Motorola Exhibit 8 Users Manual
1
Welcome
Thank you for choosing Motorola—a global leader in
communications technology.
All Motorola phones are designed and manufactured
in the United States to meet Motorola’s exacting specifications
and world-class quality standards. During development,
our laboratory testing team took the durable Digital StarTAC
®
phone through its paces. They cooked it, steamed it, shook it,
shocked it, dusted it, and dropped it—and the phone still
worked! We are confident that the one you purchased will meet
your own exacting standards.
Thank you for choosing Motorola, and we hope you enjoy your
StarTAC ST7767D cellular phone!
2
Guide Overview
Okay, you’ve got a brand new phone
with a bunch of nifty features.
Now what?
Afraid you’ll press the wrong key?
Or forget a feature or two?
Don’t sweat it!
We’ve designed this guide to take you
step-by-step through each feature of
your new Digital StarTAC
®
phone.
We’ll show you what key to press and what happens when you
press it. Follow along, chapter-by-chapter, and you’ll find it’s as
easy as 1-2-3.
Here’s an idea of what you’ll learn in each chapter.
Getting Started
First things first. Once the box is open, this section will show you
where to begin. We will explain what came with your new phone
and show you how to use the battery. Turn to page 10 to get
started.
The Basics
What do all those buttons and lights mean? How do I make my
first phone call? In this section, we’ll answer those questions and
teach you everything necessary to start using your Digital
StarTAC phone. Begin learning “The Basics” on page 22.
3
Guide Overview
Using Memory
Read “Using Memory,” beginning on page 36, and we will
explain how to make the most of your new phone’s internal
Phone Book. You will save time with dialing shortcuts and
memory features that make it easy to place quick calls.
Using Messaging
This Digital StarTAC
®
phone supports optional messaging
services, like Caller ID
*
, which allows you to see who is calling
before you answer. It can even receive alphanumeric messages
just like a pager and tell you when you have Voice Mail. Turn to
page 48 to begin “Using Messaging.”
The Works
When you are ready to learn the advanced features of your new
phone, turn to page 56 for “The Works.” We will explain
everything from navigating the menu system to electronically
locking your phone.
So relax!
Let us show you what your
Digital StarTAC phone can do!
*Contact your Service Provider for availability.
4
Contents
Introduction
Guide Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Getting Started
Package Content Options . . . . . . . . . . . . . . . . . . . . . . 10
Introduction to Batteries. . . . . . . . . . . . . . . . . . . . . . . 12
Installing Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Charging Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Phone Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Using the Smart Button . . . . . . . . . . . . . . . . . . . . . . . 21
The Basics
Turning Your Phone On . . . . . . . . . . . . . . . . . . . . . . . 22
Reading the Indicators. . . . . . . . . . . . . . . . . . . . . . . . 24
Placing and Ending Calls. . . . . . . . . . . . . . . . . . . . . . 28
Redialing Numbers. . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Receiving Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Basic Tone Controls . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Your Phone & Its Shortcuts . . . . . . . . . . . . . . . . . . . . 34
Using Memory
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Making the Most of Memory . . . . . . . . . . . . . . . . . . . 37
Storing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Recalling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Pause Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Using Calling Cards . . . . . . . . . . . . . . . . . . . . . . . . . . 46
5
Contents
Using Messaging
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Receiving Messages . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Viewing Your Caller IDs. . . . . . . . . . . . . . . . . . . . . . . .50
Checking Your Voice Mail . . . . . . . . . . . . . . . . . . . . . .52
Reading Your Messages . . . . . . . . . . . . . . . . . . . . . . . .54
The Works
Introducing the Menu Features. . . . . . . . . . . . . . . . . .56
The Internal Phone Book . . . . . . . . . . . . . . . . . . . . . .58
Store and recall numbers
Using Call Timers . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Monitor the length of your calls
Setting Tone Controls. . . . . . . . . . . . . . . . . . . . . . . . . .72
Adjust your phone’s tone controls
Lock/Security Features. . . . . . . . . . . . . . . . . . . . . . . . .80
Control access to your phone
Phone Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88
Personalize your phone’s operation
Reference Information

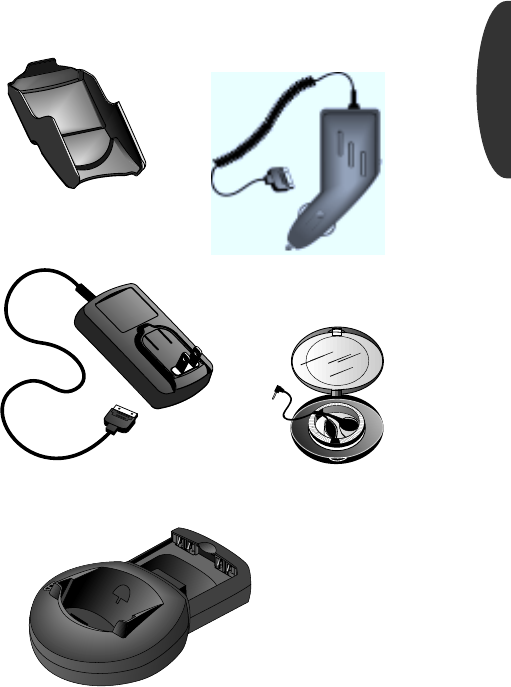

Accessory Options. . . . . . . . . . . . . . . . . . . . . . . . . . . .106
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . .109
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .111
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118
6
Safety Information
Exposure
to Radio
Frequency
Signals
Your wireless handheld portable telephone is a low power radio
transmitter and receiver. When it is ON, it receives and also sends out
radio frequency (RF) signals.
In August 1996, the Federal Communications Commissions (FCC)
adopted RF exposure guidelines with safety levels for hand-held
wireless phones. Those guidelines are consistent with the safety
standards previously set by both U.S. and international standards
bodies:
•
ANSI C95.1 (1992)
*
•
NCRP Report 86 (1986)*
•
ICNIRP (1996)*
Those standards were based on comprehensive and periodic
evaluations of the relevant scientific literature. For example, over
120 scientists, engineers, and physicians from universities,
government health agencies, and industry reviewed the available
body of research to develop the ANSI Standard (C95.1).
The design of your phone complies with the FCC guidelines (and
those standards).
*American National Standards Institute; National Council on Radiation Protection
and Measurements; International Commission on Non-Ionizing Radiation Protec-
tion
Antenna
Care
Use only the supplied or an approved replacement antenna.
Unauthorized antennas, modifications, or attachments could
damage the phone and may violate FCC regulations.
Phone
Operation
Normal Position:
Hold the phone as you would any other telephone, with the antenna
pointed up and over your shoulder.
Tips on Efficient Operation:
For your phone to operate most efficiently:
•
Extend your antenna fully.
•
Do not touch the antenna unnecessarily when the phone is in use.
Contact with the antenna affects call quality and may cause the
phone to operate at a higher power level than otherwise needed.
7
Safety Information
Batteries
Caution
:
All batteries can cause property damage, injury or burns
if a conductive material, such as jewelry, keys or beaded chains,
touches exposed terminals. The material may complete an electrical
circuit and become quite hot. To protect against such unwanted
current drain, exercise care in handling any charged battery,
particularly when placing it inside your pocket, purse or other
container with metal objects. When the battery is detached from the
phone: your battery is packed with a protective cover.; please use this
cover for storing your battery when not in use.
Driving
Check the laws and regulations on the use of wireless telephones in
the areas where you drive. Always obey them. Also, if using your
phone while driving, please:
•
Give full attention to driving–driving safely is your first responsibility;
•
Use hands-free operation, if available;
•
Pull off the road and park before making or answering a call if
driving conditions so require.
Electronic
Devices
Most modern electronic equipment is shielded from RF signals.
However, certain electronic equipment may not be shielded against
the RF signals from your wireless phone.
Pacemakers
The Health Industry Manufacturers Association recommends that a
minimum separation of six (6”) inches be maintained between a
handheld wireless phone and a pacemaker to avoid potential
interference with the pacemaker. These recommendations are
consistent with the independent research by and recommendations
of Wireless Technology Research.
Persons with pacemakers:
•
Should ALWAYS keep the phone more than six inches from their
pacemaker when the phone is turned ON;
•
Should not carry the phone in a breast pocket;
•
Should use the ear opposite the pacemaker to minimize the poten-
tial for interference.
•
If you have any reason to suspect that interference is taking place,
turn your phone OFF immediately.
8
Safety Information
Hearing Aids
Some digital wireless phones may interfere with some hearing aids.
In the event of such interference, you may want to consult your
hearing aid manufacturer to discuss alternatives.
Other Medical Devices
If you use any other personal medical device, consult the
manufacturer of your device to determine if they are adequately
shielded from external RF energy. Your physician may be able to
assist you in obtaining this information.
Turn your phone OFF in health care facilities when any regulations
posted in these areas instruct you to do so. Hospitals or health care
facilities may be using equipment that could be sensitive to external
RF energy.
Vehicles
RF signals may affect improperly installed or inadequately shielded
electronic systems in motor vehicles. Check with the manufacturer
or its representative regarding your vehicle. You should also consult
the manufacturer of any equipment that has been added to your
vehicle.
Posted Facilities
Turn your phone OFF in any facility where posted notices so require.
Aircraft
FCC regulations prohibit using your phone while in the air. Switch
OFF your phone before boarding an aircraft.
9
Safety Information
Blasting
Areas
To avoid interfering with blasting operations, turn your phone OFF
when in a “blasting area” or in areas posted: “Turn off two-way
radio.” Obey all signs and instructions.
Turn your phone OFF when in any area with a potentially explosive
atmosphere, and obey all signs and instructions. Sparks in such
areas could cause an explosion or fire resulting in bodily injury or
even death.
Potentially
Explosive
Atmospheres
Areas with a potentially explosive atmosphere are often, but not
always, clearly marked. They include fueling areas such as gasoline
stations; below deck on boats; fuel or chemical transfer or storage
facilities; areas where fuel odors are present, i.e. if a gas/propane
leak occurs in a car or home; areas where the air contains
chemicals or particles, such as grain, dust, or metal powders; and
any other area where you would normally be advised to turn off
your vehicle engine.
Vehicles
Equipped
with Air
Bags
An air bag inflates with great force. DO NOT place objects, including
both installed or portable wireless equipment, in the area over the
air bag or in the air bag deployment area. If in-vehicle wireless
equipment is improperly installed and the air bag inflates, serious
injury could result.
Equipment
Care
Your cellular radiotelephone is designed for excellent durability
under normal use conditions. Protect your cellular telephone from
water damage that could result from spills or excessive exposure to
rain. Never submerge your cellular phone.
Cleaning
the Phone
Cleaning of this product should only be done with a damp cloth.
The use of chemical cleaners may harm the finish and integrity of
the radio housing and is not recommended.
10
Getting Started
Package Content Options
The Digital StarTAC
®
phone comes equipped with a standard
battery and an AC Adapter to get you up and running. An
exciting line of accessory options, now smaller and lighter than
ever, can customize your cellular package for maximum
performance and portability.
6
9
3
5
8
0
2
4
7
1
lock
vib
batt
menu
mute
RCL STO CLR
SEND
FCN END
tuv
jkl mno
wxyz
pqrs
ghi
def
opr
abc
Digital
07/07/98
Slim Main Battery with
Battery Cover
Standard Main Battery
with Battery Cover
Digital StarTAC Phone
Slim Auxiliary Battery
with Battery Cover
11
Getting Started
Package Content Options
Your phone and accessories may not look exactly as pictured.
Holster
Cigarette Lighter
Adapter
AC Adapter
Headset
Desktop Charger
(AC Adapter required)
12
Introduction to Batteries
Each battery is shipped in an uncharged state with a protective
cover on it. Before you can use your phone, you will need to
remove the cover from the battery and charge it.
Battery Covers
It is a good idea to save the protective cover to store and carry the
battery when not in use. The cover prevents objects from
touching the battery terminals, thereby reducing the risk of
injury or damage from a short circuit.
Removing the Main Battery Cover
Attaching the Main Battery Cover
1.
Press In
Latch
Press in the release latch.
2.
Remove
Battery
Rotate the battery upward and lift it out of
the cover.
1.
Lower
Side
Lower the side, opposite the release latch,
into the cover.
2.
Click
Latch
Drop the side with the release latch down
until the latch clicks.
Release Latch
1.
2.
1.
2.
13
Getting Started
Introduction to Batteries
Removing the Auxiliary Battery Cover
Attaching the Auxiliary Battery Cover
1.
Dislodge
Cover
Hold the auxiliary battery securely with one
hand. With your other hand’s thumb, push up
on the bottom of the cover.
2.
Remove
Battery
Continue to push up until the cover slides free
of the pins on the bottom of the battery and
swing the cover outward.
1.
Insert
Point
Slide the cover’s narrow end into the small
grooved hook on the top of the auxiliary bat-
tery.
2.
Secure
Cover
Push the cover firmly so the base slides past
the pins on the auxiliary battery, and release.
1.
2.
1.
2.
Hook
Pins
14
Installing Batteries
Main Battery Installation
To install a battery:
Main Battery Removal
To remove a battery:
1.
Insert
Toe
Place the side of the battery opposite the
release latch into the compartment.
2.
Snap
Heel
Press the side with the release latch down
until you hear it click into place.
1.
Turn OFF
Phone
If another battery is not attached, press and
hold
¡
to turn your phone OFF.
2.
Remove
Battery
Pull the release latch back toward the battery
and lift the battery out.
1.
2.
Tip:
If you have a
charged auxiliary
battery attached
to your phone,
you can remove
and change your
main battery at
any time – even
during a call.
Release Latch
15
Getting Started
Installing Batteries
Auxiliary Battery Installation
The auxiliary battery clips onto the back of your phone.
Auxiliary Battery Removal
To remove the auxiliary battery:
1.
Place
Hook
Place the hook located on the narrow end of
the battery into the slot on the back of the
phone.
2.
Pull
Battery
Down
Pull the battery down and slide the battery
pegs over the bottom of the phone.
3.
Release
Battery
Once the battery clears the bottom of the
phone, release it. Make sure that the pegs fit
securely into place.
1.
Pull
Battery
Down
Pull the battery down until the pegs come
free, and pull the base away from the phone.
2.
Remove
Battery
Lift the battery’s hook out of the slot on the
back of the phone.
2.
1.
3.
Tip:
If you have a
charged main
battery attached
to your phone,
you can remove
and change your
auxiliary battery
at any time – even
during a call.
1.
2.
16
Charging Batteries
Using the Internal Rapid Charger
Believe it or not, there is a battery charger built right into your
phone! To make use of the internal charger, you will need one of
the three available adapters, either a standard AC Adapter, a
rapid rate AC Adapter, or a cigarette lighter adapter.
*
Keep in mind:
When the internal charger is in use and the
phone is ON, you can still place and receive calls. However,
talking on the phone requires energy, so your phone may not
charge while the call is in progress.
Keep in mind:
In some cars, the ignition must be ON to use
the cigarette lighter.
*Check with your dealer for availability of the adapters.
1.
Attach
Adapter
to Phone
Plug the AC or cigarette lighter adapter into
the accessory connector on the bottom of
your phone as shown, with the release tab
facing up.
2.
Plug In
Adapter
Plug the adapter into the appropriate
power source.
PUSH
9
8
0
4
7
vi
b
RCL STO CLR
SEND
FCN END
tuv
pqrs
ghi
opr
17
Getting Started
Charging Batteries
The Battery Indicator
In the upper right corner of your phone’s display, there is a
battery indicator filled with three segments. The more segments
you see, the greater the charge.
•
The border of the battery icon will flash during charging.
•
When both batteries are fully charged, the battery icon will
stop flashing and become solid.
Battery Storage and Disposal
To prolong the life of batteries, avoid exposing them to
temperatures below -10
°
C (14
°
F) or above 45
°
C (113
°
F). It is a
good idea to take your phone with you when you leave your car.
Never dispose of batteries in fire.
Caution:
To prevent injuries or burns, do not allow metal
objects to contact or short circuit the battery terminals.
Expert Performance (E•P
®
)Charging System
The E•P system enables your phone’s built-in charger to
communicate with installed batteries and tailor its charging
cycle to optimize performance. If you see
Invalid Battery
when you power up the phone, the built-in charger is not able to
communicate with the battery and cannot charge it. There are
several possible reasons for this message. The most likely one is
that the battery is not a Motorola original and it does not have
the appropriate E•P technology. We recommend that you use
only Motorola original batteries and accessories and that you
store your batteries in their protective covers when not in use.
High Low
18
Charging Batteries
Using the Desktop Charger
The Desktop Charger’s front pocket can charge batteries while
they are attached to your phone, and the rear pocket can charge
batteries separately.
If you have a Desktop Charger:
Note:
If two or three batteries are loaded in the charger, the
batteries will charge one at a time. The main battery attached to
the phone will charge first, the attached auxiliary second, and
the battery in the rear pocket last.
1.
Attach
Adapter
Plug the AC Adapter into the back of the
charger, with the release tab facing up.
2.
Plug In
Adapter
Plug the other end of the AC Adapter into a
wall socket.
3.
Insert
Phone
Insert the phone into the front pocket with a
main and/or auxiliary battery attached.
&
Insert
Battery
If you like, insert a main or auxiliary battery
into the rear pocket.
PUSH
Front Pocket
Rear Pocket
19
Getting Started
Charging Batteries
Desktop Charger Indicators
The three LED indicators on the left front of the Desktop Charger
let you know the current state of any charging batteries. The first
light provides information on the main battery attached to the
phone, the second on the attached auxiliary battery, and the
third on any battery loaded in the rear pocket.
•
Red means the battery is charging.
•
Flashing yellow means the battery is waiting to be charged.
•
Green means the battery is charged within 90% of its capacity
and can be used. An additional hour of charging will bring
your battery up to 100% capacity.
•
Flashing red means the battery is damaged and cannot be
charged.
Desktop Charger Charging Times
The time it takes for your battery to obtain a full charge is
affected by a variety of factors, including:
•
Temperature
Batteries should be at or near room tempera-
ture when charging. To prolong battery life and charge
capacity, avoid exposing your batteries to temperatures below
-10
°
C (14
°
F) or above 45
°
C (113
°
F). It is a good idea to take
your phone with you when you leave your car.
•
Inactivity
New batteries, or batteries that have been stored
for long periods of time, may not rapid charge properly. In
these instances, the battery requires an overnight charge.
•
Extended Usage
Over extended periods of time, batteries
gradually wear down and require longer charging times.
This is normal. If you charge your battery regularly and
notice a decrease in talk-time or an increase in charging
time, then it is probably time to purchase a new battery.
20
Phone Overview
Function Keys
Alphanumeric Display
Displays your input from the keypad,
information recalled from memory, and other messages.
Microphone
Positioned for convenient conversation.
Retractable Antenna
Extend for best performance.
Earpiece Ultra-compact phone speaker.
Headset Jack Provides the connection for an optional headset.
Accessory Connector Provides the connection for an
external power supply.
Volume Keys Represented in this manual by qq
qq and ZZ
ZZ, these
keys adjust keypad, earpiece, and ringer volume. They also scroll
up and down through memory locations and menu features.
¡Turns the phone your ON and OFF.
øOpens messaging menus.
ƒActs as a “shift” key to access the secondary
functions of other keys.
‰Recalls phone numbers from memory.
¬Stores phone numbers into memory.
ÇClears characters from the screen.
ºEnds phone calls and exits the menu.
ª
æPlaces or answers calls. Your phone will have one
of these two keys.
«
»Can be used to scroll through memory entries
and menu features.
21
Getting Started
Using the Smart Button
When in doubt, press the Smart Button! Easily recognized in this
User’s Guide by AA
AA and in your phone’s display by § – the handy
Smart Button puts a variety of functions at your fingertip.
Use the Smart Button’s fingertip convenience for:
Opening the Quick Menu
Press AA
AA when your phone is idle to display a menu containing
shortcuts to your phone’s most popular features. See page 34.
Opening Your Phone Book
Press AA
AA twice to open the Phone Book with your names and
numbers. Turn to page 40 in “Using Memory” to learn more.
Entering the Menu System
Press ƒ then press AA
AA to enter your phone’s menu system.
See page 56 for information on navigating the menu system.
Selecting Items in the Menu
The primary use of the Smart Button is to select. Whenever the
phone offers you a choice, such as setting a ringer style, press AA
AA
to select. You will see: Press § to Select.
Turning Features ON and OFF
Press AA
AA to toggle ON and OFF many menu features, like the call
timers (pg. 66). You will see: Press § to Toggle.
Placing and Ending Calls
Press & hold AA
AA to place a call when the number you want to
call is on the display. Press & hold AA
AA again to end a call. See
page 28 for information on placing and ending calls.
1menu 2abc 3def
Digital
07/07/98
The Smart Button
22
The Basics
The next few pages will introduce you to the basic features of
your phone. In the chapters that follow, we will explain every
one of your phone’s features, including storing names and
numbers, using the call timers, locking the phone, and more.
Turning Your Phone On
Follow these steps to turn your phone ON:
What you will see:
Each time you turn your phone
ON, it performs a short self-test
to make sure it is operational
and then it scans for service.
CDMA Digital
If your phone finds a CDMA
digital system, you will see the
time and date, the icon,
and either Ready or the
personalizable banner (if
programmed).
1. Extend
Antenna Extend the antenna completely for best
performance.
2. Open
Phone Open the phone to expose the keypad.
3. Turn ON
Phone Press ¡ once to turn the phone ON.
4. Turn OFF
Phone When finished, press ¡ again to turn the
phone OFF.
07/07/98
23
Basics
Turning Your Phone On
Analog
If your phone finds an analog
system, you will see the icon
and either Ready or your
personalized banner.
Quad Number
Your phone can be activated
with up to four unique phone
numbers. If there is more than
one number programmed on
your phone, you will see the currently active number whenever
you turn on the phone. Turn to Changing Your Number on page
90 if you want to change your currently active number.
Power Save Mode
If you travel outside the range of
available networks, your phone
will continue to search for a
signal. To save power, it stops
searching every couple minutes. Your phone will automatically
begin searching again in a minute or two – if you would like it
to start searching immediately, just press any key.
Standby Mode
To conserve energy, your phone enters standby mode and turns
off the backlight when you have not touched a key for a few
seconds. The backlight will come back on as soon you press a
key or open the phone. If you like, you can choose how long the
backlight remains ON. See page 100.
24
Reading the Indicators
Signal Strength (1)
Displays the strength of the connection between your phone and
the local cellular system.
Clock (2)
When your phone is on a CDMA digital network, the display
shows the current time and date. Wherever you are, you will have
the correct local time. You can set your clock for 12- or 24-hour
format. See page 101 for more information.
Battery Level (3)
The three bar segments on the phone’s Battery Level Indicator
show the amount of charge remaining in your battery. The more
bar segments you see, the higher the charge. If your battery is
low, the phone alerts you in three ways:
•No bar segments on the indicator will be highlighted.
•Low Battery will appear on your display.
•A hi-lo tone will sound periodically.
If you ignore these warnings, the phone will automatically turn
itself OFF when the battery is exhausted. At this point, you
should charge the battery or insert a new battery.
Digital (4)
Indicates you are in a digital service area, allowing for excellent
voice quality. Check with your Service Provider for more
information.
231
4
56 789
10
Strong
Weak
High
Low
25
Basics
Reading the Indicators
Analog (4)
Appears when you are on an analog channel.
In Use (5)
Appears when a call is in progress.
Roam (6)
Lights up when your phone accesses a cellular service outside of
your home system. When you leave your cellular Service Area,
your phone roams (seeks another CDMA cellular system).
No Service (7)
Appears when calls cannot be placed or received from your
location.
Message (8)
Appears when you receive an alphanumeric message.* It will
disappear after you have read the message.
Voice Mail (9)
Indicates that you have received a Voice Mail message in
your Voice Mailbox. It will disappear after you have listened
to the message.
When you select one of the VibraCall® Alert combinations (see
page 75), the following indicators appear in the display:
VibraCall On (10)
Indicates that your phone’s ringer is turned OFF and the
VibraCall Alert is ON.
Silent Mode (10)
Indicates that all of your phone’s tones are silenced and the
VibraCall Alert is ON.
Vibrate Then Ring (10)
Indicates that both the ringer and VibraCall Alert are ON.
*Contact your Service Provider for availability.
26
Reading the Indicators
Detailed Battery Level Reading
The bar graph in the display represents the battery level. The
higher the graph, the closer the battery is to full charge.
If you are using an auxiliary battery with the main battery, the
display will indicate which one is in use.
Important: If the phone is being powered externally–from the
cigarette lighter adapter for example–you will see:
Press ƒ then press ›.
Full Charge Low Charge
27
Basics
Reading the Indicators
Service Light
The Service Light is on top of your phone and lights up when
your phone is ON. The color it flashes depends on your phone’s
current state of service. Please read the chart below to learn how
to understand your phone’s state of service at a glance.
Note: If you would like to increase your phone’s standby-time,
you can turn the Service Light OFF. See page 101.
Red & Green,
alternating Incoming call or message
Green, flashing In Service: home type system
Red, flashing No Service
Yellow, flashing slow Roaming: home type system
Yellow, flashing fast Roaming: non-home type system
Service Light
28
Placing and Ending Calls
Placing a Call
You can dial phone numbers with up to 32 digits, but only the
last twenty-four digits will appear in the display.
Your phone will display the first 24 digits, then a second screen
will show the digits remaining in the phone number.
Ending a Call
There are three ways to end a call:
1. Extend
Antenna Extend the antenna completely for best
performance.
2. Open
Phone Open the phone to expose the keypad.
If necessary, press ¡ to turn the phone ON.
3. Enter
Number Enter the number you want to call,
for example: 555-1212.
Correct
Errors Press Ç to erase one digit at a time if you
make a mistake. Press & hold Ç to erase
the entire entry and start again.
4. Place
Call Press æ (or ª) to place the call.
or
Press & hold AA
AA until you hear a high tone.
You will see: Calling 555-1212.
Press ‰ to see the rest of the number.
Close
Phone Close the phone to end a call.
or Press Key Press º.
or Hold
Smart
Button
Press & hold AA
AA until you hear a high tone.
You will see: Press § to End Call.
Press AA
AA again to end the call.
Tip:
If you press æ
(or ª) with-
out entering a
number, your
phone will dial
the last number
entered.
29
Basics
Redialing Numbers
Automatic Redial
The cellular system may at times be too busy to handle your call.
If this is the case, you may hear a fast busy signal and see Call
Failed then Press SND to Redial on the display. Using
Automatic Redial, your phone will repeat the call attempt over
the next four minutes. When the call succeeds, your phone will
ring or vibrate until the person you are calling answers.
To make this feature even easier, turn Instant Redial ON. Your
phone will instantly redial after a fast busy signal, and you will
not have to push a button. To find out more, see page 97.
Redial
If you hear an ordinary busy signal:
Display Last Ten Numbers Dialed
Your phone keeps track of the last ten numbers you have dialed.
Auto
Redial Press æ (or ª) or press & hold AA
AA
until you hear a high tone.
You will see: Redialing.
1. Hang Up Press º to hang up.
2. Redial Press æ (or ª) to redial.
or
Press & hold AA
AA. You will see: Calling.
1. Enter
List Press ‰ then press ‚, ‚. The dis-
play will show the last number you dialed.
2. Review
List Press qq
qq or ZZ
ZZ to scroll through the last ten
numbers dialed, starting with the most recent.
3. Call
Number Press æ (or ª) or press & hold AA
AA
to call
the number in your display. You will see:
Calling.
Tip:
Your phone
automatically
remembers the
last number
entered. See
page 43 to learn
more.
Ti
p:
This feature is
available
through the
Quick Menu. See
page 34 to learn
more.
30
Receiving Calls
Your phone must be ON to receive calls.
When a call is incoming:
•an alert will sound and/or vibrate.
•the Service Light (pg. 27) will flash red and green.
You can choose your phone’s alert, selecting from nine ringer
styles or silent vibration mode. See page 75.
Answering a Call
To answer a call:
Caller ID
If Caller ID* is active on your phone, you will be able to see who
is calling before you answer. The display will show either your
caller’s name (if it is in your Phone Book) or your caller’s
number. If you prefer to always see your caller’s number, see
page 63 to turn Number Preference ON.
The Caller IDs for your last 16 callers will be saved. See page 50
to learn how to view your stored Caller IDs.
*Contact your Service Provider for availability.
1. Extend
Antenna Extend the antenna completely for best
performance.
2. Open
Phone Open the phone to expose the keypad.
or
Press æ (or ª) if the phone is already
open.
31
Basics
Receiving Calls
Ringer/Vibrator Suppress
If an incoming call catches you by surprise, you can turn the
alert OFF using the upper or lower volume key. Your phone’s
ringer or vibrator will be OFF while the current call lasts. The
caller will still hear ringing and you can still answer the call by
pressing æ (or ª).
Note: This feature works the same with a headset. To answer
the call with a headset, press either volume key again or the
Smart Button.
Unanswered Call Indicator
Even with the latest wireless technology, sometimes you are
unavailable to answer calls. If your phone is ON, it keeps a count
of unanswered calls. For example, if you miss two calls, your
display will show: 2 Calls Unanswered.
If you subscribe to Caller ID service, you can easily return the
calls that you missed. See page 50 to learn how.
Call Waiting
If you subscribe to Call Waiting through your Service Provider,
you may hear a tone while on a call, indicating that you are
receiving a second call.
Suppress
Alert When the phone rings or vibrates, press the
upper or lower volume key.
Clear
Display Press Ç or press º to clear the display,
and you can begin placing calls again.
Answer
Call Press æ (or ª) to answer the call and
automatically place the current call on hold.
or End
Current
Call
Press º to end the current call. Your phone
will then ring and/or vibrate as usual. Press
æ (or ª) to answer the call.
32
Basic Tone Controls
Vibration Mode
In situations where ringing may not be appropriate, or in noisy
places where you may not hear your phone, select the VibraCall®
Alert. Ringing will be replaced by gentle vibrations.
Silent Mode
For complete discretion, turn Silent Mode ON. All tones will be
silenced. You can dial silently, and the ringer will be replaced by
gentle vibrations.
Note: This shortcut allows you to activate Silent Mode quickly.
To learn how to turn Silent Mode OFF, see page 74.
Muting the Microphone
If you would like privacy while a call is in progress, you may
mute the microphone—you will be able to hear the party on the
other end, but they will not hear you.
Toggle
Alert Press ƒ then press † to switch
between ringer and vibrator alerts.
Activate
Silent
Mode
Press ƒ then press & hold † until you
see: Silent Mode On.
Mute
Phone Press ƒ then press fl to mute
the microphone. You will see: Muted.
Unmute
Phone Press ƒ then press fl again to
resume your conversation.
33
Basics
Basic Tone Controls
The upper and lower volume keys are left of the display and can
be used to adjust the earpiece, keypad, and ringer volume. As
you press these keys, the phone’s speaker will demonstrate the
new volume level.
Adjusting Earpiece and Keypad Volume
The audio feedback your phone gives you when you press a key
is called keypad tones. When your phone is idle, pressing the
volume keys adjusts the volume of these tones. To adjust the
volume of your conversation (the earpiece volume) use the
volume keys during a call.
The bar graph in the display represents the volume level. The
higher the graph, the louder the volume is.
Adjusting Ringer Volume
To adjust ringer volume:
Raise
Volume Press qq
qq to raise the volume.
Lower
Volume Press ZZ
ZZ to lower the volume.
Raise
Volume Press ƒ then press qq
qq to raise the
ringer volume.
Lower
Volume Press ƒ then press ZZ
ZZ to lower the
ringer volume.
Tip:
See page 76 if
you would like
to silence the
keypad tones.
High Volume Low Volume
34
Your Phone & Its Shortcuts
Throughout this guide you will see shortcuts that point out
simple ways to reach some of your phone’s features. If you have
owned a Motorola phone before, some of these shortcuts will
already be familiar to you.
The Quick Menu
Press the Smart Button and the Quick Menu opens on the
display! The Quick Menu contains shortcuts to your phone’s
most popular features. Press the volume keys to scroll through
the options shown below and the Smart Button to choose one.
Press AA
AA to open the Quick Menu:
The Phone Book is the place to find all
your personal names and numbers.
See page 40.
If you subscribe to messaging, you can
use this shortcut or the one on page
48.
Your phone remembers the last ten
numbers you dialed. Turn to page 29 to
learn more.
Select this to access your phone’s
menu system. See page 56 to find out
more about the menu system.
Select this option or press º to exit
the Quick Menu at any time.
Phone
Book
35
Basics
Your Phone & Its Shortcuts
The Usual Shortcuts
The words “menu,” “batt,” “lock,” “mute,” and “vib” appear
on the ⁄, ›, fi, fl, and † buttons. Press the
ƒ key first, then any one of these buttons, and your phone
will perform that function.
Enter
Menu Press ƒ then press ⁄ to enter the
menu system.
Toggle
Analog Press ƒ then press ¤ to toggle
Analog Only On or Analog Only Off.
Display
Meter Press ƒ then press › to display the
battery meter.
Lock
Phone Press ƒ then press fi.
You will see: Lock? Press ¬ to lock.
Mute
Phone Press ƒ then press fl to toggle mute
ON and OFF during a conversation.
Silence
Ringer Press ƒ then press † to toggle your
phone’s VibraCall® Alert ON and OFF.
Silence
All Tones Press ƒ then press and hold † to turn
ON Silent Mode.
1menu
8vib
tuv
7pqrs
4batt
ghi
2abc
5lock
jkl 6mute
mno
3def
9wxyz
0opr
Digital
36
Using Memory
Do you have places to go and people to see? Too many phone
numbers to remember? Let your phone remember them for you.
The internal Phone Book can store up to 99 names and numbers
for easy access on the go!
In this chapter we will explain how to:
•store names and numbers into the Phone Book.
•recall phone numbers from memory.
•dial in a flash with the Super Speed Dial and Turbo Dial®
functions.
•simplify automated calling systems and credit card calls.
Follow these symbols as a guide for using the keys on the side of
your phone.
Press qq
qq to scroll up
Press aa
aa to select
Press ZZ
ZZ to scroll down 1menu
4batt
2abc
5lock 6mute
3def
Digital
07/07/98
37
Using Memory
Making the Most of Memory
Each phone number is stored in a “memory location”
numbered 01-99. You can arrange your Phone Book for
convenient recall by storing related numbers in groups of ten.
For example, store your ten most frequently called numbers in
locations 01-09, then you can use the Turbo Dial® keys to call
them with the push of a key. You could store business numbers
in locations 10-19, family numbers in 20-29, friends in 30-39,
and so on.
You can also store names to help identify phone numbers. If
someone you know has more than one phone number, you
could make each number easy to distinguish by storing names
with descriptive labels. You can enter labels using the
alphanumeric keypad or by selecting one of the convenient
preset labels – choose from Home, Work, Mobile, or Pager. See
page 39 for more information.
When you feel ready for more, try the advanced storing features
at the end of the chapter. For instance, pages 44-45 describe how
the Phone Book can help you access automated calling systems
with only a few keystrokes.
Smith J.
Home
09
1-312-555-1313
Smith J.
Mobile
32
1-630-555-1515
Labels
Memory locationName
Phone number
38
Storing Names and Numbers
To take advantage of the internal Phone Book, you will need to
store some names and numbers into memory. Your phone’s
dedicated ¬ key makes storing quick and easy.
Keep in mind: Your Phone Book sorts alphabetically by the
first letter in the entry. If you store an entry without a name it
will be placed at the back of the Phone Book.
Note: To make it easy, your phone will let you know if you have
already stored the name or number in your Phone Book. You
will see: Duplicate Number or Duplicate Name. Press ¬ to
store it again or Ç to exit.
1. Enter
Number Enter the phone number you want to store.
2. Begin
Storing Press ¬ to begin storing.
You will see: Location XX? XX is the num-
ber of the lowest available location.
3. Accept
Location Press ¬ or « to store the sequence in
the displayed location.
or Enter
New
Location
Press Ç to clear the location number
from the display and enter a new two-digit
location number.
or Select
Range of
Ten
Enter the first digit of the memory location
and press « to store the sequence in
the first available location beginning with
that digit. (If you store personal numbers in
the twenties, for instance, press ¤, «.)
4. Enter
Name Enter a name to identify the phone number.
(See the next page for help entering names.)
Press aa
aa or ¬ when finished. Your phone
will confirm the entry by displaying the infor-
mation stored.
Ti
p:
The “ § ” symbol
in your display
represents the
Smart Button aa
aa.
Tip:
Always store
your Voice Mail
number in
location 98.
39
Using Memory
Entering Names
When the display shows Alpha or Press §, you can use the
keypad to produce any letter in the alphabet. Use the letters
printed on the key as a guide. For example, press ¤ to enter
the letters “A,” “B,” or “C” as shown:
To enter a name into the Phone Book:
1. Enter
Letter Press a key as many times as necessary to
enter a letter. The next letter on the key will
appear with each press.
Toggle
Case Press qq
qq or zz
zz to switch between upper and
lowercase.
2. Advance
Cursor After each character, press » to advance
the cursor to the next space.
Clear
Letter Press Ç to erase a letter if you make
a mistake.
Back
Space Press « to move the cursor backward if
you would like to insert a letter earlier in the
sequence.
3. Choose
Label Press ‚ to scroll through the available
labels. After 0 you will see Home, Mobile,
Pager, or Work.
4. Enter
Marks Press ⁄ to scroll through the available
punctuation marks: <space> 1 ! " $ %
& ' @ ( ) + , - . / \ :
; < = > ? [ ] — * #.
5. Finish
Storing Enter up to 20 letters, including labels.
Press aa
aa when you are finished. Your phone
will confirm the entry by displaying the
information stored.
2
press 1 time to insert an "A"
press 2 times to insert a "B"
press 3 times to insert a "C"
press 4 times to insert a "2"
Ti
p:
The preset labels
make storing
names simple!
40
Recalling from Memory
Recall by Name
Once you have stored names and numbers, you can recall them
alphabetically and immediately place calls.
1. Enter
Directory Press aa
aa twice to enter your name directory.
2. Scroll to
Name Press qq
qq or zz
zz to scroll to the name you are
looking for.
or Search
for Name Enter the first letter of the name. (See page
39 for details on entering letters.) The display
will show the name, phone number, and
memory location of the first entry beginning
with that letter.
3. Place
Call Press & hold aa
aa or press æ (or ª) to call
the selected number. You will see: Calling.
4. End
Call Press º or close the phone.
or
Press & hold aa
aa until you hear a high tone.
You will see: Press § to End Call.
then
Press aa
aa again.
Smith J.
Home
09
1-312-555-1313
41
Using Memory
Recalling from Memory
Recall by Memory Location
Each name and number you store is placed in a memory
location numbered 01-99. Once you have stored names and
numbers, you can recall them by memory location.
Clear an Entry
To erase a memory entry:
1. Begin
Recalling Press ‰ to begin recalling.
2. Enter
Location Enter the two-digit memory location of the
phone number you are looking for.
3. Place
Call Press & hold aa
aa or press æ (or ª) to call
the number you selected.
4. End
Call Press º or close the phone.
or
Press & hold aa
aa until you hear a high tone.
You will see: Press § to End Call.
then
Press aa
aa again.
1. Recall
Entry Press aa
aa twice then press qq
qq or zz
zz to scroll
to the entry you want to erase.
or
Press ‰ and the two-digit location number
of the entry.
2. Clear
Entry Press & hold Ç to clear the entry.
You will see: To Delete Press STO.
3. Confirm
Erase Press ¬ to confirm that you want to
erase the entry.
42
Recall Shortcuts
Super Speed Dial
If you know the memory location of the number you wish to
call, you may use the Super Speed Dial function.
Note: If you enter the number of an empty location, you will
see: Location XX Is Empty.
Turbo Dial
The Turbo Dial® keys let you dial numbers stored in locations
01-09 with the push of a button.
Your phone’s Emergency Call feature gives you unrestricted
access to any number stored in location 01, even if your phone is
locked. To learn how to activate this feature, see page 83.
1. Enter
Location Enter the two-digit memory location, 01-99.
2. Place
Call Press & hold aa
aa or press æ (or ª) to call
the number you selected. The number stored
in the memory location you entered will be
dialed. You will see: Calling.
Turbo
Dial Press & hold the memory location number of
the entry you want to call, ⁄ through
·, and your call is placed.
You will see: Calling.
43
Using Memory
Scratchpad
If you need to take a quick note, but you do not want to save the
number, use the Scratchpad, which always remembers the last
phone number that was on your phone’s display. The Scratchpad
is helpful if you are on the phone and your party gives you
another number to call.
1. Enter
Number Enter the number with the keypad.
(The person on the line will hear tones as
you dial.)
2. Store
Number Press ¬, enter a two-digit location, enter a
name with the keypad, and press ¬ again.
See page 38 for more details.
or End
Call Press º to end your current call
if necessary.
& Place
Call Press æ (or ª) to call the number in the
Scratchpad.
44
Pause Dialing
When you call automated systems like Voice Mail or bank by
phone, a recorded message prompts you for PIN numbers,
account numbers, etc. Pause Dialing can make using
automated systems easy by allowing you to store these numbers
in the same memory location as the automated system’s access
number. Separate each set of numbers with a “pause”– a special
character that tells your phone to wait before sending additional
numbers.
Storing a Number with Pause Dialing
The pause occupies a one-digit space in your phone’s memory.
Once you have entered a string of numbers and pauses, store the
string in the same way you store other entries.
1. Enter
Number Enter the phone number you use to access
the automated system.
2. Insert
Pause Press ƒ and press æ (or ª). You will
see: Insert Pause o. Press aa
aa. You will see
a pause circle o inserted into the number entry.
3. Enter
PIN Enter the next group of numbers, for example,
your PIN number. If the automated system
requires a * or #, enter those symbols, too.
4. Insert
Pause Press ƒ and press æ (or ª) then aa
aa.
Repeat steps 3 and 4 as many times as
necessary.
5. Store
Sequence Press ¬. Enter a two-digit location, enter a
name if you like, and press ¬ or aa
aa when
finished. Your phone will confirm the entry by
displaying the information you stored.
Tip:
You can store up
to 32 digits,
including pauses.
45
Using Memory
Using Pause Dialing
Once stored, you may recall the entry and place the call. All of the
digits you have stored will be recalled, but your phone will only
send the tones for the set of numbers before the first pause.
Using Memory Linking
Each memory location holds up to 32 digits, including pauses.
Some automated systems, however, may require you to enter
more than 32 digits. If this is required, split the numbers into
two memory locations and recall the second set of digits as you
need them.
1. Place
Call Enter the two-digit memory location of the
Pause Dialing number and press & hold aa
aa
or press æ (or ª). Your phone will dial
the access number and wait for your input
when it reaches the first pause.
2. Send
More
Numbers
When the automated system prompts you
for information, press aa
aa or æ (or ª) to
send the next group of numbers. Repeat this
step to send each group of numbers that you
have stored.
3. End
Call Press º, close the phone, or press &
hold aa
aa until you hear a high tone and
press aa
aa again.
1. Recall 2nd
Location Once you have sent the tones from the
1st location, press ‰ and the two-digit
memory location where you stored the
second set of digits.
2. Send
Tones Press ‰ and æ (or ª) to send the
tones in the 2nd location. If you have stored
a pause in the 2nd location, your phone will
pause as usual when it reaches the pause
character.
46
Using Calling Cards
Storing Calling Card Numbers
Number Characters are another way your phone can save you
time in dialing. The Number Character saves a place in the
memory sequence for whatever number you are calling when
you use your calling card. You may use the Number Character
along with Pause Dialing.
1. Enter
Access
Number
Enter the phone number you use to access
the calling card system, usually a 1-800
phone number. Skip this step if you only
dial 0.
2. Insert
Pause Press ƒ then press æ (or ª). You will
see: Insert Pause o. Press aa
aa.
3. Insert
Number
Character
Press ƒ then press æ (or ª). Press qq
qq
or ZZ
ZZ to scroll to Insert Number ‘N. Press
aa
aa. You will see the number character ‘N
inserted into the sequence.This special char-
acter saves a place for the number you will
be calling when you use your calling card.
4. Insert
Pause Press ƒ then æ (or ª) then aa
aa as in
step 2.
5. Enter
Code When you use your calling card, the system
prompts you for an access code, usually a PIN
code. Enter this number. Repeat steps 4 & 5 if
your card requires more access codes.
6. Store
Sequence Press ¬. Enter a two-digit location, enter a
name if you like, and press ¬ or aa
aa when
finished. Your phone will confirm the entry by
displaying the information you stored.
Tip:
You can protect
your calling card
information with
your phone’s call
restriction fea-
tures. See page
87 for details.
47
Using Memory
Placing a Calling Card Call
Once you have stored your calling card information, recall the
information and place the call whenever you want to use your
calling card. Before your phone begins dialing, it will prompt
you for the number you want to call. Once you have entered the
number, your phone will automatically insert the number in
place of the Number Character you stored.
1. Recall
Entry Press ‰ then enter the location number
where your calling card sequence is stored.
2. Enter
Number Press æ (or ª). You will see: Enter
Number. Enter the phone number you are call-
ing. You may enter the number manually or
recall it by location.
3. Place
Call Press & hold aa
aa to place the call. Your phone
will dial the number to access your long
distance provider, then wait for your input
when it reaches the first pause.
4. Send
More
Numbers
Press aa
aa or press æ (or ª) to send the
next group of numbers when the recording
prompts you. The phone will automatically
insert the number to call at the appropriate
spot in the sequence. Press aa
aa to send each
set of numbers until finished.
5. End
Call Press º, close the phone, or press & hold
aa
aa until you hear a high tone, and press aa
aa
again to end the call.
48
Using Messaging
*
The dedicated Message Key provides access to your phone’s new
and easy Messaging Menu. Through this menu, you can check
your Voice Mail, read your pager-like alphanumeric Messages,
and view the Caller IDs of your most recent callers.
In this chapter we will explain how to:
•view your Caller IDs.
•check your Voice Mail.
•read your Messages.
•explore your options with the Function Menus.
Follow these symbols as a guide for using the keys on your phone.
*Contact your Service Provider for availability.
ø
1
menu
END
8
vib
tuv
7
pqrs
4
batt
ghi
2
abc
5
lock
jkl
RCL STO CLR
SEND
FCN
6
mute
mno
3
def
9
wxyz
0
opr
Digital
07/07/98
Press qq
qq to scroll up
Press aa
aa to select
Press ZZ
ZZ to scroll down
Press ø to open
messaging menus
49
Messaging
Receiving Messages
If your phone is ON and you receive a Voice Mail or
alphanumeric message:
•An alert sounds or vibrates:
Your phone will beep or vibrate three times.
See Ringer or Vibrator Selection on page 75 to set your phone’s
alert. See page 79 to learn about Reminder Tones.
•An indicator appears on the display:
Appears on the lower line of the display when you receive
an alphanumeric message. It will stay on the display until you
have read the message.
Urgent Appears in the main display when you receive an
urgent message and your phone is in idle mode. After a few
seconds, the screen will change to Press and begin
flashing.
Msg Mem Low Appears when your phone’s message memory is
almost full (at approximately 85% capacity).
Msg Mem Full Appears in the main display when the message
memory is completely full and your phone is in idle mode.
Appears when you receive a Voice Mail message. It will stay
on the display until you have listened to the message. Your Service
Provider will then signal your phone to turn the indicator OFF.
•Press ø to open the Messaging Menu:
The specific icon will be flashing.
Tip:
See page 30
for information
on receiving
Caller IDs.
Tip:
Your Service
Provider holds
your messages
and will forward
them after you
have made room.
See page 55
to learn how
to delete
messages.
Voice Mail
Indicator
Message Indicator
50
Viewing Your Caller IDs
*
Your phone supports Caller ID service, which lets you see who is
calling before you answer. The Caller IDs for the last 16 different
callers are stored so they can be viewed at any time.
You will see a Caller ID icon for each stored Caller ID.
Flashing icons represent Caller IDs that have not been viewed.
Below the icons you will see information for the latest Caller ID:
Keep in mind: You will see the caller’s name only if it is stored
in your Phone Book.
A check mark will appear in the corner if you have answered
or returned the call. Press æ (or ª) to return the call of the
displayed caller. Press ¬ to store the information.
*Contact your Service Provider for availability.
1. Enter
Messaging Press ø to open the Messaging Menu.
2. Select
Caller ID Press qq
qq or ZZ
ZZ to scroll to Caller ID and press
aa
aa to select.
3. Select
Caller Press qq
qq or ZZ
ZZ to highlight a Caller ID to
view and press aa
aa to view complete
information for that call:
selected Caller ID
time & date of call
your caller‘s
phone number
number
of times
they
called your caller’s
phone number
your
caller’s
name
51
Messaging
Caller ID Options
When viewing Caller IDs, press the Message Key to see the
options available for the highlighted Caller ID.
4. Access
Options Press ø to open the Caller ID
Function Menu.
5. Choose
Function Press qq
qq or ZZ
ZZ to scroll to one of
the following:
Go To
Msg Menu Press aa
aa to return your phone to the
Messaging Menu.
Exit Press aa
aa to exit Messaging to idle mode.
Delete
Message Press aa
aa to delete the currently selected
Caller ID. Press aa
aa again to confirm.
Delete
AllMsgs Press aa
aa to delete all your Caller IDs.
Press aa
aa again to confirm.
CallBack Press aa
aa to return the call.
Store
To Mem Press aa
aa to begin storing the number. Enter a
two-digit location, enter a name, and press
¬ again.
Store To
Memory
Call Back
Go To
Messaging
Menu Exit Delete
Message Delete All
Messages
52
Checking Your Voice Mail
*
When you receive Voice Mail, your Service Provider sends a
notification to your phone and your phone displays an indicator.
This way, you will be able to check for new Voice Mail simply by
glancing at your phone’s display.
If you have one or more Voice Mail messages, you will see:
To listen to your messages, dial your access number. Your phone will
do this automatically with one keypress.
See the following page for more options.
Keep in mind: Some Service Providers send the Voice Mailbox
number to your phone automatically. If the number has not
been sent, then store it in location 98 of your Phone Book. To
learn how, see Pause Dialing on page 44.
If you have no new messages, you will see:
*Contact your Service Provider for availability.
1. Enter
Messaging Press ø to open the Messaging Menu.
2. Select
Voice Mail Press qq
qq or ZZ
ZZ to scroll to Voice Mail and
press aa
aa to select.
Dial
Number When viewing notifications, press æ (or ª)
or press & hold aa
aa to call your Voice Mail box.
53
Messaging
Voice Mail Options
When checking Voice Mail, press the Message Key to see options
for the highlighted Voice Mail notification.
3. Access
Options Press ø to open the Voice Mail
Function Menu.
4. Choose
Function Press qq
qq or ZZ
ZZ to scroll to one of
the following:
Go To Msg
Menu Press aa
aa to return your phone to the
Messaging Menu.
Exit Press aa
aa to exit Messaging to idle mode.
Delete
Message Press aa
aa to delete the currently selected
Voice Mail notification. Press aa
aa to confirm.
CallBack Press aa
aa to dial your Voice Mail box number.
Call BackGo To
Messaging
Menu
Exit Delete
Message
54
Reading Your Messages
*
Your phone can receive alphanumeric messages like a pager.
The message memory stores up to 60 messages, depending on
the size of each.
*Contact your Service Provider for availability.
1. Enter
Messaging Press ø to open the Messaging Menu.
2. Select
Messages Press qq
qq or ZZ
ZZ to scroll to Messages and
press aa
aa to select.
3. Select a
Message Press qq
qq or ZZ
ZZ to highlight a message to
read and press aa
aa to select the message.
Once a message is selected, the following keys will help
you read through your messages:
4. Scroll Press aa
aa
or ZZ
ZZ to scroll through the
selected message.
Previous
Message Press qq
qq or « to go to the previous
message.
Next
Message Press » to go to the next message.
If the message includes a number in parentheses (a Call
Back number) you can use the following shortcuts:
Call Back Press æ (or ª) to dial the Call Back
number (in parentheses if included).
Store Press ¬ to store the Call Back number (in
parentheses if included) in your Phone Book.
Tip:
Flashing icons
represent mes-
sages that have
not been viewed.
Tip:
If the Call Back
number matches
one in your Phone
book, you will
see the name of
the caller when
you view the
message.
selected
message
more msgs
to right
time & date
of msg
text of
msg
more msgs
to left
urgent
message
locked msg
sender’s
number
more text
msg
number
55
Messaging
Message Options
When reading your messages, press the Message Key to see the
options available for the highlighted message.
5. Access
Options Press ø to open the Message
Function Menu.
6. Choose
Function Press qq
qq or ZZ
ZZ to scroll to one of
the following:
Go To
Msg Menu Press aa
aa to return your phone to the
Messaging Menu.
Exit Press aa
aa to exit Messaging to idle mode.
Delete
Message Press aa
aa to delete the currently selected
message. Press aa
aa again to confirm.
Delete
AllMsgs Press aa
aa to delete all messages.
Press aa
aa again to confirm.
Lock
Message
Press aa
aa to lock or unlock the message.
Lock important messages to protect them
from accidental deletion.
Unlock
Message Messages must be unlocked before they can
be deleted.
If the message contains a Call Back number
(in parentheses), you will also see these options:
CallBack Press aa
aa to dial the sender’s number.
Store
To Mem Press aa
aa to begin storing the number. Enter a
two-digit location, enter a name, and press
¬ again.
Store To
Memory
Call Back
Go To
Messaging
Menu Exit Delete
Message Delete All
Messages Lock
(Unlock)
56
The Works
Introducing the Menu Features
The Digital StarTAC® phone is loaded with features that can
help make life easier and more productive. The phone’s user-
friendly menu system will help you find what you need
quickly and easily. You will see the following icons as you
scroll through the menu system and each represents a menu.
Navigating the Menu
You can navigate through the menu system using the three keys
located on the left side of the phone. Use the volume keys to
scroll up and down through the options available on one level,
and the Smart Button, in the middle, to select.
This manual uses these symbols to instruct you to use the
navigation keys.
p
Phone Book l
Lock/Secure
c
Timers P
Phone Options
t
Tone Control
Press qq
qq to scroll up
Press aa
aa to select
Press ZZ
ZZ to scroll down 1menu
4batt
2abc
5lock 6mute
3def
Digital
07/07/98
57
The Works
Road Maps
To help you navigate through the phone’s menu system, chapters
begin with an easy-to-follow visual “road map”—a quick
overview of what you will find in the chapter that follows.
To use the menu system:
Previous User Compatibility
If you are already familiar with previous Motorola phones, you
may prefer to use your phone’s « and » keys to scroll
through the menu system.
In the Works
In the chapters that follow, detailed instructions describe the
operation of each feature. We will explain everything you need to
know about your new phone, including how to access and use a
feature and what happens when you do.
1. Enter Menu Press ƒ then
press aa
aa.
2. Scroll
through
Menu
Press zz
zz or qq
qq to
scroll through the
menu’s top level,
shown on the right.
3. Exit
Menu Press º to exit
the menu.
Phone
Book
Timers
Tone
Control
Lock
Secure
Phone
Options
pg. 58
pg. 66
pg. 72
pg. 80
pg. 88
58
Phone Book
In “Using Memory” you learned how to store and recall phone
numbers with the internal Phone Book. You can access the same
features, along with some other interesting features, using your
phone’s convenient menu system.
In this chapter we will explain how to:
•recall and store phone numbers using the menu system.
•edit your memory information.
•view your own phone number.
Follow these symbols as a guide for using the keys on the side of
your phone.
Press qq
qq to scroll up
Press aa
aa to select
Press ZZ
ZZ to scroll down 1menu
4batt
2abc
5lock 6mute
3def
Digital
07/07/98
59
Phone Book
Road Map
Press ƒ then press aa
aa to enter the menu system.
Start:
Recall ByRecall By
Location
Phone BookPhone Book
Status
Store NewStore New
Number
Edit
Memory
View MyView My
Number
Number
Prefer
Off
To Main
Menu
Recall ByRecall By
Name
Phone
Book
pg. 60
pg. 61
pg. 61
pg. 62
pg. 64
pg. 63
pg. 58
pg. 63
60
Getting to Phone Book...
1. Enter Menu Press ƒ then press aa
aa.
2. Enter
Phone Book Press aa
aa to enter Phone Book.
Recalling By Name
Once you have stored names and numbers, you can recall them
alphabetically with the Phone Book menu.
3. Begin
Recalling Press aa
aa to select Recall By Name.
You will see: Enter 1st Letter.
4. Enter
Name Press the appropriate digit key as many times
as necessary to enter the first letter of the
name. (See page 39 for help entering letters.)
You will see the first entry with that letter.
5. Find
Name Press qq
qq or ZZ
ZZ to scroll to the name you are
looking for.
6. Place
Call Press & hold aa
aa or press æ (or ª).
You will see: Calling.
7. End
Call Press º or close the phone.
or
Press & hold aa
aa until you hear a high tone.
You will see: Press § to End Call.
then
Press aa
aa again.
Recall By
Name p
61
Phone Book
Recalling By Location
Each name and number you store is placed in a memory
location numbered 01-99. Once you have stored names and
numbers, you can use this feature to recall them by memory
location.
Phone Book Status
You can use this feature to see how many of your Phone Book’s
99 locations have been used.
3. Begin
Recalling Press qq
qq or ZZ
ZZ to scroll to
Recall By
Location and press aa
aa to select.
4. Enter
Location Enter the two-digit memory location of the
number you are looking for. You will see the
Phone Book screen for that memory location.
5. Place
Call Press & hold aa
aa or press æ (or ª).
You will see: Calling.
6. End
Call Press º or close the phone.
or
Press & hold aa
aa until you hear a high tone.
You will see: Press § to End Call.
then
Press aa
aa again.
3. Select
Feature Press qq
qq or ZZ
ZZ to scroll to
Phone Book
Status and press aa
aa to select. You will see:
XX Full XX Empty.
4. Exit
Menu Press º to exit menu, or you may scroll to
other features.
Recall By
Location p
Tip:
To place a quick
call just enter
the two-digit
location and
press æ (or
ª).
Phone Book
Status p
62
Getting to Phone Book...
1. Enter Menu Press ƒ then press aa
aa.
2. Enter
Phone Book Press aa
aa to enter Phone Book.
Storing a New Number
Whether you store numbers as described in “Using Memory” or
store numbers with this menu feature, you will get the same
results.
3. Begin
Storing Press qq
qq or ZZ
ZZ to scroll to Store New
Number and press aa
aa to select.
You will see: Enter Number.
4. Enter
Number Enter the number you want to store and press
aa
aa. You will see: Location XX? XX is the
number of the lowest available location.
5. Enter
Location Press ¬ or « to store the sequence in
the displayed location or enter a new two-
digit location.
or Select
Range of
Ten
Enter the first digit of the memory location
and press « to store the sequence in
the first available location beginning with
that digit. (If you store personal numbers in
the twenties, for instance, press ¤, «.)
6. Enter
Name Enter a name to identify the phone number or
continue with step 7. See page 39 for details
on entering names.
7. Store
Number Press ¬ or aa
aa. Your phone will confirm the
entry by displaying: Stored At XX.
8. Exit
Menu Press º to exit menu, or return to Step 3 to
store more numbers.
Store New
Number p
Tip:
Always store
your Voice Mail
number in
location 98.
Tip:
If the name or
number is
already in your
Phone Book,
you will see:
Duplicate
Name or
Number.
63
Phone Book
Viewing Your Number
Use this feature to view your phone’s currently active number. If
you have more than one phone number, you can change the
active number with Changing Your Number on page 90.
Number Preference
When Placing Calls:
If you prefer to see the number (Calling 555-1212) instead of
the name (Calling Jane Smith) when you place a call from
the internal Phone Book, turn Number Preference ON.
When Receiving Calls:
If you subscribe to Caller ID, your phone automatically looks up
callers in your Phone Book and displays the name stored in the
entry. If you prefer to see the caller’s number (555-1212), then
turn Number Preference ON.
3. View
Number Press qq
qq or ZZ
ZZ to scroll to
View My
Number and press aa
aa to select. The
display will show the currently active
number on your phone.
4. Exit
Menu Press º to exit the menu, or you may scroll
to other features.
3. Find
Feature Press qq
qq or ZZ
ZZ to scroll to
Number Prefer.
4. Toggle
Feature Press aa
aa to toggle the feature ON or OFF.
5. Exit
Menu Press º to exit the menu, or you may scroll
to other features.
View My
Number p
Shortcut:
Press ‰
».
Number
Prefer On p
64
Getting to Phone Book...
1. Enter Menu Press ƒ then press aa
aa.
2. Enter
Phone Book Press aa
aa to enter Phone Book.
Editing a Memory Location
You can edit an entry or move it to another location. When you
move an entry, the original location remains untouched,
allowing you to create a Phone Book entry similar to one you
have already stored.
3. Begin
Editing Press qq
qq or ZZ
ZZ to scroll to Edit Memory and
press aa
aa to select.
4. Find by
Location Press qq
qq or ZZ
ZZ to scroll to Edit By
Location and press aa
aa to select. You will
see: Location——. Enter the two-digit mem-
ory location of the phone number you want to
edit. Press aa
aa to begin editing the displayed
entry and continue with Step 5.
or Find by
Name Press qq
qq or ZZ
ZZ to scroll to Edit By Name and
press aa
aa to select. You will see: Enter 1st
Letter. Enter the first letter of the name you
want to edit. (See page 39 for information on
entering letters.) You will see the first entry
beginning with that letter. Press qq
qq or ZZ
ZZ to
scroll to the name you are looking for and
press aa
aa to begin editing.
5. Edit
Phone
Number
Enter changes to the phone number. Press
Ç to erase one digit at a time, or press &
hold Ç to erase the entire number. Press
« to move the cursor backward.
Edit
Memory p
65
Phone Book
Editing (cont’d)
6. Finish
Number Press aa
aa when you finish editing the phone
number. The display will show the current
location.
7. Move to
a New
Location
If you would like to move the entry to a new
location and preserve the original entry, then
press and hold Ç to erase the location and
enter a new two-digit location. You will see
the name associated with the entry.
or Overwrite
Original If you would like to overwrite the original
entry, then press aa
aa or ¬. You will see the
name associated with the entry.
8. Edit
Name Enter your changes to the name. (See page 39
for details on entering names.) Press Ç to
erase one letter at a time, or press and hold
Ç to erase the entire name. Press « to
move the cursor backward. Skip this step to
leave the name unchanged.
9. Confirm
Changes Press aa
aa or ¬ when you finish editing the
name. If you are overwriting an entry, then
you will see: Location XX is Full. The
display will then show the new information
and you will see: Change? Press aa
aa or ¬
again to save your changes. You will see:
Stored At XX.
or Choose
Different
Location
Press Ç to choose a new memory location
and return to step 6.
or Discard
Changes Press º to exit without saving your
changes.
10. Exit
Menu Press º to exit the menu, or you may scroll
to other features.
66
Call Timers
Your phone is equipped with three visual and three audible call
timers. You can monitor or record the length of individual calls,
set a timer to track monthly usage, or have the phone alert you
at intervals that you specify.
In this chapter we will explain how to:
•monitor the length of your calls.
•set and view the resettable timer for long-term monitoring.
•program audible timers for your individual needs.
Follow these symbols as a guide for using the keys on the side of
your phone.
Press qq
qq to scroll up
Press aa
aa to select
Press ZZ
ZZ to scroll down 1menu
4batt
2abc
5lock 6mute
3def
Digital
07/07/98
67
CallTimers
Road Map
Press ƒ then press aa
aa to enter the menu system.
Start:
Individual
XX:XX:XX
Resettable
Time XXXXX
Cumulative
Time XXXXX
Reset
Timer
Individual
Timer Off
Phone
Book
Timers
One Minute
Timer Off
Repeating
Timer Off
Single
Timer Off
To Main
Menu
pg. 68
pg. 68
pg. 69
pg. 69
pg. 70
pg. 70
pg. 58
pg. 66
pg. 71
pg. 71
68
Getting to Call Timers...
1. Enter Menu Press ƒ then press aa
aa.
2. Enter
Call Timers Press qq
qq or ZZ
ZZ to scroll to Timers
and press AA
AA to select.
Viewing the Individual Timer
The individual timer records the air-time of your most recent
call in hours, minutes, and seconds. It resets before you place
the next call and when you turn the phone OFF. You can have
the timer display automatically while calls are in progress. See
Auto Display Individual Timer on page 70.
Viewing the Resettable Timer
You can track how much air-time you have accumulated during
any time period you choose. For example, reset this timer at the
beginning of each billing period to know where you stand at any
given moment. Use this feature to view the time elapsed, and
follow the instructions on page 69 to reset the timer.
3. View
Timer When you enter the Call Timers menu,
you will see: Individual XX:XX:XX.
4. Exit
Menu Press º to exit the menu, or you may scroll
to other features.
3. View
Timer Press qq
qq or ZZ
ZZ to scroll to Resettable Time.
You will see the air-time in minutes since you
last reset the timer.
4. Exit
Menu Press º to exit the menu, or you may scroll
to other features.
Shortcut:
Press ‰ then
» twice.
Shortcut:
Press ƒ, aa
aa
then ›, fi.
Individual
XX:XX:XX c
Resettable
TimeXXXXX c
Shortcut:
Press ‰ then
» three times.
Shortcut:
Press ƒ, aa
aa
then ›, fl.
69
CallTimers
Viewing the Cumulative Timer
This is a non-resettable timer that keeps track of your phone’s
total air-time (in minutes) since your phone was activated.
Resetting the Timer
This feature allows you to monitor elapsed air-time over a period
of time that you choose. After you reset the timer, it will continue
to keep track of your air-time (in minutes) until you reset it
again.
Keep in mind: The shortcuts will not work if the Resettable
Timer is already set at zero.
3. View
Timer Press qq
qq or ZZ
ZZ to scroll to Cumulative Time.
You will see the total air-time in minutes.
4. Exit
Menu Press º to exit the menu, or you may scroll
to other features.
3. Find
Feature Press qq
qq or ZZ
ZZ to scroll to Reset Timer.
4. Reset
Timer Press aa
aa to reset. You will see: Resettable
Time 00000.
5. Exit
Menu Press º to exit the menu, or you may scroll
to other features.
Cumulative
TimeXXXXX c
Shortcut:
Press ‰ then
» four times.
Shortcut:
Press ƒ, aa
aa
then ›, ‡.
Reset
Timer c
Shortcut:
Press ƒ, aa
aa
then ›, ‹
and continue
with step 4.
Shortcut:
Press ƒ then
‚, ‡, Ç
to reset the
timer.
70
Getting to Call Timers...
1. Enter Menu Press ƒ then press aa
aa.
2. Enter
Call Timers Press qq
qq or ZZ
ZZ to scroll to Timers
and press AA
AA to select.
Auto Display Individual Timer
When you turn this feature ON, your phone will automatically
display your air-time in minutes and seconds during and after
each call.
Note: Activating the Auto Display Timer may reduce standby-
time and talk-time.
One Minute Audible Timer
Turn this feature ON to hear an audible beep 10 seconds before
the end of every minute during a call. The party on the other end
will not hear the beeps.
3. Find
Feature Press qq
qq or ZZ
ZZ to scroll to Individual
Timer.
4. Toggle
Display Press aa
aa to toggle ON or OFF the automatic
display of the individual timer.
5. Exit
Menu Press º to exit the menu, or you may scroll
to other features.
3. Find
Feature Press qq
qq or ZZ
ZZ to scroll to One Minute
Timer.
4. Toggle
Timer Press aa
aa to toggle the timer ON or OFF.
5. Exit
Menu Press º to exit the menu, or you may scroll
to other features.
Individual
Timer On c
Shortcut:
Press ƒ, aa
aa
then ›,†
and continue
with step 4.
One Minute
Timer Off c
Shortcut:
Press ƒ, aa
aa
then ›, ›
and continue
with step 4.
71
CallTimers
Repeating Audible Timer
You can set this timer to beep during your calls at an interval
that you select—from 11-999 seconds. Like the One Minute
Timer, you will hear the beep 10 seconds before the end of each
interval, and the party on the other end will not hear the beeps.
Single Audible Timer
You can set the Single Timer to beep at a time that you select–
from 11-999 seconds. It will beep once during each call, 10
seconds before the end of the preset time. The party on the other
end will not hear the beeps.
3. Find
Feature Press qq
qq or ZZ
ZZ to scroll to Repeating Timer.
4. Toggle
Timer Press aa
aa to toggle the timer ON or OFF.
5. Enter
Seconds If you toggle the timer ON, you will see:
Enter Seconds. Enter the number of seconds
you would like between beeps and press aa
aa
to set the timer. You will see: Set At XXX Secs.
6. Exit
Menu Press º to exit the menu, or you may scroll
to other features.
3. Find
Feature Press qq
qq or ZZ
ZZ to scroll to Single Timer.
4. Toggle
Timer Press aa
aa to toggle the timer ON or OFF.
5. Enter
Seconds If you toggle the timer ON, you will see:
Enter Seconds. Enter the number of seconds
you would like before the beep and press aa
aa
to set the timer. You will see: Set At XXX Secs.
6. Exit
Menu Press º to exit the menu, or you may scroll
to other features.
Repeating
Timer Off c
Shortcut:
Press ƒ, aa
aa
then ›, ⁄
and continue
with step 4.
Single
Timer Off c
Shortcut:
Press ƒ, aa
aa
then ›, ¤
and continue
with step 4.
72
Tone Controls
If you’ve been reading along diligently, this may be a good time
for a break–put your feet up and have some fun with these
features. Use the Tone Control features to select Silent Mode,
personalize your phone’s ringer styles, or set the phone to
remind you of new messages.
In this chapter we will explain how to:
•choose from nine different ringer styles.
•activate and deactivate the VibraCall® Alert.
•silence the keypad.
•silence all your phone’s tones with one convenient feature.
•set the Message Reminder.
Follow these symbols as a guide for using the keys on the side of
your phone.
Press qq
qq to scroll up
Press aa
aa to select
Press ZZ
ZZ to scroll down 1menu
4batt
2abc
5lock 6mute
3def
Digital
07/07/98
73
Tone Controls
Road Map
Press ƒ then press AA
AA to enter the menu system.
Start:
Silent Silent
Mode OffMode Off
Ring/Vib
Select
Ringer Ringer
Style 1Style 1
Keypad Keypad
Tones OnTones On
Phone
Book
Timers
Tone Tone
Control
Setup MsgSetup Msg
Tones
DTMF DTMF
Select
Reminder
TonesSetup
Service Service
Tones Off
To Main
Menu
pg. 74
pg. 75
pg. 75
pg. 76
pg. 77
pg. 78
pg. 79
pg. 58
pg. 66
pg. 72
pg. 79
74
Getting to Tone Control...
1. Enter Menu Press ƒ then press aa
aa.
2. Enter
Tone Control Press qq
qq or ZZ
ZZ to scroll to Tone Control
and press AA
AA to select.
Silent Mode
When you need to be discreet, just turn Silent Mode ON. All tones
will be silenced. The ringer and incoming message tones will be
replaced by vibrations.
3. Find
Feature Press qq
qq or ZZ
ZZ to scroll to Silent Mode.
4. Toggle
Feature Press AA
AA to toggle the feature ON or OFF.
5. Exit
Menu Press º to exit the menu, or you may scroll
to other features.
Silent
Mode Off t
Shortcut:
Press ƒ then
press & hold †.
75
Tone Controls
Ringer or Vibrator Selection
Motorola’s VibraCall® Alert is ideal for situations where ringing
may not be appropriate, or in noisy places where you might not
hear the ringer. You can choose to be alerted to incoming calls
using the vibrator, ringer, both or neither.
Keep in mind: When both the ringer and vibrator are ON, the
phone alerts you by vibrating for three ring cycles then ringing.
Selecting a Ringer Style
Your new phone offers nine different ringer styles. After you
choose a style, the phone will give you a brief sample of your new
alert sound, or vibrate if you have the VibraCall® Alert selected.
3. Enter
Feature Press qq
qq or ZZ
ZZ to scroll to Ring/Vib
Select and press AA
AA to select.
4. Select
Ringer/
Vibe
Press qq
qq or ZZ
ZZ to scroll to Vibrate Only,
Ring Only, or Vibrate Then Ring and
press AA
AA to select the displayed option.
5. Exit
Menu Press º to exit the menu, or you may scroll
to other features.
3. Enter
Feature Press qq
qq or ZZ
ZZ to scroll to Ringer Style and
press AA
AA to select.
4. Select
Ringer Press qq
qq or ZZ
ZZ to scroll through the ringer
styles. As you scroll, your phone will give an
audible sample of the currently displayed
style. Press AA
AA to select the displayed option.
5. Exit
Menu Press º to exit the menu, or you may scroll
to other features.
Shortcut:
Press ƒ
then press †
to toggle the
VibraCall® Alert
ON and OFF.
Ring/Vib
Select t
Shortcut:
Press ƒ, aa
aa
and ‹, ‚
or ⁄ and
continue with
step 4.
Ringer
Style X t
76
Getting to Tone Control...
1. Enter Menu Press ƒ then press aa
aa.
2. Enter
Tone Control Press qq
qq or ZZ
ZZ to scroll to Tone Control
and press AA
AA to select.
Keypad Tones
Keypad Tones are the sounds you hear when you press any key
on the phone. If you want to be discreet, use this feature to
silence the audio feedback from the keypad.
Keep in mind: Turning Keypad Tones OFF does not silence the
tones your phone sends across the line. See Transmit Tones on
page 78 for more information.
3. Find
Feature Press qq
qq or ZZ
ZZ to scroll to Keypad Tones.
4. Toggle
Feature Press AA
AA to toggle the feature ON or OFF.
5. Exit
Menu Press º to exit the menu, or you may scroll
to other features.
Keypad
Tones On t
Shortcut:
Press ƒ, aa
aa
and ‹, ¤
and continue
with step 4.
77
Tone Controls
Setup Message Tones
When you receive a new Voice Mail or alphanumeric message,
your phone beeps three times. To change the number of beeps or
to turn them OFF, use this feature.
3. Enter
Feature Press qq
qq or ZZ
ZZ to scroll to Setup Msg
Tones and press AA
AA to select.
4. Select
Msg Type Press qq
qq or ZZ
ZZ to scroll to Text Msg Tone
or Voice Mail Tone and press AA
AA to
select.
5. Toggle
Tone Press qq
qq or ZZ
ZZ to scroll to 3Beep, 1Beep, or
Off and press AA
AA to select.
6. Exit
Menu Press º to exit the menu, or you may
scroll to other features.
Tip:
To make new
messages easy to
recognize, try
making the
number of beeps
unique to each
message type.
Setup Msg
Tones t
78
Getting to Tone Control...
1. Enter Menu Press ƒ then press aa
aa.
2. Enter
Tone Control Press qq
qq or ZZ
ZZ to scroll to Tone Control
and press AA
AA to select.
Transmit Tones
Your phone transmits tones to communicate with automated
calling systems like Voice Mail or bank by phone. These tones
are called DTMF tones (Dual Tone Multi-Frequency tones), and
this feature allows you to control the length of the tone your
phone sends. For most systems, you should use the default
setting of short tones, which sends the tones for a preset length of
time. If you choose long tones, your phone will transmit the
tones for as long as you press & hold the key. To silence the tones
during conversations, turn the tones OFF.
Note: If you turned the DTMF tones OFF, but you want to access
a tone-activated system like Voice Mail, place your call, enter the
numbers you need to transmit and:
3. Enter
Feature Press qq
qq or ZZ
ZZ to scroll to DTMF Select and
press AA
AA to select.
4. Select
Setting Press qq
qq or ZZ
ZZ to scroll to Transmit DTMF
Long, Transmit DTMF Short, or
Transmit DTMF Off and press AA
AA to select.
5. Exit
Menu Press º to exit the menu, or you may scroll
to other features.
Send
Tones Press ‰ then press æ (or ª) to send
the tones if DTMF tones are OFF.
DTMF
Select t
Shortcut:
Press ƒ, aa
aa
then ‹, ‹
and continue
with step 4.
79
Tone Controls
Reminder Tones Setup
If you subscribe to messaging services, this feature can help you
remember to check your messages. Turn Message Reminder Tones
ON and your phone will remind you of unread messages by
beeping and /or vibrating every two minutes. This feature is
especially helpful if you are busy or away from your phone.
Service Tones
When Service Tones are ON, you will be instantly alerted to any
change in your cellular service. You will hear two short beeps
when your phone (1) starts to roam, (2) returns to a home
system after roaming, (3) loses service, (4) finds service, or (5)
moves from digital to analog service (or vice versa).
Keep in mind: Your phone will always beep if a call
is dropped.
3. Find
Feature Press qq
qq or ZZ
ZZ to scroll to Reminder
Tones Setup.
4. Toggle
Feature Press AA
AA to toggle the feature ON or OFF.
5. Exit
Menu Press º to exit the menu, or you may scroll
to other features.
3. Find
Feature Press qq
qq or ZZ
ZZ to scroll to Service Tones.
4. Toggle
Feature Press AA
AA to toggle the feature ON or OFF.
5. Exit
Menu Press º to exit the menu, or you may scroll
to other features.
Reminder
TonesSetupt
Service
Tones On t
80
Lock/Security
While you probably would not want to leave your phone
unattended, your phone has a number of built-in
security features to prevent unauthorized use.
In this chapter we will explain how to:
•lock and unlock your phone.
•place emergency calls.
•view and change your lock code.
•restrict call placement and memory access.
•reset or clear your phone’s settings.
Follow these symbols as a guide for using the keys on the side of
your phone.
Press qq
qq to scroll up
Press aa
aa to select
Press ZZ
ZZ to scroll down 1menu
4batt
2abc
5lock 6mute
3def
Digital
07/07/98
81
Lock/Security
Road Map
Press ƒ then press aa
aa to enter the menu system.
Start:
Auto
Lock Off
Emergency
Call On
Secure Secure
Options
Phone
Book
Timers
Tone
Control
Lock
Secure
To Main
Menu
View Lock
Code
Change Change
SecureCode
Service
Level 4
Master
Reset
Master
Clear
To Main
Menu
Secure
Code------
Change Change
Lock Code
pg. 72
pg. 80
pg. 58
pg. 66
pg. 84
pg. 84
pg. 84
pg. 85
pg. 86
pg. 87
pg. 85
pg. 82
pg. 83
pg. 84
82
Getting to Lock/Security...
1. Enter Menu Press ƒ then press aa
aa.
2. Enter
Lock/Secure Press qq
qq or ZZ
ZZ to scroll to Lock Secure
and press aa
aa to select.
Auto Lock
Turn this feature ON and your phone will automatically lock
itself each time the phone is turned OFF.
Locking the Phone
You can lock your phone manually at any time to help prevent
unwanted use. Once locked, you can leave the phone ON or turn
it OFF and the phone will remain locked.
Unlocking the Phone
Unlocking your phone is quick and easy. Once your phone is ON,
just enter your three-digit code. Your factory programmed lock
code is 123. If you have changed this code and cannot
remember what it is, see Viewing the Lock Code on page 84.
Keep in mind: You can still receive calls when the phone is
locked. Follow these steps to answer an incoming call:
3. Find Feature Press qq
qq or ZZ
ZZ to scroll to Auto Lock.
4. Toggle Lock Press AA
AA to toggle the feature ON or OFF.
5. Exit
Menu Press º to exit the menu, or you may
scroll to other features.
1. Lock Phone Press ƒ then press fi.
You will see: Lock?
2. Confirm Press AA
AA or ¬. You will see: Locked.
Unlock &
Answer Enter your three-digit code and press aa
aa or
æ (or ª) to answer.
Auto
Lock Off l
83
Lock/Security
Emergency Call
Your phone’s emergency call feature allows you to instantly
place a call from location 01 – even when your phone is locked.
Keep in mind: Some cellular systems only allow access to their
own emergency numbers. Check with your Service Provider for
more information.
Storing an Emergency Call Number
You should reserve memory location 01 for an emergency
number or the number of a family member or close friend. To
store your emergency number, follow these steps:
Placing an Emergency Call
Keep in mind: If call restriction Service Level 1 is enabled, the
Turbo Dial® Keys will not be active. To override the restriction
and place an emergency call, press ‰, ⁄, æ (or ª).
See page 87 for information on your phone’s service levels.
3. Find Feature Press qq
qq or ZZ
ZZ to scroll to Emergency Call.
4. Toggle Press AA
AA to toggle the feature ON or OFF.
5. Exit
Menu Press º to exit the menu, or you may
scroll to other features.
1. Enter
Number Enter your emergency number.
2. Save
Number Press ¬ and ‚, ⁄ to choose location
01. You will see: Alpha or Press §.
3. Enter
Name Enter a name if you like and press AA
AA when
finished. Your phone will confirm the entry by
displaying the stored information.
Place
Call When Emergency Call is ON, press & hold
⁄ at any time.
Emergency
Call On l
Shortcut:
Press ƒ, AA
AA
then ¤, ·
and continue
with step 4.
1. Enter Menu Press ƒ then press aa
aa.
2. Enter
Lock/Secure Press qq
qq or ZZ
ZZ to scroll to Lock Secure
and press aa
aa to select.
3. Access
Secure
Options
Press qq
qq or ZZ
ZZ to scroll to Secure Options
and press aa
aa. You will see: Secure Code——————.
Enter your six-digit secure code.
84
Getting to Lock/Security...
Secure Options Submenu
For your protection, you must enter a six-digit secure code in
order to access the features in the Secure Options submenu. The
factory programmed secure code is 000000.
Viewing the Lock Code
To view the three-digit lock code:
Changing the Lock Code
To change the three-digit lock code:
4. View
Code Press AA
AA to select View Lock Code.
You will see: Lock Code XXX.
5. Exit
Menu Press º to exit the menu, or you may
scroll to other features.
4. Begin
Change Press qq
qq or ZZ
ZZ to scroll to Change Lock
Code and press aa
aa to select.
You will see:
Enter New Code———.
5. Enter New
Code Enter a new three-digit lock code. You will
see: New Lock Code XXX.
6. Exit
Menu Press º to exit the menu, or you may
scroll to other features.
Secure
Options l
View Lock
Code l
Shortcut:
Press ƒ, ‚,
enter six-digit
security code,
then ‰.
Change
Lock Code l
Shortcut:
Press ƒ, ‚,
enter your six-
digit secure
code, enter a new
lock code,
then ¬.
85
Lock/Security
Master Reset
Use this feature to reset all user-selectable options back to their
original factory settings.
Keep in mind: Once you select this feature, the reset process
cannot be canceled or reversed.
Master Clear
Use Master Clear to clear all user-selectable options, the
resettable timer, the Phone Book, and the Messaging memory.
Keep in mind: Once you select this feature, the process cannot
be canceled or reversed.
4. Reset
Features Press qq
qq or ZZ
ZZ to scroll to Master Reset
and press AA
AA to select. You will see: Reset?
5. Confirm
Reset Press AA
AA to confirm.
You will see: Standard Setting.
or Exit Press º to exit without resetting.
6. Exit
Menu Press º to exit the menu, or you may
scroll to other features.
4. Clear
Settings Press qq
qq or ZZ
ZZ to scroll to Master Clear
and press AA
AA to select. You will see: Clear?
5. Confirm
Clear Press AA
AA to confirm. You will see: Busy.
It will take a few seconds to reset all of
your phone’s options back to their factory
settings.
or Exit Press º to exit without resetting.
6. Exit
Menu Press º to exit the menu, or you may
scroll to other features.
Master
Reset l
Master
Clear l
1. Enter Menu Press ƒ then press aa
aa.
2. Enter
Lock/Secure Press qq
qq or ZZ
ZZ to scroll to Lock Secure
and press aa
aa to select.
3. Access
Secure
Options
Press qq
qq or ZZ
ZZ to scroll to Secure Options
and press aa
aa. You will see: Secure Code——————.
Enter your six-digit secure code.
86
Getting to Lock/Security...
Secure Options Submenu
Changing the Secure Code
The Secure Code is a six-digit number factory set to 000000. You
will probably want to change it to something unique and easy to
remember.
4. Select
Feature Press qq
qq or ZZ
ZZ to scroll to Change Secure
Code and press AA
AA to select. You will see:
New Code ——————.
5. Enter New
Code Enter a new six-digit Secure Code. Your
phone will briefly display the new code.
6. Exit
Menu Press º to exit the menu, or you may
scroll to other features.
Change
SecureCode l
87
Lock/Security
Service Level
When loaning your phone to others, you may want to restrict
call placement or protect memory information. Your phone has
two service levels that allow you to control the types of outgoing
calls that can be made from your phone.
Your phone has two service levels:
4. Select
Feature Press qq
qq or ZZ
ZZ to scroll to Service Level
and press AA
AA to select.
5. Choose
Level Press qq
qq or ZZ
ZZ to scroll through service level
settings and press AA
AA to select the setting.
(See the chart below for descriptions.)
6. Exit
Menu Press º to exit the menu, or you may
scroll to other features.
Level 1: Calls can be placed from
memory locations 1-10 only.
• No dialing from keypad.
• No memory edit or storage.
• No access to name directory.
Level 4: This is the default setting.
• No restrictions.
Service
Level 4 l
1 Memory
1-10 Only
4 Std
Setting
88
Phone Options
The Phone Options menu is your “command center” for
adjusting the way your phone sends and receives calls. You can
fine tune your phone for optimal performance, view
information about your phone’s settings, and much more.
In this chapter we will explain how to:
•switch phone numbers.
•review your phone’s settings.
•select a variety of system specific settings.
Follow these symbols as a guide for using the keys on the side of
your phone.
Press qq
qq to scroll up
Press aa
aa to select
Press ZZ
ZZ to scroll down 1menu
4batt
2abc
5lock 6mute
3def
Digital
07/07/98
89
Phone Options
Road Map
Press ƒ then press aa
aa to enter the menu system.
Start:
Phone
Book
Timers
Tone
Control
Lock
Secure
Phone
Options
Display
Options
Call
Options
Change
Number
Feature
Review
To Main
Menu
Auto
Answer Off
Multi Key
Answer Off
Open to
Answer OnAnswer On
To Main
Menu
System
Options
Instant
Redial Off
Display
System ID
Select
SystemMode
Phone
Info
Change
Banner
Service
Light OnLight On
24 Hour
Clock Off
Auto
Hyphen
Off
Backlight
Select
To Main
Menu
Analog
Only Off
To Main
Menu
pg. 58
pg. 66
pg. 72
pg. 80
pg. 88
pg. 91
pg. 92
pg. 98
pg. 102
pg. 96
pg. 96
pg. 97
pg. 98
pg. 99
pg. 101
pg. 104
pg. 102
pg. 94
pg. 101
pg. 101
pg. 102 pg. 99
pg. 100
pg. 103
pg. 103
pg. 90
pg. 103
90
Getting to Phone Options...
1. Enter Menu Press ƒ then press aa
aa.
2. Enter
Phone Options Press qq
qq or ZZ
ZZ to scroll to Phone Options
and press AA
AA to select.
Changing Your Number
Your phone can be activated with two unique phone numbers.
You could use one number for your home service and the other
for a city that you travel to frequently. This feature allows you to
select the number for the appropriate service.
Keep in mind: Only one number can be active on your
phone at a time.
3. Begin
Change Press AA
AA to enter Change Number. The
display will show your phone’s currently
active number.
4. Choose
Number Press qq
qq or ZZ
ZZ to scroll through the phone
numbers programmed into your phone.
Press AA
AA to select the desired number.
You will see: Set.
5. Exit
Menu Press º to exit the menu, or you may
scroll to other features.
Change
Number P
91
Phone Options
Feature Review
After you have spent some time adjusting your phone’s settings,
use this feature to review the changes you have made. When you
enter Feature Review, your phone will display any features that
you have changed from their default factory settings.
Keep in mind: Feature Review is simply an opportunity to
review – but not change – your current settings.
3. Begin
Review Press qq
qq or ZZ
ZZ to scroll to Feature Review
and press AA
AA to enter.
4. Browse
Features Press qq
qq or ZZ
ZZ to scroll through any features
you have changed from their default set-
tings. If all features are set to their default
factory settings, the display will show:
Standard Settings.
5. Exit
Menu Press º to exit the menu, or you may
scroll to other features.
Feature
Review P
Shortcut:
Press ƒ then
‚, ·, ‰.
92
1. Enter Menu Press ƒ then press aa
aa.
2. Enter
Phone Options Press qq
qq or ZZ
ZZ to scroll to Phone Options
and press aa
aa to select.
3. Enter
Call Options Press qq
qq or ZZ
ZZ to scroll to Phone Options
and press aa
aa to select.
Getting to Call Options...
Call Options Submenu
This submenu gives you control over the way your phone places
and receives calls.
Activating PIN Code
Your Service Provider may require a Personal Identification
Number (PIN) when placing calls. If so, you will probably want
to activate this feature, which allows you to send your PIN code
with one touch of a button.
Keep in mind: If you enter a service area that does not require
a PIN code, make sure PIN Inactive is set.
4. Toggle
PIN Press qq
qq or ZZ
ZZ to scroll to PIN Inactive
or Active and press AA
AA to toggle.
5. Exit
Menu Press º to exit the menu, or you may
scroll to other features.
Call
Options P
PIN
Inactive P
93
Phone Options
Storing PIN Code in Memory Location 07
When PIN Code is active, your phone automatically uses
the number stored in location 07 as your PIN Code. Once you
have activated the PIN code, you should store the PIN code in
location 07.
Placing a Call with PIN Code Active
When you place a call with PIN Code active, your phone will
queue the number stored in location 07 and then send it when
you press the Smart Button.
Note: If you see Invalid PIN, the menu feature may be active
but your PIN code is not stored in location 07. The PIN code
must be less than seven digits.
1. Enter PIN Enter your PIN Code.
2. Store
PIN Press ¬, press ‚, ‡, and then
press AA
AA.
1. Place Call Enter the number to be called, or recall it
from memory and press æ (or ª) or
press & hold AA
AA.
2. Send PIN After the call is placed, the system
will prompt you for your PIN code. Press
æ (or ª) or press & hold AA
AA to send the
PIN code.
94
1. Enter Menu Press ƒ then press aa
aa.
2. Enter
Phone Options Press qq
qq or ZZ
ZZ to scroll to Phone Options
and press aa
aa to select.
3. Enter
Call Options Press qq
qq or ZZ
ZZ to scroll to Phone Options
and press aa
aa to select.
Getting to Call Options...
Call Options Submenu
Multiple Key Answer
With Multiple Key Answer ON, you can answer calls by pressing
AA
AA or any key in the center of the keypad, ⁄ through ».
Keep in mind: If there are any digits in your Scratchpad or if
your phone is locked, this feature will not work.
4. Find
Feature Press qq
qq or ZZ
ZZ to scroll to Multi Key
Answer.
5. Toggle
Feature Press AA
AA to toggle the feature ON or OFF.
6. Exit
Menu Press º to exit the menu, or you may
scroll to other features.
Multi Key
Answer Off
P
95
Phone Options
Open to Answer
This feature allows you to set whether or not your phone
automatically answers when opened. If you subscribe to Caller
ID, you will probably want to set this feature OFF so you can
open the phone and check who is calling before you answer.
Note: To answer calls with Open to Answer OFF,
press æ (or ª).
4. Find
Feature Press qq
qq or ZZ
ZZ to scroll to Open to
Answer.
5. Toggle
Feature Press AA
AA to toggle the feature ON or OFF.
6. Exit
Menu Press º to exit the menu, or you may
scroll to other features.
Open to
Answer On P
96
1. Enter Menu Press ƒ then press aa
aa.
2. Enter
Phone Options Press qq
qq or ZZ
ZZ to scroll to Phone Options
and press aa
aa to select.
3. Enter
Call Options Press qq
qq or ZZ
ZZ to scroll to Phone Options
and press aa
aa to select.
Getting to Call Options...
Call Options Submenu
Automatic Answer
Turn Auto Answer ON to have your phone automatically answer
incoming calls after two ring cycles.
Note: We recommend you use this feature only with vehicle
accessories and with your phone’s ringer active (pg. 75).
Otherwise, your phone may answer a call in your absence.
4. Find
Feature Press qq
qq or ZZ
ZZ to scroll to Auto Answer.
5. Toggle
Feature Press AA
AA to toggle the feature ON or OFF.
6. Exit
Menu Press º to exit the menu, or you may
scroll to other features.
Auto
Answer Off
P
Shortcut:
Press ƒ, AA
AA
then ¤, fl
and continue
with step 4.
97
Phone Options
Instant Redial
When placing calls, you may hear a fast busy signal and see
Press SND to Redial. This probably means the network is
temporarily busy. If you turn Instant Redial ON, your phone will
redial for the next four minutes or until the call goes through.
You will see: Redialing.
Keep in mind: This feature redials only when the network
is busy. If you hear a normal busy signal, this feature will
not work.
4. Find
Feature Press qq
qq or ZZ
ZZ to scroll to Instant
Redial.
5. Toggle
Feature Press AA
AA to toggle the feature ON or OFF.
6. Exit
Menu Press º to exit the menu, or you may
scroll to other features.
Instant
Redial Off
P
Tip:
See page 29 for
more redialing
options.
98
Getting to Display Options...
1. Enter Menu Press ƒ then press aa
aa.
2. Enter
Phone Options Press qq
qq or ZZ
ZZ to scroll to Phone Options
and press aa
aa to select.
3. Enter
Display Options Press qq
qq or ZZ
ZZ to scroll to Display Options
and press aa
aa to enter.
Display Options Submenu
This submenu allows you to customize your phone’s display.
Activating the Quick Menu
Press the Smart Button once and the Quick Menu appears on the
display, offering shortcuts to the most popular features. This
feature turns the Quick Menu OFF if you would rather use the
Smart Button to go straight into the Phone Book. See page 34 for
more information.
4. Toggle
Feature When you enter Display Options, you will
see: Quick Menu. Press AA
AA to toggle the
feature ON or OFF.
5. Exit
Menu Press º to exit the menu, or you may
scroll to other features.
Display
Options P
Quick
Menu On P
99
Phone Options
Changing the Language
This feature allows you to select the language in the display.
Changing the Banner
You may create your own message banner for the phone
to display when it is idle. Your banner can be up to 12
characters long.
4. Begin
Selection Press qq
qq or ZZ
ZZ to scroll to Change
Language and press aa
aa to select.
5. Choose
Option Press qq
qq or ZZ
ZZ to scroll through the available
languages and press aa
aa to select.
6. Exit
Menu Press º to exit the menu, or you may
scroll to other features.
4. Enter
Feature Press qq
qq or ZZ
ZZ to scroll to Change Banner
and press aa
aa to select. You will see the cur-
rent banner or Alpha or Press §.
5. Enter
Message Enter your message using the alphanumeric
keypad. Press AA
AA when your message is
complete.
6. Exit
Menu Press º to exit the menu, or you may
scroll to other features.
Change
Language P
Change
Banner P
100
Getting to Display Options...
1. Enter Menu Press ƒ then press aa
aa.
2. Enter
Phone Options Press qq
qq or ZZ
ZZ to scroll to Phone Options
and press aa
aa to select.
3. Enter
Display Options Press qq
qq or ZZ
ZZ to scroll to Display Options
and press aa
aa to enter.
Display Options Submenu
Customizing the Backlight
Your phone’s backlight illuminates when you open the phone,
press a key, or receive an incoming call signal. This feature
allows you to choose how long it remains ON.
Keep in mind: The backlight will always be illuminated when
your phone is connected to an external power supply, like a
charger or vehicle accessory.
4. Find
Feature Press qq
qq or ZZ
ZZ to scroll to Backlight
Selection and press AA
AA to select.
5. Toggle
Feature Press qq
qq or ZZ
ZZ to scroll to 15 Seconds, 30
Seconds, or Always On and press AA
AA to
select the displayed option.
6. Exit
Menu Press º to exit the menu, or you may
scroll to other features.
Backlight
Selection
P
101
Phone Options
Auto Hyphen
Just turn Auto Hyphen ON to have all phone numbers
automatically hyphenated on the display. This allows you to
easily distinguish between area codes, call prefixes, and other
numbers.
Displaying the 24-Hour Clock
Your phone can display the current time in 12-hour or 24-hour
format. Use this feature to turn the 24-hour clock ON or OFF.
Service Light
The Service Light can be useful to quickly check the current state
of your phone’s service. If you prefer to conserve standby-time,
you can turn the Service Light OFF with this feature.
4. Find
Feature Press qq
qq or ZZ
ZZ to scroll to Auto Hyphen.
5. Toggle
Feature Press AA
AA to toggle the feature ON or OFF.
6. Exit
Menu Press º to exit the menu, or you may
scroll to other features.
4. Find
Feature Press qq
qq or ZZ
ZZ to scroll to 24 Hour Clock.
5. Toggle
Feature Press AA
AA to toggle the feature ON or OFF.
6. Exit
Menu Press º to exit the menu, or you may
scroll to other features.
4. Find
Feature Press qq
qq or ZZ
ZZ to scroll to Service Light.
5. Toggle
Feature Press AA
AA to toggle the feature ON or OFF.
6. Exit
Menu Press º to exit the menu, or you may
scroll to other features.
Auto
HyphenOff
P
24 Hour
Clock Off
P
Service
Light Off P
102
Getting to System Options...
1. Enter Menu Press ƒ then press aa
aa.
2. Enter
Phone Options Press qq
qq or ZZ
ZZ to scroll to Phone Options
and press aa
aa to select.
3. Enter
System Options Press qq
qq or ZZ
ZZ to scroll to System Options
and press aa
aa to enter.
System Options Submenu
The System Options submenu offers a couple features that will
help you use your phone and cellular network.
Displaying the System ID
Use this feature to determine the unique System ID for
your cellular phone.
Displaying Phone Information
This feature allows you to view information about your
phone. If you require technical assistance, you may be asked to
check here.
4. View SID Press AA
AA to select Display SID. You will
see the System ID for your phone.
5. Exit
Menu Press º to exit the menu, or you may
scroll to other features.
4. Find
Feature Press qq
qq or ZZ
ZZ to scroll to Phone Info then
press AA
AA to select.
5. Scroll Press qq
qq or ZZ
ZZ to scroll through the options.
6. Exit
Menu Press º to exit the menu, or you may
scroll to other features.
System
Options P
Display
SID P
Phone
Info P
103
Phone Options
Displaying the Roam List Version
If you require technical assistance, you may need to check this
feature, which displays your phone’s Roam List Version.
Displaying the Software Version
This feature displays the Software Version used by your phone
and may be useful if you require technical assistance.
Analog Only
Turning Analog Only ON tells your phone to select an analog
channel for the next call. If you do not place a call, your
phone will revert to dual mode service after a few minutes.
Note: Some peripheral devices, like fax machines and modems,
require analog operation.
4. View
Roam List Press qq
qq or ZZ
ZZ to scroll to Roam List
Version then press AA
AA to select. You will
see: Version XXXX.
5. Exit
Menu Press º to exit the menu, or you may
scroll to other features.
4. View
Software
Version
Press qq
qq or ZZ
ZZ to scroll to Software
Version then press AA
AA to select. You will
see: Version XXXX.
5. Exit
Menu Press º to exit the menu, or you may
scroll to other features.
4. Find
Feature Press qq
qq or ZZ
ZZ to scroll to Analog Only.
5. Toggle
Feature Press AA
AA to toggle the feature ON or OFF.
6. Exit
Menu Press º to exit the menu, or you may
scroll to other features.
Roam List
Version P
Software
Version P
Analog
Only Off P
Shortcut:
Press ƒ then
¤ to toggle
Analog Only ON
or OFF.
104
Getting to System Options...
1. Enter Menu Press ƒ then press aa
aa.
2. Enter
Phone Options Press qq
qq or ZZ
ZZ to scroll to Phone Options
and press aa
aa to select.
3. Enter
System Options Press qq
qq or ZZ
ZZ to scroll to System Options
and press aa
aa to enter.
System Options Submenu
Selecting a System Mode
Your Service Provider configures Select System Mode when you
receive your phone. This feature allows you to select the type of
system your phone will attempt to access. See below for a chart of
available settings.
4. Begin
Selection Press qq
qq or ZZ
ZZ to scroll to Select
SystemMode and press aa
aa to enter.
The display will show your phone’s
current System Mode setting.
5. Choose
Mode Press qq
qq or ZZ
ZZ to scroll through the System
Mode settings (see chart on next page).
Press aa
aa to select the displayed setting.
6. Exit
Menu Press º to exit the menu, or you may
scroll to other features.
Select
SystemMode
P
Shortcut:
Press ‰
then «.
105
Phone Options
Selecting a System Mode
Standard Mode:
Your phone first seeks a home type
system, then a non-home type system.
If home system is non-wireline
(type A)
If home system is wireline (type B)
Reversed Preference Mode:
Your phone first seeks a non-home
type system, then a home type
system. (This mode may be useful
in fringe areas or certain roaming
situations.)
If home system is non-wireline
(type A)
If home system is wireline (type B)
Home Only Mode:
Phone will not operate outside its
home system.
Scan A Mode:
Phone will operate only within
non-wireline (A) systems.
Scan B Mode:
Phone will operate only within
wireline (B) systems.
Preferred System ID Mode:
Phone will scan for home or
programmed preferred SIDs first.
This choice requires entry of up to
60 System ID numbers for those
systems in which you wish to
operate. Contact your Cellular
Service Provider for SID information.
Std BA
Std AB
Scan BA
Scan AB
Home Only
Scan A
Scan B
Preferred
SID Scan
106
An exciting line of accessories can enhance and personalize your digital
cellular experience.
Lithium Ion Batteries Motorola’s Lithium Ion (LiIon)
batteries are high energy-density
batteries that offer increased
capacity and are lighter in weight
than similar sized Nickel
Cadmium and Nickel Metal
Hydride batteries.
Nickel Metal Hydride Batteries
Nickel Metal Hydride batteries (NiMH) are high-capacity batteries that offer up to
30% more talk-time than comparable Nickel Cadmium batteries. To help achieve
maximum life and capacity for your NiMH battery, do not leave the battery in the
charger for more than 24 hours, and use only Motorola-approved chargers.
Cigarette Lighter Adapter
Lets you plug into a reliable power source on
the road. Uses your car’s battery to power your
phone and rapid charge its battery at the
same time. The Cigarette Lighter Adapter will
not overcharge your battery and contains
circuitry to protect against overvoltage and
power surges in the vehicle. In some cars, the
engine must be running in order for the
cigarette lighter to operate.
Accessory Options
107
Reference
Desktop Charger
(AC Adapter Required) This charger can be loaded with up to
three batteries. Equipped with one LED
charging status indicator for each
battery, the charger’s front pocket can
charge both a main and an auxiliary
battery attached to a phone, and the
rear pocket can charge one battery by
itself. For use with Lithium Ion, Nickel
Cadmium and Nickel Metal Hydride
batteries.
Holster
Your Digital StarTAC® phone is so small and
light, it is positively wearable. Slip it in the
holster and clip the holster on– for the ultimate
in high-tech fashion.
Headset The convenient headset provides both an earphone and
microphone in one small piece for simple hands-free and
private telephone conversations. The headset plugs directly
into the jack on the top of your phone, so that you can wear
your phone and move freely. Place the foam cover on the
earpiece for a more comfortable fit. See pages 92-97 for Call
Options that make using a headset with your phone even
more convenient.
PCMCIA Modems
These compact modems are made for mobility, with cable attachments that plug
directly into the bottom of your Motorola cellular phone. They support fax, e-mail,
and data transmission. The PCMCIA modems work with data devices using a
standard PCMCIA Type II slot.
Accessory Options
108
Hands-Free Vehicle Kit
Optional Hands-Free Kits give you the convenience of hands-free, speaker phone
operation while in your car. Full duplex operation lets you simultaneously talk and
listen, so both parties can interrupt each other for a normal sounding conversation.
The Hands-Free Kit powers the phone and charges its battery whenever your car’s
engine is running.
Keep in mind: Motorola offers a 3-Watt Vehicular Kit, which includes a 3-watt
booster for analog signals. Since the Digital StarTAC® phone is a digital phone, it is
not compatible with the 3-Watt Kit.
Important: We recommend you use genuine Motorola batteries and accessories.
Under its cellular telephone warranty, Motorola specifically disclaims any
responsibility for damage caused by the use of portable cellular telephone accessories
not manufactured by Motorola.
Zero Install Car Kit
For the quickest and easiest mobile solution, use the Zero Install Car Kit. Just plug
it in, attach the microphone, and you are ready to go!
Accessory Options
109
Reference
Q. I pressed the power button, but nothing happened. What’s
wrong with my phone?
A. Check that you have installed a battery and that the battery is charged. See
page 12 for information about installing your battery.
Q. The display says Locked. How do I unlock my phone?
A. Try entering the last three digits of your cellular number. If that does not
work, try using the factory preset lock code: 123. If this fails, call your
Service Provider (the company that sends you your monthly cellular bill)
for assistance. For more information on your phone’s security features, see
the Lock/Security chapter, page 80.
Q. My battery did not last as long as I expected. What can I do to
extend battery life?
A. To get the most from your battery, make sure it is fully charged. To charge
the battery to 100% of its capacity, leave it in the charger for an extra hour
after the charger’s light turns green.
Exposing your battery to extreme temperatures—below -10°C (14°F) or
above 45°C (113°F)—can shorten battery life. Batteries are especially
sensitive to high temperature extremes. It is a good idea to always take your
phone with you when you leave your car.
Q. I tried to place a call and received a fast busy signal.
A. This sound means that your call was not processed. For example, the
network may be temporarily busy. To redial the number, press the Smart
Button or press æ (or ª) before ending your call attempt, or press º
and try the call again later. See page 97 for more information on redialing.
Troubleshooting
110
Q. I tried to place a call but received an alternating
high/low tone. What does this mean?
A. This sound means your call did not connect to the network. Most likely, you
dialed the number too soon after turning the phone ON. Wait until the NS
indicator disappears before placing a call.
An alternating tone may also indicate that your phone’s signal is blocked.
Make sure the antenna is fully extended and move clear of any
obstructions, like bridges, parking garages, tall buildings, etc.
Q. Whenever I turn the phone ON, the display says: Invalid
Battery. What does this mean and why am I not able to
charge the battery?
A. Your cellular phone uses the Motorola Expert Performance (E•P)
Charging System. The E•P system enables the built-in charger to
communicate with attached batteries and tailor its charging cycle to
optimize performance.
If you see Invalid Battery when you power up the phone, the built-in
charger is not able to communicate with the battery and cannot charge it.
You could see this message for several reasons. The most likely one is that
the battery is not a Motorola original and it does not have the appropriate
E•P technology. We recommend that you use only Motorola original
batteries and accessories and that you store your batteries in their protective
covers when not in use.
Q. My phone started beeping, and the display says: 1 Call
Unanswered. What happened?
A. Someone tried to call you while you were in an area where the signal was
weak. Press Ç to clear your display, extend your phone’s antenna, and
avoid obstructions like tunnels, parking garages and tall buildings
whenever possible.
Q. My phone was stolen. What should I report and to whom?
A. Report a stolen phone to the police and to your Service Provider (the
company that sends you your monthly cellular service bills).
Troubleshooting
111
Reference
A
AC Adapter An accessory device that allows you to power and/or charge your phone from a wall
outlet. See page 16.
accessory connector A socket on the bottom of the phone where you can attach accessories
such as an AC Adapter or cigarette lighter adapter. To learn more, see page 16.
air-time The amount of time you spend using a cellular system, between the time you
successfully place a call and the termination of that call.
alkaline A battery technology used in personal cellular telephones.
analog The traditional method of cellular transmission. In addition to analog capability, your
phone is equipped to handle digital transmission. See also CDMA.
antenna The device on your phone that sends and receives cellular signals.
Auto Answer When you activate this feature, your phone automatically answers after two rings.
See page 96.
Automatic Redial When your cellular network cannot handle your call, this feature enables
your phone to automatically redial with one button push. See page 29.
C
Call Back number A phone number in a text message, provided by the sender. See page 54.
Caller ID A network/subscription dependent service that allows you to view information on
incoming calls before answering. See page 50.
CDMA (Code Division Multiple Access) CDMA takes digitized voice and encodes it in a
unique scheme that is sent out over the air. CDMA digital reduces the probability of dropped
calls. Your phone is equipped to handle CDMA digital voice transmission.
cellular carrier One of multiple competing companies in a given geographic area that owns
and operates a cellular system.
Cellular Service Provider A company affiliated with a cellular carrier that provides cellular
service to its customers.
cellular signal The radio waves that carry information between your cellular phone and the
cellular system.
cellular system The cellular equipment in a given geographic area that relays signals to and
from individual cellular telephones and the landline telephone system.
cigarette lighter adapter An accessory device that allows you to power and/or charge your
phone from a car’s cigarette lighter.
Glossary
112
D
dedicated Message Key See Message Key.
default A feature’s original setting as programmed in the factory.
digital See CDMA.
DTMF Dual Tone Multi-Frequency are the tones that your phone transmits to communicate with
tone activated phone systems like Voice Mail or bank-by-phone. See page 78. Keep in mind:
“DTMF Tones” does not refer to the sounds produced by your phone’s speaker. See Keypad
Tones for information on the sounds produced by your phone’s speaker.
E
Emergency Call This feature allows you to place a call from memory location 01 even if the
phone is locked. See page 83. F
fringe area The outermost range of a cellular system where cellular signals are weak.
function keys The non-numeric keys on your phone used to access and navigate menu fea-
tures, as well as perform memory functions. See page 20.
H
Home Only Mode When your phone is active in this System Mode setting and you are beyond
the range of your home Service Provider, your phone will not operate. See page 104. See also
system type.
home system The local cellular system where you obtain your cellular service.
home type system A cellular system of the same type as the local cellular system where you
obtain your service. See also non-home type system and system type.
I
icon One of the variety of symbols used to designate menu features and messages.
indicator A symbol on your phone that gives you information about your phone’s status.
See pages 24-27.
Instant Redial This feature enables your phone to redial when your cellular network is tempo-
rarily unable to handle your call. Your phone will automatically attempt the call for four
minutes or until it is picked up by the network. See page 97.
Internal Rapid Charger A charger built into your phone for use with an AC Adapter or ciga-
rette lighter adapter. See page 16.
Glossary
113
Reference
K
Keypad Tones The sounds produced through your phone’s speaker when you press the keys.
See page 76. Keep in mind: “Keypad Tones” does not refer to the tones sent by your phone to
communicate with automated phone systems. See Transmit Tones for information on the
tones used to access automated phone systems.
L
landline The telephone system used for conventional office and home phones.
Lithium Ion (LiIon) A battery technology used in personal cellular telephones. Lithium Ion
batteries generally provide more energy capacity than Nickel Metal Hydride batteries of the
same weight.
lock To prevent unauthorized access to the cellular telephone. See page 82.
lock code A three-digit code used to access your phone once it has been locked. The factory
programmed lock code is 123. To view or change your lock code, see page 84.
M
memory location A space in the Phone Book where you can store a telephone number and a
name. Each of the Phone Book’s 99 memory locations (numbered 01-99) can hold up to 32
digits and 24 letters.
menu This system contains five features: Phone Book, Timers, Tone Control, Lock/Secure, and
Phone Options.
menu feature Any feature that can be accessed through the menu system.
Message Key Located on the bottom row of the keypad, the dedicated Message Key offers
One-Touch Access to messages and messaging functions. See page 48. See also Caller ID,
Messages, and Voice Mail.
Messages A network/subscription dependent service that enables your phone to receive text
messages and numeric pages just like a pager. See page 54.
Messaging Function Menus While viewing your Caller IDs, reading your Messages, or
checking your Voice Mail, you can use these menus to manage your messages: lock or unlock
a text message, delete one or all of your Caller ID or text messages and numeric pages, or
select a different message type.
Glossary
114
N
Nickel Cadmium (NiCd) A battery technology used in personal cellular telephone batteries.
Nickel Metal Hydride (NiMH) A battery technology used in personal cellular
telephone batteries.
non-home type system A system type different from your home system. See also home type
system and system type.
non-wireline See system type. P
pause A special character that tells your phone to wait before sending the next set of numbers
stored in one memory location. See Pause Dialing.
Pause Dialing A method of storing Phone Book entries that allows you to store multiple strings
of numbers in one memory location; useful, for instance, in accessing automated phone sys-
tems. See page 44.
Personal Identification Number (PIN) A private numeric password which protects per-
sonal accounts such as bank-by-phone or Voice Mail.
Phone Book An alphabetical list of the names and telephone numbers you have stored into
your phone’s internal memory.
Preferred System ID Mode When your phone is in this system mode setting, it will scan for
systems on a preferred list. This choice requires entry of up to 60 System ID numbers. Contact
your Service Provider for SID information.
prompt A display message requesting input. Q
Quad Number Your phone can be activated with up to four different phone numbers.
See page 90 to learn how to change the number active on your phone.
R
Reversed Preference Mode When your phone is active in this System Mode setting and you
are beyond the range of your home Service Provider, your phone will seek a non-home type
system, then a home type system. See pages 103-104. See also system type.
road map The visual representation of your phone’s menu system provided in this manual.
roam To use a cellular system outside of your home system, usually when you travel beyond the
range of your home system.
Glossary
115
Reference
S
Scan A Mode When your phone is active in this System Mode setting and you are beyond the
range of your home Service Provider, your phone will only operate on non-wireline type sys-
tems. See pages 103-104. See also system type.
Scan B Mode When your phone is active in this System Mode setting and you are beyond the
range of your home Service Provider, your phone will only operate on wireline type systems.
See pages 103-104. See also system type.
Scratchpad A memory feature that automatically remembers the most recent number entered
into the keypad. See page 43.
Scratchpad tones See DTMF.
scroll To move backward or forward through a list; for example, to move backward or forward
through the menu system or the Phone Book using either the volume keys or the « and
» keys.
secure code A six-digit code used to access and change certain security features.
The factory programmed secure code is 000000.
Service Provider See Cellular Service Provider.
Service Tones Two short beeps used to alert you to changes in your cellular service. See page 79.
signal See cellular signal.
Silent Mode Select this feature and all your phone’s tones will be silenced and the VibraCall®
Alert activated. See page 74.
Smart Button The middle key on the side of your phone used to access the Phone Book, place
calls, end calls, select the Phone Book, enter the menu system, and toggle features ON and
OFF.
soft-handoff Unlike traditional analog technology where you are disconnected from one site
and then connected to another, CDMA digital technology connects you to a new site before
disconnecting you from the old site. This is known as a “soft-handoff.” With soft-handoff
technology, you could experience fewer dropped calls.
Standard Mode When your phone is active in this System Mode setting and you are beyond the
range of your home Service Provider, your phone will seek a home type system, then a non-
home type system. See page 104. See also system type.
standby-time The total time your phone is ON but not used for talking.
Glossary
116
Super Speed Dial A dialing shortcut that allows you to quickly dial any number in the Phone
Book. To use this feature, enter the two-digit location of the number, 01-99, then press and
hold Smart Button or press æ (or ª) and the call is placed. See page 42.
System ID Every cellular system has a unique number to identify itself. See page 102.
System Mode A setting that determines the system type that your cellular phone will access. See
page 104 to select a System Mode.
system type A designation that indicates one of the two competing cellular carriers in a given
geographic area. The non-wireline carrier operates on the “A” block of cellular frequencies,
and the wireline carrier operates on the “B” block of cellular frequencies.
T
talk-time The total time that you can talk on your phone before the battery is fully discharged.
toggle To switch between two possible options; for example: ON vs. OFF. Pressing the Smart But-
ton toggles features ON or OFF.
Transmit Tones See DTMF.
Turbo Dial® keys To use this feature, press and hold a number on the keypad, ⁄ through
·, and your call is placed. U
unlock code See lock code. V
VibraCall® Alert When activated, this feature alerts you silently of incoming calls by vibrating.
It can be used alone or in conjunction with the ringer. See page 75.
Voice Mail Contact your Service Provider for availability.
volume keys Located on the side of your phone, the upper and lower volume keys are used
to adjust ringer and keypad volume. They also scroll within the menu system and the
Phone Book. W
wireline See system type.
Glossary
117
Reference
Patent Information
Manufactured under one or more of the following U.S. patents:
4121218
4138681
4193036
4254382m
4302845
4312074
4327319
4329666
4369516
4369522
4378603
4390963
D269873
4398265
4400584
4400585
D270835
D271491
Re.31470
4431977
4434461
4455534
4462098
D275951
4484153
4485486
4486624
D276809
4491972
D277667
4504834
D278708
4523155
4546329
4550426
4551696
4564821
D282169
4571595
4573017
4574243
4585957
4602218
D284759
D285439
4616314
4617520
D286778
4626309
4628529
4629829
4630304
4630305
4633141
4636593
4636741
D288432
4648125
4649543
D288683
4654655
D289156
4662691
4667333
4668917
4670747
4672502
4680787
4681476
4683585
4692726
4704588
D292578
4706036
D292920
4710724
4711361
4715063
4716319
4716391
4723305
D294257
4727306
4727583
4730195
4734635
4736277
4737976
4740794
4741018
4741034
4742562
D295627
4746242
D295973
D295975
4751737
D296187
4761621
4764737
D297734
D297735
4777564
Re.32768
D299136
4797929
4798975
4800348
4802236
4809356
4811377
4811404
4827226
4827507
4829274
4837534
D301476
4843621
4845772
D302015
4851966
4868576
4870686
D303656
4876552
4879533
D305427
4896124
4897873
D305717
4904549
4905288
4905301
D306293
D306441
D306594
4912602
4918732
4922178
4945570
4954796
4959851
4963812
4963843
4965537
4972355
4972432
4972455
4975808
4984290
D314173
D315330
D315346
D315543
D315559
D315565
5004992
D315907
5008925
D316417
D316859
5017856
5018188
5020091
5020092
5020093
5028083
5028859
5029044
5029233
5031028
5036532
5053924
5057762
D320780
5059885
5060294
D322783
D322955
5081674
5083304
D324024
D324388
5095503
D325028
D325583
5109536
D325915
5113436
5117450
5121047
5122480
5122722
D327061
5128834
D328302
5142551
5142696
5146620
5148471
5148473
5148961
5150359
5150384
5152006
5157693
5163159
5164652
5166596
5175759
5175874
D332261
5182749
D332785
5185566
5187809
5193223
5195106
5195108
5201069
5204977
5210793
5214675
5222104
5222251
D337332
5230007
5230093
5233633
5235492
5237257
5239127
5241545
5241548
5241650
5241693
5242767
D339582
5249302
5251331
D340710
5260988
5261119
5262710
5263052
5276707
5278994
D343173
5280637
D344087
5287553
5287555
5287556
D344511
5301365
5321847
D348880
5349588
5359696
5361400
5363071
5365549
D352497
5366826
D353131
D353361
5375143
5375258
5379324
D354055
D354062
5384825
D356084
5402447
5406146
5406562
D357224
D357457
5410741
D357680
D357681
5428836
D359734
D359735
D359959
5432017
D360632
5438684
D361070
5442680
5446763
5448763
5448771
5453997
D362840
5457744
5459640
5463646
5465412
5469177
5475752
D365094
D365817
5486843
5487184
5488335
5488649
D366872
5493198
5493714
5497126
5497382
D367640
5499394
5506490
D368696
5510693
5511235
D369162
5513078
D369359
5519303
5519346
5524276
5524278
D370463
5530922
5542116
5544250
D372481
5546275
5546380
D372896
5551078
5559471
D374424
D374872
5572193
5574976
5577268
D375732
D375733
D375734
D375932
D375952
D376127
5588041
5589796
5590177
5594778
5594951
D377792
D377934
5604050
5606730
D378366
5613229
5613863
5615233
5621763
Other patents pending.
118
A
AC adapter 16–18
accessory connector 20
account numbers, storing 44–
45
adjusting volume 33
alpha characters, entering 39
Analog Indicator 23, 25
Analog Only 103
answering calls 30–31
automatic answer 96
multiple key answer 94
antenna 20
audible timers
one minute 70
repeating 71
single 71
Authentication Entry 87
auto display timer 70
auto lock 82
automated systems
calling 44–45
storing number 44–45
automatic answer 96
automatic redial 29
B
banner 99
batteries 12–17
chargers 16–19
charging 16–21
covers 12–13
installing 14–15
storage & disposal 17
varieties 106
battery level
indicator 24
shortcut 35
C
Call Back messages 54
Call Options 92–97
Call Timers 66–71
road map 67
Caller ID 30
deleting 51
number preference 63
options 51
viewing 50
calling cards
storing numbers 46
using 47
changing lock code 84
changing secure code 86
changing the banner 99
changing your number 90
chargers 16–19
desktop 18–19
Internal Rapid 16
charging batteries 16–19
checking your voice mail 52
cigarette lighter adapter 16, 106
clear key 20
Clear, Master 85
clearing
Caller ID 51
Messages 55
Phone Book entries 41
settings 85
Voice Mail notification 53
clock 24
display format 101
cumulative call timer 69
D
deleting
Caller ID 51
Messages 55
Phone Book entries 41
Voice Mail notification 53
desktop charger 18–19
indicator lights 19
times 19
dialing
emergency call 83
restricting 87
Digital Indicator 24
display 20
individual call timer 68, 70
last ten numbers dialed
29
lock code 84
system ID 102
your number 63
Display Options 99–101
displaying
Index
119
Index
caller’s numbers 63
displaying the 24-Hour Clock 101
DTMF tones 78
storing 44–47
E
earpiece 20
editing memory 64–65
emergency call 83
ending calls 28
entering names 39
entries, clearing 41
F
fax compatibility 107
flip 20
function key 20
G
Getting Started 10–21
Glossary 111–116
H
Hands-Free Vehicle Kit 106
headset 107
headset jack 20
holster 107
Home Only Mode 105
I
In Use Indicator 25
incoming calls 30–31
indicators
Analog 25
battery level 24, 26
desktop charger lights 19
Digital 24
In Use 25
No Service 25
Roam 25
Service Light 27
Signal Strength 24
Silent Mode 25
Unanswered Call 31
VibraCall® On 25
Vibrate Then Ring 25
individual call timer 68
auto display 70
installing batteries 14–15
Instant Redial 97
Internal Rapid Charger 16
K
keypad cover 20
Keypad Tones 76
L
LAN compatibility 107
last ten numbers dialed 29
letters, entering 39
Lithium Ion Batteries 106
lock automatically 82
manually 82
messages 55
lock code
changing 84
viewing 84
Lock/Security 80–86
road map 81
M
Master Clear 85
Master Reset 85
memory 36–43
editing 64–65
Phone Book 58–63
recalling 40–42, 60–61
storing 38, 62
tips 37
menu features 56
Messages
Call Back 54
lock/unlock 55
options 55
reading 54
receiving 49
Messaging Menu 48
microphone 20
modem compatibility 107
multiple key answer 94
mute the phone 32
N
names
clearing 41
entering 39
recalling 40, 60, 61
viewing 63
navigating the menu 56
120
Nickel Metal Hydride Batteries 106
No Service Indicator 25
number
changing yours 90
viewing others 63
viewing yours 63
number character 46–47
Number Preference 63
numbers
recalling 40–42
storing 38
O
one minute timer 70
outgoing calls
controlling 87
placing 28
P
Pause Dialing 44–45
PCMCIA Modems 107
personalizable banner 99
Phone Book 58–63
editing 64–65
memory 36–43
recalling 60–61
road map 59
status 61
storing 38, 62
phone lock
automatically 82
manually 82
phone number
changing yours 90
viewing others 63
viewing yours 63
Phone Options 88–103
road map 89
PIN code
activating 92
storing 93
using 93
placing calls 28
emergency call 83
redial 29
power key 20, 22
Preferred System ID Mode 105
R
reading the indicators 24–27
reading your messages 54
real time clock 24
recall key 20
recalling
by location 41
by name 40, 60, 61
shortcuts 42
receiving calls 30–31
automatic answer 96
multiple key answer 94
receiving messages 49
redial 29
automatic 29
Instant 97
last ten numbers dialed 29
repeating timer 71
Reset, Master 85
resettable call timer
resetting 69
viewing 68
Reversed Preference Mode 105
ringersilencing 74–75
style 75
volume 33
ringer/vibrator 74–75
road maps 57
Call Timers 67
Lock/Security 81
Phone Book 59
Phone Options 89
Tone Control 73
Roam Indicator 25
roam list version 103
S
Safety Information 6–9
Scan A Mode 105
Scan B Mode 105
Scratchpad 43
Scratchpad Tones 78
scroll keys 20
secure code, changing 86
Secure Options 84–86
security 80–86
selecting a system mode 104–105
selecting ringer style 75
send key 20
service level 87
Service Light 27, 101
121
Index
Service Tones 79
shortcuts 34
signal strength 24
Silent Mode 74–75
Indicator 25
silent mode 32
single timer 71
Smart Button 21
software version 103
Standard Mode 105
store key 20
storing 38, 62
Call Back number 54
while on a call 43
Super Speed Dial 42
system ID, viewing 102
System Mode 104–105
system mode 104
System Options 102–103
T
Three-Watt Vehicular Kit 108
timers
audible 70–71
cumulative 69
individual 68, 70
one minute 70
repeating 71
resettable 68, 69
single 71
Tone Controls 72–78
Basic 32–33
road map 73
volume 33
toneskeypad 76
service 79
storing 44–47
Transmit Tones 78
storing 44–47
Turbo Dial® keys 42
emergency call 83
Turning Your Phone On 22
U
unanswered call indicator 31
unlock/lock 82
Using Messaging 48–55
V
VibraCall® Alert 32, 74–75
VibraCall® On Indicator 25
Vibrate Then Ring Indicator 25
vibration mode 32
viewing
Caller IDs 50
cumulative call timer 69
individual call timer 68, 70
lock code 84
resettable call timer 68
your number 63
Voice Mail
calling 44–45
checking 52
deleting notification 53
options 53
storing number 44–45
volume keys 20
volume, adjusting 33
Y
Your Phone & Its Shortcuts 34
Z
Zero Install Car Kit 108
