Welcome

Congratulations! As the proud owner of a state-of-the-art

Motorola cellular phone, product superiority is yours.

All Motorola cellular phones are designed and

manufactured to meet Motorola’s rigorous speciﬁcations

and world-class quality standards. During development, our

laboratory testing team took the TDMA StarTac cellular

phone through its paces. They cooked it, steamed it, shook

it, shocked it, dusted it, and dropped it—and the phone still

worked! We are conﬁdent that the one you purchased will

meet your own exacting standards.

Thank you for choosing Motorola and, by all means, enjoy

your TDMA StarTac phone!

Welcome

What’s New?

The company that brought you the world’s ﬁrst

commercially available TDMA cellular phone has done it

again!

Motorola is proud to introduce the TDMA StarTac–the latest

breakthrough in personal cellular communications. Using

the latest advances in TDMA digital technology, the dual-

mode TDMA StarTac phone automatically switches between

high-capacity TDMA digital and traditional analog systems.

Just look what the new TDMA StarTac phone has to offer:

Short Messaging Service (SMS)

Thanks to SMS, you can receive and store up to 10 full-

length alphanumeric messages. Simply press the dedicated

message button and read your messages on the large

scrolling display.

In-Building Services

“One Phone Number” technology allows your TDMA

StarTac to use non-public cellular systems. The In-Building

feature saves you time and money.

Welcome

iii

Highlights

As one of the most sophisticated cellular phones around,

your TDMA StarTac phone offers exceptional features that

make life easier, more organized, and more fun! This

miracle of modern technology can help you…

• conserve battery power when the phone is waiting

for a call while in Sleep Mode

• receive and store pager-like alpha numeric mes-

sages on the cellular phone using the short messag-

ing service

• receive calls discreetly with the VibraCall™ func-

tion

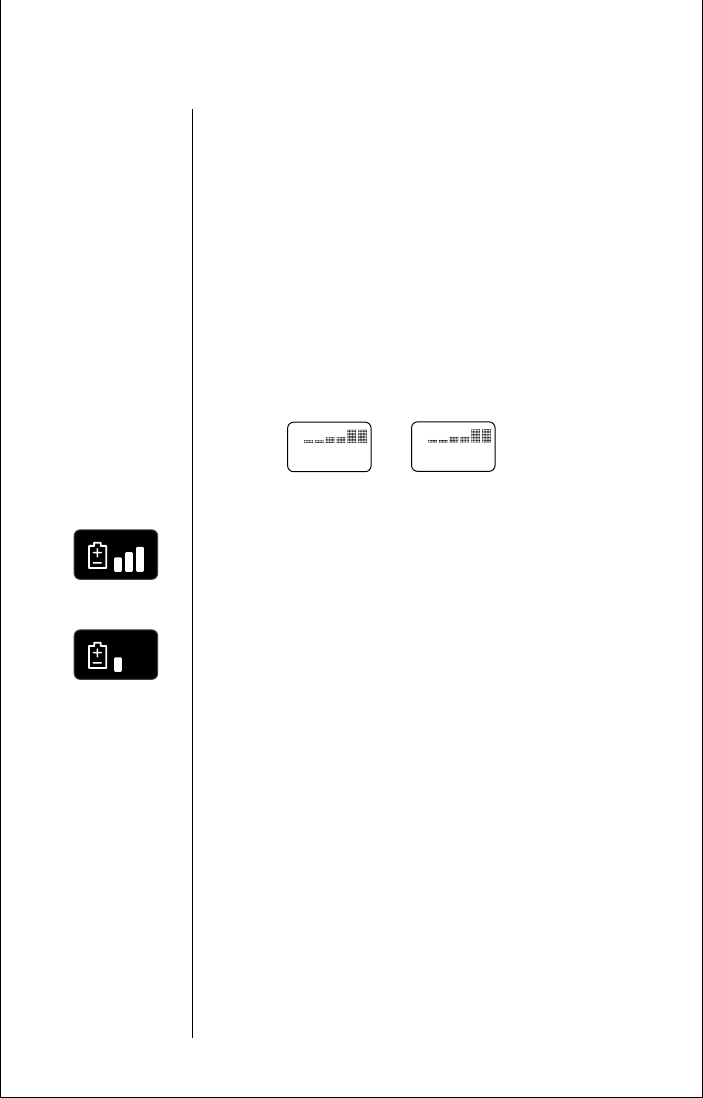

• know when to charge with the Dedicated Battery

Level Indicator

• read more information on the scrolling two line dis-

play

• make calls in a ﬂash with the Turbo Dial™ func-

tion

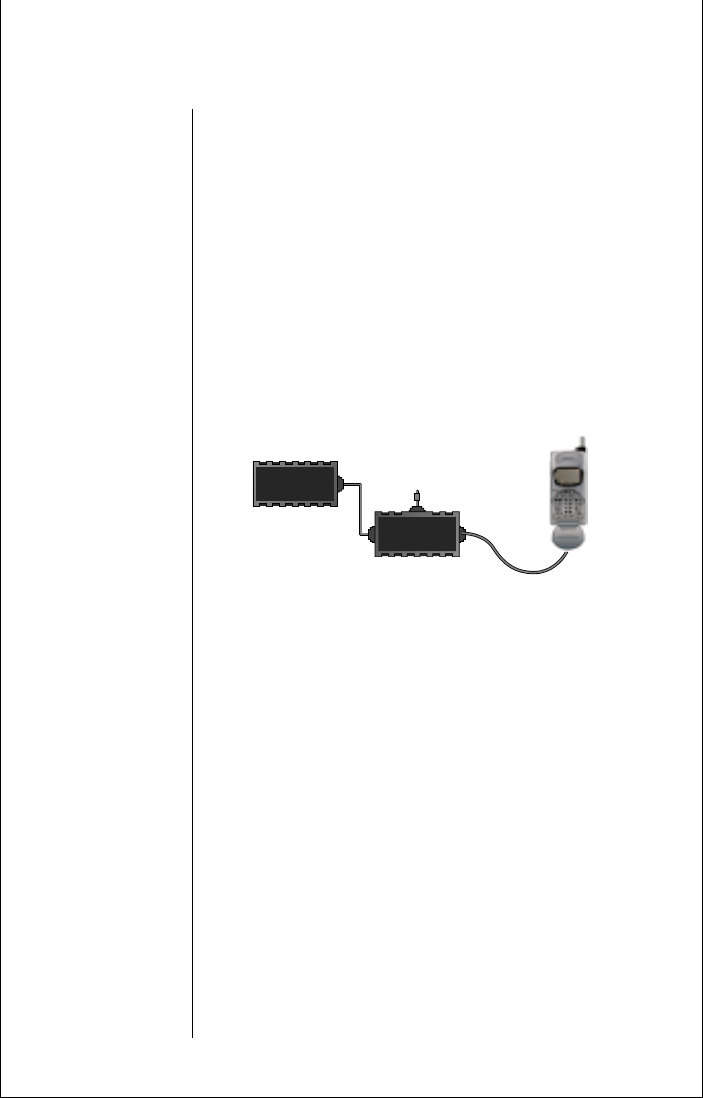

• charge on the go with the Internal Rapid Charger

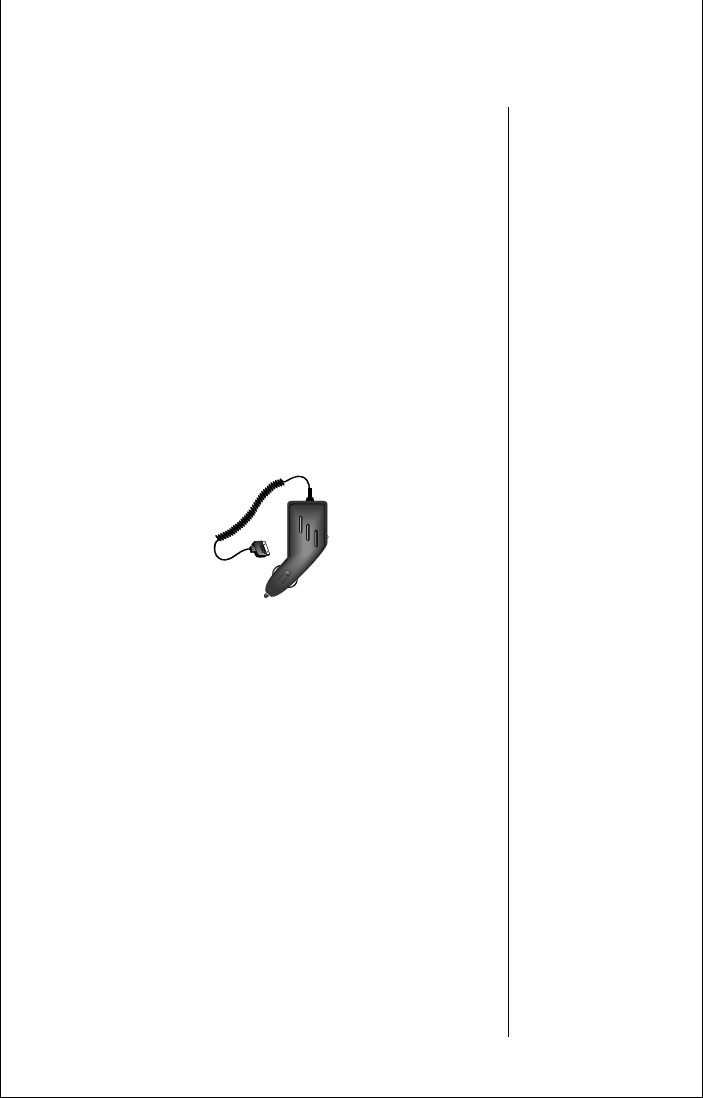

and an AC Adapter or Cigarette Lighter Adapter

• navigate phone features with a user-friendly, icon-

driven menu interface

• remember phone numbers with the internal Phone

Book.

• monitor your calls with Displayed and Audible Call

Timers

• reduce roaming with two-system registration

Welcome

Safety Information

Important:

Read this information before using your

wireless handheld phone.

Exposure to Radio Frequency Signals

Your wireless handheld portable telephone is a low power

radio transmitter and receiver. When it is on, it receives and

also sends out radio frequency (RF) signals.

In August 1996, The Federal Communications

Commissions (FCC) adopted RF exposure guidelines with

safety levels for handheld wireless phones. Those guidelines

are consistent with safety standards previously set by both

U.S. and international standards bodies:

• American National Standards Institute (ANSI)

C95.1 1992

• National Council on Radiation Protection and Mea-

surement (NCRP) Report 86 1986

• International Commission on Non-Ionizing Radia-

tion Protection (ICNIRP) 1996

Those standards were based on comprehensive and periodic

evaluations of the relevant scientiﬁc literature. For

example, over 120 scientists, engineers, and physicians

from universities, government health agencies, and

industry reviewed the available body of research to develop

the ANSI Standard(C95.1).

The design of your phone complies with the FCC guidelines

(and those standards).

Welcome

Safety Information (Continued)

Antenna Care

Use only the supplied or an approved replacement antenna.

Unauthorized antennas, modiﬁcations, or attachments

could damage the phone and may violate FCC regulations.

Phone Operation

Normal Operation

Hold the phone as you would any other telephone with the

antenna pointed up and over your shoulder.

Tips on Efficient Operation

For your phone to operate most efﬁciently:

• Extend your antenna fully.

• Do not touch the antenna unnecessarily when the

phone is in use. Contact with the antenna affects

call quality and may cause the phone to operate at a

higher power level than otherwise needed.

Batteries

Caution:

All batteries can cause property damage, injury, or

burns if a conductive material, such as jewelry, keys, or

beaded chains, touches exposed terminals.The material

may complete an electrical circuit and become quite hot.

To protect against such unwanted current drain, exercise

care in handling any charged battery, particularly when it

is inside your pocket, purse, or other container with metal

objects.When the battery is detached from the phone, your

batteries are packed with a protective battery cover; please

use this cover for storing your batteries when not in use.

Welcome

Safety Information (Continued)

Driving

Check the laws and regulations on the use of wireless

telephones in the areas where your drive. Always obey them.

Also, if using your phone while driving, please:

• Give full attention to driving--driving safely is your

ﬁrst responsibility.

• Use hands-free operation, if available.

• Pull off the road and park before making or answer-

ing a call if driving conditions so require.

Electronic Devices

Most modern electronic equipment is shielded from RF

signals. However, certain electronic equipment may not be

shielded against the RF signals from your wireless phone.

Pacemakers

The Health Industry Manufacturers Association

recommends that a minimum separation of six (6") inches

be maintained between a handheld wireless phone and a

pacemaker to avoid potential interference with the

pacemaker. These recommendations are consistent with the

independent research by and recommendations of Wireless

Technology Research. Persons with pacemakers:

• Should ALWAYS keep the phone more than six

inches from their pacemaker when the phone is on.

• Should not carry the phone in a breast pocket.

• Should use the ear opposite the pacemaker to mini-

mize the potential for interference.

• If you have any reason to suspect that interference is

taking place, turn your phone off immediately.

Welcome

vii

Safety Information (Continued)

Electronic Devices (Continued)

Hearing Aids

Some digital wireless phones may interfere with some

hearing aids. In the event of such interference, you may

want to consult your hearing aid manufacturer to discuss

alternatives.

Other Medical Devices

If you use any other personal medical device, consult the

manufacturer of your device to determine if it is adequately

shielded from external RF energy. Your physician may be

able to assist you in obtaining this information.

Turn your phone off in health care facilities when any

regulations posted in these areas instruct you to do so.

Hospitals or health care facilities may be using equipment

that could be sensitive to external RF energy.

Vehicles

RF signals may affect improperly installed or inadequately

shielded electronic systems in motor vehicles. Check with

the manufacturer or its representative regarding your

vehicle. You should also consult the manufacturer of any

equipment that has been added to your vehicle.

Posted Facilities

Turn your phone off in any facility where posted notices so

require.

Aircraft

FCC regulations prohibit phone usage while in the air.

Switch off your phone before boarding an aircraft.

viii

Welcome

Safety Information (Continued)

Blasting Areas

To avoid interfering with blasting operations, turn your

phone off when in a “blasting area” or in areas posted:

“Turn off two-way radio.” Obey all signs and instructions.

Potentially Explosive Atmospheres

Turn your phone off in any area with a potentially explosive

atmosphere and obey all signs and instructions. Sparks in

such areas could cause an explosion or ﬁre resulting in

bodily injury or even death.

Areas with a potentially explosive atmosphere are often, but

not always, clearly marked. They include fueling areas such

as gasoline stations, below deck on boats, fuel or chemical

transfer or storage facilities, vehicles using liqueﬁed

petroleum gas (such as propane or butane), areas where

the air contains chemicals or particles (such as grain, dust,

or metal powders), and any other area where you would

normally be advised to turn off your vehicle engine.

For Vehicles Equipped with an Air Bag

An air bag inﬂates with great force. DO NOT place objects,

including both installed or portable wireless equipment, in

the area over the air bag or in the air bag deployment area.

If in-vehicle wireless equipment is improperly installed and

the air bag inﬂates, serious injury could result.

Welcome

Contents

Welcome

What’s New? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii

Highlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iv

Getting Started

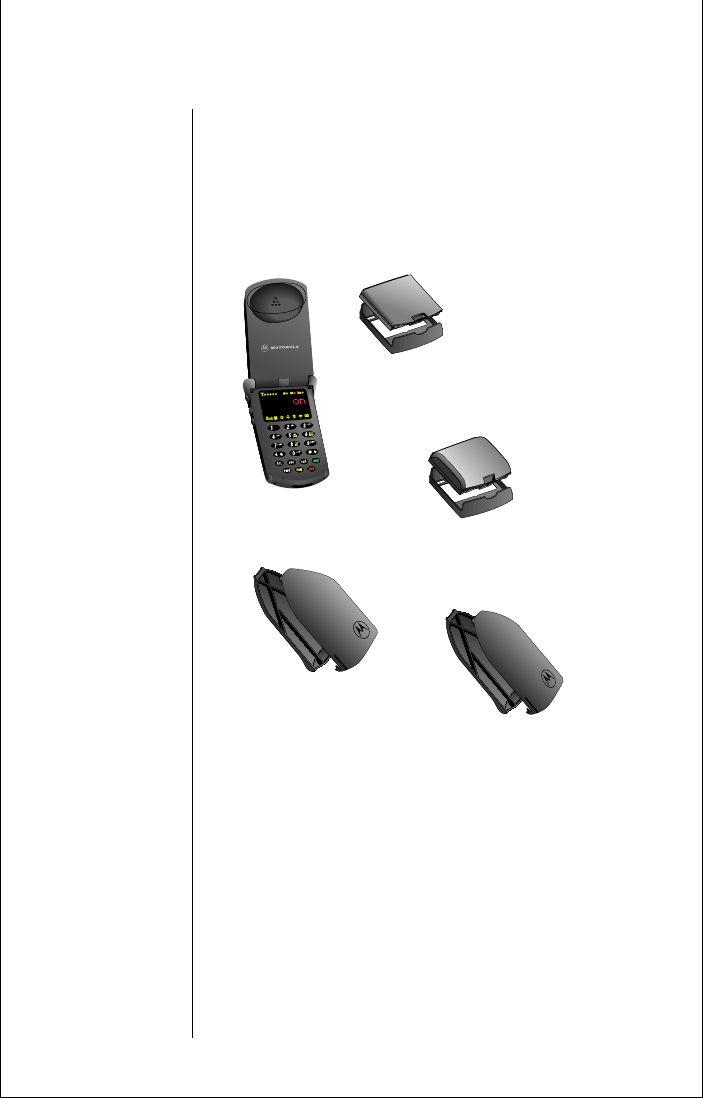

Package Content Options . . . . . . . . . . . . . . . . . . . . . . . . 14

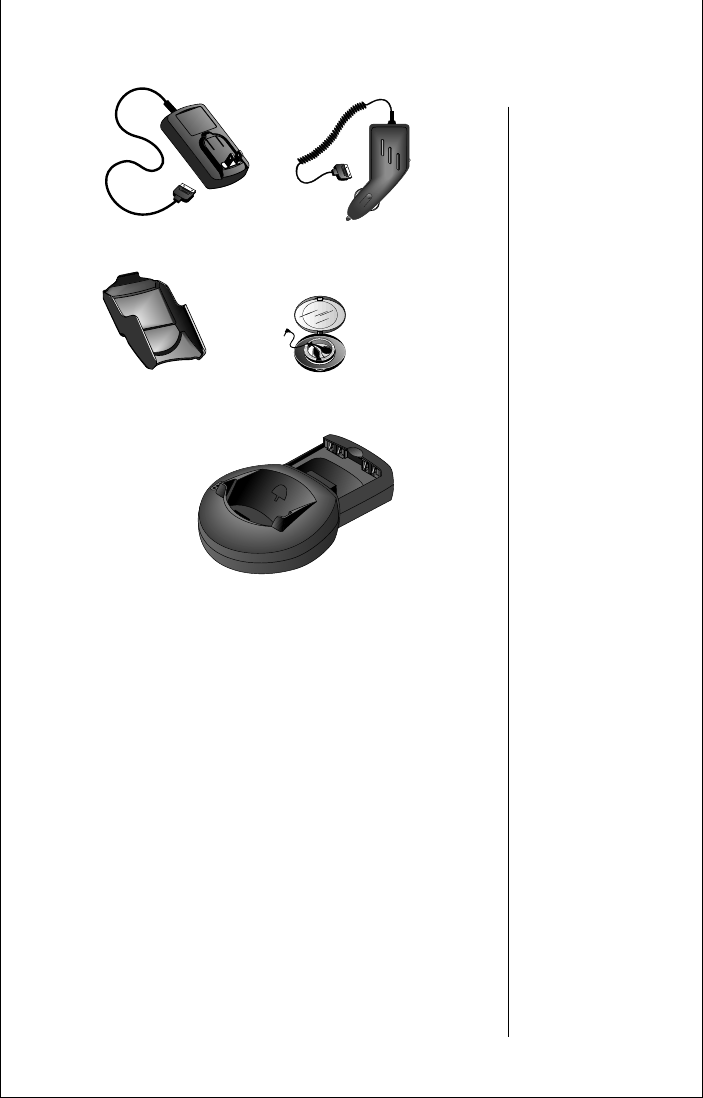

Accessory Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Phone Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

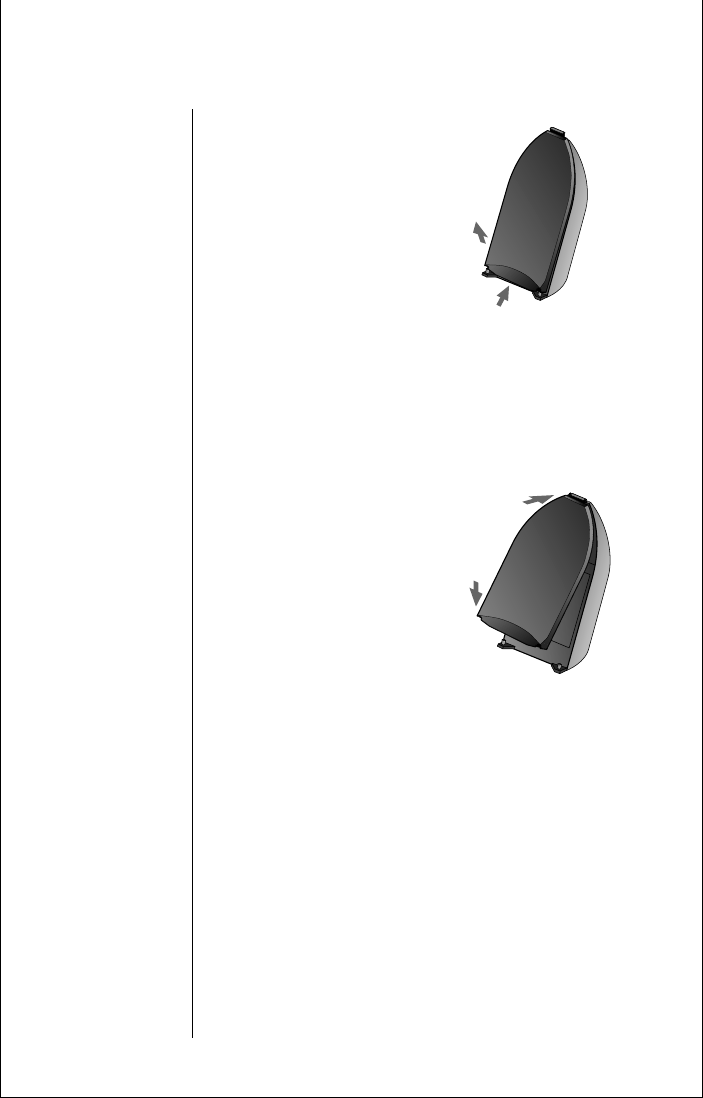

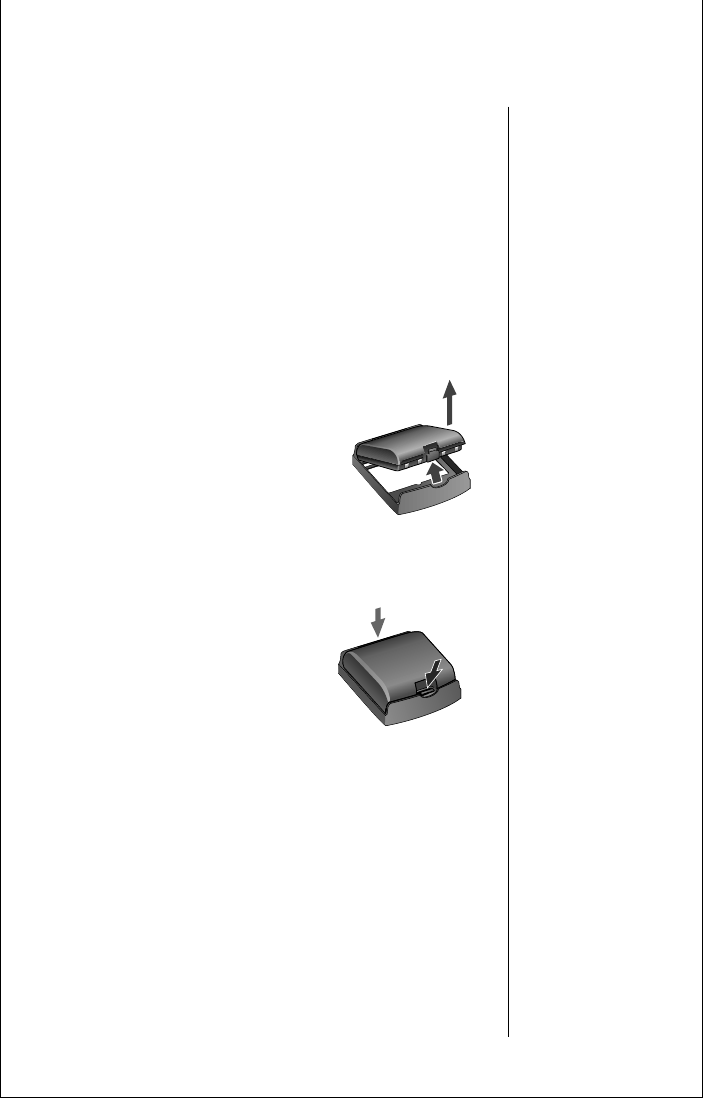

Installing Your Batteries . . . . . . . . . . . . . . . . . . . . . . . . 22

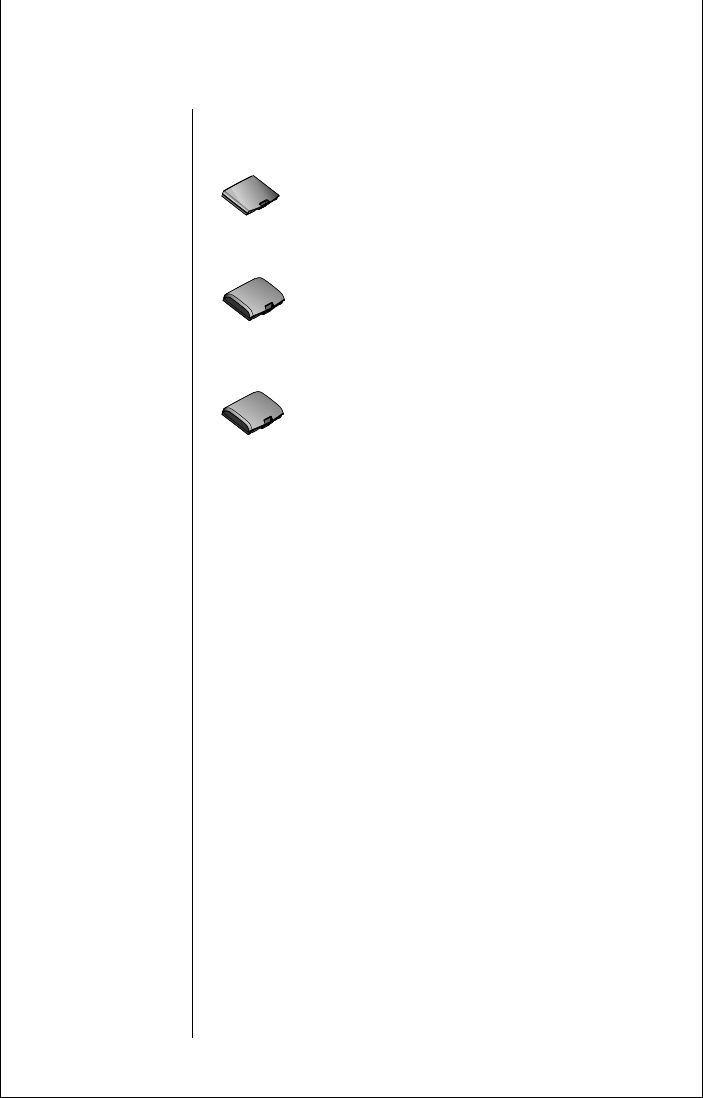

Information About Batteries . . . . . . . . . . . . . . . . . . . . . 27

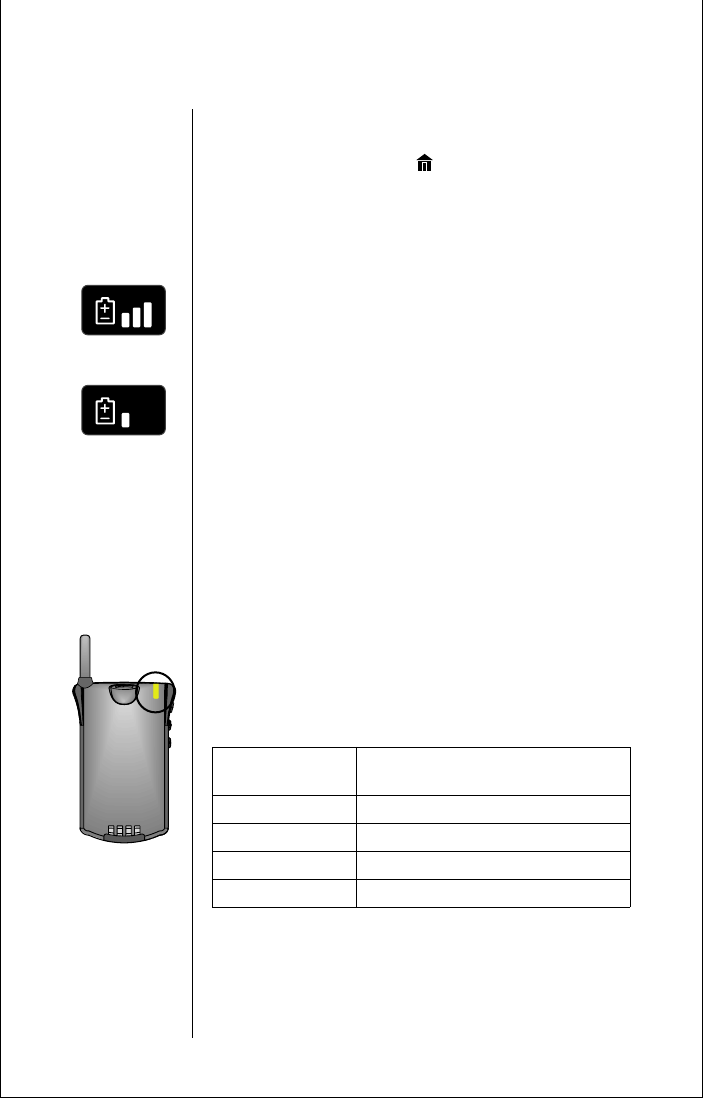

Determining Your Battery’s Level of Charge . . . . . . . . . 30

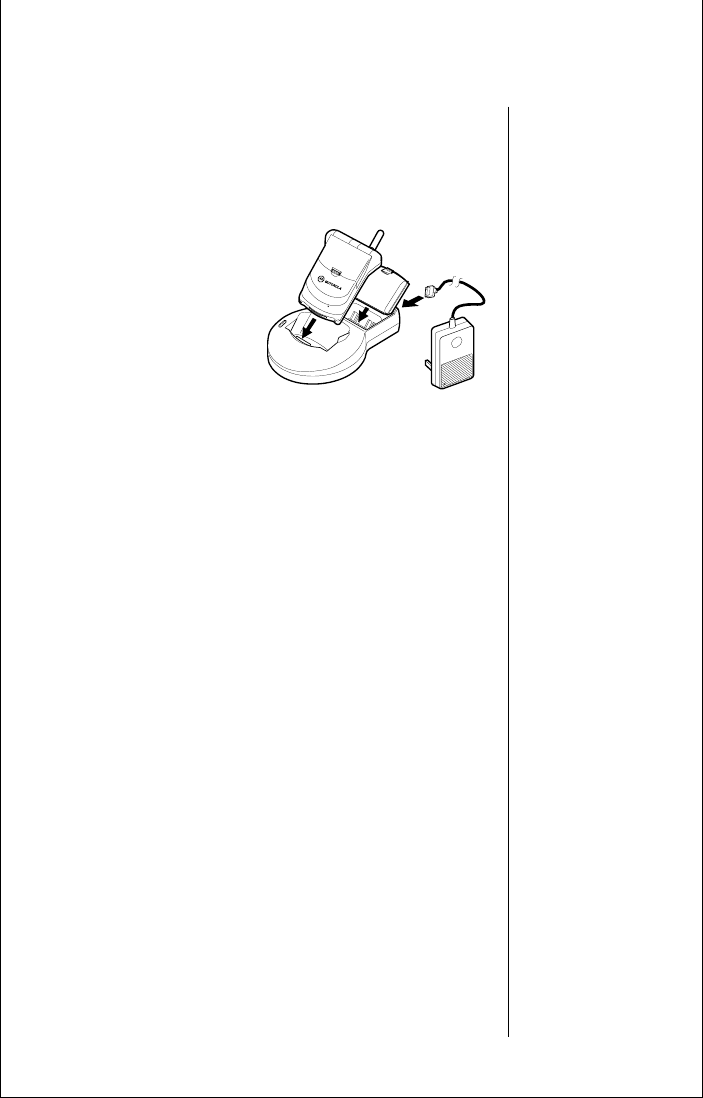

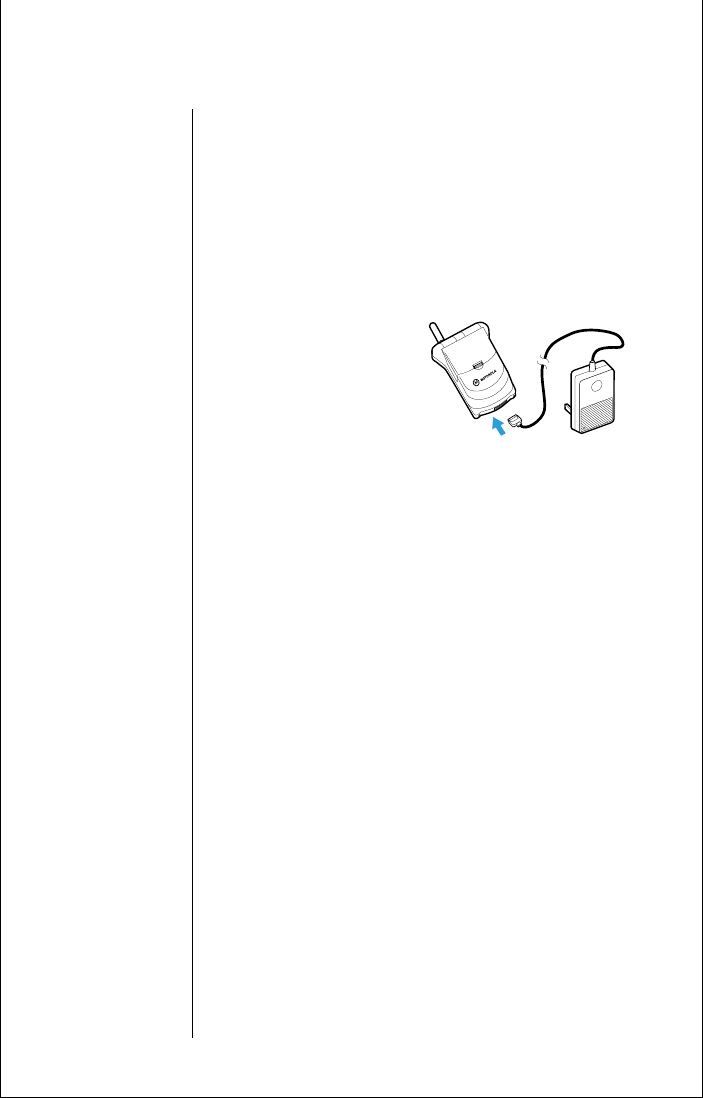

Charging Your Batteries . . . . . . . . . . . . . . . . . . . . . . . . . 32

Using the Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Using the Smart Button . . . . . . . . . . . . . . . . . . . . . . . . . 41

Placing a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Ending a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Receiving a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

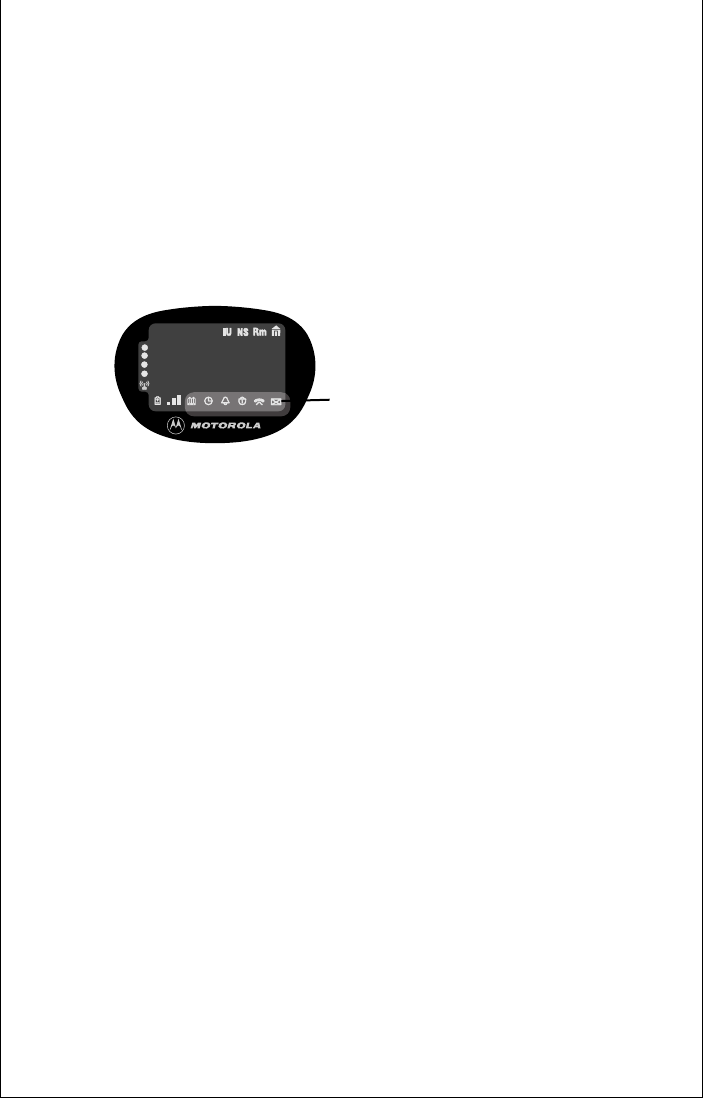

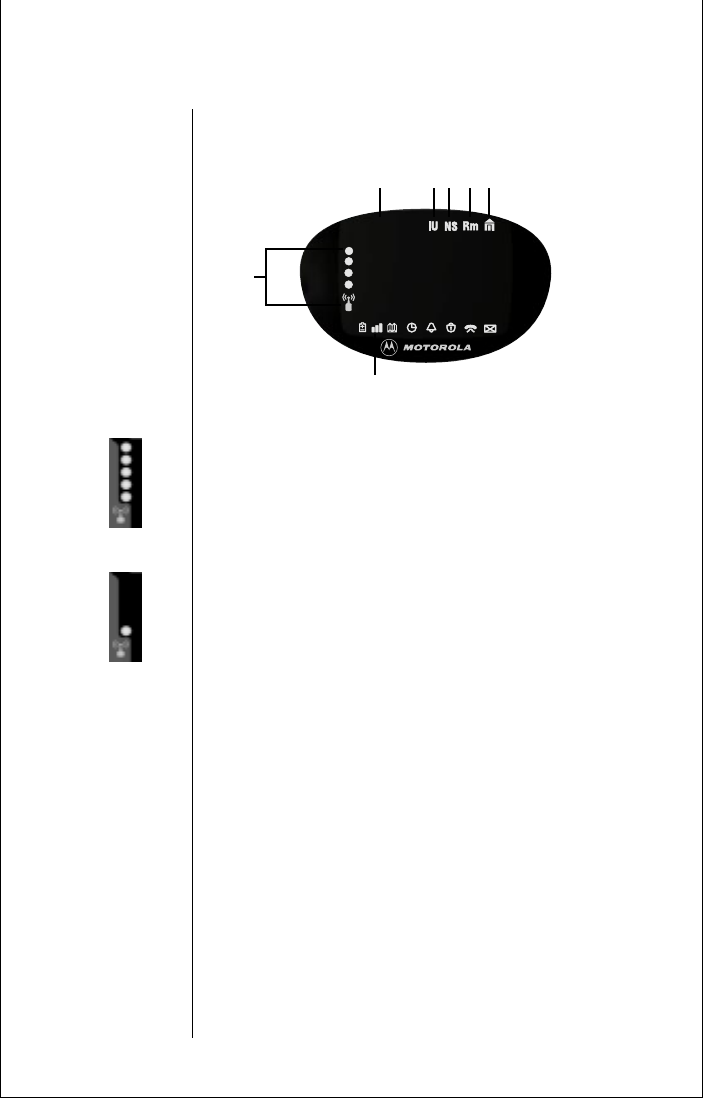

Reading the Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Redialing a Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Controlling Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Using Memory

Using Your Built-in Phone Book . . . . . . . . . . . . . . . . . . 54

Recalling Phone Book Entries . . . . . . . . . . . . . . . . . . . . 58

Shortcuts for Recalling Phone Book Entries . . . . . . . . . 61

Making Notes on Your Phone’s Scratchpad . . . . . . . . . . 62

Using Short Messaging

How Your Phone Alerts You to a Message . . . . . . . . . . . 64

Viewing a Short Message . . . . . . . . . . . . . . . . . . . . . . . . 66

Locking and Unlocking a Message . . . . . . . . . . . . . . . . 70

Clearing Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

The Menu System

Navigating the Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

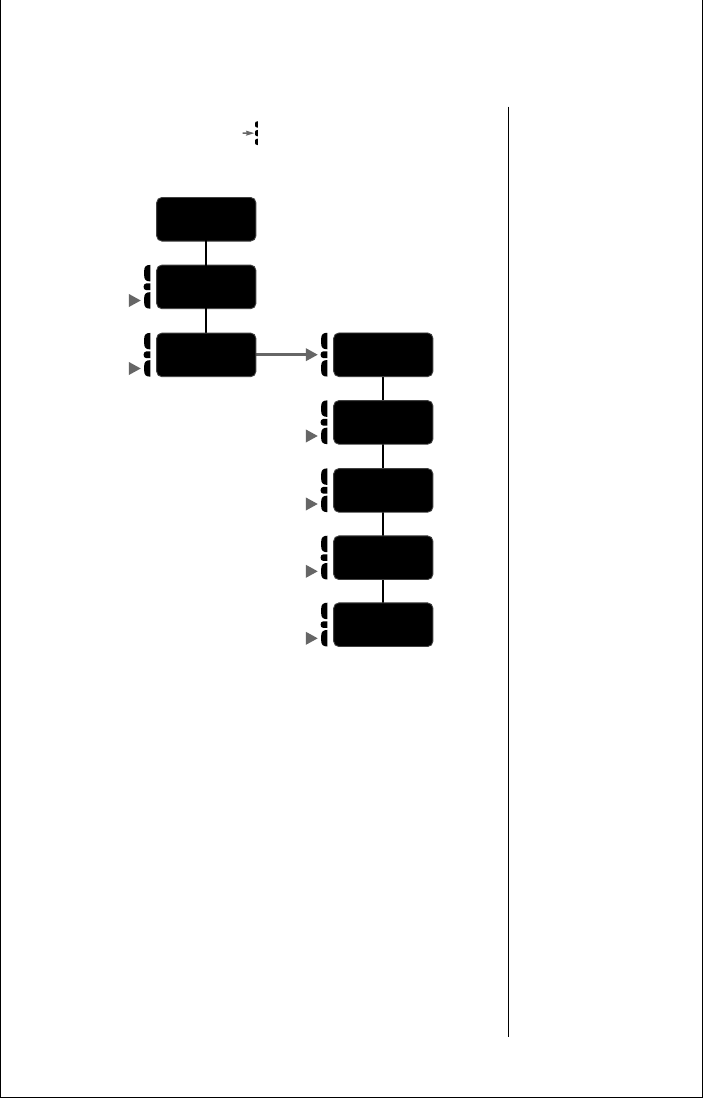

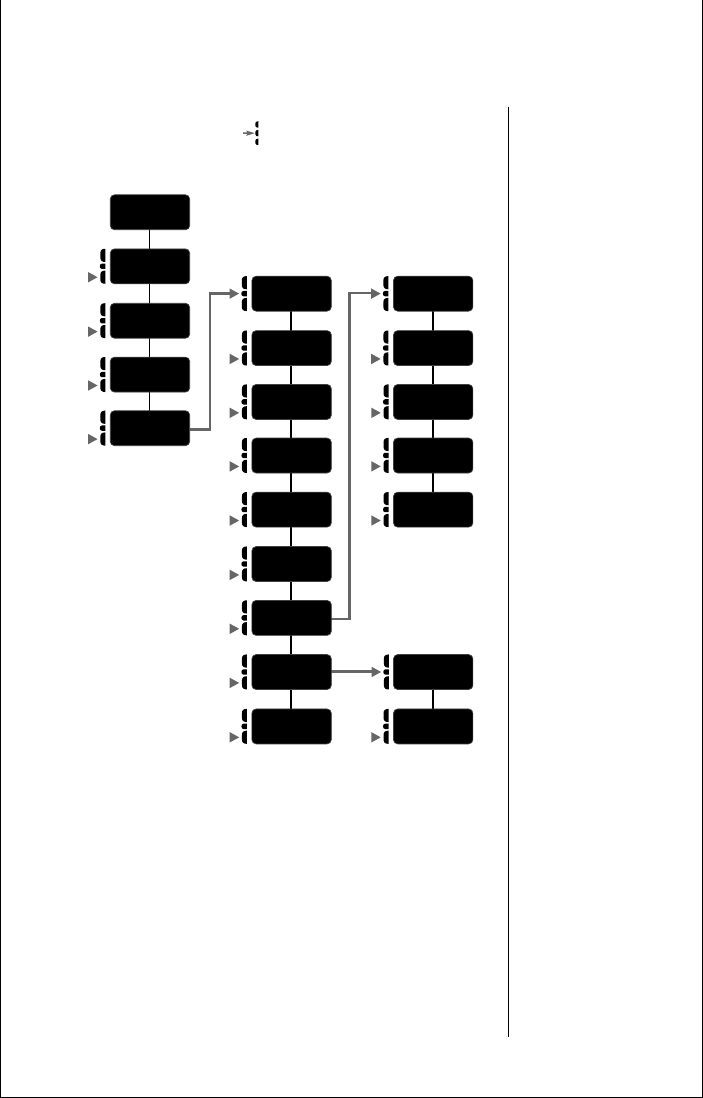

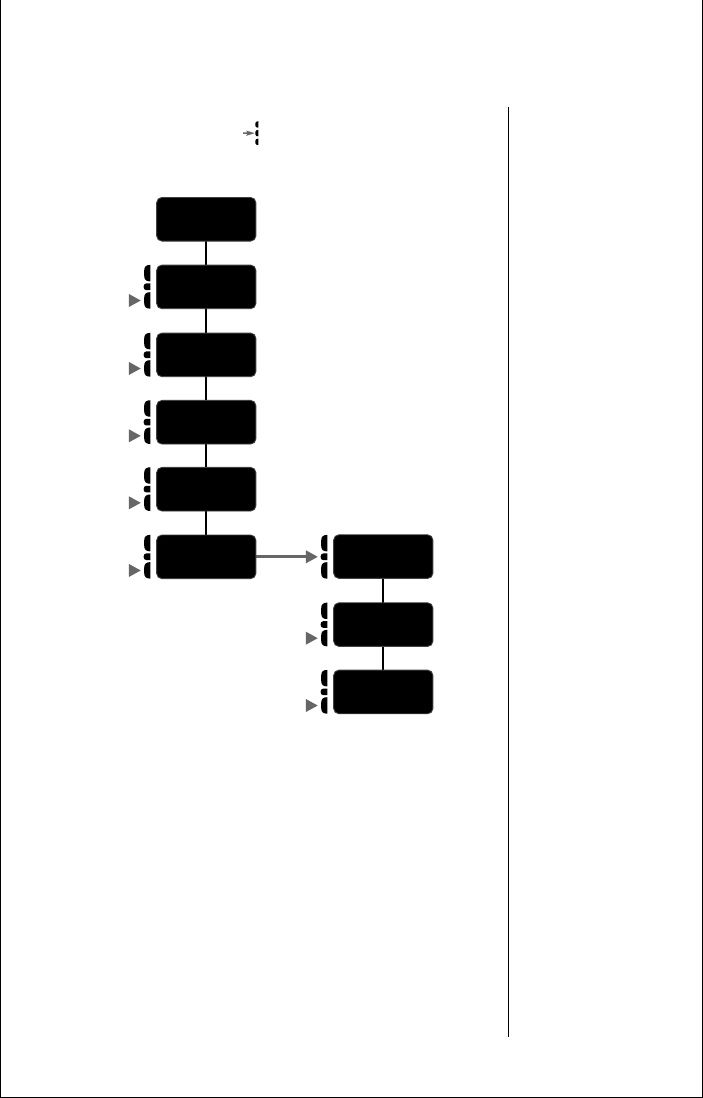

Road Maps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Phone Book

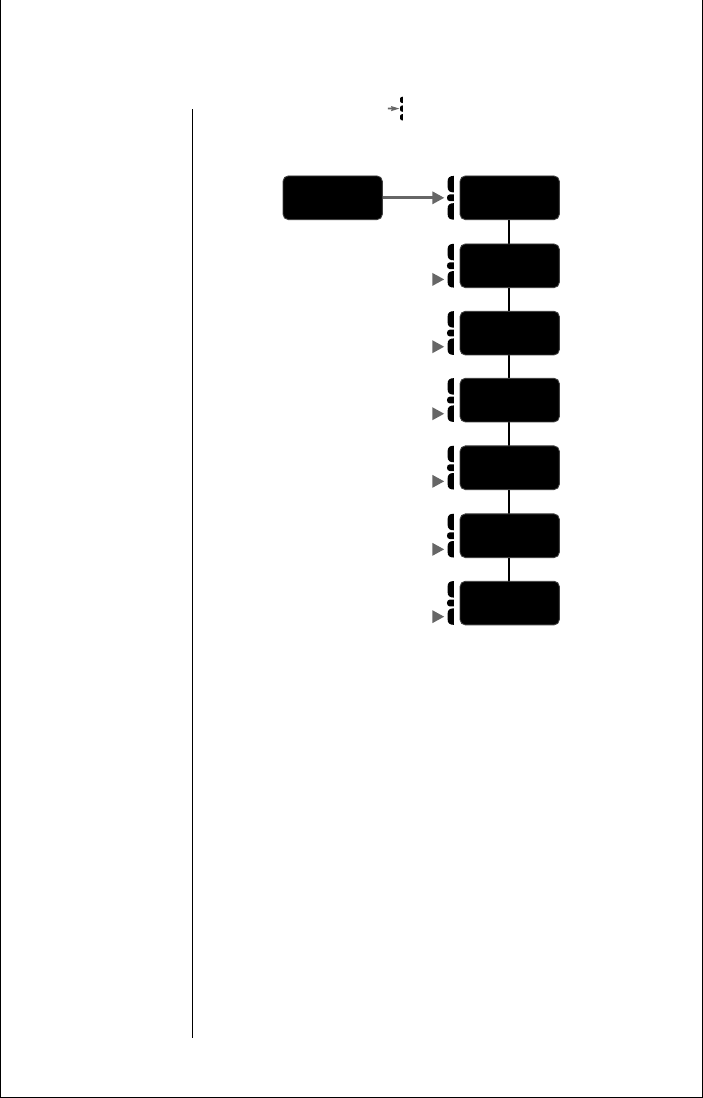

Road Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Recalling Phone Book Entries with the Menu . . . . . . . 79

Storing with the Menu . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Advanced Storing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Editing a Memory Location . . . . . . . . . . . . . . . . . . . . . . 88

Viewing Your Own Number . . . . . . . . . . . . . . . . . . . . . . 90

Phone Book Display Preferences . . . . . . . . . . . . . . . . . . 91

Call Timers

Road Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

View Individual Call Timer . . . . . . . . . . . . . . . . . . . . . . 94

View Resettable Call Timer . . . . . . . . . . . . . . . . . . . . . . . 95

View Cumulative Timer . . . . . . . . . . . . . . . . . . . . . . . . . 96

Reset Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Display Individual Timer Automatically . . . . . . . . . . . . 98

One Minute Audible Timer . . . . . . . . . . . . . . . . . . . . . . . 99

Repeating Audible Timer . . . . . . . . . . . . . . . . . . . . . . . 100

Single Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Tone Controls

Road Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

VibraCall Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Select Ringer Style . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Keypad Tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Scratchpad Tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Lock/Security

Road Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Voice Privacy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Locking/Unlocking Your Phone . . . . . . . . . . . . . . . . . 111

Activating Emergency Dialing . . . . . . . . . . . . . . . . . . . 113

Security Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

xii

Phone Options

Road Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Voice Mail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Call Mode Preference . . . . . . . . . . . . . . . . . . . . . . . . . . 132

Switching Between Phone Numbers . . . . . . . . . . . . . . 133

Selecting a Cellular System . . . . . . . . . . . . . . . . . . . . . 135

Feature Review . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Call Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Display System Identiﬁcation . . . . . . . . . . . . . . . . . . . 143

Message Menu

Road Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

Set Scrolling Speeds . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

Message Key Options . . . . . . . . . . . . . . . . . . . . . . . . . . 147

Reference Information

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

Glossary (Continued) . . . . . . . . . . . . . . . . . . . . . . . . . . 153

Glossary (Continued) . . . . . . . . . . . . . . . . . . . . . . . . . . 154

Glossary (Continued) . . . . . . . . . . . . . . . . . . . . . . . . . . 155

Glossary (Continued) . . . . . . . . . . . . . . . . . . . . . . . . . . 156

Glossary (Continued) . . . . . . . . . . . . . . . . . . . . . . . . . . 157

Patent Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

Patent Information (Continued) . . . . . . . . . . . . . . . . . 159

Getting Started

This chapter tells you how to set up your TDMA StarTac

cellular telephone and perform basic phone functions.

In this chapter you will learn how to:

• install and charge your phone's batteries

• place and receive calls

• read your phone’s status indicators

• redial numbers

• adjust your phone's ringer and earpiece volumes

• set your phone to vibrate silently when you receive a

call

Getting Started

Package Content Options

Typically, your TDMA StarTac cellular phone may be packed

with a charger, transformer and at least one battery. Listed

on the following pages, you’ll ﬁnd a sampling of the

different batteries, battery chargers, and transformers.

TDMA StarTac

Cellular Telephone

Slim Main Battery

with Battery Cover

Standard Main Battery

with Battery Cover

Standard Auxiliary Battery

with Battery Cover

Slim Auxiliary Battery

with Battery Cover

Getting Started

Note:

You phone and accessories may not look exactly as

pictured above.

AC Adapter Cigarette Lighter Adapter

Holster

Desktop Charger

(AC Adapter required

Headset

Getting Started

Accessory Options

THE Portable Cellular Connection™

Interface Analog Mode Only

Your TDMA StarTac cellular phone is data compatible in the

Analog Mode, so you can send and receive faxes, e-mail,

and data with Motorola data accessories. THE Portable

Cellular Connection Interface connects your phone to a

computer or fax machine for unparalleled convenience.

THE Portable Cellular Connection Kit includes the Portable

Cellular Connection Interface box with rechargeable

battery, and a cable that plugs into the accessory connector

on the bottom of your phone.

Wall Transformer

or Car Adapter

Telephone Cord

8-Pin Modular Connector

Modem or

Fax Machine

Cellular

Connection

Getting Started

Hands-Free Vehicle Kit

The optional Hands-Free Kits give you the convenience of

hands-free, speaker phone operation while in your car. Full

duplex operation lets you simultaneously talk and listen, so

both parties can interrupt each other for a normal sounding

conversation.

The Hands-Free Kit powers the phone and charges its

battery whenever your car’s engine is running. An optional

external antenna can improve your signal reception and

boost performance.

Cigarette Lighter Adapter

The cigarette lighter adapter powers the phone and charges

the battery whenever your car’s engine is running.

Getting Started

Phone Overview

See inside front cover for a diagram

Retractable Antenna

Extend for best performance.

Earpiece Ultra

Compact phone speaker.

Status Indicators

In Use— Flashes when a call is in

progress.

No Service—Tells you the phone is

beyond the range of a cellular service

area. When this indicator is lit, calls

cannot be placed or received.

Roam—Lets you know when your

phone is accessing cellular service

outside your home system.

In-Building Cellular System—Flashes

when phone accesses an In-Building

Cellular System.

Digital—Flashes when on digital

channel.

Getting Started

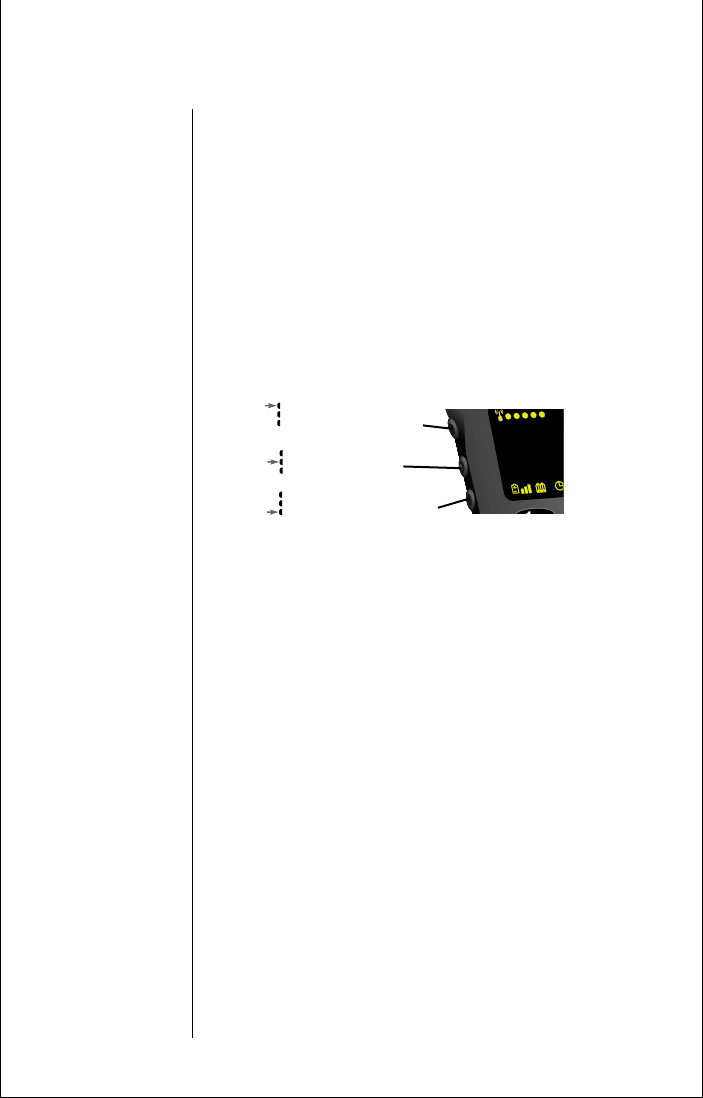

Signal Strength

Indicator

Indicates the strength of the signal

your phone is receiving. The stronger

the signal, the better your chances of

placing and receiving calls success-

fully.

Battery Level

Indicator

Tells you the amount of charge left in

your battery.

Two-line

Alphanumeric

Display

Displays your input from the keypad,

information recalled from memory,

help, and other messages.

Menu Icons

As you move through the menu, the

icons ﬂash to indicate the selected

feature:

Phone Book lets you store and

retrieve numbers.

Call Timers can monitor the length of

your calls.

Tone Controls adjust your phone’s

tones.

Lock/Security features prevent unau-

thorized access.

Phone Options/Voice Mail can be set

to your speciﬁcations.

Digital message provides access to

digital messaging options.

Getting Started

Phone Overview (Continued)

Smart Button

The Smart Button can recall informa-

tion from memory, place calls, end

calls, select menu features, and tog-

gle features ON and OFF. The symbol

“ ” in your display represents the

Smart Button.

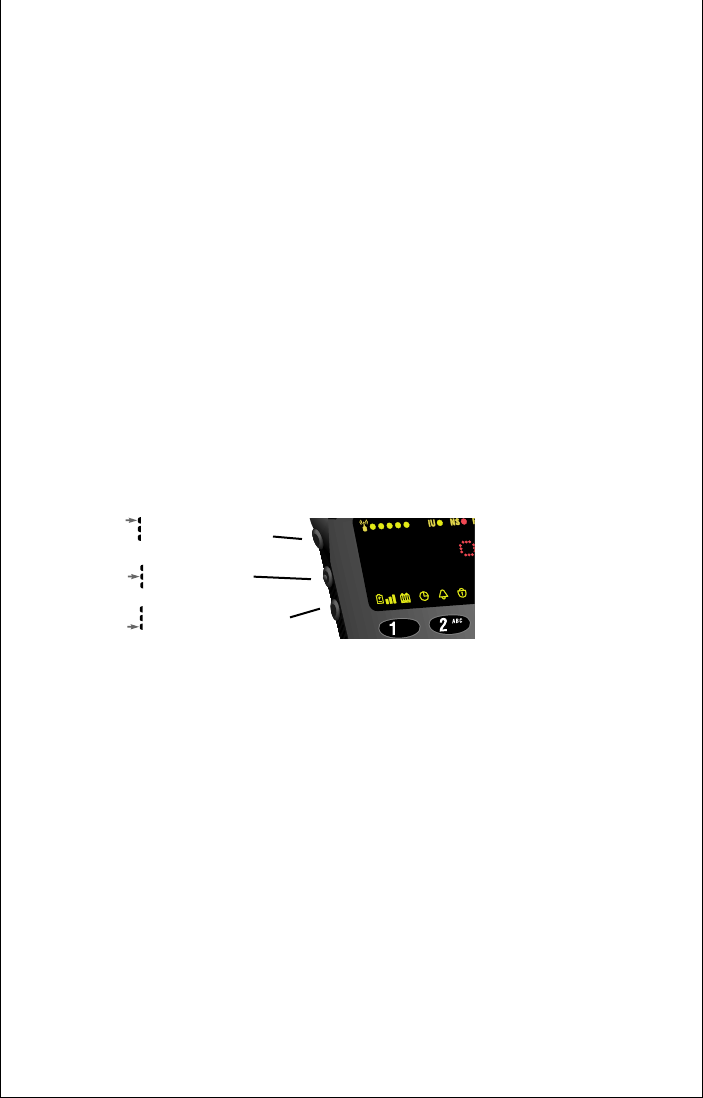

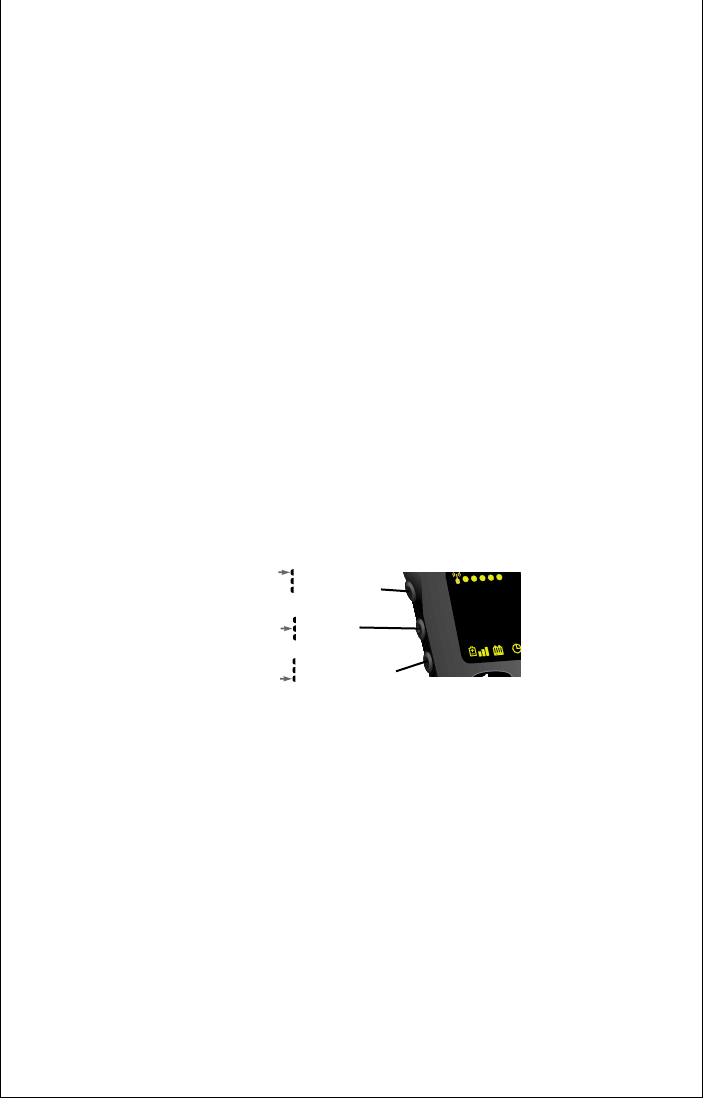

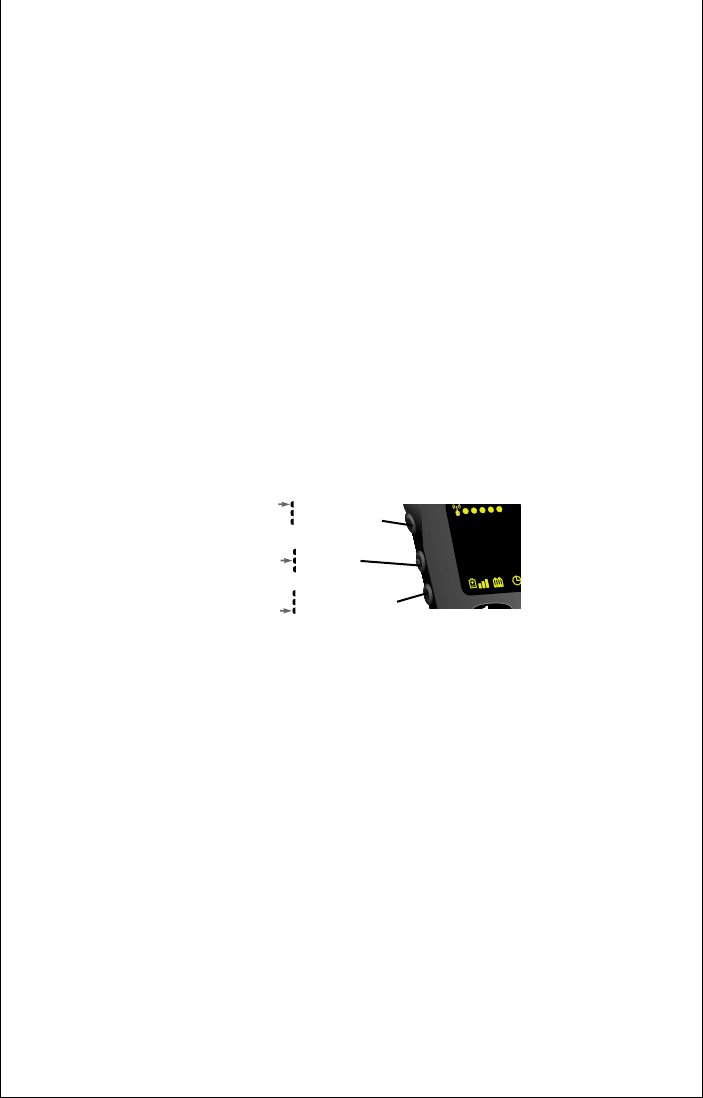

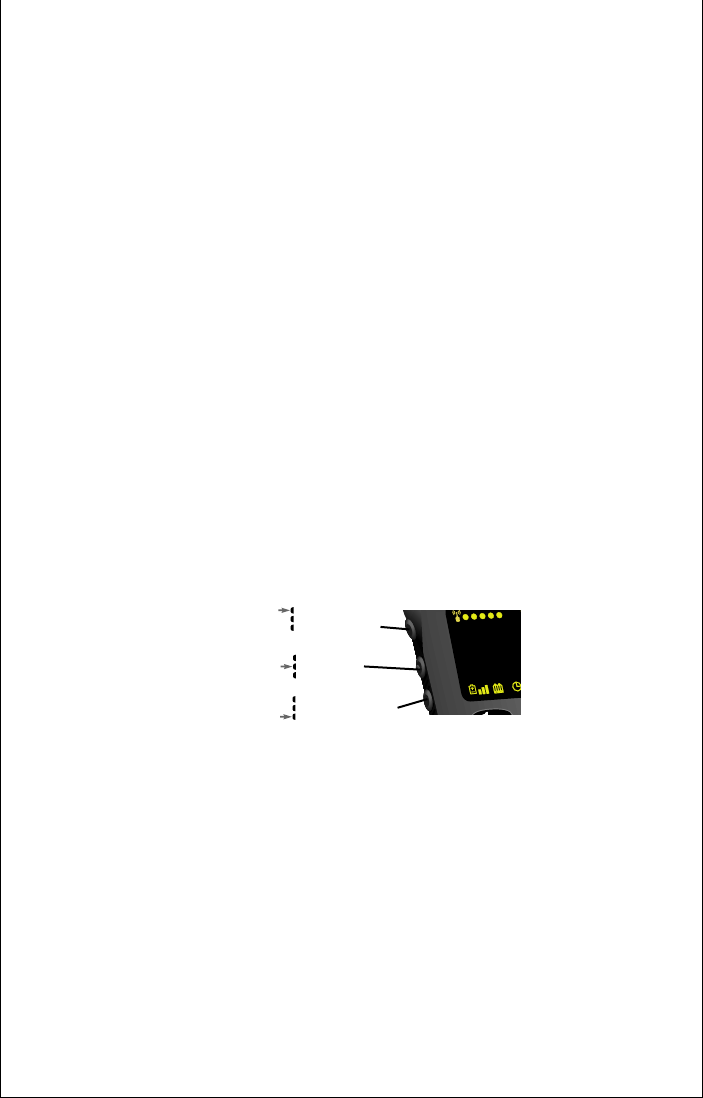

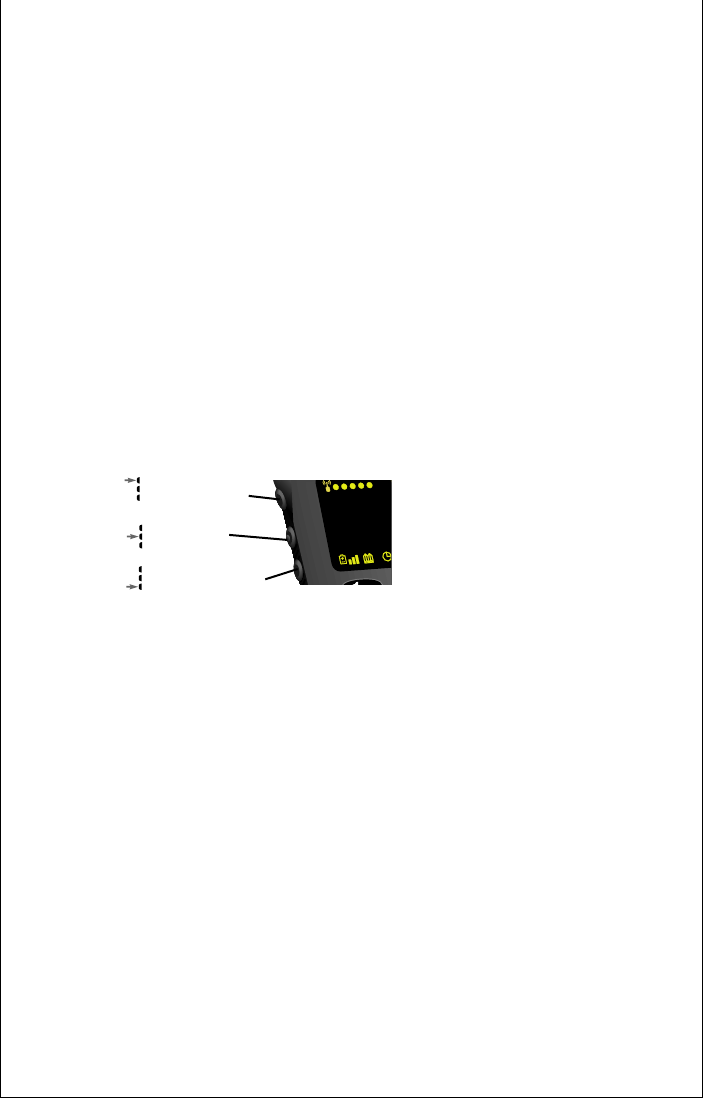

Volume Keys

The upper and lower volume keys can

adjust keypad, earpiece, and ringer

volume. After pressing the Smart

Button, the volume keys also scroll

through memory entries and menu

features.

Function Keys

Turns the phone ON and OFF.

Acts as a “shift” key to access the

secondary functions of other keys.

‰

Recalls phone numbers from memory.

Stores phone numbers into memory.

Clears characters from the screen.

Ends phone calls.

Places or answers calls

and

can be used to scroll through memory

entries and menu features.

Getting Started

Message Button.

Accessory

Connector Port

Provides the connection for an exter-

nal power supply and vehicular and

data accessories.

Headset Jack

Provides the connection for an

optional headset.

Microphone

Positioned for convenient conversa-

tion

Getting Started

Installing Your Batteries

About Your Batteries

Thanks to Motorola’s breakthrough technology, the TDMA

StarTAC phone’s are smaller weigh less than any previous

Motorola cellular telephone battery. Now it’s easier than

ever to carry a spare or two.

Your TDMA StarTAC phone can use two batteries at the same

time. With an auxiliary battery attached to the back of the

phone, you get even more talk-time.

You can use any single battery or battery combination to ﬁt

your individual needs. You can even extend your talk-time

by attaching an auxiliary battery at any time, without

interrupting your call.

Getting Started

Removing and Attaching Battery Covers

Your phone’s batteries are shipped uncharged and ﬁtted

with protective covers. To begin using your phone, just

remove the battery cover, install the battery on the phone,

and charge! See “Charging Your Batteries” on page 32

when you’re ready to begin charging your battery.

Save the covers to store and carry unused batteries. The covers

will prevent metal objects from contacting both battery

terminals, reducing the risk of injury or damage from a

battery short circuit.

Removing the Main Battery

Cover

Press and hold the release

latch.

Pull the battery upward, out

of its cover.

Attaching the Main Battery Cover

Set the edge of the bat-

tery opposite the release

latch into the cover.

Lower the release latch

side of the battery into

the cover until the latch

clicks into place.

Getting Started

Installing Your Batteries (continued)

Removing the Auxiliary

Battery Cover

Hold the battery securely

with one hand.

With the thumb of your

other hand, push the

base of the cover

upward.

Continue pushing until the cover slides free from

the pins on the bottom of the battery.

Swing the cover away from the battery.

Attaching the Auxiliary

Battery Cover

Slide the curved end of

the cover onto the

grooved hook on top of

the battery.

Push the cover ﬁrmly

upward until the base of

the cover slides past the battery pins; then release.

Getting Started

Attaching a Main Battery

Set the edge of the battery opposite the release latch

into the cover.

Press the release latch side of the battery into the

cover until the latch clicks into place.

Removing a Main Battery

Press and hold the release latch.

Pull the battery upward, out of the phone.

Getting Started

Installing Your Batteries (continued)

Attaching an Auxiliary Battery

Place the hook on the battery into the slot on the

back of the phone.

Pull the battery toward the bottom of the phone

until the two pins click into place.

Removing an Auxiliary Battery

Slide the battery down until the two pins release

from the base of the phone—then lift the battery

off.

Getting Started

Information About Batteries

Battery Types

Your TDMA StarTAC phone can use either Lithium Ion

(LiIon) or Nickel Metal Hydride (NiMH) batteries. Batteries

are available in a variety of sizes: Slim, Standard, and Extra

Capacity.

What Are Talk and Standby Times?

Talk-time refers to the time you can talk on your phone

before the battery if fully discharged. Standby-time is the

time that your phone is on but not used for talking.

What Is Sleep Mode?

Sleep Mode is a feature that increases your phone’s standby

time. If the D icon on your phone is blinking, you are in an

area where sleep mode is available. If your phone is in

standby mode, press any key to see if your D icon is

blinking.

Sleep Mode is a network-dependent feature and is not

available in all areas. Standby-times may be reduced if the

cellular service provider does not offer sleep mode

operation.

Talk-times are for TDMA Digital operation. All times are

approximate and depend on network, signal strength, and

the function selected.

28 Getting Started

Information About Batteries (continued)

Main Battery Talk and Standby Times

Keep in Mind: Talking on the phone uses more power

than leaving it idle. The more power you use for talking, the

less you’ll have for standby-time, and vice-versa.

Standard Main Battery

(Nickel Metal Hydride)

up to 60 minutes talk-time or 14 hours standby-time

Standard Extra Capacity Main Battery

(Lithium Ion) E•P

up to 110 minutes talk-time or 22 hours standby-time

Slim Main Battery

(Lithium Ion) E•P

up to 60 minutes talk-time or 14 hours standby-time

Getting Started 29

Auxiliary Battery Talk and Standby Times

Times shown in this section reﬂect the capacity of the

auxiliary battery shown. For a complete measure of talk-

time or standby-time, simply combine the time shown for

your main battery to the time shown for your auxiliary

battery.

Storing and Disposing of Batteries

To prolong the life of your batteries, do not expose them to

temperatures below -10°C (14°F) or above 45°C (113°F).

As a general rule, always take your phone with you when

you leave your car.

To dispose of batteries, check with your local recycling

center for a battery recycler near you. Never dispose of

batteries in a ﬁre.

Caution: To prevent injuries or burns, do not allow metal

objects to contact or short-circuit the battery terminals.

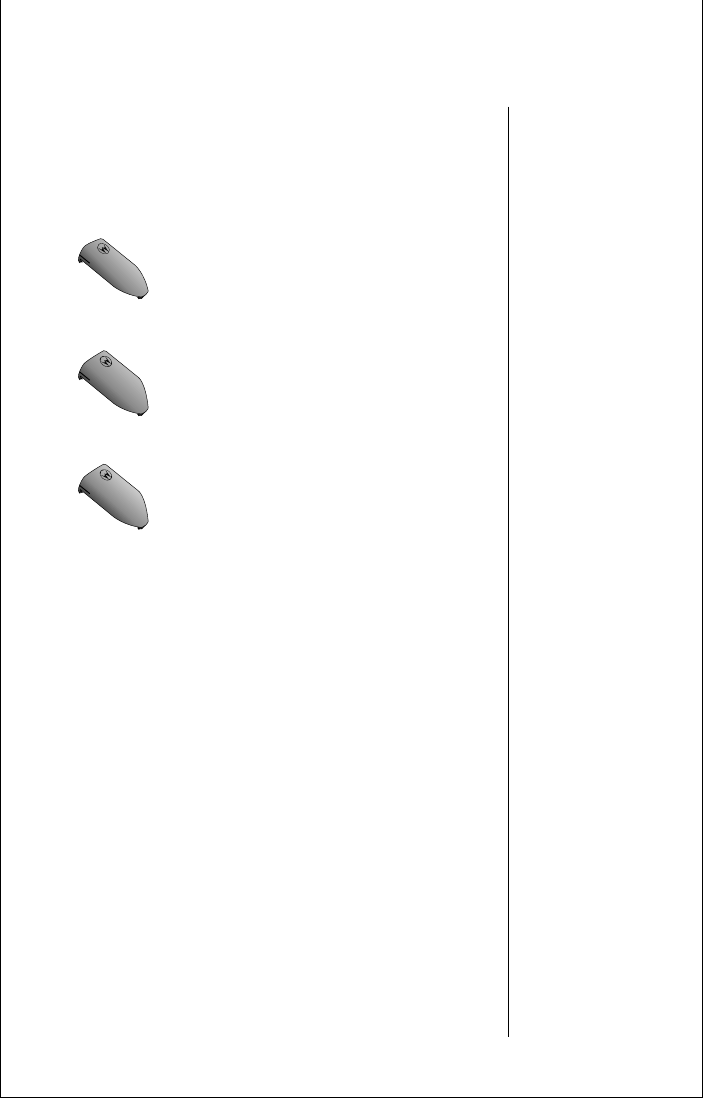

Standard Auxiliary Battery

(Nickel Metal Hydride)

up to 120 minutes talk-time or 24 hours standby-time*

Slim Auxiliary Battery

(Lithium Ion) E•P

up to 110 minutes talk-time or 22 hours standby-time*

Extra Capacity Auxiliary Battery

(Lithium Ion) E•P

up to 150 minutes talk-time or 35 hours standby-time*

30 Getting Started

Determining Your Battery’s Level of Charge

Your phone indicates the level of charge remaining in your

battery in several ways.

Tip:

Pressing once

will place the

phone in charger

only mode and

pressing twice

will turn the

phone OFF. If the

phone is turned

off, no charging

will occur.

Battery Level Indicator

The three bar segments on your phone’s Battery Level

Indicator display the amount of charge remaining in your

battery. The more segments visible, the greater the charge.

For a detailed battery level reading:

Press ƒ, then press›.

You will see one of the following:

The more segments ﬁlled on the fuel gauge, the

greater the charge.

Low Battery Warning

When the battery level is low and only a few minutes of talk-

time remain, your phone signals you in three ways:

•Low Battry appears in the ﬁrst line of the display.

• No bar segments are highlighted.

Tip:

Recharging

quickly after the

low level warning

helps maintain

the best battery

and phone

performance

• A short tone plays periodically.

Check your phone’s display area to conﬁrm low battery

signals:

Press ƒ, then press›.

B______

Main

B______

Aux

High

Low

Getting Started 31

Power Status Messages

You may also see one of the following messages:

Not

Available

No battery ﬁtted; the phone is operating

from external power.

Battery Only one battery ﬁtted; the phone is

operating from this battery.

Aux Battery

Auxiliary and main batteries ﬁtted; the

phone is operating from the auxiliary

battery.

Main Battery

Auxiliary and main batteries ﬁtted; the

phone is operating from the main bat-

tery.

Charging Bat-

tery

Only one battery ﬁtted; this battery is

being charged.

Charging

Aux Battery

Auxiliary and main batteries ﬁtted; the

auxiliary battery is being charged.

Charging Main

Battery

Auxiliary and main batteries ﬁtted;

the main battery is being charged.

Fast Charge

Complete Fast charging is complete.

32 Getting Started

Charging Your Batteries

Using the Internal Charger

Believe it or not, there’s a battery charger built right into

your phone! Using either the AC or cigarette lighter adapter,

you can plug the handset directly into a power source to

charge any attached batteries.

Tip:

If both a main

and auxiliary

battery are

attached, the

main will be

charged to 95%

before the

auxiliary is

charged.

To charge:

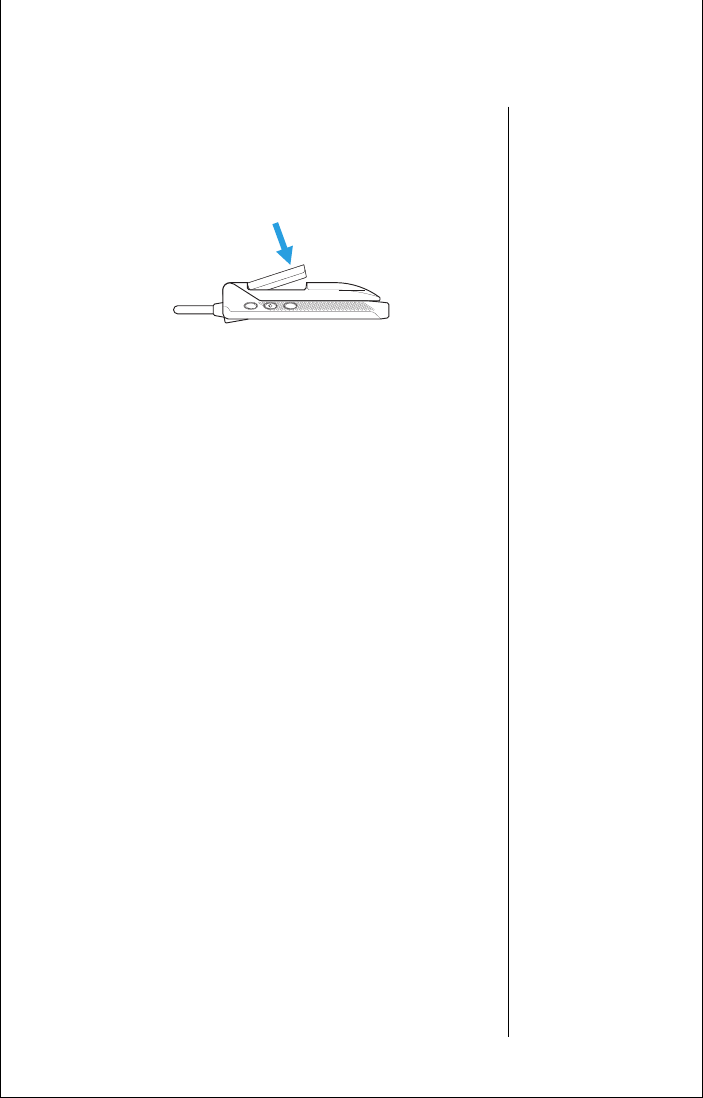

Plug the AC adapter

or cigarette lighter

adapter into the

accessory connec-

tor on the bottom

of your phone as shown, with the release tab facing

up.

Plug the power adapter into a 110V AC electrical

outlet. You will hear a beep-tone and you will see

the battery icon ﬂashing.

Tip:

You can still

place and answer

calls while using

the internal

charger. Keep in

mind that talking

on the phone

requires energy,

so charging will

take more time.

See “Charge Times” on page 37 for charge times.

Getting Started 33

Using the Desktop Charger

The desktop charger’s front pocket can charge batteries

while they are attached to your phone, and the rear pocket

can charge batteries separately.

To charge:

Tip:

If you attach an

auxiliary battery

along with the

main battery and

insert another

battery into the

rear pocket of

the desktop

charger, you’ll

have three

charged batteries

ready to go in the

morning.

First, plug the AC

adapter into the

back of the

charger, with the

release tab facing

up.

Plug the other

end of the AC adapter into an AC wall socket.

With battery(s) attached, place the phone into the

charger’s front pocket.

You can insert an extra auxiliary or main battery

into the rear pocket.

Note: The detachable plug assembly included with your

package can only be used for this power supply. Do not plug

it into any wall outlet without the power supply.

34 Getting Started

Charging Your Battery (Continued)

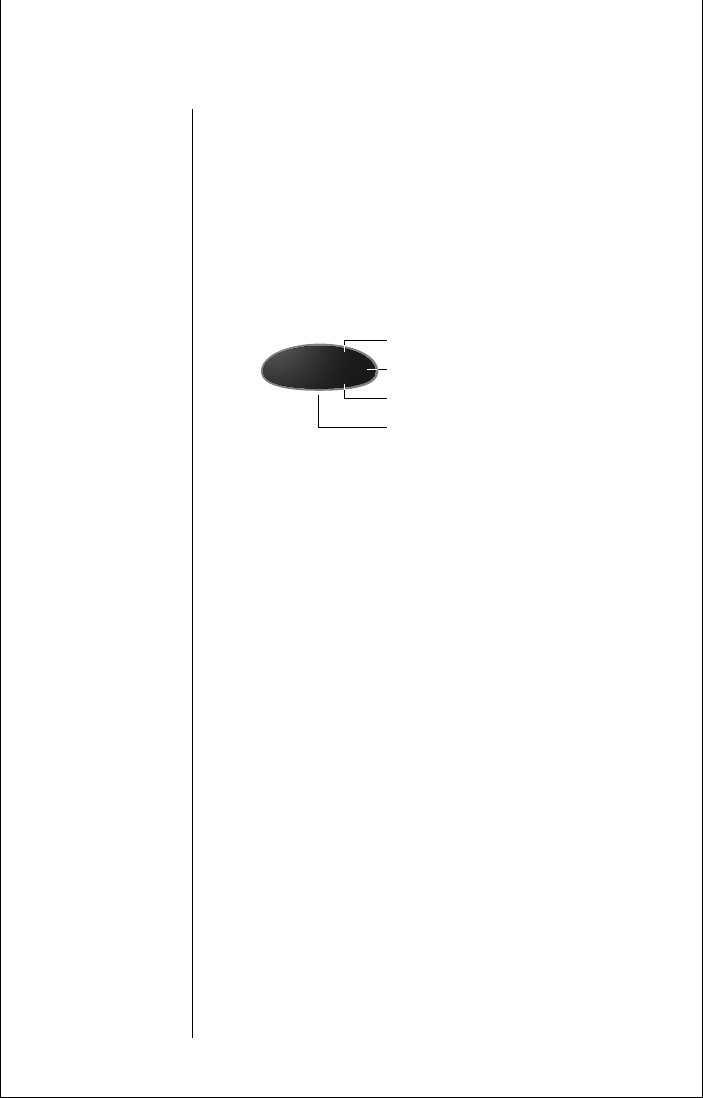

Desktop Charger Indicator Lights

•Red means the battery is charging.

•Flashing yellow means the battery is waiting its turn.

•Green means the battery is charged within approxi-

mately 90% of its capacity and can be used. An addi-

tional hour of charging will bring your battery up to

100% capacity.

•Flashing red indicates that the battery is damaged

and cannot be charged.

Charging Two Batteries On The Phone

When you charge your phone with a main and auxiliary

battery attached, the main battery will be charged ﬁrst.

To ﬁnd out which battery is being charged:

Press ƒ, then press›.

Getting Started 35

Battery Charging Tips

To ensure that you enjoy maximum battery life and use

your battery to its fullest capacity:

• Always use Motorola approved battery chargers.

• For the best results, Li-Ion batteries should be

charged using the E•P Desktop Charger, or your

phone’s internal charger.

• The battery should be at or near room temperature

when charging.

• When you don’t plan on using a particular battery

for a while, it’s a good idea to store the battery

uncharged in a cool, dark, and dry place like your

refrigerator.

• Do not leave a NiMH battery connected to any

charger for longer than 24 hours.

A new NiMH battery may require several full charge/

discharge cycles in order to achieve its optimum

performance. After this initial charge, you can recharge

your battery at your convenience, using the phone’s rapid

travel charger.

36 Getting Started

Charging Your Batteries (continued)

Quick Change Power Source

The quick change feature lets you switch power sources

without losing the call in progress. If you hear a low battery

warning while you are in a call, just plug in the cigarette

lighter adapter.

Quick Change Battery Replacement

You can also remove your phone’s battery and replace it

with a charged spare without losing the call in progress. If

you hear a low battery warning while you are in a call,

quickly switch batteries and resume your conversation.

Be aware that a quick change must be completed in three

seconds to avoid losing the call in progress. Just give your

party on the line a warning before beginning this

procedure.

Caution: To prevent injuries or burns, do not allow metal

objects to contact or short circuit the battery terminals.

Getting Started 37

Charge Times

Locate your battery by type to see how long your battery will

take to charge to a 95% power level:

After the battery reaches 95%, it will begin to slow charge

until it is fully charged. It is normal for batteries to become

warm during charging.

Battery Type Charge Time

Slim Main 350 mAh Li-Ion 2.5 hours

Slim Main 500 mAh Li-Ion 2.5 hours

Extra Cap Main 900 mAh Li-Ion 2.5 hours

Standard Main 500 mAh NiMH 70 min.

Slim Aux 900 mAh Li-Ion 2.5 hours

38 Getting Started

Using the Phone

Turning the Phone On and Off

Follow these steps to turn your phone on:

Extend antenna. Extend the antenna for best

performance.

Open the phone.

Open your phone to

expose the keypad.

Press ¡ once to

turn the phone on.

Press ¡ again to

turn the phone off.

Tip:

You can still

place and answer

calls while using

the internal

charger. Keep in

mind that talking

on the phone

requires energy,

so charging will

take more time.

Power On Greeting

Each time you turn on your phone, it performs a self-test to

let you know your phone is operational. When the self-test is

ﬁnished, the display shows on or Aux, and you’re ready to

place or receive calls.

Getting Started 39

Other Greetings You May See

Your TDMA StarTac also displays network related messages

when it’s ﬁrst powered ON. For example, your Service

Provider may broadcast their name in your phone’s display.

If you don’t see the name of your Service Provider, then

you’ll see ‘Home System’ when inside your local coverage

area or ‘Public Roam’ when outside your local coverage

area.

Standby Mode

To conserve energy, your phone may turn off its lights and

most indicators when in standby mode. Don’t worry, the

display will come back the next time you press a key or open

the phone.

40 Getting Started

Using the Phone (continued)

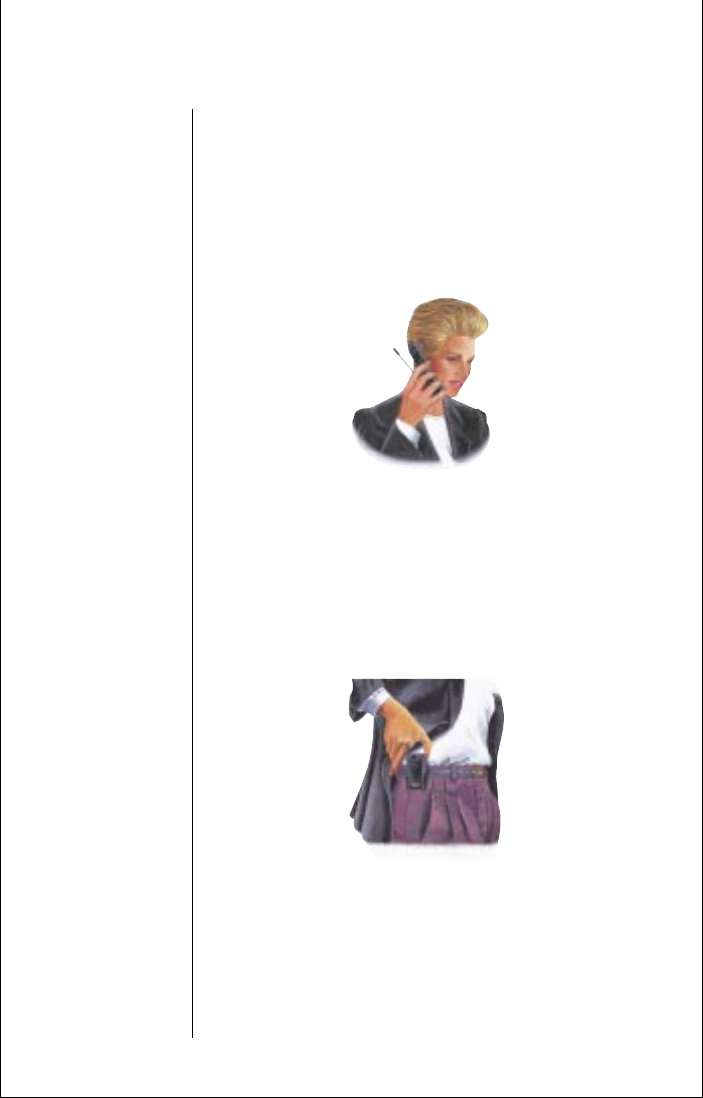

How to Hold Your Phone

Hold your cellular phone as shown below, with the antenna

fully extended and pointing up and over your shoulder.

For best performance, make sure your hand is not covering

the antenna.

Storing Your Phone in Its Holster

To slip your StarTAC cellular phone into its holster, make

sure the main battery is facing the inside of the holster. Just

clip the holster onto a belt, purse or briefcase and you’ll

always have it with you.

Getting Started 41

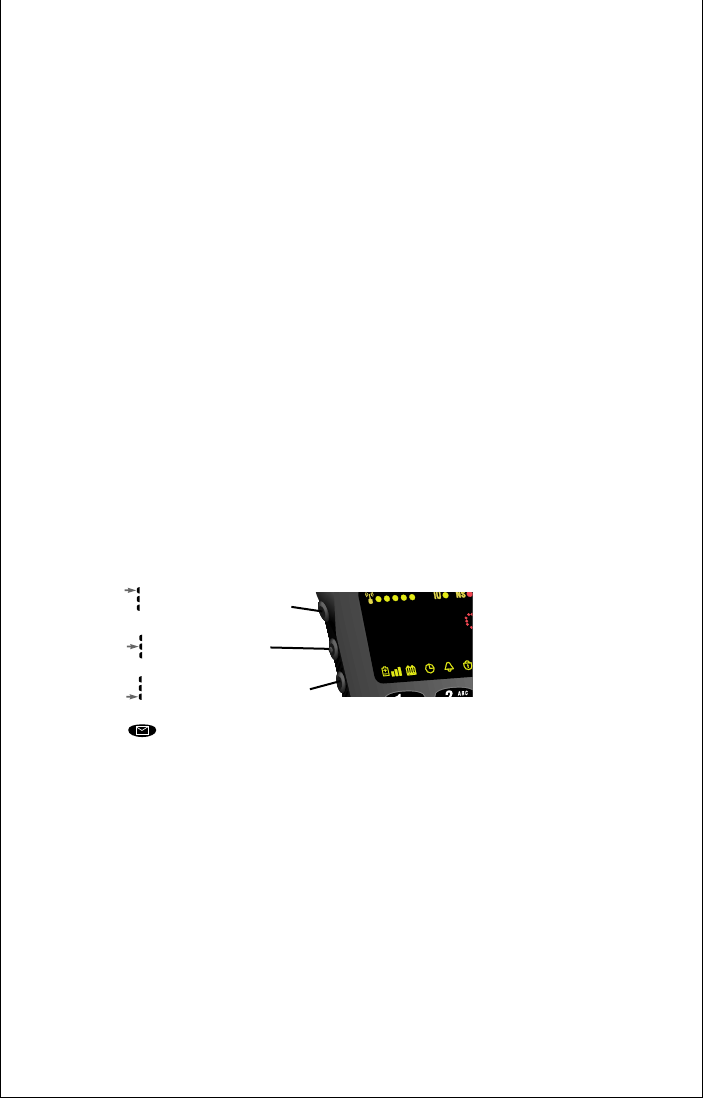

Using the Smart Button

The new Smart Button simpliﬁes the use of the TDMA

StarTac phone by allowing you to place calls, end calls,

enter the menu system, toggle features on and off, and

select items in the display. The Smart Button’s central

location—the middle key on the left side—makes it easy to

feel, easy to ﬁnd, and easy to use.

The symbol “§” in your display represents the Smart

Button.

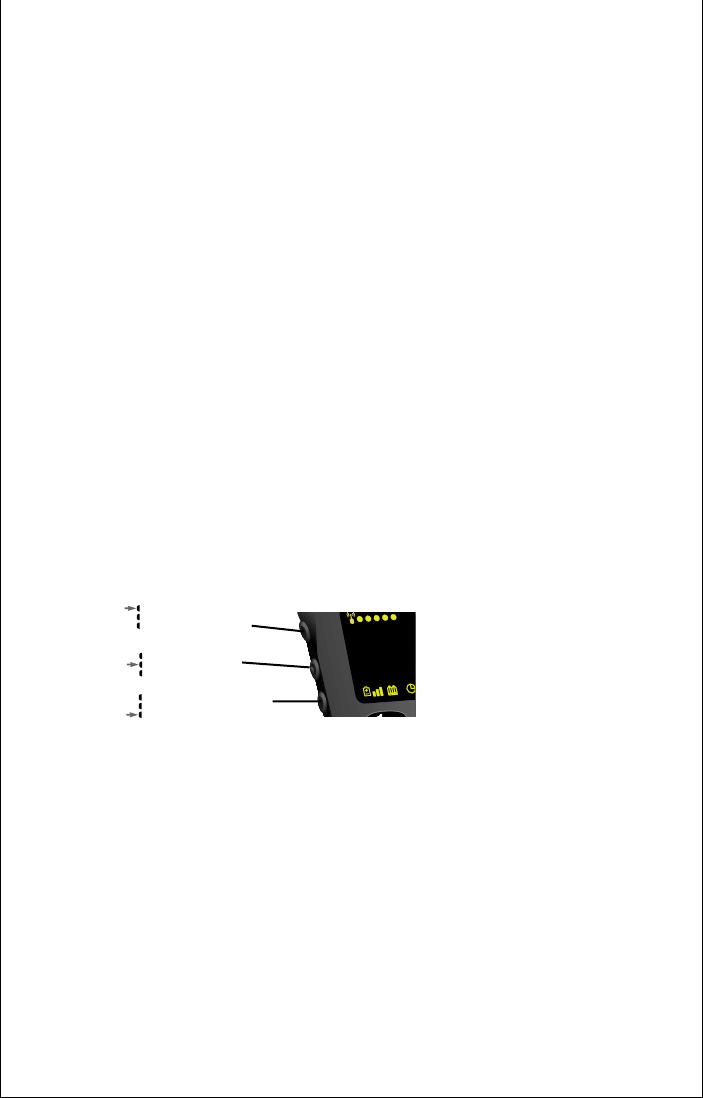

The Smart Button puts ease of use at your ﬁngertips. Use the

Smart Button to:

Select Items in the Display

The most basic use of the Smart Button is to select.

Whenever the phone offers you choices, such as a ringer

setting, press the Smart Button to select the setting you

want.

Toggle Features On and Off

Some of your phone’s features toggle on and off. Use the

upper or lower volume key to scroll to the desired feature

and press the Smart Button to select it.

42 Getting Started

Using the Smart Button (Continued)

Entering the Menu System

You can quickly access the TDMA StarTac phone’s menu

system with this key sequence:

Press ƒ, then press to access the menu.

You will see Phone Book

Placing a Call

To place a call with the Smart Button:

Enter a number. Enter the number you want to

call.

You can also use any method you choose to recall a

previously dialed or stored number. (See “Using

Memory” on page 53 for more information on

storing or recalling numbers.)

Press and hold to place the call.

You will see Dialing XXXXXX.

Ending a Call

To end a call with the Smart Button:

Press and hold until you hear two tones.

You will see § To End Call.

Press again to end the call.

Getting Started 43

Placing a Call

To place a call:

Press ¡ to turn you phone on.

Extend the antenna completely for best perfor-

mance.

Enter the number you want to call.

•Press Ç to erase one digit at a time if you

make a mistake.

•Press and hold Ç to clear the entire entry.

Press and hold until you hear two tones.

Press æ to place the call.

You will see Dialing XXXXXXX.

You can dial phone numbers with up to 32 digits, but only

the last 20 digits appear in the display.

Press ‰ to see the entire phone number.

The phone displays the beginning of the phone number,

then ﬂashes the remaining digits.

Tip:

You can use

the Smart Button

instead of æ.

44 Getting Started

Ending a Call

To end a call:

Press º or close the phone.

Press and hold until you hear two tones.

You will see § To End Call.

Press again to end the call.

Getting Started 45

Receiving a Call

Your phone must be powered on to receive calls.

Answering a Call

To answer a call:

Extend the antenna completely for best perfor-

mance.

Press æ or open the phone when the phone

rings.

Unanswered Call Indicator

When you’re not available to take a call, your TDMA

StarTac keeps a count of your unanswered calls. Your phone

will alert you with the message Call XX, where XX is the

number of calls not answered. For example, if your

telephone is on and you choose not to answer a call, your

display will show Call XX.

Press Ç to erase the message, and you can begin

placing calls again.

Tip:

To make

answering calls

even easier, try

the Multiple Key

Answer feature

on page XX.

Viewing Your Own Number

To ﬁnd out your phone’s number:

Press ‰, then press ».

46 Getting Started

Reading the Indicators

Signal Strength Indicator (1)

The Signal Strength Indicator (SSI) tells you the strength of

the connection between your phone and the local cellular

system. A strong signal increases your chances of placing

and receiving calls. You may see low signal strength if

you’re in a fringe area of the cellular system. Buildings,

tunnels, and bad weather could block or interfere with

reception. If the display goes blank to conserve energy, the

SSI’s lights ﬂash one at a time up to the signal level you are

receiving.

Strong

Weak

Getting Started 47

Reading the Indicators (Continued)

Digital Indicator (2)

If you are in a digital coverage area, the indicator ﬂashes.

In Use Indicator (3)

The In Use (IU) Indicator ﬂashes when a call is in progress.

No Service Indicator (4)

If you travel beyond the range of a cellular system, the No

Service (NS) Indicator ﬂashes to let you know that calls

cannot be placed or received from your location.

Roam Indicator (5)

The Roam (Rm) Indicator lights up when your phone

accesses a cellular service outside your local cellular system.

When you leave your cellular service area, your phone

roams or seeks another cellular system until it ﬁnds one.

If your phone ﬁnds another cellular service of the same

system type as your local service, the Roam Indicator

ﬂashes slowly. If it ﬁnds a different system type, it ﬂashes

quickly.

48 Getting Started

Reading the Indicators (continued)

In-Building Indicator (6)

The In-Building Indicator ( ) lights up when your

phone accesses an In-Building Cellular System or another

non-public system.

Battery Level Indicator (7)

The three bar segments on the phone’s Battery Level

Indicator show the amount of charge remaining in your

battery. The more segments you see, the greater the charge.

When your battery is low, the phone alerts you in three ways:

• No bar segments are highlighted.

•Low Battry appear on your screen.

• A short tone plays periodically.

If you ignore these warnings, the phone automatically

turns itself off when the battery charge is exhausted. Just

charge the battery to resume normal operation.

Power/Status Indicator

When you are wearing your phone in its holster or just

carrying it, you can check the Power/Status indicator on the

top of the phone for status information.

Alternating

Red/Green

Incoming Call

Flashing Green In Service

Flashing Red No Service

Yellow, slow ﬂash Roam: home type system

Yellow, fast ﬂash Roam: non-home type system

High

Low

Getting Started 49

Redialing a Number

Automatic Redial

Sometimes you may hear a fast busy signal, which indicates

that the cellular system is busy. With Automatic Redial, your

phone will call continuously for the next four minutes.

When it makes a connection, the phone will ring or vibrate.

When the person you are calling answers, you can begin

talking.

Press or press æ if you hear a fast busy

signal.

You will see Redial.

If the call does not go through after four minutes:

Press or press æ to continue the call

attempt.

If you hear an ordinary busy signal, try this sequence.

Press º to hang up.

Press or press æ to redial the busy number.

You will see Dialing 5551234.

50 Getting Started

Redialing Numbers (Continued)

Displaying the Last Twenty Numbers

Dialed

This feature makes it easy to call any one of the last twenty

numbers you’ve dialed.

Press ‰, then press ‚, ‚.

The display will show the last number dialed.

Press to scroll through the last ten numbers,

starting with the most recent call.

Press and hold , or press æ, to call the

number in your display.

You will see Dialing 5551234.

Getting Started 51

Controlling Volume

Adjusting Volume

You can use the upper and lower volume keys to adjust

earpiece. keypad, and ringer volume. When you press these

keys, the phone’s speaker demonstrates the current volume

level.

To adjust earpiece and keypad volume:

Press to raise or lower the volume.

To adjust the ringer volume:

Press º.

Press to raise or lower the ringer volume.

Muting the Microphone

If you need some privacy while a call is in progress, try

muting the microphone—you will be able to hear the

person on the other end, but he or she will not hear you.

Press º, then press ﬂ, to mute the micro-

phone.

You will see Mute.

Press º, then press ﬂ again to resume nor-

mal conversation.

52 Getting Started

Controlling Volume (continued)

Silent Vibration Mode

In situations where you don’t want your phone to ring, or in

noisy places where you may not hear your phone, select the

VibraCall function for silent vibration with this quick

sequence:

Press º, then press † to shift back and forth

between ringer and vibration mode.

You will see Vibrate Only or Ring Only.

Using Memory

Do you have places to go and people to see? Too many

phone numbers to remember? Let your phone remember

them for you. Your TDMA StarTac phone’s internal Phone

Book can store up to 99 names and numbers for easy access

on the go.

In this chapter you will learn how to:

• store names and numbers into the Phone Book

• recall phone numbers from memory

• dial a number with the Super Speed Dial and Turbo

Dial

• instantly dial with the One-Touch Dialing Keys

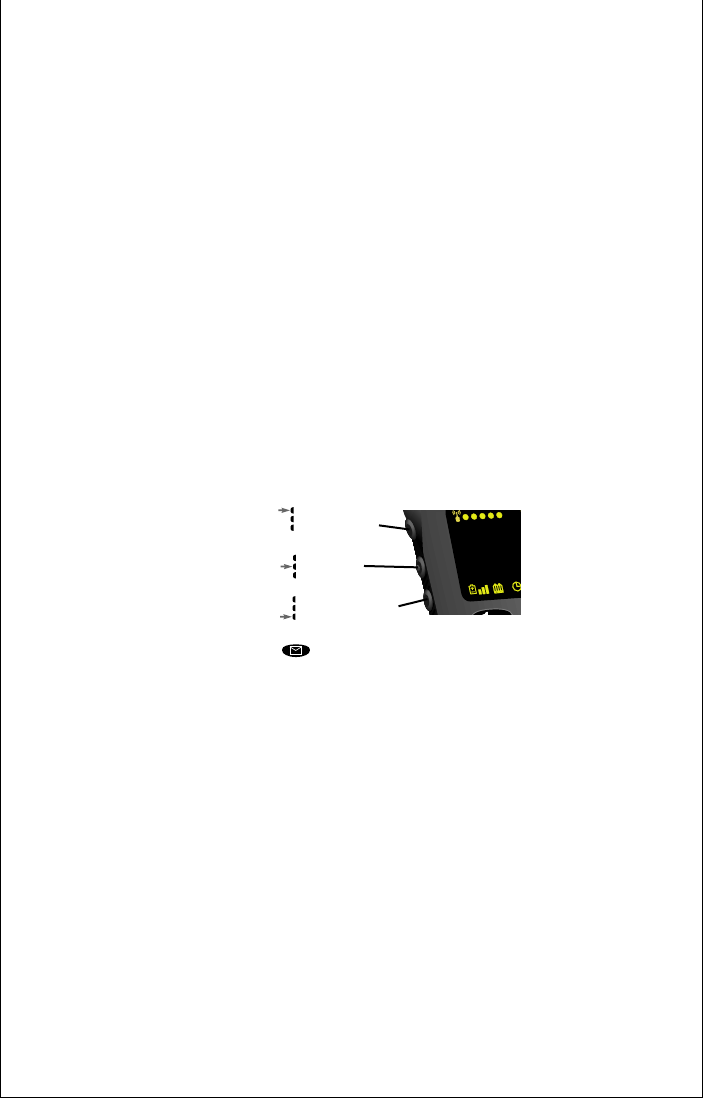

Follow these symbols as a guide for using the keys on the

side of your phone:

Press to scroll up.

Press to select.

Press to scroll down.

54 Using Memory

Using Your Built-in Phone Book

How Your Phone Book Is Organized

Each phone number is stored in a “memory location”

within the phone, numbered 01-99. You can arrange the

numbers in your Phone Book for convenient recall by

storing related numbers in groups of ten.

For example, store your nine most frequently called

numbers in locations 01-09. Then, you can use the Turbo

Dial function to call those numbers with the push of a

single key. You could store business phone numbers in

locations 10-19, family numbers in 20-29, friends in 30-39,

and so on.

You can also store names to help identify phone numbers.

Later, you can easily recall a number either by its memory

location or by name that corresponds to it.

If someone you know has more than one phone number,

you could quickly recall the number you need by storing it

with a descriptive name, for example:

The section “Phone Book” on page 77 describes how the

Phone Book can help you place calling card calls and

access other automated calling systems with the touch of a

button.

SMITH J

HOME

SMITH J

WORK

SMITH J

PAGER

Using Memory 55

Storing Names and Numbers

To take advantage of your phone’s internal Phone Book,

ﬁrst store some names and numbers into memory:

Enter the number. Enter the phone number you

want to store.

Press¬ to begin storing.

The phone prompts you to enter a memory

location. You will see Location __.

Enter the memory location. Enter the two-

digit memory location where you want the sequence

stored.

Press « to store the sequence in the ﬁrst available

location.

Enter a digit. Enter the ﬁrst digit of the memory

location, then press « to store the sequence in

the ﬁrst available location beginning with that

digit.

Enter a name. Enter a name to identify the

phone number. (See the next page for details on

entering names.) You will see Alpha Or §.

Tip:

The “§“

symbol in your

display

represents the

Smart Button.

Press , or press ¬, when you are ﬁnished

entering the name.

Your phone conﬁrms your entry by displaying the

information you stored.

56 Using Memory

Using Your Built-in Phone Book (continued)

How to Enter Letters

When the display shows Alpha Or §, you can use the

keypad to produce any letter in the alphabet by pressing the

numeric keys one or more times. Use the letters printed on

each key as a guide. For example, press ¤ to enter the

letters “A,” “B,” or “C,” as shown:

press 1 time to insert an “A”

press 2 times to insert a “B”

press 3 times to insert a “C”

press 4 times to insert a “2“

Using Memory 57

Entering a Name

To enter a name into the Phone Book:

Tip:

Press the

upper or lower

side key ﬁrst, to

toggle between

upper and lower

case letters.

Enter a letter. Enter a letter by pressing a key as

many times as necessary.

Enter punctuation. Enter punctuation by

pressing ⁄ as many times as indicated by the

chart below.

Press »to advance the cursor to the next space

Press « or press Ç to erase a letter if you

make a mistake.

Continue storing. Continue with step 5 on the

previous page when you are ﬁnished entering the

name.

2345678910

11 //

// ‘‘

‘‘ ,,

,, ??

?? $$

$$ ..

.. &&

&& !!

58 Using Memory

Recalling Phone Book Entries

Recalling an Entry by Name

Once you have stored names and numbers, you can recall

them alphabetically and immediately place calls. One press

of the Smart Button gives your instant access to the name

directory.

Press once to enter your name directory.

Press to scroll to the name you are looking for.

Enter the first letter. Enter the ﬁrst letter of the

name you want to recall from memory. The display

show the ﬁrst name in the phone book that begins

with that letter.

Press ‰ two times if you want to see the number

stored with the name.

Press and hold , or press æ, to call the

number you selected.

Press º or close the phone to end the call.

Press and hold until you hear two tones.

When you see § To End Call, press again to

end the call.

Using Memory 59

Recalling an Entry by Memory Location

Each name and number you store is placed in a memory

location numbered 01-99. Once you have stored names and

numbers, you can recall them by memory location:

Press ‰.

Enter the location number. Enter the two-

digit memory location of the phone number you’re

looking for.

Press and hold , or press æ, to call the

number you selected.

Press º or close the phone to end the call.

Press and hold until you hear two tones.

When you see § To End Call, press again to

end the call.

60 Using Memory

Recalling Phone Book Entries (continued)

Clearing an Entry

To erase a memory entry:

Recall the entry. Recall by name the entry that

you want to erase.

Press Ç to clear the entry.

You will see Clear?.

Press¬ to conﬁrm that you want to erase the

entry.

The numbered location of the cleared entry will

show in the display.

Using Memory 61

Shortcuts for Recalling Phone Book Entries

Using Super Speed Dial

If you know the memory location of the number you want

to call, try the Speed Dial function:

Enter the memory location. Enter the two-

digit memory location (01-99).

Press and hold , or press æ, to place the

call.

Using Turbo Dial

The Turbo Dial function enables you to dial numbers stored

in locations 01-09 with the push of a single button:

Press and hold a number ⁄ through · on

the keypad, and your call is placed.

Your phone’s Priority Call feature gives you fast access to

any number stored in location 01. To learn how to activate

this feature, see “Activating Emergency Dialing” on

page 113.

62 Using Memory

Making Notes on Your Phone’s Scratchpad

In addition to your internal phone book, you also have a

built-in scratchpad for making quick notes. The scratchpad

remembers the last phone number shown on your display.

Entering a Number in the Scratchpad

If you are on the phone and your party gives you another

number to call, enter the number on the Scratchpad so you

can place the call later.

Enter the number. Enter the number into the

keypad. (The person on the line can hear tones as

you dial.)

Press º to end the current call, if necessary.

Press æ to call the number you saved on the

Scratchpad.

Storing Numbers while in a Call

You can also store numbers while you are in a call:

Enter the number. Enter the number into the

keypad.(The person on the line can hear tones as

you dial.)

Press ¬, and continue storing with step 3 in

“Storing Names and Numbers” on page 55.

Using Short Messaging

If your Service Provider offers Short Messaging Services,

your TDMA StarTac phone can receive alphanumeric

messages just like a pager. The TDMA StarTac can save up

to 30 short messages and will automatically replace the

oldest messages with the newest as they are received. Call

Back messages and numbers can be stored for your review.

Best of all, viewing your messages is a snap thanks to

Motorola’s one-touch Message Button!

In this chapter you will learn how to:

• use the message key to access your messages

• initiate a Call Back with the press of a button

• lock and unlock speciﬁc messages

• clear one or more messages

Follow these symbols as a guide for using the keys on your

phone:

Press to scroll up

Press to select

Press to scroll down

Press on the keypad to retrieve messages

64 Using Short Messaging

How Your Phone Alerts You to a Message

New Message Alerts

If your phone is on and receives a new digital message, the

phone alerts you in two different ways:

•Message Received appears in the display, and:

- The message icon ﬂashes.

- The phone beeps three times.

- The status indicator ﬂashes.

•Urgent Msg Received or EMERGENCY MSG RECVD

appears in the display, and:

- The message icon ﬂashes.

- The phone beeps ﬁve times.

- The status indicator ﬂashes

Using Short Messaging 65

Short Message Indicators

If a message is unread, the colon after the message number

is highlighted in reverse video. After the message appears

and scrolls across the display for the ﬁrst time, it is denoted

as a “read” message and is no longer highlighted.

If the sender has marked the message “Emergency” or

“Urgent,” the display shows:

Setting Scrolling Speeds

Adjusting the message scrolling speed is quick and easy. See

“Set Scrolling Speeds” on page 146 for details.

Call home

01:Emergcy

Call home

01:Urgent

66 Using Short Messaging

Viewing a Short Message

Short Message Service is an optional service which may be

available from your Service Provider. Contact your Service

Provider to subscribe to this service.

Tip:

Message

Button ( )

can be used

when key pad

cover is closed.

Entering The Message Center

To enter the message center:

Press and hold to enter the message center.

• If the message center has messages, you will

see New XX Total YY.

where XX is the number of unread messages,

and YY is the total messages currently stored.

• If the message center has no messages, you

will see Msg Center Empty.

• If the message center is full, you will see Msg

Memory Full.

Reading The Most Recent Message

Tip:

Pressing

will start or

stop a scrolling

message.To

adjust the

scrolling speed,

see “Scrolling

Speeds” on page

152.

Press to view the most recently received

message.

Using Short Messaging 67

Retrieving a Speciﬁc Message

Enter Message Number to retrieve a speciﬁc

message.

If a message does not match that number, then

Invalid Msg Number appears in the display.

After a few seconds, the message begins to scroll

across the display.

Reading Subsequent Messages

When the current message has ﬁnished scrolling across the

display:

Press to display the next message.

Whenever a message has ﬁnished scrolling, you can

access the next message by pressing .

68 Using Short Messaging

Viewing a Short Message (Continued)

Reading the Time/Date of Message

When the current message has ﬁnished scrolling across the

display:

Press to display the time/date stamp of the

current message.

Reviewing Current Message

When the current message has ﬁnished scrolling across the

display:

Press to display the beginning of the current

message once the current message has scrolled past.

Using Short Messaging 69

Initiating a Call Back

When the current message has ﬁnished scrolling across the

display, you can call back a number embedded in the text

message.

Press and hold , or press æ, to initiate a

Call Back, if a Call Back number was provided as

part of the message.

You will see Dial No.? XXXXXXX.

If a Call Back number was not provided as part of

the text message, the phone dials the ﬁrst number

present in the text message.

Press , or press æ, to dial the number

shown in the display.

Press to search the text message for the next

call back number.

Note:

While in the message center, you can enter a Call

Back number at any time by using the keypad, and then

press æ to place the call.

Exiting Message Center

Press º to exit the message center.

Press and hold to exit the message center.

70 Using Short Messaging

Locking and Unlocking a Message

Important messages can be locked to ensure their

safekeeping for later review. A locked message cannot be

deleted until the message is unlocked.

Press ƒ, then press ﬁ, to toggle the current

message between LOCKED and UNLOCKED.

The icon ﬂashes in the display when a message

is locked.

Note:

If your message memory is full and a new message is

received, any unlocked messages that have been read will be

deleted.

Using Short Messaging 71

Clearing Messages

Clearing the Current Message

To erase the current message:

Press Ç when the message you want to erase is

on the display.

You will see Clear XX Press §, where XX is the

number of the message you want to clear.

Press

to clear the message.

You will see Message XX Cleared.

Press ºor any other key if you change your

mind and do not wish to clear the message.

Note:

You can not clear a locked message. A locked

message must be unlocked before it can be cleared. For

more information, see “Locking and Unlocking a Message”

on page 70.

72 Using Short Messaging

Clearing Messages (Continued)

Clear All Messages

To erase all the messages from your Message Center at once:

Press and hold Ç when you are in the message

center.

You will see Clear All Press §.

Press to verify that you want all the messages

cleared.

Press º if you change your mind and do not

wish to clear all the messages. You will be returned

to the message center.

Press º to exit from the message center.

If all the messages have been cleared and no locked

messages remain in the message center, Msg

Center Empty appears in the display.

Note:

You can not clear locked messages. Locked messages

must be unlocked before they can be cleared. For more

information, see “Locking and Unlocking a Message” on

page 70.

The Menu System

The TDMA StarTac cellular phone is loaded with features

that can help you be more productive. The phone’s user-

friendly menu system helps you ﬁnd what you need quickly

and easily.

Each of the icons on your phone’s display represents a

menu:

In this chapter you will learn:

• how to navigate through the menus

• how to read a roadmap

Menu Feature

Icons

74 The Menu System

Navigating the Menu

You can navigate through the menu system using the three

keys located on the left side of the phone. Use the upper and

lower volume keys to scroll to sub-menus and to control

volume. Use the middle Smart Button to choose menus and

functions.

Shortcut:

Experienced

Motorola

Users:

Watch for the

“Shortcuts.”

You will ﬁnd

many of the

same key

sequences you

have used with

other Motorola

models!

This manual uses these symbols to instruct you to use the

Smart Button and the upper and lower volume keys.

Follow these symbols as a guide for using the keys on the

side of your phone.

Press to scroll up

Press to select

Press to scroll down

If you are already familiar with previous Motorola cellular

phones, you can use your phone’s « and » keys to

scroll through the menu system.

The Menu System 75

Road Maps

To help you navigate through the phone’s menu system,

each chapter begins with an easy-to-follow visual “road

map.” Simply press the key shown, and observe the message

that appears in the display. For example, try this:

Press ƒ, then press , to enter the menu fea-

tures.

Press to scroll through the menu’s top level,

shown here in the margin.

(Notice that the icons on the bottom of your display

ﬂash as you scroll.)

Press º to exit the menu.

Detailed instructions within each chapter describe how each

feature works.

p. XX

Phone

Book

p. XX

Timers

p. XX

Tone

Control

p. XX

Lock

Secure

p. XX

Phone

Options

p. XX

Message

76 The Menu System

Phone Book

The last chapter told you how to store and recall phone

numbers with the internal Phone Book. This chapter tells

you how to access the same features using your phone’s

convenient menu system. You will also learn about

advanced storing features that help you use calling cards

and access automated calling systems.

In this chapter you will learn how to:

• recall and store phone numbers using the menu

system

• simplify automated calling systems like Voice Mail

• store calling card sequences for easy access

• edit your memory information

• view your own phone number.

• adjust the information on the display

Follow these symbols as a guide for using the keys on the

side of your phone.

Press to scroll up

Press to select

Press to scroll down

78 Phone Book

Road Map

Press ƒ, then press , to enter the menu system.

Start:

p. 72

Recall By

Name

p. 74

Recall By

Location

p. 76

Store

Number

p. 84

Edit

p. 88

My

Number

p. 89

Name

Pref On

To Main

Phone

Book

Phone Book 79

Recalling Phone Book Entries with the

Recalling an Entry by Name

Once you have stored names and numbers, you can recall

them alphabetically with the Phone Book menu.

Press ƒ, then press , to enter the menu.

You will see Phone Book.

Press to select Phone Book.

You will see Recall By Name.

Press to select Recall By Name.

You will see Enter 1st Letter.

Enter the first letter. Enter the ﬁrst letter of the

name you want to recall from memory.

The display shows the ﬁrst name that begins with

that letter.

Press to scroll to the name you want.

Press ‰ two times if you want to see the number

stored with the name.

Press and hold , or press æ, to call the

number you selected.

80 Phone Book

Recalling Phone Book Entries with the

Menu (continued)

Recalling an Entry by Location

Each name and number you store is placed in a memory

location numbered 01-99. Once you have stored names and

numbers, you can recall them by memory location with the

Phone Book menu.

Press ƒ, then press , to enter the menu.

You will see Phone Book.

Press to select Phone Book.

You will see Recall By Name.

Press to scroll to Recall by Location.

You will see Recall By Location.

Press to select Recall by Location.

Enter the location. Enter the two-digit memory

location of the number you want.

Press and hold , or press æ, to call the

number you selected.

Phone Book 81

Storing with the Menu

You can use the phone’s menu system to store names and

numbers into the Phone Book.

Press ƒ, then press , to enter the menu.

You will see Phone Book.

Press to select Phone Book.

You will see Recall By Name.

Press to scroll to Store Number.

You will see Store Number.

Press to select Store Number.

You will see Enter Number.

Enter the number. Enter the phone number you

want to store.

Press when you ﬁnish entering the number.

Press « to store the sequence in the next

available location.

Enter the first digit. Enter the ﬁrst digit of the

memory location and press « to store the

sequence in the ﬁrst available location beginning

with that digit.

You will see Location __.

82 Phone Book

Storing with the Menu (Continued)

Enter a location. Enter the two-digit memory

location where you want the sequence stored.

Tip:

You will see

Alpha Or §. If

the chosen

location is full,

press º and

restart the

storing sequence.

Enter a name. Enter a name to identify the phone

name number, or skip this step and continue with

step 9. (See“Entering a Name” on page 57 for

details on entering names.)

Press , or press ¬, when you ﬁnish entering

the name.

Your phone conﬁrms your entry by displaying the

location, number, and name you stored. Proceed

with step 10 below, or continue with step 5 in

“Storing with the Menu” on page 81 to store more

numbers.

10.

Press º to exit the menu.

Phone Book 83

Advanced Storing

Entering a Pause in a Number

When you call automated systems, a recorded message

prompts you for PIN numbers, Voice Mail numbers, etc. You

can store these numbers in your phone’s memory, separated

by “pauses”—special characters that tell your phone to

wait before sending additional numbers.

Enter the number. Enter the phone number you

use number to access the automated system.

Press ƒ, then press æ.

You will see Insert Pause o.

Press to insert a pause (o) into the sequence.

Enter the next numbers. Enter the next group of

numbers, for example, an account number or PIN

number.

If the automated system requires a * or #, enter that

symbol, too.

Insert a pause. Insert another pause, and enter

the next group of numbers by repeating steps 2

through 4 as many times as necessary.

You can store up to 32 digits, including pauses.

When you’ve entered the entire sequence, store it as

you would any phone number.

84 Phone Book

Advanced Storing (continued)

Press ¬ to begin storing.

You will see Location __.

Enter a location. Enter the two-digit memory

location where you want the sequence stored.

You will see Alpha Or §.

Enter a name. Enter a name for your sequence.

(See “Entering a Name” on page 57 for details on

entering names.)

Press when you ﬁnish entering the name.

Your phone conﬁrms your entry by displaying the

location, number, and name you stored.

Placing a Call with Pauses

To use your stored sequence:

Recall number. Recall the stored number with the

pause inserted.

Press and hold , or press æ, to place the

call.

Send the next set of numbers. When the record-

ing prompts you for information, press or æ

to send the next set of stored numbers.

Press , or press æ as many times as neces-

sary, to transmit all the numbers.

Phone Book 85

Storing Calling Card Information

Like Pause Dialing, you can store calling card access

numbers, separated by pauses, for easy recall later. You can

also store a Number Character in the sequence to save a

place for the number you will be calling when you use your

calling card.

You can protect your calling card information with your

phone’s security features. See “Lock/Security” on page 108

for more information.

Enter a number. Enter the phone number you use

to access your calling card system, usually an 800

phone number.

Skip this step if you only dial 0.

Press ƒ, then press æ.

You will see Insert Pause o.

Press to insert a pause (o) into the sequence.

Enter the next numbers. If necessary, enter the

next group of numbers.

For example, some long distance carriers require

you to dial a 0 before the number you are calling. If

no further numbers are needed, skip to Step 6.

Press ƒ, then press æ.

Press to scroll to the Number Character.

You will see Insert Number ‘N.

86 Phone Book

Advanced Storing (Continued)

Press to insert the ‘N Character into the

sequence.

This special character saves a place for the phone

number you will be calling. The number will be

inserted into the sequence automatically when you

place the call.

Press ƒ, then press æ.

Press to insert another pause, as in steps 2 and

10.

Enter the next numbers. Enter your calling card

PIN number.

11.

Press¬ to store your calling card sequence.

You will see Location __.

12.

Enter a location. Enter the two-digit memory

location where you want the sequence stored.

You will see Alpha Or §.

13.

Enter a name. Enter a name for your sequence.

See “Entering a Name” on page 57 for details on

entering names.

14.

Press when you are ﬁnished entering the

name.

Your phone conﬁrms your entry by displaying the

location, number, and name you stored.

Phone Book 87

Placing a Calling Card Call

After you’ve stored your calling card information, just recall

the information. Enter the number of the person you are

calling, and your phone will do the rest.

Recall the information. Recall the calling card

information you’ve stored. (See “Recalling an Entry

by Name” on page 79 and “Recalling an Entry by

Location” on page 80 for more information on

Recalling Numbers.)

Press æ before entering number.

You will see Enter Number.

Enter a number. Enter the phone number you

want to call, including the area code.

Enter the number manually, by location, or recall.

Press and hold , or press æ, to place the

call.

Your phone dials the number to access your long

distance provider.

Press , or press æ, to send the next group of

numbers when you are prompted.

The phone automatically inserts the selected

number to call at the appropriate time in the

sequence.

Send the next numbers. Repeat step 5 to send the

next group of numbers as many times as necessary.

88 Phone Book

Editing a Memory Location

After you store names and numbers in the Phone Book, you

can edit the information or erase entries at any time.

Press ƒ, then press , to enter the menu.

You will see Phone Book.

Press to select Phone Book.

You will see Recall By Name.

Press to scroll to Edit.

You will see Edit.

Press to select Edit.

Recall the entry. Recall the entry by location or by

name. (See “Recalling an Entry by Name” on

page 58 or “Recalling an Entry by Location” on

page 80.)

Press to begin editing the phone number.

The display shows the name brieﬂy, then the phone

number.

Press Ç to erase one digit at a time.

Press and hold Ç to erase the entire number.

Enter numbers. Enter your changes to the phone

number.

Phone Book 89

Press when you ﬁnish editing the phone num-

ber.

The display shows the location where your number

is currently stored.

10.

Press Ç to erase the memory location, then enter

a new two-digit location.

Press to keep the phone number in its current

location. The display shows the name stored with

the phone number you are editing.

11.

Press Ç to erase one letter at a time, or skip to

step 13 to leave the name unchanged.

12.

Enter letters. Enter your changes to the name.

(See “Entering a Name” on page 57.)

13.

Press when you ﬁnish editing the name.

The display shows the new information.

14.

Press to save your changes.

Your phone conﬁrms your entry by displaying the

location, number, and name you stored.

Press Ç to leave the information unchanged.

When you see Location __, enter a new two-

digit memory location to avoid overwriting the

information in the current location.

15.

Press º to exit the menu, or scroll to other fea-

tures.

90 Phone Book

Viewing Your Own Number

Use this feature to view your phone’s currently active phone

number. If you have more than one phone number, you can

change the active number with the Change Number feature

in the Phone Options menu (see pages 136 and 137).

Shortcut:

Press

‰

then

, for a

quick look at

your phone

number.

Press ƒ, then press , to enter the menu.

You will see Phone Book.

Press to select Phone Book.

You will see Recall By Name.

Press to scroll to My Number.

You will see My Number.

Press to select My Number.

Press to view your own phone number.

Your active phone number appears on the screen.

After six seconds, the phone returns to step 3.

Press º to exit the menu, or scroll to other fea-

tures.

Phone Book 91

Phone Book Display Preferences

The Name Preference feature determines the order in which

the Phone Book displays information. When you recall

information by location and this feature is:

• Off— You see the stored phone number ﬁrst and

must press ‰ to see the associated name.

• On—You see the stored name ﬁrst and must press

‰, ‰ to see the associated phone number.

To turn this feature on or off:

Shortcut:

Press

then press the

Smart Button,

then,

⁄

, and

continue with

step 4.

Press ƒ, then press , to enter the menu.

You will see Phone Book.

Press to select Phone Book.

You will see Recall By Name.

Press to scroll to the Name Preference feature.

You will see Name Pref On or Name Pref Off.

Press to toggle between Name Pref On and

Name Pref Off.

Press º to exit the menu, or scroll to other fea-

tures.

You should set Name Preference to Name Pref On if you

subscribe to Caller ID, so that you can see the name of the

person who is calling. See “Caller ID” on page 129.

Call Timers

Your phone’s Call Timers give you a variety of options for

managing your time. You can monitor the length of

individual calls, set a timer to track monthly usage, or have

the phone alert you at intervals that you specify.

In this chapter you will learn how to:

• monitor the length of your calls

• set and view the resettable timer for long-term mon-

itoring

• program audible timers for your individual needs

Note:

Follow these symbols as a guide for using the keys on

the side of your phone.

Press to scroll up

Press to select

Press to scroll down

93 Call Timers

Road Map

Press ƒ, then press , to enter the menu system.

Start:

p. 92

Individual

XX YY

p. 93

Resettable

XXXXX

p. 94

Cumulative

XXXXX

p. 95

Reset

Timer

p. 96

Individual

Timer Off

p. 97

One Minute

Timer Off

p. 98

Repeat

Timer Off

p. 100

Single

Timer Off

Phone

Book

Timers

To Main

Call Timers 94

View Individual Call Timer

You can view the air-time of the most recent call or the call

in progress (in minutes and seconds) at any time using this

feature. The Individual Call Timer resets when you place

the next call and when you turn the phone OFF. You can

also choose to have the timer display while calls are in

progress. See “Display Individual Timer Automatically” on

page 98.

Shortcut 1:

Press

‰

then

twice for

a quick look at

this timer.

Pressƒ then press to enter the menu.

You will see: Phone Book

Press to scroll to Call Timers.

You will see: Timers

Press to select Call Timers.

You will see: Individual XX YY

The display will show the air-time of your last call

in minutes (XX) and seconds (YY).

Shortcut 2:

Press

then

press the

Smart Button,

then

›

ﬁ

for a quick look

at this timer.

Press º to exit the menu, or you may scroll to

other features.

95 Call Timers

View Resettable Call Timer

You can track how much air-time you have accumulated at

any time. Use this feature to view the time elapsed, and

follow the instructions on page 95 to reset the timer.

Shortcut 1:

Press

‰

then

three

times for a

quick look at

this timer.

Pressƒ then press to enter the menu.

You will see: Phone Book

Press to scroll to Call Timers.

You will see: Timers

Press to select Call Timers.

You will see: Individual XX YY

Press to scroll to Resettable Timer.

You will see: Resettable XXXX

The display will show your air-time in minutes

since you last reset the timer.

Shortcut 2:

Press

then

press the

Smart Button,

then

›

ﬂ

for a quick look

at this timer.

Press º to exit the menu, or you may scroll to

other features.

Call Timers 96

View Cumulative Timer

This is a non-resettable timer that keeps track of your

phone’s total air-time (in minutes).

Shortcut 1:

Press

‰

then

four times

for a quick look

at this timer.

Pressƒ then press to enter the menu.

You will see: Phone Book

Press to scroll to Call Timers.

You will see: Timers

Press to select Call Timers.

You will see: Individual XX YY

Press to scroll to Cumulative Timer.

You will see: Cumulative XXXX

The display will show your air-time in minutes

since your phone was activated.

Shortcut 2:

Press

then

press the

Smart Button,

then

›

‡

for a quick look

at this timer.

Press º to exit the menu, or you may scroll to

other features.

97 Call Timers

Reset Timer

Reset this timer at the beginning of each billing cycle and

you can keep a running tab of your monthly usage. After

you reset the timer, it will continue to keep track of your air-

time (in minutes) until you reset it again.

Shortcut 1:

Press

then

press the

Smart Button,

then

›

‹

and continue

with step 5.

Keep in Mind: The shortcuts will not work if the Reset

Timer is already set at zero.

Pressƒ then press to enter the menu.

You will see: Phone Book

Press to scroll to Call Timers.

You will see: Timers

Press to select Call Timers.

You will see: Individual XX YY

Press to scroll to Reset Timer.

You will see: Reset Timer

Press to reset the timer.

Shortcut 2:

Press

then

‚,

‡

to reset the

timer.

Press º to exit the menu, or you may scroll to

other features.

Call Timers 98

Display Individual Timer Automatically

When you turn this feature on, your phone automatically

will display your air-time in minutes (XX) and seconds (YY)

during and after each call.

Shortcut:

Press

then

press the

Smart Button,

then

›

†

and continue

with step 5.

Pressƒ then press to enter the menu.

You will see: Phone Book

Press to scroll to Call Timers.

You will see: Timers

Press to select Call Timers.

You will see: Individual XX YY

Press to scroll to Individual Timer.

You will see: Individual Timer Off or

Individual Timer On

Press to toggle between Individual Timer

Off and Individual Timer On.

Press º to exit the menu, or you may scroll to

other features.

Tip:

Activating

the Individual

Timer may reduce

both standby and

talk-times.

99 Call Timers

One Minute Audible Timer

Turn this feature on to hear an audible beep 10 seconds

before the end of every minute during a call. Don’t worry,

the party on the other end will not hear the beeps.

Shortcut:

Press

then

press the

Smart Button,

then

›

and continue

with step 5.

Pressƒ then press to enter the menu.

You will see: Phone Book

Press to scroll to Call Timers.

You will see: Timers

Press to select Call Timers.

You will see: Individual XX YY

Press to scroll to One Minute Timer.

You will see: One Minute Timer Off or One

Minute Timer On

Press to toggle between One Minute Timer

Off and One Minute Timer On.

Press º to exit the menu, or you may scroll to

other features.

Call Timers 100

Repeating Audible Timer

You can set this timer to beep during your calls at an

interval that you select—from 11-999 seconds. You will

hear the beep 10 seconds before the end of each interval, but

the party on the other end will not hear the beeps.

Pressƒ then press to enter the menu.

You will see: Phone Book

Press to scroll to Call Timers.

You will see: Timers

Press to select Call Timers.

You will see: Individual XX YY

Press to scroll to Repeating Timer.

You will see: Repeat Timer Off or Repeat

Timer On

Press to toggle between Repeat Timer Off

and Repeat Timer On.

The prompt to enter seconds will appear only if you

have turned the feature on. If you have turned it off,

you will see: Repeat Timer Off

Shortcut: Pres

then

press the

Smart Button,

then

›

⁄

and continue

with step 5.

Enter seconds. Enter the number of seconds you

would like between audible beeps.

You will see: Beep At YYY Secs

Press to set the timer.

The phone will conﬁrm by displaying your entry:

Set At YYY Secs

Press º to exit the menu, or you may scroll to

other features.

101 Call Timers

Single Timer

Like the Repeating Timer, you can set the Single Timer to

beep at a time that you select—from 11-999 seconds. It will

beep once during each call, 10 seconds before the end of the

interval. The party on the other end will not hear the beeps.

Shortcut:

Press

then

press the

Smart Button,

then

›

and continue

with step 5

Pressƒ then press to enter the menu.

You will see: Phone Book

Press to scroll to Call Timers.

You will see: Timers

Press to select Call Timers.

You will see: Individual XX YY

Press to scroll to Single Timer.

You will see: Single Timer Off or Single

Timer On

Press to toggle between Single Timer Off

and Single Timer On.

The prompt to enter seconds will appear only if you

have turned the feature on. If you have turned it on,

you will see: Single Timer Off

Enter seconds. Enter the number of seconds you

would like between audible beeps.

You will see: Beep At YYY Secs

Press to set the timer.

The phone will conﬁrm by displaying your entry:

Set At YYY Secs

Press º to exit the menu, or you may scroll to

other features.

Tone Controls

If you’ve been reading along diligently, this may be a good

time for a break—put your feet up and have some fun with

the Tone Controls. Use these features to select silent

vibration mode, personalize your phone’s ringer styles, or

turn the ringer off for some peace and quiet.

In this chapter you will learn how to:

• choose from nine different ringer styles

• activate and deactivate the VibraCall function.

• silence the keypad

• silence the scratchpad

Note:

Follow these symbols as a guide for using the keys on

the side of your phone.

Press to scroll up

Press to select

Press to scroll down

103

Road Map

Press ƒ then press to enter the menu system.

Start:

p. 104

Ring or

Vib Sel

p. 105

Ringer

Style X

p. 106

Keypad

Tone On

p. 107

Scratchpad

Tone On

To Main

Phone

Book

Timers

Tone

Control

104

VibraCall Selection

Shortcut 1:

Press

, then

press

†

toggle the

VibraCall

function on and

off.

Using this innovative feature, you can choose to be alerted

to incoming calls using the vibrating ringer, the ringer,

both, or neither. Motorola’s VibraCall option is ideal for

situations where ringing may not be appropriate, or in

noisy places where you might not hear the ringer.

Pressƒ then press to enter the menu.

You will see: Phone Book

Press to scroll to Tone Controls.

You will see: Tone Controls

Shortcut 2:

Press

then

press the

Smart Button,

then

‹

‚

and continue

with step 4.

Press to select Tone Controls.

You will see: Ring Or Vib Sel

Press to select this feature.

The display will show your current ringer setting.

Press to scroll through your choices:

When both the ringer and vibrator are on, the

phone alerts you by vibrating for three ring cycles

and then ringing.

Shortcut 3:

Press

then

press the

Smart Button,

then

‹

⁄

and continue

with step 4.

Press when you reach the setting you want.

Press º to exit the menu, or you may scroll to

other features.

Vibrate

Only

Ring

Only

RingerOn

Vib On

RingerOff

Vib Off

105

Select Ringer Style

The TDMA StarTac phone gives you nine different ringer

styles to choose from. After you choose a style, the phone

will give you a brief sample of your new alert sound, or

vibrate if you have the VibraCall function selected.

Pressƒ then press to enter the menu.

You will see: Phone Book

Press to scroll to Tone Controls.

You will see: Tone Controls

Press to select Tone Controls.

You will see: Ring Or Vib Sel

Press to scroll to Ringer Style.

The phone will show your current ringer style’s

number: Ringer Style X

Press to select this feature.

You will hear a sample of your current ringer style.

You will see: Select 1-9

Press ⁄ through · to hear the different

ringer styles, or you may scroll through the ringer

styles.

Press when you reach the ringer style you

want.

Press º to exit the menu, or you may scroll to

other features.

106

Keypad Tones

Keypad tones are the sounds you hear when you press any

key on the phone. If you want to be discreet, use this feature

to silence the audio feedback from the keypad.

Shortcut:

Press

then

press the

Smart Button,

then

‹

and continue

with step 5.

Keep in Mind: The other party will still hear tones.

Pressƒ then press to enter the menu.

You will see: Phone Book

Press to scroll to Tone Controls.

You will see: Tone Controls

Press to select Tone Controls.

You will see: Ring Or Vib Sel

Press to scroll to Keypad Tones.

You will see: Keypad Tone On or Keypad Tone

Off

Press to toggle between Keypad Tone On and

Keypad Tone Off.

Press º to exit the menu, or you may scroll to

other features.

107

Scratchpad Tones

Scratchpad tones are the tones that your phone sends to

access automated calling systems like Voice Mail. If you

don’t want your party to hear these sounds when you use

the scratchpad, turn the scratchpad tones off.

Shortcut:

Press

then

press the

Smart Button,

then

‹

and continue

with step 5.

Pressƒ then press to enter the menu.

You will see: Phone Book

Press to scroll to Tone Controls.

You will see: Tone Controls

Press to select Tone Controls.

You will see: Ring Or Vib Sel

Press to scroll to Scratchpad Tones.

You will see: Scratchpad Tone On or

Scratchpad Tone Off

Press to toggle between Scratchpad Tone On

and Scratchpad Tone Off.

Press º to exit the menu, or you may scroll to

other features.

Note:

If you turned the scratchpad tones off, but you want

to access a tone-activated system like Voice Mail, place your

call, enter the numbers you need to transmit, then:

Press ‰ then press æ to send the tones.

Lock/Security

While you probably would not want to leave your phone

unattended, the TDMA StarTac cellular phone has a

number of built-in security features to prevent

unauthorized use.

In this chapter you will learn how to:

• activate the Voice Privacy feature

• lock and unlock your phone

• place priority calls

• change your lock code

• restrict call placement and memory access

• reset or clear your phone’s settings

• activate your phone’s Authentication feature

Note:

Follow these symbols as a guide for using the keys on

the side of your phone.

Press to scroll up

Press to select

Press to scroll down

109

Road Map

Press ƒ then press to enter the menu system.

Start:

p. 116

Code

p. 117

View

Lock Code

p. 118

Change

Lock Code

p.119

Service

Level X

p. 122

Master

Reset

p. 124

Master

Clear

p. 126

A-Key

Entry

To Main

p. 110

Privacy

Off

p. 112

Automatic

Lock Off

p. 114

Priority

Call Off

p. 116

Secure

Options

To Main

Phone

Book

Timers

Tone

Control

Lock

Secure

110

Voice Privacy

By activating your TDMA StarTac’s Voice Privacy feature,

you are making a request to your cellular system to search

for a Voice Privacy channel with each call. If, for any

reason, a Voice Privacy channel is not available (or your

call is “handed off” to a cell where a Voice Privacy channel

is not available) you will hear a series of short beeps

alerting you that the call is no longer private.

Voice Privacy must be selected prior to placing a call in

order for that call to search for a Voice Privacy channel.

Keep in Mind: This feature is not available in all markets.

Contact your Service Provider for additional information

about your service area.

To turn the Voice Privacy feature on or off:

Pressƒ then press to enter the menu.

You will see: Phone Book

Press to scroll to Lock/Security.

You will see: Lock Secure

Press to select Voice Privacy.

You will see: Privacy Off or Privacy

Preferred

Press to toggle between Privacy Off and

Privacy Preferred.

Press º to exit the menu, or you may scroll to

other features.

111

Locking/Unlocking Your Phone

Locking Your Phone Automatically

When you turn this feature on, your phone will

automatically lock itself each time the phone is turned off.

Shortcut: Pres

then

press the

Smart Button,

then

⁄

ﬁ

and continue

with step 5.

Pressƒ then press to enter the menu.

You will see: Phone Book

Press to scroll to Lock/Security.

You will see: Lock Secure

Press to select Lock/Security.

You will see: Privacy Off or Privacy

Preferred

Press to scroll to Automatic Lock.

You will see: Automatic Lock Off or Automatic

Lock On

Press to toggle between Automatic Lock Off

and Automatic Lock On.

Press º to exit the menu, or you may scroll to

other features.

Press or press ¬ to conﬁrm and lock your

phone.

112

Locking/Unlocking Your Phone (Continued)

Locking Your Phone Manually

Tip:

“LOCK” is

printed on ﬁ,

as a reminder.

You can lock your phone manually at any time to help

prevent unwanted use. Once locked, you can leave your

phone ON or turn it OFF and the phone remains locked.

Press ƒ.

Press & holdﬁ for at least one full second.

You will see: Lock?

Unlocking Your Phone

Unlocking your phone is quick and easy. Once your phone

is on, just enter your three-digit lock code to unlock your

phone. (See pages 116 and 118 for more information on

your lock code.)

You can still receive calls when the phone is locked. Follow

these steps to answer the incoming call.

Enter code. Enter your three-digit lock code.

Press or press æ to receive the call.

Tip:

If you have

forgotten your

lock code, try

pressing ⁄,

¤,‹ or the

last three digits

of your cellular

phone number.

113

Activating Emergency Dialing

The Priority Call feature allows the Turbo Dial function to

dial from memory location 01 – even when the phone is

locked! To make good use of this feature, store an

emergency number or the phone number of a close relative

or friend that you would like to contact in case of

emergency.

Keep in Mind: Some cellular systems have their own

emergency numbers and do not allow access to emergency

numbers like 911 (not available in some areas). Check with

your Service Provider for more information.

Shortcut:

Press

then

press the

Smart Button,

then

and continue

with step 5.

To activate Priority Call:

Pressƒ then press to enter the menu.

You will see: Phone Book

Press to scroll to Lock/Security.

You will see: Lock Secure

Press to select Lock/Security.

You will see: Privacy Off or Privacy

Preferred

Press to scroll to Priority Call.

You will see: Priority Call Off or Priority

CallOn

Press to toggle between Priority Call Off

and Priority CallOn.

Press º to exit the menu, or you may scroll to

other features.

114

Security Options

The Secure Options sub-menu contains a number of

security-minded features to put your mind at ease. For your

protection, you must enter the six-digit security code in

order to access these features.

The factory programmed lock code used to unlock the

phone is 123, and the six-digit security code is 000000.

These may have been changed at the time your phone was

activated.

View Lock Code

If you need to refresh your memory, the View Lock Code

feature displays the currently active three-digit lock code.

Shortcut:

Press

then

press the

Smart Button,

then

ﬁ

and continue

with step 5.

Pressƒ then press to enter the menu.

You will see: Phone Book

Press to scroll to Lock/Security.

You will see: Lock Secure

Press to select Lock/Security.

You will see: Privacy Off or Privacy

Preferred

Press to scroll to Secure Options.

You will see: Secure Options

Press to enter the sub-menu.

You will see: Code ______

115

Security Options (Continued)

View Lock Code (Continued)

Enter code. Enter your six-digit security code to

continue.

You will see: View Lock Code

Press to display your three-digit lock code.

It appears for a few seconds.

Press º exit the menu, or you may scroll to

other features.

Change Lock Code

To change your three-digit lock code:

Pressƒ then press to enter the menu.

You will see: Phone Book

Press to scroll to Lock/Security.

You will see: Lock Secure

Press to select Lock/Security.

You will see: Privacy Off or Privacy

Preferred

Press to scroll to Secure Options.

You will see: Secure Options

Press to enter the sub-menu.

You will see: Code ______

116

Security Options (Continued)

Change Lock Code (Continued)

Enter code. Enter your six-digit security code to

continue.

You will see: View Lock Code

Press to scroll to Change Lock Code.

You will see: Change Lock Code

Press to select this feature.

You will see: Enter Code___

Enter new code. Enter the new three-digit code.

You will see: Changed To XXX

10.

Press º exit the menu, or you may scroll to

other features.

117

Security Options (Continued)

Restricting Call Placement

You may want to restrict call placement or hide memory

information when loaning your phone to others. Each of

your phone’s eight service levels offers a different

combination of access privileges and restriction.

Level 1: calls can be placed from memory

locations 1-10 only, no dialing from keypad,

no memory edit or storage, no access to

name directory

1 Memory

1-10

Level 2: calls can be placed from all memory

locations, no dialing from keypad, no memory

edit or storage

2 Memory

Only

Level 3: calls can be placed manually from

the keypad only, no access to memory infor-

mation, no memory edit or storage

3 Keypad

Only

Level 4: standard setting, no restrictions

4 Standard

Setting

Level 5: seven-digit (local) dialing only,

DTMF tones are not transmitted to prevent

calling card call

5 Local

Only

Level 6: calls can be placed from the keypad

and from memory, no edit or memory storage

to memory locations 1-10, memory cannot be

changed

6 No Store

1-10

Level 7: calls can be placed from a selected

memory range only, memory edit and storage

allowed with the selected range, no access

to name directory

7 Allow

Range

Level 8: no edit, storage, or recall from mem-

ory locations 1-10

8 Hide

Turbo

118

Security Options (Continued)

Restricting Call Placement (Continued)

To select a service level:

Pressƒ then press to enter the menu.

You will see: Phone Book

Press to scroll to Lock/Security.

You will see: Lock Secure

Press to select Lock/Security.

You will see: Privacy Off or Privacy

Preferred

Press to scroll to Secure Options.

You will see: Secure Options

Press to enter the sub-menu.

You will see: Code ______

Enter code. Enter your six-digit security code to

continue.

You will see: View Lock Code

Press to scroll to Service Level.

You will see: Service Level X

Press to select this feature.

The phone will display your current service level.

Press to scroll through the service level set-

tings.

See the chart on previous page.

119

Security Options (Continued)

Restricting Call Placement (Continued)

10.

Press to select the service level you want.

11.

If you select Level 7, the phone will prompt you for

the range of memory locations you want to remain

active. You will see: Range 1-__

Enter the range of digits memory locations from

which calls will be allowed. The phone will conﬁrm

the allowed range.

You will see: 1-XX Allowed

12.

Press º exit the menu, or you may scroll to

other features.

120

Security Options (Continued)

Resetting All Options

Use the Master Reset feature to reset all user-selectable

options back to their original factory settings.

Keep in Mind: Once you select this feature, the reset

process cannot be canceled or reversed.

Pressƒ then press to enter the menu.

You will see: Phone Book

Press to scroll to Lock/Security.

You will see: Lock Secure

Press to select Lock/Security.

You will see: Privacy Off or Privacy

Preferred

Press to scroll to Secure Options.

You will see: Secure Options

Press to enter the sub-menu.

You will see: Code ______

Enter code. Enter your six-digit security code to

continue.

You will see: View Lock Code

Press to scroll to Master Reset.

You will see: Master Reset

121

Security Options (Continued)

Resetting All Options (Continued)

Shortcut:

Press

then

press the

Smart Button,

then

ﬁ

and continue

with step 5.

Press if you want to reset all your phone’s

options back to their factory settings.

You will see: Standard Setting

Press º to exit the menu if you do not want to

reset your phone’s options.

Press º exit the menu, or you may scroll to

other features.

Clearing All Stored Information

If you want to start with a clean slate, use Master Clear to

reset all user-selectable options, clear the resettable timer

and erase all Phone Book information.

Keep in Mind: Once you select this feature, the process

cannot be canceled or reversed.

Pressƒ then press to enter the menu.

You will see: Phone Book

Press to scroll to Lock/Security.

You will see: Lock Secure

Press to select Lock/Security.

You will see: Privacy Off or Privacy

Preferred

Press to scroll to Secure Options.

You will see: Secure Options

122

Security Options (Continued)

Clearing All Stored Information

(Continued)

Press to enter the sub-menu.

You will see: Code ______

Enter code. Enter your six-digit security code to

continue.

You will see: View Lock Code

Press to scroll to Master Clear.

You will see: Master Clear

Press if you want to clear the memory and

reset all your phone’s options back to their factory

settings. This will take a few seconds.

You will see: Busy

Press º to exit the menu if you do not want to

reset your phone’s options.

Press º exit the menu, or you may scroll to

other features.

123

Security Options (Continued)

Authenticating Users

Dual mode phones such as the TDMA StarTac are equipped

with an authentication feature called the A-Key. The A-Key

acts much like a PIN number and helps prevent

unauthorized users from using your TDMA StarTac. Contact

your Service Provider for your personalized A-Key number.

Note:

This feature should only be programmed once.

To activate your TDMA StarTac’s A-Key feature:

Pressƒ then press to enter the menu.

You will see: Phone Book

Press to scroll to Lock/Security.

You will see: Lock Secure

Press to select Lock/Security.

You will see: Privacy Off or Privacy

Preferred

Press to scroll to Secure Options.

You will see: Secure Options

Press to enter the sub-menu.

You will see: Code ______

Enter code. Enter your six-digit security code to

continue.

You will see: View Lock Code

Press to scroll to A-Key Entry feature.

You will see: A-Key Entry

124

Security Options (Continued)

Authentication (A-Key) Entry (Continued)

Press to select.

The display will show the phone's active phone

number.

If the phone number displayed is not the number

you want to program the A-Key to, press either «

or » to switch to the second programmed phone

number. This will be the phone number your phone

will operate with once you exit the A-Key feature.

Enter A-Key. Enter your new A-Key (6- to 26-digit

number) as provided by your Service Provider.

Press Ç to correct any errors.

10.

Press to validate the A-Key entry.

• If the A-Key was input correctly, you will see

“Valid”.

• If was input incorrectly, you will seem

“Invalid”. Re-enter your A-Key.

11.

Press º to exit the menu, or you may scroll to

other features.

125

Phone Options

The Phone Options menu lets you adjust the way your

phone sends and receives calls.

You can tweak your phone for optimal performance, view

information about the phone, and choose from a number

of convenient features.

In this chapter you will learn how to:

• switch cellular phone numbers

• select the system mode

• review your phone’s feature settings

• place calls automatically at a later time

• select features for vehicular use

• conserve battery power

• view numbers with Caller ID

Note:

Follow these symbols as a guide for using the keys on

the side of your phone.

Press to scroll up

Press to select

Press to scroll down

127

Road Map

Press ƒ then press to enter the menu system.

Start:

p. 142

Call

ReceiveOn

p. 144

Automatic

HF Off

p. 146

Mult Key

Answer

p. 148

Automatic

Answer Off

To Main

p. 149

To Main

p. 130

Voice Mail

XX Messges

p. 131

Caller ID

XX No's

p. 134

Call Mode

Preference

p. 136

Change 

Number

p. 138

System 

Mode

p. 140

Feature

Review

p. 142

Call

Options

p. 149

System

Options

To Main

Phone

Book

Timers

Tone

Control

Lock

Secure

Phone

Options

Display

SID

128

Voice Mail

This feature updates you each time a message is sent to

your voice mail number, providing you with real time

information on messages waiting to be retrieved. To hear

any voice mail messages received, dial your voice mail

access number or retrieve the access number from memory.

When a voice mail message is received, the icon will

ﬂash rapidly.

Pressƒ then press to enter the menu.

You will see: Phone Book

Press to scroll to Phone Options.

You will see: Phone Options

Press to select Phone Options.

If a voice mail message has been received, the

display will show: Voice Mail XX Messages

Press º to exit the menu, or you may scroll to

other features.

129

Caller ID

This feature allows you to view the number of the calling

party in the phone’s display while the phone is ringing.

Additionally, your TDMA StarTac stores the telephone

numbers of the last ten incoming calls.

Should the caller’s phone number match a phone number

that you have stored in the phone’s memory, the phone will

automatically display the name associated with that phone

number. The display of the name-tag or phone number is

controlled through your setting of the Name Preference

feature. For more information on Name Preference, see

page 89.

If you subscribe to call waiting and receive a call while

another call is in progress, you will hear a call waiting tone

and the caller’s number will appear on the display. The

number will automatically be stored and can be viewed

after ending the call, using the procedure described on the

next page.

If the caller has restricted transmission of the phone

number, your phone will display, “Private.” If the Calling

Number ID information is not available to the cellular

network, “No ID” will display.

You can store any number contained in your Caller ID

memory to a memory location in the same way you would

save any phone number. Once the correct number is

displayed, press ¬ and a memory location or « to

autoload. See the Phone Book section on page 50 of this

manual for more information on storing phone numbers.

Note:

Caller ID is not available in all markets. Contact your

Service Provider for availability information.

130

Caller ID (Continued)

Using Caller ID

Pressƒ then press to enter the menu.

You will see: Phone Book

Press to scroll to Phone Options.

You will see: Phone Options

Press to select Phone Options.

You will see: Voice Mail XX Messages

Press to scroll to the Call ID feature.

You will see: Caller ID XX No’s

(XX) is the number of Caller ID numbers stored.

Shortcut:

Press

‰

then

press & hold

‰

and

continue with

step 5 if you

have

messages.

Press to see the Caller ID number list.

Press to scroll through the list.

The display will show the call number in the upper

left corner, with the phone number of the last phone

call being “C0'”, the second to the last “C1'”, and

so on, through “C9'”. If there are no numbers in

the caller ID list, then you will see: Empty

Press æ to dial the displayed number.

131

Caller ID (Continued)

Clearing Caller ID

To erase all entries saved in your Caller ID memory:

Press & hold Ç when a Caller ID name and

number is displayed.

You will see: Clear?

Press ¬ to clear.

Press º to cancel and leave your caller ID

memory intact.

132

Call Mode Preference

Either a digital or analog channel can be assigned to your

phone, based upon system channel availability.

Examples of peripheral devices that require analog

operation include fax machines, personal computers with

modems, and telemetry monitors (EKG). This feature must

be selected before a call originates in order for the call to be

analog.

Keep in Mind: When powered on, your TDMA StarTac will

first search for a digital channel. If no digital channel is

available, your phone will switch to an analog channel.

Tip:

If this

feature is

selected during a

call, the feature

will be effective

with the next

call. Press ƒ

¤ to switch

from digital to

analog mode.

Pressƒ then press to enter the menu.

You will see: Phone Book

Press to scroll to Phone Options.

You will see: Phone Options

Press to select Phone Options.

You will se: Voice Mail XX Messages

Press to scroll to Call Mode Preference.

You will see: Call Mode Preference

Press to select a Dual, Analog, or Digital chan-

nel.

You will see: Dual Mode or Analog Mode or

Digital Mode

Press to toggle between the Dual, Analog, or

Digital modes.

Press º to exit the menu, or you may scroll to

other features.

133

Switching Between Phone Numbers

Your phone can operate on two different home systems. If

you travel often, you can have your phone programmed

with two cellular numbers to reduce roaming. This feature

allows you to change your active number to the one

appropriate for the area you’re in.

When your phone has two numbers, both are designated as

your home system but only one number can be active at

any given time. Calls are placed and received by the

currently active number only. Each time you turn your

phone ON, you’ll see a message in the display that indicates

which phone number and home system are currently

active:

In most areas, there are two competing cellular carriers, the

“wireline” carrier and the “non-wireline” carrier: If your

cellular service is from a:

• non-wireline carrier—the display will indicate that

your home system is system A

• wireline carrier—the display will indicate that your

home system is system B

Non-wireline type with phone number 1 A1

Non-wireline type with phone number 2 A2

Wireline with phone number 1 B1

Wireline with phone number 2 B2

134

Switching Between Phone Numbers

(Continued)

To switch your phone number:

Pressƒ then press to enter the menu.

You will see: Phone Book

Press to scroll to Phone Options.

You will see: Phone Options

Press to select Phone Options.

You will se: Voice Mail XX Messages

Press to scroll to Change Number.

You will see: Change Number

Press to select the Change Number feature.

The active phone number will appear in the display,

for example: 5155551515

Press to switch to your other phone number.

In this case: 7085551212

Press to conﬁrm the new setting.

Press º to exit the menu, or you may scroll to

other features.

135

Selecting a Cellular System

Your Service Provider conﬁgures the System Mode feature

when you receive a cellular phone number. If you want to

get into the nitty-gritty of your phone’s operation, read on.

System Mode allows you to select the type of cellular system

your phone will access.

Shortcut:

Press

‰

then

and

continue with

step 6.

Pressƒ then press to enter the menu.

You will see: Phone Book

Press to scroll to Phone Options.

You will see: Phone Options

Press to select Phone Options.

You will se: Voice Mail XX Messages

Press to scroll to System Mode.

You will see: System Mode

Press to select the System mode feature.

Continued...

136

System Mode (Continued)

Continued from page...

Press to scroll through the system mode

settings:

Shortcut:

Press

then press the

Smart Button,

then

‹

and continue

with step 5.

Press to select the system mode setting you

want.

Press º to exit the menu, or you may scroll to

other features.

Standard Mode

Your phone ﬁrst seeks a home type system,

then a non-home type system

If home is non-wireline (type A) Std AB

If home is wireline (type B) Std BA

Reversed Preference Mode

Your phone ﬁrst seeks a non-home type sys-

tem, then a home type system. (This mode

may be useful in fringe areas or certain

roaming situations

If home is non-wireline (type A) Scan BA

If home is wireline (type B) Scan AB

Home Only Mode

The phone will not operate outside its home

system.

Home

Scan A Mode

The phone will operate only within nonwire-

line (type A) systems.

Scan A

Scan B Mode

The phone will operate only within wireline

(type B) systems.

Scan B

137

Feature Review

After you've spent some time adjusting your phone's

settings, use this feature to review the selections you've

made. When you enter Feature Review, your phone will

display any features that you have changed from their

default factory settings.

Keep in Mind: Settings cannot be changed while scrolling

through Feature Review. Feature Review is simply an

opportunity to review your current settings.

Pressƒ then press to enter the menu.

You will see: Phone Book

Press to scroll to Phone Options.

You will see: Phone Options

Press to select Phone Options.

You will se: Voice Mail XX Messages

Press to scroll to Feature Review.

You will see: Feature Review

Continued...

138

Feature Review/Channel Status (Continued)

Continued from page...

Press to select Feature Review.

The display message will indicate whether the

phone is accessing a Digital Channel, an Analog

Channel, or a Control Channel. The message will

be displayed in the following format:

Note:

The icon will flash when on a digital control

channel.

Press or press « or » to scroll through

any features you have changed from their default

settings.

If all of the features are set to the factory standard

settings, the display will show: Standard Setting

Pressº to exit the menu.

D X - xxxx

D=Digital Trafﬁc Channel

Digital Slot Number

Digital Channel Number

A- xxxx

A=Analog Voice Channel

Analog Channel Number

C - xxxx

C=Control Channel

Control Channel Number

139

Call Options

Blocking Incoming Calls

There are times when you can’t be bothered. Turn the Call

Receive feature off to disable call reception. Your phone will

inform you of incoming calls without receiving them.

While this feature is on, your display will indicate number

of calls.

Pressƒ then press to enter the menu.

You will see: Phone Book

Press to scroll to Phone Options.

You will see: Phone Options

Press to select Phone Options.

You will se: Voice Mail XX Messages

Press to scroll to Call Options.

You will see: Call Options

Press to enter the sub-menu.

You will see: Call ReceiveOn or Call

ReceiveOff

Shortcut:

Press

then press the

Smart Button,

then

⁄

, and

continue with

step 7.

Press to toggle between Call ReceiveOn and

Call ReceiveOff.

Pressº to exit the menu, or you may scroll to

other features.

Note:

If this feature is active, the phone will beep several

times when turned on.

140

Call Options (Continued)

Automatic Hands-Free

Turn this feature on when you are using Hands-Free

vehicular accessories. To ﬁnd out more about accessories

for your car, turn to page 17.

Pressƒ then press to enter the menu.

You will see: Phone Book

Press to scroll to Phone Options.

You will see: Phone Options

Press to select Phone Options.

You will se: Voice Mail XX Messages

Press to scroll to Call Options.

You will see: Call Options

Press to enter the sub-menu.

You will see: Call Receive On or Call Receive

Off

Shortcut:

Press

then press the

Smart Button,

then

†

, and

continue with

step 7.

Press to scroll to Automatic Hands-Free.

You will see: Automatic HF On or Automatic HF

Off

Press to toggle between Automatic HF On

and Automatic HF Off.

Press º to exit the menu, or you may scroll to

other features.

141

Call Options (Continued)

Multiple Key Answer

Why fumble for the æ key to answer calls? With Multiple

Key Answer on, you can answer calls by pressing the Smart

Button, any key on the upper keypad ⁄-», or the

upper and lower volume keys.

Shortcut:

Press

then press the

Smart Button,

then

‚,

and

continue with

step 7.

Pressƒ then press to enter the menu.

You will see: Phone Book

Press to scroll to Phone Options.

You will see: Phone Options

Press to select Phone Options.

You will se: Voice Mail XX Messages

Press to scroll to Call Options.

You will see: Call Options

Press to enter the sub-menu.

You will see: Call Receive On or Call Receive

Off

Press to scroll to Multiple Key Answer.

You will see: Mult Key Answer On or Mult Key

Answer Off

Press to toggle between Mult Key Answer On

and Mult Key Answer Off.

Press º to exit the menu, or you may scroll to

other features.

142

Call Options (Continued)

Automatic Answer

Turn Auto Answer on to have your phone automatically

answer incoming calls after two rings.

Note:

If keypad cover is closed the phone will not Auto

Answer.

Shortcut:

Press

then press the

Smart Button,

then

ﬂ

, and

continue with

step 7.

Pressƒ then press to enter the menu.

You will see: Phone Book

Press to scroll to Phone Options.

You will see: Phone Options

Press to select Phone Options.

You will se: Voice Mail XX Messages

Tip:

If the ringer

and VibraCall

functions are off,

your phone will

answer without

ringing or

vibrating.

Press to scroll to Call Options.

You will see: Call Options

Press to enter the sub-menu.

You will see: Call Receive On or Call Receive

Off

Press to scroll to Automatic Answer.

You will see: Automatic Answer On or Automatic

Answer Off

Press to toggle between Automatic Answer

On and Automatic Answer Off.

Press º to exit the menu, or you may scroll to

other features.

143

Display System Identification

This feature will show you the System ID number that

identiﬁes the cellular system your phone is currently

accessing. An even number indicates a wireline system and

an odd number indicates a non-wireline system.

Shortcut:

Press

then press the

Smart Button,

then

‡

, and

continue with

step 6.

Pressƒ then press to enter the menu.

You will see: Phone Book

Press to scroll to Phone Options.

You will see: Phone Options

Press to select Phone Options.

You will see: Voice Mail XX Messages

Press to scroll to System Options.

You will see: System Options

Press to enter the sub-menu.

You will see: Display SID

Press to view the System ID number.

After six seconds, the phone will go back to step 5.

Press º to exit the menu, or you may scroll to

other features.

Message Menu

Scroll over to the Message Menu for easy access to your

message settings. Some Service Providers let you subscribe

to a Digital Message Service that allows you to use your

cellular phone like a pager. Ask your Service Provider for

information about the availability of messaging in your

area.

In this chapter you will learn how to:

• adjust speed of your scrolling messages

• toggle the dedicated Message key for messaging or

One Touch Dialing

Note:

Follow these symbols as a guide for using the keys on

your phone.

Press to scroll up

Press to select

Press to scroll down

Press to retrieve messages

145

Road Map

Press ƒ then press to enter the menu system.

Start:

p. 152

Scrolling

Speeds

p. 153

MessageKey

Options

To Main

Phone 

Book

Timers

Tone

Control

Lock

Secure

Phone

Options

Message

146

Set Scrolling Speeds

Are your incoming messages scrolling across the display too

slowly? To adjust the scrolling speed:

Pressƒ then press to enter the menu.

You will see: Phone Book

Press to scroll to Message.

You will see: Message

Press to select Message.

You will see: Scrolling Speeds

Press to select Scrolling Speeds.

You will see: Medium Scrolling

Press to scroll through the scrolling speed set-

tings.

• To scroll slowly: Slow Scrolling

• For medium scrolling: Medium Scrolling

• To scroll quickly: Fast Scrolling

Press º to exit the menu, or you may scroll to

other features.

147

Message Key Options

If you don't have access to a messaging service, your

dedicated Message key can be used as a third One-Touch

Dialing key. See page 58, “One-Touch Dialing” for more

information on using and programming One-Touch

Dialing Keys.

Pressƒ then press to enter the menu.

You will see: Phone Book

Press to scroll to Message.

You will see: Message

Press to select Message.

You will see: Scrolling Speeds

Press to scroll to Message Key Options.

You will see: Message Key Options

Press to select Message Key Options.

You will see: Short Messaging or One-Touch

Dialing

Press to toggle between Short Messaging

and One-Touch Dialing.

Press º to exit the menu, or you may scroll to

other features.

Reference Information

Troubleshooting

Q. I pressed the power button, but nothing happened.

What’s wrong withmy phone?

A. Check that you have installed a battery and that the

battery is charged. See pages 21-33 for more

information about batteries and charging.

Q. My battery didn’t last as long as I expected. What can I

do to extend battery life?

A. Keep in mind that your battery’s “talk-time” and

“standby-time” are a relative measurement of the

battery’s capacity. The more you talk on the phone, the

less standby-time you will have and vice versa.

To get the most from your battery, make sure you allow it to

fully charge. To charge the battery to 100% of its capacity,

leave it in the charger for an extra hour after the charger’s

light turns green.

Certain features demand power from your battery and reduce

battery life. If you have selected the Automatic Display of

Individual Call Timer feature, the display uses battery power

to remain active during each call. Turn this feature off to

conserve battery energy. (See page 96 for more information

on this feature.)

Exposing your battery to extreme temperatures—below -

10°C (14°F) or above 45°C (113°F)—can shorten battery

life. Batteries are especially sensitive to high temperature

extremes. As a good rule of thumb, always take your phone

with you when you leave your car.

149

Troubleshooting (Continued)

Q. The display says, “Locked.” How do I unlock my phone?

A. Try entering the last three digits of your cellular

number. If that doesn’t work, try using the factory preset

lock code: 123. If all else fails, call your service provider

(the company that sends you your monthly cellular

bill) for assistance. (See pages 108-127 for more

information on your phone’s Security Features.)

Q. I tried to place a call and received a fast busy signal.

A. This sound means that the cellular system did not

process your call. For example, the cellular system may

be overloaded with call attempts. To redial the number,

press æ before ending your call attempt, or press º

and try the call again later. (See pages 46-47 for more

information on redialing.)

Q. I tried to place a call and received an alternating high/

low tone.

A. This sound means your call did not reach the cellular

system. Most likely, you dialed the number too soon

after turning the phone on. Wait until the red “NS”

light stops blinking before placing a call.

An alternating tone may also indicate that your phone’s

signal is blocked. Make sure the antenna is fully extended

and you’re clear of any obstructions, like bridges, parking

garages, tall buildings, etc.

Q. I am in my home service area but the Roam indicator is

ﬂashing.

A. If your phone is programmed with more than one

telephone number, you might not have switched to the

number appropriate for your current location. Press

‰, »,¬ to switch to your other number. See page

136 for more information on multiple phone numbers.

150

Troubleshooting (Continued)

Q. I tried to listen to my Voice Mail (or use a paging

service, a calling card, etc.) but nothing happened.

A. You have probably turned off the Scratchpad tones.

Place your call, enter the access numbers when

prompted by the recording, then press ‰,æ. To

avoid this problem in the future, follow the directions

on page 107 to turn the Scratchpad tones on.

Q. What if my phone beeps several times after power up?

A. The phone is programmed for Call ReceiveOff. See page

142 for more information.

Q. I tried to place a calling card call using the internal

Phone Book, but it didn’t work.

A. You may have turned off your Scratchpad tones. Follow

the directions on page 107 to turn the Scratchpad tones

on. Check that you stored your calling card information

in the correct order, and make sure the groups of

numbers are separated by pauses. The easiest way to

correct the sequence may be to start from scratch.

Follow the instructions on page 80, enter your calling

card information again, and store it in the same

memory location as your previous attempt.

Also keep in mind that when using your calling card, you

must enter the number you are calling with the area code,

but without the initial “1.” Check with your long distance

carrier for details on using your calling card.

Q. My phone was stolen. What should I report and to

whom?

A. Report a stolen phone to the police and to your service

provider (the company that sends you your monthly

cellular service bills).

151

Glossary

AC adapter An accessory device that allows you to power

your phone and charge any attached batteries from a wall

outlet.

AMPS (Advanced Mobile Phone System) A

cellular technology that operates on 832 channels.

accessory connector port A socket on the bottom of

the phone where you can attach accessories such as an AC

adapter, battery charger, cigarette lighter adapter or data

accessories.

air-time The amount of time you spend using a cellular

system. Especially, the time between successfully placing a

call and terminating a call.

antenna The device on your phone that sends and

receives cellular signals.

cellular carrier One of the two competing

organizations in a given geographic area that owns and

operates a cellular system.

cellular system The cellular equipment in a given

geographic area that relays signals to and from individual

cellular telephones and the landline telephone system.

cigarette lighter adapter An accessory device that

allows you to power your phone and charge any attached

batteries from a car’s cigarette lighter.

152

Glossary (Continued)

DTMF tones See Dual Tone Multi-Frequency tones.

default A feature’s original setting as pre-programmed

in the factory.

Dual Tone Multi-Frequency tones tThe tones that

your telephone transmits when you press a key on the

keypad. These tones are used to access automated calling

systems such as Voice Mail, paging services, banking-by-

phone, etc. These tones will also be heard by the party on

the other line if you use the Scratchpad while a call is in

progress. Synonymous with Scratchpad tones.

fringe area The outermost range of a cellular system

where cellular signals are weak.

function keys The seven keys on your phone’s keypad

used to perform speciﬁc tasks.

home system The local cellular system where you

obtain your cellular service.

home type system A cellular system of the same type

as your local cellular system. See also non-home type

system, and system type.

indicator A light on your phone that gives you

information about your phone’s status.

153

Glossary (Continued)

icon A symbol at the bottom of the phone’s display that

corresponds to a main feature menu. See also main menu.

landline The telephone system used for conventional

ofﬁce and home phones.

Lithium Ion (LiIon) A battery technology used in

personal cellular telephones. Lithium Ion batteries provide

more energy capacity than Nickel Metal Hydride batteries of

the same weight.

lock To prevent unauthorized access to the cellular

telephone.

lock code A three-digit code used to unlock a locked

phone.

memory location A space in the internal Phone Book

where you can store a telephone number and a name. Each

of the Phone Book’s 99 memory locations (numbered 01-

99) can hold up to 32 digits and 14 letters.

main menu The ﬁrst level of the menu system

hierarchy, which contains the six main feature menus:

Phone Book, Call Timers, Tone Control, Lock/Security,

Phone Options, Message.

menu feature Any feature that can be accessed through

the menu system.

menu system The hierarchical arrangement of your

phone’s features that allows for quick, intuitive access.

154

Glossary (Continued)

message A feature that allows the user to view pager-like

alphanumeric messages.

modem An electronic device that allows a computer to

send and receive data through a telephone line.

name directory An alphabetical list of the names and

telephone numbers you have stored into your phone’s

internal Phone Book.

Nickel Cadmium (NiCd) A battery technology used in

personal cellular telephone batteries.

Nickel Metal Hydride (NiMH) A battery technology

used in personal cellular telephone batteries.

non-home type system A system type different from

your home system. See also home type system and system

type.

non-wireline See system type.

Number Character A special character used in a

calling card sequence to save a place for the telephone

number you will call when you use your calling card.

pause A special character that tells your phone to

“pause” or wait for your input before sending a group of

numbers stored in memory.

prompt A message requesting input.

155

Glossary (Continued)

road map The visual representation of your phone’s

menu system provided throughout this manual.

roam To use a cellular system outside of your home

system, usually when you travel beyond the range of your

home system.

SID See System Identiﬁcation.

Scratchpad A memory feature that automatically

remembers the most recent number entered into the

keypad.

Scratchpad tones The tones that your telephone

transmits when you press a key on the keypad. These tones

are used to access automated calling systems such as Voice

Mail, paging services, banking-by-phone, etc. These tones

will also be heard by the party on the other line if you use

the Scratchpad while a call is in progress. Synonymous with

Dual Tone Multi-Frequency tones.

scroll To move backward or forward through a list; for

example: to move backward or forward through the menu

system or the name directory using either the side keys or

the « and » keys.

security code A six-digit code used to access sensitive

features in the Secure Options sub-menu of the Lock/

Security menu.

156

Glossary (Continued)

service provider A company afﬁliated with a cellular

carrier that provides cellular service to its customers cellular

signal. The radio waves that carry information between

your cellular phone and the cellular system.

signal See cellular signal.

Smart Button The middle key on the side of your phone

used to access the Phone Book’s name directory, send calls,

end calls, enter the menu system, select features, and toggle

features on and off.

Speed Dial To use this feature, enter the two-digit

location of your number, 01-99, then press and hold Smart

Button or press æ and the call is placed.

standby-time The amount of time that your phone is

left on to receive calls.

status indicator See indicator.

sub-menu A secondary level of your phone’s menu

system hierarchy.

System Identiﬁcation A ﬁve-digit number that

identiﬁes your home cellular system. An even number

indicates a wireline system and an odd number indicates a

non-wireline system. See also system type.

system mode A setting that determines the system type

that your cellular phone will access.

system type A designation that indicates one of the two

competing cellular carriers in a given geographic area. The

non-wireline carrier operates on the “A” block of cellular

frequencies, and the wireline carrier operates on the “B”

block of cellular frequencies.

157

Glossary (Continued)

talk-time The amount of time that you spend talking on

the phone.

toggle To switch between two possible options; for

example: on vs. off.

Turbo Dial™ function To use this feature, press and

hold a number on the keypad, ⁄ through ·, and your

call is placed.

TDMA (Time Division Multiple Access) TDMA is

an efﬁcient method of providing digital cellular

communication by allowing several different conversations

on the same carrier frequency.

VibraCall™ function Motorola’s silent vibration

mode that discreetly alerts you to incoming calls.

volume keys Located on the side of your phone, the

upper and lower volume keys are used to adjust ringer and

keypad volume. They also scroll within the menu system

and the name directory.

wireline See system type.

158

Patent Information

Manufactured under one or more of the following U.S. patents:

4121218

4138681

4193036

4254382

4302845

4312074

4327319

4329666

4369516

4369522

4378603

4390963

D269873

4398265

4400584

4400585

D270835

D271491

Re.31470

4431977

4434461

4455534

4462098

D275951

4484153

4485486

4486624

D276809

4491972

D277667

4504834

D278708

4523155

4546329

4550426

4551696

4564821

D282169

4571595

4573017

4574243

4585957

4602218

D284759

D285439

4616314

4617520

D286778

4626309

4628529

4629829

4630304

4630305

4633141

4636593

4636741

D288432

4648125

4649543

D288683

4654655

D289156

4662691

4667333

4668917

4670747

4672502

4680787

4681476

4683585

4692726

4704588

D292578

4706036

D292920

4710724

4711361

4715063

4716319

4716391

4723305

D294257

4727306

4727583

4730195

4734635

4736277

4737976

4740794

4741018

4741034

4742562

D295627

4746242

D295973

D295975

4751737

D296187

4761621

4764737

D297734

D297735

4777564

Re.32768

D299136

4797929

4798975

4800348

4802236

4809356

4811377

4811404

4827226

4827507

4829274

4837534

D301476

4843621

4845772

D302015

4851966

4868576

4870686

D303656

4876552

4879533

D305427

4896124

4897873

D305717

4904549

4905288

4905301

D306293

D306441

D306594

4912602

4918732

4922178

4945570

4954796

4959851

4963812

4963843

4965537

4972355

4972432

4972455

4975808

4984290

D314173

D315330

D315346

D315543

D315559

D315565

5004992

D315907

5008925

D316417

D316859

5017856

5018188

5020091

5020092

5020093

5028083

5028859

5029044

5029233

5031028

5036532

5053924

5057762

D320780

5059885

5060294

D322783

D322955

5081674

5083304

D324024

D324388

5095503

D325028
