A preliminary user manual follows.
1
Welcome
Thank you for choosing Motorola—a global leader in
communications technology.
All Motorola cellular phones are designed and manufactured
in the United States to meet Motorola’s exacting specifications
and world-class quality standards. During development, our
laboratory testing team took the durable dual mode StarTAC
™
phone through its paces. They cooked it, steamed it, shook it,
shocked it, dusted it, and dropped it—and the phone still worked!
We are confident that the one you purchased will meet your own
exacting standards.
Thank you for choosing Motorola, and by all means, enjoy your
dual mode StarTAC cellular phone!
2
Guide Overview
Okay, you’ve got a brand new phone
with a bunch of nifty features.
Now what?
Afraid you’ll press the wrong key?
Or forget a feature or two?
Don’t sweat it!
We’ve designed this guide to take you step-by-step through each
feature of your new dual mode StarTAC
™
phone. We’ll show you
what key to press and what happens when you press it. Follow
along, chapter-by-chapter, and you’ll find it’s as easy as 1-2-3.
Here’s an idea of what you’ll learn in each chapter:
Introduction
There are many exciting features on your new phone, like the
new, enlarged display and a clock that sets itself automatically.
Find out exactly what’s in store by turning to the “Introduction”
on page 6.
Getting Started
First things first. Turn to page 14, and we’ll explain what came with
your phone. Then, we’ll show you how to install and charge your
battery so that you can get started with “The Basics” in the next
section.
The Basics
What do all those buttons and lights mean? How do I make my
first phone call? In this section, we’ll answer those questions and
get you going with your dual mode StarTAC phone. Start learning
“The Basics” on page 24.
3
Using Memory
Read “Using Memory,” beginning on page 38, and you’ll learn
how to make the most of your new phone’s built-in Phone Book.
Plus, learn how to save time with dialing shortcuts using the
Turbo Dial
™
keys or Super Speed Dial.
Using Messaging
Did you know that your dual mode StarTAC phone supports
optional messaging services, like Caller ID*, which allows you to
see who’s calling before you answer? Your new phone can even
receive alphanumeric messages just like a pager and tell you
when you have Voice Mail*. Simply turn to page 46 to begin
“Using Messaging.”
The Works
When you’re ready to get into the more advanced features your
new phone has to offer, just turn to page 54 for “The Works.”
Learn about everything from navigating the menu system to elec-
tronically locking your phone.
So relax! Let us show you what your
dual mode StarTAC
™
phone can do!
*Contact your Service Provider for availability.
4
Contents
Introduction
What’s New. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Highlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Important Safety Information. . . . . . . . . . . . . . . . . . . . . . . . 10
Getting Started
Package Content Options . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Installing the Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
The Basics
Phone Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Using the Smart Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Turning Your Phone On . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Reading the Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Placing and Ending Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Receiving Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Redialing Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

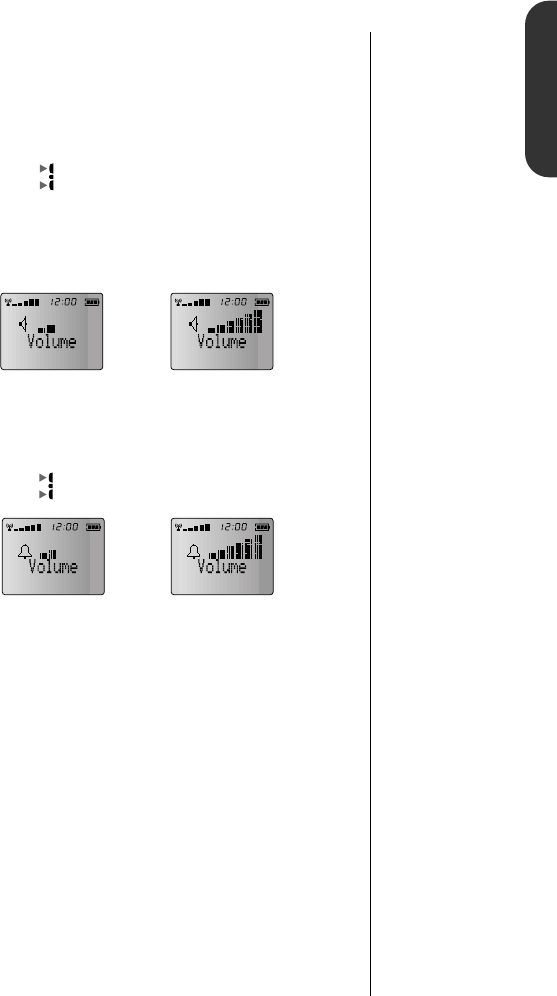

Basic Tone Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Your Phone & Its Shortcuts. . . . . . . . . . . . . . . . . . . . . . . . . . 36
Using Memory
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Making the Most of Memory . . . . . . . . . . . . . . . . . . . . . . . . 39
Storing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Recalling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
5
Contents
Using Messaging
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Receiving Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Viewing Your Caller IDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Checking Your Voice Mail . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Reading Your Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
The Works
Introducing the Menu Features. . . . . . . . . . . . . . . . . . . . . . . 54
The Internal Phone Book . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Learn how to store and recall numbers
Using Call Timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Learn how to monitor the length of your calls
Setting Tone Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Learn how to adjust your phone’s tone controls
Lock/Security Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Learn how to restrict access to your phone
Phone Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Learn how to personalize your phone’s operation
Reference Information
Accessory Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
6
What’s New?
The company that brought you the world’s first commercially
available portable cellular phone has done it again!
Motorola is proud to present the dual mode StarTAC
™
cellular
phone—the latest breakthrough in personal cellular communi-
cations. Utilizing the latest advances in CDMA digital technology,
your dual-mode phone automatically switches between high
capacity CDMA digital and traditional analog systems.
Just look what else your new phone has to offer:
Real Time Clock
When CDMA digital service is active on your phone, a Real Time
Clock that automatically updates itself will appear on the display
along with today’s date to help keep you on time! See page 28.
Personalizable Banner
Personalize your dual mode StarTAC phone with the message of
your choice (up to 12 characters long) by selecting the new
Change Banner feature. Your message will then appear whenever
your phone is in idle mode. See page 94.
Real Time Clock
Banner
7
Messaging Menu
Viewing Caller IDs*, checking Voice Mail*, and reading messages*
are made simple! Just press the dedicated Message Key
ø
to open
your phone’s new and easy Messaging Menu. See page 46.
*Contact your Service Provider for availability.

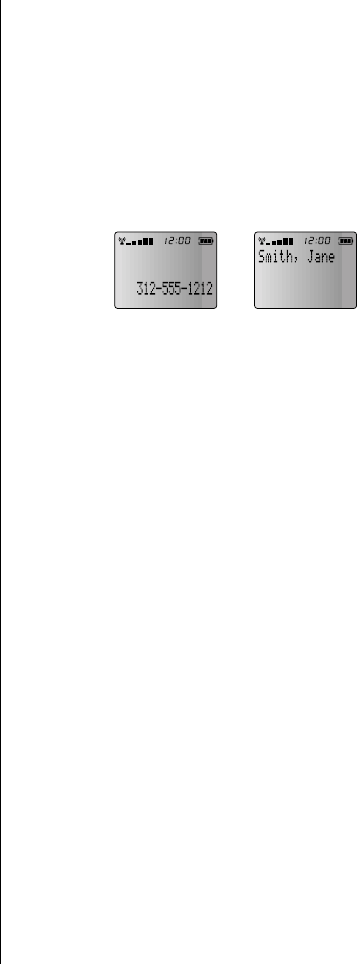

Caller ID Name Look-up
If you subscribe to Caller ID* through your Service Provider, your
phone will automatically look up the caller’s number in your
Phone Book and display the name of the caller! See page 65.
New Expanded Display
Read information with ease on your phone’s new, enlarged display.
With 24-character alpha entry (up from 14) and 32 numeric,
everything you need to know is right there!
Auto Hyphen
Now your phone numbers are easier to read too! When Auto Hyphen
is turned ON, all of the phone numbers in your phone’s memory will
be automatically hyphenated. See page 95.
Turn the page for more new features.
02
Smith J.
Work
1-312-555-1212
Name Memory location
Phone number
8
What’s New?
Here are more new features to help simplify your life!
Silent Mode
When you need to be discreet, just turn Silent Mode ON. All tones
will be silenced. The ringer and incoming message tones will be
replaced by vibrations. Don’t worry, even though you don’t hear
anything when you dial a number, you can still access services
like Voice Mail and bank-by-phone. See page 74.
Service Tones
Two short beeps let you know when there is a change in your
cellular service, such as moving from analog to digital service.
See page 77.
Phone Book Status
Just check your Phone Book Status to see exactly how much room
you have in your phone’s memory. See page 59.
Instant Redial
Turn Instant Redial ON to have your phone instantly redial the
number you’re calling when the cellular system is busy. See page 93.
Quad Number
Your dual mode StarTAC phone can be activated with up to four
unique phone numbers. You could use one number for personal
use, one for business, and the other two for cities that you travel to
frequently. Turn to Changing Your Number to learn how to select an
appropriate number. See page 88.
9
Highlights
As one of the most sophisticated cellular phones around,
your dual mode StarTAC
™
phone offers exceptional features that
make life easier, more organized, and more fun! This miracle of
modern technology can help you...
•
receive calls discreetly with the VibraCall
™
alert.
•
know when to charge with the dedicated Battery Level
Indicator.
•
make calls in a flash using the Turbo Dial
™
keys.
•
charge on-the-go with the Internal Rapid Charger and an AC
adapter or cigarette lighter adapter.
•
navigate phone features with a user-friendly, icon-driven
menu interface.
•
enjoy the convenience of hands-free operation with the
headset jack and an optional headset.
•
remember phone numbers with the enhanced internal
Phone Book.
•
personalize your phone with multiple ringer styles.
Also, if you’re already a Motorola cellular phone user, you’ll be
happy to know that many of your Motorola accessories can be used
with your dual mode StarTAC phone. In fact, your new phone also
uses many of the same keystrokes. So, if you’re familiar with Motor-
ola phones, you’re familiar with the dual mode StarTAC phone!
10
Safety Information
Exposure
to Radio
Frequency
Signals
Your wireless handheld portable telephone is a low power radio transmitter
and receiver. When it is ON, it receives and also sends out radio frequency
(RF) signals.
In August 1996, the Federal Communications Commissions (FCC)
adopted RF exposure guidelines with safety levels for hand-held wireless
phones. Those guidelines are consistent with the safety standards previ-
ously set by both U.S. and international standards bodies:
•
ANSI C95.1 (1992)*
•
NCRP Report 86 (1986)*
•
ICNIRP (1996)*
Those standards were based on comprehensive and periodic evaluations
of the relevant scientific literature. For example, over 120 scientists,
engineers, and physicians from universities, government health agencies,
and industry reviewed the available body of research to develop the ANSI
Standard (C95.1).
The design of your phone complies with the FCC guidelines (and those
standards).
*American National Standards Institute; National Council on Radiation Protection and
Measurements; International Commission on Non-Ionizing Radiation Protection
Antenna
Care
Use only the supplied or an approved replacement antenna. Unautho-
rized antennas, modifications, or attachments could damage the phone
and may violate FCC regulations.
Normal Position:
Hold the phone as you would any other telephone, with the antenna
pointed up and over your shoulder.
Phone
Operation
Tips on Efficient Operation:
For your phone to operate most efficiently:
•
Extend your antenna fully.
•
Do not touch the antenna unnecessarily when the phone is in use.
Contact with the antenna affects call quality and may cause the phone
to operate at a higher power level than otherwise needed.
11
Safety Information
Batteries
Caution:
All batteries can cause property damage, injury or burns if a
conductive material, such as jewelry, keys or beaded chains, touches
exposed terminals. The material may complete an electrical circuit and
become quite hot. To protect against such unwanted current drain, exercise
care in handling any charged battery, particularly when placing it inside
your pocket, purse or other container with metal objects. Your battery is
packed with a protective cover. Please use this cover for storing your battery
when not in use.
Driving
Check the laws and regulations on the use of wireless telephones in the
areas where you drive. Always obey them.
Also, if using your phone while driving, please:
•
Give full attention to driving–driving safely is your
first responsibility;
•
Use hands-free operation, if available;
•Pull off the road and park before making or answering a call if driving
conditions so require.
Electronic
Devices
Most modern electronic equipment is shielded from RF signals. However,
certain electronic equipment may not be shielded against the RF signals
from your wireless phone.
Pacemakers
The Health Industry Manufacturers Association recommends that a mini-
mum separation of six (6”) inches be maintained between a handheld
wireless phone and a pacemaker to avoid potential interference with the
pacemaker. These recommendations are consistent with the independent
research by and recommendations of Wireless Technology Research.
Persons with pacemakers:
•Should ALWAYS keep the phone more than six inches from their pace-
maker when the phone is turned ON;
•Should not carry the phone in a breast pocket;
•Should use the ear opposite the pacemaker to minimize the potential
for interference.
•If you have any reason to suspect that interference is taking place, turn
your phone OFF immediately.
12
Safety Information
Hearing Aids
Some digital wireless phones may interfere with some hearing aids. In the
event of such interference, you may want to consult your hearing aid
manufacturer to discuss alternatives.
Electronic
Devices
Other Medical Devices
If you use any other personal medical device, consult the manufacturer
of your device to determine if they are adequately shielded from external
RF energy. Your physician may be able to assist you in obtaining this
information.
Turn your phone OFF in health care facilities when any regulations
posted in these areas instruct you to do so. Hospitals or health care facilities
may be using equipment that could be sensitive to external RF energy.
Vehicles
RF signals may affect improperly installed or inadequately shielded
electronic systems in motor vehicles. Check with the manufacturer or
its representative regarding your vehicle. You should also consult the
manufacturer of any equipment that has been added to your vehicle.
Aircraft
Posted Facilities
Turn your phone OFF in any facility where posted notices so require.
FCC regulations prohibit using your phone while in the air. Switch OFF
your phone before boarding an aircraft.
Blasting
Areas
To avoid interfering with blasting operations, turn your phone OFF when
in a “blasting area” or in areas posted: “Turn off two-way radio.” Obey all
signs and instructions.
13
Safety Information
Potentially
Explosive
Atmospheres
Turn your phone OFF when in any area with a potentially explosive atmo-
sphere, and obey all signs and instructions. Sparks in such areas could
cause an explosion or fire resulting in bodily injury or even death.
Areas with a potentially explosive atmosphere are often, but not always,
clearly marked. They include fueling areas such as gasoline stations;
below deck on boats; fuel or chemical transfer or storage facilities; vehicles
using liquefied petroleum gas (such as propane or butane); areas where
the air contains chemicals or particles, such as grain, dust, or metal pow-
ders; and any other area where you would normally be advised to turn off
your vehicle engine.
Air bags
An air bag inflates with great force. DO NOT place objects, including both
installed or portable wireless equipment, in the area over the air bag or in
the air bag deployment area. If in-vehicle wireless equipment is improperly
installed and the air bag inflates, serious injury could result.
Equipment
Care
Your Motorola cellular radiotelephone is designed for excellent durability
under normal use conditions. Protect your cellular telephone from water
damage that could result from spills or excessive exposure to rain. Never
submerge your cellular phone.
14
Getting Started
Package Content Options
The dual mode StarTAC™ phone comes equipped with a standard
battery and an AC adapter to get you up and running. A whole
new line of accessory options, now smaller and lighter than ever,
can customize your wireless package for maximum performance
and portability.
66
99
33
55
88
00
22
44
77
11
lock
vib
batt
menu
mute
RCL STO CLR
SEND
FCN END
tuv
jkl mno
wxyz
pqrs
ghi
def
opr
abc
Slim Main Battery
with Battery Cover
Standard Main Battery
with Battery Cover
Dual Mode StarTAC Phone
Standard Auxiliary Battery
with Battery Cover
Slim Auxiliary Battery
with Battery Cover
15
Package Content Options
Your phone and accessories may not look exactly as pictured above.
Holster
Cigarette Lighter Adapter
AC Adapter
Headset
Desktop Charger
(AC Adapter required)
16
Battery Information
Battery
Covers
Your phone’s batteries are shipped in an uncharged state with
protective covers on them. Save these covers; use them to carry
batteries and to store batteries when they are not in use. The cover
prevents objects from touching the battery terminals, thereby
reducing the risk of injury or damage from a short circuit.
To begin using your phone, just slip a battery out of its protective
cover, install and charge the battery.
Removing the Main Battery Cover
1. Press in release latch.
2. Continue pushing in and upwards until battery slips free from
its cover.
Attaching the Main Battery Cover
1. Lower the side, opposite the release latch, into the cover.
2. Slip the side with the release latch down until it clicks.
Release Latch
1.
2.
1.
2.
17
Getting Started
Battery Information
Battery
Covers
Removing the Auxiliary Battery Cover
1. Hold auxiliary battery securely with one hand. With your other
hand’s thumb, push up on bottom of the cover.
2. Continue to push up until the cover slides free of the pins on
the bottom of the battery, then swing the cover outwards.
Attaching the Auxiliary Battery Cover
1. Slide the cover’s narrow end into the small grooved hook on
the top of the auxiliary battery.
1. Push cover firmly so the base of cover slides past the pins on
the auxiliary battery, then release.
1.
2.
1.
2.
Hook
Pins
18
Installing the Battery
Installing
Batteries
Main Battery Installation
The main battery fits into the top of your phone like a ski boot fits
into a ski.
1. Place the battery’s “toe” into the compartment as shown.
2. Press its “heel” down until you hear it click into place.
Main Battery Removal
Tip: If you have a charged auxiliary battery attached to
your phone, you can remove and change your
main battery during a call.
To remove the main battery:
1. Turn your phone OFF.
2. Pull the release latch back toward battery and lift the
battery out.
1.
2.
Release Latch
19
Getting Started
Installing the Battery
The
Auxiliary
Battery
Auxiliary Battery Installation
The auxiliary battery clips onto the back of your phone:
1. Place the hook located on the narrow end of the battery
into the slot on the back of the phone.
2. Pull the battery downward and toward the bottom of the
phone.
3. Release the battery so that it clicks upward into place.
Make sure that the bottom of the battery is firmly attached.
Auxiliary Battery Removal
Tip: If you have a charged main battery attached to your
phone, you can remove and change your aux-
iliary battery during a call.
To remove the auxiliary battery:
1. Pull the battery down and away from the phone.
2. Lift the battery’s hook out of the slot on the back of the phone.
2.
1.
3.
1.
2.
20
Charging the Battery
With the Internal Rapid Charger
Believe it or not, there’s a battery charger built right into your
phone! If your phone came with an AC adapter or cigarette lighter
adapter, you can plug your phone directly into a power supply and
charge the battery – whether the phone is ON or OFF. When the
Internal Rapid Charger is in use and the phone is ON, you can
still place and receive calls. Just remember, talking on the phone
requires energy, so charging will take more time.
Note: The AC adapter and cigarette lighter adapter may or may
not have been included with your phone.
1. Plug the AC or cigarette lighter adapter into the accessory
connector on the bottom of your phone as shown, with
the release tab facing up.
2. Plug the adapter into the appropriate power source.
Keep in mind: In some cars, the ignition must be ON to use the
cigarette lighter.
What you will see:
•The border of the battery icon will flash during charging.
•When both batteries are fully charged, the battery icon will stop
flashing and become solid.
PUSH
88
00
77
vib
RCL STO CLR
SEND
FCN END
tuv
pqrs
opr
21
Getting Started
Charging the Battery
Using the Desktop Charger
The desktop charger’s front pocket can charge batteries while they
are attached to your phone, and the rear pocket can charge batter-
ies separately.
First plug the AC adapter into the back of the charger, with the
release tab facing up. Plug the other end of the AC adapter into an
AC wall socket, and you can begin charging your batteries. With
battery(s) attached, place the phone into the charger’s front
pocket. You can also charge an extra auxiliary or main battery in
the rear pocket as shown:
Tip: When you charge the main and an auxiliary battery,
the main battery will be charged first.
What you will see when charging:
•Red means the battery is charging.
•Flashing yellow means the battery is waiting to be charged.
•Green means the battery is charged within 90% of its capacity
and can be used. An additional hour of charging will bring
your battery up to 100% capacity.
•Flashing red means the battery is damaged and can’t be charged.
PUSH
Front Pocket Rear Pocket
22
Charging the Battery
Desktop Charger Charging Times
The time it takes for your battery to obtain a full charge is affected
by a variety of factors, including:
•Temperature Batteries should be at or near room
temperature when charging. To prolong battery life and charge
capacity, avoid exposing your batteries to temperatures below
10°C (14°F) or above 45°C (113°F). As a good rule of thumb,
always take your phone with you when you leave your car.
•Inactivity New batteries, or batteries that have been stored for
long periods of time, may not rapid charge properly. In these
instances, the battery requires an overnight charge.
•Extended Usage Over extended periods of time, batteries
gradually wear down and require longer charging times. This
is normal. If you’ve been charging your battery regularly and
notice a decrease in talk-time or an increase in charging time,
then it’s probably time to purchase a new battery.
23
Getting Started
Charging the Battery
Battery Storage and Disposal
To prolong the life of your batteries, avoid exposing them to
temperatures below -10°C (14°F) or above 45°C (113°F).
As a good rule of thumb, always take your phone with you when
you leave your car. To dispose of batteries, check with your local
recycling center for a battery recycler near you. Never dispose of
batteries in fire.
Caution: To prevent injuries or burns, do not allow metal objects
to contact or short circuit the battery terminals.
24
Phone Overview
Power Key
¡ Turns the phone ON and OFF.
Dedicated Message Key
øOpens messaging menus.
Function Keys
ƒ Acts as a “shift” key to access the secondary functions of
other keys. See page 36.
‰ Recalls phone numbers from memory.
¬ Stores phone numbers into memory.
Ç Clears characters from the screen.
º Ends phone calls and exits the menu.
æ Places or answers calls.
« and » can be used to scroll through memory entries
and menu features.
Alphanumeric Display Displays your input from the keypad,
information recalled from memory, and other messages.
Microphone Positioned for convenient conversation.
Keypad Cover Open to answer; close to hang up.
Clock Appears when you have CDMA digital service.
Retractable Antenna Extend for best performance.
Earpiece Ultra-compact phone speaker.
Headset Jack Provides the connection for an optional headset.
Accessory Connector Provides the connection for an external
power supply.
Volume Keys Represented in this manual by and , these
keys adjust keypad, earpiece, and ringer volume. They also scroll
up and down through memory locations and menu features.
25
The Basics
Using the Smart Button
Easily recognized in this User’s Guide by and in your phone’s
display by – the handy Smart Button puts a variety of functions
right at your fingertip.
Use the Smart Button’s fingertip convenience for:
Opening Your Phone Book
Simply press when your phone is idle to open the Phone Book
on the display! Turn to page 38 in “Using Memory” for more
information.
Entering the Menu System
Press ƒ then press to enter your phone’s menu system.
See page 54 for information on navigating the menu system.
Selecting Items in the Menu
The most basic use of the Smart Button is to select. Whenever the
phone offers you a choice, such as setting a ringer style, just press
to select. You will see: Press To Select.
Turning Features ON and OFF
Press to toggle displayed menu features ON and OFF.
You will see: Press To Toggle.
Placing and Ending Calls
Just press & hold to place a call when the number you want to
call is on the display. Press & hold again to end a call. See page
31 for information on placing and ending calls.
§
33
2211
menu defabc
The Smart Button
§
§
26
Turning Your Phone On
The next few pages will introduce you to the basic features of your
dual mode StarTAC™ phone. Once you learn these, you’ll be
hooked. But don’t stop with “The Basics”– there’s so much more
to know!
In the chapters that follow, we’ll take you step-by-step through
every one of your new phone’s features – storing names and num-
bers, using the call timers, locking the phone, and more.
Turning Your
Phone On
and Off
Follow these steps to turn your phone ON and OFF:
1. Extend the antenna for best performance.
2. Open keypad cover to expose the keypad.
3. Press ¡ once to turn the phone ON.
Press ¡ again to turn the phone OFF.
You will see: Powering Off.
What you will see:
Each time you turn your phone ON, it will light up and perform a
short self-test to let you know it’s operational. While your phone
seeks an available network, you will see: Searching.
CDMA Digital
If your phone finds a CDMA digital system, you will see the time
and date, the icon, and either Ready or the personalizable
banner (if programmed).
27
The Basics
Turning Your Phone On
Analog
If your phone finds an analog system, you will see the icon
and either Ready or your personalized banner.
Quad Number
Your phone can be activated with up to four unique phone num-
bers. If there’s more than one phone number programmed on
your phone, you’ll see the currently active number instead of
Ready or the personalized banner.
Turn to Changing Your Number on page 88 if you want to change
your currently active number.
Standby Mode
To conserve energy, your phone enters standby mode and turns off
the back light when you haven’t touched a key for a few seconds.
The back light will come back on as soon you press a key or open
the phone.
Turn the page to learn about your phone’s expanded display
screen and all of its helpful indicators.
28
Reading the Indicators
Signal Strength (1)
Displays the strength of the connection between your phone and
the local cellular system.
Clock (2)
When your phone is on a CDMA digital network, the display
shows the current time and date transmitted by your digital Service
Provider. Wherever you are, you’ll have the correct local time. You
can set your clock for 12- or 24-hour format. See page 95 for more
information.
Battery Level (3)
The three bar segments on the phone’s Battery Level Indicator
show the amount of charge remaining in your battery. The more
bar segments you see, the higher the charge.
If your battery is low, the phone alerts you in three ways:
•No bar segments on the indicator will be highlighted.
• Low Battery will appear on your display.
•A hi-lo tone will sound periodically (except in Silent Mode).
If you ignore these warnings, the phone will automatically turn
itself OFF when the battery is exhausted. At this point, you should
charge the battery or install a new battery.
4 5 6 7 8
123
9 10
Strong
Weak
High
Low
29
The Basics
Reading the Indicators
Digital (4)
Indicates you’re on a digital channel, allowing for better voice
quality. Check with your Service Provider for more information.
Analog (4)
Appears when you’re on an analog channel.
In Use (5)
Appears when a call is in progress.
Roam (6)
Lights up when your phone accesses a cellular service outside of
your home system. When you leave your cellular service area,
your phone roams (seeks another cellular system).
In-Building (7)
The In-Building Indicator lights up when your phone accesses an
In-Building Cellular system.
No Service (7)
Appears when calls cannot be placed or received from your location.
Caller ID/Message (9)
Appears when you receive a Caller ID* or alphanumeric message. It
will disappear after you’ve viewed the Caller ID or read the message.
Voice Mail (10)
Indicates that you’ve received a Voice Mail* message in your Voice
Mailbox. It will disappear after you’ve listened to the message.
The following indicators appear in the idle display when you
select one of the VibraCall™ alert combinations (see page 75):
VibraCall On– Indicates that your phone’s ringer is turned
OFF and the VibraCall alert is ON.
Silent Mode – Indicates that all of your phone’s tones are
silenced and the VibraCall alert is ON.
Vibrate Then Ring– Indicates that both your phone’s
ringer and VibraCall alert are ON.
*Contact your Service Provider for availability.
30
Reading the Indicators
Detailed Battery Level Reading
Press ƒ then press › to view
the battery level.
The bar graph in the display represents the battery level. The
higher the graph, the closer the battery is to full charge.
Important: If the phone is being powered externally–from the
cigarette lighter adapter for example–you will see:
Incoming Call Indicator
The Incoming Call Indicator on the top of your phone flashes red
and green when you have an incoming call.
Full Charge Low Charge
Incoming Call Indicator
31
The Basics
Placing and Ending Calls
First check that your phone is ON.
Placing a Call
To place a call:
1. Extend the antenna completely for
best performance.
2. Open keypad cover to expose the keypad.
3. Enter the number you want to call,
for example: 555-1234.
Press Ç to erase one digit at a time if you
make a mistake.
Hold Ç to erase the entire entry.
4. Press æ to place the call.
You will see: Dialing 555-1234.
or
Press & hold Smart Button until you hear a
high tone. You will see: Dialing 555-1234.
You can dial phone numbers with up to 32 digits, but only the last
twenty-four digits will appear in the display.
Press ‰ to see the rest of the number.
Your phone will display the first 24 digits, then a second screen
will show the remaining digits in the phone number.
Ending a Call
To end a call:
Close keypad cover to hang up your phone.
or
Press º.
or
Press & hold Smart Button until you hear a
high tone. You will see: Press § to End Call.
then
Press Smart Button again to end the call.
32
Receiving Calls
Your phone is ringing and/or vibrating.
•It must be ON to receive calls.
Caller ID
If Caller ID* service is active on your phone, you can see who’s
calling before you answer! The display will show either your
caller’s name (if it’s in your Phone Book) or your caller’s number.
If you prefer to always see your caller’s number, see page 65 to
turn Number Preference ON.
The Caller IDs for your last 16 different callers will be saved. Turn to
page 48 to learn how to view your Caller IDs.
*Contact your Service Provider for availability.
Answering
a Call
To answer a call:
1. Extend the antenna completely for
best performance.
2. Open keypad cover when the phone rings.
or
Press æ.
Ending a Call
To end a call:
Close keypad cover to hang up your phone.
or
Press º.
or
Hold Smart Button until you hear a high tone.
You will see: Press § to End Call.
then
Press Smart Button again to end the call.
Unanswered
Call Indicator
Even with the latest wireless technology, sometimes you are
unavailable to answer calls. While your phone is ON, it keeps a
count of unanswered or missed calls. For example, if you miss two
calls, your display will show: 2 Calls Unanswered.
Press Ç or press º to clear the display,
and you can begin placing calls again.
33
The Basics
Redialing Numbers
Automatic
Redial
If you hear a fast busy signal and see Press SND to
Redial, the cellular system is too busy to handle your call.
To automatically redial:
Press æ.
or
Press Smart Button.
You will see: Redialing.
Your phone will automatically redial the number for the next four
minutes. When the call goes through, your phone will ring or
vibrate until the person you are calling answers.
If the call does not go through in four minutes, you will see:
Press SND to Redial again.
To automatically redial again:
Press æ.
or
Press Smart Button.
You will see: Redialing.
Instant Redial
You can also have your phone instantly redial after a fast busy signal
without pushing a button. Just turn Instant Redial ON. To find out
how, see page 93.
Redial
If you hear an ordinary busy signal:
1. Press º to hang up.
2. Press æ to redial.
or
Press & hold Smart Button.
You will see: Dialing 555-1234.
34
Redialing Numbers
Display Last
Ten Numbers
Dialed
Your phone keeps track of the last ten numbers you’ve dialed.
1. Press ‰ then press ‚, ‚.
The display will show the last number
you dialed.
2. Use the volume keys to scroll up or down
through the last ten numbers, starting with
the most recent call.
3. Press æ to call the number in your display.
or
Press & hold Smart Button.
You will see: Dialing 1-312-555-1212.
L0
1-312-555-1212
Smith
John
35
The Basics
Basic Tone Controls
The upper and lower volume keys can be used to adjust both the
earpiece and ringer volume. As you press these keys, the phone’s
speaker will demonstrate the new volume level.
Adjusting
Earpiece
Volume
To adjust earpiece and keypad volume:
Hold to raise or lower the volume.
The bar graph in the display represents the volume level. The
higher the graph, the louder the volume is.
Adjusting
Ringer
Volume
To adjust ringer volume:
1. Press ƒ.
2. Hold to raise or lower the ringer volume.
Muting the
Microphone
If you need some privacy while a call is in progress, try muting the
microphone—you’ll be able to hear the party on the other end,
but they will not hear you.
1. Press ƒ then press fl to mute
the microphone. You will see: Muted.
2. Press ƒ then press fl again to
resume your conversation.
The following page will provide more information on the
dual mode StarTAC™ phone’s shortcuts.
or
Low Volume High Volume
or
Low Volume High Volume
36
Your Phone & Its Shortcuts
Throughout this guide you will see boxes that point out
simple ways to reach some of your phone’s features. If you’ve
owned a Motorola phone before, many of these shortcuts will
already be familiar to you.
The Usual Shortcuts
You’ll notice the words “ menu,” “batt,” “lock,” “mute,” and
“vib” written on the ⁄, ›, fi, fl, and † buttons.
Press the ƒ key first, then any one of these buttons, and your
phone will perform that function. It’s easy, so give it a try!
Just press:
ƒ then ⁄ to enter the menu system.
ƒ then ¤ to toggle Analog Only On or Analog Only Off.
ƒ then › to display the battery meter.
ƒ then fi and hold, you will see: Lock? Then press ¬ to
lock. Your factory lock code is set to 123. See page 82,
Locking the Phone, for more information.
ƒ then fl to toggle mute ON and OFF during a conversation.
ƒ then † to toggle your phone’s VibraCall™ alert ON and OFF.
ƒ then † and hold to turn ON Silent Mode.
37
The Basics
Your Phone & Its Shortcuts
66
99
33
55
88
00
22
44
77
11
lock
vib
batt
menu
mute
RCL STO CLR
SEND
FCN END
tuv
jkl mno
wxyz
pqrs
ghi
def
opr
abc
38
Do you have places to go and people to see? Too many phone
numbers to remember? Let your phone remember them for you.
Your dual mode StarTAC™ phone’s internal Phone Book can store
up to 99 names and numbers for easy access on the go.
In this chapter you will learn how to:
•store names and numbers into the Phone Book
•recall phone numbers from memory
•dial a number with the Super Speed Dial and Turbo Dial™
functions
Follow these symbols as a guide for using the keys on the side of
your phone.
Press to scroll up
Press to select
Press to scroll down
66
33
55
22
44
11
lock
batt
menu
m
jk
d
abc
Using Memory
39
Using Memory
Making the Most of Memory
Each phone number is stored in a “memory location” numbered
01-99. You can arrange your Phone Book for convenient recall by
storing related numbers in groups. For example, store your most
important numbers in locations 01-09, then you can use the Turbo
Dial™ keys to call them with the push of a button. Location 01
should be reserved for your Emergency Call number (see page 81).
You can also store names of up to 24 characters, in 2 lines of 12,
to help identify phone numbers. Then you can easily recall num-
bers by either the name or memory location.
If someone you know has more than one phone number, you can
organize the entries to quickly find the number you need by using
line 1 for the name and line 2 for information unique to that
number, as in the example below:
The possibilities are endless, so give it a try!
When you feel ready for more advanced memory features, move
on to the “Phone Book” section, beginning on page 56. In
“Phone Book” we will show you things like how to edit a memory
location and access automated calling systems like Voice Mail
with just the touch of a button!
13
Smith J.
Work
1-312-555-1212
02
Smith J.
Home
1-773-555-1313
32
Smith J.
Mobile
1-630-555-1515
Information
about phone
number
Memory location
Name
Phone
number
40
Storing Names & Numbers
To take advantage of your phone’s internal Phone Book, you’ll
first want to store some names and numbers into memory.
1. Enter the phone number you want to store.
2. Press ¬ to begin storing. The phone will
prompt you for a memory location.
You will see: Location ——.
3. Enter the two-digit memory location where
you want the phone number stored.
or
Press « to store it in the next available loca-
tion.
or
Enter the first digit of the memory location
and press « to store the number in the first
available location beginning with that digit.
You will see: Alpha or Press §.
4. Enter a name to identify the phone number, or
skip this step and go to step 5. (See the next
page for details on entering names.)
5. Press ¬ when you are finished entering the
name. You will see: Stored At XX.
Keep in mind: Your Phone Book sorts alphanumerically by the
first letter of the entry. If you’ve entered a phone number without
a name, it will be placed at the end of your Phone Book.
41
Using Memory
Entering Names
When the display shows Alpha or Press •, you can use
the keypad to produce any letter in the alphabet. For example,
press ¤ to enter the letters “A,” “B,” or “C” as shown:
To enter a name:
1. Enter a letter by pressing a key as many times
as necessary.
Use the volume keys to toggle between
upper and lowercase.
2. Press » to advance the cursor.
3. Press Ç or « to erase a letter if you make
a mistake.
4. Continue with step 5 on the previous page
when you are finished entering the name.
To enter punctuation:
Using this chart as a guide, press ⁄ as many times as indicated
to produce the desired punctuation:
12345678910
11
11 //
//
,,
,,
,,
,, ??
?? $$
$$ ..
.. &&
&&
22
abc
press 1 time to insert an "A"
press 2 times to insert a "B"
press 3 times to insert a "C"
press 4 times to insert a "2"
42
Recall from Memory
Using the Smart Button
Recall by
Name
Once you’ve stored names and numbers, simply press the Smart
Button to open your Phone Book. You can then recall numbers by
name and instantly place calls–just press & hold the Smart Button.
1. Press Smart Button once to enter your
Phone Book.
2. Press the volume keys to scroll to the name
you are looking for.
or
Enter the first letter of the name you want to
recall from memory. The display will show the
name, phone number, and entry location of
the first entry beginning with that letter.
Press the volume keys to scroll to the name
you are looking for.
3. Press & hold Smart Button or press æ to
call the number you selected.
You will see: Dialing 1-630-555-1515.
4. Press º or close the phone to end the call.
or
Press & hold Smart Button until you hear
a high tone.
You will see: Press § to End Call.
then
Press Smart Button again to end the call.
32
Smith J.
Mobile
1-630-555-1515
43
Using Memory
Recall from Memory
Recall by
Memory
Location
Each name and number you store is placed in a memory location
numbered 01-99. Once you have stored names and numbers, you
can recall them by memory location.
1. Press ‰ then enter the two-digit memory
location of the phone number you’re looking for.
2. Press & hold Smart Button or press æ
to call the number you selected.
You will see: Dialing 555-1234.
3. Press º or close the phone to end the call.
or
Press & hold Smart Button until you hear
a high tone.
You will see: Press § to End Call.
then
Press Smart Button again to end the call.
Clear an Entry
Clearing a memory entry is easy:
1. Press Smart Button once to enter your
Phone Book.
2. Press the volume keys to scroll to the name
you are looking for.
3. Press Ç. You will see: Clear?
4. Press ¬ to confirm that you want to erase
the entry. The two-digit location of the entry
will show in the display with no other informa-
tion to confirm that you have erased the entry.
44
Super Speed Dial
If you know the memory location of the number you want to call,
try the Super Speed Dial function:
1. Enter the two-digit memory location 01-99.
2. Press & hold Smart Button to place the call.
or
Press æ to place the call.
You will see: Dialing 555-1234.
Turbo Dial
The Turbo Dial™ keys allow you to dial numbers stored in loca-
tions 01-09 with the push of a button:
Press & hold a number on the keypad,
⁄ through ·, and your call is placed!
You will see: Dialing 555-1234.
Your phone’s Emergency Call feature gives you fast access to any
number stored in location 01 – even if your phone is locked. To
learn how to activate this feature, see Emergency Call on page 81.
45
Using Memory
Scratchpad
For quick notes on-the-fly, you can use the built-in Scratchpad.
The Scratchpad remembers the last phone number that was on
your display. If you are on the phone and your party gives you
another number, just enter the number into the Scratchpad to
place the call or store the number later.
During a call:
1. Enter the number into the keypad. (The per-
son on the line will hear tones as you dial.)
Do not press Ç or you will erase the num-
ber.
2. Press º to end the call you are currently in,
if necessary.
3. Press æ to call the number on the
Scratchpad.
You can also store numbers while you are on a call:
1. Enter the number into the keypad. (The per-
son on the line will hear tones as you dial.)
Do not press Ç or you will erase the num-
ber.
2. Press ¬ and continue storing with step 3
under Storing Names & Numbers on page 40.
46
Using Messaging
*
ø
66
99
33
55
88
00
22
44
77
11
lock
vib
batt
menu
mute
RCL STO CLR
SEND
FCN END
tuv
jkl mno
wxyz
pqrs
ghi
def
opr
abc
Just press the dedicated Message Key to open your dual mode
StarTAC™ phone’s new and easy Messaging Menu. Through this
menu, you can view Caller IDs, check your Voice Mail, and read your
pager-like alphanumeric Messages.
In this chapter you will learn how to:
•view your Caller IDs
•check your Voice Mail
•read your Messages
•explore your options with the Function Menus
Follow these symbols as a guide for using the keys on your phone.
Press to scroll up
Press to select
Press to scroll down
Press ø to open messaging menus
*Contact your Service Provider for availability.
47
Messaging
Receiving Messages
If your phone is ON and you receive a Caller ID, Voice Mail, or
alphanumeric message:
Note:
See Receiving
Calls on pg. 32
for more about
receiving
Caller IDs.
See page 77
to learn about
Message
Reminder
Tones.
1. An alert sounds or vibrates:
•Your phone will beep or vibrate three times.
See Ring/Vib Select on page 75 to set your phone’s alert.
2. An indicator appears on the display:
• Appears when you receive a Caller ID or alphanumeric
message. It will stay on the display until you’ve viewed the
Caller ID or read the message.
•Urgent Msg Appears when you receive an urgent message
and your phone is in idle mode.
•Msg Mem Full Appears when your alphanumeric message
memory is full and your phone is in idle mode. Your Service
Provider holds your messages and will forward them after
you’ve made room. See Message Options on page 53 to learn
how to delete messages.
• Appears when you receive a Voice Mail message. It will stay
on the display until you’ve listened to the message. Your Service
Provider will then signal your phone to turn the indicator OFF.
3. Press ø to open the Messaging Menu.
•The specific icon will be flashing.
Messaging can be used with the keypad
cover closed.
Voice Mail
Indicator
Caller ID/
Message Indicator
48
Viewing Your Caller IDs
*
Your phone supports Caller ID service which lets you see who’s
calling before you answer. The Caller IDs for the last 16 different
callers are stored in a special memory so they can be viewed at any
time.
1. Press ø to open Messaging Menu.
2. Press volume keys to scroll to Caller ID.
3. Press Smart Button to select.
You will see a Caller ID icon for each stored Caller ID. Flashing
icons have not been viewed. Below the icons you’ll see information
for the latest Caller ID:
4. Press volume keys to highlight Caller ID to view.
5. Press Smart Button to view complete infor-
mation for that call:
Keep in mind: You will see the caller’s name only if it is stored
in your Phone Book.
A check mark will appear in the black box in the corner if
you’ve answered or returned the call.
Call Back
Press æ to dial the caller’s number.
Store to
Memory
Press ¬ to store the caller’s number in your Phone Book.
*Contact your Service Provider for availability.
12:10
PM
08/01/97
312-555-1212
selected Caller ID
time & date of call
your caller‘s
phone number
John Smith
Work
312-555-1212
02
number
of times
they called
your caller’s
phone number
your caller’s name
49
Messaging
Caller ID Options
While viewing Caller IDs, just press the Message Key to see the
options available for the highlighted Caller ID.
6. Press ø to open Function Menu.
Caller ID
Function
Menu
7. Press volume keys to scroll to the desired
option, then press Smart Button to select:
Go To Msg Menu Returns your phone to
the Messaging Menu.
Exit Exits Messaging to idle mode.
Delete Message Deletes the currently
selected Caller ID. Press Smart Button again
to confirm.
Delete All Msgs Deletes all your Caller
IDs. Press Smart Button again to confirm.
Call Back Dials the caller’s number.
Store To Mem Allows you to store the
caller’s number into your Phone Book by fol-
lowing the steps on page 40.
ExitGo To Delete
Message Delete All
Messages Store To
Memory
Messaging
Menu
Call Back
50
Checking Your Voice Mail
*
When you receive Voice Mail, your Service Provider sends a notifi-
cation to your phone. You can check your Voice Mail at any time
by following these simple steps.
1. Press ø to open Messaging Menu.
2. Press volume keys to scroll to Voice Mail.
3. Press Smart Button to select.
If you have one or more Voice Mail messages, you will see:
(or XX Voice Mail Msgs if the notification includes the num-
ber of messages you’ve received.)
4. Press æ or press & hold Smart Button to
dial your Voice Mailbox number.
Keep in mind: Some Service Providers send the Voice Mailbox
number to your phone automatically. If the number has not been
sent, all you need to do is store it in location 98 of your Phone
Book. To learn how, see Pause Dialing on page 61.
If you have no new messages, you will see:
*Contact your Service Provider for availability.
51
Messaging
Voice Mail Options
While checking Voice Mail, just press the Message Key to see the
available options.
5. Press ø to open Function Menu.
Voice Mail
Function
Menu
6. Press volume keys to scroll to the desired
option, then press Smart Button to select:
Go To Msg Menu Returns your phone to
the Messaging Menu.
Exit Exits Messaging to idle mode.
Delete Message Deletes the Voice
Mail Notification. Press Smart Button again to
confirm.
Call Back Dials your Voice Mailbox
number.
Exit
Call Back
Go To
Messaging
Menu
Delete
Message
52
Reading Your Messages
*
Your phone can receive alphanumeric messages just like a pager.
The message memory stores up to 60 messages (depending on the
size) so they can be read at any time.
1. Press ø to open Messaging Menu.
2. Press volume keys to scroll to Messages.
3. Press Smart Button to select.
You will see a row of message icons , one for each message.
You may also see for urgent messages and for locked
messages. Flashing icons have not been viewed. If there are more
messages than can be shown on one line, arrows will point to the
rest of the messages. Below the icons you’ll see the latest message:
4. Press volume keys to highlight message to read.
5. Press Smart Button to read message.
6. Press Smart Button to scroll through message.
or
Press volume keys to scroll to other messages.
Call Back
Press æ to dial Call Back number (in parentheses).
Store to
Memory
Press ¬ to store Call Back number in your Phone Book.
*Contact your Service Provider for availability.
12:34PM
07/07/97
Happy Birthday!
I'll pick you up
selected message
more msgs to right
time & date of msg
text of selected msg
more msgs
to left
locked msg
urgent message
Happy Birthday!
I'll pick you up
at 7:30 tonight
in front of the
more text in
current msg
text of selected msg
53
Messaging
Message Options
While reading your messages, just press the Message Key to see the
options available for the highlighted message.
7. Press ø to open Function Menu.
Message
Function
Menu
8. Press volume keys to scroll to the desired
option, then press Smart Button to select:
Go To Msg Menu Returns your phone to
the Messaging Menu.
Exit Exits Messaging to idle mode.
Delete Message Deletes the currently
selected message. Press Smart Button again
to confirm.
Delete All Msgs Deletes all messages
from memory. Press Smart Button again to
confirm.
Lock Message / Unlock Message
Lock important messages to protect them
from accidental deletion. Messages must be
unlocked before they can be deleted.
If the message contains a Call Back number (in
parentheses), you will also see these options:
Call Back Dials the number.
Store To Mem Allows you to store the
number into your Phone Book by following
the steps on page 40.
Exit Delete All Delete
Message Messages Lock
(Unlock)Call Back Store To
Memory
Go To
Messaging
Menu
54
Introducing the Menu Features
The dual mode StarTAC™ cellular phone is loaded with handy
features that can help make life easier, more productive, and just
a bit more exciting. The phone’s user-friendly menu system will
help you find what you need quickly and easily. Each of the icons
that appear in your phone’s display represents a menu.
You can navigate through the menu system using the three keys
located on the left side of the phone. Use the upper and lower
volume keys to scroll to submenus and functions. Use the Smart
Button in the middle to choose menus and functions.
Navigating the Menu
This guide uses these symbols to instruct you to use the Smart
Button and the upper and lower volume keys.
Press to scroll up
Press to select
Press to scroll down
Phone Book Lock/Secure
Timers Phone Options
Tone Control
The Works
55
2211
lock
menu abc
55
The Works
Road Maps
To help you navigate through the phone’s menu system, each
chapter begins with an easy-to-follow visual “road map.” Simply
press the key shown and observe the message that appears in the
display. For example, try this:
1. Press ƒ then Smart Button or ⁄ to enter
the menu.
You will see: Phone Book.
2. Press the upper or lower volume keys to
scroll through the menu’s top level, shown
here in the margin.
3. Press º to exit the menu.
Detailed instructions in each chapter take you step-by-step
through each feature.
Now it’s time to take the plunge. Move at your own pace,
experiment, and have fun!
Previous User Compatibility
If you are already familiar with previous Motorola cellular
phones, you can use your phone’s « and » keys to scroll
through the menu system.
Shortcuts
Experienced Motorola Users: Watch for the box. You
will find many of the same key sequences that you have used with
other Motorola models!
p. 54
p. 64
TimersTimers
p. 70
ToneTone
ControlControl
p. 76
LockLock
SecureSecure
p. 84
PhonePhone
OptionsOptions
PhonePhone
BookBook
56
In “Using Memory” you learned how to store and recall phone
numbers with your internal Phone Book. You can access the same
features using your phone’s convenient menu system–the choice
is yours! We’ll also show you how to use your phone’s advanced
memory features.
In this chapter you will learn how to:
•recall and store phone numbers using the menu system
•simplify automated calling systems like Voice Mail
•edit your memory information
•view your own phone number
Follow these symbols as a guide for using the keys on the side of
your phone.
Press to scroll up
Press to select
Press to scroll down
Phone Book
2211
menu abc
Phone Book
57
Road Map
Press ƒ then press to enter the menu system.
Start:
p. 56
p. 57
Recall ByRecall By
LocationLocation
p. 57
Phone BookPhone Book
StatusStatus
p. 58
Store NewStore New
NumberNumber
p. 60
EditEdit
MemoryMemory
p. 62
View MyView My
NumberNumber
p. 63
NumberNumber
PreferPrefer
OffOff
To MainTo Main
MenuMenu
p. 54
Recall ByRecall By
NameName
PhonePhone
BookBook
58
Press ƒthen press Smart Button to enter the menu system.
Press Smart Button to select Phone Book.
Press to scroll to the following features:
or
Getting to Phone Book...
1.
2.
3.
Recall By Name
Once you have stored names and numbers, you can recall them
alphabetically with the Phone Book menu.
4. Press Smart Button to select Recall By Name.
You will see: Enter 1st Letter.
5. Enter the first letter of the name you want to
recall from memory. The display will show the
first name that begins with that letter and the
telephone number.
6. Press the volume keys to scroll to the name
you are looking for.
7. Press & hold Smart Button or press æ to call
the number you selected.
You will see: Dialing 555-1234.
8. Press º or close the phone to end the call.
or
Press & hold Smart Button until you hear a
high tone. You will see: Press § to End Call.
then
Press Smart Button again to end the call.
Recall By
Name p
59
Phone Book
Recall By Location
Each name and number you store is placed in a memory location
numbered 01-99. Once you have stored names and numbers, you
can recall them by memory location with the Phone Book menu.
4. Press Smart Button to select Recall
By Location. You will see: Location __.
5. Enter the two-digit memory location of the
number you’re looking for. You will see the
Phone Book screen for that memory location.
6. Press & hold Smart Button or press æ to call
the number you selected.
You will see: Dialing 555-1234.
7. Press º or close the phone to end the call.
or
Press & hold Smart Button until you hear a
high tone. You will see: Press § to End Call.
then
Press Smart Button again to end the call.
Phone Book Status
You can use this feature to see how many of your Phone Book’s 99
locations have been used.
4. Press Smart Button to select Phone Book
Status. Your phone will display the number of
full locations.
You will see: XX Full XX Empty.
5. Press º to exit the menu, or you may scroll
to other features.
Recall By
Location p
Phone Book
Status p
60
Press ƒthen press Smart Button to enter the menu system.
Press Smart Button to select Phone Book.
Press to scroll to the following features:
or
Getting to Phone Book...
1.
2.
3.
Store New Number
You can use the menu system to store names and numbers in the
Phone Book. Whether you store numbers as described in “Using
Memory” or store numbers with the menu, you will get the same
results – so give it a try!
4. Press Smart Button to select Store
New Number. You will see: Enter Number.
5. Enter the phone number you want to store.
6. Press Smart Button when you are finished
entering the number.
You will see: Location __.
7. Enter the two-digit number of the memory
location where you want the number stored.
or
Press « to store the sequence in the next
available location.
or
Enter the first digit of the memory location
and press « to store the sequence in the
first available location with that first digit.
You will see: Alpha or Press §.
8. Enter a name to identify the phone number, or
skip this step and continue with Step 9. See
page 41 for more information on entering
names.
9. Press ¬ or Smart Button when you are
finished entering the name. Your phone will
confirm the entry by displaying: Stored At XX.
Proceed with Step 10 or return to Step 5 to
store more numbers.
10. Press º to exit the menu, or you may scroll
to other features.
Store New
Number p
61
Phone Book
Pause Dialing
When you call automated systems like Voice Mail, a recorded message
prompts you for PIN numbers, account numbers, etc. You can make
using automated systems easy by storing these numbers in the same
memory location as the automated system’s access number. Just
separate the numbers with “pauses”–special characters that tell
your phone to wait before sending additional numbers–and store
the string in the same way you would other numbers.
1. Enter the phone number you use to access
the automated system.
2. Press ƒ then press æ.
You will see a pause circle inserted into the
number entry: o.
3. Enter the next group of numbers, for example,
your PIN number. If the automated system
requires a * or #, enter those symbols, too.
4. Insert another pause and enter the next group
of numbers by repeating steps 2 through 4 as
many times as necessary.
You can store up to 32 digits, including pauses.
5. Press ¬ to begin storing.
You will see: Location ——.
Always store your Voice Mail number in loca-
tion number 98.
6. Enter the two-digit number of the memory
location where you want the number stored.
You will see: Alpha or Press §.
7. Enter a name for your sequence.
See Entering Names on page 41.
8. Press ¬ or Smart Button when you are fin-
ished entering the name. Your phone will con-
firm the entry by displaying: Stored At XX.
Once stored, simply recall the entry and place the call. When the
recording asks for your information, press æ or the Smart But-
ton to transmit the numbers you’ve stored. Continue to press æ
or the Smart Button when you are prompted for more numbers.
62
Press ƒthen press Smart Button to enter the menu system.
Press Smart Button to select Phone Book.
Press to scroll to the following features:
or
Getting to Phone Book...
1.
2.
3.
Editing a Memory Location
After you have stored names and numbers in the Phone Book, you
can edit entries at any time by location or name.
4. Press Smart Button to select Edit Memory.
5. Press the volume keys to scroll to Edit By
Location or Edit By Name.
then
Press Smart Button to select.
6. Edit By Location
You will see: Location __.
Enter the two-digit memory location of
the phone number you want to edit.
You will see the Phone Book screen for that
memory location.
Continue with Step 7.
or
Edit By Name
You will see: Enter 1st Letter.
Enter the first letter of the name you want to
edit. See page 41 for information on entering
alpha characters. You will see the Phone Book
screen for the first memory location begin-
ning with that letter.
then
Press the volume keys to scroll to the name
you are looking for.
7. Press Smart Button to begin editing the
phone number. The display will show the
name briefly, then the phone number.
Continued on next page.
Edit
Memory p
63
Phone Book
Editing a Memory Location
8. Enter your changes to the phone number.
Press Ç to erase one digit at a time.
Press & hold Ç to erase the entire number.
9. Press Smart Button when you finish editing
the phone number. The display will show the
location where your number is currently
stored. You will see: Location XX.
10. Press Ç to erase the memory location and
enter a new two-digit location.
or
Press Smart Button or ¬ to keep the phone
number in its current location. The display will
show the name.
11. Enter your changes to the name.
See page 41 for details on entering names.
Press Ç to erase one letter at a time, or skip
this step to leave the name unchanged.
12. Press Smart Button or ¬ when you finish
editing the name. You will see: Location XX
Is Full. The display will show the new infor-
mation and ask if you want to save your
changes. You will see: Change?
13. Press Smart Button or ¬ to save your
changes. You will see: Stored At XX.
or
Press Ç to choose a new memory location
and return to step 10.
or
Press º to exit without saving your
changes.
14. Press º to exit the menu, or you may scroll
to other features.
64
Press ƒthen press Smart Button to enter the menu system.
Press Smart Button to select Phone Book.
Press to scroll to the following features:
or
Getting to Phone Book...
1.
2.
3.
Viewing Your Number
Use this feature to view your cellular phone’s currently active
phone number. If you have more than one phone number, you
can change the active number with Changing Your Number on
page 88.
4. Press Smart Button to select View My Number.
The display will show the currently active
number on your phone.
5. Press º to exit the menu, or you may scroll
to other features.
Press ‰ ».
View My
Number p
65
Phone Book
Number Preference
When Placing Calls:
If you prefer to see the phone number (Dialing 555-1212)
instead of the name (Calling Jane Smith) when you place a
call from your Phone Book, just turn Number Preference ON.
When Receiving Calls:
If you subscribe to Caller ID, your phone automatically looks up the
caller’s name in your Phone Book and flashes it in the display (Jane
Smith). If you prefer to see the caller’s number (555-1212), just
turn Number Preference ON.
4. Press Smart Button to toggle between
Number Prefer Off or Number Prefer On.
5. Press º to exit the menu, or you may scroll
to other features.
Number
Prefer Off p
66
Call Timers
Your phone is equipped with three visual and three
audible Call Timers to help you manage your time. The three
visual timers record the time spent talking on your phone just like
a stop watch. The three audible timers can be set to beep at
specific intervals so that you can keep track of air-time without
even looking at the phone.
In this chapter you will learn how to:
•view the air-time of your individual calls
•set and view the Resettable Timer for long-term timing
•view your phone’s total air-time
•set audible timers to beep at intervals that you choose
Follow these symbols as a guide for using the keys on the side of
your phone.
Press to scroll up
Press to select
Press to scroll down
55
2211
lock
batt
menu
jk
abc
Call Timers
67
Road Map
Press ƒ then press to enter the menu system.
Start:
p. 66
IndividualIndividual
XX:XX:XXXX:XX:XX
p. 66
ResettableResettable
TimeTime XXXXXXXXXX
p. 67
CumulativeCumulative
TimeTime XXXXXXXXXX
p. 67
ResetReset
TimerTimer
p. 67
IndividualIndividual
TimerTimer OffOff
p. 68
p. 68
p. 69
p. 54
PhonePhone
BookBook
p. 64
TimersTimers
One MinuteOne Minute
TimerTimer OffOff
Repeating Repeating
TimerTimer OffOff
Single Single
TimerTimer OffOff
To Main To Main
MenuMenu
Getting to Call Timers...
68
Press ƒthen press Smart Button to enter the menu system.
Press to scroll to Timers and press Smart Button to select.
Press to scroll to the following features:
1.
2.
3.
View Individual Timer
The Individual Timer records the air-time of the most recent call or
the call in progress in hours, minutes, and seconds. It resets auto-
matically when you place your next call.
4. The display will show the air-time of your last
call in hours, minutes, and seconds.
5. Press º to exit the menu, or you may scroll
to other features.
Press ‰ then » twice.
View Resettable Timer
You can record the air-time you’ve used during any time period.
For example, reset it at the beginning of each billing period to
know exactly where you stand at any given moment. The air-time
of all calls is displayed in minutes from the point at which it is
reset. See Reset Resettable Timer on page 69 to learn how to reset
this timer.
4. The display will show your air-time in minutes
since you last reset the timer.
5. Press º to exit the menu, or you may scroll
to other features.
Press ‰ then » three times.
Press ƒ then press Smart Button, then
›, fl and continue with step 4.
Individual
XX:XX:XX c
Resettable
Time XXXXX c
69
Call Timers
View Cumulative Timer
This non-resettable timer records your phone’s total air-time (in
minutes) since the day you began using your phone.
4. The display will show your air-time in minutes
since your phone was activated.
5. Press º to exit the menu, or you may scroll
to other features.
Press ‰ then » four times.
Press ƒ then press Smart Button, then
›, ‡ and continue with step 4.
Reset Resettable Timer
After you reset the Resettable Call Timer, it will record your air-
time in minutes from that point until you reset it again.
4. Press Smart Button to reset the timer.
You will see: Resettable Time 00000.
5. Press º to exit the menu, or you may scroll
to other features.
Press ƒ then press Smart Button, then ›,
‹ and continue with step 4.
Press ƒ then ‚, ‡, Ç.
Auto Display Individual Timer
When you turn this feature ON, your phone will automatically
display the Individual Call Timer during and after each call.
4. Press Smart Button to toggle Individual
Timer On or Individual Timer Off.
5. Press º to exit the menu, or you may scroll
to other features.
Press ƒ then press Smart Button, then
›, † and continue with step 4.
Cumulative
Time XXXXX c
Reset
Timer c
Individual
Timer Off c
Getting to Call Timers...
70
Press ƒthen press Smart Button to enter the menu system.
Press to scroll to Timers and press Smart Button to select.
Press to scroll to the following features:
1.
2.
3.
One Minute Audible Timer
Turn this feature ON to hear a beep 10 seconds before the end of
every minute during a call. Don’t worry, the party on the other end
will not hear the beep.
4. Press Smart Button to toggle One Minute
Timer On or One Minute Timer Off.
5. Press º to exit the menu, or you may scroll
to other features.
Press ƒ then press Smart Button,
then ›, › and continue with step 4.
Repeating Audible Timer
You can set this timer to beep during your calls at an interval that
you select – from 11-999 seconds. The party on the other end will
not hear the beep.
4. Press Smart Button to toggle Repeating
Timer On or Repeating Timer Off.
If ON, you will see: Enter Seconds.
If OFF, you will see: Repeating Timer Off.
5. Enter the number of seconds you would like
between audible beeps.
You will see: Beep At XXX Secs.
6. Press Smart Button to set the timer. The
phone will confirm by displaying your entry:
Set At XXX Secs.
7. Press º to exit the menu, or you may scroll
to other features.
Press ƒ then press Smart Button,
then ›, ⁄ and continue with step 4.
One Minute
Timer Off c
Repeating
Timer Off c
71
Call Timers
Single Audible Timer
You can set the Single Timer to beep once at a time that you select
– from 11-999 seconds. The party on the other end will not hear
the beep.
4. Press Smart Button to toggle Single Timer
On or Single Timer Off.
If ON, you will see: Enter Seconds.
If OFF, you will see: Single Timer Off.
5. Enter the number of seconds you would like
before the audible beep.
You will see: Beep At XXX Secs.
6. Press Smart Button to set the timer. The
phone will confirm by displaying your entry:
Set At XXX Secs.
7. Press º to exit the menu, or you may scroll
to other features.
If the Single Timer is already ON, but you
want to change the length of the timer, toggle
Single Timer OFF then ON again.
Press ƒ then press Smart Button,
then ›, ¤ and continue with step 4.
Single
Timer Off c
72
Tone Control
If you’ve been reading along diligently, this may be a good time
for a break—put your feet up and have some fun with the Tone
Controls. Use these features to select Silent Mode, personalize
your phone’s ringer styles, or turn them off for some peace
and quiet.
In this chapter you will learn how to:
•choose from nine different ringer styles
•select Silent Mode for occasions when your phone’s beeps and
bleeps aren’t appropriate
•set the Message Reminder
Follow these symbols as a guide for using the keys on the side of
your phone.
Press to scroll up
Press to select
Press to scroll down
55
2211
lock
batt
menu
jk
l
abc
Tone Control
73
Road Map
Press ƒ then press to enter the menu system.
Start:
p. 72
Silent Silent
Mode OffMode Off
p. 73
Ring/VibRing/Vib
SelectSelect
p. 72
Ringer Ringer
Style 1Style 1
p. 74
Keypad Keypad
Tones OnTones On
p. 74
DTMF DTMF
SelectSelect
p. 75
Msg RemindMsg Remind
Tones OnTones On
p. 75
Service Service
TonesTones OffOff
To MainTo Main
MenuMenu
p. 54
PhonePhone
BookBook
p. 64
TimersTimers
p. 70
Tone Tone
ControlControl
74
Press ƒthen press Smart Button to enter the menu system.
Press to scroll to Tone Control and press Smart Button to select.
Press to scroll to the following features:
Getting to Tone Control...
1.
2.
3.
Silent Mode
When you need to be discreet, just turn Silent Mode ON. All tones will
be silenced. The ringer and incoming message tones will be replaced
by vibrations.
4. Press Smart Button to toggle Silent Mode
Off or Silent Mode On.
5. Press º to exit the menu, or you may scroll
to other features.
Press ƒ then press and hold † to acti-
vate Silent Mode.
Select Ringer Style
Your phone offers nine different ringer styles. After selecting a
ringer, your phone will demonstrate the new ringer style.
Keep in mind: If you have VibraCall™ alert set, your phone will
demonstrate a new vibration style.
4. You will see: Ringer Style X.
X is the ringer currently set.
5. Press Smart Button to select a new ringer.
You will hear the ringer currently set and see:
Select 1-9.
6. Press ⁄ through · to hear that ringer
style, or scroll through all the styles with the
volume keys.
7. Press Smart Button when you find the ringer
style you want. You will see: Ringer X Set.
8. Press º to exit the menu, or you may scroll
to other features.
Silent
Mode Off t
Ringer
Style 1 t
75
Tone Control
Ringer/Vib Select
The VibraCall™ alert is ideal when you need to be discreet or in
noisy places where you might not hear the ringer. Just select
Vibrate Only and your phone’s ringer will be replaced by gentle
vibrations. Or have it all by selecting Vibrate Then Ring to
have your phone vibrate three times then ring.
4. Press Smart Button to select Ring/Vib Select.
You will see the current setting.
5. Press volume keys to scroll through the
following: Vibrate Only, Ring Only, Vibrate
Then Ring.
6. Press Smart Button to select the setting
you want.
7. Press º to exit the menu, or you may scroll
to other features.
Press ƒ then press † to toggle the Vibra-
Call™ alert ON and OFF.
Press ƒ then press Smart Button, then
‹, ‚ and continue with step 4.
Press ƒ then press Smart Button, then
‹, ⁄ and continue with step 4.
Ring/Vib
Select t
76
Press ƒthen press Smart Button to enter the menu system.
Press to scroll to Tone Control and press Smart Button to select.
Press to scroll to the following features:
Getting to Tone Control...
1.
2.
3.
Keypad Tones
Keypad Tones are the sounds made when your phone’s keys are
pressed. If you need to be discreet, use this feature to silence the
Keypad Tones.
Keep in mind: Even with Keypad Tones OFF, the party on the
line with you will still hear the tones.
4. Press Smart Button to toggle Keypad Tones
On or Keypad Tones Off.
5. Press º to exit the menu, or you may scroll
to other features.
Press ƒ then press Smart Button, then
‹, ¤ and continue with step 4.
Transmit Tones
Your phone transmits DTMF tones to communicate with auto-
mated calling systems like Voice Mail. For most systems, you should
choose short tones. If you choose long tones, your phone will trans-
mit the tones for as long as you press and hold the key. To silence
the tones during conversations, just turn the tones OFF.
4. Press Smart Button to select DTMF Select. You
will see the current setting.
5. Press volume keys to scroll through the
following: Transmit DTMF Long, Transmit
DTMF Short, or Transmit DTMF Off.
6. Press Smart Button to select the setting
you want.
7. Press º to exit the menu, or you may scroll
to other features.
Keypad
Tones On t
DTMF
Select t
77
Tone Control
Press ƒ then press Smart Button, then
‹, ‹ and continue with step 4.
You can still use automated calling systems
with Transmit DTMF OFF. When the system
prompts you for input, follow this sequence
to transmit the tones:
1. Enter the numbers you need to transmit.
then
Press ‰ then press æ to send the tones.
2. Repeat step 1 for each set of numbers you
need to transmit.
Message Reminder Tones
There’s no need to worry about missing the new message alert or the
new message indicators. Just turn Message Reminder Tones ON and
your phone will remind you of unread messages by beeping or
vibrating every two minutes.
4. Press Smart Button to toggle Msg Remind
Tones On or Msg Remind Tones Off.
5. Press º to exit the menu, or you may scroll
to other features.
Service Tones
When Service Tones are ON, you’ll be alerted to any change in your
cellular service. You’ll hear two short beeps when your phone (1)
starts to roam, (2) returns to a home system after roaming, (3) loses
service, (4) finds service, or (5) moves from digital to analog
service (or vice versa).
4. Press Smart Button to toggle Service Tones
On or Service Tones Off.
5. Press º to exit the menu, or you may scroll
to other features.
Keep in mind: Your phone will always beep if a call is dropped.
Msg Remind
Tones On t
Service
Tones On t
78
Lock/Security
While you probably would not want to leave it
unattended, your phone has a number of built-in
security features to prevent unauthorized use.
In this chapter you will learn how to:
•lock and unlock your phone
•place emergency calls
•view and change your lock code
•restrict call placement and memory access
•reset or clear your phone’s settings
•activate your phone’s Authentication* feature
Follow these symbols as a guide for using the keys on the side of
your phone.
Press to scroll up
Press to select
Press to scroll down
*Contact your Service Provider for availability.
55
2211
lock
batt
menu
jk
abc
Lock/Security
79
Road Map
Press ƒ then press to enter the menu system.
Start:
p. 78
AutoAuto
Lock OffLock Off
p. 79
EmergencyEmergency
Call OnCall On
p. 80
Secure Secure
OptionsOptions
p. 54
PhonePhone
BookBook
p. 64
TimersTimers
p. 70
ToneTone
ControlControl
p. 76
LockLock
SecureSecure
To MainTo Main
MenuMenu
p. 80
p. 80
View LockView Lock
CodeCode
p. 82
Change Change
LockLock CodeCode
p. 81
Service Service
Level 4Level 4
p. 81
MasterMaster
ResetReset
MasterMaster
ClearClear
To MainTo Main
MenuMenu
p. 80
SecureSecure
CodeCode------------
80
Press ƒthen press Smart Button to enter the menu system.
Press to scroll to Lock Secure and press Smart Button to select.
Press to scroll to the following features:
Getting to Lock/Security...
1.
2.
3.
Auto Lock
Turn this feature ON and your phone will automatically lock itself
each time the phone is turned OFF.
4. Press Smart Button to toggle Auto Lock Off
or Auto Lock On.
5. Press º to exit the menu, or you may scroll
to other features.
Locking the Phone
You can lock your phone manually at any time to help prevent
unwanted use. Once locked, you can leave the phone ON or turn it
OFF and the phone will remain locked.
1. Press ƒ then press and hold fi.
You will see: Lock?
2. Press Smart Button or ¬.
You will see: Locked.
Unlocking the Phone
Unlocking your phone is quick and easy. Once your phone is ON,
just enter your three-digit code. Your factory programmed lock
code is 123. If you’ve changed this code and can’t remember what
it is, see View Lock Code on page 82.
You can still receive calls when the phone is
locked. Follow these steps to answer an
incoming call:
1. Enter your three-digit code.
2. Press Smart Button.
or
Press æ to answer the call.
Auto
Lock Off l
81
Lock/Security
Emergency Call
You can make an emergency call even when your phone is locked.
Just press and hold ⁄. First you’ll need to store an emergency
number or the number of a close friend or relative in your mem-
ory location 01. See page 40 for more information on storing
numbers into a memory location.
4. Press Smart Button to toggle Emergency Call
On or Emergency Call Off.
5. Press º to exit the menu, or you may scroll
to other features.
Press ƒ then press Smart Button, then
¤, · and continue with step 4.
Keep in mind: Some cellular systems have their own emer-
gency numbers and do not allow access to conventional emer-
gency numbers like 911. Check with your Service Provider for
more information.
Emergency
Call On l
82
Press ƒthen press Smart Button to enter the menu system.
Press to scroll to Lock Secure and press Smart Button to select.
Press to scroll to Secure Options Submenu and press Smart Button
to select.
Enter your six-digit secure code and scroll to the following features:
Getting to Secure Options...
1.
2.
3.
4.
Secure Options Submenu
The Secure Options submenu contains a number of features to
put your mind at ease. For your protection, you must enter a six-
digit secure code in order to access these features. The factory pro-
grammed secure code is 000000.
View Lock Code
Forget your lock code or need to double-check it? Help is only a
few keystrokes away:
5. Press Smart Button to display your three-digit
lock code.
6. Press º to exit the menu, or you may scroll
to other features.
Press ƒ then ‚, enter your six-digit
security code, then press ‰.
Change Lock Code
Changing your lock code is easy–just follow these simple steps:
5. Press Smart Button to select.
You will see: Enter New Code ___.
6. Enter a new three-digit lock code. Your phone
will confirm by displaying: New Lock Code XXX.
7. Press º to exit the menu, or you may scroll
to other features.
Press ƒ then ‚, enter your six-digit
secure code, enter a new lock code, then
press ¬.
Secure
Options l
View Lock
Code l
Change
Lock Code l
83
Lock/Security
Master Reset
Use this feature to reset all user-selectable options back to their
original factory settings.
Keep in mind: Once you select this feature, the reset process
cannot be canceled or reversed.
5. Press º to exit the menu if you do not want
to reset your phone’s options.
or
Press Smart Button to select Master Reset.
You will see: Standard Settings.
6. Press º to exit the menu, or you may scroll
to other features.
Master Clear
If you want to start with a clean slate, use Master Clear to clear all
user-selectable options, the resettable timer, the Phone Book, and
the Messaging memory.
Keep in mind: Once you select this feature, the process cannot
be canceled or reversed.
5. Press º to exit the menu if you do not want
to clear your phone’s memory and reset its
options.
or
Press Smart Button to select Master Clear.
You will see: Busy. It will take a few seconds to
reset all of your phone’s options back to their
factory settings.
6. Press º to exit the menu, or you may scroll
to other features.
Master
Reset l
Master
Clear l
84
Press ƒthen press Smart Button to enter the menu system.
Press to scroll to Lock Secure and press Smart Button to select.
Press to scroll to Secure Options Submenu and press Smart Button
to select.
Enter your six-digit secure code and scroll to the following features:
Getting to Secure Options...
1.
2.
3.
4.
Service Level
When loaning your phone to others, you may want to restrict call
placement or hide memory information. Your phone has two ser-
vice levels that allow you to control the types of outgoing calls that
can be made from your phone.
5. Press Smart Button to select Service Level
X. (X is the number of the current level.) The
phone will display a brief description of your
current Service Level.
6. Press the volume keys to scroll through the
Service Level settings.
7. Press Smart Button to select the Service
Level you want.
8. Press º to exit the menu, or you may scroll
to other features.
Your phone has two service levels:
Level 1: Calls can be placed from
memory locations 1-10 only.
• No dialing from keypad.
• No memory edit or storage.
• No access to the Phone Book.
• No Turbo Dial™ calls.
• No access to messaging.
Level 4: This is the standard setting.
• No restrictions.
Service
Level 4 l
1 Memory
1-10 Only
4 Standard
Setting
85
Lock/Security
Authentication (A-Key) Entry
Your A-Key feature acts like a PIN code and helps to protect your
phone from unauthorized users. Contact your Service Provider for
your personalized A-Key number.
Keep in mind: This feature should only be programmed once.
To activate the A-Key feature:
1. Press ¤, fi, ‹, · then ƒ, ƒ. You
will see your phone’s active phone number.
If the phone number displayed is not the
number you want the A-Key programmed
to, press » to select another number.
This will be the phone number your phone
will operate with once you exit the A-Key
feature.
2. Enter your new A-Key (6- to 26-digit number) as
provided by your Service Provider, then ¬,
¬.
Press Ç to correct any errors.
3. Press Smart Button to validate the A-Key
entry. You will see Valid if the A-Key was
entered correctly, or you’ll see A-Key Invalid
if you need to re-enter your A-Key number.
4. Press º to exit the menu, or you may scroll
to other features.
86
Phone Options
The Phone Options menu is your “command center” for adjust-
ing the way your phone sends and receives calls. You can fine tune
your phone for optimal performance, view information about
your phone’s settings, and much more.
In this chapter you will learn how to:
•switch phone numbers
•review your phone’s settings
•select a variety of system specific settings
Follow these symbols as a guide for using the keys on the side of
your phone.
Press to scroll up
Press to select
Press to scroll down
55
2211
lock
t
menu
j
abc
Phone Options
87
Road Map
Press ƒ then press to enter the menu system.
Start:
p. 87
SelectSelect
SystemModeSystemMode
p. 89
FeatureFeature
ReviewReview
p. 90
CallCall
OptionsOptions
p. 92
DisplayDisplay
OptionsOptions
p. 94
SystemSystem
OptionsOptions
p. 54
PhonePhone
BookBook
p. 64
TimersTimers
p. 70
ToneTone
ControlControl
p. 76
LockLock
SecureSecure
p. 84
PhonePhone
OptionsOptions
To MainTo Main
MenuMenu
p. 86
ChangeChange
NumberNumber
p. 90
Multi KeyMulti Key
AnswerAnswer OffOff
p. 91
Auto Auto
AnswerAnswer OffOff
p. 91
InstantInstant
RedialRedial OffOff
To MainTo Main
MenuMenu
p. XX
p. 95
p. 93
AutoAuto
HyphenHyphen
OffOff
p. 93
24 Hour24 Hour
ClockClock OffOff
To MainTo Main
MenuMenu
p. 92
Change Change
BannerBanner
DisplayDisplay
SystemSystem IDID
p. 94
To MainTo Main
MenuMenu
Analog Analog
Only OffOnly Off
88
Press ƒthen press Smart Button to enter the menu system.
Press to scroll to Phone Options and press Smart Button to select.
Press to scroll to the following features:
Getting to Phone Options...
1.
2.
3.
Changing Your Number
Your phone can be activated with up to four unique phone num-
bers. You could use one number for personal use, one for busi-
ness, and the other two for cities that you travel to frequently. Use
this feature to select an appropriate number.
4. Press Smart Button to enter Change Number.
The display will show your phone’s currently
active number.
5. Press the volume keys to scroll through
the phone numbers programmed into your
phone.
6. Press Smart Button to select desired number.
You will see: Set.
7. Press º to exit the menu, or you may scroll
to other features.
Change
Number P
89
Phone Options
Selecting a System Mode
If you want to get into the nitty-gritty of your cellular phone’s opera-
tion, read on. Your Service Provider configures this feature when you
receive a cellular phone number. Select System Mode allows you to
select the type of cellular system your phone will attempt to access.
See the next page for a chart of available settings.
4. Press Smart Button to enter Select
SystemMode. The display will show your
phone’s current System Mode setting.
5. Press the volume keys to scroll through the
System Mode settings (see chart on next
page).
6. Press Smart Button to select the setting that
you want. You will see: Set.
7. Press º to exit the menu, or you may scroll
to other features.
Select
SystemModeP
90
Press ƒthen press Smart Button to enter the menu system.
Press to scroll to Phone Options and press Smart Button to select.
Press to scroll to the following features:
Getting to Phone Options...
1.
2.
3.
Selecting a System Mode
Standard Mode:
Your phone first seeks a home type
system, then a non-home type system.
If home system is non-wireline (type A)
If home system is wireline (type B)
Reversed Preference Mode:
Your phone first seeks a non-home type
system, then a home type system.
(This mode may be useful in fringe areas
or certain roaming situations.)
If home system is non-wireline (type A)
If home system is wireline (type B)
Home Only Mode:
Phone will not operate outside its home
system.
Scan A Mode:
Phone will operate only within non-wireline
(A) systems.
Scan B Mode:
Phone will operate only within wireline (B)
systems.
Preferred System ID Mode:
Phone will scan for home or programmed
preferred SIDs first. This choice requires
entry of up to 60 System ID numbers for
those systems in which you wish to operate.
Contact your Cellular Service Provider for SID
information.
Std AB
P
Std BA
P
Scan BA
P
Scan AB
P
Home Only
P
Scan A
P
Scan B
P
Preferred
SID Scan P
91
Phone Options
Feature Review
After you’ve spent some time adjusting your phone’s settings, use
this feature to review the changes you’ve made. When you enter
Feature Review, your phone will display any features that you
have changed from their default factory settings.
Keep in mind: Feature Review is simply an opportunity to
review – but not change – your current settings.
4. Press Smart Button to enter Feature Review.
5. Press the volume keys to scroll through any
features you have changed from their default
settings.
or
If all features are set to their default factory
settings, the display will show:
Standard Settings.
6. Press º to exit the menu, or you may scroll
to other features.
Press ƒ then ‚, ·, ‰.
Feature
Review P
92
Press ƒthen press Smart Button to enter the menu system.
Press to scroll to Phone Options and press Smart Button to select.
Press to scroll to Call Options Submenu and press Smart Button
to select.
Press to scroll to the following features:
Getting to Call Options...
1.
2.
3.
4.
Multiple Key Answer
Why fumble for the æ key to answer calls? With Multiple Key
Answer ON, you can answer calls by pressing the Smart Button,
the upper or lower volume keys, or any key in the center of the
keypad, ⁄ through ».
5. Press Smart Button to toggle between Multi
Key Answer Off or Multi Key Answer On.
6. Press º to exit the menu, or you may scroll
to other features.
Keep in mind: If there are any digits in your Scratchpad or if
your phone is locked, this feature will not work.
Multi Key
Answer OffP
93
Phone Options
Auto Answer
Turn Auto Answer ON to have your phone automatically answer
incoming calls after two rings.
Keep in mind: If the ringer and VibraCall™ alert are OFF and
Auto Answer is ON, your phone will answer without ringing or
vibrating.
5. Press Smart Button to toggle between
Auto Answer On or Auto Answer Off.
6. Press º to exit the menu, or you may scroll
to other features.
Press ƒ then press Smart Button, then
¤, fl, and continue with step 5 above.
Instant Redial
When you hear a fast busy signal and see System Busy or No
Service, the network may not be able to handle your call at
the moment. Turn Instant Redial ON to have your phone auto-
matically redial for the next four minutes.
5. Press Smart Button to toggle Instant Redial
On or Instant Redial Off.
6. Press º to exit the menu, or you may scroll
to other features.
Keep in mind: If you receive a normal busy signal, this feature
will not work.
Auto
Answer OffP
Instant
Redial OffP
94
Press ƒthen press Smart Button to enter the menu system.
Press to scroll to Phone Options and press Smart Button to select.
Press to scroll to Display Options Submenu and press Smart Button
to select.
Press to scroll to the following features:
Getting to Display Options...
1.
2.
3.
4.
Change Banner
Want to give your phone even more personality? Then create your
own message banner for the phone to display when it’s idle. Your
banner can be up to 12 characters long.
5. Press Smart Button to enter Change Banner.
You will see either the current banner or if no
banner is programmed: Alpha or Press §.
6. Enter your message using the alphanumeric
keypad. (See page 38 for more information on
entering alphanumeric messages.)
7. Press Smart Button when your message is
complete.
8. Press º to exit the menu, or you may scroll
to other features.
Change
Banner P
95
Phone Options
Auto Hyphen
Just turn Auto Hyphen ON to have all phone numbers automatically
hyphenated on the display. This allows you to easily distinguish
between area codes, call prefixes, and other numbers.
5. Press Smart Button to toggle Auto Hyphen On
or Auto Hyphen Off.
6. Press º to exit the menu, or you may scroll
to other features.
Display 24-Hour Clock
Your phone can display the current time in 12-hour or 24-hour
format.
5. Press Smart Button to toggle 24 Hour Clock
On or 24 Hour Clock Off.
6. Press º to exit the menu, or you may scroll
to other features.
Auto
Hyphen OffP
24 Hour
Clock Off P
96
Press ƒthen press Smart Button to enter the menu system.
Press to scroll to Phone Options and press Smart Button to select.
Press to scroll to System Options Submenu and press Smart Button
to select.
Press to scroll to the following features:
Getting to System Options...
1.
2.
3.
4.
Display System ID
Use this feature to determine the unique System ID for your
dual mode StarTAC cellular phone.
5. Press Smart Button to enter Display
System ID.
6. Press º to exit the menu, or you may scroll
to other features.
Display
System ID P
97
Phone Options
Analog Only
Turning Analog Only ON tells your phone to select an analog
channel for the next call. If you don’t place a call, your phone
will revert to dual mode service after a few minutes.
5. Press Smart Button to toggle Analog Only On
or Analog Only Off.
6. Press º to exit the menu, or you may scroll
to other features.
Press ƒ then ¤ to toggle Analog Only On
or Analog Only Off.
Some peripheral devices, like fax machines
and modems, require analog operation.
Analog
Only Off P
98
Accessory Options
An exciting line of StarTAC™ phone accessories, now smaller and lighter than ever, can
enhance and personalize your cellular experience.
Lithium Ion Batteries
Motorola’s Lithium Ion (LiIon) batteries are high energy-density batteries that offer increased
capacity and are lighter in weight than similar sized Nickel Cadmium and Nickel Metal
Hydride batteries.
Nickel Metal Hydride Batteries
Nickel Metal Hydride batteries (NiMH) are high-capacity batteries that offer up to 30% more
talk-time than comparable Nickel Cadmium batteries. To help achieve maximum life and
capacity for your NiMH battery, do not leave the battery in the charger for more than 24 hours,
and use only Motorola-approved chargers.
Cigarette Lighter Adapter
Lets you plug into a reliable power source on the road. Uses your car’s battery to power your
phone and rapid charge its battery at the same time. The Cigarette Lighter Adapter will not over-
charge your battery and contains circuitry to protect against overvoltage and power surges in the
vehicle. In some cars, the engine must be running in order for the cigarette lighter to operate.
99
Reference
Accessory Options
Desktop Charger (AC Adapter required)
This charger has two pockets to charge up to two bat-
teries simultaneously. Each pocket has its own sequen-
tial charging status LEDs. The desktop charger’s front
pocket can charge batteries while they are attached to
your phone, and the rear pocket can charge batteries
separately. It’s easy to rotate batteries and always have
a charged spare. For use with Lithium Ion, Nickel Cad-
mium and Nickel Metal Hydride batteries.
Holster
StarTAC is so small and light, it’s positively wearable. Slip
it in the holster and clip the holster on–for the ultimate
in high-tech fashion.
Headset
The convenient headset provides both an earphone and micro-
phone in one small piece for simple hands-free and private tele-
phone conversations. The headset plugs directly into the jack on
the top of your phone, so that you can wear your phone and move
freely. Place the foam cover on the earpiece for a more comfort-
able fit.
See pages 86-87 for Call Options that make using a headset with your phone even more con-
venient. To answer with any key on the side of your phone, you can set Multiple Key Answer
ON, or use Auto Answer to set your phone to automatically answer after two rings. You can
even use the Smart Button to end calls (see page 25). You don’t have to open your phone to
take a call.
100
Accessory Options
3-Watt Vehicular Kit
The 3-Watt Vehicular Kit delivers a full 3 watts of power. This booster works behind the scenes
to increase performance, especially in fringe areas.
Keep in mind: This kit only works when your phone is on an analog system ( ). If you
plan to use your phone on a CDMA digital system, we recommend that you purchase the
Hands-Free Vehicle Kit on the previous page.
3-Watt Vehicular Kit components:
•Hands-Free phone holder with rapid battery charger
•External microphone
•External speaker
•3-watt booster
•External antenna (not included)
We recommend you use genuine Motorola batteries and accessories. Under its cellular tele-
phone warranty, Motorola specifically disclaims any responsibility for damage caused by the use
of portable cellular telephone accessories not manufactured by Motorola.
Vehicular Charger/Holder
Microphone
Speaker
Glass Mount Antenna
Booster
101
Reference
Accessory Options
Hands-Free Vehicle Kit
Optional Hands-Free Kits give you the convenience of hands-free, speaker phone operation
while in your car. Full duplex operation lets you simultaneously talk and listen, so both par-
ties can interrupt each other for a normal sounding conversation.
The Hands-Free Kit powers the phone and rapid charges its battery whenever your car’s engine
is running.
Montana Modem/Fax PC Card
If you have a Motorola Montana 33.6 Modem/Fax PC Card, you can use your dual mode
StarTAC™ phone to transmit data and faxes. Just connect your phone to a personal com-
puter with Type II or Type III PCMCIA slots and your phone can transmit data at 33.6 Kbps
and faxes at 14.4 Kbps.
Mariner 33.6 Modem/Fax/LAN PC Card
This accessory adds Ethernet capability to all the features of the Motorola Montana 33.6
Modem/Fax PC Card described above.
102
Troubleshooting
Q. I pressed the power button, but nothing happened. What’s wrong with my phone?
A. Check that you have installed a battery and that the battery is charged. See page 16 for
information about installing your battery.
Q. The display says Locked. How do I unlock my phone?
A. Try entering the last three digits of your cellular number. If that doesn’t work, try using
the factory preset lock code: 123. If all else fails, call your Service Provider (the company
that sends you your monthly cellular bill) for assistance. For more information on your
phone’s security features, see the Lock/Security chapter, page 78.
Q. My battery didn’t last as long as I expected. What can I do to extend battery life?
A. To get the most from your battery, make sure it is fully charged. To charge the battery
to 100% of its capacity, leave it in the charger for an extra hour after the charger’s light
turns green.
Exposing your battery to extreme temperatures—below -10°C (14°F) or above 45°C
(113°F)—can shorten battery life. Batteries are especially sensitive to high temperature
extremes. As a good rule of thumb, always take your phone with you when you leave your car.
Q. I tried to place a call and received a fast busy signal.
A. This sound means that the cellular system did not process your call. For example, the
cellular system may be overloaded with call attempts. To redial the number, press the
Smart Button or press æ before ending your call attempt, or press º and try the call
again later. See page 93 for more information on redialing.
103
Reference
Troubleshooting
Q. I tried to place a call and received an alternating high/low tone.
A. This sound means your call did not reach the cellular system. Most likely, you dialed the
number too soon after turning the phone ON. Wait until the NS indicator disappears before
placing a call.
An alternating tone may also indicate that your phone’s signal is blocked. Make sure the
antenna is fully extended and move clear of any obstructions, like bridges, parking
garages, tall buildings, etc.
Q. My phone started beeping, and the display says: 1 Call Unanswered. What happened?
A. Someone tried to call you while you were in an area where the cellular signal was weak.
Press Ç to clear your display, extend your phone’s antenna, and avoid obstructions like
tunnels, parking garages and tall buildings whenever possible.
Q. My phone was stolen. What should I report and to whom?
A. Report a stolen phone to the police and to your Service Provider (the company that sends
you your monthly cellular service bills).
104
Glossary
A
AC adapter An accessory device that allows you to power and/or charge your phone from a wall outlet.
See page 20.
accessory connector A socket on the bottom of the phone where you can attach accessories such as
an AC adapter or cigarette lighter adapter. To learn more, see page 20.
air-time The amount of time you spend using a cellular system, between the time you
successfully place a call and the termination of that call.
alkaline A battery technology used in personal cellular telephones.
analog The traditional method of cellular transmission. In addition to analog capability, your dual
mode StarTAC phone is equipped to handle digital transmission. See also CDMA.
antenna The device on your phone that sends and receives cellular signals. For tips on antenna use and
efficiency, see page 10.
Auto Answer When you activate this feature, your phone automatically answers after two rings. See page 93.
Auto Hyphen A feature that automatically inserts hyphens into displayed phone numbers for easier
visibility. See page 95.
Automatic Redial When your cellular network cannot handle your call, this feature enables your
phone to automatically redial with one button push. See page 93.
C
Call Back number A phone number in an alphanumeric message, provided by the sender.
See page 52.
Caller ID A network/subscription dependent service that allows you to view information on incoming calls
before answering. See page 32.
CDMA (Code Division Multiple Access) CDMA takes digitized voice and encodes it in a unique
scheme that is sent out over the air. CDMA digital reduces the probability of dropped calls. Your
dual mode StarTAC™ phone is equipped to handle CDMA digital voice transmission.
cellular carrier One of multiple competing companies in a given geographic area that owns and
operates a cellular system.
Cellular Service Provider A company affiliated with a cellular carrier that provides cellular service
to its customers.
cellular signal The radio waves that carry information between your cellular phone and the cellular
system.
cellular system The cellular equipment in a given geographic area that relays signals to and from
individual cellular telephones and the landline telephone system.
cigarette lighter adapter An accessory device that allows you to power and/or charge your phone
from a car’s cigarette lighter.
105
Reference
Glossary
D
dedicated Message Key See Message Key.
default A feature’s original setting as programmed in the factory.
digital See CDMA.
DTMF Dual Tone Multi-Frequency are the tones that your phone transmits to communicate with tone
activated phone systems like Voice Mail or bank-by-phone. See page 72. Keep in mind: “DTMF
Tones” does not refer to the sounds produced by your phone’s speaker. See Keypad Tones for infor-
mation on the sounds produced by your phone’s speaker.
E
Emergency Call This feature allows you to place a call from memory location 01 even if the phone is
locked. See page 81.
F
fringe area The outermost range of a cellular system where cellular signals are weak.
function keys The non-numeric keys on your phone used to access and navigate menu features, as
well as perform memory functions. See page 24.
H
Home Only Mode When your phone is active in this System Mode setting and you are beyond
the range of your home Service Provider, your phone will not operate. See pages 89-90.
See also system type.
home system The local cellular system where you obtain your cellular service.
home type system A cellular system of the same type as the local cellular system where you obtain
your service. See also non-home type system and system type.
I
icon One of the variety of symbols used to designate menu features and messages.
indicator A symbol on your phone that gives you information about your phone’s status. See pages 28-29.
106
Glossary
K
Instant Redial When your cellular network cannot handle your call, this feature enables your phone
to continuously redial for four minutes or until your call is picked up by the network. See page 93.
Internal Rapid Charger A charger built into your phone for use with an AC adapter or cigarette
lighter adapter. See page 20.
Keypad Tones The sounds produced through your phone’s speaker when you press the keys. See page
76. Keep in mind: “Keypad Tones” does not refer to the tones sent by your phone to communicate
with automated phone systems. See Transmit Tones for information on the tones used to access
automated phone systems.
L
landline The telephone system used for conventional office and home phones.
Lithium Ion (LiIon) A battery technology used in personal cellular telephones. Lithium Ion batteries
generally provide more energy capacity than Nickel Metal Hydride batteries of the same weight.
lock To prevent unauthorized access to the cellular telephone. See page 80.
lock code A three-digit code used to access your phone once it has been locked. The factory
programmed lock code is 123. To view or change your lock code, see page 82.
M
memory location A space in the internal Phone Book where you can store a telephone number and a name.
Each of the Phone Book’s 99 memory locations (numbered 01-99) can hold up to 32 digits and 24 letters.
menu This system contains five features: Phone Book, Timers, Tone Control, Lock/Secure, and Phone Options.
menu feature Any feature that can be accessed through the menu system.
Message Key Located in the upper right corner of the keypad, the dedicated Message Key offers one-touch
access to messages and messaging functions. See page 46. See also Caller ID, Messages, and Voice Mail.
Messages A network/subscription dependent service that enables your phone to receive alphanumeric
messages just like a pager. See page 53.
Messaging Function Menus While viewing your Caller IDs, reading your Messages, or checking your
Voice Mail, you can use these menus to manage your messages: lock or unlock an alphanumeric mes-
sage, delete one or all of your Caller ID or alphanumeric messages, or select a different message type.
N
Nickel Cadmium (NiCd) A battery technology used in personal cellular telephone batteries.
Nickel Metal Hydride (NiMH) A battery technology used in personal cellular telephone batteries.
107
Reference
Glossary
non-home type system A system type different from your home system. See also home type system
and system type.
non-wireline See system type.
P
pause A special character that tells your phone to wait before sending the next set of numbers stored in
one memory location. See Pause Dialing.
Pause Dialing A method of storing Phone Book entries that allows you to store multiple strings of numbers in
one memory location; useful, for instance, in accessing automated phone systems. See page 61.
Personal Identification Number (PIN) A private numeric password which protects personal
accounts such as bank-by-phone or Voice Mail.
Phone Book An alphabetical list of the names and telephone numbers you have stored into your
phone’s internal memory.
Preferred System ID Mode When your phone is in this system mode setting, it will scan for systems
on a preferred list. This choice requires entry of up to 60 System ID numbers. Contact your Service
Provider for SID information.
prompt A display message requesting input.
Q
Quad Number Your phone can be activated with up to four different phone numbers.
See page 27 to learn how to change the number active on your phone.
R
Reversed Preference Mode When your phone is active in this System Mode setting and you
are beyond the range of your home Service Provider, your phone will seek a non-home
type system, then a home type system. See pages 89-90. See also system type.
road map The visual representation of your phone’s menu system provided in this manual.
roam To use a cellular system outside of your home system, usually when you travel beyond the range
of your home system.
S
Scan A Mode When your phone is active in this System Mode setting and you are beyond the range of
your home Service Provider, your phone will only operate on non-wireline type systems. See pages
89-90. See also system type.
Scan B Mode When your phone is active in this System Mode setting and you are beyond the range of
your home Service Provider, your phone will only operate on wireline type systems. See pages 89-90.
See also system type.
108
Glossary
Scratchpad A memory feature that automatically remembers the most recent number entered into the
keypad. See page 45.
Scratchpad tones See DTMF.
scroll To move backward or forward through a list; for example, to move backward or forward through
the menu system or the Phone Book using either the volume keys or the « and » keys.
secure code A six-digit code used to access and change certain security features. The factory
programmed secure code is 000000.
Service Provider See Cellular Service Provider.
Service Tones Two short beeps used to alert you to any changes in your cellular service. See page 77.
signal See cellular signal.
Silent Mode Select this feature and all your phone’s tones will be silenced and the VibraCall™ alert
activated. See page 74.
soft-handoff Unlike traditional analog technology where you are disconnected from one cell site and
then connected to another, CDMA digital technology connects you to a new site before disconnecting
you from the old site. This is known as a “soft-handoff.” With soft-handoff technology, you could
experience fewer dropped calls as you travel between cell sites.
Smart Button The middle key on the side of your phone used to access the Phone Book, place calls, end
calls, select the Phone Book, enter the menu system, and toggle features ON and OFF.
Standard Mode When your phone is active in this System Mode setting and you are beyond the range
of your home Service Provider, your phone will seek a home type system, then a non-home type sys-
tem. See pages 89-90. See also system type.
standby-time The total time your phone is ON but not used for talking.
Super Speed Dial A dialing shortcut that allows you to quickly dial any number in the internal Phone
Book. To use this feature, enter the two-digit location of your number, 01-99, then press and hold
Smart Button or press æ and the call is placed. See page 44.
System ID Every cellular system has a unique number to identify itself. See page 96.
System Mode A setting that determines the system type that your cellular phone will access. See pages
89-90 to select a System Mode.
system type A designation that indicates one of the two competing cellular carriers in a given geo-
graphic area. The non-wireline carrier operates on the “A” block of cellular frequencies, and the
wireline carrier operates on the “B” block of cellular frequencies.
109
Reference
Glossary
T
talk-time The total time that you can talk on your phone before the battery is fully discharged.
toggle To switch between two possible options; for example: ON vs. OFF. Pressing the Smart Button
toggles features ON or OFF.
Transmit Tones See DTMF.
Turbo Dial™ keys To use this feature, press and hold a number on the keypad, ⁄ through ·,
and your call is placed.
U
unlock code See lock code.
V
VibraCall™ alert When activated, this feature alerts you silently of incoming calls by vibrating. It can be
used alone or in conjunction with the ringer. See page 75.
Voice Mail Contact your Service Provider for availability.
volume keys Located on the side of your phone, the upper and lower volume keys are used to adjust
ringer and keypad volume. They also scroll within the menu system and the Phone Book.
W
wireline See system type.
Patent Information
Manufactured under one or more of the following U.S. patents:
4121218
4138681
4193036
4254382
4302845
4312074
4327319
4329666
4369516
4369522
4378603
4390963
D269873
4398265
4400584
4400585
D270835
D271491
Re.31470
4431977
4434461
4455534
4462098
D275951
4484153
4485486
4486624
D276809
4491972
D277667
4504834
D278708
4523155
4546329
4550426
4551696
4564821
D282169
4571595
4573017
4574243
4585957
4602218
D284759
D285439
4616314
4617520
D286778
4626309
4628529
4629829
4630304
4630305
4633141
4636593
4636741
D288432
4648125
4649543
D288683
4654655
D289156
4662691
4667333
4668917
4670747
4672502
4680787
4681476
4683585
4692726
4704588
D292578
4706036
D292920
4710724
4711361
4715063
4716319
4716391
4723305
D294257
4727306
4727583
4730195
4734635
4736277
4737976
4740794
4741018
4741034
4742562
D295627
4746242
D295973
D295975
4751737
D296187
4761621
4764737
D297734
D297735
4777564
Re.32768
D299136
4797929
4798975
4800348
4802236
4809356
4811377
4811404
4827226
4827507
4829274
4837534
D301476
4843621
4845772
D302015
4851966
4868576
4870686
D303656
4876552
4879533
D305427
4896124
4897873
D305717
4904549
4905288
4905301
D306293
D306441
D306594
4912602
4918732
4922178
4945570
4954796
4959851
4963812
4963843
4965537
4972355
4972432
4972455
4975808
4984290
D314173
D315330
D315346
D315543
D315559
D315565
5004992
D315907
5008925
D316417
D316859
5017856
5018188
5020091
5020092
5020093
5028083
5028859
5029044
5029233
5031028
5036532
5053924
5057762
D320780
5059885
5060294
D322783
D322955
5081674
5083304
D324024
D324388
5095503
D325028
D325583
5109536
D325915
5113436
5117450
5121047
5122480
5122722
D327061
5128834
D328302
5142551
5142696
5146620
5148471
5148473
5148961
5150359
5150384
5152006
5157693
5163159
5164652
5166596
5175759
5175874
D332261
5182749
D332785
5185566
5187809
5193223
5195106
5195108
5201069
5204977
5210793
5214675
5222104
5222251
D337332
5230007
5230093
5233633
5235492
5237257
5239127
5241545
5241548
5241650
5241693
5242767
D339582
5249302
5251331
D340710
5260988
5261119
5262710
5263052
5276707
5278994
D343173
5280637
D344087
5287553
5287555
5287556
D344511
5301365
5321847
D348880
5349588
5359696
5361400
5363071
5365549
D352497
5366826
D353131
D353361
5375143
5375258
5379324
D354055
D354062
5384825
D356084
5402447
5406146
5406562
D357224
D357457
5410741
D357680
D357681
5428836
D359734
D359735
D359959
5432017
D360632
5438684
D361070
5442680
5446763
5448763
5448771
5453997
D362840
5457744
5459640
5463646
5465412
5469177
5475752
D365094
D365817
5486843
5487184
5488335
5488649
D366872
5493198
5493714
5497126
5497382
D367640
5499394
5506490
D368696
5510693
5511235
D369162
5513078
D369359
5519303
5519346
5524276
5524278
D370463
5530922
5542116
5544250
D372481
5546275
5546380
D372896
5551078
5559471
D374424
D374872
5572193
5574976
5577268
D375732
D375733
D375734
D375932
D375952
D376127
5588041
5589796
5590177
5594778
5594951
D377792
D377934
5604050
5606730
D378366
5613229
5613863
5615233
5621763
Other patents pending.
111
A
AC adapter 20–21
Accessory Options 98–101
adjusting volume 35
alpha entry 41
alphanumeric messages 7
Analog Indicator 27, 29
Analog Only 97
audible timers
One Minute 70
Repeating 70
Single 71
Authentication Entry 85
Auto Answer 93
Auto Display Individual Timer 69
Auto Hyphen 7, 95
Auto Lock 80
Automatic Redial 33
B
banner 94
batteries 16–23
chargers 20–23
covers 16–17
installing 18–19
storage & disposal 23
varieties 98
battery level
checking 30
indicator 28
shortcut 36
C
Call Back
Caller ID 48
Messages 52
Call Options 92–93
Call Timers 66–71
Cumulative 69
Individual 68, 69
One Minute Audible 70
Repeating Audible 70
Resettable 68, 69
road map 67
Single Audible 71
Caller ID 7, 32
Call Back 48
deleting 49
Message Indicator 29
name look-up 7
Number Preference 65
options 49
storing 48
viewing 48
CDMA Digital Service 6, 26
Change Banner 94
Change Lock Code 82
Changing Your Number 88
chargers 20–23
desktop 21–23
Internal Rapid 20
Charging the Battery 20–23
Checking Your Voice Mail 50
cigarette lighter adapter 20, 98
Clear Resettable Call Timer 69
Clear, Master 83
clock 6, 28
display format 95
Cumulative Timer 69
D
Dedicated Message Key 24
deleting
Caller ID 49
Messages 53
desktop charger 21–23
indicator lights 21
times 23
Digital Indicator 29
display 7
Display 24-Hour Clock 95
Display Last Ten Numbers Dialed
34
Index
112
Display Options 94–95
Display System ID 96
DTMF 76
E
earpiece volume 35
Editing a Memory Location 62–63
Emergency Call 81
ending calls 31, 32
Entering Names 41
F
fax compatibility 101
Feature Review 91
Function Key 24
G
Glossary 104–109
H
Hands-Free Vehicle Kit 98
Hyphen, Auto 95
I
In Use Indicator 29
Incoming Call Indicator 30
indicators
Analog 29
Battery Level 28, 30
shortcut 36
Caller ID/Message 29
desktop charger lights 21
Digital 29
In Use 29
Incoming Call 30
No Service 29
Roam 29
Signal Strength 28
Silent Mode 29
VibraCall™ On 29
Vibrate Then Ring 29
Voice Mail 29
Individual Call Timer
Auto Display 69
viewing 68
Installing the Battery 18–19
Instant Redial 8, 93
Internal Rapid Charger 20
K
Key Answer, Multiple 92
Keypad Tones 76
L
Last Ten Numbers Dialed 34
Lithium Ion Batteries 98
lock code
changing 82
viewing 82
Lock/Security 78–85
road map 79
locking/unlocking 80
shortcut 36
M
Making the Most of Memory 39
Mariner Modem/Fax/LAN PC Card
101
Master Clear 83
Master Reset 83
memory 38–45
editing 62–63
Entering Names 41
Making the Most of 39
recalling 42–43, 58–59
storing 40, 60
while calling 45
Super Speed Dial 44
Turbo Dial™ keys 44
menu
features 54
navigating 54
Message Indicator 29
Message Reminder Tones 77
113
Messages
Call Back 52
dedicated key 24
deleting 53
options 53
reading 52
receiving 47
Reminder Tones 77
store Call Back number 52
Messaging Menu 7, 46
modem compatibility 101
Montana Modem/Fax PC Card 101
Multiple Key Answer 92
mute 35
shortcut 36
N
Nickel Metal Hydride Batteries 98
No Service Indicator 29
Number Preference 65
O
One Minute Audible Timer 70
P
Pause Dialing 61
personalizable banner 6, 94
Phone Book 56–65
editing 62–63
Entering Names 41
recalling 42–43, 58–59
road map 57
status 8, 59
storing 40, 60
while calling 45
Super Speed Dial 44
Turbo Dial™ keys 44
Using Memory 38–45
Phone Options 86–96
road map 87
Phone Overview 24
placing calls 31
power key 24
Preferred System ID Mode 90
Previous User Compatibility 55
programmable timers
Repeating Audible 70
Single Audible 71
Q
Quad Number 8, 88
R
Reading the Indicators 28–30
Reading Your Messages 52
Real Time Clock 6, 28
recalling
by location 43, 59
by name 42, 58
receiving calls 32
Receiving Messages 47
redial
Automatic 33
Instant 93
Last Ten Numbers Dialed 34
Reminder Tones, Message 77
Reset, Master 83
Resettable Call Timer
clearing 69
viewing 68
ringer
Ringer/Vib Select 75
silencing 74
style 74
volume 35
road maps 55
Roam Indicator 29
S
Safety Information 10–13
Scratchpad 45
secure code 82
Secure Options 82–85
Select Ringer Style 74
114
Service Level 84
Service Tones 8, 77
shortcuts 36, 55
Signal Strength Indicator 28
Silent Mode 8, 74
Indicator 29
shortcut 36
Slim Nickel Metal Hydride Batteries
98
Smart Button 25, 42
storing 40, 60
Caller ID 48
Super Speed Dial 44
System ID 96
System Mode 89–90
System Options 96
T
Three-Watt Vehicular Kit 100
timers
Cumulative 69
Individual 68, 69
One Minute Audible 70
Repeating Audible 70
Resettable 68, 69
Single Audible 71
Tone Controls 72–77
Basic 35
road map 73
volume 35
Tones
Keypad 76
Message Reminder 77
Service 77
Transmit 76
Transmit Tones 76
Troubleshooting 102–103
Turbo Dial™ keys 44
Turning Your Phone On 26
U
unlocking 80
Using Memory 38–45
Using Messaging 46–53
V
vehicle accessories 100–101
VibraCall™ alert 74–75
shortcut 36
VibraCall™ On Indicator 29
Vibrate Then Ring Indicator 29
View Cumulative Timer 69
View Individual Timer 68
View Lock Code 82
View Resettable Timer 68
Viewing Your Caller IDs 48
Viewing Your Number 64
Voice Mail 7
checking 50
Indicator 29
options 51
volume, adjusting 35
W
What’s New? 6–8
Y
Your Phone & Its Shortcuts 36
