Motorola Mobility T5YV1 Portable Cellular Transceiver User Manual sc3160 Book
Motorola Mobility LLC Portable Cellular Transceiver sc3160 Book
Motorola Exhibit 7 Users Manual Preliminary
APPLICANT: MOTOROLA, INC. TRANSCEIVER TYPE: IHDT5YV1
EXHIBIT 7
A preliminary user manual follows.
1
Welcome
Thank you for choosing Motorola—a global leader in
communications technology.
All Motorola phones are designed and manufactured
in the United States to meet Motorola’s exacting specifications
and world-class quality standards. During development,
our laboratory testing team took the durable SC-3160
phone through its paces. They cooked it, steamed it, shook it,
shocked it, dusted it, and dropped it—and the phone still
worked! We are confident that the one you purchased will meet
your own exacting standards.
Thank you for choosing Motorola, and by all means, enjoy your
SC-3160 dual mode digital cellular phone!
2
Guide Overview
Okay, you’ve got a brand new phone
with a bunch of nifty features.
Now what?
Afraid you’ll press the wrong key?
Or forget a feature or two?
Don’t sweat it!
We’ve designed this guide to take you
step-by-step through each feature of
your new SC-3160 phone. We’ll show
you what key to press and what happens when you press it. Follow
along, chapter-by-chapter, and you’ll find it’s as easy as 1-2-3.
Here’s an idea of what you’ll learn in each chapter:
Getting Started
First things first. Turn to page 10, and we’ll explain what came
with your phone. Then, we’ll show you how to install and
charge your battery so that you can get started with “The Basics”
in the next section.
The Basics
What do all those buttons and lights mean? How do I make my
first phone call? In this section, we’ll answer those questions and
get you going with your SC-3160 phone. Start learning “The
Basics” on page 18.
3
Guide Overview
Using Memory
Read “Using Memory,” beginning on page 32, and you’ll learn
how to make the most of your new phone’s built-in Phone Book.
You’ll save time with dialing shortcuts and memory tricks that
make it easy to place quick calls.
Using Messaging
Did you know that your SC-3160 phone supports optional messag-
ing services, like Caller ID
*
, which allows you to see who’s calling
before you answer? Your new phone can even receive alphanu-
meric messages just like a pager and tell you when you have Voice
Mail*. Simply turn to page 42 to begin “Using Messaging.”
The Works
When you’re ready to get into the more advanced features your
new phone has to offer, just turn to page 50 for “The Works.”
Learn about everything from navigating the menu system to elec-
tronically locking your phone.
So relax! Let us show you what your
SC-3160 phone can do!
*Contact your Service Provider for availability.
4
Contents
Introduction
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Getting Started
Package Content Options . . . . . . . . . . . . . . . . . . . . . . 10
Introduction to Batteries. . . . . . . . . . . . . . . . . . . . . . . 11
Installing Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Charging Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Phone Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
The Basics
Turning Your Phone On . . . . . . . . . . . . . . . . . . . . . . . 18
Reading the Indicators. . . . . . . . . . . . . . . . . . . . . . . . 20
Placing and Ending Calls. . . . . . . . . . . . . . . . . . . . . . 24
Receiving Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Redialing Numbers. . . . . . . . . . . . . . . . . . . . . . . . . . . 27

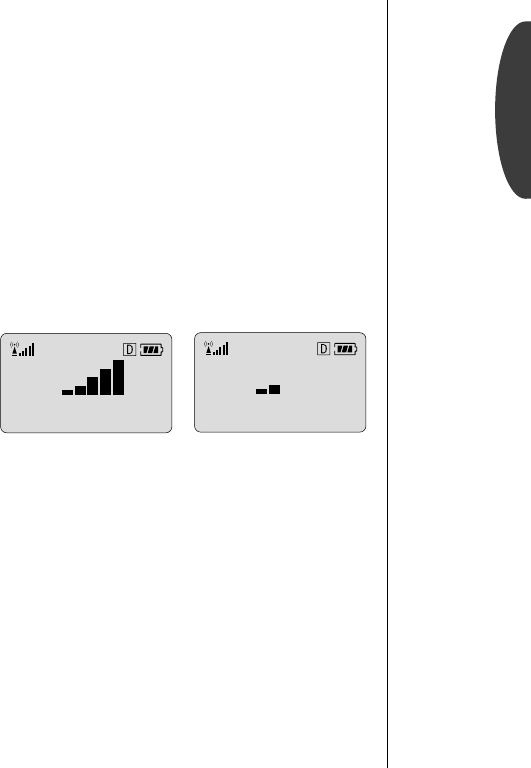

Basic Tone Controls . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Your Phone & Its Shortcuts . . . . . . . . . . . . . . . . . . . . 30
Using Memory
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Making the Most of Memory . . . . . . . . . . . . . . . . . . . 33
Storing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Recalling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Pause Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
5
Contents
Using Messaging
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Receiving Messages . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Viewing Your Caller IDs . . . . . . . . . . . . . . . . . . . . . . . .44
Checking Your Voice Mail . . . . . . . . . . . . . . . . . . . . . .46
Reading Your Messages . . . . . . . . . . . . . . . . . . . . . . . .48
The Works

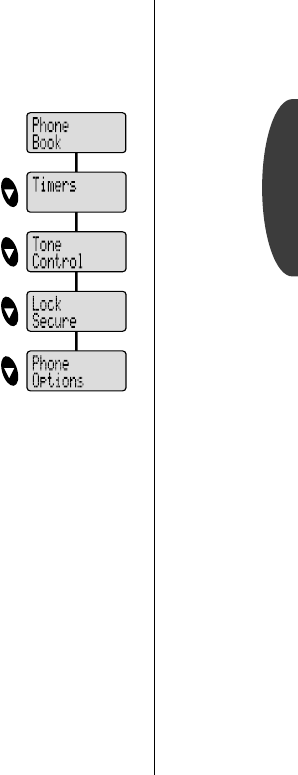

Introducing the Menu Features. . . . . . . . . . . . . . . . . .50

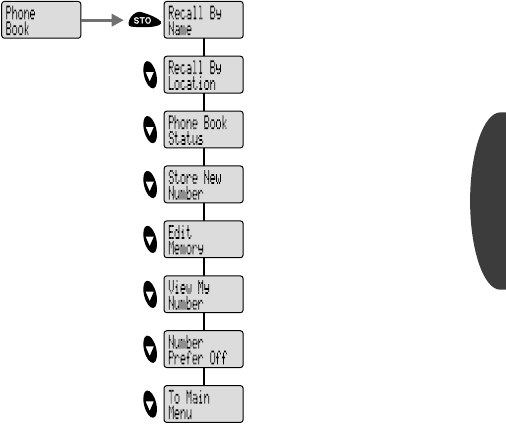

The Internal Phone Book . . . . . . . . . . . . . . . . . . . . . .52
Learn how to store and recall numbers
Using Call Timers . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Learn how to monitor the length of your calls

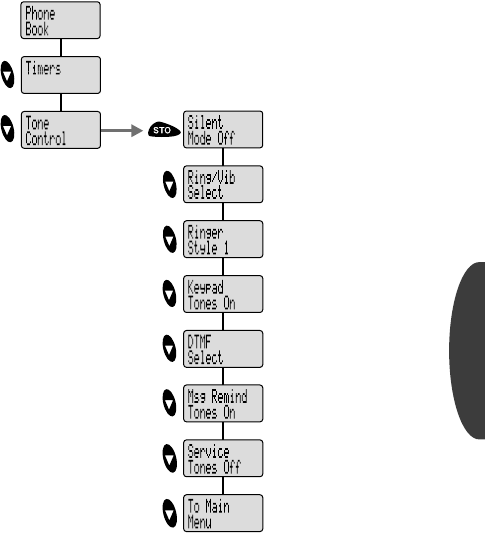

Setting Tone Controls. . . . . . . . . . . . . . . . . . . . . . . . . .66
Learn how to adjust your phone’s tone controls

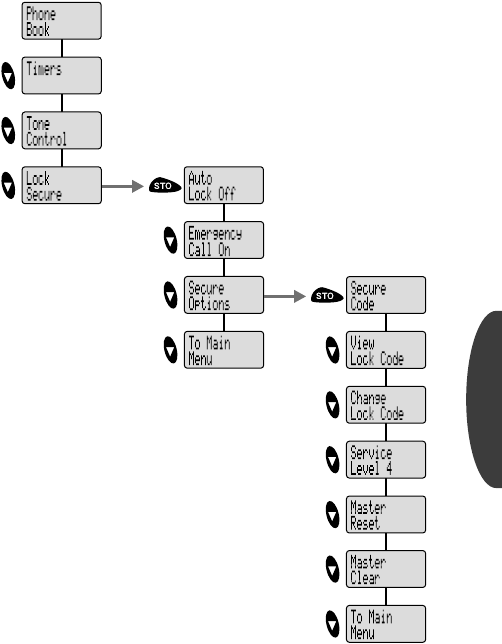

Lock/Security Features. . . . . . . . . . . . . . . . . . . . . . . . .72
Learn how to control access to your phone

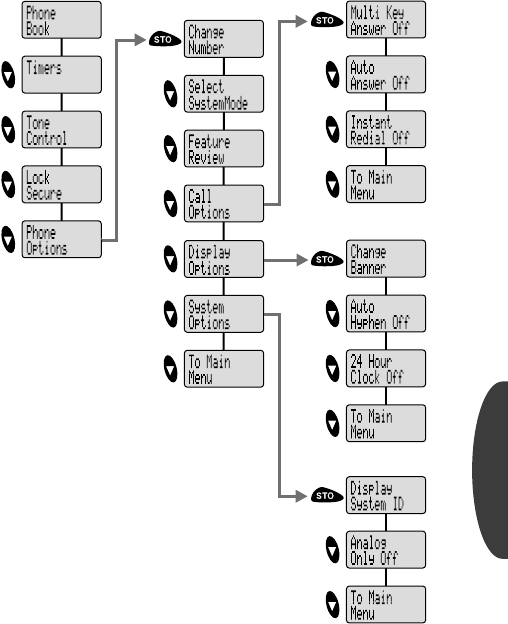

Phone Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80
Learn how to personalize your phone’s operation
Reference Information
Accessory Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . .92
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .97
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .104
6
Safety Information
Exposure
to Radio
Frequency
Signals
Your wireless handheld portable telephone is a low power radio
transmitter and receiver. When it is ON, it receives and also sends out
radio frequency (RF) signals.
In August 1996, the Federal Communications Commissions (FCC)
adopted RF exposure guidelines with safety levels for hand-held
wireless phones. Those guidelines are consistent with the safety
standards previously set by both U.S. and international standards
bodies:
•
ANSI C95.1 (1992)
*
•
NCRP Report 86 (1986)*
•
ICNIRP (1996)*
Those standards were based on comprehensive and periodic evalua-
tions of the relevant scientific literature. For example, over 120 sci-
entists, engineers, and physicians from universities, government
health agencies, and industry reviewed the available body of
research to develop the ANSI Standard (C95.1).
The design of your phone complies with the FCC guidelines (and
those standards).
*American National Standards Institute; National Council on Radiation Protection and
Measurements; International Commission on Non-Ionizing Radiation Protection
Antenna
Care
Use only the supplied or an approved replacement antenna. Unau-
thorized antennas, modifications, or attachments could damage the
phone and may violate FCC regulations.
Phone
Operation
Normal Position:
Hold the phone as you would any other telephone, with the antenna
pointed up and over your shoulder.
Tips on Efficient Operation:
For your phone to operate most efficiently:
•
Extend your antenna fully.
•
Do not touch the antenna unnecessarily when the phone is in use.
Contact with the antenna affects call quality and may cause the
phone to operate at a higher power level than otherwise needed.
7
Safety Information
Batteries
Caution:
All batteries can cause property damage, injury or burns if
a conductive material, such as jewelry, keys or beaded chains,
touches exposed terminals. The material may complete an electrical
circuit and become quite hot. To protect against such unwanted cur-
rent drain, exercise care in handling any charged battery, particu-
larly when placing it inside your pocket, purse or other container
with metal objects. When the battery is detached from the phone:
your battery is packed with a protective cover.; please use this cover
for storing your battery when not in use.
Driving
Check the laws and regulations on the use of wireless telephones in
the areas where you drive. Always obey them. Also, if using your
phone while driving, please:
•
Give full attention to driving–driving safely is your first responsibility;
•
Use hands-free operation, if available;
•
Pull off the road and park before making or answering a call if
driving conditions so require.
Electronic
Devices
Most modern electronic equipment is shielded from RF signals.
However, certain electronic equipment may not be shielded against
the RF signals from your wireless phone.
Pacemakers
The Health Industry Manufacturers Association recommends that a
minimum separation of six (6”) inches be maintained between a
handheld wireless phone and a pacemaker to avoid potential inter-
ference with the pacemaker. These recommendations are consistent
with the independent research by and recommendations of Wireless
Technology Research.
Persons with pacemakers:
•
Should ALWAYS keep the phone more than six inches from their
pacemaker when the phone is turned ON;
•
Should not carry the phone in a breast pocket;
•
Should use the ear opposite the pacemaker to minimize the poten-
tial for interference.
•
If you have any reason to suspect that interference is taking place,
turn your phone OFF immediately.
8
Safety Information
Hearing Aids
Some digital wireless phones may interfere with some hearing aids.
In the event of such interference, you may want to consult your
hearing aid manufacturer to discuss alternatives.
Other Medical Devices
If you use any other personal medical device, consult the manufac-
turer of your device to determine if they are adequately shielded
from external RF energy. Your physician may be able to assist you in
obtaining this information.
Turn your phone OFF in health care facilities when any regulations
posted in these areas instruct you to do so. Hospitals or health care
facilities may be using equipment that could be sensitive to external
RF energy.
Vehicles
RF signals may affect improperly installed or inadequately shielded
electronic systems in motor vehicles. Check with the manufacturer
or its representative regarding your vehicle. You should also consult
the manufacturer of any equipment that has been added to your
vehicle.
Posted Facilities
Turn your phone OFF in any facility where posted notices so require.
Aircraft
FCC regulations prohibit using your phone while in the air. Switch
OFF your phone before boarding an aircraft.
9
Safety Information
Blasting
Areas
To avoid interfering with blasting operations, turn your phone OFF
when in a “blasting area” or in areas posted: “Turn off two-way
radio.” Obey all signs and instructions.
Turn your phone OFF when in any area with a potentially explosive
atmosphere, and obey all signs and instructions. Sparks in such
areas could cause an explosion or fire resulting in bodily injury or
even death.
Potentially
Explosive
Atmospheres
Areas with a potentially explosive atmosphere are often, but not
always, clearly marked. They include fueling areas such as gasoline
stations; below deck on boats; fuel or chemical transfer or storage
facilities; areas where fuel odors are present, i.e. if a gas/propane
leak occurs in a car or home; areas where the air contains chemi-
cals or particles, such as grain, dust, or metal powders; and any
other area where you would normally be advised to turn off your
vehicle engine.
Vehicles
Equipped
with Air
Bags
An air bag inflates with great force. DO NOT place objects, including
both installed or portable wireless equipment, in the area over the
air bag or in the air bag deployment area. If in-vehicle wireless
equipment is improperly installed and the air bag inflates, serious
injury could result.
Equipment
Care
Your Motorola cellular radiotelephone is designed for excellent
durability under normal use conditions. Protect your cellular tele-
phone from water damage that could result from spills or excessive
exposure to rain. Never submerge your cellular phone.
10
Getting Started
Package Content Options
The SC-3160 phone comes equipped with a standard battery and
an AC adapter to get you up and running. An exciting
line of accessory options, now smaller and lighter than ever, can
customize your cellular package for maximum performance and
portability.
Your phone and accessories may not look exactly as pictured above.
Slim Battery
Standard Battery
SC-3160 Dual Mode Phone
AC Adapter
Cigarette Lighter Adapter
Desktop Charger
(AC Adapter required)
FPO
FPO
FPO
FPO
11
Getting Started
Introduction to Batteries
Battery Covers
Your phone’s batteries are shipped uncharged, protected by a plas-
tic storage case. You should use this case to store and carry bat-
teries. The storage case prevents objects from touching the battery
terminals, thereby reducing the risk of injury or damage from a
short circuit.
To begin using your battery:
1.
Unsnap
Battery
Unsnap the top of the plastic storage case.
2.
Remove
Battery
Remove the battery from the case and snap the
case closed.
FPO
12
Installing Batteries
Battery Installation
Find the imprinted arrows and the release latch on the top back
of your phone.
Battery Removal
To remove a battery:
1.
Place
Battery
Place the top of the battery just below the bot-
tom of the imprinted arrows.
2.
Slide
Battery
Slide the battery up along the guides until it
clicks into place.
1.
Turn OFF
Phone
Press
¡
to turn your phone OFF.
2.
Press
Latch
Press the release latch on the top back of the
phone.
3.
Slide
Battery
Slide the battery down the phone until it
comes free.
13
Getting Started
Charging Batteries
Using the Internal Rapid Charger
Believe it or not, there’s a battery charger built right into your
phone! It’s called the internal charger and it’s a quick and easy
way to charge your phone’s battery. To make use of the internal
charger, all you need is one of the three available adapters, either
a standard AC adapter, a rapid rate AC adapter, or a cigarette
lighter adapter.
Keep in mind:
When the internal charger is in use and the
phone is ON, you can still place and receive calls. Just remember,
talking on the phone requires energy, so your phone may not
charge while the call is in progress.
Keep in mind:
In some cars, the ignition must be ON to use the
cigarette lighter.
1.
Attach
Adapter
to Phone
Plug the AC or cigarette lighter adapter into the
accessory connector on the bottom of your
phone as shown.
2.
Plug In
Adapter
Plug the adapter into the appropriate
power source.
PUSH IN
TO
RELEASE
FPO
14
Charging Batteries
The Battery Indicator
In the upper right corner of your phone’s display, there is a bat-
tery indicator filled with three segments. The more segments you
see, the greater the charge.
•
The border of the battery icon will flash during charging.
•
When both batteries are fully charged, the battery icon will
stop flashing and become solid.
Battery Storage and Disposal
To prolong the life of your batteries, avoid exposing them to
temperatures below -10
°
C (14
°
F) or above 45
°
C (113
°
F). As a
good rule of thumb, always take your phone with you when you
leave your car.
To dispose of batteries, check with your local recycling center for
a battery recycler near you. Never dispose of batteries in fire.
Caution:
To prevent injuries or burns, do not allow metal
objects to contact or short circuit the battery terminals.
High Low
15
Getting Started
Charging Batteries
Using the Desktop Charger
The desktop charger’s front pocket can charge batteries while
they are attached to your phone, and the rear pocket can charge
batteries separately.
If you have a desktop charger:
Note:
If a phone and a battery are loaded in the charger, the bat-
teries will charge one at a time. The battery attached to the
phone will charge first, followed by the battery in the rear pocket.
1.
Attach
Adapter
Plug the AC adapter into the back of the charger.
2.
Plug In
Adapter
Plug the other end of the AC adapter into a wall
socket.
3.
Insert
Phone
Insert the phone with a battery attached into the
front pocket.
&
Insert
Battery
If you like, insert a battery by itself into the rear
pocket.
BATT.
PHONE
16
Charging Batteries
Desktop Charger Indicators
Each pocket of the desktop charger has its own LED indicator to
let you know the current state of any charging batteries.
•
Red means the battery is charging.
•
Flashing yellow means the battery is waiting to be charged.
•
Green means the battery is charged within 90% of its capacity
and can be used. An additional hour of charging will bring
your battery up to 100% capacity.
•
Flashing red means the battery is damaged and can’t be
charged.
Desktop Charger Charging Times
The time it takes for your battery to obtain a full charge is
affected by a variety of factors, including:
•
Temperature
Batteries should be at or near room
temperature when charging. To prolong battery life
and charge capacity, avoid exposing your batteries to
temperatures below -10
°
C (14
°
F) or above 45
°
C (113
°
F).
As a good rule of thumb, always take your phone with
you when you leave your car.
•
Inactivity
New batteries, or batteries that have been stored
for long periods of time, may not rapid charge properly. In
these instances, the battery requires an overnight charge.
•
Extended Usage
Over extended periods of time, batteries
gradually wear down and require longer charging times.
This is normal. If you’ve been charging your battery regularly
and notice a decrease in talk-time or an increase in charging
time, then it’s probably time to purchase a new battery.
17
Getting Started
Phone Overview
Function Keys
Alphanumeric Display
Displays your input from the keypad,
information recalled from memory, and other messages.
Microphone
Positioned for convenient conversation.
Retractable Antenna
Extend for best performance.
Earpiece
Ultra-compact phone speaker.
Headset Jack
Provides the connection for an optional headset.
Accessory Connector
Provides the connection for an external
power supply.
Volume Keys
Represented in this manual by
”
and
’
,
these
keys adjust keypad, earpiece, and ringer volume. They also scroll
up and down through memory locations and menu features.
¡
Turns the phone ON and OFF.
ø
Opens messaging menus.
ƒ
Acts as a “shift” key to access the secondary func-
tions of other keys.
‰
Recalls phone numbers from memory.
¬
Stores phone numbers into memory.
Ç
Clears characters from the screen.
º
Ends phone calls and exits the menu.
æ
Places or answers calls.
«
»
Can be used to scroll through memory entries
and menu features.
18
The Basics
The next few pages will introduce you to the basic features of
your phone. In the chapters that follow, we’ll take you step-by-
step through every one of your phone’s features, including stor-
ing names and numbers, using the call timers, locking the
phone, and more.
Turning Your Phone On
Follow these steps to turn your phone ON and OFF:
What you will see:
Each time you turn your phone ON, it performs a short self-test
to make sure it’s operational and then scans for service. While
the phone scans, the display reads:
Searching
.
CDMA Digital
If your phone finds a
CDMA digital system,
you will see the time
and date, the icon,
and either
Ready
or the
personalizable banner
(if programmed).
1.
Extend
Antenna
Extend the antenna completely for best
performance.
2.
Open
Flip
Open the flip to expose the keypad.
3.
Turn ON
Phone
Press
¡
once to turn the phone ON.
4.
Turn OFF
Phone
Press ¡ again to turn the phone OFF.
MonReady
10/12/98
12:00
19
Basics
Turning Your Phone On
Analog
If your phone finds an analog system, you will see the icon
and either Ready or your personalized banner.
Quad Number
Your phone can be activated with up to four unique phone num-
bers. If there’s more than one phone number programmed on
your phone, you’ll see the currently active number whenever you
turn on the phone.
Turn to Changing Your Number on page 82 if you want to
change your currently active number.
Standby Mode
To conserve energy, your phone enters standby mode and turns
off the back light when you close the flip or haven’t touched a
key for a few seconds. The back light will come back on as soon
you press a key or open the flip.
Ready
847-555-1212
Number 4
20
Reading the Indicators
Signal Strength (1)
Displays the strength of the connection between your phone and
the local cellular system.
VibraCall™ On (2)
Indicates that your phone’s ringer is turned OFF and the
VibraCall alert is ON.
In Use (3)
Appears when a call is in progress.
Caller ID/Message (4)
Appears when you receive a Caller ID* or alphanumeric message.
It will disappear after you’ve viewed the Caller ID or read the
message.
Voice Mail (4)
Indicates that you’ve received a Voice Mail* message in your Voice
Mailbox. It will disappear after you’ve listened to the message.
Roam (5)
Lights up when your phone accesses a cellular service outside of
your home system. When you leave your cellular service area,
your phone roams (seeks another cellular system).
*Contact your Service Provider for availability.
4 5 6 71 2 3
8
Mon 10/12/98
12:00
Strong
Weak
21
Basics
Reading the Indicators
Digital (6)
Indicates you’re on a digital channel, allowing for better voice
quality. Check with your Service Provider for more information.
Analog (6)
Appears when you’re on an analog channel.
Battery Level (7)
The three bar segments on the phone’s Battery Level Indicator
show the amount of charge remaining in your battery. The more
bar segments you see, the higher the charge. If your battery is
low, the phone alerts you in three ways:
•No bar segments on the indicator will be highlighted.
•Low Battery will appear on your display.
•A hi-lo tone will sound periodically.
If you ignore these warnings, the phone will automatically turn
itself OFF when the battery is exhausted. At this point, you should
charge the battery or insert a new battery.
Time and Date(8)
When your phone is on a CDMA digital network, the display
shows the current time and date transmitted by your digital Ser-
vice Provider. Wherever you are, you’ll have the correct local
time. You can set your clock for 12- or 24-hour format. See page
89 for more information.
High
Low
22
Reading the Indicators
Detailed Battery Level Reading
The bar graph in the display represents the battery level. The
higher the graph, the closer the battery is to full charge.
Important: If the phone is being powered externally–from the
cigarette lighter adapter for example–you will see:
Press ƒ then press ›.
Battery Battery
Full Charge Low Charge
Charging
23
Basics
Reading the Indicators
Power/Status Indicator
The Power/Status Indicator is on top of your phone and lights up
when your phone is ON. The color it flashes depends on your
phone’s current state of service. Read the chart below to learn
how to recognize your phone’s state of service at a glance, with-
out even opening the phone.
Red & Green,
alternating Incoming call or message
Green, flashing In Service: home type system
Red, flashing No Service
Yellow, flashing slow Roaming: home type system
Yellow, flashing fast Roaming: non-home type system
Power/Status Indicator
FPO
24
Placing and Ending Calls
Placing a Call
You can dial phone numbers with up to 32 digits, but only the
last twenty-four digits will appear in the display.
Your phone will display the first 24 digits, then a second screen
will show the digits remaining in the phone number.
Ending a Call
There are two ways to end a call:
1. Extend
Antenna
Extend the antenna completely for best
performance.
2. Open
Flip
Open the flip to expose the keypad. If necessary,
press ¡ to turn the phone ON.
3. Enter
Number
Enter the number you want to call,
for example: 555-1212.
Correct
Errors
Press Ç to erase one digit at a time if you
make a mistake. Press & hold Ç to erase the
entire entry and start again.
4. Place
Call
Press æ to place the call.
You will see: Dialing 555-1212.
Press ‰ to see the rest of the number.
or
Close
Phone
Close the flip to end a call.
Press Key Press º.
Tip:
If you press
æ without
entering a
number, your
phone will dial
the last number
entered.
25
Basics
Receiving Calls
Your phone must be ON to receive calls.
When a call is incoming:
•an alert will sound and/or vibrate.
•the Service Light (pg. 23) will flash red and green.
You can choose your phone’s alert, selecting from nine ringer
styles or silent vibration mode. See page 69.
Answering a Call
To answer a call:
Caller ID
If Caller ID* service is active on your phone, you can see who’s
calling before you answer! The display will show either your
caller’s name (if it’s in your Phone Book) or your caller’s num-
ber. If you prefer to always see your caller’s number, see page 57
to turn Number Preference ON.
The Caller IDs for your last 16 callers will be saved. See page 44 to
learn how to view your stored Caller IDs.
*Contact your Service Provider for availability.
1. Extend
Antenna
Extend the antenna completely for best
performance.
2. Open
Flip
Open the flip to expose the keypad.
Jane
Mon Smith
10/12/98
12:00
Mon
312-555-1212
10/12/98
12:00
26
Receiving Calls
Call Waiting
If you subscribe to Call Waiting through your Service Provider,
you may hear a tone while on a call, indicating that you are
receiving a second call.
Unanswered Call Indicator
Even with the latest wireless technology, sometimes you are
unavailable to answer calls. If your phone is ON, it keeps a count
of unanswered calls. For example, if you miss two calls, your dis-
play will show: 2 Calls Unanswered.
If you subscribe to Caller ID service, you can easily return the
calls that you missed. See page 44 to learn how.
or
Answer
Call
Press æ to answer the call and automatically
place the current call on hold.
End
Current
Call
Press º to end the current call. Your phone
will then ring and/or vibrate as usual. Press
æ to answer the call.
Clear
Display
Press Ç or press º to clear the display,
and you can begin placing calls again.
27
Basics
Redialing Numbers
Automatic Redial
The cellular system may at times be too busy to handle your call.
If this is the case, you will hear a fast busy signal and see SND to
Redial on the display. You can let your phone take care of the
redialing for you – Automatic Redial will repeat the attempt over
the next four minutes. When the call succeeds, your phone will
ring or vibrate until the person you are calling answers.
To make this feature even easier, turn Instant Redial ON. Your
phone will instantly redial after a fast busy signal, and you won’t
even have to push a button. To find out more, see page 87.
Redial
If you hear an ordinary busy signal:
Display Last Ten Numbers Dialed
Your phone keeps track of the last ten numbers you’ve dialed.
Auto
Redial
Press æ. You will see: Redialing.
1. Hang Up Press º to hang up.
2. Redial Press æ to redial.
You will see: Dialing.
1. Enter
List
Press ‰ then press ‚, ‚. The display
will show the last number you dialed.
2. Review
List
Press ” or ’ to scroll through the last ten num-
bers dialed, starting with the most recent.
3. Call
Number
Press æ to call the number in your display.
You will see: Dialing.
Tip:
Your phone
automatically
remembers
the last number
entered.
See page 39
to learn more
ways this might
be helpful.
28
Basic Tone Controls
Vibration Mode
In situations where ringing may not be appropriate, or in noisy
places where you may not hear your phone, select the Vibra-
Call™ Alert. Ringing will be replaced by gentle vibrations.
Silent Mode
For complete discretion, just turn Silent Mode ON. All tones will
be silenced. You can dial silently, and the ringer will be replaced
by gentle vibrations.
Note: This shortcut allows you to activate Silent Mode quickly.
To learn how to turn Silent Mode OFF, see page 68.
Muting the Microphone
If you need some privacy while a call is in progress, try muting
the microphone—you’ll be able to hear the party on the other
end, but they will not hear you.
Toggle
VibraCall
Alert
Press ƒ then press ° to switch between
ringer and vibrator alerts.
Activate
Silent
Mode
Press ƒ then press & hold ° until you
see: Silent Mode On.
Mute
Phone
Press ƒ then press fl to mute
the microphone. You will see: Muted.
Unmute
Phone
Press ƒ then press fl again to
resume your conversation.
29
Basics
Basic Tone Controls
The upper and lower volume keys are left of the display and can
be used to adjust both the earpiece and ringer volume. As you
press these keys, the phone’s speaker will demonstrate the new
volume level.
Adjusting Earpiece Volume
To adjust earpiece and keypad volume:
The bar graph in the display represents the volume level. The
higher the graph, the louder the volume is.
Adjusting Ringer Volume
To adjust ringer volume:
Raise
Volume
Press ” to raise the earpiece volume.
Lower
Volume
Press ’ to lower the earpiece volume.
Raise
Volume
Press ƒ then press ” to raise the
ringer volume.
Lower
Volume
Press ƒ then press ’ to lower the
ringer volume.
Key Volume Key Volume
High Volume Low Volume
30
Your Phone & Its Shortcuts
Throughout this guide you will see shortcuts that point out sim-
ple ways to reach some of your phone’s features. If you’ve owned
a Motorola phone before, many of these shortcuts will already be
familiar to you.
The Usual Shortcuts
You’ll notice the words “menu,” “batt,” “lock,” “mute,” and
“vib” written on the ⁄, ›, fi, fl, and ° buttons.
Press the ƒ key first, then any one of these buttons, and your
phone will perform that function. It’s easy, so give it a try!
Enter
Menu
Press ƒ then press ⁄ to enter the menu
system.
Toggle
Analog
Press ƒ then press ¤ to toggle Analog
Only On or Analog Only Off.
Display
Meter
Press ƒ then press › to display the
battery meter.
Lock
Phone
Press ƒ then press fi.
You will see: Lock? Press ¬ to lock.
Mute
Phone
Press ƒ then press fl to toggle mute ON
and OFF during a conversation.
Silence
Ringer
Press ƒ then press ° to toggle your
phone’s VibraCall™ Alert ON and OFF.
Silence
All Tones
Press ƒ then press and hold ° to turn
ON Silent Mode.
Tip:
Your factory
lock code is
set to 123.
See Locking
the Phone on
page 74
for more
information.
31
Basics
Your Phone & Its Shortcuts
1 2 3
4 5 6
7 8
0
9
menu
ghi
pqrs
abc def
jkl mno
batt lock mute
tuv
vib
opr
wxyz
SEND
CLR RCL
FCN
STO
END
32
Using Memory
Do you have places to go and people to see? Too many phone
numbers to remember? Let your phone remember them for you.
Your phone’s internal Phone Book can store up to 99 names and
numbers for easy access on the go.
In this chapter you will learn how to:
•store names and numbers into the Phone Book.
•recall phone numbers from memory.
•dial in a flash with the Super Speed Dial and Turbo Dial™
functions.
•simplify automated calling systems.
Follow these symbols as a guide for using the keys on the side of
your phone.
Press ” to scroll up
Press ¬ to select
Press ’ to scroll down
55
22
44
11
lock
batt
menu
jkl
ghi
abc
07/07
/
FPO
Using Memory
33
Making the Most of Memory
Each phone number is stored in a “memory location” numbered
01-99. You can arrange your Phone Book for convenient recall
by storing related numbers in groups of ten. For example, store
your ten most frequently called numbers in locations 01-09, then
you can use the Turbo Dial™ keys to call them with the push of
a key. You could store business phone numbers in locations 10-
19, family numbers in 20-29, friends in 30-39, and so on.
You can also store names to help identify phone numbers. Later
you can easily recall numbers either by memory location or by
name. If someone you know has more than one phone number,
you could quickly recall the number you need by storing it with
a descriptive name, for example:
When you feel ready for more, try the advanced storing features
at the end of the chapter. For instance, pages 40-41 describe how
the Phone Book can help you access Voice Mail and other auto-
mated calling systems with just a few keystrokes.
Information
about phone
number
Memory location
Name
Phone
number
Mobile
Smith J
847-555-1313
56
Work
Smith J
312-555-1414
36
Home
Smith J
773-555-1515
06
34
Storing Names and Numbers
To take advantage of the internal Phone Book, you’ll first want to
store some names and numbers into memory. Your phone’s ded-
icated ¬ key makes storing quick and easy.
Keep in mind: Your Phone Book sorts alphabetically by the
first letter in the entry. If you store an entry without a name it will
be placed at the back of the Phone Book.
1. Enter
Number
Enter the phone number you want to store.
2. Begin
Storing
Press ¬ to begin storing.
You will see: Location__.
3.
or
or
Enter
Location
Enter the two-digit memory location where you
want the entry stored.
Select
First
Empty
Press « to store the sequence in the first
available location.
Select
Range of
Ten
Enter the first digit of the memory location and
press « to store the sequence in the first
available location beginning with that digit.
4. Enter
Name
Enter a name to identify the phone number. (See
the next page for help entering names.) Press
¬ when you are finished. Your phone will
confirm the entry by displaying the information
stored.
Using Memory
35
Entering Names
When the display shows Alpha or Press STO, you can use the keypad
to produce any letter in the alphabet. Press any key to scroll
through the letters printed on the key and use the volume keys to
switch between upper and lowercase. For example, press ¤ to
enter the letters “A,” “B,” or “C” as shown:
To enter a name into the Phone Book:
To enter punctuation:
Using this chart as a guide, press ⁄ to scroll through the
available punctuation marks:
1. Enter
Letter
Press a key as many times as necessary to enter
a letter. The next letter on the key will appear
with each press.
Toggle
Case
Press ” or ’ to toggle between upper and
lowercase.
2. Advance
Cursor
After each letter, press » to advance the cur-
sor to the next space.
Clear
Letter
Press Ç or « to erase a letter if you
make a mistake.
3. Finish
Storing
Enter up to 18 letters. Press ¬ when you are
finished. Your phone will confirm the entry by
displaying the information stored.
press 1 time to insert an "A"
press 2 times to insert a "B"
press 3 times to insert a "C"
press 4 times to insert a "2"
FPO
36
Recalling from Memory
Recall by Name
Once you have stored names and numbers, you can recall them
alphabetically and immediately place calls.
1. Enter
Menu
Press ƒ and ⁄ to enter the menu.
You will see: Phone Book.
2. Enter
Phone
Book
Press ¬ to enter Phone Book.
You will see: Recall By Name.
3. Select
Feature
Press ¬ to select Recall By Name.
You will see: Enter 1st Letter.
4. Search
for Name
Enter the first letter of the name. (See page
35 for details on entering letters.) The display
will show the name, phone number, and
memory location of the first entry beginning
with that letter.
5. Place
Call
Press æ to call the number you selected. You
will see: Dialing.
6. End
Call
Press º or close the flip.
Home
Smith J
773-555-1515
06
Using Memory
37
Recalling from Memory
Recall by Memory Location
Each name and number you store is placed in a memory loca-
tion numbered 01-99. Once you have stored names and num-
bers, you can recall them by memory location.
Clear an Entry
Here’s an easy way to erase a memory entry:
1. Begin
Recalling
Press ‰ to begin recalling.
2. Enter
Location
Enter the two-digit memory location of the
phone number you are looking for.
3. Place
Call
Press æ to call the number you selected. You
will see: Dialing.
4. End
Call
Press º or close the flip.
1. Recall
Entry
Press ‰ and the two-digit location number
of the entry.
2. Clear
Entry
Press & hold Ç to clear the entry.
You will see: Clear?
3. Confirm
Erase
Press ¬ to confirm that you want to
erase the entry.
38
Recall Shortcuts
Super Speed Dial
If you know the memory location of the number you want to
call, try the Super Speed Dial function.
Note: If you enter the number of an empty location, you will see:
Location XX Is Empty.
Turbo Dial
The Turbo Dial™ keys let you dial numbers stored in locations
01-09 with the push of a button.
Your phone’s Emergency Call feature gives you unrestricted
access to any number stored in location 01, even if your phone is
locked. To learn how to activate this feature, see page 75.
1. Enter
Location
Enter the two-digit memory location, 01-99.
2. Place
Call
Press æ to call the number you selected. The
number stored in the memory location you
entered will be dialed. You will see: Dialing.
Turbo
Dial
Press & hold the memory location number of the
entry you want to call, ⁄ through ·, and
your call is placed.
You will see: Dialing.
Using Memory
39
Scratchpad
If you need to take a quick note, but you don’t necessarily want to
save the number, use the Scratchpad, which always remembers
the last phone number that was on your phone’s display. The
Scratchpad is especially helpful if you are on the phone and your
party gives you another number to call.
1. Enter
Number
Enter the number with the keypad. (The person
on the line will hear tones as you dial.)
2.
or
Store
Number
Press ¬ and continue storing with step 3
on page 34.
End
Call
Press º to end your current call
if necessary.
& Place
Call
Press æ to call the number in the
Scratchpad.
40
Pause Dialing
When you call automated systems like Voice Mail or bank by
phone, a recorded message prompts you for PIN numbers,
account numbers, etc. Pause Dialing can make using automated
systems easy by allowing you to store these numbers in the same
memory location as the automated system’s access number. Just
separate each set of numbers with a “pause”– a special character
that tells your phone to wait before sending additional numbers.
Storing a Number with Pause Dialing
The pause occupies a one-digit space in your phone’s memory.
Once you have entered a string of numbers and pauses (up to 32
digits, including pauses), store the string in the same way you
store other entries.
1. Enter
Number
Enter the phone number you use to access the
automated system.
2. Insert
Pause
Press ƒ and press æ. You will see:
Insert Pause o. Press ¬. You will see a pause
circle inserted into the number entry: o. Each
pause counts as one digit, and you can store up
to 32 digits in each memory location.
3. Enter
PIN
Enter the next group of numbers, for example,
your PIN number. If the automated system
requires a * or #, enter those symbols, too.
4. Insert
Pause
Press ƒ and press æ then ¬. Repeat
steps 3 and 4 as many times as necessary.
5. Store
Sequence
Press ¬. You will see: Location__. Enter a
two-digit location, enter a name if you like, and
press ¬ when finished. Your phone will con-
firm the entry by displaying the information you
stored.
Tip:
Always store
your Voice
Mail number
in location 98.
Using Memory
41
Pause Dialing
Using Pause Dialing
Once stored, simply recall the entry and place the call. All of the
digits you’ve stored will be recalled, but your phone will only send
the tones for the set of numbers before the first pause.
Using Memory Linking
Each memory location holds up to 32 digits, including pauses.
Some automated systems, however, may require you to enter
more than 32 digits. In these cases, using Pause Dialing is still
easy enough. Just split the numbers into two memory locations
and recall the second set of digits as you need them.
1. Place
Call
Enter the two-digit memory location where you
stored your Pause Dialing number and press
æ. Your phone will dial the access number
and wait for your input when it reaches the
first pause.
2. Send
More
Numbers
When the automated system prompts you for
information, press æ to send the next group
of numbers. Repeat this step to send each
group of numbers that you have stored.
3. End
Call
Press º or close the flip.
1. Recall 2nd
Location
Once you have sent the tones from the
1st location, press ‰ and the two-digit
memory location where you stored the second
set of digits.
2. Send
Tones
Press ‰ and æ to send the tones in the
2nd location. If you have stored a pause in the
2nd location, your phone will pause as usual
when it reaches the pause character.
42
66
99
33
55
88
00
22
44
77
11
lock
vib
batt
menu
RCL STO CLR
FCN
tuv
jkl
pqrs
ghi
d
opr
abc
Digit
a
07/07/98
FPO
Using Messaging
*
Just press the dedicated Message Key to open your phone’s new
and easy Messaging Menu. Through this menu, you can view
Caller IDs, check your Voice Mail, and read your pager-like
alphanumeric Messages.
In this chapter you will learn how to:
•view your Caller IDs.
•check your Voice Mail.
•read your Messages.
•explore your options with the Function Menus.
Follow these symbols as a guide for using the keys on your phone.
Press ” to scroll up
Press ¬ to select
Press ’ to scroll down
Press ø to open messaging menus
*Contact your Service Provider for availability.
43
Messaging
Receiving Messages
If your phone is ON and you receive a Caller ID, Voice Mail, or
alphanumeric message:
•An alert sounds or vibrates:
Your phone will beep or vibrate three times. See Ringer or Vibra-
tor Selection on page 69 to set your phone’s alert. See page 71 to
learn about Message Reminder Tones.
•An indicator appears on the display:
Appears on the lower line of the display when you receive a
Caller ID or alphanumeric message. It will stay on the display
until you’ve viewed the Caller ID or read the message.
Urgent Appears in the main display when you receive an
urgent message and your phone is in idle mode. After a few sec-
onds, the screen will change to Press and begin flashing.
Msg Mem Low Appears when your phone’s alphanumeric message
memory is almost full (at approximately 85% capacity).
Msg Mem Full Appears in the main display when the alphanu-
meric message memory is completely full and your phone is in
idle mode.
Appears when you receive a Voice Mail message. It will stay
on the display until you’ve listened to the message. Your Service Pro-
vider will then signal your phone to turn the indicator OFF.
•Press ø to open the Messaging Menu:
The specific icon will be flashing.
Tip:
Your Service
Provider holds
your messages
and will for-
ward them
after you’ve
made room.
See page 49
to learn how
to delete
messages.
Voice Mail
Indicator
Caller ID/
Message Indicator
FPO
44
Viewing Your Caller IDs*
Your phone supports Caller ID service which lets you see who’s
calling before you answer. The Caller IDs for the last 16 different
callers are stored so they can be viewed at any time.
You will see a Caller ID icon for each stored Caller ID.
Flashing icons represent Caller IDs that have not been viewed.
Below the icons you’ll see information for the latest Caller ID:
Keep in mind: You will see the caller’s name only if it is stored
in your Phone Book.
A check mark will appear in the corner if you’ve answered or
returned the call. Press æ to return the call of the displayed
caller. Press ¬ to store the information in your Phone Book.
*Contact your Service Provider for availability.
1. Enter
Messaging
Press ø to open the Messaging Menu.
2. Select
Caller ID
Press ” or ’ to scroll to Caller ID and press
¬ to select.
3. Select
Caller
Press ” or ’ to highlight a Caller ID to view
and press ¬ to view complete information
for that call:
selected Caller ID
time & date of call
your caller‘s
phone number
FPO
number
of times
they
called
your caller’s
phone number
your
caller’s
name
FPO
45
Messaging
Caller ID Options
While viewing Caller IDs, just press the Message Key to see the
options available for the highlighted Caller ID.
4. Access
Options
Press ø to open the Caller ID
Function Menu.
5. Choose
Function
Press ” or ’ to scroll to one of the
following:
Go To Msg
Menu
Press ¬ to return your phone to the
Messaging Menu.
Exit Press ¬ to exit Messaging to idle mode.
Delete
Message
Press ¬ to delete the currently selected
Caller ID. Press ¬ again to confirm.
Delete
AllMsgs
Press ¬ to delete all your Caller IDs.
Press ¬ again to confirm.
CallBack Press ¬ to dial the caller’s number..
Store To
Mem
Press ¬ to begin storing the number into
your Phone Book. Once selected follow the
steps on page 34.
Exit
Go To
Delete
Message Delete All
Messages
Store To
Memory
Messaging
Menu
Call Back
FPO
46
Checking Your Voice Mail*
When you receive Voice Mail, your Service Provider sends a noti-
fication to your phone and your phone displays an indicator.
You’ll know when you have new Voice Mail without even calling
your access number.
If you have one or more Voice Mail messages, you will see:
To listen to your messages, all you need to do is dial your access num-
ber. Your phone will do this automatically with one keypress.
Keep in mind: Some Service Providers send the Voice Mailbox
number to your phone automatically. If the number has not
been sent, just store it in location 98 of your Phone Book. To
learn how, see Pause Dialing on page 40.
If you have no new messages, you will see:
*Contact your Service Provider for availability.
1. Enter
Messaging
Press ø to open the Messaging Menu.
2. Select
Voice Mail
Press ” or ’ to scroll to Voice Mail and press
¬ to select.
Dial
Number
While viewing notifications, press æ to dial
your Voice Mailbox number.
FPO
FPO
47
Messaging
Voice Mail Options
While checking Voice Mail, just press the Message Key to see
options for the highlighted Voice Mail notification.
3. Access
Options
Press ø to open the Voice Mail
Function Menu.
4. Choose
Function
Press ” or ’ to scroll to one of the
following:
Go To Msg
Menu
Press ¬ to return your phone to the
Messaging Menu.
Exit Press ¬ to exit Messaging to idle mode.
Delete
Message
Press ¬ to delete the currently selected
Voice Mail notification.
Press ¬ again to confirm.
CallBack Press ¬ to dial your Voice Mailbox number.
Exit
Call Back
Go To
Messaging
Menu
Delete
Message
FPO
48
Reading Your Messages*
Your phone can receive alphanumeric messages just like a pager.
The message memory stores up to 60 messages, depending on
the size of each.
You will see a row of message icons , one for each message.
You may also see for urgent messages and for locked mes-
sages. Flashing icons represent messages that have not been
viewed. If there are more messages than can be shown on one
line, arrows will point to the rest of the messages. Below the icons
you’ll see the latest message:
*Contact your Service Provider for availability.
1. Enter
Messaging
Press ø to open the Messaging Menu.
2. Select
Messages
Press ” or ’ to scroll to Messages and press
¬ to select.
3. Select a
Message
Press ” or ’ to highlight a message to read
and press ¬ to read message.
Scroll Press ¬ to scroll through the message.
Review
Messages
Press ” or ’ to scroll to other messages.
Call Back Press æ to dial the Call Back number (in
parentheses if included).
Store to
Memory
Press ¬ to store the Call Back number (in
parentheses if included) in your Phone Book.
selected
message
more msgs
to right
time & date
of msg
text of
selected
msg
more msgs
to left
urgent
message
locked msg
msg
number
sender’s
number
FPO
49
Messaging
Message Options
While reading your messages, just press the Message Key to see
the options available for the highlighted message.
4. Access
Options
Press ø to open the Message
Function Menu.
5. Choose
Function
Press ” or ’ to scroll to one of the
following:
Go To Msg
Menu
Press ¬ to return your phone to the
Messaging Menu.
Exit Press ¬ to exit Messaging to idle mode.
Delete
Message
Press ¬ to delete the currently selected
message. Press ¬ again to confirm.
Delete
AllMsgs
Press ¬ to delete all messages.
Press ¬ again to confirm.
Lock
Message
Press ¬ to lock or unlock the message.
Unlock
Message
Messages must be unlocked before they can be
deleted.
If the message contains a Call Back number (in paren-
theses), you will also see these options:
CallBack Press ¬ to dial the sender’s number.
Store To
Mem
Press ¬ to begin storing the number into
your Phone Book. Once selected follow the
steps on page 34.
Exit Delete All Delete
Message Messages Lock
(Unlock)
Call Back
Store To
Memory
Go To
Messaging
FPO
50
55
22
44
11
lock
batt
menu
jkl
i
abc
D
07/07/
9
FPO
The Works
Introducing the Menu Features
The SC-3160 dual mode digital cellular phone is loaded with
handy features that can help make life easier, more productive,
and just a bit more exciting. The phone’s user-friendly menu sys-
tem will help you find what you need quickly and easily.
Navigating the Menu
You can navigate through the menu system using the volume
keys and the ¬ key. Use the upper and lower volume keys to
scroll through the options available on one level. Use the ¬
key to choose an option, both menus and features.
This manual uses these symbols to instruct you to use the
navigation keys
Press ” to scroll up
Press ¬ to select
Press ’ to scroll down
The Works
51
Road Maps
To help you navigate through the phone’s menu system, chapters
begin with an easy-to-follow visual “road map”—a quick over-
view of what you’ll find in the chapter that follows.
To use the menu system:
Previous User Compatibility
If you are already familiar with previous Motorola cellular
phones, you may prefer to use your phone’s « & » keys to
scroll through the menu system.
In ”The Works”
Within the chapters that follow, detailed instructions describe
the operation of each feature. We’ll teach you everything you
need to know about your new phone, including how to use and
access a feature and what happens when you do, without missing
a keypress.
1. Enter
Menu
Press ƒ then
press ⁄.
2. Scroll
through
Menu
Press ’ or ” to scroll
through the menu’s
top level, shown on
the right.
3. Exit
Menu
Press º to exit
the menu.
pg. 52
pg. 60
pg. 66
pg. 72
pg. 80
52
2211
menu a
b
07
FPO
Phone Book
In “Using Memory” you learned how to store and recall phone
numbers with the internal Phone Book. You can access the same
features, along with a few others, using your phone’s convenient
menu system.
In this chapter you will learn how to:
•recall and store phone numbers using the menu system.
•edit your memory information.
•view your own phone number.
Follow these symbols as a guide for using the navigation keys.
Press ” to scroll up
Press ¬ to select
Press ’ to scroll down
54
Getting to Phone Book...
1. Enter Menu Press ƒ and press ⁄.
2. Enter
Phone Book
Press ¬ to enter Phone Book.
Recalling By Name
Once you have stored names and numbers, you can recall them
alphabetically with the Phone Book menu.
3. Begin
Recalling
Press ¬ to select Recall By Name.
You will see: Enter 1st Letter.
4. Enter
Name
Press the appropriate digit key as many times as
necessary to enter the first letter of the name.
(See page 35 for help entering letters.) You will
see the first entry with that letter.
5. Find
Name
Press ” or ’ to scroll to the name you are look-
ing for.
6. Place
Call
Press æ. You will see: Dialing.
7. End
Call
Press º or close the flip.
Recall By
Name
55
Phone Book
Recalling By Location
Each name and number you store is placed in a memory loca-
tion numbered 01-99. Once you have stored names and num-
bers, you can use this feature to recall them by memory location.
Phone Book Status
You can use this feature to see how many of your Phone Book’s
99 locations have been used.
3. Begin
Recalling
Press ” or ’ to scroll to Recall By
Location and press ¬ to select.
4. Enter
Location
Enter the two-digit memory location of the num-
ber you’re looking for. You will see the Phone
Book screen for that memory location.
5. Place
Call
Press æ. You will see: Dialing.
6. End
Call
Press º or close the flip.
3. Select
Feature
Press ” or ’ to scroll to Phone Book
Status and press ¬ to select. You will see: XX
Full XX Empty.
4. Exit
Menu
Press º to exit menu, or you may scroll to
other features.
Recall By
Location
Tip:
To place a
quick call just
enter the two-
digit location
and press
æ. See
page 38 for
more informa-
tion.
Phone Book
Status
56
Getting to Phone Book...
1. Enter Menu Press ƒ and press ⁄.
2. Enter
Phone Book
Press ¬ to enter Phone Book.
Storing a New Number
Whether you store numbers as described in “Using Memory” or
store numbers with this menu feature, you will get the same
results – so give it a try!
3. Begin
Storing
Press ” or ’ to scroll to Store New Number and
press ¬ to select.
You will see: Enter Number.
4. Enter
Number
Enter the number you want to store and press
¬. You will see: Location__.
5. Enter
Location
Enter the two-digit number of the memory loca-
tion where you want the number stored. You
will see: Alpha or Press STO.
6. Enter
Name
Enter a name to identify the phone number or
continue with step 7. See page 35 for details on
entering names.
7. Store
Number
Press ¬ when finished entering the name.
Your phone will confirm the entry by displaying:
Stored At XX.
8. Exit
Menu
Press º to exit menu, or return to Step 3 to
store more numbers.
Store New
Number
Tip:
Press « to
store the entry
in the first avail-
able location or
press one digit
and « to
store it in the
first location
beginning with
that digit.
57
Phone Book
Viewing Your Number
Use this feature to view your phone’s currently active phone num-
ber. If you have more than one phone number, you can change
the active number with Changing Your Number on page 82.
Number Preference
When Placing Calls:
If you prefer to see the phone number (Dialing 555-1212) instead of
the name (Calling Jane Smith) when you place a call from the
internal Phone Book, turn Number Preference ON.
When Receiving Calls:
If you subscribe to Caller ID, your phone automatically looks up
callers in your Phone Book and displays the name stored in the
entry. If you prefer to see the caller’s number (555-1212), turn
Number Preference ON.
3. View
Number
Press ” or ’ to scroll to View My
Number and press ¬ to select. The
display will show the currently active
number on your phone.
4. Exit
Menu
Press º to exit the menu, or you may scroll
to other features.
3. Find
Feature
Press ” or ’ to scroll to Number Prefer.
4. Toggle
Feature
Press ¬ to toggle the feature ON or OFF.
5. Exit
Menu
Press º to exit the menu, or you may scroll
to other features.
View My
Number
Shortcut:
Press ‰
».
Number
Prefer Off
58
Getting to Phone Book...
1. Enter Menu Press ƒ and press ⁄.
2. Enter
Phone Book
Press ¬ to enter Phone Book.
Editing a Memory Location
You can edit an entry or move it to another location. When you
move an entry, the original location remains untouched, allow-
ing you to easily create a Phone Book entry similar to one you’ve
already stored.
3. Begin
Editing
Press ” or ’ to scroll to Edit Memory and press
¬ to select.
4. Find by
Location
Press ” or ’ to scroll to Edit By Location and
press ¬ to select. You will see: Location__.
Enter the two-digit memory location of the
phone number you want to edit. Press ¬ to
begin editing the displayed entry and continue
with Step 5.
or Find by
Name
Press ” or ’ to scroll to Edit By Name and press
¬ to select. You will see: Enter 1st Letter.
Enter the first letter of the name you want to
edit. (See page 35 for information on entering
letters.) You will see the first entry beginning
with that letter. Press ” or ’ to scroll to the
name you are looking for and press ¬ to
begin editing.
5. Edit
Phone
Number
Enter your changes to the phone number. Press
Ç to erase one digit at a time, or press &
hold Ç to erase the entire number. Press
« to move the cursor backward.
Edit
Memory
59
Phone Book
Editing a Memory Location
(continued)
6. Finish
Number
Press ¬ when you finish editing the
phone number. The display will show the
current location.
7. Move to
a New
Location
If you’d like to move the entry to a new location
and preserve the original entry, press & hold
Ç to erase the location and enter a new
two-digit location. You will see the name associ-
ated with the entry.
or Overwrite
Original
If you’d like to overwrite the original entry, press
¬. You will see the name associated with
the entry.
8. Edit
Name
Enter your changes to the name. (See page 35
for details on entering names.) Press Ç or
« to erase one letter at a time, or press &
hold Ç to erase the entire name. Skip this
step to leave the name unchanged.
9. Confirm
Changes
Press ¬ when you finish editing the name. If
you are overwriting an entry, you will see: Loca-
tion XX is Full. The display will then show the
new information and you will see: Change? Press
¬ again to save your changes. You will see:
Stored At XX.
or Choose
Different
Location
Press Ç to choose a new memory location
and return to step 6.
or Discard
Changes
Press º to exit without saving your changes.
10. Exit
Menu
Press º to exit the menu, or you may scroll
to other features.
60
55
2211
l
o
batt
menu
jk
a
b
07
/
FPO
Call Timers
Your phone is equipped with three visual and three audible call
timers. You can monitor or record the length of individual calls,
set a timer to track monthly usage, or have the phone alert you at
intervals that you specify.
In this chapter you will learn how to:
•monitor the length of your calls.
•set and view the resettable timer for long-term monitoring.
•program audible timers for your individual needs.
Follow these symbols as a guide for using the navigation keys.
Press ” to scroll up
Press ¬ to select
Press ’ to scroll down
62
Getting to Call Timers...
1. Enter Menu Press ƒ and press ⁄.
2. Enter
Call Timers
Press ” or ’ to scroll to Timers
and press ¬ to select.
Viewing the Individual Timer
The individual timer records the air-time of your most recent call
in hours, minutes, and seconds. It resets before you place the
next call and when you turn the phone OFF. You can have the
timer display automatically while calls are in progress. See Auto
Display Individual Timer on page 64.
Viewing the Resettable Timer
You can track how much air-time you have accumulated during
any time period you choose. For example, reset this timer at the
beginning of each billing period to know where you stand at any
given moment. Use this feature to view the time elapsed, and fol-
low the instructions on page 63 to reset the timer.
3. View
Timer
When you enter the Call Timers menu,
you will see: Individual XX:XX:XX.
4. Exit
Menu
Press º to exit the menu, or you may scroll
to other features.
3. View
Timer
Press ” or ’ to scroll to Resettable Time. You will
see the air-time in minutes since you last reset
the timer.
4. Exit
Menu
Press º to exit the menu, or you may scroll
to other features.
Shortcut:
Press ‰
then » twice
for a quick look
at this timer.
Individual
00:00:00
Resettable
Time 00000
Shortcut:
Press ‰
then » three
times for a quick
look at this timer.
CallTimers
63
Viewing the Cumulative Timer
This is a non-resettable timer that keeps track of your phone’s
total air-time (in minutes) since your phone was activated.
Resetting the Timer
Scroll over to this feature at the beginning of each billing cycle
and you will always be in the know. After you reset the timer, it
will continue to keep track of your air-time (in minutes) until
you reset it again.
Keep in mind: The shortcuts will not work if the Resettable
Timer is already set at zero.
3. View
Timer
Press ” or ’ to scroll to Cumulative Time.
You will see the total air-time in minutes.
4. Exit
Menu
Press º to exit the menu, or you may scroll
to other features.
3. Find
Feature
Press ” or ’ to scroll to Reset Timer.
4. Reset
Timer
Press ¬ to reset. You will see: Resettable Time
00000.
5. Exit
Menu
Press º to exit the menu, or you may scroll
to other features.
Cumulative
Time 000000
Shortcut:
Press ‰
then » four
times.
Reset
Timer
Shortcut:
Press ƒ then
‚, ‡,
‰ to reset
the timer.
64
Getting to Call Timers...
1. Enter Menu Press ƒ and press ⁄.
2. Enter
Call Timers
Press ” or ’ to scroll to Timers
and press ¬ to select.
Auto Display Individual Timer
When you turn this feature ON, your phone will automatically
display your air-time in minutes and seconds during and after
each call.
Note: Activating the Auto Display Timer may reduce standby-
time and talk-time.
One Minute Audible Timer
Turn this feature ON to hear an audible beep 10 seconds before
the end of every minute during a call. Don’t worry, the party on
the other end will not hear the beeps.
3. Find
Feature
Press ” or ’ to scroll to Individual Timer.
4. Toggle
Display
Press ¬ to toggle ON or OFF the automatic
display of the individual timer.
5. Exit
Menu
Press º to exit the menu, or you may scroll
to other features.
3. Find
Feature
Press ” or ’ to scroll to One Minute Timer.
4. Toggle
Timer
Press ¬ to toggle the timer ON or OFF.
5. Exit
Menu
Press º to exit the menu, or you may scroll
to other features.
Individual
Timer Off
One Minute
Timer Off
CallTimers
65
Repeating Audible Timer
You can set this timer to beep during your calls at an interval that
you select—from 11-999 seconds. Like the One Minute Audible
Timer, you will hear the beep 10 seconds before the end of each
interval, and the party on the other end will not hear the beeps.
Single Audible Timer
You can set the Single Timer to beep at a time that you select–
from 11-999 seconds. It will beep once during each call, 10 sec-
onds before the end of the interval. The party on the other end
will not hear the beeps.
3. Find
Feature
Press ” or ’ to scroll to Repeating Timer.
4. Toggle
Timer
Press ¬ to toggle the timer ON or OFF.
5. Enter
Seconds
If you toggle the timer ON, you will see: Enter
Seconds. Enter the number of seconds you would
like between beeps and press ¬ to set the
timer. You will see: Set At XXX Secs.
6. Exit
Menu
Press º to exit the menu, or you may scroll
to other features.
3. Find
Feature
Press ” or ’ to scroll to Single Timer.
4. Toggle
Timer
Press ¬ to toggle the timer ON or OFF.
5. Enter
Seconds
If you toggle the timer ON, you will see: Enter
Seconds. Enter the number of seconds you would
like before the beep and press ¬ to set the
timer. You will see: Set At XXX Secs.
6. Exit
Menu
Press º to exit the menu, or you may scroll
to other features.
Repeating
Timer Off
Single
Timer Off
66
55
2211
l
oc
batt
menu
jk
ab
c
07
/
FPO
Tone Controls
If you’ve been reading along diligently, this may be a good time
for a break—put your feet up and have some fun with the Tone
Controls. Use these features to select Silent Mode, personalize
your phone’s ringer styles—or turn them OFF for some peace
and quiet.
In this chapter you will learn how to:
•choose from nine different ringer styles.
•activate and deactivate the VibraCall™ Alert.
•silence the keypad.
•silence all your phone’s tones with one convenient feature.
•set the Message Reminder.
Follow these symbols as a guide for using the keys on the side of
your phone.
Press ” to scroll up
Press ¬ to select
Press ’ to scroll down
68
Getting to Tone Control...
1. Enter Menu Press ƒ and press ⁄.
2. Enter
Tone Control
Press ” or ’ to scroll to Tone Control
and press ¬ to select.
Silent Mode
When you need to be discreet, just turn Silent Mode ON. All tones
will be silenced. The ringer and incoming message tones will be
replaced by vibrations.
Selecting a Ringer Style
Your new phone offers nine different ringer styles. After you
choose a style, the phone will give you a brief sample of your new
alert sound, or vibrate if you have the VibraCall™ Alert selected.
3. Find
Feature
Press ” or ’ to scroll to Silent Mode.
4. Toggle
Feature
Press ¬ to toggle the feature ON or OFF.
5. Exit
Menu
Press º to exit the menu, or you may scroll
to other features.
3. Enter
Feature
Press ” or ’ to scroll to Ringer Style
and press ¬.
4. Select
Ringer
Press ” or ’ to scroll through the ringer styles.
As you scroll, your phone will give an audible
sample of the currently displayed style. Press
¬ to select the displayed option.
5. Exit
Menu
Press º to exit the menu, or you may scroll
to other features.
Silent
Mode Off
Shortcut:
Press ƒ
then press &
hold °.
Ringer
Style 1
Tone Controls
69
Ringer or Vibrator Selection
Motorola’s VibraCall™ Alert is ideal for situations where ringing
may not be appropriate, or in noisy places where you might not
hear the ringer. You can choose to be alerted to incoming calls
using the vibrator, ringer, both or neither.
Keep in mind: When both the ringer and vibrator are ON, the phone
alerts you by vibrating for three ring cycles and then ringing.
Keypad Tones
Keypad Tones are the sounds you hear when you press any key on
the phone. If you want to be discreet, use this feature to silence
the audio feedback from the keypad.
Keep in mind: Turning Keypad Tones OFF does not silence the
tones your phone sends across the line. See Transmit Tones on
the following page for more information.
3. Enter
Feature
Press ” or ’ to scroll to Ring/Vib Select and
press ¬.
4. Select
Ringer/
Vibe
Press ” or ’ to scroll to Vibrate Only, Ring Only,
or Vibrate Then Ring and press ¬ to select the
displayed option.
5. Exit
Menu
Press º to exit the menu, or you may scroll
to other features.
3. Find
Feature
Press ” or ’ to scroll to Keypad Tones.
4. Toggle
Feature
Press ¬ to toggle the feature ON or OFF.
5. Exit
Menu
Press º to exit the menu, or you may scroll
to other features.
Shortcut:
Press ƒ then
press ° to
toggle the Vibra-
Call™ Alert ON
and OFF.
Ring/Vib
Select
Keypad
Tones On
70
Getting to Tone Control...
1. Enter Menu Press ƒ and press ⁄.
2. Enter
Tone Control
Press ” or ’ to scroll to Tone Control
and press ¬ to select.
Transmit Tones
Your phone transmits tones to communicate with automated
calling systems like Voice Mail or bank by phone. These tones are
called DTMF tones (Dual Tone Multi-Frequency tones), and this
feature allows you to control the length of the tone your phone
sends. For most systems, you should use the default setting of
short tones, which sends the tones for a preset length of time. If
you choose long tones, your phone will transmit the tones for as
long as you press & hold the key. To silence the tones during con-
versations, turn the tones OFF.
Note: If you turned the DTMF tones OFF, but you want to access
a tone-activated system like Voice Mail, place your call, enter the
numbers you need to transmit and:
3. Enter
Feature
Press ” or ’ to scroll to DTMF Select and press
¬ to select.
4. Select
Setting
Press ” or ’ to scroll to Transmit DTMF Long,
Transmit DTMF Short, or Transmit DTMF Off and
press ¬ to select.
5. Exit
Menu
Press º to exit the menu, or you may scroll
to other features.
Send
Tones
Press ‰ then press æ to send the tones
if DTMF tones are OFF.
DTMF
Select
Tone Controls
71
Message Reminder
If you subscribe to messaging services, there’s no need to worry
about missing the new message alert. Just turn Message Reminder
Tones ON and your phone will remind you of unread messages by
beeping and /or vibrating every two minutes. This feature is espe-
cially helpful if you are busy or away from your phone.
Service Tones
When Service Tones are ON, you’ll be instantly alerted to any
change in your cellular service. You’ll hear two short beeps when
your phone (1) starts to roam, (2) returns to a home system after
roaming, (3) loses service, (4) finds service, or (5) moves from
digital to analog service (or vice versa).
Keep in mind: Your phone will always beep if a call
is dropped.
3. Find
Feature
Press ” or ’ to scroll to Msg Remind Tones.
4. Toggle
Feature
Press ¬ to toggle the feature ON or OFF.
5. Exit
Menu
Press º to exit the menu, or you may scroll
to other features.
3. Find
Feature
Press ” or ’ to scroll to Service Tones.
4. Toggle
Feature
Press ¬ to toggle the feature ON or OFF.
5. Exit
Menu
Press º to exit the menu, or you may scroll
to other features.
Msg Remind
Tones On
Service
Tones Off
72
55
2211
l
o
batt
menu
jk
ab
c
07
/
FPO
Lock/Security
While you probably would not want to leave your phone
unattended, your phone has a number of built-in
security features to prevent unauthorized use.
In this chapter you will learn how to:
•lock and unlock your phone.
•place emergency calls.
•view and change your lock code.
•restrict call placement and memory access.
•reset or clear your phone’s settings.
Follow these symbols as a guide for using the keys on the side of
your phone.
Press ” to scroll up
Press ¬ to select
Press ’ to scroll down
74
Getting to Lock/Security...
1. Enter Menu Press ƒ and press ⁄.
2. Enter
Lock/Secure
Press ” or ’ to scroll to Lock Secure
and press ¬ to select.
Auto Lock
Turn this feature ON and your phone will automatically lock
itself each time the phone is turned OFF.
Locking the Phone
You can lock your phone manually at any time to help prevent
unwanted use. Once locked, you can leave the phone ON or turn
it OFF and the phone will remain locked.
Unlocking the Phone
Unlocking your phone is quick and easy. Your factory pro-
grammed lock code is 123. If you’ve changed this code and can’t
remember what it is, see Viewing the Lock Code on page 76.
Keep in mind: You can still receive calls when the phone is
locked. Follow these steps to answer an incoming call:
3. Find Feature Press ” or ’ to scroll to Auto Lock.
4. Toggle Lock Press ¬ to toggle the feature ON or OFF.
5. Exit
Menu
Press º to exit the menu, or you may scroll
to other features.
1. Lock Phone Press ƒ then press fi.
You will see: Lock?
2. Confirm Press ¬. You will see: Locked.
1. Unlock Enter your three-digit code.
2. Answer
Call
Press æ to answer the call.
Auto
Lock Off
Lock/Security
75
Emergency Call
Your phone’s emergency call feature allows you to instantly place
a call from location 01 – even when your phone is locked.
Keep in mind: Some cellular systems only allow access to
their own emergency numbers. Check with your Service Provider
for more information.
Storing an Emergency Call Number
You should reserve memory location 01 for an emergency num-
ber or the number of a family member or close friend. To store
your emergency number, follow these steps:
Placing an Emergency Call
Keep in mind: If call restriction Service Level 1 is enabled, the
Turbo Dial™ Keys will not be active. To override the restriction
and place an emergency call, press ‰, ⁄, æ. See page
78 for information on your phone’s service levels.
3. Find
Feature
Press ” or ’ to scroll to Emergency Call.
4. Toggle Press ¬ to toggle the feature ON or OFF.
5. Exit
Menu
Press º to exit the menu, or you may scroll
to other features.
1. Enter
Number
Enter your emergency number.
2. Save
Number
Press ¬ and press ‚, ⁄ to choose
location 01. You will see: Alpha or Press STO.
3. Enter
Name
Enter a name if you like and press ¬ when
finished. Your phone will confirm the entry by
displaying the stored information.
Place
Call
Press & hold ⁄ at any time.
Emergency
Call On
76
Getting to Secure Options...
1. Enter Menu Press ƒ and press ⁄.
2. Enter
Lock/Secure
Press ” or ’ to scroll to Lock Secure
and press ¬ to select.
3. Access
Secure
Options
Press ” or ’ to scroll to Secure Options
and press ¬. You will see: Secure Code______.
Enter your six-digit secure code.
Secure Options Submenu
For your protection, you must enter a six-digit secure code in
order to access the features in the Secure Options submenu. The
factory programmed secure code is 000000.
Viewing the Lock Code
Forget your lock code or need to double-check it?
Help is only a few keystrokes away.
Changing the Lock Code
Changing your lock code is easy– follow these simple steps.
4. View
Code
Press ¬ to select View Lock Code.
You will see: Lock Code XXX.
5. Exit
Menu
Press º to exit the menu, or you may scroll
to other features.
4. Begin
Change
Press ” or ’ to scroll to Change Lock Code and
press ¬ to select.
You will see: Enter New Code___.
5. Enter New
Code
Enter a new three-digit lock code. Your phone
will confirm by displaying: New Lock Code XXX.
6. Exit
Menu
Press º to exit the menu, or you may scroll
to other features.
Secure
Options
View Lock
Code
Shortcut:
Press ƒ,
‚, enter six-
digit security
code, then
‰.
Change
Lock Code
Shortcut:
Press ƒ
‚, enter your
six-digit secure
code, enter a
new lock code,
then ¬.
Lock/Security
77
Master Reset
Use this feature to reset all user-selectable options back to their
original factory settings.
Keep in mind: Once you select this feature, the reset process
cannot be canceled or reversed.
Master Clear
If you want to start with a clean slate, use Master Clear to clear all
user-selectable options, the resettable timer, the Phone Book, and
the Messaging memory.
Keep in mind: Once you select this feature, the process cannot
be canceled or reversed.
4. Reset
Features
Press ” or ’ to scroll to Master Reset and press
¬ to select. You will see: Reset?
5. Confirm
Reset
Press ¬ to confirm.
You will see: Standard Setting.
or Exit Press º to exit without resetting.
6. Exit
Menu
Press º to exit the menu, or you may scroll
to other features.
4. Clear
Settings
Press ” or ’ to scroll to Master Clear and press
¬ to select. You will see: Clear?
5. Confirm
Clear
Press ¬ to confirm. You will see: Busy. It
will take a few seconds to reset all of your
phone’s options back to their factory settings.
or Exit Press º to exit without resetting.
6. Exit
Menu
Press º to exit the menu, or you may scroll
to other features.
Master
Reset
Master
Clear
78
Getting to Secure Options...
1. Enter Menu Press ƒ and press ⁄.
2. Enter
Lock/Secure
Press ” or ’ to scroll to Lock Secure
and press ¬ to select.
3. Access
Secure
Options
Press ” or ’ to scroll to Secure Options
and press ¬. You will see: Secure Code______.
Enter your six-digit secure code.
Secure Options Submenu
Service Level
When loaning your phone to others, you may want to restrict call
placement or protect memory information. Your phone has two
service levels that allow you to control the types of outgoing calls
that can be made from your phone.
Your phone has two service levels:
4. Select
Feature
Press ” or ’ to scroll to Service Level and press
¬ to select.
5. Choose
Level
Press ” or ’ to scroll through service level set-
tings and press ¬ to select the setting.
(See the chart below for descriptions.)
6. Exit
Menu
Press º to exit the menu, or you may scroll
to other features.
Level 1: Calls can be placed from
memory locations 1-10 only.
• No dialing from keypad.
• No memory edit or storage.
• No access to name directory.
Level 4: This is the default setting.
• No restrictions.
Service
Level 4
1 Memory
1-10 Only
4 Std
Setting
Lock/Security
79
Authentication (A-Key) Entry
Your A-Key feature acts like a PIN code and helps to protect your
phone from unauthorized users. Contact your Service Provider
for your personalized A-Key number.
Keep in mind: This feature should only be programmed once.
To activate the A-Key feature:
1. Activate
Feature
Press ¤, fi, ‹, · then ƒ,
ƒ. You will see your phone’s active phone
number.
2. Select
Number
If the phone number displayed is not the num-
ber you want the A-Key programmed to, press
» to select another number. This will be the
phone number your phone will operate with
once you exit the A-Key feature.
3. Enter
A-Key
Enter your new A-Key (6- to 26-digit number) as
provided by your Service Provider and ¬,
¬. Press Ç to correct any errors.
4. Validate
A-Key
Press ¬ to validate the A-Key entry. You
will see Valid if the A-Key was entered cor-
rectly, or you’ll see A-Key Invalid if you need to
re-enter your A-Key number.
80
55
2211
l
o
btt
menu
jk
ab
c
07
/
FPO
Phone Options
The Phone Options menu is your “command center” for adjust-
ing the way your phone sends and receives calls. You can fine
tune your phone for optimal performance, view information
about your phone’s settings, and much more.
In this chapter you will learn how to:
•switch phone numbers.
•review your phone’s settings.
•select a variety of system specific settings.
Follow these symbols as a guide for using the keys on the side of
your phone.
Press ” to scroll up
Press ¬ to select
Press ’ to scroll down
82
Getting to Phone Options...
1. Enter Menu Press ƒ and press ⁄.
2. Enter
Phone Options
Press qq
qq or ’ to scroll to Phone Options
and press ¬ to enter.
Changing Your Number
Your phone can be activated with up to four unique phone num-
bers. You could use one number for personal use, one for busi-
ness, and the other two for cities that you travel to frequently.
This feature allows you to select an appropriate number.
Keep in mind: Only one number can be active on your
phone at a time.
3. Begin
Change
Press ¬ to enter Change Number. The
display will show your phone’s currently active
number.
4. Choose
Number
Press ” or ’ to scroll through the phone num-
bers programmed into your phone.
Press ¬ to select the desired number.
You will see: Set.
5. Exit
Menu
Press º to exit the menu, or you may scroll
to other features.
Change
Number
Phone Options
83
Feature Review
After you’ve spent some time adjusting your phone’s settings, use
this feature to review the changes you’ve made. When you enter
Feature Review, your phone will display any features that you
have changed from their default factory settings.
Keep in mind: Feature Review is simply an opportunity to
review – but not change – your current settings.
3. Begin
Review
Press ” or ’ to scroll to Feature Review and
press ¬ to enter.
4. Browse
Features
Press ” or ’ to scroll through any features you
have changed from their default settings. If all
features are set to their default factory set-
tings, the display will show: Standard Settings.
5. Exit
Menu
Press º to exit the menu, or you may scroll
to other features.
Feature
Review
Shortcut:
Press ƒ then
‚, ·,
‰.
84
Getting to Phone Options...
1. Enter Menu Press ƒ and press ⁄.
2. Enter
Phone Options
Press qq
qq or ’ to scroll to Phone Options
and press ¬ to enter.
Selecting a System Mode
Your Service Provider configures this feature when you receive a
cellular phone number. Select System Mode allows you to select the
type of cellular system your phone will attempt to access. See the
next page for a chart of available settings.
3. Begin
Selection
Press ” or ’ to scroll to Select
SystemMode and press ¬ to enter. The display
will show your phone’s current System Mode
setting.
4. Choose
Mode
Press ” or ’ to scroll through the System
Mode settings (see chart on next page). Press
¬ to select the displayed setting.
5. Exit
Menu
Press º to exit the menu, or you may scroll
to other features.
Select
SystemMode
Phone Options
85
Selecting a System Mode
Standard Mode:
Your phone first seeks a home type
system, then a non-home type system.
If home system is non-wireline
(type A)
If home system is wireline (type B)
Reversed Preference Mode:
Your phone first seeks a non-home
type system, then a home type sys-
tem. (This mode may be useful in
fringe areas or certain roaming situa-
tions.)
If home system is non-wireline
(type A)
If home system is wireline (type B)
Home Only Mode:
Phone will not operate outside its
home system.
Scan A Mode:
Phone will operate only within
non-wireline (A) systems.
Scan B Mode:
Phone will operate only within
wireline (B) systems.
Preferred System ID Mode:
Phone will scan for home or pro-
grammed preferred SIDs first.
This choice requires entry of up to
60 System ID numbers for those
systems in which you wish to
operate. Contact your Cellular
Service Provider for SID information.
Std AB
Std BA
Scan BA
Scan AB
Home Only
Scan A
Scan B
Preferred
SID Scan
86
Getting to Call Options...
1. Enter Menu Press ƒ and press ⁄.
2. Enter
Phone Options
Press qq
qq or ’ to scroll to Phone Options
and press ¬ to select.
3. Enter
Call Options
Press qq
qq or ’ to scroll to Call Options
and press ¬ to enter.
Call Options Submenu
This submenu gives you control over the way your phone places
and receives calls.
Multiple Key Answer
Why fumble for the æ key to answer calls? With Multiple Key
Answer ON, you can answer calls by pressing ”
or ’, or any key
in the center of the keypad, ⁄ through ».
Keep in mind: If there are any digits in your Scratchpad or if
your phone is locked, this feature will not work.
Automatic Answer
Turn Auto Answer ON to have your phone automatically answer
incoming calls after two ring cycles.
4. Find
Feature
Press ” or ’ to scroll to Multi Key Answer.
5. Toggle
Feature
Press ¬ to toggle the feature ON or OFF.
6. Exit
Menu
Press º to exit the menu, or you may scroll
to other features.
4. Find
Feature
Press ” or ’ to scroll to Auto Answer.
Call
Options
Multi Key
Answer Off
Auto
Answer Off
Phone Options
87
Automatic Answer (continued)
Note: We recommend you use this feature only with vehicle
accessories and with your phone’s ringer active (pg. 69). For
instance, if you leave your phone unattended with this feature
ON or do not hear the incoming call alert, your phone may
answer a call in your absence.
Instant Redial
When placing calls, you may at times hear a fast busy signal and see
Press SND to Redial. This probably means the network is tem-
porarily unable to handle your call, and pressing æ will tell your
phone to keep trying the number for the next four minutes or until
the call goes through. If you turn Instant Redial ON, your phone will
take care of the redialing for you! There’s no need even to press
æ. You will see: Redialing.
Keep in mind: This feature redials only when the network is
busy. If you hear a normal busy signal, this feature will not work.
5. Toggle
Feature
Press ¬ to toggle the feature ON or OFF.
6. Exit
Menu
Press º to exit the menu, or you may scroll
to other features.
4. Find
Feature
Press ” or ’ to scroll to Instant Redial.
5. Toggle
Feature
Press ¬ to toggle the feature ON or OFF.
6. Exit
Menu
Press º to exit the menu, or you may scroll
to other features.
Instant
Redial Off
88
Getting to Display Options...
1. Enter Menu Press ƒ and press ⁄.
2. Enter
Phone Options
Press qq
qq or ’ to scroll to Phone Options
and press ¬ to select.
3. Enter
Display Options
Press qq
qq or ’ to scroll to Display Options
and press ¬ to enter.
Display Options Submenu
This submenu has a few features that determine how informa-
tion appears on your phone’s display.
Changing the Banner
Want to give your phone even more personality? Then create
your own message banner for the phone to display when it’s idle.
Your banner can be up to 12 characters long.
Auto Hyphen
Just turn Auto Hyphen ON to have all phone numbers automati-
cally hyphenated on the display. This allows you to easily distin-
guish between area codes, call prefixes, and other numbers.
4. Enter
Feature
Press ¬ to enter Change Banner. You will see
either the current banner or if no banner is pro-
grammed: Alpha or Press STO.
5. Enter
Message
Enter your message using the alphanumeric
keypad. (See page 35 for information on enter-
ing alphanumeric messages.) Press ¬
when your message is complete.
6. Exit
Menu
Press º to exit the menu, or you may scroll
to other features.
4. Find
Feature
Press ” or ’ to scroll to Auto Hyphen.
Display
Options
Change
Banner
Auto
Hyphen Off
Phone Options
89
Auto Hyphen (continued)
Displaying the 24-Hour Clock
Your phone can display the current time in 12-hour or 24-hour
format. Use this feature to turn the 24-hour clock ON or OFF.
5. Toggle
Feature
Press ¬ to toggle the feature ON or OFF.
6. Exit
Menu
Press º to exit the menu, or you may scroll
to other features.
4. Find
Feature
Press ” or ’ to scroll to 24 Hour Clock.
5. Toggle
Feature
Press ¬ to toggle the feature ON or OFF.
6. Exit
Menu
Press º to exit the menu, or you may scroll
to other features.
24 Hour
Clock Off
90
Getting to System Options...
1. Enter Menu Press ƒ and press ⁄.
2. Enter
Phone Options
Press qq
qq or ’ to scroll to Phone Options
and press ¬ to select.
3. Enter
System Options
Press qq
qq or ’ to scroll to System Options
and press ¬ to enter.
System Options Submenu
The System Options submenu offers a couple features that will
help you use your cellular network.
Displaying the System ID
Use this feature to determine the unique System ID for your
cellular phone.
4. View SID Press ¬ to select Display System ID. You will
see the System ID for your phone.
5. Exit
Menu
Press º to exit the menu, or you may scroll
to other features.
System
Options
Display
System ID
Phone Options
91
Analog Only
Turning Analog Only ON tells your phone to select an analog
channel for the next call. If you don’t place a call, your
phone will revert to dual mode service after a few minutes.
Note: Some peripheral devices, like fax machines and modems,
require analog operation.
4. Find
Feature
Press ” or ’ to scroll to Analog Only.
5. Toggle
Feature
Press ¬ to toggle the feature ON or OFF.
6. Exit
Menu
Press º to exit the menu, or you may scroll
to other features.
Analog
Only Off
Shortcut:
Press ƒ
then ¤ to
toggle Analog
Only ON or
OFF.
92
Accessory Options
An exciting line of accessories can enhance and personalize
your dual mode digital cellular experience.
Lithium Ion Batteries
Motorola’s Lithium Ion (LiIon) batteries are high energy-den-
sity batteries that offer increased capacity and are lighter in
weight than similar sized Nickel Cadmium and Nickel Metal
Hydride batteries.
Nickel Metal Hydride Batteries
Nickel Metal Hydride batteries (NiMH) are high-capacity batter-
ies that offer up to 30% more talk-time than comparable Nickel
Cadmium batteries. To help achieve maximum life and capacity
for your NiMH battery, do not leave the battery in the charger for
more than 24 hours, and use only Motorola-approved chargers.
Cigarette Lighter Adapter
Lets you plug into a reliable power source on the road. Uses your
car’s battery to power your phone and rapid charge its battery at
the same time. The Cigarette Lighter Adapter will not overcharge
your battery and contains circuitry to protect against overvoltage
and power surges in the vehicle. In some cars, the engine must
be running in order for the cigarette lighter to operate.
FPO
Reference
93
Accessory Options
Desktop Charger (AC Adapter Required)
This charger can be loaded
with up to two batteries. It’s
easy to rotate batteries and
always have a charged spare
or two! Equipped with one
LED charging status indica-
tor for each battery, the desk-
top charger’s front pocket
can charge both a main and
an auxiliary battery
attached to a phone, and the rear pocket can charge one battery
by itself. For use with Lithium Ion, Nickel Cadmium and Nickel
Metal Hydride batteries.
Headset
The convenient headset provides both
an earphone and microphone in one
small piece for simple hands-free and
private telephone conversations. The
headset plugs directly into the jack on
the top of your phone, so that you can
wear your phone and move freely. Place
the foam cover on the earpiece for a
more comfortable fit. See pages 86-87 for Call Options that
make using a headset with your phone even more convenient.
PCMCIA Modems
These compact modems are made for mobility, with cable
attachments that plug directly into the bottom of your Motorola
cellular phone. They support fax, e-mail, and data transmis-
sion. The PCMCIA modems work with data devices using a stan-
dard PCMCIA Type II slot.
BATT.
PHONE
FPO
94
Accessory Options
Hands-Free Vehicle Kit
Optional Hands-Free Kits give you the convenience of hands-
free, speaker phone operation while in your car. Full duplex
operation lets you simultaneously talk and listen, so both parties
can interrupt each other for a normal sounding conversation.
The Hands-Free Kit powers the phone and rapid charges its bat-
tery whenever your car’s engine is running.
Keep in mind: Motorola offers a 3-Watt Vehicular Kit, which
includes a 3-watt booster for analog signals. Since it is a digital
cellular phone, your phone is NOT compatible with the 3-Watt
Kit.
Important: We recommend you use genuine Motorola batter-
ies and accessories. Under its cellular telephone warranty,
Motorola specifically disclaims any responsibility for damage
caused by the use of portable cellular telephone accessories not
manufactured by Motorola.
Zero Install Car Kit
For the quickest and easiest mobile solution, use the Zero Install
Car Kit. Just plug it in, attach the microphone, and you’re ready
to go!
FPO
Reference
95
Troubleshooting
Q. I pressed the power button, but nothing hap-
pened. What’s wrong with my phone?
A. Check that you have installed a battery and that the bat-
tery is charged. See page 12 for information about install-
ing your battery.
Q. The display says Locked.
How do I unlock my phone?
A. Try entering the last three digits of your cellular number.
If that doesn’t work, try using the factory preset lock code:
123. If all else fails, call your Service Provider (the com-
pany that sends you your monthly cellular bill) for assis-
tance. For more information on your phone’s security
features, see the Lock/Security chapter, page 72.
Q. My battery didn’t last as long as I expected.
What can I do to extend battery life?
A. To get the most from your battery, make sure it is fully
charged. To charge the battery to 100% of its capacity,
leave it in the charger for an extra hour after the
charger’s light turns green.
Exposing your battery to extreme temperatures—below -
10°C (14°F) or above 45°C (113°F)—can shorten battery
life. Batteries are especially sensitive to high temperature
extremes. As a good rule of thumb, always take your phone
with you when you leave your car.
Q. I tried to place a call and received a fast busy
signal. What does this mean?
A. This sound means that the cellular system did not process
your call. For example, the cellular system may be over-
loaded with call attempts. To redial the number, press the
Smart Button or press æ before ending your call
attempt, or press º and try the call again later. See
page 87 for more information on redialing.
96
Troubleshooting
Q. I tried to place a call but received an alternat-
ing high/low tone.
A. This sound means your call did not reach the cellular sys-
tem. Most likely, you dialed the number too soon after
turning the phone ON. Wait until the NS indicator disap-
pears before placing a call.
An alternating tone may also indicate that your phone’s
signal is blocked. Make sure the antenna is fully extended
and move clear of any obstructions, like bridges, parking
garages, tall buildings, etc.
Q. My phone started beeping, and the display
says: 1 Call Unanswered. What happened?
A. Someone tried to call you while you were in an area
where the cellular signal was weak. Press Ç to clear
your display, extend your phone’s antenna, and avoid
obstructions like tunnels, parking garages and tall build-
ings whenever possible.
Q. My phone was stolen. What should I report
and to whom?
A. Report a stolen phone to the police and to your Service
Provider (the company that sends you your monthly cel-
lular service bills).
Reference
97
Glossary
A
AC adapter An accessory device that allows you to power and/or charge your
phone from a wall outlet. See page 13.
accessory connector A socket on the bottom of the phone where you can
attach accessories such as an AC adapter or cigarette lighter adapter. To learn
more, see page 13.
air-time The amount of time you spend using a cellular system, between the
time you successfully place a call and the termination of that call.
alkaline A battery technology used in personal cellular telephones.
analog The traditional method of cellular transmission. In addition to analog
capability, your phone is equipped to handle digital transmission. See also
CDMA.
antenna The device on your phone that sends and receives cellular signals. For
tips on antenna use and efficiency, see page 6.
Auto Answer When you activate this feature, your phone automatically
answers after two rings. See page 86.
Auto Hyphen A feature that automatically inserts hyphens into displayed phone
numbers for easier visibility. See page 88.
Automatic Redial When your cellular network cannot handle your call, this
feature enables your phone to automatically redial with one button push.
See page 27.
C
Call Back number A phone number in an alphanumeric message, provided by
the sender. See page 48.
Caller ID A network/subscription dependent service that allows you to view
information on incoming calls before answering. See page 44.
CDMA (Code Division Multiple Access) CDMA takes digitized voice and
encodes it in a unique scheme that is sent out over the air. CDMA digital
reduces the probability of dropped calls. Your phone is equipped to handle
CDMA digital voice transmission.
cellular carrier One of multiple competing companies in a given geographic
area that owns and operates a cellular system.
Cellular Service Provider A company affiliated with a cellular carrier that
provides cellular service to its customers.
98
Glossary
cellular signal The radio waves that carry information between your cellular
phone and the cellular system.
cellular system The cellular equipment in a given geographic area that relays
signals to and from individual cellular telephones and the landline tele-
phone system.
cigarette lighter adapter An accessory device that allows you to power and/
or charge your phone from a car’s cigarette lighter.
D
dedicated Message Key See Message Key.
default A feature’s original setting as programmed in the factory.
digital See CDMA.
DTMF Dual Tone Multi-Frequency are the tones that your phone transmits to
communicate with tone activated phone systems like Voice Mail or bank-by-
phone. See page 70. Keep in mind: “DTMF Tones” does not refer to the
sounds produced by your phone’s speaker. See Keypad Tones for information
on the sounds produced by your phone’s speaker.
E
Emergency Call This feature allows you to place a call from memory location
01 even if the phone is locked. See page 75.
F
fringe area The outermost range of a cellular system where cellular signals are
weak.
function keys The non-numeric keys on your phone used to access and navi-
gate menu features, as well as perform memory functions. See page 17.
H
Home Only Mode When your phone is active in this System Mode setting and
you are beyond the range of your home Service Provider, your phone will not
operate. See pages 84-85. See also system type.
home system The local cellular system where you obtain your cellular service.
home type system A cellular system of the same type as the local cellular sys-
tem where you obtain your service. See also non-home type system and sys-
tem type.
I
icon One of the variety of symbols used to designate menu features and messages.
indicator A symbol on your phone that gives you information about your
phone’s status. See pages 20-23.
Reference
99
Glossary
K
Instant Redial When your cellular network cannot handle your call, this fea-
ture enables your phone to continuously redial for four minutes or until your
call is picked up by the network. See page 87.
Internal Rapid Charger A charger built into your phone for use with an AC
adapter or cigarette lighter adapter. See page 13.
Keypad Tones The sounds produced through your phone’s speaker when you
press the keys. See page 69. Keep in mind: “Keypad Tones” does not refer to
the tones sent by your phone to communicate with automated phone sys-
tems. See Transmit Tones for information on the tones used to access auto-
mated phone systems.
L
landline The telephone system used for conventional office and home phones.
Lithium Ion (LiIon) A battery technology used in personal cellular telephones.
Lithium Ion batteries generally provide more energy capacity than Nickel
Metal Hydride batteries of the same weight.
lock To prevent unauthorized access to the cellular telephone. See page 74.
lock code A three-digit code used to access your phone once it has been locked.
The factory programmed lock code is 123. To view or change your lock code,
see page 76.
M
memory location A space in the internal Phone Book where you can store a
telephone number and a name. Each of the Phone Book’s 99 memory loca-
tions (numbered 01-99) can hold up to 32 digits and 24 letters.
menu This system contains five features: Phone Book, Timers, Tone Control,
Lock/Secure, and Phone Options.
menu feature Any feature that can be accessed through the menu system.
Message Key Located in the center just below the display, the dedicated Mes-
sage Key offers one-touch access to messages and messaging functions. See
page 43. See also Caller ID, Messages, and Voice Mail.
Messages A network/subscription dependent service that enables your phone to
receive alphanumeric messages just like a pager. See page 42.
100
Glossary
Messaging Function Menus While viewing your Caller IDs, reading your
Messages, or checking your Voice Mail, you can use these menus to manage
your messages: lock or unlock an alphanumeric message, delete one or all of
your Caller ID or alphanumeric messages, or select a different message type.
N
Nickel Cadmium (NiCd) A battery technology used in personal cellular tele-
phone batteries.
Nickel Metal Hydride (NiMH) A battery technology used in personal cellular
telephone batteries.
non-home type system A system type different from your home system. See
also home type system and system type.
non-wireline See system type.
P
pause A special character that tells your phone to wait before sending the next
set of numbers stored in one memory location. See Pause Dialing.
Pause Dialing A method of storing Phone Book entries that allows you to store
multiple strings of numbers in one memory location; useful, for instance, in
accessing automated phone systems. See page 58.
Personal Identification Number (PIN) A private numeric password which
protects personal accounts such as bank-by-phone or Voice Mail.
Phone Book An alphabetical list of the names and telephone numbers you
have stored into your phone’s internal memory.
Preferred System ID Mode When your phone is in this system mode setting,
it will scan for systems on a preferred list. This choice requires entry of up to
60 System ID numbers. Contact your Service Provider for SID information.
prompt A display message requesting input.
Q
Quad Number Your phone can be activated with up to four different phone
numbers. See page 82 to learn how to change the number active on your
phone.
R
Reversed Preference Mode When your phone is active in this System Mode
setting and you are beyond the range of your home Service Provider, your
phone will seek a non-home type system, then a home type system. See pages
84-85. See also system type.
Reference
101
Glossary
road map The visual representation of your phone’s menu system provided
in this manual.
roam To use a cellular system outside of your home system, usually when you
travel beyond the range of your home system.
S
Scan A Mode When your phone is active in this System Mode setting and you
are beyond the range of your home Service Provider, your phone will only
operate on non-wireline type systems. See pages 84-85. See also system type.
Scan B Mode When your phone is active in this System Mode setting and you
are beyond the range of your home Service Provider, your phone will only
operate on wireline type systems. See pages 84-85. See also system type.
Scratchpad A memory feature that automatically remembers the most recent
number entered into the keypad. See page 39.
Scratchpad tones See DTMF.
scroll To move backward or forward through a list; for example, to move back-
ward or forward through the menu system or the Phone Book using either
the volume keys or the « and » keys.
secure code A six-digit code used to access and change certain security fea-
tures. The factory programmed secure code is 000000.
Service Provider See Cellular Service Provider.
Service Tones Two short beeps used to alert you to any changes in your cellular
service. See page 71.
signal See cellular signal.
Silent Mode Select this feature and all your phone’s tones will be silenced and
the VibraCall™ Alert activated. See page 68.
soft-handoff Unlike traditional analog technology where you are discon-
nected from one cell site and then connected to another, CDMA digital tech-
nology connects you to a new site before disconnecting you from the old site.
This is known as a “soft-handoff.” With soft-handoff technology, you could
experience fewer dropped calls as you travel between cell sites.
102
Glossary
Standard Mode When your phone is active in this System Mode setting and you
are beyond the range of your home Service Provider, your phone will seek a
home type system, then a non-home type system. See pages 84-85. See also
system type.
standby-time The total time your phone is ON but not used for talking.
Super Speed Dial A dialing shortcut that allows you to quickly dial any num-
ber in the internal Phone Book. To use this feature, enter the two-digit loca-
tion of your number, 01-99, then press and hold Smart Button or press æ
and the call is placed. See page 38.
System ID Every cellular system has a unique number to identify itself. See page
90.
System Mode A setting that determines the system type that your cellular
phone will access. See pages 84-85 to select a System Mode.
system type A designation that indicates one of the two competing cellular
carriers in a given geographic area. The non-wireline carrier operates on
the “A” block of cellular frequencies, and the wireline carrier operates on
the “B” block of cellular frequencies.
T
talk-time The total time that you can talk on your phone before the battery is
fully discharged.
toggle To switch between two possible options; for example: ON vs. OFF. Pressing
the Smart Button toggles features ON or OFF.
Transmit Tones See DTMF.
Turbo Dial™ keys To use this feature, press and hold a number on the key-
pad, ⁄ through ·, and your call is placed.
U
unlock code See lock code.
V
VibraCall™ Alert When activated, this feature alerts you silently of incoming
calls by vibrating. It can be used alone or in conjunction with the ringer. See
page 69.
Voice Mail Contact your Service Provider for availability.
volume keys Located on the side of your phone, the upper and lower volume
keys are used to adjust ringer and keypad volume. They also scroll within the
menu system and the Phone Book.
W
wireline See system type.
103
Reference
Patent Information
Manufactured under one or more of the following U.S. patents:
4121218
4138681
4193036
4254382
4302845
4312074
4327319
4329666
4369516
4369522
4378603
4390963
D269873
4398265
4400584
4400585
D270835
D271491
Re.31470
4431977
4434461
4455534
4462098
D275951
4484153
4485486
4486624
D276809
4491972
D277667
4504834
D278708
4523155
4546329
4550426
4551696
4564821
D282169
4571595
4573017
4574243
4585957
4602218
D284759
D285439
4616314
4617520
D286778
4626309
4628529
4629829
4630304
4630305
4633141
4636593
4636741
D288432
4648125
4649543
D288683
4654655
D289156
4662691
4667333
4668917
4670747
4672502
4680787
4681476
4683585
4692726
4704588
D292578
4706036
D292920
4710724
4711361
4715063
4716319
4716391
4723305
D294257
4727306
4727583
4730195
4734635
4736277
4737976
4740794
4741018
4741034
4742562
D295627
4746242
D295973
D295975
4751737
D296187
4761621
4764737
D297734
D297735
4777564
Re.32768
D299136
4797929
4798975
4800348
4802236
4809356
4811377
4811404
4827226
4827507
4829274
4837534
D301476
4843621
4845772
D302015
4851966
4868576
4870686
D303656
4876552
4879533
D305427
4896124
4897873
D305717
4904549
4905288
4905301
D306293
D306441
D306594
4912602
4918732
4922178
4945570
4954796
4959851
4963812
4963843
4965537
4972355
4972432
4972455
4975808
4984290
D314173
D315330
D315346
D315543
D315559
D315565
5004992
D315907
5008925
D316417
D316859
5017856
5018188
5020091
5020092
5020093
5028083
5028859
5029044
5029233
5031028
5036532
5053924
5057762
D320780
5059885
5060294
D322783
D322955
5081674
5083304
D324024
D324388
5095503
D325028
D325583
5109536
D325915
5113436
5117450
5121047
5122480
5122722
D327061
5128834
D328302
5142551
5142696
5146620
5148471
5148473
5148961
5150359
5150384
5152006
5157693
5163159
5164652
5166596
5175759
5175874
D332261
5182749
D332785
5185566
5187809
5193223
5195106
5195108
5201069
5204977
5210793
5214675
5222104
5222251
D337332
5230007
5230093
5233633
5235492
5237257
5239127
5241545
5241548
5241650
5241693
5242767
D339582
5249302
5251331
D340710
5260988
5261119
5262710
5263052
5276707
5278994
D343173
5280637
D344087
5287553
5287555
5287556
D344511
5301365
5321847
D348880
5349588
5359696
5361400
5363071
5365549
D352497
5366826
D353131
D353361
5375143
5375258
5379324
D354055
D354062
5384825
D356084
5402447
5406146
5406562
D357224
D357457
5410741
D357680
D357681
5428836
D359734
D359735
D359959
5432017
D360632
5438684
D361070
5442680
5446763
5448763
5448771
5453997
D362840
5457744
5459640
5463646
5465412
5469177
5475752
D365094
D365817
5486843
5487184
5488335
5488649
D366872
5493198
5493714
5497126
5497382
D367640
5499394
5506490
D368696
5510693
5511235
D369162
5513078
D369359
5519303
5519346
5524276
5524278
D370463
5530922
5542116
5544250
D372481
5546275
5546380
D372896
5551078
5559471
D374424
D374872
5572193
5574976
5577268
D375732
D375733
D375734
D375932
D375952
D376127
5588041
5589796
5590177
5594778
5594951
D377792
D377934
5604050
5606730
D378366
5613229
5613863
5615233
5621763
Other patents pending.
104
A
AC adapter 13–15
accessory connector 17
Accessory Options 92–94
account numbers, storing 40–41
adjusting volume 29
alpha characters, entering 35
Analog Indicator 19, 21
Analog Only 91
answering calls 25–26
automatic answer 86
multiple key answer 86
antenna 17
audible timers
one minute 64
repeating 65
single 65
Authentication Entry 79
auto display timer 64
Auto Hyphen 88, 89
auto lock 74
automated systems
calling 40–41
storing number 40–41
automatic answer 86
automatic redial 27
B
banner 88
batteries 11–14
chargers 13–16
charging 13–16
covers 11
installing 12
storage & disposal 14
storage case 11
varieties 92
battery level
shortcut 30
battery level, indicator 21
C
Call Back Messages 48
Call Options 86–87
Call Timers 60–65
road map 61
Caller ID 25
deleting 45
Message Indicator 20
number preference 57
options 45
viewing 44
changing lock code 76
changing the banner 88
changing your number 82
chargers 13–16
desktop 15–16
Internal Rapid 13
charging batteries 13–16
checking your voice mail 46
cigarette lighter adapter 13, 92
clear key 17
Clear, Master 77
clearing
Caller ID 45
Messages 49
Phone Book entries 37
settings 77
Voice Mail notification 47
clock 21
display format 89
cumulative call timer 63
D
deleting
Caller ID 45
Messages 49
Phone Book entries 37
Voice Mail notification 47
desktop charger 15–16
times 16
dialing
controlling 78
emergency call 75
Digital Indicator 21
display 17
individual call timer 62, 64
last ten numbers dialed 27
lock code 76
system ID 90
your number 57
Display Options 88–89
displaying
caller’s numbers 57
Index
105
Index
displaying the 24-Hour Clock 89
DTMF tones 70
storing 40–41
E
earpiece 17
volume 29
editing memory 58–59
emergency call 75
ending calls 24
entering names 35
entries, clearing 37
F
fax compatibility 93
flip 17
function key 17
G
Getting Started 10–17
Glossary 97–102
H
Hands-Free Vehicle Kit 92
headset 93
headset jack 17
Home Only Mode 85
Hyphen, Auto 88, 89
I
In Use Indicator 20
incoming calls 25–26
indicators
Analog 21
battery level 21, 22
Caller ID/Message 20
Digital 21
In Use 20
Roam 20
Service Light 23
Signal Strength 20
Unanswered Call 26
VibraCall™ On 20
Voice Mail 20
individual call timer 62
auto display 64
installing batteries 12
Instant Redial 87
Internal Rapid Charger 13
K
keypad cover 17
Keypad Tones 69
L
LAN compatibility 93
last ten numbers dialed 27
letters, entering 35
Lithium Ion Batteries 92
locations 55
lock automatically 74
manually 74
messages 49
lock code
changing 76
viewing 76
Lock/Security 72–79
road map 73
M
Master Clear 77
Master Reset 77
memory 32–39
editing 58–59
Phone Book 52–57
recalling 36–38, 54–55
storing 34, 56
tips 33
menu features 50
Message Indicator 20
Messages
Call Back 48
lock/unlock 49
options 49
reading 48
receiving 43
Messaging Menu 42
microphone 17
modem compatibility 93
multiple key answer 86
mute the phone 28
N
names
clearing 37
entering 35
recalling 36, 54
viewing 57
navigating the menu 50
106
Nickel Metal Hydride Batteries 92
number
changing yours 82
viewing others 57
viewing yours 57
Number Preference 57
numbers
recalling 36–38
storing 34
O
one minute timer 64
outgoing calls
controlling 78
placing 24
P
Pause Dialing 40–41
PCMCIA Modems 93
personalizable banner 88
Phone Book 52–57
editing 58–59
memory 32–39
recalling 54–55
road map 53
status 55
storing 34, 56
phone lock
automatically 74
manually 74
phone number
changing yours 82
viewing others 57
viewing yours 57
Phone Options 80–91
road map 81
placing calls 24
emergency call 75
redial 27
power key 17, 18
Preferred System ID Mode 85
R
reading the indicators 20–23
reading your messages 48
real time clock 21
recall key 17
recalling 55
by location 37, 55
by name 36, 54
shortcuts 38
receiving calls 25–26
automatic answer 86
multiple key answer 86
Receiving Messages 43
redial 27
automatic 27
Instant 87
last ten numbers dialed 27
repeating timer 65
Reset, Master 77
resettable call timer
resetting 63
viewing 62
Reversed Preference Mode 85
ringersilencing 68–69
style 68
volume 29
ringer/vibrator 68–69
road maps 51
Call Timers 61
Lock/Security 73
Phone Book 53
Phone Options 81
Tone Control 67
Roam Indicator 20
S
Safety Information 6–9
Scan A Mode 85
Scan B Mode 85
Scratchpad 39
Scratchpad Tones 70
scroll keys 17
Secure Options 76–79
security 72–79
selecting a system mode 84–85
selecting ringer style 68
send key 17
service level 78
Service Light 23
Service Tones 71
shortcuts 30
signal strength 20
Silent Mode 68–69
silent mode 28
single timer 65
Slim Nickel Metal Hydride Batteries
92
107
Index
Standard Mode 85
store key 17
storing 34, 56
Call Back number 48
while on a call 39
Super Speed Dial 38
system ID, viewing 90
System Mode 84–85
System Options 90–91
T
Three-Watt Vehicular Kit 94
timers
audible 64–65
cumulative 63
individual 62, 64
one minute 64
repeating 65
resettable 62, 63
single 65
Tone Controls 66–70
Basic 28–29
road map 67
volume 29
toneskeypad 69
service 71
storing 40–41
Transmit Tones 70
storing 40–41
Troubleshooting 95–96
Turbo Dial™ Keys
emergency call 75
Turbo Dial™ keys 38
Turning Your Phone On 18
U
unanswered call indicator 26
unlock/lock 74
Using Messaging 42–49
V
vehicle accessories 94
VibraCall™ alert 28, 68–69
VibraCall™ On Indicator 20
vibration mode 28
viewing
cumulative call timer 63
individual call timer 62, 64
lock code 76
resettable call timer 62
your number 57
Viewing Your Caller IDs 44
Voice Mail
calling 40–41
checking 46
deleting notification 47
Indicator 20
options 47
storing number 40–41
volume keys 17
volume, adjusting 29
Y
Your Phone & Its Shortcuts 30
Z
Zero Install Car Kit 94
