Safety Information
IMPORTANT: Read this information before using your wireless handheld phone.
Exposure to Radio Frequency Signals
Your wireless handheld portable telephone is a low power radio transmitter and receiver. When it is ON, it receives and also
sends out radio frequency (RF) signals.
In August 1996, The Federal Communications Commission (FCC) adopted RF exposure guidelines with safety levels for
handheld wireless phones. Those guidelines are consistent with safety standards previously set by both U.S. and international
standards bodies:
• American National Standards Institute (ANSI) IEEE. C95. 1-1992
• National Council on Radiation Protection and Measurement (NCRP). Report 86
• International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1996
• Ministry of Health (Canada), Safety Code 6
Those standards were based on comprehensive and periodic evaluations of the relevant scientific literature. For example, over
120 scientists, engineers, and physicians from universities, government health agencies, and industry reviewed the available
body of research to develop the ANSI Standard (C95.1).
The design of your phone complies with the FCC guidelines (and those standards). For additional information concerning
exposure to radio frequency signals, see the statement by the FDA at the end of this user guide.
To maintain compliance with FCC RF exposure guidelines, if you wear a handset on your body, use the Motorola-supplied or
approved carrying case, holster, or other body-worn accessory. If you do not use a body-worn accessory, ensure the antenna is
at least one inch (2.5 centimeters) from your body when transmitting. Use of non-Motorola accessories may violate FCC RF
exposure guidelines.
Antenna Care
Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications, or attachments could
damage the phone and may violate FCC regulations.
Phone Operation
Normal Operation
Hold the phone as you would any other telephone, with the antenna pointed up and over your shoulder.
Tips on Efficient Operation
Observe the following guidelines to operate your phone most efficiently.
• Extend your antenna fully.
• Do not touch the antenna unnecessarily when the phone is in use. Contact with the antenna affects call quality and
may cause the phone to operate at a higher power level than otherwise needed.
Batteries
Caution:All batteries can cause property damage, injury, or burns if a conductive material, such as jewelry, keys or beaded
chains, touches exposed terminals. The material may complete an electrical circuit and become quite hot. To protect against
such unwanted current drain, exercise care in handling any charged battery, particularly when placing it inside your pocket,
purse, or other container with metal objects. When the battery is detached from the phone, your batteries are packed with a
protective battery cover; please use this cover for storing your batteries when not in use.
Driving
Check the laws and regulations on the use of wireless telephones in the areas where you drive. Always obey them. Observe
the following guidelines when using your phone while driving.
• Give full attention to driving--driving safely is your first responsibility.
• Use hands-free phone operation, if available.
APPLICANT: MOTOROLA, INC. FCC ID: IHDT5ZG1
EXHIBIT 8
• Pull off the road and park before making or answering a call if driving conditions so require.
Electronic Devices
Most modern electronic equipment is shielded from RF signals. However, certain equipment may not be shielded against the
RF signals from your wireless phone.
Pacemakers
The Health Industry Manufacturers Association recommends that a minimum separation of six inches (6") be maintained
between a handheld wireless phone and a pacemaker to avoid potential interference with the pacemaker. These
recommendations are consistent with the independent research by and recommendations of Wireless Technology Research.
Persons with pacemakers:
• should ALWAYS keep the phone more than six inches from their pacemaker when the phone is turned ON
• should not carry the phone in a breast pocket
• should use the ear opposite the pacemaker to minimize the potential for interference
• should turn the phone OFF immediately if you have any reason to suspect that interference is taking place
Hearing Aids
Some digital wireless phones may interfere with some hearing aids. In the event of such interference, you may want to consult
your hearing aid manufacturer to discuss alternatives.
Other Medical Devices
If you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded
from external RF energy. Your physician may be able to assist you in obtaining this information.
Turn your phone OFF in health care facilities when any regulations posted in these areas instruct you to do so. Hospitals or
health care facilities may be using equipment that could be sensitive to external RF energy.
Vehicles
RF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles. Check with the
manufacturer or its representative regarding your vehicle. You should also consult the manufacturer of any equipment that has
been added to your vehicle.
Posted Facilities
Turn your phone OFF in any facility where posted notices so require.
Aircraft
Switch OFF your phone before boarding an aircraft.
Airline regulations prohibit using your phone while in the air. Check and comply with the policy of your airline regarding the
use of your phone while the aircraft is on the ground.
Blasting Areas
To avoid interfering with blasting operations, turn your phone OFF when in a "blasting area" or in areas posted: "Turn off
two-way radio." Obey all signs and instructions.
Potentially Explosive Atmospheres
Turn your phone OFF, do not remove your battery when you are in any area with a potentially explosive atmosphere, and
obey all signs and instructions. Sparks from your battery in such areas could cause an explosion or fire resulting in bodily
injury or even death.
Areas with a potentially explosive atmosphere are often but not always clearly marked. They include: fueling areas such as
gasoline stations; below deck on boats; fuel or chemical transfer or storage facilities; areas where fuel odors are present (for
example, if a gas/propane leak occurs in a car or home); areas where the air contains chemicals or particles, such as grain,
dust, or metal powders; and any other area where you normally would be advised to turn off your vehicle engine.
For Vehicles Equipped with an Air Bag
An air bag inflates with great force. Do NOT place objects, including both installed or portable wireless equipment, in the
area over the air bag or in the air bag deployment area. If in-vehicle wireless equipment is improperly installed and the air bag
inflates, serious injury could result.
APPLICANT: MOTOROLA, INC. FCC ID: IHDT5ZG1
EXHIBIT 8
INSTRUCTION MANUAL
The following is a draft copy of the instruction manual.
Welcome
Thank you for choosing your Motorola TDMA digital
StarTAC™ phone from a global leader in
communications technology. All Motorola digital
cellular phones are designed and manufactured to
meet Motorola’s rigorous specifications and world-
class quality standards. During development, our
laboratory testing team took your TDMA digital
StarTAC™cellular phone through rigorous durability
tests including temperature, humidity, shock, dust,
vibration, and drop tests—and the phone still
worked!
We are confident that the phone you purchased will
meet your own exacting standards. Enjoy your
Motorola TDMA digital StarTAC™ phone.
ii
Contents
Welcome
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .i
Safety Information
. . . . . . . . . . . . . . . . . . . . . . . . v
Overview
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

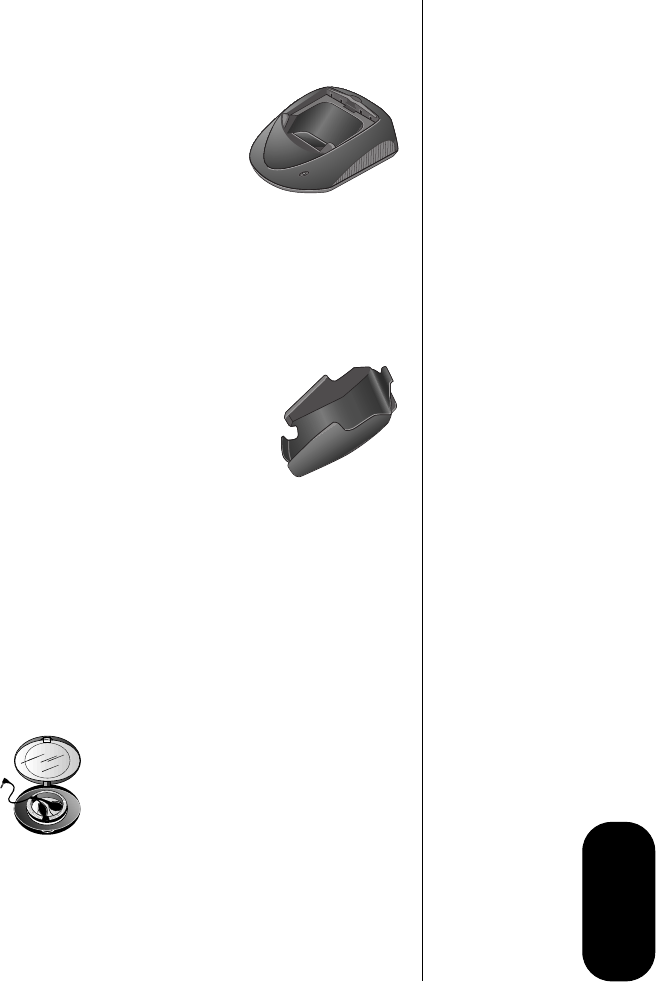

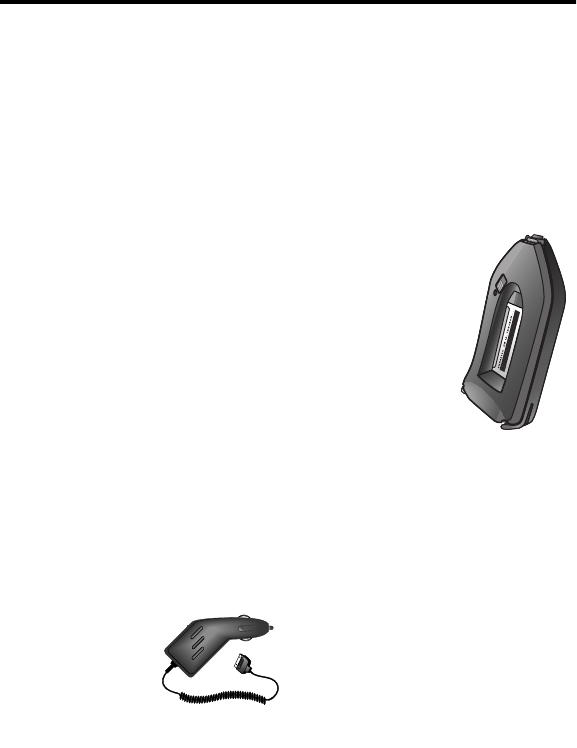

Package Content Options . . . . . . . . . . . . . . . . 10
Phone Overview . . . . . . . . . . . . . . . . . . . . . . . . 11
Understanding the Guide . . . . . . . . . . . . . . . . 12
Using the Battery
. . . . . . . . . . . . . . . . . . . . . . . . 13
About Your Batteries . . . . . . . . . . . . . . . . . . . . 13

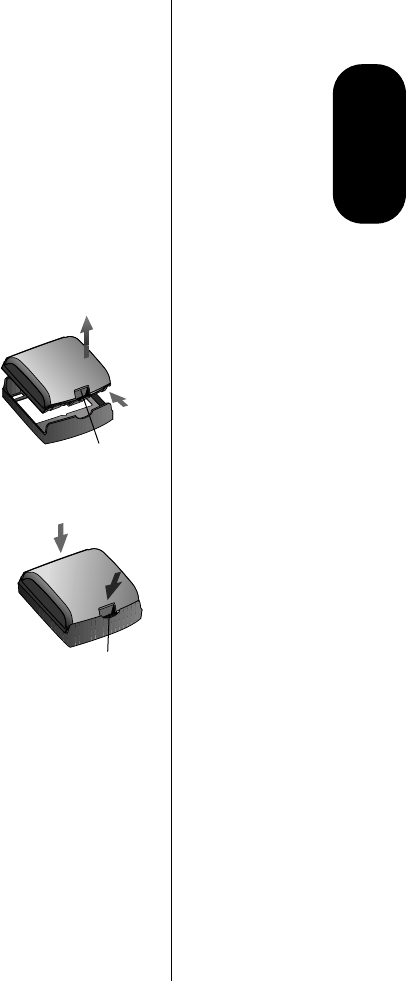

Removing and Attaching Battery Covers . . . . 15
Installing and Removing Batteries . . . . . . . . . . 17
Checking Battery Levels . . . . . . . . . . . . . . . . . 18

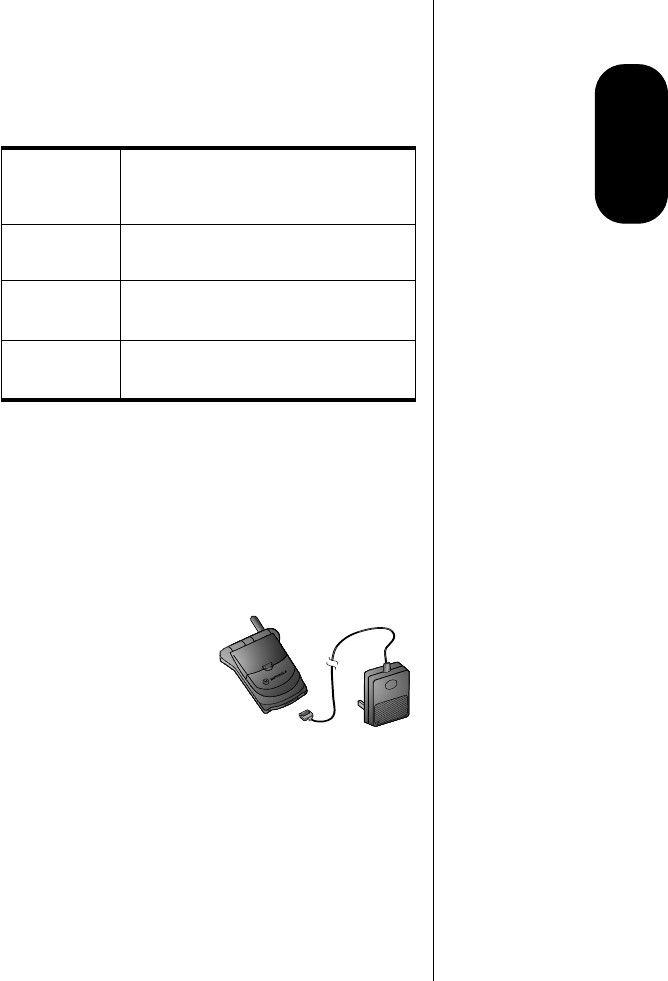

Charging Batteries . . . . . . . . . . . . . . . . . . . . . . 19
Using the Phone
. . . . . . . . . . . . . . . . . . . . . . . . . 23
Turning the Phone On and Off . . . . . . . . . . . . . 23
Reading the Indicators . . . . . . . . . . . . . . . . . . 24
Standby Mode . . . . . . . . . . . . . . . . . . . . . . . . . 26

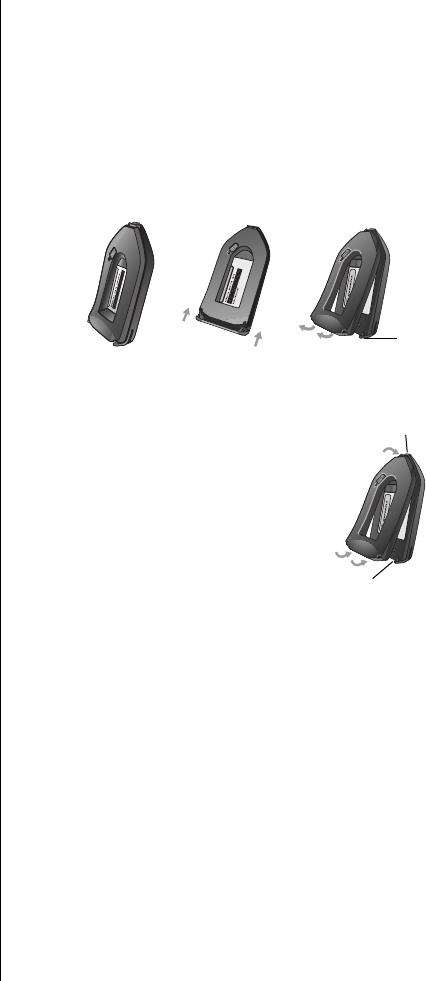

Storing Your Phone in Its Holster . . . . . . . . . . . 26
Placing a Call . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Ending a Call . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Receiving a Call . . . . . . . . . . . . . . . . . . . . . . . . 28
Using the Smart Button . . . . . . . . . . . . . . . . . . 29
Redialing a Number . . . . . . . . . . . . . . . . . . . . . 29
Controlling Volume . . . . . . . . . . . . . . . . . . . . . . 30
Using Phone Memory
. . . . . . . . . . . . . . . . . . . . 32
Using Your Phone’s Built-in Phone Book . . . . . 33
Storing Names and Numbers . . . . . . . . . . . . . 33
Recalling an Entry by Name . . . . . . . . . . . . . . 35
Recalling an Entry by Memory Location . . . . . 36
Clearing a Phone Memory Entry . . . . . . . . . . . 36
Shortcuts for Recalling Phone Book Entries . . 37
Making Notes on the Scratchpad . . . . . . . . . . 38
Using the Menu System
. . . . . . . . . . . . . . . . . . . 39
Introducing the Menu Features . . . . . . . . . . . . 39
Navigating the Menu . . . . . . . . . . . . . . . . . . . . 40

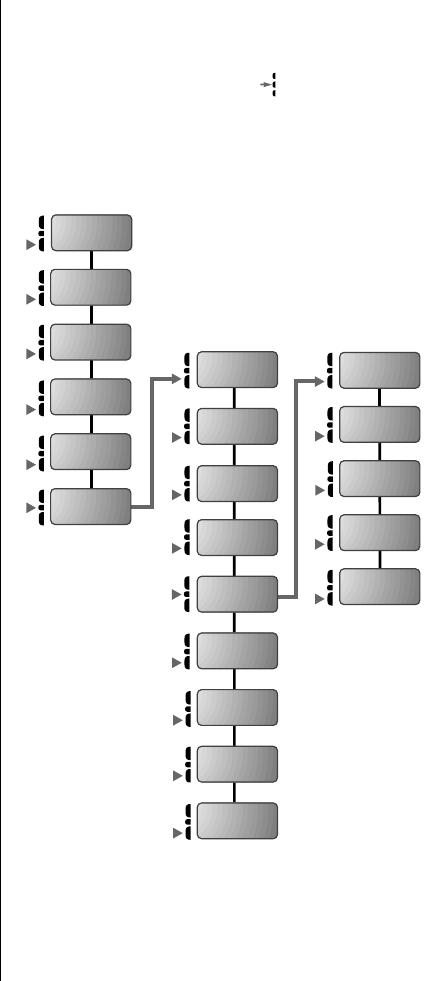

Road Maps . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
iii
Managing Recent Calls
. . . . . . . . . . . . . . . . . . .41
Road Map for Recent Calls . . . . . . . . . . . . . . .42
About Recent Calls . . . . . . . . . . . . . . . . . . . . . .42
Reviewing Received Call . . . . . . . . . . . . . . . . .44
Reviewing Dialed Calls . . . . . . . . . . . . . . . . . . .45
Clearing Caller Line ID . . . . . . . . . . . . . . . . . . .46
Managing the Phone Book
. . . . . . . . . . . . . . . .47
Road Map for Phone Book . . . . . . . . . . . . . . . .48
Recalling an Entry by Name . . . . . . . . . . . . . . .49
Recalling an Entry by Location . . . . . . . . . . . .49
Storing with the Menu . . . . . . . . . . . . . . . . . . . .50
Storing and Placing Numbers with Pause
Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Storing and Placing Numbers for Calling
Card Information . . . . . . . . . . . . . . . . . . . . . . . .53
Editing a Memory Location . . . . . . . . . . . . . . .56
Assigning an Individual Ring Style to a |
Phone Book Entry . . . . . . . . . . . . . . . . . . . . . . .58
Timing Your Calls
. . . . . . . . . . . . . . . . . . . . . . . .60
Road Map for Call Timers . . . . . . . . . . . . . . . . .61
Viewing the Individual Call Timer . . . . . . . . . . .62
Viewing the Resettable Call Timer . . . . . . . . . .62
Viewing the Cumulative Timer . . . . . . . . . . . . .63
Resetting the Timer . . . . . . . . . . . . . . . . . . . . .63
Displaying the Individual Timer Automatically .64
Setting the One-Minute Audible Timer . . . . . . .64
Setting the Repeating Audible Timer . . . . . . . .65
Setting the Single Timer . . . . . . . . . . . . . . . . . .65
Adjusting Tone Controls
. . . . . . . . . . . . . . . . . .67
Road Map for Tone Controls . . . . . . . . . . . . . . .68
Selecting Call Alert Type . . . . . . . . . . . . . . . . .69
Selecting Message Alert Type . . . . . . . . . . . . .70
Selecting a Ring Style . . . . . . . . . . . . . . . . . . .71
Turning Keypad Tones On and Off . . . . . . . . . .71
Turning Scratchpad Tones On and Off . . . . . . .72
Using Lock/Security Features
. . . . . . . . . . . . . .73
Road Map for Lock Security . . . . . . . . . . . . . . .74
Activating Voice Privacy . . . . . . . . . . . . . . . . . .75
Locking/Unlocking Your Phone . . . . . . . . . . . .76
Activating Priority Calling . . . . . . . . . . . . . . . . .77
iv
Viewing the Lock Code . . . . . . . . . . . . . . . . . . 78
Changing the Lock Code . . . . . . . . . . . . . . . . 78
Restricting Call Placement . . . . . . . . . . . . . . . 79
Customizing Phone Options
. . . . . . . . . . . . . . 83
Road Map for Phone Options . . . . . . . . . . . . . 84
Activating Pager Mode . . . . . . . . . . . . . . . . . . 85
Viewing Your Own Number . . . . . . . . . . . . . . . 86
Switching Between Numbers . . . . . . . . . . . . . 87
Reviewing Feature Settings . . . . . . . . . . . . . . . 88
Activating Automatic Hands-Free . . . . . . . . . . 89
Activating Multiple Key Answer . . . . . . . . . . . . 90
Deactivating Open to Answer . . . . . . . . . . . . . 90
Activating Automatic Answer . . . . . . . . . . . . . . 91
Selecting Battery Options—Status Light . . . . . 92
Displaying System Identification . . . . . . . . . . . 92
Selecting Language . . . . . . . . . . . . . . . . . . . . 93
Using the Message Center
. . . . . . . . . . . . . . . . 94

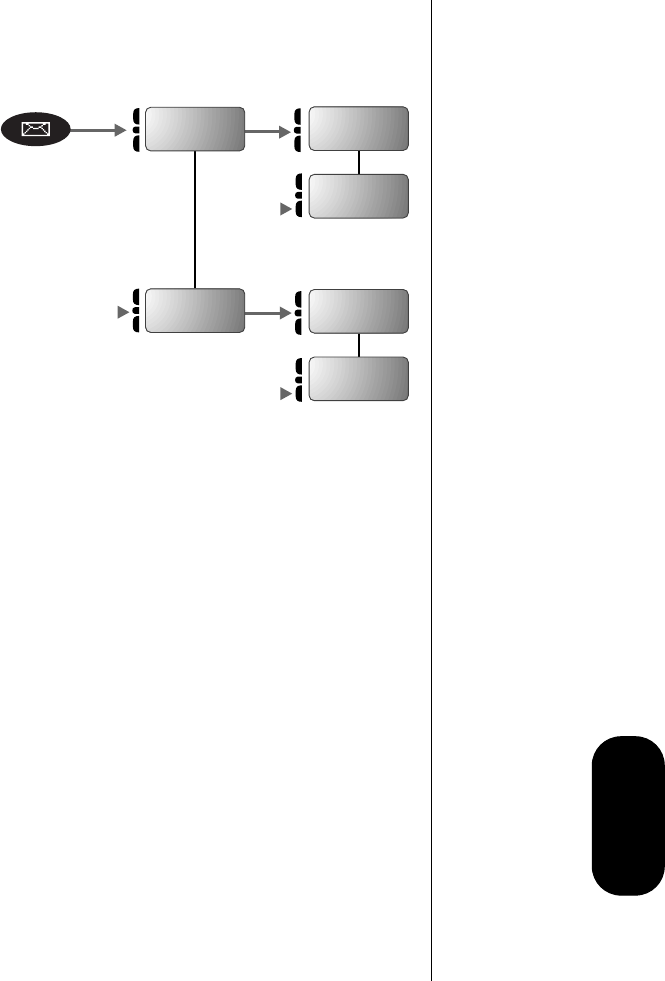

Road Map for Message Center . . . . . . . . . . . . 95
Voice Mail Alerts . . . . . . . . . . . . . . . . . . . . . . . 96
Dialing Voice Mail . . . . . . . . . . . . . . . . . . . . . . 96
Reading Text Messages . . . . . . . . . . . . . . . . . 97
Editing the Voice Mail Number . . . . . . . . . . . 102
Setting the Scrolling Speed . . . . . . . . . . . . . . 103
Reference Information
. . . . . . . . . . . . . . . . . . . 104
Accessory Options . . . . . . . . . . . . . . . . . . . . 104
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 107
Glossary
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Index
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Patent Information
. . . . . . . . . . . . . . . . . . . . . . 119
v
Safety Information
Important:
Read this information before using your
wireless handheld phone.
Exposure to Radio Frequency Signals
Your wireless handheld portable telephone is a low
power radio transmitter and receiver. When it is ON,
it receives and also sends out radio frequency (RF)
signals.
In August 1996, The Federal Communications
Commissions (FCC) adopted RF exposure
guidelines with safety levels for handheld wireless
phones. Those guidelines are consistent with safety
standards previously set by both U.S. and
international standards bodies:
•
American National Standards Institute (ANSI)
IEEE. C95. 1-1992
•
National Council on Radiation Protection and
Measurement (NCRP) Report 86
•
International Commission on Non-Ionizing
Radiation Protection (ICNIRP) 1996
Those standards were based on comprehensive
and periodic evaluations of the relevant scientific
literature. For example, over 120 scientists,
engineers, and physicians from universities,
government health agencies, and industry
reviewed the available body of research to develop
the ANSI Standard (C95.1).
The design of your phone complies with the FCC
guidelines (and those standards).
Antenna Care
Use only the supplied or an approved replacement
antenna. Unauthorized antennas, modifications, or
attachments could damage the phone and may
violate FCC regulations.
vi
Phone Operation
Normal Operation
Hold the phone as you would any other telephone,
with the antenna pointed up and over your
shoulder.
Tip on Efficient Operation
To operate your phone most efficiently, do not touch
the antenna unnecessarily when the phone is in
use. Contact with the antenna affects call quality
and may cause the phone to operate at a higher
power level than otherwise needed.
Batteries
Caution:
All batteries can cause property damage,
injury, or burns if a conductive material, such as
jewelry, keys or beaded chains, touches exposed
terminals. The material may complete an electrical
circuit and become quite hot. To protect against
such unwanted current drain, exercise care in
handling any charged battery, particularly when
placing it inside your pocket, purse, or other
container with metal objects. When the battery is
detached from the phone, your batteries are
packed with a protective battery cover; please use
this cover for storing your batteries when not in use.
Driving
Check the laws and regulations on the use of
wireless telephones in the areas where you drive.
Always obey them. Observe the following
guidelines when using your phone while driving.
•
Give full attention to driving--driving safely is
your first responsibility.
•
Use hands-free phone operation, if available.
•
Pull off the road and park before making or
answering a call if driving conditions so
require.
vii
Electronic Devices
Most modern electronic equipment is shielded from
RF signals. However, certain equipment may not be
shielded against the RF signals from your wireless
phone.
Pacemakers
The Health Industry Manufacturers Association
recommends that a minimum separation of six
inches (6") be maintained between a handheld
wireless phone and a pacemaker to avoid potential
interference with the pacemaker. These
recommendations are consistent with the
independent research by and recommendations of
Wireless Technology Research.
Persons with pacemakers:
•
should ALWAYS keep the phone more than
six inches from their pacemaker when the
phone is turned ON
•
should not carry the phone in a breast pocket
•
should use the ear opposite the pacemaker
to minimize the potential for interference
•
should turn the phone OFF immediately if you
have any reason to suspect that interference
is taking place
Hearing Aids
Some digital wireless phones may interfere with
some hearing aids. In the event of such
interference, you may want to consult your hearing
aid manufacturer to discuss alternatives.
Other Medical Devices
If you use any other personal medical device,
consult the manufacturer of your device to
determine if it is adequately shielded from external
RF energy. Your physician may be able to assist
you in obtaining this information.
viii
Turn your phone OFF in health care facilities when
any regulations posted in these areas instruct you
to do so. Hospitals or health care facilities may be
using equipment that could be sensitive to external
RF energy.
Vehicles
RF signals may affect improperly installed or
inadequately shielded electronic systems in motor
vehicles. Check with the manufacturer or its
representative regarding your vehicle. You should
also consult the manufacturer of any equipment
that has been added to your vehicle.
Posted Facilities
Turn your phone OFF in any facility where posted
notices so require.
Aircraft
FCC regulations prohibit using your phone while in
the air. Switch OFF your phone before boarding an
aircraft.
Blasting Areas
To avoid interfering with blasting operations, turn
your phone OFF when in a “blasting area” or in
areas posted: “Turn off two-way radio.” Obey all
signs and instructions.
Potentially Explosive Atmospheres
Turn your phone OFF and do not remove your
battery when you are in any area with a potentially
explosive atmosphere. Obey all signs and
instructions.
Sparks from your battery in such areas could cause
an explosion or fire resulting in bodily injury or even
death.
Areas with a potentially explosive atmosphere are
often but not always clearly marked. They include,
but are not limited to: fueling areas such as
ix
gasoline stations; below deck on boats; fuel or
chemical transfer or storage facilities; areas where
fuel odors are present (for example, if a gas/
propane leak occurs in a car or home); areas where
the air contains chemicals or particles, such as
grain, dust, or metal powders; and any other area
where you normally would be advised to turn off
your vehicle engine.
For Vehicles Equipped with an Air Bag
An air bag inflates with great force. Do NOT place
objects, including both installed or portable
wireless equipment, in the area over the air bag or
in the air bag deployment area. If in-vehicle
wireless equipment is improperly installed and the
air bag inflates, serious injury could result.
US050498REV
10
Overview
Package Content Options
Your TDMA digital StarTAC™ cellular phone is
typically packed with a transformer charger and at
least one battery. Below is a sampling of the
different package options.
Note:
Your phone and accessories may not look
exactly as pictured.
TDMA digital
StarTAC™ Cellular
Telephone
Slim Main Battery
with Battery Cover
Standard Main Battery
with Battery Cover
AC Adapter
Cigarette Lighter
Adapter
Holster
Headset
Desktop Charger
(AC Adapter required)
Digital
Slim Auxiliary Battery
with Battery Cover
11
Overview
Phone Overview
See the inside front cover of this guide for a
diagram of the components described below.
Antenna
—Provides superior connectability.
Earpiece
—Ultra-compact phone speaker.
Accessory Connector Port
—Provides the
connections for an external power supply and
vehicular and optional accessories.
Headset Jack
—Provides the connection for an
optional headset.
Microphone
—Positioned for convenient
conversation.
Function Keys
¡
—Turns the phone On and Off.
ƒ
—Acts as a “shift” key to access the secondary
functions of other keys.
‰
—Recalls phone numbers from memory.
¬
—Stores phone numbers into memory.
Ç
—Clears characters from the screen.
º
—Ends phone calls.
æ
—Places or answers calls.
«
and
»
—Can be used to scroll through
memory entries and menu features.
ø
Message Center Button
—Allows access to
digital messages and voice mail messages.
Smart Button
—Use the Smart Button to recall
information from memory, place and end calls,
select menu features, and toggle features on and
off. The symbol in your display represents the
Smart Button.
12

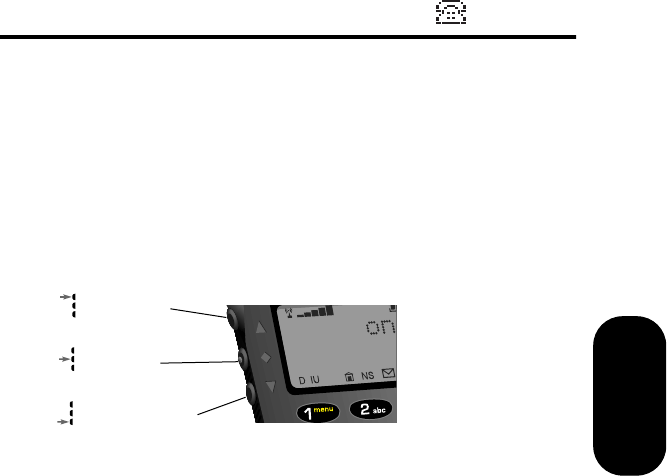

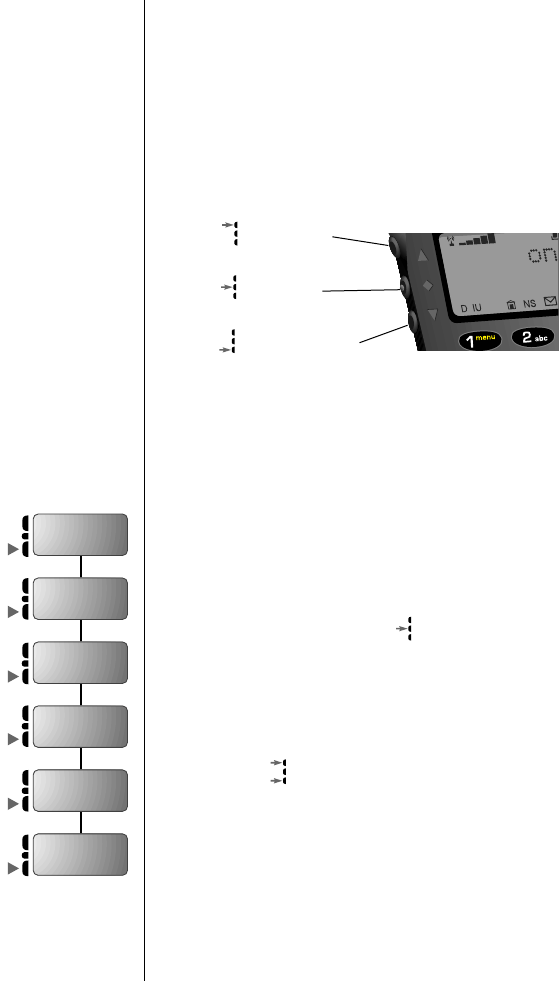

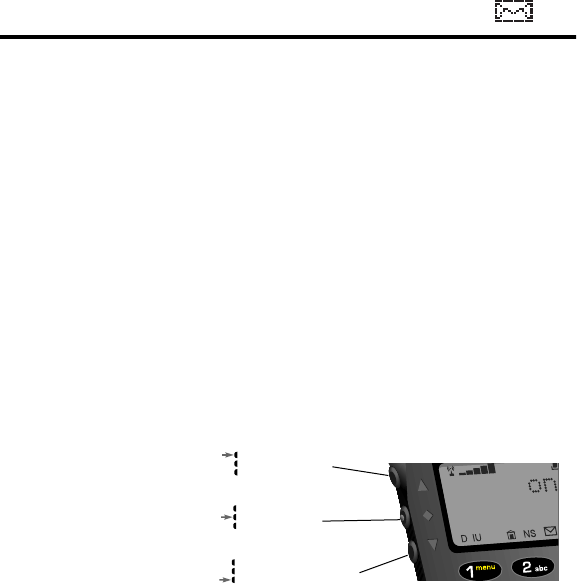

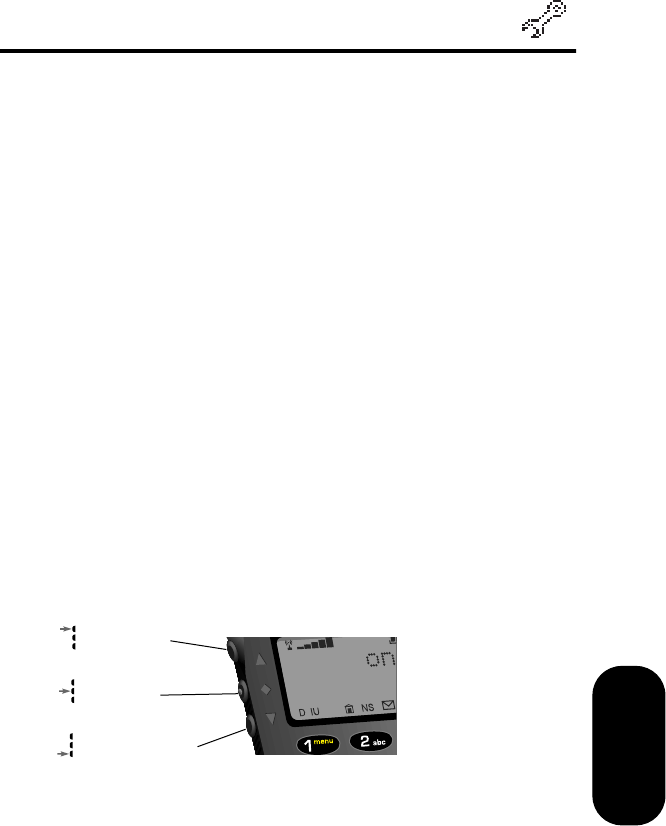

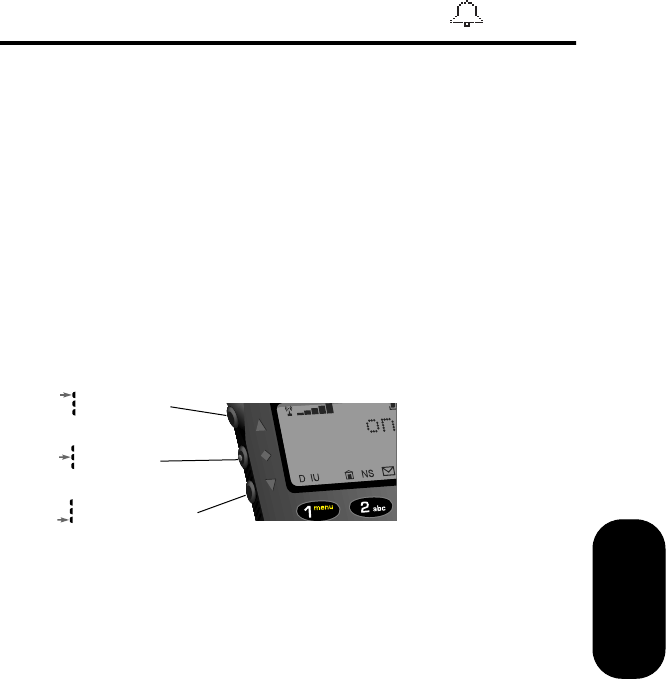

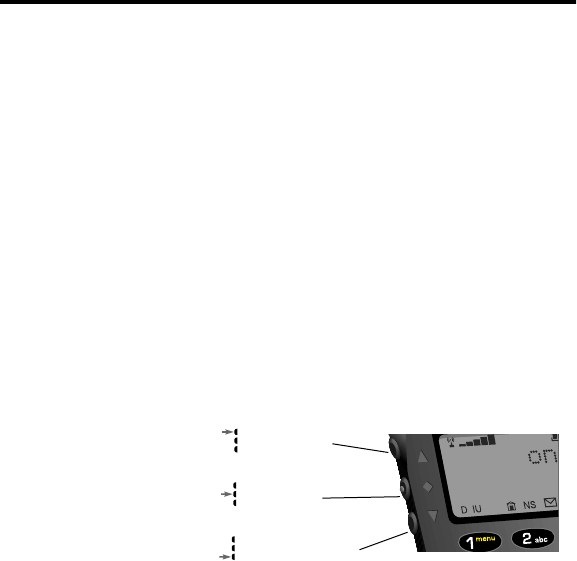

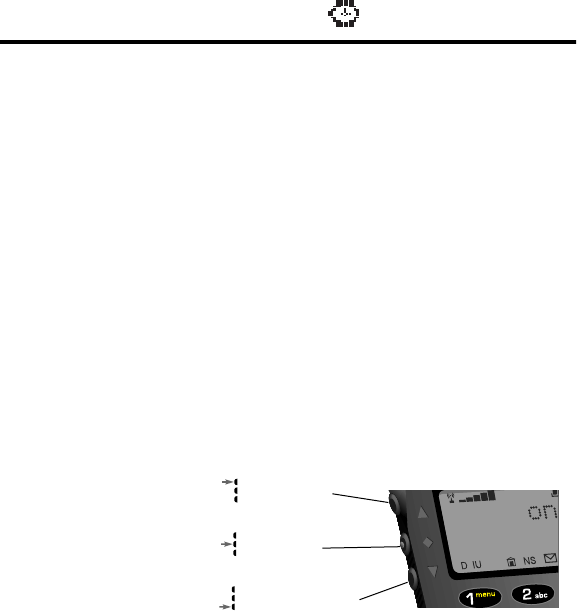

Volume Keys
—The upper and lower volume
keys can adjust keypad, earpiece, and ringer
volume. After pressing the Smart Button, the
volume keys also scroll through memory entries
and menu features.
Understanding the Guide
Key Presses
Key presses are represented in this guide using
symbols so that you may locate and use the
required sequence quickly. A sequence of key
presses may be shown as follows:
ƒ ‚ ‡ Ç
This means you should press
ƒ
followed by
‚,
‡,
and then
Ç
, in sequence, not
simultaneously.
Prompts and Messages
Your phone responds to key presses by displaying
either a prompt that guides you to the next action or
a message confirming that your action is complete.
Prompts and messages are represented in this
guide in LCD style, for example:
Reset Timer
.
Short Cuts and Tips
In the margins of your guide are short cuts and
useful hints and ways to improve your phone’s
performance. These are especially helpful for
experienced Motorola Users, who can find many of
the same key sequences used with other Motorola
models.
or
13
Batteries
Using the Battery
About Your Batteries
Your TDMA digital StarTAC™ phone can use either
Lithium Ion (LiIon) or Nickel Metal Hydride (NiMH)
batteries. Batteries are available in these sizes:
Slim, Standard, and Extra Capacity.
Your phone can use two batteries at the same time.
You can use:
•
any single main or auxiliary battery
or
•
a main and auxiliary battery combination
to fit your needs. You can even extend your talk-
time by attaching an auxiliary battery at any time,
without interrupting your call.
Battery Talk-Time and Standby-Time
Talk-time
refers to the time you can talk on your
phone before the battery is fully discharged.
Standby-time
is the time that your phone is on but
not used for talking.
Notes:
•
Talking on the phone uses more power than
leaving it idle. The more power you use for
talking, the less you’ll have for standby-time,
and vice-versa.
•
All times are approximate and depend on the
battery used, network configuration, signal
strength, and the features selected.
•
Talk and standby times are lower in analog
mode.
•
Your phone operates more efficiently in
Digital mode. If the icon is displayed in
the lower left corner, your phone’s
14
performance is reflected in the digital section
of the table below. Otherwise, refer to the
Analog section.
The following table shows ranges for battery talk-
times and standby times.
Storing and Disposing of Batteries
To prolong the life of your batteries, do not expose
them to temperatures below -10°C (14°F) or above
45°C (113°F). Always take your phone with you
when you leave your car.
To dispose of batteries, check with your local
recycling center for a battery recycler near you.
Never dispose of batteries in a fire.
Caution:
To prevent injuries or burns, do not allow
metal objects to contact or short-circuit the battery
terminals.
Battery
Digital Analog
Talk
(up to)
Standby
(up to)
Talk
(up to)
Standby
(up to)
Slim Main
LiION
500mAH 60 min. 50 hrs. 35 min. 10 hrs.
Standard
Main
NiMH
(500mAH
9 hrs.
Extra
Capacity
LiION
900 mAH
110 min. 100 hrs. 60 min. 15 hrs.
Slim Auxil-
iary LiION
900 mAH
15
Batteries
Removing and Attaching
Battery Covers
Your phone’s batteries are shipped uncharged and
fitted with protective covers. Before you install the
batteries, remove these covers, and save them for
storing unused batteries. The covers prevent metal
objects from contacting the battery terminals,
reducing the risk of injury or damage from a battery
short circuit.

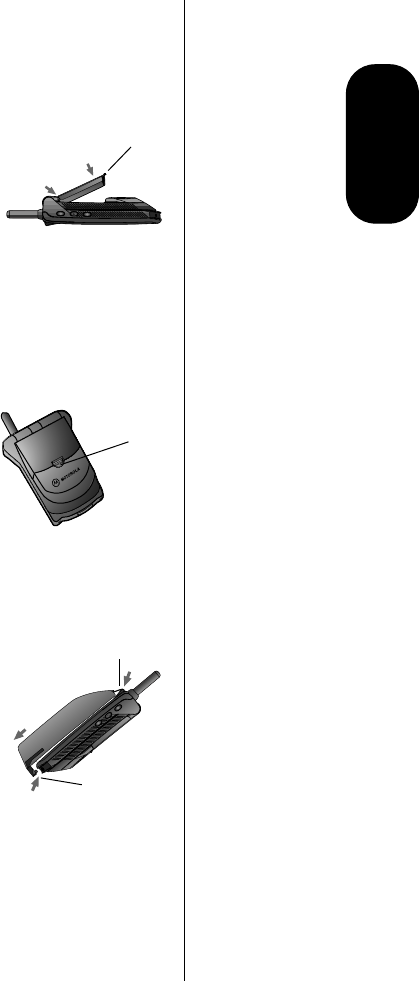

Removing the Main Battery Cover
1.
Press in the release
latch.
2.
Rotate the battery
upward and lift it out of
the cover.
Attaching the Main
Battery Cover
1.
Lower the edge of the
battery opposite the
release latch into the
cover.
2.
Drop the side with the
release latch down until
the latch clicks into
place.
1.
2.
Release Latch
1.
2.
Release Latch
16
Removing the Auxiliary Battery Cover
1. Hold the auxiliary battery securely with one
hand.
2. With your other hand’s thumb, push up on the
bottom of the cover.
3. Continue pushing until the cover slides free
of the pins on the bottom of the battery, and
swing the cover away from the battery.
Attaching the Auxiliary Battery Cover
1. Slide the cover’s narrow end
into the small grooved hook
on top of the auxiliary battery.
2. Push the cover firmly
downward until the base of
the cover slides past the
battery pins; then release.
1.
2. 3.
Pins
1.
2.
Pins
Hook
17
Batteries
Installing and Removing
Batteries
Installing a Main Battery
1. Set the edge of the
battery opposite the
release latch into the
cover.
2. Press the release latch
side of the battery into the cover until the
latch clicks into place
Removing a Main Battery
1. If you don’t have another battery attached,
press ¡ to turn your phone off.
2. Press the release latch
back toward the
battery, and lift the
battery out.
Installing an Auxiliary
Battery
The auxiliary battery clips onto the back of your
phone.
1. Place the hook located
on the narrow end of
the battery into the slot
on the back of the
phone.
2. Pull the battery toward
the bottom of the phone
and slide the battery
pins over the bottom of the phone.
3. Once the battery clears the bottom of the
phone, release it. Make sure that the pins fit
securely into place.
1.
2.
Release Latch
Release Latch
2.
1.
Hook
Pins
18
Removing an Auxiliary Battery
1. Pull the battery
down until the pins
release from the
base of the phone,
and pull the base
away from the
phone.
2. Lift the battery’s hook out of the slot on the
back of the phone.
Checking Battery Levels
Battery Level Indicator
The three bar segments on your phone’s Battery
Level Indicator display the amount of charge
remaining in your battery. The more segments
visible, the greater the charge.
For a detailed battery level reading:
Press ƒ ›.
One of the following is displayed:
The more segments filled on the battery
gauge, the greater the charge.
Low Battery Warning
When the battery level is low and only a few
minutes of talk-time remain, your phone signals you
in three ways:
•Low Battery appears in the first line of the
display.
•No bar segments are highlighted.
•A short tone plays periodically.
1.
2.
Hook
Pins
Main
Auxiliary
High
Low
19
Batteries
To confirm low battery signals:
Press ƒ ›.
Power Status Messages
You may also see one of the following messages:
Charging Batteries
Tip:
You can still
place and
answer calls
while using
either the
internal
charger or the
cigarette lighter
adapter.
Remember that
talking on the
phone requires
energy, so
charging takes
more time. To
place the
phone in
charger-only
mode, turn off
the phone by
pressing
¡
once.
Using the Internal Charger
Your phone has a built-in battery charger. Using
either the AC or cigarette lighter adapter, you can
plug the handset directly into a power source to
charge any attached batteries.
To charge:
1. Plug the AC
adapter or
cigarette lighter
adapter into the
accessory
connector on the bottom of your phone as
shown, with the release tab facing up.
Auxiliary Auxiliary and/or main batteries fitted;
phone is operating from auxiliary
battery.
Main Auxiliary and/or main batteries fitted;
phone is operating from main battery.
Charging
Auxiliary
Auxiliary and main batteries fitted;
auxiliary battery is being charged.
Charging
Main
Auxiliary and/or main batteries fitted;
main battery is being charged.
20
2. Plug the power adapter into a 110V AC
electrical outlet.
or
Plug the cigarette lighter adapter into the
cigarette lighter opening in the vehicle.
In both cases, a beep-tone sounds, and the
battery icon flashes.
See “Charge Times” on page 22 for charge times.
Using the Desktop Charger
You can use the desktop charger to charge
batteries while they are attached to your phone, or
you can charge a main battery separately.
Tip:
If both a main
and auxiliary
battery are
attached, the
main battery is
charged to
90% before the
auxiliary is
charged.
To charge:
1. Plug the AC adapter
into the back of the
charger, release tab
facing up.
2. Plug the other end of
the adapter into an
AC wall socket.
3. With battery(ies) attached, place the phone
into the charger’s pocket.
Note: When the phone is charging, the battery level
indicator flashes. When the battery is fully charged,
this icon stops flashing. If your phone cannot
charge the battery, this indicator does not appear.
Desktop Charger Indicator Lights
The lights for charging a battery are:
Red
The battery is rapid charging.
Flashing
yellow
The battery is waiting for its charge.
PUSH
21
Batteries
The light for charging a battery attached to the
phone is:
Charging Two Batteries on the Phone
When you charge your phone with a main and
auxiliary battery attached, the main battery is
charged first.
To find out which battery is being charged:
Press ƒ ›.
Tip:
“batt” is
printed on the
›
key as a
reminder.
Note: If the battery cannot be charged and you
press ƒ ›, you will see Invalid Battery.
Battery Charging Tips
To ensure that you enjoy maximum battery life and
use your battery to its fullest capacity:
•Always use Motorola approved battery
chargers.
•For the best results, Li-Ion batteries should
be charged using the E•P™ Desktop
Charger, or your phone’s internal charger.
•The battery should be at or near room
temperature when charging.
•When you don’t intend to use a battery for a
while, store it uncharged in a cool, dark, dry
place, such as a refrigerator.
Green
The battery is charged within
approximately 90% of its capacity and
can be used. Charging the battery for
an additional hour brings it up to 100%
capacity.
Flashing
red
Either the battery or the power supply
is damaged and cannot be charged.
Yellow
The phone is inserted and rapid
charging.
22
•Do not leave a NiMH battery connected to
any charger for longer than 24 hours.
A new NiMH battery may require several full
charge/discharge cycles in order to achieve its
optimum performance. After this initial charge, you
can recharge your battery at your convenience,
using the phone’s rapid travel charger.
Quick Change Power Source
(“Seamless Connection”)
The quick change feature enables you to switch
power sources while a call is in progress without
losing the call. If you hear a low-battery warning
while you are in a call, plug in the Cigarette Lighter
Adapter or AC Adapter.
Charge Times
Locate your battery by type to see how long your
battery takes to charge to a 95% power level:
After the battery reaches 95%, it begins to slow
charge until it is fully charged. It is normal for
batteries to become warm during charging.
Battery Type
Charge Time
(hrs)
Internal Charger
NiMH Main (500 mAH) 1.25
Slim LiION Main (500 mAH) 2.5
Extended LiON Main (900
mAH) 3.0
LiION Auxiliary (900 mAH) 3.0
23
Using the Phone
Using the Phone
Turning the Phone On and
Off
1. Open your phone to
expose the keypad.
2. To turn the phone on,
press and hold ¡ until
the display appears and
you hear an audible alert.
3. Press and hold ¡ again to turn the phone
off. Powering off will be displayed, and you
will hear an audible alert.
What You Will See
When you turn on your TDMA digital StarTAC™
phone, it performs a self-test to let you know it is
operational. When the test is completed, the display
shows:
•one of several possible greetings, such as:
-the name of your Service Provider
or
-an indication of local or non-local cover-
age area
•your phone number
•the Digital or Analog icon
24
Reading the Indicators
Signal Strength Indicator (1)
The Signal Strength Indicator (SSI) indicates the
strength of your phone’s connection with the local
cellular system. A strong signal increases your
chances of placing and receiving calls. Low signal
strength can occur in a fringe area of the cellular
system. Buildings, tunnels, and bad weather can
block or interfere with reception.
Digital Indicator (2)
If you are in a digital coverage area, the digital
indicator appears.
In Use Indicator (3)
The In Use (IU) Indicator appears when a call is in
progress.
In-Building Indicator (4)
The In-Building Indicator lights when the phone
accesses an In-Building Cellular System or other
non-public system.
No Service Indicator (5)
If you travel beyond the range of a cellular system,
the No Service Indicator appears to let you know
that calls cannot be placed or received from your
location.
SMS Message Waiting Indicator (6)
The Short Message Service (SMS) Message
Waiting Indicator is displayed when the phone
receives a message. (This is an optional, network
1
2
34567
8
High
Low
25
Using the Phone
and subscription-dependent feature that is not
available in all areas.)
Voice Message Waiting Indicator(7)
The Voice Message Waiting Indicator is displayed
when your Voicemail has received a message. (This
is an optional, network and subscription-dependent
feature that is not available in all areas.)
Battery Level Indicator (8)
The three bar segments on the Battery Level
Indicator show the amount of charge remaining in
your battery. The more segments you see, the
greater the charge. The phone alerts you to a low
charge in three ways:
•No bar segments are highlighted.
•Low Battery appears on your screen.
•A short tone plays periodically.

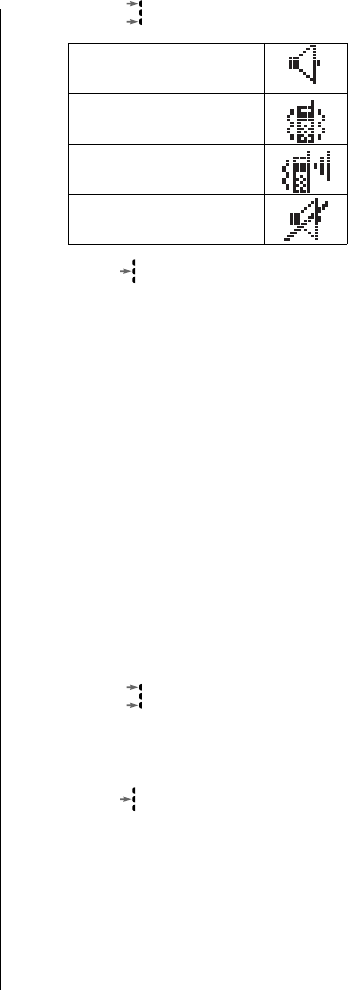

VibraCall™ Alert Indicator
When you select one of the VibraCall™ alert
combinations, the following types of indicators
appear in the display:
VibraCall on—Your phone’s ringer is turned off
and the VibraCall™ alert is on.
Vibrate then ring—Both your phone’s ringer
and the VibraCall™ alert are on.
Power/Status Indicator
While wearing your phone in its holster or carrying
it, you can check the Power/Status indicator on top
of the phone for status information on your current
type of service and message status. The messages
can include voice mails and Short Message
Services (SMS) messages, or the receipt of recent
calls. (This is an optional, network and subscription-
dependent feature that is not available in all areas.)
During wake-up and while the phone is “ringing,”
the Power/Status Indicator flashes alternating red
and green. Otherwise, if the flip is closed and the
High
Low
26
Status Light setting in the Phone Options menu is
set to On, then the Power/Status Indicator flashes
according to the following chart. (See “Selecting
Battery Options—Status Light” on page 92 for
information on the status indicator.)
Note: The Power/Status Indicator is Off when the
phone is in charger-only mode or when the status
light feature is turned off.
Standby Mode
To conserve energy, your phone may turn off its
lights when in standby mode. The display comes
back the next time you press a key or open the
phone.
Storing Your Phone in Its
Holster
To slip your phone into its holster, make sure the
main battery is facing the inside of the holster. Then
clip the holster onto a belt, purse or briefcase.
Notes:
•For body-worn use, keep the antenna at least
one inch from your body when transmitting.
Service Condition First
Flash
Second
Flash
Service in
home
system
No message
Green
Green
Message
waiting Red
Roaming
(service in
non-home
system)
No message
Yellow
Yellow
Message
waiting Red
No service
No message
Red
Off
Message
waiting Red
27
Using the Phone
•The holster has been designed for your
convenience and is not meant to secure your
phone under all circumstances.
Placing a Call
To place a call:
1. First, turn the phone on. Press and hold ¡
until the display appears and you hear an
audible alert.
2. Enter the number you want to call.
•Press Ç to erase one digit at a time if
you make a mistake.
•Press and hold Ç to clear the entire
entry.
You can also recall a previously dialed or
stored number. (See “Using Phone Memory”
on page 32 for details on storing or recalling.)
3. Press and hold until you hear a second
tone.
or
Press æ to place the call.
You will hear a single-tone alert (if the keypad
tones are turned on) and see Dialing
XXXXXXX.
4. You can dial phone numbers with up to 32
digits, but only the last 20 digits appear in the
display.
Press ‰ to see the entire phone number.
28
Ending a Call
To end a call:
Press º or close the phone.
or
1. Press and hold until you hear a second
tone.
You will see § To End Call.
2. Press again to end the call.
Receiving a Call
Your phone must be powered on to receive calls. To
answer a call:
Press æ or open the phone when the
phone rings.
Note: Opening the phone does not answer the call
if the Open to Answer feature is off. (See
“Deactivating Open to Answer” on page 90.)
Unanswered Call Indicator
When you cannot take a call, your TDMA digital
StarTAC™ phone keeps a count of your
unanswered calls and alerts you with the message
Missed XX Calls, where
XX
is the number of missed
calls.
Press to view missed calls.
Terminating the Ring or Vibrate
Indicator
You can terminate either the ring or the vibrate
indicator by pressing either of the volume keys
during the ring/vibrate cycle.
29
Using the Phone
Using the Smart Button
Use the Smart Button to place and end calls, enter
menus, toggle features on and off, and select items
in the display. The Smart Button is the middle key
on the left side—easy to feel, easy to find, and easy
to use.
The symbol § in your display represents the Smart
Button.
Selecting Items in the Display
The most basic use of the Smart Button is for
making selections. Whenever you are given a
choice such as a ringer setting, press the Smart
Button to select the setting you want.
Toggling Features On and Off
Some of your phone’s features toggle on and off.
Use the upper or lower volume key to scroll to the
desired feature, then press the Smart Button to
select it.
Tip:
You can
also enter the
menu system
by pressing
ƒ ⁄.

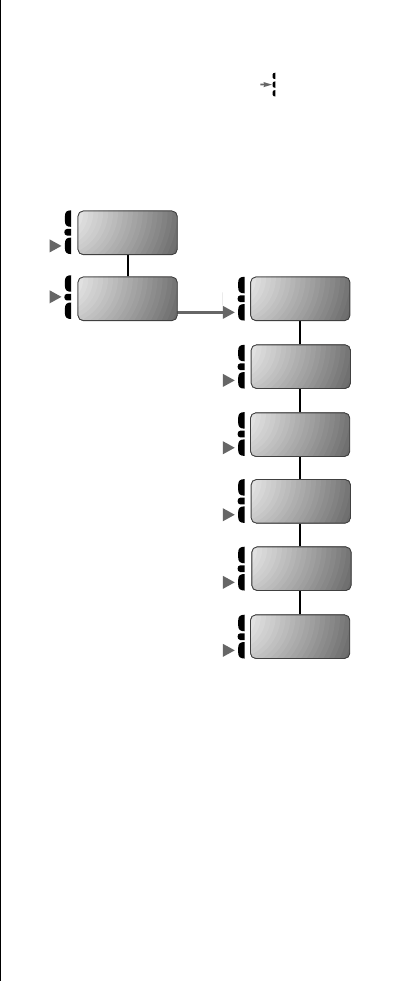

Entering the Menu System
Press ƒ, then press to access the
menu. You will see Recent Calls.
Placing and Ending a Call
You can use the Smart Button to place and end a
call, as described in “Placing a Call” on page 27
and “Ending a Call” on page 28.
Redialing a Number
Automatic Redial
A fast busy signal indicates that the cellular system
is busy. With Automatic Redial, your phone calls
continuously for the next four minutes.
30
When it makes a connection, the phone rings or
vibrates. You can distinguish this ring because it is
half as long as the ring or vibrate for a new
incoming call. When the person you are calling
answers, you can begin talking.
If you hear a fast busy signal:
1. You will see Redial Call?
Press or press æ to redial, or press º
to exit.
2. If the call does not go through after four
minutes, press , or press æ to continue
the call attempt.
You will see Redial.
If you hear an ordinary busy signal:
1. Press º to hang up.
2. Press or press æ to redial the busy
number.
You will see Dialing 5551234.
Controlling Volume
Adjusting Volume
Use the upper and lower volume keys to adjust
earpiece, keypad, and ringer volume. When you
press these keys, the phone’s speaker
demonstrates the current volume level.
To adjust earpiece and keypad volume:
Press to raise or lower the volume.
To adjust the ringer volume:
1. Press ƒ.
2. Press to raise or lower the ringer volume.
or
or
31
Using the Phone
Muting the Microphone
For privacy during a call, mute the microphone. You
can hear the person on the other end, but he or she
cannot hear you.
1. Press ƒ fl to mute the microphone. You
will see Mute.
2. Press ƒ fl again to resume normal
conversation.
Selecting Silent Vibration Mode
In situations where you don’t want your phone to
ring, or in noisy places where you may not hear
your phone, select the VibraCall™ Alert function for
discrete vibration:
Press ƒ † to toggle between ringer and
vibration mode. You will see Ring only or
Vibrate only.
32
Using Phone Memory
Use your TDMA digital StarTAC™ phone’s internal
Phone Book to store up to 99 names and numbers
for easy access.
In this chapter you will learn how to:
•store names and numbers into the Phone
Book
•recall phone numbers from memory
•clear names and numbers
•dial a number with Speed Dial and
Turbo Dial™
•make notes on the scratchpad

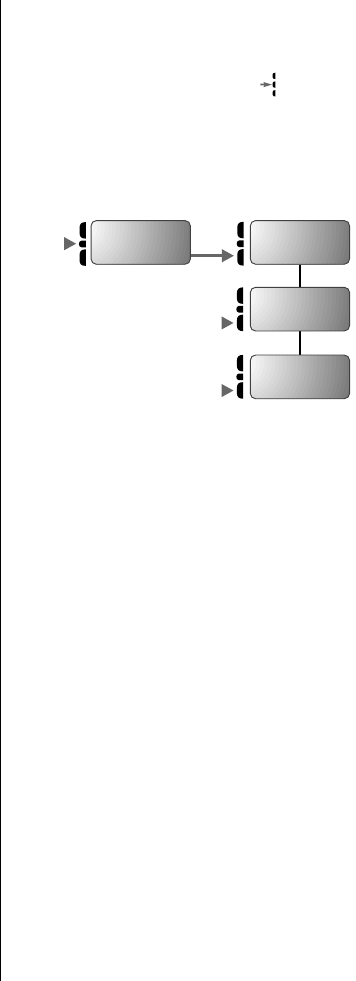

Follow these symbols as a guide for using the keys
on the side of your phone:
You can also use your phone’s « and » keys
to scroll through the menu system.
Press to scroll up.
Press to select.
Press to scroll down.
33
Using Memory
Using Your Phone’s Built-in
Phone Book
Each phone number in your phone book is stored in
a
memory location
numbered 01-99.
Arrange numbers for easy recall by storing related
numbers in groups. If you store the numbers you
call most in locations 01-09, then you can use
Turbo Dial™ to call those numbers with a single
key. (See “Using the Turbo Dial™ Function” on
page 37 for details.)
You can also store names to identify phone
numbers. Later, you can recall a number by the
name that corresponds to it.
Storing Names and Numbers
How to Store Phone Numbers
1. Enter the phone number you want to store.
Note: You can store up to 32 digits per phone
number entry.
2. Press ¬ to begin storing.
The phone prompts you to enter a memory
location. You will see Location __.
3. Enter the two-digit memory location where
you want the sequence stored.
or
Press « to store the sequence in the
first available location.
or
Enter the first digit of the memory location,
then press « to store the sequence in the
first available location beginning with that
digit.
You will see Alpha Or §.
34
Tip:
The
§
symbol in your
display
represents the
Smart Button.
4. Enter a name to identify the phone number.
(See the following section for details on
entering names.)
5. Press or ¬ when you finish entering the
name.
Your phone confirms your entry by displaying
the information you stored.

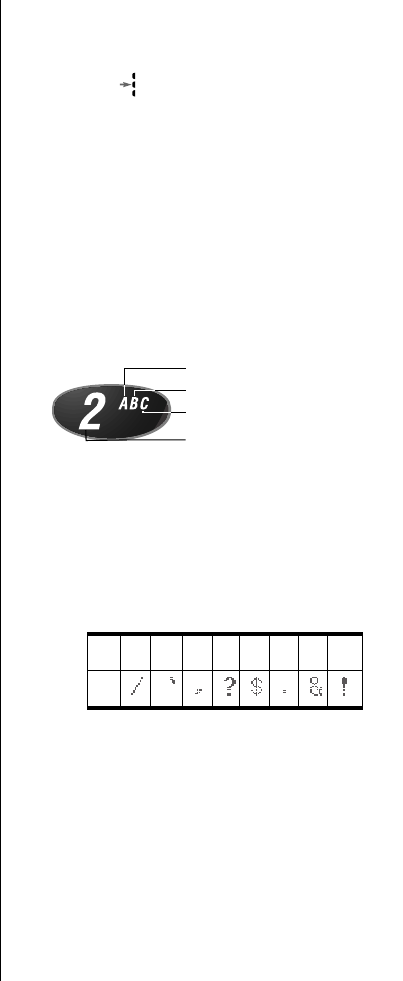

How to Enter Letters and Numbers
When the display shows Alpha Or §, you can press
the numeric keys one or more times to produce any
letter or number in the alphabet. Use the letters
printed on each key as a guide. For example, press
¤ to enter “A,” “B,” “C,” or “2” as shown:
How to Enter a Name
Tip:
Press the
upper or lower
volume key
first, to toggle
between upper
and lower case
letters.
1. Enter a letter by pressing a key as many
times as necessary. Enter punctuation by
pressing ⁄ as many times as indicated by
the chart below. Pressing ⁄ a single time
produces a single space.
The cursor advances automatically to the
next space after you enter a letter or after
three seconds of inactivity. If you are
repeating a character, then press » to
advance the cursor to the next space.
2. Press «or Ç to erase a letter if you make
an error.
press 1 time to insert an “A”
press 2 times to insert a “B”
press 3 times to insert a “C”
press 4 times to insert a “2”
2345678910
1
35
Using Memory
3. Press or ¬ when you finish entering the
name.
Your phone confirms your entry by displaying
the information you stored.
Recalling an Entry by Name
After storing names and numbers, you can recall
them alphabetically and immediately place calls.
Use the Smart Button for instant access to the name
directory.
1. Press once to enter your name directory.
2. Press to scroll to the name you are
looking for.
or
Enter the first letter of the name you want to
recall. The display shows the first name in the
phone book that begins with that letter. If no
entry beginning with that letter is found,
No A s is displayed.
When the name is displayed, the
corresponding number is displayed on a
third line, and the phone memory location is
displayed in the upper right corner.
3. Press and hold , or press æ, to call the
number you selected.
or
36
Recalling an Entry by
Memory Location
Each name and number you store is placed in a
memory location numbered 01-99. Once you have
stored names and numbers, you can recall them by
memory location:
1. Press ‰.
2. Enter the two-digit memory location of the
phone number you want.
3. Press and hold , or press æ to call the
number you selected.
Clearing a Phone Memory
Entry
Clearing an Entry by Name
1. Recall by name the entry that you want to
erase. (See “Recalling an Entry by Name” on
page 35.)
2. Press Ç to clear the entry.
You will see Clear Entry?.
3. Press or
¬ to confirm that you want to
erase the entry.
The numbered location of the cleared entry is
shown in the display.
Clearing an Entry by Location Number
1. Recall by location the entry that you want to
erase.
2. Press Ç to clear the display.
3. Press ¬ and the location you want to clear.
You will see XX Full Change?
4. Press ¬ to confirm that you want to erase
the entry.
37
Using Memory
Shortcuts for Recalling
Phone Book Entries
Using Speed Dial
If you know the memory location of the number you
want to call, try the Speed Dial function:
1. Enter the two-digit memory location (01-99).
2. Press and hold , or press æ to place the
call.
Using the Turbo Dial™ Function
The Turbo Dial™ function enables you to dial
numbers stored in locations 01-09 with the push of
a single button:
Press and hold a number ⁄ through ·
on the keypad, and your call is placed. You
will hear a two-tone alert afterwards.
Your phone’s Priority Call feature gives you fast
access to any number stored in location 01. To
learn more about this feature, see “Activating
Priority Calling” on page 77.
38
Making Notes on the
Scratchpad
In addition to your internal phone book, you also
have a built-in scratchpad for making quick notes.
The scratchpad remembers the last phone number
shown on your display.
Entering a Number in the Scratchpad
If you are on the phone and your party gives you
another number to call, enter the number on the
scratchpad so you can place the call later.
1. Enter the number into the keypad. (The
person on the line can hear tones as you
dial.)
2. Press º to end the current call, if
necessary.
3. Press æ to call the number you saved on
the Scratchpad.
Storing Numbers During a Call
You can also store numbers during a call:
1. Enter the number into the keypad. (The
person on the line can hear tones as you
dial.)
2. Press ¬ and continue storing with step 3 in
“Storing Names and Numbers” on page 33.
39
ˇhe Menu System
Using the Menu System
Your TDMA digital StarTAC™ cellular phone
includes many features to help you be more
productive. The phone’s user-friendly menu system
helps you find what you need quickly and easily.
In this chapter you will learn:
•what are the main menu features
•how to navigate through the menus
•how to read a menu road map
Introducing the Menu
Features
As you scroll through the menu system, you will see
the following icons, each representing a high-level
menu.
Tone Control
Recent Calls
Phone Book
Lock Secure Phone Options
Timers
40
Navigating the Menu
You can navigate through the menu system using
the three keys located on the left side of the phone.
Use the upper and lower volume keys to scroll to
sub-menus and to control volume. Use the middle
Smart Button to choose menus and functions.
Follow these symbols as a guide for using the keys
on the side of your phone:
You can also use your phone’s « and » keys
to scroll through the menu system.
Road Maps
To help you navigate through the phone’s menu
system, each chapter begins with an easy-to-follow
visual “road map.” Simply press the key shown, and
observe the message that appears in the display.
For example, try this:
1. Press ƒ, then press to enter the menu
features
or
Press ƒ ⁄. “menu” is printed on the
⁄ key as a reminder.
2. Press to scroll through the menu’s top
level, shown here in the margin.
3. Press º to exit the menu.
Detailed instructions within each chapter describe
how each feature works.
Press to scroll up.
Press to select.
Press to scroll down.
Phone
Book
Timers
Tone
Control
Lock
Secure
Phone
Options
Recent
Calls
or
41
Recent Calls
Managing Recent Calls
The recent calls menu option allows you to access
your Caller Line ID and review previous calls. Caller
Line ID is an optional network and subscription-
dependent feature that is not available in all areas.
In this chapter you will learn how to review all calls
that you have received or dialed.
Follow these symbols as a guide for using the keys
on the side of your phone:
You can also use your phone’s « and » keys
to scroll through the menu system.
Press to scroll up.
Press to select.
Press to scroll down.
42
Road Map for Recent Calls
To enter the menu system:
Press ƒ, then press .
or
Press ƒ ⁄.
Start:
About Recent Calls
The Recent Calls menu allows you to review
previous calls that you have received or dialed.
Following are some useful tips and information
about reviewing recent calls.
•Your TDMA digital StarTAC™ cellular phone
can store the telephone numbers and names
of the last thirty incoming calls.
•If the caller’s phone number matches a
phone number stored in the phone’s memory,
the phone automatically displays the name
associated with that phone number.
•If you subscribe to call waiting and receive a
call while another call is in progress, you hear
a call waiting tone, and the caller’s name and
number appear on the display. The name
and number are automatically stored and can
be viewed after ending the call, using the
procedure described in “Reviewing Received
Call” on page 44.
Received
Calls
Dialed
Calls
To Main
Menu
Recent
Calls
43
Recent Calls
•Caller Line ID allows you to view the name
and number of the calling party in the
phone’s display while the phone is ringing.
Caller Line ID is an optional feature that is not
available in all markets. Contact your Service
Provider for availability information.
•If the caller has restricted transmission of the
phone number, your phone displays
Anonymous. If the Calling Number ID
information is not available to the cellular
network, your phone displays Unavailabl.
•You can store any number contained in your
Caller Line ID memory to a memory location
in the same way you would save any phone
number. Once the correct number is
displayed, press ¬ and a memory location
or ¬ «to autoload. See “Storing with the
Menu” on page 50 for more information on
storing phone numbers.
•To view Caller Line ID information prior to
answering a call, you must turn off the Open
to Answer feature. (See “Deactivating Open
to Answer” on page 90.)
44 Managing Recent Calls
Reviewing Received Call
Shortcut:
Press‰ ‰
to view your
received calls.
You must hold
the second
‰ until the
received call
list is
displayed.
1. Follow the steps in the ”Getting to Recent
Calls…” block to scroll to Received Calls.
The total numbers of received calls stored is
displayed in the upper right corner. If there
are no numbers in the Caller Line ID list, you
will see 00 in the upper right corner.
2. Press to enter your Caller Line ID list of
received calls.
3. Press to scroll through the list.
The display shows the order in which the call
was received in the upper right corner, with
the phone number and name of the calling
party (if available).
The received call list can range from 01 (the
most recent previous phone call) to 30 (the
least recent phone call).
The following symbols appear next to the
received calls:
4. Press æ to dial the displayed number.
Getting to Recent Calls
1. Press ƒ, then press to enter the menu system.
2. When you see Recent Calls, press
to select.
3. Press to scroll to the following features.
or
Answered
Missed
or
45
Recent Calls
Reviewing Dialed Calls
1. Follow the steps in the ”Getting to Recent
Calls…” block to scroll to Dialed Calls.
The total number of dialed calls that are
stored is displayed in the upper right corner.
You can see up to the last twenty numbers
dialed. If there are no numbers in the Dialed
Call list, you will see 00.
Shortcut:
Press ‰ ‚
‚ to enter
your dialed
calls list.
2. Press to enter your dialed calls list.
3. Press to scroll through the list. The dialed
call list can range from 01 (the most recent
dialed phone call) to 20 (the least recent
dialed phone call).
The display shows the order of the previously
dialed phone call in the upper right corner,
with the phone number and name (if
available) of the party called.
4. Press æ to dial the displayed number.
or
46
Clearing Caller Line ID
Tip:
To erase
all entries you
must press and
hold
Ç
,
whereas to
erase a single
entry you
simply press
Ç.
To erase all entries saved in your Caller Line ID
memory:
1. Follow the steps in the ”Getting to Recent
Calls…” block to scroll to Received Calls.
2. Press and hold Ç when a Caller Line ID
name and number is displayed. You will see
Clear All?.
3. Press or
¬ to clear.
or
Press º to leave your Caller Line ID
memory intact.
To erase a single entry saved in your Caller Line ID
memory:
1. Press Ç or any other key when a Caller
Line ID name and number is displayed. You
will see Clear Entry?.
2. Press or
¬ to clear.
or
Press º to leave your Caller Line ID
memory intact.
47
Phone Book
Managing the Phone Book
In “Using Phone Memory” you learned how to store
and recall phone numbers with the internal Phone
Book. You can access the same features, along
with several advanced features, using your phone’s
convenient menu system.
In this chapter you will learn how to:
•recall and store phone numbers using the
menu system
•store numbers with pause dialing
•store calling card sequences for easy access
•edit your memory information
•select the individual ringer style
Follow these symbols as a guide for using the keys
on the side of your phone:
You can also use your phone’s « and » keys
to scroll through the menu system.
Press to scroll up.
Press to select.
Press to scroll down.
48
Road Map for Phone Book
To enter the menu system:
Press ƒ, then press .
or
Press ƒ ⁄.
Start:
Recall By
Name
Recall By
Location
Store
Number
Phone
Book
Recent
Calls
Edit
Individual
Ring Style
To Main
Menu
49
Phone Book
Recalling an Entry by Name
Tip:
You can
also recall
phone
numbers
without using
the Phone
Book. See
“Recalling an
Entry by Name”
on page 35 or
“Recalling an
Entry by
Memory
Location” on
page 36.
To recall a stored name with the Phone Book menu:
1. Follow the steps in the ”Getting to Phone
Book…” block above to select Recall By
Name. You will see Enter 1st Letter.
2. Enter the first letter of the name you want to
recall. The display shows the first name in the
phone book that begins with that letter. If no
entry beginning with that letter is found, No
As is displayed.
3. Press to scroll to the name you want.
4. Press and hold , or press æ to call the
number you selected.
Recalling an Entry by
Location
Each name and number you store is placed in a
memory location numbered 01-99. After storing
names and numbers, you can recall them by
memory location with the Phone Book menu.
1. Follow the steps in the ”Getting to Phone
Book…” block above to select Recall By
Location. You will see Location __.
2. Enter the two-digit memory location of the
number you want.
3. Press and hold , or press æ, to call the
number you selected.
Getting to Phone Book...
1. Press ƒ, then press to enter the menu system.
2. Press to scroll to Phone Book, and press
to select.
3. Press to scroll to the following features, and press
to
select.
or
or
or
50
Storing with the Menu
Use the phone’s menu system to store names and
numbers into the Phone Book.
1. Follow the steps in the ”Getting to Phone
Book…” block to select Store Number.You will
see Enter Number.
2. Enter the phone number you want to store.
See “How to Enter Letters and Numbers” on
page 34.
3. Press when you finish entering the
number.
You will see Location __.
4. Press «to store the sequence in the next
available location.
or
Enter the first digit of the memory location
and press «to store the sequence in the
first available location beginning with that
digit.
or
Enter the two-digit memory location where
you want the sequence stored.
Tip:
If the chosen
location is full,
press
º
and
restart the
storing
sequence.
5. You will see
Alpha Or §
.
Enter a name to
identify the phone number, or skip this step
and continue with step 6. (See “How to Enter
a Name” on page 34 for details on entering
names.)
6. Press , or ¬, when you finish entering the
name. Your phone confirms your entry by
displaying the location, number, and name
you stored. Proceed with step 7 below, or
return to step 2 above to store more
numbers.
7. Press º to exit the menu.
51
Phone Book
Storing and Placing Numbers
with Pause Dialing
Entering a Pause in a Number
When you call automated systems, a recorded
message prompts you for PIN numbers, Voice Mail
numbers, etc.
You can store these numbers in your phone’s
memory, separated by “pauses”—special
characters that tell your phone to wait before
sending additional numbers.
1. Follow the steps in the ”Getting to Phone
Book…” block above to select Store
Number.You will see Enter Number.
2. Enter the phone number you use to access
the automated system.
3. Press ƒ, then press æ.
You will see Insert Wait o.
4. Press to insert a pause (o) into the
sequence.
5. Enter the next group of numbers (such as an
account number or PIN number.)
6. Enter any other required symbols (such as *
or #).
Getting to Phone Book...
1. Press ƒ, then press to enter the menu system.
2. Press to scroll to Phone Book, and press
to select.
3. Press to scroll to the following features, and press
to
select.
or
or
52
7. Insert another pause, and enter the next
group of numbers by repeating steps 3
through 5 as many times as necessary.
You can store up to 32 digits, including
pauses. Then store the entire sequence as
you would any phone number.
8. Press ¬ to begin storing.
You will see Location __.
9. Enter the two-digit memory location where
you want the sequence stored.
You will see Alpha Or §.
10. Enter a name for your sequence.
(See “How to Enter a Name” on page 34 for
details on entering names.)
11. Press when you finish entering the name.
Your phone confirms your entry by displaying
the location, number, and name you stored.
Placing a Call with Pauses
To use your stored sequence:
1. Recall the stored number with the pause
inserted.
2. Press and hold , or press æ, to place the
call.
3. When the recording prompts you for
information, press or æ to send the next
set of stored numbers.
4. Press or press æ as many times as
necessary, to transmit all the numbers.
53
Phone Book
Storing and Placing Numbers
for Calling Card Information
Storing Calling Card Information
Like Pause Dialing, you can store calling card
access numbers, separated by pauses, for recall
later. You can also store a Number Character in the
sequence to save a place for the number you call
when you use your calling card.
See “Using Lock/Security Features” on page 73 for
more information on protecting your calling card
information.
1. Follow the steps in the ”Getting to Phone
Book…” block above to select Store
Number.You will see Enter Number.
2. Enter the phone number you use to access
your calling card system. (Skip this step if
you only dial 0.)
3. Press ƒ æ. You will see Insert Wait o.
4. Press to insert a pause (o) into the
sequence.
5. Enter the next numbers, if needed. (For
example, some long distance carriers require
you to dial a 0 first. If no further numbers are
needed, skip to step 7.)
6. Press ƒ æ.
Getting to Phone Book...
1. Press ƒ, then press to enter the menu system.
2. Press to scroll to Phone Book, and press
to select.
3. Press to scroll to the following features, and press
to
select
or
or
54
7. Press to scroll to the Number Character.
You will see Insert Number 'N.
8. Press to insert the 'N Character.
This special character saves a place for the
phone number you will be calling. The
number is inserted automatically when you
place the call.
9. Press ƒ æ.
10. Press to insert another pause, as in steps
3 and 4.
11. Enter your calling card PIN number.
12. Press ¬ to store your calling card
sequence.
You will see Location __.
13. Enter the two-digit memory location where
you want the sequence stored.
You will see Alpha Or §.
14. Enter a name for your sequence. (See “How
to Enter a Name” on page 34 for details on
entering names.)
15. Press when you are finished entering the
name.
Your phone confirms your entry by displaying
the location, number, and name you stored.
Placing a Calling Card Call
To recall your stored calling card information:
1. Recall the calling card information you
stored.
(See “Recalling an Entry by Name”” and
“Recalling an Entry by Location” on page 49
for more information on Recalling Numbers.)
2. Press æ before entering the number. You
will see Enter Number.
55
Phone Book
3. Enter the phone number you want to call,
including the area code.
Enter the number manually, by location, or
recall.
4. Press and hold , or press æ, to place the
call.
Your phone dials the number to access your
long distance provider.
5. Press , or press æ, to send the next
group of numbers when you are prompted.
The phone automatically inserts the selected
number to call at the appropriate time in the
sequence.
6. Repeat step 5 to send the next group of
numbers as many times as necessary.
56
Editing a Memory Location
After you store names and numbers in the Phone
Book, you can edit the information or erase entries
at any time.
1. Follow the steps in the ”Getting to Phone
Book…” block above to select Edit.
2. Recall the entry by location or by name.
(See “Recalling an Entry by Name” and
“Recalling an Entry by Location” on
page 49.)
3. Press to begin editing the phone number.
The display shows the name briefly, then the
phone number.
4. Press Ç to erase one digit at a time.
Press and hold Ç to erase the entire
number.
5. Enter your changes to the phone number.
6. Press when you finish editing the phone
number.
The display shows the location where your
number is currently stored.
7. Press Ç to erase the memory location, then
enter a new two-digit location.
or
Getting to Phone Book...
1. Press ƒ, then press to enter the menu system.
2. Press to scroll to Phone Book, and press
to select.
3. Press to scroll to the following features, and press
to
select.
or
or
57
Phone Book
Press to keep the phone number in its
current location.
The display shows the name stored with the
phone number you are editing.
8. Enter your changes to the name. (See “How
to Enter a Name” on page 34.)
Press Ç to erase one letter at a time, or
skip to step 9 to leave the name unchanged.
9. Press when you finish editing the name.
The display shows the new information.
10. Press to save your changes.
Your phone confirms your entry by displaying
the location, number, and name you stored.
or
Press Ç to leave the information
unchanged.
When you see Location __, enter a new two-
digit memory location to avoid overwriting the
information in the current location.
11. Press º to exit, or scroll to other features.
58
Assigning an Individual Ring
Style to a Phone Book Entry
You can use the individual ring style feature to
assign one of nine ring styles to alert you of an
incoming call from a phone number listed in your
phone book.
Note: This feature will only operate if you subscribe
to Caller ID from your service provider. Caller ID is
not available in all areas.
1. Follow the steps in the ”Getting to Phone
Book…” block to select Individual Ring
Style.
2. Select the phone book entry to which you
want to assign an individual ring style.
a. Enter the first letter of the name entry
associated with the phone number.
b. Scroll up and down to reach the desired
phone book entry.
3. When you reach the phone number you want,
select it by pressing or ¬.
The display will show Press 0-9, 0=OFF.
4. Press ‚ to assign the default ring style for
the number.
or
Press an entry from ⁄ to · to select one
of the nine ring styles.
Getting to Phone Book...
1. Press ƒ, then press to enter the menu system.
2. Press to scroll to Phone Book, and press
to select.
3. Press to scroll to the following features, and press
to
select.
or
or
59
Phone Book
5. Press or ¬to select that ring style.
The display confirms the selection by
showing Ring Style Assigned.
6. Press º to exit, or scroll to other features.
60
Timing Your Calls
Your phone’s Call Timers give you a variety of
options for managing your time. You can monitor
the length of individual calls, set a timer to track
monthly usage, or have the phone alert you at
intervals that you specify.
In this chapter you will learn how to:
•view the timers
•monitor the length of your calls
•set and view the resettable timer for long-
term monitoring
•program audible timers for your individual
needs
Follow these symbols as a guide for using the keys
on the side of your phone:
You can also use your phone’s « and » keys
to scroll through the menu system.
Press to scroll up.
Press to select.
Press to scroll down.
61
Call Timers
Road Map for Call Timers
To enter the menu system:
Press ƒ, then press .
or
Press ƒ ⁄.
Start:
Individual
XX YY
Resettable
XXXXX
Cumulative
XXXXX
Reset
Timer
Individual
Timer Off
One Minute
Timer Off
Repeat
Timer Off
Single
Timer Off
Phone
Book
Recent
Calls
Timers
To Main
Menu
62
Viewing the Individual Call
Timer
Shortcut:
Press ‰ »
» for a quick
look at this
timer.
You can view the air-time of the most recent call or
the call in progress (in minutes and seconds) at any
time using this feature. The Individual Call Timer
resets when you place the next call and when you
turn the phone off. You can also choose to have the
timer display while calls are in progress. See
“Displaying the Individual Timer Automatically” on
page 64.
1. Follow the steps in the ”Getting to Call
Timers…” block above to select Individual
XX YY. The display shows the air-time of your
last call in minutes (
XX
) and seconds (
YY
).
2. Press º to exit, or scroll to other features.
Shortcut:
Press ‰ »
»» for a
quick look at
this timer.
Viewing the Resettable Call
Timer
You can track how much air time you have
accumulated at any time. Use this feature to view
the time elapsed, and follow the instructions in
“Resetting the Timer” on page 63 to reset the timer.
1. Follow the steps in the ”Getting to Call
Timers…” block above to select Resettable
XXXXX. The display shows your air time in
minutes since you last reset the timer.
2. Press º to exit, or scroll to other features.
Getting to Call Timers...
1. Press ƒ, then press to enter the menu system.
2. Press to scroll to Timers and press
to select.
3. Press to scroll to the following features, and press
to
select.
or
or
63
Call Timers
Shortcut:
Press ‰ »
»»»
for a quick look
at this timer.
Viewing the Cumulative
Timer
This is a non-resettable timer that keeps track of
your phone’s total air time (in minutes).
1. Follow the steps in the ”Getting to Call
Timers…” block to select Cumulative XXXXX.
The display shows your air time in minutes
since your phone was activated.
2. Press º to exit, or scroll to other features.
Resetting the Timer
By resetting this timer at the beginning of each
billing cycle, you can keep a running tab of your
monthly usage. After you reset the timer, it
continues to keep track of your air time (in minutes)
until you reset it again.
1. Follow the steps in the ”Getting to Call
Timers…” block to select Individual XX YY.
2. Press to scroll to Reset Timer.
3. Press to reset the timer.
4. Press º to exit, or scroll to other features.
64
Displaying the Individual
Timer Automatically
Tip:
Activating the
Individual
Timer may
reduce both
standby and
talk times.
When you turn this feature on, your phone
automatically displays your air time in minutes (
XX
)
and seconds (
YY
) during and after each call.
1. Follow the steps in the ”Getting to Call
Timers…” block to select Individual Timer.
You will see Individual Timer Off or
Individual Timer On.
2. Press to toggle between Individual Timer
Off and Individual Timer On.
3. Press º to exit, or scroll to other features.
Setting the One-Minute
Audible Timer
Activate this feature to hear an audible beep 10
seconds before the end of every minute during a
call. The party on the other end does not hear the
beeps.
1. Follow the steps in the ”Getting to Call
Timers…” block to select One Minute Timer.
You will see One Minute Timer Off or One
Minute Timer On.
2. Press to toggle between One Minute Timer
Off and One Minute Timer On.
3. Press º to exit, or scroll to other features.
Getting to Call Timers...
1. Press ƒ, then press to enter the menu system.
2. Press to scroll to Timers and press
to select.
3. Press to scroll to the following features, and press
to
select.
or
or
65
Call Timers
Setting the Repeating
Audible Timer
You can set this timer to beep during your calls at
an interval that you select—from 11-999 seconds.
You will hear the beep 10 seconds before the end
of each interval, but the party on the other end does
not hear the beeps.
1. Follow the steps in the ”Getting to Call
Timers…” block to select Repeat Timer. You
will see Repeat Timer Off or Repeat Timer
On.
2. Press to toggle between Repeat Timer Off
and Repeat Timer On.
The prompt to enter seconds appears only if
you have turned the feature on. If you have
turned it off, you will see Repeat Timer Off.
3. Enter the number of seconds you would like
between audible beeps. You will see Beep At
YYY Secs.
4. Press to set the timer. The phone confirms
the setting by displaying Set At YYY Secs.
5. Press º to exit, or scroll to other features.
Setting the Single Timer
Like the Repeating Timer, you can set the Single
Timer to beep at a time that you select—from 11-
999 seconds. It beeps once during each call, 10
seconds before the end of the interval. The party on
the other end does not hear the beep.
1. Follow the steps in the ”Getting to Call
Timers…” block to select Single Timer. You
will see Single Timer Off or Single Timer
On.
66
2. Press to toggle between Single Timer Off
and Single Timer On.
The prompt to enter seconds appears only if
you have turned the feature on. If you have
turned it on, you will see Single Timer Off.
3. Enter the number of seconds you would like
between audible beeps. You will see Beep At
YYY Secs.
4. Press to set the timer. The phone confirms
the setting by displaying Set At YYY Secs.
5. Press º to exit, or scroll to other features.
67
Tone Controls
Adjusting Tone Controls
Use these features to select vibration mode,
personalize your phone’s ringer styles, or turn the
ringer off.
In this chapter you will learn how to:
•select the type of Call Alert or Message Alert
•choose from nine different ringer styles
•silence the keypad
•silence the scratchpad
Follow these symbols as a guide for using the keys
on the side of your phone:
You can also use your phone’s « and » keys
to scroll through the menu system.
Press to scroll up.
Press to select.
Press to scroll down.
68
Road Map for Tone Controls
To enter the menu system:
Press ƒ, then press .
or
Press ƒ ⁄.
Start:
Call Alert
Type
Msg Alert
Type
Call Alert
Ring Style
Keypad
Tone On
Scratchpad
Tone On
To Main
Menu
Phone
Book
Recent
Calls
Timers
Tone
Control
69
Tone Controls
Selecting Call Alert Type
Shortcut:
Press ƒ †
to toggle the
VibraCall™
Alert function
on and off.
Using this feature, you can choose to be alerted to
incoming calls using the vibrating ringer, the ringer,
both, or neither. Ring Only is the default.
In particular, the VibraCall™ Alert vibrating alert is
ideal for situations where ringing may not be
appropriate, or in noisy places where you might not
hear the ringer.
When both the ringer and vibrating alerts are
selected, the phone alerts you by vibrating for three
cycles and then ringing.
Notes:
•Although you set your call alert type below,
the selection is temporarily suppressed if
Pager Mode is enabled. See “Activating
Pager Mode” on page 85 for details.
•When your phone is connected to an external
power supply and you receive an incoming
call, your phone will ring, regardless of the
call alert setting.
1. Follow the steps in the ”Getting to Tone
Controls…” block above to select Call Alert
Type.The display shows your current alert
type setting.
Getting to Tone Controls...
1. Press ƒ, then press to enter the menu system.
2. Press to scroll to Tone Control and press
to select.
3. Press to scroll to the following features, and press
to
select.
or
or
70
2. Press to scroll through your choices:
3. Press when you reach the setting you
want.
4. Press º to exit, or scroll to other features.
Selecting Message Alert Type
Shortcut:
Press ƒ †
to toggle
among the
Message Alert
and Call Alert
types.
Using this feature, you can choose to receive an
alert to incoming voice mails and short messages
using the VibraCall™ alert, beeping alert, or no
alert.
The beep tone and vibrating patterns differ if the
incoming message is marked urgent versus
normal. You will receive one beep for a normal
message and three beeps for an urgent message.
1. Follow the steps in the ”Getting to Tone
Controls…” block to select Message Alert
Type.
2. Press to scroll through your choices:
Messages Beep, Messages Vibrate, Beep Off,
and Vib Off. Messages Beep is the default
setting.
3. Press when you reach the setting you
want.
4. Press º to exit, or scroll to other features.
Ring Only
Vibrate Only
Ringer On and Vib On
Ringer Off Vib Off
or
or
71
Tone Controls
Selecting a Ring Style
Your phone lets you select any of nine different ring
styles. After you choose a style, the phone give you
a brief sample of the new ring style, or vibrates if
you have selected the VibraCall™ Alert feature.
1. Follow the steps in the ”Getting to Tone
Controls…” block to select Call Alert Ring
Style.
2. Press ⁄ through · to hear the different
ring styles, or scroll through the ring styles.
Ring Style 1 is the default setting.
3. Press when you reach the ring style you
want.
The display will show Ring Style X Set.
4. Press º to exit, or scroll to other features.
Turning Keypad Tones On and
Off
Keypad tones are the sounds you hear when you
press any key on the phone. By default, keypad
tones are turned on. If you want to be discreet, use
this feature to silence the audio feedback from the
keypad.
Note: The other party still hears tones.
1. Follow the steps in the ”Getting to Tone
Controls…” block to select Keypad Tone. You
will see Keypad Tone On or Keypad Tone Off.
Getting to Tone Controls...
1. Press ƒ, then press to enter the menu system.
2. Press to scroll to Tone Control and press
to select.
3. Press to scroll to the following features, and press
to
select
or
or
72
2. Press to toggle between Keypad Tone On
and Keypad Tone Off.
3. Press º to exit, or scroll to other features.
Turning Scratchpad Tones On
and Off
Scratchpad tones are the tones that your phone
sends to access automated calling systems like
Voice Mail. By default, scratchpad tones are turned
on. If you don’t want your party to hear these
sounds when you use the scratchpad, turn the
scratchpad tones off.
1. Follow the steps in the ”Getting to Tone
Controls…” block to select Scratchpad Tone.
You will see Scratchpad Tone On or
Scratchpad Tone Off.
2. Press to toggle between Scratchpad Tone
On and Scratchpad Tone Off.
3. Press º to exit, or scroll to other features.
Note: If you turned the scratchpad tones off but
want to access a tone-activated system like Voice
Mail, place the call, enter the numbers you need to
transmit, then:
Press ‰ æ to send the tones.
73
Lock/Security
Using Lock/Security Features
While you probably would not want to leave your
phone unattended, your TDMA digital StarTAC™
phone has a number of built-in security features to
prevent unauthorized use.
In this chapter you will learn how to:
•activate the Voice Privacy feature
•lock and unlock your phone
•place priority calls
•change your lock code
•restrict call placement and memory access
•reset or clear your phone’s settings
Follow these symbols as a guide for using the keys
on the side of your phone:
You can also use your phone’s « and » keys
to scroll through the menu system.
Press to scroll up.
Press to select.
Press to scroll down.
74
Road Map for Lock Security
To enter the menu system:
Press ƒ, then press .
or
Press ƒ ⁄.
Start:
Code
View
Lock Code
Change
Lock Code
Service
Level X
Master
Reset
Master
Clear
To Main
Menu
Privacy
Off
Automatic
Lock Off
Priority
Call Off
Secure
Options
To Main
Menu
Phone
Book
Recent
Calls
Timers
Tone
Control
Lock
Secure
75
Lock/SecurityLock/Security
Activating Voice Privacy
When you activate your phone’s Voice Privacy
feature, you request your cellular system to search
for a Voice Privacy channel with each call. If no
Voice Privacy channel is available (or your call is
“handed off” to a cell where a Voice Privacy
channel is not available), five short beeps alert you
that the call is no longer private.
You must select the Voice Privacy feature before
you make a call in order for that call to search for a
Voice Privacy channel.
Note: This feature is not available in all markets.
Contact your Service Provider for additional
information about your service area.
To turn the Voice Privacy feature on or off:
1. Follow the steps in the ”Getting to Lock/
Security…” block above to select Voice
Privacy. You will see Privacy Off or Privacy
Preferred.
2. Press to toggle between Privacy Off and
Privacy Preferred.
3. Press º to exit, or scroll to other features.
Getting to Lock Security...
1. Press ƒ, then press to enter the menu system.
2. Press to scroll to Lock Secure and press
to select.
3. Press to scroll to the following features, and press
to
select.
or
or
76
Locking/Unlocking Your
Phone
For your protection, you must enter the six-digit
security code to access the features that your
phone contains. The factory-programmed lock
code for unlocking the phone is 123. The six-digit
security code is 000000. These may have been
changed when your phone was activated.
Locking Your Phone Automatically
When you turn this feature on, your phone
automatically locks itself each time you turn it off.
Shortcut:
Press ƒ, the
Smart Button,
⁄ fi, and
continue with
step 2.
1. Follow the steps in the ”Getting to Lock/
Security…” block to select Automatic Lock.
You will see Automatic Lock Off or Automatic
Lock On.
2. Press to toggle between Automatic Lock
Off and Automatic Lock On.
3. Press º to exit, or scroll to other features.
Locking Your Phone Manually
Tip:
“LOCK” is
printed on the
fi
key, as a
reminder.
You can lock your phone manually at any time to
prevent unwanted use. Once you lock the phone, it
remains locked whether it is powered on or off.
1. Press ƒ.
2. Press and hold fi for at least one full
second.You will see Lock?.
3. Press ¬ or to lock. You will see Locked.
Unlocking Your Phone
To unlock your phone:
Once your phone is on, enter your three-
digit lock code to unlock your phone. (See
“Viewing the Lock Code” on page 78 and
“Changing the Lock Code” on page 78 for
more information on your lock code.)
77
Lock/Security
Tip:
If you
forget your lock
code, try
pressing
⁄
¤ ‹
or the
last three digits
of your cellular
phone number.
Answering Calls While the Phone Is
Locked
You can still receive calls when the phone is locked.
To answer an incoming call:
1. Enter your three-digit lock code.
2. Press and hold , or press æ to receive
the call.
Activating Priority Calling
Priority Call allows the Turbo Dial™ function to dial
from memory location 01—even when the phone is
locked. You can store an emergency number or the
number of someone you would like to contact in
case of emergency.
Note: Some cellular systems have their own
emergency numbers and deny access to
emergency numbers like 911 (not available in some
areas). Check with your Service Provider for more
information.
Shortcut:
Press ƒ, the
Smart Button,
¤ ·, and
continue with
step 2.
By default, Priority Call is activated. To turn it off or
to switch it back on, complete the following steps:
1. Follow the steps in the ”Getting to Lock/
Security…” block on the previous page to
select Priority Call. You will see Priority
Call Off or Priority Call On.
2. Press to toggle between Priority Call
Off and Priority Call On.
3. Press º to exit, or scroll to other features.
78
Viewing the Lock Code
To display the active three-digit lock code:
1. Follow the steps in the ”Getting to Secure
Options…” block above to select View Lock
Code. You will see View Lock Code.
2. Press to display your three-digit lock code.
The code appears for a few seconds.
3. Press º to exit, or scroll to other features.
Changing the Lock Code
To change your three-digit lock code:
1. Follow the steps in the ”Getting to Secure
Options…” block above to select Change
Lock Code. You will see Enter Code ___.
2. Enter the new three-digit code. You will see
Changed To XXX.
3. Press º to exit, or scroll to other features.
Note: If you try to change your lock code to 911 or
the first three digits of an emergency number, you
will see Code Invalid, and the code you entered
will not be accepted. You will return to step 1
above.
Getting to Secure Options...
1. Press ƒ, then press to enter the menu system.
2. Press to scroll to Lock Secure and press
to select.
3. Press to scroll to the Secure Options submenu, and press
to select.
4. Enter your six-digit security code, scroll to the following
features, and press
to select.
or
or
79
Lock/Security
Restricting Call Placement
You may want to restrict call placement or hide
memory information when loaning your phone to
others.
Selecting a Service Level
1. Follow the steps in the ”Getting to Secure
Options…” block to select Service Level.
The phone displays your current service
level. Refer to the chart on the next page.
2. Press to scroll through the service level
settings, and press to select the service
level you want.
If you select Level 7, the phone prompts you
for the range of memory locations you want to
remain active. You will see Range 1-__.
Enter the range of digits memory locations
from which calls are allowed. The phone
confirms the allowed range, and you will see
1-XX Allowed.
3. Press º to exit, or scroll to other features.
Service Level Settings
Each of your phone’s eight service levels offers a
different combination of access privileges and
restriction.
Note: Caller Line ID is an optional network and
subscription feature that is not available in all areas.
Level Description Display
1
•Calls can be placed from
memory locations 1-10
only.
•No dialing from keypad
•No memory edit or storage
•No access to name
directory
•No access to last number
dialed
1 Memory 1-10
or
80
2
•Calls can be placed from
all memory locations.
•No dialing from keypad
•No memory edit or storage
•No access to Caller Line ID
stack or Last Number
Dialed
2 Memory Only
3
•Calls can be placed
manually from the keypad
only.
•No access to memory
information
•No memory edit or storage
•No access to Caller Line ID
stack or Last Number
Dialed
3 Keypad Only
4Standard setting, no
restrictions 4 Standard
Setting
5 Seven-digit (local) dialing only 5 Local Only
6
•Calls can be placed from
the keypad and from
memory.
•No edit or memory storage
to memory locations 1-10
6 No Store
1-10
7
•Calls can be placed from a
selected memory range
only.
•Memory edit and storage
allowed with the selected
range.
•No access to name
directory
7 Allow Range
8No edit, storage, or recall
from memory locations 1-9 8 Hide Turbo
Level Description Display
81
Lock/SecurityLock/Security
Resetting All Options
Use the Master Reset feature to reset all user-
selectable options back to their original factory
settings.
Note: Once you select this feature, the reset
process cannot be canceled or reversed.
1. Follow the steps in the ”Getting to Security
Options…” block above to select Master
Reset.
2. Press if you want to reset all your phone’s
options back to their factory settings. You will
see Standard Setting.
or
Press º to exit the menu if you do not want
to reset your phone’s options.
3. Press º to exit, or scroll to other features.
Clearing All Stored Information
If you want to start over, use Master Clear to reset
all user-selectable options, clear the resettable
timer, and erase all Phone Book information.
Note: Once you select this feature, the process
cannot be canceled or reversed.
1. Follow the steps in the ”Getting to Security
Options…” block to select Master Clear.
Getting to Secure Options...
1. Press ƒ, then press to enter the menu system.
2. Press to scroll to Lock Secure and press
to select.
3. Press to scroll to the Secure Options submenu, and press
to select.
4. Enter your six-digit security code, scroll to the following
features, and press
to select.
or
or
82
2. Press to clear the memory and reset all
your phone’s options back to their factory
settings. You will see Busy. (This takes a few
seconds.)
or
Press º to exit the menu if you do not want
to reset your phone’s options.
3. Press º to exit, or scroll to other features.
83
Phone Options
Customizing Phone Options
The Phone Options menu lets you customize the
way your phone sends and receives calls.
You can tune your phone for optimal performance,
view information about the phone, and choose from
a number of convenient features.
In this chapter you will learn how to:
•activate pager mode
•switch between analog or digital mode
•view your own phone number
•switch cellular phone numbers
•review your phone’s feature settings
•select features for vehicular use
•conserve battery power
•display your system identification
•select a language
Follow these symbols as a guide for using the keys
on the side of your phone:
You can also use your phone’s « and » keys
to scroll through the menu system.
Press to scroll up.
Press to select.
Press to scroll down.
84
Road Map for Phone Options
To enter the menu system:
Press ƒ, then press .
or
Press ƒ ⁄.
Start:
Automatic
HF Off
Mult Key
Answer Off
Automatic
Answer Off
To Main
Menu
Pager
Mode Off
Change
Number
My
Number
Feature
Review
Call
Options
To Main
Menu
Phone
Book
Recent
Calls
Timers
Tone
Control
Lock
Secure
Phone
Options
System
Options
Language
Battery
Options
Open to
Answer On
85
Phone Options
Activating Pager Mode
Tip:
When
Pager Mode is
active,
ƒ
†
only
toggles the
Message Alert
Type settings.
ƒ †
has
no effect on the
Call Alert Type
settings.
When Pager Mode is activated, the phone
simulates a pager. Pager Mode suppresses
incoming call alerts but leaves message alerts
active. The following conditions occur:
•Voice call alerts are suppressed.
•Message alerts are allowed.
•The Open to Answer function is turned off.
•The Automatic Answer function is turned off.
•The Call Alert Type, Open to Answer, and
Automatic Answer menus cannot be
accessed.
By default, Pager Mode is turned off. Complete the
following steps to turn Pager Mode on and off.
1. Follow the steps in the ”Getting to Phone
Options…” block to select Pager Mode
on/off. The display shows your current
Pager Mode setting.
2. Press to toggle between Pager Mode on
and off.
3. Press º to exit, or scroll to other features.
Getting to Phone Options...
1. Press ƒ, then press to enter the menu system.
2. Press to scroll to Phone Options and press
to select.
3. Press to scroll to the following features
or
or
86
Viewing Your Own Number
Use this feature to view your phone’s currently
active phone number. If you have more than one
phone number, you can change the active number
with the Change Number feature in the Phone
Options menu. (See “Switching Between Numbers”
on page 87.)
Shortcut:
Press ‰»
for a quick look
at your phone
number.
1. Follow the steps in the ”Getting to Phone
Options…” block to select My Number.
2. Press to view your own phone number.
Your active phone number appears on the
screen. After six seconds, the phone returns
to step 1.
3. Press º to exit, or scroll to other features.
87
Phone Options
Switching Between Numbers
Your phone can operate on two different home
systems. If you travel often, you can have your
phone programmed with two cellular numbers to
reduce roaming. This feature allows you to change
your active number to the one appropriate for the
area you are in.
When your phone has two numbers, both are
designated as your home system but only one
number can be active at any given time. Calls are
placed and received by the currently active number
only. Each time you turn your phone ON, you’ll see
a message in the display that indicates which
phone number and home system are currently
active.
To switch your phone number:
1. Follow the steps in the ”Getting to Phone
Options…” block to select Change Number.
The active phone number appears in the
display (for example, 5155551515).
2. Press to switch to your other phone
number (for example, 7085551212).
3. Press to confirm the new setting.
4. Press º to exit, or scroll to other features.
Getting to Phone Options...
1. Press ƒ, then press to enter the menu system.
2. Press to scroll to Phone Options and press
to select.
3. Press to scroll to the following features
or
or
88
Reviewing Feature Settings
Use this feature to review the changes you’ve made
to feature settings.
Note: While scrolling through Feature Review, you
can only review settings. You cannot change them.
1. Follow the steps in the ”Getting to Phone
Options…” block to select Feature Review.
2. Press , or press « or » to scroll
through features you changed from their
default settings.
If all of the features are set to the factory
standard settings, the display shows
Standard Setting.
3. Press º to exit the menu.
or
89
Phone Options
Activating Automatic
Hands-Free
Turn this feature on when you are using Hands-Free
vehicular accessories.
Note: The use of wireless telephones and their
accessories (devices) may be prohibited or
restricted in certain areas. Always obey the laws
and regulations on the use of these devices.
To find out more about accessories for your car,
refer to “Accessory Options” on page 104.
1. Follow the steps in the ”Getting to Call
Options…” block to scroll to Automatic HF.
You will see Automatic HF On or Automatic HF
Off.
2. Press to toggle between Automatic HF On
and Automatic HF Off.
3. Press º to exit, or scroll to other features.
Getting to Call Options...
1. Press ƒ, then press to enter the menu system.
2. Press to scroll to Phone Options and press
to select.
3. Press to scroll to the Call Options submenu,
and press
to select.
4. Press
to scroll to the following features.
or
or
or
90
Activating Multiple Key
Answer
Turn on the Multiple Key Answer feature to answer
calls by pressing the Smart Button, any key on the
upper keypad ⁄-», or the upper and lower
volume keys.
1. Follow the steps in the ”Getting to Call
Options…” block to scroll to Mult Key Answer.
You will see Mult Key Answer On or Mult Key
Answer Off.
2. Press to toggle between Mult Key Answer
On and Mult Key Answer Off.
3. Press º to exit, or scroll to other features.
Deactivating Open to Answer
With Open to Answer set to off, you can open the
phone to see the message in the display and then
answer by pressing æ or .
Notes:
•To view Caller ID information prior to
answering a call, you must turn off the Open
to Answer feature.
•You cannot access the Open to Answer
setting while the Pager Mode feature is
active.
1. Follow the steps in the ”Getting to Call
Options…” block to scroll to Open to Answer.
You will see Open to Answer On or Open to
Answer Off.
2. Press to toggle between Open to Answer
On and Open to Answer Off.
Note: The Open to Answer function cannot
be accessed when in Pager Mode.
3. Press º to exit, or scroll to other features.
91
Phone Options
Activating Automatic
Answer
Tip:
If the
ringer and
VibraCall™
alert are off, the
phone answers
without ringing
or vibrating.
Turn Auto Answer on to have your phone
automatically answer incoming calls after two rings.
Note: Auto Answer does not work if the keypad
cover is closed or if Pager Mode is activated.
However, the Auto Answer will work with the
headset
while the keypad cover is closed.
1. Follow the steps in the ”Getting to Call
Options…” block to scroll to Automatic
Answer. You will see Automatic Answer On or
Automatic Answer Off.
2. Press to toggle between Automatic Answer
On and Automatic Answer Off.
3. Press º to exit, or scroll to other features.
92
Selecting Battery Options—
Status Light
This feature enables you to turn off the Power/Status
Indicator. Turn this mode on to increase talk or
standby times.
1. Follow the steps in the ”Getting to Phone
Options…” block to select the Battery
Options sub-menu. You will see Status Light
On or Status Light Off.
2. Press to toggle between Status Light On
and Status Light Off.
3. Press º to exit, or scroll to other features.
Displaying System
Identification
This feature shows the System ID number that
identifies the cellular system your phone is currently
accessing. An even number indicates a wireline
system, while an odd number indicates a non-
wireline system.
1. Follow the steps in the ”Getting to Phone
Options…” block to enter the System Options
sub-menu. You will see Display SID.
2. Press to view the System ID number. After
six seconds, the phone goes back to step 2.
3. Press º to exit, or scroll to other features.
Getting to Phone Options...
1. Press ƒ, then press to enter the menu system.
2. Press to scroll to Phone Options and press
to select.
3. Press to scroll to the following features.
or
or
93
Phone Options
Selecting Language
This feature enables you to select the language in
which your phone displays prompts and messages.
1. Follow the steps in the ”Getting to Phone
Options…” block on the previous page to
select the Language sub-menu.
2. Press to scroll through the language
options. The choices include English,
Spanish, French, Portuguese, Hebrew, and
Russian.
3. Press to select the language setting you
want.
4. Press º to exit, or scroll to other features.
94
Using the Message Center
The Message Center gives you easy access to both
voice mail and your text messages. In this chapter
you will learn how to:
•use voice mail
•edit a phone number to access voice mail
•use short messaging services (SMS) to view,
lock/unlock, and clear messages
•adjust speed of your scrolling messages
Note: Voice mail and SMS are optional network and
subscription-dependent features that are not
available in all areas.
Follow these symbols as a guide for using the keys
on the side of your phone:
You can also use your phone’s « and » keys
to scroll through the menu system.
Press to scroll up.
Press to select.
Press to scroll down.
95
Message Center
Road Map for Message
Center
Start:
Dialing
XXXX
Set Voice
Mail No.
Actual
Message
Set Scroll
Speed
Voice Mail
XX Msgs
Text Msgs
XX Newl
96
Voice Mail Alerts
This feature updates you each time a message is
sent to your voice mail number, providing you with
real-time information on messages waiting to be
retrieved.
When a voice mail message is received:
•Voice Mail XX Msgs appears.
•The icon appears.
•The phone beeps three times or vibrates one
time for a message.
Dialing Voice Mail
You can retrieve your voice mail messages in one of
two ways.
From the Voice Mail Alert Screen
When you receive a voice mail alert and the Voice
Mail XX message appears, press to dial your
voice mail number.
Your access number for the voice mail center is
dialed automatically, and Dialing XXXX appears on
the display, where XXXX is your access number.
From the Message Center
Follow the steps in the ”Getting to Voice Mail…”
block and press or ø to dial your voice mail
number.
Your access number for the voice mail center is
dialed automatically, and Dialing XXXX appears on
the display, where XXXX is your access number.
Getting to Voice Mail
1. Press ø to enter the message center.
2. Press to scroll to Voice Mail.
or
97
Message Center
Reading Text Messages
Some Service Providers let you subscribe to a Short
Message Service (SMS), which allows you to
receive alphanumeric messages on your TDMA
digital StarTAC™ phone, just like a pager. Contact
your Service Provider for information about the
availability of messaging in your area.
SMS enables your phone to save up to 15 short
messages, each up to 80 characters in length, or
five full-length 239-character messages.
Your TDMA digital StarTAC™ phone automatically
replaces the oldest messages with the newest as
they are received. You can store Call Back
messages and numbers for later review. The one-
touch Message Button makes viewing your
messages easy.
How Your Phone Receives Message
Alerts
New Message Alerts
If your phone is on and receives a new digital
message, the phone alerts you in two different
ways:
•Message Received appears in the display,
and:
-The message icon appears.
-The phone beeps three times or vibrates
once.
or
Getting to Text Messages
1. Press ø to enter the message center.
2. Press to scroll to Text Msgs.
or
98
•Urgent Msg Received or EMERGENCY MSG RECVD
appears in the display, and:
-The message icon appears.
-The phone beeps five times or vibrates
three times.
Short Message Indicators
If the sender has marked the message
“Emergency” or “Urgent,” the display shows the
message content on the first line and either Urgent
or Emergency on the second line. The message
number appears in the upper right of the display.
Selecting and Reading Short
Messages
1. Follow the steps in the ”Getting to Text
Messages…” block.
•If the message center has messages, you
will see Text Msgs XX New, where
XX
is
the number of unread messages.
The total number of messages stored,
YY
appears in the upper right of the display.
•If the message center has no messages,
you will see Text Msgs Empty, and 00 will
appear in the upper right portion of the
display.
2. Press or
ø to view the message
headers.
If the message center is full, you will see Msg
Memory Full displayed for two seconds prior
to viewing the message headers.
3. Now you can scroll through a list of message
headers. Each header includes:
99
Message Center
•the message number
•its urgency
•the beginning of the message text
Press to scroll forward or backward
through the list of message headers. The
newest message is placed at the top of the
list, and the oldest message is at the bottom.
4. Press to select and view a message. First,
the time and date stamp is displayed for two
seconds, and then the message text
appears, starting on the top line.
Press ø to halt the display of the message
text. Press ø again to restart it.
5. After reading a selected message, press
to scroll through the list of message headers.
6. Press º or press and hold ø to exit, or
scroll to other features.
Initiating a Call Back
When the current message has scrolled across the
display, you can call back a number embedded in
the text message.
1. Press and hold , or press æ to initiate a
Call Back, if a Call Back number was
included in the message.
You will see Dial No.? XXXXXXX.
If a Call Back number was not included in the
text message, the phone dials the first
number present in the text message.
2. Press , or press æ to dial the number
shown.
or
Press to search the text message for the
next call back number.
or
or
or
100
Note: While in the message center, you can enter a
Call Back number at any time by using the keypad,
and then pressing æ to place the call.
Locking and Unlocking a Message
You can lock important messages to ensure their
safekeeping for later review. A locked message
cannot be deleted until the message is unlocked.
Press ƒ fi, to toggle the current
message between locked and unlocked.
Msg Locked is displayed when a message is
locked.
Note: If your message memory is full and a new
message is received, the oldest unlocked message
that has been read is deleted.
Clearing Messages
Clearing the Current Message
1. Press Ç when the message you want to
erase is on the display.
You will see Clear Message?, where
XX
is the
number of the message you will clear. This
number will appear in the upper right portion
of the display.
2. Press or ¬ to clear the message.
You will see Message Cleared.
or
Press ºor any other key if you do not wish
to clear the message. You will see Msg Not
Cleared.
Note: You must unlock a locked message before
you can clear it. For more information, see “Locking
and Unlocking a Message” above.
101
Message Center
Clearing All Messages
To erase all the messages from your Message
Center at once:
1. Press and hold Ç when you are in the
message center.
You will see Clear All?.
2. Press or ¬ to verify that you want all the
messages cleared.
or
Press º if you decide not to clear all the
messages. You are returned to the message
center.
3. Press º to exit from the message center.
If all messages have been cleared and no
locked messages remain in the message
center, Msg Center Empty appears in the
display.
Note: You must unlock any locked messages
before they can be cleared. For more information,
see “Locking and Unlocking a Message” on
page 100.
102
Editing the Voice Mail
Number
This feature allows you to save your voice mail
access number.
Note: When you receive your phone, the default
voice mail number is your phone number.
1. Follow the steps in the ”Getting to Message
Center Options…” block.
2. Press to select Set Voice Mail No.
3. Enter your voice mail number.
The digits appear as you enter them.
4. Press or ¬.
A message confirms that your number has
been saved.
Note: If you subscribe to a system that
provides a shortcut number for voice mail,
enter the complete number—not the shortcut
number.
5. Press º to exit, or scroll to other features.
Getting to Message Center Options...
1. Press ø to enter the message center.
2. Press to scroll to Msg Center Options and press to select.
3. Press to scroll to the following features.
or
or
103
Message Center
Setting the Scrolling Speed
To adjust the scrolling speed of your incoming
messages:
1. Follow the steps in the “Getting to Message
Center Options…” block.
2. Press to select the Set Scroll Speed
option.
3. Press to scroll through scrolling speed
settings:
•To scroll slowly, select Slow Scrolling.
•For medium scrolling, select Medium
Scrolling.
•To scroll quickly, select Fast Scrolling.
4. Press to select a scrolling speed.
5. Press º to exit, or scroll to other features.
or
104
Reference Information
Accessory Options
An exciting line of Motorola TDMA digital StarTAC™
accessories, now smaller and lighter than ever, can
enhance and personalize your cellular experience.
Batteries
If your cellular phone is quickly
becoming your companion, an
optional auxiliary battery gives
your phone a boost. Auxiliary
batteries attach to the back of
your phone and provide extra talk
time in addition to your main
battery. See “Battery Talk-Time
and Standby-Time” on page 13 for
battery talk-times and standby-
times.
Note: Nickel Metal Hydride batteries should not be
left in the charger for more than 24 hours.
Cigarette Lighter Adapter
With the cigarette lighter
adapter, you can power your
phone and charge your phone’s
battery directly from your
vehicle’s cigarette lighter! In
some cars, the engine must be
running in order for the cigarette
lighter to operate.
105
Reference
Desktop Charger (AC Adapter
required)
The desktop charger is
designed for optimal
performance and
compatibility with Motorola’s
new generation of cellular
telephones. The desktop
charger’s pocket can charge
batteries while they are
attached to or separate from your phone. Now it is
easy to rotate batteries and always have a charged
spare.
Holster
Your TDMA digital StarTAC™
phone is so small and light, it is
positively wearable. Slip it in and
clip it on—for the ultimate in
high-tech fashion.
Notes:
•The holster is designed for your convenience
and is not meant to secure your phone under
all circumstances.
•For body-worn use, keep the antenna at least
one inch from your body when transmitting.
Headset
The convenient headset provides
both an earphone and microphone in
one small piece for simple hands-free
and private telephone conversations.
The headset plugs directly into the
jack on the top of your phone, so that
you can wear your phone and move freely. Place
the foam cover on the earpiece for a more
comfortable fit.
106
Hands-Free Vehicle Kit
The optional Hands-Free Kit gives you the
convenience of hands-free, speaker phone
operation while in your car. Full duplex operation
lets you simultaneously talk and listen, so both
parties can interrupt each other for a normal
sounding conversation.
The Hands-Free Kit automatically powers your
phone and charges its battery (even when your
car’s engine is turned off). The Hands-Free Kit also
includes a required external antenna that can
improve your signal reception and boost
performance.
Note: The use of wireless telephones and their
accessories (devices) may be prohibited or
restricted in certain areas. Always obey the laws
and regulations on the use of these devices.
Accessory Limited Warranty
Information
We recommend that you use Motorola original
batteries and accessories. Under its limited cellular
telephone warranty, Motorola specifically disclaims
any responsibility for damage caused by the use of
portable cellular telephone accessories not
manufactured by Motorola.
For details on the complete line of Motorola cellular
accessories, see your dealer or visit our Web site at
http://www.mot.com/.
107
Reference
Troubleshooting
Question Answer
I pressed the
power button, but
nothing happened.
What’s wrong with
my phone?
Make sure that you press and hold the power button
until the display appears and you hear an audible alert. If
nothing still happens, then check that you have installed
a battery and that the battery is charged. For more
information about batteries and charging see the
sections on batteries starting with “Installing and
Removing Batteries” on page 17.
My battery didn’t
last as long as I
expected. What
can I do to extend
battery life?
Your battery’s “talk-time” and “standby-time” are
relative measurements of the battery’s capacity. The
more you talk on the phone, the less standby-time you
have, and vice versa.
To get the most from your battery, allow it to charge
fully. To charge the battery to 100% of its capacity, leave
it in the charger for an extra hour after the charger’s light
turns green.
You can also turn on the Power Save Mode feature to
extend battery life. However, the LED Power/Status
Indicator does not light when this feature is activated.
Certain features demand power from your battery and
reduce battery life. If you have selected the Automatic
Display of Individual Call Timer feature, the display uses
battery power to remain active during each call. Turn this
feature off to conserve battery energy. (See “Displaying
the Individual Timer Automatically” on page 64 for more
information on this feature.)
Make sure that you are using batteries that are
compatible with your phone.
Exposing your battery to extreme temperatures—below
-10°C (14°F) or above 45°C (113°F)—can shorten battery
life. Batteries are especially sensitive to high
temperature extremes. As a good rule, always take your
phone with you when you leave your car.
The display says,
“Locked.” How do I
unlock my phone?
Enter the last three digits of your cellular number. If that
doesn’t work, use the factory preset lock code: 123. If
all else fails, call your service provider (the company that
sends you your monthly cellular bill) for assistance. (See
“Locking/Unlocking Your Phone” on page 76 for more
information on Security Features.)
108
I tried to place a
call and received a
fast busy signal.
This sound means that the cellular system did not
process your call. For example, the cellular system may
be overloaded with call attempts. To redial the number,
press æ before ending your call attempt, or press
º and try the call again later. (See “Redialing a
Number” on page 29 for more information on redialing.)
I tried to place a
call and received
an alternating
high/low tone.
This sound means your call did not reach the cellular
system. You may have dialed the number too soon after
turning the phone on. Wait until the “NS” light stops
blinking before placing a call.
An alternating tone may also indicate that your phone’s
signal is blocked. Make sure you’re clear of any
obstructions such as bridges, parking garages, or tall
buildings.
I tried to listen to
my Voice Mail (or
use a paging
service, a calling
card, etc.) but
nothing happened.
You have probably turned off the Scratchpad tones.
Place your call, enter the access numbers when
prompted by the recording, then press ‰ æ. To
avoid this problem in the future, follow the directions
“Turning Scratchpad Tones On and Off” on page 72 to
turn the Scratchpad tones on.
My phone was
stolen. What
should I report and
to whom?
Report a stolen phone to the police and to your service
provider (the company that sends you your monthly
cellular service bills).
I tried to place a
calling card call
using the internal
Phone Book, but it
didn’t work.
You may have turned off your Scratchpad tones. Follow
the directions in “Turning Scratchpad Tones On and Off”
on page 72 to turn the Scratchpad tones on.
Check that you stored your calling card information in
the correct order, and make sure the groups of numbers
are separated by pauses. The easiest way to correct the
sequence may be to start from scratch. Follow the
instructions on “Storing Calling Card Information” on
page 53, enter your calling card information again, and
store it in the same memory location as your previous
attempt.
Also keep in mind that when using your calling card, you
must enter the number you are calling with the area
code, but without the initial “1.” Check with your long
distance carrier for details on using your calling card.
Question Answer
109
Glossary
A
AC adapter An accessory device that allows you to power your phone
and charge any attached batteries from a wall outlet.
AMPS (Advanced Mobile Phone System) A cellular technology that
operates on 832 channels.
accessory connector port A socket on the bottom of the phone where
you can attach accessories such as an AC adapter, battery charger,
cigarette lighter adapter, or optional accessories.
air-time The amount of time you spend using a cellular system.
Especially, the time between successfully placing a call and terminating
a call.
antenna The device attached to your phone that sends and receives
cellular signals.
Auto Answer When you activate this feature, your phone automatically
answers after two rings. See “Activating Automatic Answer” on page 91.
Automatic Redial When your cellular network cannot handle your call,
this feature enables your phone to automatically redial for the next four
minutes. See “Redialing a Number” on page 29.
C
Caller Line ID A network/subscription dependent service that allows you
to view information on incoming calls before answering. Not available in all
areas.
cellular carrier One of multiple competing organizations in a given
geographic area that owns and operates a cellular system.
cellular signal The radio waves that carry information between your
cellular phone and the cellular system.
cellular system The cellular equipment in a given geographic area that
relays signals to and from individual cellular telephones and the landline
telephone system.
cigarette lighter adapter An accessory device that allows you to power
your phone and charge any attached batteries from a car’s cigarette
lighter.
110
D
DTMF tones See Dual Tone Multi-Frequency tones.
default A feature’s original setting as pre-programmed in the factory.
Dual Tone Multi-Frequency tones The tones that your telephone
transmits when you press a key on the keypad. These tones are used to
access automated calling systems such as Voice Mail, paging services,
banking-by-phone, etc. These tones are also heard by the party on the
other line if you use the Scratchpad while a call is in progress.
Synonymous with Scratchpad tones or touch tones.
E
emergency call This feature allows you to make an emergency call
even if your phone is locked, by dialing 911 or another emergency
access number.
F
fringe area The outermost range of a cellular system where signals are
weak.
function keys The non-numeric keys on your phone’s keypad used to
perform specific tasks.
H
home system The local cellular system where you obtain your cellular
service.
home type system A cellular system of the same type as your local
cellular system. See also non-home type system, and system type.
I
icon One of the variety of symbols used to designate menu features
and messages.
indicator A light on your phone that gives you information about your
phone’s status.
Internal Charger A charger built into your phone for use with an AC
adapter or cigarette lighter adapter. See “Using the Internal Charger” on
page 19.
111
K
Keypad Tones The sounds produced through your phone’s speaker
when you press the keys. See “Turning Keypad Tones On and Off” on
page 71.
L
landline The telephone system used for conventional office and home
phones.
Lithium Ion (LiIon) A battery technology used in personal cellular
telephones. Lithium Ion batteries generally provide more energy
capacity than Nickel Metal Hydride batteries of the same weight.
lock Use this feature to prevent unauthorized access to your telephone.
lock code A three-digit code used to access your phone once it has
been locked. The factory programmed lock code is 123. To view or
change your lock code, see “Locking/Unlocking Your Phone” on
page 76.
M
memory location A space in the internal Phone Book where you can
store a telephone number and a name.
menu feature Any feature that can be accessed through the menu
system.
menu system The hierarchical arrangement of your phone’s features
that allows for quick, intuitive access.The top-level menu contains:
Phone Book, Timers, Tone Control, Lock Secure, Phone Options, and
Message Center.
Message Center Key Located on the bottom row of the keypad, the
dedicated Message Center Key provides quick access to messages
and messaging functions. See “Using the Message Center” on page 94.
N
name directory An alphabetical list of the names and telephone
numbers you have stored into your phone’s internal Phone Book.
Nickel Metal Hydride (NiMH) A battery technology used in personal
cellular telephone batteries.
P
pause A special character that tells your phone to “pause” or wait for
your input before sending a group of numbers stored in memory.
112
Pause Dialing A method of storing Phone Book entries that allows you
to store multiple strings of numbers in one memory location; useful, for
instance, in accessing automated phone systems. See “Storing and
Placing Numbers with Pause Dialing” on page 51.
Personal Identification Number (PIN) A private numeric password
that protects personal accounts such as bank-by-phone or Voice Mail.
prompt A message requesting input.
R
road map The visual representation of your phone’s menu system
provided in this user guide.
S
scratchpad tones The tones that your telephone transmits when you
press a key on the keypad. These tones are used to access automated
calling systems such as Voice Mail, paging services, banking-by-
phone, etc. These tones are also heard by the party on the other line if
you use the Scratchpad while a call is in progress. Synonymous with
Dual Tone Multi-Frequency tones.
scroll To move backward or forward through a list; for example: to
move backward or forward through the menu system or the name
directory.
security code A six-digit code used to access sensitive features in the
Secure Options submenu of the Lock/Security menu.
service provider A company affiliated with a cellular carrier that
provides satellite service to its customers.
signal The radio waves that carry information between your phone and
the satellite system.
Smart Button The middle key on the side of your phone used to
access the Phone Book’s name directory, send calls, end calls, enter
the menu system, select features, and toggle features ON and OFF.
Speed Dial a feature that enables you to place a number by entering
the two-digit location of your number and then pressing and holding the
Smart Button.
standby-time The length of time a battery typically lasts if the phone is
left ON but is not in use.
status indicator See indicator.
submenu A secondary level of your phone’s menu system hierarchy.
113
System Identification A five-digit number that identifies your home
cellular system. An even number indicates a wireline system and an
odd number indicates a non-wireline system. See also system type.
T
talk-time The amount of time that you spend talking on the phone.
toggle To switch between two possible options; for example: on versus
off.
Turbo Dial™ keys a feature that enables you to dial numbers stored in
memory locations by pressing and holding a single number key.
TDMA (Time Division Multiple Access) TDMA is an efficient method
of providing digital cellular communication by allowing several different
conversations on the same carrier frequency.
V
VibraCall™ alert Motorola’s silent vibration mode that discreetly alerts
you to incoming calls.
Voice Mail Contact your Service Provider for availability.
volume keys Located on the side of your phone, the upper and lower
volume keys are used to adjust phone volume.
114
Index
A
access number for voice mail
102
accessories 104, 104–106
batteries 104
cigarette lighter adapter 104
desktop charger 105
hands-free kit 106
headset 105
holster 105
accessory connector port 11
antenna 11
audible timer
one-minute 64
repeating 65
automatic answer 91
automatic hands-free 89
auxiliary battery
installing 17
removing 18
B
battery
accessories 104
auxiliary
installing 17
removing 18
charge times 21, 22
charging 19
desktop charger 20
internal charger 19
tips 21
two batteries at once 21
checking levels 18
cover
attachment 15
removal 15
desktop charging 20
disposal 14
battery (continued)
installing 17
life 107
low battery warning 18
main
installing 17
removing 17
overview 13
power save mode 92
removing 17
slim auxiliary 10
slim main 10
standard main 10
standby-time 13
storage 14
talk-time 13
types 13
battery cover
auxiliary
attaching 16
removing 16
main
attaching 15
removing 15
battery level
checking 18
indicator 18, 25
messages 19
Battery Level Indicator 25
busy signal 108
button
Message 11
Smart 11
115
C
call
ending 28
placing 27, 29
calling card call 54
restricting call placement 79
receiving 28
open to answer 90
while phone is locked 77
Call Back number 99
call timer
automatically display individual
64
cumulative 63
individual 62
resettable 62
resetting 63
call waiting 42
Caller ID 46
Caller Line ID 43
calling card
PIN number 54
placing calling card call 54
storing information 53, 108
calls
dialed 45
managing recent 41
received 44
changing your number 87
charge times, battery 21, 22
chargers
desktop charger 105
internal 19
charging batteries 19
cigarette lighter adapter 10, 104
clearing a memory entry 36
connector port 11
cumulative timer 63
D
desktop charger 10, 20, 105
dialed calls 45
digital
indicator 23, 24
display
System Identification 92
E
earpiece 11
ending a call 28
F
feature review 88
function keys 11
G
glossary 109–113
H
hands-free
automatic 89
kit 106
operation 106
headset 10, 105
headset jack 11
holster 10, 26, 105
home system 87
I
In Use Indicator 24
In-Building Indicator 24
indicator
Battery Level 25
Digital 24
In Use 24
In-Building 24
No Service 24
Power/Status 25
reading 24
Short Message Service 98
Signal Strength 24
SMS message waiting 24
Voice Message Waiting 25
116
J
jack, headset 11
K
key answer, multiple 90
key presses 12
keypad tones 71
L
language, select for display 93
lock code
changing 78
viewing 78
locking phone
answering calls while phone is
locked 77
automatically 76
manually 76
locking/unlocking phone 76
M
main battery
installing 17
removing 17
Master Clear 81
Master Reset 81
memory location
editing 56
service level 79
using phone book 33
menus
entering 29
navigating 40
message
clearing 101
unlocking 100
viewing a short message 98
message alert 97
Message Center button 11
messages, locking 100
microphone 11
Multiple Key Answer 90
N
No Service Indicator 24
O
open to answer 90
option
clearing stored information 81
reset 81
P
package contents 10
Pager Mode 85, 90
pager mode 69
pause dialing 52
pauses
entering into a number 51
placing a call with pauses 52
phone book
clearing entry 36
editing entries 56
entering a name 34
entering letters 34
entry
recalling by location 49
recalling by name 49
recalling with short cuts 37
recalling entry
by location 36
by name 35
storing entry 50
storing names and numbers
33
using 33
phone number, viewing your own
23, 86
phone overview 11
PIN number 54
placing a call 27, 29
power button 11, 107
power save mode 92
power sources, switching 22
power status messages 19
Power/Status Indicator 25
117
Priority Call 37
prompts, defined 12
R
recalling entry by location 36
recalling entry by name 35
received calls 44
receiving call
automatic answer 91
multiple key answer 90
procedure 28
Recent Calls menu 42
redialing a number 29
retractable antenna 11
ringer
selecting style 71
suppressing 28
vibrating 58, 69, 71
road map 40
call timers 61
lock security 74
phone book 48
recent calls 42
tone controls 68
S
scratchpad tones 38, 72, 108
scrolling speed
setting 103
Seamless Connection 22
security options
resetting 81
service level 79
Short Message Service
clearing message 101
indicator 24
indicators 98
locking message 100
unlocking a message 100
viewing messages 98
Short Messaging Services (SMS)
97
Signal Strength Indicator 24
single timer 65
Smart Button 29
smart button 11
SMS Message Waiting Indicator
24
Speed Dial 37
standby mode 26
standby-time 13
storing
calling card information 53
names and numbers 33
storing names and numbers 50
System Identification
viewing 92
T
talk-time 13
timer
audible one-minute 64
audible repeating 65
automatically display individual
timer 64
cumulative call timer 63
individual call timer 62
one-minute audible 64
repeating audible timer 65
reset 63
resettable call timer 62
single 65
tips, defined 12
tones
alternating high/low 108
call alert 69
turning scratchpad tones on
and off 72
Turbo Dial™ 33, 37
turning phone off 23
turning phone on 23
U
unanswered call indicator 28
unlock phone 107
118
V
VibraCall™ Alert 25, 31, 58, 69,
71
VibraCall™ alert 70
vibrating ringer 58, 69, 71
voice mail 70, 108
dialing 96
edit access number 102
Voice Message Waiting Indicator
25
voice privacy 75
Voicemail 25
volume
adjusting 30
muting 31
volume keys 12
119
Patent Information
Manufactured under one or more of the following U.S. patents:
4121218
4138681
4193036
4254382
4302845
4312074
4327319
4329666
4369516
4369522
4378603
4390963
D269873
4398265
4400584
4400585
D270835
D271491
Re.31470
4431977
4434461
4455534
4462098
D275951
4484153
4485486
4486624
D276809
4491972
D277667
4504834
D278708
4523155
4546329
4550426
4551696
4564821
D282169
4571595
4573017
4574243
4585957
4602218
D284759
D285439
4616314
4617520
D286778
4626309
4628529
4629829
4630304
4630305
4633141
4636593
4636741
D288432
4648125
4649543
D288683
4654655
D289156
4662691
4667333
4668917
4670747
4672502
4680787
4681476
4683585
4692726
4704588
D292578
4706036
D292920
4710724
4711361
4715063
4716319
4716391
4723305
D294257
4727306
4727583
4730195
4734635
4736277
4737976
4740794
4741018
4741034
4742562
D295627
4746242
D295973
D295975
4751737
D296187
4761621
4764737
D297734
D297735
4777564
Re.32768
D299136
4797929
4798975
4800348
4802236
4809356
4811377
4811404
4827226
4827507
4829274
4837534
D301476
4843621
4845772
D302015
4851966
4868576
4870686
D303656
4876552
4879533
D305427
4896124
4897873
D305717
4904549
4905288
4905301
D306293
D306441
D306594
4912602
4918732
4922178
4945570
4954796
4959851
4963812
4963843
4965537
4972355
4972432
4972455
4975808
4984290
D314173
D315330
D315346
D315543
D315559
D315565
5004992
D315907
5008925
D316417
D316859
5017856
5018188
5020091
5020092
5020093
5028083
5028859
5029044
5029233
5031028
5036532
5053924
5057762
D320780
5059885
5060294
D322783
D322955
5081674
5083304
D324024
D324388
5095503
D325028
D325583
5109536
D325915
5113436
5117450
5121047
5122480
5122722
D327061
5128834
D328302
5142551
5142696
5146620
5148471
5148473
5148961
5150359
5150384
5152006
5157693
5163159
5164652
5166596
5175759
5175874
D332261
5182749
D332785
5185566
5187809
5193223
5195106
5195108
5201069
5204977
5210793
5214675
5222104
5222251
D337332
5230007
5230093
5233633
5235492
5237257
5239127
5241545
5241548
5241650
5241693
5242767
D339582
5249302
5251331
D340710
5260988
5261119
5262710
5263052
5276707
5278994
D343173
5280637
D344087
5287553
5287555
5287556
D344511
5301365
5321847
D348880
5349588
5359696
5361400
5363071
5365549
D352497
5366826
D353131
D353361
5375143
5375258
5379324
D354055
D354062
5384825
D356084
5402447
5406146
5406562
D357224
D357457
5410741
D357680
D357681
5428836
D359734
D359735
D359959
5432017
D360632
5438684
D361070
5442680
5446763
5448763
5448771
5453997
D362840
5457744
5459640
5463646
5465412
5469177
5475752
D365094
D365817
5486843
5487184
5488335
5488649
D366872
5493198
5493714
5497126
5497382
D367640
5499394
5506490
D368696
5510693
5511235
D369162
5513078
D369359
5519303
5519346
5524276
5524278
D370463
5530922
5542116
5544250
D372481
5546275
5546380
D372896
5551078
5559471
D374424
D374872
5572193
5574976
5577268
D375732
D375733
D375734
D375932
D375952
D376127
5588041
5589796
5590177
5594778
5594951
D377792
D377934
5604050
5606730
D378366
5613229
5613863
5615233
5621763
PAT111398
Other patents pending.
