Exhibit 8 Users Manual 1 of 2
APPLICANT: MOTOROLA, INC. FCC ID: IHDT6BA1
EXHIBIT 8
INSTRUCTION MANUAL
A preliminary draft copy of the Users Manual follows:
Note:
Correspondence Reference Number: 17917 requested a change in user
manual text. (FYI - For future filings, please indicate in the users manual
"the phone and its antenna" instead of "the antenna" for instructions that
require users to maintain a separation distance.)
The next two pages contains the text which will be incorporated into the
final version of the manual.
15
Safety and General Information
Portable Phone Operation and EME
Exposure
Antenna Care
Use only the supplied or an approved replacement
antenna.
Unauthorized antennas, modifications, or
attachments could damage the phone and may violate FCC
regulations.
Do NOT hold the antenna when the phone is in use.
Holding the antenna affects call quality and may cause the
phone to operate at a higher power level than needed.
Phone Operation
When placing or receiving a phone call, hold your phone as you
would a wireline telephone.
Speak directly into the
microphone.
Body-Worn Operation
To maintain compliance with FCC RF exposure guidelines, if you
wear a phone on your body when transmitting, always place the
phone in a
Motorola-supplied or approved clip, holder,
holster, case, or body harness.
Use of
non-Motorola-approved accessories may exceed FCC RF
exposure guidelines.
If you do not use a body-worn
accessory, and are not holding the phone in the normal
use position at the ear, ensure the phone and its
antenna are at least one inch (2.5 centimeters) from
your body when transmitting.
Safety and General Information
16
Data Operation
When using any data feature of the phone, with or without an
accessory cable,
position the phone and its antenna at
least one inch (2.5 centimeters) from your body.
Approved Accessories
For a list of approved Motorola accessories, visit our website at
www.motorola.com.
Electromagnetic Interference/
Compatibility
Note:
Nearly every electronic device is susceptible to
electromagnetic interference (EMI) if inadequately shielded,
designed, or otherwise configured for electromagnetic
compatibility.
Facilities
To avoid electromagnetic interference and/or compatibility
conflicts, turn off your phone in any facility where posted notices
instruct you to do so. Hospitals or health care facilities may be
using equipment that is sensitive to external RF energy.
Aircraft
When instructed to do so, turn off your phone when on board an
aircraft. Any use of a phone must be in accordance with
applicable regulations per airline crew instructions.
Sapphire GSM
Wireless Telephone
Basic User’s Guide
Draft for GSM Type Approval and Field Test
January 31, 2001
1

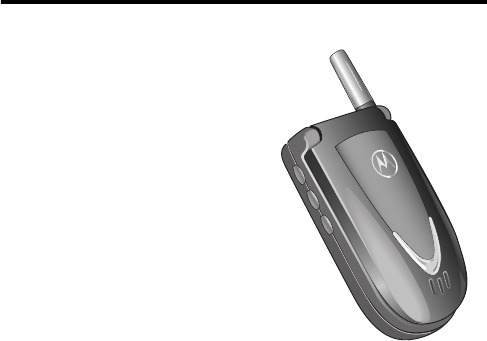

Welcome
Welcome to the world of
Motorola digital wireless
communications! Motorola
is a global leader in
communications
technology. We are pleased
that you have chosen the
Motorola
V
____g
wireless phone to keep you
connected with ease.
All Motorola phones are
designed and
manufactured to meet
Motorola’s rigorous
specifications and world-class quality standards. During
development, our testing team took the Motorola
V
phone
through rigorous durability tests including temperature,
humidity, shock, dust, vibration, and drop tests.
We are confident that you and your callers will find your wireless
phone to be a convenient and reliable way to stay in touch.
Thank you for choosing Motorola
V
, and enjoy your new
phone!
2
Personal Communications Sector
600 North U.S. Highway 45
Libertyville, Illinois 60048
1-800-331-6456 (United States)
1-888-390-6456 (TTY/TDD United States)
1-800-461-4575 (Canada)
www.motorola.com
MOTOROLA, the Stylized M Logo and all other trademarks
indicated as such herein are trademarks of Motorola, Inc. ® Reg.
U.S. Pat. & Tm. Off. TrueSync is a trademark of Starfish, Inc., a
wholly owned independent subsidiary of Motorola, Inc. All other
product or service names are the property of their respective
owners.
© 2001 Motorola, Inc. All rights reserved. Printed in the U.S.A.
Manual number: 68________-O
Cover number: 8988485L07
3
✂
Menu Map
Main Menu
• Recent Calls
• Received Calls
• Dialed Calls
• Notepad
• Call Times
• Phonebook
• Datebook
• Quick Dial
• Radio
• Messages
• Voicemail
• Text Msgs
• Browser Alerts
• Quick Notes
• Outbox
• Drafts
• Shortcuts
• Voice Notes
• Browser
• Settings
(see next page)
Note:
This is the standard menu
layout. You or your service
provider may have modified the
menu structure or changed
some feature names. Not all
features may be available for all
users. For example, the
Radio
feature is displayed only when
the FM radio headset accessory
is plugged into the accessory
connector port on your phone.
Shortcuts
Change display zoom:
Press
M
, then
press and hold
M
Lock/unlock keypad:
Press
M
*
Display my phone
number:
Press
M
#
Go to dialed calls list:
Press
N
4
✂
Settings Menu
•
Ring/Vibrate
• Alert
•
Alert
Detail
•
Call Forward
• Voice Calls
• Fax Calls
• Data Calls
• Cancel All
• Forward Status
•
Phone Status
• My Tel. Number
• Credit Available
• Credit Info
• Battery Meter
• Phone: Line 1/2
• Other Information
• Connection
• Incoming Call
• In-Call Setup
• In-Call Timer
• Call Cost Setup
• My Caller ID
• Talk and Fax
• Answer Options
• Call Waiting
• Security
• Phone Lock
• Lock Keypad
• Lock Application
• Fixed Dial
• Call Barring
• SIM Pin
• New Passwords
•
Other Settings
• Personalize
• Main Menu
• Keys
• Greeting
• Banner
• Quick Dial
• Initial Setup
• Time and Date
• One-Touch Dial
• Auto Redial
• Backlight
• Status Light
• Zoom
• Scroll
• Animation
• Language
• Preferred Card
• Battery Save
• Contrast Setting
• Master Reset
• Master Clear
• Network
• Car Settings
• Headset
5
Phone Diagram
EarpieceHeadset Jack
Insert headset
accessory for
hands-free use.
Status Light
See incoming call
and service status.
Volume Keys
Adjust earpiece
and ringer volume.
Smart Key
Select menu items,
send and end calls.
Voice Key
Record voice notes,
phonebook and
shortcut names.
Display
Microphone
Accessory
Connector Port
Insert charger and
phone accessories.
Power Key
Right Soft Key
Perform functions
identified by right
display prompt.
Menu Key
End Key
End phone calls,
exit menu system.
Left Soft Key
Perform functions
identified by left
display prompt.
Send Key
Send and answer
calls, view recent
dialed calls list.
4-Way
Navigation Keys
Scroll through
menus and lists,
set feature values.
6
Contents
Menu Map
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Phone Diagram
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
About This Guide
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Safety and General Information
. . . . . . . . . . . . . . . . . . 13
Getting Started
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
What’s in the Box? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Installing the SIM Card . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Turning Your Phone On . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Sending a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Ending a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Receiving a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Displaying Your Phone Number . . . . . . . . . . . . . . . . . . . . 28
About Your Phone
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Changing the Zoom Setting . . . . . . . . . . . . . . . . . . . . . . . 32
Status Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Volume Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Smart Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Battery Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Sending and Receiving Calls
. . . . . . . . . . . . . . . . . . . . . . 37
Redialing a Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Using Automatic Redial . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Returning an Unanswered Call . . . . . . . . . . . . . . . . . . . . 38
Dialing an Emergency Number When the Phone is Locked 39
7
Contents
Entering Numbers in the Notepad . . . . . . . . . . . . . . . . . . 39
Muting the Ring or Vibrate Alert . . . . . . . . . . . . . . . . . . . . 40
Terminating an Incoming Call . . . . . . . . . . . . . . . . . . . . . . 40
Dialing With Speed Dial . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Dialing With One-Touch Dial . . . . . . . . . . . . . . . . . . . . . . 42
Dialing a Number In a Text Message . . . . . . . . . . . . . . . . 43
Additional Dialing Features . . . . . . . . . . . . . . . . . . . . . . . 44
Using Features While On a Call
. . . . . . . . . . . . . . . . . . . . 46
Using Call Waiting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Making a Conference Call . . . . . . . . . . . . . . . . . . . . . . . . 47
Transferring a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Additional On-Call Features . . . . . . . . . . . . . . . . . . . . . . . 50
Using the Menu
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Navigating to a Feature . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Selecting a Feature Option . . . . . . . . . . . . . . . . . . . . . . . . 52
Entering Feature Information . . . . . . . . . . . . . . . . . . . . . . 53
Entering Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Menu Feature Descriptions
. . . . . . . . . . . . . . . . . . . . . . . 63
Recent Calls
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Viewing the Received Calls or Dialed Calls List . . . . . . . . . 78
Using the Notepad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Call Times and Costs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Viewing and Resetting Call Times and Costs . . . . . . . . . . . 84
Phonebook
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Fields in a Phonebook Entry Form . . . . . . . . . . . . . . . . . . . 86
Storing a Phonebook Entry . . . . . . . . . . . . . . . . . . . . . . . . 87
Recording a Voice Name For a Phonebook Entry . . . . . . . . 89
Dialing a Phonebook Entry . . . . . . . . . . . . . . . . . . . . . . . . 91
Editing a Phonebook Entry . . . . . . . . . . . . . . . . . . . . . . . . 93
Contents
8
Deleting a Phonebook Entry . . . . . . . . . . . . . . . . . . . . . . . 93
Copying Phonebook Entries to a SIM Card . . . . . . . . . . . . 94
Checking Phonebook Capacity . . . . . . . . . . . . . . . . . . . . . 97
Synchronizing with TrueSync Software . . . . . . . . . . . . . . . 97
Setting Up the Phonebook . . . . . . . . . . . . . . . . . . . . . . . . 98
Datebook
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Week View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Day View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Event View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Storing a New Event . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Changing Event Information . . . . . . . . . . . . . . . . . . . . . 103
Copying an Event . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Deleting an Event . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Radio
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Turning the Radio On and Off . . . . . . . . . . . . . . . . . . . . 106
Tuning a Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Storing a Preset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Selecting a Preset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Sending and Receiving Calls With the Radio On . . . . . . . 107
Messages—Voicemail
. . . . . . . . . . . . . . . . . . . . . . . . . . 108
Storing Your Voicemail Number . . . . . . . . . . . . . . . . . . . 108
Receiving a New Voicemail Message . . . . . . . . . . . . . . . 108
Listening to a Voicemail Message . . . . . . . . . . . . . . . . . . 109
Messages—Text
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Setting Up the Text Message Inbox . . . . . . . . . . . . . . . . 110
Receiving a New Text Message . . . . . . . . . . . . . . . . . . . 112
Reading, Locking, or Deleting a Text Message . . . . . . . . 112
Sending a New Text Message . . . . . . . . . . . . . . . . . . . . . 114
Viewing the Status of Sent Text Messages . . . . . . . . . . . 116
9
Contents
Shortcuts
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Standard Shortcuts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
User-Settable Shortcuts . . . . . . . . . . . . . . . . . . . . . . . . . 117
Creating a Shortcut . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Using Shortcuts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Voice Notes
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Recording a Voice Note . . . . . . . . . . . . . . . . . . . . . . . . . 122
Viewing the Voice Notes List . . . . . . . . . . . . . . . . . . . . . 124
Playing a Voice Note . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Locking and Unlocking a Voice Note . . . . . . . . . . . . . . . 127
Deleting a Voice Note . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Micro-Browser
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Starting a Micro-Browser Session . . . . . . . . . . . . . . . . . . 129
Interacting With Web Pages . . . . . . . . . . . . . . . . . . . . . . 130
Adjusting Your Settings
. . . . . . . . . . . . . . . . . . . . . . . . . 131
Ring/Vibrate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Reminders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Call Forwarding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Reordering Menu Items . . . . . . . . . . . . . . . . . . . . . . . . . 136
Customizing a Soft Key Function . . . . . . . . . . . . . . . . . . 136
Hands-Free Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Data and Fax Calls
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Connecting Your Phone to an External Device . . . . . . . . . 141
Sending a Data or Fax Call . . . . . . . . . . . . . . . . . . . . . . . 143
Receiving a Data or Fax Call . . . . . . . . . . . . . . . . . . . . . . 144
Sending a Talk then Data or Talk then Fax Call . . . . . . . . 147
Security
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Assigning a New Code or Password . . . . . . . . . . . . . . . . 148
If You Forget a Code or Password . . . . . . . . . . . . . . . . . . 149
Contents
10
Locking and Unlocking Your Phone . . . . . . . . . . . . . . . . 150
Locking and Unlocking Your Keypad . . . . . . . . . . . . . . . . 152
Barring Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Protecting the SIM Card . . . . . . . . . . . . . . . . . . . . . . . . 153
Troubleshooting
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Programming Instructions
. . . . . . . . . . . . . . . . . . . . . . 162
Specific Absorption Rate Data
. . . . . . . . . . . . . . . . . . . 163
FDA Update
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Warranty
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Patent Information
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Export Law Assurances
. . . . . . . . . . . . . . . . . . . . . . . . . 188
Index
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
11
About This Guide
Using Your Phone’s Features
This user guide introduces you to the many features in your
Motorola
V
phone. A reference guide for your phone is also
available that explains the phone’s features in more detail. To
obtain a copy of the reference guide or another copy of this user
guide, see the Motorola Web site at:
http://motorola.com/consumer/manuals
or contact the Motorola Customer Call Center at
1-800-331-6456.
Navigating To a Menu Feature
You can access many of your phone’s features through the menu
system. This guide shows you how to navigate to a specific menu
feature as follows:
The > symbol means that you should scroll to and select the
feature. This example shows that you must press
M
, scroll to
and select
Recent Calls
, then scroll to and select
Dialed Calls
to view the dialed calls list.
Find the Feature
M
>
Recent Calls
>
Dialed Calls
About This Guide
12
Optional Features
Features marked with this label are optional network
and/or subscription-dependent features. These
features may not be offered by all service providers in
all geographical areas. Contact your service provider
for information about availability.
Optional Accessories
Features marked with this label require the use of an
optional Motorola Original™ accessory.
13
Safety and General
Information
IMPORTANT INFORMATION ON SAFE AND EFFICIENT
OPERATION. READ THIS INFORMATION BEFORE USING YOUR
PHONE.
RF Operational Characteristics
Your phone contains a transmitter and a receiver. When it is ON,
it receives and transmits radio frequency (RF) energy. The phone
operates in the frequency range of ____ MHz to ____ MHz in
digital mode.
When you communicate with your phone, the system handling
your call controls the power levels at which your phone
transmits. The output power level typically may vary over a range
from ____ watts to ____ watts in digital mode.
Exposure To Radio Frequency Energy
Your Motorola phone is designed to comply with the following
national and international standards and guidelines regarding
exposure of human beings to radio frequency electromagnetic
energy (EME):
• United States Federal Communications Commission, Code
of Regulations; 47 CFR part 2 sub-part J
• American National Standards Institute (ANSI) / Institute of
Electrical and Electronic Engineers (IEEE) C95. 1-1992
Safety and General Information
14
• Institute of Electrical and Electronic Engineers (IEEE) C95.1-
1999 Edition
• National Council on Radiation Protection and
Measurements (NCRP) of the United States, Report 86,
1986
• International Commission on Non-Ionizing Radiation
Protection (ICNIRP) 1998
• National Radiological Protection Board of the United
Kingdom 1995
• Ministry of Health (Canada) Safety Code 6. Limits of Human
Exposure to Radiofrequency Electromagnetic Fields in the
Frequency Range from 3 kHz to 300 GHz, 1999
• Australian Communications Authority
Radiocommunications (Electromagnetic Radiation-Human
Exposure) Standard 1999
To assure optimal phone performance and make sure human
exposure to radio frequency electromagnetic energy is within the
guidelines set forth in the above standards, always adhere to the
following procedures:
Portable Phone Operation and EME
Exposure
Antenna Care
Use only the supplied or an approved replacement
antenna. Unauthorized antennas, modifications, or
15
Safety and General Information
attachments could damage the phone and may violate FCC
regulations.
Do NOT hold the antenna when the phone is in use.
Holding the antenna affects call quality and may cause the
phone to operate at a higher power level than needed.
Phone Operation
When placing or receiving a phone call, hold your phone as you
would a wireline telephone. Speak directly into the
microphone.
Body-Worn Operation
To maintain compliance with FCC RF exposure guidelines, if you
wear a phone on your body when transmitting, always place the
phone in a Motorola-supplied or approved clip, holder,
holster, case, or body harness. Use of
non-Motorola-approved accessories may exceed FCC RF
exposure guidelines. If you do not use a body-worn
accessory, and are not holding the phone in the normal
use position at the ear, ensure the antenna is at least
one inch (2.5 centimeters) from your body when
transmitting.
Data Operation
When using any data feature of the phone, with or without an
accessory cable, position the phone antenna at least one
inch (2.5 centimeters) from your body.
Safety and General Information
16
Approved Accessories
For a list of approved Motorola accessories, visit our website at
www.motorola.com.
Electromagnetic Interference/
Compatibility
Note: Nearly every electronic device is susceptible to
electromagnetic interference (EMI) if inadequately shielded,
designed, or otherwise configured for electromagnetic
compatibility.
Facilities
To avoid electromagnetic interference and/or compatibility
conflicts, turn off your phone in any facility where posted notices
instruct you to do so. Hospitals or health care facilities may be
using equipment that is sensitive to external RF energy.
Aircraft
When instructed to do so, turn off your phone when on board an
aircraft. Any use of a phone must be in accordance with
applicable regulations per airline crew instructions.
Medical Devices
Pacemakers
The Health Industry Manufacturers Association recommends that
a minimum separation of 6 inches (15 centimeters) be
17
Safety and General Information
maintained between a handheld wireless phone and a
pacemaker. These recommendations are consistent with the
independent research by, and recommendations of, Wireless
Technology Research.
Persons with pacemakers should:
• ALWAYS keep the phone more than six inches
(15 centimeters) from your pacemaker when the phone is
turned ON.
• NOT carry the phone in the breast pocket.
• use the ear opposite the pacemaker to minimize the
potential for interference.
• turn OFF the phone immediately if you have any reason to
suspect that interference is taking place.
Hearing Aids
Some digital wireless phones may interfere with some hearing
aids. In the event of such interference, you may want to consult
your hearing aid manufacturer to discuss alternatives.
Safety and General Information
18
Other Medical Devices
If you use any other personal medical device, consult the
manufacturer of your device to determine if it is adequately
shielded from RF energy. Your physician may be able to assist
you in obtaining this information.
Safety and General
Use While Driving
Check the laws and regulations on the use of phones in the area
where you drive. Always obey them.
When using your phone while driving, please:
• give full attention to driving and to the road.
• use hands-free operation, if available.
• pull off the road and park before making or answering a
call if driving conditions so require.
Operational Warnings
For Vehicles With an Air Bag
Do not place a portable phone in the area over an air bag or in
the air bag deployment area. Air bags inflate with great force. If
a portable phone is placed in the air bag deployment area and
the air bag inflates, the phone may be propelled with great force
and cause serious injury to occupants of the vehicle.
19
Safety and General Information
Potentially Explosive Atmospheres
Turn off your phone prior to entering any area with a potentially
explosive atmosphere, unless the phone is a model specifically
identified as being “Intrinsically Safe” for use in such areas (for
example, Factory Mutual, CSA, or UL Approved). Do not remove,
install, or charge batteries in such areas. Sparks in a potentially
explosive atmosphere can cause an explosion or fire resulting in
bodily injury or even death.
Note: The areas with potentially explosive atmospheres referred
to above include fueling areas such as below decks on boats,
fuel or chemical transfer or storage facilities, areas where the air
contains chemicals or particles such as grain, dust, or metal
powders, and any other area where you would normally be
advised to turn off your vehicle engine. Areas with potentially
explosive atmospheres are often but not always posted.
Blasting Caps and Areas
To avoid possible interference with blasting operations, turn OFF
your phone when you are near electrical blasting caps, in a
blasting area, or in areas posted: “Turn off two-way radio.” Obey
all signs and instructions.
Safety and General Information
20
Operational Cautions
Antennas
Do not use any portable phone that has a damaged
antenna. If a damaged antenna comes into contact with your
skin, a minor burn can result.
Batteries
All batteries can cause property damage and/or bodily injury
such as burns if a conductive material such as jewelry, keys, or
beaded chains touches exposed terminals. The conductive
material may complete an electrical circuit (short circuit) and
become quite hot. Exercise care in handling any charged battery,
particularly when placing it inside a pocket, purse, or other
container with metal objects.
GEN011001
21
Getting Started
What’s in the Box?
Your digital wireless phone typically comes equipped with a
battery and a charger. Other accessory options can customize
your phone for maximum performance and portability. The
following illustrations show a sample of the package contents.
Note: Your phone and accessories may not look exactly as
pictured.
Motorola
Telephone
Battery
Holster
For Placement
Only
Getting Started
22
To purchase Motorola Original™ accessories, please phone
1-800-331-6456 in the United States or 1-800-461-4575 in
Canada.
Installing the SIM Card
Your SIM (Subscriber Identity Module) card contains your phone
number, service details, and phonebook/message memory. It is
stored in a recess in the battery compartment.
Caution: Do not bend or scratch your SIM card. Avoid exposing
your SIM card to static electricity, water, or dirt.
Travel
Charger
23
Getting Started
Do This
1
Pull up at the base of the
SIM card door and lift the
door off of the phone.
2
Slide the SIM card cover
up (toward the antenna)
and lift open.
3
Insert the SIM card with
the notch in the upper left
corner and the gold plate
facing down.
4
Close the SIM card cover
and slide it down to lock
the SIM card in place.
5
Replace the SIM card door,
then push down and snap
it into place.
Getting Started
24
Installing the Battery
Before you can use your phone, you need to install and charge
the battery.
Your phone is designed to be used only with Motorola
Original batteries and accessories. We recommend that
you store batteries in their protective cases when not
in use.
Do This
1
Remove the battery from
its protective clear plastic
case.
2
Insert the tabs at the base
of the battery into the
slots at the bottom of the
battery compartment.
3
Pull up on the battery
release latch at the top of
the battery compartment,
then push the battery
down and snap it into
place.
25
Getting Started
Charging the Battery
Before you can use your phone, you need to install and charge
the battery.
Tip: When your phone is turned on, the battery level indicator in
the upper right corner of the phone display shows the amount of
charge left in your battery. (See the “Battery Level Indicator”
item on page 31.)
Do This
1
Plug the travel charger
into your phone with the
release tab facing up.
2
Plug the other end of the
travel charger into the
appropriate electrical
outlet.
3
When your phone
indicates that the battery
is fully charged, press the
release tab and remove
the travel charger. Charge Complete
PH BOOK MESSAGE
M
5E
Getting Started
26
Turning Your Phone On
Do This To
1
Open your phone expose the keypad
2
Press and hold P
(the power key)
turn on your phone
3
Enter your SIM card PIN code
and press OK (+)
unlock your SIM card, if
necessary
See “Protecting the SIM
Card” on page 153.
Caution: If you enter an
incorrect SIM card PIN
code three times in a row,
your SIM card is disabled.
Power
key
27
Getting Started
Sending a Call
To call a number, your phone must be turned on, have a SIM
card inserted, be unlocked, and have a network connection with
adequate signal strength.
4
Enter your four-digit unlock
code and press OK (+)
unlock your phone, if
necessary
The unlock code is
originally set to 1234. (For
more information, see
“Locking and Unlocking
Your Phone” on
page 150.)
Press To
1
keypad keys dial the phone number (up to 32
digits)
Tip: If you make a mistake, press
DELETE (-) to delete the last
digit, or press and hold
DELETE (-) to clear all digits.
2
N (send key) send the call
Do This To
Getting Started
28
Ending a Call
Receiving a Call
To receive a call, your phone must be turned on, have a SIM card
inserted, and have a network connection with adequate signal
strength. If your phone is locked, you must unlock the phone to
answer the call.
Note: Your phone cannot receive calls when your SIM card is
locked.
When you receive a call, your phone rings and/or vibrates and
displays an incoming call message.
Displaying Your Phone Number
From the idle display:
Press To
O (end key) end the call
Press To
N or ANSWER (+)answer the call
Press To
M #see your phone number
29
About Your Phone
See page 5 for a diagram of your phone that describes basic
phone components.
Display
The top section of the display shows phone status indicators. The
following illustration shows some of the common indicators that
you may see at the top of the display when using your phone.
Messages, phone numbers, and menu options appear in the
middle of the display. Text labels at the bottom corners of the
display show the current soft key functions. A M (menu) indicator
in the bottom center of the display indicates that you can open
the main menu or a feature sub-menu to see more options. For
more information about the soft key and menu key labels, see
“Using the Menu” on page 51.
Some of the phone functions described in this guide must be
performed from the idle display. The term
idle display
refers to
the standard display that you see when your phone is on and
ready to use, when you are
not
on a call or using the menu
system.
About Your Phone
30
➊ Signal Strength Indicator Shows the strength of your
phone’s connection with the network.
You cannot send or receive calls when the “no signal” indicator
is displayed.
➋ In Use Indicator Appears when a call is in progress.
➌ Roam Indicator Appears when your phone uses another
network system outside your home network. When you leave
your home network area, your phone
roams
or seeks another
network.
Strong 5 4 3 2 1 j No signal
12:00am
➒
Alert Setting
Indicator
➊
Signal
Strength
Indicator
➐
Clock
➏
Battery
Level
Indicator
➋
In Use
Indicator
➌
Roam
Indicator
➍
Message Waiting
Indicator
➎
Voice Message
Waiting Indicator
➑
Menu Indicator
31
About Your Phone
➍ Message Waiting Indicator Appears when
your phone receives a text message.
➎ Voice Message Waiting Indicator Appears
when you receive a voicemail message.
➏ Battery Level Indicator Shows the amount of charge left
in your battery. The more segments visible, the greater the
charge.
Recharge your battery as soon as possible when you see the
Low Battery warning message.
➐ Clock Shows the current time.
➑ Menu Indicator Indicates that you can press M to open
a menu. See “Using the Menu” on page 51.
➒ Alert Setting Indicator Shows the current selected alert.
The default alert setting is a ringer.
High E D C B Empty
w Loud ring x Soft ring
y Vibrate u Ring and vibrate
t Silent
About Your Phone
32
Changing the Zoom Setting
You can set your phone’s display to show either three lines or
two lines of text plus soft key labels. Three lines of text display
more information, while two lines increase text size.
To change the display view, press M once, then press and
hold M again within two seconds of the first press.
You can also adjust the zoom setting from the menu. See the
“Zoom” item on page 70.
Status Light
The status light tells you
when you have an
incoming call or message,
or when your phone is
roaming
(using a
non-home system). The
light changes color to
indicate different states:
Indication State
alternating
red/green (fast)
incoming call
flashing green in service, home system
flashing yellow roaming, non-home system
flashing red (slow) no service
Status
light
33
About Your Phone
By default, the status light indicator is turned off to extend
battery life. See the “Status Light” item on page 70 to turn on
the status light.
Note: Turning on the status light will substantially reduce your
phone’s
standby time
(the length of time that your phone’s
battery retains power when the phone is turned on but is not in
use).
Volume Keys
Use the upper and lower
volume keys to adjust
your phone’s earpiece
and ringer volume.
flashing red (fast) text or voicemail message received,
but no service
alternating green
(short)/red (long)
text or voicemail message received,
home service
alternating yellow
(short)/red (long)
text or voicemail message received,
roaming service
Indication State
Volume
keys
About Your Phone
34
You can also use the volume keys to scroll up or down through
menus and lists.
To change keypad volume, see “Select a Ring/Vibration for a
Specific Event” on page 132.
Smart Key
The smart key gives you
another way to perform
many basic phone
functions. It’s called the
smart key because it
anticipates the next
action you are likely to
perform. For example, if
you highlight an item
and press the smart key,
the smart key selects the highlighted item. You can use the smart
key to send and end calls, select menu items, toggle features on
and off, and open your phonebook. The smart key usually
performs the same function as the right soft key (+).
When Press To
During a call volume keys increase or decrease
earpiece speaker volume
From the idle
display (with
flip opened)
volume keys increase or decrease ringer
volume
Smart
key
35
About Your Phone
Note: The smart key only provides an optional way to do some
things faster. It is never
the only way
to perform a task.
Battery Use
Caution: To prevent injuries or burns, do not allow metal
objects to contact or short-circuit the battery terminals.
To maximize your battery’s performance:
• Always use Motorola approved batteries and battery
chargers. The phone warranty does not cover damage
caused from using non-Motorola batteries and/or battery
chargers.
• New batteries or batteries that have been stored for long
periods of time may require a longer charge time.
• Maintain the battery at or near room temperature when
charging.
• Do not expose batteries to temperatures below -10°C
(14°F) or above 45°C (113°F). Always take your phone with
you when you leave your vehicle.
• When you do not intend to use a battery for a while, store it
uncharged in a cool, dark, dry place, such as a refrigerator.
• Over extended periods of time, batteries gradually wear
down and require longer charging times. This is normal. If
you charge your battery regularly and notice a decrease in
talk time or an increase in charging time, then it is probably
time to purchase a new battery.
About Your Phone
36
• The more you talk on the phone or use phone features (like
sending text messages), the less standby time your battery
has. You can also extend battery life by turning off the
status light. (See the “Status Light” item on page 70.)
The rechargeable batteries that power this product
must be disposed of properly and may need to be
recycled. Refer to your battery’s label for battery type.
Contact your local recycling center for proper disposal methods.
Never dispose of batteries in a fire because they may explode.
37
Sending and Receiving
Calls
For basic instructions on how to send a call, end a call, and
receive a call, see page 27 of the “Getting Started” section.
Redialing a Number
If you hear an ordinary busy signal, the phone number you dialed
is busy.
Using Automatic Redial
If the network is busy, you hear a fast busy signal, and your
phone displays the message Call Failed.
With automatic redial, your phone makes a number of redial
attempts until the call goes through.
Press To
1
O hang up
2
N redial the busy number
Press To
1
N or RETRY (+)activate automatic redial
When the call goes through, your
phone rings or vibrates one time
and displays Redial Successful.
Sending and Receiving Calls
38
You must activate automatic redial in order to use the feature.
See the “Auto Redial” item on page 68.
Caller ID
The
calling line identification
(caller ID) feature lets
you see who is calling before you answer.
• If the caller’s name is stored in your phonebook, the phone
automatically displays the name. Otherwise, the phone
displays the caller’s phone number.
• If caller ID information is not available, your phone displays
the message Incoming Call.
Returning an Unanswered Call
Your phone keeps a record of your unanswered calls. When you
cannot answer a call, your phone displays:
• the T (missed call) indicator
• the message X Missed Calls Y Unknown, where X is the
total number of missed calls and Y is the number of missed
calls for which caller ID information is not available.
2
N or OK (+)connect the call
Press To
39
Sending and Receiving Calls
Dialing an Emergency Number When
the Phone is Locked
Your service provider may program one or more emergency
phone numbers that you can call even if your phone is locked or
restricted.
When you see Enter Unlock Code in the display:
Entering Numbers in the Notepad
Your phone stores the most recent string of digits entered on the
keypad in a temporary memory location called the
notepad
.
These digits can be the last phone number that you called, or a
Press To
1
VIEW (+) see the received calls list, with the
most recent call at the top
2
S scroll through the list and select a call
that you want to return
3
N send the call
Press To
1
keypad keys dial the emergency number (such as
911)
2
N call the emergency number
Sending and Receiving Calls
40
phone number that you simply entered but did not call. These
digits remain in the notepad even when you turn off the phone.
You can use the notepad to store a phone number that you
intend to call later (such as a phone number told to you by the
other party during a call). To retrieve these digits, see “Using the
Notepad” on page 81.
Muting the Ring or Vibrate Alert
You can mute your phone’s incoming call alert before answering
the call.
While the phone is ringing or vibrating:
To specify a ring or vibration type, see “Ring/Vibrate” on
page 131.
Terminating an Incoming Call
While the phone is ringing or vibrating:
Press To
either volume key turn off the ring or vibration alert
Press To
O or IGNORE (-)cancel the incoming call
41
Sending and Receiving Calls
Depending on your phone settings and the type of subscription
you have with your service provider, the call may be forwarded to
another number, or the calling party may hear a busy signal.
Dialing With Speed Dial
The
speed dial
feature lets you dial any phonebook entry with a
minimal number of keypresses.
Whenever you store an entry in your phonebook, the entry is
assigned a unique speed dial number. If you know the speed dial
number for the phonebook entry you want to call, you can use
the speed dial feature.
To make an entry in the phonebook or view an existing entry’s
speed dial number, see “Storing a Phonebook Entry” on
page 87.
Press To
1
keypad keys enter the one-, two-, or three-digit
speed dial number for the entry you
want to dial
2
# submit the number
3
N call the entry
Sending and Receiving Calls
42
Dialing With One-Touch Dial
You can call phonebook entries 2 through 9 with the push of a
single key. Just press and hold the one-digit speed dial number
for one second.
It is recommended that you reserve location 1 in the phonebook
for storing your voicemail number. In many cases, your service
provider has already stored your voicemail number in location 1.
If your voicemail number is not accessible by pressing and
holding the 1 key, complete the following steps:
To store entries in locations 2 through 9 in the phonebook, see
“Storing a Phonebook Entry” on page 87.
Note: You must specify which phone number list you want to
use with this feature: phone memory phonebook, fixed dial list,
or SIM card phonebook. See “One-Touch Dial Preference” on
page 99.
Do This To
1
Store your voicemail number in
phonebook location number 1
(see “Storing a Phonebook
Entry” on page 87)
enable the 1 key
voicemail shortcut
2
Complete the instructions for
“Storing Your Voicemail Number”
on page 108
enable voicemail soft
key and menu
shortcuts
43
Sending and Receiving Calls
Dialing a Number In a Text Message
If you receive a text message with an embedded
phone number, you can dial the number directly.
Note: You must set up your inbox before opening
text messages. See “Setting Up the Text Message
Inbox” on page 110.
If the message contains more than one phone number, press S
to scroll to a number and then press SELECT (+) to dial.
Find the Feature
M> Messages
> Text Msgs
Press To
1
S scroll to the message with the
number
2
M open the Text Msg Menu
3
S scroll to Call Back
4
SELECT (+) dial the number in the message
Sending and Receiving Calls
44
Additional Dialing Features
In addition to pressing numbers on your keypad, you can insert
numbers or characters and send calls in a variety of ways.
While dialing (with digits visible in the display):
Do This To
Press 0 for two
seconds
insert the international access code
for the country from which you are
calling
Press M and then
scroll to and select
one of the following:
•Insert Pause
(to insert a p)
•Insert Wait
(to insert a w)
•Insert 'n'
(to insert an n)
insert a special character when
making a calling card call:
•Pause tells your phone to wait
until the call connects before it
sends the next digit.
•Wait tells your phone to wait
until the call connects, and then
to prompt you before it sends the
next digit.
•'n' tells your phone to stop and to
prompt you for a number before it
sends the next digit.
Press M
> Attach Number
attach a number from the phonebook
or recent calls list to the end of the
digits you entered
Press M
> Send Message
create a text message addressed to
the number entered
45
Sending and Receiving Calls
You can also call numbers using these features:
Do This To Call
Press and release the voice key
on the right side of your phone
and say the entry’s name (in
two seconds).
a phone number using the
voice dial feature
See “Recording a Voice
Name For a Phonebook
Entry” on page 80.
Press M > Service Dial
>
entry to call
a service dial number
programmed on the SIM
card
Press M > Fixed Dial
>
entry to call
a fixed dial number
Press M > Recent Calls
> Received Calls or
Dialed Calls >
entry to call
a missed call or a number
from a call you recently
dialed or received
Voice
key
46
Using Features While On a
Call
Using Call Waiting
If you subscribe to call waiting, an alert tone sounds
while you are on a call to indicate that you have
received a second call.
To put the first call on hold and answer the second call:
To end the first call and answer the second call:
You must activate call waiting in order to use the feature. See
“Call Waiting” on page 65.
Press To
1
N answer the new call
2
SWITCH (+) switch back to the first call
Press To
1
O end the current call
Your phone rings to signal the new
call.
2
N answer the new call
47
Using Features While On a Call
Making a Conference Call
To talk to more than one person on a call, you can
make a conference call. Call the first person, call the
second person, then link the two calls.
Press To
1
keypad keys dial the first person’s number
2
N call the number
3
HOLD (+)
(if available)
or
M > Hold
put the first call on hold
Your phone displays a l (flashing
phone) icon next to the call on hold.
4
keypad keys dial the next person’s number
5
N call the number
Your phone displays a W (active call)
icon next to the new active call.
6
LINK (-) connect the two calls
7
O end the entire call
Using Features While On a Call
48
Transferring a Call
While you are on a call, you can transfer the call to another
phone by first talking to the person who answers the other
phone, or by directly transferring the call.
Announce the Call Transfer
You can talk to the person who answers the other phone before
you transfer the call, to tell them whom you are transferring.
Find the Feature
M> Hold
Press To
1
keypad keys enter the phone number where you
are transferring the call
2
N dial the phone number
Speak to the person who answers the
target phone.
3
M open the menu
4
S scroll to Transfer
5
SELECT (+) select Transfer
6
OK (+) confirm the transfer
Your phone displays the message
Transfer: Complete when the call
is transferred.
49
Using Features While On a Call
Do Not Announce the Call Transfer
You can directly transfer a call without talking to the person who
answers.
Find the Feature
M> Transfer
Press To
1
keypad keys enter the phone number where you
are transferring the call
2
N dial the phone number
Your phone displays the message
Transfer: Complete when the call
is transferred.
Using Features While On a Call
50
Additional On-Call Features
While you are on a call, you can perform the following tasks:
Do This To
Press HOLD (+)
(if available)
or
Press M > Hold
put a call on hold
Your phone displays a l
(flashing phone) icon to indicate
that the call is on hold.
Press SPEAKER (+)
(if available)
or
Press M
> Spkrphone On
activate an attached
speakerphone
(hands-free mode)
Press M
> My Tel. Number
see your phone number
51
Using the Menu
Navigating to a Feature
You can access many of your phone’s features by using these
keys to move through the menu system:
Main Menu
)Recent Calls
)Phonebook
)EXIT)SELECT
Menu Key
Enter the menu
system, or open
a sub-menu, when
M
appears in the
bottom center of
the display.
Right Soft Key
Perform the
function shown
in the lower
right corner of
the display
(usually
SELECT
the highlighted
menu item).
Left Soft Key
Perform the
function shown
in the lower left
corner of the
display (usually
EXIT
or
BACK
).
End Key
Exit the menu
system without
making changes,
return to the
idle display.
4-Way
Navigation Keys
Scroll up or down
through menus
and lists. Scroll
left and right to
cycle through and
set the value of
the highlighted
menu item.
Using the Menu
52
This guide shows you how to navigate to a specific menu feature
as follows:
The > symbol means that you should scroll to and select the
feature. This example shows that you must press M, scroll to
and select Recent Calls, then scroll to and select Dialed Calls
to see the dialed calls list.
Selecting a Feature Option
Some features require you to select an item from a list:
Find the Feature
M> Recent Calls
> Dialed Calls
Dialed Calls
10) John Smith
9) Mary Smith
BACK VIEW
Press
BACK
(
-
)
to go back to the
previous screen.
A sub-menu is
available. Press
M
to open
the sub-menu.
Highlighted
item
Press
VIEW
(
+
) to view
details of the highlighted item.
STORE
(
+
) appears if you can
store the item in your phonebook.
M
53
Using the Menu
Select an item by highlighting it. Use one of the following
approaches:
• Press S to scroll up or down to the item you want.
• In a numbered list, press a number key to highlight the
item.
• In an alphabetized list, press a key multiple times to cycle
through the letters on the key and highlight the closest
matching list item.
Entering Feature Information
Features such as the phonebook and datebook require you to
enter information to fill in an entry’s details:
Entry Details
Name:John Smith
No.:2125551212
CANCEL CHANGE
Press
S
to
scroll down
to additional
items.
Press
CANCEL
(
-
) to exit
without making changes.
DONE
(
-
) appears when you
enter or edit information. Press
DONE
(
-
) to save your changes.
Press
CHANGE
(
+
)
to edit the selected
information.
Highlighted
item
Using the Menu
54
• Enter numbers or text with the keypad. (See “Entering Text”
on page 56.)
• When an item has a list of possible values, press * or #
to scroll through and select a value.
• When an item has a list of possible numeric values, press a
number key to set the value.
• If you enter or edit information and then decide that you do
not want to save your changes, press O to exit without
saving.
The message center lets you compose and send text messages.
(See “Entering Text” on page 56.) A
flashing cursor
shows you
where the text will appear:
Msg:
CANCEL BROWSE
Press
BROWSE
(
+
)
to view and
insert a name,
number, or
message from
previously
stored
information.
Press
CANCEL
(
-
)
to exit without
making changes.
Flashing
cursor
indicates
insertion
point.
Press
M
to open the
sub-menu.
M
55
Using the Menu
When you enter text, the flashing cursor changes to a
block
cursor
, and the soft key functions change:
Msg:
T
DELETE OK
Press
OK
(
+
)
to accept and
store the text.
Press
DELETE
(
-
) to
delete the character to the
left of the insertion point.
Block
cursor
indicates
current
highlighted
character.
M
After two seconds, the block
cursor reverts to a flashing cursor
and moves to the next position.
Using the Menu
56
Entering Text
General Text Entry Rules
Use the keypad to enter letters, numbers, and other characters.
Press the same key repeatedly to cycle through available
characters (see “Character Chart” on page 57):
Msg:
CANCEL) )BROWSE
Press a number
key to enter text
at flashing cursor
location.
Press a number
key as many times
as necessary to
enter the desired
character.
Press and hold
a number key to
cycle between
uppercase and
lowercase
characters.
Press navigation
keys left or right
to move flashing
cursor to the
left or right in
text message.
Press navigation
keys up or down
to move flashing
cursor up or
down one line
in text message,
or change
character in
block cursor to
uppercase or
lowercase.
57
Using the Menu
• If you do not press a key for two seconds, the character in
the block cursor is accepted, and the cursor moves to the
next position.
• The first character of every sentence is capitalized unless
you manually override it. (Hold the number key or press S
down to force the character to lowercase while it is
highlighted by the block cursor.)
Character Chart
Use this chart as a guide for entering spaces, numbers, letters,
and other characters. Press and hold a key to cycle between
uppercase and lowercase characters.
1
space
. 1 ? ! , @ & : ; " - ( ) '¿ ¡
% £ $ ¥
2 a b c 2 ä å à α β ç
3 d e f 3 ∆ é è Φ
4 g h i 4 Γ
5 j k l 5 Λ
6 m n o 6 ñ ö ø ò Ω
7 p q r s 7 Π ß ∑
8 t u v 8 Θ ü ù
9 w x y z 9 Ξ Ψ
0 + - 0 x * / = > < # §
Using the Menu
58
Predictive Text Entry with iTAP Software
iTAP™ software provides a predictive text entry method that lets
you enter the letters of a word using only one keypress per letter.
Activating and Deactivating iTAP Software
You must activate iTAP software prior to entering letters. You can
do this from any text entry screen by pressing M and
selecting the iTAP menu option.
When you are finished using iTAP software, press M again
from any text entry screen and select TAP Method to reset your
phone to use the standard text entry method described on pages
56 and 57.
Entering Words
To enter a word:
Do This To
1
Press a keypad key
once
enter the first letter of the word
The letters associated with the key
you pressed are shown at the bottom
of the display.
2
Press keypad keys
(one per letter)
enter the rest of the word
Alternative words and letter
combinations are shown at the
bottom of the display based on the
keys you press. These word choices
are updated with each keypress.
59
Using the Menu
For example, to spell the word “act,” press 2 2 8. The
display shows:
3
When you have
entered all the
letters of the
word, press
* and #
locate and highlight the word you
want
4
Press
SELECT (+)
add the highlighted word to the text
area at the top of the display
A space is automatically inserted
after the word.
Do This To
Press
SELECT
(
+
) to
insert the highlighted word
at the insertion point.
Press
DELETE
(
-
)
to clear the last letter
entered.
Flashing
cursor
indicates
insertion
point.
Press
*
and
#
to scroll and see
additional word
choices.
Cat Act Bat Abu }
DELETE SELECT
Using the Menu
60
Entering Novel Words
You may enter a word that is not in the iTAP software dictionary.
If you enter all the letters of a word but the word is not
displayed:
Punctuation
The iTAP software automatically adds a space after each word.
When you enter punctuation, this space is removed. To use
punctuation:
Do This To
1
Press DELETE (-)
one or more times
delete one or more letters until
you see a letter combination
that matches the start of the
word
2
Press * and # highlight the letter or letter
combination
3
Press SELECT (+),
then press *
shift the text entry cursor to the
left and “lock” the selected
portion of the word
4
Continue entering
letters and highlighting
letter combinations
spell the word
Press To
1 or 0enter punctuation or other characters
as shown in the “Character Chart”
on page 57
61
Using the Menu
Capitalization
The first word of a sentence is automatically capitalized, with
following words in lowercase. To set or adjust character
capitalization:
Entering Numbers
To enter a number:
Press To
5
S change the words to initial character
capitalized, all uppercase characters,
or all lowercase characters
Do This To
1
Enter the first digit
and then highlight
it
put the iTAP software in number
entry mode
2
Press keypad keys add digits to the number
3
Press
SELECT (+)
enter the number at the insertion
point
Using the Menu
62
Deleting Letters and Words
Place the cursor to the right of the text that you want to delete,
and then do the following:
Do This To
Press DELETE (-) delete one letter at a time
Continue to hold
DELETE (-)
delete the entire message
