Welcome
The Motorola Wireless Portable Speaker HF800 with Bluetooth
®
technology
defies traditional expectations. This hands-free product by Motorola makes
connectivity invisible and reliable. It is astonishingly advanced, yet intuitive
and simple to use. It is decidedly smaller than its competitors, yet more eye-
catching than ever. And although you are no longer connected by wires, you
are intrinsically connected to a growing group of leading-edge technology
pioneers who are embracing the global Bluetooth movement.
Innovation is a recognized part of Motorola’s 75-year heritage. A company
that understands the way the world is moving...and then jumps in to
intelligently shape its direction. Motorola consumer products with Bluetooth
wireless technology are challenging the expected and defying the traditional
rules. Connectivity is bringing us together–need it be hampered by wires?
Technology is making life more integrated–must it be complicated?
Motorola is actively creating Bluetooth solutions for work, for play, for home,
for life–everywhere around the globe. Welcome to the movement. And thank
you for choosing the Motorola Wireless Portable Speaker HF800!
6809461A31-O
2
Contents
Safety and General Information
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Introduction
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
What Is Bluetooth Wireless Technology? . . . . . . . . . . . . . . . . . . . . . . . . . .6
How Can I Use My Wireless Portable Speaker? . . . . . . . . . . . . . . . . . . . .6
Portable Speaker Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Using Your Portable Speaker
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Charging Your Portable Speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Using the Portable Speaker in a Vehicle . . . . . . . . . . . . . . . . . . . . . . . . .10
Wearing the Portable Speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Pairing Your Portable Speaker and Phone . . . . . . . . . . . . . . . . . . . . . . . .14
Controlling Portable Speaker Volume . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Placing and Receiving Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Using Your Portable Speaker Indicators . . . . . . . . . . . . . . . . . . . . . . . . . .20
3
Safety and General Information
IMPORTANT INFORMATION ON SAFE AND EFFICIENT
OPERATION. READ THIS INFORMATION BEFORE USING YOUR
DEVICE.
Users are not permitted to make changes or modify the device in any way.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment. See 47
CFR Sec. 15.21.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation. See 47 CFR Sec. 15.19(3).
Electromagnetic Interference/Compatibility
Note:
Nearly every electronic device is susceptible to electromagnetic
interference (EMI) if inadequately shielded, designed, or otherwise configured
for electromagnetic compatibility.
Facilities
To avoid electromagnetic interference and/or compatibility conflicts, turn off
your device in any facility where posted notices instruct you to do so.
Hospitals or health care facilities may be using equipment that is sensitive to
external RF energy.
Safety and General Information
4
Aircraft
When instructed to do so, turn off your device when on board an aircraft. Any
use of a device must be in accordance with applicable regulations per airline
crew instructions.
Medical Devices
Hearing Aids
Some devices may interfere with some hearing aids. In the event of such
interference, you may want to consult with your hearing aid manufacturer to
discuss alternatives.
Other Medical Devices
If you use any other personal medical device, consult the manufacturer of
your device to determine if it is adequately shielded from RF energy. Your
physician may be able to assist you in obtaining this information.
Industry Canada Notice to Users
Operation is subject to the following two conditions: (1) This device may not
cause interference and (2) This device must accept any interference,
including interference that may cause undesired operation of the device Ref
IC RSS 210 Sec. 5.11. The term “IC:” before the certification/registration
5
Safety and General Information
number only signifies that registration was performed based on a Declaration
of Conformity indicating that Industry Canada technical specifications were
met. It does not imply that Industry Canada approved the equipment. See Ref
IC Self-Marking 6(f) and RSP-100 Sec. 4.
FCC Notice to Users
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
6
Introduction
What Is Bluetooth Wireless Technology?
Bluetooth wireless technology propels you into a new dimension in
connectivity.
Bluetooth devices communicate without wires, using built-in radio
transceivers that operate on a globally available radio frequency to ensure
worldwide compatibility. Your Bluetooth Wireless Portable Speaker can
communicate with other Bluetooth devices within a range of approximately
10 meters (33 feet).
How Can I Use My Wireless Portable Speaker?
Your Wireless Portable Speaker equipped with Bluetooth technology lets you
connect with other similarly equipped devices such as a
Motorola V600
with integrated Bluetooth technology.
• Use your phone hands free.
• Handle incoming and outgoing calls with the multifunction control button
(MFB).
• Use voice activation to make calls.
Note:
The HF800 supports both Headset and Hands Free Bluetooth Profiles
Consult your User’s Guide for more information.
7
Introduction
Preliminary
Portable Speaker Features

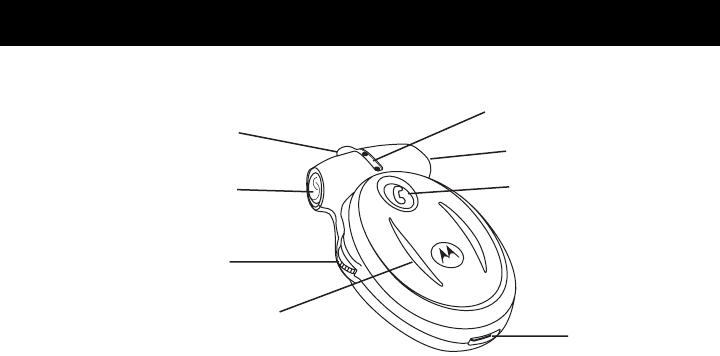

1 — Multifunction Button (MFB) and Indicator LED
Provides visual
indication about speaker status.
2 — Headset Jack
Plug in an extra headset during phone conversations.
3 — Internal Microphone
Picks up your voice input.
4 — Lanyard Loop
Lets you attach a lanyard, so you can wear the speaker
around your neck and always keep it near.
5 — Microphone Mute Button and LED
Mutes the microphone during a
phone call.
6 — Volume Button
Adjusts speaker output volume up and down.
7 — 1 Watt Speaker
Plays the sound you receive on the call.
8 — Charging Port
Plug the charger in here to charge the speaker battery.
1
6
5
7
8
2
3
4
8
Preliminary
Using Your Portable Speaker
Charging Your Portable Speaker
When to Charge
First-Time Use
—Before you can use your portable speaker, you need to
charge its self-contained battery for two hours.
Recharging
—When you hear five rapid high tones through the portable
speaker, repeated at 20-second intervals, the speaker battery needs to be
recharged.
Over extended periods of time, batteries gradually wear down and require
longer charging times. This is normal. The more you use the portable speaker
with your phone, the less standby time your battery has.
The rechargeable batteries that power this product must be
disposed of properly and may need to be recycled. Contact your
local recycling center for proper disposal methods. Never dispose of
batteries in a fire because they may explode.
A fully charged battery provides approximately:
• 3 hours talk time
• 100 hours standby time
9
Using Your Portable Speaker
Preliminary
How to Charge
Note:
You can use either a Motorola Original Wall Charger or Motorola
Original Vehicle Power Adapter to charge the speaker.
Note:
The speaker will function with the charger connected, but no charging
will occur. If a low battery is detected while the unit is on, charging will begin.
Step
1
Turn off unit.
2

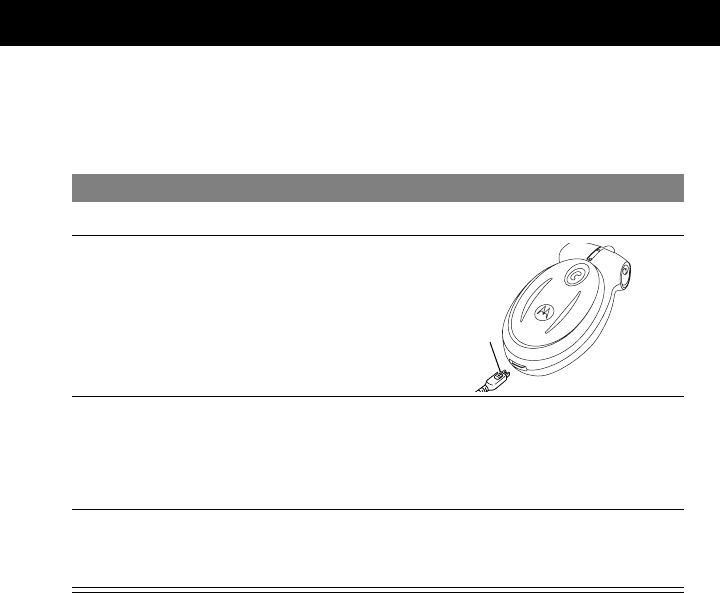

Plug the Motorola charger into
the speaker, with the charger’s
release tab facing up, and the
speaker facing up.
3
Plug the other end of the charger into an electrical outlet.
During charging, the mute button indicator turns on and remains lit until
charging is complete. The speaker will function while charging. Your
speaker requires approximately two hours to receive a full charge.
4
When charging is complete (mute indicator is off), remove the charger
from the electrical outlet, press the release tab, and detach the charger
cord from the speaker.
Release
Tab
Using Your Portable Speaker
10
Preliminary
Using the Portable Speaker in a Vehicle
Placing the Portable Speaker on a Visor
The portable speaker is configured for optimal audio performance when
placed on a visor using the carry case with the belt/visor clip.
Step
1
Insert the Portable Speaker into
the carry Case.
2
Mount the carry case to your
vehicle’s sun visor directly above
your mouth.
3
The microphone should be pointed toward your mouth.
4
Remove the unit from your visor when charging.
11
Using Your Portable Speaker
Preliminary
Wearing the Portable Speaker
Wearing the Portable Speaker in the Carry Case
The charger receptacle and all buttons are exposed for ease of operation
when in a carry case.
Wearing the Portable Speaker on a lanyard
Step
1
Insert the Portable Speaker into
the Carry Case.
2
Use the belt clip to wear the unit
on your belt or other convenient
carrying location.
Step
1
Place a lanyard around the lanyard loop on the top of the unit.
2
Loop the lanyard around your neck.
3
The microphone should be pointed toward your mouth.
Using Your Portable Speaker
12
Preliminary

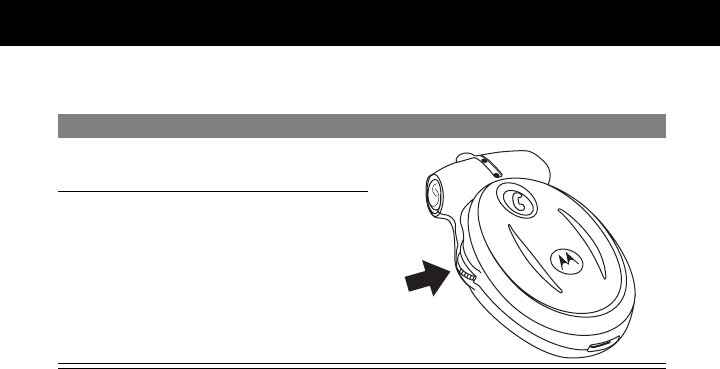

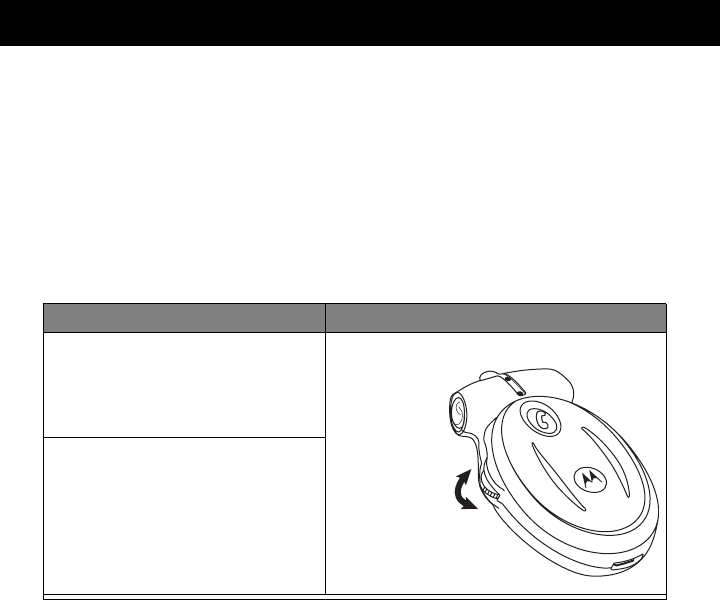

Turning the Portable Speaker On and Off
Function Action
Press the volume button to turn the
Portable Speaker
on
.
Press and hold the volume button for
2-3 seconds to turn the Portable
Speaker
off
.
13
Using Your Portable Speaker
Preliminary

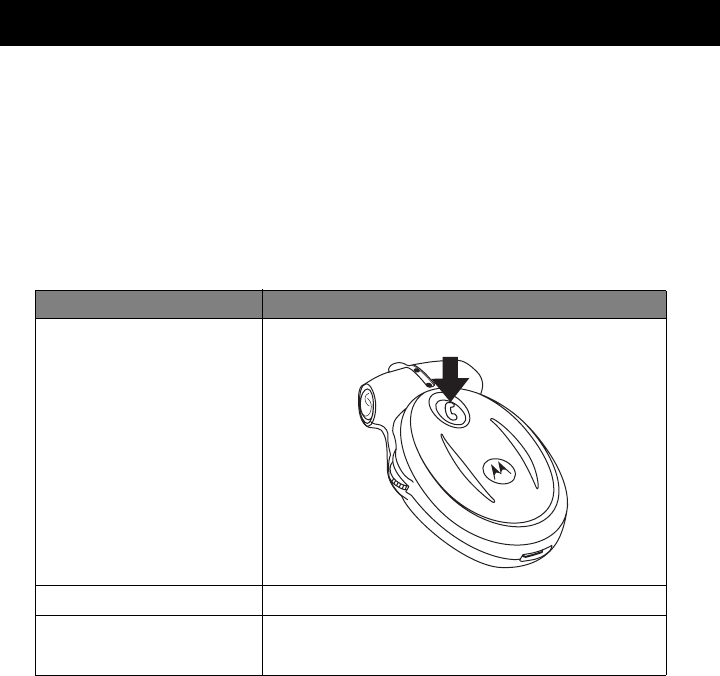

Using the Portable Speaker with a headset.
Function Action

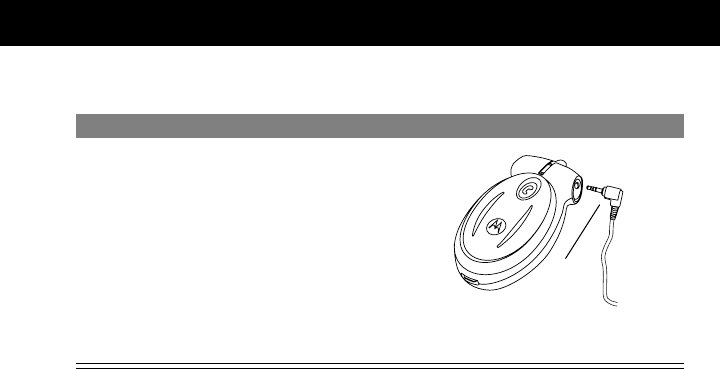

You can plug an extra headset into
your wireless portable speaker.
Headset
Speaker
Plug
Using Your Portable Speaker
14
Preliminary
Pairing Your Portable Speaker and Phone
Note:
You must pair your Portable Speaker and phone before you can make
a call.
“Pairing” creates a link between devices equipped with Bluetooth wireless
technology and allows the phone to remember the speaker’s unique ID. Once
your speaker and phone are paired, your speaker automatically connects to
your phone any time you turn on the speaker.
Pairing
With the Portable Speaker and phone in close proximity:
Step Result
1
Put the speaker into pairing mode.
a
Press the volume button once.
The MFB LED illuminates.
2
Initiate the pairing sequence using
hands free mode if available.
The unit may also be paired in
headset mode if hands free mode is
not available.
15
Using Your Portable Speaker
Preliminary
Paired Link to Additional Devices
Your speaker can store pairing information for up to eight different devices
equipped with Bluetooth wireless technology. Devices are stored in a “Paired
Device List” in memory in chronological order. When an attempt to pair to
more than eight devices is made, the oldest paired device is removed from
the list.
3
Perform a
device
discovery
from
the phone.
For details on device discovery
for your phone, refer to the
user’s guide for the phone.
When the scan is complete, the
phone displays the devices
found.
4
Select the Motorola HF800 from the
discovered devices list and confirm
following the on screen prompts.
5
When prompted by the phone, enter
the passkey
0000
and confirm to
pair the speaker with the phone.
The device ID is now stored in
the phone’s memory.
Pairing is successful when the
speaker indicator flashes 10
times rapidly.
Step Result
Using Your Portable Speaker
16
Preliminary
Any of the eight paired devices can initiate a paired connection to the speaker.
The speaker will only automatically initiate a paired connection (when
powered on) with the
last
device it was
connected to
. If you want to connect
the Portable Speaker to another device in the paired device list, you must
initiate the connection from that device. Whichever of the eight devices
initiates a connection to the speaker afterwards, that device then becomes
the “last connected” device.
Step Result
1
Perform a
device
discovery
from
the phone.
For details on device discovery
for your phone, refer to the
user’s guide for the phone.
When the scan is complete, the
phone displays the devices
found.
2
Select the Motorola HF800 from the
discovered devices list and confirm
following the on screen prompts.
3
When prompted by the phone, enter
the passkey
0000
and confirm to
pair the Portable Speaker with the
phone.
The device ID is now stored in
the phone’s memory.
Pairing is successful when the
speaker indicator flashes 2 times
rapidly.
17
Using Your Portable Speaker
Preliminary
Note:
If you power up your phone after turning on the Portable Speaker, then
you may initiate a connection to the last connected device by pressing the
MFB.
Note:
Some phones request authorization upon each connection. You may
be able to disable this feature. Refer to your phone's user guide for details.
Controlling Portable Speaker Volume
Increasing and Decreasing Volume
Function Action
Increase:
Press the volume
button in the up position
repeatedly until you reach the
desired volume level.
Decrease:
Press the volume
button in the down position
repeatedly until you reach the
desired volume level.
Speaker
Volume
Control Down
Up
Using Your Portable Speaker
18
Preliminary
Placing and Receiving Calls
Your Portable Speaker supports both Hands Free and Headset Profiles.
Accessing call functions depends on which profile your phone supports.
Note:
Some phones do not support all features listed. Please consult your
phone user’s guide.
You can activate call functions for both Hands Free and speaker Profiles
according to the following table:
Function Action
Make a Voice Dial Call Short press MFB, speak name, phone dials call
Dial a Number User dials number on phone
Redial a Number Long press MFB (recalls last phone number).
Press MFB (call is sent).
19
Using Your Portable Speaker
Preliminary
Note:
If the link is abnormally disconnected (out of range) the portable
speaker tries to reestablish the link.
End a Call Short press MFB
Put Active Call On Hold Long press MFB
Receive a Call Short press MFB (call is answered).
Reject a Call (phone rings) Long press MFB
Answer Second Incoming Call Long press MFB (first call is placed on hold, incoming
call is answered).
Answer Second Incoming Call Long press Volume button (second call is added to
conversation).
Reject Second Incoming Call Short press Volume button
In Call, Add second call Long press Volume button (second call is added to
conversation).
Toggle Between Two Active
Calls
Long press MFB (one active call is placed on hold, call
on hold, other active call is on portable speaker).
End Call. Resume Call On
Hold
Short Press Volume button
Transfer Call From Phone To
Portable Speaker
Short press MFB (call is transferred to Portable
Speaker).
Function Action
Using Your Portable Speaker
20
Preliminary
Using Your Portable Speaker Indicators
Portable Speaker MFB Indicator (LED)
Note:
When the wireless Portable Speaker is not connected to a phone for 5
minutes, the blue flashing LED turns off. Any button press on the Portable
Speaker will reawaken the Portable Speaker and the flashing resumes.
Mute Button (LED)
In a call:
With charger plugged in:
MFB Indicator (LED) Portable Speaker
OFF power off
ON (steady) pairing mode
2 rapid flashes pairing successful
Mute Button LED Indicator Speaker
ON Microphone is muted
Mute Button LED Indicator Speaker
ON Charging in progress
OFF Charging is complete
21
Using Your Portable Speaker
Preliminary
Audio Tones
Audio Tone Portable Speaker Status
single high tone Volume maximum or minimum
reached
Pairing confirmation
End call
single low tone Initiate voice activation
five rapid high tones, repeated every
20 seconds
low battery
no audio indications; deteriorating
audio quality
out of range
ring tone Incoming call
dual high/low tone Voice tag not recognized
fast high/low tone every 5 seconds No network/service
no tone power ON/OFF
22
Limited Warranty for Motorola Personal
Communications Products and Accessories
Purchased in the United States and Canada
I. What This Warranty Covers
•Products. Defects in materials and workmanship in (a) wireless cellular
telephones, pagers, and/or two-way radios, (b) accessories that are sold with
them, such as the battery, battery charger and holster manufactured and/or
sold by Motorola, and (c) accessories manufactured and/or sold by Motorola
(Products).
•Batteries. Defects in materials and workmanship in batteries that are
manufactured by Motorola and/or sold with Products are covered by this
warranty only if the fully-charged capacity falls below 80% of rated capacity or
they leak.
•Software. Physical defects in the media that tangibly embodies each copy of
any software supplied with the Products.
II. What the Period of Coverage Is
From the date the Products are purchased by the first end-user:
•Products. The warranty is for one year. Exception: The warranty for Spirit GT
series and Talkabout series two-way radio accessories is for 90 days.
•Software. The warranty is for 90 days.
Warranty
23
•Repairs / Replacements. The warranty is for the balance of the original
warranty or for 90 days from the date you receive it, whichever is longer.
III. Who is Covered
This warranty extends to the first end-user purchaser, only.
IV. What We Will Do to Correct Warranty Problems
At no charge to you, we have the option to repair or replace the Products or software
that do not conform to the warranty, or to refund the Products’ purchase price. We
may use functionally equivalent reconditioned/refurbished/pre-owned or new
Products or parts. No software updates are provided.
V. How to Get Warranty Service
PLEASE CALL – DO NOT SHIP:
USA Canada
Cellular 1-800-331-6456 All Products1-800-461-4575
Paging 1-800-548-9954 TTY (Text Telephone)
Two-Way 1-800-353-2729 1-888-390-6456
TTY (Text Telephone)
1-888-390-6456
Accessories -- call the number designated for the product with which you
use the accessory.
24
Warranty
You will receive instructions on how to ship the Products to Motorola or our
designated resource. If instructed to ship the Products, you must ship them with
freight, duties and insurance prepaid. Regardless of where you are instructed to
return the Products, you must include: (a) a copy of your receipt, bill of sale or other
comparable proof of purchase; (b) a written description of the problem; (c) the name
of your service provider (if this Product requires subscription service); (d) the name
and location of the installation facility (if applicable) and, most importantly; (e) your
address and telephone number. If requested, you must also return all detachable
parts such as antennas, batteries and chargers. RETAIN YOUR ORIGINAL PROOF OF
PURCHASE.
For Products you ship to us, we will ship repaired or replacement Products at our
expense for the freight and insurance, but at your expense for any duties. If
additional information is needed, please contact us at the telephone number listed
above.
VI. What This Warranty Does Not Cover
• Products that are operated in combination with ancillary or
peripheral equipment or software not furnished by Motorola for use
with the Products ("ancillary equipment"), or any damage to the
Products or ancillary equipment as a result of such use. Among other
things, "ancillary equipment" includes batteries, chargers, adaptors,
and power supplies not manufactured or supplied by Motorola. Any
of these voids the warranty.
Warranty
25
• Someone other than Motorola (or its authorized service centers) tests, adjusts,
installs, maintains, alters, modifies or services the Products in any way. Any of
these voids the warranty.
• Rechargeable batteries that: (a) are charged by other than the Motorola-
approved battery charger specified for charging such batteries; (b) have any
broken seals or show evidence of tampering; (c) are used in equipment other
than the Product for which they are specified; or (d) are charged and stored at
temperatures greater than 60 degrees centigrade. Any of these voids the
warranty.
• Products that have: (a) serial numbers or date tags that have been removed,
altered or obliterated; (b) board serial numbers that do not match each other, or
board serial numbers that do not match the housing; or (c) nonconforming or
non-Motorola housings or parts. Any of these voids the warranty.
• Defects or damage that result from: (a) use of the Products in a manner that is
not normal or customary; (b) improper operation or misuse; (c) accident or
neglect such as dropping the Products onto hard surfaces; (d) contact with
water, rain, extreme humidity or heavy perspiration; (e) contact with sand, dirt
or the like; or (f) contact with extreme heat, or spills of food or liquid.
• Physical damage to the surface of the Products, including scratches, cracks or
other damage to a display screen, lens or other externally exposed parts.
• Failure of Products that is due primarily to any communication service or signal
you may subscribe to or use with the Products.
• Coil cords that are stretched or that have any broken modular tabs.
26
Warranty
• Products that are leased.
Flat-rate repair rates may apply to Products not covered by this warranty. To obtain
information about Products needing repairs that are not covered by this warranty,
please call the telephone number previously listed. We will provide information on
repair availability, rates, methods of payment, where to send the Products, etc.
VII. Some Other Limitations
This is Motorola’s complete warranty for the Products, and states your
exclusive remedies. This warranty is given in lieu of all other express
warranties. Implied warranties, including without limitation, the implied
warranties of merchantability and fitness for a particular purpose, are
given only if specifically required by applicable law. Otherwise, they are
specifically excluded.
No warranty is made as to coverage, availability, or grade of service
provided by the Products, whether through a service provider or
otherwise.
No warranty is made that the software will meet your requirements or
will work in combination with any hardware or applications software
products provided by third parties, that the operation of the software
products will be uninterrupted or error free, or that all defects in the
software products will be corrected.
In no event shall Motorola be liable, whether in contract or tort
(including negligence) for damages in excess of the purchase price of the
Warranty
27
Product, or for any indirect, incidental, special or consequential damages
of any kind, or loss of revenue or profits, loss of business, loss of
information or data, or other financial loss arising out of or in connection
with the ability or inability to use the Products, to the full extent these
damages may be disclaimed by law.
VIII. Patent and Software Provisions
At Motorola’s expense, we will defend you, and pay costs and damages that may be
finally awarded against you, to the extent that a lawsuit is based on a claim that the
Products directly infringe a United States patent. Our obligation is conditioned on:
(a) you notifying us promptly in writing when you receive notice of the claim; (b) you
giving us sole control of the defense of the suit and all negotiations for its settlement
or compromise; and (c) should the Products become, or in Motorola's opinion be
likely to become, the subject of a claim of infringement of a United States patent,
you permit us, at our option and expense, either to: procure for you the right to
continue using the Products; replace or modify them so that they become non-
infringing; or grant you a credit for such Products, as depreciated, and accept their
return. The depreciation will be an equal amount per year over the lifetime of the
Products, as established by Motorola.
Motorola will have no liability to you with respect to any claim of patent
infringement that is based upon the combination of the Products or parts furnished
under this limited warranty with ancillary equipment, as defined in VI., above.
This is Motorola’s entire liability with respect to infringement of patents
by the Products.
28
Warranty
Laws in the United States and other countries preserve for Motorola and other third
party software providers certain exclusive rights for copyrighted software, such as the
exclusive rights to reproduce in copies and distribute copies of such software. The
software may be copied into, used in and redistributed with only those Products that
are associated with such software. No other use, including without limitation,
disassembly or reverse engineering of such software or exercise of exclusive rights in
such software is permitted.
IX. State Law and Other Jurisdiction Rights
Some states and other jurisdictions do not allow the exclusion or limitation of
incidental or consequential damages, or limitation on the length of an implied
warranty, so the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights,
which vary from jurisdiction to jurisdiction.
To obtain information on Motorola Personal Communications Products, including
warranty service, accessories and optional Extended Warranties on selected Products,
please call:
USA Canada
Cellular 1-800-331-6456 All Products 1-800 461-4575
Paging 1-800-548-9954 TTY 1-888-390-6456
Two-Way 1-800-353-2729
TTY 1-888-390-6456
Warranty
29
Accessories -- call the number designated for the product with which
you use the accessory.
DO NOT SHIP PRODUCTS UNDER WARRANTY TO THESE ADDRESSES – INSTEAD
PLEASE CALL. To correspond with Motorola about Products, please write us at
http://www.motorola.com or at:
In the USA: In Canada:
Motorola, Inc. Motorola Canada Limited
600 North U.S. Highway 45 5875 Whittle Road
Libertyville, IL 60048 Mississauga, ON L4Z 2H4
Copyright 2001 Motorola. All rights reserved.
