DRAFT 2 - 8/1/06
S705 Bluetooth Stereo
1
DRAFT
S705 Bluetooth
Stereo
Controller for
Headphones
Congratulations on purchasing your new
SoundPilot!
The first Class 1 Bluetooth stereo
controller on the market, the Motorola
S705 SoundPilot offers music and
communication in perfect harmony.
Innovatively designed, the S705
empowers you to listen to and
wirelessly control your favorite tunes
without the worry of missing a call. All
with the freedom of using your own
favorite headphones.
2
S705 Bluetooth Stereo
DRAFT
With superior sound and power, the
Motorola S705 SoundPilot is light in
weight but heavy in style and
functionality - so go ahead, take control,
and never miss a beat or a call.
Package Contents
•
S705 Bluetooth Stereo Controller
for wired headphones
•
Motorola S2xx (model # to be
confirmed) headphones
•
Detachable shirt clip
•
Lanyard
•
Wall charger
•
User’s Guide (this manual)
•
Quick Start Guide
S705 Bluetooth Stereo
3
DRAFT
4
S705 Bluetooth Stereo
DRAFT
Motorola, Inc.
Consumer Advocacy Office
1307 East Algonquin Road
Schaumburg, IL 60196
www.hellomoto.com
www.hellomoto.com/Bluetoothsupport
1-877-MOTOBLU (Motorola Bluetooth® support)
1-800-331-6456 (United States)
1-888-390-6456 (TTY/TDD United States for hearing impaired)
1-800-461-4575 (Canada)
The use of wireless devices and their accessories may be
prohibited or restricted in certain areas. Always obey the laws
and regulations on the use of these products.
MOTOROLA and the Stylized M Logo are registered in the US
Patent & Trademark Office. SoundPilot is a trademark of
Motorola, Inc. The Bluetooth trademarks are owned by their
proprietor and used by Motorola, Inc. under license. iPod is a
registered trademark of Apple Computer, Inc. registered in the
U.S. and other countries. naviPlay is a trademark of TEN
Technology, Inc. All other product or service names are the
property of their respective owners.
© Motorola, Inc., 2006.
S705 Bluetooth Stereo
5
DRAFT
Software Copyright Notice
The Motorola products described in this manual may include
copyrighted Motorola and third-party software stored in
semiconductor memories or other media. Laws in the United
States and other countries preserve for Motorola and
third-party software providers certain exclusive rights for
copyrighted software, such as the exclusive rights to
distribute or reproduce the copyrighted software. Accordingly,
any copyrighted software contained in the Motorola products
may not be modified, reverse-engineered, distributed, or
reproduced in any manner to the extent allowed by law.
Furthermore, the purchase of the Motorola products shall not
be deemed to grant either directly or by implication, estoppel,
or otherwise, any license under the copyrights, patents, or
patent applications of Motorola or any third-party software
provider, except for the normal, non-exclusive, royalty-free
license to use that arises by operation of law in the sale of a
product.
Manual Number: 6809504A42-O
Contents
6
DRAFT
Contents
S705 Bluetooth Stereo Controller for
Headphones
. . . . . . . . . . . . . . . . . . . 1
Package Contents . . . . . . . . . . . . . . 2
Overview
. . . . . . . . . . . . . . . . . . . . . . 9
Getting Started
. . . . . . . . . . . . . . . . 13
Charging Your S705. . . . . . . . . . . . 13
Pairing Your Bluetooth Device(s) with
Your S705 . . . . . . . . . . . . . . . . . . . 16
Attaching Shirt Clip to Your S705. . 21
Attaching Lanyard to Your S705. . . 23
Connecting Your Headphones to Your
S705 . . . . . . . . . . . . . . . . . . . . . . . 25
Operation
. . . . . . . . . . . . . . . . . . . . . 27
Turning Your S705 On and Off . . . . 27
Operating the S705 . . . . . . . . . . . . 30
Listening to Music. . . . . . . . . . . . . 34
Listening to FM Radio . . . . . . . . . . 41
7
Contents
DRAFT
Making and Receiving Calls . . . . . 45
Locking/Unlocking Keys . . . . . . . . 52
Customize
. . . . . . . . . . . . . . . . . . . . 55
Setting Language . . . . . . . . . . . . . 55
Putting S705 in Bluetooth
Discoverable Mode. . . . . . . . . . . . 56
European Union Directives
Conformance Statement
. . . . . . . . 58
Caring for the Environment by
Recycling
. . . . . . . . . . . . . . . . . . . . . 59
Recycling Mobile Phones and
Accessories
. . . . . . . . . . . . . . . . . . . 59
Safety and General Information
. . 60
Smart Practices While Driving
. . . 63
Industry Canada Notice to Users
. 66
FCC Notice To Users
. . . . . . . . . . . . 67
Motorola Limited Warranty for the
United States and Canada
. . . . . . . 69
Export Law Assurances
. . . . . . . . . 78
Overview
9
DRAFT
Overview
The Motorola S705 Bluetooth Stereo
Controller allows you to both listen to
music and place and receive phone calls
wirelessly using your favorite
headphones .

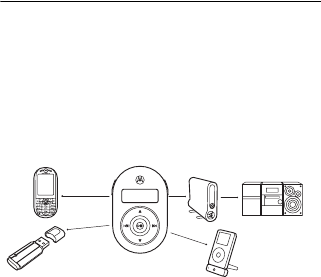

Along with making and receiving phone
calls using your Bluetooth-enabled
mobile phone, there are several typical
scenarios for using your S705 Bluetooth
Stereo Controller with your music
devices.
10
Overview
DRAFT
Application Description
Streaming
music from
your home
stereo
Listen to music from
your home stereo using
Motorola DC800
Bluetooth Home Stereo
Adapter.
Streaming
music from
your PC
Listen to music from
your PC using Motorola
PC850 Bluetooth
Stereo PC Adapter.
Streaming
music from
your iPod
®
Listen to music from
your iPod using TEN
Technologies naviPlay™
Bluetooth Stereo
Adapter for iPod.
Streaming
music from
your phone
Listen to music from
your phone that
supports Bluetooth
streaming capabilities.
Overview
11
DRAFT
The following Bluetooth profiles are
utilized by the S705 and must be
supported by your connected mobile
phone or music source device.
Profile Description
HFP
(Handsfree
Profile)
Telephony / Call
management:
operations related to
placing/ receiving
phone calls
A2DP
(Advanced
Audio
Distribution
Profile)
Stereo music
streaming
AVRCP (Audio
Video Remote
Control
Profile)
Remote music
control (for example,
ability to remotely
Play / Pause or Stop
music)
12
Overview
DRAFT
Getting Started
13
DRAFT
Getting Started
Charging Your S705
First-Time Use
— Before you can use
your S705, charge its self-contained
battery for two hours.
Recharging
— When the S705’s
battery meter indicates low charge (
v
),
the S705 battery needs recharging.
Over time, batteries gradually wear
down and require longer charging times.
This is normal. The more you use your
S705 with your Bluetooth devices, the
less standby time your battery has.
The rechargeable batteries that
power your S705 must be
disposed of properly and may
14
Getting Started
DRAFT
need to be recycled. Contact your local
recycling center for proper disposal
methods.
Warning:
Never dispose of batteries in
a fire because they may explode.
1
Plug the
Motorola
charger into
the S705’s
charging
port as shown.
2
Plug the other end of the charger
into an electrical outlet.
•
When powered on, the S705’s
battery meter indicates charging
(
w
).
•
When powered off, the S705’s
joystick backlight light is on.
Getting Started
15
DRAFT
Once complete, the S705’s battery
meter indicates full charge (
r
).
Note:
The S705 can be used while
charging.
3
When charging completes (about 2
hours), remove charger from the
electrical outlet, and detach charger
from the S705.
Note:
You can also use a
Motorola Original Vehicle Power
Adapter to charge the S705 battery
while in your vehicle.
A fully charged S705 battery provides
approximately:
•
6 hours of stereo music listening
and/or phone call talk time.
•
75 hours of standby time .
16
Getting Started
DRAFT
Pairing Your
Bluetooth Device(s)
with Your S705
Note:
The S705 is a Class 1-capable
Bluetooth device. Bluetooth features
and Bluetooth Class 1 power levels are
not allowed for outdoor operation in
France. To avoid unlawful interference
with radio signals, do not use the
Bluetooth features in France unless you
are indoors.
You must pair (link) your S705 and your
Bluetooth-enabled phone and/or music
devices before you can make/receive
calls or listen to music.
“Pairing” links two Bluetooth equipped
devices, and allows your Bluetooth
device to remember your S705’s unique
Getting Started
17
DRAFT
ID. After your S705 and Bluetooth
device are paired, your S705
automatically connects to the device
when you turn it on.
Perform the following steps to pair (link)
your S705 with your Bluetooth devices:
1
From the off position, press and hold
the
e
button until the Motorola logo
is displayed. After a few moments,
you see:
Note:
If this screen is not displayed, see
“Putting S705 in Bluetooth Discoverable
Mode” on page 56 to place S705 in
Bluetooth discoverable mode.
Discoverable r
using Bluetooth
18
Getting Started
DRAFT
2
Using your Bluetooth phone or
music device, perform a Bluetooth
device discovery (refer to your
phone or music device manual for
detailed instructions on accessing
Bluetooth and searching for
discoverable devices).
When pairing with a Motorola
phone, you can find the Bluetooth
option under the Main Menu or
Connections menu:
After accessing Bluetooth:
a
Select
Look for Devices
.
The phone lists Bluetooth
devices it finds.
b
Select
Motorola S705
.
c
Select
OK
or
Ye s
to pair your
S705 with your phone.
d
Enter the passkey:
0000
Getting Started
19
DRAFT
e
Select
OK
.
Note:
These steps are for most
Motorola phones. For other phones,
see your phone’s user’s guide for
instructions on performing a
Bluetooth device discovery.
3
Verify your S705 has successfully
paired with your phone or music
source device:
•
The Phone Connected (
y
) icon
displays when successfully paired
with your Bluetooth phone. A
Bluetooth Handsfree Phone (HFP)
connection is established with
your phone.
•
The Streaming Music Connected
icon (
x
) displays when
successfully paired with your
music source (phone or other
device). A Bluetooth Streaming
20
Getting Started
DRAFT
Music (A2DP) connection is
established with your music
source device.
Note:
Your S705 can store pairing
information for up to eight different
Bluetooth devices. Device IDs are
stored in the “Paired Device List” in
memory in the order entered. If you try
to pair more than eight devices, the
oldest paired device is removed from
the list.
When any of the eight paired devices is
turned on and close to the S705, it
automatically pairs with the S705. To
connect your S705 to another device in
the paired device list, start the
connection from that device. The last
device to start a connection with the
S705 becomes the “last connected”
device.
Getting Started
21
DRAFT
Attaching Shirt Clip to
Your S705
Your S705 comes with a detachable
shirt clip. Perform the following steps to
attach the shirt clip to your S705:
1
Remove rubber plug from back of
S705 as shown.
22
Getting Started
DRAFT
2

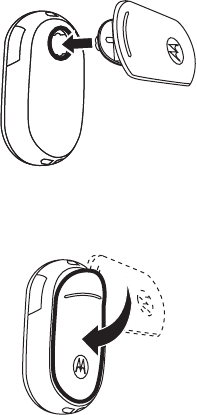

Insert shirt clip onto the back of the
S705 as shown.
3
Turn shirt clip to lock into place on
the S705 as shown.
Getting Started
23
DRAFT
Attaching Lanyard to
Your S705
Your S705 comes with a detachable
lanyard. Perform the following steps to
attach the lanyard to your S705:
1
Detach lanyard cord from quick
release mechanism as shown.
24
Getting Started
DRAFT
2
Attach quick release mechanism to
S705 as shown.
Note:
Release mechanism can be
attached to either end of S705.
3
Reattach lanyard cord to quick
release mechanism as shown.
Getting Started
25
DRAFT
Connecting Your
Headphones to Your
S705
Your S705 comes with 3.5mm
headphones. To utilize your S705,
connect these headphones (or your
own favorite headphones) to the
headphone jack as shown.
26
Getting Started
DRAFT
Operation
27
DRAFT
Operation
Turning Your S705 On
and Off
To turn on or off your S705, press and
hold
e
button for at least 5 seconds until
the Motorola logo is displayed.
When turned on, the S705 automatically
establishes handsfree phone and
streaming music connections with the
last paired Bluetooth devices (phone
and/or music devices).
Note:
If not paired with any Bluetooth
device(s), your S705 automatically
enters Bluetooth discoverable mode.
See “Pairing Your Bluetooth Device(s)
with Your S705” on page 16 for details
28
Operation
DRAFT
on pairing your Bluetooth device(s) with
your S705.
Connecting to Your
Bluetooth Devices
When connection to a streaming music
source is established, the Music Idle
screen is displayed.
The Streaming Music Connection (
x
)
icon is displayed along with the Phone
Connected (
y
) icon when a handsfree
phone connection is also established.
When only a handsfree phone
connection is established (no streaming
C
Play zxyr
-Connected-
Operation
29
DRAFT
music connection), the Radio Idle
screen is displayed.
The Phone Connected (
y
) icon is
displayed.
Whenever a Bluetooth connection
exists (streaming music and/or
handsfree phone), the text
-Connected-
is
displayed from either Idle screen.
No Bluetooth Connection
If no Bluetooth device connections are
established, the S705 is placed in
Bluetooth discoverable mode for 3
minutes.
During this period, you can access
menus (and cancel discoverable mode)
C
FM Radio yr
-Connected-
30
Operation
DRAFT
by pressing the
e
button. Otherwise,
when the discoverable mode times out,
the S705 automatically turns off.
Operating the S705
A combination of display panel, buttons,
and navigation joystick are used to
operate your S705. Here’s a quick
anatomy lesson of the S705.
Menu Button e Call Key d
Navigation Joystick/
Play/Pause Key V
Display Panel
Joystick Backlight
Operation
31
DRAFT
Status Indicators
Your S705 displays graphical icons to
indicate status of battery, music
streaming, and Bluetooth connections.
The following indicators are displayed
for status:
Indicator Indicates
u
–
r
Battery charge level
v
Battery charge low
w
Battery charging
y
Phone connected
(Handsfree connection)
x
Streaming music
connected (A2DP
connection)
xyr
P
z
S
t
reamin
g
Status
Indicators
32
Operation
DRAFT
Menus
Your S705 provides menus for
performing certain operating and
configuring tasks.
P
Streaming music playing
O
Streaming music paused
U
FM radio playing
W
Keys locked
Indicator Indicates (Continued)
G
z Play music
x
y
r
Navigation
Aids
Menu
Selection
Operation
33
DRAFT
Menus are accessed by pressing the
e
button. Use the following guidelines for
navigating the menus:
•
Scroll through menus by pressing
I
and
J
with joystick.
•
Make a menu selection by
pressing
H
with joystick.
•
Press
e
button in menu to step
backwards (or return to exit
menus from top level).
Buttons and Navigation
Joystick
Several push buttons and multi-position
navigation joystick allow you to perform
tasks with your S705. The actions
performed by these controls depend on
the screen displayed.
34
Operation
DRAFT
On most screens, a selection box
indicates the most logical action to
perform.
For example, from the screen above,
pressing the
d
button answers the
phone.
Listening to Music
Your S705 allows you to select from
multiple Bluetooth streaming music
sources to listen to music with your
headphones.
B
Answer xy
r
O
O
<Ca
ll
er I
D
>
Operation
35
DRAFT
Selecting Streaming Music
Source
To select a Bluetooth streaming music
source:
1
Press
e
button to access menus.
2
Press
J
with joystick until you see
the music source to which you want
to connect.
3
Press
H
with joystick
E
<Music Source>
r
G
x Connect
r
36
Operation
DRAFT
4
Press
H
with joystick to connect.
You see:
Playing Streaming Music
To play music from your selected
Bluetooth streaming music source:
•
Press
V
button from Music Idle
screen (shown on page 28), or
•
Select
Play Music
from menus.
You hear music playing and see the
Music Playing screen.
C
Play zxyr
-Connected-
xyr
P
z Streaming
Operation
37
DRAFT
From the Music Playing screen, you can
do the following:
To d o
this...
Do this
Pause/
resume
music
Press
V
button.
When music is paused,
the Music Paused
(
O
) icon is
displayed.
Change
music
volume
Press
I
and
J
with
joystick.
When reaching
minimum/maximum
volume, you are hear a
beep.
Fast-forwar
d song
Press and hold
H
with
joystick.
38
Operation
DRAFT
Skip to next
song
Press
H
with joystick.
Note:
If playing last
song on list, music is
paused.
Rewind
song
Press and hold
G
with
joystick.
Play
previous
song
Press
G
twice with
joystick.
Lock keys Press and hold
V
button.
Make voice
dial call
Press
d
button.
Music is paused. When
call is ended, music is
resumed.
To d o
this...
Do this
Operation
39
DRAFT
Deleting Streaming Music
Source
You can remove a paired Bluetooth
music source from your S705’s
memory.
1
Press
e
button to access menus.
Redial last
call
Press and hold
d
button.
Music is paused. When
call is ended, music is
resumed.
To d o
this...
Do this
40
Operation
DRAFT
2
Press
J
with joystick until you see
the music source to which you want
to delete.
3
Press
H
with joystick
4
Press
J
with joystick until you see
Delete
/
E
<Music Source>
r
G
x Connect
r
F
x Delete?
r
Operation
41
DRAFT
5
Press
H
with joystick to delete.
You see:
6
Press
H
with joystick to confirm
delete.
Listening to FM Radio
Your S705 allows you to listen to FM
radio with your headphones.
Playing FM Radio
To listen to FM radio:
•
Press
V
button from Radio Idle
screen (shown on page 29), or
•
Select
FM Radio
from menus.
Delete? L
Kxyr
No Yes
42
Operation
DRAFT
You hear radio playing and see the
Radio Playing screen. On this
screen, both the radio station and
Radio Data System (RDS) text are
displayed..
From the Radio Playing screen, you can
do the following:
To d o
this...
Do this
Mute/unmu
te radio
Press
V
button.
When radio is mute,
-Mute-
is displayed.
yr
U <Radio Text>
J
93.1
Operation
43
DRAFT
Change
radio
volume
Press
I
and
J
with
joystick.
Note:
When reaching
minimum/maximum
volume, you are hear a
beep.
Seek
station
forward
Press and hold
H
with
joystick.
Skip to next
station
Press
H
with joystick.
Seek
station
backward
Press and hold
G
with
joystick.
Skip to
previous
station
Press
G
with joystick.
To d o
this...
Do this
44
Operation
DRAFT
Lock keys Press and hold
V
button.
Make voice
dial call
Press
d
button.
Radio is muted. When
call is ended, radio is
resumed.
Redial last
call
Press and hold
d
button.
Radio is muted. When
call is ended, radio is
resumed.
To d o
this...
Do this
Operation
45
DRAFT
Making and Receiving
Calls
Your S705 allows you to make and
receive phone calls from your Bluetooth
phone.
Note:
Some features are
phone/network dependent.
Making a Voice Dial Call
Note:
To make a voice dial call, your
phone must support voice dial features.
1
Press
W
button. If music /radio is
playing, it is paused/muted. You see:
Voice
Recognition...
xyr
46
Operation
DRAFT
2
Speak name of person to call. Name
is repeated over headphones and
phone number is dialed. You see:
Once connected, the On Call screen
is displayed.
Making a Handset Dial Call
1
Dial the phone number using the
phone handset. You will hear dialing
over headphones. (If music /radio is
playing, it is paused/muted).
xyr
O
Calling...
<Phone Number>
B
Hang up xyr
On a Call
Operation
47
DRAFT
2
Press Send button on the phone.
Ringing is heard over headphones.
You see:
Once connected, the On Call screen
is displayed.
Making a Call Using Last
Dialed Phone Number
Press and hold
W
button. If music /radio
is playing, it is paused/muted. After a
few moments, ringing is heard over
xyr
O
Calling...
<Phone Number>
B
Hang up xyr
On a Call
48
Operation
DRAFT
headphones and phone number is
dialed. You see:
Once connected, the On Call screen is
displayed.
Receiving a Call
When an incoming call is active, the
following is displayed.
xyr
O
Calling...
<Phone Number>
B
Hang up xyr
On a Call
B
Answer xyr
O
<Caller ID>
Operation
49
DRAFT
Answering a Call
To answer an incoming call, press
W
or
V
button. If music/radio is playing, it is
paused./muted. If you are currently on a
call, it is placed on hold.
Once connected, the following On Call
screen is displayed when one call is
connected.
When two calls are connected, the
following On Call screen is displayed.
B
Hang up xyr
On a Call
B
K
Hang up xyr
On Call 2
1
50
Operation
DRAFT
Rejecting a Call
To ignore an incoming call, press
e
button.
Performing In-Call Actions
While on a call, you can do the
following:
To d o
this...
Do this
Mute /
unmute a
call
Press
V
button.
When call is muted,
-Mute-
is displayed.
Change the
call volume
Press
I
and
J
with
joystick.
Answer a
second
incoming
call
Press
W
and
V
buttons.
First call is placed on
hold.
Operation
51
DRAFT
Reject a
second
incoming
call
Press
e
button or press
G
,
H
,
I
,
J
with
joystick
Switch
between
two active
calls
If first call is active,
press
H
with joystick
to switch to second
call.
If second call is active,
press
G
with joystick
to switch to first call.
Note:
If only one call is
active, you cannot put
that call on hold using
the S705.
To d o
this...
Do this
52
Operation
DRAFT
Locking/Unlocking
Keys
You can lock/unlock your S705’s keys to
avoid inadvertent key presses.
End a call Press
W
button.
If music/radio was
playing before call, it
will resume. If two calls
were connected, the
other call becomes
active.
To d o
this...
Do this
Operation
53
DRAFT
To lock or unlock your S705 keys, press
and hold
V
button. When locked, the
following is displayed.
When keys are locked and not on a call,
you can answer/ignore a call or unlock
the S705. While on a call, however, keys
are not locked.
To unlock keys, press and hold
V
button.
You see the following displayed until the
keys are unlocked.
C
Unlock W xyr
-Connected-
Hold Play
to Unlock
xyr
54
Operation
DRAFT
Customize
55
DRAFT
Customize
This section provides instructions for
customizing operations for your S705.
Setting Language
1
Press
e
key to access menus.
2
Press
J
with joystick until you see
the following.
3
Press
H
with joystick
F
Language
xyr
G
T English
xyr
56
Customize
DRAFT
4
Press
I
/
J
with joystick to scroll to
desired language.
5
Press
H
with joystick to select
language.
Putting S705 in
Bluetooth
Discoverable Mode
1
Press
e
key to access menus.
2
Press
J
with joystick until you see
the following.
3
Press
H
with joystick.
E
y Find Me
r
Customize
57
DRAFT
If S705 is currently connected to a
Bluetooth device, you see:
Press
H
with joystick. The S705 is
placed in Bluetooth discoverable
mode:
The S705 remains in Bluetooth
discoverable mode for 90 seconds.
Notes:
For details on pairing and
connecting your S705 with Bluetooth
devices, see “Pairing Your Bluetooth
Device(s) with Your S705” on page 16.
Disconnect?L
K r
No Yes
Discoverable r
using Bluetooth
European Union Directives
58
DRAFT
European Union
Directives Conformance
Statement
Hereby, Motorola declares that this product is in compliance
with:
•
The essential requirements and other relevant provisions
of Directive 1999/5/EC
•
All other relevant EU Directives
The above gives an example of a typical Product Approval
Number.
You can view your product’s Declaration of Conformity (DoC)
to Directive 1999/5/EC (to R&TTE Directive) at
www.motorola.com/rtte. To find your DoC, enter the product
Approval Number from your product’s label in the “Search”
bar on the Web site.
[France Only]
0168
Product
Approval
Number
Caring for the Environment by
59
DRAFT
Caring for the
Environment by
Recycling
This symbol on a Motorola product means the
product should not be disposed of with household
waste.
Recycling Mobile
Phones and Accessories
Do not dispose of mobile phones or electrical accessories,
such as chargers or headsets, with your household waste. In
some countries or regions, collection systems are set up to
handle electrical and electronic waste items. Contact your
regional authorities for more details. If collection systems
aren’t available, return unwanted mobile phones or electrical
accessories to any Motorola Approved Service Centre in your
region.
Safety and General Information
60
DRAFT
Safety and General
Information
Safety Information
IMPORTANT INFORMATION ON SAFE AND EFFICIENT
OPERATION. READ THIS INFORMATION BEFORE
USING YOUR DEVICE.
Approved Accessories
Use of accessories not approved by Motorola, including but
not limited to batteries, antennas, and convertible covers,
may cause your mobile device to exceed RF energy exposure
guidelines and may void your mobile device’s warranty. For a
list of approved Motorola accessories, visit our Web site at:
www.motorola.com
.
Electromagnetic
Interference/Compatibility
Note:
Nearly every electronic device is susceptible to
electromagnetic interference (EMI) if inadequately shielded,
designed, or otherwise configured for electromagnetic
compatibility.
Safety and General Information
61
DRAFT
Facilities
Turn off your mobile device in any facility where posted
notices instruct you to do so. These facilities may include
hospitals or health care facilities that may be using
equipment that is sensitive to external RF energy.
Aircraft
When instructed to do so, turn off your mobile device when
on board an aircraft. Any use of a mobile device must be in
accordance with applicable regulations per airline crew
instructions.
Medical Devices
Hearing Aids
Some mobile devices may interfere with some hearing aids. In
the event of such interference, you may want to consult your
hearing aid manufacturer or physician to discuss alternatives.
Other Medical Devices
If you use any other personal medical device, consult the
manufacturer of your device to determine if it is adequately
shielded from RF energy. Your physician may be able to assist
you in obtaining this information.
Safety and General Information
62
DRAFT
Batteries and Chargers
Your battery, charger, or mobile device may contain symbols,
defined as follows:
Symbol Definition
Important safety information follows.
Do not dispose of your battery or
mobile device in a fire.
Your battery or mobile device may
require recycling in accordance with
local laws. Contact your local
regulatory authorities for more
information.
Do not throw your battery or mobile
device in the trash.
Your mobile device contains an
internal lithium ion battery.
Do not let your battery, charger, or
mobile device get wet.
Listening at full volume to music or
voice through a headset may damage
your hearing.
032374o
032376o
032375o
032378o
Li Ion BATT
Smart Practices While Driving
63
DRAFT
Smart Practices While
Driving
Driving Safety
Drive Safe, Call Smart
SM
Check the laws and regulations on the use of mobile
devices and their accessories in the areas where you
drive. Always obey them. The use of these devices may
be prohibited or restricted in certain areas. Go to
www.motorola.com/callsmart for more
information.
Your mobile device lets you communicate by voice and
data—almost anywhere, anytime, wherever wireless service
is available and safe conditions allow. When driving a car,
driving is your first responsibility. If you choose to use your
mobile device while driving, remember the following tips:
• Get to know your Motorola mobile device and
its features such as speed dial and redial.
If
available, these features help you to place your call
without taking your attention off the road.
• When available, use a handsfree
device.
If possible, add an additional
layer of convenience to your mobile
device with one of the many
Motorola Original handsfree
accessories available today.
Smart Practices While Driving
64
DRAFT
• Position your mobile device within easy reach.
Be able to access your mobile device without
removing your eyes from the road. If you receive an
incoming call at an inconvenient time, if possible, let
your voice mail answer it for you.
• Let the person you are speaking with know you
are driving; if necessary, suspend the call in
heavy traffic or hazardous weather conditions.
Rain, sleet, snow, ice, and even heavy traffic can be
hazardous.
• Do not take notes or look up phone numbers
while driving.
Jotting down a “to do” list or going
through your address book takes attention away from
your primary responsibility—driving safely.
• Dial sensibly and assess the traffic; if possible,
place calls when your car is not moving or
before pulling into traffic.
If you must make a call
while moving, dial only a few numbers, check the
road and your mirrors, then continue.
• Do not engage in stressful or emotional
conversations that may be distracting.
Make
people you are talking with aware you are driving and
suspend conversations that can divert your attention
away from the road.
Smart Practices While Driving
65
DRAFT
• Use your mobile device to call for help.
Dial 911
or other local emergency number in the case of fire,
traffic accident, or medical emergencies.*
• Use your mobile device to help others in
emergencies.
If you see an auto accident, crime in
progress, or other serious emergency where lives are
in danger, call 911 or other local emergency number,
as you would want others to do for you.*
• Call roadside assistance or a special
non-emergency wireless assistance number
when necessary.
If you see a broken-down vehicle
posing no serious hazard, a broken traffic signal, a
minor traffic accident where no one appears injured,
or a vehicle you know to be stolen, call roadside
assistance or other special non-emergency wireless
number.
1
1. Wherever wireless phone service is available.
Industry Canada Notice to Users
66
DRAFT
Industry Canada Notice to
Users
Industry Canada Notice
Operation is subject to the following two conditions: (1) This
device may not cause interference and (2) This device must
accept any interference, including interference that may
cause undesired operation of the device. See RSS-GEN 7.1.5.
FCC Notice To Users
67
DRAFT
FCC Notice To Users
FCC Notice
Motorola has not approved any changes or modifications to
this device by the user. Any changes or modifications could
void the user’s authority to operate the equipment. See 47
CFR Sec. 15.21.
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation. See 47 CFR Sec. 15.19(3).
If your mobile device or accessory has a USB connector, or is
otherwise considered a computer peripheral device whereby
it can be connected to a computer for purposes of transferring
data, then it is considered a Class B device and the following
statement applies:
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
FCC Notice To Users
68
DRAFT
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and
the receiver.
•
Connect the equipment to an outlet on a circuit
different from that to which the receiver is
connected.
•
Consult the dealer or an experienced radio/TV
technician for help.
Motorola Limited Warranty for the
69
DRAFT
Motorola Limited
Warranty for the United
States and Canada
Warranty
What Does This Warranty Cover?
Subject to the exclusions contained below, Motorola, Inc.
warrants its telephones, pagers, messaging devices, and
consumer and professional two-way radios (excluding
commercial, government or industrial radios) that operate via
Family Radio Service or General Mobile Radio Service,
Motorola-branded or certified accessories sold for use with
these Products (“Accessories”) and Motorola software
contained on CD-ROMs or other tangible media and sold for
use with these Products (“Software”) to be free from defects
in materials and workmanship under normal consumer usage
for the period(s) outlined below. This limited warranty is a
consumer's exclusive remedy, and applies as follows to new
Motorola Products, Accessories and Software purchased by
consumers in the United States or Canada, which are
accompanied by this written warranty:
Motorola Limited Warranty for the
70
DRAFT
Products and Accessories
Products Covered Length of Coverage
Products and
Accessories
as
defined above, unless
otherwise provided for
below.
One (1) year
from the date of
purchase by the first consumer
purchaser of the product
unless otherwise provided for
below.
Decorative
Accessories and
Cases.
Decorative
covers, bezels,
PhoneWrap™ covers
and cases.
Limited lifetime warranty
for the lifetime of ownership
by the first consumer
purchaser of the product.
Monaural Headsets.
Ear buds and boom
headsets that transmit
mono sound through a
wired connection.
Limited lifetime warranty
for the lifetime of ownership
by the first consumer
purchaser of the product.
Consumer and
Professional
Two-Way Radio
Accessories.
Ninety (90) days
from the
date of purchase by the first
consumer purchaser of the
product.
Motorola Limited Warranty for the
71
DRAFT
Exclusions
Normal wear and tear.
Periodic maintenance, repair and
replacement of parts due to normal wear and tear are
excluded from coverage.
Batteries.
Only batteries whose fully charged capacity falls
below 80% of their rated capacity and batteries that leak are
covered by this limited warranty.
Abuse & misuse.
Defects or damage that result from:
(a) improper operation, storage, misuse or abuse, accident or
neglect, such as physical damage (cracks, scratches, etc.) to
the surface of the product resulting from misuse; (b) contact
with liquid, water, rain, extreme humidity or heavy
perspiration, sand, dirt or the like, extreme heat, or food;
(c) use of the Products or Accessories for commercial
purposes or subjecting the Product or Accessory to abnormal
usage or conditions; or (d) other acts which are not the fault
of Motorola, are excluded from coverage.
Products and
Accessories that are
Repaired or
Replaced.
The balance of the original
warranty or for ninety (90)
days
from the date returned to
the consumer, whichever is
longer.
Products Covered Length of Coverage
Motorola Limited Warranty for the
72
DRAFT
Use of non-Motorola Products and Accessories.
Defects
or damage that result from the use of Non-Motorola branded
or certified Products, Accessories, Software or other
peripheral equipment are excluded from coverage.
Unauthorized service or modification.
Defects or
damages resulting from service, testing, adjustment,
installation, maintenance, alteration, or modification in any
way by someone other than Motorola, or its authorized
service centers, are excluded from coverage.
Altered products.
Products or Accessories with (a) serial
numbers or date tags that have been removed, altered or
obliterated; (b) broken seals or that show evidence of
tampering; (c) mismatched board serial numbers; or
(d) nonconforming or non-Motorola housings, or parts, are
excluded from coverage.
Communication services.
Defects, damages, or the failure
of Products, Accessories or Software due to any
communication service or signal you may subscribe to or use
with the Products Accessories or Software is excluded from
coverage.
Motorola Limited Warranty for the
73
DRAFT
Software
Exclusions
Software embodied in physical media.
No warranty is
made that the software will meet your requirements or will
work in combination with any hardware or software
applications provided by third parties, that the operation of
the software products will be uninterrupted or error free, or
that all defects in the software products will be corrected.
Software NOT embodied in physical media.
Software
that is not embodied in physical media (e.g. software that is
downloaded from the Internet), is provided “as is” and
without warranty.
Who is Covered?
This warranty extends only to the first consumer purchaser,
and is not transferable.
Products Covered Length of
Coverage
Software.
Applies only to
physical defects in the media that
embodies the copy of the
software (e.g. CD-ROM, or floppy
disk).
Ninety (90) days
from the date of
purchase.
Motorola Limited Warranty for the
74
DRAFT
What Will Motorola Do?
Motorola, at its option, will at no charge repair, replace or
refund the purchase price of any Products, Accessories or
Software that does not conform to this warranty. We may use
functionally equivalent reconditioned/refurbished/pre-owned
or new Products, Accessories or parts. No data, software or
applications added to your Product, Accessory or Software,
including but not limited to personal contacts, games and
ringer tones, will be reinstalled. To avoid losing such data,
software and applications please create a back up prior to
requesting service.
How to Obtain Warranty Service or
Other Information
USA Phones
1-800-331-6456
Pagers
1-800-548-9954
Two-Way Radios and Messaging
Devices
1-800-353-2729
Canada All Products
1-800-461-4575
Motorola Limited Warranty for the
75
DRAFT
You will receive instructions on how to ship the Products,
Accessories or Software, at your expense, to a Motorola
Authorized Repair Center. To obtain service, you must include:
(a) a copy of your receipt, bill of sale or other comparable
proof of purchase; (b) a written description of the problem;
(c) the name of your service provider, if applicable; (d) the
name and location of the installation facility (if applicable)
and, most importantly; (e) your address and telephone
number.
What Other Limitations Are There?
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT
LIMITATION THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS
LIMITED WARRANTY, OTHERWISE THE REPAIR,
REPLACEMENT, OR REFUND AS PROVIDED UNDER THIS
EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY
OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL
OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT
SHALL MOTOROLA BE LIABLE, WHETHER IN CONTRACT OR
TORT (INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS
TTY
1-888-390-6456
For
Accessories
and
Software
, please call the
telephone number designated above for the product with
which they are used.
Motorola Limited Warranty for the
76
DRAFT
OF THE PURCHASE PRICE OF THE PRODUCT, ACCESSORY OR
SOFTWARE, OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL
OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF
REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF
INFORMATION OR DATA, SOFTWARE OR APPLICATIONS OR
OTHER FINANCIAL LOSS ARISING OUT OF OR IN
CONNECTION WITH THE ABILITY OR INABILITY TO USE THE
PRODUCTS, ACCESSORIES OR SOFTWARE TO THE FULL
EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW.
Some states and jurisdictions do not allow the
limitation or exclusion of incidental or consequential
damages, or limitation on the length of an implied
warranty, so the above limitations or exclusions may
not apply to you. This warranty gives you specific legal
rights, and you may also have other rights that vary
from state to state or from one jurisdiction to another.
Laws in the United States and other countries preserve for
Motorola certain exclusive rights for copyrighted Motorola
software such as the exclusive rights to reproduce and
distribute copies of the Motorola software. Motorola
software may only be copied into, used in, and redistributed
with, the Products associated with such Motorola software.
No other use, including without limitation disassembly of
such Motorola software or exercise of the exclusive rights
reserved for Motorola, is permitted.
Motorola Limited Warranty for the
77
DRAFT
Product Registration
Registration
Online Product Registration:
direct.motorola.com/hellomoto/
Motosupport/source/registration.asp
Product registration is an important step toward enjoying your
new Motorola product. Registering helps us facilitate
warranty service, and permits us to contact you should your
product require an update or other service. Registration is for
U.S. residents only and is not required for warranty coverage.
Please retain your original dated sales receipt for your
records. For warranty service of your Motorola Personal
Communications Product you will need to provide a copy of
your dated sales receipt to confirm warranty status.
Thank you for choosing a Motorola product.
Export Law Assurances
78
DRAFT
Export Law Assurances
Expor t Law
This product is controlled under the export regulations of the
United States of America and Canada. The Governments of
the United States of America and Canada may restrict the
exportation or re-exportation of this product to certain
destinations. For further information contact the U.S.
Department of Commerce or the Canadian Department of
Foreign Affairs and International Trade.
79
Index
Index
motorola.com
