Motorola Mobility T6NB2 Bluetooth Headset User Manual
Motorola Mobility LLC Bluetooth Headset
Manual
Motorola HK110
EN
ULC2 HeadsetEN17 February 2012
March 1, 2012
EN Check it out 1
Check it out
here’s what you can do
Your Motorola HK110 Bluetooth® headset gives
you quick connections, crystal clear
conversations with CrystalTalk™, and lasting
comfort. The HK110 also allows you to have
connections with two phones at the same time.
Go ahead, check it out:
Check it out. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
At a glance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Connect & go. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Basics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Advanced . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Connect with Motorola . . . . . . . . . . . . . . . . . . . . . . . 10
Safety, Regulatory & Legal . . . . . . . . . . . . . . . . . . . . 12
Caution: Please read the important safety,
regulatory and legal information at the back of
this guide.
March 1, 2012
2At a glance EN
At a glance
the important bits, quick and easy
Note: Fully charge before use.
Power/
Call
Power - press
& hold
Call - press to
answer/end
call
Charge
(MicroUSB)
Earhook
Volume
Status
Light
Earpiece
Phone
Tablet
Computer
Connections
Wear
Calls
Ear
Cushion
Use volume buttons on
phone.
Battery Charging
Status
Red - low charge
Yellow - medium charge
Green - high charge
March 1, 2012
EN At a glance 3
Note: Your battery is designed to last the life of
your product. It should only be removed by a
recycling facility. Any attempt to remove or
replace your battery will damage your headset.
March 1, 2012
4Connect & go EN
Connect & go
let’s get you connected
Turn Bluetooth on.
T
1
On
2
Status Light -
two green flashes
Turn headset on (charge before use).
On
Complete.
C
4
Status Light -
solid green
3
Enter “0000”
if prompted
Enter passcode.
March 1, 2012
EN Connect & go 5
Tip: For daily use, just make sure your headset is
on, and your phone’s Bluetooth feature is on.
Your headset and phone connect automatically.
March 1, 2012
6Basics EN
Basics
standard features, advanced quality
Calls
To . . .
answer a call
Press
reject a call
Press and hold until you
hear a tone.
make a voice
dial call
Press and you hear a
tone.
mute or unmute Use your phone to mute/unmute a
call.
end a call
Press
answer a
second
incoming call
from other
phone
Press . The first call is
placed on hold.
March 1, 2012
EN Basics 7
Note: Some features are phone/network
dependent.
Note: Using a mobile device or accessory while
driving may cause distraction and may be illegal.
Always obey the laws and drive safely.
end a second
call from other
phone
Press . The first call is
resumed.
To . . .
March 1, 2012
8Advanced EN
Advanced
more clever stuff
Second device
Using two phones? Or maybe a tablet and a
phone? Pair with two devices.
•Before pairing the second device, turn off the
Bluetooth feature of the previously paired
device. Now pair your second device as
normal, see “Connect & go” on page 4.
•Once paired, to connect to both devices
simply turn them on.
•To use headset features, such as voice dial,
and end call, with the desired device, just use
the feature as normal.
March 1, 2012
EN Advanced 9
Status light
An easy way to check your headset.
Restore to factory setting
Caution: This action erases all pairing
information stored in your headset.
Press and hold and plug in headset. Hold
button for about 5 seconds until you hear a tone.
status light headset
two green flashes turning on
steady green pairing or connected
three green
flashes
turning off
March 1, 2012
10 Connect with Motorola EN
Connect with
Motorola
Get what you need:
•Answers: User guides, online help and more
at www.motorola.com/support.
• Support: You can contact the Motorola
Customer Support Center at: 1-800-331-6456
(United States), 1-888-390-6456 (TTY/TDD
United States for hearing impaired), or
1-800-461-4575 (Canada).
•Bluetooth: If you have questions or need
assistance, contact us at 1-877-MOTOBLU, or
visit www.motorola.com/bluetoothsupport or
www.motorola com/bluetoothconnect.
•Accessories: Find more accessories at
www.motorola.com/products.
March 1, 2012
EN Connect with Motorola 11
•Social: The latest news, tips & tricks, videos
and so much more—join us on:
YouTube™ www.youtube.com/motorola
Facebook™ www.facebook.com/motorola
Twitter www.twitter.com/motomobile
March 1, 2012
12
Safety, Regulatory & Legal
Battery Use & Safety
DON’Ts
• Don’t let the product come in contact with liquids.*
Liquids can get into
the product’s circuits, leading to corrosion.
• Don’t place your product near a heat source.*
High temperatures can
cause the battery to swell, leak, or malfunction.
• Don’t dry a wet or damp product with an appliance or heat source
,
such as a hair dryer or microwave oven.
DOs
• Do avoid leaving your product in your car in high temperatures.*
• Do avoid dropping the product.*
Dropping your product, especially on a
hard surface, can potentially cause damage.*
• Do contact your retailer or Motorola if your product has been
damaged by dropping, liquids or high temperatures.
Warning:
Never dispose of battery powered products in a fire because they
may explode.
Battery Charging
Battery Charging
Notes for charging your product’s battery:
•
During charging, keep your battery and charger near room temperature for
efficient battery charging.
•
New batteries are not fully charged.
March 1, 2012
13
•
New batteries or batteries stored for a long time may take more time to
charge.
•
Motorola batteries and charging systems have circuitry that protects the
battery from damage from overcharging.
Third Party Accessories
Use of third party accessories, including but not limited to batteries, chargers,
headsets, covers, cases, screen protectors and memory cards, may impact your
product’s performance. In some circumstances, third party accessories can be
dangerous and may void your product warranty. For a list of Motorola
accessories, visit
www.motorola.com/products
Driving Precautions
Responsible and safe driving is your primary responsibility when behind the
wheel of a vehicle. Using a mobile device or accessory for a call or other
application while driving may cause distraction, and may be prohibited or
restricted in certain areas—always obey the laws and regulations on the use of
these products.
While driving, NEVER:
•
Type, read, enter or review texts, emails, or any other written data.
•
Surf the web.
•
Input navigation information.
•
Perform any other functions that divert your attention from driving.
While driving, ALWAYS:
•
Keep your eyes on the road.
•
Use a handsfree device if available or required by law in your area.
•
Enter destination information into a navigation device
before
driving.
March 1, 2012
14
•
Use voice activated features (such as voice dial) and speaking features (such
as audible directions), if available.
•
Obey all local laws and regulations for the use of mobile devices and
accessories in the vehicle.
•
End your call or other task if you cannot concentrate on driving.
Remember to follow the “Smart Practices While Driving” at
www.motorola.com/callsmart
(in English only).
Caution About High Volume Usage
Warning:
Exposure to loud noise from any source for extended periods of time
may affect your hearing. The louder the volume sound level, the less time is
required before your hearing could be affected. To protect your hearing:
•
Limit the amount of time you use headsets or headphones at high volume.
•
Avoid turning up the volume to block out noisy surroundings.
•
Turn the volume down if you can’t hear people speaking near you.
If you experience hearing discomfort, including the sensation of pressure or
fullness in your ears, ringing in your ears, or muffled speech, you should stop
listening to the device through your headset or headphones and have your
hearing checked.
For more information about hearing, see our website at
direct.motorola.com/hellomoto/nss/AcousticSafety.asp
(in English
only).
Children
Keep your product and its accessories away from small children.
These
products are not toys and may be hazardous to small children. For example:
March 1, 2012
15
•
A choking hazard may exist for small, detachable parts.
•
Improper use could result in loud sounds, possibly causing hearing injury.
•
Improperly handled batteries could overheat and cause a burn.
Symbol Key
Your battery, charger, or accessory product may contain symbols, defined as
follows:
Symbol Definition
Important safety information follows.
Do not dispose of your product or battery in a fire.
Your product or battery may require recycling in accordance
with local laws. Contact your local regulatory authorities
for more information.
Do not dispose of your product or battery with your
household waste. See “Recycling” for more information.
032374o
032376o
032375o
March 1, 2012
16
European Union Directives
Conformance Statement
EU Conformance
The following CE compliance information is applicable to Motorola products that
carry one of the following CE marks:
Hereby, Motorola declares that this product is in compliance with:
•
The essential requirements and other relevant provisions of Directive
1999/5/EC
•
All other relevant EU Directives
Do not use tools.
For indoor use only.
Symbol Definition
[Only Indoor Use Allowed In France
for Bluetooth and/or Wi-Fi]
March 1, 2012
17
For products that support Wi-Fi 802.11a (as defined in your product information):
This device is restricted to indoor use when operating in the 5.15 to 5.25 GHz
(802.11a) Wi-Fi frequency band.

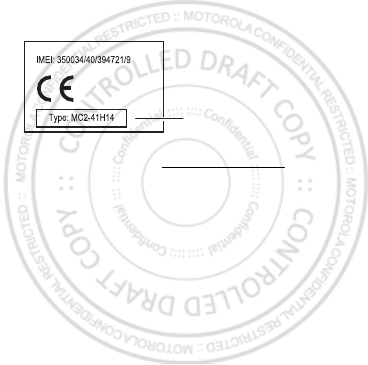

The following gives an example of a typical Product Approval Number:
You can view your product’s Declaration of Conformity (DoC) to Directive
1999/5/EC (to R&TTE Directive) at
www.motorola.com/rtte
(in English
only). To find your DoC, enter the Product Approval Number from your product’s
label in the “Search” bar on the website.
FCC Notice to Users
FCC Notice
The following statement applies to all products that bear the FCC logo
on the product label.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. See 47 CFR Sec. 15.105(b).
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
Product
Approval
Number
March 1, 2012
18
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and the receiver.
•
Connect the equipment to an outlet on a circuit different from that to which
the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation. See 47 CFR Sec. 15.19(a)(3).
Motorola has not approved any changes or modifications to this device by the
user. Any changes or modifications could void the user’s authority to operate the
equipment. See 47 CFR Sec. 15.21.
For products that support Wi-Fi 802.11a (as defined in your product information):
This device is restricted to indoor use when operating in the 5.15 to 5.25 GHz
(802.11a) Wi-Fi frequency band.
Industry Canada Notice to Users
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) This device may not
cause interference and (2) This device must accept any interference, including
interference that may cause undesired operation of the device. See RSS-GEN
7.1.5. This Class B digital apparatus complies with Canadian ICES-003.
March 1, 2012
19
Use & Care
Use & Care
To care for your Motorola product, please keep it away from:
liquids
Don’t expose your product to water, rain, extreme humidity, sweat,
or other liquids.
drying
Don’t try to dry your product using a microwave oven, conventional
oven, or dryer, as this may damage the product.
extreme heat or cold
Avoid temperatures below -10°C (14°F) or above 60°C (140°F). For
battery powered accessories, do not recharge your accessory in
temperatures below 0°C (32°F) or above 45°C (113°F).
dust and dirt
Don’t expose your product to dust, dirt, sand, food, or other
inappropriate materials.
cleaning
To clean your product, use only a dry soft cloth. Don’t use alcohol
or other cleaning solutions.
March 1, 2012
20
shock and vibration
Don’t drop your product.
protection
To help protect your product, always make sure that any battery,
connector and compartment covers are closed and secure.
Recycling
Recycling
Products & Accessories
Please do not dispose of products or electrical accessories (such as
chargers, headsets, or batteries) with your household waste, or in a
fire. These items should be disposed of in accordance with the
national collection and recycling schemes operated by your local or
regional authority. Alternatively, you may return unwanted products and
electrical accessories to any Motorola Approved Service Center in your region.
Details of Motorola approved national recycling schemes, and further
information on Motorola recycling activities can be found at:
www.motorola.com/recycling
Packaging & Product Guides
Product packaging and product guides should only be disposed of in accordance
with national collection and recycling requirements. Please contact your
regional authorities for more details.
March 1, 2012
21
Software Copyright
Software Copyright Notice
Motorola products may include copyrighted Motorola and third-party software
stored in semiconductor memories or other media. Laws in the United States
and other countries preserve for Motorola and third-party software providers
certain exclusive rights for copyrighted software, such as the exclusive rights to
distribute or reproduce the copyrighted software. Accordingly, any copyrighted
software contained in Motorola products may not be modified,
reverse-engineered, distributed, or reproduced in any manner to the extent
allowed by law. Furthermore, the purchase of Motorola products shall not be
deemed to grant either directly or by implication, estoppel, or otherwise, any
license under the copyrights, patents, or patent applications of Motorola or any
third-party software provider, except for the normal, non-exclusive, royalty-free
license to use that arises by operation of law in the sale of a product.
Export Law Assurances
Export Law
This product is controlled under the export regulations of the United States of
America and Canada. The Governments of the United States of America and
Canada may restrict the exportation or re-exportation of this product to certain
destinations. For further information contact the U.S. Department of Commerce
or the Canadian Department of Foreign Affairs and International Trade.
Product Registration
Registration
Online Product Registration:
www.motorola.com/us/productregistration
(in English only)
Product registration is an important step toward enjoying your new Motorola
product. Registering permits us to contact you for product or software updates
March 1, 2012
22
and allows you to subscribe to updates on new products or special promotions.
Registration is not required for warranty coverage.
Please retain your original dated sales receipt for your records. For warranty
service of your Motorola product, you will need to provide a copy of your dated
sales receipt to confirm warranty status.
Thank you for choosing a Motorola product.
Motorola Limited Warranty for the
United States and Canada
Warranty
What Does this Warranty Cover?
Subject to the exclusions contained below, Motorola Mobility, Inc. warrants its
mobile telephones (“Products”), Motorola-branded or certified accessories sold
for use with these Products (“Accessories”), and Motorola software contained
on CD-ROMs or other tangible media and sold for use with these Products
(“Software”) to be free from defects in materials and workmanship under normal
consumer usage for the period(s) outlined below. This limited warranty is a
consumer's exclusive remedy, and applies as follows to new Motorola Products,
Accessories, and Software purchased by consumers in the United States or
Canada, which are accompanied by this written warranty:
March 1, 2012
23
Products and Accessories
Exclusions (Products and Accessories)
Normal Wear and Tear.
Periodic maintenance, repair and replacement of parts
due to normal wear and tear are excluded from coverage.
Products Covered Length of Coverage
Products and Accessories
as defined above, unless
otherwise provided for below.
One (1) year
from the date of purchase
by the first consumer purchaser of the
product unless otherwise provided for
below.
Decorative Accessories
and Cases.
Decorative covers,
bezels, PhoneWrap™ covers
and cases.
Limited lifetime warranty
for the
lifetime of ownership by the first
consumer purchaser of the product.
Monaural Headsets.
Ear
buds and boom headsets that
transmit mono sound through a
wired connection.
Limited lifetime warranty
for the
lifetime of ownership by the first
consumer purchaser of the product.
Products and Accessories
that are Repaired or
Replaced.
The balance of the original
warranty or for ninety (90) days
from
the date returned to the consumer,
whichever is longer.
March 1, 2012
24
Batteries.
Only batteries whose fully charged capacity falls below 80% of their
rated capacity and batteries that leak are covered by this limited warranty.
Abuse & Misuse.
Defects or damage that result from: (a) improper operation,
storage, misuse or abuse, accident or neglect, such as physical damage (cracks,
scratches, etc.) to the surface of the product resulting from misuse; (b) contact
with liquid, water, rain, extreme humidity or heavy perspiration, sand, dirt or the
like, extreme heat, or food; (c) use of the Products or Accessories for commercial
purposes or subjecting the Product or Accessory to abnormal usage or
conditions; or (d) other acts which are not the fault of Motorola, are excluded
from coverage.
Use of Non-Motorola Products and Accessories.
Defects or damage that
result from the use of non-Motorola branded or certified Products, Accessories,
Software or other peripheral equipment are excluded from coverage.
Unauthorized Service or Modification.
Defects or damages resulting from
service, testing, adjustment, installation, maintenance, alteration, or
modification in any way by someone other than Motorola, or its authorized
service centers, are excluded from coverage.
Altered Products.
Products or Accessories with (a) serial numbers or date tags
that have been removed, altered or obliterated; (b) broken seals or that show
evidence of tampering; (c) mismatched board serial numbers; or
(d) nonconforming or non-Motorola housings, or parts, are excluded from
coverage.
Communication Services.
Defects, damages, or the failure of Products,
Accessories or Software due to any communication service or signal you may
subscribe to or use with the Products Accessories or Software is excluded from
coverage.
March 1, 2012
25
Software
Exclusions (Software)
Software Embodied in Physical Media.
No warranty is made that the
software will meet your requirements or will work in combination with any
hardware or software applications provided by third parties, that the operation
of the software products will be uninterrupted or error free, or that all defects in
the software products will be corrected.
Software NOT Embodied in Physical Media.
Software that is not embodied
in physical media (e.g. software that is downloaded from the Internet), is
provided “as is” and without warranty.
Who is Covered?
This warranty extends only to the first consumer purchaser, and is not
transferable.
What Will Motorola Do?
Motorola, at its option, will at no charge repair, replace or refund the purchase
price of any Products, Accessories or Software that does not conform to this
warranty. We may use functionally equivalent
Products Covered Length of
Coverage
Software.
Applies only to physical defects in the
media that embodies the copy of the software (e.g.
CD-ROM, or floppy disk).
Ninety (90) days
from the date of
purchase.
March 1, 2012
26
reconditioned/refurbished/pre-owned or new Products, Accessories or parts. No
data, software or applications added to your Product, Accessory or Software,
including but not limited to personal contacts, games and ringer tones, will be
reinstalled. To avoid losing such data, software, and applications, please create
a back up prior to requesting service.
How to Obtain Warranty Service or Other
Information
You will receive instructions on how to ship the Products, Accessories or
Software, at your expense, to a Motorola Authorized Repair Center. To obtain
service, you must include: (a) a copy of your receipt, bill of sale or other
comparable proof of purchase; (b) a written description of the problem; (c) the
name of your service provider, if applicable; (d) the name and location of the
installation facility (if applicable) and, most importantly; (e) your address and
telephone number.
What Other Limitations are There?
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY,
OTHERWISE THE REPAIR, REPLACEMENT, OR REFUND AS PROVIDED UNDER
USA
1-800-331-6456
Canada
1-800-461-4575
TTY
1-888-390-6456
March 1, 2012
27
THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE
CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS
OR IMPLIED. IN NO EVENT SHALL MOTOROLA BE LIABLE, WHETHER IN
CONTRACT OR TORT (INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF
THE PURCHASE PRICE OF THE PRODUCT, ACCESSORY OR SOFTWARE, OR FOR
ANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY
KIND, OR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF
INFORMATION OR DATA, SOFTWARE OR APPLICATIONS OR OTHER FINANCIAL
LOSS ARISING OUT OF OR IN CONNECTION WITH THE ABILITY OR INABILITY
TO USE THE PRODUCTS, ACCESSORIES OR SOFTWARE TO THE FULL EXTENT
THESE DAMAGES MAY BE DISCLAIMED BY LAW.
Some states and jurisdictions do not allow the limitation or exclusion of
incidental or consequential damages, or limitation on the length of an
implied warranty, so the above limitations or exclusions may not apply
to you. This warranty gives you specific legal rights, and you may also
have other rights that vary from state to state or from one jurisdiction to
another.
March 1, 2012
28
Copyright & Trademarks
Motorola Mobility, Inc.
Consumer Advocacy Office
600 N US Hwy 45
Libertyville, IL 60048
www.motorola.com
Note:
Do not ship your product to the above address. If you need to return your
product for repairs, replacement, or warranty service, please contact the
Motorola Customer Support Center at:
1-800-331-6456 (United States)
1-888-390-6456 (TTY/TDD United States for hearing impaired)
1-800-461-4575 (Canada)
Certain features, services and applications are network dependent and may not
be available in all areas; additional terms, conditions and/or charges may apply.
Contact your service provider for details.
All features, functionality, and other product specifications, as well as the
information contained in this guide, are based upon the latest available
information and believed to be accurate at the time of printing. Motorola
reserves the right to change or modify any information or specifications without
notice or obligation.
Note:
The images in this guide are examples only.
MOTOROLA and the Stylized M Logo are trademarks or registered trademarks of
Motorola Trademark Holdings, LLC. All other product or service names are the
property of their respective owners.
© 2012 Motorola Mobility, Inc. All rights reserved.
March 1, 2012
29
Caution:
Motorola does not take responsibility for changes/modification to the
transceiver.
Product ID: Motorola HK110
Manual Number: 68016816001-A
March 1, 2012
30
March 1, 2012
