Motorola Mobility T6PC1 HZ850 User Manual User Guide
Motorola Mobility LLC HZ850 User Guide
TempConfidential_(HZ850) User manual- update20120403
MOTOROLA
ARCHANGEL
EN
14th Feb 2013
http://www.pdfdo.com
PDFdo Password Remover Trial
14th Feb 2013
http://www.pdfdo.com
PDFdo Password Remover Trial
EN Check it out 1
Check it out
here’s what you can do
Enjoy crystal-clear hands-free audio whenever
and wherever you want it, with your
MOTOROLA ARCHANGEL Bluetooth® headset.
The world's first retractable boom headset with
four microphones.
Go ahead, check it out:
At a glance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Charge it . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Connect & go. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Basics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Advanced . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Want more?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Safety, Regulatory & Legal . . . . . . . . . . . . . . . . . . . . . 18
Caution: Please read the important safety,
regulatory and legal information at the back of
this guide.
14th Feb 2013
http://www.pdfdo.com
PDFdo Password Remover Trial
2At a glance EN
At a glance
the important bits, quick and easy
Status
Light
Tu rn
on & off
Retractable Boom
Microphone
Volume
Buttons
Call Button
Charge
(Micro
USB)
Ear Hook
14th Feb 2013
http://www.pdfdo.com
PDFdo Password Remover Trial
EN At a glance 3

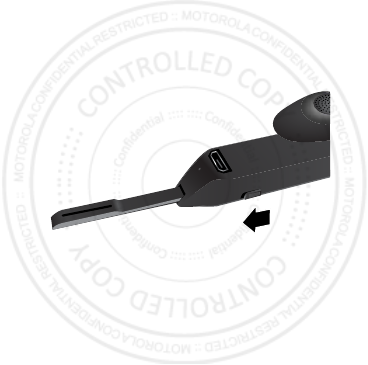

Turn on & Off
Slide the switch towards the retractable boom to
turn your headset on. Slide the switch away from
the retractable boom to turn your headset off.
ON
14th Feb 2013
http://www.pdfdo.com
PDFdo Password Remover Trial
4At a glance EN

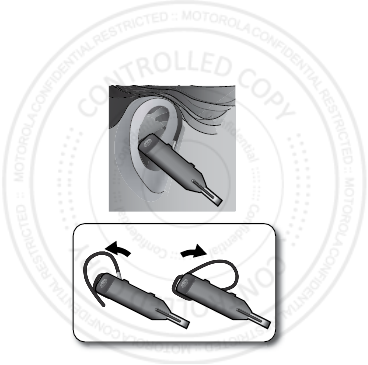

Wear
Push up to engage the ear hook and down to
remove it. When, engaged the ear hook can
swivel to make fitting easier.
Ear Hook Swivels
14th Feb 2013
http://www.pdfdo.com
PDFdo Password Remover Trial
EN Charge it 5
Charge it
let’s get you up and running
Status Light
Flashing Green - highly charged battery
Flashing Yellow - medium charged battery
Flashing Red - low charged battery
14th Feb 2013
http://www.pdfdo.com
PDFdo Password Remover Trial
6Charge it EN
You can charge the headset in two ways:
•Plug a charger directly into the headset’s
micro USB port.
•Plug a computer into the headset’s micro USB
port.
Caution: Your battery is designed to last the life
of your device. It should only be removed by a
recycling facility. Any attempt to remove or
replace your battery will damage the device, void
your warranty, and could cause injury.
Note: Fully charge the headset before you use it.
Tip: To save battery power, turn off the headset
when you’re not using it.
14th Feb 2013
http://www.pdfdo.com
PDFdo Password Remover Trial
EN Connect & go 7
Connect & go
let’s get you connected
2
Turn on the headset and follow the
voice prompts.
4
When the device and headset connect,
you’ll hear “pairing complete”.
3
Go to the Bluetooth option on your device
to pair & connect with the headset. Enter
passcode 0000 if prompted.
1
Turn on Bluetooth on your device.
14th Feb 2013
http://www.pdfdo.com
PDFdo Password Remover Trial
8Basics EN
Basics
standard features, advanced quality
Calls
To …
make a voice
dial call
Press the Call button to
activate voice recognition.
answer a call Press the Call button.
change call
volume
Press the Volume Up or
Volume Down button. To
quickly change volume, press
and hold the Volume Up or
Volume Down button.
reject a call Press and hold the Volume Up
or Volume Down button until
you hear a tone.
end a call Press the Call button.
14th Feb 2013
http://www.pdfdo.com
PDFdo Password Remover Trial
EN Basics 9
Notes:
•Some features are phone/network dependent.
redial last
call
Please use your phone to
redial the last call.
mute or
unmute a
call
Press and hold the Volume Up
and Volume Down buttons
until you hear “mute on” or
“mute off”.
answer a
second
incoming
call
Press the Call button.
reject a
second call
Press and hold the Volume Up
or Volume Down button until
you hear a tone.
To …
14th Feb 2013
http://www.pdfdo.com
PDFdo Password Remover Trial
10 Basics EN
•Using a mobile device or accessory while
driving may cause distraction and may be
illegal. Always obey the laws and drive safely.
status light
light shows… your headset is…
two blue blinks,
pause, repeat
powered on &
searching for a device
steady blue fading
out
powering off
steady blue connected to a device
flashing red charging, battery at
low power
flashing yellow charging, battery at
medium power
flashing green charging, battery at
high power
14th Feb 2013
http://www.pdfdo.com
PDFdo Password Remover Trial
EN Basics 11
music
Note: This feature is phone dependent.
Bluetooth® music can be streamed from your
phone. Start and control music playback from
your phone.
Music pauses when you make or receive a call.
When the call ends, music resumes playing.
Clean & dry
To get the most from your headset, keep it clean
and dry.
•High humidity or perspiration can make the
ear fitting feel slippery. Wipe the ear fitting
with a soft cloth to remove dirt and moisture.
steady green connected to charger,
battery fully charged
light shows… your headset is…
14th Feb 2013
http://www.pdfdo.com
PDFdo Password Remover Trial
12 Basics EN
Note: Be very careful when wiping near the
speaker.
•Check for and remove any debris that may
be blocking the small speaker port near the
earpiece.
14th Feb 2013
http://www.pdfdo.com
PDFdo Password Remover Trial
EN Advanced 13
Advanced
more clever stuff
Second device
Using two phones? Or maybe a phone and a
tablet? Connect with two devices.
1Separately pair each device with the headset
as normal (see “Connect & go” on page 7).
2Once paired, to connect to both devices
simply turn them on. You’ll hear
“<device x> connected” as each device
connects with your headset.
Notes:
• Two phones connected, not on a call: Press
the Call button to activate voice recognition on
the first phone. Double-press it to activate
voice recognition on the second phone.
14th Feb 2013
http://www.pdfdo.com
PDFdo Password Remover Trial
14 Advanced EN
• Two phones connected, single held call on
each phone: Press the Call button to return to
the call on the first phone. Double-press it to
return to the call on the second phone.
Caller ID
Note: This feature is phone/network dependent.
If your phone knows the caller’s number, you’ll
hear “call from <number>” on an incoming call.
If the phone supports the Phonebook Access
profile, you’ll hear “call from <caller’s name>”
when the contact info is stored on your phone.
Note: This feature doesn’t work when you’re on
a call and you receive a second incoming call.
Battery readout
You hear a voice prompt, that tells you how
much talk time you have left when you turn on
your headset.
14th Feb 2013
http://www.pdfdo.com
PDFdo Password Remover Trial
EN Advanced 15
When you’re not in a call, press the Volume Up
and Volume Down buttons to hear how much
battery talk-time is left on your headset.
To save battery power, turn off the headset when
you don't use it for an extended time.
Settings
Press and hold the Call button while turning on
the headset, then follow the voice prompts to
turn these features on/off:
• Restore Factory Settings: Reset default
settings on your headset.
Caution: This feature erases all pairing
information stored on the headset.
• Voice Interface: Voice dial calls, and more.
• Caller ID Alert: Hear caller ID for incoming
calls.
• Multipoint: Connect your headset to two
phones.
14th Feb 2013
http://www.pdfdo.com
PDFdo Password Remover Trial
16 Advanced EN
•Wide-band: Use HD Audio Plus for increased
clarity and richer sound.
•Voice Answer: Speak to answer incoming
calls.
14th Feb 2013
http://www.pdfdo.com
PDFdo Password Remover Trial
EN Want more? 17
Want more?
we’re here to help
Troubleshooting
A few frequently asked questions—with
answers, of course. Find more at
www.motorola.com/support.
• My headset will not enter pairing mode
Make sure that any devices previously paired
with the headset are turned off. If the
indicator light is flashing blue, first turn the
headset off and on. You’ll hear “ready to
pair”.
• My phone doesn't find my headset when
searching
Press and hold the Call button, and turn your
headset on. Follow voice prompts to reset
headset. You’ll hear “Welcome to the
Motorola Archangel, ready to pair”.
14th Feb 2013
http://www.pdfdo.com
PDFdo Password Remover Trial
18 Want more? EN
Connect with Motorola
•Answers: Guides, online help, and more at
www.motorola.com/support.
• Support: Visit www.motorola.com/support or
contact the Motorola Customer Support
Center at: 1-800-331-6456 (United States),
1-888-390-6456 (TTY/TDD United States for
hearing impaired), or 1-800-461-4575
(Canada).
• Bluetooth®: If you have questions or need
assistance, contact us at 1-877-MOTOBLU, or
visit www.motorola.com/bluetoothsupport or
www.motorola com/bluetoothconnect.
• Accessories: Find more accessories at
www.motorola.com/products.
14th Feb 2013
http://www.pdfdo.com
PDFdo Password Remover Trial
EN Want more? 19
•Social: The latest news, tips & tricks, videos
and so much more—join us on:
YouTube™ www.youtube.com/motorola
Facebook® www.facebook.com/motorola
Tw i t t e r www.twitter.com/motomobile
Google+™ www.google.com/+
14th Feb 2013
http://www.pdfdo.com
PDFdo Password Remover Trial
20 Safety, Regulatory & Legal EN
Safety, Regulatory & Legal
Battery Use & Safety
DON’Ts
• Don’t let the product come in contact with liquids.*
Liquids can get into
the product’s circuits, leading to corrosion.
• Don’t place your product near a heat source.*
High temperatures can
cause the battery to swell, leak, or malfunction.
• Don’t dry a wet or damp product with an appliance or heat source
,
such as a hair dryer or microwave oven.
DOs
• Do avoid leaving your product in your car in high temperatures.*
• Do avoid dropping the product.*
Dropping your product, especially on a
hard surface, can potentially cause damage.*
• Do contact your retailer or Motorola if your product has been
damaged by dropping, liquids or high temperatures.
Warning:
Never dispose of battery powered products in a fire because they
may explode.
Battery Charging
Battery Cha rging
Notes for charging your product’s battery:
•
During charging, keep your battery and charger near room temperature for
efficient battery charging.
•
New batteries are not fully charged.
14th Feb 2013
http://www.pdfdo.com
PDFdo Password Remover Trial
EN Safety, Regulatory & Legal 21
•
New batteries or batteries stored for a long time may take more time to
charge.
•
Motorola batteries and charging systems have circuitry that protects the
battery from damage from overcharging.
Third Party Accessories
Use of third party accessories, including but not limited to batteries, chargers,
headsets, covers, cases, screen protectors and memory cards, may impact your
product’s performance. In some circumstances, third party accessories can be
dangerous and may void your product warranty. For a list of Motorola
accessories, visit
www.motorola.com/products
Driving Precautions
Responsible and safe driving is your primary responsibility when behind the
wheel of a vehicle. Using a mobile device or accessory for a call or other
application while driving may cause distraction, and may be prohibited or
restricted in certain areas—always obey the laws and regulations on the use of
these products.
While driving, NEVER:
•
Type, read, enter or review texts, emails, or any other written data.
•
Surf the web.
•
Input navigation information.
•
Perform any other functions that divert your attention from driving.
While driving, ALWAYS:
•
Keep your eyes on the road.
•
Use a handsfree device if available or required by law in your area.
•
Enter destination information into a navigation device
before
driving.
14th Feb 2013
http://www.pdfdo.com
PDFdo Password Remover Trial
22 Safety, Regulatory & Legal EN
•
Use voice activated features (such as voice dial) and speaking features (such
as audible directions), if available.
•
Obey all local laws and regulations for the use of mobile devices and
accessories in the vehicle.
•
End your call or other task if you cannot concentrate on driving.
Remember to follow the “Smart Practices While Driving” at
www.motorola.com/callsmart
(in English only).
Caution About High Volume Usage
Warning:
Exposure to loud noise from any source for extended
periods of time may affect your hearing. The louder the volume
sound level, the less time is required before your hearing could be
affected. To protect your hearing:
•
Limit the amount of time you use headsets or headphones at
high volume.
•
Avoid turning up the volume to block out noisy surroundings.
•
Turn the volume down if you can’t hear people speaking near
you.
If you experience hearing discomfort, including the sensation of pressure or
fullness in your ears, ringing in your ears, or muffled speech, you should stop
listening to the device through your headset or headphones and have your
hearing checked.
For more information about hearing, see our website at
http://direct.motorola.com/hellomoto/nss/AcousticSafety.asp
(in English only).
14th Feb 2013
http://www.pdfdo.com
PDFdo Password Remover Trial
EN Safety, Regulatory & Legal 23
Children
Keep your product and its accessories away from small children.
These
products are not toys and may be hazardous to small children. For example:
•
A choking hazard may exist for small, detachable parts.
•
Improper use could result in loud sounds, possibly causing hearing injury.
•
Improperly handled batteries could overheat and cause a burn.
Symbol Key
Your battery, charger, or accessory product may contain symbols, defined as
follows:
Symbol Definition
Important safety information follows.
Do not dispose of your product or battery in a fire.
Your product or battery may require recycling in
accordance with local laws. Contact your local
regulatory authorities for more information.
Do not dispose of your product or battery with your
household waste. See “Recycling” for more
information.
032374o
032376o
032375o
14th Feb 2013
http://www.pdfdo.com
PDFdo Password Remover Trial
24 Safety, Regulatory & Legal EN
European Union Directives
Conformance Statement
EU Conformance
The following CE compliance information is applicable to Motorola products that
carry one of the following CE marks:
Hereby, Motorola declares that this product is in compliance with:
•
The essential requirements and other relevant provisions of Directive
1999/5/EC
•
All other relevant EU Directives
Do not use tools.
For indoor use only.
Symbol Definition
14th Feb 2013
http://www.pdfdo.com
PDFdo Password Remover Trial
EN Safety, Regulatory & Legal 25
For products that support Wi-Fi 802.11a (as defined in your product information):
This device is restricted to indoor use when operating in the 5.15 to 5.25 GHz
(802.11a) Wi-Fi frequency band.

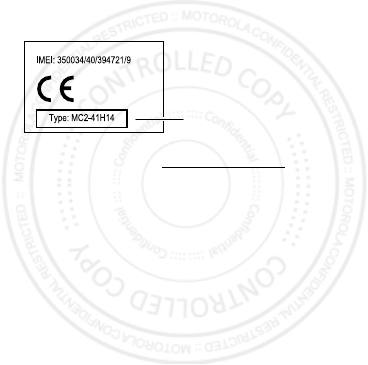

The following gives an example of a typical Product Approval Number:
You can view your product’s Declaration of Conformity (DoC) to Directive
1999/5/EC (to R&TTE Directive) at
www.motorola.com/rtte
(in English
only). To find your DoC, enter the Product Approval Number from your product’s
label in the “Search” bar on the website.
FCC Notice to Users
FCC Notice
The following statement applies to all products that bear the FCC logo
and/or FCC ID on the product label.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. See 47 CFR Sec. 15.105(b).
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
Product
Approval
Number
14th Feb 2013
http://www.pdfdo.com
PDFdo Password Remover Trial
26 Safety, Regulatory & Legal EN
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and the receiver.
•
Connect the equipment to an outlet on a circuit different from that to which
the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation. See 47 CFR Sec. 15.19(a)(3).
Motorola has not approved any changes or modifications to this device by the
user. Any changes or modifications could void the user’s authority to operate the
equipment. See 47 CFR Sec. 15.21.
Industry Canada Notice to Users
Indus try Canada Notice
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) This device may not
cause interference and (2) This device must accept any interference, including
14th Feb 2013
http://www.pdfdo.com
PDFdo Password Remover Trial
interference that may cause undesired operation of the device. See RSS-GEN
7.1.3. This Class B digital apparatus complies with Canadian ICES-003.
EN Safety, Regulatory & Legal 27
Use & Care
Use & Care
To care for your Motorola product, please keep it away from:
liquids
Don’t expose your product to water, rain, extreme humidity, sweat,
or other liquids.
drying
Don’t try to dry your product using a microwave oven, conventional
oven, or dryer, as this may damage the product.
extreme heat or cold
Avoid temperatures below -10°C (14°F) or above 60°C (140°F). For
battery powered accessories, do not recharge your accessory in
temperatures below 0°C (32°F) or above 45°C (113°F).
dust and dirt
Don’t expose your product to dust, dirt, sand, food, or other
inappropriate materials.
14th Feb 2013
http://www.pdfdo.com
PDFdo Password Remover Trial
28 Safety, Regulatory & Legal EN
cleaning
To clean your product, use only a dry soft cloth. Don’t use alcohol
or other cleaning solutions.
shock and vibration
Don’t drop your product.
protection
To help protect your product, always make sure that any battery,
connector and compartment covers are closed and secure.
Recycling
Recycli ng
Products & Accessories
Please do not dispose of products or electrical accessories (such as
chargers, headsets, or batteries) with your household waste, or in a
fire. These items should be disposed of in accordance with the
national collection and recycling schemes operated by your local or
regional authority. Alternatively, you may return unwanted products and
electrical accessories to any Motorola Approved Service Center in your region.
Details of Motorola approved national recycling schemes, and further
information on Motorola recycling activities can be found at:
www.motorola.com/recycling
14th Feb 2013
http://www.pdfdo.com
PDFdo Password Remover Trial
EN Safety, Regulatory & Legal 29
Packaging & Product Guides
Product packaging and product guides should only be disposed of in accordance
with national collection and recycling requirements. Please contact your
regional authorities for more details.
Software Copyright
Softwar e Copyright Not ice
Motorola products may include copyrighted Motorola and third-party software
stored in semiconductor memories or other media. Laws in the United States
and other countries preserve for Motorola and third-party software providers
certain exclusive rights for copyrighted software, such as the exclusive rights to
distribute or reproduce the copyrighted software. Accordingly, any copyrighted
software contained in Motorola products may not be modified,
reverse-engineered, distributed, or reproduced in any manner to the extent
allowed by law. Furthermore, the purchase of Motorola products shall not be
deemed to grant either directly or by implication, estoppel, or otherwise, any
license under the copyrights, patents, or patent applications of Motorola or any
third-party software provider, except for the normal, non-exclusive, royalty-free
license to use that arises by operation of law in the sale of a product.
Export Law Assurances
Export Law
This product is controlled under the export regulations of the United States of
America and Canada. The Governments of the United States of America and
Canada may restrict the exportation or re-exportation of this product to certain
destinations. For further information contact the U.S. Department of Commerce
or the Canadian Department of Foreign Affairs and International Trade.
14th Feb 2013
http://www.pdfdo.com
PDFdo Password Remover Trial
30 Safety, Regulatory & Legal EN
Product Registration
Regist ration
Online Product Registration:
www.motorola.com/us/productregistration
(in English only)
Product registration is an important step toward enjoying your new Motorola
product. Registering permits us to contact you for product or software updates
and allows you to subscribe to updates on new products or special promotions.
Registration is not required for warranty coverage.
Please retain your original dated sales receipt for your records. For warranty
service of your Motorola product, you will need to provide a copy of your dated
sales receipt to confirm warranty status.
Thank you for choosing a Motorola product.
Motorola Limited Warranty for the
United States and Canada
Warr ant y
What Does this Warranty Cover?
Subject to the exclusions contained below, Motorola Mobility LLC warrants its
mobile telephones (“Products”), Motorola-branded or certified accessories sold
for use with these Products (“Accessories”), and Motorola software contained
on CD-ROMs or other tangible media and sold for use with these Products
(“Software”) to be free from defects in materials and workmanship under normal
consumer usage for the period(s) outlined below. This limited warranty is a
consumer's exclusive remedy, and applies as follows to new Motorola Products,
Accessories, and Software purchased by consumers in the United States or
Canada, which are accompanied by this written warranty:
14th Feb 2013
http://www.pdfdo.com
PDFdo Password Remover Trial
EN Safety, Regulatory & Legal 31
Products and Accessories
Exclusions (Products and Accessories)
Normal Wear and Tear.
Periodic maintenance, repair and replacement of parts
due to normal wear and tear are excluded from coverage.
Products Covered Length of Coverage
Products and Accessories
as defined above, unless
otherwise provided for below.
One (1) year
from the date of purchase
by the first consumer purchaser of the
product unless otherwise provided for
below.
Decorative Accessories
and Cases.
Decorative covers,
bezels, PhoneWrap™ covers
and cases.
Limited lifetime warranty
for the
lifetime of ownership by the first
consumer purchaser of the product.
Monaural Headsets.
Ear
buds and boom headsets that
transmit mono sound through a
wired connection.
Limited lifetime warranty
for the
lifetime of ownership by the first
consumer purchaser of the product.
Products and Accessories
that are Repaired or
Replaced.
The balance of the original warranty
or for ninety (90) days
from the date
returned to the consumer, whichever is
longer.
14th Feb 2013
http://www.pdfdo.com
PDFdo Password Remover Trial
32 Safety, Regulatory & Legal EN
Batteries.
Only batteries whose fully charged capacity falls below 80% of their
rated capacity and batteries that leak are covered by this limited warranty.
Abuse & Misuse.
Defects or damage that result from: (a) improper operation,
storage, misuse or abuse, accident or neglect, such as physical damage (cracks,
scratches, etc.) to the surface of the product resulting from misuse; (b) contact
with liquid, water, rain, extreme humidity or heavy perspiration, sand, dirt or the
like, extreme heat, or food; (c) use of the Products or Accessories for commercial
purposes or subjecting the Product or Accessory to abnormal usage or
conditions; or (d) other acts which are not the fault of Motorola, are excluded
from coverage.
Use of Non-Motorola Products and Accessories.
Defects or damage that
result from the use of non-Motorola branded or certified Products, Accessories,
Software or other peripheral equipment are excluded from coverage.
Unauthorized Service or Modification.
Defects or damages resulting from
service, testing, adjustment, installation, maintenance, alteration, or
modification in any way by someone other than Motorola, or its authorized
service centers, are excluded from coverage.
Altered Products.
Products or Accessories with (a) serial numbers or date tags
that have been removed, altered or obliterated; (b) broken seals or that show
evidence of tampering; (c) mismatched board serial numbers; or
(d) nonconforming or non-Motorola housings, or parts, are excluded from
coverage.
Communication Services.
Defects, damages, or the failure of Products,
Accessories or Software due to any communication service or signal you may
subscribe to or use with the Products Accessories or Software is excluded from
coverage.
14th Feb 2013
http://www.pdfdo.com
PDFdo Password Remover Trial
EN Safety, Regulatory & Legal 33
Software
Exclusions (Software)
Software Embodied in Physical Media.
No warranty is made that the
software will meet your requirements or will work in combination with any
hardware or software applications provided by third parties, that the operation
of the software products will be uninterrupted or error free, or that all defects in
the software products will be corrected.
Software NOT Embodied in Physical Media.
Software that is not embodied
in physical media (e.g. software that is downloaded from the Internet), is
provided “as is” and without warranty.
Who is Covered?
This warranty extends only to the first consumer purchaser, and is not
transferable.
What Will Motorola Do?
Motorola, at its option, will at no charge repair, replace or refund the purchase
price of any Products, Accessories or Software that does not conform to this
warranty. We may use functionally equivalent
reconditioned/refurbished/pre-owned or new Products, Accessories or parts. No
Products Covered Length of Coverage
Software.
Applies only to physical defects in the
media that embodies the copy of the software
(e.g. CD-ROM, or floppy disk).
Ninety (90) days
from the date of
purchase.
14th Feb 2013
http://www.pdfdo.com
PDFdo Password Remover Trial
34 Safety, Regulatory & Legal EN
data, software or applications added to your Product, Accessory or Software,
including but not limited to personal contacts, games and ringer tones, will be
reinstalled. To avoid losing such data, software, and applications, please create
a back up prior to requesting service.
How to Obtain Warranty Service or Other
Information
You will receive instructions on how to ship the Products, Accessories or
Software, at your expense, to a Motorola Authorized Repair Center. To obtain
service, you must include: (a) a copy of your receipt, bill of sale or other
comparable proof of purchase; (b) a written description of the problem; (c) the
name of your service provider, if applicable; (d) the name and location of the
installation facility (if applicable) and, most importantly; (e) your address and
telephone number.
What Other Limitations are There?
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY,
OTHERWISE THE REPAIR, REPLACEMENT, OR REFUND AS PROVIDED UNDER
THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE
USA
1-800-331-6456
Canada
1-800-461-4575
TTY
1-888-390-6456
14th Feb 2013
http://www.pdfdo.com
PDFdo Password Remover Trial
EN Safety, Regulatory & Legal 35
CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS
OR IMPLIED. IN NO EVENT SHALL MOTOROLA BE LIABLE, WHETHER IN
CONTRACT OR TORT (INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF
THE PURCHASE PRICE OF THE PRODUCT, ACCESSORY OR SOFTWARE, OR FOR
ANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY
KIND, OR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF
INFORMATION OR DATA, SOFTWARE OR APPLICATIONS OR OTHER FINANCIAL
LOSS ARISING OUT OF OR IN CONNECTION WITH THE ABILITY OR INABILITY
TO USE THE PRODUCTS, ACCESSORIES OR SOFTWARE TO THE FULL EXTENT
THESE DAMAGES MAY BE DISCLAIMED BY LAW.
Some states and jurisdictions do not allow the limitation or exclusion of
incidental or consequential damages, or limitation on the length of an
implied warranty, so the above limitations or exclusions may not apply
to you. This warranty gives you specific legal rights, and you may also
have other rights that vary from state to state or from one jurisdiction to
another.
14th Feb 2013
http://www.pdfdo.com
PDFdo Password Remover Trial
36 Safety, Regulatory & Legal EN
Copyright & Trademarks
Motorola Mobility LLC
Consumer Advocacy Office
600 N US Hwy 45
Libertyville, IL 60048
www.motorola.com
Note:
Do not ship your product to the above address. If you need to return your
product for repairs, replacement, or warranty service, please contact the
Motorola Customer Support Center at:
1-800-331-6456 (United States)
1-888-390-6456 (TTY/TDD United States for hearing impaired)
1-800-461-4575 (Canada)
Certain features, services and applications are network dependent and may not
be available in all areas; additional terms, conditions and/or charges may apply.
Contact your service provider for details.
All features, functionality, and other product specifications, as well as the
information contained in this guide, are based upon the latest available
information and believed to be accurate at the time of printing. Motorola
reserves the right to change or modify any information or specifications without
notice or obligation.
Note:
The images in this guide are examples only.
MOTOROLA and the Stylized M Logo are trademarks or registered trademarks of
Motorola Trademark Holdings, LLC. Android, Google and other trademarks are
owned by Google Inc. All other product or service names are the property of their
respective owners.
© 2013 Motorola Mobility LLC. All rights reserved.
14th Feb 2013
http://www.pdfdo.com
PDFdo Password Remover Trial
EN Safety, Regulatory & Legal 37
Caution:
Motorola does not take responsibility for changes/modification to the
transceiver.
Product ID: MOTOROLA ARCHANGEL
Manual Number: 68017165001-A
14th Feb 2013
http://www.pdfdo.com
PDFdo Password Remover Trial
14th Feb 2013
http://www.pdfdo.com
PDFdo Password Remover Trial
