Motorola Solutions 89FT3819 PORTABLE 2-WAY RADIO User Manual 6864110R04b
Motorola Solutions, Inc. PORTABLE 2-WAY RADIO 6864110R04b
USERS GUIDE
-1
6864110R04b.book Page -1 Friday, October 20, 2006 4:38 PM
0
6864110R04b.book Page 0 Friday, October 20, 2006 4:38 PM
1
Introduction
RDX
Introduction
Thank you for purchasing a Motorola® RDX Series Radio. Your radio is a product of
Motorola’s 70 plus years of experience as a world leader in the designing and
manufacturing of communications equipment. The RDX Series radios provide cost-
effective communications for businesses such as retail stores, restaurants, schools,
construction sites, manufacturing, property and hotel management and more.
Motorola professional two-way radios are the perfect communications solution for all
of today’s fast-paced industries.
Note: Please read this manual carefully to ensure you know how to properly
operate the radio before use.
Package Contents
•Radio
• Spring Action Belt Clip
• Lithium Ion Battery
• 10-Hour Charger
• User's Guide
• Warranty Card
• Drop-In Charging Tray (not included with all models)
6864110R04b.book Page 1 Friday, October 20, 2006 4:38 PM
Introduction
2
RDX
For product-related questions, please contact:
1-800-448-6686 in the USA
1-800-461-4575 in Canada
1-888-390-6456
on your TTY (Text Telephone)
On the web, please refer to: www.motorola.com/radios/professional
6864110R04b.book Page 2 Friday, October 20, 2006 4:38 PM
Contents
3
Contents
Introduction...................................1
FCC Licensing Information..........5
Safety and General
Information...............................7
Getting Started............................17
Installing the Swivel Belt
Holster ..................................18
Installing the Nickel-Metal
Hydride Battery .....................19
Charging the XSeries Radio ....20
Turning Your Radio On
or Off......................................21
Adjusting the Volume ................21
Using the Radio ........................21
Understanding the Display........23
Battery and Charging
Options...................................24
NiMH Battery.............................24
Alkaline Batteries ......................24
Charging with the Drop-in
Charging Tray........................25
Reading the Battery Meter ........26
Battery Life................................26
XTN Series Factory Defaults ....27
Talking and Receiving ............... 28
Signal Strength Indicator/
Channel Busy........................ 28
Talk Range ............................... 28
Keypad Lock............................. 29
Hands-Free Use/VOX .............. 29
With Compatible VOX
Accessories........................... 29
Without Accessories................. 30
Setting VOX Sensitivity ............ 30
Monitoring a Channel ............... 31
Scanning ................................. 31
Programming Features...............32
Entering Programming Mode ....32
Programming a Channel ..........34
Programming the Frequency.....34
Programming the Interference
Eliminator Code......................35
Assigning Channels
to Presets ..............................35
Programming the Scramble
Feature...................................36
Programming Bandwidth ..........36
Programming the Available
Channel .................................37
6864110R04b.book Page 3 Friday, October 20, 2006 4:38 PM
Contents
4
Programming Call Tones .........37
Programming Microphone
Gain ....................................... 38
Editing the Scan List ................38
Cloning...................................... 39
Advanced Features .........................41
Troubleshooting .............................43
Use and Care....................................45
Frequencies and Bandwidths.........47
Verifying the M-Series
Frequency and Code Setting ......53
Motorola Limited Warranty .............55
Software Copyright Notice..............63
Patent Notice..................................63
Export Law Assurances ..................64
Index .................................................66
6864110R04b.book Page 4 Friday, October 20, 2006 4:38 PM
5
FCC Licensing Information
FCC
FCC Licensing Information
RDX Series professional two-way radios operate on radio frequencies that are
regulated by the Federal Communications Commission (FCC). In order to transmit
on these frequencies, you are required to have a license issued by the FCC.
Application is made available on FCC Form 601 and Schedules D, H, and
Remittance Form 159.
To obtain these FCC forms please request document 000601 which includes all
forms and instructions. If you wish to have the document faxed, mailed or have
questions, please use the following contact information.
Before filling out your application, you must decide which frequency(ies) you can
operate on. See Frequencies and Bandwidths.
For questions on determining your radio frequency, please call Motorola Product
Services at: 1-800-448-6686.
Faxed
contact the Fax-On-
Demand system at:
Mailed
call the FCC forms
hotline at:
Questions
regarding FCC license
contact the FCC at:
1-202-418-0177
1-800-418-FORM
1-800-418-3676
1-888-CALL-FCC
1-888-225-5322
Or: http://www.fcc.gov
6864110R04b.book Page 5 Friday, October 20, 2006 4:38 PM
FCC Licensing Information
6
FCC
Changes or modifications not expressly approved by Motorola may void the user’s
authority granted by the FCC to operate this radio and should not be made. To
comply with FCC requirements, transmitter adjustments should be made only by or
under the supervision of a person certified as technically qualified to perform
transmitter maintenance and repairs in the private land mobile and fixed services as
certified by an organization representative of the user of those services.
Replacement of any transmitter component (crystal, semiconductor, etc.) not
authorized by the FCC equipment authorization for this radio could violate FCC
rules.
Note: Use of this radio outside the country where it was intended to be distributed
is subject to government regulations and may be prohibited.
6864110R04b.book Page 6 Friday, October 20, 2006 4:38 PM
Safety and General Information
7
IMPORTANT
SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
This document contains important safety and operating instructions. Please read
these instructions carefully and save them for future reference.
Before using the battery charger, read all the instructions and cautionary markings
on (1) the charger and (2) the battery (3) and on the radio using the battery.
1. To reduce risk of injury, charge only the rechargeable Motorola authorized
batteries. Other batteries may explode, causing personal injury and damage.
2. Use of accessories not recommended by Motorola may result in risk of fire,
electric shock, or injury.
3. To reduce risk of damage to the electric plug and cord, pull by the plug rather than the
cord when disconnecting the charger.
4. An extension cord should not be used unless absolutely necessary. Use of an improper
extension cord could result in risk of fire and electric shock. If an extension cord must be
used, make sure that the cord size is 18AWG for lengths of up to 100 feet (30.48m), and
16AWG for lengths up to 150 feet (45.72m).
!
WARNING
6864110R04b.book Page 7 Friday, October 20, 2006 4:38 PM
Safety and General Inforation
8
Warnings (Cont.)
5. To reduce risk of fire, electric shock, or injury, do not operate the charger if it has been
broken or damaged in any way. Take it to a qualified Motorola service representative.
6. Do not disassemble the charger – it is not repairable and replacement parts are not
available. Disassembly of the charger may result in risk of electrical shock or fire.
7. To reduce risk of electric shock, unplug the charger from the AC outlet before attempting
any maintenance or cleaning.
Operational Safety Guidelines
• This equipment is not suitable for outdoor use. Use only in dry locations/conditions.
• Connect equipment only to an appropriately fused and wired supply of the correct voltage
(as specified on the product).
• When not in use, disconnect the transformer from the AC outlet.
• The socket outlet to which the transformer is connected should be close by and easily
accessible.
• In equipment using fuses, replacements must comply with the type and rating specified in
the equipment instructions.
• Maximum ambient temperature around the transformer unit must not exceed 40°C (104°F).
• Output power from the transformer unit must not exceed the ratings stated on the product
label located on the bottom of the charger.
• Make sure the cord is located where it will not be stepped on, tripped over, or subjected to
water, damage, or stress.
6864110R04b.book Page 8 Friday, October 20, 2006 4:38 PM
Safety and General Information
9
Product Safety and RF Exposure for
Portable Two-Way Radios
The information provided in this document
supersedes information contained in user guides
published prior to February 2002.
RF Energy Exposure Awareness and
Control Information and Operational
Instructions for Occupational Use
Note: This radio is intended for use in
occupational/controlled conditions where users
have full knowledge of their exposure and can
exercise control over their exposure to meet the
occupational limits in FCC/ICNIRP and
International standards. This radio device is NOT
authorized for general population consumer use
This two-way radio uses electromagnetic energy in
the radio frequency (RF) spectrum to provide
communications between two or more users over a
distance. It uses radio frequency (RF) energy or
radio waves to send and receive calls. RF energy is
one form of electromagnetic energy. Other forms
include, but are not limited to, sunlight and x-rays.
RF energy, however, should not be confused with
these other forms of electromagnetic energy, which
when used improperly, can cause biological
damage. Very high levels of x-rays, for example, can
damage tissues and genetic material.
Experts in science, engineering, medicine, health,
and industry work with organizations to develop
standards for safe exposure to RF energy. These
standards provide recommended levels of RF
exposure for both workers and the general public.
BEFORE USING THIS
RADIO, READ THIS
INFORMATION WHICH
CONTAINS IMPORTANT
OPERATING
INSTRUCTIONS FOR SAFE
USAGE AND RF ENERGY
AWARENESS AND CONTROL
INFORMATION AND OPERATIONAL
INSTRUCTIONS FOR COMPLIANCE WITH
RF ENERGY EXPOSURE LIMITS IN
APPLICABLE NATIONAL AND
INTERNATIONAL STANDARDS. ALSO READ
THE OPERATIONAL INSTRUCTIONS FOR
SAFE USAGE. FOR RADIOS THAT HAVE
BEEN APPROVED AS INTRINSICALLY
SAFE, READ THE INSTRUCTIONS AND
INFORMATION ON INTRINSIC SAFETY ON
PAGE 15.
!
C
a u t i o
n
6864110R04b.book Page 9 Friday, October 20, 2006 4:38 PM
Safety and General Inforation
10
These recommended RF exposure levels include
substantial margins of protection.
All Motorola two-way radios are designed,
manufactured, and tested to ensure they meet
government-established RF exposure levels. In
addition, manufacturers also recommend specific
operating instructions to users of two-way radios.
These instructions are important because they
inform users about RF energy exposure and
provide simple procedures on how to control it.
Please refer to the following websites for more
information on what RF energy exposure is and
how to control your exposure to assure compliance
with established RF exposure limits:
http://www.fcc.gov/oet/rfsafety/rf-faqs.html
http://www.osha.gov/SLTC/
radiofrequencyradiation/index.html
Federal Communication Commission
(FCC) Regulations (US markets only)
The FCC rules require manufacturers to comply
with the FCC RF energy exposure limits for
portable two-way radios before they can be
marketed in the U.S. When two-way radios are
used as a consequence of employment, the FCC
requires users to be fully aware of and able to
control their exposure to meet occupational
requirements. Exposure awareness can be
facilitated by the use of a product label directing
users to specific user awareness information. Your
Motorola two-way radio has a RF Exposure
Product Label. Do not remove this RF Exposure
Label from the device. Also, your Motorola user
manual, or separate safety booklet includes
information and operating instructions required to
control your RF exposure and to satisfy compliance
requirements.
Compliance with RF Exposure
Standards
Your Motorola two-way radio is designed and
tested to comply with a number of national and
International standards and guidelines (listed
below) for human exposure to radio frequency
electromagnetic energy. This radio complies with
the IEEE (FCC) and ICNIRP exposure limits for
occupational/controlled RF exposure
environments at operating duty factors of up to
50% talk-50% listen and is authorized by the
IEEE/ICNIRP for occupational use only.
In terms of measuring RF energy for compliance
with these exposure guidelines, your radio
generates measurable RF energy only while it
is transmitting (during talking), not when it is
receiving (listening) or in standby mode.
6864110R04b.book Page 10 Friday, October 20, 2006 4:38 PM
Safety and General Information
11
Note: The approved batteries, supplied with this
radio, are rated for a 5-5-90 duty cycle (5% talk–
5% listen–90% standby), even though this radio
complies with IEEE/ICNIRP occupational exposure
limits at usage factors of up to 50% talk.
Your Motorola two-way radio complies
with the following RF energy exposure
standards and guidelines:
• United States Federal Communications
Commission, Code of Federal Regulations; 47
CFR part 2 sub-part J
• American National Standards Institute (ANSI) /
Institute of Electrical and Electronic Engineers
(IEEE) C95. 1-1992
• Institute of Electrical and Electronic Engineers
(IEEE) C95.1-1999 Edition
• International Commission on Non-Ionizing
Radiation Protection (ICNIRP) 1998
• Ministry of Health (Canada) Safety Code 6. Limits
of Human Exposure to Radiofrequency
Electromagnetic Fields in the Frequency Range
from 3 kHz to 300 GHz, 1999
•Australian Communications Authority
Radiocommunications (Electromagnetic
Radiation – Human Exposure) Standard, 2003
• ANATEL ANNEX to Resolution No. 303 of July
2, 2002 "Regulation of limitation of exposure to
electrical, magnetic and electromagnetic fields
in the radio frequency range between 9 KHz
and 300 GHz" and "Attachment to resolution #
303 from July 2, 2002"
RF Exposure Compliance and Control
Guidelines and Operating Instructions
To control your exposure and ensure compliance
with the occupational/controlled environment
exposure limits, always adhere to the following
procedures:
Guidelines:
• User awareness instructions should accompany
device when transferred to other users.
• Do not use this device if the operational require-
ments described herein are not met.
Operating Instructions
• Transmit no more than the rated duty factor of
50% of the time. To transmit (talk), push the Push-
To-Talk (PTT) button. To receive calls, release the
PTT button. Transmitting 50% of the time, or less,
is important because this radio generates measur-
able RF energy exposure only when transmitting
(in terms of measuring for standards compliance).
• When worn on the body, always place the radio in
6864110R04b.book Page 11 Friday, October 20, 2006 4:38 PM
Safety and General Inforation
12
a Motorola-approved clip, holder, holster, case, or
body harness for this product. Using approved
body-worn accessories is important because the
use of non-Motorola-approved accessories may
result in exposure levels, which exceed the IEEE/
ICNIRP occupational/controlled environment RF
exposure limits.
•If you are not using a body-worn accessory and
are not using the radio in the intended use posi-
tion, along side the head in the phone mode
(TETRA only), in front of the face in the hand
held mode, then ensure the antenna and the
radio are kept 2.5 cm (one inch) from the body
when transmitting. Keeping the radio at a
proper distance is important because RF expo-
sures decrease with increasing distance from
the antenna.
Hand-held Mode - Operating Instructions
• Hold the radio in a vertical position in
front of the face with the microphone
(and other parts of the radio includ-
ing the antenna) at least 2.5 cm (one
inch) away from the nose or lips.
Antenna should be kept away from the eye. Keep-
ing the radio at a proper distance is important
since RF exposures decrease with increasing dis-
tance from the antenna.
Phone Mode (TETRA only) - Operating
Instructions
• When placing or receiving a phone call, hold
your radio product as you would a wireless
telephone. Speak directly into the microphone.
Approved Accessories
• Use only Motorola-approved supplied or replace-
ment antennas, batteries, and accessories. Use of
non–Motorola - approved antennas, batteries and
accessories may exceed IEEE/ICNIRP RF expo-
sure guidelines.
For a list of Motorola-approved accessories, visit
the following website, which lists approved acces-
sories for your radio model.
http://www.motorola.com/governmentandenterprise
Additional Information
For additional information on exposure
requirements or other training information, visit
http://www.motorola.com/rfhealth.
Electromagnetic Interference/
Compatibility
NOTE: Nearly every electronic device is
susceptible to electromagnetic interference (EMI) if
inadequately shielded, designed or otherwise
configured for electromagnetic compatibility.
MAN WITH RADI
O
6864110R04b.book Page 12 Friday, October 20, 2006 4:38 PM
Safety and General Information
13
Facilities
To avoid electromagnetic interference and/or
compatibility conflicts, turn off your radio in any
facility where posted notices instruct you to do so.
Hospitals or health care facilities may be using
equipment that is sensitive to external RF energy.
Aircraft
When instructed to do so, turn off your radio when
on board an aircraft. Any use of a radio must be in
accordance with applicable regulations per airline
crew instructions.
Medical Devices
Pacemakers
The Advanced Medical Technology Association
(AdvaMed) recommends that a minimum
separation of 15 cms (6 inches) be maintained
between a handheld wireless radio and a
pacemaker.These recommendations are
consistent with those of the U.S. Food and Drug
Administration.
Persons with pacemakers should:
• ALWAYS keep the radio more than 15 cms from
their pacemaker when the radio is turned ON.
• Not carry the radio in the breast pocket.
• Use the ear opposite the pacemaker to minimize
the potential for interference.
Turn the radio OFF immediately if you have any
reason to suspect that interference is taking place.
Hearing Aids
Some digital wireless radios may interfere with
some hearing aids. In the event of such
interference, you may want to consult your hearing
aid manufacturer to discuss alternatives.
Other Medical Devices
If you use any other personal medical device,
consult the manufacturer of your device to
determine if it is adequately shielded from RF
energy. Your physician may be able to assist you in
obtaining this information.
Use of Communication Devices While
Driving
Always check the laws and regulations on the use
of radios in the areas where you drive.
• Give full attention to driving and to the road.
• Use hands-free operation, if available.
• Pull off the road and park before making or
answering a call, if driving conditions or regula-
tions so require.
6864110R04b.book Page 13 Friday, October 20, 2006 4:38 PM
Safety and General Inforation
14
OPERATIONAL WARNINGS
For Vehicles With Air Bags
Refer to vehicle manufacturer's
manual prior to installation of
electronic equipment to avoid
interference with air bag wiring.
Do not place a portable radio in the area over an air
bag or in the air bag deployment area. Air bags
inflate with great force. If a portable radio is placed
in the air bag deployment area and the air bag
inflates, the radio may be propelled with great force
and cause serious injury to occupants of the
vehicle.
Potentially Explosive Atmospheres
(Explosive atmospheres refers to hazard
classified locations that may contain hazardous
gas, vapors, or dusts.)
Turn off your radio prior to entering any area with a
potentially explosive atmosphere, unless it is a
radio type especially qualified for use in such areas
as "Intrinsically Safe" (for example, Factory Mutual,
CSA, UL, CENELEC or ATEX Approved). Do not
remove, install, or charge batteries in such areas.
Sparks in a potentially explosive atmosphere can
cause an explosion or fire resulting in bodily injury
or even death.
The areas with potentially explosive atmospheres
referred to above include fuelling areas such as
below decks on boats, fuel or chemical transfer or
storage facilities, areas where the air contains
chemicals or particles, such as grain, dust or metal
powders. Areas with potentially explosive
atmospheres are often but not always posted.
Blasting Caps And Blasting Areas
To avoid possible interference with blasting
operations, turn off your radio when you are near
electrical blasting caps, in a blasting area, or in
areas posted:
"Turn off two-way radio". Obey all signs and
instructions.
OPERATIONAL CAUTIONS
Antennas
Do not use any portable radio that has a
damaged antenna. If a damaged
antenna comes into contact with your
skin, a minor burn can result.
Batteries
All batteries can cause property damage and/or
bodily injury such as burns if a conductive material
such as jewellery, keys, or beaded chains touch
exposed terminals. The conductive material may
complete an electrical circuit (short circuit) and
become quite hot. Exercise care in handling any
!
WARNING
!
C
a u t i o
n
6864110R04b.book Page 14 Friday, October 20, 2006 4:38 PM
Safety and General Information
15
charged battery, particularly when placing it inside
a pocket, purse, or other container with metal
objects.
INTRINSICALLY SAFE RADIO
INFORMATION
The Intrinsically safe approval unit refers to a
product that has been approved as intrinsically
safe by an approval agency (for example FM
Approvals, CSA, UL, CENELEC or ATEX) and
certifies that a particular product meets the
Agency's applicable intrinsic safety standards for
specific types of hazardous classified locations. A
portable radio that has been approved for intrinsic
safety will have Approval label attached to the radio
to identify the unit as being Approved for specified
hazardous atmospheres. This label specifies the
hazardous Class/Division/Group along with the
part number of the battery that must be used. The
Intrinsically Safe Approval Label will be located on
the portable radio unit.
Operational Cautions for Intrinsic Safe
Equipment
• Do not operate radio communications equipment
in a hazardous atmosphere unless it is a type
especially qualified (for example, FM, UL, CSA, or
CENELEC or ATEX approved). An explosion or
fire may result.
• Do not operate a radio unit that has been
approved as intrinsically safe product in a hazard-
ous atmosphere if it has been physically damaged
(for example, cracked housing). An explosion or
fire may result.
Do not replace or charge batteries in a hazardous
atmosphere. Contact sparking may occur while
installing or removing batteries and cause an
explosion or fire.
Warnings for Radios
Approved as Intrinsically Safe
Radios must ship from the Motorola
manufacturing facility with the
hazardous atmosphere capability
and the intrinsic safety approval labelling (FM, UL,
CSA, CENELEC or ATEX). Radios will not be
upgraded to this capability and labeled once they
have been shipped to the field. A modification
changes the unit’s hardware from it’s original
design made by the original product.
• Do not replace or change accessories in a
hazardous atmosphere. Contact sparking
may occur while installing or removing
accessories and cause an explosion or fire.
• Turn the radio off before removing or
installing a battery or accessory.
• Do not disassemble an intrinsically safe
product in any way that exposes the
internal circuits of the unit.
• Failure to use an intrinsically safe approved
battery or Approved accessories
specifically approved for the radio unit may
!
WARNING
6864110R04b.book Page 15 Friday, October 20, 2006 4:38 PM
Safety and General Inforation
16
result in the dangerously unsafe condition
of an unapproved radio combination being
used in a hazardous location.
• Unauthorized or incorrect modification of
the intrinsically safe approved Product will
negate the approval rating of the product.
• Incorrect repair or relabeling or any
intrinsically safe Agency-approved radio
could adversely affect the Approval rating
of the unit.
• Use of a radio that is not intrinsically safe in
a hazardous atmosphere could result in
serious injury or death.
Repair
A repair constitutes something done internally to
the unit that would bring it back to its original
condition. Items not considered as repairs are
those in which an action is performed on a unit
which does not require the outer casing of the unit
to be opened in a manner which exposes the
internal electrical circuits of the unit.
Do Not Substitute Options or
Accessories
The Motorola communications equipment certified
as intrinsically safe by the approving agency, (FM,
UL, CSA, CENELEC or ATEX) is tested as a
complete system which consists of the listed
agency Approved portable, Approved battery, and
Approved accessories or options, or both. This
Approved portable and battery combination must
be strictly observed. There must be no substitution
of items, even if the substitute has been previously
Approved with a different Motorola
communications equipment unit. Approved
configurations are listed by the Approving Agency
(FM, UL, CSA, CENELEC or ATEX).
The Intrinsically Safe Approval Label affixed to
radio refers to the intrinsically safe classification of
that radio product, and the approved batteries that
can be used with that system.
The manual PN referenced on the Intrinsically Safe
Approval Label identifies the approved
Accessories and or options that can be used with
that portable radio unit.
Using a non Motorola intrinsically safe battery and
or accessory with the Motorola approved radio unit
will void the intrinsically safe approval of that radio
unit.
REPAIRS FOR MOTOROLA
PRODUCTS WITH
INTRINSICALLY SAFE
APPROVAL ARE THE
RESPONSIBILITY OF THE
USER.
• Repairs to a Motorola FM approved
radio product should only be done at a
location that has been FM audited
under the FM 3605 repairs and service
standard.
• Contact Motorola for assistance
regarding repairs and service of
Motorola intrinsically safe equipment.
!
WARNING
6864110R04b.book Page 16 Friday, October 20, 2006 4:38 PM
17
Getting Started
RDX
Getting Started
This User’s Guide covers multiple RDX Series models, and may detail some features
your radio does not have. Your model number is shown on the front of the radio,
underneath the speaker, and tells you the following information:
Model Model Number
Location Frequency
Band
Transmit
Power
(Watts) Number of
Channels
RDU2020 UHF 2 2
RDV2020 VHF 2 2
6864110R04b.book Page 17 Friday, October 20, 2006 4:38 PM
Getting Started
18
RDX

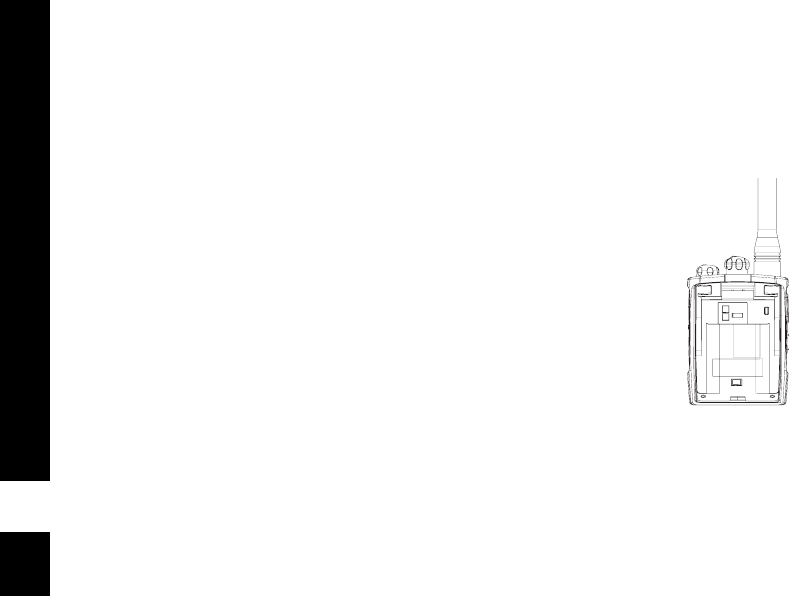

Installing the Spring Action Belt Clip
1. Slide the spring action belt clip grooves into the belt clip
rails on the back of the battery pack and slide it down into
place until it snaps.
2. To remove, push the release tab on the back of the battery
surface and pull the spring action belt clip upward to
remove.
Note: In case of loss, please contact your point-of-sale or call
1-800-448-6686 to request replacement part number
4280383X62.
6864110R04b.book Page 18 Friday, October 20, 2006 4:38 PM
19
Getting Started
RDX

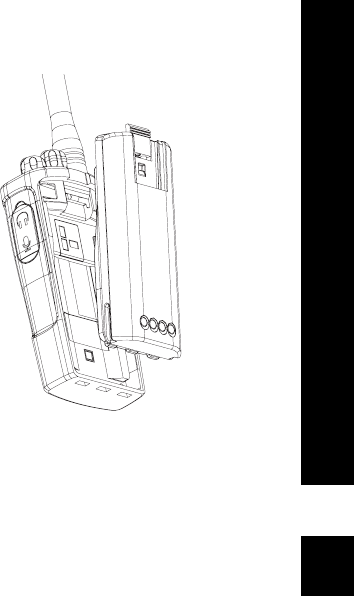

Installing the Lithium Ion Battery Pack
Your radio is powered by an Li-Ion
battery pack, which provides up to 22
hours* of usage.
1. With the Motorola logo side up, on
the battery pack, place the battery
into the radio.
2. Push the battery into the battery
compartment to fit properly into
place.
*Based on 5% transmit/ 5% receive/
90% standby standard duty cycle (22
hours with battery save enabled or 18
hours with battery save disabled).
6864110R04b.book Page 19 Friday, October 20, 2006 4:38 PM
20
Getting Started
RDX
Turning Your Radio On or Off
Turn clockwise for On or counterclockwise for Off.
The radio chirps and the LED briefly lights up..
Adjusting the Volume
You can set the volume by turning.
Note: Do not hold the radio too close to your ear when adjusting the
volume or if it is at a high setting.
Using the Radio
1. Press and hold Q to check for channel activity. If you hear
static, the channel is clear to use. Do not transmit if someone is
speaking on the channel. Press Q again to stop monitoring the
channel.
2. Press and hold M and speak into the microphone. To maximize
clarity, hold the radio two-to-three inches away from your mouth.
Note: The LED light on the front of the radio lights up solid green
red when transmitting.
6864110R04b.book Page 20 Friday, October 20, 2006 4:38 PM
Getting Started
21
RDX

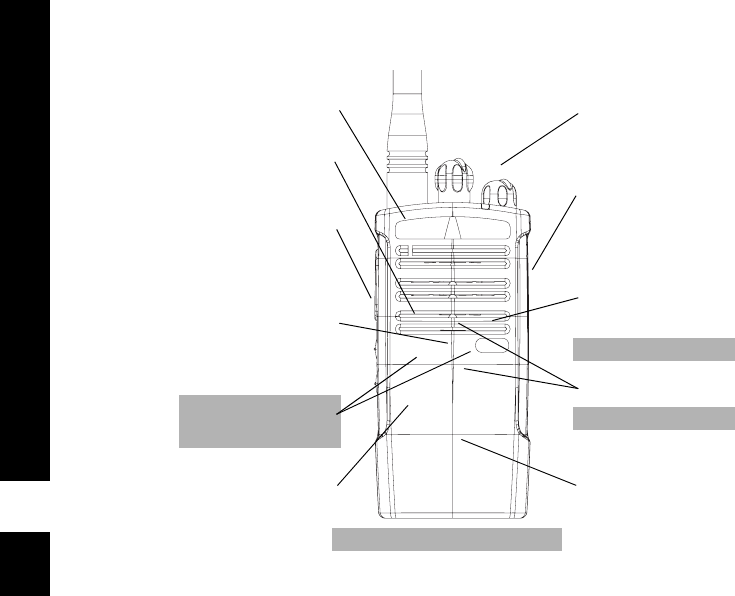

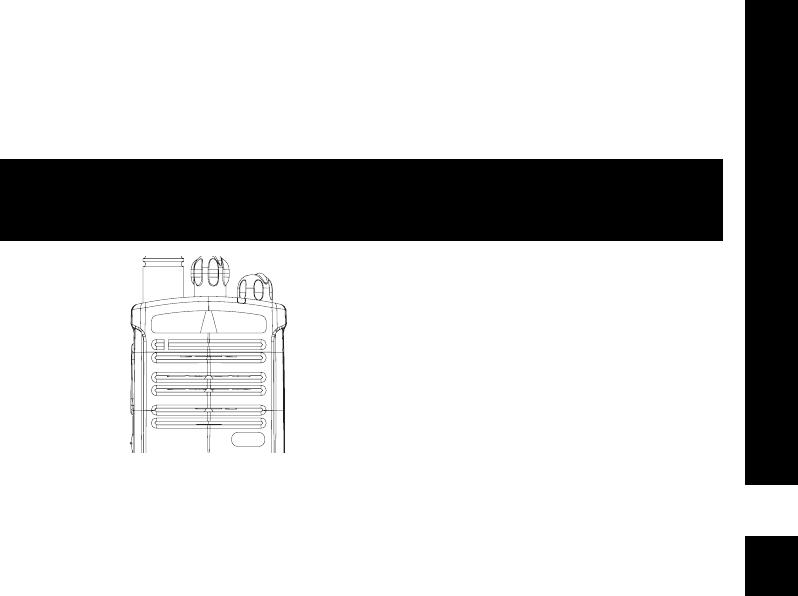

Basic Operation
Indicator Light
Use B to:
Transmit call tone
Use M to:
Talk
Exit a menu
Use \ to:
Lock the keypad
Scroll through available menus
Use T / S to:
*Access presets
Microphone
Use P to:
Turn power on/off
Adjust radio volume
Use Accessory Jack
for:
Radio plug-in charging
Audio accessories
Use J to:
Monitor the frequency
Turn scan on/off*
Use [ and ] to:
Change channels*
Change menu settings
Speaker
*
XU2600 and XV2600 only
6864110R04b.book Page 21 Friday, October 20, 2006 4:38 PM
Battery and Charging Options
22
RDX
Battery and Charging Options
You have several battery and charging options on your RDX Series Two-Way Radio.
Li-Ion Battery
See “Installing the Lithium Ion Battery Pack” on page 19.
Alkaline Batteries
Your radio can also use 5 AA Alkaline batteries with the purchase of
an Alkaline Battery Frame (sold separately); alkaline cells provide up
to TBD hours* of radio use.
1. Slide the 5 - AA Alkaline batteries into the Alkaline Battery Pack
(part number RHN1005), matching the markings inside of the
compartment.
2. Snap the battery pack into the back of the radio into place.
Note: Your two-way radio will automatically acknowledge the use of
Alkaline batteries in use.
*Please refer to the diagram and Battery Life on page 24.
6864110R04b.book Page 22 Friday, October 20, 2006 4:38 PM
23
Battery and Charging Options
RDX
Charging the Radio
1. Place the drop-in charging tray on a flat
surface.
2. Insert the mini USB plug of the 10-hour
charger into the USB port on the back
of the drop-in charging tray.
3. Plug the AC adaptor into a power outlet.
Insert the battery or radio into the tray with
the Motorola logo or radio front facing the
front of the charger.
Note: To extend battery life, do not
overcharge. Charging the battery
over the weekend is acceptable.
If the radio is on while charging, it
will take longer to fully charge.
Use only the charger supplied with
the radio, or other RDX Series power accessories.
You can charge only one radio or battery at a time.
6864110R04b.book Page 23 Friday, October 20, 2006 4:38 PM
Battery and Charging Options
24
RDX
Battery Life
RDX Series Factory Defaults
Your RDX radio is programmed at the factory to the following settings. If you need to
change settings, refer to Programming Features on page 27.
To restore your radio to factory default programming, turn the radio on while holding
the M , Side button 1, and Side button 2 for three seconds.
Watts Li-Ion Alkaline
2 22 Hours <TBD> Hours
1 <TBD> Hours <TBD> Hours
UHF VHF
Channel Frequency Code Bandwidth Frequency Code Bandwidth
12 67.0 25.0 3 67.0 25.0
28 67.0 25.0 4 67.0 25.0
• Call Tone: Off (0)
• VOX: Off (0)
• Scramble: Off (0)
6864110R04b.book Page 24 Friday, October 20, 2006 4:38 PM
25
Talking and Receiving
RDX
Talking and Receiving
Signal Strength Indicator/Channel Busy
Note: Obstacles that block the signal path may affect the strength of the incoming
signal.
Talk Range
When transmitting the LED on the front of the radio will be solid
green.
When receiving,
the LED on the front of the radio will be solid red.
Model
Industrial Multi-Level
Inside steel/concrete
industrial buildings
Inside multi-level
buildings
UHF 2W Up to 250,000 Sq. Ft. TBD
VHF 2W Up to 180,000 Sq. Ft. TBD
6864110R04b.book Page 25 Friday, October 20, 2006 4:38 PM
Talking and Receiving
26
RDX
Hands-Free Use/VOX
Motorola RDX radios can operate hands-free (VOX) when used with compatible VOX
accessories. A short delay occurs between when you start talking and the radio
transmits.
With Compatible VOX Accessories
1. Turn radio off.
2. Open accessory cover.
3. Insert plug of audio accessory firmly into accessory jack.
4. Turn radio on. Radio LED will flash double green
5. Lower radio volume BEFORE placing accessory near ear.
6. To transmit, speak into accessory microphone and to
receive, stop talking.
7. You can disable VOX operation by pressing M or
removing the audio accessory.
Note: To order accessories, refer to: www.motorola.com/radios/professional,
call 1 (800) 448-6686, or contact your point of purchase.
Setting VOX Sensitivity
You can adjust the sensitivity of your radio’s accessory or microphone during VOX
operation to suit different operating environments. These menus appear only if the
VOX feature is in use.
Press Side button 1 to increase or Side button 2 to decrease the sensitivity level.
6864110R04b.book Page 26 Friday, October 20, 2006 4:38 PM
27
Programming Features
RDX
0 = Off (VOX with accessories only, default settings)
1 = Low sensitivity
2 = Medium sensitivity
3 = High sensitivity
Monitoring a Channel
Check for channel activity.
1. Press and hold Q. You will hear static if the channel is clear.
2. Press side button 1 icon again to release.
Programming Features
You can change the following features by entering the programming mode. To talk
with someone on your two-way radios, these settings must match:
• Channel
• Frequency
• Interference Eliminator Code
• Bandwidth (for optimal clarity)
You can also use the programming mode to set the following:
• Call tones
• Microphone Gain
Note: You cannot enter programming mode while a VOX accessory is plugged into
the radio.
6864110R04b.book Page 27 Friday, October 20, 2006 4:38 PM
Programming Features
28
RDX
Entering Programming Mode
You must enter Programming Mode to change your communication settings.
1. Press and hold MJ for three seconds while turning on your radio. The radio
beeps.
Programming a Channel
Each channel has its own Frequency, Interference Eliminator Code, and Bandwidth
Settings.
Program each channel separately.
Select the channel that you will be programming by rotating the
channel selector knob.
Programming the Frequency
Sets the frequency that your radio will use. Enter Programming Mode
by pressing M, Side button 1, and side button 2 for 3 seconds.
1. Enter programming mode (M+SB1+hold for 3 seconds).
2. Selects the desired Channel (using Rotary Selector).
3. Press M to move to the "Tens Digit" of Frequency, then scroll up or down using
SB1/SB2 to set the "10's" value.
4. Press M to move to "Units Digit" of Frequency, then scroll up or down using
SB1/SB2 to set the "1's" value.
6864110R04b.book Page 28 Friday, October 20, 2006 4:38 PM
29
Programming Features
RDX
For example:
UHF frequency code 12 = 461.1125 would be programmed as M + SB1 + M + SB1
+ SB1
M gets you to the 10's numeral placement
SB1 gets you to scroll up to the number 1 (only one press)
M confirms your placement & moves you to the units number placement
by pressing SB1 twice you increased the number from 0 to 2
Note: Both LED and Audio beeps will advise user of what number is being
programmed (i.e. 2 = 2 beeps and LED will flash twice)
Programming the Interference Eliminator Code
The Interference Eliminator Code helps minimize interference by
providing you with code combinations, which filter out static, noise,
and unwanted messages.
1. Press M to move to the "Hundreds Digit" of Code, then scroll up
or down using SB1/SB2 to set the "100's" value.
2. Press M to move to the "Tens Digit" of Code, then scroll up or
down using SB1/SB2 to set the "10's" value.
3. Press M to move to the "Units Digit" of Code, then scroll up or down using SB1/
SB2 to set the "1s" value.
Note: Both LED and Audio beeps will advise user of what number is being
programmed (i.e. 2 = 2 beeps and LED will flash twice)
6864110R04b.book Page 29 Friday, October 20, 2006 4:38 PM
Programming Features
30
RDX
Programming Bandwidth (when FCC allowable)
Some frequencies have selectable channel spacing, which must
match other radios for optimal radio quality. Bandwidth settings are
programmed for each channel.
1. Enter Programming Mode as necessary, refer to “Entering
Programming Mode” on page 28.
Note: Spirit GT radios operate at 12.5 kHz. The M Series radios may operate at
25.0 kHz or 12.5 kHz bandwidth if selectable. If you have questions on radio
use, call 1-800-448-6686.
Programming Call Tones
Your radio can transmit call tones to other radios in your group so
you can alert them that you are about to talk. The default is set to 0
(off) or you may choose 1
,
2,
or
3 to choose a distinctive call tone.
1. Enter Programming Mode as necessary, refer to “Entering
Programming Mode” on page 28.
Programming Microphone Gain
The sensitivity of your radio’s microphone can be adjusted to suit different users or
operating environments.
1. Enter Programming Mode as necessary, refer to “Entering Programming Mode”
on page 28.
6864110R04b.book Page 30 Friday, October 20, 2006 4:38 PM
31
Programming Features
RDX
2. Press sb1 or sb2 to select the sensitivity level.
3 = High sensitivity, for quiet environments
2 = Medium sensitivity, the default setting
1 = Low sensitivity, for loud environments
3. Press and hold M to exit.
Cloning
You can duplicate RDX Series radio settings from one radio to another by using
optional accessories.
There are two methods in which the radios can be cloned:
Using the Radio-to-Radio Cloning Cable (RLN6303)
1. Ensure both programmed and non-programmed radios are OFF
2. Connect one side of the USB cable, to the back of the charging tray.
3. Connect the opposite side of the USB cable, to the back of the second charging
tray.
4. Place the non-programmed radio into one of the charging trays and turn it ON
5. Place the programmed radio into the second charging tray - keep it OFF
6. Once the radio is positioned properly in the charging tray, press and hold down
the PTT, side button 2, and turn the radio ON.
6864110R04b.book Page 31 Friday, October 20, 2006 4:38 PM
Programming Features
32
RDX
Using the Multi-Unit Charger (RLN6309)
1. Enter programming mode on the programmed radio (M + SB1 + ON)
2. Place the programmed radio in one of the front pockets of the multi unit charger.
3. Turn the non-programmed radio ON and place it directly behind the programed
radio.
4. Press and hold PTT on the programmed radio until the non-programmed radio
beeps.
5. Turn the non-programmed radio OFF and back ON again to test cloning occurred.
6. Exit programming mode on the programmed radio.
Note: You can clone only one radio at a time.
The MUC does not need to be plugged in for Cloning feature to work.
Radios must be of the same band; UHF or VHF. Also, multi-channel models
can clone to single-channel radios, but only the first channel is cloned.
6864110R04b.book Page 32 Friday, October 20, 2006 4:38 PM
33
Advanced Features
RDX
Advanced Features
You can set the following features by pressing and holding additional button(s) while
you turn on your radio.
To Do This
Press this Key
While Turning
On the Radio
Default
Setting
Turn End-of-Transmission Tone on/off
When enabled, your two-way radio transmits a tone
when you finish transmitting. It’s like saying “Roger”
or “Over.”
]Off
Turn Battery Save on/off
Decreases attack time, which is the brief period of
time between when the radio receives a
transmission on its frequency and broadcasts
audio. Turning Battery Save off decreases battery
life by approximately 20%.
M Q [ On
6864110R04b.book Page 33 Friday, October 20, 2006 4:38 PM
Advanced Features
34
RDX
Toggle Phase Shift
Changes your phase shift for optimal
communication with other Motorola radios.
180° XTN Series (factory default), M Series,
Spirit M-Series, and Radius SP21
240° Spirit HP and Radius SP50
M B 180°
Restore Factory Defaults
Returns your radio to its original factory settings to
verify proper operation. Refer to page 24 for factory
default settings.
M \ ---
To Do This
Press this Key
While Turning
On the Radio
Default
Setting
6864110R04b.book Page 34 Friday, October 20, 2006 4:38 PM
35
Troubleshooting
RDX
Troubleshooting
Symptom Try This:
No Power
Recharge or replace battery RLN6305 battery pack. Reposition
or replace alkaline batteries if the Alkaline Battery Frame
(RLN6306) has been purchased.
Message not
transmitted
Make sure M is completely pressed while transmitting.
Recharge or replace batteries.
Verify the transmit light is illuminated solid green while speaking.
Hearing other
noises or
conversation on
a channel
Frequency or Interference Eliminator Code may be in use,
change on all radios if possible. See “Programming the
Interference Eliminator Code” on page 29.
Poor Audio
Quality
Scramble Code is On (2-watt models only), and/or setting does
not match other radios’ settings.
Bandwidth of radios does not match. See “Programming
Bandwidth (when FCC allowable)” on page 30.
6864110R04b.book Page 35 Friday, October 20, 2006 4:38 PM
Troubleshooting
36
RDX
Limited talk
range
Steel and/or concrete structures, heavy foliage, buildings or
vehicles decrease range. Check for clear line of sight to improve
transmission.
Wearing radio close to body such as in a pocket or on a belt
decreases range. Change location of radio.
Message not
received
Confirm radios have the same Channel, Frequency, Interference
Eliminator Code settings.
Recharge or replace batteries.
Move to another location. Obstructions and operating indoors, or
in vehicles may decrease range.
Heavy static or
interference
Radios are too close, they must be at least five feet apart.
Radios are too far apart or obstacles are interfering with
transmission.
Low batteries
Recharge or replace battery pack. Extreme operating
temperatures affect battery life. See “Battery Life” on page 24.
Symptom Try This:
6864110R04b.book Page 36 Friday, October 20, 2006 4:38 PM
37
Troubleshooting
RDX
Charger light
does not come
on
Reinsert radio/battery.
Clean battery/charger contacts.
Verify that the USB connector is inserted correctly into the
charging tray.
Cannot enter
Programming
mode
Unplug any audio accessories and retry.
Symptom Try This:
6864110R04b.book Page 37 Friday, October 20, 2006 4:38 PM
Use and Care
38
RDX

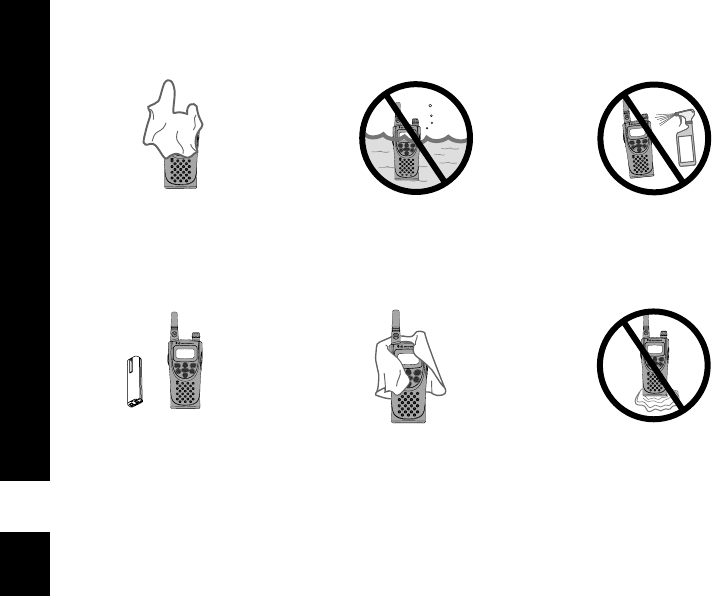

Use and Care
If the radio is submerged in water...
Use a soft damp cloth
to clean the exterior.
Do not immerse
in water.
Do not use alcohol or
cleaning solutions.
Turn radio off and
remove batteries. Dry with soft cloth. Do not use radio until
completely dry.
XXX
6864110R04b.book Page 38 Friday, October 20, 2006 4:38 PM
39
Use and Care
RDX
Frequencies and Bandwidths
The charts on the next few pages provide frequency information. These charts are
useful when using Motorola RDX Series two-way radios with other business radios.
Frequency Programming Number is identical to Spirit M, GT and S-Series frequency
position (where applicable).
VHF Frequencies
Program
ming
Number
Frequency
(MHz) Bandwidth
Program
ming
Number
Frequency
(MHz) Bandwidth
1 151.6250 25.00 16 151.8650 25.00
2 151.9550 25.00 17 151.8950 25.00
3 154.5700 25.00 18 151.9250 25.00
4 154.6000 25.00 19 152.7000 25.00
5 151.7000 12.5/25.0 20 154.4900 25.00
6 151.7600 12.5/25.0 21 154.5150 25.00
*7 151.8200 12.5/25.0 22 154.5275 25.00
*8 151.8800 12.5/25.0 23 154.5400 25.00
*9 151.9400 12.5/25.0 24 154.6000 25.00
10 151.5125 25.00 25 154.6550 25.00
11 151.6550 25.00 26 158.4000 25.00
12 151.6850 25.00 27 158.4075 25.00
13 151.7150 25.00 *Note: Due to FCC regulations,
these frequencies transmit
at only 1 watt.
14 151.7450 25.00
15 151.7750 25.00
6864110R04b.book Page 39 Friday, October 20, 2006 4:38 PM
Use and Care
40
RDX
UHF Frequencies
Programmi
ng Number
Frequency
(MHz) Bandwidth
Programmi
ng Number
Frequency
(MHz) Bandwidth
1 464.5000 12.5/25.0 15 461.1875 12.5
2 464.5500 12.5/25.0 16 461.2125 12.5
3 467.7625 12.5/25.0 17 461.2375 12.5
4 467.8125 12.5/25.0 18 461.2625 12.5
5 467.8500 12.5/25.0 19 461.2875 12.5
6 467.8750 12.5/25.0 20 461.3125 12.5
7 467.9000 12.5/25.0 21 461.3375 12.5
8 467.9250 12.5/25.0 22 461.3625 12.5
9 461.0375 12.5 23 462.7625 12.5
10 461.0625 12.5 24 462.7875 12.5
11 461.0875 12.5 25 462.8125 12.5
12 461.1125 12.5 26 462.8375 12.5
13 461.1375 12.5 27 462.8625 12.5
14 461.1625 12.5 28 462.8875 12.5
6864110R04b.book Page 40 Friday, October 20, 2006 4:38 PM
41
Use and Care
RDX
29 462.9125 12.5 43 466.2625 12.5
30 464.4875 12.5 44 466.2875 12.5
31 464.5125 12.5 45 466.3125 12.5
32 464.5375 12.5 46 466.3375 12.5
33 464.5625 12.5 47 466.3625 12.5
34 466.0375 12.5 48 467.7875 12.5
35 466.0625 12.5 49 467.8375 12.5
36 466.0875 12.5 50 467.8625 12.5
37 466.1125 12.5 51 467.8875 12.5
38 466.1375 12.5 52 467.9125 12.5
39 466.1625 12.5 53 469.4875 12.5
40 466.1875 12.5 54 469.5125 12.5
41 466.2125 12.5 55 469.5375 12.5
42 466.2375 12.5 56 469.5625 12.5
UHF Frequencies (Continued)
Programmi
ng Number
Frequency
(MHz) Bandwidth
Programmi
ng Number
Frequency
(MHz) Bandwidth
6864110R04b.book Page 41 Friday, October 20, 2006 4:38 PM
Use and Care
42
RDX
UHF Frequencies (Continued)
Programmi
ng Number
Frequency
(MHz) Bandwidth
Programmi
ng Number
Frequency
(MHz) Bandwidth
57 462.1875 12.5 71 451.6375 12.5
58 462.4625 12.5 72 452.3125 12.5
59 462.4875 12.5 73 452.5375 12.5
60 462.5125 12.5 74 452.4125 12.5
61 467.1875 12.5 75 452.5125 12.5
62 467.4625 12.5 76 452.7625 12.5
63 467.4875 12.5 77 452.8625 12.5
64 467.5125 12.5 78 456.1875 12.5
65 451.1875 12.5 79 456.2375 12.5
66 451.2375 12.5 80 456.2875 12.5
67 451.2875 12.5 81 456.3375 12.5
68 451.3375 12.5 82 456.4375 12.5
69 451.4375 12.5 83 456.5375 12.5
70 451.5375 12.5 84 456.6375 12.5
6864110R04b.book Page 42 Friday, October 20, 2006 4:38 PM
43
Use and Care
RDX
85 457.3125 12.5 88 457.7625 12.5
86 457.4125 12.5 89 457.8625 12.5
87 457.5125 12.5 ---
Programmi
ng Number
Frequency
(MHz) Bandwidth
Programmi
ng Number
Frequency
(MHz) Bandwidth
6864110R04b.book Page 43 Friday, October 20, 2006 4:38 PM
Use and Care
44
RDX
Interference Eliminator Codes
Carrier Squelch (0) disables interference eliminator codes.
Display
Number
Code
(Hz)
Display
Number
Code
(Hz)
Display
Number
Code
(Hz)
1 67.0 14 107.2 27 167.9
2 71.9 15 110.9 28 173.8
3 74.4 16 114.8 29 179.9
4 77.0 17 118.8 30 186.2
5 79.7 18 123.0 31 192.8
6 82.5 19 127.3 32 203.5
7 85.4 20 131.8 33 210.7
8 88.5 21 136.5 34 218.1
9 91.5 22 141.3 35 225.7
10 94.8 23 146.2 36 233.6
11 97.4 24 151.4 37 241.8
12 100.0 25 156.7 38 250.3
13 103.5 26 162.2
6864110R04b.book Page 44 Friday, October 20, 2006 4:38 PM
45
RDX
Digital Interference Eliminator Codes
Display
Number
Digital
Code
Display
Number
Digital
Code
Display
Number
Digital
Code
39 023 54 115 69 223
40 025 55 116 70 226
41 026 56 125 71 243
42 031 57 131 72 244
43 032 58 132 73 245
44 043 59 134 74 251
45 047 60 143 75 261
46 051 61 152 76 263
47 054 62 155 77 265
48 065 63 156 78 271
49 071 64 162 79 306
50 072 65 165 80 311
51 073 66 172 81 315
52 074 67 174 82 331
53 114 68 205 83 343
6864110R04b.book Page 45 Friday, October 20, 2006 4:38 PM
46
RDX
84 346 97 465 110 632
85 351 98 466 111 654
86 364 99 503 112 662
87 365 100 506 113 664
88 371 101 516 114 703
89 411 102 532 115 712
90 412 103 546 116 723
91 413 104 565 117 731
92 423 105 606 118 732
93 431 106 612 119 734
94 432 107 624 120 743
95 445 108 627 121 754
96 464 109 631
Digital Interference Eliminator Codes (Continued)
Display
Number
Digital
Code
Display
Number
Digital
Code
Display
Number
Digital
Code
6864110R04b.book Page 46 Friday, October 20, 2006 4:38 PM
Motorola Limited Warranty
47
Motorola Limited Warranty
for the United States and Canada
What Does this Warranty Cover?
Subject to the exclusions contained below, Motorola, Inc. warrants its telephones,
pagers, and consumer and professional two-way radios (excluding commercial,
government or industrial radios) that operate via Family Radio Service or General
Mobile Radio Service, Motorola-branded or certified accessories sold for use with
these Products (“Accessories”) and Motorola software contained on CD-ROMs or
other tangible media and sold for use with these Products (“Software”) to be free from
defects in materials and workmanship under normal consumer usage for the
period(s) outlined below. This limited warranty is a consumer's exclusive remedy,
and applies as follows to new Motorola Products, Accessories and Software
purchased by consumers in the United States or Canada, which are accompanied by
this written warranty:
6864110R04b.book Page 47 Friday, October 20, 2006 4:38 PM
48
Motorola Limited Warranty
Products and Accessories
Products Covered Length of Coverage
Products and Accessories as defined
above, unless otherwise provided for
below.
One (1) year from the date of purchase
by the first consumer purchaser of the
product unless otherwise provided for
below.
Decorative Accessories and Cases.
Decorative covers, bezels,
PhoneWrap™ covers and cases.
Limited lifetime warranty for the
lifetime of ownership by the first
consumer purchaser of the product.
Professional Two-way Radio
Accessories.
One (1) year from the date of purchase
by the first consumer purchaser of the
product.
Products and Accessories that are
Repaired or Replaced.
The balance of the original warranty
or for ninety (90) days from the date
returned to the consumer, whichever is
longer.
6864110R04b.book Page 48 Friday, October 20, 2006 4:38 PM
Motorola Limited Warranty
49
Exclusions
Normal Wear and Tear. Periodic maintenance, repair and replacement of parts due
to normal wear and tear are excluded from coverage.
Batteries. Only batteries whose fully charged capacity falls below 80% of their rated
capacity and batteries that leak are covered by this limited warranty.
Abuse & Misuse. Defects or damage that result from: (a) improper operation,
storage, misuse or abuse, accident or neglect, such as physical damage (cracks,
scratches, etc.) to the surface of the product resulting from misuse; (b) contact with
liquid, water, rain, extreme humidity or heavy perspiration, sand, dirt or the like,
extreme heat, or food; (c) use of the Products or Accessories for commercial
purposes or subjecting the Product or Accessory to abnormal usage or conditions; or
(d) other acts which are not the fault of Motorola, are excluded from coverage.
Use of Non-Motorola Products and Accessories. Defects or damage that result
from the use of Non-Motorola branded or certified Products, Accessories, Software
or other peripheral equipment are excluded from coverage.
Unauthorized Service or Modification. Defects or damages resulting from service,
testing, adjustment, installation, maintenance, alteration, or modification in any way
by someone other than Motorola, or its authorized service centers, are excluded from
coverage.
6864110R04b.book Page 49 Friday, October 20, 2006 4:38 PM
50
Motorola Limited Warranty
Altered Products. Products or Accessories with (a) serial numbers or date tags that
have been removed, altered or obliterated; (b) broken seals or that show evidence of
tampering; (c) mismatched board serial numbers; or (d) nonconforming or
non-Motorola housings, or parts, are excluded form coverage.
Communication Services. Defects, damages, or the failure of Products,
Accessories or Software due to any communication service or signal you may
subscribe to or use with the Products Accessories or Software is excluded from
coverage.
Software
Exclusions
Software Embodied in Physical Media. No warranty is made that the software will
meet your requirements or will work in combination with any hardware or software
applications provided by third parties, that the operation of the software products will
be uninterrupted or error free, or that all defects in the software products will be
corrected.
Products Covered Length of Coverage
Software. Applies only to physical defects in
the media that embodies the copy of the
software (e.g. CD-ROM, or floppy disk).
Ninety (90) days from the date of
purchase.
6864110R04b.book Page 50 Friday, October 20, 2006 4:38 PM
Motorola Limited Warranty
51
Software NOT Embodied in Physical Media. Software that is not embodied in
physical media (e.g. software that is downloaded from the internet), is provided “as
is” and without warranty.
Who is Covered?
This warranty extends only to the first consumer purchaser, and is not transferable.
What Will Motorola Do?
Motorola, at its option, will at no charge repair, replace or refund the purchase price
of any Products, Accessories or Software that does not conform to this warranty. We
may use functionally equivalent reconditioned/refurbished/pre-owned or new
Products, Accessories or parts. No data, software or applications added to your
Product, Accessory or Software, including but not limited to personal contacts,
games and ringer tones, will be reinstalled. To avoid losing such data, software and
applications please create a back up prior to requesting service.
6864110R04b.book Page 51 Friday, October 20, 2006 4:38 PM
52
Motorola Limited Warranty
How to Obtain Warranty Service or Other Information?
You will receive instructions on how to ship the Products, Accessories or Software,
at your expense, to a Motorola Authorized Repair Center. To obtain service, you must
include: (a) a copy of your receipt, bill of sale or other comparable proof of purchase;
(b) a written description of the problem; (c) the name of your service provider, if
applicable; (d) the name and location of the installation facility (if applicable) and,
most importantly; (e) your address and telephone number.
USA Phones 1-800-331-6456
Two-Way Radios 1-800-448-6686
Pagers 1-800-548-9954
Canada All Products 1-800-461-4575
TTY TTY 1-888-390-6456
For Accessories and Software, please call the telephone number designated
above for the product with which they are used.
6864110R04b.book Page 52 Friday, October 20, 2006 4:38 PM
Motorola Limited Warranty
53
What Other Limitations Are There?
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS LIMITED
WARRANTY, OTHERWISE THE REPAIR, REPLACEMENT, OR REFUND AS
PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE
REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OF IMPLIED. IN NO EVENT SHALL MOTOROLA BE
LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING NEGLIGENCE) FOR
DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT,
ACCESSORY OR SOFTWARE, OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL
OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF REVENUE OR
PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATA,
SOFTWARE OR APPLICATIONS OR OTHER FINANCIAL LOSS ARISING OUT OF
OR IN CONNECTION WITH THE ABILITY OR INABILITY TO USE THE
PRODUCTS, ACCESSORIES OR SOFTWARE TO THE FULL EXTENT THESE
DAMAGES MAY BE DISCLAIMED BY LAW.
6864110R04b.book Page 53 Friday, October 20, 2006 4:38 PM
54
Motorola Limited Warranty
Some states and jurisdictions do not allow the limitation or exclusion of
incidental or consequential damages, or limitation on the length of an implied
warranty, so the above limitations or exclusions may not apply to you. This
warranty gives you specific legal rights, and you may also have other rights
that vary from state to state or from one jurisdiction to another.
Laws in the United States and other countries preserve for Motorola certain exclusive
rights for copyrighted Motorola software such as the exclusive rights to reproduce
and distribute copies of the Motorola software. Motorola software may only be copied
into, used in, and redistributed with, the Products associated with such Motorola
software. No other use, including without limitation disassembly of such Motorola
software or exercise of the exclusive rights reserved for Motorola, is permitted.
ITC02-159
6864110R04b.book Page 54 Friday, October 20, 2006 4:38 PM
Software Copyright Notice
55
Software Copyright Notice
The Motorola products described in this manual may include copyrighted Motorola
computer programs stored in semiconductor memories or other media. Laws in the
United States and other countries preserve for Motorola certain exclusive rights for
copyrighted computer programs, including but not limited to, the exclusive right to
copy or reproduce in any form, the copyrighted computer program. Accordingly, any
copyrighted programs contained in the Motorola products described in this manual
may not be copied, reproduced, modified, reverse-engineered, or distributed in any
manner without the express written permission of Motorola. Furthermore, the
purchase of the Motorola products shall not be deemed to grant either directly or by
implication, estoppel or otherwise, any license under the copyrights, patents, or
patent applications of Motorola, except for the normal, non-exclusive license to use
that arises by operation of law in the sale of a product.
Patent Notice
This product is covered by one or more of the following United States patents.
5896277 5894292 5864752 5699006 5742484 D408396 D399821 D387758
D389158 5894592 5893027 5789098 5734975 5861850 D395882 D383745
D389827 D389139 5929825 5926514 5953640 6071640 D413022 D416252
D416893 D433001
6864110R04b.book Page 55 Friday, October 20, 2006 4:38 PM
56
Export Law Assurances
Export Law Assurances
This product is controlled under the export regulations of the United States of
America and Canada. The Governments of the United States of America and
Canada may restrict the exportation or re-exportation of this product to certain
destinations. For further information contact the U.S. Department of Commerce or
the Canadian Department of Foreign Affairs and International Trade.
6864110R04b.book Page 56 Friday, October 20, 2006 4:38 PM
Index
57
A
Audio accessories ............................ 29
Adjust volume ............................. 21, 22
Advanced features ........................... 41
Alkaline batteries .............................. 24
B
Bandwidth......................................... 36
Basic operations ............................... 22
Battery
Alkaline ...................................... 24
Install ................................... 24
Charge
Alkaline ................................ 20
NiMH.................................... 20
Meter .......................................... 26
C
Call display ....................................... 37
Channel
Activity........................................ 31
Charger
Drop-in ....................................... 25
Multi-unit .................................... 39
Plug-in ........................................ 25
Charging ........................................... 21
Cloning ............................................. 39
Code
Interference eliminator ............... 35
D
Diagram
Function ..................................... 22
Drop-in charger ................................ 25
E
End-of-transmission tone ................. 41
External VOX.............................. 30, 38
F
FCC licensing information .................. 7
Frequency
Setting........................................ 34
Functions.......................................... 22
H
Hands-free use........................... 30, 38
I
Information
Safety........................................... 9
Install
Alkaline batteries ....................... 24
NiMH battery.............................. 19
Interference eliminator code............. 35
6864110R04b.book Page 57 Friday, October 20, 2006 4:38 PM
58
Index
Internal VOX............................... 30, 38
Introduction ........................................ 1
K
Keepad tones ................................... 41
L
Licensing information
FCC ............................................. 5
M
Meter
Battery ....................................... 26
Microphone gain......................... 30, 38
Monitor signal strength............... 28, 31
M-Series............................... 34, 42, 53
O
Obstacles ......................................... 28
Operating radio ................................ 31
P
Plug
Audio ......................................... 29
Plug-in charger................................. 20
Product-related questions .................. 2
Programming mode.......................... 33
R
Radio
Clean ......................................... 46
Diagram......................................22
Display........................................26
Functions and settings ...............23
Off...............................................21
On...............................................41
Operating....................................28
Out of range ...............................28
Range
Talking........................................28
S
Safety information ...............................7
Scan..................................................44
Scan list ............................................31
Sensitivity....................................30, 38
Setting
Battery type ................................39
Call tone .....................................37
Channel ......................................34
Scramble code ...........................36
VOX sensitivity level.............30, 38
Signal strength indicator .............28, 31
T
Talk range .........................................28
6864110R04b.book Page 58 Friday, October 20, 2006 4:38 PM
Index
59
U
Use and care .................................... 46
V
VOX
External ...................................... 29
Internal....................................... 30
Sensitivity level .................... 30, 38
W
Warranty .......................................... 54
Website
Accesories ................................. 29
6864110R04b.book Page 59 Friday, October 20, 2006 4:38 PM
RDX Series Programming Quick Reference
Function Appearance
Press & hold side button 1for 3 sec. and turn on radio to enter
programming mode.
Frequency Press
\
until
l displays. To
change, press
[
or
]
.
*depending upon model
*depending upon model
Interference
Eliminator
Code
Appears after l shows. Set
for each channel.
Bandwidth
Press \ until K displays. Press
[ or ] to select D (25.0 kHz)
or C (12.5 kHz).
Note: If bandwidth is not flashing,
it is not selectable on the
chosen frequency.
RDX Series Programming Quick Reference
Radio On Visual \as needed, then
[
or
]
Call Tone Choose1, 2, 3, or
0 = Off (default).
6864110R04b.book Page 60 Friday, October 20, 2006 4:38 PM
Microphone
Gain
Choose:
1 Low Sensitivity
2 Medium Sensitivity
3 High Sensitivity
RDX Series Programming Quick Reference
Radio On Visual \as needed, then
[
or
]
6864110R04b.book Page 61 Friday, October 20, 2006 4:38 PM
6864110R04b.book Page 62 Friday, October 20, 2006 4:38 PM
•
•
MOTOROLA, the Stylized M Logo,RDX Series and all other trademarks indicated as such herein are trademarks of Motorola, Inc. ® Reg. U.S. Pat. & Tm. Off. All other
product or service names are the property of their respective owners. © 2001, 2002, 2005, 2006 Motorola, Inc. All rights reserved. Printed in the U.S.A.
FCC
License Required
*XTNXTN*
Motorola
®
RDX Series
Proof of Purchase
WARNING CHOKING HAZARD
SMALL PARTS
Not for children under 3 years.
This product is not intended to be used
as a toy or plaything.
6864110R04b.book Page 63 Friday, October 20, 2006 4:38 PM
