Motorola Solutions 89FT4851 XTN Series Two-Way Radio User Manual 6881038B80
Motorola Solutions, Inc. XTN Series Two-Way Radio 6881038B80
Preliminary User Manual
PRELIMINARY
@6864110R04@
6864110R04-O
010449-O
Models XU1100, XU2100, and XU2600
Models XV1100, XV2100, and XV2600
TWO-WAY RADIO
User's Guide
6881038B80.book Page 1 Thursday, August 30, 2001 5:33 PM
6881038B80.book Page 2 Thursday, August 30, 2001 5:33 PM
Safety and General Information
i
PRELIMINARY
Safety and General Information
Important Information on Safe and Efficient Operation
Read This Information Before Using Your Radio
The information provided in this document supersedes the general safety
information contained in user guides published prior to July 2000. For information
regarding radio use in a hazardous atmosphere please refer to the Factory Mutual
(FM) Approval Manual Supplement or Instruction Card, which is included with radio
models that offer this capability.
RF Operational Characteristics
Your radio contains a transmitter and a receiver. When it is ON, it receives and
transmits radio frequency (RF) energy. The XTN Series VHF radios operate in the
frequency range of 151-161 MHz, the XTN Series UHF radios operate in the
frequency range of 461-469 MHz. When you communicate with XU1100 or XV1100
radios the output power level is 1.0 watt, with other XTN Series radios, the output
power level is 2.0 watts
Exposure to Radio Frequency Energy
Your Motorola radio is designed to comply with the following national and
international standards and guidelines regarding exposure of human beings to radio
frequency electromagnetic energy:
• United States Federal Communications Commission, Code of Federal
Regulations; 47 CFR part 2 sub-part J
• American National Standards Institute (ANSI) / Institute of Electrical and
Electronic Engineers (IEEE) C95. 1-1992
• Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition
6881038B80.book Page i Thursday, August 30, 2001 5:33 PM
Safety and General Information
ii
PRELIMINARY
•National Council on Radiation Protection and Measurements (NCRP) of the
United States, Report 86, 1986
•International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998
•Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to Radio
Frequency Electromagnetic Fields in the Frequency Range from 3 kHz to 300
GHz, 1999
•Australian Communications Authority Radiocommunications (Electromagnetic
Radiation - Human Exposure) Standard 1999 (applicable to wireless phones
only)
To assure optimal radio performance and make sure human exposure to radio
frequency electromagnetic energy is within the guidelines set forth in the above
standards, always adhere to the following procedures:
Portable Radio Operation and EME Exposure
Antenna Care
Use only the supplied or an approved replacement antenna. Unauthorized
antennas, modifications, or attachments could damage the radio and may violate
FCC regulations.
DO NOT hold the antenna when the radio is “IN USE.” Holding the antenna
affects the effective range.
Two-Way Radio Operation
When using your radio as a traditional two-way radio, hold the radio in a vertical
position with the microphone two to three inches (5. 0 to 7.5 cm) away from the lips.
6881038B80.book Page ii Thursday, August 30, 2001 5:33 PM
Safety and General Information
iii
PRELIMINARY
Body-Worn Operation
To maintain compliance with FCC/Health Canada RF exposure guidelines, if you
wear a radio on your body when transmitting, always place the radio in a Motorola
supplied or approved clip, holder, holster, case, or body harness for this
product. Use of non-Motorola-approved accessories may exceed FCC RF
exposure guidelines. If you do not use a body-worn accessory, ensure the radio
and its antenna is at least one inch (2.5 cm) from your body when transmitting.
Data Operation
When using any data feature of a device, with or without an accessory cable,
position the device and its antenna at least one inch (2.5 cm) from the body.
Approved Accessories
For a list of approved Motorola accessories refer to the Two-Way Radio section of
www.motorola.com/store.
Electromagnetic Interference/Compatibility
Note: Nearly every electronic device is susceptible to electromagnetic interference
(EMI) if inadequately shielded, designed or otherwise configured for
electromagnetic compatibility.
Facilities
To avoid electromagnetic interference and/or compatibility conflicts, turn off your
radio in any facility where posted notices instruct you to do so. Hospitals or health
care facilities may be using equipment that is sensitive to external RF energy.
Aircraft
When instructed to do so, turn off your radio when on board an aircraft. Any use of a
radio must be in accordance with applicable regulations per airline crew instructions.
6881038B80.book Page iii Thursday, August 30, 2001 5:33 PM
Safety and General Information
iv
PRELIMINARY
Medical Devices
Pacemakers
The Advanced Medical Technology Association recommends that a minimum
separation of 6 inches (15 centimeters) be maintained between a handheld wireless
radio and a pacemaker. These recommendations are consistent with the
independent research by, and recommendations of the U.S. Food and Drug
Administration.
Persons with pacemakers should:
•ALWAYS keep the radio more than six inches (15 centimeters) from their
pacemaker when the radio is turned ON.
•not carry the radio in the breast pocket.
•use the ear opposite the pacemaker to minimize the potential for interference.
•turn the radio OFF immediately if you have any reason to suspect that
interference is taking place.
Hearing Aids
Some wireless radios may interfere with some hearing aids. In the event of such
interference, you may want to consult your hearing aid manufacturer to discuss
alternatives.
Other Medical Devices
If you use any other personal medical device, consult the manufacturer of your
device to determine if it is adequately shielded from RF energy. Your physician may
be able to assist you in obtaining this information.
6881038B80.book Page iv Thursday, August 30, 2001 5:33 PM
Safety and General Information
v
PRELIMINARY
Safety and General Use While Driving
Check the laws and regulations on the use of radios in the area where you drive.
Always obey them. When using your radio while driving, please:
•Give full attention to driving and to the road.
•Use hands-free operation, if available.
•Pull off the road and park before making or answering a call if driving conditions
so require.
Operational Warnings
For Vehicles with an Air Bag
Do not place a portable radio in the area over an air bag or in the air bag deployment
area. Air bags inflate with great force. If a portable radio is placed in the air bag
deployment area and the air bag inflates, the radio may be propelled with great force
and cause serious injury to occupants of the vehicle.
Potentially Explosive Atmospheres
Turn off your radio prior to entering any area with a potentially explosive
atmosphere, unless it is a radio type especially qualified for use in such areas as
“Intrinsically Safe.”
Do not remove, install, or charge batteries in such areas. Sparks in a potentially explosive
atmosphere can cause an explosion or fire resulting in bodily injury or even death.
Note: The areas with potentially explosive atmospheres referred to above include
fueling areas such as below decks on boats, fuel or chemical transfer or
storage facilities, areas where the air contains chemicals or particles, such
as grain, dust or metal powders, and any other area where you would
normally be advised to turn off your vehicle engine. Areas with potentially
explosive atmospheres are often but not always posted.
6881038B80.book Page v Thursday, August 30, 2001 5:33 PM
Safety and General Information
vi
PRELIMINARY
Blasting Caps and Areas
To avoid possible interference with blasting operations, turn off your radio when you
are near electrical blasting caps, in a blasting area, or in areas posted: “Turn off two-
way radio.” Obey all signs and instructions.
Operational Cautions
Antennas
Do not use any portable radio that has a damaged antenna. If a damaged
antenna comes into contact with your skin, a minor burn can result.
Batteries
All batteries can cause property damage and/or bodily injury such as burns if a
conductive material such as jewelry, keys, or beaded chains touch exposed
terminals. The conductive material may complete an electrical circuit (short circuit)
and become quite hot. Exercise care in handling any charged battery, particularly
when placing it inside a pocket, purse, or other container with metal objects.

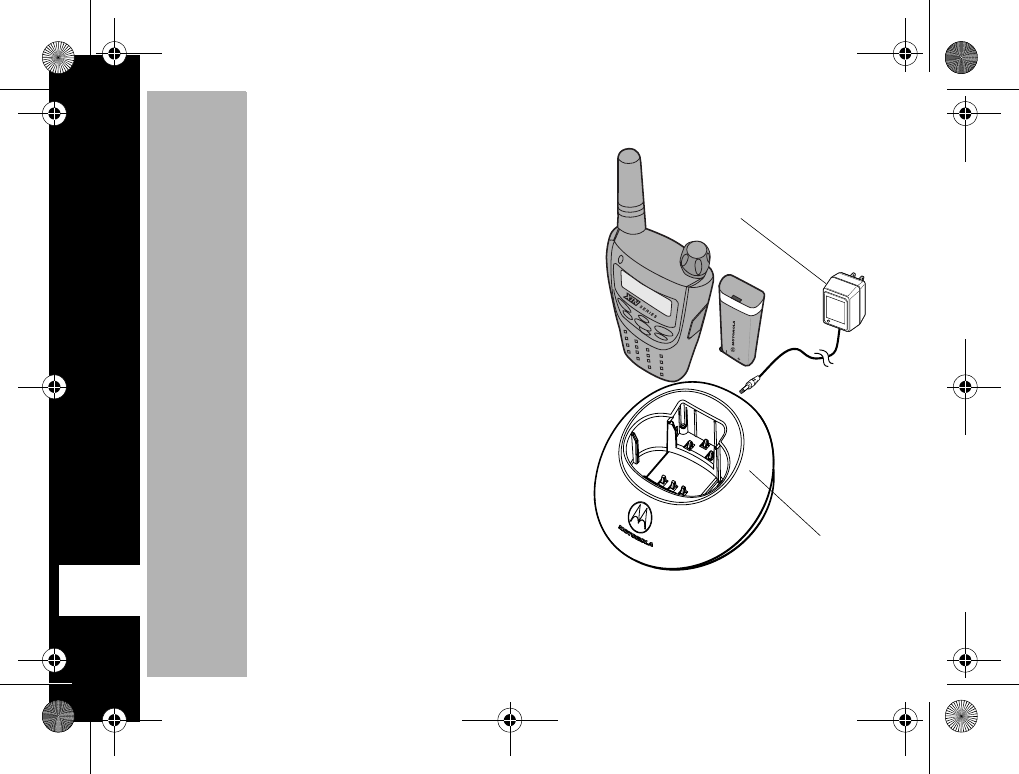

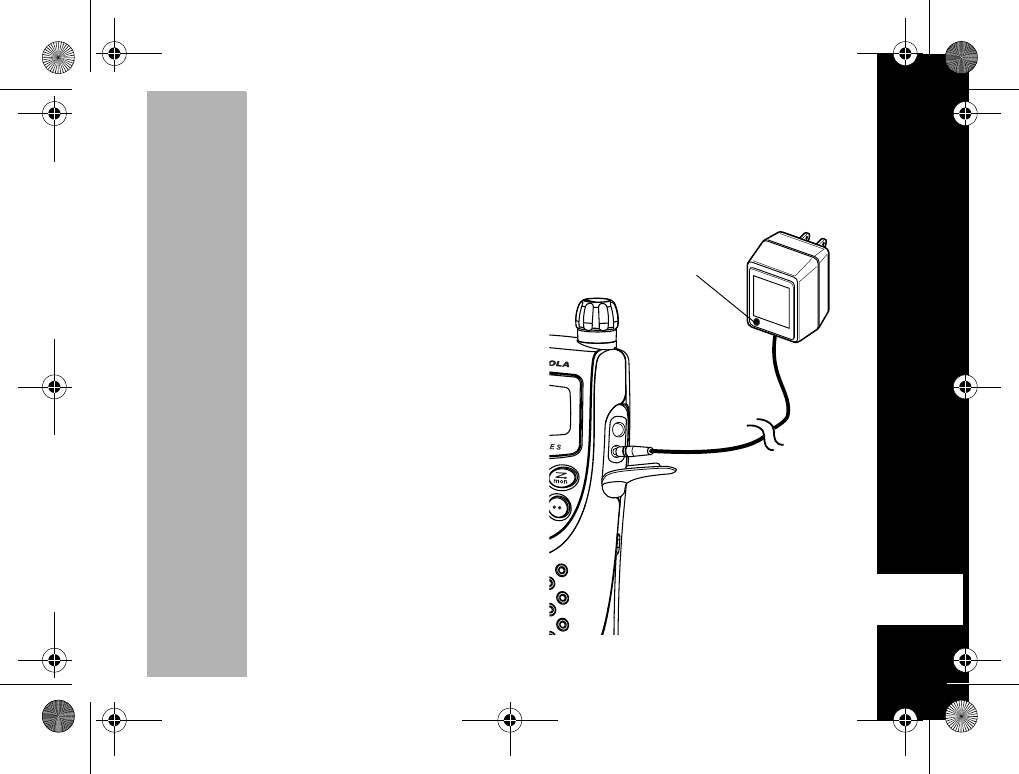

Charging Safety Instructions
Before using the battery charger, read all instructions and cautionary markings on:
1. the battery
2. the battery charger, and
3. the radio using the battery.
Caution: To reduce the risk of injury, charge only the rechargeable battery. Other
types of batteries may burst, causing personal injury and damage.
6881038B80.book Page vi Thursday, August 30, 2001 5:33 PM
Safety and General Information
vii
PRELIMINARY
Save these Instructions
1. Do not expose the charger to rain or snow.
2. Do not operate the charger if it has received a sharp blow, or has been dropped
or damaged in any way.
3. Do not disassemble the charger if it has received a sharp blow, or has been
dropped or damaged in any way.
4. Never alter the AC cord or plug provided with the unit. If plug will not fit the out-
let, have proper outlet installed by a qualified electrician. An improper condition
can result in a risk of electric shock.
5. To reduce risk of damage to cord or plug, pull the plug rather than the cord when
disconnecting charger from AC receptacle.
6. To reduce the risk of electric shock, unplug the charger from the outlet before
attempting any maintenance or cleaning.
7. Use of an attachment not recommended or sold by Motorola may result in a risk
of fire, electric shock, or personal injury.
8. Make sure that the cord is located so that it will not be stepped on, tripped over,
or subjected to damage or stress.
6881038B80.book Page vii Thursday, August 30, 2001 5:33 PM
Safety and General Information
viii
PRELIMINARY
9. An extension cord should not be used unless absolutely necessary. Use of an
improper extension cord could result in a risk of fire and/or electric shock. If an
extension cord must be used, make sure:
•That the pins on the plug of the extension cord are the same number, size
and shape as those on the plug of the charger.
•That the extension cord is properly wired and in good electrical condition,
and
•That the cord size is18 AWG for lengths up to 100 feet, and 16 AWG for
lengths up to 150 feet.
10. The supply cord of this charger cannot be replaced. If the cord is damaged, call
Motorola Product Services at:
1-800-353-2729 (U.S.A.) 1-800-461-4575 (Canada)
1-888-390-6456 TTY (Text Telephone) 1-888-390-6456 TTY (Text Telephone)
6881038B80.book Page viii Thursday, August 30, 2001 5:33 PM
Introduction
PRELIMINARY
-1
Introduction
Thank you for purchasing a
Motorola XTN Series Radio.
Your radio is a product of Motorola’s
70 plus years of experience as a
world leader in the designing and
manufacturing of communications
equipment. The revised industrial
design reflects the heritage and
ruggedness of the XTN Series. The
XTN Series radios provide cost-
effective communications for
businesses such as retail stores,
restaurants, schools, construction
sites and more. Motorola
professional two-way radios are the
perfect communications solution for
all of today’s fast-paced industries.
Note: Please read this manual
carefully to ensure you know
how to properly operate the
radio before use.
Motorola
Consumer Products Division
1705 Belle Meade Court
Lawrenceville, GA 30043
Package Contents
•Radio
•Swivel Belt Holster

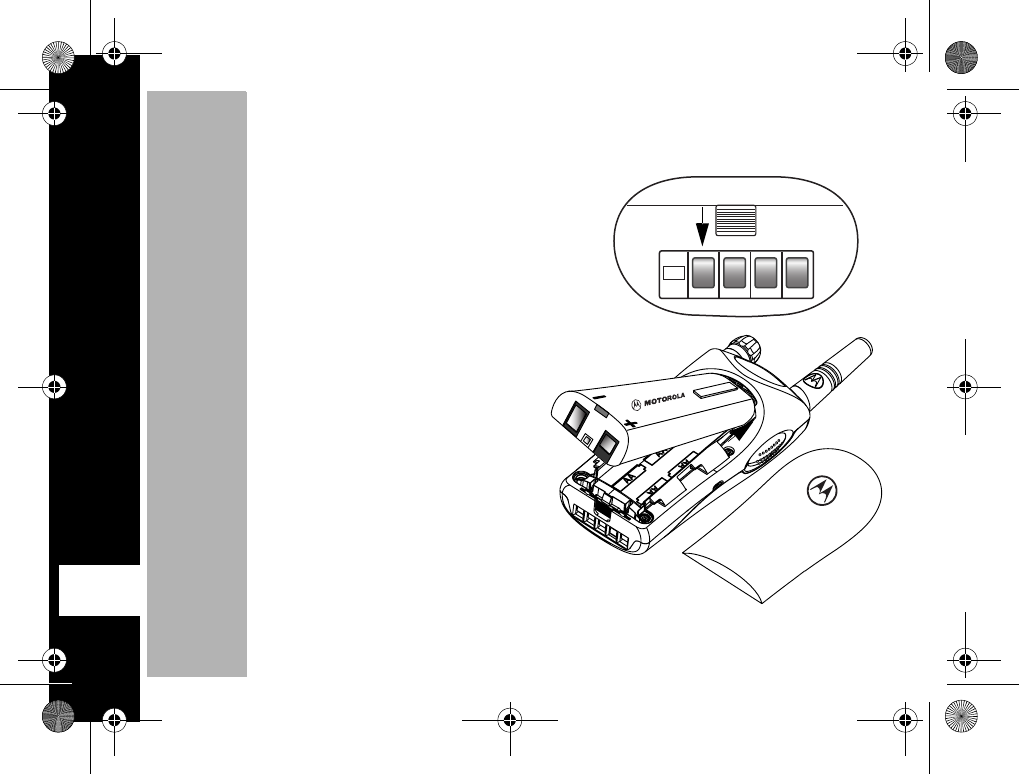

•NiMH Battery NTN8971
•10-Hour Charger NNTN4021
•User's Guide
•Accessory Brochure
•Warranty Card
Motorola, the Stylized M Logo, and all other
trademarks indicated as such herein are
Trademarks of Motorola, Inc.
Reg. U.S. Pat. & Tm. Off.
© 2001 Motorola, Inc. All rights reserved.
Printed in the U.S.A. 08/01
For a copy of a large-print
version of this guide, or for
product-related questions,
please contact:
1-800-353-2729 U.S.A.
1-800-461-4575 Canada
1-888-390-6456 TTY (Text Telephone)
On the web, please refer to:
www.motorola.com/radios/professional
6881038B80.book Page -1 Thursday, August 30, 2001 5:33 PM
ContentsContents
PRELIMINARY
0
Contents
Getting Started . . . . . . . . . . . . . . 3
Turning On/Off Your Radio . . . . . . . 3
Installing Batteries . . . . . . . . . . . . . . 4
Charging . . . . . . . . . . . . . . . . . . . . . 7
Programming Mode . . . . . . . . . . 9
Setting the
Channel . . . . . . . . . . . . . . . . . . . 10
Frequency . . . . . . . . . . . . . . . . . 10
Interference Eliminator Code . . . 11
Eavesdrop Reducer . . . . . . . . . . 11
Bandwidth . . . . . . . . . . . . . . . . . 12
Manager Lockout . . . . . . . . . . . . 12
Assigning Channels to Presets . . . 12
Cloning . . . . . . . . . . . . . . . . . . . . . . 13
Resetting Factory Defaults . . . . . . 13

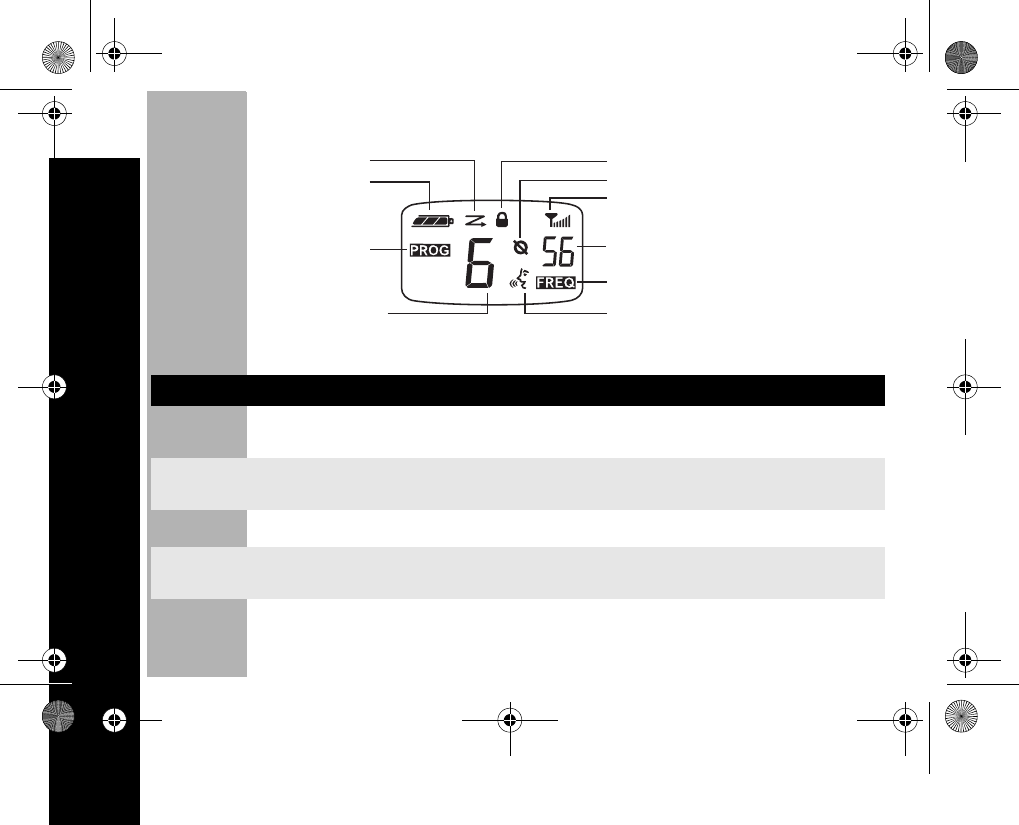

Settings and Functions Display 14
Operating Radio . . . . . . . . . . . . 15
Signal Strength Indicator . . . . . . . . 15
Monitor Signal Strength Indicator . 15
User Menu Features . . . . . . . . 16
Setting Call Tone . . . . . . . . . . . . . 16
Setting Microphone Gain . . . . . . . . 16
Hands-Free Use/VOX . . . . . . . . . . 17
Setting Preferences for Scanning. . 19
Setting the Battery Type* . . . . . . . 20
End-of-Transmission Tone . . . . . . 20
Keypad Tones . . . . . . . . . . . . . . . . 21

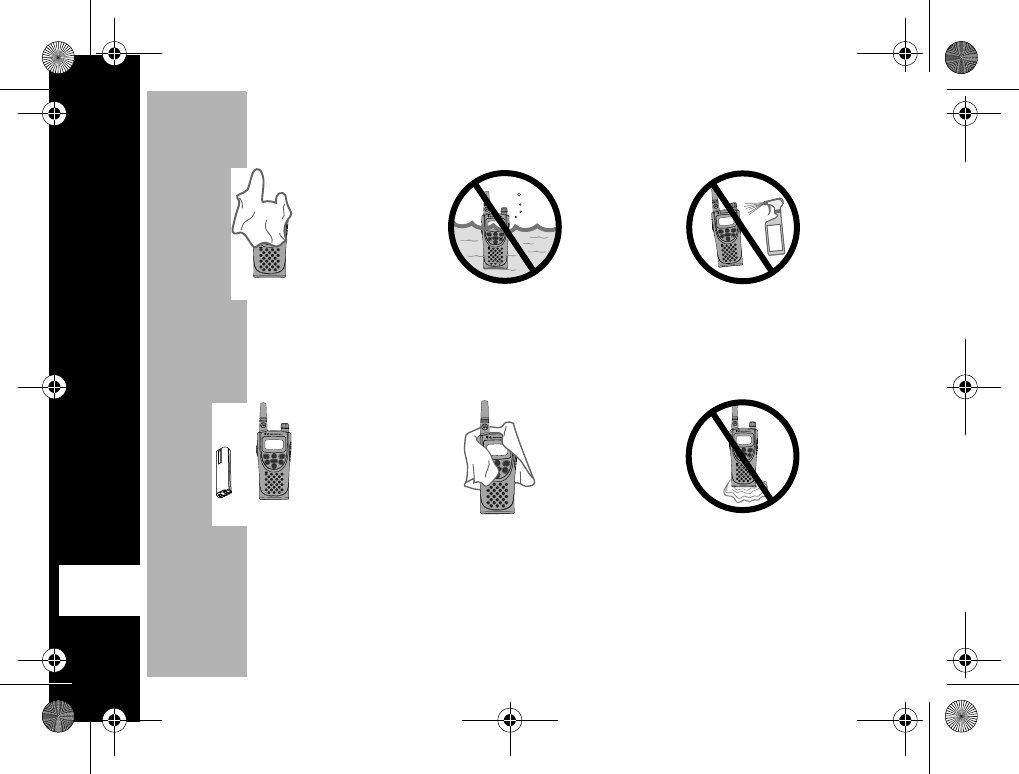

Use and Care . . . . . . . . . . . . . . 22
Frequency and Code Charts . . 23
VHF Frequency Chart . . . . . . . . . . 23
UHF Frequency Chart . . . . . . . . . . 24
Interference Eliminator Codes . . . . 25
Digital Private Line/DPL Codes . . . 26
Troubleshooting . . . . . . . . . . . 27
Motorola Limited Warranty . . . 30
6881038B80.book Page 0 Thursday, August 30, 2001 5:33 PM
1
PRELIMINARY
FCC Licensing Information
FCC
FCC Licensing Information
XTN Series professional two-way radios operate on radio frequencies that are
regulated by the Federal Communications Commission (FCC). In order to transmit
on these frequencies, you are required to have a license issued by the FCC.
Application is made on FCC Form 601 and Schedules D, E and G.
To have the FCC forms please request document 000601 which includes all forms
and instructions. If you wish to have the document faxed, mailed or have questions,
please use the following contact information.
Before filling out your application, you must decide which frequency(ies) you can
operate on. See the Frequency and Code Charts on page 23.
For questions on determining your radio frequency, please call Motorola Product
Services at:
1-800-448-6686
Faxed
contact the Fax-On-
Demand system at:
Mailed
call the FCC forms
hotline at:
Questions
regarding FCC license
contact the FCC at:
1-202-418-0177 1-800-418-FORM
1-800-418-3676
1-888-CALL-FCC
1-888-225-5322
Or: http://www.fcc.gov
6881038B80.book Page 1 Thursday, August 30, 2001 5:33 PM
FCC Licensing Information
2
PRELIMINARY
FCC
Changes or modifications not expressly approved by Motorola may void the user’s
authority granted by the FCC to operate this radio and should not be made. To
comply with FCC requirements, transmitter adjustments should be made only by
or under the supervision of a person certified as technically qualified to perform
transmitter maintenance and repairs in the private land mobile and fixed services
as certified by an organization representative of the user of those services.
Replacement of any transmitter component (crystal, semiconductor, etc.) not
authorized by the FCC equipment authorization for this radio could violate FCC
rules.
Note: Use of this radio outside the country where it was intended to be distributed
is subject to government regulations and may be prohibited.
6881038B80.book Page 2 Thursday, August 30, 2001 5:33 PM
3
PRELIMINARY
Getting Started
X
Getting Started
Turning On/Off Your Radio
A Diagram of your New XTN Series Radio and its Functions can be found on page 8.
Volume
You can set the volume by adjusting the knob on the top of the radio; P.
Note:
Do not hold the radio too close to your ear when the volume is at a high setting.
Turn
knob Display Normal Menu Mode
P
Turn knob on the top of the radio clockwise to turn the
radio On. Turn the Knob counterclockwise to turn the
radio Off.
The radio chirps and the display will briefly show all
features and display segments of your radio.
Then, the code area will briefly display the current Channel
(larger number located in the center of the display) and the
Frequency assigned to that Channel.
The Interference Eliminator Code shows briefly. Current
Channel will be left on display.
k
1
6881038B80.book Page 3 Thursday, August 30, 2001 5:33 PM
Getting Started
4
PRELIMINARY
X
Installing Batteries
The Nickel-Metal Hydride Battery
•Push the Ribbed Latch on the bottom of
the radio away from the battery door, or
toward the contacts.
•Slide and lift the battery door off.
•Place the battery so that the charge
contacts are facing out toward the
battery door. Insert the top of the
battery into the radio and push the
battery up and into the battery
compartment. The battery fits tightly
into place.
•Slide and snap the battery door into
place.
Note: *Based upon 5/5/90 duty cycle.
Ribbed
Latch
6881038B80.book Page 4 Thursday, August 30, 2001 5:33 PM
5
PRELIMINARY
Getting Started
X

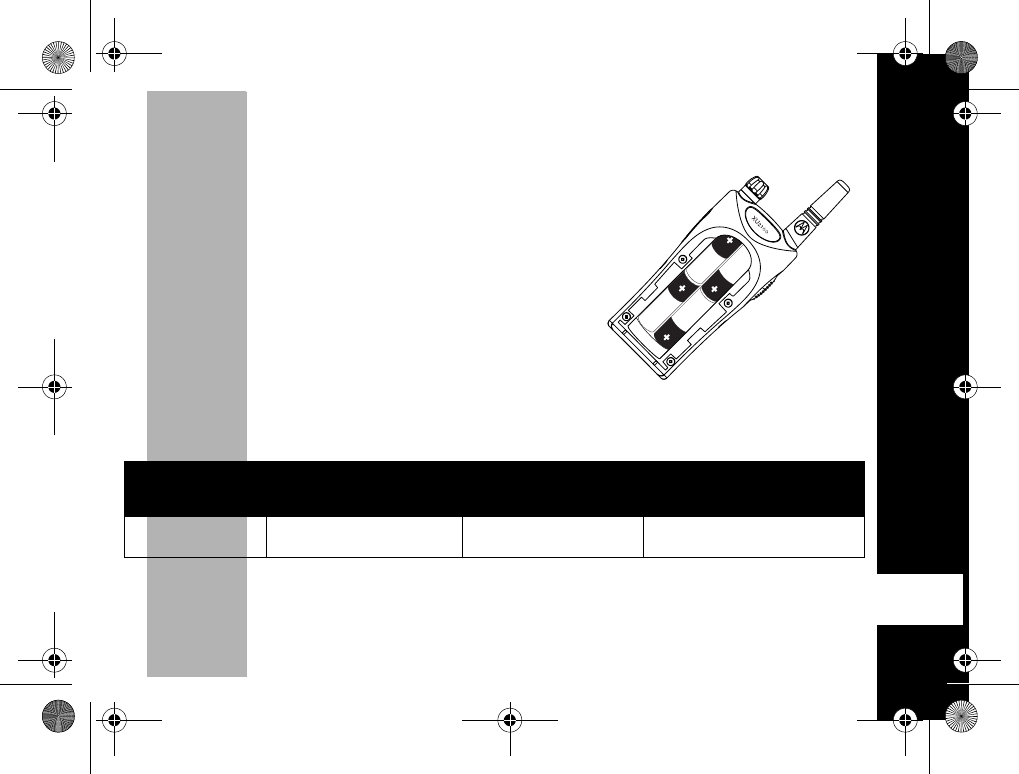

AA Alkaline Batteries
Your radio can also use 4 AA batteries; alkaline cells provide 24 hours* of radio use.
Battery Meter
The battery meter located in the upper left hand corner of the display indicates how
much battery power you have remaining.
•Push the ribbed latch on the bottom of the radio
away from the battery door.
•Slide and lift the battery door off.
•Place AA batteries matching the markings in
the compartment.
•Slide and snap the battery door into place.
Full Two-thirds Full One-third Full Battery Meter flashes
when almost empty.
db c m
When the battery meter Flashes; m, the radio chirps after releasing Mand every
10 minutes.
Note: *Based upon 5/5/90 duty cycle.
6881038B80.book Page 5 Thursday, August 30, 2001 5:33 PM
Getting Started
6
PRELIMINARY
X

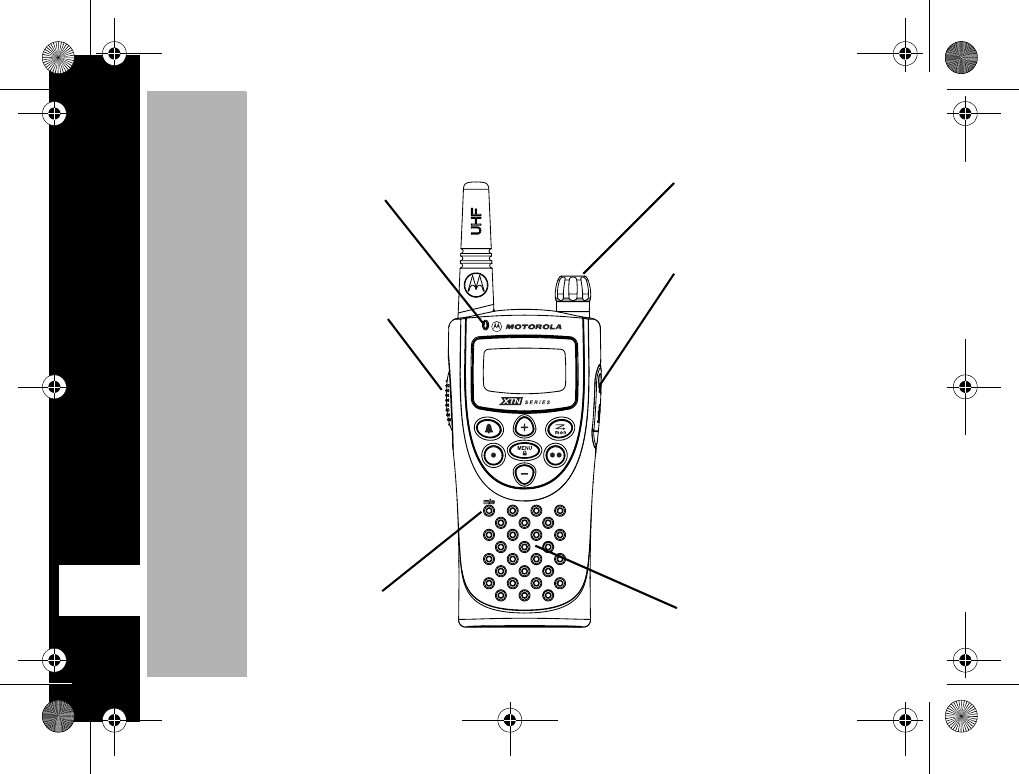

Diagram of your New XTN Series Radio and its Functions
Indicator Light:
Use B to:
Transmit call tone
Use M to:
Tal k
Exit a menu
Use \ button to:
Scroll through menus
Lock the keypad
Use T / S buttons to:
Access Presets
(XU2600, XV2600)
Microphone:
Use P (Power) to:
Turn power On/Off
Adjust radio volume

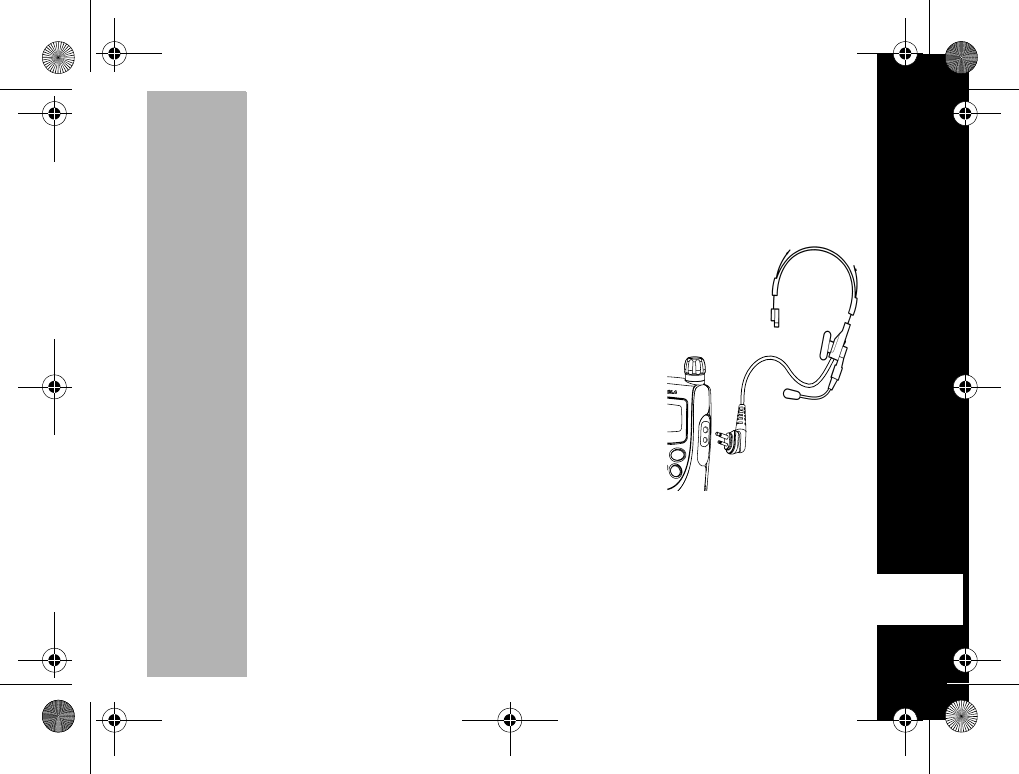

Accessory Jack
Audio Accessories
Radio Plug-in Charging
Use J button to:
Turn Scan On/Off
(XU2600, XV2600)
Monitor the Frequency
Use [ and ] to:
Change Channels
(XU2600, XV2600)
Scroll through
menu settings
Speaker:
6881038B80.book Page 6 Thursday, August 30, 2001 5:33 PM
7
PRELIMINARY
Getting Started
X
Charging
The NiMH Battery with 10-Hour Charger
•Make sure the radio is Off.
•Lift Accessory Cover and plug the 10-Hour
Charger (NNTN4021) firmly into the lower
jack (small hole). Please see figure.
•Plug the charger into an electric outlet.
The light on the charger will glow red if
charging properly.
Note: Charge the battery (NTN8971)
overnight (16 hours) before using it for
the first time, it will only need up to ten
hours of charging thereafter.
For optimum battery life, the battery
must not be left charging for prolonged
periods after reaching full charge.
Charging the battery over the
weekend is acceptable.
If radio is On while charging,
additional time is required to charge
the battery.
Light
6881038B80.book Page 7 Thursday, August 30, 2001 5:33 PM
Getting Started
8
PRELIMINARY
X
With Drop-in Charging Tray ( Not included with all models)
The Drop-in Charging Tray can be placed on any
flat surface and provides drop-in charging
convenience.
•Connect 10-Hour Charger (NNTN4021)
and Drop-in Charging Tray* (NNTN4019)
by inserting plug into the rear of Drop-in
Charging Tray.
•To charge the radio, place into the
Drop-in Charging Tray with the radio facing
toward you.
Note: The battery can be charged while inside
the radio or removed from the radio and
placed in Drop-in Charging Tray
separately. The battery’s contacts must
face down and the Motorola Logo must
face the front of Charger.
The light on the 10-Hour Charger will glow
continuously when radio/battery is inserted.
Note: Allow 10 hours for the battery to reach
full charge.
* Accessory Number for Drop-in Charger is 53872.
10-Hour Charger
NNTN4021
Drop-in
Charging Tray
NNTN401
6881038B80.book Page 8 Thursday, August 30, 2001 5:33 PM
9
PRELIMINARY
Programming Mode
k
Programming Mode
To talk with someone on your two-way radios, the following features need to be set
exactly alike:
1. Channel (Current channel that the radio is using.)
2. Frequency (The frequency wave your radio uses to transmit/receive.)
3. Interference Eliminator Code (These codes help minimize interference by
providing you with a choice of code combinations.) Please refer to the Frequency
and Code Charts on page 23.
4. Eavesdrop Reducer/Scrambling Code (Codes that make your transmissions
sound garbled to anyone listening who is not set to that specific code). Please
refer to Setting Eavesdrop Reducer (2 watt models only) can be found on
page 11.
Note: The Cloning Feature used with the Multi-unit Charger/MUC (Optional
Accessory) can help to duplicate radio settings easily for multiple radio use.
Please refer to Cloning on page 13.
Channel Frequency, Interference Eliminator Code, Eavesdrop Reducer/Scrambling
Code, and Manager Lock can all be selected in Programming Mode: k.
•Access k by turning the radio on while holding the M and J buttons for
three seconds.
•The Programming icon; k illuminates and radio chirps to indicate access.
•Exit k by holding the M for three seconds.
Note: k does not timeout.
6881038B80.book Page 9 Thursday, August 30, 2001 5:33 PM
Programming Mode
10
PRELIMINARY
k

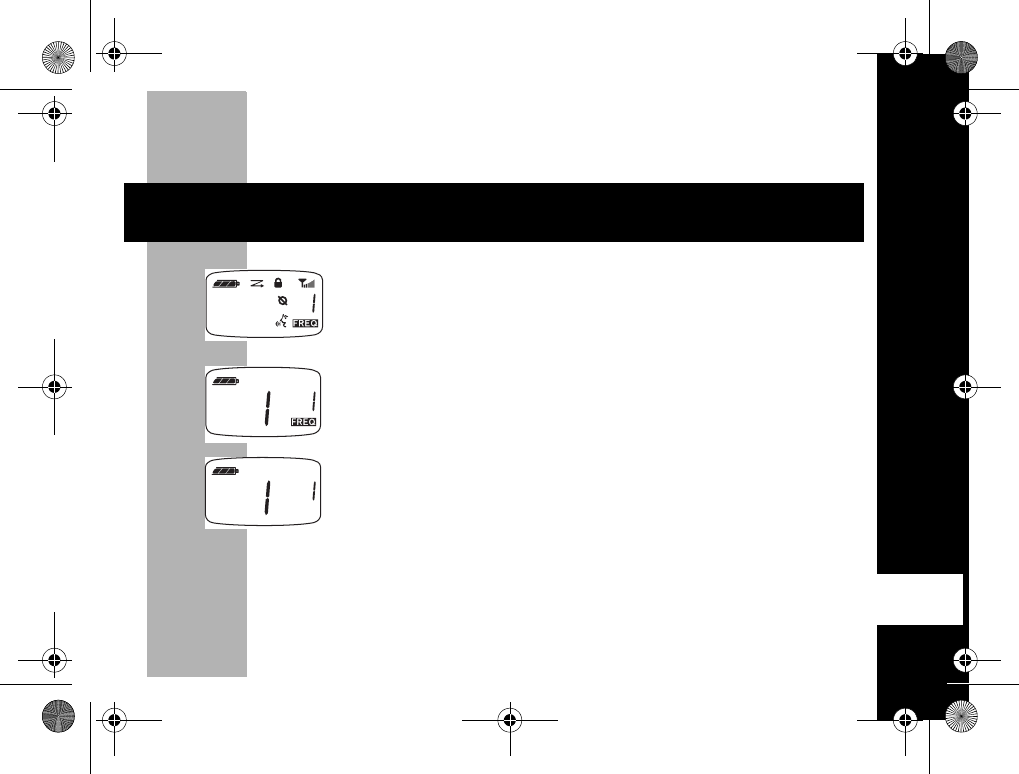

kNow, you may use your radio’s \ and [ or ] to select features.

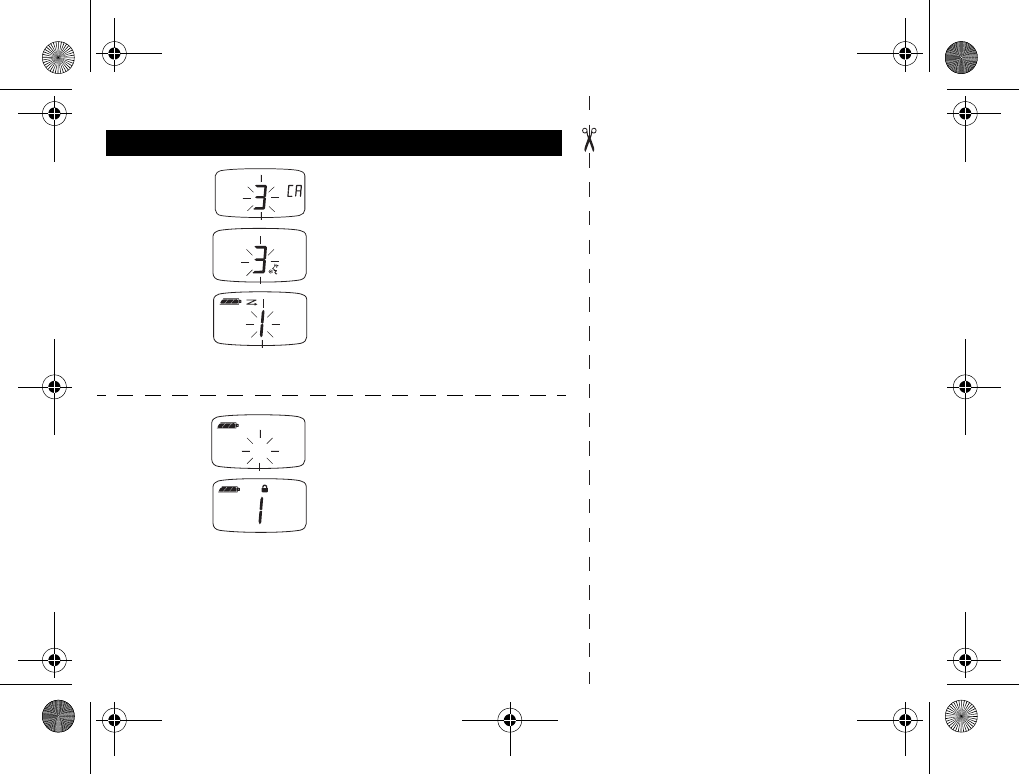

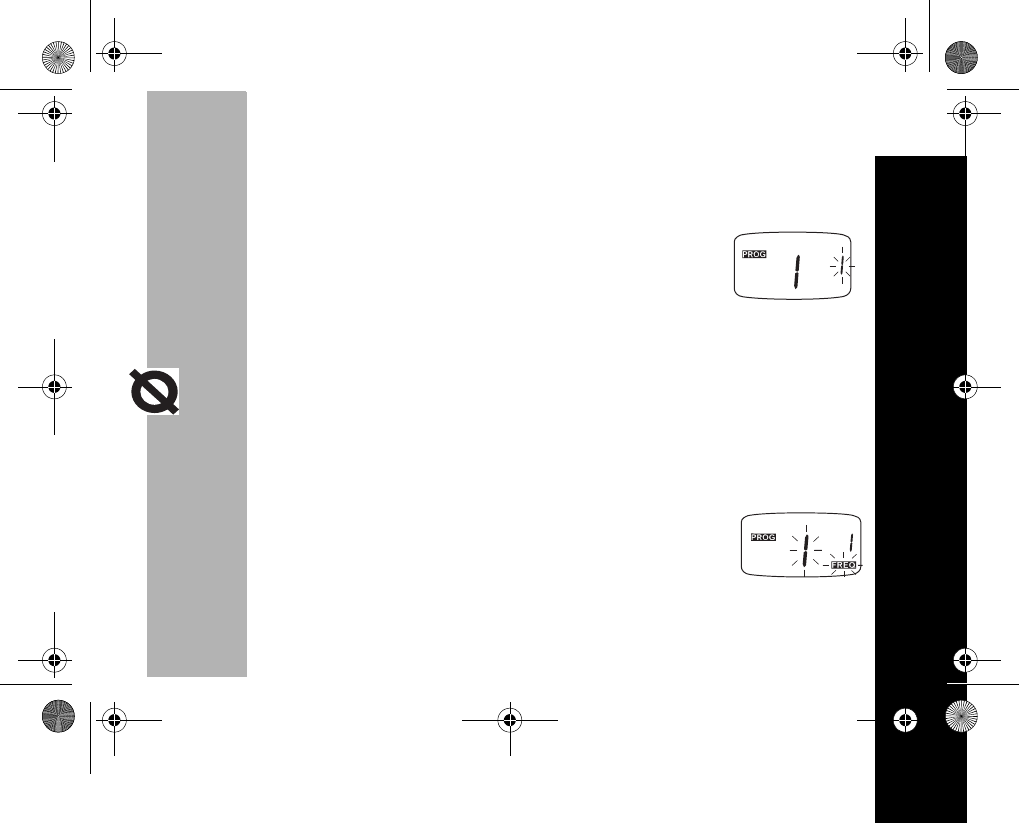

Setting the Channel (X2600 and XV2600 only)
Press Display Then Press
\the icon representing
the feature you want
[ or ] to select the feature.
Press M for three seconds to exit
programming mode.

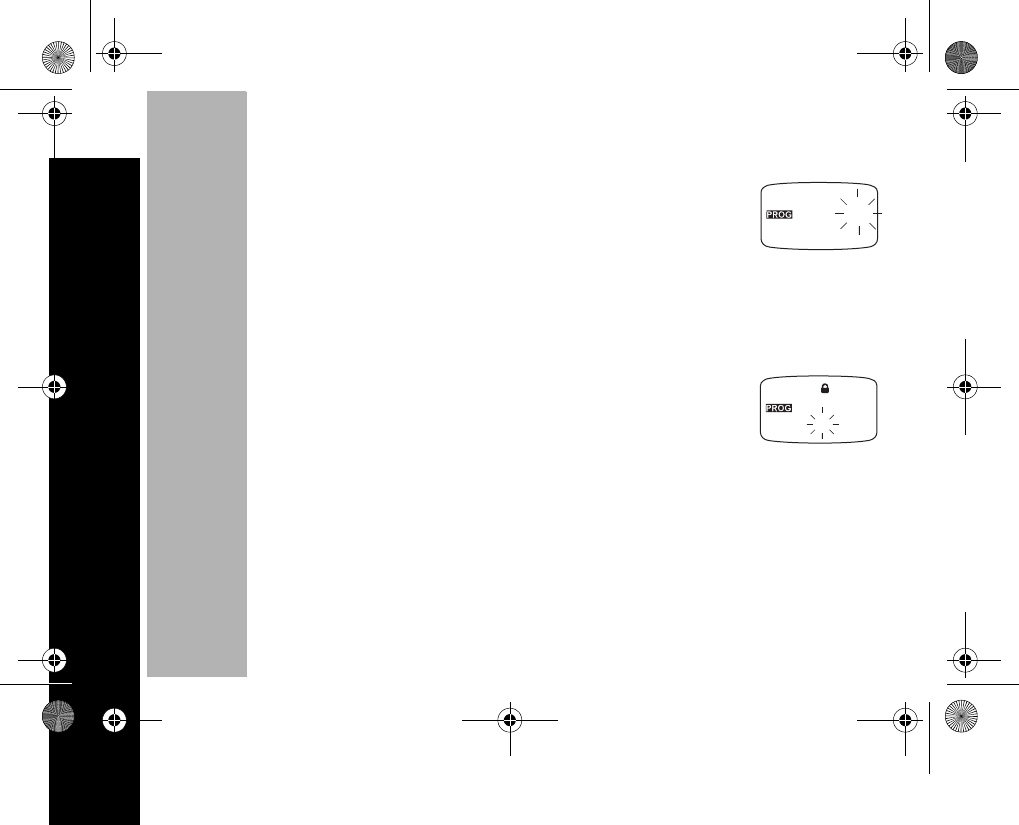

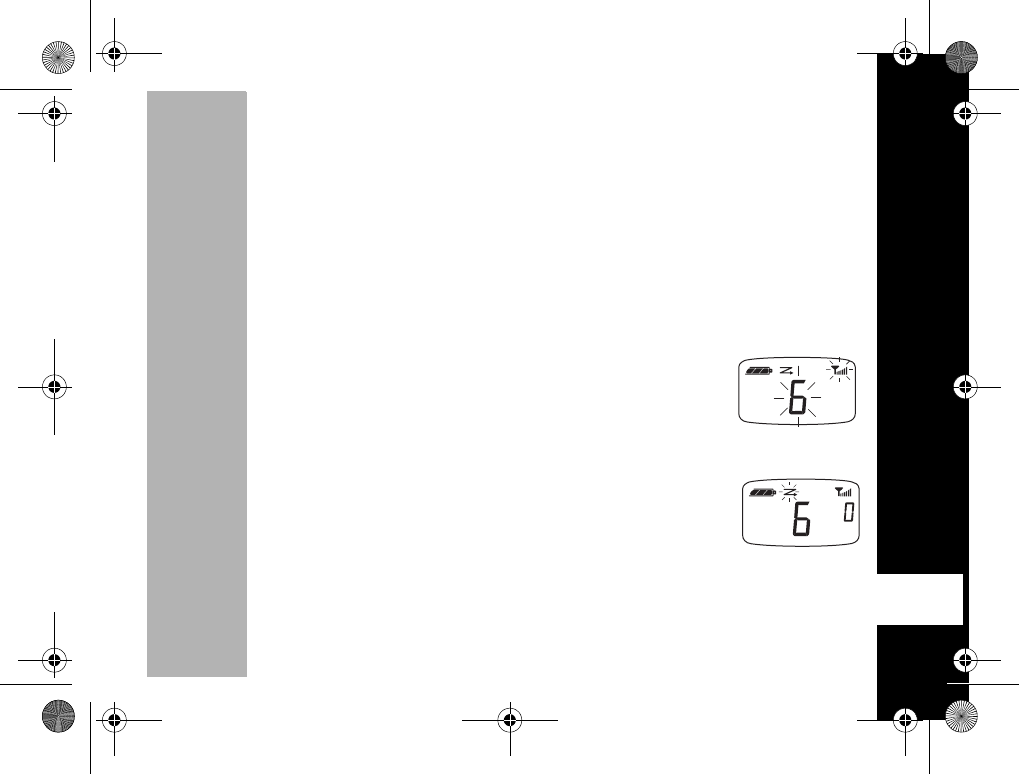

•Make sure k is accessed. Please refer to Programming
Mode on page 9.

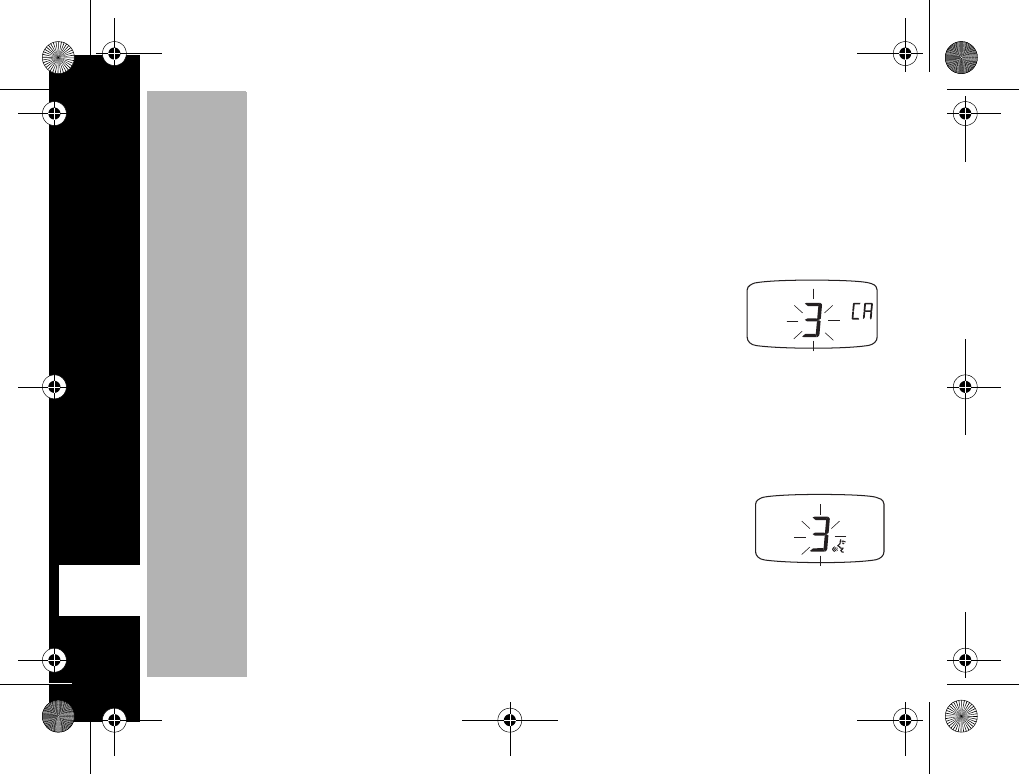

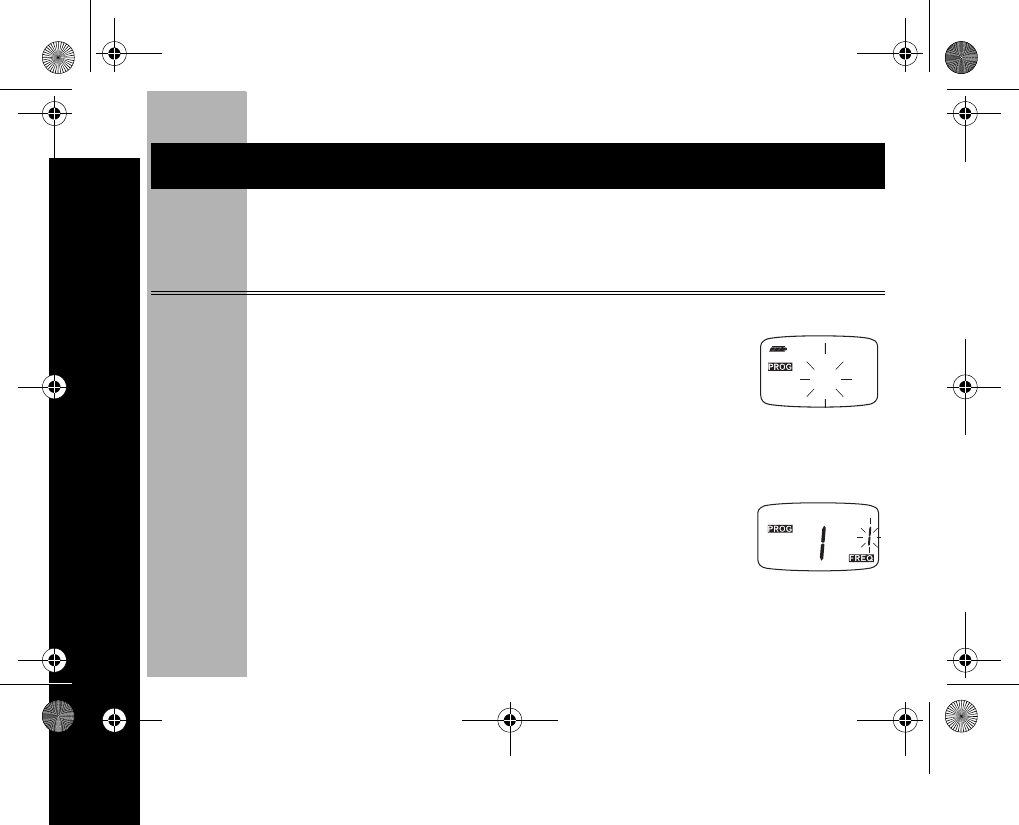

•The channel number flashes. l and Code will display
alternately.
•Press [ or ] until the desired channel is selected.
Setting the Frequency
•Press \ once, l indicator illuminates and the
Frequency flashes.
•Press [ or ] to choose desired Frequency.
•Exit the Programming Mode by holding down M.
6
6881038B80.book Page 10 Thursday, August 30, 2001 5:33 PM
11
PRELIMINARY
Programming Mode
k
Setting the Interference Eliminator Code
The Interference Eliminator Code helps minimize interference by providing you with
a choice of code combinations.
Make sure k is accessed. Please refer to Programming Mode on page 9.
Note: To hear everyone on your frequency, select Interference Eliminator Code 0.

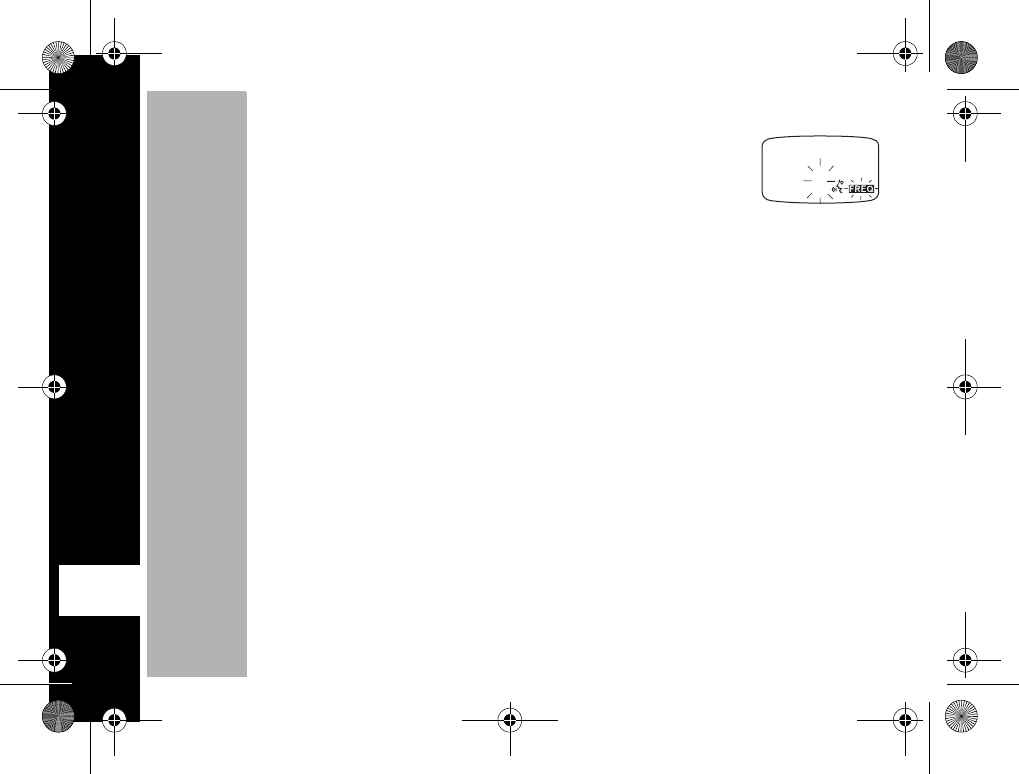

Setting Eavesdrop Reducer (2 watt models only)
Your radio has the Eavesdrop Reducer feature, a scramble code that makes
your transmissions sound garbled to anyone listening without the same code.
It doesn’t guarantee confidentiality, but it adds an extra layer of privacy.
Note: All the radios have to be set to the same Eavesdrop Reducer for transmission
to be clear.
•Make sure k is accessed. Please refer to Programming Mode on page 9.
•Press \ as needed until e is displayed, then
•Press [ or ] to choose the scramble code.
•
Select code
1
,
2,
or
3. Factory Default is set at
0 (Off).
When you exit k, radio displays e.
•To set the code, press \ until the code number display begins
to flash.
•Then press [ or ] to choose the code.
e
6881038B80.book Page 11 Thursday, August 30, 2001 5:33 PM
Programming Mode
12
PRELIMINARY
k
kSetting Bandwidth (when FCC allowable)
Make sure k is accessed. Please refer to Programming Mode on page 9.
Setting Manager Lockout
This feature aids in preventing changing of radio settings. All buttons except M and
B, will be unaccessible when ‘Y’ is chosen.
•Make sure k is accessed. Please refer to Programming Mode on page 9.
Assigning Channels to Presets
•Change the setting by pushing the \ until ‘b’ displays.
•Press [ or ] to select setting:
Bandwidth is only selectable when flashing.
Either "HI" (high: 25.0 kHz) or "Lo" (low: 12.5 kHz) will display.
•To turn lock on, press \ until f displays.
•Press [ or ] to select setting, ‘Y’ or ‘n.’
•Once turned on, f icon displays after exiting k.
•Make sure k is accessed. Please refer to Programming Mode on page 9.
•Press [ or ] to choose desired Channel.
•Press and hold T or S to assign a Channel to that preset button, radio beeps
to confirm.
Note: All of the Channel settings are assigned to that preset button.
KC
n
6881038B80.book Page 12 Thursday, August 30, 2001 5:33 PM
13
PRELIMINARY
Programming Mode
k

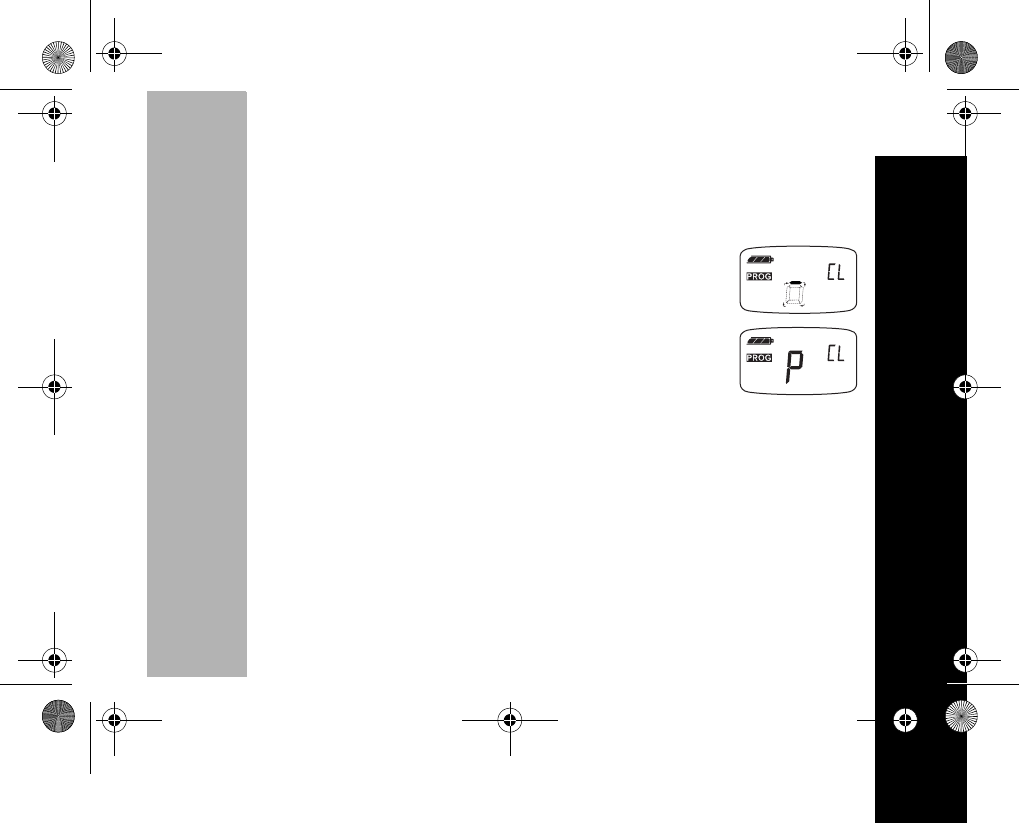

Cloning
The XTN Series radios have cloning capability when connected via the Multi Unit
Charger (MUC). Cloning enables rapid fleet reconfiguration because all selectable
settings are sent to the target unit. The target radios must be placed behind the
source radio, please refer to the MUC instructions included with this accessory.
Resetting Factory Defaults
All selectable features can be reset to factory defaults by turning the radio on while
holding M and \ buttons simultaneously for five seconds.
Note: The radio cannot be reset if Manager Lockout is enabled.
•Make sure k is accessed. Please refer to Programming
Mode on page 9.
•The source radio enters Cloning Mode through an extended
press of J. Pressing J again, will clone additional radios.
•Either p for pass or f for fail shall appear on the display.
•Only the source radio needs to be in Clone Mode, and both
radios will indicate if cloning was successful.
6881038B80.book Page 13 Thursday, August 30, 2001 5:33 PM

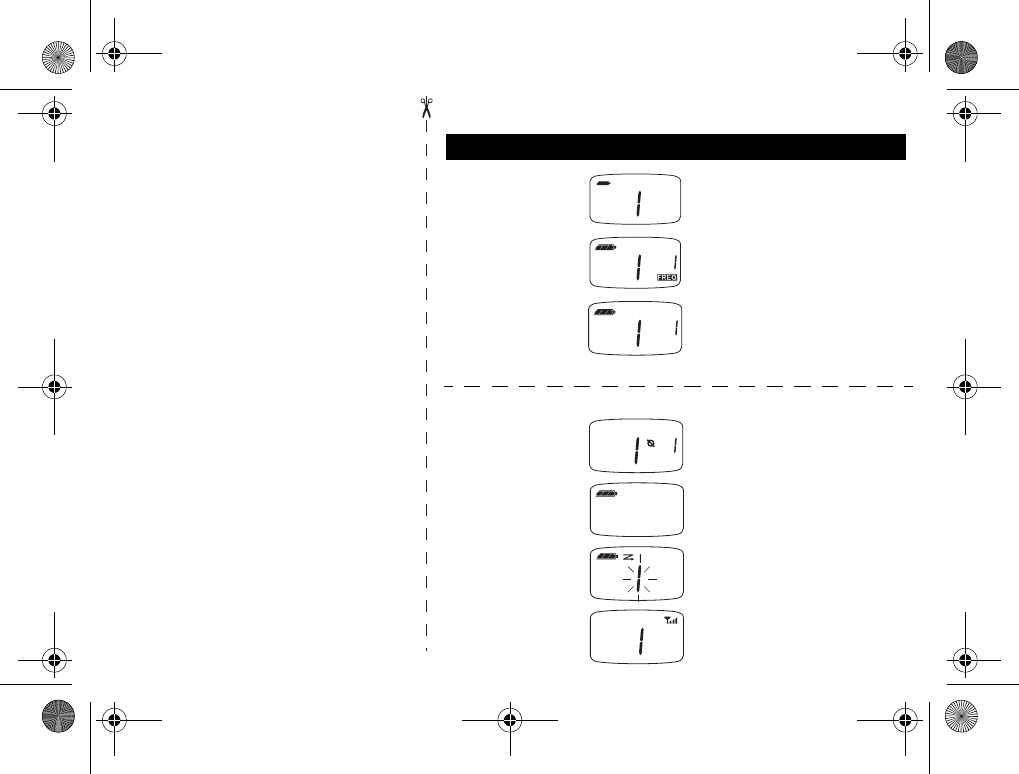

Settings and Functions Display
14
PRELIMINARY
k
kSettings and Functions Display
The following table lists the functions you can set by pressing and holding a button
while you are turning on your radio.
Key(s) Pressed. Function
MJ P = kAccess k Programming Mode: Five second delay.
You can change the channel here.
M\ P + ) +Reset factory settings: Five second delay.
Will not work if Manager Lock is enabled.
M PEnable g VOX.
] PTu r ns “End-of-Transmission Tone On/Off.
Radio default setting is “Off.”
[ PTurns Keypad Tones On/Off.
Radio default setting is “On.”
Scan Manager Lockout/User Lock
Eavesdrop Reducer
Signal Strength
Frequency Indicator
Interference Eliminator Code
Frequency Setting and
VOX
Battery Meter
Channel
Programming Mode
6881038B80.book Page 14 Thursday, August 30, 2001 5:33 PM
15
PRELIMINARY
Operating Radio
X
Operating Radio
Check channel activity by pressing monitor button. You will hear static if the channel
is clear to use. Do not transmit if someone is speaking on the channel.
•Press and hold M. and speak into radio.
Note: To maximize clarity hold radio two-to-three inches away from mouth.)
•To listen for messages, release M.
Note: The transmit light on the front left of the radio flashes every three seconds
when radio is On and is steady red when transmitting.
Signal Strength Indicator
Monitor Signal Strength Indicator
To check for channel activity, press and hold the J button. You’ll
hear static if the channel is clear and w 0 will display. Press J
to release. To avoid interrupted conversation, wait until the channel
is clear or switch to another channel.
Note: Obstacles that block the signal path may affect the strength of the incoming
signal.
The radio will display w when there is activity on the frequency.
When receiving the display will show w and a signal strength of
1 (weakest) through 6 (strongest) .
This
can help to determine when a
radio is moving out of range.
6881038B80.book Page 15 Thursday, August 30, 2001 5:33 PM
User Menu Features
16
PRELIMINARY
X
User Menu Features
Setting Call Tone
Your radio can transmit call tones to other radios in your group so you can alert the
group that you want to talk to them. There are three distinct individual call tones to
choose or you can choose to turn Call Tones off: 0. Once selected, just press B to
transmit the Call Tone to others.
Note: The default is set on 0, or you may choose 1
,
2,
or
3.
Setting Microphone Gain
Microphone Gain allows compensation for background noise and enhances the
ability to pick up quiet voices.
• To set your call tone, press \ as needed to display E.
• You can press [ or ] to scroll through the available call tones.
The radio plays each individual Call tone as you scroll through.
•To set sensitivity level, press \ as needed, until g and ? are
visible.
•Select 1, 2 or 3 by using [ or ]:
3 = High Sensitivity
2 = Medium Sensitivity
1 = Low Sensitivity
?
6881038B80.book Page 16 Thursday, August 30, 2001 5:33 PM
17
PRELIMINARY
User Menu Features
X
Hands-Free Use/VOX
VOX allows “hands-free” transmission when used with compatible VOX accessories.
•Turn radio Off.
•Open Accessory Cover.
•Insert plug of audio accessory firmly into Accessory Jack.
•Turn radio On and lower volume before placing accessory
on head or in ear.
•To transmit, speak into Accessory Microphone and to
receive, stop talking.
Setting VOX Sensitivity Level
The default VOX sensitivity level must be changed for initial
use. The g will flash if sensitivity is set to 0.
•Press \ as needed to display g and H.
•Select Sensitivity Level of 1, 2, or 3 by using
[ or ]:
3 = High Sensitivity
2 = Medium Sensitivity
1 = Low Sensitivity
6881038B80.book Page 17 Thursday, August 30, 2001 5:33 PM
User Menu Features
18
PRELIMINARY
X
XU2600 and XV2600 radios are capable of hands-free use without accessories.
•Enable VOX by pressing M while turning the radio On.
•Press \ as needed to display g and I.
Setting VOX Sensitivity Level
•Select Sensitivity Level of 1, 2, or 3 by using
[ or ]:
3 = High Sensitivity
2 = Medium Sensitivity
1 = Low Sensitivity
To turn VOX Off, simply turn the radio Off and then On again. The g will not be
visible. Press M to turn off VOX and return to normal operation, g will flash.
A short press of M will enable VOX.
Note: There is a short delay between when you start talking and the radio
transmits.
Note: To order accessories, please refer to: www.motorola.com/
radios/professional.
•VOX operation can be disabled by pressing M.
•A short press M of will enable VOX.
3
H
6881038B80.book Page 18 Thursday, August 30, 2001 5:33 PM
19
PRELIMINARY
User Menu Features
X
Setting Preferences for Scanning/Scan List
By using J, you can monitor channels and codes for transmissions and lock in on
a specific channel.
•To start scanning, briefly press J.
Your channel/code screen displays
h
and begins to scroll through channels. When
the radio detects channel activity, it stops on that channel and displays its channel and
code. You can talk to the person(s) transmitting without having to switch channels by
pressing
M
.
•To stop scanning, briefly press J.
If you press
M
while the radio is scanning, the radio will transmit on the channel
which was selected before you activated Scan.
If no transmission occurs within five seconds, scanning will resume.
If you want to scan channels without interference eliminator codes, change the code
for your set channel to 0 before you briefly press J.
Nuisance Delete/ Manual Advance While Scanning
Note: While scanning you can quickly delete a channel that the radio has loaded for
an indefinite period of time by pressing [ once, i.e. shortcut to Scan List
Editing. You can also advance to the next channel with activity by manually
pressing ].
6881038B80.book Page 19 Thursday, August 30, 2001 5:33 PM
User Menu Features
20
PRELIMINARY
X
Editing Scan List
Scan List Setting is changed by pressing the \ button three times.
•The flashing channel will appear on the display with a solid Y or n in the
code section.
•Press [ or ] button to increase or decrease the channel.
•Pressing the Js button toggles between the channel number and Scan List
setting.
•The scroll buttons, [ or ] will change the Scan List to include/Y or exclude/n
that particular channel.
•Once you have seklected your Scan List options, press
M
to exit.
Setting the Battery Type*
End-of-Transmission Tone
When you turn this feature On, your two-way radio transmits a tone when you finish
transmitting. It’s like saying “Roger” or “Over.”
This feature allows the battery meter to recognize and properly
display the power remaining of single cell batteries.
Press \ until d displays. Either A (Alkaline) or n (NiCad,
NiMH, Li-Ion rechargeable AA cells) is flashing.
•Press [ or ] until your choice of A or n displays.
Note: *This menu will not appear if the NiMH Battery is in use.
A
6881038B80.book Page 20 Thursday, August 30, 2001 5:33 PM
21
PRELIMINARY
User Menu Features
X
•If you don’t hear the talk confirmation tone, you can enable it by pressing and
holding ] as you turn on your radio.
•To disable the End-of-Transmission Tone feature, turn your radio Off and then
back On while pressing and holding ].
Keypad Tones
Every time you press a button on your radio, it beeps unless you turn this feature off.
•Turn your radio On while you press and hold [.
•To turn Keypad Tones back on, turn the radio Off and then back On again while
you press and hold [.
Talking Range
Model
Industrial Multi-Level Outdoor
Inside steel/concrete
industrial buildings
Inside multi-level
buildings
Flat ground with no
obstructions
UHF 2W Up to 250, 000 Sq. Ft. Up to 20 Floors Up to 6 Miles
UHF 1W Up to 200, 000 Sq. Ft. Up to 15 Floors Up to 5 Miles
VHF 2W Up to 180, 000 Sq. Ft. Up to 10 Floors Up to 6 Miles
VHF 1W Up to 150,000 Sq. Ft. Up to 8 Floors Up to 5 Miles
6881038B80.book Page 21 Thursday, August 30, 2001 5:33 PM
Use and Care
22
PRELIMINARY
X
Use and Care
If the radio gets wet...
Use a soft damp cloth
to clean the exterior.
Do not immerse
in water.
Do not use alcohol or
cleaning solutions.
Turn radio Off and
remove batteries. Dry with soft cloth. Do not use radio until
completely dry.
XXX
XXX
6881038B80.book Page 22 Thursday, August 30, 2001 5:33 PM
23
PRELIMINARY
Frequency and Code Charts
X
Frequency and Code Charts
The charts on these pages provide frequency and code information. These charts are
useful when using Motorola XTN Series two-way radios with other business radios.
VHF Frequency Chart
Position MHz Bandwidth Position MHz Bandwidth
1 151.6250 25.00 16 151.8650 25.00
2151.9550 25.00 17 151.8950 25.00
3 154.5700 25.00 18 151.9250 25.00
4154.6000 25.00 19 152.7000 25.00
5 151.7000 12.5/25.0 20 154.4900 25.00
6151.7600 12.5/25.0 21 154.5150 25.00
7 151.8200* 12.5/25.0 22 154.5275 25.00
8151.8800* 12.5/25.0 23 154.5400 25.00
9 151.9400* 12.5/25.0 24 154.6000 25.00
10 151.5125 25.00 25 154.6550 25.00
11 151.6550 25.00 26 158.4000 25.00
12 151.6850 25.00 27 158.4075 25.00
13 151.7150 25.00 Note: Due to FCC regulations,
these frequencies transmit
at 1 watt only.
14 151.7450 25.00
15 151.7750 25.00
6881038B80.book Page 23 Thursday, August 30, 2001 5:33 PM
Frequency and Code Charts
24
PRELIMINARY
X
UHF Frequency Chart
Position MHz Bandwidth Position MHz Bandwidth
1 464.5000 12.5/25.0 29 462.9125 12.5
2464.5500 12.5/25.0 30 464.4875 12.5
3 467.7625 12.5 31 464.5125 12.5
4467.8125 12.5 32 464.5375 12.5
5 467.8500 12.5/25.0 33 464.5625 12.5
6467.8750 12.5/25.0 34 466.0375 12.5
7 467.9000 12.5/25.0 35 466.0625 12.5
8467.9250 12.5/25.0 36 466.0875 12.5
9 461.0375 12.5 37 466.1125 12.5
10 461.0625 12.5 38 466.1375 12.5
11 461.0875 12.5 39 466.1625 12.5
12 461.1125 12.5 40 466.1875 12.5
13 461.1375 12.5 41 466.2125 12.5
14 461.1625 12.5 42 466.2375 12.5
15 461.1875 12.5 43 466.2625 12.5
16 461.2125 12.5 44 466.2875 12.5
17 461.2375 12.5 45 466.3125 12.5
18 461.2625 12.5 46 466.3375 12.5
19 461.2875 12.5 47 466.3625 12.5
20 461.3125 12.5 48 467.7875 12.5
21 461.3375 12.5 49 467.8375 12.5
22 461.3625 12.5 50 467.8625 12.5
23 462.7625 12.5 51 467.8875 12.5
24 462.7875 12.5 52 467.9125 12.5
25 462.8125 12.5 53 469.4875 12.5
26 462.8375 12.5 54 469.5125 12.5
27 462.8625 12.5 55 469.5375 12.5
28 462.8875 12.5 56 469.5625 12.5
6881038B80.book Page 24 Thursday, August 30, 2001 5:33 PM
25
PRELIMINARY
Frequency and Code Charts
X
Interference Eliminator Codes
This allows you to monitor all activity on the channel you are using. Interference
Eliminator codes help minimize interference by providing you with a choice of code
combinations.
Carrier Squelch (0) disables Interfeence Eliminator Codes.
Code Hz Code Hz Code Hz
167.0 14 107.2 27 167.9
271.9 15 110.9 28 173.8
374.4 16 114.8 29 179.9
477.0 17 118.8 30 186.2
579.7 18 123.0 31 192.8
682.5 19 127.3 32 203.5
785.4 20 131.8 33 210.7
888.5 21 136.5 34 218.1
991.5 22 141.3 35 225.7
10 94.8 23 146.2 36 233.6
11 97.4 24 151.4 37 241.8
12 100.0 25 156.7 38 250.3
13 103.5 26 162.2
6881038B80.book Page 25 Thursday, August 30, 2001 5:33 PM
Frequency and Code Charts
26
PRELIMINARY
X
Digital Private Line/DPL Codes
Position Code Word Position Code Word Position Code Word
39 023 67 174 95 445
40 0256820596 464
41 026 69 223 97 465
42 0317022698 466
43 032 71 243 99 503
44 04372244100 506
45 047 73 245 101 516
46 05174251102 532
47 054 75 261 103 546
48 06576263104 565
49 071 77 265 105 606
50 07278271106 612
51 073 79 306 107 624
52 07480311108 627
53 114 81 315 109 631
54 11582331110 632
55 116 83 343 111 654
56 12584346112 662
57 131 85 351 113 664
58 13286364114 703
59 134 87 365 115 712
60 14388371116 723
61 152 89 411 117 731
62 15590412118 732
63 156 91 413 119 734
64 16292423120 743
65 165 93 431 121 754
66 17294432
6881038B80.book Page 26 Thursday, August 30, 2001 5:33 PM
27
PRELIMINARY
Troubleshooting
X
Troubleshooting
Symptom Try This:
No Power
Recharge or replace battery (NTN8971).
Reposition or replace AA batteries.
Message not
transmitted
Make sure M is completely pressed as you transmit.
Replace, recharge and/or reposition batteries.
Hearing other
noises or
conversation on
a channel
Confirm Interference Eliminator Code is set.
Frequency or Interference Eliminator Code may be in use,
change code on all radios if possible.
Message
scrambled
Eavesdrop Reducer is on, and/or setting does not match other
radios’ settings.
Limited talk
range
Steel and/or concrete structures, heavy foliage, buildings or
vehicles decrease range. Check for clear line of sight to improve
transmission.
Wearing radio close to body such as in a pocket or on a belt
decreases range. Change location of radio.
6881038B80.book Page 27 Thursday, August 30, 2001 5:33 PM
Troubleshooting
28
PRELIMINARY
X
Message not
received
Confirm radios have the same channel, frequency, interference
eliminator code and *eavesdrop reducer code settings.
(*XV2600, XU2600)
Make sure M is NOT being pressed while trying to listen.
Replace, recharge and/or reposition batteries.
Obstructions and operating indoors, or in vehicles, may interfere
-- change location.
Verify that the radio is not in Scan mode.
Heavy static or
interference
Radios are too close, they must be at least five feet apart.
Radios are too far apart or obstacles are interfering with
transmission.
Keypad locked
Make sure menu is unlocked. Unlock by holding \ for three
seconds.
Make sure Manager Lockout is disabled. Please refer to Setting
Manager Lockout on page 12.
Low batteries
Recharge or replace NiMH battery. Replace AA batteries.
Extreme operating temperatures affect battery life.
Symptom Try This:
6881038B80.book Page 28 Thursday, August 30, 2001 5:33 PM
29
PRELIMINARY
Troubleshooting
X
Charger light
does not come
on.
Check radio/battery is properly inserted and check battery/
charger contacts to be sure they are clean.
Low battery
meter reading
although new
batteries are
installed
Verify that the radio is set to the correct battery type. (Single cell
bateries only.)
Cannot activate
VOX
Feature not set and on.Sensitivity set to 0.
Please refer to Hands-Free Use/VOX on page 17.
Symptom Try This:
6881038B80.book Page 29 Thursday, August 30, 2001 5:33 PM
Motorola Limited Warranty
30
PRELIMINARY
X
Motorola Limited Warranty
Personal Communications Products Purchased in the United States and
Canada
V. What This Warranty Covers
•Products. Defects in materials and workmanship in wireless cellular telephones, pagers,
and/or two-way radios, and certain accessories that are sold with them, such as the
battery, battery charger and holster manufactured and/or sold by Motorola (Products).
•Batteries. Defects in materials and workmanship in batteries that are manufactured by
Motorola and/or sold with Products are covered by this warranty only if the fully-charged
capacity falls below 80% of rated capacity or they leak.
•Software. Physical defects in the media that tangibly embodies each copy of any software
supplied with the Products.
VI. What the Period of Coverage Is
From the date the Products are purchased by the first end-user:
•Products. The warranty is for one year. Exception: The warranty for Spirit GT series and
Talkabout series two-way radio accessories is for 90 days.
•Software. The warranty is for 90 days.
•Repairs / Replacements. The warranty is for the balance of the original warranty or for 90
days from the date you receive it, whichever is longer.
VII. Who is Covered
This warranty extends to the first end-user purchaser, only.
6881038B80.book Page 30 Thursday, August 30, 2001 5:33 PM
31
PRELIMINARY
Motorola Limited Warranty
X
VIII. What We Will Do to Correct Warranty Problems
At no charge to you, we have the option to repair or replace the Products or software
that do not conform to the warranty, or to refund the Products’ purchase price. We
may use functionally equivalent reconditioned/refurbished/pre-owned or new
Products or parts. No software updates are provided.
IX. How to Get Warranty Service
Please call:
USA Canada
Cellular 1-800-331-6456 All Products1-800-461-4575
Paging 1-800-548-9954 TTY 1-888-390-6456 (Text Telephone)
Two-Way 1-800-353-2729
TTY 1-888-390-6456 (Text Telephone)
You will receive instructions on how to ship the Products to Motorola. You must ship
the Products to us with freight, duties and insurance prepaid. Along with the Products
you must include: (a) a copy of your receipt, bill of sale or other comparable proof of
purchase; (b) a written description of the problem; (c) the name of your service
provider (if this Product requires subscription service); (d) the name and location of
the installation facility (if applicable) and, most importantly; (e) your address and
telephone number. If requested, you must also return all detachable parts such as
antennas, batteries and chargers. RETAIN YOUR ORIGINAL PROOF OF
PURCHASE.
We will ship repaired or replacement Products at our expense for the freight and
insurance, but at your expense for any duties. If additional information is needed,
please contact us at the telephone number listed above.
6881038B80.book Page 31 Thursday, August 30, 2001 5:33 PM
Motorola Limited Warranty
32
PRELIMINARY
X
X. What This Warranty Does Not Cover
•Products that are operated in combination with ancillary or peripheral equipment or
software not furnished by Motorola for use with the Products (“ancillary equipment”), or
any damage to the Products or ancillary equipment as a result of such use. Among other
things, “ancillary equipment” includes batteries, chargers, adaptors, and power supplies
not manufactured or supplied by Motorola. Any of these voids the warranty.
•Someone other than Motorola (or its authorized service centers) tests, adjusts, installs,
maintains, alters, modifies or services the Products in any way. Any of these voids the
warranty.
•Rechargeable batteries that: (a) are charged by other than the Motorola-approved battery
charger specified for charging such batteries; (b) have any broken seals or show evidence
of tampering; (c) are used in equipment other than the Product for which they are
specified; or (d) are charged and stored at temperatures greater than 60 degrees
centigrade. Any of these voids the warranty.
•Products that have: (a) serial numbers or date tags that have been removed, altered or
obliterated; (b) board serial numbers that do not match each other, or board serial
numbers that do not match the housing; or (c) nonconforming or non-Motorola housings
or parts. Any of these voids the warranty.
•Defects or damage that result from: (a) use of the Products in a manner that is not normal
or customary; (b) improper operation or misuse; (c) accident or neglect such as dropping
the Products onto hard surfaces; (d) contact with water, rain, extreme humidity or heavy
perspiration; (e) contact with sand, dirt or the like; or (f) contact with extreme heat, or spills
of food or liquid.
•Physical damage to the surface of the Products, including scratches, cracks or other
damage to a display screen, lens or other externally exposed parts.
•Failure of Products that is due primarily to any communication service or signal you may
subscribe to or use with the Products.
•Coil cords that are stretched or that have any broken modular tabs.
•Products that are leased.
6881038B80.book Page 32 Thursday, August 30, 2001 5:33 PM
33
PRELIMINARY
Motorola Limited Warranty
X
Flat-rate repair rates may apply to Products not covered by this warranty. To obtain
information about Products needing repairs that are not covered by this warranty,
please call the telephone number previously listed. We will provide information on
repair availability, rates, methods of payment, where to send the Products, etc.
XI. Some Other Limitations
This is Motorola’s complete warranty for the Products, and states your exclusive
remedies. This warranty is given in lieu of all other express warranties. Implied
warranties, including without limitation, the implied warranties of merchantability and
fitness for a particular purpose, are given only if specifically required by applicable
law. Otherwise, they are specifically excluded.
No warranty is made as to coverage, availability, or grade of service provided by the
Products, whether through a service provider or otherwise.
No warranty is made that the software will meet your requirements or will work in
combination with any hardware or applications software products provided by third
parties, that the operation of the software products will be uninterrupted or error free,
or that all defects in the software products will be corrected.
In no event shall Motorola be liable, whether in contract or tort (including negligence)
for damages in excess of the purchase price of the Product, or for any indirect,
incidental, special or consequential damages of any kind, or loss of revenue or
profits, loss of business, loss of information or data, or other financial loss arising out
of or in connection with the ability or inability to use the Products, to the full extent
these damages may be disclaimed by law.
6881038B80.book Page 33 Thursday, August 30, 2001 5:33 PM
Motorola Limited Warranty
34
PRELIMINARY
X
XII. Patent and Software Provisions
At Motorola’s expense, we will defend you, and pay costs and damages that may be
finally awarded against you, to the extent that a lawsuit is based on a claim that the
Products directly infringe a United States patent. Our obligation is conditioned on: (a)
you notifying us promptly in writing when you receive notice of the claim; (b) you
giving us sole control of the defense of the suit and all negotiations for its settlement
or compromise; and (c) should the Products become, or in Motorola's opinion be
likely to become, the subject of a claim of infringement of a United States patent, you
permit us, at our option and expense, either to: procure for you the right to continue
using the Products; replace or modify them so that they become non-infringing; or
grant you a credit for such Products, as depreciated, and accept their return. The
depreciation will be an equal amount per year over the lifetime of the Products, as
established by Motorola.
Motorola will have no liability to you with respect to any claim of patent infringement
that is based upon the combination of the Products or parts furnished under this
limited warranty with ancillary equipment, as defined in VI., above.
This is Motorola’s entire liability with respect to infringement of patents by the
Products.
Laws in the United States and other countries preserve for Motorola and other third
party software providers certain exclusive rights for copyrighted software, such as the
exclusive rights to reproduce in copies and distribute copies of such software. The
software may be copied into, used in and redistributed with only those Products that
are associated with such software. No other use, including without limitation,
disassembly or reverse engineering of such software or exercise of exclusive rights
in such software is permitted.
6881038B80.book Page 34 Thursday, August 30, 2001 5:33 PM
XIII. State Law and Other Jurisdiction Rights
Some states and other jurisdictions do not allow the exclusion or limitation of
incidental or consequential damages, or limitation on the length of an implied
warranty, so the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights,
which vary from jurisdiction to jurisdiction.
To obtain information on Motorola Personal Communications Products, including
warranty service, accessories and optional Extended Warranties on selected
Products, please call:
USA Canada
Cellular 1-800-331-6456 All Products1-800-461-4575
Paging 1-800-548-9954 TTY 1-888-390-6456 (Text Telephone)
Two-Way 1-800-353-2729
TTY 1-888-390-6456 (Text Telephone)
To correspond with Motorola about the Products, please write us at
http://www.motorola.com or at:
In the USA: In Canada:
Motorola, Inc. Motorola Canada Limited
600 North U.S. Highway 45 5875 Whittle Road
Libertyville, IL 60048 Mississauga, ON L4Z 2H4
6881038B80.book Page 35 Thursday, August 30, 2001 5:33 PM
Software Copyright Notice
The Motorola products described in this manual may include copyrighted Motorola
and third party software stored in semiconductor memories or other media. Laws in
the United States and other countries preserve for Motorola and third party software
providers certain exclusive rights for copyrighted software, such as the exclusive
rights to distribute or reproduce the copyrighted software. Accordingly, any
copyrighted software contained in the Motorola products may not be modified,
reverse-engineered, distributed, or reproduced in any manner to the extent allowed
by law. Furthermore, the purchase of the Motorola products shall not be deemed to
grant either directly or by implication, estoppel, or otherwise, any license under the
copyrights, patents, or patent applications of Motorola or any third party software
provider, except for the normal, non-exclusive, royalty-free license to use that arises
by operation of law in the sale of a product.
Patent Notice
This product is covered by one or more of the following United States patents.
5896277 5894292 5864752 5699006 5742484 D408396 D399821 D387758
D389158 5894592 5893027 5789098 5734975 5861850 D395882 D383745
D389827 D389139 5929825 5926514 5953640 6071640 D413022 D416252
D416893 D433001
6881038B80.book Page 36 Thursday, August 30, 2001 5:33 PM
Export Law Assurances
This product is controlled under the export regulations of the United States of
America and Canada. The Governments of the United States of America and
Canada may restrict the exportation or re-exportation of this product to certain
destinations. For further information contact the U.S. Department of Commerce or
the Canadian Department of Foreign Affairs and International Trade.
Replacement of any transmitter component (crystal, semiconductor, etc.) not
authorized by the FCC equipment authorization for this radio could violate FCC rules.
More specifically, changes or modifications not expressly approved by Motorola may
void the user’s authority granted by the FCC to operate this radio and should not be
made. To comply with FCC requirements, transmitter adjustments should be made
only by or under the supervision of a person certified as technically qualified to
perform transmitter maintenance and repairs in the private land mobile and fixed
services as certified by an organization representative of the user of those services.
Replacement of any transmitter component (crystal, semiconductor, etc.) not
authorized by the FCC equipment authorization for this radio could violate FCC rules.
Note: Use of this radio outside the country where it was intended to be distributed
is subject to government regulations and may be prohibited.
6881038B80.book Page 37 Thursday, August 30, 2001 5:33 PM
6881038B80.book Page 38 Thursday, August 30, 2001 5:33 PM
Index
A
Accessory .................................................. 18
Cover.....................................................6
Adjust volume ...............................................6
Alkaline batteries .......................................... 5
B
Back cover ....................................................4
Bandwidth ................................................... 12
Battery
Alkaline ..................................................5
Install ..............................................5
Charge
NTN8971NiMH ............................... 7
Meter .....................................................5
NTN8971NiMH
Charge............................................7
Install ..............................................4
Optimum life .......................................... 7
Setting .................................................20
Button Beeps ..............................................14
C
Call display .................................................16
Call tone...................................................6,16
Channel ................................................3,9,14
Activity .................................................15
Change..................................................6
Monitor.................................................19
Setting .................................................10
Charger .........................................................7
Desktop Drop-in.....................................8
Multi-unit ................................................9
Plug-in....................................................8
Charging .......................................................7
Clean radio..................................................22
Cloning.....................................................9,13
Code
Interference Eliminator......................9,11
Scrambling.............................................9
D
Default
Settings................................................13
Diagram
Function .................................................6
Drop-in Charger ............................................8
E
Eavesdrop Reducer ....................................11
Exit a menu ...................................................6
F
FCC
FAX
1-202-418-0177 ..............................1
FORMS
1-800-418-3676 ..............................1
1-800-418-FORM ...........................1
QUESTIONS
1-888-225-5322 ..............................1
1-888-CALL-FCC............................1
6881038B80.book Page 55 Thursday, August 30, 2001 5:33 PM
UHF Bandwidth ...................................12
FCC Licensing Information ...........................1
Frequency..................................................... 3
Setting ................................................. 10
Functions ......................................................6
G
Gain ............................................................ 16
H
Hands-Free Use .........................................17
I
Icon Programming ........................................9
Indicator Light
...............................................................6
Install
AA Battery .............................................5
NTN8971NiMH Battery..........................4
Interference Eliminator Code ................... 9,11
Internal VOX ...............................................18
L
Licensing Information
FCC .......................................................1
Light
Charger.................................................. 7
Desktop Charger ...................................8
Radio indicator.....................................15
Lock
keypad ................................................... 6
M
Meter
Battery ...................................................5
Mic Gain......................................................16
Microphone ...................................................6
Monitor Signal Strength ..............................15
MOTOROLA SERVICES
1-800-448-6686 .....................................1
N
noise ...........................................................16
NTN8971NiMH battery..................................4
O
Obstacle......................................................15
Operating radio ...........................................15
Optional Accessory
www.motorola.com/spirit........................9
P
Plug
Audio....................................................17
Plug-in Charger.............................................7
Programming Mode ................10,11,12,13,14
R
Radio
Back cover .............................................5
Bottom ...................................................4
Clean ...................................................22
Diagram .................................................6
Display ...................................................5
Factory default settings........................13
Features...............................................16
Frequency wave/Channel ......................9
6881038B80.book Page 56 Thursday, August 30, 2001 5:33 PM
Functions and Settings ........................ 14
Latch......................................................4
Off.......................................................... 3
On........................................................14
Operating............................................. 21
Out of range.........................................15
Radio Display................................................3
Range
Talking ................................................. 21
Roger Beeps...............................................14
S
Scan............................................................28
Turn On/Off............................................ 6
Scan List.....................................................19
Scrambling Code ........................................11
Sensitivity level ...........................................17
Setting
Battery Type ........................................20
Call tone .............................................. 16
Channel ...............................................10
Factory Defaults ..................................13
Interference Eliminator Code...............11
Scrambling Code.................................11
Volume ..................................................3
Setting VOX Sensitivity Level ............... 17, 18
Signal Strength Indicator ............................15
Speaker ........................................................ 6
T
Talk Confirmation Tone ..............................20
Talking range ..............................................21
To talk ...........................................................6
Transmit ......................................................18
U
Use and Care..............................................22
V
Volume
Adjust.....................................................6
VOX .......................................................14,17
External................................................17
Off ........................................................18
W
Website
Motorola
www.motorola.com
Accesories
www.motorola.com/radios/professional
FCC
www.fcc.gov .........................................1
6881038B80.book Page 57 Thursday, August 30, 2001 5:33 PM
XTN-Series Quick Reference
Function Appearance
Channel
Use
[
or
]
for
1 through 6*
XU2600, XV2600
Frequency
Interference
Eliminator
Code
Eavesdrop
Reducer Visible if Feature is On.
Battery Meter Visible except when
changing features.
Channel Scan
XU2600, XV2600 Press J to access.
Receiving Others speaking on the
same frequency and code.
Signal strength 1-6
6
6881038B80.book Page 67 Thursday, August 30, 2001 5:33 PM
XTN Series Buttons
XTN Series User Programming
Radio On Visual \as needed, then
[
or
]
Call Tone Choose1,2,3 or Off = 0
Mic Gain/
Sensitivity
Level
Choose1 low, 2 medium, or 3
high sensitivity.
Scan List Choose Y (yes) or n (no) for each
individual channel.
*XU2600, XV2600 only
*Battery
Type
A (alkaline)
n (other rechargeable single cells)
Does not appear if using NiMH.
Lock
Keypad
Hold \for 3 seconds
no flashing
P•Turn power on/off M•Talk on the radio
•Exit a menu
T
S•Access Preset Channel
*XU2600, XV2600 only \•Scroll through menus
•Lock Keypad 3 seconds
B•Transmit call tone
[
or
]•Scroll through settings.
?
A
6881038B80.book Page 68 Thursday, August 30, 2001 5:33 PM
6881038B80.book Page 1 Thursday, August 30, 2001 5:33 PM
• Extend Your Productivity
Provides a cost-effective solution to
onsite communication needs.
Designed for heavy duty, everyday
industrial use. Well suited for
construction, manufacturing, security,
property management, retail, etc.
• Rugged MOTOROLA QUALITY
Shock/drop/temperature tested to
meet Motorola's High standards.
• Weather/Dust Resistant
IP-54 rating
• Built to Military Specifications
810 C, D, E & F
• Dependable Indoor/Outdoor
Coverage
Will provide a communication range*
of up to 250,000 sq. ft. or 20 floors
indoors and up to 6 miles outdoors.
*Range will vary based on terrain and
conditions and model selected.
• Simple and Easy to Operate
Allows one-to-one or group
communication at the push of a
button. With no phone numbers
to dial, plus the manager lock
feature, there's little to no
training needed for your staff to
be fully up to speed.
• Cost Efficient
No monthly fees to pay and no
service contracts. Compatible
with older Motorola Spirit•
radios and audio accessories.
• User Guide Included
• Business Exclusive Frequencies
Frequencies set aside exclusively for
business-only use (FCC License
required).
• 38 PL Codes, 83 Digital PL Codes.
• Talk Hands-Free Mode (VOX)
Advanced voice activation (VOX) let's
you talk hands-free; XV2600, XU2600
models do not require accessories.
• Voice Compression Technology
Helps provide better sound even at
longer distances.
• Cloning Capability
Radio Specification Chart
Tra ns mit Powe r
Receiver Sensitivity
Audio Putput
Receiver Technology
1 or 2 Watts
-120 dBm for 12 dB SINAD
90 dB SPL
Direct Conversion
• Accessories for XTN Series - Brochure included
Convenient headphones, multi-chargers, drop-in chargers, carry cases, and rechargeable battery packs
available from your retailer or www.motorola.com/sradios/professional
MOTOROLA, the Stylized M Logo, XTN Series and all other trademarks indicated as such herein are trademarks of
Motorola, Inc. ® Reg. U.S. Pat. & Tm. Off. All other product or service names are the property of their respective
owners. © 2001 Motorola, Inc. All rights reserved. Printed in the U.S.A.
FCC GMRS
License required.
@xtnseries@
Motorola
®
XTN Series
Proof of Purchase
PWARNING CHOKING HAZARD
SMALL PARTS
Not for children under 3 years.
This product is not intended to be used
as a toy or plaything.
6881038B80.book Page 2 Thursday, August 30, 2001 5:33 PM
3
6881038B80.book Page 3 Thursday, August 30, 2001 5:33 PM
