Motorola Solutions 89FT4872 PORTABLE 2-WAY RADIO User Manual BPR40 UG text Eng EME

Motorola Solutions, Inc. PORTABLE 2-WAY RADIO BPR40 UG text Eng EME

Contents

USERS MANUAL 1

PRODUCT SAFETY AND RF EXPOSURE COMPLIANCE
ATTENTION!
This radio is restricted to occupational use only to satisfy FCC RF energy exposure
requirements. Before using this product, read the RF energy awareness information and operating
instructions in the Product Safety and RF Exposure booklet enclosed with your radio (Motorola
Publication part number 6881095C98) to ensure compliance with RF energy exposure limits.
For a list of Motorola-approved antennas, batteries, and other accessories, visit the following web
site which lists approved accessories: http://www.motorola.com/governmentandenterprise
Mag One™ by Motorola is registered in the U.S. Patent and Trademark Office.
All other products and service names are the property of their own respective owners.
© Motorola, Inc. 2005, 2006
1301 E. Algonquin Rd., Schaumburg, IL 60196
Printed in Korea. 03/06. All Rights Reserved.
Before using this product, read the operating instructions for safe usage contained in the
Product Safety and RF Exposure booklet enclosed with your radio.
*6881098C61*
6881098C61-B
Attaching and Removing the Antenna
To Attach Antenna
To Remove Antenna
1. Fasten the antenna to the radio by placing
the threaded end of the antenna into the
Antenna Connector.
2. Rotate the antenna clockwise until tight.
1. Turn the antenna in a counter-clockwise
direction until it disengages from the radio.
Threaded End
of Antenna
Antenna
Connector
Attaching and Removing the Battery
To Attach Battery
To Remove Battery
1. Align and fit the battery tongue into the
groove of the chassis of the radio.
2. Secure the latch at the bottom of the radio.
1. Unlatch the battery clasp at the bottom of
the radio.
2. Gently lift the hilt of the battery nearest to
the battery latch away from the housing.
3. Slide battery downwards to remove.
Attaching and Removing the Belt Clip
To Attach Belt Clip
To Remove Belt Clip
1. Align mounting rails of the radio with the
grooves of the belt clip.
2. Slide the belt clip downwards until it clicks
into place.
1. Lift the release tab.
2. Slide the belt clip upwards.
Release Tab
Charging your Radio
1. Turn off your radio and the A/C power sup-
ply to your charger (if they are turned on).
2. Place your radio in the charger pocket.
3. Turn on the charger’s A/C power supply.
4. While charging your radio, the charger’s
LED shows a steady red light. The radio
should be charged at least 16 hours initially
before decreasing charging time to 12 hours.
5. Turn off the charger’s A/C power supply,
and remove the radio from the charger
pocket.
6. For more details, refer to the Charger
Manual (6881013Y27).
Charger Pocket
LED Indicators
Colour State Indication
Red Illuminated Radio is transmitting.
Blinking Battery voltage is low.
Green Illuminated Radio is receiving with PL/DPL disabled.
Blinking Radio is in active scanning mode.
Orange Illuminated Radio is receiving with PL/DPL enabled.
Blinking An error has occured.

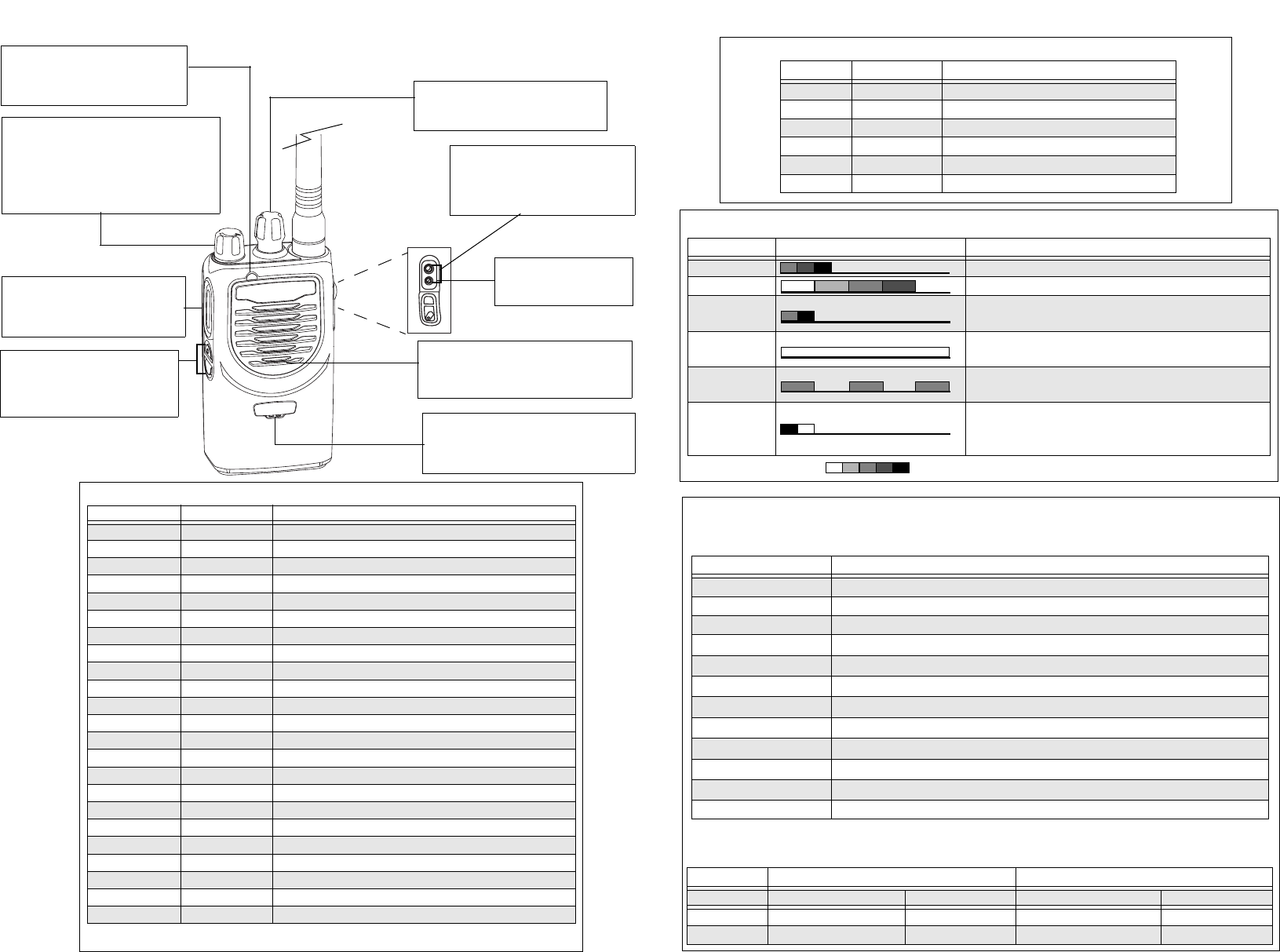

On/Off and Volume Knob
• Turn clockwise to turn radio ON
and increase volume.
• Turn counter-clockwise to decrease
volume and turn radio OFF.
Push-to-Talk (PTT) button
• Press to transmit and release
to receive messages.
Speaker
• Where received messages are
heard.
Microphone
• Speak into microphone when send-
ing message.
Accessory Connector
• To connect compatible acces-
sories to radio.
Programming Port
• To program the radio.
Accessories
*Caution: Your radio does not support the VOX feature. Please set the accessory switch to ‘PTT’. If the accessory switch
is set to ‘VOX’, your radio transmits constantly and never receives.
Types Part No. Description
PMAD4050_R Mag One 136-150MHz Antenna
Antenna PMAD4051_R Mag One 150-174MHz Antenna
PMAE4019_R Mag One 403-425MHz Antenna
PMAE4020_R Mag One 450-470MHz Antenna
Audio Accessory PMMN4008_ Remote Speaker Microphone
PMLN4442_ Earbud with in-line mic and PTT/VOX* Switch
PMLN4443_ Ear Receiver with in-line mic and PTT/VOX* Switch
PMLN4445_ Ultra Lightweight Headset with In-line PTT/VOX* Switch
PMLN4294_ Earbud with Microphone & PTT Combined
PMLN4605_ Clear Acoustic Kit
PMLN4606_ 2-Wire Surveillance Kit with Clear Acoustic Tube
PMLN4658 _ D-shell Earset with Boom Mic with PTT/VOX* Switch
Battery PMNN4071_R Mag One NiMH batt 1200mAH
Carry Accessory PMLN4743_ Mag One Spring Belt Clip
PMLN4691_R Mag One Belt Clip
PMLN4741_ Mag One Soft Leather Carry Case
PMLN4742_ Mag One Hard Leather Carry Case
Charger PMLN4685_R Mag One Mid-rate Charger Base Only
PMLN4738_R Mag One Mid-rate Charger Kit, 120 V
PMLN4682_R Mag One Slow Charger Base Only
PMLN4683_R Mag One Slow Charger Kit, 120 V
PMLN4829_R Mag One Mid-rate Transformer, 120 V
PMLN4822_R Mag One Slow Transformer, 120 V
Channel Knob
• Turn knob to change channel.
Programmable Buttons
• Frequently used features can
be programmed here.
LED Indicator
• Colors indicate various states
of the radio
Programmable Buttons
• The following functions can be assigned as short press (press and release) or long press (press and hold
for 1 second) in the programmable buttons.
† In Chirp Tone
* Out Chirp Tone
• Your radio’s default functions are described below. If re-programmed, enter the new functions .
Button Function
High/Low Power Selects desired power level to High† or Low*.
Volume Set Allows you to check the audio and alert tone volume level.
Monitor Allows you to monitor the current channel for activity; disables squelch.
Sticky Monitor*The radio monitors continually until you press this button again.
Scan Starts* or Stops† channel scan.
Nuisance Channel Delete†Removes unwanted channel(s) temporarily from scan list during scan.
Repeater/Talkaround Toggles radio between functioning in Repeater mode† or Talkaround mode*.
PL/DPL Enables†/Disables* radio from requiring matching PL/DPL to receive messages.
Button Lock Locks* or unlocks† all buttons except PTT, Channel Knob and On/Off/Volume Knob.
Battery Save Mode Toggles between functioning with Battery Saver ON* or Battery Saver OFF†.
Squelch Selects desired squelch level: Normal† or Tight*.
No Operation No function is programmed to this button.
Press Type Programmable Button 1 Programmable Button 2
Default Re-programmed Default Re-programmed
Short Press Monitor Scan
Long Press Sticky Monitor Nuisance Channel Delete
Audio Alert Tones
Tone Name Tone Cadence Description
In Chirp Tone Programmable buttons are pressed.
Out Chirp Tone Programmable buttons are pressed.
Bad Key Chirp
Tone
Invalid programmable button function (i.e. pressing
programmable button while button lock is activated.)
Talk Prohibit
Tone
Continuous tone is heard if PTT is pressed when transmit is
not allowed.
Low Battery
Alert Tone
Repeating tone heard if battery level is low.
Priority
Channel Alert
Tone
Received priority channel in Priority Scan mode.
Low Tone High Tone
