Motorola Solutions 89FT4902 PORTABLE 2-WAY RADIO User Manual 2000044 C CLP en

Model CLP1010, CLP1040, and CLP1060 (with Bluetooth® Wireless Technology)

User Guide

CLP Series Two-Way Radio

TM

Document Copyrights

No duplication or distribution of this document or any portion thereof shall take place without the express

written permission of Motorola. No part of this manual may be reproduced, distributed, or transmitted in

any form or by any means, electronic or mechanical, for any purpose without the express written

permission of Motorola.

Disclaimer

The information in this document is carefully examined, and is believed to be entirely reliable. However,

no responsibility is assumed for inaccuracies. Furthermore, Motorola reserves the right to make changes

to any products herein to improve readability, function, or design. Motorola does not assume any liability

arising out of the applications or use of any product or circuit described herein; nor does it cover any

license under its patent rights nor the rights of others.

CONTENTS

i

CONTENTS

Computer Software Copyrights . . . . . . . . . iii

Radio Frequency (RF) Exposure Safety

Standards. . . . . . . . . . . . . . . . . . . . . . . . . . . iv

Product Safety and RF Exposure

Compliance . . . . . . . . . . . . . . . . . . . . . . iv

FCC Licensing Information . . . . . . . . . . . . .v

Interference Information . . . . . . . . . . . . . . . . .v

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . .1

Radio Overview . . . . . . . . . . . . . . . . . . . . . . .2

Radio Controls. . . . . . . . . . . . . . . . . . . . . . . . .2

Getting Started . . . . . . . . . . . . . . . . . . . . . . . .3

Install The Battery . . . . . . . . . . . . . . . . . . . . . .3

Connecting a Wired Audio Accessory. . . .4

Connecting a Bluetooth Wireless Accessory

(Select Models Only) . . . . . . . . . . . . . . . . . . . .5

Add Bluetooth Headset

(Initial Pairing) . . . . . . . . . . . . . . . . . . . . . .5

Reconnect to Last Connected

Bluetooth Headset . . . . . . . . . . . . . . . . . .5

Erase Bluetooth Headset History

and Add Bluetooth Headset. . . . . . . . . . . 5

Turning the Radio On and Off . . . . . . . . . 6

Adjusting the Volume. . . . . . . . . . . . . . . . 6

Installing and Removing the

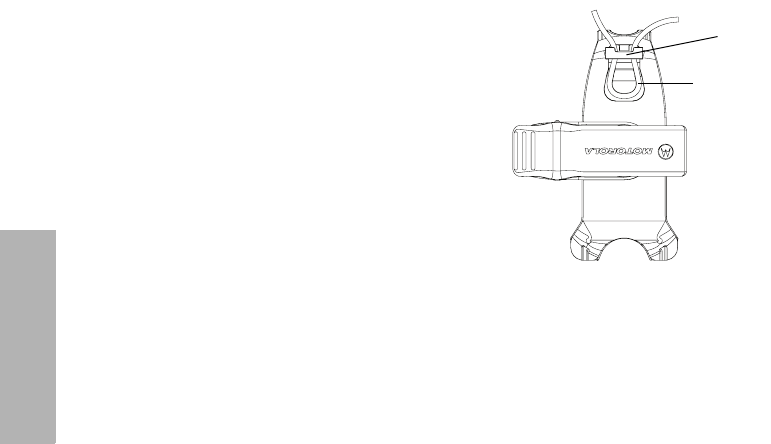

Swivel Belt Clip Holster . . . . . . . . . . . . . . 6

Transmitting and Receiving . . . . . . . . . . . . . . 7

Operation with Menu Settings . . . . . . . . . . . . 8

Selecting a Channel. . . . . . . . . . . . . . . . . 9

Monitoring a Channel. . . . . . . . . . . . . . . 10

Scanning . . . . . . . . . . . . . . . . . . . . . . . . 10

Dynamic Talkaround Scan (*) . . . . . . . . 11

Sending Call Tone (enabled

through CPS) . . . . . . . . . . . . . . . . . . . . . 11

Mute Feature (*). . . . . . . . . . . . . . . . . . . 11

Talk Permit Tone (*). . . . . . . . . . . . . . . . 11

Battery and Charger Features. . . . . . . . . . 12

Battery Features. . . . . . . . . . . . . . . . . . . . . . 12

About the Li-Ion Battery . . . . . . . . . . . . . 12

Battery Recycling and Disposal . . . . . . . 13

Removing the Lithium-Ion

(Li-Ion) Battery . . . . . . . . . . . . . . . . . . . . 14

CONTENTS

ii

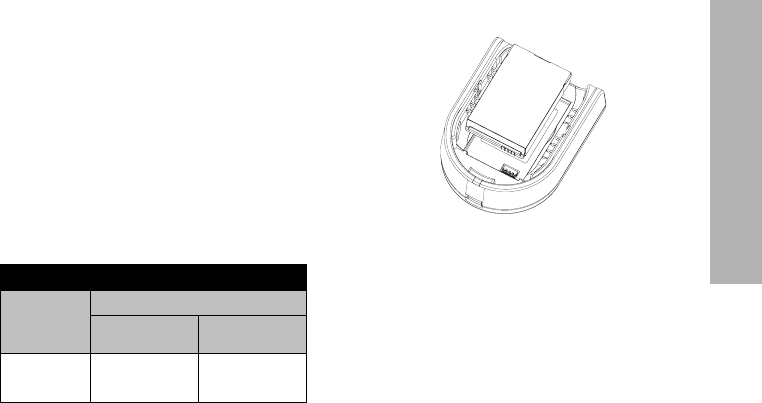

Power Supply, Adapter and Drop-in

Tray Charger. . . . . . . . . . . . . . . . . . . . . .14

Charging the Battery . . . . . . . . . . . . . . . .15

Charging the Bluetooth Headset. . . . . . .18

Checking Battery Status . . . . . . . . . . . . .19

Batteries and Chargers Safety

Information. . . . . . . . . . . . . . . . . . . . . . . . . .20

Operational Safety Guidelines . . . . . . . .21

Programming The Radio Through

the CPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Downloading the (Customer

Programming Software) CPS . . . . . . . . .22

Radio Cloning . . . . . . . . . . . . . . . . . . . . . . .25

Cloning Radio Settings . . . . . . . . . . . . . . . . .25

Cloning Instructions. . . . . . . . . . . . . . . . . . . .25

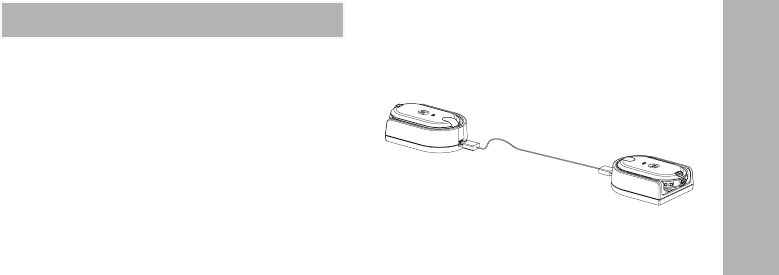

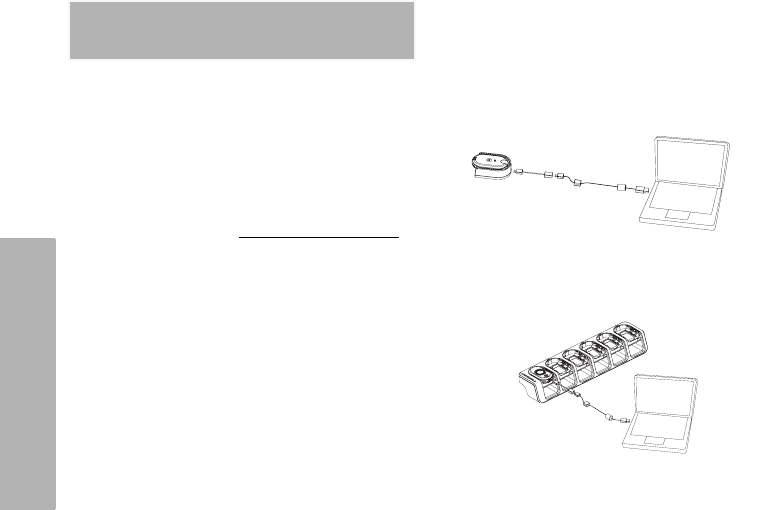

Cloning Radios using the CLP Series

Cloning Cable Kit P/N HKKN4026

(optional accessory) . . . . . . . . . . . . . . . .25

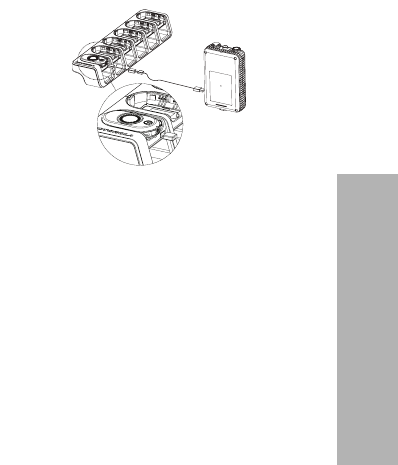

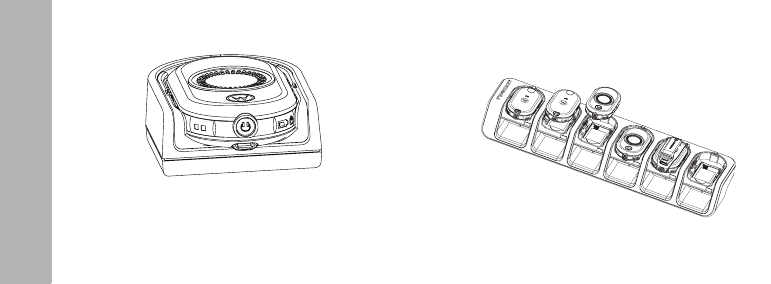

Cloning Radios using the CLP Series

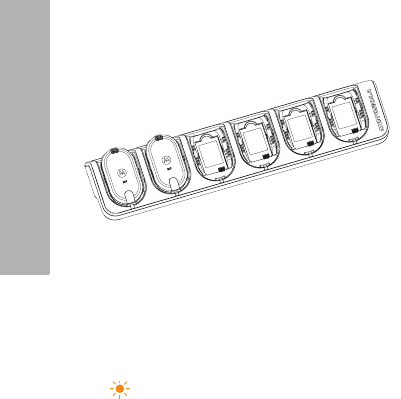

Multi-Unit Charger (MUC) Kit

P/N HKPN4007 (optional accessory) . . .28

Advanced Radio Configuration (*) . . . . . . 29

Entering Advanced Radio

Configuration Mode . . . . . . . . . . . . . . . . 29

CLP Repeater Capability: Working with

RPX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

CLP Repeater Capability . . . . . . . . . . . . . . . 30

Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . 30

Troubleshooting . . . . . . . . . . . . . . . . . . . . . 32

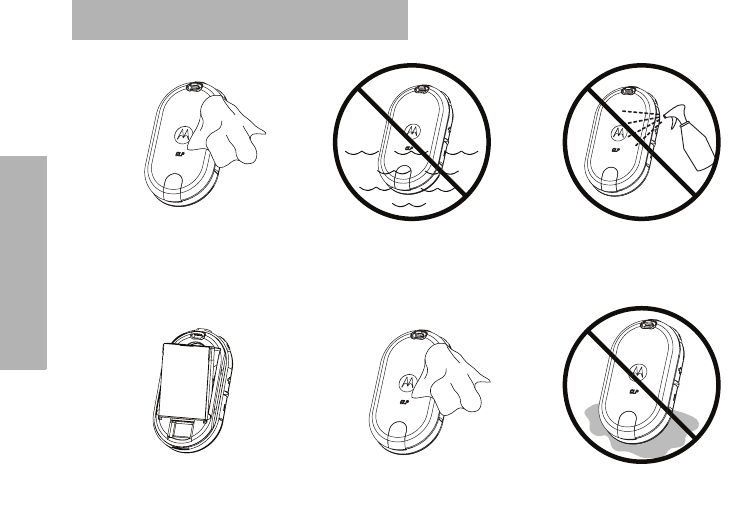

Use and Care . . . . . . . . . . . . . . . . . . . . . . . 36

Radio Frequency and Code Charts . . . . . 37

Motorola Limited Warranty for the

United States and Canada. . . . . . . . . . . . . 41

Accessories . . . . . . . . . . . . . . . . . . . . . . . . 46

Audio Accessories . . . . . . . . . . . . . . . . . . . . 46

Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Carry Accessories . . . . . . . . . . . . . . . . . . . . 46

Chargers . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Programming Cables . . . . . . . . . . . . . . . . . . 47

COMPUTER SOFTWARE

COPYRIGHTS

iii

COMPUTER SOFTWARE

COPYRIGHTS

The Motorola products described in this

manual may include copyrighted Motorola

computer programs stored in semiconductor

memories or other media. Laws in the United

States and other countries preserve for

Motorola certain exclusive rights for

copyrighted computer programs, including, but

not limited to, the exclusive right to copy or

reproduce in any form the copyrighted

computer program. Accordingly, any

copyrighted Motorola computer programs

contained in the Motorola products described in

this manual may not be copied, reproduced,

modified, reverse-engineered, or distributed in

any manner without the express written

permission of Motorola.

Furthermore, the purchase of Motorola

products shall not be deemed to grant either

directly or by implication, estoppels, or

otherwise, any license under the copyrights,

patents or patent applications of Motorola,

except for the normal non-exclusive license to

use that arises by operation of law in the sale of

a product.

RF SAFETY STANDARDS

iv

RADIO FREQUENCY (RF)

EXPOSURE SAFETY

STANDARDS

Product Safety and RF Exposure

Compliance

ATTENTION!

This radio is restricted to occupational use only to

satisfy FCC RF energy exposure requirements.

Before using this product, read the RF energy

awareness information and operating instructions in

the Product Safety and RF Exposure booklet

enclosed with your radio (Motorola Publication part

number 6881095C98) to ensure compliance with RF

energy exposure limits.

For a list of Motorola-approved antennas, batteries,

and other accessories, visit the following website:

www.motorola.com/CLP

Before using this product, read the

operating instructions for safe

usage contained in the Product

Safety and RF Exposure booklet

contained with your radio.

C a u t i o n

FCC LICENSING

INFORMATION

v

FCC LICENSING

INFORMATION

INTERFERENCE INFORMATION

This device complies with Parts 90 and 15 of the FCC

Rules. Operation is subject to the condition that this

device does not cause harmful interference.

The CLP Series radio operates on radio frequencies

that are regulated by the Federal Communications

Commission (FCC). To transmit on these frequencies,

you are required to have a license issued by the FCC.

Application is made available on FCC Form 601 and

Schedules D, H, and Remittance Form 159.

To obtain these FCC forms, request document

000601 which includes all forms and instructions. If

you wish to have the document faxed, mailed or have

questions, use the following contact information.

Faxed: Contact the

Fax-On-Demand

system at:

Mailed: Call the FCC forms hotline

at:

For questions regarding FCC

license, contact the FCC at:

1-202-418-0177 1-800-418-FORM

1-800-418-3676

1-888-CALL-FCC

1-888-225-5322

Or: http://www.fcc.gov

vi

FCC LICENSING

INFORMATION

Before filling out your application, you must decide

which frequency(ies) you can operate on: “Radio

Frequency and Code Charts” on page 37. For

questions on determining the radio frequency, call

Motorola Product Services at: 1-800-448-6686.

Changes or modifications not expressly approved by

Motorola may void the user’s authority granted by the

FCC to operate this radio and should not be made. To

comply with FCC requirements, transmitter

adjustments should be made only by or under the

supervision of a person certified as technically

qualified to perform transmitter maintenance and

repairs in the private land mobile and fixed services as

certified by an organization representative of the user

of those services.

Replacement of any transmitter component (crystal,

semiconductor, etc.) not authorized by the FCC

equipment authorization for this radio could violate

FCC rules.

Use of this radio outside the country where it was

intended to be distributed is subject to government

regulations and may be prohibited.

INTRODUCTION

1

INTRODUCTION

Thank you for purchasing a Motorola CLP Series

Two-Way Radio™. Your radio is a product of

Motorola’s 80 plus years of experience as a world

leader in designing and manufacturing

communications equipment. The CLP Series radios

provide cost-effective efficient communications for

businesses such as retail stores, restaurants, hotels,

and schools. Motorola professional two-way radios

are the perfect communications solution for all of

today’s fast-paced industries. Please read this guide

carefully so you know how to properly operate the

radio before use.

PACKAGE CONTENTS

Your product package contains the following products

and manuals:

• CLP Series Two-way Radio™

• Swivel Belt Clip Holster

• Lithium Ion Battery and Battery Door

• Drop-In Tray Charger with Transformer

• Audio Accessory

• User Quick Reference

• Warranty Card

For product information, visit us at:

www.motorola.com/CLP

For product-related questions, contact:

1-800-448- 6686 in the USA

1-800-461-4575 in Canada

1-866-522-5210 on your TTY (Text Telephone)

This user guide covers the following CLP Series™ models (*):

Note: Certain models may or may not be available at the time of purchase.

Model Frequency

Band

Transmit

Power

No. of

Channels Bluetooth

CLP1010 UHF 1W 1 No

CLP1040 UHF 1W 4 No

CLP1060 UHF 1W 6 Yes

RADIO OVERVIEW

2

RADIO OVERVIEW

RADIO CONTROLS

A

ccessory

Connector

Smart Status

Glow

Volume

Control (+/-)

Power/Battery

Button

Push-to-Talk

(PTT) Button

Menu Button

RADIO OVERVIEW

3

GETTING STARTED

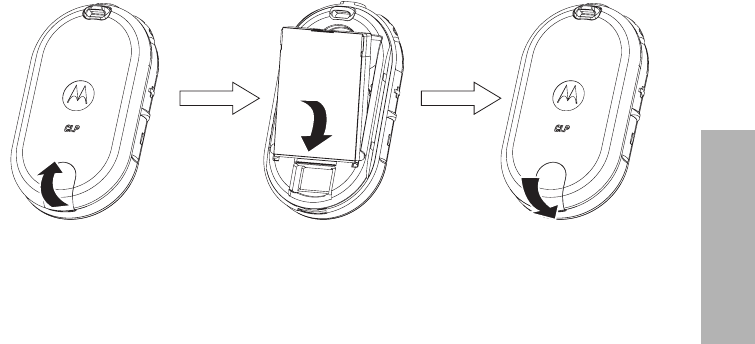

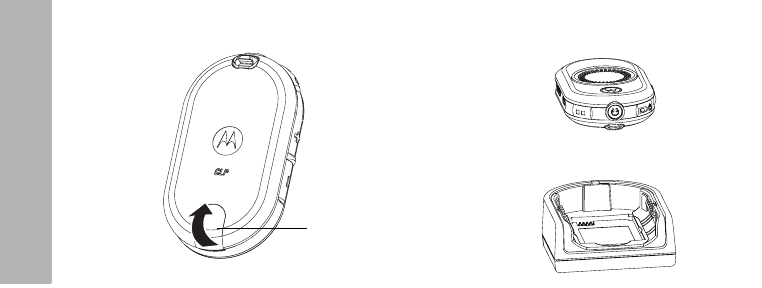

INSTALL THE BATTERY

1. Push up the latch at the bottom of the battery

door and lift the battery door off the radio.

2. Align the battery contacts with tabs in the battery

compartment. Insert the contact side of the

battery first, then press the battery down to

secure in place.

3. Put the battery door back on the radio. Push

down the latch to lock.

Note: The CLP Series radios’ standard packaged models come with standard Lithium Ion battery and the standard Lithium Ion

battery door. For option, customers can order Hi-capacity Lithium Ion battery (P/N HKNN4013) and the Hi-capacity Lithium

Ion battery door (P/N HKLN4440).

RADIO OVERVIEW

4

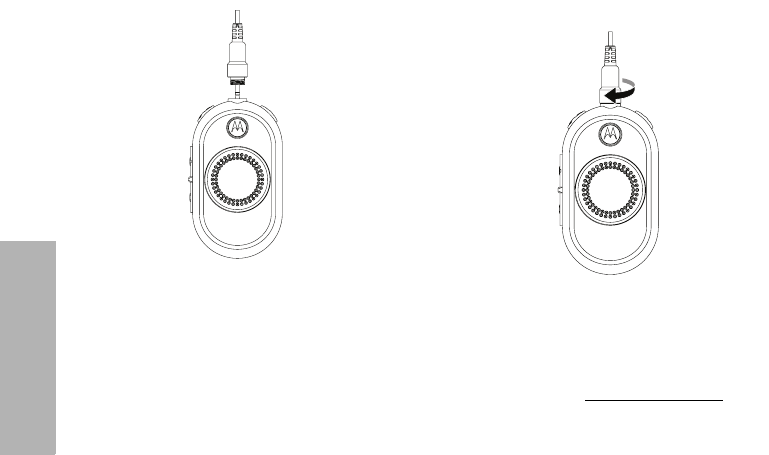

Connecting a Wired Audio Accessory

Connect the wired audio accessory.

1. Turn the radio OFF.

2. Remove the accessory connector cover

(applicable on bluetooth enabled models only).

3. Plug the audio accessory straight into the

accessory connector on the radio. Screw the

audio accessory plug into the connector until it

is tight and fully engaged with the connector.

4. Turn the radio ON. Press either the Battery

Status, Menu or Volume Control button to

check for audio through the audio accessory.

Note: The CLP Series radios offer a variety of audio

accessories. For detailed Audio Accessories List,

please refer to www.motorola.com/CLP for

information on approved accessories. Lower the

radio volume BEFORE placing the audio accessory

in or near your ear.

RADIO OVERVIEW

5

CONNECTING A BLUETOOTH WIRELESS

ACCESSORY (SELECT MODELS ONLY)

Add Bluetooth Headset (Initial Pairing)

1. Turn the radio OFF.

2. Put Bluetooth headset in pairing mode. Refer to

your Bluetooth headset instructions leaflet.

3. Press and hold the PTT button and power

button simultaneously until radio shows the blue

LED.

Note: The Bluetooth feature is disabled when the wired

audio accessory is plugged into the accessory

connector on the CLP radio.

Reconnect to Last Connected Bluetooth

Headset

1. Turn the radio OFF.

2. Press the power button to turn the radio ON.

(Make sure the Bluetooth headset is turned

ON).

Erase Bluetooth Headset History and Add

Bluetooth Headset

1. Turn the radio OFF.

2. Put the Bluetooth headset in pairing mode.

Refer to your Bluetooth headset Instructions

leaflet.

3. Press and hold the PTT button and power

button simultaneously until radio shows the blue

LED.

Note: The CLP radio uses proximity pairing. Make sure

the headset is close enough to the CLP radio.

Pairing process takes about 14 seconds.

LED Configuration

User Mode LED Status Color

Bluetooth

Pairing Mode

• Last connection

– Fast blinking

blue

• Add or erase/

add – Solid blue

Pairing

Successfully

Blue/purple blinks for

5 seconds

Bluetooth

Disconnected

Red/purple blinks

until the radio

reconnects

Pairing Fail/

Timeout

Red/purple blinks

until radio reconnects

RADIO OVERVIEW

6

Turning the Radio On and Off

• To turn the radio ON, press and hold the Power/

Battery button until you hear a short tone and the

Smart Status Glow lights up.

• To turn it OFF, press and hold the button until you

hear a short tone and the Smart Status Glow

(red) indicator blinks once.

Adjusting the Volume

Turn the radio ON and set volume level by

pressing volume control (+/- button). A total of 16

volume levels are available.

Installing and Removing the Swivel Belt

Clip Holster

1. Slide the bottom of the radio into the holster.

2. Snap the top of the holster into the radio around

the accessory connector.

3. To remove the holster, pull either the top or

bottom tab(s) and pull the radio from the holster.

Note: When using a corded audio accessory, loop the

cord into the recess in the rear of the holster for

optimal plug retention.

4. Make a small loop in the cord. Pass the cord

through the cord guide, nest the cord in the

U-shaped groove. Pull tight to lock the cord in

place.

5. Turn the belt clip to the position as needed.

Cord

Guide

U-Shaped

Groove

RADIO OVERVIEW

7

Note: The CLP Series radios offer a variety of flexible

carrying accessories. For detailed Carrying

Accessories List, please refer to

www.motorola.com/CLP for information on

approved accessories.

TRANSMITTING AND RECEIVING

1. To talk, press and hold the PTT button on the

front of the radio (or on select wired audio

accessories with an inline PTT). Speak clearly

into the microphone on the audio accessory.

When finished talking, release the PTT to listen.

2. To receive, listen through the earpiece at the

volume level you have set. Press the PTT to

respond.

Note: The CLP Series radios always require the use of an

audio accessory with microphone and speaker.

Talk Range

Industrial Multi-Level

Inside steel/concrete

industrial buildings

Inside Multi-Level

Buildings

Up to 160,000 square

feet

Up to 12 floors

RADIO OVERVIEW

8

OPERATION WITH MENU SETTINGS

Press Menu button to navigate through the Menu settings. Voice Assisted Operation feature* (* may not be

available on certain previous shipping radios) At any time in Menu mode, short press PTT or wait 3

seconds to exit the menu.

HOW TO... STEP 1 STEP 2

Change Channel Press Menu button to navigate to Channel. Press +/- button to change

channel.

Enter Monitor Mode Press Menu button to navigate to Monitor. Press +/- button to activate or

deactivate Monitor.

Enter Scan Mode Press Menu button to navigate to Scan. Press +/- button to activate or

deactivate Scan.

Send Call Tone (enabled

through CPS)

Press Menu button to navigate to Call

Tone.

Press +/- button to send Call

Tone.

Quick Tip: It is not necessary to wait for the voice prompt to be completed before continuing with next button press.

Note: For single channel models, Monitor, Scan Mode and Call Tone are supported. Single channel models support Scan mode

when the user enables “Dynamic Talkaround Scan” on a repeater channel via the customer programming software.

RADIO OVERVIEW

9

Selecting a Channel

For CLP multi-channel models only:

1. When powered ON, press the Menu button, you

can hear the voice prompt:

• [Color] “Channel” – [Channel#] – “To change” –

“press +/-”

2. Select the channel you want. The LED reflects

the color of the new channel. Press PTT button

to confirm or it is activated after 3 second hang

time.

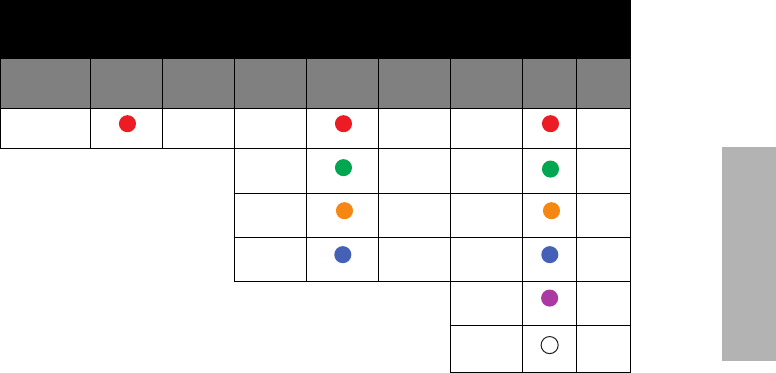

Default Channel Settings for CPS

CLP1010 Single-Channel Models CLP1040 Multi-Channel Models CLP1060 Multi-

Channel Models

Channel LED Status Color Channel

LED

Status

Color Channel

LED

Status

Color

1 Red

1

Red 1 Red

2

Green 2Green

3

Orange 3Orange

4 Blue 4 Blue

5 Purple

6White

RADIO OVERVIEW

10

Monitoring a Channel

1. To activate, press the Menu button to navigate

to Monitor mode.

2. When Monitor is OFF, you can hear the voice

prompt: “Monitor” – “To activate” – “press +/-”.

3. Press either “+/-“ button to activate the Monitor;

press either “+/-“ button again to deactivate.

Note: When Monitor is ON, you can hear static if no

activity is present or audio if channel activity is

present.

4. To engage the Monitor mode, enable Monitor via

the menu and let the menu time out.

5. To deactivate, press PTT during Monitor Menu

mode.

Scanning

For multi-channel models only

You can scan up to 4 channels on CLP1040

models and scan up to 6 channels on CLP1060

models. When the radio detects activity, it stops

scanning and locks in on the active channel. This

allows you to talk and listen to the person

transmitting without changing channels.

1. Press the Menu button to navigate to Scan

mode.

2. When Scan is OFF, you can hear the voice

prompt: “Scan” – “To activate” – “press +/-”.

3. Press either “+/-“ button to activate the Scan;

press either “+/-“ button again to deactivate.

4. When Scan is on, you can hear the voice

prompt: “Scan” – “To deactivate” – “press +/-”

button.

RADIO OVERVIEW

11

Dynamic Talkaround Scan (*)

"Dynamic Talkaround Scan" is a simple but

effective method for an on-site repeater enabled

two-way radio systems to maximize

communication coverage. This feature can be

enabled on a repeater channel via the Customer

Programming Software (CPS). The Dynamic

Talkaround Scan gives the radio the ability to scan

both the transmit and receive frequencies of a

repeater channel.

Note: (*) Enhancement feature on CLP Radios. May not

be available on previous shipping radios. The

Dynamic Talkaround Scan is given higher priority

then the Scan Mode. If the Dynamic Talkaround

Scan and Scan is enabled on the home channel,

then the radio can only support the Dynamic

Talkaround Scan.

Sending Call Tone (enabled through CPS)

1. Press the Menu button to navigate to Call Tone.

2. Press either “+/-“ button to transmit selected

Call Tone.

Note: There are 4 Call Tones available.

Mute Feature (*)

You can quickly lower the headset volume using

the Mute feature.

1. Press and hold + or - button while receiving

audio to quickly lower the headset volume to

“Mute Headset Volume” setting (configurable via

CPS). You can hear the voice prompt: "Mute"

2. To switch back to the previous headset volume

setting, press and hold + or - button again. You

can hear the voice prompt: "Unmute".

Note: (*) Enhancement feature on CLP radios. May not

available on previous shipping radios. The

enhanced CLP does not support the volume scroll

like the previous CLP models.

Talk Permit Tone (*)

In mixed fleet situations (CLP1010 or CLP1040 and

CLP1060), Bluetooth users may miss some words

due to the Bluetooth connection not being

established. Talk Permit Tone allocates some time so

that the link between the radio and headset gets

reestablished thus minimizing the lost words. The Talk

Permit Tone is enabled as default on CPS on the

Bluetooth models.

Note: (*) Enhancement feature on CLP radios; may not

available on previous shipping radios. The Talk

Permit Tone is enabled as default on the Bluetooth

models. It is not enabled on non-Bluetooth models

(default mode is OFF).

BATTERY AND CHARGER

FEATURES

12

BATTERY AND CHARGER

FEATURES

BATTERY FEATURES

The CLP Series radio provides Lithium-Ion batteries

that come in different capacities that define the battery

life.

About the Li-Ion Battery

The CLP Series radio comes equipped with a

rechargeable Li-Ion battery. This battery should be

charged before initial use to ensure optimum capacity

and performance.

Battery life is determined by several factors. Among

the more critical are the regular overcharge of

batteries and the average depth of discharge with

each cycle. Typically, the greater the overcharge and

the deeper the average discharge, the fewer cycles a

battery can last. For example, a battery which is

overcharged and discharged 100% several times a

day, lasts fewer cycles than a battery that receives

less of an overcharge and is discharged to 50% per

day. Further, a battery which receives minimal

overcharging and averages only 25% discharge, lasts

even longer.

Motorola batteries are designed specifically to be

used with a Motorola charger and vice versa.

Charging in non-Motorola equipment may lead to

battery damage and void the battery warranty. The

battery should be at about 77 °F (25 °C) (room

temperature), whenever possible. Charging a cold

battery (below 50 °F [10 °C]) may result in leakage of

electrolyte and ultimately in failure of the battery.

Charging a hot battery (above 95 °F [35 °C]) results in

reduced discharge capacity, affecting the performance

of the radio. Motorola rapid-rate battery chargers

contain a temperature-sensing circuit to ensure that

batteries are charged within the temperature limits

stated above.

Battery Life

Based on 5% transmit, 5% receive, 90% standby

(standard duty cycle):

Estimated Battery Life

Standard

Charging

Solution

Battery Type

Standard Li-Ion

Battery

High Capacity

Li-Ion Battery

CLP1010,

CLP1040 12 hours 18 hours

CLP1060 9 hours 14 hours

13

BATTERY AND CHARGER

FEATURES

Battery Recycling and Disposal

Li-Ion rechargeable batteries can be recycled.

However, recycling facilities may not be available in all

areas. Under various U.S. state laws and the laws of

several other countries, batteries must be recycled

and cannot be disposed of in landfills or incinerators.

Contact your local waste management agency for

specific requirements and information in your area.

Motorola fully endorses and encourages the recycling

of Li-Ion batteries. In the U.S. and Canada, Motorola

participates in the nationwide Rechargeable Battery

Recycling Corporation (RBRC) program for Li-Ion

battery collection and recycling.

Many retailers and dealers participate in this program.

For the location of the drop-off facility closest to you,

access RBRC's Internet web site at:

http://www.call2recycle.org or call:

1- 877-723-1297.

This internet site and telephone number also provides

other useful information concerning recycling options

for consumers, businesses and governmental

agencies.

BATTERY AND CHARGER

FEATURES

14

Removing the Lithium-Ion (Li-Ion) Battery

1. Turn OFF the radio.

2. Push up the latch at the bottom of the battery

door and lift the battery door off the radio.

3. Pull the battery away from the radio.

Power Supply, Adapter and Drop-in Tray

Charger

The radio is packaged with one Drop-in Tray Charger

with transformer. For details, see “Chargers” Section

on page 47.

Battery

Latch

15

BATTERY AND CHARGER

FEATURES

Charging the Battery

To charge the battery (with the radio attached):

1. Place it in a Motorola-approved Drop-in Tray

Single Unit Charger or Drop-in Tray Multi Unit

Charger.

Note: When acquiring additional chargers or power

supplies, make sure you have similar drop-in tray

chargers and power supplies sets. For part number

details, refer to “Chargers” Section on page 47.

Estimated Charging Time

The following table provides the estimated charging

time of the battery.

For further details, see “Batteries” Section on page 46.

Charging a Standalone Battery

To charge only the battery:

1. Insert the battery into the tray, with the inside

surface of the battery facing the front of the

charger, as shown.

2. Ensure the slots in the battery correctly engage

in the charger.

Estimated Charging Time

Charging

Solution

Battery Type

Standard Li- Ion

Battery

High Capacity

Li-Ion Battery

Standard

Charging

Solution

2.5 hours 3.5 hours

BATTERY AND CHARGER

FEATURES

16

Charging with the Drop-in Tray

Single Unit Charger (SUC)

1. Place the drop-in tray charger on a flat surface.

2. Insert the connector of the power supply into the

Micro USB port on the front of the drop-in tray

charger.

3. Connect the correct power supply to a proper

AC outlet.

4. Insert the radio into the tray, making sure the

charging contacts on the charger are aligned

with the contacts on the radio.

Note: When charging a battery attached to a radio, turn

the radio OFF to ensure a full charge. The radio fits

in the charger with the holster attached when

placed face down in the tray.

Charging with the Drop-In Tray

Multi-Unit Charger (Optional

Accessory)

The Multi-Unit Charger (MUC) allows drop-in

charging of up to 6 radios. Each of the 6 charging

pockets can hold a radio (with battery installed).

The Multi-Unit Charger provides pockets for

headset storage.

1. Place the charger on a flat surface or mount it

on the wall.

2. Insert the power cord plug into the jack on the

MUC.

3. Plug the cord into an AC outlet and then into

charger.

4. Turn the radio OFF.

17

BATTERY AND CHARGER

FEATURES

Note: If the radio is ON while charging, it takes longer to

fully charge.

5. Insert the radio (with battery installed) into the

charging pocket.

Note: The radio fits in the charger with the holster

attached when placed face down in the tray. The

battery can be charged by itself using the slot on

the flat surface of the charging pocket.

Charging Status LEDs

On the drop-in charger, the radio charging pocket

has an LED Charger.

On the MUC, each of the 6 charging pockets has

an LED. The LEDs are grouped into pairs to show

which charging pockets are paired. The LED is red

when the battery is charging. It turns to green

once the battery is fully charged.

Note: This Multi Unit Charger allows you to clone up to 2

radios (2 Source radios and 2 Target radios). For

more details, refer to “Radio Cloning” Section on

page 25.

• For part number details, refer to the“Accessories”

Section on page 46.

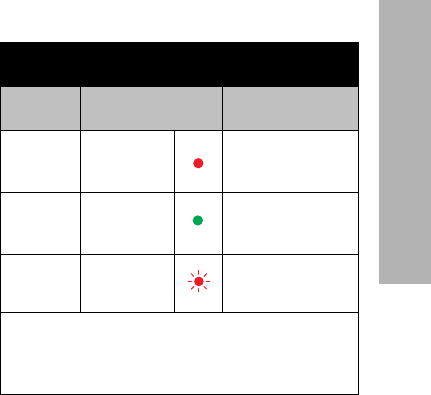

Charger LED Indicator

Status LED Status Comments

Charging Steady

Red

Indication

The charger is

currently charging.

Charge

Complete

Steady

Green

Indication

Battery is fully

charged.

Battery

Fault (*)

Blinking

Red

Battery was faulty

when inserted.

Note: The LED is red when the battery is charging. It turns

to green once the battery is fully charged.

Note: (*) Re-seating the battery pack likely corrects this

issue.

BATTERY AND CHARGER

FEATURES

18

Charging the Bluetooth Headset

Refer to your Bluetooth headset leaflet for charging

instruction.

Charging Bluetooth Headset with CLP

Series Drop-In Tray Multi-Unit Charger

and Cloning Cable (Optional Accessory)

You can also charge your Bluetooth headset with

CLP Series Multi Unit Charger (MUC) P/N

HKPN4007 (optional accessory) and Cloning

Cable P/N HKKN4026 (optional accessory).

• Plug one side of the cloning cable

microconnector to the USB port of the Multi-Unit

Charger (there are 6 USB port on top of the

accessory pockets)

• Plug the other end of the cloning cable to the

USB port of the Bluetooth headset for charging

Note: Refer to the charging status light on your Bluetooth

headset leaflet.

19

BATTERY AND CHARGER

FEATURES

Checking Battery Status

When powered on, short press and release the

Power/Battery button, the Smart Status Glow and

Voice Assisted Operation features (* ) gives you

the battery status of the radio.

After the Smart Status Glow and Voice Assisted

Operation features (*) indicate the BATTERY

STATUS, it returns to the current channel color.

Note: (*) May not be available on certain previous

shipping radios.

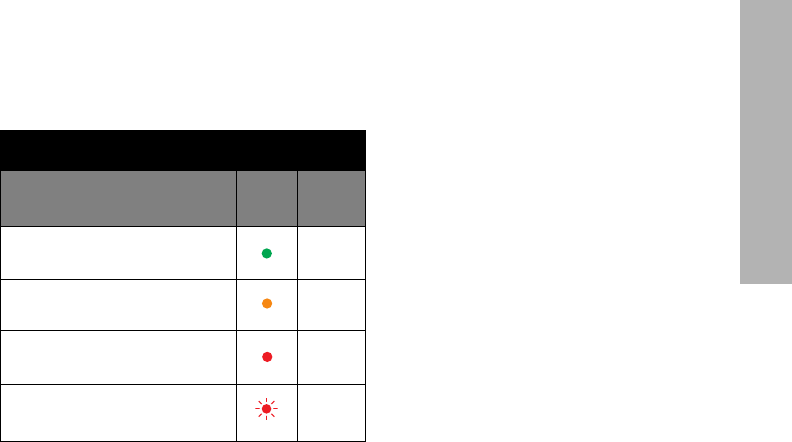

Battery Status

Level LED

Status Color

Battery Level High (70 –100%) Green

Battery Level Medium (30 – 70%) Orange

Battery Level Low (10 – 30%) Red

Battery Level Critical (0 – 10%) Blinking

Red

BATTERIES AND CHARGERS

SAFETY INFORMATION

20

BATTERIES AND

CHARGERS SAFETY

INFORMATION

This document contains important safety and

operating instructions. Read these instructions

carefully and save them for future reference.

Before using the battery charger, read all the

instructions and cautionary markings on

• the charger,

• the battery, and

• the radio using the battery

1. To reduce risk of injury, charge only the

rechargeable Motorola-authorized batteries.

Other batteries may explode, causing personal

injury and damage.

2. Use of accessories not recommended by

Motorola may result in risk of fire, electric

shock, or injury.

3. To reduce risk of damage to the electric plug

and cord, pull by the plug rather than the cord

when disconnecting the charger.

4. An extension cord should not be used unless

absolutely necessary. Use of an improper

extension cord could result in risk of fire and

electric shock. If an extension cord must be

used, make sure that the cord size is 18 AWG

for lengths up to 6.5 feet (2.0 m), and 16 AWG

for lengths up to 9.8 feet (3.0 m).

5. To reduce risk of fire, electric shock, or injury, do

not operate the charger if it has been broken or

damaged in any way. Take it to a qualified

Motorola service representative.

6. Do not disassemble the charger; it is not

repairable and replacement parts are not

available. Disassembly of the charger may

result in risk of electrical shock or fire.

7. To reduce risk of electric shock, unplug the

charger from the AC outlet before attempting

any maintenance or cleaning

BATTERIES AND CHARGERS

SAFETY INFORMATION

21

OPERATIONAL SAFETY GUIDELINES

• Turn the radio OFF when charging battery.

• The charger is not suitable for outdoor use. Use

only in dry locations/conditions.

• Connect charger only to an appropriately fused

and wired supply of the correct voltage (as

specified on the product).

• Disconnect charger from line voltage by removing

main plug.

• The outlet to which this equipment is connected

should be nearby and easily accessible.

• Maximum ambient temperature around the power

supply equipment must not exceed 40 °C

(104 °F).

• Make sure that the cord is located where it cannot

be stepped on, tripped over, or subjected to

water, damage, or stress.

PROGRAMMING THE RADIO

THROUGH THE CPS

22

PROGRAMMING THE

RADIO THROUGH THE CPS

RADIO PROGRAMMING OVERVIEW

Downloading the (Customer Programming

Software) CPS

You can program or change features on your CLP

radios by using the Computer Programming Software

(CPS) and the CPS Programming Cable (*). CPS

software is available for free as web based

downloadable software at: www.motorola.com/CLP

After downloading the CPS, install the software to

your computer.

Programming the Radio

To program the radio:

1. Connect the radio via the Drop-in Charger Tray

or the Charging Pocket with “PROG” label on

the Multi-Unit Charger and CPS Programming

Cable.

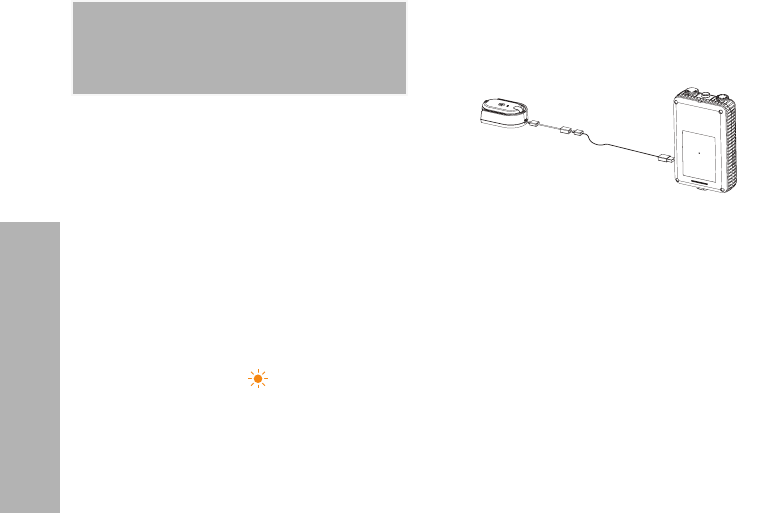

Programming the Radio through a Single Unit

Charger

Programming the Radio through a Multi-Unit

Charger

23

PROGRAMMING THE RADIO

THROUGH THE CPS

2. Make sure the radio is turned ON.

3. Once the radio is connected, open the CPS and

select “Read” on the toolbar to get the radio

profile. The CPS allows the user to change

settings, such as General, Audio, Menu,

Channels, Scan List, Customized PL/DPL,

Bluetooth (*) as well as select frequencies, PL/

DPL codes on each channel.

4. After you change the settings, press “Write” on

the toolbar to save the settings.

For more information on the Computer Programming

Software, please refer to Help menu on the CPS.

Note: (*) CPS Programming Cable (P/N HKKN4025) is an

accessory sold separately. Please contact your

Motorola Point of Purchase for more information.

Note: (*) Bluetooth is available on selected models only.

Factory Default Settings

Your radio is programmed at the factory to the

following settings:

CLP1010 1W UHF 1 CH Radios Default Settings - BRUS

Channel

#

Frequency

#

Frequency

Setting

Code

Value

(Hz)

Band

width

(kHz)

1 2 464.5500 67.0 12.5

CLP1040 1W UHF 4 CH Radios Default Settings - BRUS

Channel

#

Frequency

#

Frequency

Settings

Code

Value

(Hz)

Band

width

(kHz)

1 2 464.5500 67.0 12.5

2 8 467.9250 67.0 12.5

3 5 467.8500 67.0 12.5

4 6 467.8750 67.0 12.5

PROGRAMMING THE RADIO

THROUGH THE CPS

24

CLP1060 1W UHF 6 CH Bluetooth Radios Default

Settings - BRUS

Channel

#

Frequency

#

Frequency

Settings

Code

Value

(Hz)

Band

width

(kHz)

1 2 464.5500 67.0 12.5

2 8 467.9250 67.0 12.5

3 5 467.8500 67.0 12.5

4 6 467.8750 67.0 12.5

510 461.0625 67.0 12.5

612 461.1125 67.0 12.5

25

RADIO CLONING

CLONING RADIO SETTINGS

You can copy the CLP Series radio settings from

one radio (the source) to a second radio using the

CLP Series Single Unit Charger (SUC) Kit P/N

HKPN4008 and CLP Series Cloning Cable Kit P/N

HKKN4026 (optional accessory) or CLP Series

Multi-Unit Charger (MUC) Kit P/N HKPN4007

(optional accessory).

A multi-channel radio can be cloned to a single-

channel radio BUT only the first channel is cloned.

The Multi-Unit Charger (MUC) does not have to be

plugged in for cloning, but both radios require

charged batteries.

Note: The enhanced CLP software also uses the

LED to indicate “pass” or “fail” status during

cloning. Green LED during cloning indicates

“pass” status and red LED during cloning

indicates “fail” status.

CLONING INSTRUCTIONS

Cloning Radios using the CLP Series

Cloning Cable Kit P/N HKKN4026 (optional

accessory)

Source Radio: Radio to be cloned

Target Radio : Radio to which the configuration of the

“Source Radio” is to be copied.

Before beginning the cloning process, make

sure you have:

• A fully charged battery on each one of the

radios

• Two CLP Series Single Unit Charger (SUC) Kits

• Both radios are turned OFF

1. Unplug any cables (power supply or USB

cables) from the Single Unit Chargers.

Cloning the Radio through a Single

Unit Charger

RADIO CLONING

26

2. Plug one side of the cloning cable

microconnector to one Single Unit Charger.

Plug the other end to the second Single Unit

Charger.

Note: During the cloning process no power is

being applied to the Single Unit Charger.

The batteries cannot be charged. A data

communication is being established

between the two radios.

3. Turn ON the “Target Radio” and place it into

one of the Single Unit Chargers.

4. On the “Source Radio”, power the radio

following the sequence below:• Press and

hold the Push-to-Talk (PTT) and the “-“Button

simultaneously while turning the radio ON

until you hear the Cloning Tone and Double

Blinking Orange on the Smart Status

Glow.

5. Place the “Source Radio” in its Single Unit

Charger with an Audio accessory, then press

and release Menu Button to start the cloning

process.

6. After cloning is completed, the “Source

Radio” sounds either a “pass” tone (cloning

was successful) or a “fail” tone (cloning

process has failed). The pass tone sounds

like a good key “chirp” whereas the “fail” tone

sounds similar to a “bonk” tone.

(A tone is heard in no more than 5 seconds).

7. Once you have completed the cloning

process, you should turn the radios “OFF”

and “ON” to bring them to normal user mode

(exit “clone” mode).

27

RADIO CLONING

What to do if cloning fails

The radio emits an audible “bonk” indicating

that the cloning process has failed. In the event

that cloning fails, try performing each of the

following before trying to start the cloning

process again.

1. Make sure that the radio batteries on both

radios are fully charged.

2. Verify the cloning cable connection on both

Single Unit Chargers.

3. Make sure that the battery is engaged

properly on to the radio.

4. Make sure that there is no debris in the

charging tray or on the radio contacts.

5. Verify that the source radio is in cloning

mode.

6. Make sure that the radio to be cloned is

turned ON.

7. Make sure that radios are both from the

same type (same frequency band, same

region and same transmission power).

Note: This cloning cable is designed to operate

only with compatible Motorola Drop-in Tray

Single Unit Charger. When ordering the

cloning cable, please refer to CLP Series

Cloning Cable Kit P/N HKKN4026. For

details about accessories, refer to

"Accessories" Section on page 46.

RADIO CLONING

28

Cloning Radios using the CLP Series Multi-

Unit Charger (MUC) Kit P/N HKPN4007

(optional accessory)

1. To put the source radio into clone mode,

press and hold PTT and the “-” button while

turning the radio ON until you hear the

Cloning Tone and Double Blinking Orange

on the Smart Status Glow.

2. Place the source radio into one of the

charging pockets that has the “CLONE”

label.

3. Turn the target radio ON and place it in the

pairing charging pocket that has the

“CLONE” label and start the cloning process.

4. Press the “Menu” button on the source radio

to start the cloning process. The source

radio generates the start clone tone.

5. Once the cloning is completed, turn the

target radio OFF and back ON again in order

to activate the radio.

6. To clone another radio, repeat steps 3, 4 and

5.

7. To exit clone mode on the source radio, turn

the radio OFF.

Cloning the Radio through a Multi-Unit

Charger

29

ADVANCED RADIO

CONFIGURATION (*)

ADVANCED RADIO

CONFIGURATION (*)

(*) Enhancement feature on CLP radios. May not

be available on previous shipping radios.

Advanced Radio Configuration provides you with

the ability to view and configure the following

settings without the need to use a computer.

• Channels

• Frequencies

• Codes (CTCC/DPL)

Frequencies allows the user to select frequencies

for each channel. Codes helps minimize

interference by providing the user with a choice of

code combinations that filter out static, noise, and

unwanted messages.

Entering Advanced Radio Configuration

Mode

Available when the device is powered OFF.

Note: For Bluetooth models, makes sure the wired

accessory is connected or the Bluetooth headset is

paired before entering Advanced Radio

Configuration Mode.

1. Press the PTT, + Button and Power button

and hold for 3 to 5 seconds until you hear a

“chirp” sound and the voice prompt

“Programming Mode”.

Note: The LED Indicator starts blinking a green heartbeat.

2. Press the Menu button to change the

settings on:

• Channel (for multi-channel models)

• RX frequency

• TX frequency*

•RX code

• TX code*

Note: TX frequencies and TX codes are only available for

repeater channels.

3. The voice announcements indicate the menu

items and their current settings. To change,

press +/- button; to go to the next menu item,

press Menu button.

4. Short press PTT or wait 15 seconds to exit

the menu.

5. Press and hold the PTT button to exit the

Advanced Radio Configuration Mode.

30

CLP REPEATER CAPABILITY:

WORKING WITH RPX

CLP REPEATER

CAPABILITY: WORKING

WITH RPX

CLP REPEATER CAPABILITY

Use the Single Unit Charger or use the pocket with

“PROG” label on the Multi-Unit Charger to clone

the RPX.

Note: Connect the RDX Serial Clone Cable (P/N

RLN6303) and the Mini-USB to the Micro-USB

Adapter Cable in order to link the CLP and RPX

units.

INSTRUCTIONS

1. To put the CLP radio into clone mode, press

and hold PTT and the “-” button while turning

the radio ON until you hear the Cloning Tone

and Blinking Orange on the Smart Status

Glow.

Programming the RPX through a

Single Unit Charger

1. Place the CLP radio into the charging

pocket.

2. Connect the micro-USB plug of the micro-

USB adapter cable with the RDX Serial

Clone Cable into the micro-USB receptable

charging pockets.

3. Connect the Mini-USB plug of the RDX

Serial Clone Cable into the RPX Mini-USB

receptable.

Programming the RPX through a Single Unit

Charger

CLP REPEATER CAPABILITY:

WORKING WITH RPX

31

4. Press the “Menu” button on the CLP radio to

start the cloning process.

5. Once the cloning is completed, turn the RPX

OFF and back ON again in order to activate

the radio.

6. To clone another RPX, repeat steps 3, 4 and

5.

7. To exit clone mode on the CLP radio, turn the

radio OFF.

Programming the RPX through a

Multi-Unit Charger

1. Place the CLP radio into one of the charging

pockets that has the “PROG” label indicated.

2. Connect the micro-USB plug of the micro-

USB adapter cable with the RDX Serial

Clone Cable into the micro-USB receptable

charging pockets with the “PROG” label

indicated.

3. Follow steps 4 through 7 under

"Programming the RPX through a Single Unit

Charger" on page 30.

Programming the RPX through a Multi-Unit

Charger

TROUBLESHOOTING

32

TROUBLESHOOTING

Symptom Try this

No Power Recharge or replace Li-Ion battery.

Extreme operating temperatures affect battery life.

Refer to “About the Li-Ion Battery” Section on page 12.

Hearing other noises or

conversation on a channel

Confirm Interference Eliminator Code is set.

Frequency or Interference Eliminator Code may be in use.

Change settings: either change frequencies or codes on all

radios.

Make sure radio is at the right frequency and code when

transmitting.

Message Scrambled Scramble Code might be ON, and/or setting does not match

other radios' settings. Use CPS to change settings.

Audio quality not good enough Radio settings might not be matching up correctly.

Double check frequencies, codes and bandwidths to ensure

they are identical in all radios.

TROUBLESHOOTING

33

Limited talk range Steel and/or concrete structures, heavy foliage, buildings or

vehicles decrease range. Check for clear line of sight to

improve transmission.

Change location of radio. To increase range and coverage, you

can either reduce obstructions or increase power.

UHF radios provide greater coverage in industrial and

commercial buildings.

Increasing power provides greater signal range and increased

penetration through obstructions.

Message not transmitted/

received

Make sure the PTT button is completely pressed when

transmitting.

Confirm that the radios have the same Channel, Frequency,

Interference Eliminator Code and Scramble Code settings.

Refer to “Transmitting and Receiving” Section on page 7.

Recharge, replace and/or reposition batteries. Refer to “About

the Li-Ion Battery” Section on page 12.

Obstructions and operating indoors, or in vehicles, may

interfere. Change location.

Verify that the radio is not in Scan mode. Refer to “Scanning”

Section on page 10.

Symptom Try this

TROUBLESHOOTING

34

Heavy static or interference Radios are too close, they must be at least five feet apart.

Radios are too far apart or obstacles are interfering with

transmission.

Low batteries Recharge or replace Li-Ion battery.

Extreme operating temperatures affect battery life.

Refer to “About the Li-Ion Battery” Section on page 12.

Drop-in Charger LED light does

not blink

Check radio/battery is properly inserted and check battery/

charger contacts to ensure they are clean and the charging pin

is inserted correctly. Refer to “Charging the Battery” Section on

page 15 and “Charger LED Indicator” Section on page 17.

Cannot activate VOX VOX feature might be OFF.

Use the CPS to ensure that the VOX Sensitivity Level is not set

to “0”.

Accessory not working or not compatible.

Battery doesn't charge although it

has been placed in the drop-in

charger for a while

Check drop-in charger is connected and correspond to a

compatible power supply.

Refer to “Charging the Battery” Section on page 15.

Check the charger LEDs indicators to see if battery has a

problem. Refer to “Charger LED Indicator” Section on page 17.

Symptom Try this

TROUBLESHOOTING

35

Unable to pair a Bluetooth

headset

Make sure the target Bluetooth headset is not connected to

another device.

Unable to connect to a Bluetooth

headset

Make sure the target Bluetooth headset is not connected to

another device.

Pairing with wrong Bluetooth

headset

Don’t perform pairing procedures next to other Bluetooth

headset devices.

CLP Bluetooth uses proximity pairing. Make sure the headset is

placed next to the CLP radio.

Note: Whenever a feature in your radio seems to not correspond to the default or preprogrammed values,

check if your radio have been programmed using CPS with a customized profile.

Symptom Try this

USE AND CARE

36

USE AND CARE

Use a soft damp cloth

to clean the exterior.

Turn OFF and

remove batteries.

Dry with soft cloth. Do not use until

completely dry.

Do not immerse in water. Do not use alcohol or

cleaning solutions.

If the portable is submerged in water...

37

RADIO FREQUENCY AND

CODE CHARTS

RADIO FREQUENCY AND CODE CHARTS

These charts provide frequency information and are useful when using Motorola CLP Series Two-

Way Radios with other business radios. Most of the frequency positions are the same as Spirit M,

GT, S, XTN, RDX and CLS Series frequency positions (where applicable), the bandwidths are

different.

CLP UHF Frequencies

Freq.

#

Frequency

(MHz)

Band

width

(kHz)

Freq.

#

Frequency

(MHz)

Band

width

(kHz)

Freq.

#

Frequenc

y (MHz)

Band

width

(kHz)

Freq.

#

Frequenc

y (MHz)

Band

width

(kHz)

1464.5000 12.5 13 461.1375 12.5 25 462.8125 12.5 37 466.1125 12.5

2464.5500 12.5 14 461.1625 12.5 26 462.8375 12.5 38 466.1375 12.5

3467.7625 12.5 15 461.1875 12.5 27 462.8625 12.5 39 466.1625 12.5

4467.8125 12.5 16 461. 2125 12.5 28 462.8875 12.5 40 466.1875 12.5

5467.8500 12.5 17 461.2375 12.5 29 462.9125 12.5 41 466.2125 12.5

6467.8750 12.5 18 461.2625 12.5 30 464.4875 12.5 42 466.2375 12.5

7467.9000 12.5 19 461.2875 12.5 31 464.8375 12.5 43 466.2625 12.5

8467.9250 12.5 20 461.3125 12.5 32 464.5375 12.5 44 466.2825 12.5

9461.0375 12.5 21 461.3175 12.5 33 464.5625 12.5 45 466.3125 12.5

10 461.0625 12.5 22 461.3625 12.5 34 466.0375 12.5 46 466.3375 12.5

11 461.0875 12.5 23 462.7625 12.5 35 466.0625 12.5 47 466.3625 12.5

12 461.1125 12.5 24 462.7875 12.5 36 466.0875 12.5 48 467.7875 12.5

RADIO FREQUENCY AND

CODE CHARTS

38

49 467.8375 12.5 60 462.5125 12.5 71 451.6375 12.5 81 468.2125 12.5

50 467.8625 12.5 61 467.1875 12.5 72 452.3125 12.5 82 468.2625 12.5

51 467.8875 12.5 62 467.4625 12.5 73 452.5375 12.5 83 468.3125 12.5

52 467.9125 12.5 63 467.4875 12.5 74 452.4125 12.5 84 468.3625 12.5

53 469.4875 12.5 64 467.5125 12.5 75 452.5125 12.5 85 468.4125 12.5

54 469.5125 12.5 65 451.1875 12.5 76 452.7625 12.5 86 468.4625 12.5

55 469.5375 12.5 66 451.2375 12.5 77 452.8265 12.5 87 468.5125 12.5

56 469.5625 12.5 67 451.2875 12.5 78 456.1875 12.5 88 468.5625 12.5

57 462.1875 12.5 68 451.3375 12.5 79 456.2375 12.5 89 468.6125 12.5

58 462.4625 12.5 69 451.4375 12.5 80 456.2875 12.5 90 468.6625 12.5

59 462.4875 12.5 70 451.5375 12.5

CLP UHF Frequencies

Freq.

#

Frequency

(MHz)

Band

width

(kHz)

Freq.

#

Frequency

(MHz)

Band

width

(kHz)

Freq.

#

Frequenc

y (MHz)

Band

width

(kHz)

Freq.

#

Frequenc

y (MHz)

Band

width

(kHz)

39

RADIO FREQUENCY AND

CODE CHARTS

CTCSS/DPL Interference Eliminator Codes

CTCSS Code CTCSS/DPL Code DPL Code DPL Code DPL Code

0Disabled 24 151.4 47 54 71 243 95 445

167 25 156.7 48 65 72 244 96 464

271.9 26 162.2 49 71 73 245 97 465

374.4 27 167.9 50 72 74 251 98 466

477 28 173.8 51 73 75 261 99 503

579.7 29 179.9 52 74 76 263 100 506

682.5 30 186.2 53 114 77 265 101 516

785.4 31 192.8 54 115 78 271 102 532

888.5 32 203.5 55 116 79 306 103 546

991.5 33 210.7 56 125 80 311 104 565

10 94.8 34 218.1 57 131 81 315 105 606

11 97.4 35 225.7 58 132 82 331 106 612

12 100 36 233.6 59 134 83 343 107 624

13 103.5 37 241.8 60 143 84 346 108 627

14 107.2 38 250.3 61 152 85 351 109 631

15 110.9 122 69.3 62 155 86 364 11 0 632

16 114.8 39 23 63 156 87 365 111 654

17 118.8 40 25 64 162 88 371 112 662

18 123 41 26 65 165 89 411 113 664

19 127.3 42 31 66 172 90 412 114 703

20 131.8 43 32 67 174 91 413 115 712

21 136.5 44 43 68 205 92 423 116 723

22 141.3 45 47 69 223 93 431 117 731

23 146.2 46 51 70 226 94 432 118 732

119 734

RADIO FREQUENCY AND

CODE CHARTS

40

CTCSS/DPL Interference Eliminator Codes (cont’d)

DPL Code DPL Code DPL Code DPL Code

120 743 146 Inverted DPL 55 171 Inverted DPL 80 195 Inverted DPL 104

121 754 147 Inverted DPL 56 172 Inverted DPL 81 196 Inverted DPL 105

123 645 148 Inverted DPL 57 173 Inverted DPL 82 197 Inverted DPL 106

124 Customized PL 149 Inverted DPL 58 174 Inverted DPL 83 198 Inverted DPL 107

125 Customized PL 150 Inverted DPL 59 175 Inverted DPL 84 199 Inverted DPL 108

126 Customized PL 151 Inverted DPL 60 176 Inverted DPL 85 200 Inverted DPL 109

127 Customized PL 152 Inverted DPL 61 177 Inverted DPL 86 201 Inverted DPL 110

128 Customized PL 153 Inverted DPL 62 178 Inverted DPL 87 202 Inverted DPL 111

129 Customized PL 154 Inverted DPL 63 179 Inverted DPL 88 203 Inverted DPL 112

130 Inverted DPL 39 155 Inverted DPL 64 180 Inverted DPL 89 204 Inverted DPL 113

131 Inverted DPL 40 156 Inverted DPL 65 181 Inverted DPL 90 205 Inverted DPL 114

132 Inverted DPL 41 157 Inverted DPL 66 181 Inverted DPL 90 206 Inverted DPL 115

133 Inverted DPL 42 158 Inverted DPL 67 182 Inverted DPL 91 207 Inverted DPL 116

134 Inverted DPL 43 159 Inverted DPL 68 183 Inverted DPL 92 208 Inverted DPL 117

135 Inverted DPL 44 160 Inverted DPL 69 184 Inverted DPL 93 209 Inverted DPL 118

136 Inverted DPL 45 161 Inverted DPL 70 185 Inverted DPL 94 210 Inverted DPL 119

137 Inverted DPL 46 162 Inverted DPL 71 186 Inverted DPL 95 211 Inverted DPL 120

138 Inverted DPL 47 163 Inverted DPL 72 187 Inverted DPL 96 212 Inverted DPL 121

139 Inverted DPL 48 164 Inverted DPL 73 188 Inverted DPL 97 213 Inverted DPL 123

140 Inverted DPL 49 165 Inverted DPL 74 189 Inverted DPL 98 214 Customized DPL

141 Inverted DPL 50 166 Inverted DPL 75 190 Inverted DPL 99 215 Customized DPL

142 Inverted DPL 51 167 Inverted DPL 76 191 Inverted DPL 100 216 Customized DPL

143 Inverted DPL 52 168 Inverted DPL 77 192 Inverted DPL 101 217 Customized DPL

144 Inverted DPL 53 169 Inverted DPL 78 193 Inverted DPL 102 218 Customized DPL

145 Inverted DPL 54 170 Inverted DPL 79 194 Inverted DPL 103 219 Customized DPL

WARRANTY

41

MOTOROLA LIMITED

WARRANTY FOR THE

UNITED STATES AND

CANADA

What Does this Warranty Cover?

Subject to the exclusions contained below,

Motorola, Inc. warrants its telephones, pagers, and

consumer and business two-way radios (excluding

commercial, government or industrial radios) that

operate via Family Radio Service or General

Mobile Radio Service, Motorola-branded or

certified accessories sold for use with these

Products (“Accessories”) and Motorola software

contained on CD-ROMs or other tangible media

and sold for use with these Products (“Software”)

to be free from defects in materials and

workmanship under normal consumer usage for

the period(s) outlined below.

This limited warranty is a consumer's exclusive

remedy, and applies as follows to new Motorola

Products, Accessories and Software purchased by

consumers in the United States and Canada,

which are accompanied by this written warranty.

Products and Accessories

Products Covered Length of Coverage

Products and

Accessories as

defined above, unless

otherwise provided for

below.

One (1) year from the date

of purchase by the first

consumer purchaser of the

product unless otherwise

provided for below.

Decorative

Accessories and

Cases.

Decorative covers,

bezels, PhoneWrap™

covers and cases.

Limited lifetime warranty

for the lifetime of

ownership by the first

consumer purchaser of the

product.

Business Two-way

Radio Accessories

One (1) year from the date

of purchase by the first

consumer purchaser of the

product.

Products and

Accessories that are

Repaired or

Replaced.

The balance of the

original warranty or for

ninety (90) days from the

date returned to the

consumer, whichever is

longer.

WARRANTY

42

Exclusions

Normal Wear and Tear. Periodic maintenance,

repair and replacement of parts due to normal

wear and tear are excluded from coverage.

Batteries. Only batteries whose fully charged

capacity falls below 80 % of their rated capacity

and batteries that leak are covered by this limited

warranty.

Abuse & Misuse. Defects or damage that result

from: (a) improper operation, storage, misuse or

abuse, accident or neglect, such as physical

damage (cracks, scratches, etc.) to the surface of

the product resulting from misuse; (b) contact with

liquid, water, rain, extreme humidity or heavy

perspiration, sand, dirt or the like, extreme heat, or

food; (c) use of the Products or Accessories for

commercial purposes or subjecting the Product or

Accessory to abnormal usage or conditions; or (d)

other acts which are not the fault of Motorola, are

excluded from coverage.

Use of Non-Motorola Products and

Accessories. Defects or damage that result from

the use of Non-Motorola branded or certified

Products, Accessories, Software or other

peripheral equipment are excluded from coverage.

Unauthorized Service or Modification. Defects

or damages resulting from service, testing,

adjustment, installation, maintenance, alteration,

or modification in any way by someone other than

Motorola, or its authorized service centers, are

excluded from coverage.

Altered Products. Products or Accessories with

(a) serial numbers or date tags that have been

removed, altered or obliterated; (b) broken seals

or that show evidence of tampering; (c)

mismatched board serial numbers; or (d)

nonconforming or non-Motorola housings, or

parts, are excluded form coverage.

WARRANTY

43

Communication Services. Defects, damages, or

the failure of Products, Accessories or Software

due to any communication service or signal you

may subscribe to or use with the Products

Accessories or Software is excluded from

coverage.

Software

Exclusions

Software Embodied in Physical Media. No

warranty is made that the software will meet your

requirements or will work in combination with any

hardware or software applications provided by

third parties, that the operation of the software

products will be uninterrupted or error free, or that

all defects in the software products will be

corrected.

Software NOT Embodied in Physical Media.

Software that is not embodied in physical media

(e.g. software that is downloaded from the

internet), is provided “as is” and without warranty.

WHO IS COVERED?

This warranty extends only to the first consumer

purchaser, and is not transferable.

WHAT WE WILL DO TO CORRECT

WARRANTY PROBLEMS

At no charge to you, we have the option to repair

or replace the Products or software that do not

conform to the warranty, or to refund the Products’

purchase price. We may use functionally

equivalent reconditioned/refurbished/pre-owned or

new Products or parts. No software updates are

provided.

HOW TO OBTAIN WARRANTY SERVICE OR

OTHER INFORMATION?

Contact your Motorola point of purchase.

Please call:

1-800-448- 6686 in the USA

1-800-461-4575 in Canada

1-866-522-5210 on your TTY (Text Telephone)

Products Covered Length of Coverage

Software. Applies only

to physical defects in

the media that

embodies the copy of

the software (e.g. CD-

ROM, or floppy disk).

Ninety (90) days from the

date of purchase.

WARRANTY

44

You will receive instructions on how to ship the

Products to Motorola. You must ship the Products

to us with freight, duties and insurance prepaid.

Along with the Products you must include:

(a) a copy of your receipt, bill of sale or other

comparable proof of purchase;

(b) a written description of the problem;

(c) the name of your service provider (if this

Product requires subscription service);

(d) the name and location of the installation facility

(if applicable) and, most importantly;

(e) your address and telephone number. If

requested, you must also return all detachable

parts such as antennas, batteries and chargers.

RETAIN YOUR ORIGINAL PROOF OF

PURCHASE

We will ship repaired or replacement Products at

our expense for the freight and insurance, but at

your expense for any duties. If additional

information is needed, please contact us at the

telephone number listed above.

SOFTWARE COPYRIGHT NOTICE

The Motorola products described in this manual

may include copyrighted Motorola and third party

software stored in semiconductor memories or

other media. Laws in the United States and other

countries preserve for Motorola and third party

software providers certain exclusive rights for

copyrighted software, such as the exclusive rights

to distribute or reproduce the copyrighted

software. Accordingly, any copyrighted software

contained in the Motorola products may not be

modified, reverse-engineered, distributed, or

reproduced in any manner to the extent allowed by

law.

Furthermore, the purchase of the Motorola

products shall not be deemed to grant either

directly or by implication, estoppel, or otherwise,

any license under the copyrights, patents, or

patent applications of Motorola or any third party

software provider, except for the normal, non-

exclusive, royalty-free license to use that arises by

operation of law in the sale of a product.

WARRANTY

45

PATENT NOTICE

This product is covered by one or more of the

following United States patents.

5896277 5894292 5864752 5699006 5742484

D408396 D399821 D387758 D389158 5894592

5893027 5789098 5734975 5861850 D395882

D383745 D389827 D389139 5929825 5926514

5953640 6071640 D413022 D416252 D416893

D433001

EXPORT LAW ASSURANCES

This product is controlled under the export

regulations of the United States of America. The

Governments of the United States of America may

restrict the exportation or re-exportation of this

product to certain destinations. For further

information contact the U.S. Department of

Commerce.

ACCESSORIES

46

ACCESSORIES

AUDIO ACCESSORIES

BATTERIES

CARRY ACCESSORIES

Part No. Description

HKLN4435_ CLP Series Single Pin

Adjustable Cord Earpiece

HKLN4436_ CLP Series Single Pin

Adjustable Inline PTT Earpiece

HKLN4437_ CLP Single Pin Short Cord

Earpiece

HKLN4455_ CLP Single Pin Non-Adjustable

PTT Earpiece

Part No. Description

HKNN4013_ CLP Series High Capacity

Li-Ion Battery Kit

HKNN4014_ CLP Series Standard Li-Ion

Battery Kit

HKLN4440_ CLP High Capacity Li-Ion

Battery Door Kit

HKLN4441_ CLP Standard Li-Ion Battery

Door Kit

Part No. Description

HKLN4433_ CLP Series Magnetic Case (*)

HKLN4438_ CLP Series Swivel Belt Clip

Holster

ACCESSORIES

47

CHARGERS

PROGRAMMING CABLES

Note: (*) Certain accessories may be or may not be

available at the time of purchase. For latest

information on accessories, contact your Motorola

point of purchase or visit: www.motorola.com/CLP

For product-related questions, contact:

1-800-448- 6686 in the USA

1-800-461-4575 in Canada

1-866-522-5210 on your TTY (Text Telephone)

Part No. Description

HKPN4007_ CLP Series Multi Unit Charger

(MUC) Kit

HKPN4008_ CLP Series Single Unit Charger

(SUC) Kit

Part No. Description

HKKN4025_ CLP Series CPS Cable Kit

HKKN4026_ CLP Series Cloning Cable Kit

RLN6303_ RDX Serial Clone Cable

ACCESSORIES

48

Notes

M

Motorola Inc.

1301 E. Algonquin Rd.

Schaumburg, IL 60196-1078 U.S.A.

MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office.

All other product or service names are the property of their respective owners.

Printed in Malaysia.

*68012000044*

68012000044-C

Motorola Solutions 89FT4902 PORTABLE 2-WAY RADIO User Manual 2000044 C CLP en

Motorola Solutions, Inc. PORTABLE 2-WAY RADIO 2000044 C CLP en

Contents

Users Manual

Navigation menu

Namespaces

Views

Navigation
