User Manual 1
M
Models RMU2080 & RMV2080
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or
registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All
other trademarks are the property of their respective owners. ©2013 Motorola, Inc. All rights
reserved. Printed in Malaysia.
Motorola Solutions, Inc. 1301 East Algonquin Road Schaumburg, Illinois 60196,
U.S.A. 800-367-2346 www.motorolasolutions.com
CONTENTS
English
1
CONTENTS
Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Introduction . . . . . . . . . . . . . . . . . . . . . . . . .5
Package Contents . . . . . . . . . . . . . . . . . . . . . .5
Batteries and Chargers
Safety Information . . . . . . . . . . . . . . . . . . . .7
Operational Safety Guidelines. . . . . . . . . . . . .8
FCC Licensing Information . . . . . . . . . . . . .9
Interference Information . . . . . . . . . . . . . . . . .9
Radio Overview . . . . . . . . . . . . . . . . . . . . .11
Parts of the Radio . . . . . . . . . . . . . . . . . . . . .11
On/Off/Volume Knob. . . . . . . . . . . . . . . .12
Channel Selector Knob . . . . . . . . . . . . . .12
Accessory Connector . . . . . . . . . . . . . . .12
Model Label . . . . . . . . . . . . . . . . . . . . . .12
Microphone . . . . . . . . . . . . . . . . . . . . . . .12
Antenna. . . . . . . . . . . . . . . . . . . . . . . . . .12
LED Indicator . . . . . . . . . . . . . . . . . . . . . 12
Side Buttons . . . . . . . . . . . . . . . . . . . . . 12
The Lithium-Ion (Li-Ion) Battery . . . . . . . 12
Battery Features. . . . . . . . . . . . . . . . . . . . . . 14
About the Li-Ion Battery . . . . . . . . . . . . . 14
Battery Recycling and Disposal . . . . . . . 15
Installing the Lithium-Ion
(Li-Ion) Battery . . . . . . . . . . . . . . . . . . . . 16
Removing the Lithium-Ion
(Li-Ion) Battery . . . . . . . . . . . . . . . . . . . . 16
Power Supply, Adaptor and
Drop-in Tray Charger. . . . . . . . . . . . . . . 19
Battery Life Information . . . . . . . . . . . . . 20
Charging the Battery . . . . . . . . . . . . . . . 22
CONTENTS
English 2
Getting Started . . . . . . . . . . . . . . . . . . . . . .29
Turning radio ON/OFF. . . . . . . . . . . . . . . . . .29
Adjusting Volume . . . . . . . . . . . . . . . . . . . . .29
Selecting a Channel . . . . . . . . . . . . . . . . . . .29
Talking and Monitoring . . . . . . . . . . . . . . . . .29
Receiving a Call . . . . . . . . . . . . . . . . . . . . . .30
Talk Range . . . . . . . . . . . . . . . . . . . . . . . . . .30
Radio LED Indicators . . . . . . . . . . . . . . . . . .32
Hands-Free Use/VOX . . . . . . . . . . . . . . . . . .33
With Compatible VOX Accessories. . . . .33
Setting VOX Sensitivity . . . . . . . . . . . . . .34
Microphone Gain. . . . . . . . . . . . . . . . . . .34
Battery Save . . . . . . . . . . . . . . . . . . . . . .34
Reset to Factory Defaults . . . . . . . . . . . .34
End of Transmission Tone
(Roger Beep Tone) . . . . . . . . . . . . . . . . .35
Programming Features . . . . . . . . . . . . . . .36
Programming Mode. . . . . . . . . . . . . . . . . . . .36
Reading the Values
the Radio Signals You . . . . . . . . . . . . . .36
Entering Programming Mode . . . . . . . . .39
Reading Frequencies Values . . . . . . . . .39
Reading CTCSS/DPL Values . . . . . . . . 40
Reading Auto-Scan Values . . . . . . . . . . 41
Programming Frequencies, Codes,
Auto-Scan an Active Channels . . . . . . . 41
Programming Mode FAQ. . . . . . . . . . . . 42
Programming Values Example. . . . . . . . . . . 43
Example of Programming
a Frequency. . . . . . . . . . . . . . . . . . . . . . 43
Example of Programming
a Code . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Example of Programming
Auto-Scan . . . . . . . . . . . . . . . . . . . . . . . 45
Other Programming Features . . . . . . . . . . . 46
Scan. . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Editing Scan List . . . . . . . . . . . . . . . . . . 47
Nuisance Channel Delete . . . . . . . . . . . 47
CPS (Computer Programming Software) . . . 48
Time-Out Timer . . . . . . . . . . . . . . . . . . . 49
Power Select . . . . . . . . . . . . . . . . . . . . . 49
Battery Type Setting . . . . . . . . . . . . . . . 49
Call Tones . . . . . . . . . . . . . . . . . . . . . . . 49
Scramble . . . . . . . . . . . . . . . . . . . . . 50
Reverse Burst . . . . . . . . . . . . . . . . . . . . 50
CONTENTS
English
3
Cloning Radios . . . . . . . . . . . . . . . . . . . . . . .51
Cloning with a Multi
Unit Charger (MUC) . . . . . . . . . . . . . . . .51
Cloning Radio using
the Radio to Radio (R2R) Cloning
Cable (Optional Accessory) . . . . . . . . . .53
Cloning using the CPS (Computer
Programming Software) . . . . . . . . . . . . .55
Troubleshooting . . . . . . . . . . . . . . . . . . . . .56
Use and Care . . . . . . . . . . . . . . . . . . . . . . .60
Frequency and Code Charts . . . . . . . . . . .61
RMV VHF Frequencies Chart . . . . . . . . . . . .61
RMV2080 - VHF
Default Frequencies Chart . . . . . . . . . . . . . .63
RMU UHF Frequencies Chart . . . . . . . . . . . .65
RMU2080 - UHF
Default Frequencies Chart . . . . . . . . . . . . . .69
CTCSS and PL/DPL Codes . . . . . . . . . . . . . 71
Motorola Limited Warranty for the United
States and Canada . . . . . . . . . . . . . . . . . . 76
Accessories . . . . . . . . . . . . . . . . . . . . . . . . 80
Audio Accessories . . . . . . . . . . . . . . . . . . . . 80
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Carry Accessories . . . . . . . . . . . . . . . . . . . . 81
Power Supplies AC Pin Adaptors. . . . . . . . . 81
Software Applications. . . . . . . . . . . . . . . . . . 81
Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Chargers . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Power Supplies . . . . . . . . . . . . . . . . . . . . . . 82
RM Series Features Summary . . . . . . 83
Programmable Buttons Chart . . . . . . . . . 93
Icons Chart . . . . . . . . . . . . . . . . . . . . . . . . 94
SAFETY
English 4
SAFETY
PRODUCT SAFETY AND RF
EXPOSURE COMPLIANCE
ATTENTION!
This radio is restricted to occupational use only
to satisfy FCC RF energy exposure
requirements.
For a list of Motorola-approved antennas,
batteries, and other accessories, visit the
following website which lists approved
accessories:
www.motorolasolutions.com/RMseries
Before using this product,
read the operating
instructions and RF energy
awareness information
contained in the Product
Safety and RF Exposure
booklet enclosed with your
radio.
!
C
a u t i o
n
INTRODUCTION
English
5
INTRODUCTION
Thank you for purchasing the Motorola® RM
Series Radio. This radio is a product of
Motorola's 80 plus years of experience as a
world leader in the designing and
manufacturing of communications equipment.
The RM Series™ radios provide cost-effective
communications for businesses such as retail
stores, restaurants, schools, construction sites,
manufacturing, property, hotel management
and more. Motorola Business two-way radios
are the perfect communications solution for all
of today's fast-paced industries. Note:. Read
this user guide carefully to ensure you
know how to properly operate the radio
before use
Business Radios,
Mailstop 1C15, Motorola
8000 West Sunrise Boulevard
Plantation, Florida 33322

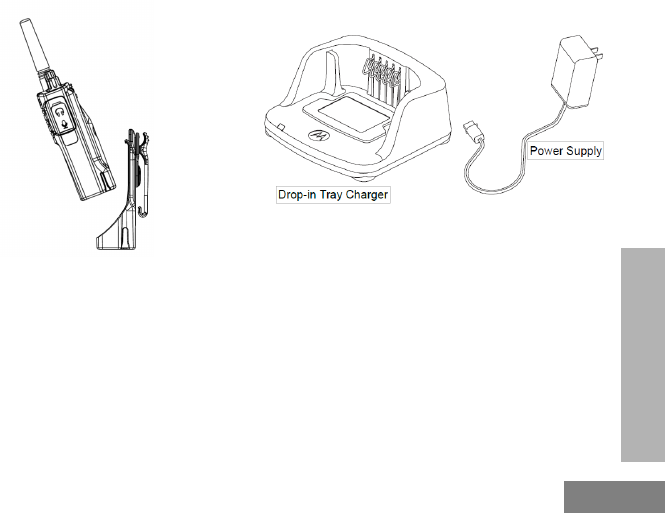

PACKAGE CONTENTS
• Radio
•Holster
• Lithium-Ion Battery
• Power Supply
•Quick Reference Guide
• Warranty Card
• Drop-in Tray Charger
• Product Safety & RF Exposure Booklet
INTRODUCTION
English 6
For a copy of a large-print version of this user
guide or for product-related questions, contact:
1-800-448-6686 in the USA
1-866-522-5210 on your TTY (Text
Telephone)
For product information visit us at:
www.motorolasolutions.com/RMseries
BATTERIES AND CHARGERS
SAFETY INFORMATION
English
7
BATTERIES AND
CHARGERS SAFETY
INFORMATION
This document contains important safety and
operating instructions. Read these instructions
carefully and save them for future reference.
Before using the battery charger, read all the
instructions and cautionary markings on
•The charger,
•The battery, and
•The radio using the battery
1. To reduce risk of injury, charge only the
rechargeable Motorola-authorized batteries.
Other batteries may explode, causing personal
injury and damage.
2. Use of accessories not recommended by
Motorola may result in risk of fire, electric
shock, or injury.
3. To reduce risk of damage to the electric plug
and cord, pull by the plug rather than the cord
when disconnecting the charger.
4. An extension cord should not be used unless
absolutely necessary. Use of an improper
extension cord could result in risk of fire and
electric shock. If an extension cord must be
used, make sure that the cord size is 18AWG
for lengths up to 6.5 feet (2.0 m), and 16AWG
for lengths up to 9.8 feet (3.0 m).
5. To reduce risk of fire, electric shock, or injury, do
not operate the charger if it has been broken or
damaged in any way. Take it to a qualified
Motorola service representative.
6. Do not disassemble the charger; it is not
repairable and replacement parts are not
available. Disassembly of the charger may
result in risk of electrical shock or fire.
7. To reduce risk of electric shock, unplug the
charger from the AC outlet before attempting
any maintenance or cleaning
BATTERIES AND CHARGERS
SAFETY INFORMATION
English 8
OPERATIONAL SAFETY
GUIDELINES
• Turn the radio OFF when charging battery.
• The charger is not suitable for outdoor use. Use
only in dry locations/conditions.
• Connect charger only to an appropriately fused
and wired supply of the correct voltage (as
specified on the product).
• Disconnect charger from line voltage by removing
main plug.
• The outlet to which this equipment is connected
should be nearby and easily accessible.
• Maximum ambient temperature around the power
supply equipment must not exceed 40°C (104°F).
• Make sure that the cord is located where it will
not be stepped on, tripped over, or subjected to
water, damage, or stress.
FCC LICENSING
INFORMATION
English
9
FCC LICENSING
INFORMATION
INTERFERENCE INFORMATION
This device complies with Part 15 of the FCC
Rules. Operation is subject to the condition that
this device does not cause harmful
interference.
RM Series Business two-way radios operate
on radio frequencies that are regulated by the
Federal Communications Commission
(FCC). To transmit on these frequencies, you
are required to have a license issued by the
FCC. Application is made available on FCC
Form 601 and Schedules D, H, and Remittance
Form 159.
To obtain these FCC forms, request document
000601 which includes all forms and
instructions. If you wish to have the document
faxed, mailed or have questions, use the
following contact information.
Faxed contact the
Fax-On- Demand
system at:
Mailed call the FCC forms hotline at: Questions regarding FCC
license contact the FCC at:
1-202-418-0177 1-800-418-FORM
1-800-418-3676
1-888-CALL-FCC
1-888-225-5322
Or: http://www.fcc.gov
FCC LICENSING
INFORMATION
English 10
Before filling out your application, you must
decide which frequency(ies) you can operate
on. See “Frequencies and Code Charts”. For
questions on determining the radio frequency,
call Motorola Product Services at:
1-800-448-6686
Changes or modifications not expressly
approved by Motorola may void the user’s
authority granted by the FCC to operate this
radio and should not be made. To comply with
FCC requirements, transmitter adjustments
should be made only by or under the
supervision of a person certified as technically
qualified to perform transmitter maintenance
and repairs in the private land mobile and fixed
services as certified by an organization
representative of the user of those services.
Replacement of any transmitter component
(crystal, semiconductor, etc.) not authorized by
the FCC equipment authorization for this radio
could violate FCC rules.
Use of this radio outside the country where it
was intended to be distributed is subject to
government regulations and may be prohibited.
RADIO OVERVIEW
English
11
RADIO OVERVIEW
PARTS OF THE RADIO
RADIO OVERVIEW
English 12
On/Off/Volume Knob
Used to turn the radio ON or OFF and to adjust
the radio’s volume.
Channel Selector Knob
Used to switch the radio to different channels.
Accessory Connector
Used to connect compatible audio accessories.
Model Label
Indicates the model of the radio.
Microphone
Speak clearly into the microphone when
sending a message.
Antenna
For models RMU2080, and RMV2080 the
antennas are non-removable.
LED Indicator
Used to give battery status, power-up status,
radio call information and scan status.
Side Buttons
Push-to-Talk (PTT) Button
•Press and hold down this button to talk,
release to listen it.
Side Button 1 (SB1)
•The Side Button 1 is a general button that
can be configured by the Computer
Programming Software - CPS. The default
setting of SB1 is
‘Monitor’.
Side Button 2 (SB2)
•The Side Button 2 is a general button that
can be configured by the CPS. The SB2
default setting is ‘Scan/Nuisance Channel
Delete’.
The Lithium-Ion (Li-Ion) Battery
RM Series radios include a standard capacity
battery. Other batteries may be available. For
more information, see “Battery Features” on
page 14.
RADIO OVERVIEW
English
13
This User Guide covers multiple RM Series
models, and may detail some features your
radio does not have. The radio’s model is
shown at the bottom of the radio.
RADIO OVERVIEW
English 14
BATTERY FEATURES
RM Series radios provide Lithium-Ion
batteries that come in different capacities
that will define the battery life.
About the Li-Ion Battery
The RM Series radio comes equipped with a
rechargeable Li-Ion battery. This battery
should be charged before initial use to ensure
optimum capacity and performance.
Battery life is determined by several factors.
Among the more critical are the regular
overcharge of batteries and the average depth
of discharge with each cycle. Typically, the
greater the overcharge and the deeper the
average discharge, the fewer cycles a battery
will last. For example, a battery which is
overcharged and discharged 100% several
times a day, lasts fewer cycles than a battery
that receives less of an overcharge and is
discharged to 50% per day. Further, a battery
which receives minimal overcharging and
averages only 25% discharge, lasts even
longer.
Motorola batteries are designed specifically to
be used with a Motorola charger and vice
versa. Charging in non-Motorola equipment
may lead to battery damage and void the
battery warranty. The battery should be at
about 77°F (25°C) (room temperature),
whenever possible. Charging a cold battery
(below 50° F [10°C]) may result in leakage of
electrolyte and ultimately in failure of the
battery. Charging a hot battery (above 95°F
[35°C]) results in reduced discharge capacity,
affecting the performance of the radio.
Motorola rapid-rate battery chargers contain a
temperature-sensing circuit to ensure that
batteries are charged within the temperature
limits stated above.
RADIO OVERVIEW
English
15
Battery Recycling and Disposal
Li-Ion rechargeable batteries can be recycled.
However, recycling facilities may not be
available in all areas. Under various U.S. state
laws and the laws of several other countries,
batteries must be recycled and cannot be
disposed of in landfills or incinerators. Contact
your local waste management agency for
specific requirements and information in your
area. Motorola fully endorses and encourages
the recycling of Li-Ion batteries. In the U.S. and
Canada, Motorola participates in the
nationwide Rechargeable Battery Recycling
Corporation (RBRC) program for Li-Ion battery
collection and recycling.
Many retailers and dealers participate in this
program. For the location of the drop-off facility
closest to you, access RBRC's Internet web
site at:
www.rbrc.com
or call:
1-800-8-BATTERY
This internet site and telephone number also
provides other useful information concerning
recycling options for consumers, businesses
and governmental agencies.
RADIO OVERVIEW
English 16
Installing the Lithium-Ion (Li-Ion) Battery
1. Turn OFF the radio.
2. With the Motorola logo side up on the battery
pack, fit the tabs at the bottom of the battery
into the slots at the bottom of the radio’s body.
3. Press the top part of the battery towards the
radio until a click is heard.
Note: To learn about the Li-Ion Battery Life
features, refer to “About the Li-Ion Battery”
on page 14
Removing the Lithium-Ion (Li-Ion) Battery
1. Turn OFF the radio.
2. Push down the battery latch and hold
it while removing the battery.
3. Pull the battery away from the radio.
RADIO OVERVIEW
English
19
Holster
1. Slide the radio into the base of the holster and
then press the radio against the back of the
holster until the top clips are inserted in the
top latches of the battery.
2. To remove, detach the top clips of the holster
from the top latches of the battery and then
slide the radio up from the holster pocket.
Power Supply and Drop-in Tray Charger
The radio is equipped with one Drop-in Tray
Charger and one Power Supply with Adaptor.
For details, see “Chargers” on page 72.
RADIO OVERVIEW
English 20
Battery Life Information
When the Battery Save feature is ON (enabled by default) the battery life will be longer. The
following chart summarizes battery life estimations:
Note: Battery life is estimated based on 5% transmit/ 5% receive/ 90% standby
standard duty cycle
RADIO OVERVIEW
English 22
Charging the Battery
The RM series radios offers two types
of power supply:
•Standard Power Supply and,
•Rapid Power Supply .
Note: The radio comes equipped with a Standard
Power Supply
To charge the battery (with the radio attached),
place it in a Motorola-approved Drop-in Tray
Single Unit Charger or Drop-in Tray Multi Unit
Charger.
Note: For part number details, refer to “Chargers”
on page 72
Charging with the Drop-in Tray
Single Unit Charger (SUC)
1. Place the drop-in tray charger on a flat surface.
2. Insert the connector of the power supply into the
port on the back of the drop-in tray charger.
3. Plug the AC adaptor into a power outlet.
4. Insert the radio into the tray with the front of the
radio facing the front of the charger, as shown.
Note: When charging a battery attached to a radio,
turn the radio OFF to ensure a full charge.
See “Operational Safety Guidelines” on
page 9 for more information
RADIO OVERVIEW
English
25
Drop-in Tray Charger LED Indicators
Table 1
RADIO OVERVIEW
English 28
Charging a Radio and Battery using
a Multi Unit Charger- MUC (Optional
Accessory)
The Multi Unit Charger (MUC) allows drop-in
charging of up to 6 radios or batteries. Batteries
can be charged with the radios or removed and
placed in the MUC separately. Each of the 6
charging pockets can hold a radio (with or
without holster) or battery, but not both.
1.
Place the charger on a flat surface.
2.
Insert the power cord plug into the MUC’s jack.
3. Plug the cord into an AC outlet.
4. Turn the radio OFF.
5. Insert the radio or battery into the charging
pocket.
Notes:
•This Multi Unit Charger also allows you to
clone up to 2 radios (2 Source radios and 2
Target radios). Refer to page 51 for details.
•Further details on MUC’s operation are explained
in the Instructions Sheet provided with the MUC.
For part number details, refer to the Accessories
section.
Table 1
GETTING STARTED
English
29
GETTING STARTED SELECTING A CHANNEL
To select a channel, rotate the Channel
Selector Knob and select the desired channel
number.
Each channel has its own Frequency,
Interference Eliminator Code and Scan
Settings.
TALKING AND MONITORING
It is important to monitor for traffic before
transmitting to avoid ‘talking over’ someone
who is already transmitting.
To monitor, long press and hold the SB1(*)
button to access channel traffic. If no activity is
present, you will hear ‘static’. To release,
press SB1 again. Once channel traffic has
cleared, proceed with your call by pressing the
PTT button. When transmitting, the LED
Indicator will be On solid red during
transmission.
For the following explanations, refer to “Parts of
the Radio” on page 8.
TURNING RADIO ON/OFF
To turn the radio ON, rotate the ON/OFF/
Volume Knob clockwise. The radio will play
either one of the following options:
•Power up tone and channel number
announcement
•Battery level and channel number
announcement
•Silent
The LED blinks red briefly.
To turn the radio OFF, rotate the On/Off/
Volume Knob counterclockwise until you hear
a ‘click’ and the radio LED Indicator turns OFF.
ADJUSTING VOLUME
Turn the On/Off/Volume Knob clockwise to
increase the volume, or counterclockwise to
decrease the volume.
Note: Do not hold the radio too close to the ear
when the volume is high or when
adjusting the volume
GETTING STARTED
English 30
Notes:
• To listen to all activity on a current channel, short
press the SB1 to set the CTCSS/DPL code to 0.
This feature is called ‘CTCSS/DPL Defeat
(Squelch set to SILENT)’.
• (*) This assumes SB1 is not being programmed
for a different mode.
RECEIVING A CALL
Select a channel by rotating the Channel
Selector Knob until you reach the desired
channel. Voice announcement will indicate the
channel selected.
1.Make sure the PTT button is released and listen
for voice activity.
2.The LED Indicator will be solid Red while the
radio is receiving a call.
3.To respond, hold the radio vertically 1 to 2
inches (2.5 to 5cm) from mouth. Press the PTT
button to talk; release it to listen.
TALK RANGE
TALK RANGE
Model
Industrial Multi-Level
Inside steel/concrete
Industrial buildings
Inside multi-level
buildings
UHF 2W Up to 250,000 Sq. Ft. Up to 20 Floors
VHF 2W Up to 220,000 Sq. Ft. Up to 13 Floors
GETTING STARTED
English
31
To establish a proper two-way communication,
the channel, frequency, and interference
eliminator codes must be the same on both
radios. This depends on the stored profile that
has been preprogrammed on the radio:
1. Channel: Current channel that the radio is
using, depending on radio model.
2. Frequency: The frequency the radio uses to
transmit/receive.
3. Interference Eliminator Code: These codes
help minimize interference by providing a
choice of code combinations.
4. Scramble Code: Codes that make the
transmissions sound garbled to anyone
listening who is not set to that specific code.
For details on how to set up frequencies and
CTCSS/DPL codes in the channels, refer to
“Advanced Configuration Mode” in page 36.
GETTING STARTED
English 32
RADIO LED INDICATORS
GETTING STARTED
English
33
HANDS-FREE USE/VOX
Motorola RM Series radios can operate
hands-free (VOX) when used with compatible
VOX accessories.
With Compatible VOX Accessories
1. Turn the radio OFF.
2. Open accessory cover.
3. Insert the audio accessory’s plug
firmly into accessory port.
4. Turn radio ON. The LED
Indicator will blink double red.
5. Lower radio volume BEFORE
placing accessory near ear.
6. To transmit, speak into accessory
microphone and to receive, stop talking.
Note: To order accessories, refer to:
www.motorolasolutions.com,
call 1 (800) 448-6686, or contact your
Motorola point of purchase
VOX
Accessory
Accessory
Port/
Connector
The default factory setting for VOX sensitivity
level is OFF. Before using VOX, set VOX
level to a setting different from ‘OFF’ via the
CPS (Customer Programming Software).
Then, perform the following steps:
GETTING STARTED
English 34
Setting VOX Sensitivity
The sensitivity of the radio's accessory or
microphone can be adjusted to suit different
operating environments. VOX sensitivity can
be programmed via the CPS.
Default value is OFF . If you want to use the
VOX feature, VOX level should be set at a
value different from OFF.
Microphone Gain
The sensitivity of the microphone can be
adjusted to fit different users or operating
environments.
This feature can be adjusted only through the
CPS. Microphone default setting is set to 2 =
Medium Gain.
•1 = High audio input level will trigger the Tx
•2 = Medium sensitivity
•3 = Low audio input level will trigger the Tx
Hands Free without Accessories (iVOX)
•Enable iVOX by pressing the PTT
button while turning the radio ON.
•iVOX operation can be temporarily
disabled by pressing the PTT button.
•There is a short delay between when
you start talking and when the radio
transmits.
•
A short press of the PTT button will
re-enable iVOX.
GETTING STARTED
English
35
Toggle Voice Prompt in User Mode
Short press the SB1 button while turning ON
the radio to enable/disable Voice Prompt in
User mode (Default is set to ON).
Note: This setting is set to OFF by default
Reset to Factory Defaults
Reset to Factory Defaults will set back all radio
features to the original factory default settings.
To do so, press PTT, SB2 and SB1
simultaneously while turning ON the radio until
you hear a high tone chirp.
Power Up - Tone Mode
Toggle power up mode, To enable/disable
press SB1 and SB2 buttons simultaneously
for 2 or 3 seconds while powering up the
radio until you hear a quick series of beeps
and the power up voice announcement
programmed.
PROGRAMMING
FEATURES
English 36
PROGRAMMING
FEATURES
To easily program all the features in your
radio, it is recommended to use the Customer
Programming Software (CPS) and
programming cable.
CPS software download is available for free
at www.motorolasolutions.com/RMseries
Advanced Configuration
Advanced Configuration is a configuration
mode that allows the customization of
additional features via the front panel.
When the radio is set to Advanced
Configuration, you are able to read and modify
four features:
•Frequency Selection
•CTCSS/DPL Codes
•Auto-Scan.
The Frequency Select feature allows you to
choose frequencies from a pre-defined list.
The Interference Eliminator Code (CTCSS/
DPL) helps minimize interference by providing
you with a choice of code combinations that
filter out static, noise, and unwanted
messages.
The Auto-Scan feature allows you to set a
particular channel to automatically enable Scan
each time you switch to that channel.
The non-display models don't have a display
to show programmed values, then
navigation is guided via voice prompt.
•Active Channels
The Active Channels feature allows you to
increase or decrease the amount of
channels active (In the range of maximum
channels).
Enable/Disable/Program the Weather Channel
•
PROGRAMMING
FEATURES
English
39
Entering Advanced Configuration Mode
Note: Before programming the features, make
sure your radio is set to the channel you
wish to program. You can do so before
entering Advanced Configuration Mode
or at any time during the Advanced
Configuration Mode by rotating the
Channel Selector Knob.
Note: 'Idle' Programming Mode is the stage of
the Programming Mode in which the radio is
waiting for the user to start the radio
programming cycle.
Entering Frequencies Values
RM Series radios have 99
frequencies for UHF and 27 for VHF.
Once you are in the 'Idle' Programming Mode,
you will be able to hear the Frequencies,
Codes, Auto-Scan, active channels settings
and Weather Channel enable/disable by short
pressing the PTT button to move along the
different programmable features.
Once in ‘Idle’ Programming Mode, the first
value available to change is Channel
number, you can change the channel by
rotating the Channel Selector Knob, voice
announcement will indicate channel selected.
Using SB1 and SB2 you can change
values. The value selected is announced
by voice prompt.
To read or modify Frequencies, Codes,
Auto-Scan, Active Channels or enable/
disable the Weather Channel, set the
radio to 'Advanced Configuration Mode' by
pressing and holding the PTT and SB1
buttons simultaneously for 3 to 5 seconds
while powering up the radio and until you
hear a voice prompt saying
"Programming Mode" and "Channel #".
The Weather Programming feature allows
to alternate the channel function, between
2 way radio channel and weather channel.
Also for weather channel function allows to
chose one of the 7 received frequencies.
PROGRAMMING
FEATURES
English 40
Reading CTCSS/DPL Values
If you continue short pressing the PTT button
the radio will move forward to programming
CTCSS/PL Codes.
After hearing the current value for CTCSS/PL
Code you can scroll to a new code value using
the SB1 or SB2 button.
RM Series have up to 219 codes available
(refer to “Frequencies and Codes Charts”
Section).
Reading Auto-Scan Values
After hearing the CTCSS/DPL codes, short
press the PTT button and the radio will move
forward to programming Auto-Scan.
Auto-Scan only has two values:
- Enabled
- Disabled
If you continue short pressing the PTT button
the radio will move forward to programming
Active Channels.
Again, another short pressing the PTT, the
radio will advance to enable/disable
Weather Channels.
Saving Settings
If you are satisfied with the setting, you
can either:
•short press PTT to continue
programming,
•long press PTT to save and return to
'Idle' Programming Mode, or
•long press the PTT button twice to exit
'Idle' Programming Mode and return to
the normal radio operation.
Note:
•If you do not wish to save the value you just
programmed, turn the radio OFF or switch the
Freq knob before radio entering idle mode
•If you ‘roll-over’ to the beginning of ‘Idle’
Programming Mode you will hear "Channel #" and
the LED Indicator will show a green heartbeat
again. All values that were changed will be
automatically saved.
•If long PTT press or radio return to "Idle"
Programming mode, radio will save the changes.
•return to normal radio operation if the
radio is already in idle mode or
PROGRAMMING
FEATURES
English 42
Programming Mode FAQ
1. I got distracted while programming and
forgot which feature I was
programming. What should I do?
Return to 'Idle' Programming Mode and start
over.
• Long press the PTT button. The radio will return
to the 'Idle' Programming Mode or,
• Turn OFF the radio and enter Programming
Mode again (see instructions in the beginning of
this section)
2. I am trying to program a frequency (or
code) value but the radio would not do it.
It rolled over and took me back to value
‘0’.
The radio will not allow you to program any
values that are not available in the frequencies
and codes pool. For example, if you try to
program code 220, the radio would not accept
it, as the maximum value allowed is 219. Same
thing will happen with frequencies. Check the
Frequencies and Codes Charts section to make
sure you are programming a valid number.
3. I am trying to enter the Programming
Mode but the radio would not do it.
The radio might be locked using the CPS to not
allow Front Panel Programming. To re-enable,
use the CPS.
PROGRAMMING
FEATURES
English
43
4. When I was programming I made a
mistake and programmed the wrong
value. How can I erase it or re-program
it?
If you make a mistake while programming a
value you have two choices:
•
•Turn OFF the radio and start-over.
5. I just programmed the value I wanted.
How do I exit Programming Mode?
• If you are in Programming Mode you can exit
by long pressing the PTT button twice.
•If you are already in the ‘Idle’ Programming
Mode, long press the PTT button once.
6. I am done programming the features in
this channel and want to program another
channel.
PROGRAMMING VALUES EXAMPLE
Example of Programming a Frequency
Assuming current frequency value is set to
Channel 1, with the UHF default frequency
‘02’ (equivalent to 464.5500 MHz), and you
want to change it to Frequency Number =
‘13’ (which is mapped to 461.1375 MHz), follow
this sequence:
•Enter into Advanced Configuration Mode
Press short PTT several times until you hear
"Channel #", then switch channel using
Channel Selector Knob. If you wish to save
the changes, make sure you are in the ‘Idle’
Programming Mode before switching the
channel as otherwise you will lose the changes
made.
The radio settings will roll-over each time
they reach a maximum or minimum value.
Keep increasing (short press SB1) or
decreasing (short pressing SB2) until you get
the desired value or,
PROGRAMMING
FEATURES
English 44
•Short press the PTT button to enter
Frequency Programming Selection Mode.
Radio will announce current value ‘2’
•Press SB1 button eleven times to scroll up the
frequency list and you will hear frequency "13"
Long press the PTT button. LED Indicator will
show a heartbeat to indicate 'Idle' state.
Long press the PTT button to exit Programming
Mode or turn radio OFF.
Example of Programming a Code
Assuming current code value is set to factory
default ‘001’, and you want to change it to
CTCSS/DPL Code = 103 follow the sequence
below:
•Enter into Advanced Configuration Mode
•Short press the PTT button twice and you
will hear "Code #" (Entering CTCSS/DPL
Programming Selection Mode).
•
Long press the PTT button. LED Indicator will
show a green heartbeat to indicate
'Programming' state.
Long press the PTT button to exit Programming
Mode or turn radio OFF.
•
•
•
•
Press and hold SB1 or SB2 will cause the radio
to increment by 10's - 10, 20, 30 ... 100, 110.
Will not hear 103. Need to release SB1 or SB2,
then slowly press/release SB1 or SB2 until the
user reaches the desired code, in this case "103"
PROGRAMMING
FEATURES
English
45
•
Example of Programming Auto-Scan Auto-
Scan is the third Programming Mode and can be
set to either ON or OFF on a particular channel.
To set Auto-Scan to ON:
•Enter into advanced Configuration Mode and
select the desired channel.
•Short press the PTT button three times to enter
Auto-Scan Programming Selection Mode. The
radio will announce "Auto-Scan" and current
setting (Enabled or Disabled), followed by
changing instruction - "To change, press side
button 1 or 2"
Example of Programming Active Channels
Active Channels allows you to modify the . of active
channels the radio will be programmed to support.
To set Active Channels:
Enter Programming Mode and select the
desired channel.
Short press the PTT button Four times to enter
Active Channels Programming Selection Mode.
The radio will announces "Active Channels"
and current value followed by changing
instruction.
Short press the SB1 or SB2 buttons until
you hear the number of channels desired.
•
•
•
Long press the PTT button. LED Indicator will
show a green heartbeat to indicate Idle/
Programming state.
•
Long press the PTT button to exit
Programming Mode or turn radio OFF.
•
•
Example of Programming Weather Channels
Weather Channels mode allows you toggle a radio
channel between 2 way radio mode and weather alert
mode.
To set Channels to Weather mode:
Enter Programming Mode and select the desired
channel.
Short press the PTT button five times to enter
Weather Channels Programming Mode.
The radio will announce "Weather Channel and
Frequency used" plus how to change it.
•
•
•Short press the SB1 or SB2 to enable/
disableLong press the PTT button.
LED Indicator will show a green heartbeat to
indicate Programming state.
•
Long press the PTT button to exit
Programming Mode or turn radio OFF.
•
PROGRAMMING
FEATURES
English 46
OTHER PROGRAMMING FEATURES
Scan
Scan allows you to monitor other channels to detect
conversations. When the radio detects a
transmission, it will stop scanning and will receive on
the active channel. This will allow you to listen and
talk to people on that channel without having to
change channel. If there is are transmissions on
another channel once the radio has stopped
scanning then you will not hear that activity. After
activity has ceased on the channel which the radio
has stopped, scanning will resume again after 5
seconds of no activity on that channel.
•By pressing the PTT button while the radio is
scanning, the radio will transmit on the channel
which was selected before Scan was activated.
If no transmission occurs within five seconds,
scanning will resume.
•If you want to scan a channel without
Interference Eliminator Codes (CTCSS/DPL),
set the code settings for the channels to ‘0’ in the
CTCSS/DPL Programming Selection Mode.
Whenever the radio is set up in Scan, the
LED Indicator will signal a Fast Red
Heartbeat.
•
•To stop scanning, short press the SBx
button again.
To start scanning, press the SBx (x=1 or 2)
button (Scan is defaulted on SB2 but can be
programmed to either SB1 or SB2 via CPS).
When the radio detects channel activity, it will
stop on that channel until the activity ends. You
can respond to the caller on that channel
without having to switch channels by pressing
PTT.
PROGRAMMING
FEATURES
English
47
Editing Scan List
Scan Lists can be edited by using the CPS
(refer to CPS section on page 46)
Nuisance Channel Delete
Nuisance Channel Delete allows you to
temporarily remove channels from the
Scan List. This feature is useful when
frequent, irrelevant conversations on a
channel tie up the scanning feature,
becoming a nuisance to the user.
To delete a channel from the Scan List:
•To start scanning, press the SBx (x=1
or x=2) button (Scan has to be
programmed to either SB1 or SB2 via
CPS). SB2 by default programmed to
Scan/Nuisance Channel Delete
•Wait until the radio stops on the
channel you wish to eliminate, then
long press the SBx button to delete it.
(Cannot delete home channel - the
channel that the user enables scan on).
•The channel will not be scanned again
until you exit Scan by short pressing
the SBx button again or by turning the
radio OFF and back ON.
PROGRAMMING
FEATURES
English 48
CPS (COMPUTER PROGRAMMING
SOFTWARE)
The easiest way to program or change features
in your radio is by using the Computer
Programming Software (CPS) and the CPS
Programming Cable(*). CPS Software is
available for free as web based downloadable
software at:
www.motorolasolutions.com/RMseries
To program, connect the RM Series radio
via the Drop-in Charger Tray and CPS
Programming Cable as shown in the
picture above. (Need to select CPS mode
on the cable switch).
CPS allows the user to program frequencies,
PL/DPL codes, as well as other features such
as: Bandwidth Select, Time-out Timer, Power
Select, Scan List, Call Tones, Scramble,
Reverse Burst, etc. CPS is a very useful tool as
it can also lock the Front-Panel Radio
Programming to avoid accidentally erasing the
current radio settings. It also provides security
by giving the option to set up a password for
radio profile management. Please refer to
Features Summary Chart Section at the end of
the user guide for more details.
Note: (*) CPS Programming Cable P/N HKKN4027A
is an accessory sold separately. Please
contact your Motorola point of purchase for
more information.
PROGRAMMING
FEATURES
English
49
Time-Out Timer
This timer sets the amount of time that the
radio can continuously transmit before
transmission is automatically terminated. The
default setting is 60 seconds and can be
changed using the CPS.
Power Select
Power Select allows you to select between
high and low transmission power per channel.
The power levels for RM Series toggle
between 2W and 1W.
Call Tones
Call Tones feature allows you to transmit
an audible tone to other radios on the
same channel and alerting them that you
are about to talk or alerting them
without speaking. The call tones feature
must be programmed to SB1 or SB2 and 1
of 3 pre-recorded tones selected
Scramble
The Scramble feature makes transmissions
sound garbled to anyone listening without the
same code. Scramble default value is OFF.
The Scramble feature should be
programmed to SB1 or SB2, If the scramble
code need to be changed during radio's
normal operation.
Reverse Burst
Reverse Burst eliminates unwanted noise
(squelch tail) during loss of carrier detection.
You can select values of either 180 or 240
to be compatible with other radios. Default
is 180.
Notes:
•The features described in previous pages
are just some of the features CPS has. CPS
offers more capabilities. For more information
refer to the HELP file in the CPS.
•Some of the features available with the CPS
software may vary depending on the radio
model.
PROGRAMMING
FEATURES
English 50
Weather Channel
Weather Channel (Cont.)
The channel position 8 on all RM Series radios with channel selector knob is configured at the
factory as a NOAA Weather Radio.
The NOAA Weather Radio feature can be disabled or configured to any of the other available
channel positions via the Customer Programming Software or in Advanced Configuration Mode.
When a channel that has the NOAA Weather Radio enabled is selected, the RM radio generates a
voice announcement indicating channel and weather frequency number, e.g. "Channel 8: Weather
1". The weather frequency number announced is which of the 7 NOAA national frequencies is
currently tuned in the weather radio. The weather frequency can be changed while in the Weather
Channel by Pressing SB2 to enter Weather menu then SB1 acts as up button and SB2 acts down
button. Also, PTT acts as menu button to advance to channel menu or weather alert menu.
NOAA Weather Alert
The RM Series radio is capable of monitoring the NOAA frequency for any Alerts issued by the
National Weather Service. When the weather alert feature is enabled the radio will "mute" the daily
weather radio, you can then move the channel position to a standard two way radio frequency and
continue normal communication.
The Weather Alert allows the radio to "listen" for a Warning Alarm Tone (WAT) from the National
Weather Service. If a WAT is detected the weather radio will "un-mute" and the message being
broadcasted will be heard on the RM radio.
If the RM radio is tuned to a two-way channel (normal operation + weather alert on) when a WAT
is detected, the radio will "un-mute" and the message being broadcasted will be heard. While
monitoring an alert, pressing the PTT or changing channels will exit the weather alert and go back
to normal operation.
Please note that using the Weather Alert feature will impact normal battery life.
PROGRAMMING
FEATURES
PROGRAMMING
FEATURES
English
51
CLONING RADIOS
You can clone RM Series radio profiles from
one Source radio to a Target radio by using any
one of these 3 methods:
•Using a Multi Unit Charger (optional accessory),
• Two Single Unit Chargers (SUC) and a Radio-to-
Radio cloning cable (optional accessory),
•the CPS (free software download) and CPS
programming cable (optional accessory).
Cloning with a Multi Unit Charger (MUC)
To clone radios using the MUC, there must be
at least two radios:
• a Source radio (radio which profiles will be cloned
or copied from) and
• a Target radio (the radio which profile will be
cloned from the source radio.)
The Source radio has to be in Pocket 1 or 4
while the Target radio has to be in Pocket 2 or
5, matching in the MUCs pockets by pairs as
follows:
• 1 and 2 or,
•4 and 5
When cloning, the MUC does not need to be
plugged into a power source, but ALL radios
require charged batteries.
1. Turn ON the Target radio and place it into one of
the MUC Target Pockets
2. Power the Source radio following the sequence
below:
•Hold the PTT button and SB2 for 3 to
5 seconds simultaneously while
turning the radio ON.
PROGRAMMING
FEATURES
English 52
• Wait for 3 seconds before releasing the
buttons until a distinctive audible tone is
heard and ‘Cloning’ is announced.
3. Place the Source radio in the source pocket that
pairs with the target pocket you chose in step 1.
Short press SB1 on Source radio.
4. After cloning is completed, the Source radio will
announce either ‘Successful’ (cloning was
successful) or ‘failed’ (cloning process has failed).
5. Once you have completed the cloning process,
turn the radios OFF and ON to exit the ‘cloning’
mode.
•If cloning fails please refer to “What To Do if
Cloning Fails” on page 54.
Further details on how to clone radios are
explained in the Instructions Sheet provided
with the MUC.
When ordering the MUC, please refer to
P/N PMLN6384A.
•Paired Target radios and Source radios
must be of the same band type in order for
the cloning to run successfully.
•MUC pockets numbers should be read from
left to right with the Motorola logo facing
front.
Notes
CPS and Cloning Cables (Optionals)
•Both CPS and Cloning cables are made to
work either with RM Series radios or RDX
series. Cloning cable also can work with a
mix of RDX and RM radios.
The CPS cable is made to program RM
series radio when the switch is in either
"Flash" or "CPS" position. If you want to
use the CPS cable to program RDX
radios, make sure the switch is in "CPS"
position and attach a USB converter
provided as part of the CPS cable kit.
•
Cloning cable allows you to clone:
- RM Series, make sure the switch is either
in "Cloning" or "Legacy" position.
- RDX radios, make sure the switch is in
"Legacy" position there is one USB
converter attached on each side.
- RM and RDX radios, make sure the switch
is in "Legacy" position and use a USB
converter to connect to the RDX SUC.
Cloning cable kit provides 1 USB converter.
•
CPS Cable
Cloning Cable
Micro-to-Mini USB Convertor
USB Converter
PROGRAMMING
FEATURES
English
53
Cloning Radio using the Radio to Radio
(R2R) Cloning Cable (Optional Accessory)
Operating Instructions
1. Before beginning the cloning process, make
sure you have:
•A fully charged battery on each one of
the radios.
•Two Single Unit Chargers (SUC).
Either 2 SUC for RM Series or 1 SUC
for RM Series and 1 SUC for RDX
Series
•Turned OFF the radios and,
2. Unplug any cables (power supply or USB
cables) from the SUCs.
3. Plug one side of the cloning cable mini
connector to one SUC. Plug the other end to
the second SUC.
Note: During the cloning process no power is
being applied to the SUC. The batteries will
not be charged. A data communication is
being established between the two radios.
4. Turn ON the Target radio and place it into one of
the SUCs.
5. On the Source radio, power the radio following
the sequence below:
•Long press the PTT button and SB2
simultaneously while turning the radio ON.
• Wait for 3 seconds before releasing the
buttons until you hear a distinctive audible
tone and the word "Cloning"
6. Place the Source radio in its SUC, press and
release SB1.
PROGRAMMING
FEATURES
English 54
7. After cloning is completed, the Source radio will
announce either ‘Successful’ (cloning was
successful) or ‘failed’ (cloning process has
failed).
8. Once you have completed the cloning process,
turn the radios OFF and ON to exit ‘clone’
mode.
What To Do if Cloning Fails
The radio will emit "Fail" indicating that the
cloning process has failed. In the event that
cloning fails, try performing each of the
following before trying to start the cloning
process again:
1. Ensure that the batteries on both radios are fully
charged.
2. Check the cloning cable connection on both
SUCs.
3. Ensure that the battery is engaged properly on
to the radio.
4. Ensure that there is no debris in the charging
tray or on the radio contacts.
5. Ensure that the Source radio is in cloning mode.
6. Ensure that the Target radio is turned ON.
7. Ensure that radios are both from the same
frequency band, same region and same
transmission power.
Note: This cloning cable is designed to operate
only with compatible Motorola SUC
RLN6175 and PMLN6394A
When ordering Cloning Cable please refer to
P/N HKKN4028A. For details about
accessories refer to Accessories section.
PROGRAMMING
FEATURES
English
55
Cloning using the CPS (Computer
Programming Software)
When cloning using this method, you will need
to have the CPS software, a Drop-in Tray
Charger and the CPS Programming Cable.
To order the CPS Programming Cable,
please refer to HKKN4028A
Information on how to clone using the CPS is
available either in:
• the CPS Help File --> Content and Index -->
Cloning Radios, or
•in the CPS Programming Cable Accessory
Leaflet.
TROUBLESHOOTING
English 56
TROUBLESHOOTING
Symptom
No Power
Try This... Recharge
Replace the battery.
Extreme operating temperatures may affect battery life.
Refer to See “About the Li-Ion Battery” on page 14.
Hearing other noises or
conversation on a channel
Confirm Interference Eliminator Code is set.
Frequency or Interference Eliminator Code may be in use.
Change settings: either change frequencies or codes on all radios.
Make sure radio is at the right frequency and code when
transmitting. Refer to “Talking and Monitoring” on page 24.
Message Scrambled Scramble Code might be ON, and/or setting does not match the other radios'
settings.
Audio quality not good enough Radio settings might not be matching up correctly. Double check frequency
codes to make sure they are identical in all radios
TROUBLESHOOTING
English
57
Limited talk range
Try This...
Check for clear line of sight to improve transmission.
Wearing radio close to body such as in a pocket or on a belt decreases
range. Change location of radio. To increase range and coverage, you can
reduce obstructions, increase power. UHF radios provides greater coverage
in industrial and commercial buildings. Increasing power provides greater
signal range and increased penetration through obstructions.
Refer to See “Talking and Monitoring” on page 24.
Message not transmitted or
received
Make sure the PTT button is completely pressed when transmitting.
Confirm that the radios have the same Channel, Frequency, Interference
Eliminator Code and Scramble Code settings. Refer to “Talking and
Monitoring” section on page 24 for further information.
Recharge, replace and/or reposition batteries. Refer to “About your Li-Ion
Battery” section on page 11.
Obstructions and operating indoors, or in vehicles, may interfere. Change
location. Refer to “Talking and Monitoring” Section on page 24.
Verify that the radio is not in Scan. Refer to “Scan” on page 41 and “Nuisance
Channel Delete” on page 41.
Symptom
TROUBLESHOOTING
English 58
Heavy static or interference
Radios are too close; they must be at least five feet apart.
Radios are too far apart or obstacles are interfering with
transmission. Refer to “Talking and Monitoring” on page 24.
Low batteries
Recharge or replace Li-Ion battery. Extreme operating
temperatures affect battery life. Refer to “About the Li-
Ion Battery” on page 11.
Drop-in Charger LED light
does not blink
Refer to “Charging the Battery” section on page 21, “Drop-in Tray Charger
LED Indicators” section on page 24 and “Installing the Lithium-Ion Battery”
section on page 13.
Low battery indicator is
blinking although new
batteries are inserted
Refer to “Installing the Li-Ion Battery” section on page 13 and “About
your Li-Ion Battery” section on page 11.
Symptom Try This...
TROUBLESHOOTING
English
59
Cannot activate VOX
Try Th
Try This...
is...
VOX feature might be set to OFF.
Use the CPS to ensure that the VOX Sensitivity level is not set to ‘Off’.’.
Accessory not working or not compatible.
Refer to “Hands-Free Use/VOX” section on page 28.
Battery does not charge
although it has been placed in
the drop-in charger for a while
Check drop-in tray charger is properly connected and correspond to a
compatible power supply.
Refer to “Charging with the Drop-In Tray Single Unit Charger” section on
page 21 and “Charging a Standalone Battery” section on page 22.
Refer to “Drop-in Tray Charger LED Indicators” section on page 24.
Check the charger’s LEDs indicators to see if the battery has a problem.
Refer to “Drop-in Tray Charger LED Indicators” section on page 18.
Note: Whenever a feature in the radio seems to not correspond to the default or preprogrammed values, check
to see if the radio has been programmed using the CPS with a customized profile.
Symptom
USE AND CARE
English 60
USE AND CARE
Use a soft damp cloth
to clean the exterior
Do not immerse
in water
Do not use alcohol or
cleaning solutions
Turn radio OFF and
remove batteries
Dry with soft cloth Do not use radio until
completely dry
If the radio is submerged in water...
FREQUENCY AND CODE
English
61
FREQUENCY AND CODE CHARTS
RM VHF FREQUENCIES CHART
The charts in this section provide Frequency and Code information. These charts are useful when
using Motorola RM Series two-way radios with other business radios.
In blue default frequencies
FREQUENCY AND CODE
English 62
RM VHF Frequencies (cont.)
PLEASE NOTICE THAT THE FACTORY DEFAULT CONFIGURATION OF THE RM SERIES RADIOS HAVE BEEN MODIFIED TO
BE IN COMPLIANCE WITH THE 2013 FCC NARROWBAND MANDATE. THIS MANDATE REQUIRES RADIO OPERATORS TO
SWITCH THE CONFIGURATION OF THEIR EQUIPMENT TO 12.5 KHZ CHANNEL BANDWIDTH BY JANUARY 1ST, 2013. THE
RM SERIES RADIO CHANNEL BANDWIDTH DEFAULT HAS BEEN SET AT 12.5 KHZ.
IF THIS NEW RADIO IS AN ADDITION OR REPLACEMENT TO AN EXISTING GROUP OF RADIOS WITH 25 KHz SETTING
(LEGACY FACTORY CONFIGURATION), ACTION MAY BE REQUIRED ON YOUR PART IN ORDER TO OPTIMIZE OPERATION
OF YOUR FLEET AND BE IN COMPLIANCE WITH FCC RULES.
TO CHANGE THE CHANNEL BANDWITH OF YOUR OLDER RDX RADIO FROM 25 KHZ TO 12.5 KHZ YOU MAY USE THE
CUSTOMER PROGRAMMING SOFTWARE AVAILABLE FOR FREE DOWNLOAD AT HYPERLINK "http://www.motorola.com/RDX"
WWW.MOTOROLASOLUTIONS.COM/RDX (PROGRAMMING CABLE REQUIRED) OR YOU CAN FOLLOW DIRECTIONS IN THE
USER GUIDE UNDER ‘PROGRAMMING FEATURES’ .
IF YOU HAVE QUESTIONS OR NEED FURTHER ASSISTANCE, PLEASE CONTACT OUR CUSTOMER CARE TEAM AT
+800-448-6686.
FOR ADDITIONAL DETAILS ON THE NARROWBAND MANDATE PLEASE VISIT
WWW.MOTOROLASOLUTIONS.COM/NARROWBANDING
English
63
RMV2080 - VHF DEFAULT FREQUENCIES CHART
FREQUENCY AND CODE
FREQUENCY AND CODE
English
65
RM UHF FREQUENCIES CHART
RM UHF Frequencies
Frequency # Frequency
(MHz) Bandwidth Frequency # Frequency
(MHz) Bandwidth
1 464.5000 12.5 kHz 14 461.1625 12.5 kHz
2464.5500 12.5 kHz 15 461.1875 12.5 kHz
3 467.7625 12.5 kHz 16 461.2125 12.5 kHz
4467.8125 12.5 kHz 17 461.2375 12.5 kHz
5 467.8500 12.5 kHz 18 461.2625 12.5 kHz
6467.8750 12.5 kHz 19 461.2875 12.5 kHz
7 467.9000 12.5 kHz 20 461.3125 12.5 kHz
8467.9250 12.5 kHz 21 461.3375 12.5 kHz
9 461.0375 12.5 kHz 22 461.3625 12.5 kHz
10 461.0625 12.5 kHz *23 462.7625 12.5 kHz
11 461.0875 12.5 kHz 24 462.7875 12.5 kHz
12 461.1125 12.5 kHz 25 462.8125 12.5 kHz
13 461.1375 12.5 kHz 26 462.8375 12.5 kHz
FREQUENCY AND CODE
English 66
27 462.8625 12.5 kHz 38 466.1375 12.5 kHz
28 462.8875 12.5 kHz 39 466.1625 12.5 kHz
29 462.9125 12.5 kHz 40 466.1875 12.5 kHz
30 464.4875 12.5 kHz 41 466.2125 12.5 kHz
31 464.5125 12.5 kHz 42 466.2375 12.5 kHz
32 464.5375 12.5 kHz 43 466.2625 12.5 kHz
33 464.5625 12.5 kHz 44 466.2875 12.5 kHz
34 466.0375 12.5 kHz 45 466.3125 12.5 kHz
35 466.0625 12.5 kHz 46 466.3375 12.5 kHz
36 466.0875 12.5 kHz 47 466.3625 12.5 kHz
37 466.1125 12.5 kHz 48 467.7875 12.5 kHz
RM UHF Frequencies (Continued)
Frequency # Frequency
(MHz) Bandwidth Frequency # Frequency
(MHz) Bandwidth
FREQUENCY AND CODE
English
67
49 467.8375 12.5 kHz 61 467.1875 12.5 kHz
50 467.8625 12.5 kHz 62 467.4625 12.5 kHz
51 467.8875 12.5 kHz 63 467.4875 12.5 kHz
52 467.9125 12.5 kHz 64 467.5125 12.5 kHz
53 469.4875 12.5 kHz 65 451.1875 12.5 kHz
54 469.5125 12.5 kHz 66 451.2375 12.5 kHz
55 469.5375 12.5 kHz 67 451.2875 12.5 kHz
56 469.5625 12.5 kHz 68 451.3375 12.5 kHz
57 462.1875 12.5 kHz 69 451.4375 12.5 kHz
58 462.4625 12.5 kHz 70 451.5375 12.5 kHz
59 462.4875 12.5 kHz 71 451.6375 12.5 kHz
60 462.5125 12.5 kHz 72 452.3125 12.5 kHz
RM UHF Frequencies (Continued)
Frequency # Frequency
(MHz) Bandwidth Frequency # Frequency
(MHz) Bandwidth
FREQUENCY AND CODE
English 68
RM UHF Frequencies (cont.)
Frequency # Frequency
(MHz) Bandwidth Frequency # Frequency
(MHz) Bandwidth
73 452.5375 12.5 kHz 82 456.4375 12.5 kHz
74 452.4125 12.5 kHz 83 456.5375 12.5 kHz
75 452.5125 12.5 kHz 84 456.6375 12.5 kHz
76 452.7625 12.5 kHz 85 457.3125 12.5 kHz
77 452.8625 12.5 kHz 86 457.4125 12.5 kHz
78 456.1875 12.5 kHz 87 457.5125 12.5 kHz
79 456.2375 12.5 kHz 88 457.7625 12.5 kHz
80 456.2875 12.5 kHz 89 457.8625 12.5 kHz
81 456.3375 12.5 kHz
Notes:
•When referring to XTN radios, note that
frequencies from # 57 to # 89 are 33 new
additional frequencies
FREQUENCY AND CODE
English
69
RMU2080 - UHF DEFAULT FREQUENCIES CHART
RM UHF 8 CH Radios Default Frequencies – RMU2080
Channel Frequency # Frequency
(MHz) Code # Code Bandwidth
1 2 464.5500 1 67.0 Hz 12.5 kHz
2 8 467.9250 167.0 Hz 12.5 kHz
3 5 467.8500 1 67.0 Hz 12.5 kHz
4 6 467.8750 167.0 Hz 12.5 kHz
5 10 461.0625 1 67.0 Hz 12.5 kHz
612 461.1125 167.0 Hz 12.5 kHz
7 14 461.1625 1 67.0 Hz 12.5 kHz
8WC 162.4000 167.0 Hz 12.5 kHz
WC = Weather Channel Frequency
FREQUENCY AND CODE
English
71
CTCSS AND PL/DPL CODES
CTCSS Codes
CTCSS Hz CTCSS Hz CTCSS Hz
1 67.0 14 107.2 27 167.9
271.9 15 110.9 28 173.8
3 74.4 16 114.8 29 179.9
477.0 17 118.8 30 186.2
5 79.7 18 123 31 192.8
682.5 19 127.3 32 203.5
7 85.4 20 131.8 33 210.7
888.5 21 136.5 34 218.1
9 91.5 22 141.3 35 225.7
10 94.8 23 146.2 36 233.6
11 97.4 24 151.4 37 241.8
12 100.0 25 156.7 38 250.3
13 103.5 26 162.2 122 (*) 69.3
Note: (*) New CTCSS code.
FREQUENCY AND CODE
English 72
PL/DPL Codes
DPL Code DPL Code DPL Code
39 23 55 116 71 243
40 25 56 125 72 244
41 26 57 131 73 245
42 31 58 132 74 251
43 32 59 134 75 261
44 43 60 143 76 263
45 47 61 152 77 265
46 51 62 155 78 271
47 54 63 156 79 306
48 65 64 162 80 311
49 71 65 165 81 315
50 72 66 172 82 331
51 73 67 174 83 343
52 74 68 205 84 346
53 114 69 223 85 351
54 115 70 226 86 364
FREQUENCY AND CODE
English
73
87 365 104 565 121 754
88 371 105 606 123 645
89 411 106 612 124 Customized PL
90 412 107 624 125 Customized PL
91 413 108 627 126 Customized PL
92 423 109 631 127 Customized PL
93 431 110 632 128 Customized PL
94 432 111 654 129 Customized PL
95 445 112 662 130 Inverted DPL 39
96 464 113 664 131 Inverted DPL 40
97 465 114 703 132 Inverted DPL 41
98 466 115 712 133 Inverted DPL 42
99 503 116 723 134 Inverted DPL 43
100 506 117 731 135 Inverted DPL 44
101 516 118 732 136 Inverted DPL 45
102 532 119 734 137 Inverted DPL 46
103 546 120 743 138 Inverted DPL 47
PL/DPL Codes (Continued)
DPL Code DPL Code DPL Code
FREQUENCY AND CODE
English 74
139 Inverted DPL 48 156 Inverted DPL 65 173 Inverted DPL 82
140 Inverted DPL 49 157 Inverted DPL 66 174 Inverted DPL 83
141 Inverted DPL 50 158 Inverted DPL 67 175 Inverted DPL 84
142 Inverted DPL 51 159 Inverted DPL 68 176 Inverted DPL 85
143 Inverted DPL 52 160 Inverted DPL 69 177 Inverted DPL 86
144 Inverted DPL 53 161 Inverted DPL 70 178 Inverted DPL 87
145 Inverted DPL 54 162 Inverted DPL 71 179 Inverted DPL 88
146 Inverted DPL 55 163 Inverted DPL 72 180 Inverted DPL 89
147 Inverted DPL 56 164 Inverted DPL 73 181 Inverted DPL 90
148 Inverted DPL 57 165 Inverted DPL 74 182 Inverted DPL 91
149 Inverted DPL 58 166 Inverted DPL 75 183 Inverted DPL 92
150 Inverted DPL 59 167 Inverted DPL 76 184 Inverted DPL 93
151 Inverted DPL 60 168 Inverted DPL 77 185 Inverted DPL 94
152 Inverted DPL 61 169 Inverted DPL 78 186 Inverted DPL 95
153 Inverted DPL 62 170 Inverted DPL 79 187 Inverted DPL 96
154 Inverted DPL 63 171 Inverted DPL 80 188 Inverted DPL 97
155 Inverted DPL 64 172 Inverted DPL 81 189 Inverted DPL 98
PL/DPL Codes (Continued)
DPL Code DPL Code DPL Code
FREQUENCY AND CODE
English
75
190 Inverted DPL 99 200 Inverted DPL 109 210 Inverted DPL 119
191 Inverted DPL 100 201 Inverted DPL 110 211 Inverted DPL 120
192 Inverted DPL 101 202 Inverted DPL 111 212 Inverted DPL 121
193 Inverted DPL 102 203 Inverted DPL 112 213 Inverted DPL 123
194 Inverted DPL 103 204 Inverted DPL 113 214 Customized DPL
195 Inverted DPL 104 205 Inverted DPL 114 215 Customized DPL
196 Inverted DPL 105 206 Inverted DPL 115 216 Customized DPL
197 Inverted DPL 106 207 Inverted DPL 116 217 Customized DPL
198 Inverted DPL 107 208 Inverted DPL 117 218 Customized DPL
199 Inverted DPL 108 209 Inverted DPL 118 219 Customized DPL
PL/DPL Codes (Continued)
DPL Code DPL Code DPL Code
WARRANTY
English 76
MOTOROLA LIMITED
WARRANTY FOR THE
UNITED STATES AND
CANADA
What Does this Warranty Cover?
Subject to the exclusions contained below,
Motorola, Inc. warrants its telephones, pagers, and
consumer and business two-way radios (excluding
commercial, government or industrial radios) that
operate via Family Radio Service or General
Mobile Radio Service, Motorola-branded or
certified accessories sold for use with these
Products (“Accessories”) and Motorola software
contained on CD-ROMs or other tangible media
and sold for use with these Products (“Software”)
to be free from defects in materials and
workmanship under normal consumer usage for
the period(s) outlined below.
This limited warranty is a consumer's exclusive
remedy, and applies as follows to new Motorola
Products, Accessories and Software purchased by
consumers in the United States, which are
accompanied by this written warranty.
Products and Accessories
Products Covered Length of Coverage
Products and
Accessories as defined
above, unless otherwise
provided for below.
One (1) year from the date
of purchase by the first
consumer purchaser of the
product unless otherwise
provided for below.
Decorative
Accessories and
Cases.
Decorative covers,
bezels, PhoneWrap™
covers and cases.
Limited lifetime warranty
for the lifetime of ownership
by the first consumer
purchaser of the product.
Business Two-way
Radio Accessories
One (1) year from the date
of purchase by the first
consumer purchaser of the
product.
Products and
Accessories that are
Repaired or Replaced.
The balance of the original
warranty or for ninety (90)
days from the date returned
to the consumer, whichever
is longer.
WARRANTY
English
77
Exclusions
Normal Wear and Tear. Periodic maintenance,
repair and replacement of parts due to normal
wear and tear are excluded from coverage.
Batteries. Only batteries whose fully charged
capacity falls below 80% of their rated capacity
and batteries that leak are covered by this limited
warranty.
Abuse & Misuse. Defects or damage that result
from: (a) improper operation, storage, misuse or
abuse, accident or neglect, such as physical
damage (cracks, scratches, etc.) to the surface of
the product resulting from misuse; (b) contact with
liquid, water, rain, extreme humidity or heavy
perspiration, sand, dirt or the like, extreme heat, or
food; (c) use of the Products or Accessories for
commercial purposes or subjecting the Product or
Accessory to abnormal usage or conditions; or (d)
other acts which are not the fault of Motorola, are
excluded from coverage.
Use of Non-Motorola Products and
Accessories. Defects or damage that result from
the use of Non-Motorola branded or certified
Products, Accessories, Software or other
peripheral equipment are excluded from coverage.
Unauthorized Service or Modification. Defects
or damages resulting from service, testing,
adjustment, installation, maintenance, alteration,
or modification in any way by someone other than
Motorola, or its authorized service centers, are
excluded from coverage.
Altered Products. Products or Accessories with
(a) serial numbers or date tags that have been
removed, altered or obliterated; (b) broken seals
or that show evidence of tampering; (c)
mismatched board serial numbers; or (d)
nonconforming or non-Motorola housings, or
parts, are excluded form coverage.
WARRANTY
English 78
Communication Services. Defects, damages, or
the failure of Products, Accessories or Software
due to any communication service or signal you
may subscribe to or use with the Products
Accessories or Software is excluded from
coverage.
Software
Exclusions
Software Embodied in Physical Media. No
warranty is made that the software will meet your
requirements or will work in combination with any
hardware or software applications provided by
third parties, that the operation of the software
products will be uninterrupted or error free, or that
all defects in the software products will be
corrected.
Software NOT Embodied in Physical Media.
Software that is not embodied in physical media
(e.g. software that is downloaded from the
internet), is provided “as is” and without warranty.
WHO IS COVERED?
This warranty extends only to the first consumer
purchaser, and is not transferable.
HOW TO OBTAIN WARRANTY SERVICE OR
OTHER INFORMATION?
Contact your Motorola point of purchase.
SOFTWARE COPYRIGHT NOTICE
The Motorola products described in this manual
may include copyrighted Motorola and third party
software stored in semiconductor memories or
other media. Laws in the United States and other
countries preserve for Motorola and third party
software providers certain exclusive rights for
copyrighted software, such as the exclusive rights
to distribute or reproduce the copyrighted
software. Accordingly, any copyrighted software
contained in the Motorola products may not be
modified, reverse-engineered, distributed, or
reproduced in any manner to the extent allowed by
law.
Products Covered Length of Coverage
Software. Applies only
to physical defects in
the media that
embodies the copy of
the software (e.g. CD-
ROM, or floppy disk).
Ninety (90) days from the
date of purchase.
WARRANTY
English
79
Furthermore, the purchase of the Motorola
products shall not be deemed to grant either
directly or by implication, estoppel, or otherwise,
any license under the copyrights, patents, or
patent applications of Motorola or any third party
software provider, except for the normal, non-
exclusive, royalty-free license to use that arises by
operation of law in the sale of a product.
PATENT NOTICE
This product is covered by one or more of the
following United States patents.
5896277 5894292 5864752 5699006 5742484
D408396 D399821 D387758 D389158
5894592 5893027 5789098 5734975 5861850
D395882 D383745 D389827 D389139 5929825
5926514 5953640 6071640 D413022 D416252
D416893 D433001
EXPORT LAW ASSURANCES
This product is controlled under the export
regulations of the United States of America. The
Governments of the United States of America may
restrict the exportation or re-exportation of this
product to certain destinations. For further
information contact the U.S. Department of
Commerce.
ACCESSORIES
English 80
ACCESSORIES
AUDIO ACCESSORIES BATTERY
Part No. Description
53815 Headset w/Boom Mic BR
HMN9026ER Remote Speaker Mic BR
HKLN4477B Surveillance Earpiece BR
53865 Headset w/Swivel Boom Mic
53866 Earbud w/Clip PTT Mic BR
56517 Earpiece w/Inline Mic
RLN6423B Swivel Earpiece BR
Part No. Description
ACCESSORIES
English
81
CARRY ACCESSORIES
CABLES
CHARGERS
Description
Part No. Description
HKKN4028A Radio to Radio Cloning Cable
HKKN4027A CPS Programming Cable
Part No. Description
PMLN6384A Multi Unit Charger (MUC) Kit -
North America
PMLN6394A Standard Drop-in Tray Charger
HKLN4510A Swivel Holster
Part No.
83
RM Series Features Summary M
84
Call Tones (4) Yes No Ye s Ye s OF F /
BUTTON A
Advanced Configuration available only for Display
Models by going into Advanced Configuration
Mode(1). Values available are 0 (OFF),1, 2 and 3.
To enable/disable Call Tones press Button A
(default button).
Channel
Aliasing Yes N/A Yes N/A OFF
Only Display Models. To enter or exit
Channel Aliasing mode press PTT and "A"
buttons simultaneously while turning radio ON
for 3 sec. After editing, to exit and save, long
press PTT. Note: To edit, refer to
Programming Features/Editing Channels.
Channels Yes Yes Yes Yes Model Dependant
You can select channels using the Channel Selector
Knob (non-display models) or the MENU button
(display models). You can also add or delete
channels by using the CPS.
Note: Enabling/disabling channels via CPS will
automatically affect the Max Channels you are able
to program via front panel.
Features
Programmable Via
Advanced Conf.
Programmable via
CPS
Default Value Programming Tips
Display Non-
Display Display Non-
Display
85
Cloning Mode Yes Yes Yes Yes Enable
Enables radio to enter cloning mode in order to
clone its profile settings into other radios (using
Radio to Radio Cloning Cable or Multi-Unit
Charger). Press PTT, SB2 while turning radio ON.
Note: You can clone radios using the CPS.
CPS Manager
Lock No No Yes Ye s N/A
This feature is referred in the CPS software as
“Codeplug Password”. It prevents unauthorized
access to the CPS to the radio’s programmed
configuration. Make sure you set up a 4 digits
password that is easy to remember.
End of Tx
Tone (or
Roger Beep)
(2)
Yes Ye s Yes Yes OFF
To enable/disable press SB1 while powering up the
radio
Frequencies Yes Yes Yes Yes Channel and
Model Dependant
There are 27 VHF frequencies and 89 UHF
frequencies available. Use Advanced Configuration
Mode (1) for configuration via the front panel radio
programming. Refer to Frequencies and Codes
Charts Section for details.
Features
Programmable Via
Advanced Conf.
Programmable via
CPS
Default Value Programming Tips
Display Non-
Display Display Non-
Display
86
Codes,
Interference
Eliminator
Codes
(CTCSS/DPL)
Yes Yes Yes Yes Channel and
Model Dependant
Use Advanced Configuration Mode for front
panel radio configuration. There are 122 codes
available.For details refer to Frequencies and
Codes Charts Section.
IVOX, enable/
disable Yes N/A Yes Yes OFF
Hands free without accessories. To enable IVOX
long press the PTT button while turning radio ON
and until the IVOX icon blinks on Display model.
Features
Programmable Via
Advanced Conf.
Programmable via
CPS
Default Value Programming Tips
Display Non-
Display Display Non-
Display
Bandwidth
Range N/A N/A N/A N/A Model Dependant
Radios Bandwidth is fixed and non-programmable.
Bandwidth Range for 2W radios: VHF 150.8 - 162
Mhz / UHF 450-470 Mhz
87
IVOX,
sensitivity
Level
Yes N/A Yes N/A H IG H
(Level 3)
Available for Display models only. Allows user to
specify IVOX sensitivity level. For front panel radio
programming use the MENU button.
Keypad Beep (
or Keypad
Tone) (2)
Yes Ye s Yes Yes ON
Press SB2 while turning ON radio to enable/disable
keypad beep.
Keypad Lock
(2) Yes N/A Yes N/A UNLOCKED
LEDs Enabled/
Disabled No No Yes Yes Enabled
Press and hold MENU for 4 seconds to lock the
radio keypad.To unlock, press MENU for 4
seconds. Using CPS you can disable radio LEDs
Low Battery
Alert -
Shutdown
N/A N/A N/A N/A ON
Gives a sequence of loud and high beep tones to
alert battery level is low. LED will blink orange
several times. This a non-programmable feature.
Features
Programmable Via
Advanced Conf.
Programmable via
CPS
Default Value Programming Tips
Display Non-
Display Display Non-
Display
88
Maximum
Channels (2) Yes Yes Ye s Ye s
Model and CPS
programmable
dependant
Use the Advanced Configuration mode to get the
Active Channels Menu option.
Note: Default value is set to the maximum
number of channels that the radio supports.
Microphone
Gain Level,
ACCESSORY
Yes No Ye s Ye s Me di um
(Level 2)
For front panel programming enter in Advanced
Configuration Mode (1).
Microphone
Gain Level,
RADIO
Yes No Ye s Ye s Me di um
(Level 2)
For front panel programming enter in Advanced
Configuration Mode (1).
Monitor (4) Yes Ye s Ye s Yes SB1 Button
Long Press SB1 to monitor and press SB1 again to
release.
Note: PL/DPL defeat feature should be disabled in
order to monitor.
Features
Programmable Via
Advanced Conf.
Programmable via
CPS Default Value Programming Tips
Display Non-
Display Display Non-
Display
89
Nuisance Ch
Delete (4) Yes Yes Yes Yes SB2 Button
Press SB2 to start scanning and wait until the radio
lands on the channel you want to delete. Long press
SB2 to delete the channel.
Note: The nuisance deleted channel will be restored
into the scan list when the radio is turned OFF or
you exit SCAN.
PL Defeat Ye s Yes Yes Yes SB1 Button
Also known as ‘Squelch defeat’. Short Press SB1 to
enable PL/DPL defeat so you can listen or monitor
any activity in the channel without noise. Press SB1
again to disable PL/DPL defeat.
Power Select
(4) Yes Yes Yes Yes
2W
(1W Model
dependant)
Use CPS to program an SBx button to be used for
selecting the transmission power level you want for
each channel. Note: There may be power
restrictions depending on the frequency chosen in
each channel.
Features
Programmable Via
Advanced Conf.
Programmable via
CPS
Default Value Programming Tips
Display Non-
Display Display Non-
Display
90
Power up Text No N/A Yes N/A MOTOROLA
Text that shows up in the radio display when turned
ON. Default text is MOTOROLA. Programmable via
CPS.
Reset to
Factory
Defaults (2)
Yes Ye s Ye s Yes Enabled
Allows to restore radio's factory defaults. Press PTT,
SB1, SB2 simultaneously for 3 seconds while
turning ON radio.
Reverse Burst No No Yes Yes 180
Reverse Burst eliminates unwanted noise (squelch
tail) during loss of carrier detection. Use CPS to
select values 180 or 240.
Features
Programmable Via
Advanced Conf.
Programmable via
CPS
Default Value Programming Tips
Display Non-
Display Display Non-
Display
91
Scan Yes Ye s N/A N/A SB2 Button Short press SB2 to enable/disable scan.
Multiple (16)
Scan Lists
Yes No Ye s Ye s ON - All
Channels
Use CPS for editing Scan Lists (adding/removing
channels to be scanned). For display models only:
you can add/delete channels in the scan lists
using front panel by going into Adv. Config. mode.
Mode(1).
Scan, Auto
Scan No Yes No Ye s OFF
Feature available only for Non Display Models. For
front programming using front panel radio enter in
Advanced Configuration Mode(1)
Scramble (4) Yes No Yes Yes O F F
(level 0)
Display models: you can program scramble
using front panel by going into Advanced
Configuration Mode(1). Non-display model you
need to program an SBx.
Time-Out
Timer No No Yes Ye s 60 seconds
Use CPS to program to program how long the PTT
can be pressed before the transmission is
automatically terminated. Values are 60, 120 and
180 seconds. (Pressing again PTT will start the
transmission again).
Features
Programmable Via
Advanced Conf.
Programmable via
CPS
Default Value Programming Tips
Display Non-
Display Display Non-
Display
92
VOX
Sensitivity
Level
Yes No Ye s Ye s O F F
(level 0)
Front panel radio programming available in display
models by pressing PTT or MENU buttons and
scrolling down/up with "A" and "B" buttons to set
value. Long press PTT to save.
VOX, enable/
disable Yes Yes Ye s Yes OFF
Allows to use ‘hands-free’ mode connecting
microphone accessories. To enable connect
external accessory and power up radio.
Note: The VOX sensitivity level default value is set
to OFF in the CPS settings. Before using this
feature, check VOX sensitivity level.
(1) To enter in Advanced Configuration Mode, press and hold both PTT and SB1 simultaneously for 3-5 seconds while turning radio ON (LED
will start to blink green). Short press PTT to get to the different programming options.
(2) Using CPS you can prevent this feature to be programmed via front panel radio.
(3) Contact your Motorola Point of purchase for enabling this feature and/or for radio models details.
(4) For Non-Display Models, feature can be enabled for front panel programming by assigning feature to SB1 or SB2. For Display models:
Feature can be enabled to any of the programmable buttons rather than the default ones. For more details refer to Programming Buttons Chart
or CPS Menus.
Features
Programmable Via
Advanced Conf.
Programmable via
CPS
Default Value Programming Tips
Display Non-
Display Display Non-
Display
New Features
93
Programmable Buttons Chart
Button Monitor
Scan /
Nuisance
Delete
Call Tone Power Select Scramble No Operation
SB1 Default
SB2 Default
Notes:
•Buttons come programmed to default functions. Using CPS you can assign one of the features shown in the
chart, so the button can toggle values using radio front panel.
m
68012009072
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks
or registered trademarks of Motorola Trademark Holdings, LLC and are used under
license. All other trademarks are the property of their respective owners. ©2013 Motorola,
Inc. All rights reserved. Printed in Malaysia.
