Motorola Solutions 89FT4932 2-way Radio with GMRS and FRS User Manual MN002664A01 EN
Motorola Solutions, Inc. 2-way Radio with GMRS and FRS MN002664A01 EN
Manual
m
TALKABOUT ® TWO-WAY RADIO
T1XX SERIES
*MN002664A01*
MN002664A01-AB
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M logo are trademarks
or registered trademarks of Motorola Trademark Holdings, LLC and are used under
license. All other trademarks are the property of their respective owners.
© 2016 and 2017 Motorola Solutions, Inc. All rights reserved.
Printed in China
Caution
Before using this radio, read this booklet which contains important
operating instructions.
For information on product details, brochures, user manuals and approved
accessories. Please refer to www.motorolasolutions.com.
Compliance with RF Exposure Standards
National and international regulations require manufacturers to comply
with the RF energy exposure limits for portable two-way radios before they
can be marketed. Your Motorola Solutions two-way radio is designed,
manufactured, and tested to comply with all applicable national and
international regulations for human exposure to radio frequency
electromagnetic energy.
RF Energy Exposure Awareness and Control Information and
Operational Instructions for General Population and Uncontrolled
Environment Use
For more information on what RF energy exposure is, see the following
websites:
• https://www.fcc.gov/
• http://www.who.int/peh-emf/project/en/
For additional information, see https://www.motorolasolutions.com/en_us/
about/ company-overview/corporate-responsibility/governance-and-
policies/wirelesscommunication-and-health-faqs.html.
FCC Licensing Information
For a Class B digital device or peripheral, the instructions furnished the
user shall include the following or similar statement, placed in a prominent
location in the text of the manual:
Note:This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
Operating Instructions
• Transmit no more than 50% of the time. To transmit (talk), press the
Push-To-Talk (PTT) button. To receive calls, release the PTT button.
• Hold the radio in a vertical position in front of the face with the
microphone (and other parts of the radio including the antenna) at
least 1 in. (2.5 cm) away from the nose or lips. Antenna should be
kept away from the eye.
• When worn on the body, always place the radio in a Motorola
Solutions-approved clip, holder, holster, case, or body harness for
this product.
• DO NOT hold the antenna when the radio is transmitting.
• DO NOT use any portable radio that has a damaged antenna. If a
damaged antenna comes into contact with your skin, a minor burn
can result.
• To ensure continued compliance with applicable RF exposure limits,
use only Motorola Solutions-approved, supplied or replacement
antennas, batteries, and accessories.
• For a list of Motorola Solutions-approved accessories please refer
to your user manual or visit www.motorolasolutions.com
Acoustic Safety
Exposure to loud noises from any source for extended periods of time may
temporarily or permanently affect your hearing. The louder the volume of
the radio, the sooner your hearing will be affected. Hearing damage from
loud noise is sometimes undetectable at first, and can have a cumulative
effect.
To protect your hearing, follow these precautions:
• Use the lowest volume necessary to do your job.
• Turn up the volume only if you are in noisy surroundings.
• Turn down the volume before putting on a headset or headphones.
• Limit the amount of time you use a headset or headphones at high
volume.
• When using the radio without a headset or headphones, do not place the
speaker of the radio directly against your ear.
Medical Devices
If you use a personal medical device, such as a pacemaker or hearing aid,
consult the manufacturer of your device to determine if it is adequately
shielded from RF energy. Your physician may be able to assist you in
obtaining this information.
Operational Warnings
The following explains the operational warnings:
For Vehicle With Air Bags
Potentially Explosive Atmospheres
Blasting Caps and Blasting Areas
Batteries
• Charge your battery using the approved Motorola Solutions charger.
• Use the battery in accordance with its water and/or dust Ingress
Protection (IP) rating.
• Do not discard your battery into a fire.
• Do not replace the battery in any area labeled “Hazardous
Atmosphere”.
• Do not disassemble, crush, puncture, shred, or otherwise attempt to
change the form of your battery.
• Do not dry a wet or damp battery with an appliance or heat source,
such as a hair dryer or microwave oven.
• Do not allow conductive material such as jewelry, keys, or beaded
chains to touch exposed battery terminals.
Repair
Do Not Substitute Options or Accessories
The Motorola Solutions communications equipment certified as intrinsically
safe by the approving agency (FM, UL, CSA, CENELEC) is tested as a
complete system which consists of the listed agency approved portable,
approved battery, and approved accessories or options, or both. This
approved portable and battery combination must be strictly observed.
There must be no substitution of items, even if the substitute has been
previously approved with a different Motorola Solutions communications
equipment unit. approved configurations are listed by the
approving agency (FM, UL, CSA, CENELEC).
The Intrinsically Safe Approval Label affixed to radio refers to the
intrinsically safe classification of that radio product, and the approved
batteries that can be used with that system.
The manual PN referenced on the Intrinsically Safe Approval Label
identifies the approved accessories and or options that can be used with
that portable radio unit.
Using a non-Motorola Solutions-intrinsically safe battery and/or accessory
with the Motorola Solutions-approved radio unit will void the intrinsically
safe approval of that radio unit.
European Union (EU) Waste of Electrical and Electronic
Equipment (WEEE) Directive
USA
Use of GMRS frequencies is subject to the Rules and Regulations of
the Federal Communications Commission (FCC).
The FCC requires that all operators using GMRS frequencies obtain
a radio license before operating their equipment. To obtain the FCC
forms, please visit the FCC website at wireless.fcc.gov/uls/
index.htm?job=home to source form 605 and 159, which includes all
the instructions you will need.
If you wish to have the document faxed or mailed, or if you have
questions, please use the following contact information:
Canada
Use of Motorola Solutions radio in Canada is subject to the rules &
regulations of Industry Canada (IC). IC requires no license when
operated in Canada.
Changes or modifications not expressly approved by Motorola
Solutions may void your user authority granted by the IC/FCC to
operate this radio and should not be made. To comply with IC/FCC
requirements, transmitter adjustments should be made only by or
under the supervision of a person certified as technically qualified to
perform transmitter maintenance and repairs in the private land
mobile and fixed services as certified by an organization
representative of the user of those services. Replacement of any
transmitter component (crystal, semiconductor, etc) not authorized by
the IC/FCC equipment authorization for this radio could violate IC/
FCC rules.
Note: Use of this radio outside the country where it was intended to
be distributed is subject to government regulations and may
be prohibited.
Mexico
Use of GMRS frequencies is subject to the Rules and Regulations of
the Federal Communications Institute (IFT) requires that all operators
using GMRS frequencies obtain a permit before operating their
equipment. To obtain a permit from the IFT, you must proceed in
accordance with Articles 14 and 15 of the Federal
Telecommunications Law. Consult your local IFT office for more
information: www.ift.org.mx
Uruguay
Use of GMRS frequencies is subject to the Rules and Regulations of
the Regulatory Unit Communications Services (URSEC). URSEC
requires that all operators using GMRS frequencies obtain a permit
before operating their equipment. The authorization shall depend on
the channel availability at the time the authorization is requested. To
obtain a permit from URSEC, consult your local URSEC office for
more information: www.ursec.gub.uy.
Panama
The Republic of Panama does not require authorization to use FRS/
GMRS radio equipment frequencies.
Installing the Batteries
1. Make sure your radio is OFF.
2. To remove the battery compartment door, by pressing the tab
at the bottom of the compartment door. Remove the door.
Insert three AAA batteries into the battery compartment.
3. Replace the battery compartment door.
Battery Level and Low Battery Alert
Removing the Alkaline Batteries
1. Turn the radio off.
2. With the back of the radio facing you, lift the battery cover latch
up and remove the cover.
3. Gently remove each alkaline battery.
4. Close the battery cover firmly.
Note:
• Exercise care when removing AAA batteries. Do not use sharp
or conductive tools to remove either of these batteries.
• Remove the batteries before storing your radio for extended
periods of time. Batteries corrode over time and may cause
permanent damage to your radio.
Attaching and Removing the Belt Clip
1. Attach the belt clip to the back of the radio until the clip clicks in
place.
2. Attach the belt clip to pocket or belt strap until the clip clicks in
place.
To Remove
1. Push the release tab on top of the belt clip to release the latch.
2. Pull the belt clip away from the back of the radio.
Read this reference guide completely before attempting to operate
the unit.
Turning Your Radio On/Off
Press and hold the MENU/ button to turn your radio ON/OFF.
Adjusting the Volume
1. Adjust the volume by pressing the and buttons.
2. When the volume reached level 0, the mute icon appears
permanently on screen.
Adjusting the Sound (Key Beeps)
Your radio emits a beep each time one of the buttons is pressed
(except the PTT button).
Press and hold the button while turning the radio ON to switch the
sound OFF.
To turn this sound ON, turn the radio OFF and ON again without
pressing the button.
Selecting a Channel
In order to speak to someone, both your radios must be set to the
same channel.
To select a channel:
1. Press MENU/ one time to enter Menu.
2. Press or to the required channel. An extended press
of or allows you to scroll through the channel.
3. Press PTT button to confirm the selection or MENU/ to
continue setup.
To communicate, all radios in your group must be set to the same
channel.
1. To talk, press and hold the PTT button. When transmitting, the
is shown.
2. When you are finished talking, release the PTT button.
3. When receiving, the is shown.
For maximum clarity, hold the radio 1 in. away from your mouth and
speak directly into the microphone. Do not cover the microphone
while talking.
Talk Range
Your radio is designed to maximize performance and improve
transmission range. Do not use the radios closer than 5 ft apart.
Push-to-Talk Timeout Timer
To prevent accidental transmissions and save battery life, the radio
emits a continuous warning tone and stops transmitting if you press
the PTT button for 60 s continuously.
Channel Scan Mode
Channel Scan Mode enables your radio to scan for active channels.
When activity is detected, your radio lands (stays) on that channel
(for two seconds). To transmit on that channel, press the PTT button.
When activity on the landed channel ends, your radio continues
scanning other channels.
To turn the channel scan ON:
1. Press MENU/ two times until appears.
2. Press / to start scanning. Press MENU/ or PTT to turn
OFF Scan mode.
Key Lock
1. Press and hold / until appears to lock the keypad.
2. When in lock mode, you can turn the radio on and off, adjust
the volume, send a call tone, receive, and transmit. All other
functions are locked.
3. Press and hold / , until disappears to unlock the
keypad.
Monitor Mode
Your radio enables you to listen for weak signals on the current
channel.
To turn the Monitor Mode ON:
1. Press MENU/ three times until the Channel Monitor setting
flashes and the appears.
2. Press the / button for continuous listening. The icon
continues to appears.
To turn the Monitor Mode OFF:
1. Press the MENU/ button to return to “Normal” mode. The
icon stops appearing.
Roger Beep
Roger beep sounds to indicate the end of a PTT transmission. It can
be heard through the speaker when Key Beep is on. It cannot be
heard through the speaker if Key Beep is turned off.
Press and hold the button while turning the radio ON to turn the
Roger Beep ON. Repeat the step to turn Roger Beep OFF.
Automatic Power Save
For better battery life, your radio is designed to switch to Power Save
mode when there has been no transmissions after 3 s. The radio can
receive transmissions in this mode.
USA, Canada, Mexico, Panama, Uruguay
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M
logo are trademarks or registered trademarks of Motorola Trademark
Holdings, LLC and are used under license. All other trademarks are
the property of their respective owners.
© 2016 and 2017 Motorola Solutions, Inc. All rights reserved.
Consumer Two-Way Radio Products and Accessories
purchased in the USA, Canada, Mexico, Uruguay, and
Panama
What Does this Warranty Cover?
Subject to the exclusions contained below, Motorola Solutions, Inc.
(“Motorola”) warrants the Motorola branded consumer
two-way radios that operate through Family Radio Service or General
Mobile Radio Service (“Products”), the Motorola branded or certified
accessories sold for use with these Products (“Accessories”) to be
free from defects in materials and workmanship under normal
consumer usage for the period(s) outlined below. This limited
warranty is the exclusive remedy of a consumer, and applies as
follows to new Products and Accessories and purchased by
consumers in the United States or Canada, which are accompanied
by this written warranty:
Who is Covered?
This warranty extends only to the first consumer purchaser, and is
not transferable.
What will MOTOROLA SOLUTIONS, INC. do?
Motorola Solutions, Inc., at its option, will at no charge repair, replace
or refund the purchase price of any Products or Accessories that do
not conform to this warranty. We may use functionally equivalent
reconditioned/refurbished/pre-owned or new Products or
Accessories.
What Other Limitations Are There?
Any Implied Warranties, Including Without Limitation
The implied warranties of merchantability and fitness for a particular
purpose, shall be limited to the duration of this limited warranty,
otherwise the repair, replacement, or refund as provided under this
express limited warranty is the exclusive remedy of the consumers,
and is provided in lieu of all other warranties, express or implied. In
no event shall Motorola Solutions be liable, whether in contract or tort
(including negligence) for damages in excess of the purchase price
of the product or accessory, or for any indirect, incidental, special or
consequential damages of any kind, or loss of revenue or profits, loss
of business, loss of information or other financial loss arising out of or
in connection with the ability or inability to use the products or
accessories to the full extent these damages may be disclaimed by
law.
Some states and jurisdictions do not allow the limitation or exclusion
of incidental or consequential damages, or limitation on the length of
an implied warranty, so the above limitations or exclusions may not
apply to you. This warranty gives you specific legal rights, and you
may also have other rights that vary from state to state or from one
jurisdiction to another.
How to Obtain Warranty Service or Other Information?
To obtain customer service or information:
USA and Canada
1-800-448-6686.
www.motorolasolutions.com/talkabout
E-mail us at consumerradio@motorolasolutions.com
Latin America
Toll free:
Mexico 001-855-241-8253
Panama 001-800-205-3867
Uruguay 598 – 24001716
Toll or long distance:
Spanish +001-312-725-5372
English +001-312-725-5368
www.motorolasolutions.com/talkabout/es (Spanish)
For Accessories:
Please call the telephone number designated above for the Product
with which they are used.
You will receive instructions on how to ship the Products or
Accessories at your expense, to Motorola Solutions or a Motorola
Solutions Authorized Repair Center. To obtain service, you must
include: (a) a copy of your receipt, bill of sale or other comparable
proof of purchase; (b) a written description of the problem; (c) the
name of your service provider, if applicable; (d) the name and
location of the installation facility (if applicable) and, most importantly;
(e) your address and telephone number.
For more information, please visit us at:
Safety and General Information
Warning:
• Refer to vehicle manufacturer's manual prior to
installation of electronic equipment to avoid interference
with air bag wiring.
• DO NOT place a portable radio in the area over an air
bag or in the air bag deployment area. Air bags inflate with
great force. If a portable radio is placed in the air bag
deployment area and the air bag inflates, the radio may
be propelled with great force and cause serious injury to
occupants of the vehicle.
Warning:
• Use of a radio that is not intrinsically safe in a potentially
explosive atmosphere could result in a serious injury, or
death. You should only use a certified Intrinsically Safe
radio in potentially explosive atmospheres.
• Explosive atmospheres refer to hazard classified
locations that may contain hazardous gas, vapors, dusts,
such as fueling areas below decks on boats, fuel, or
chemical transferor storage facilities, and areas where the
air contains chemicals or particles such as grain, dust, or
metal powders. Areas with potentially explosive
atmospheres are often, but not always, posted.
• Turn off your radio prior to entering any area with a
potentially explosive atmosphere unless it is a radio type
specifically certified for use in hazardous location areas.
• DO NOT remove, install, or charge batteries in such
areas, or remove or install antennas. Sparks in a
potentially explosive atmosphere can cause an explosion
or fire resulting in bodily injury or even death.
Warning: To avoid possible interference with blasting
operations, turn off your radio when you are near
electrical blasting caps, in a blasting area, or in areas
posted: “Turn off two-way radio.” Obey all signs and
instructions.
Warning:
Repairs to a Motorola Solutions intrinsically safe radio
product certified by, for example, FM, UL, CSA,
CENELEC, should only be done at a location that has
been audited under the certifying body's repair and
service
standard.
Contact Motorola Solutions for assistance regarding
repairs and service of Motorola Solutions intrinsically safe
equipment.
A repair constitutes something done internally to the unit
that would bring it back to its original condition. Items not
considered as repairs are those in which an action is
performed on a unit which does not require the outer
casing of the unit to be opened in a manner that exposes
the internal electrical circuits of the unit.
The European Union's WEEE directive requires that
products sold into EU countries must have the crossed
out trash bin label on the product (or the package in some
cases). As defined by the WEEE directive, this cross-out
trash bin label means that customers and end-users in EU
countries should not dispose of electronic and electrical
equipment or accessories in household waste. Customers
or end-users in EU countries should contact their local
equipment supplier representative or service centre for
information about the waste collection system in their
country.
!!
!!
!!
!!
For a fax:
Contact the Fax-
On-Demand
system
For mail service:
Call the FCC Forms
Hotline
If you have questions
about the FCC License:
Call the FCC
1-202-418-0177 1-800-418-FORM
(3676)
1-888-CALL-FCC
(225-5322)
Licensing Information
Antenna
Volume/
Scroll
Call Tone/ Lock
Speaker
Microphone
Menu/Power
Push-to-Talk Screen
Channel
Battery (2
Battery Levels)
Keypad Lock
Mute Status (transmit/
receive)
Scan
This icon will show when battery is low and will blink
when battery is extremely low. Replace the batteries
immediately.
Getting Started
Basic Radio Operations
Talking and Listening
Channel Frequency Description Channel Frequency Description
1 462.5625 MHz GMRS/FRS 12 467.6625 MHz FRS
2 462.5875 MHz GMRS/FRS 13 467.6875 MHz FRS
3 462.6125 MHz GMRS/FRS 14 467.7125 MHz FRS
4 462.6375 MHz GMRS/FRS 15 462.5500 MHz GMRS
5 462.6625 MHz GMRS/FRS 16 462.5750 MHz GMRS
6 462.6875 MHz GMRS/FRS 17 462.6000 MHz GMRS
7 462.7125 MHz GMRS/FRS 18 462.6250 MHz GMRS
8 467.5625 MHz FRS 19 462.6500 MHz GMRS
9 467.5875 MHz FRS 20 462.6750 MHz GMRS
10 467.6125 MHz FRS 21 462.7000 MHz GMRS
11 467.6375 MHz FRS 22 462.7250 MHz GMRS
Channels and Frequencies
Patent and Copyright Information
Warranty
Products Covered Length Of Coverage
Products and Accessories
as defined above, unless
otherwise provided for
below:
One year from the date of purchase
by the first consumer purchaser of
the product unless otherwise
provided for below.
Products and Accessories
that are repaired or replaced
The balance of the original
warranty or for 90 days from the
date returned to the consumer,
whichever is longer.
Exclusions From Warranty Coverage
Normal Wear and Tear:
Periodic maintenance, repair, and replacement of products or
accessories due to normal wear and tear.
Abuse and Misuse:
Defects or damage that result from: (a) improper operation, storage,
misuse or abuse, accident, or neglect, such as physical damage
(cracks, scratches, etc.) to the surface of the Products and
Accessories resulting from misuse; (b) contact with liquid, water,
rain, extreme humidity or heavy perspiration, sand, dirt, or the like,
extreme heat, or food; (c) use of the Products or Accessories for
commercial purposes or subjecting the Product or Accessory to
abnormal usage or conditions; or (d) other acts which are not the
fault of Motorola Solutions.
Use of Non-Motorola Solutions branded Products and
Accessories:
Defects or damage that result from the use of Non-Motorola
Solutions branded or certified products, accessories, software, or
other peripheral equipment.
Unauthorized Service or Modification:
Defects or damages resulting from service, testing, adjustment,
installation, maintenance, alteration, or modification in any way by
someone other than Motorola Solutions, or its authorized service
centers.
Altered Products:
Products or Accessories with (a) serial numbers or date tags that
have been removed, altered, or obliterated; (b) broken seals or that
show evidence of tampering; (c) mismatched board serial numbers;
or (d) non-conforming or non-Motorola Solutions branded housings,
or parts.
Communication Services:
Defects, damages, or the failure of Products or Accessories due to
any communication service or signal you may subscribe to or use
with the Products or Accessories.
https://www.facebook.com/
MotorolaTalkaboutWalkieTalkies
http://bit.ly/Talkabout
www.motorolasolutions.com/talkabout
www.motorolasolutions.com/talkabout/es
(Spanish)
MN002664A01_EN.fm Page 1 Friday, June 30, 2017 4:35 PM
Electromagnetic Interference/Compatibility
Note: Nearly every electronic device is susceptible to electromagnetic
interference (EMI) if inadequately shielded, designed or otherwise
configured for electromagnetic compatibility.
This device complies with part 15 of the FCC Rules and Industry
Canada License-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation of the device.

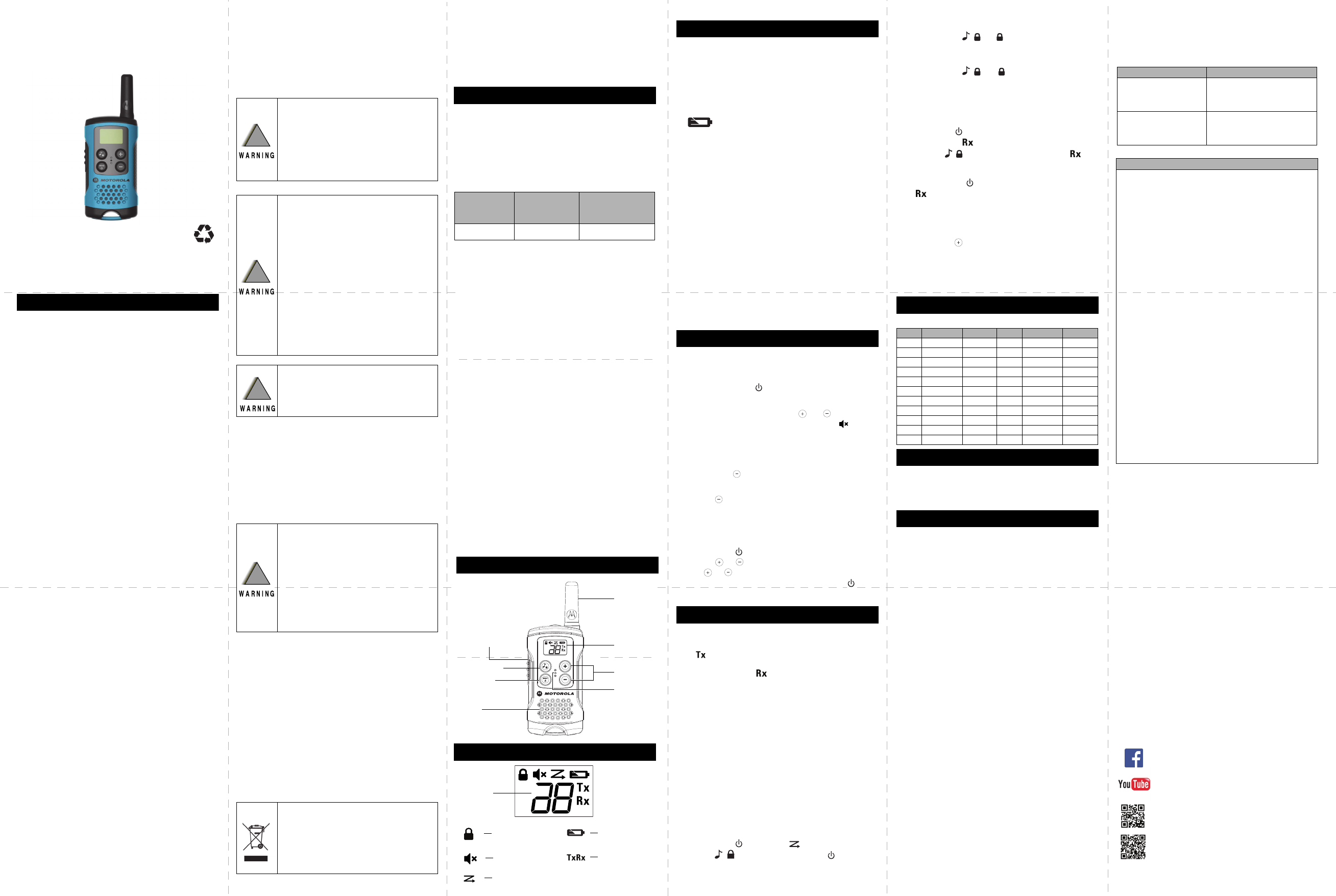

Display Screen Guide
Control Buttons
