Users Guide
APX TWO-WAY RADIOS
User Guide
Contents
Declaration of Conformity......................... 7
Important Safety Information..........9
Software Version............................10
Notice to Users (FCC and Industry
Canada)....................................................10
Consignes de sécurité
importantes.................................11
Version logicielle........................... 12
Avis aux utilisateurs (FCC et Industrie
Canada)....................................................12
Computer Software Copyrights....13
Documentation Copyrights...........14
Disclaimer.......................................15
Getting Started............................... 16
How to Use This Guide..................................16
Notations Used in This Manual......................16
Additional Performance Enhancement.......... 17
ASTRO 25 Enhanced Data.................17
Dynamic System Resilience (DSR).... 17
CrossTalk Prevention..........................17
SecureNet...........................................17
What Your Dealer/System Administrator
Can Tell You.............................................17
Preparing Your Radio for Use.......19
Charging the Battery......................................19
Attaching the Battery..................................... 19

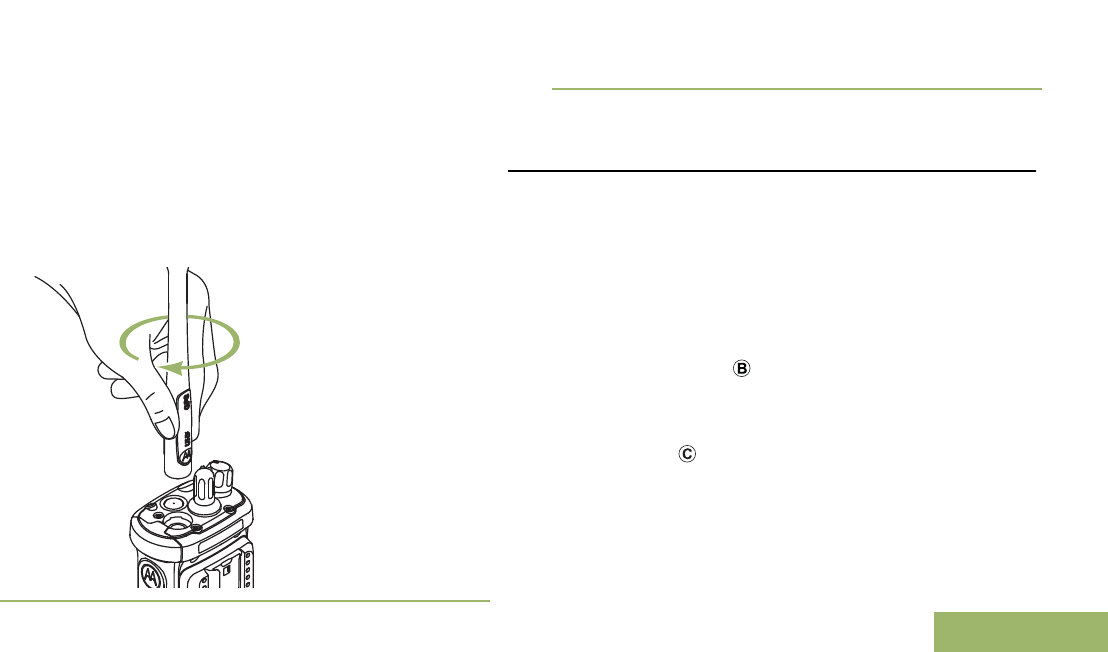

Attaching the Antenna................................... 20

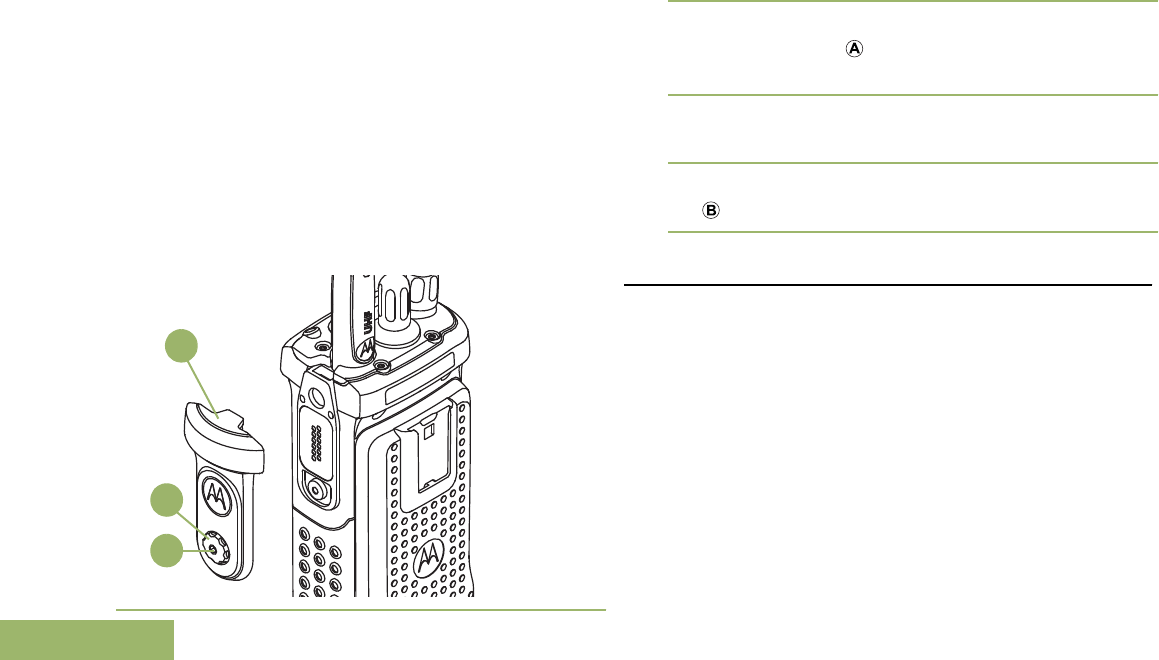

Removing and Attaching the Accessory
Connector Cover...................................... 21
Contents
1
English
Attaching the Belt Clip................................... 22

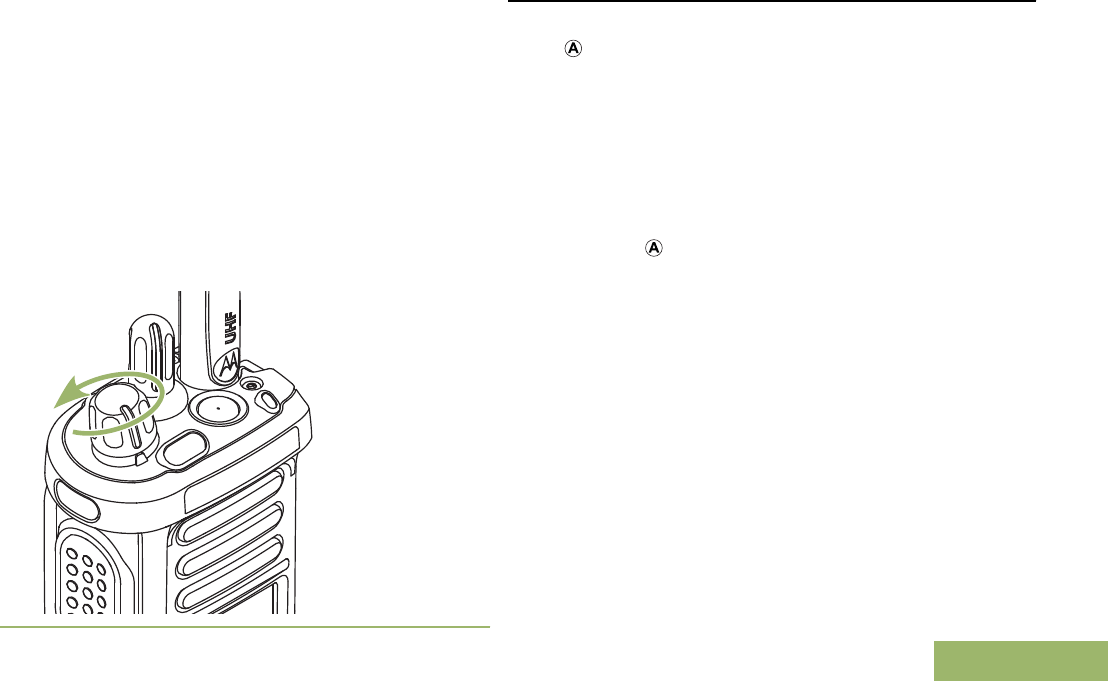

Turning On the Radio.................................... 23
Adjusting the Volume.....................................25
Identifying Radio Controls............ 27
Radio Parts and Controls...............................27
Programmable Features................................28
Assignable Radio Functions............... 28
Assignable Settings or Utility
Functions....................................... 31
Accessing the Preprogrammed Functions.....31
Menu Select Buttons...........................32
Home Button.......................................32
4-Way Navigation Button.................... 32
Data Feature Button............................32
Push-To-Talk (PTT) Button............................33
Identifying Status Indicators.........35

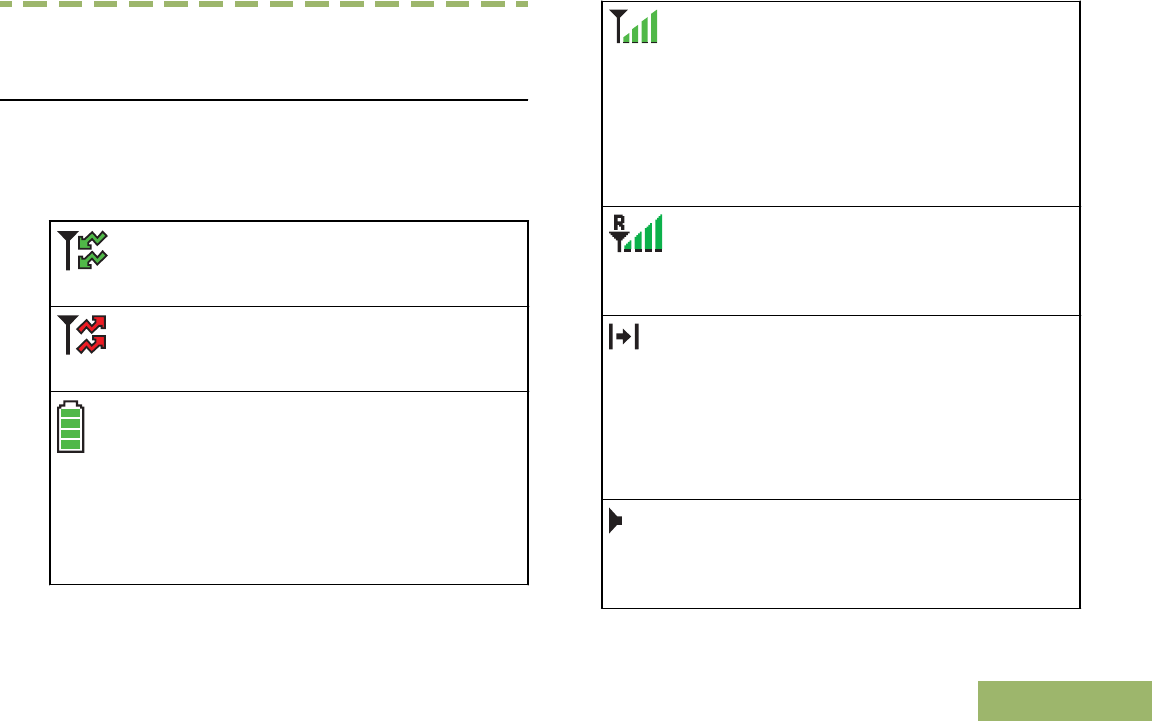

Status Icons...................................................35
Text Messaging Service (TMS) Indicators.....37
TMS Status Icons................................37
TMS Menu Options.............................39
Call Type Icons..............................................39
LED Indicator.................................................39
Top Lightbar Indicator....................................41
Intelligent Lighting Indicators......................... 42
Alert Tones.................................................... 43
Phone Call Displays and Alerts..................... 46
General Radio Operation...............48
Selecting a Zone............................................48
Selecting a Radio Channel............................ 48
Mode Select Feature..................................... 49
Saving a Zone and a Channel to a
Softkey...........................................49
Saving a Zone and a Channel to a
Keypad Button............................... 50
Receiving and Responding to a Radio Call... 50
Receiving and Responding to a
Talkgroup Call................................50
Receiving and Responding to a
Private Call (Trunking Only)...........51
Receiving and Responding to a
Telephone Call (Trunking Only).....52
Making a Radio Call.......................................52
Making a Talkgroup Call..................... 52
Making a Private Call (Trunking
Only).............................................. 53
Contents
2
English
Making an Enhanced Private Call
(Trunking Only).............................. 54
Making a Telephone Call (Trunking
Only).............................................. 55
Switching Between Repeater or Direct
Operation Button...................................... 56
Monitor Feature............................................. 56
Monitoring a Channel..........................56
Monitoring Conventional Mode........... 57
Advanced Features........................58
Advanced Call Features................................ 58
Selective Call (ASTRO
Conventional Only)........................ 58
Talkgroup Call Feature
(Conventional Operation Only)...... 59
Sending a Status Call......................... 59
Responding to the Dynamic
Regrouping Feature (Trunking
Only).............................................. 60
Dynamic Zone Programming (DZP)....61
Contacts.........................................................63
Making a Private Call from Contacts...63
Adding a Contact to a Call List............64
Removing a Contact from a Call
List................................................. 64
Viewing Details of a Contact...............65
Scan Lists...................................................... 65
Viewing a Scan List.............................65
Editing the Scan List........................... 66
Viewing and Changing the Priority
Status.............................................67
Scan...............................................................67
Turning Scan On or Off.......................67
Making a Dynamic Priority Change
(Conventional Scan Only)..............68
Deleting a Nuisance Channel............. 68
Restoring a Nuisance Channel........... 68
Call Alert Paging............................................69
Receiving a Call Alert Page................ 69
Sending a Call Alert Page...................69
Emergency Operation....................................71
Sending an Emergency Alarm............ 72
Sending an Emergency Call
(Trunking Only).............................. 72
Sending an Emergency Alarm with
Emergency Call............................. 73
Sending a Silent Emergency Alarm.... 73
Change of Channels during
Emergency.....................................74
Emergency Keep-Alive Feature..........74
Contents
3
English
Man Down......................................................74
Pre-Alert Timer....................................76
Post-Alert Timer..................................76
Radio Alerts When Man Down
Feature is Triggered...................... 76
Triggering Emergency.........................76
Radio Alerts When Man Down
Enhanced is Triggered...................77
Exiting Man Down Feature..................77
Re-Initiating Man Down.......................78
Testing the Man Down Feature...........78
Automatic Registration Service (ARS)...........78
Selecting or Changing the ARS
Mode..............................................79
User Login Feature............................. 79
Text Messaging Service (TMS)..................... 80
Sending a Quick Text Message..........81
Priority Status and Request Reply
of a New Text Message................. 82
Secure Operations.........................................87
Selecting Secure Transmissions.........87
Selecting Clear Transmissions........... 88
Managing Encryption.......................... 88
Global Positioning System (GPS)..................92
GPS Operation....................................93
GPS Performance Enhancement........94
The Outdoor Location Feature
(Using GPS)...................................94
MGRS Coordinates.............................95
Trunking System Controls............................. 98
Using the Failsoft System................... 98
Out-of-Range Radio............................99
Site Trunking Feature......................... 99
Locking and Unlocking a Site..............99
Site Display and Search Button........ 100
Mission Critical Wireless - Bluetooth-.......... 100
Turning the Bluetooth On..................101
Turning the Bluetooth Off..................101
Re-Pair Timer....................................102
Bluetooth Drop Timer........................103
Pairing with Low Frequency-
Motorola Proximity Pairing (LF-
MPP) Feature.............................. 104
Radio Indications of Lost Bluetooth
Connection...................................106
Standard Pairing Feature..................106
PIN Authentication in Pairing............ 109
Turning On the Bluetooth Audio
(Routing the Audio from the
Radio to the Headset)..................111
Turning Off the Bluetooth Audio
(Routing the Audio from the
Headset to the Radio)..................112
Contents
4
English
Adjusting the Volume of the Radio
from Bluetooth Audio Device....... 112
Viewing and Clearing the Bluetooth
Device Information.......................112
Clearing All Bluetooth Devices
Information...................................113
Programming Over Project 25 (POP 25)
(ASTRO 25 and ASTRO Conventional). 114
Responding to the Notification of
Upgrade....................................... 114
Voice Announcement...................................115
Site Selectable Alerts (ASTRO 25)..............116
Sending SSA Notification to Single
Site...............................................117
Sending SSA Notification to All
Sites.............................................117
Sending SSA Notification to All
Available Sites............................. 118
Stopping SSA Notification of a
Single Site....................................118
Stopping SSA Notification of All
Sites.............................................119
Stopping SSA Notification of All
Available Sites............................. 120
Utilities......................................................... 120
Viewing Recent Calls........................120
Selecting the Power Level................ 121
Selecting a Radio Profile...................122
Enabling and Disabling the Radio
Alias............................................. 122
Selecting the Audio Speaker.............123
Controlling the Display Backlight...... 123
Setting Up the Radio Display and
Visual Indicators to Suit Night
Vision Goggles.............................124
Locking and Unlocking the Controls. 125
Turning the Controls and Buttons
Tones On or Off........................... 125
Turning Voice Mute On or Off...........126
Using the Time-Out Timer.................126
Time and Date Setup........................127
Using Conventional Squelch
Operation Features......................128
Using the PL Defeat Feature............ 128
Digital PTT ID Support......................129
Smart PTT Feature (Conventional
Only)............................................ 129
IMPRES Battery Annunciator............130
General Radio Information................130
Helpful Tips.................................. 133
Radio Care...................................................133
Contents
5
English
Cleaning Your Radio.........................134
Proper Ways to Handle the Radio.... 134
Radio Service and Repair.................134
Battery Care.................................................135
Battery Charge Status.......................135
Battery Recycling and Disposal........ 136
Accessories..................................137
Maritime Radio Use in the VHF
Frequency Range..................... 138
Special Channel Assignments.....................138
Emergency Channel......................... 138
Operating Frequency Requirements............138
Declaration of Compliance for the Use of
Distress and Safety Frequencies............141
Glossary........................................142
Limited Warranty..........................148
MOTOROLA COMMUNICATION
PRODUCTS........................................... 148
I. WHAT THIS WARRANTY COVERS
AND FOR HOW LONG:......................... 148
II. GENERAL PROVISIONS:....................... 149
III. STATE LAW RIGHTS:............................149
IV. HOW TO GET WARRANTY SERVICE:.149
V. WHAT THIS WARRANTY DOES NOT
COVER:..................................................150
VI. PATENT AND SOFTWARE
PROVISIONS:........................................ 150
VII. GOVERNING LAW:...............................152
VIII. For Australia Only:................................152
Contents
6
English
Declaration of Conformity
This declaration is applicable to your radio only if your radio is labeled with the FCC logo shown below.
Declaration of Conformity
Per FCC CFR 47 Part 2 Section 2.1077(a)
Responsible Party
Name: Motorola Solutions, Inc.
Address: 1303 East Algonquin Road, Schaumburg, IL 60196-1078, U.S.A.
Phone Number: 1-800-927-2744
Hereby declares that the product:
Model Name: APX 4000/ APX 4000Li
conforms to the following regulations:
FCC Part 15, subpart B, section 15.107(a), 15.107(d) and section 15.109(a)
Declaration of Conformity
7
English
Class B Digital Device
As a personal computer peripheral, this device complies with Part 15 of the FCC Rules. This device complies with
Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
1This device may not cause harmful interference, and
2This device must accept any interference received, including interference that may cause undesired operation.
Note:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
•Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Declaration of Conformity
8
English
Important Safety Information
RF Energy Exposure and Product Safety Guide
for Portable Two-Way Radios
ATTENTION!
This radio is restricted to Occupational use only.
Before using the radio, read the RF Energy Exposure
and Product Safety Guide for Portable Two-Way
Radios which contains important operating
instructions for safe usage and RF energy awareness
and control for Compliance with applicable standards
and Regulations.
For a list of Motorola-approved antennas, batteries,
and other accessories, visit the following website:
http://www.motorolasolutions.com/APX
Under Industry Canada regulations, this radio
transmitter may only operate using an antenna of a
type and maximum (or lesser) gain approved for the
transmitter by Industry Canada. To reduce potential
radio interference to other users, the antenna type
and its gain should be so chosen that the equivalent
isotropically radiated power (e.i.r.p.) is not more than
that necessary for successful communication.
This radio transmitter has been approved by Industry
Canada to operate with Motorola-approved antenna
with the maximum permissible gain and required
antenna impedance for each antenna type indicated.
Antenna types not included in this list, having a gain
greater than the maximum gain indicated for that
type, are strictly prohibited for use with this device.
Important Safety Information
9
English
Software Version
All the features described in the following sections are
supported by the radio's software version R13.00.00
or later.
See Accessing the Radio Information on page 130 to
determine your radio software version.
Check with your dealer or system administrator for
more details of all the features supported.
Notice to Users (FCC and Industry Canada)
This device complies with Part 15 of the FCC rules
and RSS 210 of the Industry Canada rules per the
following conditions:
•This device may not cause harmful interference.
• This device must accept any interference
received, including interference that may cause
undesired operation.
• Changes or modifications made to this device, not
expressly approved by Motorola, could void the
user's authority to operate this equipment.
Software Version
10
English
Consignes de sécurité importantes
Radios bidirectionnelles portatives : exposition
aux radiofréquences et sécurité du produit
ATTENTION!
Cette radio ne doit être utilisée qu'à des fins
professionnelles. Avant d'utiliser la radio, lisez le
guide Radios bidirectionnelles : exposition aux
radiofréquences et sécurité du produit, qui contient
d'importantes instructions de fonctionnement pour
une utilisation sécuritaire et des informations sur
l'exposition aux fréquences radioélectriques, dans le
but d’assurer votre conformité aux normes et
règlements en vigueur.
Visitez le site Web suivant pour obtenir la liste des
antennes et des autres accessoires approuvés par
Motorola :
http://www.motorolasolutions.com/APX
Selon la réglementation d'Industrie Canada, cet
émetteur radio ne peut être utilisé qu'avec une
antenne dont le type et le gain maximal (ou minimal)
sont approuvés par Industrie Canada pour cet
émetteur. Afin de limiter les interférences radio pour
les autres utilisateurs, le type et le gain de l'antenne
doivent être choisis de façon à ce que la puissance
isotrope rayonnée équivalente (P.I.R.E.) ne soit pas
plus forte qu'il ne le faut pour établir la
communication.
Cet émetteur radio a été approuvé par Industrie
Canada pour utilisation avec une antenne approuvée
par Motorola offrant le gain maximal autorisé et
l'impédance requise pour le type d'antenne indiqué. Il
est strictement interdit d'utiliser avec cet appareil tout
type d'antenne ne figurant pas dans cette liste et
présentant un gain supérieur au maximum indiqué
pour le type.
Consignes de sécurité importantes
11
English
Version logicielle
Toutes les fonctions décrites dans les sections
suivantes sont prises en charge par la version
R13.00.00 ou les versions ultérieures du logiciel de la
radio.
Pour obtenir davantage de renseignements à propos
des fonctions prises en charge, adressez-vous à
votre détaillant ou à votre administrateur de système.
Avis aux utilisateurs (FCC et Industrie
Canada)
Cet appareil est conforme à la Partie 15 des
règlements de la FCC et RSS 210 du règlement
d'Industrie Canada selon les conditions énumérées
ci-dessous:
•Ce dispositif ne doit pas causer d'interférences
nuisibles.
• Cet appareil doit accepter toute interférence
reçue, y compris les interférences qui peuvent
perturber le fonctionnement.
• Les changements ou les modifications apportées
à ce dispositif, non expressément approuvées par
Motorola, peuvent annuler le droit de l'utilisateur à
utiliser cet équipement.
Version logicielle
12
English
Computer Software Copyrights
The Motorola products described in this manual may
include copyrighted Motorola computer programs
stored in semiconductor memories or other media.
Laws in the United States and other countries
preserve for Motorola certain exclusive rights for
copyrighted computer programs including, but not
limited to, the exclusive right to copy or reproduce in
any form the copyrighted computer program.
Accordingly, any copyrighted Motorola computer
programs contained in the Motorola products
described in this manual may not be copied,
reproduced, modified, reverse-engineered, or
distributed in any manner without the express written
permission of Motorola. Furthermore, the purchase of
Motorola products shall not be deemed to grant either
directly or by implication, estoppel, or otherwise, any
license under the copyrights, patents or patent
applications of Motorola, except for the normal non-
exclusive license to use that arises by operation of
law in the sale of a product.
Computer Software Copyrights
13
English
Documentation Copyrights
No duplication or distribution of this document or any
portion thereof shall take place without the express
written permission of Motorola. No part of this manual
may be reproduced, distributed, or transmitted in any
form or by any means, electronic or mechanical, for
any purpose without the express written permission of
Motorola.
Documentation Copyrights
14
English
Disclaimer
The information in this document is carefully
examined, and is believed to be entirely reliable.
However, no responsibility is assumed for
inaccuracies. Furthermore, Motorola reserves the
right to make changes to any products herein to
improve readability, function, or design. Motorola
does not assume any liability arising out of the
applications or use of any product or circuit described
herein; nor does it cover any license under its patent
rights, nor the rights of others.
Disclaimer
15
English
Getting Started
How to Use This Guide
This User Guide covers the basic operation of the
APX Portables.
However, your dealer or system administrator may
have customized your radio for your specific needs.
Check with your dealer or system administrator for
more information.
Notations Used in This Manual
Throughout the text in this publication, you will notice
the use of Warning, Caution, and Note. These
notations are used to emphasize that safety hazards
exist, and the care that must be taken or observed.
Warning: An operational procedure, practice,
or condition and so on, which may result in
injury or death if not carefully observed.
Caution: An operational procedure, practice,
or condition and so on, which may result in
damage to the equipment if not carefully
observed.
Note: An operational procedure, practice, or condition
and so on, which is essential to emphasize.
The following special notations identify certain items.
Example Description
Home button or Buttons and keys are shown in
bold print or as an icon.
Phon Menu entries are shown similar
to the way they appear on the
radio’s display.
This means “Press the right
side of the 4-way Navigation
button”.
Getting Started
16
English
Additional Performance Enhancement
The following performance enhancements are some
of the latest creations designed to enhance the
security, quality and efficiency of the radios.
ASTRO 25 Enhanced Data
ASTRO 25 Enhanced Data is optimized to handle
different message sizes and variable update rates
from different applications of the radio. Add Enhanced
Data to the Integrated Data system with a software
installation to improve data channel efficiency and
enable denser network traffic.
Dynamic System Resilience (DSR)
DSR ensures the radio system is seamlessly
switched to a backup master site dynamically in case
of system failure. DSR also provides additional
indication e.g. failure detection, fault recovery, and
redundancy within the system to address to the user
in need. Mechanisms related to the Integrated Voice
and Data (IV&D) or data centric are all supported by
DSR.
CrossTalk Prevention
This feature prevents crosstalk scenario from
happening, especially when a wideband antenna is
used. This feature allows the adjustment of the
Trident Transmitting SSI clock rate in the radio to be
varied from the Receiving Frequency. This
subsequently reduced the possibilities of radio
frequency interfering spurs and prevents the issues of
crosstalk.
SecureNet
SecureNet allows user to perform secured
communications on an Analog or Motorola Data
Communication (MDC) channel.
What Your Dealer/System Administrator Can
Tell You
Check with your dealer or system administrator for
the correct radio settings, if the radio is to be
operated in extreme temperatures (less than -30 °C
or more than +60 °C), to ensure proper top and front
display operation.
You can consult your dealer or system administrator
about the following:
Getting Started
17
English
• Is your radio programmed with any preset
conventional channels?
•Which buttons have been programmed to access
other features?
• What optional accessories may suit your needs?
Getting Started
18
English
Preparing Your Radio for Use
This section provides simple instructions to prepare
your radio for your.
Charging the Battery
Warning: To avoid a possible explosion:
•Do not replace the battery in any area
labeled hazardous atmosphere.
• Do not discard batteries in a fire.
The Motorola-approved battery shipped with your
radio is uncharged. Prior to using a new battery,
charge it for a minimum of 16 hours to ensure
optimum capacity and performance. For a list of
Motorola-authorized batteries and chargers available
for use with your radio, see Accessories on page
137.
Note:
When charging a battery attached to a radio, turn the
radio off to ensure a full charge.
To charge the battery, place the battery (with or
without the radio), in a Motorola-approved charger.
The LED on the charger indicates the charging
progress; see the charger user guide.
Attaching the Battery

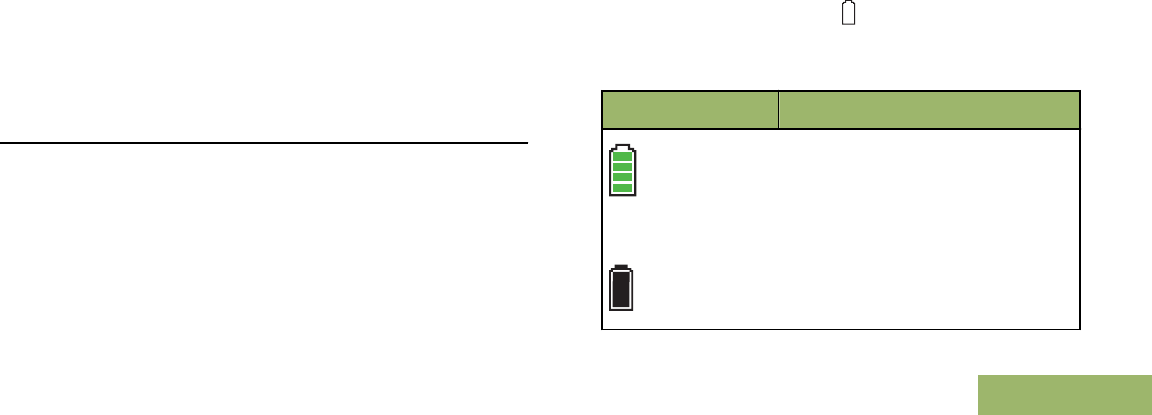

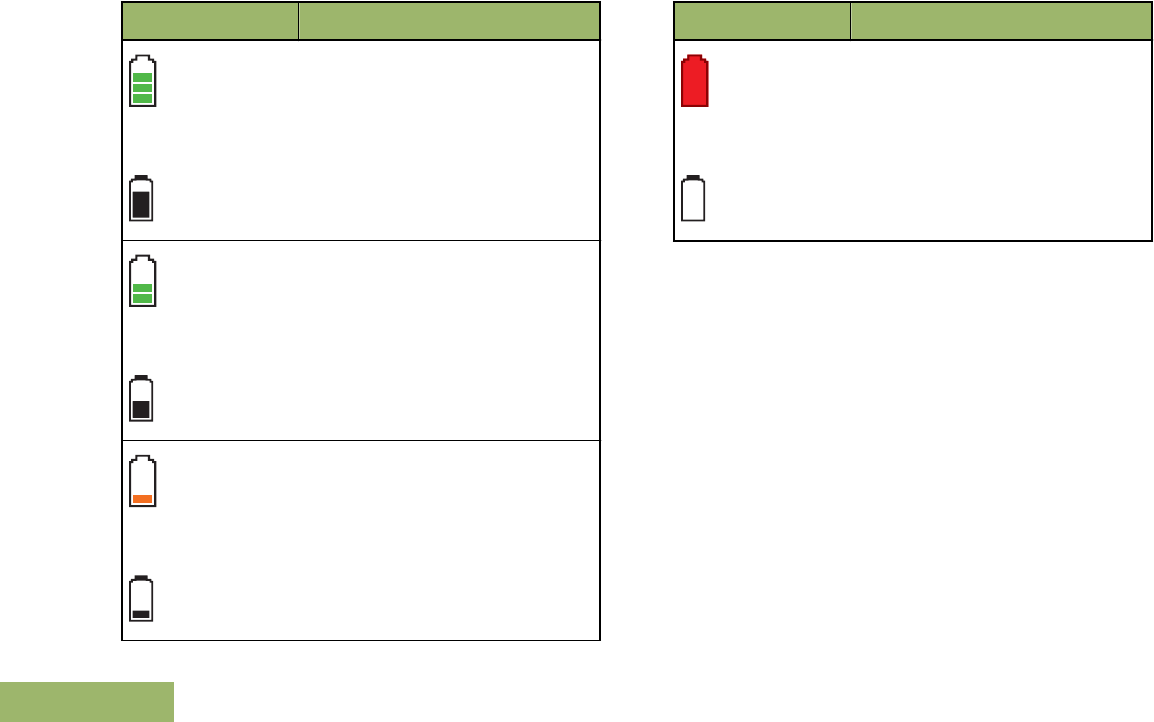

You can view the status of the IMPRES™ battery if the
radio is using an IMPRES battery. See IMPRES
Battery Annunciator on page 130 for more
information.
1Slide the battery into the radio frame until the latch
which is at the bottom of the radio clicks into
place.
Preparing Your Radio for Use
19
English
2To remove the battery, lift up the latch which is at
the bottom of the radio, then slide the battery out
from the radio.
Note: When removing the battery, ensure that the
radio is turned off.
A
Attaching the Antenna
Ensure the radio is turned off before attaching the
antenna.
1Set the antenna in its receptacle.
2Turn the antenna clockwise to attach to the radio.
Preparing Your Radio for Use
20
English
3To remove the antenna, turn the antenna
counterclockwise.
Note:
When removing the antenna, ensure that the radio
is turned off.
Removing and Attaching the Accessory
Connector Cover
The accessory connector is located on the antenna
side of the radio. It is used to connect accessories to
the radio.
Note: To prevent damage to the connector, shield it
with the connector cover when not in use.
1To remove the accessory connector cover, rotate
the thumbscrew counterclockwise until it
disengages from the radio.
Note: If the thumbscrew is too tight, use an Allen
wrench at to loosen it first.
Preparing Your Radio for Use
21
English
A
B
C
2Rotate and lift the connector cover to disengage it
from the radio.
3To attach the accessory connector cover, insert
the hooked end of the cover into the slot above
the connector.
4Press downward on the cover’s top to seat it in the
slot.
5Once in place, tighten by rotating the thumbscrew
clockwise by hand.
Attaching the Belt Clip
1Align the grooves of the belt clip with those of the
radio and push down until you hear a click.
Preparing Your Radio for Use
22
English
2To remove the clip, use a flatbladed object to
press the belt clip tab ( ) away from the radio.
Then, slide the clip upward and away from the
radio.
A
Turning On the Radio
1Press the Control Knob until the radio display
lights on, then release the knob.
Preparing Your Radio for Use
23
English
• If the power-up test is successful, you see
momentary SELFTEST on the radio’s display,
followed by the Home screen.
• If the power-up test is unsuccessful, you see
Error XX/YY (XX/YY is an alphanumeric
code).
Note: If the radio fails to power-up after
repeating a few times, record the Error XX/YY
code and contact your dealer.
2To turn off the radio, press and hold the Control
Knob until the radio display shows Power off?,
press the Menu Select button below Yes to power
off.
Preparing Your Radio for Use
24
English

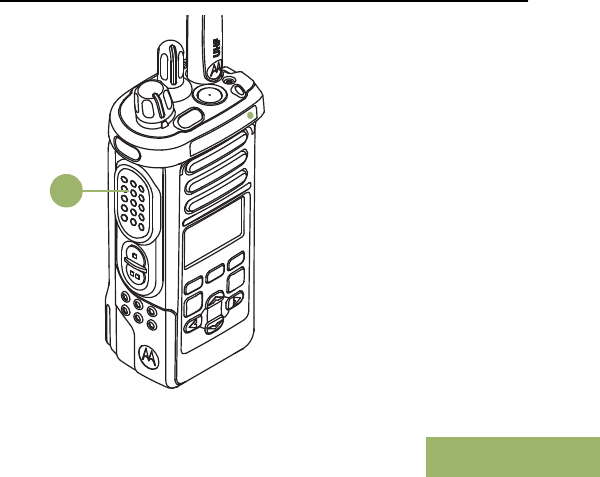

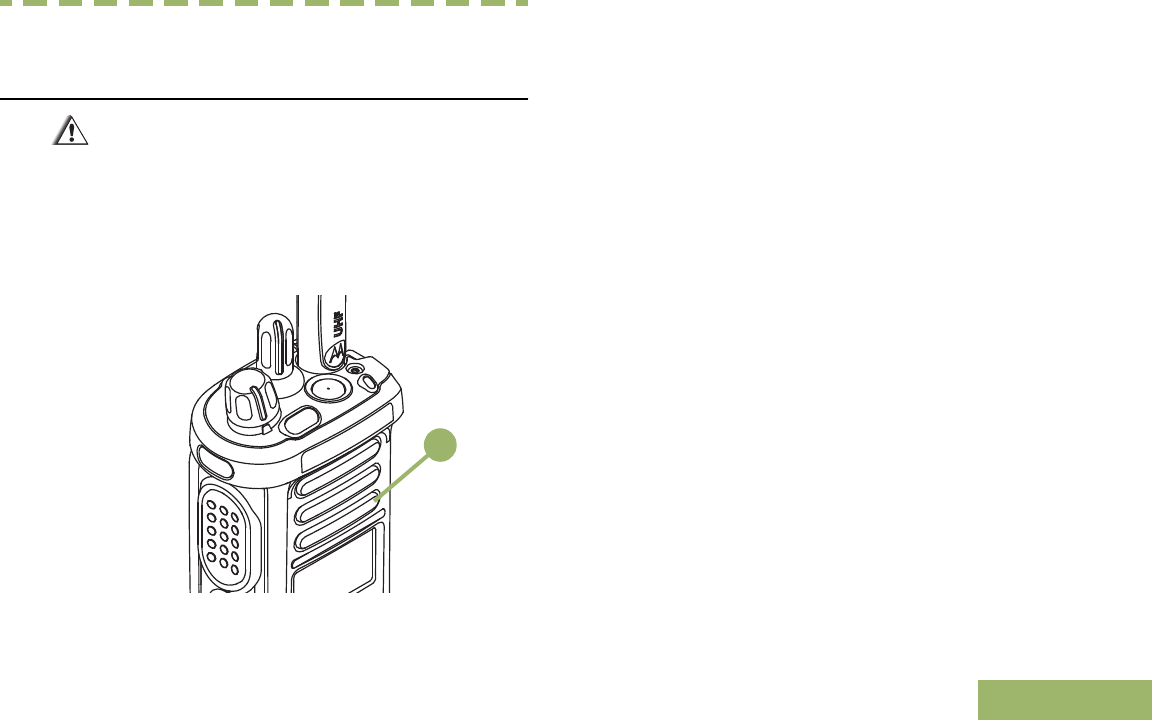

Adjusting the Volume
Ensure the radio is power on and the main speaker
( ) is pointed towards you for increased loudness
and intelligibility, especially in areas with loud
background noises.
Your radio is preprogrammed to reset to medium
volume rate, which is Level 12, by default whenever
the radio powers up.

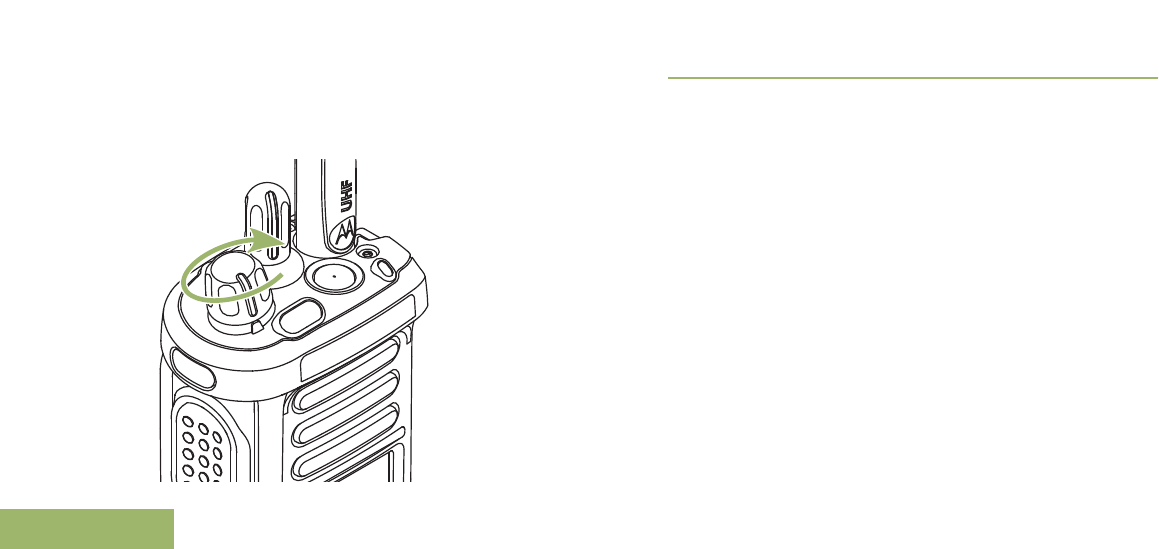

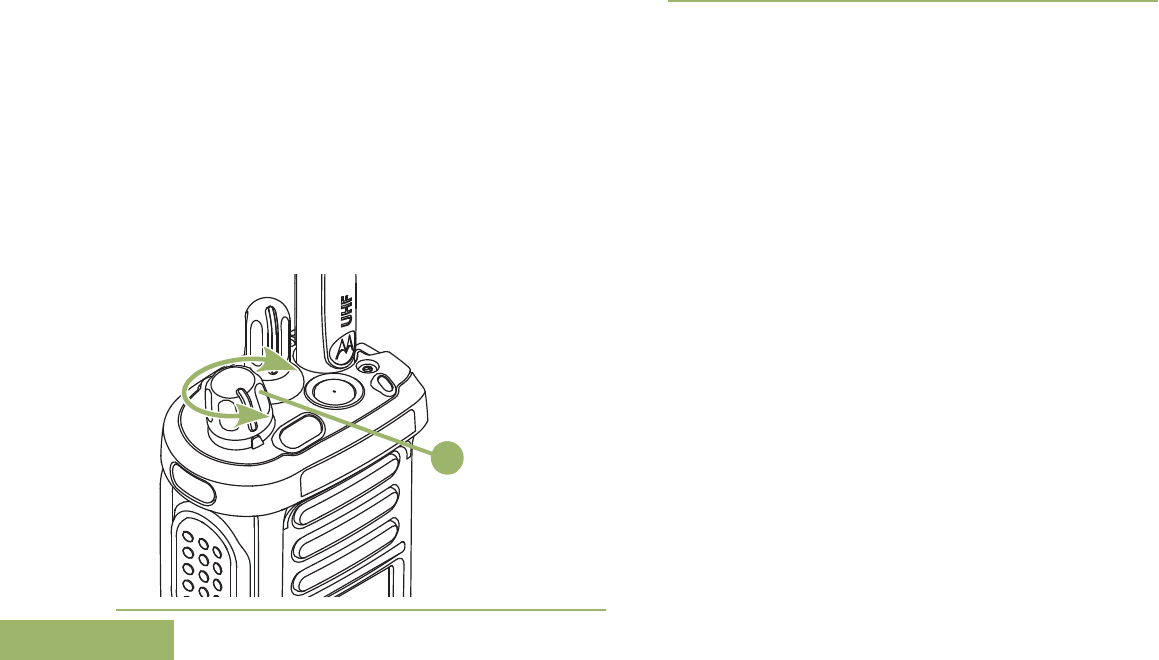

1To increase the volume, rotate the Multi Function
Knob ( ) clockwise.
Preparing Your Radio for Use
25
English
A
2To decrease the volume, rotate this knob
counterclockwise.
The display shows volume bars and volume level
when you change the volume.
Preparing Your Radio for Use
26
English
Identifying Radio Controls
Radio Parts and Controls
1
16
14
12
11
10
9
2
3
4
6
7
8
13
15
17
5
22
21
20
19
18
1 16–Poition Select Knob1
2 On/Off/Volume Control Knob
3 Top Lightbar
4 Top Side (Select) Button1
5 Microphone
6 Push-to-Talk (PTT) Button
7 Side Button 11
8 Side Button 21
Identifying Radio Controls
27
English
9 Home Button
10 4-Way Navigation Button
11 Data Feature Button
12 Menu Select Buttons
13 Main Display
14 Speaker
15 Bluetooth Pairing Location Indicator
16 LED
17 Battery Latch (at the bottom)Top (Orange)
Button1
18 Antenna
19 Accessory Connector
20 Battery Latch
21 Battery
22 Microphone
Programmable Features
Any reference in this manual to a control that is
preprogrammed means that the control must be
programmed by a dealer or qualified radio technician
using the radio's programming software, in order to
assign a feature to that control.
The programmable buttons can be programmed as
shortcuts to radio functions or preset channels/groups
depending on the duration of a button press:
Press Pressing and releasing rapidly.
Long Press Pressing and holding for the
preprogrammed duration (between
0.25 seconds and 3.75 seconds).
Hold down Keeping the button pressed.
Assignable Radio Functions
Call Alert Allows the radio to function like
a pager, or to verify if a radio is
active on the system.
1These radio controls/buttons are programmable.
Identifying Radio Controls
28
English
Call Response Allows you to answer a private
call.
Channel Selects a channel.
Contacts Selects the Contacts menu.
Dynamic Priority
(Conventional
Only)
Allows any channel in a Scan
List (except for the Priority-One
channel) to temporarily replace
the Priority-Two channel.
Emergency Depending on the
programming, initiates or
cancels an emergency alarm or
call.
Information Displays the information of the
radio.
Internet Protocol
Address
Display the Internet Protocol
(IP) address, device name and
status of the radio.
Location Determines the current location
(latitude, longtitude, time and
date), and also the distance
and bearing to another location.
Or, turns the GPS functionality
on or off for all location.
Message Enters the current message list.
Mode Select Long-press programs a button
with the current zone and
channel of the radio; once
programmed, the short-press of
that button changes the radio
zone channel to the
programmed zone and
channel.
Monitor
(Conventional
Only)
Monitors a selected channel for
all radio traffic until function is
disabled.
Multiple Private
Line
(Conventional
Only)
Selects the Multiple Private
Line lists.
Nuisance Delete Temporarily removes an
unwanted channel, except for
priority channels or the
designated transmit channel
from the scan list.
Phone Allows you to make and receive
calls similar to standard phone
calls.
Identifying Radio Controls
29
English
Private Call
(Trunking Only)
Allows a call from an individual
radio to another individual
radio.
Private Line
Defeat
(Conventional
Only)
Overrides any coded squelch
(DPL or PL) that is
preprogrammed to a channel.
Radio Profiles Allows for easy access t a set
of preprogrammed visual and
audio settings of the radio.
Recent Calls Allows for easy access to the
list of calls recently received or
made.
Repeater Access
Button (RAB)
(Conventional
Only)
Allows to manually send a
repeater access codeword.
Reprogram
Request
(Trunking Only)
Notifies the dispatcher you
want a new dynamic
regrouping assignment.
Request-To-Talk
(Conventional
Only)
Notifies the dispatcher you
want to send a voice call.
Scan Toggles scan on or off.
Scan List
Programming
Selects the scan list for editing
(by long press on the Scan
button).
Secure
Transmission
Select
(Conventional
and Trunking)
Toggles the Secure
Transmission On or Off when
the Secure/Clear Strapping
fields is set to Select for the
current channel and when the
radio is model/option capable.
Selective Call
(Conventional
Only)
Calls an assigned radio.
Site Display/
Search (Trunking
Only)
Displays the current site ID and
RSSI value; performs site
search for Automatic Multiple
Site Select (AMSS) or
SmartZone operation.
Site Lock/Unlock
(Trunking Only)
Locks onto a specific site.
Status Sends data calls to the
dispatcher about a predefined
status.
Identifying Radio Controls
30
English
Talkaround/Direct
(Conventional
Only)
Toggles between using a
repeater and communicating
directly with another radio.
Talkgroup
(Conventional
Only)
Allows a call from an individual
radio to a group of radios.
Text Messaging
Service (TMS)
Selects the text messaging
menu.
TMS Quick Text Selects a predefined message.
User Automatically registers with the
server.
Zone Select Allows selection from a list of
zones.
Assignable Settings or Utility Functions
Keypad/Controls
Lock
Locks or unlocks the keypad,
programmable buttons,
switches or rotary knobs.
Light/Flip Press the button to toggle the
display backlight on or off;
press and hold the button to
reverse the content of the top
display.
Voice
Announcement
Audibly indicates the current
feature mode, Zone or
Channel the user has just
assigned.
Voice Mute Toggles voice mute on or off.
Volume Set Tone Sets the volume set tone.
Accessing the Preprogrammed Functions
You can access various radio functions through one
of the following methods.
•A short or long press of the relevant
programmable buttons.
•Use the Menu Select and Navigation buttons.
A
B
C
D
E
Identifying Radio Controls
31
English
A Softkeys
B Menu Select Buttons
C Data Feature Button
D 4–Way Navigation Button
E Home Button
Menu Select Buttons
Note: Check with your dealer or system administrator
for the list of features activated in your radio.
Use the Menu Select button to access the menu
entry of your radio feature. Your radio may be
preprogrammed differently from the following
example, but the steps for selecting a channel may
appear as shown below:
Press the Menu Select button
directly below Chan.
Home Button
Pressing the button returns you to the Home
(default) screen. In most cases, this is the current
mode. For selected radio features, the button is
also used to save user-edited radio settings or
information before returning you to the Home screen.
Note: Some features do not require you to press
to go to the Home screen. Refer to the individual
feature sections in this manual for further details on
saving user-edited radio settings or information.
4-Way Navigation Button
Use 4-Way Navigation Button to scroll up, down, left
or right with one of the following methods.
• Press and release one of the button to scroll from
one entry to the next one.
• Press and hold one of the button to have the radio
toggles through the list automatically (release the
button to stop).
Data Feature Button
Use Data Feature button to access data-related
features, such as the Text Messaging Service (TMS)
feature screen.
Identifying Radio Controls
32
English
Push-To-Talk (PTT) Button
A
Identifying Radio Controls
33
English
The PTT button on the side of the radio serves two
basic purposes:
• While a call is in progress, the PTT button allows
the radio to transmit to other radios in the call.
Press and hold down PTT button to talk. Release
the PTT button to listen. The microphone is
activated when the PTT button is pressed.
• While a call is not in progress, the PTT button is
used to make a new call. See Making a Radio Call
on page 52 for more information.
Identifying Radio Controls
34
English
Identifying Status Indicators
Status Icons
The 160 x 90 pixel front liquid crystal display (LCD) of
your radio shows radio status, text entries, and menu
entries. The top two display rows contain color icons
that indicate radio operating conditions.
Receiving
Radio is receiving a call or data.
Transmitting
Radio is transmitting a call or data.
Battery
For IMPRES battery operation only– the
icon shown indicates the charge
remaining in the battery.
For all battery operation– the icon blinks
when the battery is low.
Received Signal Strength Indicator
(RSSI)
The number of bars displayed
represents the received signal strength
for the current site, for trunking only. The
more stripes in the icon, the stronger the
signal.
Roaming
The radio has roamed to and is currently
registered to a foreign system.
Direct
•On– Radio is currently configured for
direct radio-to-radio communication
(during conventional operation only).
•Off– Radio is connected with other
radios through a repeater.
Monitor (Carrier Squelch)
Selected channel is being monitored
(during conventional operation only).
Identifying Status Indicators
35
English
In-Call User Alert
On– The feature is enabled. Voice
muting of the affiliated trunking talkgroup
or selected conventional channel is
activated.
Off– The feature is disabled. Voice
muting of the affiliated trunking talkgroup
or selected conventional channel is
deactivated.
or Power Level
L– Radio is set at Low power.
H– Radio is set at High power.
Scan
Radio is scanning a scan list.
Priority Channel Scan
Blinking dot– Radio detects activity on
channel designated as Priority-One.
Steady dot– Radio detects activity on
channel designated as Priority-Two.
Vote Scan Enabled
The vote scan feature is enabled.
Secure Operation
On Secure operation.
Off Clear operation.
Blinking Receiving an encrypted
voice call.
AES Secure Operation
On– AES secure operation.
Off– Clear operation.
Blinking– Receiving an encrypted voice
call.
GPS Signal
On– Feature is enabled and signal is
available.
Off– Feature is disabled.
Identifying Status Indicators
36
English
Blinking– Feature is enabled, but no
signal is available.
Inverted
User Login Indicator (IP Packet Data)
On– User is currently associated with
the radio.
Off– User is currently not associated
with the radio.
Blinking– Device registration or user
registration with the server failed due to
an invalid username or pin.
Inverted– User successfully login to the
secured IP Packet Data.
Data Activity
Data activity is present.
Bluetooth On
Bluetooth is on and ready for Bluetooth
connection.
Bluetooth Connected
Bluetooth is currently connected to the
external Bluetooth device.
Text Messaging Service (TMS) Indicators
This feature allows you to send and receive text
messages. Status icons and menu options shown
here help you to work more efficiently with TMS
feature. See Text Messaging Service (TMS) for more
information.
TMS Status Icons
The following icons appear on the radio’s display
when you send and receive text messages.
Inbox Full
The Inbox is full.
Message Sent
The text message is sent successfully.
Message Unsent
Identifying Status Indicators
37
English
The text message cannot be sent.
Unread Message
•User receives a new message.
• The selected text message in the Inbox
has not been read.
Read Message
The selected text message in the Inbox
has been read.
Normal Message
User is composing a message with normal
priority and without a request for a reply.
Message Index
Indicates the index of the current message
the user is viewing.
Example: If the user is looking at the third
message out of a total of 6 messages in
the Inbox folder, the icon is displayed as
the icon on the left column.
Priority Status
•The “Priority” feature is toggled on
before the message is sent.
• Messages in the Inbox folder are
flagged with “Priority”.
Request Reply
•The “Request Reply” feature is toggled
on before the message is sent.
• Messages in the Inbox folder are
flagged with “Request Reply”.
Priority Status and Request Reply
•User is composing a message with a
priority status and a request for a reply.
• Messages in the Inbox folder are
flagged with “Priority” and “Request
Reply”.
Identifying Status Indicators
38
English
TMS Menu Options
Menu
Option
Description/Function
Sel Selects the highlighted command.
Send Sends the message.
Yes Updates or saves a command.
Call Type Icons
The following icons appear on the radio’s main
display, when you make or receive a call, or view
selected call lists, to indicate the different call types
associated with an alias or ID.
Radio number.
Radio number added to a Call List.
Mobile number.
Mobile number added to a Call List.
Landline phone number.
Landline phone number added to a Call
List.
Incoming call or data.
Outgoing call or data.
Incoming emergency call.

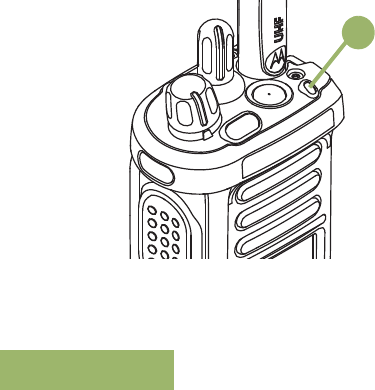

LED Indicator
The LED indicator shows the operational status of
your radio.
Identifying Status Indicators
39
English
A
Solid red Radio is transmitting.
Blinking red Radio is transmitting at low
battery condition.
Double blinking
red
Radio is in Emergency Mode.
Rapidly blinking
red
Radio has failed the self test
upon powering up or
encountered a fatal error.
Solid yellow
(Conventional
Only)
Channel is busy.
Blinking yellow Radio is receiving a secured
transmission.
Solid green Radio is powering up, or is on
a non-priority channel while in
the Scan List Programming
mode.
Blinking green Radio is receiving an individual
or telephone call, or is on a
Priority-Two channel while in
the Scan List Programming
mode.
Identifying Status Indicators
40
English
Rapidly blinking
green
Radio is on a Priority-One
channel while in the Scan List
Programming mode.
Note: No LED indication when the radio receives a
clear (non-secured) transmission in trunking Mode.
LED indication can be preprogramed by qualified
technician to be permanently disabled. Consult your
dealer for further details if you need it to be disabled.

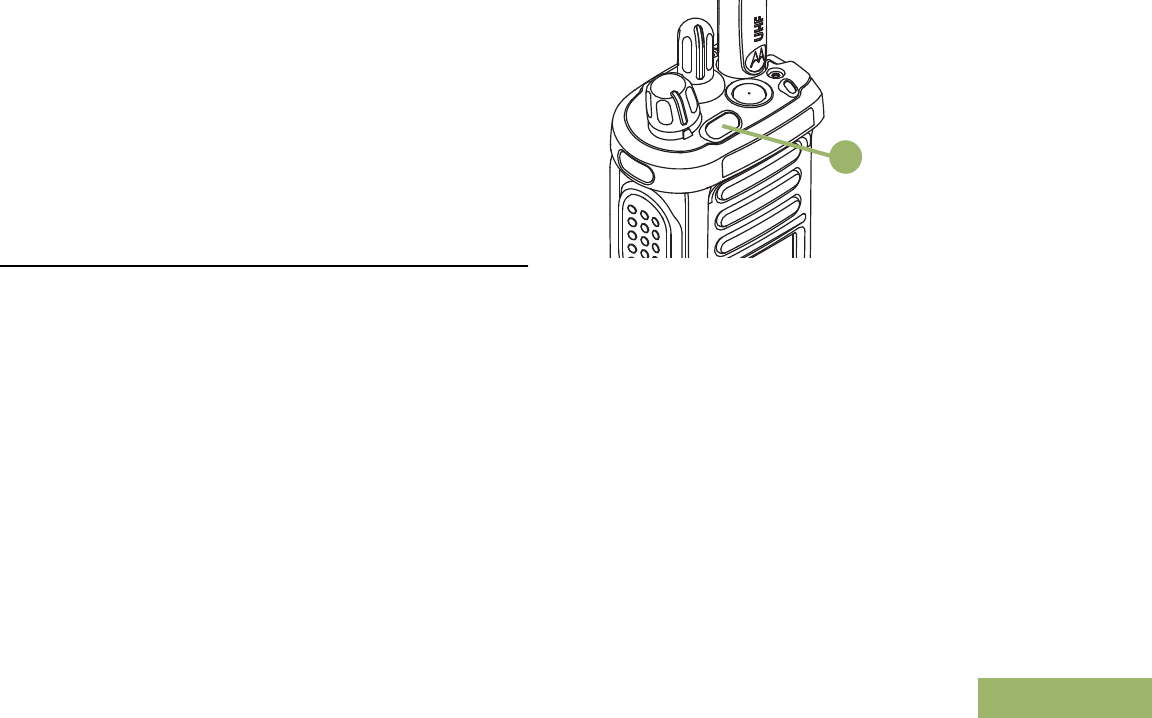

Top Lightbar Indicator
A
The Top Lightbar indicates the status of Intelligent
Lighting.
The lightbar turn into solid color of orange, red or
green depending on the status of Intelligent Lighting.
See Intelligent Lighting Indicators on page 42for
different status of Intelligent Lighting.
Identifying Status Indicators
41
English
Intelligent Lighting Indicators
This feature temporary changes the color of the Top Lightbar and adds a color bar to the main display screen to
help signal that a radio event has occurred.
Note: This feature must be preprogrammed by a qualified radio technician.
Backlight and Bar
Color
Notification When
Orange Emergency Alerts The radio initiates an emergency alarm or call.
The radio receives an emergency alarm or call.
The radio initiates the Man Down Post-Alert timer.
The radio initiates Fireground Evacuation alarm.
Red Critical Alerts The radio battery is low.
The radio is out of range.
The radio enters Failsoft mode.
The radio is unable to establish a full connection with the system.
The radio is unable to authenticate or register with the system.
Green Call Alerts The radio receives a private call.
The radio receives a phone call.
Identifying Status Indicators
42
English
Backlight and Bar
Color
Notification When
The radio receives a call alert.
The radio receives a selective call.
Alert Tones
Your radio uses alert tones to inform you of your radio’s condition. The following table lists these tones and when
they occur.
You Hear Tone Name Heard
Short, Low-
Pitched Tone
Radio Self Test Fail When radio fails its power-up self test.
Reject When an unauthorized request is made.
Time-Out Timer Warning Four seconds before time out.
No ACK Received When radio fails to receive an acknowledgment.
Individual Call Warning
Tone
When radio is in an individual call for greater than 6 seconds
without any activity.
Man Down Entry When radio initiates Man Down mode.
Long, Low-
Pitched Tone
Time-Out Timer Timed Out After time out.
Talk Prohibit/PTT Inhibit (When PTT button is pressed) transmissions are not allowed.
Identifying Status Indicators
43
English
You Hear Tone Name Heard
Out of Range (When PTT button is pressed) the radio is out of range of the
system.
Invalid Mode When radio is on an unpreprogrammed channel.
A Group of
Low-Pitched
Tones
Busy When system is busy.
Short, Medium-
Pitched Tone
Valid Key-Press When a correct key is pressed.
Radio Self Test Pass When radio passes its power-up self test.
Clear Voice At beginning of a non-coded communication.
Priority Channel Received When activity on a priority channel is received.
Emergency Alarm /Call
Entry
When entering the emergency state.
Central Echo When central controller has received a request from a radio.
Long, Medium-
Pitched Tone
Volume Set When volume is changed on a quiet channel.
Emergency Exit When exiting the emergency state.
A Group of
Medium-
Pitched Tones
Failsoft When the trunking system fails.
Automatic Call Back When voice channel is available from previous request.
Identifying Status Indicators
44
English
You Hear Tone Name Heard
Keyfail When encryption key has been lost.
Console Acknowledge When status, emergency alarm, or reprogram request ACK is
received.
Received Individual Call When Call Alert or Private Call is received.
Call Alert Sent When Call Alert is received by the target radio.
Site Trunking When a SmartZone trunking system fails.
Short, High-
Pitched Tone
(Chirp)
Low-Battery Chirp When battery is below preset threshold value.
Ringing Fast Ringing When system is searching for target of Private Call.
Enhanced Call Sent When waiting for target of Private Call to answer the call.
Phone Call Received When a land-to-mobile phone call is received.
Gurgle Dynamic Regrouping (When PTT button is pressed) a dynamic ID has been received.
Talk Permit (When PTT button is pressed) is verifying with the system for
accepting its transmissions.
Unique, Low-
Pitched Chirp
New Message When a new message is received.
Identifying Status Indicators
45
English
You Hear Tone Name Heard
Unique, High-
Pitched Chirp
Priority Status When a priority message is received.
Incremental-
Pitched Tone
Bluetooth Paired When Bluetooth accessory is paired with the radio.
Bluetooth Connected When Bluetooth accessory is connected to the radio.
Decremental-
Pitched Tone
Bluetooth Unpaired When Bluetooth accessory is unpaired from the radio.
Bluetooth Disconnected When Bluetooth accessory is disconnected from the radio.
A Group of
Very High-
Pitched Tones
Man Down Continuous
Tone
When radio is in Man Down mode and prepares to transmit
Emergency Alarm when the timer of this alarm ends.
Critical Man Down
Continuous Tone
When radio is in Man Down Enhanced mode and prepares to
transmit Emergency Alarm when the timer of this alarm ends.
Doh-Sol Enhanced Zone Bank Up When EZB Up button is pressed to scroll the Enhance Zone
Bank up.
Sol-Doh Enhanced Zone Bank Down When EZB Down button is pressed to scroll the Enhance Zone
Bank down.
Phone Call Displays and Alerts
The following phone call displays and alerts appears on the radio’s display when you make and receive Phone calls.
The radio also uses alert tones to indicate the current status.
Identifying Status Indicators
46
English
You Hear You See When Notes
A Long Tone No phone You press the PTT button
and the phone system is
not available.
Press to hang up. The radio returns to the
Home screen.
Phone busy The phone system is busy. Press to exit the phone mode and try your
call later.
A Busy Tone Phone busy When a channel is not
available.
The radio automatically connects when a
channel opens.
– No
acknowledge
The call is not
acknowledged. Press to hang up. The radio returns to the
Home screen.
A High- Pitched
Tone
– When you release the PTT
button.
The radio indicates to the landline party that
he or she may begin talking.
Identifying Status Indicators
47
English
General Radio Operation
Selecting a Zone
Your radio must be preprogrammed to allow you to
use this feature.
A zone is a group of channels. The following methods
are options on how to select a radio zone. The result
of all the methods is the same. You can use the
options interchangeably depending on your
preference and the programmed functions.
•Select a zone via the preprogrammed Zone (3-
Position A/B/C) switch:
a) Move the preprogrammed Zone (3-Position
A/B/C) switch to the position of the required
zone.
If the zone number entered is unprogrammed,
the display shows Invalid entry. Repeat
Step A.
b) Press the Menu Select button directly below
Sel to confirm the displayed zone.
c) Press the PTT button to transmit on the
displayed zone channel.
•Select a zone via the radio menu Zone:
a) or to Zone.
b) Press the Menu Select button directly below
Zone.
c) or to the required zone.
d) Press the Menu Select button directly below
Sel to confirm the displayed zone.
e) Press the PTT button to transmit on the
displayed zone channel.
•Select a zone via the radio menu ZnUp or ZnDn:
a) or to ZnUp or ZnDn.
b) Press and hold the Menu Select button directly
below ZnUp or ZnDn until the required zone
appears.
Positions of ZnUp and ZnDn on the display may
differ each time you release the Menu Select
button. Read carefully before you press.
c) Press the PTT button to transmit on the
displayed zone channel.
General Radio Operation
49
English
Selecting a Radio Channel
A channel is a group of radio characteristics, such as
transmit/ receive frequency pairs. The following
methods are options on how to select a radio
channel. The result of all the methods is the same.
You can use the options interchangeably depending
on your preference and the programmed functions.
•Select a channel via the preprogrammed 16–
Position Select Knob to the desired channel.
a) Rotate the preprogrammed 16–Position
Select Knob to the desired channel.
b) Press the PTT button to transmit on the
displayed zone channel.
•Select a channel via the Channel radio menu.
a)
b) Press the PTT button to transmit on the
displayed zone channel.
•Select a channel via Channel Up or Channel
Down radio menu:
a) or to ChUp or ChDn.
b) Press the Menu Select button directly below
ChUp or ChDn.
Positions of ChUp and ChDn on the display may
differ each time you release the Menu Select
button. Read carefully before you press.
c) Press the PTT button to transmit on the
displayed zone and channel.
Mode Select Feature
Mode Select allows a long press to save your radio’s
current zone and channel to a programmable button,
keypad button or a softkey; then once programmed,
the short-press of that button or softkey changes the
transmission to the saved zone and channel.
There are two methods to save the selected zone and
channel:
• Softkeys
• Programmable buttons
Note: Your radio must be preprogrammed to allow
you to use this feature.
Saving a Zone and a Channel to a Softkey
Five softkeys are available for you to save the
frequently used zone and channel.
General Radio Operation
50
English
1Toggle your zone and channel to the required
zone and channel.
2 or to MS1, MS2 ... or MS5.
3Press and hold the Menu Select button directly
below one of the softkey (MS1–MS5).
You hear a short, medium-pitched tone when the
zone and channel is saved.
Note: To change the programmed zone and channel,
repeat this procedure.
Short press of the programmed softkey changes your
current transmission to the zone and channel
programmed in this softkey.
Saving a Zone and a Channel to a Keypad Button
You can save the frequent used zone and channel to
the programmable buttons.
1Toggle your zone and channel to the required
zone and channel.
2Press and hold the button you desire to program.
You hear a short, medium-pitched tone when the
zone and channel is saved.
Note: Repeat this procedure to change the zone and
channel of the programmed button. Short press of the
programmed button
Short press of the programmed button changes your
current transmission to the zone and channel
programmed in this button.
Receiving and Responding to a Radio Call
Once you have selected the required channel and/or
zone, you can proceed to receive and respond to
calls.
The LED lights up solid red while the radio is
transmitting. In conventional mode, the LED lights up
solid yellow when the radio is receiving a
General Radio Operation
51
English
transmission. In trunking mode, there is no LED
indication when the radio receives a transmission.
If the radio is receiving a secure transmission, the
LED blinks yellow.
Receiving and Responding to a Talkgroup Call
To receive a call from a group of users, your radio
must be configured as part of that talkgroup.
When you receive a talkgroup call (while on the
Home screen) the radio triggers for your attention with
one of the following scenarios depending on the
system your radio is configured:
•For ASTRO Conventional system, the LED lights
up solid yellow. The display shows the talkgroup
alias or ID, and the caller alias or ID.
• For Trunking system, the display shows the caller
alias or ID.
1Hold the radio vertically 1 to 2 inches (2.5 to 5.0
cm) from your mouth.
2Press the PTT button to respond to the call.
The LED lights up solid red.
3Release the PTT button to listen.
See also Making a Talkgroup Call on page 54 for
details on making a Talkgroup Call.
Receiving and Responding to a Private Call (Trunking
Only)
A Private Call is a call from an individual radio to
another individual radio.
The one-to-one call between the two radios are not
heard by the others in the current talkgroup. The
transmitting radio automatically verifies that the
receiving radio is active on the system and can
display the caller ID.
Note: With the inactivity timer enabled (optional),
when there is no response from the receiving radio,
the transmitting radio exits the call with Menu Inactive
Exit tone after the timer expires.
When you receive a Private Call, you hear two alert
tones and the LED blinks green. The display shows
Call received and the call received icon blinks.
1Perform one of the following actions:
• Press the Menu Select button directly below
Resp.
• Press theCall Response button within 20
seconds after the call indicators begin.
General Radio Operation
52
English
If the caller alias is in the call list, the display
shows the caller alias during the call.
If the caller name is not in the call list, the display
shows the caller ID.
2Press and hold the PTT button to talk. Release
thePTT button to listen.
3Press or theCall Response button to hang up
and return to the Home screen.
See also Making a Private Call (Trunking Only) on
page 54 for details on making a Private Call.
Receiving and Responding to a Telephone Call
(Trunking Only)
This feature allows you to receive calls similar to
standard phone calls from a landline phone.
Note: With the inactivity timer enabled (optional), if
there are no response to the call after the timer
expires your radio exits the call with Menu Inactive
Exit tone.
When you receive a Telephone Call, you hear
telephone-type ringing and the LED blinks green. The
display shows Phone Call and the call received icon
blinks.
1Press the Call Response button within 20
seconds after the call indicators begin.
2Press and hold the PTT button to talk. Release the
PTT button to listen.
3Press or the Call Response button to hang up
and return to the Home screen.
See also Making a Telephone Call (Trunking Only) on
page 56 for details on making a Private Call.
Making a Radio Call
You can select a zone, channel, subscriber ID, or
talkgroup by using:
•The preprogrammed Zone switch.
• The 16-Position Select Channel Knob.
• A preprogrammed One Touch Call button.
• The Contacts list (see Viewing Details of a Contact
on page 66.)
Note: The radio automatically exits the feature, if the
feature inactivity timer is enabled, when the radio is
General Radio Operation
53
English
left idle and the timer expires. You will hear the Menu
Inactive Exit Tone upon feature exit.
Making a Talkgroup Call
To make a call to a group of users, your radio must
be configured as part of that talkgroup.
1Turn the 16-Position Select Channel Knob to
select the channel with the desired talkgroup.
2Hold the radio vertically 1 to 2 inches (2.5 to 5.0
cm) from your mouth.
3Press the PTT button to make the call.
The radio shows different indicators based on the
system the radio is configured.
• For ASTRO Conventional system, the LED
lights up solid red. The display shows the
talkgroup alias or ID.
•For Trunking system, the LED lights up solid
red.
4Speak clearly into the microphone.
5Release the PTT button to listen.
Making a Private Call (Trunking Only)
1Perform one of the following actions:
• To access this feature via a preprogrammed
button, press the preprogrammed Quick
Access (One-Touch) Private Call button to
dial the preprogrammed ID (number) and
initiate the Private Call. Proceed to step 5.
• To access this feature via the menu, proceed
to the next step.
2 or to Call, and press the Menu Select button
directly below Call.
The display shows the last transmitted or received
ID.
3To select the required ID, perform one of the
following actions:
• Press the Menu Select button directly below
Cnts to scroll through and select the required
ID.
• Press the Menu Select button directly below
LNum to go to the last number dialed.
•or to the required ID.
4Press the PTT button to initiate the Private Call.
General Radio Operation
54
English
The display shows Calling... <Number>.
5Hold the radio vertically 1 to 2 inches (2.5 to 5.0
cm) from your mouth.
When you are connected, the display shows the
ID of the target radio.
If no acknowledgment is received, the display
shows No acknowledge.
6Press and hold the PTT button to talk. Release the
PTT button to listen.
7Press to return to the Home screen.
Making an Enhanced Private Call (Trunking Only)
Your radio must be preprogrammed to allow you to
use this feature.
This feature allows you to send an individual Call
Alert Page if there is no answer from the target radio.
See Sending a Call Alert Page on page 70 for more
information.
1Perform one of the following actions:
• To access this feature via a preprogrammed
button, press the preprogrammed Quick
Access (One-Touch) Private Call button to
dial the preprogrammed ID (number) and
initiate the Private Call. Proceed to step 5.
• To access this feature via the menu, proceed
to the next step.
2 or to Call, and press the Menu Select button
directly below Call.
The display shows the last transmitted or received
ID.
3To select the required ID, perform one of the
following actions:
• Press the Menu Select button directly below
Cnts to scroll through and select the required
ID.
• Press the Menu Select button directly below
LNum to go to the last number dialed.
•or to the required ID.
4Press the PTT button to initiate the Private Call.
The display shows Calling... <Number>.
5Hold the radio vertically 1 to 2 inches (2.5 to 5.0
cm) from your mouth.
General Radio Operation
55
English
When you are connected, the display shows the
ID of the target radio.
If no acknowledgment is received, the display
shows No acknowledge.
If the target radio does not respond before the
time out, the display shows No answer.
6Press and hold the PTT button to talk. Release the
PTT button to listen.
7Press to return to the Home screen.
Making a Telephone Call (Trunking Only)
This feature allows you to make calls similar to
standard phone calls to a mobile or landline phone.
1Perform one of the following actions:
•To access this feature via a preprogrammed
button, press the preprogrammed Quick
Access (One-Touch) Phone Call button to
dial the preprogrammed phone number.
Proceed to step 5.
• To access this feature via the menu, proceed
to the next step.
2 or to Phon, and press the Menu Select button
directly below Phon.
The display shows the last transmitted or received
ID.
3To select the required ID, perform one of the
following actions:
•Press the Menu Select button directly below
Cnts to scroll through and select the required
ID.
• Press the Menu Select button directly below
LNum to go to the last number dialed.
• or to the required ID.
4Press the PTT button to dial the phone number.
5Hold the radio vertically 1 to 2 inches (2.5 to 5.0
cm) from your mouth.
6When your call is answered, press and hold the
PTT button to talk. Release the PTT button to
listen.
7Press to return to the Home screen.
General Radio Operation
56
English
See Phone Call Displays and Alerts on page 48 for
more information if your call is not answered.
Switching Between Repeater or Direct
Operation Button
The Repeater Operation increases the radio’s range
by connecting with other radios through a repeater.
The transmit and receive frequencies are different.
The Direct or “talkaround operation” allows you to
bypass the repeater and connect directly to another
radio. The transmit and receive frequencies are the
same.
Perform one of the followings:
• Press the preprogrammed Repeater/Direct
switch to toggle between talkaround and
repeater modes.
•or to Dir then press the Menu Select button
directly below Dir.
The display shows Repeater mode if the radio is
currently in Repeater mode.
The display shows Direct mode and the Talkaround
icon if the radio is currently in Direct mode (during
conventional operation only).
Monitor Feature
Radio users who switch from analog to digital radios
often assume that the lack of static on a digital
channel is an indication that the radio is not working
properly. This is not the case.
This digital technology quiets the transmission by
removing the noise from the signal and allows only
the clear voice or data information to be heard.
Use the Monitor feature to make sure a channel is
clear before transmitting.
Monitoring a Channel
The following methods are options on how to monitor
a channel. The result of all the methods is the same.
You can use the options interchangeably depending
on your preference and the programmed functions.
•Monitoring a Channel with Volume Set button.
a) Select the desired zone and channel.
b) Press and hold the Volume Set button to hear
the volume set tone.
General Radio Operation
57
English
c) Adjust the Volume Control Knob if necessary.
d) Release the Volume Set button.
e) Press and hold the PTT button to transmit.
The LED lights up solid red.
f) Release the PTT button to receive (listen).
•Monitoring a Channel with Monitor button.
a) Press the preprogrammed Monitor button.
b) Adjust the Volume Control Knob if necessary.
c) Press and hold the PTT button to transmit.
The LED lights up solid red.
d) Release the PTT button to receive (listen).
The Carrier Squelch indicator appears on the
display when you monitor a channel via the
preprogrammed Monitor button.
•Monitoring a Channel via the selected zone
channel.
a) Select the desired zone and channel.
b) Listen for a transmission.
c) Adjust the Volume Control Knob if necessary.
d) Press and hold the PTT button to transmit.
The LED lights up solid red.
e) Release the PTT button to receive (listen).
Monitoring Conventional Mode
Your radio may be preprogrammed to receive Private-
Line® (PL) calls.
1Momentarily press the Monitor button to listen for
activity.
The Carrier Squelch indicator appears on the
display.
2Press and hold the Monitor button to set
continuous monitor operation.
The duration of the button press is programmable.
3Press the Monitor button again, or the PTT
button, to return to the original squelch setting.
If you try to transmit on a receive-only channel,
you hear an invalid tone until you release the PTT
button.
General Radio Operation
58
English
Advanced Features
Advanced Call Features
Selective Call (ASTRO Conventional Only)
This feature allows you to receive a call from or to call
a specific individual. It is intended to provide privacy
and to eliminate the annoyance of having to listen to
conversations that are of no interest to you.
Receiving a Selective Call
When you receive a Selective Call, the radio prompts
you with one the following indication scenario:
•you hear two alert tones and the LED lights up
solid yellow to indicate the transmitting radio is still
sending signal. The call received icons blinks and
the display shows Call received.
• The LED blinks solid green once to indicate the
transmitting radio is pending to receive signal.
The speaker unmutes.
1Hold the radio vertically 1 to 2 inches (2.5 to 5.0
cm) from your mouth.
2Press and hold the PTT button to talk. Release the
PTT button to listen.
Making a Selective Call
1Perform one of the following actions:
•To access this feature via a preprogrammed
button, press the preprogrammed Quick
Access (One-Touch) Selective Call button to
dial the preprogrammed ID. Proceed to step 4.
• To access this feature via the menu, proceed
to the next step.
2 or to Call, and press the Menu Select button
directly below Call.
The display shows the last transmitted or received
ID.
3To select the required ID, perform one of the
following actions:
•Press the Menu Select button directly below
Cnts to scroll through and select the required
ID.
• Press the Menu Select button directly below
LNum to go to the last number dialed.
Advanced Features
59
English
• or to the required ID.
4Hold the radio vertically 1 to 2 inches (2.5 to 5.0
cm) from your mouth.
5Press and hold the PTT button to start the
Selective Call.
The display shows the ID of the target radio.
6Release the PTT button to listen.
7Press to return to the Home screen.
Talkgroup Call Feature (Conventional Operation Only)
This feature allows you to define a group of
conventional system users so that they can share the
use of a conventional channel.
Note: Encryption keys are associated to talkgroups.
When talkgroups are associated, encryption keys are
changed by changing the active talkgroup. See
Secure Operations on page 97 for more
information.
Selecting a Talkgroup
1 or to Sel to save the currently selected
Talkgroup and return to the Home screen.
If the encryption key associated to the new
Talkgroup is erased, you hear a momentary key
fail tone and the display shows Key fail.
If the encryption key that is associated to the new
Talkgroup is not allowed, you hear a momentary
key fail tone and the display shows Illegal key.
2Press to return to the Home screen.
Sending a Status Call
This feature allows you to send data calls to the
dispatcher about a predefined status.
Each status can have up to a 14-character name. A
maximum of eight status conditions is possible.
Note: The radio automatically exits the feature, if the
feature inactivity timer is enabled, when the radio is
left idle and the timer expires. You will hear the Menu
Inactive Exit Tone upon feature exit.
1Perform one of the following actions:
•Press the preprogrammed Status button.
• or to Sts and press the Menu Select button
directly below Sts.
Advanced Features
60
English
The display shows the last acknowledged status
call, or the first status in the list.
2 or to the required status.
3Press the PTT button to send the status.
When the dispatcher acknowledges, you hear four
tones and the display shows Ack received . The
radio returns to normal dispatch operation.
If no acknowledgment is received, you hear a low-
pitched tone and the display shows No
acknowledge.
4Press to return to the Home screen.
No traffic is heard on trunked channels while
Status Calls is selected. If the radio detects no
Status Call activity for six seconds, an alert tone
sounds until you press or the PTT button.
Responding to the Dynamic Regrouping Feature
(Trunking Only)
This feature allows the dispatcher to temporarily
reassign selected radios to a particular channel
where they can communicate with each other. This
feature is typically used during special operations and
is enabled by a qualified radio technician.
You will not notice whether your radio has this feature
enabled until a dynamic regrouping command is sent
by the dispatcher.
Note: If you try to access a zone or channel that has
been reserved by the dispatcher as a dynamically
regrouped mode for other users, you hear an invalid
tone.
When your radio is dynamically regrouped, it
automatically switches to the dynamically regrouped
channel. You hear a Gurgle tone and the display
shows the dynamically regrouped channel’s name.
Press the PTT button to talk. Release PTT button
to listen.
When the dispatcher cancels dynamic regrouping, the
radio automatically returns to the zone and channel
that you were using before the radio was dynamically
regrouped.
Requesting a Reprogram (Trunking Only)
This feature allows you to notify the dispatcher when
you want a new dynamic regrouping assignment.
Advanced Features
61
English
Perform one of the following actions:
•Press the preprogrammed Reprogram
Request button to send reprogram request to
the dispatcher.
• or to Rpgm then press the Menu Select
button directly below Rpgm to send reprogram
request to the dispatcher.
The display shows Reprgrm rqst and Please
wait.
If you hear five beeps, the dispatcher has
acknowledged the reprogram request. The display
shows Ack received and the radio returns to the
Home screen.
If the dispatcher does not acknowledge the
reprogram request within six seconds, you hear a
low-pitched alert tone and the display shows No
acknowledge. Try again or press to cancel and
return to the Home screen.
Classification of Regrouped Radios
The dispatcher can classify regrouped radios into
either of two categories:
Select
Enabled
Select-enabled radios are free to
change to any available channel,
including the dynamic-regrouping
channel, once the user has selected
the dynamic-regrouping position.
Select
Disabled
Select-disabled radios cannot change
channels while dynamically regrouped.
The dispatcher has forced the radio to
remain on the dynamic-regrouping
channel.
The Scan or Private Call feature cannot be selected
while your radio is Select Disabled.
Dynamic Zone Programming (DZP)
Note: Your radio must be preprogrammed to allow
you to use this feature. This feature works on the
condition at least one zone in the radio must be a
non-dynamic zone.
This feature provides one or more Dynamic Zones to
store the frequent used channels be it conventional or
trunking. These dynamic channels are saved from
pre-existing (non-dynamic) channels in the radio. This
saves the time and effort from the regular navigation
around the working zones and channels. User can
also delete or update the list in the Dynamic Zone.
Advanced Features
62
English
Entering the Dynamic Zone to Select a Dynamic
Channel
1 or to Zone then press the Menu Select button
directly below Zone.
The display shows the Zone screen.
2 or to <Dynamic Zone Channels>.
3Perform one of the following actions:
•Press the Menu Select button below Sel to
select.
•Press the Menu Select button below Exit to
exit.
If you have selected one of the Dynamic Zone
Channels list, the display returns to Home screen
with the selected <Dynamic Zone Channels>
shown on the screen.
If you have selected Exit without selecting any
Dynamic Zone Channels list, the display returns to
Home screen without any changes.
Saving a Channel in the Dynamic Zone from List
Selection
The radio must be in Dynamic Zone in order to
perform this operation.
1 or to Sel.
The display shows Select Zone screen.
2 or to the required zone. Press the Menu
Select button directly below Sel.
The display shows Select Chan screen.
3 or to the required channel. Press the Menu
Select button directly below Sel.
The display shows Channel updated.
4Press theMenu Select button directly below Exit
to return to Home screen.
Deleting a Channel in the Dynamic Zone
The radio must be in Dynamic Zone in order to
perform this operation.
1 or to ZnPr then press the Menu Select button
directly below ZnPr to enter Program Zone
screen.
Advanced Features
63
English
The display shows the dynamic channels list.
2 or to the saved dynamic channel then press
the Menu Select button directly below Del.
The display shows Channel deleted screen.
3Press the Menu Select button below Exit to
return to Home screen.
The Home screen shows <Dynamic Zone
Channels>.
If the channel deleted is the Home channel, the
Home screen shows <Zone Name>+”Blank”.
Contacts
This feature provides “address-book” capabilities on
your radio. Each entry corresponds to an alias (name)
or ID (number) that you use to initiate a call.
Contact entries are alphabetically sorted according to
entry alias. Each alias can have up to five IDs of
different call types associated with it.
Additionally, each entry, depending on context
(conventional, trunking, or phone), associates with
one or more of the four types of calls: Phone Call,
Selective Call, Private Call, or Call Alert.
Each entry within Contacts contains the following
information:
•Call Alias (Name)
• Call ID (Number)
• Call Type (Icon)
• WACN ID (Astro 25 Trunking IDs only)
• System ID
Note: Your radio must be preprogrammed to allow
you to add, edit, or delete the contact entries.
Your radio also supports a maximum of 50 call lists.
Each list can store up to 100 IDs (numbers).
Note: Your radio is preprogrammed with a number of
contacts per Call Lists. Check with your dealer or
system administrator for more information.
The radio automatically exits the feature, if the feature
inactivity timer is enabled, when the radio is left idle
and the timer expires. You hear the Menu Inactive
Exit Tone upon feature exit.
Making a Private Call from Contacts
Your radio must be preprogrammed to allow you to
use this feature.
Advanced Features
64
English
1 or to Cnts and press the Menu Select button
directly below Cnts.
The entries are alphabetically sorted.
2 or to the required subscriber alias.
3Press the Menu Select button directly below Optn
and proceed to the next step.
4 or to Call and press the Menu Select
button directly below Sel.
5 or to select the call type.
6Hold the radio vertically 1 to 2 inches (2.5 to 5.0
cm) from your mouth.
7Press the PTT button to initiate the call.
During the call, the display shows the subscriber
alias.
8Press and hold the PTT button to talk. Release the
PTT button to listen.
The LED lights up solid red when the PTT button
is pressed.
If there is no voice activity for a preprogrammed
period of time, the call ends.
If the call reaches the maximum ring time, the call
ends.
Adding a Contact to a Call List
1 or to Sel.
2 or to the required Call List and press the
Menu Select button directly below Add to add to
the Call List, or Cncl to cancel and return to the
main screen of Contacts.
The display shows momentary Please wait
before showing <Entry> added to Call List,
confirming the addition of the contact to the list.
The radio returns to the main display of Contacts.
Removing a Contact from a Call List
1 or to Sel.
The display shows Remove <Entry> frm Call
List?.
Advanced Features
65
English
2Press the Menu Select button directly below Yes
to remove the entry from the Call List, or No to
cancel and return to the main display of Contacts.
The display shows momentary Please wait
before showing <Entry> removed from Call
List, confirming the removal of the contact from
the list.
The radio returns to the main display of Contacts.
Viewing Details of a Contact
1 or to Cnts then press the Menu Select button
directly below Cnts.
The entries are alphabetically sorted.
2 or to the entry you want to view and press
the Menu Select button directly below Optn.
3 or to View and press the Menu Select
button directly below Sel.
The display shows all the numbers associated with
the entry.
Scan Lists
Scan lists are created and assigned to individual
channels/ groups. Your radio scans for voice activity
by cycling through the channel/group sequence
specified in the scan list for the current channel/
group.
Your radio supports different types of Scan Lists:
•Trunking Priority Monitor Scan List
• Conventional Scan List
• Talkgroup Scan List
Please refer to a qualified radio technician for the
maximum number of Scan Lists can be programmed
in your radio. These lists must be preprogrammed by
a qualified radio technician.
Viewing a Scan List
1 or to ScnL then press the Menu Select button
directly below ScnL.
2 or to view the members on the list.
3Press to exit the current display and return to
the Home screen.
Advanced Features
66
English
Editing the Scan List
This feature lets you change scan list members and
priorities.
1Perform one of the following actions:
•Long press the preprogrammed Scan List
Programming button (side button).
• or to ScnL then press the Menu Select
button directly below ScnL.
The display shows the lists that can be changed.
2 or to the entry you want to edit.
3Perform one of the following actions:
•Press the Menu Select button directly below
Sel to add and/ or change the priority of the
currently displayed channel in the scan list.
• Press the Menu Select button directly below
Del to delete the currently displayed channel
from the scan list.
• Press the Menu Select button directly below
Rcl to view the next member of the scan list.
4Perform one of the following actions: to select
another channel that needs to be added or deleted
then repeat 3. Otherwise proceed to next step.
• or to the desired channel.
•Use the 16-Position Select knob to select the
channel.
5Perform one of the following actions:
•Move the Scan List Programming switch out
of programming position.
•Press to exit scan list programming and
return to the Home screen.
See Viewing and Changing the Priority Status on
page 68 for more information on how to add and/or
change the priority of the currently displayed channel
in the scan list.
Changing the Scan List Status
1Perform one of the following actions:
• Long press the preprogrammed Scan List
Programming button (side button).
• Move the preprogrammed Scan List
Programming switch to programming position.
Advanced Features
67
English
The display shows the programming mode icon
and the first list member.
2 or to the member you want to edit.
3Perform one of the following actions:
•Press the Select button once to add the
currently displayed channel to the scan list.
• Press the Select button one or more times to
change the scan list status icon of the currently
displayed channel.
4Perform one of the following actions:
• or to select more list members whose
scan status you want to change.
•Use the 16-Position Select knob to select
another scan list member.
5Move the Scan List Programming switch out of
programming position. Press to exit scan list
programming and return to the Home screen.
Viewing and Changing the Priority Status
Perform one of the following actions:
• Press the Menu Select button directly below
Sel one or more times to change the priority
status of the current displayed channel.
• Press the Select button one or more times to
toggle different status of the Scan List status
icon of the current displayed channel.
The radio shows one of following priority status
icons and scenarios:
• A Scan icon indicates that the current channel
is in the scan list as a non-priority channel. The
LED lights up solid green.
• A Priority-Two Channel Scan icon indicates
that the current channel is in the scan list as
the Priority-Two channel. The LED blinks
green.
• A Priority-One Channel Scan icon indicates
that the current channel is in the scan list as
the Priority-One channel. The LED rapidly
blinks green. You hear all traffic on the Priority-
One channel, regardless of traffic on non-
priority channels.
• No icon indicates that the current channel is
deleted from the scan list.
Advanced Features
68
English
Scan
This feature allows you to monitor traffic on different
channels by scanning a preprogrammed list of
channels.
Turning Scan On or Off
Perform one of the following actions:
• Press the preprogrammed Scan button to
toggle Scan On or Scan Off to initiate or stop
scan.
• Turn the preprogrammed Scan switch to the
Scan on or Scan off position to initiate or stop
scan.
•or to Scan then press the Menu Select
button directly below Scan.
If the scan is enabled, the display shows Scan on
and the scan status icon.
If the scan is disabled, the display shows Scan
Off.
The radio returns to the Home screen.
Making a Dynamic Priority Change (Conventional Scan
Only)
While the radio is scanning, the dynamic priority
change feature allows you to temporarily change any
channel in a scan list (except for the Priority-One
channel) to the Priority-Two channel.
This change remains in effect until scan is turned off.
Scan then reverts to the preprogrammed (original)
setting.
When the radio locks onto the channel designated
as the new Priority-Two channel, press the
preprogrammed Dynamic Priority button.
The radio continues scanning the remaining
channels in the list.
Deleting a Nuisance Channel
If a channel continually generates unwanted calls or
noise (termed a “nuisance” channel), you can
temporarily remove the unwanted channel from the
scan list.
This capability does not apply to priority channels or
the designated transmit channel.
Advanced Features
69
English
When the radio is locked onto the channel to be
deleted, Perform one of the following actions:
• Press the preprogrammed Nuisance Delete
button.
• or to Nuis and press the Menu Select
button directly below Nuis.
The radio continues scanning the remaining channels
in the list.
Restoring a Nuisance Channel
To restore the deleted nuisance channel, perform
one of the following actions:
•Turn the radio off and then turning it on again.
• Stop and restart a scan via the preprogrammed
Scan button or menu.
• Change the channel via the 16-Position
Select knob.
Call Alert Paging
This feature allows your radio to work like a pager.
Even if other users are away from their radios, or if
they are unable to hear their radios, you can send
them an individual Call Alert page. You can also
verify if a radio is active on the system.
Depending on how your radio is programmed, when
you make an Enhanced Private Call, the radio either
automatically sends a call alert page if there is no
answer after the maximum ring time, or when you
press the PTT button.
Note: This feature must be preprogrammed by a
qualified radio technician.
Receiving a Call Alert Page
When you receive a Call Alert page, you hear four
repeating alert tones and the LED blinks green. The
call received icons blinks and the display shows Page
received.
Press any button to clear the Call Alert page.
See Making a Talkgroup Call on page 54 or Making a
Private Call (Trunking Only) on page 54 for more
information on returning the call.
Sending a Call Alert Page
The following methods are options on how to send a
call alert page. The result of all the methods is the
same. You can use the options interchangeably
Advanced Features
70
English
depending on your preference and the programmed
functions.
Note: The radio automatically exits the feature, if the
feature inactivity timer is enabled, when the radio is
left idle and the timer expires. You will hear the Menu
Inactive Exit Tone upon feature exit.
•Sending a call alert page via the preprogrammed
Quick Access (One-Touch) Call Alert Paging
button:
a) Press the preprogrammed Quick Access
(One-Touch) Call Alert Paging button to send
a page to the preprogrammed ID.
The display shows Paging...<Number>.
If the call alert page is sent successfully, you
hear a tone and the display shows Ack
received. The radio returns to the Home
screen.
If the call alert page is not acknowledged, you
hear a low tone and the display shows No
acknowledge. Press the Menu Select button
directly below Ok to return to the main screen
for Contacts.
•Sending a call alert page via the radio menu Page:
a) or to Page.
b) Press the Menu Select button directly below
Page.
c) Press the Menu Select button directly below
Cnts to view the required ID, or to the
required ID.
d) Press the PTT button to send the page.
The display shows Paging...<Number>.
If the call alert page is sent successfully, you
hear a tone and the display shows Ack
received. The radio returns to the Home
screen.
If the call alert page is not acknowledged, you
hear a low tone and the display shows No
acknowledge. Press the Menu Select button
directly below Ok to return to the main screen of
Contacts.
•Sending a call alert page via the radio menu Call:
a) or to Call.
b) Press the Menu Select button directly below
Call.
c) or to select the alias or ID, and press the
PTT button to initiate the call.
Advanced Features
71
English
If the target radio does not respond after a
preprogrammed period of time, the display
shows Send page?.
d) To send the call alert page, press the Menu
Select button directly below Yes. To exit the
screen without sending the call alert page,
press the Menu Select button directly below
No.
The display shows Paging...<Alias>.
If the call alert page is sent successfully, you
hear a tone and the display shows Ack
received. The radio returns to the Home
screen.
If the call alert page is not acknowledged, you
hear a low tone and the display shows No
acknowledge. Press the Menu Select button
directly below Ok to return to the main screen of
Contacts.
Emergency Operation
The Emergency feature is used to indicate a critical
situation.
If the Top (Orange) button is preprogrammed to send
an emergency signal, this signal overrides any other
communication over the selected channel.
Your radio supports the following Emergency modes:
•Emergency Alarm
• Emergency Call (Trunking Only)
• Emergency Call (Trunking Only)
• Silent Emergency Alarm
Check with your dealer or system administrator for
more information on the programming of this feature.
Each channel can only assigned one of the
Emergency modes above. The radio responds
differently when pressing the preprogrammed
Emergency button in each channel.
Note: To exit emergency at any time, press and hold
the preprogrammed Emergency button for about a
second.
The radio operates in the normal dispatch manner
while in Emergency Call, except if enabled, it returns
to one of the following:
Advanced Features
72
English
Tactical/Non-
Revert
The radio sends emergency alarm
and/or make emergency call on the
current selected channel.
Non-Tactical/
Revert for
Conventional
system
The radio reverts to the
preprogrammed emergency
channel to send alarm and/or
make emergency call.
Non-Tactical/
Revert for
Trunking
system
The radio reverts to the
preprogrammed emergency
talkgroup to send alarm and/or
make emergency call.
Man Down is an alternate way to activate the
Emergency feature on the condition the Emergency
must be set up for this feature to operate.
See Man Down on page 79 on page 73 for details.
Sending an Emergency Alarm
This feature allows you to send a data transmission,
which identifies the radio sending the emergency, to
the dispatcher.
Note: Emergency button press timer by default is set
to 1 second. This timer is programmable from 0 – 6
seconds by a qualified technician.
Press the preprogrammed Emergency button.
One of the following scenarios occurs:
•The display shows Emergency on the current
zone and channel. You hear a short medium-
pitched tone and the LED blinks red
momentarily.
• You hear the radio sounds a short low-pitched
tone to indicate the selected channel does not
support emergency and rejects to launch
emergency mode.
When you receive the dispatcher’s acknowledgment,
the display shows Ack received. You hear four
tones, the alarm ends, and the radio exits the
Emergency Alarm mode.
If no acknowledgement is received, the display shows
No acknowledge. The alarm ends when the timer
expires and the radio exits the Emergency Alarm
mode.
Sending an Emergency Call (Trunking Only)
This feature gives your radio priority access to a
talkgroup.
1Press the preprogrammed Emergency button.
Advanced Features
73
English
One of the following scenarios will occur:
•The display shows Emergency on the current
zone and channel. You hear a short medium-
pitched tone and the LED blinks red
momentarily.
• You hear the radio sounds a short low-pitched
tone to indicate the selected channel does not
support emergency and rejects to launch
emergency mode.
2Hold the radio vertically 1 to 2 inches (2.5 to 5.0
cm) from your mouth.
3Press and hold the PTT button. Speak clearly into
the microphone.
4Release the PTT button to end the transmission
and wait for a response from the dispatcher.
5To exit Emergency Call, press and hold the
preprogrammed Emergency button for about a
second.
Sending an Emergency Alarm with Emergency Call
This feature gives your radio priority access on a
channel for conventional system, and to a talkgroup
for trunking system.
1Press the preprogrammed Emergency button.
If successful, the display shows Emergency on the
current zone and channel. You hear a short,
medium-pitched tone and the LED blinks red
momentarily.
The radio exits Emergency Alarm and enters the
Emergency Call state when one of the following
scenarios occur:
• You receive the dispatcher’s acknowledgment.
The display shows Ack received.
• You receive no acknowledgement. The display
shows No acknowledge.
• You press the PTT button while in the
Emergency Alarm mode.
If unsuccessful, you hear the radio sounds a short
low-pitched tone to indicate the selected channel
does not support emergency and rejects to launch
emergency mode.
Advanced Features
74
English
2Hold the radio vertically 1 to 2 inches (2.5 to 5.0
cm) from your mouth.
3Press and hold the PTT button. Speak clearly into
the microphone.
4Release the PTT button to end the transmission
and wait for a response from the dispatcher.
5To exit Emergency Call, press and hold the
preprogrammed Emergency button for about a
second.
Sending a Silent Emergency Alarm
This feature allows you to send an Emergency Alarm
to the system without triggering any audio or visual
indicators.
1Press the preprogrammed Emergency button.
The display shows no changes, the LED does not
light up, and you hear no tones. The silent
emergency state continues until you perform the
next step.
2Perform one of the following actions:
• You press and hold the preprogrammed
Emergency button for about a second to exit
the Silent Emergency Alarm mode.
•Press and release the PTT button to exit the
Silent Emergency Alarm mode and enter
regular dispatch or Emergency Call mode.
Change of Channels during Emergency
For ALL Emergency transmissions, when changing
channels:
•If the new channel is also preprogrammed for
Emergency, you can change channels while in
Emergency operation. The emergency alarm or
call continues on the new channel.
• If the new channel is not preprogrammed for
Emergency, the display shows No emergency,
and you hear an invalid tone until you exit the
Emergency state or change to a channel
preprogrammed for Emergency.
Emergency Keep-Alive Feature
This feature, when enabled, prevents the radio from
being turned off via the On/Off Control Knob when
the radio is in the Emergency state.
Advanced Features
75
English
Note: The radio only exits the Emergency state using
one of the ways mentioned in the previous sections.
See Sending an Emergency Alarm on page 73,
Sending an Emergency Call (Trunking Only) on page
73, Sending an Emergency Alarm with Emergency
Call on page 74, or Sending a Silent Emergency
Alarm on page 75.
Fireground (Conventional Only)
The portable Fireground Communications System is
designed for deployment at an incident scene. It
consists of five central components:
•Your APX portable radios
• Incident Management Software
• Incident Management Software
• Radio Frequency (RF) Modem
• DVRS (Optional)
These components provide on-scene and inbuilding
radio coverage, and enhanced personnel
accountability and monitoring.
The radio helps to indicate your presence on the
scene if it is in the range of the Incident Commander
command terminal.
Each Fireground Communication System radio
automatically reports your radio ID on the commander
mobile command terminal. Your name, riding position
and sector are all can be configured to be seen at the
Commander’s command terminal.
If you have a critical situation, you can press the
Emergency button which activates an alarm on the
Incident Management Software at the command
terminal.
The Fireground signals transmission is always
exchanging data between your radio and the RF
Modem and command terminal. The status of your
radio includes:
•Powering up or down the radio
• Automatic response to Polling
• Response to Evacuation commands
• Pressing the PTT button to make voice
transmission
• Sending an Emergency Alarm and Call
Entering Fireground Zone Channel
1Upon powering up, perform one of the following
actions:
Advanced Features
76
English
• If the Fireground Zone Channel is set as
default, you hear gurgle tone and the home
screen. You are in Fireground zone channel.
•If the Fireground Zone Channel is set as
default, but you hear a short, low-pitched tone,
the display shows Reg failed to indicate that
the command terminal does not respond to
Fireground Zone Channel. Get a qualified
technician for assistance.
• If your home channel is not Fireground Zone
Channel, toggle or change the radio zone
channel to Fireground Zone Channel.
2Listen for a transmission. Adjust the Volume
Control Knob if necessary.
3Perform one of the following actions:
•Press and hold the preprogrammed Volume
Set button to hear the volume set tone. Adjust
the Volume Control Knob if necessary.
Release the Volume Set button.
• At the desired Fireground zone and channel,
press the preprogrammed Monitor button and
listen for activity. Adjust the Volume Control
Knob if necessary.
• If your radio is working in Fireground Zone
Channel, proceed to next step.
4Press and hold the PTT button to transmit. The
LED lights up solid red while transmitting. Talk into
the microphone clearly if needed.
5Release the PTT button to receive.
You hear a Transmit End Tone.
Responding to Evacuation Indicator
When Incident Commander triggers Evacuation
signal from his command terminal, the RF Modem
updates everyone in the Fireground Communication
System with the order to evacuate the incident site.
Your radio sounds the Evacuation Tone at the profile
maximum alert tone volume level. The display shows
EVACUATE.
Perform one of the following actions:
•Move the Volume Control Knob to adjust the
volume of the Evacuation Tone from full
volume.
• Perform any action on the radio other than
volume adjustments to cancel the evacuation
indications and update the command terminal.
Advanced Features
77
English
• If preprogrammed with Manual
Acknowledgement of Evacuation Command,
pressing the PTT button shall cancel the
indications and acknowledge the command
terminal.
Tactical Public Safety(TPS) (Conventional
Only)
TPS enabled the user of a group to identify a
transmission starts and ends clearly by displaying the
caller name or ID on the radio display.
Using TPS Normal Transmission
At TPS Zone Channel, perform one of the
following actions:
•Press PTT button to transmit. Talk clearly into
the microphone. Release PTT button to listen.
• Receive and listen to call, the radio displays
the caller’s name or ID.
Using TPS Emergency Transmission
The following are two important alert tones designed
for this feature.
Emergency
Beacon
During Emergency if the TPS radio
user pushes the Emergency button,
the radio sounds a Beacon at the
maximum volume of the radio at
radio’s internal speaker and it is not
adjustable. This beacon goes to
silent when user presses the PTT
button for voice transmission.
Emergency
Call De-Key
Sidetone
The radio sounds an alert tone to
remind radio user that the
Emergency Mode is still active after
user releases the PTT button for an
Emergency call transmission. The
volume of loudness depends on the
maximum tone at your radio profile.
1Press the Emergency button to enter Emergency
Mode.
You hear Emergency Beacon.
2Press PTT button to make Emergency Call.
3Release to listen.
You hear Emergency Call De-Key Sidetone. After
a short pause, you hear Emergency Beacon.
Advanced Features
78
English
4Long press Emergency button to exit Emergency
mode and cancel Emergency Beacon.
Man Down
Man Down condition is determined based upon the
radio tilt angle or a combination of radio tilt angle and
the lack of radio motion.
Man Down feature is an alternate way to activate the
Emergency feature if Emergency has been
programmed in your radio.
Note: This feature could be preprogrammed for all
channels that support Emergency feature or could be
preprogrammed specifically to a zone and channel
which has Emergency feature. Consult your agent or
qualified technician for more details.
Your radio automatically activates Emergency Alarm
or Call when the radio achieves or passes a tilt angle
threshold or a combination of the angle threshold and
radio motion below the motion sensitivity level,
depending upon how the radio is programmed. The
radio must stay in this condition for a preprogrammed
amount of time before the Emergency Alarm or Call is
activated.
Note: It is recommended that an Emergency button is
preprogrammed in order to allow the user to exit the
emergency condition.
The Man Down feature provides a Clear function to
the user. After a Man Down condition has been
detected, the user can press a preprogrammed Clear
button or preprogrammed Menu Select button to
cancel the Man Down condition. The radio remains in
the Man Down state without triggering an emergency
condition until the radio is moved out of the Man
Down state, at which point Man Down functionality
resumes.
The Man Down feature has three phases:
1The radio senses the Man Down condition and
Pre-Alert Timer is initiated.
2Man Down condition continues for the time
duration defined in the Pre-Alert Timer field. At the
end of this time, the radio alerts the user on the
Man Down status with an audible alert tone and
Man-Down text on the screen.Man Down condition
continues for the time duration defined in the Pre-
Alert Timer field. At the end of this time, the radio
alerts the user on the Man Down status with an
audible alert tone and text on the screen. The
Post-Alert Timer also initiates at this point.
Advanced Features
79
English
3Man Down condition continues for the time
duration defined in the Post-Alert Timer field. Once
the timer expires, the Emergency alarm is
transmitted. The Man Down Clear function is used
in this phase to cancel the Man Down condition.
The following scenarios affect the timers:
•Pressing the PTT button suspends the Man Down
timers; releasing the PTT button reinitiates the
Pre-Alert Timer.
• Pressing other buttons on the radio does not
impact these timers.
• Repositioning the radio exits the Man Down
feature, which stops and resets the timers.
• Pressing a preprogrammed Clear button or
pressing a Menu Select button preprogrammed
for Clear stops and resets the timers. The timers
do not restart until the radio is repositioned.
Note: Emergency must be set up for this feature to
operate. For details on operating the Emergency
alerts, please see Emergency Operation on page 72.
If the radio is preprogrammed to horizontal only, it
must be worn in a vertical position otherwise the Man
Down alert may be inadvertently triggered.
When the radio is programmed with Man Down
feature, special care is required when charging the
radio with a wall mounted charger. See Proper Ways
to Handle the Radio on page 146 for details.
Pre-Alert Timer
This timer sets the amount of time that a Man Down
condition must be present before the radio-user is
warned of the Man Down condition.
When the radio detects that it has returned to the
vertical position or when the radio detects motion, the
Pre-Alert timer stops and is reset.
The Pre-Alert timer reinitiates when the radio detects
it is in the horizontal position or motionless again.
Post-Alert Timer
This timer sets the amount of time the radio needs to
remain in the Man Down condition before the
Emergency alarm is transmitted. When the Post-Alert
Timer is initiated, the radio alerts the user with an
audible tone and displays the “Man-Down” text.
See Exiting Man Down Feature on page 82 to exit
Man Down feature.
Advanced Features
80
English
Radio Alerts When Man Down Feature is Triggered
The Man Down alert tone volume is directly related to
the radio’s volume. Ensure that the radio’s volume is
loud enough so that the user does not miss the Post-
Alert tone.
Note: If the radio is programmed with Silent
Emergency, the radio inhibits the alert tone and visual
alert associated with the emergency feature.
If the radio is programmed in Surveillance Mode, the
radio inhibits all tones and lights on the radio
including the Man Down tones.
Triggering Emergency
When the user does not clear the Man Down
condition and the Post-Alert Timer comes to an end,
Emergency Alarm or call is triggered. The radio sends
emergency message to units within the same
Talkgroup. The radio also sends ID number and GPS
coordinates to dispatcher if these features are
enabled. User can exit Emergency following the
Emergency procedure. See Emergency Operation on
page 72 for details.
Note: At this point the Man Down features is
complete. Use normal Emergency procedures to
cancel Emergency transmissions.
Radio Alerts When Man Down Enhanced is Triggered
Note: This feature is to be preprogrammed
specifically to a zone and channel which supports
Emergency feature.
The volume and repetition duration of Man Down
Enhanced alert tone could be customized and
preprogrammed to suite the required situation.
Consult your agent or qualified technician for more
details.
When the radio initiates Man Down Enhanced, you
hear the Critical Man Down Continuous alert tone
from the radio speaker. The volume of this tone is set
to the louder of the preprogrammed minimum level or
the current radio speaker level. This acts as a beacon
to find the radio.
Note: If the radio is programmed with Silent
Emergency, the radio inhibits the alert tone and visual
alert associated with the emergency feature.
If the radio is programmed in Surveillance Mode, the
alert tone can be heard from the radio speaker.
Once the alert tone is active, changing to another
channel with different setup triggers a different
response from the radio as described next.
Advanced Features
81
English
• The alert tone is inhibited when you change to a
channel without Emergency feature.
•The alert tone is inhibited when you change to a
channel with Emergency but no Man Down
feature.
• The current alert tone is inhibited and is replaced
with a different alert tone when you change to a
channel with Emergency and different Man Down
configuration.
• The alert tone continues when you change to a
channel with Emergency and similar Man Down
configuration.
Exiting Man Down Feature
If you are not in a real Man Down situation, you
should exit the Man Down feature and prevent
emergency from going off with the following
operation.
Perform one of the following actions:
• Repositioning the radio or shaking the radio
(when motion sensitivity is enabled).
• Press the preprogrammed Man Down Clear
button to exit.
•Press the Menu Select button below Clr to
exit.
Re-Initiating Man Down
After exiting the Emergency Operation when the radio
is still in Man Down condition (tilted achieving
threshold angle or motionless), user must first exit
Man Down condition to then reinitiate the Man Down
feature.
Return the radio to the vertical position or shake
the radio (when motion sensitivity is enabled).
Testing the Man Down Feature
Enable the Emergency feature with Silent Alarm
disabled, but not in Surveillance Mode before running
this test on the radio.
1Turn the radio on and place in the vertical position,
for at least 5 seconds.
2Lay the radio down in the horizontal position.
3Wait for alert tone.
One of the following scenarios will occur:
Advanced Features
82
English
• The radio alerts with audible tone and displays
Man-Down.
•If no tone is heard, make sure that the Man Down
feature is enabled on your radio. If Man Down
feature was not enabled, please enable it and
repeat step 1 to 3.
• If the Man Down feature is enabled and no tone is
heard, send the radio to a qualified technician.
Automatic Registration Service (ARS)
This feature provides an automated data application
registration for the radio. When you turn on the radio,
the device automatically registers with the server.
Data applications within the fixed network can
determine the presence of a device on the system
and send data to the device. For example: Text
Messaging Service (TMS).
The Automatic Registration Service for the radio
consists of two (2) modes:
• ARS Server Mode (default mode)
• ARS Non-Server Mode
Note: The default ARS mode can be changed by a
qualified radio technician using the radio’s
programming software.
Selecting or Changing the ARS Mode
•Once the zone you want is displayed, turn the
preprogrammed 16-Position Select knob to the
desired mode.
•
•Selecting the ARS mode via the radio menu.
a) or to Sel to confirm the displayed channel.
User Login Feature
This feature allows you as the user to be associated
with the radio. With this association, every data
application (Example: Text Messaging Service) takes
on a friendly username.
You can still send text messages without logging in
as a user. The user login feature only enables the
recipient of your message to identify you as the
sender by assigning a username to your message.
Note: A predefined username that is set more than
the maximum allowed characters is an invalid name.
Advanced Features
83
English
Logging In as a User
Perform one of the following actions:
•Press the preprogrammed User Login button.
• or to Sel to select the predefined user
name.
• Press and hold or to scroll through the
list of predefined user names at a fast scroll
rate. Press the Menu Select button directly
below Sel to select the predefined user name.
If the ID is invalid, the display shows momentary
Invalid ID.
One of the following scenarios occurs:
•If the user name is invalid, login fails and the user
login failure indicator (IP indicator) icon blinks. The
display also shows momentary Login failed.
• Wait for the logged in confirmation screen. If the
login process is successful, the display shows the
successful user login indicator (IP indicator) icon
and Logged in, with Logt and Exit.
Note: To cancel the login process and return to the
initial user login screen, press the Menu Select
button directly below Cncl.
Logging Out
When you have logged in or you are using Offline
mode, you can log out.
Note: Private data refers to all messages in the text
messaging Inbox, Draft, and Sent folder. The next
user is able to access the Inbox, Draft and Sent
messages if private data is not deleted.
1Press the Menu Select button directly below
Logt.
One of the following scenarios will occur:
•The display shows Clear private data?.
Proceed to the next step.
•If the Delete Messages On Session End
feature is enabled, the radio clears the private
data and returns to User Login screen.
2Perform one of the following actions:
•Select Yes to clear all your private data. The
display shows momentary Private data
cleared.
•Select No to keep your private data.
Advanced Features
84
English
Text Messaging Service (TMS)
This features allows you to quickly send and receive
messages and run database queries directly from
your radios. The maximum length of characters for a
text message is 200.
The types of text messages available:
•A predefined message (quick text message).
• An edited quick text message.
The main menu consists of the following options:
• Inbox
• Compose
• Sent
Note: See Status Icons on page 36 for more
information on the TMS icons and TMS Menu Options
on page 41 for more information on each menu
option.
Sending a Quick Text Message
Quick Text messages are messages that are
predefined and usually consist of messages that are
used most frequently.
Each Quick Text message has a maximum length of
50 characters. You can select the required text from
the Quick Text.
1Perform one of the following actions:
• To access this feature via a preprogrammed
button, press the preprogrammed Quick Text
button and proceed to Step 4.
• To access this feature via the menu, proceed
to the next step.
2 or to TMS and press the Menu Select button
directly below TMS to access the TMS feature
screen.
3Perform one of the following actions:
• or to Compose and press the Menu
Select button directly below Sel.
•Press the Menu Select button directly below
Exit to return to the Home screen.
4 or to Quick Text and press the Menu
Select button directly below Sel for a predefined
message.
Advanced Features
85
English
5 or to scroll through the list of messages and
press the Menu Select button directly below Sel
to select the required message.
The message appears on the Compose screen,
with a blinking cursor at the end of it. Use the
keypad to edit the message, if required.
6Press the Menu Select button directly below
Optn.
7 or to Send Message and press the Menu
Select button directly below Sel.
8Perform one of the following actions:
• or to scroll through the address list and
highlight the required address.
• or to [Other Recpnt] and press the
Menu Select button below Edit. When a
blinking cursor appears on the Enter Address
screen, use the keypad to type the address
entry.
9Press the Menu Select button directly below Send
or press the PTT button to send the message.
The display shows the Send Message screen and
Sending msg.
If the message is sent, you hear a tone and the
display shows Msg sent.
If the message is not sent, you hear a low tone,
the display shows Send failed and returns to the
main TMS screen.
Note: You can append a priority status and/or a
request reply to your message. See Priority Status
and Request Reply of a New Text Message on
page 86 for more information.
Priority Status and Request Reply of a New Text
Message
Before sending your message, you can append a
priority status and/or a request reply to your
message.
Appending a Priority Status to a Text Message
Note: The Priority Status icon on a message does not
imply that the message gets higher priority over the
other messages when it is being transmitted. It is just
an indication that can be embedded into a message
to let the receiver know that the message is
important.
Advanced Features
86
English
1Press the Menu Select button directly below
Optn.
2 or to Mark Important and press the Menu
Select button directly below Sel to indicate the
message is important.
The priority status icon appears beside the normal
message icon on the label bar.
Removing a Priority Status from a Text Message
1Press the Menu Select button directly below
Optn.
2 or to Mark as Normal and press the Menu
Select button directly below Sel to remove the
priority status from the message.
The display shows the normal message icon on the
label bar.
Appending a Request Reply to a Text Message
1Press the Menu Select button directly below
Optn.
2 or to Req Reply and press the Menu Select
button directly below Sel to request for a reply.
The request reply icon appears beside the normal
message icon on the label bar.
Removing a Request Reply from a Text Message
1Press the Menu Select button directly below
Optn.
2 or to No Req Reply and press the Menu
Select button directly below Sel to remove the
priority status from the message.
The display shows the normal message icon on the
label bar.
Appending a Priority Status and a Reply Request
to a Text Message
1Press the Menu Select button directly below
Optn.
2 or to Mark Important and press the Menu
Select button directly below Sel to indicate the
message is important.
3 or to Req Reply and press the Menu Select
button directly below Sel to request for a reply.
Advanced Features
87
English
The priority status and request reply icons appear
beside the normal message icon on the label bar.
Removing a Priority Status and a Reply Request
from a Text Message
1Press the Menu Select button directly below
Optn.
2 or to Mark Important and press the Menu
Select button directly below Sel to remove the
priority status icon.
3 or to No Req Reply and press the Menu
Select button directly below Sel to remove the
reply status icon.
The display shows the normal message icon on the
label bar.
Managing Text Messages
Receiving a Text Message
Note: When you receive a message that is flagged
with the “Request Reply” icon, you must manually
respond to the sender that you have received the
message. The system will not automatically send
back a notification that the radio has received such
message.
The following methods are options on how to receive
a text message. The result of all the methods is the
same. You can use the options interchangeably
depending on your preference and the programmed
functions.
•Receiving a text message via the Data Feature
button or the TMS Feature button:
a) When you receive a message, press and hold
the preprogrammed Data Feature button or the
TMS Feature button to access the Inbox.
The display shows a list of aliases or IDs, with
the sender of the latest received message on
top.
•Receiving a text message via the radio menu:
a) When the new message icon appears and the
display shows momentary New msg, press the
Menu Select button directly below TMS to
access the Inbox.
The display shows a list of aliases or IDs, with
the sender of the latest received message on
top.
Viewing a Text Message from the Inbox
The Inbox can hold up to thirty (30) messages.
Advanced Features
88
English
Note: or to read the message if the content fills
more than one screen.
1Perform one of the following actions:
•Press the Data Feature button or the
preprogrammed TMS Feature button to access
the TMS feature screen. or to Inbox and
press the Menu Select button below Sel.
• Press and hold the Data Feature button or the
preprogrammed TMS Feature button to access
the Inbox.
• or to TMS and press the Menu Select button
directly below TMS to access the TMS feature
screen. or to Inbox and press the Menu
Select button below Sel.
The display shows a list of aliases or IDs, with the
sender of the latest received message on top.
2 or to the required aliases or ID and press
the Menu Select button below Sel to view the
message.
While on the view message screen, press the
Menu Select button directly below Rply, Del, or
Back to access the option.
•Select Rply to reply the message.
•Select Del to delete the message.
•Select Back to return to the previous screen.
Note: The icon at the top right corner of the
screen indicates the status of the message. See
Text Messaging Service (TMS) Indicators on page
40 for more information.
Replying to a Received Text Message
Note: The original date and time stamp, address and
message content is automatically appended to the
reply message.
1 or to the required aliases or ID and press
the Menu Select button below Sel to view the
message.
2Press the Menu Select button directly below Rply
to reply to a message.
The display shows a list of Quick Text.
3Press the Menu Select button directly below Optn
once you have completed the message.
Advanced Features
89
English
4 or to Send Message and press the Menu
Select button directly below Sel to send the
message.
The display shows the Send Message screen and
Sending msg.
Note: Press the Menu Select button directly below
Back at any time to return to the previous screen.
You can append a priority status and/or a request
reply to your message. See Priority Status and
Request Reply of a New Text Message on page 86
for more information.
Sent Text Messages
Once a message is sent to another radio, it is saved
in the Sent folder. The most recent sent text message
is always added to the top of the Sent list.
The Sent folder is capable of storing a maximum of
ten (10) last sent messages. When the folder is full,
the oldest message in the folder is deleted when the
11th message comes in.
Viewing a Sent Text Message
1Perform one of the following actions:
• Press the Data Feature button or the
preprogrammed TMS Feature button to access
the TMS feature screen.
• or to TMS and press the Menu Select button
directly below TMS to access the TMS feature
screen.
2 or to Sent and press the Menu Select
button below Sel.
The display shows a list of aliases or IDs, with the
recipient of latest sent message on top.
3 or to the required aliases or ID and press
the Menu Select button below Sel to view the
message.
While on the view message screen, press the
Menu Select button directly below Optn, Del or
Back to access the option.
•Select Optn to configure the message settings.
•Select Del to delete the message.
•Select Back to return to the previous screen.
Note: The icon at the top right corner of the
screen indicates the status of the message. See
Advanced Features
90
English
Text Messaging Service (TMS) Indicators on page
40 for more information.
Sending a Sent Text Message
1Press the Menu Select button directly below Sel.
2 or to scroll through the address list and
highlight the required address.
3Press the Menu Select button below Send or the
PTT button to send the message.
The display shows the Send Message screen and
Sending msg.
Note: Press the Menu Select button directly
below Back at any time to return to the previous
screen.
You can append a priority status and/or a request
reply to your message. See Priority Status and
Request Reply of a New Text Message on page
86 for more information.
Deleting a Text Message
1From the Inbox or Sent screen, or to scroll
through the messages.
2Press the Menu Select button directly below Del
to delete the current message.
Deleting All Text Messages
1Perform one of the following actions:
• Press the Data Feature button or the
preprogrammed TMS Feature button to access
the Messaging feature screen.
• or to TMS and press the Menu Select button
directly below TMS to access the TMS feature
screen.
2 or to Inbox or Sent then press the Menu
Select button below Clr to select all messages in
the selected folder.
The display shows Del All?.
3Perform one of the following actions:
•Press the Menu Select button directly below
Yes to delete all the messages in the selected
folder.
• Press the Menu Select button directly below
No to return to the main TMS feature screen.
Advanced Features
91
English
ASTRO 25 Advanced Messaging Solution
The ASTRO 25 Advanced Messaging Solution allows
you to quickly send and receive messages and run
database queries directly from your data-enabled
Motorola two-way radios. Federal mandate requires
Two-Factor Authentication when querying Federal
and State databases. With this advance messaging
solution you have the ability enable Two-Factor
Authentication.
With Query and Two-Factor Authentication, you can
use a secure system logon to initiate and receive key
information on people, vehicles and properties when
doing the regular security patrol. You can access to
local or external databases such as the National
Crime Information Center (NCIC), for "Hot Hits" on
priors and warrants. Query and Two-Factor
Authentication has Criminal Justice Information
Services (CJIS) security compliance for queries.
With this Advanced Messaging Solution, ARS
functionality splits between two protocols:
•ARS for Device Registration
• New User Authentication for User Login
TMS functionality splits between two protocols:
• TMS for messaging
• New Service Advertisement for service
availabilities
The radio with Two-Factor capabilities are backward
compatible with the existing device registration
system and TMS servers.
System Setup for ASTRO Advanced Messaging
Solution
Your user name, unit ID and password all need to be
provisioned in PremierOne™. Your user account in
PremierOne needs to be linked to an RSA account
specifying a token to be used with the Two-Factor
passcode.
The radios caches the user name, unit ID and or
Single Factor password in the codeplug, this allows
the radio to automatically log in to use Single Factor
authentication upon power up or mode change. The
Two-Factor passcode is not stored in the codeplug.
You can upgrade the Single Factor session to a Two-
Factor session by entering the Two-Factor passcode
only. After an interruption (for example mode change,
DSR switch over, power loss), the radio is capable of
restoring the active session in its current state as long
as the session is active in the server.
Advanced Features
92
English
Note: Power loss and power down are different
activities, power down occurs when the user
intentionally powers off the radio, power loss is when
the battery dies or is removed from the unit.
Two-Factor Authentication
Two-Factor Authentication is an extension of existing
ARS and TMS operation. This feature allows you to
authenticate yourself with a username, unit ID,
password and passcode.
The purpose of this feature is to allow the sender of a
text message to address a specific user of the radio,
so the message is delivered to the user, not to the
radio which may have any user using it at the time.
Secondly, this feature supports query authentication
requirements so the query service knows which user
originated a query.
You can still send text messages without logging in
as a user. The user login feature only enables the
recipient of your message to identify you as the
sender by assigning a username to your message.
Note: A predefined username that is set more than
the maximum allowed characters is an invalid name.
Logging in via the Two-Factor Authentication
1Perform one of the following actions:
•Press the preprogrammed User Login button.
• or to User, and press the Menu Select
button directly below User.
The display shows the User Login screen.
2Perform one of the following actions:
• or to [ID Entry] and press the Menu
Select button directly below Edit. A blinking
cursor appears. Use the keypad to type or edit
a username. Press the Menu Select button
directly below Ok to submit.
• or to scroll through the list of predefined
usernames. Press the Menu Select button
directly below Sel to select the predefined
username.
• Press and hold or to scroll through the
list of predefined usernames at a fast scroll
rate. Press the Menu Select button directly
below Sel to select the predefined username.
If the selected predefined username has more
than the maximum allowed characters, or an
Advanced Features
93
English
invalid character in it, the display shows
momentary Invalid ID.
3For radio enabled with Unit ID, Perform one of the
following actions:
• or to [UnitID Entry] and press the
Menu Select button directly below Edit. A
blinking cursor appears. Use the keypad to
type or edit a Unit ID. Press the Menu Select
button directly below Ok to submit.
• or to scroll through the list of predefined
Unit IDs. Press the Menu Select button directly
below Sel to select the predefined Unit ID.
•Press and hold or to scroll through the
list of predefined Unit IDs at a fast scroll rate.
Press the Menu Select button directly below
Sel to select the predefined Unit ID.
If the selected predefined Unit ID has more than
the maximum allowed characters, or an invalid
character in it, the display shows momentary
Invalid UnitID.
4Enter your password when you see a blinking
cursor.
5Press the Menu Select button directly below Logn
or Ok.
If only one-factor is enabled, the display shows 1F
logged at the status. The login operation is
complete.
If login fails, the display shows momentary Login
failed. The display returns to User Login
screen.
6For radio enabled with two-factor login, enter your
passcode when you see a blinking cursor.
7Press the Menu Select button directly below
Logn.
The display shows In progress.
If the login fails, the display shows momentary 2F
pscd failed. Press the Menu Select button directly
below Pscd to re-enter passcode. If successful, the
display shows User Login screen with 2F logged
in status to indicate Two-Factor Authentication
complete.
Logging out of Two-Factor Authentication
Note: Private data refers to all messages in the text
messaging Inbox, Draft, and Sent folder. The next
Advanced Features
94
English
user is able to access the Inbox, Draft and Sent
messages if private data is not deleted.
Radio which is successfully logged in to the secured
system receives advertisement from the server that
the access to the data for query is enabled.
1Press the Menu Select button directly below
Logt.
One of the following scenarios occurs:
•The display shows Clear private data?.
•If the Delete Messages On Session End
feature is enabled, the display shows
momentary Private data cleared.
2Select Yes to clear all your private data or select
No to keep your private data.
If you select Yes, the display shows momentary
Private data cleared.
Sending a Query
This feature is available for radio users who have
successfully logged in with the Two-Factor
Authentication. Query is a special form of Quick Text
marked with a flag that is replied or dispatched in
normal TMS message. The query template needs to
be configured in the quick test list of the CPS. You
can choose from the quick text list, including queries
if present.
You shall receive a service advertisement message
to indicate the Query is available after you have
successfully logged in the radio with a Two-Factor
Authentication.
Note: The query server must be selected as the
destination so that it can receive the query message
and respond the query with text message. The query
server must be an entry in the data user list in the
CPS.
1Perform one of the following actions:
•To access this feature via a preprogrammed
button, press the preprogrammed TMS Query
button and proceed to Step5.
• To access this feature via the menu, proceed
to the next step.
2 or to TMS and press the Menu Select button
directly below TMS to access the TMS feature
screen.
3Perform one of the following actions:
Advanced Features
95
English
• or to Compose and press the Menu
Select button directly below Sel.
• Press the Menu Select button directly below
Exit to return to the Home screen.
4 or to Query and press the Menu Select
button directly below Sel for a predefined
message.
5 or to scroll through the list of messages and
press the Menu Select button directly below Sel
to select the required message.
The message appears on the Compose screen,
with a blinking cursor at the end of it.
6Use the keypad to edit the message, if required.
7Press the Menu Select button directly below
Optn.
8 or to Send Message and press the Menu
Select button directly below Sel.
9Perform one of the following actions:
• or to scroll through the address list and
highlight the required address.
• or to [Other Recpnt] and press the
Menu Select button below Edit. A blinking
cursor appears on the Enter Address screen.
Use the keypad to type the address entry.
10 Press the Menu Select button below Send or the
PTT button to send the message.
The display shows the Send Message screen and
Sending msg.
If the message is sent, you hear a tone and the
display shows Msg sent.
If the message is not sent, you hear a low tone,
the display shows Send failed and returns to the
main TMS screen.
Note: The server responds to your query with the
required report in text messages.
You can append a priority status and/or a request
reply to your message. See Priority Status and
Request Reply of a New Text Message on page
86 for more information.
Receiving a Query
You shall receive the information you have requested
in TMS format.
Advanced Features
96
English
When you receive a query, you hear a unique, high-
pitched chirp and the display shows the message
icon flagged with “Priority”. The display shows
momentary New msg.
To access the Inbox, press and hold the Data
Feature button or the preprogrammed TMS
Feature button or press the Menu Select button
directly below TMS.
The display shows a list of aliases or IDs, with the
sender of the latest received message on top.
Secure Operations
Secure radio operation provides the highest
commercially available level of voice security on both
trunked and conventional channels.
Unlike other forms of security, Motorola digital
encryption provides signaling that makes it virtually
impossible for others to decode any part of an
encrypted message.
Selecting Secure Transmissions
Turn the preprogrammed Secure/Clear switch to
the secure position.
Note: If the selected channel is preprogrammed
for clear-only operation, when you press the PTT
button, you hear an invalid mode tone and the
display shows Clear TX only.
The radio will not transmit until you set the
Secure/Clear switch to the clear position.
Selecting Clear Transmissions
Turn the preprogrammed Secure/Clear switch to
the clear position.
Note: If the selected channel is preprogrammed
for secure-only operation, when you press the PTT
button, you hear an invalid mode tone and the
display shows Secure TX only.
The radio will not transmit until you set the
Secure/ Clear switch to the secure position.
The radio can be configured to ignore the clear
voice or insecured transmission when the radio is
in secured transmission. Check with your agent for
details.
Advanced Features
97
English
Managing Encryption
Loading an Encryption Key
Note: Refer to the key-variable loader (KVL) manual
for equipment connections and setup.
1Attach the KVL to your radio.
The display shows Keyloading, and all other
radio functions, except for power down, backlight,
and volume, are locked out.
2Select the required keys and press the Menu
Select button directly below LOAD on the KVL.
This loads the encryption keys into your radio.
When the key has been loaded successfully, one of
the following scenarios occurs:
•You hear a short tone for single-key radios.
• You hear an alternating tone for multikey radios.
Multikey Feature
This feature allows the radio to be equipped with
different encryption keys and supports the DES-OFB
algorithm.
There are two types:
Conventional
Multikey
The encryption keys can be tied
(strapped), on a one-per-channel
basis, through Customer
Programming Software. In addition,
you can have operator-selectable
keys, operator-selectable keysets,
and operator-selectable key
erasure. If talkgroups are enabled
in conventional, then the encryption
keys are strapped to the talkgroups.
Trunked
Multikey
If you use your radio for both
conventional and trunked
applications, you have to strap your
encryption keys for trunking on a
per-talkgroup or announcement-
group basis. In addition, you may
strap a different key to other
features, such as dynamic
regrouping, failsoft, or emergency
talkgroup. You can have operator-
selectable key erasure.
Selecting an Encryption Key
1 or to Key.
Advanced Features
98
English
2Press the Menu Select button directly below Key.
The display shows the last user-selected and
stored encryption key, and the available menu
selections.
3 or to scroll through the encryption keys.
4Perform one of the following actions:
• Press the Menu Select button directly below
Sel to save the newly selected key and return
to the Home screen.
•Press , the PTT button, or the Menu Select
button directly below Exit.
•Turn the 16-Position Select knob to exit.
Note: When the selected key is erased, you hear
a momentary keyfail tone and the display shows
Key fail.
When the selected key is not allowed, you hear a
momentary illegal key tone and the display shows
Illegal key.
Selecting a Keyset
This feature allows you to select one or more groups
of several encryption keys from among the available
keys stored in the radio.
For example, you could have a group of three keys
structured to one keyset, and another group of three
different keys structured to another keyset; by
changing keysets, you would automatically switch
from one set of keys to the other.
Every channel to which one of the original keys was
tied now has the equivalent new key instead.
1 or to KSet and press the Menu Select button
directly below KSet.
The display shows the last user-selected and
stored keyset, and the available keyset menu
selections.
2 or to scroll through the keysets.
3Press the Menu Select button directly below Sel
to save the newly selected keyset.
The radio exits keyset selection and returns to the
Home screen.
Advanced Features
99
English
Note: Press , the PTT button, or the Exit menu
selection, or turn the 16-Position Select knob to
exit this menu at any time without changing the
keyset selection.
Erasing the Selected Encryption Keys
This feature allows you to erase all or selected
encryption keys.
The following methods are options on how to erase
the selected encryption keys. The result of all the
methods is the same. You can use the options
interchangeably depending on your preference and
the programmed functions.
•Erasing the selected encryption keys via the radio
menu:
a) or to Eras and press the Menu Select
button directly below Eras.
The display shows the last user-selected and
stored encryption key, and the available menu
selections.
b) or to the desired encryption key.
c) Press the Menu Select button directly below
Optn.
The display shows the available key erase
options.
d) or to the required option and press the
Menu Select button directly below Sel.
e) Select Erase all keys? or Erase single
key? by pressing the Menu Select button
below Yes to erase the encryption key(s) in the
radio.
You can return to the previous screen by
pressing the Menu Select button below No.
•Erasing the single key in radios with the single-key
option and erasing all keys in radios with the
multikey option via the preprogrammed Top Side
(Select) button and Top (Orange) button:
a) Press and hold the Top Side (Select) button.
b) While holding Top Side (Select) button down,
press the Top (Orange) button.
The display shows Please wait. When all the
encryption keys have been erased, the display
shows All keys erased.
Note: Do not press the Top (Orange) button
before pressing the Top Side (Select) button,
unless you are in an emergency situation as
this sends an emergency alarm.
Advanced Features
100
English
Requesting an Over-the-Air Rekey (ASTRO
Conventional Only)
Ensure that the Unique Shadow Key (USK) is loaded
into the radio with the key-variable loader (KVL)
before the rekey request can be sent. Refer to your
local key management supervisor for more
information.
This feature, also known as OTAR, allows the
dispatcher to reprogram the encryption keys in the
radio remotely. The dispatcher performs the rekey
operation upon receiving a rekey request from the
user.
1 or to Reky.
2Press the Menu Select button directly below
Reky.
3Perform one of the following actions:
•Press the PTT button to send the rekey
request.
• Press the PTT button again, or the Home or
Emergency button, to exit the feature and
transmit in normal mode.
If the rekey operation fails, you hear a bad-key
tone and the display shows Rekey fail.
Note: The rekey operation failure indicates that
your radio does not contain the Unique Shadow
Key (USK).
MDC Over-the-Air Rekeying (OTAR) Page
This feature allows you to view or define MDC Over-
the-Air Rekeying (OTAR) features. It is applied only
when operating in secure encrypted mode and only
for conventional communications. In additional to
Rekey Requests, OTAR transmissions include
Delayed Acknowledgements, and Powerup
Acknowledgements.
Some of the options selected may also need to be set
up at the Key Management Controller (KMC) site to
work properly.
Note: This feature must be preprogrammed by a
qualified radio technician. Check with your dealer or
system administrator for more information.
Infinite UKEK Retention
This feature enables Unique Key Encryption Key
(UKEK) to be permanently stored in the radio even
when all of the encryption keys is erased. Without this
Advanced Features
101
English
UKEK key, the radio could not be over the air
rekeyed.
Note: This feature must be preprogrammed by a
qualified radio technician. Check with your dealer or
system administrator for more information.
Hear Clear
Note: This feature must be preprogrammed by a
qualified radio technician. Check with your dealer or
system administrator for more information.
There are two components of Hear Clear.
Companding Reduces the channel noise, e.g.
OTA transmission, that is
predominantly present in UHF2 and
900 MHz channel with the following
features.
Compressor Reduces the
background noise
flow and the speech
signal at transmitting
radio.
Expander Expands the speech
while the noise flow
remains the same at
receiving radio.
Random FM
Noise
Canceller
(Flutter
Fighter)
Reduces the unwanted effects of
random FM noise pulses caused by
channel fading under high Signal-to-
Noise (S/N) conditions such as in a
moving in a transportation. The
fading effects, heard as audio pops
and clicks, are cancelled without
affecting the desired audio signal.
The Random FM Noise Canceller
operates only in receive mode.
Global Positioning System (GPS)
This feature uses information from the Global
Positioning System (GPS) satellites orbiting the Earth
to determine the approximate geographical location of
your radio, expressed as latitude and longitude or
MGRS format per request from customers. The
availability and accuracy of this location information
(and the amount of time that it takes to calculate it)
varies depending on the environment in which you
are using the GPS feature.
Advanced Features
102
English
For example, GPS location fixes are very difficult to
obtain indoors, in covered locations, between high
buildings, or in situations where you have not
established a clear broad view of the sky.
Once GPS is enabled, the radio displays the GPS
icon on the screen. The dispatcher can always
request the system to determine the real-time location
coordinates of the radio.
GPS Operation
The GPS technology uses radio signals from earth
orbiting satellites, to establish the location
coordinates, maximizing your view of clear
unobstructed sky is essential for optimum
performance.
Where adequate signals from multiple satellites are
not available (usually because you cannot establish a
view of a wide area of the sky), the GPS feature of
your radio will not work. Such situations include but
are not limited to:
•Underground locations
• Inside of buildings, trains, or other covered
vehicles
• Under any other metal or concrete roof or
structure
• Between tall buildings or under dense tree-cover
• In temperature extremes outside the operating
limits of your radio
Even where location information can be calculated in
such situations, it may take longer to do so, and your
location estimate may not be as accurate. Therefore,
in any emergency situation, always report your
location to your dispatcher.
Keep in mind that the accuracy of the location
information and the time it takes to obtain it varies
depending upon circumstances, particularly the ability
to receive signals from an adequate number of
satellites.
Note: Even where adequate signals from multiple
satellites are available, your GPS feature only
provides an approximate location, usually within 20
meters from your actual location, but sometimes
farther away.
The satellites used by the GPS feature are controlled
by the U.S. government and are subject to changes
implemented in accordance with the Department of
Defense GPS user policy and the Federal Radio
Navigation Plan. These changes may affect the
performance of the GPS feature on your radio.
Advanced Features
103
English
GPS Performance Enhancement
Sometimes, the GPS feature may be unable to
complete a location calculation successfully. You then
see a message indicating that your radio cannot
connect to enough visible satellites.
To maximize the ability of your radio to determine a
fix, take note of the following guidelines:
•For your initial fix, hold the radio in the face
position.
• Stay in the open. The GPS feature works best
where there is nothing between your radio and a
large amount of open sky.
The Outdoor Location Feature (Using GPS)
This feature allows you to determine your current
location using a location menu, as well as your
current distance and bearing in relation to another
location. Radio location may be requested and
reported over-the-air.
Your radio stores up to a maximum of sixty (60)
programmable location coordinates, also known as
waypoints. When the memory is full, the next
waypoints automatically replaces the oldest
waypoints in the radio.
The radio also stores four (4) preprogrammed
waypoints. These coordinates cannot be deleted.
The following table shows the differences between a
programmable waypoints and a preprogrammed
waypoints.
Programmable
Waypoints
Preprogrammed
Waypoints
User-configurable
location coordinates.
Fixed location
coordinates:
•Home
• Emergency
• Last Known Location
• Destination
Note: The radio automatically exits the feature, if the
feature inactivity timer is enabled, when the radio is
left idle and the timer expires. You hear the Menu
Inactive Exit Tone upon feature exit.
MGRS Coordinates
This feature can only be enabled through CPS
configuration. When the MGRS coordinate is
enabled, all location coordinates are displayed in
Advanced Features
104
English
MGRS format, including the editable locations in
GPS.
Accessing the Outdoor Location Feature
Note: An ON radio menu may be present on the
Location menu screen if it is preprogrammed by the
dealer or system administrator.
Press the preprogrammed GPS button to toggle the
Outdoor Location feature to on or follow the following
procedure to access this feature via the radio menu.
1 or to Loc.
2Press the Menu Select button directly below Loc.
The display shows Location off.
3Perform one of the following actions:
•To obtain a location fix, press the Menu Select
button directly below On .
• Press the Menu Select button directly below
Optn. or to Turn On GPS and press the
Menu Select button directly below Sel.
The front display shows the MGRS or latitude/
longitude location, time, and date of the last
successful location fix.
4To obtain a new location fix, press the Menu
Select button directly below Rfsh.
The top line temporarily displays Please wait
while the new location is being determined. While
the new location is being determined, the location
signal can be a solid or blinking icon.
Once the location coordinates are fixed, the
display shows the current location along with the
UTC (Zulu) time and date that the location fix was
obtained.
The location coordinates are updated
automatically every 5 seconds while the location
signal is present.
If the radio fails to get a location fix, the display
shows No service and returns to the previous
display.
5To return to the Home screen, press , the PTT
button, the preprogrammed GPS button or the
Menu Select button directly below Exit.
Saving a Waypoint
Ensure that your radio shows the current location on
the screen.
Advanced Features
105
English
1Press the Menu Select button directly below
Optn.
2Perform one of the following actions:
• or to Save as Waypt and press the
Menu Select button directly below Sel.
• or to Save as Home and press the Menu
Select button directly below Sel and proceed
to 5.
• or to Save as Dest. and press the
Menu Select button directly below Sel and
proceed to 5.
3Press the Menu Select button directly below Ok
once you are done.
One of the following scenarios occur:
•The display shows Current loc saved as
<Waypoint name>.
•The display shows Current loc saved as
[Home].
•The display shows Current loc saved as
[Destination].
4To return to the Home screen, press , the PTT
button, the preprogrammed GPS button or the
Menu Select button directly below Exit.
Viewing a Saved Waypoint
Ensure your radio shows the current location on the
screen.
1Press the Menu Select button directly below
Optn.
2 or to Waypoints and press the Menu Select
button directly below Sel.
The display shows a list of waypoints.
3Perform one of the following actions:
• or to scroll through the list.
• or to select a waypoint to view the
location information in full.
4Press the Menu Select button directly below
Optn.
5To view the MGRS or latitude/longitude location,
time and date of the selected waypoint, or to
Advanced Features
106
English
View and press the Menu Select button directly
below Sel.
6To return to the previous screen, press the Menu
Select button directly below Back, or to return to
the Home screen, press , the PTT button, or the
preprogrammed GPS button.
Deleting a Single Saved Waypoint
Ensure your radio shows the current location on the
screen.
1Press the Menu Select button directly below Sel.
The display shows a list of waypoints.
2 or to desired waypoints.
3Perform one of the following actions:
•Press the Menu Select button directly below
Optn, or to Del, and press the Menu
Select button directly below Sel.
•Press the Menu Select button directly below
Del.
4The display shows Delete <Waypoint name>
Confirm?.
5Press the Menu Select button directly below Yes
to delete the waypoint or press the Menu Select
button directly below No to return to the Waypoints
main screen.
The display shows <Waypoint name> deleted .
Deleting All Saved Waypoints
Ensure your radio shows the current location on the
screen.
Note: You cannot delete any of the preprogrammed
waypoints.
1Press the Menu Select button directly below Sel.
The display shows a list of waypoints.
2The display shows Delete All saved waypnts
Confirm?.
3Press the Menu Select button directly below Yes
to delete all waypoints or press the Menu Select
button directly below No to return to the Waypoints
main screen.
The display shows All saved waypnts deleted.
Advanced Features
107
English
Measuring the Distance and Bearing from a Saved
Waypoint
Ensure your radio shows the current location on the
screen.
1Press the Menu Select button directly below Sel.
The display shows a list of waypoints.
2 or to the required waypoint and press the
Menu Select button directly below Sel.
The display shows the distance and bearing from the
current to the selected coordinates.
Location Feature in Emergency Mode
When the Emergency feature is activated by pressing
the emergency button, the radio exits the Location
menu and returns to the Home (default) screen so
that you can see which channel the emergency signal
is going out on.
However, you may re-enter the Location menu while
still in emergency mode, provided that Silent
Emergency has not been activated.
If you have turned Location off using the ON/OFF
menu key, it automatically turns back on when
Emergency is activated.
If there is a solid location signal during Emergency,
the current location and the location information
received is saved as Emergency and Last Known
Location waypoints, respectively.
Trunking System Controls
Using the Failsoft System
The failsoft system ensures continuous radio
communications during a trunked system failure. If a
trunking system fails completely, the radio goes into
failsoft operation and automatically switches to its
failsoft channel.
During failsoft operation, your radio transmits and
receives in conventional operation on a
predetermined frequency. You hear a medium-
pitched tone and the display shows Failsoft.
When the trunking system returns to normal
operation, your radio automatically leaves failsoft
operation and returns to trunked operation.
To continue, in Failsoft, to communicate with other
talkgroups, refer to the following procedure.
1Rotate the Mode Knob to change to a different
repeater frequency.
Advanced Features
108
English
2Press the PTT button to talk, and release the
button to listen.
Out-of-Range Radio
When your radio goes out of the range of the system,
it can no longer lock onto a control channel.
You hear a low-pitched tone and/or the display shows
the currently selected zone/channel combination and
Out of range. Your radio remains in this out-of-
range condition until it locks onto a control channel, it
locks onto a failsoft channel, or it is turned off.
Site Trunking Feature
If the zone controller loses communication with any
site, that site reverts to site trunking.
The display shows the currently selected zone/
channel combination and Site trunking.
Note: When this occurs, you can communicate only
with other radios within your trunking site.
Locking and Unlocking a Site
This feature allows your radio to lock onto a specific
site and not roam among wide-area talkgroup sites.
This feature should be used with caution, since it
inhibits roaming to another site in a wide-area
system.
You can toggle the lock state between locked and
unlocked by pressing the preprogrammed Site Lock/
Unlock button.
Follow the following procedure to lock and unlock a
site via the radio menu.
1 or to Site.
2Press the Menu Select button directly below
Site.
3Perform one of the following actions:
•To lock the site, press the Menu Select button
directly below Lock. The display shows Site
locked.
• To unlock the site, press the Menu Select
button directly below Unlk. The display shows
Site unlocked.
The radio saves the new site lock state and returns to
the Home screen.
Advanced Features
109
English
Site Display and Search Button
The Site Display and Site Search button allows you
to view the name of the current site or force your
radio to change to a new one.
Viewing the Current Site
Perform one of the following actions:
•Press the preprogrammed Site Displ/Srch
button.
• or to RSSI and press the Menu Select
button directly below RSSI.
The display shows momentary the name of the
current site and its corresponding received signal
strength indicator (RSSI).
Changing the Current Site
Perform one of the following actions:
•Press and hold down the preprogrammed Site
Displ/Srch button.
• Press and hold down the Menu Select button
directly below RSSI.
You hear a tone and the display shows
momentary Scanning site.
When the radio finds a new site, it returns to the
Home screen.
Mission Critical Wireless - Bluetooth-
This feature allows your radio to extend its
functionality by connecting to external proprietary
Motorola accessories.
Note: It is recommended to use Motorola proprietary
Mission Critical Wireless (MCW) devices with APX
radios during Mission Critical operations as other
Bluetooth® devices may or may not meet the mission
critical standard.
Your radio must be preprogrammed to allow you to
use this feature.
The use of this feature requires the "Full Feature"
expansion board together with the Bluetooth
Software.
The default setting for Bluetooth-enabled radio is
Bluetooth ON. See Turning the Bluetooth Off on page
111 to turn the Bluetooth OFF.
Currently your radio supports the following Bluetooth
devices or profiles.
•Headset (HSP)
Advanced Features
110
English
• Dial Up Networking (DUN)
•Personal Area Networking (PAN)
• Serial Port (SPP)
Turning the Bluetooth On
The following methods are options on how to turn the
Bluetooth on. The result of all the methods is the
same. You can use the options interchangeably
depending on your preference and the programmed
functions.
•Turning the Bluetooth on via the radio menu BT:
a) or to BT. To access the Bluetooth feature
screen, press the Menu Select button directly
below BT.
b) or to Status and press the Menu Select
button directly below On.
The display shows Status On, and
appears.
If Bluetooth fails to launch, the display shows
Bluetooth on failed.
c) To return to the Home screen, press the Menu
Select button directly below Exit.
•Turning the Bluetooth on via the preprogrammed
button:
a) Press the preprogrammed button to turn on the
Bluetooth.
You hear a short, medium-pitched tone. The
display shows momentary Bluetooth on, and
appears.
If Bluetooth fails to launch, the display shows
Bluetooth on failed.
Turning the Bluetooth Off
The following methods are options on how to turn the
Bluetooth off. The result of all the methods is the
same. You can use the options interchangeably
depending on your preference and the programmed
functions.
•Turning the Bluetooth off via the radio menu BT:
a) or to BT. To access the Bluetooth feature
screen, press the Menu Select button directly
below BT.
b) or to Status and press the Menu Select
button directly below Off.
Advanced Features
111
English
The display shows Status Off, and
disappears.
c) To return to the Home screen, press the Menu
Select button directly below Exit.
•Turning the Bluetooth off via the preprogrammed
button:
a) Press the preprogrammed button to turn off the
Bluetooth.
You hear a short, medium-pitched tone. The
display shows momentary Bluetooth off and
disappears.
Re-Pair Timer
There are two options for configuring the Bluetooth
pairing type of the radio. The type defines the
duration the radio and the accessory retain the
pairing information.
Immediate (For MCW accessories only.) When the
radio and/or device is turned off after
pairing, the keys are lost. Due to this,
when your radio and your device are
turned back on, they are unable to re-
connect. The user must re-pair the
devices to re-establish a new set of
pairing keys. See Pairing with Low
Frequency-Motorola Proximity Pairing
(LF-MPP) Feature on page 114 and
Standard Pairing Feature on page 116.
Infinite (For all Bluetooth devices.) When the
radio and/or device are turned off after
pairing, keys are not lost. When the
radio and the device are turned back
on, they can resume the Bluetooth
connection without user intervention.
Re-Pair
Timer
Options
Re-Pair Timer Scenarios
Immediate
(For MCW
Accessories
only)
• When the radio is powered off,
pairing key is lost immediately,
and accessory attempts to pair
again. If pairing is unsuccessful
within the Drop Timer value, the
accessory automatically powers
off.
•When the accessory is powered
off, all keys are lost immediately,
Advanced Features
112
English
Re-Pair
Timer
Options
Re-Pair Timer Scenarios
and the user must re-pair the
devices.
•When the device loses Bluetooth
connection, the device will
attempt to re-establish Bluetooth
Connection within the Drop
Timer value.
Infinite (For all
Bluetooth
devices)
• When the radio is powered off,
the accessory attempts to re-
establish the Bluetooth
Connection for a period of time
depending upon the Drop Timer
value. If the device fails to
reconnect within the period, the
accessory then powers off.
Bluetooth Drop Timer
The Bluetooth Drop Timer has two different settings
and functions, depending upon the selection of the
Re-Pair Timer.
Re-Pair Timer
Options
Description
Immediate
(For MCW
Accessories
only)
0 – 15 minutes programmable
buffer time to re-establish the
Bluetooth Connection when the
Bluetooth signal is out of range.
If either device powers off, the
pairing keys are immediately
cleared from both devices and the
devices must re-pair.
Infinite (For all
Bluetooth
devices)
This Timer only applies to the
accessory. The programmable
timer choices are: 0 – 15 minutes, 2
hours, 4 hours or 8 hours.
Do note there are exceptions for
Operation Critical Wireless (OCW)
headset and PTT which are
preprogrammed to 8 hours.
This is a "stay alive" time that the
accessory will remain on without
the device reconnecting before
powering off. The radio will remain
on until the user powers the radio
Advanced Features
113
English
Re-Pair Timer
Options
Description
off. The radio and accessory will
remain paired indefinitely. Once the
device re-connect, the timer is
reset.
The radio could not control the Drop Timer of
Personal Area Networking (PAN), Dial-Up Networking
(DUN), Commercial Off- The-Shelf (COTS) and data
services. It is depends on the specifications of these
external devices.
Check with your dealer or system administrator for
more information about these timers.
To establish the Bluetooth Connection, see Pairing
with Low Frequency-Motorola Proximity Pairing (LF-
MPP) Feature on page 114 or Standard Pairing
Feature on page 116 .
Pairing with Low Frequency-Motorola Proximity Pairing
(LF-MPP) Feature
Ensure that Bluetooth feature of your radio is on and
the Bluetooth tones are enabled.
Bluetooth tones, Bluetooth menu and preprogrammed
buttons must be preprogrammed by a qualified radio
technician. Check with your dealer or system
administrator for more information.
The range of Bluetooth operation is 10 meters line-of-
sight communication. This is an unobstructed path
between the location of the signal transmitter (your
Advanced Features
114
English
radio) and the location of the receiver (your device or
accessory).
Obstacles that can cause an obstruction in the line-of-
sight include trees, buildings, mountains, cars and
etc.
It is not recommended that you leave your radio
behind and expect your accessory to work with a high
degree of reliability when they are separated.
At the fringe areas of reception, both voice and tone
quality will start to sound "garbled" or "broken". To
correct this problem, simply position the accessory
and radio closer to each other (within the 10 meter
defined range) to re-establish clear audio reception.
Note: Once a COTS headset is paired to your radio, it
is always connected. Therefore the battery life of the
accessory is aligned with the Talk Time power
consumption, not the Standby Time consumption.
Turn on the accessory. Then place it close to your
radio aligning the Bluetooth Pairing Location ( )
on the radio to the Bluetooth Pairing Location (a
blue dot) on the accessory.
If the pairing process is successful, you hear an
incremental-pitched tone. The radio begins to
connect to the device.
Note: If the connection fails within 6 seconds, you
hear a decremental-pitched tone to indicate that
the device is unpaired. The display shows
<Device Type> unpaired. Repeat this step to
re-initiate the pairing process.
If the pairing process fails, you hear a short, low-
pitched tone. The display shows Bluetooth
pairing failed. Repeat this step.
If the connection is successful, you hear an
incremental-pitched tone. The display shows <Device
Type> connected and the Bluetooth icon turns from
to .
If the radio has the pairing record of the device and
the connection fails, you hear a short, low-pitched
tone. The display shows <Device Type> connect
failed.
Advanced Features
115
English
Radio Indications of Lost Bluetooth Connection
The radio shows when the device has a Bluetooth
connection. Below is the scenario and radio
indications when the connection is interrupted.
The starts blinking for up to 10 seconds. You hear
a decremental-pitched tone. The display shows
<Device Type> alternating with disconnected.
If the Bluetooth device successfully re-connects
before the Bluetooth 10 second Re-Connection Timer
expires, the display shows momentary <Device
Type> connected, and stops blinking, or if the
Bluetooth device fails to re-connect within 10
seconds, the blinking is replaced by a persistent
.
Standard Pairing Feature
Note: Bluetooth tones, Bluetooth menu and
preprogrammed buttons must be preprogrammed by
a qualified radio technician. Check with your dealer or
system administrator for more information.
Once a COTS headset is paired to your radio, it is
always connected. Therefore the battery life of the
accessory is aligned with the Talk time power
consumption, not the Standby time consumption.
The Bluetooth Standard Pairing feature enables your
Bluetooth enabled radio to search for other Bluetooth
enabled and discoverable device. Once the device is
discovered, you can initiate your radio to send a
pairing request to pair with the device.
This feature also enables your Bluetooth enabled
radio to be visible to another Bluetooth enabled
device and receive request to pair from other device.
The Standard Pairing feature supports pairing
Authentication Personal Pairing Number or PIN which
ensure your radio recognizes the correct device to
pair. The PIN must be exchanged with the radio or
the device before the pairing completes. Your radio
prompts for the Authentication PIN when needed.
Refer to your device’s manual for details about the
Bluetooth Authentication PIN of your device if
needed.
Advanced Features
116
English
Searching and Pairing the Bluetooth Device
Ensure the Bluetooth on your device is turned to On
and is set to Discoverable in order to enable your
radio to detect your device in Bluetooth.
Bluetooth Search in Bluetooth Standard Pairing
method is used to scan for other Bluetooth devices
nearby. It is set to off by default.
1Perform one of the following actions:
• Press the preprogrammed Bluetooth Search
button .
• or to BT. Press the Menu Select button
directly below BT to access the Bluetooth
feature screen. or to Search Devices
and press the Menu Select button directly
below On.
If successful, the display shows Searching for
BT devices followed by the names of Bluetooth
devices found, if any. When the search timer
expires, Available Dev screen shows a list of
Bluetooth devices found. To stop the search
before the search timer expires, press the
preprogrammed Bluetooth Search button or the
Menu Select button below Stop.
If the feature fails to initiate, the radio sounds a
short, low-pitched tone. The screen shows BT
Search failed. Press the Menu Select button
below Back to return to Bluetooth feature screen,
or press or the Menu Select button below
Exit to return to Home screen.
2 or to the device name and press the Menu
Select button directly below Sel to connect to the
device.
The radio starts pairing to the device.
To continue with Bluetooth pairing, please see Pairing
with Low Frequency-Motorola Proximity Pairing (LF-
MPP) Feature on page 114.
Turning Bluetooth Visibility On
Turning Bluetooth visibility to on enables other
Bluetooth devices to search for your radio. The
visibility of the Bluetooth is set to off by default.
The following methods are options on how to turn
Bluetooth visibility on. The result of all the methods is
the same. You can use the options interchangeably
depending on your preference and the programmed
functions.
•Turn Bluetooth visibility on via radio menu BT:
Advanced Features
117
English
a) or to BT. Press the Menu Select button
directly below BT to access the Bluetooth
feature screen.
b) or to Visibility and press the Menu
Select button directly below On.
The status changes to Visible to all.
Visibility mode is enabled.
When the timer expires, the status changes to
Visibility failed. Repeat the procedure to
turn Bluetooth visibility on.
•Turn Bluetooth visibility on via the preprogrammed
button.
a) Press the preprogrammed button to enable the
Bluetooth visibility feature.
You hear a short, medium-pitched tone. The
display shows momentary Visible to all.
Visibility mode is enabled.
When the timer expires, the display shows
momentary Visibility failed. Repeat the
procedure to turn Bluetooth visibility on.
Note: Press the preprogrammed to toggle the
Bluetooth visibility on or off.
Receiving Pairing Request from other Devices
When your radio receives a pairing request from
other device, the display shows <Device
Friendly Name>pair request. Press the Menu
Select button below Ok to accept or Cncl to refuse
pairing request.
Turning Bluetooth Visibility Off
Ensure that Bluetooth Visibility is turned on.
The following methods are options on how to turn
Bluetooth visibility off. The result of all the methods is
the same. You can use the options interchangeably
depending on your preference and the programmed
functions.
•Turn Bluetooth visibility off via radio menu BT:
a) or to BT. Press the Menu Select button
directly below BT to access the Bluetooth
feature screen.
b) or to Visibility and press the Menu
Select button directly below Off.
The display shows Visibility Off.
Advanced Features
118
English
When the timer expires, the status changes to
Visibility off failed. Repeat this step to
turn Bluetooth visibility off.
c) To return to the Home screen, press the Menu
Select button directly below Exit.
•To disable the Bluetooth visibility, press the
preprogrammed button.
You hear a short, medium-pitched tone. The
display shows momentary Visibility Off.
Visibility mode is disabled.
When the timer expires, the status changes to
Visibility off failed. Repeat this step to
turn Bluetooth visibility off.
PIN Authentication in Pairing
For the security of your radio, Bluetooth Pairing PIN
feature is designed to enable your radio to verify the
correct device to pair before initiating the pairing.
Authentic PIN is used for the verification.
Note: The compare PIN authentication method is only
applicable for Bluetooth version 2.1 and above.
Pairing the Authentication PIN when Receiving a
Pairing Request
1When the radio display shows <Device Friendly
Name> pair request, perform one of the
following actions:
•To accept, press the Menu Select button
below Ok.
• To reject, press the Menu Select button below
Cncl
Your radio only supports HSP, DUN, PAN and
SPP Bluetooth profiles.
When the pairing timer expires, the display shows
<Device Friendly Name> pair canceled and
return to Home screen.
If you choose to accept the pairing process, the
display shows Compare PIN: XXXXXX.
If you choose to reject the pairing process, the
display shows Cancel pairing in
progress... followed by <Device Friendly
Name> pair canceled and return to Home
screen.
Advanced Features
119
English
2Perform one of the following actions when the
display shows Compare PIN: XXXXXX.:
•Press the Menu Select button below Ok if the
PIN is correct.
•Press the Menu Select button below Cncl to
reject if the PIN number is incorrect. The
display shows Cancel pairing in
progress... followed by <Device Friendly
Name> pair canceled and return to Home
screen.
When the PIN authentication timer expires, the
display shows <Device Friendly Name>pair
canceled and return to Home screen.
If successful, the display shows Pairing in
progress...., <Device Friendly
Name>paired followed by <Device Friendly
Name>connected.
If unsuccessful, one of the following scenarios will
occur:
•The display shows <Device Friendly Name>
pair failed (if the pairing timer expires).
•The display shows <Device Friendly
Name>connect failed (if the connecting timer
expires).
If the PIN is correct but the profiles are not
supported, the display shows BT profiles not
supported. The display returns to Home screen.
Pairing the Authentication PIN with the Generated
Numeric PIN
Follow the procedure inSearching and Pairing the
Bluetooth Device on page 117 to search for available
Bluetooth devices. Start pairing with the
Authentication PIN by following the steps described
next.
1 or to the required device. Press the Menu
Select button directly below Sel to initiate pairing.
Your radio only supports HSP, DUN, PAN and
SPP Bluetooth profiles.
If successful, the display shows Pairing in
progress... followed by a randomly generated
numeric PIN, Compare PIN: XXXXXX.
Advanced Features
120
English
If unsuccessful, the display shows BT profiles
not supported. The display returns to Available
Dev screen.
2Press Ok to continue pairing the radio and the
device.
The pairing process can be canceled by pressing
the Menu Select button below Cncl.
If successful, the display shows Pairing in
progress,<Device Friendly Name> paired,
Connecting in progress... followed by
<Device Friendly Name>connected. The
display returns to the Bluetooth feature screen.
If unsuccessful, one of the following scenarios will
occur:
•The display shows <Device Friendly Name>
pair failed (if the PIN numbers are
different).
•<Device Friendly Name> connect failed
(if the connection fails).
The display returns to Available Dev screen.
Turning On the Bluetooth Audio (Routing the Audio
from the Radio to the Headset)
The following methods are options on how to turn on
the Bluetooth audio. The result of all the methods is
the same. You can use the options interchangeably
depending on your preference and the programmed
functions.
•Turning on the Bluetooth audio via radio menu BT:
a) or to BT. Press the Menu Select button
directly below BT to access the Bluetooth
feature screen.
b) or to Bluetooth spkr and press the
Menu Select button directly below On.
The display shows On.
c) To return to the Home screen, press the Menu
Select button directly below Exit.
•Turning on the Bluetooth audio via the
preprogrammed button:
a) To route the audio routing from the radio to the
headset, short press the preprogrammed
button.
You hear a short, medium-pitched tone. The
display shows Headset on.
Advanced Features
121
English
Turning Off the Bluetooth Audio (Routing the Audio
from the Headset to the Radio)
The following methods are options on how to turn off
the Bluetooth Audio. The result of all the methods is
the same. You can use the options interchangeably
depending on your preference and the programmed
functions.
•Turning off the Bluetooth audio via radio menu BT:
a) or to BT. Press the Menu Select button
directly below BT to access the Bluetooth
feature screen.
b) or to Bluetooth spkr and press the
Menu Select button directly below Off.
The display shows Off.
c) To return to the Home screen, press the Menu
Select button directly below Exit.
•Turning off the Bluetooth audio via the
preprogrammed button:
a) To route the audio routing from the headset to
the radio, press the preprogrammed button.
You hear a short, medium-pitched tone. The
display shows Speaker on.
Adjusting the Volume of the Radio from Bluetooth
Audio Device
Ensure that the Bluetooth audio device is connected
to the radio.
Your radio can only control the volume of MCW and
OCW Bluetooth enabled audio device. If the radio is
paired with other Bluetooth enabled audio device, its
volume is independent from the APX radio. In this
case, the volume is only adjustable on the device.
Adjust volume up/down on the Bluetooth audio
device.
The radio display shows Volume XX, and you hear
a short, medium-pitched tone.
Viewing and Clearing the Bluetooth Device Information
1 or to BT. Press the Menu Select button directly
below BT to access the Bluetooth feature screen.
2 or to Devices.
Once the display highlights the Devices, the
display shows XX connected alternates with XX
paired.
3Press the Menu Select button directly below Sel.
Advanced Features
122
English
4If there are devices being paired or connected,
or along the list of <Device Friendly Name>
to see the status of each device.
If there are no active Bluetooth devices being
paired or connected, the display shows No
devices.
5Perform one of the following actions:
•To clear the device from the list, or to the
required device, press the Menu Select button
directly below Clr.
•To exit from this function, press the Menu
Select button directly below Back to return to
the previous screen without deleting the device
name.
If Clr is selected, the display shows <Device
Friendly Name> clear?.
6Press the Menu Select button directly below Yes
or No to proceed delete the device or to exit this
function and return to previous screen..
If the device is deleted successfully, the display
shows <Devlice Friendly Name> cleared to
indicate clearing is successful.
If the device is not deleted successfully, you hear the
radio sounds a short, low-pitched tone. The display
shows <Devlice Friendly Name> clear failed.
The display returns to previous screen.
Note: If Re-Pair Timer is set to infinite and you clear
keys on the radio, you must clear keys on all
previously paired devices as well. (Please see your
accessories manual for further details.)
Clearing All Bluetooth Devices Information
The following methods are options on how to clear all
Bluetooth devices information. The result of all the
methods is the same. You can use the options
interchangeably depending on your preference and
the programmed functions.
•Clearing all Bluetooth devices information via the
preprogrammed Bluetooth On/Off button:
a) Long press the preprogrammed Bluetooth
On/Off button.
You hear a short, medium-pitched tone. The
display shows Please wait to indicate
clearing is in progress.
If successful, the display shows All BT
devices cleared.
Advanced Features
123
English
If unsuccessful, you hear the radio sounds a
short, low-pitched tone. The display shows
Clear all BT devices failed. The display
returns to Bluetooth feature screen.
•Clearing all Bluetooth devices information via the
radio menu Clr:
a) or to Devices and press the Menu
Select button directly below Clr.
You hear a short, medium-pitched tone. The
display shows Clear all BT devices?.
b) Press the Menu Select button directly below
Yes to proceed.
The display shows Please wait to indicate
clearing is in progress.
If successful, the display shows All BT
devices cleared.
If unsuccessful, you hear the radio sounds a
short, low-pitched tone. The display shows
Clear all BT devices failed. The display
returns to Bluetooth feature screen.
Note: If Re-Pair Timer is set to infinite and you clear
keys on the radio, you must clear keys on all
previously paired devices as well. (Please see your
accessories manual for further details.)
Advanced Features
124
English
Programming Over Project 25 (POP 25)
(ASTRO 25 and ASTRO Conventional)
This feature enables configuration data to be
upgraded to your radio over-the-air. This feature
retains full use of the radio during the configuration
data transfer without interrupting communication. The
upgrade pauses to give priorities to voice call, and
continues after the voice call ended.
Once a configuration upgrade is downloaded to your
radio, you can install new changes immediately or
delay changes to be installed on the radio when it is
being powered up.
Your radio can also be configured to allow you to
accept or reject an upgrade.
Note: This feature must be preprogrammed by a
qualified radio technician. Check with your dealer or
system administrator for more information.
Responding to the Notification of Upgrade
1The display shows Upgrade?.
2Perform one of the following actions:
•Press the Menu Select button below Acpt to
accept the request to upgrade immediately.
•Press the Menu Select button below Dlay to
delay the request to upgrade.
•Press the Menu Select button below Rej to
reject the request to upgrade.
One of the following scenarios occurs:
Advanced Features
125
English
•If you choose to accept, the display shows Upg Rx
In Prog to indicate the upgrade received is in
progress.
If the upgrade is successful, the display shows
Program done.
If the upgrade fails, the display shows Program
failed. The radio remains in current
configuration.
•If you choose to delay, the radio prompts to
upgrade in the next power up of your radio.
•If you choose to reject, the display shows Upg
Aborted. The radio continues to function with the
current configuration until it gets reprogrammed.
Note: If your radio has problems upgrading over-the-
air, consult a qualified technician for details.
Voice Announcement
This feature enables the radio to audibly indicate the
current feature mode, zone or channel the user has
just assigned. This audio indicator can be customized
per customer requirements. This is typically useful
when the user is in a difficult condition to read the
content shown on the display.
Each voice announcement is within a limit of three
seconds maximum. The sum duration of all different
voice announcements in a radio shall be no more
than 1000 seconds.
Note: This feature must be preprogrammed by a
qualified radio technician.
Check with your agent if Voice Announcement is
available for the feature you need.
The two options of priority for the Voice
Announcement available are:
High Enables the voice of the feature to announce
even when the radio is receiving calls.
Low Disables the voice of the feature from
announcing when the radio is receiving calls.
You hear a voice announcement when the features
below are preprogrammed in the radio.
•The radio powers up. The radio announces the
current zone and channel it is transmitting.
• Press the preprogrammed voice announcement
button (which specifically programmed to playback
the current zone and channel). The radio
Advanced Features
126
English
announces the current zone and channel it is
transmitting.
Note: Pressing this preprogrammed playback
button will always enable the voice feature to
announce in High priority.
All the three programmable buttons at the side of
the radio support this feature.
• Change to a new zone. The radio announces the
current zone and channel it is transmitting.
•Change to a new channel remaining within the
current zone. The radio announces the current
channel.
• Press either the Menu Select button or
preprogrammed button or switch of the radio to
launch or terminate Scan, PL Disabled,
Talkaround/Direct or Transmit Inhibit. The radio
announces the corresponding feature activation or
deactivation.
Site Selectable Alerts (ASTRO 25)
A Site Selectable Alert (SSA) is an Intelligent Lighting
indicator together with audio alert sent to radios at a
site or a few sites to notify the users when there is a
special situation that they need to be aware of. Only
authorized radios are enabled to send SSA.
Upon the activation of a SSA, the receiving radios
display the alert alias and generate the periodic alert
tone.
Note: Alert alias, alert tone, and alert period can be
preprogrammed. Alert period is the duration for the
radio to repeat the alert tone. An interval of 5 seconds
might impact the battery life of the radio. Check with
your dealer or system administrator for more details.
When mixing SSA with received voice audio, the SSA
alert is reduced in volume to ensure that the voice
message is still heard clearly. Therefore, it is
important that the SSA audio files are created with
clear loud audio to ensure they can still be heard
clearly when played at reduced levels.
Sending SSA Notification to Single Site
1 or to SSA.
2Press the Menu Select button directly below SSA.
The display shows the Site Alert screen.
3 or to Start Alert and press the Menu
Select button directly below Sel.
Advanced Features
127
English
The display shows the Select Site screen.
4 or to the desired Site Alias. Press the Menu
Select button directly below Sel.
The display shows the Select Alert screen.
5 or to select the desired Alert Alias and press
the Menu Select button directly below Send.
The display shows Sending req.
If radio is out of range, roaming to a foreign
system or in a failsoft situation, the display shows
Req failed.
If the request is successful, the display shows Req
successful.
If the site is not available, the display shows <Site
Alias> not available.
If the site does not exist, the display shows <Site
Alias> does not exist.
6To return to the Home screen, press the Menu
Select button directly below Exit.
If you are at the site designated to receive this alert,
you can hear an alert tone repeated periodically. The
display shows the <Alert Alias> with the intelligent
lighting at Home screen.
Sending SSA Notification to All Sites
1 or to SSA.
2Press the Menu Select button directly below SSA.
The display shows the Site Alert screen.
3 or to Start Alert and press the Menu
Select button directly below Sel.
The display shows the Select Site screen.
4 or to [All Sites] and press the Menu
Select button directly below Sel.
The display shows the Select Alert screen.
5 or to select the desired Alert Alias and press
the Menu Select button directly below Send.
The display shows Sending req.
If radio is out of range, roaming to a foreign
system or in a failsoft situation, the display shows
Req failed.
If the request is successful, the display shows Req
successful.
Advanced Features
128
English
If one or more sites are not available, the display
shows Not all sites available. Repeat 3.
6To return to the Home screen, press the Menu
Select button directly below Exit.
If you are at the site designated to receive this alert,
you can hear an alert tone repeated periodically. The
display shows the <Alert Alias> with the intelligent
lighting at Home screen.
Sending SSA Notification to All Available Sites
1 or to SSA.
2Press the Menu Select button directly below SSA.
The display shows the Site Alert screen.
3 or to Start Alert and press the Menu
Select button directly below Sel.
The display shows the Select Site screen.
4 or to [All Avail] and press the Menu
Select button directly below Sel.
The display shows the Select Alert screen.
5 or to select the desired Alert Alias and press
the Menu Select button directly below Send.
The display shows Sending req.
If radio is out of range, roaming to a foreign
system or in a failsoft situation, the display shows
Req failed.
If the request is successful, the display shows Req
successful.
6To return to the Home screen, press the Menu
Select button directly below Exit.
If you are at the site designated to receive this alert,
you can hear an alert tone repeated periodically. The
display shows the <Alert Alias> with the intelligent
lighting at Home screen.
Stopping SSA Notification of a Single Site
1 or to SSA.
2Press the Menu Select button directly below SSA.
The display shows the Site Alert screen.
3 or to Stop Alert and press the Menu
Select button directly below Sel.
The display shows the Select Site screen.
Advanced Features
129
English
4 or to select the desired Site Alias and press
the Menu Select button directly below Send.
The display shows Sending req.
If radio is out of range, roaming to a foreign
system or in a failsoft situation, the display shows
Req failed.
If the request is successful, the display shows Req
successful.
If the site is not available, the display shows <Site
Alias> not available.
If the site does not exist, the display shows <Site
Alias>does not exist.
5To return to the Home screen, press the Menu
Select button directly below Exit.
The SSA Alert for the designated site stops.
Stopping SSA Notification of All Sites
1 or to SSA.
2Press the Menu Select button directly below SSA.
The display shows the Site Alert screen.
3 or to Stop Alert and press the Menu
Select button directly below Sel.
The display shows the Select Site screen.
4 or to [All Sites] and press the Menu
Select button directly below Send.
The display shows Sending req.
If radio is out of range, roaming to a foreign
system or in a failsoft situation, the display shows
Req failed.
If the request is successful, the display shows Req
successful.
If one or more sites are not available, the display
shows Not all sites available. Repeat step
3.
5To return to the Home screen, press the Menu
Select button directly below Exit.
The SSA Alert for all sites stop.
Stopping SSA Notification of All Available Sites
1 or to SSA.
2Press the Menu Select button directly below SSA.
Advanced Features
130
English
The display shows the Site Alert screen.
3 or to Stop Alert and press the Menu
Select button directly below Sel.
The display shows the Select Site screen.
4 or to [All Avail] and press the Menu
Select button directly below Send.
The display shows Sending req.
If radio is out of range, roaming to a foreign
system or in a failsoft situation, the display shows
Req failed.
If the request is successful, the display shows Req
successful.
5To return to the Home screen, press the Menu
Select button directly below Exit.
The SSA Alert for all available sites stop.
Utilities
Viewing Recent Calls
This feature allows you to view the recent incoming
and outgoing call information of the following call
types:
• Call Alert
•Selective Call
• Private Call
• Phone Call (Outgoing Only)
• Emergency Call (Incoming Only)
Note: The radio can also be preprogrammed to log
only the radio IDs associated with incoming Dispatch
Calls. Check with your dealer or system administrator
for more information.
The following methods are options on how to view
recent calls. The result of all the methods is the same.
You can use the options interchangeably depending
on your preference and the programmed functions.
•Viewing recent calls via the preprogrammed
Recent Calls button:
a) Press the preprogrammed Recent Calls
button.
b) or to scroll through the list.
c) To return to the Home screen, press the Menu
Select button directly below Exit, press or
the PTT button.
•Viewing recent calls via the radio menu:
Advanced Features
131
English
a) or to Rcnt.
b) Press the Menu Select button directly below
Rcnt to access the Recent Calls feature
screen.
c) or to scroll through the list.
d) To return to the Home screen, press the Menu
Select button directly below Exit, or the
PTT button.
The radio automatically exits the feature, if the feature
inactivity timer is enabled, when the radio is left idle
and the timer expires. You will hear the Menu Inactive
Exit Tone upon feature exit.
Using the Flip Display
This feature allows you to flip the content of the top
display upside down. It is particularly useful when you
would like to read the top display while the radio is
still in the carry holder attached to your belt.
To flip the display, press and hold the
preprogrammed Light/Flip button
Selecting a Basic Zone Bank
The Basic Zone Select feature must to be
preprogrammed to the 3-position A-B-C switch,
while the Basic Zone Bank feature must be
preprogrammed to any side button or Top (Orange)
button before you can use this feature.
This feature allows twice as many zones to be
accessed from a switch, doubling the amount of
switch positions.
Use the preprogrammed Basic Zone Bank button
to toggle the position between Bank 1 and Bank 2.
The top display shows the status icons (A, B, C, D,
E or F) or the zone name based on the bank and
switch position selected.
Note: See the Basic Zone Bank 1 and Basic Zone
Bank 2 icons for more information on the status
icons.
Selecting an Enhanced Zone Bank
This feature is created in order to allow users to
communicate in more zones. An Enhanced Zone
Bank (EZB) consists of three zones. This also means
each icon A, B, C, ... or Y consist of three zones. You
can use the preprogrammed 3-position A-B-C switch
to select the first, second or third zone in an EZB.
This feature allows user to navigate from up to 75
zones in 25 EZBs.
Advanced Features
132
English
Note: The Zone Select feature must to be
preprogrammed to the 3-position A-B-C switch,
while the Enhanced Zone Bank feature must be
preprogrammed to any side button or Top (Orange)
button before you can use this feature.
1Press the preprogrammed EZB Up or EZB Down
button to scroll the EZB up or down or press and
hold the preprogrammed EZB Up or EZB Down
button to fast scroll the EZB up or down.
2Turn the 3-Position A/B/C Switch to select the
first, second or third zone in the selected EZB.
Selecting the Power Level
Note: This feature must be preprogrammed by a
qualified radio technician.
This feature enables you to reduce the transmit
power level for specific case that requires a lower
power level. You can select the power level at which
your radio transmits. The radio always turns on to the
default setting. These reduced transmit power level
settings do not affect the receiving performance of
your radio, nor diminish the overall quality of the
audio and data functionality of the radio given the
following conditions.
Power levelLow enables a shorter transmitting
distance and to conserve power. Power levelHigh
enables a longer transmitting distance.
The following methods are options on how to select
the power level. The result of all the methods is the
same. You can use the options interchangeably
depending on your preference and the programmed
functions.
•Selecting the Power Level via the Transmit
Power Level switch:
a) Use the preprogrammed Transmit Power
Level switch to toggle the power level between
low and high power.
•Selecting the Power Level via the radio menu:
a) or to Pwr.
b) Press the Menu Select button directly below
Pwr.
The display shows Low power and the low power
icon or the display shows High power and the high
power icon.
Advanced Features
133
English
Selecting a Radio Profile
This feature allows you to manually switch the visual
and audio settings of the radio. The display, backlight,
alert tones, and audio settings are defined according
to the preprogrammed radio settings of each radio
profile.
Please refer to a qualified technician for more
information.
Note: The radio automatically exits the feature, if the
feature inactivity timer is enabled, when the radio is
left idle and the timer expires. You will hear the Menu
Inactive Exit Tone upon feature exit.
The following methods are options on how to select a
radio profile. The result of all the methods is the
same. You can use the options interchangeably
depending on your preference and the programmed
functions.
Selecting a radio profile via the preprogrammed
Profile button:
a) Press the preprogrammed Profile button.
b) or to scroll through the menu selections.
c) Press the Menu Select button directly below
Sel to select the required radio profile, or press
the Menu Select button directly below Sel to
select the required radio profile, or press the
Menu Select button directly below Sel to
select the required radio profile, or press the
Menu Select button directly below Sel to
select the required radio profile, or press the
Menu Select button directly below EXIT to exit
the screen without making any changes.
The radio returns to the Home screen. The profile
name on the Home screen indicates the current
selected radio profile.
Enabling and Disabling the Radio Alias
This feature allows you to display or hide the radio
alias (name).
Press the Menu Select button directly below
MyID.
The display shows momentary Radio ID off, and
the radio alias disappears from the Home screen or
the display shows momentary Radio ID on, and the
radio alias appears on the Home screen.
Advanced Features
134
English
Selecting the Audio Speaker
Your radio must be preprogrammed to allow you to
use this feature.
This feature allows you to select the speaker route for
the radio's audio from either the main or the
secondary speaker using the radio profile settings.
While both speakers function together with the
secondary speaker enhancing intelligibility of the
received audio during typical radio operation, each
speaker has an independently-tuned frequency
response and volume level operation.
The secondary speaker also has a "whisper" mode
with a modified volume taper for quieter modes of
operation.
Note: If an external speaker or microphone accessory
is attached to the radio, neither internal speaker is
operational as audio is routed to the accessory.
The following methods are options on how to select
the audio speaker. The result of all the methods is the
same. You can use the options interchangeably
depending on your preference and the programmed
functions.
Select the audio speaker via the preprogrammed
Profile button:
a) Press the preprogrammed Profile button.
b) or to scroll through the menu selections.
c) Press the Menu Select button directly below
Sel to select the radio profile with the required
speaker routing or press the Menu Select
button directly below Sel to select the radio
profile with the required speaker routing or
press the Menu Select button directly below
Exit to exit the screen without making any
changes.
The radio returns to the Home screen. The
profile name on the Home screen indicates the
current selected radio profile.
Controlling the Display Backlight
You can enable or disable the radio’s display
backlight as needed, if poor light conditions make the
display or keypad difficult to read.
Depending on how your radio is preprogrammed, you
can also maintain a minimum backlight level on the
radio's front display.
Advanced Features
135
English
Note: The backlight setting also affects the Menu
Select buttons and Navigation button backlighting
accordingly.
The backlight remains on for a preprogrammed time
before it automatically turns off completely or returns
to the minimum backlight level.
The preprogrammed Light/Flip button of the
accessories connected to the radio such as Display
Remote Speaker Microphone (DRSM) is disabled
when the radio is in Night Vision Goggles (NVG)
display mode.
Perform one of the following actions:
• To toggle the backlight on or off, press the
preprogrammed Light/Flip button.
• To turn the backlight on, press either the Menu
Select or Navigation button, or any
programmable radio controls or buttons.
Setting Up the Radio Display and Visual Indicators to
Suit Night Vision Goggles
During tactical nighttime operations of military entities
worldwide, the Night Vision Goggles (NVG) is used to
see in the dark. Your radio is 3rd generation NVG
compatible. When the radio is in NVG display mode,
the radio's front display and top display emit a very
low illumination backlight to allow the user to operate
the radio with the goggles on.
Caution: Remove your NVG if you operate
the radio in non-NVG compatible display
mode. Wearing the NVG to operate in non-
NVG compatible display mode might injure
your eyes.
Accessory connected to the radio that is in NVG
display mode such as Display Remote Speaker
Microphone (DRSM) has its backlight always in off
state.
Intelligent lighting indicators, TX LED and RX LED
are all disabled on both the radio and the connected
accessory when the radio is in NVG display mode.
Note: Get familiar with your radio NVG feature and
operation before you use it with your Night Vision
Goggles.
The following methods are options on how to set up
the radio display and visual indicators. The result of
all the methods is the same. You can use the options
interchangeably depending on your preference and
the programmed functions.
Advanced Features
136
English
Setting up the radio display and visual indicators
via the preprogrammed Profile button:
a) Press the preprogrammed Profile button.
b) or to the designated NVG profile.
c) To select the required radio profile, press the
Menu Select button directly below Sel or to
exit the screen without making any changes,
press the Menu Select button directly below
Sel or to exit the screen without making any
changes, press the Menu Select button
directly below Exit.
The radio returns to the Home screen with
NVG display mode. The profile name on the
Home screen indicates the current selected
radio profile.
Locking and Unlocking the Controls
Check with your dealer or qualified technician for best
selection to suit your usage.
1Toggle the preprogrammed Keypad/Control Lock
button or switch to on.
2The display shows Kypd/Ctrl Lock.
3To unlock the knobs and buttons, toggle again.
Turning the Controls and Buttons Tones On or Off
You can enable and disable the tones of Navigation
buttons and controls if needed.
•Turning the tones on or off via the preprogrammed
Mute button:
a) To turn the tones off or on, press the
preprogrammed Mute button.
•Turning the tones on or off via the radio menu:
a) or to Mute.
b) Press the Menu Select button directly below
Mute.
The display shows momentary Tones off,
indicating that the tones are disabled or the
display shows momentary Tones on, and you
hear a short tone indicating that the tones are
enabled.
Turning Voice Mute On or Off
You can enable and disable voice transmission, if
needed.
The following methods are options on how to turn
Voice Mute on or off. The result of all the methods is
the same. You can use the options interchangeably
Advanced Features
137
English
depending on your preference and the programmed
functions.
•Turning Voice Mute on or off via the
preprogrammed Voice Mute button:
a) To turn the feature off or on, press the
preprogrammed Voice Mute button.
•Turning Voice Mute on or off via the radio menu:
a) or to VMut.
b) Press the Menu Select button directly below
VMut.
The display shows momentary Voice mute off, and
you hear a short tone, indicating that the feature is
disabled or the display shows momentary Voice
mute on, and you hear a short tone, indicating that
the feature is enabled.
Using the Time-Out Timer
This feature turns off your radio’s transmitter. You
cannot transmit longer than the preset timer setting.
If you attempt to do so, the radio automatically stops
your transmission, and you hear a talk-prohibit tone.
The timer is defaulted at 60 seconds, but it can be
preprogrammed from 3 to 120 seconds, in 15-second
intervals, or it can be disabled entirely for each radio
mode, by a qualified radio technician.
Note: You hear a brief, low-pitched, warning tone four
seconds before the transmission times out.
1Hold down the PTT button longer than the
preprogrammed time.
You hear a short, low-pitched warning tone, the
transmission is cut-off, and the LED goes out until
you release the PTT button.
2Release the PTT button.
The timer resets.
3To re-transmit, press the PTT button.
The time-out timer restarts and the LED lights up
solid red.
Time and Date Setup
You can set the time and date for your radio.
Settings:
•The default time setting is a 12-hour clock. The
display shows 12:00AM.
Advanced Features
138
English
• The AM/PM selection is not available for the 24-
hour clock setting.
•The default setting for the domestic date shows
MDY.
Note: Check with your dealer or system administrator
for additional programmable settings for this feature.
Editing the Time and Date
1 or to Clck.
2Press the Menu Select button directly below
Clck.
The display shows the current setting of the radio.
3Press the Menu Select button directly below
Edit.
The first item blinks.
4Perform one of the following actions:
• or to change the selected item.
• or one or more times to move to an item you
wish to change. or to change the
selected item.
• Press the Menu Select button directly below
Exit to exit the screen without making any
changes and return to the Home screen.
5Perform one of the following actions:
• Press the Menu Select button directly below
Ok once you have finished to save your
changes and return to the Home screen.
• Press the Menu Select button directly below
Cncl to discard all changes and return to the
Home screen.
Press at any time to return to the Home screen
without saving your changes.
Note: If a call arrives while the radio is in the
clock-setting menu, the radio exits clock setting
and displays the call information. Any changes
made before the call is not saved.
Using Conventional Squelch Operation Features
This feature filters out unwanted calls with low signal
strength or channels that have a higher than normal
background noise.
Advanced Features
139
English
Analog Options
Tone Private Line (PL), Digital Private-Line (DPL),
and carrier squelch can be available
(preprogrammed) per channel.
Mode Result
Carrier squelch (C) You hear all traffic on a
channel.
PL or DPL The radio responds only
to your messages.
Digital Options
One or more of the following options may be
preprogrammed in your radio. Check with your dealer
or system administrator for more information.
Option Result
Digital Carrier-Operated
Squelch (COS)
You hear any digital
traffic.
Normal Squelch You hear any digital
traffic having the correct
network access code.
Option Result
Selective Switch You hear any digital
traffic having the correct
network access code and
correct talkgroup.
Using the PL Defeat Feature
This feature allows you to override any coded squelch
(DPL or PL) that might be preprogrammed to a
channel. The radio will also unmute to any digital
activity on a digital channel.
Place the preprogrammed PL Defeat switch in the
PL Defeat position.
One of the following scenarios occurs:
•You hear any activity on the channel.
• The radio is muted if no activity is present.
Note: When this feature is active, the Carrier
Squelch status indicator is displayed.
Digital PTT ID Support
This feature allows you to see the radio ID (number)
of the radio from whom you are currently receiving a
transmission. This ID, consisting up to a maximum of
Advanced Features
140
English
eight characters, can be viewed by both the receiving
radio and the dispatcher.
Your radio’s ID number is also automatically sent
every time the PTT button is pressed. This is a per-
channel feature. For digital voice transmissions, your
radio’s ID is sent continuously during the voice
message.
Smart PTT Feature (Conventional Only)
Smart PTT is a per-personality, programmable
feature used in conventional radio systems to keep
radio users from talking over other radio
conversations.
When smart PTT is enabled in your radio, you cannot
transmit on an active channel.
If you try to transmit on an active smart-PTT channel,
you hear an alert tone, and the transmission is
inhibited. The LED lights up solid yellow to indicate
that the channel is busy.
The following table shows the variations of smart
PTT:
Mode Description
Transmit Inhibit
on Busy
Channel with
Carrier
You cannot transmit if any traffic
is detected on the channel.
Transmit Inhibit
on Busy
Channel with
Wrong Squelch
Code
You cannot transmit on an active
channel with a squelch code or (if
secure-equipped) encryption key
other than your own. If the PL
code is the same as yours, the
transmission is not prevented.
Quick-Key
Override
This feature can work in
conjunction with either of the two
above variations. You can
override the transmit-inhibit state
by quick-keying the radio. In
other words, two PTT button
presses within the
preprogrammed time limit.
IMPRES Battery Annunciator
This feature displays the current capacity and
charges cycles of your battery when an IMPRES™
Advanced Features
141
English
Battery is powering your radio. This feature must be
enabled in your radio to see the information.
The information shown are:
Rated Capacity Percentage of current battery
capacity.
Remaining
Capacity
Remaining power of the battery
in mAh.
Estimated
Charges
Number of charges cycles the
battery has gone through.
Accessing the Battery Info screen
1 or to Batt.
2Press the Menu Select button directly below
Batt.
The display shows the details of the battery.
3To return to the Home screen, press the Menu
Select button directly below Exit.
General Radio Information
Your radio contains information on the following:
•Radio Information
• IP Display
•Control Assignments
• Soft ID (If enabled)
Note: The radio automatically exits the feature, if the
feature inactivity timer is enabled, when the radio is
left idle and the timer expires. You hear the Menu
Inactive Exit Tone upon feature exit.
Accessing the Radio Information
This feature displays the following radio information:
•Host Version
• Secure Version
• Model Number
• ESN
• Flash Code
• Tuning Version
• Option Board Type (optional)
• Option Board Bluetooth Address (optional)
• Expansion Board Type (optional)
• DSP Version
• KG (Secure Algorithm)
• Serial Number
• Flash Size & Type
• RF Band
Advanced Features
142
English
• Processor Version
•Option Board Serial Number (optional)
• Option Board Software Version (optional)
• Language Pack ID and Version (only when the
language of the display is set to non-English)
Note: To return to the Home screen, press at any
time.
1Perform one of the following actions:
•Press the preprogrammed Info button.
• or to Info and press the Menu Select
button directly below Info.
2 or to Radio Info and press the Menu
Select button directly below Sel.
The display shows the Information screen.
3Perform one of the following actions:
• or to scroll through the various
information.
•To return to the previous screen, press the
Menu Select button directly below Back.
•To return to the Home screen, press .
Viewing the IP Information
This feature displays the device name, IP address,
and status of your radio.
Note: The device name of your radio is
preprogrammed. Check with your dealer or system
administrator for more information.
APX 7000L radio has different list of information as
shown in the following list.
•iosu
• iosc
• LOOPBACK
• Ite1
• vpn1
• device name
1Perform one of the following actions:
• Press the preprogrammed Info button.
• or to Info and press the Menu Select
button directly below Info.
2 or to IP Info and press the Menu Select
button directly below Sel.
The display shows the IP Info screen.
Advanced Features
143
English
3Perform one of the following actions:
• or to scroll through the various
information.
•Press the Menu Select button directly below
Back to return to the previous screen.
•Press to return to the Home screen.
Viewing the Control Assignments
This feature displays the programmable radio
functions assigned to the controls of your radio for the
currently selected channel.
See Programmable Features on page 28 for more
information on the various programmable features of
your radio.
1Perform one of the following actions:
•Press the preprogrammed Info button.
• or to Info and press the Menu Select
button directly below Info.
2 or to Control map and press the Menu
Select button directly below Sel.
The display shows the Control Map screen.
3Perform one of the following actions:
• or to scroll through the various
information.
•Press the Menu Select button directly below
Back to return to the previous screen.
•Press to return to the Home screen.
Advanced Features
144
English
Helpful Tips
Radio Care
Caution:
• Your radio casting has a vent port that
allows for pressure equalization in the
radio. Never poke this vent with any
objects, such as needles, tweezers, or
screwdrivers.This could create leak paths
into the radio and the radio’s submergibility
will be lost.
•Your radio is designed to be submerged to
a maximum depth of 6 feet, with a
maximum submersion time of 2 hours.
Exceeding either maximum limit may result
in damage to the radio.
• Elastomer technology materials used for
seals in rugged portable radios can age
with time and environmental exposure.
Therefore, Motorola recommends that
rugged radios be checked annually as a
preventive measure in order to assure the
watertight integrity of the radio. Motorola
details the disassembly, test, and
reassembly procedures along with
necessary test equipment needed to
inspect, maintain and troubleshoot radio
seals in the radio’s service manual.
• If the radio battery contact area has been
submerged in water, dry and clean the
radio battery contacts before attaching a
battery to the radio. Otherwise, the water
could short-circuit the radio.
•If the radio has been submerged in water,
shake the radio well so that any water that
may be trapped inside the speaker grille
and microphone port can be removed.
Otherwise, the water will decrease the
audio quality of the radio.
Helpful Tips
145
English
A
• Do not disassemble the radio. This could
damage radio seals and result in leak
paths into the radio. Any radio
maintenance should be performed only by
a qualified radio technician.
Cleaning Your Radio
Caution: Do not use solvents to clean your
radio as most chemicals may permanently
damage the radio housing and textures.
Do not submerge the radio in the detergent
solution.
To clean the external surfaces of your radio, follow
the procedure described next.
1Combine one teaspoon of mild dishwashing
detergent to one gallon of water (0.5% solution).
2Apply the solution sparingly with a stiff, non-
metallic, shortbristled brush, making sure excess
detergent does not get entrapped near the
connectors, controls or crevices. Dry the radio
thoroughly with a soft, lint-free cloth.
3Clean battery contacts with a lint-free cloth to
remove dirt or grease.
Proper Ways to Handle the Radio
•Do not pound, drop, or throw the radio
unnecessarily. Never carry the radio by the
antenna.
• Avoid subjecting the radio to an excess of liquids.
Do not submerge the radio unless it is a
ruggedized.
• Avoid subjecting the radio to corrosives, solvents
or chemicals.
• Do not disassemble the radio.
• Keep the accessory-connector cover in place until
ready to use the connector. Replace the cover
immediately once the accessory has been
disconnected.
• When charging the radio using a wall mounted
charger, the radio must be turned off. Otherwise,
the Man Down Alert and Emergency may be
accidentally triggered.
Radio Service and Repair
Proper repair and maintenance procedures will
assure efficient operation and long life for this
product. A Motorola maintenance agreement will
provide expert service to keep this and all other
communication equipment in perfect operating
Helpful Tips
146
English
condition. A nationwide service organization is
provided by Motorola to support maintenance
services. Through its maintenance and installation
program, Motorola makes available the finest service
to those desiring reliable, continuous communications
on a contract basis. For a contract service agreement,
please contact your nearest Motorola service or sales
representative, or an authorized Motorola dealer.
Express Service Plus (ESP) is an optional extended
service coverage plan, which provides for the repair
of this product for an additional period of either one or
two years beyond the normal expiration date of the
standard warranty. For more information about ESP,
contact the Motorola Radio Support Center at 3761
South Central Avenue, Rockford, IL 61102 (800)
227-6772 / (847)725-4200.
Battery Care
Battery Charge Status
Your radio can indicate the battery’s charge status
through:
•the LED and sounds.
• the fuel gauge icon on the display.
You can also check the battery charge status via the
menu entry. See IMPRES Battery Annunciator on
page 141 for more information.
LED and Sounds
When your battery is low:
• the LED blinks red when the PTT button is
pressed.
• you hear a low-battery “chirp” (short, high-pitched
tone).
Fuel Gauge Icons
A blinking fuel gauge icon ( ) is displayed only when
the battery voltage drops to low level. In this case,
replace the battery with a fully charged one.
Gauge Battery Charge
Top Display
76% to 100% full*
Helpful Tips
147
English
Gauge Battery Charge
Top Display
51% to 75%*
Top Display
26% to 50%*
Top Display
11% to 25%*
Gauge Battery Charge
Top Display
10% or less (at 10%, the gauge
begins blinking)
*These are for IMPRES battery operation only.
Battery Recycling and Disposal
In the U.S. and Canada, Motorola participates in the
nationwide Rechargeable Battery Recycling
Corporation (RBRC) program for battery collection
and recycling. Many retailers and dealers participate
in this program.
For the of the drop-off facility closest to you, access
RBRC's Internet web site at www.rbrc.com or call
1-800-8-BATTERY. This internet site and telephone
number also provide other useful information
concerning recycling options for consumers,
businesses, and governmental agencies.
Helpful Tips
148
English
Accessories
The accessory link below is for APX radios. Not all
accessories are FCC certified to operate with all APX
models and/or bandsplits. Please refer to the specific
APX radio price pages for a list of FCC certified
accessories or contact your sales representative for
accessory compatibility.
http://www.motorolasolutions.com/APX
Note: GPS only antenna is only used in either a
single band UHF or 700/800 application where the
Public Safety Microphone (PSM) is used with the
corresponding PSM antenna. This antenna is only for
GPS reception and cannot be used for receive/
transmit operation at UHF, VHF or 700/800. This
antenna is never to be used on the PSM.
Accessories
149
English
Maritime Radio Use in the VHF
Frequency Range
Special Channel Assignments
Emergency Channel
If you are in imminent and grave danger at sea and
require emergency assistance, use VHF Channel 16
to send a distress call to nearby vessels and the
United States Coast Guard. Transmit the following
information, in this order:
1“MAYDAY, MAYDAY, MAYDAY.”
2“THIS IS _____________________, CALL SIGN
__________.” State the name of the vessel in
distress 3 times, followed by the call sign or other
identification of the vessel, stated 3 times.
3Repeat “MAYDAY” and the name of the vessel.
4“WE ARE LOCATED AT
_______________________.” State the position
of the vessel in distress, using any information that
will help responders to locate you, e.g.:
•latitude and longitude
• bearing (state whether you are using true or
magnetic north)
• distance to a well-known landmark
• vessel course, speed or destination
5State the nature of the distress.
6Specify what kind of assistance you need.
7State the number of persons on board and the
number needing medical attention, if any.
8Mention any other information that would be
helpful to responders, such as type of vessel,
vessel length and/or tonnage, hull color, etc.
9“OVER.”
10 Wait for a response.
11 If you do not receive an immediate response,
remain by the radio and repeat the transmission at
intervals until you receive a response. Be
prepared to follow any instructions given to you.
Operating Frequency Requirements
A radio designated for shipboard use must comply
with Federal Communications Commission Rule Part
80 as follows:
•on ships subject to Part II of Title III of the
Communications Act, the radio must be capable of
operating on the 156.800 MHz frequency.
Maritime Radio Use in the VHF Frequency Range
150
English
• on ships subject to the Safety Convention, the
radio must be capable of operating:
•in the simplex mode on the ship station
transmitting frequencies specified in the
156.025 – 157.425 MHz frequency band, and
• in the semiduplex mode on the two frequency
channels specified in the table below.
Note:
Simplex channels 3, 21, 23, 61, 64, 81, 82, and 83
cannot be lawfully used by the general public in US
waters.
Additional information about operating requirements
in the Maritime Services can be obtained from the full
text of FCC Rule Part 80 and from the US Coast
Guard.
Table 1: VHF Marine Channel List
Chan
nel
Numb
er
Frequency (MHz)
Transmit Receive
1 156.050 160.550
2 156.100 160.700
* 156.150 160.750
4 156.200 160.800
5 156.250 160.850
6 156.300 -
7 156.350 160.950
8 156.400 -
9 156.450 156.450
10 156.500 156.500
11 156.550 156.550
12 156.600 156.600
13** 156.650 156.650
14 156.700 156.700
15** 156.750 156.750
16 156.800 156.800
17** 156.850 156.850
18 156.900 161.500
Maritime Radio Use in the VHF Frequency Range
151
English
19 156.950 161.550
20 157.000 161.600
* 157.050 161.650
22 157.100 161.700
* 157.150 161.750
24 157.200 161.800
25 157.250 161.850
26 157.300 161.950
27 157.350 161.950
28 157.400 162.000
60 156.025 160.625
* 156.075 160.675
62 156.125 160.725
63 156.175 160.775
* 156.225 160.825
65 156.275 160.875
66 156.325 160.925
67** 156.375 156.375
68 156.425 156.425
69 156.475 156.475
71 156.575 156.575
72 156.625 -
73 156.675 156.675
74 156.725 156.725
75 *** ***
76 *** ***
77** 156.875 -
78 156.925 161.525
79 156.975 161.575
80 157.025 161.025
* 157.025 161.675
* 157.125 161.725
* 157.175 161.775
84 157.225 161.825
Maritime Radio Use in the VHF Frequency Range
152
English
85 157.275 161.875
86 157.325 161.925
87 157.375 161.975
88 157.425 162.025
Note:
* Simplex channels 3, 21, 23, 61, 64, 81, 82, and 83
cannot be lawfully used by the general public in US
waters.
** Low power (1 W) only
*** Guard band
Note: A – in the Receive column indicates that the
channel is transmit only.
Declaration of Compliance for the Use of
Distress and Safety Frequencies
The radio equipment does not employ a modulation
other than the internationally adopted modulation for
maritime use when it operates on the distress and
safety frequencies specified in RSS-182 Section 7.3.
Maritime Radio Use in the VHF Frequency Range
153
English
Glossary
This glossary is a list of specialized terms used in this
manual.
ACK Acknowledgment of
communication.
Active Channel A channel that has traffic on it.
Analog Signal An RF signal that has a
continuous nature rather than a
pulsed or discrete nature.
ARS Automatic Registration Service
ASTRO 25 Motorola standard for wireless
digital trunked communications.
ASTRO
Conventional
Motorola standard for wireless
digital conventional
communications.
Autoscan A feature that allows the radio
to automatically scan the
members of a scan list.
Bluetooth Bluetooth is an open wireless
technology standard for
exchanging data over short
distances from fixed and
mobile devices with high levels
of security.
Bluetooth Pairing Bluetooth pairing occurs when
two bluetooth devices
exchanged a passkey to form a
paired Bluetooth wireless
connection.
Call Alert Privately page an individual by
sending an audible tone.
Carrier Squelch Feature that responds to the
presence of an RF carrier by
opening or unmuting (turning
on) a receiver’s audio circuit. A
squelch circuit silences the
radio when no signal is being
received so that the user does
not have to listen to “noise”.
Central Controller A software-controlled,
computer-driven device that
receives and generates data
for the trunked radios assigned
to it. It monitors and directs the
Glossary
154
English
operations of the trunked
repeaters.
Channel A group of characteristics such
as transmit/ receive frequency
pairs, radio parameters, and
encryption encoding.
Control Channel In a trunking system, one of the
channels that is used to
provide a continuous, twoway/
data communications path
between the central controller
and all radios on the system.
Conventional Typically refers to radio-to-
radio communications,
sometimes through a repeater
(see Trunking).
Conventional
Scan List
A scan list that includes only
conventional channels.
COTS Commercial Off-The-Shelf
Digital Private
Line (DPL)
A type of coded squelch using
data bursts. Similar to PL
except a digital code is used
instead of a tone.
Digital Signal An RF signal that has a pulsed,
or discrete, nature, rather than
a continuous nature.
Dispatcher An individual who has radio
system management duties.
DSP Digital Signal Processing
Dynamic
Regrouping
A feature that allows the
dispatcher to temporarily
reassign selected radios to a
single special channel so they
can communicate with each
other.
DSR Dynamic System Resilience
EID Encrypted Integrated Data
ESN Electrical Serial Number
Failsoft A feature that allows
communications to take place
even though the central
controller has failed. Each
trunked repeater in the system
transmits a data word informing
every radio that the system has
gone into failsoft.
Glossary
155
English
FCC Federal Communications
Commission.
FM Frequency Modulation
Hang Up Disconnect.
Home screen The first display information
after the radio completes its
self test.
IV&D Integrated Voice and Data
KVL Key-variable loader: A device
for loading encryption keys into
the radio.
LCD Liquid crystal display.
LED Light-emitting diode.
Li-Ion Lithium ion.
Man Down A life-saving feature that
senses the radio user may be
in trouble by monitoring the
whether the radio is in a
vertical or horizontal position or
whether the radio is
motionless. When this feature
is triggered, the radio alerts the
user with audio and visual
alerts. It can also trigger
Emergency Alarm the Post-
Alert Timer is not cancelled.
MCW Mission Critical Wireless
MDC Motorola Data Communication
Menu Entry A software-activated feature
shown at the bottom of the
display – selection of these
features is controlled by the
, , and buttons.
Monitor Check channel activity by
pressing the Monitor button. If
the channel is clear, you hear
static. If the channel is in use,
you hear conversation. It also
serves as a way to check the
volume level of the radio, since
the radio “opens the squelch”
when the monitor button is
pressed.
Glossary
156
English
Multi-System
Talkgroup Scan
List
A scan list that can include
both talkgroups (trunked) and
channels (conventional).
Network Access
Code
Network Access Code (NAC)
operates on digital channels to
reduce voice channel
interference between adjacent
systems and sites.
NiMH Nickel-metal-hydride.
Non-Tactical/
Revert
The user talks on a
preprogrammed emergency
channel. The emergency alarm
is sent out on this same
channel.
OCW Operation Critical Wireless
OTAR Over-the-air rekeying.
Page A one-way alert, with audio
and/or display messages.
Personality A set of unique features
specific to a radio.
PIN Personal Identification Number
Preprogrammed Refers to a software feature
that has been activated by a
qualified radio technician.
Private
(Conversation)
Call
A feature that lets you have a
private conversation with
another radio user in the
talkgroup.
Private Line (PL) A sub-audible tone that is
transmitted such that only
receivers decoding the tone
receives it.
Programmable Refers to a radio control that
can have a radio feature
assigned to it.
PTT Push-To-Talk. The PTT button
engages the transmitter and
puts the radio in transmit
(send) operation when
pressed.
Radio Frequency
(RF)
The part of the general
frequency spectrum between
the audio and infrared light
regions (about 10 kHz to
10,000,000 MHz).
Glossary
157
English
Repeater A conventional radio feature,
where you talk through a
receive/transmit facility that re-
transmits received signals, in
order to improve
communications range and
coverage.
Selective Call A feature that allows you to call
a select individual, intended to
provide privacy and to
eliminate the annoyance of
having to listen to
conversations of no interest to
you.
Selective Switch Any digital P25 traffic having
the correct Network Access
Code and the correct talkgroup.
Squelch Special electronic circuitry,
added to the receiver of a
radio, that reduces, or cuts off,
unwanted signals before they
are heard in the speaker.
SSI Synchronous Serial Interface
Standby An operating condition whereby
the radio’s speaker is muted
but still continues to receive
data.
Status Calls Pre-defined text messages that
allow the user to send a
conditional message without
talking.
Tactical/ Non-
Revert
The user talks on the channel
that was selected before the
radio entered the emergency
state.
Talkaround Bypass a repeater and talk
directly to another unit for easy
local unit-to-unit
communications.
Talkgroup An organization or group of
radio users who communicate
with each other using the same
communication path.
TMS Text Messaging Service
Glossary
158
English
Trunking The automatic sharing of
communications paths between
a large number of users (see
Conventional).
Trunking Priority
Monitor Scan List
A scan list that includes
talkgroups that are all from the
same trunking system.
USK Unique Shadow Key.
UTC Coordinated Universal Time.
The international time standard
(formerly Greenwich Mean
Time, or GMT). Zero hours
UTC is midnight in Greenwich,
England, which is located at 0
degrees longitude. Everything
east of Greenwich (up to 180
degrees) is later in time;
everything west is earlier.
There are 42 time authorities
around the world that are
constantly synchronizing with
each other. Abbreviated as
UTC (English backronym =
Universal Time, Coordinated),
it is also known as Zulu (Z)
Time.
Zone A grouping of channels.
Glossary
159
English
Limited Warranty
MOTOROLA COMMUNICATION PRODUCTS
I. WHAT THIS WARRANTY COVERS AND FOR
HOW LONG:
MOTOROLA SOLUTIONS, INC. (“MOTOROLA”)
warrants the MOTOROLA manufactured
Communication Products listed below (“Product”)
against defects in material and workmanship under
normal use and service for a period of time from the
date of purchase as scheduled below:
Other region:
Product Accessories One (1) Year
ASTRO Portable Units Three (3) Years
Product Accessories One (1) Year
MOTOROLA, at its option, will at no charge either
repair the Product (with new or reconditioned parts),
replace it (with a new or reconditioned Product), or
refund the purchase price of the Product during the
warranty period provided it is returned in accordance
with the terms of this warranty. Replaced parts or
boards are warranted for the balance of the original
applicable warranty period. All replaced parts of
Product shall become the property of MOTOROLA.
This express limited warranty is extended by
MOTOROLA to the original end user purchaser only
and is not assignable or transferable to any other
party. This is the complete warranty for the Product
manufactured by MOTOROLA. MOTOROLA
assumes no obligations or liability for additions or
modifications to this warranty unless made in writing
and signed by an officer of MOTOROLA.
Unless made in a separate agreement between
MOTOROLA and the original end user purchaser,
MOTOROLA does not warrant the installation,
maintenance or service of the Product.
MOTOROLA cannot be responsible in any way for
any ancillary equipment not furnished by MOTOROLA
which is attached to or used in connection with the
Product, or for operation of the Product with any
ancillary equipment, and all such equipment is
expressly excluded from this warranty. Because each
system which may use the Product is unique,
Limited Warranty
148
English
MOTOROLA disclaims liability for range, coverage, or
operation of the system as a whole under this
warranty.
II. GENERAL PROVISIONS:
This warranty sets forth the full extent of
MOTOROLA'S responsibilities regarding the Product.
Repair, replacement or refund of the purchase price,
at MOTOROLA’s option, is the exclusive remedy.
THIS WARRANTY IS GIVEN IN LIEU OF ALL
OTHER EXPRESS WARRANTIES. IMPLIED
WARRANTIES, INCLUDING WITHOUT LIMITATION,
IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE,
ARE LIMITED TO THE DURATION OF THIS
LIMITED WARRANTY. IN NO EVENT SHALL
MOTOROLA BE LIABLE FOR DAMAGES IN
EXCESS OF THE PURCHASE PRICE OF THE
PRODUCT, FOR ANY LOSS OF USE, LOSS OF
TIME, INCONVENIENCE, COMMERCIAL LOSS,
LOST PROFITS OR SAVINGS OR OTHER
INCIDENTAL, SPECIAL OR CONSEQUENTIAL
DAMAGES ARISING OUT OF THE USE OR
INABILITY TO USE SUCH PRODUCT, TO THE
FULL EXTENT SUCH MAY BE DISCLAIMED BY
LAW.
III. STATE LAW RIGHTS:
SOME STATES DO NOT ALLOW THE EXCLUSION
OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES OR LIMITATION ON
HOW LONG AN IMPLIED WARRANTY LASTS, SO
THE ABOVE LIMITATION OR EXCLUSIONS MAY
NOT APPLY.
This warranty gives specific legal rights, and there
may be other rights which may vary from state to
state.
IV. HOW TO GET WARRANTY SERVICE:
You must provide proof of purchase (bearing the date
of purchase and Product item serial number) in order
to receive warranty service and, also, deliver or send
the Product item, transportation and insurance
prepaid, to an authorized warranty service location.
Warranty service will be provided by MOTOROLA
through one of its authorized warranty service
locations. If you first contact the company which sold
you the Product (e.g., dealer or communication
service provider), it can facilitate your obtaining
warranty service. You can also call MOTOROLA at
1-800-927-2744 US/Canada.
Limited Warranty
149
English
V. WHAT THIS WARRANTY DOES NOT
COVER:
1Defects or damage resulting from use of the
Product in other than its normal and customary
manner.
2Defects or damage from misuse, accident, water,
or neglect.
3Defects or damage from improper testing,
operation, maintenance, installation, alteration,
modification, or adjustment.
4Breakage or damage to antennas unless caused
directly by defects in material workmanship.
5A Product subjected to unauthorized Product
modifications, disassembles or repairs (including,
without limitation, the addition to the Product of
non-MOTOROLA supplied equipment) which
adversely affect performance of the Product or
interfere with MOTOROLA's normal warranty
inspection and testing of the Product to verify any
warranty claim.
6Product which has had the serial number removed
or made illegible.
7Rechargeable batteries if:
1any of the seals on the battery enclosure of
cells are broken or show evidence of
tampering.
2the damage or defect is caused by charging or
using the battery in equipment or service other
than the Product for which it is specified.
8Freight costs to the repair depot.
9A Product which, due to illegal or unauthorized
alteration of the software/firmware in the Product,
does not function in accordance with
MOTOROLA’s published specifications or the FCC
certification labeling in effect for the Product at the
time the Product was initially distributed from
MOTOROLA.
10 Scratches or other cosmetic damage to Product
surfaces that does not affect the operation of the
Product.
11 Normal and customary wear and tear.
VI. PATENT AND SOFTWARE PROVISIONS:
MOTOROLA will defend, at its own expense, any suit
brought against the end user purchaser to the extent
that it is based on a claim that the Product or parts
infringe a United States patent, and MOTOROLA will
pay those costs and damages finally awarded against
Limited Warranty
150
English
the end user purchaser in any such suit which are
attributable to any such claim, but such defense and
payments are conditioned on the following:
1that MOTOROLA will be notified promptly in
writing by such purchaser of any notice of such
claim,
2that MOTOROLA will have sole control of the
defense of such suit and all negotiations for its
settlement or compromise, and
3should the Product or parts become, or in
MOTOROLA’s opinion be likely to become, the
subject of a claim of infringement of a United
States patent, that such purchaser will permit
MOTOROLA, at its option and expense, either to
procure for such purchaser the right to continue
using the Product or parts or to replace or modify
the same so that it becomes non-infringing or to
grant such purchaser a credit for the Product or
parts as depreciated and accept its return. The
depreciation will be an equal amount per year over
the lifetime of the Product or parts as established
by MOTOROLA.
MOTOROLA will have no liability with respect to any
claim of patent infringement which is based upon the
combination of the Product or parts furnished
hereunder with software, apparatus or devices not
furnished by MOTOROLA, nor will MOTOROLA have
any liability for the use of ancillary equipment or
software not furnished by MOTOROLA which is
attached to or used in connection with the Product.
The foregoing states the entire liability of
MOTOROLA with respect to infringement of patents
by the Product or any parts thereof.
Laws in the United States and other countries
preserve for MOTOROLA certain exclusive rights for
copyrighted MOTOROLA software such as the
exclusive rights to reproduce in copies and distribute
copies of such MOTOROLA software. MOTOROLA
software may be used in only the Product in which
the software was originally embodied and such
software in such Product may not be replaced,
copied, distributed, modified in any way, or used to
produce any derivative thereof. No other use
including, without limitation, alteration, modification,
reproduction, distribution, or reverse engineering of
such MOTOROLA software or exercise of rights in
such MOTOROLA software is permitted. No license is
granted by implication, estoppel or otherwise under
MOTOROLA patent rights or copyrights.
Limited Warranty
151
English
VII. GOVERNING LAW:
This Warranty is governed by the laws of the State of
Illinois, U.S.A.
VIII. For Australia Only:
This warranty is given by Motorola Solutions Australia
Pty Limited (ABN 16 004 742 312) of Tally Ho
Business Park, 10 Wesley Court. Burwood East,
Victoria.
Our goods come with guarantees that cannot be
excluded under the Australia Consumer Law. You are
entitled to a replacement or refund for a major failure
and compensation for any other reasonably
foreseeable loss or damage. You are also entitled to
have the goods repaired or replaced if the goods fail
to be of acceptable quality and the failure does not
amount to a major failure.
Motorola Solutions Australia’s limited warranty above
is in addition to any rights and remedies you may
have under the Australian Consumer Law. If you have
any queries, please call Motorola Solutions Australia
at 1800 457 439. You may also visit our website:
http://www.motorolasolutions.com/XA-EN/Pages/
Contact_Us for the most updated warranty terms.
Limited Warranty
152
English
