Users Manual
Professional Digital Two-Way Radio System
XPR™ 4550 / XPR™ 4580
Display Mobile
User Guide
Declaration of Conformity
English
i
Declaration of Conformity
This declaration is applicable to your radio only if your radio is labeled with the FCC logo shown below.
DECLARATION OF CONFORMITY
Per FCC CFR 47 Part 2 Section 2.1077(a)
Responsible Party
Name: Motorola, Inc.
Address: 1301 East Algonquin Road, Schaumburg, IL 60196-1078, U.S.A.
Phone Number: 1-800-927-2744
Hereby declares that the product:
Model Name: XPR 4550/XPR 4580
conforms to the following regulations:
FCC Part 15, subpart B, section 15.107(a), 15.107(d) and section 15.109(a)
Class B Digital Device
As a personal computer peripheral, this device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
NAG_6880309T15.book Page i Friday, January 28, 2011 10:48 AM
Declaration of Conformity
English
ii
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
NAG_6880309T15.book Page ii Friday, January 28, 2011 10:48 AM
Contents
English
iii
Contents
This User Guide contains all the information you need
to use the MOTOTRBO XPR Series Digital Mobile
Radios.
Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . i
Important Safety Information . . . . . . . . . . . . . . . . . ix
Product Safety and RF Exposure Compliance . . .ix
Software Version . . . . . . . . . . . . . . . . . . . . . . . . . . . ix
Computer Software Copyrights . . . . . . . . . . . . . . . . x
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
How to Use This User Guide . . . . . . . . . . . . . . . . . . 1
What Your Dealer/System Administrator
Can Tell You . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

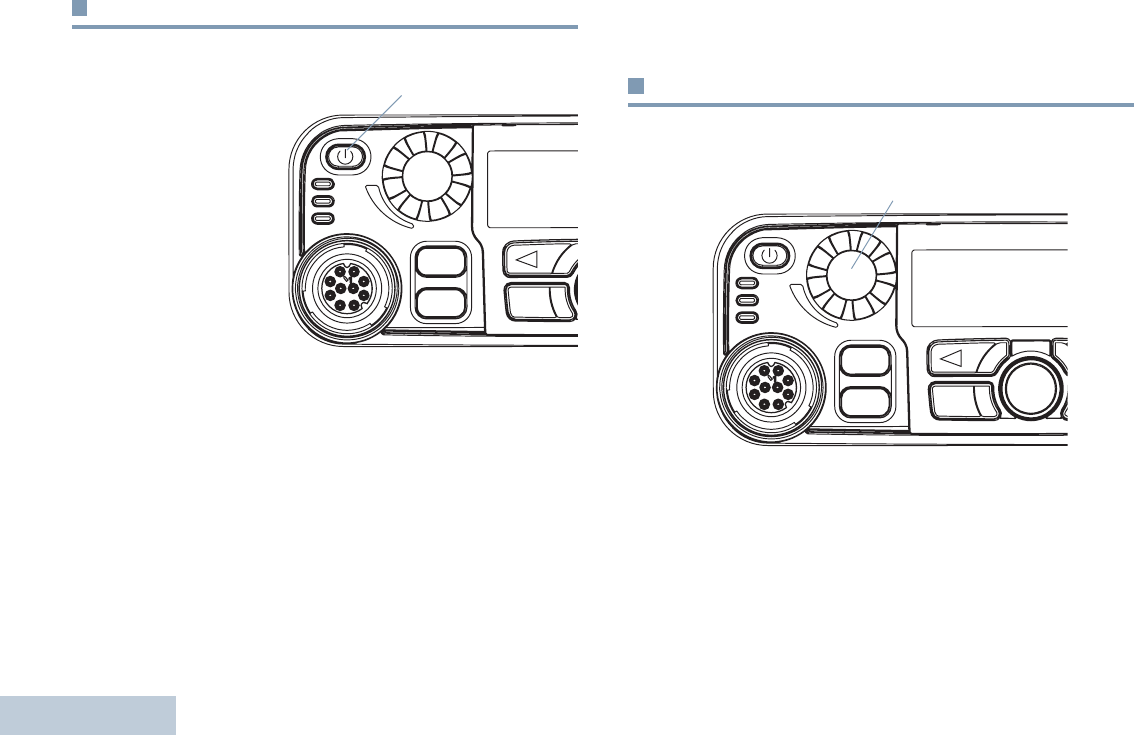

Powering Up the Radio . . . . . . . . . . . . . . . . . . . . . . . 2
Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . 2

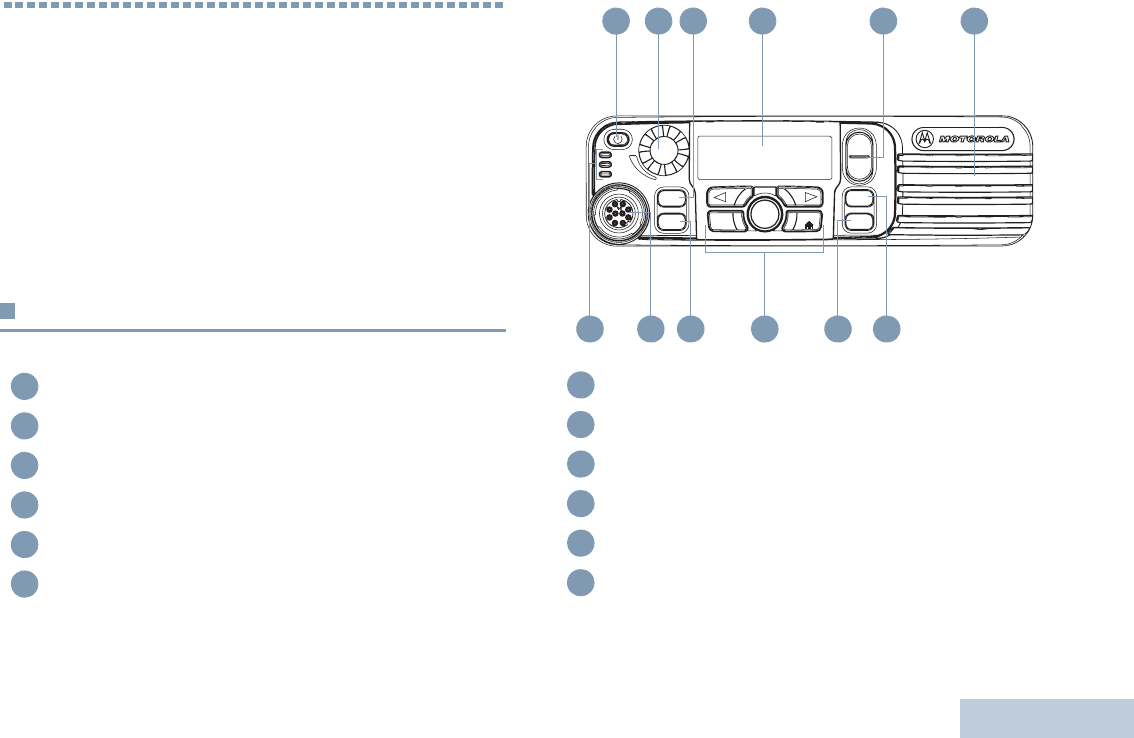

Identifying Radio Controls . . . . . . . . . . . . . . . . . . . . 3
Radio Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Programmable Buttons . . . . . . . . . . . . . . . . . . . . . . . 4
Assignable Radio Functions . . . . . . . . . . . . . . . . . 4
Assignable Settings/Utility Functions . . . . . . . . . . . 5
Accessing the Programmed Functions . . . . . . . . . . . 6
Push-To-Talk (PTT) Button . . . . . . . . . . . . . . . . . . . . 6
Switching Between Conventional Analog
and Digital Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Capacity Plus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Identifying Status Indicators . . . . . . . . . . . . . . . . . . . 8

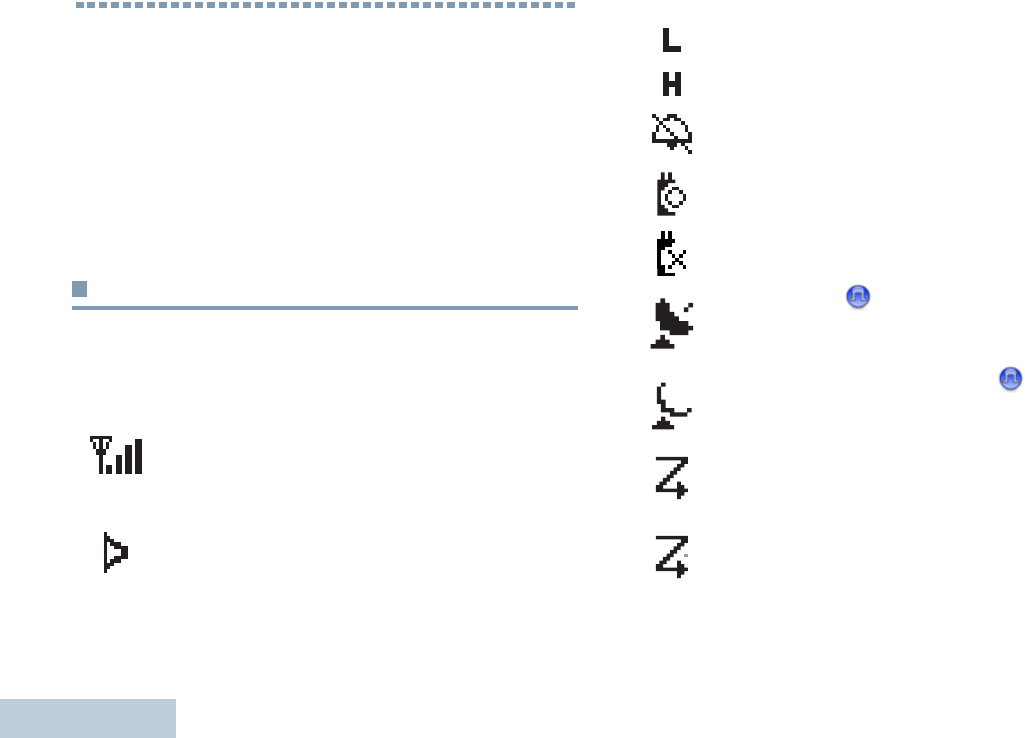

Display Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Call Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Sent Item Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Audio Tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Indicator Tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Receiving and Making Calls . . . . . . . . . . . . . . . . . . 12
Selecting a Site . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Selecting a Zone . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Selecting a Radio Channel, Subscriber Alias
or ID, or Group Alias or ID . . . . . . . . . . . . . . . . . . . 13
Receiving and Responding to a Radio Call . . . . . . 14
Receiving and Responding to a Group Call . . . . . 14
Receiving and Responding to a Private Call . . . 15
Receiving an All Call . . . . . . . . . . . . . . . . . . . . . . 16
Receiving and Responding to a Phone Call . . . . 17
Phone Call as Private Call . . . . . . . . . . . . . . . . 17
Phone Call as Group Call . . . . . . . . . . . . . . . . . 17
Phone Call as All Call . . . . . . . . . . . . . . . . . . . . 18
Making a Radio Call . . . . . . . . . . . . . . . . . . . . . . . . 18
NAG_6880309T15.book Page iii Friday, January 28, 2011 10:48 AM
Contents
English
iv
Making a Call with the Channel Rocker . . . . . . . 19
Making a Group Call . . . . . . . . . . . . . . . . . . . . 19
Making a Private Call . . . . . . . . . . . . . . . . . . . 20
Making an All Call . . . . . . . . . . . . . . . . . . . . . . 21
Making a Group or Private Call with the
One Touch Access Button . . . . . . . . . . . . . . . . . 21
Stopping a Radio Call . . . . . . . . . . . . . . . . . . . . . . 22
Talkaround . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Permanent Monitor . . . . . . . . . . . . . . . . . . . . . . . . . 23
Advanced Features . . . . . . . . . . . . . . . . . . . . . . . . . 24
Radio Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Sending a Radio Check . . . . . . . . . . . . . . . . . . . 24
Remote Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Initiating Remote Monitor . . . . . . . . . . . . . . . . . . 26
Stopping Remote Monitor . . . . . . . . . . . . . . . . . . 27
Scan Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Viewing an Entry in the Scan List . . . . . . . . . . . . 28
Editing the Scan List . . . . . . . . . . . . . . . . . . . . . . 28
Adding a New Entry to the Scan List . . . . . . . . 28
Deleting an Entry from the Scan List . . . . . . . . 29
Setting and Editing Priority for an
Entry in the Scan List . . . . . . . . . . . . . . . . . . . . 29
Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Starting and Stopping Scan . . . . . . . . . . . . . . . . 30
Responding to a Transmission During a Scan . . 31
Deleting a Nuisance Channel . . . . . . . . . . . . . . . 31
Restoring a Nuisance Channel . . . . . . . . . . . . . . 32
Contacts Settings . . . . . . . . . . . . . . . . . . . . . . . . . 32
Making a Group Call from Contacts . . . . . . . . . . 33
Making a Private Call from Contacts . . . . . . . . . 34
Assigning an Entry to a Programmable
Number Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Removing the Association between Entry
and Programmable Number Key . . . . . . . . . . . . 36
Call Indicator Settings . . . . . . . . . . . . . . . . . . . . . . 36
Activating and Deactivating Call Ringers
for Private Calls . . . . . . . . . . . . . . . . . . . . . . . . . 36
Activating and Deactivating Call Ringers
for Text Messaging . . . . . . . . . . . . . . . . . . . . . . 37
Activating and Deactivating Call Ringers
for Telemetry Status with Text . . . . . . . . . . . . . . 37
Assigning Ring Styles . . . . . . . . . . . . . . . . . . . . 38
Escalating Alarm Tone Volume . . . . . . . . . . . . . . 38
Call Log Features . . . . . . . . . . . . . . . . . . . . . . . . . 39
Viewing Recent Calls . . . . . . . . . . . . . . . . . . . . . 39
Missed Call Screen . . . . . . . . . . . . . . . . . . . . . . . 39
Deleting a Call from a Call List . . . . . . . . . . . . . . 40
Call Alert Operation . . . . . . . . . . . . . . . . . . . . . . . . 40
Receiving and Responding to a Call Alert . . . . . 40
Making a Call Alert from the Contacts List . . . . . 41
NAG_6880309T15.book Page iv Friday, January 28, 2011 10:48 AM
Contents
English
v
Making a Call Alert with the One Touch
Access Button . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Emergency Operation . . . . . . . . . . . . . . . . . . . . . . . 42
Receiving an Emergency Alarm . . . . . . . . . . . . . 42
Responding to an Emergency Alarm . . . . . . . . . . 43
Sending an Emergency Alarm . . . . . . . . . . . . . . . 44
Sending an Emergency Alarm with Call . . . . . . . 44
Sending an Emergency Alarm with
Voice to Follow . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Reinitiating an Emergency Mode . . . . . . . . . . . . . 46
Exiting Emergency Mode . . . . . . . . . . . . . . . . . . . 46
Text Messaging Features . . . . . . . . . . . . . . . . . . . 47
Sending a Quick Text Message . . . . . . . . . . . . . . 47
Sending a Quick Text Message with the
One Touch Access Button . . . . . . . . . . . . . . . . . . 47
Managing Text Messages in the Drafts Folder . . 48
Viewing a Saved Text Message . . . . . . . . . . . . 48
Deleting a Saved Text Message from Drafts . . 48
Managing Fail-to-Send Text Messages . . . . . . . . 49
Resending a Text Message . . . . . . . . . . . . . . . 49
Forwarding a Text Message . . . . . . . . . . . . . . . 49
Managing Sent Text Messages . . . . . . . . . . . . . . 50
Viewing a Sent Text Message . . . . . . . . . . . . . 50
Sending a Sent Text Message . . . . . . . . . . . . . 50
Deleting All Sent Text Messages from
Sent Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Receiving a Text Message . . . . . . . . . . . . . . . . . 52
Reading a Text Message . . . . . . . . . . . . . . . . . . . 52
Managing Received Text Messages . . . . . . . . . . 53
Viewing a Text Message from the Inbox . . . . . 53
Viewing a Telemetry Status Text Message
from the Inbox . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Replying to a Text Message with Quick Text . . 54
Deleting a Text Message from the Inbox . . . . . 55
Deleting All Text Messages from the Inbox . . . 55
Privacy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
IP Site Connect . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Starting an Automatic Site Search . . . . . . . . . . . . 57
Stopping an Automatic Site Search . . . . . . . . . . . 58
Starting a Manual Site Search . . . . . . . . . . . . . . . 58
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Radio Disable . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Radio Enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Lone Worker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Third Party Peripherals Connection Modes . . . . . . 62
Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Setting the Squelch Level . . . . . . . . . . . . . . . . . . 63
Setting the Power Level . . . . . . . . . . . . . . . . . . . . 63
Turning the Option Board Feature(s) On or Off . . 64
Turning the Voice Operating Transmission
(VOX) Feature On or Off . . . . . . . . . . . . . . . . . . . 64
NAG_6880309T15.book Page v Friday, January 28, 2011 10:48 AM
Contents
English
vi
Turning the Public Address System On or Off . . 65
Turning the External Public Address System
On or Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Controlling the Display Backlight . . . . . . . . . . . . 65
Turning Horns/Lights On or Off . . . . . . . . . . . . . . 66
Turning the Radio Tones/Alerts On or Off . . . . . 66
Setting the Tone Alert Volume Offset Level . . . . 67
Turning the Talk Permit Tone On or Off . . . . . . . 67
Turning the Power Up Alert Tone On or Off . . . . 68
Setting the Text Message Alert Tone . . . . . . . . . 68
Turning the LED Indicators On or Off . . . . . . . . . 69
Turning the Introduction Screen On or Off . . . . . 69
Accessing General Radio Information . . . . . . . . 70
Checking the Radio Alias and ID . . . . . . . . . . 70
Checking the Firmware Version . . . . . . . . . . . . 71
Checking the Codeplug Version . . . . . . . . . . . 71
Keypad Microphone Features . . . . . . . . . . . . . . . . 71
Using the Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Turning Keypad Tones On or Off . . . . . . . . . . . . 73
Additional Advanced Features . . . . . . . . . . . . . . . . 73
Selecting a Zone by Alias Search . . . . . . . . . . . . 73
Initiating a Radio Check by Manual Dial . . . . . . 74
Initiating Remote Monitor by Manual Dial . . . . . 74
Making a Private Call by Manual Dial . . . . . . . . 75
Making a Phone Call by Manual Dial . . . . . . . . . 76
Making a Phone Call with the One Touch
Access Button . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Making a Group, Private or All Call with the
Programmable Number Key . . . . . . . . . . . . . . . 79
Making a Phone Call with the Programmable
Phone Button . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Making a Phone Call from Contacts . . . . . . . . . 82
Making a Group, Private, Phone or All Call
by Alias Search . . . . . . . . . . . . . . . . . . . . . . . . . 84
Viewing an Entry in the Scan List by
Alias Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Editing the Scan List by Alias Search . . . . . . . . . 85
Adding a New Entry to the Scan List . . . . . . . . 85
Deleting an Entry from the Scan List . . . . . . . . 86
Setting and Editing Priority for an
Entry in the Scan List . . . . . . . . . . . . . . . . . . . . 87
Storing an Alias or ID from the
Missed Call List . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Making a Call Alert by Manual Dial . . . . . . . . . . 88
Text Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Writing and Sending a Text Message . . . . . . . . . 88
Replying to Text Messages from the Inbox . . . . . 89
Editing a Quick Text Message . . . . . . . . . . . . . . 90
Accessing the Drafts Folder . . . . . . . . . . . . . . . . 91
Editing and Sending a Saved Text Message . . 91
Managing Fail-to-Send Text Messages . . . . . . . 92
NAG_6880309T15.book Page vi Friday, January 28, 2011 10:48 AM
Contents
English
vii
Forwarding a Text Message by Manual Dial . . 92
Editing a Text Message . . . . . . . . . . . . . . . . . . 93
Dual Tone Multi Frequency (DTMF) . . . . . . . . . . . . 93
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Radio Disable via Manual Dial . . . . . . . . . . . . . . . 94
Radio Enable via Manual Dial . . . . . . . . . . . . . . . 94
Password Lock Features . . . . . . . . . . . . . . . . . . . . 95
Accessing the Radio from Password . . . . . . . . . . 95
Unlocking the Radio from Locked State . . . . . . . 96
Turning the Password Lock On or Off . . . . . . . . . 96
Changing the Password . . . . . . . . . . . . . . . . . . . . 97
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Desktop Accessories . . . . . . . . . . . . . . . . . . . . . . 100
Mounting Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Remote Mount Adaptor Kits . . . . . . . . . . . . . . . . . 101
Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Miscellaneous Accessories . . . . . . . . . . . . . . . . . . 101
Appendix: Maritime Radio Use in the
VHF Frequency Range . . . . . . . . . . . . . . . . . . . . . . 102
Special Channel Assignments . . . . . . . . . . . . . . . 102
Emergency Channel . . . . . . . . . . . . . . . . . . . . . 102
Non-Commercial Call Channel . . . . . . . . . . . . . 102
Operating Frequency Requirements . . . . . . . . . . . 103
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . 105
NAG_6880309T15.book Page vii Friday, January 28, 2011 10:48 AM
Notes
English
viii
Notes
NAG_6880309T15.book Page viii Friday, January 28, 2011 10:48 AM
Important Safety Information
English
ix
Important Safety Information
Product Safety and RF Exposure Compliance
ATTENTION!
This radio is restricted to occupational use only to
satisfy FCC RF energy exposure requirements.
Before using this product, read the RF energy awareness
information and operating instructions in the Product
Safety and RF Exposure booklet enclosed with your radio
(Motorola Publication part number 6881095C99) to
ensure compliance with RF energy exposure limits.
For a list of Motorola-approved antennas and other
accessories, visit the following website:
http://www.motorola.com/governmentandenterprise
Software Version
All the features described in the following sections are
supported by the radio's software version R01.08.00 or
later.
See Checking the Firmware Version on page 71 to
determine your radio's software version.
Please check with your dealer or system administrator
for more details of all the features supported.
Before using this product, read the operating
instructions for safe usage contained in the
Product Safety and RF Exposure booklet
enclosed with your radio.
!
C
a u t i o
n
NAG_6880309T15.book Page ix Friday, January 28, 2011 10:48 AM
Computer Software Copyrights
English
x
Computer Software Copyrights
The Motorola products described in this manual may
include copyrighted Motorola computer programs stored
in semiconductor memories or other media. Laws in the
United States and other countries preserve for Motorola
certain exclusive rights for copyrighted computer
programs including, but not limited to, the exclusive right
to copy or reproduce in any form the copyrighted
computer program. Accordingly, any copyrighted
Motorola computer programs contained in the Motorola
products described in this manual may not be copied,
reproduced, modified, reverse-engineered, or distributed
in any manner without the express written permission of
Motorola. Furthermore, the purchase of Motorola
products shall not be deemed to grant either directly or by
implication, estoppel, or otherwise, any license under the
copyrights, patents or patent applications of Motorola,
except for the normal non-exclusive license to use that
arises by operation of law in the sale of a product.
The AMBE+2TM voice coding Technology embodied in
this product is protected by intellectual property rights
including patent rights, copyrights and trade secrets of
Digital Voice Systems, Inc.
This voice coding Technology is licensed solely for use
within this Communications Equipment. The user of this
Technology is explicitly prohibited from attempting to
decompile, reverse engineer, or disassemble the Object
Code, or in any other way convert the Object Code into a
human-readable form.
U.S. Pat. Nos. #5,870,405, #5,826,222, #5,754,974,
#5,701,390, #5,715,365, #5,649,050, #5,630,011,
#5,581,656, #5,517,511, #5,491,772, #5,247,579,
#5,226,084 and #5,195,166.
NAG_6880309T15.book Page x Friday, January 28, 2011 10:48 AM
Getting Started
English
1
Getting Started
Take a moment to review the following:
How to Use This User Guide. . . . . . . . . . . . . . . . . . . . . page 1
What Your Dealer/System Administrator
Can Tell You. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 1
Powering Up the Radio . . . . . . . . . . . . . . . . . . . . . . . . . page 2
Adjusting the Volume. . . . . . . . . . . . . . . . . . . . . . . . . . . page 2
How to Use This User Guide
This User Guide covers the basic operation of the MOTOTRBO
Mobiles.
However, your dealer or system administrator may have
customized your radio for your specific needs. Check with your
dealer or system administrator for more information.
Throughout this publication, the icons below are used to
indicate features supported in either the conventional Analog
mode or conventional Digital mode:
For features that are available in both Analog and Digital
modes, no icon is shown.
Selected features are also available on the single-site trunking
mode, Capacity Plus. See Capacity Plus on page 7 for more
information.
What Your Dealer/System Administrator
Can Tell You
You can consult your dealer or system administrator about the
following:
•Is your radio programmed with any preset conventional
channels?
•Which buttons have been programmed to access other
features?
•What optional accessories may suit your needs?
Indicates a conventional Analog Mode-Only feature.
Indicates a conventional Digital Mode-Only feature.
NAG_6880309T15.book Page 1 Friday, January 28, 2011 10:48 AM
Getting Started
English
2

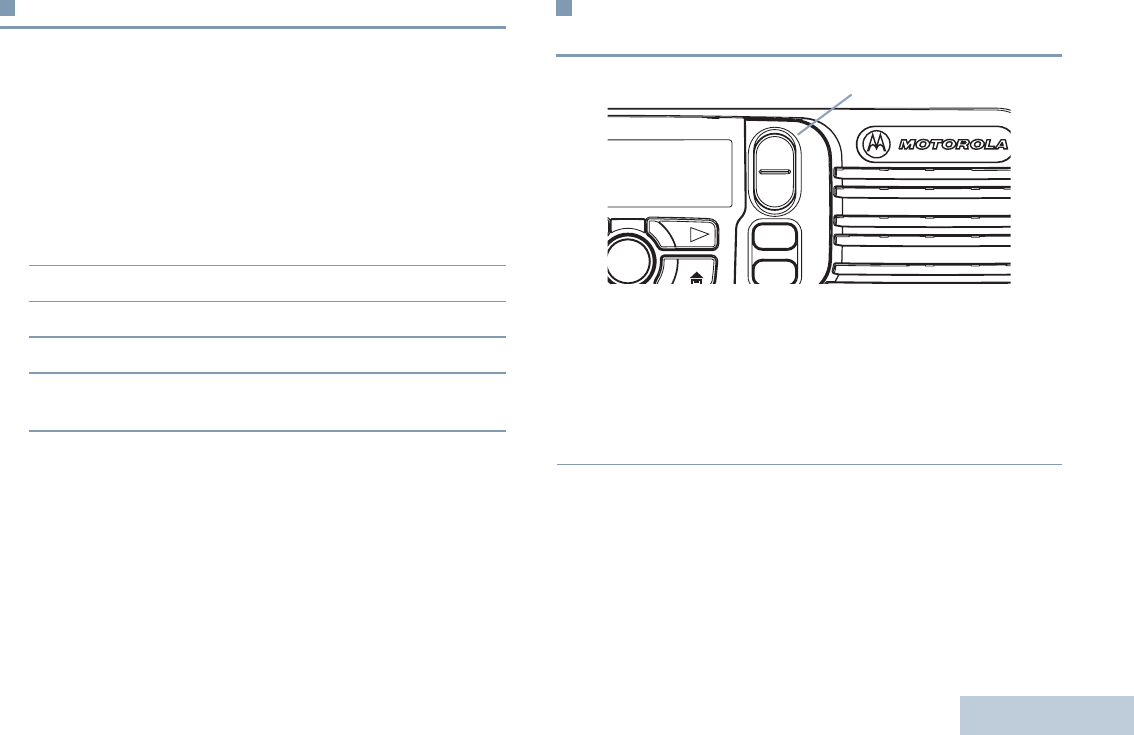

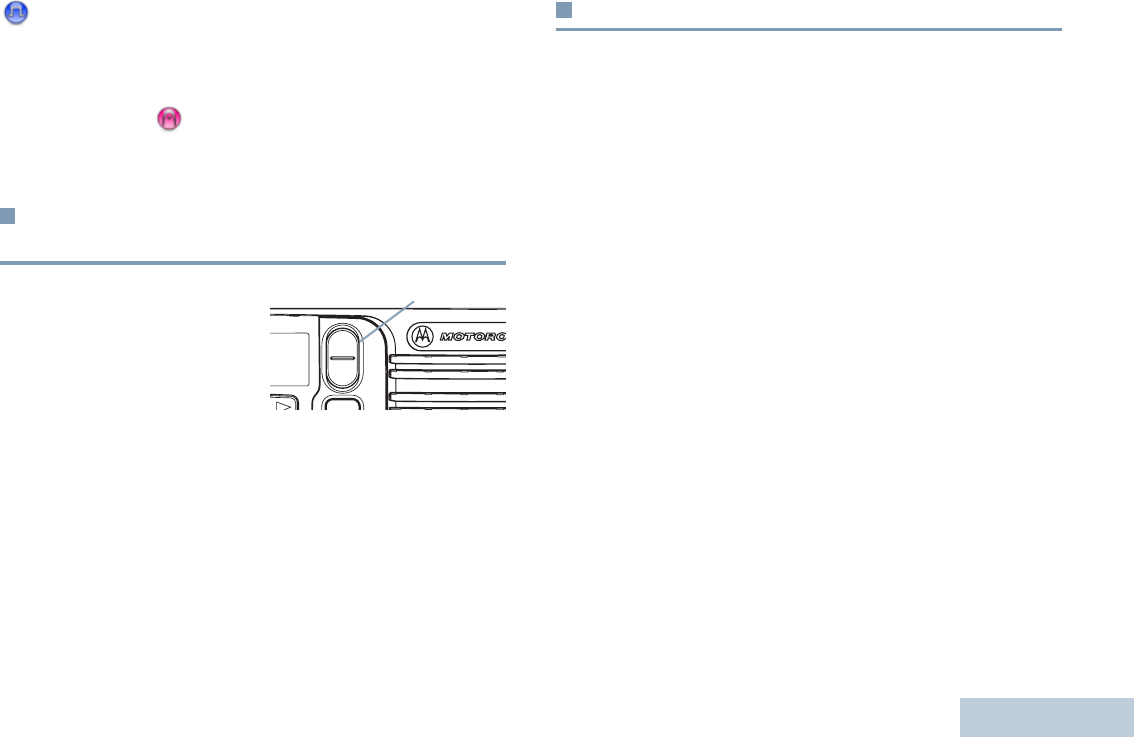

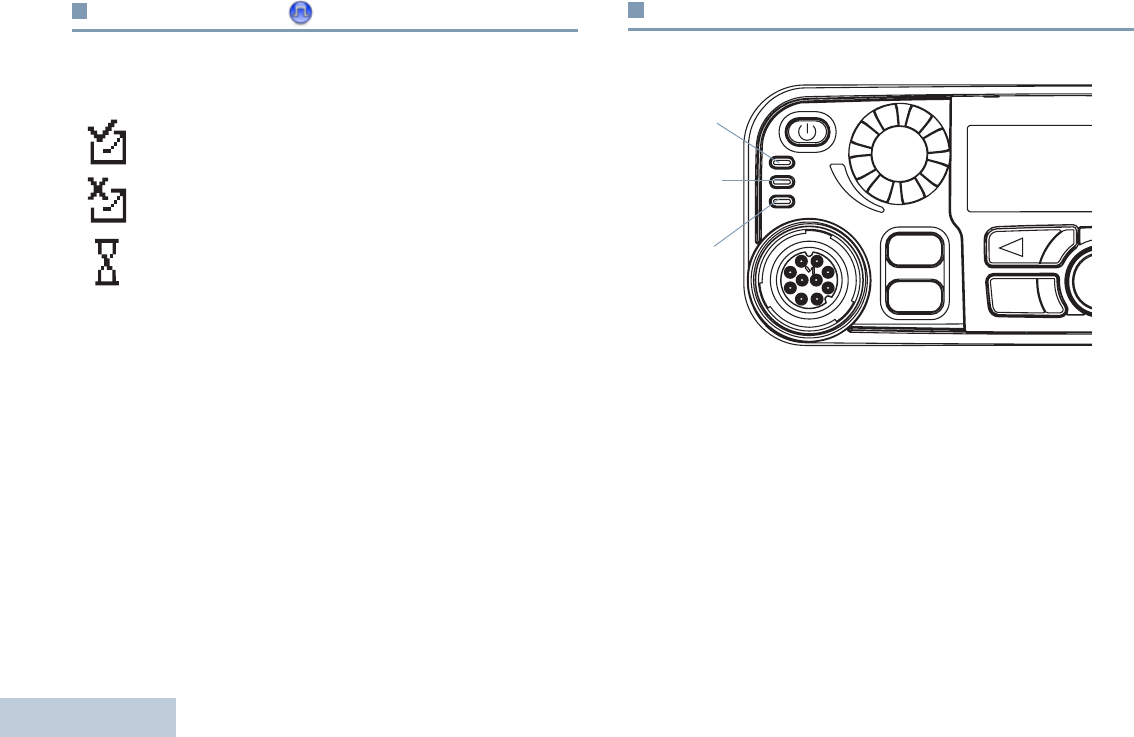

Powering Up the Radio
Press the On/Off
Button briefly. You see
Motorola and
MOTOTRBO (TM) on the
radio’s display
momentarily, followed
by Motorola once
more.
The green LED blinks
and the Home screen
lights up if the backlight
setting is set to turn on
automatically.
NOTE: The Home screen does not light up during a power up if
the LED indicators are disabled (see Turning the LED
Indicators On or Off on page 69).
A brief tone sounds, indicating that the power up test is
successful.
NOTE: There is no power up tone if the radio tones/alerts
function is disabled (see Turning the Radio Tones/
Alerts On or Off on page 66).
If your radio does not power up, contact your dealer.
To turn off the radio, press and hold the On/Off Button until you
see
Powering Down
on the radio’s display.
Adjusting the Volume
To increase the volume, turn the Volume Knob clockwise.
To decrease the volume, turn this knob counterclockwise.
NOTE: Your radio can be programmed to have a minimum
volume offset where the volume level cannot be turned
down fully. Check with your dealer or system
administrator for more information.
P 1
O K
P 2
P 3
P 4
CH+
BACK
MENU
CH -
On/Off Button
P 1
O K
P 2
P 3
P 4
CH+
BACK
MENU
CH -
Volume Knob
NAG_6880309T15.book Page 2 Friday, January 28, 2011 10:48 AM
Identifying Radio Controls
English
3
Identifying Radio Controls
Take a moment to review the following:
Radio Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 3
Programmable Buttons . . . . . . . . . . . . . . . . . . . . . . . . . page 4
Accessing the Programmed Functions . . . . . . . . . . . . . page 6
Push-To-Talk (PTT) Button . . . . . . . . . . . . . . . . . . . . . . page 6
Switching Between Conventional Analog and
Digital Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 7
Capacity Plus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 7
Radio Controls
On/Off Button
Volume Knob
Front Button P1*
Display
Channel Rocker
Speaker
1
2
3
4
5
6
Front Button P3*
Front Button P4*
Menu Navigation Buttons
Front Button P2*
Accessory Connector
LED Indicators
* These buttons are programmable.
P 1
O K
P 2
P 3
P 4
CH+
BACK
MENU
CH -
12 3 654
12 11 8 7910
7
8
9
10
11
12
NAG_6880309T15.book Page 3 Friday, January 28, 2011 10:48 AM
Identifying Radio Controls
English
4
Programmable Buttons
Your dealer can program the programmable buttons as
shortcuts to radio functions or up to a maximum of six (6)
preset channels/groups depending on the duration of a button
press:
•Short press – Pressing and releasing rapidly (0.05 seconds).
•Long press – Pressing and holding for the programmed
duration (between 1.00 second and 3.75 seconds).
•Hold down – Keeping the button pressed.
NOTE: The programmed duration of a button press is
applicable for all assignable radio/utility functions or
settings. See Emergency Operation on page 42 for
more information on the programmed duration of the
Emergency button.
Assignable Radio Functions
Contacts – Provides direct access to the Contacts list.
Emergency – Depending on the programming, initiates or
cancels an emergency alarm or call.
Ext PA On/Off – Toggles the audio routing between the
connected public address (PA) loudspeaker amplifier and the
radio’s internal public address (PA) system.
Manual Site Roam* – Starts the manual site search.
Manual Dial – Depending on the programming, initiates a
Private or Phone Call by keying in any subscriber ID. Only
available with a keypad microphone.
Nuisance Channel Delete* – Temporarily removes an
unwanted channel, except for the Selected Channel, from the
scan list. The Selected Channel refers to the user’s selected
zone/channel combination from which scan is initiated.
One Touch Access – Directly initiates a predefined
Private, Phone or Group Call, a Call Alert or a Quick Text
message, or returns the user to a preset channel.
Option Board Feature – Toggles option board features on or
off for option board-enabled channels.
PA On/Off – Toggles the radio’s internal public address (PA)
system on or off.
Permanent Monitor* – Monitors a selected channel for all radio
traffic until function is disabled.
Phone – Provides direct access to the Phone Contacts list.
Privacy – Toggles privacy on or off.
Radio Alias and ID – Provides radio alias and ID.
Radio Check – Determines if a radio is active in a system.
Radio Enable – Allows a target radio to be remotely
enabled.
* Not applicable in Capacity Plus
NAG_6880309T15.book Page 4 Friday, January 28, 2011 10:48 AM
Identifying Radio Controls
English
5
Radio Disable – Allows a target radio to be remotely
disabled.
Remote Monitor – Turns on the microphone of a target
radio without it giving any indicators.
Repeater/Talkaround* – Toggles between using a repeater and
communicating directly with another radio.
Scan* – Toggles scan on or off.
Site Lock On/Off* – Toggles the automatic site roam on or
off.
Telemetry Control – Controls the Output Pin on a local or
remote radio.
Text Message – Selects the text message menu.
Transmit Interrupt Remote Dekey – Stops the
transmission of a remote monitored radio without giving any
indicators, or an ongoing interruptible call to free the channel.
Voice Operating Transmission (VOX) – Toggles VOX on or
off.
Zone – Allows selection from a list of zones.
Assignable Settings/Utility Functions
All Tones/Alerts – Toggles all tones on or off.
Backlight – Controls the backlight intensity.
Horns/Lights – Toggles horns and lights feature on or off.
Power Level – Toggles transmit power level between high and
low.
Squelch – Toggles squelch level between normal and
tight.
* Not applicable in Capacity Plus
NAG_6880309T15.book Page 5 Friday, January 28, 2011 10:48 AM
Identifying Radio Controls
English
6

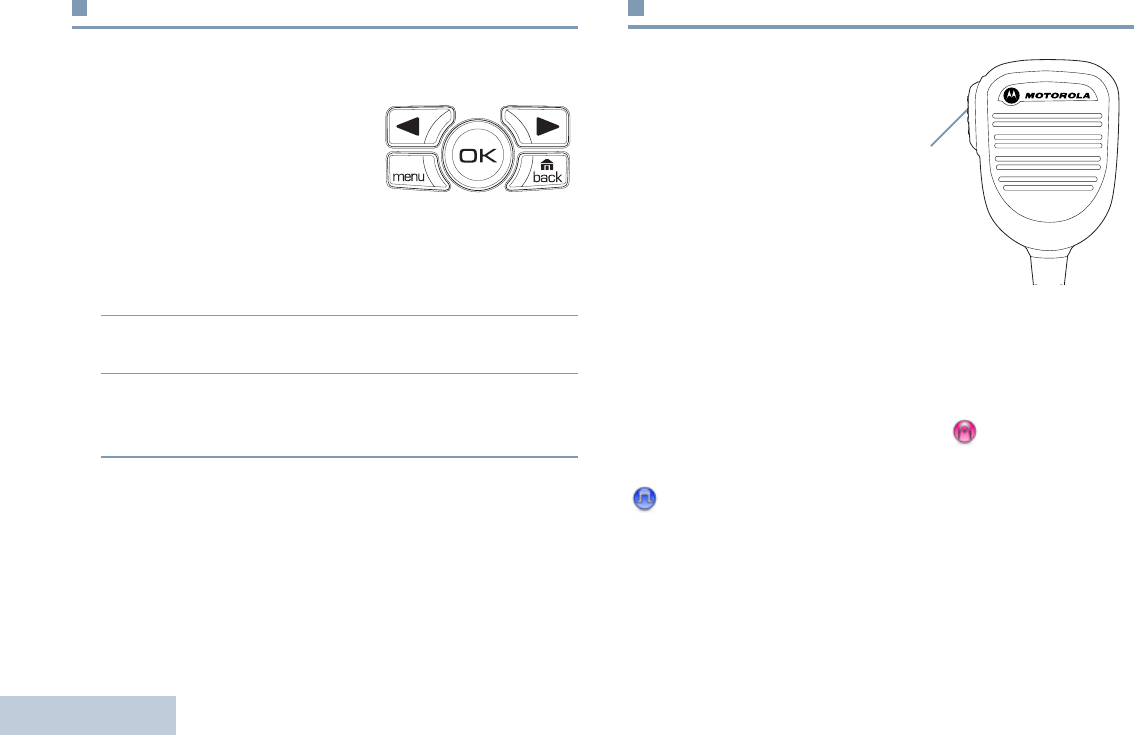

Accessing the Programmed Functions
You can access various radio functions through one of the
following ways:
•A short or long press of the
relevant programmable buttons.
OR
•Use the Menu Navigation Buttons as follows:
1To access the menu, press the S button. Press the
appropriate Menu Scroll button (Por Q) to access
the menu functions.
2To select a function or enter a sub-menu, press the N
button.
3To go back one menu level, or to return to the previous
screen, press the R button. Long press the R button
to return to the Home screen.
The Menu Navigation Buttons are also available on a keypad
microphone (see Using the Keypad on page 72).
NOTE: Your radio automatically exits the menu after a period
of inactivity and returns to your Home screen.
Push-To-Talk (PTT) Button
The PTT button on the side of
the microphone serves two
basic purposes:
•While a call is in progress,
the PTT button allows the
radio to transmit to other
radios in the call.
Press and hold down PTT
button to talk. Release the
PTT button to listen.
The microphone is activated when the PTT button is pressed.
•While a call is not in progress, the PTT button is used to make
a new call (see Making a Radio Call on page 18).
If the Talk Permit Tone (see Turning the Talk Permit Tone On
or Off on page 67) or the PTT Sidetone is enabled, wait
until the short alert tone ends before talking.
During a call, if the Channel Free Indication feature is
enabled on your radio (programmed by your dealer), you
will hear a short alert tone the moment the target radio (the
radio that is receiving your call) releases the PTT button,
indicating the channel is free for you to respond.
PTT
Button
NAG_6880309T15.book Page 6 Friday, January 28, 2011 10:48 AM
Identifying Radio Controls
English
7
You will also hear the Channel Free Indication tone if your
call is interrupted, for example when the radio receives an
Emergency Call.
You can turn off the Channel Free Indication tone or the
PTT Sidetone by disabling all radio tones and alerts
(see Turning the Radio Tones/Alerts On or Off on
page 66).
Switching Between Conventional Analog
and Digital Mode
Each channel in your radio can
be configured as a conventional
analog or conventional digital
channel. Use the Channel
Rocker to switch between an
analog or a digital channel.
When switching from digital to analog mode, certain features
are unavailable. Icons for the digital features (such as
Messages) reflect this change by appearing ‘grayed out’.
Disabled features are hidden in the menu.
Your radio also has features available in both analog and digital
mode. However, the minor differences in the way each feature
works does NOT affect the performance of your radio.
NOTE: Your radio also switches between digital and analog
modes during a dual mode scan (see Scan on
page 30).
Capacity Plus
Capacity Plus is a single-site trunking configuration of the
MOTOTRBO radio system, which uses a pool of channels to
support hundreds of users and up to 254 Groups. This feature
allows your radio to efficiently utilize the available number of
programmed channels while in Repeater Mode.
You ca n only access channel(s) with Capacity Plus via the
Channel Rocker, while features supported in Capacity Plus can
be accessed via the menu and/or a programmable button press.
Icons of features not applicable to Capacity Plus will not be
available in the menu. You will hear a negative indicator tone if
you access a feature not applicable to Capacity Plus via a
programmable button press.
Your radio also has features that are available in both
conventional digital mode and Capacity Plus. However, the
minor differences in the way each feature works does NOT
affect the performance of your radio.
Check with your dealer or system administrator for more
information on this system.
P 1
O K
P 2
P 3
P 4
CH+
BACK
MENU
CH -
Channel Rocker
NAG_6880309T15.book Page 7 Friday, January 28, 2011 10:48 AM
Identifying Status Indicators
English
8
Identifying Status Indicators
Your radio indicates its operational status through the following:
Display Icons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 8
Call Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 9
Sent Item Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 10
LED Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 10
Audio Tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 11
Indicator Tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 12
Display Icons
The liquid crystal display (LCD) of your radio shows the radio
status, text entries, and menu entries.
The following are the icons that appear on the radio’s display.
Received Signal Strength Indicator (RSSI)
The number of bars displayed represents the radio
signal strength. Four bars indicates the strongest
signal. This icon is only displayed while receiving.
Monitor
Selected channel is being monitored.
Power Level
Radio is set at Low power.
Radio is set at High power.
Tones Disable
Tones are turned off.
Option Board
The Option Board is enabled.
Option Board Non-Function
The Option Board is disabled.
GPS Available
The GPS feature is enabled. The icon stays lit when
a position fix is available.
GPS Not Available/Out of Range
The GPS feature is enabled but is not receiving data
from the satellite.
Scan*
Scan feature is activated.
Priority Scan*
Radio detects activity on channel/group designated
as Priority 1 (if • is blinking) or Priority 2 (if • is
steady).
or
* Not applicable in Capacity Plus
NAG_6880309T15.book Page 8 Friday, January 28, 2011 10:48 AM
Identifying Status Indicators
English
9

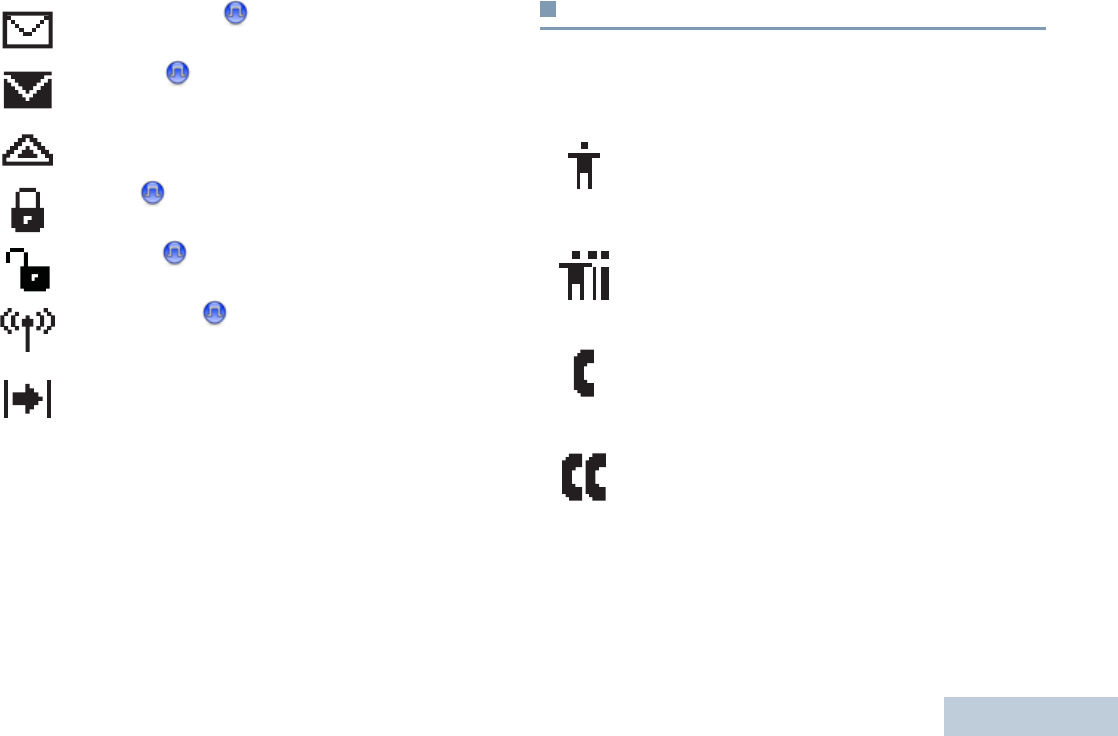

Call Icons
The following icons appear on the radio’s display during a call.
These icons also appear in the Contacts list to indicate alias or
ID type.
Unread Message
User has unread message(s) in the Inbox.
Inbox Full
User’s Inbox is full.
Emergency
Radio is in Emergency mode.
Secure
The Privacy feature is enabled.
Unsecure
The Privacy feature is disabled.
Site Roaming*
The auto roaming feature is enabled.
Talkaround*
In the absence of a repeater, radio is currently
configured for direct radio to radio communication.
Private Call
Indicates a Private Call in progress. In the Contacts
list, it indicates a subscriber alias (name) or ID
(number).
Group Call/All Call
Indicates a Group Call or All Call in progress. In the
Contacts list, it indicates a group alias (name) or ID
(number).
Phone Call as Private Call
Indicates a Phone Call as Private Call in progress. In
the Contacts list, it indicates a subscriber alias
(name) or ID (number).
Phone Call as Group/All Call
Indicates a Phone Call as Group/All Call in progress.
In the Contacts list, it indicates a group alias (name)
or ID (number).
* Not applicable in Capacity Plus
NAG_6880309T15.book Page 9 Friday, January 28, 2011 10:48 AM
Identifying Status Indicators
English
10
Sent Item Icons
The following icons appear at the top right corner of the radio’s
display in the Sent Items folder.
LED Indicators
LED indicators show the operational status of your radio.
Blinking red – Radio is receiving an Emergency transmission
or has failed the self-test upon powering up.
Solid yellow – Radio is monitoring a channel.
Blinking yellow – Radio is scanning for activity or receiving a
Call Alert.
Double blinking yellow – Radio is no longer connected to the
repeater while in Capacity Plus, all Capacity Plus channels are
currently busy or in locked state.
Sent Successfully
The text message is sent successfully.
Send Failed
The text message cannot be sent.
In-Progress
•The text message to a group alias or ID is pending
transmission.
•The text message to a subscriber alias or ID is
pending transmission, followed by waiting for
acknowledgement.
P 1
O K
P 2
P 3
P 4
CH+
BACK
MENU
CH -
Red
Yellow
Green
NAG_6880309T15.book Page 10 Friday, January 28, 2011 10:48 AM
Identifying Status Indicators
English
11
Rapidly blinking yellow – Radio is actively searching for a new
site.
Solid green – Radio is transmitting.
Blinking green – Radio is powering up, receiving a non-
privacy-enabled call or data, or detecting activity over the air.
Rapidly blinking green – Radio is receiving a privacy-enabled
call or data.
NOTE: While in conventional mode, when the green LED
blinks, it indicates the radio detects activity over the air.
Due to the nature of the digital protocol, this activity
may or may not affect the radio's programmed channel.
For Capacity Plus, there is no LED indication when the
radio is detecting activity over the air.
Upon a PTT button press, if the radio is programmed
for polite operation, the radio automatically determines
whether a transmission is permitted via a Talk Permit or
a Talk Denial tone.

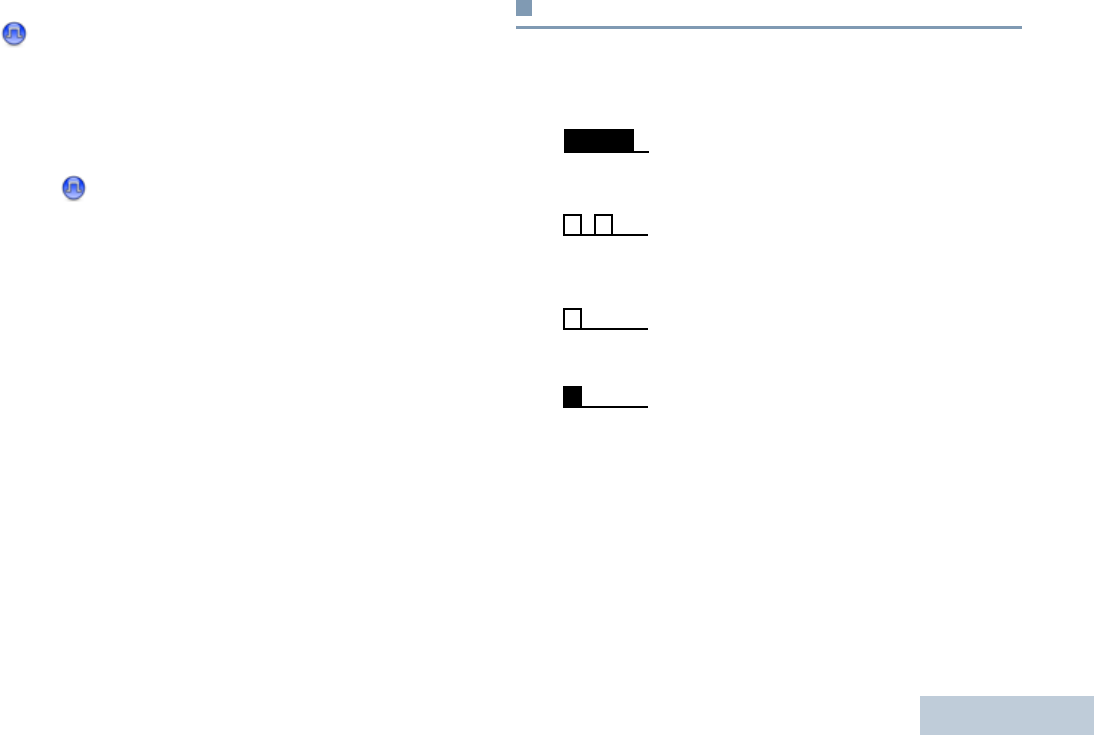

Audio Tones
Alert tones provide you with audible indications of the radio’s
status or the radio’s response to data received.
Continuous Tone A monotone sound. Sounds
continuously until termination.
Periodic Tone Sounds periodically depending on the
duration set by the radio. Tone starts,
stops, and repeats itself.
Repetitive Tone A single tone that repeats itself until it is
terminated by the user.
Momentary Tone Sounds only once for a short period of
time defined by the radio.
NAG_6880309T15.book Page 11 Friday, January 28, 2011 10:48 AM
Receiving and Making Calls
English
12
Indicator Tones
High pitched tone Low pitched tone
Receiving and Making Calls
Once you understand how your MOTOTRBO Mobile is
configured, you are ready to use your radio.
Use this navigation guide to familiarize yourself with the basic
Call features:
Selecting a Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 12
Selecting a Zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 13
Selecting a Radio Channel, Subscriber Alias or ID,
or Group Alias or ID . . . . . . . . . . . . . . . . . . . . . . . . . page 13
Receiving and Responding to a Radio Call . . . . . . . . . page 14
Making a Radio Call. . . . . . . . . . . . . . . . . . . . . . . . . . . page 18
Stopping a Radio Call . . . . . . . . . . . . . . . . . . . . . . . . . page 22
Talkaround . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 23
Permanent Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . page 23
Selecting a Site
A site is a specific area where a base station is placed to
provide optimal coverage for the radio.
If enabled, your radio is able to connect to different available
sites via an Internet Protocol (IP) network.
See IP Site Connect on page 57 for more information.
Positive Indicator Tone
Negative Indicator Tone
NAG_6880309T15.book Page 12 Friday, January 28, 2011 10:48 AM
Receiving and Making Calls
English
13
Selecting a Zone
A zone is a group of channels. Your radio supports up to 250
zones, with a maximum of 160 channels per zone.
Use the following procedure to select a zone.
Procedure:
Press the programmed Zone button and proceed to Step 3.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Zone and press N to select.
3The current zone is displayed and indicated by a 9.
4Por Q to the required zone and press N to select.
5The display shows <Zone> Selected momentarily and
returns to the selected zone screen.
Selecting a Radio Channel, Subscriber
Alias or ID, or Group Alias or ID
Procedure:
Once the required zone is displayed (if you have multiple
zones in your radio), press the Channel Rocker to select the
channel, subscriber alias or ID, or group alias or ID.
OR
Press the programmed One Touch Access button to select
the preset channel assigned to the button.
P 1
O K
P 2
P 3
P 4
CH+
BACK
MENU
CH -
Channel Rocker
NAG_6880309T15.book Page 13 Friday, January 28, 2011 10:48 AM
Receiving and Making Calls
English
14

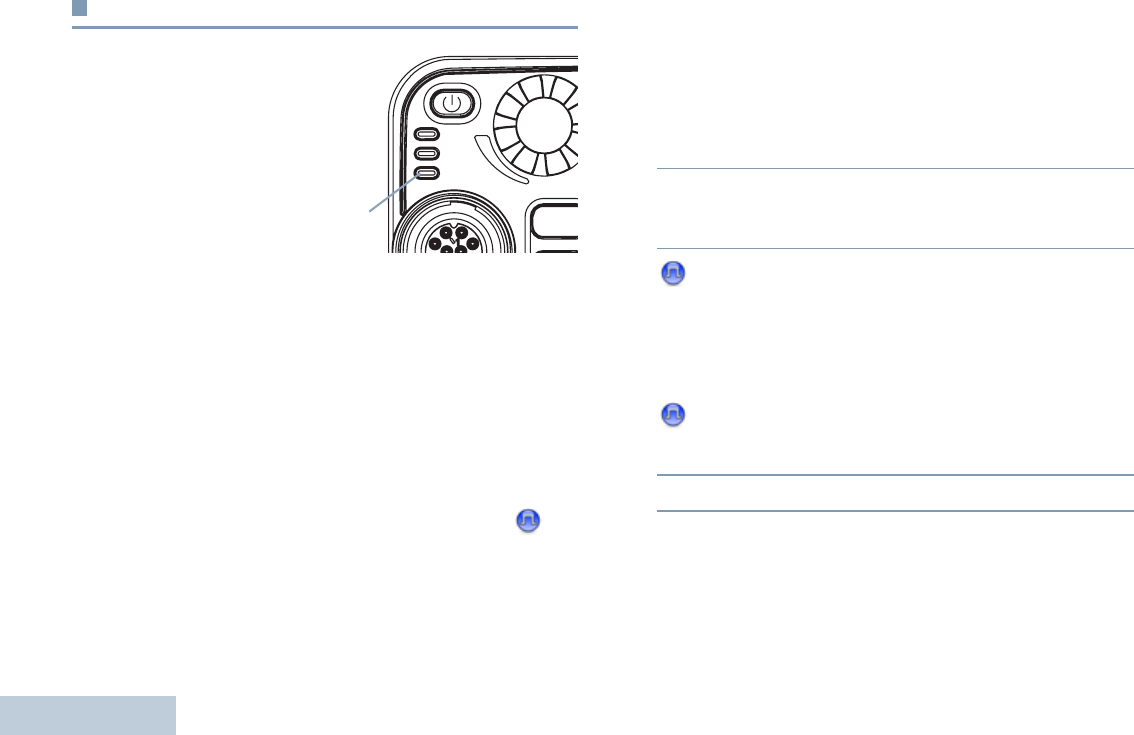

Receiving and Responding to a Radio Call
Once the channel, subscriber
alias or ID, or group alias or ID
is displayed, you can proceed
to receive and respond to
calls.
The green LED lights up
while the radio is transmitting
and blinks when the radio is
receiving.
NOTE: The green LED lights up while the radio is transmitting
and blinks rapidly when the radio is receiving a privacy-
enabled call.
To unscramble a privacy-enabled call, your radio must
have the same Privacy Key, or the same Key Value and
Key ID (programmed by your dealer) as the
transmitting radio (the radio you are receiving the call
from).
See Privacy on page 56 for more information.
Receiving and Responding to a Group Call
To receive a call from a group of users, your radio must be
configured as part of that group.
Procedure:
When you receive a Group Call (while on the Home screen):
1The green LED blinks.
2The first line of the display shows the caller alias or ID, and
the RSSI icon. The second line displays the group alias or
ID, and the Group Call icon (in Digital mode only).
3 If the Channel Free Indication feature is enabled, you
will hear a short alert tone the moment the transmitting radio
releases the PTT button, indicating the channel is free for
you to respond.
Press the PTT button to respond to the call.
OR
If the Voice Interrupt feature is enabled, press the PTT
button to stop the current call from the transmitting radio and
free the channel for you to talk/respond.
4The green LED lights up.
P 1
O K
P 2
P 3
P 4
CH+
BACK
MENU
CH -
Green
LED
NAG_6880309T15.book Page 14 Friday, January 28, 2011 10:48 AM
Receiving and Making Calls
English
15
5Wait for the Talk Permit Tone to finish (if enabled) and
speak clearly into the microphone.
OR
Wait for the PTT Sidetone to finish (if enabled) and
speak clearly into the microphone.
6Release the PTT button to listen.
7If there is no voice activity for a predetermined period of
time, the call ends.
See Making a Group Call on page 19 for details on making a
Group Call.
NOTE: If the radio receives a Group Call while not on the
Home screen, it remains on its current screen prior to
answering the call.
Long press the R button to go to Home screen to
view the caller alias before replying.
Receiving and Responding to a Private Call
A Private Call is a call from an individual radio to another
individual radio.
There are two types of Private Calls. The first type, where a
radio presence check is performed prior to setting up the call,
while the other sets up the call immediately.
When your radio is checked, the green LED blinks.
Only one of these call types can be programmed to your radio
by your dealer.
Procedure:
When you receive a Private Call:
1The green LED blinks.
2The first line of the display shows the subscriber alias or ID,
and the RSSI icon. The second line displays Private Call
and the Private Call icon.
NAG_6880309T15.book Page 15 Friday, January 28, 2011 10:48 AM
Receiving and Making Calls
English
16
3If the Channel Free Indication feature is enabled, you will
hear a short alert tone the moment the transmitting radio
releases the PTT button, indicating the channel is free for
you to respond.
Press the PTT button to respond to the call.
OR
If the Voice Interrupt feature is enabled, press the PTT
button to stop the current call from the transmitting radio and
free the channel for you to talk/respond.
4The green LED lights up.
5Wait for the Talk Permit Tone to finish (if enabled) and speak
clearly into the microphone.
6Release the PTT button to listen.
7If there is no voice activity for a predetermined period of
time, the call ends.
8You hear a short tone. The display shows Call Ended.
See Making a Private Call on page 20 for details on making a
Private Call.
Receiving an All Call
An All Call is a call from an individual radio to every radio on the
channel. It is used to make important announcements requiring
the user’s full attention.
Procedure:
When you receive an All Call:
1A tone sounds and the green LED blinks.
2The first line of the display shows the caller alias, and the
RSSI icon. The second line displays All Call and the All
Call icon.
3Once the All Call ends, the radio returns to the previous
screen before receiving the call.
If the Channel Free Indication feature is enabled, you
will hear a short alert tone the moment the transmitting radio
releases the PTT button, indicating the channel is now
available for use.
You cannot respond to an All Call.
See Making an All Call on page 21 for details on making an All
Call.
NOTE: The radio stops receiving the All Call if you switch to a
different channel while receiving the call.
During an All Call, you will not be able to continue with
any menu navigation or editing until the call ends.
NAG_6880309T15.book Page 16 Friday, January 28, 2011 10:48 AM
Receiving and Making Calls
English
17
Receiving and Responding to a Phone Call
NOTE: If Phone Call capability is enabled, you are able to
respond to a Phone Call. Check with your dealer or
system administrator for more information.
Phone Call as Private Call
Procedure:
When you receive a Phone Call as a Private Call:
1The first line of the display shows the RSSI icon. The
second line of the display shows Phone Call and the
Phone Call icon.
2Press the PTT button to talk and release it to listen. The
RSSI icon disappears during transmission.
3Press R to end the call.
If Phone Call capability is not enabled in your radio, the first line
of the display shows
Unavailable
and your radio mutes the
call. Your radio returns to the previous screen when the call
ends.
Phone Call as Group Call
Procedure:
When you receive a Phone Call as a Group Call:
1The first line of the display shows the RSSI icon. The
second line of the display shows Phone Call which
alternates with the group alias, and the Phone Call icon.
2Press the PTT button to talk and release it to listen. The
RSSI icon disappears during transmission.
3Press R to end the call.
If Phone Call capability is not enabled in your radio, the first line
of the display shows
Unavailable
and your radio mutes the
call. Your radio returns to the previous screen when the call
ends.
NAG_6880309T15.book Page 17 Friday, January 28, 2011 10:48 AM
Receiving and Making Calls
English
18
Phone Call as All Call
Procedure:
When you receive a Phone Call as an All Call:
1The first line of the display shows the RSSI icon. The
second line of the display shows Phone Call which
alternates with All Call, and the Phone Call icon.
2Press the PTT button to talk and release it to listen. The
RSSI icon disappears during transmission.
3Press R to end the call.
If Phone Call capability is not enabled in your radio, the first line
of the display shows
Unavailable
and your radio mutes the
call. Your radio returns to the previous screen when the call
ends.
NOTE: When you receive a Phone Call as an All Call, you can
respond to the call or end the call, only if an All Call
type is assigned to the channel.
Making a Radio Call
You can select a channel, subscriber alias or ID, or group alias
or ID by using:
•The Channel Rocker
•A programmed One Touch Access button
•The programmed number keys – This method is for Group,
Private and All Calls only and is used with the keypad
microphone (see Making a Group, Private or All Call with
the Programmable Number Key on page 79).
•The Contacts list (see Contacts Settings on page 32)
•Manual Dial (via Contacts) – This method is for Private Calls
only and is dialed using a keypad microphone (see Making a
Private Call by Manual Dial on page 75)
NOTE: Your radio must have the Privacy feature enabled on
the channel to send a privacy-enabled transmission.
Only target radios with the same Privacy Key as your
radio will be able to unscramble the transmission.
See Privacy on page 56 for more information.
NAG_6880309T15.book Page 18 Friday, January 28, 2011 10:48 AM
Receiving and Making Calls
English
19
Making a Call with the Channel Rocker
Making a Group Call
To make a call to a group of users, your radio must be
configured as part of that group.
Procedure:
1Press the Channel Rocker to select the channel with the
active group alias or ID.
2Press the PTT button to make the call. The green LED lights
up. The display shows the group alias or ID, and the Group
Call icon.
3Wait for the Talk Permit Tone to finish (if enabled) and speak
clearly into the microphone.
OR
Wait for the PTT Sidetone to finish (if enabled) and
speak clearly into the microphone.
4Release the PTT button to listen. When the target radio
responds, the green LED blinks. You see the Group Call
icon, the group alias or ID, and transmitting radio alias
or ID on your display.
5 If the Channel Free Indication feature is enabled, you
will hear a short alert tone the moment the target radio
releases the PTT button, indicating the channel is free for
you to respond. Press the PTT button to respond.
OR
If there is no voice activity for a predetermined period of
time, the call ends.
6Radio returns to the screen you were on prior to initiating the
call.
You can also make a Group Call via Contacts (see Making a
Group Call from Contacts on page 33).
NAG_6880309T15.book Page 19 Friday, January 28, 2011 10:48 AM
Receiving and Making Calls
English
20
Making a Private Call
While you can receive and/or respond to a Private Call
initiated by an authorized individual radio, your radio must
be programmed for you to initiate a Private Call.
You will hear a negative indicator tone, when you make a
Private Call via the Menu, Call Log, Contacts list, One Touch
Access button, the programmed number keys, or the Channel
Rocker, if this feature is not enabled.
Use the Text Message or Call Alert features to contact an
individual radio. See Text Messaging Features on page 47 or
Call Alert Operation on page 40 for more information.
Procedure:
1Press the Channel Rocker to select the channel with the
active subscriber alias or ID.
2Press the PTT button to make the call. The green LED lights
up. The first line displays the subscriber alias or ID. The
second line displays Private Call and the Private Call
icon.
3Wait for the Talk Permit Tone to finish (if enabled) and
speak clearly into the microphone.
4Release the PTT button to listen. When the target radio
responds, the green LED blinks.
5If the Channel Free Indication feature is enabled, you will
hear a short alert tone the moment the target radio releases
the PTT button, indicating the channel is free for you to
respond. Press the PTT button to respond.
OR
If there is no voice activity for a predetermined period of
time, the call ends.
6You hear a short tone. The display shows Call Ended.
You can also make a Private Call via Contacts (see Making a
Private Call from Contacts on page 34), manually dial a
Private Call (see Making a Private Call by Manual Dial on
page 75) or perform a quick alphanumeric search for the
required target alias via a keypad entry (see Making a Group,
Private, Phone or All Call by Alias Search on page 84).
NAG_6880309T15.book Page 20 Friday, January 28, 2011 10:48 AM
Receiving and Making Calls
English
21
Making an All Call
This feature allows you to transmit to all users on the channel.
Your radio must be programmed to allow you to use this feature.
Procedure:
1Press the Channel Rocker to select the channel with the
active All Call group alias or ID.
2Press the PTT button to make the call. The green LED lights
up. The display shows the All Call group alias or ID, and the
All Call icon.
3Wait for the Talk Permit Tone to finish (if enabled) and speak
clearly into the microphone.
OR
Wait for the PTT Sidetone to finish (if enabled) and
speak clearly into the microphone.
Users on the channel cannot respond to an All Call.
Making a Group or Private Call with the One Touch
Access Button
The One Touch Access feature allows you to make a Group,
Private or Phone Call to a predefined alias or ID easily. This
feature can be assigned to a short or long programmable button
press.
You ca n ONLY have one alias or ID assigned to a One Touch
Access button. Your radio can have multiple One Touch
Access buttons programmed.
Procedure:
1Press the programmed One Touch Access button to make
a Group or Private Call to the predefined alias or ID.
2Press the PTT button to make the call. The green LED lights
up. The display shows the group/subscriber alias or ID, and
the Group/Private Call icon.
3Wait for the Talk Permit Tone to finish (if enabled) and
speak clearly into the microphone.
OR
For Group Call only: Wait for the PTT Sidetone to
finish (if enabled) and speak clearly into the microphone.
NAG_6880309T15.book Page 21 Friday, January 28, 2011 10:48 AM
Receiving and Making Calls
English
22
4Release the PTT button to listen. When the target radio
responds, the green LED blinks.
5If the Channel Free Indication feature is enabled, you will
hear a short alert tone the moment the target radio releases
the PTT button, indicating the channel is free for you to
respond. Press the PTT button to respond.
OR
If there is no voice activity for a predetermined period of
time, the call ends.
6Radio returns to the screen you were on prior to initiating the
call.
For a Private Call, you hear a short tone when the call ends.
Stopping a Radio Call
This feature allows you to stop an ongoing Group or Private Call
to free the channel for transmission. For example, when a radio
experiences a “stuck microphone” condition where the PTT
button is inadvertently pressed by the user.
Your radio must be programmed to allow you to use this feature.
Procedure:
While on the required channel:
1Press the programmed Transmit Interrupt Remote Dekey
button.
2The display shows Remote Dekey.
3Wait for acknowledgment.
4The radio sounds a positive indicator tone and the display
shows Remote Dekey Success, indicating that the channel
is now free.
OR
The radio sounds a negative indicator tone and the display
shows Remote Dekey Failed.
The display shows
Call Interrupted
, and the radio sounds a
negative indicator tone until you release the PTT button, if it is
transmitting an interruptible call that is stopped via this feature.
NAG_6880309T15.book Page 22 Friday, January 28, 2011 10:48 AM
Receiving and Making Calls
English
23
Talkaround
You can continue to communicate when your repeater is not
operating, or when your radio is out of the repeater’s range but
within talking range of other radios. This is called “talkaround”.
NOTE: This feature is not applicable in Capacity Plus.
Procedure:
Press the programmed Repeater/Talkaround button to toggle
between talkaround and repeater modes.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Settings and press N to select.
4Por Q to Talkaround and press N to select.
5You see Turn On if the radio is currently in Repeater mode.
OR
You see Turn Off if the radio is currently in Talkaround
mode.
6Press N to select.
7The display shows Talkaround On.
OR
The display shows Talkaround Off.
8The screen automatically returns to the previous menu.
The Talkaround setting is retained even after powering down.
Permanent Monitor
Use the Permanent Monitor feature to continuously monitor a
selected channel for activity.
NOTE: This feature is not applicable in Capacity Plus.
Procedure:
1Press the programmed Permanent Monitor button.
2Radio sounds an alert tone, the yellow LED lights up, and
the display shows Permanent Monitor On. The monitor
icon appears on the display.
3Press the programmed Permanent Monitor button to exit
Permanent Monitor mode.
4Radio sounds an alert tone, the yellow LED turns off, and
display shows Permanent Monitor Off.
NAG_6880309T15.book Page 23 Friday, January 28, 2011 10:48 AM
Advanced Features
English
24
Advanced Features
Use this navigation guide to learn more about advanced
features available with your radio:
Radio Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 24
Remote Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 26
Scan Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 28
Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 30
Contacts Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 32
Call Indicator Settings . . . . . . . . . . . . . . . . . . . . . . . . . page 36
Call Log Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 39
Call Alert Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . page 40
Emergency Operation . . . . . . . . . . . . . . . . . . . . . . . . . page 42
Text Messaging Features . . . . . . . . . . . . . . . . . . . . . . page 47
Privacy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 56
IP Site Connect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 57
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 59
Lone Worker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 61
Third Party Peripherals Connection Modes . . . . . . . . page 62
Utilities. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 63
Radio Check
If enabled, this feature allows you to determine if another radio
is active in a system without disturbing the user of that radio. No
audible or visual notification is shown on the target radio.
This feature is only applicable for subscriber aliases or IDs.
Sending a Radio Check
Procedure:
Use the programmed Radio Check button.
1Press the programmed Radio Check button.
2Por Q to the required subscriber alias or ID and press
N to select.
3The display shows Radio Check: <Subscriber Alias
or ID>, indicating that Radio Check is in progress. The
green LED lights up.
4Wait for acknowledgement.
NAG_6880309T15.book Page 24 Friday, January 28, 2011 10:48 AM
Advanced Features
English
25
5If the target radio is active in the system, a tone sounds and
the display briefly shows Target Radio Available.
OR
If the target radio is not active in the system, a tone sounds
and the display briefly shows Target Radio Not
Available.
6Radio returns to the subscriber alias or ID screen.
OR
Procedure:
Use the menu.
1S to access the menu.
2Por Q to Contacts and press N to select.
3Por Q to the required subscriber alias or ID and press
N to select.
4Por Q to Radio Check and press N to select.
5The display shows Radio Check: <Subscriber Alias or
ID>, indicating that Radio Check is in progress. The green
LED lights up.
6Wait for acknowledgement.
7If the target radio is active in the system, a tone sounds and
the display briefly shows Target Radio Available.
OR
If the target radio is not active in the system, a tone sounds
and the display briefly shows Target Radio Not
Available.
8Radio returns to the subscriber alias or ID screen.
If the R button is pressed when the radio is waiting for
acknowledgement, a tone sounds, and the radio terminates all
retries and exits Radio Check mode.
You can also initiate Radio Check via manual dial (see
Initiating a Radio Check by Manual Dial on page 74).
NAG_6880309T15.book Page 25 Friday, January 28, 2011 10:48 AM
Advanced Features
English
26
Remote Monitor
Use the Remote Monitor feature to turn on the microphone of a
target radio (subscriber IDs only). No audible or visual indication
is given to the target radio. You can use this feature to monitor,
remotely, any audible activity surrounding the target radio.
Your radio must be programmed to allow you to use this feature.
Initiating Remote Monitor
Procedure:
Use the programmed Remote Monitor button.
1Press the programmed Remote Monitor button.
2Por Q to the required subscriber alias or ID and press
N to select.
3Radio sounds an alert tone and the green LED blinks.
4Wait for acknowledgment.
5The display shows Remote Monitor Successful.
OR
The display shows Remote Monitor Failed.
6If successful:
The radio starts receiving audio from the monitored radio for
a programmed duration.
Once the timer expires, the radio sounds an alert tone and
the green LED turns off. The display shows Remote
Monitor Ended.
OR
If unsuccessful:
The radio repeats the attempt until the programmed number
of tries expires.
OR
Procedure:
Use the menu.
1S to access the menu.
2Por Q to Contacts and press N to select.
3Por Q to the required subscriber alias or ID and press
N to select.
4Por Q to Remote Mon. and press N to select.
5Radio sounds an alert tone and the green LED blinks.
6Wait for acknowledgment.
NAG_6880309T15.book Page 26 Friday, January 28, 2011 10:48 AM
Advanced Features
English
27
7The display shows Remote Monitor Successful.
OR
The display shows Remote Monitor Failed.
8If successful:
The radio starts receiving audio from the monitored radio for
a programmed duration.
Once the timer expires, the radio sounds an alert tone and
the green LED turns off. The display shows Remote
Monitor Ended.
OR
If unsuccessful:
The radio repeats the attempt until the programmed number
of tries expires.
You can also manually select a target radio address (see
Initiating Remote Monitor by Manual Dial on page 74).
Stopping Remote Monitor
Procedure:
1Press the programmed Transmit Interrupt Remote Dekey
button.
2The display shows Remote Dekey.
3Wait for acknowledgment.
4The radio sounds a positive indicator tone and the display
shows Remote Dekey Success, indicating that the channel
is now free.
OR
The radio sounds a negative indicator tone and the display
shows Remote Dekey Failed.
NAG_6880309T15.book Page 27 Friday, January 28, 2011 10:48 AM
Advanced Features
English
28
Scan Lists
Scan lists are created and assigned to individual channels/
groups. Your radio scans for voice activity by cycling through the
channel/group sequence specified in the scan list for the current
channel/group.
Your radio can support up to 250 scan lists, with a maximum of
16 members in a list. Each scan list supports a mixture of both
analog and digital entries.
You can add, delete, or prioritize channels by editing a scan list.
NOTE: This feature is not applicable in Capacity Plus.
Viewing an Entry in the Scan List
Procedure:
1S to access the menu.
2Por Q to Scan and press N to select.
3Por Q to View/Edit List and press N to select.
4Use Por Q to view each member on the list.
The priority icon appears left of the member’s alias, if set, to
indicate whether the member is on a Priority 1 or Priority 2
channel list. You cannot have multiple Priority 1 or Priority 2
channels in a scan list.
There is no priority icon if priority is set to None.
Editing the Scan List
Adding a New Entry to the Scan List
Procedure:
1S to access the menu.
2Por Q to Scan and press N to select.
3Por Q to View/Edit List and press N to select.
4Por Q to Add Member and press N to select.
5Por Q to the required alias or ID and press N to
select.
6Por Q to the required priority level and press N to
select.
7The display shows Entry Saved, followed immediately by
Add Another?.
8Por Q to Yes and press N to select, to add another
entry, and repeat Steps 5 and 6.
OR
Por Q to No and press N to select to save the current
list.
NAG_6880309T15.book Page 28 Friday, January 28, 2011 10:48 AM
Advanced Features
English
29
Deleting an Entry from the Scan List
Procedure:
1S to access the menu.
2Por Q to Scan and press N to select.
3Por Q to View/Edit List and press N to select.
4Por Q to the required alias or ID and press N to
select.
5Por Q to Delete and press N to select.
6At Delete Entry?, Por Q to Yes and press N to
select, to delete the entry. The display shows Entry
Deleted.
OR
Por Q to No and press N to select to return to the
previous screen.
7Repeat Steps 4 to 6 to delete other entries.
After deleting all required aliases or IDs, long press R to
return to the Home screen.
Setting and Editing Priority for an Entry in the Scan
List
Procedure:
1S to access the menu.
2Por Q to Scan and press N to select.
3Por Q to View/Edit List and press N to select.
4Por Q to the required alias or ID and press N to
select.
5Por Q to Edit Priority and press N to select.
6Por Q to the required priority level and press N to
select.
7The display shows Entry Saved before returning to the
previous screen.
8The priority icon appears left of the member’s name.
There is no priority icon if priority is set to None.
NAG_6880309T15.book Page 29 Friday, January 28, 2011 10:48 AM
Advanced Features
English
30
Scan
When you start a scan, your radio cycles through the
programmed scan list for the current channel looking for voice
activity.
The yellow LED blinks and you see the scan icon on the display.
During a dual mode scan, if you are on a digital channel, and
your radio locks onto an analog channel, it automatically
switches from digital mode to analog mode for the duration of
the call. This is also true for the reverse.
There are two ways of initiating scan:
•Main Channel Scan (Manual): Your radio scans all the
channels/groups in your scan list. On entering scan, your
radio may – depending on the settings – automatically start
on the last scanned “active” channel/group or on the channel
where scan was initiated.
•Auto Scan (Automatic): Your radio automatically starts
scanning when you select a channel/group that has Auto
Scan enabled.
NOTE: This feature is not applicable in Capacity Plus.
Starting and Stopping Scan
Procedure:
Press the programmed Scan button to start or stop Scan. OR
Follow the procedure below.
1Use the Channel Rocker to select a channel programmed
with a scan list.
2S to access the menu.
3Por Q to Scan and press N to select.
4The display shows Turn On if scan is disabled.
OR
The display shows Turn Off if scan is enabled.
5Press N to select.
6The yellow LED blinks and the scan icon is displayed when
Scan is enabled.
OR
The LED turns off and the scan icon is not displayed when
Scan is disabled.
While scanning, the radio will only accept data (e.g. text
message, location, telemetry, or PC data) if received on its
Selected Channel.
NAG_6880309T15.book Page 30 Friday, January 28, 2011 10:48 AM
Advanced Features
English
31
Responding to a Transmission During a Scan
During scanning, your radio stops on a channel/group where
activity is detected. The radio stays on that channel for a
programmed time period known as “hang time”.
Procedure:
1 If the Channel Free Indication feature is enabled, you
will hear a short alert tone the moment the transmitting radio
releases the PTT button, indicating the channel is free for
you to respond.
2Press the PTT button during hang time. The green LED
lights up.
3Wait for the Talk Permit Tone to finish (if enabled) and speak
clearly into the microphone.
OR
Wait for the PTT Sidetone to finish (if enabled) and
speak clearly into the microphone.
4Release the PTT button to listen.
5If you do not respond within the hang time, the radio returns
to scanning other channels/groups.
Deleting a Nuisance Channel
If a channel continually generates unwanted calls or noise
(termed a “nuisance” channel), you can temporarily remove the
unwanted channel from the scan list.
This capability does not apply to the channel designated as the
Selected Channel.
Procedure:
1When your radio “locks on to” an unwanted or nuisance
channel, press the programmed Nuisance Channel Delete
button until you hear a tone.
2Release the Nuisance Channel Delete button. The
nuisance channel is deleted.
Deleting a “nuisance” channel is only possible through the
programmed Nuisance Channel Delete button. This feature is
not accessible through the menu.
NAG_6880309T15.book Page 31 Friday, January 28, 2011 10:48 AM
Advanced Features
English
32
Restoring a Nuisance Channel
Procedure:
To restore the deleted nuisance channel, do one of the
following:
•Turn the radio off and then power it on again, OR
•Stop and restart a scan via the programmed Scan button or
menu, OR
•Change the channel via the Channel Rocker.
Contacts Settings
Contacts provides “address-book” capabilities on your radio.
Each entry corresponds to an alias or ID that you use to initiate
a call.
Each entry, depending on context, associates with one of five
types of calls: Group Call, Private Call, All Call, PC Call or
Dispatch Call.
PC Call and Dispatch Call are data-related. They are only
available with the applications. Refer to the data applications
documentation for further details.
NOTE: If the Privacy feature is enabled on a channel, you can
make privacy-enabled Group Call, Private Call, and All
Call on that channel. Only target radios with the same
Privacy Key OR the same Key Value and
Key ID as your radio will be able to unscramble the
transmission.
See Privacy on page 56 for more information.
Additionally, Contacts menu allows you to assign each entry to a
programmable number key or more on a keypad microphone. If
an entry is assigned to a number key, your radio can perform a
quick dial on the entry.
NAG_6880309T15.book Page 32 Friday, January 28, 2011 10:48 AM
Advanced Features
English
33
Your radio supports two Contacts lists, one for Analog contacts
and one for Digital contacts, with a a maximum of 500 members
for each Contacts list.
Each entry within Contacts displays the following information:
•Call Type
•Call Alias
•Call ID
NOTE: You can add, delete, or edit subscriber aliases or IDs
for the Digital Contacts list.
For the Analog Contacts list, you can only view the list
and initiate a Call Alert. Adding, deleting, and editing
capabilities can only be performed by your dealer.
Making a Group Call from Contacts
Procedure:
1S to access the menu.
2Por Q to Contacts and press N to select.The
entries are alphabetically sorted.
3Por Q to the required group alias or ID.
4Press the PTT button to make the call. The green LED lights
up. The display shows the group alias or ID, and the Group
Call icon.
5Wait for the Talk Permit Tone to finish (if enabled) and speak
clearly into the microphone.
OR
Wait for the PTT Sidetone to finish (if enabled) and
speak clearly into the microphone.
6Release the PTT button to listen. When any user in the
group responds, the green LED blinks. You see the Group
Call icon, the group alias or ID, and that user’s alias or ID
on your display.
7 If the Channel Free Indication feature is enabled, you
will hear a short alert tone the moment the target radio
releases the PTT button, indicating the channel is free for
you to respond. Press the PTT button to respond.
OR
If there is no voice activity for a programmed period of time,
the call ends.
NAG_6880309T15.book Page 33 Friday, January 28, 2011 10:48 AM
Advanced Features
English
34
Making a Private Call from Contacts
Procedure:
1S to access the menu.
2Por Q to Contacts and press N to select.The
entries are alphabetically sorted.
3Por Q to the required subscriber alias or ID.
4Press the PTT button to make the call. The green LED lights
up. The first line displays the subscriber alias or ID. The
second line displays Private Call and the Private Call
icon.
5Wait for the Talk Permit Tone to finish (if enabled) and speak
clearly into the microphone.
6Release the PTT button to listen. When the target radio
responds, the green LED blinks and the display shows the
transmitting user's alias or ID.
7If the Channel Free Indication feature is enabled, you will
hear a short alert tone the moment the target radio releases
the PTT button, indicating the channel is free for you to
respond. Press the PTT button to respond.
OR
If there is no voice activity for a programmed period of time,
the call ends.
8You hear a short tone. The display shows Call Ended.
NOTE: If you release the PTT button while the radio is setting
up the call, it exits without any indication and returns to
the previous screen.
Your radio may be programmed to perform a radio
presence check prior to setting up the Private Call. If
the target radio is not available, you hear a short tone
and see Party Not Available on the display.
The radio returns to the menu prior to initiating the
radio presence check.
NAG_6880309T15.book Page 34 Friday, January 28, 2011 10:48 AM
Advanced Features
English
35
Assigning an Entry to a Programmable
Number Key
Procedure:
1S to access the menu.
2Por Q to Contacts and press N to select. The
entries are alphabetically sorted.
3Por Q to the required alias or ID and press N to
select.
4Por Q to Program Key and press N to select.
5Por Q to the desired number key and press N to
select.
OR
If the number key is currently assigned to another entry, the
display shows The Key is Already Assigned and then,
the first line of the display shows Overwrite?.
Por Q to Yes and press N to select.
6The radio sounds a positive indicator tone and the display
shows Contact Saved.
7The screen automatically returns to the previous menu.
NOTE: Each entry can be associated to different number keys.
You see a checkmark before each number key that is
assigned to an entry. If the checkmark is before Empty,
you have not assign a number key to the entry.
If a number key is assigned to an entry in a particular
mode, this feature is not supported when you long
press the number key in another mode.
See Making a Group, Private or All Call with the
Programmable Number Key on page 79 for details on making
a Group, Private or All Call with the programmed number
key(s).
NAG_6880309T15.book Page 35 Friday, January 28, 2011 10:48 AM
Advanced Features
English
36
Removing the Association between Entry and
Programmable Number Key
Procedure:
Long press the programmed number key to the required alias or
ID, press N to select, and proceed to Step 4.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Contacts and press N to select. The
entries are alphabetically sorted.
3Por Q to the required alias or ID and press N to
select.
4Por Q to Program Key and press N to select.
5Por Q to Empty and press N to select.
6The first line of the display shows Clear from all keys?.
7Por Q to Yes and press N to select.
8The radio sounds a positive indicator tone and the display
shows Contact Saved.
9The screen automatically returns to the previous menu.
NOTE: When an entry is deleted, the association between the
entry and its programmed number key(s) is removed.
Call Indicator Settings
Activating and Deactivating Call Ringers for
Private Calls
You can turn on or off the ringing tones for a received Private
Call.
Procedure:
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Settings and press N to select.
4Por Q to Tones/Alerts and press N to select.
5Por Q to Call Ringers and press N to select.
6Por Q to Private Call and press N to select.
7The display shows Turn On. Press N to enable Call
Ringers for Private Calls. The display shows Private Call
Ringer On.
OR
The display shows Turn Off. Press N to disable Call
Ringers for Private Calls. The display shows Private Call
Ringer Off.
NAG_6880309T15.book Page 36 Friday, January 28, 2011 10:48 AM
Advanced Features
English
37
Activating and Deactivating Call Ringers for Text
Messaging
You can turn on or off the ringing tones for a received Text
Message.
Procedure:
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Settings and press N to select.
4Por Q to Tones/Alerts and press N to select.
5Por Q to Call Ringers and press N to select.
6Por Q to Text Message and press N to select.
7The current tone is indicated by a 9.
8Por Q to the preferred tone and press N to select.
The display shows Tone <Number> Selected and a 9
appears left of the selected tone.
OR
Por Q to Turn Off and press N to select. The
display shows Text Message Ringer Off and a 9
appears left of Turn Off.
Activating and Deactivating Call Ringers for
Telemetry Status with Text
You can turn on or off the alert tones for a received Telemetry
Status with Text.
Procedure:
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Settings and press N to select.
4Por Q to Tones/Alerts and press N to select.
5Por Q to Call Ringers and press N to select.
6Por Q to Telemetry and press N to select.
7The current tone is indicated by a 9.
8Por Q to the preferred tone and press N to select.
The display shows Tone <Number> Selected and a 9
appears left of the selected tone.
OR
Por Q to Turn Off and press N to select. The
display shows Telemetry Ringer Off and a 9 appears
left of Turn Off.
NAG_6880309T15.book Page 37 Friday, January 28, 2011 10:48 AM
Advanced Features
English
38
Assigning Ring Styles
You can program your radio to sound one of ten predefined
ringing tones when receiving a Call Alert or a Text Message
from a particular contact.
Procedure:
1S to access the menu.
2Por Q to Contacts and press N to select.The
entries are alphabetically sorted.
3Por Q to the required alias or ID and press N to
select.
4Por Q to Ring Style and press N to select.
5A 9 indicates the current selected tone.
6 Por Q to the required tone and press N to select.
7The display shows Contact Saved.
The radio sounds out each ring style as you navigate through
the list.
Escalating Alarm Tone Volume
You can program your radio to continually alert you when a
radio call remains unanswered. This is done by automatically
increasing the alarm tone volume over time. This feature is
known as Escalert.
Procedure:
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Settings and press N to select.
4Por Q to Tones/Alerts and press N to select.
5Por Q to Escalert and press N to select.
6The display shows Turn On. Press N to enable Escalert.
The display shows Escalert On.
OR
The display shows Turn Off. Press N to disable Escalert.
The display shows Escalert Off.
NAG_6880309T15.book Page 38 Friday, January 28, 2011 10:48 AM
Advanced Features
English
39
Call Log Features
Your radio keeps track of all recent outgoing, answered, and
missed Private Calls. Use the call log feature to view and
manage recent calls.
You can perform the following tasks in each of your call lists:
•Store alias or ID to Contacts
•Delete
Viewing Recent Calls
The lists are Missed, Answered, and Outgoing.
Procedure:
1S to access the menu.
2Por Q to Call Log and press N to select.
3Por Q to preferred list and press N to select.
4The display shows the most recent entry at the top of the
list.
5Por Q to view the list.
Press the PTT button to start a Private Call with the current
selected alias or ID.
Missed Call Screen
Whenever a call is missed, your radio displays a missed call
message. Select View to view it immediately or View Later to
view at a later time.
NOTE: The radio exits the Missed Call screen and sets up a
Private Call if you press the PTT button while viewing
a missed call number.
Procedure:
1The display shows Missed Calls, along with the number of
calls missed and View.
2Press N to view the missed call alias or ID. The missed
call log list appears on display.
Press N to store or delete the entry.
OR
Por Q to View Later and press N to select. You
return to the Home screen.
To store/save an alias or ID from the Missed Call list, see
Storing an Alias or ID from the Missed Call List on page 87.
NAG_6880309T15.book Page 39 Friday, January 28, 2011 10:48 AM
Advanced Features
English
40
Deleting a Call from a Call List
Procedure:
1S to access the menu.
2Por Q to Call Log and press N to select.
3Por Q to the required list and press N to select.
4Por Q to the required alias or ID and press N to
select.
5Por Q to Delete Entry and press N to select.
6Por Q to Yes and press N to select.
7The display shows Entry Deleted.
When you select a call list and it contains no entries, the display
shows
List Empty
, and sounds a low tone if Keypad Tones are
turned on (see Turning Keypad Tones On or Off on page 73).
Call Alert Operation
Call Alert paging enables you to alert a specific radio user to call
you back when they are able to do so.
This feature is applicable for subscriber aliases or IDs only and
is accessible through the menu via Contacts or manual dial.
Receiving and Responding to a Call Alert
When you receive a Call Alert page, you see Call Alert that
alternates with the alias or ID of the calling radio on the display.
Procedure:
1You hear a repetitive tone. The yellow LED blinks.
2Press the PTT button within four (4) seconds of receiving a
Call Alert page to respond to the Private Call.
OR
Press N to exit the Call Alert.
NAG_6880309T15.book Page 40 Friday, January 28, 2011 10:48 AM
Advanced Features
English
41
Making a Call Alert from the Contacts List
Procedure:
1S to access the menu.
2Por Q to Contacts and press N to select.
3Por Q to the required subscriber alias or ID and press
N to select.
4Por Q to Call Alert and press N to select.
5The display shows Call Alert: <Subscriber Alias or
ID>, indicating that the Call Alert has been sent.
6The green LED lights up when your radio is sending the Call
Alert.
7If the Call Alert acknowledgement is received, a tone
sounds and the display shows Call Alert Successful.
OR
If the Call Alert acknowledgement is not received, a tone
sounds and the display shows Call Alert Failed.
You can also send a Call Alert by manually dialing the
subscriber ID (see Making a Call Alert by Manual Dial on
page 88).
Making a Call Alert with the One Touch Access
Button
Procedure:
1Press the programmed One Touch Access button to make
a Call Alert to the predefined alias or ID.
2The display shows Call Alert: <Subscriber Alias or
ID>, indicating that the Call Alert has been sent.
3The green LED lights up when your radio is sending the Call
Alert.
4If the Call Alert acknowledgement is received, a tone
sounds and the display shows Call Alert Successful.
OR
If the Call Alert acknowledgement is not received, a tone
sounds and the display shows Call Alert Failed.
NAG_6880309T15.book Page 41 Friday, January 28, 2011 10:48 AM
Advanced Features
English
42
Emergency Operation
An Emergency Alarm is used to indicate a critical situation. You
are able to initiate an Emergency at any time on any screen
display even when there is activity on the current channel.
Your dealer can set the duration of a button press for the
programmed Emergency button, except for long press, which is
similar with all other buttons:
•Short press – Between 0.05 seconds and 0.75 seconds
•Long press – Between 1.00 second and 3.75 seconds
The Emergency button is assigned with the Emergency On/ Off
feature. Check with your dealer for the assigned operation of
the Emergency button.
If short press the Emergency button is assigned to turn on the
Emergency mode, then long press the Emergency button is
assigned to exit the Emergency mode.
If long press the Emergency button is assigned to turn on the
Emergency mode, then short press the Emergency button is
assigned to exit the Emergency mode.
Your radio supports three Emergency Alarms:
•Emergency Alarm
•Emergency Alarm with Call
•Emergency Alarm with Voice to Follow
In addition, each alarm has the following types:
•Regular – Radio transmits an alarm signal and shows audio
and/or visual indicators.
•Silent – Radio transmits an alarm signal without any audio or
visual indicators. Radio receives calls without any sound
through the radio’s speaker, until you press the PTT button to
initiate the call.
•Silent with Voice – Radio transmits an alarm signal without
any audio or visual indicators, but allow incoming calls to
sound through the radio’s speaker.
Only one of the Emergency Alarms above can be assigned to
the programmed Emergency button or the Emergency
footswitch.
Receiving an Emergency Alarm
Procedure:
1When receiving an Emergency Alarm, the display shows the
Emergency icon, the number of alarms received, and Alarm
Rcvd, which alternates with the alias or ID of the sender.
2A tone sounds and the red LED blinks.
3Your radio automatically acknowledges the Emergency
Alarm (if enabled).
NAG_6880309T15.book Page 42 Friday, January 28, 2011 10:48 AM
Advanced Features
English
43
When your radio receives an Emergency Alarm, it displays the
Emergency Alarm received indications until acknowledgement
is sent (if enabled) and you exit the Emergency mode.
You will not be able to receive any other indications or displays
for any other calls until you exit the Emergency Alarm received
screen.
NOTE: Press R, then press Emergency Off button
immediately to clear the Emergency Alarm received
indications and exit Emergency mode.
Press R, then press Emergency On button
immediately to toggle the Emergency feature between
hidden or shown.
When your radio receives an Emergency Alarm, and you
change the radio channel, the Emergency Alarm list is hidden.
The new channel displays the Emergency icon and the red LED
blinks. When you change the radio channel back to the previous
channel, it also displays the Emergency icon and the red LED
blinks.
Responding to an Emergency Alarm
Procedure:
When receiving an Emergency Alarm:
1Press any button to stop all Emergency Alarm received
indications.
2If the Channel Free Indication feature is enabled, you
will hear a short alert tone the moment the transmitting radio
releases the PTT button, indicating the channel is free for
you to respond.
3Press PTT button to transmit non-emergency voice to the
same group that the Emergency Alarm was targeted to. The
green LED lights up. Your radio remains in the Emergency
mode.
4Wait for the Talk Permit Tone to finish (if enabled) and speak
clearly into the microphone.
OR
Wait for the PTT Sidetone to finish (if enabled) and
speak clearly into the microphone.
5Release the PTT button to listen. When the emergency
initiating radio responds, the green LED blinks. You see the
Group Call icon, the group alias or ID, and transmitting radio
alias or ID on your display.
6Once your call ends, press R, then press Emergency
Off button immediately to clear the Emergency Call received
indications and exit Emergency mode.
7The radio returns to the Home screen.
Emergency voice can only be transmitted by the emergency
initiating radio. All other radios (including the emergency
receiving radio) transmit non- emergency voice.
NAG_6880309T15.book Page 43 Friday, January 28, 2011 10:48 AM
Advanced Features
English
44
Sending an Emergency Alarm
This feature allows you to send an Emergency Alarm, a non-
voice signal, which triggers an alert indication on a group of
radios.
Procedure:
1Press the programmed Emergency On button or the
Emergency footswitch.
2The display shows Sending Alarm, which alternates with
your radio ID. The green LED lights up and the Emergency
icon appears on the Home screen display.
3When an Emergency Alarm acknowledgment is received,
the Emergency tone sounds and the green LED blinks. The
display shows Emergency Alarm Successful.
OR
If your radio does not receive an Emergency Alarm
acknowledgement, and after all retries have been
exhausted, a tone sounds and the display shows
Emergency Alarm Failed.
4Radio exits the Emergency Alarm mode and returns to the
Home screen.
If your radio is set to Silent, it will not display any audio or visual
indicators during Emergency mode.
Sending an Emergency Alarm with Call
This feature allows you to send an Emergency Alarm to a group
of radios. Upon acknowledgement by a radio within the group,
the group of radios can communicate over a programmed
Emergency channel.
Procedure:
1Press the programmed Emergency On button or the
Emergency footswitch.
2The display shows Sending Alarm, which alternates with
your radio ID. The green LED lights up and the Emergency
icon appears on the Home screen display.
3When an Emergency Alarm acknowledgment is received,
the Emergency tone sounds and the green LED blinks. The
display shows Emergency Alarm Successful.
4Press PTT button to make the call. The green LED lights up
and the group icon appears on the display.
5Wait for the Talk Permit Tone to finish (if enabled) and speak
clearly into the microphone.
OR
Wait for the PTT Sidetone to finish (if enabled) and
speak clearly into the microphone.
NAG_6880309T15.book Page 44 Friday, January 28, 2011 10:48 AM
Advanced Features
English
45
6Release the PTT button to listen.
7When the channel is free for you to respond, a short alert
tone sounds ( if the Channel Free Indication feature is
enabled). Press the PTT button to respond.
OR
Once your call ends, press Emergency Off button to exit
the Emergency mode.
8The radio returns to the Home screen.
If your radio is set to Silent, it will not display any audio or visual
indicators during Emergency mode, or allow any received calls
to sound through the radio’s speaker, until you press the PTT
button to initiate the call.
If your radio is set to Silent with Voice, it will not display any
audio or visual indicators during Emergency mode, but allow
incoming calls to sound through the radio’s speaker. The
indicators will only appear once you press the PTT button to
initiate, or respond to, the call.
Sending an Emergency Alarm with Voice to
Follow
This feature allows you to send an Emergency Alarm to a group
of radios. Your radio’s microphone is automatically activated,
allowing you to communicate with the group of radios without
pressing the PTT button.
This activated microphone state is also known as “hot mic”.
If you press the PTT button during the programmed hot mic
transmission period, the radio ignores the PTT press and
remains in Emergency mode.
NOTE: If you press the PTT button during hot mic, and
continue to press it after the hot mic duration expires,
the radio continues to transmit until you release the
PTT button.
Procedure:
1Press the programmed Emergency On button or the
Emergency footswitch.
2The display shows Sending Alarm. The green LED lights
up and the Emergency icon is displayed.
3Once the display shows Emergency Alarm Successful,
speak clearly into the microphone. When hot mic has been
enabled, the radio automatically transmits without a PTT
press until the hot mic duration expires.
NAG_6880309T15.book Page 45 Friday, January 28, 2011 10:48 AM
Advanced Features
English
46
4While transmitting, the green LED lights up and the
Emergency icon appears on the display.
5Once the hot mic duration expires, the radio automatically
stops transmitting. To transmit again, press the PTT button.
If your radio is set to Silent, it will not display any audio or visual
indicators during Emergency mode, or allow any received calls
to sound through the radio’s speaker, until the programmed hot
mic transmission period is over, and you press the PTT button.
If your radio is set to Silent with Voice, it will not display any
audio or visual indicators during Emergency mode when you
are making the call with hot mic, but allow sound through the
radio’s speaker when the target radio responds after the
programmed hot mic transmission period is over. The indicators
will only appear when you press the PTT button.
NOTE: If the Emergency Alarm request fails, the radio does
not retry to send the request, and enters the hot mic
state directly.
Reinitiating an Emergency Mode
NOTE: This feature is only applicable to the radio sending the
Emergency Alarm.
There are two instances where this can happen:
•You change the channel while the radio is in Emergency
mode. This exits the Emergency mode. If Emergency Alarm is
enabled on this new channel, the radio reinitiates Emergency.
•You press the programmed Emergency On button during an
Emergency initiation/transmission state. This causes the
radio to exit this state, and to reinitiate Emergency.
Exiting Emergency Mode
NOTE: This feature is only applicable to the radio sending the
Emergency Alarm.
Your radio exits Emergency mode when one of the following
occurs:
•Emergency Alarm acknowledgement is received (for
Emergency Alarm only), OR
•All retries to send the alarm have been exhausted, OR
•The Emergency Off button is pressed.
NOTE: If your radio is powered off, it exits the Emergency
mode. The radio will not reinitiate the Emergency mode
automatically when it is turned on again.
NAG_6880309T15.book Page 46 Friday, January 28, 2011 10:48 AM
Advanced Features
English
47
Text Messaging Features
Your radio is able to receive data, for example a text message,
from another radio or an e-mail application.
Sending a Quick Text Message
Your radio supports a maximum of 50 Quick Text messages as
programmed by your dealer.
NOTE: While Quick Text messages are programmed, you can
edit each message before sending it. Only available
with a keypad microphone (see Editing a Quick Text
Message on page 90).
Procedure:
Press the programmed Text Messaging button and proceed to
Step 3.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Messages and press N to select.
3Por Q to Quick Text and press N to select.
4Por Q to the required Quick Text and press N to
select.
5Por Q to the required alias or ID and press N to
select.
6The display shows Text Message: <Subscriber/Group
Alias or ID>, confirming your message is being sent.
7If the message is sent successfully, a tone sounds and the
display shows Message Sent.
OR
If the message cannot be sent, the display shows Message
Send Failed.
If the text message fails to send, the radio returns you to the
Resend
option screen (see Managing Fail-to-Send Text
Messages on page 49).
Sending a Quick Text Message with the One Touch
Access Button
1Press the programmed One Touch Access button to send
a predefined Quick Text message to a predefined alias or
ID.
2The display shows Text Message: <Subscriber/Group
Alias or ID>, confirming your message is being sent.
3If the message is sent successfully, a tone sounds and the
display shows Message Sent.
OR
If the message cannot be sent, the display shows Message
Send Failed.
NAG_6880309T15.book Page 47 Friday, January 28, 2011 10:48 AM
Advanced Features
English
48
If the text message fails to send, the radio returns you to the
Resend
option screen (see Managing Fail-to-Send Text
Messages on page 49).
Managing Text Messages in the Drafts Folder
The Drafts folder stores a maximum of ten (10) last saved
messages. When the folder is full, the next saved text message
automatically replaces the oldest text message in the folder.
See Accessing the Drafts Folder on page 91 for more
information.
NOTE: You can edit a saved text message before sending it.
Only available with a keypad microphone (see Editing
and Sending a Saved Text Message on page 91).
Long press R at any time to return to the Home
screen.
Viewing a Saved Text Message
Procedure:
Press the programmed Text Message button and proceed to
Step 3.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Messages and press N to select.
3Por Q to Drafts and press N to select.
4Por Q to the required message and press N to
select.
Deleting a Saved Text Message from Drafts
Procedure:
Press the programmed Text Message button and proceed to
Step 3.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Messages and press N to select.
3Por Q to Drafts and press N to select.
4Por Q to the required message and press N to
select.
5Por Q to Delete and press N to delete the text
message.
NAG_6880309T15.book Page 48 Friday, January 28, 2011 10:48 AM
Advanced Features
English
49
Managing Fail-to-Send Text Messages
You can select one of the following options while at the Resend
option screen:
•Resend
•Forward
•Edit (Only available with a keypad microphone – see Editing a
Text Message on page 93 for more information)
NOTE: If the channel type (i.e. conventional digital or Capacity
Plus) is not a match, you can only edit and forward a
Fail-to-Send message.
Resending a Text Message
Procedure:
1Press N to resend the same message to the same
subscriber/group alias or ID.
2If the message is sent successfully, a tone sounds and the
display shows Message Sent.
OR
If the message cannot be sent, the display shows Message
Send Failed.
Forwarding a Text Message
Select Forward to send the message to another subscriber/
group alias or ID.
Procedure:
1Por Q to Forward and press N to select.
2Por Q to the required alias or ID and press N to
select.
3The display shows Text Message: <Subscriber/Group
Alias or ID>, confirming your message is being sent.
4If the message is sent, a tone sounds and the display shows
Message Sent.
OR
If the message is not sent, a low tone sounds and the
display shows Message Send Failed.
You can also manually select a target radio address (see
Forwarding a Text Message by Manual Dial on page 92).
NAG_6880309T15.book Page 49 Friday, January 28, 2011 10:48 AM
Advanced Features
English
50
Managing Sent Text Messages
Once a message is sent to another radio, it is saved in Sent
Items. The most recent sent text message is always added to
the top of the Sent Items list.
The Sent Items folder is capable of storing a maximum of
thirty (30) last sent messages. When the folder is full, the next
sent text message automatically replaces the oldest text
message in the folder.
NOTE: Long press R at any time to return to the Home
screen.
Viewing a Sent Text Message
Procedure:
Press the programmed Text Message button and proceed to
Step 3.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Messages and press N to select.
3Por Q to Sent Items and press N to select.
4Por Q to the required message and press N to
select.
A subject line may be shown if the message is from an
e-mail application.
5The icon at the top right corner of the screen indicates the
status of the message (see Sent Item Icons on page 10).
Sending a Sent Text Message
You can select one of the following options while viewing a sent
text message:
•Resend
•Forward
•Edit
•Delete
NOTE: If the channel type (i.e. conventional digital or Capacity
Plus) is not a match, you can only edit, forward, or
delete a Sent message.
Procedure:
1Press N again while viewing the message.
2Por Q to Resend and press N to select.
NAG_6880309T15.book Page 50 Friday, January 28, 2011 10:48 AM
Advanced Features
English
51
3The display shows Sending to: <Subscriber/Group
Alias or ID>, confirming that the same message is being
sent to the same target radio.
4If the message is sent, a tone sounds and the display shows
Message Sent.
OR
If the message is not sent, a low tone sounds and the
display shows Message Send Failed.
If the text message fails to send, the radio returns you to the
Resend
option screen. Press N to resend the message to the
same subscriber/group alias or ID.
NOTE: Changing the volume, and pressing any button, except
for N, P, or Q, returns you to the message.
The radio exits the Resend option screen if you press
the PTT button to initiate a Private or Group Call, or to
respond to a Group Call. It also exits the screen when
the radio receives a text or telemetry message, an
emergency call or alarm, or a call alert.
The display returns to the Resend option screen if you
press the PTT button to respond to a Private Call
(except if the radio is displaying the Missed Call
screen), and at the end of an All Call.
Press Por Q to access the
Forward
,
Edit
, or
Delete
option screen:
•Select
Forward
to send the selected text message to another
target radio (see Forwarding a Text Message on page 49).
You can also manually select a target radio address using a
keypad microphone (see Forwarding a Text Message by
Manual Dial on page 92).
•Select
Edit
to edit the selected text message before sending
it (see Editing a Text Message on page 93). Only available
with a keypad microphone.
•Select
Delete
to delete the text message.
NOTE: If you exit the message sending screen while the
message is being sent, the radio updates the status of
the message in the Sent Items folder without providing
any indication in the display or via sound.
If the radio changes mode or powers down before the
status of the message in Sent Items is updated, the
radio cannot complete any In-Progress messages and
automatically marks it with a Send Failed icon.
The radio supports a maximum of five (5) In-Progress
messages at one time. During this period, the radio
cannot send any new message and automatically
marks it with a Send Failed icon.
NAG_6880309T15.book Page 51 Friday, January 28, 2011 10:48 AM
Advanced Features
English
52
Deleting All Sent Text Messages from Sent Items
Procedure:
Press the programmed Text Message button and proceed to
Step 3.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Messages and press N to select.
3Por Q to Sent Items and press N to select.
4Por Q to Delete All and press N to select.
5At Delete Message?, press N to select Yes. The display
shows Sent Items Cleared.
OR
At Delete Message?, Por Q to No and press N to
return to the previous screen.
When you select Sent Items and it contains no text messages,
the display shows
List Empty
, and sounds a low tone if
Keypad Tones are turned on (see Turning Keypad Tones On
or Off on page 73).
Receiving a Text Message
When receiving a message, the display shows the alias or ID of
the sender and the message icon at the far left of the screen.
You can select one of the following options when receiving a
text message:
•Read
•Read Later
•Delete
NOTE: The radio exits the Text Message alert screen and sets
up a Private or Group Call if the PTT button is pressed
when the radio is displaying the alert screen.
Reading a Text Message
Procedure:
1Por Q to Read and press N to select.
2Selected message in the Inbox opens.
A subject line may be shown if the message is from an
e-mail application.
NAG_6880309T15.book Page 52 Friday, January 28, 2011 10:48 AM
Advanced Features
English
53
3Press R to return to the Inbox.
OR
Press N to reply, forward, or delete the text message.
Press Por Q to access the
Read Later
or
Delete
option
screen:
•Select
Read Later
to return to the screen you were on prior
to receiving the text message.
•Select
Delete
to delete the text message.
Managing Received Text Messages
Use the Inbox to manage your text messages. The Inbox is
capable of storing a maximum of 30 messages.
Your radio supports the following options for text messages:
•Reply (via Quick Text)
•Forward
•Delete
•Delete All
NOTE: If the channel type (i.e. conventional digital or Capacity
Plus) is not a match, you can only forward, delete, or
delete all Received messages.
Text messages in the Inbox are sorted according to the most
recently received.
NOTE: Long press R at any time to return to the Home
screen.
Viewing a Text Message from the Inbox
Procedure:
1S to access the menu.
2Por Q to Messages and press N to select.
3Por Q to Inbox and press N to select.
4Por Q to view the messages.
A subject line may be shown if the message is from an
e-mail application.
5Press N to select the current message, and press N
again to reply, forward, or delete that message.
OR
Long press R to return to the Home screen.
Unread messages are indicated with an exclamation mark (!).
NAG_6880309T15.book Page 53 Friday, January 28, 2011 10:48 AM
Advanced Features
English
54
Viewing a Telemetry Status Text Message from the
Inbox
Procedure:
1S to access the menu.
2Por Q to Messages and press N to select.
3Por Q to Inbox and press N to select.
4Por Q to the required message and press N to
select.
5The display shows Telemetry: <Status Text Message>.
6Long press R to return to the Home screen.
You cannot reply to a Telemetry Status text message.
Replying to a Text Message with Quick Text
Procedure:
Press the programmed Text Messaging button and proceed to
Step 3.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Messages and press N to select.
3Por Q to Inbox and press N to select.
4Por Q to the required message and press N to
select.
A subject line may be shown if the message is from an
e-mail application.
5Press N once more to access the sub-menu.
6Por Q to Reply and press N to select.
7Por Q to Quick Text and press N to select.
8Por Q to the required message and press N to
select.
9The display shows Text Message: <Subscriber/Group
Alias or ID>, confirming your message is being sent.
10 If the message is sent successfully, a tone sounds and the
display shows Message Sent.
OR
If the message cannot be sent, the display shows Message
Send Failed.
If the text message fails to send, the radio returns you to the
Resend
option screen (see Managing Fail-to-Send Text
Messages on page 49).
NOTE: If you are using a keypad microphone, you can also
write and send a new message (see Writing and
Sending a Text Message on page 88) or modify a
Quick Text message before sending it (see Editing a
Quick Text Message on page 90).
NAG_6880309T15.book Page 54 Friday, January 28, 2011 10:48 AM
Advanced Features
English
55
Deleting a Text Message from the Inbox
Procedure:
Press the programmed Text Messaging button and proceed to
Step 3.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Messages and press N to select.
3Por Q to Inbox and press N to select.
4Por Q to the required message and press N to
select.
A subject line may be shown if the message is from an
e-mail application.
5Press N once more to access the sub-menu.
6Por Q to Delete and press N to select.
7At Delete Message?, Por Q to Yes and press N to
select.
8The display shows Message Deleted.
9The screen returns to the Inbox.
Deleting All Text Messages from the Inbox
Procedure:
Press the programmed Text Messaging button and proceed to
Step 3.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Messages and press N to select.
3Por Q to Inbox and press N to select.
4Por Q to Delete All and press N to select.
5At Delete Message?, Por Q to Yes and press N to
select.
6The display shows Inbox Cleared.
When you select the Inbox and it contains no text messages,
the display shows
List Empty
, and sounds a low tone if
Keypad Tones are turned on (see Turning Keypad Tones On
or Off on page 73).
NOTE: Additional text messaging features are available with a
keypad-enabled microphone. Refer to Text Messaging
on page 88 for more details.
See Audio on page 100 or visit the following website
for a list of Motorola-approved microphones:
http://www.motorola.com/governmentandenterprise
NAG_6880309T15.book Page 55 Friday, January 28, 2011 10:48 AM
Advanced Features
English
56
Privacy
If enabled, this feature helps to prevent eavesdropping by
unauthorized users on a channel by the use of a software-
based scrambling solution. The signaling and user identification
portions of a transmission are not scrambled.
Your radio must have privacy enabled on the channel to send a
privacy-enabled transmission, although this is not a necessary
requirement for receiving a transmission. While on a privacy-
enabled channel, the radio is still able to receive clear
(unscrambled) transmissions.
Your radio supports two types of privacy:
•Basic Privacy
•Enhanced Privacy.
Only ONE of the privacy types above can be assigned to the
radio.
To unscramble a privacy-enabled call or data transmission, your
radio must be programmed to have the same Privacy Key (for
Basic Privacy), OR the same Key Value and Key ID (for
Enhanced Privacy) as the transmitting radio.
If your radio receives a scrambled call that is of a different
Privacy Key, OR a different Key Value and Key ID, you will
either hear a garbled transmission (Basic Privacy) or nothing at
all (Enhanced Privacy).
The LED lights up solid green while the radio is transmitting and
blinks green rapidly when the radio is receiving an ongoing
privacy-enabled transmission.
NOTE: Some radio models may not offer this Privacy feature.
Check with your dealer or system administrator for
more information.
Procedure:
Press the programmed Privacy button to toggle privacy on or
off.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Settings and press N to select.
4Por Q to Privacy and press N to select.
5The display shows Privacy and Turn On. Press N to
enable privacy. The display shows the secure icon and
Privacy On.
OR
The display shows Privacy and Turn Off. Press N to
disable privacy. The display shows the unsecure icon and
Privacy Off.
If the radio has a privacy type assigned, the Home screen
shows the secure or unsecure icon, except when the radio is
sending or receiving an Emergency call or alarm.
NAG_6880309T15.book Page 56 Friday, January 28, 2011 10:48 AM
Advanced Features
English
57
IP Site Connect
This feature allows your radio to extend communication beyond
the reach of a single site, by connecting to different available
sites via an Internet Protocol (IP) network.
NOTE: This feature is not applicable in Capacity Plus.
When the radio moves out of range from one site and into the
range of another, it connects to the new site's base station to
send or receive calls/data transmissions. Depending on your
settings, this is done automatically or manually.
If the radio is set to do this automatically, it scans through all
available sites when the signal from the current site is weak or
when the radio is unable to detect any signal from the current
site. It then locks on to the base station with the strongest
Received Signal Strength Indicator (RSSI) value.
In a manual site search, the radio searches for the next site in
the roam list that is currently in range (but which may not have
the strongest signal) and locks on to it.
NOTE: Each channel can only have either Scan or Roam
enabled, not both at the same time.
Channels with this feature enabled can be added to a particular
roam list. The radio searches the channel(s) in the Members list
during the automatic roam operation to locate the best site.
A Members list supports a maximum of 16 channels (including
the Selected Channel).
NOTE: You cannot manually add or delete an entry to the
Members list. Check with your dealer or system
administrator for more information.
Starting an Automatic Site Search
NOTE: The radio only scans for a new site if the current signal
is weak or when the radio is unable to detect any signal
from the current site. If the RSSI value is strong, the
radio remains on the current site.
Procedure:
Press the programmed Site Lock On/Off button.
1A tone sounds and the display shows Site Unlocked.
2The yellow LED blinks rapidly when the radio is actively
searching for a new site, and turns off once the radio locks
on to a site.
3The display shows the site roaming icon and channel alias.
OR
Procedure:
Use the menu.
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Settings and press N to select.
NAG_6880309T15.book Page 57 Friday, January 28, 2011 10:48 AM
Advanced Features
English
58
4Por Q to Site Roaming and press N to select.
5Por Q to Unlock Site and press N to select. A tone
sounds and the display shows Site Unlocked.
6The radio returns to the Home screen. The display shows
the site roaming icon and channel alias.
7The yellow LED blinks rapidly when the radio is actively
searching for a new site, and turns off once the radio locks
on to a site.
The radio also performs an automatic site search (site is
unlocked) during a PTT button press or data transmission if
the current channel, an IP Site Select channel with an attached
roam list, is out of range.
Stopping an Automatic Site Search
When the radio is actively searching for a new site:
Procedure:
Press the programmed Site Lock On/Off button.
1A tone sounds and the display shows Site Locked.
2The LED turns off and the display shows the channel alias.
OR
Procedure:
Use the menu.
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Settings and press N to select.
4Por Q to Site Roaming and press N to select.
5Por Q to Lock Site and press N to select. A tone
sounds and the display shows Site Locked.
6The LED turns off and the radio returns to the Home screen.
The display shows the channel alias.
Starting a Manual Site Search
Procedure:
Press the programmed Manual Site Roam button and proceed
to Step 6.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Utilities and press N to select.
NAG_6880309T15.book Page 58 Friday, January 28, 2011 10:48 AM
Advanced Features
English
59
3Por Q to Radio Settings and press N to select.
4Por Q to Site Roaming and press N to select.
5Por Q to Active Search and press N to select.
6A tone sounds and the display shows Finding Site.
The green LED blinks.
7If a new site is found, a tone sounds and the LED turns off.
The display shows Site <Alias> Found.
OR
If there is no available site within range, a tone sounds and
the LED turns off. The display shows Out of Range.
OR
If a new site is within range, but the radio is unable to
connect to it, a tone sounds and the LED turns off. The
display shows Channel Busy.
8The radio returns to the Home screen.
Security
You can enable or disable any radio in the system. For example,
you might want to disable a stolen radio, to prevent the thief
from using it, and enable that radio, when it is recovered.
NOTE: Performing Radio Disable and Enable is limited to
radios with these functions enabled.
Radio Disable
Procedure:
Use the programmed Radio Disable button.
1Press the programmed Radio Disable button.
2Por Q to the required subscriber alias or ID and press
N to select.
3The display shows Radio Disable: <Subscriber Alias
or ID> and the green LED lights up.
4Wait for acknowledgment.
5If successful, a tone sounds and the display shows Radio
Disable Successful.
OR
If not successful, a tone sounds and the display shows
Radio Disable Failed.
NAG_6880309T15.book Page 59 Friday, January 28, 2011 10:48 AM
Advanced Features
English
60
OR
Procedure:
Use the menu.
1S to access the menu.
2Por Q to Contacts and press N to select. The
entries are alphabetically sorted.
3Por Q to the required subscriber alias or ID and press
N to select.
4Por Q to Radio Disable and press N to select. The
green LED blinks.
5The display shows Radio Disable: <Subscriber Alias
or ID> and the green LED lights up.
6Wait for acknowledgment.
7If successful, a tone sounds and the display shows Radio
Disable Successful.
OR
If not successful, a tone sounds and the display shows
Radio Disable Failed.
Do not press R during the Radio Disable operation as you
will not get an acknowledgement message.
You can also access this feature using manual dial (see Radio
Disable via Manual Dial on page 94).
Radio Enable
Procedure:
Use the programmed Radio Enable button.
1Press the programmed Radio Enable button.
2Por Q to the required subscriber alias or ID and press
N to select.
3The display shows Radio Enable: <Subscriber Alias
or ID> and the green LED lights up.
4Wait for acknowledgment.
5If successful, a tone sounds and the display shows Radio
Enable Successful.
OR
If not successful, a tone sounds and the display shows
Radio Enable Failed.
OR
Procedure:
Use the menu.
1S to access the menu.
2Por Q to Contacts and press N to select. The
entries are alphabetically sorted.
NAG_6880309T15.book Page 60 Friday, January 28, 2011 10:48 AM
Advanced Features
English
61
3Por Q to the required subscriber alias or ID and press
N to select.
4Por Q to Radio Enable and press N to select. The
green LED blinks.
5The display shows Radio Enable: <Subscriber Alias
or ID> and the green LED lights up.
6Wait for acknowledgment.
7If successful, a tone sounds and the display shows Radio
Enable Successful.
OR
If not successful, a tone sounds and the display shows
Radio Enable Failed.
Do not press R during the Radio Enable operation as you will
not get an acknowledgement message.
You can also access this feature using manual dial (see Radio
Enable via Manual Dial on page 94).
Lone Worker
This feature prompts an emergency to be raised if there is no
user activity, such as any radio button press or activation of the
channel selector, for a predefined time.
Following no user activity for a programmed duration, the radio
pre-warns the user via an audio indicator once the inactivity
timer expires.
If there is still no acknowledgment by the user before the
predefined reminder timer expires, the radio initiates an
Emergency Alarm.
Only one of the following Emergency Alarms is assigned to this
feature:
•Emergency Alarm
•Emergency Alarm with Call
•Emergency Alarm with Voice to Follow
The radio remains in the emergency state allowing voice
messages to proceed until action is taken. See Emergency
Operation on page 42 on ways to exit Emergency.
NOTE: This feature is limited to radios with this function
enabled. Check with your dealer or system
administrator for more information.
NAG_6880309T15.book Page 61 Friday, January 28, 2011 10:48 AM
Advanced Features
English
62
Third Party Peripherals Connection
Modes
You can select one of the third party peripherals connection
modes:
•Motorola
•PC and Audio
•Data Accessory
•Tel em et ry
•Generic
Procedure:
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Settings and press N to select.
4Por Q to Cable Type and press N to select.
5Por Q to the required connection mode and press N
to select.
6The display shows the selected connection mode.
7The screen automatically returns to the previous menu.
NOTE: You cannot change the connection mode while the
cable of the third party peripheral is still attached to
your radio.
NAG_6880309T15.book Page 62 Friday, January 28, 2011 10:48 AM
Advanced Features
English
63
Utilities
Setting the Squelch Level
You can adjust your radio's squelch level to filter out unwanted
calls with low signal strength or channels that have a higher
than normal background noise.
Settings: Normal is the default. Tight filters out (unwanted)
calls and/or background noise. However, calls from remote
locations may also be filtered out.
Procedure:
Press the programmed Squelch button to toggle squelch level
between normal and tight.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Settings and press N to select.
4Por Q to Squelch and press N to select.
5Choose either Tight or Normal and press N to select.
6Screen returns to the previous menu.
Setting the Power Level
You can customize your radio’s power setting to high or low for
each channel.
Settings: High enables communication with radios located at
a considerable distance from you. Low enables communication
with radios in closer proximity.
Procedure:
Press the programmed Power Level button to toggle transmit
power level between high and low.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Settings and press N to select.
4Por Q to Power and press N to select.
5Change your current setting as prompted on the display.
6Press N to select a new power level.
7Screen returns to the previous menu.
Long press R to return to the Home screen. The power level
icon is visible.
NAG_6880309T15.book Page 63 Friday, January 28, 2011 10:48 AM
Advanced Features
English
64
Turning the Option Board Feature(s) On or Off
A channel can support up to 6 option board features. Refer to
your dealer or system administrator for more information.
Procedure:
Press the programmed Option Board Feature button to toggle
the feature on or off.
Turning the Voice Operating Transmission (VOX)
Feature On or Off
This feature allows you to initiate a hands-free voice activated
call on a programmed channel. The radio automatically
transmits, for a programmed period, whenever the microphone
on the VOX-capable accessory detects voice.
NOTE: You may need to turn off the radio and power it up
again after detaching the VOX-capable microphone
from it to allow the radio to switch to another valid
accessory.
Pressing the PTT button during radio operation will disable
VOX. To re-enable VOX, do one of the following:
•Turn the radio off and power it on again, OR
•Change the channel via the Channel Rocker, OR
•Follow the procedure below.
NOTE: Turning this feature on or off is limited to radios with
this function enabled. Check with your dealer or system
administrator for more information.
Procedure:
Press the programmed VOX button to toggle the feature on or
off.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Settings and press N to select.
4Por Q to VOX and press N to select.
5The display shows VOX On. Press N to disable VOX. A
tone sounds and the display shows VOX Off.
OR
The display shows VOX Off. Press N to enable VOX. A
tone sounds and the display shows VOX On.
If the Talk Permit Tone feature is enabled (see Turning the Talk
Permit Tone On or Off on page 67), use a trigger word to
initiate the call. Wait for the Talk Permit Tone to finish before
speaking clearly into the microphone.
NAG_6880309T15.book Page 64 Friday, January 28, 2011 10:48 AM
Advanced Features
English
65
Turning the Public Address System On or Off
You can enable and disable the radio’s internal public address
(PA) system.
Procedure:
Press the programmed PA On/Off button to toggle the feature
on or off.
Turning the External Public Address System On
or Off
You can enable or disable the audio routing between the
connected public address (PA) loudspeaker amplifier and the
radio’s internal public address (PA) system.
Procedure:
Press the programmed Ext PA On/Off button to toggle the
feature on or off.
Controlling the Display Backlight
You can set the radio’s display backlight intensity to either Low,
Medium, High, or Off, to light up the display and the Menu
Navigation Buttons backlighting accordingly. The setting also
affects the keypad backlighting on a keypad microphone.
Procedure:
Press the programmed Backlight button to set the backlight
intensity. Each press changes the display backlight setting to a
new setting.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Settings and press N to select.
4Por Q to Backlight and press N to select.
5A 9 indicates the current setting.
6 Por Q to the required setting and press N to select.
7The display lights up accordingly and the screen returns to
the previous menu.
The display backlight, buttons and/or keypad backlighting are
automatically turned off if the LED indicators are disabled (see
Turning the LED Indicators On or Off on page 69).
NAG_6880309T15.book Page 65 Friday, January 28, 2011 10:48 AM
Advanced Features
English
66
Turning Horns/Lights On or Off
Your radio is able to notify you of an incoming call via the horns
and lights feature. When activated, an incoming call sounds
your vehicle's horn and turns on its lights.
This feature needs to be installed through your radio’s rear
accessory connector by your dealer.
Procedure:
Press the programmed Horns/Lights button to toggle horns
and lights feature on or off.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Settings and press N to select.
4Por Q to Horns/Lights and press N to select.
5The display shows Turn On. Press N to enable the
horns and lights feature. The display shows Horns and
Lights On.
OR
The display shows Turn Off. Press N to disable the
horns and lights feature. The display shows Horns and
Lights Off.
Turning the Radio Tones/Alerts On or Off
You can enable and disable all radio tones and alerts (except for
the incoming Emergency alert tone) if needed.
Procedure:
Press the programmed All Tones/Alerts button to toggle all
tones on or off.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Settings and press N to select.
4Por Q to Tones/Alerts and press N to select.
5Por Q to All Tones and press N to select.
6The display shows Turn On. Press N to enable all tones
and alerts. The display shows All Tones On.
OR
The display shows Turn Off. Press N to disable all tones
and alerts. The display shows All Tones Off.
NAG_6880309T15.book Page 66 Friday, January 28, 2011 10:48 AM
Advanced Features
English
67
Setting the Tone Alert Volume Offset Level
You can adjust the Tone Alert Volume Offset level if needed.
This feature adjusts the volume of the tones/alerts, allowing it to
be higher or lower than the voice volume.
Procedure:
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Settings and press N to select.
4Por Q to Tones/Alerts and press N to select.
5Por Q to Vol. Offset and press N to select.
6Por Q to the required volume value. The radio sounds
a feedback tone with each corresponding volume value.
7Press N to keep the required displayed volume value. The
display shows Volume Offset Selected.
OR
Repeat Step 6 to select another volume value.
OR
R to exit without changing the current volume offset
settings.
Turning the Talk Permit Tone On or Off
You can enable and disable the Talk Permit Tone if needed.
Procedure:
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Settings and press N to select.
4Por Q to Tones/Alerts and press N to select.
5Por Q to Talk Permit and press N to select.
6Select Turn On. Press N to enable the Talk Permit Tone.
The display shows Talk Permit Tone On.
OR
Select Turn Off. Press N to disable the Talk Permit Tone.
The display shows Talk Permit Tone Off.
NAG_6880309T15.book Page 67 Friday, January 28, 2011 10:48 AM
Advanced Features
English
68
Turning the Power Up Alert Tone On or Off
You can enable and disable the Power Up Alert Tone if needed.
Procedure:
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Settings and press N to select.
4Por Q to Tones/Alerts and press N to select.
5Por Q to Power Up and press N to select.
6The display shows Turn On. Press N to enable the Talk
Permit Tone. The display shows Power Up Tone On.
OR
The display shows Turn Off. Press N to disable the Talk
Permit Tone. The display shows Power Up Tone Off.
Setting the Text Message Alert Tone
You can customize your radio’s text message alert tone to
Momentary or Repetitive for each entry in the Contacts list.
Procedure:
1S to access the menu.
2Por Q to Contacts and press N to select.
3Por Q to the required subscriber alias or ID and press
N to select.
4Por Q to Message Alert and press N to select.
5Change your current setting as prompted on the display.
6Press N to select a new text message alert tone.
7Screen returns to the previous menu.
NAG_6880309T15.book Page 68 Friday, January 28, 2011 10:48 AM
Advanced Features
English
69
Turning the LED Indicators On or Off
You can enable and disable the LED Indicators if needed.
Procedure:
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Settings and press N to select.
4Por Q to LED Indicator and press N to select.
5Select Turn On. Press N to enable the LED Indicators.
The display shows All LEDs On.
OR
Select Turn Off. Press N to disable the LED Indicators.
The display shows All LEDs Off.
The display backlight, buttons and/or keypad backlighting are
automatically turned off if the LED Indicators are disabled (see
Controlling the Display Backlight on page 65).
Turning the Introduction Screen On or Off
You can enable and disable the Introduction Screen if needed.
Procedure:
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Settings and press N to select.
4Por Q to Intro Screen and press N to select.
5The display shows Turn On. Press N to enable the
Introduction Screen. The display shows Intro Screen On.
OR
The display shows Turn Off. Press N to disable the
Introduction Screen. The display shows Intro Screen
Off.
NAG_6880309T15.book Page 69 Friday, January 28, 2011 10:48 AM
Advanced Features
English
70
Accessing General Radio Information
Your radio contains information on the following:
•Radio Alias and ID
•Software Version
•Codeplug Version
NOTE: Press R at any time to return to the previous screen
or long press R to return to the Home screen. The
radio exits the current screen once the inactivity timer
expires.
Checking the Radio Alias and ID
Displays the ID of your radio.
Procedure:
Press the programmed Radio Alias and ID button to check your
radio alias and ID. You hear a positive indicator tone.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Info and press N to select.
4Por Q to My Number and press N to select.
5The first line of the display shows the radio alias. The
second line of the display shows the radio ID.
You can also press the programmed Radio Alias and ID button
to return to the previous screen.
NAG_6880309T15.book Page 70 Friday, January 28, 2011 10:48 AM
Keypad Microphone Features
English
71
Checking the Firmware Version
Displays the firmware version on your radio.
Procedure:
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Info and press N to select.
4Por Q to Firmware Ver. and press N to select.
5The display shows the current firmware version.
Checking the Codeplug Version
Displays the codeplug version on your radio.
Procedure:
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Info and press N to select.
4Por Q to CP Ver. and press N to select.
5The display shows the current codeplug version.
Keypad Microphone Features
The following additional features for your radio are available
with a keypad-enabled microphone:
Using the Keypad. . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 72
Additional Advanced Features . . . . . . . . . . . . . . . . . . . page 73
Text Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 88
Dual Tone Multi Frequency (DTMF) . . . . . . . . . . . . . . .page 93
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 94
Password Lock Features . . . . . . . . . . . . . . . . . . . . . . .page 95
NAG_6880309T15.book Page 71 Friday, January 28, 2011 10:48 AM
Keypad Microphone Features
English
72
Using the Keypad
You can use the 3 x 4 alphanumeric keypad on the keypad microphone (Motorola part number: RMN5065_) to access your radio’s
features. You can use the keypad to enter subscriber aliases or IDs, and text messages. Many characters require that you press a key
multiple times. The table below shows the number of times a key needs to be pressed to generate the required character.
Number of Times Key is Pressed
Key1 2345678910111213
1.,?!@&‘%-:*#
ABC2
DEF3
GHI4
JKL5
MNO6
PQRS7
TUV8
WXYZ9
0NOTE: Press to enter “0” and long press to activate the CAPS lock. Another long press to turn off the CAPS lock.
* or del NOTE: Press during text entry to delete the character. Press during numeric entry to enter a “*”.
# or space NOTE: Press during text entry to insert a space. Press during numeric entry to enter a “#”.
NAG_6880309T15.book Page 72 Friday, January 28, 2011 10:48 AM
Keypad Microphone Features
English
73
Turning Keypad Tones On or Off
You can enable and disable Keypad Tones if needed.
Procedure:
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Settings and press N to select.
4Por Q to Tones/Alerts and press N to select.
5Por Q to Keypad Tones and press N to select.
6The display shows Turn On. Press N to enable keypad
tones. The display shows Keypad Tone On.
OR
The display shows Turn Off. Press N to disable keypad
tones. The display shows Keypad Tone Off.
Additional Advanced Features
Selecting a Zone by Alias Search
Procedure:
1S to access the menu.
2Por Q to Zone and press N to select.
3The current zone is displayed and indicated by a 9.
4Por Q to the required zone and proceed to Step 7.
OR
Key in the first character of the required zone.
5A blinking cursor appears.
Use the keypad to type the required zone.
Press P to move one space to the left.
Press Q to move one space to the right.
Press the *DEL key to delete any unwanted characters.
6The first line of the display shows the characters you keyed
in. The second line of the display shows the required zone.
The alias search is case-insensitive. If there are two or more
zones with the same name, the radio displays the zone that
is listed first in the zone list.
7Press N to select.
8The display shows <Zone> Selected momentarily and
returns to the selected zone screen.
NAG_6880309T15.book Page 73 Friday, January 28, 2011 10:48 AM
Keypad Microphone Features
English
74
Initiating a Radio Check by Manual Dial
Procedure:
1S to access the menu.
2Por Q to Contacts and press N to select.
3Por Q to Manual Dial and press N to select.
4Por Q to Private Call and press N to select.
5The first line of the display shows Radio Number:.
6If there is a previously dialed subscriber ID, the ID appears
along with a blinking cursor.
Use the keypad to edit the ID. Press N to select.
OR
Use the keypad to enter a new subscriber ID. Press N to
select.
7Por Q to Radio Check and press N to select.
8The display shows Radio Check: <Subscriber ID>,
indicating that Radio Check is in progress. The green LED
lights up.
9Wait for acknowledgement.
10 If the target radio is active in the system, a tone sounds and
the display briefly shows Target Radio Available.
OR
If the target radio is not active in the system, a tone sounds
and the display briefly shows Target Radio Not
Available.
11 Radio returns to the subscriber ID screen.
If the R button is pressed when the radio is waiting for
acknowledgement, a tone sounds, and the radio terminates all
retries and exits Radio Check mode.
Initiating Remote Monitor by Manual Dial
Procedure:
1S to access the menu.
2Por Q to Contacts and press N to select.
3Por Q to Manual Dial and press N to select.
4Por Q to Private Call and press N to select.
5The first line of the display shows Radio Number:.
NAG_6880309T15.book Page 74 Friday, January 28, 2011 10:48 AM
Keypad Microphone Features
English
75
6If there is a previously dialed subscriber ID, the ID appears
along with a blinking cursor.
Use the keypad to edit the subscriber ID. Press N to
select.
OR
Use the keypad to enter a new subscriber ID. Press N to
select.
7Por Q to Remote Mon. and press N to select.
8Wait for acknowledgment.
9The display shows Remote Monitor Successful.
OR
The display shows Remote Monitor Failed.
10 If successful:
Once the timer expires, the radio sounds an alert tone and
the green LED turns off. The display shows Remote
Monitor Ended.
OR
If unsuccessful:
The radio repeats the attempt until the programmed number
of tries expires.
Making a Private Call by Manual Dial
Procedure:
1S to access the menu.
2Por Q to Contacts and press N to select.The
entries are alphabetically sorted.
3Por Q to Manual Dial and press N to select.
4Por Q to Private Call and press N to select.
5The first line of the display shows Radio Number:.
6If there is a previously dialed subscriber ID, the ID appears
along with a blinking cursor.
Use the keypad to edit the subscriber ID.
OR
Use the keypad to enter a new subscriber ID.
7Press the PTT button to make the call. The green LED lights
up. The first line displays the target radio’s ID. The second
line displays Private Call and the Private Call icon.
8Wait for the Talk Permit Tone to finish (if enabled) and
speak clearly into the microphone.
NAG_6880309T15.book Page 75 Friday, January 28, 2011 10:48 AM
Keypad Microphone Features
English
76
9Release the PTT button to listen. When the target radio
responds, the green LED blinks.
10 If the Channel Free Indication feature is enabled, you will
hear a short alert tone the moment the target radio releases
the PTT button, indicating the channel is free for you to
respond. Press the PTT button to respond.
OR
If there is no voice activity for a programmed period of time,
the call ends.
11 You hear a short tone. The display shows Call Ended.
Making a Phone Call by Manual Dial
Procedure:
1S to access the menu.
2Por Q to Contacts and press N to select.The
entries are alphabetically sorted.
3Por Q to Manual Dial and press N to select.
4Por Q to Phone Call and press N to select.
5The first line of the display shows Phone Number:. The
second line of the display shows a blinking cursor. Use the
keypad to enter a telephone number and press N to
proceed.
If the access code was not preconfigured in the Contacts
list, the first line of the display shows Access Code:. The
second line of the display shows a blinking cursor. Enter the
access code and press N to proceed.
6The first line of the display shows Calling. The second line
of the display shows the subscriber alias or ID, and the
Phone Call icon.
7If successful:
The DTMF tone sounds. You hear the dialing tone of the
telephone user. The first line of the display shows the
subscriber alias or ID, and the RSSI icon. The second line of
the display shows Phone Call and the Phone Call icon.
OR
If unsuccessful:
A tone sounds and the display shows Phone Call Failed.
Your radio returns to the Access Code input screen.
If the access code was preconfigured in the Contacts list,
the radio returns to the screen you were on prior to initiating
the call.
8Press the PTT button to talk and release it to listen. The
RSSI icon disappears during transmission.
To enter extra digits, if requested by the Phone Call:
Press any keypad to begin the input of extra digits. The first
line of the display shows Extra Digits:. The second line
of the display shows a blinking cursor. Enter the extra digits
and press N to proceed. The DTMF tone sounds and the
radio returns to the previous screen.
OR
NAG_6880309T15.book Page 76 Friday, January 28, 2011 10:48 AM
Keypad Microphone Features
English
77
Press One Touch Access button. The DTMF tone sounds
and the radio returns to the previous screen. If the entry for
the One Touch Access button is empty, a negative
indicator tone sounds.
9Press R to end the call.
If deaccess code was not preconfigured in the Contacts list,
the first line of the display shows De-Access Code:. The
second line of the display shows a blinking cursor. Enter the
deaccess code and press N to proceed. The radio returns
to the previous screen.
10 The DTMF tone sounds and the display shows Ending
Phone Call.
11 If successful:
A tone sounds and the display shows Phone Call Ended.
Your radio returns to the Call Phone screen.
OR
If unsuccessful:
Your radio returns to the Phone Call screen. Repeat Steps 9
and 10 or wait for the telephone user to end the call.
When you press PTT button while in the Phone Contacts
screen, a tone sounds and the display shows Press OK to
Place Phone Call.
When the telephone user ends the call, a tone sounds and the
display shows Phone Call Ended.
If the call ends while you are entering the extra digits requested
by the Phone Call, your radio returns to the screen you were on
prior to initiating the call.
NOTE: During channel access, press R to dismiss the call
attempt and a tone sounds.
During the call, when you press One Touch Access
button with the deaccess code preconfigured or enter
the deaccess code as the input for extra digits, your
radio attempts to end the call.
During channel access and access/deaccess code or
extra digits transmission, your radio responds to On/
Off button, Volume Knob, and Channel Rocker only.
A tone sounds for every invalid input.
The access or deaccess code cannot be more than 10
characters.
NAG_6880309T15.book Page 77 Friday, January 28, 2011 10:48 AM
Keypad Microphone Features
English
78
Making a Phone Call with the One Touch Access
Button
Procedure:
1Press the programmed One Touch Access button to make
a Phone Call to the predefined alias or ID.
If the entry for the One Touch Access button is empty, a
negative indicator tone sounds.
If the access code was not preconfigured in the Contacts
list, the first line of the display shows Access Code:. The
second line of the display shows a blinking cursor. Enter the
access code and press N to proceed.
2The first line of the display shows Calling. The second line
of the display shows the subscriber alias or ID, and the
Phone Call icon.
3If successful:
The DTMF tone sounds. You hear the dialing tone of the
telephone user. The first line of the display shows the
subscriber alias or ID, and the RSSI icon. The second line of
the display shows Phone Call and the Phone Call icon.
OR
If unsuccessful:
A tone sounds and the display shows Phone Call Failed.
Your radio returns to the Access Code input screen.
If the access code was preconfigured in the Contacts list,
the radio returns to the screen you were on prior to initiating
the call.
4Press the PTT button to talk and release it to listen. The
RSSI icon disappears during transmission.
To enter extra digits, if requested by the Phone Call:
Press any keypad to begin the input of extra digits. The first
line of the display shows Extra Digits:. The second line
of the display shows a blinking cursor. Enter the extra digits
and press N to proceed. The DTMF tone sounds and the
radio returns to the previous screen.
OR
Press One Touch Access button. The DTMF tone sounds
and the radio returns to the previous screen. If the entry for
the One Touch Access button is empty, a negative
indicator tone sounds.
5Press R to end the call.
If deaccess code was not preconfigured in the Contacts list,
the first line of the display shows De-Access Code:. The
second line of the display shows a blinking cursor. Enter the
deaccess code and press N to proceed. The radio returns
to the previous screen.
6The DTMF tone sounds and the display shows Ending
Phone Call.
7If successful:
A tone sounds and the display shows Phone Call Ended.
Your radio returns to the Call Phone screen.
OR
NAG_6880309T15.book Page 78 Friday, January 28, 2011 10:48 AM
Keypad Microphone Features
English
79
If unsuccessful:
Your radio returns to the Phone Call screen. Repeat Steps 5
and 6 or wait for the telephone user to end the call.
When the telephone user ends the call, a tone sounds and the
display shows Phone Call Ended.
If the call ends while you are entering the extra digits requested
by the Phone Call, your radio returns to the screen you were on
prior to initiating the call.
NOTE: During channel access, press R to dismiss the call
attempt and a tone sounds.
During the call, when you press One Touch Access
button with the deaccess code preconfigured or enter
the deaccess code as the input for extra digits, your
radio attempts to end the call.
During channel access and access/deaccess code or
extra digits transmission, your radio responds to On/
Off button, Volume Knob, and Channel Rocker only.
A tone sounds for every invalid input.
The access or deaccess code cannot be more than 10
characters.
Making a Group, Private or All Call with the
Programmable Number Key
The Programmable Number Key feature allows you to make a
Group, Private or All Call to a predefined alias or ID easily. This
feature can be assigned to all the available number keys on a
keypad microphone.
You ca n ONLY have one alias or ID assigned to a number key,
but you can have more than one number key associated to an
alias or ID.
Procedure:
When you are on the Home screen:
1Long press the programmed number key to make a Group,
Private or All Call to the predefined alias or ID.
If the number key is not associated to an entry, a negative
indicator tone sounds.
2Press the PTT button to make the call. The green LED lights
up. The display shows the group/subscriber alias or ID, and
the Group/Private/All Call icon.
3Wait for the Talk Permit Tone to finish (if enabled) and
speak clearly into the microphone.
OR
For Group Call only: Wait for the PTT Sidetone to
finish (if enabled) and speak clearly into the microphone.
NAG_6880309T15.book Page 79 Friday, January 28, 2011 10:48 AM
Keypad Microphone Features
English
80
4Release the PTT button to listen. When the target radio
responds, the green LED blinks.
5If the Channel Free Indication feature is enabled, you will
hear a short alert tone the moment the target radio releases
the PTT button, indicating the channel is free for you to
respond. Press the PTT button to respond.
OR
If there is no voice activity for a predetermined period of
time, the call ends.
6Radio returns to the screen you were on prior to initiating the
call.
For a Private Call, you hear a short tone when the call ends.
See Assigning an Entry to a Programmable Number Key on
page 35 for details on assigning an entry to a number key on
the keypad.
Making a Phone Call with the Programmable
Phone Button
Procedure:
1Press the programmed Phone button to enter into the
Phone Entry list.
2Por Q to the required subscriber alias or ID, and press
N to select.
If the access code was not preconfigured in the Contacts
list, the first line of the display shows Access Code:. The
second line of the display shows a blinking cursor. Enter the
access code and press N to proceed.
3The first line of the display shows Calling. The second line
of the display shows the subscriber alias or ID, and the
Phone Call icon.
4If successful:
The DTMF tone sounds. You hear the dialing tone of the
telephone user. The first line of the display shows the
subscriber alias or ID, and the RSSI icon. The second line of
the display shows Phone Call and the Phone Call icon.
OR
If unsuccessful:
A tone sounds and the display shows Phone Call Failed.
Your radio returns to the Access Code input screen.
If the access code was preconfigured in the Contacts list,
the radio returns to the screen you were on prior to initiating
the call.
NAG_6880309T15.book Page 80 Friday, January 28, 2011 10:48 AM
Keypad Microphone Features
English
81
5Press the PTT button to talk and release it to listen. The
RSSI icon disappears during transmission.
To enter extra digits, if requested by the Phone Call:
Press any keypad to begin the input of extra digits. The first
line of the display shows Extra Digits:. The second line
of the display shows a blinking cursor. Enter the extra digits
and press N to proceed. The DTMF tone sounds and the
radio returns to the previous screen.
OR
Press One Touch Access button. The DTMF tone sounds
and the radio returns to the previous screen. If the entry for
the One Touch Access button is empty, a negative
indicator tone sounds.
6Press R to end the call.
If deaccess code was not preconfigured in the Contacts list,
the first line of the display shows De-Access Code:. The
second line of the display shows a blinking cursor. Enter the
deaccess code and press N to proceed. The radio returns
to the previous screen.
7The DTMF tone sounds and the display shows Ending
Phone Call.
8If successful:
A tone sounds and the display shows Phone Call Ended.
Your radio returns to the screen you were on prior to
initiating the call.
OR
If unsuccessful:
Your radio returns to the Phone Call screen. Repeat Steps 6
and 7 or wait for the telephone user to end the call.
When you press PTT button while in the Phone Contacts
screen, a tone sounds and the display shows Press OK to
Place Phone Call.
When the telephone user ends the call, a tone sounds and the
display shows Phone Call Ended.
If the call ends while you are entering the extra digits requested
by the Phone Call, your radio returns to the screen you were on
prior to initiating the call.
NOTE: During channel access, press R to dismiss the call
attempt and a tone sounds.
During the call, when you press One Touch Access
button with the deaccess code preconfigured or enter
the deaccess code as the input for extra digits, your
radio attempts to end the call.
During channel access and access/deaccess code or
extra digits transmission, your radio responds to On/
Off button, Volume Knob, and Channel Rocker only.
A tone sounds for every invalid input.
The access or deaccess code cannot be more than 10
characters.
NAG_6880309T15.book Page 81 Friday, January 28, 2011 10:48 AM
Keypad Microphone Features
English
82
Making a Phone Call from Contacts
Procedure:
1S to access the menu.
2Por Q to Contacts and press N to select.The
entries are alphabetically sorted.
3Por Q to the required subscriber alias or ID.
OR
Por Q to Manual Dial and press N to select.
Por Q to Phone Call and press N to select.
The first line of the display shows Phone Number:. The
second line of the display shows a blinking cursor. Use the
keypad to enter a telephone number.
4Press N to select.
5Por Q to Call Phone and press N to select.
If the access code was not preconfigured in the Contacts
list, the first line of the display shows Access Code:. The
second line of the display shows a blinking cursor. Enter the
access code and press N to proceed.
6The first line of the display shows Calling. The second line
of the display shows the subscriber alias or ID, and the
Phone Call icon.
7If successful:
The DTMF tone sounds. You hear the dialing tone of the
telephone user. The first line of the display shows the
subscriber alias or ID, and the RSSI icon. The second line of
the display shows Phone Call and the Phone Call icon.
OR
If unsuccessful:
A tone sounds and the display shows Phone Call Failed.
Your radio returns to the Access Code input screen.
If the access code was preconfigured in the Contacts list,
the radio returns to the screen you were on prior to initiating
the call.
8Press the PTT button to talk and release it to listen. The
RSSI icon disappears during transmission.
To enter extra digits, if requested by the Phone Call:
Press any keypad to begin the input of extra digits. The first
line of the display shows Extra Digits:. The second line
of the display shows a blinking cursor. Enter the extra digits
and press N to proceed. The DTMF tone sounds and the
radio returns to the previous screen.
OR
Press One Touch Access button. The DTMF tone sounds
and the radio returns to the previous screen. If the entry for
the One Touch Access button is empty, a negative
indicator tone sounds.
NAG_6880309T15.book Page 82 Friday, January 28, 2011 10:48 AM
Keypad Microphone Features
English
83
9Press R to end the call.
If deaccess code was not preconfigured in the Contacts list,
the first line of the display shows De-Access Code:. The
second line of the display shows a blinking cursor. Enter the
deaccess code and press N to proceed. The radio returns
to the previous screen.
10 The DTMF tone sounds and the display shows Ending
Phone Call.
11 If successful:
A tone sounds and the display shows Phone Call Ended.
Your radio returns to the Call Phone screen.
OR
If unsuccessful:
Your radio returns to the Phone Call screen. Repeat Steps 9
and 10 or wait for the telephone user to end the call.
When you press PTT button while in the Phone Contacts
screen, a negative indicator tone sounds and the display shows
Press OK to Place Phone Call.
When the telephone user ends the call, a tone sounds and the
display shows Phone Call Ended.
If the call ends while you are entering the extra digits requested
by the Phone Call, your radio returns to the screen you were on
prior to initiating the call.
NOTE: During channel access, press R to dismiss the call
attempt and a negative indicator tone sounds. Your
radio returns to the Call Phone screen.
During the call, when you press One Touch Access
button with the deaccess code preconfigured or enter
the deaccess code as the input for extra digits, your
radio attempts to end the call.
During channel access and access/deaccess code or
extra digits transmission, your radio responds to On/
Off button, Volume Knob, and Channel Rocker only.
A tone sounds for every invalid input.
The access or deaccess code cannot be more than 10
characters.
NAG_6880309T15.book Page 83 Friday, January 28, 2011 10:48 AM
Keypad Microphone Features
English
84
Making a Group, Private, Phone or All Call by Alias
Search
You can also use alias or alphanumeric search to retrieve the
required subscriber alias.
This feature is only applicable while in Contacts.
Procedure:
1S to access the menu.
2Por Q to Contacts and press N to select. The
entries are alphabetically sorted.
3Key in the first character of the required alias.
4A blinking cursor appears.
Use the keypad to type the required alias.
Press P to move one space to the left.
Press Q to move one space to the right.
Press the *DEL key to delete any unwanted characters.
5The first line of the display shows the characters you keyed
in. The second line of the display shows the required alias.
The alias search is case-insensitive. If there are two or more
entries with the same name, the radio displays the entry that
is listed first in the Contacts list.
6Press the PTT button to make the call. The green LED lights
up. The first line displays the target radio’s ID. The second
line displays the call type and the Call icon.
7Wait for the Talk Permit Tone to finish (if enabled) and
speak clearly into the microphone
8Release the PTT button to listen. When the target radio
responds, the green LED blinks.
9If the Channel Free Indication feature is enabled, you will
hear a short alert tone the moment the target radio releases
the PTT button, indicating the channel is free for you to
respond. Press the PTT button to respond.
OR
If there is no voice activity for a programmed period of time,
the call ends.
10 You hear a short tone. The display shows Call Ended.
NOTE: Press R button or N to exit alias search.
NAG_6880309T15.book Page 84 Friday, January 28, 2011 10:48 AM
Keypad Microphone Features
English
85
Viewing an Entry in the Scan List by Alias Search
Procedure:
1S to access the menu.
2Por Q to Scan and press N to select.
3Por Q to View/Edit List and press N to select.
4Key in the first character of the required alias.
5A blinking cursor appears.
Use the keypad to type the required alias.
Press P to move one space to the left.
Press Q to move one space to the right.
Press the *DEL key to delete any unwanted characters.
6The first line of the display shows the characters you keyed
in. The second line of the display shows the required alias.
The alias search is case-insensitive. If there are two or more
entries with the same name, the radio displays the entry that is
listed first in the scan list.
Editing the Scan List by Alias Search
Adding a New Entry to the Scan List
Procedure:
1S to access the menu.
2Por Q to Scan and press N to select.
3Por Q to View/Edit List and press N to select.
4Por Q to Add Member and press N to select.
5Key in the first character of the required alias.
6A blinking cursor appears.
Use the keypad to type the required alias.
Press P to move one space to the left.
Press Q to move one space to the right.
Press the *DEL key to delete any unwanted characters.
7The first line of the display shows the characters you keyed
in. The second line of the display shows the required alias.
The alias search is case-insensitive. If there are two or more
aliases with the same name, the radio displays the alias that
is listed first in the list.
8Press N to select.
9Por Q to the required priority level and press N to
select.
NAG_6880309T15.book Page 85 Friday, January 28, 2011 10:48 AM
Keypad Microphone Features
English
86
10 The display shows Entry Saved, followed immediately by
Add Another?.
11 Por Q to Yes and press N to select, to add another
entry, and repeat Steps 5 to 9.
OR
Por Q to No and press N to select to save the current
list.
Deleting an Entry from the Scan List
Procedure:
1S to access the menu.
2Por Q to Scan and press N to select.
3Por Q to View/Edit List and press N to select.
4Key in the first character of the required alias.
5A blinking cursor appears.
Use the keypad to type the required alias.
Press P to move one space to the left.
Press Q to move one space to the right.
Press the *DEL key to delete any unwanted characters.
6The first line of the display shows the characters you keyed
in. The second line of the display shows the required alias.
The alias search is case-insensitive. If there are two or more
entries with the same name, the radio displays the entry that
is listed first in the scan list.
7Press N to select.
8Por Q to Delete and press N to select.
9At Delete Entry?, Por Q to Yes and press N to
select, to delete the entry. The display shows Entry
Deleted.
OR
Por Q to No and press N to select to return to the
previous screen.
10 Repeat Steps 4 to 9 to delete other entries.
After deleting all required aliases or IDs, long press R to
return to the Home screen.
NAG_6880309T15.book Page 86 Friday, January 28, 2011 10:48 AM
Keypad Microphone Features
English
87
Setting and Editing Priority for an Entry in the Scan
List
Procedure:
1S to access the menu.
2Por Q to Scan and press N to select.
3Por Q to View/Edit List and press N to select.
4Key in the first character of the required alias.
5A blinking cursor appears.
Use the keypad to type the required alias.
Press P to move one space to the left.
Press Q to move one space to the right.
Press the *DEL key to delete any unwanted characters.
6The first line of the display shows the characters you keyed
in. The second line of the display shows the required alias.
The alias search is case-insensitive. If there are two or more
entries with the same name, the radio displays the entry that
is listed first in the scan list.
7Press N to select.
8Por Q to Edit Priority and press N to select.
9Por Q to the required priority level and press N to
select.
10 The display shows Entry Saved before returning to the
previous screen.
11 The priority icon appears left of the member’s name.
There is no priority icon if priority is set to None.
Storing an Alias or ID from the Missed Call List
Procedure:
1S to access the menu.
2Por Q to Call Log and press N to select.
3Por Q to Missed and press N to select.
4Por Q to the required missed call alias or ID and press
N to select.
5Por Q to Store and press N to select.
6A blinking cursor appears. If needed, key in the alias for that
ID and press N.
7The display shows Contact Saved.
You can also store an ID without an alias.
NAG_6880309T15.book Page 87 Friday, January 28, 2011 10:48 AM
Keypad Microphone Features
English
88
Making a Call Alert by Manual Dial
Procedure:
1S to access the menu.
2Por Q to Contacts and press N to select.
3Por Q to Manual Dial and press N to select.
4Por Q to Private Call and press N to select.
5The first line of the display shows Radio Number:.
6A blinking cursor appears. Enter the subscriber ID you want
to send the Call Alert to and press N.
7Por Q to Call Alert and press N to select.
8The display shows Call Alert: <Subscriber ID>,
confirming that the Call Alert has been sent.
9The green LED lights up when your radio is sending the Call
Alert.
10 If the Call Alert acknowledgement is received, a tone
sounds and the display shows Call Alert Successful.
OR
If the Call Alert acknowledgement is not received, a tone
sounds and the display shows Call Alert Failed.
Text Messaging
The maximum length of characters for a text message,
including the subject line (seen when receiving message from
an e-mail application), is 138.
The radio exits the current screen once the inactivity timer
expires. Any text message in the writing/editing screen will
automatically be saved to the Drafts folder.
NOTE: Long press R at any time to return to the Home
screen.
Writing and Sending a Text Message
Procedure:
Press the programmed Text Messaging button and proceed to
Step 3.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Messages and press N to select.
3Por Q to Write and press N to select.
4Use the keypad to type your message.
Press P to move one space to the left.
Press Q or the # key to move one space to the right.
Press the * key to delete any unwanted characters.
NAG_6880309T15.book Page 88 Friday, January 28, 2011 10:48 AM
Keypad Microphone Features
English
89
5Press N once message is composed.
6Por Q to Send and press N to send the message.
OR
Por Q to Save and press N to save the message to
the Drafts folder.
OR
R to edit the message.
R again to delete the message or save it to the Drafts
folder.
7Por Q to the required subscriber alias or ID and press
N to select.
OR
Por Q to Manual Dial and press N to select.
Por Q to Private Call and press N to select.
The first line of the display shows Radio Number:.
Key in the subscriber ID and press N.
8The display shows Text Message: <Subscriber Alias
or ID>, confirming your message is being sent.
9If the message is sent, a tone sounds and the display shows
Message Sent.
OR
If the message is not sent, the display shows Message Send
Failed.
If the text message fails to send, the radio returns you to the
Resend
option screen (see Managing Fail-to-Send Text
Messages on page 49 and page 92).
Replying to Text Messages from the Inbox
Procedure:
Press the programmed Text Messaging button and proceed to
Step 3.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Messages and press N to select.
3Por Q to Inbox and press N to select.
4Por Q to the required message and press N to
select.
A subject line may be shown if the message is from an
e-mail application.
5Press N once more to access additional options.
6Por Q to Reply and press N to select.
NAG_6880309T15.book Page 89 Friday, January 28, 2011 10:48 AM
Keypad Microphone Features
English
90
7Por Q to Write and press N to select.
A blinking cursor appears. Use the keypad to type your
message.
Press P to move one space to the left.
Press Q or the # key to move one space to the right.
Press the * key to delete any unwanted characters.
8Press N once message is composed.
9The display shows Text Message: <Subscriber/Group
Alias or ID>, confirming your message is being sent.
10 If the message is sent, a tone sounds and the display shows
Message Sent.
OR
If the message is not sent, a tone sounds and the display
shows Message Send Failed.
If the text message fails to send, the radio returns you to the
Resend
option screen (see Managing Fail-to-Send Text
Messages on page 49 and page 92).
NOTE: If a subject line is present (for messages received from
an e-mail application), you cannot edit it.
Editing a Quick Text Message
Procedure:
Press the programmed Text Messaging button and proceed to
Step 3.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Messages and press N to select.
3Por Q to Quick Text and press N to select.
4Por Q to the required Quick Text and press N to
select.
5A blinking cursor appears. Use the keypad to edit the
message.
Press P to move one space to the left.
Press Q or the # key to move one space to the right.
Press the * key to delete any unwanted characters.
6Press N once message is composed.
NAG_6880309T15.book Page 90 Friday, January 28, 2011 10:48 AM
Keypad Microphone Features
English
91
7Por Q to Send and press N to send the message.
OR
Por Q to Save and press N to save the message to
the Drafts folder.
OR
R to edit the message.
R again to delete the message or save it to the Drafts
folder.
8Por Q to the required subscriber alias or ID and press
N to select.
OR
Por Q to Manual Dial and press N to select.
Por Q to Private Call and press N to select.
The first line of the display shows Radio Number:.
Key in the subscriber ID and press N.
9The display shows Text Message: <Subscriber Alias
or ID>, confirming your message is being sent.
10 If the message is sent, a tone sounds and the display shows
Message Sent.
OR
If the message is not sent, a tone sounds and the display
shows Message Send Failed.
If the text message fails to send, the radio returns you to the
Resend
option screen (see Managing Fail-to-Send Text
Messages on page 49 and page 92).
Accessing the Drafts Folder
You can save a text message to send it at a later time.
If a PTT button press or a mode change causes the radio to exit
the text message writing/editing screen while you are in the
process of writing or editing a text message, your current text
message is automatically saved to the Drafts folder.
The most recent saved text message is always added to the top
of the Drafts list. See Managing Text Messages in the Drafts
Folder on page 48 for more information.
NOTE: Long press R at any time to return to the Home
screen.
Editing and Sending a Saved Text Message
Procedure:
1Press N again while viewing the message.
2Por Q to Edit and press N to select.
A blinking cursor appears.
Use the keypad to edit your message.
Press P to move one space to the left.
Press Q or the # key to move one space to the right.
Press the *DEL key to delete any unwanted characters.
Press N once message is composed.
OR
Por Q to Send and press N to select.
NAG_6880309T15.book Page 91 Friday, January 28, 2011 10:48 AM
Keypad Microphone Features
English
92
3Por Q to the required alias or ID and press N to
select.
OR
Por Q to Manual Dial and press N to select.
Por Q to Private Call and press N to select.
The first line of the display shows Radio Number:.
Key in the subscriber alias or ID and press N.
4The display shows Sending to: <Subscriber/Group
Alias or ID>, confirming your message is being sent.
5If the message is sent, a tone sounds and the display shows
Message Sent.
OR
If the message is not sent, a low tone sounds and the
display shows Message Send Failed.
If the text message fails to send, it is moved to the Sent Items
folder and marked with a Send Failed icon.
Managing Fail-to-Send Text Messages
if the message fails to send, the radio returns you to the Resend
option screen.
Forwarding a Text Message by Manual Dial
Select Forward to send the message to another subscriber/
group alias or ID.
Procedure:
1Por Q to Forward and press N to select.
2Por Q to Manual Dial and press N to select.
Por Q to Private Call and press N to select.
The first line of the display shows Radio Number:.
Key in the subscriber ID and press N.
3The display shows Text Message: <Subscriber/Group
Alias or ID>, confirming your message is being sent.
4If the message is sent, a tone sounds and the display shows
Message Sent.
OR
If the message is not sent, a low tone sounds and the
display shows Message Send Failed.
NAG_6880309T15.book Page 92 Friday, January 28, 2011 10:48 AM
Keypad Microphone Features
English
93
Editing a Text Message
Select Edit to edit the message before sending it.
NOTE: If a subject line is present (for messages received from
an e-mail application), you cannot edit it.
Procedure:
1Por Q to Edit and press N to select.
2A blinking cursor appears beside the message.
Use the keypad to edit your message.
Press P to move one space to the left.
Press Q or the # key to move one space to the right.
Press the *DEL key to delete any unwanted characters.
3Press N once message is composed.
4Por Q to the required alias or ID and press N to
select.
OR
Por Q to Manual Dial and press N to select.
Por Q to Private Call and press N to select.
The first line of the display shows Radio Number:.
Key in the subscriber ID and press N.
5The display shows Text Message: <Subscriber/Group
Alias or ID>, confirming your message is being sent.
6If the message is sent, a tone sounds and the display shows
Message Sent.
OR
If the message is not sent, a low tone sounds and the
display shows Message Send Failed.
Dual Tone Multi Frequency (DTMF)
The Dual Tone Multi Frequency (DTMF) feature allows the radio
to operate in a radio system with an interface to telephone
systems.
Procedure:
To initiate a DTMF call.
1Press and hold the PTT button.
2Enter the desired number, * or #.
You can turn off the DTMF tone by disabling all radio tones and
alerts (see Turning the Radio Tones/Alerts On or Off on
page 66).
NAG_6880309T15.book Page 93 Friday, January 28, 2011 10:48 AM
Keypad Microphone Features
English
94
Security
Radio Disable via Manual Dial
Procedure:
1S to access the menu.
2Por Q to Contacts and press N to select. The
entries are alphabetically sorted.
3Por Q to Manual Dial and press N to select.
Por Q to Private Call and press N to select.
The first line of the display shows Radio Number:.
Key in the subscriber ID and press N.
4Por Q to Radio Disable and press N to select. The
green LED blinks.
5The display shows Radio Disable: <Subscriber ID> and
the green LED lights up.
6Wait for acknowledgment.
7If successful, a tone sounds and the display shows Radio
Disable Successful.
OR
If not successful, a tone sounds and the display shows
Radio Disable Failed.
Do not press R during the Radio Disable operation as you
will not get an acknowledgement message.
Radio Enable via Manual Dial
Procedure:
1S to access the menu.
2Por Q to Contacts and press N to select. The
entries are alphabetically sorted.
3Por Q to Manual Dial and press N to select.
Por Q to Private Call and press N to select.
The first line of the display shows Radio Number:.
Key in the subscriber ID and press N.
4Por Q to Radio Enable and press N to select. The
green LED blinks.
5The display shows Radio Enable: <Subscriber ID> and
the green LED lights up.
6Wait for acknowledgment.
7If successful, a tone sounds and the display shows Radio
Enable Successful.
OR
If not successful, a tone sounds and the display shows
Radio Enable Failed.
Do not press R during the Radio Enable operation as you will
not get an acknowledgement message.
NAG_6880309T15.book Page 94 Friday, January 28, 2011 10:48 AM
Keypad Microphone Features
English
95
Password Lock Features
If enabled, this feature allows you to access your radio via
password upon powering up. You can use a keypad
microphone or Channel Rocker to enter password.
Accessing the Radio from Password
Procedure:
Power up the radio.
1You hear a continuous tone. The first line of the display
shows Enter Password:. The second line of the display
shows a blinking cursor.
2Enter a four-digit password via keypad microphone.
You hear a positive indicator tone for every digit pressed.
OR
Press the Channel Rocker to select a digit and N to enter
the selected digit. Enter the remaining digits of the password
in the same manner.
The second line of the display shows ****. Press N to
proceed.
Press P to remove the last * on the display. You hear a
negative indicator tone, if you press P when the second
line of the display is empty, or if you press more than four
digits.
3If the password is correct:
Your radio proceeds to power up. See Powering Up the
Radio on page 2.
OR
If the password is incorrect:
The display shows Wrong Password. Repeat Steps 1 and 2.
Password less than four digits is incorrect.
OR
After the third incorrect password, the display shows Wrong
Password and then, shows Radio Locked. A tone sounds
and the yellow LED double blinks.
Your radio enters into locked state for 15 minutes, and responds
to inputs from On/Off button and programmed Backlight button
only.
NOTE: The radio is unable to receive any call, including
emergency calls, in locked state.
The use of Emergency footswitch cancels out
password input to access the radio.
NAG_6880309T15.book Page 95 Friday, January 28, 2011 10:48 AM
Keypad Microphone Features
English
96
Unlocking the Radio from Locked State
Procedure:
Wait for 15 minutes. Repeat Steps 1 to 3 in Accessing the
Radio from Password on page 95.
OR
Power up the radio, if you have powered down the radio during
locked state:
1A tone sounds and the yellow LED double blinks. The
display shows Radio Locked.
2Wait for 15 minutes. Repeat Steps 1 to 3 in Accessing the
Radio from Password on page 95.
Your radio restarts the 15 minutes timer for locked state when
you power up.
Turning the Password Lock On or Off
Procedure:
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Settings and press N to select.
4Por Q to Passwd Lock and press N to select.
5The first line of the display shows Current Password:.
6Enter a four-digit password via keypad microphone.
OR
Press the Channel Rocker to select a digit and N to enter
the selected digit. Enter the remaining digits of the password
in the same manner.
The second line of the display shows ****. Press N to
proceed.
7If the password is correct:
The first line of the display shows Passwd Lock and the
second line of the display shows Turn On. Press N to
enable password lock. The display shows Password Lock
On.
OR
The first line of the display shows Passwd Lock and the
second line of the display shows Turn Off. Press N to
disable password lock. The display shows Password Lock
Off.
OR
If the password is incorrect:
The display shows Wrong Password and automatically
returns to the previous menu.
NAG_6880309T15.book Page 96 Friday, January 28, 2011 10:48 AM
Keypad Microphone Features
English
97
Changing the Password
Procedure:
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Settings and press N to select.
4Por Q to Passwd Lock and press N to select.
5The first line of the display shows Current Password:.
6Enter a four-digit password via keypad microphone.
OR
Press the Channel Rocker to select a digit and N to enter
the selected digit. Enter the remaining digits of the password
in the same manner.
The second line of the display shows ****. Press N to
proceed.
7If the password is correct:
Por Q to Change Pwd and press N to select.
OR
If the password is incorrect:
The display shows Wrong Password and automatically
returns to the previous menu.
8The first line of the display shows New Password:.
9Enter a four-digit password via keypad microphone.
OR
Press the Channel Rocker to select a digit and N to enter
the selected digit. Enter the remaining digits of the password
in the same manner.
The second line of the display shows ****. Press N to
proceed.
You hear a negative indicator tone, if you press more than
four digits.
10 The first line of the display shows Confirm Password:.
11 Reenter a four-digit password via keypad microphone.
OR
Press the Channel Rocker to select a digit and N to enter
the selected digit. Enter the remaining digits of the password
in the same manner.
The second line of the display shows ****. Press N to
proceed. If the new password is less than four digits:
The display shows Four Digitals Required. Repeat
Steps 8 to 11.
12 If both of the new password inputs match:
The display shows Password Changed.
OR
If both of the new password inputs do not match:
The display shows Passwords Do Not Match.
13 The screen automatically returns to the previous menu.
NAG_6880309T15.book Page 97 Friday, January 28, 2011 10:48 AM
Accessories
English
98
Accessories
Your radio is compatible with the accessories listed in this
chapter. Contact your dealer for details.
Antennas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 98
Audio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 100
Cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 100
Desktop Accessories. . . . . . . . . . . . . . . . . . . . . . . . . page 100
Mounting Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 100
Remote Mount Adaptor Kits . . . . . . . . . . . . . . . . . . . page 101
Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 101
Miscellaneous Accessories. . . . . . . . . . . . . . . . . . . . page 101
Antennas
•VHF, 136 – 144 MHz, 1/4 Wave, Through-Hole Mount,
Mini-U (HAD4006_)
•VHF, 146 – 150.8 MHz, 1/4 Wave, Through-Hole Mount,
Mini-U (HAD4007_)
•VHF, 150.8 – 162 MHz, 1/4 Wave, Through-Hole Mount,
Mini-U (HAD4008_)
•VHF, 162 – 174 MHz, 1/4 Wave, Through-Hole Mount,
Mini-U (HAD4009_)
•VHF, 146 – 172 MHz, 3.0 dB Gain, Through-Hole Mount,
Mini-U (HAD4014_)
•UHF, 403 – 430 MHz, 1/4 Wave, Through-Hole Mount,
Mini-U (HAE4002_)
•UHF, 450 – 470 MHz, 1/4 Wave, Through-Hole Mount,
Mini-U (HAE4003_)
•UHF, 470 – 527 MHz, 1/4 Wave, Through-Hole Mount,
Mini-U (HAE4004_)
•UHF, 406 – 420 MHz, 3.5 dB Gain, Through-Hole Mount,
Mini-U (HAE4010_)
•UHF, 450 – 470 MHz, 3.5 dB Gain, Through-Hole Mount,
Mini-U (HAE4011_)
•UHF, 470 – 494 MHz, 3.5 dB Gain, Through-Hole Mount,
Mini-U (HAE4012_)
•UHF, 494 – 512 MHz, 3.5 dB Gain, Through-Hole Mount,
Mini-U (HAE4013_)
•UHF, 403 – 527 MHz, 2.0 dB Gain, Through-Hole Mount,
Mini-U (HAE6022_)
NAG_6880309T15.book Page 98 Friday, January 28, 2011 10:48 AM
Accessories
English
99
•Combination GPS+RF, 806 – 941 MHz, 1/4 Wave,
Through-Hole Mount, Mini-U (HAF4029_)
•Combination GPS+RF, 806 – 941 MHz, 3.0 dB Gain,
Through-Hole Mount, Mini-U (HAF4030_)
•Combination GPS+RF, 806 – 941 MHz, 5.0 dB Gain,
Through-Hole Mount, Mini-U (HAF4032_)
•Combination GPS+RF, 806 – 941 MHz, 5.0 dB Gain,
Through-Hole Mount, Mini-U (HAF4033_)
•UHF, 450 – 470 MHz, 5.0 dB Gain, Through-Hole Mount,
Mini-U (RAE4004_)
•Combination GPS/VHF, 136 – 144 MHz, 1/4 Wave,
Through-Hole Mount, Mini-U (RAD4214_)
•Combination GPS/VHF, 146 – 150.8 MHz, 1/4 Wave,
Through-Hole Mount, Mini-U (RAD4215_)
•Combination GPS/VHF, 150.8 – 162 MHz, 1/4 Wave,
Through-Hole Mount, Mini-U (RAD4216_)
•Combination GPS/VHF, 162 – 174 MHz, 1/4 Wave,
Through-Hole Mount, Mini-U (RAD4217_)
•Combination GPS/VHF, 146 – 172 MHz, 3.0 dB Gain,
Through-Hole Mount, Mini-U (RAD4218_)
•Combination GPS/UHF, 403 – 527 MHz, 2.0 dB Gain,
Through-Hole Mount, Mini-U (HAE6019_)
•Combination GPS/UHF, 470 – 527 MHz, 1/4 Wave,
Through-Hole Mount, Mini-U (HAE6020_)
•Combination GPS/UHF, 470 – 494 MHz, 3.0 dB Gain,
Through-Hole Mount, Mini-U (HAE6024_)
•Combination GPS/UHF, 494 – 512 MHz, 3.0 dB Gain,
Through-Hole Mount, Mini-U (HAE6026_)
•Combination GPS/UHF, 403 – 430 MHz, 1/4 Wave,
Through-Hole Mount, Mini-U (PMAE4030_)
•Combination GPS/UHF, 450 – 470 MHz, 1/4 Wave,
Through-Hole Mount, Mini-U (PMAE4031_)
•Combination GPS/UHF, 406 – 420 MHz, 3.5 dB Gain,
Through-Hole Mount, Mini-U (PMAE4032_)
•Combination GPS/UHF, 450 – 470 MHz, 3.5 dB Gain,
Through-Hole Mount, Mini-U (PMAE4033_)
•Combination GPS/UHF, 450 – 470 MHz, 5.0 dB Gain,
Through-Hole Mount, Mini-U (PMAE4034_)
•Fixed Mount GPS Active Antenna (PMAN4000_)
•Window Mount GPS Active Antenna (PMAN4001_)
•Magnetic Mount GPS Active Antenna (PMAN4002_)
NAG_6880309T15.book Page 99 Friday, January 28, 2011 10:48 AM
Accessories
English
100
Audio
•Telephone Style Handset (HMN4098_)
•Desktop Microphone (RMN5050_)
•Compact Microphone (RMN5052_)
•Heavy Duty Microphone with Enhanced Audio (RMN5053_)
•Visor Microphone with Enhanced Audio (RMN5054_)
•Keypad Microphone with Enhanced Audio (RMN5065_)
Cables
•Power Cable to Battery, 10-foot (3-metre) Cable, 15 amp
(1 – 25 Watt) (HKN4137_)
•Power Cable to Battery, 10-foot (3-metre) Cable, 20 amp
(1 – 45 Watt) (HKN4191_)
•Power Cable to Battery, 20-foot (6-metre) Cable, 20 amp
(1 – 45 Watt) (HKN4192_)
•Mobile and Repeater Rear Accessory Connector Universal
Cable (PMKN4018_)
•Ignition Sense Cable (RKN4136_)
Desktop Accessories
•Radio Power Cable for GPN6145 (GKN6266_)
•Desktop Tray without Speaker (GLN7318_)
•Desktop Tray with Speaker (RSN4005_)
•Switchmode Power Supply (1 – 25 Watt Models) (CE
marked) (GPN6145_)
•Mobile Mini-U Antenna Adapter, 8-foot (2.4-metre) Cable
(HKN9088_)
•Power Supply and Cable (HPN4007_)
•Hardware Kit for Rear Accessory Connector (PMLN5072_)
Mounting Kits
•In Dash (DIN) Mounting Kit (RLN5933_)
•Low Profile Trunnion Kit (RLN6077_)
•High Profile Trunnion Kit (RLN6078_)
•Key Lock Trunnion Kit (RLN6079_)
NAG_6880309T15.book Page 100 Friday, January 28, 2011 10:48 AM
Accessories
English
101
Remote Mount Adaptor Kits
•Mobile Remote Mount 5-Meter Cable Kit (PMKN4073_)
•Mobile Remote Mount 3-Meter Cable Kit (PMKN4074_)
•Mobile Remote Mount Adaptor Kit (PMLN5404_)
Speakers
•13-Watt External Speaker (RSN4002_)
•7.5-Watt External Speaker (RSN4003_)
•5-Watt External Speaker (RSN4004_)
Miscellaneous Accessories
•Display Mobile Button Kit (Includes Buttons for Monitor, Scan,
Backlight, Emergency, Talkaround, Text Message, and
Contacts) (HKLN4291_)
•Mobile Button Kit (Includes Buttons for Remote Monitor,
Radio Check, Radio Disable, and VOX) (HKLN4292_)
•PL259/Mini-U Antenna Adapter, 8-foot (2.4-metre) Cable
(HKN9557_)
•Microphone Hang Up Clip (All Microphones) (HLN9073_)
•Universal Microphone Hang Up Clip (All Microphones)
(HLN9414_)
•Push Button PTT (RLN5926_)
•Emergency Footswitch (RLN5929_)
NAG_6880309T15.book Page 101 Friday, January 28, 2011 10:48 AM
Appendix: Maritime Radio Use in the VHF
Frequency Range
English
102
Appendix: Maritime Radio Use in the
VHF Frequency Range
Take a moment to review the following:
Special Channel Assignments. . . . . . . . . . . . . . . . . . page 102
Operating Frequency Requirements . . . . . . . . . . . . . page 103
Special Channel Assignments
Emergency Channel
If you are in imminent and grave danger at sea and require
emergency assistance, use VHF Channel 16 to send a distress
call to nearby vessels and the United States Coast Guard.
Transmit the following information, in this order:
1“MAYDAY, MAYDAY, MAYDAY.”
2“THIS IS _____________________, CALL SIGN
__________.”
State the name of the vessel in distress 3 times, followed
by the call sign or other identification of the vessel, stated 3
times.
3Repeat “MAYDAY” and the name of the vessel.
4“WE ARE LOCATED AT _______________________.”
State the position of the vessel in distress, using any
information that will help responders to locate you, e.g.:
• latitude and longitude
• bearing (state whether you are using true or magnetic
north)
• distance to a well-known landmark
• vessel course, speed or destination
5State the nature of the distress.
6Specify what kind of assistance you need.
7State the number of persons on board and the number
needing medical attention, if any.
8Mention any other information that would be helpful to
responders, such as type of vessel, vessel length and/or
tonnage, hull color, etc.
9“OVER.”
10 Wait for a response.
11 If you do not receive an immediate response, remain by the
radio and repeat the transmission at intervals until you
receive a response. Be prepared to follow any instructions
given to you.
Non-Commercial Call Channel
For non-commercial transmissions, such as fishing reports,
rendezvous arrangements, repair scheduling, or berthing
information, use VHF Channel 9.
NAG_6880309T15.book Page 102 Friday, January 28, 2011 10:48 AM
Appendix: Maritime Radio Use in the VHF
Frequency Range
English
103
Operating Frequency Requirements
A radio designated for shipboard use must comply with Federal
Communications Commission Rule Part 80 as follows:
•on ships subject to Part II of Title III of the Communications
Act, the radio must be capable of operating on the 156.800
MHz frequency
•on ships subject to the Safety Convention, the radio must be
capable of operating:
• in the simplex mode on the ship station transmitting
frequencies specified in the 156.025 – 157.425 MHz
frequency band, and
• in the semiduplex mode on the two frequency channels
specified in the table below.
NOTE: Simplex channels 3, 21, 23, 61, 64, 81, 82, and 83
cannot be lawfully used by the general public in US
waters.
Additional information about operating requirements in the
Maritime Services can be obtained from the full text of FCC
Rule Part 80 and from the US Coast Guard.
Table A-1: VHF Marine Channel List
Channel
Number
Frequency (MHz)
Transmit Receive
1 156.050 160.650
2 156.100 160.700
* 156.150 160.750
4 156.200 160.800
5 156.250 160.850
6 156.300 –
7 156.350 160.950
8 156.400 –
9 156.450 156.450
10 156.500 156.500
11 156.550 156.550
12 156.600 156.600
13** 156.650 156.650
14 156.700 156.700
15** 156.750 156.750
16 156.800 156.800
17** 156.850 156.850
18 156.900 161.500
19 156.950 161.550
20 157.000 161.600
* 157.050 161.650
22 157.100 161.700
* 157.150 161.750
Table A-1: VHF Marine Channel List (Continued)
Channel
Number
Frequency (MHz)
Transmit Receive
NAG_6880309T15.book Page 103 Friday, January 28, 2011 10:48 AM
Appendix: Maritime Radio Use in the VHF
Frequency Range
English
104
* Simplex channels 3, 21, 23, 61, 64, 81, 82, and 83 cannot be
lawfully used by the general public in US waters.
** Low power (1 W) only
*** Guard band
NOTE: A – in the Receive column indicates that the channel is
transmit only.
24 157.200 161.800
25 157.250 161.850
26 157.300 161.900
27 157.350 161.950
28 157.400 162.000
60 156.025 160.625
* 156.075 160.675
62 156.125 160.725
63 156.175 160.775
* 156.225 160.825
65 156.275 160.875
66 156.325 160.925
67** 156.375 156.375
68 156.425 156.425
69 156.475 156.475
71 156.575 156.575
72 156.625 –
73 156.675 156.675
74 156.725 156.725
75 *** ***
76 *** ***
77** 156.875 –
Table A-1: VHF Marine Channel List (Continued)
Channel
Number
Frequency (MHz)
Transmit Receive
78 156.925 161.525
79 156.975 161.575
80 157.025 161.625
* 157.075 161.675
* 157.125 161.725
* 157.175 161.775
84 157.225 161.825
85 157.275 161.875
86 157.325 161.925
87 157.375 161.975
88 157.425 162.025
Table A-1: VHF Marine Channel List (Continued)
Channel
Number
Frequency (MHz)
Transmit Receive
NAG_6880309T15.book Page 104 Friday, January 28, 2011 10:48 AM
Limited Warranty
English
105
Limited Warranty
MOTOROLA COMMUNICATION PRODUCTS
I. WHAT THIS WARRANTY COVERS AND FOR HOW
LONG:
MOTOROLA INC. (“MOTOROLA”) warrants the MOTOROLA
manufactured Communication Products listed below (“Product”)
against defects in material and workmanship under normal use and
service for a period of time from the date of purchase as scheduled
below:
MOTOROLA, at its option, will at no charge either repair the
Product (with new or reconditioned parts), replace it (with a new or
reconditioned Product), or refund the purchase price of the Product
during the warranty period provided it is returned in accordance
with the terms of this warranty. Replaced parts or boards are
warranted for the balance of the original applicable warranty period.
All replaced parts of Product shall become the property of
MOTOROLA.
This express limited warranty is extended by MOTOROLA to the
original end user purchaser only and is not assignable or
transferable to any other party. This is the complete warranty for the
Product manufactured by MOTOROLA. MOTOROLA assumes no
obligations or liability for additions or modifications to this warranty
unless made in writing and signed by an officer of MOTOROLA.
Unless made in a separate agreement between MOTOROLA and
the original end user purchaser, MOTOROLA does not warrant the
installation, maintenance or service of the Product.
MOTOROLA cannot be responsible in any way for any ancillary
equipment not furnished by MOTOROLA which is attached to or
used in connection with the Product, or for operation of the Product
with any ancillary equipment, and all such equipment is expressly
excluded from this warranty. Because each system which may use
the Product is unique, MOTOROLA disclaims liability for range,
coverage, or operation of the system as a whole under this
warranty.
II. GENERAL PROVISIONS:
This warranty sets forth the full extent of MOTOROLA'S
responsibilities regarding the Product. Repair, replacement or
refund of the purchase price, at MOTOROLA’s option, is the
exclusive remedy. THIS WARRANTY IS GIVEN IN LIEU OF ALL
OTHER EXPRESS WARRANTIES. IMPLIED WARRANTIES,
INCLUDING WITHOUT LIMITATION, IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE LIMITED TO THE DURATION OF THIS LIMITED
WARRANTY. IN NO EVENT SHALL MOTOROLA BE LIABLE FOR
DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE
PRODUCT, FOR ANY LOSS OF USE, LOSS OF TIME,
INCONVENIENCE, COMMERCIAL LOSS, LOST PROFITS OR
SAVINGS OR OTHER INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR
XPR Series Digital Mobile Radios Two (2) Years
Product Accessories One (1) Year
NAG_6880309T15.book Page 105 Friday, January 28, 2011 10:48 AM
Limited Warranty
English
106
INABILITY TO USE SUCH PRODUCT, TO THE FULL EXTENT
SUCH MAY BE DISCLAIMED BY LAW.
III. STATE LAW RIGHTS:
SOME STATES DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES
OR LIMITATION ON HOW LONG AN IMPLIED WARRANTY
LASTS, SO THE ABOVE LIMITATION OR EXCLUSIONS MAY
NOT APPLY.
This warranty gives specific legal rights, and there may be other
rights which may vary from state to state.
IV. HOW TO GET WARRANTY SERVICE:
You must provide proof of purchase (bearing the date of purchase
and Product item serial number) in order to receive warranty
service and, also, deliver or send the Product item, transportation
and insurance prepaid, to an authorized warranty service location.
Warranty service will be provided by MOTOROLA through one of its
authorized warranty service locations. If you first contact the
company which sold you the Product (e.g., dealer or
communication service provider), it can facilitate your obtaining
warranty service. You can also call MOTOROLA at 1-800-927-2744
US/Canada.
V. WHAT THIS WARRANTY DOES NOT COVER:
A) Defects or damage resulting from use of the Product in other
than its normal and customary manner.
B) Defects or damage from misuse, accident, water, or neglect.
C)Defects or damage from improper testing, operation,
maintenance, installation, alteration, modification, or adjustment.
D)Breakage or damage to antennas unless caused directly by
defects in material workmanship.
E) A Product subjected to unauthorized Product modifications,
disassembles or repairs (including, without limitation, the addition
to the Product of non-MOTOROLA supplied equipment) which
adversely affect performance of the Product or interfere with
MOTOROLA's normal warranty inspection and testing of the
Product to verify any warranty claim.
F) Product which has had the serial number removed or made
illegible.
G)Rechargeable batteries if:
(1) any of the seals on the battery enclosure of cells are broken
or show evidence of tampering.
(2) the damage or defect is caused by charging or using the
battery in equipment or service other than the Product for which it
is specified.
H)Freight costs to the repair depot.
I) A Product which, due to illegal or unauthorized alteration of the
software/firmware in the Product, does not function in
accordance with MOTOROLA’s published specifications or the
FCC certification labeling in effect for the Product at the time the
Product was initially distributed from MOTOROLA.
J) Scratches or other cosmetic damage to Product surfaces that
does not affect the operation of the Product.
K) Normal and customary wear and tear.
NAG_6880309T15.book Page 106 Friday, January 28, 2011 10:48 AM
Limited Warranty
English
107
VI. PATENT AND SOFTWARE PROVISIONS:
MOTOROLA will defend, at its own expense, any suit brought
against the end user purchaser to the extent that it is based on a
claim that the Product or parts infringe a United States patent, and
MOTOROLA will pay those costs and damages finally awarded
against the end user purchaser in any such suit which are
attributable to any such claim, but such defense and payments are
conditioned on the following:
A) that MOTOROLA will be notified promptly in writing by such
purchaser of any notice of such claim;
B) that MOTOROLA will have sole control of the defense of such
suit and all negotiations for its settlement or compromise; and
C)should the Product or parts become, or in MOTOROLA’s opinion
be likely to become, the subject of a claim of infringement of a
United States patent, that such purchaser will permit
MOTOROLA, at its option and expense, either to procure for
such purchaser the right to continue using the Product or parts or
to replace or modify the same so that it becomes non-infringing
or to grant such purchaser a credit for the Product or parts as
depreciated and accept its return. The depreciation will be an
equal amount per year over the lifetime of the Product or parts as
established by MOTOROLA.
MOTOROLA will have no liability with respect to any claim of patent
infringement which is based upon the combination of the Product or
parts furnished hereunder with software, apparatus or devices not
furnished by MOTOROLA, nor will MOTOROLA have any liability
for the use of ancillary equipment or software not furnished by
MOTOROLA which is attached to or used in connection with the
Product. The foregoing states the entire liability of MOTOROLA
with respect to infringement of patents by the Product or any parts
thereof.
Laws in the United States and other countries preserve for
MOTOROLA certain exclusive rights for copyrighted MOTOROLA
software such as the exclusive rights to reproduce in copies and
distribute copies of such MOTOROLA software. MOTOROLA
software may be used in only the Product in which the software was
originally embodied and such software in such Product may not be
replaced, copied, distributed, modified in any way, or used to
produce any derivative thereof. No other use including, without
limitation, alteration, modification, reproduction, distribution, or
reverse engineering of such MOTOROLA software or exercise of
rights in such MOTOROLA software is permitted. No license is
granted by implication, estoppel or otherwise under MOTOROLA
patent rights or copyrights.
VII. GOVERNING LAW:
This Warranty is governed by the laws of the State of Illinois, U.S.A.
NAG_6880309T15.book Page 107 Friday, January 28, 2011 10:48 AM
Notes
English
108
Notes
NAG_6880309T15.book Page 108 Friday, January 28, 2011 10:48 AM
