Motorola Solutions, Inc. MOTOTRBO UHF 25 Watt Repeater NAG
Exhibit D Users Manual per 2 1033 c3
Repeater
XPR™ 8300 Repeater
Professional Digital Two-Way Radio System
Installation Guide
i
Foreword
This manual is intended for use by experienced technicians familiar with similar types of equipment. Specifically, it contains
installation information required for the MOTOTRBO XPR 8300 Repeater.
For information related to the service of the XPR 8300 Repeater, refer to the list applicable manuals available separately.
This list is provided in the Related Publications section on page ii.
Product Safety and RF Exposure Compliance
See Installation Requirements for Compliance with Radio Frequency (RF) Energy Exposure Safety Standards on page i.
Manual Revisions
Changes which occur after this manual is printed are described in PMRs (Publication Manual Revisions). These PMRs
provide complete replacement pages for all added, changed, and deleted items.
To obtain PMRs, go to:
http://www.motorola.com/businessonline
Parts Ordering
See Appendix A: Replacement Parts Ordering for information on how to obtain replacement parts. For part numbers, refer
to the XPR 8300 Repeater Basic Service Manual (Motorola publication part number 6816810H01).
Computer Software Copyrights
The Motorola products described in this manual may include copyrighted Motorola computer programs stored in
semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola certain
exclusive rights for copyrighted computer programs, including, but not limited to, the exclusive right to copy or reproduce in
any form the copyrighted computer program. Accordingly, any copyrighted Motorola computer programs contained in the
Motorola products described in this manual may not be copied, reproduced, modified, reverse-engineered, or distributed in
any manner without the express written permission of Motorola. Furthermore, the purchase of Motorola products shall not
be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or
patent applications of Motorola, except for the normal non-exclusive license to use that arises by operation of law in the
sale of a product.
Document Copyrights
No duplication or distribution of this document or any portion thereof shall take place without the express written permission
of Motorola. No part of this manual may be reproduced, distributed, or transmitted in any form or by any means, electronic
or mechanical, for any purpose without the express written permission of Motorola.
Disclaimer
The information in this document is carefully examined, and is believed to be entirely reliable. However, no responsibility is
assumed for inaccuracies. Furthermore, Motorola reserves the right to make changes to any products herein to improve
readability, function, or design. Motorola does not assume any liability arising out of the applications or use of any product
or circuit described herein; nor does it cover any license under its patent rights nor the rights of others.
Trademarks
MOTOROLA, the Stylized M logo are registered in the US Patent & Trademark Office. All other product or service names
are the property of their respective owners.
© 2006, 2007 by Motorola, Inc.
i
Installation Requirements for Compliance with
Radio Frequency (RF) Energy Exposure Safety
Standards
ATTENTION!
This radio is intended for use in occupational/controlled conditions, where users have full knowledge
of their exposure and can exercise control over their exposure to meet FCC limits. This radio device is
NOT authorized for general population, consumer, or any other use.
To ensure compliance to RF Energy Safety Standards:
• Install only Motorola approved antennas and accessories
• Be sure that Product Safety and RF Safety Booklet enclosed with this radio is available to the end user
upon completion of the installation of this radio
Before using this product, the operator must be familiar with the RF energy awareness information and
operating instructions in the Product Safety and RF Exposure booklet enclosed with each radio (Motorola
Publication part number 6881095C99) to ensure compliance with Radio Frequency (RF) energy exposure
limits.
For a list of Motorola-approved antennas and other accessories, visit the following web site which lists
approved accessories for your radio model:
http://www.motorola.com/governmentandenterprise
ii
Declaration of Conformity
This declaration is applicable to your radio only if your radio is labeled with the
FCC logo shown below.
DECLARATION OF CONFORMITY
Per FCC CFR 47 Part 2 Section 2.1077(a)
Responsible Party
Name: Motorola, Inc.
Address: 1301 East Algonquin Road, Schaumburg, IL 60196-1078, U.S.A.
Phone Number: 1-888-567-7347
Hereby declares that the product:
Model Name: XPR 8300
conforms to the following regulations:
FCC Part 15, subpart B, section 15.107(a), 15.107(d) and section 15.109(a)
Class B Digital Device
As a personal computer peripheral, this device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Table of Contents i
June 2007 6816814H01
Table of Contents
Foreword..........................................................................................................i
Product Safety and RF Exposure Compliance.............................................................................................i
Manual Revisions .........................................................................................................................................i
Parts Ordering ..............................................................................................................................................i
Computer Software Copyrights ....................................................................................................................i
Document Copyrights...................................................................................................................................i
Disclaimer.....................................................................................................................................................i
Trademarks ..................................................................................................................................................i
Installation Requirements for Compliance with
Radio Frequency (RF) Energy Exposure Safety Standards........................i
Declaration of Conformity .............................................................................ii
List of Figures ...............................................................................................iii
Repeater Model Numbering Scheme...........................................................iv
Commercial Warranty ....................................................................................v
Limited Warranty .........................................................................................................................................v
MOTOROLA COMMUNICATION PRODUCTS.................................................................................v
I. What This Warranty Covers and For How Long.......................................................................v
II. General Provisions ..................................................................................................................v
III. State Law Rights ..................................................................................................................vi
IV. How to Get Warranty Service ...............................................................................................vi
V. What This Warranty Does Not Cover.....................................................................................vi
VI. Patent and Software Provisions........................................................................................... vii
VII. Governing Law.................................................................................................................... vii
Chapter 1 Pre-Installation Considerations......................................... 1-1
1.1 Installation Overview...................................................................................................................... 1-1
1.2 Environmental Conditions at Intended Installation Site ................................................................. 1-1
1.2.1 Operating Temperature Range......................................................................................... 1-1
1.2.2 Humidity............................................................................................................................ 1-2
1.2.3 Air Quality ......................................................................................................................... 1-2
1.3 Equipment Ventilation.................................................................................................................... 1-2
1.4 AC Input Power Requirements ...................................................................................................... 1-2
1.4.1 Circuit Overloading ........................................................................................................... 1-2
1.5 Equipment Mounting Methods ....................................................................................................... 1-2
1.6 Site Grounding and Lightning Protection ....................................................................................... 1-3
1.6.1 Electrical Ground .............................................................................................................. 1-3
1.6.2 RF Ground ........................................................................................................................ 1-3
1.6.3 Lightning Ground .............................................................................................................. 1-3
1.7 Power Supply Connections............................................................................................................ 1-3
ii Table of Contents
June 2007 6816814H01
Chapter 2 Mechanical Installation....................................................... 2-1
2.1 Unpacking Equipment ................................................................................................................... 2-1
2.2 Transferring Equipment from Shipping Container to Rack or Cabinet .......................................... 2-1
Chapter 3 Indicators and Connectors................................................. 3-1
3.1 Front Panel ................................................................................................................................... 3-1
3.1.1 LED Indicator Descriptions ............................................................................................... 3-1
3.2 Rear Panel .................................................................................................................................... 3-2
3.2.1 Rear Panel Parts .............................................................................................................. 3-2
Chapter 4 Electrical Connections........................................................ 4-1
4.1 Power Supply Connections ........................................................................................................... 4-1
4.1.1 AC Input Power Connection ............................................................................................. 4-1
4.1.2 Ground Connection ..........................................................................................................4-2
4.1.3 Battery Backup Connection .............................................................................................. 4-2
4.2 RF Antenna Connections .............................................................................................................. 4-3
4.2.1 Duplexer Selection............................................................................................................ 4-3
4.2.2 Antenna Selection ............................................................................................................ 4-3
Chapter 5 Post-Installation Checklist ................................................. 5-1
5.1 Applying Power.............................................................................................................................. 5-1
5.2 Verifying Proper Operation ............................................................................................................ 5-1
5.2.1 Front Panel LEDs ............................................................................................................. 5-1
5.3 Archiving........................................................................................................................................ 5-1
5.3.1 Copying the Repeater Codeplug Data to a Computer...................................................... 5-1
Chapter 6 Accessories ......................................................................... 6-1
Antennas ................................................................................................................................................ 6-1
Cables .................................................................................................................................................... 6-1
Miscellaneous Accessories .................................................................................................................... 6-1
Appendix A Replacement Parts Ordering..............................................A-1
A.1 Basic Ordering Information............................................................................................................A-1
A.2 Motorola Online ............................................................................................................................. A-1
A.3 Mail Orders ....................................................................................................................................A-1
A.5 Fax Orders.....................................................................................................................................A-1
A.6 Parts Identification .........................................................................................................................A-2
A.7 Product Customer Service.............................................................................................................A-2
Appendix B Motorola Service Centers...................................................B-1
B.1 Servicing Information.....................................................................................................................B-1
B.2 Motorola Service Center................................................................................................................B-1
B.3 Motorola Federal Technical Center ...............................................................................................B-1
B.4 Motorola Canadian Technical Logistics Center .............................................................................B-1
Related Publications
XPR 8300 Repeater Basic Service Manual................................................................................. 6816810H01
List of Figures iii
June 2007 6816814H01
List of Figures
Figure 4-1 Locations of External Connectors at Rear of Repeater ........................................................ 4-1
Figure 4-2 Making Connections to a Backup Battery ............................................................................. 4-2
Related Publications
MOTOTRBO XPR Series Mobile Radios Basic Service Manual............................................... 6816810H01_
June 2007 6816814H01
iv Repeater Model Numbering Scheme

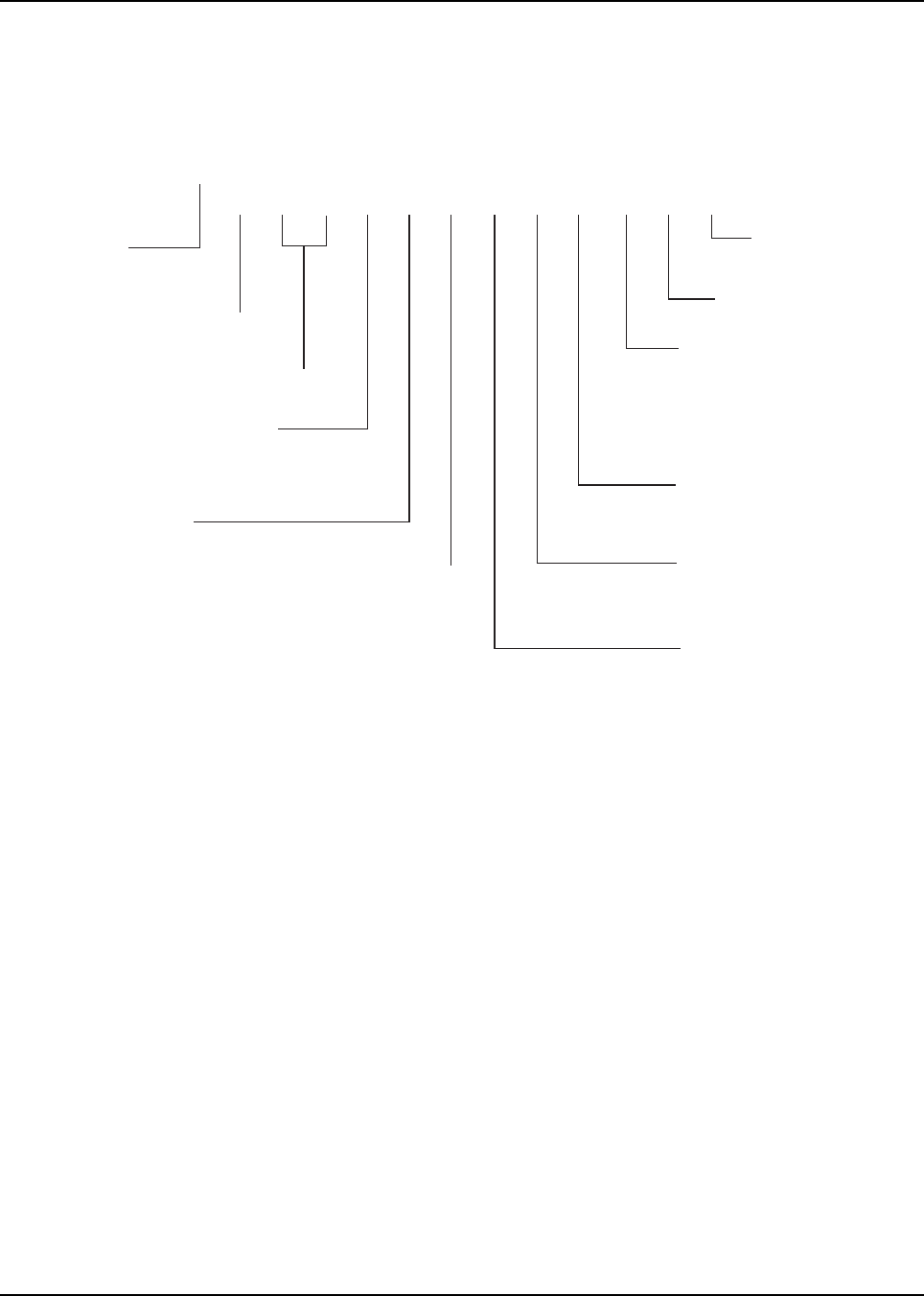

Repeater Model Numbering Scheme
Model No.Example : AA M 2 7 Q P R 9 J A 7 A N
Position : 1 2 3 4 5 6 7 8 9 10 11 12
Version Letter
Feature Level
1: Mini-U
2: BNC
7: Rack Mount
Primary System Type
A: Conventional
Primary Operation
J: w/o GPS
L: w/ GPS
Channel Spacing
9: Variable/Programmable
Power Level
P: 25-40W
Q: 25-45W
MOTOTRBO Repeater
Model Series
Band
J : 136-174MHz
Q: 403-470MHz
Physical Packages
R: Repeater
Repeater
A
Z: Asia/Australia
LA: Latin America
A
A: North America (except Mexico)
MD: Europe/Middle East/Africa
Unique Model Variations
N: Standard Package
June 2007 6816814H01
Commercial Warranty v
Commercial Warranty
Limited Warranty
MOTOROLA COMMUNICATION PRODUCTS
I. What This Warranty Covers and For How Long
MOTOROLA INC. (“MOTOROLA”) warrants the MOTOROLA manufactured Communication
Products listed below (“Product”) against defects in material and workmanship under normal use and
service for a period of time from the date of purchase as scheduled below:
Motorola, at its option, will at no charge either repair the Product (with new or reconditioned parts),
replace it (with a new or reconditioned Product), or refund the purchase price of the Product during
the warranty period provided it is returned in accordance with the terms of this warranty. Replaced
parts or boards are warranted for the balance of the original applicable warranty period. All replaced
parts of Product shall become the property of MOTOROLA.
This express limited warranty is extended by MOTOROLA to the original end user purchaser only
and is not assignable or transferable to any other party. This is the complete warranty for the Product
manufactured by MOTOROLA. MOTOROLA assumes no obligations or liability for additions or
modifications to this warranty unless made in writing and signed by an officer of MOTOROLA.
Unless made in a separate agreement between MOTOROLA and the original end user purchaser,
MOTOROLA does not warrant the installation, maintenance or service of the Product.
MOTOROLA cannot be responsible in any way for any ancillary equipment not furnished by
MOTOROLA which is attached to or used in connection with the Product, or for operation of the
Product with any ancillary equipment, and all such equipment is expressly excluded from this
warranty. Because each system which may use the Product is unique, MOTOROLA disclaims
liability for range, coverage, or operation of the system as a whole under this warranty.
II. General Provisions
This warranty sets forth the full extent of MOTOROLA'S responsibilities regarding the Product.
Repair, replacement or refund of the purchase price, at MOTOROLA's option, is the exclusive
remedy. THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER EXPRESS WARRANTIES. IMPLIED
WARRANTIES, INCLUDING WITHOUT LIMITATION, IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE
DURATION OF THIS LIMITED WARRANTY. IN NO EVENT SHALL MOTOROLA BE LIABLE FOR
DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT, FOR ANY LOSS OF
USE, LOSS OF TIME, INCONVENIENCE, COMMERCIAL LOSS, LOST PROFITS OR SAVINGS
OR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE
USE OR INABILITY TO USE SUCH PRODUCT, TO THE FULL EXTENT SUCH MAY BE
DISCLAIMED BY LAW.
XPR 8300 Repeater Two (2) Years
June 2007 6816814H01
vi Commercial Warranty
III. State Law Rights
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES OR LIMITATION ON HOW LONG AN IMPLIED WARRANTY
LASTS, SO THE ABOVE LIMITATION OR EXCLUSIONS MAY NOT APPLY.
This warranty gives specific legal rights, and there may be other rights which may vary from state to
state.
IV. How to Get Warranty Service
You must provide proof of purchase (bearing the date of purchase and Product item serial number)
in order to receive warranty service and, also, deliver or send the Product item, transportation and
insurance prepaid, to an authorized warranty service location. Warranty service will be provided by
Motorola through one of its authorized warranty service locations. If you first contact the company
which sold you the Product, it can facilitate your obtaining warranty service. You can also call
Motorola at 1-888-567-7347 US/Canada.
V. What This Warranty Does Not Cover
A. Defects or damage resulting from use of the Product in other than its normal and customary
manner.
B. Defects or damage from misuse, accident, water, or neglect.
C. Defects or damage from improper testing, operation, maintenance, installation, alteration,
modification, or adjustment.
D. Breakage or damage to antennas unless caused directly by defects in material workmanship.
E. A Product subjected to unauthorized Product modifications, disassemblies or repairs
(including, without limitation, the addition to the Product of non-Motorola supplied equipment)
which adversely affect performance of the Product or interfere with Motorola's normal
warranty inspection and testing of the Product to verify any warranty claim.
F. Product which has had the serial number removed or made illegible.
G. Rechargeable batteries if:
- any of the seals on the battery enclosure of cells are broken or show evidence of tamper-
ing.
- the damage or defect is caused by charging or using the battery in equipment or service
other than the Product for which it is specified.
H. Freight costs to the repair depot.
I. A Product which, due to illegal or unauthorized alteration of the software/firmware in the
Product, does not function in accordance with MOTOROLA’s published specifications or the
FCC type acceptance labeling in effect for the Product at the time the Product was initially
distributed from MOTOROLA.
J. Scratches or other cosmetic damage to Product surfaces that does not affect the operation of
the Product.
K. Normal and customary wear and tear.
June 2007 6816814H01
Commercial Warranty vii
VI. Patent and Software Provisions
MOTOROLA will defend, at its own expense, any suit brought against the end user purchaser to the
extent that it is based on a claim that the Product or parts infringe a United States patent, and
MOTOROLA will pay those costs and damages finally awarded against the end user purchaser in
any such suit which are attributable to any such claim, but such defense and payments are
conditioned on the following:
A. that MOTOROLA will be notified promptly in writing by such purchaser of any notice of such
claim;
B. that MOTOROLA will have sole control of the defense of such suit and all negotiations for its
settlement or compromise; and
C. should the Product or parts become, or in MOTOROLA's opinion be likely to become, the
subject of a claim of infringement of a United States patent, that such purchaser will permit
MOTOROLA, at its option and expense, either to procure for such purchaser the right to
continue using the Product or parts or to replace or modify the same so that it becomes
noninfringing or to grant such purchaser a credit for the Product or parts as depreciated and
accept its return. The depreciation will be an equal amount per year over the lifetime of the
Product or parts as established by MOTOROLA.
MOTOROLA will have no liability with respect to any claim of patent infringement which is based
upon the combination of the Product or parts furnished hereunder with software, apparatus or
devices not furnished by MOTOROLA, nor will MOTOROLA have any liability for the use of ancillary
equipment or software not furnished by MOTOROLA which is attached to or used in connection with
the Product. The foregoing states the entire liability of MOTOROLA with respect to infringement of
patents by the Product or any parts thereof.
Laws in the United States and other countries preserve for MOTOROLA certain exclusive rights for
copyrighted MOTOROLA software such as the exclusive rights to reproduce in copies and distribute
copies of such Motorola software. MOTOROLA software may be used in only the Product in which
the software was originally embodied and such software in such Product may not be replaced,
copied, distributed, modified in any way, or used to produce any derivative thereof. No other use
including, without limitation, alteration, modification, reproduction, distribution, or reverse
engineering of such MOTOROLA software or exercise of rights in such MOTOROLA software is
permitted. No license is granted by implication, estoppel or otherwise under MOTOROLA patent
rights or copyrights.
VII. Governing Law
This Warranty is governed by the laws of the State of Illinois, USA.
June 2007 6816814H01
viii Commercial Warranty
Notes
Chapter 1 Pre-Installation Considerations
Proper installation ensures the best possible performance and reliability of the MOTOTRBO
Repeater. Pre-installation planning is required. This includes considering the mounting location of
the repeater in relation to input power and antennas. Also to be considered are site environment
conditions, the particular mounting method (several available), and required tools and equipment.
If this is the first time this type of equipment is being installed, it is highly recommended that the
user read:
• this entire installation section before beginning the actual installation, and
• the Motorola Quality Standard Fixed Network Equipment Installation manual, R56
(6881089E50), specifically refer to the information on ground connection for lightning
protection.
1.1 Installation Overview
The following information is an overview for installing the MOTOTRBO Repeater and ancillary
equipment. Step-by-step procedures for each of the major installation tasks are then provided
beginning in Section 2, Mechanical Installation.
• Plan the installation, paying particular attention to environmental condition at the site, ventilation
requirements, and grounding and lightning protection.
• Unpack and inspect the equipment.
• Mechanical install the equipment at the site.
• Make necessary electrical and cabling connections, including the following:
- AC input cabling
- Coaxial cables to transmit and receive antennas
• Perform a post-installation function checkout test of the equipment to verify proper installation.
• Proceed to the Optimization procedures to customize the repeater parameters per customer
specifications (e.g. operating frequency, PL, codes, color code, etc.).
1.2 Environmental Conditions at Intended Installation Site
The repeater may be installed in any location suitable for electronic communications equipment,
provided that the environmental condition do not exceed the equipment specifications for
temperature, humidity, and air quality.
1.2.1 Operating Temperature Range
-30°C (-22°F) to +60°C (+140°F)
This is the temperature measured in close proximity to the repeater. For example, if the repeater is
mounted in a cabinet, the temperature within the cabinet is measured.
If the repeater is to be installed in an environment which is usually dusty or
dirty (and so does not meet the air quality requirements), the air used to cool
the repeater modules must be treated using appropriate filtering devices. Dust
or dirt accumulating on the internal circuit boards and modules is not easily
removed, and can cause such malfunctions as overheating and intermittent
electrical connections.
!
C a u t i o n
June 2007 6816814H01
1-2 Pre-Installation Considerations Equipment Ventilation
1.2.2 Humidity
Not to exceed 95% relative humidity @ 50°C (122°F).
1.2.3 Air Quality
For equipment operating in an environmentally controlled environment with repeater(s) rack
mounted, the airborne particle level must not exceed 25 µg/m³.
For equipment operating in an area which is not environmentally controlled (repeater(s) cabinet
mounted), air borne particle level must not exceed 90 µg/m³.
1.3 Equipment Ventilation
The repeater is equipped with a cooling fan that is used to provide forced convection cooling. When
planning the installation, observe the following ventilation guidelines:
• Customer-supplied cabinets must be equipped with ventilation slots or openings in the front (for
air entry) and back or side panels (for air to exit). If several repeaters are installed in a single
cabinet, be sure ventilation openings surround each repeater to allow for adequate cooling.
• All cabinets must have a least 15 cm (6 inches) of open space between the air vents and any
wall or other cabinets. This allows adequate air flow.
• When multiple cabinets (each equipped with several repeaters) are installed in an enclosed
area, make sure the temperature within each cabinet does not exceed the recommended/
maximum operating temperature of +16°C (+140°F). It may be necessary to have air
conditioning or other climate control equipment installed to satisfy the environmental
requirements.
1.4 AC Input Power Requirements
The repeater is equipped with a switching power supply, this assembly operates from 100Vac to
240Vac at 47 to 63Hz AC input power. A standard 3-prong line cord is supplied to connect the power
supply to the AC source.
It is recommended that a standard 3-wire grounded electrical outlet be used as the AC source.
The outlet must be connected to an AC source capable of supplying a maximum of 280W. For a
nominal 110/120Vac input, the AC source must supply 5A and should be protected by circuit breaker
rated at 15A. For a nominal 220/240Vac input, the AC source must supply 3A and should be
protected by a circuit breaker rated at 10A.
1.4.1 Circuit Overloading
Consideration should be given to the connection of the equipment to the supply circuit and the effect
that overloading of the circuits might have on overcurrent protection and supply wiring. Appropriate
consideration of equipment ratings should be used when addressing this concern.
1.5 Equipment Mounting Methods
The MOTOTRBO Repeater may be mounted in a rack, bracket or cabinet (available as accessories).
The AC socket outlet must be installed near the equipment and must be easily
accessible.
!
C a u t i o n
June 2007 6816814H01
Pre-Installation Considerations Site Grounding and Lightning Protection 1-3
1.6 Site Grounding and Lightning Protection
One of the most important considerations when designing a communications site is the ground and
lightning protection system. While proper grounding techniques and lightning protection are closely
related, the general category of site grounding may be divided into the following section.
1.6.1 Electrical Ground
Ground wires carrying electrical current from circuitry or equipment at the site is included in the
category of electrical ground. Examples include the AC or DC electrical power used to source
equipment located at the site, and wires or cables connected to alarms or sensors located at the site.
1.6.2 RF Ground
This type of ground is related to the transmission of the radio frequency energy to earth ground. An
example of RF grounding is the use of shielding to prevent or at least minimize the leakage of
unwanted RF transmissions from communications equipment and cables.
1.6.3 Lightning Ground
Providing adequate lightning protection is critical to a safe reliable communications site. RF
transmission cables, and AC and DC power lines must all be protected to prevent lightning energy
from entering the site building.
Although a comprehensive coverage of the site grounding technique and lightning protection is not
within the scope of this instruction manual, there are several excellent industry sources for rules and
guidelines on ground and lightning protection at communications site.
NOTE: Motorola recommends the following reference source:
Motorola Quality Standards Fixed Network Equipment
Installation Manual R56……………………...……………......................................6881089E50
1.6.4 Equipment Grounding Guidelines
The repeater is equipped with a ground screw located on the rear of the repeater power supply
module. This screw is used to connect the repeater to the site ground point. It is assumed that all
antenna cables, and AC or DC power cabling, has been properly grounded and lightning protected
by following the rules and guidelines provided in the above reference.
1.7 Power Supply Connections
Refer to 4.1.1 AC Input Power Connection on page 4-1 for the recommended AC input power
connection and to 4.1.2 Ground Connection on page 4-2 for the recommended ground connection.
Proper site grounding and lightning protection are vitally important consider-
ation. Failure to provide proper lightning protection may result in permanent
damage to the radio equipment.
!
C a u t i o n
