Motorola Solutions 99FT4027 40 Watt UHF Repeater User Manual NAG

Motorola Solutions, Inc. 40 Watt UHF Repeater NAG

Exhibit D Users Manual per 2 1033 c3

Foreword

This manual is intended for use by experienced technicians familiar with similar types of equipment. Specifically, it contains

installation information required for the MOTOTRBO XPR 8300 Repeater.

For information related to the service of the XPR 8300 Repeater, refer to the list applicable manuals available separately.

This list is provided in the Related Publications section on page v.

Product Safety and RF Exposure Compliance

See Installation Requirements for Compliance with Radio Frequency (RF) Energy Exposure Safety Standards on page ii.

Manual Revisions

Changes which occur after this manual is printed are described in PMRs (Publication Manual Revisions). These PMRs

provide complete replacement pages for all added, changed, and deleted items.

To obtain PMRs, go to:

http://www.motorola.com/businessonline

Parts Ordering

See Appendix A: Replacement Parts Ordering for information on how to obtain replacement parts. For part numbers, refer

to the XPR 8300 Repeater Basic Service Manual (Motorola publication part number 6816810H01).

Computer Software Copyrights

The Motorola products described in this manual may include copyrighted Motorola computer programs stored in

semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola certain

exclusive rights for copyrighted computer programs, including, but not limited to, the exclusive right to copy or reproduce in

any form the copyrighted computer program. Accordingly, any copyrighted Motorola computer programs contained in the

Motorola products described in this manual may not be copied, reproduced, modified, reverse-engineered, or distributed in

any manner without the express written permission of Motorola. Furthermore, the purchase of Motorola products shall not

be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or

patent applications of Motorola, except for the normal non-exclusive license to use that arises by operation of law in the

sale of a product.

Document Copyrights

No duplication or distribution of this document or any portion thereof shall take place without the express written permission

of Motorola. No part of this manual may be reproduced, distributed, or transmitted in any form or by any means, electronic

or mechanical, for any purpose without the express written permission of Motorola.

Disclaimer

The information in this document is carefully examined, and is believed to be entirely reliable. However, no responsibility is

assumed for inaccuracies. Furthermore, Motorola reserves the right to make changes to any products herein to improve

readability, function, or design. Motorola does not assume any liability arising out of the applications or use of any product

or circuit described herein; nor does it cover any license under its patent rights nor the rights of others.

Trademarks

MOTOROLA, the Stylized M logo are registered in the US Patent & Trademark Office. All other product or service names

are the property of their respective owners.

Installation Requirements for Compliance with

Radio Frequency (RF) Energy Exposure Safety

Standards

ATTENTION!

This radio is intended for use in occupational/controlled conditions, where users have full knowledge

of their exposure and can exercise control over their exposure to meet FCC limits. This radio device is

NOT authorized for general population, consumer, or any other use.

To ensure compliance to RF Energy Safety Standards:

• Install only Motorola approved antennas and accessories

• Be sure that Product Safety and RF Safety Booklet enclosed with this radio is available to the end user

upon completion of the installation of this radio

Before using this product, the operator must be familiar with the RF energy awareness information and

operating instructions in the Product Safety and RF Exposure booklet enclosed with each radio (Motorola

Publication part number 6881095C99) to ensure compliance with Radio Frequency (RF) energy exposure

limits.

For a list of Motorola-approved antennas and other accessories, visit the following web site which lists

approved accessories for your radio model:

http://www.motorola.com/governmentandenterprise

iii

Declaration of Conformity

This declaration is applicable to your radio only if your radio is labeled with the

FCC logo shown below.

DECLARATION OF CONFORMITY

Per FCC CFR 47 Part 2 Section 2.1077(a)

Responsible Party

Name: Motorola, Inc.

Address: 1301 East Algonquin Road, Schaumburg, IL 60196-1078, U.S.A.

Phone Number: 1-888-567-7347

Hereby declares that the product:

Model Name: XPR 8300

conforms to the following regulations:

FCC Part 15, subpart B, section 15.107(a), 15.107(d) and section 15.109(a)

Class B Digital Device

As a personal computer peripheral, this device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause

undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not

occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Notes

Table of Contents

Foreword..........................................................................................................i

Product Safety and RF Exposure Compliance.............................................................................................i

Manual Revisions .........................................................................................................................................i

Parts Ordering ..............................................................................................................................................i

Computer Software Copyrights ....................................................................................................................i

Document Copyrights...................................................................................................................................i

Disclaimer.....................................................................................................................................................i

Trademarks ..................................................................................................................................................i

Installation Requirements for Compliance with

Radio Frequency (RF) Energy Exposure Safety Standards.......................ii

Declaration of Conformity ............................................................................iii

List of Figures ..............................................................................................vii

Related Publications....................................................................................vii

Repeater Model Numbering Scheme...........................................................ix

Commercial Warranty...................................................................................xi

Limited Warranty ........................................................................................................................................xi

MOTOROLA COMMUNICATION PRODUCTS................................................................................xi

I. What This Warranty Covers and For How Long......................................................................xi

II. General Provisions.................................................................................................................xi

III. State Law Rights (Applicable Only in U.S.A.).......................................................................xii

IV. How to Get Warranty Service ..............................................................................................xii

V. What This Warranty Does Not Cover.................................................................................... xii

VI. Patent and Software Provisions.......................................................................................... xiii

VII. Governing Law................................................................................................................... xiii

Chapter 1 Pre-Installation Considerations......................................... 1-1

1.1 Installation Overview...................................................................................................................... 1-1

1.2 Environmental Conditions at Intended Installation Site ................................................................. 1-1

1.2.1 Operating Temperature Range......................................................................................... 1-1

1.2.2 Humidity............................................................................................................................ 1-1

1.2.3 Air Quality ......................................................................................................................... 1-1

1.3 Equipment Ventilation.................................................................................................................... 1-2

1.4 AC Input Power Requirements ...................................................................................................... 1-2

1.4.1 Circuit Overloading ........................................................................................................... 1-2

1.5 Equipment Mounting Methods....................................................................................................... 1-2

1.6 Site Grounding and Lightning Protection....................................................................................... 1-3

1.6.1 Electrical Ground .............................................................................................................. 1-3

1.6.2 RF Ground ........................................................................................................................ 1-3

1.6.3 Lightning Ground .............................................................................................................. 1-3

February 2008 6816814H01

Chapter 2 Mechanical Installation....................................................... 2-1

2.1 Unpacking Equipment....................................................................................................................2-1

2.2 Transferring Equipment from Shipping Container to Rack or Cabinet...........................................2-1

Chapter 3 Indicators and Connectors................................................. 3-1

3.1 Front Panel ...................................................................................................................................3-1

3.1.1 LED Indicator Descriptions ...............................................................................................3-1

3.2 Rear Panel ....................................................................................................................................3-2

3.2.1 Rear Panel Part ................................................................................................................3-2

3.2.2 Rear Accessory Connector ...............................................................................................3-3

Chapter 4 Electrical Connections ....................................................... 4-1

4.1 Power Supply Connections............................................................................................................ 4-1

4.1.1 AC Input Power Connection..............................................................................................4-1

4.1.2 Ground Connection........................................................................................................... 4-2

4.1.3 Battery Backup Connection .............................................................................................. 4-2

4.2 RF Antenna Connections...............................................................................................................4-3

4.2.1 Duplexer Selection............................................................................................................4-3

4.2.2 Antenna Selection.............................................................................................................4-3

Chapter 5 Post-Installation Checklist ................................................. 5-1

5.1 Applying Power..............................................................................................................................5-1

5.2 Verifying Proper Operation ............................................................................................................5-1

5.2.1 Front Panel LEDs..............................................................................................................5-1

5.3 Archiving ........................................................................................................................................5-1

5.3.1 Copying the Repeater Codeplug Data to a Computer ......................................................5-1

Chapter 6 Accessories......................................................................... 6-1

Antennas .................................................................................................................................................6-1

Cables .....................................................................................................................................................6-1

Miscellaneous Accessories ..................................................................................................................... 6-1

Appendix A Replacement Parts Ordering..............................................A-1

A.1 Basic Ordering Information ............................................................................................................A-1

A.2 Motorola Online..............................................................................................................................A-1

Appendix B Motorola Service Centers...................................................B-1

B.1 Servicing Information .....................................................................................................................B-1

B.2 Motorola de México, S.A................................................................................................................B-1

B.3 Motorola de Colombia, Ltd.............................................................................................................B-1

List of Figures

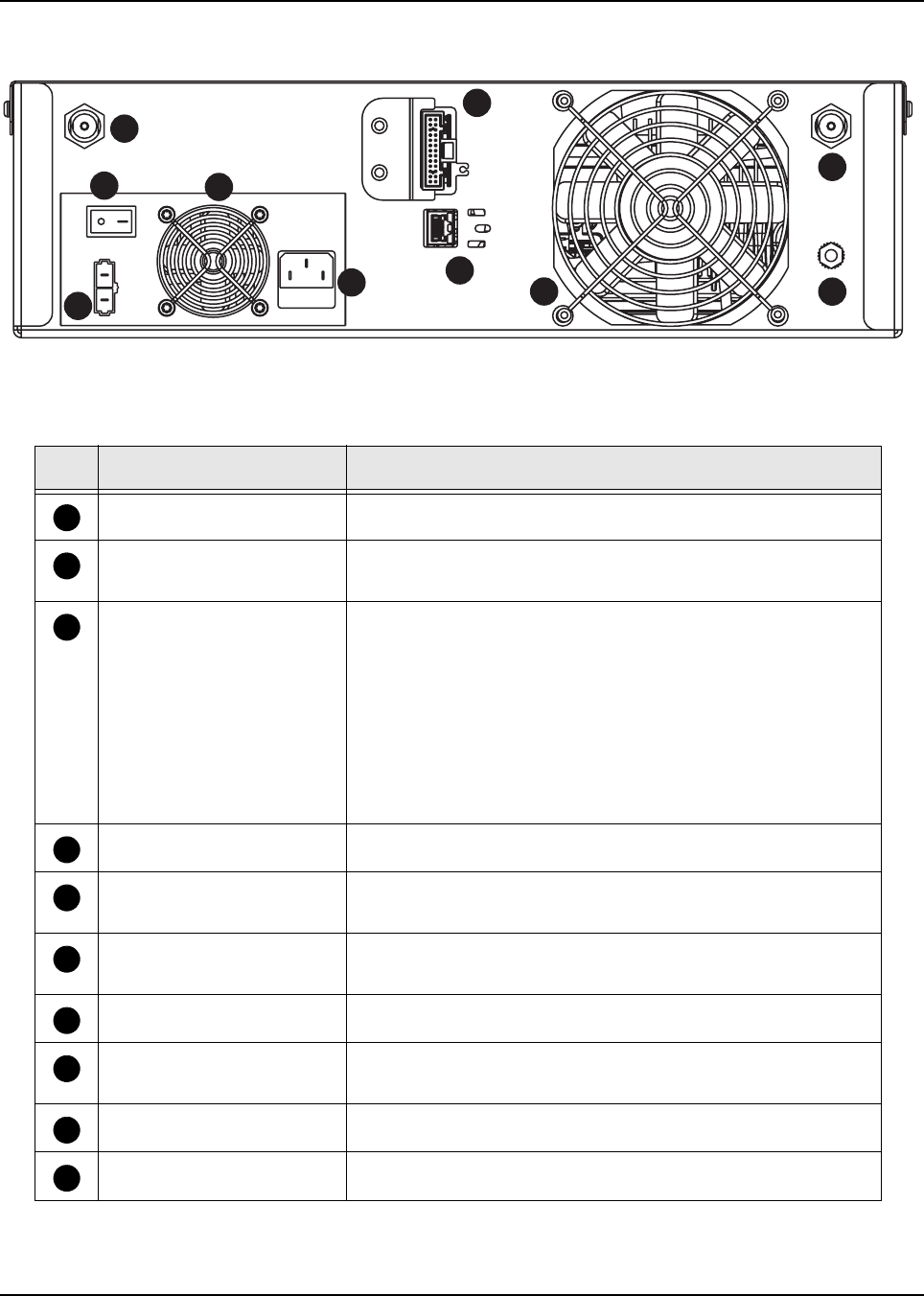

Figure 4-1 Locations of Connectors on the Rear Panel of the Repeater ............................................... 4-1

Figure 4-2 Making Connections to a Backup Battery............................................................................. 4-2

Related Publications

MOTOTRBO XPR Series Mobile Radios Basic Service Manual................................................6816810H01

Motorola Quality Standards Fixed Network Equipment Installation Manual R56 .......................6881089E50

Product Safety and RF Exposure booklet ................................................................................. 6881095C99

vi List of Figures

February 2008 6816814H01

Notes

6816814H01 February 2008

Repeater Model Numbering Scheme ix

Repeater Model Numbering Scheme

Model No.Example : AA M 2 7 Q P R 9 J A 7 A N

Position : 1 2 3 4 5 6 7 8 9 10 11 12

Version Letter

Feature Level

1: Mini-U

2: BNC

7: Rack Mount

Primary System Type

A: Conventional

Primary Operation

J: w/o GPS

L: w/ GPS

Channel Spacing

9: Variable/Programmable

Power Level

N: 1-25W

R: 1-40W

P: 25-40W

Q: 25-45W

MOTOTRBO Repeater

Model Series

Band

J : 136-174 MHz

Q: 403-470 MHz

T: 450-512 MHz

Physical Packages

R: Repeater

Repeater

Z: Asia/Australia

LA: Latin America

A: North America (except Mexico)

MD: Europe/Middle East/Africa

Unique Model Variations

N: Standard Package

February 2008 6816814H01

Notes

6816814H01 February 2008

Commercial Warranty xi

Commercial Warranty

Limited Warranty

MOTOROLA COMMUNICATION PRODUCTS

I. What This Warranty Covers and For How Long

MOTOROLA INC. (“MOTOROLA”) warrants the MOTOROLA manufactured Communication

Products listed below (“Product”) against defects in material and workmanship under normal use and

service for a period of time from the date of purchase as scheduled below:

Motorola, at its option, will at no charge either repair the Product (with new or reconditioned parts),

replace it (with a new or reconditioned Product), or refund the purchase price of the Product during

the warranty period provided it is returned in accordance with the terms of this warranty. Replaced

parts or boards are warranted for the balance of the original applicable warranty period. All replaced

parts of Product shall become the property of MOTOROLA.

This express limited warranty is extended by MOTOROLA to the original end user purchaser only

and is not assignable or transferable to any other party. This is the complete warranty for the Product

manufactured by MOTOROLA. MOTOROLA assumes no obligations or liability for additions or

modifications to this warranty unless made in writing and signed by an officer of MOTOROLA.

Unless made in a separate agreement between MOTOROLA and the original end user purchaser,

MOTOROLA does not warrant the installation, maintenance or service of the Product.

MOTOROLA cannot be responsible in any way for any ancillary equipment not furnished by

MOTOROLA which is attached to or used in connection with the Product, or for operation of the

Product with any ancillary equipment, and all such equipment is expressly excluded from this

warranty. Because each system which may use the Product is unique, MOTOROLA disclaims

liability for range, coverage, or operation of the system as a whole under this warranty.

II. General Provisions

This warranty sets forth the full extent of MOTOROLA'S responsibilities regarding the Product.

Repair, replacement or refund of the purchase price, at MOTOROLA's option, is the exclusive

remedy. THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER EXPRESS WARRANTIES. IMPLIED

WARRANTIES, INCLUDING WITHOUT LIMITATION, IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE

DURATION OF THIS LIMITED WARRANTY. IN NO EVENT SHALL MOTOROLA BE LIABLE FOR

DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT, FOR ANY LOSS OF

USE, LOSS OF TIME, INCONVENIENCE, COMMERCIAL LOSS, LOST PROFITS OR SAVINGS

OR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE

USE OR INABILITY TO USE SUCH PRODUCT, TO THE FULL EXTENT SUCH MAY BE

DISCLAIMED BY LAW.

XPR 8300 Repeater Two (2) Years

February 2008 6816814H01

xii Commercial Warranty

III. State Law Rights

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR

CONSEQUENTIAL DAMAGES OR LIMITATION ON HOW LONG AN IMPLIED WARRANTY

LASTS, SO THE ABOVE LIMITATION OR EXCLUSIONS MAY NOT APPLY.

This warranty gives specific legal rights, and there may be other rights which may vary from state to

state.

IV. How to Get Warranty Service

You must provide proof of purchase (bearing the date of purchase and Product item serial number)

in order to receive warranty service and, also, deliver or send the Product item, transportation and

insurance prepaid, to an authorized warranty service location. Warranty service will be provided by

Motorola through one of its authorized warranty service locations. If you first contact the company

which sold you the Product, it can facilitate your obtaining warranty service. You can also call

Motorola at 1-888-567-7347 US/Canada.

V. What This Warranty Does Not Cover

A. Defects or damage resulting from use of the Product in other than its normal and customary

manner.

B. Defects or damage from misuse, accident, water, or neglect.

C. Defects or damage from improper testing, operation, maintenance, installation, alteration,

modification, or adjustment.

D. Breakage or damage to antennas unless caused directly by defects in material workmanship.

E. A Product subjected to unauthorized Product modifications, disassemblies or repairs

(including, without limitation, the addition to the Product of non-Motorola supplied equipment)

which adversely affect performance of the Product or interfere with Motorola's normal

warranty inspection and testing of the Product to verify any warranty claim.

F. Product which has had the serial number removed or made illegible.

G. Rechargeable batteries if:

- any of the seals on the battery enclosure of cells are broken or show evidence of tamper-

ing.

- the damage or defect is caused by charging or using the battery in equipment or service

other than the Product for which it is specified.

H. Freight costs to the repair depot.

I. A Product which, due to illegal or unauthorized alteration of the software/firmware in the

Product, does not function in accordance with MOTOROLA’s published specifications or the

FCC type acceptance labeling in effect for the Product at the time the Product was initially

distributed from MOTOROLA.

J. Scratches or other cosmetic damage to Product surfaces that does not affect the operation of

the Product.

K. Normal and customary wear and tear.

6816814H01 February 2008

Commercial Warranty xiii

VI. Patent and Software Provisions

MOTOROLA will defend, at its own expense, any suit brought against the end user purchaser to the

extent that it is based on a claim that the Product or parts infringe a United States patent, and

MOTOROLA will pay those costs and damages finally awarded against the end user purchaser in

any such suit which are attributable to any such claim, but such defense and payments are

conditioned on the following:

A. that MOTOROLA will be notified promptly in writing by such purchaser of any notice of such

claim;

B. that MOTOROLA will have sole control of the defense of such suit and all negotiations for its

settlement or compromise; and

C. should the Product or parts become, or in MOTOROLA's opinion be likely to become, the

subject of a claim of infringement of a United States patent, that such purchaser will permit

MOTOROLA, at its option and expense, either to procure for such purchaser the right to

continue using the Product or parts or to replace or modify the same so that it becomes

noninfringing or to grant such purchaser a credit for the Product or parts as depreciated and

accept its return. The depreciation will be an equal amount per year over the lifetime of the

Product or parts as established by MOTOROLA.

MOTOROLA will have no liability with respect to any claim of patent infringement which is based

upon the combination of the Product or parts furnished hereunder with software, apparatus or

devices not furnished by MOTOROLA, nor will MOTOROLA have any liability for the use of ancillary

equipment or software not furnished by MOTOROLA which is attached to or used in connection with

the Product. The foregoing states the entire liability of MOTOROLA with respect to infringement of

patents by the Product or any parts thereof.

Laws in the United States and other countries preserve for MOTOROLA certain exclusive rights for

copyrighted MOTOROLA software such as the exclusive rights to reproduce in copies and distribute

copies of such Motorola software. MOTOROLA software may be used in only the Product in which

the software was originally embodied and such software in such Product may not be replaced,

copied, distributed, modified in any way, or used to produce any derivative thereof. No other use

including, without limitation, alteration, modification, reproduction, distribution, or reverse

engineering of such MOTOROLA software or exercise of rights in such MOTOROLA software is

permitted. No license is granted by implication, estoppel or otherwise under MOTOROLA patent

rights or copyrights.

VII. Governing Law

This Warranty is governed by the laws of the State of Illinois, USA.

February 2008 6816814H01

xiv Commercial Warranty

Notes

Chapter 1 Pre-Installation Considerations

Proper installation ensures the best possible performance and reliability of the MOTOTRBO

Repeater. Pre-installation planning is required. This includes considering the mounting location of

the repeater in relation to input power and antennas. Also consider the site environmental conditions,

the particular mounting method (several available), and required tools and equipment.

If this is the first time this type of equipment is being installed, it is highly recommended that the

user read:

• this entire installation section before beginning the actual installation, and

• the Motorola Quality Standard Fixed Network Equipment Installation manual, R56

(6881089E50), specifically refer to the information on ground connection for lightning

protection.

1.1 Installation Overview

The following information is an overview for installing the MOTOTRBO Repeater and ancillary

equipment.

• Plan the installation, paying particular attention to environmental conditions at the site,

ventilation requirements, and grounding and lightning protection.

• Unpack and inspect the equipment.

• Mechanical install the equipment at the site.

• Make necessary electrical and cabling connections, including the following:

- AC input cabling

- Coaxial cables to transmit and receive antennas

• Perform a post-installation function checkout test of the equipment to verify proper installation.

• Proceed to customize the repeater parameters per customer specifications (e.g. operating

frequency, PL, codes, color code, etc.).

1.2 Environmental Conditions at Intended Installation Site

The repeater may be installed in any location suitable for electronic communications equipment,

provided that the environmental conditions do not exceed the equipment specifications for

temperature, humidity, and air quality.

1.2.1 Operating Temperature Range

-30°C (-22°F) to +60°C (+140°F)

This is the temperature measured in close proximity to the repeater. For example, if the repeater is

mounted in a cabinet, the temperature within the cabinet is measured.

1.2.2 Humidity

Humidity conditions should not exceed 95% relative humidity @ 50°C (122°F).

1.2.3 Air Quality

For equipment operating in an area which is environmentally controlled and with the repeater(s) rack

mounted, the airborne particle level must not exceed 25 µg/m³.

February 2008 6816814H01

1-2 Pre-Installation Considerations Equipment Ventilation

For equipment operating in an area which is not environmentally controlled and with the repeater(s)

cabinet mounted, airborne particle level must not exceed 90 µg/m³.

1.3 Equipment Ventilation

The repeater is equipped with a cooling fan that is used to provide forced convection cooling. When

planning the installation, observe the following ventilation guidelines:

• Customer-supplied cabinets must be equipped with ventilation slots or openings in the front (for

air entry) and back or side panels (for air to exit). If several repeaters are installed in a single

cabinet, ensure ventilation openings surrounding each repeater allow for adequate cooling.

• All cabinets must have a least 15 cm (6 inches) of open space between the air vents and any

wall or other objects.

• When multiple cabinets (each equipped with several repeaters) are installed in an enclosed

area, ensure appropriate ventilation and consider air conditioning or other climate control

equipment to satisfy the temperature requirements stated under Section 1.2.1 Operating

Temperature Range on page 1-1.

1.4 AC Input Power Requirements

The repeater is equipped with a switching power supply, and this assembly operates from 100 – 240

at 47 – 63 Hz AC input power. A standard 3-prong line cord is supplied to connect the power

supply to the AC source.

It is recommended that a standard 3-wire grounded electrical outlet be used as the AC source.

The outlet must be connected to an AC source capable of supplying a maximum of 280 W. For a

nominal 110/120 V

input, the AC source must supply 5 A and should be protected by circuit

breaker rated at 15A. For a nominal 220/240 V

input, the AC source must supply 3 A and should

be protected by a circuit breaker rated at 10 A.

1.4.1 Circuit Overloading

Consideration should be given to the effects of overloading on overcurrent protection devices and

supply wiring. Appropriate consideration of equipment ratings should be used when addressing this

concern.

1.5 Equipment Mounting Methods

The MOTOTRBO Repeater may be mounted in a rack, bracket or cabinet (available as accessories).

If the repeater is to be installed in an environment which is usually dusty, dirty,

or does not meet the air quality requirements, then the air used to cool the

repeater modules must be treated using appropriate filtering devices. Dust or

dirt accumulating on the internal circuit boards and modules is not easily

removed, and can cause such malfunctions as overheating and intermittent

electrical connections.

The equipment must be installed near an easily-accessible AC source.

C a u t i o n

6816814H01 February 2008

Pre-Installation Considerations Site Grounding and Lightning Protection 1-3

1.6 Site Grounding and Lightning Protection

One of the most important considerations when designing a communications site is the ground and

lightning protection system. While proper grounding techniques and lightning protection are closely

related, the general category of site grounding may be divided into the following section.

1.6.1 Electrical Ground

Ground wires carrying electrical current from circuitry or equipment at the site is included in the

category of electrical ground. Examples include the AC or DC electrical power used to source

equipment located at the site, and wires or cables connected to alarms or sensors located at the site.

1.6.2 RF Ground

This type of ground is related to the bypassing of unwanted radio frequency energy to earth ground.

An example of RF grounding is the use of shielding to prevent or at least minimize the leakage of

unwanted RF energy from communications equipment and cables.

1.6.3 Lightning Ground

Providing adequate lightning protection is critical to a safe reliable communications site. RF

transmission cables, and AC and DC power lines must all be protected to prevent lightning energy

from entering the site.

Comprehensive coverage of site grounding techniques and lightning protection is not within the

scope of this instruction manual, but there are several excellent industry sources for rules and

guidelines on grounding and lightning protection at communications sites.

NOTE: Motorola recommends the following reference source:

Motorola Quality Standards Fixed Network Equipment

Installation Manual R56……………………...……………......................................6881089E50

1.6.4 Equipment Grounding

The repeater is equipped with a ground screw located on the rear of the repeater power supply

module. This screw is used to connect the repeater to the site grounding. All antenna cables, and AC

and DC power cabling, should be properly grounded and lightning protected by following the rules

and guidelines provided in the above reference. Failure to provide proper lightning protection may result in

permanent damage to the radio equipment.

Proper site grounding and lightning protection are vitally important

considerations. Failure to provide proper lightning protection may result in

permanent damage to the radio equipment.

W A R N I N G

February 2008 6816814H01

1-4 Pre-Installation Considerations

Notes

Chapter 2 Mechanical Installation

This section describes the procedures to unpack and mechanically install the MOTOTRBO

Repeater. A variety of mounting methods are possible depending on which type of cabinet or rack

(if any) has been selected to house the repeater(s).

2.1 Unpacking Equipment

The following items are packed together in the box:

• MOTOTRBO Repeater

• AC Line Cord

• MOTOTRBO Repeater Installation Guide

• Product Safety and RF Exposure Booklet

2.2 Transferring Equipment from Shipping Container to Rack or

Cabinet

The repeater is shipped in a box. Upon delivery, the equipment must be removed from the container

and transferred to a rack or cabinet.

NOTE: Customer-supplied cabinets and racks must have mounting rail and hole spacing compatible

with EIA Universal 48.3 cm (19 inches) specifications. Cabinets must provide adequate

ventilation (see “Environmental Conditions at Intended Installation Site” on page 1-1) and

must meet the following minimum criteria:

- 41.3 cm (16.25 inches) deep

- 48.3 cm (19 inches) wide

- 13.4 cm (5.25 inches) high

- Two mounting rails 5 cm (2 inches) from the front of the cabinet with front mounting holes

5.7 cm (2.25 inches) apart (center to center).

Contact Motorola Technical Support for specific question(s) regarding mounting equipment in

customer-supplied cabinets.

Be sure to observe proper electrostatic discharge precautions if modules must

be removed from the repeater.

Inspect the equipment for damage immediately after unpacking,

and make a report of the extent of any damage to the

transportation company and to Motorola.

C a u t i o n

W A R N I N G

February 2008 6816814H01

Notes

2-2 Mechanical Installation

Chapter 3 Indicators and Connectors

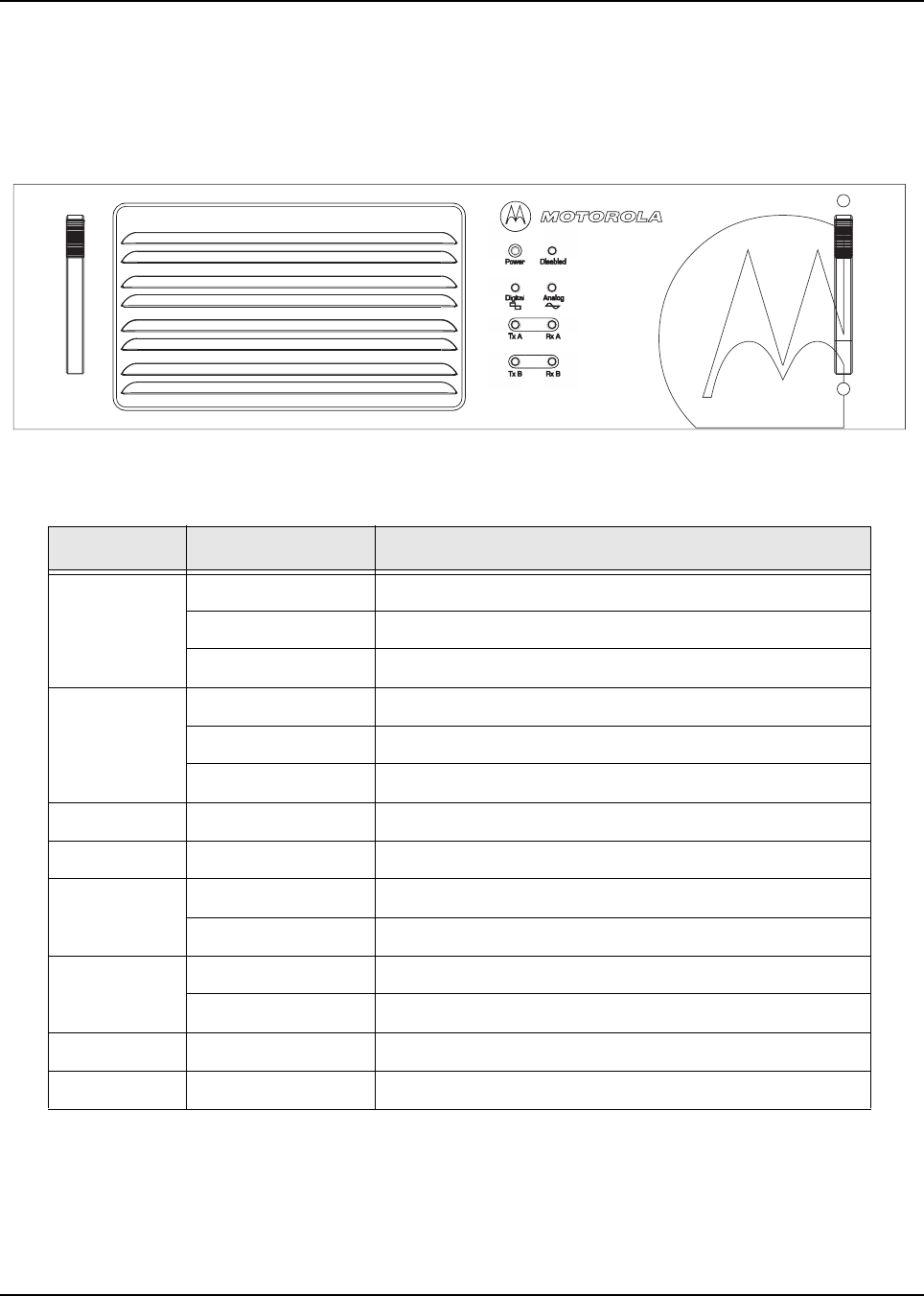

3.1 Front Panel

3.1.1 LED Indicator Descriptions

LED Status Description

Power

Solid GREEN Repeater powered by AC.

Solid RED Repeater powered by backup battery.

Off Repeater powered off.

Repeater

Disabled

Solid RED Repeater function disabled.

Blinking RED Repeater in self-test mode.

Off Repeater in normal operational mode.

Digital Solid BLUE Repeater in Digital Mode.

Analog Solid YELLOW Repeater in Analog Mode.

Tx-A Solid GREEN Repeater transmitting (Analog).

Solid GREEN Repeater transmitting on Slot A (Digital).

Rx-A Solid YELLOW Repeater receiving (Analog).

Solid YELLOW Repeater receiving on Slot A (Digital).

Tx-B Solid GREEN Repeater transmitting on Slot B (Digital).

Rx-B Solid YELLOW Repeater receiving on Slot B (Digital).

February 2008 6816814H01

3-2 Indicators and Connectors

3.2 Rear Panel

3.2.1 Rear Panel Part

No Item Description

Rx Connector BNC (Female).

Power Supply On/Off

Switch Turns on or off the power to the repeater from AC input.

Battery Backup Connector

(DC Input) Backup battery supplies backup power to the repeater. The

battery is an optional accessory. The repeater will trickle

charge battery, but an external charger is recommended to

equalize battery after a prolonged use. Auto switching from

AC to battery with loss of AC power is a function of the

standard repeater power supply. Supply will automatically

switch back to AC operation upon the return of AC power.

The front panel power LED switches from green to red when

on battery power.

Power Supply Fan Runs continuously to cool the repeater.

Main Power Supply

Connector (AC Input) 100 – 240 V.

Rear Accessory

Connector Programming cable plugs in here.

Ethernet Connector (For Future Use)

Main Fan Variable speed. Idles at room temperature. Speeds up with

extended use of the repeater.

Tx Connector Type-N (Female).

Ground Screw Must be connected to System Ground.

6816814H01 February 2008

Indicators and Connectors Rear Panel 3-3

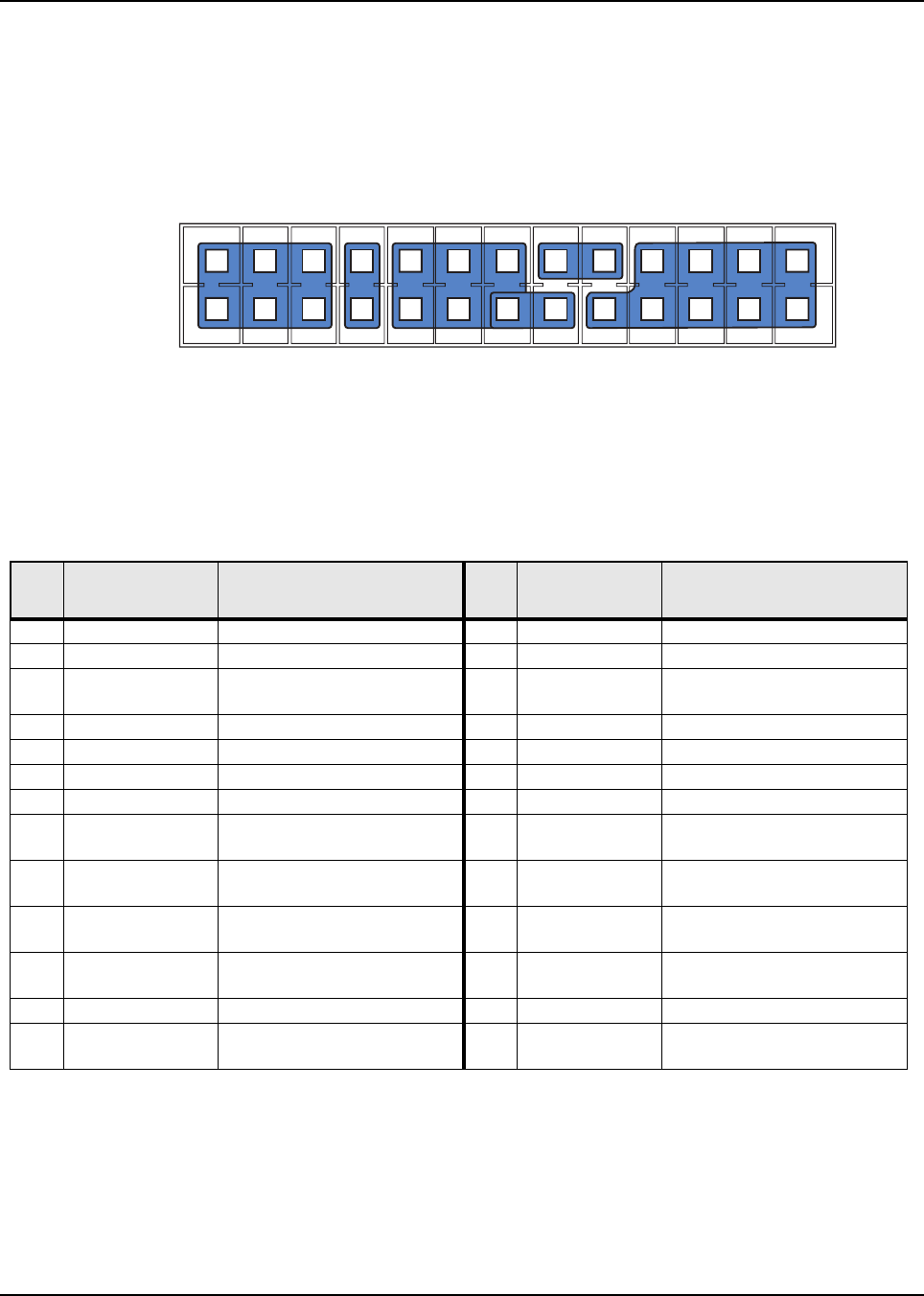

3.2.2 Rear Accessory Connector

The rear accessory connector is located above the ethernet connector. Most of the Motorola-

approved accessories are supplied with female terminals crimped to a 20-gauge wire specifically

designed to fit the housing of the rear accessory connector.

Insert the female terminal into the accessory connector housing in the appropriate locations. The

accessory connector housing is provided together with the accessory. Connect the accessory

connector housing to the rear accessory connector on the back of the repeater. Do not use other

generic terminals in the housing. Generic terminals can cause electrical intermittences and may

cause damage to the housing.

February 2008 6816814H01

3-4 Indicators and Connectors Rear Panel

1Pulling this line to ground activates the PTT function, thus activating the AUX_MIC input.

2Fixed level (independent of volume level) received audio signal, including alert tones. Flat or de-emphasis are

programmed by CPS. Output voltage is approximately 330 mVrms for 1kHz of deviation.

3This input is used to detect when a rear microphone accessory is taken off-hook.

4This microphone signal is independent of the microphone signal on the front microphone connector. The nominal

input level is 80mVrms for 60% deviation. The DC impedance is 660 ohms and the AC impedance is 560 ohms.

Table 3-1 Rear Accessory Connector Pin Functions

No. Pin Name Pin Function Pin

No. Pin Name Pin Function

1D+ USB + (Data) 14 Rx Audio Receive Live Audio2

2D- USB - (Data) 15 AUX Audio 2 PUBLIC Address 2

3VBUS USB Power (5V from USB

accessory/cable) 16 GND Ground

4USB/MAP_ID GND USB/MAP_ID Ground 17 GP5-1 (PTT) 5V Level GPIO, PTT Input1

5MAP_ID_2 Accessory Identifier 18 GND Ground

6MAP_ID_1 Accessory Identifier 19 GP5-2 (Monitor) 5V Level GPIO, Monitor Input3

7SW B+ Switched Battery Voltage 20 GP5-6 5V Level GPIO

8PWRGND Ground 21 GP5-3 5V Level GPIO, Channel

Activity Function

9SPKR- Speaker - (3.2 ohm minimum

impedance) 22 GP5-7 5V Level GPIO

10 SPKR+ Speaker + (3.2 ohm minimum

impedance) 23 EMERGENCY Emergency Switch Input

11 Tx Audio Rear External Microphone

Input424 GP5-7 No connection

12 Audio GND Audio Ground 25 IGN SENSE No connection

13 AUX Audio 1 PUBLIC Address 1 26 VIP-1 12V Tolerant, 5V GPIO,

External alarm

D+

Vbus

SW B+

Spkr-

Tx Audio

ux Audio Out 1 / RxD

Aux Audio Out 2 / TxD

GP5_1 (PTT)

GP5_2 (Monitor)

GP5_3 (Chan Act)

Emerg Sw

Ign Sense

D-

USB / MAP_ID Ground

MAP_ID_1

Power Ground

Spkr+

Audio Ground

Rx Audio

Ground

GP5_6

GP5_7

GP5_8

VIP_1 (Ext Alarm)

MAP_ID_2

Chapter 4 Electrical Connections

After the MOTOTRBO Repeater has been mechanically installed, electrical connections must be

made. This involves making the following connections:

• AC power cord, and

• antenna coaxial cables

Figure 4-1 shows the position of the various connectors and connections on the rear panel of the

repeater.

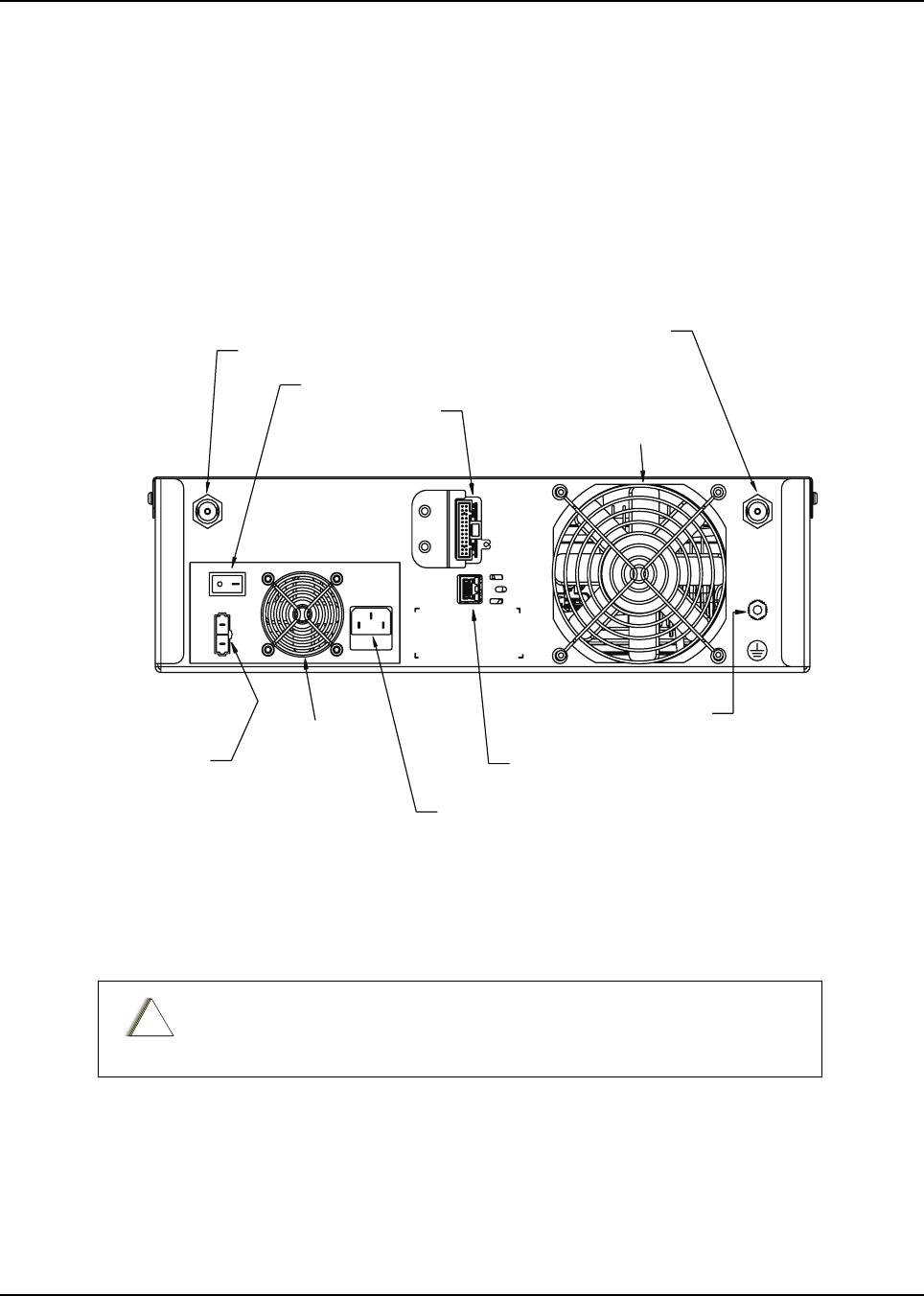

Figure 4-1 Locations of Connectors on the Rear Panel of the Repeater

4.1 Power Supply Connections

4.1.1 AC Input Power Connection

NOTE: The AC source must be installed near the equipment and must be easily accessible.

Each repeater ships with a 2.438 m (8 feet) 3-conductor line cord that connects the repeater to a

110/120/220/240 V

source. Figure 4-1 shows the location where the AC line cord connects to the

repeater. Insert the 3-prong plug into a 110/120/220/240 V

grounded outlet.

If an alternate line cord is required, obtain a suitable line cord, with fittings approved by the safety

testing agency in the end-use country, from a certified electrical parts supplier.

Do NOT apply AC power to the repeater at this time. Make sure that the circuit

breaker associated with the AC outlet is turned to OFF.

GND

POWER

SUPPLY FAN

BATTERY

BACKUP

CONNECTOR AC LINE CORD CONNECTOR

ETHERNET CONNECTOR

GROUND SCREW

TX CONNECTOR

RX CONNECTOR

POWER SUPPLY ON/OFF SWITCH

REAR

ACCESSORY

CONNECTOR MAIN FAN

C a u t i o n

February 2008 6816814H01

4-2 Electrical Connections Power Supply Connections

4.1.2 Ground Connection

The repeater is equipped with a ground screw located on the rear of the repeater. Connect the site

ground cable to the ground screw.

4.1.3 Battery Backup Connection

The MOTOTRBO Repeater offers the capability of connecting to battery backup power in the event

of an AC power failure.

The battery backup system is connected to the repeater through the DC connector mounted at the

rear of the repeater (see Figure 4-2).

The repeater power supply will trickle charge the backup battery. If the battery is significantly

discharged, it is recommended that an external charger be used to charge the battery.

Figure 4-2 Making Connections to a Backup Battery

Refer to Motorola Quality Standards Fixed Network Equipment Installation

Manual R56 (6881089E50), for complete information regarding lightning

protection.

The repeater should only be connected to a battery supply that is in

accordance with the applicable electrical codes for the end use country; for

example, the National Electrical Code ANSI/NFPA No. 70 in the U.S.

The repeater is to be connected to a battery charger that is in accordance with

the applicable electrical codes for the end use country; for example, the

National Electrical Code ANSI/NFPA No.70 in the U.S.

Unplug the battery from the repeater when charging the battery with an

external charger.

C a u t i o n

FUSE

6816814H01 February 2008

Electrical Connections RF Antenna Connections 4-3

4.2 RF Antenna Connections

The transmit and receive antenna RF connection are made using two separate connectors.

Coaxial cables from the receive and transmit antenna must be connected to the Type-N (Tx) and

BNC (Rx) connectors. The position of these connectors is shown in Figure 4-1. For repeater use,

either two antennas with adequate isolation of 75 dB UHF or 85 dB VHF between them, or one

antenna through a duplexer with at least 75 dB UHF, 85 dB VHF isolation between the Tx and Rx

antenna ports is required.

4.2.1 Duplexer Selection

The selection of a duplexer is critical to system performance. The use of a notch (band reject)

duplexer is possible in some systems that are not located at high RF density sites. A duplexer like

the HFE8400_ (406 – 450 MHz) or RFE4000_ (450 – 470 MHz) or HFD8465_ (150 – 160 MHz) is

adequate. Note that these duplexers are good for 4 – 7 MHz Tx-Rx spacings. Select a different

duplexer for other Tx-Rx spacings.

The duplexer must be able to handle at least 50 W continuously. For the best system performance,

the insertion loss should be less than 2 dB. If the repeater is used in higher RF density sites, the use

of a pass-notch duplexer is recommended.

4.2.2 Antenna Selection

The selection of the antenna is critical to system performance. The selected antenna must be

50 Ohm impedance and capable of at least 50 Watts. Gain antennas may be used to increase

system coverage. Please take note of licensing restrictions when selecting gain antennas. Some

services or regions may have antenna gain or system ERP limitations.

The antenna must be connected to the duplexer with a high grade 50 Ohm transmission line

(hardline). The line must have connectors to match the connectors on the duplexer and antenna.

For proper antenna installation, please also consult the Motorola Quality Standards Fixed Network

Equipment Installation Manual R56 (6881089E50).

The repeater can key up at any time due to input from a subscriber unit or a

CW ID. Please ensure that all power is switched off before disconnecting the

transmit antenna.

It is important that all antenna cables are grounded at the point they enter the

building.

The antenna design is the customer's responsibility. All aspects of the antenna

design must comply with the relevant local regulations.

C a u t i o n

February 2008 6816814H01

Notes

4-4 Electrical Connections

Chapter 5 Post-Installation Checklist

After the MOTOTRBO Repeater has been mechanically installed and all electrical connections have

been made, power may now be applied and the repeater checked for proper operation.

5.1 Applying Power

Before applying power to the repeater, make sure all boards are securely seated in the appropriate

connectors on the backplane and that all RF cables are securely connected.

Turn ON the circuit breaker controlling the AC outlet that is supplying power to the repeater Power

Supply Module.

5.2 Verifying Proper Operation

Operation of the repeater can be verified by:

• observing the state of the 8 LEDs located on the front panel, and

• exercising radio operation.

5.2.1 Front Panel LEDs

After turning ON the repeater power (or after a repeater reset), the 8 LEDs on the repeater front

panel:

• Light for about one second to indicate that they are functional, then

• Go off for one second, then

• Indicate the operational status of the repeater.

5.3 Archiving

5.3.1 Copying the Repeater Codeplug Data to a Computer

Backup the repeater's codeplug data by using the Customer Programming Software (CPS) on a

computer.

Some repeater components can become extremely hot during operation. Turn

off all power to the repeater and wait until sufficiently cool before touching the

repeater.

C a u t i o n

February 2008 6816814H01

5-2 Post-Installation Checklist

Notes

Chapter 6 Accessories

Antennas

RDD4527_ VHF 3.0 dB Gain Antenna, 150 – 158 MHz

RDE4557_ 3.8 dB Gain Omni Antenna 403 – 420 MHz

RDE4556_ 3.8 dB Gain Omni Antenna 450 – 470 MHz

RDE4555_ 3.8 dB Gain Omni Antenna 470 – 488 MHz

RDE4554_ 3.8 dB Gain Omni Antenna 488 – 512 MHz

Cables

PMKN4010_ Mobile and Repeater Rear Programming Cable

PMKN4016_ Mobile and Repeater Rear Accessory Programming and Test Cable

PMKN4018_ Mobile and Repeater Rear Accessory Connector Universal Cable

RKN4152_ Battery Backup Cable

Miscellaneous Accessories

PMLE4476_ Wall Mount Kit for MOTOTRBO Repeater

RRX4032_ Tower Mounting Hardware for RRX4038_

RRX4038_ RF Surge Suppressor

RFE4000_ Untuned Duplexer, 450 – 470 MHz

HFE8400_ Untuned Duplexer, 406 – 450 MHz

HFE8401_ Untuned Duplexer, 470 – 527 MHz

HFE8459_ UHF Preselector, 440 – 474 MHz

HFD8188_ VHF Duplexer, 144 – 155 MHz

HFD8189_ VHF Duplexer, 155 – 162 MHz

HFD8190_ VHF Duplexer, 162 – 174 MHz

HFD8461_ VHF Preselector, 144 – 160 MHz

HFD8462_ VHF Preselector, 160 – 174 MHz

February 2008 6816814H01

6-2 Accessories

Notes

Appendix A Replacement Parts Ordering

A.1 Basic Ordering Information

When ordering replacement parts or equipment information, the complete identification number

should be included. This applies to all components, kits, and chassis. If the component part number

is not known, the order should include the number of the chassis or kit of which it is a part, and

sufficient description of the desired component to identify it.The XPR 8300 Repeater Basic Service

Manual (Motorola publication part number 6816810H01) includes complete parts lists and parts

numbers.

A.2 Motorola Online

Motorola Online users can access our online catalog at

http://www.motorola.com/businessonline

To register for online access, please call 1-800-422-4210 (for U.S. and Canada Service Centers

only). International customers can obtain assistance at http://www.motorola.com/businessonline

A.3 Mail Orders

Mail orders are only accepted by the U.S. Federal Government Markets Division (USFGMD):

Motorola Inc.

7031 Columbia Gateway Drive

3rd Floor - Order Processing

Columbia, MD 21046

U.S.A.

A.4 Telephone Orders

Radio Products and Solutions Organization*

(United States and Canada)

7:00 AM to 7:00 PM (Central Standard Time)

Monday through Friday (Chicago, U.S.A.)

1-800-422-4210

1-847-538-8023 (United States and Canada)

U.S. Federal Government Markets Division (USFGMD)

1-877-873-4668

8:30 AM to 5:00 PM (Eastern Standard Time)

A.5 Fax Orders

Radio Products and Solutions Organization*

(United States and Canada)

1-800-622-6210

1-847-576-3023 (International)

USFGMD

(Federal Government Orders)

1-800-526-8641 (For Parts and Equipment Purchase Orders)

February, 2008 6816814H01

A-2 Replacement Parts Ordering Parts Identification

A.6 Parts Identification

Radio Products and Solutions Organization*

(United States and Canada)

1-800-422-4210

A.7 Product Customer Service

Radio Products and Solutions Organization (United States and Canada)

1-800-927-2744

* The Radio Products and Solutions Organization (RPSO) was formerly known as the Radio

Products Services Division (RPSD) and/or the Accessories and Aftermarket Division (AAD).

Appendix B Motorola Service Centers

B.1 Servicing Information

If a unit requires further complete testing, knowledge and/or details of component level

troubleshooting or service than is customarily performed at the basic level, please send

the radio to a Motorola Service Center as listed below.

B.2 Motorola Service Center

45D Butterfield Trail

El Paso, TX 79906

Tel: 1-800-227-6772

B.3 Motorola Federal Technical Center

4395 Nicole Drive

Lanham, MD 20706

Tel: 1-800-969-6680

Fax: 1-800-784-4133

B.4 Motorola Canadian Technical Logistics Center

Motorola Canada Ltd.

8133 Warden Avenue

Markham, Ontario, L6G 1B3

Tel: 1-800-543-3222

Fax: 1-888-331-9872 or 1-905-948-5970

February 2008 6816814H01

B-2 Motorola Service Centers

Notes
