MOTOTRBO™ SLR 8000 Series Base Station Repeater Quick Start Guide
Notations Used in This Manual
Note and caution notations are used throughout the text in this publication. These notations are used to emphasize that safety hazards exist,
and due care must be taken and observed.
CAUTION indicates a potentially hazardous situation which, if not avoided, might result in equipment damage.
WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or injury.
This symbol indicates areas of the product that pose potential burn hazards.
W A R N I N G
SLR_8000_NAG.book Page 1 Tuesday, November 17, 2015 11:38 PM
2
English
General Safety and Installation Standards and Guidelines
The following are additional general safety precautions that must be observed:
• To continue compliance with any applicable regulations and maintain the safety of this equipment, do not install substitute parts or perform
any unauthorized modifications.
• All equipment must be serviced by Motorola trained personnel.
• If troubleshooting the equipment while the power is on, be aware of live circuits which could contain hazardous voltage.
• Do not operate the radio transmitters unless all RF connectors are secure and all connectors are properly terminated.
• All equipment must be properly grounded in accordance with the Motorola R56 and specified installation instructions for safe operation.
• Slots and openings in the cabinet are provided for ventilation. Do not block or cover openings that protect the devices from overheating.
• Some equipment components can become extremely hot during operation. Turn off all power to the equipment and wait until sufficiently
cool before touching.
• Maintain emergency first aid kits at the site.
• Never store combustible materials in or near equipment racks. The combination of combustible material, heat and electrical energy
increases the risk of a fire hazard.
• Equipment shall be installed in a site that meets the requirements of a “restricted access location,” per (UL60950-1 & EN60950-1), which is
defined as follows: “Access can only be gained by service persons or by users who have been instructed about the reasons for the
restrictions applied to the location and about any precautions that shall be taken; and access is through the use of a tool or lock and key, or
other means of security, and is controlled by the authority responsible for the location.”
• Burn hazard. The metal housing of the product may become extremely hot. Use caution when working around the equipment.
WARNING: For safe installation, operation, service and repair of this equipment, follow the safety precautions and
instructions described below, as well as any additional safety information in Motorola’s product service and installation
manuals and the Motorola R56 Standards and Guidelines for Communications Sites manual (which can be obtained by
ordering CD-ROM 9880384V83). To obtain copies of these materials, please contact Motorola as directed at the end of this
section. After installation, these instructions should be retained and readily available for any person operating or servicing this
Base Station Repeater or working near it.
Failure to follow these safety precautions and instructions could result in serious injury or property damage. The installation
process requires preparation and knowledge of the site before installation begins. Review installation procedures and
precautions in the Motorola R56 manual before performing any site or component installation. Personnel must use safe work
practices and good judgment, and always follow applicable safety procedures, such as requirements of the Occupational
Safety and Health Administration (OSHA), the National Electrical Code (NEC), and local codes.
W A R N I N G
SLR_8000_NAG.book Page 2 Tuesday, November 17, 2015 11:38 PM
3
English
• RF energy burn hazard. Disconnect power in the cabinet to prevent injury before disconnecting and connecting antennas.
• Shock hazard. The outer shields of all Tx and Rx RF cables outer shields must be grounded per Motorola R56 manual.
• Shock hazard. DC input voltage shall be no higher than 60 VDC. This maximum voltage shall include consideration of the battery charging
“float voltage” associated with the intended supply system, regardless of the marked power rating of the equipment.
• All Tx and Rx RF cables shall be connected to a surge protection device according to Motorola R56 manual. Do not connect Tx and Rx RF
cables directly to an outside antenna.
• Compliance with National and International standards and guidelines for human exposure to Electromagnetic Energy (EME) at
Transmitter Antenna sites generally requires that persons having access to a site shall be aware of the potential for exposure to EME and
can exercise control of exposure by appropriate means, such as adhering to warning sign instructions. See this installation manual and
Appendix A of Motorola R56.
This product complies with the requirements set forth by the European R&TTE regulations and applicable CENELEC standards concerning
human exposure to Electromagnetic Energy (EME) at Transmitter Antenna sites. “Appendix F” of the SLR 8000 Series Base Station Repeater
Basic Service and Installation Manual includes an EME exposure analysis of a typical system configuration for this product.
For a different system configuration than the typical configuration, compliance with applicable EME exposure standards (current versions of
the EN50384 and EN50385 standards for occupational and general public exposure, respectively) can be evaluated by either employing the
method illustrated in the typical system configuration EME exposure analysis included in “Appendix F” in the SLR 8000 Series Base Station
Repeater Basic Service and Installation Manual, or employing another suitable method among those described in the current version of the
EN50383 standard.
Once the occupational and general public compliance boundaries are determined, means to ensure that workers and people are outside the
respective boundaries, for instance using appropriate signage or restricted access, should be implemented; if this is not possible or practically
achievable for the specific system configuration, the configuration should be modified in order to make it possible. The R56 Standards and
Guidelines for Communications Sites manual provides examples of signage that can be used to identify the occupational or general public
compliance boundaries.
Refer to product specific manuals for detailed safety and installation instructions. Manuals can be obtained with product orders, downloaded
from https://businessonline.motorolasolutions.com or purchased through the Motorola Aftermarket & Accessory Department.
Attention
SLR_8000_NAG.book Page 3 Tuesday, November 17, 2015 11:38 PM
4
English
Part 68 Information
Part 68 FCC Guideline
This section applies when the SLR 8000 Base Station Repeater is equipped with the optional Wireline Interface Board. This equipment
complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the rear of this equipment is a label that contains,
among other information, the registration number:
US:ABZNINANSLR8000
If requested, this number must be provided to the telephone company. The connector used to connect this equipment to the premises wiring
and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant connector is
provided with this product. See installation instructions for details.
REN: N/A
Connector: RJ1DC
Authorized Network Port: 04NO2
Service Order Code: 7.0Y
If the equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of
service may be required. But if advance notice is not practical, the telephone company will notify you as soon as possible. Also, you will be
advised of your right to file a complaint with the FCC if you believe it is necessary.
The telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the operation of the
equipment. If this happens, the telephone company will provide advance notice in order for you to make necessary modifications to maintain
uninterrupted service.
If you experience trouble with this equipment, please refer to “Appendix B”, “Appendix C” or “Appendix D” of MN002296A01_ for repair and
warranty information. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the
equipment until the problem is resolved.
None of the circuit boards in this equipment are field repairable. For assistance in sending the boards back for repair, please contact the
Service Center listed in “Appendix B”, “Appendix C” or “Appendix D” of MN002296A01_.
This equipment cannot be used on public coin phone service provided by the telephone company. Connection to party line service is subject to
state tariffs. Contact the state public utility commission, public service commission or corporation commission for information.
SLR_8000_NAG.book Page 4 Tuesday, November 17, 2015 11:38 PM
5
English
MOTOTRBO SLR 8000 Series Base Station
Repeater Supplemental Safety and
Installation Requirements
ATTENTION!
The MOTOTRBO SLR 8000 Series Base Station Repeater must be
installed in a suitable, in-building enclosure. A restricted access
location is required when installing this equipment into the end
system.
The Base Station Repeater contains a Class 1 built-in power supply
component. It is equipped with an appliance inlet for connecting to an
AC input, as well as DC input terminals which meet SELV DC circuit
requirements.
When installing the equipment, all requirements of relevant standards
and local electrical codes must be fulfilled.
The maximum operating ambient temperature of this equipment is
60°C. The maximum guaranteed operating altitude is 5000 meters
above sea level. Operating above this maximum altitude may result in
degradation to product specifications and compliances.
The nominal 15.75 VDC output from the power supply to the PA is at
an energy hazard level (exceeds 240 VA).
When installing into the end system, care must be taken so as not to
touch the output wires. When the MOTOTRBO SLR 8000 Series
Base Station Repeater is used in a DC reverting system, the DC
power supply must be located in the same building as the
MOTOTRBO SLR 8000 Series Base Station Repeater, and it must
meet the requirements of a SELV circuit.
General Installation
Proper installation ensures the best possible performance and
reliability of the Base Station Repeater equipment. Pre-installation
planning is required. This includes considering the mounting location
of the equipment in relation to input power, antennas, and system
interfaces. Also to be considered are site environment conditions, the
particular mounting method (several available), and the required tools
and equipment.
If this is the first time installing this type of equipment, it is highly
recommended that the user read the following:
• Chapter 12 of the SLR 8000 Series Basic Service and Installation
Manual before beginning the actual installation.
Pre-Installation Overview
The following information is an overview for installing the SLR 8000
Series Repeater:
List of Supplied Items
• SLR 8000 Series Base Station Repeater
• Cabinet and Rack mounting hardware
• AC line cord
• Quick Start Guide
NOTE: Save the SLR 8000 Series Base Station Repeater shipping
container and its components to facilitate possible future
SLR 8000 Series Base Station Repeater shipping needs.
SLR_8000_NAG.book Page 5 Tuesday, November 17, 2015 11:38 PM
English
English
6
Environmental Conditions at Intended Installation
Site
The repeater may be installed in any location suitable for electronic
communications equipment, provided that the environmental
conditions do not exceed the equipment specifications for
temperature, humidity, and air quality.
Operating Temperature Range
-30°C (-22°F) to +60°C (+140°F) – consider cabinet temperature rise.
Humidity
Humidity range: At or below RH of 95%, non-condensing at 50°C
(122°F).
Air Quality
• Air quality: airborne particulates level must not exceed 90 µg/m3
The Motorola Quality Standards Fixed Network Equipment
Installation manual, R56; specifically refer to the information on
ground connection for lightning protection and power requirements.
Mechanical Installation
• The repeater may be mounted in a rack or cabinet.
• Open frame racks accept multiple repeaters and ancillary
equipment; EIA 48.3 cm (19 inch) rack configuration.
Recommended clearance front and rear is 91.44 cm (36 in)
minimum for servicing access.
• Cabinets must be equipped with ventilation slots or openings in the
front (for air entry) and back or side panels (for air to exit). If
several repeaters are installed in a single cabinet, be sure
ventilation openings surround each repeater to allow for adequate
cooling. All cabinets must have at least 15 cm (6 in) of open space
between the air vents and any wall or other cabinets to allow for
adequate air flow.
Mounting the SLR 8000 Series Base Station
Repeater in a Rack or Cabinet
When mounting the SLR 8000 Series Base Station Repeater into a
rack or cabinet, use the included mounting hardware. This allows
proper installation of the repeater within the center of gravity of a rack
or to use in forward mounting the repeater in cabinet installations.
NOTE: See Chapter 12 of the SLR 8000 Series Base Station
Repeater for modular racks and cabinets that are available
for purchase.
See Figure 1a and Figure 1b for an illustration of the mounting
hardware configured for a rack installation.

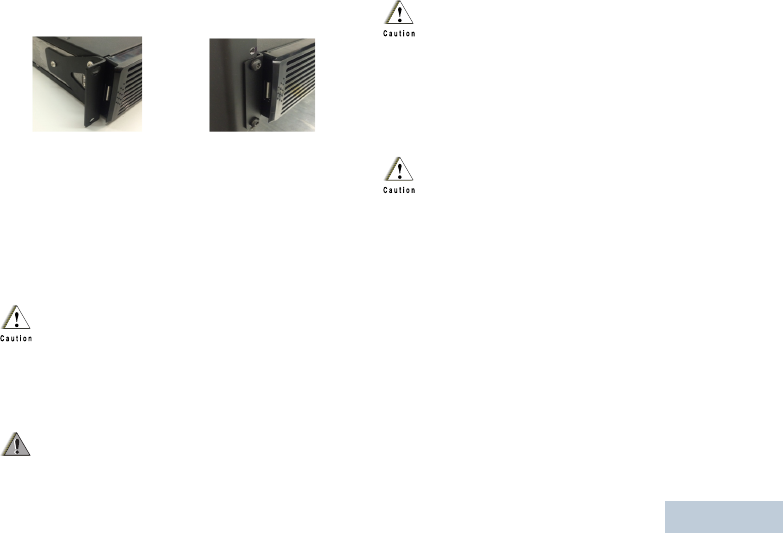

Figure 1a: Rack installation Figure 1b: Rack installation
SLR_8000_NAG.book Page 6 Tuesday, November 17, 2015 11:38 PM
7
English

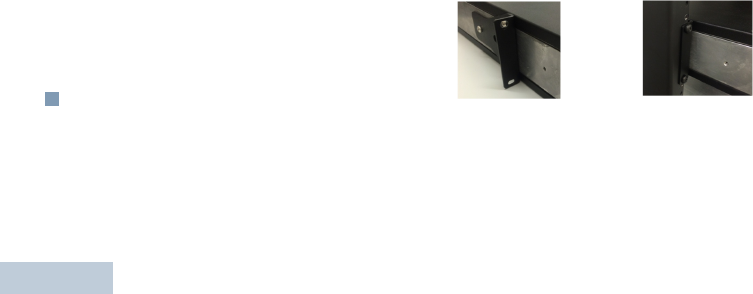

See Figure 2a and Figure 2b for an illustration of the mounting
hardware configured for a cabinet installation.
Power Input Requirements
After the repeater equipment has been mechanically installed,
electrical connections must be made. This involves making the
following connections to:
• When applicable, AC input power cabling: 100–240 Volts
(47–63Hz) at 10A maximum.
• When applicable, DC input power cabling: 11–15.5 VDC at 23A
maximum, or 20.6 - 32 VDC at 23A maximum.
Grounding
Connect a bonding wire from the repeaters ground screw to the site
ground point. The size of the bonding wire used for this connection
must be 6 AWG minimum.
NOTE: Follow all applicable electrical codes for the end use
country and locality.
Cable Connections
• Connect RF coaxial cables to transmit (N-Type Female) and
receive (BNC Female) antenna connectors.
• System cable connections are made through the Aux and/or
Ethernet connectors.
Do not apply AC power to the repeater at this time. Make
sure that the circuit breaker associated with the AC outlet
is turned off.
The AC socket-outlet must be installed near the
equipment and must be easily accessible.
Ensure that the appropriate voltage is connected with a
nominal 13.6VDC (11–15.5 VDC), or nominal 27.2 VDC
(20.6 - 32 VDC)
Figure 2a: Mounting hardware Figure 2b: Mounting hardware
W A R N I N G
The base station/repeater is to be connected to a battery
supply that is in accordance with the applicable electrical
codes for the end use country; for example, the National
Electric Code ANSI/NFPA No.70 for the U.S.
Refer to Motorola Quality Standards Fixed Network
Equipment Installation manual, R56 for complete
information regarding lightning protection.
SLR_8000_NAG.book Page 7 Tuesday, November 17, 2015 11:38 PM
8
English
Connectors
Rear Panel

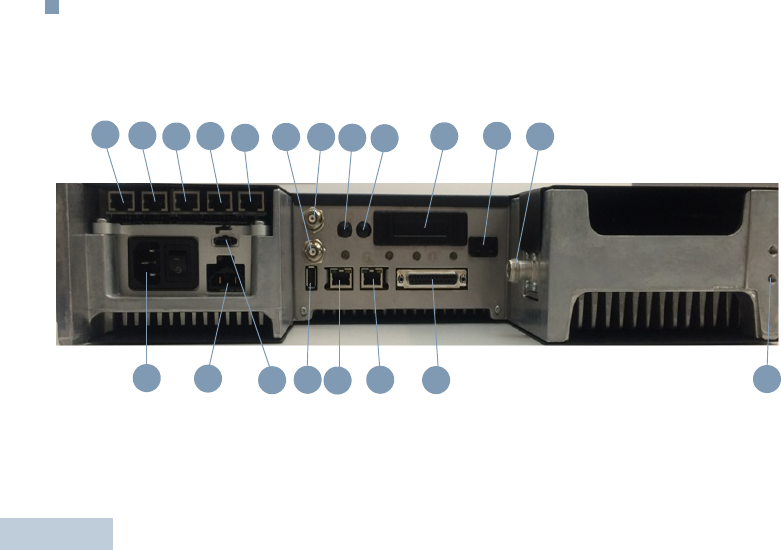

Figure 3 illustrates the position of the external connectors located on the back panel of the repeater. Table 1 identifies the connector types as
well as the primary function of a connector.
Figure 3: SLR 8000 Series Base Station Repeater rear panel locations
125
4
3
6
78
9
11
10 12
13
14 15 16 17 18 19 20
*Optional devices not shown.
SLR_8000_NAG.book Page 8 Tuesday, November 17, 2015 11:38 PM
9
English
Post-Installation Checklist
Applying Power
After the SLR 8000 Series Base Station Repeater has been
mechanically installed and all electrical connections have been made,
power may now be applied and the repeater checked for proper
operation.
Table 1: Connector Type and Primary Function
NO Connector Function(s)
C14 (IEC
60320)
AC Power Inlet and Base Station
Repeater Power Switch
Molex
42818-0212
DC Power Inlet and DC Charger
Outlet
Option
Dependent
Future Option 1
Option
Dependent
Future Option 2
Type A Socket USB
RJ-45 - Jack Ethernet 1
RJ-45 - Jack Ethernet 2 - (Optional) - Future
DB25 -
Female
Rx Audio, Tx Audio, PTT, COR,
Accessory Power, 1 PPS, and
GPIO
BNC - Female Receiver RF
BNC - Female Frequency Reference Input
T30 TORX
Screw
Bonding ground connection
N-Type -
Female
Transmitter RF
1
2
3
4
5
6
7
8
9
10
11
12
Molex
43640-0300
Battery Charger Temperature
Compensation
RJ-45 - Jack Wireline #1 - Balanced Rx and Tx
Audio with E&M - (Optional)
RJ-45 - Jack Wireline #2 - Balanced Rx and Tx
Audio with E&M - (Optional) -
Future
RJ-45 - Jack GPIO1 - (Optional) - Future
RJ-45 - Jack GPIO2 - (Optional) - Future
RJ-45 - Jack GPIO3 - (Optional) - Future
N-Type-
Female
RF Antenna Relay - Transmitter
RF and Receiver RF - (Optional)
Molex
03-06-2024
External Circulator Temperature
Sense - (Optional)
Table 1: Connector Type and Primary Function
13
14
15
16
17
18
19
20
SLR_8000_NAG.book Page 9 Tuesday, November 17, 2015 11:38 PM
English
English
10
Front Panel LEDs
After turning on the repeater power, the seven LEDs on the repeater
front panel:
1. Light for approximately one second to indicate that they are
functional, then
2. Go off for one second.
3. Indicate the operational status of the repeater.
Front Panel Speaker/Microphone
•Microphone Connector (RJ45) Jack: accepts interface with the
GMMN4063_ microphone accessory.
•Volume Increase Button: Raises the volume level of the
integrated front panel speaker.
•Volume Decrease/Mute Button: Lowers/Mutes the volume level
of the integrated front panel speaker.
Verifying Proper Operation
Operation of the repeater can be verified by:
• Observing the state of the seven LEDs located on the front panel,
and
• Exercising radio operation.
Archiving
Copying the Base Station Repeater Codeplug Data to a
Computer
Proceed to the Customer Programming Software (CPS) configuration
procedures to customize the repeater parameters (e.g., operating
frequency, PL, codes, etc.). Backup the codeplug data of the SLR
8000 Series Base Station Repeater using the CPS application.
The SLR 8000 Series Base Station Repeater connector to facilitate
the CPS configuration is a USB Type-B host connection located on
the front of the repeater. See Figure 4.

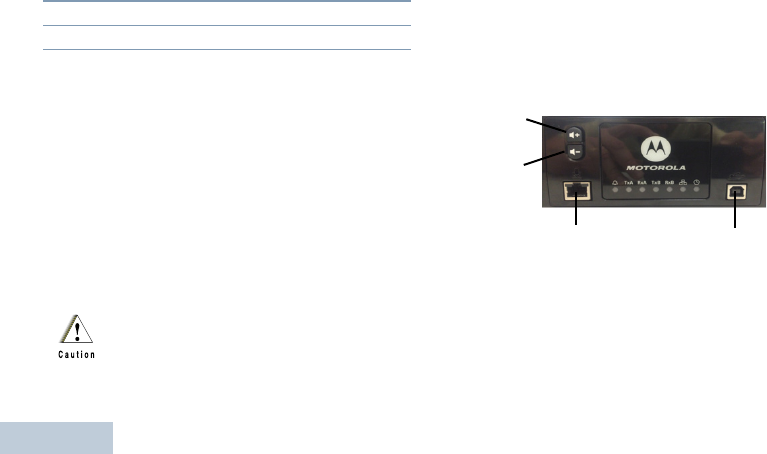

Figure 4: Front panel
Motorola Service Center
To find out more about Motorola Service Centers, please visit
http://www.motorolasolutions.com
Some repeater components can become extremely
hot during operation. Turn off all power to the
repeater and wait until sufficiently cool before
touching the repeater.
USB service port
Microphone
Connector port
Volume
Increase Button
Volume
Decrease/Mute
Button
SLR_8000_NAG.book Page 10 Tuesday, November 17, 2015 11:38 PM
SLR_8000_NAG.book Page 11 Thursday, October 22, 2015 3:38 PM
M
MOTOROLA, MOTO, MOTOROLA SOLUTIONS
and the Stylized M logo are trademarks or
registered trademark of Motorola Trademark
Holdings, LLC and are used under license.
All other trademarks are the property of their respective
owners.
© 2015 Motorola Solutions, Inc. All rights reserved.
Oct 2015.
www.motorolasolutions.com/mototrbo
Printed in
*MN002302A01*
MN002302A01-AA
SLR_8000_NAG.book Page 1 Thursday, October 22, 2015 3:38 PM
