Motorola Solutions 99FT7011 Shop Talker User Manual motorola eps
Motorola Solutions, Inc. Shop Talker motorola eps
Users Manual
U
SER
GUIDE
6880906Z37-O
TR3000
™
Portable Radio
and Motorola are registered trademarks of Motorola, Inc.
TELARIO, TC3000, TR3000, and TS3000 are trademarks of Motorola, Inc.
Copyright © 1999 Motorola, Inc. All rights reserved.
This manual may not be reproduced, in whole or in part, in any
form whatsoever, without the express written permission of
Motorola, Inc.
Note: The Motorola products described in this manual contain one
or more computer programs. These computer programs are
protected by copyright laws and international treaties.
Unauthorized reproduction or distribution of these programs, or
any part thereof, may result in severe civil and criminal penalties,
and will be prosecuted to the maximum extent possible under the
law. U.S. and international patents pending.
This product is covered by one or more issued U.S. Patents. Other Patent
applications pending.
1
Introduction
UTAM Registration ........................................................................................... 3
TR3000 Radio Features ................................................................................... 4
Inspection......................................................................................................... 6
Battery Installation Instructions ........................................................................7
To Insert Battery .......................................................................................... 7
To Remove Battery ...................................................................................... 7
Charging Instructions .......................................................................................8
Rapid Charge Method .................................................................................8
Slow Charge Method................................................................................... 9
Attaching and Removing the Belt Clip............................................................10
Basic Functions
Turning the TR3000 Radio On........................................................................11
Tuning the TR3000 Radio Off......................................................................... 11
Setting the Volume ......................................................................................... 11
Battery Life Indicator ......................................................................................12
Time-Out Timer .............................................................................................. 12
Idle Timer .......................................................................................................12
Group Talk
Selecting a Group........................................................................................... 13
LED Indicators........................................................................................... 13
Initiating a Group Talk.....................................................................................14
Group Busy Signal.....................................................................................14
User Out of Range.....................................................................................14
System Busy Signal...................................................................................14
System Busy Auto Retry............................................................................ 15
Receiving a Group Talk .................................................................................. 15
Person Link
Initiating a Person Link ................................................................................... 16
Target User Busy Signal............................................................................ 16
User Out of Range.....................................................................................16
System Busy Signal...................................................................................17
System Busy Auto Retry............................................................................ 17
Receiving a Person Link................................................................................. 17
Responding to a Person Link .........................................................................17
Responding to a Person Link While in a Group Talk ...................................... 18
Disconnecting a Person Link.......................................................................... 18
Table of Contents
2
Table of Contents
Accessories....................................................................................................... 19
LED Indications and Alert Tones..................................................................... 20
Troubleshooting ................................................................................................ 21
Important Safety Information
Scope ............................................................................................................. 24
Exposure to Radio Frequency Energy............................................................24
Portable Radio Operation and EME Exposure .......................................... 26
Electromagnetic Interference / Compatibility..................................................26
Medical Devices......................................................................................... 27
Pacemakers .......................................................................................... 27
Hearing Aids ......................................................................................... 27
Other Medical Devices..........................................................................27
Operational Warnings..................................................................................... 28
Potentially Explosive Atmospheres............................................................ 28
Batteries .................................................................................................... 28
Blasting Caps and Areas........................................................................... 28
Operational Cautions...................................................................................... 29
Batteries .................................................................................................... 29
Portable Radio Care....................................................................................... 29
Batteries and Chargers ..................................................................................29
Charging Batteries..................................................................................... 29
Charging Temperatures............................................................................. 30
Recharging NiMH Batteries....................................................................... 30
Recycling / Disposal of Batteries............................................................... 31
Battery Charger ......................................................................................... 32
Licensing ........................................................................................................... 33
Service ........................................................................................................... 34
Computer Software Copyrights ...................................................................... 34
3
Congratulations!
You are about to increase your
business’ productivity through the use of the TR3000™
Radio. The TR3000 Radio is part of the Telario™ product
system, a state of the art Motorola digital communications
system. Your TR3000 Radio has been designed
exclusively to function with other TR3000 Radios and
TC3000™ Communicators, and with the TS3000™
Control Station.
The TR3000 Radio offers you two types of
communications services:
•Group Talk Communication (up to 3 Groups)
•Person Link Communication
UTAM Registration
Installation of this equipment is subject to notification and
coordination with UTAM, Inc. Any relocation of this
equipment must be coordinated through, and approved
by UTAM. UTAM may be contacted at (800) 429-UTAM
(800) 429-8826.
Introduction
4
Introduction

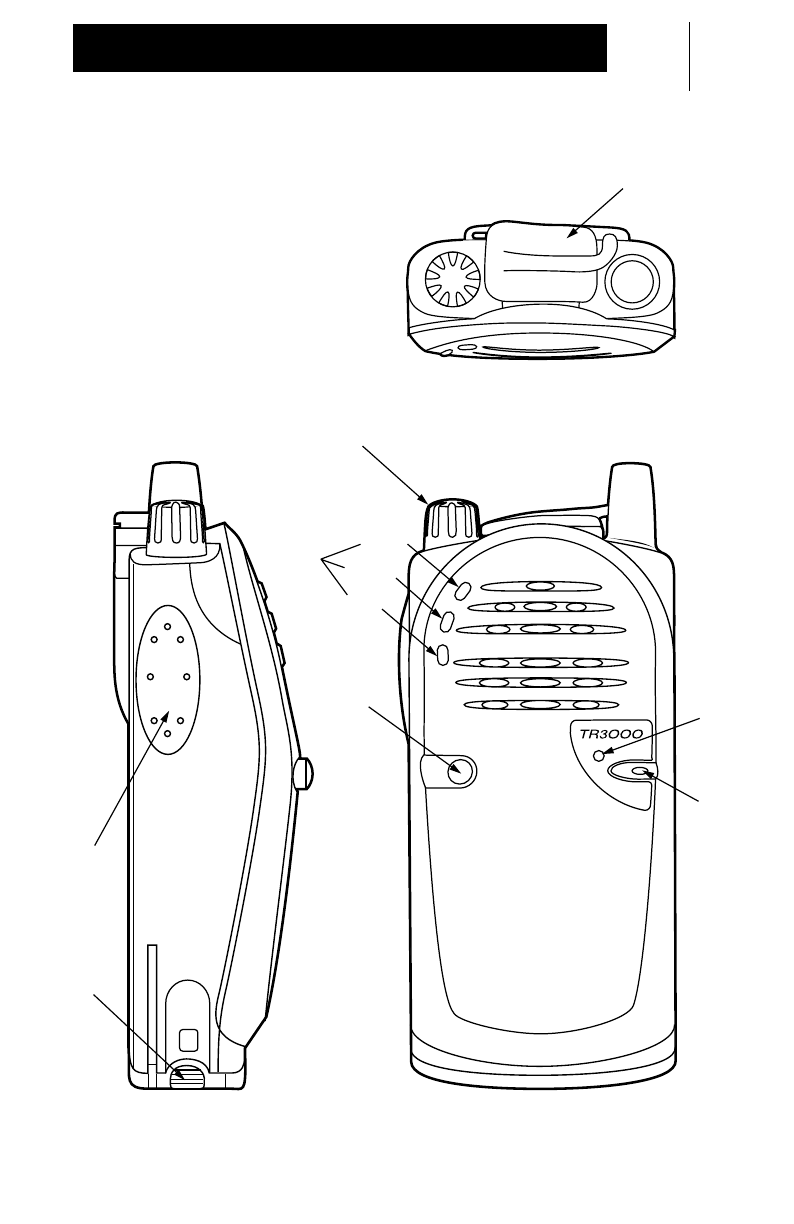

TR3000 Radio Features
1. Accessory Connector – Connects audio accessories
2. Microphone
3. Battery Latch (located on both sides of the Radio)
Controls
4. Control Knob – Rotate to turn radio on/off and increase or
decrease volume
5. Group Selector Button – Press to select a Group Talk location
6. Push-To-Transmit (PTT) Button – Press and hold to speak
Visual Indicators
A. Battery Charging LED Indicator – Indicates charging status
B. LED Indicators – Each individual indicator (yellow, green, and
red) represents a Group Talk location. The LED indicators also
identify when you are transmitting or receiving a Group Talk or
Person Link.
5
Introduction
6
1
3
4
5A
2
BYellow
Green
Red
6
Introduction

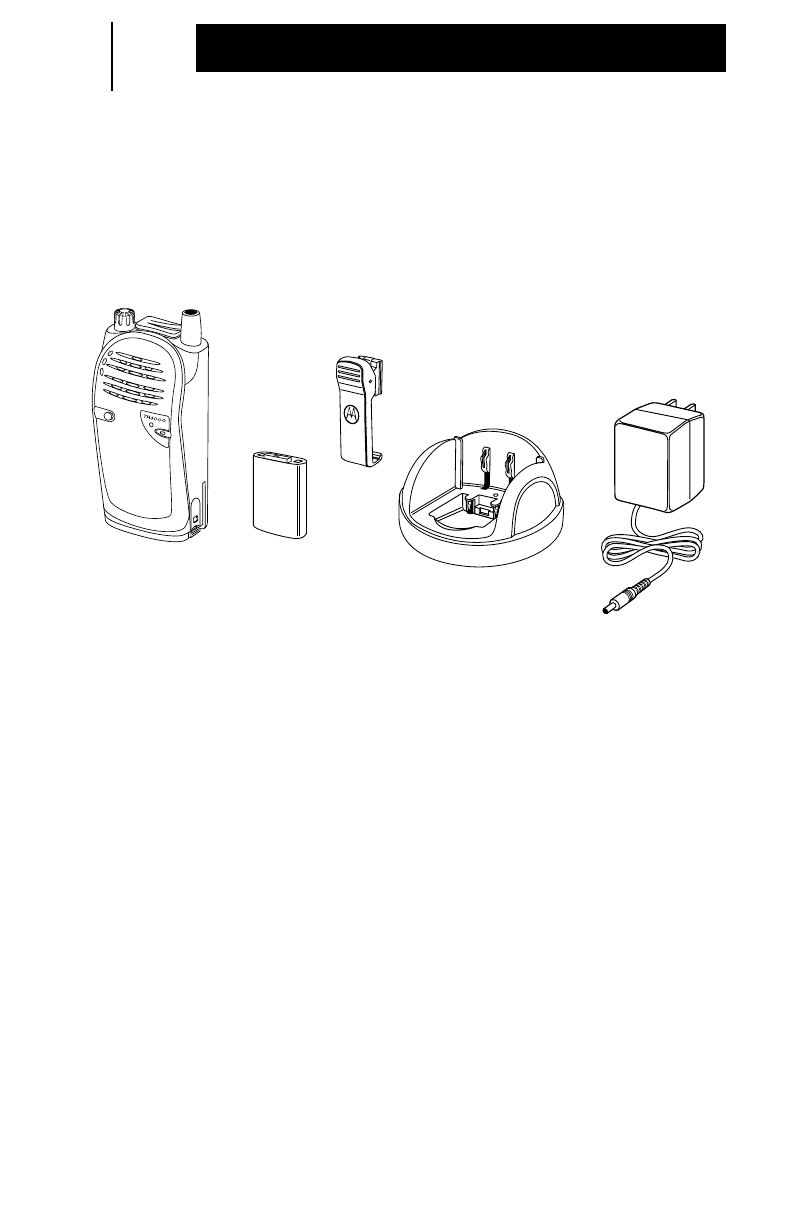

Inspection
The Radio ships standard with the following items:
•NiMH Battery
•Belt Clip
•Rapid Rate Charger with spare battery compartment
& charging transformer
•Manual (not shown)
7
Introduction

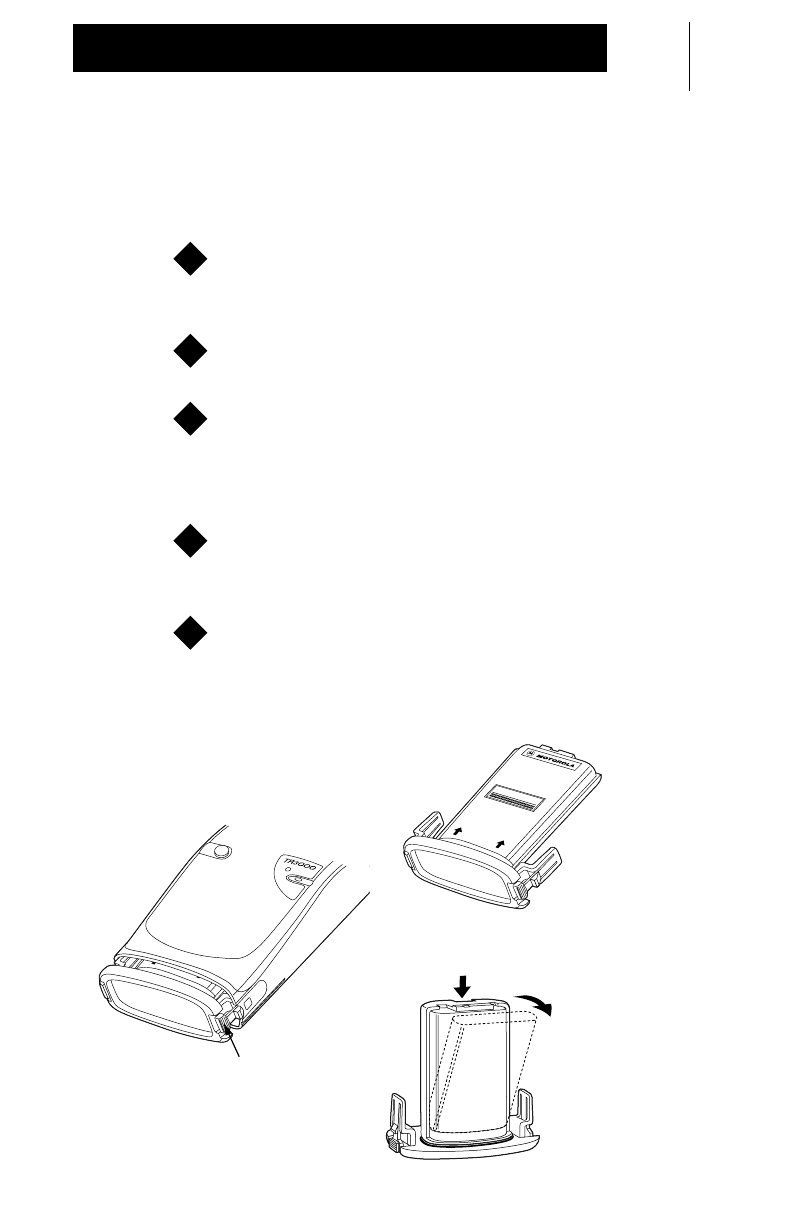

Battery Installation Instructions
To Insert Battery
Squeeze the two bottom side battery latches in and
slide the battery tray down and out of the Radio as
shown in Figure 1.
Place the battery pack into the tray with the arrows
facing upward. Refer to Figure 2.
Slide the battery tray into the Radio until it snaps into
place.
To Remove Battery
Squeeze the two bottom side battery latches in and
slide the battery tray down and out of the Radio as
shown in Figure 1.
Remove the battery pack from the tray by pushing
downward on the battery and pivoting it away from the
tray until the hook-latch on the battery clears the tray.
Refer to Figure 3.
1
2
3
1
2
WARNING
Figure 1.
Battery Tray
Battery
Latch
WARNINGWARNING
Figure 2.
Insert Battery Pack
Figure 3.
Remove Battery Pack
8
Introduction
Charging Instructions
MPORTANT:
The battery is shipped from the factory
uncharged and must be charged before use.
Your battery will need to be charged using the rapid
charge method before operating your Radio for the first
time. The rapid charge method fully charges your battery
in 60 minutes.
Your battery charger has the capability of charging both a
battery inside the radio (rapid charge method) and a
spare battery (slow charge method) simultaneously.
OTE:
Do not leave the Radio or battery in the charger for
extended periods of time (1 week) in order to avoid a
decrease in overall battery performance.
Plug the round end of the transformer cord into the
socket located on the back of the charger.
Plug the transformer into the appropriate AC outlet.
Rapid Charge Method (battery inside radio)
Align the grooved rails of the Radio with the guide
rails of the charger and insert the radio, with the
battery inside, into the charger pocket. Refer to
Figure 4.
OTE:
The radio can be left on to receive communications
while charging without causing harm to the battery or
battery charger. However, if the radio remains on
while charging, it will require at least 25% more time
for the battery to charge to full capacity.
I
N
1
2
1
N
9
Introduction
When the Radio is properly inserted into the charger
pocket, the battery charging LED indicator on the
radio will indicate:
•
Red
while the battery is rapid charging. The battery
fully charges in 60 minutes.
•
Green
when the battery is fully charged. This occurs
once rapid charge is completed.
•
Yellow
if there is a charging problem.
Slow Charge Method (battery only)
Insert a spare battery into the charger pocket. The red
LED on the charger will light when the battery is prop-
erly installed. The battery fully charges in 24 hours.
2
1

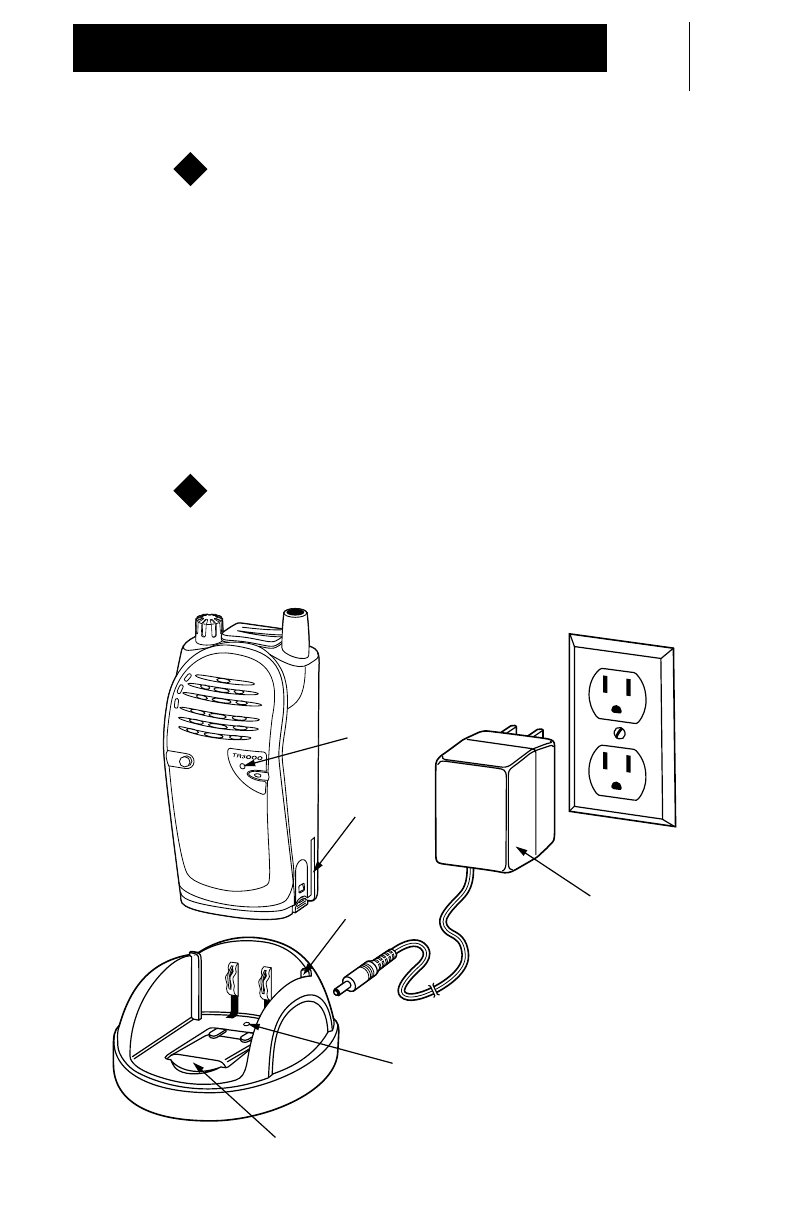

Figure 4.
Grooved
Rails
Guide
Rails
Spare Battery
Red
LED
Transformer
Battery Charging
LED Indicator
10
Introduction

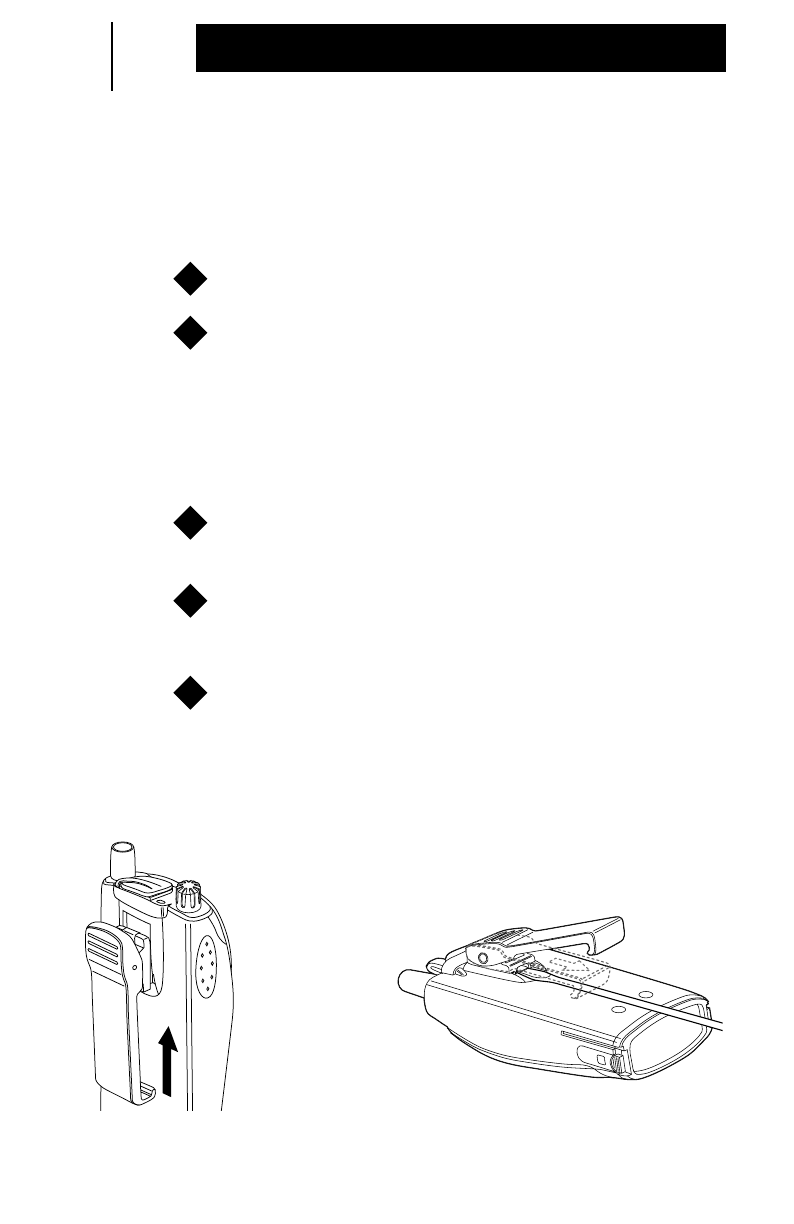

Attaching and Removing the Belt Clip
To Attach the Belt Clip
Locate the grooved rails on the back of the Radio.
Align the mounting rails of the belt clip with the
grooved rails on the back of the radio. Refer to
Figure 5. Slide the belt clip up the grooved rails until
it clicks into place.
To Remove the Belt Clip
Locate the belt clip release tab on the underside of
the belt clip.
Lift the belt clip up and insert a small screwdriver
between the release tab and the back surface of the
radio. Refer to Figure 6.
Release the belt clip with the screwdriver still under
the release tab and slide the belt clip down and off
the radio. Refer to Figure 6.
1
2
1
2
3
Figure 5.
Attach Belt Clip Figure 6.
Remove Belt Clip
11
Turning the TR3000 Radio On
Rotate the Control knob clockwise until it clicks.
•A short, high-pitched tone will sound and the three
LED Indicators will blink, indicating successful start-
up. If the Radio is not operating properly, a
continuous low-pitched tone will sound.
When turning on your Radio for the first time, the first avail-
able Group Talk location will be your initial default Group.
Afterward, when turning the Radio on, it will default to the
last selected Group Talk location. Refer to page 13 to
change the Group Talk location.
To preserve battery life, your Radio will enter a “battery
saver” mode after several minutes of no activity. Your
Radio will return to full operation by pressing any button
or by receiving a transmission.
Your Radio and its battery have been designed for unin-
terrupted use, making it unnecessary to turn it off when
not in use. See Charging Instructions on page 8 for more
information.
Turning the TR3000 Radio Off
Rotate the Control knob counterclockwise until it
clicks.
Setting the Volume
Rotate the Control knob to adjust the volume to a
comfortable listening level.
1
1
1
Basic Functions
12
Basic Functions
Battery Life Indicator
Your Radio has a built-in feature to alert you when your
battery life is low (approximately 5-10% charge remain-
ing):
•Two (2) short, low-pitched tones will sound every 10
minutes and upon release of the PTT button.
Time-Out Timer
Time-Out Timer limits the amount of time you have to
transmit. Preprogrammed from 1 to 255 seconds or Off.
•When you reach the time limit, a continuous, low
pitched tone will sound (until you release the PTT)
and your transmission will be cut off.
Idle Timer
Your Radio has a built-in Idle Timer that can be pro-
grammed from 0-30 seconds that will take you out of any
service you have entered if no action has taken place
within the given amount of time.
•For example, if you enter Person Link Service but do
not initiate a Person Link, your Radio will
automatically return to Group Talk Service, so as not
to tie up system resources.
13
Your TR3000 Radio supports two-way Group Talk
communications among TR3000 Radios and TC3000
Communicators.
A Group Talk is a transmission to a specific group of
assigned members. Your Radio always defaults to Group
Talk Service.
Selecting a Group
LED Indicators
There are three (3) LED Indicators – yellow, green, and
red. Each color represents a Group Talk location. Only
one Group Talk location can be selected at a time.
To select your desired Group Talk location, press the
Group Selector button.
•A short, high-pitched tone will sound and the LED
Indicator of your selected Group will light
momentarily, then blink every few seconds.
1
Group Talk
14
Group Talk
Initiating a Group Talk
To select your desired Group Talk location, press the
Group Selector button.
•A short, high-pitched tone will sound and the LED
Indicator of your selected Group will light
momentarily, then blink every few seconds.
Press and hold the PTT button to initiate a Group
Talk.
•Two (2) medium-pitched access tones and one (1)
high-pitched permit tone will sound, indicating that
you may begin speaking. The LED Indicator will light
continuously when transmitting.
Speak into the Radio and release the PTT button to
listen.
Group Busy Signal
If a continuous, low-pitched tone is heard while pressing
the PTT button when attempting a Group Talk, it
indicates that someone else is talking on that Group.
User Out of Range
If a continuous low-pitched tone is heard while
attempting a Group Talk, it indicates that you are out of
range or the Control Station is inoperable.
System Busy Signal
If fast, low-pitched busy tones are heard while attempting
a Group Talk, it indicates that all system resources are
busy.
1
2
3
15
Group Talk
System Busy Auto Retry
Your Radio has a built-in system busy auto retry when
initiating a Group Talk. When your Group Talk is unable
to be connected because the system is busy, your Radio
will automatically retry for 20 seconds. When the system
is available you will be alerted and can retry your Group
Talk.
•When the system is available, three (3) short, high
pitched tones will sound.
Press the PTT button to retry your Group Talk.
OTE:
Any keypress or incoming communication will
terminate the system busy audio retry.
Receiving a Group Talk
A Group Talk can be received
only
on your selected
Group Talk location.
To select your desired Group Talk location, press the
Group Selector button.
•A short, high-pitched tone will sound and the LED
Indicator of your selected Group will light
momentarily, then blink every few seconds.
Listen for voice activity. Make sure the PTT button is
released.
•The LED Indicator of your selected Group will blink
every two (2) seconds when receiving.
Press the PTT button to respond and release to lis-
ten.
•If a low-pitched tone is heard while attempting to
answer the Group Talk, it indicates that you cannot
transmit at this time. Refer to “Group Busy Signal” on
page 14.
1
N
1
2
3
16
Your TR3000 Radio supports Person Link service. A
Person Link is a two-way communication that is private
among TR3000 Radios and TC3000 Communicators.
The TR3000 Radio can only receive and respond to a
Person Link. It
cannot
initiate a Person Link
unless
one
of the three Groups has been preprogrammed for Person
Link service.
Initiating a Person Link
To select your preprogrammed Link location, press
the Group Selector button.
•The LED Indicator will light, indicating your current
Link location.
Press and hold the PTT button to initiate a Person
Link.
•Two (2) medium-pitched access tones and one (1)
high-pitched permit tone will sound, indicating that
you may begin speaking.
•All three LED Indicators will light continuously when
transmitting.
Release the PTT button to listen.
Target User Busy Signal
If two (2) medium-pitched access tones and one (1) low
pitched tone is heard while attempting a Person Link, it
indicates that the other person is on another call and
either declined or ignored your Person Link.
1
2
3
Person Link
17
Person Link
User Out of Range
If a continuous, low-pitched tone is heard while
attempting a Person Link, it indicates that you are out of
range or the Control Station is inoperable.
System Busy Signal
If fast, low-pitched busy tones are heard while attempting
a Person Link, it indicates that all system resources are
busy.
System Busy Auto Retry
Your Radio has a built-in system busy audio retry when
making a Person Link. When your Person Link is unable
to be connected because the system is busy, your Radio
will automatically retry for 20 seconds. When the system
is available you will be alerted and can retry your Person
Link.
•When the system is available, three (3) short, high
pitched tones will sound.
Press the PTT button to retry your Person Link.
OTE:
Any keypress or incoming communication will
terminate the system busy audio retry.
Receiving a Person Link
•Four (4) short, medium-pitched tones will sound
when receiving a Person Link.
•All three LED Indicators will blink until you respond.
1
N
18
Person Link
Responding to a Person Link
To accept the Person Link, press the Group Select
button.
Press the PTT button within 10 seconds to respond.
•If you do not respond within 10 seconds, the Radio
will remain in your selected Group.
Release the PTT button to listen.
•All three LED Indicators will light continuously during
the duration of the Person Link.
Responding to a Person Link While in a Group Talk
To respond to the Person Link, press the Group
Select button within 10 seconds to end the Group
Talk.
•If you do not respond within 10 seconds, the Radio
will remain in your selected Group.
Press the PTT button to speak and release to listen.
•All three LED Indicators will blink when receiving and
light continuously when transmitting.
Disconnecting a Person Link
To disconnect the Person Link and return to your
selected Group, press the Group Select button.
1
2
3
1
2
1
19
Accessories
Carrying Accessories:
HLN9766 1-1/2” Spring Action Belt Clip
HLN9783 Nylon Carry Case w/Belt Loop
HLN9785 Hard Leather Carry Case w/Swivel Belt Loop
Battery Chargers:
HTN9018 120 V Desktop Rapid Charger w/Spare
Battery Compartment
HTN9019 120 V Multi-Unit Rapid Charger
Batteries:
HNN9021 650 mAH NiMH Battery
Audio Accessories:
HMN9065 Lightweight Headset w/Swivel Boom
Microphone
HMN9066 Flexible Ear Receiver
HMN9067 Remote Speaker Microphone
HMN9068 Earbud w/Clip Microphone and PTT
HMN9069 Two-Piece Surveillance Microphone
HLN9070 Earpiece w/Microphone
HLN9787 Earpiece without Volume Control
HLN9788 Earbud
20
LED Indications
Radio Condition LED Color(s)
Group Selection Blinking Yellow, Green or Red
Group Talk Transmit Continuous Yellow, Green or Red
Group Talk Receive Blinking Yellow, Green or Red
Person Link Transmit Continuous Yellow, Green
and
Red
Person Link Receive Blinking Yellow, Green
and
Red
Battery Charging Indicator LED:
Rapid Charging
Fully Charged
Unsuccessful Charge
Continuous Red
Continuous Green
Continuous Yellow
Alert Tones
Radio Condition Alert Tone(s)
Successful Power-Up Short, High-Pitched Tone
Unsuccessful Power-Up Continuous, Low-Pitched Tone
Group Selection Short, High-Pitched Tone
Group Talk Permit Two (2) Medium-Pitched Access Tones followed by
One (1) High-Pitched Permit Tone
Group Talk Busy Signal Continuous, Low-Pitched Tone
Person Link Receive Four (4) Short, Medium-Pitched Tones
Person Link Talk Permit Two (2) Medium-Pitched Access Tones followed by
One (1) High-Pitched Permit Tone
Person Link Target User Busy Signal Two (2) Medium-Pitched Access Tones followed by
One (1) Low-Pitched Tone
Valid (Good) Button Press Short, High-Pitched Tone
Invalid Button Press Short, Low-Pitched Tone
User Out of Range Continuous, Low-Pitched Tone
System Busy Signal Fast, Low-Pitched Tones
System Busy Auto Retry Three (3) Short, High-Pitched Tones
Low Battery (approx. 5-10% charge
remaining) Two (2) Short, Low-Pitched Tones every ten (10) minutes
Time-Out Timer Expired Continuous, Low-Pitched Tone
LED Indications & Alert Tones
21
Troubleshooting
Symptom Problem Solution
1. 1a.
1b.
1a.
1b.
2. 2a. 2a.
3. 3a. 3a.
4. 4a.
4b.
4c.
4d.
4a.
4b.
4c.
4d.
5. 5a.
5b.
5a.
5b.
6. 6. 6a.
6b.
7. 7. 7.
8. 8a.
8b.
8a.
8b.
22
Troubleshooting
Symptom Problem Solution
23
Troubleshooting
Symptom Problem Solution
24
Read this information before using your TR3000 Radio.
For safe and efficient operation, observe these
guidelines.
•Privacy of communications may not be ensured when
using your Radio. Your Motorola dealer may enable
encryption for sensitive communications.
•Your Radio complies with Part 15 of the U.S. FCC
Rules and Industry Canada RSS-213. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
Scope
This document provides information and instructions for
the safe and efficient operation of Motorola Portable and
Mobile Two-Way Radios.
The information provided in this document supersedes
the general safety information contained in user guides
published prior to 1st April 1999. For information
regarding radio use in a hazardous atmosphere please
refer to the Factory Mutual (FM) Approval Manual
Supplement or Instruction Card which is included with
radio models that offer this capability.
Exposure to Radio Frequency Energy
National and International Standards and Guidelines
Your Motorola Two-Way Radio, which generates and
radiates radio frequency (RF) electromagnetic energy
(EME), is designed to comply with the following National
and International Standards and Guidelines regarding
exposure of human beings to radio frequency
electromagnetic energy:
Important Safety
Information
25
Important Safety Information
•Federal Communications Commission Report and
Order No. FCC 96-326 (August 1996)
•American National Standards Institute (C95-1-1992)
•National Council on Radiation Protection and
Measurements (NCRP - 1986)
•International Commission on Non-Ionizing Radiation
Protection (ICNIRP - 1988)
•National Radiological Protection Board of the United
Kingdom (GS11 - 1998)
•Verband Deutscher Elektrotechniker (VDE) DIN-0848
•Department of Health and Welfare Canada, Safety
Code 6
•European Committee for Electrotechnical
Standardization (CENELEC)
– Env. 50166 - 1 1995E - Human Exposure to
Electromagnetic Fields Low Frequency (0 Hz to
10 kHz)
– Env. 50166 - 2 1995E - Human Exposure to
Electromagnetic Fields High Frequency (10k Hz to
300 GHz)
– Proceedings of SC211/8 1996 - Safety
Considerations for Human Exposure to E.M.Fs from
Mobile Telecommunications Equipment (M.T.E.) in
the Frequency Range 30 MHz - 6 GHz (E.M.F -
Electromagnetic Fields)
26
Important Safety Information
To assure optimal performance and that human
exposure to radio frequency electromagnetic energy is
within the guidelines set forth in the above standards,
always adhere to the following procedures:
Portable Radio Operation and EME Exposure
•When transmitting with the radio,
hold it in a vertical position with
its microphone 1 to 2 inches (2.5
to 5.0 centimeters) away from
your mouth. Keep the antenna at
least 1 inch (2.5 centimeters)
from your head and body.
•If you wear the radio on your body, ensure that the
antenna is at least 1 inch (2.5 centimeters) from your
body when transmitting.
•For body-worn operation, the antenna should be kept
at least 1 inch (2.5 centimeters) from the body when
transmitting.
•DO NOT hold the antenna when the radio is “IN
USE.” Holding the antenna affects call quality and
may cause the radio to operate at a higher power
level than needed.
Electromagnetic Interference / Compatibility
OTE:
Nearly every electronic device is susceptible to
electromagnetic interference (EMI) if inadequately
shielded, designed or otherwise configured for
electromagnetic compatibility.
Facilities
To avoid electromagnetic interference and/or compatibil-
ity conflicts, turn off your radio in any facility where
posted notices instruct you to do so. Hospitals or health
care facilities may be using equipment that is sensitive to
external RF energy.
2.5 to 5.0 cm
(1 to 2 in.)
N
27
Important Safety Information
Medical Devices
Pacemakers
The Health Industry Manufacturers Association
recommends that a minimum separation of 6 inches
(15 centimeters) be maintained between a handheld
wireless phone and a pacemaker. These recommendations
are consistent with the independent research by, and
recommendations of, Wireless Technology Research.
Persons with pacemakers should:
•ALWAYS keep the radio more than 6 inches
(15 centimeters) from their pacemaker when the
radio is turned on.
•NOT carry the radio in the breast pocket.
•Use the ear opposite the pacemaker to minimize the
potential for interference,
•Turn the radio OFF immediately if you have any
reason to suspect that interference is taking place.
Hearing Aids
Some digital radios may interfere with some hearing
aids. In the event of such interference, you may want to
consult your hearing aid manufacturer to discuss
alternatives.
Other Medical Devices
If you use any other personal medical device, consult the
manufacturer of your device to determine if it is adequately
shielded from RF energy. your physician may be able to
assist you in obtaining this information.
28
Important Safety Information
Operational Warnings
Potentially Explosive Atmospheres
Turn off your radio when you are in any area with a
potentially explosive atmosphere, unless it is a type
especially qualified for use in such areas (for example,
Factory Mutual Approved). Sparks in a potentially
explosive atmosphere can cause an explosion or fire
resulting in bodily injury or even death.
OTE:
The areas with potentially explosive atmospheres
referred to include fueling areas such as: below
decks on boats; fuel or chemical transfer or storage
facilities; areas where the air contains chemicals or
particles, such as grain, dust or metal powders; and
any other area where you would normally be advised
to turn off your vehicle engine. Areas with potentially
explosive atmospheres are often but not always
posted.
Batteries
Do not replace or charge batteries in a potentially
explosive atmosphere. Contact sparking may occur while
installing or removing batteries and cause an explosion.
Blasting Caps and Areas
To avoid possible interference with blasting operations,
turn off your radio when you are near electrical blasting
caps, in a blasting area, or in areas posted: “Turn off
two-way radio”. Obey all signs and instructions.
!
N
29
Important Safety Information
Operational Cautions
Batteries
All batteries can cause property damage and/or bodily
injury such as burns if a conductive material such as
jewelry, keys, or beaded chains touch exposed terminals.
The conductive material may complete an electrical
circuit (short circuit) and become quite hot. Exercise care
in handling any charged battery, particularly when
placing it inside a pocket, purse, or other container with
metal objects.
Portable Radio Care
•Avoid physical abuse of your radio such as carrying it
by the antenna or remote microphone.
•Wipe the battery contacts with a lint-free cloth to
remove dirt, grease, or other material which may
prevent good electrical connections.
•When not in use, keep the accessory jack covered
with the protective cap.
•Clean the radio exterior using a cloth moistened with
water.
AUTION:
Use of chemicals such as detergents, alcohol,
aerosol spray, and/or petroleum products may be
harmful and damage the housing and cover.
Batteries and Chargers
MPORTANT:
The battery is shipped from the factory
uncharged and must be charged before use.
Charging Batteries
To ensure peak performance, batteries should be fully
charged before use and periodically thereafter. The
battery lasts approximately 40 hours when fully charged.
!
!C
I
30
Important Safety Information
Standard use has a 5-5-90 duty cycle. This means
during normal use, the average user transmits 5%,
receives 5%, and remains in battery conservation mode
90% of the time. If the unit is continuously transmitting
and receiving, battery life will be approximately 5 hours.
A battery conversation time of up to 300 hours is
achievable between charging cycles.
Please observe the following precautions while handling
and charging batteries:
Charging Temperatures
Charging batteries in cold temperatures
(below 45˚F) can result in electrolyte
leakage and may destroy the battery.
Charging in hot temperatures (above 95˚F)
will not damage the battery, but will reduce
charge capacity. Charge batteries at
approximately 77˚F.
ARNING:
To reduce risk of injury, charge only Motorola
NiMH type rechargeable batteries listed. Other
types of batteries may burst, causing personal
injury and damage.
Recharging NiMH Batteries
Recharge the battery before use to ensure optimum
capacity and performance. Your battery was designed to
be used only with a Motorola charger, specifically
designed for your Radio. Charging in non-Motorola
equipment may lead to battery damage and void the
battery warranty.
MPORTANT:
While charging a battery that is inside your radio,
turn the device off to ensure a proper charge.
77˚95˚
45˚
!
W
I
31
Important Safety Information
Recycling / Disposal of Batteries
ARNING:
Batteries contain hazardous substances. do not
dispose of any batteries in a fire as they may
explode!
The U.S. Environmental Protection Agency (EPA)
classifies used NiMH batteries as hazardous waste,
unless certain exemptions apply.
At the end of your battery’s useful life, it can be recycled.
However, recycling facilities may not be available in all
areas. Under various state or local laws, such batteries
must be recycled or disposed of properly, and cannot be
dumped in landfills or incinerators.
Motorola fully endorses and encourages the recycling of
NiMH batteries. In the United States, you can ship your
NiMH batteries to the following address post paid to be
recycled:
INMETCO
P.O. Box 720
245 Porteville Road
Ellwood City, PA 16117
Tel: (412) 758-5515
Fax: (412) 758-9311
You should consider the methods of collecting, labeling,
and shipping used NiMH batteries. Consult your federal,
state, or local EPA for specific legal requirements and for
recycling options in your area.
Motorola, as a responsible corporate citizen, has always
been concerned with the protection of the environment.
Please feel free to call our toll-free number,1-800-422-
4210, for further battery information.
!
W
32
Important Safety Information
Battery Charger
•To reduce risk of injury, charge only rechargeable Motorola
authorized batteries. Other batteries may explode, causing
personal injury and damage.
•Use of accessories not recommended by Motorola may
result in risk of fire, electric shock, or injury.
•To reduce the risk of damage to the electric plug and cord,
pull by the plug rather than the cord when disconnecting the
charger.
•An extension cord should not be used unless absolutely
necessary. Use of an improper extension cord could result
in risk of fire and electric shock. If an extension cord must
be used, make sure that the cord size is 18AWG for lengths
up to 15 feet (4.62mm).
•To reduce risk of fire, electric shock, or injury, do not oper-
ate the charger if it has been broken or damaged in any
way. Take it to a qualified Motorola service representative.
•Do not disassemble the charger; it is not repairable and
replacement parts are not available. Disassembly of the
charger may result in risk of electrical shock or fire.
•To reduce risk of electric shock, unplug the charger from the
ac outlet before attempting any maintenance or cleaning.
•This equipment is not suitable for outdoor use. Use only in
dry locations/conditions.
•Connect equipment only to an appropriately fused and wired
supply of the correct voltage (as specified on the product).
•When not in use, disconnect the transformer from the ac outlet.
•The socket outlet to which the transformer is connected
should be close by and easily accessible.
•In equipment using fuses, replacements must comply with
the type and rating specified in the equipment instructions.
•Maximum ambient temperature around the transformer unit
must not exceed 40˚C (104˚F).
•Output power from the transformer unit must not exceed the
ratings stated on the product label located on the bottom of
the charger.
•Make sure the cord is located where it will not be stepped
on, tripped over, or subjected to water, damage, or stress.
33
This system operates in the 1.9 GHz Unlicensed Personal
Communications Services (UPCS) band. The protocol is a
derivative of the Personal Handyphone System (PHS) called
Personal Advanced Communications Systems (PACS) that meets
the FCC Part 15 Rules and Etiquette. The access method used is
Time Division Multiple Access (TDMA) also managed and
coordinated by UTAM, Inc. as designed the FCC Part 15 Rules.
Your TR3000 Radio operates on FM radio communication
frequencies and is subject to the rules and regulations of the local
communications governing agencies.
The following is a list of communications agencies in various
countries:
United States
Federal Communications Commission
Consumer Assistance
Branch License Division
Gettysburg, PA 17326
Tel (717) 337-1212
Canada
Contact your regional industry Canada licensing office.
Mexico
Secretaria De Comunicaciones Y Transportes
Direccion General De Politicas
Y Normas De Comunicaciones
Av. Eugenia No. 197-5o. Piso
Mexico, D.F. 06700
If your country is not listed, contact your local Motorola dealer for
licensing information.
Licensing
34
Licensing
Service
Because this unit contains a radio transmitter, most local
governments prohibit anyone from making internal
adjustments to the transmitter unless specifically
licensed to do so by government regulations. If your radio
fails to operate or any operational difficulties arise,
contact your local Motorola dealer.
Proper repair and maintenance procedures assure
efficient operation and long life for this radio. Frequency,
power and deviation must be checked at least once
yearly.
Computer Software Copyrights
The Motorola products described in this manual may
include copyrighted Motorola computer programs stored
in semiconductor memories or other media. Laws in the
United States and other countries preserve for Motorola
certain exclusive rights for copyrighted computer
programs, including the exclusive right to copy or
reproduce in any form, the copyrighted computer
program. Accordingly, any copyrighted Motorola
computer programs contained in the Motorola products
described in this manual may not be copied or
reproduced in any manner without the express written
permission of Motorola. Furthermore, the purchase of
Motorola products shall not be deemed to grant, either
directly or by implication, estoppel or otherwise, any
license under the copyrights, patents or patent
applications of Motorola, except for the normal non-
exclusive royalty-free license to use that arises by
operation of law in the sale of a product.
