Motorola Solutions 99FT7014 Part 15 Transmitter User Manual 68012007013 a EN
Motorola Solutions, Inc. Part 15 Transmitter 68012007013 a EN
Exhibit D Users Manual per 2 1033 b3

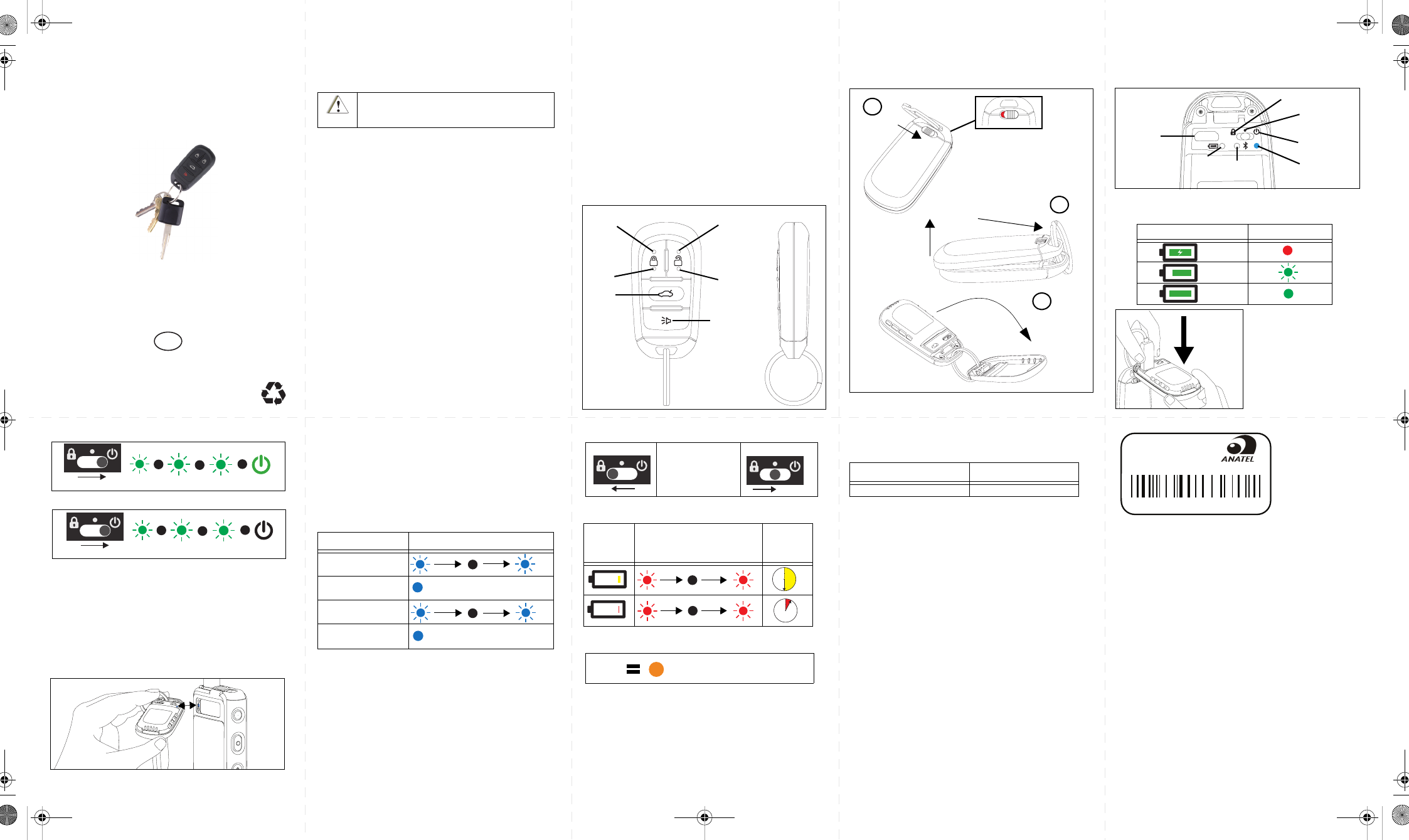

m
Trunk
Button/
Prog 5
Prog 2
Prog 1 Prog 3
Prog 4
Panic
Button/
Prog 6
KEY FOB OVERVIEW
Mission Critical Wireless RCU
Key Fob PMLN6233
*68012007013*
68012007013-B
EN
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the
Stylized M logo are trademarks or registered trademarks of
Motorola Trademark Holdings, LLC and are used under license.
All other trademarks are the property of their respective owners.
© 2012 Motorola Solutions, Inc. All rights reserved.
FOREWORD
Product Safety and RF Exposure Compliance
ATTENTION!
The radio is restricted to occupational use only to satisfy ICNIRP/FCC RF
energy exposure requirements. Before using this product, read the RF
energy awareness information and operating instructions in the Product
Safety and RF Exposure booklet enclosed with your radio (Motorola
Publication part number 6881095C98 (US) or 6864117B25 (EMEA)) to
ensure compliance with RF energy exposure limits.
This device complies with part 15 of the FCC Rules and Industry Canada
licence-exempt RSS standard(s). Operation is subject to the following
two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada
applicables aux appareils radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes: (1) I’appareil ne doit pas
produire de brouillage, et (2) I’utilisateur de I’appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d’en
compromettre le fonctionnement.
Any changes or modifications not expressly approved by Motorola
may void the user’s authority to operate this device.
Battery Information:
Battery is shipped with a nominal charge between 30% and 50%. Battery
should be stored between -10 °C (14 °F) and 30 °C (86 °F) to minimize
permanent capacity loss.
Caution: Storing your fully charged accessory in high-temperature
conditions may permanently reduce the life of the internal
battery.
Note: The battery is not a user replaceable part.
Before using this product, read the operating instructions
for safe usage contained in the Product Safety and RF
Exposure booklet enclosed with your radio.
Caution
Important Information:
• Do not charge your accessory in temperatures below 0 °C
(32 °F) or above 45 °C (113 °F). Do not store your accessory in
direct sunlight or where expected temperatures can exceed this
range such as inside a parked car.
• Storing your fully charged accessory in high-temperature
conditions may permanently reduce the life of the internal battery.
• Battery life may temporarily shorten in low-temperature conditions.
INTRODUCTION
The PMLN6233 Mission Critical Wireless RCU Key Fob is compatible with
APX 2000, 3000, 4000, 5000, 6000, 7000 radios with firmware SR7.13
and above.
Refer to the APX radio’s user manual for approved body-worn
accessories.
CAP OPENING/CLOSING
1
a
b
2
Flip Open
3
Micro USB
Jack and
Charger
Battery
Status
Indicator
Keypad Lock
Position
Blue Dot
Power
ON/OFF
Pairing
Indicator
Keypad
Unlock
Position
INTERNAL FEATURE LAYOUT
State LED Indication
90%
CHARGING YOUR KEY FOB
Charge key fob 3 hours before using.
POWERING OFF KEY FOB
Slide and hold 3 sec
POWERING ON KEY FOB
Slide and hold 3 sec
PAIRING YOUR KEY FOB
First time connection steps:
1. Verify that both the radio and the key fob are powered ON and in
pairing mode.
2. To enter pairing mode on the key fob, press and hold the Trunk
button while powering up the key fob.
3. Place the Blue Dot (touch pairing spot) of the key fob on the Blue
Dot on the radio.
4. Wireless Link Connected with radio indication is provided upon
successful link establishment (refer to Subsequent
Connection table).
5. Your key fob is now ready to be used.
1 cm
SUBSEQUENT CONNECTION
Same Radio:
If the Bluetooth link is lost, connection will be automatically
re-established when the radio and key fob come within range. The
minimum line-of-sight range for the key fob is 30 feet. However, the body
tends to obstruct the signal, therefore the normal usage range is 6 feet
around your body.
New Radio:
Put the key fob in Pairing Mode by powering ON while pressing Trunk
button simultaneously.
Follow steps from Pairing Your Key Fob.
State LED Indication
Not Paired
Paired Successfully
Wireless Link Connected
with Radio
Wireless Link
Disconnected from Radio
2 sec
100 ms
1000 ms
50 ms 4000 ms
PROGRAMMABLE BUTTON CONTROL
Refer radio CPS for button assignment. Once the key fob connects with
the Radio, the Programmable Button will operate as defined in the radio
CPS setting.
SURVEILLANCE MODE (DARK MODE)
After Connection with the Radio, if the Radio is in the Surveillance Mode
the key fob shall also enter Surveillance Mode.
• The key fob will display LED indication before it gets Connected to
the Radio and will enter Surveillance Mode 20 seconds after
connection is established.
• The key fob will not show LED indication on Link Lost if Radio is in
Surveillance Mode.
1. Enable 2. Only the PTT and the
Volume Up/Down
functionality remain
functional during
feature lock.
3. Disable
FEATURE
LOCK
BATTERY ALERTS
ERROR INDICATOR
TROUBLESHOOTING
If at any time the wireless connection cannot be re-established, or the
key fob is operating incorrectly:
1. Power Cycle the key fob and the radio. The connection should
re-establish.
2. If the problem continues; Refer to Pairing Your Key Fob to
repeat the connection process.
State LED Indication
Remaining
Battery
Life
3%
10%
200 ms
100 ms
4000 ms
50 ms
5
min
30
min
Error
REPLACEMENT PART
The following replacement part is available for the PMLN6233 Mission
Critical Wireless RCU Key Fob:
Please contact your local Motorola Representative or Dealer for details.
Part Number Description
PMLN6475_ ASSY, BACK COVER
SOFTWARE UPGRADES
Please go to the respective regional MOL links below:
1. EMEA - https://emeaonline.motorola.com
2. LACR/NA - https://motonline.mot.com
3. APAC - https://asiaonline.mot.com
OPEN SOURCE SOFTWARE LEGAL
NOTICES
This Motorola Product contains Open Source Software. For information
regarding licenses, acknowledgements, required copyright notices, and
other usage terms, refer to the documentation for this Motorola Product at
the respective regional MOL links as above.
SUPPORT
Please contact Motorola Customer Care at 1-800-422-4210 (US only),
+44 2030277499 (EMEA), (5) 257-6700, (571) 602-1111 (LACR)
or 1-800-88-0089 (APAC); for ordering or any technical troubleshooting
assistance.
WARRANTY
Motorola offers a standard one year warranty. Contact your Motorola
dealer for detailed information on the standard warranty.
Note: Warranty is void after customer replacement of any parts other than
replacement parts listed.
2108-12-1699
PMLN6233A
(01)07898520334773
This equipment operates as a secondary user, so it is not entitled to
protection from harmful interference, even if generated by similar
equipment, and it may not cause harmful interference on systems
operating as primary users.
Note: Key fob should be switched
off during charging
operations. Use only
Motorola-approved
supplied charger.
