www.motorola.com
MOTOMANUAL
MOTOKRZR K1
Cover.Print.Front.UG.landscape-K1.fm Page 2 Thursday, October 12, 2006 10:22 AM
1
HELLOMOTO
Introducing your new
MOTO
KRZR™
K1
GSM wireless phone. Here’s a quick anatomy lesson.
Left Soft Key
Volume Keys
Charge up or
go handsfree.
Make &
answer calls.
Smart Key
Go online.
Scroll up,
down, left, or
right.
Open menu
and select.
Right Soft Key
Clear/Back Key
Voice
Command Key
Turn on & off,
hang up, exit
menus.
2
Home Screen Main Menu

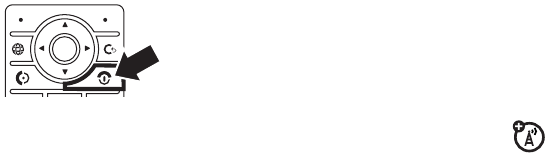

Press and hold the
Power
Key
O
for a few
seconds or until the
display lights up to turn
on your phone.
1
Press the Navigation Key
up, down, left, or right
(
S
) to highlight a menu
feature.
3
Press the Center Key
(
s
) to select it.
4
Press the Center Key
s
key to open the
Main Menu
.
2
Options Main Menu
Service Provider
12/31/09
12:00
Exit Select
Games & Apps
3
Motorola, Inc.
Consumer Advocacy Office
1307 East Algonquin Road
Schaumburg, IL 60196
www.hellomoto.com
1-800-331-6456 (United States)
1-888-390-6456 (TTY/TDD United States for hearing impaired)
1-800-461-4575 (Canada)
Certain mobile phone features are dependent on the capabilities
and settings of your service provider’s network. Additionally,
certain features may not be activated by your service provider,
and/or the provider's network settings may limit the feature’s
functionality. Always contact your service provider about feature
availability and functionality. All features, functionality, and other
product specifications, as well as the information contained in this
user's guide are based upon the latest available information and
are believed to be accurate at the time of printing. Motorola
reserves the right to change or modify any information or
specifications without notice or obligation.
MOTOROLA and the Stylized M Logo are registered in the US
Patent & Trademark Office. All other product or service names are
the property of their respective owners. The Bluetooth trademarks
are owned by their proprietor and used by Motorola, Inc. under
license. Java and all other Java-based marks are trademarks or
registered trademarks of Sun Microsystems, Inc. in the U.S. and
other countries. Microsoft, Windows and Windows Me are
registered trademarks of Microsoft Corporation; and Windows XP
is a trademark of Microsoft Corporation.
© Motorola, Inc., 2006.
Caution:
Changes or modifications made in the radio phone, not
expressly approved by Motorola, will void the user’s authority to
operate the equipment.
Manual Number: 6809507A81-A
4
contents
contents
menu map . . . . . . . . . . . . 6
Use and Care . . . . . . . . . . 8
essentials . . . . . . . . . . . . . 9
about this guide. . . . . . . 9
SIM card . . . . . . . . . . . 10
battery . . . . . . . . . . . . . 10
turn it on & off . . . . . . . 12
make a call. . . . . . . . . . 13
answer a call . . . . . . . . 13
store a phone number . 13
call a stored phone
number . . . . . . . . . . . . 14
your phone number . . . 15
main attractions . . . . . . 16
Bluetooth® wireless . . 16
audio player . . . . . . . . . 18
photos . . . . . . . . . . . . . 19
videos . . . . . . . . . . . . . 22
text messages. . . . . . . 23
memory card . . . . . . . . 25
cable connections . . . . 27
phone updates. . . . . . . 29
basics . . . . . . . . . . . . . . . 30
display . . . . . . . . . . . . . 30
text entry. . . . . . . . . . . 33
navigation key . . . . . . . 37
voice commands . . . . . 37
external display . . . . . . 40
handsfree speaker. . . . 40
codes & passwords. . . 40
lock & unlock phone . . 41
customize. . . . . . . . . . . . 42
ring style . . . . . . . . . . . 42
time & date . . . . . . . . . 43
wallpaper . . . . . . . . . . . 43
screen saver . . . . . . . . 44
themes . . . . . . . . . . . . 44
display appearance . . . 45
answer options . . . . . . 45
calls. . . . . . . . . . . . . . . . . 47
turn off a call alert . . . . 47
delay answering. . . . . . 47
recent calls . . . . . . . . . 47
redial . . . . . . . . . . . . . . 49
return a call . . . . . . . . . 49
caller ID . . . . . . . . . . . . 50
emergency calls . . . . . 50
voicemail . . . . . . . . . . . 51
other features . . . . . . . . 52
advanced calling . . . . . 52
phonebook. . . . . . . . . . 55
contents
5
messages . . . . . . . . . . 61
personalizing. . . . . . . . 64
call times & costs . . . . 66
handsfree . . . . . . . . . . 67
data calls . . . . . . . . . . 68
network . . . . . . . . . . . 70
personal organizer . . . 71
security. . . . . . . . . . . . 73
fun & games. . . . . . . . . 74
service and repairs . . . . 79
SAR Data. . . . . . . . . . . . 80
EU Conformance . . . . . 82
Safety Information . . . . 84
Industry Canada Notice 89
FCC Notice . . . . . . . . . . 90
Warranty . . . . . . . . . . . . 91
Hearing Aids . . . . . . . . . 95
WHO Information . . . . . 96
Registration . . . . . . . . . 96
Export Law . . . . . . . . . . 97
Recycling. . . . . . . . . . . . 97
Perchlorate Label . . . . . 98
Driving Safety . . . . . . . . 99
index . . . . . . . . . . . . . . 101
6
menu map
menu map
main menu
n
Phonebook
s
Recent Calls
• (press the
*
or
#
to scroll
through the call lists)
e
Messages
• Create Message
•EmailMsgs
• Message Inbox
• Hot Messages
•Voicemail
• Browser Msgs
• Info Services *
• Outbox
•Drafts
• Templates
É
To o l s
• SIM Applications *
•Calculator
• Datebook
•Alarm Clock
• Dialing Services
• Fixed Dial *
• Service Dial *
•Quick Dial
• Activation List *
• World Clock
Q
Games & Apps
á
Web Access *
•Browser
• Web Shortcuts
• Stored Pages
•History
•Go To URL
•Browser Setup
• Web Sessions *
h
Multimedia
• Themes
•Voice Records
•Camera
• Video Camera
•Pictures
• Sounds
• Videos
w
Settings
• (see next page)
* optional features
This is the standard main menu layout.
Your phone’s menu may be different.
Tip:
Press
D
to exit the current menu, or
O
to exit all menus.
menu map
7
settings menu
l
Personalize
• Home Screen
• Main Menu
•Voice Dial Setup
•Skin
• Greeting
• Wallpaper
• Screen Saver
t
Ring Styles
•Style
•(style) Detail
L
Connection
• Bluetooth™ Link
• USB Settings
•MOTOSYNC™*
H
Call Forward *
• Voice Calls
• Fax Calls
• Data Calls
•Cancel All
• Forward Status
U
In-Call Setup
• In-Call Timer
• Call Cost Setup *
• My Caller ID
• Talk and Fax
• Answer Options
• Call Waiting
Z
Initial Setup
• Time and Date
• Speed Dial
• Auto Redial
• Display Timeout
• Backlight
• TTY Setup *
•Scroll
• Text Marquee
• Language
• Brightness
•DTMF
• Master Reset
• Master Clear
m
Phone Status
• My Tel. Numbers
• Credit Info/Available *
• Active Line *
• Battery Meter
• Download Location
• Storage Devices
• Software Update *
• Other Information
S
Headset
• Auto Answer
•Voice Dial
J
Car Settings
• Auto Answer
• Auto Handsfree
•Power-Off Delay
• Charger Time
* optional features
%
Airplane Mode
• Airplane Mode
• Prompt at Power Up
j
Network
•New Network
•Network Setup
• Available Networks
• My Network List *
• Service Tone *
• Network Jingle *
• Call Drop Tone
u
Security
• Phone Lock
• Lock Application
• Fixed Dial *
• Restrict Calls *
• SIM PIN
•New Passwords
• Certificate Mgmt *
c
Java™ Settings
• Java System
• Delete All Apps
• App Vibration
• App Volume
• App Priority *
• App Backlight
8
Use and Care
Use and Care
Use and Care
To care for your Motorola phone, please keep it away from:
liquids of any kind dust and dirt
Don’t expose your phone to water, rain,
extreme humidity, sweat, or other moisture.
Don’t expose your phone to dust, dirt, sand,
food, or other inappropriate materials.
extreme heat or cold cleaning solutions
Avoid temperatures below -10°C/14°F or
above 45°C/113°F.
To clean your phone, use only a dry soft cloth.
Don’t use alcohol or other cleaning solutions.
microwaves the ground
Don’t try to dry your phone in a microwave
oven.
Don’t drop your phone.
9
essentials
essentials
about this guide
This guide shows how to open a menu
feature as follows:
Find it:
s
>
eMessages
>
Create Message
This means that, from the home screen:
1
Press the center key
s
to open the
menu.
2
Press the navigation key
S
to scroll to
eMessages
, and press the center key
s
to select it.
3
Press the navigation key
S
to scroll to
Create Message
, and press the center key
s
to select it.
CAUTION: Before using the
phone for the first time, read the
Important Safety and Legal
Information
included in the gray-
edged pages at the back of this
guide.
symbols
This means a feature is network,
SIM card, or subscription
dependent and may not be available
in all areas. Contact your service
provider for more information.
10
essentials
SIM card
Caution:
Don’t bend or scratch your SIM card.
Keep it away from static electricity, water, and
dirt.
Your Subscriber Identity Module (SIM) card
contains personal information like your phone
number and phonebook entries.
To insert and use a
memory card
, see
page 25.
Turn off your phone and remove your
battery before you install or remove a SIM
card.
battery
battery tips
Battery life depends on the network, signal
strength, temperature, features, and
accessories you use.
•
Always use Motorola
Original batteries and
chargers. The warranty does
not cover damage caused by
non-Motorola batteries and/or chargers.
This means a feature requires an
optional accessory.
symbols 12
11
essentials
•
New batteries or batteries stored for a
long time may take more time to
charge.
•
When charging your battery, keep it
near room temperature.
When storing your battery, keep it
uncharged in a cool, dark, dry place.
•
Never expose batteries to
temperatures below -10°C (14°F) or
above 45°C (113°F). Always take your
phone with you when you leave your
vehicle.
•
It is normal for batteries to gradually
wear down and require longer charging
times. If you notice a change in your
battery life, it is probably time to
purchase a new battery.
Contact your local recycling center for
proper battery disposal.
Warning:
Never dispose of batteries in a fire
because they may explode.
Before using your phone, read the battery
safety information in the “Safety and General
Information” section included in this guide.

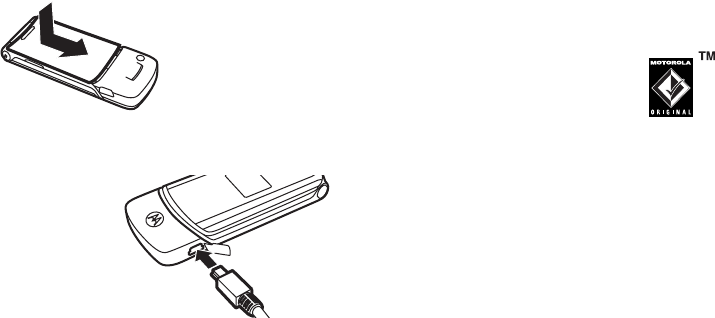

battery installation
12
032375o
12
essentials
battery charging
New batteries
are not fully
charged. Plug
the battery
charger into
your phone
and an
electrical outlet. Your phone might take
several seconds to start charging the battery.
When finished, your display shows
Charge Complete
.
Tip:
Relax, you can’t overcharge your battery.
It will perform best after you fully charge and
discharge it a few times.
You can charge your battery by
connecting a
cable
from your
phone's mini-USB port to a USB
port on a computer. Both your
phone and the computer must be turned on,
and your computer must have the correct
software drivers installed. Cables and
software drivers are available in
Motorola Original data kits, sold separately.
turn it on & off
Caution:
Some phones ask for your SIM card
PIN code when you turn them on. If you enter
an incorrect PIN code three times before the
correct code, your SIM card is disabled, and
your display shows
SIM Blocked
. Contact your
service provider.
3
13
essentials
To t u r n o n y o u r
phone
, press and
hold
O
for a few
seconds or until the
keypad or display
lights up. If prompted, enter your eight-digit
SIM card PIN code and/or four-digit unlock
code.
To turn off your phone
, press and hold
O
for a few seconds.
make a call
To make a call
, enter a phone number and
press
N
.
To “hang up,”
close the flip or
press
O
.
To use voice commands for calling, see
page 37.
answer a call
To answer a call
when your phone rings
and/or vibrates, just open the flip or press
N
.
To “hang up,”
close the flip or press
O
.
Note:
Your phone cannot receive data
over an EDGE network while it is
playing videos or some sound files. The
EDGE
œ
status indicator appears at the top of
your display when you can receive data over
an EDGE network.
store a phone number
You can store a phone number in your
Phonebook
:
Find it:
s
>
nPhonebook
, then press
Options
>
Create New
>
Phone Contact
or
SIM Contact
Note:
You can store new contacts in your
phone’s memory
or on your
SIM card
.
14
essentials
Contacts on the SIM card only have a
Name
and
Number
.
1
Enter a name and other details for the
phone number. To select a highlighted
item, press the center key
s
.
2
Press the
Done
key to store the number.
To
edit
or
delete
a
Phonebook
entry, see
page 57.
To s to r e a n
email
address from the home
screen, press
s
>
nPhonebook
>
New Entry
.
Enter the new contact’s name and
Email
information.
Shortcut:
Enter a phone number in the home
screen, then press the
Store
key to create a
contact. To choose whether your phone
stores these contacts in your phone’s
memory or on your SIM card, go back to the
home screen and press
s
>
nPhonebook
,
then press
Options
>
Setup
>
Default Storage
>
Phone
or
SIM Card
.
call a stored phone
number
Find it:
s
>
nPhonebook
1
Scroll to the phonebook entry.
Shortcut:
In the phonebook, press
keypad keys to enter the first letters of an
entry you want.
2
Press
N
to call the entry.
Note:
You can show contacts stored in your
phone’s memory or on your SIM card. To
choose which contacts you see, press
s
>
nPhonebook
, then press
Options
>
View
.
You can select
Phone &SIM Card
,
SIM Card
, or
Phone Contacts
.
15
essentials
To use voice commands for calling, see
page 37.
your phone number
From the home screen, press
the clear key
D
then
#
to see your
number.
Tip:
Want to see your phone number while
you’re on a call? Press
Options
>
My Tel. Number
.
You can edit the name and phone
number stored on your SIM card. From
the home screen, press
D#
, select an
entry, press the
View
key, press the
Options
key,
and select
Edit
. If you don’t know your phone
number, contact your service provider.
16
main attractions
main attractions
You can do much more with your phone than
make and receive calls!
Bluetooth® wireless
Your phone supports Bluetooth wireless
connections. You can connect your phone
with a Bluetooth headset or car kit to make
handsfree calls. You can also connect your
phone with a phone or computer that
supports Bluetooth connections to exchange
files.
Note:
The use of wireless phones while
driving may cause distraction. Discontinue a
call if you can’t concentrate on driving.
Additionally, the use of wireless devices and
their accessories may be prohibited or
restricted in certain areas. Always obey the
laws and regulations on the use of these
products.
For maximum Bluetooth security
, you
should always connect Bluetooth devices in a
safe, private environment.
use a headset or handsfree car
kit
Before you try to connect your phone with
a handsfree device
, make sure the device is
on
and
ready
in pairing or bonding mode
(see the user’s guide for the device). You can
connect your phone with only one device at a
time.
17
main attractions
Find it:
s
>
wSettings
>
Connection
>
Bluetooth Link
>
Audio Devices
>
[Look For Devices]
Your phone lists the devices it finds within
range.
1
Scroll to a device in the list and press the
center key
s
.
2
Press the
Yes
or
OK
key to connect to the
device.
3
If necessary, enter the device passkey
(such as
0000
) and press the
OK
key.
When your phone is connected, the Bluetooth
indicator
O
appears in the home screen.
Shortcut:
When your phone’s
Bluetooth power is on, your phone can
automatically connect to a handsfree device
you have used before. Just turn on the device,
or move it near the phone. If the device
doesn’t connect, turn it off and back on.
Tip:
Want to know more about your headset
or car kit? For specific information about a
device, refer to the instructions that came
with it.
copy files to another device
You can copy a media file, phonebook
entry, datebook event, or Web shortcut
from your phone to a computer or other
device.
Note:
You can’t copy some copyrighted
objects.
1
On your phone, scroll to the object that
you want to copy to the other device.
2
Press
Options
, then select:
•
Manage
>
Copy
for media files.
•
Send Contact
for phonebook entries.
•
Send
for datebook events.
18
main attractions
3
Select a recognized device name, or
[Look For Devices]
to search for the device
where you want to copy the file.
If your phone could not copy the file to the
other device
, make sure the device is
on
and
ready
in discoverable mode (see the user’s
guide for the device). Also, make sure the
device is not busy with another similar
Bluetooth connection.
Note:
Once you connect your phone to a
Bluetooth device, that device can start similar
Bluetooth connections with your phone. Your
display shows the Bluetooth indicator
O
at
the top when there is a Bluetooth connection.
receive files from another
device
If you do not see the
Bluetooth indicator
O
at the top of your
phone display, turn on your phone’s
Bluetooth feature by pressing
s
>
wSettings
>
Connection
>
Bluetooth Link
>
Setup
>
Power
>
On
.
1
Place your phone near the device, and
send the file from the device.
If your phone and the sending device
don’t recognize each other, place your
phone in discoverable mode so the
sending device can locate it: press
s
>
wSettings
>
Connection
>
Bluetooth Link
>
Find Me
.
2
Press the
Accept
key on your phone to
accept the file from the other device.
Your phone notifies you when file transfer is
complete. If necessary, press the
Store
key to
save the file.
audio player
Your phone can play song files:
19
main attractions
Find it:
s
>
hMultimedia
>
Sounds
and select
the file you want to play.
Press
S
up to play or
pause. Press
S
down to
stop. Press
S
right or
left to go forward or back.
To download songs to
your phone, see page 76. To copy files
between your phone and a computer, see
page 28.
Note:
Your phone may not play audio files that
have a bit rate higher than 128 kbps. If you try
to download or play one of these files, your
phone might show you an error or ask you to
delete the file.
Tip:
You can listen to tunes on your way. Use
airplane mode to make your phone safe to
use with a wired headset, even while you’re
on a plane. See page 78.
photos
To edit the appearance of photos you’ve
taken, see page 75. You can change settings
such as
Brightness
and
Contrast
, or add effects
such as
Blur
and
Mirror
.
Your camera lens is on the back of your phone
when the phone is open.
To get the clearest
pictures, wipe the lens clean with a dry
cloth before you take a picture.
20
main attractions
1
Press
s
>
hMultimedia
>
Camera
to see
the camera viewfinder.
Note:
Adjusting the exposure affects the
brightness of both the viewfinder display
and the captured photo.
2
Press the center key
s
to take the photo
in the viewfinder. You can:
•
Press the
Options
key to store the photo.
•
Press the
Send
key to send the photo in
a message.
Your phone might tell you that this is a
MultimediaMsg
, since it has a picture in it.
Some other phones or networks do not
support picture messages. Press the
Yes
key to send the message.
•
Press
D
to discard the photo and
return to the active viewfinder.
Before you capture the photo, you can press
Options
to open the camera menu:
232
Press
s
to
take the
picture.
Press
S
up
or down to
view camera
settings.
Press left or
right to
change.
Exit the
camera.
Focus point
ExitOptions
Zoom
1x
Open the camera menu.
Camera Mode
(photo or
video)
Resolution
Remaining
photos
Storage
(phone or
memory card)
Timer
options
Go To Pictures
See stored pictures and
photos.
21
main attractions
self portrait
If you close your phone while the viewfinder
is active, the external display shows the
image. Press the volume keys to zoom, or
press the smart key to capture and store the
image.
send a stored photo in a
message
Find it:
s
>
eMessages
>
Create Message
>
Message
, then press
Options
>
Insert
>
1
Scroll to the picture you want and press
Insert
.
2
Enter the message text and press
Send To
.
3
Scroll to a recipient address and press the
center key
s
.
Go To Video Mode
Switch to the video
camera.
Auto-Timed Capture
Set a timer for the camera
to take a photo.
CameraSetup
Open the setup menu to
adjust photo settings.
Switch Storage
Device
Choose to store
pictures on your
phone or a memory
card.
Free Space
See how much memory
remains.
Note:
Your service
provider may store some
content in user memory
before you receive the
phone.
options
22
main attractions
4
Press the
Send
key to send the
message.
Your phone might tell you that this is a
MultimediaMsg
, since it has a picture in it.
Some other phones or networks do not
support picture messages. Press the
Yes
key to send the message.
videos
To view, delete, or manage videos you’ve
recorded, see page 75.
Your camera lens is on the back of your
phone, when your phone is open.
To get the
clearest videos, wipe the lens clean with a
dry cloth before you capture a video.
Press
s
>
hMultimedia
>
Video Camera
to see
the video viewfinder.
Note:
The number of minutes remaining is an
estimate.
Zoom
1x
51
Press
s
to
start the
video.
Press
S
up
or down to
view camera
settings.
Press left or
right to
change.
Open the video menu.
Exit the
camera.
Options Exit
Camera Mode
(photo or video)
Minutes
remaining
Storage
(phone or
memory card)
Resolution
23
main attractions
Tip:
If you want to send your video in a
message, the video length must be set to
MMS
. To set length, press
Options
>
Video CameraSetup
>
Video Length
.
1
Press the center key
s
to start recording
the video in the viewfinder.
2
Press the
Stop
key to stop recording the
video. You can:
•
Press the
Options
key to preview, store,
or discard the video.
•
Press the
Send
key to send the
video in a message.
Enter text and press
Send To
, then scroll
to a recipient address and press the
center key
s
to select it. Press the
Options
key to enter a new number. To
send the message, press the
Send
key.
Note:
Some other phones or networks
do not support messages with videos.
•
Press
D
to discard the video and
return to the active viewfinder.
text messages
To create a group mailing list, see page 59.
For more message features, see page 61.
send a text message
A text message can contain text and
pictures, sounds, or other media
objects. You can add multiple pages to a
message, and you can put text and media
objects on each page. You can send a
message to other compatible phones or to
email addresses.
Find it:
s
>
eMessages
>
Create Message
>
Message
24
main attractions
1
Press keypad keys to enter text on the
page (for details about text entry, see
page 33).
To i ns e r t a
picture, sound, or other
object
on the page, press
Options
>
Insert
.
Select the file type and the file.
To i ns e r t
another page
in the message,
enter text or objects on the current page
and press
Options
>
Insert
>
New Page
. You can
enter more text and objects on the new
page.
2
When you finish the message, press the
Send To
key.
3
Scroll to a recipient and press the
center key
s
. Repeat to add other
recipients.
To enter a
new
number or email address,
press the
Options
key and select
Enter Number
or
Enter Email
.
4
Before you send a message, you can
press
Options
to choose
Save to Drafts
,
Cancel Message
, or open
Sending Options
(such as
message
Subject
or
CC
addresses).
5
To
send
the message, press the
Send
key.
Your phone might tell you that this is a
MultimediaMsg
, if it has multiple pages or
media objects in it. Some other phones or
networks do not support multimedia
messages. Press the
Yes
key to send the
message.
receive a text message
When you receive a message, your
phone plays an alert, and the display
shows
New Message
with a message indicator,
such as
É
. Press the
Read
key to open the
message.
25
main attractions
To see all of your text messages:
Find it:
s
>
eMessages
>
Message Inbox
If a multimedia message contains media
objects:
•
Photos, pictures, and animations show
as you read the message.
•
A sound file plays when its slide
shows. Use the volume keys to adjust
the sound volume.
•
Attached files are added to the end of
the message. To open an attachment,
scroll to the file indicator/filename and
press the
View
key (image),
Play
key
(sound), or
Open
key (phonebook vCard,
datebook vCalendar entry, or unknown
file type).
memory card
You can use a removable memory card
with your phone to store and retrieve
multimedia objects (such as photos and
sounds).
Note:
If you download a copyrighted file and
store it on your memory card, you can use the
file only while your memory card is inserted in
your phone. You cannot send, copy, or change
copyrighted files.
26
main attractions
install or remove a memory
card
1
Remove the
battery door
(see page 11).
2 To install the
memory card
,
make sure the
memory card’s
metal contacts are facing down, and slide
the top of the memory card under the
metal band.
To remove the memory card
, slide it
back out of the holder.
3
Replace the battery door.
Do not remove your memory card while your
phone is using it or writing files on it.
see and change memory card
information
To
see the files
stored on your memory card
and on your phone, open a file list, such as
Pictures
(see page 74). Icons can indicate if a file
is stored in your phone memory (
®
) or on
your memory card (
©
).To copy or move a file
from your phone to your memory card,
highlight it in the list and press
Options
>
Manage
>
Copy
or
Move
>
Memory Card
. You cannot copy or
move some copyrighted files.
To
copy files
between your memory card and
a computer, you can use a cable connection
(see page 28) or a Bluetooth connection (see
page 17).
27
main attractions
To see yo ur
memory card name, available
memory,
and other information about the
card:
Find it:
s
>
wSettings
>
Phone Status
>
Storage Devices
1
Press
S
to scroll to the memory card
that is installed.
2
Press the center key
s
to see the
memory card information. Your phone
stores any content that you add, like ring
tones or games, in user memory. Your
service provider may store some content
in user memory before you receive the
phone.
or
Press
Options
to see the
Storage Device
menu,
which lets you
Format
or
Rename
the memory
card.
cable connections
Yo u r
phone
has a mini-USB
port so you can
connect it to a
computer to
transfer data.
Note:
Motorola Original USB data
cables and supporting software are
sold separately. Check your
computer or hand-held device to
determine the type of cable you need. To
transfer data
between your phone and
computer, you might need to install the
software included with the Motorola Original
data kit. See the data kit user’s guide for more
information. To make
data calls
through a
connected computer, see page 68.
28
main attractions
connect your memory card to a
computer
You can use a cable connection to access your
phone’s memory card with a PC.
Note:
When your phone is connected to a
computer, you can only access the memory
card through the computer.
On your phone:
Disconnect the cable
from your phone, if it is
connected, then press
s
>
wSettings
>
Connection
>
USB Settings
>
Default Connection
>
Memory Card
.
This directs the USB connection to your
memory card.
Connect the cable
to your phone and to an
available USB port on your computer. Then
follow these steps:
On your computer:
1
Open your “My Computer” window,
where your phone’s memory card appears
as a “Removable Disk” icon.
2
Click on the “Removable Disk” icon to
access the files on your phone’s memory
card.
3
To store the desired files onto the
memory card, drag and drop them as
follows:
audio files:
> mobile > audio
screen savers:
> mobile > picture
wallpapers:
> mobile > picture
video clips:
> mobile > video
4
When you finish, disconnect your phone
by selecting the “Safely Remove
Hardware” icon in the system tray at the
bottom of your computer screen. Then
disconnect the “USB Mass Storage
Device.”
29
main attractions
5
Disconnect the cable from your phone
and computer.
On your phone:
To return to
Data
as your USB default
connection, press
s
>
wSettings
>
Connection
>
USB Settings
>
Default Connection
>
DataConnection
.
phone updates
Sometimes we think of ways to make
your phone’s software faster or more
efficient after you’ve purchased your phone.
You can find out if your phone can be updated
at:
http://hellomoto.com/update
Note:
Software updates do not affect your
phonebook entries or other personal entries.
If you receive a software update but choose to
install it later, see page 70.
30
basics
basics
See page 1 for a basic phone diagram.
display
The home screen appears when you turn on
the phone.
Note:
Your home screen might look different
from the one shown, depending on your
service provider.
To dial a number from the home screen, press
number keys and
N
.
Press
S
up, down, left, or right in the home
screen to open basic menu features.
Press the center key
s
to open the menu.
Soft Key Labels show the current soft key
functions. For soft key locations, see page 1.
Clock
Right Soft Key
Label
Left Soft Key
Label
Service Provider
12:00
Options Main Menu
31
basics
Status indicators can show at the top of the
home screen:
1 Signal Strength Indicator –
Vertical bars
show the strength of the network
connection. You can’t make or receive
calls when
1
or
0
appears.
2 EDGE/GPRS Indicator –
Shows
when your phone is using a
high-speed Enhanced Data for GSM
Evolution (EDGE) or General Packet Radio
Service (GPRS) network connection.
Indicators can include:
3 Data Indicator –
Shows connection
status.
5. Active Line
6. Message
7. Ring Style
8. Battery
Level
4. Roam
3. Data
2. EDGE /
GPRS
1. Signal
Strength
Service Provider
12:00
Options Main Menu
H
GPRS PDP context
active
œ
EDGE
B
GPRS packet data
available
L
secure packet data
transfer
K
unsecure
packet data
transfer
N
secure application
connection
M
unsecure
application
connection
S
secure Circuit
Switch Data (CSD) call
T
unsecure
CSD call
O
Bluetooth
®
connection is active
32
basics
4Roam Indicator –
Shows
W
when
your phone is seeking or using a
network outside your home network.
5 Active Line Indicator –
Shows
shows
h
to indicate an active
phone call, or
g
to indicate when call
forwarding is on. Indicators for
dual-line-enabled SIM cards can include:
6 Message Indicator –
Shows when
you receive a new message.
Indicators can include:
7 Ring Style Indicator –
Shows the ring
style setting.
8 Battery Level Indicator –
Vertical bars
show the battery charge level. Recharge
the battery when your display shows
Low Battery
.
f
line 1 active
i
line 1 active, call
forward on
e
line 2 active
j
line 2 active, call
forward on
É
text message
Ë
voice message
è
voice & text message
õ
loud ring
Ì
vibrate & ring
ô
soft ring
ö
vibrate then ring
Î
vibrate
Í
silent
33
basics
text entry
Some features let you enter text.
Press
#
in a text entry view to select an
entry mode:
To set your primary and secondary text entry
modes, press
Options
>
Text Setup
in a text entry
view and select
Primary Text
or
Secondary Text
.
iTAP
®
and tap mode tips
•
Press
0
in a text entry view to
change text case to all capital letters
Vk
For indicator
descriptions
see following
section.
Flashing
cursor
indicates
insertion
point.
Press the
Cancel
key to
exit without
making
changes.
Press the
Options
key to
open the submenu.
MsgSMS:0
Options Cancel
entry modes
Û
or
Ô
Your
Primary
text entry mode can
be set to any iTAP
®Û
or tap
Ô
mode.
Ú
or
Õ
Your
Secondary
text entry mode can
be set to any iTAP
Ú
or tap
Õ
mode, or set to
None
if you don’t
want a secondary entry mode.
ÃNumeric
mode enters numbers only.
ÄSymbol
mode enters symbols only.
34
basics
(
á
), no capitals (
Á
), or next letter
capital (
Â
).
•
To enter numbers quickly, press and
hold a number key to temporarily
switch to numeric mode. Press the
number keys to enter the numbers you
want. Enter a space to change back to
iTAP or Tap mode.
•
Press
1
to enter punctuation or other
characters.
•
Press
S
to move the flashing cursor
to enter or edit message text.
•
Press
D
to delete the character to the
left of the cursor. Hold
D
to delete the
word.
•
To cancel your message, press
O
.
iTAP
®
mode
Press
#
in a text entry view to switch to
iTAP mode. If you don’t see
Û
or
Ú
, press
Options
>
Text Setup
to set iTAP mode as your
primary or secondary text entry mode.
iTAP mode lets you enter words using one
keypress per letter. The iTAP software
combines your keypresses into common
words and predicts each word as you enter it.
35
basics
For example, if you press
7764
,
your display shows:
If you want a different word (such as
Progress
),
continue pressing keypad keys to enter the
remaining letters.
Tip:
Don’t worry if you forget how iTAP
works. In a text entry display, you can press
Options
>
Text Setup
>
Text Tutorial
to see an
explanation.
tap and tap extended modes
Press
#
in a text entry view to switch to tap
mode. If you don’t see
ÂÔ
or
ÂÕ
, press
Options
>
Text Setup
to set tap mode as your
primary or secondary text entry mode.
To enter text in
Tap
mode, press a keypad key
repeatedly to cycle through the letters and
number on the key. Repeat this step to enter
each letter. The
Tap Extended
mode works the
same way, but includes more special
characters and symbols.
Uj
Cancel
Program
Options
Msg
SMS:7
Press the
Options
key to
open
message
options.
Press
S
right to accept
Program
.
Press
*
to
enter a space
at the cursor.
Hold
S
up or
down to see a
list of word
options.
Press the
Cancel
key to cancel
the suggested word.
36
basics
For example, if you press
7
one time, your
display shows:
The first character of every sentence is
capitalized. If necessary, press
S
down to
change the character to lowercase before the
cursor moves to the next position.
numeric mode
Press
#
in a text entry view until you see
Ã
. Press the number keys to enter the
numbers you want.
Shortcut:
You can press and hold a number
key to temporarily switch to numeric mode
from iTAP™ or Tap modes. Press the number
keys to enter the numbers you want. Enter a
space to change back to iTAP mode.
symbol mode
Press
#
in a text entry view until your
display shows a list of symbols. Scroll to the
symbol you want, then press the
center key
s
.
Um
Send To
Page
Options
Msg
SMS:2995
Press the
Options
key to
open message
options.
Character
displays at
insertion
point.
Your phone
might suggest
a word.
Press
S
right to accept
it, or press
*
to enter a
space at the
cursor.
After you enter text, press
the
Send To
key to enter
recipients.
37
basics
volume
Press the volume keys
to:
•
turn off an
incoming call
alert
•
change the earpiece volume during
calls
•
change the ringer volume from the
home screen
Tip:
Sometimes silence really is
golden. That’s why you can quickly set
your ringer to
Vibrate
or
Silent
by holding
the down volume key while you are in
the home screen. You can also switch
to
Silent
or back by holding
#
in the
home screen.
navigation key
Press the
navigation key
S
up,
down, left, or right to scroll
to items in the display.
When you scroll to an
item, press the center key
s
to select it.
voice commands
You can use voice commands to tell your
phone what to do.
1
Press and release the
voice key
on the
right side of your phone.
Your phone says “Say a command.”
2
Say a voice command from the list
(replace 555-1212 with a phone number,
38
basics
and replace John Smith with a phonebook
entry name):
voice commands
“
Call
555-1212”
“
Call
John Smith”
“
Send Email
John Smith”
“
Send Voice Note
555-1212”
“
Send Voice Note
John Smith”
“
Send Message
555-1212”
“
Send Message
John Smith”
“
Lookup
John Smith”
“
Go to Voicemail
”
“
Go to Camera
”
“
Go to Redial
”
“
Go to Received Calls
”
“
Check Status
”
Your phone tells you its battery strength,
network signal strength, and whether its
coverage is normal or roaming.
“
Check Battery
”
“
Check Signal
”
“
Check Network
”
“
Check My Phone Number
”
“
Turn Prompts Off
“
Your phone turns off the sound on your
voice command prompts (such as “Say a
command.”). To turn prompts on again, say
“
Turn Prompts On
.” Your phone confirms
by saying “Voice prompts on.”
voice commands
39
basics
Tips:
•
You can say a phonebook entry’s name
and number type together. For
example, say “Call John Smith Mobile”
to call the Mobile number stored for
John Smith.
•
Speak numbers at a normal speed and
volume, pronouncing each digit
distinctly. Don’t pause between digits.
•
For voice command help, press the
voice key
, then press the
Help
key.
voice command setup
You can change voice command settings.
1
Press and release the
voice key
on the
right side of the phone.
2
Press the
Settings
key.
3
Choose one of the settings below:
voice command settings
Choice Lists
Turn choice lists on or off.
Your phone uses choice lists
to confirm voice commands
by asking “Did you say...”
followed by a choice list item.
Sensitivity
Make your phone more or
less likely to reject a voice
command.
Digit Dialing
Train your phone to recognize
how you say digits.
Sound
Adjust the sound settings for
your voice commands.
About
See voice command
software information.
40
basics
external display
When your phone is closed, the external
display shows the time, date, status
indicators, and notifications for incoming calls
and other events. For a list of phone status
indicators, see page 31.
handsfree speaker
You can use your phone’s handsfree speaker
to make calls without holding the phone to
your ear.
To turn the handsfree speaker on during a call,
press the
Speaker
key (if available), or
Options
>
Spkrphone On
. Your display shows
Spkrphone On
until you turn it off or end the call.
Note:
The handsfree speaker won’t work
when your phone is connected to a handsfree
car kit or headset.
codes & passwords
Your phone’s four-digit
unlock code
is
originally set to
1234
. The six-digit
security
code
is originally set to
000000
. If your
service provider didn’t change these codes,
you should change them:
Find it:
s
>
wSettings
>
Security
>
New Passwords
You can also change your
SIM PIN
password.
If you forget your unlock code:
At the
Enter Unlock Code
prompt, try entering 1234 or the
last four digits of your phone number. If that
doesn’t work, press
s
and enter your
six-digit security code instead.
If you forget other codes:
If you forget your
security code, SIM PIN code, PIN2 code, or
call barring password, contact your service
provider.
41
basics
lock & unlock phone
You can lock your phone to keep others from
using it. To lock or unlock your phone, you
need the four-digit unlock code.
To
manually lock
your phone:
Press
s
>
wSettings
>
Security
>
Phone Lock
>
Lock Now
.
To
automatically lock
your phone whenever
you turn it off: Press
s
>
wSettings
>
Security
>
Phone Lock
>
Automatic Lock
>
On
.
Note:
You can make emergency calls on a
locked phone (see page 50). A locked phone
still rings or vibrates for incoming calls or
messages,
but you need to unlock it to
answer
.
42
customize
customize
ring style
Each ring style profile uses a different set of
sounds or vibrations for incoming calls and
other events. Here are the profiles you can
choose:
The ring style profile’s indicator appears at the
top of your home screen. To choose your
profile:
Find it:
s
>
wSettings
>
Ring Styles
>
Style:
style name
change alerts in a ring style
You can change the alerts for incoming calls
and other events. Your changes are saved in
the current ring style profile.
Find it:
s
>
wSettings
>
Ring Styles
>style
Detail
Note:
Style represents the current ring style.
You can’t set an alert for the
Silent
ring style
setting.
1
Scroll to
Calls
(or
Line 1
or
Line 2
for dual-line
phones), then press the
Change
key to
change it.
2
Scroll to the alert you want, then press
the center key
s
.
õLoud ÌVibe &Ring
ôSoft öVibe then Ring
ÎVibrate ÍSilent
43
customize
3
Press the
Back
key to save the alert setting.
time & date
Your phone can automatically update your
time zone, time, and date. It uses the time
and date for the datebook.
To
synchronize
the time zone, time,
and date with the network: Press
s
>
wSettings
>
Initial Setup
>
Time and Date
>
Autoupdate
>
Time &Time Zone
. If you don’t want
your phone to automatically update your time
zone and date, choose
Time Only
instead.
To
manually
set the time zone, time, and
date, turn off
Autoupdate
, then: Press
s
>
wSettings
>
Initial Setup
>
Time and Date
>
Time Zone
,time or date. To jump to a city in
the time zone list, enter the first letter of its
name by pressing keypad keys.
Tip:
To choose three time zones for easier
access, press
s
>
ÉTools
>
World Clock
.
When you open
World Clock
, you can press the
Options
key to see the
MapView
of time zones.
To choose an
analog or digital
clock for your
home screen, press
s
>
wSettings
>
Personalize
>
Home Screen
>
Clock
.
wallpaper
Set a photo, picture, or animation as a
wallpaper (background) image in your home
screen.
Find it:
s
>
wSettings
>
Personalize
>
Wallpaper
options
Press
S
up or down to select a
picture, or select
None
for no
wallpaper.
44
customize
screen saver
Set a photo, picture, or animation as a screen
saver. The screen saver appears when the flip
is open and no activity is detected for a
specified time.
Tip:
This feature helps save your screen, but
not your battery. To extend battery life, turn off
the screen saver.
Find it:
s
>
wSettings
>
Personalize
>
Screen Saver
themes
A phone theme is a group of image and
sound files that you can apply to your
phone. Most themes include a wallpaper
image, screen saver image, and ring tone.
Your phone may come with some themes,
and you can download more.
To
apply
a theme, press
s
>
hMultimedia
>
Themes
> theme.
Layout
Select
Center
to center the image in
the display,
Tile
to repeat the
image across the display, or
Fit-to-screen
to stretch the image
across the display.
options
options
Press
S
up or down to select a
picture or animation, or select
None
for no screen saver.
Delay
Select the length of inactivity
before the screen saver appears.
45
customize
To
download
a theme, see page 76.
To
delete themes you downloaded
, press
s
>
hMultimedia
>
Themes
, scroll to the
theme, and press
Options
>
Delete
or
Delete All
.
display appearance
To choose a phone
skin
that sets the look and
feel of your phone’s display: Press
s
>
wSettings
>
Personalize
>
Skin
.
To set your display
brightness
: Press
s
>
wSettings
>
Initial Setup
>
Brightness
.
To save battery life, your keypad
backlight
turns off when you’re not using your phone.
The backlight turns on when you open the flip
or press any key. To set how long your phone
waits before the backlight turns off:
Press
s
>
wSettings
>
Initial Setup
>
Backlight
.
Note:
To turn the backlight on or off for Java™
applications, press
s
>
wSettings
>
JavaSettings
>
App Backlight
.
To save battery life, the
display
can turn off
when you’re not using your phone. The
display turns back on when you open the flip
or press any key. To set how long your phone
waits before the display turns off:
Press
s
>
wSettings
>
Initial Setup
>
Display Timeout
.
answer options
You can use different ways to answer an
incoming call. To turn on or turn off an answer
option:
47
calls
calls
To make and answer calls, see page 13.
turn off a call alert
You can press the volume keys to turn off a
call alert before answering the call.
delay answering
If you want to answer a call, but need to step
outside first, you can delay answering the call.
When your phone rings, press the
Delay
key or
your voice key. Your phone stops ringing and
plays a brief message for the caller, such as
“Please hold, your call will be answered in a
moment.” The call remains on hold until you
press the
Talk
key.
To tu r n
Delayed Answer
on, or record your
Delayed Answer
message (up to 10 seconds),
press
s
>
wSettings
>
In-Call Setup
>
Answer Options
>
Delayed Answer
Note:
When
Delayed Answer
is on, the
Open to Answer
feature is disabled.
recent calls
Your phone keeps lists of incoming and
outgoing calls, even for calls that didn’t
connect. The most recent calls are listed first.
The oldest calls are deleted as new calls are
added.
Shortcut:
Press
N
from the home screen to
see a list of dialed calls.
48
calls
Find it:
s
>
sRecent Calls
, then press
*
or
#
to switch to
Dialed Calls
,
Received Calls
,or
Missed Calls
Scroll to a call. A
%
next to a call means the
call connected.
•
To call the number, press
N
.
•
To see call details (like time and date),
press the center key
s
.
•
To see the
Last Calls Menu
, press
Options
.
This menu can include:
options
Store
Create a phonebook entry
with the number in the
No.
field.
Store
does not appear if
the number is already
stored.
Delete
Delete the entry.
Delete All
Delete all entries in the list.
Show ID
Show your caller ID for the
next call.
Hide ID
Hide your caller ID for the
next call.
Send Message
Open a new text message
with the number in the
To
field.
Send Voice
Message
Record and send a voice
message to the number.
Add Digits
Add digits after the number.
Attach Number
Attach a number from the
phonebook or recent calls
lists.
Send Tones
Send the number to the
network as DTMF tones.
Note:
This option appears
only
during a call
.
options
49
calls
redial
1
Press
N
from the home screen to see a
list of recent calls.
2
Scroll to the entry you want to call, then
press
N
.
If you hear a
busy signal
, and you see
Call Failed
, you can press
N
or the
Retry
key to redial the number. When the call goes
through, your phone rings or vibrates one
time, shows
Redial Successful
, and connects the
call.
return a call
Your phone keeps a record of your
unanswered calls, and shows
X Missed Calls
,
where
X
is the number of missed calls.
1
Press the
View
key to see the received
calls list.
Talk then Fax
Talk and then send a
fax in the same call
(see page 68).
Filter by
Select all, dialed, received,
or missed calls.
Notepad
Open the number in a text
editor.
Call Times
Open your call time
information.
Call Cost
Open your call cost
information.
Data Times
See how much time
you have spent on
data transfers.
Data Volumes
See how much data
you have transferred.
options
50
calls
2
Scroll to the call you want to return, then
press
N
.
caller ID
Calling line identification (caller ID)
shows the phone number for an
incoming call in your external and internal
displays.
Your phone shows the caller’s name and
picture when they’re stored in your
phonebook, or
Incoming Call
when caller ID
information isn’t available.
You can set your phone to play a different
ringer ID for an entry stored in your
phonebook (see page 57).
To show or hide
your phone number
from
the next person you call, enter the phone
number and press
Options
>
Hide ID/Show ID
.
emergency calls
Your service provider programs one or more
emergency phone numbers, such as 911 or
112, that you can call under any
circumstances, even when your phone is
locked or the SIM card is not inserted.
Note:
Emergency numbers vary by country.
Your phone’s preprogrammed emergency
number(s) may not work in all locations, and
sometimes an emergency call cannot be
placed due to network, environmental, or
interference issues.
1
Press the keypad keys to dial the
emergency number.
2
Press
N
to call the emergency number.
51
calls
voicemail
Your network stores the voicemail
messages you receive. To listen to your
messages, call your voicemail number.
Note:
Your service provider may include
additional information about using this
feature.
When you
receive
a voicemail message, your
phone shows the voicemail message
indicator
Ë
and
New Voicemail
. Press the
Call
key to listen to the message.
To
check
voicemail messages:
Find it:
s
>
eMessages
>
Voicemail
Your phone may prompt you to store your
voicemail phone number. If you don’t know
your voicemail number, contact your service
provider.
Note:
You can’t store a
p
(pause),
w
(wait), or
n
(number) character in this number. If you want
to store a voicemail number with these
characters, create a phonebook entry for it.
Then you can use the entry to call your
voicemail.
To
change
your voicemail number or turn off
voicemail notification, press
s
>
eMessages
,
then press the
Options
key and select
Setup
>
Voicemail Setup
.
52
other features
other features
advanced calling
To use voice commands for calling, see
page 37.
features
attach a phone number
Dial an area code or prefix for a
phonebook number, then press
Options
>
Attach Number
.
notepad
Press
s
>
sRecent Calls
, press the
Options
key, then >
Notepad
.
•
To call the number, press
N
.
•
To create a phonebook entry with the
number in the
No.
field, press the
Store
key.
•
To open the
Dialing Menu
to attach a
number or insert a special character,
press
Options
.
features
53
other features
international calls
If your phone service includes
international dialing, press and hold
0
to
insert your local international access code
(indicated by
+
). Then, press the keypad
keys to dial the country code and phone
number.
hold a call
Press
Options
>
Hold
to put all active calls on
hold.
mute a call
Press the
Mute
key (if available) or
Options
>
Mute
to put all active calls on mute.
features
call waiting
When you’re on a call, you’ll hear an
alert if you receive a second call.
Press
N
to answer the new call.
•
To switch between calls, press the
Switch
key.
•
To connect the two calls, press
Options
>
Link
.
•
To end the call on hold, press
Options
>
End Call On Hold
.
To turn the call waiting feature on or off,
press
s
>
wSettings
>
In-Call Setup
>
Call Waiting
>
On
or
Off
.
features
54
other features
conference call
During a call:
Dial the next number, press
N
, and press
Options
>
Link
.
transfer a call
During a call:
Options
>
Transfer
, dial transfer number, press
N
call forwarding
Set up or cancel call forwarding:
s
>
wSettings
>
Call Forward
features
restrict calls
Restrict outgoing or incoming calls:
s
>
wSettings
>
Security
>
Restrict Calls
Tell your phone to allow
All
,
None
, or only the
calls from your
Phonebook
.
call barring
Restrict outgoing or incoming calls:
s
>
wSettings
>
Security
>
Call Barring
TTY calls
Set up your phone for use with an
optional TTY device:
s
>
wSettings
>
Initial Setup
>
TTY Setup
features
55
other features
phonebook
To store and call phonebook entries, see
page 13.
Note:
You can show contacts stored in your
phone’s memory or on your SIM card. To
change phone line
If you have a dual-line-enabled SIM
card, you can change your line to make and
receive calls from your other phone
number.
s
>
wSettings
>
Phone Status
>
Active Line
fixed dial
When you turn on fixed dialing, you
can call only numbers stored in the fixed
dial list.
Turn fixed dialing on or off:
s
>
wSettings
>
Security
>
Fixed Dial
Use the fixed dial list:
s
>
ÉTools
>
Dialing Services
>
Fixed Dial
features
quick dial
Dial preprogrammed phone numbers:
s
>
ÉTools
>
Dialing Services
>
Quick Dial
DTMF tones
Activate DTMF tones:
s
>
wSettings
>
Initial Setup
>
DTMF
To send DTMF tones during a call, just
press number keys or scroll to a number in
the phonebook or recent calls lists and
press
Options
>
Send Tones
.
features
56
other features
choose which entries you see, press
s
>
nPhonebook
, then press
Options
>
View
.
You can select
Phone &SIM Card
,
SIM Card
, or
Phone Contacts
.
features
assign a speed dial key to a phonebook
entry
You can assign the keys
1
through
9
to
phonebook entries. Then, when you press
and hold a key, your phone calls the entry.
Note:
Your service provider might assign
some keys, such as
1
for your voicemail
number. You can only speed dial the
phonebook entries stored on your phone
(not on your SIM card).
Press
s
>
nPhonebook
and scroll to the
phonebook entry. Then, press
Options
>
AddtoSpeedDial
and pick a speed dial key.
use the speed dial key for a phonebook
entry
To
use a speed dial key
that you assigned
to a phonebook entry, just press and hold
the key while in your home screen.
edit your speed dial keys
s
>
nPhonebook
, then press
Options
>
Manage Contacts
>
Speed Dial
choose a speed dial key list
You can set speed dial to call the
entries in your phone memory
phonebook or your Fixed Dial list: Press
s
>
wSettings
>
Initial Setup
>
Speed Dial
>
Phone Memory
or
Fixed Dial
.
features
57
other features
edit or delete a phonebook entry
Edit a number stored in the phonebook:
s
>
nPhonebook
, scroll to the phonebook
entry, and press
Options
. You can select
Edit Contact
,
Delete Contact
, or other options.
Shortcut:
In the phonebook, press keypad
keys to enter the first letters of an entry you
want. You can also press
*
and
#
to see
the entries in your categories or entries you
used recently.
features
set ringer ID for a phonebook entry
Assign a ring alert (ringer ID) to an entry:
s
>
nPhonebook
> entry, then press
Options
>
Edit Contact
>
Ringer ID
> ringer name
Note:
The
Ringer ID
option isn’t available for
entries stored on the SIM card. To copy an
entry from SIM to phone memory, see
page 60.
To activate ringer IDs:
s
>
wSettings
>
Ring Styles
> style
Detail
>
Ringer IDs
>
On
features
58
other features—phonebook
set picture ID for a phonebook entry
Assign a photo or picture to show when you
receive a call from an entry:
s
>
nPhonebook
> entry, then press
Options
>
Edit Contact
>
> picture name
Note:
The
option isn’t available for
entries stored on the SIM card. To copy an
entry from SIM to phone memory, see
page 60
set picture ID view for phonebook
Show entries as a text list, or with picture
caller ID photos:
s
>
nPhonebook
, then press
Options
>
Setup
>
View by
> view name
features
set category for a phonebook entry
s
>
nPhonebook
> entry, then press
Options
>
Edit Contact
>
Category
> category name
Note:
The
Category
option isn’t available for
entries stored on the SIM card. To copy an
entry from SIM to phone memory, see
page 60
When you open your phonebook, press
*
or
#
to see your categories.
set category view for phonebook
s
>
nPhonebook
, then press
Options
>
Filter by
>
Category
>category name
You can show
All
entries, entries in a
predefined category (
Business
,
Personal
,
General
,
VIPs
), or entries in a category you create.
Shortcut:
When you open your phonebook,
press
*
or
#
to see your categories.
features
other features—phonebook
59
create a new category
s
>
nPhonebook
, then press
Options
>
Manage Contacts
>
Edit Categories
>
[New Category]
Enter the category name, and select its
members from your phonebook entries.
edit a category
s
>
nPhonebook
, then press
Options
>
Manage Contacts
>
Edit Categories
Scroll to the category name and press
Options
>
Edit Category
.
You can edit the category name, members,
ringer ID, or picture. Your phone uses the
ringer ID and picture whenever you receive
calls from numbers in the category.
features
create group mailing list
You can put several phonebook entries in a
group mailing list, then send a message to
the list. To create a list:
s
>
nPhonebook
, then press
Options
>
Create New
>
Message List
Note:
A
Message List
cannot include entries
stored on the SIM card. To copy an entry
from SIM to phone memory, see page 60
sort phonebook list
Set the order in which entries are listed:
s
>
nPhonebook
, then press
Options
>
Setup
>
Sort by
>
First Name
or
Last Name
features
60
other features—phonebook
copy one phonebook entry
Copy an entry from the phone to the SIM
card, or from the SIM card to the phone:
s
>
nPhonebook
, scroll to the entry, press
Options
>
Copy to SIM Card
or
Copy to Phone
copy multiple phonebook entries
Copy multiple phonebook entries between
the phone and SIM card:
s
>
nPhonebook
, then press
Options
>
Select Multiple to
, and select
Copy Phone to SIM
or
Copy SIM to Phone
send phonebook entry to another device
Send a phonebook entry to another phone,
computer, or device:
s
>
nPhonebook
, scroll to the entry, press
Options
>
Send Contact
features
print phonebook entry over
Bluetooth
®
connection
You can use a Bluetooth wireless
connection to send a phonebook entry from
your phone to a printer.
s
>
nPhonebook
Scroll to the entry you want to print, and
press
Options
>
Print
.
You cannot print a
Mailing List
. For more about
Bluetooth connections, see page 16.
features
other features—messages
61
messages
For basic text message features, see page 23.
features
send email
s
>
eMessages
>
Create Message
>
New Email
send voice message
s
>
eMessages
>
Create Message
>
New Voice Msg
Your phone starts recording the voice
message. To stop recording, press the
Stop
key. Your phone inserts the voice recording
into a message and lets you enter email
addresses or phone numbers of the
recipients.
use a message template
s
>
eMessages
>
Templates
>
Text Templates
or
MultimediaTemplates
Select a template to create a new message
based on the template.
features
62
other features—messages
read and manage messages
s
>
eMessages
>
Message Inbox
Icons next to each message indicate if it is
read
>
or unread
<
. Icons can also
indicate if the message has an
attachment
=
, might be SPAM
?
, or is
locked
9
, urgent
!
, or low priority
↓
.
To
Reply
,
Forward
,
Lock
, or
Delete
a message,
scroll to it and press
Options
.
To open a message, press
s
. Then, you
can press
Options
to use or store any
phone numbers, email addresses,
Web sites, or files in the message.
features
read and manage email
s
>
eMessages
>
Email Msgs
To
Reply
,
Forward
,
Lock
, or
Delete
a message,
scroll to it and press
Options
.
To open a message, press
s
. Then, you
can press
Options
to use or store any
phone numbers, email addresses,
Web sites, or files in the message.
store message objects
Go to a multimedia message page, or
scroll to an object in a message, then:
Options
>
Store
features
other features—messages
63
print message over Bluetooth
®
connection
You can use a Bluetooth wireless
connection to send a message from your
phone to a printer.
s
>
eMessages
>
Message Inbox
,
Email Msgs
,
Outbox
, or
Drafts
Scroll to the message you want to print and
press
Options
>
Print
.
You cannot print message
Templates
. For
more about Bluetooth connections, see
page 16.
features
store text messages on your SIM
card
To store incoming text messages on your
SIM card, press:
s
>
eMessages
, then press
Options
>
Setup
>
Message Setup
>
Text Msg Setup
>
Default Storage
>
SIM Card
features
64
other features—personalizing
personalizing
edit email settings
You can edit the settings for your
Email connections. To use email, you need
to store your email
User ID
and
Password
.
s
>
eMessages
, then press
Options
>
Setup
>
Email Msg Setup
>
Account Settings
If you have more than one email account,
select an account to edit.
Your phone shows a list of email settings.
Here is where you store your email
User ID
and
Password
.
Note:
To create a new account, select
[New Entry]
in the
Account Settings
list. Your
display shows a folder for each email
account under
s
>
eMessages
>
Email Msgs
.
features
browser messages
Read messages received by your
micro-browser:
s
>
eMessages
>
Browser Msgs
info services
Read subscription-based information
services messages:
s
>
eMessages
>
Info Services
features
language
Set menu language:
s
>
wSettings
>
Initial Setup
>
Language
features
other features—personalizing
65
scroll
Set the scroll bar to
Up/Down
or
Wrap Around
in
menu lists:
s
>
wSettings
>
Initial Setup
>
Scroll
text marquee
Set the speed for scrolling text in your
display:
s
>
wSettings
>
Initial Setup
>
Text Marquee
activate ringer IDs
Activate ringer IDs assigned to phonebook
entries and categories:
s
>
wSettings
>
Ring Styles
> style
Detail
>
Ringer IDs
ring volume
s
>
wSettings
>
Ring Styles
> style
Detail
>
Ring Volume
features
keypad volume
s
>
wSettings
>
Ring Styles
> style
Detail
>
Key Volume
reminders
Set a reminder for when you have not
responded to an incoming call, message, or
other event:
s
>
wSettings
>
Ring Styles
> style
Detail
>
Reminders
menu view
Show the main menu as graphic icons or as
a text-based list:
s
>
wSettings
>
Personalize
>
Main Menu
>
View
features
66
other features—call times & costs
call times & costs
Network connection time
is the elapsed
time from the moment you connect to your
service provider's network to the moment
you end the call by pressing
O
. This time
includes busy signals and ringing.
main menu
Reorder your phone’s main menu:
s
>
wSettings
>
Personalize
>
Main Menu
>
Reorder
show/hide menu icons
Show or hide menu feature icons in
the home screen:
s
>
wSettings
>
Personalize
>
Home Screen
>
Home Keys
>
Icons
master reset
Reset all options
except
unlock code,
security code, and lifetime timer:
s
>
wSettings
>
InitialSetup
>
Master Reset
features
master clear
Caution:
Master clear
erases all
information you have entered
(including
phonebook and datebook entries)
and
content you have downloaded
(including
photos and sounds) stored in your phone’s
memory. After you erase the information,
you can’t recover it.
s
>
wSettings
>
Initial Setup
>
Master Clear
features
other features—handsfree
67
The amount of network connection time
you track on your resettable timer may not
equal the amount of time for which you
are billed by your service provider. For
billing information, contact your service
provider.
handsfree
Note:
The use of wireless phones while
driving may cause distraction. Discontinue a
call if you can’t concentrate on driving.
Additionally, the use of wireless devices and
their accessories may be prohibited or
restricted in certain areas. Always obey the
features
call times
Show call timers:
s
>
sRecent Calls
, press the
Options
key,
then >
Call Times
in-call timer
Show time or cost information during
a call:
s
>
wSettings
>
In-Call Setup
>
In-Call Timer
call cost
Show call cost trackers:
s
>
sRecent Calls
, press the
Options
key,
then >
Call Cost
features
68
other features—data calls
laws and regulations on the use of these
products.
data calls
To connect your phone with a USB cable, see
page 27.
features
speakerphone
Activate the speakerphone during a
call:
Press the
Speaker
key (if available), or
Options
>
Spkrphone On
.
auto answer
(car kit or headset)
Automatically answer calls when
connected to a car kit or headset:
s
>
wSettings
>
Car Settings
or
Headset
>
Auto Answer
voice dial
(headset)
Enable voice dial with headset
send/end key:
s
>
wSettings
>
Headset
>
Voice Dial
auto handsfree
(car kit)
Automatically route calls to a car kit
when connected:
s
>
wSettings
>
Car Settings
>
Auto Handsfree
features
send data
Connect your phone to the device,
then place the call through the device
application.
features
other features—data calls
69
receive data or fax
Connect your phone to the device,
then answer the call through the device
application.
talk then fax
Connect your phone to the device,
enter fax number, press
Options
>
Talk then Fax
,
then press
N
to make the call.
features
set up Exchange ActiveSync
You can use the Internet to
synchronize your phone’s phonebook and
datebook entries with an email account on a
Microsoft® Exchange 2003 Server.
You need to know the email account’s
user
name
and
password
, the Microsoft®
Exchange
server name
, and the
user
domain name
. Confirm that the
Mobility
option is enabled on the email account, and
that
data service
is activated with your
phone service provider.
features
70
other features—network
network
use Exchange ActiveSync
Once you set up an Exchange
ActiveSync partner, you can schedule your
phone to synchronize with the account
automatically.
To
schedule
synchronization, press
s
>
wSettings
>
Connection
>
MOTOSYNC
>
Exchange
, press the
Options
key, then
>
Auto Sync Setup
. Enter the time and days you
want your phone to synchronize.
features
features
network settings
See network information and adjust
network settings:
s
>
wSettings
>
Network
software update
Your service provider can send
updated phone software over the air to your
phone. When your phone receives a
software update, you can choose to
download it and install it later. To install a
software update you downloaded:
s
>
wSettings
>
Phone Status
>
Software Update
>
Install Now
other features—personal organizer
71
personal organizer
features
set alarm
s
>
ÉTools
>
Alarm Clock
turn off alarm
When an alarm happens:
To turn off the alarm, press the
Disable
key or
O
. To set an eight-minute delay, press the
Snooze
key.
Note:
The
Snooze
key is available only if the
phone is already powered on when the
alarm sounds.
add new datebook event
s
>
ÉTools
>
Datebook
, scroll to the day,
press
s
, scroll to
Create New Event
, and press
s
If you set a reminder for a datebook event,
A
can appear at the top of your screen.
see datebook event
See or edit event details:
s
>
ÉTools
>
Datebook
, scroll to the day,
and press
s
Scroll to the event and press
s
. To edit the
details, press
Options
>
Edit
.
Tip:
Keeping up with life can be tough
work. To see a list of your upcoming events,
open the datebook and press
Options
>
View
>
Organized Events
.
features
72
other features—personal organizer
event reminder
When an event reminder happens:
To see reminder details, press the
View
key.
To close the reminder, press the
Exit
key.
send datebook event to another device
Send a datebook event to another phone,
computer, or device:
s
>
ÉTools
>
Datebook
, scroll to the day,
press
s
, scroll to the event, press
Options
>
Send
>
with Bluetooth
features
print datebook month, week, or
day over Bluetooth™ connection
You can use a Bluetooth wireless
connection to send a datebook month,
week, or day from your phone to a printer.
s
>
ÉTools
>
Datebook
Go to the month, week, or day view and
press
Options
>
Print
.
For more about Bluetooth connections, see
page 16.
features
other features—security
73
security
create voice record
Press and hold the voice key, speak into the
phone, release the voice key.
Note:
Recording phone calls is subject to
varying state and federal laws regarding
privacy and recording of conversations.
Always obey the laws and regulations on
the use of this feature.
play voice record
Play back a voice record:
s
>
hMultimedia
>
Sounds
, scroll to the
voice record, and press the center key
s
calculator
s
>
ÉTools
>
Calculator
features
currency converter
s
>
ÉTools
>
Calculator
, then press
Options
>
Exchange Rate
Enter exchange rate, press the
OK
key, enter
amount, and press
Options
>
Convert Currency
.
features
SIM PIN
Caution:
If you enter an incorrect PIN code
three times before the correct code, your
SIM card is disabled and your display shows
SIM Blocked
.
Lock or unlock the SIM card:
s
>
wSettings
>
Security
>
SIM PIN
features
74
other features—fun & games
fun & games
For basic information on the camera, see
page 19.
lock feature
s
>
wSettings
>
Security
>
Lock Application
manage certificates
Enable or disable Internet access
certificates stored on your phone:
s
>
wSettings
>
Security
>
Certificate Mgmt
Certificates are used to verify the identity
and security of Web sites when you
download files or share information.
features
features
view, delete, or manage pictures
Manage photos, pictures, and animations:
s
>
hMultimedia
>
Pictures
To
delete
a file, scroll to it in the list and
press
Options
>
Manage
>
Delete
.
To
copy or move
a file from your
memory card (
©
) to your phone
memory (
®
), scroll to it in the list and
press
Options
>
Manage
>
Copy
or
Move
>
Memory Card
. You cannot copy or move
some copyrighted files.
other features—fun & games
75
edit photos
Edit the appearance of your photos:
s
>
hMultimedia
>
Pictures
Scroll to the photo you want to edit, and
press
Options
>
Edit
. You can choose settings
such as
Brightness
and
Contrast
, or effects such
as
Blur
and
Mirror
. You cannot edit some
copyrighted files.
features
view, delete, or manage video clips
s
>
hMultimedia
>
Videos
To
delete
a file, scroll to it in the list and
press
Options
>
Manage
>
Delete
.
To
copy or move
a file from your
memory card (
©
) to your phone
memory (
®
), scroll to it in the list and
press
Options
>
Manage
>
Copy
or
Move
>
Memory Card
. You cannot copy or move
some copyrighted files.
features
76
other features—fun & games
hear, delete, or manage sounds
Manage ring tones and music that you have
downloaded or composed:
s
>
hMultimedia
>
Sounds
To
delete
a file, scroll to it in the list and
press
Options
>
Manage
>
Delete
.
To
copy or move
a file from your
memory card (
©
) to your phone
memory (
®
), scroll to it in the list and
press
Options
>
Manage
>
Copy
or
Move
>
Memory Card
. You cannot copy or move
some copyrighted files.
create ring tones
Create ring tones that you can use with
your phone:
s
>
hMultimedia
>
Sounds
>
[New Melody]
features
start micro-browser
Just press
L
.
download objects from Web page
Download a picture, sound, or other
object from a Web page:
Press
L
, go to the page that links to the
file, scroll to the link, and select it.
To activate downloaded copyrighted files,
press
s
>
ÉTools
>
Activation List
> file type
>file. You can see file’s
Status
,
Type
,
Activation
,
and
Counts Remaining
.
features
other features—fun & games
77
store downloaded files in your phone or
memory card
You can choose to store your downloaded
files on your phone or your memory card
you download choose where to store the
files you download:
s
>
wSettings
>
Phone Status
>
DownloadLocation
>
Memory Card
or
Phone
To see how much memory is available on
your phone or memory card, see page 26.
Web sessions
A Web Session stores settings that
your phone uses to access the Internet. To
select or create a Web session:
s
>
áWeb Access
>
Web Sessions
features
clear micro-browser history
Clear the micro-browser’s history,
cache, or cookies:
s
>
áWeb Access
>
Browser Setup
>
Clear History
,
Reset Cache
, or
Clear Cookies
download game or application
You can download a Java™ game or
application the same way you download
pictures or other objects:
Press
L
, go to the page that links to the
file, scroll to the link, and select it.
features
78
other features—fun & games
start game or application
Start a Java™ game or application:
s
>
QGames &Apps
, scroll to the game or
application, press the center key
s
Note:
To install and run games stored on
your memory card, press
s
>
QGames &Apps
>
[Install New]
.
features
airplane mode
You can switch your phone to airplane mode
to prevent it from communicating with the
network. This lets you use games or other
applications while you are on an airplane,
without interfering with airplane
communications.
Note:
Your phone cannot make Bluetooth™
connections when
Airplane Mode
is on.
s
>
wSettings
>
Airplane Mode
>
Airplane Mode
>
On
You can make the airplane mode option
appear whenever you turn on your phone:
s
>
wSettings
>
Airplane Mode
>
Prompt At Power Up
>
On
features
service and repairs—fun & games
79
service and repairs
If you have questions or need assistance,
we're here to help.
Go to
www.motorola.com/consumer/support
,
where you can select from a number of
customer care options. You can also contact
the Motorola Customer Support Center at
1-800-972-1837 (United States),
1-888-390-6456 (TTY/TDD United States for
hearing impaired), or 1-800-461-4575
(Canada).
80
service and repairs—fun & games
Specific Absorption Rate Data
SAR Da ta
This model wireless phone meets the
government’s requirements for exposure to radio
waves.
Your wireless phone is a radio transmitter and receiver. It is
designed and manufactured not to exceed limits for exposure to
radio frequency (RF) energy set by the Federal Communications
Commission (FCC) of the U.S. Government and by the Canadian
regulatory authorities. These limits are part of comprehensive
guidelines and establish permitted levels of RF energy for the
general population. The guidelines are based on standards that
were developed by independent scientific organizations through
periodic and thorough evaluation of scientific studies. The
standards include a substantial safety margin designed to assure
the safety of all persons, regardless of age or health.
The exposure standard for wireless mobile phones employs a unit
of measurement known as the Specific Absorption Rate, or SAR.
The SAR limit set by the FCC and by the Canadian regulatory
authorities is 1.6 W/kg.
1
Tests for SAR are conducted using
standard operating positions accepted by the FCC and by Industry
Canada with the phone transmitting at its highest certified power
level in all tested frequency bands. Although the SAR is
determined at the highest certified power level, the actual SAR
level of the phone while operating can be well below the
maximum value. This is because the phone is designed to operate
at multiple power levels so as to use only the power required to
reach the network. In general, the closer you are to a wireless
base station, the lower the power output.
Before a phone model is available for sale to the public in the U.S.
and Canada, it must be tested and certified to the FCC and Industry
Canada that it does not exceed the limit established by each
government for safe exposure. The tests are performed in
positions and locations (e.g., at the ear and worn on the body)
reported to the FCC and available for review by Industry Canada.
The highest SAR value for this model phone when tested for use at
the ear is 1.07 W/kg, and when worn on the body, as described in
this user guide, is 1.19 W/kg. The SAR value for this product in its
data transmission mode (body-worn use) is .88 W/kg. (Body-worn
measurements differ among phone models, depending upon
available accessories and regulatory requirements).
2
While there may be differences between the SAR levels of various
phones and at various positions, they all meet the governmental
requirements for safe exposure. Please note that improvements to
this product model could cause differences in the SAR value for
later products; in all cases, products are designed to be within the
guidelines.
service and repairs—fun & games
81
Additional information on Specific Absorption Rates (SAR) can be
found on the Cellular Telecommunications & Internet Association
(CTIA) Web site:
http://www.phonefacts.net
or the Canadian Wireless Telecommunications Association (CWTA)
Web site:
http://www.cwta.ca
1. In the United States and Canada, the SAR limit for mobile phones used
by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue.
The standard incorporates a substantial margin of safety to give
additional protection for the public and to account for any variations in
measurements.
2. The SAR information includes the Motorola testing protocol,
assessment procedure, and measurement uncertainty range for this
product.
82
service and repairs—fun & games
European Union Directives Conformance Statement
EU Conformance
Hereby, Motorola declares that this product is in compliance with
•
The essential requirements and other relevant provisions
of Directive 1999/5/EC
•
All other relevant EU Directives
The above gives an example of a typical Product Approval Number.
You can view your product’s Declaration of Conformity (DoC) to
Directive 1999/5/EC (to R&TTE Directive) at
www.motorola.com/rtte
. To find your DoC, enter the
product Approval Number from your product’s label in the “Search”
bar on the web site.
83
Important Safety and
Legal Information
84
service and repairs—fun & games
Safety and General Information
Safe ty Infor mation
This section contains important information on the safe and
efficient operation of your mobile device. Read this
information before using your mobile device.
*
Exposure to Radio Frequency (RF)
Energy
Your mobile device contains a transmitter and receiver. When it is
ON, it receives and transmits RF energy. When you communicate
with your mobile device, the system handling your call controls the
power level at which your mobile device transmits.
Your Motorola mobile device is designed to comply with local
regulatory requirements in your country concerning exposure of
human beings to RF energy.
Operational Precautions
For optimal mobile device performance and to be sure that human
exposure to RF energy does not exceed the guidelines set forth in
the relevant standards, always follow these instructions and
precautions.
External Antenna Care
If your mobile device has an external antenna, use only a
Motorola-supplied or approved replacement antenna. Use of
unauthorized antennas, modifications, or attachments could
damage the mobile device and/or may result in your device not
complying with local regulatory requirements in your country.
DO NOT hold the external antenna when the mobile device is IN
USE. Holding the external antenna affects call quality and may
cause the mobile device to operate at a higher power level than
needed.
Product Operation
When placing or receiving a phone call, hold your mobile device
just like you would a landline phone.
If you wear the mobile device on your body, always place the
mobile device in a Motorola-supplied or approved clip, holder,
holster, case, or body harness. If you do not use a body-worn
accessory supplied or approved by Motorola, keep the mobile
device and its antenna at least 2.5 centimeters (1 inch) from your
body when transmitting.
* The information provided in this document supersedes the general
safety information in user’s guides published prior to May 1, 2006.
Safety Information
85
When using any data feature of the mobile device, with or without
an accessory cable, position the mobile device and its antenna at
least 2.5 centimeters (1 inch) from your body.
Using accessories not supplied or approved by Motorola may
cause your mobile device to exceed RF energy exposure
guidelines. For a list of Motorola-supplied or approved
accessories, visit our Web site at:
www.motorola.com
.
RF Energy Interference/Compatibility
Nearly every electronic device is subject to RF energy interference
from external sources if inadequately shielded, designed, or
otherwise configured for RF energy compatibility. In some
circumstances your mobile device may cause interference with
other devices.
Follow Instructions to Avoid Interference
Problems
Turn off your mobile device in any location where posted notices
instruct you to do so. These locations include hospitals or health
care facilities that may be using equipment that is sensitive to
external RF energy.
In an aircraft, turn off your mobile device whenever instructed to
do so by airline staff. If your mobile device offers an airplane mode
or similar feature, consult airline staff about using it in flight.
Pacemakers
If you have a pacemaker, consult your physician before using this
device.
Persons with pacemakers should observe the following
precautions:
•
ALWAYS keep the mobile device more than
20 centimeters (8 inches) from your pacemaker when the
mobile device is turned ON.
•
DO NOT carry the mobile device in the breast pocket.
•
Use the ear opposite the pacemaker to minimize the
potential for interference.
•
Turn OFF the mobile device immediately if you have any
reason to suspect that interference is taking place.
Hearing Aids
Some mobile devices may interfere with some hearing aids. In the
event of such interference, you may want to consult your hearing
aid manufacturer or physician to discuss alternatives.
Other Medical Devices
If you use any other personal medical device, consult your
physician or the manufacturer of your device to determine if it is
adequately shielded from RF energy.
86
Safety Information
Driving Precautions
Check the laws and regulations on the use of mobile devices in the
area where you drive. Always obey them.
When using your mobile device while driving, please:
•
Give full attention to driving and to the road. Using a
mobile device may be distracting. Discontinue a call if you
can’t concentrate on driving.
•
Use handsfree operation, if available.
•
Pull off the road and park before making or answering a
call if driving conditions so require.
Responsible driving practices can be found in the “Smart Practices
While Driving” section at the end of this guide and/or at the
Motorola Web site:
www.motorola.com/callsmart
.
Operational Warnings
Obey all posted signs when using mobile devices in public areas,
such as health care facilities or blasting areas.
Automobile Air Bags
Do not place a mobile device in the air bag deployment area.
Potentially Explosive Atmospheres
Areas with potentially explosive atmospheres are often but not
always posted, and can include fueling areas such as below decks
on boats, fuel or chemical transfer or storage facilities, or areas
where the air contains chemicals or particles, such as grain, dust,
or metal powders.
When you are in such an area, turn off your mobile device, and do
not remove, install, or charge batteries. In such areas, sparks can
occur and cause an explosion or fire.
Damaged Products
If your mobile device or battery has been submerged in water,
punctured, or subjected to a severe fall, do not use it until you take
it to a Motorola Authorized Service Center. Do not attempt to dry it
with an external heat source, such as a microwave oven.
Batteries and Chargers
If jewelry, keys, beaded chains, or other conductive
materials touch exposed battery terminals, this
could complete an electrical circuit (short circuit),
become very hot, and could cause damage or
injury. Be careful when handling a charged battery,
particularly when placing it inside a pocket, purse, or other
container with metal objects.
Use only Motorola Original
batteries and chargers.
Caution:
To avoid risk of personal injury, do not dispose of your
battery in a fire.
Safety Information
87
Your battery, charger, or mobile device may contain symbols,
defined as follows:
Choking Hazards
Your mobile device or its accessories may include detachable
parts, which may present a choking hazard to small children. Keep
your mobile device and its accessories away from small children.
Glass Parts
Some parts of your mobile device may be made of glass. This glass
could break if the product is dropped on a hard surface or receives
a substantial impact. If glass breaks, do not touch or attempt to
remove. Stop using your mobile device until the glass is replaced
by a qualified service center.
Seizures/Blackouts
Some people may be susceptible to epileptic seizures or blackouts
when exposed to flashing lights, such as when playing video
games. These may occur even if a person has never had a previous
seizure or blackout.
If you have experienced seizures or blackouts, or if you have a
family history of such occurrences, please consult with your
physician before playing video games or enabling a flashing-lights
feature (if available) on your mobile device.
Discontinue use and consult a physician if any of the following
symptoms occur: convulsion, eye or muscle twitching, loss of
awareness, involuntary movements, or disorientation. It is always
a good idea to hold the screen away from your eyes, leave the
Symbol Definition
Important safety information follows.
Do not dispose of your battery or mobile
device in a fire.
Your battery or mobile device may require
recycling in accordance with local laws.
Contact your local regulatory authorities
for more information.
Do not throw your battery or mobile device
in the trash.
Your mobile device contains an internal
lithium ion battery.
Do not let your battery, charger, or mobile
device get wet.
Listening at full volume to music or voice
through a headset may damage your
hearing.
032374o
032376o
032375o
032378o
Li Ion BATT
88
Safety Information
lights on in the room, take a 15-minute break every hour, and stop
use if you are very tired.
Caution About High Volume Usage
Listening at full volume to music or voice through a
headset may damage your hearing.
Repetitive Motion
When you repetitively perform actions such as pressing keys or
entering finger-written characters, you may experience occasional
discomfort in your hands, arms, shoulders, neck, or other parts of
your body. If you continue to have discomfort during or after such
use, stop use and see a physician.
Industry Canada Notice
89
Industry Canada Notice to Users
Industry Canada Notice
Operation is subject to the following two conditions: (1) This
device may not cause interference and (2) This device must accept
any interference, including interference that may cause undesired
operation of the device. See RSS-GEN 7.1.5.
90
FCC Notice
FCC Notice To Users
FCC Notice
Motorola has not approved any changes or modifications to this
device by the user. Any changes or modifications could void the
user’s authority to operate the equipment. See 47 CFR Sec. 15.21.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation. See 47 CFR Sec. 15.19(3).
If your mobile device or accessory has a USB connector, or is
otherwise considered a computer peripheral device whereby it can
be connected to a computer for purposes of transferring data, then
it is considered a Class B device and the following statement
applies:
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and the
receiver.
•
Connect the equipment to an outlet on a circuit different
from that to which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician
for help.
Warranty
91
Motorola Limited Warranty for the United States and
Canada
War r an t y
What Does this Warranty Cover?
Subject to the exclusions contained below, Motorola, Inc. warrants
its telephones, pagers, messaging devices, and consumer and
professional two-way radios (excluding commercial, government
or industrial radios) that operate via Family Radio Service or
General Mobile Radio Service, Motorola-branded or certified
accessories sold for use with these Products (“Accessories”) and
Motorola software contained on CD-ROMs or other tangible media
and sold for use with these Products (“Software”) to be free from
defects in materials and workmanship under normal consumer
usage for the period(s) outlined below. This limited warranty is a
consumer's exclusive remedy, and applies as follows to new
Motorola Products, Accessories and Software purchased by
consumers in the United States or Canada, which are accompanied
by this written warranty:
Products and Accessories
Products Covered Length of Coverage
Products and
Accessories
as
defined above, unless
otherwise provided for
below.
One (1) year
from the date of
purchase by the first consumer
purchaser of the product unless
otherwise provided for below.
Decorative
Accessories and
Cases.
Decorative
covers, bezels,
PhoneWrap™ covers
and cases.
Limited lifetime warranty
for the
lifetime of ownership by the first
consumer purchaser of the product.
Monaural Headsets.
Ear buds and boom
headsets that transmit
mono sound through a
wired connection.
Limited lifetime warranty
for the
lifetime of ownership by the first
consumer purchaser of the product.
92
Warranty
Exclusions
Normal Wear and Tear.
Periodic maintenance, repair and
replacement of parts due to normal wear and tear are excluded
from coverage.
Batteries.
Only batteries whose fully charged capacity falls below
80% of their rated capacity and batteries that leak are covered by
this limited warranty.
Abuse & Misuse.
Defects or damage that result from:
(a) improper operation, storage, misuse or abuse, accident or
neglect, such as physical damage (cracks, scratches, etc.) to the
surface of the product resulting from misuse; (b) contact with
liquid, water, rain, extreme humidity or heavy perspiration, sand,
dirt or the like, extreme heat, or food; (c) use of the Products or
Accessories for commercial purposes or subjecting the Product or
Accessory to abnormal usage or conditions; or (d) other acts which
are not the fault of Motorola, are excluded from coverage.
Use of Non-Motorola Products and Accessories.
Defects or
damage that result from the use of Non-Motorola branded or
certified Products, Accessories, Software or other peripheral
equipment are excluded from coverage.
Unauthorized Service or Modification.
Defects or damages
resulting from service, testing, adjustment, installation,
maintenance, alteration, or modification in any way by someone
other than Motorola, or its authorized service centers, are
excluded from coverage.
Altered Products.
Products or Accessories with (a) serial
numbers or date tags that have been removed, altered or
obliterated; (b) broken seals or that show evidence of tampering;
(c) mismatched board serial numbers; or (d) nonconforming or
non-Motorola housings, or parts, are excluded from coverage.
Communication Services.
Defects, damages, or the failure of
Products, Accessories or Software due to any communication
service or signal you may subscribe to or use with the Products
Accessories or Software is excluded from coverage.
Software
Consumer and
Professional
Two-Way Radio
Accessories.
Ninety (90) days
from the date of
purchase by the first consumer
purchaser of the product.
Products and
Accessories that are
Repaired or
Replaced.
The balance of the original
warranty or for ninety (90) days
from the date returned to the
consumer, whichever is longer.
Products Covered Length of Coverage
Products Covered Length of Coverage
Software.
Applies only to physical
defects in the media that embodies
the copy of the software (e.g.
CD-ROM, or floppy disk).
Ninety (90) days
from
the date of purchase.
Warranty
93
Exclusions
Software Embodied in Physical Media.
No warranty is made
that the software will meet your requirements or will work in
combination with any hardware or software applications provided
by third parties, that the operation of the software products will be
uninterrupted or error free, or that all defects in the software
products will be corrected.
Software NOT Embodied in Physical Media.
Software that is
not embodied in physical media (e.g. software that is downloaded
from the internet), is provided “as is” and without warranty.
Who Is Covered?
This warranty extends only to the first consumer purchaser, and is
not transferable.
What Will Motorola Do?
Motorola, at its option, will at no charge repair, replace or refund
the purchase price of any Products, Accessories or Software that
does not conform to this warranty. We may use functionally
equivalent reconditioned/refurbished/pre-owned or new Products,
Accessories or parts. No data, software or applications added to
your Product, Accessory or Software, including but not limited to
personal contacts, games and ringer tones, will be reinstalled. To
avoid losing such data, software and applications please create a
back up prior to requesting service.
How to Obtain Warranty Service or
Other Information
You will receive instructions on how to ship the Products,
Accessories or Software, at your expense, to a Motorola
Authorized Repair Center. To obtain service, you must include: (a) a
copy of your receipt, bill of sale or other comparable proof of
purchase; (b) a written description of the problem; (c) the name of
your service provider, if applicable; (d) the name and location of the
installation facility (if applicable) and, most importantly; (e) your
address and telephone number.
USA Phones
1-800-331-6456
Pagers
1-800-548-9954
Two-Way Radios and Messaging Devices
1-800-353-2729
Canada All Products
1-800-461-4575
TTY
1-888-390-6456
For
Accessories
and
Software
, please call the telephone
number designated above for the product with which they are
used.
94
Warranty
What Other Limitations Are There?
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE
DURATION OF THIS LIMITED WARRANTY, OTHERWISE THE
REPAIR, REPLACEMENT, OR REFUND AS PROVIDED UNDER THIS
EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF
THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL
MOTOROLA BE LIABLE, WHETHER IN CONTRACT OR TORT
(INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE
PURCHASE PRICE OF THE PRODUCT, ACCESSORY OR SOFTWARE,
OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF
REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF
INFORMATION OR DATA, SOFTWARE OR APPLICATIONS OR
OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION
WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS,
ACCESSORIES OR SOFTWARE TO THE FULL EXTENT THESE
DAMAGES MAY BE DISCLAIMED BY LAW.
Some states and jurisdictions do not allow the limitation or
exclusion of incidental or consequential damages, or
limitation on the length of an implied warranty, so the
above limitations or exclusions may not apply to you. This
warranty gives you specific legal rights, and you may also
have other rights that vary from state to state or from one
jurisdiction to another.
Laws in the United States and other countries preserve for
Motorola certain exclusive rights for copyrighted Motorola
software such as the exclusive rights to reproduce and distribute
copies of the Motorola software. Motorola software may only be
copied into, used in, and redistributed with, the Products
associated with such Motorola software. No other use, including
without limitation disassembly of such Motorola software or
exercise of the exclusive rights reserved for Motorola, is
permitted.
Hearing Aids
95
Hearing Aid Compatibility with Mobile Phones
Hearing Aids
Some Motorola phones are measured for compatibility with
hearing aids. If the box for your particular model has “Rated for
Hearing Aids” printed on it, the following explanation applies.
When some mobile phones are used near some hearing devices
(hearing aids and cochlear implants), users may detect a buzzing,
humming, or whining noise. Some hearing devices are more
immune than others to this interference noise, and phones also
vary in the amount of interference they generate.
The wireless telephone industry has developed ratings for some of
their mobile phones, to assist hearing device users in finding
phones that may be compatible with their hearing devices. Not all
phones have been rated. Phones that are rated have the rating on
their box or a label on the box.
The ratings are not guarantees. Results will vary depending on the
user’s hearing device and hearing loss. If your hearing device
happens to be vulnerable to interference, you may not be able to
use a rated phone successfully. Trying out the phone with your
hearing device is the best way to evaluate it for your personal
needs.
M-Ratings:
Phones rated M3 or M4 meet FCC requirements and
are likely to generate less interference to hearing devices than
phones that are not labeled. M4 is the better/higher of the two
ratings.
T-Ratings:
Phones rated T3 or T4 meet FCC requirements and are
likely to be more usable with a hearing device’s telecoil (“T
Switch” or “Telephone Switch”) than unrated phones. T4 is the
better/higher of the two ratings. (Note that not all hearing devices
have telecoils in them.)
Hearing devices may also be measured for immunity to this type of
interference. Your hearing device manufacturer or hearing health
professional may help you find results for your hearing device. The
more immune your hearing aid is, the less likely you are to
experience interference noise from mobile phones.
96
WHO Information
Information from the World Health Organization
WHO Info rmation
Present scientific information does not indicate the need for any
special precautions for the use of mobile phones. If you are
concerned, you may want to limit your own or your children’s RF
exposure by limiting the length of calls or by using handsfree
devices to keep mobile phones away from your head and body.
Source: WHO Fact Sheet 193
Further information:
http://www.who.int./peh-emf
Product Registration
Registration
Online Product Registration:
direct.motorola.com/hellomoto/
Motosupport/source/registration.asp
Product registration is an important step toward enjoying your new
Motorola product. Registering helps us facilitate warranty service,
and permits us to contact you should your product require an
update or other service. Registration is for U.S. residents only and
is not required for warranty coverage.
Please retain your original dated sales receipt for your records. For
warranty service of your Motorola Personal Communications
Product you will need to provide a copy of your dated sales receipt
to confirm warranty status.
Thank you for choosing a Motorola product.
Export Law
97
Export Law Assurances
Export Law
This product is controlled under the export regulations of the
United States of America and Canada. The Governments of the
United States of America and Canada may restrict the exportation
or re-exportation of this product to certain destinations. For further
information contact the U.S. Department of Commerce or the
Canadian Department of Foreign Affairs and International Trade.
Wireless: The New Recyclable
Recycling
Your wireless mobile device can be recycled. Recycling your
mobile device reduces the amount of waste disposed in landfills
and allows recycled materials to be incorporated into new
products.
The Cellular Telecommunications Industry Association (CTIA) and
its members encourage consumers to recycle their mobile devices
and have taken steps to promote the collection and
environmentally sound recycling of end-of-life devices.
As a mobile device user, you have an important role in ensuring
that this device is recycled properly. When it comes time to give
this mobile device up or trade it in for a new one, please remember
that the mobile device, the charger, and many of its accessories
can be recycled. It's easy. To learn more about CTIA's Recycling
Program for Used Wireless Devices, please visit us at::
recycling.motorola.young-america.com/
index.html
98
Perchlorate Label
California Perchlorate Label
Perchlorate Label
Some mobile phones use an internal, permanent backup battery on
the printed circuit board that may contain very small amounts of
perchlorate. In such cases, California law requires the following
label:
“Perchlorate Material – special handling may apply. See
www.dtsc.ca.gov/hazardouswaste/
perchlorate
.”
There is no special handling required by consumers.
Driving Safety
99
Smart Practices While Driving
Drivin g S afety
Drive Safe, Call Smart
SM
Check the laws and regulations on the use of mobile
devices and their accessories in the areas where you drive.
Always obey them. The use of these devices may be
prohibited or restricted in certain areas. Go to
www.motorola.com/callsmart
for more
information.
Your mobile device lets you communicate by voice and
data—almost anywhere, anytime, wherever wireless service is
available and safe conditions allow. When driving a car, driving is
your first responsibility. If you choose to use your mobile device
while driving, remember the following tips:
• Get to know your Motorola mobile device and its
features such as speed dial and redial.
If available,
these features help you to place your call without taking
your attention off the road.
• When available, use a handsfree
device.
If possible, add an additional
layer of convenience to your mobile device
with one of the many Motorola Original
handsfree accessories available today.
• Position your mobile device within easy reach.
Be
able to access your mobile device without removing your
eyes from the road. If you receive an incoming call at an
inconvenient time, if possible, let your voice mail answer
it for you.
• Let the person you are speaking with know you are
driving; if necessary, suspend the call in heavy
traffic or hazardous weather conditions.
Rain, sleet,
snow, ice, and even heavy traffic can be hazardous.
• Do not take notes or look up phone numbers while
driving.
Jotting down a “to do” list or going through your
address book takes attention away from your primary
responsibility—driving safely.
• Dial sensibly and assess the traffic; if possible,
place calls when your car is not moving or before
pulling into traffic.
If you must make a call while
moving, dial only a few numbers, check the road and your
mirrors, then continue.
• Do not engage in stressful or emotional
conversations that may be distracting.
Make people
you are talking with aware you are driving and suspend
conversations that can divert your attention away from the
road.
100
Driving Safety
• Use your mobile device to call for help.
Dial 911 or
other local emergency number in the case of fire, traffic
accident, or medical emergencies.*
• Use your mobile device to help others in
emergencies.
If you see an auto accident, crime in
progress, or other serious emergency where lives are in
danger, call 911 or other local emergency number, as you
would want others to do for you.*
• Call roadside assistance or a special
non-emergency wireless assistance number when
necessary.
If you see a broken-down vehicle posing no
serious hazard, a broken traffic signal, a minor traffic
accident where no one appears injured, or a vehicle you
know to be stolen, call roadside assistance or other
special non-emergency wireless number.*
* Wherever wireless phone service is available.
index
101
index
A
accessories 10, 67
accessory connector port 1
activation list 76
active line indicator 32
active line, changing 55
ActiveSync 69, 70
airplane mode 78
alarm clock 71
alert
set 37, 42
turn off 37, 47
animation 74
answer a call 13, 45
attach a number 48, 52
audio player 18
B
backlight 45
battery 11, 12
extending battery life 10
battery indicator 32
battery life, extending 44, 45
Bluetooth connection
datebook entry, printing
72
datebook entry, sending
72
description 16
messages, printing 63
phonebook entries 60
blur photo setting 75
brightness 45
brightness photo setting 75
browser messages 64
browser. See micro-browser
C
cables 27
calculator 73
call
answering 13, 45
barring 54
end 13
ending 13
forwarding 54
making 13
timers 67
waiting 53
call forward indicator 32
caller ID 48, 50, 58
102
index
camera 19
car kit 67
categories 58, 59
center key 1, 37
center select key 9
certificate management 74
clock 43
codes 40, 41
conference call 54
contrast photo setting 75
copy files 17
copyrighted files, activating
76
costs, tracking 67
D
data call 68, 69
data indicator 31
date, setting 43
datebook 71, 72
delayed answer 47
dial a phone number 13, 55
dialed calls 47
digital audio 18
display 2, 30, 45
downloaded files
activating 76
from Web pages 76
in messages 62
storage location 77
drafts folder 24
DTMF tones 48, 55
E
earpiece volume 37
EDGE indicator 31
email
reading and managing 62
sending 61
settings 64
emergency number 50
end a call 13
end key 1, 13
Enter Unlock Code message
40
export regulations 97
external display 21, 40
F
fax call 49, 68, 69
fixed dial 55
flip 13, 46
forward calls 54
G
games 77
GPRS indicator 31
group mailing list 59
H
handsfree speaker 40
headset 67
index
103
headset jack 1
hearing aids 95
hold a call 53
home screen 2, 30, 66
I
in-call indicator 32
Incoming Call message 50
information services 64
international access code 53
iTAP text entry mode 34
J
Java applications 77
K
keypad 46, 65
L
language 64
linking. See Bluetooth
connection
lock
application 74
phone 41
SIM card 73
Low Battery message 32
M
make a call 13
master clear 66
master reset 66
memory card 25
menu 2, 9, 30, 65, 66
menu icons 30, 65, 66
message 61, 62, 63
message indicator 24, 32
message reminders 65
micro-browser 64, 76, 77
mirror photo setting 75
Missed Calls message 49
MMS, defined 23
MOTOSYNC 69, 70
MP3 sound files 18, 19
multimedia message 23, 61,
62, 63
music 76
mute a call 53
N
navigation key 1, 9, 37
network settings 70
notepad 52
number. See phone number
numeric entry mode 36
O
object exchange 17
1-touch dial 56
open to answer 46
optional accessory 10
optional feature 9
104
index
P
pairing. See Bluetooth
connection
passwords. See codes
perchlorate label 98
personalize 64
phone number 15, 55
phonebook 48, 52, 55, 56
photo 19, 74, 75
picture 74
picture ID 50, 58
PIN code 13, 40, 73
PIN2 code 40
power key 1, 13
Q
quick dial 55
R
received calls 47
recent calls 47
recycling 97
redial 49
reminders 65
restrict calls 54
return a call 49
ring style indicator 32
ring style, setting 37, 42
ring tone 76
ringer ID 50, 57, 65
ringer volume 37, 65
roam indicator 32
S
safety information 84
safety tips 99
screen saver 44
scrolling 65
security code 40
send key 1, 13
signal strength indicator 31
silent answer 47
SIM Blocked message 12,
73
SIM card 10, 13, 40, 63, 73
skin 45
soft keys 1, 30
software update 70
speakerphone 67
speed dial 56
store your number 15
symbol entry mode 36
synchronizing 69, 70
T
tap text entry mode 35
telephone number. See
phone number
text entry 33
text marquee 65
text message 62, 63
theme 44
index
105
time zone 43
time, setting 43
timers 67
transfer a call 54
TTY device 54
turn on/off 12
U
unlock
application 74
phone 13, 40, 41
SIM card 73
unlock code 40, 41
USB cables 27
V
video clip 75
videos 22
voice commands 37
voice dial 37, 68
voice message 61
voice record 73
voicemail 51
voicemail message indicator
32, 51
volume 37, 65
W
wallpaper 43
warranty 91
Web pages 76
Web sessions 77
WHO information 96
Y
your phone number 15
U.S. patent Re. 34,976
106
index
