![](asset-1.png)
MC65
User Guide
![](asset-3.png)
MC65 User Guide
72E-133769-01
Rev. A
September 2010
![](asset-4.png)
ii MC65 User Guide
© 2010 Motorola, Inc. All rights reserved.
No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means,
without permission in writing from Motorola. This includes electronic or mechanical means, such as
photocopying, recording, or information storage and retrieval systems. The material in this manual is subject to
change without notice.
The software is provided strictly on an “as is” basis. All software, including firmware, furnished to the user is on
a licensed basis. Motorola grants to the user a non-transferable and non-exclusive license to use each
software or firmware program delivered hereunder (licensed program). Except as noted below, such license
may not be assigned, sublicensed, or otherwise transferred by the user without prior written consent of
Motorola. No right to copy a licensed program in whole or in part is granted, except as permitted under
copyright law. The user shall not modify, merge, or incorporate any form or portion of a licensed program with
other program material, create a derivative work from a licensed program, or use a licensed program in a
network without written permission from Motorola. The user agrees to maintain Motorola’s copyright notice on
the licensed programs delivered hereunder, and to include the same on any authorized copies it makes, in
whole or in part. The user agrees not to decompile, disassemble, decode, or reverse engineer any licensed
program delivered to the user or any portion thereof.
Motorola reserves the right to make changes to any software or product to improve reliability, function, or
design.
Motorola does not assume any product liability arising out of, or in connection with, the application or use of
any product, circuit, or application described herein.
No license is granted, either expressly or by implication, estoppel, or otherwise under any Motorola, Inc.,
intellectual property rights. An implied license only exists for equipment, circuits, and subsystems contained in
Motorola products.
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered
trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the
property of their respective owners.
Motorola, Inc.
One Motorola Plaza
Holtsville, New York 11742-1300
http://www.motorola.com/enterprisemobility
![](asset-5.png)
iii
Revision History
Changes to the original manual are listed below:
Change Date Description
-01 Rev. A 9/2010 Initial release.
![](asset-6.png)
iv MC65 User Guide
![](asset-7.png)
Table of Contents
About This Guide
Introduction ........................................................................................................................................... xiii
Documentation Set ......................................................................................................................... xiii
Configurations....................................................................................................................................... xiii
Software Versions........................................................................................................................... xiv
Chapter Descriptions ............................................................................................................................ xiv
Notational Conventions......................................................................................................................... xv
Related Documents .............................................................................................................................. xv
Service Information............................................................................................................................... xvi
Chapter 1: Getting Started
Introduction .......................................................................................................................................... 1-1
Unpacking ............................................................................................................................................ 1-1
Getting Started ..................................................................................................................................... 1-2
Installing a microSD Card .............................................................................................................. 1-2
Installing the SIM Card ................................................................................................................... 1-3
Installing the Battery ...................................................................................................................... 1-4
Charging the Battery ...................................................................................................................... 1-5
Charging the Main Battery ....................................................................................................... 1-5
Charging Spare Batteries ......................................................................................................... 1-6
Charging Temperature ............................................................................................................. 1-6
Powering On the MC65 .................................................................................................................. 1-6
Calibrating the Screen ............................................................................................................. 1-6
First-time Network Activation ............................................................................................................... 1-7
GSM/UMTS Activation ................................................................................................................... 1-7
Network Activation ................................................................................................................... 1-7
Checking Battery Status ...................................................................................................................... 1-7
Replacing the Battery .......................................................................................................................... 1-8
Replacing the microSD Card ............................................................................................................... 1-8
Replacing the SIM Card ....................................................................................................................... 1-9
Battery Management ........................................................................................................................... 1-10
Changing the Power Settings ........................................................................................................ 1-10
Changing the Backlight Settings .................................................................................................... 1-10
Changing the Keypad Backlight Settings ....................................................................................... 1-10
![](asset-8.png)
vi MC65 User Guide
Turning Off the Radios ................................................................................................................... 1-11
Handstrap Replacement ...................................................................................................................... 1-11
Removal ......................................................................................................................................... 1-11
Installation ...................................................................................................................................... 1-12
Chapter 2: Using the MC65
Introduction .......................................................................................................................................... 2-1
Features ............................................................................................................................................... 2-1
Function Buttons .................................................................................................................................. 2-3
Keypads ............................................................................................................................................... 2-4
Keypad Remapping ....................................................................................................................... 2-4
Finger Scrolling .................................................................................................................................... 2-4
Motorola Home Screen ........................................................................................................................ 2-5
Cards ............................................................................................................................................. 2-7
Simple Home Card ................................................................................................................... 2-7
Full Home Card ........................................................................................................................ 2-7
Weather Card ........................................................................................................................... 2-9
Time Tracker Card ................................................................................................................... 2-9
Card Configuration ................................................................................................................... 2-9
Program Shortcuts ................................................................................................................... 2-9
My Apps Window ..................................................................................................................... 2-10
Tile Bar ........................................................................................................................................... 2-10
Device Management ...................................................................................................................... 2-12
Programs ................................................................................................................................. 2-13
Memory Manager ..................................................................................................................... 2-13
Sound Profiles .......................................................................................................................... 2-14
Power & Radio ......................................................................................................................... 2-15
Alarms ...................................................................................................................................... 2-16
Fusion ...................................................................................................................................... 2-16
Status ....................................................................................................................................... 2-17
Settings .................................................................................................................................... 2-17
Adjusting Volume ................................................................................................................................. 2-18
Battery Status Indications .................................................................................................................... 2-18
LED Indicators ..................................................................................................................................... 2-18
Resetting the MC65 ............................................................................................................................. 2-19
Locking the MC65 ................................................................................................................................ 2-19
Stylus ................................................................................................................................................... 2-20
Entering Data ....................................................................................................................................... 2-21
Data Capture ....................................................................................................................................... 2-22
Imaging .......................................................................................................................................... 2-22
Operational Modes ................................................................................................................... 2-22
Digital Camera ............................................................................................................................... 2-22
Scanning Considerations ............................................................................................................... 2-23
Imager Scanning ............................................................................................................................ 2-23
Digital Camera Scanning ............................................................................................................... 2-25
Using Voice-Over-IP ............................................................................................................................ 2-26
![](asset-9.png)
Table of Contents vii
Chapter 3: Making Calls
Introduction .......................................................................................................................................... 3-1
Making a Call ....................................................................................................................................... 3-1
Using the Phone Keypad ............................................................................................................... 3-1
Smart Dialing ................................................................................................................................. 3-2
Using Contacts ............................................................................................................................... 3-3
Using Call Log ................................................................................................................................ 3-4
Answering a Call .................................................................................................................................. 3-4
Incoming Call Features .................................................................................................................. 3-4
Missed Call Notification ....................................................................................................................... 3-4
Emergency Calling ............................................................................................................................... 3-5
Audio Modes ........................................................................................................................................ 3-5
Using a Bluetooth Headset ............................................................................................................ 3-5
Adjusting Audio Volume ................................................................................................................. 3-5
Muting a Call ........................................................................................................................................ 3-5
Using Call Log ..................................................................................................................................... 3-6
Managing Call Log ......................................................................................................................... 3-6
Using the Call Log Menu .......................................................................................................... 3-6
Conference Calling .............................................................................................................................. 3-7
Making a 3-Way Call ............................................................................................................................ 3-10
Voice Commander ............................................................................................................................... 3-10
Call ................................................................................................................................................. 3-11
Find ................................................................................................................................................ 3-11
Redial ............................................................................................................................................. 3-12
Callback ......................................................................................................................................... 3-12
Start ............................................................................................................................................... 3-12
Appointments ................................................................................................................................. 3-12
Read .............................................................................................................................................. 3-12
What time is it ................................................................................................................................ 3-13
Call History ..................................................................................................................................... 3-13
Voice Play Music ............................................................................................................................ 3-13
What can I say ............................................................................................................................... 3-14
Goodbye ........................................................................................................................................ 3-14
Chapter 4: Using WLAN
Introduction .......................................................................................................................................... 4-1
Fusion Overview .................................................................................................................................. 4-1
Wireless Zero Config Overview ........................................................................................................... 4-2
Switching Between Fusion and WZC .................................................................................................. 4-2
Supported Applications ........................................................................................................................ 4-3
Fusion Setup ........................................................................................................................................ 4-3
Wireless Zero Config Setup ................................................................................................................. 4-6
More Information on WZC .............................................................................................................. 4-8
Chapter 5: Messaging
Introduction .......................................................................................................................................... 5-1
Email .................................................................................................................................................... 5-1
Creating an Email Message ........................................................................................................... 5-1
![](asset-a.png)
viii MC65 User Guide
Viewing an Email Message ............................................................................................................ 5-1
Replying to or Forwarding a Message ........................................................................................... 5-2
SMS Messaging ................................................................................................................................... 5-2
Sending a Text Message ............................................................................................................... 5-2
Viewing Text Messages ................................................................................................................. 5-3
Replying to an SMS Message ........................................................................................................ 5-4
MMS Messaging .................................................................................................................................. 5-4
Creating and Sending MMS Messages ......................................................................................... 5-4
Viewing an MMS Message ............................................................................................................ 5-5
Replying to an MMS Message ....................................................................................................... 5-6
Blocking Incoming SMS Messages ................................................................................................ 5-6
Chapter 6: Using the Camera
Introduction .......................................................................................................................................... 6-1
Taking Pictures .................................................................................................................................... 6-1
Burst Mode ..................................................................................................................................... 6-2
Timer Mode .................................................................................................................................... 6-2
Editing Pictures .............................................................................................................................. 6-2
Setting a Picture as Wallpaper ....................................................................................................... 6-2
Camera Configuration .................................................................................................................... 6-3
Recording a Video ............................................................................................................................... 6-3
Video Configuration ....................................................................................................................... 6-4
Viewing Pictures and Videos ............................................................................................................... 6-4
Customizing Pictures & Videos ............................................................................................................ 6-5
....................................................................................................................................................... 6-5
Chapter 7: Using Bluetooth
Introduction .......................................................................................................................................... 7-1
Adaptive Frequency Hopping .............................................................................................................. 7-1
Security ................................................................................................................................................ 7-2
Bluetooth Configuration ....................................................................................................................... 7-3
Bluetooth Power States ....................................................................................................................... 7-3
Suspend ................................................................................................................................... 7-3
Resume .................................................................................................................................... 7-3
Turning Bluetooth On and Off .............................................................................................................. 7-4
Enabling Bluetooth ......................................................................................................................... 7-4
Disabling Bluetooth ........................................................................................................................ 7-4
Discovering Bluetooth Device(s) .......................................................................................................... 7-4
Available Services ............................................................................................................................... 7-7
Object Push Services via Beam ..................................................................................................... 7-7
Internet Sharing ............................................................................................................................. 7-8
Hands-free Services ...................................................................................................................... 7-9
Serial Port Services ....................................................................................................................... 7-9
ActiveSync Using Bluetooth ........................................................................................................... 7-10
Phone Book Access Profile Services ............................................................................................. 7-11
Dial-Up Networking Services ......................................................................................................... 7-12
Connect to a HID Device ............................................................................................................... 7-12
A2DP/AVRCP Services ................................................................................................................. 7-12
![](asset-b.png)
Table of Contents ix
Chapter 8: Using GPS Navigation
Introduction .......................................................................................................................................... 8-1
Software Installation ............................................................................................................................ 8-1
MC65 GPS Setup ................................................................................................................................ 8-1
Operation ............................................................................................................................................. 8-2
GPS Maps on microSD Cards ....................................................................................................... 8-2
Answering a Phone Call While Using GPS .................................................................................... 8-2
Losing the GPS Signal While in a Vehicle ..................................................................................... 8-2
Assisted GPS ....................................................................................................................................... 8-2
Chapter 9: Settings
Introduction .......................................................................................................................................... 9-1
Settings Folder ..................................................................................................................................... 9-1
Locking the MC65 ................................................................................................................................ 9-4
Switching the Dialer ............................................................................................................................. 9-4
Device Management ............................................................................................................................ 9-5
Sound Profiles ................................................................................................................................ 9-5
Power Profiles ................................................................................................................................ 9-6
Alarms ............................................................................................................................................ 9-7
Backlight and Keylight Settings ........................................................................................................... 9-7
Accelerometer ...................................................................................................................................... 9-8
Display Tab .................................................................................................................................... 9-8
About Tab ...................................................................................................................................... 9-8
Program Shortcuts Setup .................................................................................................................... 9-8
My Apps Window Setup ....................................................................................................................... 9-9
Card Setup ........................................................................................................................................... 9-10
Re-Order Cards ............................................................................................................................. 9-10
Configure Cards ............................................................................................................................. 9-10
Time Tracker Card ......................................................................................................................... 9-11
Weather Card ................................................................................................................................. 9-12
Add a New Location ................................................................................................................. 9-12
Change Location ...................................................................................................................... 9-13
Delete a Location ..................................................................................................................... 9-13
Email Setup ......................................................................................................................................... 9-13
Setting Up an IMAP or POP Account ............................................................................................. 9-13
Automatic Email Setup ............................................................................................................. 9-13
Manual Email Setup ................................................................................................................. 9-14
Entering Email Settings Manually ............................................................................................ 9-14
Editing an Email Account ............................................................................................................... 9-16
Setting Email Signatures ................................................................................................................ 9-17
MMS Messaging Setup ........................................................................................................................ 9-17
Voice Commander ............................................................................................................................... 9-18
Contacts Settings ........................................................................................................................... 9-18
Play .......................................................................................................................................... 9-18
Voice Tag ................................................................................................................................. 9-18
Application Settings ....................................................................................................................... 9-19
Play .......................................................................................................................................... 9-19
Voice Tag ................................................................................................................................. 9-19
Music Settings ................................................................................................................................ 9-19
![](asset-c.png)
x MC65 User Guide
Play .......................................................................................................................................... 9-19
Voice Tag ................................................................................................................................. 9-19
Digit Trainer Settings ..................................................................................................................... 9-20
Digit Setting Settings ...................................................................................................................... 9-20
Advanced Settings ......................................................................................................................... 9-20
Chapter 10: Accessories
Introduction .......................................................................................................................................... 10-1
Accessories ......................................................................................................................................... 10-1
Single Slot USB Cradle ........................................................................................................................ 10-3
Charging the MC65 Battery ........................................................................................................... 10-3
Charging the Spare Battery ........................................................................................................... 10-4
Battery Charging Indicators ........................................................................................................... 10-4
Charging Temperature ............................................................................................................. 10-4
Four Slot Charge Only Cradle ............................................................................................................. 10-6
Charging ........................................................................................................................................ 10-6
Battery Charging Indicators ........................................................................................................... 10-6
Charging Temperature ............................................................................................................. 10-6
Four Slot Ethernet Cradle .................................................................................................................... 10-7
Charging ........................................................................................................................................ 10-7
Battery Charging Indicators ........................................................................................................... 10-7
Charging Temperature ............................................................................................................. 10-7
VCD5000 Vehicle Cradle ..................................................................................................................... 10-8
Charging the MC65 Battery ........................................................................................................... 10-8
Removing the MC65 ................................................................................................................ 10-8
Battery Charging Indicators ........................................................................................................... 10-9
Charging Temperature ............................................................................................................. 10-9
Four Slot Battery Charger .................................................................................................................... 10-10
Battery Charging ........................................................................................................................... 10-10
Battery Charging Indicators ........................................................................................................... 10-10
Charging Temperature ............................................................................................................. 10-10
Cables .................................................................................................................................................. 10-11
Battery Charging and Operating Power ......................................................................................... 10-11
LED Charge Indications ................................................................................................................. 10-12
Charging Temperature ............................................................................................................. 10-12
Vehicle Holder ..................................................................................................................................... 10-13
Installation Reminders ................................................................................................................... 10-13
Device Mounting Precautions ........................................................................................................ 10-13
Installation ...................................................................................................................................... 10-13
Assembly ................................................................................................................................. 10-14
Windshield Installation ............................................................................................................. 10-14
Flat Surface Installation ........................................................................................................... 10-15
Chapter 11: Maintenance & Troubleshooting
Introduction .......................................................................................................................................... 11-1
Maintaining the MC65 .......................................................................................................................... 11-1
Removing the Screen Protector ........................................................................................................... 11-2
Battery Safety Guidelines .................................................................................................................... 11-2
![](asset-d.png)
Table of Contents xi
Cleaning ............................................................................................................................................... 11-3
Materials Required ......................................................................................................................... 11-3
Cleaning the MC65 ........................................................................................................................ 11-4
Housing .................................................................................................................................... 11-4
Display ..................................................................................................................................... 11-4
Scanner Exit Window ............................................................................................................... 11-4
Connector ................................................................................................................................ 11-4
Cleaning Cradle Connectors .......................................................................................................... 11-4
Cleaning Frequency ....................................................................................................................... 11-5
Troubleshooting ................................................................................................................................... 11-5
MC65 ............................................................................................................................................. 11-5
Bluetooth Connection ..................................................................................................................... 11-7
Single Slot USB Cradle .................................................................................................................. 11-8
Four Slot Ethernet Cradle .............................................................................................................. 11-9
Vehicle Cradle ................................................................................................................................ 11-9
Four Slot Battery Charger .............................................................................................................. 11-10
Cables ............................................................................................................................................ 11-10
Magnetic Stripe Reader ................................................................................................................. 11-11
Appendix A: Technical Specifications
MC65 Technical Specifications ............................................................................................................ A-1
MC65 ............................................................................................................................................. A-1
MC65 Accessory Specifications .......................................................................................................... A-6
Single Slot USB Cradle .................................................................................................................. A-6
Four Slot Battery Charger .............................................................................................................. A-7
Four Slot Charge Only Cradle ........................................................................................................ A-7
Four Slot Ethernet Cradle .............................................................................................................. A-8
Magstripe Reader .......................................................................................................................... A-8
Vehicle Cradle ................................................................................................................................ A-9
Cables ............................................................................................................................................ A-10
Appendix B: Keypads
Introduction .......................................................................................................................................... B-1
Numeric Keypad Configuration ...................................................................................................... B-1
Alpha-numeric Keypad Configurations .......................................................................................... B-4
Special Character Key ............................................................................................................. B-12
Appendix C: Windows Mobile Home Screen and Dialer
Introduction .......................................................................................................................................... C-1
Windows Mobile Home Screen ............................................................................................................ C-1
Classic Today Screen .............................................................................................................. C-3
Start Screen ................................................................................................................................... C-4
Windows Mobile Dialer ........................................................................................................................ C-4
Making a Call ....................................................................................................................................... C-5
Using the Phone Keypad ............................................................................................................... C-5
Smart Dialing ................................................................................................................................. C-5
Using Contacts ............................................................................................................................... C-6
![](asset-e.png)
xii MC65 User Guide
Using Call History .......................................................................................................................... C-7
Making a Speed Dial Call ............................................................................................................... C-8
Answering a Call .................................................................................................................................. C-8
Incoming Call Features .................................................................................................................. C-9
Missed Call Notification ....................................................................................................................... C-9
Emergency Calling ............................................................................................................................... C-9
Audio Modes ........................................................................................................................................ C-9
Using a Wired Headset .................................................................................................................. C-10
Using a Bluetooth Headset ............................................................................................................ C-10
Adjusting Audio Volume ................................................................................................................. C-10
Muting a Call ........................................................................................................................................ C-11
Using Call History ................................................................................................................................ C-11
Managing Call History .................................................................................................................... C-11
Changing the Call History View ............................................................................................... C-11
Resetting the Recent Calls Counter ......................................................................................... C-11
Deleting All Call History Items .................................................................................................. C-12
Viewing Call Status .................................................................................................................. C-12
Using the Call History Menu .................................................................................................... C-13
Swapping Calls (GSM) ........................................................................................................................ C-14
Swapping Calls (CDMA) ...................................................................................................................... C-14
Conference Calling (GSM) ................................................................................................................... C-15
Three-way Calling (CDMA) .................................................................................................................. C-16
Glossary
Index
![](asset-f.png)
About This Guide
Introduction
This guide provides information about using the MC65 Enterprise Digital Assistant (EDA) and accessories.
Documentation Set
The documentation set for the MC65 provides information for specific user needs, and includes:
•
MC65 Quick Start Guide - describes how to get the MC65 EDA up and running.
•
MC65 User Guide - describes how to use the MC65 EDA.
•
MC65 Integrator Guide - describes how to set up the MC65 EDA and accessories.
•
Enterprise Mobility Developer Kit (EMDK) Help File - provides API information for writing applications.
Configurations
This guide covers the following configurations:
NOTE Screens and windows pictured in this guide are samples and can differ from actual screens. This guide
provides instructions for using the Enterprise Home screen and Dialer. See Appendix C, Windows Mobile
Home Screen and Dialer for information on using the Microsoft Home screen and Dialer.
Configuration Radios Display Memory Data Capture
Options
Operating
System Keypads
MC659B WLAN: 802.11 a/b/g
WPAN: Bluetooth
v2.0 EDR
WWAN: CDMA or
GSM/UMTS
GPS: Stand-alone
GPS or
A-GPS
3.5” VGA
Color 128 MB RAM/
1 GB Flash 2D imager and
camera Windows
Mobile 6.5
Professional
Numeric,
Alphanumeric,
QWERTY,
QWERTZ or
AZERTY
keypad
![](asset-10.png)
xiv MC65 User Guide
Software Versions
This guide covers various software configurations and references are made to operating system or software
versions for:
•
Adaptation Kit Update (AKU) version
•
OEM version
•
Fusion software
•
Phone software.
AKU Version
To determine the Adaptation Kit Update (AKU) version:
Tap Start > Settings > System > About > Version.
The second line lists the operating system version and the build number. The last part of the build number
represents the AKU number. For example, Build 23121.5.3.6 indicates that the device is running AKU version
5.3.6.
OEM Version
To determine the OEM software version:
Tap Start > Settings > System > System Info > System.
Fusion Software
To determine the Fusion software version:
Tap Status Bar > > Wireless Status > Versions.
Phone Software
To determine the Phone software version:
Press > > Phone information.
Chapter Descriptions
Topics covered in this guide are as follows:
•
Chapter 1, Getting Started provides information on getting the MC65 up and running for the first time.
•
Chapter 2, Using the MC65 provides basic instructions for using the MC65, including powering on and
resetting the MC65, and entering and capturing data.
•
Chapter 3, Making Calls provides setup instructions for the MC65 phone.
•
Chapter 4, Using WLAN provides information for connection the MC65 to a WLAN.
•
Chapter 5, Messaging provides information for using Email, SMS and MMS messaging.
•
Chapter 6, Using the Camera provides instructions for taking pictures and capturing video.
![](asset-11.png)
About This Guide xv
•
Chapter 7, Using Bluetooth explains Bluetooth functionality on the MC65.
•
Chapter 8, Using GPS Navigation provides information about GPS navigation with the MC65.
•
Chapter 9, Settings provides basic instructions for using the MC65 phone.
•
Chapter 10, Accessories describes the available accessories and how to use them with the MC65.
•
Chapter 11, Maintenance & Troubleshooting includes instructions on cleaning and storing the MC65, and
provides troubleshooting solutions for potential problems during MC65 operation.
•
Appendix A, Technical Specifications provides the technical specifications for the MC65.
•
Appendix B, Keypads Provides information on the various keypad configuration.
•
Appendix C, Windows Mobile Home Screen and Dialer provides information for using the Windows Mobile
Home screen and Windows Mobile dialer.
Notational Conventions
The following conventions are used in this document:
•
“EDA” refers to the Motorola MC65 series of hand-held computers.
•
Italics are used to highlight the following:
•Chapters and sections in this and related documents
•Icons on a screen.
•
Bold text is used to highlight the following:
•Dialog box, window, and screen names
•Drop-down list and list box names
•Check box and radio button names
•Key names on a keypad
•Button names on a screen.
•
bullets (•) indicate:
•Action items
•Lists of alternatives
•Lists of required steps that are not necessarily sequential
•
Sequential lists (e.g., those that describe step-by-step procedures) appear as numbered lists.
Related Documents
•
MC65 Quick Start Guide, p/n 72-134041-xx.
•
MC65 Regulatory Guide, p/n 72-134232-xx.
•
MC65 Integrator Guide, p/n 72E-142435-xx.
•
Mobility Services Platform User Guide, p/n 72E-100158-xx.
•
Enterprise Mobility Developer Kits (EMDKs), available at: http://supportcentral.motorola.com.
![](asset-12.png)
xvi MC65 User Guide
•
Latest ActiveSync software, available at: http://www.microsoft.com.
For the latest version of this guide and all guides, go to: http://supportcentral.motorola.com.
Service Information
If you have a problem with your equipment, contact Motorola Enterprise Mobility support for your region. Contact
information is available at: http://www.motorola.com/enterprisemobility/contactsupport.
When contacting Enterprise Mobility support, please have the following information available:
•
Serial number of the unit (found on manufacturing label)
•
Model number or product name (found on manufacturing label)
•
Software type and version number.
Motorola responds to calls by email, telephone or fax within the time limits set forth in support agreements.
If your problem cannot be solved by Motorola Enterprise Mobility Support, you may need to return your equipment
for servicing and will be given specific directions. Motorola is not responsible for any damages incurred during
shipment if the approved shipping container is not used. Shipping the units improperly can possibly void the
warranty. Remove the SIM card and/or microSD card from the MC65 before shipping for service.
If you purchased your Enterprise Mobility business product from a Motorola business partner, contact that business
partner for support.
Manufacturing label
![](asset-13.png)
Chapter 1 Getting Started
Introduction
This chapter lists the parts and accessories for the MC65 and explains how to set up the MC65 for the first time.
Unpacking
Carefully remove all protective material from the MC65 and save the shipping container for later storage and
shipping.
Verify that you received the following:
•
MC65 EDA
•
3600 mAh Lithium-ion battery
•
stylus with tether (installed)
•
screen protector, installed on display window
•
Regulatory Guide
•
Quick Start Guide.
Inspect the equipment for damage. If any equipment is missing or damaged, contact the Motorola Enterprise
Mobility Support center immediately. See page xvi for contact information.
Prior to using the MC65 for the first time, remove the protective shipping film that covers the scan window, display
and camera window.
![](asset-14.png)
1 - 2 MC65 User Guide
Getting Started
To start using the MC65 for the first time:
•
Install a microSD card (optional)
•
Install the SIM card (GSM only)
•
Install the main battery pack.
•
Charge the MC65.
•
Power on the MC65.
Installing a microSD Card
The microSD card slot provides secondary non-volatile storage. The slot is located under the battery pack. Refer to
the documentation provided with the card for more information, and follow the manufacturer’s recommendations for
use.
To install the microSD card:
1. Remove the handstrap.
2. Lift the rubber access door.
3. Slide the SIM card holder door up to unlock.
4. Lift the SIM card holder door.
Figure 1-1
Lift SIM Slot Holder Door
5. Lift the microSD card holder door.
6. Insert the microSD card into the card holder door ensuring that the card slides into the holding tabs on each
side of the door.
CAUTION Follow proper ESD precautions to avoid damaging the SD card. Proper ESD precautions include, but are
not limited to, working on an ESD mat and ensuring that the operator is properly grounded.
Rubber access door
microSD card holder door
SIM card holder door
![](asset-15.png)
Getting Started 1 - 3
Figure 1-2
Insert microSD Card in Holder
7. Close the card holder door and push down until it is securely in place.
8. If installing a SIM card, proceed to Installing the SIM Card.
9. Close the SIM card holder door and slide down until it locks into place.
10. Close the rubber access door.
Installing the SIM Card
GSM phone service requires a Subscriber Identification Module (SIM) card. Obtain the card from the your service
provider. The card fits into the MC65 and can contain the following information:
•
Mobile phone service provider account details.
•
Information regarding service access and preferences.
•
Contact information, which can be moved to Contacts on the MC65.
•
Any additional services to which you have subscribed.
To install the SIM card:
1. Lift rubber access door.
2. Slide the SIM card holder up to unlock.
3. Lift the SIM card holder door.
microSD card
Holding tab
NOTE GSMs only.
NOTE For more information about SIM cards, refer to the service provider's documentation.
![](asset-16.png)
1 - 4 MC65 User Guide
Figure 1-3
Lifting the SIM Cover
4. Insert the SIM card, as shown in Figure 1-4 ensuring that the card slides into the holding tabs on each side of
the door.
Figure 1-4
Inserting the SIM Card
5. Close the SIM card holder door and slide down to lock into place.
6. Close the rubber access door.
7. Install the battery.
Installing the Battery
To install the battery.
1. Insert the battery, bottom first, into the battery compartment in the back of the MC65.
2. Press the battery down into the battery compartment until the battery release latch snaps into place.
3. Replace the handstrap.
NOTE For detailed information about WWAN activation, see First-time Network Activation on page 1-7.
![](asset-17.png)
Getting Started 1 - 5
Figure 1-5
Inserting the Battery
Charging the Battery
Charging the Main Battery
Before using the MC65 for the first time, charge the main battery until the amber Charging/Battery Status LED
remains lit (see Table 1-1 on page 1-6 for charge status indications). To charge the MC65, use a cable or a cradle
with the appropriate power supply. For information about the accessories available for the MC65, see Chapter 10,
Accessories.
The MC65 is equipped with a memory backup battery which automatically charges from the fully-charged main
battery. When using the MC65 for the first time, the backup battery requires approximately 36 hours to fully charge.
This is also true any time the backup battery is discharged, which occurs when the main battery is removed for
several hours. The backup battery retains RAM data in memory for at least 15 minutes (at room temperature) when
the MC65’s main battery is removed. When the MC65 reaches a very low battery state, the combination of main
battery and backup battery retains RAM data in memory for at least 48 hours.
For cable and cradle setup and charging procedures refer to the MC65 Integrator Guide.
•
USB Charging Cable
•
Charge Only Cable
•
Single Slot USB Cradle
•
Four Slot Charge Only Cradle
•
Four Slot Ethernet Cradle.
To charge the main battery:
1
2
Battery
Battery Release Latch
CAUTION Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page
11-2.
![](asset-18.png)
1 - 6 MC65 User Guide
1. Connect the charging accessory to the appropriate power source.
2. Insert the MC65 into a cradle or attach to a cable. The MC65 begins charging. The Charging/Battery Status
LED blinks amber while charging, then turns solid amber when fully charged. See Table 1-1 for charging
indications.
The 3600 mAh battery charges in less than six hours.
Charging Spare Batteries
See Chapter 10, Accessories for information on using accessories to change spare batteries.
Charging Temperature
Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). Note that charging is intelligently controlled by
the MC65.
To accomplish this, for small periods of time, the MC65 or accessory alternately enables and disables battery
charging to keep the battery at acceptable temperatures. The MC65 or accessory indicates when charging is
disabled due to abnormal temperatures via its LED. See Table 1-1.
Powering On the MC65
Press the Power button to turn on the MC65. The splash screen displays for about a minute as the MC65 initializes
its flash file system, then the calibration window appears.
Calibrating the Screen
To calibrate the screen so the cursor on the touch screen aligns with the tip of the stylus:
1. Remove the stylus from its holder on the side of the MC65.
2. Carefully press and briefly hold the tip of stylus on the center of each target that appears on the screen.
3. Repeat as the target moves around the screen, then tap the screen to continue.
Table 1-1
LED Charge Indicators
Charging/Battery
Status LED Indication
Off MC65 is not charging.
MC65 is not inserted correctly in the cradle or connected to a power source.
Charger/cradle is not powered.
Slow Blinking Amber
(1 blink every 2 seconds) MC65 is charging.
Solid Amber Charging complete.
Note: When the battery is initially inserted in the MC65, the amber LED flashes
once if the battery power is low or the battery is not fully inserted.
Fast Blinking Amber
(2 blinks/second) Charging error, e.g.:
•
Temperature is too low or too high.
•
Charging has gone on too long without completion (typically eight hours).
NOTE The Calibration screen can be accessed by pressing Blue key then Backspace key.
![](asset-19.png)
Getting Started 1 - 7
First-time Network Activation
GSM/UMTS Activation
Network Activation
To activate on a GSM/UMTS network:
1. If an active SIM card was installed in the MC65, the MC65 performs the activation process.
2. The Phone Network - GSM/UMTS Setup dialog box displays.
3. Tap Yes and then OK. For some carriers, the ES400 resets.
4. If during start-up, no update connection settings message appears, tap Start > Settings > Connection >
Phone Network Setup and tap Update Connection Settings button.
5. If the network is unsupported, a message appears with links for manually setting the data connection and MMS
settings.
To activate on a CDMA network:
1. If a SIM card was not installed, a No SIM card found dialog box displays.
2. Tap OK. The Phone Network - CDMA Activation dialog box displays.
3. Tap Yes to activate on a CDMA network.
4. On the CDMA Setup tab, tap the Preferred network option and select a network.
5. Tap Yes.
6. Tap the Start Activation button.
7. Tap Yes to activate.
8. Call the carrier from an existing phone to request over-the-air activation.
9. When instructed by the operator press Activate Now button.
For detailed information for configuring the phone and activating on a different network, refer to the MC65
Integrator Guide.
Checking Battery Status
To check the charge status of the main battery in the MC65, tap Start > Settings > Power to display the Power
window or tap Status Bar > .
![](asset-1a.png)
1 - 8 MC65 User Guide
Replacing the Battery
1. If the MC65 is in suspend mode, press the red Power button to wake the device.
2. Press and hold the red Power button for approximately 5 seconds.
3. Release the Power button. The Data Capture LED lights red.
4. When the LED turns off, remove the handstrap.
5. Slide the battery latch to the right. The battery ejects slightly.
Figure 1-6
Removing the Battery
6. Lift the battery from the MC65.
7. Insert the replacement battery, bottom first, into the battery compartment in the back of the MC65.
8. Press the battery down until the battery release latch snaps into place.
9. Replace the handstrap.
Replacing the microSD Card
To replace an microSD card:
1. If the MC65 is in suspend mode, press the red Power button to wake the device.
2. Press and hold the red Power button for approximately 5 seconds.
3. Release the Power button. The Data Capture LED lights red.
4. When the LED turns off, remove the handstrap.
CAUTION The MC65 backup battery retains data for up to 15 minutes. Replace the battery within 15 minutes to
ensure that application states are maintained and that data is not lost.
1
2
Battery Latch
CAUTION The MC65 backup battery retains data for up to 15 minutes. Replace the battery within 15 minutes to
ensure that application states are maintained and that data is not lost.
![](asset-1b.png)
Getting Started 1 - 9
5. Remove the battery.
6. Lift the rubber access door.
7. Slide SIM card holder door up to unlock.
8. Lift SIM Card holder door.
9. Lift the microSD card holder door.
10. Remove microSD card from holder.
11. Close microSD card holder door.
12. Close SIM card holder door.
13. Slide SIM card holder door down to lock into place.
14. Close the rubber access door.
15. Replace the battery.
16. Replace the handstrap.
17. If a SIM card is installed, reset the MC65. See Resetting the MC65 on page 2-19.
Replacing the SIM Card
To replace a SIM card:
1. If the MC65 is in suspend mode, press the red Power button to wake the device.
2. Press and hold the red Power button for approximately 5 seconds.
3. Release the Power button. The Data Capture LED lights red.
4. When the LED turns off, remove the handstrap.
5. Remove the battery.
6. Lift the rubber access door.
7. Slide SIM card holder door up to unlock.
8. Lift the SIM Card holder door.
9. Remove SIM card from holder.
10. Close SIM card holder door.
11. Slide SIM card holder door down to lock into place.
12. Close the rubber access door.
13. Replace the battery.
14. Replace the handstrap.
CAUTION The MC65 backup battery retains data for up to 15 minutes. Replace the battery within 15 minutes to
ensure that application states are maintained and that data is not lost.
![](asset-1c.png)
1 - 10 MC65 User Guide
15. Reset the MC65. See Resetting the MC65 on page 2-19.
Battery Management
Observe the following battery saving tips:
•
Leave the MC65 connected to AC power at all times when not in use.
•
Set the MC65 to turn off after a short period of non-use.
•
Set the backlight to turn off after a short period of non-use.
•
Turn off all wireless activities when not in use.
Changing the Power Settings
To set the MC65 to turn off after a short period of non-use:
1. Tap Status Bar > .
2. Select the Device timeout option.
3. Select a value from the list.
Changing the Backlight Settings
To change the backlight settings in order to conserve more battery power:
1. Tap Start > Status Bar > .
2. Select the Backlight option.
3. Select a value from the list.
4. Select the Brightness option.
5. Tap the Manual option and use the slider to select a low value.
6. Tap Back.
Changing the Keypad Backlight Settings
To change the keypad backlight settings in order to conserve more battery power:
1. Tap Start > Settings > System > Backlight & Keylight > Battery Power.
2. Tap the Keylight option.
3. Select a value from the list.
4. Tap the Keylight option.
5. Select a low value from the list.
6. Tap OK.
![](asset-1d.png)
Getting Started 1 - 11
Turning Off the Radios
To turn off the radios:
1. Tap Status Bar > .
2. Tap Phone radio to toggle the phone radio on and off.
3. Tap Wi-Fi to toggle the WLAN radio on and off.
4. Tap Bluetooth to toggle the Bluetooth radio on and off.
Handstrap Replacement
Removal
To remove a handstrap from the MC65:
1. If the MC65 is in suspend mode, press the red Power button to wake the device.
2. Press and hold the red Power button for approximately 5 seconds.
3. Release the Power button. The Data Capture LED lights red.
4. When the LED turns off, remove the handstrap.
Figure 1-7
Handstrap Clip Removal
5. Remove the battery.
6. Using a small flat screwdriver, push the head of the screwdriver between the handstrap pin and the bottom of
the housing as shown below.
CAUTION Close all running applications prior to replacing the handstrap. The backup battery maintains data for
up to 15 minutes. If replacement takes longer than 15 minutes data may be lost.
CAUTION When removing handstrap pin, be careful not to damage handstrap mounting area.
![](asset-1e.png)
1 - 12 MC65 User Guide
7. Pry the handstrap and pin up and out of the handstrap mount area.
Figure 1-8
Handstrap and Pin Removal
8. Repeat for the other side of the handstrap.
9. Remove pin from the handstrap.
Figure 1-9
Pin Removal
10. Pull handstrap through handstrap slot.
Installation
To install a new handstrap:
1. Feed bottom end of handstrap into handstrap slot on the bottom of the MC65.
12
34
![](asset-1f.png)
Getting Started 1 - 13
Figure 1-10
Feed handstrap into Handstrap Slot
2. Slide pin into bottom of handstrap.
3. Center the pin in the handstrap loop.
4. Pull handstrap so that the pin and bottom of handstrap slide into position in the mounting area.
Figure 1-11
Pin and Handstrap in Mounting Area
Figure 1-12
Slide Handstrap and Tether Over Handstrap Mount
5. Slide tether loop over handstrap.
6. Insert the handstrap clip into the slot on the device. Ensure that it is securely in place.
NOTE Handstrap and pin should fit securely into the handstrap mounting area. When pulling on handstrap use
enough force to engage pin into place.
![](asset-20.png)
1 - 14 MC65 User Guide
![](asset-21.png)
Chapter 2 Using the MC65
Introduction
This chapter explains the buttons, status icons, and controls on the MC65, and provides basic instructions for using
the MC65, including resetting the MC65 and entering and capturing data.
Features
Figure 2-1
MC65 Front View
Data Capture
LED
Charging/Battery
Status LED
WAN Radio
Status LED
Scan/Action
Button
Keypad
(Alpha-Numeric Keypad Shown)
Power Button
I/O Connector
Volume
Up/Down Button
Touch Screen with
Protective Overlay
Microphone
Scan Button
![](asset-22.png)
2 - 2 MC65 User Guide
Figure 2-2
MC65 Rear View
Battery
Speaker
Exit Window
Stylus
Battery Latch
Camera
Stylus Clip
Camera Flash
Action Button
Scan/Action Button
Handstrap
![](asset-23.png)
Using the MC65 2 - 3
Function Buttons
The MC65’s buttons perform the following functions.
Figure 2-3
Function Buttons
•
Power: Press the red Power button to turn the MC65 screen on and off. The MC65 is in suspend mode when
the screen is off. For more information, see Powering On the MC65 on page 1-6. Also use the Power button
to reset the MC65. See Resetting the MC65 on page 2-19.
•
Scan/Action: Press to scan bar codes or capture images. See Data Capture on page 2-22.
Or, press to open an application or perform a function. See the Microsoft® Applications for Mobile 6 User
Guide to set an application to open.
•
Volume Up/Down: Press to increase or decrease the MC65’s volume.
•
Action: Press to open an application or perform a function. See the Microsoft® Applications for Windows
Mobile 6 User Guide to set an application to open.
Scan/Action
Button
Power Button
Volume
Up/Down
Button
Action Button
Scan/Action
Button
![](asset-24.png)
2 - 4 MC65 User Guide
Keypads
The MC65 offers two types modular keypad configurations: Numeric and alpha-numeric.
Figure 2-4
MC65 Numeric Keypad
Refer to Chapter B, Keypads for detailed information on the keypad configurations.
Keypad Remapping
The user has the ability to remap the keypad keys to characters or applications. Refer to Chapter 9, Settings for
detailed information on remap keypad keys.
Finger Scrolling
Finger scrolling can be used to scroll up and down web pages, documents, and lists such as the contacts list, file
list, message list, calendar appointments list, and more.
When finger scrolling, swipe or flick your finger on the screen.
To scroll down, swipe your finger upward on the screen. To scroll up, swipe your finger downward on the screen.
To auto-scroll, flick your finger upward or downward on the screen. Touch the screen to stop scrolling.
![](asset-25.png)
Using the MC65 2 - 5
Motorola Home Screen
The customizable Motorola Home screen provides faster and easier access to features and applications, and
allows users to tailor the interface to improve their unique workflow and maximize on-the-job efficiency.
Figure 2-5
Motorola Home Screen
The Status Bar at the top of the screen displays the status icons listed in Table 2-1. Tap anywhere on the Status
Bar to open the Device Management window. Refer to Device Management on page 2-12 for more information.
Figure 2-6
Status Bar Icons
Table 2-1
Status Bar Icons
Icon Description Icon Description
Notifications
Reminder of an upcoming calendar event. One or more instant messages were received.
One or more text messages were received.
One or more voice messages were received.
Tap to Open Programs Window
Tap to Lock the Device
Tap to Open the Contacts
Status Bar
Cards
Program Shortcuts
Tile Bar
Tap to Open Start Window
Battery
Audio
Connectivity
Notifications
Signal Strength
Battery
Clock
![](asset-26.png)
2 - 6 MC65 User Guide
There are more notification icons than can be
displayed. Bluetooth radio is on.
One or more Email messages were received.
Receiving MMS message.
Sending MMS message. MMS message sent successfully.
MMS message received successfully. Microsoft customer feedback alert.
MMS message received successfully.
Connectivity
Connection is active. Connection is not active.
Synchronization is occurring. Wi-Fi available.
Wi-Fi in use. HSDPA available. (GSM only)
3G available. (GSM only) GPRS available. (GSM only)
EGPRS available. (GSM only) 1xRTT available. (CDMA only)
EVDO Rev. 0 available. (CDMA only) EVDO Rev. A available. (CDMA only)
Dormant State - no data transmission during a
1x or EVDO connection. (CDMA only) Roaming.
WAN
Call missed. Dialing while no SIM card is installed.
Call in progress. Calls are forwarded.
Call on hold. Speakerphone is on.
Phone on/good signal. Phone off.
No WAN service. Searching for WAN service.
HSDPA connecting. (GSM only) HSDPA in use. (GSM only)
3G in use. (GSM only) 3G connecting. (GSM only)
GPRS in use. (GSM only) GPRS connecting. (GSM only)
EGPRS in use. (GSM only) EGPRS connecting. (GSM only)
EVDO in use. (CDMA only) EVDO connecting. (CDMA only)
SIM Card not installed. (GSM only)
Audio
All sounds are on. All sounds are off.
Table 2-1
Status Bar Icons (Continued)
Icon Description Icon Description
![](asset-27.png)
Using the MC65 2 - 7
Cards
Cards provide quick access to completing common tasks. The number and type of cards available to an end user
are configurable by the system administrator or the end user. By default, the MC65 ships with four cards.
Swipe finger left or right on the screen to view adjacent cards.
Cards can be rearranged, deleted or added to the Home screen. See Chapter 9, Settings for more information.
Simple Home Card
The Simple Home card displays the current date and time and notifications.

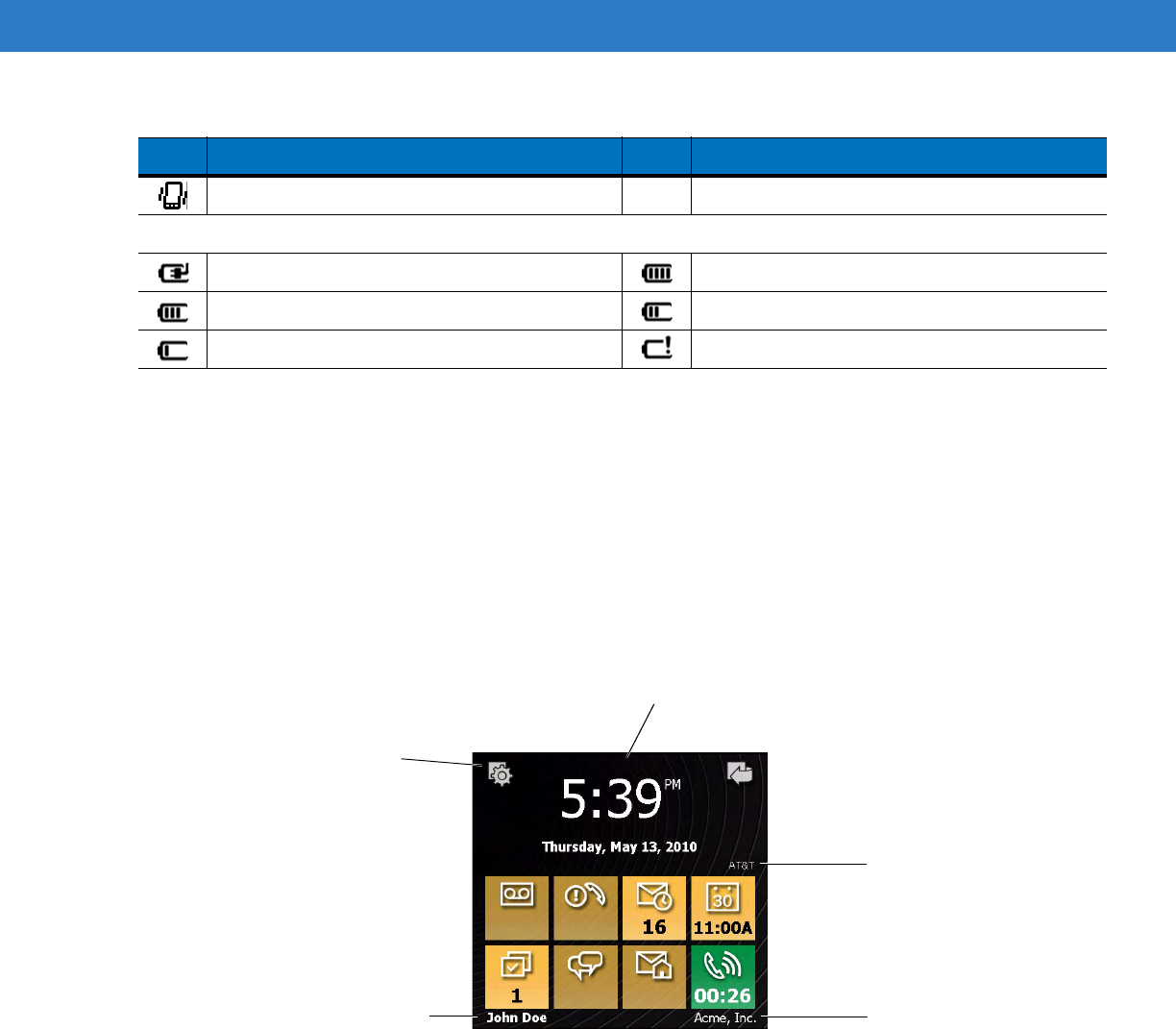

Figure 2-7
Simple Home Card
Full Home Card
The Full Home card displays the current date and time and notifications with expanded information.
Vibrate is on.
Battery
Battery is charging. Battery has a full charge.
Battery has a high charge. Battery has a medium charge.
Battery has a low charge. Battery has a very low charge.
Table 2-1
Status Bar Icons (Continued)
Icon Description Icon Description
Owner’s Company Name
Tap to Open Date and Time
Owner’s Name
Tap to Configure
Active Card
Carrier Name
![](asset-28.png)
2 - 8 MC65 User Guide
Figure 2-8
Full Home Card
Table 2-2 lists the Home card shortcut icons.
Table 2-2
Home Card Icons
Icon Description
Calendar: Indicates the next appointment in the calendar. Tap to open the Calendar
application.
Outlook Email: Indicates the number of unread emails in Outlook email. Tap to
open the Email application.
Tasks: Indicates the number of unfinished tasks. Tap to open the Task application.
Messages: Indicates the number of unread SMS and MMS messages. Tap to open
the Messaging application.
Voicemail: Indicates the number of voice messages in the voicemail box.
Missed Calls: Indicates the number of missed call.
Home Email: Indicates the number of unread emails in a personal email account.
tap to open the Email application.
In Call Status: Indicates call status.
Tap to Configure Cards
Owner’s Company Name
Carrier Name
Owner’s Name
Tap to Open Date and Time
Tap to Configure
Active Card
![](asset-29.png)
Using the MC65 2 - 9
Weather Card
The Weather card display the weather for a selected city.
Figure 2-9
Weather Card
See Weather Card on page 9-12 for information on configuring the Weather card.
Time Tracker Card
The Time Tracker card provide a easy way for a worker to log hours spend at a job and output this information in a
easy to use format.
Figure 2-10
Time Tracker Card
See Weather Card on page 9-12 for information on configuring the Weather card.
Card Configuration
Cards can be rearranged, deleted or added to the Home screen. See Chapter 9, Settings for more information.
Program Shortcuts
The Program Shortcut buttons provides easy access for four often used applications. Just tap the icon to launch
the application. To configure the Program Shortcuts refer to Program Shortcuts Setup on page 9-8.
Figure 2-11
My Apps Window
Program Shortcut Buttons
![](asset-2a.png)
2 - 10 MC65 User Guide
My Apps Window
The My Apps window provides access to all the applications on the MC65. The window is configurable so that it
can display favorite applications. To configure the My Apps window refer to My Apps Window Setup on page 9-9.
Figure 2-12
My Apps Window
My Apps screen is configurable. See My Apps Window Setup on page 9-9 for more information.
Tile Bar
The Tile Bar, located at the bottom of the screen, contains the Start tile to open the Start Menu. It also
displays tiles that vary depending upon the open application.
Figure 2-13
Tile Bar Examples
Table 2-3
Programs Available on the Start Menu
Icon Description Icon Description
ActiveSync
- Synchronize information
between the MC65 and a host computer or the
Exchange Server.
AirBEAM Client
- Allows legacy customers to
deploy AirBEAM Smart™ packages to
devices.
Alarms
- Set the clock to the date and time of
your locale. Alarms can also be set at
specified days and times of a week.
Bing
- Search the internet.
Calculator
- Perform basic arithmetic and
calculations, such as addition, subtraction,
multiplication, and division.
Calendar
- Keep track of appointments and
create meeting requests.
Contacts
- Keep track of friends and
colleagues.
E-mail
- Send an Email.
File Explorer
- Organize and manage files on
the device.
Games
- Play games.
![](asset-2b.png)
Using the MC65 2 - 11
Getting Started
- Launch the Getting Started
application.
Help
- Access on-line Help topics.
Internet Explorer
- Browse Web and WAP
sites as well as download new programs and
files from the Internet.
Internet Sharing
- Connect a notebook
computer to the Internet using the MC65's
data connection.
Marketplace
- Purchase applications from the
Marketplace.
Messenger
- Use the mobile version of
Windows Live Messenger.
Microsoft My Phone
- Synchronizes the
MC65’s contacts, calendar, tasks, text
messages, music, photos videos and
documents with a Microsoft My Phone
account.
MSN Money
- Keep track of finances.
MSN Weather
- Check the local weather.
MSP Agent
- Enables management of the
MC65 from an MSP Server. Requires the
purchase of an appropriate MSP client license
per device to suit the level of management
functionality required.
Notes
- Create handwritten or typed notes,
drawings, and voice recordings.
Office Mobile 2010
- Provides access to
Excel Mobile, PowerPoint Mobile, OneNote
Mobile, SharePoint WorkSpace Mobile and
Word Mobile applications.
Phone
- Make calls.
Pictures & Videos
- View and manage
pictures, animated GIFs, and video files.
Rapid Deployment Client
- Allows the MC65
user to stage a device for initial use by
initiating the deployment of settings, firmware,
and software. Requires the purchase of an
MSP client license per device.
Remote Desktop Mobile
- Log onto Windows
NT server type computers and use all of the
programs that are available on that computer
from the MC65.
Search Phone
- Search contacts, data, and
other information on the MC65. Refer to the
Microsoft Applications for Windows Mobile 6
User Guide for more information.
Settings
- Opens the Settings folder. See
Chapter 9, Settings
for more information.
SMS Staging
-
Receives and processes SMS
messages from an MSP Server and allows the
user to stage an MC65 based on them.
Requires the purchase of an MSP client
license per device.
Task Manager
- Enables viewing of memory
and CPU allocations and stops running
processes.
Table 2-3
Programs Available on the Start Menu
Icon Description Icon Description
![](asset-2c.png)
2 - 12 MC65 User Guide
Device Management
The Device Management window provides quick access to information and settings for the MC65.
Tap anywhere on the Status Bar to open the Device Management window.
Figure 2-14
Device Management Window
The navigation bar consists of eight tabs:
•
Programs
•
Memory Manager
•
Sound Profiles
•
Power & Radio
•
Alarms
•
Fusion
Tasks
- Keep track of tasks.
Text
- Send an SMS or MMS message.
Toolbox
- Contains the
Adobe Reader
and
Voice Commander
applications.
Wireless Companion
- Opens the Wireless
Companion folder.
Windows Live
- Use the mobile version of
Windows Live™ to find information on the
web.
Windows Media
- Play back audio and video
files.
Table 2-3
Programs Available on the Start Menu
Icon Description Icon Description
![](asset-2d.png)
Using the MC65 2 - 13
•
Status
•
Settings .
Tap an icon to open the associated tab. Scroll left or right to view more icons.
Programs
The Programs tab lists the programs that are currently running on the MC65 and allows for easy program
switching, and a quick way to end processes.
Figure 2-15
Programs Tab
•
To switch to a program, tap the name of the program.
•
To end a running program, tap the X next to the program name.
•
To close all running programs, tap Close All.
•
To go to the Task Manager application, tap Task Manager.
Memory Manager
The Memory Manager tab displays an overview of memory utilization, and a quick way to free up space.
Figure 2-16
Memory Manager Tab
•
Device Storage - Lists the total available Flash and the amount of Flash that is currently being used.
![](asset-2e.png)
2 - 14 MC65 User Guide
•
SD Card - Lists the total available memory and the amount of memory that is currently being used.
•
RAM - Lists the total available RAM and the amount of RAM that is currently being used.
Tap View Large Files to display files on the MC65 that are above a specific byte size.
Sound Profiles
The Sound Profiles tab provides direct access to sound-related profiles.
Figure 2-17
Sound Profiles Tab
To select a profile, tap the profile name.
•
Vibrate - Ring type, reminder and notifications are set to vibrate. Ring and system volumes are set to 0 (off).
•
Silent - Ring type, reminder and notifications are set to None. Ring and system volumes are set to 0 (off).
•
Schedule - Ring type, reminder and notifications are set to vibrate when Calendar meeting is in session.
•
Normal - Ring type is set to Ring, Reminder is set to Vibrate & Sound, Notification is set to Play Sound. Ring
and system volumes are set to level 4.
•
Loud - Ring type is set to Vibrate & Ring, Reminder is set to Vibrate & Sound, Notification is set to Vibrate &
Sound. Ring and system volumes are set to level 5.
•
Ambient - Profile settings are set based on the surrounding environment’s sound level.
The Temporary profile is created when changes are made by the system, for example: the user adjust the volume
using the volume buttons.
Refer to Sound Profiles on page 9-5 for information on creating new sound profiles.
![](asset-2f.png)
Using the MC65 2 - 15
Power & Radio
The Power & Radio tab displays the current battery status and direct access to power profiles and
power/radio-related options.
Figure 2-18
Power & Radio Tab
The Battery remaining graphic displays the amount of battery power remaining in the form of a bar graph and also
as a percentage.
The Profile row displays the current profile that is being used. To set a defined profile, tap Profile. A list of profiles
appear. Select a profile from the list. A radio button appears next to the selected profile. To view the properties of a
profile in the list, tap next to the profile.
Figure 2-19
Profiles Page
Tap Back to return to the Profiles tab.
The user can manually change the following settings (slide the display up to view more options).
•
Phone radio - Turns the phone radio on or off.
•
Wi-Fi - Turns the Wi-Fi radio on or off.
•
Bluetooth - Turns the Bluetooth radio on or off.
•
Device timeout - Sets the amount of time after inactivity that the MC65 goes into suspend mode.
•
Backlight - Sets the amount of time after inactivity that the MC65 goes into suspend mode.
•
Brightness - Sets the display brightness.
![](asset-30.png)
2 - 16 MC65 User Guide
•
ActiveSync - Set the interval between which the MC65 checks for email and calendar events.
•
ActiveSync off - Set the interval between which the MC65 checks for email and calendar events.
Refer to Power Profiles on page 9-6 for information on creating new profiles.
Alarms
The Alarms tab controls the Windows Mobile enabled alarms.
Tap Status Bar > .
Figure 2-20
Alarms Tab
To turn an alarm on or off tap the alarm name.
To change an alarm setting, tap Edit Alarm.
Refer to Alarms on page 9-7 for information on configuring alarms.
Fusion
The Fusion tab provides access to the Fusion interface.
Figure 2-21
Fusion Tab
Refer to Chapter 4, Using WLAN for information on using and setting up a WLAN.
![](asset-31.png)
Using the MC65 2 - 17
Status
The Status tab displays all system notifications.
Figure 2-22
Status Tab
Tap a notification to read the associated information.
Settings
The Settings tab lists the settings applications on the MC65. Tap an item in the list to open the associated setting
application or folder. Slide the list up to view more settings icons.
Figure 2-23
Settings Tab
Refer to Table 9-1 on page 9-1 for a list of setting application icons and their descriptions.
![](asset-32.png)
2 - 18 MC65 User Guide
Adjusting Volume
To adjust the system volume:
1. Press the volume buttons on the right side of the MC65 to increase and decrease the system volume. The
Volume dialog box appears.
2. As you increase or decrease the volume, the slider moves accordingly. You can also move the slider to adjust
the volume.
3. Select the Vibrate radio button to turn off the system audio and enable the MC65 to vibrate upon system
notifications.
4. Select Off radio button to turn off all system audio notifications.
Battery Status Indications
Battery icons appear on the Status Bar indicating the battery power level. When the battery power falls below a
predetermined level the icon indicates the status and a battery dialog box appears indicating the status of the
battery.
The message displays until the user taps Dismiss. Alternately tap the Status Bar to display the Device
Management window. Tap .
LED Indicators
The MC65 has three LED indicators. The Data Capture LED indicates status for scanning. The Charging/Battery
Status LED indicates battery charging and status.The Radio Status LED indicates WWAN radio status. Table 2-4
describes the LED indications.
Figure 2-24
LED Indicators
Table 2-4
LED Indications
LED State Indication
Data Capture LED
Solid Green Successful decode/capture.
Solid Red Laser enabled, scanning/imaging in process.
Flashing Green Software initiated notification.
Data Capture
LED
Charging/Battery
Status LED
Charging/Battery
Status LED
WAN Radio
Status LED
![](asset-33.png)
Using the MC65 2 - 19
Resetting the MC65
A reset restarts the MC65 by closing all running programs. Data saved in flash memory or a memory card is not
lost.
To perform a reset:
•
On a numeric keypad, simultaneously press the red Power button and the and keys.
•
On an alphanumeric keypad, simultaneously press the red Power button and the and keys.
Locking the MC65
The user can lock the MC65 to disable key presses and screen tap or by requiring a password to keep your data
secure. Refer to Locking the MC65 on page 9-4 for information on setting up device locking.
The lock screen displays whenever the MC65 is locked. When the MC65 is locked, you still receive notifications of
new messages, missed calls and upcoming appointments. You can also receive a call when the MC65 is locked.
The MC65 locks when a time out has occurred or you lock the MC65 manually.
To manually lock the MC65 tap the lock icon in the center of the Home screen Tile bar.
Solid Red (after Power button press) MC65 is shutting down for battery replacement.
Off Data capture not enabled.
Charging/Battery Status LED
Slow Blinking Amber Main battery in MC65 is charging.
Solid Amber Main battery in MC65 is fully charged.
Fast Blinking Amber Charging error.
Off Not charging.
WAN Radio Status LED
Slow Blinking Green RF (WWAN) radio is on.
Off RF (WWAN) radio is off.
Table 2-4
LED Indications (Continued)
LED State Indication
NOTE For information about scanning/decoding, see Data Capture on page 2-22. For information about WWAN
radio status and settings, see Chapter 3, Making Calls, or refer to the MC65 Integrator Guide.
NOTE The user can make emergency calls even when the MC65 is locked.
![](asset-34.png)
2 - 20 MC65 User Guide
Figure 2-25
Lock Screen
Drag to either the right or left side of the screen.
If a password is set up, enter the password and then tap to unlock and display the Home screen, tap
to unlock and display the Contacts window, tap to unlock and display the Messaging window.
Figure 2-26
Password Window
Stylus
Use the MC65 stylus to select items and enter information. The stylus functions as a mouse.
•
Tap: Touch the screen once with the stylus to press option buttons and open menu items.
•
Tap and Hold: Tap and hold the stylus on an item to see a list of actions available for that item. On the pop-up
menu that appears, tap the action to perform.
•
Drag: Hold the stylus on the screen and drag across the screen to select text and images. Drag in a list to
select multiple items.
CAUTION To prevent damage to the screen, do not use any device other than the Motorola-provided stylus.
![](asset-36.png)
2 - 22 MC65 User Guide
Data Capture
The MC65 offers two types of data capture options:
•
Imaging
•
Digital camera.
Imaging
The MC65 with an integrated imager has the following features:
•
Omnidirectional reading of a variety of bar code symbologies, including the most popular linear, postal,
PDF417, and 2D matrix code types.
•
The ability to capture and download images to a host for a variety of imaging applications.
•
Advanced intuitive laser aiming cross-hair and dot aiming) for easy point-and-shoot operation.
The imager uses digital camera technology to take a digital picture of a bar code, stores the resulting image in its
memory, and executes state-of-the-art software decoding algorithms to extract the data from the image.
Operational Modes
The MC65 with an integrated imager supports three modes of operation, listed below. Activate each mode by
pressing the Scan button.
•
Decode Mode: In this mode, the MC65 attempts to locate and decode enabled bar codes within its field of
view. The imager remains in this mode as long as you hold the scan button, or until it decodes a bar code.
•
Pick List Mode: This mode allows you to selectively decode a bar code when more than one bar code is in
the MC65’s field of view. To accomplish this, move the aiming crosshair or dot over the required bar code to
decode only this bar code. This feature is ideal for pick lists containing multiple bar codes and manufacturing
or transport labels containing more than one bar code type (either 1D or 2D).
•
Image Capture Mode: Use this mode to capture an image within the MC65’s field of view. This is useful for
capturing signatures or images of items like damaged boxes.
Digital Camera
The MC65 with an integrated digital camera has the following features:
•
Omnidirectional reading of a variety of bar code symbologies, including the most popular linear, postal,
PDF417, and 2D matrix code types.
•
Advanced intuitive aiming for easy point-and-shoot operation.
The camera uses digital camera technology to take a digital picture of a bar code, stores the resulting image in its
memory, and executes state-of-the-art software decoding algorithms to extract the data from the image.
NOTE To perform data capture a scanning enabled application must be installed on the MC65. A sample scanning
application can be downloaded from the Motorola Support site at http://support.symbol.com.
NOTE To enable Pick List Mode, download the Control Panel applet from the Support Central web site at
http://support.symbol.com. Pick List can also be set in an application using a API command.
![](asset-37.png)
Using the MC65 2 - 23
Scanning Considerations
Typically, scanning is a simple matter of aim, scan, and decode and a few quick trial efforts master it. However,
consider the following to optimize scanning performance:
•
Range
Any scanning device decodes well over a particular working range — minimum and maximum distances from
the bar code. This range varies according to bar code density and scanning device optics.
Scanning within range brings quick and constant decodes; scanning too close or too far away prevents
decodes. Move the scanner closer and further away to find the right working range for the bar codes being
scanned.
•
Angle
Scanning angle is important for promoting quick decodes. When laser beams reflect directly back into the
scanner from the bar code, this specular reflection can “blind” the scanner.
To avoid this, scan the bar code so that the beam does not bounce directly back. But don’t scan at too sharp
an angle; the scanner needs to collect scattered reflections from the scan to make a successful decode.
Practice quickly shows what tolerances to work within.
•
Hold the MC65 farther away for larger symbols.
•
Move the MC65 closer for symbols with bars that are close together.
Imager Scanning
To read a bar code, a scan-enabled application is required. The MC65 contains the DataWedge application that
allows the user to enable the camera, decode the bar code data and display the bar code content.
1. Enable DataWedge.
a. Tap Start > Settings > System > DataWedge.
b. Tap Basic configuration > 1. Barcode input > 1. Block Buster Imager.
c. Tap 1. Enabled.
d. Tap 0. Back.
e. Tap 0. Back and then tap OK.
f. Tap Running to start the DataWedge process. The DataWedge Status changes to Ready.
g. Tap OK.
2. Launch an application that supports text inputs, such as Word Mobile 2010 or Excel Mobile 2010.
3. Point the exit window on the top of the MC65 at a bar code.
NOTE Scanning procedures depend on the application and MC65 configuration. An application may use different
scanning procedures from the one listed above.
![](asset-38.png)
2 - 24 MC65 User Guide

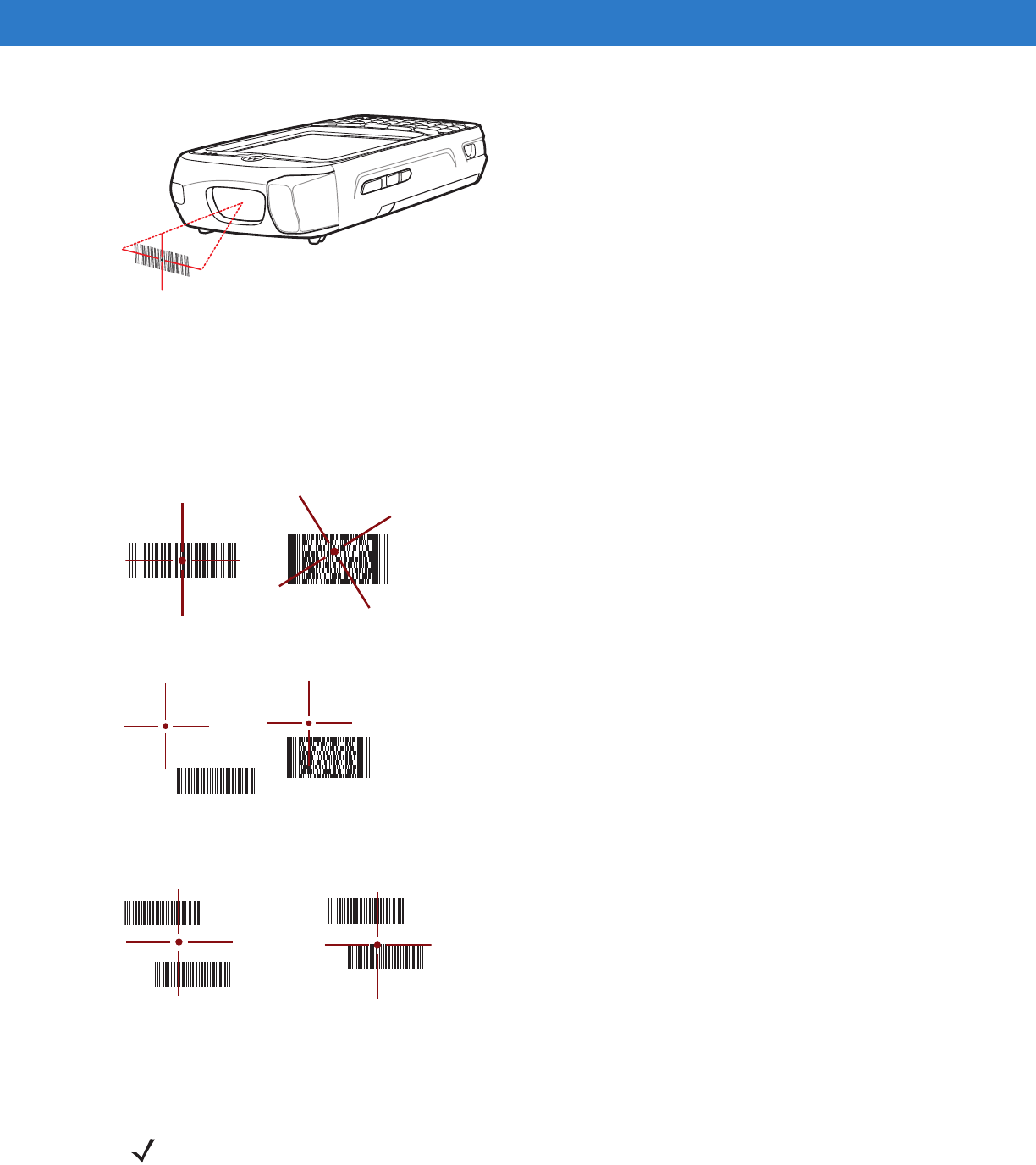

Figure 2-28
Imager Scanning
4. Press and hold the scan button.
The red laser aiming pattern turns on to assist in aiming. Ensure the bar code is within the area formed by the
brackets in the aiming pattern. The aiming dot is used for increased visibility in bright lighting conditions.
The Scan/Decode LED lights red to indicate that scanning is in process, then lights green and a beep sounds,
by default, to indicate the bar code was decoded successfully. Note that when the MC65 is in Pick List Mode,
the imager does not decode the bar code until the crosshair or aiming dot touches the bar code.
Figure 2-29
Imager Aiming Pattern: Bar Code Centered
Figure 2-30
Imager Aiming Pattern: Bar Code Not Centered
Figure 2-31
Pick List Mode with Multiple Bar Codes in Aiming Pattern
5. Release the scan button.
Correct Incorrect
Decoded Not Decoded
NOTE Imager decoding usually occurs instantaneously. The MC65 repeats the steps required to take a digital
picture (image) of a poor or difficult bar code as long as the scan button remains pressed.
![](asset-39.png)
Using the MC65 2 - 25
6. Disable DataWedge.
a. Tap Start > Settings > System > DataWedge.
b. Tap the Running option to end the DataWedge process. The DataWedge Status changes to Stopped.
c. Tap OK.
Digital Camera Scanning
To read a bar code, a scan-enabled application is required. The MC65 contains the DataWedge application that
allows the user to enable the camera, decode the bar code data and display the bar code content.
1. Enable DataWedge.
a. Tap Start > Settings > System > DataWedge.
b. Tap Basic configuration > 1. Barcode input > 2. Camera Scanner Driver.
c. Tap 1. Enabled.
d. Tap 0. Back.
e. Tap 0. Back and then tap OK.
f. Tap Running to start the DataWedge process. The DataWedge Status changes to Ready.
g. Tap OK.
2. Launch an application that supports text inputs, such as Word Mobile 2010 or Excel Mobile 2010.
3. Point the camera lens on the back of the MC65 at a bar code.
4. Press and hold . A preview window appears on the display window and a red aiming line emits from the
MC65. The LED lights red indicating that the data capture is in process.
5. Move the MC65 until the red aiming line is across the bar code.
Figure 2-32
Sample Bar Code
6. The LED lights green and a beep sounds, by default, to indicate the bar code was decoded successfully.
7. The bar code content data displays in the text field.
8. Disable DataWedge.
a. Tap Start > Settings > System > DataWedge.
b. Tap the Running option to end the DataWedge process. The DataWedge Status changes to Stopped.
c. Tap OK.
![](asset-3a.png)
2 - 26 MC65 User Guide
Using Voice-Over-IP
The MC65 supports Voice over IP over WLAN (VoWLAN) using Motorola or third party voice clients. The MC65 can
communicate using VoIP either using the MC65 supports several audio outputs, including back speaker phone,
front receiver or handset, and Bluetooth headset.
It is recommended that the wireless network use the 802.11a (5 GHz) band for voice applications. Using the 5 GHz
band avoids some noise sources that may occur on the 802.11b/g (2.4 GHz) band due to wireless interference.
When using a Bluetooth headset with the MC65 and VoWLAN, it is required to use the Bluetooth Headset profile
instead of Hands-free profile. Use the buttons on the MC65 to answer and end calls. See Chapter 7, Using
Bluetooth for information on setting up a Bluetooth Headset Profile.
![](asset-3b.png)
Chapter 3 Making Calls
Introduction
Use the MC65 to make phone calls, keep track of calls, and send text messages. Your wireless service provider
may also provide other services such as voice mail, call forwarding, and caller ID.
Also use the phone to connect to an ISP or work network in order to browse the Web and read e-mail over
High-Speed Packet Access (HSPA) or Evolution Data-Optimized (EvDO) using Cellular Line.
Making a Call
With the MC65, the user can make a call from the phone, contacts, and Call Log.
Using the Phone Keypad
To make a call:
1. Press .
NOTE If using the Windows Mobile Dialer, refer to Windows Mobile Dialer on page C-4 for information on using the
dialer.
NOTE The user can make emergency calls even when the MC65 is locked or when it is not activated. See
Emergency Calling on page 3-5 for more information.
![](asset-3c.png)
3 - 2 MC65 User Guide
Figure 3-1
Enterprise Dialer
2. Enter the phone number on the dialer or keypad. The number appears in the Call Line.
3. Tap the green Call Line or press .
4. Tap Cancel to cancel the call or tap Speaker to place the MC65 in speakerphone mode.
5. When the call connects, the name or number appears in the Call Line. To place the call on hold tap the Call
Line. To return to the call tap the Call Line again.
6. Tap or press to end the call.
Table 3-1 lists the Phone dialer icons that appear below the Status bar and above the Call Line. Icons vary
depending upon carrier and network.
Smart Dialing
Smart Dialing makes it easy to dial a phone number. When the user starts entering numbers or characters, Smart
Dialing automatically searches and sorts the contact entries on the SIM card, in Contacts, and the phone numbers
in Call Log (including incoming, outgoing, and missed calls). You can then select the desired number or contact
from the filtered list to dial.
Press keys on the MC65 keypad that correspond to the phone number or contact to call. The contact panel lists
contacts that match the sequence entered.
Call Line
CDMAGSM/UMTS
NOTE If the user taps a wrong number, tap the Delete key to erase each subsequent digit. To erase the entire
number, tap and hold the Delete key.
Table 3-1
Phone Dialer Status Icons
Icon Description Icon Description
Bluetooth headset connected. Location disabled.
Call Forwarding enabled. Phone unlocked.
Phone audio muted.
ok
![](asset-3d.png)
Making Calls 3 - 3
Smart Dialing starts looking for numbers or contacts that match the sequence entered.
To find a phone number:
•
Enter the first one or two digits to find a phone number in Call History.
•
Enter the first three digits or more to find a phone number from the saved Contacts and SIM card.
To find a contact name:
•Enter the first letter of a contact’s first name or last name. Smart Dialing searches for the letter starting
from the first character of a contact name as well as from any character that appears after a space, dash,
or underscore in a contact name.
•If the matching list is long, narrow down the search further by entering another letter.
Figure 3-2
Finding a Contact
To make a call or send a message using Smart Dialing:
1. Begin entering the first few numbers or characters.
2. In the Smart Dialing panel, use the navigation keys on the keypad to navigate to the desired contact or phone
number.
3. When the correct contact is selected, press to make a voice call.
4. To send a message to the selected contact, tap > Send Text Message to send a text message or >
Send MMS to send an MMS message.
5. To call a different phone number associated with the selected contact, tap the contact name and select the
phone number to call.
Using Contacts
Use Contacts to make a call without looking up or entering the phone number.
To make a call from Contacts:
1. Press .
2. From the Phone shortcut, tap .
3. From the contact list, tap and hold the contact name.
![](asset-3e.png)
3 - 4 MC65 User Guide
4. Tap Call Work, Call Home or Call Mobile.
Using Call Log
To make a call using Call Log:
1. Press .
2. From the Phone shortcut, tap .
3. Tap the contact or phone number.
4. Tap SEND or press .
5. Tap Cancel or press to stop dialing or end the call.
Answering a Call
When the MC65 receives an incoming call a dialog box appears. If the phone is set to ring, a ring tone sounds.
Answer or ignore the incoming call.
To answer an incoming call tap Answer or press .
To ignore the incoming call, tap Ignore. This sends the caller to voice mail, depending on the service provider.
Otherwise, this presents a busy signal to the calling party.
Tap or press to end the call.
Incoming Call Features
•
The user can use other programs on the MC65 during a call. To switch back to the phone, press .
Press to end the call.
•
To hold the current call and answer a waiting call, tap Answer to place the current call on hold and answer
the incoming call.
•
To put a call on hold to call another number, tap Hold.
•
To move from one call to another, tap Swap.
Missed Call Notification
When the user does not answer an incoming call, the Home screen displays a Missed Call indication.
To view a missed call entry, tap the on the Home screen.
ok
ok
ok
![](asset-3f.png)
Making Calls 3 - 5
Emergency Calling
The service provider programs one or more emergency phone numbers, such as 911 or 999, that the user can call
under any circumstances, even when the phone is locked, a SIM card is not inserted or the phone is not activated.
Your service provider can program additional emergency numbers into the SIM card. However, the SIM card must
be inserted in the MC65 in order to use the numbers stored on it. See the service provider for additional
information.
When the keypad is locked, press the orange key twice to set the keypad to numeric mode and then enter the
emergency number.
Audio Modes
The MC65 offers three audio modes for use during phone calls:
•
Handset Mode: Switches audio to the receiver at the top front of the MC65, so the user can use the MC65 as
a handset. This is the default mode.
•
Speaker Mode: Use the MC65 as if on speaker phone. Tap Speaker to activate this mode. Tap Speaker
again to switch back to handset mode.
•
Headset Mode: Connect a Bluetooth headset to automatically switch audio to the headset.
The MC65 defaults to handset mode. When a Bluetooth headset is configured for use with the MC65, the earpiece
and speakerphone are muted and audio is heard through the headset.
Using a Bluetooth Headset
You can use a Bluetooth headset for audio communication when using an audio-enabled application. See Chapter
7, Using Bluetooth for information on connecting a Bluetooth headset to the MC65. Set the MC65’s volume
appropriately before putting the headset on. When a Bluetooth headset is connected the speakerphone is muted.
Adjusting Audio Volume
Use the Volume buttons to adjust the volume of the ringer when not in a call and the audio volume when in a call.
Muting a Call
During a call, the caller can mute the microphone so they can hear the person on the line but he or she cannot hear
the caller. This is useful when there is conversation or background noise.
To mute or unmute a call tap Mute on the dialer to mute the audio. The Mute button becomes yellow.
NOTE Adjust the conversation phone volume during a call. Adjusting the volume while not in a call affects the ring
and notification sound levels.
![](asset-40.png)
3 - 6 MC65 User Guide
Using Call Log
Use Call Log to call someone who was recently called, or recently called in. The Call Log provides the time of all
incoming, outgoing, and missed calls. Table 4-1 lists the call Log icons that appear in the Call Log window.
Press and then tap to open the Call Log window.
Figure 3-3
Call Log Window
Managing Call Log
Change views, reset the call timer, and delete calls to manage the calls stored in Call Log.
Using the Call Log Menu
Use the Call Log menu to make a call, send an SMS, add to contacts and remove item from the log.
1. Press and then tap .
Table 3-2
Call Log Icons
Icon Description
This icon appears next to the contact information for all outgoing calls.
This icon appears next to the contact information for all incoming calls.
This icon appears next to the contact information for all unconnected outgoing calls.
This icon appears next to the contact information for all missed incoming calls.
![](asset-41.png)
Making Calls 3 - 7
Figure 3-4
Call Log Window
2. Tap an item to call the number or tap to open the Options window for that item.
3. Select an applicable option from the menu.
4. Depending on the option selected, the appropriate window displays. For example, select SMS to display the
Text Messages window.
5. Tap to close the Options window.
Conference Calling
To create a conference phone session with multiple people:
1. Press to display the dialer.
2. Enter the first phone number and tap the Call Line area. When the call connects, the name or number appears
in the Call Line.
3. Tap .
4. Tap . The dialer re-appears.
5. Enter the second number and tap Send.
6. When the call connects, the first call is placed on hold and the second call is active.
NOTE For use on GSM/UMTS networks.
Conference Calling and the number of conference calls allowed may not be available on all services. Please
check with the service provider for Conference Calling availability.
![](asset-42.png)
3 - 8 MC65 User Guide
Figure 3-5
Two Calls
7. Tap the Call Line 1 to make that call active. The second call go on hold.
8. Tap to create a conference call (three callers).
Figure 3-6
Two Merged Calls
9. To add a third caller tap . The dialer appears. When the call connects the new call is active and the
conference is on hold.
Figure 3-7
Adding a Third Call
![](asset-43.png)
Making Calls 3 - 9
10. To add the new caller to the conference tap .
Figure 3-8
Three Merged Calls
11. Tap to view all callers.
Figure 3-9
Un-Merge Calls
12. Tap to remove a caller from the conference.
13. To end the conference call, tap next to the Call Line.
Calls Complete dialog appears and then the dialer displays.
.
NOTE To speak privately with one party during a conference call, tap and then tap next to the caller.
To include all parties again, tap.
![](asset-44.png)
3 - 10 MC65 User Guide
Making a 3-Way Call
With 3-Way Calling, you can talk to two people at the same time. When using this feature, the normal airtime rates
will be charged for each of the two calls.
1. Enter a number and press .
2. Once you have established the connection, enter or select a number and tap Flash.
3. When you’re connected to the second party, tap Flash to begin your 3-way call.
If one of the people you called hangs up during your call, you and the remaining caller stay connected. If you
initiated the call and are the first to hang up, all callers are disconnected.
Voice Commander
Voice Commander is a speech dialog system that provides natural human interface for users to communicate
seamlessly with the MC65. Users can make phone calls, look up contact information, launch programs or check
calendars. Voice Commander contains the following features:
•
Eyes-free and hands-free voice command and control.
•
Speaker-independent speech recognition technology, no training is required.
•
Ease of use conversational user interface.
•
Personal Voice Tag and Digit Model Adaptation to enhance the usability.
To initiate Voice Commander tap Start > Toolbox > Voice Commander or press the call button on a Bluetooth
headset. The system says, “Say a Command.” The user says one of the following commands:
•
Call
•
Find
•
Redial/Callback
•
Play Music
•
Play
•
Next/Previous
•
Start
•
Appointments
•
Read/Call History
•
What time is it?
•
What can I say?
•
Goodbye
NOTE For use on CDMA networks.
3-way Calling may not be available on all services. Please check with the service provider for availability.
![](asset-45.png)
Making Calls 3 - 11
Call
To call a person by name:
1. Initiate Voice Commander. The MC65 responds with “Say command.”
2. Say “Call Michael Archer.” System responds with “Call Michael Archer work, is it correct?”
3. Say “Yes.” MC65 responds with “Dialing.”
To call a person at a location:
1. Initiate Voice Commander. The MC65 responds with “Say command.”
2. Say “Call Mary Smith at home.” The MC65 responds with “Call Mary Smith home, is it correct?”
3. Say “Yes.” The MC65 responds with “Dialing.”
To call a person with more that one phone number:
1. Initiate Voice Commander. The MC65 responds with “Say command.”
2. Say “Call Alex Jordan.” The MC65 responds with “Call Alex Jordan, home, work, mobile or cancel?”
3. Say “Home.” The MC65 responds with “Dialing.”
If two people have similar names:
1. Initiate Voice Commander. The MC65 responds with “Say command.”
2. Say “Call Halley Johnson.” The MC65 responds with “More than one Halley Johnson, please select.”
3. Select the contact intended to call.
Find
To look up contact information:
1. Initiate Voice Commander. The MC65 responds with “Say command.”
2. Say “Find Mary Smith.” The MC65 responds with “Mary Smith home 5555551212."
To look up a specific number:
1. Initiate Voice Commander. The MC65 responds with “Say command.”
2. Say “Find Michael Archer at work.” The MC65 responds with “Michael Archer, work, 5555551212."
If two contacts have similar names:
1. Initiate Voice Commander. The MC65 responds with “Say command.”
NOTE Voice Commander automatically maintains a maximum of 2000 contacts in the recognition database. To
change this setting, see Contacts Settings on page 9-18.
If the command can not be recognized, Voice Commander prompts “Please say again.” This situation
could happen under the noisy environment, or when user says command before Voice Commander
starts recording. After hearing the prompt “Say Command”, user should wait one to two seconds to speak
the command.
The recognizable contact length is 48 characters. Contacts exceeding 48 characters will be ignored.
![](asset-46.png)
3 - 12 MC65 User Guide
2. Say “Find John Smith at work.” The MC65 responds with “More than one John Smith, please select.” Voice
Commander displays a window with the two contacts. (System will show both Halley Johnson and Haley
Johnson for user to select.)
If a contact is not found:
1. Initiate Voice Commander. The MC65 responds with “Say command.”
2. Say “Find Michael Archer at home.”
3. MC65 responds with “Michael Archer has no home number.”
Redial
To re-dial a previous number:
1. Initiate Voice Commander. The MC65 responds with “Say command.”
2. Say “Redial.” The MC65 responds with “Call Mary Smith at home, is it correct?”
3. Say “Yes.” The MC65 responds with “Dialing.”
Callback
1. Initiate Voice Commander. The MC65 responds with “Say command.”
2. Say “Callback.” The MC65 responds with “Call Mary Smith at home, is it correct?”
3. Say “Yes.” The MC65 responds with “Dialing.”
Start
To launch an application:
1. Initiate Voice Commander. The MC65 responds with “Say command.”
2. Say “Start calendar.” The MC65 responds with “Go to Calendar.” The Calendar application launches.
Appointments
To read today’s, tomorrow’s or this week’s appointments:
1. Initiate Voice Commander. The MC65 responds with “Say command.”
2. Say “Today's appointment.” The MC65 responds with “You have 3 appointments” and reads the appointments.
Read
To read a text message or an email message:
1. Initiate Voice Commander. The MC65 responds with “Say command.”
2. Say “Read SMS.” The MC65 responds with “You have 3 SMS” and reads the SMS messages.
NOTE User can say Previous, Next, Repeat, or Abort to control calendar reading. Voice Commander only plays
the new appointments. Older appointments are ignored.
![](asset-47.png)
Making Calls 3 - 13
What time is it
To find out the time of day:
1. Initiate Voice Commander. The MC65 responds with “Say command.”
2. Say “What time is it?” The MC65 responds with “The time is 3 p.m.”
Call History
To view the call history window:
1. Initiate Voice Commander. The MC65 responds with “Say command.”
2. Say “Call History.”The MC65 responds with “Call history.”
3. The Call history page displays.
Voice Play Music
To play a specific music file:
1. Initiate Voice Commander. The MC65 responds with “Say command.”
2. Say “Play The Moment.” The MC65 responds with “The Moment.”
3. Windows Media starts to play “The Moment.”
To play all music files:
1. Initiate Voice Commander. The MC65 responds with “Say command.”
2. Say “Play music.” The MC65 responds with “Play music.”
3. Windows Media starts to play all music files.
To play a different music file during playing of another:
1. Initiate Voice Commander. The MC65 responds with “Say command.”
2. Say “Next.” The MC65 responds with “Next.”
3. Windows Media starts to play next music file.
To pause or resume a playing music file:
1. Initiate Voice Commander. The MC65 responds with “Say command.”
2. Say “Pause” or “Resume.” The MC65 pauses or resumes the playing music.
NOTE User can say “Pause” or “Resume” to control music playing. The command “Resume” only works when
Windows Media is running. The commands “Previous” and “Next” only work when playing all music files.
Voice Commander only supports media files with .mp3 and .wma format. Voice Commander supports the
music files in Playlists or Media files synched by Active Sync, in My Documents and its subfolder or on the
microSD card and its subfolders.
![](asset-48.png)
3 - 14 MC65 User Guide
What can I say
To view the help information:
1. Initiate Voice Commander. The MC65 responds with “Say command.”
2. Say “What can I say.” The help file displays.
Alternately tap Menu > Help to open the help file.
Goodbye
To exit the Voice Commander application, Say “Goodbye.” The MC65 responds with “Goodbye” and the
application terminates.
Voice Commander can be also terminated manually by tapping Menu > Exit. Note that goodbye will not be
accepted during voice digit dialing operation.
NOTE Voice Commander automatically terminates after 10 seconds of silence.
![](asset-49.png)
Chapter 4 Using WLAN
Introduction
WLANs allow the MC65 to communicate wirelessly inside a building. Before using the MC65 on a WLAN, the
facility must be set up with the required hardware to run the WLAN (sometimes known as infrastructure). The
infrastructure and the MC65 must both be properly configured to enable this communication.
Refer to the documentation provided with the infrastructure (access points (APs), access ports, switches, Radius
servers, etc.) for instructions on how to set up the infrastructure.
Once you have set up the infrastructure to enforce your chosen WLAN security scheme, use the Fusion or
Wireless Zero Config (WZC) software to configure the MC65 to match.
Fusion Overview
The Fusion software contains applications with which to create wireless profiles. Each profile specifies the security
parameters to use for connecting to a particular WLAN as identified by its ESSID. The Fusion software also allows
the user to control which profile out of a set of profiles is used to connect. Other Fusion applications allow the user
to monitor the status of the current WLAN connection and to invoke diagnostic tools for troubleshooting.
To access Fusion, tap the Status Bar > .
Figure 4-1
Status - Fusion Tab
![](asset-4a.png)
4 - 2 MC65 User Guide
Refer to the Wireless Fusion Enterprise Mobility Suite User Guide for Version 3.20 for detailed information on using
and configuring Fusion.
To access the on-device Fusion Help tap Status Bar > > Help.
Wireless Zero Config Overview
WZC is a Microsoft wireless connection management utility that dynamically selects a wireless network to connect
to based on a user's preferences and various default settings.
Switching Between Fusion and WZC
To switch from Fusion to WZC:
1. Tap the Status Bar > > Options.
2. Select WLAN Management from the drop-down list.
3. Select Microsoft Manages WLAN radio button.
4. Tap Save.
5. Tap OK.
6. Perform a reboot.
To switch from WZC to Fusion:
1. Tap the Status Bar > > Options.
2. Select WLAN Management from the drop-down list.
3. Select Fusion Manages WLAN radio button.
4. Tap Save.
5. Tap OK.
6. Perform a reboot.
![](asset-4b.png)
Using WLAN 4 - 3
Supported Applications
The Fusion menu items and their corresponding applications are summarized in Table 4-1.
Fusion Setup
To detailed setup WLAN using Fusion refer to the Wireless Fusion Enterprise Mobility Suite User Guide for Version
3.20 for detailed information on using and configuring Fusion.
To setup WLAN using Fusion:
1. Tap the Status Bar > > Manage Profiles. The Manage Profiles window appears.
Table 4-1
Supported Applications
Application Description Fusion Support WZC Support
Find WLANs Invokes the Find WLANs application which
displays a list of the WLANs active in your area. Yes No
Manage Profiles Invokes the Manage Profiles application
(which includes the Profile Editor Wizard) to
manage and edit your list of WLAN profiles.
Yes No
Wireless Zero Config Invokes the Wireless Zero Config application to
configure the WLAN. No Yes
Manage Certs Invokes the Certificate Manager application
which allows you to manage certificates used
for authentication.
Yes Yes
Manage PACs Invokes the PAC Manager application which
helps you manage the list of Protected Access
Credentials used with EAP-FAST
authentication.
Yes No
Options Invokes the Options application which allows
you to configure the Fusion option settings. Yes Yes
Wireless Status Invokes the Wireless Status application which
allows you to view the status of the current
wireless connection.
Yes Yes
Wireless Diagnostics Invokes the Wireless Diagnostics application
which provides tools with which to diagnose
problems with the wireless connection.
Yes Yes
Log On/Off Invokes the Network Login dialog which allows
you to log on to a particular profile or to log off
from the currently active profile
Yes No
NOTE Obtain the proper WLAN configuration information from your system administrator prior to performing the
Fusion setup procedures.
The following setup procedure example shows setup of a WLAN using WEP encryption.
![](asset-4c.png)
4 - 4 MC65 User Guide
2. Tap and hold in the window and select Add from the pop-up menu. The Wireless LAN Profile Entry window
appears.
3. In the Profile Name text box enter a name for the profile.
4. In the ESSID text box enter the ESSID.
Figure 4-2
Profile ID Dialog Box
5. Tap Next. The Operating Mode dialog box displays.
6. In the Operating Mode drop-down list, select Infrastructure or Ad-hoc.
Figure 4-3
Operating Mode Dialog Box
7. Tap Next. The Security Mode dialog box displays.
8. In the Security Mode drop-down list, select Legacy (Pre-WPA).
Figure 4-4
Security/Authentication Dialog Box
9. In the Authentication drop-down list, select None.
10. Ta p Next. The Encryption dialog box displays.
11. In the Encryption Type drop-down list, select WEP-40 (40/24).
![](asset-4d.png)
Using WLAN 4 - 5
Figure 4-5
Encryption Dialog Box
12. Select the Pass-phrase or Hexadecimal Keys radio button to indicate whether a pass-phrase or hexadecimal
keys will be entered on the next page.
13. Select the For added security - Mask characters entered check box to hide characters entered. Deselect
this to show characters entered.
14. Ta p Next.
Figure 4-6
WEP-40 WEP Keys Dialog Box
15. In the Edit Key drop-down list, select the key to enter.
16. In the Key field, enter 10 hexadecimal characters.
17. In the Confirm field, re-enter the key. When the keys match, a message appears indicating that the keys
match.
18. Repeat for each WEP key.
19. In the Transmit Key drop-down list, select the key to transmit.
20. Ta p Next. The IPv4 Address Entry dialog box displays.
Figure 4-7
IP Address Entry Dialog Box
21. Ensure that all three check boxes are selected.
22. Ta p Next. The Battery Usage dialog box appears.
![](asset-4e.png)
4 - 6 MC65 User Guide
23. In the Battery Usage Mode dialog box select a power consumption option.
Figure 4-8
Battery Usage Dialog Box
24. Ta p Save.
Wireless Zero Config Setup
To setup WLAN using WZC:
1. Tap Status Bar > > Wireless Zero Config.
Figure 4-9
Wireless Zero Config Window
2. The MC65 searches for wireless networks in the area and displays them in the window.
3. Tap a network name.
NOTE Obtain the proper WLAN configuration information from your system administrator prior to performing the
WZC setup procedures.
The following setup procedure example shows setup of a WLAN using WEP encryption.
![](asset-4f.png)
Using WLAN 4 - 7

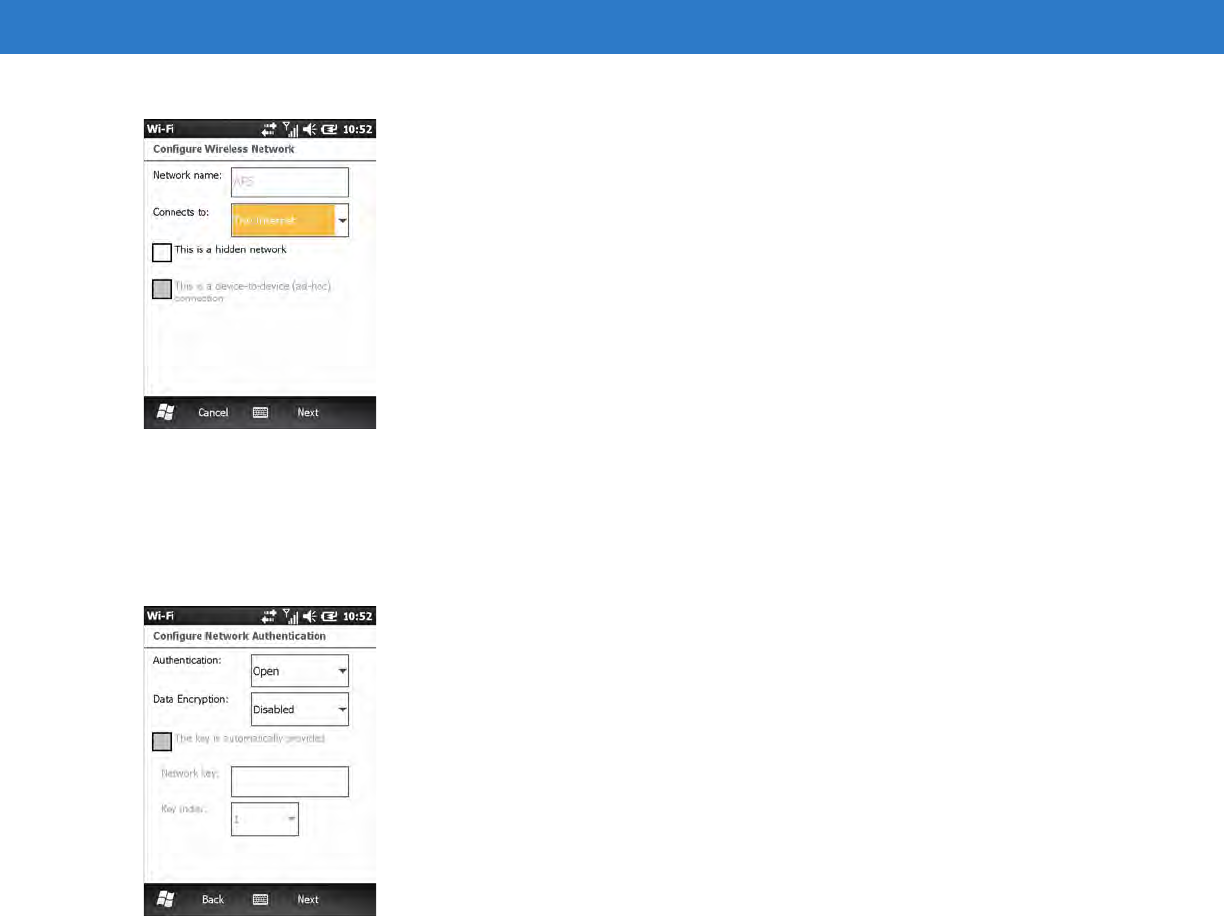

Figure 4-10
Configure Wireless Network Window
4. In the Connects to drop-own list, select either The Internet or Work.
5. Check the This is a hidden network checkbox if the network is a hidden network.
6. Tap Next.
Figure 4-11
Configure Network Authentication Window
7. In the Authentication drop-down list, select the authentication type.
8. In the Data Encryption drop-down list, select the data encryption type.
9. If WEP encryption is selected, enter an encryption key in the Network key text box.
10. Ta p Next.
![](asset-50.png)
4 - 8 MC65 User Guide
Figure 4-12
Configure Network Authentication Window
11. If required, select Use IEEE 802.1x network access control check box.
12. In the EAP type drop-down list box, select the EAP type.
13. Ta p Finish.
More Information on WZC
For more information on Microsoft Wireless Zero Config, see the Microsoft Software Developer Network (MSDN) at
http://msdn.microsoft.com.
![](asset-51.png)
Chapter 5 Messaging
Introduction
This chapter describes how to use Email, SMS Messaging and MMS Messaging.
Email
Use email to send messages to other users.
Creating an Email Message
To create an email message:
1. Press Start > E-mail.
2. Select an email account.
3. Tap > New.
4. To add recipients, enter their email addresses, separating them with a semicolon ( ; ). Tap To to add email
addresses stored in Contacts.
5. Enter a subject and compose the message.
6. To add an attachment to the message, tap > Insert and tap the item you want to attach: Picture, Voice
Note, or File.
7. Tap .
Viewing an Email Message
To view an email message:
1. On the Home screen, tap for an Outlook email or for a personal email account.
![](asset-52.png)
5 - 2 MC65 User Guide
2. Tap an email to open it.
Replying to or Forwarding a Message
1. On the Home screen, tap for an Outlook email or for a personal email account.
2. Tap an email to open it.
3. Tap .
4. Enter your reply message, and then tap .
SMS Messaging
Text messages allow the user to send and receive short text messages (SMS) to and from other mobile devices.
The text can contain words, numbers, or an alphanumeric combination no longer than 160 characters.
Sending a Text Message
To send a text message:
1. Press Start > Text.
2. Tap > New > SMS.
Figure 5-1
Create Text Message
3. Tap To to select a recipient from Contacts or enter a phone number in the address area.
4. Compose a message.
•The auto-correct feature automatically fixes common spelling errors as the user types so that messages
are more accurate.
•The character counter, in the Status Bar, indicates the size of the message being composed.
•Tap > Message Options, then select the Request message delivery notification check box to
request notification when the text messages is received.
5. Tap to send the message.
Address Area
Message Area
![](asset-53.png)
Messaging 5 - 3
If the MC65 phone feature is on, the text message is sent. If it’s off, a prompt displays to turn on the phone
feature. The message is saved in the Drafts folder and sent when the MC65 phone feature is turned on.
When outside of coverage area, the message is saved in the Drafts folder and sent when back in a coverage
area.
Viewing Text Messages
When an incoming text message arrives, the text notification icon appears in the Status Bar and the dialog box
displays.
Figure 5-2
New Text Message Notification
The Caller Identification feature matches incoming text message numbers with those stored in Contacts indicating
who is sending the message. The user can act on the text message right away or read it later. Tap to reply to
the message. The New Text Message dialog box provides the option to call the sender, or save, dismiss or delete
the message. Tap Menu > Delete to delete the text message. Tap Menu > Call sender to call the sender. Tap
Menu > Save as read to close the dialog box and read the text message at a later time.
To view previously received text messages:
1. Tap Start > Text.
Figure 5-3
Text Messages Window
2. In the message list, tap a text message. The window displays previous text conversations.
Text Message Notification Icon
![](asset-54.png)
5 - 4 MC65 User Guide
Figure 5-4
Text Message - Conversation
Replying to an SMS Message
To reply to a text message:
1. Tap Start > Text.
2. In the message list, tap a text message. The window displays previous text conversations.
3. Enter text in the reply field.
4. Tap .
MMS Messaging
MMS Messaging allows the user to send a pictures, videos, audio files and other file types to another mobile
computer.
Creating and Sending MMS Messages
To send an MMS message:
1. Tap Start > Text.
2. Tap > New > MMS.
![](asset-55.png)
Messaging 5 - 5
Figure 5-5
MMS Window
3. To add a contact, tap . A window appears with a list of contacts. Select one or more contacts and then tap
Done.
4. Tap to add a subject for the message. Enter the subject text in the window and then tap Done.
5. Tap in the text window to enter a text message. A window appears allowing you to add a text message plus
emoticons, favorite web addresses, pre-defined text, contact information and calendar information. Tap Done
after adding information.
6. Tap to attach a picture or video stored on the MC65 to the message.
7. Tap to attach a sound file stored on the MC65 to the message.
8. Tap to take a picture and attach it to the message.
9. Tap to capture video and attach it to the message.
10. Tap to record a message and attach it to the message.
11. Tap to add a file stored on the MC65 to the message.
12. After all of the items are attached to the message, tap Send.
Viewing an MMS Message
To view an MMS message:
1. Tap Start > Text.
2. Tap the MMS message.
3. In the threaded message, tap the MMS icon to view the message.
4. Tap Contents to view a list of files included in the message.
On the Message Contents screen:
1. Tap Menu > Save to save a file.
2. Tap Menu > Save into My Text to save the contents of a text file to the My Text list.
3. Tap Menu > Assign to Contact to associate a photo to a contact.
![](asset-56.png)
5 - 6 MC65 User Guide
4. Tap Menu > Set as Ringtone to associate a audio file as a ringtone.
Replying to an MMS Message
To reply to an MMS message
1. Tap Start > Text.
2. Tap the MMS message.
3. In the threaded message, tap the MMS message to open and view an MMS message.
4. After viewing the MMS message, tap Menu > Reply > via MMS to reply with an MMS message or tap Menu >
Reply > via SMS to reply with a text message.
Blocking Incoming SMS Messages
To block incoming MMS messages from a specific sender:
1. Open and view the MMS message.
2. Tap Menu > Show > Contact Details.
3. Tap Menu > Save to Blacklist.
4. Tap Done.
To unblock a sender:
1. Tap Start > Text.
2. Tap Menu > MMS Options > Blacklist.
3. Tap and hold the phone number.
4. Select Delete from the pop up menu.
5. Tap OK.
![](asset-57.png)
Chapter 6 Using the Camera
Introduction
Use Pictures & Videos to take pictures and record videos and to view them on the MC65.
Taking Pictures
To take a picture:
1. Tap Start > Pictures & Videos.
2. Tap Camera.
Figure 6-1
Camera Window
The Camera window displays the view finder. Information about the current settings or the remaining number
of pictures that can be saved to the MC65 are displayed on the lower right corner of the screen.
3. Check the image on the view finder, adjust if necessary.
4. Press the Enter key to take the picture.
![](asset-58.png)
6 - 2 MC65 User Guide
Burst Mode
Burst mode is a way to take a series of quick pictures.
1. Tap Start > Pictures & Videos.
2. Tap Camera.
3. Tap Menu > Mode > Burst.
4. Check the image on the view finder, adjust if necessary.
5. Press the Enter key to take the picture.
To stop a burst of pictures before all pictures have been taken tap OK.
Timer Mode
To take pictures using the timer:
1. Tap Start > Pictures & Videos.
2. Tap Camera.
3. Tap Menu > Mode > Timer.
4. Check the image on the view finder, adjust if necessary.
5. Press the Enter key to take the picture.
Editing Pictures
Rotate, crop, zoom, and adjust the brightness and color contrast pictures.
1. Tap Start > Pictures & Videos.
2. Tap the thumbnail of the picture to view.
3. Tap Menu > Zoom to display the Zoom panel, used to zoom in or out of a picture. Tap Menu > Zoom again to
close the Zoom panel.
4. To rotate a picture 90 degrees counter-clockwise, tap Menu > Edit, then tap Rotate.
5. To crop a picture, tap Menu > Edit, then tap Menu > Crop. Drag the stylus across the screen to select the crop
area. Tap inside the area to crop the picture, or outside of the area to cancel cropping.
Setting a Picture as Wallpaper
To add a custom look to the Home screen of the MC65 (using the Windows Home screen); apply a wallpaper of
your choice using any image. To set an image as a Home wallpaper:
1. Tap and hold a thumbnail, then select Set as Home Background.
2. Tap the up or down arrows to set the transparency level.
3. Tap OK.
NOTE By default, the self timer delay is set at five seconds.
![](asset-59.png)
Using the Camera 6 - 3
Camera Configuration
To configure the camera settings:
1. Tap Start > Pictures & Videos.
2. Tap Menu, then configure the device settings.
•
Video - Tap to switch to video mode.
•
Mode - Select from the following modes to take the picture:
•Normal - Takes picture using the default settings.
•Burst - Takes picture consecutively in continuous mode.
•Timer - Takes picture five seconds after pressing the Enter key.
•
Brightness - Set the camera brightness level.
•
Resolution - Set the camera resolution level. Note that selecting a high resolution picture increases the size
of the file significantly.
•
Flash - Turns flash on and off.
•
Auto Focus - Turns auto focus on and off.
•
Full Screen - Toggles the viewfinder between full screen and window modes.
•
Options - Displays the camera options window.
3. Tap OK to exit.
Recording a Video
To record a video:
1. Tap Start > Pictures & Videos.
2. Tap Camera.
3. Tap Menu > Video.
Figure 6-2
Video Window
The available recording time displays on the screen.
![](asset-5a.png)
6 - 4 MC65 User Guide
4. Press the Enter key to begin recording.
5. Press the Enter key to stop recording.
Video Configuration
To configure the video settings:
1. Launch the Video application.
2. Tap Menu, then configure the device settings.
•
Still - Tap to switch to still (camera) mode.
•
Brightness - Set the video brightness level.
•
Quality - Set the quality (video resolution and sound fidelity) and size of the video clips you record. Video
clips of higher quality require more memory.
•
Full Screen - Toggles the viewfinder between full screen and window modes.
•
Options - Displays the video options window.
3. Tap OK to exit.
Viewing Pictures and Videos
To view a picture or video:
1. Tap Start > Pictures & Videos.
2. Tap the thumbnail of the picture or video:
•
Tap the Show drop-down list to browse folders.
•
Tap the Sort By drop-down list to sort the files by name, date or size.
Figure 6-3
Pictures & Videos
NOTE By default, the time limit for recording videos is set to 30 seconds.
![](asset-5b.png)
Using the Camera 6 - 5
Customizing Pictures & Videos
Using the Options command you can set preference settings on how to use Pictures & Videos.
To customize Pictures & Videos:
1. On either thumbnail or full screen mode, tap Menu > Options.
2. On the General tab, set the following options:
•
Select the size of the pictures you want to send through e-mail. Only pictures sent through an e-mail
message is resized, the original picture remains unchanged.
•
Resize pictures for faster e-mail transfer.
•
Rotate pictures towards left or right.
3. On the Slide Show tab, set the following options:
•
Select the Portrait pictures or Landscape pictures radio button to set slide show orientation.
•
Select the Play a screen saver when connected to my PC and idle for 2 minutes check box to set the
image files in the My Pictures folder as a screen saver whenever your device is connected to the USB sync
cable and is idle for 2 minutes.
4. On the Camera tab, set the following options:
•
In the Type filename prefix text box, enter the prefix to be used as a default title for the image file.
•
In the Save files to drop-down list, select to save image files to onboard memory or built-in storage.
•
In the Still image compression level drop-down list, set a compression level when saving the image. The
high quality setting provides the best image quality but more memory is required.
5. On the Video tab, set the following options:
•
Select the Include audio when recording video files check box to record audio along with video.
•
In the Time limit for videos drop-down list, set the amount of time for recording video.
![](asset-5c.png)
6 - 6 MC65 User Guide
![](asset-5d.png)
Chapter 7 Using Bluetooth
Introduction
Bluetooth-equipped devices can communicate without wires, using frequency-hopping spread spectrum (FHSS)
radio frequency (RF) to transmit and receive data in the 2.4 GHz Industry Scientific and Medical (ISM) band
(802.15.1). Bluetooth wireless technology is specifically designed for short-range (10 meters (32.8 feet))
communication and low power consumption.
MC65s with Bluetooth capabilities can exchange information (e.g., files, appointments, and tasks) with other
Bluetooth enabled devices such as printers, access points, and other Enterprise Smart Phones. To use the MC65
as a modem, create a dial-up modem connection between a computer and MC65.
Adaptive Frequency Hopping
Adaptive Frequency Hopping (AFH) is a method of avoiding fixed frequency interferers, and can be used with
Bluetooth voice. All devices in the piconet (Bluetooth network) must be AFH-capable in order for AFH to work.
There is no AFH when connecting and discovering devices. Avoid making Bluetooth connections and discoveries
during critical 802.11b communications. AFH for Bluetooth consists of four main sections:
•
Channel Classification - A method of detecting an interference on a channel-by-channel basis, or pre-defined
channel mask.
•
Link Management - Coordinates and distributes the AFH information to the rest of the Bluetooth network.
•
Hop Sequence Modification - Avoids interference by selectively reducing the number of hopping channels.
•
Channel Maintenance - A method for periodically re-evaluating the channels.
When AFH is enabled, the Bluetooth radio “hops around” (instead of through) the 802.11b high-rate channels. AFH
coexistence allows Motorola Enterprise Smart Phones to operate in any infrastructure.
The Bluetooth radio in this MC65 operates as a Class 2 device power class. The maximum output power is 2.5 mW
and the expected range is 10 meters (32.8 feet). A definition of ranges based on power class is difficult to obtain
due to power and device differences, and whether one measures open space or closed office space.
NOTE It is not recommended to perform Bluetooth wireless technology inquiry when high rate 802.11b operation is
required.
![](asset-5e.png)
7 - 2 MC65 User Guide
Security
The current Bluetooth specification defines security at the link level. Application-level security is not specified. This
allows application developers to define security mechanisms tailored to their specific need. Link-level security
occurs between devices, not users, while application-level security can be implemented on a per-user basis. The
Bluetooth specification defines security algorithms and procedures needed to authenticate devices, and if needed,
encrypt the data flowing on the link between the devices. Device authentication is a mandatory feature of Bluetooth
while link encryption is optional.
Pairing of Bluetooth devices is accomplished by creating an initialization key that is used to authenticate the
devices and create a link key for them. Entering a common PIN number in the devices being paired generates the
initialization key. The PIN number is never sent over the air. By default, the Bluetooth stack responds with no key
when a key is requested (it is up to user to respond to the key request event). Authentication of Bluetooth devices
is based-upon a challenge-response transaction. Bluetooth allows for a PIN number or passkey that is used to
create other 128-bit keys used for security and encryption. The encryption key is derived from the link key used to
authenticate the pairing devices. Also worthy of note is the limited range and fast frequency hopping of the
Bluetooth radios that makes long-distance eavesdropping difficult.
Recommendations are:
•
Perform pairing in a secure environment
•
Keep PIN codes private and don't store the PIN codes in the MC65
•
Implement application-level security.
The Microsoft stack supports Smart-pairing. For detailed information, refer to the Microsoft MSDN.
![](asset-5f.png)
Using Bluetooth 7 - 3
Bluetooth Configuration
The following services are supported:
•
OBEX Object Push Services
•
Hands-Free Audio Gateway Services
•
Serial Port Services
•
Personal Area Networking Services
•
PBAP Services
•
Dial-Up Networking Services
•
HID Client Services
•
A2DP/AVRCP Services
•
File Transfer profile
•
General Audio/Video Distribution Profile
•
SIM Access Profile
•
Headset Profile
•
Generic Object Exchange Profile
•
Service Discovery Access profile
•
Generic Access Profile.
COM ports COM2, COM3, COM4, and COM7 are available unless being used by another service (MSR uses
COM2).
Bluetooth Power States
Suspend
When there is an active Bluetooth connection, the Bluetooth radio goes into low power mode maintaining the active
connection.
Resume
When the MC65 resumes, Bluetooth turns on if it was on prior to suspend.
NOTE If there is an active Bluetooth connection between the MC65 and another Bluetooth device and there is no
data activity, the MC65 will timeout. However, if the user presses the Power button on the MC65, the MC65
will suspend (except when on a call) and upon receiving data from a remote Bluetooth device, the MC65 will
wake from suspend mode. For example, headset redial or Bluetooth scanner sending data to the MC65.
![](asset-60.png)
7 - 4 MC65 User Guide
Turning Bluetooth On and Off
Turn off the Bluetooth radio to save power or if entering an area with radio restrictions (e.g., an airplane). When the
radio is off, other Bluetooth devices cannot see or connect to the MC65. Turn on the Bluetooth radio to exchange
information with other Bluetooth devices (within range). Communicate only with Bluetooth radios in close proximity.
Enabling Bluetooth
To enable Bluetooth:
1. Tap Status Bar > > Bluetooth > Mode.
Figure 7-1
Bluetooth Mode Tab
2. Check the Turn On Bluetooth checkbox.
3. Tap OK.
Disabling Bluetooth
To disable Bluetooth:
1. Tap Status Bar > > Bluetooth > Mode.
2. Un-check the Turn On Bluetooth checkbox.
3. Tap OK.
Discovering Bluetooth Device(s)
The MC65 can receive information from discovered devices without pairing. However, once bonded, the MC65 and
a paired device exchange information automatically when the Bluetooth radio is on.
To find Bluetooth devices in the area:
1. Ensure that Bluetooth is enabled on both devices.
NOTE To achieve the best battery life turn off radios not in use.
![](asset-61.png)
Using Bluetooth 7 - 5
2. Ensure that the Bluetooth device to discover is in discoverable and connectable modes.
3. Ensure that the two devices are within 32.8 feet (10 meters) of one another.
4. Tap Status Bar > > Bluetooth > Devices.
Figure 7-2
Bluetooth - Devices Tab
5. Tap Add new device. The MC65 begins searching for discoverable Bluetooth devices in the area.
6. Select a device from the list.
Figure 7-3
Select a Bluetooth Device
7. Tap Next. The Enter Passcode window appears.
![](asset-62.png)
7 - 6 MC65 User Guide
Figure 7-4
Enter Passcode
8. Enter the Passcode on the other device. The device is added to the Bluetooth list.
Figure 7-5
Bluetooth Connection Confirmation
The user is prompted to enter a passcode. If the device has a specific passcode, enter it in the Passcode field
and tap Next. If the device does not have a specific passcode, enter a passcode in the Passcode field and tap
Next. The Bluetooth radio tries to connect with the device.
9. If the user created a passcode, the user is prompted by the other device to enter the same passcode. Enter the
created passcode to establish a paired connection. (If the user entered a passcode from the device, the user
shouldn’t have to do anything on the other device.)
10. When the connection is complete, a list of matching and supported services on the device appears.
11. Select the services you want to use and tap Finish. The services on the new devices have to be selected or
else the pairing won’t include those services, even though the devices are paired. If services are not selected,
the user is continually reprompted for the passcode from the device.
12. The device appears in the list on the main window.
After the passcodes have been accepted on both sides, a trusted (“paired”) connection is established.
![](asset-63.png)
Using Bluetooth 7 - 7
Available Services
The MC65 with Microsoft Bluetooth stack offers the following services:
•
OBEX Object Push Services via Beam
•
Hands-Free Audio Gateway Services
•
Serial Port Services
•
Personal Area Networking Services
•
PBAP Services
•
Dial-up Networking
•
HID Client
•
A2DP/AVRCP.
See the following sections for information on these services.
Object Push Services via Beam
Use the OBEX Push Service to send files and contacts to another Bluetooth device. To transfer files between the
MC65 and another Bluetooth enabled device:
1. Ensure that Bluetooth is enabled and discoverable on both devices.
2. Ensure that the two devices are within 32.8 feet (10 meters) of one another.
3. Tap My Apps > File Explorer.
4. Navigate to the file to transfer.
5. Tap and hold on the filename until the pop-up menu appears.
Figure 7-6
File Explorer Window
NOTE Some devices might not require a PIN. This depends upon the device’s authentication.
NOTE The user can only send files to a remote device using the Beam function.
![](asset-64.png)
7 - 8 MC65 User Guide
6. Select Beam File. The MC65 searches for Bluetooth devices in the area.
7. Tap Tap to send next to the Bluetooth device to send the file to. The MC65 communicates with the device and
sends the file. When completed, Tap to send changes to Done.
To transfer a contact between the MC65 and another Bluetooth enabled device:
1. Ensure that Bluetooth is enabled and discoverable on both devices.
2. Ensure that the two devices are within 32.8 feet (10 meters) of one another.
3. Tap Contacts
4. Navigate to the contact to transfer.
5. Tap and hold on the contact until the pop-up menu appears.
6. Select Send Contact > Beam. The MC65 searches for Bluetooth devices in the area.
7. Tap Tap to send next to the Bluetooth device. The MC65 communicates with the device and sends the
contact. When completed, Tap to send changes to Done.
Internet Sharing
Internet Sharing allows the user to connect a computer or laptop to the MC65 and use the MC65 as a modem to
connect to an office network or ISP.
To use MC65 as a modem using Bluetooth:
1. Ensure that the device is not connected to the computer or laptop.
2. On the MC65, ensure that the Phone is on and a data connection is configured.
3. Tap Start > Internet Sharing.
4. In the PC Connection list, select Bluetooth PAN.
5. In the Network Connection list, select the connection type.
Select the network connection that the device should use to connect to the Internet.
6. Tap Connect.
7. On the computer or laptop, setup a Bluetooth PAN with your device.
a. Select Start > Control Panel > Network Connections.
b. Under Personal Area Network, select Bluetooth Network Connection.
c. Right-click on Bluetooth Network Connection and select View Bluetooth network devices.
d. In the Bluetooth Personal Area Network Devices window select your device.
e. Click Connect. The computer connects to the device via Bluetooth.
8. To verify, on the computer, launch Internet Explorer and open a web site.
9. To end dial-up networking, on the MC65 tap Disconnect.
NOTE If your computer is Bluetooth-enabled and you select Bluetooth as the PC connection, you must initiate and
complete the Bluetooth PAN partnership before Internet Sharing will work. For more information, refer to
Windows Help and Support.
![](asset-65.png)
Using Bluetooth 7 - 9
Hands-free Services
To connect to a Bluetooth headset:
1. Ensure that Bluetooth is enabled and discoverable on both devices.
2. Ensure that the two devices are within 32.8 feet (10 meters) of one another.
3. Tap Start > Settings > Bluetooth > Devices.
4. Tap Add new device. The MC65 searches for Bluetooth devices in the area.
5. Select the headset name and tap Next. The Passcode window appears.
6. Enter the headset’s passcode, if required.
7. Tap Next. The MC65 connects to the headset. Refer to the headset user manual for instructions on
communicating with a Bluetooth device.
Serial Port Services
Use the wireless Bluetooth serial port connection similar to a physical serial cable connection. Configure the
application that will use the connection to the correct serial port.
To establish a serial port connection:
1. Ensure that Bluetooth is enabled and discoverable on both devices.
2. Ensure that the two devices are within 32.8 feet (10 meters) of one another.
3. Tap Start > Settings > Bluetooth > Devices.
4. Tap Add new device. The MC65 begins searching for discoverable Bluetooth devices in the area.
5. Select a device from the list.
6. Tap Next. The Enter Passcode window appears.
7. Enter the Passcode and the tap Next. The device is added to the Bluetooth list.
8. In the device list, tap the serial device. The Partnership Settings window displays.
9. Select the Serial Port checkbox.
10. Ta p Save.
11. Ta p COM Ports tab.
12. Ta p New Outgoing Port. The add device window appears.
NOTE Newer Bluetooth headsets are device dependant and remember the last device they connected to. If problems
occur while connecting to the headset, place the headset in discovery mode. Refer to the headset user manual
for more information.
Only WAN audio and Voice Commander audio is routed to the headset. System audio is still emitted through
the MC65 speaker.
You can accept calls and re-dial using the Hands-free profile.
Hands-free profile does not support 3-way calling.
![](asset-66.png)
7 - 10 MC65 User Guide
13. Select the serial device in the list and then tap Next.
14. Select a COM port from the drop-down list.
15. Ta p Finish.
ActiveSync Using Bluetooth
Use the wireless Bluetooth serial port connection for ActiveSync similar to a physical USB cable connection.
Configure the application that will use the connection to the correct serial port.
To set up a Bluetooth ActiveSync connection:
1. Ensure that Bluetooth is enabled and discoverable on both devices.
2. Ensure that the two devices are within 32.8 feet (10 meters) of one another.
3. On the computer, click Start > Settings > Control Panel.
4. Double-click Bluetooth Devices.
5. On the Options tab, select the Turn discovery on and Allow Bluetooth devices to connect to this
computer checkboxes.
Figure 7-7
Computer Bluetooth Devices Window
6. On the COM Ports tab, click Add.
NOTE No connection is made at this point. An application must open the selected COM port to trigger Microsoft
Bluetooth stack to open the connection.
NOTE For additional security, disable network bridging on the computer (specifically, bridging to a Remote NDIS
adapter) before connecting to the computer to pass though to the Internet or a network. For more information
on network bridging, see Windows Help on your computer.
The instructions below are for computers that support the Windows XP SP2 or later version operating system.
![](asset-67.png)
Using Bluetooth 7 - 11
7. Select the Incoming (device initiates the connection) option, then click OK.
Note the number of the COM port that was added.
8. Click OK.
9. Click Start > All Programs > Microsoft ActiveSync.
10. Click File > Connection Settings.
Figure 7-8
ActiveSync Connection Settings
11. On the Allow connections to one of the following drop-down list, select the COM port with the number you
noted earlier.
12. On the MC65, tap Start > ActiveSync.
13. Ta p Menu > Connect via Bluetooth.
Synchronization is automatically initiated.
If an Authentication is required, the Enter Passcode screen appears, type an alphanumeric passkey (PIN
code), then tap Next; enter the same passkey on the other device.
The passkey is recommended for enhanced security. The passkey must be between 1 to 16 alphanumeric
characters.
If a passkey is not required, tap Next.
14. To disconnect the ActiveSync connection, tap Start > ActiveSync.
15. Ta p Disconnect.
Phone Book Access Profile Services
Phone Book Access profile (PBAP) is used to synchronize contacts between a remote device and the MC65. To
establish an PBAP synchronization:
1. Ensure that Bluetooth is enabled and discoverable on both devices.
2. Ensure that the two devices are within 32.8 feet (10 meters) of one another.
3. Tap Start > Settings > Bluetooth > Devices.
4. Tap Add New Device.The MC65 searches for a Bluetooth device, such as a car kit.
5. Select a device from the list.
![](asset-68.png)
7 - 12 MC65 User Guide
6. Tap Next. The Enter Passcode window appears.
7. Enter the Passcode and the tap Next. The device is added to the Bluetooth list.
8. A dialog box appears requesting to transfer contacts to the car kit.
9. Select Yes or No.
10. If Yes is selected, contacts from the MC65 are transferred to the car kit.
Dial-Up Networking Services
Dial-up networking allows the user to connect a PC or laptop to the MC65 and use the MC65 as a modem to
connect to an office network or ISP.
Before setting up dial-up networking, obtain dial-up information and other necessary settings (username, password
and domain name, if required) for the office network or ISP. To create a new Bluetooth connection:
1. Ensure the MC65 is discoverable and connectable.
2. On the PC or laptop, set up Bluetooth according to the manufacturer’s instructions.
3. On the PC or laptop Bluetooth software, search for the MC65 and select the Dial-up Networking service.
4. Using dial-up software on the PC or laptop, connect to the MC65.
5. The MC65 phone function dials the ISP number and connects to the ISP.
6. To verify, on the PC or laptop, launch Internet Explorer and open a web site.
Connect to a HID Device
The MC65 can connect to an Human Interface Device (HID) device such as a Bluetooth keyboard or mouse:
1. Ensure that Bluetooth is enabled on both devices.
2. Ensure that the Bluetooth device to discover is in discoverable and connectable modes.
3. Ensure that the two devices are within 10 meters (32.8 feet) of one another.
4. Tap Start > Settings > Bluetooth > Devices.
5. Tap Add new device. The MC65 begins searching for discoverable Bluetooth devices in the area.
6. Select a HID device from the list.
7. Tap Next. The Enter Passcode window appears. Refer to the device’s User Manuals for more information.
8. Tap Connect. The MC65 connects to the HID device.
A2DP/AVRCP Services
A2DP/AVRCP is used to connect to a high-quality stereo headset:
1. Ensure that Bluetooth is enabled on both devices.
2. Ensure that the Bluetooth device to discover is in discoverable and connectable modes.
3. Ensure that the two devices are within 10 meters (32.8 feet) of one another.
![](asset-69.png)
Using Bluetooth 7 - 13
4. Tap Start > Settings > Bluetooth > Devices.
5. Tap Add new device. The MC65 begins searching for discoverable Bluetooth devices in the area.
6. Select a stereo headset from the list.
7. Tap Next. The Enter Passcode window appears. Refer to the device’s User Manuals for more information.
8. Tap Connect. The MC65 connects to the stereo headset.
For stereo headsets that can use hands-free services, connect to the hands-free service after connecting to the
A2DP service:
1. Tap Start > Settings > Bluetooth > Devices.
2. Tap Add new device. The MC65 begins searching for discoverable Bluetooth devices in the area.
3. Select a stereo headset from the list.
4. Tap Next. The Enter Passcode window appears. Refer to the device’s User Manuals for more information.
5. Tap Connect. The MC65 connects to the stereo headset.
![](asset-6a.png)
7 - 14 MC65 User Guide
![](asset-6b.png)
Chapter 8 Using GPS Navigation
Introduction
The MC65 includes Global Positioning System (GPS) technology. GPS technology is based on a worldwide system
of GPS satellites orbiting the earth that continuously transmit digital radio signals. These radio signals contain data
on the satellites’ locations and their exact clock time and are used to determine your location on the earth.
Software Installation
Third-party GPS navigation software is required. Evaluation software is available from various suppliers. For
example; VisualGPS, visit: http://www.visualgps.net/VisualGPSce/
If interested in purchasing GPS navigation software check with the GPS software vendor (before purchasing,
downloading, or installing any software) to determine that the application is compatible with the MC65. Refer to the
application’s user guide for application installation and setup information.
MC65 GPS Setup
The GPS-enabled MC65 automatically manages access to the GPS receiver to allow multiple programs to
simultaneously access GPS data.
By default, the MC65 has the following settings:
1. Tap Start > Settings > System > External GPS.
2. In the Programs tab, the GPS program port is set to COM6.
3. In the Hardware tab, the GPS hardware port is set to None.
WARNING!When using the MC65 in a vehicle, it is the user’s responsibility to place, secure and use in a
manner that will not cause accidents, personal injury or property damage or obstruct their view. It
is the responsibility of the driver to operate the vehicle in a safe manner, maintain observation of
all driving conditions at all times, and not become distracted by the device to the exclusion of safe
driving practices. It is unsafe to operate the controls of the device while driving.
![](asset-6c.png)
8 - 2 MC65 User Guide
Operation
Acquiring satellite signals may take several seconds to a few minutes. It is best to be outside and have a clear,
unobstructed view of the sky. Without a clear view, acquisition takes much longer and could result in the MC65
being unable to compute the initial position quickly. When operating the device indoors access to the GPS signals
may be limited or unavailable.
GPS Maps on microSD Cards
GPS navigation software vendors may sell maps on microSD cards. If using a microSD card with the GPS
navigation software install the microSD memory card using procedure in Installing a microSD Card on page 1-2.
Answering a Phone Call While Using GPS
If receiving an incoming phone call while using your GPS navigation software:
1. Answer the phone call by pressing the Answer button.
2. Once the phone call ends, press the End Call button to resume the audio on the GPS software.
Losing the GPS Signal While in a Vehicle
GPS performance on the MC65 may be affected if the vehicle has thermal glass windows and windshields, which
can block the MC65 from receiving a GPS signal from satellites. To improve GPS signal strength, place the MC65
where there is a clear view of the sky. A direct line of sight is required between the MC65 and the GPS satellites to
access information from the satellites.
Assisted GPS
GPS can be used in stand-alone or Assisted GPS (A-GPS) modes. A Stand-alone GPS receiver downloads data
from GPS satellites. In certain environments, it can take several minutes to get a fix. By using GPS Location
servers, A-GPS dramatically reduces the TTFF (Time To First Fix) and improves the sensitivity of GPS receivers by
providing them with data that they would ordinarily have to download from the GPS satellites. With the A-GPS data,
GPS receivers can operate faster and more reliably.
The GPS Assist application provides the ability to modify the settings associated with obtaining GPS data.
Tap Start > Settings > Connections > GPS Assist.
NOTE When using a GPS navigation application, ensure that the MC65 does not go into suspend mode. If the MC65
suspends then the power to the GPS radio is removed. Upon resume the GPS receiver must reacquire a valid GPS
signal, resulting in a a delay of positional information.
NOTE Anytime using GPS on the MC65 and you receive a phone call, the audio on the GPS navigation software is muted
until you finish the call.
![](asset-6d.png)
Using GPS Navigation 8 - 3
Figure 8-1
GPS Assistance Window
To set the source of the data tap Source and select one of the options: WAN (default), WLAN, Active Sync, Any,
None.
To set the frequency of updating the data tap Update Frequency and select one of the options: On Demand
(default), 1 Day, 2 Days, 4 Days, 7 Days.
To manually update the data tap the Update Now button.
![](asset-6e.png)
8 - 4 MC65 User Guide
![](asset-6f.png)
Chapter 9 Settings
Introduction
This chapter provides information for customizing the MC65.
Settings Folder
Table 9-1 lists setting applications pre-installed on the MC65. Tap Status Bar > or tap Start > Settings to open
the Settings tab.
Table 9-1
Setting Applications
Icon Name Description Icon Name Description
Bluetooth Turn on Bluetooth, set the
MC65 to visible mode and
scan for other Bluetooth
devices in the area.
Lock Set a password for the
MC65.
Clock &
Alarms Set the device clock to the
date and time of your locale.
Alarms can also be set at
specified days and times of
a week.
Power Check battery power and set
the time-out for turning off
the display to conserve
battery power.
Home Customize the appearance
of the Home screen and the
information to display on it.
Sounds &
Notifications Enable sounds for events,
notifications, and more, and
set the type of notification for
different events.
Connections
Folder Contains connection setting
applications. System Folder Contains system setting
applications.
![](asset-70.png)
9 - 2 MC65 User Guide
Personal
Folder Contains personal setting
applications. Microsoft My
Phone Synchronizes the phone’s
contacts, calendar, tasks,
text messages, music,
photos, videos and other
documents with your My
Phone account at
www.microsoft.com.
Connections Folder
Beam Set the MC65 to receive
incoming IrDA beams. Domain Enroll Make your device an AD
domain member for device
management and security.
Connections Set up one or more types of
modem connections for your
device, such as phone
dial-up, cellular, Bluetooth,
and more, so that the MC65
can connect to the Internet
or a private local network.
Phone Network
Setup Configure the MC65
network.
GPS Assist
Modify the settings associated
with using other data sources
to aid in finding a location.
USB Connect Configure USB
communication port. Refer
to MC65 Integrator Guide.
Wi-Fi Setup wireless network
connection and customize
settings.
Wireless
Manager Enables or disables the
MC65’s wireless radios and
customizes Wi-Fi, Bluetooth
and Phone settings.
Personal Folder
Buttons Assign a program to a
button. Owner
Information Enter personal information
on the MC65.
Phone Configure the phone. Dialer Switcher Switches bet wee en the
Microsoft dialer and the
Enterprise Dialer.
Voice
Commander
Settings
Configure the Voice
Commander application.
System Folder
About View basic information such
as the Windows Mobile
®
version and type of
processor used on the
MC65.
Accelerometer Configure how the MC65
behaves. Refer to
Accelerometer on page 9-8
.
Table 9-1
Setting Applications (Continued)
Icon Name Description Icon Name Description
![](asset-71.png)
Settings 9 - 3
Backlight &
Keylight Set backlight and keylight
settings. Refer to
Backlight
and Keylight Settings on
page 9-7
.
Certificates See information about
certificates installed on the
MC65.
Customer
Feedback Submit feedback on the
Windows Mobile 6 software. Encryption Allow files on a storage card
to be encrypted. Encrypted
files are readable only on
your device.
External GPS Set the appropriate GPS
communication ports, if
required. Refer to
MC65
GPS Setup on page 8-1
.
Error Reporting Enable or disable the
Microsoft’s error reporting
function.
Device
Information Displays the MC65’s
software and hardware
information.
Memory Check the device memory
allocation status and
memory card information
and stop currently running
programs.
Managed
Programs Displays the programs that
were installed on the MC65
using Mobile Device
Manager.
Regional
Settings Set the regional
configuration to use,
including the format for
displaying numbers,
currency, date, and time on
the MC65.
Screen Change the screen
orientation, re-calibrate the
screen, and change the
screen text size.
Remove
Programs Remove programs that you
installed on the MC65.
Task Manager Stop running programs. System Info Obtain system information.
DataWedge
Enable data capture using
the camera or imager.
Table 9-1
Setting Applications (Continued)
Icon Name Description Icon Name Description
![](asset-72.png)
9 - 4 MC65 User Guide
Locking the MC65
Use the Password window to set a password to disable unauthorized access to the MC65.
1. Tap the Start > Settings > Lock > Password.
2. Select Prompt if device unused for check box to enable password protection.
3. From the drop-down list, select a time value for the protection to take affect after non-use.
4. From the Password type: drop-down list, select either Simple PIN or Strong alphanumeric.
5. For a simple password, enter a four-digit password in the Password field.
For a stronger password:
a. Enter a seven character password in the Password: field. A strong password must contain at least seven
characters and contain at least three of the following: uppercase and lowercase letters, numerals, and
punctuation.
b. Re-enter the password in the Confirm: field.
6. Tap OK.
Switching the Dialer
The MC65 provide an Enterprise Dialer user interface and the standard Microsoft interface.
To switch between the Enterprise Dialer and the Microsoft Dialer:
1. Tap Start > Settings > Personal > Dialer Switcher.
2. Select either Enterprise Dialer or Microsoft Dialer.
3. Tap Save.
4. Tap OK. The MC65 reboots.
NOTE If the device is configured to connect to a network, use a strong (difficult to figure out) password to
help protect network security. Password cracking tools continue to improve and the computers
used to crack passwords are more powerful than ever.
![](asset-73.png)
Settings 9 - 5
Device Management
The Device Management window provides quick and easy access to common settings and related options. The
Device Management Window is accessed by tapping anywhere on the Status Bar.
Sound Profiles
To create a new sound profile or to edit a custom profile:
1. Tap Status Bar > .
2. Tap next to a custom profile or tap Create New to create a new profile.
Figure 9-1
Sound Window
3. Edit or enter a new name for the profile in the text box.
4. Select each feature listed and select an available option.
•
Ring type - Set the type of ring that occurs when an incoming call is received.
•
Reminder - Set the type of ring that occurs when a MC65 generates a reminder.
•
Notification - Set the type of ring that occurs when a notification is received.
•
Ring volume - Set the volume of the ring.
•
System volume - Set the volume of the system audio.
•
Ringtone - Set the ringtone for an incoming call.
5. Tap Save.
To delete a custom sound profile:
1. Tap next to the custom profile.
2. Tap Delete Profile and then tap OK.
![](asset-74.png)
9 - 6 MC65 User Guide
Power Profiles
To edit a power profile:
1. Tap Status Bar > .
2. Tap next to the current profile.
3. Tap next to a profile to edit or tap Create New to create a new profile.
Figure 9-2
Edit Profile Window
4. Edit or enter a new name for the profile in the text box.
5. For each radio, tap the name to toggle the value to On or Off.
•
Phone radio
•
Wi-Fi
•
Bluetooth.
6. Scroll down to view more options.
7. Tap the option to select each feature listed and select an available option.
•
Device timeout - Sets the amount of time after inactivity that the MC65 goes into suspend mode.
•
Backlight - Sets the amount of time after inactivity that the MC65 goes into suspend mode.
•
Brightness - Set the screen brightness to automatic or manual. If selecting manual, set the brightness level
using the slider.
•
ActiveSync - Set the amount of time that the MC65 checks for email and calendar events.
•
ActiveSync Off - Set the amount of time that the MC65 checks for email and calendar events.
8. Tap Save.
![](asset-75.png)
Settings 9 - 7
Alarms
To use the MC65 as a clock:
1. Tap the Status Bar > > Edit Alarm.
2. Tap one of the three alarm rows.
3. Use the time field up and down arrows to set the time.
4. Highlight the Description field, then enter a name for the alarm.
5. Tap the letter(s) representing the day(s) of the week to enable the alarm.
6. From the drop-down list, select the sound that plays when the alarm starts. Tap Play to listen to the alarm
sounds and tap Stop to cancel playback.
7. From the drop-down list, select the repeat sound notification type.
8. Tap OK.
9. Set up to two more alarms.
10. Select the checkbox to enable the alarm sound even when the MC65 is set to silent or vibrate.
11. Ta p OK.
Backlight and Keylight Settings
The display brightness settings provides the ability to automatically detect the brightness in a specific environment.
Tap Start > Settings > System > Backlight & Keylight.
Figure 9-3
Backlight & Keylight
Use the Battery Power tab to set the backlight and keylight settings when the MC65 is on battery power.
Use the External Power tab to set the backlight and keylight settings when the MC65 is on external power.
•
Backlight - Set the backlight functionality. Select On Any Input to turn on the backlight upon an action or
touch of the screen. Select Always On to keep the backlight on all the time.
•
Backlight Timeout - Sets the time of inactivity before the screen backlight turns off.
![](asset-76.png)
9 - 8 MC65 User Guide
•
Backlight Brightness - Select between automatic and manual control. Select Auto to automatically control
the backlight. Select Manual set the backlight brightness. Select one of five levels of brightness.
•
Keylight - Select On Any Input to turn on the keylight upon an action or touch of the keypad. Select Always
On to keep the keylight on all the time. Select Follow Display to set the Keylight to follow the same settings
as the backlight.
•
Keylight Timeout - Sets the time of inactivity before the keylight turns off.
Accelerometer
Provides the ability to customize the accelerometer behaviors when in a call or using the display.
The user has the ability to set behaviors when the device is in motion, has a certain orientation of if the device is
face down.
Display Tab
The user has the ability to conserve battery life when using accelerometer behaviors and to set the MC65 to
automatic operations.
Tap the Status Bar > > System > Accelerometer.
•
Suspend when face down - Places the MC65 in suspend mode when it is placed face down.
•
Screen Rotation - Enable or disable screen rotation. The screen can be rotated between portrait and
landscape modes automatically, depending on the physical orientation of the MC65. For example, if the
MC65 is rotated 90° counterclockwise, the display rotates counterclockwise 90°.
About Tab
Use the About tab to view accelerometer information.
Program Shortcuts Setup
To change program shortcuts:
Figure 9-4
Add Shortcut Icon
![](asset-77.png)
Settings 9 - 9
1. Tap My Apps > Edit > Dock.
2. Tap a shortcut button to remove the assigned shortcut.
3. Tap a new program icon and then tap Save.
My Apps Window Setup
To create a customized application list:
1. Tap My Apps > Edit > View > Create New.
2. In the text box, enter a name for the list.
3. Scroll through the list and tap an icon to add to the new list. Each icon highlights indicating it is selected.
As icons are added to the list, the icon counter increments.
Figure 9-5
Add Programs
4. Tap Save.
To make the new list the default, tap the name of the list.
To edit a customized application list:
1. Tap My Apps > Edit > View.
2. Tap next to the list to edit.
3. Tap an icon to add or delete from the list.
4. Tap Save and then tap OK.
![](asset-78.png)
9 - 10 MC65 User Guide
Card Setup
The cards on the Motorola Home screen can be configured and re-ordered:
On any card, tap . The card flips over.
Figure 9-6
Back of Card
Re-Order Cards
Each icon on the card back represents a card. To re-order the cards, press and hold on an icon and then drag it to
a new location. Tap to return to the front of the card.
Configure Cards
Cards can be removed so that they do not appear on the Home screen.
On any card, tap to flip the card over.
Tap to configure the cards.
Figure 9-7
Card Configuration Window
The window lists the available cards. A next to the name indicates that the card is enabled. A indicates that
the card is disabled.
1. Tap the name of the card to enable or disable the card.
![](asset-79.png)
Settings 9 - 11
2. Tap to view a description of the card.
3. Tap OK to return to the Home screen.
Time Tracker Card
The Time Tracker card is an application that keep track of time spent on projects. Project data is stored in the
/Windows directory in file TimeTracker_data_file.csv.
Figure 9-8
Time Tracker Main Screen
1. To create a new project, tap the Settings icons.
Figure 9-9
New Project
2. In the text box, enter the project name.
3. Tap + to add the project to the list.
4. Tap Save.
5. In the main screen, tap the project name to open the project screen.
![](asset-7a.png)
9 - 12 MC65 User Guide
Figure 9-10
Project Screen
6. Tap the Start button to start the project timer.
7. Select a reminder time that will indicate the interval from the start of the project session.
8. Tap Back to return to the main screen.
Weather Card
The Weather card displays the current weather for your location plus the next three days provided by
Accuweather.com.Tap to manually update the data.
Figure 9-11
Weather Card
Add a New Location
To add a new location:
1. Tap the Setting icon.
2. In the text field, enter a city or zip code.
3. Tap the Magnifying Glass icon.
4. Select the new location from the list.
5. Tap Back to return to the Weather card front.
Displays the total time
for the entire project Displays the total time for the current day
Displays the last session total or running time since
the project was started
Create a notification that sounds from the start of the
project
Starts and ends the timer
Return to the main screen
Resets the project timer
Displays the project
name and date
Temperature
Tap to get forecast from
website
Next Three Days
Current Weather
Condition
Tap to Configure
Weather Card
Tap to view radar from
website
Tap to manually update
![](asset-7b.png)
Settings 9 - 13
Change Location
To change the location:
1. Tap the Settings icon.
2. Select a location from the list.
Delete a Location
To delete a location:
1. Tap the Settings icon.
2. Scroll to the desired location.
3. Tap the X. The location is removed from the list.
4. Tap Back to return to the Weather card front.
Email Setup
The MC65’s Messaging application lets users access and manage multiple email accounts simultaneously in one
convenient location. To send and receive email messages through an ISP (Internet Service Provider) account, or to
use the MC65 to access corporate email through a VPN (Virtual Private Network), first set up an IMAP or POP
account.
•
IMAP (Internet Message Access Protocol) - This mail retrieval protocol is frequently used in large networks
and commercial and institutional settings. IMAP4 is the current standard.
•
POP (Post Office Protocol) - This protocol is supported by most ISPs and is currently more common among
consumer applications. POP3 is the current standard.
Setting Up an IMAP or POP Account
When setting up an IMAP or POP account, the MC65 may be able to retrieve account settings automatically, or you
may need to enter certain settings manually.
Automatic Email Setup
1. Start > E-mail.
2. Tap Setup E-mail.
3. In the E-mail address text box, enter an email address.
4. In the Password text box, enter an associated password.
5. The Save password checkbox is checked by default to allow the MC65 to always remember the email account
password. To prevent other users from viewing the email account, tap the Save password checkbox to
remove the checkmark and deactivate the feature.
6. Tap Next.
NOTE If you have multiple email accounts, configure each account with its own settings.
![](asset-7c.png)
9 - 14 MC65 User Guide
7. Tap the Try to get e-mail settings automatically from the Internet checkbox to place a checkmark in the
checkbox.
Tap Next to attempt to retrieve these settings automatically. This process may take several minutes. The MC65
attempts to determine the necessary communication settings for both incoming and outgoing email messages.
8. If the MC65 was able to automatically retrieve the necessary settings, tap Next.
If the MC65 was unable to obtain the settings automatically, tap Next and proceed to step 8 in Entering Email
Settings Manually on page 9-14.
9. In the Your name: field, enter the name that displays in the From field on outgoing messages.
10. In the Account display name: field enter a name for the new email account.
This name appears within the list of available email accounts on the E-mail page.
11. Ta p Next.
12. Tap the Automatic Send/Receive: field and select the time interval you would like for the MC65 to send and
check for new email messages.
13. Tap the Review all download settings link for additional download settings and options. See Editing an Email
Account on page 9-16 for more details.
14. Ta p Finish.
Manual Email Setup
If the Automatic configuration was unsuccessful, or if accessing an account using a VPN server connection,
contact your ISP (Internet Service Provider) or network administrator for the following information and enter it
manually:
•
Account type (IMAP4 or POP3)
•
Incoming and outgoing mail server names
•
Username and password
•
Domain name
•
Special security settings (if used).
For more information about configuring email accounts, go to:
www.microsoft.com/windowsmobile/help/smartphone/default.mspx or www.windowsmobile.com/getstarted
Entering Email Settings Manually
1. Start > E-mail.
2. Tap Setup E-mail.
3. In the E-mail address: field, enter the email address for the account.
4. In the Password: fields and the password for the account.
NOTE For some common email types, the MC65 automatically detects and configures the email settings without
performing this step.
![](asset-7d.png)
Settings 9 - 15
5. The Save password checkbox is checked by default to allow the MC65 to always remember the email account
password. To prevent other users from viewing your email, tap the Save password checkbox to remove the
checkmark and deactivate the feature.
6. Tap Next.
7. Tap the Try to get e-mail settings automatically from the Internet box to remove the checkmark from the box
and tap Next.
8. In the Your e-mail provider: drop-down list, select Internet e-mail and tap Next.
9. In the Your name: field enter the name that will display in the From field on outgoing messages.
10. In the Account display name: field enter a name for this new email account.
This name appears within the list of available email accounts on the E-mail page.
11. Ta p Next.
12. In the Incoming mail server: field enter the incoming mail server address.
13. In the Account Type: drop-down list, select either POP3 or IMAP4.
14. Ta p Next.
15. In the User name: field enter the username for the account.
16. In the Password: field enter the password for the account.
17. Ta p Next.
18. In the Outgoing (SMTP) mail server: field enter the outgoing mail server address.
19. Check the appropriate fields and then tap OK.
•
Outgoing server requires authentication is used if a password is required for outgoing mail in addition to
incoming mail. (Please contact your System Administrator for detailed server requirements.)
Use the same user name and password for sending e-mail to use the same user name and password for
outgoing mail as well as for incoming mail (can only be selected if the Outgoing server requires
authentication checkbox is checked).
20. Tap the Advanced Server Settings link.
•
These allows configuration of server-specific messaging settings such as SSL requirements for both
incoming and outgoing email, as well as network firewall profiles.
•
Select the desired options.
•
Tap Done once completed making updates to these settings.
21. Ta p Next.
22. In the Automatic Send/Receive: drop-down list select the time interval for the MC65 to send and check for
new email.
23. Tap the Review all download settings link for additional download settings and options.
24. Ta p Finish.
![](asset-7e.png)
9 - 16 MC65 User Guide
Editing an Email Account
To edit general email settings:
1. Start > E-mail.
2. Highlight an account and tap Menu > Options.
3. Tap the desired email account from the on screen list.
4. Tap Edit Account Setup.
5. Confirm the email address and make any changes if necessary. Tap Next.
6. Confirm the Your name and Account display name information and make any changes if necessary. Tap
Next.
7. Confirm the Incoming mail server and Account type information and make any changes if necessary. Tap
Next.
8. Confirm the User name and Password information and make any changes if necessary (including checking or
unchecking the Save password checkbox). Tap Next.
9. Confirm the Outgoing (SMTP) mail server information and make any changes if necessary.
10. Tap the Advanced Server Settings link and select any setting on this page to check or uncheck the option.
•
Require SSL for Incoming e-mail check box to enable SSL encryption of incoming email (if supported by
the mail server).
•
Require SSL for Outgoing e-mail checkbox to enable SSL encryption of outgoing email (if supported by the
mail server).
•
Network connection drop-down list to select a firewall connection setting. Select either The Internet (open:
no firewall), Work (behind a firewall) or a data connection.
11. Ta p Done and then tap Next.
12. In the Automatic Send/Receive drop-down list, select the time interval the MC65 sends and checks for new
email.
13. In the Download messages drop-down list, select the age range of messages to download from the server to
the MC65. (The longer the time period, the more messages are downloaded.)
14. Tap the Advanced Settings link and select any setting on this page to check or uncheck the option.
•
Select the Send/receive when I click Send checkbox to automatically check for and download new
messages whenever the user sends a message.
•
Select the Use automatic send/receive schedule when roaming checkbox to continue to check the email
at predetermined intervals even if in a roaming area.
•
In the When deleting messages drop-down list select whether to automatically delete or retain messages
on the email server when deleting messages from the MC65.
15. Ta p Done.
16. Ta p Next.
17. Tap an on screen field and change any settings you wish. Tap an option to select it.
•
In the Message format drop-down list, select to view your email messages as either HTML or plain text
documents.
![](asset-7f.png)
Settings 9 - 17
•
In the Message download limit drop-down list, select the size limit of files attached to email messages.
18. Ta p Finish.
Setting Email Signatures
Signatures are the string of text automatically added to the end of an outgoing emails or messages.
1. Start > E-mail.
2. Tap Menu > Options.
3. Highlight an account and tap Signatures.
4. In the Select an account drop-down list, select a pre-existing account.
5. Tap the Use signature with this account checkbox to enable a signature to be automatically added to new
outgoing messages.
6. Tap the Use when replying and forwarding checkbox to enable a signature to be automatically added to any
messaging being replied to or being forwarded from the account.
7. Tap in the text field and enter a signature message.
8. Tap OK to save the new signature.
MMS Messaging Setup
If a SIM card from a non-supported carrier is installed, the MMS options must be configured manually. To configure
the MC65 for MMS messaging:
1. Obtain all necessary information from the carrier.
2. Tap Start > Text.
3. Tap > MMS Options.
4. Select Servers tab.
Figure 9-12
MMS Options Server Tab
5. Enter the data in the fields and tap Done.
![](asset-80.png)
9 - 18 MC65 User Guide
Voice Commander
Use the Voice Commander Settings to configure the Voice Commander application. There are five major
functions:
•
Contacts
•
Applications
•
Music
•
Digit Trainer
•
Advanced Settings.
To configure Voice Commander setting tap Start > Settings > Personal > Voice Commander Settings.
Contacts Settings
The Contacts tab lists all the names in the MC65 Contacts and SIM card (if installed). When a new contact is
created, Voice Commander automatically updates the recognition database.
A check in a box indicates that the contact can be recognized normally. An unchecked box indicates that the
contact is not in the recognition range. A grayed box indicates that the name contains some unrecognizable
characters, such as symbols or marks. The user can build a voice tag to enable it.
The default recognition database is limited to 2,000 contacts. The user can check the leading checkboxes of the
contacts exceeding 2,000 items to enable additional entries.
Play
Tap to hear the pronunciation of a contact.
Voice Tag
The user can record a voice tag for selected contacts to enhance usability and accuracy. indicates that the
voice tag is built.
To record a voice tag:
1. Select a contact.
2. Tap .
3. After the beep, say the contacts name or nickname. For example: The Boss.
4. After the second beep, repeat it.
5. Voice Commander builds the recorded voice tag.
6. Voice Commander plays back the recorded voice tag to confirm the voice tag has been created successfully,
and appears to the right of the contact name.
NOTE Tap again rebuild the voice tag. Tap to delete the voice tag.
![](asset-81.png)
Settings 9 - 19
Application Settings
The Application tab lists all the applications installed in the Start menu. When a new application installed, Voice
Commander automatically updates the recognition database.
A check in a box indicates that the application can be recognized normally. An unchecked box indicates that the
application is not in the recognition range. A grayed box indicates that the application name contains some
unrecognizable characters, such as symbols or marks. The user can build a voice tag to enable it.
Play
Tap to hear the pronunciation of an application.
Voice Tag
The user can record a voice tag for selected applications to enhance usability and accuracy. indicates that the
voice tag is built.
To record a voice tag:
1. Select an application.
2. Tap .
3. After the beep, say the application name. For example: File Explorer.
4. After the second beep, repeat it.
5. Voice Commander builds the recorded voice tag.
6. Voice Commander plays back the recorded voice tag to confirm the voice tag has been created successfully,
and appears to the right of the contact name.
Music Settings
The Music tab lists all the music files found on the MC65. When a media file is downloaded, Voice Commander
automatically updates the recognition database.
A check in a box indicates that the music file can be recognized normally. An unchecked box indicates that the
music file is not in the recognition range. A grayed box indicates that the music file name contains some
unrecognizable characters, such as symbols or marks. The user can build a voice tag to enable it.
Play
Tap to hear the pronunciation of an application.
Voice Tag
The user can record a voice tag for selected music file to enhance usability and accuracy. indicates that the
voice tag is built.
To record a voice tag:
1. Select a music file.
NOTE Tap again rebuild the voice tag. Tap to delete the voice tag.
![](asset-82.png)
9 - 20 MC65 User Guide
2. Tap .
3. After the beep, say the music file name. For example: Drive.
4. After the second beep, repeat it.
5. Voice Commander builds the recorded voice tag.
6. Voice Commander plays back the recorded voice tag to confirm the voice tag has been created successfully,
and appears to the right of the music file name.
Digit Trainer Settings
The user can improve the Voice Commander digit dialing success by performing the Digit Trainer sequence:
1. Tap .
2. Start reading first string after hearing a beep. When finished, the system plays back the recorded voice and ask
for confirmation.
3. If the utterance is correct and clear, tap Yes. The system moves into next digit string for recording.
If the utterance is incorrect, tap No. The system stays at the current string for re-recording.
4. Repeat steps 1 through 3 for the remainder of the strings (at any time, tap Cancel to stop.)
5. After finishing the recording of 10 digit strings, tap Done to confirm the adapted model or tap Remove All to
delete the adapted model and re-train.
Digit Setting Settings
Use the Digit Setting tab to set valid phone number lengths to improve digit recognition accuracy. The user can
change the default settings based on the local telecom requirement. The user can also select No constraint
checkbox to disable this limitation, though with the trade off of increased errors caused by surrounding noises.
Advanced Settings
Use the Advanced Settings tab to set the voice recognition sensitivity. Select:
•
Sensitive: makes the recognizer easier to return a recognition result, whenever there is an utterance
detected. This setting is used in environment with stationary noises, such as in a car, a bus or a factory.
•
Normal: this setting is used in most environments.
•
Accurate: when selected, the recognizer becomes very strict in responding to user's voice commands. This is
to reduce misunderstanding calls or actions that could be triggered by unrelated voices issued by
surrounding people.
NOTE Tap again rebuild the voice tag. Tap to delete the voice tag.
NOTE The maximum phone number length is 18 digits.
![](asset-83.png)
Chapter 10 Accessories
Introduction
MC65 accessories, listed below, provide a variety of product support capabilities.
Accessories
Table 10-1 lists the accessories available for the MC65 EDA.
Table 10-1
MC65 Accessories
Accessory Part Number Description
Cradles
Single Slot USB Cradle CRD5500-1000UR Charges the MC65 main battery and a spare battery. Synchronizes
the MC65 with a host computer through a USB connection.
Single Slot
Ethernet/Modem/USB
Cradle
CRD5500-1000XR Charges the MC65 main battery and a spare battery. Synchronizes
the MC65 with a host computer through an Ethernet, Modem or USB
connection.
Four Slot Charge Only
Cradle CRD5500-4000CR Charges up to four MC65 devices.
Four Slot Ethernet Cradle CRD5500-4000ER Charges up to four MC65 devices and connects the MC65 with an
Ethernet network.
Vehicle Cradle VCD5500-1000R Installs in a vehicle and charges the MC65 main battery.
Vehicle Holder VCH5500-1000R Provides an alternative mounting solution for the MC65 in a vehicle.
Requires the Auto Charge cable for charging the MC65 battery.
Chargers
Four Slot Spare Battery
Charger SAC5500-4000CR Charges up to four MC65 battery packs.
USB Charging Cable 25-108022-01R Provides power to the MC65 and USB communication with a host
computer.
Charge Only Cable 25-112560-01R Connects to a power supply to provide power to the MC65.
![](asset-84.png)
10 - 2 MC65 User Guide
Auto Charge Cable VCA5500-01R Charges the MC65 using a vehicle’s cigarette lighter.
Miscellaneous
Spare 3600 mAh lithium-ion
battery BTRY-MC55EAB02 Replacement 3600 mAh battery.
DEX Cable 25-127558-01R For use with electronic data exchange For example, vending
machines.
Trigger Handle TRG5500-100R Adds a gun-style handle with a scanning trigger for comfortable and
productive data capture.
Magnetic Stripe Reader MSR5500-100R Captures data from magnetic stripe cards.
Belt Mounted Rigid Holster SG-MC5511110-01R Clips onto belt to hold the MC65 when not in use.
Fabric Holster SG-MC5521110-01R Soft holder for added protection.
Stylus KT-119150-03R
KT-119150-50R Replacement stylus (3-pack).
Replacement stylus (50-pack).
Spring Loaded Stylus STYLUS-00001-03R
STYLUS-00001-10R Optional spring loaded stylus (3-pack).
Optional spring loaded stylus (10-pack).
Wall Mounting Kit 8710-050006-01R Use for wall mounting the four slot cradles.
Screen Protector KT-67525-01R Package of 3 screen protectors.
Software - Enterprise Mobility Developer Kits (EMDKs), available at:
http://support.symbol.com.
Table 10-1
MC65 Accessories (Continued)
Accessory Part Number Description
![](asset-85.png)
Accessories 10 - 3
Single Slot USB Cradle
This section describes how to use a Single Slot USB cradle with the MC65. For USB communication setup
procedures refer to the MC65 Integrator Guide.
The Single Slot USB Cradle:
•
Provides 5.4 VDC power for operating the MC65.
•
Synchronizes information between the MC65 and a host computer. Refer to the MC65 Integrator Guide for
information on setting up a partnership between the MC65 and a host computer.
•
Charges the MC65’s battery.
•
Charges a spare battery.
Charging the MC65 Battery
Connect the cradle to power. Insert the MC65 into the slot to begin charging.
Figure 10-1
MC65 Battery Charging
Charging/Battery Status LED
![](asset-86.png)
10 - 4 MC65 User Guide
Charging the Spare Battery
Figure 10-2
Spare Battery Charging
Battery Charging Indicators
The Single Slot USB Cradle charges the MC65’s main battery and a spare battery simultaneously.
The MC65’s charge LED indicates the status of the battery charging in the MC65. See Table 1-1 on page 1-6 for
charging status indications.
The spare battery charging LED on the cradle indicates the status of the spare battery charging in the cradle. See
Table 10-2 for charging status indications.
The 3600 mAh battery fully charges in less than six hours.
Charging Temperature
Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). Charging is intelligently controlled by the
MC65.
To accomplish this, for small periods of time, the MC65 or accessory alternately enables and disables battery
charging to keep the battery at acceptable temperatures. The MC65 or accessory indicates when charging is
disabled due to abnormal temperatures via its LED. See Table 1-1 on page 1-6 and Table 10-2.
Spare Battery Spare Battery
Charging LED
Table 10-2
Spare Battery LED Charging Indicators
Spare Battery LED
(on cradle) Indication
Off Battery is not charging; battery is not inserted correctly in the cradle;
cradle is not powered
![](asset-87.png)
Accessories 10 - 5
Slow Blinking Amber Spare battery is charging.
Solid Amber Charging complete.
Fast Blinking Amber Charging error.
Table 10-2
Spare Battery LED Charging Indicators (Continued)
Spare Battery LED
(on cradle) Indication
![](asset-88.png)
10 - 6 MC65 User Guide
Four Slot Charge Only Cradle
This section describes how to set up and use a Four Slot Charge Only cradle with the MC65.
The Four Slot Charge Only cradle:
•
Provides 5.4 VDC power for operating the MC65.
•
Simultaneously charges up to four MC65 devices.
Charging
Insert the MC65 into a slot to begin charging.
Figure 10-3
MC65 Battery Charging
Battery Charging Indicators
The MC65’s charge LED shows the status of the battery charging in the MC65. See Table 1-1 on page 1-6 for
charging status indications.
The 3600 mAh battery fully charges in less than six hours.
Charging Temperature
Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). Charging is intelligently controlled by the
MC65.
To accomplish this, for small periods of time, the MC65 or accessory alternately enables and disables battery
charging to keep the battery at acceptable temperatures. The MC65 or accessory indicates when charging is
disabled due to abnormal temperatures via its LED. See Table 1-1 on page 1-6.
![](asset-89.png)
Accessories 10 - 7
Four Slot Ethernet Cradle
This section describes how to set up and use a Four Slot Ethernet cradle with the MC65. For cradle communication
setup procedures refer to the MC65 Integrator Guide.
The Four Slot Ethernet cradle:
•
Provides 5.4 VDC power for operating the MC65.
•
Connects the MC65 (up to four) to an Ethernet network.
•
Simultaneously charges up to four MC65 devices.
Charging
Insert the MC65 into a slot to begin charging.
Figure 10-4
MC65 Battery Charging
Battery Charging Indicators
The MC65’s charge LED shows the status of the battery charging in the MC65. See Table 1-1 on page 1-6 for
charging status indications.
The3600 mAh battery fully charges in less than six hours.
Charging Temperature
Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). Charging is intelligently controlled by the
MC65.
To accomplish this, for small periods of time, the MC65 alternately enables and disables battery charging to keep
the battery at acceptable temperatures. The MC65 indicates when charging is disabled due to abnormal
temperatures via its LED. See Table 1-1 on page 1-6.
100
Mbps
![](asset-8a.png)
10 - 8 MC65 User Guide
VCD5000 Vehicle Cradle
This section describes how to use a VCD5000 vehicle cradle with the MC65. For cradle installation and
communication setup procedures refer to the MC65 Integrator Guide.
Once installed in a vehicle, the cradle:
•
holds the MC65 securely in place
•
provides power for operating the MC65
•
re-charges the battery in the MC65.
Charging the MC65 Battery
Insert the MC65 into the vehicle cradle to begin charging. A click indicates that the MC65 button release locking
mechanism is enabled and the MC65 is locked in place.
Figure 10-5
MC65 Battery Charging
Removing the MC65
To remove the MC65, hold back the release lever on the cradle and pull the MC65 up and out of the cradle.
CAUTION Ensure the MC65 is fully inserted in the cradle. Lack of proper insertion may result in property damage
or personal injury. Motorola is not responsible for any loss resulting from the use of the products while
driving.
![](asset-8b.png)
Accessories 10 - 9
Figure 10-6
Removing the MC65
Battery Charging Indicators
The MC65’s charge LED indicates the status of the battery charging in the MC65. See Table 1-1 on page 1-6 for
charging status indications.
The 3600 mAh battery fully charges in less than six hours.
Charging Temperature
Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). Charging is intelligently controlled by the
MC65.
To accomplish this, for small periods of time, the MC65 alternately enables and disables battery charging to keep
the battery at acceptable temperatures. The MC65 indicates when charging is disabled due to abnormal
temperatures via its LED. See Table 1-1 on page 1-6.
Release Lever
![](asset-8c.png)
10 - 10 MC65 User Guide
Four Slot Battery Charger
This section describes how to use the Four Slot Battery Charger to charge up to four MC65 batteries.
Battery Charging
1. Connect the charger to a power source.
2. Insert the battery into a battery charging well and gently press down on the battery to ensure proper contact.
Figure 10-7
Four Slot Battery Charger
Battery Charging Indicators
The charger has an amber LED for each battery charging well. See Table 10-3 for charging status indications. The
3600 mAh battery fully charges in less than six hours.
Charging Temperature
Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). Charging is intelligently controlled by the
MC65.
To accomplish this, for small periods of time, the charger alternately enables and disables battery charging to keep
the battery at acceptable temperatures. The charger indicates when charging is disabled due to abnormal
temperatures via its LED. See Table 10-3.
Battery Charging
LEDs (4)
Battery
Table 10-3
Battery LED Charging Indicators
LED Indication
Off No battery in slot; battery is not charging; battery is not inserted correctly in the
charger; charger is not powered.
![](asset-8d.png)
Accessories 10 - 11
Cables
This section describes how to set up and use the cables. The cables are available with a variety of connection
capabilities.
The following communication/charge cables are available:
•
USB Charging cable
•Provide the MC65 with operating and charging power when used with the Motorola approved power
supply.
•Synchronize information between the MC65 and a host computer. With customized or third party software,
it can also synchronize the MC65 with corporate databases.
•
Charge Only cable
•Provide the MC65 with operating and charging power when used with the Motorola approved power
supply.
•
Auto Charge cable.
•Provide the MC65 with operating and charging power when used with the Motorola approved power
supply.
Battery Charging and Operating Power
The communication/charge cables can charge the MC65 battery and supply operating power.
To charge the MC65 battery:
1. Connect the communication/charge cable power input connector to the Motorola approved power source.
2. Slide the bottom of the MC65 into the connector cup end of the communication/charge cable and gently press
in until it latches into the MC65.
3. Slide the two locking tabs up until they both lock into position.
Slow Blinking Amber Battery is charging.
Solid Amber Charging complete.
Fast Blinking Amber Charging error.
Table 10-3
Battery LED Charging Indicators (Continued)
LED Indication
![](asset-8e.png)
10 - 12 MC65 User Guide
Figure 10-8
Cable Cup Locking Tabs
The MC65 amber Charge LED indicates the MC65 battery charging status. The 3600 mAh standard battery
charges in less than six hours. See Table 1-1 on page 1-6 for charging status indications.
4. When charging is complete, push the two locking tab down and remove the cable from the MC65.
LED Charge Indications
The amber Charge LED on the MC65 indicates battery charging status. See Table 1-1 on page 1-6 for charging
status indications.
Charging Temperature
Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). Charging is intelligently controlled by the
MC65.
To accomplish this, for small periods of time, the MC65 or accessory alternately enables and disables battery
charging to keep the battery at acceptable temperatures. The MC65 or accessory indicates when charging is
disabled due to abnormal temperatures via its LED. See Table 1-1 on page 1-6.
Locking Tab
![](asset-8f.png)
Accessories 10 - 13
Vehicle Holder
Installation Reminders
Figure 10-9
Vehicle Holder Mounting
•
Do not mount the vehicle holder where it will obscure the driver’s view of the road.
•
Do not mount the vehicle holder near the driver seat air bag deployment area.
•
Do not place the MC65 on top of the dashboard or anywhere without securing it in the vehicle holder.
•
Do not mount the vehicle holder near the passenger seat air bag deployment area.
•
Install the vehicle holder on the surface of your vehicle that is reasonably flat and free of dirt and oil.
Device Mounting Precautions
•
Some countries prohibit the mounting of any electronic device in any location on the vehicle dashboard. Be
sure to check your local laws acceptable mounting areas before installing the vehicle holder.
•
The heating and cooling cycle of a vehicle’s interior will in some cases loosen the adhesion of the suction
cup. Check the vacuum seal of the vehicle mount kit for adequate adhesion each time you use the unit, and
reinstall if necessary.
•
If the vehicle holder has problems staying on, clean the plastic suction cup with alcohol, then reinstall.
Installation
Install the vehicle mount on the surface of your vehicle that is reasonably flat and free of dirt and oil. Clean the
mounting surface with a glass cleaner and a clean cotton cloth. Install the vehicle mount on the windshield or other
flat car surface using the supplied mounting disc.
WARNING!Some countries prohibit the mounting of any electronic device in any location on the vehicle
dashboard and or windshield. Be sure to check your local laws acceptable mounting areas
before installing the auto mounting kit.
![](asset-90.png)
10 - 14 MC65 User Guide
Assembly
1. Insert the vehicle holder’s cradle plate to the holes on the back of the cradle.
2. Push the cradle down until both parts are engaged.
Windshield Installation
1. Fix the suction cup mount to the selected area with the suction lever facing up.
Figure 10-10
Windshield Installation
2. Flip the lever down to create a vacuum between the suction cup and the mounting surface.
3. Make sure that the suction bond is strong enough before proceeding to the next step.
4. Slide the MC65 into the cradle.
Cradle Plate
Cradle
Suction Cup Mount
![](asset-91.png)
Accessories 10 - 15
Figure 10-11
Insert MC65 into Vehicle Holder
5. Connect the auto charger cable to the MC65 and slide the two locking tabs up to secure the cable cup to the
MC65.
6. Connect the other end to the cigarette lighter socket.
The LED indicator on the right side of the touch screen lights up orange during charging.
Flat Surface Installation
1. Remove the plastic sheet on the bottom of the mounting disc.
2. Place the disc, sticky side down, on a clean flat surface.
Figure 10-12
Mounting Disc
3. Fix the suction cup mount to the disc with the suction lever facing up.
4. Flip the lever down to create a vacuum between the suction cup and the disc.
5. Make sure that the suction bond is strong enough before proceeding to the next step.
6. Slide the MC65 into the cradle.
Locking Tab
![](asset-92.png)
10 - 16 MC65 User Guide
Figure 10-13
Vehicle Holder Mounted on Flat Surface
7. Connect the auto charger cable to the MC65 and slide the two locking tabs up to secure the cable cup to the
MC65.
8. Connect the other end to the cigarette lighter socket.
The LED indicator on the right side of the touch screen lights up orange during charging.
![](asset-93.png)
Chapter 11 Maintenance & Troubleshooting
Introduction
This chapter includes instructions on cleaning and storing the MC65, and provides troubleshooting solutions for
potential problems during MC65 operation.
Maintaining the MC65
For trouble-free service, observe the following tips when using the MC65:
•
Do not scratch the screen of the MC65. When working with the MC65, use the supplied stylus or
plastic-tipped pens intended for use with a touch-sensitive screen. Never use an actual pen or pencil or other
sharp object on the surface of the MC65 screen.
Motorola recommends using a screen protector, p/n KT-67525-01R.
•
The touch-sensitive screen of the MC65 is glass. Do not to drop the MC65 or subject it to strong impact.
•
Protect the MC65 from temperature extremes. Do not leave it on the dashboard of a car on a hot day, and
keep it away from heat sources.
•
Do not store or use the MC65 in any location that is dusty, damp, or wet.
•
Use a soft lens cloth to clean the MC65. If the surface of the MC65 screen becomes soiled, clean it with a soft
cloth moistened with a diluted window-cleaning solution.
•
Periodically replace the rechargeable battery to ensure maximum battery life and product performance.
Battery life depends on individual usage patterns.
![](asset-94.png)
11 - 2 MC65 User Guide
•
A screen protector is applied to the MC65. Motorola recommends using this to minimize wear and tear.
Screen protectors enhance the usability and durability of touch screen displays. Benefits include:
•Protection from scratches and gouges
•Durable writing and touch surface with tactile feel
•Abrasion and chemical resistance
•Glare reduction
•Keeping the device’s screen looking new
•Quick and easy installation.
Removing the Screen Protector
A screen protector is applied to the MC65. Motorola recommends using this to minimize wear and tear. Screen
protectors enhance the usability and durability of touch screen displays.
To remove the screen protector, lift the corner using a thin plastic card, such as a credit card, then carefully lift it off
the display.
Figure 11-1
Removing the Screen Protector
Battery Safety Guidelines
•
The area in which the units are charged should be clear of debris and combustible materials or chemicals.
Particular care should be taken where the device is charged in a non commercial environment.
•
Follow battery usage, storage, and charging guidelines found in the user's guide.
•
Improper battery use may result in a fire, explosion, or other hazard.
Lift Screen
Protector
Corner
CAUTION Do not use a sharp object to remove the protector. Doing so can damage the display.
NOTE Not using a screen protector can affect warranty coverage. To purchase replacement protectors, contact your
local account manager or Motorola, Inc. These include screen protector installation instructions. Part number:
KT-67525-01R Screen Protector 3/pk.
![](asset-95.png)
Maintenance & Troubleshooting 11 - 3
•
To charge the mobile device battery, the battery and charger temperatures must be between +32 ºF and
+104 ºF (0 ºC and +40 ºC)
•
Do not use incompatible batteries and chargers. Use of an incompatible battery or charger may present a risk
of fire, explosion, leakage, or other hazard. If you have any questions about the compatibility of a battery or a
charger, contact Motorola Enterprise Mobility support.
•
For devices that utilize a USB port as a charging source, the device shall only be connected to products that
bear the USB-IF logo or have completed the USB-IF compliance program.
•
To enable authentication of an approved battery, as required by IEEE1725 clause 10.2.1, all batteries will
carry a Motorola hologram. Do not fit any battery without checking it has the Motorola authentication
hologram.
•
Do not disassemble or open, crush, bend or deform, puncture, or shred.
•
Severe impact from dropping any battery-operated device on a hard surface could cause the battery to
overheat.
•
Do not short circuit a battery or allow metallic or conductive objects to contact the battery terminals.
•
Do not modify or remanufacture, attempt to insert foreign objects into the battery, immerse or expose to water
or other liquids, or expose to fire, explosion, or other hazard.
•
Do not leave or store the equipment in or near areas that might get very hot, such as in a parked vehicle or
near a radiator or other heat source. Do not place battery into a microwave oven or dryer.
•
Battery usage by children should be supervised.
•
Please follow local regulations to properly dispose of used re-chargeable batteries.
•
Do not dispose of batteries in fire.
•
In the event of a battery leak, do not allow the liquid to come in contact with the skin or eyes. If contact has
been made, wash the affected area with large amounts of water and seek medical advice.
•
If you suspect damage to your equipment or battery, contact Motorola Enterprise Mobility support to arrange
for inspection.
Cleaning
Materials Required
•
Alcohol wipes
•
Lens tissue
•
Cotton tipped applicators
CAUTION Always wear eye protection.
Read warning label on compressed air and alcohol product before using.
If you have to use any other solution for medical reasons please contact Motorola for more information.
WARNING!Avoid exposing this product to contact with hot oil or other flammable liquids. If such exposure
occurs, unplug the device and clean the product immediately in accordance with these guidelines.
![](asset-96.png)
11 - 4 MC65 User Guide
•
Isopropyl alcohol
•
Can of compressed air with a tube.
Cleaning the MC65
Housing
Using the alcohol wipes, wipe the housing including keys and in-between keys.
Display
The display can be wiped down with the alcohol wipes, but care should be taken not to allow any pooling of liquid
around the edges of the display. Immediately dry the display with a soft, non-abrasive cloth to prevent streaking.
Scanner Exit Window
Wipe the scanner exit window periodically with a lens tissue or other material suitable for cleaning optical material
such as eyeglasses.
Connector
1. Remove the main battery from mobile computer. See Replacing the Battery on page 1-8.
2. Dip the cotton portion of the cotton tipped applicator in isopropyl alcohol.
3. Rub the cotton portion of the cotton tipped applicator back-and-forth across the connector on the bottom of the
MC65. Do not leave any cotton residue on the connector.
4. Repeat at least three times.
5. Use the cotton tipped applicator dipped in alcohol to remove any grease and dirt near the connector area.
6. Use a dry cotton tipped applicator and repeat steps 4 through 6.
7. Spray compressed air on the connector area by pointing the tube/nozzle about ½ inch away from the surface.
8. Inspect the area for any grease or dirt, repeat if required.
Cleaning Cradle Connectors
To clean the connectors on a cradle:
1. Remove the DC power cable from the cradle.
2. Dip the cotton portion of the cotton tipped applicator in isopropyl alcohol.
3. Rub the cotton portion of the cotton tipped applicator along the pins of the connector. Slowly move the
applicator back-and-forth from one side of the connector to the other. Do not let any cotton residue on the
connector.
4. All sides of the connector should also be rubbed with the cotton tipped applicator.
5. Spray compressed air in the connector area by pointing the tube/nozzle about ½ inch away from the surface.
CAUTION Do not point nozzle at yourself and others, ensure the nozzle or tube is away from your face.
![](asset-97.png)
Maintenance & Troubleshooting 11 - 5
6. Ensure that there is no lint left by the cotton tipped applicator, remove lint if found.
7. If grease and other dirt can be found on other areas of the cradle, use lint free cloth and alcohol to remove.
8. Allow at least 10 to 30 minutes (depending on ambient temperature and humidity) for the alcohol to air dry
before applying power to cradle.
If the temperature is low and humidity is high, longer drying time is required. Warm temperature and dry
humidity requires less drying time.
Cleaning Frequency
The cleaning frequency is up to the customer’s discretion due to the varied environments in which the mobile
devices are used. They may be cleaned as frequently as required. However when used in dirty environments it
may be advisable to periodically clean the scanner exit window to ensure optimum scanning performance.
Troubleshooting
MC65
CAUTION Do not point nozzle at yourself and others, ensure the nozzle or tube is away from your face.
Table 11-1
Troubleshooting the MC65
Problem Cause Solution
When pressing the
power button the
MC65 does not turn
on.
Battery not
charged. Charge or replace the battery in the MC65.
Battery not installed
properly. Install the battery properly. See Installing the Battery on page 1-4.
System crash. Perform a reset. See Resetting the MC65 on page 2-19.
When pressing the
power button the
MC65 does not turn
on but two LEDs blink.
Battery charge is at
a level where data
is maintained but
battery should be
re-charged.
Charge or replace the battery in the MC65.
Rechargeable battery
did not charge. Battery failed. Replace battery. If the MC65 still does not operate, perform a
reset. See Resetting the MC65 on page 2-19.
MC65 removed
from cradle while
battery was
charging.
Insert MC65 in cradle. The 3600 mAh battery fully charges in less
than six hours.
Extreme battery
temperature. Battery does not charge if ambient temperature is below 0°C
(32°F) or above 40°C (104°F).
Cannot see
characters on display. MC65 not powered
on. Press the Power button.
![](asset-98.png)
11 - 6 MC65 User Guide
During data
communication, no
data transmitted, or
transmitted data was
incomplete.
MC65 removed
from cradle or
disconnected from
host computer
during
communication.
Replace the MC65 in the cradle, or reattach the communication
cable and re-transmit.
Incorrect cable
configuration. See the system administrator.
Communication
software was
incorrectly installed
or configured.
Perform setup. Refer to the MC65 Integrator Guide for details.
No sound. Volume setting is
low or turned off. Adjust the volume. See Adjusting Volume on page 2-18.
MC65 shuts off. MC65 is inactive. The MC65 turns off after a period of inactivity. If the MC65 is
running on battery power, set this period from 1 to 5 minutes, in
one-minute intervals.
Check the Power window by selecting Tap Status Bar > .
Battery is depleted. Replace the battery.
Battery is not
inserted properly. Insert the battery properly. See Installing the Battery on page 1-4.
Tapping the window
buttons or icons does
not activate the
corresponding
feature.
Screen is not
calibrated correctly. Re-calibrate the screen. Press Blue key - Backspace key.
The device is not
responding. Reset the device. See Resetting the MC65 on page 2-19.
A message appears
stating that the MC65
memory is full.
Too many files
stored on the
MC65.
Delete unused memos and records. If necessary, save these
records on the host computer (or use an SD card for additional
memory).
Too many
applications
installed on the
MC65.
Remove user-installed applications on the MC65 to recover
memory. Select Start > Settings > System tab and tap the
Remove Programs icon. Select the unused program and tap
Remove.
Camera application
does not launch. DataWedge
application running. Stop DataWedge application. Tap Start > Settings > System >
Task Manager. Select DataWedge application and tap End Task.
Table 11-1
Troubleshooting the MC65 (Continued)
Problem Cause Solution
![](asset-99.png)
Maintenance & Troubleshooting 11 - 7
Bluetooth Connection
The MC65 does not
decode with reading
bar code.
Scanning
application is not
loaded.
Load a scanning application on the MC65. See your system
administrator.
Unreadable bar
code. Ensure the symbol is not defaced.
Distance between
exit window and bar
code is incorrect.
Place the MC65 within proper scanning range.
MC65 is not
programmed for the
bar code.
Program the MC65 to accept the type of bar code being scanned.
Refer to the EMDK or Control Panel application.
MC65 is not
programmed to
generate a beep.
If the MC65 does not beep on a good decode, set the application
to generate a beep on good decode.
Battery is low. If the scanner stops emitting a laser beam upon a trigger press,
check the battery level. When the battery is low, the scanner shuts
off before the MC65 low battery condition notification.
Note: If the scanner is still not reading symbols, contact the
distributor or Motorola.
Table 11-1
Troubleshooting the MC65 (Continued)
Problem Cause Solution
Table 11-2
Troubleshooting Bluetooth Connection
Problem Cause Solution
MC65 cannot find
any Bluetooth
devices nearby.
Too far from other
Bluetooth devices. Move closer to the other Bluetooth device(s), within a range of 10
meters (32.8 feet).
The Bluetooth
device(s) nearby
are not turned on.
Turn on the Bluetooth device(s) to find.
The Bluetooth
device(s) are not in
discoverable mode.
Set the Bluetooth device(s) to discoverable mode. If needed, refer
to the device’s user documentation for help.
![](asset-9a.png)
11 - 8 MC65 User Guide
Single Slot USB Cradle
Table 11-3
Troubleshooting the Single Slot USB Cradle
Symptom Possible Cause Action
LEDs do not light
when MC65 or spare
battery is inserted.
Cradle is not
receiving power. Ensure the power cable is connected securely to both the cradle
and to AC power.
MC65 is not seated
firmly in the cradle. Remove and re-insert the MC65 into the cradle, ensuring it is firmly
seated.
Spare battery is not
seated firmly in the
cradle.
Remove and re-insert the spare battery into the charging slot,
ensuring it is firmly seated.
MC65 battery is not
charging. MC65 was
removed from
cradle or cradle
was unplugged
from AC power too
soon.
Ensure cradle is receiving power. Ensure MC65 is seated
correctly. Confirm main battery is charging under Tap Status Bar
> . The 3600 mAh battery fully charges in less than six hours.
Battery is faulty. Verify that other batteries charge properly. If so, replace the faulty
battery.
The MC65 is not
fully seated in the
cradle.
Remove and re-insert the MC65 into the cradle, ensuring it is firmly
seated.
Extreme battery
temperature. Battery does not charge if ambient temperature is below 0°C
(32°F) or above 40°C (104°F).
Spare battery is not
charging. Battery not fully
seated in charging
slot.
Remove and re-insert the spare battery in the cradle, ensuring it is
firmly seated.
Battery inserted
incorrectly. Re-insert the battery so the charging contacts on the battery align
with the contacts on the cradle.
Battery is faulty. Verify that other batteries charge properly. If so, replace the faulty
battery.
During data
communication, no
data transmits, or
transmitted data was
incomplete.
MC65 removed
from cradle during
communications.
Replace MC65 in cradle and retransmit.
Communication
software is not
installed or
configured properly.
Perform setup as described in the MC65 Integrator Guide.
![](asset-9b.png)
Maintenance & Troubleshooting 11 - 9
Four Slot Ethernet Cradle
Vehicle Cradle
Table 11-4
Troubleshooting the Four Slot Ethernet Cradle
Symptom Cause Solution
During
communication, no
data transmits, or
transmitted data was
incomplete.
MC65 removed
from cradle during
communications.
Replace MC65 in cradle and retransmit.
MC65 has no active
connection. An icon is visible in the status bar if a connection is currently active.
Battery is not
charging. MC65 removed
from the cradle too
soon.
Replace the MC65 in the cradle. The 3600 mAh battery fully
charges in less than six hours. Tap
Status Bar >
to view battery
status.
Battery is faulty. Verify that other batteries charge properly. If so, replace the faulty
battery.
MC65 is not
inserted correctly in
the cradle.
Remove the MC65 and reinsert it correctly. Verify charging is active.
Tap Status Bar >
to view battery status.
Ambient
temperature of the
cradle is too warm.
Move the cradle to an area where the ambient temperature is
between 0°C (32°F) and 50°C (122°F).
Table 11-5
Troubleshooting the Vehicle Cradle
Symptom Possible Cause Action
MC65 battery
charging LED does
not light up.
Cradle is not
receiving power. Ensure the power input cable is securely connected to the cradle’s
power port.
MC65 battery is not
recharging. MC65 was
removed from the
cradle too soon.
Replace the MC65 in the cradle. The 3600 mAh battery fully
charges in less than six hours.
Battery is faulty. Replace the battery.
MC65 is not placed
correctly in the
cradle.
Remove the MC65 from the cradle, and re-insert correctly. If the
battery still does not charge, contact customer support.
The MC65 battery charging LED slowly blinks amber when the
MC65 is correctly inserted and charging.
Ambient
temperature of the
cradle is too warm.
Move to an area where the ambient temperature is between -20oC
and 50oC
50°C (-4°F and 122°F)
.
![](asset-9c.png)
11 - 10 MC65 User Guide
Four Slot Battery Charger
r
Cables
Table 11-6
Troubleshooting The Four Slot Battery Charger
Symptom Possible Cause Action
Battery not charging. Battery was
removed from the
charger or charger
was unplugged
from AC power too
soon.
Re-insert the battery in the charger or re-connect the charger’s
power supply. The 3600 mAh battery fully charges in less than six
hours.
Battery is faulty. Verify that other batteries charge properly. If so, replace the faulty
battery.
Battery contacts not
connected to
charger.
Verify that the battery is seated in the battery well correctly with the
contacts facing down.
Table 11-7
Troubleshooting the Cables
Symptom Possible Cause Action
MC65 battery is not
charging. MC65 was
disconnected from
AC power too soon.
Connect the power cable correctly. Confirm main battery is
charging under Tap Status Bar > . The 3600 mAh battery fully
charges in less than six hours.
Battery is faulty. Verify that other batteries charge properly. If so, replace the faulty
battery.
The MC65 is not
fully attached to
power.
Detach and re-attach the power cable to the MC65, ensuring it is
firmly connected.
During data
communication, no
data transmits, or
transmitted data was
incomplete.
Cable was
disconnected from
MC65 during
communications.
Re-attach the cable and retransmit.
Incorrect cable
configuration. See the system administrator.
Communication
software is not
installed or
configured properly.
Perform setup as described in the MC65 Integrator Guide.
![](asset-9d.png)
Maintenance & Troubleshooting 11 - 11
Magnetic Stripe Reader
Table 11-8
Troubleshooting the Magnetic Stripe Reader
Symptom Possible Cause Action
MSR cannot read
card. MSR removed from
MC65 during card
swipe.
Reattach MSR to MC65 and reswipe the card.
Faulty magnetic
stripe on card. See the system administrator.
MSR application is
not installed or
configured properly.
Ensure the MSR application is installed on the MC65.
Ensure the MSR application is configured correctly.
MC65 battery is not
charging. MC65 was
removed from MSR
or MSR was
unplugged from AC
power too soon.
Ensure MSR is receiving power. Ensure MC65 is attached
correctly. Confirm main battery is charging under Start > Settings
> System > Power. The 3600 mAh battery fully charges in less than
six hours.
Battery is faulty. Verify that other batteries charge properly. If so, replace the faulty
battery.
The MC65 is not
fully attached to the
MSR.
Detach and re-attach the MSR to the MC65, ensuring it is firmly
connected.
During data
communication, no
data transmits, or
transmitted data was
incomplete.
MC65 detached
from MSR during
communications.
Reattach MC65 to MSR and retransmit.
Incorrect cable
configuration. See the system administrator.
Communication
software is not
installed or
configured properly.
Perform setup as described in the MC65 Integrator Guide.
![](asset-9e.png)
11 - 12 MC65 User Guide
![](asset-9f.png)
Appendix A Technical Specifications
MC65 Technical Specifications
The following tables summarize the EDA’s intended operating environment and technical hardware specifications.
MC65
Table A-1
MC65 EDA Technical Specifications
Item Description
Physical Characteristics
Dimensions Height: 16.2 cm (6.38 in.)
Width: 7.7 cm (3.03 in.)
Depth: 3.4 cm (1.32 in.)
Weight 359 g (12.5 oz.)
Display Transflective color 3.5” VGA with backlight, TFT-LCD, 65K colors,
480 W x 640 L
Touch Panel Glass analog resistive touch
Backlight LED backlight
Battery Pack Rechargeable Lithium Ion 3.7V, 3600 mAh battery
Expansion Slot microSD slot (supports up to 32 GB).
Connection Interface USB 2.0 High Speed (host and client)
Notification Audible tone plus multi-color LEDs
Keypad Options numeric, QWERTY, AZERTY or QWERTZ
Audio Dual microphone support with noise cancellation; vibrate alert; speaker;
Bluetooth headset
![](asset-a0.png)
A - 2 MC65 User Guide
Performance Characteristics
CPU MSM Qualcomm 7627@ 600 MHz (multi-processor architecture)
Operating System Microsoft
®
Windows Mobile™ 6.5 Professional
Memory 256 MB RAM/1 GB Flash
Output Power USB - 5 VDC @ 300 mA max.
User Environment
Operating Temperature -10°C to 50°C (14°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Charging Temperature 0° C to 40° C (32°F to 104°F)
Humidity 5 to 95% non-condensing
Drop Specification Multiple 6 ft. drops per MIL-STD 810G specifications
Multiple 5 ft. drops to concrete at room temperature
Multiple 4 ft. drops to concrete across the operating temperature range
Tumble 1,000 1.6 ft./0.5 meter tumbles at room temperature; per applicable IEC tumble
specifications
Electrostatic Discharge (ESD) +/-15kVdc air discharge, +/-8kVdc direct discharge, +/-8kVdc indirect discharge
Sealing IP64; per applicable IEC sealing specifications
Vibration 4g’s PK Sine (5Hz to 2KHz); 0.04g2/Hz Random (20Hz to 2KHz); 60 minute
duration per axis, 3 axis
Thermal Shock -40° C to 70° C (-40° F to 158° F) rapid transition
Battery Performance
Standby Time 100 hours
Talk Time 6 hours
User Profiles 8 hours
Motorola Interactive Sensor Technology (IST)
Motion Sensor 3-axis accelerometer that enables motion-sensing applications for dynamic
screen orientation and power management.
Light Sensor Ambient light sensor to auto adjust display and keypad backlight brightness.
Wireless WAN Data and Voice Communications
Radio Dual 3.5G: GSM HSPA/HSUPA and CDMA EVDO Rev A
Table A-1
MC65 EDA Technical Specifications (Continued)
Item Description
![](asset-a1.png)
Technical Specifications A - 3
Frequency Band UMTS/HSDPA and HSUPA: 850, 1900 and 2100 MHz
GSM/EDGE: 850, 900, 1800 and 1900 MHz
CDMA/EVDO Rev A: 850 and 1900 MHz
Antenna External
Wireless LAN Data and Voice Communications
Radio Tri-mode IEEE
®
802.11a/b/g
Data Rates Supported 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
Operating Channels Chan 36-165 (5180 – 5825 MHz)
Chan 1-13 (2412-2472 MHz)
Chan 14 (2484 MHz) Japan only
Actual operating channels/frequencies depend on regulatory rules and
certification agency
Security WPA2 (Personal or Enterprise); 802.1x; EAP-TLS; TTLS (CHAP, MS-CHAP,
MS-CHAPv2, PAP or MD5); PEAP (TLS, MSCHAPv2, EAP-GTC); LEAP,
EAP-FAST (TLS, MS-CHAPv2, EAP-GTC)
Antenna Internal antenna
Voice Communications Voice-over-IP ready, Wi-Fi™-certified, IEEE 802.11a/b/g direct sequence
wireless LAN, Wi-Fi Multimedia™ (WMM and WMM-PS) Motorola Voice Quality
Manager (VQM), Motorola TEAM Express Ready
Wireless PAN Data and Voice Communications
Bluetooth Class II, v2.1 with Enhanced Data Rate (EDR); integrated antenna
Global Positioning System
GPS Integrated stand-alone or Assisted-GPS (A-GPS).
Regulatory
Electrical Safety IEC/UL/CSA/EN 60950-1
Environmental RoHS/WEEE compliant
WLAN and Bluetooth (PAN)
USA:
FCC Part 15.247, 15.407
Canada:
RSS-210
EU:
EN 300 328, EN 301 893
Japan:
ARIB STD-T33, T66, T70, T71
Australia:
AS/NZS 4268
Table A-1
MC65 EDA Technical Specifications (Continued)
Item Description
![](asset-a2.png)
A - 4 MC65 User Guide
Wireless Wide Area Network GSM-HSDPA
Global:
3GPP TS 51.010, 3GPP TS 34.121, 3GPP TS 34.123, GCF and
PTCRB approved module
USA:
FCC Part 22, Part 24
Canada:
RSS-132, RSS-133
EU:
EN 301 511, EN 301 908
Australia:
AS/ACIF S 024.1 & 3
CDMA-EvDO Rev A
USA:
FCC Part 22, Part 24
Canada:
RSS-132, RSS-133
RF Exposure
USA:
FCC Part 2, FCC OET Bulletin 65 Supplement C
Canada:
RSS-102
EU:
EN 50360, EN62311
Australia:
Radio communications Standard 2003
EMI/RFI
USA:
FCC Part 15, Class B
Canada:
ICES 003 Class B
EU:
EN55022 Class B, EN55024, EN 301 489-1, EN 301 489-3, EN 301 489-7,
EN 301 489-17, EN 301 489-24, EN 60601-1-2, EN 50121-3-2, EN 50121-4
Australia:
AS/NZS CISPR-22
Data Capture Specifications
Options 2D imager, 2D imager and color camera
2D Imager Engine (SE4600) Specifications
Field of View Horizontal - 39.6°
Vertical - 25.7°
Optical Resolution WVGA 752 H x 480 V pixels (gray scale)
Roll 360°
Pitch Angle +/- 60° from normal
Skew Tolerance +/- 60° from normal
Ambient Light Indoor: 450 ft. candles (4845 lux)
Outdoor: 9000 ft. candles (96,900 lux)
Sunlight: 8000 ft. candles
Fluorescent: 450 ft. candles
Focal Distance From center of exit window: SR - 7.5 in. (19 cm)
Aiming Element (VLD) 655 nm +/- 10 nm
Table A-1
MC65 EDA Technical Specifications (Continued)
Item Description
![](asset-a3.png)
Technical Specifications A - 5
Illumination Element (LED) 625 nm +/- 5 nm
Camera Specifications
Resolution 3.2 Mega pixel
Table A-2
Data Capture Options
Item Description
Laser Decode Capability Code 39 Code 128 Code 93
Codabar Code 11 Discrete 2 of 5
Interleaved 2 of 5 EAN-8 EAN-13
MSI UPCA UPCE
UPC/EAN supplementals Coupon Code Trioptic 39
Webcode Chinese 2 of 5 GS1 DataBar
GS1 DataBar Truncated GS1 DataBar Limited GS1 DataBar Stacked
GS1 DataBar Expanded GS1 DataBar Expanded Stacked
GS1 DataBar Stacked Omni
Imaging Decode Capability Code 39 Code 128 Code 93
Codabar Code 11 Interleaved 2 of 5
Discrete 2 of 5 MSI EAN-8
EAN-13 UPCA UPCE
UPC/EAN supplementals Coupon Code Trioptic 39
Webcode TLC39 Composite AB
Composite C Micro PDF-417 PDF-417
Macro PDF-417 (Macro) Micro PDF-417 QR Code
Data Matrix Maxi Code US Postnet
US Planet UK 4-state Australian 4-state
Canadian 4-state Japanese 4-state Dutch Kix
Chinese 2 of 5 USPS 4-state (US4CB) Aztec
microQR GS1 DataBar
GS1 DataBar Truncated GS1 DataBar Limited GS1 DataBar Stacked
GS1 DataBar Expanded GS1 DataBar Expanded Stacked
GS1 DataBar Stacked Omni
Table A-1
MC65 EDA Technical Specifications (Continued)
Item Description
![](asset-a4.png)
A - 6 MC65 User Guide
MC65 Accessory Specifications
Single Slot USB Cradle
Camera Decode Capability Code 39 Code 128 Code 93
Codabar Code 11 Interleaved 2 of 5
Discrete 2 of 5 MSI EAN-8
EAN-13 UPCA UPCE
UPC/EAN supplementals Coupon Code Trioptic 39
Webcode TLC39 Composite AB
Composite C Micro PDF-417 PDF-417
Macro PDF-417 (Macro) Micro PDF-417 QR Code
Data Matrix Maxi Code US Postnet
US Planet UK 4-state Australian 4-state
Canadian 4-state Japanese 4-state Dutch Kix
GS1 DataBar
GS1 DataBar Truncated GS1 DataBar Limited GS1 DataBar Stacked
GS1 DataBar Expanded GS1 DataBar Expanded Stacked
GS1 DataBar Stacked Omni
Table A-2
Data Capture Options (Continued)
Item Description
Table A-3
Single Slot USB Cradle Technical Specifications
Feature Description
Dimensions Height: 7.1 cm (2.80 in.)
Width: 11.0 cm (4.33 in.)
Depth: 15.0 cm (5.91 in.)
Weight 210 g (7.41 oz)
Input Voltage 12 VDC
Power Consumption 30 watts
Interface USB
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Charging Temperature 0°C to 40°C (32°F to 104°F)
Humidity 5% to 95% non-condensing
Drop 76.2 cm (30.0 in.) drops to vinyl tiled concrete at room temperature
Electrostatic Discharge (ESD) +/- 15 kV air
+/- 8 kV contact
![](asset-a5.png)
Technical Specifications A - 7
Four Slot Battery Charger
Four Slot Charge Only Cradle
Table A-4
Four Slot Battery Charger Technical Specifications
Feature Description
Dimensions Height: 4.7 cm (1.85 in.)
Width: 15.5 cm (6.10 in.)
Depth: 21.0 cm (8.27 in.)
Weight 384 g (13.55 oz)
Input Voltage 12 VDC
Power Consumption 30 watts
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Charging Temperature 0°C to 40°C (32°F to 104°F)
Humidity 5% to 95% non-condensing
Drop 76.2 cm (30.0 in.) drops to vinyl tiled concrete at room temperature
Electrostatic Discharge (ESD) +/- 15 kV air
+/- 8 kV contact
Table A-5
Four Slot Charge Only Cradle Technical Specifications
Feature Description
Dimensions Height: 13.7 cm (5.39 in.)
Width: 46.8 cm (18.43 in.)
Depth: 9.9 cm (3.90 in.)
Weight 1115 g (39.33 oz)
Input Voltage 12 VDC
Power Consumption 100 watts
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Charging Temperature 0°C to 40°C (32°F to 104°F)
![](asset-a6.png)
A - 8 MC65 User Guide
Four Slot Ethernet Cradle
Magstripe Reader
Humidity 5% to 95% non-condensing
Drop 76.2 cm (30.0 in.) drops to vinyl tiled concrete at room temperature
Electrostatic Discharge (ESD) +/- 15 kV air
+/- 8 kV contact
Table A-5
Four Slot Charge Only Cradle Technical Specifications (Continued)
Feature Description
Table A-6
Four Slot Ethernet Cradle Technical Specifications
Feature Description
Dimensions Height: 13.7 cm (5.39 in.)
Width: 46.8 cm (18.43 in.)
Depth: 9.9 cm (3.90 in.)
Weight 1115 g (39.33 oz)
Power 12 VDC
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Charging Temperature 0°C to 40°C (32°F to 104°F)
Humidity 5% to 95% non-condensing
Drop 76.2 cm (30.0 in.) drops to vinyl tiled concrete at room temperature
Electrostatic Discharge (ESD) +/- 15 kV air
+/- 8 kV contact
Table A-7
Magstripe Reader (MSR) Technical Specifications
Feature Description
Dimensions TBD
Weight TBD
Interface Serial with baud rate up to 19,200
Format ANSI, ISO, AAMVA, CA DMV, user-configurable generic format
Swipe Speed 5 to 50 in. (127 to 1270 mm) /sec, bi-directional
Decoders Generic, Raw Data
![](asset-a7.png)
Technical Specifications A - 9
Vehicle Cradle
Mode Buffered, unbuffered
Track Reading Capabilities Tracks 1 and 3: 210 bpi
Track 2: 75 and 210 bpi, autodetect
Operating Temperature 32° to 122° F (0° to 50° C)
Storage Temperature -40° to 158° F (-40° to 70° C)
Humidity 5% to 95% non-condensing
Drop 4 ft. (1.22 m) drops to concrete
Electrostatic Discharge (ESD) +/- 15 kV air
+/- 8 kV contact
Table A-7
Magstripe Reader (MSR) Technical Specifications (Continued)
Feature Description
Table A-8
Vehicle Cradle Technical Specifications
Feature Description
Dimensions Height: 10.4 cm (4.09 in.)
Width: 11.1 cm (4.37 in.)
Depth: 6.9 cm (2.72 in.)
Weight 240 g (8.47 oz)
Power 9- 32 VDC
Operating Temperature -20°C to 50°C (-4°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Charging Temperature 0°C to 40°C (32°C to 104°F)
Humidity 10% to 95% non-condensing
Drop 76.2 cm (30.0 in.) drops to vinyl tiled concrete at room temperature
Electrostatic Discharge (ESD) +/- 15 kV air
+/- 8 kV contact
![](asset-a8.png)
A - 10 MC65 User Guide
Cables
Table A-9
USB Charging Cable Technical Specifications
Feature Description
Length 161.9 cm (63.74 in.)
Operating Temperature -10°C to 50°C (14°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity 10% to 95% non-condensing
Electrostatic Discharge (ESD) +/- 15 kV air
+/- 8 kV contact
Table A-10
Charge Only Cable Technical Specifications
Feature Description
Length 28.0 cm (11.00 in.)
Operating Temperature -10°C to 50°C (14°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity 10% to 95% non-condensing
Electrostatic Discharge (ESD) +/- 15 kV air
+/- 8 kV contact
Table A-11
Auto Charge Cable Technical Specifications
Feature Description
Length 169.0 cm (66.54 in.)
Input Voltage 12 - 24 VDC
Operating Temperature -10°C to 50°C (14°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity 10% to 95% non-condensing
Electrostatic Discharge (ESD) +/- 15 kV air
+/- 8 kV contact
![](asset-a9.png)
Appendix B Keypads
Introduction
The MC65 offers four types of keypad configurations: Numeric, QWERTY, QWERTZ and AZERTY.
Numeric Keypad Configuration
The numeric keypad contains application keys, scroll keys, and function keys. The keypad is color-coded to
indicate the alternate function key (blue) values. Note that an application can change keypad functions so the
MC65’s keypad may not function exactly as described. See Table B-1 for key and button descriptions and Table
B-2 on page B-4 for the keypad’s special functions.
Figure B-1
MC65 Numeric Keypad
![](asset-aa.png)
B - 2 MC65 User Guide

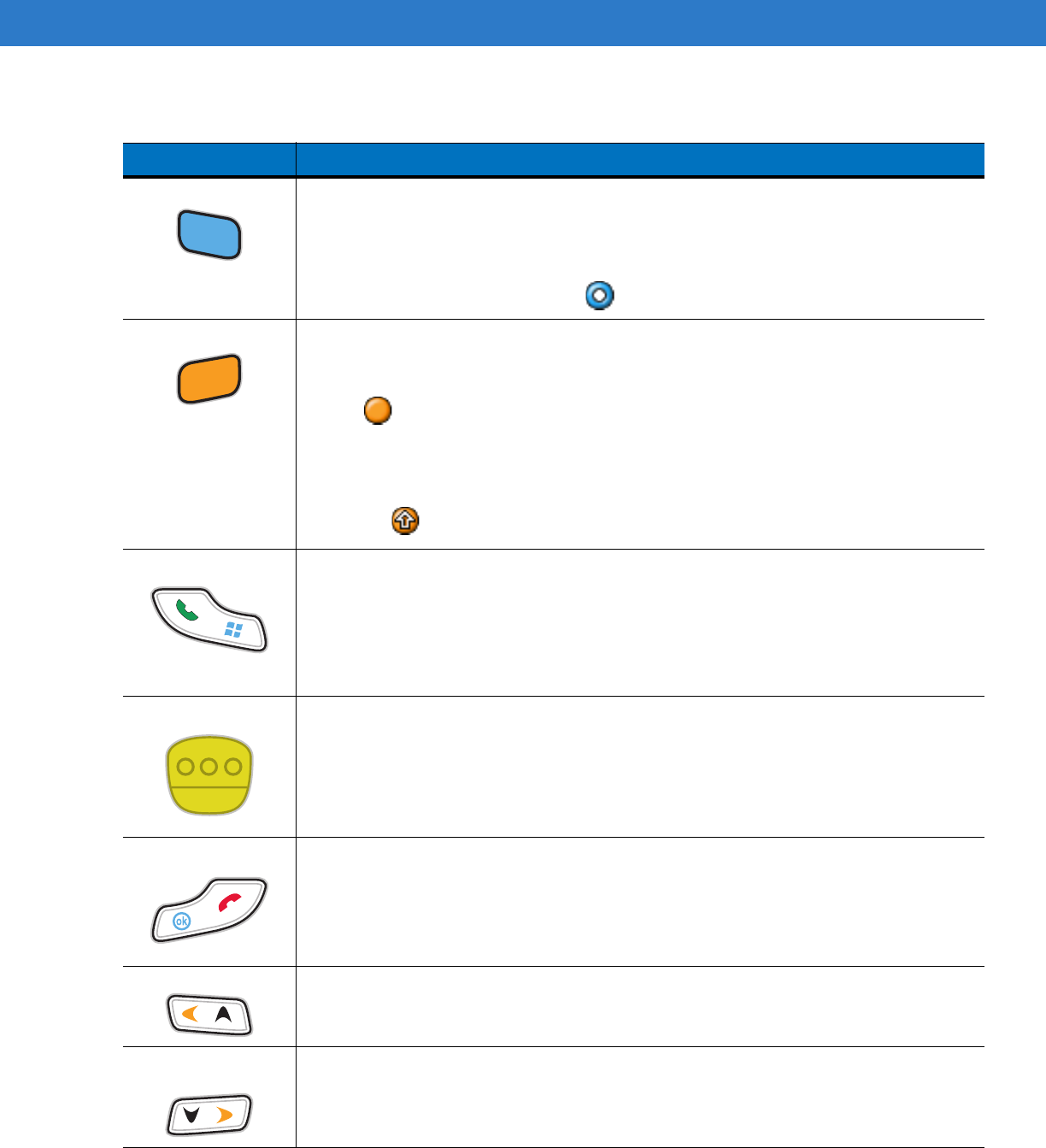

Table B-1
MC65 Numeric Keypad Descriptions
Key Description
Blue Key
Use this key to launch applications or access items (shown on the keypad in blue).
Press the Blue key once to activate this mode, followed by another key.
A single press illuminates the key and displays the following icon at the bottom of the
screen, until a second key is pressed:
Orange Key
Use this key to access the secondary layer of characters and actions (shown on the keypad
in orange). Press the Orange key once to lock the keypad into Alpha state.
A single press illuminates the key and displays the following icon at the bottom of the
screen:
Press the Orange key a second time to return to the normal state.
Press the Orange key, then the Shift key to add a temporary shift (that applies only to the
next key pressed) to the orange lock state. This displays the following icon at the bottom of
the screen:
Talk/Start Menu Talk (Green Phone): press to display the phone keypad window or to dial a phone number
(from the phone keypad window).
When on a phone call, press to place the call on hold.
Use this key in conjunction with the Blue key to instantly display the Start menu from any
application without tapping the screen. This function is user programmable.
Scan (yellow)
Activates the scanner/imager in a scan enabled application.
End/OK End (Red Phone): press when the phone keypad window displays to stop dialing or end a
call.
Use this key in conjunction with the Blue key as an OK or close button. This function is user
programmable.
Scroll Up and Left
Moves up one item.
Moves left one item when pressed with the Orange key.
Scroll Down and
Right
Moves down one item.
Moves right one item when pressed with the Orange key.
![](asset-ab.png)
Keypads B - 3
Soft Keys
Accesses the command or menu above it on the screen.
Star
Produces an asterisk in default state.
Press and release the blue key, then press the Star key to open the Start menu.
Alphanumeric
In default state, produces the numeric value on the key.
In Alpha state, produces the lower case alphabetic characters on the key. Each key press
produces the next alphabetic character in sequence. For example, press and release the
Orange key and then press the ‘4’ key once to produce the letter ‘g’; press and release the
Orange key and then press the ‘4’ key three times to produce the letter ‘i’.
Press the SHIFT key in Alpha state to produce the upper case alphabetic characters on the
key. For example, press and release the Orange key, press and release the SHIFT key, and
then press the ‘4’ key once to produce the letter ‘G’; press and release the Orange key,
press and release the SHIFT key and then press the ‘4’ key three times to produce the letter
‘I’.
Backspace
Produces a backspace.
SHIFT
Press and release the SHIFT key to activate the keypad alternate SHIFT functions.
A single press displays the following icon at the bottom of the screen, until a second key is
pressed:
Press the Orange key, then the Shift key to add a temporary shift (that applies only to the
next key pressed) to the orange lock state. This displays the following icon at the bottom of
the screen:
Enter
Executes a selected item or function.
Table B-1
MC65 Numeric Keypad Descriptions (Continued)
Key Description
![](asset-ac.png)
B - 4 MC65 User Guide
Alpha-numeric Keypad Configurations
The three types of alpha-numeric keypads (QWERTY, AZERTY and QWERTZ) produce the 26-character alphabet
(A-Z, both lowercase and uppercase), numbers (0-9), and assorted characters. The keypad is color-coded to
indicate which modifier key to press to produce a particular character or action. The keypad default is alphabetic,
producing lowercase letters. See Table B-3 for key and button descriptions and Table B-4 on page B-8 for the
keypad’s special functions. AZERTY keypad is used on configurations installed with the French operating system.
QWERTZ keypad is used on configurations installed with the German operating system.
Table B-2
Numeric Keypad Input Modes
Key
Numeric Mode Orange Key
(Alpha Lowercase Mode)
Orange + Shift Keys
(Alpha Uppercase Mode)
Blue+
Key
SHIFT
+ Key
1st
Press
2nd
Press
3rd
Press
4th
Press
1st
Press
2nd
Press
3rd
Press
4th
Press
11F1! * *** * ***
22F2@a bc A BC
33F3# d ef D EF
44F4$ g hi G HI
55F5%j kl J KL
66F6^ m no MNO
77F7& p qr sP QRS
88F8* t uv T UV
99F9( w xyzWXYZ
00F10) . >
Up Up Up Hilight
Up Left Left
Down Down Down Hilight
Down Right Right
Enter Action Action Action Action Action
Note: An application can change the key functions. The keypad may not function exactly as described.
![](asset-ad.png)
Keypads B - 5
Figure B-2
QWERTY Keypad Configuration
Figure B-3
AZERTY Keypad Configuration
Figure B-4
QWERTZ Keypad Configuration
![](asset-ae.png)
B - 6 MC65 User Guide
Table B-3
Alpha-numeric Keypad Descriptions
Key Action
Blue Key Press the Blue key once to activate this mode temporarily, followed by another key. This
displays the following icon at the bottom of the screen, until a second key is
pressed:
Press the Blue key twice to lock this mode. This displays the following icon at the bottom
of the screen:
Press the Blue key a third time to unlock.
Orange Key Accesses the secondary layer of characters and actions (shown on the keypad in
orange).
Press the Orange key once to activate this mode temporarily, followed by another key.
This displays the following icon at the bottom of the screen, until a second key is
pressed:
Press the Orange key twice to lock this mode. This displays the following icon at the
bottom of the screen:
Press the Orange key a third time to unlock.
Talk/Start Menu Talk (Green Phone): press to display the phone keypad window or to dial a phone number
(from the phone keypad window).
When on a phone call, press to place the call on hold.
Use this key in conjunction with the Blue key to instantly display the Start menu from any
application without tapping the screen. This function is user programmable.
Scan (yellow)
Activates the scanner/imager in a scan enabled application.
End/OK End (Red Phone): press when the phone keypad window displays to stop dialing or end a
call.
Use this key in conjunction with the Blue key as an OK or close button. This function is
user programmable.
Scroll Up and Left Moves up one item.
Moves left one item when pressed with the Orange key.
ok
![](asset-af.png)
Keypads B - 7
Scroll Down and Right Moves down one item.
Moves right one item when pressed with the Orange key.
Soft Keys
Accesses the command or menu above it on the screen.
Shift
Changes the state of the alpha characters from lowercase to uppercase.
•
Press the Shift key to activate this mode temporarily, followed by another key.
This displays the following icon at the bottom of the screen, until a second key is
pressed:
•
Press the Shift key twice to lock this mode. This displays the following icon at the
bottom of the screen:
Press the Shift key a third time to unlock.
Backlight Turns the display backlight on and off.
Backspace Produces a backspace.
Enter Executes a selected item or function.
Star Produces an asterisk.
au Creates special characters.
Table B-3
Alpha-numeric Keypad Descriptions (Continued)
Key Action
![](asset-b0.png)
B - 8 MC65 User Guide
Table B-4
QWERTY Keypad Input Modes
Key Normal Shift + Key Orange + Key Blue + Key
Qq Q * q
Ww W 1 w
Ee E 2 e
Rr R 3 r
Tt T + t
Yy Y _ y
Uu U - u
Ii I = i
Oo O “ o
Pp P áü p
Aa A # a
Ss S 4 s
Dd D 5 d
Ff F 6 f
Gg G ( g
Hh H ) h
Jj J / j
Kk K : k
Ll L ‘ l
Backspace Backspace Backspace Backspace Backspace
Shift Shift Shift-Lock Shift Shift
Zz Z 7 z
Xx X 8 x
Cc C 9 c
Vv V % v
Bb B & b
Nn N ! n
Mm M ? m
Note: An application can change the key functions. The keypad may not function exactly as described.
![](asset-b1.png)
Keypads B - 9
,, <@,
ENTER Enter Enter Enter Enter
00 ) 0 0
TAB Tab Tab Back tab Tab
SPACE Space Space Space Space
Backlight Backlight Backlight Backlight Backlight
. (Period) . > . .
Table B-5
AZERTY Keypad Input Modes
Key Normal Shift + Key Orange + Key Blue + Key
Aa A * a
Zz Z 1 z
Ee E 2 e
Rr R 3 r
Tt T + t
Yy Y _ y
Uu U - u
Ii I = i
Oo O “ o
Pp P áü p
Qq Q # q
Ss S 4 s
Dd D 5 d
Ff F 6 f
Gg G ( g
Hh H ) h
Jj J / j
Kk K : k
Note: An application can change the key functions. The keypad may not function exactly as described.
Table B-4
QWERTY Keypad Input Modes (Continued)
Key Normal Shift + Key Orange + Key Blue + Key
Note: An application can change the key functions. The keypad may not function exactly as described.
![](asset-b2.png)
B - 10 MC65 User Guide
Ll L ‘ l
Backspace Backspace Backspace Backspace Backspace
Shift Shift Shift-Lock Shift Shift
Ww W 7 w
Xx X 8 x
Cc C 9 c
Vv V % v
Bb B & b
Nn N ! n
Mm M ? m
,, <@
Enter Enter Enter Enter Enter
00 ) 0 0
TAB Tab Tab Back tab Tab
SPACE Space Space Space Space
Backlight Backlight Backlight Backlight Backlight
. (Period) . > . .
Table B-6
QWERTZ Keypad Input Modes
Key Normal Shift + Key Orange + Key Blue + Key
Qq Q * q
Ww W 1 w
Ee E 2 e
Rr R 3 r
Tt T + t
Zz Z _ z
Uu U - u
Ii I = i
Note: An application can change the key functions. The keypad may not function exactly as described.
Table B-5
AZERTY Keypad Input Modes (Continued)
Key Normal Shift + Key Orange + Key Blue + Key
Note: An application can change the key functions. The keypad may not function exactly as described.
![](asset-b3.png)
Keypads B - 11
Oo O “ o
Pp P áü p
Aa A # a
Ss S 4 s
Dd D 5 d
Ff F 6 f
Gg G ( g
Hh H ) h
Jj J / j
Kk K : k
Ll L ‘ l
Backspace Backspace
Shift Shift
Yy Y 7 y
Xx X 8 x
Cc C 9 c
Vv V % v
Bb B & b
Nn N ! n
Mm M ? m
,, <@,
ENTER Enter ENTER ENTER Enter
00 ) 0 0
TAB Tab Tab Back tab Tab
SPACE Space Space Space Space
Backlight Backlight Backlight Backlight Backlight
. (Period) . > . .
Table B-6
QWERTZ Keypad Input Modes (Continued)
Key Normal Shift + Key Orange + Key Blue + Key
Note: An application can change the key functions. The keypad may not function exactly as described.
![](asset-b4.png)
B - 12 MC65 User Guide
Special Character Key
To add special characters using the MC65 áü key, type the related character first, then press the Orange twice
followed by the áü (P) key. Continue pressing the áü key until the special character displays. To modify an existing
character, move the cursor to the right of the character then press the Orange key twice and then press the áü key
until the special character replaces the original character. Table B-7 lists the special characters you can generate.
NOTE Special characters are only available on the alpha-numeric keypad configurations.
Table B-7
Special Characters
Key Special Characters Key Special Characters
aA
cC
dD
eE
iI
lL
nN
oO
pP
rR
sS
tT
uU
yY
zZ
$/
“(
)+
!.
*@
%,
#&
_‘
![](asset-b5.png)
Keypads B - 13
?:
-
Table B-7
Special Characters (Continued)
Key Special Characters Key Special Characters
![](asset-b6.png)
B - 14 MC65 User Guide
![](asset-b7.png)
Appendix C Windows Mobile Home Screen
and Dialer
Introduction
The appendix describes the functionality of the optional Windows Mobile Home screen and Dialer.
Windows Mobile Home Screen
The Windows Mobile Home screen is scrollable and contains a list of application plug-ins and an Information Status
bar. The Information Status bar highlights the application plug-in that is under it and provides additional information.
Figure C-1
Windows Mobile Home Screen
To enable the Windows Mobile Home screen:
1. Tap Start > Setting > Home.
2. On the horizontal scroll, select Items.
3. In the item list select the Windows Default checkbox. Deselect all other checkboxes.
4. Tap OK. The Windows Mobile Home screen appears.
Open the Start Menu Tiles
Status Bar
Today Screen
Tile Bar
![](asset-b8.png)
C - 2 MC65 User Guide
Touch and hold the screen with your finger and move the Home screen up and down. As the application names
move under the Information Status bar, information relevant to that application appear in the bar.
Figure C-2
Moving Today Screen
You can also touch and hold the Information Status bar and move it up and down over an application name.
Remove your finger and the Information Status bar and application name center in the screen.
Figure C-3
Moving Information Status Bar
![](asset-b9.png)
Windows Mobile Home Screen and Dialer C - 3
Figure C-4
Information Bar Example
To customize the Home screen, tap Start > Settings > Today. On the horizontal scroll, use Appearance to
customize the background and the Items to change the display format.
Classic Today Screen
The user can change the Today screen to the classic layout that is used in Windows Mobile 6.1.
Figure C-5
Classic Today Screen
To change to the classic view tap Start > Settings > Home > Items.
Application Icon
Application Information
Tile Bar
Status Bar
Today Screen
Task Tray
![](asset-ba.png)
C - 4 MC65 User Guide
Figure C-6
Home Screen Settings
Deselect the Windows Default checkbox and select any of the other checkboxes except for Motorola Home.
Tap OK.
The task bar at the bottom of the screen can contain the task tray icons listed in Table C-1.
Start Screen
To open the Start screen, tap Start at the bottom left corner of the screen, or press the START key on the keypad.
Swipe upward to view more program and folder icons.
You can move often-used program and folder icons anywhere on the Start screen for easy access. Press and hold
the icon that you want to move. Drag the icon to a new location and release.
Windows Mobile Dialer
Use the MC65 to make phone calls, set up speed dials, keep track of calls, and send text messages. Your wireless
service provider may also provide other services such as voice mail, call forwarding, and caller ID.
Also use the integrated phone to connect to an ISP or work network in order to browse the Web and read e-mail.
Connect to the Internet or work network over High-Speed Downlink Packet Access (HSDPA) or Evolution
Data-Optimized (EvDO) using Cellular Line.
1. To enable the Windows Mobile Dialer:
2. Tap Start > Settings > Personal > Dialer Switcher.
Table C-1
Task Tray Icons
Icon Name Description
Wireless connection
status Indicates WLAN signal strength.
ActiveSync Active serial connection between the MC75A and the host computer.
![](asset-bb.png)
Windows Mobile Home Screen and Dialer C - 5
3. Select Microsoft Dialer.
4. Tap Save.
5. Tap OK. The MC65 reboots.
Making a Call
With the MC65, you can make a call from the phone, contacts, speed dial and call history.
Using the Phone Keypad
To make a call using the phone keypad:
1. Press .
2. Enter the phone number on the dialer or keypad. The number appears in the call line.
3. Press .
4. Press to stop dialing or end the call.
Smart Dialing
Smart Dialing makes it easy to dial a phone number. When the user starts entering numbers or characters, Smart
Dialing automatically searches and sorts the contact entries on the SIM card, in Contacts, and the phone numbers
in Call History (including incoming, outgoing, and missed calls). The user can then select the desired number or
contact from the filtered list to dial.
Open the Phone screen, then tap the keys on the Phone keypad that correspond to the phone number or contact to
call. The contact panel lists contacts that match the sequence that you entered.
Smart Dialing starts looking for numbers or contacts that match the sequence entered.
To find a phone number:
•
Enter the first one or two digits to find a phone number in Call History.
•
Enter the first three digits or more to find a phone number from the saved Contacts and SIM card.
To find a contact name:
•Enter the first letter of a contact’s first name or last name. Smart Dialing searches for the letter starting
from the first character of a contact name as well as from the character that appears after a space, dash,
or underscore in a contact name. For example, if you tap number “2” which is associated with [a, b, c] on
NOTE You can make emergency calls even when the MC65 is locked or when a SIM card is not installed. See
Emergency Calling on page C-9 for more information.
ok
NOTE If the user taps a wrong number, tap Delete key to erase each subsequent digit of a number. To erase the
entire number, tap and hold the Delete key.
![](asset-bc.png)
C - 6 MC65 User Guide
the Phone keypad, contact names such as the following will be considered matches: “Smith, Bernard”,
“Adams, John”, “Carlson, Eileen”, “Dillon, Albert”, “Childs, Larry”, “Cooper, Robert” and “Parks, Celine”.
•If the matching list is long narrow down the search further by entering another letter. Using the same
example above, tap “3” which is associated with (d, e, f), the matching list is narrowed down to the
following names: “Smith, Bernard”, “Adams, John”, and “Parks, Celine”.
Figure C-7
Finding a Contact
To make a call or send a text message using Smart Dialing:
1. Begin entering the first few numbers or characters.
2. In the Smart Dialing panel, use the up and down arrows on the keypad to navigate to the desired contact or
phone number.
3. When the correct contact is selected, press TALK to make a voice call.
4. To send a text message to the selected contact, tap > Send Text Message.
5. To call a different phone number associated with the selected contact, tap the contact name and select the
phone number to call.
Using Contacts
Use Contacts to make a call without looking up or entering the phone number.
To make a call from Contacts:
1. Tap Contacts.
2. From the contact list, tap and hold the contact name.
![](asset-bd.png)
Windows Mobile Home Screen and Dialer C - 7
Figure C-8
Contacts Menu
3. Tap Call Work, Call Home or Call Mobile.
Using Call History
To make a call using Call History:
1. Press .
2. From the Phone keypad, tap Call History.
Figure C-9
Call History Window
3. Tap the phone icon next to the number to begin dialing and return to the phone keypad.
4. Tap End or press the red phone key on the MC65 keypad to stop dialing or end the call.
NOTE To make a call from an open contact, tap the number to call. See On-Device Help for more information about
Contacts.
Phone icon
![](asset-be.png)
C - 8 MC65 User Guide
Making a Speed Dial Call
Use Speed Dial to call someone saved in the speed dial directory.
To make a speed dial call:
1. Press .
2. From the keypad, tap and hold the speed dial location number assigned to a contact. (To dial a one-digit speed
dial location number, tap and hold the speed dial number. To dial a two-digit speed dial location number, tap the
first digit and then tap and hold the second digit.)
or
From the keypad, tap Speed Dial and tap the speed dial location number of the desired contact in the list.
Figure C-10
Speed Dial Contact List
3. To stop dialing or end the call, press .
Answering a Call
A dialog box appears on the MC65 when it receives an incoming call. If the phone is set to ring, a ring tone sounds.
Answer or ignore the incoming call.
To answer an incoming call tap Answer on the dialog box or press .
Figure C-11
Incoming Call
To ignore the incoming call tap or press . This sends the caller to voice mail, depending on the service
provider. Otherwise, this presents a busy signal to the calling party.
Speed Dial
Location Number
ok
![](asset-bf.png)
Windows Mobile Home Screen and Dialer C - 9
To end the call press .
Incoming Call Features
•
You can use other programs on the MC65 during a call. To switch back to the Phone, press or tap
Start > Phone. Tap to end the call.
•
If a caller isn't in your contact list, create a contact during the call or from Call History by tapping Menu >
Save to Contacts.
•
To terminate a call when a second call comes in and answer the waiting call, tap End on the Phone keypad to
disconnect the active call, then tap Answer or press the Send key to answer the waiting call.
•
To hold the current call and answer a waiting call, tap Answer or press the Send key to place the current call
on hold and answer the incoming call.
•
To put a call on hold to call another number or answer an incoming call, tap Hold. To move from one call to
another, tap Swap.
Missed Call Notification
When you do not answer an incoming call, the Home screen displays a Missed Call indication.
To display a missed call entry tap the Missed Call box on the Home screen.
Emergency Calling
Your service provider programs one or more emergency phone numbers, such as 911 or 999, that you can call
under any circumstances, even when your phone is locked or the SIM card is not inserted. Your service provider
can program additional emergency numbers into your SIM card. However, your SIM card must be inserted in your
phone in order to use the numbers stored on it. See your service provider for additional information.
When the alpha primary keypad is locked, press the Orange key twice to set the keypad to numeric mode and then
enter the emergency number.
Audio Modes
The MC65 offers three audio modes for use during phone calls:
•
Handset Mode: Switches audio to the speaker at the top front of the MC65, so you can use the MC65 as a
handset. This is the default mode.
•
Speaker Mode: Use the MC65 as if on speaker phone. Tap the Speaker On button to activate this mode.
Tap the Speaker Off button to switch back to handset mode.
ok
ok
NOTE Emergency numbers vary by country. Your phone’s pre-programmed emergency number(s) may not work in
all locations, and sometimes an emergency call cannot be placed due to network, environmental, or
interference issues.
![](asset-c0.png)
C - 10 MC65 User Guide
•
Headset Mode: Connect a Bluetooth headset or a wired headset to automatically switch audio to the
headset.
The MC65 defaults to handset mode. When a wired headset is plugged into the MC65 headset connector or a
Bluetooth headset is configured for use with the MC65, the earpiece and speakerphone are muted and audio is
heard through the headset.
Using a Wired Headset
You can use a stereo headset for audio communication when using an audio-enabled application. To use a
headset, plug the headset jack of the Headset Adapter Cable into the headset connector on the side of the MC65.
Plug the Headset connector into the connector on the Headset Adapter Cable. Set the MC65’s volume
appropriately before putting the headset on. Plugging a headset into the jack mutes the speaker.
Using a Bluetooth Headset
You can use a Bluetooth headset for audio communication when using an audio-enabled application. See Chapter
7, Using Bluetooth for information on connecting a Bluetooth headset to the MC65. Set the MC65’s volume
appropriately before putting the headset on. When a Bluetooth headset is connected the speakerphone is muted.
Adjusting Audio Volume
Use the Volume Control Slider or the Volume buttons to adjust the volume of the ringer when not in a call and the
audio volume when in a call.
Figure C-12
Phone Volume Slider
To adjust the volume press the Volume Up or Down buttons on the side of the MC65. Move the slider up or down to
adjust the volume.
NOTE While using a Bluetooth headset during a call, the MC65 will not go into suspend mode.
NOTE Remove the headset jack plug before connecting the Headset Adapter to the MC65.
Phone Volume Slider
![](asset-c1.png)
Windows Mobile Home Screen and Dialer C - 11
Muting a Call
During a call, you can mute the microphone so you can hear the person on the line but he or she cannot hear
conversation from the microphone. This is useful when there is conversation or background noise on your end.
To mute or unmute a call, tap Mute on the dialer to mute the audio. The Mute button become Unmute.
Using Call History
Use Call History to call someone who was recently called, or recently called in. Call History provides the time and
duration of all incoming, outgoing, and missed calls. It also provides a summary of total calls and easy access to
notes taken during a call. Table 4-1 lists the call history icons that appear in the Call History window.
Managing Call History
Change views, reset the call timer, and delete calls to manage the calls stored in Call History.
Changing the Call History View
1. Press to display the Phone dialer.
2. From the Phone dialer, tap Call History.
3. Tap > Filter to show the menu.
4. Select a view type from the menu to display only missed calls, outgoing calls, incoming calls, or calls listed
alphabetically by caller name.
5. Tap OK to exit the Call History window.
Resetting the Recent Calls Counter
1. Press to display the Phone dialer.
2. From the Phone dialer, tap Call History.
NOTE Adjust the conversation phone volume during a call. Adjusting the volume while not in a call affects the ring
and notification sound levels.
Table C-2
Call History Icons
Icon Description
This icon appears next to the contact information for all outgoing calls.
This icon appears next to the contact information for all incoming calls.
This icon appears next to the contact information for all missed calls.
![](asset-c2.png)
C - 12 MC65 User Guide
3. Tap .
4. Select Call Timers... .
Figure C-13
Call History - Call Timers
5. Tap Reset. (The All Calls: counter cannot be reset.)
6. Tap OK to exit the Call Timers window.
Deleting All Call History Items
1. Press to display the Phone dialer.
2. From the Phone dialer, tap Call History.
3. Tap .
4. Select Delete all calls.
5. Tap Yes.
6. Tap OK to exit the Call History window.
Viewing Call Status
1. Press to display the Phone dialer.
2. From the Phone dialer, tap Call History.
3. Tap an entry. The Call Status window appears.
![](asset-c3.png)
Windows Mobile Home Screen and Dialer C - 13
Figure C-14
Call History - Detail
4. Tap OK and then OK to exit.
Using the Call History Menu
Use the Call History menu to dial voice mail, access the Activation Wizard, save to contacts, view a note, delete a
listing, send an SMS, and make a call.
1. Press to display the Phone dialer.
2. From the Phone dialer, tap Call History.
3. Tap and hold an item in the list.
Figure C-15
Call History - Menu
4. Select an applicable item from the menu, as needed.
5. Depending on the item selected, the appropriate window displays. For example, select Send Text message to
display the Text Messages window.
6. Tap OK to exit the Call History window.
NOTE When more than one call is on the phone line, only the duration of the first call is recorded.
![](asset-c4.png)
C - 14 MC65 User Guide
Swapping Calls (GSM)
To move between two phone calls:
1. Press to display the Phone dialer.
2. Enter the first phone number and press Talk. When the call connects, Hold appears on the dialer.
3. Tap Hold on to place the first number on hold.
4. Enter the second number and tap Talk.
Figure C-16
Call Conferencing - Conferencing
5. Tap Swap to move from one call to the other.
6. Tap End or press to end each call.
Swapping Calls (CDMA)
To swap between two incoming phone calls:
1. Tap Answer to connect to the first call.
Figure C-17
Answer a Call
ok
![](asset-c5.png)
Windows Mobile Home Screen and Dialer C - 15
2. When a second call arrives, tap Answer. The first call is placed on hold.
3. Tap Flash to swap from one call to the other.
Figure C-18
Call Swapping
4. Tap End or press the red phone key on the keypad to end active call. The remaining call re-connects, tap
Answer to connect to the call.
5. Tap End or press the red phone key on the keypad to end the last call.
Conference Calling (GSM)
To create a conference phone session with multiple people:
1. Press to display the Phone dialer.
2. Enter the first phone number and press Talk. When the call connects, Hold appears on the dialer.
3. Tap Hold to place the first call on hold.
4. Enter the second phone number and tap Talk.
5. After the call is answered, tap > Conference to place the calls in conference mode.
6. Tap Hold to place the conference on hold.
7. Enter another phone number and tap Talk.
8. After the call is answered, tap > Conference to place all the calls in conference mode.
9. Repeat steps 6 through 8 for up to six phone numbers.
10. Ta p End or press the red phone key on the keypad to end the conference call.
NOTE Conference Calling and the number of conference calls allowed may not be available on all services. Please
check with your service provider for Conference Calling availability.
![](asset-c6.png)
C - 16 MC65 User Guide
Three-way Calling (CDMA)
To create a three-way phone session with two people and you as the initiator:
1. Press to display the Phone dialer.
2. Enter the first phone number and press Flash.
3. To call a second person, tap Keypad. Enter the second number and tap Flash.
4. When the second person answers the call, tap Flash to create a three-way calling session.
5. Tap Flash to drop the last call.
6. Press to drop the first call.
NOTE To speak privately with one party during a conference call, tap > Private. To include all parties again, tap
> Conference.
NOTE Three-way Calling may not be available on all services. Please check with your service provider for availability.
ok
![](asset-c7.png)
Glossary
A
API. (Application Programming Interface) An interface by means of which one software component communicates with or
controls another. Usually used to refer to services provided by one software component to another, usually via software
interrupts or function calls
AZERTY. A standard keyboard commonly used on French keyboards. “AZERTY” refers to the arrangement of keys on the
top row of keys.
AKU. (Adaptation Kit Update) Updates to the Windows Mobile operating system.
AFH. Adaptive Frequency Hopping
ActiveSync. ActiveSync is a data synchronization program developed by Microsoft for use with Windows Mobile operating
systems.
B
Bar Code. A pattern of variable-width bars and spaces which represents numeric or alphanumeric data in machine-readable
form. The general format of a bar code symbol consists of a leading margin, start character, data or message character,
check character (if any), stop character, and trailing margin. Within this framework, each recognizable symbology uses
its own unique format. See Symbology.
Bit. Binary digit. One bit is the basic unit of binary information. Generally, eight consecutive bits compose one byte of data.
The pattern of 0 and 1 values within the byte determines its meaning.
Bits per Second (bps). Bits transmitted or received.
Bluetooth. A wireless protocol utilizing short-range communications technology facilitating data transmission over short
distances.
boot or boot-up. The process a computer goes through when it starts. During boot-up, the computer can run self-diagnostic
tests and configure hardware and software.
![](asset-c8.png)
Glossary - 2 MC55 User Guide
bps. See Bits Per Second.
Byte. On an addressable boundary, eight adjacent binary digits (0 and 1) combined in a pattern to represent a specific
character or numeric value. Bits are numbered from the right, 0 through 7, with bit 0 the low-order bit. One byte in
memory is used to store one ASCII character.
C
CDRH. Center for Devices and Radiological Health. A federal agency responsible for regulating laser product safety. This
agency specifies various laser operation classes based on power output during operation.
CDRH Class 1. This is the lowest power CDRH laser classification. This class is considered intrinsically safe, even if all laser
output were directed into the eye's pupil. There are no special operating procedures for this class.
CDRH Class 2. No additional software mechanisms are needed to conform to this limit. Laser operation in this class poses
no danger for unintentional direct human exposure.
Character. A pattern of bars and spaces which either directly represents data or indicates a control function, such as a
number, letter, punctuation mark, or communications control contained in a message.
Codabar. A discrete self-checking code with a character set consisting of digits 0 to 9 and six additional characters: (“-”, “$”,
“:”, “/”, “,” and “+”).
Code 128. A high density symbology which allows the controller to encode all 128 ASCII characters without adding extra
symbol elements.
Code 3 of 9 (Code 39). A versatile and widely used alphanumeric bar code symbology with a set of 43 character types,
including all uppercase letters, numerals from 0 to 9 and 7 special characters (“-”, “.”, “/”, “+”, “%”, “$” and space). The
code name is derived from the fact that 3 of 9 elements representing a character are wide, while the remaining 6 are
narrow.
Code 93. An industrial symbology compatible with Code 39 but offering a full character ASCII set and a higher coding
density than Code 39.
COM port. Communication port; ports are identified by number, e.g., COM1, COM2.
Cradle. A cradle is used for charging the terminal battery and for communicating with a host computer, and provides a
storage place for the terminal when not in use.
D
DCP. See Device Configuration Package.
Decode. To recognize a bar code symbology (e.g., UPC/EAN) and then analyze the content of the specific bar code
scanned.
Decode Algorithm. A decoding scheme that converts pulse widths into data representation of the letters or numbers
encoded within a bar code symbol.
![](asset-c9.png)
Glossary - 3
Decryption. Decryption is the decoding and unscrambling of received encrypted data. Also see, Encryption and Key.
Depth of Field. The range between minimum and maximum distances at which a scanner can read a symbol with a certain
minimum element width.
Device Configuration Package. The Symbol Device Configuration Package provides the Product Reference Guide (PRG),
flash partitions, Terminal Configuration Manager (TCM) and the associated TCM scripts. With this package hex images
that represent flash partitions can be created and downloaded to the mobile computer.
Discrete 2 of 5. A binary bar code symbology representing each character by a group of five bars, two of which are wide.
The location of wide bars in the group determines which character is encoded; spaces are insignificant. Only numeric
characters (0 to 9) and START/STOP characters may be encoded.
E
EAN. European Article Number. This European/International version of the UPC provides its own coding format and
symbology standards. Element dimensions are specified metrically. EAN is used primarily in retail.
EMDK. Enterprise Mobility Developer’s Kit.
ESD. Electro-Static Discharge
F
File Transfer Protocol (FTP). A TCP/IP application protocol governing file transfer via network or telephone lines. See
TCP/IP.
Flash Memory. Flash memory is nonvolatile, semi-permanent storage that can be electronically erased in the circuit and
reprogrammed.
FHSS (Frequency Hopping Spread Sprectrum). A method of transmitting radio signals by rapidly switching a carrier among
many frequency channels, using a pseudorandom sequence known to both transmitter and receiver.
G
GPS (Global Positioning System). A satellite-based navigation system made up of a network of 24 satellites. GPS
satellites circle the earth and transmit signal information to earth. GPS receivers take this information and use
triangulation to calculate the user's exact location.
H
Hz. Hertz; A unit of frequency equal to one cycle per second.
![](asset-ca.png)
Glossary - 4 MC55 User Guide
Host Computer. A computer that serves other terminals in a network, providing such services as computation, database
access, supervisory programs and network control.
I
IEC. International Electrotechnical Commission. This international agency regulates laser safety by specifying various laser
operation classes based on power output during operation.
IEC (825) Class 1. This is the lowest power IEC laser classification. Conformity is ensured through a software restriction of
120 seconds of laser operation within any 1000 second window and an automatic laser shutdown if the scanner's
oscillating mirror fails.
IEEE Address. See MAC Address.
Input/Output Ports. I/O ports are primarily dedicated to passing information into or out of the terminal’s memory. MC65
mobile computers include USB ports.
Interleaved 2 of 5. A binary bar code symbology representing character pairs in groups of five bars and five interleaved
spaces. Interleaving provides for greater information density. The location of wide elements (bar/spaces) within each
group determines which characters are encoded. This continuous code type uses no intercharacter spaces. Only
numeric (0 to 9) and START/STOP characters may be encoded.
Internet Protocol Address. See IP.
I/O Ports. The connection between two devices, defined by common physical characteristics, signal characteristics, and
signal meanings. Types of interfaces include RS-232 and USB.
IP. Internet Protocol. The IP part of the TCP/IP communications protocol. IP implements the network layer (layer 3) of the
protocol, which contains a network address and is used to route a message to a different network or subnetwork. IP
accepts “packets” from the layer 4 transport protocol (TCP or UDP), adds its own header to it and delivers a “datagram”
to the layer 2 data link protocol. It may also break the packet into fragments to support the maximum transmission unit
(MTU) of the network.
IP Address. (Internet Protocol address) The address of a computer attached to an IP network. Every client and server
station must have a unique IP address. A 32-bit address used by a computer on a IP network. Client workstations have
either a permanent address or one that is dynamically assigned to them each session. IP addresses are written as four
sets of numbers separated by periods; for example, 204.171.64.2.
IPX/SPX. Internet Package Exchange/Sequential Packet Exchange. A communications protocol for Novell. IPX is Novell’s
Layer 3 protocol, similar to XNS and IP, and used in NetWare networks. SPX is Novell's version of the Xerox SPP
protocol.
ISM. Industry Scientific and Medical
K
Key. A key is the specific code used by the algorithm to encrypt or decrypt the data. Also see, Encryption and Decrypting.
![](asset-cb.png)
Glossary - 5
L
LASER. Light Amplification by Stimulated Emission of Radiation.The laser is an intense light source. Light from a laser is
all the same frequency, unlike the output of an incandescent bulb. Laser light is typically coherent and has a high energy
density.
laser scanner. A type of bar code reader that uses a beam of laser light.
LCD. See Liquid Crystal Display.
LED Indicator. A semiconductor diode (LED - Light Emitting Diode) used as an indicator, often in digital displays. The
semiconductor uses applied voltage to produce light of a certain frequency determined by the semiconductor's particular
chemical composition.
Light Emitting Diode. See LED.
Liquid Crystal Display (LCD). A display that uses liquid crystal sealed between two glass plates. The crystals are excited
by precise electrical charges, causing them to reflect light outside according to their bias. They use little electricity and
react relatively quickly. They require external light to reflect their information to the user.
M
MC. Mobile Computer.
MDN. Mobile Directory Number. The directory listing telephone number that is dialed (generally using POTS) to reach a
mobile unit. The MDN is usually associated with a MIN in a cellular telephone -- in the US and Canada, the MDN and
MIN are the same value for voice cellular users. International roaming considerations often result in the MDN being
different from the MIN.
MIN. Mobile Identification Number. The unique account number associated with a cellular device. It is broadcast by the
cellular device when accessing the cellular system.
Mobile Computer. In this text, mobile computer refers to the MC65. It can be set up to run as a stand-alone device, or it can
be set up to communicate with a network, using wireless radio technology.
N
Nominal. The exact (or ideal) intended value for a specified parameter. Tolerances are specified as positive and negative
deviations from this value.
NVM. Non-Volatile Memory.
![](asset-cc.png)
Glossary - 6 MC55 User Guide
O
Open System Authentication. Open System authentication is a null authentication algorithm.
P
PAN . Personal Area Network. Using Bluetooth wireless technology, PANs enable devices to communicate wirelessly.
Generally, a wireless PAN consists of a dynamic group of less than 255 devices that communicate within about a 33-foot
range. Only devices within this limited area typically participate in the network.
PING. (Packet Internet Groper) An Internet utility used to determine whether a particular IP address is online. It is used to
test and debug a network by sending out a packet and waiting for a response.
Q
QWERTY. A standard keyboard commonly used on European keyboards. “QWERTY” refers to the arrangement of keys on
the top row of keys.
QWERTZ. A standard keyboard commonly used on German keyboards. “QWERTZ” refers to the arrangement of keys on
the top row of keys.
R
RAM. Random Access Memory. Data in RAM can be accessed in random order, and quickly written and read.
RF. Radio Frequency.
ROM. Read-Only Memory. Data stored in ROM cannot be changed or removed.
Router. A device that connects networks and supports the required protocols for packet filtering. Routers are typically used
to extend the range of cabling and to organize the topology of a network into subnets. See Subnet.
S
Scanner. An electronic device used to scan bar code symbols and produce a digitized pattern that corresponds to the bars
and spaces of the symbol. Its three main components are: 1) Light source (laser or photoelectric cell) - illuminates a bar
code,; 2) Photodetector - registers the difference in reflected light (more light reflected from spaces); 3) Signal
conditioning circuit - transforms optical detector output into a digitized bar pattern.
SDK. Software Development Kit
Shared Key. Shared Key authentication is an algorithm where both the AP and the MU share an authentication key.
![](asset-cd.png)
Glossary - 7
SID. System Identification code. An identifier issued by the FCC for each market. It is also broadcast by the cellular carriers
to allow cellular devices to distinguish between the home and roaming service.
Space. The lighter element of a bar code formed by the background between bars.
Specular Reflection. The mirror-like direct reflection of light from a surface, which can cause difficulty decoding a bar code.
Start/Stop Character. A pattern of bars and spaces that provides the scanner with start and stop reading instructions and
scanning direction. The start and stop characters are normally to the left and right margins of a horizontal code.
Subnet. A subset of nodes on a network that are serviced by the same router. See Router.
Subnet Mask. A 32-bit number used to separate the network and host sections of an IP address. A custom subnet mask
subdivides an IP network into smaller subsections. The mask is a binary pattern that is matched up with the IP address
to turn part of the host ID address field into a field for subnets. Default is often 255.255.255.0.
Substrate. A foundation material on which a substance or image is placed.
Symbol. A scannable unit that encodes data within the conventions of a certain symbology, usually including start/stop
characters, quiet zones, data characters and check characters.
Symbol Aspect Ratio. The ratio of symbol height to symbol width.
Symbol Height. The distance between the outside edges of the quiet zones of the first row and the last row.
Symbol Length. Length of symbol measured from the beginning of the quiet zone (margin) adjacent to the start character
to the end of the quiet zone (margin) adjacent to a stop character.
Symbology. The structural rules and conventions for representing data within a particular bar code type (e.g. UPC/EAN,
Code 39, PDF417, etc.).
T
TCP/IP. (Transmission Control Protocol/Internet Protocol) A communications protocol used to internetwork dissimilar
systems. This standard is the protocol of the Internet and has become the global standard for communications. TCP
provides transport functions, which ensures that the total amount of bytes sent is received correctly at the other end.
UDP is an alternate transport that does not guarantee delivery. It is widely used for real-time voice and video
transmissions where erroneous packets are not retransmitted. IP provides the routing mechanism. TCP/IP is a routable
protocol, which means that all messages contain not only the address of the destination station, but the address of a
destination network. This allows TCP/IP messages to be sent to multiple networks within an organization or around the
world, hence its use in the worldwide Internet. Every client and server in a TCP/IP network requires an IP address, which
is either permanently assigned or dynamically assigned at startup.
Telnet. A terminal emulation protocol commonly used on the Internet and TCP/IP-based networks. It allows a user at a
terminal or computer to log onto a remote device and run a program.
Terminal. See Mobile Computer.
Terminal Emulation. A “terminal emulation” emulates a character-based mainframe session on a remote non-mainframe
terminal, including all display features, commands and function keys. The VC5000 Series supports Terminal Emulations
in 3270, 5250 and VT220.
![](asset-ce.png)
Glossary - 8 MC55 User Guide
TFTP. (Trivial File Transfer Protocol) A version of the TCP/IP FTP (File Transfer Protocol) protocol that has no directory or
password capability. It is the protocol used for upgrading firmware, downloading software and remote booting of diskless
devices.
Tolerance. Allowable deviation from the nominal bar or space width.
Transmission Control Protocol/Internet Protocol. See TCP/IP.
Trivial File Transfer Protocol. See TFTP.
U
UDP. User Datagram Protocol. A protocol within the IP protocol suite that is used in place of TCP when a reliable delivery
is not required. For example, UDP is used for real-time audio and video traffic where lost packets are simply ignored,
because there is no time to retransmit. If UDP is used and a reliable delivery is required, packet sequence checking and
error notification must be written into the applications.
UPC. Universal Product Code. A relatively complex numeric symbology. Each character consists of two bars and two
spaces, each of which is any of four widths. The standard symbology for retail food packages in the United States.
V
Visible Laser Diode (VLD). A solid state device which produces visible laser light.
![](asset-cf.png)
Index
Numerics
2-D bar codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22
3-Way Calling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
A
accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1
auto charge cable . . . . . . . . . . . . . . . . . . . . . . . 10-2
cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-11
charge only cable . . . . . . . . . . . . . . . . . . . . . . . 10-1
communication/charge cables
battery charging . . . . . . . . . . . . . . . . . . . . 10-11
LED indicators . . . . . . . . . . . . . . . . . . . . . 10-12
fabric holster . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-2
four slot charge only cradle . . . . . . . . . . . .10-1, 10-6
four slot Ethernet cradle . . . . . . . . . . . . . .10-1, 10-7
four slot spare battery charger . . . . . . . .10-1, 10-10
holster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-2
MMC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2, 10-3
screen protector . . . . . . . . . . . . . . . . . . . . . . . . 10-2
SD card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-3
SIM card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
single slot USB cradle . . . . . . . . . . . . . . . . . . . . 10-3
spare battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-2
specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . A-6
spring loaded stylus . . . . . . . . . . . . . . . . . . . . . 10-2
stylus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-2
USB charging cable . . . . . . . . . . . . . . . . . . . . . 10-1
USB cradle . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1
vehicle cradle . . . . . . . . . . . . . . . . . . . . . .10-1, 10-8
vehicle holder . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1
wall mounting kit, cradle . . . . . . . . . . . . . . . . . . 10-2
action button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
ActiveSync . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-4
adaptive frequency hopping . . . . . . . . . . . . . . . . . . . 7-1
adjusting volume . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18
AFH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
AirBEAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
Alpha-numeric keypad . . . . . . . . . . . . . . . . . . . . . . . B-4
alpha-numeric keypad
key descriptions . . . . . . . . . . . . . . . . . . . . . . . . . B-6
answering a call . . . . . . . . . . . . . . . . . . . . . . . . .3-4, C-8
auto charge cable . . . . . . . . . . . . . . . . . . . . . 10-2, 10-11
AZERTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-4
B
bar codes
two dimensional . . . . . . . . . . . . . . . . . . . . . . . . 2-22
battery
charging . . . . . . . 1-5, 10-3, 10-6, 10-7, 10-8, 10-10
check status . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
battery chargers
communication/charge cables . . . . . . . . . . . . 10-11
LED indicators . . . . . . . . . . . . . . . . . . . . . 10-12
four slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-10
battery charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
communication/charge cables . . . . . . . . . . . . 10-11
using four slot charge only cradle . . . . . . . . . . . 10-6
using four slot Ethernet cradle . . . . . . . . . . . . . 10-7
using four slot spare battery charger . . . . . . . 10-10
using single slot USB cradle . . . . . . . . . . . . . . . 10-3
using vehicle cradle . . . . . . . . . . . . . . . . . . . . . 10-8
battery icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7, 2-18
Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
adaptive frequency hopping . . . . . . . . . . . . . . . . 7-1
security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
turning off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
turning on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
bluetooth
![](asset-d0.png)
Index - 2 MC65 User Guide
discovering devices . . . . . . . . . . . . . . . . . . . . . . . 7-4
turning on and off . . . . . . . . . . . . . . . . . . . . . . . . 7-4
bullets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xv
buttons
action . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
power . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3, 2-20
scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
up and down . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
C
cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-11
auto charge cable . . . . . . . . . . . . . . . . . . . . . . . 10-2
connecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-11
calculator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
calendar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
calibrating the screen . . . . . . . . . . . . . . . . . . . . . . . . 1-6
call history . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6, C-11
charge only cable . . . . . . . . . . . . . . . . . . . . .10-1, 10-11
charge only cradle . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1
charging
spare batteries . . . . . . . . . . . . . . . . 1-6, 10-4, 10-10
using four slot charge only cradle . . . . . . . . . . . 10-6
using four slot Ethernet cradle . . . . . . . . . . . . . 10-7
using four slot spare battery charger . . . . . . . 10-10
using single slot USB cradle . . . . . . . . . . . . . . . 10-3
using vehicle cradle . . . . . . . . . . . . . . . . . . . . . 10-8
charging indicators . . . . . . . . . . . . . . . . . . . .2-18, 10-12
four slot charge only cradle . . . . . . . . . . . . . . . . 10-6
four slot Ethernet cradle . . . . . . . . . . . . . . . . . . 10-7
four slot spare battery charger . . . . . . . . . . . . 10-10
single slot USB cradle . . . . . . . . . . . . . . . . . . . . 10-4
vehicle cradle . . . . . . . . . . . . . . . . . . . . . . . . . . 10-9
charging temperature . . . . . . . . . . . . . . . . . . . .1-6, 10-4
cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1
clock & alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1
command bar
icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-4
communication . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-11
communication/charge cables . . . . . . . . . . . . . . . . 10-11
battery charging . . . . . . . . . . . . . . . . . . . . . . . 10-11
LED indicators . . . . . . . . . . . . . . . . . . . . . . . . . 10-12
conference call . . . . . . . . . . . . . . . 3-7, 3-10, C-15, C-16
configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiii
Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
contacts application . . . . . . . . . . . . . . . . . . . . . . 3-3, C-6
conventions
notational . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xv
cradles
four slot charge only . . . . . . . . . . . . . . . . .10-1, 10-6
four slot charge only cradle . . . . . . . . . . . . . . . . 10-6
four slot Ethernet . . . . . . . . . . . . . . . . . . . .10-1, 10-7
four slot spare battery charger . . . . . . . . . . . . 10-10
single slot USB . . . . . . . . . . . . . . . . . . . . . . . . . 10-3
vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-8
D
data capture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xiii
digital camera . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22
dot aiming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-24
imager operational modes
decode mode . . . . . . . . . . . . . . . . . . . . . . . 2-22
image capture mode . . . . . . . . . . . . . . . . . . 2-22
pick list mode . . . . . . . . . . . . . . . . . . . . . . . 2-22
imaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22
scan angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-23
scan button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
scan range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-23
scanning . . . . . . . . . . . . . . . . . . . . . . . . . 2-23, 2-25
two dimensional bar codes . . . . . . . . . . . . . . . . 2-22
display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xiii
E
emergency calls . . . . . . . . . . . . . . . . . . . . . . . . . 3-5, C-9
ESD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Ethernet cradle . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-7
Evolution Data-Optimized . . . . . . . . . . . . . . . . . 3-1, C-4
F
fabric holster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-2
file explorer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
four slot charge only cradle . . . . . . . . . . . . . . . . . . . 10-6
charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-6
charging indicators . . . . . . . . . . . . . . . . . . . . . . 10-6
four slot Ethernet cradle . . . . . . . . . . . . . . . . . 10-1, 10-7
charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-7
charging indicators . . . . . . . . . . . . . . . . . . . . . . 10-7
four slot spare battery charger . . . . . . . . . . . 10-1, 10-10
charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-10
charging indicators . . . . . . . . . . . . . . . . . . . . . 10-10
setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-10
function buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
H
headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5, C-10
hexadecimal keys . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
High-Speed Downlink Packet Access . . . . . . . . 3-1, C-4
holster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-2
I
icons
![](asset-d1.png)
Index - 3
ActiveSync . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-4
battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-7, 2-18
speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18
status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
task tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-4
wireless status . . . . . . . . . . . . . . . . . . . . . . . . . . C-4
imager. See data capture, imaging
imager. See data capture, imaging, imagersample
imaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22
information, service . . . . . . . . . . . . . . . . . . . . . . . . . . .xvi
installing battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Internet Explorer Mobile . . . . . . . . . . . . . . . . . . . . . 2-11
internet sharing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
IrDA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-2
K
key descriptions
alpha-numeric keypad . . . . . . . . . . . . . . . . . . . . . B-6
numeric keypad . . . . . . . . . . . . . . . . . . . . . . . . . . B-2
keypads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xiii
input modes . . . . . . . . . . . . . . . .B-4, B-8, B-9, B-10
key descriptions . . . . . . . . . . . . . . . . . . . . . B-2, B-6
numeric . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1
QWERTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-4
special character key . . . . . . . . . . . . . . . . . . . . B-12
types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4, B-1
L
laser scanning
See data capture . . . . . . . . . . . . . . . . . . . . . . . . 2-22
LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18
battery status . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19
charging .2-19, 10-4, 10-6, 10-7, 10-9, 10-10, 10-12
radio status . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19
scan and decode . . . . . . . . . . . . . . . 2-18, 2-24, 2-25
lithium-ion battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
locking the MC65 keypad . . . . . . . . . . . . . . . . .2-19, 9-4
M
main battery
charging . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2, 1-5
installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1
masked characters . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Media Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12
memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xiii
messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
MMC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2, 10-3
MSP Agent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
multi media card . . . . . . . . . . . . . . . . . . . . . . . .1-2, 10-3
muting a call . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5, C-11
N
navigation bar
icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
notational conventions . . . . . . . . . . . . . . . . . . . . . . . . . xv
notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
numeric keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1
input modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-4
key descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . B-2
O
operating environment . . . . . . . . . . . . . . . . . . . . . . . . A-1
operating system . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xiii
P
pass-phrase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-4
phone
answering a call . . . . . . . . . . . . . . . . . . . . . . 3-4, C-8
call history . . . . . . . . . . . . . . . . . . . . . . . . . 3-6, C-11
call swapping . . . . . . . . . . . . . . . . . . . . . . . . . . . C-14
conference call . . . . . . . . . . . .3-7, 3-10, C-15, C-16
contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3, C-6
muting a call . . . . . . . . . . . . . . . . . . . . . . . 3-5, C-11
speed dial
calling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-8
text messaging . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
three-way call . . . . . . . . . . . . .3-7, 3-10, C-15, C-16
using keypad . . . . . . . . . . . . . . . . . . . . . . . . 3-1, C-5
pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
editing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
power button . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3, 2-20
Q
QWERTY keypad
input modes . . . . . . . . . . . . . . . . . . . . B-8, B-9, B-10
QWERTZ keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-4
R
radios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xiii
rapid deployment . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
removing main battery . . . . . . . . . . . . . . . . . . . . . . . . 1-8
reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19
resume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
rigid holster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-2
S
scan button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
scanning
![](asset-d2.png)
Index - 4 MC65 User Guide
button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
imaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22
See data capture . . . . . . . . . . . . . . . . . . . . . . . . 2-22
screen
calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
screen protector . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-2
SD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-3
secure digital card . . . . . . . . . . . . . . . . . . . . . . . . . . 10-3
security
Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
service information . . . . . . . . . . . . . . . . . . . . . . . . . . .xvi
settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1
about . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-2
beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-2
buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-2
certificates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3
connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-2
customer feedback . . . . . . . . . . . . . . . . . . . . . . . 9-3
encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3
error reporting . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3
external GPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3
lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1
memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3
owner information . . . . . . . . . . . . . . . . . . . . . . . . 9-2
power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1
regional settings . . . . . . . . . . . . . . . . . . . . . . . . . 9-3
remove programs . . . . . . . . . . . . . . . . . . . . . . . . 9-3
screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3
sounds & notifications . . . . . . . . . . . . . . . . . . . . . 9-1
Wi-Fi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-2
wireless manager . . . . . . . . . . . . . . . . . . . . . . . . 9-2
SIM card
accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
single slot USB cradle . . . . . . . . . . . . . . . . . . . . . . . 10-3
charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-3
charging indicators . . . . . . . . . . . . . . . . . . . . . . 10-4
spare battery
3600 mAh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-2
charging . . . . . . . . . . . . . . . . . . . . . 1-6, 10-4, 10-10
spare battery charger
charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-10
charging indicators . . . . . . . . . . . . . . . . . . . . . 10-10
setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-10
speaker icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18
special character key . . . . . . . . . . . . . . . . . . . . . . . . B-12
speed dial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-8
spring loaded stylus . . . . . . . . . . . . . . . . . . . . . . . . . 10-2
starting the EDA . . . . . . . . . . . . . . . . . . . . . . . . .1-2, 1-6
status icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-7, 2-18
speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18
strap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
stylus . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1, 2-20, 10-2
subscriber identification module . . . . . . . . . . . . . . . . . 1-3
suspend . . . . . . . . . . . . . . . . . . . .1-8, 1-9, 1-11, 2-3, 7-3
synchronize with PC
using Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . 7-10
T
task tray icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-4
tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12
technical specifications . . . . . . . . . . . . . . . . . . . . . . . A-1
accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-6
temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2
charging . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6, 10-4
three-way call . . . . . . . . . . . . . . . . .3-7, 3-10, C-15, C-16
Three-Way Calling . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-5
