SBG1000 Wireless Cable Modem Gateway User Guide
ii SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR
MOISTURE. THE UNIT MUST NOT BE EXPOSED TO DRIPPING OR SPLASHING. DO NOT PLACE OBJECTS
FILLED WITH LIQUIDS, SUCH AS VASES, ON THE UNIT.
CAUTION: TO PREVENT ELECTRICAL SHOCK, THIS EQUIPMENT REQUIRES A GROUNDING
CONDUCTOR IN THE LINE CORD. THE LINE CORD PROVIDED WITH THE EQUIPMENT IS ACCEPTABLE
FOR USE WITH NEMA STYLE 5-15R AC RECEPTACLE SUPPLYING NOMINAL 120 VOLTS. DO NOT
CONNECT THE PLUG INTO AN EXTENSION CORD, RECEPTACLE, OR OTHER OUTLET UNLESS THE
PLUG CAN BE FULLY INSERTED WITH NO PART OF THE BLADES EXPOSED.
CAUTION: TO ENSURE REGULATORY AND SAFETY COMPLIANCE, USE ONLY THE PROVIDED POWER
AND INTERFACE CABLES.
CAUTION: DO NOT OPEN THE UNIT. DO NOT PERFORM ANY SERVICING OTHER THAN THAT CONTAINED
IN THE INSTALLATION AND TROUBLESHOOTING INSTRUCTIONS. REFER ALL SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CAUTION: CHANGES AND MODIFICATIONS NOT EXPRESSLY APPROVED BY MOTOROLA FOR
COMPLIANCE COULD VOID USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device must be installed and used in strict accordance with the manufacturer’s instructions as described in
the user documentation that comes with the product.
Postpone cable modem installation until there is no risk of thunderstorm or lightning activity in the area.
Do not overload outlets or extension cords, as this can result in a risk of fire or electric shock. Overloaded AC
outlets, extension cords, frayed power cords, damaged or cracked wire insulation, and broken plugs are
dangerous. They may result in a shock or fire hazard.
Route power supply cords so that they are not likely to be walked on or pinched by items placed upon or against
them. Pay particular attention to cords where they are attached to plugs and convenience receptacles, and
examine the point where they exit from the product.
Place this equipment in a location that is close enough to an electrical outlet to accommodate the length of the
power cord.
Place this equipment on a stable surface.
iii SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Be sure that the outside cable system is grounded, so as to provide some protection against voltage surges and
built-up static charges. Article 820-20 of the NEC (Section 54, Part I of the Canadian Electrical Code) provides
guidelines for proper grounding and, in particular, specifies the CATV cable ground shall be connected in the
grounding system of the building, as close to the point of cable entry as practical.
When using this device, basic safety precautions should always be followed to reduce the risk of fire, electric
shock and injury to persons, including the following:
Read all of the instructions {listed here and/or in the user manual} before you operate this equipment. Give
particular attention to all safety precautions. Retain the instructions for future reference.
Comply with all warning and caution statements in the instructions. Observe all warning and caution symbols
that are affixed to this equipment.
Comply with all instructions that accompany this equipment.
Avoid using this product during an electrical storm. There may be a risk of electric shock from lightning. For
added protection for this product during a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet, and disconnect the cable system. This will prevent damage to
the product due to lightning and power surges.
Avoid damaging the cable modem with static by touching the coaxial cable when it is attached to the earth
grounded coaxial cable TV wall outlet.
Always first touch the coaxial cable connector on the cable modem when disconnecting or re-connecting USB
or Ethernet cable from the cable modem or the user’s PC.
Operate this product only from the type of power source indicated on the product’s marking label. If you are
not sure of the type of power supplied to your home, consult your dealer or local power company.
Upon completion of any service or repairs to this products, ask the service technician to perform safety
checks to determine that the product is in safe operating condition.
It is recommended that the customer install an AC surge protector in the AC outlet to which this device is
connected. This is to avoid damaging the equipment by local lightning strikes and other electrical surges.
Different types of cord sets may be used for connections to the main supply circuit. Use only a main line cord that
complies with all applicable product safety requirements of the country of use.
Installation of this product must be in accordance with national wiring codes.
Place unit to allow for easy access when disconnecting the power cord/adapter of the device from the AC wall
outlet.
Wipe the unit with a clean, dry cloth. Never use cleaning fluid or similar chemicals. Do not spray cleaners directly
on the unit or use forced air to remove dust.
This product was qualified under test conditions that included the use of the supplied cables between system
components. To be in compliance with regulations, the user must use these cables and install them properly.
Connect the unit to a grounding type AC wall outlet (100-240 V AC) using the standard power cord/adapter as
supplied with the unit.
Do not cover the device, or block the airflow to the device with any other objects. Keep the device away from
excessive heat and humidity and keep the device free from vibration and dust.
Installation must at all times conform to local regulations.
iv SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
This product is provided with a separate Regulatory, Safety, Software License, and Warranty Information card. If
one is not provided with this product, please ask your service provider or point-of-purchase representative, as the
case may be.
THIS PRODUCT IS IN COMPLIANCE WITH ONE OR MORE OF THE STANDARDS LISTED ON THE
REGULATORY, SAFETY, SOFTWARE LICENSE, AND WARRANTY INFORMATION CARD. NOT ALL
STANDARDS APPLY TO ALL MODELS.
NO WARRANTIES OF ANY KIND ARE PROVIDED BY MOTOROLA WITH RESPECT TO THIS PRODUCT,
EXCEPT AS STATED ON THE REGULATORY, SAFETY, SOFTWARE LICENSE, AND WARRANTY
INFORMATION CARD. MOTOROLA’S WARRANTIES DO NOT APPLY TO PRODUCT THAT HAS BEEN
REFURBISHED OR REISSUED BY YOUR SERVICE PROVIDER.
Copyright © 2002 by Motorola, Inc.
All rights reserved. No part of this publication may be reproduced in any form or by any means or used to make any derivative work (such as
translation, transformation or adaptation) without written permission from Motorola, Inc.
Motorola reserves the right to revise this publication and to make changes in content from time to time without obligation on the part of Motorola
to provide notification of such revision or change. Motorola provides this guide without warranty of any kind, either implied or expressed,
including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Motorola may make improvements or
changes in the product(s) described in this manual at any time.
MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. Microsoft and Windows are registered trademarks and
Windows Me and Windows XP are trademarks of
Microsoft Corporation. Microsoft Windows screen shots are used by permission of Microsoft
Corporation.
Macintosh and AppleTalk are registered
trademarks
of Apple Computer, Inc. Iomega is a registered trademark of Iomega
Corporation. Linux is a registered trademark of Linus Torvalds. Acrobat Reader is a registered trademark of Adobe Systems, Inc. Netscape and
Navigator are registered trademarks of
Netscape Communications Corporation
. UNIX is a registered trademark of the Open Group in the United
States and other countries. All other
product or service names are the property of their respective owners. © Motorola, Inc. 2002.
vSBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Contents
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Powerful Features in a Single Unit . . . . . . . . . . . . . . . . . 2
Easy Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Sample LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Label on the Bottom of the Unit . . . . . . . . . . . . . . . . . . . 9
Wiring the SBG LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Wired Ethernet LAN . . . . . . . . . . . . . . . . . . . . . . . . . 10
USB Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
HPNA LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
IEEE 802.11b Wireless LAN . . . . . . . . . . . . . . . . . . 14
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Firewall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
DMZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Wireless Security . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Virtual Private Networks . . . . . . . . . . . . . . . . . . . . . . . . 16
Print Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Related Documentation . . . . . . . . . . . . . . . . . . . . . . . . 17
Installation. . . . . . . . . . . . . . . . . . . . . . . . . 19
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Signing Up for Service . . . . . . . . . . . . . . . . . . . . . . . . . 21
Computer System Requirements . . . . . . . . . . . . . . . . . 21
Connecting the SBG1000 to the Cable System . . . . . . 22
Cabling the Ethernet or HPNA LAN . . . . . . . . . . . . . . . 23
Obtaining an IP address in Windows 98, Windows 98
SE, or Windows Me . . . . . . . . . . . . . . . . . . . . . 23
Obtaining an IP address in Windows 2000 or
Windows XP . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Obtaining an IP address on Macintosh or UNIX Systems
23
Connecting a PC to the USB Port . . . . . . . . . . . . . . . . 24
Setting Up the Wireless LAN . . . . . . . . . . . . . . . . . . . . 24
Connecting the Printer . . . . . . . . . . . . . . . . . . . . . . . . . 24
Wall Mounting the Wireless Gateway . . . . . . . . . . . . . 25
Wall Mounting Template . . . . . . . . . . . . . . . . . . . . . 27
Installing the Optional External Diversity Antenna . . . . 28
Configuring the SBG1000 . . . . . . . . . . . . 31
Starting the SBG Setup Program . . . . . . . . . . . . . . . . . 32
Changing the Default Password . . . . . . . . . . . . . . . . . 34
Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Setting the Firewall Policy . . . . . . . . . . . . . . . . . . . . . . 36
Firewall Pages in the SBG Setup Program . . . . . . . . . 37
Firewall > POLICY — basic Page . . . . . . . . . . . . . . 38
Firewall > POLICY — advanced Page . . . . . . . . . . 39
Firewall > ALERT — basic Page . . . . . . . . . . . . . . . 40
Firewall > ALERT — email Page . . . . . . . . . . . . . . . 41
Firewall > LOGS Page . . . . . . . . . . . . . . . . . . . . . . 42
Configuring the Gateway . . . . . . . . . . . . . 43
Gateway > STATUS Page . . . . . . . . . . . . . . . . . . . . . 44
Gateway > WAN Page . . . . . . . . . . . . . . . . . . . . . . . . 45
Gateway > LAN — nat config Page . . . . . . . . . . . . . . 47
Gateway > LAN — dhcp server config Page . . . . . . . . 48
Gateway > LAN — dhcp reservations Page . . . . . . . . 49
Gateway > ALG — basic Page . . . . . . . . . . . . . . . . . . 50
Gateway > ALG — advanced Page . . . . . . . . . . . . . . 50
Gateway > LOG Page . . . . . . . . . . . . . . . . . . . . . . . . . 51
Configuring TCP/IP. . . . . . . . . . . . . . . . . . 53
Configuring TCP/IP in Windows 95, Windows 98, or
Windows Me . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Configuring TCP/IP in Windows 2000 . . . . . . . . . . . . . 56
Configuring TCP/IP in Windows XP . . . . . . . . . . . . . . 60
Verifying the IP Address in Windows 95, Windows 98, or
Windows Me . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Verifying the IP Address in Windows 2000 or Windows XP
65
Setting Up the Wireless LAN . . . . . . . . . . 67
Configuring a Unique Wireless Network Name . . . . . . 68
Configuring Basic Wireless LAN Security . . . . . . . . . . 69
Configuring Wireless Clients . . . . . . . . . . . . . . . . . . . . 70
Wireless Pages in the SBG Setup Program . . . . . . . . 70
Wireless > STATUS Page . . . . . . . . . . . . . . . . . . . . 71
Wireless > NETWORK Page . . . . . . . . . . . . . . . . . . 72
Wireless > SECURITY — basic Page . . . . . . . . . . . 73
Wireless > SECURITY — advanced Page . . . . . . . 74
Wireless > STATISTICS page . . . . . . . . . . . . . . . . . 75
Configuring the Print Server . . . . . . . . . . 77
Configuring the SBG1000 Print Server . . . . . . . . . . . . 77
Printer > CONFIGURATION — Microsoft smb Page 78
Printer > CONFIGURATION — Apple Page . . . . . . 79
Printer > CONFIGURATION — lpr Page . . . . . . . . . 80
Adding a Printer in Windows 98 or Windows Me . . . . 80

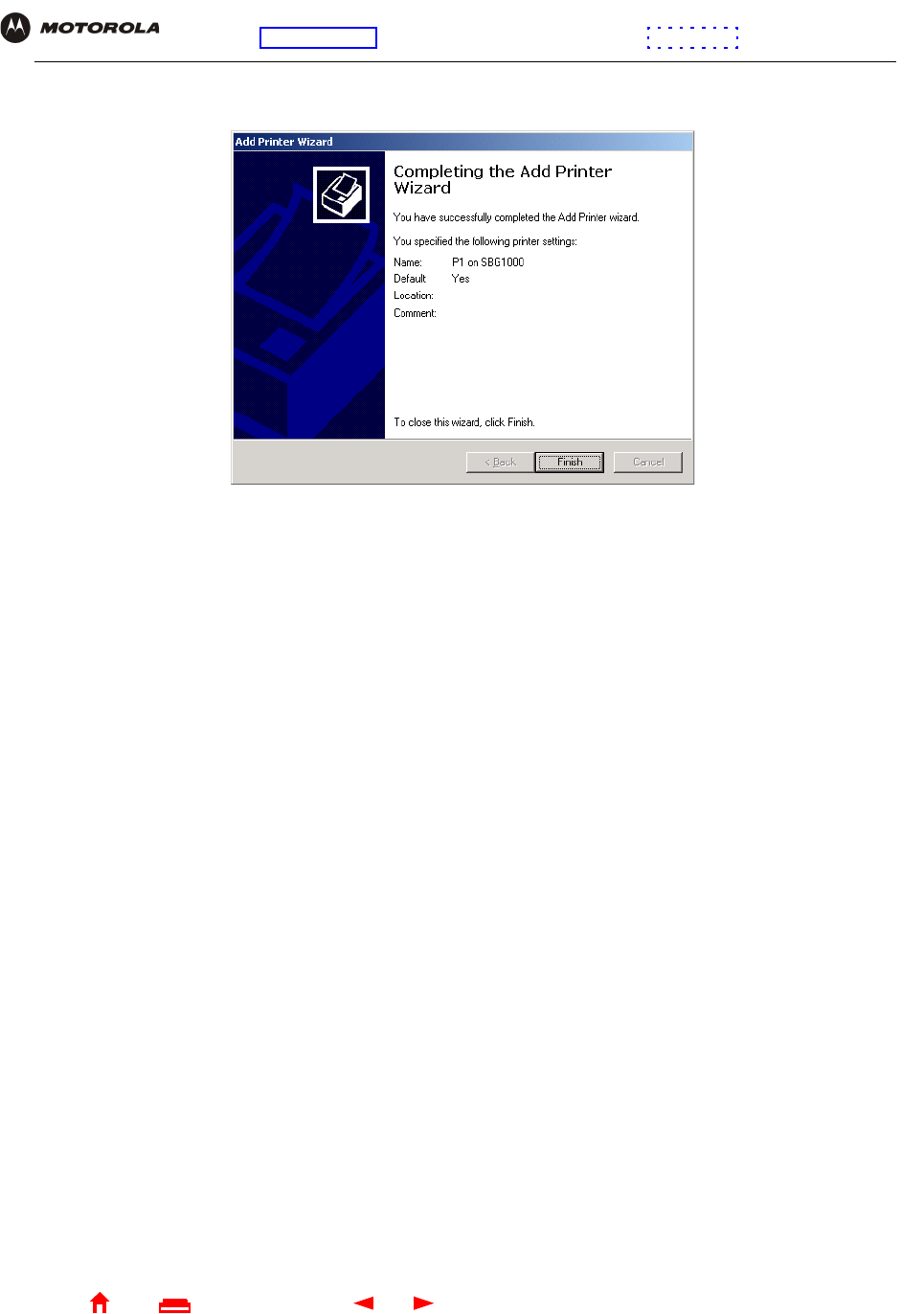

Adding a Printer in Windows 2000 . . . . . . . . . . . . . . . 86
vi SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Setting Up a USB Driver. . . . . . . . . . . . . . 95
Setting Up a USB Driver in Windows 98 . . . . . . . . . . .96
Setting Up a USB Driver in Windows 2000 . . . . . . . .100
Setting Up a USB Driver in Windows Me . . . . . . . . . .103
Setting Up a USB Driver in Windows XP . . . . . . . . . .104
Removing the USB Driver from Windows 98 or Windows Me 105
Removing the USB Driver from Windows 2000 . . . . .108
Removing the USB Driver from Windows XP . . . . . . .111
Troubleshooting . . . . . . . . . . . . . . . . . . . 117
Front-Panel Lights and Error Conditions . . . . . . . . . .117
Contact Us. . . . . . . . . . . . . . . . . . . . . . . . 119
Frequently-Asked Questions. . . . . . . . . 121
Specifications . . . . . . . . . . . . . . . . . . . . . 123
General Specifications . . . . . . . . . . . . . . . . . . . . . . . .123
Cable Modem Specifications . . . . . . . . . . . . . . . . . . . 124
Glossary. . . . . . . . . . . . . . . . . . . . . . . . . . 125
Software License . . . . . . . . . . . . . . . . . . 143
1SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Overview
Thank you for purchasing the Motorola® SBG1000 Wireless Cable Modem Gateway. The SBG1000 combines a
SURFboard cable modem, IEEE 802.11b wireless access point, router with five-port 10/100Base-T switch, print
server, and an advanced firewall into one compact product. It is the perfect networking solution for the home,
home office, or small business/enterprise. You can create a custom network to share a single broadband
connection, files, printers, and other peripherals like scanners, with or without wires.
The SBG1000:
Eliminates the need for five separate products, enabling you to maximize the potential of your existing
resources
Offers enhanced network security for wired and wireless users
Enables operators to add future value-added services
The features and physical appearance of your SBG may differ slightly from the picture.
This product is subject to change. Not all features described in this User Guide are available on all SBG models.
For the most recent documentation, visit the Product Documentation page on www.motorola.com/broadband.
2SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Powerful Features in a Single Unit
The Motorola SBG1000 Wireless Cable Modem Gateway combines high-speed Internet access, networking, and
computer security for a home or small-office local area network (LAN). It provides:
An integrated high-speed SURFboard cable modem for continuous broadband access to the Internet and
other online services, with much faster data transfer than traditional dial-up or ISDN modems.
A router with a five-port 10/100Base-T Ethernet switch, supporting:
Half- or full-duplex connections
Five dual-purpose switch/uplink ports
— Auto-MDIX
An IEEE 802.11b Wi-Fi certified wireless access point to enable laptop users to remain connected while
moving around the home or small office or to connect desktop computers without installing network wiring.
Depending on distance, wireless connection speeds can match that of Ethernet at 11 Mbps.
An HPNA connection to connect computers to the LAN over existing telephone wiring — this provides the
advantage of using your existing phone lines for network wiring with up to 10 Mbps throughput.
A USB connection for a single PC.
A single broadband connection for up to 245 computers to surf the web; all computers on the Ethernet,
wireless, HPNA LAN, and USB communicate as if they were connected to the same physical network.
A built-in DHCP server to easily configure a combined wired and/or wireless class C private LAN.
An advanced firewall, supporting:
stateful-inspection
Intrusion detection
—DMZ
Denial-of-service attack prevention
Network Address Translation (NAT)
Virtual private network (VPN) pass-through operation supporting IPSec, PPTP, or L2TP to securely connect
remote computers over the Internet.
A print server to enable Windows®, Macintosh®, UNIX®, and Linux® computers to share one or more printers.
Easy Setup
It is much easier to configure a LAN using the Motorola SBG1000 Wireless Cable Modem Gateway than it is using
typical networking equipment:
The Installation Assistant application on the Motorola SBG1000 Wireless Cable Modem Gateway CD-ROM
enables easy connection to the cable network.
For basic operation, most default settings require no modification.
The Setup Program provides a graphical user interface (GUI) for easy configuration of necessary wireless,
Ethernet, router, DHCP, and security settings. For a list of important issues, see Configuring the SBG1000”
on page 31.
3SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Sample LAN
The sample LAN shown in the figure contains the following devices, all protected by the SBG1000 firewall:
A printer connected to the print server through the parallel connection
A PDA connected through the wireless IEEE 802.11b connection
One desktop Macintosh on a wireless connection
One desktop PC on a wireless connection using a Motorola USB Adapter
A laptop PC on a wireless connection connected using a Motorola PC Card
One computer connected directly to Ethernet port one
Three computers connected to Ethernet port two using a hub or switch
Two computers connected over telephone wiring through HPNA
One PC connected to the USB port
Sample SBG1000 hybrid network
Internet
High-speed HFC
cable network
IEEE 802.11b
wireless
HPNA
Parallel
Firewall
USB
Ethernet
Hub or switch
SBG1000
USB to Ethernet
Wireless Adapter
PCC11B
Wireless Card
USB
4SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Optional Accessories
Accessories available for the Motorola SBG1000 Wireless Cable Modem Gateway include wireless adapters and
an external high-gain diversity antenna.
You can use the Motorola PCC11b wireless card or the USB11b wireless adapter, which comply with the
IEEE 802.11b wireless standard, to connect a PC to the wireless LAN:
Motorola USB11b Wireless Adapter (left) and PCC11b Wireless Card
For installation instructions, see the documentation provided with each product.
USB11b Wireless
Adapter Connects a desktop, laptop, printer, or other peripheral device to the wireless LAN. It has a
built-in antenna and a two meter (six feet) long cable that connects to the PC USB port.
Its light indicates:
Off — Not connected to a USB port or not receiving power from the PC
Yellow — Not installed or initializing
Green — Installed and operational
Flashing GreenReceiving data from another wireless LAN device
Flashing Yellow — Transmitting data to another wireless LAN device
PCC11Bb Wireless Card A credit-card sized adapter that connects a laptop to the wireless LAN. You can roam in, or
around, the home or small office and remain connected. It fits in a PCMCIA Type II
standard slot on the laptop supporting 3.3 Volt PC card. The PCC11b has also has a
built-in antenna.
5SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
The Motorola External Diversity Antenna connects to the Motorola SBG1000 Wireless Cable Modem Gateway,
providing higher gain to increase wireless LAN performance and coverage, even in obstructed locations. The
External Diversity Antenna specifications are:
For information about connecting the external antenna, see Installing the Optional External Diversity Antenna” on
page 28.
Motorola External Diversity Antenna
Frequency 2400 to 2500 MHz
Gain 5 dBi peak gain, nominal
Pattern Type Directional, vertically polarized
Connection Reverse-polarity TNC male, RG-142 cable
6SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Front Panel
The front panel provides indicator lights. The model number on your SBG may be different than in some
illustrations and screen images.
Front-panel top section lights
Key Light Flashing On
1 RX (Receive) Scanning for a receive (downstream) channel
connection The downstream channel is connected
2 TX (Transmit) Scanning for a send (upstream) channel
connection
The upstream channel is connected
3 LNK (Link) Scanning for a network connection The startup process is complete and the SBG is
online
4Transmitting or receiving data There is no solid on state
1234
10
7
12
56
13
11
8
9
7SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Front-panel bottom section lights
Key Light Flashing On
5Data transfer to printer Printer is connected
6Wireless activity Wireless feature is functioning normally
7USB activity There is a proper USB connection
8 Activity Ethernet activity on the port
910 100 none Indicates the LAN connection speed:
Amber for a 10Base-T connection
Green for a 100Base-T connection
10 Half Full none Indicates the LAN port duplex mode
Amber for half duplex
Green for full duplex
11 Link 1 to 5 No flashing mode There is a proper Ethernet connection to the port
12 Data transfer over phone line using HPNA There is no solid on state
13 Power No flashing mode The SBG1000 power supply is working properly
8SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Rear Panel
The rear panel provides cabling connectors, status lights, and the power receptacle:
Key Item Description
1The printer port provides a connection for one printer.
2The Motorola SBG1000 Wireless Cable Modem Gateway includes two antennas. The optional
Motorola External Diversity Antenna provides higher gain to increase wireless LAN performance and
coverage. For information about the External Diversity Antenna, see “Optional Accessories” on
page 4.
3Use the HPNA ports to connect an HPNA LAN:
Conect the bottom HPNA port to the telephone jack using the supplied telephone wire terminated
with RJ-11 connectors.
You can connect a telephone to the top HPNA port.
4Use Ethernet ports 1 to 5 to connect an Ethernet LAN cable with RJ-45 connectors. You can connect
Ethernet-equipped computers, hubs, bridges, or switches. The adjacent lights to each Ethernet port
are:
LINK/ACT — On when the Ethernet connection is available. It blinks during data transfer.
100 — On if there is a 100Base-T link and off for a 10Base-T link.
5Use the USB port for Connecting a PC to the USB Port (see page 24).
6If you experience a problem, you can push this recessed button to restart the SBG1000 (see
“Troubleshooting” on page 117). To reset all values to their defaults, hold down the button for more
than five seconds. Resetting may take 5 to 30 minutes because the SBG1000 must find and lock on
the appropriate communications channels.
7The cable port provides a connection to the coaxial cable outlet.
8The power connector provides power to the SBG1000.
1 3 46 85 72 2
5
1
9SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Label on the Bottom of the Unit
To receive data service, you need to provide the MAC address marked HFC MAC ID to your cable service
provider:
Wiring the SBG LAN
The Motorola SBG1000 Wireless Cable Modem Gateway enables connection of a class C network with up to 245
client computers and other IEEE 802.11b compliant devices on a combination of:
10/100Base-T Ethernet
IEEE 802.11b wireless networking
HPNA V2.0
USB V1.1
Each computer needs appropriate network adapter hardware and driver software. The clients on the Ethernet,
wireless, HPNA, or USB interfaces can share:
Internet access with a single cable service provider account
(subject to network operator terms and conditions)
Files, printers, stoage devices, multi-user software applications, games, and video conferencing
Wireless and wired network connections use Windows networking to share files and peripheral devices such as
printers, CD-ROM drives, floppy disk drives, and Iomega® Zip Drives.
10 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Wired Ethernet LAN
Each computer on the Ethernet LAN requires an Ethernet network interface card (NIC) and driver software
installed.
Because the Motorola SBG1000 Wireless Cable Modem Gateway Ethernet ports support auto-MDIX, you can use
either straight-through or cross-over cable to connect a hub, switch, or computer. Use category 5 cabling for all
Ethernet connections.
The physical wiring arrangement has no connection to the logical network allocation of IP addresses.
Sample SBG Ethernet network connections
Coaxial cable
Ethernet cable
11 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
A wired Ethernet LAN with more than five computers requires one or more hubs or switches. You can connect a
hub or switch to any Ethernet port on the Motorola SBG1000 Wireless Cable Modem Gateway.
The following illustration is an example of an Ethernet LAN you can set up using the Motorola SBG1000 Wireless
Cable Modem Gateway. You should cable the Ethernet LAN in an appropriate manner for the site. A complete
discussion of Ethernet cabling is beyond the scope of this document.
You can connect a hub or switch to any Ethernet port on the Motorola SBG1000 Wireless Cable Modem Gateway.
Add additional hubs or switches
for further expansion
12 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
USB Connection
You can connect a single PC running Windows®98, Windows XP, Windows Me®, or Windows®2000 to the
Motorola SBG1000 Wireless Cable Modem Gateway USB port. For cabling instructions, see “Connecting a PC to
the USB Port” on page 24.
Sample USB connection.
Caution!
Before plugging in the USB cable, be sure the Motorola SBG1000 Wireless Cable Modem Gateway
CD-ROM is inserted in the PC CD-ROM drive.
13 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
HPNA LAN
To eliminate the need to install network wiring, the Motorola SBG1000 Wireless Cable Modem Gateway provides
a Home Phoneline Network Alliance (HPNA or HomePNA) connection. HPNA networks use existing telephone
lines to connect the computers without interfering with telephone voice service, DSL, ISDN, modems, or fax
machines. HPNA networks can extend up to 300 meters (1000 feet).
Sample HPNA network connections
Each computer requires an HPNA adapter to connect to the HPNA network. HPNA adapters (sold elsewhere) are
available for PCI or USB. After installing the HPNA adapter, you must install HPNA driver software on the
computer following the instructions provided with the HPNA adapter.
HPNA 2.0 supports 10 Mbps data transfer similar to Ethernet 10Base-T.
If there is more than one telephone line, you must make all HPNA connections to the same line. You can connect
a telephone to the top HPNA port on the SBG1000 (see “Front Panel on page 6).
Existing wiring
Phone
system
14 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
IEEE 802.11b Wireless LAN
Wireless communication occurs over radio waves rather than a wire. Like a cordless telephone, a wireless LAN
uses radio signals instead of wires to exchange data. A wireless network eliminates the need for expensive and
intrusive wiring to connect computers throughout the home or office. Mobile users can remain connected to the
network even when carrying their laptop to different locations in the home or office.
Each computer on a wireless LAN requires an adapter described in “Optional Accessories” on page 4:
For wireless laptops connections, use a Motorola PCC11b Wireless Card in the PCMCIA slot.
For wireless desktop connections, use a Motororal USB11b Wireless Adapter to connect your PC USB port.
Sample wireless network connections
To set up the SBG, on a computer wired to the SBG over Ethernet or USB, perform the procedures in “Setting Up
the Wireless LAN” on page 67.
To set up each wireless client (station):
1Insert the PCC11b and USB11b Wireless Adapter CD-ROM in the CD-ROM drive on the client.
2Install the device software from the CD.
3Connect the Motorola PCC11b wireless card or USB11b wireless adapter following the instructions supplied
with the card or adapter
15 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Security
The Motorola SBG1000 Wireless Cable Modem Gateway provides:
A firewall to protect the SBG LAN from undesired attacks over the Internet
Security measures to prevent eavesdropping of wireless data
Network Address Translation (NAT) provides some security because the IP addresses of SBG LAN computers are
not visible on the Internet.
The logical network diagram does not necessarily correspond to the network cabling. A full discussion of network
security is beyond the scope of this document.
SBG1000 security measures shown in a logical network diagram
Firewall
The SBG1000 firewall protects the SBG LAN from undesired attacks and other intrusions from the Internet. It
provides an advanced integrated stateful-inspection firewall supporting intrusion detection, session tracking, and
denial-of-service attack prevention. The firewall:
Maintains state data for every TCP/IP session on the OSI network and transport layers
Monitors all incoming and outgoing packets, applies the firewall policy to each one, and screens for improper
packets and intrusion attempts
Provides comprehensive logging for all:
User authentications
Rejected internal and external connection requests
Session creation and termination
Outside attacks (intrusion detection)
You can configure the firewall filters to set rules for port usage and to block specific IP domains and networks. For
information about choosing a default firewall policy, see “Setting the Firewall Policy” on page 36.
SBG
Firewall
ComputerComputer
Wired Ethernet and/or HPNA LAN Wireless IEEE 802.11b LAN
LaptopComputer PDA
DMZ:
WEP shared key encryption
MAC access control list
Closed network
Internet
DMZ computer
16 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
DMZ
A de-militarized zone (DMZ) is one or more computers logically located outside the firewall between an SBG LAN
and the Internet. A DMZ prevents direct access by outside users to private data. You can use a DMZ to set up a
web server without exposing confidential data on your network. A DMZ is also useful for gamers that have a
problem running a computer game’s protocol through a firewall. DMZ provides the gamer a way to expose a single
host directly to the Internet and thus overcome any firewall issues.
Wireless Security
To prevent unauthorized eavesdropping of data transmitted over the wireless LAN, you must enable wireless
security. The default Open authentication setting provides no security for transmitted data.
You can encrypt data transmitted over the IEEE 802.11b wireless interface by configuring a WEP key on the
Motorola SBG1000 Wireless Cable Modem Gateway and wireless LAN clients (stations).
You can also define a MAC access control list to restrict wireless LAN access to specified clients based on the
client MAC address.
If you enable closed network operation, the network name (ESSID) is not transmitted in the IEEE 802.11b beacon
frame. This provides additional network protection because only IEEE 802.11b stations that are configured with
your network name can associate with the SBG. Closed network operation is not part of the IEEE 802.11b
standard
For information about configuring a WEP key, see “Configuring Basic Wireless LAN Security” on page 69.
Virtual Private Networks
The SBG1000 allows multiple tunnel VPN pass-through operation to securely connect remote computers over the
Internet through the SBG1000. The SBG1000:
Is compatible with Point to Point Tunneling Protocol (PPTP) and Layer 2 Tunneling Protocol (L2TP)
Is fully interoperable with any IPSec client or gateway and ANX certified IPSec stacks
17 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Print Server
You can connect a printer to the Motorola SBG1000 Wireless Cable Modem Gateway back panel using a standard
DB-25 connector. The print server:
Enables Windows, UNIX, Linux, or Macintosh computers on the wired or wireless SBG LAN to share a printer
Supports the SMB, LPR, AppleTalk® printing protocols
Printer connection
For information about configuring the print server, see Configuring the Print Server” on page 77.
Related Documentation
The following documents also provide information you can use with the Motorola SBG1000 Wireless Cable
Modem Gateway:
Motorola SBG1000 Wireless Cable Modem Gateway Quick Start Guide
Motorola PCC11b Wireless Card Quick Start Guide and on-line help on the PCC11b and USB11b Wireless
Adapter CD-ROM
Motorola USB11b Wireless Adapter Quick Start Guide and on-line help on the PCC11b and USB11b Wireless
Adapter CD-ROM
Motorola Diversity Antenna Installation Instructions
For the most recent documentation, visit the Product Documentation page on www.motorola.com/broadband.
18 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
19 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Installation
To install the Motorola SBG1000 Wireless Cable Modem Gateway hardware:
Determine the type of connections you will make to the SBG1000 — Ethernet, HPNA, wireless, USB, and/or
printer
Check that you have the proper cables, adapters, and adapter software to connect to your SBG1000:
For Ethernet, you’ll need Ethernet cables and network interface cards (NICs) with accompanying
installation software.
For HPNA, you’ll need telephone jumper cables, HPNA interface cards, and the installation software.
For wireless connections, you’ll need wireless adapters and the installation software for the adapters.
For USB, you’ll need a USB cable and the Motorola SBG1000 Wireless Cable Modem Gateway
CD-ROM which contains the software for USB installation.
For the printer, you’ll need a printer cable.
Before You Begin
Before you begin the installation, check that you received the following items with the Motorola SBG1000 Wireless
Cable Modem Gateway:
You will need 75-ohm coaxial cable with F-type connectors to connect the SBG1000 to the nearest cable outlet. If
a TV is connected to the cable outlet, you may need a 5-900 MHz RF splitter and two additional coaxial cables to
use both the TV and the SBG1000.
Item Description
Power cord Connects the SBG1000 to the AC electrical outlet
10/100Base-T
Ethernet cable Connects to the Ethernet port
USB cable Connects to the USB port
Phone wire jumper
with RJ-11 connectors Connects to a telephone line used for the HPNA network
Motorola SBG1000
Wireless Cable Modem
Gateway CD-ROM
Contains this User Guide and USB drivers
20 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
You may need:
If you are installing the optional Motorola External Diversity Antenna, you may need a pair of needle nose pliers.
Coaxial cable, RF splitters, hubs, and switches are available at consumer electronic stores.
Precautions
Postpone SBG1000 installation until there is no risk of thunderstorm or lightning activity in the area.
To avoid damaging the SBG1000 with static electricity:
Always first connect the coaxial cable to the grounded cable TV wall outlet.
Before you connect or disconnect the USB or Ethernet cable from the SBG1000 or PC, always touch the
coaxial cable connector on the SBG1000 to release any static charges.
To avoid potential shock, always unplug the power cord from the wall outlet or other power source before
disconnecting it from the SBG1000 rear panel.
To prevent overheating the SBG1000, do not block the ventilation holes on the bottom of the unit.
Do not open the unit. Refer all service to your cable service provider.
Wipe the unit with a clean, dry cloth. Never use cleaning fluid or similar chemicals. Do not spray cleaners directly
on the unit or use forced air to remove dust.
To Set Up You Will Need
A wired Ethernet LAN with more
than five computers One or more Ethernet hubs or switches
An HPNA LAN An HPNA adapter and driver software for each computer connected using
HPNA
An IEEE 802.11b wireless LAN An IEEE 802.11b adapter and driver software for each computer having a
wireless connection (see Optional Accessories” on page 4)
To avoid damaging the SBG1000 or computers with static electricity:
Always make the wall connection first.
Before you connect or disconnect the USB
or Ethernet cables, always touch the
coaxial cable connector on the SBG1000.
21 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Signing Up for Service
You must sign up with a cable service provider to access the Internet and other online services.
To activate your service, call your local cable service provider.
You need to provide the MAC address printed on the bar code label marked HFC MAC ID on the Motorola
SBG1000 Wireless Cable Modem Gateway rear panel. You can record it here:
00 : ______ : ______ : ______ : ______ : ______
You should ask your cable service provider the following questions:
Do you have any special system requirements?
When can I begin to use my SBG1000?
Are there any files I need to download after I am connected?
Do I need a user name or password to access the Internet or use e-mail?
Computer System Requirements
You can connect Microsoft Windows, Macintosh, UNIX, or Linux computers equipped as follows to the SBG LAN:
One of the following:
PC with Pentium class or better processor
Windows 98, Windows 98 SE, Windows Me, Windows 2000, Windows XP, Windows NT, Macintosh, or Linux
operating system with operating system CD-ROM available
Minimum 16 MB RAM recommended
10 MB available hard disk space
You can use any web browser such as Microsoft® Internet Explorer or Netscape Navigator® with the Motorola
SBG1000 Wireless Cable Modem Gateway.
You can use the USB connection with any PC running Windows 98, Windows 2000, Windows Me, or Windows XP
that has a USB interface. The USB connection requires special USB driver software that is supplied on the
Motorola SBG1000 Wireless Cable Modem Gateway CD-ROM. You can upgrade the USB drivers from the
Internet. For information, check our website http://www.motorola.com/broadband.
Ethernet 10Base-T or 10/100Base-T Ethernet adapter with proper NIC driver software installed
IEEE 802.11b Any IEEE 802.11b device
For information about the Motorola PCC11b Wireless Card (PCMCIA type II 3.3 V slot) or
USB11b Wireless Adapter, see “Optional Accessories” on page 4.
HPNA HPNA phone line adapter installed with proper HPNA driver software installed
22 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Connecting the SBG1000 to the Cable System
Allow 5 to 30 minutes the first time you turn on the SBG1000 to find and lock on the appropriate communications
channels.
1Be sure the computer is on and the SBG1000 is unplugged.
2Connect one end of the coaxial cable to the cable outlet or splitter.
3Connect the other end of the coaxial cable to the cable connector on the SBG1000.
Hand-tighten the connectors to avoid damaging them.
4If you are using the optional Motorola External Diversity Antenna, install it now. Follow the instructions in
“Installing the Optional External Diversity Antenna” on page 28.
5Insert the Motorola SBG1000 Wireless Cable Modem Gateway CD-ROM into the CD-ROM drive.
6Plug the power cord into the power connector on the SBG1000.
7Plug the power cord into the electrical outlet. This turns the Motorola SBG1000 Wireless Cable Modem
Gateway on. You do not need to unplug it when not in use.
8Check that the lights on the Front Panel cycle through this sequence:
Power icon turns on when AC power is connected to the SBG1000 and indicates that the power supply is
working properly.
RX (receive) light flashes while scanning for the receive channel and changes to solid green when the
receive channel is locked.
TX (transmit) light flashes while scanning for the send channel and changes to solid green when the
send channel is locked.
LNK (link) light flashes during SBG1000 registration and configuration and changes to solid green when
the cable modem wireless gateway is registered.
Globe icon flashes when the SBG1000 is transmitting or receiving data.
Connecting the SBG1000 to the cable system
4
1
2
3
23 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Cabling the Ethernet or HPNA LAN
After connecting to the cable system, you can connect your wired Ethernet and/or HPNA LAN. Some samples are
shown in Wired Ethernet LAN” on page 10 and HPNA LAN on page 13. Detailed information about network
cabling is beyond the scope of this document. You must install proper drivers for the Ethernet NIC or HPNA
adapter.
Obtaining an IP address in Windows 98, Windows 98 SE, or Windows Me
You must do the following on each Ethernet client PC running Windows 98, Windows 98 SE, or Windows Me:
1On the Windows Desktop, click Start.
2Select Run. The Run window is displayed.
3Type winipcfg.exe and click OK. The IP Configuration window is displayed:
4Click the Renew button to obtain an IP address for the PC from the DHCP server on the SBG1000.
Obtaining an IP address in Windows 2000 or Windows XP
You must do the following on each Ethernet client PC running Windows 2000 or Windows XP:
1On the Windows Desktop, click Start.
2Select Run. The Run window is displayed.
3Type cmd and click OK to display a command prompt window.
4Type ipconfig /renew and press ENTER to obtain an IP address for the PC from the DHCP server on the
SBG1000.
5Type exit and press ENTER to return to Windows.
Obtaining an IP address on Macintosh or UNIX Systems
Follow the instructions in your user manual.
24 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Connecting a PC to the USB Port
You can connect a single PC running Windows 98, Windows XP, Windows Me, or Windows 2000 to the Motorola
SBG1000 Wireless Cable Modem Gateway USB port.
To connect a PC to the USB port:
1Connect the USB cable to the USB port on the SBG1000.
2Connect the other end to the USB port on the computer.
3Install the USB driver following the appropriate procedure for “Setting Up a USB Driver” on page 95.
Setting Up the Wireless LAN
For information about wireless LAN setup, see “Setting Up the Wireless LAN” on page 67.
Connecting the Printer
Connect the printer to the Motorola SBG1000 Wireless Cable Modem Gateway printer port. If a cable was
supplied with the printer, use that cable. Consult your printer documentation to determine cabling requirements
from the SBG1000 to the printer.
After connecting the printer, power it on and follow the instructions for “Configuring the Print Server” on page 77.
Caution!
Before plugging in the USB cable, be sure the Motorola SBG1000 Wireless Cable Modem Gateway
CD-ROM is inserted in the PC CD-ROM drive.
25 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Wall Mounting the Wireless Gateway
If you mount the SBG1000 on the wall, you must:
Locate the unit as specified by the local or national codes governing residential or business cable TV and
communications services.
Follow all local standards for installing a network interface unit/network interface device (NIU/NID).
If possible, mount the SBG1000 to concrete, masonry, a wooden stud, or other very solid wall material. Use
anchors if necessary; for example if you must mount the unit on drywall.
To mount your SBG1000 on the wall:
1Print the Wall Mounting Template on page 27:
Click the Print icon or choose Print from the File menu to display the Print dialog box. (The following image is
from Adobe Acrobat Reader® running on Windows 2000; there may be slight differences in your version.)
Be sure you print the template at 100% scale. Be sure Fit to page is not checked in the Print dialog box.
Click the OK button to print the template.
2Measure the printed template with a ruler to ensure that it is the correct size.
3Use a center punch to mark the center of the holes.
4On the wall, locate the marks for the mounting holes.
5Drill the holes to a depth of at least 3.8 cm (11/2 inches).
6If necessary, seat an anchor in each hole.
Caution!
Before drilling holes, check the structure for potential damage to water, gas, or electric lines.
26 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Use M5 x 38 mm (#10-16 x 11/2 inch) screws with a flat underside and maximum screw head diameter of
10.5 mm to mount the SBG1000.
7Using a screwdriver, turn each screw until part of it protrudes from the wall, as shown:
There must be 4.0 mm (.16 inches) between the wall and the underside of the screw head.
The maximum distance from the wall to the top of the screw head is 7.6 mm (.3 in).
8Place the SBG1000 so the keyholes are above the mounting screws.
9Slide the SBG1000 down so it stops against the top of the keyhole opening.
7.6 mm (.3 inches) maximum
10.5 mm (.4 inches) maximum
4.0 mm (.16 inches)
27 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Wall Mounting Template
You can print this page to use as a wall mounting template.
Be sure you print it at 100% scale. In Acrobat Reader, be sure
that Fit To Page is not checked in the Print dialog box.
Measure the printed template with a ruler to ensure that it is
the correct size.
17.24 cm.
6.79 in.
28 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Installing the Optional External Diversity Antenna
The optional Motorola External Diversity Antennas are designed to provide an indoor operating range with WEP
enabled of at least:
The maximum wireless operation distance depends on the type of materials through which the signal must pass
and the location of the diversity antennas and clients (stations). Motorola cannot guarantee wireless operation for
all supported distances in all environments.
To install the optional Motorola External Diversity Antenna:
1Be sure the SBG1000 is unplugged. As with all electronic equipment, avoid potential shock by always
unplugging the power cord from the wall outlet or other power source before disconnecting it from the
SBG1000 rear panel.
2Remove the antennas on the SBG1000 by unscrewing the connectors. You may need a pair of needle nose
pliers to loosen them.
Store the antennas supplied on the SBG1000 in a safe place.
Distance Data Transfer Rate
30 meters (100 feet) 11 Mbps
50 meters (165 feet) 5.5 Mbps
75 meters (230 feet) 2Mbps
95 meters (300 feet) 1Mbps
29 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Disconnecting the antennas provided with the SBG1000
3Connect the cables from the Motorola External Diversity Antenna to the connectors on the Motorola
SBG1000 Wireless Cable Modem Gateway Front Panel. Hand-tighten the connectors to avoid damaging
them. Using excessive force may damage the connectors.
30 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Connecting the Optional External Diversity Antenna to the SBG1000
4Position or mount the External Diversity Antenna in a suitable location away from the computer and monitor.
Follow the instructions provided with the External Diversity Antenna. Do not twist the antenna cables.
To obtain optimum results, try moving the External Diversity Antennas to slightly different locations.
31 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Configuring the SBG1000
Configuring the SBG1000 includes:
Starting the SBG Setup Program (see page 32)
Changing the Default Password (see page 34)
Getting Help (see page 35)
Setting the Firewall Policy (see page 36)
For more information about configuration, see Configuring TCP/IP” on page 53, “Setting Up the Wireless LAN on
page 67, “Configuring the Print Server” on page 77, or “Setting Up a USB Driver” on page 95.
For normal operation, you do not need to change most default settings. The following caution statements
summarize the issues you must be aware of:
Caution!
To prevent unauthorized configuration, change the default password immediately when you first
configure the Motorola SBG1000 Wireless Cable Modem Gateway. See “Changing the Default
Password” on page 34
Firewalls are not foolproof. Choose the most secure firewall policy you can. See “Setting the Firewall
Policy” on page 36.
For a wireless LAN only, be sure you follow the instructions in “Setting Up the Wireless LAN” on
page 67.
32 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Starting the SBG Setup Program
1On a computer on the LAN, open a web browser.
2In the Address or Location field, type 192.168.100.1 and press ENTER to display the Login window:
3Click Login to display the Enter Network Password window:
4In the User Name field, type the User Name (the default is “admin”).
5In the Password field, type the Password (the default is “motorola”).
33 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
6Click OK to display the SBG Setup Program:
Click To Perform
Cable Configure and monitor the cable system connection
Gateway Configure and monitor the gateway preferences (see “Configuring the Gateway” on page 43)
Wireless Configure and monitor the wireless interface (see “Setting Up the Wireless LAN on page 67)
Firewall Configure and monitor the firewall (see Setting the Firewall Policy” on page 36)
Printer Configure the SBG1000 print server (see “Configuring the Print Server” on page 77)
Admin Changing the Default Password (see page 34)
Help Display information about the SBG1000 (see “Getting Help” on page 35)
Info Display information about the SBG Setup Program
Reboot Restart the SBG1000. It is the same as pressing the reset button on the Rear Panel for less than five
seconds.
For some settings, after you edit the field and click Apply, you are warned that you must Reboot for your
change to take effect. Rebooting takes 10 to 15 seconds. After rebooting, you must log-in again.
34 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Changing the Default Password
To change the default password:
1On the SBG Setup Program screen, click Admin to display the ADMIN — basic page:
2Type the old password in the Old Password field. (The default password is “motorola.”)
3Type the new password in the New Password field.
4Type the new password again in the Verify Password field.
5Click Apply to apply your changes.
Caution!
To prevent unauthorized configuration, change the default password immediately when you first
configure the Motorola SBG1000 Wireless Cable Modem Gateway.
35 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Getting Help
To get help on any underlined item, field, click the text. For example, if you click a field or the help button on the
ADMIN — basic page, the following help is displayed:
You can scroll to browse the help, or click another item to display help for that item.
This button also displays
help for the window.
36 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Setting the Firewall Policy
To select a predefined policy for all packets processed by the firewall:
1On the SBG Setup Program left panel, click Firewall.
2Click POLICY.
3Click basic to display the options for firewall policy:
4Select one of the following. Unless you have the necessary expertise and need to setup a custom firewall,
use High, Medium, or Low:
5Click Apply to apply your changes.
Caution!
Firewalls are not foolproof. Choose the most secure firewall policy you can. To enable easy network
setup, the default firewall policy is Low, which provides minimum security.
High Safest configuration, highest security. We recommend this setting.
Medium Common configuration, modest risk
Low Minimum security, higher risk
Custom You can create a custom firewall policy on the Firewall > POLICY — advanced Page (see page 39). Do
not create a custom policy unless you have the necessary expertise and the need to do so.
None This setting disables the firewall and provides no security. We do not recommend this setting.
37 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Firewall Pages in the SBG Setup Program
Use the following pages to configure the firewall:
Firewall > POLICY — basic Page (see page 38)
Firewall > POLICY — advanced Page (see page 39)
Firewall > ALERT — basic Page (see page 40)
Firewall > ALERT — email Page (see page 41)
Firewall > LOGS Page (see page 42)
For some settings, after you edit the field and click Apply, you are warned that you must Reboot for your
change to take effect. Rebooting takes 10 to 15 seconds. After rebooting, you must log-in again.
38 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Firewall > POLICY — basic Page
Use this page to select a predefined firewall policy for all packets processed by the SBG firewall, as described in
“Setting the Firewall Policy on page 36. Advanced users only can create a custom policy on the Firewall >
POLICY — advanced Page (see page 39). The FIREWALL POLICY setting None disables the firewall and
provides no security. We do not recommend this setting.
The predefined policies provide outbound Internet access for computers on the SBG LAN.
The SBG firewall uses stateful inspection to allow inbound responses when there already is an outbound session
running corresponding to the data flow. For example, if you use a web browser, outbound HTTP connections are
permitted on port 80. Inbound responses from the Internet are allowed because an outbound session is
established. When required, the SBG firewall can be configured to allow inbound packets without first
establishing an outbound session.
39 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Firewall > POLICY — advanced Page
Use this page to construct a custom firewall policy.
Firewall > POLICY — advanced page fields
Field Description
Port ID The name of the protocol being filtered.
Enable Check this box to enable firewall policy filtering for the port.
Port Range
(From:To) Sets the from and to port range, which must contain all ports required by the protocol.
Allowed Protocol The allowed protocols.
Allow IB (Inbound) Filters inbound data from the Internet on the specified ports.
Allow OB (Outbound) Filters outbound data to the Internet on the specified ports. Stateful inspection ensures
appropriate responses for outbound sessions.
Protocol # The protocol number associated with the IP packets to allow in the firewall policy.
40 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Firewall > ALERT — basic Page
Use this page to set the alert mechanism for firewall intrusion detection events.
Firewall > ALERT — basic page fields
Field or Button Description
Intrusion Detection Check Email to be alerted through SMTP e-mail. An SMTP server that does not require any
authentication such as a user name or password must be present to receive the e-mail.
Apply Click to apply your changes.
41 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Firewall > ALERT — email Page
Use this page to configure the e-mail alert parameters:
Firewall > ALERT — email page fields
Field or Button Description
E-mail Server IP Address Sets the e-mail server IP address, in dotted-decimal format.
E-mail Server Port Sets the e-mail server port number.
E-mail Sender Sets the sender e-mail address.
E-mail Recipient List Sets the list of e-mail addresses that receive alerts from the SBG firewall.
Apply Click to apply your changes.
42 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Firewall > LOGS Page
Use this page to set which firewall events are logged.
Firewall > LOGS page fields
Field or Button Description
Enable Session Log Check this box to log session events.
Enable Blocking Log Check this box to log blocking events.
Enable Intrusion Log Check this box to log intrusions.
Apply Click to apply your changes.
43 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Configuring the Gateway
This section describes the Gateway configuration pages in the SBG Setup Program:
Gateway > STATUS Page (see page 44)
Gateway > WAN Page (see page 45)
Gateway > LAN — nat config Page (see page 47)
Gateway > LAN — dhcp server config Page (see page 48)
Gateway > LAN — dhcp reservations Page (see page 49)
Gateway > LOG Page (see page 51)
For some settings, after you edit the field and click Apply, you are warned that you must Reboot for your
change to take effect. Rebooting takes 10 to 15 seconds. After rebooting, you must log-in again.
44 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Gateway > STATUS Page
This page displays the gateway status information:
These fields display settings that are set on the other Gateway pages. For descriptions, see the sections about
those pages.
45 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Gateway > WAN Page
Use this page to configure the external (public) wide area network (WAN) interface:
Gateway > WAN page fields
Field Description
Host Name If the cable service provider requires a hostname to access to their network, type the hostname
they provided in this field. The default is None.
Enable DHCP Client Enabling the DHCP client causes the wireless gateway to automatically obtain the public IP
address, subnet mask, domain name, and DNS server(s). Most commonly, the DHCP client is
enabled if the cable service provider automatically assigns a public IP address from their
DHCP server. Enable DHCP Client is on by default.
Disable DHCP Client If the cable service provider does not automatically assign a public IP address using DHCP,
they must provide a static IP address. Select Disable DHCP Client. When you disable the
DHCP client, you must type the static IP address, subnet mask, DNS server(s), and domain
name (if necessary) in the fields provided. Disable DHCP Client is off by default.
Static IP Address If Disable DHCP Client is on, type the static IP address provided by the cable service provider,
in dotted-decimal format. The default is None.
Static IP Address
Subnet Mask If Disable DHCP Client is on, type the subnet mask associated with the static IP address, in
dotted-decimal format. The default is None.
Domain Name If the cable service provider requires a domain name, type the domain name they provided you
in this field. The default is None.
46 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
DNS IP Address 1
DNS IP Address 2
DNS IP Address 3
The cable service provider DNS server provides name-to-IP address resolution. If the cable
service provider does not automatically assign DNS addresses from their DHCP server, they
must provide at least one DNS server IP address to enter in these fields, in dotted-decimal
format. The default is None.
TCP Session Wait
Timeout Sets the maximum time in minutes to wait before assuming a TCP session has timed out. The
default is 5 minutes.
UDP Session Wait
Timeout Sets the maximum time in minutes to wait before assuming a UDP session has timed out. The
default is 5 minutes.
ICMP Session Wait
Timeout Sets the maximum time in minutes to wait before assuming an ICMP session has timed out.
The default is 5 minutes.
Apply Click to apply your changes.
Gateway > WAN page fields (continued)
Field Description
47 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Gateway > LAN — nat config Page
Use this page to configure NAT:
Gateway > LAN — nat config page fields
Field or Button Description
LAN
Enable NAT If enabled, the single HFC IP Address (public IP address) assigned by the cable service
provider is mapped to many private IP addresses on the SBG LAN.
Apply Click to apply your changes. You must reboot the SBG1000.
NEW NAT
PASSTHROUGH You can reserve up to 20 private IP addresses for clients to ensure that they always receive
the same IP address. For example, for a private FTP server needs to always have the same
IP address. When the client having the MAC address requests an IP address, the SBG1000
DHCP server assigns the client the reserved IP address.
MAC Address Sets the MAC address of the passthrough client. The format is 16 hexadecimal numerals.
DMZ Check the box to set the MAC address as a de-militarized zone (DMZ) client. A DMZ is a
computer on the LAN that can be accessed from the public Internet.
Add Click to add the IP address to the reserved IP address table.
CURRENT NAT
PASSTHROUGH Displays the NAT passthrough list.
Delete Click to delete the MAC address from the NAT passthrough list.
48 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Gateway > LAN — dhcp server config Page
Experienced network administrators only can use this page to perform advanced DHCP server configuration:
CAUTION!
Do not modify these settings unless you are an experienced network administrator with strong
knowledge of IP addressing, subnetting, and DHCP.
Gateway > LAN — advanced page fields
Field Description
LAN IP Address Sets the SBG LAN IP address, in dotted-decimal format. The default is 192.168.0.1.
LAN IP Subnet Mask Sets the subnet mask, in dotted-decimal format. The default is 255.255.255.0
Starting IP Address Sets the starting IP address assigned by the SBG1000 DHCP server to clients, in
dotted-decimal format. The default is 192.168.0.2.
# of DHCP Users Sets the number of clients for the SBG1000 DHCP server to assign a private IP address.
There are 245 possible client addresses. The default is 245.
DHCP Server Lease
Time Sets the time in seconds that the SBG1000 DHCP server leases an IP address to a client. The
default is 60 seconds.
Domain Name Sets the domain name for the SBG LAN. The default is None.
Time To Live Sets the TTL (hop limit) for outbound packets. The default is 64.
Interface Maximum
Transmission Unit Sets the SBG LAN MTU, in bytes. The minimum is 68 bytes. The default is 1500 bytes.
Apply Click to apply your changes. SBG1000 reboot required.
49 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Gateway > LAN — dhcp reservations Page
Use this page to configure DHCP reservations:
Gateway > LAN — dhcp reservations page fields
Field Description
RESERVE NEW IP
ADDRESS You can reserve up to 32 IP addresses assigned by the SBG DHCP server for specific LAN
clients. For example, you can reserve an IP address for a private FTP server to ensure that it
always receives the same private IP address.
MAC Address Type the MAC address of the DHCP client for which a reserved IP address is required. The
format is 16 hexadecimal numerals.
IP Address Sets the host portion of the reserved IP address for the LAN client having the specified MAC
address. When the LAN client requests an IP address, the SBG DHCP server assigns the
client this IP address.
DMZ Check this box if you want the host to bypass NAT and be exposed directly to the Internet.
When configuring a client as a NAT passthrough device, you can specify whether it should be
a de-militarized zone (DMZ) host. A DMZ host is completely exposed to the Internet. Any
device configured as a DMZ is open to Internet hackers and should be used with extreme
caution.
Host Name If your ISP requires a hostname to access their network, enter the hostname provided to you
in the Host Name field.
Add Click Add to reserve a new IP address.
50 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Gateway > ALG — basic Page
This may not be supported in your code release. For the most recent documentation, visit the Product
Documentation page on www.motorola.com/broadband.
Gateway > ALG — advanced Page
This may not be supported in your code release. For the most recent documentation, visit the Product
Documentation page on www.motorola.com/broadband.
CURRENTLY RESERVED
IP ADDRESSES Displays all DHCP clients that have specific IP addresses reserved for their use by MAC and
IP address.
MAC Address Displays the reserved MAC addresses.
IP Address Displays the reserved IP addresses.
DMZ Displays whether the client is configured as a DMZ.
Host Name Displays the host name.
Delete Click this box to remove the reserved IP address for the client.
Delete Click this button to remove the reserved IP addresses for clients designated by the Delete
box.
Gateway > LAN — dhcp reservations page fields (continued)
Field Description
51 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Gateway > LOG Page
Use this page to:
Gateway > LOG page fields
Field Description
Time The data and time in the format yyyy-mm-dd hh:mm:ss (hours hh are 00 to 23)
Priority Indicates the importance of the message.
Code
Message Describes the event.
52 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
53 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Configuring TCP/IP
You must be sure all client computers are configured for TCP/IP (a protocol for communication between
computers). Perform one of:
“Configuring TCP/IP in Windows 95, Windows 98, or Windows Me” on page 54
“Configuring TCP/IP in Windows 2000” on page 56
“Configuring TCP/IP in Windows XP” on page 60
Follow the instructions in your Macintosh or UNIX user manual
After configuring TCP/IP, perform one of the following to verify the IP address:
“Verifying the IP Address in Windows 95, Windows 98, or Windows Me” on page 64
“Verifying the IP Address in Windows 2000 or Windows XP” on page 65
Follow the instructions in your Macintosh or UNIX user manual
54 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Configuring TCP/IP in Windows 95, Windows 98, or Windows Me
1On the Windows Desktop, click Start.
2Select Settings and then Control Panel from the pop-up menus to display the Control Panel window.
3Double-click the Network icon to display the Network window:
4Select the Configuration tab.
5Verify that TCP/IP is installed for the adapter used to connect to the SBG1000. If TCP/IP is installed, skip to
step 10. If TCP/IP is not installed for the adapter, continue with step 6.
6Select the adapter to use for the SBG1000 connection and click Add. The Select Network Component Type
window is displayed:
7Click Protocol and click the Add button.
Although your SBG model number may be different than in the images in this guide,
the procedure is the same.
55 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
8Click Microsoft in the Manufacturers section and click TCP/IP in the Network Protocol section of Select
Network Protocol window:
9Click OK.
10 Click TCP/IP on the Network window. If there is more than one TCP/IP entry, choose the one for the Ethernet
card or USB port connected to the SBG1000.
11 Click Properties. The TCP/IP Properties window is displayed:
12 Click the IP Address tab.
13 Click Obtain an IP address automatically.
14 Click OK to accept the TCP/IP settings.
15 Click OK to close the Network window.
16 Click OK when prompted to restart the computer and click OK again.
When you complete TCP/IP configuration, go to “Verifying the IP Address in Windows 95, Windows 98, or
Windows Me” on page 64.
56 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Configuring TCP/IP in Windows 2000
1On the Windows Desktop, click Start.
2Select Settings and then Control Panel from the pop-up menus to display the Control Panel window:
3Double-click the Network and Dial-up Connections icon to display the Network and Dial-up Connections
window:
57 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
4Click Local Area Connection number. The value of number varies from system to system. The Local Area
Connection number Status window is displayed:
5Click Properties. Information similar to the following window is displayed:
6If Internet Protocol (TCP/IP) is in the list of components, TCP/IP is installed. You can skip to step 10.
If Internet Protocol (TCP/IP) is not in the list, click Install. The Select Network Component Type window is
displayed:
58 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
7Click Protocol on the Select Network Component Type window and click Add. The Select Network Protocol
window is displayed:
8Click Internet Protocol (TCP/IP).
9Click OK. The Local Area Connection number Properties window is re-displayed.
10 Be sure the box next to Internet Protocol (TCP/IP) is checked.
59 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
11 Click Properties. The Internet Protocol (TCP/IP) Properties window is displayed:
12 Be sure Obtain IP address automatically and Obtain DNS server address automatically are selected.
13 Click OK to accept the TCP/IP settings.
14 Click OK to close the Local Area Connection number Properties window.
15 Click OK when prompted to restart the computer and click OK again.
When you complete the TCP/IP configuration, go to “Verifying the IP Address in Windows 2000 or Windows XP”
on page 65.
60 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Configuring TCP/IP in Windows XP
1On the Windows desktop, click Start to display the Start window:
2Click Control Panel to display the Control Panel window. The display varies, depending on the Windows XP
view options. If the display is a Category view as shown below, continue with step 3. Otherwise, skip to
step 5.
61 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
3Click Network and Internet Connections to display the Network and Internet Connections window:
4On the Network and Internet Connections window in the “or pick a Control Panel icon, click Network
Connections to display the LAN or High-speed Internet connections. Skip to step 6.
5If a classic view similar to below is displayed, click Network Connections to display the LAN or High-speed
Internet connections:
62 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
6Right-click on the network connection. If more than one connection is displayed, be sure to select the one for
your network interface:
7Select Properties from the pop-up menu to display the Local Area Connection Properties window:
8On the Local Area Connection Properties window, be sure Internet Protocol (TCP/IP) is checked. If it is not
checked, check it.
63 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
9Select Internet Protocol (TCP/IP) and click Properties to display the Internet Protocol (TCP/IP) Properties
window:
10 On the Internet Protocol (TCP/IP) Properties window, verify that the settings are correct, as shown above.
11 Click OK to close the TCP/IP Properties window.
12 Click OK to close the Local Area Connection Properties window.
When you complete the TCP/IP configuration, go to “Verifying the IP Address in Windows 2000 or Windows XP”
on page 65.
64 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Verifying the IP Address in Windows 95, Windows 98, or Windows Me
To check the IP address:
1On the Windows Desktop, click Start.
2Select Run. The Run window is displayed.
3Type winipcfg.exe and click OK. The IP Configuration window is displayed. The Ethernet Adpater
Information field will vary depending on the system, as shown in the following examples:
The values for Adapter Address, IP Address, Subnet Mask, and Default Gateway on the PC will be different
than in the image.
In Windows 98, if “Autoconfiguration” is displayed before the IP Address as in the following image, call your
service provider.
4Select the adapter name — the Ethernet card or USB device.
5Click Renew.
6Click OK after the system displays an IP address.
If after performing this procedure the computer cannot access the Internet, call your cable service provider for
help.
65 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Verifying the IP Address in Windows 2000 or Windows XP
To check the IP address:
1On the Windows Desktop, click Start.
2Select Run. The Run window is displayed.
3Type cmd and click OK to display a command prompt window.
4Type ipconfig and press ENTER to display the IP configuration. A display similar to the following indicates a
normal configuration:
If an Autoconfiguration IP Address is displayed as in the following window, there is an incorrect connection
between the PC and the SBG1000 or there are cable network problems. Check the cable connections and
determine if you can view cable-TV channels on your television:
After verifying the cable connections and proper cable-TV operation, renew the IP address.
66 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
To renew the IP address:
1Type ipconfig /renew and press ENTER. If a valid IP address is displayed as shown, Internet access should
be available.
2Type exit and press ENTER to return to Windows.
If after performing this procedure the computer cannot access the Internet, call your cable service provider
for help.
67 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Setting Up the Wireless LAN
You can use the Motorola SBG1000 Wireless Cable Modem Gateway as an access point for an IEEE 802.11b
wireless LAN without changing its default settings. This section describes:
Configuring a Unique Wireless Network Name (see page 68)
Configuring Basic Wireless LAN Security (see page 69)
Configuring Wireless Clients (see page 70)
Wireless Pages in the SBG Setup Program (see page 70)
Caution!
The default Wired Equivalent Privacy (WEP) Authentication setting Disable WEP provides no
security for wireless data. After the wireless LAN is operational, be sure to configure WEP as
described in “Configuring Basic Wireless LAN Security” on page 69.
68 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Configuring a Unique Wireless Network Name
All clients (stations) on the wireless LAN must have the same network name (ESSID) as the access point on the
SBG1000. You must configure the same ESSID on all IEEE 802.11b LAN clients.
To configure the ESSID:
1Start the SBG Setup Program as described in “Starting the SBG Setup Program” on page 32.
2On the left frame, click Wireless.
3Click the NETWORK tab to display:
4In the ESSID field, type a name. It can be any alphanumeric, case-sensitive string up to 32 characters. The
default is “Motorola.Do not use the default ESSID.
5Click Save Changes to save your changes.
69 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Configuring Basic Wireless LAN Security
To enable WEP and set the key on the SBG1000:
1On the SBG Setup Program left frame, click Wireless.
2Click the SECURITY tab to display the Wireless > SECURITY — basic screen:
3Set the following:
4If necessary, click Reset Wireless Defaults to reset the wireless defaults.
5Click Save Changes to save your changes.
Caution!
The default settings provide no security for wireless data. After the wireless LAN is operational, be sure
to enable Shared Key Authentication and Wired Equivalent Privacy (WEP) encryption. You must
configure the same WEP key on the SBG1000 access point and all wireless clients (stations).
Authentication Sets whether shared key authentication is enabled to provide data privacy on the wireless LAN:
Open System — Any wireless LAN client can transmit data to any other client without
authentication. Open authentication provides no security for transmitted data.
Shared Key — All data transmitted over the wireless LAN is encrypted. The SBG authenticates
and transfers data to and from all clients having shared key authentication enabled and an
identical WEP key.
For optimal security, we recommend changing the WEP keys frequently. The default is Open
System.
Encryption Use a WEP key length that is compatible with your wireless client adapters. Choose one of:
Enable 64-Bit — Use only if you have wireless clients that do not support 128-bit encryption
Enable 128-Bit — The recommended setting for stronger encryption; supported by the Motorola
PCC11b wireless card, USB11b wireless adapter, and most current wireless adapters
Disable WEP — Recommended during network setup only
Key 1 to Key 4 Sets the active WEP key. You can enter up to four 64-bit or 128-bit WEP keys containing the
non-case-sensitive hexadecimal characters 0 to 9 and A to F. Only one key can be active:
For 64-bit encryption, the key must be 10 characters long.
For 128-bit encryption, the key must be 26 characters long.
70 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Configuring Wireless Clients
For each wireless client computer (station), install the wireless client card or adaptersuch as a Motorola
PCC11b wireless card or Motorola USB11b wireless adapter — following the instructions supplied with the card or
adapter.
Configure the card or adapter to obtain an IP address automatically. The Motorola PCC11b wireless card and
Motorola USB11b wireless adapter are supplied with a client configuration program called Wireless Client Manger,
which is installed in the Windows Startup group.
If Wireless Client Manager is running, the icon is displayed on the Windows task bar. Double-click the icon to
launch the utility.
To distinguish it from other nearby IEEE 802.11b wireless LANs, each wireless LAN is identified by a unique
network name (also known as a network identifier or ESSID). When prompted for the network identifier, network
name, or ESSID, type the name set in the ESSID field on the Wireless > NETWORK window in the SBG Setup
Program. For more information, see “Configuring a Unique Wireless Network Name” on page 68.
After you specify the network name, the wireless card or adapter automatically scans for an IEEE 802.11b access
point such as the SBG1000 and the proper channel and data rate.
If shared key authentication is enabled and a WEP key is set on the SBG1000 as described in “Configuring Basic
Wireless LAN Security” on page 69, you must enter the same WEP key on the wireless client. The SBG1000
cannot authenticate a client if:
Shared key authentication is enabled on the SBG1000 but not on the client
The client WEP key does not match the SBG1000 WEP key
After you correctly set the network name and WEP key on the client computer, you should be able to use it to surf
the Internet.
Wireless Pages in the SBG Setup Program
Use the Wireless pages to control and monitor the wireless interface:
Wireless > STATUS Page (see page 71)
Wireless > NETWORK Page (see page 72)
Wireless > SECURITY — basic Page (see page 73)
Wireless > SECURITY — advanced Page (see page 74)
Wireless > STATISTICS page (see page 75)
Caution!
If shared key authentication is not enabled and no WEP key is set, there is no security for wireless
data. You must configure the same WEP key on the SBG1000 and all wireless clients.
For some settings, after you edit the field and click Apply, you are warned that you must Reboot for your
change to take effect. Rebooting takes 10 to 15 seconds. After rebooting, you must log-in again.
71 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Wireless > STATUS Page
Use this page to view the wireless interface status.
Wireless > STATUS Page Fields
Regulatory
Domain Indicates the country the SBG is manufactured for. The list of channels depends on the country’s
standards for operation of IEEE 802.11b devices. Depending on the domain set at the factory, you
may see FCC USA, Europe, Spain, France, Japan, or some other country name in this field.
ESSID
(Network Name) Displays the network name set on Wireless > Network page. For more information, see “Configuring a
Unique Wireless Network Name” on page 68.
Channel Displays the radio channel for the access point. If you encounter interference, you can set a different
channel on the Wireless > NETWORK Page (see page 72).
RTS Threshold Displays the RTS Threshold set on the Wireless > NETWORK Page.
Fragmentation
Threshold Displays the Fragmentation Threshold set on the Wireless > NETWORK Page.
MAC Address Displays the SBG MAC address.
WEP Enabled Displays the type of Wired Equivalent Privacy (WEP) that is enabled. For more information, see
“Configuring Basic Wireless LAN Security” on page 69.
MAC Access
Control Displays the state of MAC access control setting. It is set on the Wireless > SECURITY — advanced
Page (see page 74).
Allow Listed — Only IEEE 802.11b stations in the MAC access control list can access the wireless
LAN.
Allow Any Station Access — Any 802.11b station can access the wireless LAN.
MAC ACCESS
CONTROL LIST Displays the MAC addresses of wireless clients having access. The list is set on the Wireless >
SECURITYadvanced Page.
72 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Wireless > NETWORK Page
Use this page to configure wireless LAN settings.
You can use the Motorola SBG1000 Wireless Cable Modem Gateway to operate an IEEE 802.11b wireless LAN
without changing its default settings.
Wireless > NETWORK page fields
Field Description
Enable Wireless
Interface Check this box to enable the wireless interface.
ESSID Sets a unique identifier to associate wireless clients with the SBG access point. This
distinguishes between multiple wireless LANs in the same area. All clients on wireless LAN
must have the same Network Name as the access point. It can be any alphanumeric,
case-sensitive string up to 32 characters. The default is “Motorola.We strongly recommend
not using the default.
Channel Sets the wireless radio channel. You can change the channel if you encounter interference on
the default channel. The default is 1 (one), except in countries where the first channel
permitted for IEEE 802.11b wireless operation is not one.
Basic Rate Sets the wireless data transmission rates that all wireless LAN clients must be able to receive:
1, 2 Mbps. The SBG1000 attempts to transmit at 2 Mbps. Use this setting if the wireless
LAN has only legacy IEEE 802.11b clients.
1, 2, 5.5, and 11 Mbps. The SBG1000 attempts to transmit at 11 Mbps. If there are
obstacles or interference, it automatically steps down to the highest rate that allows
transmission. Use this setting if the wireless LAN has fully-compliant IEEE 802.11b clients.
The default is 1, 2, 5.5, 11 Mbps.
73 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Wireless > SECURITY — basic Page
Use this page to configure basic Wired Equivalent Privacy (WEP) settings.
For information about using this page, see Configuring Basic Wireless LAN Security” on page 69.
Transmit Power Sets the transmit power on the SBG1000 wireless access point — 1, 2, 5, 10, 25, 50, or 100
mW. The default is 32 mW. Transmit power control is an optional IEEE 802.11b feature.
RTS Threshold The Request To Send Threshold sets the packet size at which the access point issues an RTS
before sending the packet. A low RTS can help when many clients are associated with the
SBG1000 or when the clients are far apart and can detect the SBG1000 but not each other.
The value can be 0 to 2347 bytes. The default is 2347.
Fragmentation
Threshold Sets the size at which packets are fragmented (sent as several packets instead of as one
packet). A low Fragmentation Threshold can help when communication is poor or when there
is a significant interference.
The default is 2346. The value can be 256 to 2346 bytes.
Enable Short Preamble Short preamble can improve throughput when the SBG1000 access point and associated
clients operate at 2, 5.5, or 11 Mbps. If you enable short preamble, be sure all wireless clients
also support short preamble. Short preamble is an optional IEEE 802.11b feature that is useful
if maximum throughput is important and interoperability with legacy IEEE 802.11b equipment is
not required. The default is Disabled.
CAUTION!
The default Authentication setting of Disable WEP provides no security for transmitted data.
Wireless > NETWORK page fields (continued)
Field Description
74 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Wireless > SECURITY — advanced Page
Use this page to configure advanced wireless security settings.
Wireless > Security — ADVANCED page fields
Field or Button Description
Closed Network If you enable closed network operation, only wireless clients configured with the Network
Name can associate with the SBG1000. Closed network operation is a SBG enhancement to
IEEE 802.11b. The default is Disabled.
MAC ACCESS
CONTROL LIST The MAC access control list restricts wireless LAN access to identified 802.11b station MAC
addresses. Up to five 802.11b station MAC addresses can be entered.
Allow Any Station
Access Any 802.11b station can access the wireless network.
Allow Only Listed
Stations Only 802.11b stations in the MAC access control list can access the wireless network.
Apply Click to apply your changes.
Listed Stations Displays stations that have restricted wireless access by their MAC addresses.
Delete Click to select a station to be removed from the control list.
75 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Wireless > STATISTICS page
Use this page to display wireless statistics.
New Station Enter the MAC address of a station that you want to add to the list of allowed stations.
Add Station Click to add the new station.
Wireless > STATISTICS page fields
Field or Button Description
Transmitted
Fragment Count The number of acknowledged MAC protocol data units (MPDUs) with an address in the
address 1 field or an MPDU with a multicast address in the address 1 field of type data or
management.
Multicast
Transmitted
Fragment Count
The number of transmitted fragments when the multicast bit is set in the destination MAC
address of a successfully transmitted MAC service data unit (MSDU). When operating as a
STA in an ESS, where these frames are directed to the AP, this implies having received an
acknowledgment to all associated MPDUs.
Failed Count The number of MSDUs not transmitted successfully because the number of transmit attempts
exceeded the IEEE 802.11b short or long retry limit.
Retry Count The number of successfully transmitted MSDUs after one or more retransmissions.
Multiple Retry Count The number of successfully transmitted MSDUs after more than one retransmission.
Wireless > Security — ADVANCED page fields (continued)
Field or Button Description
76 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Frame Duplicate
Count The number of frames received where the Sequence Control field indicated the frame was a
duplicate.
Request To Send
Success Count The number of CTS messages received in response to RTS messages.
Request To Send
Failure Count The number of CTS messages not received in response to RTS messages.
Acknowledgement
Failed Count The number of acknowledgment messages not received when expected from a data
message transmission.
Received Fragment
Count The number of successfully received MPDUs of type Data or Management.
Multicast Received
Fragment Count The number of MSDUs received when the multicast bit was set in the destination MAC
address.
Frame Check
Sequence Error
Count
The number of FCS errors detected in a received MPDU.
Transmitted Frame
Count The number of successfully transmitted MSDUs.
WEP Undecryptable
Count This number of frames received with the WEP subfield of the Frame Control field set to one
and the WEPOn key value mapped to the client MAC address. This indicates that the frame
should not have been encrypted or that frame was discarded due to the receiving client not
having WEP enabled.
Refresh Click to collect new data.
Wireless > STATISTICS page fields (continued)
Field or Button Description
77 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Configuring the Print Server
The SBG1000 print server supports a printer connected to its printer port using Microsoft, UNIX (Linux), or Apple
printing. Configuring printing consists of:
Configuring the SBG1000 Print Server
Connecting the printer to the SBG1000 as shown in “Installation” on page 19
Adding a printer to each PC following one of:
“Adding a Printer in Windows 98 or Windows Me” on page 80
“Adding a Printer in Windows 2000” on page 86
Configuring the SBG1000 Print Server
1Start the SBG Setup Program as described in “Starting the SBG Setup Program” on page 32.
2On the left frame, click Printer to display the Printer CONFIGURATION > basic page:
3(Optional) For a printer that supports bi-directional communication, you can enable Extended Capabilities
Port (ECP) Mode, which can provide a performance benefit over a standard port.
4Use the following pages to configure the print server for the necessary platform(s):
5Power off the SBG1000.
6Connect the printer to the printer port on the SBG1000 Rear Panel as shown in Installation” on page 19.
7Power on the printer.
8Power on the SBG1000. If printer configuration was successful, the printer icon displays on the SBG1000
front panel.
If the printer icon is not displayed, check the printer cable connection and power the printer and the SBG1000
off and on again. Verify that Enable printer is checked on the Printer CONFIGURATON > basic page.
Windows Printer > CONFIGURATION — Microsoft smb Page (see page 78)
Macintosh Printer > CONFIGURATION — Apple Page (see page 79)
UNIX (Linux) Printer > CONFIGURATION — lpr Page (see page 80)
78 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Printer > CONFIGURATION — Microsoft smb Page
Use this page to configure the print server for Microsoft printing:
Printer > CONFIGURATION Microsoft smb page fields
Field Description
Domain Name Sets the Microsoft workgroup for the SBG1000 print server. You must use this setting for the
Workgroup when you add the printer connected to the SBG1000 to each client PC running
Windows.
Enable Abort Print
Job Check this box to abort a print job if the printer runs out of paper. When this is disabled, the print
server waits to resume printing the job until you add paper to the printer. The default is Disabled.
Response Time Sets the response time if you need to slow down the response to a Microsoft SMB client for a
slow legacy printer. The value can be from 0 (no wait) to 255 seconds. The default is 0 (zero).
Print Server Name \
Queue Name Sets the print server name and queue.
Apply Click to apply your changes.
79 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Printer > CONFIGURATION — Apple Page
Use this page to configure the print server for AppleTalk printing:
Printer > CONFIGURATION — apple page fields
Field Description
AppleTalk Zone Sets the AppleTalk zone having access to the print server. The zone name can be up to 32
characters long. The default “*” enables all AppleTalk zones to use the printer(s) connected to the
print server.
Printer Type Sets the printer type. The default, LaserWriter, is used for most AppleTalk printers. If you have an
Epson printer that supports AppleTalk, it has a different printer type, found in the Epson printer
manual or web site. The SBG1000 print server only responds to the Chooser if the AppleTalk zone
and printer type are the same.
Communication
Protocol Choose Standard if the printer uses a communication protocol that supports sending and receiving
ASCII data. The Standard protocol is typically supported on devices using RS-232 and centronics
channels. The default is ASCII.
Choose Binary Communication Protocol (BCP) if the printer can send and receive binary data. BCP
is used by some devices for flow control, status request, abort job, and end of file functions. BCP
can provide a significant performance advantage over ASCII printing on serial and parallel ports.
Choose Tagged Binary Communication Protocol (TBCP) for a printer containing a
language-independent feature to determine which language interprets a print job. TBCP is typically
supported by PJL printers.
To determine the protocol a printer supports, see the documentation provided with the printer.
Apply Click to apply your changes.
80 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Printer > CONFIGURATION — lpr Page
Use this page to configure the print server for UNIX printing:
Adding a Printer in Windows 98 or Windows Me
1On the Windows desktop, click Start.
2Click Settings.
3Click Control Panel to display the Control Panel window:
Printer > CONFIGURATION — lpr page fields
Field Description
Printer IP Address Displays the SBG1000 IP address; by default 192.168.100.1
Queue Name Sets the queue name; typically lpx; where x is 0, 1, 2, ...
Apply Click to apply your changes
81 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
4Double-click the Network icon to display the Network window.
5Click the Identification tab:
6In the Workgroup field, type the Workgroup name. Be sure it matches the “Domain Name” configured on the
SBG1000 Printer > CONFIGURATION — Microsoft smb Page (see page 78).
7Click the Configuration tab to display the Configuration page:
8Select the TCP/IP for the SBG1000 network interface, as shown above.
82 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
9Click Properties to display the TCP/IP Properties window:
Be sure Obtain an IP address automatically is selected.
10 Click the WINS Configuration tab to display:
11 To Enable WINS Resolution, select its radio button.
12 In the WINS Server Search Order field, type 192.168.100.1 and click Add.
13 Click OK to exit the TCP/IP Properties window.
14 Click OK to exit the Network window.
15 On the Windows desktop, click Start.
16 Click Settings.
83 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
17 Click Printer to display the Printers window:
18 Double-click the Add Printer icon to start the Add Printer Wizard:
19 Click Next:
84 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
20 Select Network printer by clicking its radio button and click Next:
21 In the Network path or queue name field, type \\Print Server Name\Queue Name and click Next. It must
match the Print Server Name\Queue Name set on the SBG1000 Printer > CONFIGURATION — Microsoft
smb Page (see page 78). The default is \\SBG1000\P1.
22 In the Manufacturers field, click the manufacturer of the printer connected to the SBG1000.
23 In the Printers field, click the printer model.
If your printer is not listed, its driver software is not installed in Windows on the PC. You need to provide the
driver from a disk or download the driver from the Internet.
85 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
24 Click Next.
25 Click Next to accept the default printer name.
or
Type the name and click Next.
26 Click Finish to complete printer installation and print a test page.
86 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Adding a Printer in Windows 2000
1On the Windows desktop, click Start.
2Click Settings.
3Click Control Panel to display the Control Panel window:
4Double-click the System icon to display the System Properties window.
5Click the Network Identification tab:
87 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
6Click Properties. The Identification Changes window is displayed:
7In the Workgroup field, type the Workgroup name. Be sure it matches the “Domain Name” configured on the
SBG1000 Printer > CONFIGURATION — Microsoft smb Page (see page 78).
8Click OK.
9On the System Properties window, click OK. You are prompted to reboot your computer.
10 Click Yes to reboot.
11 After the PC reboots, click Start.
12 Click Settings.
13 Click Control Panel to display the Control Panel window:
14 Double-click the Network and Dial-up Connections icon.
88 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
15 Double-click the Local Area Connection icon. If more than one is present, be sure you select the one
connected to the SBG1000. The Local Area Connection Status window is displayed:
16 Click Properties. The Local Area Connection Properties window is displayed:
89 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
17 Click Internet Protocol TCP/IP and click the Properties button. The Local Area Connection Properties
window is displayed:
18 Click Properties. The Internet Protocol (TCP/IP) Properties window is displayed:
Be sure Obtain an IP address automatically is selected.
19 Click Advanced to display the Advanced TCP/IP Settings window.
90 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
20 Click the WINS tab:
21 Click Add. The TCP/IP WINS Server window is displayed:
22 In the WINS server field, type 192.168.100.1 click Add.
23 Click OK three times to close the Advanced TCP/IP Settings window, the Internet Protocol (TCP/IP)
Properties window, and the Local Area Connection Properties window.
24 Click Start.
91 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
25 Click Settings.
26 Click Printers to display the Printers window:
27 Double-click the Add Printer icon to start the Add Printer Wizard:
92 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
28 Click Next:
29 Click the Network printer radio button to select it and click Next:
30 Click Next to browse the network for the SBG1000 printer. This step will fail but is necessary.
31 Click Back to return to the following window:
32 In the Type the printer name,... field, type \\Print Server Name\Queue Name and click Next. It must match
the Print Server Name\Queue Name set on the SBG1000 Printer > CONFIGURATION — Microsoft smb Page
(see page 78). The default is \\SBG1000\P1.
If a message such as the following displays, indicating that the printer driver is not present, insert the driver
disk provided with your printer in the drive and click OK.
93 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
The following message should display:
33 Click Finish to complete printer installation.
94 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
95 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Setting Up a USB Driver
The following subsections describe setting up a USB driver if you connect a PC to the USB port on the SBG.
Perform one of the following procedures based on your Windows version:
“Setting Up a USB Driver in Windows 98” on page 96
“Setting Up a USB Driver in Windows 2000” on page 100
“Setting Up a USB Driver in Windows Me” on page 103
“Setting Up a USB Driver in Windows XP” on page 104
The SBG1000 USB driver does not support Macintosh or UNIX computers. For those systems, you can connect
through Ethernet only.
If you have a problem setting up the USB driver, remove it by performing one of the following procedures:
“Removing the USB Driver from Windows 98 or Windows Me” on page 105
“Removing the USB Driver from Windows 2000” on page 108
“Removing the USB Driver from Windows XP” on page 111
CAUTION!
Be sure the Motorola SBG1000 Wireless Cable Modem Gateway CD-ROM is inserted in the
CD-ROM drive before you plug in the USB cable.
96 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Setting Up a USB Driver in Windows 98
Be sure the Motorola SBG1000 Wireless Cable Modem Gateway CD-ROM is inserted in the CD-ROM drive
before you plug in the USB cable. This CD contains the USB drivers and must be inserted and read by the PC
before you connect the SBG1000 to the PC.
A few seconds after you complete the USB connection, the Add New Hardware Wizard window is displayed:
1Click Next. The following window is displayed:
Be sure “Search for the best driver for your device” is selected.
97 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
2Click Next. The following window is displayed:
Be sure “CD-ROM drive” is the only box checked.
3Click Next. The message “Please wait while Windows searches for a new driver for this device” is displayed.
If the computer successfully locates the driver, you can skip to step 6.
If the computer does not locate the driver, the previous window is displayed again.
4Select Specify a location and type the location of the CD-ROM drive:
To load the driver successfully, you may need to click Browse to manually select the NetMotCM.sys file on
the CD-ROM.
98 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
5Click Next.The following window is displayed:
6Select The updated driver... and click Next. If the following window is not displayed, verify that the Motorola
SBG1000 Wireless Cable Modem Gateway CD-ROM is properly inserted in the CD-ROM drive. If you still
cannot find the correct driver file, click Cancel to cancel the installation and perform the procedure for
“Removing the USB Driver from Windows 98 or Windows Me” on page 105. Then repeat this procedure.
7After the window shown under step 6 is displayed, click Next.
If a window with the message Copying Files... displays and asks for the CD-ROM drive, type the CD-ROM
drive letter (for example, “D:”) and click OK.
If an Insert Disk window similar to the one below is displayed, Windows 98 system files are needed to
complete the installation. To install the files, insert your Windows 98 CD-ROM in the CD-ROM drive and click
OK.
Although your SBG model number may be different than in the images in this guide,
the procedure is the same.
99 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
After all the necessary files are loaded, the following window is displayed to confirm a successful installation:
8Click Finish. The Systems Settings Change window is displayed:
9Click Yes to restart the computer.
When you finish setting up the USB driver, you can continue with “Configuring TCP/IP” on page 53.
If you have difficulties setting up the USB driver, perform “Removing the USB Driver from Windows 98 or
Windows Me” on page 105 and repeat this procedure. If that does not correct the problem, see the Regulatory,
Safety, Software License, and Warranty Information card provided with the SBG1000 for information about
obtaining warranty service.
100 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Setting Up a USB Driver in Windows 2000
Be sure the Motorola SBG1000 Wireless Cable Modem Gateway CD-ROM is inserted into the CD-ROM drive
before you plug in the USB cable. A few seconds after you complete the USB connection, the Found New
Hardware window is displayed:
1Click Next. The following window is displayed:
Be sure “Search for a suitable driver for my device” is selected.
Although your SBG model number may be different than in the images in this guide,
the procedure is the same.
101 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
2Click Next. The following window is displayed:
Be sure “CD-ROM drives is the only box checked.
3Click Next. The following window is displayed:
4Click Next.
If the Insert Disk window is displayed, be sure the Motorola SBG1000 Wireless Cable Modem Gateway
CD-ROM is in the CD-ROM drive and follow steps 5 to 10. Otherwise, you can skip to step 11.
102 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
5On the Insert Disk window, click OK. The Files Needed window is displayed:
6If necessary, select the CD-ROM drive in the Copy files from list.
7Click Browse.
8Locate the NetMotCM.sys file in the CD-ROM root directory.
9Double-click the NetMotCM.sys file. The Files Needed window is displayed.
10 Click OK. The Found New Hardware Wizard window is displayed:
11 Click Finish to complete the installation.
When you finish setting up the USB driver, you can continue with “Configuring TCP/IP” on page 53.
If you have any difficulties setting up the USB driver, perform “Removing the USB Driver from Windows 2000” on
page 108 and repeat this procedure.
103 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Setting Up a USB Driver in Windows Me
Be sure the Motorola SBG1000 Wireless Cable Modem Gateway CD-ROM is inserted into the CD-ROM drive
before you plug in the USB cable. A few seconds after you complete the USB connection, the Add New Hardware
Wizard window is displayed:
1Click Next. Windows automatically searches for the correct USB drivers and installs them. If the installation is
successful, the following window is displayed:
2If the window above is displayed, click Finish. Otherwise, be sure the Motorola SBG1000 Wireless Cable
Modem Gateway CD-ROM is correctly inserted in the CD-ROM drive.
When you finish setting up the USB driver, you can continue with “Configuring TCP/IP” on page 53.
Although your SBG model number may be different than in the images in this guide,
the procedure is the same.
104 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Setting Up a USB Driver in Windows XP
Be sure the Motorola SBG1000 Wireless Cable Modem Gateway CD-ROM is inserted into the CD-ROM drive
before you plug in the USB cable. A few seconds after you complete the USB connection, the Found New
Hardware Wizard window is displayed:
1Be sure “Install the software automatically” is selected.
2Click Next. Windows automatically searches for the correct USB drivers and installs them. If the installation is
successful, the following window is displayed:
3Click Finish to complete the installation. Otherwise, be sure the Motorola SBG1000 Wireless Cable Modem
Gateway CD-ROM is correctly inserted in the CD-ROM drive.
When you finish setting up the USB driver, you can continue with “Configuring TCP/IP” on page 53.
Although your SBG model number may be different than in the images in this guide,
the procedure is the same.
105 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Removing the USB Driver from Windows 98 or Windows Me
1On the Windows Desktop, right-click one of:
In Windows 98, the Network Neighborhood icon
In Windows ME, the My Network Places icon
The Network window is displayed:
2Click the Motorola SurfBoard SBG1000 USB Gateway.
Although your SBG model number may be different than in the images in this guide,
the procedure is the same.
106 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
3Click Remove. The Network window no longer displays Motorola SurfBoard SBG1000 USB Gateway in the
list:
4Click OK. The System Settings Change window is displayed:
5Disconnect the USB cable from the PC or SBG1000.
6Click Yes to restart the computer.
7Insert the Motorola SBG1000 Wireless Cable Modem Gateway CD-ROM in the CD-ROM drive. After a short
time, a window with language choices is displayed.
8Press the Esc key on the keyboard to exit the start-up screens.
9To start Windows Explorer, click Start and select Run.
107 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
10 In the Run window, type explorer and click OK. The Exploring window is displayed:
Windows Explorer may appear different than in the image. There are variations between Windows versions
and you can configure Windows Explorer as you like.
11 Double-click the Motorola SBG1000 CD-ROM drive (D: in the image above).
12 Double-click remove or remove.exe to run the Remove utility from the Motorola SBG1000 Wireless Cable
Modem Gateway CD-ROM. The SURFboard Cable Modem USB Driver Removal window is displayed:
13 Click Remove Driver.
After you remove the USB driver, re-install it on the computer:
“Setting Up a USB Driver in Windows 98” on page 96
“Setting Up a USB Driver in Windows Me” on page 103
If you continue to have problems, contact your cable service provider.
108 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Removing the USB Driver from Windows 2000
1On the Windows desktop, click Start.
2Click Settings.
3Click Control Panel to display the Control Panel window:
4Double-click System to display the System Properties window:
109 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
5On the System Properties window, click the Hardware tab.
6Click the Device Manager button to display the Device Manager window:
7On the Device Manager window, double-click Network Adapters.
8Click the Motorola SurfBoard SBG1000 USB Gateway. The Uninstall icon displays on the window near the
top.
9Click the Uninstall icon. The following window is displayed:
10 Click OK.
11 Close the Device Manager window.
12 Close the Control Panel window.
13 Insert the Motorola SBG1000 Wireless Cable Modem Gateway CD-ROM in the CD-ROM drive. After a short
time, a window with language choices is displayed.
14 Press the Esc key on the keyboard to exit the start-up screens.
15 To start Windows Explorer, click Start and select Run to display the Run window.
Although your SBG model number may be different than in the images in this guide,
the procedure is the same.
110 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
16 On the Run window, type explorer and click OK to display Windows Explorer:
Windows Explorer may appear different than in the image. There are variations between Windows versions
and you can configure Windows Explorer as you like.
17 Double-click My Computer.
18 Double-click the Motorola SBG1000 CD icon (D: in the image).
19 Double-click remove or remove.exe to run the Remove utility from the Motorola SBG1000 Wireless Cable
Modem Gateway CD-ROM. The SURFboard Cable Modem USB Driver Removal window is displayed:
20 Be sure the USB cable is disconnected.
21 Click Remove Driver.
Informational messages similar to the ones shown are displayed on the SURFboard Cable Modem USB
Driver Removal window.
After you remove the USB driver, re-install it following “Setting Up a USB Driver in Windows 2000 on page 100. If
you continue to have problems, contact your cable service provider.
111 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Removing the USB Driver from Windows XP
1On the Windows desktop, click Start to display the Start window:
2Click Control Panel to display the Control Panel window. The display varies, depending on the Windows XP
view options:
112 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
3If a Category view similar to the image under step 2 is displayed, click Performance and Maintenance to
display the Performance and Maintenance window. Otherwise, skip to step 5.
4Click System to display the System Properties window. Skip to step 6.
113 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
5If a classic view similar to the following is displayed, click System to display the System Properties window:
6On the System Properties window, click the Hardware tab to display the Hardware page:
114 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
7Double-click the Device Manager button to display the Device Manager window:
8Double-click Network adapters.
9Click the Motorola SurfBoard SBG1000 USB Gateway. The Uninstall icon displays on the window near the
top.
10 Click the Uninstall icon.
11 Close the Device Manager and Control Panel windows.
12 Insert the Motorola SBG1000 Wireless Cable Modem Gateway CD-ROM in the CD-ROM drive. After a short
time, a window with language choices is displayed.
13 Press the Esc key on the keyboard to exit the start-up screens.
14 To start Windows Explorer, click Start and select Run to display the Run window.
Although your SBG model number may be different than in the images in this guide,
the procedure is the same.
115 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
15 Type explorer and click OK to display Windows Explorer.
Windows Explorer may appear slightly different than in the image. There are variations between Windows
versions and you can configure Windows Explorer as you like.
16 Double-click My Computer.
17 Double-click the Motorola CD icon (D: in the image).
18 Double-click remove or remove.exe to run the Remove utility from the Motorola SBG1000 Wireless Cable
Modem Gateway CD-ROM. The SURFboard Cable Modem USB Driver Removal window is displayed:
19 Be sure the USB cable is disconnected.
20 Click Remove Driver. Informational messages similar to the ones shown are displayed on the SURFboard
Cable Modem USB Driver Removal window.
After you remove the USB driver, re-install it following “Setting Up a USB Driver in Windows XP” on page 104. If
you continue to have problems, contact your cable service provider.
116 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
117 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Troubleshooting
If the solutions listed here do not solve the problem, contact your cable service provider. Before calling your cable
service provider, try pressing the reset button on the rear panel. Resetting the SBG1000 may take 5 to 30 minutes.
Your service provider may ask for the status of the front-panel lights as described in Front-Panel Lights and Error
Conditions.
Front-Panel Lights and Error Conditions
For more information about the lights, see “Front Panel on page 6.
Problem Possible Solutions
Green power icon
light is off Check that the power cord is properly plugged into the electrical outlet and the SBG1000.
Check that the electrical outlet is working.
Press the Reset button.
Cannot send or
receive data On the top front panel, note which is the first light (starting from the left) that is off. This light
indicates where the error occurred as described in the Front-Panel Lights and Error Conditions
table.
If you have cable TV, check that the TV is working and the picture is clear. If you cannot receive
regular TV channels, the data service will not function.
Check the coaxial cable at the SBG1000 and wall outlet. Hand-tighten if necessary.
Check the IP address. Follow the steps for Setting Up a USB Driver for your system. Call your
cable service provider if you need an IP address.
Check that the Ethernet cable is properly connected to the SBG1000 and the computer.
Problems related to
unsuccessful USB
driver installation
Remove the USB driver. Follow the appropriate procedure for your system in “Setting Up a USB
Driver” on page 95.
The printer icon is
not displayed Check the printer cable connection and power the printer and SBG1000 off and on again.
Verify that Enable printer is checked on the Printer CONFIGURATION > basic page.
Light Turns Off During Startup If Turns Off During Normal Operation If
RX (receive) The receive channel cannot be acquired The receive channel is lost
TX (transmit) The send channel cannot be acquired The send channel is lost
LNK light is not on IP registration is unsuccessful The IP registration is lost
Green power icon
light is off The SBG1000 is not properly plugged into the
power outlet
The SBG1000 is unplugged
118 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
119 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Contact Us
In the United States and Canada, if you need assistance while working with the SBG1000 and related equipment,
call 1-800-942-7721 for technical and warranty support. Support is available 24 hours a day, seven days a week.
For information about customer service, technical support, or warranty claims, see the Regulatory, Safety,
Software License, and Warranty Information card provided with the SURFboard SBG1000.
For answers to typical questions, see “Frequently-Asked Questions” on page 121.
For more information about Motorola consumer cable products, education, and support, visit
http://www.motorola.com/broadband.
120 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
121 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Frequently-Asked Questions
Here are answers to questions our customers frequently ask:
Q What is high-speed cable Internet access?
A Cable Internet access uses cable television wires instead of telephone lines to connect to the Internet. It is
extremely fast and does not tie up telephone lines for incoming or outgoing calls and faxes.
Q How fast is the Motorola SBG1000 Wireless Cable Modem Gateway?
A Cable modems offer Internet access at speeds up to 100 times faster than a traditional phone modem. You
can experience speeds of over 1,000 Kbps. Due to network condition such as traffic volume and the speed of
the sites you visit, actual speed may vary. Many network and other factors can affect download speeds.
Q How many users can one SBG support?
A A single SBG can support up to 245 users, each assigned a unique IP address, on a class C network.
Q What is Network Address Translation?
A NAT is a technique to translate private IP addresses on your LAN to a single IP address assigned by your
cable service provider that is that is visible to outside users on the Internet.
Q What is IEEE_802.11b?
A IEEE 802.11b is the IEEE wireless network standard.
Q What type of firewall is provided on the SBG1000?
A The SBG1000 provides a stateful-inspection firewall.
Q What wireless security measures are provided on the SBG1000?
A To protect data transmitted over wireless connections, the SBG1000 supports WEP encryption and MAC
access control lists. For information, see “Setting Up the Wireless LAN” on page 67.
Q Why is there no Standby button?
A As a security measure, current Motorola SURFboard cable modems provide a Standby button to temporarily
suspend the Internet connection. Because the SBG firewall provides high security levels while connected, the
Standby button is not required.
Q Can I still watch cable TV while using my Motorola SBG1000 Wireless Cable Modem Gateway?
A Yes, your cable TV line can carry the TV signal while you send and receive information on the Internet.
Q What are CableLabs Certified, DOCSIS, and Euro-DOCSIS?
A CableLabs Certified, DOCSIS, and Euro-DOCSIS are the industry standards for high-speed data distribution
over cable television system networks. They are intended to ensure that all compliant SBGs interface with all
compliant cable systems. Your SBG1000 is DOCSIS or Euro-DOCSIS certified.
Q If I have an SBG1000, can I still use my old 28.8 Kbps or 56 Kbps modem?
A Yes you can. However, once you’ve experienced the speed of cable Internet access, you’ll never again want
to wait for traditional dial-up services.
122 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Q Do I need to change my Internet service provider (ISP)?
A Currently, most Internet service providers do not provide cable Internet access. Contact your cable company
for your specific information.
Q Do I need to subscribe to cable TV to get cable Internet access?
A No, but you will need to subscribe to cable Internet service. Some systems require that you subscribe to basic
service before you can get Internet access and/or offer a discount when you use your own SBG1000. Check
with your local cable company for specific information.
Q What type of technical support is available?
A For questions about your Internet service, connection, or SBG1000, call your cable service provider.
Q What do I do if my SBG stops working?
A Troubleshooting” on page 117 provides tips to diagnose problems and simple solutions. If you continue to
have problems, call your cable service provider.
Q Can multiple game players on the SBG LAN log onto the same game server and play simultaneously
with just one public IP address?
A It depends on the game server.
123 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Specifications
General Specifications
Wireless
Standards Compliance IEEE 802.11, 802.11b Direct Sequence Spread Spectrum - DSSS
RF Frequency Range Range 2.4 to 2.4835 GHz, 2.4 to 2.497 GHz for Japan
Data Rate Auto, 11, 5.5, 2, and 1 Mb/s
Modulation Auto 11 and 5.5 Mb/s = CCK,
2 Mb/s = DQPSK,
1 Mb/s = DBPSK
Number of channels Europe = 13, Spain = 2, France = 4, US = 11, Japan = 14
Transmit Power 17.5 dBm (EIRP)
Receive Sensitivity -83 dBm at 11 Mbps
Router
Ethernet Standards
Compliance IEEE 802.3, IEEE 802.3u
Number of Ports 5
Number of Uplink Ports 5
Electrical
Input Voltage Range -100 – 240 VAC, 50 – 60 Hz
Power Consumption 18 Watts
Print Server Windows, Mac, Linux
Environmental
Operating Temperature 0° C – 40° C, -150 to 10000 ft.
Storage Temperature -30° C to 80° C
Humidity 5 to 95% (non-condensing)
Mechanical Antenna 2 External Articulating Antennas, with Unique Connectors per FCC Requirements
LED Indicators
Modem Modem Receive, Send, Online, Internet
Router (each port 1 – 5) Activity, 10/100, Half/Full, Link
Access Point Wireless
Other USB, Power, Model Number
Interfaces (1) AC Power, (1) F-Type, (5) RJ-45, (2) RJ-11, (1) DB-25
Dimensions 290 W x 160 D x 70 H (mm)
Weight 0.8 lbs (Unit Only)
124 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Cable Modem Specifications
Downstream
Modulation 64 QAM or 256 QAM
Maximum Data rate 38 Mbps maximum
Frequency 88 MHz to 860 MHz (30 kHz minimum step size)
Bandwidth 6 MHz
Symbol rate:
64 QAM 5.069 Msym/s maximum
256 QAM 5.361 Msym/s maximum
Operating Level Range -15 dBmV to +15 dBmV
Input impedance 75 ohms (nominal)
Frequency Range 88 to 860 MHz
Upstream
Modulation 16 QAM or QPSK (variable symbol rates)
Maximum Data Rate 10 Mbps maximum
Bandwidth 200 kHz to 3200 kHz
Frequency 5 MHz to 42 MHz (edge to edge)
Symbol rates 160, 320, 640, 1280, and 2560 ksym/s
Operating Level Range:
16 QAM +8 dBmV to +55 dBmV
QPSK +8 dBmV to +58 dBmV
Output impedance 75 ohms nominal
General
Cable Interface F-Connector, female, 75 ohm
CPE Network Interface Interface USB, Ethernet 10/100Base-T (auto sensing)
Data protocol TCP/IP
Dimensions 7.2" H x 2.0" W x 7.8" L
Power 9 Watts (nominal)
Input Power 100-240 VAC, 50-60 Hz
Environmental
Operating temperature 0 to +40º C
Storage temperature -30º C to +80º C
Operating humidity 0% to 95% RH, non-condensing
125 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Glossary
This glossary defines terms and lists acronyms used with the Motorola SBG1000 Wireless Cable Modem
Gateway.
To return to your previous page, click the Acrobat Go to Previous Page button.
A
To return to your previous page, click the Acrobat Go to Previous Page button.
access point A device that provides wireless LAN connectivity to wireless clients (stations). The SBG acts as a
wireless access point.
adapter A device or card that connects a computer, printer, or other peripheral device to the network or to
some other device. A wireless adapter connects a computer to the wireless LAN.
address
translation See NAT.
ALG Application level gateway triggers are required by some file transfer (for example, FTP), game, and
video conferencing applications to open one or more ports to enable the application to operate
properly.
American Wire
Gauge (AWG) A standard system used to designate the size of electrical conductors; gauge numbers are inverse to
size.
ANSI The American National Standards Institute is a non-profit, independent organization supported by
trade organizations, industry, and professional societies for standards development in the United
States. This organization defined ASCII and represents the United States to the International
Organization for Standardization.
ANX Automotive Network Exchange
ARP Address Resolution Protocol broadcasts a datagram to obtain a response containing a MAC address
corresponding to the host IP address. When it is first connected to the network, a client sends an ARP
message. The SBG1000 responds with a message containing its MAC address. Subsequently, data
sent by the computer uses the SBG1000 MAC address as its destination.
ASCII The American Standard Code for Information Interchange refers to alphanumeric data for processing
and communication compatibility among various devices; normally used for asynchronous
transmission.
asynchronous
timing The SBG1000 uses synchronous timing for upstream data transmissions. The CMTS broadcasts
messages that bandwidth is available. The SBG1000 reserves data bytes requiring x-number of
mini-slots. The CMTS replies that it can receive data at a specified time (synchronized). At the
specified time, the SBG transmits the x-number of data bytes.
attenuation The difference between transmitted and received power resulting from loss through equipment,
transmission lines, or other devices; usually expressed in decibels.
authentication A process where the CMTS verifies that access is authorized, using a password, trusted IP address,
or serial number.
authorization Part of the process between a CMTS and the cable modem or gateway to enable Baseline Privacy.
auto-MDIX Automatic medium-dependent interface crossover detects and corrects cabling errors by automatically
reversing the send and receive pins on any port. It enables the use of straight-through wiring between
the SBG Ethernet ports and any computer, printer, or hub.
126 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
B
To return to your previous page, click the Acrobat Go to Previous Page button.
bandwidth The transmission capacity of a medium in terms of a range of frequencies. Greater bandwidth
indicates the ability to transmit more data over a given period of time.
Baseline
Privacy An optional feature that encrypts data between the CMTS and the cable modem or gateway.
Protection of service is provided by ensuring that a cable modem or gateway, uniquely identified by its
MAC address, can only obtain keys for services it is authorized to access.
baud The analog signaling rate. For complex modulation modes, the digital bit rate is encoded in multiple
bits per baud, for example, 64 QAM encodes 6 bits per baud and 16 QAM encodes 4 bits per baud.
BCP Binary Communication Protocol
BER The bit error rate is the ratio of the number of erroneous bits or characters received from some fixed
number of bits transmitted.
binary A numbering system that uses two digits, 0 and 1.
bit rate The number of bits (digital 0s and 1s) transmitted per second in a communications channel. It is
usually measured in bits per second bps.
BPKM Baseline Protocol Key Management encrypts data flows between a cable modem or gateway and the
CMTS. The encryption occurs after the cable modem or gateway registers to ensure data privacy
across the RF network.
bps bits per second
bridge An OSI layer 2 networking device that connects two LANs using similar protocols. It filters frames
based on the MAC address to reduce the amount of traffic. A bridge can be placed between two
groups of hosts that communicate a lot together, but not so much with the hosts in the other group.
The bridge examines the destination of each packet to determine whether to transmit it to the other
side. See also switch.
broadband High bandwidth network technology that multiplexes multiple, independent carriers to carry voice,
video, data, and other interactive services over a single cable. A communications medium that can
transmit a relatively large amount of data in a given time period. A frequently used synonym for cable
TV that can describe any technology capable of delivering multiple channels and services.
broadcast Simultaneous transmission to multiple network devices; a protocol mechanism supporting group and
universal addressing. See also multicast and unicast.
127 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
C
To return to your previous page, click the Acrobat Go to Previous Page button.
CableHome A project of CableLabs and technology suppliers to develop interface specifications for extending
high-quality cable-based services to home network devices. It addresses issues such as device
interoperability, QoS, and network management. CableHome will enable cable service providers to
offer more services over HFC. It will improve consumer convenience by providing cable-delivered
services throughout the home.
CableLabs A research consortium that defines the interface requirements for cable modems and acknowledges
that tested equipment complies with DOCSIS.
cable modem A device installed at a subscriber location to provide data communications over an HFC network.
Unless otherwise specified, all references to “cable modem” in this documentation refers to DOCSIS
or Euro-DOCSIS cable modems only.
cable modem
configuration
file
File containing operational parameters that a cable modem or gateway downloads from the cable
service provider TFTP server during registration.
circuit-switched Network-connection scheme used in the traditional PSTN telephone network where each connection
requires a dedicated path for its duration. An alternative is packet-switched.
class C network An IP network containing up to 245 hosts. Class C IP addresses are in the form
“network.network.network.host.”
client In a client/server architecture, a client is a computer that requests files or services such as file transfer,
remote login, or printing from the server.
On an IEEE 802.11b wireless LAN, a client is any host that can communicate with the access point.
Also called a CPE. A wireless client is also called a “station.”
CMTS A cable modem termination system is a device in the cable system headend that interfaces the HFC
network to local or remote IP networks to connecting IP hosts, cable modems or gateways, and
subscribers. It manages all cable modem bandwidth. It is sometimes called an edge router.
CNR carrier to noise ratio
coaxial cable
(coax) A type of cable consisting of a center wire surrounded by insulation and a grounded shield of braided
wire. The shield minimizes electrical and radio frequency interference. Coaxial cable has high
bandwidth and can support transmission over long distances.
CoS Class of service traffic management or scheduling functions are performed when transferring data
upstream or downstream on HFC.
CPE Customer premise equipment, typically computers, printers, etc., are connected to the cable modem
or gateway at the subscriber location. CPE can be provided by the subscriber or the cable service
provider. Also called a client.
crosstalk Undesired signal interfering with the desired signal.
CSMA/CD carrier sense multiple access with collision detection
128 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
D
datagram In RFC 1594, a datagram is defined as “a self-contained, independent entity of data carrying sufficient
information to be routed from the source to the destination computer without reliance on earlier
exchanges between this source and destination computer and the transporting network.” For the most
part, it has been replaced by the term packet.
default route The route by which packets are forwarded when other routes in the routing table do not apply.
dB decibel
dBc Signal level expressed in dB relative to the unmodulated carrier level desired.
DBm A unit of measurement referenced to one milliwatt across specified impedance. 0dBm = 1 milliwatt
across 75 ohms.
dBmV Signal level expressed in dB as the ratio of the signal power in a 75-ohm system to a reference power
when 1 mV is across 75 ohms.
demodulation An operation to restore a previously modulated wave and separate the multiple signals that were
combined and modulated on a subcarrier.
DHCP A Dynamic Host Configuration Protocol server dynamically assigns IP addresses to client hosts on an
IP network. DHCP eliminates the need to manually assign static IP addresses by “leasing” an
IP address and subnet mask to each client. It enables the automatic reuse of unused IP addresses:
The SBG is simultaneously a DHCP client and a DHCP server.
A DHCP server at the cable system headend assigns a public IP address to the SBG1000 and
optionally to clients on the SBG LAN.
The SBG contains a built-in DHCP server that assigns private IP addresses to clients.
distortion An undesired change in signal waveform within a transmission medium. A nonlinear reproduction of
the input waveform.
diversity
antennas Two identical antennas located a small distance apart to reduce multipath distortion and improve
wireless reception. Properly placed diversity antennas improve SBG wireless reception.
DNS The Domain Name System is the Internet system for converting domain names to IP addresses. A
DNS server contains a table matching domain names such as Internetname.com to IP addresses
such as 192.169.9.1. When you access the world-wide web, a DNS server translates the URL
displayed on the browser to the destination website IP address. The DNS lookup table is a distributed
Internet database; no one DNS server lists all domain name to IP address matches.
DOCSIS The CableLabs Data-Over-Cable Service Interface Specification defines interface standards for cable
modems, gateways, and supporting equipment to deliver data between an HFC network and a
computer systems or television sets. To emphasize its use as a cable modem standard, DOCSIS is
now called CableLabs Certified Cable Modems. Euro-DOCSIS is DOCSIS adapted for use in Europe.
domain name A unique name, such as motorola.com, that maps to an IP address. Domain names are typically much
easier to remember than are IP addresses.
dotted-decimal
format Method of representing an IP address or subnet mask using four decimal numbers called octets. Each
octet represents eight bits.
In a class C IP address, the octets are “network.network.network.host.” The first three octets together
represent the network address and the final octet is the host address. In the SBG LAN default
configuration, 192.168.100 represents the network address. In the final octet, the host address can be
from 2 to 254.
download To copy a file from one computer to another. You can use the Internet to download files from a server
to a computer. A DOCSIS or Euro-DOCSIS cable modem or gateway downloads its configuration file
from a TFTP server during start-up.
downstream In a cable data network, the direction of data received by the computer from the Internet.
129 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
E
To return to your previous page, click the Acrobat Go to Previous Page button.
driver Software that enables a computer to interact with a network or other device. For example, there are
drivers for printers, monitors, graphics adapters, modems, Ethernet, USB, HPNA, and many others.
DSL Digital Subscriber Line
DSSS Direct Sequence Spread Spectrum is an IEEE 802.11b RF modulation protocol.
dynamic IP
address An IP address that is temporarily leased to a host by a DHCP server. The opposite of static IP
address.
encapsulate To include data into some other data unit to hide the format of the included data.
encode To alter an electronic signal so that only an authorized user can unscramble it to view the information.
encrypt To encode data.
endpoint A VPN endpoint terminates the VPN at the router so that computers on the SBG LAN do not need
VPN client software to tunnel through the Internet to the VPN server.
ESSID The Extended Service Set Identifier or network name is a unique identifier that wireless clients use to
associate with an access point to distinguish between multiple wireless LANs in the same area. All
clients on a wireless LAN must have the same ESSID as the access point. On the SBG, you can set
the ESSID on the Wireless > NETWORK page.
Ethernet The most widely used LAN type, also known as IEEE 802.3. The most common Ethernet networks are
10Base-T, which provide transmission speeds up to 10 Mbps, usually over unshielded, twisted-pair
wire terminated with RJ-45 connectors. Fast Ethernet (100Base-T) provides speeds up to 100 Mbps.
“Base” means “baseband technology” and “T” means “twisted pair cable.”’
Each Ethernet port has a physical address called the MAC address.
Euro-DOCSIS A tComLabs standard that is DOCSIS adapted for use in Europe
event A message generated by a device to inform an operator or the network management system that
something has occurred.
expansion slot An connection point in a computer where a circuit board can be inserted to add new capabilities.
130 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
F
G
To return to your previous page, click the Acrobat Go to Previous Page button.
FCS frame check sequence
F-type
connector A type of connector used to connect coaxial cable to equipment such as the SBG.
firewall A security software system on the SBG that enforces an access control policy between the Internet
and the SBG LAN.
flow A data path moving in one direction.
FEC Forward error correction is a technique to correct transmission errors without requiring the transmitter
to resend any data.
FDMA Frequency Division Multiple Access is a method to allow multiple users to share a specific radio
spectrum. Each active user is assigned an individual RF channel (or carrier) with the carrier frequency
of each channel offset from its adjacent channels by an amount equal to the channel spacing, which
allows the required bandwidth per channel.
frame A unit of data transmitted between network nodes that contains addressing and protocol control data.
Some control frames contain no data.
frequency Number of times an electromagnetic signal repeats an identical cycle in a unit of time, usually one
second, measured in Hz, kHz, mHz, or GHz.
FTP File Transfer Protocol is a standard Internet protocol for exchanging files between computers. FTP is
commonly used to download programs and other files to a computer from web pages on Internet
servers.
full-duplex The ability to simultaneously transmit and receive data. See also half-duplex.
gateway A device that enables communication between networks using different protocols. See also router.
The SBG enables up to 245 computers supporting IEEE 802.11b, Ethernet, USB, or HPNA to share a
single broadband Internet connection.
gateway IP
address The address of the default gateway router on the internet. Also known as the “giaddr.”
GHz Gigahertz — one billion cycles per second.
GUI graphical user interface
131 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
H
To return to your previous page, click the Acrobat Go to Previous Page button.
H.323 A suite of protocols created by the ITU for interactive video-conferencing, data sharing, and audio
applications such as VoIP.
half-duplex Network where only one device at a time can transmit data. See also full-duplex.
headend A location that receives TV programming, radio programming, data, and telephone calls that it
modulates onto the HFC network. It also sends return data and telephone transmissions. Headend
equipment includes transmitters, preamplifiers, frequency terminals, demodulators, modulators, and
other devices that amplify, filter, and convert incoming broadcast TV signals to wireless and cable
channels.
header The data at the beginning of a packet that identifies what is in the packet.
hexadecimal A base-sixteen numbering system that uses sixteen sequential numbers (0 to 9 and the letters A to F)
as base units before adding a new position. On computers, hexadecimal is a convenient way to
express binary numbers.
HFC A hybrid fiber/coaxial cable network uses fiber-optic cable as the trunk and coaxial cable to the
subscriber premises.
hop The interval between two routers on an IP network. The number of hops a packet traverses toward its
destination (called the hop count) is saved in the packet header. For example, a hop count of six
means the packet has traversed six routers. The packet hop count increases as the time-to-live (TTL)
value decreases.
host In IP, a host is any computer supporting end-user applications or services with full two-way network
access. Each host has a unique host number that combined with the network number forms its IP
address.
Host also can mean:
A computer running a web server that serves pages for one or more web sites belonging to
organization(s) or individuals
A company that provides this service
In IBM environments, a mainframe computer
HPNA The Home Phoneline Networking Alliance (HomePNA) standard enables home network devices to
interact over existing telephone wiring without disturbing normal voice service. An HPNA network
processes, manages, transports, and stores data to enable telephones, fax machines, desktops,
laptops, printers, scanners and web cameras to connect and interoperate over home telephone wiring.
HPNA uses frequencies that are not used for phone modems or voice communications. HPNA can
work on a Digital Subscriber Line (DSL). Motorola is an HPNA participant.
HTML Hyper Text Markup Language
hub On a LAN, a hub is a device that connects multiple hosts to the LAN. A hub performs no data filtering.
See also bridge and router. An IP hub is typically a unit on a rack or desktop.
On an HFC network, a hub is a scaled-down headend that performs some or all headend functions for
part of the system.
Hz Hertz — one cycle per second. The unit to measure the frequency that an alternating electromagnetic
signal cycles through its highest and lowest states. Used to define the bands of the electromagnetic
spectrum used in voice and data communications, or to define the bandwidth of a transmission
medium.
132 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
I
IANA The Internet Numbering Address Authority (IANA) is an organization under the Internet Architecture
Board (IAB) of the Internet Society that oversees IP address allocation. It is under a contract from the
U.S. government.
ICMP Internet Control Message Protocol is a protocol used for error, problem, and informational messages
sent between IP hosts and gateways. ICMP messages are processed by the IP software and are not
usually apparent to the end-user.
ICSA The International Computer Security Association is the security industry’s main source of research,
intelligence, and product certification.
IEEE The Institute of Electrical and Electronics Engineers, Inc. (http://www.ieee.org) is an organization that
produces standards, technical papers, and symposiums for the electrical and electronic industries and
is accredited by ANSI.
IEEE 802.11b IEEE wireless network standard.
IEEE 802.3 See Ethernet.
IETF The Internet Engineering Task Force (http://www.ietf.org) is an open international community of
network designers, operators, vendors, and researchers to develop and maintain Internet architecture.
Technical working groups issue working documents called Internet-Drafts. The IETF publishes review
versions of the drafts called requests for comments (RFCs).
IGMP Internet Group Membership Protocol the Internet multicasting standard. IGMP establishes and
maintains a database of group multicast addresses and interfaces to which a multicast router forwards
multicast packets. IGMP runs between multicast hosts and their immediately-neighboring multicast
routers.
IGMP spoofing A process where a router acts as an IGMP querier for multicast hosts and an IGMP host to a multicast
router.
impedance The total opposition to ac electron current flow within a device. Impedance is typically 75 ohms for
coax cable and other CATV components.
impulse noise Noise of very short in duration, typically of the order of 10 microseconds. It is caused by electrical
transients such as voltage spikes, electric motors turning on, and lightning or switching equipment that
bleed over to the cable.
ingress noise Noise typically caused by discrete frequencies picked up by the cable plant from radio broadcasts or
an improperly grounded or shielded home appliance such as a hair dryer. Ingress is the major source
of cable system noise.
Internet A worldwide collection of interconnected networks using TCP/IP.
internetwork A collection of interconnected networks allowing communication between all devices connected to any
network in the collection.
IP Internet Protocol is a set of standards that enable different types of computers to communicate with
one another and exchange data through the Internet. IP provides the appearance of a single,
seamless communication system and makes the Internet a virtual network.
133 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
K
IP address A unique 32-bit value that identifies each host on a TCP/IP network. TCP/IP networks route messages
based on the destination IP address. An IP address has two parts:
The network address is assigned by IANA.
The SBG network administrator assigns a host address to each host connected to the SBG1000,
automatically using its DHCP server or as a static IP address.
For a class C network, the first 24 bits are the network address and the final 8 bits are the host
address; in dotted-decimal format it appears “network.network.network.host.”
If you enable the SBG1000 DHCP client on the WAN page, the cable service provider automatically
assigns the network address, subnet mask, domain name, and DNS server to provide a continuous
Internet connection.
IPSec The Internet Protocol Security protocols are IETF authentication and encryption standards for secure
packet exchange over the Internet. IPSec works at OSI layer 3 and secures everything on the
network.
IKE Internet Key Exchange
ISAKMP Internet Security Association and Key Management Protocol
ISDN Integrated Services Digital Network
ISO The International Organization for Standardization (http://www.iso.ch) is a worldwide federation of
national standards bodies from approximately 140 countries. ISO is a non-governmental organization
established in 1947 to promote the development of standardization and related activities in the world
with a view to facilitating the international exchange of goods and services, and to developing
cooperation in the spheres of intellectual, scientific, technological, and economic activity.
ISP Internet Service Provider
ITU International Telecommunications Union
kHz kilohertz — one thousand cycles per second
134 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
L
To return to your previous page, click the Acrobat Go to Previous Page button.
L2F Layer 2 Forwarding is an OSI layer 2 protocol that establishes a secure tunnel across the Internet to
create a virtual PPP connection between the user and the enterprise network. L2F is the most
established and stable layer 2 tunneling protocol.
L2TP Layer 2 Tunnel Protocol is a PPP extension that enables ISPs to operate VPNs. L2TP merges the
best features of the PPTP and L2F. L2TP is the emerging IETF standard.
LAC An L2TP access concentrator is a device to which the client directly connects through which PPP
frames are tunneled to the LNS. The LAC need only implement the media over which L2TP operates
to transmit traffic to one or more LNSs. The LAC may tunnel any protocol carried within PPP. The LAC
initiates incoming calls and receives outgoing calls. A LAC is analogous to an L2F NAS.
LAN A local area network provides a full-time, high-bandwidth connection over a limited area, such as a
building or campus. Ethernet is the most widely used LAN standard.
layer In networks, layers are software protocol levels. Each layer performs functions for the layers above it.
OSI is a reference model having seven functional layers.
LCP Link Control Protocol establishes, configures, and tests data link connections used by PPP.
latency The time required for a signal to pass through a device. It is often expressed in a quantity of symbols.
LED light-emitting diode
LNS An L2TP network server is a termination point for L2TP tunnels where PPP frames are processed and
passed to higher layer protocols. An LNS can operate on any platform that terminates PPP. The LNS
handles the server side of the L2TP protocol. L2TP relies only on the single media over which L2TP
tunnels arrive. The LNS can have a single LAN or WAN interface but can terminate calls arriving at
any of the LACs full range of PPP interfaces (asynchronous, synchronous, ISDN, V.120, etc.). The
LNS initiates outgoing calls and receives incoming calls. An LNS is analogous to a home gateway in
L2F technology.
loopback A test that loops the transmit signal to the receive signal. Usually the loopback test is initiated on a
network device. The test is used to verify a path or to measure the quality of a signal on that path.
135 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
M
To return to your previous page, click the Acrobat Go to Previous Page button.
MAC address The Media Access Control address is a unique, 48-bit value permanently saved in ROM at the factory to
identify each Ethernet network device. It is expressed as a sequence of 12 hexadecimal digits printed
on the SBG rear panel. You need to provide the HFC MAC address to the cable service provider.
Also called an Ethernet address, physical address, hardware address, or NIC address.
MB One megabyte; equals 1,024 x 1,024 bytes, 1,024 kilobytes, or about 8 million bits.
Mbps Million bits per second (megabits per second). A rate of data transfer.
media The various physical environments through which signals pass; for example, coaxial, unshielded
twisted-pair (UTP), or fiber-optic cable.
MIB A management information base is a unique hierarchical structure of software objects used by the
SNMP manager and agent to configure, monitor, or test a device.
MHz Megahertz — one million cycles per second. A measure of radio frequency.
MPDU MAC protocol data unit (PDU)
MSDU MAC service data unit
MSO Multiple Systems Operator. A company that owns and operates more than one cable system. Also
called a group operator.
MTU The Maximum Transmission Unit is the largest amount of data that can be transmitted in one discrete
message on a given physical network. The MTU places an upper bound on the size of a message that
can be transferred by the network in a single frame. Messages exceeding the MTU must be fragmented
before transmission, and reassembled at the destination.
multicast A data transmission sent from one sender to multiple receivers. See also broadcast and unicast.
mW milliwatts
136 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
N
To return to your previous page, click the Acrobat Go to Previous Page button.
O
To return to your previous page, click the Acrobat Go to Previous Page button.
NAS network access server
NAT Network Address Translation is an Internet standard for a LAN to use one set of IP addresses for
internal traffic and a second set of IP addresses for external traffic. NAT provides some security
because the IP addresses of SBG LAN computers are invisible on the Internet.
If NAT is enabled on the Gateway page, there is a one-to-one mapping between each public IP
address and client IP address.
NAPT Network Address Port Translation is the most common form of address translation between public and
private IP addresses. NAPT is a mapping of one public IP address to many private IP addresses. If
NAPT is enabled on the Gateway page, one public IP address is mapped to an individual private
IP address for up to 245 LAN clients.
NEC National Electrical Code (United States) — The regulations for construction and installation of
electrical wiring and apparatus, suitable for mandatory application by a wide range of state and local
authorities.
network Two or more computers connected to communicate with each other. Networks have traditionally been
connected using some kind of wiring.
network driver Software packaged with a NIC that enables the computer to communicate with the NIC.
network layer Layer 3 in the OSI architecture that provides services to establish a path between open systems. The
network layer knows the address of the neighboring nodes, packages output with the correct network
address data, selects routes, and recognizes and forwards to the transport layer incoming messages
for local host domains.
NIC A network interface card converts computer data to serial data in a packet format that it sends over the
LAN. A NIC is installed in an expansion slot or can be built-in. Every Ethernet NIC has a MAC address
permanently saved in its ROM.
node On a LAN, a generic term for any network device.
On an HFC network, the interface between the fiber-optic trunk and coaxial cable feeders to
subscriber locations. A node is typically located in the subscriber neighborhood.
noise Random spurts of electrical energy or interface. May produce a salt-and-pepper pattern on a television
picture.
ohm A unit of electrical resistance.
OSI The Open Systems Interconnection reference model is an illustrative model describing how data
moves from an application on the source host through a network to an application on the destination
host. It is a conceptual framework developed by ISO that is now the primary model for intercomputer
communications. OSI is a model only; it does not define a specific networking interface.
137 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
P
packet The unit of data that is routed between the sender and destination on the Internet or other
packet-switched network. When data such as an e-mail message or other file is sent over the Internet,
IP on the sender divides the data into uniquely-numbered packets.The packet header contains the
source and destination IP addresses. The individual packets may travel different routes. When all
packets arrive at the destination, IP at that end reassembles the packets. The header and the data can
vary in length. Packet and datagram are similar in meaning.
packet-
switched A scheme to handle transmissions on a connectionless network such as the Internet. An alternative is
circuit-switched.
PacketCable A CableLabs®-led project to define a common platform to deliver advanced real-time multimedia
services over two-way HFC cable plant. Built on DOCSIS 1.1, PacketCable networks use IP
technology as the basis for a highly-capable multimedia architecture.
pass-through A pass-through client on the SBG LAN obtains its public IP address from the cable service provider
DHCP server.
PAT Port Address Translation
PCMCIA The Personal Computer Memory Card International Association sets international standards for
connecting peripherals to portable computers. Laptop computers typically have a PCMCIA slot that
can hold one or two PC Cards to provide features such as Ethernet connectivity.
PDA personal desktop assistant
PDU A protocol data unit is a message containing operational instructions used for SNMP. The basic
SNMP V2 PDU types are get-request, get-next-request, get-bulk-request, response, set-request,
inform-request, and trap.
periodic
ranging Ranging that is performed on an on-going basis after initial ranging has taken place.
physical layer Layer 1 in the OSI architecture. It provides services to transmit bits or groups of bits over a
transmission link between open systems. It entails the electrical, mechanical, and handshaking
procedures.
piggybacking A process that occurs when a cable modem simultaneously transmits data and requests additional
bandwidth.
PING A network utility that tests host reachability by sending a small packet to the host and waiting for a
reply. If you PING a computer IP address and receive a reply, you know the computer is reachable
over the network. It also stands for “Packet InterNet Groper.”
PJL (Hewlett-Packard) Printer Job Language
PMD The physical media-dependent sublayer of the physical layer which transmits bits or groups of bits
over particular types of transmission links between open systems. It entails the electrical, mechanical,
and handshaking procedures.
point-to-point Physical connection made from one point to another.
POTS The “plain old telephone service” offered through the PSTN; basic analog telephone service. POTS
uses the lowest 4 kHz of bandwidth on twisted pair wiring.
port On a computer or other electronic device, a port is a socket or plug used to physically connect it to the
network or to other devices.
in TCP/IP, a port is a number from 0 to 65536 used logically by a client program to specify a server
program. Ports 0 to 1024 are reserved
port mirroring A feature that enables one port (source) on the SBG1000 to be copied to another port (destination) to
be studied. The destination mirrors the transmitted (from) or received (to) data on the source port to
enable the person managing the network to monitor activity.
138 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Q
To return to your previous page, click the Acrobat Go to Previous Page button.
PPP Point-to-Point Protocol is used to transport other protocols, typically for simple links over serial lines. It
is most commonly used to access the Internet with a dial-up modem.
PPTP Point-to-Point Tunneling Protocol encapsulates other protocols. It is a new technology to create VPNs
developed jointly by several vendors.
private IP
address An IP address assigned to a computer on the SBG LAN by the DHCP server on the SBG for a
specified lease time. Private IP addresses are used by the SBG LAN only; they are invisible to devices
on the Internet. See also public IP address.
protocol A formal set of rules and conventions for exchanging data. Different computer types (for example PC,
UNIX, or mainframe) can communicate if they support common protocols.
provisioning The process of autodiscovery or manually configuring a cable modem on the CMTS.
PSTN The public switched telephone network is the traditional circuit-switched, voice-oriented telephone
network. See also POTS.
public IP
address The IP address assigned to the SBG by the cable service provider. A public IP address is visible to
devices on the Internet. See also private IP address.
QAM Quadrature Amplitude Modulation uses amplitude and phase modulation to encode multiple bits of
data in one signaling element. QAM achieves faster data transfer than amplitude or phase modulation
alone, but the signal is more prone to errors caused by noise. QAM requires a transmission circuit with
a higher CNR than alternate modulation formats such as QPSK. Two types of QAM are:
16 QAM encodes four bits per symbol as one of 16 possible amplitude and phase combinations.
64 QAM encodes six bits per symbol as one of 64 possible amplitude and phase combinations.
QPSK Quadrature Phase Shift Key (QPSK) modulation sends two bits of information per symbol period with
one symbol 90 degrees out of phase with other symbols. The four constellation points represented by
the coordinates (0,0 - 0,1 - 1,0 - 1,1) represent the four possible combinations.
QoS Quality of service describes the priority, delay, throughput, and bandwidth of a connection.
139 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
R
To return to your previous page, click the Acrobat Go to Previous Page button.
RAS Remote Access Server
registration How a cable modem makes itself known to the CMTS. The cable modem configuration file and
authorization are verified and the CoS is negotiated.
return loss A measurement of the quality of the match of the device to the cable system. Return loss is the ratio of
the amount of power reflected by the device. A return loss of 20 dB or greater is preferred.
RF Radio Frequency — signals used by the CMTS transmitter and receiver to send data over HFC. The
carrier is modulated to encode the digital data stream for transmission across the cable network.
RFC Request for Comments published on the IETF or other websites. Many RFCs become international
standards.
RJ-11 The most common type of connector for household or office phones.
RJ-45 An 8-pin modular connector; the most common connector type for 10Base-T or 100Base-T Ethernet
networks.
ROM read-only memory
router On IP networks, a device connecting at least two networks, which may or may not be similar. A router
is typically located at a gateway between networks. A router operates on OSI network layer 3. It filters
packets based on the IP address, examining the source and destination IP addresses to determine the
best route on which to forward them.
A router is often included as part of a network switch. A router can also be implemented as software
on a computer.
routing table A table listing available routes that is used by a router to determine the best route for a packet.
RTS request to send
140 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
S
server In a client/server architecture, a dedicated computer that supplies files or services such as file transfer,
remote login, or printing to clients.
scope The set of IP addresses that a DHCP server can lease to clients.
service provider A company providing cable data services to subscribers.
SID A service ID is a unique 14-bit identifier the CMTS assigns to a cable modem or gateway that
identifies the traffic type it carries (for example, data or voice). The SID provides the basis for the
CMTS to allocate bandwidth to the cable modem and implement CoS.
SDU service data unit
SME small and medium enterprise
SMTP Simple Mail Transfer Protocol is a standard Internet protocol for transferring e-mail.
SNMP Simple Network Management Protocol is a standard to monitor and manage networks and network
devices. Data is exchanged using PDU messages.
SOHO small office home office
spectrum A specified range of frequencies used for transmission of electromagnetic signals.
spectrum
allocation An allocation of portions of the available electromagnetic spectrum for specific services, such as AM,
FM, or personal communications.
splitter A device that divides the signal from an input cable between two or more cables.
stateful
inspection A type of firewall that tracks each connection traversing all firewall interfaces to ensure validity. In
addition to examining the source and destination in the packet header based on static rules, a stateful
inspection firewall:
Examines packet headers on context established by previous packets that traversed the firewall
Monitors the connection state and saves it in a table
Closes ports until a connection to a specific port is requested
May examine the packet contents up through the application layer to determine more than just the
source and destination
A stateful-inspection firewall is more advanced than a static filter firewall.
static filter A type of firewall that examines the source and destination in the packet header based on
administrator-defined rules only.
static IP
address An IP address that is permanently assigned to a host. Normally, a static IP address must be assigned
manually. The opposite of dynamic IP address.
static route A manually-defined route.
station IEEE 802.11b term for wireless client.
subscriber A home or office user who accesses television, data, or other services from a cable service provider.
subnet mask A bit mask that is logically ANDed with the destination IP address of a packet to determine the network
address. A router routes packets using the network address.
subnetwork A part of a network; commonly abbreviated “subnet.” When subnetting is used, the host portion of the
IP address is divided into a subnet and host number. Hosts and routers use the subnet mask to
identify the bits used for the network and subnet number.
switch On an Ethernet network, a switch filters frames based on the MAC address, in a manner similar to a
bridge. A switch is more advanced because it can connect more than two segments.
141 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
T
To return to your previous page, click the Acrobat Go to Previous Page button.
symbol rate Also known as baud rate, is a measure of the number of times per second a signal in a
communications channel varies, or makes a transition between states (states being frequencies,
voltage levels or phase angles). Usually measured in symbols per second (sps).
SYSLOG A a de-facto UNIX standard for logging system events.
TBCP Tagged Binary Communication Protocol
TCP Transmission Control Protocol on OSI transport layer four, provides reliable transport over the network
for data transmitted using IP (network layer three). It is an end-to-end protocol defining rules and
procedures for data exchange between hosts on top of connectionless IP. TCP uses a timer to track
outstanding packets, checks error in incoming packets, and retransmits packets if requested.
TCP/IP The Transmission Control Protocol/Internet Protocol suite provides standards and rules for data
communication between networks on the Internet. It is the worldwide internetworking standard and the
basic communications protocol of the Internet.
TFTP Trivial File Transfer Protocol is a very simple protocol used to transfer files.
transparent
bridging A method to enable all hosts on the wired Ethernet LAN, IEEE 802.11b wireless LAN, HPNA LAN, and
USB connection to communicate as if they were all connected to the same physical network.
transport layer Layer of the OSI concerned with protocols for error recognition and recovery. This layer also regulates
information flow.
trunk Electronic path over which date is transmitted.
TTL The time to live is the number of routers (or hops) a packet can traverse before being discarded. When
a router processes an packet, it decreases the TTL by 1. When the TTL reaches zero, the packet is
discarded.
tunnel To place packets inside other packets to send over a network. The protocol of the enclosing packet is
understood by each endpoint, or tunnel interface, where the packet enters and exits the network.
VPNs rely on tunneling to create a secure network.
Tunneling requires the following protocol types:
A carrier protocol, such as TCP, used by the network that the data travels over
An encapsulating protocol, such as IPSec, L2F, L2TP, or PPTP, that is wrapped around the original
data
A passenger protocol, such as IP, for the original data
two-way A cable system that can transmit signals in both directions to and from the headend and the
subscriber.
142 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
U-Z
To return to your previous page, click the Acrobat Go to Previous Page button.
UDP User Datagram Protocol
unicast A point-to-point data transmission sent from one sender to one receiver. This the normal way you
access websites. See also broadcast and multicast.
upstream In a cable data network, upstream describes the direction of data sent from the subscriber computer
through the cable modem to the CMTS and the Internet.
USB Universal Serial Bus is a computer interface for add-on devices such as printers, scanners, mice,
modems, or keyboards. USB supports data transfer rates of 12 Mbps and plug-and-play installation.
You can connect up to 127 devices to a single USB port.
UTP unshielded twisted pair (wire)
VLAN A virtual local area network is group of devices on different LAN segments that are logically configured
to communicate as if they are connected to the same wire.
VoIP Voice over Internet Protocol is a method to exchange voice, fax, and other information over the
Internet. Voice and fax have traditionally been carried over traditional telephone lines of the PSTN
using a dedicated circuit for each line. VoIP enables calls to travel as discrete data packets on shared
lines. VoIP is an important part of the convergence of computers, telephones, and television into a
single integrated information network.
VPN A virtual private network is a private network that uses “virtual” connections (tunnels) routed over a
public network (usually the Internet) to provide a secure and fast connection; usually to users working
remotely at home or in small branch offices. A VPN connection provides security and performance
similar to a dedicated link (for example, a leased line), but at much lower cost.
WAN A wide-area network provides a connection over a large geographic area, such as a country or the
whole world. The bandwidth depends on need and cost, but is usually much lower than for a LAN.
WAP Wireless access point or Wireless Access Protocol. See also access point.
WECA The Wireless Ethernet Compatibility Alliance is a trade organization that works to ensure that all
wireless IEEE 802.11b Wi-Fi devices — computer cards, laptops, air routers, PDAs, etc — can
communicate with each other.
WEP Wired Equivalent Privacy encryption protects the privacy of data transmitted over a wireless LAN.
WEP uses keys to encrypt and decrypt transmitted data. The access point must authenticate a client
before it can transfer data to another client. WEP is part of IEEE 802.11b.
Wi-Fi Wireless fidelity (pronounced y-phi) brand name applied to products supporting IEEE 802.11b.
Wireless Cable
Modem
Gateway
The Motorola SBG1000 Wireless Cable Modem Gateway is a single device that combines a cable
modem, router, Ethernet switch, wireless access point, HPNA connection, print server, and DHCP
server for SOHO or SME use.
WLAN wireless LAN
world wide web An interface to the Internet that you use to navigate and hyperlink to information.
143 SBG1000 Wireless Cable Modem Gateway User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless Print Server USB
Software License
Motorola, Inc., Broadband Communications Sector (“Motorola”), 101 Tournament Drive, Horsham, PA 19044
IMPORTANT:
PLEASE READ THIS SOFTWARE LICENSE
(“LICENSE”) CAREFULLY BEFORE YOU INSTALL,
DOWNLOAD
OR USE ANY APPLICATION SOFTWARE, USB DRIVER SOFTWARE, FIRMWARE AND RELATED
DOCUMENTATION (“SOFTWARE”) PROVIDED WITH MOTOROLA’S CABLE DATA PRODUCT (THE “CABLE DATA
PRODUCT”). BY USING THE
CABLE DATA PRODUCT AND/OR INSTALLING, DOWNLOADING
OR USING ANY OF
THE SOFTWARE, YOU INDICATE YOUR ACCEPTANCE OF EACH OF THE TERMS OF THIS LICENSE. UPON
ACCEPTANCE, THIS LICENSE WILL BE A LEGALLY BINDING AGREEMENT BETWEEN YOU AND MOTOROLA.
THE TERMS OF THIS LICENSE APPLY TO YOU AND TO ANY SUBSEQUENT USER OF THIS SOFTWARE.
IF YOU DO NOT AGREE TO ALL OF THE TERMS OF THIS LICENSE (I) DO NOT INSTALL OR USE THE SOFTWARE
AND
(II) RETURN THE CABLE DATA PRODUCT AND THE SOFTWARE
(COLLECTIVELY, “PRODUCT”), INCLUDING ALL
COMPONENTS,
DOCUMENTATION AND ANY OTHER MATERIALS PROVIDED
WITH THE PRODUCT, TO YOUR POINT
OF PURCHASE OR SERVICE
PROVIDER, AS THE CASE MAY BE, FOR A FULL REFUND
.
The Software includes associated media, any printed materials, and any “on-line” or electronic documentation, as well as
any updates, revisions, bug fixes, or drives obtained by you from Motorola or your service provider. Software provided by
third parties may be subject to separate end-user license agreements from the manufacturers of such Software.
The Software is never sold. Motorola licenses the Software to the original customer and to any subsequent licensee for
personal use only on the terms of this License. Motorola and its 3rd party licensors retain the ownership of the Software.
You may:
USE the Software only in connection with the operation of the Product.
TRANSFER the Software (including all component parts and printed
materials) permanently to another person, but only if
the person agrees to
accept all of the terms of this License. If you transfer the Software, you
must at the same time transfer
the Product and all copies of the Software
(if applicable) to the same person or destroy any copies not transferred.
TERMINATE this License by destroying the original and all copies of the Software (if applicable) in whatever form.
You may not:
(1) Loan, distribute, rent, lease, give, sublicense or otherwise transfer
the Software, in whole or in part, to any other person,
except as permitted
under the TRANSFER paragraph above. (2) Copy or translate the User
Guide included with the
Software, other than for personal use. (3) Copy,
alter, translate, decompile, disassemble or reverse engineer the Software,
including but not limited to, modifying the Software to make it operate on non-compatible hardware. (4) Remove, alter or
cause not to be displayed, any copyright notices or
startup message contained in the Software programs or
