User Guide

RNG200N

High-Definition All-Digital Dual Tuner DVR

Set-top

MOTOROLA and the Stylized M logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC.

CableCARD, M-Card , and DOCSIS are trademarks or registered trademarks of Cable Television Laboratories, Inc. HDMI,

the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of JDMI Licensing

LLC. Dolby, Pro Logic, and the double-D symbol are registered trademarks of Dolby Laboratories. Macrovision is a

registered trademark of Macrovision Corporation. MoCA and the MoCA logo are trademarks of Multimedia over Coax

Alliance. All other product or service names are the property of their respective owners. All other product or service

names are the property of their respective owners.

©2010 Motorola Mobility, Inc. All rights reserved.

No part of this publication may be reproduced in any form or by any means or used to make any derivative work (such as

translation, transformation, or adaptation) without written permission from Motorola, Inc. Motorola reserves the right to

revise this publication and to make changes in content from time to time without obligation on the part of Motorola to

provide notification of such revision or change. Motorola provides this guide without warranty of any kind, implied or

expressed, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.

Motorola may make improvements or changes in the product(s) described in this manual at any time.

Safety & Regulatory Information B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide i

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Safety & Regulatory Information

IMPORTANT SAFETY INSTRUCTIONS

• Read these instructions.

• Keep these instructions.

• Heed all warnings.

• Follow all instructions.

• Do not use this apparatus near water.

• Clean only with dry cloth.

• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

• Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two

blades with one wider than the other. A grounding type plug has two blades and a third grounding

prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into

your outlet, consult an electrician for replacement of the obsolete outlet.

• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,

and the point where they exit from the apparatus.

• Only use attachments/accessories specified by the manufacturer.

• Unplug this apparatus during lightning storms or when unused for long periods of time.

• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been

damaged in any way, such as the power supply cord or plug is damaged, liquid has been spilled or

objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not

operate normally, or has been dropped.

IMPORTANT SAFETY CONSIDERATIONS

The RNG3501 set-top requires careful handling to avoid potential damage to its internal hard disk drive or the loss of

recorded data. Be sure to follow these requirements during transportation and installation.

The plug is the main disconnect device. It shall remain readily accessible and operable.

The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be

placed on the apparatus.

During Transportation to the Subscriber Home

Transport the cable terminal in its shipping box or an equally padded container.

Do not expose the terminal to rain or moisture.

i

Safety & Regulatory Information B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide ii

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

During Installation

• Do not place the terminal in an enclosed area where the cooling vents are blocked or impede the flow of

air through the ventilation openings.

• Install the terminal so that its position does not interfere with its proper ventilation. For example, do not

place the terminal on a bed, sofa, rug, or similar surface that could block the ventilation openings.

• Install the terminal away from heat sources such as radiators, heat registers and stoves. Installation of

the terminal near consumer electronics devices, such as stereo receiver/amplifiers and televisions, is

permitted as long as the air surrounding the terminal does not exceed 40º C (104º F).

• Place the terminal on a flat surface not prone to vibration or impact.

• Do not install the terminal in an area where condensation occurs.

• To prevent the temporary loss of guide data and cause a temporarily non-responding terminal, do not

plug the AC power cord into a switched power outlet.

• To avoid shock and vibration damage to the internal hard drive, do not move the terminal while it is

plugged in.

• To allow the hard drive to spin down and park its heads, wait at least 10 seconds after disconnecting

power before moving the terminal.

FCC Compliance

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference

to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and set-top.

• Connect the equipment into an outlet on a circuit different from that to which the set-top is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Caution: Changes or modifications not expressly approved by Motorola for compliance could void the user’s authority to

operate the equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device

may not cause harmful interference, and (2) this device must accept any interference received, including interference

that may cause undesired operation.

Safety & Regulatory Information B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide iii

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

FCC Declaration Of Conformity

Motorola Mobility Inc., 101 Tournament Drive, Horsham, PA 19044, 1-215-323-1000, declares that the RNG200N set-

top complies with 47 CFR Parts 2 and 15 of the FCC rules as a Class B digital device.

Canada Industry Canada (IC)

This Class B digital device complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Caring for the Environment by Recycling

When you see this symbol on a Motorola product, do not dispose of the product with

residential or commercial waste.

Recycling your Motorola Equipment

Please do not dispose of this product with your residential or commercial waste. Some

countries or regions, such as the European Union, have set up systems to collect and recycle

electrical and electronic waste items. Contact your local authorities for information about

practices established for your region. If collection systems are not available, call Motorola

Customer Service for assistance.

Software License B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide iv

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Software License

IMPORTANT: PLEASE READ THIS SOFTWARE LICENSE (“LICENSE”) CAREFULLY BEFORE YOU USE ANY SOFTWARE,

FIRMWARE AND RELATED DOCUMENTATION (“SOFTWARE”) PROVIDED WITH MOTOROLA’S DIGITAL CABLE

RECEIVER OR HOME THEATER SYSTEM (EACH SHALL BE REFERRED TO IN THIS LICENSE AS A “RECEIVER”). BY USING

THE RECEIVER AND/OR USING ANY OF THE SOFTWARE, YOU INDICATE YOUR ACCEPTANCE OF EACH OF THE TERMS

OF THIS LICENSE. UPON ACCEPTANCE, THIS LICENSE WILL BE A LEGALLY BINDING AGREEMENT BETWEEN YOU

AND MOTOROLA. THE TERMS OF THIS LICENSE APPLY TO YOU AND TO ANY SUBSEQUENT USER OF THIS

SOFTWARE.

IF YOU DO NOT AGREE TO ALL OF THE TERMS OF THIS LICENSE (I) DO NOT USE THE SOFTWARE AND (II) RETURN THE

RECEIVER AND THE SOFTWARE (COLLECTIVELY, “PRODUCT”), INCLUDING ALL COMPONENTS, DOCUMENTATION

AND ANY OTHER MATERIALS PROVIDED WITH THE PRODUCT, TO YOUR POINT OF PURCHASE OR SERVICE PROVIDER,

AS THE CASE MAY BE, FOR A FULL REFUND.

The Software includes associated media, any printed materials, and any “on line” or electronic documentation.

Software provided by third parties may be subject to separate end user license agreements from the manufacturers of

such Software. The Software is never sold. Motorola licenses the Software to the original customer and to any

subsequent licensee for personal use only on the terms of this License. Motorola and its third party licensors retain the

ownership of the Software.

You may:

USE the Software only in connection with the operation of the Product.

TRANSFER the Software (including all component parts and printed materials) permanently to another person, but only

if the person agrees to accept all of the terms of this License. If you transfer the Software, you must at the same time

transfer the Product and all copies of the Software (if applicable) to the same person or destroy any copies not

transferred.

TERMINATE this License by destroying the original and all copies of the Software (if applicable) in whatever form.

You may not:

(1) Loan, distribute, rent, lease, give, sublicense or otherwise transfer the Software, in whole or in part, to any other

person, except as permitted under the TRANSFER paragraph above. (2) Copy or translate the User Guide included with

the Software, other than for personal use. (3) Copy, alter, translate, decompile, disassemble or reverse engineer the

Software, including but not limited to, modifying the Software to make it operate on non compatible hardware. (4)

Remove, alter or cause not to be displayed, any copyright notices or startup message contained in the Software

programs or documentation. (5) Export the Software or the Product components in violation of any United States export

laws.

The Product is not designed or intended for use in on line control of aircraft, air traffic, aircraft navigation or aircraft

communications; or in design, construction, operation or maintenance of any nuclear facility. MOTOROLA AND ITS

THIRD PARTY LICENSORS DISCLAIM ANY EXPRESS OR IMPLIED WARRANTY OF FITNESS FOR SUCH USES. YOU

REPRESENT AND WARRANT THAT YOU SHALL NOT USE THE PRODUCT FOR SUCH PURPOSES.

Title to this Software, including the ownership of all copyrights, mask work rights, patents, trademarks and all other

intellectual property rights subsisting in the foregoing, and all adaptations to and modifications of the foregoing shall

at all times remain with Motorola and its third party licensors. Motorola retains all rights not expressly licensed under

this License. The Software, including any images, graphics, photographs, animation, video, audio, music and text

ii

Software License B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide v

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

incorporated therein is owned by Motorola or its third party licensors and is protected by United States copyright laws

and international treaty provisions. Except as otherwise expressly provided in this License, the copying, reproduction,

distribution or preparation of derivative works of the Software, any portion of the Product or the documentation is

strictly prohibited by such laws and treaty provisions. Nothing in this License constitutes a waiver of Motorola’s rights

under United States copyright law.

This License and your rights regarding any matter it addresses are governed by the laws of the Commonwealth of

Pennsylvania, without reference to conflict of laws principles. THIS LICENSE SHALL TERMINATE AUTOMATICALLY if

you fail to comply with the terms of this License.

Motorola is not responsible for any third party software that is provided as a bundled application, or otherwise, with

the Software or that is downloaded to, or otherwise installed on, the Product.

U.S. GOVERNMENT RESTRICTED RIGHTS

The Product and documentation is provided with RESTRICTED RIGHTS. The use, duplication or disclosure by the

Government is subject to restrictions as set forth in subdivision (c)(1)(ii) of The Rights in Technical Data and Computer

Software clause at 52.227 7013. The contractor/manufacturer is Motorola Mobility, Inc., 101 Tournament Drive,

Horsham, PA 19044.

Table of Contents B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide vi

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Contents

Safety & Regulatory Information .................................................................................................. i

Software License .......................................................................................................................... iv

Introduction .................................................................................................................................... 1

Overview ......................................................................................................................................... 1

Front Panel ................................................................................................................................ 2

Rear Panel ................................................................................................................................. 3

Operation ........................................................................................................................................ 4

Turning Power On and Off .............................................................................................................. 4

Changing Channels .......................................................................................................................... 4

Adjusting the Volume ...................................................................................................................... 4

Interactive Program Guide ............................................................................................................... 4

Front Panel Format Button .............................................................................................................. 5

Operation .................................................................................................................................. 5

Video Format Indicators (Front Panel Display) .......................................................................... 5

M-Card™ .......................................................................................................................................... 6

Digital Video Recorder (DVR) ....................................................................................................... 7

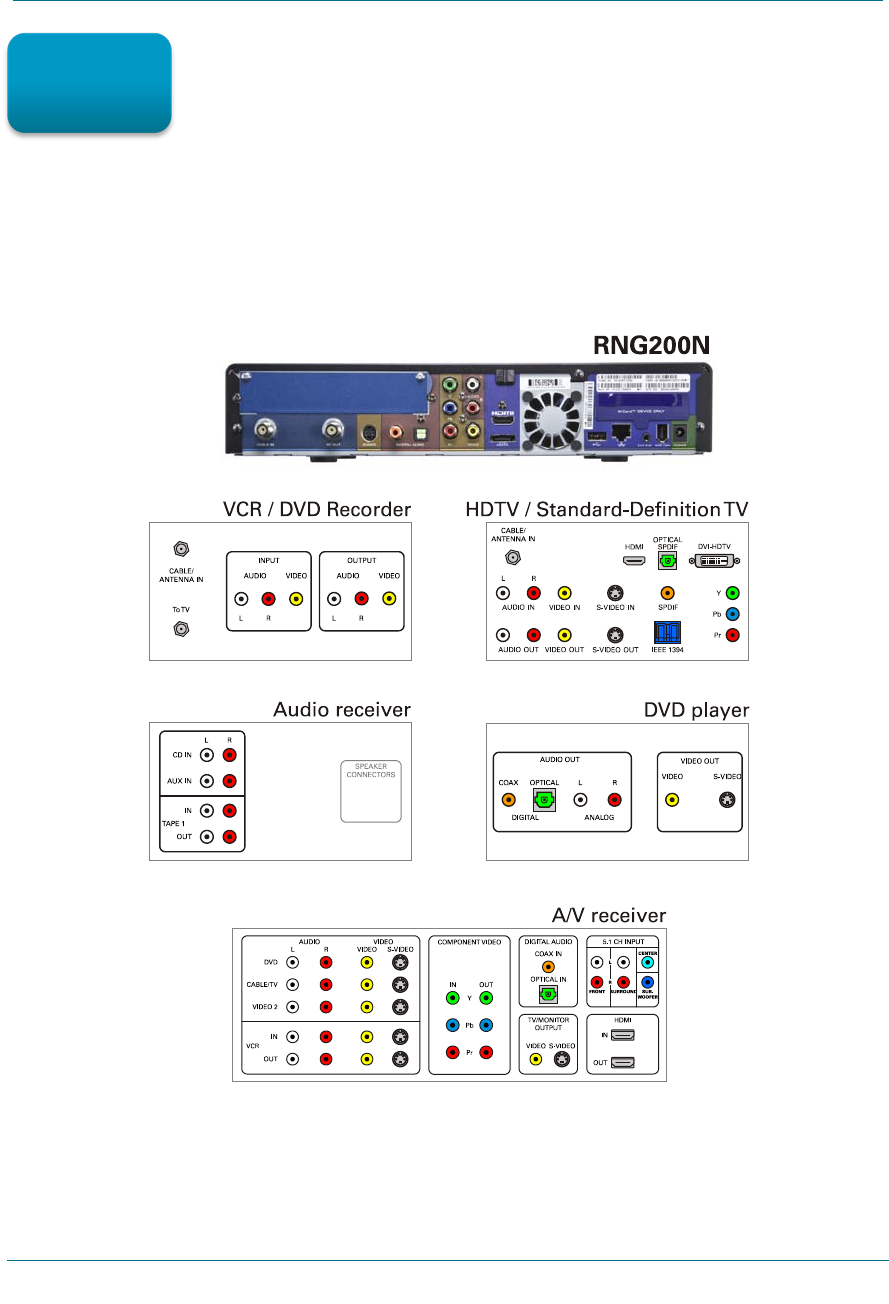

Connecting Your RNG Set-top ..................................................................................................... 9

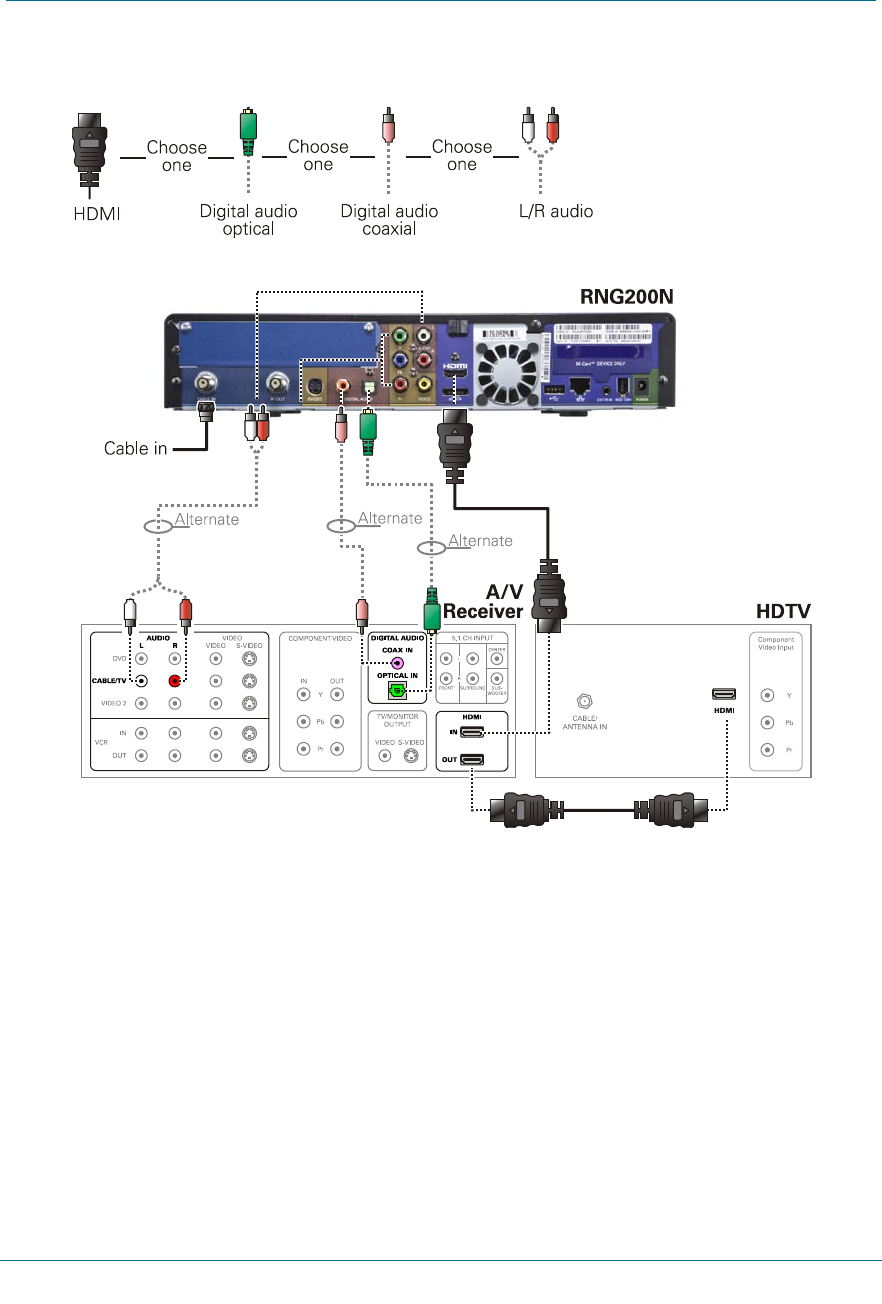

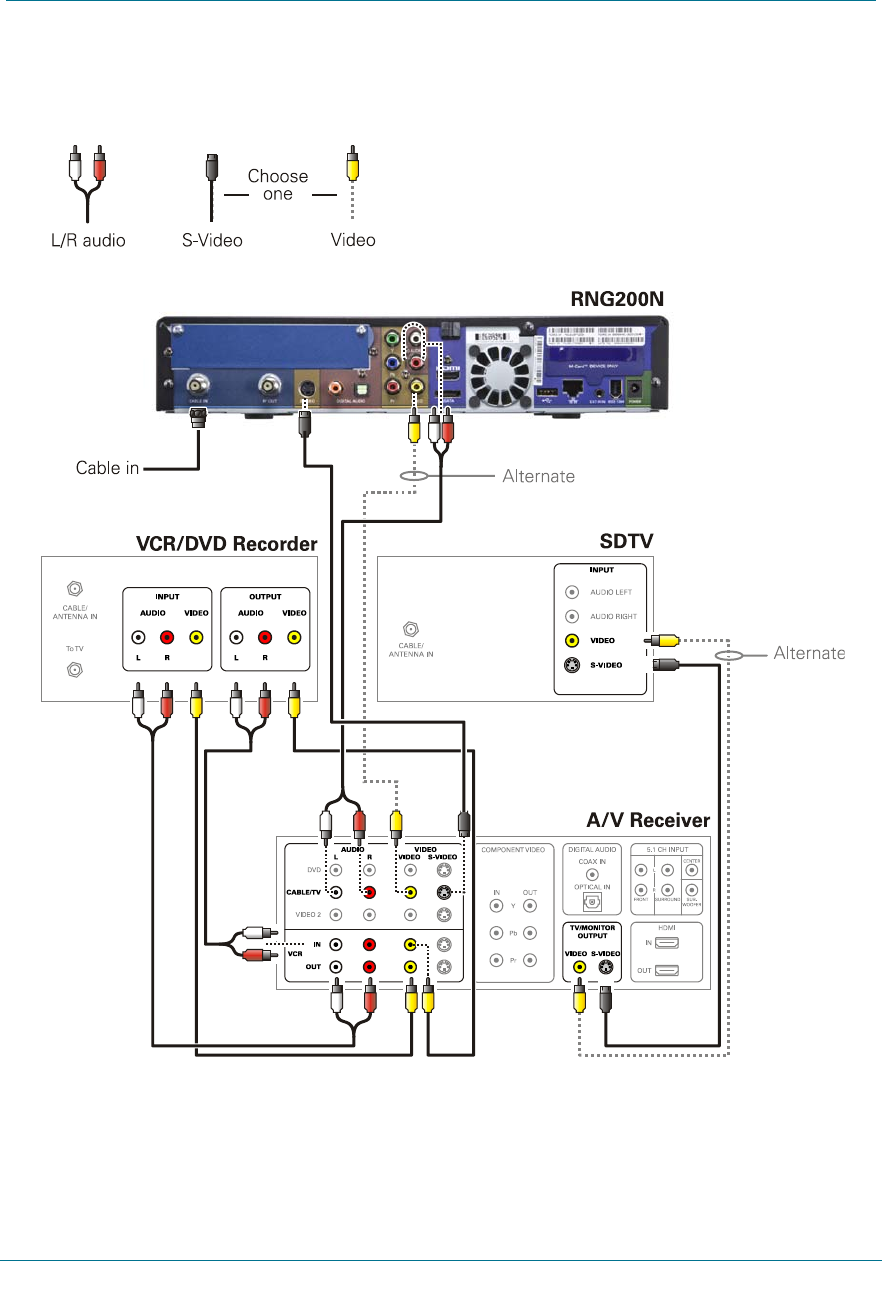

Video Connection Options ............................................................................................................... 9

HDMI or IEEE-1394 — HDTV and SDTV ................................................................................. 10

Component video (YPbPr) — HDTV and SDTV ....................................................................... 10

S-Video — SDTV ..................................................................................................................... 10

Composite Video — SDTV ...................................................................................................... 10

RF Output — SDTV ................................................................................................................. 10

Connecting HDTV — Single Connection for Video/Audio ....................................................... 11

Connecting Your RNG Set-top to an HDTV — Single Connection for Video/Audio ....................... 12

Connecting HDTV — Separate Video/Audio Connections ............................................................. 13

Cable In ................................................................................................................................... 13

DVI ........................................................................................................................................... 13

Component Video (YPbPr)....................................................................................................... 13

Audio ....................................................................................................................................... 13

Connecting Your RNG Set-top to an HDTV — Separate Video/Audio ........................................... 14

Connecting Your RNG Set-top to an HDTV — Alternate Audio ..................................................... 15

Connecting an A/V Receiver — Audio ........................................................................................... 16

Connecting Your RNG Set-top to an A/V Receiver — Audio ......................................................... 17

Table of Contents B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide vii

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Connecting an SDTV ...................................................................................................................... 18

Connecting Your RNG Set-top to an SDTV .................................................................................... 18

Connecting an A/V Receiver, SDTV, and VCR/DVD Recorder ....................................................... 19

Connecting Your RNG Set-top to an A/V Receiver, SDTV, and VCR/DVD Recorder ..................... 20

Connecting Your Set-top to an External eSATA DVR .................................................................... 21

Recording Your Connections ...................................................................................................... 22

Data Devices .................................................................................................................................. 23

Data Features ................................................................................................................................ 23

On-Screen Graphics .................................................................................................................... 24

Configuring A/V, Closed Captioning, and Other Settings ...................................................... 25

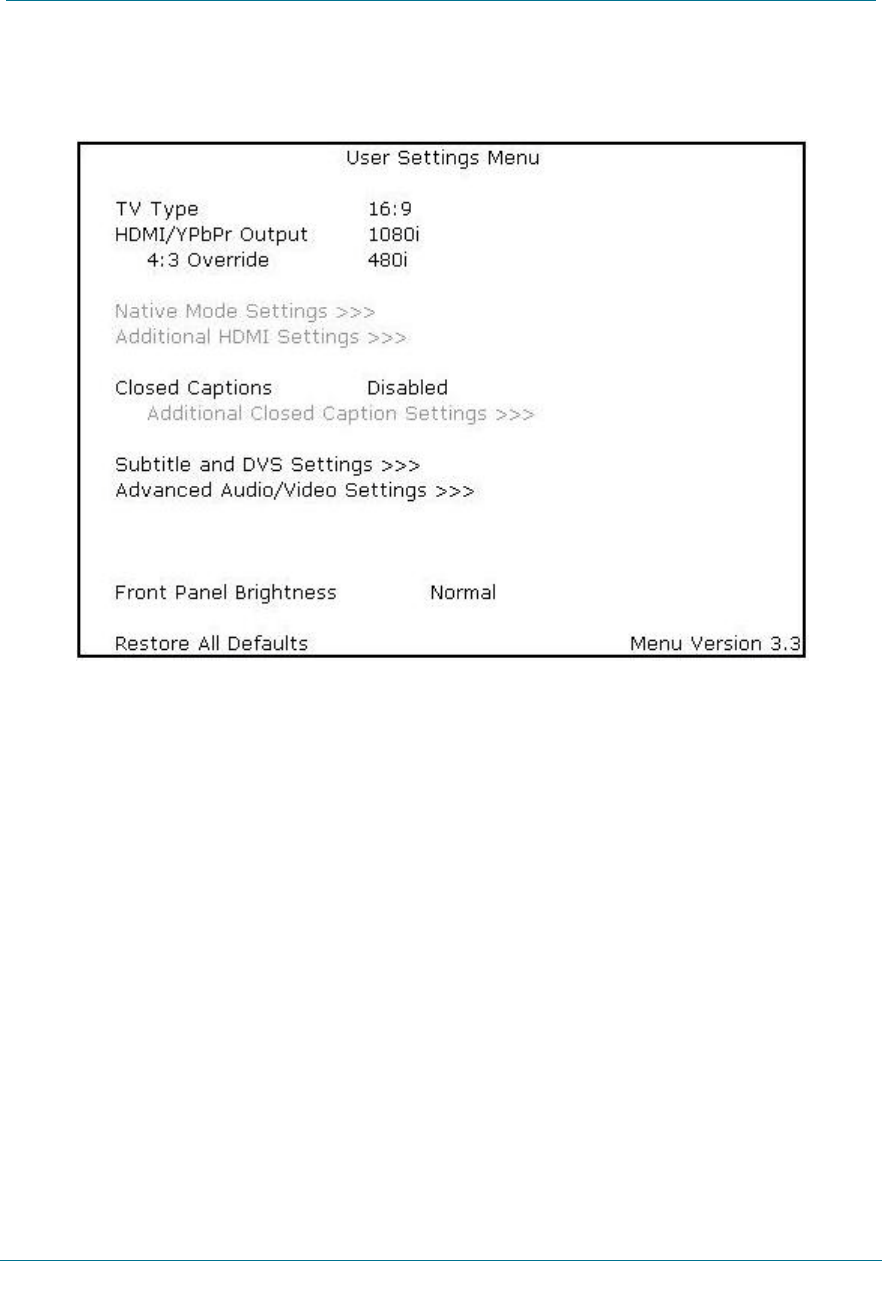

User Settings Menu Main Screen ................................................................................................. 26

Native Mode Settings Screen ........................................................................................................ 32

Additional HDMI Settings Screen .................................................................................................. 35

Additional Closed Caption Settings Screen ................................................................................... 38

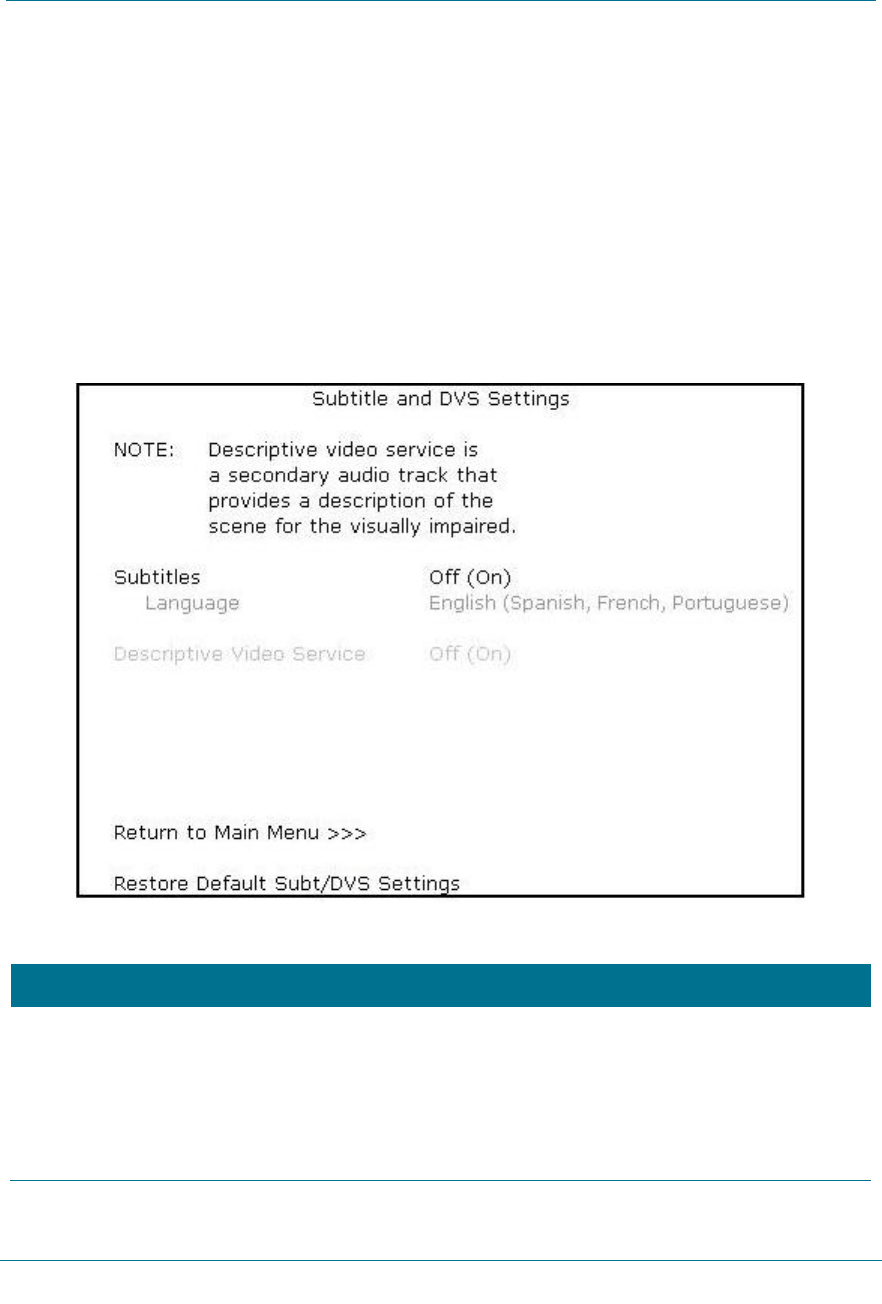

Subtitle and DVS Settings Screen ................................................................................................. 40

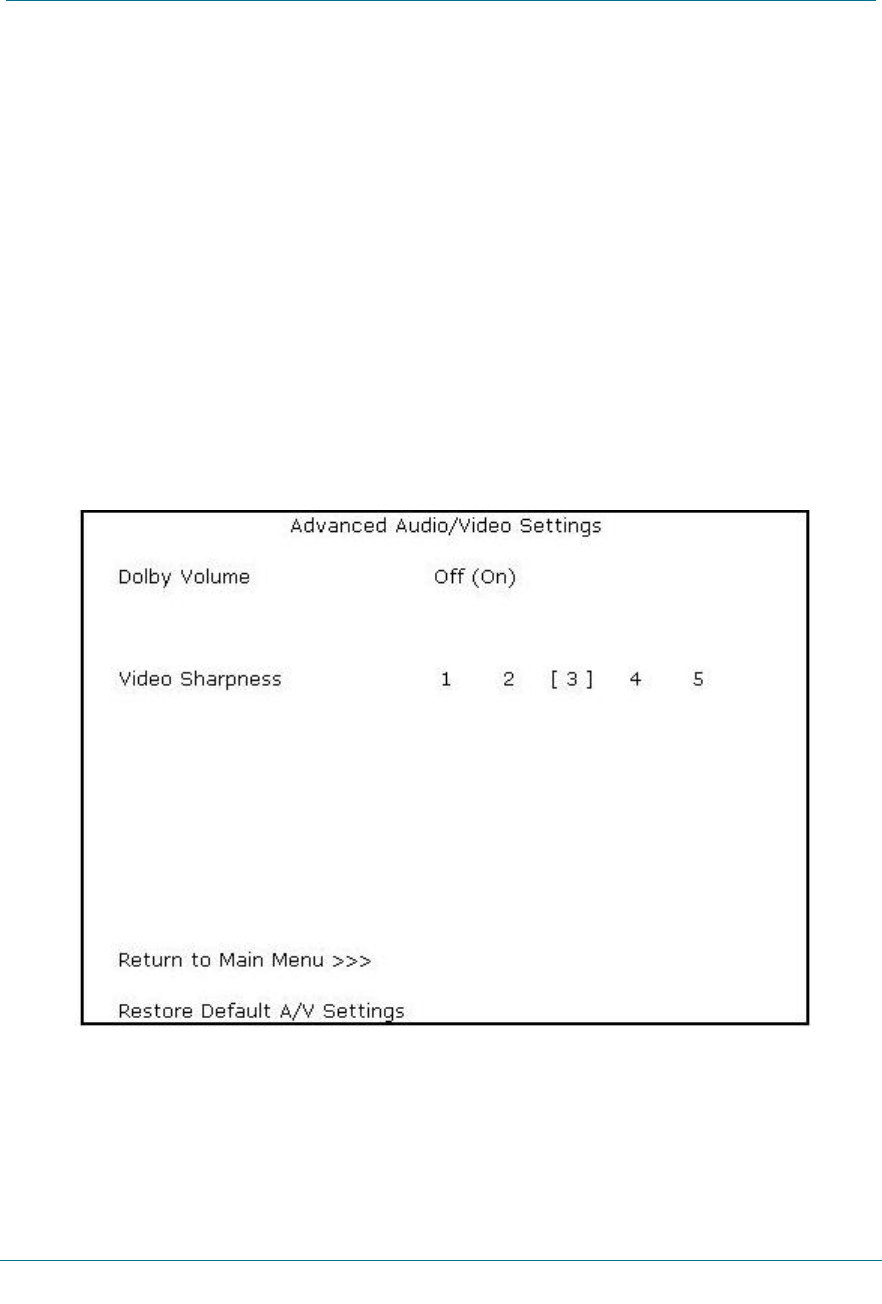

Advanced Audio/Video Settings Screen ........................................................................................ 42

Troubleshooting .......................................................................................................................... 44

Introduction B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 1

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Introduction

Overview

Congratulations on receiving a Motorola RNG200N Series High-Definition All-Digital Dual

Tuner Cable Set-top, one of the most advanced interactive digital cable set-tops available

today. Motorola has merged the extraordinary features of digital cable — the seemingly

endless programming options, interactive program guides, Video on Demand (VOD), and

commercial-free, CD quality music — with the flexibility of a dual tuner-digital video

recorder (DVR) and the incredible picture quality and sound of High-Definition TV (HDTV).

The RNG200N includes an “Entertainment Package” that enables a direct digital

connection to consumer audio and video devices through IEEE-1394 and HDMI™

interfaces. Dolby® Digital Plus is supported by the HDMI interface and provides 7.1

channels and beyond of enhanced-quality audio. The set-top is fully equipped with a

factory-installed hard drive for hours of DVR functionality, which includes the capability of

recording two High-Definition programs, or watching one while recording another.

This User Guide introduces you to the basic features, outlines important safeguards, and

provides several options for integrating this component into your current entertainment

system. Please take a few moments to read through this User Guide; the configuration

diagrams, on-screen menu description, and troubleshooting sections will help you make

the most of your home entertainment experience.

To determine which features of digital cable are provided in your service area, please

check with your local cable operator. They will be happy to provide instructions for these

optional services.

Features

• All-Digital Dual Tuner High Definition DVR M-Card Host (dual tuners support watch

and record mode)

• Dual Advanced A/V High-Definition decode

• Integrated MoCA™ networking

• HDMI, Component, IEEE-1394, S-Video, Composite, RF remod, Digital Audio

(S/PDIF), Audio L/R, Ethernet, USB, eSATA

• 1080p 24/30 video decode and 1080p 24/30/60 video output support

1

Introduction B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 2

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Front Panel

1

Cursor — Menu navigation

Select — Selects menu options

2

Power — Turns the set-top on and off (standby)

3

Menu — Displays the menu

4

Guide — Displays the program guide

5

Info — Displays current channel and program information

6

Format * — Change the video output format

7

Channel — Changes channel up or down

* Availability of certain features is dependent upon application support.

Introduction B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 3

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Rear Panel

1

Cable In — Connects to cable signal from your service provider

2

RF Out — Ch 3/4 modulated audio/video (SDTV) to TV or VCR

3

S-Video — Connects to S-Video (SDTV) input of TV or VCR

4

Digital Audio (Coaxial S/PDIF) — Provides Dolby® Digital or PCM output

Digital Audio (Optical S/PDIF) — Provides Dolby® Digital or PCM output

5

Video outputs / YPbPr — Component video output (HDTV)

6

Video Out — Composite Video (SDTV)

7

Audio Out — L/R audio

8

eSATA* — External Serial ATA disk interface

9

HDMI — High-Definition TV (HDTV) connector

10

USB* 2.0 — High-Speed peripheral device connection

11

Ethernet* — Network connection

12

External IR Input — Connects to a remote control set-top accessory cable

Data test connector (service personnel only)

13

IEEE-1394 — Audio and video device connection

14

Power connector

* Availability of certain features is dependent upon application support.

Operation B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 4

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Operation

Turning Power On and Off

Press power on the front panel or remote control to turn the RNG set-top on or off

(standby). When using the remote control, be sure it is in cable mode by pressing cable

before pressing power. When using the front panel please note that the front panel

buttons are touch-sensitive, so simply touch the power icon to turn on the set-top.

Changing Channels

You can change channels in three ways:

• Press channel + or – on the front panel of the RNG set-top or the remote control to

step through the channel selection.

• Enter the number of the channel you wish to view using the number keys on the

remote control.

• Select the channel in the Interactive Program Guide.

Adjusting the Volume

Press volume + or – on the remote control to adjust the volume. When you adjust the

volume, the volume scale is displayed on the screen. Press mute on the remote control

to toggle the sound on and off.

For best audio quality when using the analog L/R (var.) volume controlled audio outputs,

use the remote control to set the RNG set-top to approximately three quarters of the

maximum volume level and then adjust the audio levels on external devices such as your

TV or A/V receiver.

When using the analog L/R (fixed) audio outputs or any of the digital audio outputs

(HDMI, IEEE-1394, optical or coaxial digital audio) adjust the audio levels on your external

device such as your TV or A/V receiver. You may also be able to program your remote to

control the volume of your TV or A/V receiver directly (refer to the remote control

instruction manual).

Interactive Program Guide

The Interactive Program Guide displays information about TV programs and enables you

to access features such as Parental Control or Pay-Per-View. Interactive program guides

can vary with each cable service provider. Refer to the Interactive Program Guide’s

instruction manual for detailed instructions.

2

Operation B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 5

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Front Panel Format Button

The Format button located on the front panel of the RNG200N set-top allows you to

quickly change the video output format used by the Component Video (YPbPr) and HDMI

outputs. The RNG200N set-top is capable of providing the following video formats on the

YPbPr and HDMI video outputs:

• High Definition 1080i (1920 x 1080 pixels)

• High Definition 720p (1280 x 720 pixels)

• Enhanced Definition 480p (720 x 480 pixels)

• Standard Definition 480i (720 x 480 pixels)

The RNG200N set-top is also capable of passing through High-Definition 1080p 24/30/60

(1920 x 1080 pixels) source content over the HDMI video output.

The Format button is intended to allow you to select a video output format that is

compatible with a connected display device. Some televisions may not support all four

video formats listed above. The Format button provides an easy method for selecting an

output format that is compatible with your television.

Operation

The Format button is intended to complement the User Settings Menu (see Configuring

the Audio, Video, and Closed Caption Settings). It is not intended to replace the User

Settings Menu. The User Settings Menu is the preferred method of optimizing the RNG

set-top to operate with your specific television.

If you cannot get a video display when the RNG set-top is connected to your television

via component video or standard HDMI cables, use the Format button to select a video

output format that results in a viewable picture on the display screen. Once a viewable

picture is available, use the User Settings Menu to optimize the RNG200N set-top

display settings for your specific television.

Video Format Indicators (Front Panel Display)

The front panel display of the RNG200N set-top is equipped with indicators to the right

hand side of the display that are used to indicate the currently-selected video output

format on the component video (YPbPr) and HDMI outputs. As the Format button is

depressed, the front panel format indicators will change to illuminate the currently

selected video output format in use by the RNG set-top.

Note: There are some scenarios where the RNG set-top does not change the video

output format if the Format button is depressed. In these scenarios, the RNG200N set-

top will flash the currently illuminated video format indicator on the front panel display. If

this should occur, please use the User Settings Menu to make further changes to the

video output settings of the RNG200N set-top.

Note: Availability of certain features is dependent upon application support.

Operation B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 6

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

M-Card™

The M-Card is required to view cable television programs, previously recorded programs

on the DVR, or interactive on-demand programs. The M-Card should not be removed.

Digital Video Recorder (DVR) B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 7

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Digital Video Recorder (DVR)

The RNG200N set-top is equipped with an internal hard drive for DVR (Digital Video

Recorder) functionality, which provides the ability to record both Standard Definition TV

(SDTV) and High Definition TV (HDTV) programs. Storage time varies based on the video

format and specific channel.

The RNG200N set-top is also equipped with an eSATA interface on the rear panel. This

interface allows the connection of an external hard disk drive to increase the DVR

storage capacity of the RNG200N. Note: your service provider must authorize your

RNG200N for external DVR functionality.

DVR offers the ability to control your viewing experience by pausing (time shifting) live

TV and providing trick playback modes (pause, fast forward, slow forward, fast rewind,

slow rewind). You may experience a slight delay when switching between time-shifted

and live TV.

The RNG200N model also includes integrated MoCA™ networking which supports

whole-home DVR capabilities. This feature extends the DVR experience to RNG150N or

other compatible non-DVR set-tops with integrated MoCA, when enabled by application

software. On your non-DVR set-top you can now view your DVR recordings, playback

content, and set future recordings all from another room in your home.

With the RNG200N set-top, you can:

Record Programming. The total hours of recorded content will vary based on the

storage capacity of your DVR, the storage capacity of your specific external drive (if

authorized), and type of content (digital SD or HD and encoding method, MPEG-2 or

MPEG-4) being recorded.

Drive Size

Estimated Recording Hours

Standard Definition

High-Definition

500 GB

350 to 700 (MPEG-4)

175 to 350 (MPEG-2)

100 to 160 (MPEG-4)

50 to 60 (MPEG-2)

Maintain a Personal Program Library. Accessed by using the Interactive Program

Guide (IPG).

Control Live TV. Pause, rewind, and fast-forward live TV.

Simultaneously Watch Two Programs. Watch two programs and easily switch

between them using the swap key on your remote control. (Dependent upon program

guide support and provided remote control.)

Simultaneous Watch and Record. Record one program in the background while

viewing another live broadcast at the same time.

3

Digital Video Recorder (DVR) B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 8

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Simultaneously Record Two Shows. Record two programs from two different

channels at the same time.

Simultaneously Record Two Shows and Watch a Recorded Program. Watch a

program recorded on your DVR while recording up to two other programs at the same

time. You can also easily switch from viewing the pre-recorded program and either of the

programs you’re recording.

Play Recorded Programming On Networked Set-tops In Your Home. Using

integrated MoCA networking, RNG200N recorded entertainment can be accessed by

other compatible non-DVR set-tops with integrated MoCA, when enabled by application

software.

Connecting Your RNG Set-top B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 9

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Connecting Your RNG Set-top

Instructions and diagrams are included for the following connections:

• High-Definition Television (HDTV)

• A/V receiver — Audio

• Standard-Definition TV (SDTV)

• Standard-Definition TV (SDTV) and VCR/DVD Recorder

• A/V receiver, Standard-Definition TV (SDTV), and VCR/DVD Recorder

Before you move or change components on your entertainment system, review the

following:

• For basic cable connections, use 75 ohm coaxial cables equipped with F type

connectors.

• Disconnect power from your equipment before connecting or changing cable

connections.

For information on connecting to an HDTV, see Video Connection Options.

Caution Do not place anything on top of your RNG set-top, especially other home

entertainment components. Be sure to provide adequate ventilation to prevent

overheating.

Video Connection Options

The RNG set-top offers several different video connection options. Component video,

HDMI, and IEEE-1394 allow you to view both High-Definition and Standard-Definition TV

programming. Composite video, S-Video, and RF coaxial connections allow you to view

only Standard-Definition TV programming. HD programming will be down-converted to

SD format for SD outputs.

To determine whether your TV features component video, HDMI, IEEE-1394, S-Video, or

composite video, check the manual supplied with your TV.

Use the guidelines below to determine the best video connection for your home

entertainment system.

Note: Only (1) video connection to the TV is required. HD video can only be viewed with

HDMI, IEEE-1394, or component video connections.

4

Connecting Your RNG Set-top B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 10

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

HDMI or IEEE-1394 — HDTV and SDTV

• HDMI and IEEE-1394 offer higher quality HD video than component video.

• If your TV has an HDMI input, this is for both audio and video. Connect a Standard

HDMI cable to the TV and to the HDMI connector on your RNG set-top.

• HDMI and IEEE-1394 outputs provide video and audio, so no separate audio

connections are required if you plan to use your TV’s speakers as the primary audio

source.

• On screen graphics will not be displayed when you are using the IEEE-1394

connection on the rear panel of the RNG set-top. Refer to Section 6 for more

information.

• If your TV has a DVI input, connect a HDMI-to-DVI adapter or cable to the HDMI out

connector on the RNG set-top and the DVI HDTV connector on your TV.

Note: DVI does not provide audio. A separate audio connection must be made.

Component video (YPbPr) — HDTV and SDTV

The YPbPr connectors on your RNG set-top provide HDTV and SDTV component video.

Note: Component video does not provide audio. A separate audio connection must be

made.

S-Video — SDTV

If a component video input is not available on your TV, use the S-Video connection.

Note: S-Video does not provide audio. A separate audio connection must be made.

Composite Video — SDTV

If an S-Video input is not available on your TV, use the composite video (video)

connection.

Note: Composite video does not provide audio. A separate audio connection must be

made.

RF Output — SDTV

If no other input is available on your TV, the RF Output of the RNG200N set-top can be

connected to the Antenna or Cable Input on your TV. The RF Output carries both video

and audio. Set your TV to channel 3 or 4.

Connecting Your RNG Set-top B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 11

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Connecting HDTV — Single Connection for Video/Audio

Cable In

Connect an RF coaxial cable to the cable wall outlet and the CABLE IN connector on the

RNG set-top.

HDMI

If your TV has an HDMI input, this is for both audio and video if you are using the TV

speakers. Connect a Standard HDMI cable to the TV and to the HDMI connector on your

RNG set-top.

IEEE-1394

If your HDTV has an IEEE-1394 connector, you can use the IEEE-1394 for both your

video and audio connection. Connect an IEEE-1394 cable to the IEEE-1394 connector on

your HDTV and RNG set-top.

Note: On-screen graphics will not be displayed when you are using the IEEE-1394

connection on the rear panel of the RNG set-top. Refer to Section 6 for more

information.

If you have an audio/video receiver and are not using your TV’s speakers, go to

Connecting Your RNG Set-top to an A/V Receiver – Audio.

Connecting Your RNG Set-top B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 12

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Connecting Your RNG Set-top to an HDTV — Single Connection for

Video/Audio

Note: Only (1) HDTV video connection needs to be made to an HDTV.

Note: On-screen graphics will not be displayed when using IEEE-1394 connection. Refer

to Section 6 for more information.

Note: Solid lines indicate optimum connections.

Note: Optional HDMI connection to A/V Receiver shown but not required.

Connecting Your RNG Set-top B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 13

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Connecting HDTV — Separate Video/Audio Connections

Cable In

Connect an RF coaxial cable to the cable wall outlet and the CABLE IN connector on the

RNG set-top.

DVI

If your TV has a DVI input, use the DVI connection for your video, connect a HDMI-to-DVI

adapter or cable to the HDMI out connector on the RNG set-top and the DVI-HDTV

connector on your TV.

Note: A DVI connection supports only the video connection between the RNG set-top

and the HDTV.

To connect your audio connections with your TV speakers, go to Audio section below.

To connect your audio connections for an A/V receiver, go to Connecting Your RNG Set-

top to an A/V Receiver — Audio.

Component Video (YPbPr)

Connect the component video cables to the Y, Pb, and Pr connectors on your HDTV and

RNG set-top.

Note: This connection supports only the high definition video connection between the

RNG set-top and the HDTV.

Note: Be sure to match up each signal to the same connection on the TV, otherwise the

colors will not appear correctly on your TV.

To connect your audio connections with your TV speakers, go to Audio section below.

To connect your audio connections for an A/V receiver, go to Connecting Your RNG Set-

top to an A/V Receiver — Audio.

Audio

If your TV does not have digital audio inputs, connect the stereo audio cable to the audio

L/R connectors on the RNG200N set-top and the Audio L/R connectors on the HDTV.

If your TV supports a digital audio inputs, use the digital audio optical S/PDIF or coaxial

S/PDIF outputs instead of the audio L/R outputs. S/PDIF offers better audio quality,

including support for Dolby® Digital audio.

For information on configuring your RNG set-top settings, go to Configuring the Audio,

Video, and Closed Caption Settings.

Connecting Your RNG Set-top B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 14

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Connecting Your RNG Set-top to an HDTV — Separate

Video/Audio

Note: Only (1) video connection and (1) audio connection needs to be made to an HDTV.

Note: HDMI-to-DVI adapter is not included with the set-top.

Note: Solid lines indicate optimum connections.

Connecting Your RNG Set-top B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 15

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Connecting Your RNG Set-top to an HDTV — Alternate Audio

Note: Only (1) audio connection needs to be made to an HDTV.

Note: Solid lines indicate optimum connections.

Connecting Your RNG Set-top B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 16

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Connecting an A/V Receiver — Audio

There are several options available for audio connections to your A/V receiver:

• Digital audio (OPTICAL S/PDIF)

• Digital audio (COAXIAL S/PDIF)

• Stereo audio (AUDIO L/R)

If your A/V receiver supports it, the optical (S/PDIF) or coaxial (S/PDIF) digital audio

outputs may be used in place of the stereo audio outputs (audio L/R). These outputs

offer a higher level of audio quality, including support for Dolby Digital audio.

• Digital audio optical (S/PDIF)—Connect the optical cable to the digital audio

OPTICAL connector on the RNG set-top and the optical connector on the A/V

receiver.

• Digital audio coaxial (S/PDIF)—Connect the digital audio cable to the digital audio

coaxial connector on the RNG set-top and the digital input coax connector on the A/V

receiver.

• Stereo audio—Connect the stereo audio cable to the audio L/R connectors on the

RNG set-top and the audio l/r connectors on the A/V receiver.

For information on configuring your RNG set-top settings, see Configuring the Audio,

Video, and Closed Caption Settings.

Connecting Your RNG Set-top B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 17

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Connecting Your RNG Set-top to an A/V Receiver — Audio

Note: Only (1) audio connection needs to be made to an A/V Receiver.

Note: Solid lines indicate optimum connections.

Connecting Your RNG Set-top B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 18

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Connecting an SDTV

1. Connect the stereo audio cable to the audio L/R connectors on the RNG set-top and

the audio L/R connectors on the Standard-Definition TV (SDTV).

2. Connect an S-Video cable to the S-Video out connector on the RNG set-top and the

input S-Video on the TV.

Note: If the TV does not support S-Video connections, composite video connections may

be used in place of S-Video connection.

Note: If the TV does not support S-Video or composite video connections, use the RF out

connector on the RNG set-top. The RF connection carries video and audio.

These video connection methods do not support HD video. If you have an HDTV, see

Connecting HDTV — Single Connection for Video/Audio.

Connecting Your RNG Set-top to an SDTV

Note: S-Video and Composite video require separate audio connections.

Note: Only (1) video connection and (1) audio connection is required.

Note: Solid lines indicate optimum connections.

Connecting Your RNG Set-top B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 19

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Connecting an A/V Receiver, SDTV, and VCR/DVD Recorder

1. Connect a stereo audio cable to the AUDIO OUT L/R connectors on the RNG set-top

and the input L/R connectors on the A/V receiver.

2. Connect an S-Video cable to the SVIDEO connector on the RNG set-top and the S-

Video connector on the A/V receiver.

3. Note: If your A/V Receiver does not support S-Video connections, Composite video

connections may be used in place of the S-Video connection.

4. Connect a stereo audio cable to the VCR audio out L/R connectors on the A/V

receiver and the input audio L/R connectors on the stereo VCR.

5. Connect a stereo audio cable to the output audio out L/R connectors on the stereo

VCR and the VCR audio in L/R connectors on the A/V receiver.

6. Connect a composite video cable to the input video connector on the stereo VCR

and the video VCR out connector on the A/V receiver.

7. Connect a composite video cable to the output video connector on the stereo VCR

and the video VCR in connector on the A/V receiver.

8. Connect an S-Video cable to the input S-Video connector on the Standard-Definition

TV (SDTV) and the TV/monitor output S-Video connector on the A/V receiver.

Note: If your TV or A/V receiver does not support S-Video connections, Composite

connections may be used in place of the S-Video connections.

Note: The digital audio optical (optical S/PDIF) or digital audio (COAXIAL S/PDIF) audio

outputs may be used in place of the stereo audio outputs (audio L/R). These outputs

offer a higher level of audio quality, including support for Dolby Digital audio.

These video connection methods do not support HD video. If you have an HDTV, see

Connecting HDTV — Single Connection for Video/Audio.

Connecting Your RNG Set-top B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 20

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Connecting Your RNG Set-top to an A/V Receiver, SDTV, and

VCR/DVD Recorder

Note: Solid lines indicate optimum connections.

Note: Consult your A/V receiver manual for additional wiring options or constraints when

including a VCR/DVD Recorder in your configuration.

Connecting Your RNG Set-top B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 21

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Connecting Your Set-top to an External eSATA DVR

1. Contact your cable service provider to verify the set-top software necessary to

support External DVR Storage is available in your area.

2. Connect the AC power cord to the external drive and plug the external drive’s AC

power adapter into an electrical outlet.

3. Allow approximately 15 to 30 seconds for the external drive to reach operating

speed.

4. Connect one end of the eSATA cable to the set-top.

5. Connect the other end of the eSATA cable to the external drive.

6. Follow the on-screen instructions.

Note: Only connect external hard drives that have been approved by Motorola for

external DVR service. Connecting an external drive that has not been approved could

result in poor DVR performance.

Recording Your Connections B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 22

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Recording Your Connections

Use this diagram to record connections between your home entertainment components.

You can use this diagram to reconnect your system if you move the equipment or add

new equipment.

Disconnect the power from the RNG set-top before connecting or changing cable

connections. Do not place another component or object on top of the RNG set-top.

5

Recording Your Connections B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 23

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Data Devices

Do not attempt to connect data devices without contacting your service provider.

Advanced data features require the proper application and network infrastructure

to operate.

Data Features

In addition to high-quality audio and video, the RNG set-top has the capability to deliver

high-speed data services such as Internet access, e-mail, IP telephony, e-commerce, and

home banking.

Note: Your RNG set-top may be equipped with the interface connections illustrated, but

their functionality depends on the services offered by your service provider.

On-Screen Graphics B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 24

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

On-Screen Graphics

Your RNG set-top can generate graphics that overlay the video programming or fill the

entire television screen. Common examples include on-screen menus (such as the User

Setting menu), closed captions, and interactive program guides. The RNG set-top

overlays these graphics whenever you open a menu, enable closed captions, or scroll

through a program grid.

• On-screen graphics are not available on all video output combinations.

• On-screen graphics will not be displayed when you are using the IEEE-1394

connection on the rear panel of the RNG set-top.

6

Configuring A/V, Closed Captioning, and Other Settings B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 25

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Configuring A/V, Closed

Captioning, and Other Settings

The following describes how to configure the audio (for HDMI connections), SD and HD

video, closed caption, subtitle, and power settings for the RNG200N.

Before you adjust the output settings:

• Connect the RNG200N to the TV and other home entertainment devices

• Connect the provided power supply to the RNG200N and an AC power outlet

• Initialize the RNG200N and authorize it for services

• Turn the TV on

Note: When using an HDMI connection between the RNG200N and the television, be

sure to have the cable connected and the TV powered on before adjusting the video

settings.

7

Configuring A/V, Closed Captioning, and Other Settings B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 26

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

User Settings Menu Main Screen

To configure the RNG200N settings on the main User Settings menu screen, first power

off the RNG200N using either the remote control or the Power button and then press

the MENU key on the remote control . If the TV is on, the on-screen User Settings menu

lists the RNG200N settings that can be adjusted.

If no HDMI device is connected to the RNG200N, the default User Settings menu

appears as follows:

Default User Settings Menu when no HDMI connection is in place

Configuring A/V, Closed Captioning, and Other Settings B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 27

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

If the RNG200N is connected via HDMI to a display device such as a television, the

default User Settings menu is updated to reflect this information. The YPbPr Output

menu option is replaced with the HDMI/YPbPr Output menu option as shown below.

Default User Settings Menu when an HDMI connection is in place

Use the remote control cursor keys to navigate the on-screen menus as follows:

• Press the ▲ and ▼ keys to highlight the setting you wish to change.

• Press the ► key to select an option.

• To exit the setting and move to another setting, press the ▲ or ▼ key.

Configuring A/V, Closed Captioning, and Other Settings B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 28

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

The User Settings menu options available from the main screen are illustrated and

defined below.

User Settings Menu – Main Menu Screen

Setting Description

TV Type The TV Type setting allows you to specify the style of television connected to

the RNG200N. Options include 16:9, 4:3 Letterbox, and 4:3 Pan Scan. By

default, the 16:9 option is selected. The options are used as follows:

• 16:9 indicates that a widescreen television is connected to the RNG200N.

• 4:3 Letterbox indicates that a standard-screen television is connected to the RNG200N

and that widescreen programs should be scaled to fit the screen with black bars above

and below the picture.

• 4:3 Pan Scan indicates that a standard-screen television is connected to the RNG200N

and that widescreen programs should be cropped so that the picture fills the entire

screen.

HDMI/YPbPr

Output

The HDMI/YPbPr Output setting allows you to select the video format of the

HDMI and/or Component Video (YPbPr) outputs:

• For ALL programs when the 4:3 Override setting is set to either Off or Stretch.

• For ONLY widescreen programs when the 4:3 Override is set to either 480i or 480p.

Available options for the HDMI/YPbPr Output setting include 1080i, 720p, 480p,

480i, and Native. By default, the 1080i option is selected.

The options are used as follows:

• 1080p60—The RNG200N will present programs in the High-Definition 1080p60

Configuring A/V, Closed Captioning, and Other Settings B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 29

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Setting Description

format (1920 x 1080 pixels with progressive scanning at 60 frames per second).

• 1080i—The RNG200N will present programs in the High-Definition 1080i format

(1920 x 1080 pixels with interlaced scanning at 30 frames per second).

• 720p—The RNG200N will present programs in the High-Definition 720p format

(1280 x 720 pixels with progressive scanning at 60 frames per second).

• 480p—The RNG200N will present programs in the Enhanced-Definition 480p format

(720 x 480 pixels with progressive scanning at 60 frames per second).

• 480i—The RNG200N will present programs in the Standard-Definition 480i format

(720 x 480 pixels with interlaced scanning at 30 frames per second).

• Native—The RNG200N will present programs in the format that most closely

matches their native format according to the list of compatible formats selected from

the Native Mode Settings menu screen.

Note 1: Not all televisions will support all of the available video formats. Please

consult the television’s user manual for more information on video format

compatibility.

Note 2: The RNG200N can detect when the HDMI connection is in use. If you

are not using the HDMI connection on the RNG200N, the HDMI/YPbPr

Output setting will display as YPbPr Output in the User Settings Menu.

Note 3: Most new HDTVs are equipped with at least one HDMI input and can

support the 1080p60 format. The RNG200N is designed to provide excellent

video quality when converting any program to the 1080p60 video format. If

your television supports 1080p60 video input, it is highly recommended to

adjust the HDMI/YPbPr Output setting to the 1080p60 setting.

Configuring A/V, Closed Captioning, and Other Settings B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 30

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Setting Description

4:3 Override The 4:3 Override setting allows you to select the video output format of the

RNG200N when it is tuned to a Standard-Definition program or playing back a

Standard- Definition program from the DVR. Options include 480i, 480p, Stretch,

and Off. By default, the 480i option is selected.

The options are used as follows:

• 480i—The RNG200N will present Standard-Definition programs in the Standard-

Definition 480i format (720 x 480 pixels).

• 480p—The RNG200N will present Standard-Definition programs in the Enhanced-

Definition 480p format (720 x 480 pixels).

• Stretch—The RNG200N will automatically stretch all Standard-Definition programs

to a widescreen (16:9) aspect ratio and present the video in the format designated by

the HDMI/YPbPr Output setting. Note that the Stretch option is only available when

the TV Type setting is 16:9.

• Off—The RNG200N will create a widescreen version of a Standard-Definition program

by adding black bars to the left and the right of the picture (pillarbox) and present the

video in the format designated by the HDMI/YPbPr Output setting.

Note 1: Not all televisions will support all of the available video formats. Please

consult your television’s user manual for more information on format

compatibility.

Note 2: If the HDMI/YPbPr Output setting is set to either 480i or Native, the

4:3 Override feature is disabled and no longer selectable in the menu. The 4:3

Override feature is available when the HDMI/YPbPr Output setting is 1080i,

720p, or 480p.

Native Mode

Settings

The Native Mode Settings option allows you to customize the Native Mode

feature of the RNG200N by selecting the video formats supported by your

television. Selecting the Native Mode Settings option will present a new menu

screen with settings specific to Native Mode operation. These settings are

discussed in more detail below.

The Native Mode Settings option is only available when the HDMI/YPbPr

Output setting is set to Native. Otherwise, the Native Mode Settings option is

disabled and no longer selectable in the menu.

Additional

HDMI

Settings

The Additional HDMI Settings option is available whenever an HDMI device is

connected to the RNG200N. Selecting the Additional HDMI Settings option will

present a new menu screen with settings specific to the HDMI connection.

These settings are discussed in more detail below.

If no HDMI device is connected to the RNG200N, the Additional HDMI Settings

option is disabled and no longer selectable in the menu.

Closed

Captions

The Closed Captions setting turns closed captions off or on.

When this option is set to Disabled, the RNG200N does not render (draw) closed

captions on any video output. When this option is set to Enabled, the RNG200N

will render (draw) closed captions on all video outputs if closed captions are

included within the program.

By default, the Disabled option is selected.

Configuring A/V, Closed Captioning, and Other Settings B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 31

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Setting Description

Additional

Closed

Caption

Settings

The Additional Closed Caption Settings option allows you to customize the

style and appearance of closed captions.

Selecting this option will present a new menu screen with settings specific to

closed captions, including font style, color, and size. These settings are

discussed in more detail below.

The Additional Closed Caption Settings option is only available when the

Closed Captions setting is set to Enabled. Otherwise, the Additional Closed

Caption Settings option is disabled and no longer selectable in the menu.

Subtitle and

DVS

Settings

The Subtitle and DVS Settings option allows you to customize the operation of

the subtitle and descriptive video service features.

Selecting the Subtitle and DVS Settings option will present a new menu

screen with settings specific to subtitle and descriptive video service operation.

These settings are discussed in more detail below.

Advanced

Audio/Video

Settings

The Advanced Audio/Video Settings option allows you to customize several

advanced audio and video features of the RNG200N.

Selecting this option will present a new menu screen with settings specific to

closed captions, including font style, color, and size. These settings are

discussed in more detail below

Front Panel

Brightness

The Front Panel Brightness settings allows you to adjust the brightness level of

the front panel display (clock/channel number and indicator icons) of the

RNG200N. The options are used as follows:

• High—The front panel display will be at its brightest level. This setting is most useful

when using the RNG200N in very brightly lit rooms

• Normal—The front panel display will be at is default brightness level.

• Low – The front panel display will be at its lowest (visible) brightness level. This

setting is most useful when using the RNG200N in dim or dark rooms.

• Off—The front panel display will be turned off completely, including the

clock/channel number and all indicator icons. However, the blue backlighting of the

front panel Power button will remain illuminated even if the Off option has been

selected.

Restore All

Defaults

To reset ALL of the RNG200N User Settings to their default values, including

options stored on other menu screens, move the cursor to this option and press

the ► key.

Configuring A/V, Closed Captioning, and Other Settings B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 32

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Native Mode Settings Screen

The Native Mode Settings menu is used to configure the operation of the native mode

feature on the RNG200N. The RNG200N is capable of receiving and decoding a number

of different digital video formats. When operating in native mode, the RNG200N will

generate a video output format that most closely matches the broadcast video format .

For example, if the RNG200N is configured to operate in native mode, a channel

broadcast in the 720p format will be output to the television in the 720p format, while a

channel broadcast in the 1080i format will be output to the television in the 1080i format.

When using the native mode feature of the RNG200N, please exercise caution when

selecting the formats from the checklist. If a format is selected that is not compatible

with the television, there may be a loss of video whenever the RNG200N is tuned to a

channel which is broadcast in that format.

If the television is connected to the RNG200N using an HDMI cable, the RNG200N will

automatically customize the checklist of supported formats as reported to it by the

television. If the television is connected to the RNG200N using Component Video

(YPbPr) cables, the checklist will need to be customized manually. Note that at least one

of the [1080p - 1080i – 720p – 480p – 480i] formats must be selected from the checklist

for the RNG200N to operate properly in native mode.

The Native Mode Settings menu screen is illustrated and defined below.

Native Mode Settings menu screen

Configuring A/V, Closed Captioning, and Other Settings B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 33

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Setting

Description

1080p60

(High Definition)

If this option is selected, the RNG200N will generate 1080p60 video on the HDMI

output if the program is broadcast in 1080p60 format. The RNG200N can also convert

any other broadcast format to the 1080p60 video format.

1080p60 is a high-definition video image with 1920 x 1080 pixels, progressive

scanning, and a frame rate of 60 frames per second.

This option is only available if the RNG200N is connected to an HDMI display device.

If no HDMI connection is detected, this option is disabled and no longer selectable in

the menu.

Note: The Component Video (YPbPr) output delivers 480i video whenever the HDMI

output is delivering 1080p60 video.

1080p30

(High Definition)

If this option is selected, the RNG200N will generate 1080p30 video on the HDMI

output if the program is broadcast in 1080p30 format. The RNG200N cannot convert

any other broadcast format to the 1080p30 video format.

1080p30 is a high-definition video image with 1920 x 1080 pixels, progressive

scanning, and a frame rate of 30 frames per second.

This option is only available if the RNG200N is connected to an HDMI display device.

If no HDMI connection is detected, this option is disabled and no longer selectable in

the menu.

Note: The Component Video (YPbPr) output delivers 480i video whenever the HDMI

output is delivering 1080p30 video.

1080p24

(High Definition)

If this option is selected, the RNG200N will generate 1080p24 video on the HDMI

output if the program is broadcast in 1080p24 format. The RNG200N cannot convert

any other broadcast format to the 1080p24 video format.

1080p24 is a high-definition video image with 1920 x 1080 pixels, progressive

scanning, and a frame rate of 24 frames per second.

This option is only available if the RNG200N is connected to an HDMI display device.

If no HDMI connection is detected, this option is disabled and no longer selectable in

the menu.

Note: The Component Video (YPbPr) output delivers 480i video whenever the HDMI

output is delivering 1080p24 video.

1080i

(High Definition)

If this option is selected, the RNG200N will generate 1080i video on both the HDMI

and Component Video (YPbPr) outputs if the program is broadcast in 1080i format.

The RNG200N can also convert any other broadcast format to the 1080i video format.

1080i is a high definition video image with 1920 x 1080 pixels, interlaced scanning,

and a frame rate of 30 frames per second.

720p

(High Definition)

If this option is selected, the RNG200N will generate 720p video on both the HDMI

and Component Video (YPbPr) outputs if the program is broadcast in 720p format. The

RNG200N can also convert any other broadcast format to the 720p video format.

720p is a high-definition video image with 1280 x 720 pixels, progressive scanning,

and a frame rate of 60 frames per second.

480p

(Enhanced

Definition)

If this option is selected, the RNG200N will generate 480p video on both the HDMI

and Component Video (YPbPr) outputs if the program is broadcast in 480p format. The

RNG200N can also convert any other broadcast format to the 480p video format.

Configuring A/V, Closed Captioning, and Other Settings B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 34

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Setting

Description

480p is an enhanced-definition video image with 720 x 480 pixels, progressive

scanning, and a frame rate of 60 frames per second.

480i

(Standard

Definition)

If this option is selected, the RNG200N will generate 480i video on both the HDMI and

Component Video (YPbPr) outputs if the program is broadcast in 480i format. The

RNG200N can also convert any other broadcast format to the 480i video format.

480i is a standard-definition video image with 720 x 480 pixels, interlaced scanning,

and a frame rate of 30 frames per second.

Restore Default

Native Settings

Selecting this option will restore the checklist of video formats to its default

configuration. Use this option if audio and/or video has been lost after adjusting these

settings from their default values.

If you are the HDMI connection to your television, the checklist will be automatically

customized according to the supported formats reported by the television.

If you are using the Component Video (YPbPr) connection to your television, the

checklist will have only the 1080i and 480i formats selected.

Return to Main

Menu

Selecting this option will return you to the User Settings Menu main screen.

Configuring A/V, Closed Captioning, and Other Settings B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 35

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Additional HDMI Settings Screen

The Additional HDMI Settings menu is used to configure advanced options that affect

the operation of the RNG200N with other HDMI and DVI display devices. Adjustable

options include display mode, color space, audio output mode, and audio lip sync delay.

The Additional HDMI Settings menu screen is illustrated and defined below.

Additional HDMI Settings screen

Setting

Description

HDMI/DVI Mode

The HDMI/DVI Mode setting allows you to optimize the HDMI output to work with both

DVI-equipped televisions and HDMI-equipped televisions. By default, this option is set to

HDMI. The options are used as follows:

• HDMI—The RNG200N is optimized to work with an HDMI television or home theater

receiver.

• DVI—The RNG200N is optimized to work with a DVI television or display device

(connected via an HDMI-to-DVI adapter).

Configuring A/V, Closed Captioning, and Other Settings B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 36

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Setting

Description

Color Space

The Color Space setting allows you to adjust the color space used by the RNG200N to

generate the video signals on the HDMI output. By default, this option is set to YCC 4:4:4.

The options are used as follows:

• YCC 4:4:4—The RNG200N will generate video signals within the YCC color space.

• RGB—The RNG200N will generate video signals within the RGB color space.

Note: Adjusting these settings could result in a loss of video. Only a professional installer

or someone with a good working knowledge of the color spaces supported by the TV should

change this setting.

Audio Output

The Audio Output setting allows you to specify the digital audio format delivered over the

HDMI output by the RNG200N. Options include Auto, L-PCM, and Pass Through. By

default, the Auto option is selected. The options are used as follows:

• Auto—The RNG200N will provide the digital audio format specified by the connected

device (TV or home theater receiver) when that device was first connected to the

RNG200N.

• L-PCM—The RNG200N will provide all audio in the Linear Pulse Code Modulation

digital audio format. The L-PCM format is widely supported by most HDMI televisions

and home theater receivers.

• Pass Through—The RNG200N will provide the same digital audio format on the

HDMI output as is provided with the program being viewed at that time. For example, if

the program has a Dolby Digital soundtrack, the RNG200N will pass the Dolby Digital

audio to the HDMI output. This option is most useful when connecting the RNG200N to

a home theater receiver that has HDMI switching capability.

Note: Adjusting these settings could result in a loss of audio. Only a professional installer

or someone with a good working knowledge of the digital audio formats supported by the

TV and/or home theater receiver should change this setting

Lip Sync

The Lip Sync setting allows you to adjust the amount of time the audio signal is delayed

with respect to the video signal on the HDMI output. Some HDMI televisions and home

theater receivers add an extra delay to the video signal during processing which can

produce an effect where the audio noticeably “leads” the video.

By default, this option is set to Auto. The options are used as follows:

• Auto—The RNG200N will automatically delay the audio signal on the HDMI output by

the amount of time requested by the connected HDMI device.

• Manual—The RNG200N will delay the audio signal on the HDMI output by the

amount of time selected for the Lip Sync Delay setting.

• Off—The RNG200N will not delay the audio signal on the HDMI output.

Lip Sync Delay

The Lip Sync Delay setting is only available when the Lip Sync option has been set to

Manual. The Lip Sync Delay setting can be adjust between 0 milliseconds (msec) and 500

milliseconds in 50 millisecond increments. If the Lip Sync option has been set to either

Auto or Off, this option is disabled and no longer selectable in the menu.

Use this option to adjust the HDMI audio delay if you notice that the video image routinely

seems to be “behind” the audio soundtrack when using your HDMI device.

Return To Main

Menu

Selecting this option will return you to the User Settings Menu main screen.

Restore Default

Selecting this option will restore all of the settings on this screen (HDMI/DVI Mode,

Configuring A/V, Closed Captioning, and Other Settings B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 37

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Setting

Description

HDMI Settings

Color Space, Audio Output, and Lip Sync) to their default value. Use this option if audio

and/or video has been lost after adjusting these settings from their default values.

Configuring A/V, Closed Captioning, and Other Settings B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 38

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Additional Closed Caption Settings Screen

The Additional Closed Caption Settings menu is used to adjust the various display

options for closed caption legibility. Customizable options include font size, font style,

font color, and font opacity. Users may also select to view different closed caption

services if these are included within the broadcast program.

The Additional Closed Caption Settings menu screen is illustrated and defined below.

Additional Closed Caption Settings menu screen

Setting

Description

Service Selection

Sets the service used by the RNG200N to render (draw) the closed captions:

• Analog—This setting affects closed captions for analog and digital standard

definition services. Available options are: CC1, CC2, CC3, CC4, T1, T2, T3, or T4.

The default setting is CC1.

• Digital—This setting affects closed captions for digital enhanced definition and high

definition services. Available options are: Primary Language, Secondary

Language, 3, 4, 5, or 6. The default setting is Primary Language.

Font Size

Sets the font size used for rendering (drawing) closed captions. The default setting is

Auto. Available options include: Auto, Standard, Large, or Small.

Font Style

Sets the font style used for rendering (drawing) closed captions. The default setting is

Auto. Available options include: Auto, Mono Serif, Proportion Serif, Mono No Serif,

Proportion No Serif, Casual, Cursive, or Small Capitals.

Configuring A/V, Closed Captioning, and Other Settings B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 39

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Setting

Description

Font Color

Sets the font color used for rendering (drawing) closed captions. The default setting is

Auto. Available options include: Auto, White, Black, Red, Green, Blue, Yellow,

Magenta, or Cyan.

Font Opacity Sets the opacity used for rendering (drawing) closed captions. The default setting is

Auto. Available options include: Auto, Transparent, Translucent, Solid, or Flashing.

Font Edge Type

Sets the edge appearance used for rendering (drawing) closed captions. Available

options include: Auto, None, Raised, Depressed, Uniform, Left Shadowed, or Right

Shadowed. The default setting is Auto.

Font Edge Color

Sets the edge color used for rendering (drawing) closed captions. Available options

include: Auto, White, Black, Red, Green, Blue, Yellow, Magenta, or Cyan. The

default setting is Auto.

Background Color

Sets the background color used for rendering (drawing) closed captions. The default

setting is Auto. Available options include: Auto, White, Black, Red, Green, Blue,

Yellow, Magenta, or Cyan.

Background

Opacity

Sets the background opacity used for rendering (drawing) closed captions. The default

setting is Auto. Available options include: Auto, Transparent, Translucent, Solid, or

Flashing.

Settings

Sets the default settings for closed captions (Auto) or restores the settings you had

previously configured (User) allowing you to easily change the closed caption settings

between their default settings and your customized settings. The default setting is Auto.

Available options include: Auto or User.

Return To Main

Menu

Selecting this option will return you to the User Settings Menu main screen.

Restore Default

CC Settings

To reset all of the Additional Closed Caption settings to their default values, navigate to

this option and press the ► key.

Configuring A/V, Closed Captioning, and Other Settings B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 40

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Subtitle and DVS Settings Screen

The Subtitle and DVS Settings menu is used to customize the language and appearance

of subtitles and to turn the descriptive video service feature on and off on the RNG200N.

Subtitles allows a viewer to watch television programs and movies which contain

dialogue that is not in the viewer’s native language. Subtitles are not included within

many television programs (unlike closed captions).

A descriptive video service (DVS) is a special secondary audio track which is included

within many television programs and is intended to assist the visually impaired. The DVS

audio track provides a verbal description of each scene along with the program’s normal

dialogue.

The Subtitle and DVS Settings menu screen is illustrated and defined below.

Subtitle and DVS Settings menu screen

Setting

Description

Subtitles

The Subtitles default setting is Off. The options are used as follows:

• Off—Subtitles are not rendered (drawn) by the RNG200N.

• On—Subtitles are rendered (drawn) by the RNG200N if they are included within the

program and in the language specified by the Language setting.

When the Subtitles option is set to On, the Language selection option becomes

selectable from the menu.

Configuring A/V, Closed Captioning, and Other Settings B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 41

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Setting

Description

Language

The Language setting is only available when the Subtitles option is set to On.

Otherwise, this setting is disabled and no longer selectable in the menu.

The default language selection is English. The options are used as follows:

• English—The RNG200N will render (draw) subtitles in the English language if they

are included within the program.

• Spanish—The RNG200N will render (draw) subtitles in the Spanish language if they

are included within the program.

• French—The RNG200N will render (draw) subtitles in the French language if they

are included within the program.

• Portuguese—The RNG200N will render (draw) subtitles in the Portuguese language

if they are included within the program.

Note: The RNG200N is not capable of translating subtitles from one language into

another language. For example, if French subtitles are included with the program, the

RNG200N cannot translate them to into Portuguese if the Language option has been set

to Portuguese. The RNG200N can only display subtitles in the language(s) that have been

included within the program.

Descriptive Video

Service

The Descriptive Video Service default setting is Off. The options are used as follows:

• Off—The DVS audio track is not played by the RNG200N.

• On—The DVS audio track is player by the RNG200N if it is included within the

program.

Note: If the DVS setting is disabled and not selectable from the menu, the software

installed on the RNG200N is not capable of supporting the DVS feature.

Return To Main Menu

Selecting this option will return you to the User Settings Menu main screen.

Restore Default

Subt/DVS Settings

To reset all of the Subtitle and DVS settings to their default values, navigate to this option

and press the ► key.

Configuring A/V, Closed Captioning, and Other Settings B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 42

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Advanced Audio/Video Settings Screen

The Advanced Audio/Video Settings menu is used to customize several advanced audio

and video features of the RNG200N, most notably the Dolby Volume feature and the

Video Sharpness feature.

The Dolby Volume feature provides volume normalization across channels, programs,

and commercials. Normalization is a process where the different volume levels across

channels, programs, and commercials are adjusted to the same approximate output

volume. As a result, sudden volume changes are reduced and the overall volume output

of the RNG200N is more consistent.

The Video Sharpness feature is used to soften or sharpen Standard Definition (SD)

programs when viewed on either the HDMI or Component Video (YPbPr) outputs. When

SD programs are viewed on a large screen television, picture quality can suffer because

noise and other imperfections in the picture can be magnified on the large display. The

Video Sharpness feature can be used to soften the picture and reduce the appearance of

these imperfections.

The Advanced Audio/Video Settings menu screen is illustrated and defined below.

Advanced Audio/Video Settings menu screen

Configuring A/V, Closed Captioning, and Other Settings B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 43

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Setting

Description

Dolby Volume

The Dolby Volume default setting is Off. The options are used as follows:

• Off—The Dolby Volume feature is turned off and the output volume may fluctuate

during commercials or when changing channels.

• On—The Dolby Volume feature is turned on and the RNG200N will maintain a

more consistent output volume regardless of the channel or program being viewed.

Video Sharpness

The Video Sharpness setting allows you to adjust the picture sharpness when viewing a

standard definition (SD) program on the RNG200N. The Video Sharpness setting

affects the HDMI and Component Video (YPbPr) outputs. By default, the sharpness

level of 3 is selected.

The RNG200N supports five distinct levels of analog video picture sharpness. A value

of 1 corresponds to a “softer” picture while a value of 5 corresponds to a “sharper”

picture.

The best sharpness setting depends upon the video connection being used, the display

quality of the TV, and your own personal preference.

Return To Main

Menu

Selecting this option will return you to the User Settings Menu main screen.

Restore Default A/V

Settings

To reset all of the Advanced Audio/Video settings to their default values, navigate to

this option and press the ► key.

Troubleshooting B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 44

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Troubleshooting

Before calling your service provider, review this troubleshooting guide. This information

is to help you quickly solve a problem. If your problem still exists, contact your service

provider.

Problem

Possible Solution

The RNG set-top will

not power on

The RNG set-top may have received a software update and may not power on

while the new software is being installed. Try again in a few minutes.

Verify that the AC power cord of the external power supply is connected to the

RNG set-top and an AC outlet. Unplug the RNG set-top from the AC outlet, plug

it back in, and then press the POWER button.

If the RNG set-top is connected to a switched outlet on another unit, verify that

that unit is powered on. Unplug the power cord from the RNG set-top’s AC

outlet, plug it back it in, and then press the POWER button. Use an unswitched

outlet, if possible.

Press the POWER button on the RNG set-top front panel instead of the remote

control. The batteries in the remote control may be depleted.

The remote control

does not work

Verify that the remote control is in “Cable” mode.

Verify that there are no obstructions between the remote control and the RNG

set-top. Aim the remote control directly at the RNG set-top front panel, not the

TV or VCR.

The angle between the remote control and the RNG set-top may be too large.

Stand in front of the RNG set-top and not too far to either side.

Press and release operation keys one at a time, firmly and deliberately.

Try changing channels using the buttons on the RNG set-top front panel.

Check the batteries in the remote control. Install new batteries if needed.

There is no audio

when viewing cable

channels

Verify that the mute button on the remote control has not been pressed. Press

mute on the remote control to restore sound.

If the RNG set-top audio output is connected to the TV, verify that the mute

button on the TV has not been pressed.

If the RNG set-top audio output is connected to a home theater receiver, verify

that the receiver is set to the appropriate input source and the mute button on the

receiver has not been pressed.

Verify that you have the correct cables for the audio connections.

Verify that the audio cables are firmly connected between the RNG set-top and

the audio playback device (TV, receiver, DVD player, etc.).

There is no audio

from the center

and/or surround

speakers of a home

theater receiver

Not all programs feature full Dolby Digital [5.1] or Dolby Digital Plus [7.1]

surround sound. In some cases, the programs may only contain left and right

stereo audio.

Verify that the S/PDIF cable (coaxial or optical) is firmly connected to the RNG

8

Troubleshooting B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 45

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Problem

Possible Solution

connected to the

RNG set-top

set-top and the home theater receiver.

Verify that the home theater receiver is set to a surround sound audio mode

(Dolby Pro Logic®, Dolby Pro Logic II®, Dolby Pro Logic IIx®).

Verify that the receiver is properly configured to work with all connected

speakers.

There is no video on

the TV screen

Verify that the TV is powered on and set to the appropriate input source for the

RNG set-top.

Verify that the RNG set-top is powered on and tuned to an authorized cable

channel.

Verify that all video cables between the RNG set-top and the TV are firmly

connected.

Verify that the coaxial cable feed is firmly connected to the RNG set-top and the

wall jack.

If the RNG set-top video output is connected to a home theater unit, verify that

the home theater unit is powered on and set to the appropriate input source.

If the RNG set-top video output is connected to a TV through an HDMI

connection, power off the TV and then power off the RNG set-top. Wait one

second and then power on the devices.

Not all HDTVs can display every output format (1080p60, 1080p30, 1080p24,

1080i, 720p, 480p, or 480i) available on the RNG set-top. To select a different

format:

• Ensure that your RNG set-top is plugged into a power outlet and is turned off.

• Press the MENU key on the front panel. Your settings are displayed on the

RNG set-top front panel display.

• Press the ▲ and ▼ keys to display the HDMI/YPbPr OUTPUT setting.

• Press the ► key to cycle through the available output formats until a picture

displays on the TV.

No graphics or

program guides

appear on the TV

screen

If you use the IEEE-1394 connection, on-screen graphics, including closed

captions and program guides, are not displayed by the RNG set-top. On-screen

graphics and captions may still be overlaid by your TV, if enabled. Alternatively,

use HDMI or component video instead.

No closed captions

display

Verify on the User Settings menu that closed captions are enabled on the RNG

set-top.

Verify that closed captions are enabled on the TV.

Note: Closed captioning may not be available on the current program.

Troubleshooting B

High-Definition All-Digital Dual Tuner DVR Set-top RNG200N • User Guide 46

365-095-16097-x.1 This document is uncontrolled pending incorporation in a Motorola CMS

Problem

Possible Solution

There are black bars

to the right and left

of the picture

Wide screen TVs display 4:3 programs in this format unless set to Stretch. Turn

on the 4:3 OVERRIDE feature in the User Settings menu. This enables most

wide screen TVs to stretch the video to fill the screen (see your TV manual for

information about stretching 4:3 video).

If the RNG set-top is connected to a wide screen TV, verify that the TV TYPE is

set to 16:9 in the User Settings menu.

Many HD programs are broadcast in pillar-box format with black bars to the left

and right of the picture. These programs are broadcast in 16:9 HD formats even

though the video is not 16:9.

There are black bars

above and below the


All 4:3 HDTVs display HD programs in letterbox format (black bars above and

below the picture) because of the shape of the display screen.

Turn on the 4:3 OVERRIDE feature in the User Settings menu. This enables

most standard screen TVs to display a full screen picture when the RNG set-top

is tuned to a 4:3 program.

Set the TV TYPE to 4:3 Pan-Scan. This enables the RNG set-top to remove the

black bars above and below the picture when possible.

Some SD programs are broadcast in the letterbox format with black bars above

and below the picture. Some widescreen TVs offer a zoom feature that may be

able to remove the black bars (see your TV manual for information about

zooming 4:3 video).

There are black bars

on all four sides of

the picture

This may occur on a 4:3 TV if the 4:3 OVERRIDE setting is OFF. To set 4:3 SD

programming to fill the screen, depending on the capabilities of the TV, set

4:3 OVERRIDE to 480i or 480p.

This may occur on a 16:9 TV if the active video for an SD broadcast is in

letterbox format. To confirm, wait for a commercial or look for a graphic, such as

a network logo. If the commercial fills the screen from top to bottom, or the

graphic appears below the active video, the program is being letterboxed by the

broadcaster. You can minimize this by activating the zoom feature on the TV.

A broadcaster may include black bars on either side of a wide screen broadcast.

This is called a “hybrid” aspect ratio and results in a black border surrounding the

video on a 4:3 TV. Because this is part of the broadcast, the RNG set-top cannot

correct the video. You may be able to minimize the border using the zoom

feature on the TV.

Colors do not appear

correctly

Be sure to match up each signal to the same YPbPr connection on the TV,

otherwise the colors will not appear correctly on your TV.

The RNG set-top is

making a humming

noise.

The RNG set-top includes an integrated hard drive and a fan for cooling. During

normal operation, the RNG set-top emits a low humming noise, similar to a

personal computer. The noise varies in volume occasionally when the speed of

the internal fan adjusts to changes in the temperature around the RNG set-top.

Please note the hard drive will stay on even when the RNG set-top is turned off

(standby).

Motorola Mobility, Inc.

101 Tournament Drive, Horsham, PA 19044 www.motorola.com

365-095-16097 x.1 12/10
