SPECIFICATION SHEET
VIP1216(European Version)
High-Defi nition IP Video Set-Top Box with Digital Video Recording (DVR)
The Motorola VIP1216 is a superior, high defi nition IP set-top with a built-in hard disk drive for DVR
functionality. The VIP1216 also supports standard-defi nition high-quality digital video. Its two-way IP
capability allows it to be used in multiple applications, including broadcast TV, time-shifted TV, multicast
and VoD and is fully compliant with Microsoft® IPTVe. The VIP1216 includes a high-end system-on-chip
processor and enhanced graphics to decode HD and SD digital TV, as well as output high-quality surround
sound audio.
FEATURES
• High-Defi nition and Standard-
Defi nition television decoding
• Support for Digital Rights
Management (DRM)
• High-Defi nition Multi-media
Interface (HDMI) connectivity
with High-Bandwidth Digital
Content Protection (HDCP)
• IR remote receiver
• Two-way IP data communication
• System-on-chip (SoC) 400+ DMIPS
processor
• 128 MB DRAM
• 32 MB Flash memory (optional)
• Industry-standard video, audio,
and data outputs (see “Technical
Specifi cations” for details)
• Dolby® Digital AC3 and AAC digital
audio
• Macrovision® copy protection
• Digital video scaling and hardware
support for Picture-in-Picture
• Hardware-based (SoC) video
decoding: MPEG-4 AVC (H.264),
VC-1, and MPEG-2
BENEFITS
• Superior high-defi nition video and
all-digital sound quality
• Connects to High-Defi nition (HD) or
Standard-Defi nition (SD) televisions
• Integrated hard disk drive (HDD)
for DVR functionality with
watch-and-record capabilities
• Supports feature-rich applications
and graphics
• Supports digital TV functionality,
including electronic program guide
(EPG), video on demand (VoD),
multicast and DVR
• Hardware support for whole home
DVR
Motorola, Inc.
Connected Home Solutions
Basingstoke-Viables, Jays Close, Viables Industrial Estate, Basingstoke
Hampshire, RG22 4PD, United Kingdom www.motorola.com/ipvideo
MOTOROLA and the Stylized M Logo are registered in the U.S. Patent and Trademark Offi ce.
Dolby is a registered trademark of Dolby
Laboratories.
Microsoft Corporation in the United States and/or other countries.
Macrovision is a registered trademark of Macrovision Corporation.
All
other product or service names are the property of their registered owners.
© Motorola, Inc. 2006 All rights reserved.
Features and functions subject to change without notice.
534034-001-a 1006-0K
TECHNICAL SPECIFICATIONS
Middleware
Full support for Microsoft IPTV Edition Middleware solution
Security
Full support for Microsoft
’
s DRM solution

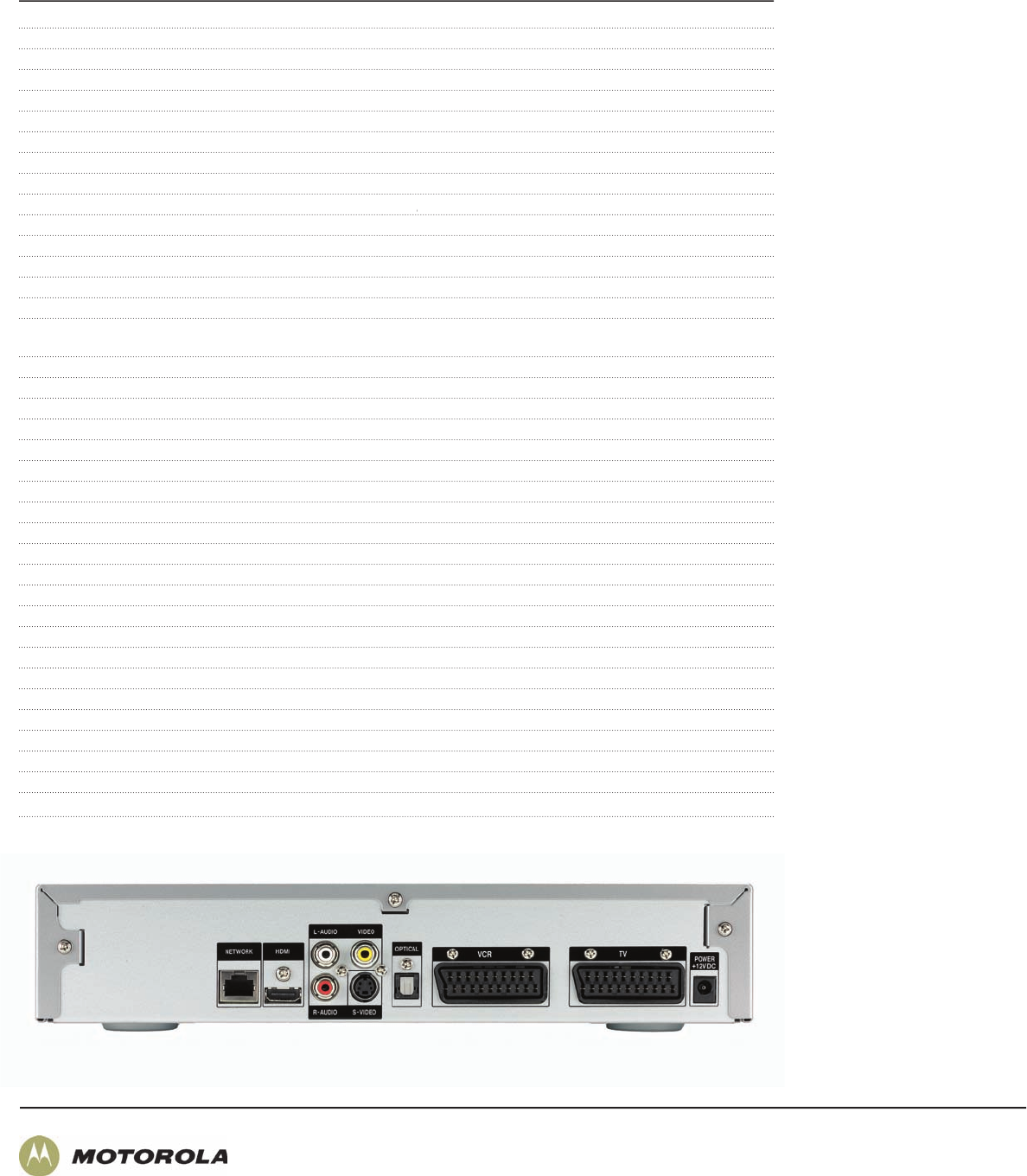

Interfaces
Video
High-Definition TV HDMI with HDCP support
Standard-Definition TV S-video, Composite video
, SCART
Video codecs (advanced compression) MPEG-2, MPEG-4 (H.264), VC-1
Audio
AAC, MPEG-1 (MP3), Dolby AC3 Optical S/PDIF
,
AAC, MPEG-1 (MP3), Dolby AC3 Optical S/PDIF, AAC, MPEG-1 (MP3), Dolby AC3 Optical S/PDIF
Left/Right Audio (RCA connectors)
Other
IR receiver for remote Standard
USB Version 1.1 (front panel)
Ethernet 10/100Base-T Ethernet/RJ-45
Power input External power supply
Hard disk drive Built-in 160GB HDD standard
(80GB and 250GB HDD versions also available)
SOFTWARE
Operating System
Windows
®
CE version 5.0
Streaming protocols RTSP, RTP
Software upgrade Remote software download/upgrade
Copy protection Macrovision Rev.
7.1
,
HDCP
User interface
Microsoft IPTV Edition User Interface
HARDWARE
Size 30.48 cm (12 in.) x 27.94 cm (11 in.) x 6.99 cm (2.75 in.)
Weight 4.38 kg (9.65 lbs)
Processor/Memory
CPU 400+ DMIPS
DRAM 128 MB standard unified
Flash 32MB (o
ptional)
Video resolution
480i, 480p, 576i, 576p, 720p, 1080i
Operating Requirements
Operating temperature 0
°
C to 40
°
C (32
°
F to 104
°
F)
Operating humidity 8% to 95% (noncondensing)
Power supply
AC voltage 200 to 240 VAC
DC input 12 V
Power consumption 24 W max.
REGULATORY
UL, CE, SABS, RoHS, EN60950, EN55022, EN55024
LIMITED PRODUCT WARRANTY
Two years
