motorola.com
V235
GSM
Cover.Print.Front.UG.landscape.eng.fm Page 1 Wednesday, December 7, 2005 5:02 PM
Cover.Print.Front.UG.landscape.eng.fm Page 2 Wednesday, December 7, 2005 5:02 PM
1
HELLOMOTO
Introducing your new Motorola V235 GSM wireless phone. Here’s a quick anatomy lesson.
Left Soft Key
Navigate menus.
Select menu items.
Open menus.
Volume Keys
Charge up,
go handsfree.
Voice Key
Right Soft Key
Turn on & off,
hang up, exit menus.
Make & answer calls.
Smart Key
2
Motorola, Inc.
Consumer Advocacy Office
1307 East Algonquin Road
Schaumburg, IL 60196
www.hellomoto.com
Certain mobile phone features are dependent on the
capabilities and settings of your service provider’s
network. Additionally, certain features may not be
activated by your service provider, and/or the
provider's network settings may limit the feature’s
functionality. Always contact your service provider
about feature availability and functionality. All
features, functionality, and other product
specifications, as well as the information contained
in this user's guide are based upon the latest
available information and are believed to be accurate
at the time of printing. Motorola reserves the right to
change or modify any information or specifications
without notice or obligation.
MOTOROLA and the Stylized M Logo are registered
in the US Patent & Trademark Office. Java and all
other Java-based marks are trademarks or registered
trademarks of Sun Microsystems, Inc. in the U.S. and
other countries. All other product or service names
are the property of their respective owners.
© Motorola, Inc., 2006.
Manual Number: 6809499A63-O
contents
3
contents
menu map. . . . . . . . . . . . 5
essentials . . . . . . . . . . . . 8
about this guide . . . . . . 8
SIM card. . . . . . . . . . . . 9
battery . . . . . . . . . . . . . 9
turn it on & off . . . . . . . 11
make a call . . . . . . . . . 12
answer a call. . . . . . . . 12
your phone number . . 12
main attractions . . . . . . 13
take & send a photo . . 13
send a stored photo
in a message . . . . . . . 14
record video . . . . . . . . 15
cable connections. . . . 16
basics. . . . . . . . . . . . . . . 17
display . . . . . . . . . . . . 17
menus . . . . . . . . . . . . 20
text entry . . . . . . . . . . 21
volume . . . . . . . . . . . . 25
navigation key. . . . . . . 26
external display. . . . . . 26
handsfree speaker . . . 26
codes & passwords . . 27
lock & unlock phone . . 27
customize . . . . . . . . . . . 29
ring style. . . . . . . . . . . 29
time & date. . . . . . . . . 30
wallpaper . . . . . . . . . . 30
screen saver . . . . . . . . 30
display appearance . . . 31
answer options. . . . . . 31
calls . . . . . . . . . . . . . . . . 33
turn off a call alert . . . . 33
recent calls . . . . . . . . . 33
redial. . . . . . . . . . . . . . 34
automatic redial . . . . . 35
return a call . . . . . . . . . 35
notepad . . . . . . . . . . . 35
hold or mute a call . . . 36
call waiting . . . . . . . . . 36
caller ID . . . . . . . . . . . 36
emergency calls . . . . . 37
international calls . . . . 37
1-touch dial . . . . . . . . . 37
voicemail. . . . . . . . . . . 38
other features . . . . . . . . 39
advanced calling . . . . . 39
phonebook . . . . . . . . . 42
4
contents
messages . . . . . . . . . . 47
personalizing . . . . . . . . 50
call times & costs . . . . 54
handsfree . . . . . . . . . . 55
data & fax calls . . . . . . 56
network . . . . . . . . . . . . 57
personal organizer . . . . 57
security . . . . . . . . . . . . 59
fun & games . . . . . . . . 60
service and repairs . . . . 64
SAR Data . . . . . . . . . . . . 65
Safety Information . . . . 69
Warranty. . . . . . . . . . . . . 75
Hearing Aid
Compatibility. . . . . . . . . 81
WHO Information . . . . . 83
Product Registration . . . 83
Export Law
Assurances. . . . . . . . . . . 84
Wireless: The New
Recyclable . . . . . . . . . . . 84
Smart Practices While
Driving . . . . . . . . . . . . . . 86
index. . . . . . . . . . . . . . . . 88
menu map
5
menu map
main menu
n
Phonebook
s
Recent Calls
• Received Calls
• Dialed Calls
• Notepad
• Call Times*
• Call Cost*
• Data Times*
• Data Volumes*
e
Messages
• Create Message
• Message Inbox
• Outbox
•Drafts
• Info Services*
•Voicemail
•Quick Notes
•MMS Templates
• Browser Msgs
É
To o l s
•Calculator
• Datebook
• Shortcuts
•Alarm Clock
• Dialing Services
Q
Games & Apps
á
Web Access
•Browser
• Web Shortcuts
• Stored Pages
•History
•Go To URL
•Browser Setup
• Web Sessions
h
Multimedia
•Pictures
• Sounds
•Camera
• Video Camera
• Videos
Ü
Voice Records**
w
Settings
• (see next page)
* optional features
** This feature may appear
under the
ÉTools
menu,
depending on your carrier.
This is the standard main
menu layout. Your phone’s
menu may be a little different.
6
menu map
settings menu
l
Personalize
• Home Screen
• Main Menu
• Color Style
• Greeting
• Wallpaper
• Screen Saver
t
Ring Styles
•Style
• Style Detail
L
Connection
•Sync
H
Call Forward *
• Voice Calls
• Fax Calls
•Data Calls
•Cancel All
• Forward Status
U
In-Call Setup
• In-Call Timer
• Call Cost Setup
• My Caller ID
• Talk and Fax
• Answer Options
• Call Waiting
Z
Initial Setup
• Time and Date
• 1-Touch Dial
• Auto Redial*
• Display Timeout*
• Backlight
•Scroll
• Language
• Contrast
•DTMF
• Master Reset
•Master Clear
m
Phone Status
•My Tel. Numbers
• Active Line*
•Battery Meter
• Software Update
• Other Information
S
Headset
• Auto Answer
•Voice Dial
J
Car Settings
• Auto Answer
• Auto Handsfree
j
Network
•New Network
•Network Setup
• Available Networks
• My Network List*
• Service Tone*
• Network Jingle *
• Call Drop Tone
c
Java Settings
• Java System
• Delete All Apps
• App Vibration
• App Volume
• App Backlight
* optional features
menu map
7
Use and Care
To care for your Motorola phone, please keep it away from:
liquids of any kind dust and dirt
Don’t expose your phone to water,
rain, extreme humidity, sweat, or
other moisture.
Don’t expose your phone to dust, dirt,
sand, food, or other inappropriate
materials.
extreme heat or cold cleaning solutions
Avoid temperatures below
-10°C/14°F or above 45°C/113°F.
To clean your phone, use only a dry
soft cloth. Don’t use alcohol or other
cleaning solutions.
microwaves the ground
Don’t try to dry your phone in a
microwave oven.
Don’t drop your phone.
8
essentials
essentials
about this guide
This guide shows how to locate a menu
feature as follows:
Find it:
Press
M
>
sRecent Calls
>
Dialed Calls
This example shows that, from the home
screen, you press
M
to open the menu,
highlight and select
sRecent Calls
, then
highlight and select
Dialed Calls
.
Press
S
to scroll to and highlight a menu
feature. Press the
SELECT
key to select the
highlighted menu feature.
CAUTION: Before using the
phone for the first time, read the
Important Safety and Legal
Information
included in the gray-
edged pages at the back of this
guide.
symbols
This means a feature is
network/subscription dependent and
may not be available in all areas.
Contact your service provider for more
information.
This means a feature requires an
optional accessory.
9
essentials
SIM card
Yo u r Subscriber Identity Module (SIM) card
contains personal information like your phone
number and phonebook entries.
Caution:
Don’t bend or scratch your SIM card.
Keep it away from static electricity, water, and
dirt.

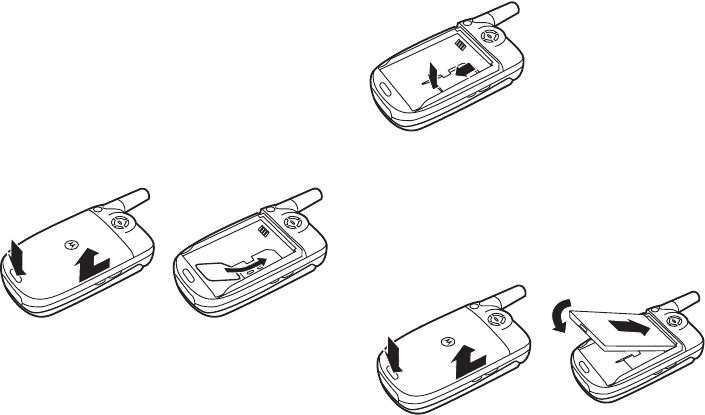

To install a SIM card:
To remove a SIM card:
battery
battery installation
12
12
10
essentials

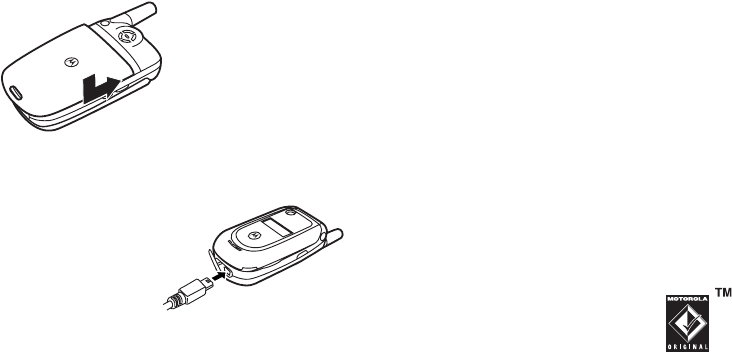

battery charging
New batteries are
not fully charged.
Plug the travel
charger into your
phone and an
electrical outlet.
Your phone displays
Charge Complete
when
finished.
Tip:
Relax, you can’t overcharge your battery.
It will perform best after you fully charge and
discharge it a few times.
You can charge your battery by connecting a
cable from your phone’s mini-USB port to a
USB port on a computer. Both your phone and
the computer must be turned on, and your
computer must have the correct software
drivers installed. Cables and software drivers
are available in Motorola Original data kits,
sold separately.
battery tips
Battery life depends on the network, signal
strength, temperature, features, and
accessories you use.
•
Always use
Motorola Original batteries
and chargers. The warranty
does not cover damage
caused by non-Motorola batteries
and/or chargers.
3
11
essentials
•
New batteries or batteries stored for a
long time may take more time to
charge.
•
When charging your battery, keep it
near room temperature.
•
When storing your battery, keep it
uncharged in a cool, dark, dry place.
•
Never expose batteries to
temperatures below -10°C (14°F) or
above 45°C (113°F). Always take your
phone with you when you leave your
vehicle.
•
It is normal for batteries to gradually
wear down and require longer charging
times. If you notice a change in your
battery life, it is probably time to
purchase a new battery.
Contact your local recycling center for
proper battery disposal.
Warning:
Never dispose of batteries in a fire
because they may explode.
Before using your phone, read the battery
safety information in the “Safety and General
Information” section included in this guide.

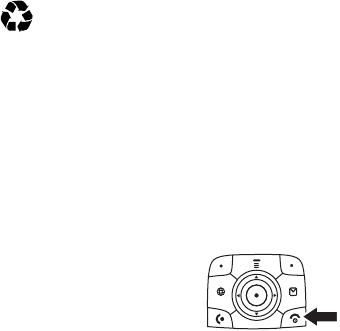

turn it on & off
To turn on your phone,
press and hold
u
for a
few seconds or until the
display turns on. If
prompted, enter your
6-digit SIM card PIN code and/or 4-digit unlock
code.
Caution:
If you enter an incorrect PIN code 3
times in a row, your SIM card is disabled and
032375o
12
essentials
your phone displays
SIM Blocked
. Contact your
service provider.
To turn off your phone, press and hold
u
for
2 seconds.
make a call
Enter a phone number and press
U
to make
a call.
To “hang up,” close the flip or press
u
.
answer a call
Note:
Your phone cannot receive data over an
EDGE network while it is playing videos or
some sound files. The EDGE
È
status
indicator appears at the top of your display
when you can receive data over an EDGE
network.
When your phone rings and/or vibrates, just
open the flip or press
U
to answer.
To “hang up,” close the flip or press
u
.
your phone number
From the home screen, press
M#
to see
your number.
Tip:
Want to see your phone number while
you’re on a call? Press
M
>
My Tel. Numbers
.
To store or edit your name and phone
number on your SIM card, press the
Edit
key while displaying it. If you don’t know your
phone number, contact your service provider.
13
main attractions
main attractions
You can do much more with your phone than
make and receive calls!
take & send a photo
Press
M
>
h
Multimedia
>
Camera
to see the
camera viewfinder:
Note:
Adjusting the exposure will affect the
brightness of both the Photo Viewfinder
display and the captured photo.
1
Point the camera lens at the photo
subject.
You can press
M
to open the
Pictures Menu
.
See the table after this procedure.
2
Press the
Capture
key to take a photo.
3
To send the photo in a multimedia
message, press
Store
>
Send in Message
, enter
a text note, press
Send To
, scroll to and
select a recipient address, press the
center key
s
,then press
Send
.
or
To store the photo, press
Store
>
Store Only
.
Press
S
up or down to
zoom in or
out.
Remaining
photos you
can capture.
Return to previous
screen.
Press
S
left or right to
change
exposure.
Take a photo.
Press
M
to open
Pictures menu.
CaptureBack
Photo Viewfinder
100 Remaining
AREA
14
main attractions
or
To delete the photo and return to the
active viewfinder, press the
Discard
key.
When the viewfinder is active, press
M
to
open the
Pictures Menu
:
send a stored photo in a
message
1
Press
M
>
eMessages
>
Create
Message
>
New Multimedia Msg
.
2
Press
M
>
Insert
>
.
3
Scroll to the picture you want to insert and
press
Insert
.
4
Enter message text and press
Send To
.
5
Scroll to the recipient address, press the
center key
s
, and press
Send To
.
option
Go To Pictures
View stored pictures and
photos.
Auto-Timed Capture
Set a timer for the
camera to take a photo.
Pictures Setup
Open the setup menu to
adjust photo settings.
View Free Space
See how much memory
remains.
15
main attractions
record video
Press
M
>
hMultimedia
>
Video Camera
to see
the video viewfinder.
Note:
You can zoom only before you start
recording. The number of video clips
remaining is an estimate.
If you want to send your video in an MMS
message, the video length must be set to
MMS. To set length, from the video
viewfinder press
M
>
Videos Setup
>
Video Length
.
Point the camera lens at the video subject,
then:
1
Press the
Capture
key to start the video
recording.
2
Press the
Stop
key to stop the video
recording.
3
To send the video clip in a multimedia
message, press
Store
>
Send in Message
,
enter a text note, press
Send To
, scroll to
and select a recipient address, press the
center key
s
, then press
Send
.
or
To store the video clip, press
Store
>
Store
Only
.
or
Press
S
up or down to
zoom in or out.
Remaining
clips you can
capture
Start video
capture.
Return to previous
screen.
Press
M
to
open Videos
Menu.
VIDEO
CLIP
AREA
Video Viewfinder
104 Remaining
Back Capture
16
main attractions
To delete the video clip and return to the
active viewfinder, press the
Discard
key.
cable connections
Your phone has
a mini-USB port
so you can connect it
to a computer to
transfer data. You
can:
•
Synchronize phonebook and datebook
information between your phone and a
computer or hand-held device.
•
Use your phone as a modem to
connect to the Internet.
•
Use your phone to send and receive
data calls from your computer or
handheld device.
Note:
Motorola Original USB data
cables and supporting software are
sold separately. Check your
computer or hand-held device to
determine the type of cable you need.
To
transfer data
between your phone and
computer, you must install the software
included with the Motorola Original data kit.
See the data kit user’s guide for more
information. To make
data and fax calls
through a connected computer, see page 56.
17
basics
basics
See page 1 for a basic phone diagram.
display
The home screen displays when you turn on
the phone. To dial a number from the home
screen, press number keys and then
U
.
Note:
Your home screen may look different
from the one below, depending on your
service provider.
The Menu Indicator
å
shows that you can
press
M
to open the menu. Soft Key Labels
show the current soft key functions. For soft
key locations, see page 1.
Ç
Clock
Right Soft
Key Label
Menu Indicator
Left Soft
Key Label
Service Provider
3:56pm
Setting Phonebook
25-APR-05
Date
18
basics
Status indicators can display at the top of the
home screen:
1 Signal Strength Indicator –
Vertical bars
show the strength of the network
connection. You can’t make or receive
calls when
!
or
)
displays.
2 EDGE/GPRS Indicator –
Shows
when your phone is using a
high-speed Enhanced Data for GSM
Evolution (EDGE) or General Packet Radio
Service (GPRS) network connection.
Indicators can include:
3 Data Indicator –
Indicators can
include:
&È7Wr YÉ
?
040079b
5. Active Line
6. Message
7. Ring Style
8. Battery
Level
4. Roam
3. Data
2. EDGE /
GPRS
1. Signal
Strength
Service Provider
3:56pm
Setting Phonebook
25-APR-05
*
= GPRS PDP context
active
È
= EDGE
+
= GPRS packet data
available
4
= secure packet
data transfer
7
= unsecure
packet data
transfer
3
= secure
application
connection
6
= unsecure
application
connection
2
= secure Circuit
Switch Data (CSD)
call
5
= unsecure
CSD call
19
basics
4Roam Indicator –
Shows
W
when
your phone is seeking or using a
network outside your home network.
5 Active Line Indicator –
Shows
?
to indicate an active call, or
>
to
indicate when call forwarding is on.
Indicators for dual-line-enabled SIM cards
can include:
6 Message Indicator –
Shows when
you receive a new message.
Indicators can include:
7 Ring Style Indicator –
Shows the ring
style setting.
8 Battery Level Indicator –
Vertical bars
show the battery charge level. Recharge
the battery when your phone shows
Low Battery
.
@
= line 1
active
A
= line 1 active, call
forward on
B
= line 2
active
C
= line 2 active, call
forward on
r
= text message
t
= voice
message
Y
= loud ring
†
= vibrate &
ring
X
= soft ring
Ó
= vibrate then
ring
|
= vibrate
Ò
= silent
20
basics
menus
From the home screen, press
M
to enter the
main menu.
The following menu icons may be available,
depending on your service provider and
service subscription options.
Some features require you to select an option
from a list:
Exit Select
Games & Apps
ens
ÉQ
á
hÜw
Scroll up, down,
left, or right.
Press center to
select
highlighted
menu feature.
Exit the main
menu.
Name of
Highlighted
Menu Feature
Icon
Select
highlighted menu
feature.
Exit menu without
making changes.
menu features
eMessages nPhonebook
sRecent Calls ÉTools
QGames & Apps áWeb Access
hMultimedia ÜVoice Records
wSettings
Highlighted
Option
Press Back key
to go back to
previous
screen.
Press
S
to scroll down
to other
options.
Dialed Calls
✓10) John Smith
✓9) Lisa Owens
✓8) Adda Thomas
7) Jack Bradshaw
✓6) Mary Smith
5) Carlos Emrys
✓4) Dave Thompson
✓3) Lisa Owens
Back View
G
Press View key
to view details
of highlighted
option.
Press
M
to
open sub-menu
21
basics
•
Scroll up or down to highlight the
option you want.
•
In a numbered list, press a number key
to highlight an option.
•
In an alphabetized list, press a key
repeatedly to cycle through its letters
and highlight the closest matching list
option.
•
When an option has a list of possible
settings, scroll left or right to select the
setting.
•
When an option has a list of possible
numeric values, press a number key to
set the value.
text entry
Some features let you enter text.
Press
#
in a text entry screen to select an
entry mode:
M
Msg 450
ìk
For indicator
descriptions,
see following
section.
Flashing
cursor
indicates
insertion point.
After you enter
text, press the
Send To key to
enter
recipients.
Press M to
open sub-
menu.
Press the Cancel
key to
exit
without making changes.
Cancel Send To
22
basics
To set your primary and secondary text entry
modes, press
M
>
Entry Setup
in a text entry
screen and select
Primary Setup
or
Secondary Setup
.
Tip:
WANT TO SHOUT YOUR MESSAGE?
Press
0
in a text entry screen to change text
case to all capital letters (
L
), no capital letters
(
í
) or mixed capitals (
ì
).
iTAP® mode
Press
#
in a text entry screen to switch to
iTAP mode. If you don’t see
j
or
p
, press
M
>
Entry Setup
to set iTAP mode as your
primary or secondary text entry mode.
iTAP mode lets you enter words using 1 key
press per letter. The iTAP software combines
your keypresses into common words, and
predicts each word as you enter it.
entry mode
j
or
g
Your
Primary
text entry mode can
be set to any iTAP®
j
or tap
g
mode.
p
or
m
Your
Secondary
text entry mode can
be set to any iTAP
p
or tap
m
mode, or set to
None
if you don’t
want a secondary entry mode.
gm Numeric
mode enters numbers
only.
[Symbol
mode enters symbols only.
23
basics
For example, if you press
7764
,
your phone displays:
•
If you want a different word (such as
Progress
), continue pressing keypad keys
to enter the remaining letters.
•
To enter numbers quickly, press and
hold a number key to temporarily
switch to numeric mode. Press the
number keys to enter the numbers you
want. Enter a space to change back to
iTAP mode.
•
Press
1
to enter punctuation or other
characters.
tap mode
Press
#
in a text entry screen to switch to
tap mode. If you don’t see
ìg
or
ìm
, press
M
>
Entry Setup
to set tap mode as your
primary or secondary text entry mode.
To enter text in tap mode, press a keypad key
repeatedly to cycle through the letters and
number on the key. Repeat this step to enter
each letter.
Msg 443
íj
Select
Prog ram
ProgProhSpoiProi
Delete
Press Delete key
to delete last
letter.
Press
S
up to accept
Program.
Press
S
right
to highlight
another
combination.
Press * to
enter Prog and
a space.
Press Select key to lock
highlighted combination.
24
basics
For example, if you press
8
1 time, your
phone displays:
When you enter 3 or more characters in a
row, your phone may guess the rest of the
word. For example, if you enter
prog
your
phone might display:
•
The first character of every sentence is
capitalized. If necessary, press
S
down to change the character to
lowercase before the cursor moves to
the next position.
•
Press
S
to move the flashing cursor
to enter or edit message text.
•
If you don’t want to save your text or
text edits, press
u
to go to
Msg Abort
M
Msg 449
íg
Character
displays at
insertion point.
After you enter
text, press the
Send To key to
enter
recipients.
Press the Delete
key to
delete
character to left of insertion
point.
After
2 seconds,
character is
accepted and
cursor moves
to next
position.
Delete Send To
T
Msg 443
í1
M
Character
displays at
insertion point.
Press
S
right to accept
Program, or
press *
to reject it and
enter a space
after Prog.
Send To
Prog ram
Delete
25
basics
Options
. Select
Abort Message
to exit
without saving.
•
Tap extended mode cycles through
additional special characters and
symbols as you repeatedly press a
keypad key.
numeric mode
Press
#
in a text entry screen until you see
gm
. Press the number keys to enter the
numbers you want.
symbol mode
Press
#
in a text entry screen until you see
[
. Press a keypad key to show its symbols at
the bottom of the display. Highlight the
symbol you want, then press the
Select
key.
volume
Press the volume keys
to:
•
turn off an
incoming call
alert
•
change the earpiece volume during
calls
•
change the ringer volume from the
home screen
Tip:
Sometimes silence really is
golden. That’s why you can quickly set
your ringer to
Vibrate
or
Silent
by holding
the down volume key in the home
screen.
26
basics
navigation key
Press the navigation key
S
up, down, left, or right to
scroll and highlight items in
the display. When you
highlight something, press
the center key
s
to select it. The center key
usually does the same thing as the right soft
key.
external display
When your phone is closed, the external
display shows the time, date, status
indicators, and notifications for incoming calls
and other events. For a list of phone status
indicators, see page 18.
To set the phone ring style in the external
display:
1
Press a volume key to display
Style:
style
name.
2
Press the smart key repeatedly, until the
style you want appears.
3
Press a volume key to return to the home
screen.
handsfree speaker
You can use your phone’s handsfree speaker
to make calls without holding the phone to
your ear.
During a call, press the
Speaker
key to turn the
handsfree speaker on. Your phone displays
Spkrphone On
. Press the
Speaker
key again to turn
off the handsfree speaker.
Note:
The handsfree speaker won’t work
when your phone is connected to a handsfree
car kit or headset.
27
basics
codes & passwords
Your phone’s 4-digit
unlock code
is originally
set to
1234
. The 6-digit
security code
is
originally set to
000000
. If your service
provider didn’t change these codes, you
should change them:
Find it:
Press
M
>
wSettings
>
Security
>
New Passwords
You can also change your
SIM PIN2
or call
barring passwords.
If you forget other codes:
If you forget your
security code, SIM PIN code, PIN2 code, or
call barring password, contact your service
provider.
If you forget your unlock code:
At the
Enter Unlock Code
prompt, try entering 1234 or the
last 4 digits of your phone number. If that
doesn’t work, press
M
and enter your 6-digit
security code instead.
lock & unlock phone
You can lock your phone to keep others from
using it. To lock or unlock your phone, you
need the 4-digit unlock code.
To
manually lock
your phone:
Press
M
>
wSettings
>
Security
>
Phone Lock
>
Lock Now
> unlock code.
To
automatically lock
your phone whenever
you turn it off: Press
M
>
wSettings
>
Security
>
Phone Lock
>
Automatic Lock
>
On
> unlock code.
Note:
You can make emergency calls on a
locked phone (see page 37). A locked phone
still rings or vibrates for incoming calls or
messages,
but you need to unlock it to
answer
.
battery meter
View a meter that shows your battery’s
charge level:
28
basics
Find it:
Press
M
>
wSettings
>
Phone Status
>
Battery Meter
29
customize
customize
ring style
Each ring style profile uses a different set of
sounds or vibrations for incoming calls and
other events. Here are the profiles you can
choose:
The ring style profile’s indicator displays at the
top of your home screen. To choose your
profile:
Find it:
Press
M
>
wSettings
>
Ring Styles
>
Style:
style_name
change alerts in a ring style
You can change the alerts for incoming calls
and other events. Your changes are saved in
the current ring style profile.
Find it:
Press
M
>
wSettings
>
Ring Styles
>Style
Detail
Note:
Style represents the current ring style.
You can’t set an alert for the
Silent
ring style
setting.
1
Highlight
Line 1
or
Line 2
, then press the
Change
key to change it.
2
Highlight the alert you want, then press
the
Select
key.
3
Press the
Back
key to save the alert setting.
YLoud †Vibe & Ring
XSoft ÓVibe Then Ring
|Vibrate ÒSilent
30
customize
time & date
You need to set your phone’s time and date to
use the datebook.
To set the time and date: Press
M
>
wSettings
>
Initial Setup
>
Time and Date
>time or date.
To ch o o se a n
analog or digital
clock for your
home screen, press
M
>
wSettings
>
Personalize
>
Home Screen
>
Clock
.
wallpaper
Set a photo, picture, or animation as a
wallpaper (background) image in your home
screen.
Find it:
Press
M
>
wSettings
>
Personalize
>
Wallpaper
screen saver
Set a photo, picture, or animation as a screen
saver. The screen saver displays when the flip
is open and no activity is detected for a
specified time.
Tip:
This feature helps save your screen, but
not your battery. To extend battery life, turn off
the screen saver.
option
Select an image for your wallpaper,
or
None
for no wallpaper.
Layout
Select
Center
to center the image in
the display,
Tile
to repeat the image
across the display, or
Fit-to-screen
to
stretch the image across the
display.
31
customize
Find it:
Press
M
>
wSettings
>
Personalize
>
Screen Saver
display appearance
To choose a
color style
that sets the look of
your phone’s display:
Press
M
>
wSettings
>
Personalize
>
Color Style
.
To adjust the
contrast
of your phone’s display:
Press
M
>
wSettings
>
Initial Setup
>
Contrast
To save battery life, your
backlight
turns off
when you’re not using your phone. The
backlight turns back on when you open the flip
or press any key. To set how long your phone
waits before the backlight turns off:
Press
M
>
wSettings
>
Initial Setup
>
Backlight
.
Note:
To turn the backlight on or off for Java™
applications, press
M
>
wSettings
>
Java Settings
>
App Backlight
.
To save battery life, the
display
can turn off
when you’re not using your phone. The
display turns back on when you open the flip
or press any key. To set how long your phone
waits before the display turns off:
Press
M
>
wSettings
>
Initial Setup
>
Display Timeout
.
answer options
You can use different ways to answer an
incoming call. To turn on or turn off an answer
option:
option
Select an image for your screen
saver, or
None
for no screen saver.
Delay
Select the length of inactivity
before the screen saver displays.
32
customize
Find it:
Press
M
>
wSettings
>
In-Call Setup
>
Answer Options
option
Multi-Key
Answer by pressing any key.
Open To Answer
Answer by opening the flip.
33
calls
calls
To make and answer calls, see page 12.
turn off a call alert
You can press the volume keys to turn off a
call alert before answering the call.
recent calls
Your phone keeps lists of incoming and
outgoing calls, even for calls that didn’t
connect. The most recent calls are listed first.
The oldest calls are deleted as new calls are
added.
Shortcut:
Press
U
from the home screen to
see the dialed calls list.
Find it:
Press
M
>
sRecent Calls
1
Highlight
Received Calls
or
Dialed Calls
, then
press the
Select
key.
2
Highlight a call. A
Á
next to a call means
the call connected.
•
To call the number, press
U
.
•
To see call details (like time and date),
press the
View
key.
•
To see the
Last Calls Menu
, press
M
. This
menu can include:
34
calls
redial
1
Press
U
from the home screen to see
the dialed calls list.
2
Highlight the entry you want to call, then
press
U
.
If you hear a
busy signal
and see
Call Failed, Number Busy
, press
U
or the
Retry
key to redial the number. When the call goes
option
Store
Create a phonebook entry
with the number in the
No.
field.
Store
does not appear if
the number is already stored.
Delete
Delete the entry.
Delete All
Delete all entries in the list.
Hide
ID/Show ID
Hide or show your caller ID
for the next call.
Send Message
Open a new text message
with the number in the
To
field.
Add Digits
Add digits after the number.
Attach Number
Attach a number from the
phonebook or recent calls
lists.
Send Tones
Send the number to the
network as DTMF tones.
Note:
This option displays
only during a call.
Talk then Fax
Talk and then send a fax
in the same call (see
page 56).
option
35
calls
through, your phone rings or vibrates once,
displays
Redial Successful
, and connects the call.
automatic redial
When you receive a
busy signal
, your
phone displays
Call Failed, Number Busy
. With
automatic redial, your phone automatically
redials the number for up to four minutes.
When the call goes through, your phone rings
or vibrates once, displays
Redial Successful
, and
connects the call.
To turn automatic redial on and off, press
M
>
wSettings
>
Auto Redial
>
On
or
Off
.
return a call
Your phone keeps a record of your
unanswered calls, and displays X
Missed Calls
,
where X is the number of missed calls.
1
Press the
View
key to see the received
calls list.
2
Highlight the call you want to return, then
press
U
.
notepad
Your phone saves the last set of digits entered
on the keypad in notepad memory. This can
be the last phone number you called, or a
number that you “jot down” during a call for
later use. To see the number stored in the
notepad:
Find it:
Press
M
>
sRecent Calls
>
Notepad
•
To call the number, press
U
.
•
To create a phonebook entry with the
number in the
No.
field, press the
Store
key.
36
calls
•
To open the
Dialing Menu
to attach a
number or insert a special character,
press
M
.
hold or mute a call
Press
M
>
Hold
to put all active calls on hold.
Press
Mute
key (if available) or
M
>
Mute
to put
all active calls on mute.
call waiting
When you’re on a call, you’ll hear an
alert if you receive a second call.
Press
U
to answer the new call.
•
To switch between calls, press the
Switch
key.
•
To connect the 2 calls, press the
Link
key.
•
To end the call on hold, press
M
>
EndCallOnHold
.
To turn the call waiting feature on or off:
Find it:
Press
M
>
wSettings
>
In-Call Setup
>
Call Waiting
caller ID
Calling line identification (caller ID)
shows the phone number for an
incoming call in your external and internal
displays.
Your phone shows the caller’s name and
picture when they’re stored in your
phonebook, or
Incoming Call
when caller ID
information isn’t available.
You can set your phone to play a different
ringer ID for an entry stored in your
phonebook (see page 43).
37
calls
To show or hide
your phone number
from
the next person you call, enter the phone
number and press
M
>
Hide ID
.
emergency calls
Your service provider programs 1 or more
emergency phone numbers, such as 911 or
112, that you can call under any
circumstances, even when your phone is
locked or the SIM card is not inserted.
Note:
Emergency numbers vary by country.
Your phone’s preprogrammed emergency
number(s) may not work in all locations, and
sometimes an emergency call cannot be
placed due to network, environmental, or
interference issues.
1
Press the keypad keys to dial the
emergency number.
2
Press
U
to call the emergency number.
international calls
If your phone service includes
international dialing, press and hold
0
to insert your local international access code
(indicated by
+
). Then, press the keypad keys
to dial the country code and phone number.
1-touch dial
To call phonebook entries 1 through 9, press
and hold the single-digit speed dial number for
1 second.
You can set 1-touch dial to call the entries in
your phone’s memory phonebook, your SIM
card’s phonebook, or your Fixed Dial list:
Find it:
Press
M
>
wSettings
>
Initial Setup
>
1TouchDial
>
Phone
,
SIM
,or
Fixed Dial
38
calls
To add a new phonebook entry, see page 42.
To e d i t t h e
Speed No.
for a phonebook entry,
press
M
>
nPhonebook
, highlight the entry,
and press
M
>
Edit
.
voicemail
Your network stores the voicemail
messages you receive. To listen to your
messages, call your voicemail number.
Note:
Your service provider may include
additional information about using this
feature.
When you
receive
a voicemail message, your
phone displays the voicemail message
indicator
t
and
New Voicemail
. Press the
CALL
key to listen to the message.
To
check
voicemail messages:
Find it:
Press
M
>
eMessages
>
Voicemail
Your phone may prompt you to store your
voicemail phone number. If you don’t know
your voicemail number, contact your service
provider.
Note:
You can’t store a
p
(pause),
w
(wait), or
n
(number) character in this number. If you want
to store a voicemail number with these
characters, create a phonebook entry for it.
Then, you can use the entry to call your
voicemail.
other features—advanced calling
39
other features
advanced calling
feature
conference
call
During a call:
Dial next number,
press
U
, press the
Link
key.
transfer a
call
During a call:
M
>
Transfer
, dial
transfer number, press
U
attach a
phone
number
Dial an area code or
prefix for a phonebook
number, then:
M
>
Attach Number
speed dial
Speed dial a
phonebook entry:
Enter speed dial number,
press
#
, press
U
.
To add a phonebook entry,
see page 42.
Tip:
If you forget Aunt
Mildred’s speed dial number,
press
M
>
nPhonebook
,
highlight her entry, and
press the
View
key.
feature
40
other features—advanced calling
set up
quick dial
Set up
preprogrammed
phone numbers:
M
>
ÉTools
>
Dialing Services
>
Quick Dial
call
forwarding
Set up or cancel call
forwarding:
M
>
wSettings
>
Call Forward
restrict
calls
Restrict outgoing or
incoming calls:
M
>
wSettings
>
Security
>
Call Barring
feature
change
phone line
If you have a
dual-line-enabled SIM
card, you can change your
line to make and receive
calls from your other phone
number.
M
>
wSettings
>
Phone Status
>
Active Line
The active line indicator
shows the active phone line
(see page 19).
feature
other features—advanced calling
41
fixed dial
When you turn on
fixed dialing, you can
call only numbers stored in
the fixed dial list.
Turn fixed dialing on or off:
M
>
wSettings
>
Security
>
Fixed Dial
Use the fixed dial list:
M
>
ÉTools
>
Dialing Services
>
Fixed Dial
feature
DTMF
tones
Activate DTMF tones:
M
>
wSettings
>
Initial Setup
>
DTMF
To send DTMF tones during
a call, just press number
keys or highlight a number in
the phonebook or recent
calls lists and press
M
>
Send Tones
.
feature
42
other features—phonebook
phonebook
feature
add new
entry
M
>
nPhonebook
M
>
New
>
Phone Number
or
Email Address
Shortcut:
Enter a phone
number in the home screen,
then press the
Store
key to
create an entry for that
number.
Tip:
1 phone isn’t enough for
some people. When creating
a phonebook entry, select
More
to store another number
for the same
Name
.
dial
number
Call a number stored in the
phonebook:
M
>
nPhonebook
, highlight
the phonebook entry, press
U
Shortcut:
In the phonebook,
press a keypad key 1 or
more times to jump to
entries that begin with the
key’s letters.
feature
other features—phonebook
43
record a
voice name
When creating a phonebook
entry, highlight
Voice Name
and
press the
Record
key. Press
and release the voice key
and say the entry’s name
(within 2 seconds). When
prompted, press and release
the voice key and repeat the
name.
Note:
The
Voice Name
option
isn’t available for entries
stored on the SIM card.
voice dial
number
Voice dial a number stored in
the phonebook:
Press and release the voice
key, then say the entry’s
name (within 2 seconds).
feature
set ringer
ID for entry
Assign a ring alert (ringer ID)
to an entry:
M
>
nPhonebook
> entry
M
>
Edit
>
Ringer ID
>ringer name
Note:
The
Ringer ID
option
isn’t available for entries
stored on the SIM card.
Activate ringer IDs:
M
>
wSettings
>
Ring Styles
>style
Detail
>
Ringer IDs
feature
44
other features—phonebook
set picture
ID for entry
Assign a photo or picture to
display when you receive a
call from an entry:
M
>
nPhonebook
> entry
M
>
Edit
>
>picture name
Note:
The
option isn’t
available in entries stored on
the SIM card.
set primary
or all
numbers
view
Display primary numbers or
all numbers for entries when
listed:
M
>
nPhonebook
M
>
Setup
>
View
>
All Contacts
or
Primary Contacts
feature
set
category
for entry
M
>
nPhonebook
> entry
M
>
Edit
>
Category
>category name
Note:
The
Category
option isn’t
available in entries stored on
the SIM card.
set
category
view
M
>
nPhonebook
M
>
Categories
>category view
You can display
All
entries,
entries in a predefined
category (
Business
,
Personal
,
General
,
VIPs
), or entries in a
category you create.
define new
category
M
>
nPhonebook
M
>
Categories
M
>
New
feature
other features—phonebook
45
set primary
number or
address
Set the primary number for
an entry with multiple
numbers:
M
>
nPhonebook
> entry
M
>
Set Primary
> number or
address
Note:
The
Set Primary
option is
not available on entries
stored on the SIM card.
Tip:
In
Primary
number view
mode, you can still peek at
other numbers stored for the
same name. Highlight the
name and press
S
up and
down to see the other
numbers.
feature
create
group
mailing list
M
>
nPhonebook
M
>
New
>
Mailing List
sort
phonebook
list
Set the order in which
entries are listed:
M
>
nPhonebook
M
>
Setup
>
Sort by
>sort order
You can sort the phonebook
list by
Name
,
Speed No.
,
Voice Name
, or
Email
. When
sorting by name, you can
display
All
numbers or just
the
Primary
number for each
name.
feature
46
other features—phonebook
change
phonebook
search
In the phonebook, press
keypad keys to enter the first
letters of an entry you want.
If necessary, press the
To change how this search
works:
M
>
nPhonebook
M
>
Setup
>
Search Method
>
Jump to
or
Find
Jump To
jumps directly to the
entry, while
Find
enables you
to begin the search by
pressing the
Search
key.
feature
copy
phonebook
entry
Copy an entry from the
phone to the SIM card, or
from the SIM card to the
phone:
M
>
nPhonebook
> entry
M
>
Copy
>
Entries
>
To
delete
phonebook
entry
M
>
nPhonebook
> entry
M
>
Delete
check
phonebook
memory
Display space available for
phonebook entries in phone
or SIM memory:
M
>
nPhonebook
M
>
Phone Capacity
or
SIM
Capacity
feature
other features—messages
47
messages
send
message to
phonebook
entry
Send a phonebook entry a
text, multimedia, or voice
message:
M
>
nPhonebook
> entry
M
>
Send Message
send
phonebook
entry over
data
connection
Send a phonebook entry to
another phone, computer, or
device:
M
>
nPhonebook
> entry
M
>
Share Phonebook Entry
feature
send text
message
M
>
eMessages
>
Create Message
>
New Short Message
feature
send
multimedia
message
M
>
eMessages
>
Create Message
>
New Multimedia Msg
send voice
message
M
>
eMessages
>
Create Message
>
New Voice Msg
To record the voice
message, press the
Record
key, speak, then press the
Stop
key. Your phone inserts
the voice recording into a
message and lets you enter
email addresses or phone
numbers to receive the
message.
feature
48
other features—messages
use a
multimedia
template
Open a multimedia
template with
preloaded media:
M
>
eMessages
>
Create Message
>
MMS Templates
read new
message
When your phone
displays
New Message
,
press the
Read
key to read
the message you received.
read old
messages
M
>
eMessages
>
Message Inbox
Icons next to each message
indicate if it is locked
9
, has
an attachment
=
, is urgent
!
,
or is low priority $. Press
M
to perform various
operations on a message.
feature
store
message
objects
Go to a multimedia
message page, or
highlight an object in a letter,
then:
M
>
Store
store text
messages
on your SIM
card
To store incoming text
messages on your SIM
card, press:
M
>
eMessages
M
>
Inbox Setup
>
Text Msg Setup
>
Store To
>
SIM
browser
messages
Read messages
received by your
micro-browser:
M
>
eMessages
>
Browser Msgs
feature
other features—messages
49
info services
Read
subscription-based
information services
messages:
M
>
eMessages
>
Info Services
quick notes
Send or create a
prewritten message:
M
>
eMessages
>
Quick Notes
cleanup
messages
M
>
eMessages
M
>
Cleanup Messages
feature
inbox setup
Specify settings for incoming
and outgoing text and
multimedia messages:
M
>
eMessages
M
>
Inbox Setup
Tip:
WHERE CAN YOU
STORE MESSAGES?
M
>
eMessages
M
>
Inbox Setup
>
Text Msg Setup
>
Store To:
>
Phone
or
SIM
fax message
setup
Set notification on or off for
received fax message:
M
>
eMessages
M
>
Fax Msg Setup
feature
50
other features—personalizing
personalizing
voice shortcuts
To
create
a voice shortcut to a menu item:
1
Press
M
, then scroll to the menu option
to which you want to create a shortcut.
2
With the option highlighted, press and
hold
M
.
You see
Assign Shortcut for:
name_of_option.
3
Select
Yes
.
voicemail
setup
Enter voicemail number, set
notification on or off for
received voicemail message:
M
>
eMessages
M
>
Voicemail Setup
info services
setup
Specify settings for
subscription-based
information services
messages:
M
>
eMessages
M
>
Info Srvc Setup
outbox
auto-
cleanup
Set automatic removal of
outbox messages:
M
>
eMessages
M
>
Outbox Setup
>
Auto Cleanup
feature
check
message
memory
Display space available for
stored messages:
M
>
eMessages
M
>
Memory Meter
feature
other features—personalizing
51
4
Select
Name
>
change
.
5
Select
Voice
>
Record
.
6
While pressing the voice button on the
right side of the phone, say the name you
want to use for the voice shortcut.
Release the button when you finish
speaking.
7
Select
Done
.
Your phone stores the shortcut.
To
activate
a voice shortcut:
1
Press
M
.
2
Press the number key of the desired
shortcut.
or
Press the voice button, then speak the
desired shortcut name.
other personalizing features
feature
language
Set menu language:
M
>
wSettings
>
Initial Setup
>
Language
greeting
Enter a greeting to display
when you turn on your
phone:
M
>
wSettings
>
Personalize
>
Greeting
scroll
Set the highlight bar to
Up/Down
or
Wrap Around
in menu
lists:
M
>
wSettings
>
Initial Setup
>
Scroll
52
other features—personalizing
activate
ringer IDs
Activate ringer IDs assigned
to phonebook entries and
categories:
M
>
wSettings
>
Ring Styles
>
Style
Scroll to and select the
ringstyle.
ring
volume
M
>
wSettings
>
Ring Styles
>style
Detail
>
Ring Volume
keypad
volume
M
>
wSettings
>
Ring Styles
>style
Detail
>
Key Volume
reminders
Set reminder alerts for
messages that you receive:
M
>
wSettings
>
Ring Styles
>style
Detail
>
Reminders
feature
home
screen
layout
M
>
wSettings
>
Personalize
>
Home Screen
>
Layout
>
Centered
or
Left Justified
menu view
Display the main menu as
graphic icons or as a
text-based list:
M
>
wSettings
>
Personalize
>
Main Menu
>
View
main menu
Reorder your phone’s main
menu:
M
>
wSettings
>
Personalize
>
Main Menu
>
Reorder
show/hide
menu icons
Show or hide menu feature
icons in the home screen:
M
>
wSettings
>
Personalize
>
Home Screen
>
Home Keys
>
Icons
feature
other features—personalizing
53
change
home keys
Change the features for the
soft keys and navigation key
in the home screen:
M
>
wSettings
>
Personalize
>
Home Screen
>
Home Keys
shortcuts
Create a shortcut to a menu
item:
Highlight the menu item,
press and hold
M
, then
press the
Yes
key.
Use a shortcut:
Press
M
, then press the
shortcut number.
feature
master
reset
Reset all options
except
unlock code, security code,
and lifetime timer:
M
>
wSettings
>
Initial Setup
>
Master Reset
feature
54
other features—call times & costs
call times & costs
Network connection time
is the elapsed
time from the moment you connect to your
service provider's network to the moment
you end the call by pressing
u
. This time
includes busy signals and ringing.
The amount of network connection time
you track on your resettable timer may not
equal the amount of time for which you
are billed by your service provider. For
billing information, contact your service
provider.
master
clear
Erase all downloaded files
and clear all settings and
entries you made
except
SIM card information, unlock
code, security code, and
lifetime timer:
M
>
wSettings
>
Initial Setup
>
Master Clear
Caution:
Master clear
erases all information you
have entered
(including
phonebook and datebook
entries)
and content you
have downloaded
(including photos and
sounds) stored in your
phone’s memory. After you
erase the information, you
can’t recover it.
feature
feature
call times
Display call timers:
M
>
sRecent Calls
>
Call Times
other features—handsfree
55
handsfree
Note:
The use of wireless devices and their
accessories may be prohibited or restricted in
certain areas. Always obey the laws and
regulations on the use of these products.
in-call
timer
Display time or cost
information during a
call:
M
>
wSettings
>
In-Call Setup
>
In-Call Timer
call cost
Display call cost
trackers:
M
>
sRecent Calls
>
Call Cost
feature feature
speaker-
phone
Activate the speakerphone
during a call:
Press the
Speaker
key.
auto
answer
(car kit or
headset)
Automatically answer
calls when connected
to a car kit or headset:
M
>
wSettings
>
Car Settings
or
Headset
>
Auto Answer
voice dial
(headset)
Enable voice dial with
headset send/end key:
M
>
wSettings
>
Headset
>
Voice Dial
auto
handsfree
(car kit)
Automatically route
calls to a car kit when
connected:
M
>
wSettings
>
Car Settings
>
Auto Handsfree
56
other features—data & fax calls
data & fax calls
To connect your phone with a USB cable, see
page 16.
feature
send data
or fax
Connect your phone to
the device, then place
the call through the device
application.
receive
data or fax
Connect your phone to
the device, then
answer the call through the
device application.
talk then
fax
Connect your phone to
the device, enter fax
number, press
M
>
Talk then Fax
, then press
U
to make the call.
using sync
You can call an Internet
server and synchronize
your phonebook and
datebook entries with the
server.
To
set up
an Internet sync
partner, press
M
>
wSettings
>
Connection
>
Sync
>
[New Entry]
. Enter the server
details, including
Server URL
(you can omit
http://
) and
Data Path
(the folder below the
URL where your data is
stored).
To
synchronize files
with a
partner you set up, select
the partner from the list in
M
>
wSettings
>
Connection
>
Sync
.
feature
other features—network
57
network
personal organizer
feature
network
settings
Display network
information and adjust
network settings:
M
>
wSettings
>
Network
feature
set alarm
M
>
ÉTools
>
Alarm Clock
turn off
alarm
When an alarm displays:
To turn off the alarm, press
the
Disable
key or
u
.
Tosetan8minutedelay,
press the
Snooze
key.
Note:
The
Snooze
key is
available only if the phone is
already powered on when
the alarm sounds.
add new
datebook
event
M
>
ÉTools
>
Datebook
,
highlight the day, press
s
,
press
M
>
New
view
datebook
event
Display or edit event details:
M
>
ÉTools
>
Datebook
,
highlight the day, press
s
,
press the
View
key
feature
58
other features—personal organizer
event
reminder
When an event reminder
displays:
To see reminder details,
press the
View
key.
To close the reminder, press
the
Exit
key.
send
datebook
event to
another
device
Send a datebook event to
another phone, computer, or
device:
M
>
ÉTools
>
Datebook
,
highlight the day, press
s
,
highlight the event, press
M
>
Send
feature
create voice
record
Create a voice record (for
example, to make a note to
yourself):
Press and hold the voice key,
speak into the phone,
release the voice key.
Note:
Recording phone calls
is subject to varying state
and federal laws regarding
privacy and recording of
conversations. Always obey
the laws and regulations on
the use of this feature.
feature
other features—security
59
security
play voice
record
Play back a voice record:
M
>
ÜVoice Records
>voice record
Note:
This feature may
appear under the
ÉTools
menu, depending on your
carrier.
calculator
M
>
ÉTools
>
Calculator
currency
converter
M
>
ÉTools
>
Calculator
M
>
Exchange Rate
Enter exchange rate, press
the
OK
key, enter amount,
and press
M
>
Convert Currency
.
feature
feature
SIM PIN
Lock or unlock the SIM card:
M
>
wSettings
>
Security
>
SIM PIN
Caution:
If you enter an
incorrect PIN code 3 times in
a row, your SIM card is
disabled and your phone
displays
SIM Blocked
.
lock feature
M
>
wSettings
>
Security
>
Lock Application
60
other features—fun & games
fun & games
For basic information on the camera, see
page 13.
manage
certificates
Enable or disable
Internet access
certificates stored on your
phone:
M
>
wSettings
>
Security
>
Certificate Mgmt
Certificates are used to
verify the identity and
security of Web sites when
you download files or share
information.
feature feature
manage
pictures
Manage photos,
pictures, and
animations:
M
>
hMultimedia
>
Pictures
manage
video clips
M
>
hMultimedia
>
Videos
Note:
Your phone cannot
receive phone calls over an
EDGE network while it is
playing videos.
other features—fun & games
61
manage
sounds
Manage ring tones and
music that you have
downloaded or composed:
M
>
hMultimedia
>
Sounds
Note:
Your phone cannot
receive phone calls over an
EDGE network while it is
playing some sound files.
Indicators appear at the top
of your display when you
can receive EDGE
È
calls.
create ring
tones
Create ring tones that you
can use with your phone:
M
>
hMultimedia
>
Sounds
>
[New iMelody]
feature
create
playlist
Create a playlist of songs to
play on your phone:
M
>
hMultimedia
>
Sounds
>
[New Playlist]
select
sound for
ringtone
Select a sound from your
Sounds
list to use as a
ringtone:
M
>
h
Multimedia
>
Sounds
>sound
M
>
Apply as Ringtone
start micro-
browser
M
>
áWeb Access
>
Browser
feature
62
other features—fun & games
download
objects
from Web
page
Download a picture,
sound, or other object
from a Web page:
Go to the page that links to
the file, highlight the file,
press the
Select
key, and
press the
Store
key.
Note:
Store
is displayed only
if the download is
successful.
Note:
Normal airtime and/or
carrier usage charges apply.
web
sessions
Select or create a Web
session:
M
>
áWeb Access
>
Web Sessions
feature
download
game or
application
Download a Java™
game or application
with the micro-browser:
M
>
áWeb Access
>
Browser
,
go to the page that links to
the application, highlight the
application, press the
Select
key, and press the
Download
key
Note:
Normal airtime and/or
carrier usage charges apply.
start game
or
application
Start a Java™ game or
application:
M
>
áGames & Apps
,
highlight the game or
application, press the
Select
key
feature
other features—fun & games
63
set game or
application
effects
Set volume, turn on vibration
effect for Java™ games or
applications
M
>
Settings
>
Java Settings
>
App Vibration
or
App Volume
delete all
games and
applications
M
>
Settings
>
Java Settings
>
Delete All Apps
feature
64
service and repairs
service and repairs
If you have questions or need assistance,
we're here to help.
Go to
www.motorola.com/consumer/support
,
where you can select from a number of
customer care options. You can also contact
the Motorola Customer Support Center at
1-800-331-6456 (United States),
1-888-390-6456 (TTY/TDD United States for
hearing impaired), or 1-800-461-4575
(Canada).
SAR Data
65
Specific Absorption Rate Data
SAR Da ta
The model V235 wireless phone meets
the government’s requirements for
exposure to radio waves.
Your wireless phone is a radio transmitter and
receiver. It is designed and manufactured not to
exceed limits for exposure to radio frequency (RF)
energy set by the Federal Communications
Commission (FCC) of the U.S. Government and by the
Canadian regulatory authorities. These limits are part
of comprehensive guidelines and establish permitted
levels of RF energy for the general population. The
guidelines are based on standards that were
developed by independent scientific organizations
through periodic and thorough evaluation of scientific
studies. The standards include a substantial safety
margin designed to assure the safety of all persons,
regardless of age or health.
The exposure standard for wireless mobile phones
employs a unit of measurement known as the
Specific Absorption Rate, or SAR. The SAR limit set
by the FCC and by the Canadian regulatory
authorities is 1.6 W/kg.
1
Tests for SAR are conducted
using standard operating positions accepted by the
FCC and by Industry Canada with the phone
transmitting at its highest certified power level in all
tested frequency bands. Although the SAR is
determined at the highest certified power level, the
actual SAR level of the phone while operating can be
well below the maximum value. This is because the
phone is designed to operate at multiple power
levels so as to use only the power required to reach
the network. In general, the closer you are to a
wireless base station, the lower the power output.
66
SAR Data
Before a phone model is available for sale to the
public in the U.S. and Canada, it must be tested and
certified to the FCC and Industry Canada that it does
not exceed the limit established by each government
for safe exposure. The tests are performed in
positions and locations (e.g., at the ear and worn on
the body) reported to the FCC and available for
review by Industry Canada. The highest SAR value for
this model phone when tested for use at the ear is
1.45 W/kg and when worn on the body, as described
in this user guide, is 0.49 W/kg The SAR value for
this product in its data transmission mode
(body-worn use) is 0.67 W/kg. (Body-worn
measurements differ among phone models,
depending upon available accessories and regulatory
requirements).
2
While there may be differences between the SAR
levels of various phones and at various positions,
they all meet the governmental requirements for safe
exposure. Please note that improvements to this
product model could cause differences in the SAR
value for later products; in all cases, products are
designed to be within the guidelines.
Additional information on Specific Absorption Rates
(SAR) can be found on the Cellular
Telecommunications & Internet Association (CTIA)
Web site:
http://www.phonefacts.net
or the Canadian Wireless Telecommunications
Association (CWTA) Web site:
http://www.cwta.ca
1. In the United States and Canada, the SAR limit for
mobile phones used by the public is 1.6 watts/kg
(W/kg) averaged over one gram of tissue. The standard
incorporates a substantial margin of safety to give
additional protection for the public and to account for
any variations in measurements.
2. The SAR information includes the Motorola testing
protocol, assessment procedure, and measurement
uncertainty range for this product.
67
Important Safety and Legal Information
68
Software Copyright Notice
The Motorola products described in this manual may
include copyrighted Motorola and third-party
software stored in semiconductor memories or other
media. Laws in the United States and other countries
preserve for Motorola and third-party software
providers certain exclusive rights for copyrighted
software, such as the exclusive rights to distribute or
reproduce the copyrighted software. Accordingly, any
copyrighted software contained in the Motorola
products may not be modified, reverse-engineered,
distributed, or reproduced in any manner to the
extent allowed by law. Furthermore, the purchase of
the Motorola products shall not be deemed to grant
either directly or by implication, estoppel, or
otherwise, any license under the copyrights, patents,
or patent applications of Motorola or any third-party
software provider, except for the normal,
non-exclusive, royalty-free license to use that arises
by operation of law in the sale of a product.
Manual Number: 6809497A59-O
Safety Information
69
Safety and General Information
Safet y Informa tion
This section contains important information on
the safe and efficient operation of your mobile
device. Read this information before using your
mobile device.
*
Exposure To Radio Frequency
(RF) Energy
Your mobile device contains a transmitter and
receiver. When it is ON, it receives and transmits RF
energy. When you communicate with your mobile
device, the system handling your call controls the
power level at which your mobile device transmits.
Your Motorola mobile device is designed to comply
with local regulatory requirements in your country
concerning exposure of human beings to RF energy.
Operational Precautions
For optimal mobile device performance and to be
sure that human exposure to RF energy does not
exceed the guidelines set forth in the relevant
standards, always follow these instructions and
precautions.
External Antenna Care
If your mobile device has an external antenna, use
only a Motorola-supplied or approved replacement
antenna. Use of unauthorized antennas,
modifications, or attachments could damage the
mobile device and/or may result in your device not
* The information provided in this document supersedes
the general safety information in user’s guides
published prior to September 1, 2005.
70
Safety Information
complying with local regulatory requirements in your
country.
DO NOT hold the external antenna when the mobile
device is IN USE. Holding the external antenna
affects call quality and may cause the mobile device
to operate at a higher power level than needed.
Product Operation
When placing or receiving a phone call, hold your
mobile device just like you would a landline phone.
If you wear the mobile device on your body, always
place the mobile device in a Motorola-supplied or
approved clip, holder, holster, case, or body harness.
If you do not use a body-worn accessory supplied or
approved by Motorola, keep the mobile device and its
antenna at least 2.5 centimeters (1 inch) from your
body when transmitting.
When using any data feature of the mobile device,
with or without an accessory cable, position the
mobile device and its antenna at least
2.5 centimeters (1 inch) from your body.
Using accessories not supplied or approved by
Motorola may cause your mobile device to exceed RF
energy exposure guidelines. For a list of
Motorola-supplied or approved accessories, visit our
website at
www.motorola.com
.
RF Energy
Interference/Compatibility
Nearly every electronic device is subject to RF energy
interference from external sources if inadequately
shielded, designed, or otherwise configured for RF
energy compatibility. In some circumstances your
mobile device may cause interference with other
devices.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
Safety Information
71
Follow Instructions to Avoid
Interference Problems
Turn off your mobile device in any location where
posted notices instruct you to do so. These locations
include hospitals or health care facilities that may be
using equipment that is sensitive to external RF
energy.
In an aircraft, turn off your mobile device whenever
instructed to do so by airline staff. If your mobile
device offers an airplane mode or similar feature,
consult airline staff about using it in flight.
Pacemakers
If you have a pacemaker, consult your physician
before using this device.
Persons with pacemakers should observe the
following precautions:
•
ALWAYS keep the mobile device more than
20 centimeters (8 inches) from your
pacemaker when the mobile device is turned
ON.
•
DO NOT carry the mobile device in the breast
pocket.
•
Use the ear opposite the pacemaker to
minimize the potential for interference.
•
Turn OFF the mobile device immediately if
you have any reason to suspect that
interference is taking place.
Hearing Aids
Some digital mobile devices may interfere with some
hearing aids. In the event of such interference, you
may want to consult your hearing aid manufacturer or
physician to discuss alternatives.
Other Medical Devices
If you use any other personal medical device, consult
your physician or the manufacturer of your device to
determine if it is adequately shielded from RF energy.
72
Safety Information
Driving Precautions
Check the laws and regulations on the use of mobile
devices in the area where you drive. Always obey
them.
When using your mobile device while driving, please:
•
Give full attention to driving and to the road.
Using a mobile device may be distracting.
Discontinue a call if you can’t concentrate on
driving.
•
Use handsfree operation, if available.
•
Pull off the road and park before making or
answering a call if driving conditions so
require.
Responsible driving practices can be found in the
“Smart Practices While Driving” section at the end of
this guide and/or at the Motorola website:
www.motorola.com/callsmart
.
Operational Warnings
Obey all posted signs when using mobile devices in
public areas, such as health care facilities or blasting
areas.
Automobile Air Bags
Do not place a mobile device in the air bag
deployment area.
Potentially Explosive Atmospheres
Areas with potentially explosive atmospheres are
often but not always posted, and can include fueling
areas such as below decks on boats, fuel or chemical
transfer or storage facilities, or areas where the air
contains chemicals or particles, such as grain, dust,
or metal powders.
When you are in such an area, turn off your mobile
device, and do not remove, install, or charge
batteries. In such areas, sparks can occur and cause
an explosion or fire.
Safety Information
73
Damaged Products
If your mobile device or battery has been submerged
in water, punctured, or subjected to a severe fall, do
not use it until you take it to a Motorola Authorized
Service Center. Do not attempt to dry it with an
external heat source, such as a microwave oven.
Batteries and Chargers
If jewelry, keys, beaded chains, or other conductive
materials touch exposed battery terminals, this could
complete an electrical circuit (short circuit), become
very hot, and could cause damage or injury. Be
careful when handling a charged battery, particularly
when placing it inside a pocket, purse, or other
container with metal objects.
Use only
Motorola Original ™ batteries and chargers.
Caution:
To avoid risk of personal injury, do not
dispose of your battery in a fire.
Your battery, charger, or mobile device may contain
symbols, defined as follows:
Choking Hazards
Your mobile device or its accessories may include
detachable parts, which may present a choking
Symbol Definition
Important safety information
follows.
Do not dispose of your battery or
mobile device in a fire.
Your battery or mobile device may
require recycling in accordance
with local laws. Contact your local
regulatory authorities for more
information.
Do not throw your battery or
mobile device in the trash.
Your mobile device contains an
internal lithium ion battery.
032374o
032376o
032375o
032377o
032378o
Li Ion BATT
74
Safety Information
hazard to small children. Keep your mobile device
and its accessories away from small children.
Glass Parts
Some parts of your mobile device may be made of
glass. This glass could break if the product is dropped
on a hard surface or receives a substantial impact. If
glass breaks, do not touch or attempt to remove. Stop
using your mobile device until the glass is replaced
by a qualified service center.
Seizures/Blackouts
Some people may be susceptible to epileptic seizures
or blackouts when exposed to flashing lights, such as
when playing video games. These may occur even if
a person has never had a previous seizure or
blackout.
If you have experienced seizures or blackouts, or if
you have a family history of such occurrences, please
consult with your physician before playing video
games or enabling a flashing-lights feature (if
available) on your mobile device.
Discontinue use and consult a physician if any of the
following symptoms occur: convulsion, eye or muscle
twitching, loss of awareness, involuntary
movements, or disorientation. It is always a good
idea to hold the screen away from your eyes, leave
the lights on in the room, take a 15-minute break
every hour, and stop use if you are very tired.
Repetitive Motion
When you repetitively perform actions such as
pressing keys or entering finger-written characters,
you may experience occasional discomfort in your
hands, arms, shoulders, neck, or other parts of your
body. If you continue to have discomfort during or
after such use, stop use and see a physician.
Warranty
75
Motorola Limited Warranty for the United States
and Canada
War r an t y
What Does this Warranty
Cover?
Subject to the exclusions contained below, Motorola,
Inc. warrants its telephones, pagers, messaging
devices, and consumer and professional two-way
radios (excluding commercial, government or
industrial radios) that operate via Family Radio
Service or General Mobile Radio Service,
Motorola-branded or certified accessories sold for
use with these Products (“Accessories”) and
Motorola software contained on CD-ROMs or other
tangible media and sold for use with these Products
(“Software”) to be free from defects in materials and
workmanship under normal consumer usage for the
period(s) outlined below. This limited warranty is a
consumer's exclusive remedy, and applies as follows
to new Motorola Products, Accessories and Software
purchased by consumers in the United States or
Canada, which are accompanied by this written
warranty:
76
Warranty
Products and Accessories
Products
Covered
Length of Coverage
Products and
Accessories
as
defined above,
unless otherwise
provided for below.
One (1) year
from the date
of purchase by the first
consumer purchaser of the
product unless otherwise
provided for below.
Decorative
Accessories and
Cases.
Decorative
covers, bezels,
PhoneWrap™
covers and cases.
Limited lifetime warranty
for the lifetime of ownership
by the first consumer
purchaser of the product.
Monaural
Headsets.
Ear
buds and boom
headsets that
transmit mono
sound through a
wired connection.
Limited lifetime warranty
for the lifetime of ownership
by the first consumer
purchaser of the product.
Consumer and
Professional
Two-Way Radio
Accessories.
Ninety (90) days
from the
date of purchase by the first
consumer purchaser of the
product.
Products and
Accessories that
are Repaired or
Replaced.
The balance of the
original warranty or for
ninety (90) days
from the
date returned to the
consumer, whichever is
longer.
Products
Covered
Length of Coverage
Warranty
77
Exclusions
Normal Wear and Tear.
Periodic maintenance,
repair and replacement of parts due to normal wear
and tear are excluded from coverage.
Batteries.
Only batteries whose fully charged
capacity falls below 80% of their rated capacity and
batteries that leak are covered by this limited
warranty.
Abuse & Misuse.
Defects or damage that result
from: (a) improper operation, storage, misuse or
abuse, accident or neglect, such as physical damage
(cracks, scratches, etc.) to the surface of the product
resulting from misuse; (b) contact with liquid, water,
rain, extreme humidity or heavy perspiration, sand,
dirt or the like, extreme heat, or food; (c) use of the
Products or Accessories for commercial purposes or
subjecting the Product or Accessory to abnormal
usage or conditions; or (d) other acts which are not
the fault of Motorola, are excluded from coverage.
Use of Non-Motorola Products and
Accessories.
Defects or damage that result from
the use of Non-Motorola branded or certified
Products, Accessories, Software or other peripheral
equipment are excluded from coverage.
Unauthorized Service or Modification.
Defects
or damages resulting from service, testing,
adjustment, installation, maintenance, alteration, or
modification in any way by someone other than
Motorola, or its authorized service centers, are
excluded from coverage.
Altered Products.
Products or Accessories with
(a) serial numbers or date tags that have been
removed, altered or obliterated; (b) broken seals or
that show evidence of tampering; (c) mismatched
board serial numbers; or (d) nonconforming or
non-Motorola housings, or parts, are excluded from
coverage.
Communication Services.
Defects, damages, or
the failure of Products, Accessories or Software due
to any communication service or signal you may
subscribe to or use with the Products Accessories or
Software is excluded from coverage.
78
Warranty
Software
Exclusions
Software Embodied in Physical Media.
No
warranty is made that the software will meet your
requirements or will work in combination with any
hardware or software applications provided by third
parties, that the operation of the software products
will be uninterrupted or error free, or that all defects
in the software products will be corrected.
Software NOT Embodied in Physical Media.
Software that is not embodied in physical media (e.g.
software that is downloaded from the internet), is
provided “as is” and without warranty.
Who Is Covered?
This warranty extends only to the first consumer
purchaser, and is not transferable.
What Will Motorola Do?
Motorola, at its option, will at no charge repair,
replace or refund the purchase price of any Products,
Accessories or Software that does not conform to
this warranty. We may use functionally equivalent
reconditioned/refurbished/pre-owned or new
Products, Accessories or parts. No data, software or
applications added to your Product, Accessory or
Software, including but not limited to personal
contacts, games and ringer tones, will be reinstalled.
To avoid losing such data, software and applications
please create a back up prior to requesting service.
Products Covered Length of
Coverage
Software.
Applies only to
physical defects in the
media that embodies the
copy of the software (e.g.
CD-ROM, or floppy disk).
Ninety (90) days
from the date of
purchase.
Warranty
79
How to Obtain Warranty
Service or Other Information
You will receive instructions on how to ship the
Products, Accessories or Software, at your expense,
to a Motorola Authorized Repair Center. To obtain
service, you must include: (a) a copy of your receipt,
bill of sale or other comparable proof of purchase;
(b) a written description of the problem; (c) the name
of your service provider, if applicable; (d) the name
and location of the installation facility (if applicable)
and, most importantly; (e) your address and
telephone number.
What Other Limitations Are
There?
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT
LIMITATION THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, SHALL BE LIMITED TO THE
DURATION OF THIS LIMITED WARRANTY,
OTHERWISE THE REPAIR, REPLACEMENT, OR
REFUND AS PROVIDED UNDER THIS EXPRESS
USA Phones
1-800-331-6456
Pagers
1-800-548-9954
Two-Way Radios and Messaging
Devices
1-800-353-2729
Canada All Products
1-800-461-4575
TTY
1-888-390-6456
For
Accessories
and
Software
, please call the
telephone number designated above for the
product with which they are used.
80
Warranty
LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF
THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL
OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO
EVENT SHALL MOTOROLA BE LIABLE, WHETHER IN
CONTRACT OR TORT (INCLUDING NEGLIGENCE) FOR
DAMAGES IN EXCESS OF THE PURCHASE PRICE OF
THE PRODUCT, ACCESSORY OR SOFTWARE, OR FOR
ANY INDIRECT, INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES OF ANY KIND, OR
LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS,
LOSS OF INFORMATION OR DATA, SOFTWARE OR
APPLICATIONS OR OTHER FINANCIAL LOSS ARISING
OUT OF OR IN CONNECTION WITH THE ABILITY OR
INABILITY TO USE THE PRODUCTS, ACCESSORIES
OR SOFTWARE TO THE FULL EXTENT THESE
DAMAGES MAY BE DISCLAIMED BY LAW.
Some states and jurisdictions do not allow the
limitation or exclusion of incidental or
consequential damages, or limitation on the
length of an implied warranty, so the above
limitations or exclusions may not apply to you.
This warranty gives you specific legal rights,
and you may also have other rights that vary
from state to state or from one jurisdiction to
another.
Laws in the United States and other countries
preserve for Motorola certain exclusive rights for
copyrighted Motorola software such as the exclusive
rights to reproduce and distribute copies of the
Motorola software. Motorola software may only be
copied into, used in, and redistributed with, the
Products associated with such Motorola software.
No other use, including without limitation
disassembly of such Motorola software or exercise of
the exclusive rights reserved for Motorola, is
permitted.
Hearing Aid Compatibility
81
Hearing Aid Compatibility with Mobile Phones
Hearing Aid Compatibility
Some Motorola phones are measured for
compatibility with hearing aids. If the box for your
particular model has “Rated for Hearing Aids” printed
on it, the following explanation applies.
When some mobile phones are used near some
hearing devices (hearing aids and cochlear implants),
users may detect a buzzing, humming, or whining
noise. Some hearing devices are more immune than
others to this interference noise, and phones also
vary in the amount of interference they generate.
The wireless telephone industry has developed
ratings for some of their mobile phones, to assist
hearing device users in finding phones that may be
compatible with their hearing devices. Not all phones
have been rated. Phones that are rated have the
rating on their box or a label on the box.
The ratings are not guarantees. Results will vary
depending on the user’s hearing device and hearing
loss. If your hearing device happens to be vulnerable
to interference, you may not be able to use a rated
phone successfully. Trying out the phone with your
hearing device is the best way to evaluate it for your
personal needs.
M-Ratings:
Phones rated M3 or M4 meet FCC
requirements and are likely to generate less
interference to hearing devices than phones that are
not labeled. M4 is the better/higher of the two
ratings.
T-Ratings:
Phones rated T3 or T4 meet FCC
requirements and are likely to be more usable with a
hearing device’s telecoil (“T Switch” or “Telephone
Switch”) than unrated phones. T4 is the better/higher
of the two ratings. (Note that not all hearing devices
have telecoils in them.)
82
Hearing Aid Compatibility
Hearing devices may also be measured for immunity
to this type of interference. Your hearing device
manufacturer or hearing health professional may
help you find results for your hearing device. The
more immune your hearing aid is, the less likely you
are to experience interference noise from mobile
phones.
WHO Information
83
Information from the World Health Organization
WHO Inf ormat ion
Present scientific information does not indicate the
need for any special precautions for the use of
mobile phones. If you are concerned, you may want
to limit your own or your children’s RF exposure by
limiting the length of calls or by using handsfree
devices to keep mobile phones away from your head
and body.
Source: WHO Fact Sheet 193
Further information:
http://www.who.int./peh-emf
Product Registration
Product Registration
Online Product Registration:
http://www.motorola.com/warranty
Product registration is an important step toward
enjoying your new Motorola product. Registering
helps us facilitate warranty service, and permits us to
contact you should your product require an update or
other service. Registration is for U.S. residents only
and is not required for warranty coverage.
Please retain your original dated sales receipt for
your records. For warranty service of your Motorola
Personal Communications Product you will need to
provide a copy of your dated sales receipt to confirm
warranty status.
84
Export Law Assurances
Thank you for choosing a Motorola product.
Export Law Assurances
Export Law Assurances
This product is controlled under the export
regulations of the United States of America and
Canada. The Governments of the United States of
America and Canada may restrict the exportation or
re-exportation of this product to certain destinations.
For further information contact the U.S. Department
of Commerce or the Canadian Department of Foreign
Affairs and International Trade.
Wireless: The New Recyclable
Wireless: The New Recyclable
Your wireless phone can be recycled. Recycling your
wireless phone reduces the amount of waste
disposed in landfills and allows recycled materials to
be incorporated into new products.
The Cellular Telecommunications Industry
Association (CTIA) and its members encourage
consumers to recycle their phones and have taken
steps to promote the collection and environmentally
sound recycling of end-of-life wireless devices.
As a wireless phone user, you have an important role
in ensuring that this phone is recycled properly.
When it comes time to give this phone up or trade it
Wireless: The New Recyclable
85
in for a new one, please remember that the phone,
the charger, and many of its accessories can be
recycled. It's easy. To learn more about CTIA's
Recycling Program for Used Wireless Devices, please
visit us at
http://promo.motorola.com/
recycle/phones/whyrecycle.html
86
Smart Practices While Driving
Smart Practices While Driving
Smart Practices While Driving
Drive Safe, Call Smart
SM
Check the laws and regulations on the use of
mobile devices and their accessories in the
areas where you drive. Always obey them. The
use of these devices may be prohibited or
restricted in certain areas. Contact
www.motorola.com/callsmart for more
information.
Your mobile device lets you communicate by voice
and data—almost anywhere, anytime, wherever
wireless service is available and safe conditions
allow. When driving a car, driving is your first
responsibility. If you choose to use your mobile
device while driving, remember the following tips:
• Get to know your Motorola mobile
device and its features such as speed
dial and redial.
If available, these features
help you to place your call without taking
your attention off the road.
• When available, use a handsfree device.
If possible, add an additional layer of
convenience to your mobile device with one
of the many Motorola Original
™
handsfree
accessories available today.
• Position your mobile device within easy
reach.
Be able to access your mobile device
without removing your eyes from the road. If
you receive an incoming call at an
inconvenient time, if possible, let your voice
mail answer it for you.
• Let the person you are speaking with
know you are driving; if necessary,
suspend the call in heavy traffic or
hazardous weather conditions.
Rain,
Smart Practices While Driving
87
sleet, snow, ice, and even heavy traffic can
be hazardous.
• Do not take notes or look up phone
numbers while driving.
Jotting down a “to
do” list or going through your address book
takes attention away from your primary
responsibility—driving safely.
• Dial sensibly and assess the traffic; if
possible, place calls when your car is
not moving or before pulling into traffic.
If you must make a call while moving, dial
only a few numbers, check the road and your
mirrors, then continue.
• Do not engage in stressful or emotional
conversations that may be distracting.
Make people you are talking with aware you
are driving and suspend conversations that
can divert your attention away from the road.
• Use your mobile device to call for help.
Dial 911 or other local emergency number in
the case of fire, traffic accident, or medical
emergencies.*
• Use your mobile device to help others in
emergencies.
If you see an auto accident,
crime in progress, or other serious emergency
where lives are in danger, call 911 or other
local emergency number, as you would want
others to do for you.*
• Call roadside assistance or a special
non-emergency wireless assistance
number when necessary.
If you see a
broken-down vehicle posing no serious
hazard, a broken traffic signal, a minor traffic
accident where no one appears injured, or a
vehicle you know to be stolen, call roadside
assistance or other special non-emergency
wireless number.*
* Wherever wireless phone service is available.
88
index
index
1-touch dial 37
A
accessories 8, 55
accessory connector port 1
active line indicator 19
active line, changing 40
alarm clock 57
alert
set 25, 29
turn off 25, 33
animation 60
answer a call 12, 31
attach a number 34, 39
B
backlight 31
battery 9, 10
battery indicator 19
battery life, extending 10,
30, 31
browser messages 48
browser. See micro-browser
C
cables 16
calculator 59
call
answer 12, 31
end 12
make 12, 42
call barring 27
call forward indicator 19
call forwarding 40
call timers 54, 55
call waiting 36
caller ID 34, 36, 44
camera 13
car kit 55
center key 1, 26
certificate management 60
clock 30
codes 27
color style 31
conference call 39
contrast 31
costs, tracking 55
D
data call 56
data connection 47
index
89
data indicator 18
date, setting 30
datebook 57, 58
dial a phone number 12, 41,
42
dialed calls 33
display 17, 31
download media objects 48,
62
DTMF tones 34, 41
E
earpiece volume 25
EDGE indicator 18
email 48
email address 42
emergency number 37
end a call 12
end key 1, 12
Enter Unlock Code message
27
export regulations 84
external display 26
F
fax call 34, 56
fixed dial 41
flip 12, 32
forward calls 40
G
games 62
GPRS indicator 18
greeting 51
group mailing list 45
H
handsfree speaker 26
headset 55
headset jack 1
hearing aid compatibility 81
hold a call 36
home screen 17, 52, 53
I
in-call indicator 19
Incoming Call message 36
information services 49
setup 50
international access code 37
iTAP text entry mode 22
J
Java applications 62
K
keypad 32, 52
L
language 51
layout 52
90
index
lock
application 59
phone 27
SIM card 59
Low Battery message 19
M
make a call 12, 42
master clear 54
master reset 53
menu 20, 51, 52
menu icons 20, 52
menu indicator 17
menu key 1, 8
message 47, 48
cleanup 49
setup 49
message indicator 19
message reminders 52
micro-browser 48, 61, 62
Missed Calls message 35
multimedia message 47, 48
music 61
mute a call 36
N
navigation key 1, 8, 26
network settings 57
notepad 35
number. See phone number
numeric entry mode 25
O
open to answer 32
optional accessory 8
optional feature 8
P
passwords. See codes
personalize 50
phone number 12, 40, 42
phonebook 34, 37, 39, 42
photo 13, 60
picture 60
picture ID 36, 44
PIN code 11, 27, 59
PIN2 code 27
playlist 61
power key 1, 11, 12
product registration 83
PTT
indicator 18
Q
quick dial
setup 40
quick notes 49
R
received calls 33
recent calls 33
recycling 84
index
91
redial 34
reminders 52
restrict calls 40
return a call 35
ring style indicator 19
ring style, setting 25, 29
ring tone 61
ringer ID 36, 43, 52
ringer volume 25, 52
roam indicator 19
S
safety and general
information 69
safety tips 86
screen saver 30
security code 27
send key 1, 12
shortcuts 53
signal strength indicator 18
SIM Blocked message 12,
59
SIM card 9, 11, 27, 59
smart key 26
soft keys 1, 17, 53
speakerphone 55
speed dial 39
store your number 12
symbol entry mode 25
synchronizing 56
T
tap text entry mode 23
telephone number. See
phone number
text entry 21
text message 47, 48
time, setting 30
timers 54, 55
transfer a call 39
turn on/off 11
U
unlock
application 59
phone 11, 27
SIM card 59
unlock code 27
USB cables 16
V
video clip 60
videos 15
voice dial 43, 55
voice message 47
voice name, recording 43
voice record 58, 59
voicemail 38
setup 50
voicemail message indicator
19, 38
volume 25, 52
