Motorola
iDEN®
Digital Multi-Service Phone
r750plus User’s Guide
11/17/00
@NTN9333A@
NTN9333-A
Table of Contents
iii
Table of Contents
Table of Contents................................................................................ iii
Welcome ............................................................................................... 1
TTY Access.................................................................................................... 2
Large-Print Manuals....................................................................................... 2

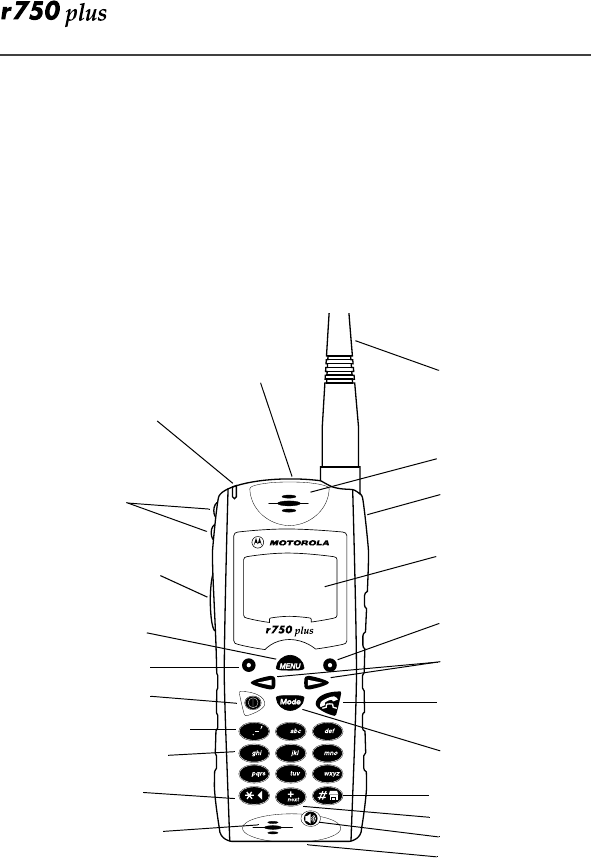

Features of your r750plus Phone.................................................................... 2

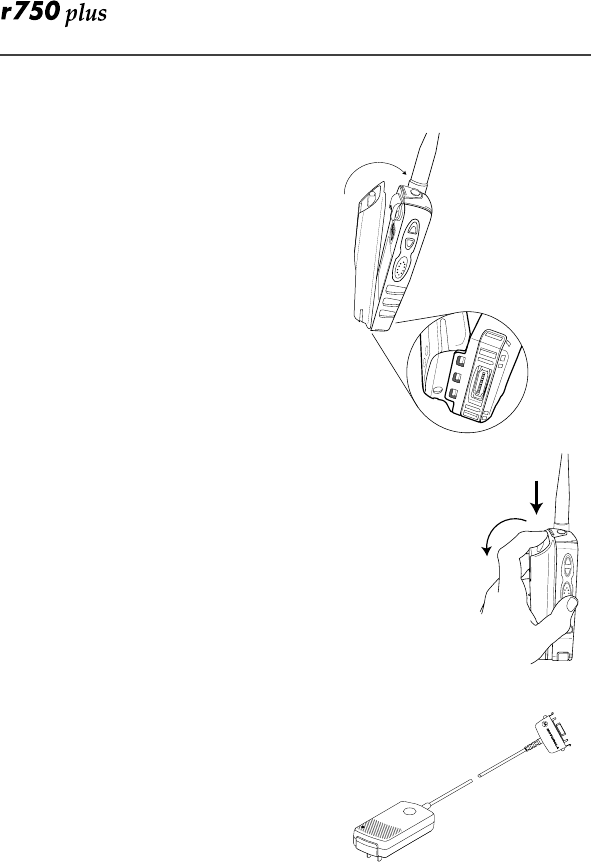

Attaching and Charging the Battery............................................................... 4
Attaching the Battery .............................................................................. 4
Detaching the Battery.............................................................................. 4
Charging the Battery ............................................................................... 4

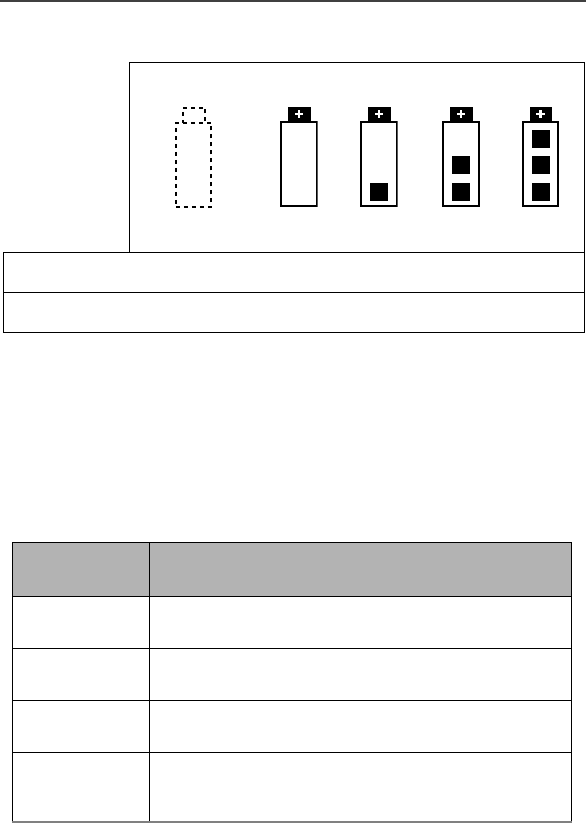

Battery and Charging Status.................................................................... 4
Turning On Your r750plus Phone.................................................................. 5
Turning Off your r750plus Phone ..................................................................5

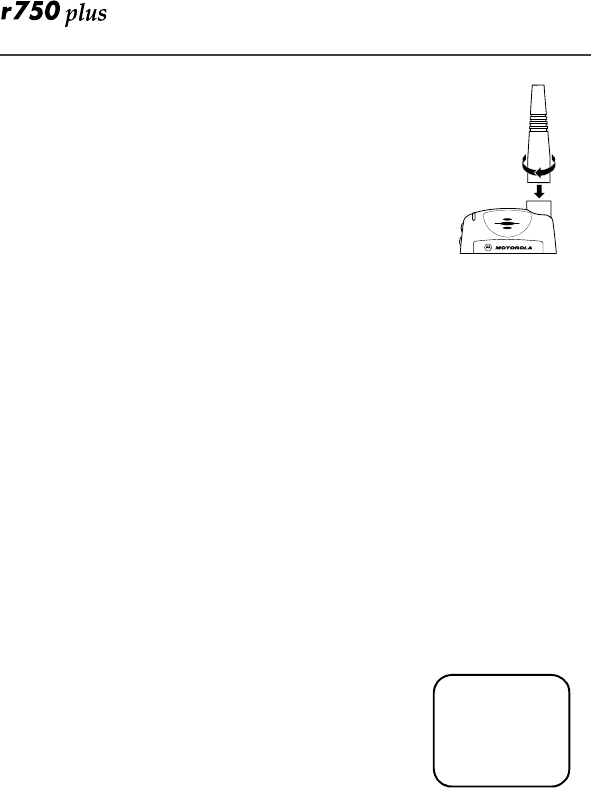

Connecting the Supplied Antenna........................................................... 6
Keypad Lock .................................................................................................. 6
Activating Keypad Lock ......................................................................... 6
Receiving Incoming Calls....................................................................... 6
Receiving New Mail Messages............................................................... 7
Receiving Voice Mail ..............................................................................7
Receiving Private (Two-Way Radio) Calls............................................. 7
Deactivating Keypad Lock...................................................................... 7

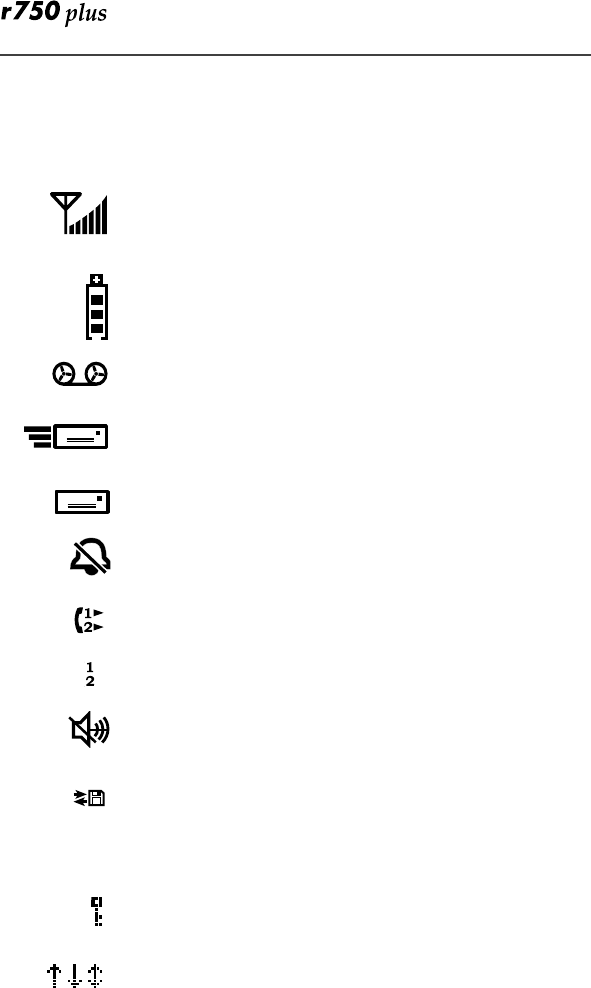

Display Icons.................................................................................................. 8
About Modes and Menus ............................................................................... 9
Setting the Time and Date.............................................................................. 9
Changing the Display Language .................................................................. 11
Selectable Backlight Timer .......................................................................... 11
Making Phone Calls .......................................................................... 12
Using Other Dialing Methods ...................................................................... 12
Scroll ..................................................................................................... 12
Speed Dial ............................................................................................. 12
Automatic Redial................................................................................... 13
Last Number Redial .............................................................................. 13
Turbo Dial® Key................................................................................... 13
Plus Dialing........................................................................................... 14
Hands-Free Speakerphone..................................................................... 14
Receiving a Phone Call ............................................................................... 14
Ending a Phone Call .....................................................................................14
What Is My Phone Number?........................................................................ 15
iv www.mot.com/iDEN
VibraCall® Alert ......................................................................................... 15
Selecting VibraCall Alert for All Incoming Calls and Messages......... 15
Selecting VibraCall Alert for Individual Services................................ 16
Setting the Ringer Volume .......................................................................... 16
Setting a Ring Style for the Alternate Line ..................................... 16
Additional Phone Services ................................................................ 17
Call Waiting................................................................................................. 17
Turning Off Call Waiting ..................................................................... 17
Call Hold............................................................................................... 17
3-Way Calling....................................................................................... 18
Alternate Phone Line ................................................................................... 18
Setting the Active Line......................................................................... 18
Receiving a Call.................................................................................... 19
Receiving a Call on Your Alternate Line ............................................. 19
Receiving a Phone Call Using Speakerphone ...................................... 19
Missed Call Indicator................................................................................... 19
Call Forwarding ........................................................................................... 20
Unconditional Call Forwarding............................................................ 20
Conditional Call Forwarding................................................................ 20
Creating, Editing, and Using Stored Lists....................................... 22
Combined Phone Number and Private ID List..................................... 22
Entering Numbers............................................................................ 22
Entering Names ............................................................................... 22
Storing Names and Numbers........................................................... 23
Pause Digit Entry............................................................................. 24
Editing and Erasing Phone List Entries........................................... 24
Editing and Erasing Private ID List Entries .................................... 25
Last 10 Calls Received and Sent Lists.................................................. 26
Quickstore of Phone Numbers.............................................................. 26
Making Private Calls......................................................................... 28
Scroll ................................................................................................ 28
Name Search.................................................................................... 28
Receiving a Private Call .............................................................................. 28
Private/Group Mode Speaker ....................................................................... 28
Call Alert...................................................................................................... 29
Selecting a Call Alert Tone Style ................................................................ 29
Setting an Alert Tone Style ............................................................. 29
Sending a Call Alert..................................................................................... 29
Receiving a Call Alert .......................................................................... 29
Call Alert Queuing................................................................................ 30
Table of Contents
v
Clearing or Queueing a Call Alert......................................................... 30
Responding to a Queued Call Alert....................................................... 30
Quickstore of Private IDs .............................................................................31
Storing Your Private ID ............................................................................... 31
Making Group Calls.......................................................................... 32
Receiving a Group Call ................................................................................ 32
Adding and Storing a Talkgroup.................................................................. 32
Area Selection ..............................................................................................33
Private/Group Mode Speake ........................................................................33
Advanced Features............................................................................ 34
Multi-Simultaneous Talk Group Scan.......................................................... 34
Entering Group Mode............................................................................ 34
Initiating a Group Call........................................................................... 35
Responding to a Secondary Talkgroup ................................................. 35
Turning Scan On and Off ......................................................................36
Aliasing Talkgroup Mode ..................................................................... 36
Talkgroup Mode Selection by Direct Entry.......................................... 37
Talkgroup Mode Selection by Memory Scroll...................................... 37
Emergency Group Call................................................................................. 37
Placing an Emergency Group Call........................................................ 37
Canceling an Emergency Group Call.....................................................38
Receiving an Emergency Group Call.................................................... 38
Receiver Operations During an Emergency Call ..................................38
Status Message ............................................................................................. 38
Entering the Status Message Function .................................................. 39
Selecting a Status Message with Direct Entry ...................................... 39
Selecting a Status Message Using Memory Scroll................................ 40
Selecting a Target by Direct Entry........................................................ 40
Selecting a Target by Memory Scroll ................................................... 40
Selecting a Target by Alpha Search...................................................... 40
Sending a Status Message ..................................................................... 41
Exiting the Status Message Function.................................................... 41
Receiving a Status Message.................................................................. 41
ID List Programming ............................................................................41
Isolated Site Operation ................................................................................. 42
Entering ISO 42
Initiating a Group Call ...........................................................................43
Exiting ISO............................................................................................ 43
Other Operations ................................................................................... 43
Using Mail Services ........................................................................... 44
vi www.mot.com/iDEN
Net Mail ....................................................................................................... 44
Voice Mail ............................................................................................. 45
Alert Receipt During Phone Call.......................................................... 45
Message Mail............................................................................................... 46
Saving and Erasing Mail........................................................................ 46
Auto Call Back ...................................................................................... 47
Mail Memory Full.................................................................................. 47
Using Your Phone as a Modem........................................................ 48
TTY Users ........................................................................................ 48
Setting Programming Menus............................................................ 49
About Error Codes........................................................................................ 54
Optional Accessories ........................................................................ 56
Batterie......................................................................................................... 56
Charging the Battery............................................................................. 56
Battery Operating Instructions.............................................................. 56

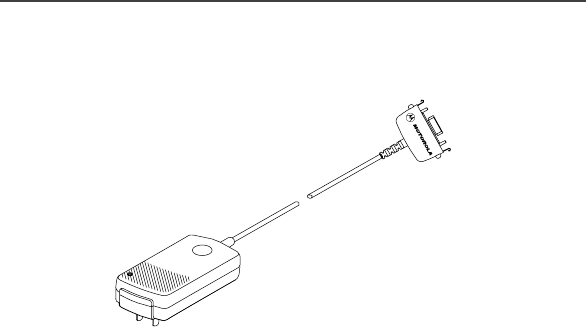

Rapid Travel Charger................................................................................... 57
Using the Rapid Travel Charger (110V/220V/240V) .......................... 57
Rapid Travel Charger Operating Specifications................................... 57

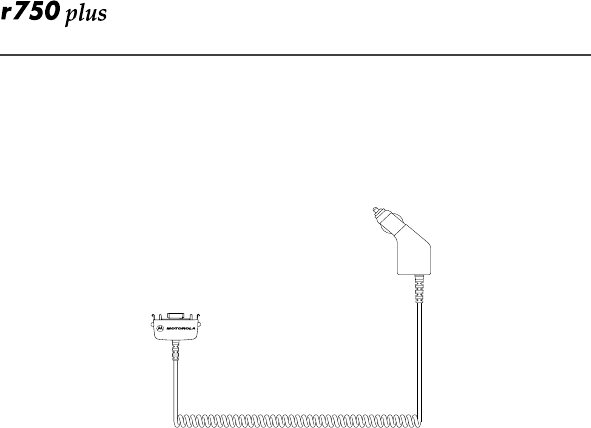

Vehicular Battery Charger ........................................................................... 58
Using the Vehicular Battery Charger ................................................... 58
Removing the Vehicular Battery Charger ............................................ 58
Operating Specifications....................................................................... 58

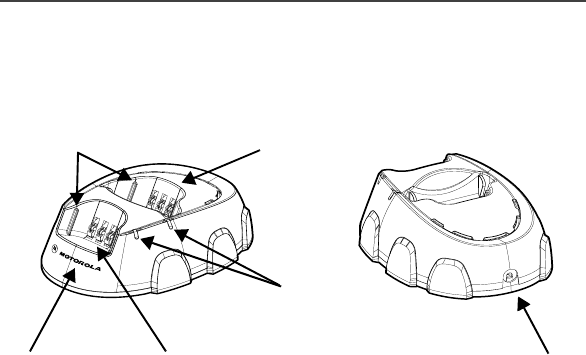

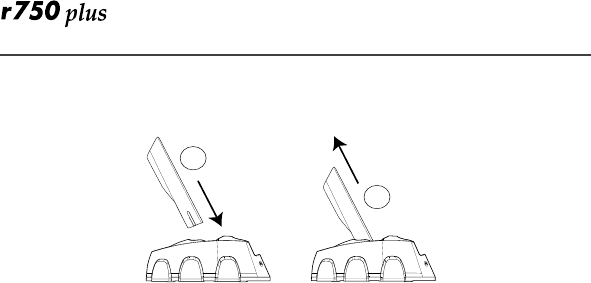

Desktop Dual-Pocket Charger ..................................................................... 59
Charging a battery................................................................................. 59
Data Operation...................................................................................... 59
Inserting and removing a battery from the rear pocket......................... 60
Desktop Charger Status ......................................................................... 60
Desktop Charger Troubleshooting ........................................................ 60

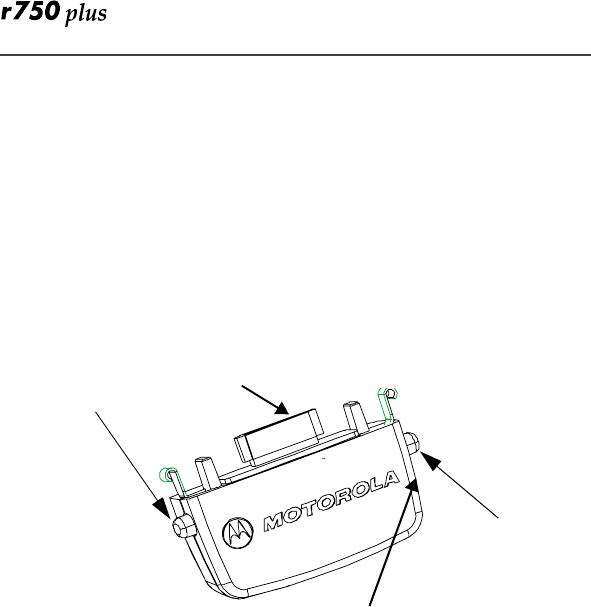

Audio Adapter ...................................................................................... 62
Using the Audio Adapter 62
Attaching/Detaching the Earpiece Microphone or Headset ................. 62
Removing the Audio Adapter.......................................................... 63

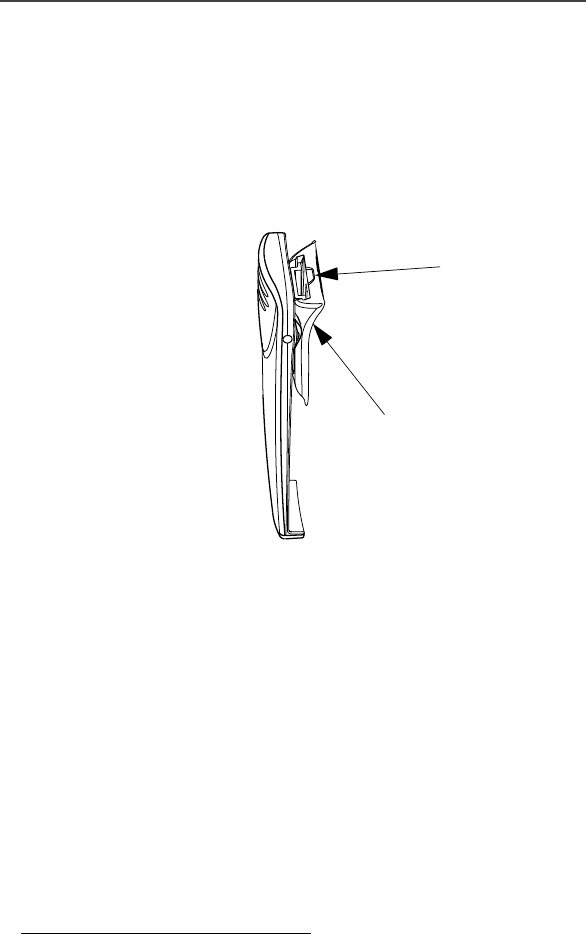

Battery Belt Clip................................................................................... 63
Using the Battery Belt Clip ............................................................. 63
Leather Carry Case ............................................................................... 63
Hard-Install Car Kit.............................................................................. 64

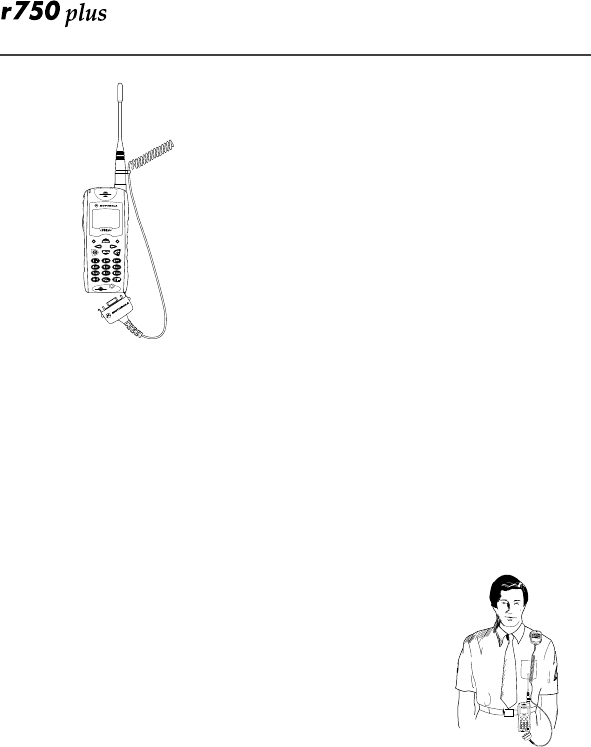

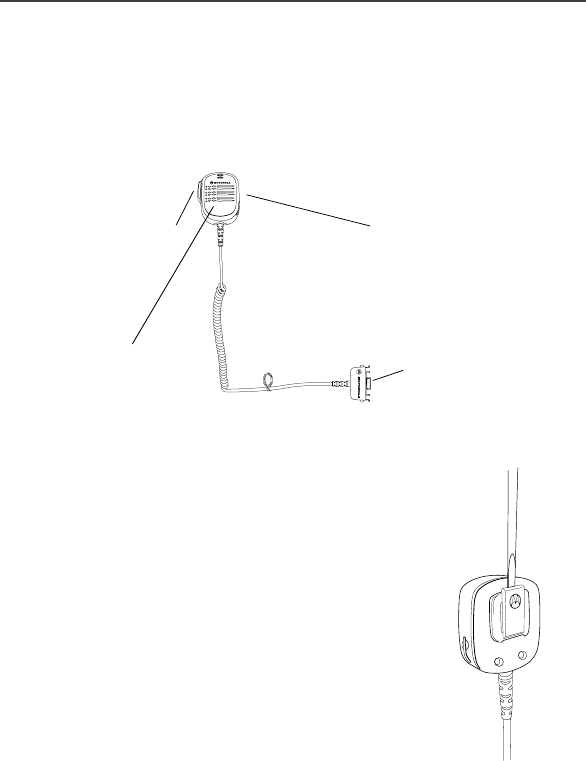

Remote Speaker/Microphone ............................................................... 65
Attaching and Removing the Swivel Clip....................................... 65
Connecting the Remote Speaker/Microphone to the Portable......... 65
Operation ......................................................................................... 66
Table of Contents
vii
Safety and General Information ...................................................... 67
RF Operational Characteristics .................................................................... 67
Exposure To Radio Frequency Energy ........................................................ 67
Portable Radio Product Operation and EME Exposure ............................... 68
Antenna Care......................................................................................... 68
Phone Operation.................................................................................... 68
Two-way radio operation ...................................................................... 68
Body-worn operation............................................................................. 68
Data operation ........................................................................................68
Approved Accessories........................................................................... 69
Electro Magnetic Interference/Compatibility............................................... 69
Facilities................................................................................................ 70
Aircraft .................................................................................................. 70
Medical Devices........................................................................................... 70
Pacemakers............................................................................................ 70
Hearing Aids ......................................................................................... 70
Other Medical Devices ..........................................................................70
Use While Driving ................................................................................ 71
Operational Warnings................................................................................... 72
For Vehicles Equipped with an Air Bag ................................................72
Potentially Explosive Atmospheres ......................................................72
Blasting Caps and Areas ....................................................................... 72
Operational Cautions.................................................................................... 73
Antennas................................................................................................ 73
Batteries................................................................................................. 73
Cleaning and Drying Considerations .................................................... 73
Intrinsically Safe Radio
Information ........................................................................................ 75
FMRC Approved Equipment .......................................................................75
Repair of FMRC Approved Products ...........................................................77
Repair .....................................................................................................77
Relabeling ..............................................................................................78
Do Not Substitute Options or Accessories............................................ 78
Accessory Safety Information .......................................................... 79
Warranty............................................................................................ 81
Patent & Trademark Information ...................................................89
Owner’s Information......................................................................... 93
viii www.mot.com/iDEN
Important!
Be sure to read “Safety and General Information” on page
67 before using your phone.
1
Welcome
ongratulations on purchasing your Motorola iDEN r750plus data-
capable, multi-service, digital portable phone. Superior features and
state-of-the-art technology help to keep you in constant touch with all
your business and personal contacts.
Your r750plus phone has so many new and exciting features! With wireless
access to the Internet, you can check on the latest news and weather, get stock
quotes, send and receive e-mail, and download information from your computer.
A missed-call indicator lets you know that you received calls while you were
away.
And new ease-of-dialing features, such as Turbo Dial key and the Last 10
Calls Received and Sent lists, help you to quickly make and return phone calls.
NOTE: Some features may be network dependent or subscription only, and
may not be available in all areas. Contact your service provider for
more information.
The r750plus phone offers:
•Phone Mode—for cellular phone operation.
See Page 12.
•Private Mode—for two-way radio use to talk with one person.
See Page 28.
•Group Mode—for two-way radio use to talk with several people. See
Page 32.
•Net Mode—for accessing the built-in microbrowser.
See the Net Mode User’s Guide.
•Advanced Features—for monitoring multiple talkgroups, emergency
calls, status messages, and Isolated Site Operation (ISO) functions.
Dependent on Network and phone availability. See Page 34.
•Mail Services—for message, voice, and net mail. See Page 44.
•Fax and Data Transfer—for circuit data faxes and file transfers. See
Page 48.
NOTE: This manual describes the features of your phone as they were set up at
the factory. However, your carrier or your organization may have
changed or added features. For more information, check with your car-
rier or your organization.
This manual provides information about how Net Mode works with various
features of your r750plus phone. For information on using the microbrowser
and other components of Net Mode, see the Net Mode User’s Guide.
2www.mot.com/iDEN
TTY Access
TTY access is available on your phone. See the Wireless Data Services User’s
Guide for complete instructions.
Large-Print Manuals
A large-print version of the phone’s User’s Guide is available. For more
information on Motorola products for people with disabilities, contact Motorola
Customer Care at 1-800-453-0920 or TTY 1-877-483-2840.
Features of your r750plus Phone
* These features are available in the Net Mode browser.
** Emergency Call Key is orange; VibraCall® Alert key is black.
NOTES: Remove the plastic film lens protector from the display before you
use your phone for the first time.
Some keys have multiple uses. For more information, see the Net
Mode User’s Guide.
Press any key or button to turn on the keypad backlight.
12
3
5
4
789
6
0
Antenna
Earpiece
Rubber
Over-Mold
Grip
Alphanumeric
Display
Option Key
Scroll Keys
Send/End Key
Mode Key
* Home Key
* Next Key
Speaker Key
** Emergency Call Button (AFU only)
or
VibraCall® Alert On/Off Button
Status Light
Vo lu me
Control/ List
Buttons
Push-To-Talk
(PTT) Button
MENU
Option Key
On/Off Key
* Punctuation Key
Alphanumeric
Keypad
* Back Key
Microphone
Accessory Connector
Welcome
3
Antenna Install for optimal signal.
Earpiece Hold to your ear to hear the other party.
Volume Control/
List Buttons Press to adjust volume levels in Phone, Private, and
Group modes.
Push-To-Talk
(PTT) Button Transmit a Private or Group Call, or a Call Alert.
Press and hold the PTT button to talk; release it to
listen.
Mode Key Press to change modes.
Emergency Call
Button
or
VibraCall® Alert
Button
Emergency Call Button: Activates Emergency
Group Call feature (see “Emergency Group
Call” on page 37).
VibraCall Alert Button: Turns on/off the VibraCall
Alert feature (see “VibraCall® Alert” on page
15).
On/Off Key Press and hold to turn your r750plus phone on or
off.
Status Light Shows the phone’s status. See Table 2 on page 5 for
more information.
Punctuation Key Add punctuation in the Net Mode browser (within
T9™ Text Input).
Back Key Return to the previous browser screen.
Microphone Use to speak during calls.
Rubber Over-Mold
Grip Hold the phone more securely and comfortably with
the rubberized grip.
Alphanumeric
Display View up to four lines (12 characters per line) or six
lines (16 characters per line) on the display.
MENU Key Press to scroll through menu options.
Scroll Keys Press the left key to scroll backward or the right key
to scroll forward through menu options and lists.
Option Keys Press the right or left option key to select the menu
option that appears in the display directly above the
key.
SEND/END Key Press to answer an incoming Phone call. After
entering a phone number, press to begin an outgoing
Phone call or to redial the entered phone number.
Press to end Phone calls.
Alphanumeric
Keypad Enter telephone numbers, Private Call IDs, and
alphanumeric characters.
Next Word Key Press to display the next word choice in the browser
(within T9 Text Input).
Home Key Press to return to the browser Home menu.
Speaker Key Press to hear incoming calls through the earpiece or
the speaker during private and group conversations.
Accessory
Connector Connect battery charging, audio, and data
accessories.
4www.mot.com/iDEN
Attaching and Charging the Battery
Attaching the Battery
1. Insert the battery bottom-end first into
the battery guide holes on the housing
of the phone.
2. Push the battery forward into the hous-
ing of the phone until it securely locks.
Detaching the Battery
1. Press down on the battery release button.
2. Pull on the battery and remove it.
Charging the Battery
You should charge your r750plus phone
battery overnight before initial use. This
allows your battery to achieve its maximum
capacity and life.
Connect the charger to the bottom of the
r750plus phone.
NOTE: For more information on charging
the battery, see “Batteries” on
page 56.
Battery and Charging Status
A low battery is indicated by a short, chirp-
like sound through the speaker. The battery
strength indicator icon shows the remaining charge in your battery. Three bars
indicates full charge. As the charge is reduced through use, the bars
progressively reduce from three to two bars, then one bar, then disappear. The
indicator flashes when you have less than five minutes of talk time (see
Table 1 ).
Welcome
5
Table 1: Battery Charging Status
Turning On Your r750plus Phone
Press and hold the On/Off button f until a set of icons appears on your display.
Next, a welcome message displays while the r750plus phone connects to your
carrier’s network.
The Status Light (LED) indicator on the r750plus phone shows the service state.
See Table 2 .Table 2: LED Indicator
Turning Off your r750plus Phone
Press and hold the On/Off button f until you see the message “Powering Off”.
Icon
Flashes
Charging Low Battery 0-30% 31-
60% 61-
90% 91-
100%
Discharging Low Battery 0-10% 11-
40% 41-
70% 71-
100%
Status Light
Indicator r750plus phone status
Flashing Red Registering—your r750plus phone is signing on to
your carrier’s network. Please wait.
Solid Red No service—your r750plus phone cannot sign on
because it is outside your carrier’s service area.
Flashing
Green In service—your r750plus phone is ready to use.
You can now place and receive calls.
Solid Green In use—your r750plus phone is currently being used.
To make sure that you ended the last call,
press e.
6www.mot.com/iDEN
Connecting the Supplied Antenna
Turn your r750plus phone off before installing or
removing the antenna.
Insert the bottom of the antenna into the screw-in base on
the top of the r750plus phone. Turn clockwise by hand
until snug. Do not force.
NOTE: Connect only the supplied NAF5075 antenna to
the antenna connector on your r750plus as it is
the only one that has been tested for compliance with Federal Commu-
nications Commission requirements and authorized by them for use on
this radio product. Please see “Safety and General Information” on
page 67 of this manual for more information.
Keypad Lock
The r750plus phone includes a Keypad Lock feature that enables you to quickly
lock the phone’s keypad to avoid inadvertently pressing keys or placing calls.
Once Keypad Lock is activated, you can only perform the following tasks
(unless you receive an incoming call, page, etc.):
•Turn your phone On/Off
•Unlock the keypad
Activating Keypad Lock
Before locking your phone’s keypad, you may want to read this entire section to
learn how to respond to incoming calls, pages, etc.
From the Phone Ready screen, simultaneously press *
and #. The message Keypad Locked displays on your
phone.
NOTE: Whenever a key is pressed, while in Keypad
Lock mode, the “Keypad Locked” message dis-
plays as a reminder.
Receiving Incoming Calls
When you receive an incoming phone call, keypad lock will be temporarily
disabled. You may perform the following:
Press e to answer the call. Or,
•Press o under “End” to send the call to voice mail and reactivate
keypad lock.
adjb
Keypad
Locked
Welcome
7
Receiving New Mail Messages
When you receive a new mail message (see “Using Mail Services” on page 44
for more information), the keypad lock will be temporarily disabled. You may
perform the following:
•Press o under “Later” to return to Phone Ready and reactivate the
lock. Or,
•Press o under “Now”. Press o under “Read”. Press o under
“Save” or “Erase”. Once you have finished, press o under “Exit”
to return to Phone Ready and reactive the lock.
NOTE: If you have disabled the Message Mail Notification feature, only the
c icon will display. You will not receive the read Now/Later
options.
Receiving Voice Mail
When you receive a new voice mail (see “Voice Mail” on page 45) keypad lock
will be temporarily disabled. You may perform the following:
•When New Voice Mail Waiting displays, press o under “Exit” to
return to Phone Ready and reactivate the lock. Or,
•Press o under “Dial” to access Voice Mail service. Once you have
finished, press # to exit Voice Mail, return to Phone Ready and
reactivate the lock.
NOTE: If you have disabled the Message Mail Notification, g icon will
display, however, “New Voice Mail Waiting” will not appear.
Receiving Private (Two-Way Radio) Calls
When you receive an incoming private (two-way radio) call (see “Receiving a
Private Call” on page 28) the phone will automatically activate the applicable
mode. Once the call is terminated and the Display Timer has expired, the phone
will return to Phone Ready and reactivate the lock.
Deactivating Keypad Lock
From the Phone Ready screen, simultaneously press *
and #. The message Keypad Unlocked displays on
your phone.
adjb
Keypad
Unlocked
8www.mot.com/iDEN
Display Icons
Display icons appear on the screen to inform you of existing conditions. See the
following list.
The following icons may appear along the top of the display.
Signal Strength Indicator
Shows the signal strength. Six bars indicate the strongest
signal. Calls and messages may not be sent or received in
no-signal areas.
Battery Strength Indicator
Shows the remaining charge in your battery. Three bars
show full charge. The indicator flashes when you have
less than five minutes of talk time remaining.
Voice Mail
Indicates that unplayed messages are waiting in your
voice mail box.
New Message Mail
Indicates that you have new text messages in your mail
box.
Unread Message Mail
Indicates that you have unread Message Mail.
Vibrate All
Indicates that the Vibrate All option is turned on. You will
not hear a ring tone.
Call Forward
Indicates that incoming phone calls are being forwarded.
Active Line Indication
Displays the active phone line (1 or 2).
Private/Group Speaker
Indicates that the Private/Group speaker is off. You will
hear calls through the earpiece.
Packet Data
Indicates packet data registration. The blinking arrows
indicate send and receive activity. For more information,
see the Wireless Data User’s Guide.
Some of the following icons may appear in the browser.
Secure Packet Data Connection
Indicates that your packet data information is encrypted
during transmission.
More Information
Indicates that there is more text to read above, below, or
above and below the current screen.
Welcome
9
About Modes and Menus
Modes and menus are the navigational tools, providing access to the various
features of your r750plus phone. Pressing the Mode key m takes you through
the mode choices. Pressing the Menu key n takes you through the menu
options within each mode.
There are four modes:
•Phone—for cellular phone calls. See Page 12.
•Private—for one-to-one radio calls. See Page 28.
•Group—for radio calls with all individuals in a designated talkgroup. See
Page 32.
•Net—for browser use. See the Net Mode User’s Guide.
To change modes:
Press m until you see the desired mode.
To select menu options:
Press n until you see the desired menu option, then press o under the desired
menu option to select it.
Setting the Time and Date
If your carrier provides this option, you can set your phone to display the current
time and date. Unless the phone is turned off, it continues to display the current
time during a loss of service.
You have a choice of a 12- or a 24-hour clock format. See Table 3.
NOTE: When this feature is activated, your phone automatically displays local
time.
Table 3: Time Display Options
12-Hour Display 24-Hour Display
12:00a 00:00
6:25a 06:25
12:00p 12:00
6:25p 18:25
10 www.mot.com/iDEN
You have a choice of either a MM/DD (month/day) or a DD/MM (day/month)
date format. See Table 4:.
If your carrier activates the time and date, they are displayed on the third line in
all modes (Phone, Private, Group, Net). The time of day is also shown during an
active Phone call. The time and date are not displayed in Group mode when you
select an Area option.
To set the time and date format:
1. Press *, #, 7, 1.
2. Select “Ok”. The Time/Date screen displays.
The default (preset) time and date format that displays
depends on your carrier. You can accept the default format
or select an alternate format.
3. Press r until you see the
Time Format screen.
4. Do one of the following:
• To use the 12-hour format, go to the next step.
• To use the 24-hour format, select “24hr”. (See
Table 3 on page 9.)
5. Press r until you see the
Date Format screen.
6. Do one of the following:
7. To use the MM/DD format, select “Exit”.
8. Or to use the DD/MM format, select “DD/MM”, then
“Exit”. (See Table 4 on page 10.)
Table 4: Date Display Options
Date Month/Day Format
(MM/DD) Day/Month Format
(DD/MM)
January 2nd 01/02 02/01
January 31st 01/31 31/01
October 9th 10/09 09/10
December 31st 12/31 31/12
adjb
71=Time/
Date
Exit Ok
adjb
71=Time/
Display:On
Exit Off
adjb
Time Format
12 Hour
Exit 24hr
adjb
Date Format:
MM/DD
Exit MM/DD
Welcome
11
9. Select “Exit” again to leave the Time/Date Programming option. The
Ready screen for each mode (Phone, Group, Private, and Net) now displays
the selected time and date formats.
Changing the Display Language
You can customize your r750plus phone to display one of four languages:
English, French, Spanish, or Portuguese.
To change the displayed language:
1. Press *, #, 7, 0.
2. Select “Ok”.
Press l or r to scroll through the language options.
Selecting “Exit” at any time retains the current language
selection.
3. When the desired language appears on your display,
select “Ok”. The displayed text immediately changes
to the selected language.
4. Select “Exit”.
The language that you select will be the displayed language.
Selectable Backlight Timer
Your phone’s backlight is what illuminates the display when you receive or
make calls. Through your Programming Menu (*,#,16), you can customize the
amount of time that your backlight remains illuminated: 0, 10, 20, or 30
seconds. By choosing zero (0) seconds, all keypad backlighting, and the Status
Light, remains off (is disabled). This means, when choosing 0 seconds, the
r750plus phone enters completely dark mode. See “Setting Programming
Menus” on page 49 for more information.
adjb
70=Language
English
Exit Ok
adjb
Language
Français
Cancl Ok
12 www.mot.com/iDEN
Making Phone Calls
In addition to making and receiving phone calls in Phone mode, you can
forward calls, use call waiting, put calls on hold, and create and use stored lists.
Phone Ready is the main screen.
NOTE:See “Additional Phone Services” on page 17 for more information.
You can place a call by entering the phone number on the keypad.
1. From the “Phone Ready” screen, using the keypad,
enter the desired number.
If you make a mistake, press l once to move back one
digit, or select “Cancl” to start over.
2. Press e to place the call.
3. To end the call, press e .
Using Other Dialing Methods
To use other dialing methods such as Scroll, Speed Dial, or Name
Search, names and numbers must be programmed into your phone. See
“Creating, Editing, and Using Stored Lists” on Page 22.
Scroll
1. From the Phone Ready screen, press l or r to scroll backward or forward
through the stored list of numbers and names.
2. Press e to place the call.
3. To end the call, press e.
Speed Dial
1. From the Phone Ready screen, press n until you see the “Spd#” option on
the last line of your display.
2. Select “Spd#”.
3. Enter the assigned speed-dial number (1-100). You will see the stored
name and phone number associated with the speed dial number.
4. Press e to place the call.
5. To end the call, press e.
adjb
Phone Ready
Line1
Exit Ok
10:42a 11/06
Making Phone Calls
13
Name Search
1. From the Phone Ready screen, select “Name”.
2. Using the keypad, enter the first letter of the desired name, for example, to
search for the name Bob:
3. Enter “B” by pressing 2 twice.
4. Press r to scroll through all the names starting with “B” until you see
“Bob”.
5. Press e to place the call.
6. To end the call, press e.
Automatic Redial
If you receive a “System Busy, Try Later” message, press e to have your phone
automatically redial the number. You will hear a ring-back tone when the call is
successful.
Last Number Redial
To redial the last number that you called, press e.
Turbo Dial® Key
Turbo Dial key enables you to quickly place a phone call by simply pressing and
holding the numeric key on the keypad that corresponds to the stored entry in
your Phone list directory. There are nine Turbo Dial positions, 1 through 9.
NOTE: If you are on a Phone call, place the call on hold before using Turbo
Dial key.
From the Phone Ready screen:
1. Select one of the first nine entries in the Phone list
using key numbers 1 through 9. For example, press
1 for Turbo dial #1. Keypad number 0 is not avail-
able for Turbo Dialing.
2. Press and hold the desired key for two seconds to acti-
vate the Turbo Dial key. The phone begins to dial the
number and “Phone Ready” changes to “Phone-In
Use”.
adjb
Phone Ready
1
Cancl
adjb
Phone-In Use
Office
12:45p 10/18
14 www.mot.com/iDEN
Plus Dialing
This feature enables you to place an International call from any country --
without entering the local international access code.
1. Press and hold 0 for two seconds. A “0” appears, then changes to a “+”
that precedes the appropriate international access code needed to place the
call.
2. Enter the international telephone number.
3. Press e.
Hands-Free Speakerphone
The r750plus phone provides the convenience of a speakerphone for holding
impromptu meetings or listening to your voice mail messages.
During speakerphone operation, you may either speak or listen, but you cannot
do both at the same time.
To use the speakerphone:
1. Select “Spkr.” The “Spkr” option flashes while the speakerphone is on.
2. Place the phone 15-30 inches (38-76 cm) away from you. In a noisy envi-
ronment, you may want to move the r750plus phone closer to you for better
transmission.
NOTE: If there is background noise in your area, you may have difficulty
hearing a caller’s voice or messages. To resolve this problem:
(1) Press n until you see the “Mute” menu option.
(2) To listen, press o under “Mute”. The display changes from
“Phone-In Use” to “Phone-Mute”, indicating that the microphone is
muted.
(3) To speak, pressounder “Mute” again. The display changes from
“Phone-Mute” to “Phone-In Use”, indicating that the microphone is
on.
While the microphone is muted, you can hear incoming audio, but a
caller cannot hear any speech coming from your r750plus phone.
Receiving a Phone Call
Press one of the following keys: e, or *, or #. Or
press any numeric key (0 through 9). To activate the
speakerphone option, select “Spkr.”
Ending a Phone Call
Press e.
adjb
Incoming
Phone Call
End
Spkr
Making Phone Calls
15
What Is My Phone Number?
Press *,#,1 to display your own phone number.
VibraCall® Alert
VibraCall Alert is a vibration alert system that notifies you
of incoming Messages, Phone, Private, Group, and Data
calls. You can set a vibration alert for all services or for individual services.
When you set vibration alerts, they are set only for the current line. If you have a
second phone line, you must select that line and repeat the procedure for
selecting all services or selecting individual services to vibrate.
The alert choices are:
•Vibe All—produces a vibration alert for all incoming calls and messages.
•Phone Vibrate—produces a vibration alert for incoming phone and circuit-
data calls.
•Phone Vibrate/Ring—produces a vibration alert followed by a ring tone for
phone and circuit-data calls.
•Mail Vibe—produces a vibration alert for mail messages and net alerts.
•Group/Prvt Vibe—produces a vibration alert for incoming group and
private calls.
NOTE: If VibraCall Alert is set for incoming calls and messages, the power-up
sequence includes a brief vibrate cycle.
Selecting VibraCall Alert for All Incoming Calls and Messages
Advanced Feature Units (orange button on top of
housing): To set a vibration alert for all incoming calls and
messages:
1. Press*,#,9.
2. Select “All”. You will receive a brief vibration alert.
After you set the alert, the display returns to the previous
mode and q (the Vibrate All icon) appears at the top of
your display.
All Other (Non-Advanced Feature) Units (black button on
top of housing): Perform the same steps as described above, or press the black
button on top of the r750plus phone.
adjb
1=Own Ph#
9545553434
Exit Edit
adjb
9=Vibrate
Alert:Off
Exit All
aqjpb
Phone Ready
Line1 Vibe
Name Mail
10:54a 12/09
16 www.mot.com/iDEN
Selecting VibraCall Alert for Individual Services
To set a vibration alert for specific phone or mail services:
1. Press *,#,9.
2. Press n until you see the
“Selct” menu option.
3. Select “Selct”. The first choice is Phone Vibrate.
4. To view the Vibe/Ring vibration alert choices, press
n on the keypad.
5. To view other choices, press r.
• To receive vibration alerts only for Mail, select
“Mail Vibe”, then select “On”.
• To receive vibration alerts for Group and
Private calls, select “Group/Prvt”, then select
“On”.
6. Select “Exit” to return to the Vibrate Alert menu.
7. Select “Exit” again to return to the previous mode.
Setting the Ringer Volume
You can adjust the ringer volume for incoming calls. If you have a second phone
line, you must set each line separately. Be sure to select the desired line before
setting the volume.
1. Press *, #, 3, 0. The “30=Ringer Volume”
screen displays.
The display shows your current ringer volume.
2. Press the Volume Control buttons on the side of the
phone to listen as you raise or lower the volume. At
the lowest setting, the screen displays “Ringer Vol-
ume Silent”.
3. When you reach the desired level, select “Exit”.
Setting a Ring Style for the Alternate Line
1. From the Phone Ready screen, press n until you see “Line2”.
2. Select “Line2”.
3. Repeat the procedure for "Setting an Alert Tone Style", above.
adjb
9=Vibrate
Alert:Off
Exit All
adjb
9=Vibrate
Alert:Off
Selct
adjb
Phone
Vibrate:
Exit Vibe
Vibrate Off
adjb
Group/Prvt
Vibe:Off
Exit On
adjb
30=Ringer
Volume
Exit
Additional Phone Services
17
Additional Phone Services
NOTE: Some features may be network dependent or subscription only, and
may not be available in all areas. Contact your service provider for
more information.
Call Waiting
Using the Call Waiting feature, you can answer an incoming call when you are
on another call. Call Waiting is on unless you turn it off for a particular call.
1. After the alert tone, your display shows the incoming
number and asks “Accept Call?”. To accept the call,
select “Yes”. To decline the call, select “No”.
2. Press n, then select “Hold” to place the second call
on hold and return to the first call. Selecting “Hold”
switches you between the two calls.
3. To end the active call, press e.
Turning Off Call Waiting
You can turn off Call Waiting if you do not want to be interrupted during a call.
1. Press n until you see “Wait”, then select “Wait”.
2. Select “Off”. Call Waiting will be disabled for one call—but will automati-
cally reset to “On” after that call.
Call Hold
When you are on a call, you can place the call on hold and make a second call.
1. To place the active call on hold, press n, then select “Hold”. You may
then answer or place another call.
2. To remove the call from hold, press n, then select “Hold” again.
adjb
5551212
Take Call
No Yes
On Line 1
adjb
Call 1-Hold
5551212
Hold Name
10:54a 12/09
18 www.mot.com/iDEN
3-Way Calling
If your carrier provides 3-way calling, you can combine
two ongoing phone calls into one conversation. This option
is available only when you initiate the second call.
After you place or receive a phone call:
1. Select “3way”. This action places the current call on
hold.
2. Enter the phone number for the second call and press e.
3. When the second call is connected, select “3way” to join the
calls. Both phone numbers and “3way” appear on your screen.
4. To end the 3-way call, press e.
Alternate Phone Line
If your phone is activated with two phone lines, you can switch between them.
To change phone lines, your phone must be at the Phone Ready screen. The
following settings are independent for each phone line. When you enable a
setting, it applies only to the active line.
• Ringer Volume
• Auto Answer
• One-minute Beep
• Automatic Display Timer
• Resettable Timer
• Total Call Timer
• Selectable Ring Styles
• Call Forwarding
Setting the Active Line
At the “Phone Ready” screen:
1. Press n until you see “Line2”. (If you are on Line 2,
you will see “Line1”.)
2. Do one of the following:
• Select “Line2” to activate Line 2 when Line 1
is the active line.
• Or, select “Line1” to activate Line 1 when Line 2 is the
active line.
Outgoing calls will be made on the selected line.
adjb
Phone-In Use
5551212
Hold 3way
10:42a 11/06
adjb
Phone Ready
Line1
Line2
11:48a 08/21
Additional Phone Services
19
Receiving a Call
You can receive calls on either line, regardless of the active line setting.
•If you receive a call on the currently active line, that icon simply flashes.
•If you receive a call on the line that is not currently active, the active line
icon remains lit and the alternate line icon flashes.
Receiving a Call on Your Alternate Line
1. Select “Yes” to answer the call on the other line. Your
previous call will be placed on hold.
2. Do one of the following:
• To end the call, press e.
• Or, to place the current call on hold, or to
toggle between calls, press n, then select
“Hold”.
When the call ends, the phone remains active in the last active line selected.
Receiving a Phone Call Using Speakerphone
Select “Spkr” to activate the speakerphone.
Missed Call Indicator
Your r750plus phone notifies you of received, but
unanswered, phone calls. If you subscribe to Caller ID, the
caller’s phone number is stored in your Last 10 Calls
Received list. Your screen displays a flashing message, for
example, “2 Rcvd Calls”, with the number of missed calls.
Press any key to clear the flashing indicator.
To retrieve the missed calls:
1. From the Phone Ready screen, press n. The menu
options change to “Calls” and “Spd#”.
2. Select “Calls”. The Rcvd Calls screen opens with the
number, time, and date of the last call that you
received.
3. Scroll to continue viewing the list.
adjb
3055551212
Accept Call
No Yes
On Line 2?
adjb
Phone Ready
Line1
Name Mail
2 Rcvd Calls
adjb
Phone Ready
Line1
Calls Spd#
10:42a 11/06
adjb
Rcvd Calls
1=5552222
Cancl Store
10:42a 11/06
20 www.mot.com/iDEN
Call Forwarding
Call forwarding lets callers reach you wherever you are. You have two options:
forward all incoming calls (unconditional) or select those circumstances
(conditional) when you want your calls forwarded.
Unconditional Call Forwarding
Unconditional call forwarding sends all incoming calls to the designated
number.
NOTE: When you set unconditional call forwarding, your phone does not ring.
1. From the Phone Ready screen, press n until you see
“Forwd” on the last line of the display.
2. Select “Forwd”.
3. To select the number where you want your calls for-
warded, do one of the following:
• Enter a number.
• Or, press the scroll keys to select a number
from your stored list.
4. Select “On”.
5. After the “Please Wait” message displays, select “Exit”.
6. Notice that the Call Forward icon z appears on your display when Uncon-
ditional Call Forwarding is set.
Conditional Call Forwarding
You may want to forward your calls when your r750plus phone is:
• Busy on another call or accessing the browser (Busy)
• Not answered (NoAns)
• Outside the service area (NoRch).
NOTE: You must turn off Unconditional Call Forwarding before you can set
Conditional Call Forwarding options.
1. From the Phone Ready screen, press n until you see
“Forwd” on the last line of your display, then select it.
adjb
Phone Ready
Line1
Forwd Spd#
9:06a 9/03
adjb
Forwd:Off
To:5551212
Exit On
adjb
Phone Ready
Line1
Forwd Spd#
9:06a 9/03
Additional Phone Services
21
2. Press n once again until you see “Busy” and
“NoAns” on the last line of your display.
3. To forward your calls when your phone is in use,
select “Busy”.
4. To forward your calls when you do not want to
answer them, select “NoAns”.
5. Press n again until you see “NoRch” and “Rcl#”.
• To forward your calls when you cannot be
reached, select “NoRch”.
• To see the call forward number, select “Rcl#”.
6. After you select the call forward option, either enter
the number where you want your calls to be for-
warded, or press the scroll buttons and select a number.
7. Select “On”.
8. Select “Exit”.
9. You can set more than one condition by repeating steps 2
through 6.
adjb
Forward:Off
To:
Busy NoAns
adjb
Forward:Off
To:
NoRch Rcl#
22 www.mot.com/iDEN
Creating, Editing, and Using
Stored Lists
A stored list is a directory of phone numbers and Private IDs and their related
names. Stored lists are convenient because you do not have to remember names
and numbers—you simply scroll through your stored list.
Combined Phone Number and Private ID List
You can set a combined Phone and a Private ID with the associated name, which
eliminates the need to program the Private ID separately. You can add up to 100
numbers to your Phone list, store them with names, and assign them to speed-
dial numbers.
Entering Numbers
To enter a number, press the corresponding key on the keypad.
Entering Names
To enter a letter, press the key the required number of times, which is related to
the letter’s position on the key. Table 5 describes how to enter each letter on the
7 key.
Table 5: Entering Letters and Numbers on the Keypad
To shift to lowercase letters, press and hold # after a letter is entered.
To enter: Press 7
P once.
Q twice.
R three times.
S four times.
7 five times.
Creating, Editing, and Using Stored Lists
23
Storing Names and Numbers
1. Press *,#,2,0.
2. Select “Ok”.
The next screen briefly displays the remaining number of
phone numbers and private IDs that you can store.
3. Enter the name that you wish to store.
Select “Store”.
See Figure 1 . for an example of entering a name.
Figure 1. Entering a Name
2. Enter the phone number that you want to associate
with this name and select “Store”.
To skip the Phone Number entry, select “Skip”. You will
go directly to the “Enter Prvt ID Number” screen.
The next screen displays the name that you entered and a
flashing speed-dial number where the entry will be stored.
3. Do one of the following:
• To accept the speed-dial number shown, select
“Store”.
• To change the speed-dial number, enter
the desired speed-dial number. The speed-
dial number stops flashing.
4. At the next screen, enter the Private ID number asso-
ciated with the name that you entered then select
“Store”.
To skip the Private ID number entry, select “Skip”.
Example
To store the name “TIM”:
1. Enter “T” by pressing 8 once.
2. Enter “I” by pressing 4 three times.
3. Enter “M” by pressing 6 once.
adjb
20=Phone/
Prvt List
Exit Ok
adjb
Available
98 Phone #
3 Prvt IDs
adjb
Enter Name
-
Exit Store
adjb
Enter Phone
Number
Skip Store
adjb
TIM
Spd#=3
Cancl Store
adjb
Enter PrvtID
Skip Store
24 www.mot.com/iDEN
Pause Digit Entry
When storing a number, you can program your phone so that it will not only dial
a number but also pause and enter another series of numbers such as a personal
identification number (PIN) or password. This feature is particularly useful for
automated services such as voice mail and banking systems.
Here’s how it works: Let’s say you have a company voice mail account that you
frequently check while on travel. And, to access that account currently you must
do the following:
•Dial your work number;
•Press * while the voice mail greeting is being played; and
•Enter your PIN to access your messages.
You can program your r750plus phone to enter all of the above information for
you. All you have to do is separate each entry with a pause. If you were to
program your phone to input the above information, the stored data would look
like this: 17035551234P1234. In this example, the first eleven digits represent
the number that must be dialed to access your voice mail. The P represents a 3
second pause. The last four digits represent your PIN.
You can use this feature not only to enter PINs and passwords but also to have
the phone automatically select menu options (i.e., press 1 to hear messages).
To create a three-second pause follow the steps below:
•Press and hold * for two seconds. The pause symbol (P) will
appear.
NOTE: You can enter up to 20 numbers/characters in a single entry, stored or
dialed. If you use a system that will not let you enter an option until the
automated message has played in its entirety, you can program your
phone to pause for more than 3 seconds. For example, performing the
above step twice will program two pauses and cause your phone to wait
6 seconds before entering the next set of numbers.
Editing and Erasing Phone List Entries
1. Press *, #, 2, 1.
2. Select “Ok”. The “Edit Entry?” screen displays.
3. Do one of the following:
a. To edit an entry, select “Ok”.
(1) At the “Edit Entry” screen, press r until the desired entry appears,
then select “OK.
(2) At the “Edit Number” screen, edit the phone number, if you wish,
then select “Store”.
(3) At the “Edit Name” screen, edit the name, if you wish, then select
“Store”.
(4) At the “Edit Spd#” screen, edit the speed number, if you wish, then
Creating, Editing, and Using Stored Lists
25
select “Store”.
b. To erase an entry:
(1) At the “Edit Entry” screen, press l or r.
(2) At the “Erase Entry” screen, select “Ok”.
(3) Scroll to the desired entry, then select “Ok”. At the “Erase Entry?”
screen, select “Yes”.
4. Select “Exit” to close the Phone List Edit screen.
Editing and Erasing Private ID List Entries
1. Press *, #, 2, 2.
2. Select “Ok”. The “Edit Entry?” screen displays.
3. Do one of the following:
a. To edit an entry, select “Ok”.
(1) At the “Edit Entry” screen, press r until the desired entry appears,
then select “OK.
(2) At the “Edit ID” screen, edit the number, if you wish, then select
“Store”.
(3) At the “Edit Name” screen, edit the name, if you wish, then select
“Store”.
b. To erase an entry at the “Edit Entry” screen, press l or r once, then
select “Ok”. Press r to scroll to the desired entry, then select “Ok”.
At the “Erase Entry?” screen, select “Yes”.
4. Select “Exit” to close the Private ID List Edit screen.
26 www.mot.com/iDEN
Last 10 Calls Received and Sent Lists
If you subscribe to your carrier’s Caller ID service, you can view, dial, and store
the list of the last ten phone numbers received and the last ten phone numbers
dialed.
The most recent call sent or received appears first in your call list.
From the Phone Ready screen:
1. Press n. The menu options change to “Calls” and
“Spd#”.
2. Select “Calls”. The Rcvd Calls screen opens.
If the “Store” option appears, the number currently dis-
played is not in your Phone list. To add the number to
your list, select “Store”.
If you want to see the Sent list but the “Store” option is
on your display, press n until you see the “Sent” menu
option.
3. Do one of the following:
• To view the Calls Received list, use the Scroll
key to view each entry.
If the “Store” option is on your display, press n until
you see the “Rcvd” menu option.
• Or, to view the Calls Sent list, select “Sent”.
Use the Scroll key to view each entry.
4. To view the Calls Received list again, select “Rcvd”.
5. To close the Calls list, select “Cancl”.
Quickstore of Phone Numbers
If you subscribe to your carrier’s Caller ID service, you can use Quickstore to
store the last number that you dialed or quickly store a number from the Last 10
Calls Received and Sent Lists without having to enter the programming menu.
NOTE: As you scroll through the Last 10 Calls Received or Sent List, only the
name displays. If the name is not available, the phone number displays.
To use Phone Number Quickstore, from either the Phone
Ready screen or from the Last 10 Calls Received or Sent
List:
1. Do one of the following:
• To go to the last call that you dialed,
press r.
• To view the Received and Sent Calls list,
press n until you see “Calls”, then select it.
adjb
Phone Ready
Line1
Calls Spd#
12:55p 10/18
adjb
Rcvd Calls
1=5554444
Cancl Store
12:55p 10/18
adjb
Rcvd Calls
2=MAILBOX
Cancl Sent
12:56 10/18
adjb
Sent Calls
1=JOHN
Cancl Rcvd
12:56p 10/18
adjb
Phone Ready
Line1
Name Mail
12:43p 07/22
Creating, Editing, and Using Stored Lists
27
2. Select “Store”. The Enter Name screen displays.
3. Enter the name then select “Store”.
The combined name and number entry is stored in the first
available storage space.
The Stored message displays with the name that you
stored.
adjb
Phone Ready
0=5554455
Cancl Store
adjb
Enter Name
-
Cancl Store
adjb
JOHN
5551212
Stored
28 www.mot.com/iDEN
Making Private Calls
A Private call is a one-to-one conversation between two people. In Private
mode, each phone is identified by a name or a number called a Private ID.
To make a Private Call:
1. Press m until you see “Prvt Ready” on your display.
2. Use the keypad to enter the Private ID of the person
that you want to reach.
3. To speak, press and hold the PTT button, wait for the
chirp, then speak into the microphone.
4. To listen, release the PTT button.
To use Scroll or Name Search, you must have a Private ID list.
Scroll
1. Press m until you see “Prvt Ready” on your display.
2. Press l or r to scroll through the stored Private ID list.
3. Press and hold the PTT button, wait for the chirp, then speak into the
microphone.
Name Search
1. Press m until you see “Prvt Ready” on your display.
2. Select “Name”.
3. Press the key with the first letter of the name you are searching for.
4. Press l or r to scroll through other stored names associated with the let-
ter you entered.
5. Press and hold the PTT button, wait for the chirp, then speak into the
microphone.
Receiving a Private Call
When you receive an incoming Private call, you hear a brief chirp-like tone.
Your r750plus phone automatically switches to Private mode, and the Private
ID or the name of the caller displays.
1. Your phone must be idle, that is, not busy in an active call or on the
browser.
2. Wait for the caller to finish speaking.
3. Press and hold the PTT button. Begin speaking after you hear the chirp.
Private/Group Mode Speaker
You can hear Private calls through either the earpiece or the speaker. Press the
Speaker button k on your r750plus phone to turn the Private/Group Mode
Speaker on or off.
adjb
Prvt Ready
JOHN SMITH
Alert Name
12:43p 07/22
Making Private Calls
29
•With the Speaker on, you will hear incoming calls through the speaker.
•With the Speaker off, you will hear incoming calls through the earpiece.
Call Alert
Call Alert enables you to page an individual by sending an audible tone. A Call
Alert allows the individual to respond when it is convenient. The alert plays
intermittently until the individual clears it.
Selecting a Call Alert Tone Style
Your phone has ten selectable Call Alert tones.
Setting an Alert Tone Style
1. Press *, #, 3, 7.
1. The display shows your current Alert tone.
2. Select “Ok”.
3. Press l or r to scroll through the available Alert
tone styles.
4. To listen to the selected Alert tone, press the Volume
buttons on the side of the phone.
5. Select “Ok” to select the Alert tone shown.
To leave the Alert tone style unchanged, select “Cancl”
6. Select “Exit”.
Sending a Call Alert
1. Press m to go to the “Prvt Ready” screen.
2. Select “Alert”.
3. Enter the Private ID, or press l or r to scroll to the
desired name. You may also select the name by press-
ing n and using Name Search.
4. Press the PTT button.
Receiving a Call Alert
When you receive a Call Alert, you will hear an alert tone and see a message on
your display.
•To answer the Call Alert, press the PTT button.
•To clear the Call Alert without answering it, select “Clear”.
adjb
37=Set Alert
Style:1
Exit Ok
adjb
Alert
Style 4
Cancl Ok
adjb
Prvt Ready
JOHN
Alert Name
12:43p 07/22
adjb
Alert 0
JOHN
Exit Queue
30 www.mot.com/iDEN
•To silence the Call Alert without clearing it, press any key other than the
PTT button.
NOTE: Until the Call Alert is cleared or returned, the alert plays intermit-
tently and you will not be able to receive any additional Phone, Private,
Group, or Net calls.
Call Alert Queuing
If your carrier provides Call Alert Queuing, you can save up to eight Call Alerts
in a queue for later use.
After you respond to the Call Alert, it is removed from the queue.
Clearing or Queueing a Call Alert
When you receive a Call Alert, do one of the following:
•To clear a Call Alert, select “Clear”.
•To place the Call Alert into the queue, select “Queue”.
Pressing m also queues the Call Alert.
If you receive multiple Call Alerts, the last received Call
Alert displays and the remaining Call Alerts are stacked at
the beginning of the queue.
Responding to a Queued Call Alert
You can respond to the Call Alerts in any order. To select a Call Alert for
response:
1. Select “Queue”.
2. Press l or r to scroll to the desired Call Alert.
3. Press the PTT button to respond to the Call Alert.
adjb
Alert 3
JOHN SMITH
Clear Queue
Making Private Calls
31
Quickstore of Private IDs
Quickstore allows you to quickly store a received or sent Private ID, without
having to enter the programming menu.
From the Private Ready screen, with the Private ID
displayed:
1. Select “Store”.
If an ID is greater than 12 characters in length, the ID
wraps to the third line.
2. Enter the name associated
with the Private ID.
3. Select “Store”. The Stored message displays.
If the list is full with the maximum 100 entries, you
will get the message, “Prvt List Full”. You cannot
add names until you remove some names from the list.
4. Next, the display returns to the Private Ready mode.
Storing Your Private ID
NOTE: For non-Crossfleet enabled networks only.
To store your Private ID in your r750plus phone:
1. Press *,#,2. The screen displays the message, “2=Own Pvt ID”.
2. Select “Ok”.
3. Enter the Private ID provided by your carrier.
4. Select “Store”.
To view your Private ID at any time after you store it:
1. Press *,#,2. The screen displays the message, “2=Own Pvt ID”.
The next line displays your Private ID. This is the number supplied by your
carrier that you store in your phone.
2. Select “Exit”.
adjb
Prvt Ready
56781
Alert Store
12:43p 07/22
adjb
Enter Name
-
Cancl Store
adjb
JOHN
Stored
adjb
Prvt Ready
JOHN
Alert Name
12:43p 07/22
32 www.mot.com/iDEN
Making Group Calls
A Group Call allows you to communicate instantly with members of a selected
Talkgroup–a pre-defined set of people who share a communication need.
Talkgroups appear on your display as numbers or programmed names, such as
Talkgrp10 or Sales Team.
To make a Group Call:
1. Press m until “Group Ready” displays. Your most
recently used talkgroup displays, for example,
“Talkgrp 10”.
2. To place a call, do one of the following:
• To speak to this talkgroup, press and hold the
PTT button. Wait for the chirp, then speak into
the microphone.
• To speak to another talkgroup, press l or r until you see the
desired talkgroup name. Press and hold the PTT button. Wait for the
chirp, then speak into the microphone.
3. To listen, release the PTT button.
Receiving a Group Call
When you receive an incoming Group call, you will hear a brief chirp-like tone.
Your r750plus phone automatically switches to Group mode, and the Talkgroup
name displays.
1. Your phone must be idle, that is, not busy in an active call or on the
browser.
2. Wait for the caller to finish speaking, then press and hold the PTT button.
Begin speaking after you hear the chirp.
3. To listen, release the PTT button.
You can receive group calls only in the Talkgroups that you are provisioned for.
For more information, see “Adding or Storing a Talkgroup” on Page 32.
Adding and Storing a Talkgroup
To add and store a talkgroup name to your r750plus phone:
1. Press *,#,2,3.
2. Select “Ok”.
3. At “Add New Entry?”, select “Ok”.
4. At “Enter ID”, enter the desired talkgroup number and select “Store”.
5. At “Enter Name”, enter a name for the talkgroup and select “Store”.
adjb
Group Ready
1:Tg1
S Off Sts
Making Group Calls
33
Area Selection
In Group mode, you can call only those talkgroup members in a specific
location. This is useful when you know where the individuals are located within
the service area.
1. Press m until you see “Group Ready” on your display.
2. Press n, then select “Area”.
3. Press l or r to scroll through the targeted areas specified by your local
carrier.
4. Select “Ok” to select the targeted area.
Private/Group Mode Speaker
You can hear Group calls through either the earpiece or the speaker.
Press the Speaker button k on the r750plus phone to turn the Private/Group
Mode Speaker on or off.
With the Speaker on, you will hear incoming calls through the speaker. This is
useful to monitor talkgroup activity in Group mode.
With the Speaker off, you will hear incoming calls through the earpiece.
34 www.mot.com/iDEN
Advanced Features
Some r750plus phones are provided with an advanced feature set as described in
this section. Please contact your service provider for more information.
Multi-Simultaneous Talk Group Scan
Multi-Simultaneous Talkgroup Scan (Scan) allows users within a fleet to
monitor more than one talkgroup. A Talkgroup Mode, within the range of 1-
255, is comprised of up to four talkgroups (one Primary Talkgroup and up to
three Secondary Talkgroups). Calls can only be initiated on the user’s Primary
Talkgroup; however, a user can respond to an active call on either a Primary or
Secondary Talkgroup. Both Primary and Secondary Talkgroups, as well as the
Talkgroup Mode, can be named (aliased). The Scan feature is set to “ON”, but
the user has the capability of disabling Scan through an option key. The unit will
store the last Scan setting, and power on with that setting.
Entering Group Mode
1. Press the f key to power on your unit. Press m to enter Group Mode.
Two different Talkgroup Modes are displayed below. The Primary Talkgroup is
indicated to the right of the Talkgroup Mode. The display on the left shows a
non-aliased Primary Talkgroup, and the display on the right shows an aliased
Primary Talkgroup.
Group Ready
102:Tg 15
S Off Sts
Group Ready
3:Electricia
S Off Sts
Primary Talkgroup
Not Aliased Primary Talkgroup
Aliased
ab
Group Ready
3:Electricia
ab
Group Ready
102:Tg 15
S Off Sts S Off Sts
Advanced Features
35
Initiating a Group Call
1. Press and hold the PTT button to initiate a group
call on your Primary Talkgroup.
The example to the right illustrates the display if Fred
pressed the PTT button to initiate a call on the
Electricians talkgroup. This is Fred’s Primary
Talkgroup for Mode 3.
All subscriber units that have affiliated with your
Primary Talkgroup as either a Primary or Secondary Talkgroup in any
Talkgroup Mode will receive your group call if they are not already engaged in
an active call.
The following screens will be displayed on the receiver subscriber units
indicating they have joined the call. The second line of the display will indicate
the Mode number followed by Primary or Secondary Talkgroup, which may be
aliased. The third line of the display indicates the PTT-ID of the unit initiating
the group call, which can also be aliased.
Example: Jason joins the Electricians talkgroup. He has
also selected Electricians as his Primary Talkgroup for
Talkgroup 3, but he has no alias for his talkgroup, so the
Talkgroup number (TG ID) is displayed. Fred’s PTT-ID
is displayed on the third line.
Example: Julie joins the call and the unit updates the
alias to indicate active Secondary Talkgroup (Mode 1,
Secondary Talkgroup 3). Fred’s PTT-ID is displayed on
the third line.
Responding to a Secondary Talkgroup
1. To respond to a call on a Secondary Talkgroup, press the PTT button.
Example: Julie responds to Fred by pressing the PTT
button.
ab
Group Ready
3:Electricia
Fred’s Display
S Off Sts
ab
Group Ready
3:Tg 3
ID:Fred
Jason’s Display
S Off Sts
ab
Group Ready
1:Electricia
ID:Fred
Julie’s Display
S Off Sts
ab
Group Ready
1:Electricia
Julie’s Display
S Off Sts
36 www.mot.com/iDEN
Fred has released his PTT button, then begins to receive
Julie’s response.
Jason receives Julies’s response.
After the Secondary Talkgroup call is completed, all
receiving subscriber units’ displays will revert to their
Primary Talkgroup of the selected Talkgroup Mode.
Turning Scan On and Off
The capability to turn scan on and off is available as an option key.
1. Press the “Scan” option key.
Press the “S Off” soft option key to disable scan.
When Scan is disabled, you will not have access to your Secondary Talkgroups
Aliasing Talkgroup Mode
The r750plus phone allows you to Alias Talkgroup Modes and Primary and
Secondary Talkgroups.
1. Press *, #, 2, 5.
2. Select “Ok”.
3. At “Add New Entry” select “Ok”.
NOTE: Press l or r to Edit or Erase a Talkgroup Mode Alias.
4. Enter the ID of the desired talkgroup mode and press “Store”.
NOTE: The Aliased Modes are displayed only while scrolling through the Talk-
group Mode or during Direct Entry. In an idle or transmission state,
the Mode ID number is displayed. This ensures that the Mode ID num-
ber and Primary Talkgroup are displayed simultaneously on screen.
5. Then enter the name of the desired talkgroup mode alias and press “Store”.
ab
Group Ready
3:Electricia
ID:Julie
Fred’s Display
S Off Sts
ab
Group Ready
3:Tg 3
ID:Julie
Jason’s Display
S Off Sts
Group Ready
102:Tg 15
S Off Sts
Group Ready
3:Electricia
S Off Sts
Scan Enabled Scan Disabled
ab
Group Ready
18-Engineers
ab
Group Ready
18:Engineers
S Off Sts Scan Sts
Advanced Features
37
Talkgroup Mode Selection by Direct Entry
You may select a different Talkgroup Mode at any time.
1. Press the 1 key. To erase a digit, press l. To clear all digits, press and
hold l. To return to your previously selected Talkgroup Mode, press the
“Cancl” option key.
2. Press the 8 key.
3. Press the PTT button or the “Ok” option key.
“Mode 18” will flash until affiliation is complete.
If you selected the Talkgroup Mode by pressing the
PTT button, you will initiate a call on your Primary
Talkgroup.
Talkgroup Mode Selection by Memory Scroll
The Memory Scroll feature allows you to use the l or r keys to scroll through
memory for Talkgroup Modes.
1. Press r. Press and hold this key to Auto Scroll
through your lists more quickly.
2. Press the PTT button or the “Ok” option key.
NOTE:To transmit, press the PTT button; to listen
only, press “Ok”.
Emergency Group Call
NOTE: If your r750plus phone has an orange button on top of the housing, the
Emergency Call feature is present.
Emergency Group Call is a carrier-dependent feature. Please contact your
carrier for service availability.
Placing an Emergency Group Call
An Emergency Group Call allows a user to have priority access to his talkgroup
members and provide them visual and audible indications of an emergency
condition. The Emergency call can be placed from any mode (private, group,
phone, Net).
1. Press and hold the Emergency Button. The portable will emit an emergency
start tone to indicate that you have successfully requested an emergency
call.
2. Press the PTT button to talk. The currently selected
Talkgroup Mode will be selected unless your orga-
nization pre-programmed an emergency Talkgroup
Mode. If this is the case, the pre-programmed
Emergency Talkgroup Mode will flash in the dis-
ab
Group Ready
18_
Cancl Ok
ab
Group Ready
Mode 18
Cancl Ok
ab
EMERGENCY
1: SE Plant
ID:John
38 www.mot.com/iDEN
play. The Talkgroup Mode appears in the second line of the display as
shown.
3. To end an emergency call, press and hold the Emergency Button for 3 sec-
onds. The portable will return to the last selected talkgroup mode. The ini-
tiator cannot exit the emergency call without first cancelling the emergency
call.
Canceling an Emergency Group Call
Press the Emergency Button until the unit generates an Emergency Call Cancel
tone. This tone indicates the cancellation has occurred. The display will return to
the non-emergency state.
An emergency call will be cancelled if no talkgroup activity occurs for 30
seconds. The dispatcher, or any other person provisioned to cancel an
emergency call can also cancel the emergency call.
Receiving an Emergency Group Call
When an emergency call is initiated, other members of the talkgroup will be
notified of an emergency condition.
The receiving unit will hear an Emergency Receive
Tone, and the receiver’s display will change to indicate
the condition.
The first line of the display will indicate the ID or alias
of the person initiating the emergency call. The second
line will show you the Talkgroup Mode and Active
Talkgroup name or number. The third line shows you the ID or alias of the
person who is currently speaking. The third line will remain blank when the
receiving unit initiates a transmission.
Receiver Operations During an Emergency Call
Other members of the Emergency Group Call can leave the emergency call and
change modes (phone, group, private, Net) while involved in the call.
While listening to the emergency call, the receiving unit will not receive phone
calls, Call Alerts, Message Mails, Status Messages, Private Calls or other group
calls for the duration of the emergency call.
Status Message
Status Message lets you send a pre-defined message to the dispatcher or to
another user’s ID. Up to ten pre-defined alphanumeric Status Messages are
available such as “At Lunch” or “En Route”.
ab
EMER:58
1:SE Plant
ID:Cheryl
S Off Sts
Advanced Features
39
You can also send any numeric Status Message from 1-255. A Status Message
can be sent by selecting both the Status Message and target ID (alias) of the
person who is to receive the Status Message. You can reduce talk time by
sending Status Messages. You can also leave a Status Message for receivers
while they are away from their portables.
Entering the Status Message Function
1. Press the Status Option Key to get to the Status Message function. You
must be in Group or Private Mode to access this function.
The second line of the display shows the Status Mes-
sage (alpha or numeric) of the last successfully
sent status.
2. Press Option “Exit” to return to either the group or
Private mode. Press Option “Targt” to go to the
Target ID selection screen.
Selecting a Status Message with Direct Entry
Direct Entry allows you to use the keypad to select the message you want to
send. Enter any number from 1-255 to select a Status Message. The number can
correspond to one of ten pre-programmed alphanumeric status messages or any
other numeric Status Message within the range of 1-255.
1. Press 2.
2. Press “Ok”. Pressing the PTT button at this time
will send the message to the last unit to which you
sent a successful message.
3. Press “Targt” to select a target for this message.
ab
Sts Message
En Route
Exit Targt
ab
Sts Message
2= At Lunch
Cancl Ok
40 www.mot.com/iDEN
Selecting a Status Message Using Memory Scroll
You can select Status Messages by using the l or r keys to scroll through the
ten named (aliased) Status Messages which you have programmed.
1. Press r until you find the message you want. In
this case we scrolled to the Status Message “At
Lunch”.
2. Press “Ok”.
3. Press “Targt” to select a target for this message.
Selecting a Target by Direct Entry
1. Enter the numeric ID of the person to whom you
are sending the message.
2. Press “Ok”.
3. Press the PTT button to send the message to the
selected ID.
Selecting a Target by Memory Scroll
You can select a target by scrolling though the portable IDs or aliases by using
the l or r keys.
1. Press the r key until you find the person to whom
you want to send the message.
2. Press “Ok”.
3. Press the PTT button. The display shows the mes-
sage that has been sent.
Selecting a Target by Alpha Search
You can select a portable ID by selecting the first letter of the name (alias). If no
name is stored under a letter, the unit will automatically search forward,
alphabetically, until the next name is found.
1. Press the “Name” key.
2. Press a numeric key. i.e.: Press 7 three times to
view the names (aliases) that begin with the letter
R.
3. Use either the l or r keys to scroll to the name
(alias) who is to receive the Status Message.
4. Press the PTT button. The display shows the message that has been sent.
ab
Sts Message
At Lunch
Cancl Ok
ab
Sts Target
5= Rochelle
Cancl Ok
ab
Sts Target
Julie
Cancl Ok
ab
Name:Sts
R=Randy
Cancl Ok
Advanced Features
41
Sending a Status Message
After selecting both a Status Message and a desired target ID, press the PTT
button to send the message. Two high pitched tones will be heard during
transmission.
If successful, two high pitched tones will be heard to
indicate the message was successfully delivered to the
target portable.
If unsuccessful, an alert tone will be heard to indicate
that the targeted unit is busy, out-of-range, or turned-off.
In either case, the portable will return to the status
screen after 3 seconds.
Exiting the Status Message Function
Press the m key to exit the Status Message screen. Pressing the “Exit” option
key from the Status Message screen will also allow you to exit the status
message function.
Receiving a Status Message
The portable will receive a message along with alert
tones. To silence the recurring alert tones only, press
any key except m or the “Clear” option key. In case of
a non-aliased sender ID, the Quickstore option is
available.
If a non-aliased ID is sent, the Quickstore softkey is
displayed.
All calls remain blocked until this message is cleared.
ID List Programming
Feature menu #26 allows you to program ten status
messages, each up to 12 characters long.
ab
Sts-Sent
Successful
ab
User Not
Available
ab
Sts-Kelly
At Lunch
Clear
ab
26=Sts Mesg
List Program
Exit Ok
42 www.mot.com/iDEN
Isolated Site Operation
Isolated Site Operation (ISO) allows group call communications to continue
within a single cell site when connectivity to the network is lost by allowing the
cell to operate in a local, one cell only mode. ISO is limited to dispatch
talkgroup calls only. In all modes the display will update to include “-Isoft” on
the first line. Talkgroup communications will be limited to only those units that
are connected to the ISO cell, and only on the talkgroup or Talkgroup Mode that
the subscriber unit last used before the cell entered the ISO state.
Entering ISO
The portable will enter the ISO state when its cell becomes isolated from the
network, assuming the portable has no available neighbor cells. It will display
one of the following screens: (The LED indicator is off in ISO unless the unit is
transmitting. While transmitting, the LED will be green.)
NOTE:If the portable is powered on in an ISO cell, it will enter the ISO state if
there are no available neighbor cells.
Phone Mode
Group Call Mode
Private Call Mode
Net Mode
ab
Phone-Isoft
Name Mail
ab
Group-Isoft
3:Electricia
S Off Sts
ab
Prvt-Isoft
Julie
Alert Name
ab
Net-Isoft
Julie
Alert Name
Advanced Features
43
Initiating a Group Call
If the portable has Scan enabled when the site enters ISO, the portable will be
able to initiate a call on its Primary Talkgroup and can respond to calls started
on either the Primary or any Secondary Talkgroup.
The portable will not be able to select a new Talkgroup
Mode while in ISO condition.
If the portable has Scan disabled when the site enters
ISO, the portable will be able to initiate and respond to
calls on the Primary Talkgroup only.
Exiting ISO
When the cell returns to normal operation, the unit will
revert back to standard operation. The green LED
indicator will resume blinking.
If the unit goes out of range of the ISO cell and has no
available neighbor cells, the unit will go out of service.
Other Operations
Since the ISO operation is limited to group calls only, any attempts to
communicate in other modes (phone, private, alert, status) will result in a
“Service Not Available” message. However, all other functions (memory scroll,
direct entry, feature menu programming, etc.) are still operable.
ab
Group-Isoft
3:Electricia
S Off Sts
ab
Group Ready
3:Electricia
S Off Sts
44 www.mot.com/iDEN
Using Mail Services
NOTE: Some features may be network dependent or subscription only, and
may not be available in all areas. Contact your service provider for
more information.
Your r750plus phone provides the following mail services:
• Net Mail
• Voice Mail
• Message Mail
When you receive a new message, the c icon
appears and flashes.
•To read your new mail immediately, select “Now”.
•To read your new mail later, select “Later”.
An asterisk * next to a mail service indicates new mail.
To use message services, select “Mail” from any Ready
screen. The inbox screen opens with your message services
listed.
To select a message service, scroll to highlight the service
or press the corresponding number. For example, to access
your Message Mail, press 2.
Net Mail
Net Mail alerts you when you receive alerts from the Browser, for example,
notification of an e-mail or fax.
From any mode:
1. Select “Mail”.
2. Select “Net Mail”, then select “Ok”.
The Alerts inbox opens and displays the type of Net Mail
alerts.
The Inbox screen opens.
3. Scroll to the type of alert that you wish to view, then
select “Ok”.
a d cb
New Mail
Read?
Later Now
a d cb
1>Voice Mail
*2>Mesg Mail
Exit Ok
3>Net Mail
adjb
1>Voice Mail
2>Mesg Mail
Exit Ok
3>Net Mail
adjb
Inbox
1 Email
Ok Del
2 Fax
Using Mail Services
45
4. To read the message, select “View”.
5. After you read the message, do one of the following:
• Select “Menu” to view a list of actions that you
can take for this message, such as reply, delete,
save, and so forth.
• Or, select “Next” to read the next
message.
Voice Mail
When your r750plus phone receives a Voice Mail message:
•The g icon appears on your display.
•The Voice Mail alert tone sounds (if Mail Notification is turned on).
•The message, “New Voice Mail Waiting” appears on your display.
•An exclamation point (!) on the display indicates that you have at least one
urgent message.
From any mode:
1. Select “Mail”.
2. Select “Voice Mail”.
The Voice Mail inbox opens and displays the number of
your new and total Voice Mail messages.
To retrieve your voice mail immediately:
1. Select “Dial”. This action automatically places a call
to your voice mailbox. The most recent message is
retrieved first.
2. To close your voice mailbox, select “Exit”.
Alert Receipt During Phone Call
Through your programming menu (*,#, 15) you can delay Voice Mail and
Message Mail Alerts so that you are not interrupted by the alert tone while on a
call. You can choose the following:
•Receive All Alerts
•Delay All Alerts
adjb
Inbox:1unread
1*Lunch
View Menu
2 MEETING
adjb
LUNCH
----
Next Menu
With client at
12:00
adjb
1>Reply
2>Delete
Ok More
3>Save
4>GoTo Message
agjb
1>Voice Mail
2>Mesg Mail
Exit Ok
3>Net Mail
agjb
Voice Mail
1 New
Exit Dial
1 Total
46 www.mot.com/iDEN
•Receive Message Mail Alerts only
See “Setting Programming Menus” on page 49 for more information.
Message Mail
Message Mail can be either a numeric page or a text message of up to 140
characters. Your phone can receive and store 16 mail messages at any time.
1. To postpone reading your mail and to clear the display, select “Later”. The
icon stops flashing but remains on your display to remind you that you
have unread messages.
To read your mail now:
2. Select “Now”. The screen will briefly display the number of new and saved
messages in your mailbox.
3. A list of all your messages will display. Highlight the message that you
wish to read and select “Read”.
To read you mail later:
4. From any mode, select “Mail”. The Mailbox opens.
5. Select “Mesg Mail”.
Your message mailbox opens and briefly displays the
number of new and saved messages currently in your
mailbox.
Next, a list of all messages will display. Select the message
that you wish to read and select “Read”.
Saving and Erasing Mail
Your message shows the time and date that the sender entered it in the network
After you read a text or numeric message, you can either
Save or Erase the message. Press o under the desired
option.
adjb
1>Voice Mail
2>Mesg Mail
Exit Ok
3>Net Mail
adjb
Message Mail
2 New
0 Saved
adjb
*>FR: Smith
*2>FR: Jones
Exit Read
adjb
1>Call
5551212
Erase Save
11:15a 04/02
Using Mail Services
47
Auto Call Back
You can respond to numeric pages and text messages containing a call-back
number. To automatically dial a number contained within a Message Mail, press
e.
Mail Memory Full
If all 16 message registers are full, your phone displays the message “Mail
Waiting, Memory Full”. You cannot receive new Message Mail until you empty
register space by erasing saved or unread messages.
48 www.mot.com/iDEN
Using Your Phone as a Modem
NOTE: Some features may be network dependent or subscription only, and
may not be available in all areas. Contact your service provider for
more information.
You can use your r750plus phone as a modem for data transfer from your
laptop, handheld device, or desktop computer. This is particularly useful when
there is no wired phone line (wall jack) available.
You simply attach a data cable (available separately) to your phone and your
computer. From that point, your phone is your modem. This allows you to send
or receive time-critical information such as e-mail, a field service report, or
files. In addition, you can also send or receive faxes.
This type of wireless connection uses one of two types of data connection:
circuit-switched data and packet data.
• Circuit-switched data is typically used for sending and
receiving faxes and for transferring large files.
• Packet data is used for small file transfers such as e-mail.
To use these services, you must install the iDEN Wireless Data Services
software (available separately). For more information on setting up your
computer and your r750plus phone for Packet and Circuit Data calls, see the
Wireless Data Services User’s Guide and contact your carrier.
TTY Users
You can use your phone and computer in TTY mode. Your computer
screen and keyboard replace the standard TTY device. For more
information, please see the Wireless Data Services User’s Guide.
Setting Programming Menus
49
Setting Programming Menus
You can customize the settings on your phone using the Programming Menu.
1. Press n until you see “Prgm” on the display.
2. Select “Prgm”.
3. Select “Ok”.
4. Press l or r to scroll to the desired Programming Menu Option or enter
the number of the Option.
NOTE: You can press *, #, and then the corresponding keypad number
to get to the desired programming menu.
Table 6: Programming Menu Options
Keypad
Number Menu Option Function
1 Own Ph # Automatically store the telephone
number of your phone after you
receive the first incoming call
(Line1). You can also enter the
number and view it.
2 Own Pvt ID Display the private number of
your phone.
3 Mail Display Turn on and off the New Mail
message that is displayed with
incoming Voice, Message, or Net
Mail.
4 Manual Lock:Off Lock your phone to prevent
unauthorized use. You must enter
a pass code to unlock it.
5 Auto Lock:Off Automatically lock your phone
each time it is powered on to
prevent unauthorized use.
6 Auto Answer:Off Turn on or off automatic
answering of incoming phone
calls after 1-4 rings.
50 www.mot.com/iDEN
9 Vibrate Alert:Off Receive a non-audible alert for
incoming phone and circuit data
calls and messages. See
“VibraCall® Alert” on page 15.
10 Last Call Timer Display the duration of the most
recent phone call.
11 Display Timer:Off Turn on or off automatic display
of the Last Call Timer at the end
of each phone call.
12 Reset Timer Display cumulative airtime of all
phone calls since last reset.
13 Total Timer Display cumulative airtime of all
phone calls.
14 1 Minute Beep:Off Automatically signal each minute
of elapsed phone airtime with an
audible beep.
15 Alert Receipt Delay Voice Mail and Message
Mail Alerts so that users are not
interrupted by the alert tone while
on a call. Users can choose to:
Delay All Alerts; Receive All
Alerts; Receive Message Mail
Alerts only. See “Alert Receipt
During Phone Call” on page 45.
16 Backlight Timer Specify the duration of the
Backlight Timer (0, 10, 20, or 30
seconds).
20 Phone/Prvt List Add phone and private numbers in
one procedure. See “Combined
Phone Number and Private ID
List” on page 22.
Table 6: Programming Menu Options (Continued)
Keypad
Number Menu Option Function
Setting Programming Menus
51
21 Phone List Edit Edit and erase up to 100
frequently called phone numbers
and associated names. See
“Editing and Erasing Phone List
Entries” on page 24.
22 Prvt ID List Edit Edit and erase up to 100 Private
numbers and associated names.
See “Editing and Erasing Private
ID List Entries” on page 25.
23 Talkgrp List
Program Add/Edit/Erase numbers and
associated names for up to 100
pre-programmed talkgroups. See
“Adding and Storing a
Talkgroup” on page 32
24 Area List Program Add/Edit/Erase numbers and
associated names for up to 50
targeted areas.
25 Talkgroup Mode
List Program Add/Edit/Erase numbers and
associated names for up to 30 pre-
programmed talkgroup modes.
26 Status Message
List Programming Add/Edit/Erase numbers and
associated names for up to 10
alphanumeric Status Messages.
30 Ringer Volume Set the ringer volume using the
volume control keys, or lower the
volume to silence the ringer. See
“Setting the Ringer Volume” on
page 16.
31 Set Ring Style Select a distinct ring style for
incoming phone calls. See
“Setting a Ring Style for the
Alternate Line” on page 16.
Table 6: Programming Menu Options (Continued)
Keypad
Number Menu Option Function
52 www.mot.com/iDEN
32 Mail Volume Set the volume of incoming
Message Mail, Voice Mail, and
Net alert tones using the volume
control keys, or lower the volume
to silence the mail alert tones.
33 Earpiece Volume Set the default earpiece volume
using the volume control keys.
34 Keypad Volume Set the volume of the keypad
tones using the volume control
keys, or to silence the keypad
tones.
35 Speaker Volume Temporarily adjust the Group/
Private Speaker volume for noisy
environments.
36 Spkr Vol Set Tone Turn the speaker volume set tones
on or off.
37 Set Alert Style Select a distinct Call Alert tone.
See “Selecting a Call Alert Tone
Style” on page 29.
38 Silent Group Silence all incoming Group call
alerts and voice activity. When
set, your screen displays the
message, Group-Silent.
40 Change Passcode Change your secret four-digit pass
code from the initial setting 0000.
60 Set Baud Rate Set the modem baud rate between
the phone and the PC. See the
Wireless Data Services User’s
Guide.
61 Data Ring Volume Set the default data ringer volume
using the volume control buttons.
See the Wireless Data Services
User’s Guide.
Table 6: Programming Menu Options (Continued)
Keypad
Number Menu Option Function
Setting Programming Menus
53
NOTE: Important! Do not perform the following shaded menu options unless
you are instructed to do so by your carrier. You could damage your
phone.
62 Pgm Data # View your circuit data (fax)
number. See the Wireless Data
Services User’s Guide.
63 IP Address Use the scroll keys to view the
Internet Protocol (IP) Address-1
for your browser, as programmed
in your phone.
If your phone is cabled to a
computer, view IP Address-2, the
stored IP address of your
computer.
See the Wireless Data Services
User’s Guide.
64 Reset KBytes Tx/
Rx View the number of Kilobytes
sent and received for packet data.
See the Wireless Data Services
User’s Guide.
65 Lines per Screen
(Browser and Mail
menu)
View the display in 4 lines, 12
characters or 6 lines, 16
characters.
70 Language Select one of four languages for
your display text. The default is
English. See “Changing the
Display Language” on page 11.
71 Time/Date Select the format for the time and
date display. See “Setting the
Time and Date” on page 9.
Table 6: Programming Menu Options (Continued)
Keypad
Number Menu Option Function
54 www.mot.com/iDEN
About Error Codes
You may receive operational status messages under certain conditions. Before
contacting your carrier, note the message, numeric code, and the conditions
under which it appeared. Table 8 lists and describes the operational status
messages.
Table 7: Other Programming Menu Options
Option
Number Menu Option Function
41 Feature Reset Returns all feature settings to
their original defaults.
42 Master Clear Performs Feature Reset and
erases all stored lists.
43 Master Reset Resets the phone’s identification
number.
44 Change Service
Key Changes or resets the fraud
prevention service key.
50 NAM Selects alternate Numeric
Assignment Module (NAM).
See local carrier for information.
51 Network ID Edits the pre-programmed
Network number list and selects
roaming options.
Table 8: Error Codes
Status Messages Message Description
Number Not in Service The number that you entered is not
valid.
User Not Available The party that you called is either
busy, out-of-range, or turned off.
Please try again later.
Setting Programming Menus
55
User Not Authorized The party that you called has not
purchased this service.
Please Try Later This service is temporarily not
available. Please try again later.
User Busy in Private The party that you called is busy
in a Private call.
Service Restricted This service was restricted by your
carrier or it was not purchased.
Service Not Available This feature is not available on the
current network.
System Busy Try Later The system is experiencing heavy
traffic. Please try again later.
Service Conflict This service cannot be enabled
because an incompatible service
has already been turned on.
Please Try Again An error occurred. Note the error
code and try again.
User Busy in Data The party that you called is busy
in a data call.
Self Check Error A fault was detected with your
phone. If this error recurs, note the
error code and contact your
carrier.
Self Check Fail An operational fault was detected
with your phone. Note the numeric
code, turn your phone off, and
contact your carrier immediately.
Table 8: Error Codes (Continued)
Status Messages Message Description
56 www.mot.com/iDEN
Optional Accessories
Batteries
NOTE: For best results, charge the batteries within the temperature range of
10° C to 40° C (50° F to 104° F).
NOTE: Prolonged charging is not recommended. See Table 9 for battery charg-
ing guidelines.
Charging the Battery
To get the maximum use from the battery, charge it overnight before you use it
for the first time. See Table 9 for battery charging times.
Table 9: Battery Charging Times
Battery Operating Instructions
•Extreme temperatures will degrade battery performance. Do not store your
battery where temperatures exceed 60°C (140°F) or fall below -20°C (4°F).
•The battery capacity will be degraded if stored for long periods while fully
charged. If long term storage is required, store at half capacity.
•For optimal battery life, use a Motorola iDEN approved NiMH Charger
with your Motorola iDEN NiMH battery. Other chargers may not fully
charge your NiMH or may yield a reduced number of charge cycles.
Motorola Battery Charging
Time to 90%:
Kit Number Description
Chemistry Rapid
Charger
NTN9037 NiMH 100 minutes
NTN9038 Intrinsically
Safe* NiMH
* For users who work in hazardous environments,
Intrinsically Safe Battery, NTN9038, is offered.
Please contact your carrier for availability and the
specific environments approved for this battery.
100 minutes
Optional Accessories
57
Rapid Travel Charger
Using the NTN9035 Rapid Travel Charger, you can charge a battery from an
electrical outlet.
Figure 2. Using the Travel Charger
Using the Rapid Travel Charger (110V/220V/240V)
1. While holding the r750plus phone with its front facing you, insert the
accessory connector (with the Motorola logo facing you) into the slot on
the bottom of the r750plus phone until you hear a click.
2. Insert the Rapid Travel Charger transformer into an AC wall outlet. The
power light (green LED) on the accessory power supply will come on.
Rapid Travel Charger Operating Specifications
Input voltage range: 110V/220V/240V.
Operating temperature range: 0°C to +50°C.
Rapid Travel Charger
Accessory Connector
58 www.mot.com/iDEN
Vehicular Battery Charger
The NTN9034 Vehicular Battery Charger enables in-vehicle communications
by charging the NiMH battery and providing power to your r750plus phone.
The power light (green LED) will light when the Vehicular Battery Charger is
receiving power.
Figure 3. Using the Vehicular Battery Charger
Using the Vehicular Battery Charger
1. Attach the Vehicular Battery Charger’s accessory connector to the bottom
of the r750plus phone. While holding the r750plus phone with its front
toward you, insert the accessory connector (with the Motorola logo facing
you) into the slot on the bottom of the r750plus phone until you hear a
click.
2. Remove the vehicle’s cigarette lighter plug from the cigarette lighter recep-
tacle.
3. Plug the Vehicular Battery Charger into the cigarette lighter receptacle.
The power light (green LED) will turn on.
4. The r750plus phone may be turned off, turned on, or in use.
Removing the Vehicular Battery Charger
1. Unplug the Vehicular Battery Charger from the vehicle’s cigarette lighter
receptacle.
2. Press the buttons on the accessory connector and pull the accessory con-
nector from the bottom of the r750plus phone.
Operating Specifications
Operating voltage range: 10.8 - 33.0 Vdc.
Operating temperature range: -30°C to +60°C
Accessory Connector
Optional Accessories
59
Desktop Dual-Pocket Charger
The NTN9036 Desktop Dual-Pocket Charger charges Motorola authorized
batteries, as listed on Page 56, for the r750plus phone.
Figure 4. Desktop Dual-Pocket Charger
Charging a battery
1. Plug the power supply DC jack into the receptacle in the back of the Desk-
top Dual-Pocket Charger.
2. Plug the transformer end of the power-supply cord into any standard AC
wall outlet.
3. Insert an r750plus phone with an attached battery, into the charger’s front
pocket. To do this, align the slots on the sides of the battery with the rails
on the sides of the charger pocket. Make sure the metal contacts on the
back of the battery are in contact with the charger contacts.
4. If the r750plus phone is properly seated in the front pocket, the charger’s
front pocket LED indicator will light.
5. The charger has the capability of displaying the battery’s charge status. The
indicator will show the following: solid red=1- 30%; solid yellow=31 -
60%; flashing green=61 - 90%; solid green=91 - 100%.
NOTE: Charging times may vary when performing data operations.
Data Operation
1. Insert the flat end of the iDEN Data Cable (FLN9581A) into the phone’s
bottom Accessory connector.
2. Connect the opposite end of the data cable to the PC.
(DC jack)
Rear pocket – Battery only
Front pocket – phone with Battery
Pin charge contacts
LED indicators
Power supply cord receptacle
Alignment rails
60 www.mot.com/iDEN
Inserting and removing a battery from the rear pocket
Figure 5. Adding and Removing a Battery from the Rear Pocket
1. Insert the battery with the Motorola label facing forward. To do this, align
the sides of the battery with the charger rails.
2. Make sure the metal contacts on the back of the battery are in contact with
the charging contacts.
3. To remove the battery, pull it up and out of the Charger.
NOTE: If a battery is in the rear pocket, and the phone with a battery is
inserted into the front pocket, the battery in the front pocket will
charge to full capacity before the battery in the rear pocket is charged.
The LED for the rear pocket flashes yellow, indicating that its battery is
waiting to be charged.
NOTE: To remove the battery from the rear pocket, hold the base of the
charger and pull the battery up.
Desktop Charger Status
The Charger displays the battery’s charge status. The indicator will show one of
the following:
solid red =1-30%; solid yellow =31-60%; flashing green =61-90%; solid green
=91-100%.
Desktop Charger Troubleshooting
If the battery is not charging and you see:
Flashing yellow indicator -
• The flashing yellow LED is used to indicate that the Charger’s
pocket is in a wait state.
• If a battery is in the rear pocket, the rear pocket’s LED continues to
flash yellow until the battery in the front pocket is more than 90%
charged (front pocket’s LED is solid green). This is normal
operation.
• To protect your battery’s life expectancy, the Charger does not rapid
charge a battery when its temperature is below 5oC (41oF) or above
1
2
Insert Remove
Optional Accessories
61
45oC (113oF).
No LED indication -
• Check that the r750plus phone with battery, or a battery alone, is
inserted correctly.
• Make sure that the power supply is plugged into an appropriate AC
outlet and that the connector is properly seated.
• Rear pocket only: Remove the battery from the Charger. Use an
ordinary pencil eraser to clean the three metal contacts on the
battery and then place the battery in the Charger.
• If the LED indicator remains turned OFF, the battery may be
defective and should be replaced.
Flashing red LED indicator -
• Remove the battery from the Charger. Use an ordinary pencil eraser
to clean the three metal contacts on the battery and then place the
battery in the Charger.
• If the LED indicator remains turned OFF, the battery may be
defective and should be replaced.
Both LEDs flash red -
• This indicates that the incorrect power supply is plugged in.
62 www.mot.com/iDEN
Audio Adapter
The FLN2854A Audio Adapter connects an earpiece microphone or headset to
your r750plus phone for privacy and hands-free operation.
The Audio Adapter fits onto the bottom of the r750plus phone and provides a
standard 2.5mm jack connection for an earpiece microphone or headset.
The following audio accessories are compatible with the audio adapter:
•Earpiece with Microphone (NTN8367)
•Headset with Boom Microphone (NTN8513)
•Lightweight Headset with Microphone (NTN8496)
•Over-the-Ear Style Headset (NTN8497)
Figure 6. Using the Audio Adapter
Using the Audio Adapter
1. Hold the phone and the Audio Adapter facing you so that you see the
Motorola logo on the adapter.
2. Insert the Audio Adapter’s connector into the r750plus phone Bottom
Accessory Connector. You will hear the connector snap into place.
NOTE: When the audio adapter and earpiece or headset are connected, all
audio, including tones, will be routed to the audio accessory’s earpiece.
Attaching/Detaching the Earpiece Microphone or Headset
1. Insert the 2.5mm plug of the earpiece microphone or headset cord into the
jack of the Audio Adapter.
2. Pull on the plug, not on the cord, to remove the earpiece
microphone.
Audio Adapter
Connector
2.5mm jack
Button
Release
Button
Release
Optional Accessories
63
Removing the Audio Adapter
1. Simultaneously press the release buttons located on either side of
the Audio Adapter and pull the Audio Adapter from the r750plus
phone.
Battery Belt Clip
The HLN9844A Battery Belt Clip provides a convenient means by which to
carry your r750plus phone with you.
Figure 7. Battery Belt Clip
Using the Battery Belt Clip
1. Slide the belt clip into the back of the battery (push until the clip locks into
place).
2. Clip the r750plus phone to your belt.
3. To remove the clip from the battery, push the holder tab outward and slide
the clip out of the battery.
NOTE:A small flathead screwdriver is recommended to push the holder tab
outward when removing the clip.
Leather Carry Case*
•The FLN9580A Leather Carry Case protects your r750plus phone while on
the go
•Includes a leather belt clip for easy attachment to a belt or purse
*Remove the belt clip from the phone before inserting it into the
leather case.
Battery (partial view)
Belt Clip Tab
64 www.mot.com/iDEN
•Accommodates most r750plus phone accessories including travel chargers,
audio accessories, vehicle accessories, and data accessories.
Hard-Install Car Kit
NOTE: The FLN2570A Hard-Install Car Kit enables in-vehicle communica-
tions by providing extended RF coverage, the ability to connect to 12-
Vdc or 24-Vdc power sources, data interface, and the ability to rapid-
charge the battery.
The FLN2570A includes:
•Visor Microphone
•Remote PTT
•External 4-watt Speaker
•Phone Coupler
•Junction Box.
An external Push-To-Talk (PTT) button is also included. When the phone is
turned off, the Hard-Install Car Kit charges the Standard battery in 75 minutes to
90% capacity. Charging time will be longer if the phone is operational during
charge time.

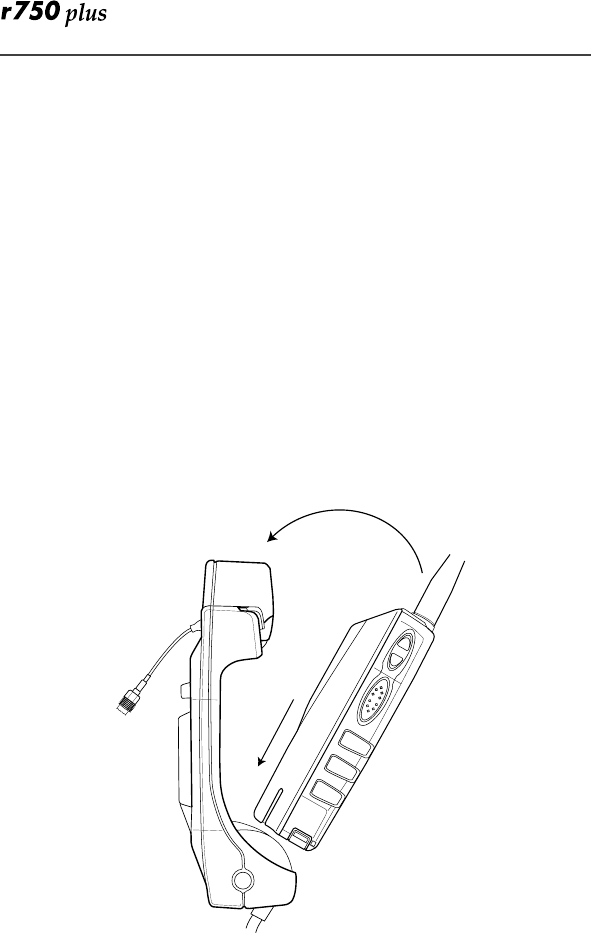

Figure 8. Hard-Install Car Kit
Optional Accessories
65
Remote Speaker/Microphone
The FLN2800A Remote Speaker/Microphone (RSM) provides a convenient
means of communicating by having a speaker, a microphone, and a Push-to-
Talk (PTT) button in a single, hand-held or clip-on accessory. The RSM also
includes a 3.5 mm audio jack (located on the opposite side of the PTT) to accept
secondary receiver audio accessories.
Attaching and Removing the Swivel Clip
To attach the swivel clip to the remote speaker/
microphone:
1. Position the clip with the release tab pointing
upward and align the metal plate edges of the
swivel clip with the plastic slots on the RSM’s rear
housing.
2. While holding the clip open, slide the metal plate
in and push down firmly until the parts snap
together.
To remove the swivel clip from the remote speaker/
microphone:
1. Carefully push the flat blade of a #2 slotted screw-
driver (or similar instrument) between the RSM’s
housing and the swivel clip’s metal release tab, as
shown in the figure.
2. While performing step 1, push the swivel clip toward the top of the RSM.
3. As the release tab disengages, remove the screwdriver and pull the swivel
clip completely away from the unit.
Connecting the Remote Speaker/Microphone to the Portable
To attach the accessory connector, position the portable so that it faces you.
Speaker /
Microphone
PTT Button 3.5mm Audio Jack
Accessory
Connector
66 www.mot.com/iDEN
1.Position the accessory connector so that its
coiled cord extends from the bottom of the por-
table and its latch is on your left.
2.Insert the RSM’s accessory connector into the
bottom of the portable (push both tabs on the
accessory connector when inserting into the por-
table).
3.Push the accessory connector firmly against
the portable to make sure it is held in place.
4.Attach the smaller end of the cable-restraint
clip on the straight portion of the coiled cord.
5.Attach the larger end of the cable-restraint clip
to the base of the antenna.
6. Adjust the cord length in the smaller end of the cable restraint clip until it is
comfortable.
Operation
Please read the safety information contained in the user’s guide supplied with
the portable before operating this equipment.
The remote speaker/microphone (RSM) only operates when the portable is in
the voice-dispatch mode (group or private call).
Wearing the RSM
For optimum performance from your RSM, wear the radio
and RSM so that the accessory cord will not cross over or
touch the antenna. Also, try to wear the radio and
accessory combination fairly close to each other to avoid
strain on the accessory connector.
Receiving:
When the RSM is connected to the radio’s bottom accessory connector, the
radio’s speaker is muted, and the audio is only heard from the RSM speaker.
Similarly, when a secondary receiver audio accessory is plugged into the 3.5
mm audio jack, audio to the RSM is rerouted to the secondary accessory.
Transmitting:
Connecting the remote speaker/microphone to the radio does not disable the
radio’s microphone and PTT button.
Safety and General Information
67
Safety and General Information
RF Operational Characteristics
Your radio product contains a radio frequency transmitter to convey the
information you wish to send as well as occasional automatic signals used to
sustain connection to the wireless network, and a receiver which enables you to
receive communication and connection information from the network.
Exposure To Radio Frequency Energy
Your Motorola Radio Product is designed to comply with the following national
and international standards and guidelines regarding exposure of human beings
to radio frequency electromagnetic energy:
•United States Federal Communications Commission, Code of Federal
Regulations; 47 CFR part 2 sub-part J
•American National Standards Institute (ANSI) / Institute of Electrical and
Electronics Engineers (IEEE). C95. 1-1992
•Institute of Electrical and Electronics Engineers (IEEE). C95. 1-1999
Edition
•National Council on Radiation Protection and Measurements (NCRP) of
the United States, Report 86, 1986
•International Commission on Non-Ionizing Radiation Protection (ICNIRP)
1998
•National Radiological Protection Board of the United Kingdom, 1995
•Ministry of Health (Canada). Safety Code 6. Limits of Human Exposure to
Radiofrequency Electromagnetic Fields in the Frequency Range from 3
kHz to 300 GHz, 1999.
•Australian Communications Authority Radiocommunications
(Electromagnetic Radiation - Human Exposure) Standard 1999 (applicable
to wireless phones only)
To assure optimal radio product performance and make sure human exposure to
radio frequency electromagnetic energy is within the guidelines set forth in the
above standards, always adhere to the following procedures:
IMPORTANT INFORMATION ON SAFE AND
EFFICIENT OPERATION.
READ THIS INFORMATION BEFORE USING
YOUR INTEGRATED MULTI-SERVICE
PORTABLE RADIO.
68 www.mot.com/iDEN
Portable Radio Product Operation and EME Exposure
Antenna Care
Use only the supplied or an approved antenna. Unauthorized replacement
antennas, modifications, or attachments could damage the phone and may
violate FCC regulations.
DO NOT hold the antenna when the radio product is “IN USE”. Holding the
antenna affects call quality and may cause the radio product to operate at a
higher power level than needed.
Phone Operation
When placing or receiving a phone call, or using the group and private call
functions with a Group/Private Speaker OFF (muted speaker icon visible in the
display), hold your radio product as you would a wireline telephone. Speak
directly into the microphone.
Two-way radio operation
When using your radio product as a traditional two-way
radio while making group or private calls with the Group/
Private Speaker ON (no speaker icon visible in the display),
hold the radio product in a vertical position with the
microphone one to two inches (2.5 to 5 cm) away from
the lips.
Body-worn operation
To maintain compliance with FCC RF exposure guidelines, if you wear a radio
product on your body when transmitting, always place the radio product in a
Motorola approved clip, holder, holster, case, or body harness for this
product. Use of non-Motorola-approved accessories may exceed FCC RF
exposure guidelines. If you do not use a Motorola approved body-worn
accessory and are not using the radio product in the intended use positions along
side of the head in the phone mode or in front of the face in the two-way radio
mode then ensure the antenna and the radio is kept the following minimum
distances from the body:
•Phone or Two-way radio mode: one inch (2.5 cm)
•Data operation using any data feature with or without an
accessory cable : two inches (5 cm)
Safety and General Information
69
Approved Accessories
For a list of approved Motorola accessories call 1-800-453-0920, visit our
website at www.mot.com/iden, or look in the accessory section of this manual.
Electro Magnetic Interference/Compatibility
NOTE: Nearly every electronic device is susceptible to electromagnetic
interference (EMI) if inadequately shielded, designed or otherwise configured
for electromagnetic compatibility.
THIS MODEL PHONE MEETS THE GOVERNMENT’S REQUIREMENTS FOR
EXPOSURE TO RADIO WAVES.
Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to
exceed the emission limits for exposure to radiofrequency (RF) energy set by the Federal
Communications Commission of the U.S. Government. These limits are part of comprehensive
guidelines and establish permitted levels of RF energy for the general population. The guidelines
are based on standards that were developed by independent scientific organizations through
periodic and thorough evaluation of scientific studies. The standards include a substantial safety
margin designed to assure the safety of all persons, regardless of age and health.
The exposure standard for wireless mobile phones employs a unit of measurement known as the
Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.* Tests for SAR are
conducted using standard operating positions specified by the FCC with the phone transmitting at
its highest certified power level in all tested frequency bands. Although the SAR is determined at
the highest certified power level, the actual SAR level of the phone while operating can be well
below the maximum value. This is because the phone is designed to operate at multiple power
levels so as to use only the power required to reach the network. In general, the closer you are to a
wireless base station antenna, the lower the power output.
Before a phone model is available for sale to the public, it must be tested and certified to the FCC
that is does not exceed the limit established by the government-adopted requirement for safe
exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body)
as required by the FCC for each model. The highest SAR value for this model phone when tested
for use at the ear is 0.48 W/kg and when tested on the body, as described in this user guide, is 0.59
W/kg during voice transmission using Phone Mode and 1.35W/kg during packet data
transmission. (Body-worn measurements differ among phone models, depending upon available
accessories and FCC requirements.) While there may be differences between the SAR levels or
various phones and at various positions, they all meet the government requirement for safe
exposure.
The FCC has granted an Equipment Authorization for this model phone with all reported SAR
levels evaluated as in compliance with the FCC RF emission guidelines. SAR information on this
model phone is on file with the FCC and can be found under the Display Grant section of http://
www.fcc.gov/oet/fccid after searching on FCC ID AZ489FT5800.
Additional information on Specific Absorption Rates (SAR) can be found on the Cellular
Telecommunications Industry Association (CTIA) web-site at http://www.wow-com.com.
______________________________________
* In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6
watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin
of safety to give additional protection for the public and to account for any variations in
measurements.
70 www.mot.com/iDEN
Facilities
To avoid electromagnetic interference and/or compatibility conflicts, turn off
your radio product in any facility where posted notices instruct you to do so.
Hospitals or health care facilities may be using equipment that is sensitive to
external RF energy.
Aircraft
When instructed to do so, turn off your radio product when on board an aircraft.
Any use of a radio product must be in accordance with applicable regulations
per airline crew instructions.
Medical Devices
Pacemakers
The Health Industry Manufacturers Association recommends that a minimum
separation of 6 inches (15 cm) be maintained between a handheld wireless radio
product and a pacemaker. These recommendations are consistent with the
independent research by, and recommendations of, Wireless Technology
Research.
Persons with pacemakers should:
•ALWAYS keep the radio product more than 6 inches (15 cm) from their
pacemaker when the radio product is turned ON.
•Not carry the radio product in a breast pocket.
•Use the ear opposite the pacemaker to minimize the potential for
interference.
•Turn the radio product OFF immediately if you have any reason to suspect
that interference is taking place.
Hearing Aids
Some digital wireless radio products may interfere with some hearing aids. In
the event of such interference, you may want to consult your hearing aid
manufacturer to discuss alternatives.
Other Medical Devices
If you use any other personal medical device, consult the manufacturer of your
device to determine if it is adequately shielded from external RF energy. Your
physician may be able to assist you in obtaining this information.
Safety and General Information
71
Use While Driving
Check the laws and regulations on the use of radio products in the area where
you drive. Always obey them.
When using the radio product while driving, please:
•Give full attention to driving and to the road.
•Use hands-free operation, if available.
•Pull off the road and park before making or answering a call if driving
conditions so require.
72 www.mot.com/iDEN
Operational Warnings
For Vehicles Equipped with an Air Bag
Do not place a portable radio product in the area over the air bag or in the
air bag deployment area. An air bag inflates with great force. If a portable
radio is placed in the air bag deployment area and the air bag inflates, the
radio product may be propelled with great force and cause serious injury to
occupants of the vehicle.
Potentially Explosive Atmospheres
Turn off your radio product, prior to entering any area with a potentially
explosive atmosphere, unless it is a radio product type especially qualified
for use in such areas (for example, Factory Mutual Approved). Do not
remove, install, or charge batteries in such areas. Sparks in a potentially
explosive atmosphere can cause an explosion or fire resulting in bodily
injury or even death.
NOTE: The areas with potentially explosive atmospheres referred to
above include fueling areas such as below decks on boats, fuel or
chemical transfer or storage facilities, areas where the air con-
tains chemicals or particles, such as grain, dust or metal powders,
and any other area where you would normally be advised to turn
off your vehicle engine. Areas with potentially explosive atmo-
spheres are often but not always posted.
Blasting Caps and Areas
To avoid possible interference with blasting operations, turn off your radio
product when you are near electrical blasting caps, in a blasting area, or in
areas posted: “Turn off two-way radio”. Obey all signs and instructions.
!!
Safety and General Information
73
Cleaning and Drying Considerations
Using a leather carry case may help protect the surfaces and help prevent liquids
(e.g., rain) from entering into the interior of the radio product. This product is
not water proof, and exposing the unit to liquids may result in permanent
damage to the unit.
If your radio product interior gets wet, then do not try to accelerate drying with
the use of an oven or a dryer as this will damage the radio product and void the
warranty. Instead, do the following:
1. Immediately power off the radio product.
2. Remove Battery from radio product.
3. Shake excess liquid from phone.
4. Place phone and battery in an area that is at room temperature and has good
air flow.
5. Let phone and battery dry for 72 hours before reconnecting the battery and/
or powering on the phone.
Operational Cautions
Antennas
Do not use any portable radio product that has a damaged antenna. If
a damaged antenna comes into contact with your skin, a minor burn can
result.
Batteries
All batteries can cause property damage and/or bodily injury, such as burns
if a conductive material such as jewelry, keys, or beaded chains touches
exposed terminals. The conductive material may complete an electrical
circuit (short circuit) and become quite hot. Exercise care in handling any
charged battery, particularly when placing it inside a pocket, purse, or other
container with metal objects.
When the battery is detached from the phone, your batteries are packed
with a protective battery cover. Please use this cover for storing your
batteries when not in use.
!
C a u t i o n
74 www.mot.com/iDEN
If the phone does not work after following the steps listed above, contact your
dealer for servicing information.
Clean the external surfaces of the radio product with a damp cloth, using a mild
solution of dishwashing detergent and water. Some household cleaners may
contain chemicals that could seriously damage the radio product. Avoid the use
of any petroleum-based solvent cleaners. Also, avoid applying liquids directly
on the radio product.
Intrinsically Safe Radio Information
75
Intrinsically Safe Radio
Information
FMRC Approved Equipment
Anyone intending to use a radio in a location where hazardous concentrations of
flammable material exist (hazardous atmosphere) is advised to become familiar
with the subject of intrinsic safety and with the National Electric Code NFPA 70
(National Fire Protection Association) Article 500 (hazardous [classified]
locations).
An Approval Guide, issued by Factory Mutual Research Corporation (FMRC),
lists manufacturers and the products approved by FMRC for use in such
locations. FMRC has also issued a voluntary approval standard for repair
service (“Class Number 3605”).
FMRC Approval labels are attached to the radio to identify the unit as being FM
Approved for specified hazardous atmospheres. This label specifies the
hazardous Class/Division/Group along with the part number of the battery that
must be used. Depending on the design of the portable unit, this FM label can be
found on the back of the radio housing or the bottom of the radio housing.Their
Approval mark is shown below.
FM
APPROVED
76 www.mot.com/iDEN
Radios must ship from the Motorola manufacturing facility with the hazardous
atmosphere capability and FM Approval labeling. Radios will not be
“upgraded” to this capability and labeled in the field.
A modification changes the unit’s hardware from its original design
configuration. Modifications can only be done by the original product
manufacturer at one of its FMRC audited manufacturing facilities.
Do not operate radio communications equipment in a hazardous
atmosphere unless it is a type especially qualified (e.g. FMRC Approved)
for such use. An explosion or fire may result.
Do not operate the FMRC Approved Product in a hazardous atmosphere if
it has been physically damaged (e.g. cracked housing). An explosion or
fire may result.
Do not replace or charge batteries in a hazardous atmosphere. Contact
sparking may occur while installing or removing batteries and cause an
explosion or fire.
Do not replace or change accessories in a hazardous atmosphere. Contact
sparking may occur while installing or removing accessories and cause an
explosion or fire.
Do not operate the FMRC Approved Product unit in a hazardous location
with the accessory contacts exposed. Keep the connector cover in place
when accessories are not used.
Turn radio off before removing or installing a battery or accessory.
Do not disassemble the FMRC Approved Product unit in any way that
exposes the internal electrical circuits of the unit.
!
W A R N I N G
!
Intrinsically Safe Radio Information
77
Unauthorized or incorrect modification of an FMRC Approved Product unit will
negate the Approval rating of the product.
Repair of FMRC Approved Products
REPAIRS FOR MOTOROLA FMRC APPROVED PRODUCTS
ARE THE RESPONSIBILITY OF THE USER.
You may want to consider using a repair facility that operates under 3605 repair
service approval.
FMRC’s Approval Standard Class Number 3605 is subject to change at any time
without notice to you, so you may want to obtain a current copy of 3605 from
FMRC. Per the December, 1994 publication of 3605, some key definitions and
service requirements are as follows:
Repair
A repair constitutes something done internally to the unit that would bring it
back to its original condition Approved by FMRC. A repair should be done in an
FMRC Approved facility.
Items not considered as repairs are those in which an action is performed on a
unit which does not require the outer casing of the unit to be opened in a manner
Failure to use an FMRC Approved Product unit with an FMRC Approved
battery or FMRC Approved accessories specifically approved for that
product may result in the dangerously unsafe condition of an unapproved
radio combination being used in a hazardous location.
!
W A R N I N G
!
Incorrect repair or relabeling of any FMRC Approved Product unit could
adversely affect the Approval rating of the unit.
Use of a radio that is not intrinsically safe in a hazardous atmosphere could
result in serious injury or death.
!
W A R N I N G
!
78 www.mot.com/iDEN
which exposes the internal electrical circuits of the unit. You do not have to be
an FMRC Approved Repair Facility to perform these actions.
Relabeling
The repair facility shall have a method by which the replacement of FMRC
Approval labels are controlled to ensure that any relabeling is limited to units
that were originally shipped from the Manufacturer with an FM Approval label
in place. FMRC Approval labels shall not be stocked by the repair facility. An
FMRC Approval label shall be ordered from the original manufacturer as
needed to repair a specific unit. Replacement labels may be obtained and
applied by the repair facility providing satisfactory evidence that the unit being
relabeled was originally an FMRC Approved unit. Verification may include, but
is not limited to: a unit with a damaged Approval label, a unit with a defective
housing displaying an Approval label, or a customer invoice indicating the serial
number of the unit and purchase of an FMRC Approved model.
Do Not Substitute Options or Accessories
The Motorola communications equipment certified by Factory Mutual is tested
as a system and consists of the FM Approved portable, FM Approved battery,
and FM Approved accessories or options, or both. This Approved portable and
battery combination must be strictly observed. There must be no substitution of
items, even if the substitute has been previously Approved with a different
Motorola communications equipment unit. Approved configurations are listed
in the FM Approval guide published by FMRC, or in the product FM
Supplement. This FM Supplement is shipped with FM Approved radio and
battery combination from the manufacturer. The Approval guide, or the
Approval standard Class Number 3605 document for repairs and service, can be
ordered directly through Factory Mutual Research Corporation located in
Norwood, Massachusetts.
Accessory Safety Information
79
Accessory Safety Information
IMPORTANT: SAVE THESE ACCESSORY SAFETY INSTRUCTIONS
•Before using any battery or battery charger, read all the instructions for and
cautionary markings on (1) the battery, (2) the battery charger, which may
include a separate wall-mounted power supply or transformer, and (3) the
radio product using the battery.
•Do not expose any battery charger to water, rain, or snow as they are
designed for indoor or in-vehicle use only.
•To reduce the risk of damage to the cord or plug, pull by the plug rather
than the cord when you disconnect the battery charger from the power
source outlet.
•Do not operate any battery charger with a damaged cord or plug - replace
them immediately.
•Battery chargers may become warm during operation, but not hot. If it
becomes hot to the touch, unplug it from the power outlet immediately and
discontinue its use.
•Use of a non-recommended attachment to a battery charger may result in a
risk of fire, electric shock, or injury to persons.
•Make sure the battery charger power cord is located so that it will not be
stepped on, tripped over, or subjected to damage or stress.
•An extension cord should not be used with any battery charger unless
absolutely necessary. Use of an improper extension cord could result in a
risk of fire and electric shock. If an extension cord must be used, make sure
that:
❒The pins on the plug of the extension cord are the same num-
ber, size, and shape as those on the plug of the charger.
❒The extension cord is properly wired and in good electrical
condition.
❒The cord size is 18AWG for lengths up to 100 feet and 16AWG
for lengths up to 150 feet.
•Do not operate any battery charger if it has received a sharp blow, has been
dropped, or has been damaged in any way; take it to a qualified service
technician.
•Do not disassemble a battery charger; take it to a qualified service
technician when service or repair is required. Incorrect reassembly may
result in a risk of electric shock or fire.
•Maximum ambient temperature around the power supply or transformer of
any battery charger should not exceed 40°C (104°F).
To reduce the risk of injury, charge only the rechargeable
batteries listed in the Accessories section of this manual.
Other types of batteries may burst, causing personal injury
and damage.
!
W A R N I N G
!
80 www.mot.com/iDEN
•The output power from the power supply or transformer must not exceed
the rating given on the Desktop Dual-Pocket Charger.
•The disconnection from the line voltage is made by unplugging the power
supply from the AC receptacle.
•To reduce risk of electric shock, unplug any battery charger from the outlet
before attempting any maintenance or cleaning.
•For optimum charging performance, turn off the radio product while
charging it in any battery charger.
Warranty
81
Warranty
Limited Warranty Motorola Communication Products
NOTE: This Warranty applies within the fifty (50) united states and the Dis-
trict of Columbia.
I. What This Warranty Covers and For How Long:
MOTOROLA, INC. (“MOTOROLA”) warrants the MOTOROLA
manufactured iDEN Communication Products listed below (“Product”) against
defects in material and workmanship under normal use and service for a period
of time from the date of purchase as scheduled below:
Rechargeable Batteries will be replaced during the applicable warranty period
if:
a. the battery capacity falls below 80% of rated capacity, or
b. the battery develops leakage.
MOTOROLA, at its options, will at no charge either repair the Product (with
new or reconditioned parts), replace it (with a new or reconditioned Product), or
refund the purchase price of the Product during the warranty period provided it
is returned in accordance with the terms of this warranty. Replaced parts or
boards are warranted for the balance of the original applicable warranty period.
All replaced parts of Product shall become the property of MOTOROLA.
This express limited warranty is extended by MOTOROLA to the original end
user purchaser only and is not assignable or transferable to any other party. This
is the complete warranty for the Product manufactured by MOTOROLA.
MOTOROLA assumes no obligations or liability for additions or modifications
to this warranty unless made in writing and signed by an officer of
MOTOROLA. Unless made in a separate agreement between MOTOROLA and
the original end user purchaser, MOTOROLA does not warrant the installation,
maintenance or service of the Product.
MOTOROLA cannot be responsible in any way for any ancillary equipment not
furnished by MOTOROLA which is attached to or used in connection with the
Product, or for operation of the Product with any ancillary equipment, and all
such equipment if expressly excluded from this warranty. Because each system
iDEN Subscriber Digital Mobile and
Portable Units One (1) Year
Product Accessories One (1) Year
Batteries One (1) Year
82 www.mot.com/iDEN
which may use the Product is unique, MOTOROLA disclaims liability for
range, coverage, or operation of the system as a whole under this warranty.
II. General Provisions:
This warranty sets forth the full extent of MOTOROLA’S responsibilities
regarding the Product, Repair, replacement or refund of the purchase price, at
MOTOROLA’S options, is the exclusive remedy. THIS WARRANTY IS
GIVEN IN LIEU OF ALL OTHER EXPRESS WARRANTIES. IMPLIED
WARRANTIES, INLCUDING WITHOUT LIMITATION, IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THIS
LIMITED WARRANTY. IN NO EVENT SHALL MOTOROLA BE LIABLE
FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE
PRODUCT, FOR ANY LOSS OF USE, LOSS OF TIME, INCONVENIENCE,
COMMERCIAL LOSS, LOST PROFITS OR SAVINGS OR OTHER
INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING
OUT OF THE USE OR INABILITY TO USE SUCH PRODUCT, TO THE
FULL EXTENT SUCH MAY BE DISCLAIMED BY LAW.
III. State Law Rights:
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATION ON
HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE
LIMITATIONS OR EXCLUSIONS MAY NOT APPLY.
This warranty gives specific legal rights, and there may be other rights which
may vary from state to state.
IV. How to Get Warranty Service:
You must provide proof of purchase (bearing the date of purchase and Product
item serial number) in order to receive warranty service and, also, deliver or
send the Product item, transportation and insurance prepaid, to an authorized
warranty service location. Warranty service will be provided by MOTOROLA
through one of its authorized warranty service locations. If you first contact the
company which sold you the Product (e.g., dealer or communication service
provider), it can facilitate your obtaining warranty service. You can also call
MOTOROLA at 1-800-453-0920 for warranty service location information.
V. What This Warranty Does Not Cover:
a. Defects or damage resulting from use of the Product in other than its
normal and customary manner.
b. Defects or damage from misuse, accident, water, or neglect.
Warranty
83
c. Defects or damage from improper testing, operation, maintenance,
installation, alteration, modification, or adjustment.
d. Breakage or damage to antennas unless caused directly by defects in
material workmanship.
e. A Product subjected to unauthorized Product modifications, disas-
semblies or repairs (including, without limitation, the addition to the
Product of non-MOTOROLA supplied equipment) which adversely
affect performance of the Product or interfere with MOTOROLA’S
normal warranty inspection and testing of the Product to verify any
warranty claim.
f. Product which has had the serial number removed or made illegible.
g. Rechargeable batteries if:
(1). Any of the seals on the battery enclosure of cells are broken or shoe
evidence of tampering.
(2) The damage or defect is caused by charging or using the battery in
equipment or service other than the Product for which it is specified.
h. Freight costs to the repair depot.
i. A Product which, due to illegal or unauthorized alteration of the soft-
ware/firmware in the Product, does not function in accordance with
MOTOROLA’S published specifications or the FCC type acceptance
labeling in effect for the Product at the time the Product was initially
distributed from MOTOROLA.
j. Scratches or other cosmetic damage to Product surfaces that does not
affect the operation of the Product.
k. Normal and customary wear and tear.
VI. Patent and Software Provisions:
MOTOROLA will defend, at its own expense, any suit brought against the end
user purchaser to the extent that it is based on a claim that the Product or parts
infringe a United States patent, and MOTOROLA will pay those costs and
damages finally awarded against the end user purchaser in any such suit which
are attributable to any such claim, but such defense and payments are
conditioned on the following:
a. that MOTOROLA will be notified promptly in writing by such pur-
chaser of any notice of such claim;
b. that MOTOROLA will have sole control of the defense of such suit
and all negotiations for its settlement or compromise; and
c. Should the Product or parts become, or in MOTOROLA’S opinion be
likely to become, the subject of a claim of infringement of a United
States patent, that such purchaser will permit MOTOROLA, at its
84 www.mot.com/iDEN
option and expense, either to procure for such purchaser the right to
continue to using the Product or parts or to replace or modify the same
so that it becomes non-infringing or to grant such purchaser a credit
for the Product or parts as depreciated and accept its return. The
depreciation will be an equal amount per year over the lifetime of the
Product or parts as established by MOTOROLA.
MOTOROLA will have no liability with respect to any claim of patent
infringement which is based upon the combination of the Product or parts
furnished hereunder with software, apparatus or devices not furnished by
MOTOROLA, nor will MOTOROLA have any liability for the use of ancillary
equipment or software not furnished by MOTOROLA which is attached to or
used in connection with the Product or any parts thereof.
Laws in the United States and other countries preserve for MOTOROLA certain
exclusive rights for copyrighted MOTOROLA software, such as the exclusive
rights to reproduce in copies and distribute copies of such MOTOROLA
software. MOTOROLA software may be used in only the Product in which the
software was originally embodied and such software in such Product may not be
replaced, copied, distributed, modified in any way, or used to product any
derivative thereof. No other use including, without limitation, alteration,
modification, reproduction, distribution, or reverse engineering of such
MOTOROLA software or exercise or rights in such MOTOROLA software is
permitted. No license is granted by implication, estoppel or otherwise under
MOTOROLA patent rights or copyrights.
Warranty
85
Limited Warranty Motorola Communication Products
(International)
NOTE:This Warranty applies within Singapore and the Philippines.
I. What This Warranty Covers and For How Long:
MOTOROLA warrants the MOTOROLA manufactured iDEN Communication
Products listed below (“Product”) against defects in material and workmanship
under normal use and service for a period of time from the date of purchase as
scheduled below:
Rechargeable Batteries will be replaced during the applicable warranty period
if:
a. the battery capacity falls below 80% of rated capacity, or
b. the battery develops leakage.
MOTOROLA, at its options, will at no charge either repair the Product (with
new or reconditioned parts), replace it (with a new or reconditioned Product), or
refund the purchase price of the Product during the warranty period provided it
is returned in accordance with the terms of this warranty. Replaced parts or
boards are warranted for the balance of the original applicable warranty period.
All replaced parts of Product shall become the property of MOTOROLA.
This express limited warranty is extended by MOTOROLA to the original end
user purchaser only and is not assignable or transferable to any other party. This
is the complete warranty for the Product manufactured by MOTOROLA.
MOTOROLA assumes no obligations or liability for additions or modifications
to this warranty unless made in writing and signed by an officer of
MOTOROLA. Unless made in a separate agreement between MOTOROLA
and the original end user purchaser, MOTOROLA does not warrant the
installation, maintenance or service of the Product.
MOTOROLA cannot be responsible in any way for any ancillary equipment not
furnished by MOTOROLA which is attached to or used in connection with the
Product, or for operation of the Product with any ancillary equipment, and all
such equipment if expressly excluded from this warranty. Because each system
which may use the Product is unique, MOTOROLA disclaims liability for
range, coverage, or operation of the system as a whole under this warranty.
iDEN Subscriber Digital Mobile and
Portable Units One (1) Year
Product Accessories One (1) Year
86 www.mot.com/iDEN
II. General Provisions:
This warranty sets forth the full extent of MOTOROLA’S responsibilities
regarding the Product, Repair, replacement or refund of the purchase price, at
MOTOROLA’S options, is the exclusive remedy. THIS WARRANTY IS
GIVEN IN LIEU OF ALL OTHER EXPRESS WARRANTIES. IMPLIED
WARRANTIES, INLCUDING WITHOUT LIMITATION, IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THIS
LIMITED WARRANTY TO THE FULL EXTENT SUCH MAY BE
DISCLAIMED BY LAW. IN NO EVENT SHALL MOTOROLA BE LIABLE
FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE
PRODUCT, FOR ANY LOSS OF USE, LOSS OF TIME, INCONVENIENCE,
COMMERCIAL LOSS, LOST PROFITS OR SAVINGS OR OTHER
INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING
OUT OF THE USE OR INABILITY TO USE SUCH PRODUCT, TO THE
FULL EXTENT SUCH MAY BE DISCLAIMED BY LAW.
III. How to Get Warranty Service:
You must provide proof of purchase (bearing the date of purchase and Product
item serial number) in order to receive warranty service and, also, deliver or
send the Product item, transportation and insurance prepaid, to an authorized
warranty service location. Warranty service will be provided by MOTOROLA
through one of its authorized warranty service locations. If you first contact the
company which sold you the Product (e.g., dealer or communication service
provider), it can facilitate your obtaining warranty service.
IV. What This Warranty Does Not Cover:
a. Defects or damage resulting from use of the Product in other
than its normal and customary manner.
b. Defects or damage from misuse, accident, water, or neglect.
c. Defects or damage from improper testing, operation,
maintenance, installation, alteration, modification, or
adjustment.
d. Breakage or damage to antennas unless caused directly by
defects in material workmanship.
e. A Product subjected to unauthorized Product modifications,
disassemblies or repairs (including, without limitation, the
audition to the Product of non-MOTOROLA supplied
equipment)
Warranty
87
f. Product which has had the serial number removed or made
illegible.
g. Rechargeable batteries if:
1.Any of the seals on the battery enclosure of cells are broken or
shoe evidence of tampering.
2.the damage or defect is caused by charging or using the
battery in equipment or service other than the Product for which
it is specified.
h. Freight costs to the repair depot.
i. A Product which, due to illegal or unauthorized alteration of
the software/firmware in the Product, does not function in
accordance with MOTOROLA’S published specifications or
the local type acceptance labeling in effect for the Product at
the time the Product was initially distributed from
MOTOROLA.
j. Scratches or other cosmetic damage to Product surfaces that
does not effect the operation of the Product.
k. Normal and customary wear and tear.
l. Exclusion for defects or damage arising from use of the
products in connection with non-MOTOROLA equipment.
V. Patent and Software Provisions:
MOTOROLA will defend, at its own expense, any suit brought against the end
user purchaser to the extent that it is based on a claim that the Product or parts
infringe a United States patent, and MOTOROLA will pay those costs and
damages finally awarded against the end user purchaser in any such suit which
are attributable to any such claim, but such defense and payments are
conditioned on the following:
a. that MOTOROLA will be notified promptly in writing by such
purchaser of any notice of such claim;
b. that MOTOROLA will have sole control of the defense of
such suit and all negotiations for its settlement or compromise;
and
c. Should the Product or parts become, or in MOTOROLA’S
opinion be likely to become, the subject of a claim of
infringement of a patent, that such purchaser will permit
MOTOROLA, at its option and expense, either to procure for
such purchaser the right to continue to using the Product or
88 www.mot.com/iDEN
parts or to replace or modify the same so that it becomes non-
infringing or to grant such purchaser a credit for the Product or
parts as depreciated and accept its return. The depreciation
will be an equal amount per year over the lifetime of the
Product or parts as established by MOTOROLA.
MOTOROLA will have no liability with respect to any claim of patent
infringement which is based upon the combination of the Product or parts
furnished hereunder with software, apparatus or devices not furnished by
MOTOROLA, nor will MOTOROLA have any liability for the use of ancillary
equipment or software not furnished by MOTOROLA which is attached to or
used in connection with the Product or any parts thereof. In no event shall
MOTOROLA be liable for any incidental, special or consequential damages
arising from any claim of patent infringement or alleged infringement.
Laws in the United States and other countries preserve for MOTOROLA certain
exclusive rights for copyrighted MOTOROLA software, such as the exclusive
rights to reproduce in copies and distribute copies of such MOTOROLA
software. MOTOROLA software may be used in only the Product in which the
software was originally embodied and such software in such Product may not be
replaced, copied, distributed, modified in any way, or used to product any
derivative thereof. No other use including, without limitation, alteration,
modification, reproduction, distribution, or reverse engineering of such
MOTOROLA software or exercise or rights in such MOTOROLA software is
permitted. No license is granted by implication, estoppel or otherwise under
MOTOROLA patent rights or copyrights.
Patent & Trademark Information
89
Patent & Trademark Information
This product is protected under one or more of the following patents:
4291475, 4365221, 4369516, 4374370, 4378603, 4390963, 4398265, 4400584,
4400585, 4434461, 4455534, 4486624, 4491972, 4523155, 4546329, 4574243,
4581602, 4581749, 4585957, 4593155, 4594657, 4602218, 4605987, 4616314,
4617520, 4628529, 4629829, 4633141, 4636593, 4636741, 4648125, 4649543,
4654655, 4680787, 4704588, 4711361, 4715063, 4717884, 4730195, 4731813,
4736277, 4737976, 4741018, 4742562, 4761621, 4764737, 4775998, 4791527,
4794489, 4797929, 4797947, 4798975, 4802236, 4803726, 4809356, 4811377,
4811404, 4817157, 4827507, 4829543, 4831647, 4843621, 4845772, 4851966,
4852090, 4860336, 4860341, 4868576, 4870686, 4872196, 4873683, 4876552,
4876656, 4876740, 4879533, 4885553, 4887050, 4890199, 4896124, 4896361,
4897873, 4903326, 4903327, 4904549, 4904992, 4905288, 4905301, 4912602,
4916262, 4918431, 4918732, 4922178, 4941203, 4942570, 4945570, 4956854,
4959851, 4963812, 4964121, 4970475, 4972355, 4972432, 4972455, 4975808,
4977589, 4977616, 4979207, 4984219, 4984290, 4989230, 4992753, 4996529,
5008925, 5010309, 5010570, 5014294, 5014346, 5017856, 5018188, 5020076,
5020091, 5020092, 5020093, 5023580, 5023866, 5023911, 5025387, 5027388,
5028083, 5028859, 5029233, 5036532, 5038253, 5040127, 5042071, 5045824,
5053924, 5055800, 5055802, 5055803, 5057762, 5058136, 5059885, 5060264,
5063340, 5065408, 5067139, 5070310, 5077757, 5077790, 5081674, 5083304,
5087004, 5093632, 5095503, 5107487, 5109400, 5111162, 5113400, 5113436,
5117073, 5117441, 5117449, 5117450, 5121047, 5121288, 5121412, 5122480,
5122722, 5124889, 5127040, 5127042, 5127100, 5128834, 5133010, 5134717,
5140286, 5140635, 5142551, 5142696, 5144533, 5146620, 5148471, 5148473,
5150075, 5150359, 5150384, 5151643, 5152006, 5152007, 5153590, 5157693,
5160898, 5162144, 5163159, 5164652, 5166596, 5166642, 5168522, 5170173,
5170485, 5170492, 5175729, 5175759, 5175874, 5182749, 5185566, 5185790,
5187640, 5187809, 5192924, 5193223, 5195106, 5195108, 5198887, 5200655,
5201069, 5203009, 5203012, 5203013, 5203021, 5204977, 5205751, 5210793,
5211581, 5212815, 5212826, 5214675, 5214774, 5216389, 5220290, 5220936,
5222078, 5222104, 5222251, 5230007, 5230093, 5233506, 5233633, 5235492,
5237257, 5237570, 5239127, 5241545, 5241548, 5241592, 5241688, 5242767,
5243355, 5247544, 5247565, 5249302, 5251331, 5255292, 5257414, 5259005,
5260170, 5260988, 5261119, 5262710, 5263052, 5263055, 5265271, 5267230,
5276588, 5276707, 5276913, 5276915, 5278832, 5278994, 5280630, 5280637,
5280644, 5285443, 5287013, 5287553, 5287555, 5287556, 5289505, 5297142,
5299232, 5301365, 5308716, 5321705, 5321737, 5321847, 5323421, 5325405,
5325429, 5327578, 5327642, 5331123, 5333153, 5336984, 5338909, 5343213,
5349588, 5351245, 5359696, 5361400, 5363071, 5365549, 5366826, 5367538,
5367558, 5371791, 5373101, 5375143, 5375258, 5379324, 5381114, 5384825,
5392000, 5392023, 5392331, 5396654, 5401927, 5402447, 5402448, 5404580,
5404582, 5406146, 5406562, 5408693, 5410275, 5410741, 5414711, 5420759,
90 www.mot.com/iDEN
5424689, 5428362, 5428820, 5428836, 5430416, 5432017, 5434947, 5436802,
5438684, 5442680, 5444764, 5446763, 5446766, 5448763, 5448770, 5448771,
5453997, 5457744, 5459640, 5459774, 5461643, 5463351, 5463406, 5463628,
5463646, 5463674, 5463688, 5463694, 5465409, 5465412, 5469177, 5471671,
5475752, 5477192, 5485506, 5485513, 5486843, 5487184, 5488649, 5490177,
5491739, 5493198, 5493700, 5493714, 5495206, 5495208, 5497126, 5497382,
5497383, 5499273, 5499394, 5499397, 5502437, 5504494, 5504812, 5506490,
5508709, 5509048, 5510693, 5511235, 5513078, 5513996, 5519303, 5519346,
5519506, 5519777, 5524276, 5526398, 5528666, 5530399, 5530922, 5533119,
5535258, 5535434, 5539360, 5542016, 5542103, 5542106, 5542116, 5544250,
5546275, 5546380, 5551078, 5551627, 5553137, 5553376, 5554996, 5555550,
5557743, 5559471, 5559522, 5559806, 5561436, 5561437, 5561852, 5565881,
5566224, 5568548, 5570453, 5572223, 5572224, 5574976, 5577267, 5577268,
5583520, 5584054, 5586146, 5588041, 5589796, 5590177, 5594778, 5594951,
5598129, 5598431, 5600341, 5604050, 5604468, 5604787, 5606332, 5606560,
5606730, 5613229, 5613863, 5615233, 5615259, 5615260, 5621763, 5621766,
5625316, 5625683, 5628001, 5628057, 5628089, 5629979, 5630159, 5630210,
5630213, 5630215, 5631538, 5633484, 5633786, 5634202, 5640690, 5642368,
5646576, 5649306, 5649309, 5656914, 5656917, 5657418, 5659601, 5660945,
5661433, 5664973, 5666429, 5668871, 5670912, 5673001, 5673003, 5673287,
5674326, 5675591, 5675702, 5678201, 5678221, 5678227, 5680063, 5684384,
5691947, 5692046, 5692101, 5696497, 5696821, 5699070, 5699389, 5699408,
5701130, 5701244, 5701589, 5703470, 5703539, 5703909, 5706019, 5706313,
5708445, 5710862, 5710987, 5711001, 5715520, 5715524, 5717307, 5722052,
5724004, 5726983, 5729221, 5732350, 5737327, 5737685, 5738954, 5739792,
5740525, 5742894, 5745116, 5745566, 5745848, 5747970, 5748727, 5754141,
5754455, 5754583, 5754645, 5754956, 5758271, 5760714, 5761300, 5761610,
5764100, 5764111, 5764730, 5764743, 5766794, 5771182, 5771471, 5777521,
5777856, 5784368, 5784419, 5784585, 5787128, 5787577, 5793315, 5793866,
5796822, 5797101, 5798716, 5799011, 5799256, 5801513, 5801567, 5802111,
5805992, 5807012, 5808585, 5808586, 5809020, 5809419, 5809421, 5809430,
5809433, 5809544, 5812093, 5812542, 5812590, 5814798, 5815507, 5815570,
5815804, 5815805, 5815807, 5815820, 5821820, 5822726, 5826224, 5831826,
5832080, 5832388, 5835006, 5835535, 5835785, 5838202, 5841851, 5842122,
5844943, 5846094, 5848072, 5848152, 5848356, 5848718, 5850440, 5854549,
5854785, 5854972, 5856763, 5856766, 5857148, 5857192, 5859522, 5859567,
5859890, 5861853, 5862460, 5862493, 5864799, 5865487, 5867063, 5867127,
5867140, 5867510, 5870670, 5872744, 5877633, 5878075, 5878209, 5878336,
5878353, 5880637, 5880646, 5881377, 5889737, 5889768, 5889859, 5892410,
5893036, 5894597, 5896054, 5896261, 5898933, 5900829, 5901347, 5901357,
5903825, 5903852, 5905956, 5907418, 5907615, 5909102, 5910944, 5912648,
5920549, 5920550, 5923007, 5924044, 5925835, 5925942, 5926119, 5926503,
5926751, 5930268, 5930288, 5930299, 5933330, 5936516, 5936972, 5939939,
5940452, 5940746, 5943027, 5945852, 5945964, 5946395, 5949020, 5950131,
5950139, 5953413, 5954817, 5955700, 5955999, 5956626, 5963848, 5963876,
5964858, 5966101, 5966667, 5966671, 5969545, 5974042, 5977916, 5980268,
Patent & Trademark Information
91
5982881, 5983082, 5987012, 5988577, 5995050, 5996178, 5999115, 5999821,
5999832, 6002922, 6002937, 6005498, 6006104, 6008636, 6009168, 6009309,
6009325, 6009336, 6009552, 6011699, 6011784, 6011959, 6011961, 6012634,
6014376, 6014552, 6016312, 6016422, 6018584, 6018651, 6018671, 6020787,
6021332, 6023191, 6023615, 6025753, 6035182, 6035191, 6035522, 6038457,
6040683, 6040720, 6041241, 6043721, 6043786, 6044153, 6047066, 6047084,
6049192, 6049233, 6049532, 6049704, 6049725, D284759, D285439, D288432,
D288683, D289156, D292578, D292920, D295627, D295973, D295975, D296187,
D297734, D297735, D297736, D299136, D299137, D299232, D300742, D300827,
D301473, D301476, D301883, D302015, D303656, D304189, D305427, D305717,
D306015, D306163, D306293, D306299, D306441, D306583, D306594, D307271,
D309301, D309451, D314173, D315330, D315346, D315543, D315559, D315565,
D315907, D316417, D316859, D320780, D322783, D324024, D324388, D325028,
D325029, D325032, D325583, D325915, D327061, D327062, D328302, D332261,
D332785, D334746, D337332, D338012, D338887, D339127, D339335, D339336,
D339337, D339564, D339578, D339581, D339582, D340709, D340710, D340711,
D340906, D341589, D342248, D342663, D342729, D342730, D342741, D343173,
D343615, D343616, D343834, D343835, D343836, D344087, D344271, D344444,
D344511, D344512, D344945, D345977, D346785, D346786, D346798, D348071,
D348250, D348427, D348470, D348665, D348666, D348668, D348674, D348880,
D349273, D349701, D350113, D350348, D350349, D350350, D351375, D351840,
D352497, D352503, D352946, D353131, D353361, D353587, D353588, D353591,
D354055, D354062, D355181, D355895, D356084, D356309, D357224, D357249,
D357457, D357680, D357681, D358148, D359052, D359734, D359735, D359959,
D360398, D360632, D361070, D361763, D362840, D362852, D365094, D365817,
D366872, D367640, D368479, D368696, D369162, D369359, D369797, D370016,
D370463, D370672, D372237, D372481, D372703, D372896, D372919, D373585,
D373764, D374013, D374014, D374227, D374424, D374872, D375732, D375733,
D375734, D375932, D375935, D375952, D376127, D377792, D377934, D378366,
D378911, D379558, D379624, D379981, D379982, D380468, D380751, D381021,
D381664, D382537, D382538, D382872, D383115, D383748, D383749, D383759,
D384080, D384662, D384951, D384952, D385271, D385283, D385555, D385873,
D385874, D385875, D385877, D385888, D386175, D386494, D386757, D387054,
D387055, D387199, D387346, D388078, D388079, D388080, D388081, D388082,
D388424, D388429, D388430, D388775, D388783, D388793, D389157, D389476,
D389478, D389488, D389641, D390221, D390222, D390509, D391567, D391955,
D391966, D393470, D394256, D394423, D394425, D394433, D394438, D394439,
D395301, D395302, D395431, D395642, D395875, D396472, D397337, D397689,
D397694, D398926, D400161, D400165, D400204, D400209, D400496, D400526,
D400527, D400874, D401554, D401929, D403265, D404397, D405080, D405782,
D405801, D406098, D406191, D406586, D406695, D406812, D407063, D407685,
D407708, D408401, D408402, D408418, D408783, D408815, D409186, D410459,
D410460, D410929, D411165, D411196, D411202, D411204, D411507, D411535,
D411843, D411844, D412000, D412487, D412709, D413893, D413898, D414159,
D415122, D415499, D416226, D417224, D417449, D419155, D419290, D419565,
D419956, D420008, D420977, D421005, D421443, D421982, D422275, D422595
92 www.mot.com/iDEN
Additional patents are pending.
MOTOROLA, the Stylized M Logo and all other trademarks indicated as such
herein are trademarks of Motorola, Inc. ®Reg. U.S. Pat. & Tm. Off. ©
Copyright 2000 Motorola, Inc. All rights reserved. Manufactured under one or
more of the U.S. patents listed in the User’s Guide.
T9 is a trademark owned by Tegic Communications, Inc.
All other product or service names mentioned in this manual are the property of
their respective trademark owners.
Owner’s Information
93
Owner’s Information
Mobile Equipment Identifier (IMEI)
_____________________________
Own Phone Number
_____________________________
Own Private Number
_____________________________
Date Purchased
______________
Dealer Telephone Number
_______________________
Customer Service Number
_______________________
94 www.mot.com/iDEN
