Declaration of Conformity
English
i
Declaration of Conformity
This declaration is applicable to your radio only if your radio is labeled with the FCC logo shown below.
DECLARATION OF CONFORMITY
Per FCC CFR 47 Part 2 Section 2.1077(a)
Responsible Party
Name: Motorola, Inc.
Address: 1301 East Algonquin Road, Schaumburg, IL 60196-1078, U.S.A.
Phone Number: 1-888-567-7347
Hereby declares that the product:
Model Name: XPR 6500/XPR 6550
conforms to the following regulations:
FCC Part 15, subpart B, section 15.107(a), 15.107(d) and section 15.109(a)
Class B Digital Device
As a personal computer peripheral, this device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
NAG-LACR-EMEA.book Page i Monday, April 28, 2008 4:59 PM
Declaration of Conformity
English
ii
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
NAG-LACR-EMEA.book Page ii Monday, April 28, 2008 4:59 PM
Contents
English
iii
Contents
This User Guide contains all the information you need
to use the MOTOTRBO XPR Series Digital Portable
Radios.
Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . i
Important Safety Information . . . . . . . . . . . . . . . . . vii
Product Safety and RF Exposure
Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Software Version . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Computer Software Copyrights . . . . . . . . . . . . . . viii
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
How to Use This Guide . . . . . . . . . . . . . . . . . . . . . . . 1
What Your Dealer/System Administrator
Can Tell You . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Preparing Your Radio for Use . . . . . . . . . . . . . . . . . . 2
Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . 2

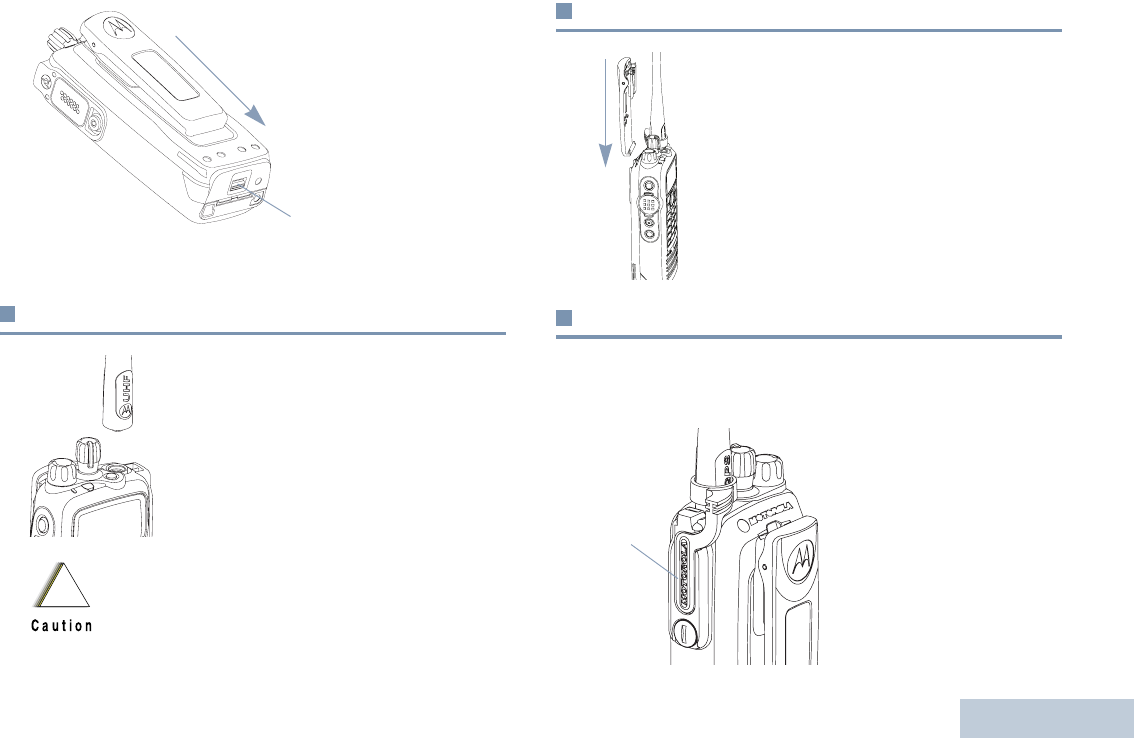

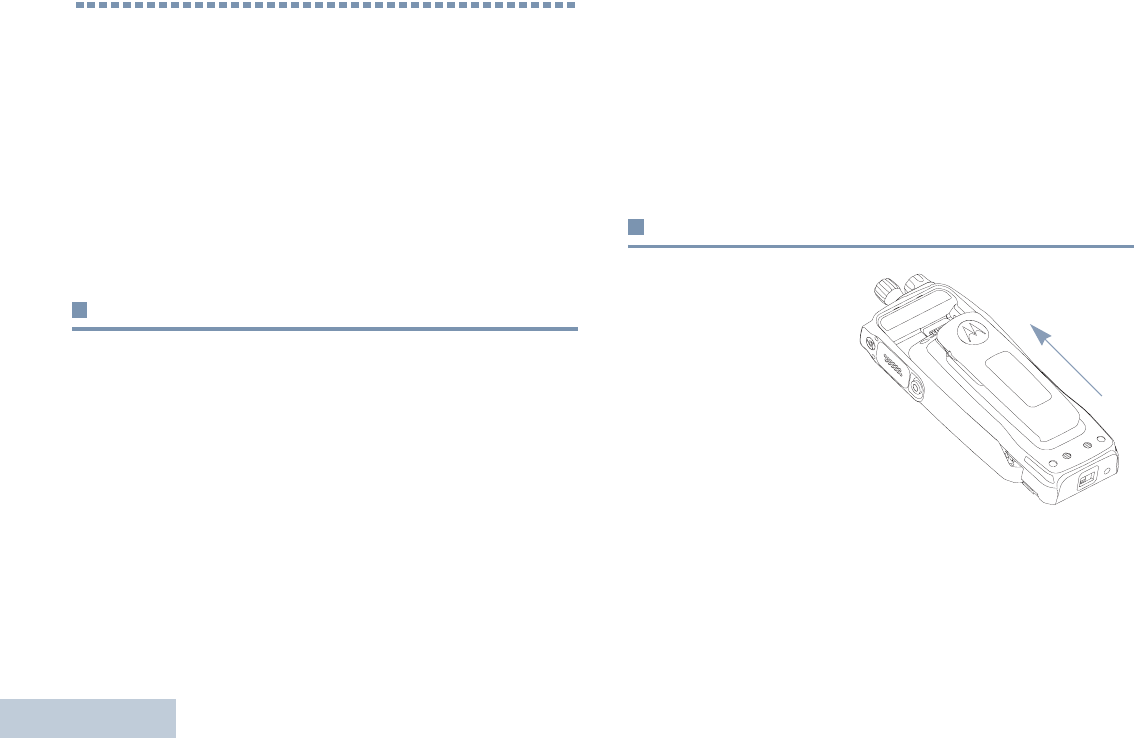

Attaching the Battery . . . . . . . . . . . . . . . . . . . . . . . . . 2
Attaching the Antenna . . . . . . . . . . . . . . . . . . . . . . . . 3
Attaching the Belt Clip . . . . . . . . . . . . . . . . . . . . . . . . 3
Attaching the Universal Connector
Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Powering Up the Radio . . . . . . . . . . . . . . . . . . . . . . . 4
Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . 4

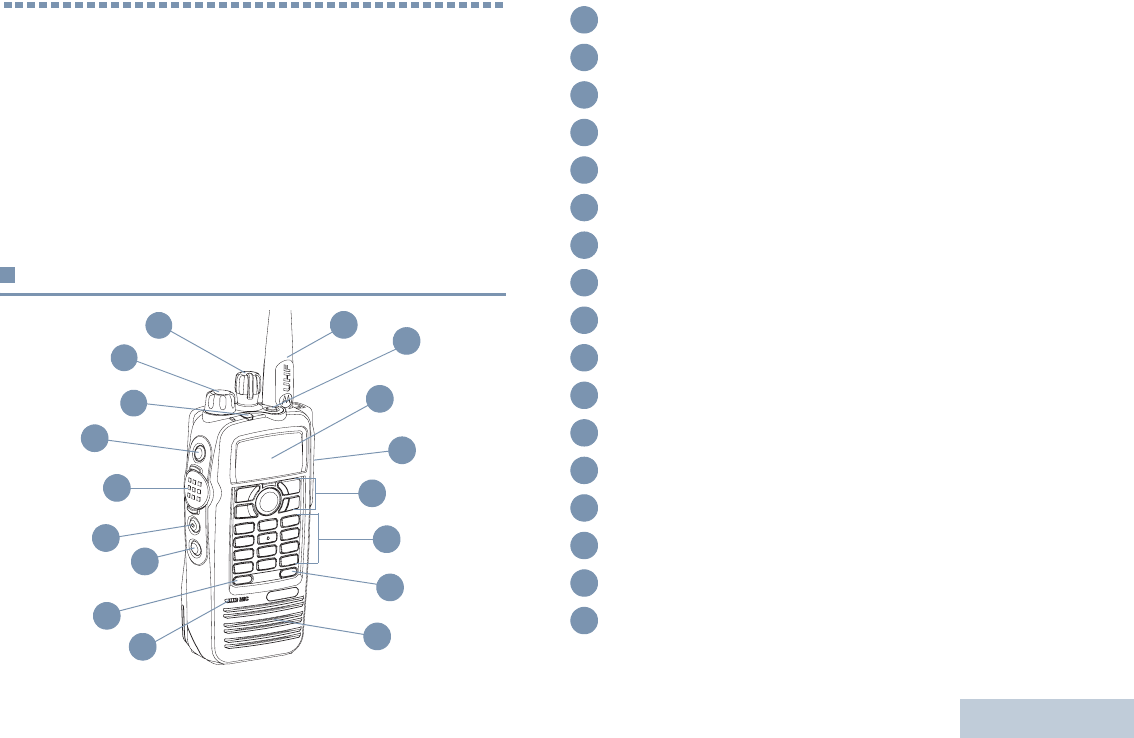

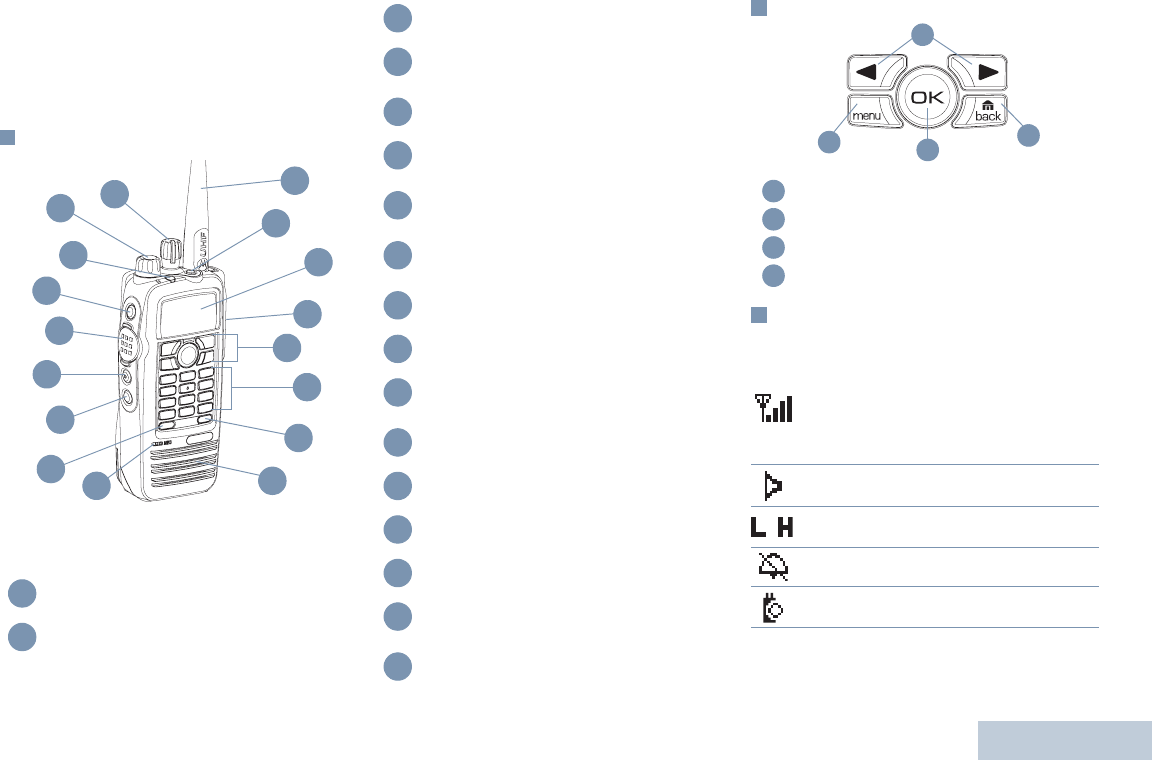

Identifying Radio Controls . . . . . . . . . . . . . . . . . . . . 5
Radio Controls You Will Be Using . . . . . . . . . . . . . . 5
Programmable Buttons . . . . . . . . . . . . . . . . . . . . . . . 6
Assignable Radio Functions . . . . . . . . . . . . . . . . . 6
Assignable Settings or Utility
Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Accessing the Programmed Functions . . . . . . . . . . . 7
Using the Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Push-To-Talk (PTT) Button . . . . . . . . . . . . . . . . . . . . 9
Switching Between Analog and
Digital Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Identifying Status Indicators . . . . . . . . . . . . . . . . . . 10

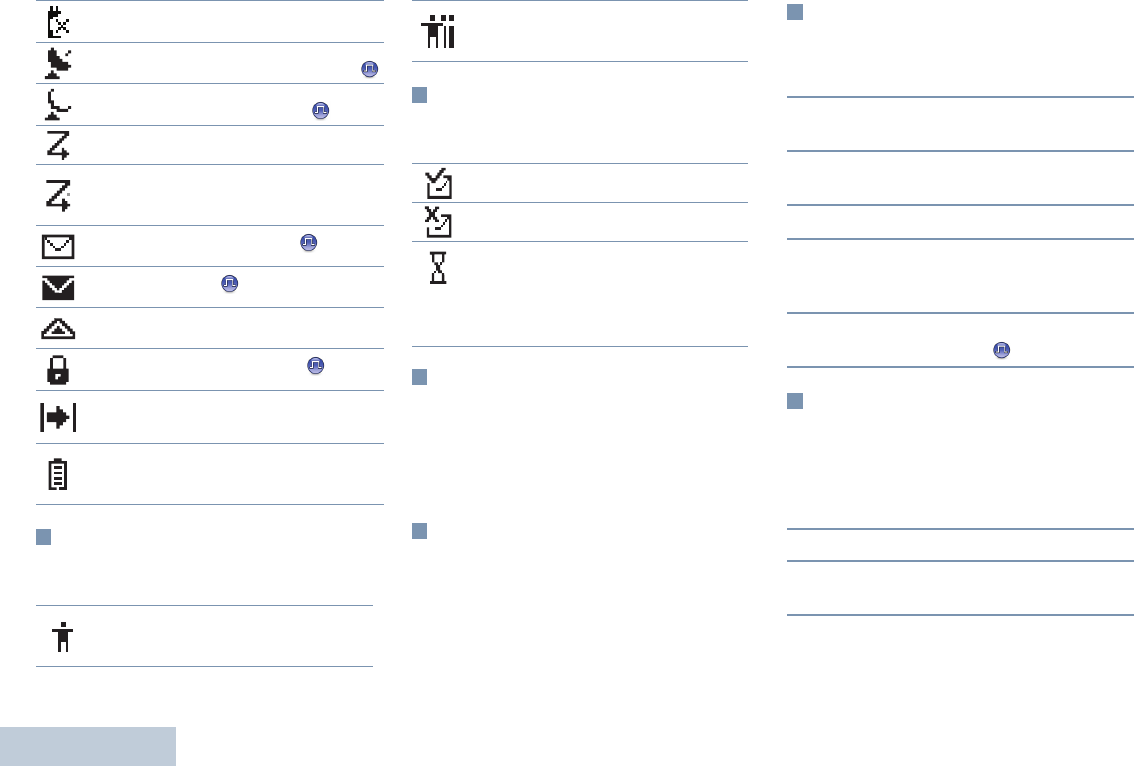

Display Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Call Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Sent Item Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
LED Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Audio Tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
NAG-LACR-EMEA.book Page iii Monday, April 28, 2008 4:59 PM
Contents
English
iv
Making and Receiving Calls . . . . . . . . . . . . . . . . . . 13
Selecting a Zone . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Selecting a Radio Channel, Subscriber ID,
or Group ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Receiving and Responding to a
Radio Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Receiving and Responding to a
Group Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Receiving and Responding to a
Private Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Receiving an All Call . . . . . . . . . . . . . . . . . . . . . . 16
Making a Radio Call . . . . . . . . . . . . . . . . . . . . . . . . 16
Making a Call with the Channel
Selector Knob . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Making a Group Call . . . . . . . . . . . . . . . . . . . . 17
Making a Private Call . . . . . . . . . . . . . . . . . . . . 17
Making an All Call . . . . . . . . . . . . . . . . . . . . . . 18
Making a Group or Private Call with the
One Touch Call Button . . . . . . . . . . . . . . . . . . . . 18
Talkaround . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Monitoring Features . . . . . . . . . . . . . . . . . . . . . . . . 20
Monitoring a Channel . . . . . . . . . . . . . . . . . . . . . 20
Permanent Monitor . . . . . . . . . . . . . . . . . . . . . . . 20
Advanced Features . . . . . . . . . . . . . . . . . . . . . . . . . 21
Radio Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Sending a Radio Check . . . . . . . . . . . . . . . . . . . 21
Remote Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Initiating Remote Monitor . . . . . . . . . . . . . . . . . . 23
Scan Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Viewing an Entry in the Scan List . . . . . . . . . . . . 24
Editing the Scan List . . . . . . . . . . . . . . . . . . . . . . 25
Adding a New Entry to the Scan List . . . . . . . . 25
Deleting an Entry from the Scan List . . . . . . . . 25
Setting and Editing Priority for an Entry
in the Scan List . . . . . . . . . . . . . . . . . . . . . . . . 26
Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Starting and Stopping Scan . . . . . . . . . . . . . . . . 27
Responding to a Transmission
During a Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
NAG-LACR-EMEA.book Page iv Monday, April 28, 2008 4:59 PM
Contents
English
v
Deleting a Nuisance Channel . . . . . . . . . . . . . . . 28
Restoring a Nuisance Channel . . . . . . . . . . . . . . 28
Contacts Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Making a Group Call from Contacts . . . . . . . . . . . 29
Making a Private Call from Contacts . . . . . . . . . . 29
Making a Private Call by Alias Search . . . . . . . . . 30
Call Indicator Settings . . . . . . . . . . . . . . . . . . . . . . . 31
Activating and Deactivating Call Ringers
for Private Calls . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Activating and Deactivating Call Ringers
for Text Message . . . . . . . . . . . . . . . . . . . . . . . . . 32
Assigning Ring Styles . . . . . . . . . . . . . . . . . . . . . 32
Escalating Alarm Tone Volume . . . . . . . . . . . . . . 33
Call Log Features . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Viewing Recent Calls . . . . . . . . . . . . . . . . . . . . . . 33
Missed Call Screen . . . . . . . . . . . . . . . . . . . . . . . 34
Storing an Alias or ID from the Missed
Call List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Deleting a Call from a Call List . . . . . . . . . . . . . . 35
Call Alert Operation . . . . . . . . . . . . . . . . . . . . . . . . . 35
Receiving and Acknowledging a Call Alert . . . . . 35
Making a Call Alert from the Contacts List . . . . . . 36
Making a Call Alert with the One Touch
Call Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Emergency Operation . . . . . . . . . . . . . . . . . . . . . . . 37
Receiving an Emergency Alarm . . . . . . . . . . . . . 37
Responding to an Emergency Alarm . . . . . . . . . . 38
Sending an Emergency Alarm . . . . . . . . . . . . . . . 38
Sending an Emergency Alarm with Call . . . . . . . 39
Sending an Emergency Alarm with |
Voice to Follow . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Reinitiating an Emergency Mode . . . . . . . . . . . . . 40
Exiting Emergency Mode . . . . . . . . . . . . . . . . . . . 40
Text Message Features . . . . . . . . . . . . . . . . . . . . . 41
Writing and Sending a Text Message . . . . . . . . . 41
Sending a Quick Text Message . . . . . . . . . . . . . . 42
Sending a Quick Text Message with the
One Touch Call Button . . . . . . . . . . . . . . . . . . . . 42
Managing Fail-to-Send Text Messages . . . . . . . . 43
Resending a Text Message . . . . . . . . . . . . . . . 43
Forwarding a Text Message . . . . . . . . . . . . . . . 43
Editing a Text Message . . . . . . . . . . . . . . . . . . 44
NAG-LACR-EMEA.book Page v Monday, April 28, 2008 4:59 PM
Contents
English
vi
Managing Sent Text Messages . . . . . . . . . . . . . 44
Viewing a Sent Text Message . . . . . . . . . . . . . 45
Sending a Sent Text Message . . . . . . . . . . . . . 45
Deleting All Sent Text Messages
from Sent Items . . . . . . . . . . . . . . . . . . . . . . . . 46
Receiving a Text Message . . . . . . . . . . . . . . . . . 47
Reading a Text Message . . . . . . . . . . . . . . . . . . 47
Managing Received Text Messages . . . . . . . . . . 47
Viewing a Text Message from the Inbox . . . . . 48
Replying to a Text Message from
the Inbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Deleting a Text Message from the Inbox . . . . . 49
Deleting All Text Messages from
the Inbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Privacy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Dual Tone Multi Frequency (DTMF) . . . . . . . . . . . . 51
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Radio Disable . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Radio Enable . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Locking and Unlocking the Keypad . . . . . . . . . . . 53
Turning Keypad Tones On or Off . . . . . . . . . . . . 54
Setting the Squelch Level . . . . . . . . . . . . . . . . . . 54
Setting the Power Level . . . . . . . . . . . . . . . . . . . 54
Turning the Option Board Feature(s)
On or Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Controlling the Display Backlight . . . . . . . . . . . . 55
Turning the Radio Tones/Alerts On
or Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Turning the Talk Permit Tone On or Off . . . . . . . 56
Turning the LED Indicator On or Off . . . . . . . . . . 57
Turning the Introduction Screen On
or Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Accessing General Radio Information . . . . . . . . 58
Accessing the Battery Information . . . . . . . . . . 58
Checking the Radio ID . . . . . . . . . . . . . . . . . . . 59
Checking the Firmware Version . . . . . . . . . . . . 59
Checking the Codeplug Version . . . . . . . . . . . 59
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Carry Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Chargers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Earbuds and Earpieces . . . . . . . . . . . . . . . . . . . . . 62
Headsets and Headset Accessories . . . . . . . . . . . 62
Remote Speaker Microphones . . . . . . . . . . . . . . . . 63
Surveillance Accessories . . . . . . . . . . . . . . . . . . . . 63
Miscellaneous Accessories . . . . . . . . . . . . . . . . . . 64
Batteries and Chargers Warranty . . . . . . . . . . . . . 65
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
NAG-LACR-EMEA.book Page vi Monday, April 28, 2008 4:59 PM
Important Safety Information
English
vii
Important Safety Information
Product Safety and RF Exposure Compliance
ATTENTION!
This radio is restricted to occupational use only to
satisfy FCC RF energy exposure requirements.
Before using this product, read the RF energy awareness
information and operating instructions in the Product
Safety and RF Exposure booklet enclosed with your radio
(Motorola Publication part number 6881095C98) to
ensure compliance with RF energy exposure limits.
For a list of Motorola-approved antennas, batteries, and
other accessories, visit the following website:
http://www.motorola.com/governmentandenterprise
Software Version
All the features described in the following sections are
supported by the radio's software version R01.02.01.
See Checking the Firmware Version on page 59 to
determine your radio's software version.
Please check with your dealer or system administrator
for more details of all the features supported.
Before using this product, read the operating
instructions for safe usage contained in the
Product Safety and RF Exposure booklet
enclosed with your radio.
!
NAG-LACR-EMEA.book Page vii Monday, April 28, 2008 4:59 PM
Computer Software Copyrights
English
viii
Computer Software Copyrights
The Motorola products described in this manual may
include copyrighted Motorola computer programs stored
in semiconductor memories or other media. Laws in the
United States and other countries preserve for Motorola
certain exclusive rights for copyrighted computer
programs including, but not limited to, the exclusive right
to copy or reproduce in any form the copyrighted
computer program. Accordingly, any copyrighted
Motorola computer programs contained in the Motorola
products described in this manual may not be copied,
reproduced, modified, reverse-engineered, or distributed
in any manner without the express written permission of
Motorola. Furthermore, the purchase of Motorola
products shall not be deemed to grant either directly or by
implication, estoppel, or otherwise, any license under the
copyrights, patents or patent applications of Motorola,
except for the normal non-exclusive license to use that
arises by operation of law in the sale of a product.
The AMBE+2TM voice coding Technology embodied in
this product is protected by intellectual property rights
including patent rights, copyrights and trade secrets of
Digital Voice Systems, Inc.
This voice coding Technology is licensed solely for use
within this Communications Equipment. The user of this
Technology is explicitly prohibited from attempting to
decompile, reverse engineer, or disassemble the Object
Code, or in any other way convert the Object Code into a
human-readable form.
U.S. Pat. Nos. #5,870,405, #5,826,222, #5,754,974,
#5,701,390, #5,715,365, #5,649,050, #5,630,011,
#5,581,656, #5,517,511, #5,491,772, #5,247,579,
#5,226,084 and #5,195,166.
NAG-LACR-EMEA.book Page viii Monday, April 28, 2008 4:59 PM
Getting Started
English
1
Getting Started
Take a moment to review the following:
How to Use This Guide . . . . . . . . . . . . . . . . . . . . . . . . . page 1
What Your Dealer/System Administrator Can Tell You . page 1
How to Use This Guide
This User Guide covers the basic operation of the MOTOTRBO
Portables.
However, your dealer or system administrator may have
customized your radio for your specific needs. Check with your
dealer or system administrator for more information.
Throughout this publication, two icons are used to differentiate
Analog mode and Digital mode only features:
For features that are available in both Analog and Digital
modes, no icon is shown.
What Your Dealer/System Administrator
Can Tell You
You can consult your dealer or system administrator about the
following:
•Is your radio programmed with any preset conventional
channels?
•Which buttons have been programmed to access other
features?
•What optional accessories may suit your needs?
Indicates an Analog Mode only feature.
Indicates a Digital Mode only feature.
NAG-LACR-EMEA.book Page 1 Monday, April 28, 2008 4:59 PM
Preparing Your Radio for Use
English
2
Preparing Your Radio for Use
Assemble your radio by following these steps:
Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2
Attaching the Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . page 2
Attaching the Antenna. . . . . . . . . . . . . . . . . . . . . . . . . . page 3
Attaching the Belt Clip. . . . . . . . . . . . . . . . . . . . . . . . . . page 3
Attaching the Universal Connector Cover . . . . . . . . . . . page 3
Powering Up the Radio . . . . . . . . . . . . . . . . . . . . . . . . . page 4
Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . . . page 4
Charging the Battery
Your radio is powered by a Nickel Metal-Hydride (NiMH) or
Lithium-Ion (Li-lon) battery. To avoid damage and comply with
warranty terms, charge the battery using a Motorola charger
exactly as described in the charger user guide.
Charge a new battery 14 to 16 hours before initial use for best
performance.
IMPORTANT:ALWAYS charge your IMPRES battery with the
IMPRES charger. Using a conventional charger
causes irrecoverable loss of IMPRES battery
data. As a result, the battery functions as a
non-IMPRES battery and cannot display the
data on your radio. Additionally, it voids your
IMPRES battery warranty, although the
standard battery warranty still applies.
Attaching the Battery
Align the battery with
the rails on the back
of the radio. Press the
battery firmly, and
slide upward until the
latch snaps into place.
Slide battery latch into
lock position.
NAG-LACR-EMEA.book Page 2 Monday, April 28, 2008 4:59 PM
Preparing Your Radio for Use
English
3
To remove the
battery, turn the
radio off. Move the
battery latch into
unlock position
and hold, and slide
the battery down
and off the rails.
Attaching the Antenna
With the radio turned off, set the
antenna in its receptacle and turn
clockwise.
To remove the antenna, turn the
antenna counterclockwise. Make sure
you turn off the radio and remove the
universal connector cover first.
Attaching the Belt Clip
Align the grooves on the clip with those on
the battery and press downward until you
hear a click.
To remove the clip, press the belt clip tab
away from the battery using a key. Then
slide the clip upward and away from the
radio.
Attaching the Universal Connector Cover
The universal connector is located on the antenna side of the
radio. It is used to connect MOTOTRBO accessories to the
radio.
Place the universal
connector cover loop over
the attached antenna. Slide
it all the way down to the
base of the antenna.
Insert the hooked end of the
cover into the slots above
the universal connector.
If antenna needs to be replaced, ensure that only
MOTOTRBO antennas are used. Neglecting this will
damage your radio. See Antennas on page 60 for a
list of available antennas.
Battery Latch
!
Universal
Connector
Cover
NAG-LACR-EMEA.book Page 3 Monday, April 28, 2008 4:59 PM
Preparing Your Radio for Use
English
4
Press downward on the cover to seat the lower tab properly into
the RF connector.
Turn the thumbscrew clockwise to secure the connector cover
to the radio.
To remove the universal connector cover, press down on the
cover and turn the thumbscrew counterclockwise. Lift the cover
up, slide the connector cover loop upwards, and remove it from
the attached antenna.

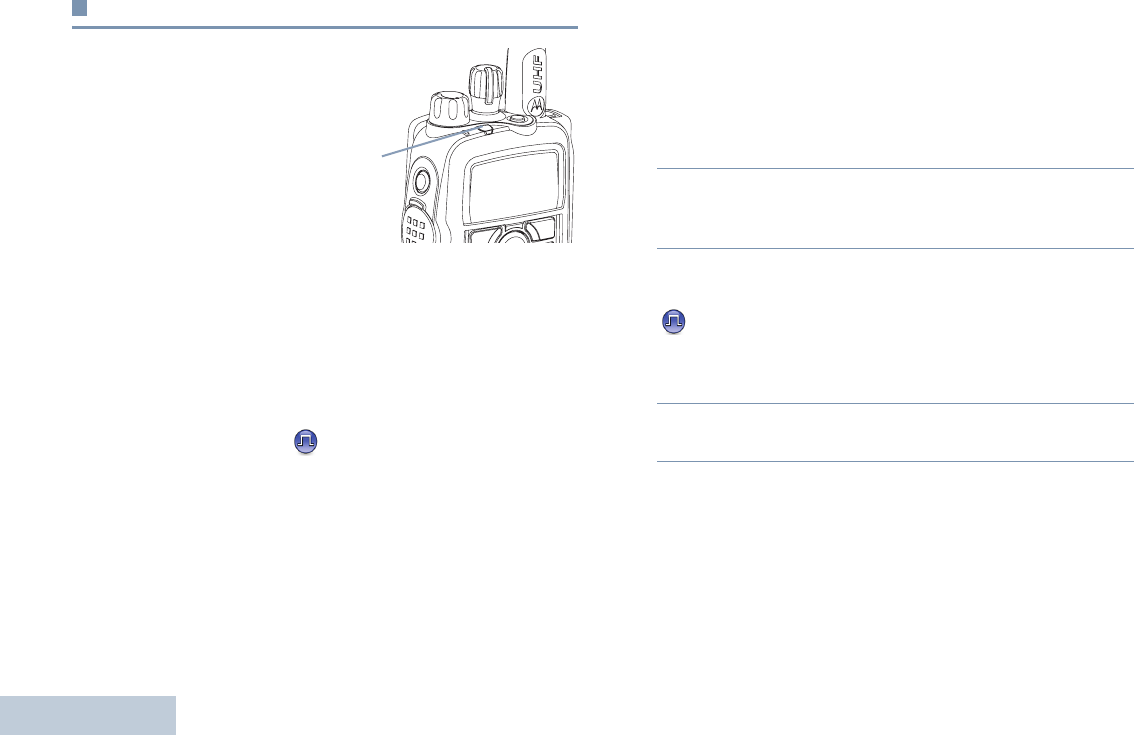

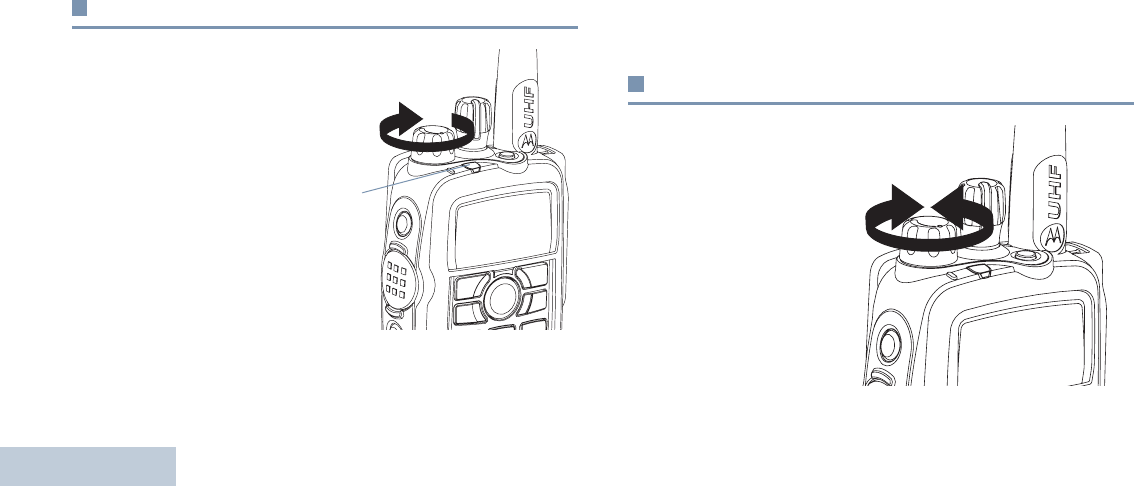

Powering Up the Radio
Rotate the On/Off/Volume
Control Knob clockwise
until you hear a click. You
see Motorola and
MOTOTRBO (TM) on the
radio’s display momentarily,
followed by Motorola once
more.
The LED blinks green and
the Home screen lights up if
the backlight setting is set
to turn on automatically.
NOTE: The Home screen does not light up during a power up
if the LED indicator is disabled (see Turning the LED
Indicator On or Off on page 57).
A brief tone sounds, indicating that the power up test is
successful.
NOTE: There is no power up tone if the radio tones/alerts
function is disabled (see Turning the Radio Tones/
Alerts On or Off on page 56).
If your radio does not power up, check your battery. Make sure
that it is charged and properly attached. If your radio still does
not power up, contact your dealer.
To turn off the radio, rotate this knob counterclockwise until you
hear a click. You see a brief
Powering Down
on the radio’s
display.
Adjusting the Volume
To increase the
volume, turn the On/
Off/Volume Control
Knob clockwise.
To decrease the
volume, turn this knob
counterclockwise.
LED
Indicator
NAG-LACR-EMEA.book Page 4 Monday, April 28, 2008 4:59 PM
Identifying Radio Controls
English
5
Identifying Radio Controls
Take a moment to review the following:
Radio Controls You Will Be Using . . . . . . . . . . . . . . . . . page 5
Programmable Buttons . . . . . . . . . . . . . . . . . . . . . . . . . page 6
Accessing the Programmed Functions . . . . . . . . . . . . . page 7
Using the Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 8
Push-To-Talk (PTT) Button . . . . . . . . . . . . . . . . . . . . . . page 9
Switching Between Analog and Digital Mode . . . . . . . . page 9
Radio Controls You Will Be Using
11
3
17
15
14
13
12
8
7
6
5
2
1
9
16
4
10
Channel Selector Knob
On/Off/Volume Control Knob
LED Indicator
Side Button 1*
Push-to-Talk (PTT) Button
Side Button 2*
Side Button 3*
Front Button P1*
Microphone
Speaker
Front Button P2*
Keypad
Menu Navigation Keys
Universal Connector for Accessories
Display
Emergency Button*
Antenna
* These buttons are programmable.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
NAG-LACR-EMEA.book Page 5 Monday, April 28, 2008 4:59 PM
Identifying Radio Controls
English
6
Programmable Buttons
Your dealer can program the programmable buttons as
shortcuts to radio functions or preset channels/groups
depending on the duration of a button press:
•Press – Pressing and releasing rapidly.
•Long press – Pressing and holding for the programmed
duration (between 0.25 seconds and 3.75 seconds).
•Hold down – Keeping the button pressed.
Assignable Radio Functions
Contacts – Provides direct access to the Contacts list.
Emergency – Depending on the programming, initiates or
cancels an emergency alarm or call.
Manual Dial – Initiates a call by keying in any subscriber
ID.
Monitor – Monitors a selected channel for activity.
Nuisance Channel Delete – Temporarily removes an
unwanted channel, except for the Selected Channel, from the
scan list. The Selected Channel refers to the user’s selected
zone/channel combination from which scan is initiated.
One Touch Call – Directly initiates a predefined Private or
Group Call, a Call Alert or a Quick Text message.
Option Board Feature – Toggles option board feature(s) on or
off for option board-enabled channels.
Permanent Monitor – Monitors a selected channel for all radio
traffic until function is disabled.
Privacy – Toggles privacy on or off.
Radio Check – Determines if a radio is active in a system.
Radio Enable – Allows a target radio to be remotely
enabled.
Radio Disable – Allows a target radio to be remotely
disabled.
Remote Monitor – Turns on the microphone of a target
radio without it giving any indicators.
Repeater/Talkaround – Toggles between using a repeater and
communicating directly with another radio.
Scan – Toggles scan on or off.
Telemetry Control – Controls the Output Pin on a local or
remote radio.
Text Message – Selects the text message menu.
Zone – Allows selection from a list of zones.
NAG-LACR-EMEA.book Page 6 Monday, April 28, 2008 4:59 PM
Identifying Radio Controls
English
7
Assignable Settings or Utility Functions
All Tones/Alerts – Toggles all tones and alerts on or off.
Backlight – Toggles display backlight on or off.
Keypad Lock – Toggles keypad between locked and unlocked.
Power Level – Toggles transmit power level between high and
low.
Squelch – Toggles squelch level between tight and
normal.
Accessing the Programmed Functions
You can access various radio functions through one of the
following ways:
•A short or long press of the
relevant programmable buttons.
OR
•Use the Menu Navigation Buttons as follows:
1To access the menu, press the S button. Press the
appropriate Menu Scroll button (Por Q) to access
the menu functions.
2To select a function or enter a sub-menu, press the N
button.
3To go back one menu level, or to return to the previous
screen, press the R button. Long press the R button
to return to the Home screen.
NOTE: Your radio automatically exits the menu after a period
of inactivity and returns to your Home screen.
NAG-LACR-EMEA.book Page 7 Monday, April 28, 2008 4:59 PM
Identifying Radio Controls
English
8
Using the Keypad
You can use the 3 x 4 alphanumeric keypad to access your radio’s features. You can use the keypad to enter subscriber aliases or IDs,
and text messages. Many characters require that you press a key multiple times. The table below shows the number of times a key
needs to be pressed to generate the required character.
Number of Times Key is Pressed
Key1 2345678910111213
11.,?!@&‘%-:*#
2ABC2
3DEF3
4GHI4
5JKL5
6MNO6
7PQRS7
8TUV8
9WXYZ9
00NOTE: Press to enter “0” and long press to activate the CAPS lock. Another long press to turn off the CAPS lock.
** or del NOTE: Press during text entry to delete the character. Press during numeric entry to enter a “*”.
## or space NOTE: Press during text entry to insert a space. Press during numeric entry to enter a “#”.
NAG-LACR-EMEA.book Page 8 Monday, April 28, 2008 4:59 PM
Identifying Radio Controls
English
9
Push-To-Talk (PTT) Button
The PTT button on the side
of the radio serves two basic
purposes:
•While a call is in progress,
the PTT button allows the
radio to transmit to other
radios in the call.
Press and hold down PTT
button to talk. Release the
PTT button to listen.
The microphone is
activated when the PTT
button is pressed.
•While a call is not in progress, the PTT button is used to make
a new call (see Making a Radio Call on page 16).
If the Talk Permit Tone is enabled (see Turning the Talk Permit
Tone On or Off on page 56), wait until the short alert tone ends
before talking.
During a call, if the Channel Free Indication feature is
enabled on your radio (programmed by your dealer), you
will hear a short alert tone the moment the target radio (the
radio that is receiving your call) releases the PTT button,
indicating the channel is free for you to respond.
You will also hear the Channel Free Indication tone if your
call is interrupted, for example when the radio receives an
Emergency Call.
You can turn off the Channel Free Indication tone by
disabling all radio tones and alerts (see Turning the Radio
Tones/Alerts On or Off on page 56).
Switching Between Analog and Digital
Mode
Each channel in your
radio can be configured
as an analog channel or a
digital channel. Use the
Channel Selector Knob to
switch between an analog
or a digital channel.
When switching from digital to analog mode, certain features
are unavailable. Icons for the digital features (such as
Messages) reflect this change by appearing “grayed out’.
Disabled features are hidden in the menu.
Your radio also has features available in both analog and digital
mode. However, the minor differences in the way each feature
works does NOT affect the performance of your radio.
NOTE: Your radio also switches between digital and analog
modes during a dual mode scan (see Scan on
page 26).
PTT
Button
Channel
Selector
Knob
NAG-LACR-EMEA.book Page 9 Monday, April 28, 2008 4:59 PM
Identifying Status Indicators
English
10
Identifying Status Indicators
Your radio indicates its operational status through the following:
Display Icons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 10
Call Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 11
Sent Item Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 11
LED Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 12
Audio Tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 12
Display Icons
The full dot matrix, black and white, liquid crystal display (LCD)
of your radio shows radio status, text entries, and menu entries.
The following are icons that appear on the radio’s display.
Received Signal Strength Indicator (RSSI)
The number of bars displayed represents the radio
signal strength. Four bars indicate the strongest
signal. This icon is only displayed while receiving.
Monitor
Selected channel is being monitored.
Power Level
Radio is set at Low power.
Radio is set at High power.
or
Tones Disable
Tones are turned off.
Option Board
The Option Board is enabled.
Option Board Non-Function
The Option Board is disabled.
GPS Available
The GPS feature is enabled. The icon stays lit when
a position fix is available.
GPS Not Available/Out of Range
The GPS feature is enabled but is not receiving data
from the satellite.
Scan
Scan feature is enabled.
Priority Scan
Radio detects activity on channel/group designated
as Priority 1 (if • is blinking) or Priority 2 (if • is
steady).
Unread Message
User has unread message(s) in the Inbox.
Inbox Full
User’s Inbox is full.
NAG-LACR-EMEA.book Page 10 Monday, April 28, 2008 4:59 PM
Identifying Status Indicators
English
11
Call Icons
The following icons appear on the radio’s display during a call.
These icons also appear in the Contacts list to indicate ID type.
Sent Item Icons
The following icons appear at the top right corner of the radio’s
display in the Sent Items folder.
Emergency
Radio is in Emergency mode.
Privacy
The Privacy feature is enabled.
Talkaround
In the absence of a repeater, radio is currently
configured for direct radio to radio communication.
Battery
The number of bars (0 – 4) shown indicates the
charge remaining in the battery.
Blinks when the battery is low.
Private Call
Indicates a Private Call in progress. In the Contacts
list, it indicates a subscriber alias (name) or ID
(number).
Group Call/All Call
Indicates a Group Call or All Call in progress. In the
Contacts list, it indicates a group alias (name) or ID
(number).
Sent Successfully
The text message is sent successfully.
Send Failed
The text message cannot be sent.
In-Progress
•The text message to a group alias or ID is pending
transmission.
•The text message to a subscriber alias or ID is
pending transmission, followed by waiting for
acknowledgement.
NAG-LACR-EMEA.book Page 11 Monday, April 28, 2008 4:59 PM
Identifying Status Indicators
English
12
LED Indicator
The LED indicator shows the
operational status of your radio.
Blinking red – Radio is
transmitting at low battery
condition, receiving an
emergency transmission or
has failed the self-test upon
powering up.
Solid yellow – Radio is
monitoring a channel.
Blinking yellow – Radio is scanning for activity or receiving a
Call Alert.
Solid green – Radio is transmitting.
Blinking green – Radio is powering up, receiving a non-
privacy-enabled call or data, or detecting activity over the air.
Rapidly blinking green – Radio is receiving a privacy-enabled
call or data.
NOTE: When the LED blinks green, it indicates the radio
detects activity over the air. Due to the nature of the
digital protocol, this activity may or may not affect the
radio's programmed channel.
Upon a PTT button press, if the radio is programmed
for polite operation, the radio automatically determines
whether a transmission is permitted via a Talk Permit
or a Talk Denial tone.
Audio Tones
Alert tones provide you with audible indications of the radio’s
status or the radio’s response to data received.
LED Indicator
Continuous Tone A monotone sound. Sounds
continuously until termination.
Periodic Tone Sounds periodically depending on the
duration set by the radio. Tone starts,
stops, and repeats itself.
Repetitive Tone A single tone that repeats itself until it is
terminated by the user.
Momentary Tone Sounds only once for a short period of
time defined by the radio.
NAG-LACR-EMEA.book Page 12 Monday, April 28, 2008 4:59 PM
Making and Receiving Calls
English
13
Making and Receiving Calls
Once you understand how your MOTOTRBO Portable is
configured, you are ready to use your radio.
Use this navigation guide to familiarize yourself with the basic
Call features:
Selecting a Zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 13
Selecting a Radio Channel, Subscriber ID,
or Group ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 14
Receiving and Responding to a Radio Call . . . . . . . . . page 14
Making a Radio Call . . . . . . . . . . . . . . . . . . . . . . . . . . page 16
Talkaround. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 19
Monitoring Features. . . . . . . . . . . . . . . . . . . . . . . . . . . page 20
Selecting a Zone
A zone is a group of channels. Your radio supports up to a
maximum of 50 zones.
Use the following procedure to select a zone.
Procedure:
Press the programmed Zone button and proceed to step 3.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Zone and press N to select.
3The current zone is displayed and indicated by a 9.
4Por Q to the required zone and press N to select.
5The display shows <Zone> Selected momentarily and
returns to the selected zone screen.
Selecting a Radio Channel, Subscriber ID,
or Group ID
Procedure:
Once the required zone is
displayed (if you have
multiple zones in your
radio), turn the
programmed Channel
Selector Knob to select the
channel, subscriber alias or
ID, or group alias or ID.
NAG-LACR-EMEA.book Page 13 Monday, April 28, 2008 4:59 PM
Making and Receiving Calls
English
14
Receiving and Responding to a Radio Call
Once the channel, subscriber
ID or group ID is displayed,
you can proceed to receive
and respond to calls.
The LED lights up solid
green while the radio is
transmitting and blinks green
when the radio is receiving.
NOTE: The LED lights up solid green while the radio is
transmitting and blinks green rapidly when the radio is
receiving a privacy-enabled call.
To unscramble a privacy-enabled call, your radio must
have the same Privacy Key (programmed by your
dealer) as the transmitting radio (the radio you are
receiving the call from). See Privacy on page 50 for
more information.
Receiving and Responding to a Group Call
To receive a call from a group of users, your radio must be
configured as part of that group.
Procedure:
When you receive a Group Call (while on the Home screen):
1The LED blinks green.
2The first line of the display shows the caller alias, and the
RSSI icon. The second line displays the group alias and the
Group Call icon (in Digital mode only).
3Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from
your mouth.
If the Channel Free Indication feature is enabled, you
will hear a short alert tone the moment the transmitting radio
releases the PTT button, indicating the channel is free for
you to respond.
4Press the PTT button to respond to the call. The LED lights
up solid green.
LED
Indicator
NAG-LACR-EMEA.book Page 14 Monday, April 28, 2008 4:59 PM
Making and Receiving Calls
English
15
5Wait for the Talk Permit Tone to finish (if enabled) and speak
clearly into the microphone.
6Release the PTT button to listen.
7If there is no voice activity for a predetermined period of
time, the call ends.
See Making a Group Call on page 17 for details on making a
Group Call.
NOTE: If the radio receives a Group Call while not on the
Home screen, it remains on its current screen prior to
answering the call.
Long press the R button to go to the Home screen
to view the caller alias before replying.
Receiving and Responding to a Private Call
A Private Call is a call from an individual radio to another
individual radio.
There are two types of Private Calls. The first type, where a
radio presence check is performed prior to setting up the call,
while the other sets up the call immediately.
When your radio is checked, the LED blinks green.
Only one of these call types can be programmed to your radio
by your dealer.
Procedure:
When you receive a Private Call:
1The LED blinks green.
2The first line of the display shows the subscriber alias or ID,
and the RSSI icon. The second line displays Private Call
and the Private Call icon.
3Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from
your mouth. If the Channel Free Indication feature is
enabled, you will hear a short alert tone the moment the
transmitting radio releases the PTT button, indicating the
channel is free for you to respond.
4Press the PTT button to respond to the call. The LED lights
up solid green.
5Wait for the Talk Permit Tone to finish (if enabled) and speak
clearly into the microphone.
6Release the PTT button to listen.
7If there is no voice activity for a predetermined period of
time, the call ends.
8You hear a short tone. The display shows Call Ended.
See Making a Private Call on page 17 for details on making a
Private Call.
NAG-LACR-EMEA.book Page 15 Monday, April 28, 2008 4:59 PM
Making and Receiving Calls
English
16
Receiving an All Call
An All Call is a call from an individual radio to every radio on the
channel. It is used to make important announcements requiring
the user’s full attention.
Procedure:
When you receive an All Call:
1A tone sounds and the LED blinks green.
2The first line of the display shows the caller alias, and the
RSSI icon. The second line displays All Call and the All
Call icon.
3Once the All Call ends, the radio returns to the previous
screen before receiving the call.
If the Channel Free Indication feature is enabled, you
will hear a short alert tone the moment the transmitting radio
releases the PTT button, indicating the channel is now
available for use.
You cannot respond to an All Call.
See Making an All Call on page 18 for details on making an All
Call.
NOTE: The radio stops receiving the All Call if you switch to a
different channel while receiving the call.
During an All Call, you will not be able to use any
programmed button functions until the call ends.
Making a Radio Call
You can select a channel, subscriber ID, or group by using:
•The Channel Selector Knob
•A programmed One Touch Call button
•The Contacts list (see Contacts Settings on page 28)
•Manual Dial (via Contacts) – This method is for Private Calls
only and is dialed using the keypad (see Making a Private
Call from Contacts on page 29)
NOTE: Your radio must have the Privacy feature enabled on
the channel to send a privacy-enabled transmission.
Only target radios with the same Privacy Key as your
radio will be able to unscramble the transmission.
See Privacy on page 50 for more information.
NAG-LACR-EMEA.book Page 16 Monday, April 28, 2008 4:59 PM
Making and Receiving Calls
English
17
Making a Call with the Channel Selector Knob
Making a Group Call
To make a call to a group of users, your radio must be
configured as part of that group.
Procedure:
1Turn the Channel Selector Knob to select the channel with
the active group alias or ID.
2Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from
your mouth.
3Press the PTT button to make the call. The LED lights up
solid green. The display shows the group alias or ID, and
the Group Call icon.
4Wait for the Talk Permit Tone to finish (if enabled) and speak
clearly into the microphone.
5Release the PTT button to listen.When the target radio
responds, the LED blinks green. You see the Group Call
icon, the group alias or ID, and transmitting radio alias or ID
on your display.
6If the Channel Free Indication feature is enabled, you will
hear a short alert tone the moment the target radio releases
the PTT button, indicating the channel is free for you to
respond. Press the PTT button to respond.
OR
If there is no voice activity for a predetermined period of
time, the call ends.
7Radio returns to the previous screen you were on prior to
receiving the call.
You can also make a Group Call via Contacts (see Making a
Group Call from Contacts on page 29).
Making a Private Call
Procedure:
1Turn the Channel Selector Knob to select the channel with
the active subscriber alias or ID.
2Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from
your mouth.
NAG-LACR-EMEA.book Page 17 Monday, April 28, 2008 4:59 PM
Making and Receiving Calls
English
18
3Press the PTT button to make the call. The LED lights up
solid green. The first line displays the subscriber alias or ID.
The second line displays Private Call and the Private
Call icon.
4Wait for the Talk Permit Tone to finish (if enabled) and speak
clearly into the microphone.
5Release the PTT button to listen. When the target radio
responds, the LED blinks green.
6If the Channel Free Indication feature is enabled, you will
hear a short alert tone the moment the target radio releases
the PTT button, indicating the channel is free for you to
respond. Press the PTT button to respond.
OR
If there is no voice activity for a predetermined period of
time, the call ends.
7You hear a short tone. The display shows Call Ended.
You can also make a Private Call via Contacts (see Making a
Private Call from Contacts on page 29) or perform a quick
alphanumeric search for the required alias via a keypad entry
(see Making a Private Call by Alias Search on page 30).
Making an All Call
This feature allows you to transmit to all users on the channel.
Your radio must be programmed to allow you to use this feature.
Procedure:
1Turn the Channel Selector Knob to select the channel with
the active All Call group alias or ID.
2Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from
your mouth.
3Press the PTT button to make the call. The LED lights up
solid green. The display shows the All Call group alias or ID,
and the All Call icon.
4Wait for the Talk Permit Tone to finish (if enabled) and speak
clearly into the microphone.
Users on the channel cannot respond to an All Call.
Making a Group or Private Call with the One Touch
Call Button
The One Touch Call feature allows you to make a Group or
Private Call to a predefined alias or ID easily. This feature can
be assigned to a short or long programmable button press.
You can ONLY have one alias or ID assigned to a One Touch
Call button. Your radio can have multiple One Touch Call
buttons programmed.
NAG-LACR-EMEA.book Page 18 Monday, April 28, 2008 4:59 PM
Making and Receiving Calls
English
19
Procedure:
1Press the programmed One Touch Call button to make a
Group or Private Call to the predefined alias or ID.
2Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from
your mouth.
3Press the PTT button to make the call. The LED lights up
solid green. The display shows the group/subscriber alias or
ID, and the Group/Private Call icon.
4Wait for the Talk Permit Tone to finish (if enabled) and speak
clearly into the microphone.
5Release the PTT button to listen. When the target radio
responds, the LED blinks green.
6If the Channel Free Indication feature is enabled, you will
hear a short alert tone the moment the target radio releases
the PTT button, indicating the channel is free for you to
respond. Press the PTT button to respond.
OR
If there is no voice activity for a predetermined period of
time, the call ends.
7Radio returns to the screen you were on prior to receiving
the call.
For a Private Call, you hear a short tone when the call ends.
Talkaround
You can continue to communicate when your repeater is not
operating, or when your radio is out of the repeater’s range but
within talking range of other radios. This is called “talkaround”.
Procedure:
Press the programmed Repeater/Talkaround button to toggle
between talkaround and repeater modes.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Settings and press N to select.
4Por Q to Talkaround and press N to select.
5You see Turn On if the radio is currently in Repeater mode.
OR
You see Turn Off if the radio is currently in Talkaround
mode.
6press N to select.
7The display shows Talkaround On.
OR
The display shows Talkaround Off.
8The screen automatically returns to the previous menu.
The Talkaround setting is retained even after powering down.
NAG-LACR-EMEA.book Page 19 Monday, April 28, 2008 4:59 PM
Making and Receiving Calls
English
20
Monitoring Features
Monitoring a Channel
Use the Monitor feature to make sure a channel is clear before
transmitting.
Procedure:
1Press and hold the programmed Monitor button and listen
for activity. The monitor icon appears on the display.
2You hear radio activity or total silence, depending on how
your radio is programmed.
3When you hear “white noise” (that is, the channel is free),
press the PTT button to talk and release it to listen. The LED
lights up solid yellow.
Permanent Monitor
Use the Permanent Monitor feature to continuously monitor a
selected channel for activity.
Procedure:
1Press the programmed Permanent Monitor button.
2Radio sounds an alert tone, the LED lights up solid yellow,
and the display shows Permanent Monitor On. The
monitor icon appears on the display.
3Press the programmed Permanent Monitor button to exit
Permanent Monitor mode.
4Radio sounds an alert tone, the LED turns off, and display
shows Permanent Monitor Off.
NAG-LACR-EMEA.book Page 20 Monday, April 28, 2008 4:59 PM
Advanced Features
English
21
Advanced Features
Use this navigation guide to learn more about advanced
features available with your radio:
Radio Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 21
Remote Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 23
Scan Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 24
Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 26
Contacts Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 28
Call Indicator Settings . . . . . . . . . . . . . . . . . . . . . . . . . page 31
Call Log Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 33
Call Alert Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . page 35
Emergency Operation . . . . . . . . . . . . . . . . . . . . . . . . . page 37
Text Message Features . . . . . . . . . . . . . . . . . . . . . . . . page 41
Privacy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 50
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 51
Utilities. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 53
Radio Check
If enabled, this feature allows you to determine if another radio
is active in a system without disturbing the user of that radio. No
audible or visual notification is shown on the target radio.
This feature is only applicable for subscriber aliases or IDs.
Sending a Radio Check
Procedure:
Using the programmed Radio Check button.
1Press the programmed Radio Check button.
2Por Q to the required subscriber alias or ID and press
N to select.
3The display shows Radio Check: <Subscriber Alias or
ID>, indicating that Radio Check is in progress. The LED
lights up solid green.
4Wait for acknowledgement.
5If the target radio is active in the system, a tone sounds and
the display briefly shows Target Radio Available.
OR
If the target radio is not active in the system, a tone sounds
and the display briefly shows Target Radio Not
Available.
NAG-LACR-EMEA.book Page 21 Monday, April 28, 2008 4:59 PM
Advanced Features
English
22
6Radio returns to the subscriber alias or ID screen.
OR
Procedure:
Using the menu.
1S to access the menu.
2Por Q to Contacts and press N to select.
3Por Q to the required subscriber alias or ID and press
N to select.
OR
Por Q to Manual Dial and press N to select.
If there was previously dialed ID, the ID appears along with
a blinking cursor. Use the keypad to edit the ID. Press N to
select.
OR
Por Q to Manual Dial and press N to select. Key in
the subscriber alias or ID and press N.
4Por Q to Radio Check and press N to select.
5The display shows Radio Check: <Subscriber Alias or
ID>, indicating that Radio Check is in progress. The LED
lights up solid green.
6Wait for acknowledgement.
7If the target radio is active in the system, a tone sounds and
the display briefly shows Target Radio Available.
OR
If the target radio is not active in the system, a tone sounds
and the display briefly shows Target Radio Not
Available.
8Radio returns to the subscriber alias or ID screen.
If the R button is pressed when the radio is waiting for
acknowledgement, a tone sounds, and the radio terminates all
retries and exits Radio Check mode.
NAG-LACR-EMEA.book Page 22 Monday, April 28, 2008 4:59 PM
Advanced Features
English
23
Remote Monitor
Use the Remote Monitor feature to turn on the microphone of a
target radio (subscriber alias or IDs only). No audible or visual
indication is given to the target radio. You can use this feature to
monitor, remotely, any audible activity surrounding the target
radio.
Your radio must be programmed to allow you to use this feature.
Initiating Remote Monitor
Procedure:
Using the programmed Remote Monitor button.
1Press the programmed Remote Monitor button.
2Por Q to the required subscriber alias or ID and press
N to select.
3Radio sounds an alert tone and the LED blinks green.
4Wait for acknowledgment.
5The display shows Remote Monitor Successful.
OR
The display shows Remote Monitor Failed.
6If successful:
The radio starts receiving audio from the monitored radio for
a programmed duration.
Once the timer expires, the radio sounds an alert tone and
the LED turns off. The display shows Remote Monitor
Ended.
OR
If unsuccessful:
The radio repeats the attempt until the programmed number
of tries expires.
OR
Procedure:
Using the menu.
1S to access the menu.
2Por Q to Contacts and press N to select.
3Por Q to the required subscriber alias or ID and press
N to select.
OR
Por Q to Manual Dial and press N to select.
If there was previously dialed ID, the ID appears along with
a blinking cursor. Use the keypad to edit the ID. Press N to
select.
OR
Por Q to Manual Dial and press N to select. Key in
the subscriber alias or ID and press N to select.
NAG-LACR-EMEA.book Page 23 Monday, April 28, 2008 4:59 PM
Advanced Features
English
24
4Por Q to Remote Mon. and press N to select.
5Radio sounds an alert tone and the LED blinks green.
6Wait for acknowledgment.
7The display shows Remote Monitor Successful.
OR
The display shows Remote Monitor Failed.
8If successful:
The radio starts receiving audio from the monitored radio for
a programmed duration.
Once the timer expires, the radio sounds an alert tone and
the LED turns off. The display shows Remote Monitor
Ended.
OR
If unsuccessful:
The radio repeats the attempt until the programmed number
of tries expires.
Scan Lists
Scan lists are created and assigned to individual channels/
groups. Your radio scans for voice activity by cycling through the
channel/group sequence specified in the scan list for the current
channel/group.
Your radio can support up to 32 scan lists, with a maximum of
16 members in a list. Each scan list supports a mixture of both
analog and digital entries.
You can add, delete, or prioritize channels by editing a scan list.
Viewing an Entry in the Scan List
Procedure:
1S to access the menu.
2Por Q to Scan and press N to select.
3Por Q to View/Edit List and press N to select.
4Use Por Q to view each member on the list.
The priority icon appears left of the member’s alias, if set, to
indicate whether the member is on a Priority 1 or Priority 2
channel list. You cannot have multiple Priority 1 or Priority 2
channels in a scan list.
There is no priority icon if priority is set to None.
NAG-LACR-EMEA.book Page 24 Monday, April 28, 2008 4:59 PM
Advanced Features
English
25
Editing the Scan List
Adding a New Entry to the Scan List
Procedure:
1S to access the menu.
2Por Q to Scan and press N to select.
3Por Q to View/Edit List and press N to select.
4Por Q to Add Member and press N to select.
5Por Q to the required alias or ID and press N to
select.
6Por Q to the required priority level and press N to
select.
7The display shows Entry Saved, followed immediately by
Add Another?.
8Por Q to Yes and press N to select, to add another
entry, and repeat steps 5 and 6.
OR
Por Q to No and press N to select to save the current
list.
Deleting an Entry from the Scan List
Procedure:
1S to access the menu.
2Por Q to Scan and press N to select.
3Por Q to View/Edit List and press N to select.
4Por Q to the required alias or ID and press N to
select.
5Por Q to Delete and press N to select.
6At Delete Entry?, Por Q to Yes and press N to
select, to delete the entry. The display shows Entry
Deleted.
OR
Por Q to No and press N to select to return to the
previous screen.
7Repeat steps 4 to 6 to delete other entries.
After deleting all required aliases or IDs, long press R to
return to the Home screen.
NAG-LACR-EMEA.book Page 25 Monday, April 28, 2008 4:59 PM
Advanced Features
English
26
Setting and Editing Priority for an Entry in the Scan
List
Procedure:
1S to access the menu.
2Por Q to Scan and press N to select.
3Por Q to View/Edit List and press N to select.
4Por Q to the required alias or ID and press N to
select.
5Por Q to Edit Priority and press N to select.
6Por Q to the required priority level and press N to
select.
7The display shows Entry Saved before returning to the
previous screen.
8The priority icon appears left of the member’s name.
There is no priority icon if priority is set to None.
Scan
When you start a scan, your radio cycles through the
programmed scan list for the current channel looking for voice
activity.
The LED blinks yellow and you see the scan icon on the display.
During a dual mode scan, if you are on a digital channel, and
your radio locks onto an analog channel, it automatically
switches from digital mode to analog mode for the duration of
the call. This is also true for the reverse.
There are two ways of initiating scan:
•Main Channel Scan (Manual): Your radio scans all the
channels/groups in your scan list. On entering scan, your
radio may – depending on the settings – automatically start
on the last scanned “active” channel/group or on the channel
where scan was initiated.
•Auto Scan (Automatic): Your radio automatically starts
scanning when you select a channel/group that has Auto
Scan enabled.
NAG-LACR-EMEA.book Page 26 Monday, April 28, 2008 4:59 PM
Advanced Features
English
27
Starting and Stopping Scan
Procedure:
Press the programmed Scan button to start or stop Scan.
OR
Follow the procedure below.
1Use the Channel Selector Knob to select a channel
programmed with a scan list.
2S to access the menu.
3Por Q to Scan and press N to select.
4The display shows Turn On if scan is disabled.
OR
The display shows Turn Off if scan is enabled.
5Press N to select.
6The LED blinks yellow and the scan icon is displayed when
Scan is enabled.
OR
The LED turns off and the scan icon is not displayed when
Scan is disabled.
While scanning, the radio will only accept data (e.g. text
message, location, telemetry, or PC data) if received on its
Selected Channel.
Responding to a Transmission During a Scan
During scanning, your radio stops on a channel/group where
activity is detected. The radio stays on that channel for a
programmed time period known as “hang time”.
Procedure:
1Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from
your mouth.
If the Channel Free Indication feature is enabled, you
will hear a short alert tone the moment the transmitting radio
releases the PTT button, indicating the channel is free for
you to respond.
2Press the PTT button during hang time. The LED lights up
solid green.
3Wait for the Talk Permit Tone to finish (if enabled) and speak
clearly into the microphone.
4Release the PTT button to listen.
5If you do not respond within the hang time, the radio returns
to scanning other channels/groups.

NAG-LACR-EMEA.book Page 27 Monday, April 28, 2008 4:59 PM
Advanced Features
English
28
Deleting a Nuisance Channel
If a channel continually generates unwanted calls or noise
(termed a “nuisance” channel), you can temporarily remove the
unwanted channel from the scan list.
This capability does not apply to the channel designated as the
Selected Channel.
Procedure:
1When your radio “locks on to” an unwanted or nuisance
channel, press the programmed Nuisance Channel Delete
button until you hear a tone.
2Release the Nuisance Channel Delete button. The
nuisance channel is deleted.
Deleting a “nuisance” channel is only possible through the
programmed Nuisance Channel Delete button. This feature is
not accessible through the menu.
Restoring a Nuisance Channel
Procedure:
To restore the deleted nuisance channel, do one of the
following:
•Power the radio off and then powering it on again, OR
•Stop and restart a scan via the programmed Scan button or
menu, OR
•Change the channel via the Channel Selector Knob.
Contacts Settings
Contacts provides “address-book” capabilities on your radio.
Each entry corresponds to an alias or ID that you use to initiate
a call.
Additionally, each entry, depending on context, associates with
one of five types of calls: Group Call, Private Call, All Call, PC
Call or Dispatch Call.
PC Call and Dispatch Call are data-related. They are only
available with the applications. Refer to the data applications
documentation for more information.
NOTE: If the Privacy feature is enabled on a channel, you can
make privacy-enabled Group Call, Private Call, and All
Call on that channel. Only target radios with the same
Privacy Key as your radio will be able to unscramble
the transmission. See Privacy on page 50 for more
information.
Your radio supports two Contacts lists, one for Analog contacts
(with a maximum of 128 members) and one for Digital contacts
(with a maximum of 256 members).
Each entry within Contacts displays the following information:
•Call Type
•Call Alias
•Call ID
NAG-LACR-EMEA.book Page 28 Monday, April 28, 2008 4:59 PM
Advanced Features
English
29
NOTE: You can add, delete, or edit subscriber IDs for the
Digital Contacts list.
For the Analog Contacts list, you can only view the list
and initiate a Call Alert. Adding, deleting, and editing
capabilities can only be performed by your dealer.
Making a Group Call from Contacts
Procedure:
1S to access the menu.
2Por Q to Contacts and press N to select.The
entries are alphabetically sorted.
3Por Q to the required group alias or ID.
4Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from
your mouth.
5Press the PTT button to make the call. The LED lights up
solid green. The display shows the group alias or ID, and
the Group Call icon.
6Wait for the Talk Permit Tone to finish (if enabled) and speak
clearly into the microphone.
7Release the PTT button to listen. When any user in the
group responds, the LED blinks green. You see the Group
Call icon, the group ID, and that user’s ID on your display.
8If the Channel Free Indication feature is enabled, you will
hear a short alert tone the moment the target radio releases
the PTT button, indicating the channel is free for you to
respond. Press the PTT button to respond.
OR
If there is no voice activity for a programmed period of time,
the call ends.
Making a Private Call from Contacts
Procedure:
1S to access the menu.
2Por Q to Contacts and press N to select.The
entries are alphabetically sorted.
3Por Q to the required subscriber alias or ID.
OR
Por Q to Manual Dial and press N to select.
If there was previously dialed subscriber alias or ID, the
alias or ID appears along with a blinking cursor.
Use the keypad to edit the ID.
OR
Por Q to Manual Dial and press N to select.
Use the keypad to enter a new subscriber alias or ID.
NAG-LACR-EMEA.book Page 29 Monday, April 28, 2008 4:59 PM
Advanced Features
English
30
4Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from
your mouth.
5Press the PTT button to make the call. The LED lights up
solid green. The first line displays the subscriber alias or ID.
The second line displays Private Call and the Private
Call icon.
6Wait for the Talk Permit Tone to finish (if enabled) and speak
clearly into the microphone.
7Release the PTT button to listen. When the target radio
responds, the LED blinks green and the display shows the
transmitting user's ID.
8If the Channel Free Indication feature is enabled, you will
hear a short alert tone the moment the target radio releases
the PTT button, indicating the channel is free for you to
respond. Press the PTT button to respond.
OR
If there is no voice activity for a programmed period of time,
the call ends.
9You hear a short tone. The display shows Call Ended.
Making a Private Call by Alias Search
You can also use alias or alphanumeric search to retrieve the
required subscriber alias.
This feature is only applicable while in Contacts.
Procedure:
1S to access the menu.
2Por Q to Contacts and press N to select. The
entries are alphabetically sorted.
3Key in the first character of the alias.
4Por Q to the required alias.
5Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from
your mouth.
6Press the PTT button to make the call. The LED lights up
solid green. The first line displays the target radio’s ID. The
second line displays Private Call and the Private Call
icon.
7Wait for the Talk Permit Tone to finish (if enabled) and speak
clearly into the microphone.
8Release the PTT button to listen. When the target radio
responds, the LED blinks green.
NAG-LACR-EMEA.book Page 30 Monday, April 28, 2008 4:59 PM
Advanced Features
English
31
9If the Channel Free Indication feature is enabled, you will
hear a short alert tone the moment the target radio releases
the PTT button, indicating the channel is free for you to
respond. Press the PTT button to respond.
OR
If there is no voice activity for a programmed period of time,
the call ends.
10 You hear a short tone. The display shows Call Ended.
NOTE: If you release the PTT button while the radio is setting
up the call, it exits without any indication and returns to
the previous screen.
Your radio may be programmed to perform a radio
presence check prior to setting up the Private Call. If
the target radio is not available, you hear a short tone
and see Party Not Available on the display.
The radio returns to the menu prior to initiating the
radio presence check.
Call Indicator Settings
Activating and Deactivating Call Ringers for
Private Calls
You can turn on or off the ringing tones for a received Private
Call.
Procedure:
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Settings and press N to select.
4Por Q to Tones/Alerts and press N to select.
5Por Q to Call Ringers and press N to select.
6Por Q to Private Call and press N to select.
7The display shows Turn On. Press N to enable Call
Ringers for Private Calls. The display shows Private Call
Ringer On.
OR
The display shows Turn Off. Press N to disable Call
Ringers for Private Calls. The display shows Private Call
Ringer Off.
NAG-LACR-EMEA.book Page 31 Monday, April 28, 2008 4:59 PM
Advanced Features
English
32
Activating and Deactivating Call Ringers for Text
Message
You can turn on or off the ringing tones for a received Text
Message.
Procedure:
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Settings and press N to select.
4Por Q to Tones/Alerts and press N to select.
5Por Q to Call Ringers and press N to select.
6Por Q to Text Message and press N to select.
7The current tone is indicated by a 9.
8Por Q to the preferred tone and press N to select.
The display shows Tone <Number> Selected and a 9
appears left of the selected tone.
OR
Por Q to Turn Off and press N to select. The
display shows Text Message Ringer Off and a 9
appears left of Turn Off.
Assigning Ring Styles
You can program your radio to sound one of ten predefined
ringing tones when receiving a Call Alert or a Text Message
from a particular contact.
Procedure:
1S to access the menu.
2Por Q to Contacts and press N to select.The
entries are alphabetically sorted.
3Por Q to the required alias or ID and press N to
select.
4Por Q to Ring Style and press N to select.
5A 9 indicates the current selected tone.
6 Por Q to the required tone and press N to select.
7The display shows Contact Saved.
The radio sounds out each ring style as you navigate through
the list.
NAG-LACR-EMEA.book Page 32 Monday, April 28, 2008 4:59 PM
Advanced Features
English
33
Escalating Alarm Tone Volume
You can program your radio to continually alert you when a
radio call remains unanswered. This is done by automatically
increasing the alarm tone volume over time. This feature is
known as Escalert.
Procedure:
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Settings and press N to select.
4Por Q to Tones/Alerts and press N to select.
5Por Q to Escalert and press N to select.
6The display shows Turn On. Press N to enable Escalert.
The display shows Escalert On.
OR
The display shows Turn Off. Press N to disable Escalert.
The display shows Escalert Off.
Call Log Features
Your radio keeps track of all recent outgoing, answered, and
missed Private Calls. Use the call log feature to view and
manage recent calls.
You can perform the following tasks in each of your call lists:
•Store ID to Contacts
•Delete
Viewing Recent Calls
The lists are Missed, Answered, and Outgoing.
Procedure:
1S to access the menu.
2Por Q to Call Log and press N to select.
3Por Q to preferred list and press N to select.
4The display shows the most recent entry at the top of the
list.
5Por Q to view the list.
Press the PTT button to start a Private Call with the current
selected alias or ID.
NAG-LACR-EMEA.book Page 33 Monday, April 28, 2008 4:59 PM
Advanced Features
English
34
Missed Call Screen
Whenever a call is missed, your radio displays a missed call
message. Select View to view it immediately or View Later to
view at a later time.
NOTE: The radio exits the Missed Call screen and sets up a
Private Call if you press the PTT button while viewing
a missed call number.
Procedure:
1The display shows Missed Calls, along with the number of
calls missed and View?.
2Press N to view the missed call ID. The missed call log list
appears on display.
Press N to store or delete the entry.
OR
Por Q to View Later and press N to select. You
return to the Home screen.
Storing an Alias or ID from the Missed Call List
Procedure:
1S to access the menu.
2Por Q to Call Log and press N to select.
3Por Q to Missed and press N to select.
4Por Q to the required missed call alias or ID and press
N to select.
5Por Q to Store and press N to select.
6A blinking cursor appears. If needed, key in the alias for that
ID and press N.
7The display shows Contact Saved.
You can also store an ID without an alias.

NAG-LACR-EMEA.book Page 34 Monday, April 28, 2008 4:59 PM
Advanced Features
English
35
Deleting a Call from a Call List
Procedure:
1S to access the menu.
2Por Q to Call Log and press N to select.
3Por Q to the required list and press N to select.
4Por Q to the required alias or ID and press N to
select.
5Por Q to Delete Entry? and press N to select.
6Press N to select Yes to delete the entry. The display
shows Entry Deleted.
OR
Por Q to No to return to the previous screen.
When you select a call list and it contains no entries, the display
shows
List Empty
, and sounds a low tone if Keypad Tones are
turned on (see Turning Keypad Tones On or Off on page 54).
Call Alert Operation
Call Alert paging enables you to alert a specific radio user to call
you back when they are able to do so.
This feature is applicable for subscriber aliases or IDs only and
is accessible through the menu via Contacts or manual dial.
Receiving and Acknowledging a Call Alert
When you receive a Call Alert page, you see Call Alert that
alternates with the alias or ID of the calling radio on the display.
Procedure:
1You hear a repetitive tone. The LED blinks yellow.
2Press and release the PTT button to acknowledge the alert.
OR
Press N to select Ignore? and to exit the Call Alert.
NAG-LACR-EMEA.book Page 35 Monday, April 28, 2008 4:59 PM
Advanced Features
English
36
Making a Call Alert from the Contacts List
Procedure:
1S to access the menu.
2Por Q to Contacts and press N to select.
3Por Q to the required subscriber alias or ID and press
N to select.
OR
Por Q to Manual Dial and press N to select.
A blinking cursor appears. Enter the subscriber ID you want
to page and press N.
4Por Q to Call Alert and press N to select.
5The display shows Call Alert: <Subscriber Alias or
ID>, indicating that the Call Alert has been sent.
6The LED lights up solid green when your radio is sending
the Call Alert.
7If the Call Alert acknowledgement is received, a tone
sounds and the display shows Call Alert Successful.
OR
If the Call Alert acknowledgement is not received, a tone
sounds and the display shows Call Alert Failed.
Making a Call Alert with the One Touch Call
Button
Procedure:
1Press the programmed One Touch Call button to make a
Call Alert to the predefined alias or ID.
2The display shows Call Alert: <Subscriber Alias or
ID>, indicating that the Call Alert has been sent.
3The LED lights up solid green when your radio is sending
the Call Alert.
4If the Call Alert acknowledgement is received, a tone
sounds and the display shows Call Alert Successful.
OR
If the Call Alert acknowledgement is not received, a tone
sounds and the display shows Call Alert Failed.

NAG-LACR-EMEA.book Page 36 Monday, April 28, 2008 4:59 PM
Advanced Features
English
37
Emergency Operation
An Emergency Alarm is used to indicate a critical situation. You
are able to initiate an Emergency at any time on any screen
display even when there is activity on the current channel.
Your radio supports 3 Emergency Alarms:
•Emergency Alarm
•Emergency Alarm with Call
•Emergency Alarm with Voice to Follow
In addition, each alarm has the following types:
•Regular – Radio transmits an alarm signal and shows audio
and/or visual indicators.
•Silent – Radio transmits an alarm signal without any audio or
visual indicators. There will be no response (call) from the
target radio until you press the PTT button to initiate the call.
•Silent with Voice – Radio transmits an alarm signal and is
able to receive an incoming call, without any audio or visual
indicators, until you press the PTT button to initiate, or
respond to, the call.
Only one of the Emergency Alarms above can be assigned to
the programmed Emergency button.
Receiving an Emergency Alarm
Procedure:
1When receiving an Emergency Alarm, the display shows the
Emergency icon, the number of alarms received, and Alarm
Rcvd, which alternates with the alias or ID of the sender.
2A tone sounds and the LED blinks red.
3If enabled, your radio automatically acknowledges the
Emergency Alarm.
When your radio receives an Emergency Alarm, it displays the
Emergency Alarm received indications until acknowledgement
is sent and you exit the Emergency mode.
You will not be able to receive any other indications or displays
for any other calls until you exit the Emergency Alarm received
screen.
NOTE: Short press
R, then long press the programmed
Emergency button to clear the Emergency Alarm
received indications and exit Emergency mode.
NAG-LACR-EMEA.book Page 37 Monday, April 28, 2008 4:59 PM
Advanced Features
English
38
Responding to an Emergency Alarm
Procedure:
When receiving an Emergency Alarm:
1Press any button to stop all Emergency Alarm received
indications.
2Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from
your mouth.
If the Channel Free Indication feature is enabled, you
will hear a short alert tone the moment the transmitting radio
releases the PTT button, indicating the channel is now
available for use.
3Press PTT button to initiate a call with the emergency
initiating radio. The LED lights up solid green. Your radio
remains in the Emergency mode.
4Wait for the Talk Permit Tone to finish (if enabled) and speak
clearly into the microphone.
5Release the PTT button to listen. When the emergency
initiating radio responds, the LED blinks green. You see the
Group Call icon, the group ID, and transmitting radio ID on
your display.
6Once your call ends, short press R, then long press the
programmed Emergency button to clear the Emergency
Call received indications and exit Emergency mode.
7The radio returns to the Home screen.
Sending an Emergency Alarm
This feature allows you to send an Emergency Alarm, a non-
voice signal, which triggers an alert indication on another radio.
Procedure:
1Press the programmed Emergency button.
2The display shows Sending Alarm, which alternates with
your radio ID. The LED lights up solid green and the
Emergency icon appears on the Home screen display.
3When an Emergency Alarm acknowledgment is received,
the Emergency tone sounds and the LED blinks green. The
display shows Emergency Alarm Successful.
OR
If your radio does not receive an Emergency Alarm
acknowledgement, and after all retries have been
exhausted, a tone sounds and the display shows
Emergency Alarm Failed.
4Radio exits the Emergency Alarm mode and returns to the
Home screen.
If your radio is set to Silent, it will not display any audio or visual
indicators during Emergency mode.
 
NAG-LACR-EMEA.book Page 38 Monday, April 28, 2008 4:59 PM
Advanced Features
English
39
Sending an Emergency Alarm with Call
This feature allows you send an Emergency Alarm to another
radio. Upon acknowledgement, both radios can communicate
over a programmed Emergency channel.
Procedure:
1Press the programmed Emergency button.
2The display shows Sending Alarm, which alternates with
your radio ID. The LED lights up solid green and the
Emergency icon appears on the Home screen display.
3When an Emergency Alarm acknowledgment is received,
the Emergency tone sounds and the LED blinks green. The
display shows Emergency Alarm Successful.
4Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from
your mouth.
5Press PTT button to make the call. The LED lights up solid
green and the group icon appears on the display.
6Wait for the Talk Permit Tone to finish (if enabled) and speak
clearly into the microphone.
7Release the PTT button to listen.
8If the Channel Free Indication feature is enabled, you will
hear a short alert tone the moment the target radio releases
the PTT button, indicating the channel is free for you to
respond. Press the PTT button to respond.
OR
Long press the programmed Emergency button to exit the
Emergency mode.
9The radio returns to the Home screen.
If your radio is set to Silent, it will not display any audio or visual
indicators during Emergency mode, or receive any response
(call) from the target radio, until you press the PTT button to
initiate the call.
If your radio is set to Silent with Voice, it will not display any
audio or visual indicators during Emergency mode, or when you
are receiving a call from the target radio. The indicators will only
appear once you press the PTT button to initiate, or respond to,
the call.
Sending an Emergency Alarm with Voice to
Follow
This feature allows you to send an Emergency Alarm to another
radio. Upon acknowledgement, your radio’s microphone is
automatically activated, allowing you to communicate with the
other radio without pressing the PTT button.
This activated microphone state is also known as “hot mic”.
If you press the PTT button during the programmed hot mic
transmission period, the radio ignores the PTT press and
remains in Emergency mode.
NAG-LACR-EMEA.book Page 39 Monday, April 28, 2008 4:59 PM
Advanced Features
English
40
NOTE: If you press the PTT button during hot mic, and
continue to press it after the hot mic duration expires,
the radio continues to transmit until you release the
PTT button.
Procedure:
1Press the programmed Emergency button.
2The display shows Sending Alarm. The LED lights up solid
green and the Emergency icon is displayed.
3Once the display shows Emergency Alarm Successful,
speak clearly into the microphone. When hot mic has been
enabled, the radio automatically transmits without a PTT
press until the hot mic duration expires.
4While transmitting, the LED lights up solid green and the
Emergency icon appears on the display.
5Once the hot mic duration expires, the radio automatically
stops transmitting. To transmit again, press the PTT button.
If your radio is set to Silent, it will not display any audio or visual
indicators during Emergency mode, or receive any response
from the target radio, until the programmed hot mic transmission
period is over, and you press the PTT button.
If your radio is set to Silent with Voice, it will not display any
audio or visual indicators during Emergency mode when you
are making the call with hot mic, or when the target radio
responds after the programmed hot mic transmission period is
over. The indicators will only appear when you press the PTT
button.
NOTE: If the Emergency Alarm request fails, the radio returns
to the Home screen.
Reinitiating an Emergency Mode
There are two instances where this can happen:
•You change the channel while the radio is in Emergency
mode. This exits the Emergency mode. If Emergency Alarm is
enabled on this new channel, the radio reinitiates Emergency.
•You press the programmed Emergency button during an
Emergency initiation/transmission state. This causes the
radio to exit this state, and to reinitiate Emergency.
Exiting Emergency Mode
Your radio exits Emergency mode when one of the following
occurs:
•Emergency Alarm acknowledgement is received (for
Emergency Alarm only), OR
•All retries to send the alarm have been exhausted, OR
•The programmed Emergency button is long pressed.
NOTE: If your radio is powered off, it exits the Emergency
mode. The radio will not reinitiate the Emergency
mode automatically when it is turned on again.
NAG-LACR-EMEA.book Page 40 Monday, April 28, 2008 4:59 PM
Advanced Features
English
41
Text Message Features
Your radio is able to receive data, for example a text message,
from another radio or an e-mail application.
The maximum length of characters for a text message,
including the subject line (seen when receiving message from
an e-mail application), is 138.
NOTE: Press R at any time to return to the previous screen
or long press R to return to the Home screen.
Writing and Sending a Text Message
Procedure:
Press the programmed Text Message button and proceed to
step 3.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Messages and press N to select.
3Por Q to Write and press N to select.
4A blinking cursor appears.
Use the keypad to type your message.
Press P to move one space to the left.
Press Q or the # key to move one space to the right.
Press the *DEL key to delete any unwanted characters.
5Press N once message is composed.
6Por Q to the required alias or ID and press N to
select.
OR
Por Q to Manual Dial and press N to select.
Key in the subscriber ID and press N.
7The display shows Text Message: <Subscriber/Group
Alias or ID>, confirming your message is being sent.
8If the message is sent, a tone sounds and the display shows
Message Sent.
OR
If the message is not sent, a low tone sounds and the
display shows Message Send Failed.
If the message fails to send, the radio returns you to the
Resend
option screen (see Managing Fail-to-Send Text Messages on
page 43).
Advanced
NAG-LACR-EMEA.book Page 41 Monday, April 28, 2008 4:59 PM
Advanced Features
English
42
Sending a Quick Text Message
Your radio supports a maximum of ten (10) Quick Text
messages as programmed by your dealer.
While Quick Text messages are predefined, you can edit each
message before sending it.
Procedure:
Press the programmed Text Message button and proceed to
step 3.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Messages and press N to select.
3Por Q to Quick Text and press N to select.
4Por Q to the required Quick Text and press N to
select.
5A blinking cursor appears.
Use the keypad to edit the message, if required.
Press P to move one space to the left.
Press Q or the # key to move one space to the right.
Press the *DEL key to delete any unwanted characters.
6Press N once message is composed.
7Por Q to the required alias or ID and press N to
select.
OR
Por Q to Manual Dial and press N to select.
Key in the subscriber alias or ID and press N.
8The display shows Text Message: <Subscriber/Group
Alias or ID>, confirming your message is being sent.
9If the message is sent successfully, a tone sounds and the
display shows Message Sent.
OR
If the message cannot be sent, a low tone sounds the
display shows Message Send Failed.
If the message fails to send, the radio returns you to the
Resend
option screen (see Managing Fail-to-Send Text Messages on
page 43).
Sending a Quick Text Message with the One Touch
Call Button
Procedure:
1Press the programmed One Touch Call button to send a
predefined Quick Text message to a predefined alias or ID.
NAG-LACR-EMEA.book Page 42 Monday, April 28, 2008 4:59 PM
Advanced Features
English
43
2The display shows Text Message: <Subscriber/Group
Alias or ID>, confirming your message is being sent.
3If the message is sent successfully, a tone sounds and the
display shows Message Sent.
OR
If the message cannot be sent, the display shows Message
Send Failed.
If the message fails to send, the radio returns you to the
Resend
option screen (see Managing Fail-to-Send Text Messages on
page 43).
Managing Fail-to-Send Text Messages
You can select one of the following options while at the Resend
option screen:
•Resend
•Forward
•Edit
Resending a Text Message
Procedure:
1Press N to resend the same message to the same
subscriber/group alias or ID.
2If the message is sent successfully, a tone sounds and the
display shows Message Sent.
OR
If the message cannot be sent, the display shows Message
Send Failed.
Forwarding a Text Message
Select Forward to send the message to another subscriber/
group alias or ID.
Procedure:
1Por Q to Forward and press N to select.
2Por Q to the required alias or ID and press N to
select.
OR
Por Q to Manual Dial and press N to select.
Key in the subscriber ID and press N.
3The display shows Text Message: <Subscriber/Group
Alias or ID>, confirming your message is being sent.
4If the message is sent, a tone sounds and the display shows
Message Sent.
OR
If the message is not sent, a low tone sounds and the
display shows Message Send Failed.
NAG-LACR-EMEA.book Page 43 Monday, April 28, 2008 4:59 PM
Advanced Features
English
44
Editing a Text Message
Select Edit to edit the message before sending it.
NOTE: If a subject line is present (for messages received from
an e-mail application), you cannot edit it.
Procedure:
1Por Q to Edit and press N to select.
2A blinking cursor appears beside the message.
Use the keypad to edit your message.
Press P to move one space to the left.
Press Q or the # key to move one space to the right.
Press the *DEL key to delete any unwanted characters.
3Press N once message is composed.
4Por Q to the required alias or ID and press N to
select.
OR
Por Q to Manual Dial and press N to select.
Key in the subscriber ID and press N.
5The display shows Text Message: <Subscriber/Group
Alias or ID>, confirming your message is being sent.
6If the message is sent, a tone sounds and the display shows
Message Sent.
OR
If the message is not sent, a low tone sounds and the
display shows Message Send Failed.
Managing Sent Text Messages
Once a message is sent to another radio, it is saved in Sent
Items. The most recent sent text message is always added to
the top of the Sent Items list.
The Sent Items folder is capable of storing a maximum of
thirty (30) last sent messages. When the folder is full, the next
sent text message automatically replaces the oldest text
message in the folder.
NOTE: Press R at any time to return to the previous screen
or long press R to return to the Home screen.
NAG-LACR-EMEA.book Page 44 Monday, April 28, 2008 4:59 PM
Advanced Features
English
45
Viewing a Sent Text Message
Procedure:
Press the programmed Text Message button and proceed to
step 3.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Messages and press N to select.
3Por Q to Sent Items and press N to select.
4Por Q to the required message and press N to
select.
A subject line may be shown if the message is from an
e-mail application.
The icon at the top right corner of the screen indicates the
status of the message (see Sent Item Icons on page 11).
Sending a Sent Text Message
You can select one of the following options while viewing a sent
text message:
•Resend
•Forward
•Edit
•Delete
Procedure:
1Press N again while viewing the message.
2Por Q to Resend and press N to select.
3The display shows Sending to: <Subscriber/Group
Alias or ID>, confirming that the same message is being
sent to the same target radio.
4If the message is sent, a tone sounds and the display shows
Message Sent.
OR
If the message is not sent, a low tone sounds and the
display shows Message Send Failed.
If the message fails to send, the radio returns you to the
Resend
option screen. Press N to resend the message to the same
subscriber/group alias or ID.
NOTE: Changing the volume, and pressing any button, except
for N, P, or Q, returns you to the message.
The radio exits the Resend option screen if you press
the PTT button to initiate a Private or Group Call, or to
respond to a Group Call. The radio also exits the
screen when it receives a text or telemetry message,
an emergency call or alarm, or a call alert.
The display returns to the Resend option screen if you
press the PTT button to respond to a Private Call
(except when the radio is displaying the Missed Call
screen), and at the end of an All Call.
NAG-LACR-EMEA.book Page 45 Monday, April 28, 2008 4:59 PM
Advanced Features
English
46
Press Por Q to access the
Forward
,
Edit
, or
Delete
option screen:
•Select
Forward
to send the selected text message to another
subscriber/group alias or ID (see Forwarding a Text
Message on page 43).
•Select
Edit
to edit the selected text message before sending
it (see Editing a Text Message on page 44).
•Select
Delete
to delete the text message.
NOTE: If you exit the message sending screen while the
message is being sent, the radio updates the status of
the message in the Sent Items folder without providing
any indication in the display or via sound.
NOTE: If the radio changes mode or powers down before the
status of the message in Sent Items is updated, the
radio cannot complete any In-Progress messages and
automatically marks it with a Send Failed icon.
The radio supports a maximum of five (5) In-Progress
messages at one time. During this period, the radio
cannot send any new message and automatically
marks it with a Send Failed icon.
Deleting All Sent Text Messages from Sent Items
Procedure:
Press the programmed Text Message button and proceed to
step 3.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Messages and press N to select.
3Por Q to Sent Items and press N to select.
4Por Q to Delete All and press N to select.
5At Delete Message?, press N to select Yes. The display
shows Sent Items Cleared.
OR
At Delete Message?, Por Q to No and press N to
return to the previous screen.
When you select Sent Items and it contains no text messages,
the display shows
List Empty
, and sounds a low tone if
Keypad Tones are turned on (see Turning Keypad Tones On
or Off on page 54).
NAG-LACR-EMEA.book Page 46 Monday, April 28, 2008 4:59 PM
Advanced Features
English
47
Receiving a Text Message
When your radio receives a message, the display shows the
alias or ID of the sender and the message icon at the far left of
the screen.
You can select one of the following options when receiving a
text message:
•Read?
•Read Later
•Delete
NOTE: The radio exits the Text Message alert screen and sets
up a Private or Group Call if the PTT button is pressed
when the radio is displaying the alert screen.
Reading a Text Message
Procedure:
1Por Q to Read? and press N to select.
2Selected message in the Inbox opens.
A subject line may be shown if the message is from an
e-mail application.
3Press N to return to the Inbox.
OR
Press N to reply, forward, or delete the text message.
Press Por Q to access the
Read Later
or
Delete
option
screen:
•Select
Read Later
to return to the screen you were on prior
to receiving the text message.
•Select
Delete
to delete the text message.
Managing Received Text Messages
Use the Inbox to manage your text messages. The Inbox is
capable of storing a maximum of 30 messages.
Your radio supports the following options for text messages:
•Reply
•Forward
•Delete
•Delete All
Text messages in the Inbox are sorted according to the most
recently received.
NOTE: Press R at any time to return to the previous screen
or long press R to return to the Home screen.
NAG-LACR-EMEA.book Page 47 Monday, April 28, 2008 4:59 PM
Advanced Features
English
48
Viewing a Text Message from the Inbox
Procedure:
1S to access the menu.
2Por Q to Messages and press N to select.
3Por Q to Inbox and press N to select.
4Por Q to view the messages.
A subject line may be shown if the message is from an
e-mail application.
5Press N to select the current message, and press N
again to reply, forward, or delete that message.
OR
Long press R to return to the Home screen.
Unread messages are indicated with an exclamation mark (!).
Replying to a Text Message from the Inbox
Procedure:
Press the programmed Text Message button and proceed to
step 3.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Messages and press N to select.
3Por Q to Inbox and press N to select.
4Por Q to the required message and press N to
select.
A subject line may be shown if the message is from an
e-mail application.
5Press once more to access the sub-menu.
6Por Q to Reply and press N to select.
7Por Q to Write and press N to select.
A blinking cursor appears. Use the keypad to write your
message.
OR
Por Q to Quick Text and press N to select.
A blinking cursor appears. Use the keypad to edit your
message, if required.
8Press N once message is composed.
9The display shows Text Message: <Subscriber/Group
Alias or ID>, confirming your message is being sent.
NAG-LACR-EMEA.book Page 48 Monday, April 28, 2008 4:59 PM
Advanced Features
English
49
10 If the message is sent successfully, a tone sounds and the
display shows Message Sent.
OR
If the message cannot be sent, the display shows Message
Send Failed.
If the message fails to send, the radio returns you to the
Resend
option screen (see Managing Fail-to-Send Text Messages on
page 43).
Deleting a Text Message from the Inbox
Procedure:
Press the programmed Text Message button and proceed to
step 3.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Messages and press N to select.
3Por Q to Inbox and press N to select.
4Por Q to the required message and press N to
select.
A subject line may be shown if the message is from an
e-mail application.
5Press N once more to access the sub-menu.
6Por Q to Delete and press N to select.
7At Delete Message?, Por Q to Yes and press N to
select.
8The display shows Message Deleted.
9The screen returns to the Inbox.
Deleting All Text Messages from the Inbox
Procedure:
Press the programmed Text Message button and proceed to
step 3.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Messages and press N to select.
3Por Q to Inbox and press N to select.
4Por Q to Delete All and press N to select.
5At Delete Message?, Por Q to Yes and press N to
select.
6The display shows Inbox Cleared.
When you select the Inbox and it contains no text messages,
the display shows
List Empty
, and sounds a low tone if
Keypad Tones are turned on (see Turning Keypad Tones On
or Off on page 54).
NAG-LACR-EMEA.book Page 49 Monday, April 28, 2008 4:59 PM
Advanced Features
English
50
Privacy
If enabled, this feature helps to prevent eavesdropping by
unauthorized users on a channel by the use of a software-
based scrambling solution. The signaling and user identification
portions of a transmission are not scrambled.
Your radio must have privacy enabled on the channel to
send a privacy-enabled transmission, although this is not a
necessary requirement for receiving a transmission. While on a
privacy-enabled channel, the radio is still able to receive clear
(unscrambled) transmissions.
To unscramble a privacy-enabled call or data transmission, your
radio must have the same Privacy Key (programmed by your
dealer) as the transmitting radio. If your radio receives a
scrambled call that is of a different Privacy Key, you will hear a
garbled transmission.
The LED lights up solid green while the radio is transmitting and
blinks green rapidly when the radio is receiving an ongoing
privacy-enabled transmission.
NOTE: Some radio models may not offer this Privacy feature.
Check with your dealer or system administrator for
more information.
Procedure:
Press the programmed Privacy button to toggle privacy on or
off.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Settings and press N to select.
4Por Q to Privacy and press N to select.
5The display shows Privacy and Turn On. Press N to
enable privacy. The display shows Privacy On.
OR
The display shows Privacy and Turn Off. Press N to
disable privacy. The display shows Privacy Off.
When privacy is enabled, the Home screen shows the Privacy
icon, except when the radio is sending or receiving an
Emergency call or alarm.
NAG-LACR-EMEA.book Page 50 Monday, April 28, 2008 4:59 PM
Advanced Features
English
51
Dual Tone Multi Frequency (DTMF)
The Dual Tone Multi Frequency (DTMF) feature allows the radio
to operate in a radio system with an interface to telephone
systems.
To use this feature, your radio must have an access code, which
is system dependent. Please check with your dealer or system
administrator for more information.
Procedure:
To initiate a DTMF call.
1Enter the Access code.
2Press and hold the PTT button.
3Enter the desired number.
NOTE: You can turn off the DTMF tone by disabling all radio
tones and alerts (see Turning the Radio Tones/
Alerts On or Off on page 56).
Security
You can enable or disable any radio in the system. For example,
you might want to disable a stolen radio, to prevent the thief
from using it, and enable that radio, when it is recovered.
NOTE: Performing Radio Disable and Enable is limited to
radios with these functions enabled.
Radio Disable
Procedure:
Using the programmed Radio Disable button.
1Press the programmed Radio Disable button.
2Por Q to the required alias or ID and press N to
select.
3The display shows Radio Disable: <Subscriber Alias
or ID> and the LED lights up solid green.
4Wait for acknowledgment.
5If successful, a tone sounds and the display shows Radio
Disable Successful.
OR
If not successful, a tone sounds and the display shows
Radio Disable Failed.
NAG-LACR-EMEA.book Page 51 Monday, April 28, 2008 4:59 PM
Advanced Features
English
52
OR
Procedure:
Using the menu.
1S to access the menu.
2Por Q to Contacts and press N to select. The
entries are alphabetically sorted.
3Por Q to the required alias or ID and press N to
select.
OR
Por Q to Manual Dial and press N to select.
Key in the subscriber alias or ID and press N.
4Por Q to Radio Disable and press N to select. The
LED blinks green.
5The display shows Radio Disable: <Subscriber Alias
or ID> and the LED lights up solid green.
6Wait for acknowledgment.
7If successful, a tone sounds and the display shows Radio
Disable Successful.
OR
If not successful, a tone sounds and the display shows
Radio Disable Failed.
Do not press R during the Radio Disable operation as you
will not get an acknowledgement message.
Radio Enable
Procedure:
Using the programmed Radio Enable button.
1Press the programmed Radio Enable button.
2Por Q to the required alias or ID and press N to
select.
3The display shows Radio Enable: <Subscriber Alias
or ID> and the LED lights up solid green.
4Wait for acknowledgment.
5If successful, a tone sounds and the display shows Radio
Enable Successful.
OR
If not successful, a tone sounds and the display shows
Radio Enable Failed.
OR
Procedure:
Using the menu.
1S to access the menu.
2Por Q to Contacts and press N to select. The
entries are alphabetically sorted.
NAG-LACR-EMEA.book Page 52 Monday, April 28, 2008 4:59 PM
Advanced Features
English
53
3Por Q to the required alias or ID and press N to
select.
OR
Por Q to Manual Dial and press N to select.
Key in the subscriber alias or ID and press N.
4Por Q to Radio Enable and press N to select. The
LED blinks green.
5The display shows Radio Enable: <Subscriber Alias
or ID> and the LED lights up solid green.
6Wait for acknowledgment.
7If successful, a tone sounds and the display shows Radio
Enable Successful.
OR
If not successful, a tone sounds and the display shows
Radio Enable Failed.
Do not press R during the Radio Enable operation as you will
not get an acknowledgement message.
Utilities
Locking and Unlocking the Keypad
You can lock your radio’s keypad to avoid inadvertent key entry.
Procedure:
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Settings and press N to select.
4Por Q to Keypad Lock and press N to select.
5The display shows Keypad Locked and returns to the Home
screen.
6To unlock the keypad, press S followed by *.
7The display shows Keypad Unlocked and returns to the
Home screen.
NAG-LACR-EMEA.book Page 53 Monday, April 28, 2008 4:59 PM
Advanced Features
English
54
Turning Keypad Tones On or Off
You can enable and disable keypad tones if needed.
Procedure:
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Settings and press N to select.
4Por Q to Tones/Alerts and press N to select.
5Por Q to Keypad Tones and press N to select.
6The display shows Turn On. Press N to enable keypad
tones. The display shows Keypad Tone On.
OR
The display shows Turn Off. Press N to disable keypad
tones. The display shows Keypad Tone Off.
Setting the Squelch Level
You can adjust your radio's squelch level to filter out unwanted
calls with low signal strength or channels that have a higher
than normal background noise.
Settings: Normal is the default. Tight filters out (unwanted)
calls and/or background noise. However, calls from remote
locations may also be filtered out.
Procedure:
Press the programmed Squelch button to toggle squelch level
between normal and tight.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Settings and press N to select.
4Por Q to Squelch and press N to select.
5Choose either Tight or Normal and press N to select.
6Screen returns to the previous menu.
Setting the Power Level
You can customize your radio’s power setting to high or low for
each channel.
Settings: High enables communication with radios located at
a considerable distance from you. Low enables communication
with radios in closer proximity.
Procedure:
Press the programmed Power Level button to toggle transmit
power level between high and low.
NAG-LACR-EMEA.book Page 54 Monday, April 28, 2008 4:59 PM
Advanced Features
English
55
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Settings and press N to select.
4Por Q to Power and press N to select.
5Change your current setting as prompted on the display.
6Press N to select a new power level.
7Screen returns to the previous menu.
Long press R to return to the Home screen. The power level
icon is visible.
Turning the Option Board Feature(s) On or Off
A channel can support up to 6 option board features. Refer to
your dealer or system administrator for more information.
Procedure:
Press the programmed Option Board Feature button to toggle
the feature on or off.
Controlling the Display Backlight
You can enable or disable the radio’s display backlight as
needed. The setting also affects the Menu Navigation Buttons
and keypad backlighting accordingly.
Procedure:
Press the programmed Backlight button to toggle the backlight
settings.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Settings and press N to select.
4Por Q to Backlight and press N to select.
5The display shows Auto On. Press N to enable the
display backlight. The display shows Backlight Auto On.
OR
The display shows Turn Off. Press N to disable the
display backlight. The display shows Backlight Turn Off.
The display backlight and keypad backlighting are automatically
turned off if the LED indicator is disabled (see Turning the LED
Indicator On or Off on page 57).
NAG-LACR-EMEA.book Page 55 Monday, April 28, 2008 4:59 PM
Advanced Features
English
56
Turning the Radio Tones/Alerts On or Off
You can enable and disable all radio tones and alerts (except for
the incoming Emergency alert tone) if needed.
Procedure:
Press the programmed All Tones/Alerts button to toggle all
tones on or off.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Settings and press N to select.
4Por Q to Tones/Alerts and press N to select.
5Por Q to All Tones and press N to select.
6The display shows Turn On. Press N to enable all tones
and alerts. The display shows All Tones On.
OR
The display shows Turn Off. Press N to disable all tones
and alerts. The display shows All Tones Off.
Turning the Talk Permit Tone On or Off
You can enable and disable the Talk Permit Tone if needed.
Procedure:
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Settings and press N to select.
4Por Q to Tones/Alerts and press N to select.
5Por Q to Talk Permit and press N to select.
6The display shows Turn On. Press N to enable the Talk
Permit Tone. The display shows Talk Permit Tone On.
OR
The display shows Turn Off. Press N to disable the Talk
Permit Tone. The display shows Talk Permit Tone Off.

NAG-LACR-EMEA.book Page 56 Monday, April 28, 2008 4:59 PM
Advanced Features
English
57
Turning the LED Indicator On or Off
You can enable and disable the LED Indicator if needed.
Procedure:
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Settings and press N to select.
4Por Q to LED Indicator and press N to select.
5The display shows Turn On. Press N to enable the LED
Indicator. The display shows All LEDs On.
OR
The display shows Turn Off. Press N to disable the LED
Indicator. The display shows All LEDs Off.
The display backlight, buttons, and keypad backlighting are
automatically turned off if the LED indicator is disabled (see
Controlling the Display Backlight on page 55).
Turning the Introduction Screen On or Off
You can enable and disable the Introduction Screen if needed.
Procedure:
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Settings and press N to select.
4Por Q to Intro Screen and press N to select.
5The display shows Turn On. Press N to enable the
Introduction Screen. The display shows Intro Screen On.
OR
The display shows Turn Off. Press N to disable the
Introduction Screen. The display shows Intro Screen
Off.

NAG-LACR-EMEA.book Page 57 Monday, April 28, 2008 4:59 PM
Advanced Features
English
58
Accessing General Radio Information
Your radio contains information on the following:
•Battery
•Radio ID
•Software Version
•Codeplug Version
NOTE: Press R at any time to return to the previous screen
or long press R to return to the Home screen.
Accessing the Battery Information
Displays information on your radio battery.
Procedure:
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Info and press N to select.
4Por Q to Battery Info and press N to select.
5The display shows the battery information.
OR
For IMPRES batteries ONLY: The display reads
Recondition Battery if the battery requires
reconditioning in an IMPRES charger.
After the reconditioning process, the display then shows the
battery information.
For IMPRES batteries ONLY:
Press Por Q to access the
Capacity
,
First Use
, or
End
of Life
option screen:
•Select
Capacity
to view battery capacity level, indicated by
a horizontal bar and percentage reading.
•Select
First Use
to view the date of initial use.
•Select
End of Life
to view if the battery is still usable. The
display shows
Replace Battery
if the battery has reached
its end of life.
NAG-LACR-EMEA.book Page 58 Monday, April 28, 2008 4:59 PM
Advanced Features
English
59
Checking the Radio ID
Displays the ID of your radio.
Procedure:
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Info and press N to select.
4Por Q to My Number and press N to select.
5The radio ID is displayed.
Checking the Firmware Version
Displays the firmware version on your radio.
Procedure:
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Info and press N to select.
4Por Q to Firmware Ver. and press N to select.
5The current firmware version is displayed.
Checking the Codeplug Version
Displays the codeplug version on your radio.
Procedure:
1S to access the menu.
2Por Q to Utilities and press N to select.
3Por Q to Radio Info and press N to select.
4Por Q to CP Ver. and press N to select.
5The current codeplug version is displayed.
NAG-LACR-EMEA.book Page 59 Monday, April 28, 2008 4:59 PM
Accessories
English
60
Accessories
Your radio is compatible with the accessories listed in this
chapter. Contact your dealer for details.
Antennas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 60
Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 61
Carry Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 61
Chargers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 62
Earbuds and Earpieces. . . . . . . . . . . . . . . . . . . . . . . . page 62
Headsets and Headset Accessories . . . . . . . . . . . . . . page 62
Remote Speaker Microphones . . . . . . . . . . . . . . . . . . page 63
Surveillance Accessories . . . . . . . . . . . . . . . . . . . . . . page 63
Miscellaneous Accessories. . . . . . . . . . . . . . . . . . . . . page 64
Antennas
The diagram on the right shows the location of
the color indicator for the following antennas. See
the footnote at the end of the list for the colors.
•Combination VHF/GPS, 136 – 147 MHz, Helical Antenna4
(PMAD4067_)
•Combination VHF/GPS, 147 – 160 MHz, Helical Antenna3
(PMAD4068_)
•Combination VHF/GPS, 160 – 174 MHz, Helical Antenna5
(PMAD4069_)
•VHF Wideband, 136 – 174 MHz, Double Helical Antenna6
(PMAD4088_)
•Combination UHF/GPS, 403 – 433 MHz, Folded Monopole
Antenna1 (PMAE4018_)
•Combination UHF/GPS, 403 – 433 MHz, Stubby Antenna1
(PMAE4021_)
•UHF, 403 – 470 MHz, Whip Antenna3 (PMAE4022_)
•Combination UHF/GPS, 430 – 470 MHz, Stubby Antenna2
(PMAE4023_)
•Combination UHF/GPS, 430 – 470 MHz, Folded Monopole
Antenna2 (PMAE4024_)
•Public Safety Microphone UHF Stubby Antenna1,
403 – 433 MHz (PMAE4046_)
•Public Safety Microphone UHF Stubby Antenna2,
430 – 470 MHz (PMAE4047_)
•UHF2, 450 – 527 MHz, Whip Antenna7 (PMAE4049_)
•Combination UHF2/GPS, 450 – 495 MHz, Folded Monopole
Antenna8 (PMAE4050_)
NAG-LACR-EMEA.book Page 60 Monday, April 28, 2008 4:59 PM
Accessories
English
61
•Combination UHF2/GPS, 495 – 527 MHz, Folded Monopole
Antenna6 (PMAE4051_)
•Public Safety Microphone VHF Antenna5,
150 – 174 MHz (PMAD4086_)
•Public Safety Microphone VHF Antenna4,
136 – 153 MHz (PMAD4087_)
Color Code:
Batteries
•IMPRES Li-Ion, 1500 mAh Submersible (IP57) Battery
(PMNN4066_)
•IMPRES Li-Ion, 1400 mAh Submersible (IP57) Battery,
Intrinsically Safe (FM) (PMNN4069_)
•IMPRES Li-Ion, 2200 mAh Submersible (IP57) Battery
(PMNN4077_)
•NiMH, 1300 mAh Submersible (IP57) Battery (PMNN4065_)
Carry Devices
•Belt Clip for 2-Inch Belt Width (PMLN4651_)
•Belt Clip for 2.5-Inch Belt Width (PMLN4652_)
•Nylon Carry Case with 3-Inch Fixed Belt Loop for Display
Radio (PMLN5015_)
•Soft Leather Carry Case with 2.5-Inch Swivel Belt Loop
for Display Radio (PMLN5016_)
•Soft Leather Carry Case with 3-Inch Swivel Belt Loop for
Display Radio (PMLN5017_)
•Soft Leather Carry Case with 3-Inch Fixed Belt Loop for
Display Radio (PMLN5018_)
•Hard Leather Carry Case with 2.5-Inch Swivel Belt Loop
for Display Radio (PMLN5019_)
•Hard Leather Carry Case with 3-Inch Swivel Belt Loop for
Display Radio (PMLN5020_)
•Hard Leather Carry Case with 3-Inch Fixed Belt Loop for
Display Radio (PMLN5021_)
•2.5-Inch Replacement Swivel Belt Loop (PMLN5022_)
•3-Inch Replacement Swivel Belt Loop (PMLN5023_)
•1.75-Inch Black Leather Belt (4200865599)
1Red 3Black 5Blue 7Brown
2Green 4Yellow 6White 8Orange
NAG-LACR-EMEA.book Page 61 Monday, April 28, 2008 4:59 PM
Accessories
English
62
Chargers
•IMPRES Multi-Unit Charger (WPLN4212_)
•IMPRES Multi-Unit Charger with Displays (WPLN4219_)
•IMPRES Single-Unit Charger (WPLN4232_)
Earbuds and Earpieces
•Receive-Only Earbud (AARLN4885_)
•D-Shell Receive-Only Earpiece (PMLN4620_)
•Receive-Only Earpiece (RLN4941_)
•Over-the-Ear Receiver for Remote Speaker Microphone
(WADN4190_)
•D-Shell Earset (PMLN5096_)
•IMPRES Temple Transducer (PMLN5101_)
•Small Custom Earpiece for Surveillance Kits, Right Ear
(RLN4760_)
•Medium Custom Earpiece for Surveillance Kits, Right Ear
(RLN4761_)
•Large Custom Earpiece for Surveillance Kits, Right Ear
(RLN4762_)
•Small Custom Earpiece for Surveillance Kits, Left Ear
(RLN4763_)
•Medium Custom Earpiece for Surveillance Kits, Left Ear
(RLN4764_)
•Large Custom Earpiece for Surveillance Kits, Left Ear
(RLN4765_)
•Standard Earpiece, Black (RLN6279_)
•Standard Earpiece, Beige (RLN6280_)
•Replacement Foam Ear Pad and Windscreen (RLN6283_)
•Earpiece with Acoustic Tube Assembly, Beige (RLN6284_)
•Earpiece with Acoustic Tube Assembly, Black (RLN6285_)
•Earpiece with High Noise Kit, Beige (RLN6288_)
•Earpiece with High Noise Kit, Black (RLN6289_)
Headsets and Headset Accessories
•Ultra-Lite Headset (PMLN5102_)
•Lightweight Headset (RMN5058_)
NAG-LACR-EMEA.book Page 62 Monday, April 28, 2008 4:59 PM
Accessories
English
63
Remote Speaker Microphones
•Remote Speaker Microphone (PMMN4024_)
•IMPRES Remote Speaker Microphone (PMMN4025_)
•Remote Speaker Microphone, Submersible (IP57)
(PMMN4040_)
•IMPRES Public Safety Microphone, 30-Inch Cable
(PMMN4041_)*
•IMPRES Public Safety Microphone, 24-Inch Cable
(PMMN4042_)*
•IMPRES Public Safety Microphone, 18-Inch Cable
(PMMN4043_)*
•IMPRES Remote Speaker Microphone, with Volume, IP57
(PMMN4046_)
•IMPRES Submersible Public Safety Microphone, 30-Inch
Cable (PMMN4047_)*
•IMPRES Submersible Public Safety Microphone, 24-Inch
Cable (PMMN4048_)*
•IMPRES Submersible Public Safety Microphone, 18-Inch
Cable (PMMN4049_)*
•IMPRES Remote Speaker Microphone, Noise-Canceling
(PMMN4050_)
•Remote Speaker Microphone Replacement Coil Cord Kit
(For Use with PMMN4024_ and PMMN4040_) (RLN6074_)
•Remote Speaker Microphone Replacement Coil Cord Kit
(For Use with PMMN4025) (RLN6075_)
*Only applicable to UHF B1 (403 – 470 MHz) and
VHF (136 – 174 MHz) bands.
Surveillance Accessories
•IMPRES 3-Wire Surveillance, Black (PMLN5097_)
•IMPRES 3-Wire Surveillance, Beige (PMLN5106_)
•IMPRES 3-Wire Surveillance Kit with Clear, Comfortable
Acoustic Tube, Black (PMLN5111_)
•IMPRES 3-Wire Surveillance Kit with Clear, Comfortable
Acoustic Tube, Beige (PMLN5112_)
•Receive Only Surveillance Kit, Black (Single Wire)
(RLN5878_)
•Receive Only Surveillance Kit, Beige (Single Wire)
(RLN5879_)
•IMPRES 2-Wire Surveillance Kit, Black (RLN5880_)
•IMPRES 2-Wire Surveillance Kit, Beige (RLN5881_)
NAG-LACR-EMEA.book Page 63 Monday, April 28, 2008 4:59 PM
Accessories
English
64
•IMPRES 2-Wire Surveillance Kit with Clear, Comfortable
Acoustic Tube, Black (RLN5882_)
•IMPRES 2-Wire Surveillance Kit with Clear, Comfortable
Acoustic Tube, Beige (RLN5883_)
•Surveillance Low Noise Kit (RLN5886_)
•Surveillance High Noise Kit (RLN5887_)
Miscellaneous Accessories
•Universal Chest Pack (HLN6602_)
•Waterproof Bag, Includes Large Carry Strap (HLN9985_)
•Shoulder Strap (Attaches to D-Rings on Carry Case)
(NTN5243_)
•Small Clip, Epaulet Strap (RLN4295_)
•Break-A-Way Chest Pack (RLN4570_)
•Universal RadioPAK and Utility Case (Fanny Pack)
(RLN4815_)
•Replacement Ear Tips, Clear, Pack of 25 (For Use with
RLN5886_) (RLN6282_)
•Replacement Strap for RLN4570_ and HLN6602_ Chest
Packs (1505596Z02)
•Accessory Dust Cover (1571477L01)
•Replacement Foam Plugs, Pack of 50 (For Use with
RLN5887_) (5080384F72)
•Universal RadioPAK Extension Belt (4280384F89)
NAG-LACR-EMEA.book Page 64 Monday, April 28, 2008 4:59 PM
Batteries and Chargers Warranty
English
65
Batteries and Chargers Warranty
The Workmanship Warranty
The workmanship warranty guarantees against defects in
workmanship under normal use and service.
The Capacity Warranty
The capacity warranty guarantees 80% of the rated capacity for the
warranty duration.
All MOTOTRBO Batteries Two (2) Years
IMPRES Chargers (Single-Unit and Multi-Unit,
Non-Display) Two (2) Years
IMPRES Chargers (Multi-Unit with Display) One (1) Year
Nickel Metal-Hydride (NiMH) or Lithium-Ion
(Li-lon) Batteries 12 Months
IMPRES Batteries, When Used Exclusively
with IMPRES Chargers 18 Months
NAG-LACR-EMEA.book Page 65 Monday, April 28, 2008 4:59 PM
Limited Warranty
English
66
Limited Warranty
MOTOROLA COMMUNICATION PRODUCTS
I. WHAT THIS WARRANTY COVERS AND FOR HOW
LONG:
MOTOROLA INC. (“MOTOROLA”) warrants the MOTOROLA
manufactured Communication Products listed below (“Product”)
against defects in material and workmanship under normal use and
service for a period of time from the date of purchase as scheduled
below:
MOTOROLA, at its option, will at no charge either repair the
Product (with new or reconditioned parts), replace it (with a new or
reconditioned Product), or refund the purchase price of the Product
during the warranty period provided it is returned in accordance
with the terms of this warranty. Replaced parts or boards are
warranted for the balance of the original applicable warranty period.
All replaced parts of Product shall become the property of
MOTOROLA.
This express limited warranty is extended by MOTOROLA to the
original end user purchaser only and is not assignable or
transferable to any other party. This is the complete warranty for the
Product manufactured by MOTOROLA. MOTOROLA assumes no
obligations or liability for additions or modifications to this warranty
unless made in writing and signed by an officer of MOTOROLA.
Unless made in a separate agreement between MOTOROLA and
the original end user purchaser, MOTOROLA does not warrant the
installation, maintenance or service of the Product.
MOTOROLA cannot be responsible in any way for any ancillary
equipment not furnished by MOTOROLA which is attached to or
used in connection with the Product, or for operation of the Product
with any ancillary equipment, and all such equipment is expressly
excluded from this warranty. Because each system which may use
the Product is unique, MOTOROLA disclaims liability for range,
coverage, or operation of the system as a whole under this
warranty.
II. GENERAL PROVISIONS:
This warranty sets forth the full extent of MOTOROLA'S
responsibilities regarding the Product. Repair, replacement or
refund of the purchase price, at MOTOROLA’s option, is the
exclusive remedy. THIS WARRANTY IS GIVEN IN LIEU OF ALL
OTHER EXPRESS WARRANTIES. IMPLIED WARRANTIES,
INCLUDING WITHOUT LIMITATION, IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE LIMITED TO THE DURATION OF THIS LIMITED
WARRANTY. IN NO EVENT SHALL MOTOROLA BE LIABLE FOR
DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE
PRODUCT, FOR ANY LOSS OF USE, LOSS OF TIME,
INCONVENIENCE, COMMERCIAL LOSS, LOST PROFITS OR
SAVINGS OR OTHER INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR
XPR Series Digital Portable Radios Two (2) Years
Product Accessories (Excluding
Batteries and Chargers) One (1) Year
NAG-LACR-EMEA.book Page 66 Monday, April 28, 2008 4:59 PM
Limited Warranty
English
67
INABILITY TO USE SUCH PRODUCT, TO THE FULL EXTENT
SUCH MAY BE DISCLAIMED BY LAW.
III. STATE LAW RIGHTS:
SOME STATES DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES
OR LIMITATION ON HOW LONG AN IMPLIED WARRANTY
LASTS, SO THE ABOVE LIMITATION OR EXCLUSIONS MAY
NOT APPLY.
This warranty gives specific legal rights, and there may be other
rights which may vary from state to state.
IV. HOW TO GET WARRANTY SERVICE:
You must provide proof of purchase (bearing the date of purchase
and Product item serial number) in order to receive warranty
service and, also, deliver or send the Product item, transportation
and insurance prepaid, to an authorized warranty service location.
Warranty service will be provided by MOTOROLA through one of its
authorized warranty service locations. If you first contact the
company which sold you the Product (e.g., dealer or
communication service provider), it can facilitate your obtaining
warranty service. You can also call MOTOROLA at 1-800-927-2744
US/Canada.
V. WHAT THIS WARRANTY DOES NOT COVER:
A) Defects or damage resulting from use of the Product in other
than its normal and customary manner.
B) Defects or damage from misuse, accident, water, or neglect.
C)Defects or damage from improper testing, operation,
maintenance, installation, alteration, modification, or adjustment.
D)Breakage or damage to antennas unless caused directly by
defects in material workmanship.
E) A Product subjected to unauthorized Product modifications,
disassembles or repairs (including, without limitation, the addition
to the Product of non-MOTOROLA supplied equipment) which
adversely affect performance of the Product or interfere with
MOTOROLA's normal warranty inspection and testing of the
Product to verify any warranty claim.
F) Product which has had the serial number removed or made
illegible.
G)Rechargeable batteries if:
(1) any of the seals on the battery enclosure of cells are broken
or show evidence of tampering.
(2) the damage or defect is caused by charging or using the
battery in equipment or service other than the Product for which it
is specified.
H)Freight costs to the repair depot.
I) A Product which, due to illegal or unauthorized alteration of the
software/firmware in the Product, does not function in
accordance with MOTOROLA’s published specifications or the
FCC type acceptance labeling in effect for the Product at the time
the Product was initially distributed from MOTOROLA.
J) Scratches or other cosmetic damage to Product surfaces that
does not affect the operation of the Product.
K) Normal and customary wear and tear.
NAG-LACR-EMEA.book Page 67 Monday, April 28, 2008 4:59 PM
Limited Warranty
English
68
VI. PATENT AND SOFTWARE PROVISIONS:
MOTOROLA will defend, at its own expense, any suit brought
against the end user purchaser to the extent that it is based on a
claim that the Product or parts infringe a United States patent, and
MOTOROLA will pay those costs and damages finally awarded
against the end user purchaser in any such suit which are
attributable to any such claim, but such defense and payments are
conditioned on the following:
A) that MOTOROLA will be notified promptly in writing by such
purchaser of any notice of such claim;
B) that MOTOROLA will have sole control of the defense of such
suit and all negotiations for its settlement or compromise; and
C)should the Product or parts become, or in MOTOROLA’s opinion
be likely to become, the subject of a claim of infringement of a
United States patent, that such purchaser will permit
MOTOROLA, at its option and expense, either to procure for
such purchaser the right to continue using the Product or parts or
to replace or modify the same so that it becomes non-infringing
or to grant such purchaser a credit for the Product or parts as
depreciated and accept its return. The depreciation will be an
equal amount per year over the lifetime of the Product or parts as
established by MOTOROLA.
MOTOROLA will have no liability with respect to any claim of patent
infringement which is based upon the combination of the Product or
parts furnished hereunder with software, apparatus or devices not
furnished by MOTOROLA, nor will MOTOROLA have any liability
for the use of ancillary equipment or software not furnished by
MOTOROLA which is attached to or used in connection with the
Product. The foregoing states the entire liability of MOTOROLA with
respect to infringement of patents by the Product or any parts
thereof.
Laws in the United States and other countries preserve for
MOTOROLA certain exclusive rights for copyrighted MOTOROLA
software such as the exclusive rights to reproduce in copies and
distribute copies of such MOTOROLA software. MOTOROLA
software may be used in only the Product in which the software was
originally embodied and such software in such Product may not be
replaced, copied, distributed, modified in any way, or used to
produce any derivative thereof. No other use including, without
limitation, alteration, modification, reproduction, distribution, or
reverse engineering of such MOTOROLA software or exercise of
rights in such MOTOROLA software is permitted. No license is
granted by implication, estoppel or otherwise under MOTOROLA
patent rights or copyrights.
VII. GOVERNING LAW:
This Warranty is governed by the laws of the State of Illinois, U.S.A.
NAG-LACR-EMEA.book Page 68 Monday, April 28, 2008 4:59 PM
English
m
XPR Series Digital
Portable Radios
Quick Reference Card
Radio Controls
Record your radio’s programmable button
functions in the blanks provided. SP represents
Short Press, LP represents Long Press.
Menu Navigation Buttons
Display Icons
The following are the icons that appear on the
radio’s display.
Channel Selector Knob
On/Off/Volume Control Knob
7
6
5
4
2
13
14
15
16
1
9
11
12
17
3
810
1
2
LED Indicator
Side Button 1 (Programmable)
SP: _____________ LP: _____________
Push-to-Talk (PTT) Button
Side Button 2 (Programmable)
SP: _____________ LP: _____________
Side Button 3 (Programmable)
SP: _____________ LP: _____________
Front Button P1 (Programmable)
SP: _____________ LP: _____________
Microphone
Speaker
Front Button P2 (Programmable)
SP: _____________ LP: _____________
Keypad
Menu Navigation Keys
Universal Connector for Accessories
Display
Emergency Button (Programmable)
SP: _____________ LP: _____________
Antenna
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Left/Right Navigation Keys
Menu Button
OK Button
Back/Home Button
The number of bars displayed represents
the radio signal strength. Four bars
indicates the strongest signal. This icon is
only displayed while receiving.
Selected channel is being monitored.
Radio is currently set at Low Power (L) or
High Power (H).
Tones are turned off.
The Option Board is enabled.
A
BCD
A
B
C
D
or
© 2006 – 2008 by Motorola, Inc. All Rights Reserved. 04/08
1301 E. Algonquin Rd., Schaumburg, IL 60196-1078, U.S.A.
Printed in the U.S.A.
*6880309T13*
6880309T13-D
NAG-LACR-EMEA.book Page 69 Monday, April 28, 2008 4:59 PM
English
Call Icons
The following icons appear during a call, and in
the Contacts list to indicate ID type.
Sent Items Icons
The following icons appear at the top right corner
of the radio’s display in the Sent Items folder.
Powering Up and Turning Off the
Radio
Rotate the On/Off/Volume Control Knob
clockwise until you hear a click to turn on the
radio, and counterclockwise until you hear a click
to turn it off.
Adjusting the Volume
Turn the On/Off/Volume Control Knob clockwise
or counterclockwise.
LED Indicator
Blinking red – Radio is receiving an Emergency
transmission or has failed the self-test upon
powering up.
Solid yellow – Radio is receiving a request for a
Private Call, or monitoring a channel.
Blinking yellow – Radio is scanning for activity
or receiving a Call Alert.
Solid green – Radio is transmitting.
Blinking green – Radio is powering up,
receiving a non-privacy-enabled call or data, or
detecting activity over the air.
Rapidly blinking green – Radio is receiving a
privacy-enabled call or data.
Selecting a Zone
Press the programmed Zone button and proceed
to step 3.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Zone and press N to select.
3The current zone is displayed and indicated
by a 9.
The Option Board is disabled.
The GPS feature is enabled. The icon
stays lit when a position fix is available.
The GPS feature is enabled but is not
receiving data from the satellite.
Scan feature is enabled.
Radio recognizes activity on the channel/
group designated as Priority 1 (if • is
blinking) or as Priority 2 (if • is steady).
Unread message in the Inbox.
User’s Inbox is full.
Radio is in Emergency mode.
The Privacy feature is enabled.
Radio bypasses the repeater and
communicates directly with another radio.
The number of bars (0 – 4) shown
indicates the charge remaining in the
battery. Blinks when the battery is low.
Indicates a Private Call in progress. In
Contacts list, it indicates a subscriber
alias or ID.
Indicates a Group Call or All Call in
progress. In Contacts list, it indicates a
group alias or ID.
The text message is sent successfully.
The text message cannot be sent.
• The text message to a group alias or
ID is pending transmission.
• The text message to a subscriber alias
or ID is pending transmission, followed
by waiting for acknowledgement.
NAG-LACR-EMEA.book Page 70 Monday, April 28, 2008 4:59 PM
English
4Por Q to the required zone and press
N to select.
5The display shows <Zone> Selected
momentarily and returns to the selected zone
screen.
Selecting a Radio Channel,
Subscriber ID, or Group ID
1Turn the On/Off/Volume Control Knob to
power up your radio.
2Turn the Channel Selector Knob to select the
required channel, subscriber ID, or group ID.
Making a Group Call
Press the programmed One Touch Call button
and proceed to step 2.
OR
Follow the procedure below.
1Turn the Channel Selector Knob to select the
channel with the active group alias or ID.
OR
S to access the menu.
Por Q to Contacts. Press N to select.
Por Q to the alias or ID you want to call
and press N to select.
2Hold the radio vertically 1 to 2 inches (2.5 to
5.0 cm) from your mouth.
3Press the PTT button to make the call. The
LED lights up solid green. The display shows
the group alias or ID, and the Group Call icon.
4Wait for the Talk Permit Tone to finish (if
enabled). Speak clearly into the microphone.
5Release the PTT button to listen. When the
target radio responds, the LED blinks green.
Display shows the Group Call icon, the group
ID, and target radio ID.
6If the Channel Free Indication feature is
enabled, you will hear a short alert tone
the moment the target radio releases the
PTT button, indicating the channel is free
for you to respond. Press the PTT button
to respond.
OR
If there is no voice activity for a programmed
period of time, the call ends.
To make a call to a group of users, your radio
must be configured as part of that group.
Your radio must have the Privacy feature
enabled on the channel to send a privacy-
enabled transmission. Only target radios with
the same Privacy Key as your radio will be
able to unscramble the transmission.
Making a Private Call
Press the programmed One Touch Call button
and proceed to step 2.
OR
Follow the procedure below.
1Turn the Channel Selector Knob to select the
channel with the active subscriber alias or ID.
OR
S to access the menu.
Por Q to Contacts. Press N to select.
Por Q to the ID you want to call and
press N to select.
2Hold the radio vertically 1 to 2 inches (2.5 to
5.0 cm) from your mouth.
3Press the PTT button to make the call. The
LED lights up solid green. The first line
displays the subscriber alias or ID. The
second line displays Private Call and the
Private Call icon.
4Wait for the Talk Permit Tone to finish (if
enabled). Speak clearly into the microphone.
5Release the PTT button to listen. When the
target radio responds, the LED blinks green.
NAG-LACR-EMEA.book Page 71 Monday, April 28, 2008 4:59 PM
English
6If the Channel Free Indication feature is
enabled, you will hear a short alert tone the
moment the target radio releases the PTT
button, indicating the channel is free for you
to respond. Press the PTT button to respond.
OR
If there is no voice activity for a programmed
period of time, the call ends.
7You hear a short tone. The display shows
Call Ended.
Your radio must have the Privacy feature
enabled on the channel to send a privacy-
enabled transmission. Only target radios with the
same Privacy Key as your radio will be able to
unscramble the transmission.
Making an All Call
Your radio must be programmed to allow you to
use this feature. Users on the channel cannot
respond to an All Call.
1Turn the Channel Selector Knob to select the
channel with the active All Call group alias or
ID.
2Hold the radio vertically 1 to 2 inches (2.5 to
5.0 cm) from your mouth.
3Press the PTT button to make the call. The
LED lights up solid green. The display shows
the All Call group alias or ID, and the All Call
icon.
4Wait for the Talk Permit Tone to finish (if
enabled). Speak clearly into the microphone.
5If there is no voice activity for a programmed
period of time, the call ends.
When you receive an All Call, a message
appears and remains on your radio’s display until
the call ends. You will not be able to continue
with any menu navigation or editing until the call
ends.
Once the All Call ends, the radio returns to the
menu prior to receiving the call.
Scanning Channels
Press the programmed Scan button to turn scan
on or off.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Scan and press N to select.
3You see Scan On or Scan Off depending on
previous selection.
During scan, the LED blinks yellow and the scan
icon is displayed.
Making a Call Alert
Press the programmed One Touch Call button
and proceed to step 5.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Contacts. Press N to select.
3Por Q to the required subscriber alias or
ID and press N to select.
4Por Q to Call Alert and press N to
select.
5The display shows Call Alert:
<Subscriber Alias or ID>. The LED lights
up solid green.
6If the Call Alert acknowledgement is received,
a tone sounds. Display shows Call Alert
Successful.
OR
If the Call Alert acknowledgement is not
received, a tone sounds. Display shows Call
Alert Failed.
NAG-LACR-EMEA.book Page 72 Monday, April 28, 2008 4:59 PM
English
Sending a Quick Text Message
Press the programmed Text Message button
and proceed to step 3.
OR
Press the programmed One Touch Call button to
send a predefined Quick Text message to a
predefined alias or ID and proceed to step 6.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Messages. Press N to select.
3Por Q to Quick Text and press N to
select.
4Por Q to the required Quick Text and
press N to select.
5Por Q to the required alias or ID and
press N to select.
6The display shows Text Message:
<Subscriber/Group Alias or ID>.
7If the message is sent successfully, a tone
sounds. Display shows Message Sent.
OR
If the message cannot be sent, the display
shows Message Send Failed.
If the message fails to send, the radio returns you
to the
Resend
option screen.
•Press N to resend the message to the same
subscriber/group alias or ID.
•Select
Forward
to send the message to
another subscriber/group alias or ID.
•Select
Edit
to edit the message before
sending it.
NOTE: Once a message is sent to another
radio, it is saved in Sent Items. The most
recent sent text message is always
added to the top of the Sent Items list.
The Sent Items folder stores a maximum
of thirty (30) last sent messages. When
the folder is full, the next sent text
message automatically replaces the
oldest text message in the folder.
The icon at the top right corner of the
screen indicates the status of the
message.
Replying to a Text Message with
Quick Text from the Inbox
Press the programmed Text Message button
and proceed to step 3.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Messages. Press N to select.
3Por Q to Inbox. Press N to select.
4Por Q to the required message and
press N to select.
A subject line may be shown if the message
is from an e-mail application.
5Press N once more to access the sub-
menu.
6Por Q to Reply and press N to select.
7Por Q to Quick Text and press N to
select.
8Press N once more to send the reply.
9The display shows Text Message:
<Subscriber/Group Alias or ID>.
10 If the message is sent successfully, a tone
sounds. Display shows Message Sent.
OR
If the message cannot be sent, the display
shows Message Send Failed.
If the message fails to send, the radio returns you
to the
Resend
option screen.
•Press N to resend the message to the same
subscriber/group alias or ID.
•Select
Forward
to send the message to
another subscriber/group alias or ID.
•Select
Edit
to edit the message before
sending it.
NAG-LACR-EMEA.book Page 73 Monday, April 28, 2008 4:59 PM
English
Sending an Emergency Alarm
1Press the programmed Emergency button.
2The display shows Sending Alarm, which
alternates with your radio ID. The LED lights
up solid green and the Emergency icon
appears on the Home screen display.
3When an Emergency Alarm acknowledgment
is received, the Emergency tone sounds and
the LED blinks green. The display shows
Emergency Alarm Successful.
OR
If your radio does not receive an Emergency
Alarm acknowledgement, and after all retries
have been exhausted, a tone sounds and the
display shows Emergency Alarm Failed.
4Radio exits the Emergency Alarm mode and
returns to the Home screen.
If your radio is set to Silent, it will not display any
audio or visual indicators during Emergency
mode.
Privacy
Press the programmed Privacy button to toggle
privacy on or off.
OR
Follow the procedure below.
1S to access the menu.
2Por Q to Utilities. Press N to
select.
3Por Q to Radio Settings. Press N to
select.
4Por Q to Privacy. Press N to select.
5The display shows Privacy and Turn On.
Press N to enable privacy. The display
shows Privacy On.
OR
The display shows Privacy and Turn On.
Press N to disable privacy. The display
shows Privacy Off.
NAG-LACR-EMEA.book Page 74 Monday, April 28, 2008 4:59 PM
*6880309T24*
6880309T24-D
Motorola, Inc.
1301 E. Algonquin Rd.
Schaumburg, IL 60196-1078, U.S.A.
MOTOROLA and the Stylized M Logo are
registered in the U.S. Patent and Trademark Office.
All other product or service names are the property
of their respective owners.
© 2006 – 2008 by Motorola, Inc.
All rights reserved. Printed in the U.S.A.
April 2008
www.motorola.com/mototrbo
