Movea AS04126 Wireless Keyboard User Manual FCC IC EU Statement
Movea, Inc Wireless Keyboard FCC IC EU Statement
Movea >
user manual
User’s Guide
AS04126
2.4GHz Wireless Keyboard
1
Federal Communications Commission Radio(FCC)
Statement
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions :
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
Caution:
*Risk of explosion if battery is replaced by an incorrect
type.
*Dispose of used batteries according to the instructions.
*Changes or modifications not expressly approved by
the party responsible for compliance could void the
user's authority to operate the equipment
Canada Statement
This Device complies with RSS-210 of the IC Rules,
Operation is subject to the following two conditions:
(1). This device may not cause interference and
(2). This device must accept any interference received,,
including interference that may cause
undesired operation.
2
1 Feature
Transmission mode: RF
Frequency: 2400~2483MHz
RFchannel quantity: 78
Bandwidth of Channel: 1MHz
Data Send timing: <500us
Power: 2 × AAA batteries
Modulate mode: GFSK
Effective distance: 10m
Number of keys: 86 keys
Low battery indicating voltage:2.2V@5%
Operational Temperature: +5 ~ +40℃
2 System Requirements
Microsoft Windows 98/ME/2000/XP/Vista/7 or
later version
An available USB port
3 Installation & Use
Plug the USB receiver into a computer’s USB port:
□
□□
□ Windows 98 SE/ME
3
The system finds new device and prompts you to
insert the operating system CD-ROM. Follow the
instructions on the screen to install the required
drivers.
□
□□
□ Windows 2000/XP/Vista/7
The operating system identifies the receiver as a
“USB Human Interface Device” and begins
installation automatically. When completed, the
system will prompt that “You new hardware is
installed and ready to use.”

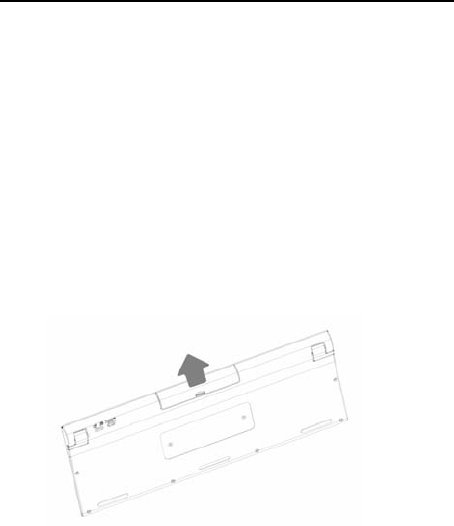

Remove the keyboard battery compartment cover.
Install batteries with the positive (+) & negative (-)
in the correct direction indicated by the AAA
battery compartment label.
4
Replace the battery compartment cover.

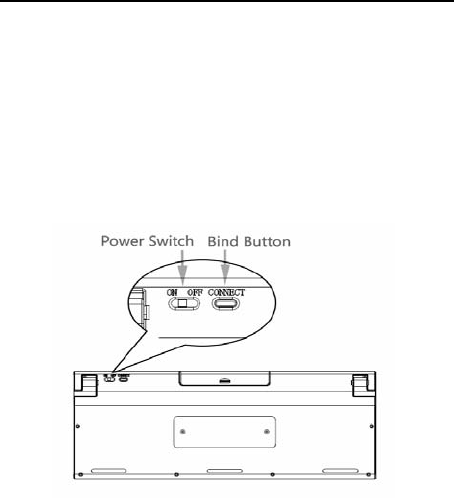

Switch on the Keyboard.
Before first time of use, you need to bind the
keyboard to the receiver as below:
With the keyboard close to the receiver within
50cm and press the bind button.
In normal use, the led on the receiver blinks
according to the wireless keyboard’s operation, if
the keyboard and mouse are not in operation, the
led is off.

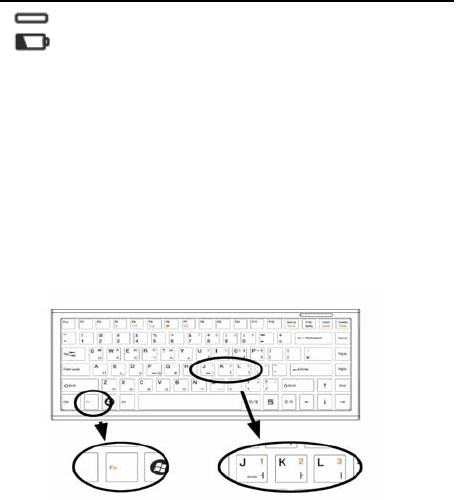

Keyboard LED function
5
Fn--Function Key
Characters in orange are accessed through the
Fn key which works like a shift key, to activate
these function, please hold-down “Fn” key before
press these keys.
Low Battery----This LED will be lit if the
battery power is low, you should replace the
battery right now.
FCC Statement
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
To assure continued compliance, any changes or modifications not
expressly approved by the party responsible for compliance could void
the user’s authority to operate this equipment. (Example- use only
shielded interface cables when connecting to computer or peripheral devices).
RF Statement
This equipment complies with Part 15 of FCC RF Rules. Operation is
subject to the following two conditions:
1) This device may not cause interference and
2) This device must accept any interference, including interference
that may cause undesired operation of the device.
Caution!
The manufacturer is not responsible for any radio or TV interference
caused by unauthorized modifications to this equipment. Such modifications
could void the user authority to operate the equipment.
Canada Statement
This Device complies with RSS-210 of the IC Rules; Operation is subject to
the following two conditions:
(1). This device may not cause interference and
(2). This device must accept any interference received,, including interference
that may cause undesired operation.
