Movita Technologies ODX-100 External USB Combo Drive User Manual od 100 safety
Movita Technologies Inc. External USB Combo Drive od 100 safety
User Manual
Notice: The changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to
operate the equipment.
Federal Communications Commission (FCC) - Notebook
The Federal Communication Commission Radio Frequency
Interference Statement includes the following paragraph:
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However there is no guarantee
that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
q Reorient or relocate the receiving antenna.
q Increase the separation between the equipment and the receiver.
q Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
q Consult the dealer or an experienced radio/TV technician for help.
Shielded interconnect cables and shielded AC power cable must be
employed with this equipment to insure compliance with the pertinent
RF emission limits governing this device. Changes or modifications not
expressly approved by the system’s manufacturer could void the user’s
authority to operate the equipment.
SAFETY & COMPLIANCE
Declaration of Conformity
This device complies with part 15 of the FCC rules. Operation is
subject to the following conditions:
q This device may not cause harmful interference.
q This device must accept any interference received, including
interference that may cause undesired operation.
Federal Communications Commission (FCC) – Fax/modem
This equipment complies with Part 68 of the FCC Rules. On this
equipment is a label that contains, among other information, the FCC
registration number and Ringer Equivalence Number (REN) for this
equipment. You must, upon request, provide this information to your
telephone company.
If your telephone equipment causes harm to the telephone network, the
Telephone Company may discontinue your service temporarily. If
possible, they will notify in advance. But, if advance notice isn't
practical, you will be notified as soon possible. You will be informed of
your right to file a complaint with the FCC.
Your telephone company may make changes in its facilities, equipment,
operations, or procedures that could affect proper operation of your
equipment. If they do, you will be notified in advance to give you an
opportunity to maintain uninterrupted telephone service.
The FCC prohibits connecting this equipment to party lines or coin-
telephone service.
In the event that this equipment should fail to operate properly,
disconnect the equipment from the phone line to determine if it is
causing the problem. If the problem is with the equipment, discontinue
use and contact your dealer or vendor.
The FCC also requires the transmitter of a FAX transmission be
properly identified (per FCC Rules Part 68, Sec. 68.381 (c) (3)).
Canadian Department of Communications-Notebook
This class B digital apparatus meets all requirements of the Canadian
Interference-causing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences
du Réglement sur le matériel brouilieur du Canada.
VCCI
DHHS- the CD-ROM Drive
FDA Regulations require the following statement for all laser-based
devices:
“Caution, Use of controls or adjustments or performance of
procedures other than those specified herein may result in
hazardous radiation exposure.”
Caution: This appliance contains a laser system and is classified as a
“CLASS 1 LASER PRODUCT”. To use this model properly, read the
instruction manual carefully and keep this manual for future reference.
In case of any trouble with this model, please contact your nearest
“Authorized Service Station”. To prevent direct exposure to the laser
beam, do not try to open this enclosure.
CLASS 1 LASER PRODUCT
LASERSCHUTZKLASSE 1 PRODUKT
TO EN60825
UL/TUV Battery & FAX/Modem Caution and Important
Safety Instructions
CAUTION
"CAUTION-To reduce the risk of fire, use only No.26 AWG or large
telecommunication line cord."
"CAUTION-Always disconnect all telephone lines from the wall outlet
before servicing or disassembling this equipment."
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer. Discard used batteries according to the manufacturer’s
instructions.
VORSICHT!
Explosionsgefahr bei unsachgemäâen Austausch der Batterie Ersatz
nur durch denselben oder einem vom Hersteller empfohlenem
ähnlichen Typ. Entsorgung gebrauchter Batterien nach Angaben des
Herstellers.
IMPORTANT SAFETY INSTRUCTIONS
When using your telephone equipment, basic safety precautions should
always be followed to reduce the risk of fire, electric shock and injury to
persons, including the following:
Do not use this product near water, for example, near a bath tub, wash
bowl, kitchen sink or laundry tub, in a wet basement or near a
swimming pool.
Avoid using a telephone (other than a cordless type) during an
electrical storm. There may be a remote risk of electric shock from
lightning.
Do not use the telephone to report a gas leak in the vicinity of the leak.
Use only the power cord and batteries indicated in this manual. Do not
dispose of batteries in a fire. They may explode. Check with local
codes for possible special disposal instructions.
This product intended to be supplied by a Listed Power Unit,
marked ”Class 2” or “LPS” and output rated +15 ~ 16V dc , 3 ~ 3.13 A”
SAVE THESE INSTRUCTIONS
CTR21 Notice
The equipment has been approved in accordance with Council
Decision 98/482/EC for pan-European single terminal connection to the
public switched telephone network (PSTN). However, due to
differences between the individual PSTNs provided in different
countries, the approval does not, of itself, give an unconditional
assurance of successful operation on every PSTN network termination
point.
In the event of problems, you should contact your equipment
supplier in the first instance.
ANNEX II
Note: The manufacturer should ensure that the vendor and user of
the equipment is clearly informed of the above information by
means of packaging and/or user manuals or other forms of user
instructions.
ANNEX III
This declaration will indicate the networks with which the equipment
is designed to work and any notified networks with which the
equipment may have interworking difficulties.
Network compatibility declaration to be made by the manufacturer
to the user.
The manufacturer shall also associate a statement to make it clear
where network compatibility is dependent on physical and software
switch settings. It will also advise the user to contact the vendor if it
is desired to use the equipment on another network
CE Declaration of Conformity
The system computer model H300 and accessories conform to the
following production specifications:
Manufacturer Name:
Manufacturer Address:
Model Name: OD-100
Is herewith confirmed to comply with the requirements set out in the
Council Directive on the Approximation of the Laws of the Member
Sates relating to Electromagnetic Compatibility (89/336/EEC) and Low-
voltage Directive (73/23/EEC & 93/68/EEC). For the evaluation
regarding the Electromagnetic Compatibility and Low-voltage Directive
the following standards were applied.
Standards
89/336/EEC-EMC Directive
EN 55022：
1998/A1:2000(Clas
s B)
Limits and methods of measurement of radio
disturbance characteristics of information
technology equipment.
EN 61000-3-2 :
1995/A1/A2:1998/A
14:2000
Disturbances in supply systems caused by
household appliance and similar electrical
equipment “harmonics”.
EN 61000-3-3 :
1995/A1:1998 Part 2: harmonics/parts: voltage fluctuations.
EN 55024:1998 ITE Immunity Standard
IEC 61000-4-2 :
1995/A1:1998/A2:2
000
Electrostatic discharge requirements
IEC 61000-4-3 :
1996/A1:1998/A2:2
000
Immunity to radiated, radio frequency
electromagnetic fields
IEC 61000-4-4 :
1995/ A1:2000 Electrical fast transient requirements
IEC 61000-4-5 :
1995/ A1:2000
Surge requirements
1995/ A1:2000
IEC 61000-4-6 :
1996/ A1:2000 RF Common Mode requirements
IEC 61000-4-8 :
1993/ A1:2000 Power Frequency Magnetic Field requirements
IEC 61000-4-11 :
1994/ A1:2000 Voltage Interruptions and Voltage Dips
requirements
73/23/EEC-Low Voltage Directive
EN 60950 1992
+A1+A2+A3+A4+A
11
Safety for information technology equipment
including electrical business equipment
The following manufacturer/importer is responsible for this declaration:
Company Name:
Company Address:
Person responsible for making this declaration:
Name:
Position:
Place
Date:
Package Content
OD-100 series External USB 2.0 optical drive package should contain the
following, if any of the items is damaged or missing, please contact your
retailer immediately for the replacement.
- OD-100 series optical CD drive
- USB 2.0 cable
- Power cable and adapter
- Multi-language user’s manual
NOTE: This applies to the retail box. Your drive may have been shipped in a
different box with other contents, depending on whom you purchased the drive from
and what they included inside the box.
Welcome
Thank you for purchasing OD-100 Series optical CD drive. A reliable,
high-performance external CD drive that connects to your computer with
a USB2.0 cable. Please read this manual carefully before you use this
drive.
System Requirements
- Computer: Pentium II, 300-MHz CPU or faster.
- Minimum RAM: 64 MB.
- USB port: USB 2.0 or 1.1
- Operating system: Windows 98SE, Windows 2000, Windows
Me, or Windows XP.
NOTE: It’s require to have one of these operating systems. In the case of Windows
98, you must have Windows 98SE or later
Specifications
The OD-100 series has the following specifications,
Chipset CYPRESS CY7C68300
Interface USB2.0 / 1.1
Access Time 72ms (1/3 stroke)
Optical Device ODC-100 (CD-ROM) 12.7mm height
ODR-100 (CD-RW ) 12.7mm height
ODV-100 (DVD-ROM) 12.7 mm height
ODB-100 (Combo) 12.7 mm height
Write Methods
(ODB-100,ODR-100)
Track at once; Disk at once; Multi-session;
Incremental
Disc Type 8cm/12cm; CD+ROM Mode-1, Ｍ
ode-2(Form1,Form2) ; CD-DA ;
CD-ROM XA; Photo CD; CD-l; Video CD;
CD-Plus; CD-R; CD-RW;
CD-Text
Write Verification
(ODB-100,ODR-100)
Running Optimum Power Control to
dynamically adjust laser write power
Logical Recording Format IS09660; UDF; Packet Write; Mount Rainier
Disc Loading Power Tray
MTBF 100,000 POH

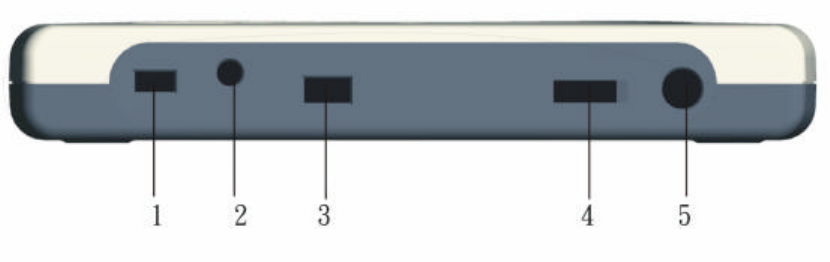

Rear panel
(One) DC jack
(One) volume control knob
(One) USB jack
(One) line-out jack
(One) on-off Switch
Dimension 159(L) x 141(W) x 21(H)
Weight 300g (with optical disk driver)
AC/DC Input:100-200VAC, 50/60Hz, 0.5A Output: 5VDC,
2.0A
Safety & EMC TUV, UL, FCC, BSMI, C-TICK, VCCI, CE
Features
- USB2.0 interface
- Operate at high (480Mbps) or full (12Mbps) speed.
- Comply with T13s ATA/ATAPI-6 Draft specification.
- Support PIO modes 0, 3, 4, and UDMA modes 2, 4,
- ATA interface IRQ signal support.
- Support for ATA/ATAPI devices configured either master or slave.
ODB-Drive Controls

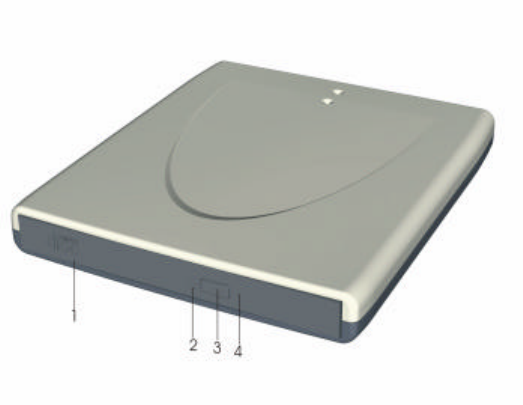

Front panel
1 Tray front door: Attached to tray drawer.
2 LED indicator:
Green: Power is on and a disc in the drive
. Blinking greenr: Reading or Writing data to disc.
3 Emergency eject hole: Illuminated to indicate drive operation:
Turn OFF power before using this feature.
Insert emergency eject tool, paper clip, or other thin,rigid object to eject
tray if automatic eject button does not work.
4 Eject button: Push once to eject tray. Push again to insert the tray back
into the OD-100. To prevent wear on the drive, always use the eject
button to insert the tray.
Rear Panel
1 Power switch: switch to turn power on or off.
2 Power connector: Connect the AC adapter here.
CAUTION: Use the AC adapter shipped with your OD-100 Series.
3 USB connector: Connect the USB cable here.
CAUTION: Use the USB cable shipped with your OD-100 Series.
4 Volume control: Controls volume of headphone jack.
5 Headphone jack: Stereo mini-jack for headphones and powered
speakers.

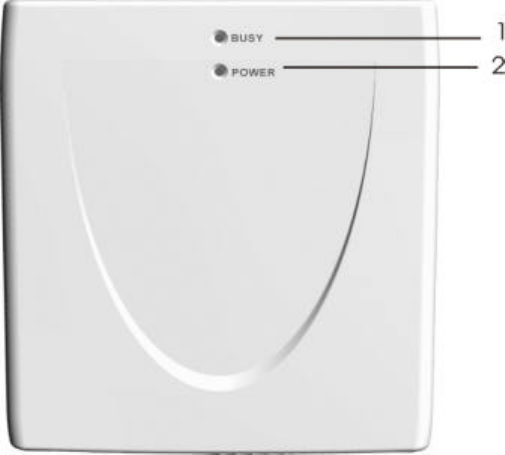

Top View
1 Power indicator
Red: Power is on
2 Busy singal indicator
. Blinking amber: Reading or Writing data to disc.
Installing your OD-100
1. Turn ON your computer system.
2. Connect the AC adapter to your OD-100.
3. Turn the PlexWriter’s power switch ON
4. Connect the USB cable from your OD-100 drive to the computer.
The drive will be automatically recognized by the system.
