Chapter 1 Introduction
The following topics are covered in this chapter:
Overview

Features
Specifications
WAPN002 User’s Manual Introduction
Overview
WAPN002 PCI Express Module is designed to provide wireless communication for all wireless device based
systems. It communicates via the standard 802.11a/b/g/n protocols. The WAPN002 uses the AR9280 wireless
chipset from Atheros. This module is connected to the PCI bus through a PCI Express connector and special
circuitry to allow for compatibility with either 3.3V or 5V PCI signaling.
.
Features
 Dynamic frequency selection (DFS) in required 5-GHz bands
 All-CMOS MIMO solution interoperable with IEEE 802.11a/b/g/n WLANs
 2x2 MIMO technology improves effective throughput and range over existing 802.11a/b/g products
 Supports spatial multiplexing, cyclic-delay diversity (CDD), and maximal ratio combining (MRC)
 2.4/5 GHz WLAN MAC/BB processing
 BPSK, QPSK, 16 QAM, 64 QAM, DBPSK,DQPSK, and CCK modulation schemes
 Data rates of up to 130 Mbps for 20 MHz channels and 300 Mbps for 40 MHz channels
 Wireless multimedia enhancements quality of service support (QoS)
 802.11e-compatible bursting
 WEP, TKIP, and AES hardware encryption
 88-pin, 10 mm x 10 mm LPCC package
 Case temperature 85°C
WAPN002 User’s Manual Introduction
Specification
Features WAPN002
Chipset Atheros AR9280
Baseband Processor
(BBP) ˙ DSS with DBPSK, DQPSK, CCK
˙ OFDM with BPSK, QPSK, 16QAM, 64QAM
˙ 802.11b: CCK@11/5.5 Mbps, DQPSK@2 Mbps, DBPSK@11 Mbps
˙ 802.11a/g: 64QAM@54/48 Mbps, 16QAM@36/24 Mbps, QPSK@18/12 Mbps
BPSK@9/6 Mbps
˙ 802.11n: 64QAM@300 to BPSK@6.5 Mbps (multiple rates supported)
security engine WEP64,WEP128, WEP256, AES-CCM, TKIP ,WPS
Bus Interface PCI Express 1.1 complaint
Connectors Defined BTB connector is using 2x40 pins header, and Support PCI Express standard.
Power requirement 1.2V +/-5%
1.8V +/-5%
3.3V +/-10%

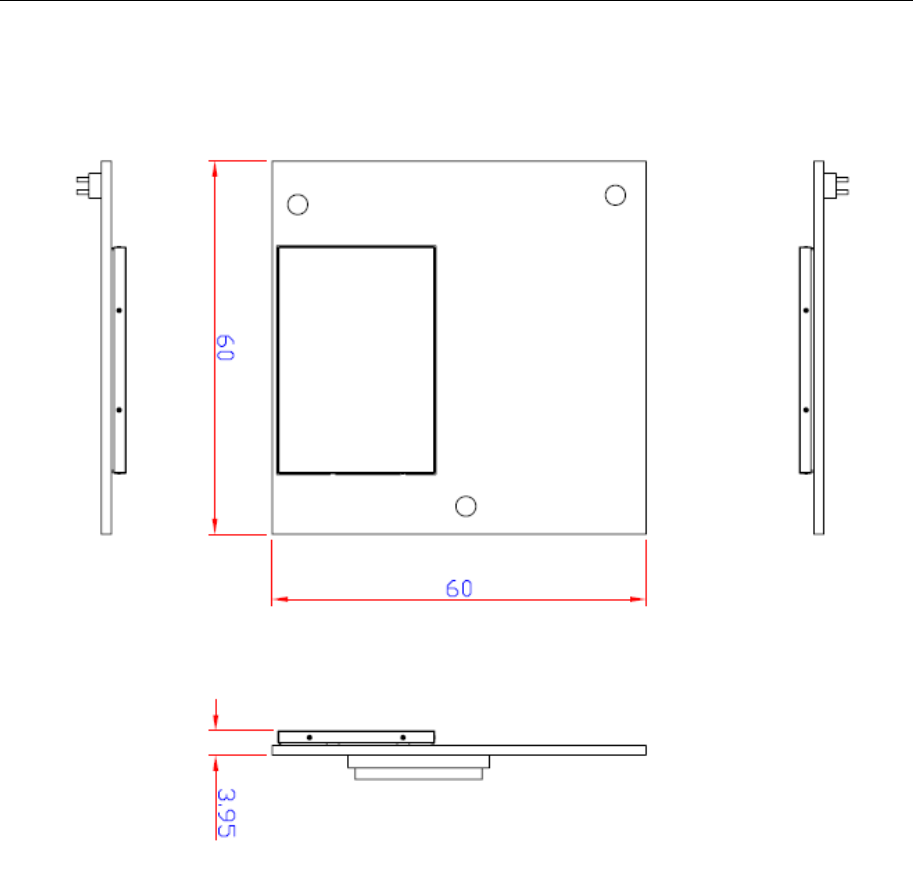

Dimension 50mm x 49mm x 1.2mm
Weight 15g
Operating
Temperature -40 to +80 ℃
Storage
Temperature: -40 to +150℃
2
2
Chapter 2 Getting Started
This chapter covers the module layout, and block diagram, hardware installation of the WAPN002. Software
installation is covered in the next chapter.
The following topics are covered:
Module Layout
Block Diagram
Hardware Installation
Software Installation
WAPN002 User’s Manual Getting Started
Module Layout
WAPN002 User’s Manual Getting Started
Block Diagram

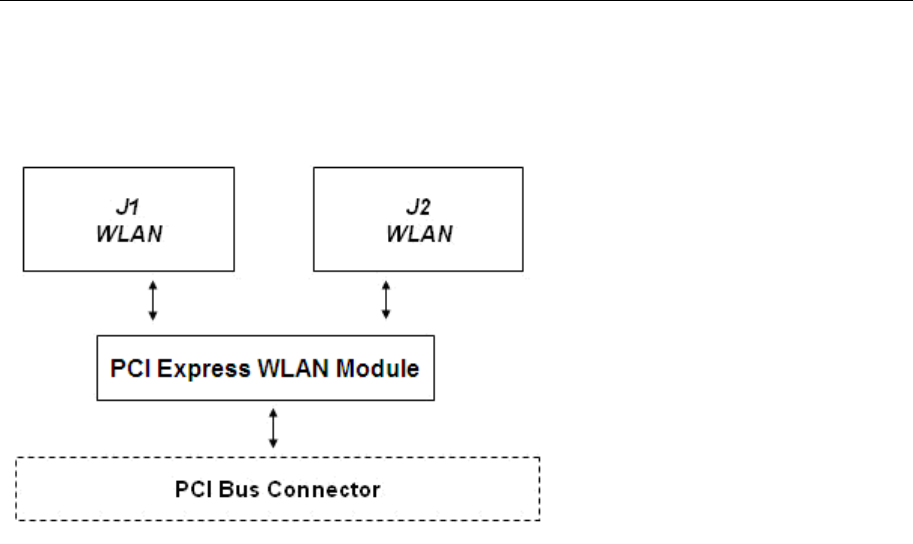

Below is a block diagram of the WAPN002. Primary board components are in bold, while external connections
are italicized.
WAPN002 User’s Manual Getting Started

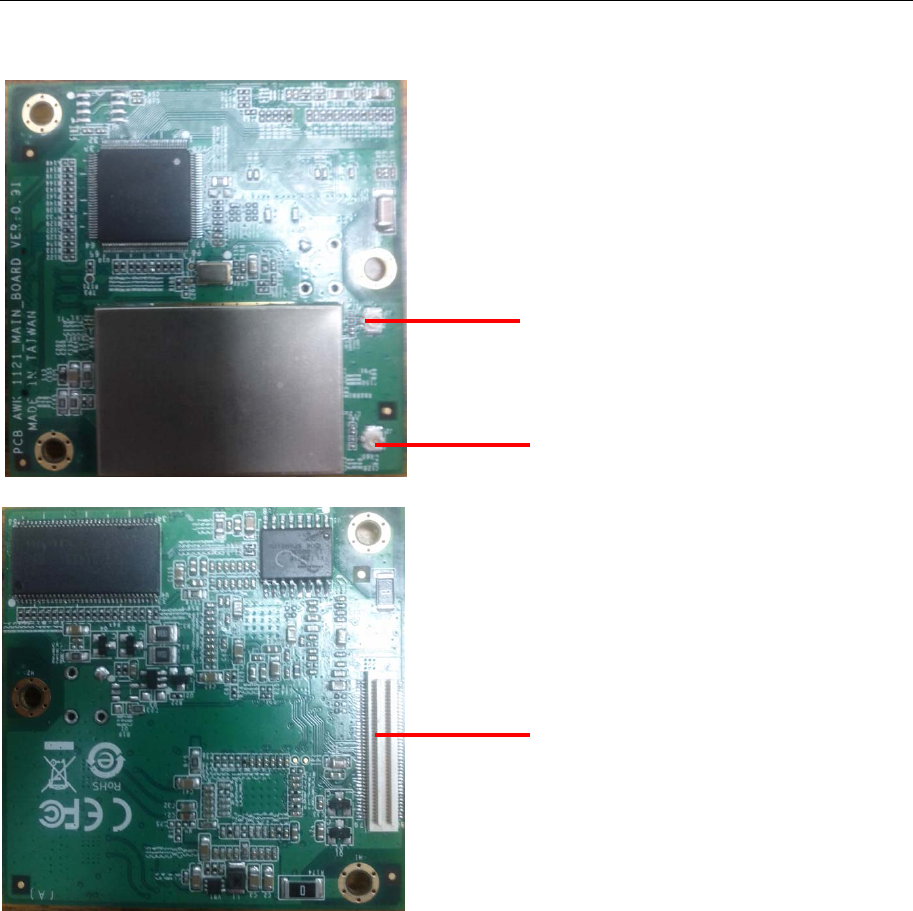

Connector Locations
J1
J2
PCI Express Connecto
r
WAPN002 User’s Manual Getting Started

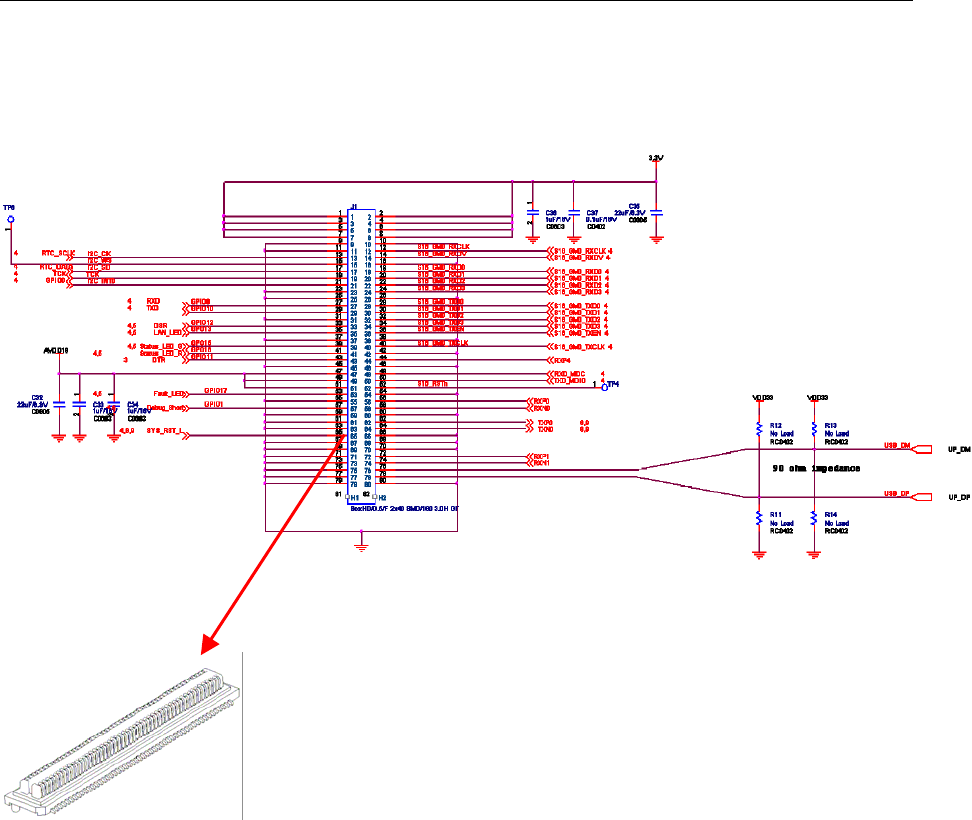

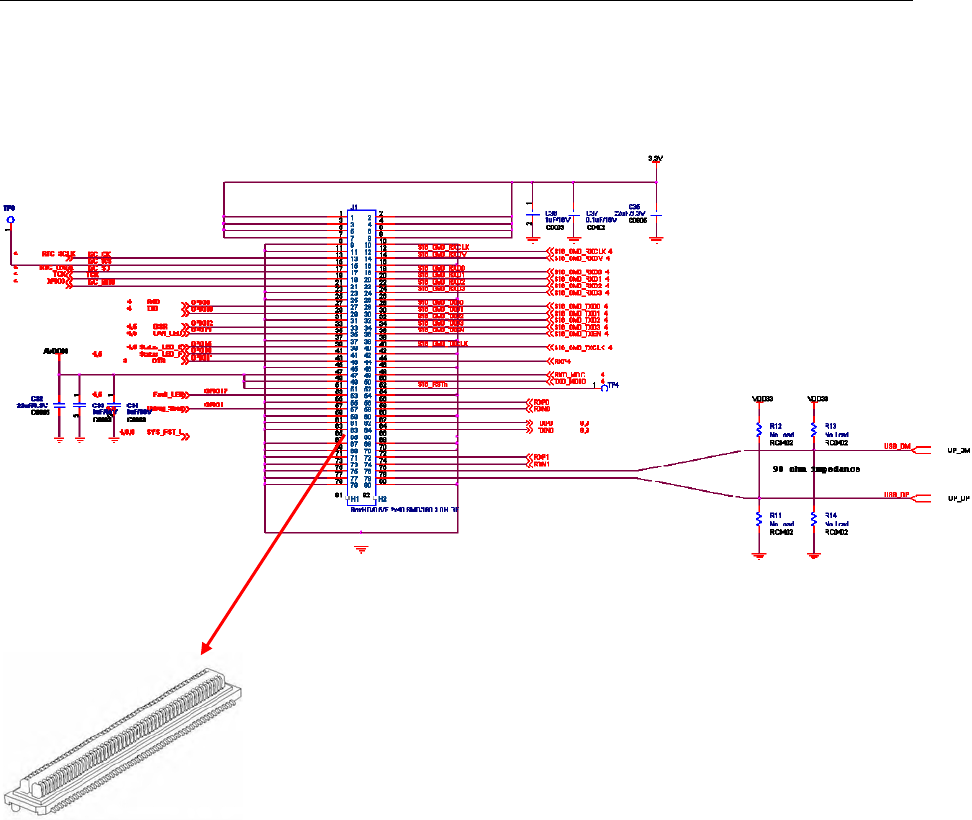

PCI Express Bus Connector PIN Assignments
WAPN002 User’s Manual Getting Started
Hardware Installation
The WAPN002 can be installed into all Moxa wireless system board series.
Step for Installation
1. Attach the WLAN antenna to connector J1.
2. If using 2nd WLAN antenna, attach it to connector J2.
3. Install the WAPN002 PCI Express card on the system board. Apply pressure to both bus
connectors and gently press the board onto the stack. The board should slide into the matching
bus connectors. Do not attempt to force the board, as this can lead to bent/broken pins.
4. Screw on the WAPN002 PCI Express card.
5. If any power boards are to be stacked above the WAPN002, install them.
6. Screw on the all the necessary chassis.
Software Installation
After physically installing the WAPN002, your operating system must be configured to recognize
the new system board.
Step for Installation
1. Apply power to the system board.
2. Connect system board and PC with Ethernet cable.
3. Open a browser and type: 192.168.127.253 to open the system login webpage.
4. Login the webpage with default password: root in order to verify that all of the hardware is
install properly.
