Moxa Industrial ZigBee Module SLEZ2150
User’s Manual
First Edition, November 2011
www.moxa.com/product
© 2011 Moxa Inc. All rights reserved.
Moxa Industrial ZigBee Module SLEZ2150
User’s Manual
The software described in this manual is furnished under a license agreement and may be used only in accordance with
the terms of that agreement.
Copyright Notice
© 2011 Moxa Inc. All rights reserved.
Trademarks
The MOXA logo is a registered trademark of Moxa Inc.
All other trademarks or registered marks in this manual belong to their respective manufacturers.
Disclaimer
Information in this document is subject to change without notice and does not represent a commitment on the part of
Moxa.
Moxa provides this document as is, without warranty of any kind, either expressed or implied, including, but not limited
to, its particular purpose. Moxa reserves the right to make improvements and/or changes to this manual, or to the
products and/or the programs described in this manual, at any time.
Information provided in this manual is intended to be accurate and reliable. However, Moxa assumes no responsibility for
its use, or for any infringements on the rights of third parties that may result from its use.
This product might include unintentional technical or typographical errors. Changes are periodically made to the
information herein to correct such errors, and these changes are incorporated into new editions of the publication.
Technical Support Contact Information
www.moxa.com/support
Moxa Americas
Toll
-free: 1-888-669-2872
Tel:
+1-714-528-6777
Fax:
+1-714-528-6778
Moxa China (Shanghai office)
Toll
-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Europe
Tel:
+49-89-3 70 03 99-0
Fax: +49-89-3 70 03 99-99
Moxa Asia
-Pacific
Tel:
+886-2-8919-1230
Fax: +886-2-8919-1231
Table of Contents
1. Introduction ...................................................................................................................................... 1-1
Overview ........................................................................................................................................... 1-2
Features ............................................................................................................................................ 1-2
Specifications ..................................................................................................................................... 1-2
2. Gettting Started ................................................................................................................................ 2-1
Module Layout .................................................................................................................................... 2-2
Block Diagram .................................................................................................................................... 2-2
Connector Locations ............................................................................................................................ 2-3
Hardware Installation .......................................................................................................................... 2-3
Software Installation ........................................................................................................................... 2-3
A. Regulatory Statements...................................................................................................................... A-1
SLEZ2150 User's Manual Introduction
1-2
Overview
The SLEZ2150 module is designed to provide ZigBee communication for all ZigBee-device-based systems. It
communicates via the standard 802.15.4 protocols. The SLEZ2150 uses the CC2530 chipset from TI. This
module is connected to the main board through SMA connector and special circuitry to allow for compatibility
with 3.3V PCI signaling.
Features
• Instant connection of any serial device to Zigbee network
• Secure data access with AES
Specifications
RF Data Rate 250 kbps
Outdoor/RF Line-of-Sight
Range
130 m
Transmit Power 4.5 dBm (Max)
Receiver Sensitivity (1% PER) -96 dBm
Adjustable Power Yes
Frequency Band 2.4 GHz
Interference Immunity DSSS (Direct Sequence Spread Spectrum)
PAN ID 0x0000~0xFFFF
Node ID 0x0000~0xFFFF
RF Channel 11-25 (15 channels)
Device Type Coordinator, Router, End Device
Network Topology Star, Mesh, Cluster
Security ZigBee Certified
Operating Temperature -40° C to +75° C
Power Requirement 3.3 V +/-10%
Information for OEMs and Integrators
The following statement must be included with all versions of this document supplied to an
OEM or integrator, but should not be distributed to the end user.
1)This device is intended for OEM integrators only.
2)Please See the full Grant of Equipment document for other restrictions.
Information for the OEMs and Integrators
The following statement must be included with all versions of this document supplied to an
OEM or integrator, but should not be distributed to the end user.
1) This device is intended for OEM integrators only.
2) The antenna must be installed such that 20cm is maintained between the antenna and users.
3) This module is applied for Limit Modular Approval in FCC. The module powered from Final Host or
products shall in accordance with module manufacture requirement.
4) Please see the full Grant of Equipment document for other restrictions.
As long as 4 conditions above are met, further transmitter test will not be required. However, the OME
integrator is still responsible for testing their end-product for any additional compliance requirements
required with this module installed.
IMPORTANT NOTE:
In the event that these conditions can not be met (for example, the host power to module can't meet
module manufacture requirement or co-location with another transmitter) then FCC authorization is no
longer consider valid and the FCC ID can not be use on the final product. In these circumstances, the
OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and
obtaining a separate FCC authorization.
SLEZ2150 User's Manual Gettting Started
2-2

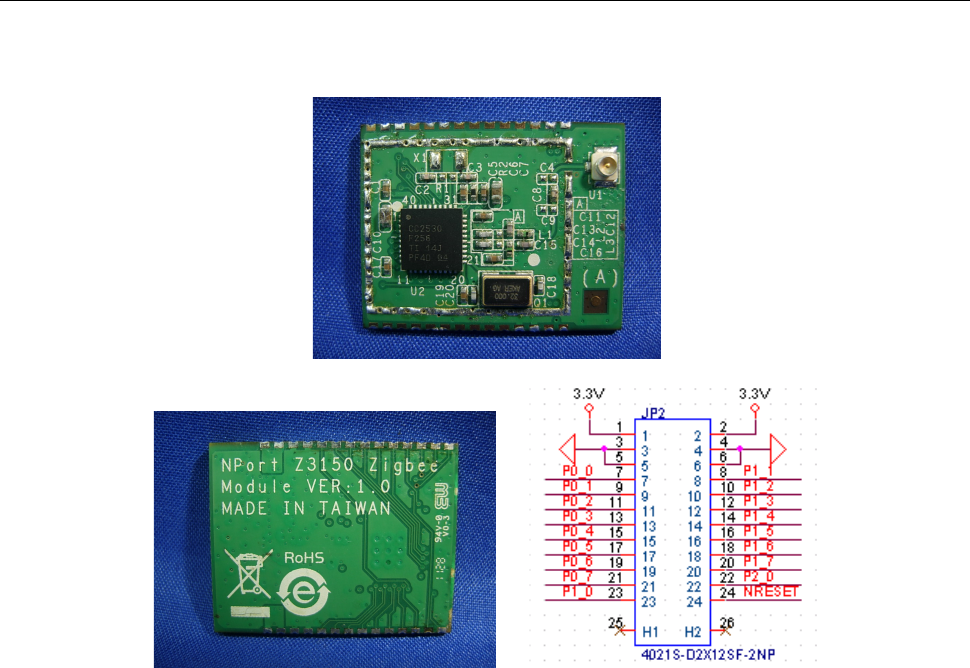

Module Layout
Block Diagram
SLEZ2150 User's Manual Gettting Started
2-3
Connector Locations
Hardware Installation
The ZigBee Module can be installed into all MOXA Zigbee system board series.
Steps for Installation
1. Attach the WLAN antenna to connector UI
2. Let ZigBee Module connect to NPort Z2150/3150
3. Screw on the ZigBee Module
Software Installation
After physically installing the SLEZ2150, the module will be recognized on the new system board after the
following steps.
Steps for Installation
1. Apply power to the system board.
A
A. Regulatory Statements
Federal Communications Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the grantee of this device could void the user's
authority to operate the equipment.
Labeling requirements
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed such that 20cm
may be maintained between the antenna and users. The final end product must be labeled in a visible area with
the following: "Contains FCC ID: SLEZ2150”
RF exposure warning
This equipment must be installed and operated in accordance with provided instructions and the antenna(s)
used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons
and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and
installers must be provide with antenna installation instructions and transmitter operating conditions for
satisfying RF exposure compliance.
Antenna Requirement:
This radio transmitter has been approved by FCC to operate with the antenna types listed below with the
maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types
not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly
prohibited for use with this device.
Antenna Type:Dipole
Peak Gain:2.9dBi for 2.4 GHz
