Mr DJ PBX4000BAT 15ft rechargeable speaker User Manual

Mr DJ Inc. 15ft rechargeable speaker

User Manual

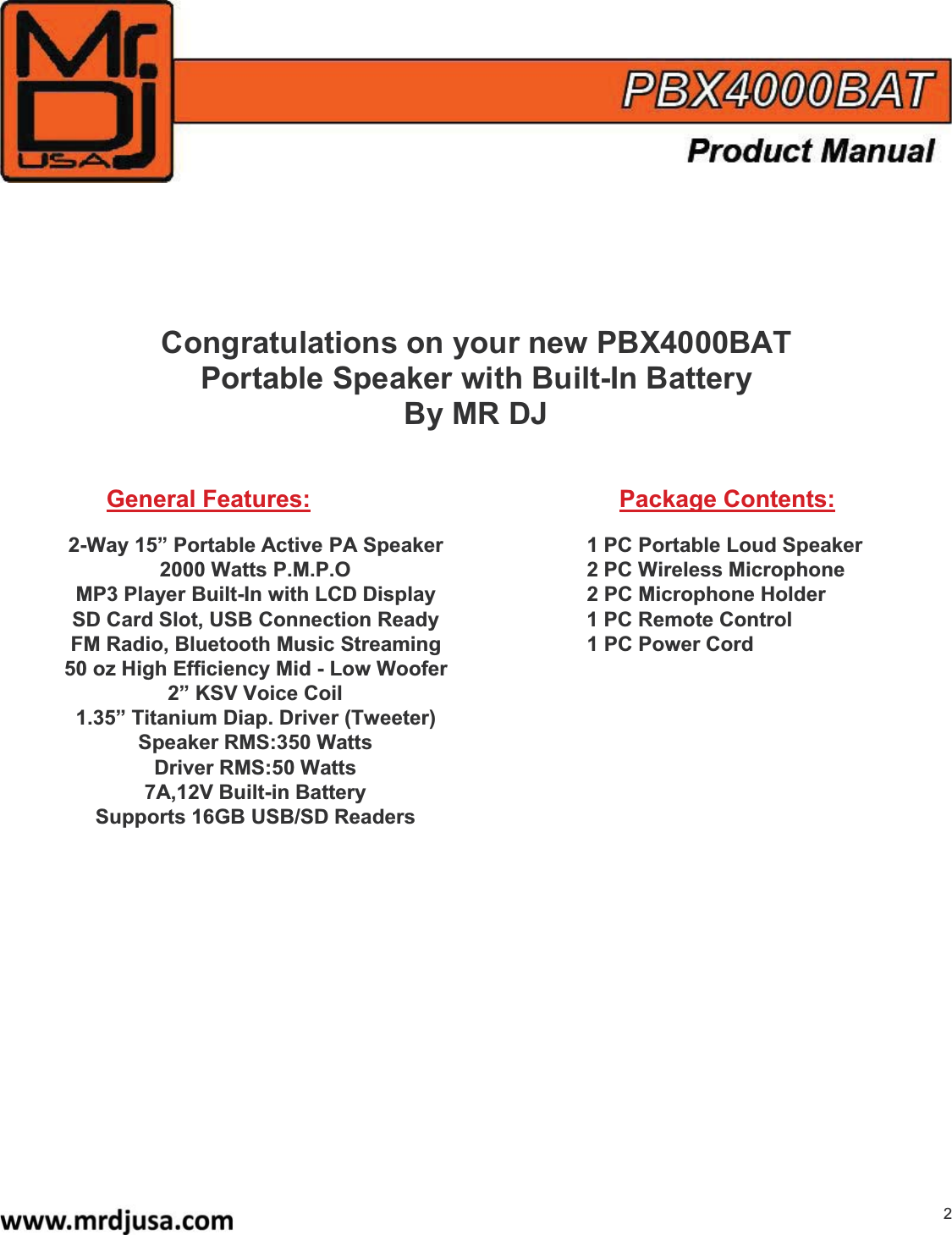

2Congratulations on your new PBX4000BATPortable Speaker with Built-In BatteryBy MR DJGeneral Features: Package Contents:2-Way 15” Portable Active PA Speaker 1 PC Portable Loud Speaker2000 Watts P.M.P.O 2 PC Wireless MicrophoneMP3 Player Built-In with LCD Display 2 PC Microphone HolderSD Card Slot, USB Connection Ready 1 PC Remote ControlFM Radio, Bluetooth Music Streaming 1 PC Power Cord50 oz High Efficiency Mid - Low Woofer2” KSV Voice Coil1.35” Titanium Diap. Driver(Tweeter)Speaker RMS:350 WattsDriver RMS:50 Watts7A,12V Built-in BatterySupports 16GB USB/SD Readers
3
4
5
6

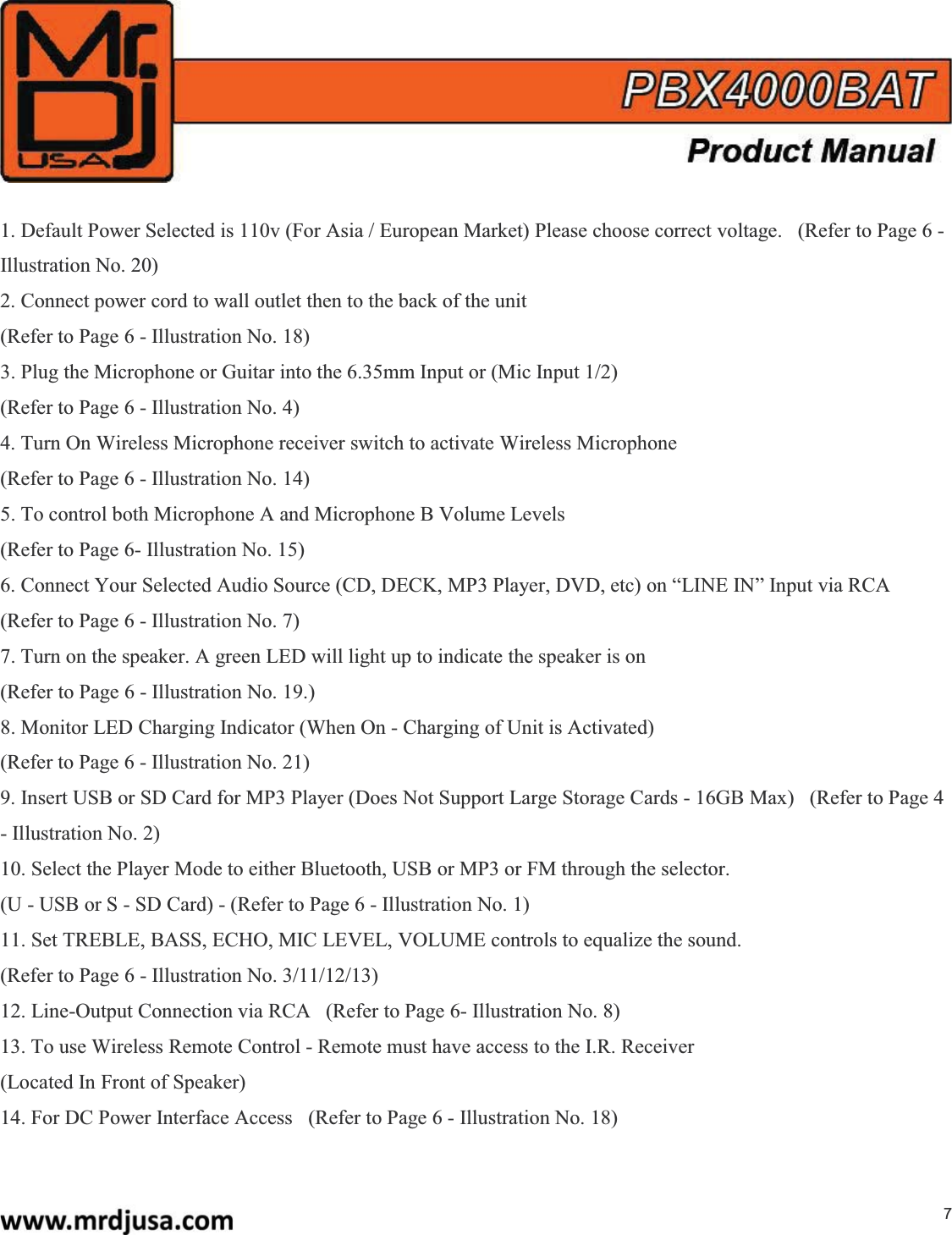

71. Default Power Selected is 110v (For Asia / European Market) Please choose correct voltage. (Refer to Page 6 -Illustration No. 20)2. Connect power cord to wall outlet then to the back of the unit(Refer to Page 6 - Illustration No. 18)3. Plug the Microphone or Guitar into the 6.35mm Input or (Mic Input 1/2)(Refer to Page 6 - Illustration No. 4)4. Turn On Wireless Microphone receiver switch to activate Wireless Microphone(Refer to Page 6 - Illustration No. 14)5. To control both Microphone A and Microphone B Volume Levels(Refer to Page 6- Illustration No. 15)6. Connect Your Selected Audio Source (CD, DECK, MP3 Player, DVD, etc) on “LINE IN” Input via RCA(Refer to Page 6 - Illustration No. 7)7. Turn on the speaker. A green LED will light up to indicate the speaker is on(Refer to Page 6 - Illustration No. 19.)8. Monitor LED Charging Indicator (When On - Charging of Unit is Activated)(Refer to Page 6 - Illustration No. 21)9. Insert USB or SD Card for MP3 Player (Does Not Support Large Storage Cards - 16GB Max) (Refer to Page 4- Illustration No. 2)10. Select the Player Mode to either Bluetooth, USB or MP3 or FM through the selector.(U - USB or S - SD Card) - (Refer to Page 6 - Illustration No. 1)11. Set TREBLE, BASS, ECHO, MIC LEVEL, VOLUME controls to equalize the sound.(Refer to Page 6 - Illustration No. 3/11/12/13)12. Line-Output Connection via RCA (Refer to Page 6- Illustration No. 8)13. To use Wireless Remote Control - Remote must have access to the I.R. Receiver(Located In Front of Speaker)14. For DC Power Interface Access (Refer to Page 6 - Illustration No. 18)
8

