Mrv Communications Lx 4000 Series Users Manual Getting Started With The

LX-4000 Series to the manual d9420098-644c-4d4c-8f68-6f9febe4a203

2015-02-09

: Mrv-Communications Mrv-Communications-Lx-4000-Series-Users-Manual-557917 mrv-communications-lx-4000-series-users-manual-557917 mrv-communications pdf

Open the PDF directly: View PDF .
Page Count: 65

Getting Started with the LX-4000 Series

451-0308P

Corporate Headquarters

MRV Communications, Inc. Corporate Center

20415 Nordhoff Street

Chatsworth, CA 91311

Tel: 818-773-0900

Fax: 818-773-0906

www.mrv.com (Internet)

MRV Americas Service and Support

295 Foster Street

Littleton, MA 01460

Tel: 800-435-7997

Tel: +001 978-952-4888 (Outside U.S.)

Email: service@mrv.com

MRV America Sales

295 Foster Street

Littleton, MA 01460

Tel: 800-338-5316 (U.S.)

Email: sales@mrv.com

MRV International Sales

Business Park Moerfelden

Waldeckerstrasse 13

64546 Moerfelden-Walldorf

Germany

Tel: (49) 6105/2070

Fax: (49) 6105/207-100

Email: sales@mrv.com

2MRV Communications, Inc. www.mrv.com 451-0308

MRV Communications, Inc. The information in this document is subject to change without notice and

should not be construed as a commitment by MRV Communications, Inc. MRV Communications, Inc.

reserves the right to revise this publication, and to make changes in content from time to time,

without obligation to provide notification of such revision or changes. MRV Communications, Inc.

assumes no responsibility for errors that may appear in this document.

Should you experience trouble with this equipment, please contact one of the following support

locations:

•If you purchased your equipment in the Americas, contact MRV Americas Service and

Support in the U.S. at 978-952-4888. (If you are calling from outside the U.S., call +011 978-

952-4888.)

•If you purchased your equipment outside the Americas (Europe, EU, Middle-East,

Africa, Asia), contact MRV International Service and Support at 972-4-993-6200.

FCC Notice

CAUTION

This equipment has been tested and found to comply with the limits for a

Class A digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

when the equipment is operated in a residential installation. This

equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instructions, can cause

harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on,

the user is encouraged to try to correct the interference by one or more of

the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the power cord of the equipment into an outlet on a circuit that

is different from that to which the receiver is connected.

• Consult the dealer or experienced radio/TV technician for help.

Changes or modifications not expressly approved by MRV Communications,

Inc. could void the user's authority to operate the equipment.

451-0308 MRV Communications, Inc. www.mrv.com 3

BSMI Notice

VCCI Notice

This is a Class A product based on the standard of the Voluntary Control Council for

Interference by Information Technology Equipment (VCCI). If this equipment is used in a

domestic environment, radio disturbance may arise. When such trouble occurs, the user may

be required to take corrective actions.

EXPORT NOTICE

MRV models contain 128-bit encryption software. Export of this product is restricted under U.S. law.

Information is available from the U.S. Department of Commerce, Bureau of Export Administration at

www.bis.doc.gov.

Licensing Notice

This software is licensed as described in the "License" file on the LX-Series CD Kit and at the MRV

website when downloading software.

4MRV Communications, Inc. www.mrv.com 451-0308

451-0308 MRV Communications, Inc. www.mrv.com 5

Table of Contents

Preface................................................................................................................................... 11

Customer Support ..............................................................................................................................11

Other Documentation ........................................................................................................................12

Overview of the LX-4000 Series........................................................................................... 13

Conventions ........................................................................................................................................13

System Specifications ........................................................................................................................14

Installing the LX-4000 Series ............................................................................................... 15

Hardware Installation .......................................................................................................................15

Unpack and Inspect the Unit ....................................................................................................... 15

Package Contents .......................................................................................................................... 15

LX-4000 Indicators and Interfaces....................................................................................................16

Front Panel LEDs ......................................................................................................................... 16

Rear Panel LEDs .......................................................................................................................... 17

Environmental and Installation Considerations..............................................................................19

Mounting the Unit into a 19-inch or 23-inch Rack ..........................................................................20

Cable Connections..............................................................................................................................20

Connect the Power Cable .............................................................................................................. 20

Connecting the Ethernet Interface............................................................................................... 20

Connect Serial Device Cables ....................................................................................................... 21

Connecting Your Management Station........................................................................................ 21

Connecting DC Power ................................................................................................................... 21

Modem Port (Optional) ......................................................................................................................22

Powering On .......................................................................................................................................22

System Login and Passwords ............................................................................................................23

Resetting the Unit..............................................................................................................................23

Configuring the LX-4000 Series for the First Time ............................................................ 25

Configuring the LX-4000 Unit for the First Time ............................................................................25

First Time Quick Configuration ................................................................................................... 25

Assigning an IP Address via the Network ................................................................................... 27

Manually Setting the IP Address Via the CLI .................................................................................28

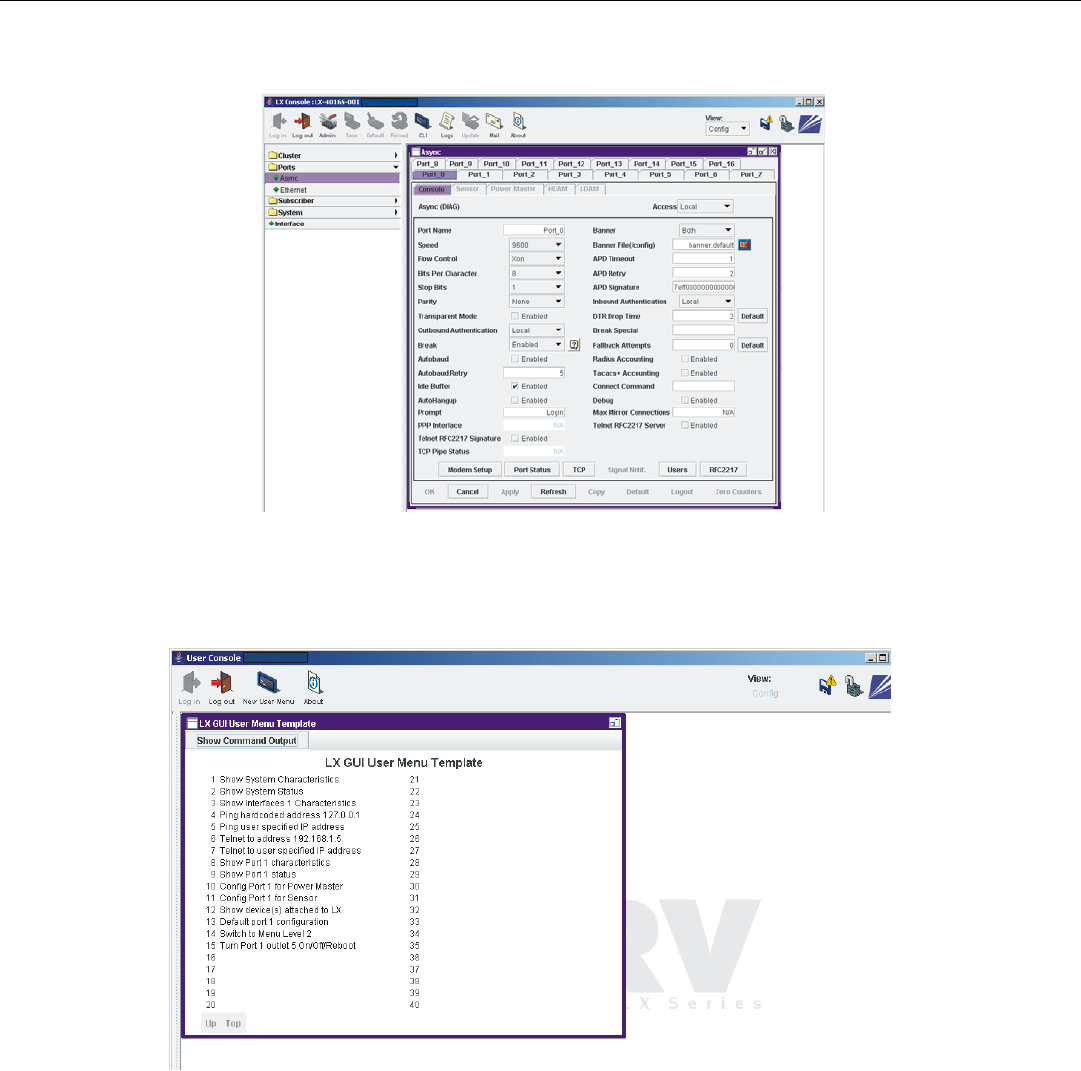

Accessing and Configuring the Graphical User Interface (GUI) ....................................................28

Web Configure Mode ..................................................................................................................... 31

Web Access Mode........................................................................................................................... 32

Menu/Config Mode ........................................................................................................................ 32

GUI EZ Configuration........................................................................................................................33

Launching the EZConfig GUI....................................................................................................... 33

Software Upgrades.............................................................................................................................34

IP Configuration Menu ......................................................................................................................34

Booting from Defaults........................................................................................................................34

Accessing and Configuring Additional Features ..............................................................................34

Connecting to the LX-4000 Series via Telnet or SSH ................................................................. 34

Accessing from a Terminal Attached to an LX-4000 Series Serial Port .................................... 35

Additional Considerations .................................................................................................................35

Command Line Interface (CLI) Tree Structure................................................................................36

Additional Considerations for an Internet Environment ................................................................36

6MRV Communications, Inc. www.mrv.com 451-0308

Autobauding Feature .........................................................................................................................36

Reinitializing/Powering Off the Unit ................................................................................................36

Alternative Port Capabilities................................................................................................ 37

Sensor (Temperature/Humidity) Ports .............................................................................................37

Connecting the Temperature/Humidity Sensor .......................................................................... 37

5250 Power Management ..................................................................................................................38

Connecting the 5250...................................................................................................................... 39

5150 Power Strip Management .........................................................................................................40

Connecting the 5150...................................................................................................................... 40

4800 Power Strip Management .........................................................................................................41

Connecting the 4800...................................................................................................................... 41

Using LX Ports as Alarm Inputs and Control Outputs ...................................................................42

Alarm Inputs Setup and Usage .................................................................................................... 42

Control Output Setup and Usage ................................................................................................. 43

Appendix A - Technical Specifications............................................................................... 45

Appendix B - Factory Defaults............................................................................................. 49

ppciboot Factory Default Settings.....................................................................................................50

Appendix C - POST Test Error Codes................................................................................. 51

Error Code Definitions.......................................................................................................................51

POST Test Error Code Sample..........................................................................................................53

Appendix D - Cabling the LX-4000 Series........................................................................... 55

Cabling Considerations......................................................................................................................55

Serial Device Connectors .............................................................................................................. 55

Diagnostic Port Connector (Port 0) .............................................................................................. 55

10/100 Connector........................................................................................................................... 56

Ordering Cables ............................................................................................................................ 56

Modular Adapters ..............................................................................................................................56

Pin Assignments............................................................................................................................ 56

Ordering and Installing the Inlet Connector Lock...........................................................................58

Connecting to the Diagnostic Port (Port 0).......................................................................................58

Modem Control/Hardware Flow Control ..........................................................................................58

RJ-45 Wiring Considerations ............................................................................................................59

Modular Adapters (RJ-45 to DB-25) .................................................................................................59

MRV 8-Wire Cabling..........................................................................................................................61

451-0308 MRV Communications, Inc. www.mrv.com 7

Figures

LX Series 4008 Front Panel ....................................................................................................... 16

LX Series 4016 Front Panel ....................................................................................................... 16

LX Series 4032 Front Panel ....................................................................................................... 16

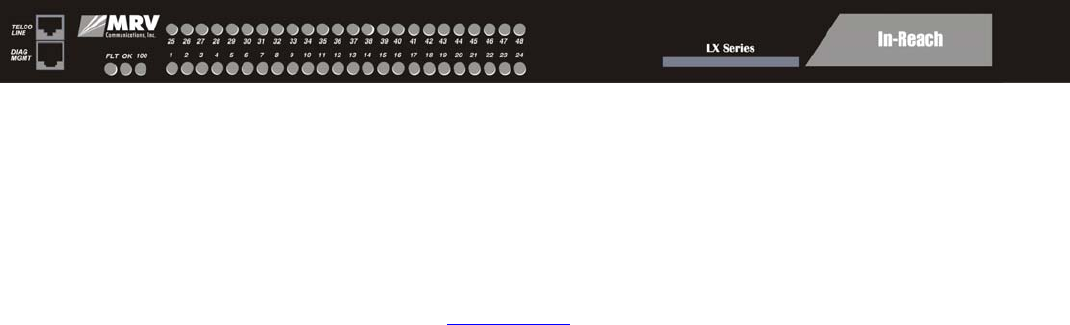

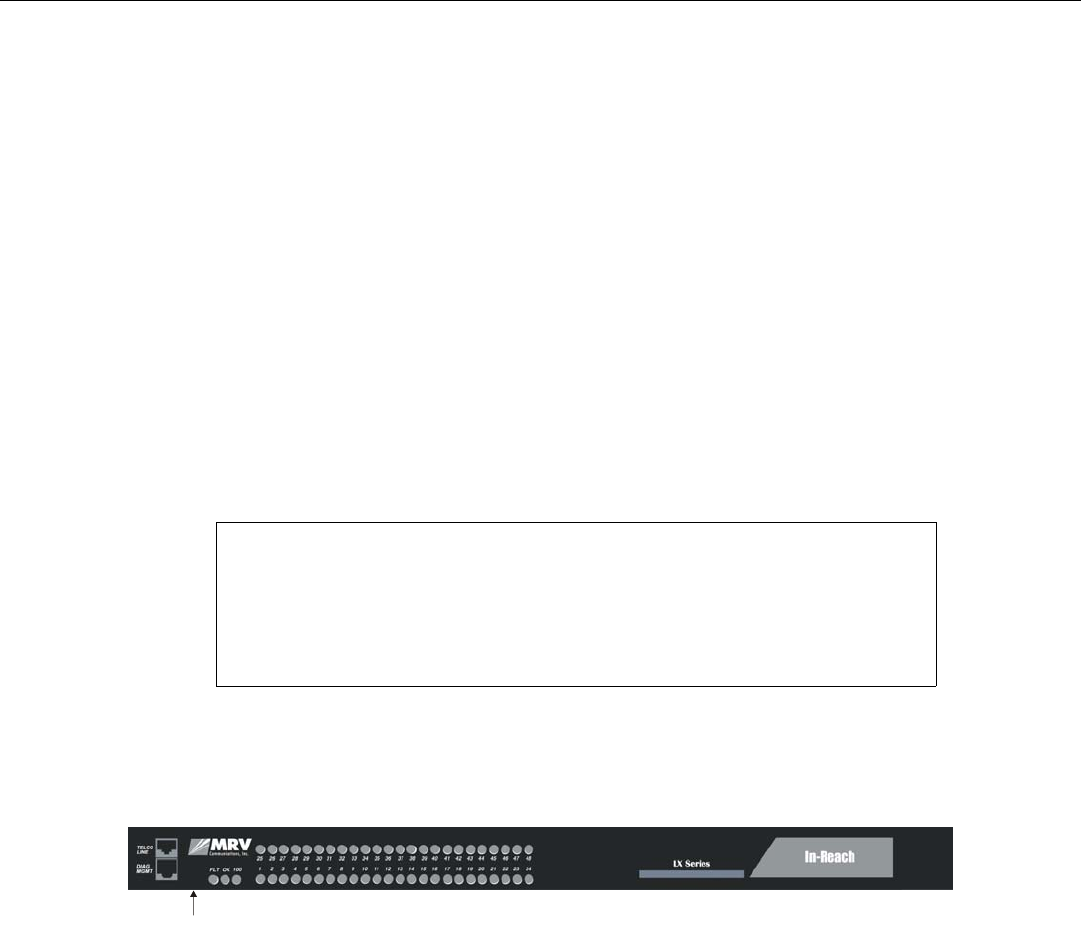

LX Series 4048 Front Panel ....................................................................................................... 16

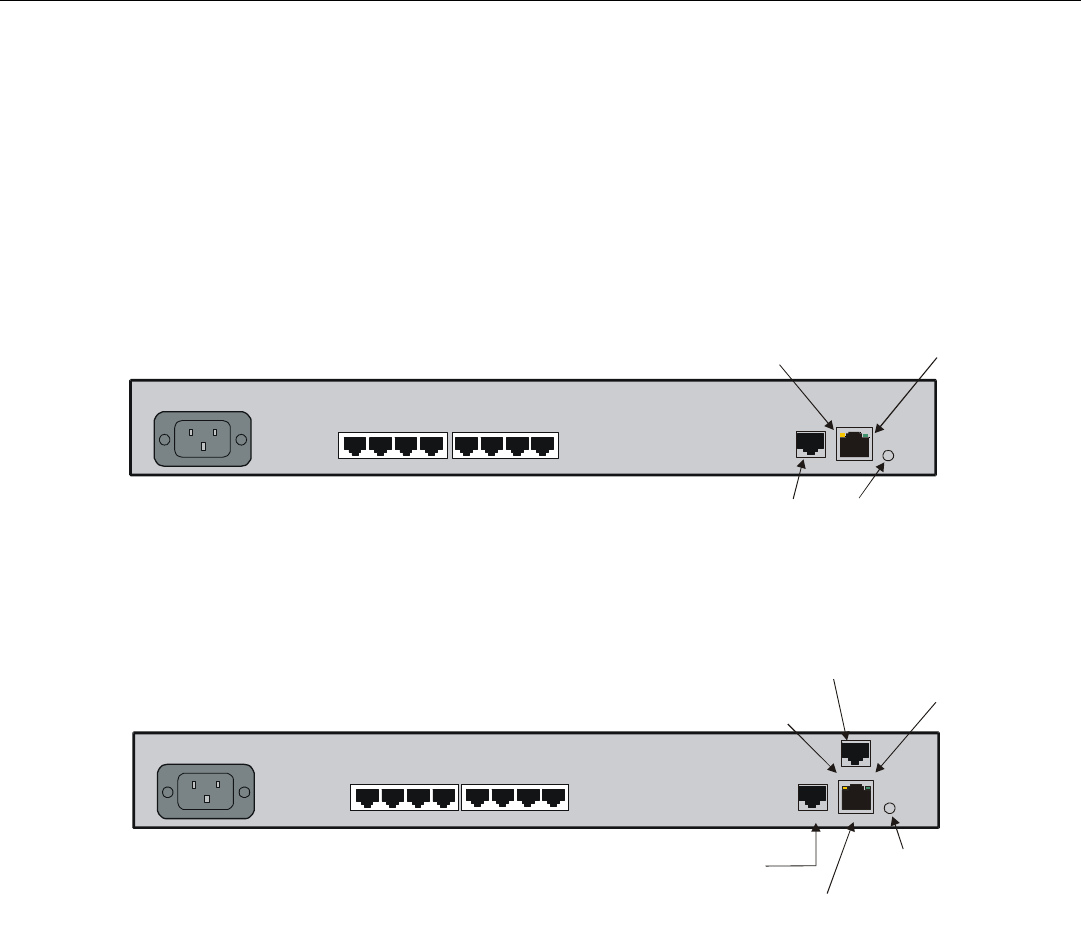

LX Series 4008 Rear Panel........................................................................................................ 17

LX Series 4008 with Modem Rear Panel ................................................................................... 17

LX Series 4016 with Modem Rear Panel ................................................................................... 18

LX Series 4016 DC Version Rear Panel..................................................................................... 18

LX Series 4032 with Modem Rear Panel ................................................................................... 18

LX Series 4032 DC Version with Modem Rear Panel ............................................................... 19

LX Series 4048 AC Rear Panel................................................................................................... 19

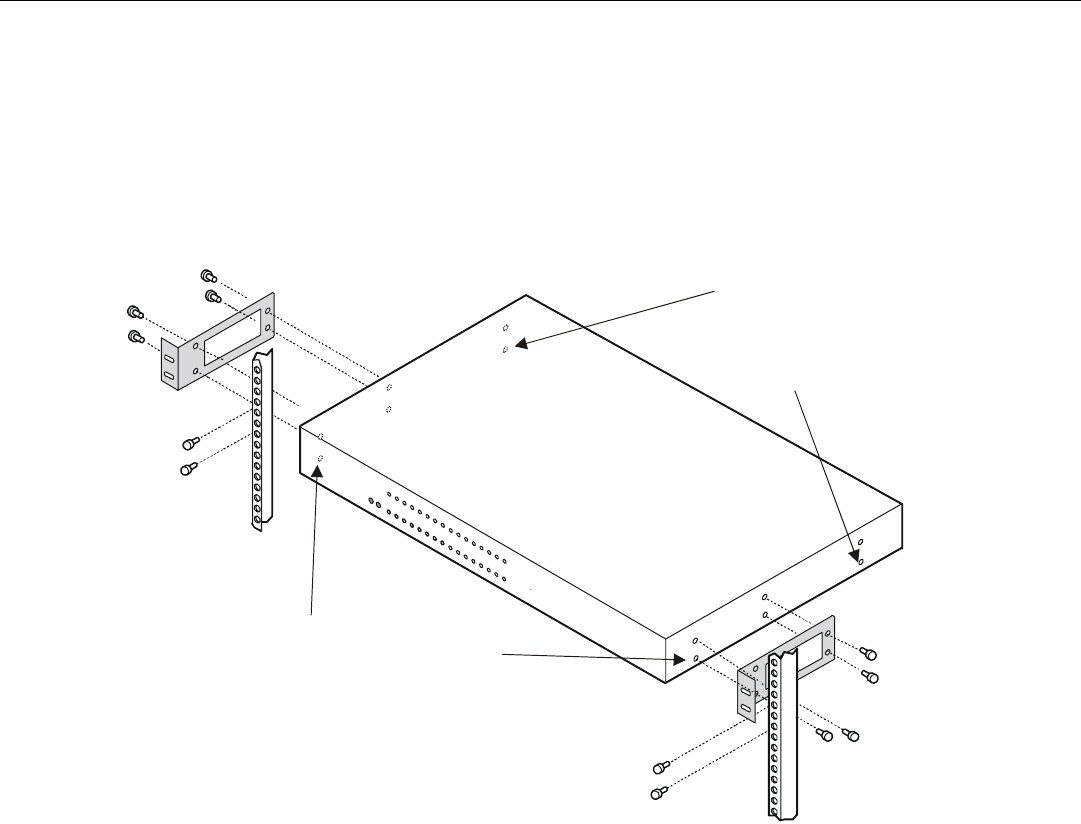

Mounting an LX-4000 Series in Rack ........................................................................................ 20

Connecting DC Power ................................................................................................................. 21

LX Series RESET Switch Location ............................................................................................ 23

Basic Menu Structure ................................................................................................................. 36

Connecting the Temperature/Humidity Sensor ........................................................................ 38

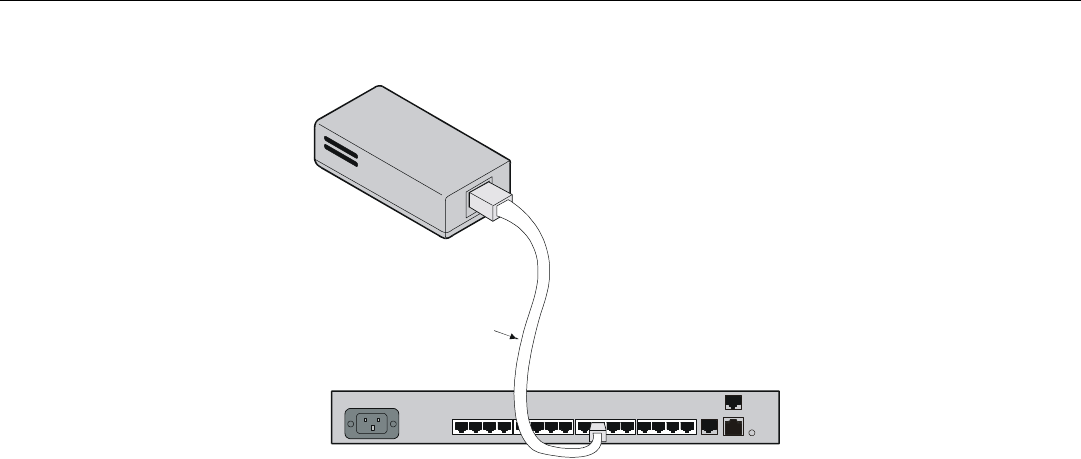

Connecting the 5250 ................................................................................................................... 39

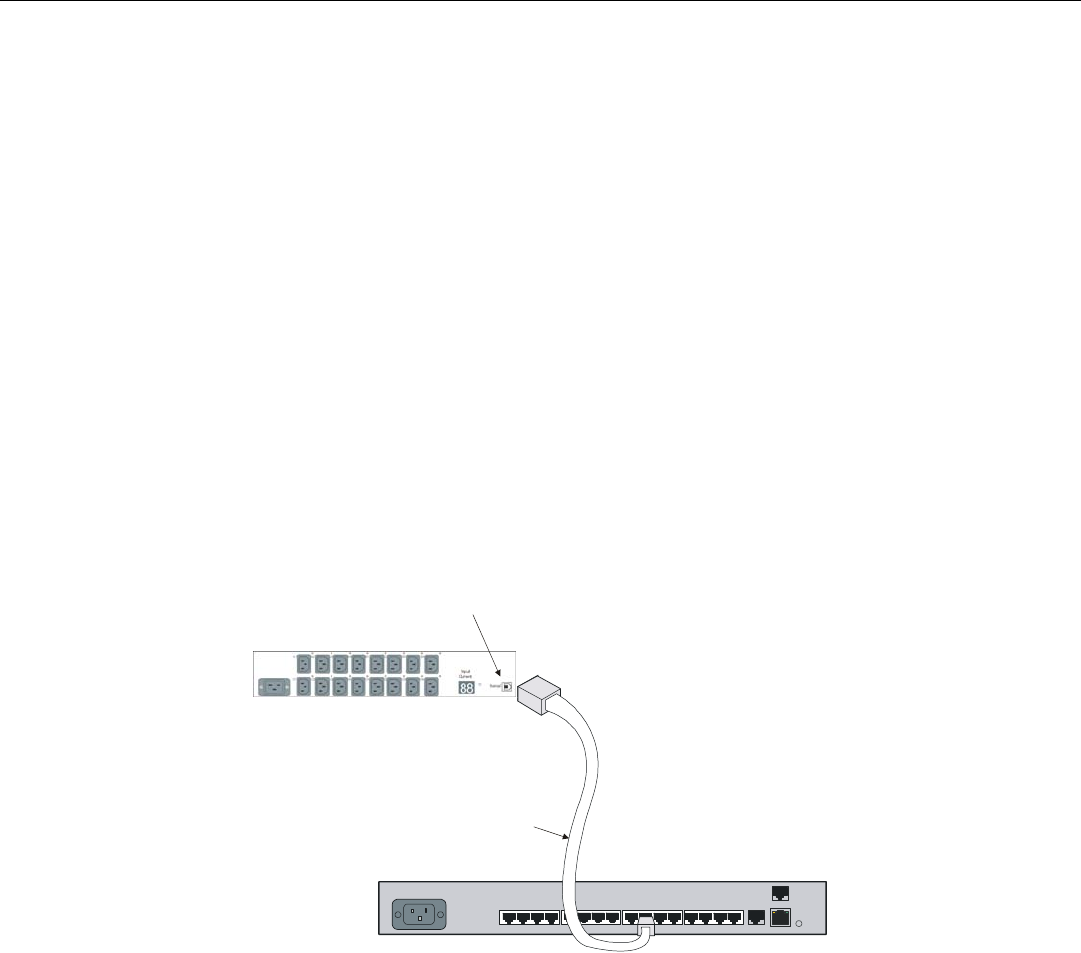

Connecting the 5150 ................................................................................................................... 40

Connecting the 4800 ................................................................................................................... 41

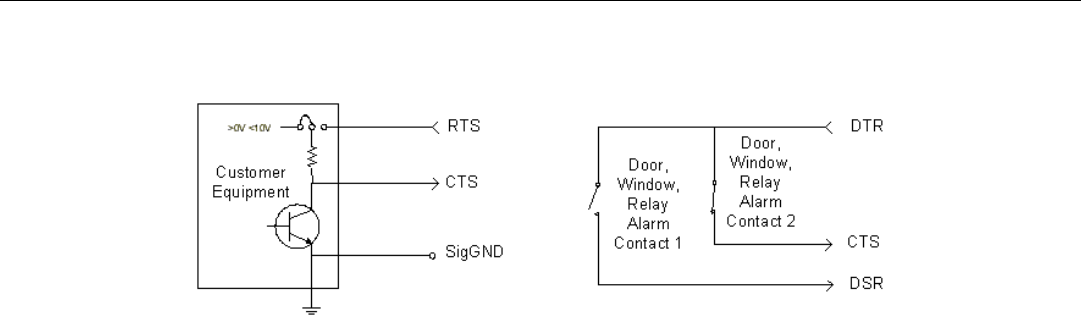

Typical Alarm Inputs Connections ............................................................................................ 43

Typical Interface Design for Control Output Signals ............................................................... 44

POST Test Error Code Sample................................................................................................... 54

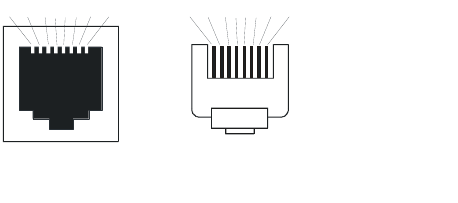

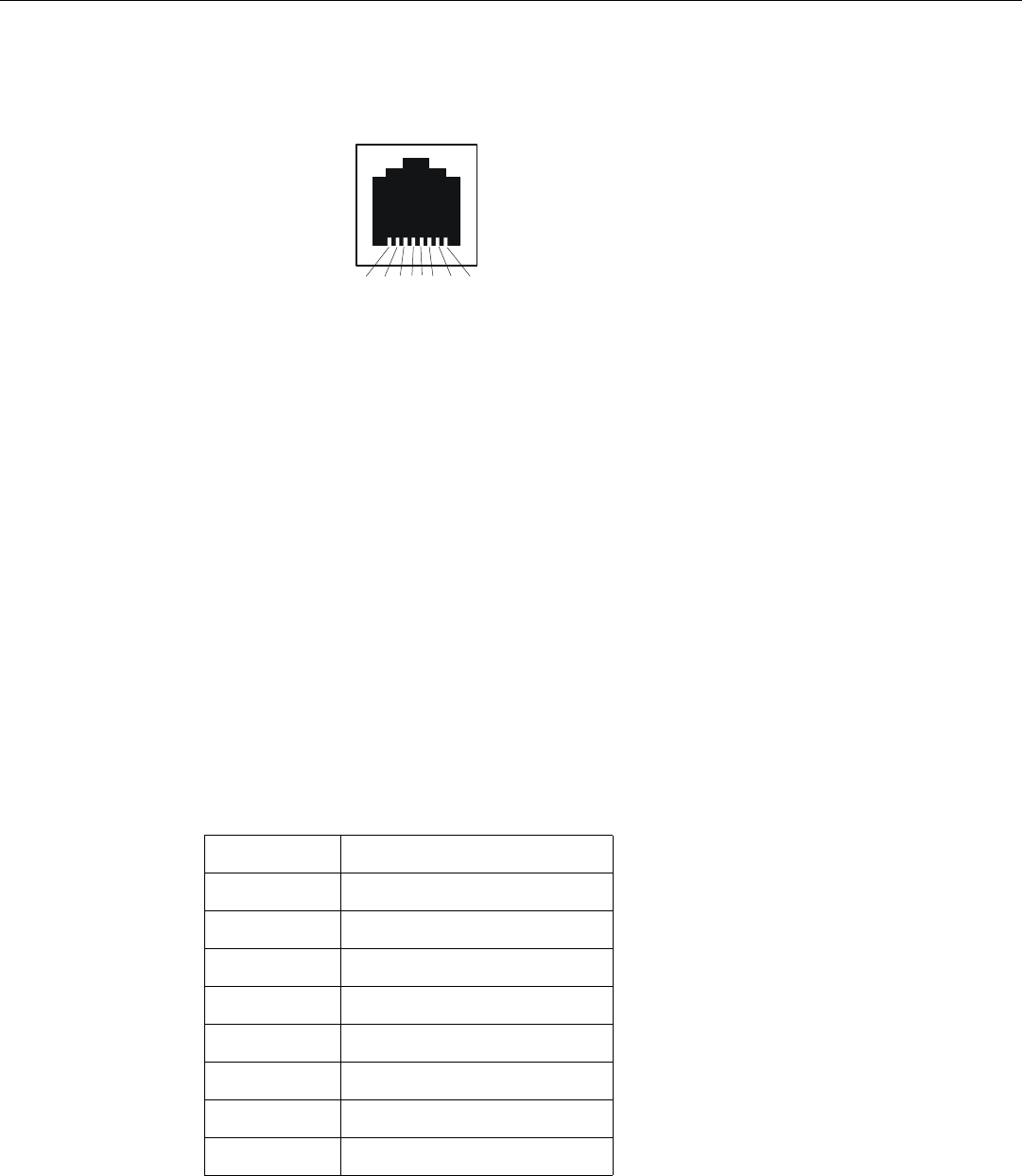

Serial Device Connector (RJ-45) Signal Assignments .............................................................. 55

10/100 Connector Assignments .................................................................................................. 56

DB-25 Pins................................................................................................................................... 57

Installing the Inlet Connector Lock ........................................................................................... 58

Adapter Wiring, LX Series to DTE ............................................................................................ 59

Adapter Wiring, RJ-45 to DB-9, LX Series to DTE................................................................... 60

Adapter Wiring, LX Series to DCE ............................................................................................ 60

Adapter Wiring, LX-Series to DCE, with RING........................................................................ 61

Modular Cables for RTS/CTS Flow Control (Eight-Wire), Concurrent with Modem Control Sig-

nalling.......................................................................................................................................... 62

8MRV Communications, Inc. www.mrv.com 451-0308

451-0308 MRV Communications, Inc. www.mrv.com 9

Tables

LX-4000 Series Specifications ....................................................................................................45

Temperature/Humidity Sensor Specifications .......................................................................... 48

LX-4000 Series Factory Defaults ...............................................................................................49

POST Test Error Codes ..............................................................................................................51

10 MRV Communications, Inc. www.mrv.com 451-0308

451-0308 MRV Communications, Inc. www.mrv.com 11

Preface

This guide contains all the information you need to get the LX-4000 Series up and running.

This guide is organized as follows:

•Preface - Describes the manual’s organization and how to contact customer support.

•Chapter 1 – Provides an overview of the LX-4000 Series, including supported communication

speeds, software requirements, and conventions.

•Chapter 2 – Describes how to install and connect the LX-4000 Series, as well as the unit’s

LEDs and connectors.

•Chapter 3 – Explains how to configure the unit for the first time, access the Graphical User

Interface, install Java Runtime Environment (JRE), and connect to the LX-4000 Series via

telnet and SSH.

•Chapter 4 – Describes alternative port capabilities, including temperature/humidity sensors,

4800/5150 power control units, and using LX ports as alarm input and control output port

points.

•Appendix A – Provides the electrical, environmental, and physical requirements for the LX-

4000 Series installation.

•Appendix B - Lists the factory default settings.

•Appendix C – Provides the error code definitions for the POST test error codes.

•Appendix D - Describes how to cable the LX-4000 Series unit.

Customer Support

Should you experience trouble with this equipment, please contact your MRV Americas Service and

Support customer representative in the USA at 978-952-4888. International customers call +011 978-

952-4888.

Preface

12 MRV Communications, Inc. www.mrv.com 451-0308

Other Documentation

Other manuals in the LX documentation set are:

•LX-Series Commands Reference Guide - Describes each individual command in the LX CLI

tree.

• LX-Series Configuration Guide - Provides information on network configuration, initial setup,

how to set up for remote console functions, RADIUS, and system administration. Provides

basic information regarding the Network Management System (NMS), and procedures on how

to use the Management Information Base (MIB) structure (as pointers to objects in the

devices) to manage these units.

•Software Release Notes - Cites supported features as well as any notes and restrictions for the

current software version.

451-0308 MRV Communications, Inc. www.mrv.com 13

Chapter 1

Overview of the LX-4000 Series

The LX-4000 Series is a secure standalone communication server that is designed for applications

requiring secure console or serial port management. The LX-4000 Series provides the most secure and

robust feature set to meet your remote console management and terminal server needs. The LX-4000

Series includes the most comprehensive security features, such as per port access protection,

RADIUS, Secure Shell v2.0, PPP PAP/CHAP, PPP dial-back, on-board database, menus, and others.

The LX-4000 Series console management solution enables centrally located or remote personnel to

connect to the console or craft ports of any network element or server. This serial connection allows

administrators to manage and configure the remote network devices and servers, as well as perform

software upgrades as if attached locally.

The LX-4000 Series also provides various port densities of RS-232 DTE RJ45 Serial ports, as well as

V.90/K56 flex Internal Modem options. Currently, the LX-4000 hardware provides port densities of 8,

16, 32, and 48 ports, plus port 0 for local management.

Conventions

The following conventions are used throughout this guide:

•User prompt – The user prompt is (for example) InReach:0> for Non-superusers or InReach:0>>

for superusers. The prompt will change based on a login user profile, as configured by the

Superuser. The 0 represents the session number.

Overview of the LX-4000 Series

14 MRV Communications, Inc. www.mrv.com 451-0308

•Configure Mode prompt – A sample configure mode prompt is Async 1-6:0 >>, where

Async is a reminder that tells you which part of the configuration you are in, 1-6 is the range

of ports any operation will affect, 0 is a session number, and >> indicates superuser mode. To

get to the Async 1-6:0 >> prompt, you must first type port async 1 6 at the Config:0

>> prompt. Note that you do not add a dash between the range numbers in port async 1 6.

•Command execution – Unless otherwise specified, commands are executed when you press

<RETURN>.

•Keyboard characters (keys) – Keyboard characters are represented using left and right

angle brackets (< and >). For example, the notation <CTRL> refers to the CTRL key; <A>

refers to the letter A; and <Enter> refers to the RETURN key.

•Typographical conventions – The following typographical conventions are used:

Monospace Typeface – indicates text that can be displayed or typed at a terminal (i.e.,

displays, user input, messages, prompts, etc.).

italics – are used to indicate variables in command syntax descriptions.

•Help Key (?) - At any prompt level, you can press ? to display the available commands at

that level. The only time this is not true is if you are in the midst of entering a command. If ?

is at the end of a partial command, the LX displays a list of valid arguments to assist you in

adding to the current command line.

•Tab - Press the Tab button to complete a partially entered command. You must enter the first

three characters of a command for autocomplete to work. If the command is already complete,

the Tab button displays available commands.

•Command Recall - The up arrow recalls previously used commands.

•Ctrl-F – Moves forward to the next session.

•Ctrl-B – Moves back to the previous session.

•Ctrl-L – Returns you to the Local Command Mode.

•Ctrl-K – Clears the current command line.

NOTE:You must press the Enter key after you type Ctrl-F, Ctrl-B, Ctrl-L, or Ctrl-K.

System Specifications

The following table lists important system specifications:

Item Description

Interface DTE RS-232 - RJ-45

Serial Line Speed 134.5 bps to 230 Kbps

Ethernet Interface 10/100 Auto Sensing

Default Serial Line Speed 9600 bps

451-0308 MRV Communications, Inc. www.mrv.com 15

Chapter 2

Installing the LX-4000 Series

Hardware Installation

This section explains how to install an LX-4000 Series Communications server and place it into

operation.

Unpack and Inspect the Unit

Place all packing materials back into the shipping carton and save the carton. (If you need to return

the unit to MRV or your distributor, you should return it in the original carton.)

Package Contents

The LX-4000 unit shipping carton contains the following items:

• One rack mounting kit. MRV provides the following mounting screws: Eight 6-32 x 5/16”

flathead screws for attaching the ears to the unit, and four 10-32 screws to attach to the rack.

• One power cord appropriate to your particular LX model.

• One 8-wire RJ-45 serial crossover cable.

• One female DB-9 to RJ-45 adapter.

• One software/documentation CD.

Installing the LX-4000 Series

16 MRV Communications, Inc. www.mrv.com 451-0308

LX-4000 Indicators and Interfaces

This section explains the LX-4000 unit’s indicators and interfaces.

Front Panel LEDs

This section explains the front panel LEDs (see Figures 1 through 4).

Figure 1 - LX Series 4008 Front Panel

Figure 2 - LX Series 4016 Front Panel

Figure 3 - LX Series 4032 Front Panel

Figure 4 - LX Series 4048 Front Panel

FLT

Solid red indicates a fault condition exists or maintenance is required. This LED remains on until the

initial Power On Self Test (POST) completes successfully.

Solid green indicates the system’s voltages are normal and the unit has passed the POST test.

FLT OK

100 Mbps LED

DIAG Port (Port 0)

FLT OK

Modem Port

451-0308 MRV Communications, Inc. www.mrv.com 17

Installing the LX-4000 Series

Port Status LEDs

Each of the eight (or 16, or 32, or 48) green LEDs flash when receive, transmit, or status activity is

detected on its corresponding serial port. The port status LEDs are used in several ways. During the

initialization process, the LEDs indicate self-tests are being performed, and if any self-test fails, they

indicate an error code. After a POST test and a system software boot, the lights indicate when a port

is actively being used.

Rear Panel LEDs

This section explains the rear panel LEDs and shows you a rear view of the various LX-4000 models

(see Figures 5 through 11).

Figure 5 - LX Series 4008 Rear Panel

Figure 6 - LX Series 4008 with Modem Rear Panel

100-240VAC

1.0A 50/60Hz

1234 5678

10/100

ETHERNET

RCV LINK

DIAG

100

RCV

100 Mbps

LIN

DIAG Port (Port 0)

100-240VAC

1.0A 50/60Hz

10/100 ETH

DIAG/MGMT

100

RCV

100

Mbps

LED

LINK

RCV LINK

TELCO

LINE

1 23 4 5678

10/100

Interface

Modem Port

DIAG Port (Port 0)

1 23 4 5678

Installing the LX-4000 Series

18 MRV Communications, Inc. www.mrv.com 451-0308

Figure 7 - LX Series 4016 with Modem Rear Panel

Figure 8 - LX Series 4016 DC Version Rear Panel

Figure 9 - LX Series 4032 with Modem Rear Panel

100-240VAC

1.0A 50/60Hz

9101112 13

14 15 16

10/100 ETHNT

DIAG

100

RCV

100

Mbps

LED

LINK

1 23 4 5678

RCV LINK

TELCO

LINE

10/100

Interface

Modem Port

DIAG Port (Port 0)

910 11 12 13 14 15 16

10/100

ETHERNET

DIAG

100

RCV

100 Mbps

LIN

1 23 4 5678

RCV LINK

-24/-48/-60 VDC

1.2 MAX

+ -

A+ -

DIAG Port (Port 0)

100-240VAC

1.0A 50/60Hz

10/100 ETHNT

DIAG

100

RCV

100

Mbps

LED

LINK

RCV LINK

TELCO

LINE

9101112 13

14 15 16

1234 5678

10/100

Interface

Modem Port

DIAG Port (Port 0)

9101112 13

14 15 16

1234 5678

25 26 27 28 29 30 31 32

17 18 19 20 21 22 23 24

451-0308 MRV Communications, Inc. www.mrv.com 19

Installing the LX-4000 Series

Figure 10 - LX Series 4032 DC Version with Modem Rear Panel

Figure 11 - LX Series 4048 AC Rear Panel

RCV

The RCV LED is one of two integral LEDs on the 10/100 jack. This yellow LED flashes to indicate

receive activity on the link.

LINK

This green LED defaults to a link good indicator. If the link is present and operating, the LED comes

ON.

100 Mbps

This green LED indicates speed. If the link is 100 Mbps, the LED comes ON. On LX-4048 units, this

LED is on the front of the unit.

Environmental and Installation Considerations

• Unit must be installed in an environment with 5% to 90% humidity, noncondensing, 0° -

40° C (32°-104° F).

• Do not choose a location where the unit will be exposed to direct sunlight or subjected to

vibration.

• Do not place an object on the side(s) of the unit that might block airflow through the unit.

10/100 ETHNT

DIAG

100

RCV

100 Mbps

LINK

RCV LINK

-24/-48/-60 VDC

1.2 MAX

+ -

A+ -

910 11 12 13 14 15 16

1 23 4 5678

DIAG Port (Port 0)

25 26 27 28 29 30 31 32

17 18 19 20 21 22 23 24

TELCO

LINE

Modem Port

100-240VAC

1.0A 50/60Hz

10/100 ETH

RCV

LINK

RCV LINK

10/100

Interface

9 101112 1314151612345678 17 18 19 20 21 22 23 24

33 34 35 36 37 38 39 40

25 26 27 28 29 30 31 32 41 42 43 44 45 46 47 48

Installing the LX-4000 Series

20 MRV Communications, Inc. www.mrv.com 451-0308

• The unit may be front, rear, or center mounted.

• There is no mounting difference between the 19” and 23” rack mount ears.

Mounting the Unit into a 19-inch or 23-inch Rack

Attach the brackets to the unit, and then mount the unit in the rack. Refer to Figure 12 for further

information.

Figure 12 - Mounting an LX-4000 Series in Rack

Cable Connections

This section explains the cable connections for the LX-4000 unit.

Connect the Power Cable

Connect the supplied power cable to the rear of the LX-4000 unit and plug the other end into a 3-

prong wall outlet.

Connecting the Ethernet Interface

NOTE: This port is set to auto negotiation by default. You can manually configure the port speed

and duplex if you want. Refer to the LX-Series Commands Reference Guide for further

details.

The three bottom side screws hold

the cover on the unit. To front-mount

the unit, you must

attaching the rack-mount brackets.

Then insert the supplied screws through

the brackets and into the same holes.

remove the front

and center top and bottom screws before

If you reverse-mount

the unit, remove the rear

and center top and bottom

screws, and insert the

supplied screws through

the rack-mount ears.

451-0308 MRV Communications, Inc. www.mrv.com 21

Installing the LX-4000 Series

Connect a category 3 (CAT 3) cable for 10 Mbps operation, or a category 5 (CAT 5) cable for 10/100

Mbps operation to the 10/100 connector on the rear of the LX-4000 Series (see Figure 5) and the other

end to your network. The LINK LED comes on steady green if the cable is properly connected.

Connect Serial Device Cables

Connect the serial device cables to the 8-pin RJ-45 jacks on the rear of the unit.

NOTE: LX-4000 Series serial ports provide concurrent support for RTS/CTS flow control and

modem control. Refer to Appendix A and Appendix D for further information.

Connecting Your Management Station

Connect the management station to the DIAG port (port 0) using the connector and cable you received

with the LX-4000 unit. Refer to “Connecting to the Diagnostic Port (Port 0)” in Appendix D for more

information on DIAG port connections.

Connecting DC Power

This section describes how to connect power to the DC version of the LX Series 4008, 4016, and 4032.

The LX-4048 model is made in an AC version only.

Figure 13 - Connecting DC Power

After you have installed the LX-4000 unit, you can connect the DC power as described in the following

procedure (refer to Figure 13):

1. Connect the LX-4000 to the facility's bonding network (or earth ground), using the points on the

rear panel of the LX-4000. The connection to the facility's bonding network should be made per

local practices, using wire with a minimum conductor size of 18 AWG.

2. Using a ¼-inch nut driver, remove the terminal block nuts.

3. Attach the facility’s “A” feed to the terminal block labeled “A”.

NOTE: Be sure that the -48VDC is connected to the minus side, and the 48VDC return is connected

to the plus side.

4. Attach the facility’s “B” feed to the terminal block labeled “B”.

5. Replace the nuts and tighten them securely.

#10

Grounding

Lugs

Installing the LX-4000 Series

22 MRV Communications, Inc. www.mrv.com 451-0308

The DC leads should be 22 AWG or larger. They should be terminated with a #5 ring terminal or

larger depending on the wire size used.

NOTE: The LX-4000 will run with only one DC power feed connected. The second input is provided

for redundant system power, which is used in high reliability installations.

6. Attach the clear plastic safety guard to the terminal blocks. (The clear plastic safety guard is pro-

vided with the LX-4000 kit.)

Modem Port (Optional)

The modem port is a V.90/K56flex Kbps optional factory installed modem on the LX-4000 Series. The

modem port allows you to dial back from, or dial in to or out of the LX-4000. If the modem is present,

connect your phone line to the modem’s RJ11 connector. If the modem is not installed, the RJ11

connector will not be present on the rear of the unit. In LX-4048 models, the modem port is on the

front of the unit.

The Modem port number is as follows for LX-4000 models:

• LX-4008 - port number 9

• LX-4016 - port number 17

• LX-4032 - port number 33

• LX-4048 - port number 49

At the InReach:0>> prompt, enter the show port async 33 modem command to display a screen

containing the LX-4032 modem port fields.

Powering On

The Power On Self Test (POST) starts when you apply power to the LX-4000 Series unit. The port

status LEDs flicker and the FLT LED remains on while the test is running (this may take only a few

seconds). If the unit passes the POST test, the FLT LED extinguishes, and the OK LED turns green. If

there is a failure, the FLT LED stays on, and the port status LEDs begin flashing an error code. Refer

to Appendix C for an explanation of the codes.

When the POST test is completed, you are presented with two options: [B] Boot System and [L]

type L, a password prompt appears. The default password is access. The Main Menu appears after

you enter the password. The Main Menu allows you to change the boot settings and IP address

assignments. You can review the factory default boot setting by referring to the “ppciboot Factory

Default Settings” on page 50. The system loads the LX-Series software from flash and then loads the

system configuration file.

If the LX boots with default operational parameters, the Quick Configuration menu appears. Refer to

the “System Maintenance” chapter in the LX-Series Configuration Guide for further information on

the Main menu. Refer to “First Time Quick Configuration” on page 25 for further details on the Quick

Configuration menu.

451-0308 MRV Communications, Inc. www.mrv.com 23

Installing the LX-4000 Series

Once the unit finishes loading the operating system, you can access the unit. At your management

station, access the unit with any terminal emulation software. The terminal settings are 9600 baud,

eight data bits, no parity, one stop bit, Xon/Xoff flow control, autowrap enabled, and terminal type

ANSI. The Login: screen appears.

System Login and Passwords

The following username and passwords are the defaults the first time you use the LX-4000 Series.

• The default login username is InReach (be sure to use a capital I and R). The default

• To enter the superuser mode at the InReach> prompt, enter enable. The default password is

system.

These passwords prevent persons who do not know them from accessing the server. Change the

default passwords to other values as part of your basic server setup. You can use any character or

number in a password. However, backspace, tab, and escape are not supported. Refer to the

“Password Enable” section in the Subscriber chapter of the LX-Series Commands Reference Guide for

information on changing passwords.

Resetting the Unit

To reset the LX-4000 Series, use a paper clip to momentarily press the reset button, which is behind

the small hole labeled R on the front panel. Refer to Figure 14 for the exact location.

Figure 14 - LX Series RESET Switch Location

When the LX-4000 Series enters the RESET state, all front panel LEDs illuminate. When you release

the reset button, the unit begins to execute the Power On Self Test (POST).

If the LX-4000 Series detects an error, the front panel LEDs illuminate to show an error code. This

error sequence is repeated continually until the error is corrected or you power off the unit. During

this time, no data is exchanged over the Ethernet cable or serial ports.

If the LX-4000 Series does not detect an error, the unit begins loading software from the internal

flash. Once loaded, the LX-4000 Series resumes normal operations.

IMPORTANT

Take steps to ensure that the password is not lost or forgotten. If you forget

the password, call Customer Support.

Reset Switch

Installing the LX-4000 Series

24 MRV Communications, Inc. www.mrv.com 451-0308

451-0308 MRV Communications, Inc. www.mrv.com 25

Chapter 3

Configuring the LX-4000 Series for the First Time

Configuring the LX-4000 Unit for the First Time

You can choose from five options to configure the unit for the first time:

•First Time Configuration Utility - The first time an LX-4000 unit boots up at default

parameters, you are presented with the option to run the Initial Connectivity setup. Enter y and

press <Enter>. Refer to “First Time Quick Configuration” for further details.

•Assign the IP Address via the Network - Refer to “Assigning an IP Address via the Network”

for further details. Use this option if your network is using DHCP, BOOTP, or RARP.

•Setting the IP Address Manually - Refer to “Manually Setting the IP Address Via the CLI”.

•Creating and Loading a Default Configuration File - Refer to “Applying Default

Configurations to Other Units” in the LX-Series Configuration Guide.

•Configuring the LX-4000 Manually via the CLI - Refer to “Upgrading Software with the

ppciboot Main Menu” in the LX-Series Configuration Guide.

First Time Quick Configuration

NOTE: The first time quick configuration runs only on the DIAG port (port 0) on all models when

booting from default parameters. The DIAG port (port 0) of the LX-4008, LX-4016, and LX-

4032 is on the rear of the unit. The LX-4048 DIAG port (port 0) is on the front of the unit.

NOTE: Display problems may occur during bootup when you attach a terminal to the DIAG port

(port 0) and the display setup is configured to Smooth-2 Scroll. To avoid this, change the

scroll setting to Jump Scroll.

Use the following procedure to configure your LX-4000 unit for the first time.

1. Plug in the terminal at the DIAG port (port 0 - port values are 9600 bps, eight data bits, one stop

bit, no parity, and Xon/Xoff flow control). The Main Menu appears.

Configuring the LX-4000 Series for the First Time

26 MRV Communications, Inc. www.mrv.com 451-0308

2. Press b to boot the LX-4000 unit. The setup takes a minute or two. The The unit has loaded

to factory defaults, would you like to run Initial Connectivity Setup? y/n

message appears.

3. Press y (yes) and press Enter. The “Enter your superuser password” message appears, fol-

lowed by the Superuser Password prompt.

4. Enter superuser password system. The Quick Configuration menu appears:

5. Press the number corresponding to the parameter you want to set.

6. Enter the appropriate information and press <Enter> to return to the Quick Configuration menu.

Once you enter a parameter value, a data entry line specific to that parameter appears on the

Quick Configuration menu.

7. Continue in this way through the menu, configuring as many parameters as you want. You are

not required to configure all parameters.

NOTE: You should change the Superuser Password, since this is the first time you are configuring

the LX-4000 unit (the default password is system). The login username and password are

case-sensitive.

Quick Configuration menu

1 Unit IP address

2 Subnet mask

3 Default Gateway

4 Domain Name Server

5 Domain Name Suffix

6 Cluster Secret

7 Superuser Password

8 Exit and Save

Enter your choice:

451-0308 MRV Communications, Inc. www.mrv.com 27

Configuring the LX-4000 Series for the First Time

8. Press 8 (Exit and Save) to save your changes. The “Is this information correct?” mes-

sage appears.

9. Press y (yes) and press <Enter>. The Save this information to flash? message appears.

10. Press y (yes) and press <Enter>. The information is saved to flash.

11. Press <Enter> several times to display the Login: prompt.

12. Enter your login name. The default is InReach.

13. Enter your password. The default is access. You can now use the LX-4000 unit.

Completing the First Time Configuration

Once configured, the system stores the configuration in a file called Config.prm by default. From

here you can continue configuring the unit via the CLI, Telnet, SSH, or by using the web browser.

• To use the CLI, refer to Figure 15 on page 36 for the CLI tree structure and to the LX-Series

Commands Reference Guide for information on specific commands.

• To use Telnet, refer to “Connecting to the LX-4000 Series via Telnet or SSH” on page 34.

• To use the web browser, refer to “Accessing and Configuring the Graphical User Interface (GUI)”

on page 28.

Assigning an IP Address via the Network

If you are running DHCP, BOOTP, or RARP the LX-4000 obtains its own IP information

automatically while it boots.

Once the unit has been assigned an IP address from your network, you can configure the unit.

• To use the CLI, refer to Figure 15 on page 36 for the CLI tree structure and to the LX-Series

Commands Reference Guide for information on specific commands.

• To use Telnet, refer to “Connecting to the LX-4000 Series via Telnet or SSH” on page 34.

• To use the web browser, refer to “Accessing and Configuring the Graphical User Interface (GUI)”

on page 28.

CONFIGURATION SUMMARY

1 Unit IP address 10.80.1.5

2 Subnet mask 255.0.0.0

3 Default Gateway

4 Domain Name Server

5 Domain Name Suffix

6 Cluster Secret Configured

7 Superuser Password Not Changed

8 Exit and Save

Is this information correct? (y/n) :

Configuring the LX-4000 Series for the First Time

28 MRV Communications, Inc. www.mrv.com 451-0308

Manually Setting the IP Address Via the CLI

If the unit boots up with or without an IP address from the network, you can change the addressing

via the CLI.

Use the following procedure to change the IP address information as needed:

1. Connect the terminal to the DIAG port (port 0 - port values are 9600 bps, eight data bits, one stop

bit, no parity, and Xon/Xoff flow control).

2. Press <Enter> several times to display the Login: prompt.

3. Enter your login name. The default is InReach.

4. Enter your password. The default is access. The InReach:0> user prompt appears.

5. Enter enable and press <Enter>. The Password: prompt appears.

6. Enter the default system and press <Enter>. The InReach:0>> superuser prompt appears.

7. Enter config and press <Enter>. The Config:0>> prompt appears.

8. Enter interface 1 and press <Enter>. The Intf 1-1:0>> prompt appears.

9. Enter address ip_address mask network_mask and press <Enter>. The Intf 1-1:0>>

prompt reappears.

10. Enter broadcast broadcast_address and press <Enter>. The Intf 1-1:0>> prompt reap-

pears.

11. Enter exit and press <Enter>. The Config:0>> prompt appears.

12. Enter gateway gateway_address and press <Enter>. The Config:0>> prompt reappears.

13. Enter exit and press <Enter>. The InReach:0>> superuser prompt appears.

14. Enter save config flash to save your changes.

Accessing and Configuring the Graphical User Interface (GUI)

This section describes how to access and configure the LX via the GUI. To perform this procedure,

you need a PC with Java Runtime Environment (JRE) 1.4.2 or later installed.

NOTE: For optimum GUI performance, MRV recommends that your PC run at 500 MHz or better.

The minimum requirement for desktop color settings is 256.

IMPORTANT

If your browser is connected to an LX running an older software version, you must close

the browser completely and clear the cache before connecting your browser to an LX running a

more recent software version. This is because the Java saves the applet to your PC. If you fail to

close the browser completely, the browser will use the old applet when you connect to the

LX running a later software version, and therefore some features will be missing from the GUI

windows.

451-0308 MRV Communications, Inc. www.mrv.com 29

Configuring the LX-4000 Series for the First Time

The GUI has two modes: Configuration and Menu. The one you can access depends on what privileges

the administrator has given you.

To access the GUI, do the following:

1. At your browser, type the IP address of your LX-4000 unit. The LX Series Console page appears.

NOTE: Make sure that your PC has access to the World Wide Web. You may need to download the

latest release of the Java plug in to your PC. This download is performed automatically if

the GUI sees that the plugin version is out of date, or not available at all. If for some reason

your PC does not download the Java plug-in automatically, click on the Download link and

install the software manually from the http://java.sun.com web site.

2. If you need to download Java, the following window appears automatically.

3. Click Yes. The plugin is downloaded and then the installation begins. A Java Runtime Environ-

ment window appears after about two minutes.

NOTE: Depending on the speed of your PC, this may take several minutes.

Configuring the LX-4000 Series for the First Time

30 MRV Communications, Inc. www.mrv.com 451-0308

4. Follow the defaults to the end of the install.

5. When your browser connects to the LX, the Java Security Warning window appears.

NOTE: Your Java Security Warning window may vary, depending on your PC operating system.

6. Click on Grant this session. The Java Security Warning window closes. The LX Series Console

page reappears, now with the console selection visible.

7. Choosing Encrypted Console means the GUI will run slower, but with security. Choosing Non-

Encrypted Console means the GUI will run faster, but without security.

8. Select Encrypted or Non-Encrypted and then select Open Console. A login window

appears.

451-0308 MRV Communications, Inc. www.mrv.com 31

Configuring the LX-4000 Series for the First Time

9. Enter your Username and Password, and click Login.

NOTE: By default, authentication is done against the LX local user database. To start, use the

known username InReach and password access.

When you login, the next screen that appears depends on which mode you are authorized to configure

and monitor. Refer to “Web Configure Mode” on page 31 or “Web Access Mode” on page 32, depending

on which mode you can access.

Web Configure Mode

If you are authorized to access the Web Configure Mode, do the following:

1. If you log in as a user, the following window appears.

2. To log in as a superuser, click the Admin button on the tool bar and log in with the default Supe-

ruser password system. You can now configure the unit via the GUI.

Configuring the LX-4000 Series for the First Time

32 MRV Communications, Inc. www.mrv.com 451-0308

3. Click on the menu items on the left side of the window. For example, selecting Ports: Async opens

the Async ports window.

Web Access Mode

If you have Web Access Mode, your pre-configured menu screen appears when you login. Click on the

various menu items on the left side of the window to perform preconfigured menu option tasks.

Menu/Config Mode

When you have both Menu and Config modes, your initial login presents the menu. Then select View:

Config to open the Config Mode window. After completing your configuration, click on the Save

button on the toolbar to save your changes.

451-0308 MRV Communications, Inc. www.mrv.com 33

Configuring the LX-4000 Series for the First Time

GUI EZ Configuration

The GUI EZConfig is an ease-of-use configuration tool for basic LX configuration

after initial installation. More experienced users with more complex networks to

configure should use the standard GUI, rather than the EZConfig GUI.

Launching the EZConfig GUI

To access the EZConfig GUI windows:

1. Open your browser.

2. Select Encrypted console or Non-encrypted console and click Open Console.

3. Enter a valid username and password and click Login. The top-level LX Console window appears.

4. Login as superuser (the default is system).

5. In the top right side of the window, select the down arrow to the right of View: Config.

6. Choose EZConfig from the pull-down menu. The five-option menu appears as shown in the following win-

dow.

Select each of the following menu options to open a specific window for quick configuration.

1. System setup

2. Network setup

3. Subscribers

4. Async Port

5. Boot setup

Follow the menu and the accompanying help text to configure the LX unit.

Configuring the LX-4000 Series for the First Time

34 MRV Communications, Inc. www.mrv.com 451-0308

Software Upgrades

To upgrade software using the ppciboot menu, refer to “Upgrading Software with the ppciboot Main

Menu” in the LX-Series Configuration Guide. To upgrade software using the CLI, refer to “Upgrading

Software and ppciboot with the Command Line Interface” in the same manual.

IP Configuration Menu

For details on using the IP Configuration Menu, refer to “Using the IP Configuration Menu” in the

LX-Series Configuration Guide.

Booting from Defaults

For information on how to boot your unit from defaults, refer to “Booting from Defaults” in the LX-

Series Configuration Guide.

Accessing and Configuring Additional Features

The following sections describe additional LX-4000 features you can access and configure.

Connecting to the LX-4000 Series via Telnet or SSH

Telnet Directly into the Communication Server

NOTE: The default telnet port is 23. The default SSH port is 22.

1. Telnet to the unit from your machine.

2. Enter your subscriber login name, then your password.

3. If you entered the password correctly, the user> prompt is displayed.

Connecting to a Serial Port

NOTE: Devices connected to serial ports 1-32 on the LX-4032 are assigned telnet port numbers

2100-5200 by default. For example:

• Port 1 = 2100

• Port 2 = 2200

• Port 3 = 2300

NOTE: The corresponding SSH port numbers are 2122-5222. For example:

• Port 1 = 2122

• Port 2 = 2222

• Port 3 = 2322

You can gain telnet/ssh access to a serial device by using the LX IP address and default port number

of that serial port.

Changing the Telnet Port

To change the interface telnet port number, use the following commands:

InReach> enable

451-0308 MRV Communications, Inc. www.mrv.com 35

Configuring the LX-4000 Series for the First Time

Password> system

InReach>> config

Config:0>> interface 1

Intf 1-1:0>> telnet port #

NOTE: If you change the port number, be sure not to use a socket number assigned to another

application or daemon.

Accessing from a Terminal Attached to an LX-4000 Series Serial Port

Use the following procedure to access the command line interface port from a dumb terminal attached

to an LX Series serial port, which is set for access local, or dynamic:

1. Hit the return key several times to autobaud (if autobaud is enabled) the port and get the Login:

prompt.

2. Enter your login name. The default is InReach.

3. Enter your password. The default is access.

Additional Considerations

Other considerations include the following:

• Setting up users

• Authentication/Security

• Configuring modem settings

For further information on these issues, refer to the LX-Series Commands Reference Guide, and to the

Support area of the MRV website at www.mrv.com.

Configuring the LX-4000 Series for the First Time

36 MRV Communications, Inc. www.mrv.com 451-0308

Command Line Interface (CLI) Tree Structure

The command line interface structure is designed to be as intuitive as possible. Refer to “Navigating

the LX Command Line Interface (CLI)” in the LX-Series Commands Reference Guide for detailed

information on the menu tree modes. See Figure 15 for the CLI menu structure.

Figure 15 - Basic Menu Structure

Additional Considerations for an Internet Environment

If you plan to use the unit in an Internet environment, you must define addressing and identification

characteristics to enable Internet hosts to recognize the unit as a member of the network. Using

ppciboot, an LX-Series unit can be configured to obtain an IP address and other parameter values

from the network when the unit boots.

Autobauding Feature

Autobaud is disabled on all ports. The administrator can enable autobaud on a per-port basis, except

for the DIAG port (port 0). Default settings for the DIAG port (port 0) are 9600/8/None/1.

Reinitializing/Powering Off the Unit

To reinitialize the unit, enter the following command from the superuser mode:

reload

To power off the unit, disconnect the power cord.

Trigger-Action

Configuration

Notification

Interface Broadcast Group

Subscriber

SNMP

User

Superuser

Enter “enable” command and

Cconfiguration

Nnotification

Mmenu

Ssnmp

Ssubscriber

Iinterface Ibroadcast

group

Modem

PPP

Ethernet

Async

Mmodem

Pppp

Pport ethernet

Pport async

Oopen

Menu Editing

User Service

Service Profile

User Information

Protocol Command

See Note (below) Modes --

Note: The Protocol Command Modes include Async, Localsyslog,

Remotesyslog, SMTP, SNPP, TAP, and WEB.

AAA

Action

Rule

Trigger

Aauthentication

trigger-action

Maction name

Trule name

Mtrigger name

Cluster Config

cluster

hdam

HDAM

451-0308 MRV Communications, Inc. www.mrv.com 37

Chapter 4

Alternative Port Capabilities

The LX-4000 Series offers extended capabilities beyond traditional RS-232 communication uses. For

example, a port with specialized hardware attached can be configured to monitor temperature and

humidity remotely. The following sections present some of these capabilities.

Sensor (Temperature/Humidity) Ports

NOTE: Refer to Appendix A for Temperature/Humidity sensor technical specifications.

You can configure ports to act as temperature and humidity monitors when connected to an In-Reach

Temperature/Humidity Sensor. The Temperature/Humidity Sensor provides an accurate

measurement of the temperature/humidity in the area in which your LX Series unit is placed.

The following section explains how to connect and install the sensor.

Connecting the Temperature/Humidity Sensor

A 10’ Male RJ-45 to Male RJ-45 straight-through cable (P/N MX-151-3027) connects the temperature/

humidity sensor to an LX-4000 async port. The LX unit can be configured to support the sensor on

any async port other than the DIAG port (port 0).

To connect the sensor:

1. Connect one end of the RJ-45 double-ended straight through cable to the temperature/humidity

sensor. The maximum length of this cable is 50 feet.

Alternative Port Capabilities

38 MRV Communications, Inc. www.mrv.com 451-0308

2. Connect the other end to any port you have configured as a sensor port.

Figure 16 - Connecting the Temperature/Humidity Sensor

You must change the port’s “access” to “sensor” before performing any monitoring. Use the

following command, in the Async Port Configure Mode, to configure asynchronous port 4 as a

Sensor Port:

Async 4-4:0>>access sensor

Once the sensor is enabled, you can check the temperature with the following command:

InReach:0>> show port async 4 status

3. You can also monitor the temperature/humidity remotely through the LX CLI. Refer to the LX-

Series Commands Reference Guide for a detailed explanation of the commands used to configure

and view your temperature/humidity sensor through the CLI interface.

5250 Power Management

The 5250 Power Control Series family of products provides easy, practical, and secure solutions for

power distribution, power management and load-measurement for data centers and remote sites.

5250 Power Control Series products are available in a variety of models for 100-120VAC up to 30A,

and for 230VAC up to 16A (Continental Europe). A 5250 Series offers individual remote control over

the power on/off status to a maximum of 32 devices.

See the Technical Specifications Appendix for more information about available 5250 Power Control

Series models.

The following section explains how to connect and install the 5250.

100-240VAC

1.0A 50/60 Hz

9101112 13141516

10/100 E THNT

DIAG

100

1 23 4 567 8

RCV LINK

TELCO

L INE

33 34

RJ45 Double-Ended

Straight-Through Cable

451-0308 MRV Communications, Inc. www.mrv.com 39

Alternative Port Capabilities

Connecting the 5250

The 5250 Series is equipped with a single RJ45 RS-232 serial port for attachment to the LX serial

port using the supplied RJ45 to RJ45 crossover cable and RJ45 to DB9F serial port adapter as

required. See the Technical Specifications in Getting Started with the 5250 Power Control Series for

more information about the RS-232 serial port.

To connect the 5250:

1. Connect one end of the standard RJ-45 double-ended crossover cable to the serial port of the 5250.

2. Connect the other end to any LX-Series port you have configured as a power management port.

Figure 17 - Connecting the 5250

You must change the port’s “access” to “power model ir5250” before performing any control

and monitoring. Use the following command, in the Async Port Configure Mode, to configure

asynchronous port 1 as a 5250 port:

Async 1-1:0>>access power model ir5250

After the 5250 is enabled, you can check its status with the following command:

InReach:0>> show port async 1 status

3. You can also control and monitor the 5250 remotely through the LX CLI. See the LX-Series Commands

Reference Guide for a detailed explanation of the commands used to configure and view your 5250

through the CLI interface. See Chapter 3 for details on how to access the GUI interface.

Top of

vertical 5250

Power Control

Series unit

T/H 1

T/H 2

SER

NET

Connect a Network

cable to a hub or switch

only when you want to

upload firmware.

100-240VAC

1.0A 50/60 Hz

910 11 12 13 14 15 16

10/100ETHNT

100

1 2 3 4 5678

RCV LINK

TELCO

LINE

RJ-45 Double-Ended

Crossover Cable

LX-4000

Alternative Port Capabilities

40 MRV Communications, Inc. www.mrv.com 451-0308

5150 Power Strip Management

The 5150 Series family of products provides easy, practical, and secure solutions for power

distribution, power management and load-measurement for remote internetworking equipment and

branch AC circuits.

5150 Series products are available in 8-outlet and 16-outlet configurations for 100-120VAC up to 30A,

and for 230VAC up to 16A (Continental Europe). An 5150 Series offers individual remote control over

the power on/off status to a maximum of 16 devices.

The following section explains how to connect and install the 5150.

Connecting the 5150

The 5150 Series is equipped with a single RJ45 RS-232 serial port for attachment to a PC or

networked terminal server using the supplied RJ45 to RJ45 crossover cable and RJ45 to DB9F serial

port adapter as required. See the Technical Specifications in Getting Started with the MRV

Communications 5150 Power Control Series for more information on the RS-232 serial port.

To connect the 5150:

1. Connect one end of the standard RJ-45 double-ended crossover cable to the serial port of the 5150.

2. Connect the other end to any port you have configured as a power management port.

Figure 18 - Connecting the 5150

You must change the port’s “access” to “power model ir5150” before performing any control and

monitoring. Use the following command, in the Async Port Configure Mode, to configure

asynchronous port 1 as an 5150 port:

Async 1-1:0>>access power model ir5150

Once the 5150 is enabled, you can check its status with the following command:

InReach:0>> show port async 1 status

100-240VAC

1.0A 50/60 Hz

910 11 12 13 14 15 16

10/100ETHNT

100

1234 5678

RCV LINK

TELCO

LINE

Serial Port

IR-5150

RJ-45 Double-Ended

Crossover Cable

LX-4000

451-0308 MRV Communications, Inc. www.mrv.com 41

Alternative Port Capabilities

3. You can also control and monitor the 5150 remotely through the LX CLI. Refer to the LX-Series

Commands Reference Guide for a detailed explanation of the commands used to configure and

view your 5150 through the CLI interface.

4800 Power Strip Management

The 4800 -48 VDC Series family of products provides easy, practical, and secure solutions for power

distribution, power management and load-measurement for remote internetworking equipment and

branch AC circuits.

4800 Series products are available in a 4-outlet configuration. An 4800 Series offers individual

remote control over the power on/off status to a maximum of four DC powered devices. The 4800

supports -48 VDC up to 70A.

The following section explains how to connect and install the 4800.

Connecting the 4800

The 4800 Series is equipped with a single RJ45 RS-232 serial port for attachment to a PC or

networked terminal server using the supplied RJ45 to RJ45 crossover cable and RJ45 to DB9F serial

port adapter as required. See the Technical Specifications in Getting Started with the MRV

Communications 4800 Power Control Series for more information on the RS-232 serial port.

To connect the 4800:

1. Connect one end of the standard RJ-45 double-ended crossover cable to the serial port of the 4800.

2. Connect the other end to any LX port you have configured as a power management port.

Figure 19 - Connecting the 4800

100-240VAC

1.0A 50/60Hz

910 11 12 13 14 15 16

10/100 ETHNT

DIAG

100

1234 5678

RCV LINK

TELCO

LINE

Serial Port

IR-4800

RJ-45 Double-Ended

Crossover Cable

LX-4000

Alternative Port Capabilities

42 MRV Communications, Inc. www.mrv.com 451-0308

You must change the port’s “access” to “power model ir4800” before performing any control and

monitoring operations. Use the following command, in the Async Port Configure Mode, to

configure asynchronous port 10 as a 4800 port:

Async 1-10:0>>access power model ir4800

Once the 4800 is enabled, you can check its status with the following command:

InReach:0>> show port async 10 status

3. You can also control and monitor the 4800 remotely through the LX CLI. Refer to the LX-Series

Commands Reference Guide for a detailed explanation of the commands used to configure and

view your 4800 through the CLI interface.

Using LX Ports as Alarm Inputs and Control Outputs

The LX-Series can be configured to provide two low voltage/low current outputs per port which can be

used to control remote devices. Using the DTR and RTS signals, these are designated Control

Outputs. They can be used to control external equipment, or they may be used as the controlling

voltage for Alarm Inputs circuits.

The LX-Series can be configured to provide two signal monitor inputs per port using the DSR and

CTS signal to provide a remote device monitoring capability. These are designated Alarm Inputs. The

following sections describe the use of these signals in greater detail.

Some common terms are:

•Alarm Inputs - LX-Series port input signals DSR and CTS used in conjunction with the Signal-

Notice software feature to monitor real world events.

•Alarm Points - High impedance, low current, isolated inputs available in the MRV Corporation

IR-7104 product.

•Control Outputs - LX-Series port output signals DTR and RTS managed with the Access Control

software commands that could be used to control external equipment or provide a controlling

voltage for Alarm Inputs.

•Control Relays - True SPDT (Single Pole Double Throw) “Form C” Relay contact points

available in the MRV Corporation IR-7104 product.

Alarm Inputs Setup and Usage

The LX-Series can be configured to provide two Alarm Inputs per port using the DSR and CTS

signals. These are enabled with the Signal-Notice feature. Signal-Notice utilizes sets of Trigger-

Action-Rule commands to detect contact closure/opens. The contacts you are monitoring may be

located within your facility, for example doors alarms, window alarms or fluid level sensors. The

contacts may also be contained within your equipment you wish to monitor, for example equipment

fault alarms, temperature alarms and other error condition signals. The signaling device may be a

simple electro-mechanical device such as a switch, a magnetic contact or a relay. The signaling device

may also be electrical such as an opto-isolator, a CMOS driver or a transistor circuit. Typical circuits

are illustrated in Figure 20.

451-0308 MRV Communications, Inc. www.mrv.com 43

Alternative Port Capabilities

Alarm Inputs use the LX-Series input circuits (DSR and CTS) to detect level transitions. These input

circuits sit at the 0V level when left unconnected and can accept a voltage input in the range of ±10V.

Figure 20 - Typical Alarm Inputs Connections

An external voltage within the range of ±10V is required in order for a change to be detected when the

contact opens or closes. Typically, an LX-Series Control Output is used to provide the controlling

voltage for the Alarm Inputs, but it is not required. An external voltage could be used as long as it is

within both the ±10V limits and the limits of the contacts or semiconductor used in the circuit. A

common Signal Ground is required. Refer to Figure 20 for typical implementations.

Important design issues to remember are:

• Electro-mechanical contacts must be rated up to 10V and 3.5mA.

• The inputs present a nominal 5K Ohm impedance but can vary from 3K to 7K Ohm.

• Input levels must be 0.6V or lower to guarantee a low state and 2.4V or higher to guarantee a

high state.

• LX-Series products do not support the use of TXD as the controlling voltage for Alarm Inputs.

DTR or RTS must be used.

• DTR or RTS can provide the controlling voltage for up to 2 Alarm Inputs each.

• A common Signal Ground is required. Twisted pair connections are recommended to reduce

sensitivity to noise.

Note that provisions for handling alarm contact bounce and alarm flooding are available in the IR-

7104 Alarm Manager family only.

Control Output Setup and Usage

The LX-Series can be configured to provide two low voltage/low current Control Outputs per port

using the DTR and RTS output signals. Typically the Control Output is used as the controlling

voltage for the LX-Series Alarm Inputs. In another case you can design an interface to transition

from the output signals to a higher capacity circuit to implement a control subsystem. An example

circuit is shown in Figure 21.

Important design issues to remember are:

• Special design attention is required when using Control Outputs in a control subsystem.

• Upon a restart or power up the states of DTR and RTS will transition several times as the LX-

Series begins its start-up initialization.

Alternative Port Capabilities

44 MRV Communications, Inc. www.mrv.com 451-0308

• The states are undefined upwards of 30 Seconds + the Boot Delay Timer value in some

configurations, i.e. the signals are non-latching through power cycles.

• Note that negative voltage could be present on the interface until the software is completely

initialized.

• Control Outputs in the LX-Series guarantee ±5.0V drive into a 3K Ohm load.

• External loading below 3K Ohm can be tolerated but under no circumstances should the device

load the LX-Series output below ±2.5V/7.6mA absolute maximum drive.

• A common Signal Ground is required.

• The MRV Corporation IR-7104 family can provide true Form C SPDT Relay outputs rated to

30VDC/1A per contact if higher capacity and stable contacts are required through restart and

power cycles.

Figure 21 - Typical Interface Design for Control Output Signals

You must change the LX-Series port access type to control to utilize DTR and RTS as the Control

Outputs. For example:

InReach:0>> config port async # access control

If you want the DTR signal to be asserted High (positive voltage) on the port:

InReach:0>> control port async # dtr high

Refer to the LX-Series Configuration Guide for a detailed explanation of the commands to set up a

port in the Control function.

451-0308 MRV Communications, Inc. www.mrv.com 45

Appendix A - Technical Specifications

The following table provides the specifications for the LX-4000 Series.

Table 1 - LX-4000 Series Specifications

Item Description

Terminal Signals Transmit Data, Receive Data, Signal Ground, Data Set Ready/

Data Carrier Detect (DSR/DCD), Data Terminal Ready (DTR),

Clear-to-Send (CTS), and Request-to-Send (RTS). Supports con-

current modem control.

Terminal Cabling Modular RJ-45 DTE

Serial Line Speed LX-4000 Series - 134.5 bps to 230 Kbps

Number of Serial Ports LX 4008 - 8 ports

LX 4016 - 16 ports

LX-4032 - 32 ports

LX-4048 - 48 ports

Modem (optional) V.90/K56flex 56 Kbps

LEDs FLT, OK, Port Status LEDs 1-8 (1-16 on 16 port, 1-32 on 32 port,

1-48 on 48 port), 10/100 Ethernet RCV, 10/100 Ethernet Link,

100Mbps speed

Controls Reset push button switch

Dimensions

Height

Depth

Width

LX-4000 Series

4.34 cm (1.71 in)

21.6 cm (8.5 in)

44.45 cm (17.5 in)

Appendix A - Technical Specifications

46 MRV Communications, Inc. www.mrv.com 451-0308

Weight (unpackaged, no

cables)

LX 4008 - 2.7 kg (6.0 lbs)

LX-4016 - 3.06 kg (6.75 lbs)

LX-4032 - 3.4 kg (7.5 lbs)

LX-4048 - 3.47 kg (7.65 lbs)

Processor/Speeds LX-4008, LX-4016:

66 MHz PowerPC system board processor with integral 33 MHz

communication co-processor, plus:

LX-4008 - Two 60 MHz RISC asynchronous communication co-

processors

LX-4016 - Four 60 MHz RISC asynchronous communication co-

processors

LX-4032, LX-4048:

100 MHz PowerPC system board processor with integral 50 MHz

communication co-processor, plus:

LX-4032 - Eight 60 MHz RISC asynchronous communication co-

processors

LX-4048 - Twelve 60 MHz RISC asynchronous communication

co-processors

Memory LX-4008, LX-4016:

8 MB Flash, 64 MB SDRAM

LX-4032, LX-4048:

8 MB Flash, 128 MB SDRAM

Environment 5% to 90% humidity, noncondensing

Operating Temperature: 0 to 40°C (32° to 104° F)

Storage Temperature: -40 to 85°C (-40 to 185° F)

Input Voltage 100 - 240 VAC 50 - 60 Hz (All LX-4000 Series)

Cable Length - Alarm

Input

150 meters (500 feet)

Cable Length - Control

Output

300 Meters (1000 feet)

451-0308 MRV Communications, Inc. www.mrv.com 47

Appendix A - Technical Specifications

Power Requirements LX-4008 AC - 11W, (38BTU/hr) 0.09A at 120V (typ), 11W 0.05A

at 220V (typ)

LX-4008 DC - -48VDC Nominal, -20VDC to -72VDC Operating

Range, 1A @ -48VDC, Dual Feed, 165 BTU/hr

LX-4016 AC - 14W, (47.8 BTU/hr) 0.11A at 120V (typ), 14W

0.06A at 220V (typ)

LX-4016 DC - -48VDC Nominal, -20VDC to -72VDC Operating

Range, 1.2A @ -20VDC, Dual Feed, 165 BTU/hr

LX-4032AC - 23W, (79 BTU/hr) 0.19A @ 120V (typ), 0.105A @

220V

LX-4032DC - -48VDC Nominal, -20VDC to -72VDC Operating

Range, 0.6A @ 48VDC, Dual Feed, (99 BTU/hr)

LX-4048AC - 41W, (140 BTU/hr) 0.24A @ 120V (typ), 0.13A @

220V

Minimum Software

Requirements

LX-4008 requires V2.0.0 or greater, LX-4016 requires V2.0.1 or

greater, LX-4032 requires V2.2.0 or greater, LX-4048 requires

V3.0.0 or greater.

Ethernet Interface 10BASE-T/100Base-TX on single RJ-45, Auto-negotiation, Stan-

dard CSMA/CD or Full-Duplex operation.

Control Output Ratings RTS/DTR: 5.0V @ 1.6mA (Nominal), 2.5V @ 7.6mA (Absolute

Maximum)

Real Time Clock

Battery

32.768KHz crystal

Lithium coin cell battery CR2032 or equivalent. Power down

shelf-life: 1 year at 200C.

Appendix A - Technical Specifications

48 MRV Communications, Inc. www.mrv.com 451-0308

The following table provides the specifications for the Temperature/Humidity Sensor.

Table 2 - Temperature/Humidity Sensor Specifications

Item Description

Interface Proprietary

Maximum Cable

Length

50 feet

Operating Environ-

ment

5% to 90% humidity, noncondensing

Operating Temperature: 0 to 40°C (32° to 104° F)

Storage Temperature: -40 to 85°C (-40 to 185° F)

Dimensions Height: 0.8 inches

Length: 3.15 inches

Width: 1.57 inches

Weight 1.2 oz

Accuracy Temp: +/-3 deg C

Humidity: +/- 5%

451-0308 MRV Communications, Inc. www.mrv.com 49

Appendix B - Factory Defaults

The following table provides the factory defaults for the LX-4000 Series.

Table 3 - LX-4000 Series Factory Defaults

Item Description

DIAG Port/local management port (default

settings)

The DIAG port (port 0) is the console manage-

ment port.

Auto Protocol Detect (APD) is disabled.

Autobaud is disabled.

9600/8/1/None.

Quick Start is enabled.

Access is Local.

Flow Control is Xon/Xoff.

All Ports Except Management and Modem

Ports (default settings)

Autobaud is disabled.

9600/8/1/None.

Access is Remote.

APD is disabled.

Flow Control is Xon/Xoff.

Modem Port (default settings) Autobaud is disabled.

Speed is 57600.

Access is Local.

APD is enabled.

Flow Control is CTS.

Appendix B - Factory Defaults

50 MRV Communications, Inc. www.mrv.com 451-0308

ppciboot Factory Default Settings

The following table lists the factory default settings.

NOTE: For defaults on specific commands, refer to the LX-Series Commands Reference Guide.

Each LX Series unit is configured at the factory to use a default set of initialization

parameters that sets all ports to operate with asynchronous ASCII terminal devices.

Main Menu Configuration Factory Default Setting

Boot from Network yes

Save boot image to flash no

Boot from flash yes

Time Out, in seconds 8

IP Configuration Menu Configura-

tion Factory Default Setting

IP Assignment method #1 DHCP

IP Assignment method #2 BOOTP

IP Assignment method #3 RARP

IP Assignment method #4 User Defined

451-0308 MRV Communications, Inc. www.mrv.com 51

Appendix C - POST Test Error Codes

Error Code Definitions

The following table provides the definitions for the LX-4000 Series POST test error codes.

Table 4 - POST Test Error Codes

Error Definition Error Code (in Hexa-

decimal)

CPU Clock Slow 1020

Reading Invalid Default Value from CPLD Diagnostic Register 2010

Reading Invalid Default Value from Expansion CPLD Diagnostic Reg-

ister

2011

Reading Invalid Pattern Value from CPLD Diagnostic Register 2020

Reading Invalid Pattern Value from Expansion CPLD Diagnostic Reg-

ister

2021

Reading Invalid Value from CPLD System Fail Status Register 2030

AC FAIL bit is set in the CPLD System Fail Status Register 2031

+12VFAIL bit is set in the CPLD System Fail Status Register 2033

-12VFAIL bit is set in the CPLD System Fail Status Register 2034

CPLD FAIL bit is set in the CPLD System Fail Status Register 2035

Watchdog Timer Failed 2040

Invalid HW Type 2050

Fast Ethernet Controller (FEC) Reset Delay Timeout 3010

Fast Ethernet Controller (FEC) Transmission Failed Timeout 3020

Appendix C - POST Test Error Codes

52 MRV Communications, Inc. www.mrv.com 451-0308

Fast Ethernet Controller (FEC) Reception Failed Timeout 3030

Fast Ethernet Controller (FEC) Invalid Data Received 3040

No PHY Device Detected 3050

CD1400 Reset delay timeout for Quadart 1 4110

CD1400 Reset delay timeout for Quadart 2 4120

CD1400 Reset delay timeout for Quadart 3 4130

CD1400 Reset delay timeout for Quadart 4 4140

CD1400 Reset delay timeout for Quadart 5 4150

CD1400 Reset delay timeout for Quadart 6 4160

CD1400 Reset delay timeout for Quadart 7 4170

CD1400 Reset delay timeout for Quadart 8 4180

CD1400 Reset delay timeout for Quadart 9 4190

CD1400 Reset delay timeout for Quadart 10 41A0

CD1400 Reset delay timeout for Quadart 11 41B0

CD1400 Reset delay timeout for Quadart 12 41C0

CD1400 Loopback operation timeout for Quadart 1 4210

CD1400 Loopback operation timeout for Quadart 2 4220

CD1400 Loopback operation timeout for Quadart 3 4230

CD1400 Loopback operation timeout for Quadart 4 4240

CD1400 Loopback operation timeout for Quadart 5 4250

CD1400 Loopback operation timeout for Quadart 6 4260

CD1400 Loopback operation timeout for Quadart 7 4270

CD1400 Loopback operation timeout for Quadart 8 4280

CD1400 Loopback operation timeout for Quadart 9 4290

CD1400 Loopback operation timeout for Quadart 10 42A0

CD1400 Loopback operation timeout for Quadart 11 42B0

CD1400 Loopback operation timeout for Quadart 12 42C0

CD1400 Invalid Data Received for Quadart 1 4410

CD1400 Invalid Data Received for Quadart 2 4420

CD1400 Invalid Data Received for Quadart 3 4430

CD1400 Invalid Data Received for Quadart 4 4440

CD1400 Invalid Data Received for Quadart 5 4450

451-0308 MRV Communications, Inc. www.mrv.com 53

Appendix C - POST Test Error Codes

POST Test Error Code Sample

NOTE: This example applies to 8, 16, 32, and 48 port LX units. The 16, 32, and 48 port

LX units use only the first eight LEDs when generating error codes.

The following sample illustrates the Port Status LED sequence for Error 2030 (Reading Invalid Value

from PLD System Fail Status Register) on the LX-4008. In this example:

1. A POST test failure occurs on an 8-port unit. All LEDs flash eight times, very quickly, then the error code

is displayed.

2. You record that LED 3 turns on. Again, all LEDs flash eight times very quickly, then the rest of the error

code is displayed.

3. You record that LEDs 3 and 4 turn on. Figure 22 explains how to interpret the sample error code.

NOTE: In hexadecimal, 0 indicates the LED is OFF. 1 indicates the LED is ON.

Each group of four LEDs is converted to a hexadecimal value as follows:

• 0 = 0000

• 1 = 0001

• 2 = 0010

• 3 = 0011

• 4 = 0100

• 5 = 0101

• 6 = 0110

• 7 = 0111

• 8 = 1000

• 9 = 1001

CD1400 Invalid Data Received for Quadart 6 4460

CD1400 Invalid Data Received for Quadart 7 4470

CD1400 Invalid Data Received for Quadart 8 4480

CD1400 Invalid Data Received for Quadart 9 4490

CD1400 Invalid Data Received for Quadart A0 44A0

CD1400 Invalid Data Received for Quadart B0 44B0

CD1400 Invalid Data Received for Quadart C0 44C0

Memory Error at (printing address) 5010

Memory Data Bus Failed 5020

Memory Address Bus Failed High 5030

Memory Address Bus Failed Low 5040

Flash Checksum Error 5055

Appendix C - POST Test Error Codes

54 MRV Communications, Inc. www.mrv.com 451-0308

• A = 1010

• B = 1011

• C = 1100

• D = 1101

• E = 1110

• F = 1111

Figure 22 - POST Test Error Code Sample

1 - All flash for 2 seconds

2 - High error code (20 Hex)

3 - Cycle 1 through 8

4 - Low error code (30 Hex)

5 - All extinguished

1 2 3 4 5 6 7 8

451-0308 MRV Communications, Inc. www.mrv.com 55

Appendix D - Cabling the LX-4000 Series

Cabling Considerations

Standard cabling items available from MRV allow you to connect to any serial device that uses male

or female DB-25 or DB-9 connectors. All you need is the appropriate cable (crossover cable for

connecting to a DTE (Data Terminal Equipment) device, straight-through cable for connecting to a

DCE (Data Communication Equipment) device), and the correct modular adapter (male or female DB-

25 connector), which is essentially an RJ-45-to-DB25 adapter.

Serial Device Connectors

The signal assignments of the 8-pin jacks are shown in Figure 23.

Figure 23 - Serial Device Connector (RJ-45) Signal Assignments

Diagnostic Port Connector (Port 0)

The pinout for the Diagnostic Port connector is the same as that of the serial connector.

12345678 1234

Rj-45 Jack

(Female) Rj-45 Plug

(Male)

Pin Signal

1 CTS

2 DTR

3 TXD

4 SGND

5 SGND

6 RXD

7 DSR

8 RTS

Appendix D - Cabling the LX-4000 Series

56 MRV Communications, Inc. www.mrv.com 451-0308

10/100 Connector

Figure 24 shows the standard 10/100 (RJ-45 jack) connector signal assignments.

Figure 24 - 10/100 Connector Assignments

Ordering Cables

MRV also supplies crossover cables and modular adapters for use with all LX-4000 Series units. To

order cables, adapters or other cabling accessories from MRV, contact your Sales representative or

distributor.

Modular Adapters

MRV provides the following modular adapters for use with LX-4000 Series units:

• Female DB-9 (PN MX-350-0308)

• Female DB-25 (PN MX-350-0181)

• Male DB-25 (PN MX-350-0179) – supports RING

• Male DB-25 (PN MX-350-0180) – supports RTS/CTS

This section describes the pinouts and wiring of the MRV-supplied DB-25 adapter.

Pin Assignments

The following table shows the pinouts for a standard RS-232 DB-25 connector.

Pin Signal

1 Cable Shield

2 Transmit Data

3 Receive Data to DCE

4 RTS (Request to Send)

5CTS (Clear to Send)

6 DSR (Data Set Ready)

7Signal Ground

8 Data Carrier Detect

8 7 6 5 4 3 2 1

Pin Signal

1 TX+

2 TX-

3 RX+

4 No Connect

5 No Connect

6 RX-

7 No Connect

8 No Connect

451-0308 MRV Communications, Inc. www.mrv.com 57

Appendix D - Cabling the LX-4000 Series

Figure 25 shows serial DB-25 pin assignments.

Figure 25 - DB-25 Pins

9Unused

10 Unused

11 Unused

12 Unused

13 Unused

14 Unused

15 Unused

16 Unused

17 Unused

18 Unused

19 Unused

20 Data Terminal Ready

21 Unused

22 Ring Indicate

23 Unused

24 Unused

25 Unused

DB-25

(Male) DB-25

(Female)

Appendix D - Cabling the LX-4000 Series

58 MRV Communications, Inc. www.mrv.com 451-0308

Ordering and Installing the Inlet Connector Lock

NOTE: The Inlet Connector Lock is available only on the LX-4008, LX-4016, and LX-4032. It is not

supported on the LX-4048.

You can use an inlet connector lock to lock the AC power cord to the LX-4000 Series unit. MRV does

not supply this lock. You can order the connector lock (part number 85910020) from Panel

Components Corporation. The web address at which you can order the connector lock is:

www.panelcomponents.com/first.html. See Figure 26 for installation instructions.

Figure 26 - Installing the Inlet Connector Lock

Connecting to the Diagnostic Port (Port 0)

NOTE: Display problems may occur during bootup when you attach a VT420 terminal to the DIAG

port (port 0) and the VT420 display setup is configured to Smooth-2 Scroll. To avoid this,

change the VT420 scroll setting to Jump Scroll.

Connect the provided serial port cable to the DIAG connector (port 0), and the other end to your

terminal. You can use this direct connect serial link to send commands to the boot loader and

diagnostics. This port is used to log system messages during bootup. You can also use port 0 to

manage and configure the LX-4000 once the unit completes the bootstrap process.

Modem Control/Hardware Flow Control

LX-4000 Series serial ports can be set up to support RTS/CTS flow control. The adapters shown in

Figure 27 and Figure 28 illustrate RTS/CTS flow control for DTE devices using DB25 and DB9

connectors. Figure 29 illustrates RTS/CTS flow control for a DB-25 connector on a DCE device like a

modem. LX-4000 Series serial ports can also be set up to support modem control (except for the DIAG

port (port 0)). Figure 27, Figure 28, and Figure 29 support modem control as needed. Only Figure 28

and Figure 29 support concurrent modem control and RTS/CTS flow control between the LX-4000

Serial Port and the attached device.

The adapter shown in Figure 29 supports modem control.

90-250VAC

1.0A 50/60Hz

Insert two 4-40 x

1/4” Philips screws

here. Do not

tighten.

Slide the connector

lock ears under the

screw heads.

Tighten the screws.

Plug in the power cord

(not shown).

Tighten the screw

beneath the connector

lock.

451-0308 MRV Communications, Inc. www.mrv.com 59

Appendix D - Cabling the LX-4000 Series

NOTE: You would use a "null-modem" cable when making a direct connection between the serial

ports of two communication servers (i.e., no modems involved) or other DTE device. For that

application, use a DTE-to-DTE cable.

RJ-45 Wiring Considerations

You should give special consideration to the wiring scheme when connecting a device such as a

terminal to a LX-4000 Series serial port. The LX-4000 Series is considered a DTE device. To connect

to another DTE device such as a terminal, you will need crossover wiring, as shown in Figure 27 and

Figure 28. When a DCE device is connected to an LX-4000 Series serial port, straight-through wiring

is required, as shown in Figure 29.

NOTE: In general, an ethernet category 3 (CAT 3) or category 5 (CAT 5) may introduce noise due to

the crossing of pins 3 and 6 (transmit and receive). Flat eight wire cables are recommended.

Modular Adapters (RJ-45 to DB-25)

You can obtain adapters with male and female DB-25 connectors from MRV. These adapters direct

signals from the RJ-45 connector on the cable to the correct pin on the DB-25 connector. Figure 27,

Figure 28, and Figure 29 show how devices are cabled when you use these adapters.

Application (see Figure 27): Use RJ-45 to DB-25 to connect your LX-Series unit to a PC.

Figure 27 - Adapter Wiring, LX Series to DTE

CTS

DTR

XMT

GND

RCV

DCD

DSR

RTS

Female RJ-45

Connector

Female DB-25

Connector

DTE Device

Pin Signal

Adaptor Wiring - MX-350-0181

(Female RJ-45 to female DB-25)

Male RJ-45

Connector

Male RJ-45

Connector

Crossover Cable

MAXserver

Connector

CTS/RING

DTR

XMT

XMTGND

RCVGND

RCV

DSR *

RTS

Male

RJ-45

Male

RJ-45

Female

RJ-45 Female

RJ-45

Female

DB-25

Crossover Cable

MAXserver

Connector Modular Adaptor

To DTE

DTE Cable

(See Note, Page 5.)

LX Se rie s

MX-151-3028

CTS

Appendix D - Cabling the LX-4000 Series

60 MRV Communications, Inc. www.mrv.com 451-0308

Application (see Figure 28): Use RJ-45 to DB-9 to connect your LX-Series unit to a PC or other serial

port using a D sub-9 connector.

Figure 28 - Adapter Wiring, RJ-45 to DB-9, LX Series to DTE

Application (see Figure 29): Use LX-Series to DCE to connect your LX-Series unit to a modem.

Figure 29 - Adapter Wiring, LX Series to DCE

CTS

DTR

XMT

GND

RCV

DCD

DSR

RTS

Female RJ-45

Connector

Female DB-25

Connector

DTE Device

Pin Signal

Adaptor Wiring - MX-350-0181

(Female RJ-45 to female DB-25)

Male RJ-45

Connector

Male RJ-45

Connector

Crossover Cable

MAXserver

Connector

CTS/RING

DTR

XMT

XMTGND

RCVGND

RCV

DSR *

RTS

Male

RJ-45

Male

RJ-45

Female

RJ-45 Female

RJ-45

Female

DB-25

Crossover Cable

MAXserver

Connector Modular Adaptor

To DTE

DTE Cable

(See Note, Page 5.)

LX Se rie s

DB-9

DB-9 Cable

DCD

0308

Female DB-9)

RTS

DSR

MX-151-3028

LX Series

Connector

Fe m a le

RJ- 4 5

Male

RJ- 4 5

Male

RJ- 4 5

St r a i g h t Th ro u g h

Cable

Fe m a le

RJ- 4 5

Modular

daptor Modem

Cable

Male

DB-25

To Modem

Fe m a le RJ- 45

Connector

Male DB-25

Connector

DCE Devic e

Pin Sig n a l

CTS

DTR

XMT

GND

RCV

DCD

RTS

Adaptor Wiring MX-350-0180

(Female RJ-45 to male DB-25)

Male RJ-45

Connector

CTS

DTR

XMT

GND

RCV

DCD

RTS

St ra i g h t Through Cable

Male RJ-45

Connector

LX Se rie s

Connector

Supports RTS/ C TS

MX-151-3027

451-0308 MRV Communications, Inc. www.mrv.com 61

Appendix D - Cabling the LX-4000 Series

Figure 30 - Adapter Wiring, LX-Series to DCE, with RING

NOTE: In order to expand the functionality of the serial interface, the LX-4000 Series modular

cabling allows you to connect different signals to pin 7 of the LX-4000 Series. (This pin is an

input to the LX-4000 Series.) When a DCE device is connected to an LX-4000 Series serial

port, the device's DCD output is connected to pin 7. In this case, the signal at pin 7 is

referred to as DCD. DCD is used here for session control only, not for flow control.

When a DTE device is connected to an LX-4000 Series serial port, the device's DTR output is

connected to pin 7 of the LX-4000 Series. In this case, the signal at pin 7 is referred to as

DSR. (This cabling scheme also provides DECconnect compatibility, since DECconnect does

not support the DCD signal.)

MRV 8-Wire Cabling

This cabling scheme provides XMT, RCV, DCD/DSR, DTR, RTS, CTS, and two signal ground wires.

This cabling is provided through RJ-45 connectors. Using this cabling scheme you can concurrently

use modem control and RTS/CTS hardware flow control, since there are four control signals. This

scheme is useful with relatively high speed devices, complex modem control applications.

In Figure 31, one signal is referred to as CTS. The CTS signal designation refers to the signal

observed at pin 1 of each serial port. Pin 1 is multiplexed to these signals.

This scheme is useful with the following applications:

LX Series

Connector

Female

RJ-45

Male

RJ-45 Male

RJ-45

Straight Through

Cable

Female

RJ-45

Modular

daptor Modem

Cable

Male

DB-25

To Modem

Female RJ-45

Connector

Male DB-25

Connector

DCE Device

Pin Signal

DTR

TXD

GND

RXD

RTS

CTS

Adaptor Wiring MX-350-0179

(Female RJ-45 to male DB-25)

Male RJ-45

Connector

CTS

DTR

XMT

GND

RCV

DCD

RTS

Straight Through Cable

Male RJ-45

Connector

LX Series

Connector

Supports RING

MX-151-3027

Appendix D - Cabling the LX-4000 Series

62 MRV Communications, Inc. www.mrv.com 451-0308

• Terminal emulation and file transfer applications, such as Kermit, Xmodem, Microphone, etc.

• Applications such as PPP using low speed modems.

• Applications such as PPP using high speed modems.

• Applications using CCITT V.42-compliant modems, or other devices operating at high port

speeds.

Application (see Figure 31): Use RTS/CTS to connect your LX-Series unit to a modem.

Figure 31 - Modular Cables for RTS/CTS Flow Control (Eight-Wire), Concur-

rent with Modem Control Signalling

Communication

Server Connector

Modular Adapt or

To M od e m

Straight Through Cable

Female RJ-45

Connector

Male DB-25

Connector

CTS

DTR

XMT

GND

RCV

DCD

RTS

Male RJ-45

Connector Male RJ-45

Connect or

Straight Through Cable

Adaptor Wiring - MX-350-0180

(Female RJ-45 t o male DB-25)

CTS/ RING

DTR

XMT

XMTGND

RCVGND

RCV

DCD

RTS

Modem connector

Pin Signal

Female RJ-45

Connector

RTS/CTS Modem Connection

Communication

Server Connector

Modular Adapt or

To M od e m

Straight Through Cable

Female RJ-45

Connector

Male DB-25

Connector

CTS

DTR

XMT

GND

RCV

DCD

RTS

Male RJ-45

Connector Male RJ-45

Connect or

Straight Through Cable

Adaptor Wiring - MX-350-0180

(Female RJ-45 t o male DB-25)

CTS/ RING

DTR

XMT

XMTGND

RCVGND

RCV

DCD

RTS

Modem connector

Pin Signal

Female RJ-45

Connector

RTS/CTS Modem Connection

LX Se rie s

Connector

CTS

MX-151-3027

451-0308 MRV Communications, Inc. www.mrv.com 63

INDEX

Numerics

10/100 connectors 56

4800 power management 41

4800 series

connecting to 41

5150 power management 40

5150 series

connecting to 40

5250 Power Management 38

5250 Series

connecting to 39

8-wire cabling 61

adapter wiring 59

adapters 59

alarm input setup 42

autobauding feature 36

cables

ordering 56

cabling 20

signals 61

command recall 14

configured 50

Configuring the LX-4000 Unit for the First Time 25

connecting DC power 21

connecting the power cable 20

connecting to a serial port 34

control output setup 43

conventions 13

crossover cables 55

DB-25 connectors 59

DB-25 pin assignments 61

DC power

connecting 21

diagnostic port connector 55

DTE devices

connecting to LX-4000 Series 61

DTE wiring 59

environment 19

environmental considerations 19

error code definitions 51

ethernet connection 21

first time quick configuration 25

flow control 58

FLT - fault LED 16

front panel LEDs 16

Graphic User Interface (GUI)

accessing 28

GUI EZ Configuration 33

hardware installation 15

help key 14

iBoot factory default settings 50

inlet connector lock

installing 58

ordering 58

installation

hardware 15

installing Java Runtime Environment (JRE) 29

Installing the LX Series

site requirements 45, 48, 49

internet access

IP addresses 36

internet environment 36

IP address

assigning via the network 27

manually setting 28

IP information

obtaining 27

Java

installing 29

LED

fault 16

link 19

OK 16

port status 17

receive 19

speed 19

LINK LED 19

default 23

LX- 4000 Indicators 16

INDEX

64 MRV Communications, Inc. www.mrv.com 451-0308

LX ports

using as alarm inputs/control outputs 42

LX Series 4008 rear panel 17

LX Series 4008 w/modem rear panel 17

LX Series 4016 DC rear panel 18

LX Series 4016 w/modem rear panel 18

LX Series 4032 DC rear panel 19

LX Series 4032 w/modem rear panel 18

LX Series 4048 AC rear panel 19

LX-4000 Series

about 13

alarm input cable length 46

cabling 45

control output cable length 46

Control Output Ratings 47

controls 45

dimensions 45

environment 46

Ethernet connections 47

LEDs 45

memory 46

minimum software requirements 47

modem 45

power requirements 47

processor 46

real time clock 47

signals 45

speeds 45

voltage 46

weight 46

LX-4000 Series ports

accessing from a terminal 35

LX-4000 Series serial ports

number of 45

LX-4000 Unit

configuring for the first time 25

LX-4008S front panel 16

LX-4016 front panel 16

LX-4032 front panel 16

LX-4048 front panel 16

management station

connecting to 21

manually setting the IP address 28

menu tree structure 36

modem port 22

modular adapters 56

OK LED 16

organization of user guide 11

package contents 15

passwords 23

defaults 23

pinouts

DB-25 56, 61

RJ-45 61

RJ-45 jacks 55

port status LEDs 17

ports 37

POST test error code sample 53

power cable 20

power on self test (POST) 22

powering on 22

ppciboot factory default settings 50

prompts 13

quick configuration

first time 25

rack-mounting the unit 20

RCV LED 19

real time clock battery 47

rear panel connections 17

rear panel LEDs 17

reinitializing/powering off the unit 36

RESET switch 23

resetting the unit 23

RJ-45 jacks 21

RJ-45 wiring 59

sensor ports 37

serial device cables

connecting to RJ-45 jacks 21

speed LED 19

System Login 23

system specifications 14

tab button 14

technical specifications 45

LX-4000 Series 45, 49

temperature/humidity sensor 48

451-0308 MRV Communications, Inc. www.mrv.com 65

INDEX

telnet directly to the communication server 34

telnet port

changing 34

temperature/humidity sensor

accuracy 48

cable length 48

connecting the 37

dimensions 48

environment 48

interface 48

weight 48

typographical conventions 14

Unpacking and inspecting the unit 15

web access mode 32

web configure mode 31

wiring schemes

for RJ-45 59
