Users Manual
DCOM-H Users Manual
Rev 0.1
ArKion Systems – Confidential Page 1
ArKion Systems
Users Manual
DCOM-H
Ver 1.0
DCOM-H Users Manual
Rev 0.1
ArKion Systems – Confidential Page 2
Document Information
Title: DCOM-H Users Manual
Version: 1.0
Last Modified On: 9/9/2004 3:45:00 PM
Authors: Iqbal Khan
Revision History
Rev Date Comments
0.1 09/9/04 First draft
Reviewers
Reviewed By Title Date Reviewed
DCOM-H Users Manual
Rev 0.1
ArKion Systems – Confidential Page 3
Table of Contents .............................................................Error! Bookmark not defined.
1. Purpose..................................................................................................................... 4
2. System Architecture.............................................................................................. 4
3. System Network Devices ..................................................................................... 5
DCOM-H....................................................Error! Bookmark not defined.
CCOM .................................................................................................. 5
4. Module Installation ............................................................................................... 6
DCOM-H Installation............................................................................ 6
5. Operating the System........................................................................................... 7
Water Meter Services............................................................................ 8
6. Interfaces ................................................................................................................. 8
DCOM-H Users Manual
Rev 0.1
ArKion Systems – Confidential Page 4
1. Purpose
This Document Describes the Instructions to install and Use ArKion’s Residential Water
Meter Reading System. ArKion provides a fixed network full duplex wireless AMR system
for Residential Sector.
2. System Architecture

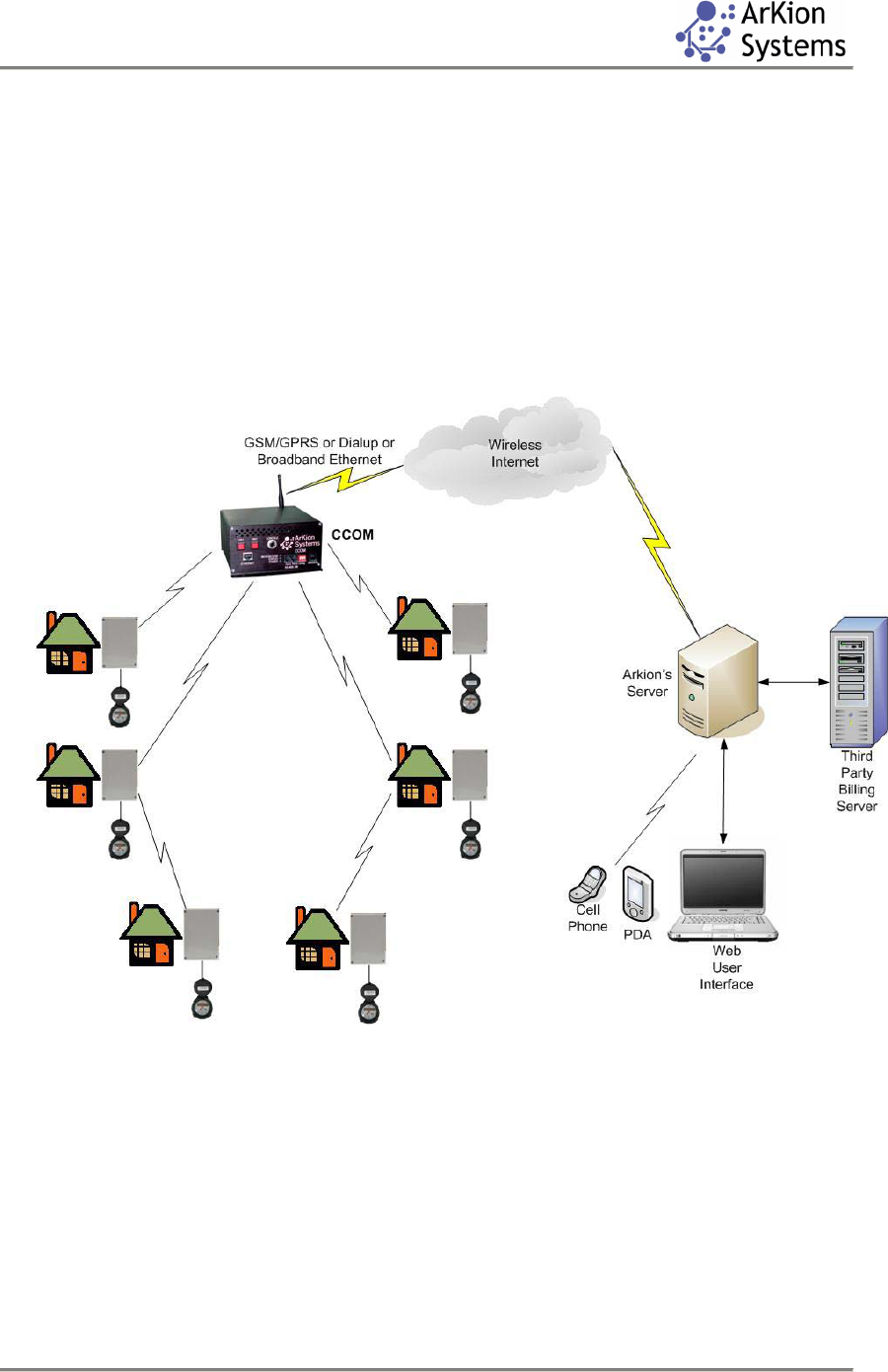

Figs 2.1 shows how the Water Meters are connected to ArKion Systems Full Duplex Fixed
Wireless Network
Figure 2.1 Water Meters Connected to ArKion Systems Network
Water Meters are connected directly to ArKion’s DCOM-H Module. Water Meters are
connected to three wire Digital Absolute Encoder Interface
Each DCOM-H has one three wire encoder type water meter interface and one Pulse
Input Interface. DCOM-H is a stand alone battery Powered Radio module. It reads the
water reading at preconfigured intervals; time stamps it and stores it. CCOM-RF act as
collector for a cluster of DCOM-H’s . CCOM-RF collects meter readings from the DCOM-
DCOM-H Users Manual
Rev 0.1
ArKion Systems – Confidential Page 5
Hs using 902-918MHz license free Radio Network, and uploads the metering data to
ArKion Server at specified upload intervals.
. DCOM-H’s also act as router for other DCOM-H’s which are not in the range of
the CCOM. The System supports maximum 6 hopping levels between a farthest DCOM-
H and CCOM.
ArKion Systems provides a Web User Interface for the users to access their
metering data by logging into the Web UI.
3. System Network Devices
System Network Devices are devices developed by ArKion Systems to connect Water
meters to ArKion Systems Fixed Network Two Way Wireless system
DCOM-H
DCOM-H Module is a Device Communication Module designed for Water Metering
Applications. It is a Stand alone Battery Operated Module and can read One Three Wire
Absolute Encoder Water meter Register and One Pulse meters simultaneously.
Main Features of this Module are
• Device Ports:
o One Absolute Encoder Water Meter Port
o One Pulse Meter Ports
• 900MHz FHSS Radio
• Stand Alone Battery Powered Module with At least 10 Year battery Life
• 0.5 mile LOS Communication Range
• Communicates the Metering Data to ArKion Systems Collector (CCOM)
• NEMA 4x weather-proof enclosure
• Rated for -20°C to +70°C operation
CCOM
CCOM is a Central Communication Module used to collect data from ArKion Systems
DCOM-H. CCOM is WAN enabled via GSM/GPRS or Dialup connection or Ethernet. CCOM
interrogates the DCOM-H, collects the metering data from DCOM-H’s and sends it over
to ArKion Systems Servers.
Main Features of this Module are
• WAN connection:
o GSM/GPRS or
o Dial up connection or
o Ethernet
• LAN connection
o 900 MHz ISM band FHSS radio
o RS232
o RS485
• Uploads the Metering Data to ArKion Systems Servers
• 12VDC Wall Transformer Powered Module
DCOM-H Users Manual
Rev 0.1
ArKion Systems – Confidential Page 6
• NEMA 4x weather-proof enclosure
• 0°C to +70°C operational temperature range
4. Module Installation
DCOM-H Installation
1. Connect three wire Water Meter to the Three wire interface provided on the
DCOM-H

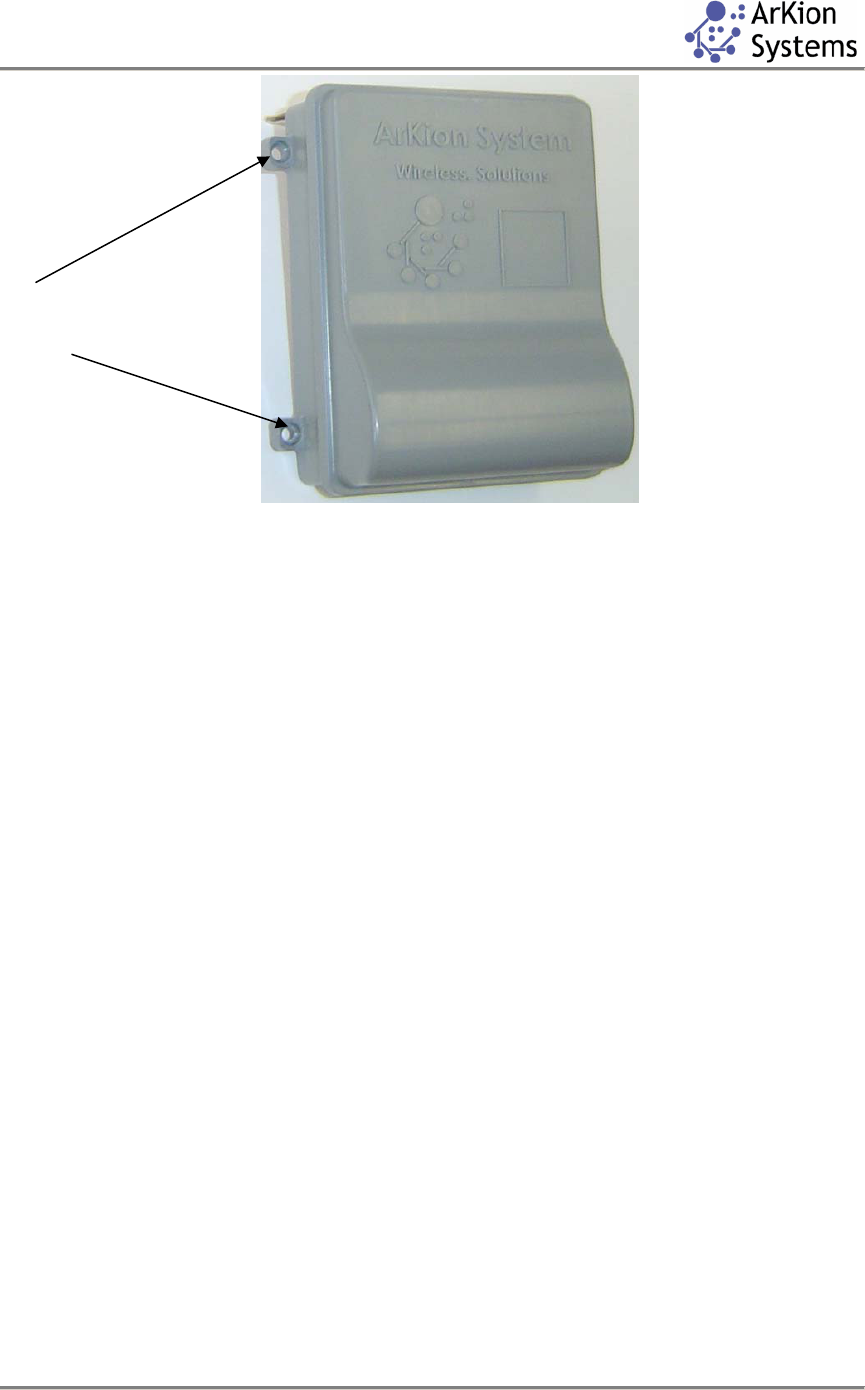

2. Mount the DCOM-H on the Side of a wall using #6 wood screws provided along
with the DCOM-H, using the mounting brackets provided on the DCOM-H box.
DCOM-H Users Manual
Rev 0.1
ArKion Systems – Confidential Page 7
5. Operating the System
A Web User Interface will be provided for the users to view their metering data.
DCOM-H Users Manual
Rev 0.1
ArKion Systems – Confidential Page 8
Following services are provided by the ArKion Systems Residential AMR system
Water Meter Services
1. Daily and Monthly Water Meter Reads
2. Current Read, Previous Read and consumption data
3. Totalizing Billing
4. Summary Billing
5. On request reads
6. Reports on historical readings, up to 1 year
7. Invoice generation
8. Online Customer Information Configuration
9. Meter Disconnect alarm
6. Interfaces
DCOM-H Users Manual
Rev 0.1
ArKion Systems – Confidential Page 9
Basic web based user interface will be provided for users to access to the data collected
from the water meter.
The basic user interface has the following capabilities:

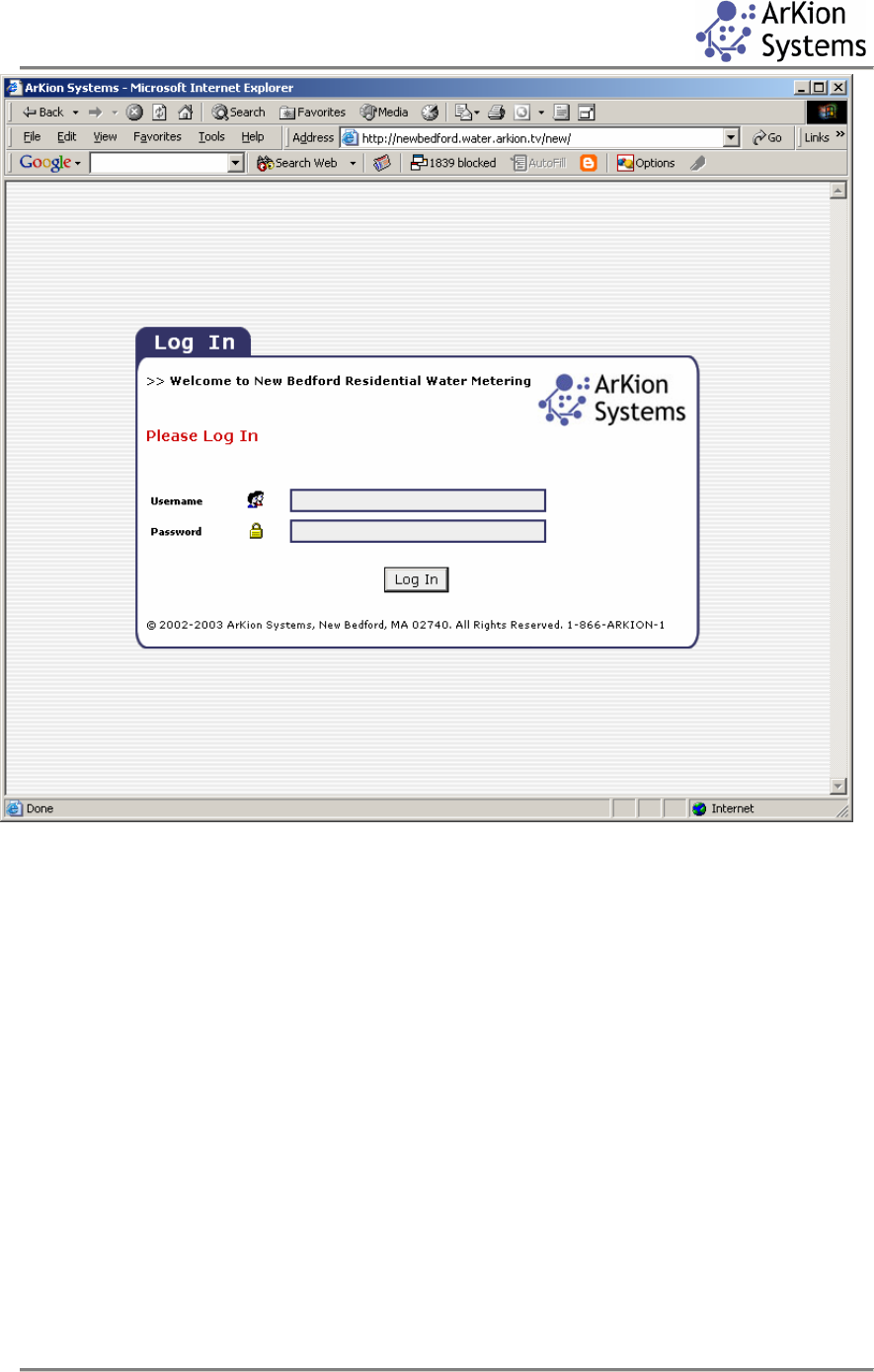

• User authentication
Only an authorized user is allowed to access the metering data from only his/her
water meters.
• Locations
Display a summary of locations and status of the list of meters owned by the
user.
DCOM-H Users Manual
Rev 0.1
ArKion Systems – Confidential Page
10

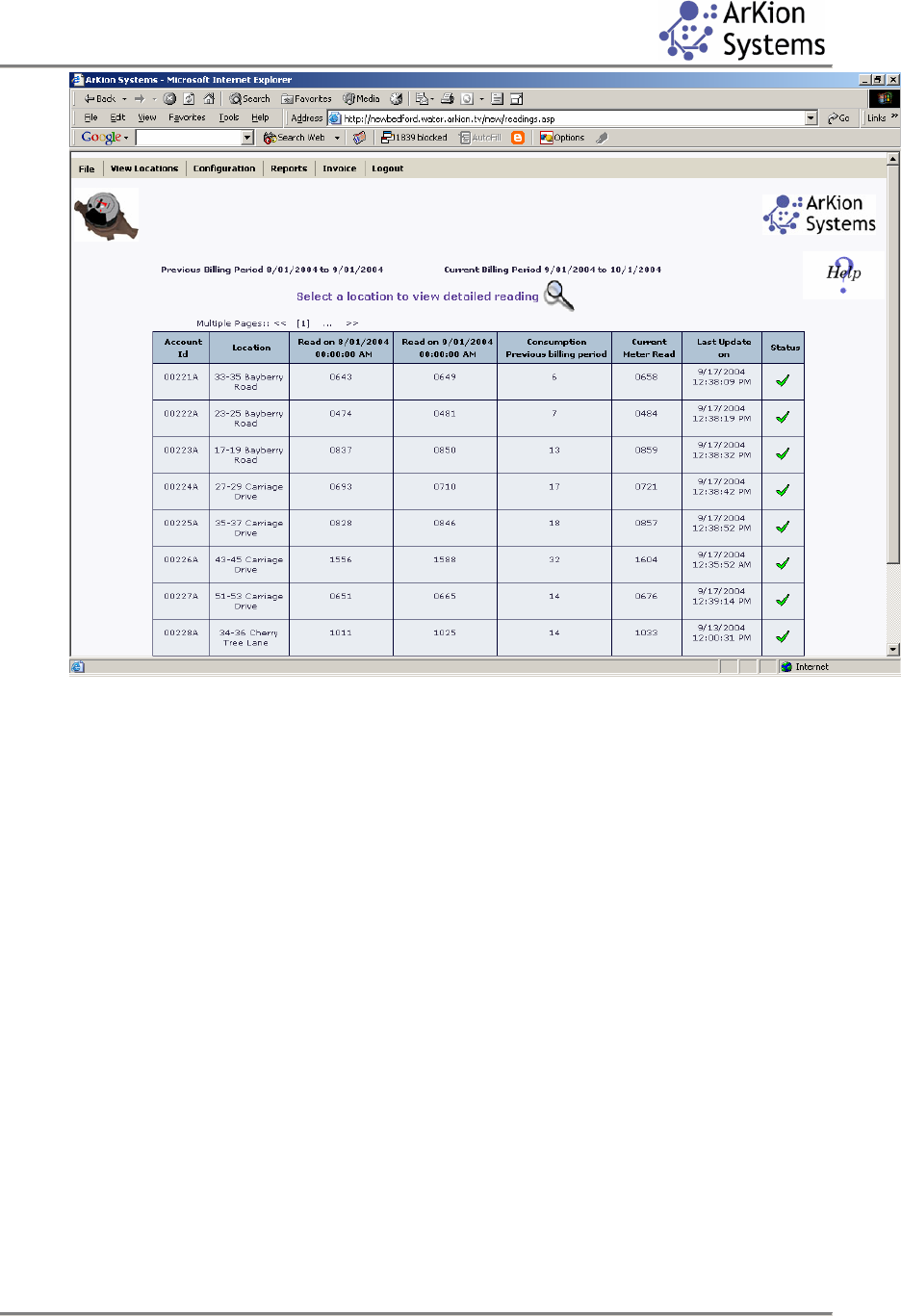

• Readings
Display a summary of readings, locations, and status of the list of meters owned
by the user. The user can view the details of a specific meter on selection. The
details of the readings vary on the type of meter selected.
DCOM-H Users Manual
Rev 0.1
ArKion Systems – Confidential Page
11

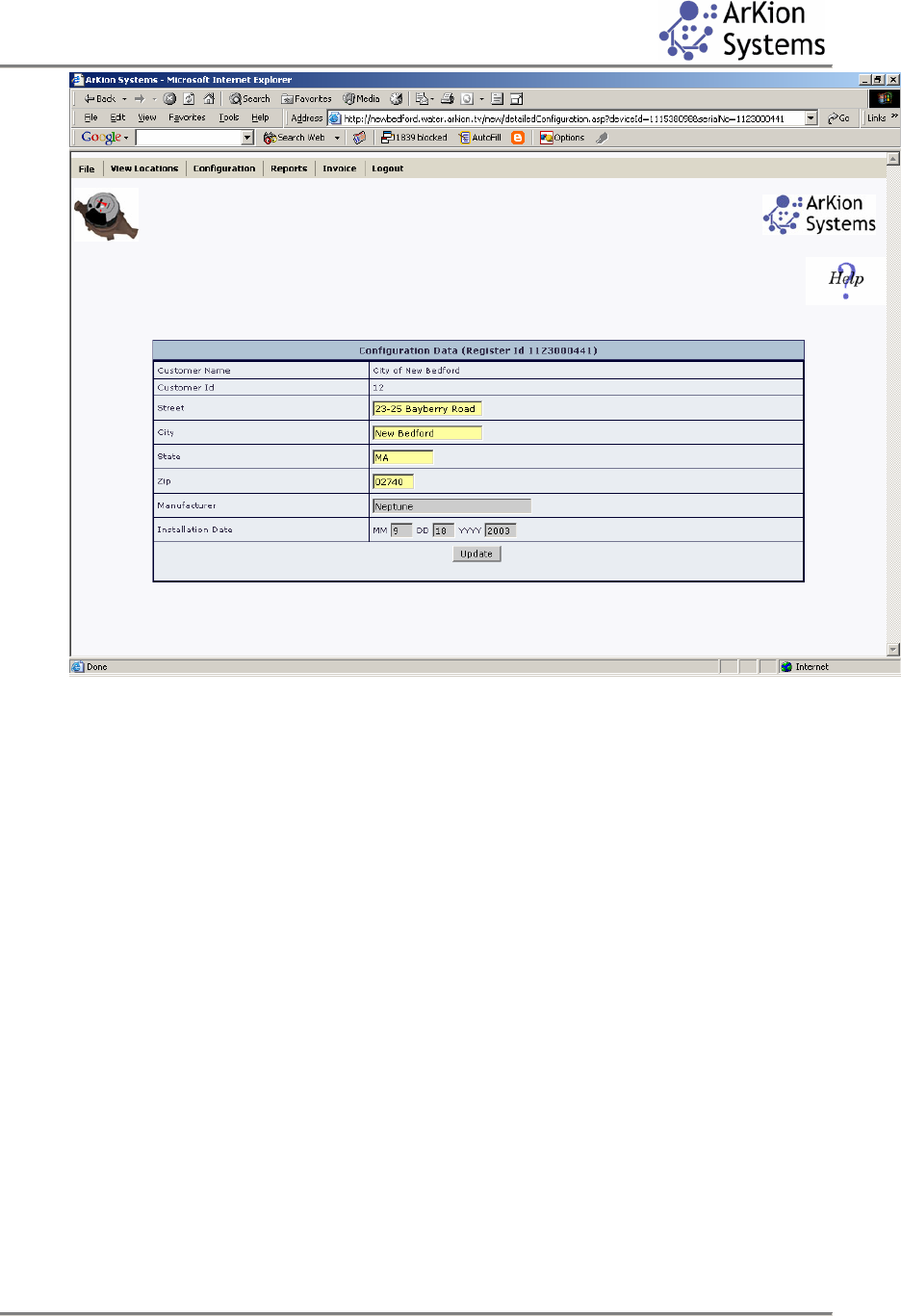

• Configuration
View and change parameters of the meter such as location, manufacturer and
installation date for the meter.
DCOM-H Users Manual
Rev 0.1
ArKion Systems – Confidential Page
12

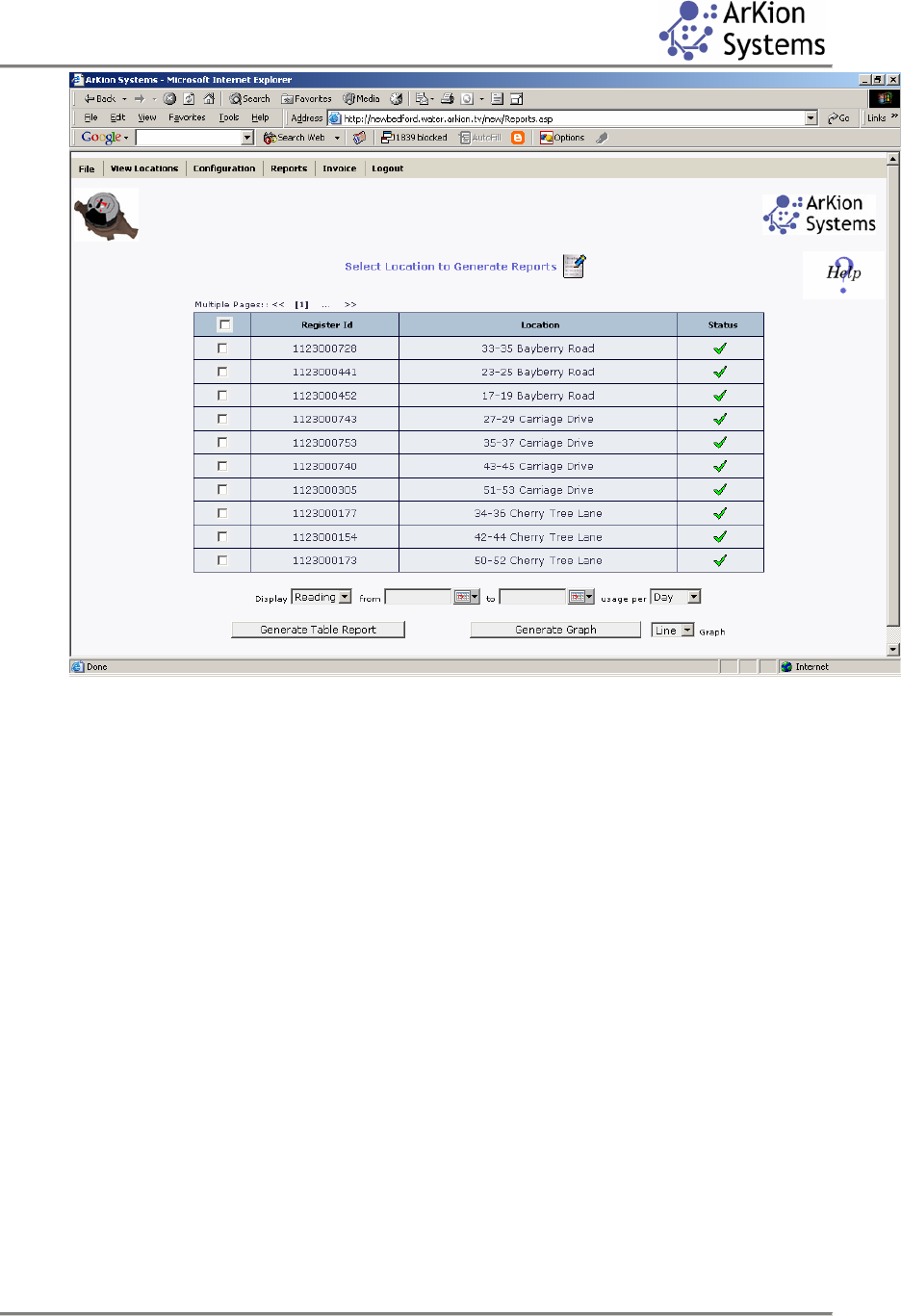

• Reports
Generate power usage reports in form of graphs and table based reports for
single and multiple meters between given date interval.
DCOM-H Users Manual
Rev 0.1
ArKion Systems – Confidential Page
13

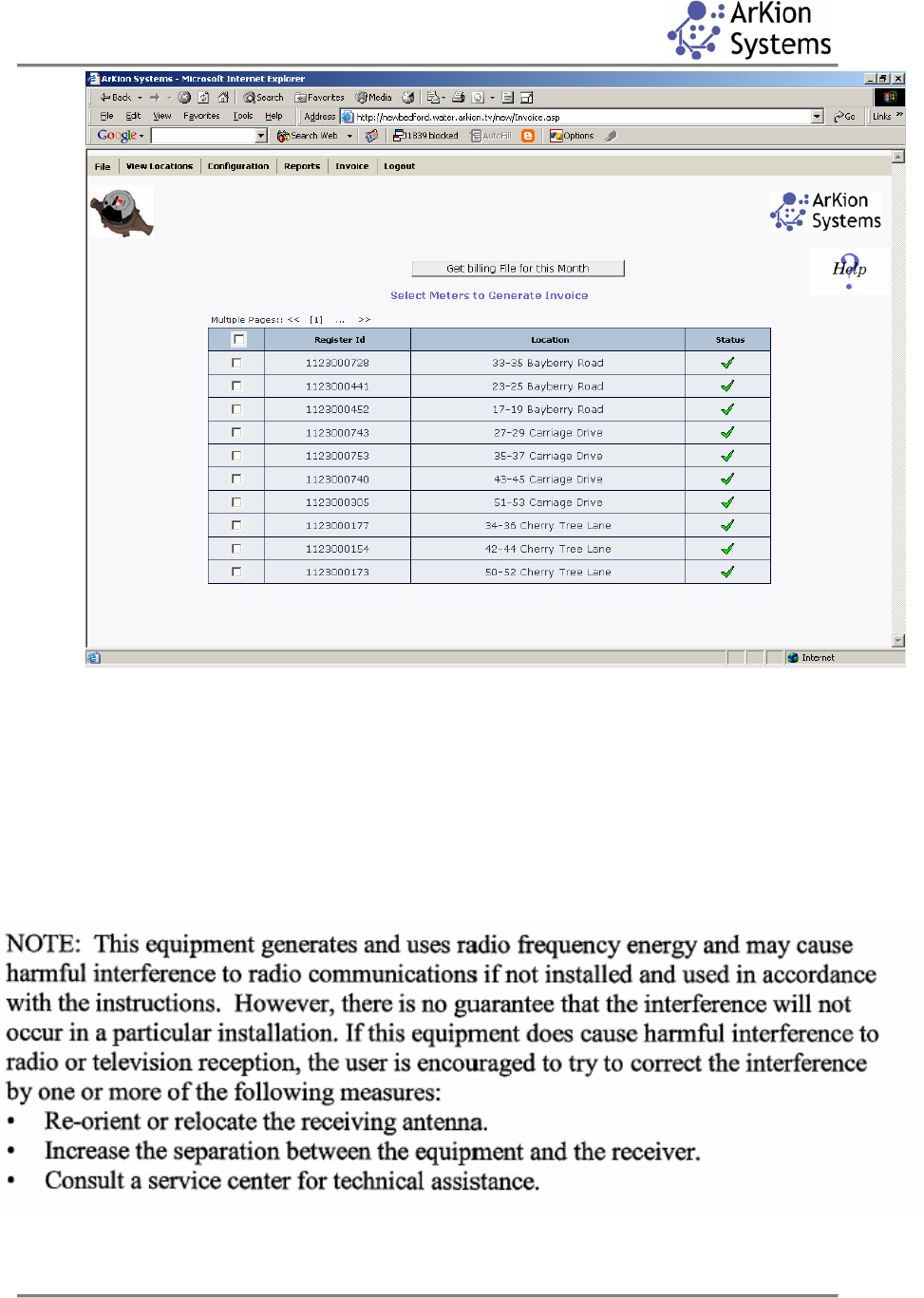

• Invoicing
Generate sample invoices based on rates for a meter between given date interval.
The invoice can be printed.
