Mueller Systems, LLC RF Transceiver Module Manual
Manual
MiNode-Water6
Installation Manual
MiNode-Water6 Installation Manual
Mueller Systems – Proprietary
Page 2
Contents
1. Introduction ................................................................................................................................ 4
2. Construction ................................................................................................................................ 4
3. Installation .................................................................................................................................. 5
3.1 Pit Set Installation ............................................................................................. 5
3.2 Exterior Wall Mounting ....................................................................................... 6
3.3 Wiring .............................................................................................................. 6
3.4 Verification ....................................................................................................... 6
4. Maintenance ............................................................................................................................... 6
5. Product Labeling .......................................................................................................................... 6
5.1 Product and FCC/IC Identification ........................................................................ 6
5.2 IC Information .................................................................................................. 7
Table of Tables
TABLE 1. Mi.Node Water 6 METER INTERCONNECT ..................................................................... 6
Table of Figures
FIGURE 1. PRODUCT IDENTIFICATION LABEL ............................................................................ 6
MiNode-Water6 Installation Manual
Mueller Systems – Proprietary
Page 3
FCC Information:
Changes or modifications not expressly approved by the Mueller Systems could
void the user's authority to operate the equipment.
IMPORTANT NOTE: To comply with FCC RF exposure compliance
requirements, the antenna used for this transmitter must be installed to
provide a separation distance of at least 20 cm from all persons and must not
be co-located or operating in conjunction with any other antenna or
transmitter.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
“NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
IC Information
Under Industry Canada regulations, this radio transmitter may only operate using an
antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry
Canada. To reduce potential radio interference to other users, the antenna type and its gain
should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more
than that necessary for successful communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut
fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour
l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage
radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son
gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas
l'intensité nécessaire à l'établissement d'une communication satisfaisante.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre
le fonctionnement.
MiNode-Water6 Installation Manual
Mueller Systems – Proprietary
Page 4
1. Introduction
The Mueller Systems MiNode-Water6 is intended for indoor and outdoor use as an
unattended Advanced Metering Infrastructure (AMI) and control device. The MiNode-
Water6 is fully self-contained and battery powered device with no user-accessible controls.
The MiNode-Water6 for Residential Metering (“MiNode-Water6”)
is a device that incorporates a microcontroller, 915MHz ISM
band transceiver (simplex operation), and battery (DC power
supply) for the purpose of logging and forwarding water meter
readings to the Mueller Systems servers. The readings are
forwarded to server via other MiNode-Water6 devices or
repeaters, Mi.Hub data collectors, or a LoRaWAN network at
assigned times. The Mi.Node-Water6 will also autonomously
send messages to the server when various events or alert
conditions are detected, such as potential leak or theft of
service.
Meter reading interval is remotely settable. Information retrieved from the meters’
registers
are temporarily stored within the Mi.Node solid-state memory. On a specified
interval, the MiNode-Water6 will automatically transmit this information to the Mueller
Systems AMI server via other meters or Mi.Hubs using the Radio Frequency (RF)
network.
The Mueller Systems AMI server analyzes and archives the readings.
The contents of this installation manual are intended for technically qualified personnel
of
water and energy distribution utilities who have been trained and are technically
qualified in
local safety procedures for installation of the device.

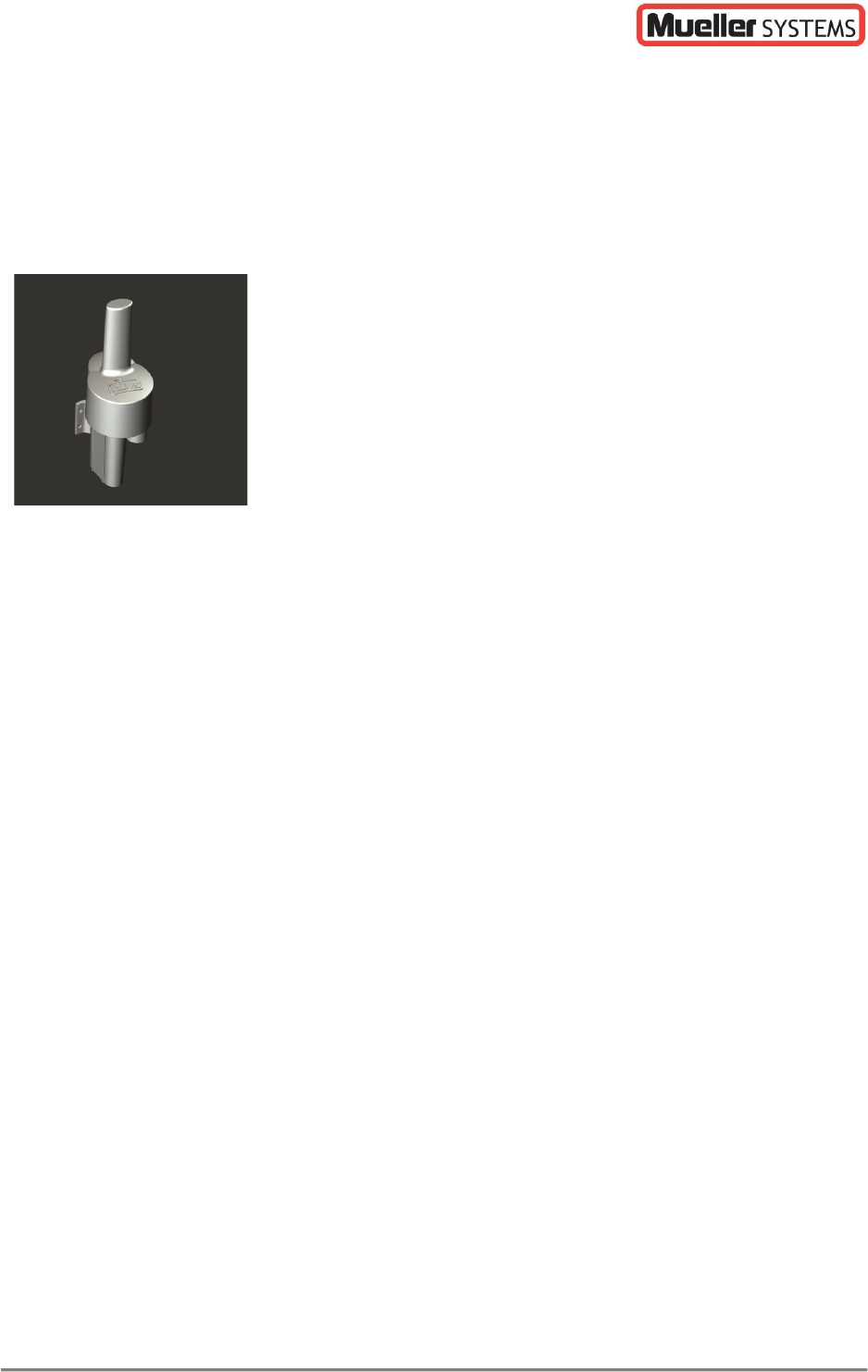

2. Construction
The MiNode-Water6 product consists of a printed circuit board which is encapsulated to
provide complete protection against shock and water intrusion. The enclosure is made of UV-
stable, high density thermoplastic and is completely waterproof. The UV-stable,
thermoplastic housing design provides a compact, waterproof enclosure that is lightweight
and easy to handle and install. The MiNode-Water6 has integral mounting brackets for
both pit and wall installations. One D size lithium battery provides plenty of power for
reading the register and sending RF data.
•
In order to protect the AMI device electronics from moisture ingress the
design
incorporates the use of thermoplastic injection molded housings, rubber
seals, a
potting compound that completely encases the internal electronics
and a coated
circuit board which combine to provide a formidable barrier of
protection against
water intrusion.
•
Internal wire strain relief has been built into the housing to protect the wire
connections against damage. Please note that meters or registers should never
be
carried while supported only by the Mi.Node-Water 6 transmitter or wiring.
•
A monopole antenna is located in the upper housing to provide powerful RF
communication.
•
A single D cell long life Lithium battery is located in the lower housing which
provides
power for register interrogation and data transmission for a calculated
battery life of
up to 20 years.
MiNode-Water6 Installation Manual
Mueller Systems – Proprietary
Page 5
•
There are no customer serviceable parts inside the Mi.Node-Water6 housing.
Batteries are not replaceable.
•
The electronic design utilizes the latest RF microchip technology which
increases
reliability when compared to older RF designs.
3. Installation
MiNode-Water6 modules support two mounting options, either mounting to a ½” PVC
pipe
for pit set installations or affixed to the side of a building. Pit set installations
require no
drilled holes through the lid and are mounted beneath the polymer meter
box lid for security
and ease of installation on PVC pipe. Surface mounts are
easily accomplished with the
integral mounting brackets and two screws (not
included).

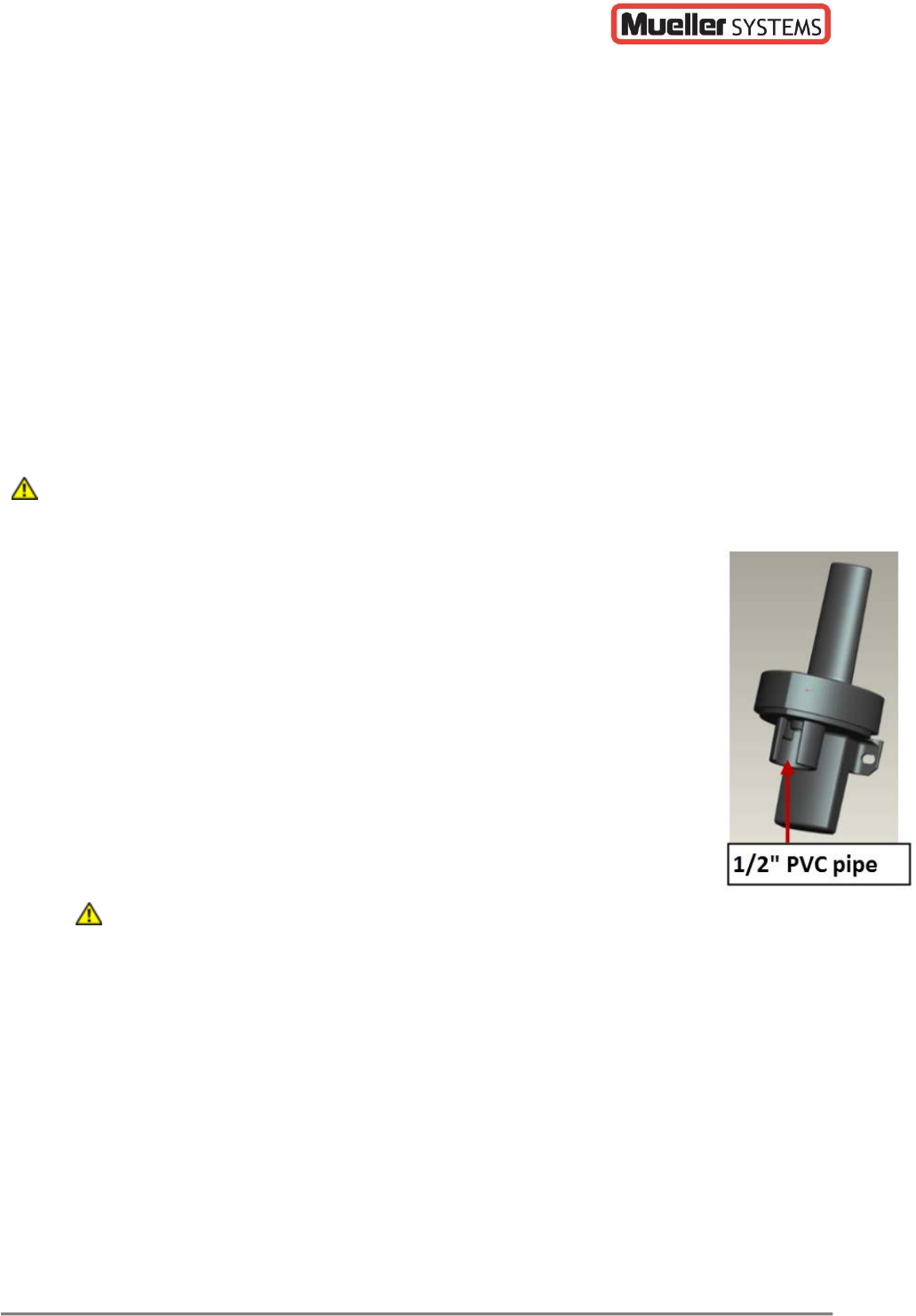

3.1 Pit Set Installation
Please note that meters or registers should never be carried while supported only
by
the AMI transmitter or wiring.
Tools Required: Length of ½” PVC pipe for pit depth, hammer
1.
PVC pipe should be cut to the proper length and installed deep
enough in the floor of
each meter box that subsequent flooding
will not allow the stake and Mi.Node-Water6 to change position.
The Mi.Node-Water6 includes
a ½” female PVC pipe fitting for
easy pit installation.
2.
For maximum radio performance, once installed, the top
of the
transmitter should be located approximately ½” inch
below the pit
lid in the center of the meter box to maximize RF
performance.
3.
Once the PVC stake is installed, the Mi.Node-Water6 should
be
pushed down onto the stake by hand until the interference
fit
engages securely. Two solid stops are molded into the
PVC
Installation Slot in order to prevent the wire from
being pinched
when installed.
Never hammer MiNode-Water6 onto the stake since this may result in
damage to
the electronic components inside the unit.
4.
Always mount the MiNode-Water6 in a vertical orientation, with the antenna
compartment on top and the battery compartment on the bottom.
MiNode-Water6 Installation Manual
Mueller Systems – Proprietary
Page 6

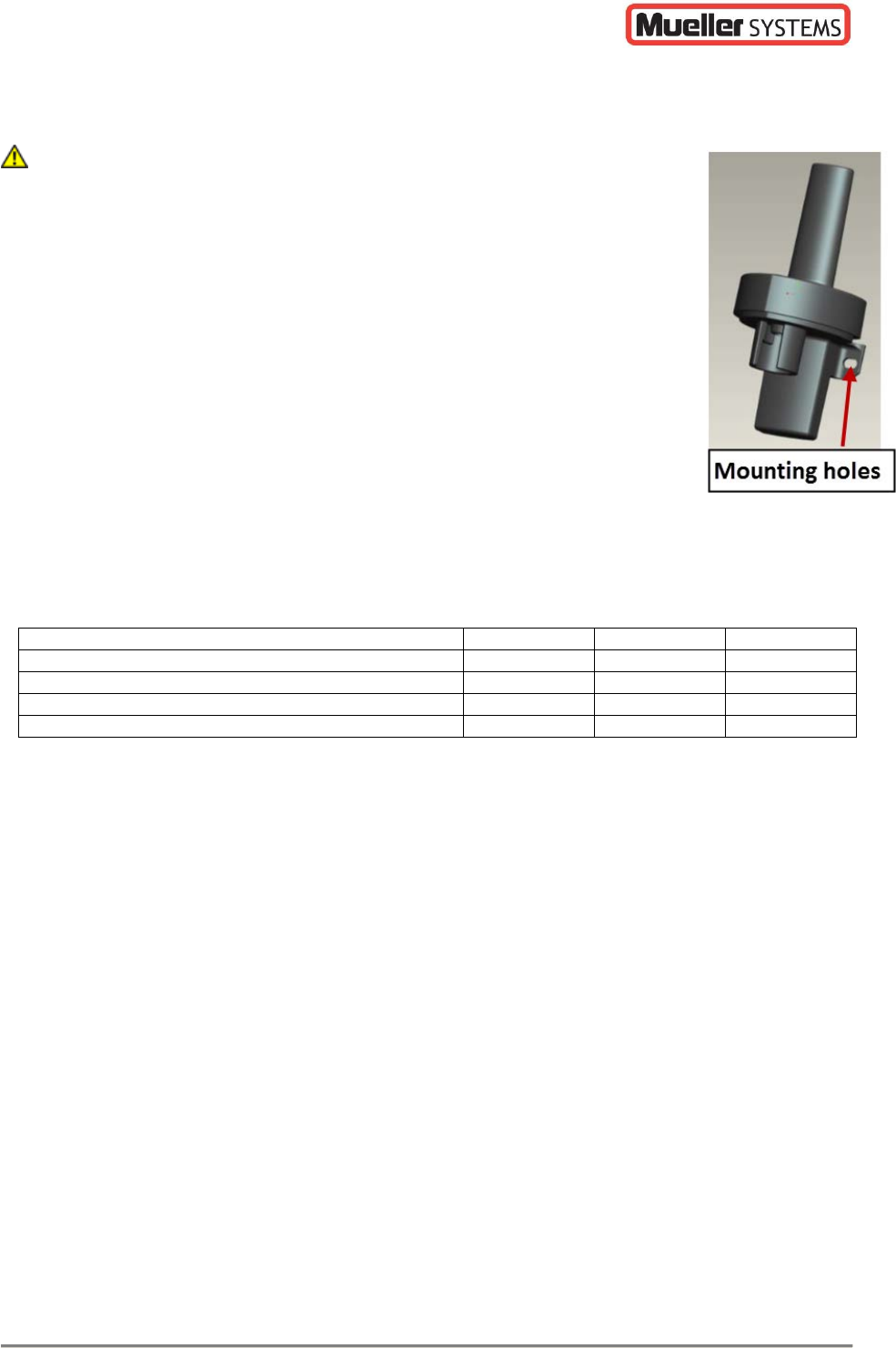

3.2 Exterior Wall Mounting
Tools required: 1 – 1 1/2 inch galvanized, or stainless wood or sheet
metal screws (2 per), Phillips screwdriver
1.
The open ended wire from the device permits routing through
interior walls for external wall mounting when required or
direct mounting to exposed floor joists above grade level.
2.
MiNode-Water6 can be directly mounted to almost any flat
surface by using the holes shown and common screws in most
instances.
3.
Vertical orientation of the device is required to maximize RF
performance.
3.3 Wiring
Tools Required: 3M-2Y connectors, splitting tube, and a 3M Crimping Tool
MiNode-Water6
Red
Green/White
Black
Translator Register
Red
Green/White
Black
Badger ADE Register
Red
Green
Black
Sensus ECR and ICE Registers
Red
Green
Black
Neptune PRORead, AUTORead, E-Coder Registers
Black
Red
Green
Table 1. Mi.Node-Water6 Meter Interconnect
3.4 Verification
Following installation the Mi.Tech Hand-held should be used to verify proper installation
and operation. Please refer to the Mi.Tech manual.
4. Maintenance
There are no user serviceable items within a MiNode-Water6. The battery is sealed within
the module and is not replaceable. No cleaning is required.
5. Product Labeling
5.1 Product and FCC/IC Identification
This label is affixed to the face of the MiNode-Water6 unit. This allows the installer to
easily scan the label with the Mi.Tech handheld computer during the installation
process. This label
includes the Date of Manufacture, the Hardware Version and the
MiNode-Water6/Serial
Number (Node ID) that is used to uniquely address the device and
Assembled in USA. The FCC ID is SM6-MINODE-WATER6.
MiNode-Water6 Installation Manual
Mueller Systems – Proprietary
Page 7

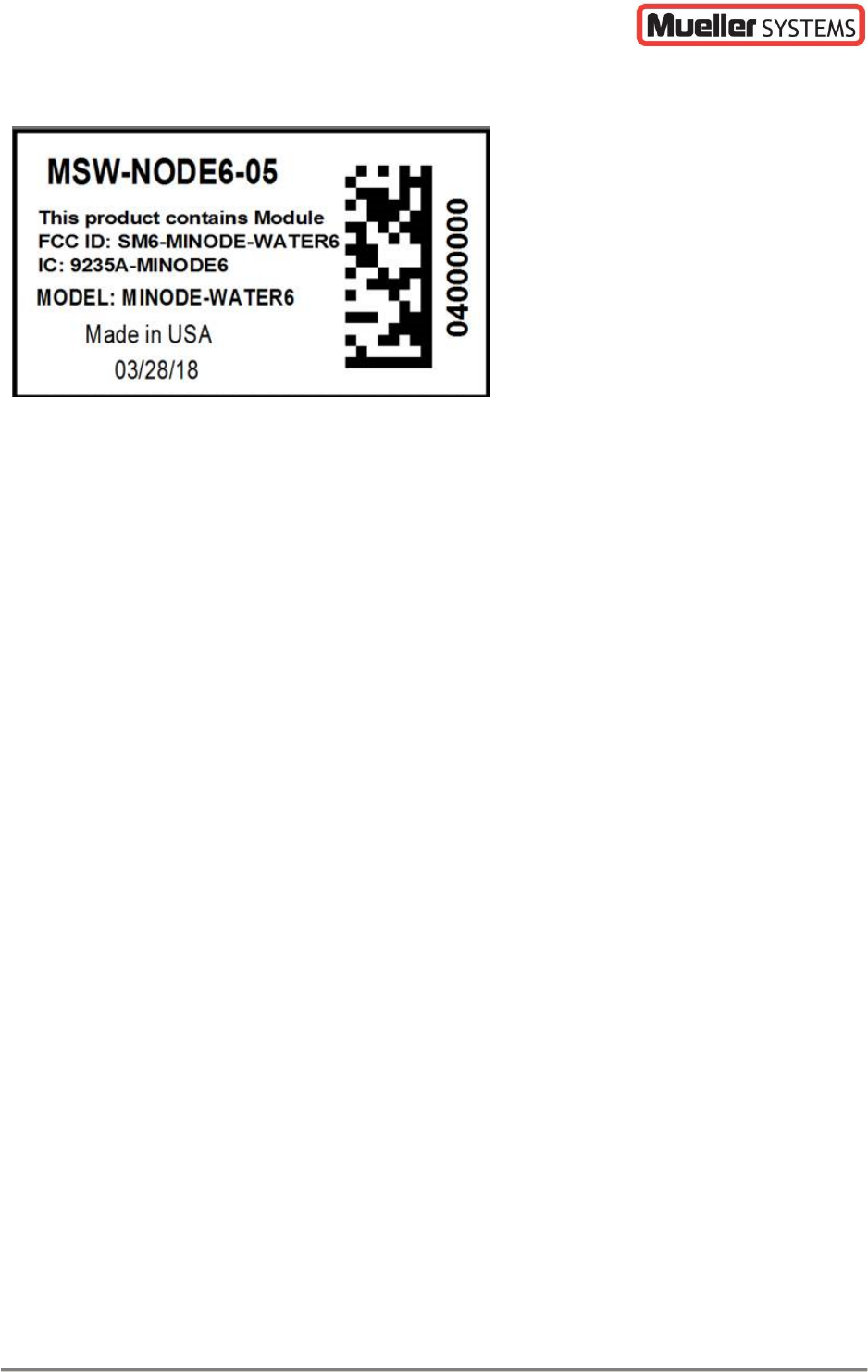

Figure 1. Sample Product Identification Label
5.2 IC Information
This AMI transmitter model operates in the license exempt 902 MHz to
928 MHz ISM
band and is certified for operation in Canada. The IC ID is 9235A-MINODE6.
Information
pertaining to the certification can be found on the web at
http://www.ic.gc.ca/eic/site/ceb-bhst.nsf/eng/home.
