Mueller Systems, LLC Spread Spectrum Transmitter
User Manual
ArKion Systems
SmartMeter
Installation Manual
880-0023-001
Document Rev 0.2
SmartMeter Install Manual
Page ii ArKion Systems – Confidential Rev 0.2
Document Information
Title: SmartMeter Installation Manual
Version: 0.2
Created: 12/13/2008
Last Modified On: 12/13/2008
Author:
Technical Lead:
Contributors:
Revision History
Version Date Author Comments
0.1 12/03/08 TC Initial draft, submitted for review
0.2 12/13/08 TC Minor update for FCC notice
Reviewers
Reviewed By Title Date Reviewed
SmartMeter Installation Manual
Rev 0.2 ArKion Systems – Confidential Page iii
Table of Contents
1. Introduction .............................................................................................. 1
2. Supported Products ................................................................................... 1
3. Maintenance .............................................................................................. 1
4. Product Labeling........................................................................................ 2
4.1 PRODUCT IDENTIFICATION ............................................................................... 2
4.2 FCC IDENTIFICATION..................................................................................... 2
Table of Figures
FIGURE 1. PRODUCT IDENTIFICATION LABEL ..................................................................... 2
FIGURE 2. FCC LABEL SMARTMETER-H........................................................................... 2
FIGURE 2. FCC LABEL SMARTMETER-L ........................................................................... 2
SmartMeter Install Manual
Page iv ArKion Systems – Confidential Rev 0.2
FCC Information
Changes or modifications not expressly approved by the ArKion
Systems could void the user's authority to operate the equipment.
IMPORTANT NOTE: To comply with FCC RF exposure compliance
requirements, the antenna used for this transmitter must be installed
to provide a separation distance of at least 20 cm from all persons and
must not be co-located or operating in conjunction with any other
antenna or transmitter.
“NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
SmartMeter Installation Manual
Rev 0.2 ArKion Systems – Confidential Page 1
1. Introduction
The ArKion SmartMeter is intended for indoor & outdoor use as an unattended automatic
metering Infrastructure (AMI) & control device. The SmartMeter product consists of an
ArKion AMI module fully integrated into a Landis+Gyr Focus solid state electric meter.
The SmartMeter is fully self-contained with no user accessible controls.
The SmartMeter interrogates the ANSI C.12 register set in Focus solid-state electric
meters from Landis + Gyr. It’s main function is to obtain energy consumption, negative
consumption, and voltage readings for billing, distribution monitoring, fraud detection,
and conservation purposes.
Meter reading interval is remotely settable. Information retrieved from the meters
registers are temporarily stored within the Smart Meters solid-state memory. On a
specified interval, the Smart Meter will automatically transmit this information to the
ArKion AMI server via. other meters or CCOM using the Radio Frequency (RF) network.
The ArKion AMI server analyzes and archives the readings.
The Smart Meter uses SuperCapacitors to support transmission of power failure
messages and to maintain the time of day clock. The Smart Meter does not use any
internal batteries eliminating need for field service.
The contents of this installation manual are intended for technically qualified personnel of
energy distribution utilities who have been trained and are technically qualified in basic
electrical principles, including safety procedures for installation of energy meters.
The installer should refer to the latest edition of the Landis+Gyr “FOCUS kWh Solid-State
Meter Technical Manual” for physical installation, wiring, and safety precautions.
2. Supported Products
SmartMeter high
SmartMeter low Power
Note: High and low power refer to RF output power. low power is approximately +13dbm
and high power is +30dbm Max. Other than transmit power the operation of the two
radios is identical.
The SmartMeter supports the following forms
Form Voltage Current
1S 120Vac Class 100
2S 240Vac Class 200
2Se 240Vac Class 320
3S 120 Class 10 or Class 20
3S 240 Class 10 or Class 20
4S 240 Class 10 or Class 20
12S 120Vac Class 200
3. Maintenance
There are no user serviceable items within a SmartMeter. No cleaning is required.
SmartMeter Install Manual
Page 2 ArKion Systems – Confidential Rev 0.2

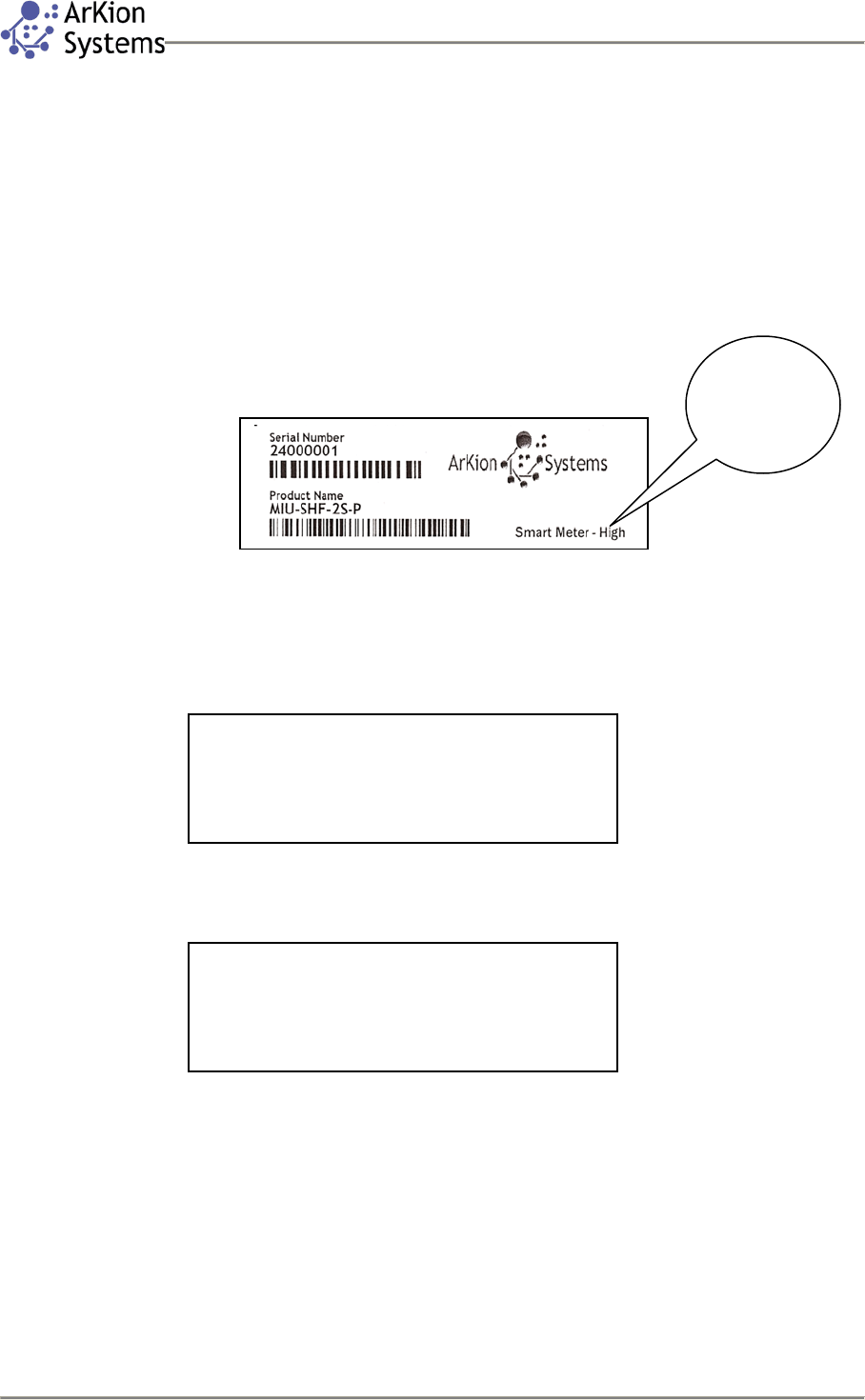

4. Product Labeling
4.1 Product Identification
This label is affixed to the face of the SmartMeter meter. This allows the installer to
recognize if the product is high or low powered radio.
Figure 1. Product Identification Label
4.2 FCC Identification
Figure 2. FCC Label SmartMeter-H
Figure 3. FCC Label SmartMeter-L
High Or
Low
Powered
This product contains Module FCC ID: SM6-UGM-H
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions; (1) this
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
This product contains Module FCC ID: SM6-UGM-L-NS
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions; (1) this
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
