Universal Socket Connectivity Embedded Device Networking Solutions Hardware Guide for Developers
Copyright and Technical Support Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 2 Universal Socket Connectivity Hardware Guide for Developers, PN S000342H, Version H For the following products: SocketModem® – MT5600SMI SocketModem® – MT5656SMI SocketModem® – MT5634SMI SocketModem® – MT9234SMI SocketModem® – MT2492SMI SocketModem® – MT2456SMI-22 SocketModem® IP – MT2456SMI-IP SocketModem® IP – MT5656SMI-IP SocketEthernet IP® – MTXCSEM SocketEthernet IP® – MT100SEM SocketModem® ISDN – MT128SMI SocketModem® GPRS – MTSMC-G SocketModem® CDMA – MTSMC-C SocketModem® EDGE – MTSMC-E SocketWireless® Wi-Fi® – MT800SWM SocketWireless® Bluetooth® – MTS2BTSMI Copyright This publication may not be reproduced, in whole or in part, without prior expressed written permission from Multi-Tech Systems, Inc. All rights reserved. Copyright © 2004-7 by Multi-Tech Systems, Inc. Multi-Tech Systems, Inc. makes no representations or warranties with respect to the contents hereof and specifically disclaim any implied warranties of merchantability or fitness for any particular purpose. Furthermore, Multi-Tech Systems, Inc. reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of Multi-Tech Systems, Inc. to notify any person or organization of such revisions or changes. See the Multi-Tech Web site for current revisions of documentation. Trademarks Trademarks and Registered Trademarks of Multi-Tech Systems, Inc. are SocketModem, SocketWireless, SocketEthernet IP, and the Multi-Tech logo. Microsoft and Windows are trademarks or registered trademarks of Microsoft Corporation in the United States and other countries. Bluetooth is a registered trademark of the Bluetooth SIG, Inc. Wi-Fi is a registered trademark of the Wi-Fi Alliance. Patents This device covered by one or more of the following patents: 6,031,867; 6,012,113; 6,009,082; 5,905,794; 5,864,560; 5,815,567; 5,815,503; 5,812,534; 5,809,068; 5,790,532; 5,764,628; 5,764,627; 5,754,589; 5,724,356; 5,673,268; 5,673,257; 5,644,594; 5,628,030; 5,619,508; 5,617,423; 5,600,649; 5,592,586; 5,577,041; 5,574,725; 5,559,793; 5,546,448; 5,546,395; 5,535,204; 5,500,859; 5,471,470; 5,463,616; 5,453,986; 5,452,289; 5,450,425; 5,355,365; 5,309,562; 5,301,274. Other Patents Pending. World Headquarters Multi-Tech Systems, Inc. 2205 Woodale Drive Mounds View, Minnesota 55112 Phone: 763-785-3500 or 800-328-9717 Fax: 763-785-9874 Internet Address: http://www.multitech.com Technical Support Country By Email By Phone Europe, Middle East, Africa: support@multitech.co.uk +(44) 118 959 7774 U.S., Canada, all others: support@multitech.com 800-972-2439 or 763-717-5863
Table of Contents Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 3 Table of Contents Chapter 1 - Universal Socket Connectivity................................................................................................................5 Multi-Tech Embedded Solutions .........................................................................................................................5 Universal Socket Connectivity Features ..........................................................................................................5 The Universal Socket Design...........................................................................................................................5 Universal Developer Kit Contents....................................................................................................................6 AT Commands Are Included on the Developer CD .........................................................................................6 Universal Socket Configuration...........................................................................................................................8 Universal Pin Descriptions...............................................................................................................................8 Design Considerations.......................................................................................................................................11 Noise Suppression Design Considerations....................................................................................................11 PC Board Layout Guidelines..........................................................................................................................11 Electromagnetic Interference (EMI) Considerations ......................................................................................12 Electrostatic Discharge Control......................................................................................................................12 Mechanicals and Schematics ............................................................................................................................13 Mechanical Dimensions in Inches..................................................................................................................13 Mechanical Dimensions in Millimeters ...........................................................................................................14 Maximum Component Height ........................................................................................................................14 SocketModem Developer Board....................................................................................................................15 Board Components........................................................................................................................................16 Pins and Corresponding Signals....................................................................................................................16 Recommended Parts ..........................................................................................................................................17 Recommended Parts for Non-Wireless Modules...........................................................................................17 Safety Notices and Warnings.............................................................................................................................18 Telecom Safety Warning................................................................................................................................18 Wireless Safety..............................................................................................................................................18 Upgrading Firmware ...........................................................................................................................................20 XMODEM Serial Port Upgrade ......................................................................................................................21 TFTP Ethernet Upgrade.................................................................................................................................22 Account Activation for Wireless Products .......................................................................................................23 Certifications, Approvals, Compliance, and Requirements ............................................................................24 Wireless Approvals (GSM, CDMA) ................................................................................................................24 Telecom Approvals for Analog Dial-up...........................................................................................................26 Labeling Requirements..................................................................................................................................27 Regulatory Compliance Statements ..............................................................................................................30 Waste Electrical and Electronic Equipment Statement ..................................................................................32 Restriction of the Use of Hazardous Substances (RoHS)..............................................................................33 Information on HS/TS Substances According to Chinese Standards ............................................................34 Information on HS/TS Substances According to Chinese Standards (in Chinese) ........................................35 Multi-Tech Warranty Statement .........................................................................................................................36 Chapter 12 – SocketWireless Wi-Fi (MT800SWM) ...................................................................................................39 Introduction.........................................................................................................................................................39 Ordering Information..........................................................................................................................................39 Technical Specifications ....................................................................................................................................40 SocketWireless Wi-Fi Configuration .................................................................................................................41 Mechanical Dimensions .....................................................................................................................................42 Electrical Characteristics ...................................................................................................................................42 3.3V Serial .....................................................................................................................................................42 5V Serial ........................................................................................................................................................42 Application Notes ...............................................................................................................................................43 RF Interface...................................................................................................................................................43 Default Power Up Settings.............................................................................................................................43 Sources for Peripheral Devices.........................................................................................................................44
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 4 Chapter 1 Universal Socket Connectivity

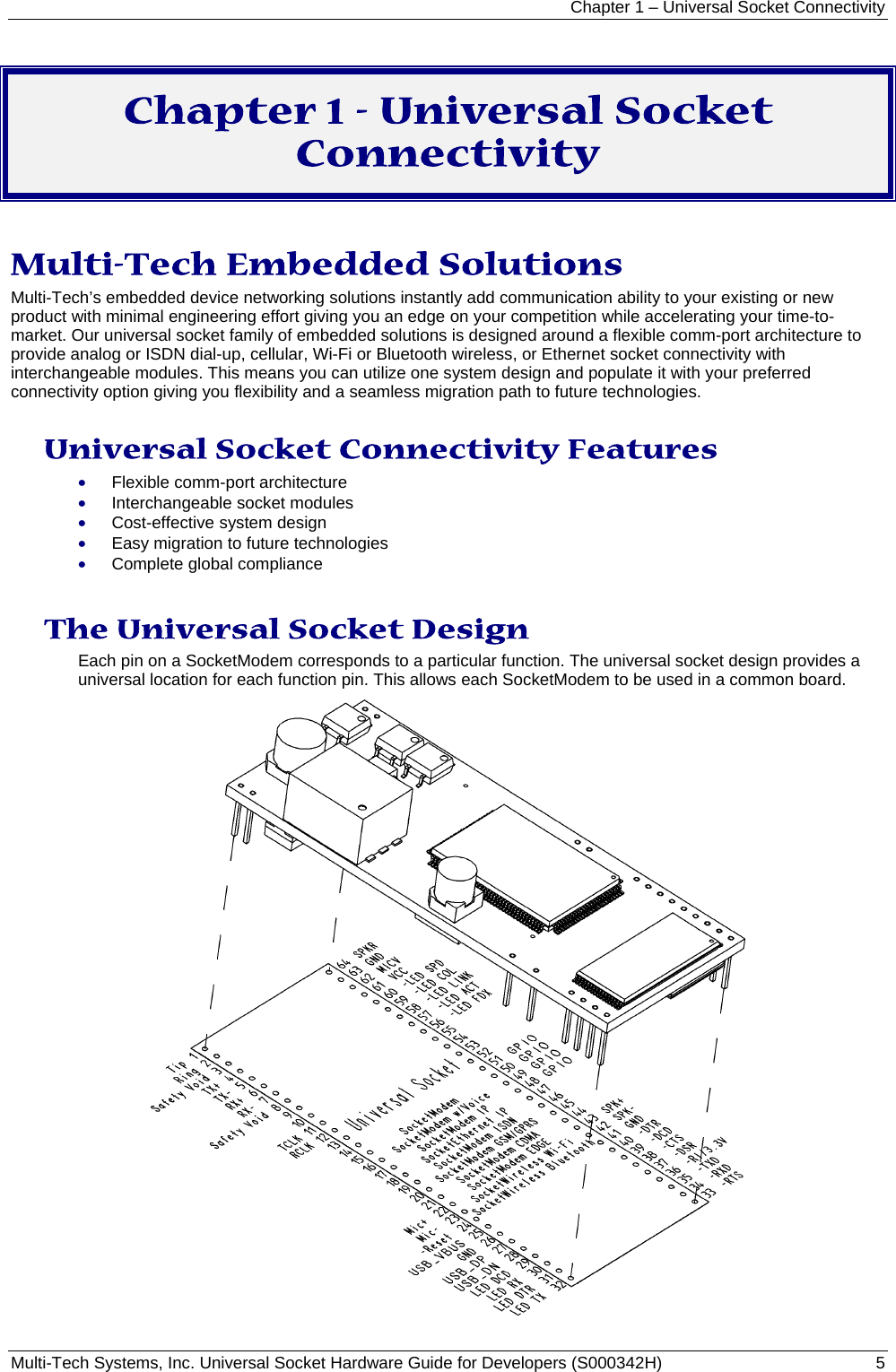

Chapter 1 – Universal Socket Connectivity Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 5 Chapter 1 - Universal Socket Connectivity Multi-Tech Embedded Solutions Multi-Tech’s embedded device networking solutions instantly add communication ability to your existing or new product with minimal engineering effort giving you an edge on your competition while accelerating your time-to-market. Our universal socket family of embedded solutions is designed around a flexible comm-port architecture to provide analog or ISDN dial-up, cellular, Wi-Fi or Bluetooth wireless, or Ethernet socket connectivity with interchangeable modules. This means you can utilize one system design and populate it with your preferred connectivity option giving you flexibility and a seamless migration path to future technologies. Universal Socket Connectivity Features • Flexible comm-port architecture • Interchangeable socket modules • Cost-effective system design • Easy migration to future technologies • Complete global compliance The Universal Socket Design Each pin on a SocketModem corresponds to a particular function. The universal socket design provides a universal location for each function pin. This allows each SocketModem to be used in a common board.
Chapter 1 – Universal Socket Connectivity Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 6 Universal Developer Kit Contents All products covered in this document can be evaluated using the MTSMI-UDK (Universal Developer Kit). • One MTSMI-UDK Developer Board • One 100-240V 9V-1A power supply w/IEC-320 connector • One IEC-320 power cord w/US type plug • One IEC-320 power cord w/EURO type plug • One IEC-320 power cord w/UK type plug • One RJ-45 cable (CARJ45NK-RJ45 7’8C non-keyed) • One 7 foot RJ-11 cable plug - plug/4C • One SMA jack to MMCX plug antenna cable (for CDMA and GPRS antennas) • One RSMA jack to MMCX plug antenna cable (for Bluetooth antenna) • One antenna 850/1900, right angle, 3-stripe (for CDMA and GPRS modules) • One antenna 900/1800, right angle 4-stripe (for GPRS modules) • One 2.4GHz ½ WAVE antenna with reverse polarity (for SocketWireless Bluetooth and SocketWireless Wi-Fi) • One DB9F-DB25M 6 foot modem serial cable • One generic CDMA Activation Notice • One Verizon Activation Notice • One Spring Activation Notice • One Cingular Activation Notice • One Universal Socket Connectivity Developer CD with BVRP Mobile PhoneTools • One Promo Screwdriver AT Commands Are Included on the Developer CD AT Commands Multi-Tech provides Reference Guides for each SocketModem's AT commands, fax commands, and voice commands. These reference guides are available on the CD included in the Developer Kit. They are also available by email at mailto:oemsales@multitech.com or by using the Developer Guide Request Form on Multi-Tech's Web site. Fax Commands Fax Commands are included in the AT Command Reference Guide when applicable to the product. They are available on the CD included in the Developer Kit. Note: Fax Commands supported by product: • SocketModem MT5600SMI supports Class 1 & 1.0 • SocketModem MT5656SMI supports Class 1 & 2 (not 2.0/2.1) • SocketModem MT9234SMI supports all Class 1 and Class 2 commands (Class 1, 1.0, 2, 2.0/2.1) • SocketModem MT5634SMI supports all Class 1 and Class 2 commands (Class 1, 1.0, 2, 2.0/2.1) • Wireless SocketModem GPRS MTSMC-G supports Class 1 core commands only (defined by ITU T.31) • Wireless SocketModem CDMA MTSMC-C supports Class 2.0 Group 3 • Wireless SocketModem EDGE MTSMC-E supports Class 1 Group 3
Chapter 1 – Universal Socket Connectivity Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 7 A List of AT Commands Reference Guides for Embedded Products Products Reference Guides – Title and Document Product Number Fax Commands Voice Commands SocketModem (MT5600SMI) MT5600/5656SMI AT Commands Reference Guide (S000306x) Applicable Fax Commands included in S000306x See S000306x SocketModem (MT5634SMI) MT5634SMI AT Commands Reference Guide (S000263x) Applicable Fax Commands included in S000263x See S000263x SocketModem (MT9234SMI) MT9234SMI AT Commands Reference Guide (S000434x) See separate Guides: Class 1 S000262x; Class 2 S000239x See S000434x SocketModem (MT2492SMI) SocketModem MT2492SMI AT Commands Reference Guide (S000435x) Fax Not Supported Voice Not Supported SocketModem (MT2456SMI-22) SocketModem MT2456SMI-22 AT Commands Reference Guide (S000281x) Fax Not Supported Voice Not Supported SocketModem IP (MT2456SMI-IP) Multi-Tech IP Connectivity Command Line Interface and Application Examples Reference Guide (S000368x) Fax Not Supported Voice Not Supported SocketModem (MT5656SMI-IP) SocketModem MT5656RJ and MT5656SMI-IP AT Commands Reference Guide (S000364x) Fax Not Supported Voice Supported in Modem Mode. See RJModem Commands SocketEthernet IP (MTXCSEM) Serial-to-Ethernet IP Command Line Interface Guide and Application Examples (S000278x) Fax Not Supported Voice Not Supported SocketEthernet IP (MT100SEM MT5656SMI-IP) SocketEthernet IP AT Commands Reference Guide (S000426x) Fax Not Supported Voice Not Supported SocketModem ISDN (MT128SMI) MT128SMI AT Commands Reference Guide and Application Examples (S000352x) Fax Not Supported Voice Not Supported SocketModem GPRS (MTSMC-G-F1/F2/F4) GPRS AT Commands Reference Guide (for F1/F2/F4) (S000293x) Applicable Fax Commands included in S000293x Applicable Voice Commands included in S000293x SocketModem GPRS IP Stack Commands (MTSMC-G-F1/F2) Wireless GPRS-F1/F2 Modems with IP Connectivity Reference Guide – AT Commands and Application Examples (S000333x) Fax Not Supported Voice Not Supported SocketModem GPRS IP Stack Commands (MTSMC-G-F4) Wireless GPRS-F4 Modems with IP Connectivity Reference Guide (S000437x) Fax Not Supported Voice Not Supported SocketModem CDMA (MTSMC-C) CDMA AT Commands Reference Guide (S000294x) Applicable Fax Commands included in S000294x Applicable Voice Commands included in S000294x SocketModem EDGE (MTSMC-E) SocketModem EDGE AT Commands Reference Guide (S000371x) Applicable Fax Commands included in S000371x Applicable Voice Commands included in S000371x SocketWireless Bluetooth (MTS2BTSMI) SocketWireless Bluetooth AT Commands Reference Guide (S000360x) Fax Not Supported Voice Not Supported SocketWireless Wi-Fi (MT800SWM) SocketWireless Wi-Fi AT Commands Reference Guide (S000425x) Fax Not Supported Voice Not Supported
Chapter 1 – Universal Socket Connectivity Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 8 Universal Socket Configuration Top View – Universal SocketModem Pinout Note: Pin 6 is RX- for the SocketEthernet IP. For ISDN, Pin 6 is RX+. Pin 7 is RX+ for the SocketEthernet IP. For ISDN, Pin 7 is RX-. Universal Pin Descriptions Pin Signal Name In Out Description 1 Tip I/O Tip Signal from Telco. Tip connection to the phone line (RJ-11 Pin 4). The SocketModem is Tip/Ring polarity insensitive. 2 Ring I/O Ring Signal from Telco. Ring connection to the phone line (RJ-11 Pin 3). The SocketModem is Tip/Ring polarity insensitive. 3 Safety Void NA Safety Clearance. 2.5 mm is required between TNV circuits and SELV circuits. 4 TX+ O Transmit Outputs (TX+ and TX-). Differential transmit outputs for Ethernet and ISDN. 5 TX- O Transmit Outputs (TX+ and TX-). Differential transmit outputs for Ethernet and ISDN. 6 RX- (Ethernet) RX+ (ISDN) I Receive Inputs (RX+ and RX-). Differential receive input pins for Ethernet and ISDN. Dummy pin for MT800SWM. 7 RX+ (Ethernet)RX- (ISDN) I Receive Inputs (RX+ and RX-). Differential receive input pins for Ethernet and ISDN. 8 Safety Void NA Safety Clearance. 2.5 mm is required between TNV circuits and SELV circuits. 9 Dummy Dummy pin for EDGE. 11 TCLK O Transmit Data Sync Clock. TX synchronous data clock for ISDN sync data mode. 12 RCLK O Receive Data Sync Clock. RX synchronous data clock for ISDN sync data mode. 22 MIC+ I Microphone positive input. See microphone sections in GPRS, CDMA, EDGE chapters. 23 MIC- I Microphone negative input. See microphone sections in GPRS, CDMA, EDGE chapters.

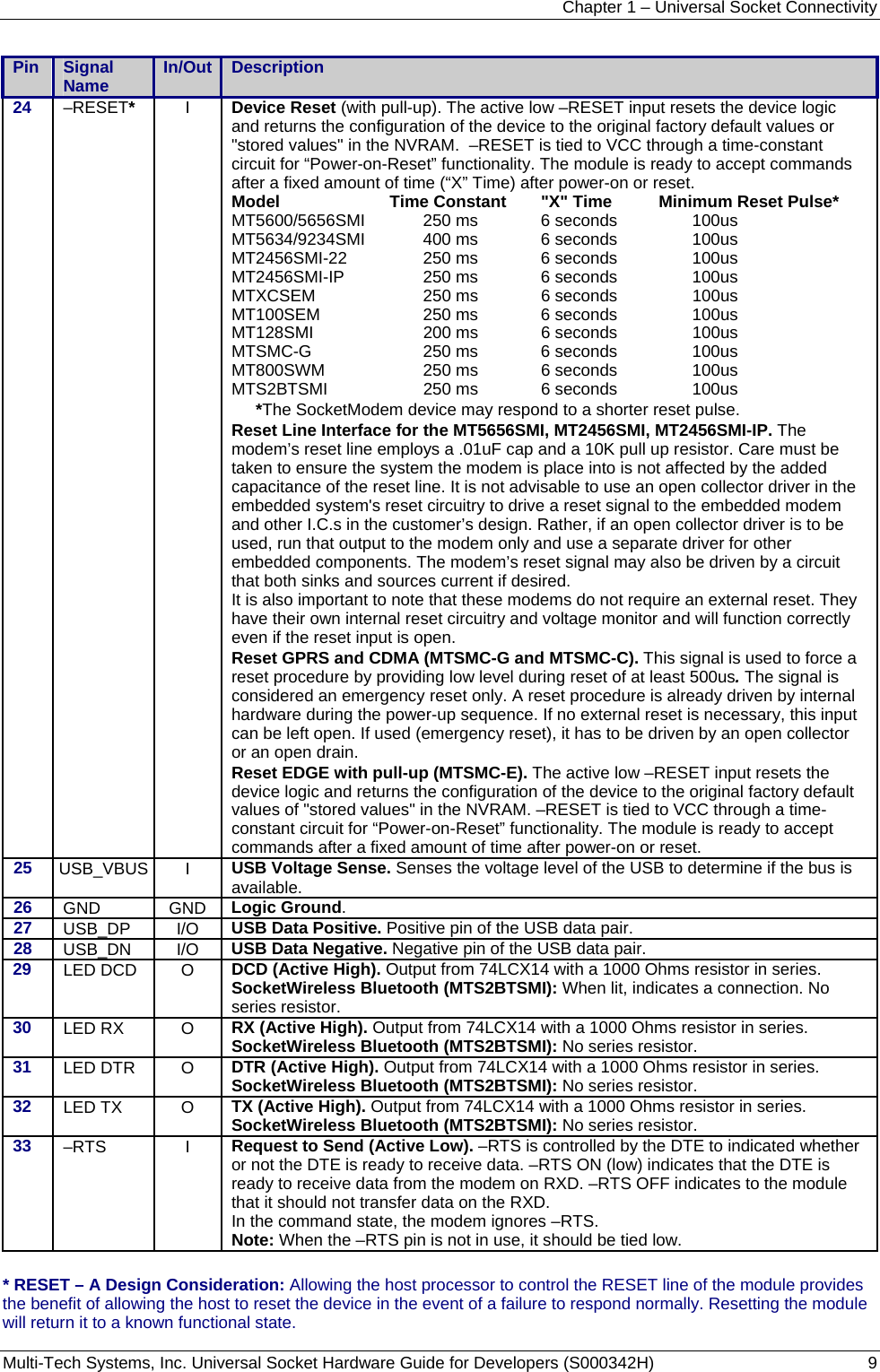

Chapter 1 – Universal Socket Connectivity Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 9 Pin Signal Name In/Out Description 24 –RESET* I Device Reset (with pull-up). The active low –RESET input resets the device logic and returns the configuration of the device to the original factory default values or "stored values" in the NVRAM. –RESET is tied to VCC through a time-constant circuit for “Power-on-Reset” functionality. The module is ready to accept commands after a fixed amount of time (“X” Time) after power-on or reset. Model Time Constant "X" Time Minimum Reset Pulse* MT5600/5656SMI 250 ms 6 seconds 100us MT5634/9234SMI 400 ms 6 seconds 100us MT2456SMI-22 250 ms 6 seconds 100us MT2456SMI-IP 250 ms 6 seconds 100us MTXCSEM 250 ms 6 seconds 100us MT100SEM 250 ms 6 seconds 100us MT128SMI 200 ms 6 seconds 100us MTSMC-G 250 ms 6 seconds 100us MT800SWM 250 ms 6 seconds 100us MTS2BTSMI 250 ms 6 seconds 100us *The SocketModem device may respond to a shorter reset pulse. Reset Line Interface for the MT5656SMI, MT2456SMI, MT2456SMI-IP. The modem’s reset line employs a .01uF cap and a 10K pull up resistor. Care must be taken to ensure the system the modem is place into is not affected by the added capacitance of the reset line. It is not advisable to use an open collector driver in the embedded system's reset circuitry to drive a reset signal to the embedded modem and other I.C.s in the customer’s design. Rather, if an open collector driver is to be used, run that output to the modem only and use a separate driver for other embedded components. The modem’s reset signal may also be driven by a circuit that both sinks and sources current if desired. It is also important to note that these modems do not require an external reset. They have their own internal reset circuitry and voltage monitor and will function correctly even if the reset input is open. Reset GPRS and CDMA (MTSMC-G and MTSMC-C). This signal is used to force a reset procedure by providing low level during reset of at least 500us. The signal is considered an emergency reset only. A reset procedure is already driven by internal hardware during the power-up sequence. If no external reset is necessary, this input can be left open. If used (emergency reset), it has to be driven by an open collector or an open drain. Reset EDGE with pull-up (MTSMC-E). The active low –RESET input resets the device logic and returns the configuration of the device to the original factory default values of "stored values" in the NVRAM. –RESET is tied to VCC through a time-constant circuit for “Power-on-Reset” functionality. The module is ready to accept commands after a fixed amount of time after power-on or reset. 25 USB_VBUS I USB Voltage Sense. Senses the voltage level of the USB to determine if the bus is available. 26 GND GND Logic Ground. 27 USB_DP I/O USB Data Positive. Positive pin of the USB data pair. 28 USB_DN I/O USB Data Negative. Negative pin of the USB data pair. 29 LED DCD O DCD (Active High). Output from 74LCX14 with a 1000 Ohms resistor in series. SocketWireless Bluetooth (MTS2BTSMI): When lit, indicates a connection. No series resistor. 30 LED RX O RX (Active High). Output from 74LCX14 with a 1000 Ohms resistor in series. SocketWireless Bluetooth (MTS2BTSMI): No series resistor. 31 LED DTR O DTR (Active High). Output from 74LCX14 with a 1000 Ohms resistor in series. SocketWireless Bluetooth (MTS2BTSMI): No series resistor. 32 LED TX O TX (Active High). Output from 74LCX14 with a 1000 Ohms resistor in series. SocketWireless Bluetooth (MTS2BTSMI): No series resistor. 33 –RTS I Request to Send (Active Low). –RTS is controlled by the DTE to indicated whether or not the DTE is ready to receive data. –RTS ON (low) indicates that the DTE is ready to receive data from the modem on RXD. –RTS OFF indicates to the module that it should not transfer data on the RXD. In the command state, the modem ignores –RTS. Note: When the –RTS pin is not in use, it should be tied low. * RESET – A Design Consideration: Allowing the host processor to control the RESET line of the module provides the benefit of allowing the host to reset the device in the event of a failure to respond normally. Resetting the module will return it to a known functional state.
Chapter 1 – Universal Socket Connectivity Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 10 Pin Signal Name In/Out Description 34 –RXD O Received Data. The module uses the RXD line to send data to the DTE and to send module responses to the DTE. In command mode, –RXD data presents the module responses to the DTE. Module responses take priority over incoming data when the two signals are in competition for –RXD. When no data is transmitted, the signal is held in mark condition. 35 –TXD I Transmitted Data. The DTE uses the –TXD line to send data to the module for transmission or to transmit commands to the module. The DTE holds this circuit in mark state when no data is being transmitted or during intervals between characters. 36 –RI O RING (Active Low). Incoming ring signal from phone. Ring Indicate. –RI output ON (low) indicates the presence of an ON segment of a ring signal on the telephone line. The modem will not go off-hook when –RI is active; the modem waits for –RI to go inactive before going off-hook. SocketWireless Bluetooth (MTS2BTSMI). Strobes 1/sec for slave indication. 37 –DSR O Data Set Ready (Active Low). –DSR indicates module status to the DTE. –DSR OFF (high) indicates that the DTE is to disregard all signals appearing on the interchange circuits except Ring Indicator (–RI). It reflects the status of the local data set and does not indicate an actual link with any remote data equipment. 38 –CTS O Clear to Send (Active Low). –CTS is controlled by the module to indicate whether or not the module is ready to transmit data. –CTS ON indicates to the DTE that signals on TXD will be transmitted. –CTS OFF indicates to the DTE that it should not transfer data on TXD. 39 –DCD O Data Carrier Detect (Active Low). –DCD output is ON (low) when a data connection is established and the module is ready to send/receive data. 40 –DTR I Data Terminal Ready (Active Low). The –DTR input is turned ON (low) when the DTE is ready to communicate. –DTR ON prepares the modem to be connected, and, once connected, maintains the connection. –DTR OFF places the modem in the disconnect state under control of the &Dn and &Qn commands. Note: When the –DTR pin is not in use, it should be tied low. 41 GND GND Logic Ground. 42 SPK- O Wireless GPRS, CDMA, and EDGE. Negative analog speaker output. 43 SPK+ O Wireless GPRS, CDMA, and EDGE. Positive analog speaker output. 48 GPIO I/O General Purpose Input/Output. User-configurable input or output pin. 49 GPIO I/O General Purpose Input/Output. User-configurable input or output pin. 50 GPIO I/O General Purpose Input/Output. User-configurable input or output pin. 51 GPIO I/O General Purpose Input/Output. User-configurable input or output pin. 56 –LED FDX O LED Full Duplex (Active Low). LED Output. During normal operation, this pin lights the FDX LED to indicate a full duplex mode. 57 –LED ACT O LED Active (Active Low). LED Output. During normal operation, this pin lights the Activity LED when transmitting or receiving. It flashes at a rate of 50ms high and 50ms low when active. 58 –LEDLINK O LED LINK (Active Low). LED Output. During normal operation, this pin lights the LINK LED to indicate a good link is detected. Pin 58 LED Mode Operating Status Note: This pin may or may not be available on some EDGE/GPRS/CDMA modules currently shipping. Off Subscriber Carrier Mode is Off or running in SLEEP mode or Alarm mode. 600 ms ON / 600ms OFF No SIM card inserted or no PIN entered, or network search in progress, or ongoing user authentication, or network login in progress. 75 ms ON / 75 ms OFF / 75 ms ON 3 s OFF Flashing One or more EDGE/GPRS/CDMA contexts activated. Indicates EDGE/GPRS/CDMA data transfer: When a transfer is in progress, the LED goes on within 1 second after data packets were exchanged. Flash duration is approximately 0.5 s. ON Depending on type of call: Voice Call: Connected to remote party. Data Call: Connected to remote party or exchange of parameters while setting up or disconnecting a call. 59 –LEDCOL O LED Collision (Active Low). LED Output. During normal operation, this pin lights the COL LED to indicate a collision. It flashes at 50ms high and 50ms low when active. 60 –LEDSPD O LED Speed (Active Low). LED Output. During normal operation, this pin lights the SPEED LED to indicate 100Mbps is selected. 61 VCC PWR DC Input Power. 3.3V or 5VDC power, depending upon the build.
Chapter 1 – Universal Socket Connectivity Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 11 Pin Signal Name In/Out Description 62 MICV I Single-Ended Microphone. Single-ended microphone input for dial-up SocketModem speakerphone and TAM functions. 63 AGND GND Analog Ground. Analog ground is tied common with DGND on the SocketModem. To minimize potential ground noise issues, connect audio circuit return to AGND. 64 SPKR O Speaker. Dual purpose output for call progress signals or speakerphone functions. Call Progress signaling on MT5600SMI, MT5656SMI, MT2492SMI, and MT2456SMI-22 is a square wave output that can be optionally connected to a low-cost single-ended speaker; e.g., a sounducer or an analog speaker circuit. Call progress on the MT9234SMI and the MT5634SMI is an analog output. Speakerphone Output on the MT5656SMI is under the control of +FCLASS. This is a single-ended analog output. SPKR is tied directly to the CODEC. One side of a differential AC output coupled through a 6.8K ohm resistor and capacitor. Design Considerations Noise Suppression Design Considerations Engineering noise-suppression practices must be adhered to when designing a printed circuit board (PCB) containing the SocketModem module. Suppression of noise is essential to the proper operation and performance of the modem itself and for surrounding equipment. Two aspects of noise in an OEM board design containing the SocketModem must be considered: on-board/off-board generated noise that can affect digital signal processing. Both on-board and off-board generated noise that is coupled on-board can affect interface signal levels and quality. Of particular concern is noise in frequency ranges affecting modem performance. On-board generated electromagnetic interference (EMI) noise that can be radiated or conducted off-board is a separate, but equally important, concern. This type of noise can affect the operation of surrounding equipment. Most local government agencies have stringent certification requirements that must be met for use in specific environments. Proper PC board layout (component placement, signal routing, trace thickness and geometry, etc.) component selection (composition, value, and tolerance), interface connections, and shielding are required for the board design to achieve desired modem performance and to attain EMI certification. Other aspects of proper noise-suppression engineering practices are beyond the scope of this designer guide. The designer should consult noise suppression techniques described in technical publications and journals, electronics and electrical engineering text books, and component supplier application notes. PC Board Layout Guidelines In a 4-layer design, provide adequate ground plane covering the entire board. In 4-layer designs, power and ground are typically on the inner layers. All power and ground traces should be 0.05 inches wide. The recommended hole size for the SocketModem pins is 0.036 in. +/-0.003 in. in diameter. Spacers can be used to hold the SocketModem vertically in place during the wave solder process. A spacer should be placed on pin 32 and pin 64 of the SocketModem. A suggested part number for the spacer is BIVAR 938-0.130 for P1 (0.310in) option SocketModems. The spacers can be left on permanently and will not effect operation. All creepages and clearances for the SocketModem have been designed to meet requirements of safety standards EN60950 or EN60601. The requirements are based on a working voltage of 125V or 250V. When the recommended DAA* circuit interface is implemented in a third party design, all creepage and clearance requirements must be strictly followed in order to meet safety standards. The third party safety design must be evaluated by the appropriate national agency per the required specification. User accessible areas: Based on where the third party design is to be marketed, sold, or used, it may be necessary to provide an insulating cover over all TNV exposed areas. Consult with the recognized safety agency to determine the requirements. Note: Even if the recommended design considerations are followed, there are no guarantees that a particular system will comply with all the necessary regulatory requirements. It is imperative that specific designs be completely evaluated by a qualified/recognized agency. *DAA stands for Data Access Arrangement. DAA is the telephone line interface of the module.

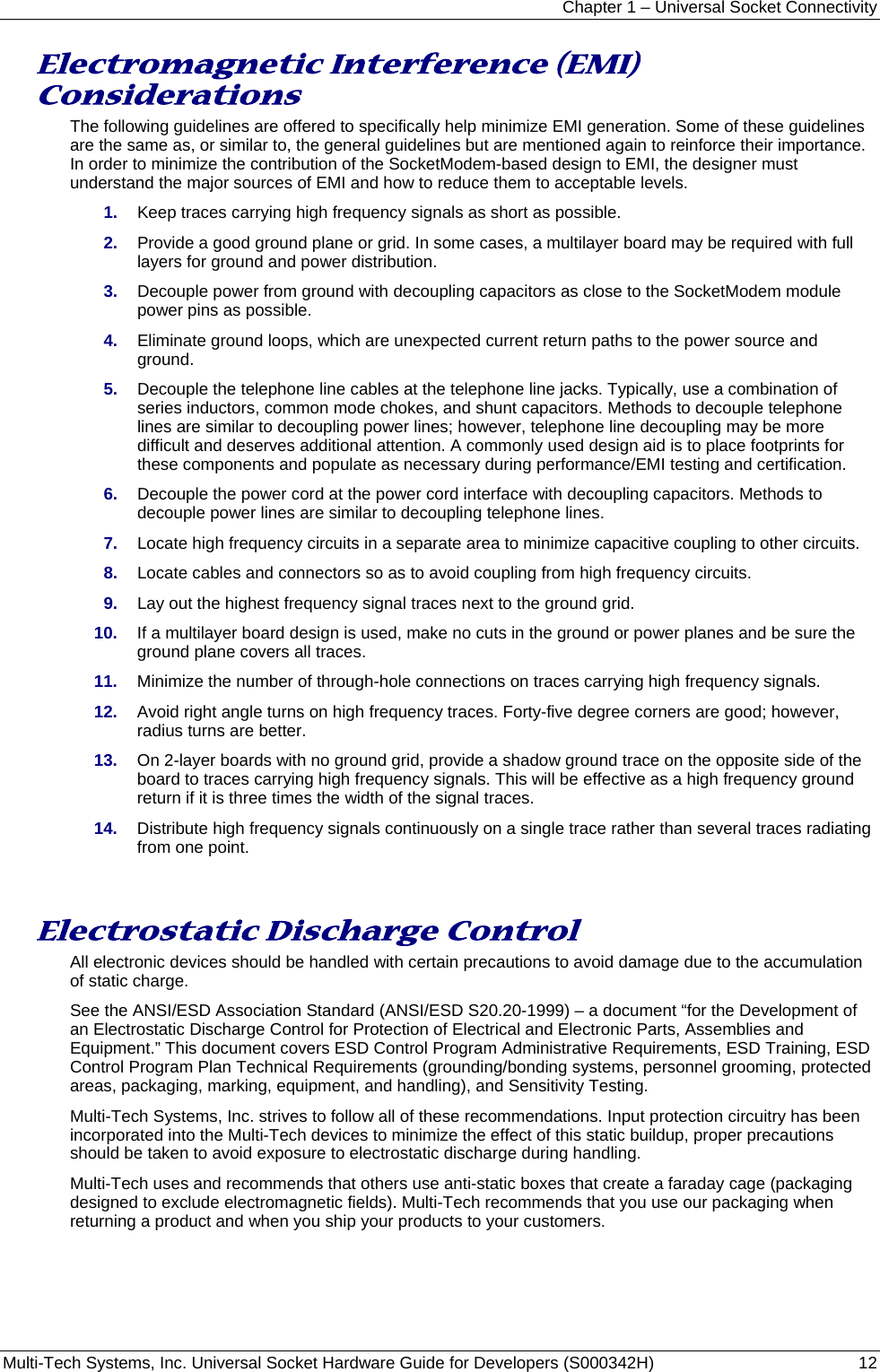

Chapter 1 – Universal Socket Connectivity Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 12 Electromagnetic Interference (EMI) Considerations The following guidelines are offered to specifically help minimize EMI generation. Some of these guidelines are the same as, or similar to, the general guidelines but are mentioned again to reinforce their importance. In order to minimize the contribution of the SocketModem-based design to EMI, the designer must understand the major sources of EMI and how to reduce them to acceptable levels. 1. Keep traces carrying high frequency signals as short as possible. 2. Provide a good ground plane or grid. In some cases, a multilayer board may be required with full layers for ground and power distribution. 3. Decouple power from ground with decoupling capacitors as close to the SocketModem module power pins as possible. 4. Eliminate ground loops, which are unexpected current return paths to the power source and ground. 5. Decouple the telephone line cables at the telephone line jacks. Typically, use a combination of series inductors, common mode chokes, and shunt capacitors. Methods to decouple telephone lines are similar to decoupling power lines; however, telephone line decoupling may be more difficult and deserves additional attention. A commonly used design aid is to place footprints for these components and populate as necessary during performance/EMI testing and certification. 6. Decouple the power cord at the power cord interface with decoupling capacitors. Methods to decouple power lines are similar to decoupling telephone lines. 7. Locate high frequency circuits in a separate area to minimize capacitive coupling to other circuits. 8. Locate cables and connectors so as to avoid coupling from high frequency circuits. 9. Lay out the highest frequency signal traces next to the ground grid. 10. If a multilayer board design is used, make no cuts in the ground or power planes and be sure the ground plane covers all traces. 11. Minimize the number of through-hole connections on traces carrying high frequency signals. 12. Avoid right angle turns on high frequency traces. Forty-five degree corners are good; however, radius turns are better. 13. On 2-layer boards with no ground grid, provide a shadow ground trace on the opposite side of the board to traces carrying high frequency signals. This will be effective as a high frequency ground return if it is three times the width of the signal traces. 14. Distribute high frequency signals continuously on a single trace rather than several traces radiating from one point. Electrostatic Discharge Control All electronic devices should be handled with certain precautions to avoid damage due to the accumulation of static charge. See the ANSI/ESD Association Standard (ANSI/ESD S20.20-1999) – a document “for the Development of an Electrostatic Discharge Control for Protection of Electrical and Electronic Parts, Assemblies and Equipment.” This document covers ESD Control Program Administrative Requirements, ESD Training, ESD Control Program Plan Technical Requirements (grounding/bonding systems, personnel grooming, protected areas, packaging, marking, equipment, and handling), and Sensitivity Testing. Multi-Tech Systems, Inc. strives to follow all of these recommendations. Input protection circuitry has been incorporated into the Multi-Tech devices to minimize the effect of this static buildup, proper precautions should be taken to avoid exposure to electrostatic discharge during handling. Multi-Tech uses and recommends that others use anti-static boxes that create a faraday cage (packaging designed to exclude electromagnetic fields). Multi-Tech recommends that you use our packaging when returning a product and when you ship your products to your customers.
Chapter 1 – Universal Socket Connectivity Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 13 Mechanicals and Schematics Mechanical Dimensions in Inches Note: This tooling hole is not on all models. 1234567 8910111213141516 17 18 1920212223242526 27 28 29303132646362616059 58 57 5655545352515049 48 47 4645444342414039 38 37 36353433 Dimensions Are Shown in Inches

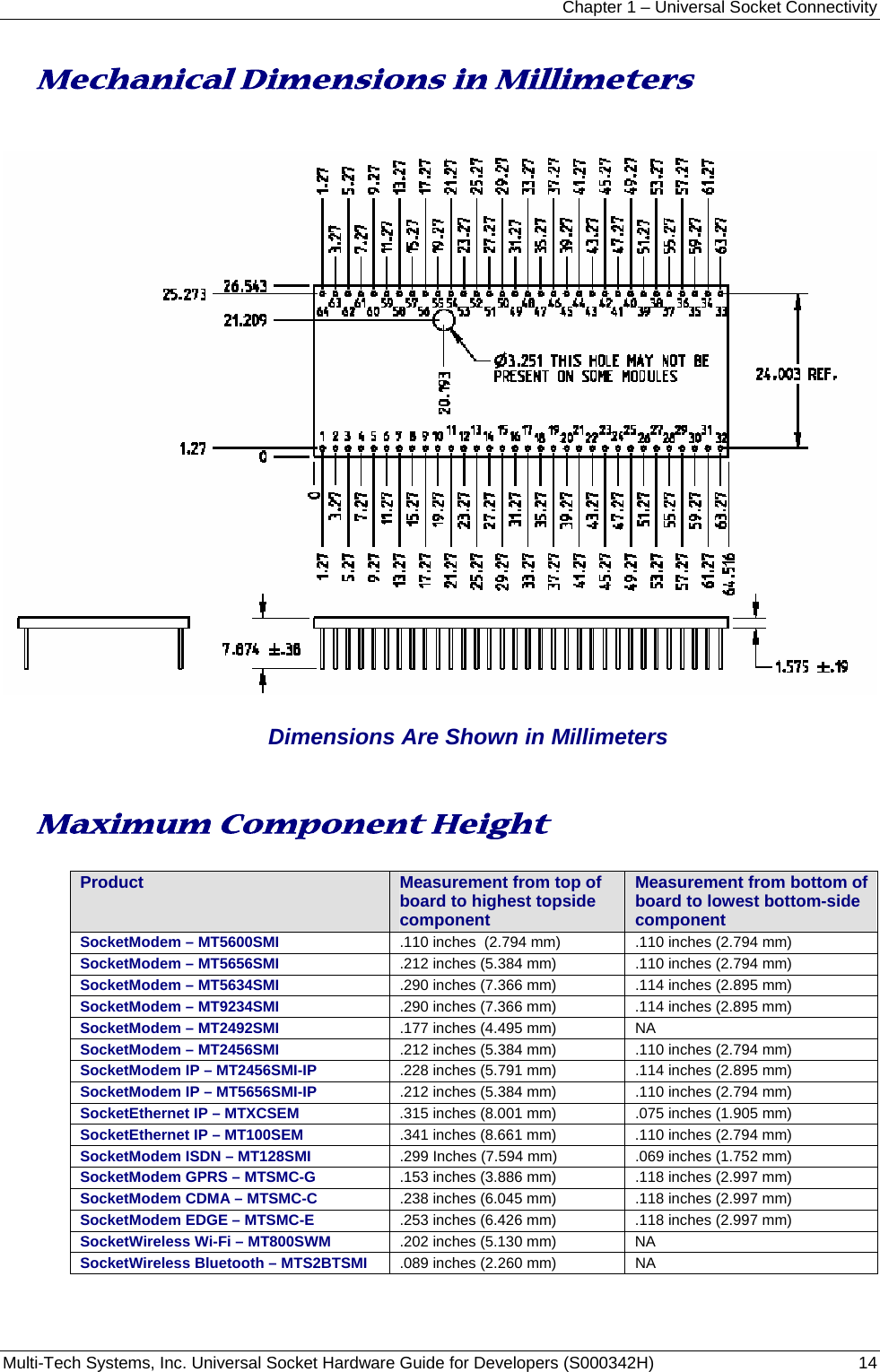

Chapter 1 – Universal Socket Connectivity Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 14 Mechanical Dimensions in Millimeters Dimensions Are Shown in Millimeters Maximum Component Height Product Measurement from top of board to highest topside component Measurement from bottom of board to lowest bottom-side component SocketModem – MT5600SMI .110 inches (2.794 mm) .110 inches (2.794 mm) SocketModem – MT5656SMI .212 inches (5.384 mm) .110 inches (2.794 mm) SocketModem – MT5634SMI .290 inches (7.366 mm) .114 inches (2.895 mm) SocketModem – MT9234SMI .290 inches (7.366 mm) .114 inches (2.895 mm) SocketModem – MT2492SMI .177 inches (4.495 mm) NA SocketModem – MT2456SMI .212 inches (5.384 mm) .110 inches (2.794 mm) SocketModem IP – MT2456SMI-IP .228 inches (5.791 mm) .114 inches (2.895 mm) SocketModem IP – MT5656SMI-IP .212 inches (5.384 mm) .110 inches (2.794 mm) SocketEthernet IP – MTXCSEM .315 inches (8.001 mm) .075 inches (1.905 mm) SocketEthernet IP – MT100SEM .341 inches (8.661 mm) .110 inches (2.794 mm) SocketModem ISDN – MT128SMI .299 Inches (7.594 mm) .069 inches (1.752 mm) SocketModem GPRS – MTSMC-G .153 inches (3.886 mm) .118 inches (2.997 mm) SocketModem CDMA – MTSMC-C .238 inches (6.045 mm) .118 inches (2.997 mm) SocketModem EDGE – MTSMC-E .253 inches (6.426 mm) .118 inches (2.997 mm) SocketWireless Wi-Fi – MT800SWM .202 inches (5.130 mm) NA SocketWireless Bluetooth – MTS2BTSMI .089 inches (2.260 mm) NA
Chapter 1 – Universal Socket Connectivity Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 15 SocketModem Developer Board This developer board drawing shows the major board components for all SocketModems. See the next page for description of Board Components
Chapter 1 – Universal Socket Connectivity Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 16 Board Components Jumper Description JP1 Mutes the speaker. Default positions are 1 and 2 (speaker is not muted). JP2 & 4 Testing interface (debugging) for the RS-232 signals. JP3 Changes the speed of the driver. For Multi-Tech use only. Default positions are 1 and 2 (transceiver operates normally). JP6 & JP9 JP6 & JP9 are the 5V / 3.3V regulators. The operating voltage factory default setting is 3.3V. JP1 jumper must be set to 3.3V. Warning – Be sure to that 5V / 3.3V jumper is set to match the requirements of your SocketModem. If this jumper is set incorrectly, damage to the SocketModem and/or the Test/Demo card could result. Caution – Use only the provided Multi-Tech Systems, Inc. transformer with the Test/Demo board. Use of any other power source will void the warranty and will likely damage the Test/Demo board and the SocketModem. The transformer connector is keyed to prevent improper connection to the Test/Demo board. JP7 & JP13 Testing interface (debugging) for the serial TTL signals. JP8 Enables/disables the Watchdog interface. JP10 & JP11 100 OHM terminator for ISDN. Default positions are 1 and 2 (off). JP12 Ties the TX and RX clock lines together. Default positions are 1 and 2 (transmit and receiver clock act independently. JP19 Allows a stereo jack feed. Default is ON. If ON, then left and right stereo channels are combined and form a mono channel. Switch 3 Sets the alternate ISDN clock. Default position is OFF (the alternate ISDN clock is off). Switch Block Set the switch to the product being used. Pins and Corresponding Signals J4 and J7 10 PWR 8 CTS 6 DSR 4 DTR 2 RXD 9 RI 7 RTS 5 GND 3 TXD 1 DCD J2 and J13 2 RXC 1 TXC
Chapter 1 – Universal Socket Connectivity Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 17 Recommended Parts Recommended Parts for Non-Wireless Modules Disclaimer: Multi-Tech Systems makes no warranty claims for vendor product recommendations listed below. Other vendor products may or may not operate satisfactorily. Multi-Tech System’s recommended vendor products only indicate that the product has been tested in controlled conditions and were found to perform satisfactorily. Surface mount ferrites are used on T&R (Tip and Ring) to mitigate emission levels out the RJ-11 cable. 220pF capacitors are also used on T&R to reduce the common mode emissions that may be present in certain systems. The ferrite and capacitors also aid in reducing the effects of transients that may be present on the line. Note: These parts are RoHS compliant. Recommended Ferrite (SMT) Manufacturer – Associated Component Technology (ACT) Part # CBZ1206-202-30-LF Manufacturer – Murata Erie Part # BLM31AJ601SN1L Recommended Ferrite (Thru-Hole) Manufacturer – Associated Component Technology (ACT) Part # WB2-2.OT Recommended Capacitor (SMT) Manufacturer – NOVACAP Part # ES2211N221K502NXT Manufacturer – Murata Erie Part # GA355DR7GC221KY02L Recommended Capacitor (Thru-Hole) Manufacturer – Ever Grace Electronic Industrials Part # YP221K2EA7PS-8.0 Manufacturer – Murata Erie Part # DE2B3KH221KA3B Note: Capacitors used on T&R must have the Y2 safety rating. Recommended Connector Manufacturer – Stewart Part # SS-64600-006F Recommended Sidactor Manufacturer – Teccor Electronics (LittelFuse) Part # P3100SAL Manufacturer – ST Microelectronics Part# SMTPA270 Manufacturer – ST Microelectronics Part # SMP100LC-270 Recommended Poly Switch Thermal Fuse (SMT) Manufacturer – RayChem (Tyco Electronics) Part # TS600-170F Recommended Poly Switch Thermal Fuse (Thru-Hole) Manufacturer – RayChem (Tyco Electronics) Part# TRF600-150 Note: The Fuse & Sidactor are required in order to comply with UL60950 for protection against over-voltages from power line cross. Fuse can be reset type. Common Mode Choke Manufacturer – TDK Part # ZJYS51R5-2PT-01 Recommended Transceiver Manufacturer – Analog Devices Part # ADM207EARZ SIP Connector Manufacturer – Neltron Industrial Co. (http://www.neltron.com.tw/) Part #2209S-xxSG 4-Pin 2.0mm SIP Socket (2 Each) 10-Pin 2.0mm SIP Socket (2 Each) Telecom The RJ-11 connector must meet FCC Part 68 requirements. Refer to FCC Part 68 section 68.500 subpart F for connector specifications. A self-healing fuse is used in series with line to help prevent damage to the DAA circuit. This fuse is required in order to comply with FCC Part 68 compliance regulations. Note: See Application Notes at the end of each SocketModem chapter.

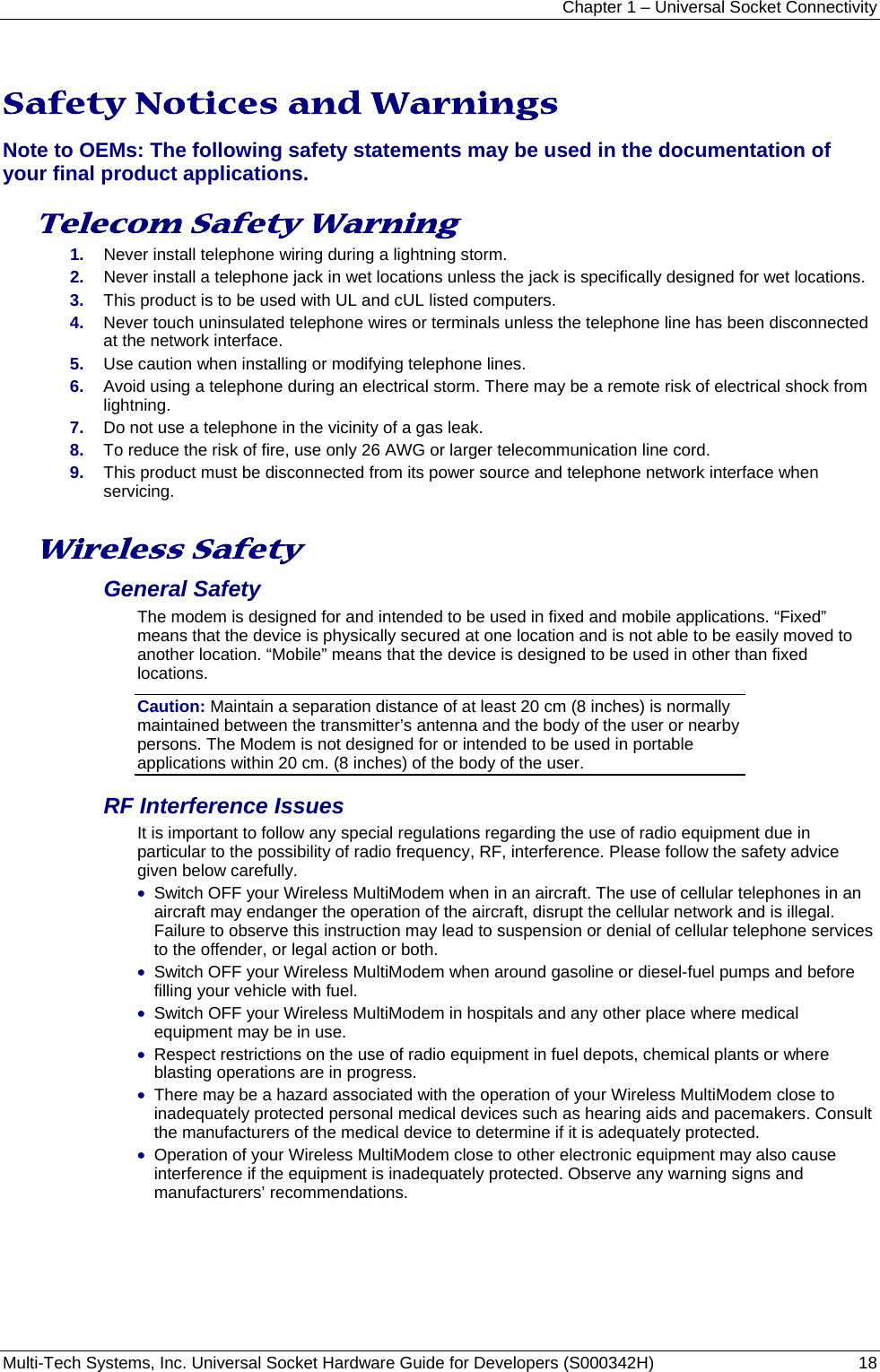

Chapter 1 – Universal Socket Connectivity Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 18 Safety Notices and Warnings Note to OEMs: The following safety statements may be used in the documentation of your final product applications. Telecom Safety Warning 1. Never install telephone wiring during a lightning storm. 2. Never install a telephone jack in wet locations unless the jack is specifically designed for wet locations. 3. This product is to be used with UL and cUL listed computers. 4. Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface. 5. Use caution when installing or modifying telephone lines. 6. Avoid using a telephone during an electrical storm. There may be a remote risk of electrical shock from lightning. 7. Do not use a telephone in the vicinity of a gas leak. 8. To reduce the risk of fire, use only 26 AWG or larger telecommunication line cord. 9. This product must be disconnected from its power source and telephone network interface when servicing. Wireless Safety General Safety The modem is designed for and intended to be used in fixed and mobile applications. “Fixed” means that the device is physically secured at one location and is not able to be easily moved to another location. “Mobile” means that the device is designed to be used in other than fixed locations. Caution: Maintain a separation distance of at least 20 cm (8 inches) is normally maintained between the transmitter’s antenna and the body of the user or nearby persons. The Modem is not designed for or intended to be used in portable applications within 20 cm. (8 inches) of the body of the user. RF Interference Issues It is important to follow any special regulations regarding the use of radio equipment due in particular to the possibility of radio frequency, RF, interference. Please follow the safety advice given below carefully. • Switch OFF your Wireless MultiModem when in an aircraft. The use of cellular telephones in an aircraft may endanger the operation of the aircraft, disrupt the cellular network and is illegal. Failure to observe this instruction may lead to suspension or denial of cellular telephone services to the offender, or legal action or both. • Switch OFF your Wireless MultiModem when around gasoline or diesel-fuel pumps and before filling your vehicle with fuel. • Switch OFF your Wireless MultiModem in hospitals and any other place where medical equipment may be in use. • Respect restrictions on the use of radio equipment in fuel depots, chemical plants or where blasting operations are in progress. • There may be a hazard associated with the operation of your Wireless MultiModem close to inadequately protected personal medical devices such as hearing aids and pacemakers. Consult the manufacturers of the medical device to determine if it is adequately protected. • Operation of your Wireless MultiModem close to other electronic equipment may also cause interference if the equipment is inadequately protected. Observe any warning signs and manufacturers’ recommendations.
Chapter 1 – Universal Socket Connectivity Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 19 Vehicle Safety • Do not use your MultiModem while driving. • Respect national regulations on the use of cellular telephones in vehicles. Road safety always comes first. • If incorrectly installed in a vehicle, the operation of Wireless MultiModem telephone could interfere with the correct functioning of vehicle electronics. To avoid such problems, be sure that qualified personnel have performed the installation. Verification of the protection of vehicle electronics should be part of the installation. • The use of an alert device to operate a vehicle’s lights or horn on public roads is not permitted. Maintenance of Your Modem Your Wireless MultiModem is the product of advanced engineering, design, and craftsmanship and should be treated with care. The suggestions below will help you to enjoy this product for many years. • Do not expose the Wireless MultiModem to any extreme environment where the temperature is above 50ºC or humidity is above 90% noncondensing. • Do not attempt to disassemble the Wireless MultiModem. There are no user serviceable parts inside. • Do not expose the Wireless MultiModem to water, rain, or spilled beverages. It is not waterproof. • Do not place the Wireless MultiModem alongside computer discs, credit or travel cards, or other magnetic media. The phone may affect the information contained on discs or cards. • The use of accessories not authorized by Multi-Tech or not compliant with Multi-Tech's accessory specifications may invalidate the warranty of the Wireless MultiModem. • In the unlikely event of a fault in the Wireless MultiModem, contact Multi-Tech Tech Support. Your Responsibility This Wireless MultiModem is your responsibility. Please treat it with care respecting all local regulations. It is not a toy. Therefore, keep it in a safe place at all times and out of the reach of children. Try to remember your Unlock and PIN codes. Become familiar with and use the security features to block unauthorized use and theft.
Chapter 1 – Universal Socket Connectivity Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 20 Upgrading Firmware Your modem is controlled by semi-permanent firmware, which is stored in flash memory. Multi-Tech's firmware is nonvolatile; that is, it remains stored in memory when the modem is turned off and can be upgraded as new features are added. Multi-Tech's Flash Wizard can be downloaded from Multi-Tech’s FTP site and is available on CD. Use this Flash Wizard for upgrading your firmware. Documentation for using the Flash Wizard is included with the wizard. The following table shows you which products support the Flash Wizard. SocketModem MT5600SMI No Flash Upgrade. Can use ASCII upload via terminal emulator; i.e., HyperTerminal. SocketModem MT5656SMI No Flash Upgrade. Can use ASCII upload via terminal emulator; i.e., HyperTerminal. SocketModem MT5634SMI Flash Wizard Software for Windows®, Mac OSX, Linux Multi-Tech Flash Protocol SocketModem MT9234SMI Flash Wizard Software for Windows®, Mac OSX, Linux Multi-Tech Flash Protocol SocketModem MT2492SMI No Flash Upgrade. SocketModem MT2456SMI No Flash Upgrade. Can use ASCII upload via terminal emulator; i.e., HyperTerminal. SocketModem IP MT5656SMI-IP Flash Wizard Software for Windows®, Mac OSX, Linux Can use ASCII upload via terminal emulator; i.e., HyperTerminal. SocketModem MT2456SMI-IP XMODEM serial port upgrade or TFTP Ethernet upgrade. See the next page for information about using the XMODEM upgrade. SocketEthernet IP MTXCSEM XMODEM serial port upgrade or TFTP Ethernet upgrade. See the next page for information about using the XMODEM upgrade. SocketEthernet IP MT100SEM Flash Wizard Software for Windows®, Mac OSX, Linux Can use ASCII upload via terminal emulator; i.e., HyperTerminal. SocketModem ISDN MT128SMI Flash Wizard Software for Windows®, Mac OSX, Linux Multi-Tech Flash Protocol SocketModem GPRS MTSMC-G Do not use the Flash Wizard for the wireless modems. Contact Multi-Tech for wireless modem firmware upgrade directions. SocketModem CDMA MTSMC-C Do not use the Flash Wizard for the wireless modems. Contact Multi-Tech for wireless modem firmware upgrade directions. SocketModem EDGE MTSMC-E Do not use the Flash Wizard for the wireless modems. Contact Multi-Tech for wireless modem firmware upgrade directions. SocketWireless Wi-Fi MT800SWM XMODEM serial port upgrade. See the next page for information about using the XMODEM upgrade. SocketWireless Bluetooth MTS2BTSMI Do not use the Flash Wizard for the wireless modems. Contact Multi-Tech for wireless modem firmware upgrade directions. Flash Wizard Software for Windows®: ftp://ftp.multitech.com/Utilities/FlashWizard/ Flash Wizard Software for Linux: http://mtflashwiz.sourceforge.net/
Chapter 1 – Universal Socket Connectivity Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 21 XMODEM Serial Port Upgrade The SocketEthernet IP Module, for example, contains a 2 MB flash wherein the boot image, the firmware and configuration files are stored in a compressed format. The flash can easily be upgraded both locally as well as remotely. Serial Port Upgrade The flash of the SocketEthernet IP can be upgraded locally through serial port using the upload feature of serial applications. Serial Port Configuration The default serial port parameters should be: Data length – 8 bits Parity – None Stop bits – 1 Baud-rate of the serial port to which the SocketEthernet IP Module is connected should be set to 115200 bps for proper operation. Example of a Serial Flash Upgrade Following steps explain the procedure to upgrade a flash using the serial COM port (serial flash upgrade). Connect the SocketEthernet IP Module to a PC COM Port. • Open an application through which we can access the serial device (e.g., Meterm, zoc, hyperterm). • Reboot the SocketEthernet IP Module. • Wait for the boot message and prompt “press d to download” to appear. • Press d when prompted. • Select the XMODEM Protocol from the Terminal application. • Choose a file (MTXCSEM-TFTP-…) file to be uploaded. • Perform a file upload. The SocketEthernet IP Module reboots and will be up after a few seconds (10-15 seconds).

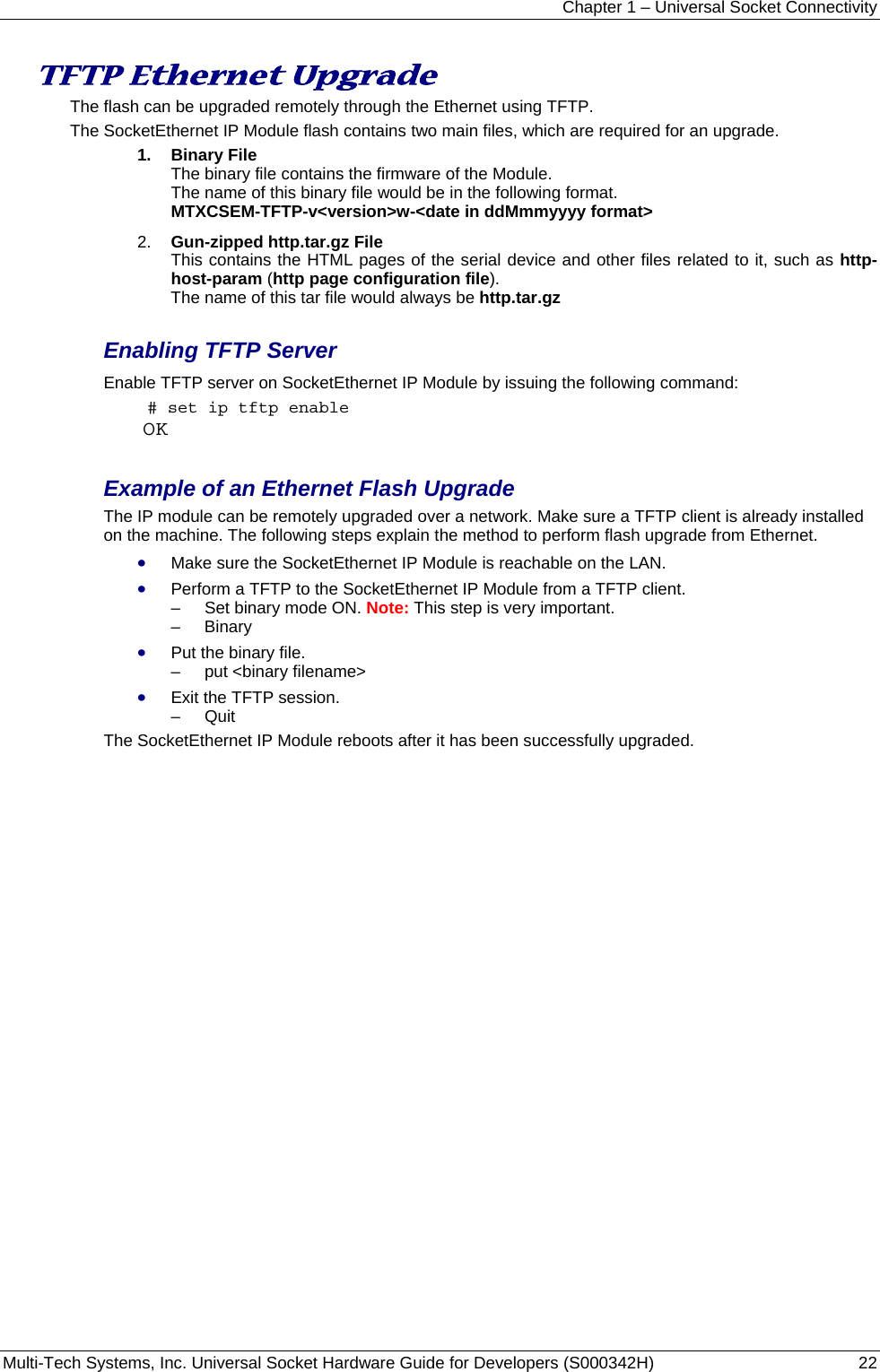

Chapter 1 – Universal Socket Connectivity Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 22 TFTP Ethernet Upgrade The flash can be upgraded remotely through the Ethernet using TFTP. The SocketEthernet IP Module flash contains two main files, which are required for an upgrade. 1. Binary File The binary file contains the firmware of the Module. The name of this binary file would be in the following format. MTXCSEM-TFTP-v<version>w-<date in ddMmmyyyy format> 2. Gun-zipped http.tar.gz File This contains the HTML pages of the serial device and other files related to it, such as http-host-param (http page configuration file). The name of this tar file would always be http.tar.gz Enabling TFTP Server Enable TFTP server on SocketEthernet IP Module by issuing the following command: # set ip tftp enable OK Example of an Ethernet Flash Upgrade The IP module can be remotely upgraded over a network. Make sure a TFTP client is already installed on the machine. The following steps explain the method to perform flash upgrade from Ethernet. • Make sure the SocketEthernet IP Module is reachable on the LAN. • Perform a TFTP to the SocketEthernet IP Module from a TFTP client. – Set binary mode ON. Note: This step is very important. – Binary • Put the binary file. – put <binary filename> • Exit the TFTP session. – Quit The SocketEthernet IP Module reboots after it has been successfully upgraded.
Chapter 1 – Universal Socket Connectivity Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 23 Account Activation for Wireless Products Pre-Configured Multi-Tech Products Each Multi-Tech wireless product (except for the MTCBA-C-N1 and N9) has been pre-configured to operate on a specific wireless network, such as Sprint, Verizon, and Cingular. However, before you can begin to use the modem, you must set up a wireless data account with your wireless network provider. Then, follow the activation procedures covered on the Activation Notices available from Multi-Tech.

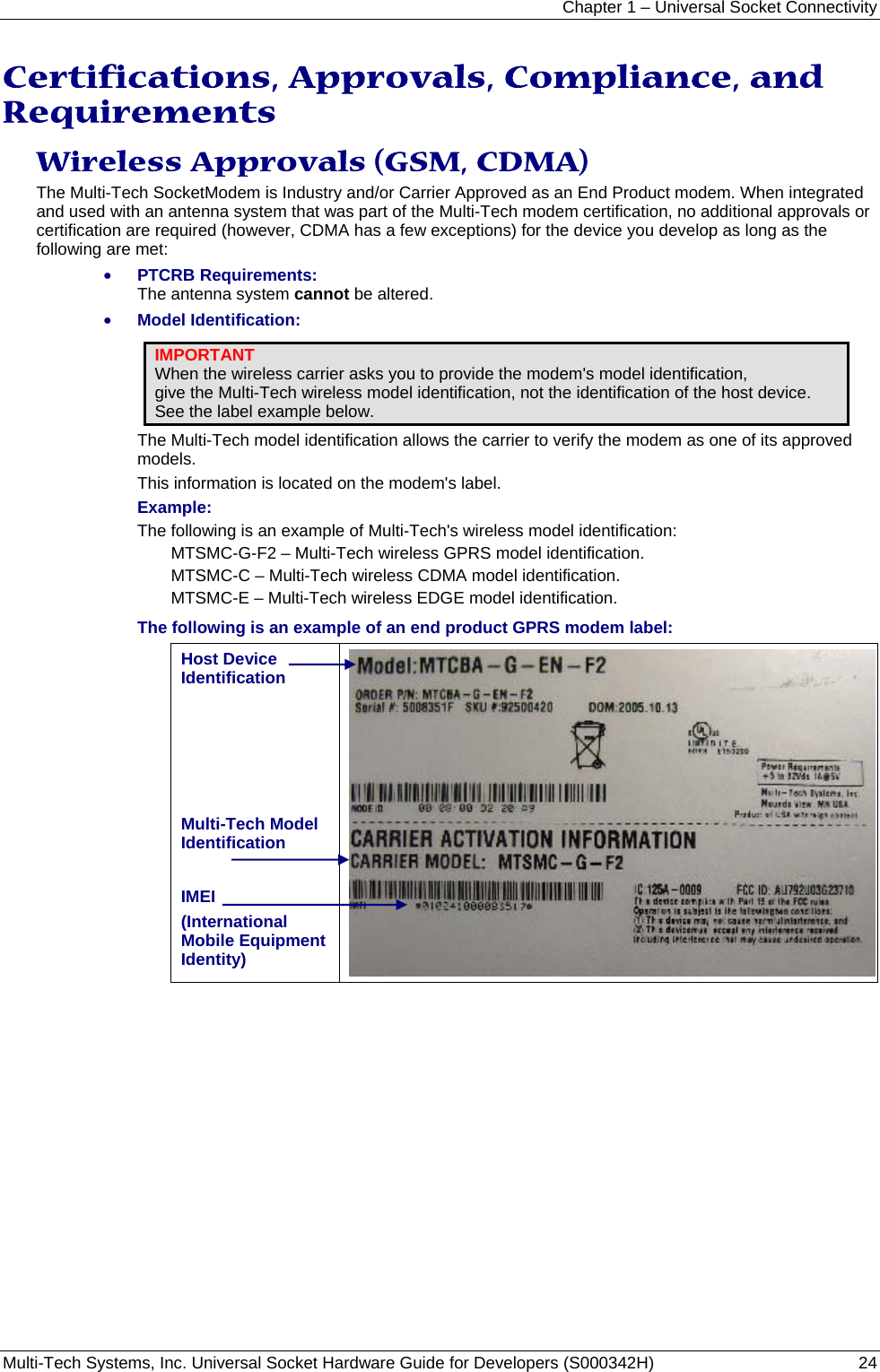

Chapter 1 – Universal Socket Connectivity Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 24 Certifications, Approvals, Compliance, and Requirements Wireless Approvals (GSM, CDMA) The Multi-Tech SocketModem is Industry and/or Carrier Approved as an End Product modem. When integrated and used with an antenna system that was part of the Multi-Tech modem certification, no additional approvals or certification are required (however, CDMA has a few exceptions) for the device you develop as long as the following are met: • PTCRB Requirements: The antenna system cannot be altered. • Model Identification: IMPORTANT When the wireless carrier asks you to provide the modem's model identification, give the Multi-Tech wireless model identification, not the identification of the host device. See the label example below. The Multi-Tech model identification allows the carrier to verify the modem as one of its approved models. This information is located on the modem's label. Example: The following is an example of Multi-Tech's wireless model identification: MTSMC-G-F2 – Multi-Tech wireless GPRS model identification. MTSMC-C – Multi-Tech wireless CDMA model identification. MTSMC-E – Multi-Tech wireless EDGE model identification. The following is an example of an end product GPRS modem label: Host Device Identification Multi-Tech Model Identification IMEI (International Mobile Equipment Identity)

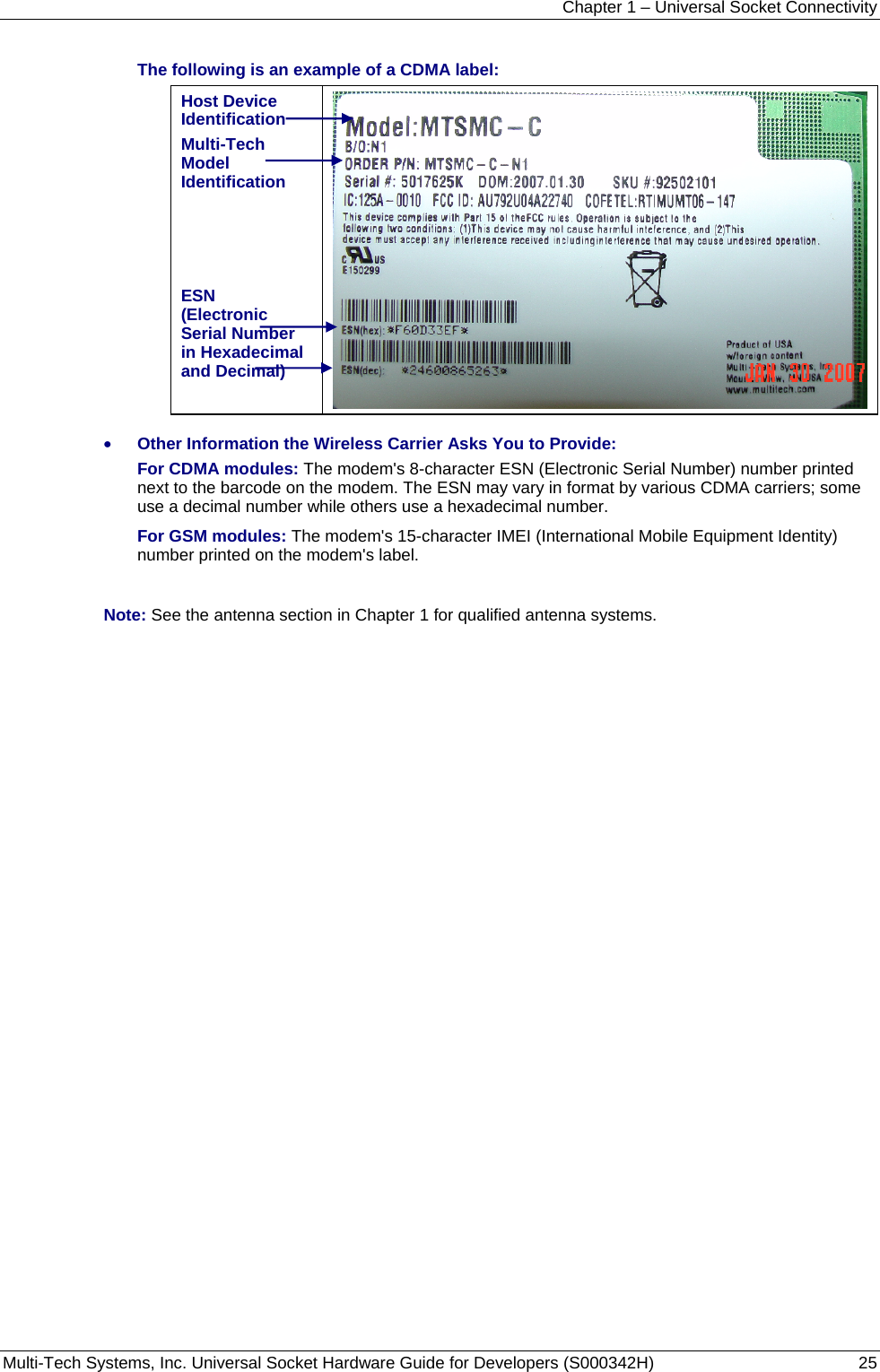

Chapter 1 – Universal Socket Connectivity Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 25 The following is an example of a CDMA label: Host Device Identification Multi-Tech Model Identification ESN (Electronic Serial Number in Hexadecimal and Decimal) • Other Information the Wireless Carrier Asks You to Provide: For CDMA modules: The modem's 8-character ESN (Electronic Serial Number) number printed next to the barcode on the modem. The ESN may vary in format by various CDMA carriers; some use a decimal number while others use a hexadecimal number. For GSM modules: The modem's 15-character IMEI (International Mobile Equipment Identity) number printed on the modem's label. Note: See the antenna section in Chapter 1 for qualified antenna systems.

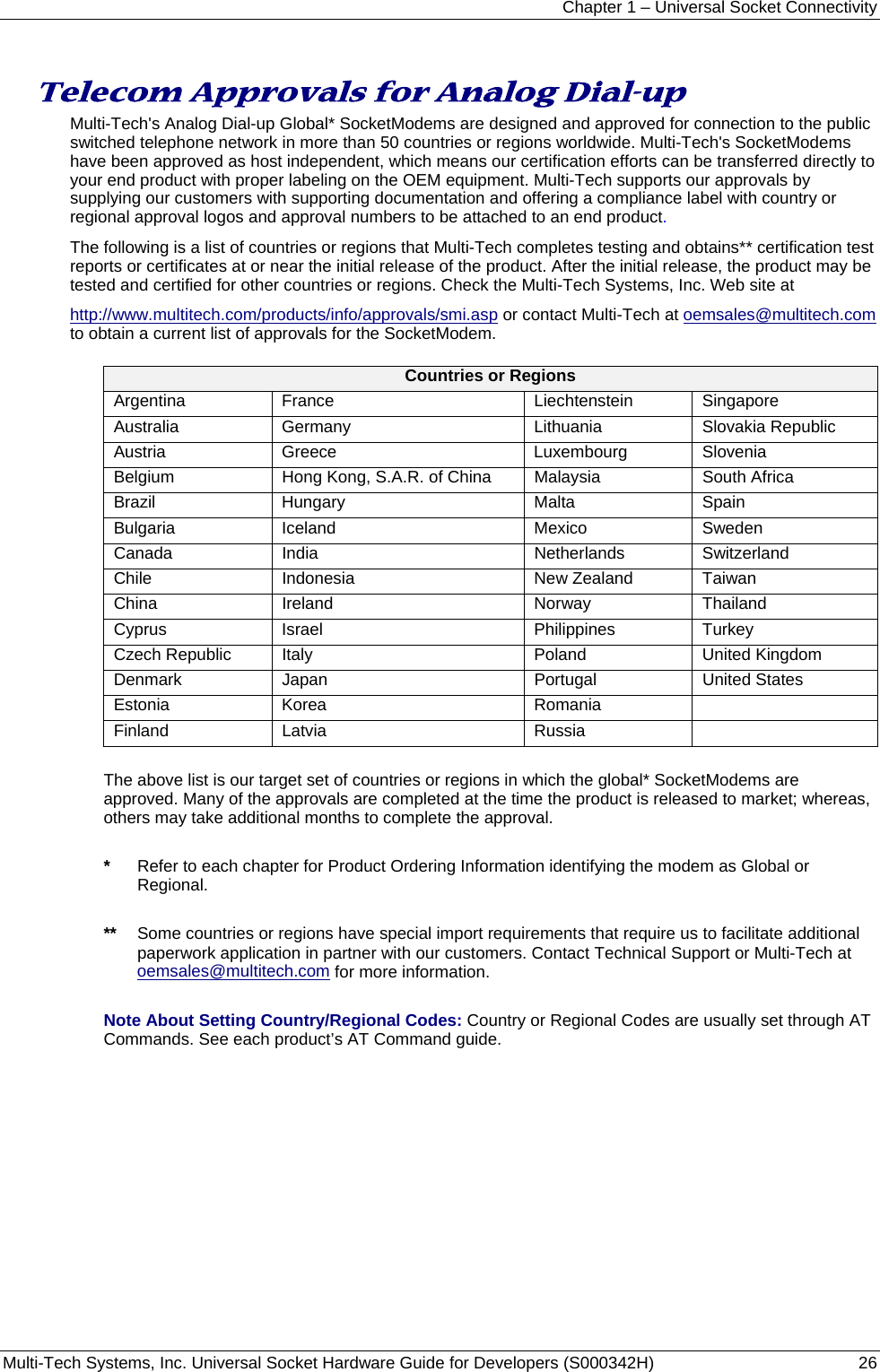

Chapter 1 – Universal Socket Connectivity Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 26 Telecom Approvals for Analog Dial-up Multi-Tech's Analog Dial-up Global* SocketModems are designed and approved for connection to the public switched telephone network in more than 50 countries or regions worldwide. Multi-Tech's SocketModems have been approved as host independent, which means our certification efforts can be transferred directly to your end product with proper labeling on the OEM equipment. Multi-Tech supports our approvals by supplying our customers with supporting documentation and offering a compliance label with country or regional approval logos and approval numbers to be attached to an end product. The following is a list of countries or regions that Multi-Tech completes testing and obtains** certification test reports or certificates at or near the initial release of the product. After the initial release, the product may be tested and certified for other countries or regions. Check the Multi-Tech Systems, Inc. Web site at http://www.multitech.com/products/info/approvals/smi.asp or contact Multi-Tech at oemsales@multitech.com to obtain a current list of approvals for the SocketModem. Countries or Regions Argentina France Liechtenstein Singapore Australia Germany Lithuania Slovakia Republic Austria Greece Luxembourg Slovenia Belgium Hong Kong, S.A.R. of China Malaysia South Africa Brazil Hungary Malta Spain Bulgaria Iceland Mexico Sweden Canada India Netherlands Switzerland Chile Indonesia New Zealand Taiwan China Ireland Norway Thailand Cyprus Israel Philippines Turkey Czech Republic Italy Poland United Kingdom Denmark Japan Portugal United States Estonia Korea Romania Finland Latvia Russia The above list is our target set of countries or regions in which the global* SocketModems are approved. Many of the approvals are completed at the time the product is released to market; whereas, others may take additional months to complete the approval. * Refer to each chapter for Product Ordering Information identifying the modem as Global or Regional. ** Some countries or regions have special import requirements that require us to facilitate additional paperwork application in partner with our customers. Contact Technical Support or Multi-Tech at oemsales@multitech.com for more information. Note About Setting Country/Regional Codes: Country or Regional Codes are usually set through AT Commands. See each product’s AT Command guide.

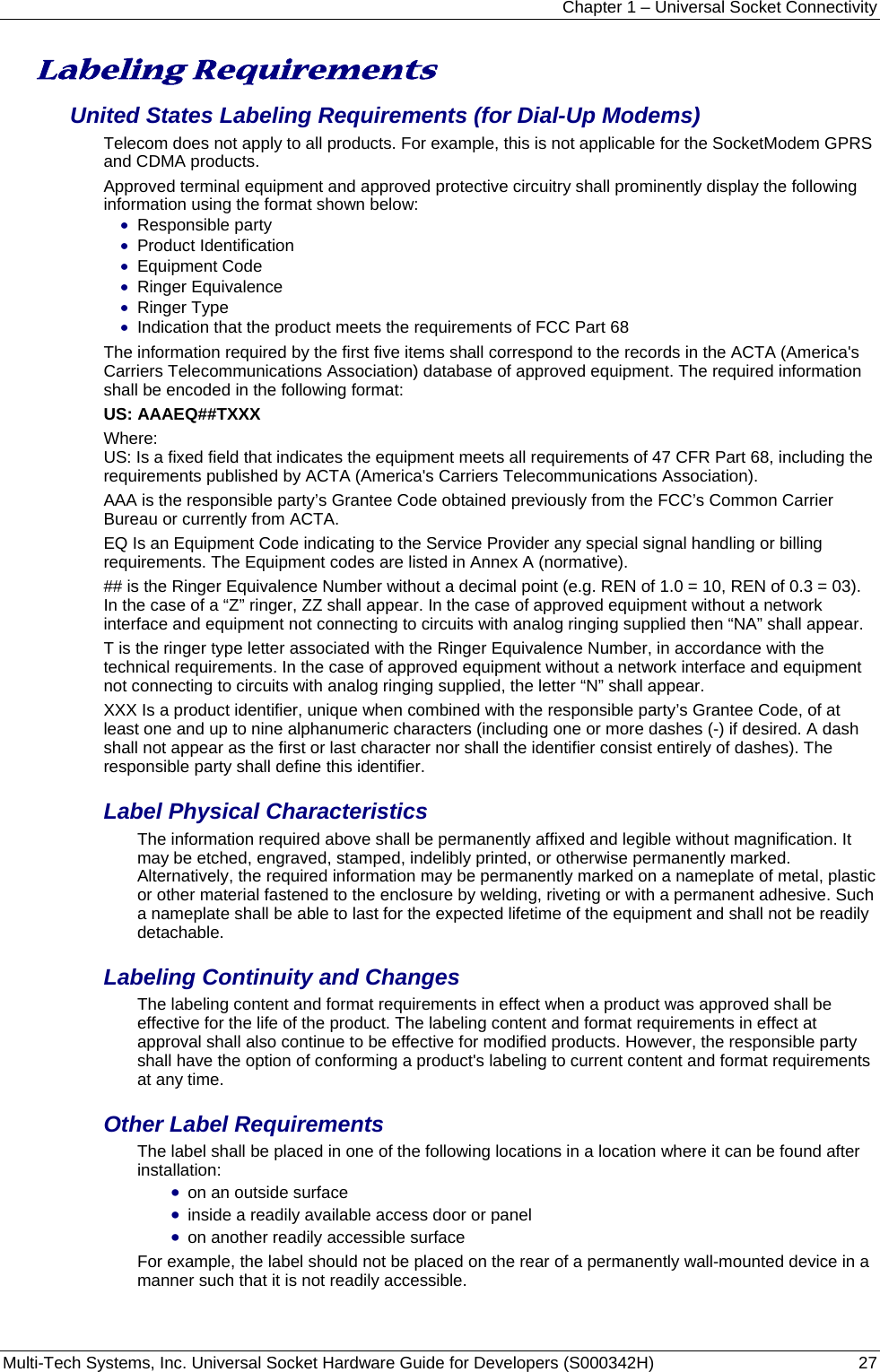

Chapter 1 – Universal Socket Connectivity Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 27 Labeling Requirements United States Labeling Requirements (for Dial-Up Modems) Telecom does not apply to all products. For example, this is not applicable for the SocketModem GPRS and CDMA products. Approved terminal equipment and approved protective circuitry shall prominently display the following information using the format shown below: • Responsible party • Product Identification • Equipment Code • Ringer Equivalence • Ringer Type • Indication that the product meets the requirements of FCC Part 68 The information required by the first five items shall correspond to the records in the ACTA (America's Carriers Telecommunications Association) database of approved equipment. The required information shall be encoded in the following format: US: AAAEQ##TXXX Where: US: Is a fixed field that indicates the equipment meets all requirements of 47 CFR Part 68, including the requirements published by ACTA (America's Carriers Telecommunications Association). AAA is the responsible party’s Grantee Code obtained previously from the FCC’s Common Carrier Bureau or currently from ACTA. EQ Is an Equipment Code indicating to the Service Provider any special signal handling or billing requirements. The Equipment codes are listed in Annex A (normative). ## is the Ringer Equivalence Number without a decimal point (e.g. REN of 1.0 = 10, REN of 0.3 = 03). In the case of a “Z” ringer, ZZ shall appear. In the case of approved equipment without a network interface and equipment not connecting to circuits with analog ringing supplied then “NA” shall appear. T is the ringer type letter associated with the Ringer Equivalence Number, in accordance with the technical requirements. In the case of approved equipment without a network interface and equipment not connecting to circuits with analog ringing supplied, the letter “N” shall appear. XXX Is a product identifier, unique when combined with the responsible party’s Grantee Code, of at least one and up to nine alphanumeric characters (including one or more dashes (-) if desired. A dash shall not appear as the first or last character nor shall the identifier consist entirely of dashes). The responsible party shall define this identifier. Label Physical Characteristics The information required above shall be permanently affixed and legible without magnification. It may be etched, engraved, stamped, indelibly printed, or otherwise permanently marked. Alternatively, the required information may be permanently marked on a nameplate of metal, plastic or other material fastened to the enclosure by welding, riveting or with a permanent adhesive. Such a nameplate shall be able to last for the expected lifetime of the equipment and shall not be readily detachable. Labeling Continuity and Changes The labeling content and format requirements in effect when a product was approved shall be effective for the life of the product. The labeling content and format requirements in effect at approval shall also continue to be effective for modified products. However, the responsible party shall have the option of conforming a product's labeling to current content and format requirements at any time. Other Label Requirements The label shall be placed in one of the following locations in a location where it can be found after installation: • on an outside surface • inside a readily available access door or panel • on another readily accessible surface For example, the label should not be placed on the rear of a permanently wall-mounted device in a manner such that it is not readily accessible.

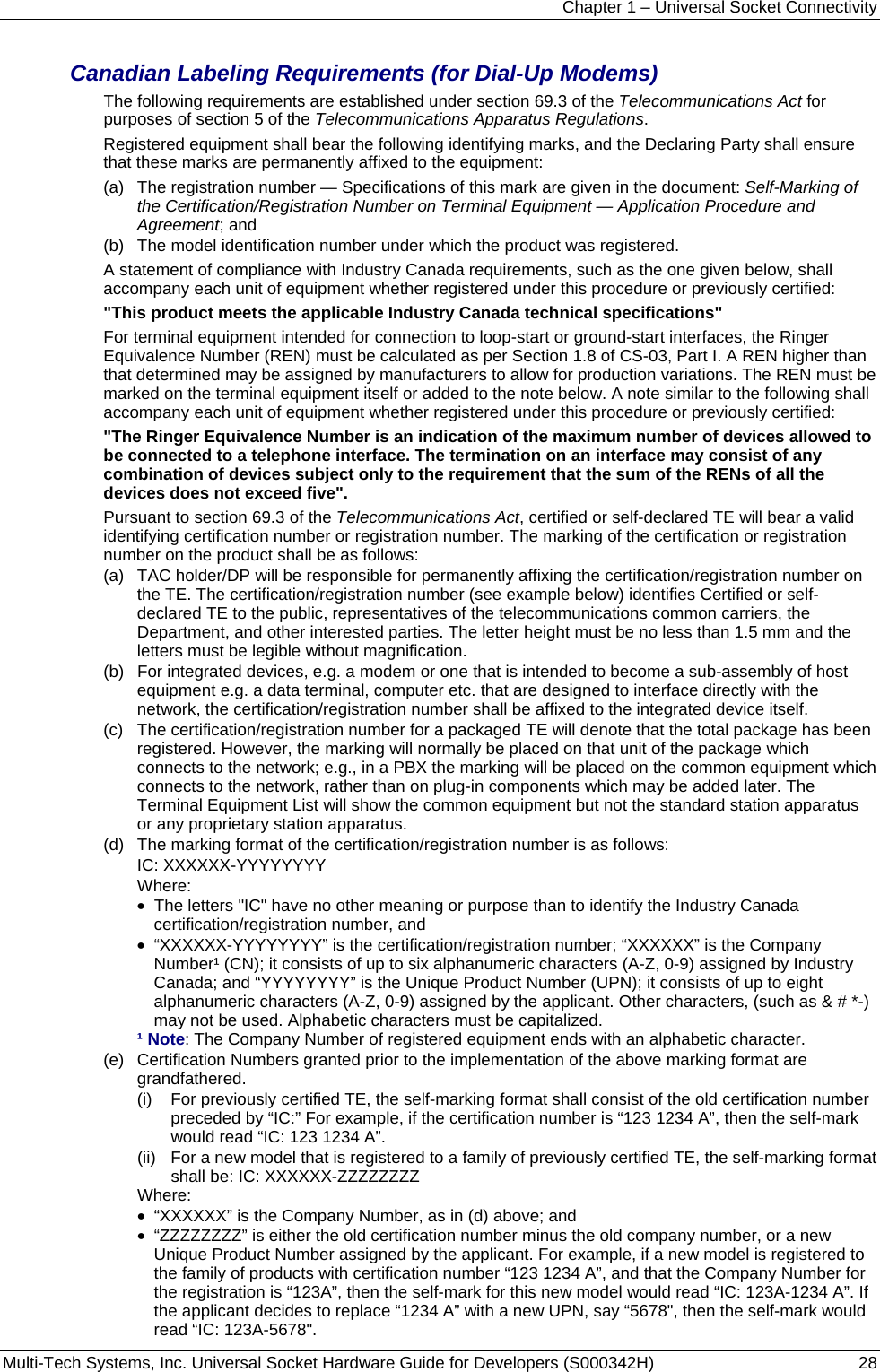

Chapter 1 – Universal Socket Connectivity Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 28 Canadian Labeling Requirements (for Dial-Up Modems) The following requirements are established under section 69.3 of the Telecommunications Act for purposes of section 5 of the Telecommunications Apparatus Regulations. Registered equipment shall bear the following identifying marks, and the Declaring Party shall ensure that these marks are permanently affixed to the equipment: (a) The registration number — Specifications of this mark are given in the document: Self-Marking of the Certification/Registration Number on Terminal Equipment — Application Procedure and Agreement; and (b) The model identification number under which the product was registered. A statement of compliance with Industry Canada requirements, such as the one given below, shall accompany each unit of equipment whether registered under this procedure or previously certified: "This product meets the applicable Industry Canada technical specifications" For terminal equipment intended for connection to loop-start or ground-start interfaces, the Ringer Equivalence Number (REN) must be calculated as per Section 1.8 of CS-03, Part I. A REN higher than that determined may be assigned by manufacturers to allow for production variations. The REN must be marked on the terminal equipment itself or added to the note below. A note similar to the following shall accompany each unit of equipment whether registered under this procedure or previously certified: "The Ringer Equivalence Number is an indication of the maximum number of devices allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the RENs of all the devices does not exceed five". Pursuant to section 69.3 of the Telecommunications Act, certified or self-declared TE will bear a valid identifying certification number or registration number. The marking of the certification or registration number on the product shall be as follows: (a) TAC holder/DP will be responsible for permanently affixing the certification/registration number on the TE. The certification/registration number (see example below) identifies Certified or self-declared TE to the public, representatives of the telecommunications common carriers, the Department, and other interested parties. The letter height must be no less than 1.5 mm and the letters must be legible without magnification. (b) For integrated devices, e.g. a modem or one that is intended to become a sub-assembly of host equipment e.g. a data terminal, computer etc. that are designed to interface directly with the network, the certification/registration number shall be affixed to the integrated device itself. (c) The certification/registration number for a packaged TE will denote that the total package has been registered. However, the marking will normally be placed on that unit of the package which connects to the network; e.g., in a PBX the marking will be placed on the common equipment which connects to the network, rather than on plug-in components which may be added later. The Terminal Equipment List will show the common equipment but not the standard station apparatus or any proprietary station apparatus. (d) The marking format of the certification/registration number is as follows: IC: XXXXXX-YYYYYYYY Where: • The letters "IC" have no other meaning or purpose than to identify the Industry Canada certification/registration number, and • “XXXXXX-YYYYYYYY” is the certification/registration number; “XXXXXX” is the Company Number¹ (CN); it consists of up to six alphanumeric characters (A-Z, 0-9) assigned by Industry Canada; and “YYYYYYYY” is the Unique Product Number (UPN); it consists of up to eight alphanumeric characters (A-Z, 0-9) assigned by the applicant. Other characters, (such as & # *-) may not be used. Alphabetic characters must be capitalized. ¹ Note: The Company Number of registered equipment ends with an alphabetic character. (e) Certification Numbers granted prior to the implementation of the above marking format are grandfathered. (i) For previously certified TE, the self-marking format shall consist of the old certification number preceded by “IC:” For example, if the certification number is “123 1234 A”, then the self-mark would read “IC: 123 1234 A”. (ii) For a new model that is registered to a family of previously certified TE, the self-marking format shall be: IC: XXXXXX-ZZZZZZZZ Where: • “XXXXXX” is the Company Number, as in (d) above; and • “ZZZZZZZZ” is either the old certification number minus the old company number, or a new Unique Product Number assigned by the applicant. For example, if a new model is registered to the family of products with certification number “123 1234 A”, and that the Company Number for the registration is “123A”, then the self-mark for this new model would read “IC: 123A-1234 A”. If the applicant decides to replace “1234 A” with a new UPN, say “5678", then the self-mark would read “IC: 123A-5678".

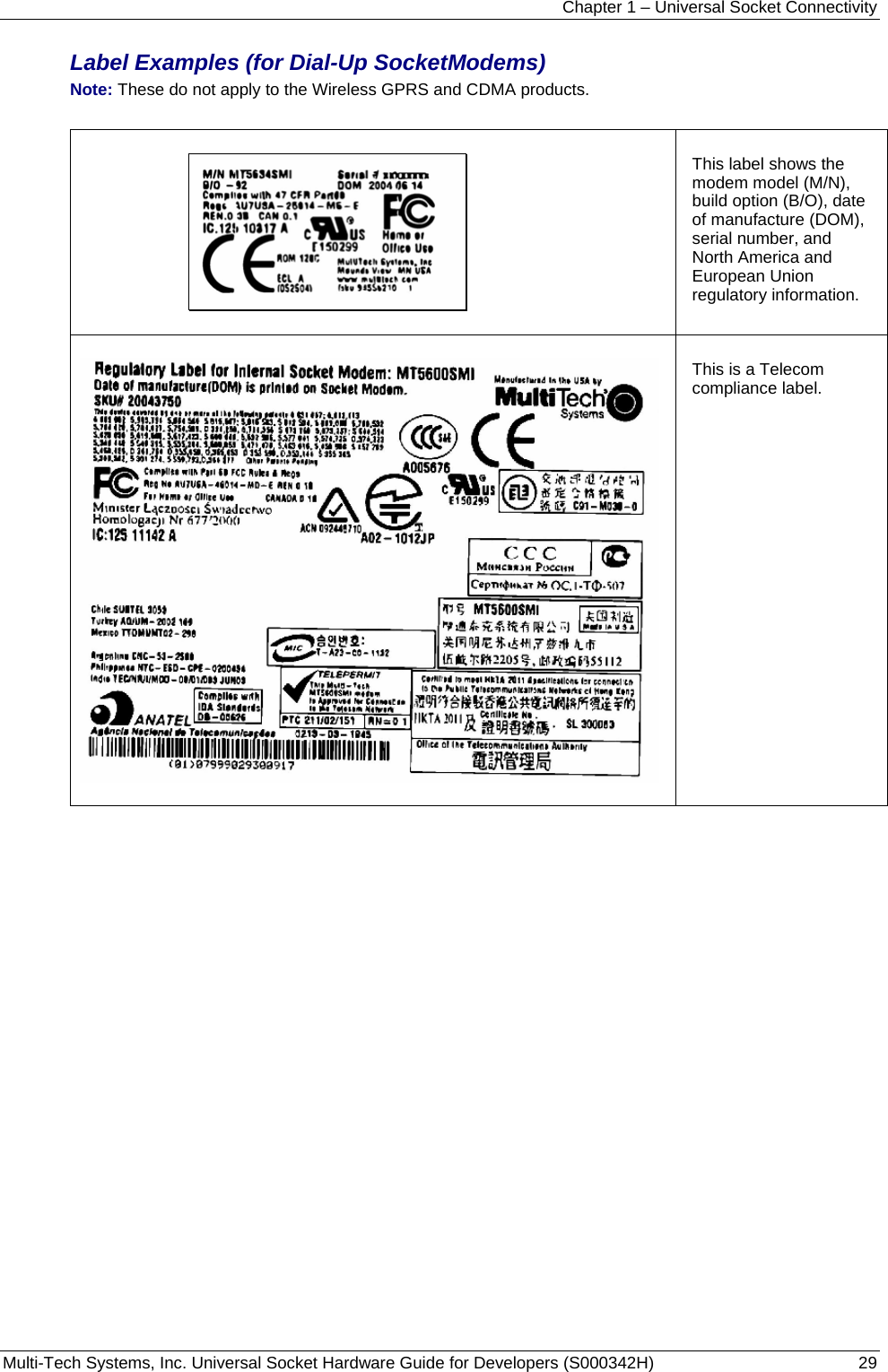

Chapter 1 – Universal Socket Connectivity Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 29 Label Examples (for Dial-Up SocketModems) Note: These do not apply to the Wireless GPRS and CDMA products. This label shows the modem model (M/N), build option (B/O), date of manufacture (DOM), serial number, and North America and European Union regulatory information. This is a Telecom compliance label.
Chapter 1 – Universal Socket Connectivity Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 30 Regulatory Compliance Statements EMC, Safety, and R&TTE Directive Compliance The CE mark is affixed to this product to confirm compliance with the following European Community Directives: Council Directive 89/336/EEC of 3 May 1989 on the approximation of the laws of Member States relating to electromagnetic compatibility; and Council Directive 73/23/EEC of 19 February 1973 on the harmonization of the laws of Member States relating to electrical equipment designed for use within certain voltage limits; and Council Directive 1999/5/EC of 9 March on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. International Modem Restrictions Some dialing and answering defaults and restrictions may vary for international modems. Changing settings may cause a modem to become non-compliant with national telecom requirements in specific countries. Also note that some software packages may have features or lack restrictions that may cause the modem to become non-compliant. EMC Requirements for the United States FCC Part 15 Regulation This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Plug the equipment into an outlet on a circuit that is different from the one used by the receiver. Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC rules. Operation of this device is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference that may cause undesired operation. WARNING – Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. EMC Requirements for Industry Canada This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Reglement Canadien sur le matériel brouilleur.

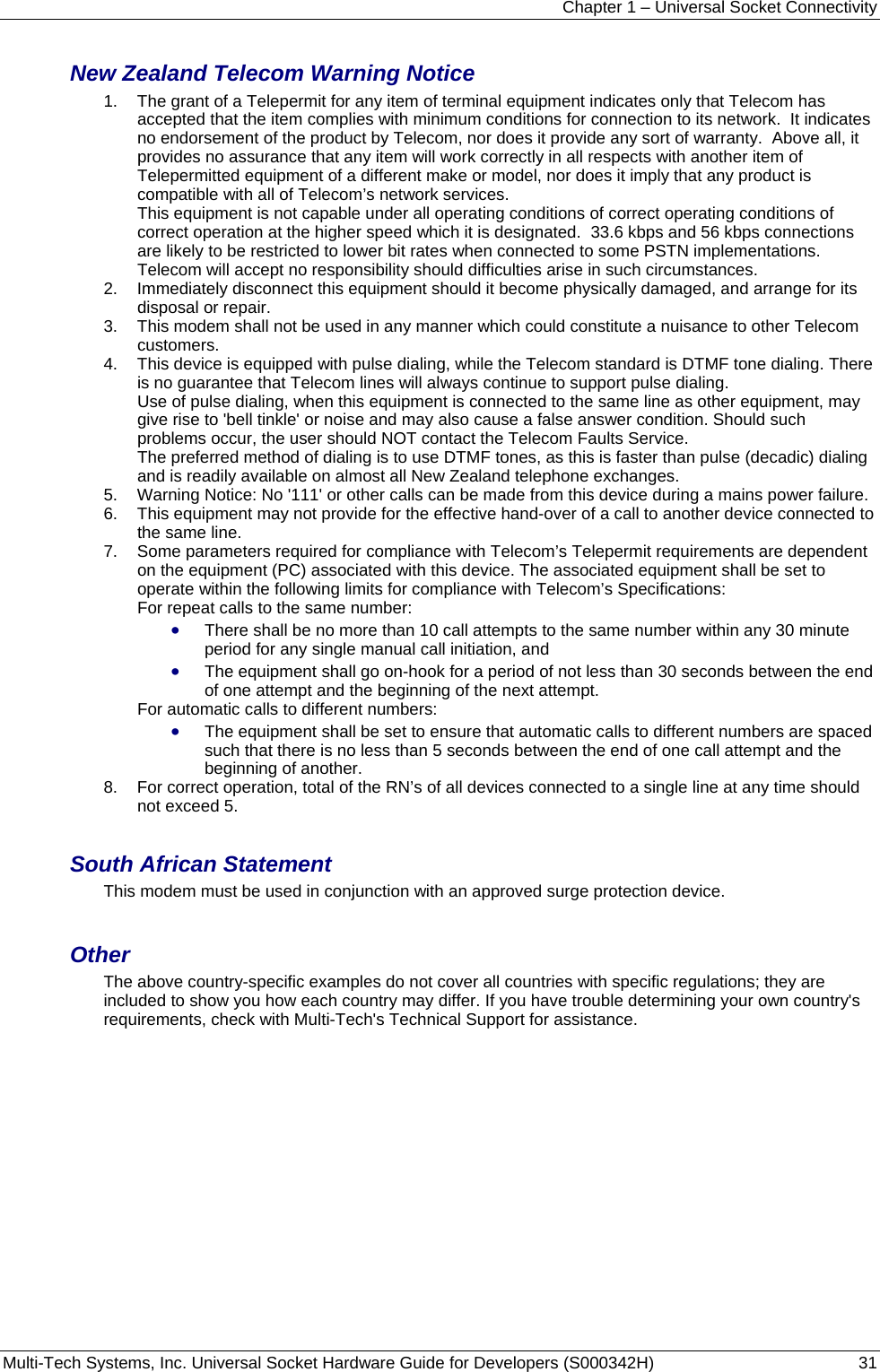

Chapter 1 – Universal Socket Connectivity Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 31 New Zealand Telecom Warning Notice 1. The grant of a Telepermit for any item of terminal equipment indicates only that Telecom has accepted that the item complies with minimum conditions for connection to its network. It indicates no endorsement of the product by Telecom, nor does it provide any sort of warranty. Above all, it provides no assurance that any item will work correctly in all respects with another item of Telepermitted equipment of a different make or model, nor does it imply that any product is compatible with all of Telecom’s network services. This equipment is not capable under all operating conditions of correct operating conditions of correct operation at the higher speed which it is designated. 33.6 kbps and 56 kbps connections are likely to be restricted to lower bit rates when connected to some PSTN implementations. Telecom will accept no responsibility should difficulties arise in such circumstances. 2. Immediately disconnect this equipment should it become physically damaged, and arrange for its disposal or repair. 3. This modem shall not be used in any manner which could constitute a nuisance to other Telecom customers. 4. This device is equipped with pulse dialing, while the Telecom standard is DTMF tone dialing. There is no guarantee that Telecom lines will always continue to support pulse dialing. Use of pulse dialing, when this equipment is connected to the same line as other equipment, may give rise to 'bell tinkle' or noise and may also cause a false answer condition. Should such problems occur, the user should NOT contact the Telecom Faults Service. The preferred method of dialing is to use DTMF tones, as this is faster than pulse (decadic) dialing and is readily available on almost all New Zealand telephone exchanges. 5. Warning Notice: No '111' or other calls can be made from this device during a mains power failure. 6. This equipment may not provide for the effective hand-over of a call to another device connected to the same line. 7. Some parameters required for compliance with Telecom’s Telepermit requirements are dependent on the equipment (PC) associated with this device. The associated equipment shall be set to operate within the following limits for compliance with Telecom’s Specifications: For repeat calls to the same number: • There shall be no more than 10 call attempts to the same number within any 30 minute period for any single manual call initiation, and • The equipment shall go on-hook for a period of not less than 30 seconds between the end of one attempt and the beginning of the next attempt. For automatic calls to different numbers: • The equipment shall be set to ensure that automatic calls to different numbers are spaced such that there is no less than 5 seconds between the end of one call attempt and the beginning of another. 8. For correct operation, total of the RN’s of all devices connected to a single line at any time should not exceed 5. South African Statement This modem must be used in conjunction with an approved surge protection device. Other The above country-specific examples do not cover all countries with specific regulations; they are included to show you how each country may differ. If you have trouble determining your own country's requirements, check with Multi-Tech's Technical Support for assistance.

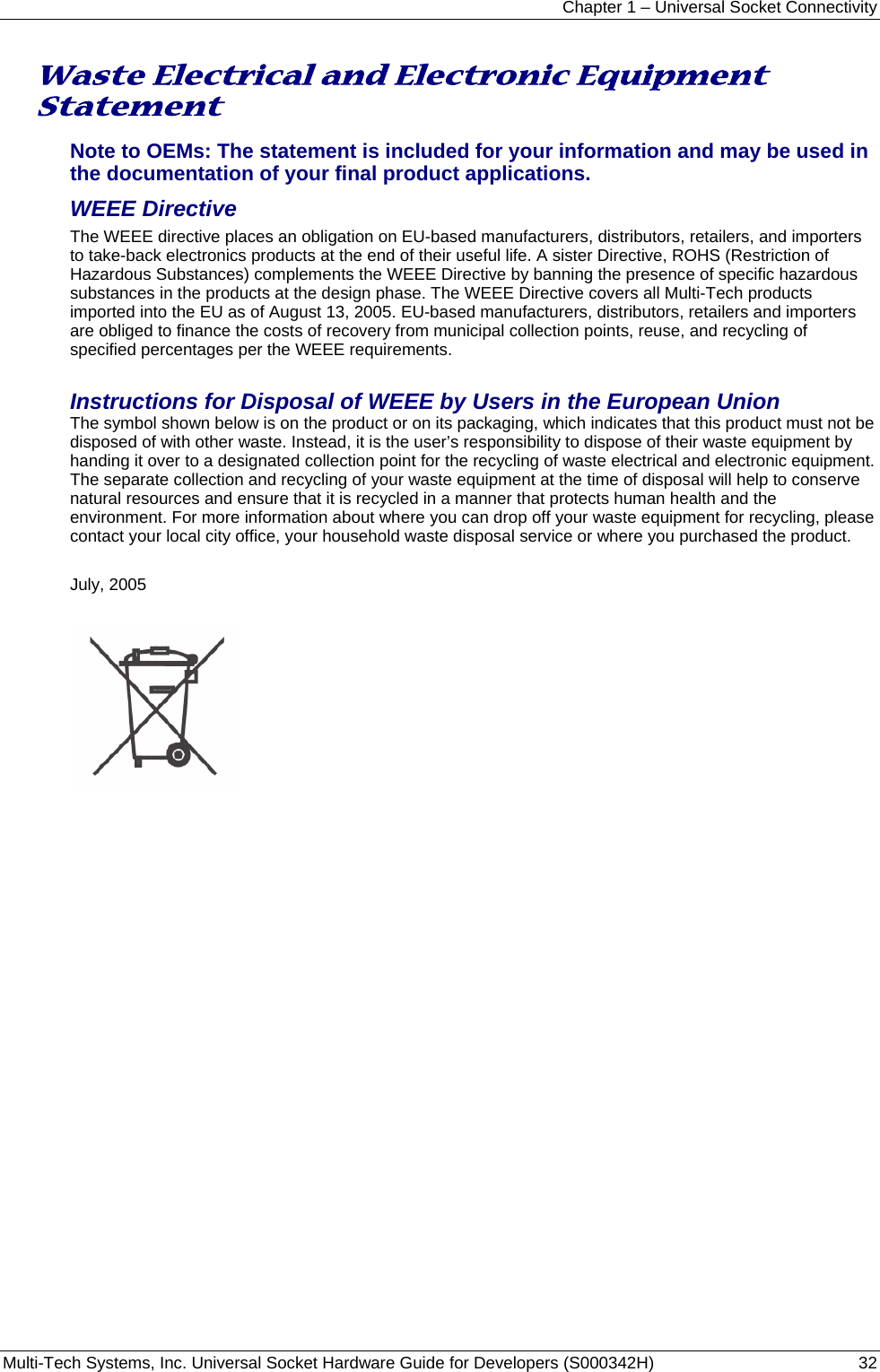

Chapter 1 – Universal Socket Connectivity Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 32 Waste Electrical and Electronic Equipment Statement Note to OEMs: The statement is included for your information and may be used in the documentation of your final product applications. WEEE Directive The WEEE directive places an obligation on EU-based manufacturers, distributors, retailers, and importers to take-back electronics products at the end of their useful life. A sister Directive, ROHS (Restriction of Hazardous Substances) complements the WEEE Directive by banning the presence of specific hazardous substances in the products at the design phase. The WEEE Directive covers all Multi-Tech products imported into the EU as of August 13, 2005. EU-based manufacturers, distributors, retailers and importers are obliged to finance the costs of recovery from municipal collection points, reuse, and recycling of specified percentages per the WEEE requirements. Instructions for Disposal of WEEE by Users in the European Union The symbol shown below is on the product or on its packaging, which indicates that this product must not be disposed of with other waste. Instead, it is the user’s responsibility to dispose of their waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or where you purchased the product. July, 2005
Chapter 1 – Universal Socket Connectivity Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 33 Restriction of the Use of Hazardous Substances (RoHS) Multi-Tech Systems, Inc. Certificate of Compliance 2002/95/EC Multi-Tech Systems Inc. confirms that its embedded products now comply with the chemical concentration limitations set forth in the directive 2002/95/EC of the European Parliament (Restriction Of the use of certain Hazardous Substances in electrical and electronic equipment - RoHS) These Multi-Tech Systems, Inc. products do not contain the following banned chemicals: Lead, [Pb] < 1000 PPM Mercury, [Hg] < 1000 PPM Hexavalent Chromium, [Cr+6] < 1000 PPM Cadmium, [Cd] < 100 PPM Polybrominated Biphenyl, [PBB] < 1000 PPM Polybrominated Diphenyl Ether, [PBDE] < 1000 PPM Moisture Sensitivity Level (MSL) =1 Tin Whisker Growth = None detected Maximum Soldering temperature = 260C (wave only) Notes: 1. Lead usage in some components is exempted by the following RoHS annex; therefore, higher lead concentration would be found in some modules (>1000ppm). a. Lead in high melting temperature type solders (i.e., tin-lead solder alloys containing more than 85% lead). b. Lead in electronic ceramic parts (e.g., piezoelectronic devices). 2. Moisture Sensitivity Level (MSL) – Analysis is based on the components/material used on the board. 3. Tin Whisker Study was done per NEMI guidelines (Elevated temperature cycle of 60°C and non-condensing relative humidity of 87% exposed to this environment for 1000 hours).

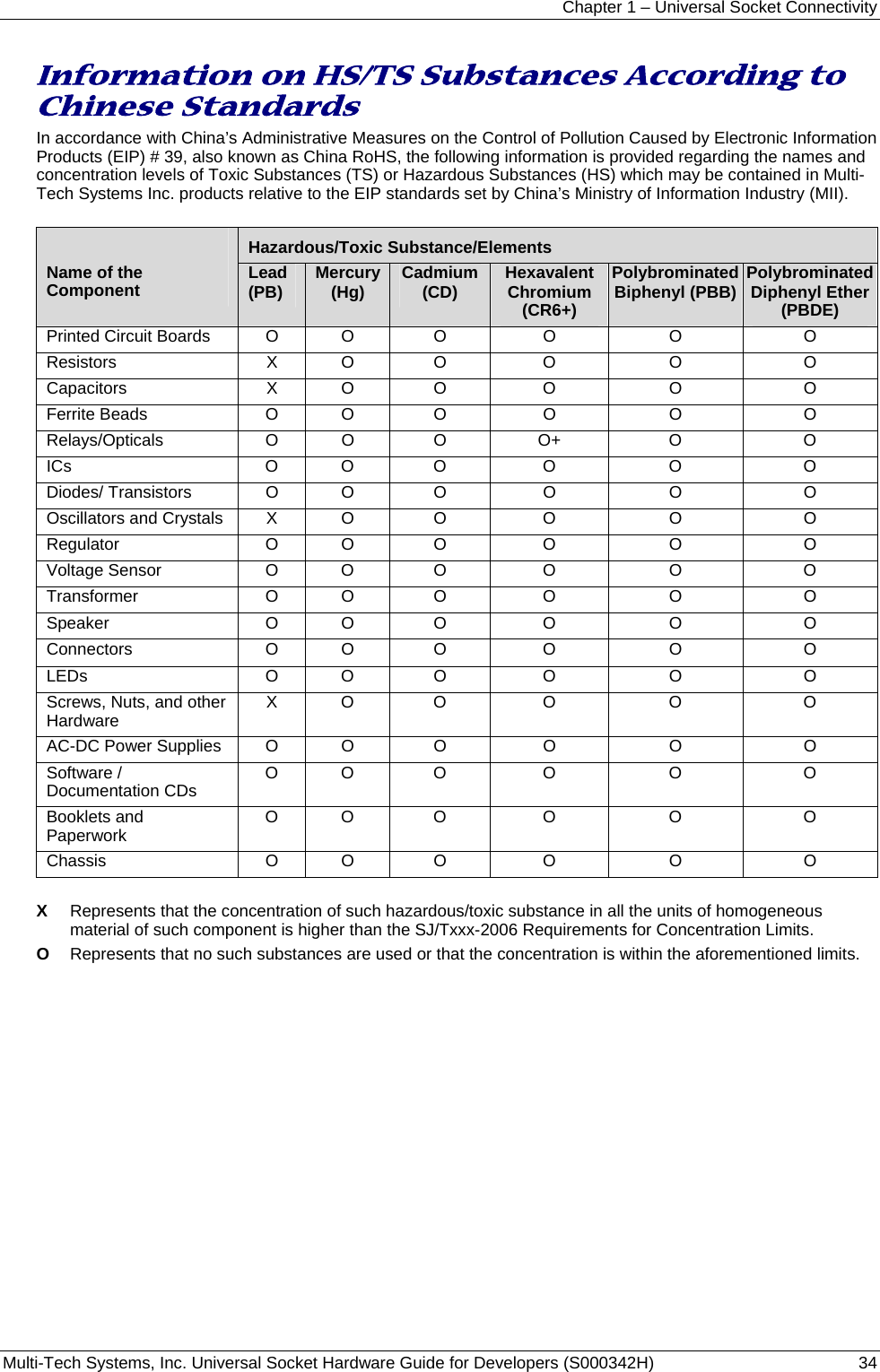

Chapter 1 – Universal Socket Connectivity Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 34 Information on HS/TS Substances According to Chinese Standards In accordance with China’s Administrative Measures on the Control of Pollution Caused by Electronic Information Products (EIP) # 39, also known as China RoHS, the following information is provided regarding the names and concentration levels of Toxic Substances (TS) or Hazardous Substances (HS) which may be contained in Multi-Tech Systems Inc. products relative to the EIP standards set by China’s Ministry of Information Industry (MII). Hazardous/Toxic Substance/Elements Name of the Component Lead (PB) Mercury (Hg) Cadmium (CD) Hexavalent Chromium (CR6+) Polybrominated Biphenyl (PBB) Polybrominated Diphenyl Ether (PBDE) Printed Circuit Boards O O O O O O Resistors X O O O O O Capacitors X O O O O O Ferrite Beads O O O O O O Relays/Opticals O O O O+ O O ICs O O O O O O Diodes/ Transistors O O O O O O Oscillators and Crystals X O O O O O Regulator O O O O O O Voltage Sensor O O O O O O Transformer O O O O O O Speaker O O O O O O Connectors O O O O O O LEDs O O O O O O Screws, Nuts, and other Hardware X O O O O O AC-DC Power Supplies O O O O O O Software / Documentation CDs O O O O O O Booklets and Paperwork O O O O O O Chassis O O O O O O X Represents that the concentration of such hazardous/toxic substance in all the units of homogeneous material of such component is higher than the SJ/Txxx-2006 Requirements for Concentration Limits. O Represents that no such substances are used or that the concentration is within the aforementioned limits.
Chapter 1 – Universal Socket Connectivity Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 35 Information on HS/TS Substances According to Chinese Standards (in Chinese) 依照中国标准的有毒有害物质信息 根据中华人民共和国信息产业部 (MII) 制定的电子信息产品 (EIP) 标准－中华人民共和国《电子信息产品污染控制管理办法》（第 39 号），也称作中国 RoHS，下表列出了 Multi-Tech Systems, Inc. 产品中可能含有的有毒物质 (TS) 或有害物质 (HS) 的名称及含量水平方面的信息。 有害/有毒物质/元素 成分名称 铅 (PB) 汞 (Hg) 镉 (CD) 六价铬 (CR6+) 多溴联苯 (PBB) 多溴二苯醚 (PBDE) 印刷电路板 O O O O O O 电阻器 X O O O O O 电容器 X O O O O O 铁氧体磁环 O O O O O O 继电器/光学部件 O O O O O O IC O O O O O O 二极管/晶体管 O O O O O O 振荡器和晶振 X O O O O O 调节器 O O O O O O 电压传感器 O O O O O O 变压器 O O O O O O 扬声器 O O O O O O 连接器 O O O O O O LED O O O O O O 螺丝、螺母以及其它五金件 X O O O O O 交流-直流电源 O O O O O O 软件/文档 CD O O O O O O 手册和纸页 O O O O O O 底盘 O O O O O O X 表示所有使用类似材料的设备中有害/有毒物质的含量水平高于 SJ/Txxx-2006 限量要求。 O 表示不含该物质或者该物质的含量水平在上述限量要求之内。

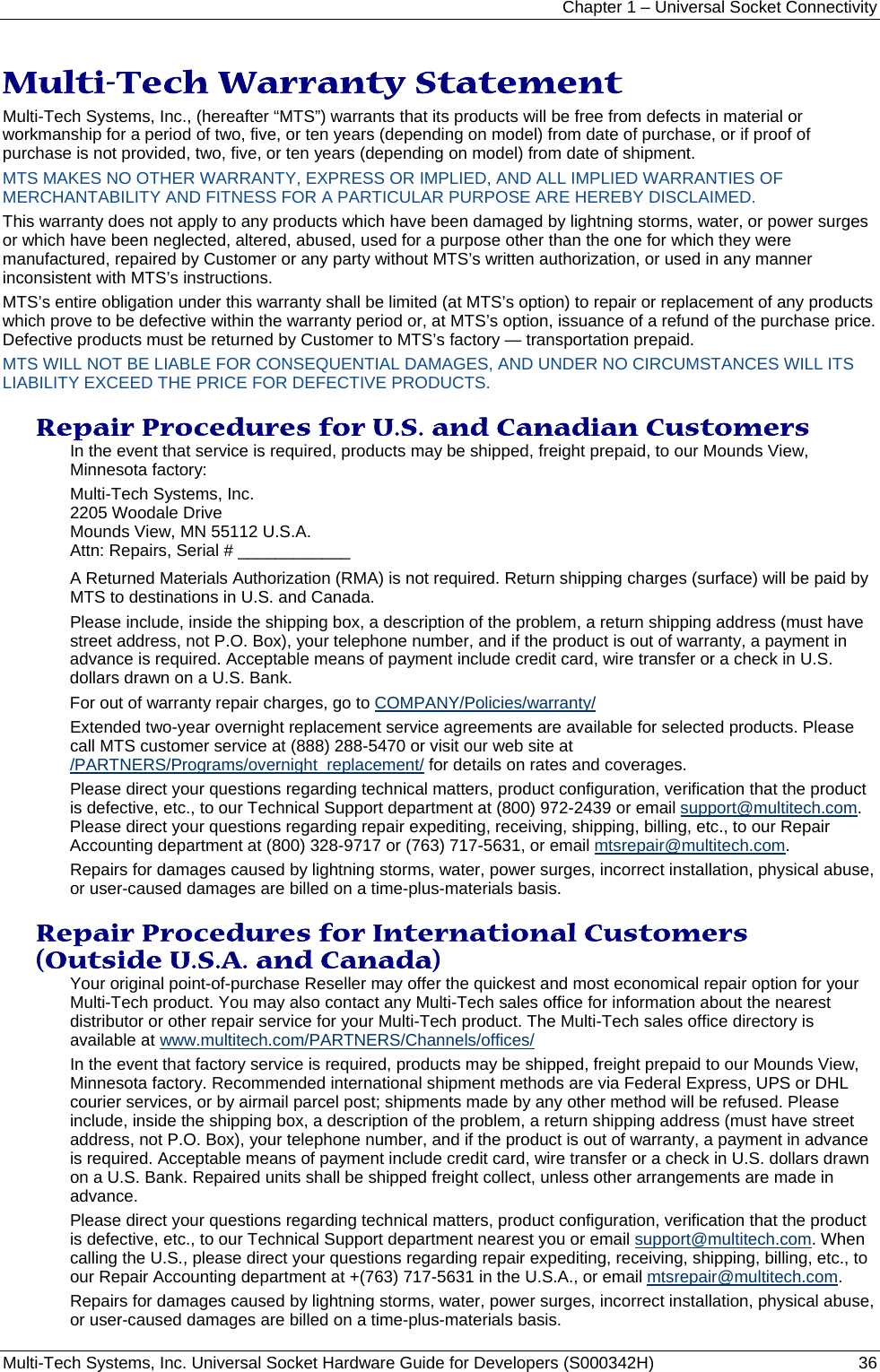

Chapter 1 – Universal Socket Connectivity Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 36 Multi-Tech Warranty Statement Multi-Tech Systems, Inc., (hereafter “MTS”) warrants that its products will be free from defects in material or workmanship for a period of two, five, or ten years (depending on model) from date of purchase, or if proof of purchase is not provided, two, five, or ten years (depending on model) from date of shipment. MTS MAKES NO OTHER WARRANTY, EXPRESS OR IMPLIED, AND ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. This warranty does not apply to any products which have been damaged by lightning storms, water, or power surges or which have been neglected, altered, abused, used for a purpose other than the one for which they were manufactured, repaired by Customer or any party without MTS’s written authorization, or used in any manner inconsistent with MTS’s instructions. MTS’s entire obligation under this warranty shall be limited (at MTS’s option) to repair or replacement of any products which prove to be defective within the warranty period or, at MTS’s option, issuance of a refund of the purchase price. Defective products must be returned by Customer to MTS’s factory — transportation prepaid. MTS WILL NOT BE LIABLE FOR CONSEQUENTIAL DAMAGES, AND UNDER NO CIRCUMSTANCES WILL ITS LIABILITY EXCEED THE PRICE FOR DEFECTIVE PRODUCTS. Repair Procedures for U.S. and Canadian Customers In the event that service is required, products may be shipped, freight prepaid, to our Mounds View, Minnesota factory: Multi-Tech Systems, Inc. 2205 Woodale Drive Mounds View, MN 55112 U.S.A. Attn: Repairs, Serial # ____________ A Returned Materials Authorization (RMA) is not required. Return shipping charges (surface) will be paid by MTS to destinations in U.S. and Canada. Please include, inside the shipping box, a description of the problem, a return shipping address (must have street address, not P.O. Box), your telephone number, and if the product is out of warranty, a payment in advance is required. Acceptable means of payment include credit card, wire transfer or a check in U.S. dollars drawn on a U.S. Bank. For out of warranty repair charges, go to COMPANY/Policies/warranty/ Extended two-year overnight replacement service agreements are available for selected products. Please call MTS customer service at (888) 288-5470 or visit our web site at /PARTNERS/Programs/overnight_replacement/ for details on rates and coverages. Please direct your questions regarding technical matters, product configuration, verification that the product is defective, etc., to our Technical Support department at (800) 972-2439 or email support@multitech.com. Please direct your questions regarding repair expediting, receiving, shipping, billing, etc., to our Repair Accounting department at (800) 328-9717 or (763) 717-5631, or email mtsrepair@multitech.com. Repairs for damages caused by lightning storms, water, power surges, incorrect installation, physical abuse, or user-caused damages are billed on a time-plus-materials basis. Repair Procedures for International Customers (Outside U.S.A. and Canada) Your original point-of-purchase Reseller may offer the quickest and most economical repair option for your Multi-Tech product. You may also contact any Multi-Tech sales office for information about the nearest distributor or other repair service for your Multi-Tech product. The Multi-Tech sales office directory is available at www.multitech.com/PARTNERS/Channels/offices/ In the event that factory service is required, products may be shipped, freight prepaid to our Mounds View, Minnesota factory. Recommended international shipment methods are via Federal Express, UPS or DHL courier services, or by airmail parcel post; shipments made by any other method will be refused. Please include, inside the shipping box, a description of the problem, a return shipping address (must have street address, not P.O. Box), your telephone number, and if the product is out of warranty, a payment in advance is required. Acceptable means of payment include credit card, wire transfer or a check in U.S. dollars drawn on a U.S. Bank. Repaired units shall be shipped freight collect, unless other arrangements are made in advance. Please direct your questions regarding technical matters, product configuration, verification that the product is defective, etc., to our Technical Support department nearest you or email support@multitech.com. When calling the U.S., please direct your questions regarding repair expediting, receiving, shipping, billing, etc., to our Repair Accounting department at +(763) 717-5631 in the U.S.A., or email mtsrepair@multitech.com. Repairs for damages caused by lightning storms, water, power surges, incorrect installation, physical abuse, or user-caused damages are billed on a time-plus-materials basis.

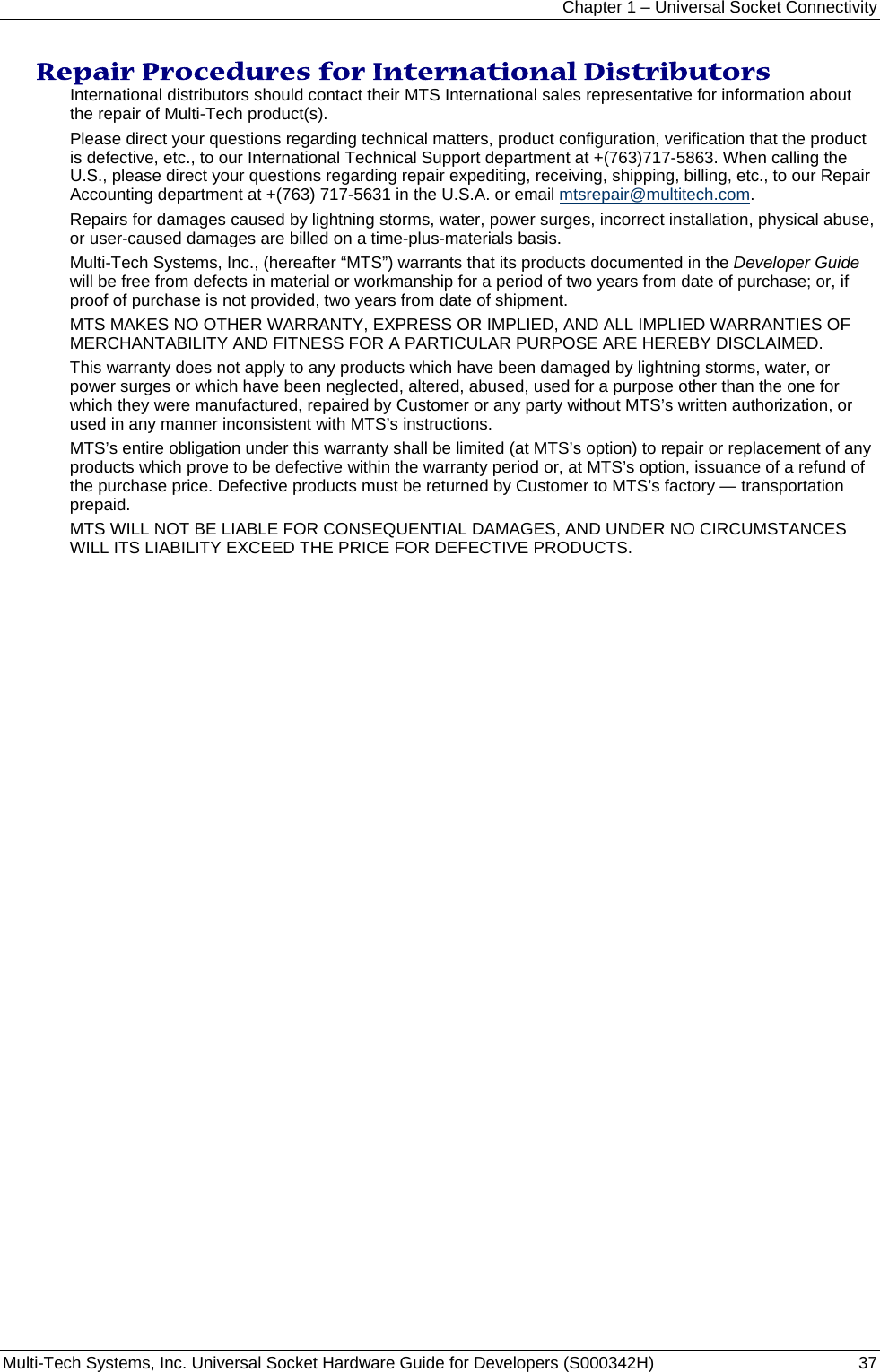

Chapter 1 – Universal Socket Connectivity Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 37 Repair Procedures for International Distributors International distributors should contact their MTS International sales representative for information about the repair of Multi-Tech product(s). Please direct your questions regarding technical matters, product configuration, verification that the product is defective, etc., to our International Technical Support department at +(763)717-5863. When calling the U.S., please direct your questions regarding repair expediting, receiving, shipping, billing, etc., to our Repair Accounting department at +(763) 717-5631 in the U.S.A. or email mtsrepair@multitech.com. Repairs for damages caused by lightning storms, water, power surges, incorrect installation, physical abuse, or user-caused damages are billed on a time-plus-materials basis. Multi-Tech Systems, Inc., (hereafter “MTS”) warrants that its products documented in the Developer Guide will be free from defects in material or workmanship for a period of two years from date of purchase; or, if proof of purchase is not provided, two years from date of shipment. MTS MAKES NO OTHER WARRANTY, EXPRESS OR IMPLIED, AND ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. This warranty does not apply to any products which have been damaged by lightning storms, water, or power surges or which have been neglected, altered, abused, used for a purpose other than the one for which they were manufactured, repaired by Customer or any party without MTS’s written authorization, or used in any manner inconsistent with MTS’s instructions. MTS’s entire obligation under this warranty shall be limited (at MTS’s option) to repair or replacement of any products which prove to be defective within the warranty period or, at MTS’s option, issuance of a refund of the purchase price. Defective products must be returned by Customer to MTS’s factory — transportation prepaid. MTS WILL NOT BE LIABLE FOR CONSEQUENTIAL DAMAGES, AND UNDER NO CIRCUMSTANCES WILL ITS LIABILITY EXCEED THE PRICE FOR DEFECTIVE PRODUCTS.
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 38 Chapter 12 SocketWireless® Wi-Fi® MT800SWM

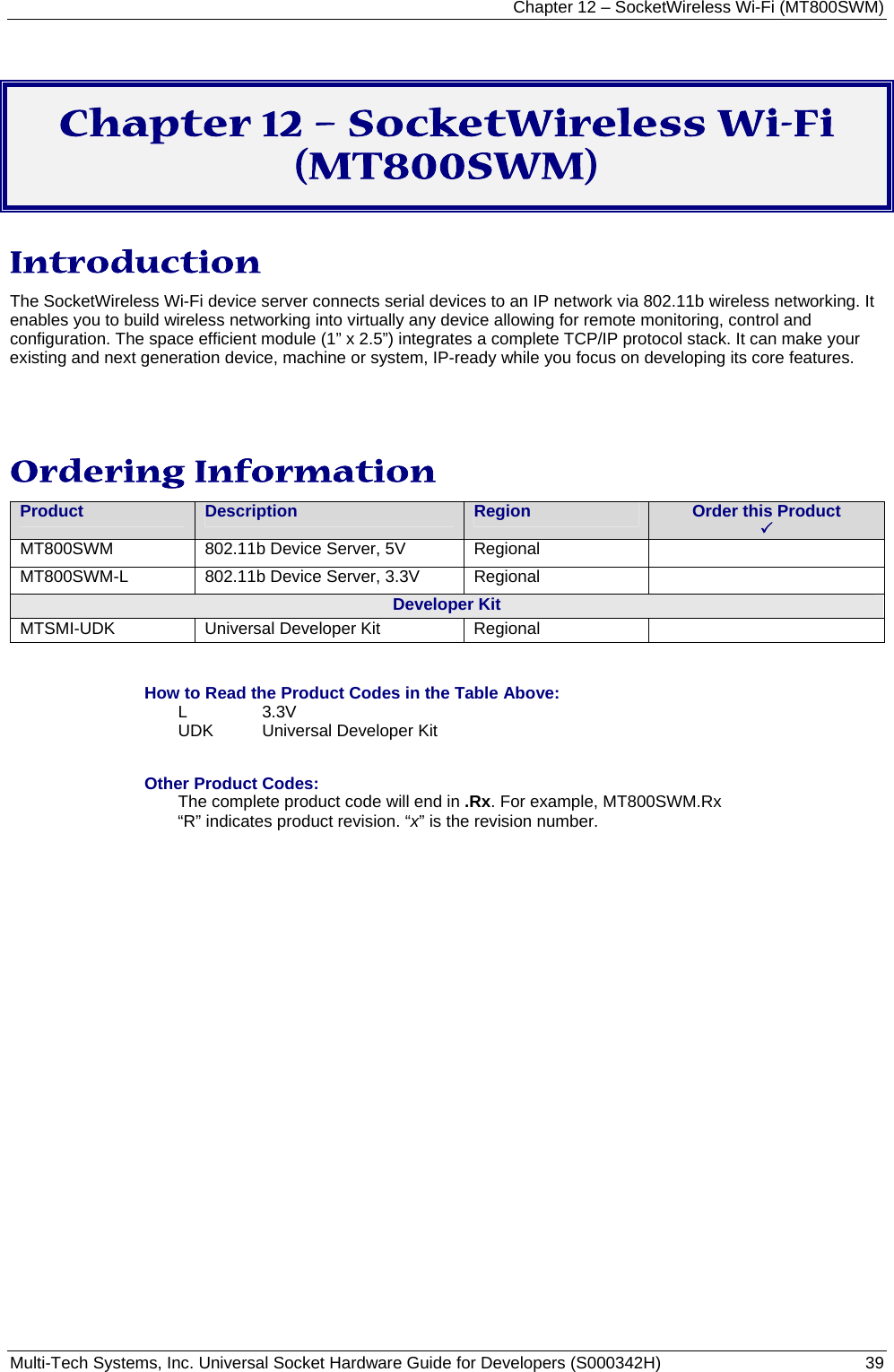

Chapter 12 – SocketWireless Wi-Fi (MT800SWM) Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 39 Chapter 12 – SocketWireless Wi-Fi (MT800SWM) Introduction The SocketWireless Wi-Fi device server connects serial devices to an IP network via 802.11b wireless networking. It enables you to build wireless networking into virtually any device allowing for remote monitoring, control and configuration. The space efficient module (1” x 2.5”) integrates a complete TCP/IP protocol stack. It can make your existing and next generation device, machine or system, IP-ready while you focus on developing its core features. Ordering Information Product Description Region Order this Product 3 MT800SWM 802.11b Device Server, 5V Regional MT800SWM-L 802.11b Device Server, 3.3V Regional Developer Kit MTSMI-UDK Universal Developer Kit Regional How to Read the Product Codes in the Table Above: L 3.3V UDK Universal Developer Kit Other Product Codes: The complete product code will end in .Rx. For example, MT800SWM.Rx “R” indicates product revision. “x” is the revision number.
Chapter 12 – SocketWireless Wi-Fi (MT800SWM) Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 40 Technical Specifications The SocketWireless Wi-Fi meets the following specifications: Category Description Standard Internet Interface: 802.11b Frequency Range 2.400 to 2.484 GHz Data Format Serial, asynchronous, 3.3V Character Format 8N1 Data Rate Software selectable: 1200 bps to 230K bps Antenna Connector MMCX Maximum Transmit Power16 dBm Receiver Sensitivity -82 dBm Dimensions 2.541" L x 1.045" W x 0.512" (6.45 cm x 2.65 cm x 1.30 cm) Weight 0.6 oz. (0.017 kg.) Power Consumption 3.3 Volt Inrush current at power-on is 740mA With active Wi-Fi connection, the current draw is 230mA 5 Volt Inrush current at power-on is 1.1 amp With active Wi-Fi connection, the current draw is 247mA Operating Temperature -30° to +70° C (FCC Certified -20° to +55° C) Storage Temperature -40° to +85° C Humidity 20% to 90% (non-condensing) Operating Voltage 3.3VDC or 5VDC Certifications & Approvals Safety Certifications: UL 60950 cUL 60950 EN 60950 AS/NZS 60950:2000 EMC Approvals: FCC Part 15 Subpart C Canada RSS-210 EN 300 328 EN 301 489-17 Intelligent Features Complete serial-to-Wi-Fi wireless connectivity solution including network processor, media access controller, and air interface Wi-Fi Security using 64/128 bit WEP Supports Ad Hoc and Infrastructure Mode Network Protocols Supported: ARP, DHCP client, FTP client, ICMP (PING), IP, POP3, SMTP client, TCP, UDP Configuration and Management via AT Commands Flash memory to update firmware with the latest enhancements Warranty Two years

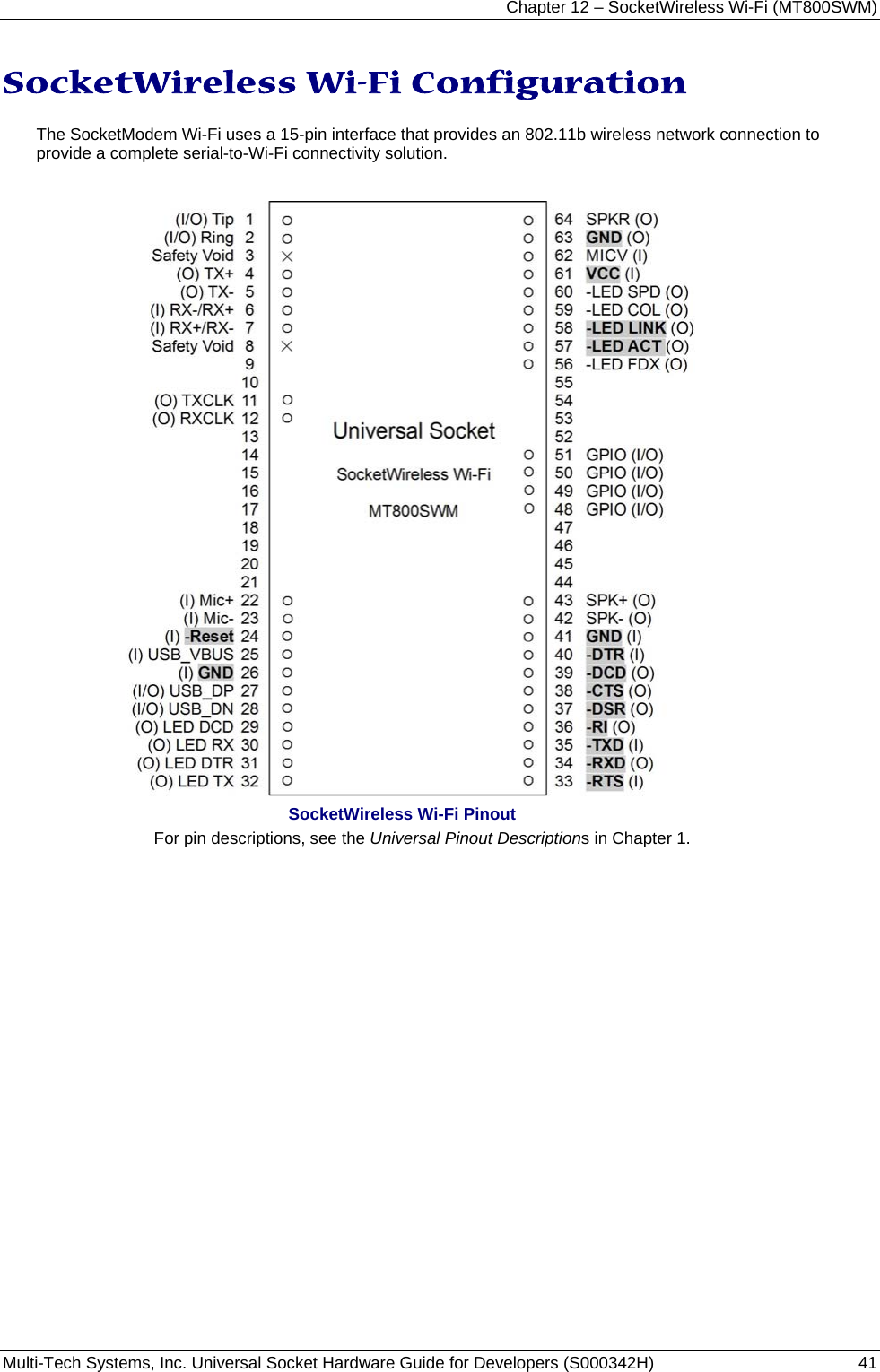

Chapter 12 – SocketWireless Wi-Fi (MT800SWM) Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 41 SocketWireless Wi-Fi Configuration The SocketModem Wi-Fi uses a 15-pin interface that provides an 802.11b wireless network connection to provide a complete serial-to-Wi-Fi connectivity solution. SocketWireless Wi-Fi Pinout For pin descriptions, see the Universal Pinout Descriptions in Chapter 1.
Chapter 12 – SocketWireless Wi-Fi (MT800SWM) Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 42 Mechanical Dimensions Electrical Characteristics 3.3V Serial 3.3VDC Characteristics (VDD = 3.3V ± 0.3V) VDDMAX = 3.6V Digital Inputs –DTR (40), –TXD (35), –RTS (33), –RESET (24) Input High Min 2.52V Input Low Max 0.8V Digital Outputs –DCD (39), –CTS (38), –DSR (37), –RI (36), –RXD (34) Output High Min. 2.3V Output Low Max 0.4V Current Drive 2mA Digital Input Capacitance 5 pF 5V Serial 5VDC Characteristics (VDD = 5V ± 0.25V) VDDMAX = 5.25V Digital Inputs –DTR (40), –TXD (35), –RTS (33), –RESET (24) Input High Min 2.52V Input Low Max .0.8V Digital Outputs –DCD (39), –CTS (38), –DSR (37), –RI (36), –RXD (34) Output High Min. 2.3V Output Low Max 0.4V Current Drive 2mA Digital Input Capacitance 5 pF Note: All digital inputs/outputs are 3.3V only.
Chapter 12 – SocketWireless Wi-Fi (MT800SWM) Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 43 Application Notes RF Interface Radio Characteristics Frequency 2402 – 2480MHz Modulation DSSS Number of Channels 1 to 14 Transmission Rate 1, 2, 5.5, 11Mbps RF Receive Sensitivity -82dBm typical RF Transmit Power 16 dBm Default Power Up Settings Baud Rate = 115200 bps Data Bits = 8 bits Parity = None Stop bits = 1 bit Hardware Flow Control RTS/CTS = Disabled

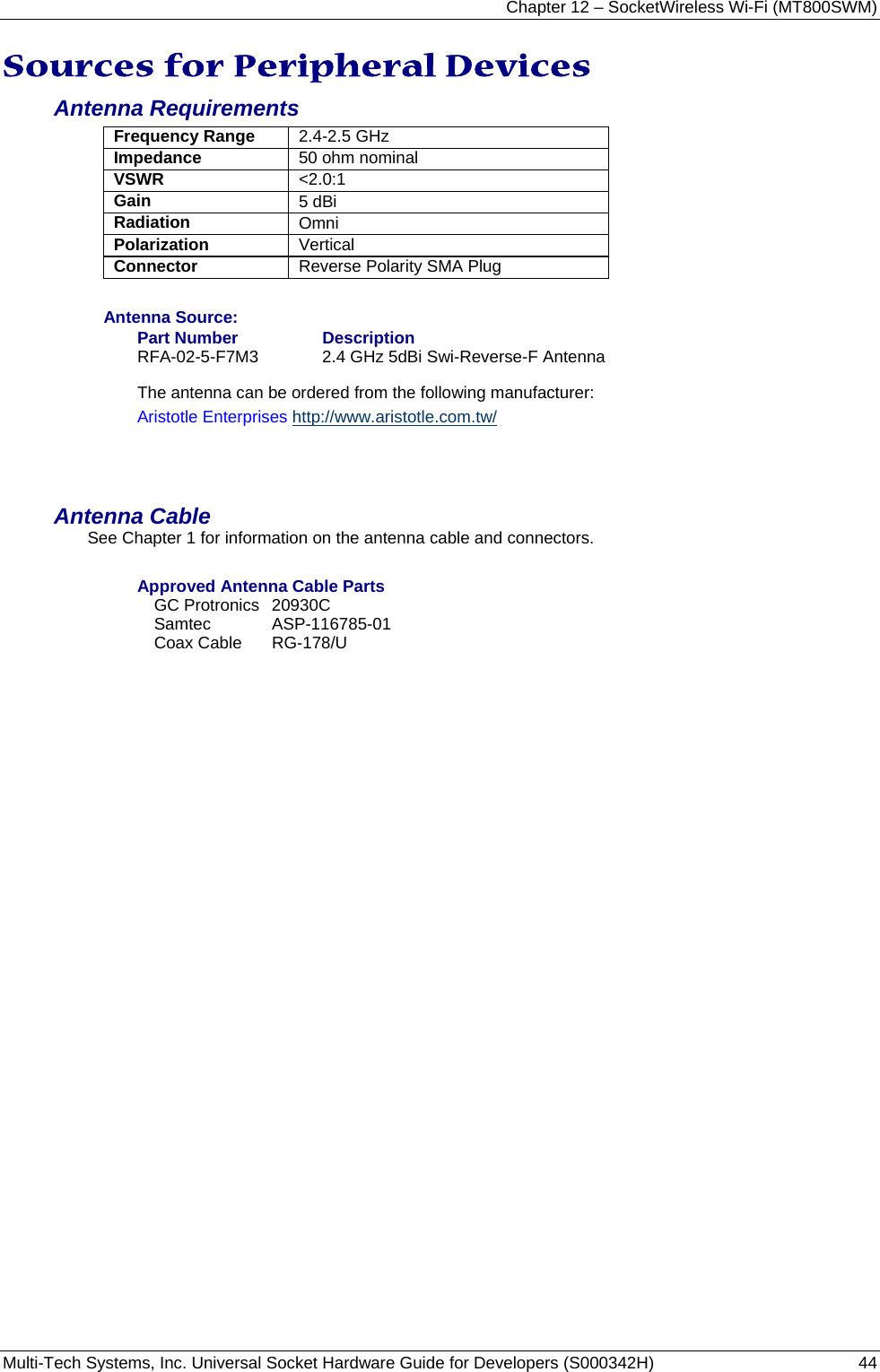

Chapter 12 – SocketWireless Wi-Fi (MT800SWM) Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 44 Sources for Peripheral Devices Antenna Requirements Frequency Range 2.4-2.5 GHz Impedance 50 ohm nominal VSWR <2.0:1 Gain 5 dBi Radiation Omni Polarization Vertical Connector Reverse Polarity SMA Plug Antenna Source: Part Number Description RFA-02-5-F7M3 2.4 GHz 5dBi Swi-Reverse-F Antenna The antenna can be ordered from the following manufacturer: Aristotle Enterprises http://www.aristotle.com.tw/ Antenna Cable See Chapter 1 for information on the antenna cable and connectors. Approved Antenna Cable Parts GC Protronics 20930C Samtec ASP-116785-01 Coax Cable RG-178/U
Chapter 12 – SocketWireless Wi-Fi (MT800SWM) Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342H) 45 Regulatory Requirements for the Antenna This section covers how to use the modular transmitter in order to maintain the modular transmitter approval and RF exposure compliance. Conditions to Satisfy Modular Transmitter Approval This device is intended only for use by OEM integrators under the following 3 conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and the end user for all installations. 2) The transmitter module may not be co-located with any other transmitter or antenna. 3) The communications device is approved using the FCC "unlicensed modular transmitter approval" method. Therefore, the communication device must only be used with the originally approved antennas. As long as the 3 conditions above are met, further transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements with this communication device installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that any of these conditions CANNOT be met (for example certain laptop configurations, co-location with another transmitter, or use of a different type antenna), then the FCC authorization for the communications device is no longer considered valid and the FCC ID CANNOT be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. RF Exposure Statements Developers Must Include in the Their User Manual for Their End Users The user manual for consumers must include the following information in a prominent location: "IMPORTANT NOTE: To comply with FCC RF safety exposure limits, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter." Regulatory Requirements for End Product Labeling Suggested End Product Labeling This transmitter module is authorized only for use in devices where the antenna may be installed in such a way that 20 cm may be maintained between the antenna and the users (for example access points, routers, wireless ASDL modems, and similar equipment). The final end product must be labeled in a visible area on the exterior of the enclosure with the following or similar text: "Contains TX FCC ID: AU792U07B06821". FCC & IC Information to Consumers The user manual for the consumer must contain the statements required by the following FCC and IC regulations: 47 C.F.R. 15.19(a)(3), 15.21, 15.101 and RSS-Gen Issue 2 dated June 2007, Sections 7.1.4 and 7.1.5. Additional Information That Must be Provided to OEM Integrators The end user should NOT be provided any instructions on how to remove or install the modular transmitter.
