Multi Tech Systems SFM10R2 RBS101 User Manual

Radio Bridge, Inc. RBS101

Contents

user manual

WirelessMulti‐FunctionSensor
UserGuide
VERSION1.1
AUGUST2018

W
IRELESS
M
ULTI
‐F
UNCTION
S
ENSOR
COPYRIGHT©2018,RADIOBRIDGEINC.WIRELESSMULTI‐FUNCTIONSENSORPAGE1OF8
T
ABLEOF
C
ONTENTS
1.
QUICKSTART...............................................................................................................................2
2.
OVERVIEW...................................................................................................................................2
2.1.SensorOverview..........................................................................................................................2
2.2.RevisionHistory...........................................................................................................................3
2.3.DocumentConventions................................................................................................................3
2.4.PartNumbers...............................................................................................................................3
3.
TECHNICALSPECIFICATIONS.......................................................................................................3
3.1.AbsoluteMaximumRatings.........................................................................................................3
4.
BATTERYLIFE...............................................................................................................................4
5.
MESSAGEPROTOCOL..................................................................................................................5
5.1.CommonMessages......................................................................................................................5
5.2.UplinkMessages..........................................................................................................................6
5.3.DownlinkMessages......................................................................................................................6
6.
MECHANICALDRAWINGS...........................................................................................................7
7.
REGULATORY...............................................................................................................................8
8.
CUSTOMERSUPPORT..................................................................................................................8
9.
DISCLAIMERS,TRADEMARKS,ANDCOPYRIGHT..........................................................................8
9.1.Disclaimers...................................................................................................................................8
9.2.TrademarksandCopyright...........................................................................................................8

W
IRELESS
M
ULTI
‐F
UNCTION
S
ENSOR
COPYRIGHT©2018,RADIOBRIDGEINC.WIRELESSMULTI‐FUNCTIONSENSORPAGE2OF8
1. Q
UICKSTART
Tostartusingyoursensor,simplygoto:
https://console.radiobridge.com
Fromhereyoucanregisteryourdeviceandimmediatelystartreceivingmessagesfromthe
sensor.
Thesensorconfiguration,messagemonitoring,andsettingupalertsisusuallyself‐explanatory
throughtheuserinterface.Forfurtherexplanationsofanysensorfeatures,youmayrefertothis
userguide.
2. O
VERVIEW
2.1. SensorOverview
The wireless sensors designed and manufactured by Radio Bridge provide full sensor to
cloud solutions for Internet of Things (IoT) applications. The multi‐function sensor can be
configured for door/window open/close events, acceleration‐based movement, ambient
light, temperature, water sensing, and more. When an event is detected, an alert is sent
overthewirelessnetwork.VersionsofthesensorsupportthemajorLPWANstandardssuch
asSigfox,LoRa/LoRaWAN,andSubGig.
Featuresinclude:
Built‐inradiothattalksdirectlywiththewirelessnetwork.Standardsinclude:
o Sigfox
o LoRa/LoRaWAN
o SubGig®
Twotypesoftamperdetection:enclosuretamperandwallmounttamper
o Enclosure tamper detects if the packaging of the sensor itself is opened or
broken
o Wall mount tamper detects if the sensor has been removed from the wall or
mountingpoint
20,000‐1M+transmissionsonasinglebatteryanda5‐10yearbatterylifedependingon
usage(seeBatterysection)
Fullyintegratedinternalantenna
Overtheairsensorconfigurationinthefield
Automaticlowbatteryreportingandsupervisorymessages

W
IRELESS
M
ULTI
‐F
UNCTION
S
ENSOR
COPYRIGHT©2018,RADIOBRIDGEINC.WIRELESSMULTI‐FUNCTIONSENSORPAGE3OF8
2.2. RevisionHistory
Table1RevisionHistory
Revision Date Description
1.0 April2018 Initialreleaseofthedocument
1.1 August2018 Updatedprotocoldefinitions
2.3. DocumentConventions
Table2DocumentConventions
Font/Icon Meaning
Importantnotes
 Warningsandcautions
2.4. PartNumbers
Table3PartNumbers
PartNumber WirelessStandard Region
RBS101‐XXX‐RCZ2 Sigfox NorthAmerica
RBS201‐XXX‐315 SubGig NorthAmerica
RBS301‐XXX‐US LoRa NorthAmerica
3. T
ECHNICAL
S
PECIFICATIONS
3.1. AbsoluteMaximumRatings
Table4AbsoluteMaximumRatings
Parameter Rating Units
Operatingambienttemperature ‐30to+70 °C
Storageambienttemperature ‐40to+100 °C

W
IRELESS
M
ULTI
‐F
UNCTION
S
ENSOR
COPYRIGHT©2018,RADIOBRIDGEINC.WIRELESSMULTI‐FUNCTIONSENSORPAGE4OF8
4. B
ATTERY
L
IFE
Thesensorusesalithiumnon‐rechargeablebatteryandiscapableof20,000to1,000,000+total
messages depending on the wireless standard and usage. For an accurate estimate of battery
life, please refer to the “Sensor Battery Estimator.xlsx” spreadsheet on the Radio Bridge
website.Thisspreadsheetcombinesusageinformationsuchasaveragenumberofmessagesper
dayandestimatesthebatterylifeforaparticularsensor.
Thepowerrequiredforamessagetransmissionismuchgreaterthanthe“sleepcurrent”(the
powerconsumedwhenthesensorisinactive)forhighpowerradiotechnologiessuchasSigfox
andLoRaWAN.Thismeansthatthebatterylifeformostsensorsisprimarilydependentonthe
numberoftransmissionsperday.
Different battery types will deplete over time with different voltageprofiles.Forinstance,a
lithium battery will maintain a relatively high voltage for the life of the battery and then
experiencearapiddropneartheend,whereasanalkalinebattery will experience a more
gradualreductioninvoltageovertime.RadioBridgesensorsareshippedwithlithiumbatteries,
andthesearerecommendedwhenthebatteryneedstobeeventuallyreplaced.
Temperaturealsoplaysaroleinbatterylife.Thebatterylifeestimatesintheonlinespreadsheet
assumeroomtemperature,buttemperaturesclosetothemaximumandminimumratingswill
haveanegativeimpactonbatterylife.Forexample,batteryvoltagetends tobelowerincold
temperatures and the internal circuitry needs a certain minimum voltage to operate properly
beforeit will shutdown.Thus,batterylifewilltendtobeshorterwhenrunningthesensorin
c
o
l
denvironments.
Thebatteryvoltageisreportedbythesupervisorymessagesaswellasalowbatteryindicator.
SeethesectiononMessageProtocolformoredetail.
Refertothespreadsheet“SensorBatteryEstimator.xlsx”ontheRadioBridge
websiteforspecificbatterylifeestimates.
Batteryvoltagewillbelowerincoldtemperaturesandthusbatterylife
willbereducedincoldenvironments.

W
IRELESS
M
ULTI
‐F
UNCTION
S
ENSOR
COPYRIGHT©2018,RADIOBRIDGEINC.WIRELESSMULTI‐FUNCTIONSENSORPAGE5OF8
5. M
ESSAGE
P
ROTOCOL
Thissectiondefinestheprotocolandmessagedefinitionsforthesensor.
I
fthestandardRadioBridgeconsole(console.radiobridge.com)isnotused,refertothissection
todecodethesensordataandconfigurethesensorthroughdownlinkmessages.
5.1. CommonMessages
Therearecommonmessagesacrossallwirelesssensorsthataredefinedinthedocument
“CommonSensorMessages”whichisavailableontheRadioBridgewebsite.
C
ommonmessagesincludebasicerrormessages,tamper,supervisory,anddownlinkack.Itis
importanttorefertothatdocumentpriortodecodingthemessagesdefinedinthissection.
RadioBridgeprovidesaweb‐basedconsoleatconsole.radiobridge.com
toconfigureandmonitorsensors.Usageofthisconsoleishighly
recommendedformostcustomersratherthanimplementingthe
protocolsdefinedinthissection.
Refertothedocument“CommonSensorMessages”fordefinitionsofall
commonmessages.Commonmessagesarenotdefinedinthisdocument.

W
IRELESS
M
ULTI
‐F
UNCTION
S
ENSOR
COPYRIGHT©2018,RADIOBRIDGEINC.WIRELESSMULTI‐FUNCTIONSENSORPAGE6OF8
5.2. UplinkMessages
Theuplinkmessage(sensortowebapplication)specifictothesensorisdefinedinthe
associateduserguide.Seetheguidespecifictoyoursensorconfigurationformore
information.
5.3. DownlinkMessages
Thedownlinkmessage(webapplicationtosensor)specifictothesensorconfigurationis
definedintheassociateduserguide.Seetheguidespecifictoyoursensorconfigurationfor
moreinformation.

W
IRELESS
M
ULTI
‐F
UNCTION
S
ENSOR
COPYRIGHT©2018,RADIOBRIDGEINC.WIRELESSMULTI‐FUNCTIONSENSORPAGE7OF8

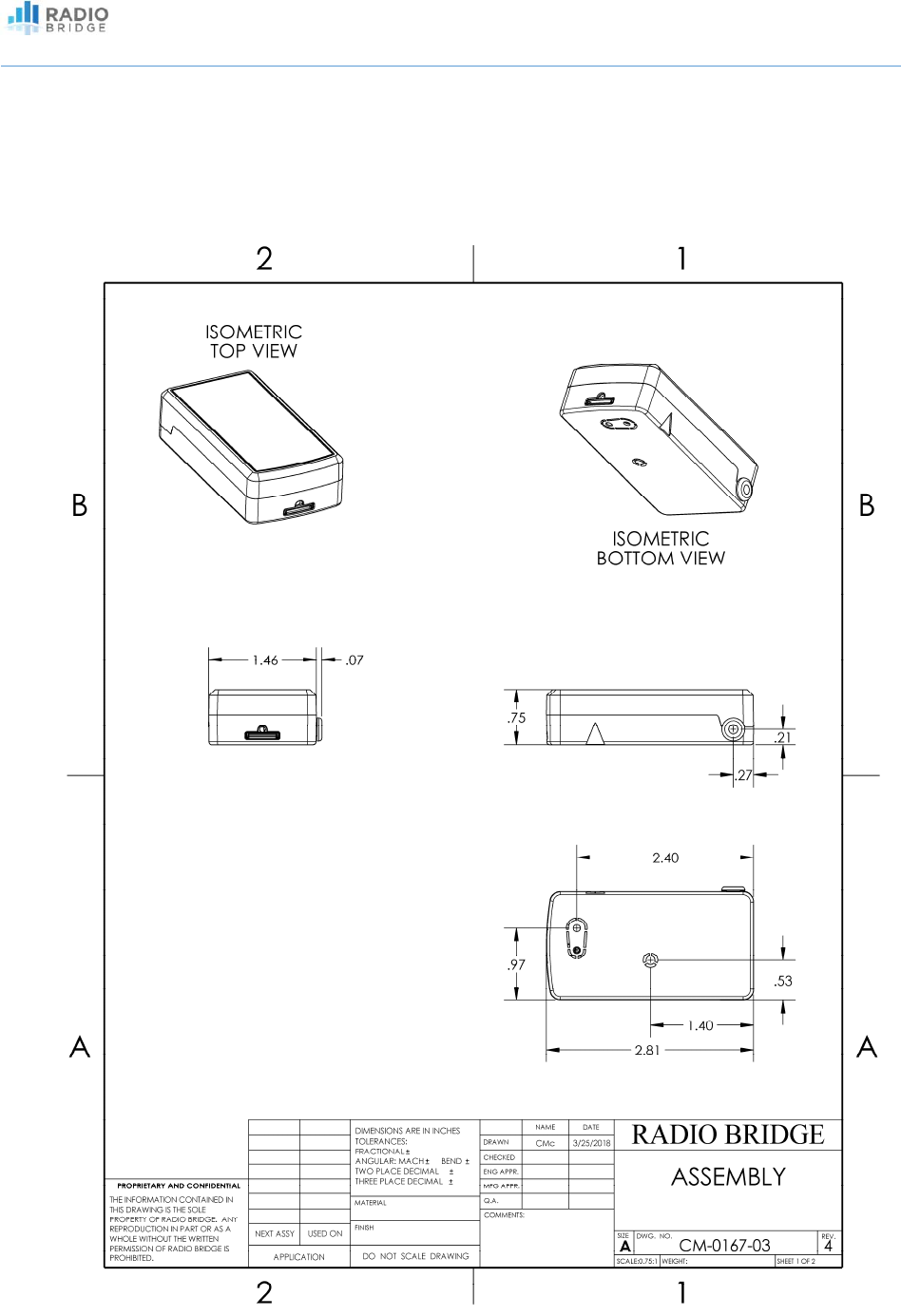

6. M
ECHANICAL
D
RAWINGS
Themechanicaldrawingsprovidedinthissectionareforthemainbodyofthesensor.All
dimensionsareinchesunlessotherwisenoted.

W
IRELESS
M
ULTI
‐F
UNCTION
S
ENSOR
COPYRIGHT©2018,RADIOBRIDGEINC.WIRELESSMULTI‐FUNCTIONSENSORPAGE8OF8
7. R
EGULATORY
PerFCC15.19(a)(3)and(a)(4)Thisdevicecomplieswithpart15oftheFCCRules.Operationis
subjecttothefollowingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and
(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause
undesiredoperation.
PerFCC15.21,ChangesormodificationsnotexpresslyapprovedbyRadioBridgecouldvoid
authoritytooperatethedevices.
RBS101(Sigfox)FCCID:2APNUSFM10R2
RBS301(LoRa)FCCID:2APNUCMABZ
8. C
USTOMER
S
UPPORT
RadioBridgeoffersfreetechnicalsupportat:
https://support.radiobridge.com
RadioBridgealsoofferstechnicalsupportplansandservicepackagestohelpourcustomersget
themostoutoftheirRadioBridgeproducts.
9. D
ISCLAIMERS
,
T
RADEMARKS
,
AND
C
OPYRIGHT
9.1. Disclaimers
Informationinthisdocumentissubjecttochangewithoutnoticeanddoesnotrepresenta
commitmentonthepartofRadioBridge.RadioBridgeprovidesthis document “as is,”
without warranty of any kind, expressed or implied, including, but not limited to, the
impliedwarrantiesoffitnessormerchantabilityforaparticularpurpose.RadioBridgemay
makeimprovementsand/orchangesinthismanualorintheproduct(s)and/orthesoftware
describedinthismanualatanytime.
9.2. TrademarksandCopyright
RadioBridge™,SubGig®,andBridgeBee®aretrademarks ofRadioBridge Inc in the United
States.
©2018RadioBridgeInc.Allrightsreserved
