OperatiOn and parts Manual
THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.
To find the latest revision of this
publication, visit our website at:
www.multiquip.com
MOdel ga6HB/ga6HeB
pOrtaBle generatOrs
(HOnda gX340r2edn2/gX340r2ede2
gasOline engines)
Revision #0 (03/13/14)
page 2 — ga6HB/ga6HeB
TABLE OF CONTENTS
GA6HB/GA6HEB Portable
60 Hz Generator
Table Of Contents .................................................... 3
Safety Information ................................................ 4-8
Specifications (Generator) ..................................... 12
Specifications (Engine) .......................................... 11
Dimensions ............................................................ 12
Installation ........................................................ 14-15
General Information ............................................... 16
Components (Generator) .................................... 17-1
Inspection/Setup ............................................... 20-21
Operation .......................................................... 22-24
Shutdown ............................................................... 24
Preparation For Long Term Storage ...................... 25
Maintenance ..................................................... 26-30
Generator Wiring Diagram (GA6HB) ..................... 32
Generator Wiring Diagram (GA6HEB) ................... 33
Troubleshooting (Engine) .................................. 34-35
Troubleshooting (Generator) .................................. 36
Explanation Of Code In Remarks Column............. 37
Suggested Spare Parts ......................................... 38
Component Drawings
Nameplate and Decals Assembly ..................... 40-41
Generator Assembly ......................................... 42-43
Control Box Assembly ...................................... 44-45
Pipe Frame Assembly ....................................... 46-47
Battery Assembly.............................................. 48-49
Honda GX340R2EDE2/
GX340R2EDN2 Gasoline Engines
Muffler Assembly .............................................. 50-51
Air Cleaner Assembly ....................................... 52-53
Camshaft Assembly .......................................... 54-55
Carburetor Assembly ........................................ 56-57
Control Assembly ............................................. 58-59
Crankcase Cover Assembly ............................. 60-61
Crankshaft Assembly ........................................ 62-63
Cylinder Barrel Assembly ................................. 64-65
Cylinder Head Assembly .................................. 66-67
Fan Assembly ................................................... 68-69
Flywheel Assembly ........................................... 70-71
Ignition Coil Assembly. ...................................... 72-73
Piston Assembly ............................................... 74-75
Recoil Starter Assembly ................................... 76-77
Starter Motor Assembly .................................... 78-79
Solenoid Assembly ........................................... 80-81
Engine Decals Assembly .................................. 82-83
Terms And Conditions Of Sale — Parts ................ 84
NOTICE
Specifications and part numbers are subject to change
without notice.
ga6HB/6HeB
PARTS ORDERING PROCEDURES
www.multiquip.com
Ordering parts has never been easier!
Choose from three easy options:
When ordering parts, please supply:
❒
❒
❒
❒
❒
❒
❒
✓ UPS/Fed Ex ✓ DHL
■ Priority One ✓ Tr uc k
■ Ground
■ Next Day
■ Second/Third Day
If you have an MQ Account, to obtain a Username
and Password, E-mail us at:
To obtain an MQ Account, contact your
District Sales Manager for more information.
Order parts on-line using Multiquip’s SmartEquip website!
■ View Parts Diagrams
■ Order Parts
■ Print Specifi cation Information
Note: Discounts Are Subject To Change
Goto www.multiquip.com and click on
Order Parts to log in and save!
Use the internet and qualify for a
on Standard orders for all orders which include
complete part numbers.*
All customers are welcome to order parts via Fax.
1-800-6-PARTS-7 (800-672-7877)
Fax your order in and qualify for a
on Standard orders for all orders which include
complete part numbers.*
1-800-427-1244
International Customers should contact
their local Multiquip Representatives for
Parts Ordering information.
Contact your local Multiquip Dealer for
parts or call 800-427-1244 for help in
locating a dealer near you.
Note: Discounts Are Subject To Change
Effective:
January 1st
, 2006
NOTICE
All orders are treated as Standard Orders and will
ship the same day if received prior to 3PM PST.
ga6HB/ga6HeB
SAFETY INFORMATION
Do not operate or service the equipment before reading the
entire manual. Safety precautions should be followed at all
times when operating this equipment. Failure to read and
understand the safety messages and operating instructions
could result in injury to yourself and others.

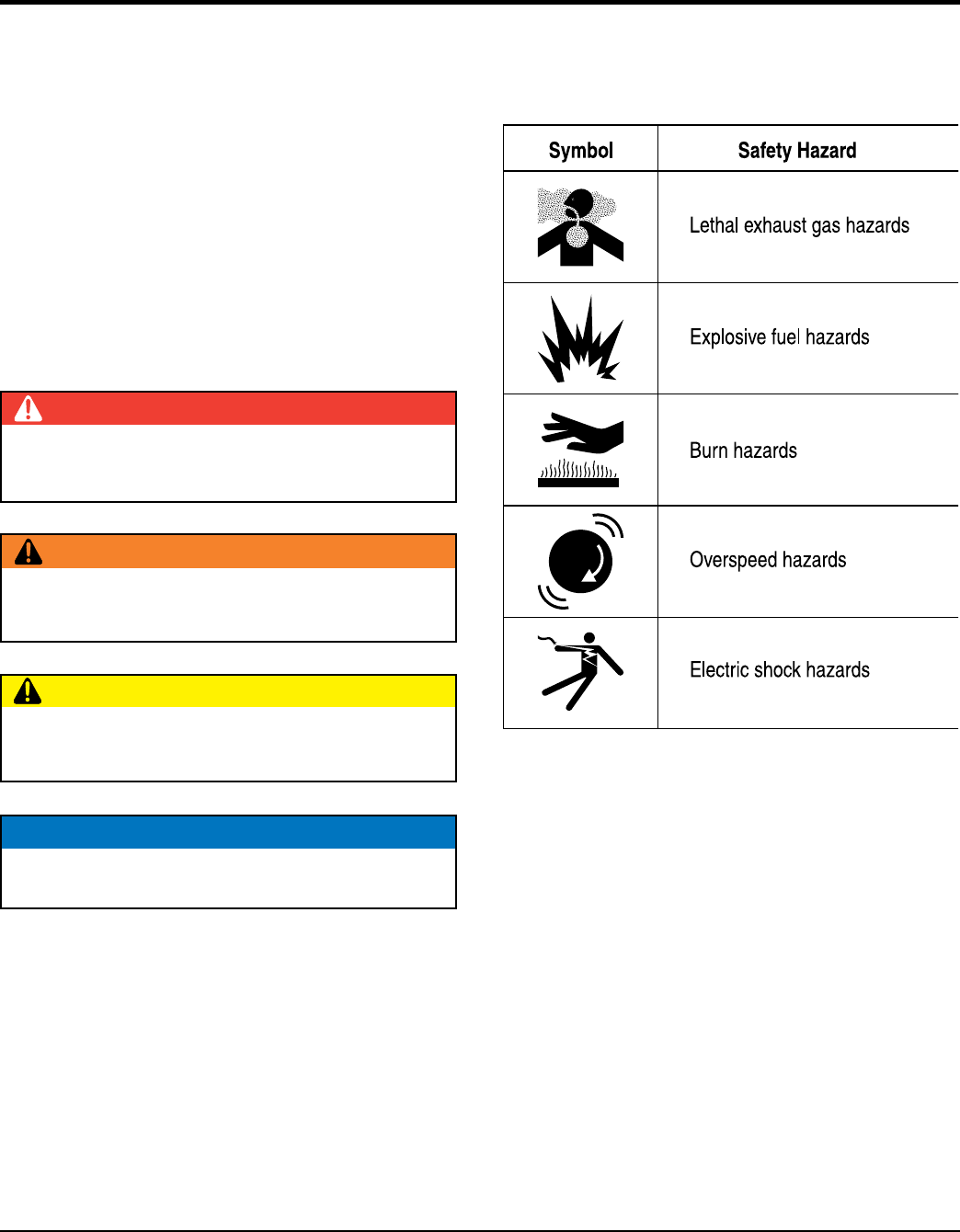

The four safety messages shown below will inform you
about potential hazards that could injure you or others. The
safety messages specifi cally address the level of exposure
to the operator and are preceded by one of four words:
or
Indicates a hazardous situation which, if not avoided,
result in or
Indicates a hazardous situation which, if not avoided,
result in or
Indicates a hazardous situation which, if not avoided,
result in or
NOTICE
Addresses practices not related to personal injury.
Potential hazards associated with the operation of this
equipment will be referenced with hazard symbols which
may appear throughout this manual in conjunction with
safety messages.
ga6HB/6HeB
SAFETY INFORMATION
operate this equipment without proper protective
clothing, shatterproof glasses, respiratory protection,
hearing protection, steel-toed boots and other protective
devices required by the job or city and state regulations.
operate this equipment when not
feeling well due to fatigue, illness or when
under medication.
operate this equipment under the infl uence of
drugs or alcohol.
check the equipment for loosened threads or
bolts before starting.
use the equipment for any purpose other than
its intended purposes or applications.
NOTICE
This equipment should only be operated by trained and
qualifi ed personnel 18 years of age and older.
Whenever necessary, replace nameplate, operation and
safety decals when they become diffi cult read.
Manufacturer does not assume responsibility for any
accident due to equipment modifi cations. Unauthorized
equipment modifi cation will void all warranties.
use accessories or attachments that are not
recommended by Multiquip for this equipment. Damage
to the equipment and/or injury to user may result.
know the location of the nearest
know the location of the nearest
know the location of the nearest phone or
Also, know the phone numbers
of the nearest and
This information will be invaluable in the case of an
emergency.
operate the equipment in an explosive
atmosphere or near combustible materials. An
explosion or fi re could result causing severe
disconnect any
These devices are intended for operator safety.
Disconnection of these devices can cause severe injury,
bodily harm or even death. Disconnection of any of these
devices will void all warranties.
lubricate components or attempt service on a
running machine.
NOTICE
ensure generator is on level ground before use.
keep the machine in proper running condition.
Fix damage to machine and replace any broken parts
immediately.
store equipment properly when it is not being
used. Equipment should be stored in a clean, dry location
out of the reach of children and unauthorized personnel
page 6 — ga6HB/ga6HeB
SAFETY INFORMATION

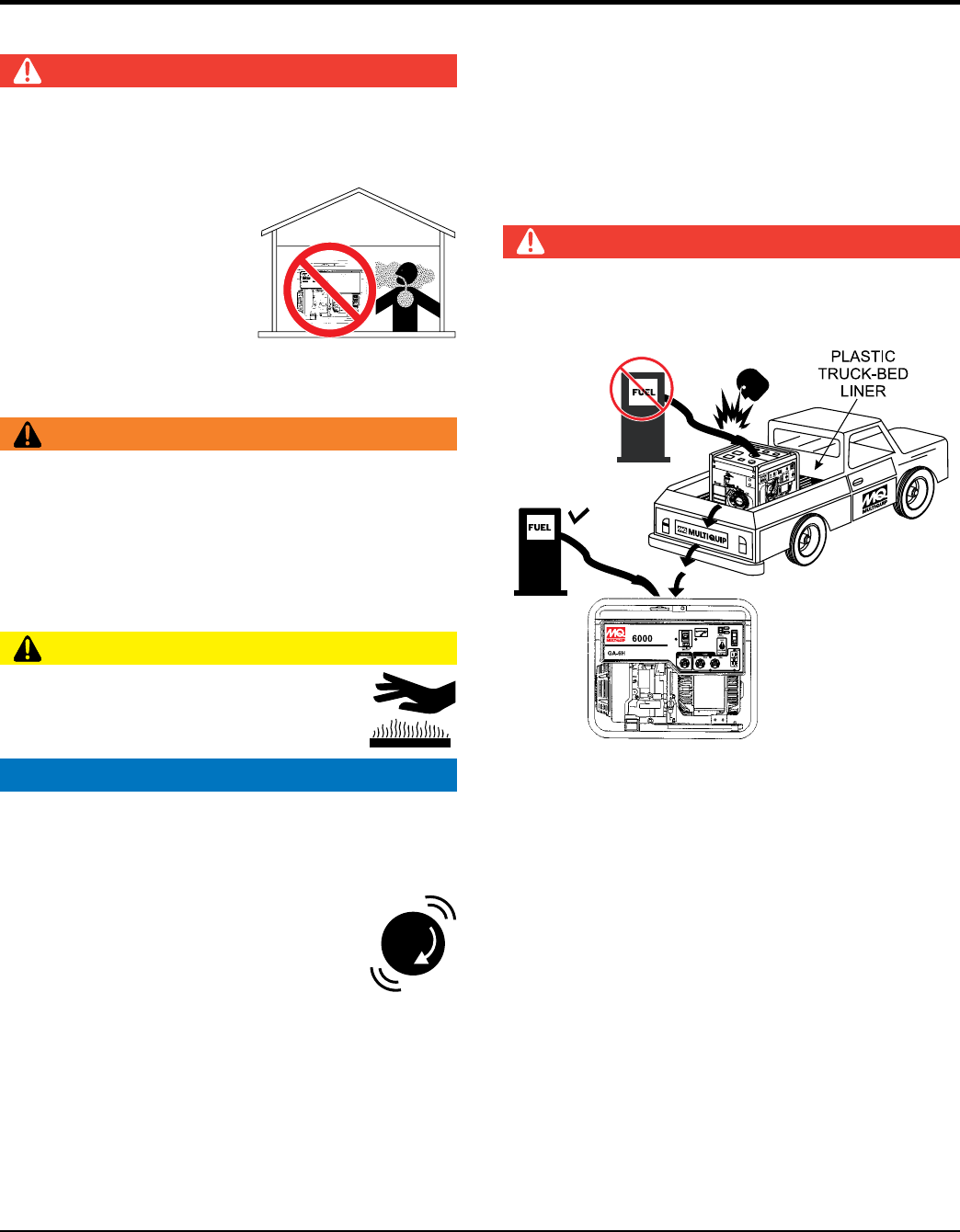

The engine fuel exhaust gases contain poisonous carbon
monoxide. This gas is colorless and odorless, and can
cause death if inhaled.
The engine of this equipment
requires an adequate free
fl ow of cooling air.
operate this equipment in
any enclosed or narrow area
where free fl ow of the air is
restricted. If the air fl ow is
restricted it will cause injury to people and property and
serious damage to the equipment or engine.
operate the engine with heat shields or
guards removed.
remove the engine oil drain plug while
the engine is hot. Hot oil will gush out of the engine
crankcase and severely scald any persons in the general
area of the generator.
touch the hot exhaust manifold,
muffl er or cylinder. Allow these parts to cool
before servicing equipment.
NOTICE
run engine without an air fi lter or with a dirty air
fi lter. Severe engine damage may occur. Service air fi lter
frequently to prevent engine malfunction.
tamper with the factory settings
of the engine or engine governor. Damage
to the engine or equipment can result
if operating in speed ranges above the
maximum allowable.
State Health Safety Codes and Public Resources
Codes specify that in certain locations, spark arresters
must be used on internal combustion engines that use
hydrocarbon fuels. A spark arrester is a device designed
to prevent accidental discharge of sparks or fl ames
from the engine exhaust. Spark arresters are qualifi ed
and rated by the United States Forest Service for this
purpose. In order to comply with local laws regarding
spark arresters, consult the engine distributor or the
local Health and Safety Administrator.
add fuel to equipment if it is placed inside truck
bed with plastic liner. Possibility exists of explosion or
fi re due to static electricity.
start the engine near spilled fuel or combustible
fl uids. Diesel fuel is extremely fl ammable and its vapors
can cause an explosion if ignited.
refuel in a well-ventilated area, away from
sparks and open fl ames.
use extreme caution when working with
liquids.
fi ll the fuel tank while the engine is running
or hot.
overfi ll tank, since spilled fuel could ignite if it
comes into contact with hot engine parts or sparks from
the ignition system.
Store fuel in appropriate containers, in well-ventilated
areas and away from sparks and fl ames.
ga6HB/6HeB
SAFETY INFORMATION
use fuel as a cleaning agent.
smoke around or near the
equipment. Fire or explosion could result
from fuel vapors or if fuel is spilled on a
hot engine.
Turn generator and all circuit breakers before
performing maintenance on the generator or making
contact with output receptacles.
insert any objects into the
output receptacles during operation.
This is extremely dangerous. The
possibility exists of
Backfeed to a utility system can cause
and/or property damage.
connect the generator to a
building’s electrical system without
a transfer switch or other approved
device. All installations should be
performed by a in accordance with
all applicable laws and electrical codes. Failure to do so
could result in electrical shock or burn, causing
let power cords or cables
while AC power from the
generator is being transferred to a load.
use or cables or cords when
connecting equipment to generator. Inspect for cuts in
the insulation.
grab or touch a live power
cord or cable with wet hands. The
possibility exists of
Make sure power cables are securely connected to the
generator’s output receptacles. Incorrect connections
may cause electrical shock and damage to the
generator.
NOTICE
make certain that proper power or extension
cord has been selected for the job. See Cable Selection
Chart in this manual.
make sure that electrical circuits are properly
grounded to a suitable earth ground (ground rod) per
the National Electrical Code (NEC) and local codes
before operating generator.
can result from operating an ungrounded
generator.
use gas piping as an electrical ground.
drop the battery. There is a possibility that the
battery will explode.
expose the battery to open fl ames,
sparks, cigarettes, etc. The battery contains
combustible gases and liquids. If these
gases and liquids come into contact with a
fl ame or spark, an explosion could occur.
charge battery if frozen. Battery can explode.
When frozen, warm the battery to at least 61°F (16°C).
wear safety glasses when
handling the battery to avoid eye irritation.
The battery contains acids that can cause
injury to the eyes and skin.
Use well-insulated gloves when picking up the battery.
keep the battery charged. If the battery is not
charged, combustible gas will build up.
recharge the battery in a well-ventilated
environment to avoid the risk of a dangerous concentration
of combustible gasses.
page 8 — ga6HB/ga6HeB
SAFETY INFORMATION
If the battery liquid (dilute sulfuric acid) comes into
contact with , rinse skin or clothing
immediately with plenty of water.
If the battery liquid (dilute sulfuric acid) comes into
contact with , rinse eyes immediately with plenty
of water and contact the nearest doctor or hospital to
seek medical attention.
disconnect the
before performing service on the generator.
keep battery cables in good working condition.
Repair or replace all worn cables.
allow any person or animal to stand underneath
the equipment while lifting.
NOTICE
Before lifting, make sure that the equipment parts (lifting
bail if equipped) are not damaged and screws are not
loose or missing.
Always make sure crane or lifi tng device has been
properly secured to the lifting bail (hook) of the
equipment.
shutdown engine before transporting.
lift the equipment while the engine is running.
Tighten fuel tank cap securely and close fuel cock to
prevent fuel from spilling.
Use adequate lifting cable (wire or rope) of suffi cient
strength.
Use one point suspension hook and lift straight
upwards.
lift machine to unnecessary heights.
tie down equipment during transport by
securing the equipment with rope.
NOTICE
Decommissioning is a controlled process used to safely
retire a piece of equipment that is no longer serviceable.
If the equipment poses an unacceptable and unrepairable
safety risk due to wear or damage or is no longer cost
effective to maintain (beyond life-cycle reliability) and is to
be decommissioned (demolition and dismantlement),be
sure to follow rules below.
pour waste or oil directly onto the ground, down
a drain or into any water source.
Contact your country's Department of
Public Works or recycling agency in your
area and arrange for proper disposal of
any electrical components, waste or oil
associated with this equipment.
When the life cycle of this equipment is over, remove
battery and bring to appropriate facility for lead
reclamation. Use safety precautions when handling
batteries that contain sulfuric acid.
When the life cycle of this equipment is over, it is
recommended that the trowel frame and all other metal
parts be sent to a recycling center.
Metal recycling involves the collection of metal from
discarded products and its transformation into raw
materials to use in manufacturing a new product.
Recyclers and manufacturers alike promote the process
of recycling metal. Using a metal recycling center
promotes energy cost savings.
ga6HB/6HeB
NOTICE
The gasoline engine used in this equipment has been
designed to reduce harmful levels of carbon monoxide
(CO), hydrocarbons (HC) and nitrogen oxides (NOx)
contained in gasoline exhaust emissions.
This engine has been certifi ed to meet US EPA Evaporative
emissions requirements in the installed confi guration.
Attempting to modify or make adjustments to the engine
emmission system by unauthorized personnel without
proper training could damage the equipment or create an
unsafe condition.
Additionally, modifying the fuel system may adversely affect
evaporative emissions, resulting in fi nes or other penalties.
The emission control label is an integral part of the emission
system and is strictly controlled by regulation(s).
The label must remain with the engine for its entire life.
If a replacement emission label is needed, please contact
your authorized Honda Engine Distributor.
SAFETY INFORMATION
ga6HB/ga6HeB
SPECIFICATIONS (GENERATOR)
Model GA6HB GA6HEB
Type Brushless Revolving Field Type
Excitation Solid State, Statically Excited System
Speed 3,600 RPM
Cooling System Self-Ventilation
Fuel Capacity 5 gallons (19 liters)
Continuous Power Output 5.0 kW
Max Power Output 6.0 kW
Rated Voltage 120/240V
Current Max/Continuous (120V) 50.0/41.6 amps
Current Max/Continuous (240V) 25.0/20.8 amps
Phase Single Phase (4 wire)
Frequency 60 Hz
Power Factor 1
27.2 x 22.0 X 22.0 in.
(690 X 560 X 560 mm)
27.2 x 22.0 X 22.0 in.
(690 X 560 X 560 mm)
194 lbs. (88 kg.) 214 lbs. (97 kg.)
GA6HEB Only)
Battery specifications for GA-6HEB : 12volts, 26Amp
hours, 260 amps cold cranking ability :
7-1/2" (L) X 5"(W) X 7-1I4"(H)
NOTICE
In keeping with Multiquip's policy of constantly
improving its products, the specifications quoted herein
are subject to change without prior notice.
ga6HB/6HeB
Type Air-cooled 4 stroke, Single Cylinder, OHV, Horizontal Shaft
Gasoline Engine
Bore X Stroke 3.46 in. X 2.52 in.
(88 mm x 64 mm.)
Displacement 23.70 cu-in (389 cm3)
Max Output 11.0 H.P./3600 R.P.M.
Fuel Unleaded Automobile Gasoline
Lube Oil Capacity 1.16 quarts (1.1 liters)
Oil Alert System Ye s
Speed Control Method Centrifugal Fly-weight Type
Starting Method Recoil Start Electric Start
15.0 x 17.7 X 17.4 in.
(380 X 450 X 443 mm)
15.0 x 17.7 X 17.4 in.
(380 X 450 X 443 mm)
68.4 lbs. (31 kg.) 68.4 lbs. (31 kg.)
SPECIFICATIONS (ENGINE)
The maximum output of the engines listed above are applicable to supplying electrical power for continuous service at
ambient conditions in accordance with SAE Test cord J607. The above ambient conditions are at standard sea level, with
a barometric reading of 29.92 inches and a temperature of 60° F (15.5° C).
Generally, the engine's output power will decrease 3-1/2% for each 1000 feet (305 meters) of altitude above sea level, and
1% for each 10° F (-12.2° C) above the standard temperature of 60° F (15.5° C).
ga6HB/ga6HeB
DIMENSIONS
Figure 1. Dimensions
120/240V
30A
0N
OFF
IDLE
CONTROL
OPERATION
SWITCH
ON
OFF
120
V
GA-6HB
120
20A
120
30A
AC CIRCUIT BREAKER
GFCI PROTECTED
120
AC VOLTMETER
120V
FULLPOWER
SWITCH
120V
120V/240V
MANUALRESET
P
O
W
E
R
F
A
U
L
T
120 V
20A
120 V
20A
IN SIMULTANEOUS USE 30AMP MAX
AB
C
D
A HEIGHT (LIFTING BALE) 26.75 (679)
B HEIGHT (FRAME) 22.00(560)
C LENGTH 27.20 (690)
D WIDTH 22.0 (560) GA6HB
22.6 (573.5) GA6HEB
ga6HB/6HeB
NOTE
ga6HB/ga6HeB
INSTALLATION
The nut and ground terminal on the generator should always
be used to connect the generator to a suitable ground. The
ground cable should be #8 size wire (aluminum) minimum. If
copper wire is used, #10 size wire minimum should be used
At the generator, connect the terminal of the ground cable
between the lock washer and the nut (Figure 2) and tighten
the nut fully. Connect the other end of the ground cable to
a suitable earth ground (ground rod).

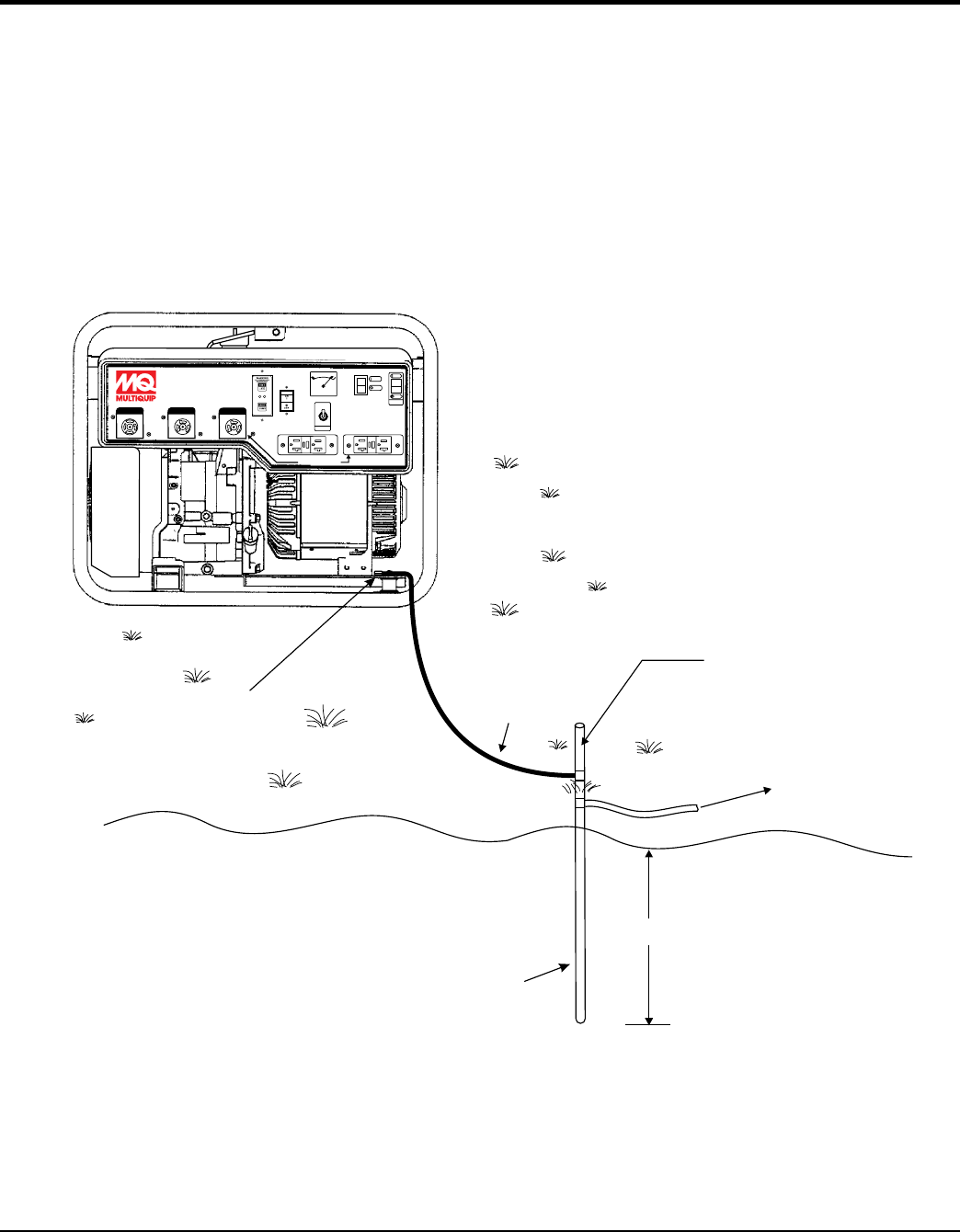

GROUND ROD
FOR EARTH
GROUND
GENERATOR
GROUND LUG CONNECT TO
BUILDING
GROUND
IF REQUIRED
8 FT. MINIMUM
REFERENCE
NEC 250-52(C)
GROUND
CABLE
#8 MINIMUM
120/240V
30A
0N
OFF
IDLE
CONTROL
OPERATION
SWITCH
ON
OFF
120
V
GA-6HB
120
20A
120
30A
AC CIRCUIT BREAKER
GFCI PROTECTED
120
AC VOLTMETER
120V
FULL POWER
SWITCH
120V
120V/240V
MANUALRESET
P
O
W
E
R
F
A
U
L
T
120 V
20A
120 V
20A
IN SIMULTANEOUS USE 30 AMPMAX
Figure 2. Generator Grounding
ga6HB/6HeB
INSTALLATION
If possible install the generator in a area that is free of
debris, bystanders, and overhead obstructions. Make sure
the generator is on secure level ground so that it cannot
slide or shift around.
The installation site must be relatively free from moisture
and dust. All electrical equipment should be protected from
excessive moisture. Failure to do will result in deterioration
of the insulation and will result in short circuits and
grounding.
Foreign materials such as dust, sand, lint and abrasive
materials have a tendency to cause excessive wear to
engine and alternator parts.
Exhaust gases from gas engines are extremely poisonous.
Whenever an engine is installed indoors the exhaust
fumes must be vented to the outside. The engine should
be installed at least two feet from any outside wall. Using
an exhaust pipe which is too long or too small can cause
excessive back pressure which will cause the engine to
heat excessively and possibly burn the valves.
The generator should always be placed on a flat level
surface when it is running. DO NOT place the generator
on slopes, the possibility exists that the generator could
slide.
Pay close attention to ventilation when
operating the generator inside tunnels
and caves. The engine exhaust contains
noxious elements. Engine exhaust must
be routed to a ventilated area
An electric shock is apt to happen when
vibrators are used. Pay close attention to
handling when operating vibrators and
always use rubber boots and gloves to
insulate the body from a short circuit.
To guard against electrical shock and possible damage to
the equipment, it is important to provide a good eaRTH
ground.
Article 250 (Grounding) of the National Electrical Code
(NEC) provides guide lines for proper grounding and
specifies that the cable ground shall be connected to the
grounding system of the building as close to the point of
cable entry as practical.
NEC articles 250-64(b) and 250-66 set the following
grounding requirements:
1. Use one of the following wire types to connect the
generator to earth ground.
a. Copper - 10 AWG (5.3 mm2) or larger.
b. Aluminum - 8 AWG (8.4 mm2) or larger.
2. When grounding the generator (Figure 2) connect the
ground cable between the lock washer and the nut on
the generator and tighten the nut fully. Connect the
other end of the ground cable to earth ground.
3. NEC article 250-52(c) specifies that the earth ground rod
should be buried a minimum of 8 ft. into the ground.
NOTICE
When connecting the generator to any buildings
electrical system consult with a licensed
electrician.
ga6HB/ga6HeB
GENERAL INFORMATION
The Multiquip GA6HB/GA6HEB generator is designed as
a portable dual purpose power source for 60 Hz (single
phase) lighting facilities, power tools, submersible pumps
and other industrial and construction machinery.
The generator is mounted on rubber vibration isolators
that have a steel base backplate which is attached to the
protective steel pipe carrying frame.
The protective carrying frame is made of steel tubing and
fully wraps around the generator to protect against damage.
Reference Figure 3, Figure 4 and Figure 7 for the basic
controls and indicators for the GA6HB/GA6HEB generators.
These portable generator are supplied with a electrical
control box (panel). To reduce vibration caused by the
engine, the control box is also placed on rubber isolators.
The control panel is provided with the following:
120V Twist-Lock Output Receptacle (L5-20R)
120V Twist-Lock Output Receptacle (L5-30R)
120/240V Twist-Lock Output Receptacle (L14-30R)
120 VAC GFCI Receptacle (2)
GFCI Sensing Module
23 Amp Main Circuit Breaker.
AC Voltmeter
Idle Control Switch
Full Power Switch
Operation Switch
Start Switch (GA6HEB only)
Before connecting this generator to any building’s
electrical system, a licensed electrician must install an
isolation (transfer) switch.
Serious injury or death may result without this transfer
switch.
ga6HB/6HeB
COMPONENTS (GENERATOR)
120/240V
30A
0N
OFF
IDLE
CONTROL
OPERATION
SWITCH
ON
OFF
120
V
GA-6HB
120
20A
120
30A
AC CIRCUIT BREAKER
GFCI PROTECTED
120
AC VOLTMETER
120V
FULL POWER
SWITCH
120V
120V/240V
MANUALRESET
P
O
W
E
R
F
A
U
L
T
120 V
20A
120 V
20A
10
4
12
8
11
1
IN SIMULTANEOUS USE 30AMP MAX
6 7
2
120/240V
30A
0N
OFF
IDLE
CONTROL
120
V
GA-6HEB
120
20A
120
30A
AC CIRCUIT BREAKER
GFCI PROTECTED
120
AC VOLTMETER
120V
FULL POWER
SWITCH
120V
120V/240V
MANUALRESET
P
O
W
E
R
F
A
U
L
T
120 V
20A
120 V
20A
IN SIMULTANEOUS USE 30AMP MAX
9
ELECTRIC START
14
START
SWITCH
OPERATION
SWITCH
13
9
3
5

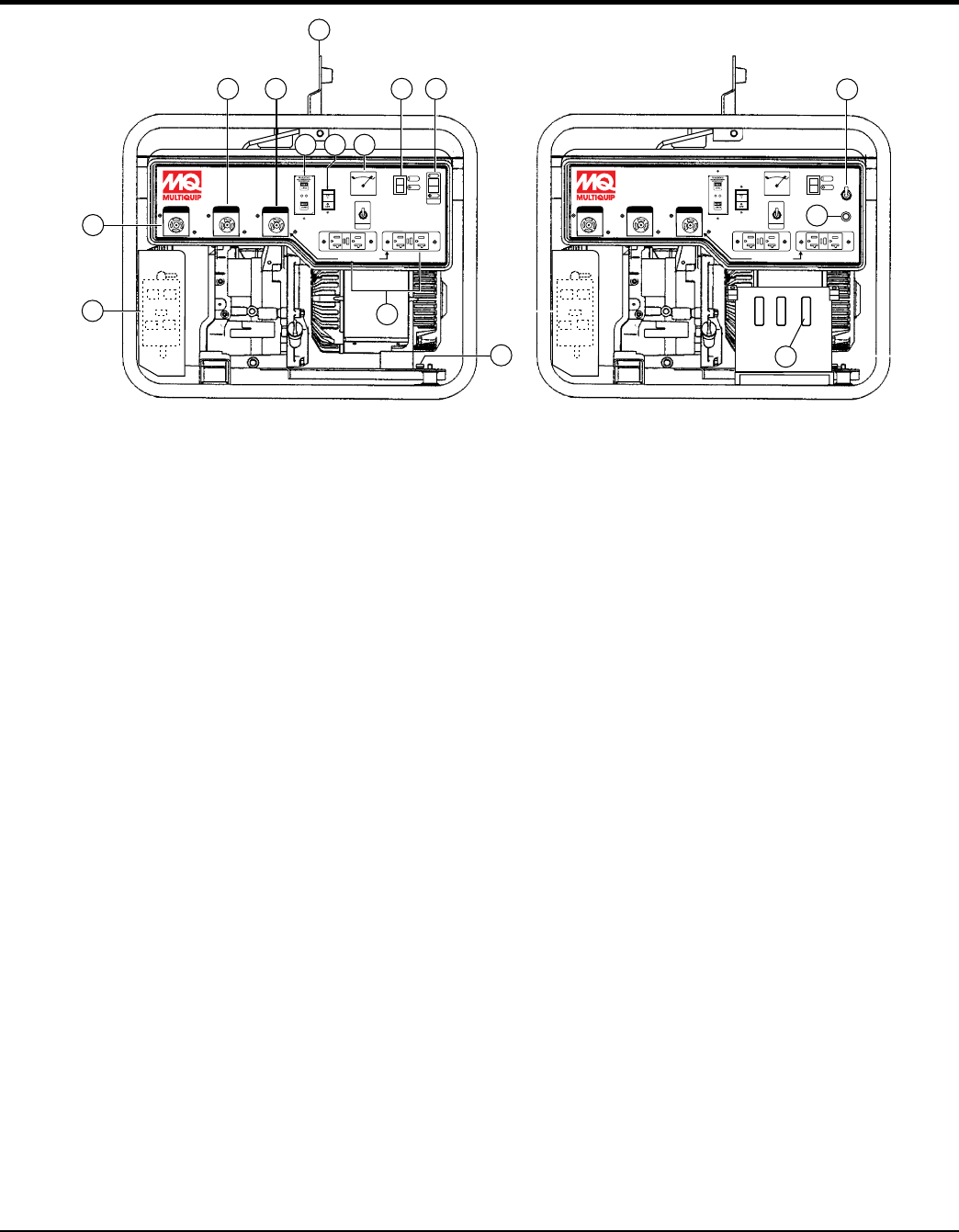

Figure 3. Generator Components
1. NEMA L14-30R twist-
lock receptacle will provide 240V, 60 Hz @ 20.8 amps,
or 120V@ 41.6 amps (X2) 60 Hz. Depending on the
position of the full power switch.
2. NEMA L5-30R twist-lock
receptacle will provide 120V, 30 amps, 60 Hz.
3. NEMA L5-20R twist-lock
receptacle will provide 120V, 20 amps, 60 Hz.
4. Attach a rope or chain to this lifting
eye when lifting of the generator is required. Never
stand underneath the generator while it is being lifted.
Place lifting eye in down position when not in use.
5. Interrupts power when a
ground fault exist.
6. This 2-pole, 23 amp circuit breaker
protects the generator from short circuiting or
overloading. When starting the generator always have
the circuit breaker placed in the "" position.
7. This voltmeter indicates (with a
mark) the rated 60 Hz (single-phase) output voltage.
In addition the voltmeter can also be used as a
diagnostic tool. If the voltmeter indicator (needle) is
below the rated voltage, engine problems may exist
(low/high RPM's). To prevent damage to the generator
or power tools turn the generator and consult your
authorized Multiquip service dealer.
8. The generator is provided with
an automatic idle control device for noise suppression
and reduced fuel consumption.
The automatic idle control automatically engages under
a no-load condition. With the automatic idle control
switched “ON”, the engine revolutions will automatically
drop to about 2600 rpm (low-speed operation) within
3 seconds after the load stops. When the operation is
resumed, the engine speed is automatically increased
to about 3600 rpm (high-speed operation) as soon as
the load is connected.
9. Place switch in the "ON" position
(up) for normal operation. To turn-off the generator,
place the operation switch in the "OFF" position (down).
10. NEMA 5-20R, GFCI
receptacle will provide 120V@ 20 amps.
11. This ground connection point should be
connect to a good earth ground (ground rod).
12. A container filled with activated
charcoal that traps gasoline vapors emitted by the
fuel system.
13. Press this pushbutton switch to start
the generator (GA6HEB only).
14. This unit is equipped with a 12 VDC
battery. Replace with only recommended type battery
(GA6HEB only).
ga6HB/ga6HeB
Figure 4. Full Power Switch
120/240V
30A
0N
OFF
IDLE
CONTROL
OPERATION
SWITCH
ON
OFF
120
V
GA-6HB
120
20A
120
30A
AC CIRCUIT BREAKER
GFCI PROTECTED
120
AC VOLTMETER
120V
FULLPOWER
SWITCH
120V
120V/240V
MANUALRESET
P
O
W
E
R
F
A
U
L
T
120 V
20A
120 V
20A
IN SIMULTANEOUS USE 30AMP MAX
120/240V
30A
0N
OFF
IDLE
CONTROL
120
V
GA-6HEB
120
20A
120
30A
AC CIRCUIT BREAKER
GFCI PROTECTED
120
AC VOLTMETER
120V
FULLPOWER
SWITCH
120V
120V/240V
MANUALRESET
P
O
W
E
R
F
A
U
L
T
120 V
20A
120 V
20A
IN SIMULTANEOUS USE 30AMP MAX
ELECTRIC START
START
SWITCH
OPERATION
SWITCH
15 15
COMPONENTS (GENERATOR)
15. The generator is provided with a
full power switch. Figure 5 and Figure 6 show simplified
wiring diagrams of the dual voltage system.
When the full power switch is in the 120 volt (up)
position, you can access the full rated power of the
generator at 120 volts from the GFCI duplex receptacle
and the120V twist-lock receptacle, or a combination
of both receptacles as long as the total load does not
exceed the generating set capacity.
Figure 5. 120V Full Power Switch
Simplified Diagram (Up Position)
NOTICE
When the full power switch is in the 120V position, the
240V twist-lock receptacle cannot be used..
When the switch is in the 240 volt (down) position, you can
access half of the rated power of the generating set at 120
volts from the GFCI duplex receptacle and up to half of the
rated power of the set at 120 volts from 120V twist-lock
receptacle; or full rated power of the set at 240 volts from
the 240V twist-lock receptacle.
Figure 6. 240/120V Full Power Switch
Simplified Diagram (Down Position)
NOTICE
When using a combination of receptacles, total load
should not exceed the rated capacity of the generator.
NOTICE
In simultaneous mode use of receptaces, Figure 3,
items 3 and 10 (right most GFCI) is 30 amps maximum.
exceed 30 amps when using this configuration.
ga6HB/6HeB

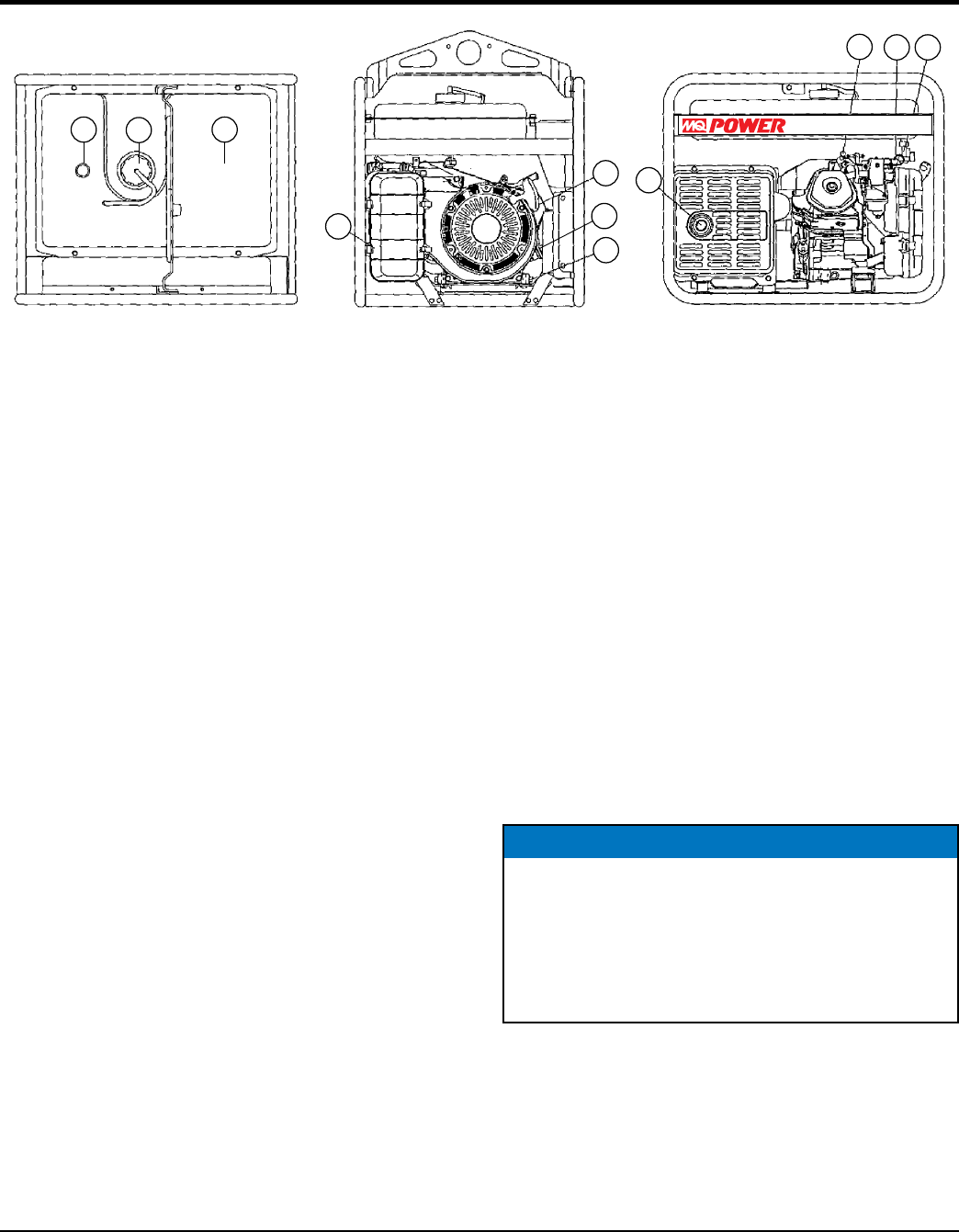

Figure 7. Generator Components (Continued)
16 17
19
20
22
23
24 25 26
GA-6H
21
18
GA-6H
COMPONENTS (GENERATOR)
16. This gauge is located on top of the fuel
tank. Read this gauge to determine when fuel is low.
17. Remove this cap to add unleaded
gasoline to the fuel tank. Replenish with clean unleaded
gasoline. Make sure cap is tightened securely.
NOT over fill.
18. Capacity is 5 gallons (19 liters). Fill with
unleaded gasoline.
19. Prevents dirt and other debris from
entering the fuel system. Remove wing-nut on top of air
filter cannister to gain access to filter element.
run the engine without an air cleaner.
20. Manual-starting method.
Pull the starter grip until resistance is felt, then pull
briskly and smoothly.
21. Remove this cap/dipstick
when the adding of engine oil is required. See Table 2
for recommended type engine oil.
22. Remove this drain plug
when draining of the oil from the engine crankcase
is required. Fill with recommended type oil as listed
in Table 4.
23. Used to reduce noise and
emissions. touch this heat shield when the
generator/welder is in use. Always allow time for engine
to cool before servicing.
24. Provides spark to the ignition system.
Set spark plug gap to 0.6 - 0.7 mm (0.028 - 0.031 inch)
Clean spark plug once a week.
25. Used for starting the engine. Close
the choke lever when starting a cold engine or in
cold weather conditions. The choke enriches the fuel
mixture. Open the choke lever if starting a warm engine
or in warm weather conditions
26. Turn this lever downward to start
(down)the flow of fuel into the carburetor. Turn upward
to stop (up) the flow of fuel.
NOTICE
This engine is equipped with a low oil
shutdown capability. A built in sensor will automatically
turn off the engine should the oil level fall below a safe
operating condition. Make sure the generators is placed
on level ground. Placing the generators on level ground
will ensure that the low oil sensor will function properly.
page 20 — ga6HB/ga6HeB
INSPECTION/SETUP
When using power tools or electrical equipment requiring
AC power from the generator, make sure power tool cord
has a ground pin or is double insulated as shown in Figure 8.

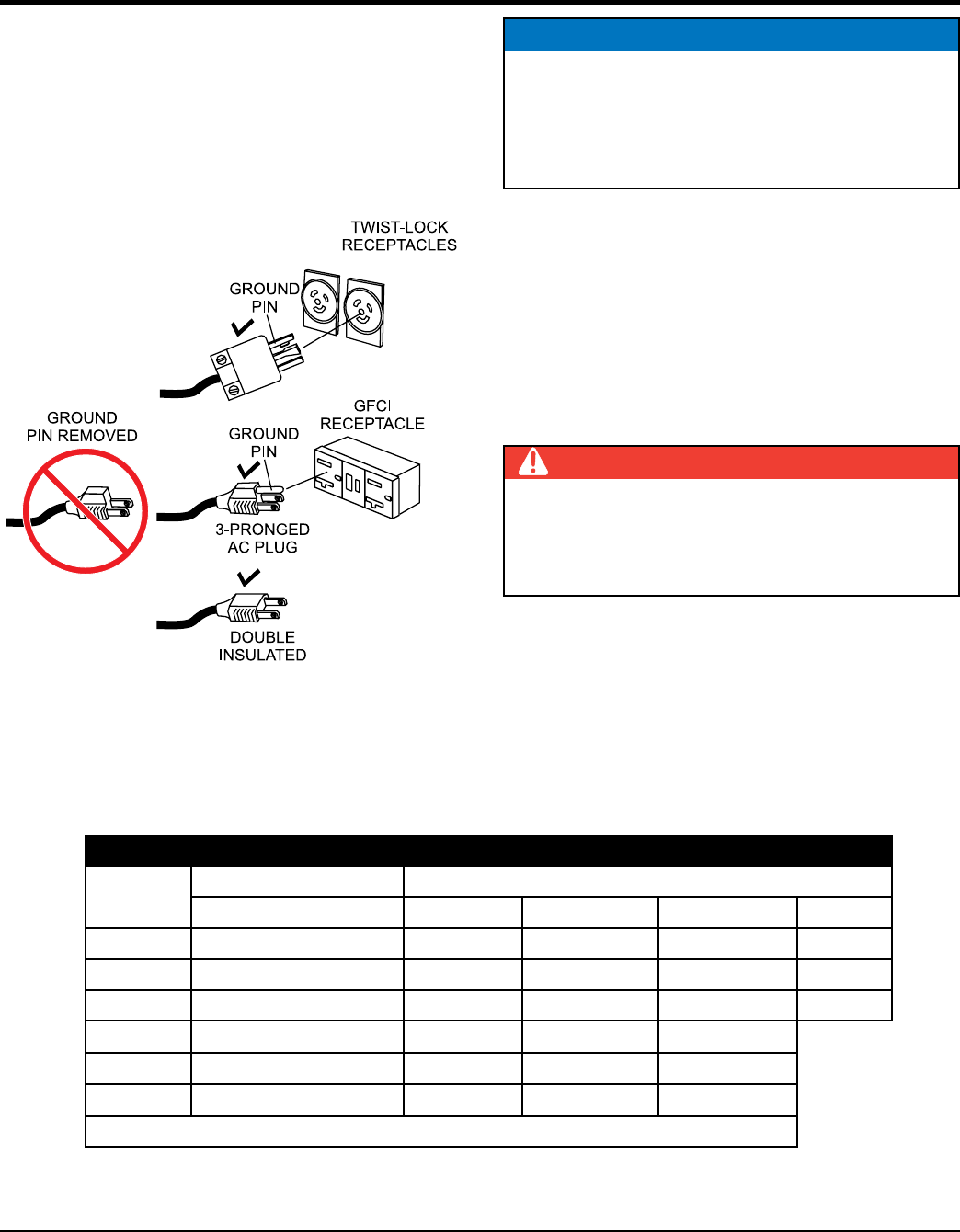

Figure 8. Ground Pin
When electric power is to be provided to various tools or
loads at some distance from the generator, extension cords
are normally used. Cables should be sized to allow for
distance in length and amperage so that the voltage drop
between the generator and point of use (load) is held to a
minimum. Use the cable selection chart (Table 4) as a guide
for selecting proper cable size.
NOTICE
Double-insulated power tools and small appliances
have specially insulated housings that eliminate the
need for a ground pin. These types of double-insulated
power cords are designed so that no part of the device
will be electrically live even if the internal insulation fails.
use power tools or equipment that do not
have a ground capability, the possibility exists of
electrocution, electrical shock or burn, which can cause
severe bodily harm or even!
#16 Wire
2.5 300 600 1000 ft. 600 ft. 375 ft. 250 ft.
5 600 1200 500 ft. 300 ft. 200 ft. 125 ft.
7.5 900 1800 350 ft. 200 ft. 125 ft. 100 ft.
10 1200 2400 250 ft. 150 ft. 100 ft.
15 1800 3600 150 ft. 100 ft. 65 ft.
20 2400 4800 125 ft. 75 ft. 50 ft.
: Equipment damage can result from low voltage.
ga6HB/6HeB
INSPECTION/SETUP
1. Read safety instructions at the beginning of manual.
2. Clean the generator, removing dirt and dust, particularly
the engine cooling air inlet, carburetor and air
cleaner.
3. Check the air filter for dirt and dust. If air filter is dirty,
replace air filter with a new one as required.
4. Check carburetor for external dirt and dust. Clean with
dry compressed air.
5. Check fastening nuts and bolts for tightness.

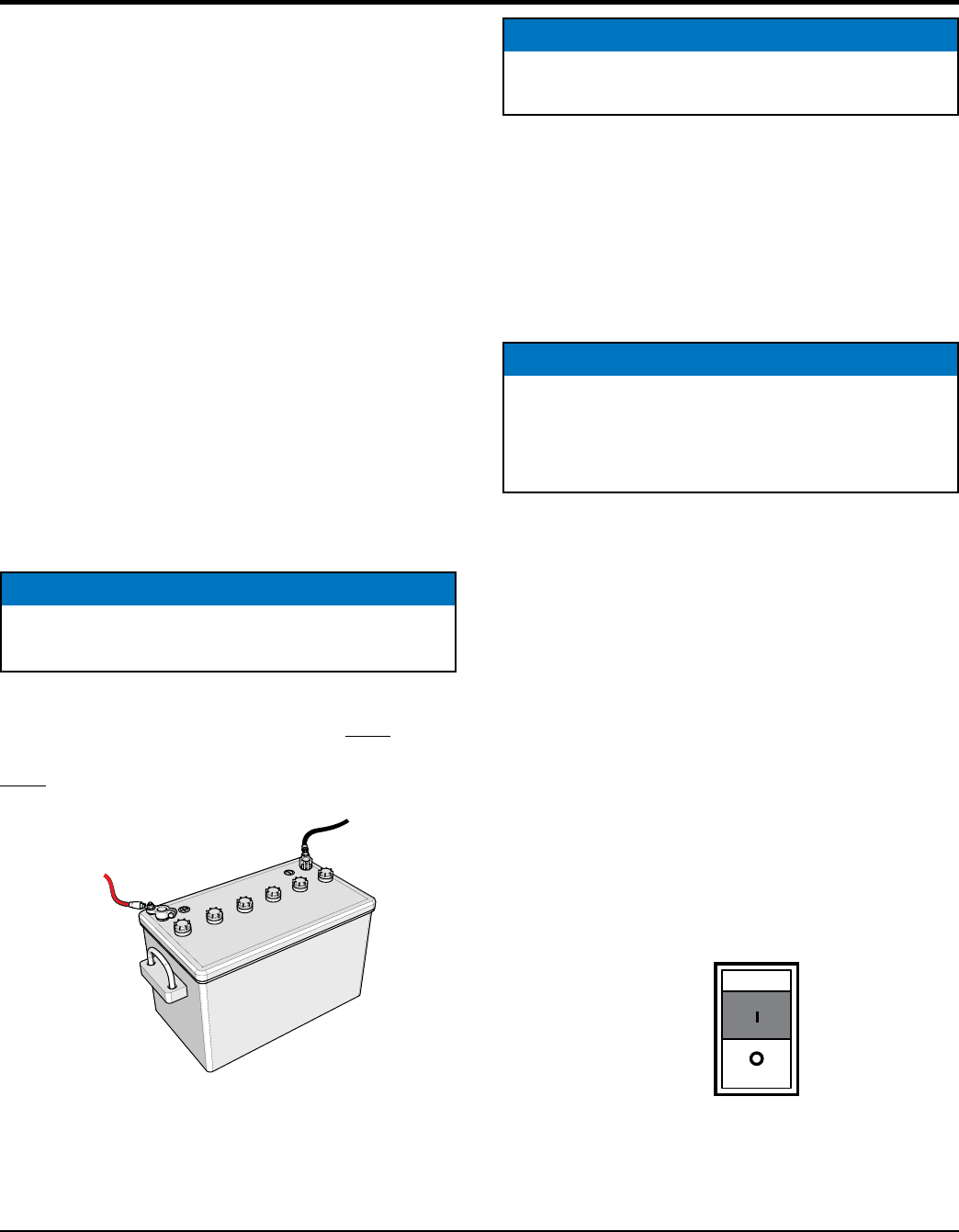

1. Place the battery into the battery cradle and secured
with mounting hardware.
2. Connect the positive cable to the positive terminal on
the battery first, then connect the negative cable to the
negative terminal.
1. To check the engine oil level, place the generator on
secure level ground with the engine stopped.

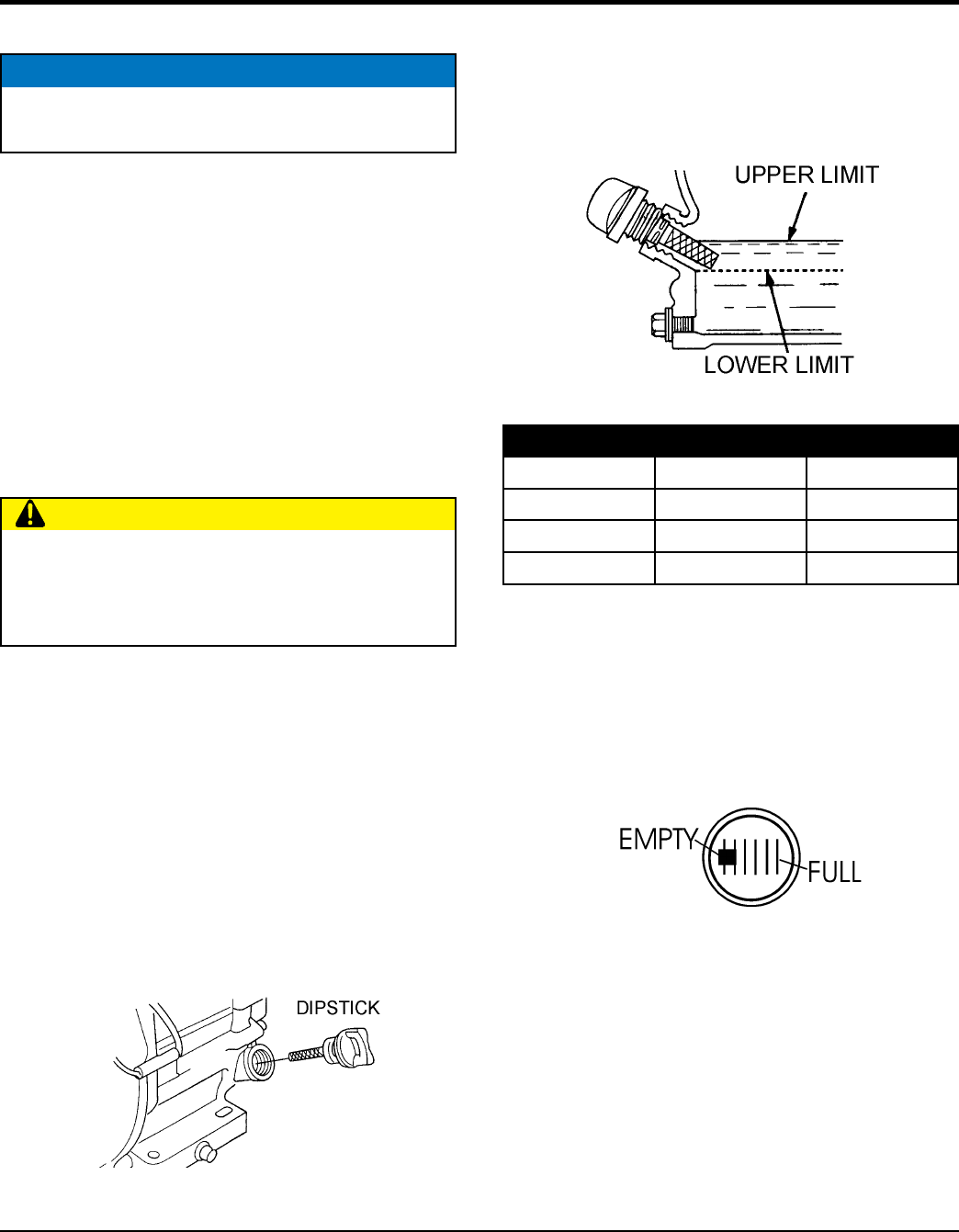

2. Remove the filler dipstick from the engine oil filler hole
(Figure 9) and wipe clean.
Figure 9. Engine Oil Dipstick Removal
NOTICE
place the main circuit breaker in the
position prior to starting the engine.
Use all safety precautions specified by the battery
manufacturer when working with the battery. See Safety
Information section of this manual for more details on
battery safety.
3. Insert and remove the dipstick without screwing it into
the filler neck. Check the oil level shown on the dipstick.
4. If the oil level is low (Figure 10), fill to the edge of the
oil filler hole with the recommended oil type (Figure
10). Maximum oil capacity is 1.16 quarts (1.1 liters).
Figure 10. Engine Oil Dipstick(Oil Level)
Summer 25°C or Higher SAE 10W-30
Spring/Fall 25°C~10°C SAE 10W-30/20
Winter 0°C or Lower SAE 10W-10
1. Close the fuel cock before filling the fuel tank.
2. Remove the fuel cap located on top of fuel tank.
3. Read the fuel gauge located on top of the fuel tank
(Figure 11) to determine if the fuel level is low. If fuel
is low, replenish with clean unleaded fuel.
Figure 11. Fuel Gauge
4. When refueling, be sure to use a strainer for filtration.
top-off fuel. fill the tank beyond
capacity. Wipe up any spilled fuel immediately!
page 22 — ga6HB/ga6HeB
OPERATION
This section is intended to assist the operator with the initial
start-up of the portable generator. It is extremely important
that this section be read carefully before attempting to use
the generator in the field.
1. Be sure to disconnect all electrical loads from the
generator prior to starting the engine.
2. start the engine with the main circuit breaker
in the ON position. Always place circuit breaker (Figure 12)
in the position before starting.
Figure 12. Main Circuit Breaker (OFF)
1. Place the engine fuel valve lever (Figure 13) in the ON
position.
Figure 13. Engine Fuel Valve Lever (ON)

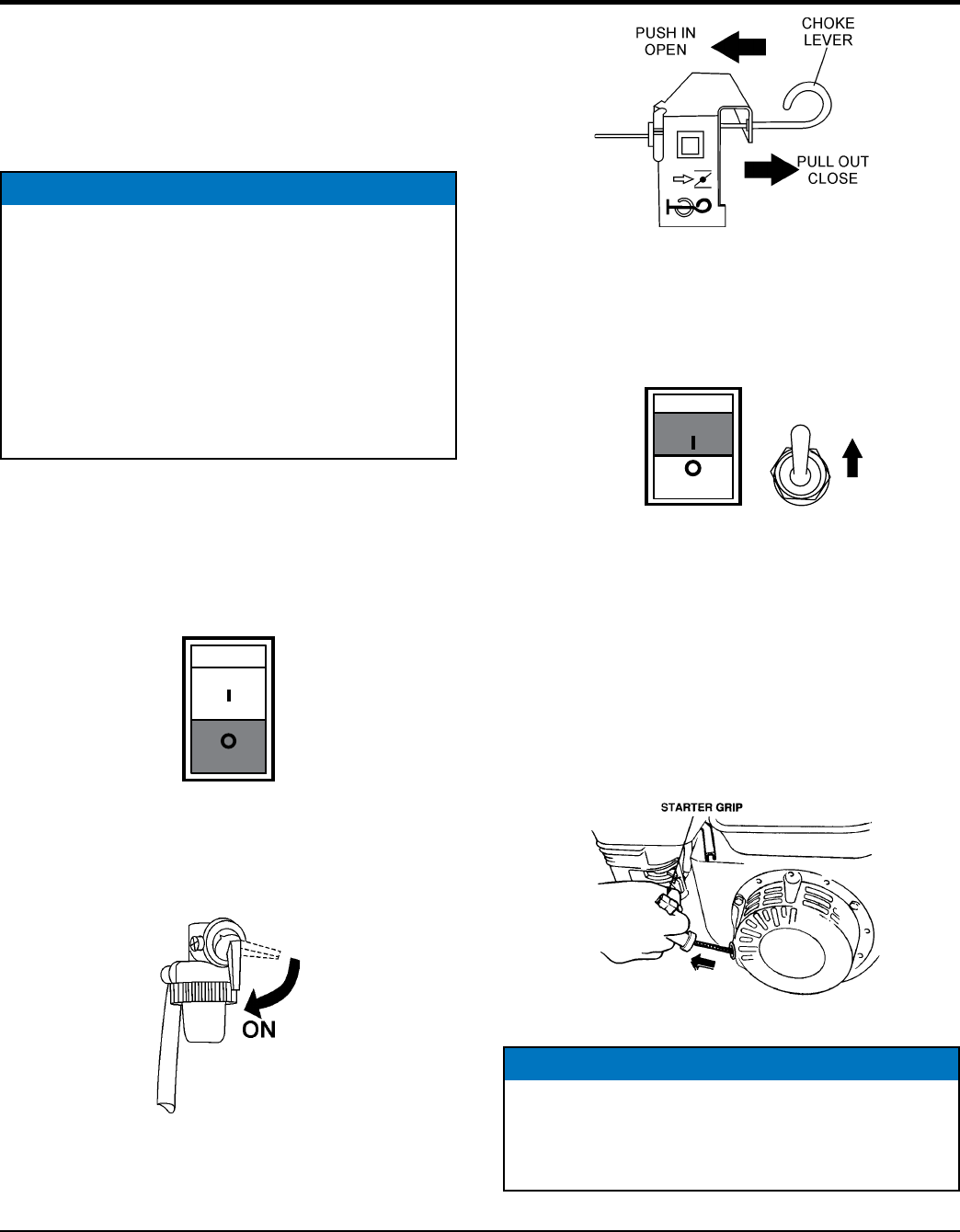

2. Place the choke lever (Figure 14) in the
position if starting a cold engine.
NOTICE
Both model generators are equipped with a GFCI
sensing module. The purpose of this module is to
sense a ground fault during operation of the generator
and shut down the generator once the ground fault has
been detected.
Multiquip recommends that the GFCI sensing module
be tested before each use of the generator. Reference
the maintenance section of this manual for the testing
of the GFCI sensing module.
ON
OFF
Figure 14. Choke Lever
3. Place the choke lever (Figure 14) in the OpeN position
if starting a warm engine or the temperature is warm.
4. Place the generator's operation switch (Figure 15) in
the ON position.
Figure 15. Operation Switch (ON)
5. If your generator is a recoil start only (no battery), grasp
the starter grip (Figure 16) and slowly pull it out. The
resistance becomes the hardest at a certain position,
corresponding to the compression point. Pull the starter
grip briskly and smoothly for starting.
Proceed to step 6 if your unit is an electric start model
(battery installed).
Figure 16. Starter Grip
ON
OFF
GA-6HB
GA-6HEB
ON
NOTICE
pull the starter rope all the way to the end.
release the starter rope after pulling. Allow it
to rewind as soon as possible..
ga6HB/6HeB
OPERATION
6. Press the generator's pushbutton start switch
(Figure 17) and listen for the engine to start.
Figure 17. Start Switch (GA6HEB Only)
7. If the engine has started, slowly return the choke lever
(Figure 14) to the OpeN position. If the engine has not
started repeat steps 1 through 6.
8. Before the generator is placed into operation, run the
engine for 3-5 minutes. Check for abnormal smells,
fuel leaks, and noises that would associate with lose
components.
9. Place idle control switch (Figure 18) in the
position. This will allow the engine speed to run at about
3600 RPM's.
Figure 18. Idle Control Switch (OFF)
OFF
ON
OFF
GA-6HB
GA-6HEB
NOTICE
Placing the idle control switch in the position
(Figure 18) allows the engine to operate at a maximum
speed of about 3600 RPM's.
When the idle control switch (Figure 19) is placed in the
up position (ON), the generator will run at idle speed
(2200 RPM's) until a load is applied, at that time the
engine speed will increase to 3600 RPM's as long as
a load is being applied.
When the load is not in use, the engine speed will drop
back to the idle mode after about 3 seconds.
Figure 19. Idle Control switch (ON)
10. Place main circuit breaker (Figure 20) in the ON
position.
Figure 20. Main Circuit Breaker (ON)

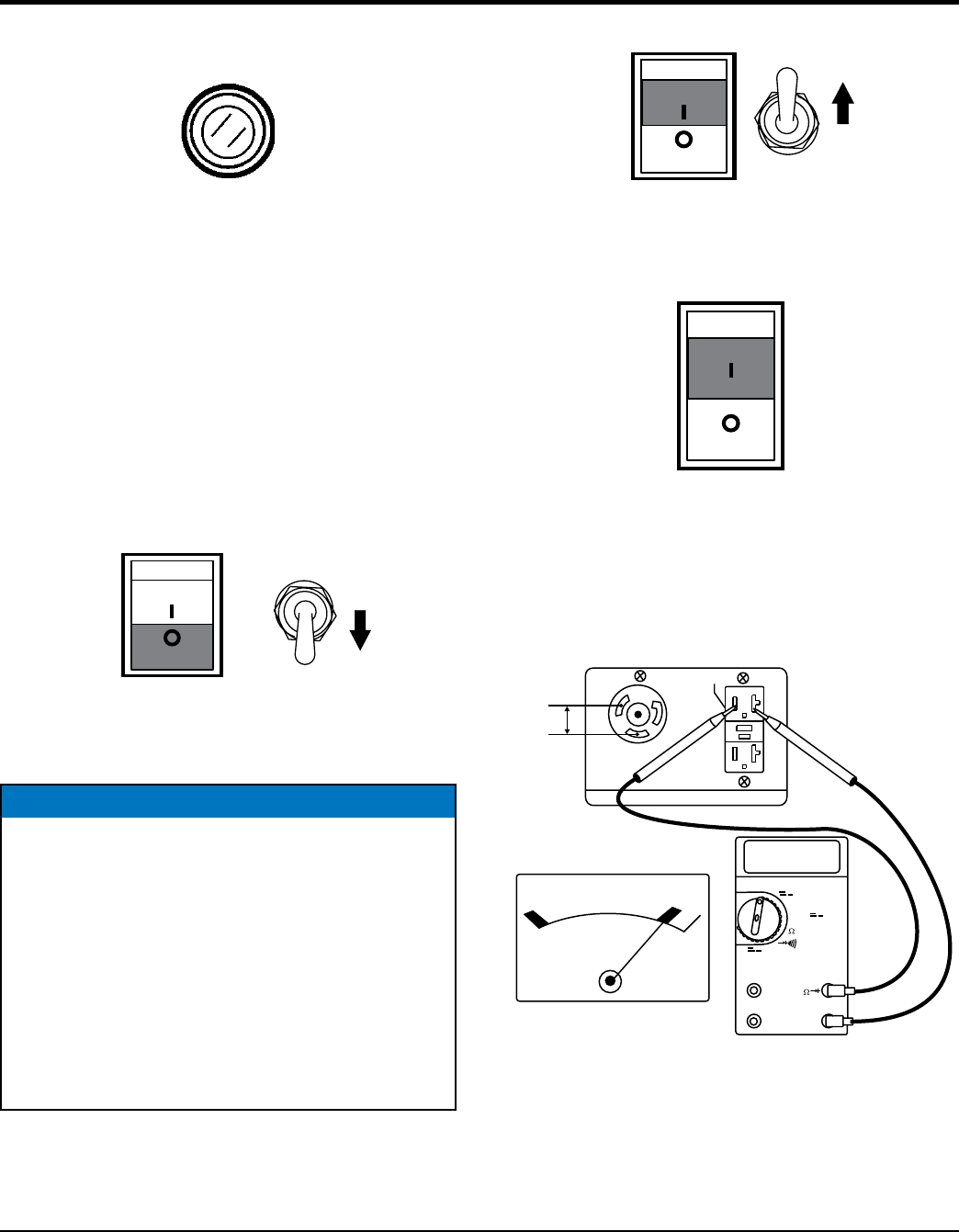

11. Read voltmeter on front panel of generator (Figure 21)
and verify that 120 VAC is displayed. Using an external
voltmeter as shown in Figure 19, verify that 120 VAC
is present at the 120V twist-lock and GFCI duplex
receptacles.
Figure 21. 120V Twist-Lock/GFCI Receptacles
ON
OFF
GA-6HB
GA-6HEB
ON
OFF
ON
120V
OFF V~ V
300 mV
AA~
V
COM
120 VAC
GFCI
L5-30R
120
V
G
W
120VAC
X
ga6HB/ga6HeB
OPERATION/SHUTDOWN

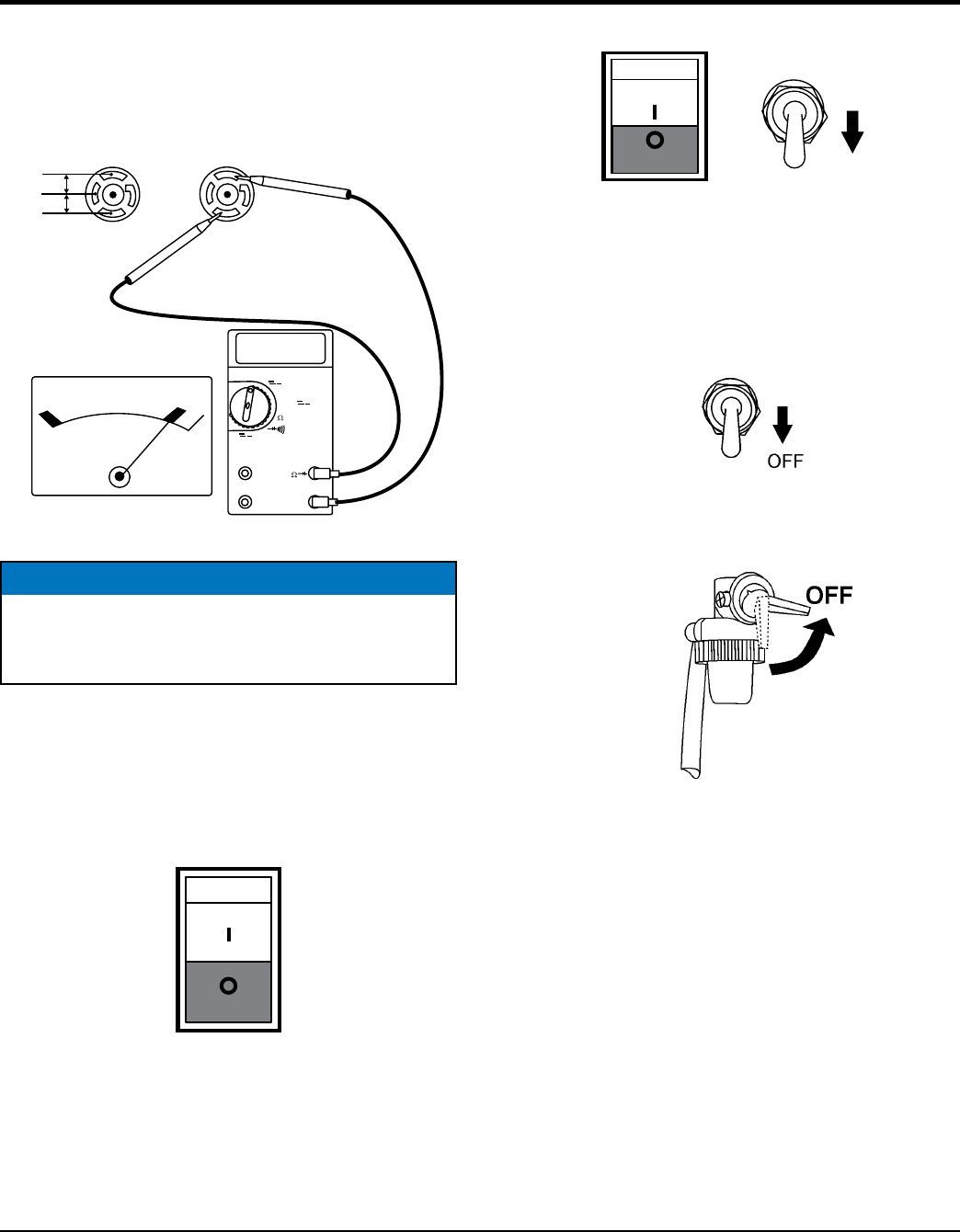

12. Read voltmeter on front panel of generator (Figure 22)
and verify that 240 VAC is displayed. Using an external
voltmeter as shown in Figure 22, verify that 240 VAC is
present at the 120/240V, L14-30R twist-lock receptacle.
Figure 22. 120/240V L14-30R Receptacle
13. Connecting of loads (power tools, lighting etc.) to the
generator receptacles can now be done.
1. Place main circuit breaker (Figure 23) in the
position.
Figure 23. Main Circuit Breaker (OFF)
240
V
OFF V~ V
300 mV
AA~
V
COM
240 VAC
L14-30R
240VAC
G
Y
X
W
120VAC
G
Y
X
W
120VAC
120VAC
L14-30R
NOTICE
When using a combination of dual receptacles, total
load should not exceed the rated capacity of the
generator.
ON
OFF
2. Place idle control switch (Figure 24) in the position.
Figure 24. Idle Control switch (OFF)
3. Let engine run at idle with no load for 2-3 minutes.
4. To shut-down the engine, place the generator's
operation switch (Figure 25) in the F position).
Figure 25. Operation Switch (OFF)
5. Place engine fuel valve lever (Figure 26) in the
position.
Figure 26. Engine Fuel Valve Lever (OFF)
6. Remove all loads from the generator.
1. Place operation switch (Figure 25) in the position
OFF
ON
OFF
GA-6HB
GA-6HEB
ga6HB/6HeB
For storage of the generating set for over 30 days, the
following is required:
Drain the fuel tank completely, or add STA-BIL to the
fuel.
Run the engine until the gasoline in the carburetor is
completely consumed.
Completely drain the oil from the crankcase and refill
with fresh oil.
Remove the spark plug, pour 2 or 3 cc of SAE 30 oil into
the cylinder and crank slowly to distribute the oil.
Slowly rotate the engine a few times with the starter rope
and install a new plug.
Pull out the starter rope slowly and stop at the
compression point.
Clean all external parts of the generating set with a
cloth.
Cover the generating set and store in a clean, dry
place.
PREPARATION FOR LONG TERM STORAGE
page 26 — ga6HB/ga6HeB
MAINTENANCE
Use Table 6 as a general maintenance guideline when
servicing your engine. For more detail engine maintenance
information, refer to the engine owner's manual supplied
with your engine.
Engine Oil CHECK X
CHANGE
Air Cleaner CHECK X X
CHANGE X (1)
Charcoal Canister (4) REPLACE
All Nuts & Bolts RETIGHTEN IF
NECESSARY X
Spark Plug CHANGE X
REPLACE X
Cooling Fins CHECK X
Spark Arrester CLEAN X
Fuel Tank CLEAN X
Fuel Strainer CHECK X
Idle Speed CHECK-ADJUST X (2)
Valve Clearance CHECK-ADJUST X (2)
Fuel lines CHECK Every 2 years, replace if necessary (2)
(1) Service more frequently when used in areas.
(2) These items should be serviced by your service dealer, unless you have the proper tools and are mechanically
proficient. Refer to the HONDA Shop Manual for service procedures.
(3) For commercial use, log hours of operation to determine proper maintenance intervals.
(4) Charcoal canister is maintenance free (non-servicable). Replace only if damaged.
ga6HB/6HeB
MAINTENANCE
Perform the scheduled maintenance procedures as defined
by Table 5 and below:
Thoroughly remove dirt and oil from the engine and
control area. Clean or replace the air cleaner elements as
necessary. Check and retighten all fasteners as necessary.
Inspect the entire generator for bad or worn electrical wiring
or connections. If any wiring or connections are exposed
(insulation missing) replace wiring immediately.
Inspect all piping, oil hose, and fuel hose connections for
wear and tightness. Tighten all hose clamps and check fuel
or leaks. If any hose (fuel or oil) lines are defective replace
them immediately.
1. Thoroughly clean the area around the fuel cap.
2. Remove the fuel cap from the fuel tank.
3. Next, remove, inspect and clean the fuel strainer
(Figure 27) with solvent.

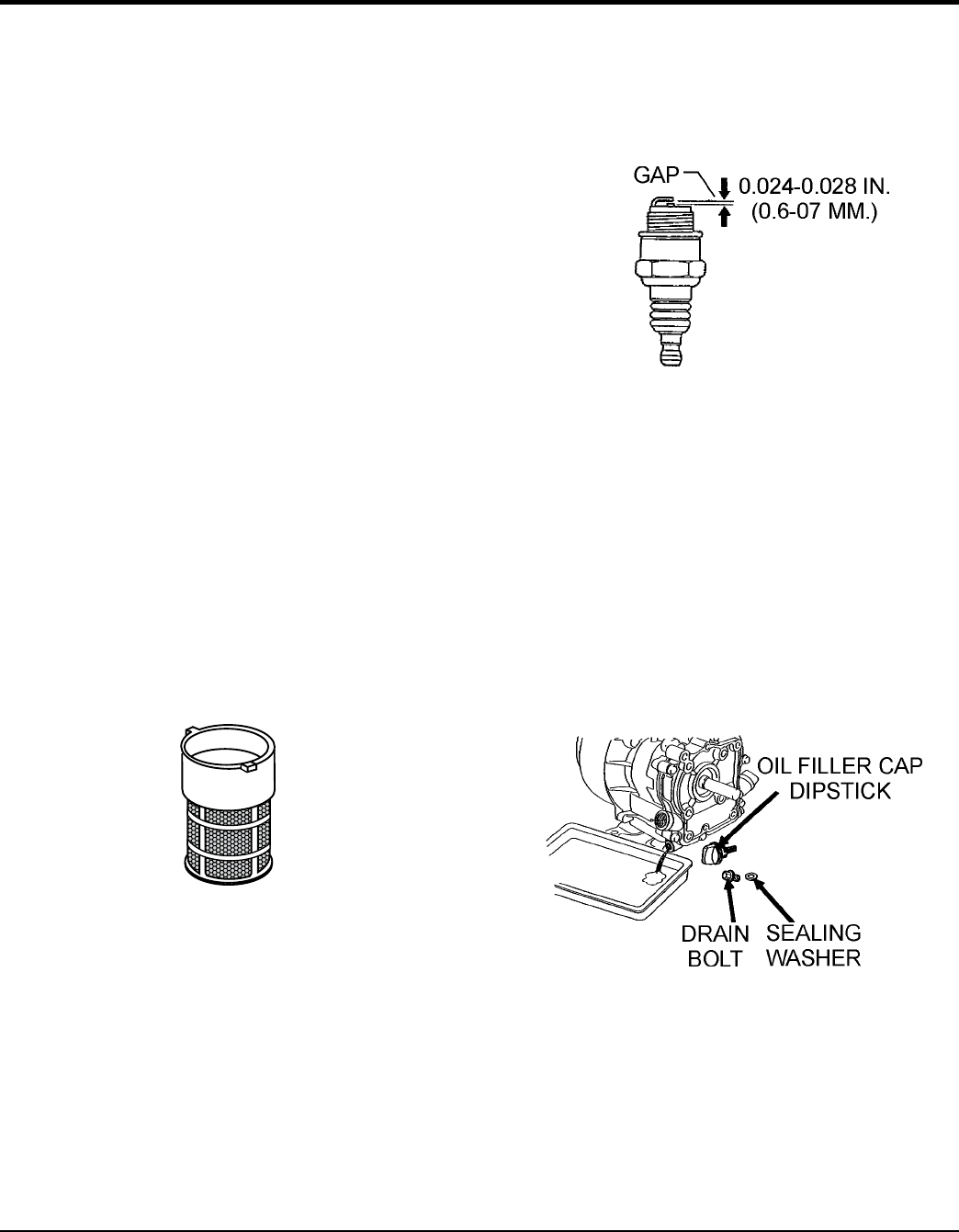

Figure 27. Fuel Strainer
1. Remove and clean the spark plug (Figure 28), then
adjust the spark gap to 0.024 ~0.028 inch (0.6~0.7
mm). This unit has electronic ignition, which requires
no adjustments.
Figure 28. Spark Plug Gap
2. Drain the engine oil when the oil is warm as shown in
Figure 29.
3. Remove the oil drain bolt and sealing washer and allow
the oil to drain into a suitable container.
4. Replace engine oil with recommended type oil as listed
in Table 4. For engine oil capacity, see Table 2 (engine
specifications). overfill.
5. Install drain bolt with sealing washer and tighten
securely.
Figure 29. Draining Engine Oil
page 28 — ga6HB/ga6HeB
1. Remove the air cleaner cover and foam filter element
as shown in Figure 30.
2. Clean foam element in warm, soapy water or
nonflammable solvent. Rinse and dry thoroughly. Dip
the element in clean engine oil and completely squeeze
out the excess oil from the element before installing.
Figure 30. Engine Air Cleaner
3. Clean foam element (Figure 31 in warm, soapy water
or non-flammable solvent. Rinse and dry thoroughly.
4. Next, dip the element in clean engine oil and completely
squeeze out the excess oil from the element before
installing.
Figure 31. Cleaning Foam Element
use gasoline as a cleaning
solvent, the possibility exists of fire or
explosion which can cause damage to
the equipment and severe bodily harm or
even!
SOLVENT
ENGINE OIL
FOAM
ELEMENT
SQUEEZE
THOROUGHLY
MAINTENANCE
Clean the spark arrester every 6 months or 100 hours.
1. Remove the muffler protector retaining bolts (Figure 32),
then remove muffler protector.
2. Next, remove tapping screw that secures spark arrestor
to muffler, then remove spark arrester.
Figure 32. Spark Arrester Removal
3. Carefully remove carbon deposits from the spark
arrester screen (Figure 33) with a wire brush.
Figure 33. Cleaning The Spark Arrester
4. If the spark arrester is damaged and has breaks or
holes, replace with a new one.
5. Reinstall the spark arrester and muffler protector in
reverse order of disassembly.
MUFFLER
PROTECTOR
RETAINING
BOLT
MUFFLER
RET
AINING
BOLT
MUFFLER
PROTECTOR
SPARK
ARRESTOR
TAPPING
SCREW
SPARK
ARRESTER
SCREEN
WIRE
BRUSH
ga6HB/6HeB
This unit is of negative ground connect in reverse.
Always maintain battery fluid level between the specified
marks. Battery life will be shortened, if the fluid levels are
not properly maintained. Add only distilled water when
replenishment is necessary.
Check to see whether the battery cables are loose. Poor
contact may result in poor starting or malfunctions. Always
keep the terminals firmly tightened. Coating the terminals
with an approved battery terminal treatment compound
will help prevent corrosion. Replace battery with only
recommended type battery.
The battery is sufficiently charged if the specific gravity
of the battery fluid is 1.28 (at 68° F). If the specific gravity
should fall to 1.245 or lower, it indicates that the battery is
dead and needs to be recharged or replaced.
Before charging the battery with an external electric source,
be sure to disconnect the battery cables.
be sure the battery cables are properly connected
to the battery terminals (Figure 30). The red cable is
connected to the positive terminal of the battery, and the
black cable is connected to the negative terminal of the
battery.
Figure 34. Battery Connections
NOTICE
Inadequate battery cable connections may cause poor
starting of the generator, and create other malfunctions..
POSITIVE
NEGA
TIVE
MAINTENANCE
When connecting battery do the following:
1. use worn or damaged battery cables. Replace
defective battery cables immediately.
2. Place a small amount of battery terminal treatment
compound around both battery terminals. This will
ensure a good connection and will help prevent
corrosion around the battery terminals.
The polarity of the battery is extremely important. When an
inverted circuit connection takes place, the circuit will be in
short circuit instantaneously resulting in possible damage
to the control box electronics and starter.
When connecting the battery cables to the battery terminals
be sure to check the polarity.
If tripping of the main circuit breaker persists after a load is
replaced with a known good one (no short circuit), perform
this test with no load.
1. Start the generator as outlined in the start up procedure
in this manual.
2. Place the main circuit breaker (Figure 35) in the ON
position.
Figure 35. Circuit Breaker ON (GFCI Test)
NOTICE
disconnect the negative terminal first and
reconnect negative terminal last.
NOTICE
If the battery cables are connected incorrectly, electrical
damage to the generator will occur. Pay close attention
to the polarity markings on the battery when connecting
the battery cables.
OFF
ON
ga6HB/ga6HeB

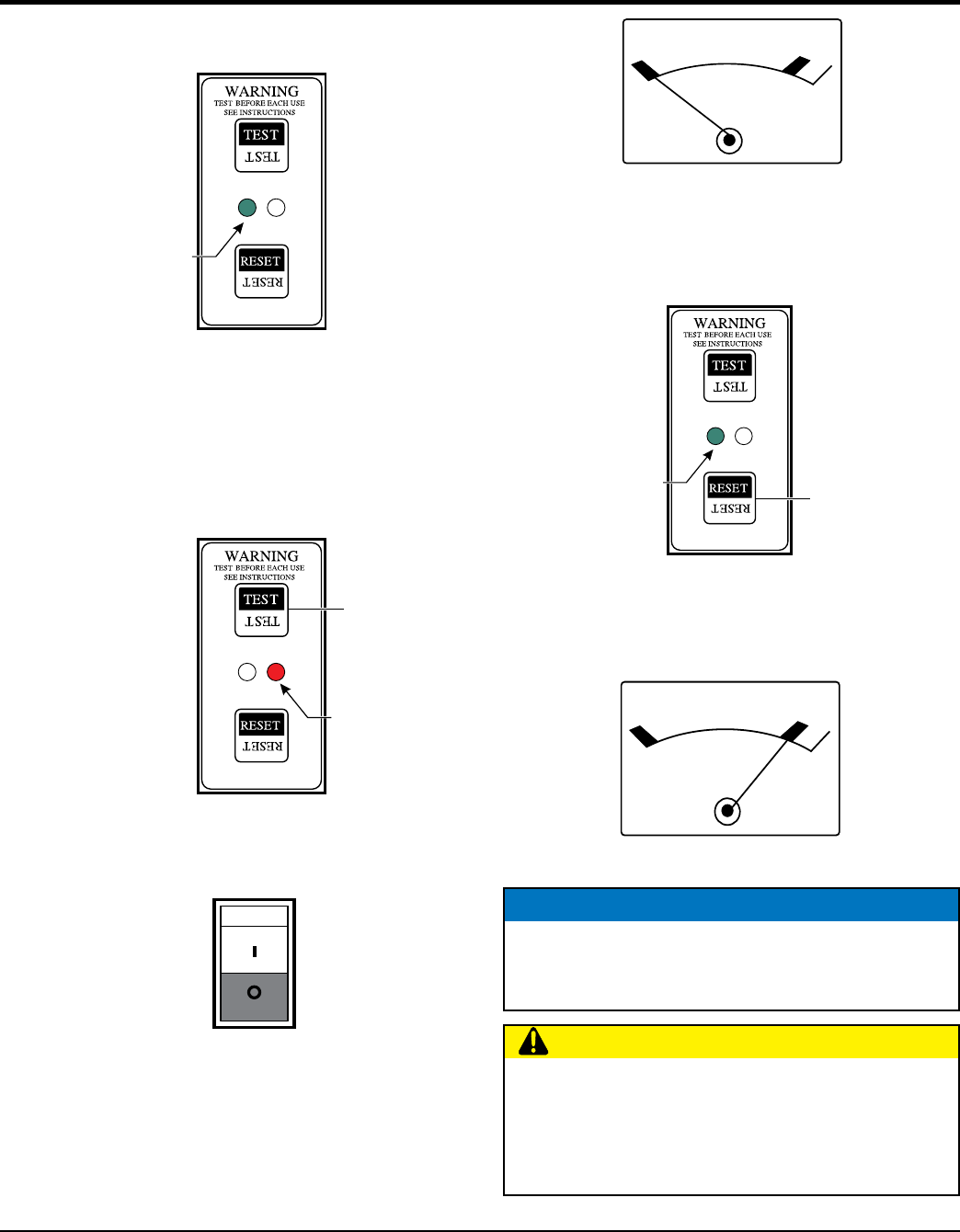

3. On the GFCI module (Figure 36), verify that the green
POWER LED is ON.
Figure 36. GFCI Module (Green LED ON)
4. Also verify that the AC voltmeter is registering a voltage
reading as indicated by Figure 41.
5. Next, press the button on the GFCI module and
verify that the green POWER LED turns and the
red FAULT LED turns ON.
Figure 37. GFCI Module (Red/Fault LED ON)
6. Also verify that the main circuit breaker switch trips to
the position.
Figure 38. Circuit Breaker OFF (GFCI Test)
7. Verify that the AC voltmeter (Figure 39) on the
generator reads zero volts.
MANUAL RESET
P
O
W
E
R
F
A
U
L
T
GREEN
POWER
LED
MANUAL RESET
P
O
W
E
R
F
A
U
L
T
PRESS
RED
FAULT
LED
ON
OFF
MAINTENANCE
Figure 39. AC Voltmeter (Zero Volts)
8. To restore power, press the RESET button (Figure 40)
on the GFCI module and verify that the red FAULT LED
turns and the green POWER LED should turn ON
Figure 40. GFCI Module (Green LED ON Reset)
9. Verify that the AC voltmeter is registering a voltage
reading as indicated by Figure 41.
Figure 41. AC Voltmeter (120/240V)
120
240
V
MANUAL RESET
P
O
W
E
R
F
A
U
L
T
PRESS
GREEN
POWER
LED
120
240
V
NOTICE
It is recommended that the GFCI unit be tested when
the generator is initially taken out of the box. Then, the
generator should be tested daily at startup.
The GFCI module is designed to interrupt power when
a ground fault exists to prevent injuries and shock
hazards. operate the generator if this test fails.
Consult a qualified electrician for repair or replacement
of the GFCI module.
ga6HB/6HeB
NOTES
ga6HB/ga6HeB

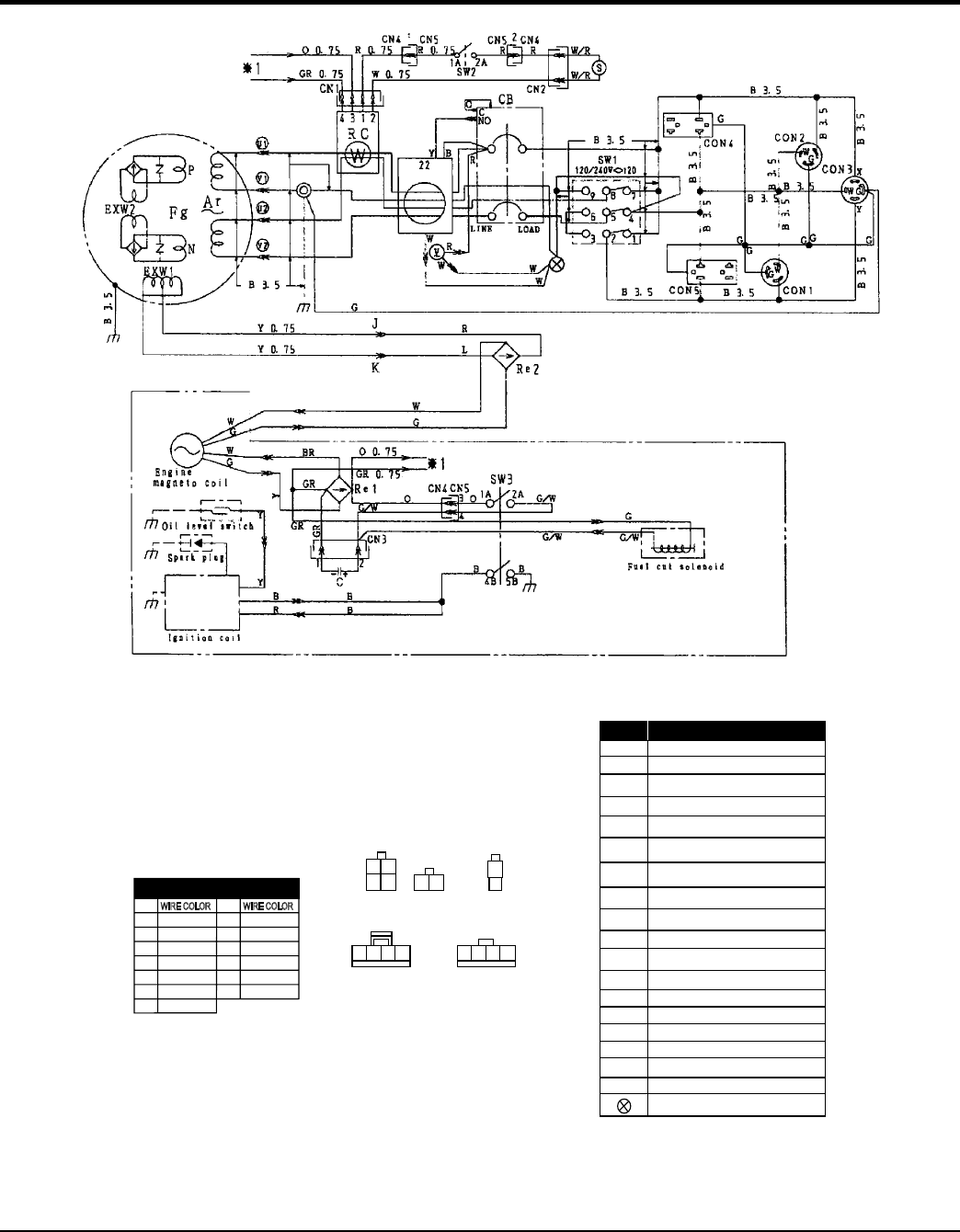

GENERATOR WIRING DIAGRAM (GA6HB)
Figure 42. Generator Wiring Diagram (GA6HB)
CONNECTOR ARRANGEMENT
(VIEW FROM INSERTING WIRE SIDE)
2 1
43
WR
CN1 CN2
1
2
CN5
CN4
Ar
Fg-P, N
Ex W1
ARMATURE WINDING
ROTOR ASSEMBLY
EXCITATION WINDING
EXCITATION WINDING
CON 1
RECEPTACLE L5-20R 20A, 125V
CON 2
RECEPTACLE L5-30R 30A 125V
CON 3
RECEPTACLE L14-30R 30A, 125/250V
FULL POWER SWITCH
SW1
IDLE CONTROL SWITCH
SW2
OPERATION SWITCH
SW3
IDLE CONTROL DEVICE
RC
IDLE CONTROL SOLENOID
S
CAPACITOR
C
CON 4,5
RECEPTACLE 5-20R GFCI 20A, 125V
Ex W2
CIRCUIT BREAKER 23A
CB
AC VOLTMETER 120/240V
V
~
RECTIFER
RE 1~2
CN3
GENERATOR
ENGINE
22
GFCI SENSING MODULE
TERMINAL BOARD
43211234
SYMBOL
DESIGNATION
B
L
G
V
P
R
W
Y
O
BR
GR LB
LG
WIRE COLOR
BLACK
BLUE
BROWN
GREEN
GRAY
VIOLET
PINK
ORANGE
LIGHT GREEN
LIGHT BLUE
YELLOW
WHITE
RED
WIRE COLOR
COLOR CODE
ga6HB/6HeB

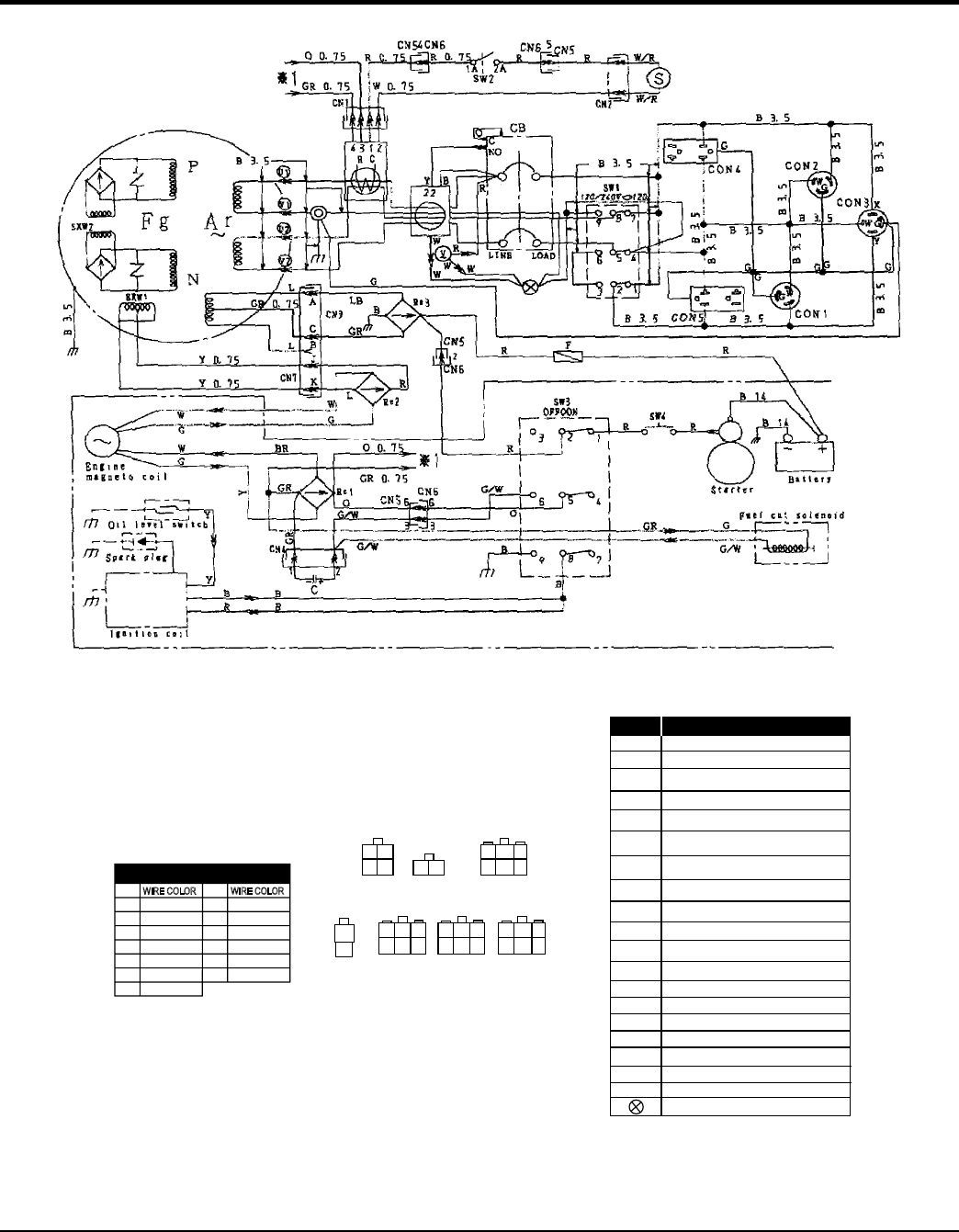

GENERATOR WIRING DIGRAM (GA6HEB)
Ar
Fg-P, N
Ex W1
ARMATURE WINDING
ROTOR ASSEMBLY
EXCITATION WINDING
EXCITATION WINDING
CON 1
RECEPTACLE L5-20R 20A, 125V
CON 2
RECEPTACLE L5-30R 30A 125V
CON 3
RECEPTACLE L14-30R 30A, 125/250V
FULL POWER SWITCH
SW1
IDLE CONTROL SWITCH
SW2
OPERATION SWITCH
SW3
IDLE CONTROL DEVICE
RC
IDLE CONTROL SOLENOID
S
CAPACITOR
C
CON 4,5
RECEPTACLE 5-20R GFCI 20A, 125V
Ex W2
CIRCUIT BREAKER 23A
CB
AC VOLTMETER 120/240V
V
~
RECTIFER
RE 1~2
STARTER SWITCH
SW4
22
GFCI SENSING MODULE
TERMINAL BOARD
SYMBOL
DESIGNATION
CONNECTOR ARRANGEMENT
(VIEW FROM INSERTING WIRE SIDE)
2 1
43
WR
CN1 CN2
CN5
CN4
CN3
B
L
G
V
P
R
W
Y
O
BR
GR LB
LG
WIRE COLOR
BLACK
BLUE
BROWN
GREEN
GRAY
VIOLET
PINK
ORANGE
LIGHT GREEN
LIGHT BLUE
YELLOW
WHITE
RED
WIRE COLOR
COLOR CODE
GENERATOR
ENGINE
B C
AJ
K
1
212
46
3
CN6 CN7
K C
JA
B
5
32
64
1
5
Figure 43. Generator Wiring Diagram (GA6HEB)
ga6HB/ga6HeB
TROUBLESHOOTING (ENGINE)
Diffi cult to start, fuel is available, but no spark at
spark plug.
Spark plug bridging? Check gap, insulation or replace spark plug.
Carbon deposit on spark plug? Clean or replace spark plug.
Short circuit due to defi cient spark plug
insulation? Check spark plug insulation, replace if worn.
Improper spark plug gap? Set to proper gap.
Fuel reaching carburetor? Check fuel line.
Water in fuel tank? Flush or replace fuel tank.
Fuel fi lter clogged? Replace fuel fi lter.
Stuck carburetor? Check fl oat mechanism.
Spark plug is red? Check transistor ignition unit.
Spark plug is bluish white?
If insuffi cient compression, repair or replace
engine. If injected air leaking, correct leak. If
carburetor jets clogged, clean carburetor.
No spark present at tip of spark plug?
Check transistor ignition unit is broken, and
replace defective unit. Check if voltage cord
cracked or broken and replace. Check if spark
plug if fouled and replace.
No oil? Add oil as required.
Oil pressure alarm lamp blinks upon starting? (if
applicable)
Check automatic shutdown circuit, "oil sensor".
(if applicable)
Diffi cult to start, fuel is available, and spark is
present at the spark plug.
ON/OFF switch is shorted? Check switch wiring, replace switch.
Ignition coil defective? Replace ignition coil.
Improper spark gap, points dirty? Set correct spark gap and clean points.
Condenser insulation worn or short circuiting? Replace condenser.
Spark plug wire broken or short circuiting? Replace defective spark plug wiring.
Diffi cult to start, fuel is available, spark is
present and compression is normal.
Wrong fuel type? Flush fuel system, replace with correct type of
fuel.
Water or dust in fuel system? Flush fuel system.
Air cleaner dirty? Clean or replace air cleaner.
Choke open? Close choke.
Diffi cult to start, fuel is available, spark is
present and compression is low.
Suction/exhaust valve stuck or protruded? Reseat valves.
Piston ring and/or cylinder worn? Replace piston rings and/or piston.
Cylinder head and/or spark plug not tightened
properly? Torque cylinder head bolts and spark plug.
Head gasket and/or spark plug gasket damaged? Replace head and spark plug gaskets.
No fuel present at carburetor.
No fuel in fuel tank? Fill with correct type of fuel.
Fuel cock does not open properly? Apply lubricant to loosen fuel cock lever,
replace if necessary.
Fuel fi lter/lines clogged? Replace fuel fi lter.
Fuel tank cap breather hole clogged? Clean or replace fuel tank cap.
Air in fuel line? Bleed fuel line.
ga6HB/6HeB
TROUBLESHOOTING (ENGINE)
Weak in power, compression is proper and
does not misfi re.
Air cleaner dirty? Clean or replace air cleaner.
Improper level in carburetor? Check fl oat adjustment, rebuild carburetor.
Defective spark plug? Clean or replace spark plug.
Improper spark plug? Set to proper gap.
Weak in power, compression is proper but
misfi res.
Water in fuel system? Flush fuel system and replace with correct
type of fuel.
Dirty spark plug? Clean or replace spark plug.
Ignition coil defective? Replace ignition coil.
Engine overheats.
Spark plug heat value incorrect? Replace with correct type of spark plug.
Wrong type of fuel? Replace with correct type of fuel.
Cooling fi ns dirty? Clean cooling fi ns.
Intake air restricted? Clear intake of dirt and debris. Replace air
cleaner elements as necessary.
Oil level too low or too high? Adjust oil to proper level.
Rotational speed fl uctuates.
Governor adjusted incorrectly? Adjust governor.
Governor spring defective? Replace governor spring.
Fuel fl ow restricted? Check entire fuel system for leaks or clogs.
Recoil starter malfunctions. (if applicable) Recoil mechanism clogged with dust and dirt? Clean recoil assembly with soap and water.
Spiral spring loose? Replace spiral spring.
Starter malfunctions.
Loose, damaged wiring? Ensure tight, clean connections on battery
and starter.
Battery insuffi ciently charged? Recharge or replace battery.
Starter damaged or internally shorted? Replace starter.
Burns too much fuel.
Over-accumulation of exhaust products? Check and clean valves. Check muffl er and
replace if necessary.
Wrong spark plug? Replace spark plug with manufacturer's
suggested type.
Exhaust color is continuously "white". Lubricating oil is wrong viscosity? Replace lubricating oil with correct viscosity.
Worn rings? Replace rings.
Exhaust color is continuously "black".
Air cleaner clogged? Clean or replace air cleaner.
Choke valve set to incorrect position? Adjust choke valve to correct position.
Carburetor defective, seal on carburetor
broken? Replace carburetor or seal.
Poor carburetor adjustment, engine runs too
rich? Adjust carburetor.
Will not start, no power with key "ON". (if
applicable)
ON/OFF device not activated ON? Turn on ON/OFF device.
Battery disconnected or discharged? Check cable connections. Charge or replace
battery
Ignition switch/wiring defective? Replace ignition switch. Check wiring.
ga6HB/ga6HeB
TROUBLESHOOTING (GENERATOR)
Low voltage Engine speed too low? Raise engine speed to rated RPM.
Low voltage. Engine speed normal
3650 RPM (unloaded), 2500 RPM
(idle)
AC voltmeter not working? Replace Ac voltmeter.
Control box internal wiring
malfunction? Check control box wiring.
Defective ignition coil? Check red and green ignition wires.
Replace ignition wires if necessary.
Rotor winding malfunction? Check or replace rotor.
Stator winding malfunction? Check or replace stator.
Leakage breaker malfunction? Check or replace CB1.
Full power switch malfunction? Check full power switch and full power
switch circuit.
Voltage output too high. Engine speed too high? Lower engine speed to rated RPM.
Voltage output too high. Engine speed
normal 3650 RPM (unloaded), 2500
RPM (idle)
Control box internal wiring
malfunction Check control box wiring.
Circuit breaker will not turn on "NO
LOAD" Defective circuit breaker? Replace circuit breaker.
Voltage output too high. Engine speed
normal 3650 RPM (unloaded), 2500
RPM (idle)
Control box internal wiring
malfunction Check control box wiring.
Circuit breaker will not turn on "NO
LOAD" Defective circuit breaker? Replace circuit breaker.
Circuit breaker will turn on "LOADED"
but trips immediately.
Overload Condition? Reduce load or replace breaker.
Load circuit is shorted? Check load circuit for short.
Does not accelerate from low to high
"NO LOAD"
Stuck solenoid? Check solenoid.
Bad Idle control switch? Check or replace idle control switch.
Does not accelerate from low to high
"LOAD ACTIVE"
Idle control switch malfunction? Check or replace idle control switch.
Idle control device malfunction? Check or replace idle control device.
Control box interal wiring
defective? Check control box wiring.
Does not decelerate no"VOLTAGE
OUTPUT".
Defective rotor windings? Check or replace rotor.
Defective solenoid? Check or replace solenoid.
Defective idle control device? Check or replace idle control device.
Defective solenoid? Check or replace idle control device.
Does not decelerate but has
"VOLTAGE OUTPUT".
Control box wiring malfunction? Check control box wiring, replace any
defective components.
Defective solenoid? Check or replace solenoid.
Idle control device malfunction? Check or replace idle control device.
ga6HB/6HeB
NOTES
ga6HB/ga6HeB
EXPLANATION OF CODE IN REMARKS COLUMN
The following section explains the different symbols and
remarks used in the Parts section of this manual. Use the
help numbers found on the back page of the manual if there
are any questions.
1 12345 BOLT
.....................1 .....INCLUDES ITEMS W/%
2% WASHER, 1/4 IN.
..........NOT SOLD SEPARATELY
2% 12347 WASHER, 3/8 IN.
..1 .....MQ-45T ONLY
3 12348 HOSE
..................A/R ...MAKE LOCALLY
4 12349 BEARING
..............1 .....S/N 2345B AND ABOVE
— All items with same unique symbol
(@, #, +, %, or >) in the number column belong to the
same assembly or kit, which is indicated by a note in the
“Remarks” column.
— Duplicate numbers indicate
multiple part numbers, which are in effect for the same
general item, such as different size saw blade guards in
use or a part that has been updated on newer versions
of the same machine.
— Part numbers can be indicated by a
number, a blank entry, or TBD.
TBD (To Be Determined) is generally used to show a
part that has not been assigned a formal part number
at the time of publication.
A blank entry generally indicates that the item is not sold
separately or is not sold by Multiquip. Other entries will
be clarifi ed in the “Remarks” Column.
NOTICE
The contents and part numbers listed in the parts
section are subject to change . Multiquip
does not guarantee the availability of the parts listed.
NOTICE
When ordering a part that has more than one item
number listed, check the remarks column for help in
determining the proper part to order.
— Item quantity can be indicated by a
number, a blank entry, or A/R.
A/R (As Required) is generally used for hoses or other
parts that are sold in bulk and cut to length.
A blank entry generally indicates that the item is not sold
separately. Other entries will be clarifi ed in the “Remarks”
Column.
Some of the most common notes found in the “Remarks”
Column are listed below. Other additional notes needed
to describe the item can also be shown.
— All items on the parts list with the
same unique symbol will be included when this item is
purchased.
Indicated by:
“INCLUDES ITEMS W/(unique symbol)”
— Used to list an effective serial
number range where a particular part is used.
Indicated by:
“S/N XXXXX AND BELOW”
“S/N XXXX AND ABOVE”
“S/N XXXX TO S/N XXX”
— Indicates that the part
is used only with the specifi c model number or model
number variant listed. It can also be used to show a
part is NOT used on a specifi c model or model number
variant.
Indicated by:
“XXXXX ONLY”
“NOT USED ON XXXX”
— Indicates that the part can
be purchased at any hardware shop or made out of
available items. Examples include battery cables, shims,
and certain washers and nuts.
— Indicates that an item cannot
be purchased as a separate item and is either part of an
assembly/kit that can be purchased, or is not available
for sale through Multiquip.
ga6HB/6HeB
SUGGESTED SPARE PARTS
ga6HB/ga6HeB
/
1............0430430120 ..........CAP FUEL TANK
1............0605505162 ..........FILTER FUEL
2............3015419604 ..........RUBBER SUSPENSION
2............1725419214 ..........RUBBER SUSPENSION
3............9807955846 ..........SPARK PLUG
1............35480ZF6003 .......SWITCH ASSY., OIL ALERT
2............28462ZV7003 ....... ROPE, RECOIL
3............17211899000 ........ELEMENT AIR CLEANER
NOTICE
Part numbers on this Suggested Spare Parts list may
supersede/replace the part numbers shown in the
following parts lists.
ga6HB/ga6HeB

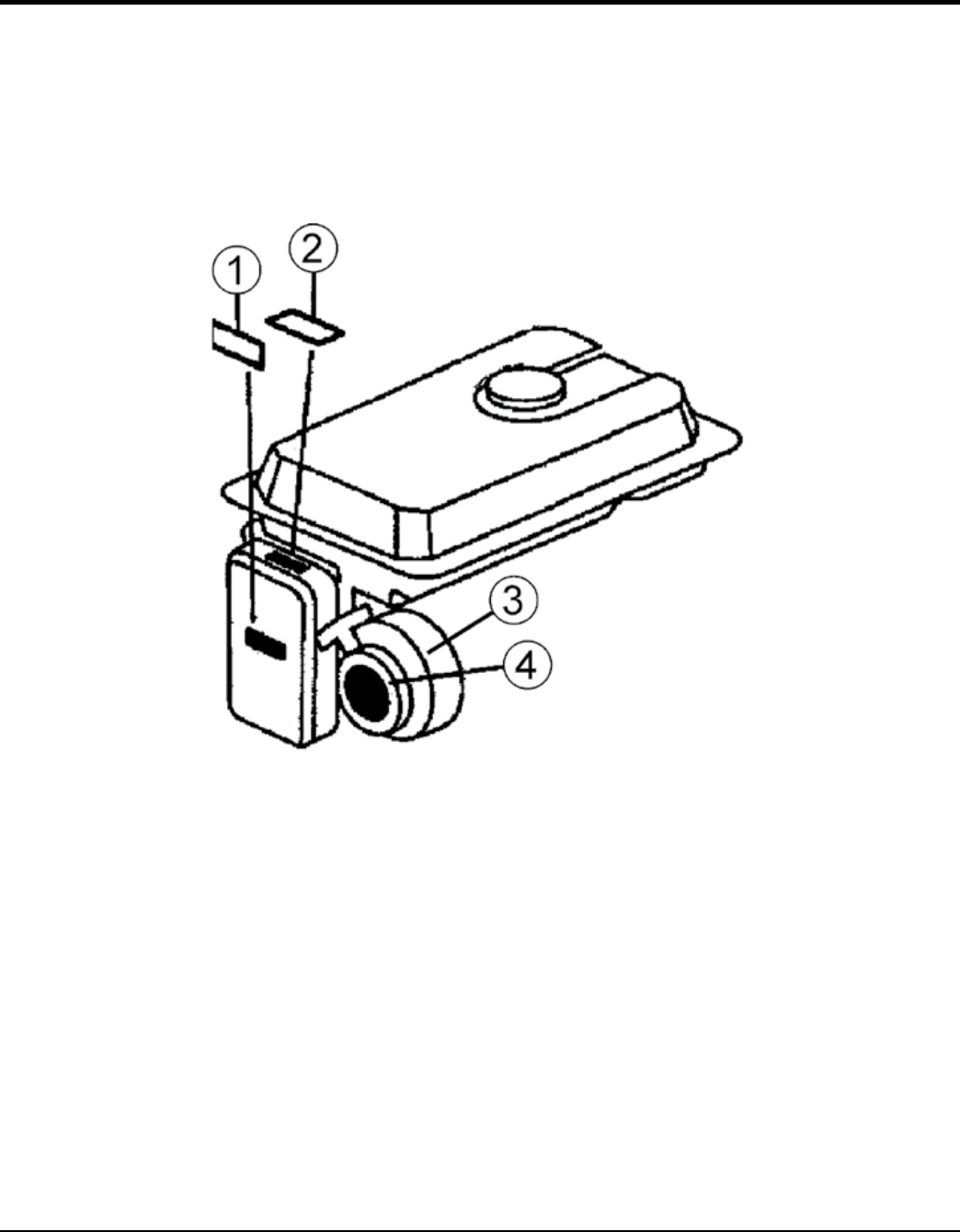

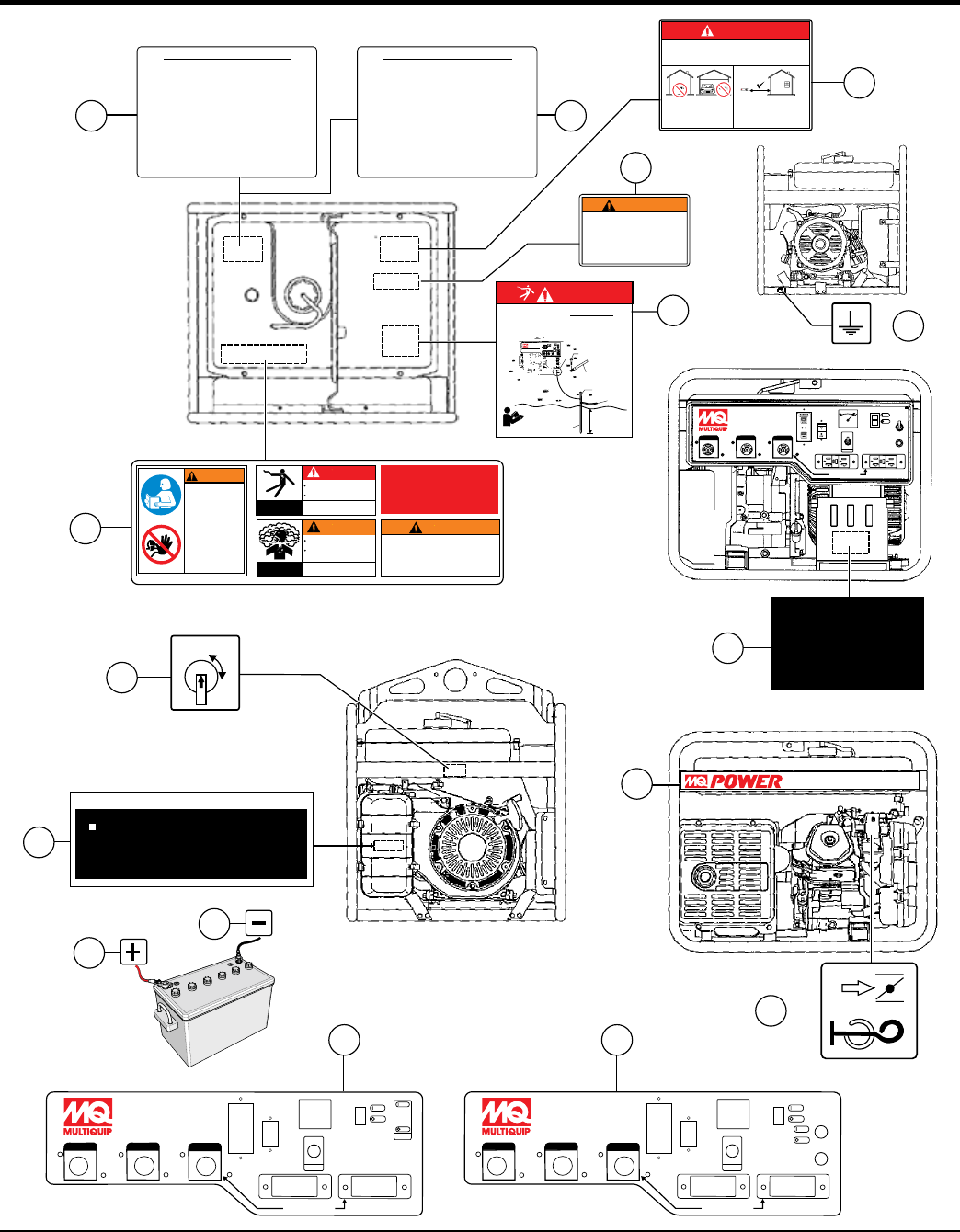

GA6HB/GA6HEB— NAMEPLATE AND DECALS ASSY.
S-1123
To avoid injury,
you MUST read
and understand
operator’s manual
before using this
machine.
Ask for training
as needed.
This machine to
be operated by
qualified
personnel only.
WARNING
Only qualified personnel should
install, use or service this
equipment.
DANGEROUS
GAS
S-4984
WARNING
Only operate machine in well ventilated
areas.
DO NOT inhale exhaust gases.
Only qualified personnel should
install, use or service this
equipment.
S-4985
DANGER
Do not touch output terminals or
internal wiring while unit is operating.
Turn off power before servicing.
Only qualified personnel should
install, use or service this
equipment.
ELECTRICAL
SHOCK
HAZARD
CAUTION
OPERATE AT
3600 RPM ONLY
()
FULL THROTTLE
DAMAGE MAY RESULT IF
OPERATED AT LOWER SPEEDS
WARNING
Before c onnecting t his
generator to any b uilding’s
electrical s ystem, a licensed
electrician must install an
isolation (transfer) s witch.
Serious i njury or d eath may
result without t his transfer
switch.
A91110010
DANGER
Using a generator indoors .
Utilser un générateur à l’ intérieur VOUS TUERA EN QUELQÙES MINUTES.
CAN KILL YOU IN MINUTES
120
V
OFF
GAC-2.2H
POWERED by
Honda Engines
120V
15A
GR PRISE DE
TERRE
AC CIRCUIT BREAKER
INTERRUPTEUR DE
COURANT PRINCIPAL
NEUTRALBONDED TO FRAME
NEUTRE MISALAMASSEA
LACARCASSE DU MOTEUR
211052
120
V
OFF
GAC-2.2H
POWERED by
Honda Engines
120V
15A
GR PRISE DE
TERRE
AC CIRCUIT BREAKER
INTERRUPTEUR DE
COURANT PRINCIPAL
NEUTRALBONDED TO FRAME
NEUTRE MISALAMASSEA
LACARCASSE DU MOTEUR
211052
120
V
OFF
GAC-2.2H
POWERED by
Honda Engines
120V
15A
GR PRISE DE
TERRE
AC CIRCUIT BREAKER
INTERRUPTEUR DE
COURANT PRINCIPAL
NEUTRALBONDED TO FRAME
NEUTRE MISALAMASSEA
LACARCASSE DU MOTEUR
211052
NEVER use in enclosed or partially
enclosed areas.
UtilisationINTERDITE dans un
espace clos ou partiellement clos.
ONLY use outdoors and away from
open windows, doors, and vents.
UtilisationUNIQUEMENT à l’ extér leur
porteset trous d’ aération
Exhaust contains carbon monoxide, a poison gas you cannot see or smell.
Les gaz d’ échappement contiennent du monoxyde de carbon, un gaz toxique
invisible et inodore.
A90400001
GROUND ROD
FOR EARTH
GROUNDCONNECT TO
BUILDING
GROUND
IF REQUIRED
8 FT. MINIMUM
REFERENCE
NEC 250-52(C)
AC CIRCUIT
BREAKER
120/240V
30A
120V
30A20A
20A
0N
OFF
IDLE
CONTROL
OPERATION
SWITCH
ON
OFF
FULLPOWER
SWITCH
120V
120V/240V
120
V
OFF
21A
GA-6H
6000
GROUND
SCREW
GROUND
CABLE
#8 MINIMUM
DANGER
THE POSSIBILITY EXISTS OF IF
GENERATOR/WELDER IS NOTPROPERLY GROUNDED.
ALWAYS CONNECT EARTH GROUND (GROUND
ROD) TO GENERATOR GROUND POINT.
ELECTROCUTION
FOR FURTHER GROUNDING
INSTRUCTIONS, READ MANUAL
D9531100104
WARNING
Operation of this equipment may create
sparks that can start fires around dry
vegetation.
A spark arrestor may be required.
The operator should contact local fire
agencies for laws or regulation relating
to fire prevention requirements. A91110010
3
6
ON
ON
S-3704
FUEL COCK
8
1. Before starting check the oil and fuel level.
2. Switch the circuit breaker to the “OFF” position.
3. Open the fuel valve.
4.
5. Turn the operation switch to the “ON” position
6. After the engine starts, gradually push in the choke knob.
7. Run the generator for 3-5 minutes without load.
8. Check for any abnormal noise or smell.
9. Switch the circuit breaker to the “ON” position.
10.When stopping, cut-off the load and allow the unit
to cool for 2-3 minutes before stopping engine.
11.Turn the operation switch to the “OFF” position.
12. After the engine completely stops, close the fuel valve.
Pull the choke knob.
and push the start button to start the engine.
OPERATING INSTRUCTIONS
A55100000
1
1. Before starting check the oil and fuel level.
2. Switch the circuit breaker to the “OFF” position.
3. Open the fuel valve.
4.
5. Turn the operation switch to the “ON” position.
6. Pull the recoil starter.
. After the engine starts, gradually push in the choke knob.
8. Run the generator for 3-5 minutes without load.
9. Check for any abnormal noise or smell.
10.Switch the circuit breaker to the “ON” position.
11.When stopping, cut-off the load and allow the unit
to cool for 2-3 minutes before stopping engine.
12.Turn the operation switch to the “OFF” position.
13. After the engine completely stops, close the fuel valve.
Pull the choke knob.
7
OPERATING INSTRUCTIONS
A92120010
GA6HB
GA6HEB
2
CLEAN ELEMENT EVERY 50 HOURS (EVERY
10 HOURS UNDER DUSTY CONDITIONS.
WASH IN HIGH FLASH-POINT SOLEVENT
SQUEEZE DRY, THE DIPIN CLEAN ENGINE
OIL AND SQUEEZE OUT EXCESS OIL.
AIR CLEANER MAINTENANCE
10
14
GA-6H
11
120/240V
30A
0N
OFF
IDLE
CONTROL
GA-6HEB
120
20A
120
30A
AC CIRCUIT BREAKER
GFCI PROTECTED
AC VOLTMETER
120V
FULL POWER
SWITCH
120V
120V/240V
120 V
20A
120 V
20A
IN SIMULTANEOUS USE 30 AMPMAX
A51120230
0N
OFF
OPERATION
SWITCH
STARTSWITCH
120/240V
30A
0N
OFF
IDLE
CONTROL
OPERATION
SWITCH
ON
OFF
GA-6HB
120
20A
120
30A
AC CIRCUIT BREAKER
GFCI PROTECTED
AC VOLTMETER
120V
FULL POWER
SWITCH
120V
120V/240V
120 V
20A
120 V
20A
IN SIMULTANEOUS USE 30 AMP MAX
A511202002
S-2090
S-2091
15
12
13
16
BATTERY
CAPACITY 12V 26 Ah
CONNECTION (+) STARTER
(-) EARTH
KEEP COVER ON THE BATTERY
WHEN DURING OPERATION.
S-1237
4
5
7
120/240V
30A
0N
OFF
IDLE
CONTROL
120
V
GA-6HEB
120
20A
120
30A
AC CIRCUIT BREAKER
GFCI PROTECTED
120
AC VOLTMETER
120V
FULLPOWER
SWITCH
120V
120V/240V
MANUALRESET
P
O
W
E
R
F
A
U
L
T
120 V
20A
120 V
20A
IN SIMULTANEOUS USE 30AMPMAX
ELECTRIC START
START
SWITCH
OPERATION
SWITCH
9
ga6HB/6HeB
1 A5551000004 DECAL; OPERATING INSTRUCTIONS (HEB) ..1................A55100000
2 A9521200104 DECAL; OPERATING INSTRUCTIONS (HB) ....1................A92120010
3 A9504000014 DECAL; DANGER, DANGEROUS GASES .......1................A90400001
4 920214100 DECAL; WARNING, START FIRES ...................1................M90420000
5 D9531100104 DECAL; DANGER, ELECTROCUTION .............1................A93110010
6 0800628504 DECAL; GROUND, (S-1123) .............................1................REPLACES P/N W0800628504
7 A9511100103 DECAL; WARNING ............................................1................A91110010
8 1980680004 DECAL; FUEL COCK.........................................1................S-3704
9 0800696804 DECAL; BATTERY (S-1237) ..............................1................REPLACES P/N 0800696604
10 87533ZC0630 DECAL; AIR CLEANER 1
11 A5561000603 DECAL; MQ POWER, GA-6H 1
12 0800689404 DECAL; + (POSITIVE) .......................................1................S-2090
13 0800689504 DECAL; - (NEGATIVE) .......................................1................S-2091
14 87528898620 DECAL; CHOKE 1
15 A5511202002 DECAL; CONTROL PANEL (HB) .......................1................A51120200
16 A5511202302 DECAL; CONTROL PANEL (HEB) ....................1................A51120230
GA6HB/GA6HEB— NAMEPLATE AND DECALS ASSY.
ga6HB/ga6HeB

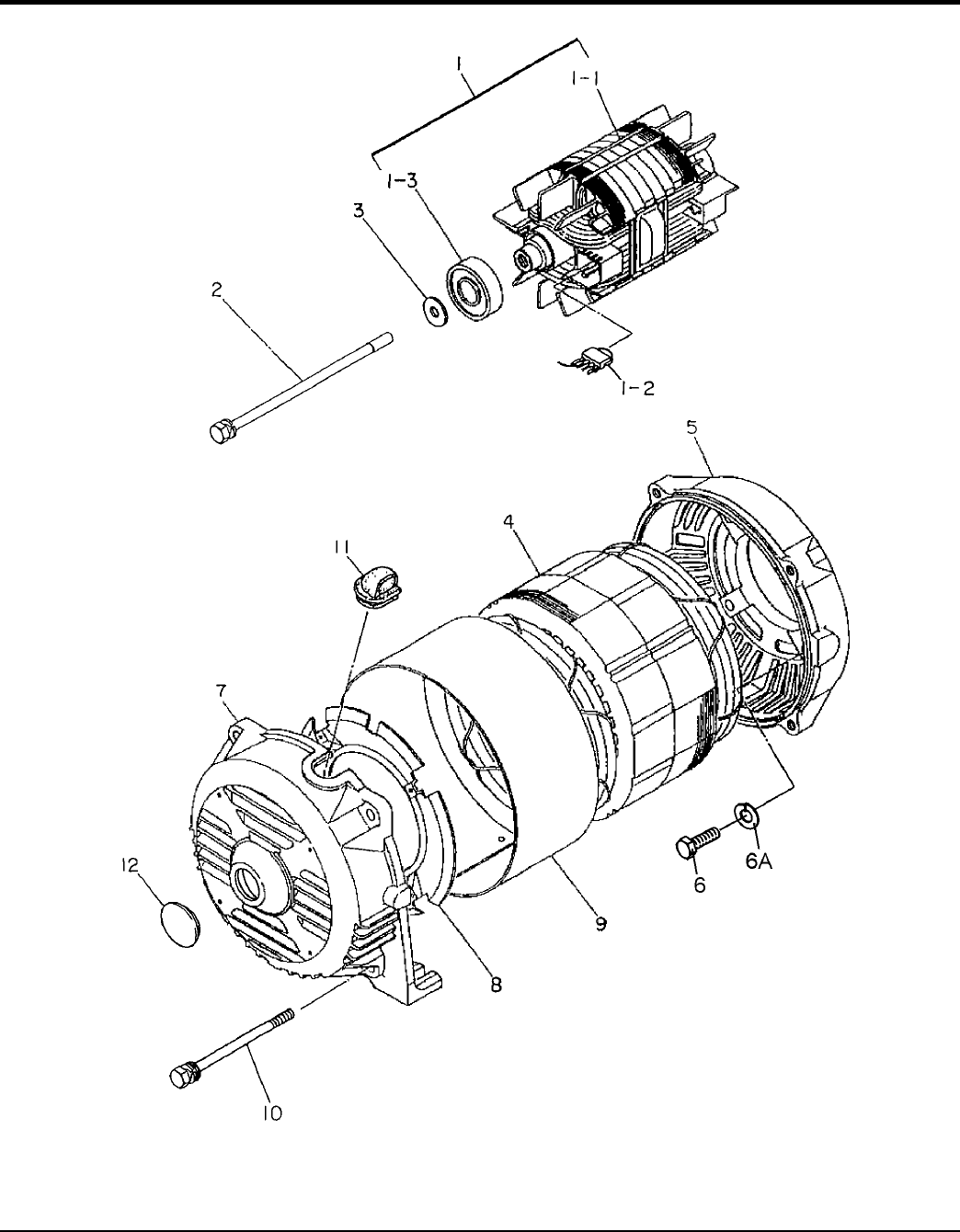

GA6HB/GA6HEB — GENERATOR ASSY.
ga6HB/6HeB
GA6HB/GA6HEB — GENERATOR ASSY.
1 7901002403 ROTOR ASSY. ...................................................1................INCLUDES ITEMS W/#
1-1# FIELD ASSY .....................................................1................NOT SOLD SEPARATELY
1-2# 0601823213 RECTIFIER D3SB80 2
0601822638 SURGE ABSORBER 2
1-3# 0071706304 BEARING 6304 1
2 7901017004 SET BOLT, ROTOR 1
3 0801086104 SET WASHER, BEARING 1
4 A5135000103 ARMATURE ASSY. 1
5 7901315502 END BRACKET 1
6 0013608020 HEX. HEAD BOLT 4
6A 0040008000 WASHER, LOCK 4
7 7871315022D END BRACKET ................................................1................REPLACES P/N 7871315022
8 7875021523 GUIDE PANEL, AIR 1
9 7871331003 COVER 1
10 7901316004 SET BOLT, STATOR 4
11 7871329514 GROMMET 1
12 0601851760 CAP 1
ga6HB/ga6HeB

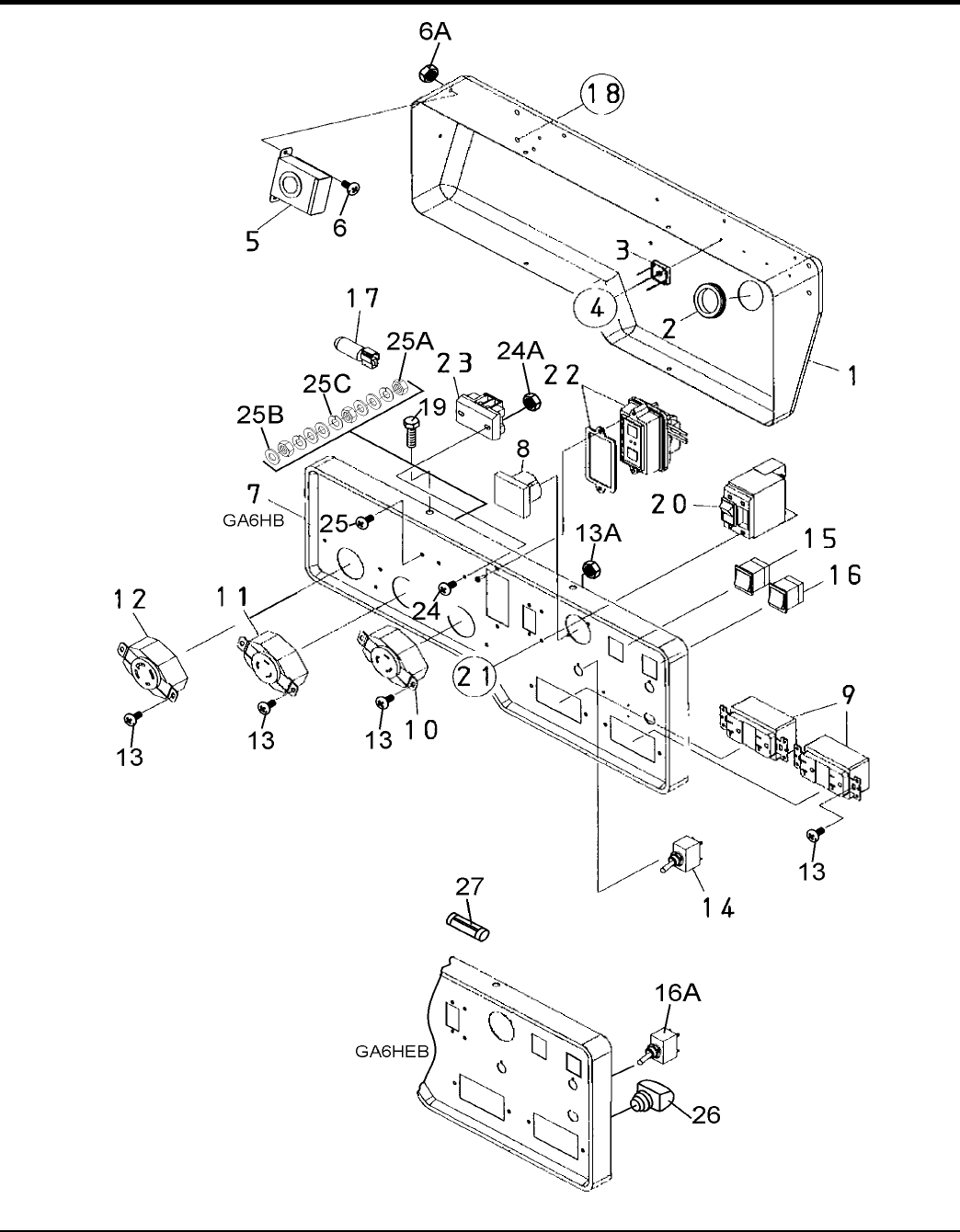

GA6HB/GAGHEB — CONTROL BOX ASSY.
ga6HB/6HeB
GA6HBGA6HEB — CONTROL BOX ASSY.
1 A3214000103 CONTROL BOX 1
2 0601850102 GROMMET 1
3 0601823204 RECTIFIER S5VB60 2
4 0027103012 MACHINE SCREW 2
5 0601823853 SLOW DOWN UNIT 1
6 0027104010 MACHINE SCREW 2
6A OEMAA8 HEX. NUT .........................................................2................REPLACES P/N 0207004000
7 A3224000303 CONTROL PANEL 1
8 0601806819 AC VOLTMETER, DE450, 0~240V 1
9 0601814065 RECEPTACLE, 5-20R DR20 (GFCI) 2
10 0601811092 RECEPTACLE, L5-20R, 125V, 20A ...................1................REPLACES P/N 0601812592
11 0601811031 RECETPACLE, L5-30R, 125V, 30A ...................1................REPLACES P/N 0601811035
12 0601812529 RECEPTACLE, L14-30R 1
13 0021004010 MACHINE SCREW 10
13A OEMAA8 HEX. NUT ........................................................10...............REPLACES P/N 0207004000
14 0601830737 FULL POWER SWITCH 1
15 0601831620 IDLE CONTROL SWITCH 1
16 0601831620 OPERATION SWITCH 1
16A 0601830737 OPERATION SWITCH 1
17 A3262800004 CAPACITOR 50V @1000 F 1
18 011106015 HEX. HEAD BOLT ..............................................4................REPLACES P/N 0017106015
19 0017105010 HEX. HEAD BOLT 4
20 0601872301 CIRCUIT BREAKER, 23A, 2P @120V 1
21 0021003005 MACHINE SCREW 4
22 0601829301 EARTH LEAKAGE RELAY, 120V 1
23 0601815870 TERMINAL BOARD 1
24 0021004020 MACHINE SCREW 2
24A OEMAA8 HEX. NUT .........................................................2................REPLACES P/N 0207004000
25 Y0027004025 MACHINE SCREW 1
25A 0030004000 HEX. NUT 3
25B 58042 WASHER, FLAT .................................................5................REPLACES P/N 0041204000
25C 0040004000 WASHER, LOCK 3
26 0602100102 START SWITCH, GA6HEB 1
27 0601802137 FUSE, 10A
ga6HB/ga6HeB

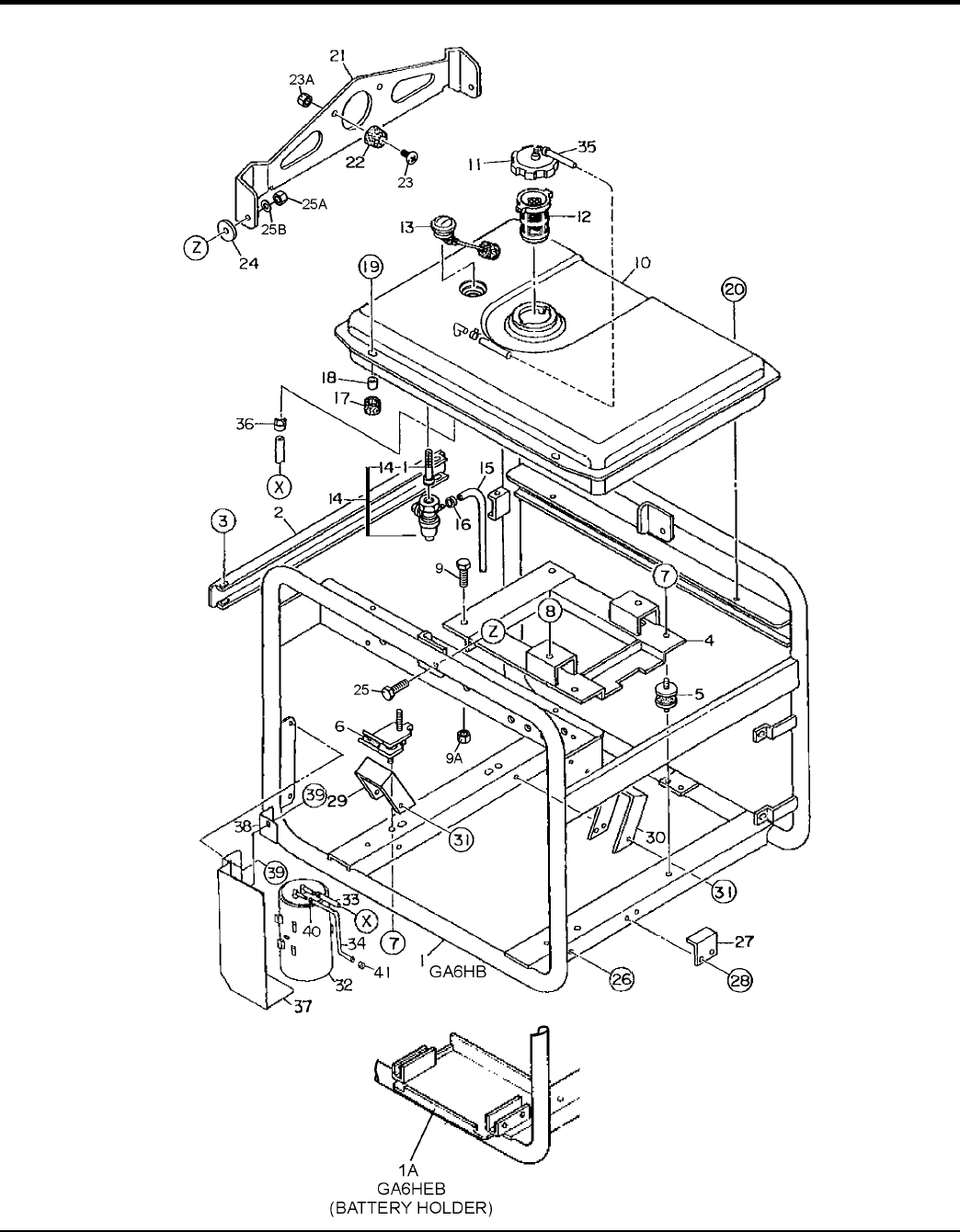

GA6HB/GA6HEB — PIPE FRAME ASSY.
ga6HB/6HeB
1 A5417000702 PIPE FRAME, GA6HB 1
1A A5417000802 PIPE FRAME, GA6HEB 1
2 A3417100004 BRACKET 1
3 0017106015 HEX. HEAD BOLT 4
4 7905443003 BASE 1
5 3015419604 RUBBER SUSPENSION 2
6 1725419214 RUBBER SUSPENSION 2
7 0207008000 HEX. NUT ..........................................................8................REPLACES P/N 0207008000
8 0017108030 HEX. HEAD BOLT 2
9 0017108040 HEX. HEAD BOLT 2
9A 020108060 HEX. NUT ..........................................................2................REPLACES P/N 0207008000
10 A3361000004 FUEL TANK 1
11 0430430120 CAP, FUEL TANK ..............................................1................REPLACES P/N 0605505068
12 0605505162 FUEL FILTER 1
13 0602125034 FUEL GAUGE 1
14 16950ZB4015 FUEL STRAINER 1
14-1 16952KJ9752 SCREEN SET ....................................................1................REPLACES P/N 16952ZB4005
15 0605513212 HOSE 1
16 950024080008 HOSE BAND .....................................................2................REPLACES P/N 0605515241
17 7855525514 RUBBER CUSHION 2
18 7855525604 COLLAR 2
19 0017108030 HEX. HEAD BOLT 2
20 011008020 HEX. HEAD BOLT ..............................................2................REPLACES P/N 0017108020
21 A9117200103 HANGER 1
22 0601850097 STOPPER 1
23 011208025 MACHINE SCREW ............................................1................REPLACES P/N 0021008025
23A 020108060 HEX. NUT ..........................................................1................REPLACES P/N 0207008000
24 0601851116 PLASTIC WASHER 2
25 011208025 HEX. HEAD BOLT ..............................................2................REPLACES P/N 0011308025
25A 020108060 HEX. NUT ..........................................................2................REPLACES P/N 0037908000
25B 0042108000 WASHER, FLAT 2
26 0019206015 HEX. HEAD BOLT 1
27 7915456004 STOPPER 1
28 011106015 HEX. HEAD BOLT ..............................................2................REPLACES 0017106015
29 7915455103 COVER 1
30 7855455003 COVER 1
31 011106015 HEX. HEAD BOLT ..............................................6................REPLACES P/N 0017106015
32 0605507002 CANISTER 1
33 0605513202 HOSE 1
34 0605513210 HOSE 1
35 0605513189 HOSE 1
36 0605515223 HOSE BAND 4
37 A3261600103 BRACKET 1
38 A3261600204 STOPPER 1
39 011106015 HEX. HEAD BOLT ..............................................3................REPLACES 0016906015
40 0605515170 HOSE BAND 1
41 Y0605515229 HOSE BAND 1
GA6HBGA6HEB — PIPE FRAME ASSY.
ga6HB/ga6HeB

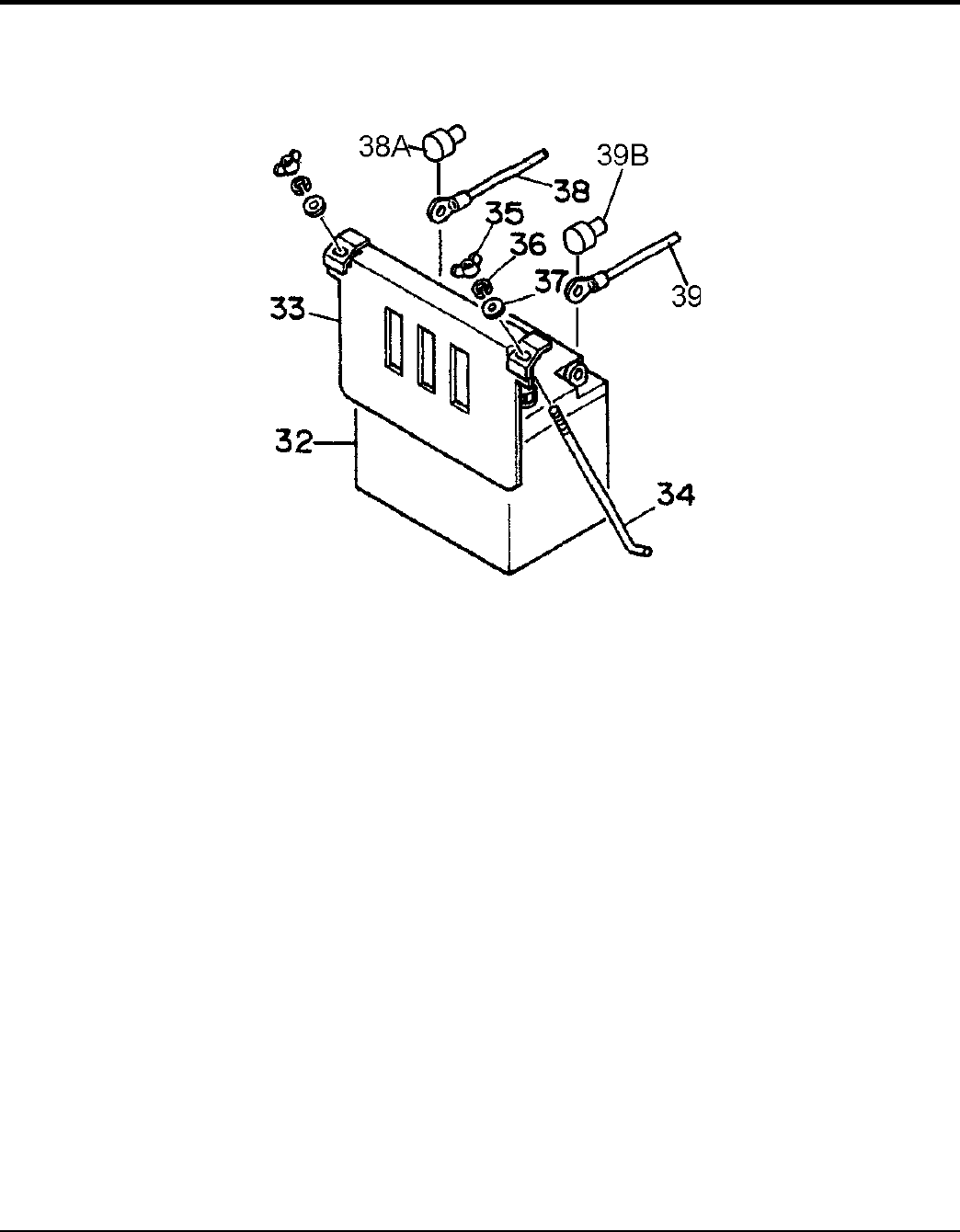

GA6HEB — BATTERY ASSY.
ga6HB/6HeB
GA6HEB — BATTERY ASSY.
32 BATTERY ...........................................................1................PURCHASE LOCALLY
33 7905458103 BATTERY BAND 1
34 A5344200004 BATTERY BOLT 2
35 0037806000 WING NUT 2
36 0040006000 SPRING NUT 2
37 0041206000 WASHER, FLAT 2
38 A5347000504 BATTERY CABLE, NEGATIVE 1
38A D1343200604 TERMINAL CAP 1
39 A5347000004 BATTERY CABLE, POSITIVE 1
38B Y0602220643 TERMINAL CAP 1
page 50 — ga6HB/ga6HeB

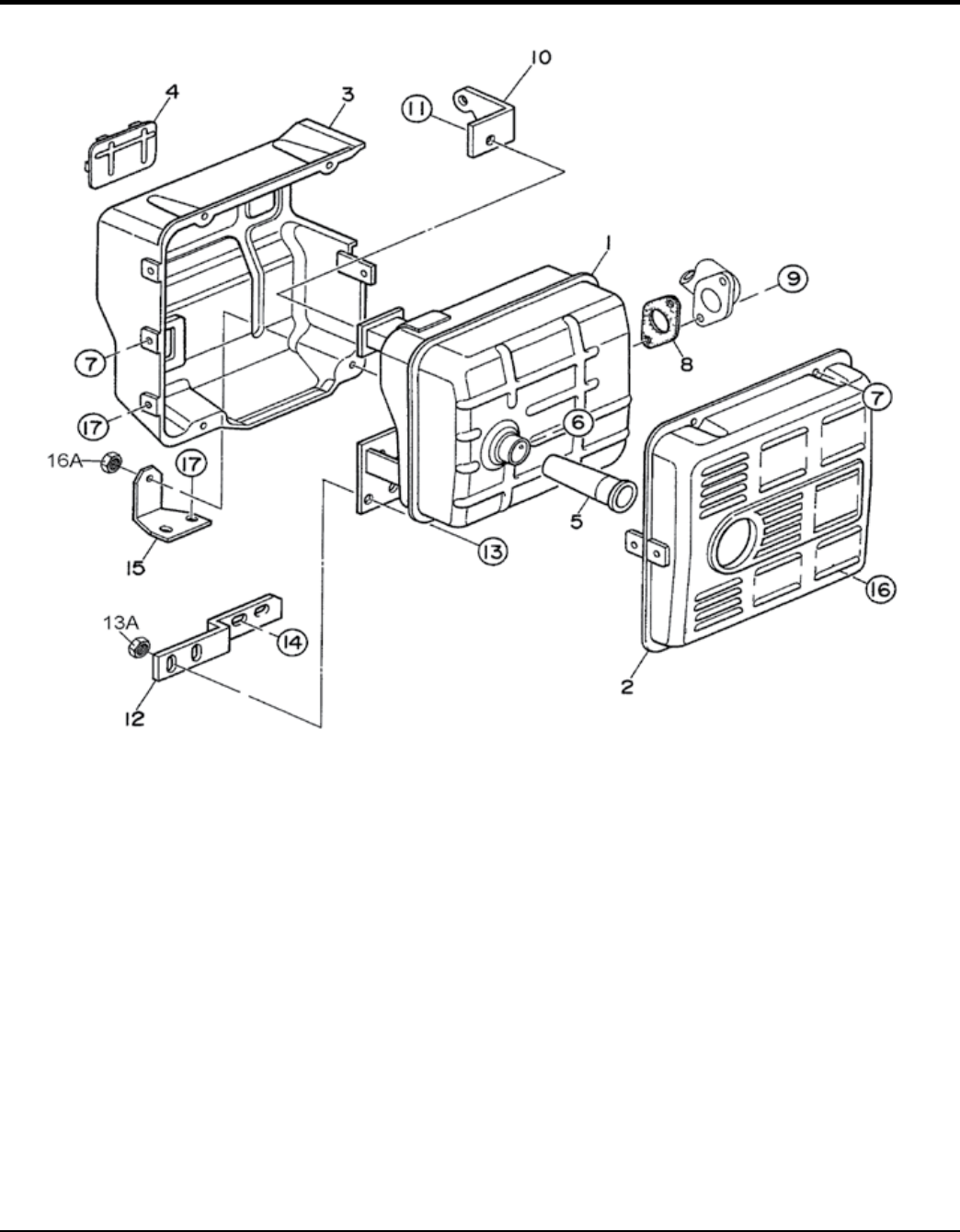

GA6HB/GA6HEB — MUFFLER ASSY.
ga6HB/6HeB
1 W7912310003 MUFFLER 1
2 18320ZC2000 PROTECTOR 1
3 18325ZB4000 PROTECTOR 1
4 18329ZB4000 SEAL 2
5 18355ZB4630 ARRESTOR, SPAR 1
6 Y0602322011 TAPPPING SCREW 1
7 0105050616 HEX. HEAD BOLT .............................................5................REPLACES P/N 0017106012
8 18333ZB4801 GASKET 1
9 Y0602322010 HEX. HEAD BOLT 2
10 W7905461004 BRACKET 1
11 011008020 HEX. HEAD BOLT ..............................................1................REPLACES P/N 0017108020
12 W7905460004 BRACKET 1
13 011208025 HEX. HEAD BOLT .............................................2................REPLACES P/N 0017108025
13A 020108060 HEX. NUT .........................................................2................REPLACES P/N 0207008000
14 011008020 HEX. HEAD BOLT ..............................................2................REPLACES P/N 0017108020
15 W7905469004 BRACKET 1
16 011206020 HEX. HEAD BOLT .............................................1................REPLACES P/N 0017106020
16A 020108060 HEX. NUT .........................................................1................REPLACES P/N 0207008000
17 0105050616 HEX. HEAD BOLT ..............................................4................REPLACES P/N 0017106012
GA6HB/GA6HEB — MUFFLER ASSY.
page 52 — ga6HB/ga6HeB

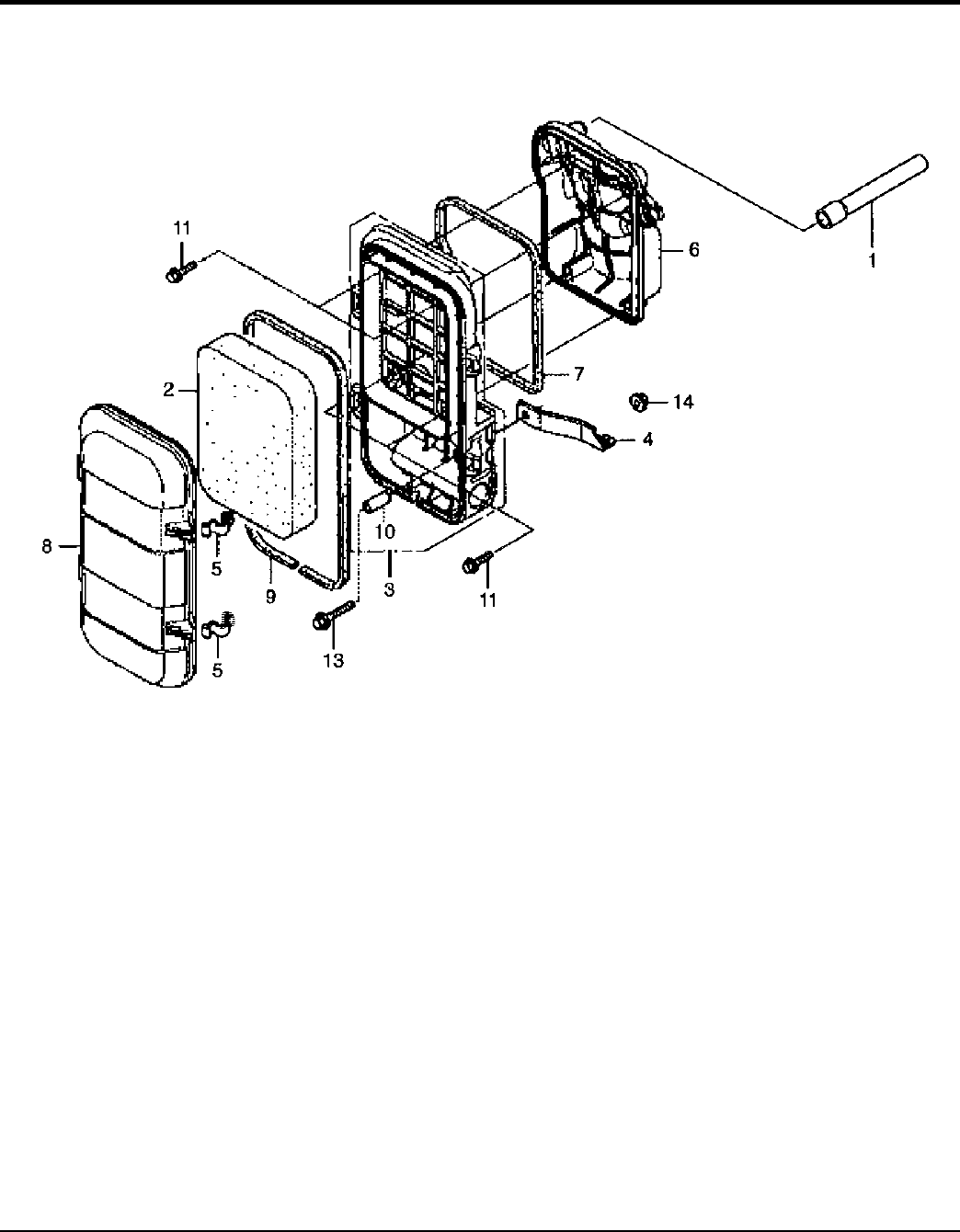

HONDA GX340R2EDE2/EDN2 — AIR CLEANER ASSY.
ga6HB/6HeB
1 15721Z23H60 TUBE BREATHER 1
2 17211899000 ELEMENT, AIR CLEANER 1
3 17220Z23530 CASE COMP, AIR CLEANER 1
4 17222Z23H60 STAY, AIR CLEANER 1
5 17223Z23000 SPRING, AIR CLEANER CASE LID 1
6 17223Z23S30 BASE COMP, AIR CLEANER 1
7 17229Z23H60 SEAL AIR CLEANER CASE 1
8 17231Z23H60 COVER, AIR CLEANER 1
9 17229Z23H60 SEAL AIR CLEANER COVER 1
10 17238ZE7710 COLLAR, AIR CLEANER 1
11 90005ZM3000 BOLT, FLANGE, 5X18 4
13 957010603208 BOLT, FLANGE, 6X32 1
139405006000 BOLT, FLANGE, 6 MM 1
HONDA GX340R2EDE2/EDN2 — AIR CLEANER ASSY.
ga6HB/ga6HeB
HONDA GX340R2EDE2/EDN2 — CAMSHAFT ASSY.
ga6HB/6HeB
1 12209ZE8003 SEAL VALVE STEM 1
2 14100Z5K810 CAMSHAFT ASSY. ............................................1................INCLUDES ITEMS W/$
3 14410ZE3013 ROD, PUSH 2
4 14431ZE2010 ARM, VALVE ROCKER 2
5 14441ZE2000 LIFTER VALVE 2
6 14451ZE1013 PIVOT, ROCKER ARM 2
7$ 14568ZE1000 SPRING, WEIGHT RETURN 1
8 14711Z5T000 VALVE, IN. 1
9 14721Z5T000 VALVE, EX. 1
10 14751ZE2003 SPRING, VALVE 2
11 14771ZE2000 RETAINER, INTAKE VALVE SPRING 1
12 14773ZE2000 RETAINER, EXHAUST VALVE SPRING 1
13 14775ZE2010 SEAT, VALVE SPRING 1
14 14781ZE2000 ROTATOR, VALVE 1
15 14791ZE2010 PLATE, PUSH ROD GUIDE 1
16 90012ZE0010 BOLT, PIVOT (8MM) 2
17 90206ZE1000 NUT, PIVOT ADJ. 2
HONDA GX340R2EDE2/EDN2 — CAMSHAFT ASSY.
page 56 — ga6HB/ga6HeB

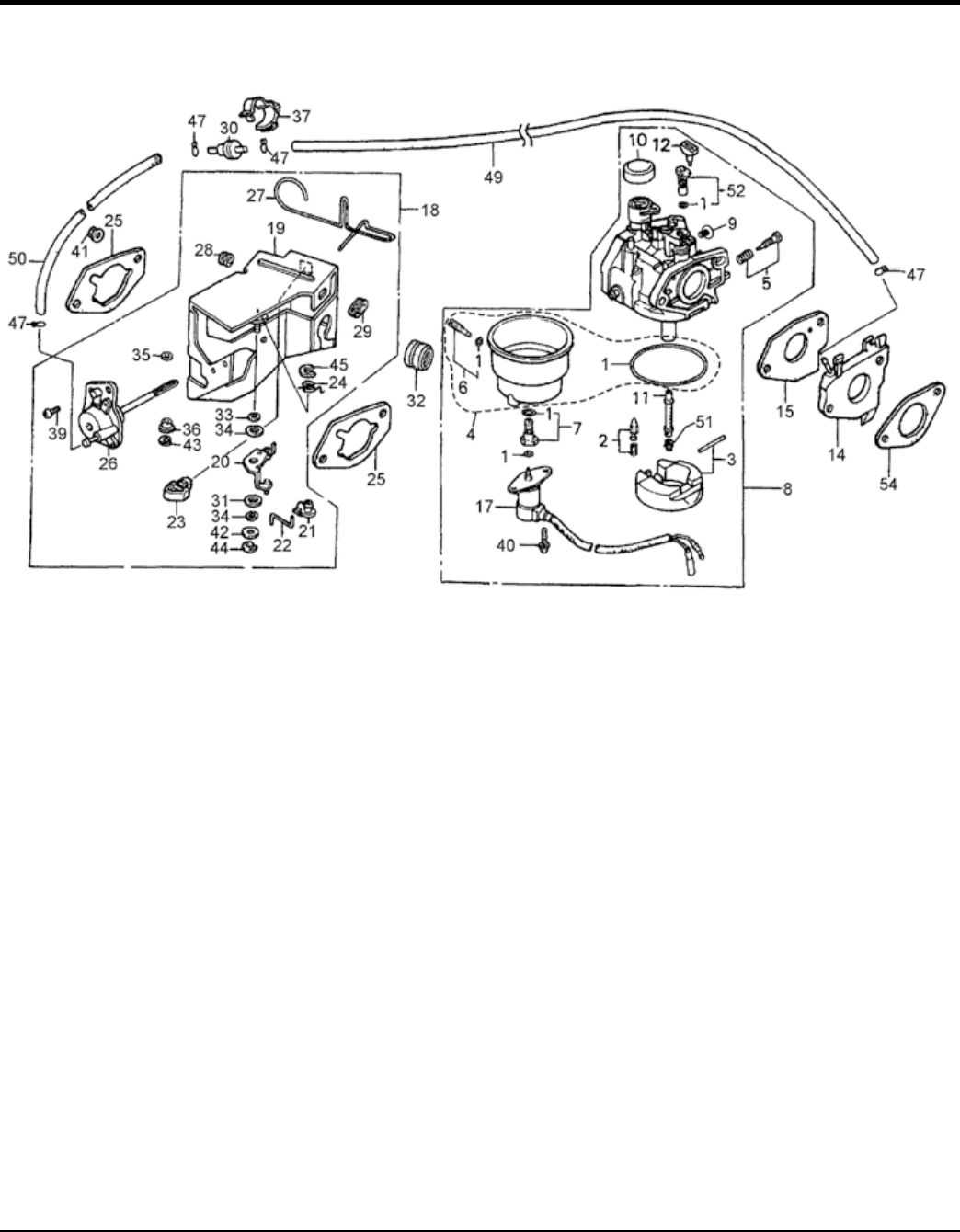

HONDA GX340R2EDE2/EDN2 — CARBURETOR ASSY.
ga6HB/6HeB
1$+♦♣@ 16010ZE3701 GASKET SET 1
2$ 16011ZA0931 VALVE SET, FLOAT 1
3$ 16013Z1C003 FLOAT SET 1
4$% 16015ZA0931 CHAMBER SET, FLOAT ...........................1................INCLUDES ITEMS W/@
5$ 16016ZH7W01 SCREW SET 1
6$%@ 16024124760 SCREW SET, DRAIN ................................1................INCLUDES ITEMS W/+
7$% 16028ZA0931 SCREW SET B .........................................1................INCLUDES ITEMS W/♦
8 16100Z8W701 CARBURETOR ASSY. ...............................1................INCLUDES ITEMS W/$
9$ 16124ZE0005 SCREW, THROTTLE STOP 1
10$ 16148141881 CAP, CHOKE LEVER DUST 1
11$ 16166ZE3F10 NOZZLE, MAIN 1
12$ 16172ZE3W10 COLLAR, SETTING 1
14 16211Z9H700 INSULATOR, CARBURETOR 1
15 16221Z8T000 GASKET, INSULATOR 1
17$ 16230ZE3702 VALVE ASSY., SOLENOID 1
18 16260ZE3D22 STAY ASSY., MANUAL CHOKE .................1................INCLUDES ITEMS W/#
19# 16261ZE2702 STAY, SOLENOID 1
20# 16262ZE2711 LEVER, CHOKE 1
21# 16263ZA0000 JOINT, ROD 1
22# 16264ZE2701 ROD, CHOKE 1
23# 16265ZE2721 STOPPER, CHOKE ROD 1
24# 16268ZE2721 SPRING, MANUAL CHOKE 1
25 16269ZA0800 GASKET, AIR CLEANER 2
26# 16400ZE2704 DIAPHRAGM ASSY. 1
27# 16611ZE3D21 ROD, CHOKE CONTROL 1
28# 16613893000 GROMMET, CHOKE ROD 1
29# 16615893000 GUIDE, CHOKE ROD 1
30 36135ZF6D41 VALVE, DASHPOT CHECK 1
31# 53149964003 BUSH, ARM PIVOT 1
32 88911MJ3000 GROMMET, FENDER 1
33# 90431ZE2700 WASHER, CHOKE LEVER 1
34# 90432ZE2700 SEAL, CHOKE LEVER 2
35# 90433ZE2700 WASHER, THRUST (2.7X8) 1
36# 90434ZE2700 COLLAR, LEVER 1
37 90650SD9003 CLIP, WIRE HARNESS 1
39# 93500050120A SCREW, PAN (5X12) 2
40$ 938920501218 SCREW, WASHER (5X12) 2
41 9405006000 NUT, FLANGE (6MM) 2
42# 9410305000 WASHER, FLASH (5MM) 1
43# 9454002010 E-RING (2MM) 1
44# 9454004010 E-RING (4MM) 1
45# 9454007010 E-RING (7MM) 1
47 9500202070 CLIP, TUBE (B7) 4
49 950053507510 TUBE (3.5X75) 1
50 950053513010 TUBE (3.5X130) 1
51$ 99101ZH80950 JET, MAIN (#95) 1
51$ 99101ZH80980 JET, MAIN (#98) 1
52$ 99204ZE00380 JET, SET PILOT MAIN, (#38) ....................1................INCLUDES ITEMS W/♣
54 16212Z5T000 GASKET, CARBURETOR INSULATOR 1
HONDA GX340R2EDE2/EDN2 — CARBURETOR ASSY.
page 58 — ga6HB/ga6HeB

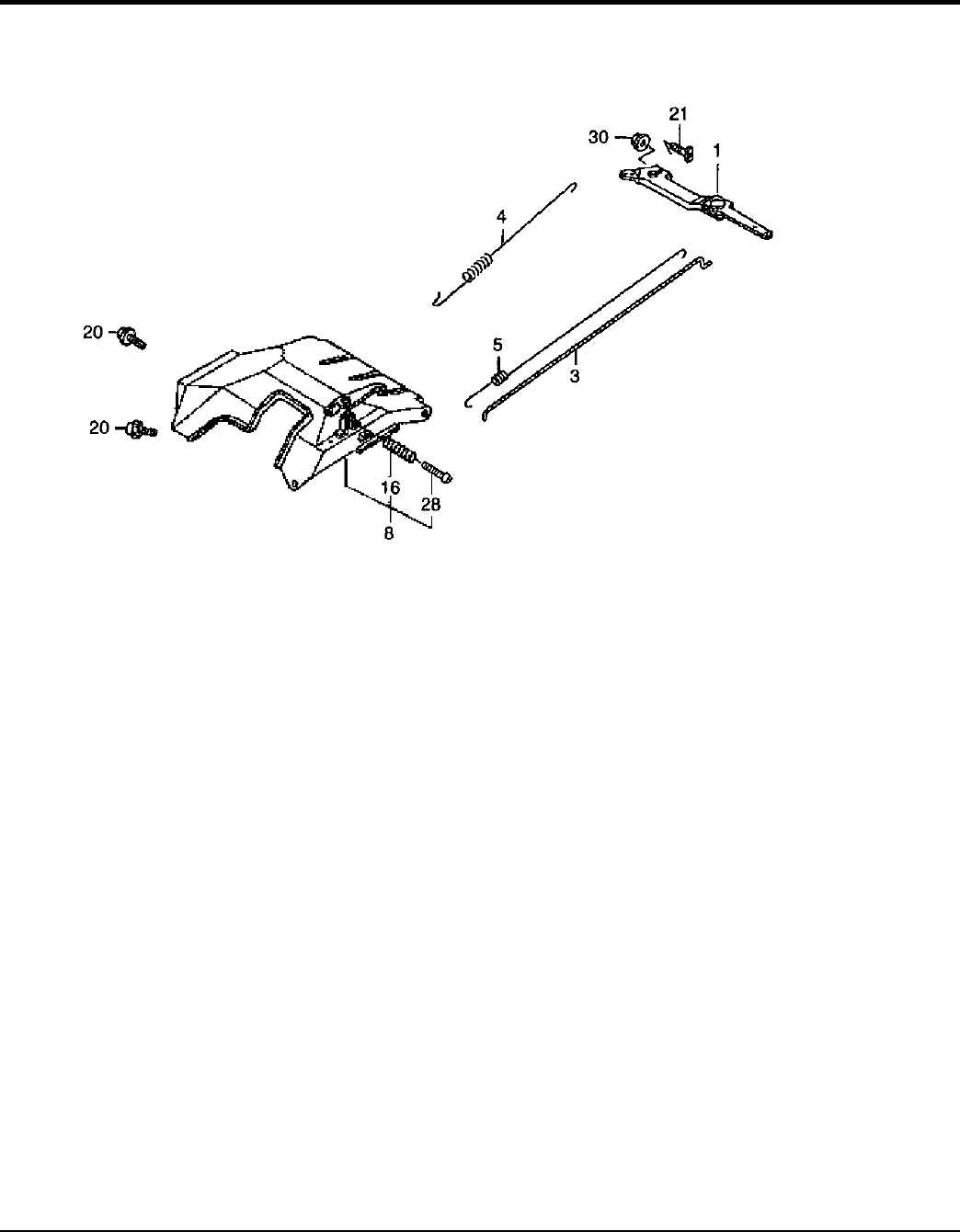

HONDA GX340R2EDE2/EDN2 — CONTROL ASSY.
ga6HB/6HeB
1 16550ZE3700 ARM, GOVERNOR 1
3 16555ZE3000 ROD, GOVERNOR 1
4 16561ZK6D70 SPRING, GOVERNOR 1
5 16562ZE3700 SPRING, THROTTLE RETURN 1
8 16570Z5T880 CONTROL ASSY................................................1................INCLUDES ITEMS W/$
16$ 16584883300 SPRING, CONTROL ADJUSTING 1
20 90013883000 BOLT, FLANGE 6X12 2
21 90015ZE5010 BOLT, GOVERNOR ARM 1
28$ 93500050350A SCREW, PAN (5X35) 1
30 9405006000 NUT, FLANGE (6MM) 1
HONDA GX340R2EDE2/EDN2 — CONTROL ASSY.
page 60 — ga6HB/ga6HeB

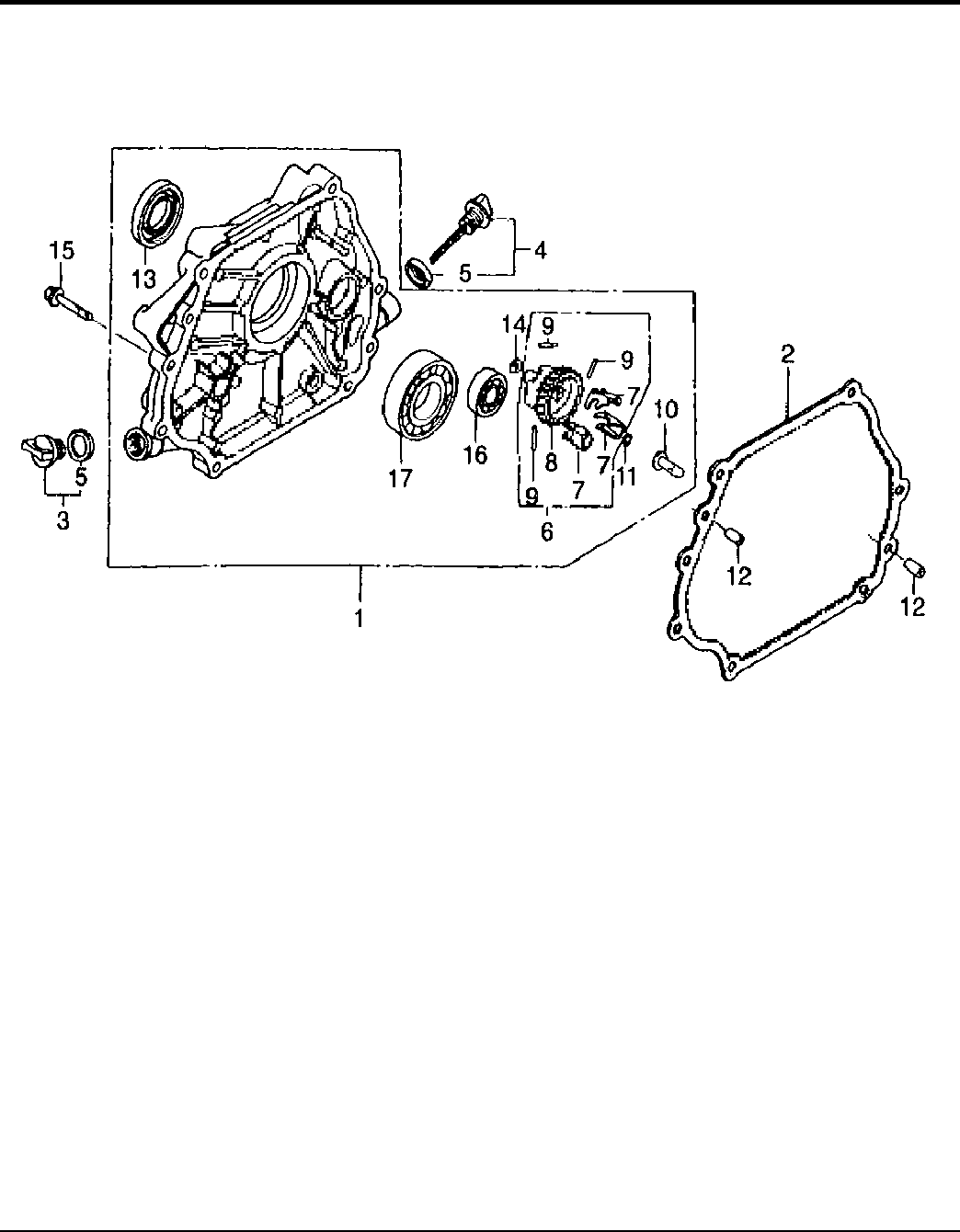

HONDA GX340R2EDE2/EDN2 — CRANKCASE COVER ASSY.
ga6HB/6HeB
1 11300ZE3040 COVER ASSY., CRANKCASE ...........................1................INCLUDES ITEMS W/$
2 11381Z5T000 PACKING CRANKCASE COVER 1
3 15600ZG4003 CAP ASSY., OIL FILLER ...................................1................INCLUDES ITEMS W/%
4 15600735003 CAP ASSY., OIL FILLER ...................................1................INCLUDES ITEMS W/@
5%@ 15625ZE1003 PACKING, OIL FILTER 2
6$ 16510ZE3000 GOVERNOR ASSY. ...........................................1................INCLUDES ITEMS W/#
7#$ 16511ZE8000 WEIGHT, GOVERNOR 3
8#$ 16512ZE3000 HOLDER, GOVERNOR WEIGHT 1
9#$ 16513ZE2000 PIN, GOVERNOR WEIGHT 3
10$ 16531ZOA000 SLIDER, GOVERNOR 1
11$ 90602ZE1000 CLIP, GOVERNOR HOLDER 1
12 90701HC4000 PIN, DOWEL (8X12) 2
13$ 91201ZE3004 OIL SEAL (35X52X8) .........................................1................REPLACES 92102ZE3004
14$ 9410106800 WASHER, PLAIN (6MM) 1
15 957010804000 BOLT, FLANGE (8X40) 7
16$ 961006202000 BEARING, RADIAL BALL (6202) 1
17$ 961006207000 BEARING, RADIAL BALL (6207) 1
HONDA GX340R2EDE2/EDN2 — CRANKCASE COVER ASSY.
page 62 — ga6HB/ga6HeB

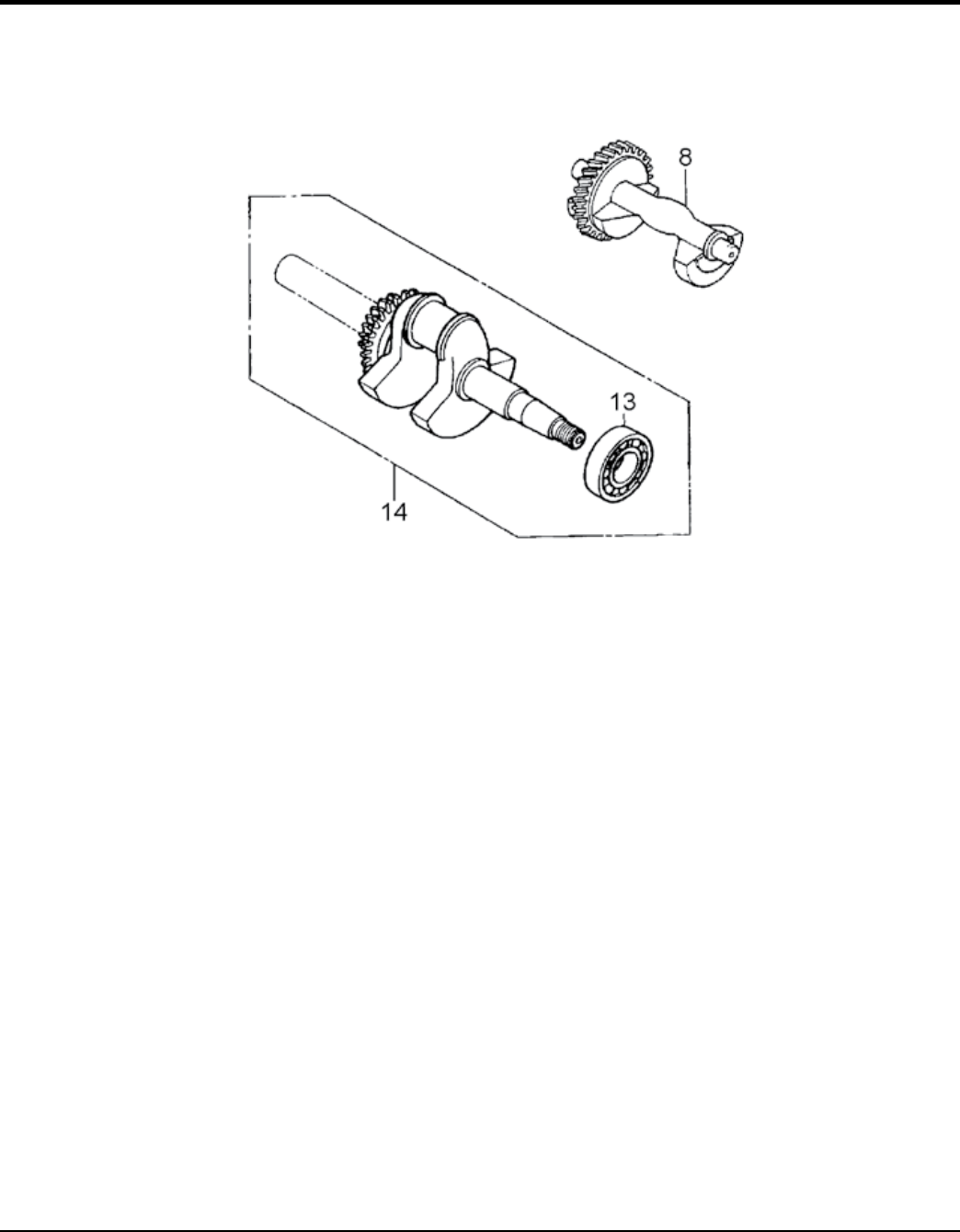

HONDA GX340R2EDE2/EDN2 — CRANKSHAFT ASSY.
ga6HB/6HeB
8 13351ZE3010 WEIGHT, BALANCER 1
13# 961001ZF6013 BEARING, RADIAL BALL (6207) 1
14 13310ZF6D42 CRANKSHAFT COMP. .......................................1................INCLUDES ITEM W/#
HONDA GX340R2EDE2/EDN2 — CRANKSHAFT ASSY.
ga6HB/ga6HeB

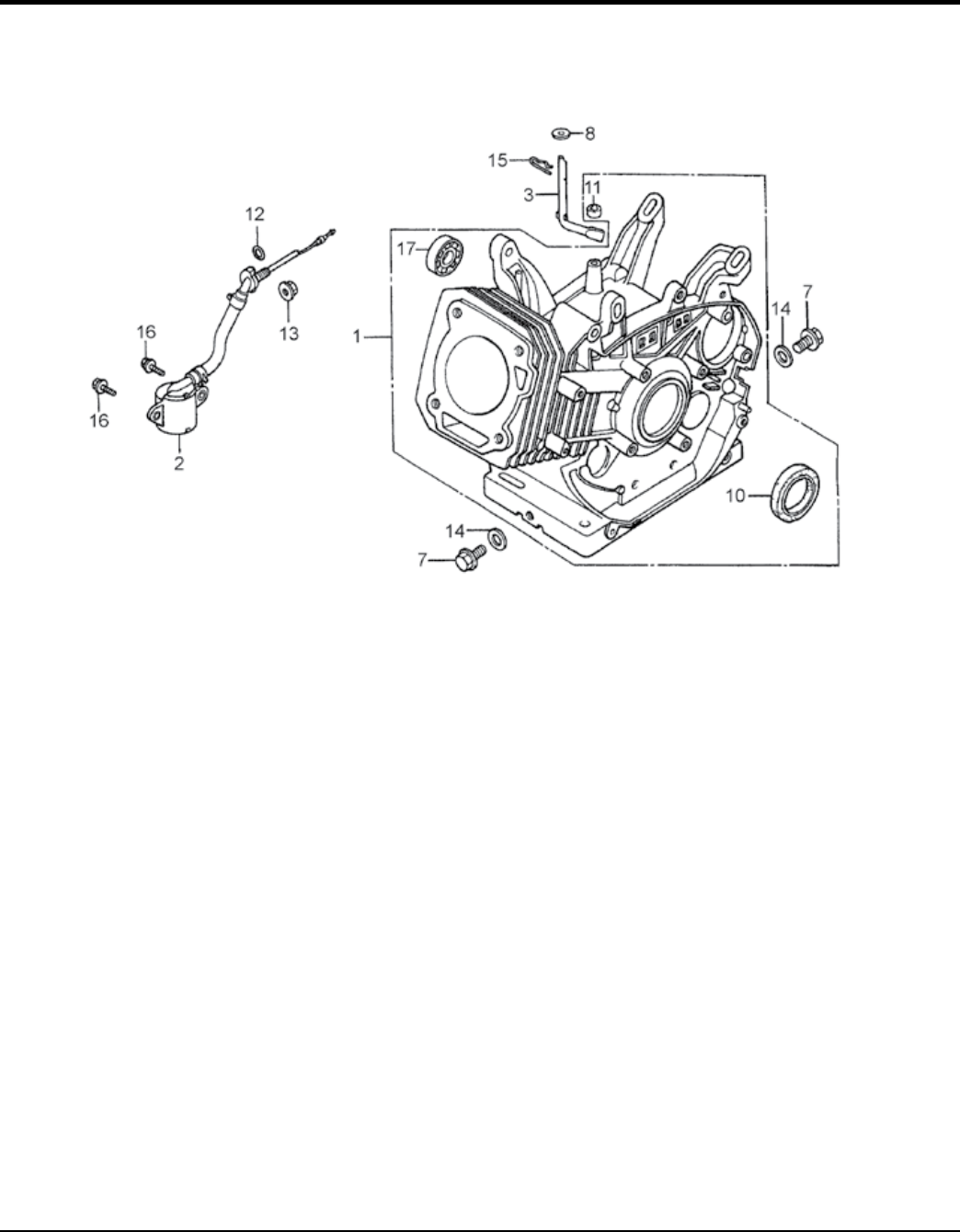

HONDA GX340R2EDE2/EDN2 — CYLINDER BARREL ASSY.
ga6HB/6HeB
1 12000Z5T405 BARREL ASSY, ELECTRIC START. ..................1................INCLUDES ITEMS W/$
1 12000Z5T407 BARREL ASSY, RECOIL START. ......................1................INCLUDES ITEMS W/#
2 35480ZF6003 SWITCH ASSY., OIL LEVEL 1
3 16541ZE3010 SHAFT, GOVERNOR ARM 1
7 90131896650 BOLT, DRAIN PLUG ..........................................2................REPLACES P/N 90131883000
8 90446KE1000 WASHER (8.2X17X0.8) 1
10$# 91201Z1C003 OIL SEAL (35X52X8) 1
11$# 91201ZE9003 OIL SEAL (8X14X5) ...........................................1................REPLACES P/N 91203952771
12 91353671003 O-RING (13.5X1.5) ...........................................1................REPLACES P/N 91353671004
13 9405010000 NUT, FLANGE (10MM) 1
14 031112230 WASHER, DRAIN PLUG (12MM) ......................2................REPLACES P/N 9410912000
15 9425110000 PIN, LOCK (10MM) 1
16 957010601200 BOLT FLANGE (6X12) 2
17$# 961006202000 BEARING, RADIAL BALL (6202) 1
HONDA GX340R2EDE2/EDN2 — CYLINDER BARREL ASSY.
page 66 — ga6HB/ga6HeB

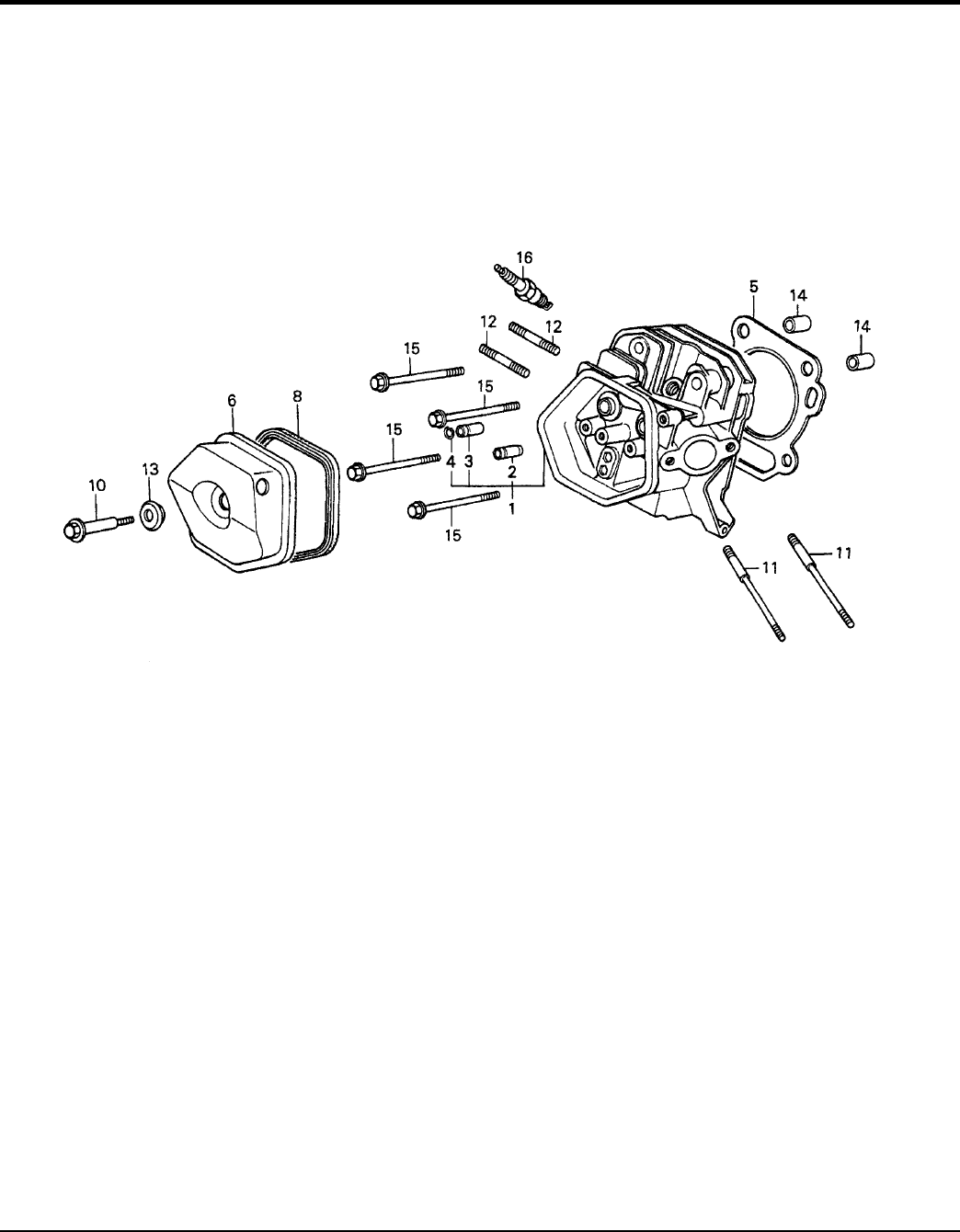

HONDA GX340R2EDE2/EDN2 — CYLINDER HEAD ASSY.
ga6HB/6HeB
1 12210Z5T406 CYLINDER HEAD ..............................................1................INCLUDES ITEMS W/$
2$ 12204ZE2306 GUIDE, VALVE (OS) (OPTIONAL) 1
3$ 12205ZE2305 GUIDE, EX. VALVE (OS) (OPTIONAL) 1
4$ 12216ZE2300 CLIP, VALVE GUIDE 1
5 12251Z5T003 GASKET, CYLINDER HEAD 1
6 12310Z5T000 COVER, CYLINDER HEAD 1
8 12391ZE2020 GASKET, CYLINDER HEAD COVER 1
10 90014ZE2000 BOLT, HEAD COVER 1
11 90042ZK6D70 BOLT, STUD (8X106) 2
12 92900080320E BOLT 2, STUD (8X32) 2
13 90441ZE2010 WASHER, HEAD COVER 1
14 9430112200 PIN A, DOWEL (12X20) 2
15 957011008000 BOLT, FLANGE (10X80) 4
16 9807955846 SPARK PLUG (BPR5ES) (NGK) (OPTIONAL) 1
16 9807955855 SPARK PLUG (W16EPR-U) (DENSO) 1
HONDA GX340R2EDE2/EDN2 — CYLINDER HEAD ASSY.
page 68 — ga6HB/ga6HeB

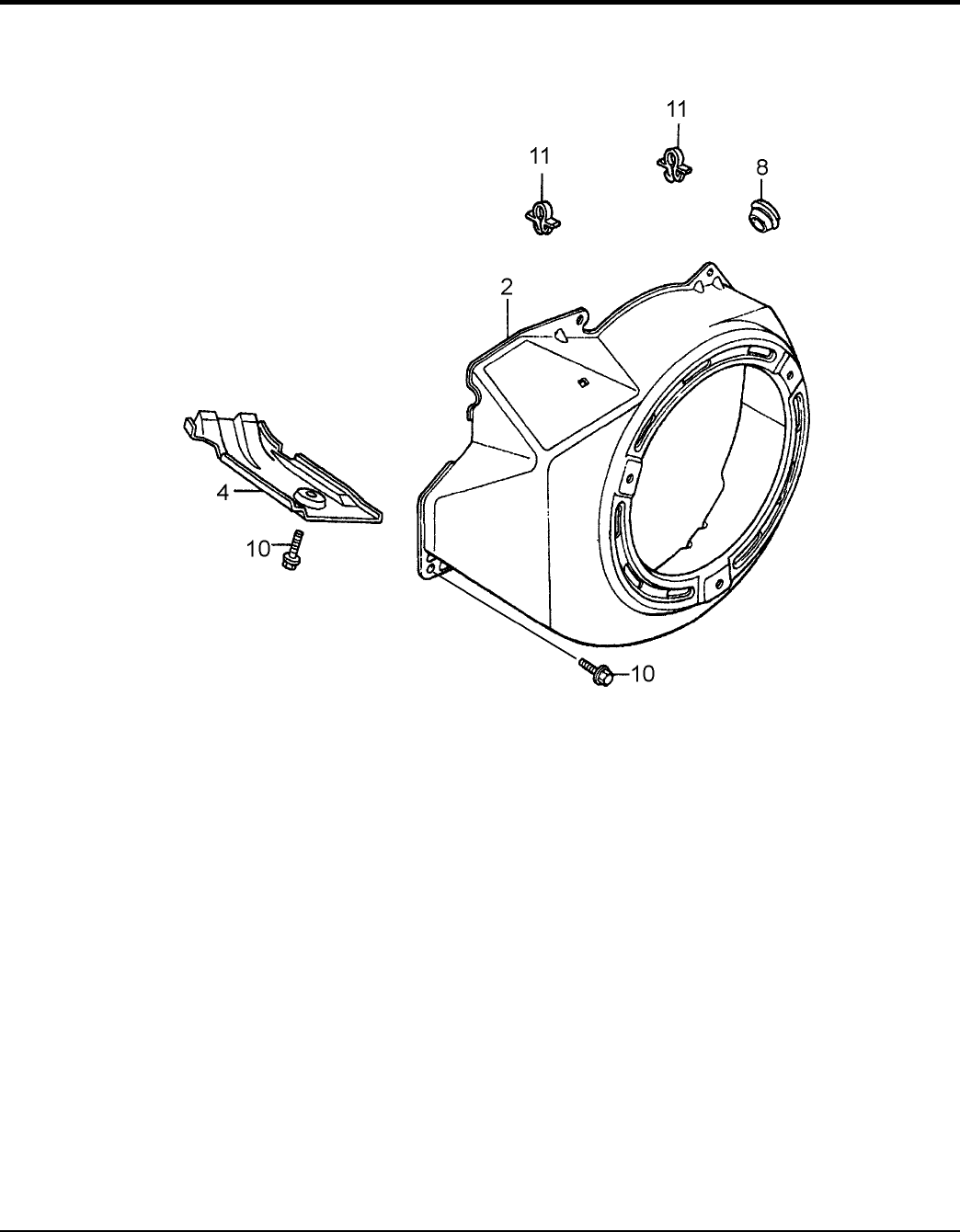

HONDA GX340R2EDE2/EDN2 — FAN COVER ASSY.
ga6HB/6HeB
2 19610Z5T800ZC COVER, FAN *NH1* (BLACK) 1
4 19631Z5T000 SHROUD 1
8 81329567020 GROMMET, DRAIN HOLE 1
10 90013883000 BOLT, FLANGE (6X12) (CT200) 6
11 90654SA4003 CLIP, WIRE HARNESS (6MM) (WHITE) 2
HONDA GX340R2EDE2/EDN2 — FAN COVER ASSY.
ga6HB/ga6HeB

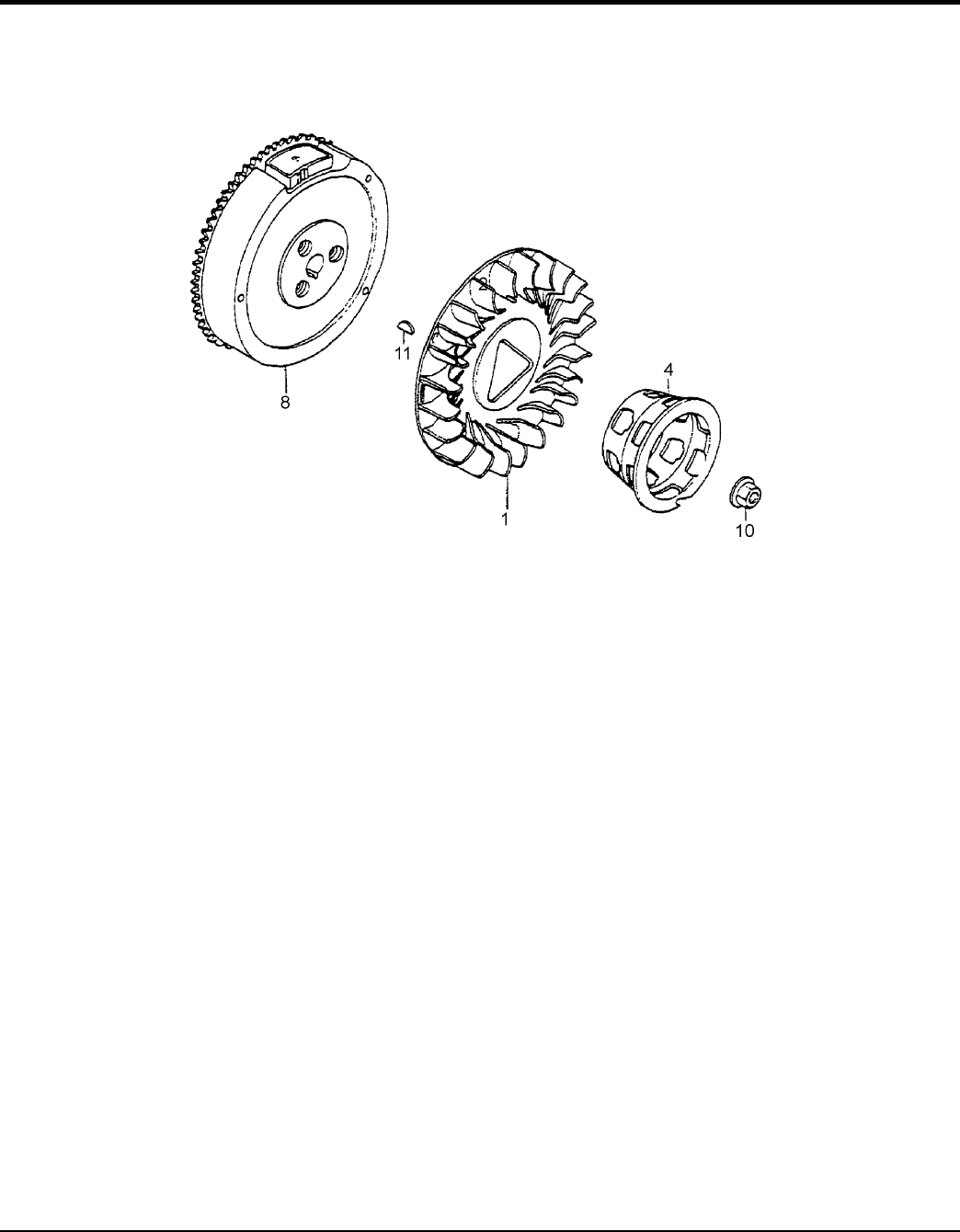

HONDA GX340R2EDE2/EDN2 — FLYWHEEL ASSY.
ga6HB/6HeB
1 19511ZE3000 FAN, COOLING 1
4 28451ZE3W01 PULLEY, STARTER 1
8 31100Z5T810 FLYWHEEL COMP., (RECOIL STRART) 1
8 31100Z5T820 FLYWHEEL COMP., ELECTRIC START
10 90201ZE3790 NUT, SPECIAL 16MM 1
11 90741ZE2000 KEY, SPECIAL WOODRUFF (25X18) 1
HONDA GX340R2EDE2/EDN2 — FLYWHEEL ASSY.
ga6HB/ga6HeB

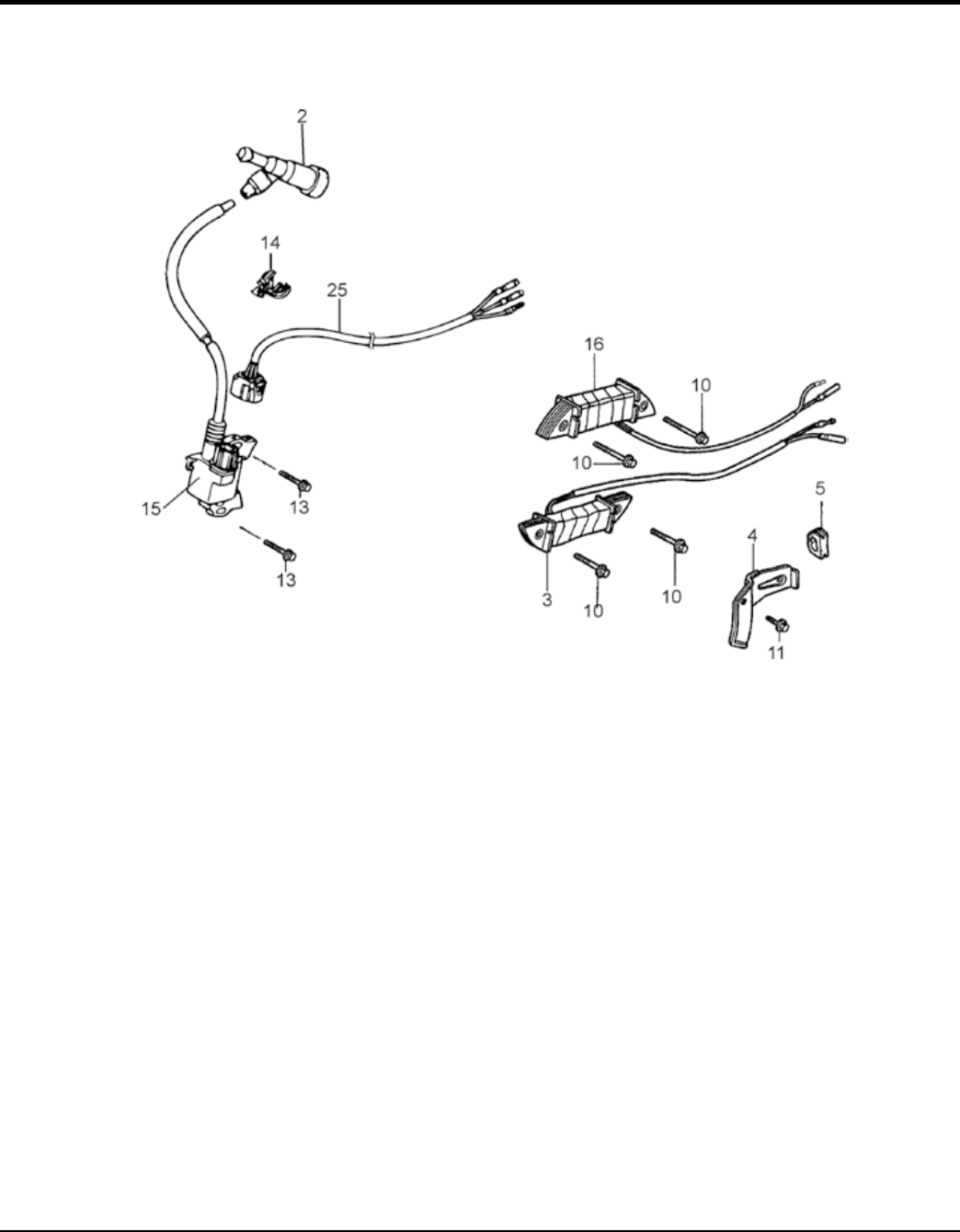

HONDA GX340R2EDE2/EDN2 — IGNITION COIL ASSY.
ga6HB/6HeB
2 30700ZE1013 CAP ASSY., NOISE SUPPRESSOR 1
3 31510ZE3003 COIL ASSY., LAMP (12V/25W) 1
4 31511ZE3000 CLAMP, WIRE 1
5 31512ZE2000 GROMMET, WIRE 1
10 90012888000 BOLT, FLANGE (6X40) 4
11 90013883000 BOLT, FLANGE (6X12) (CT200) 1
13 90015883000 BOLT, FLANGE (6X28) 2
14 90684ZA0601 CLIP, HARNESS, RECOIL START 1
15 30500Z5R003 COIL ASSY., IGNITION 1
16 31510ZE1811 COIL ASSY., LAMP (12V/25W) 1
25 32110Z5K000 HARNESS ASSY., ENGINE WIRE 1
HONDA GX340R2EDE2/EDN2 — IGNITION COIL ASSY.
ga6HB/ga6HeB

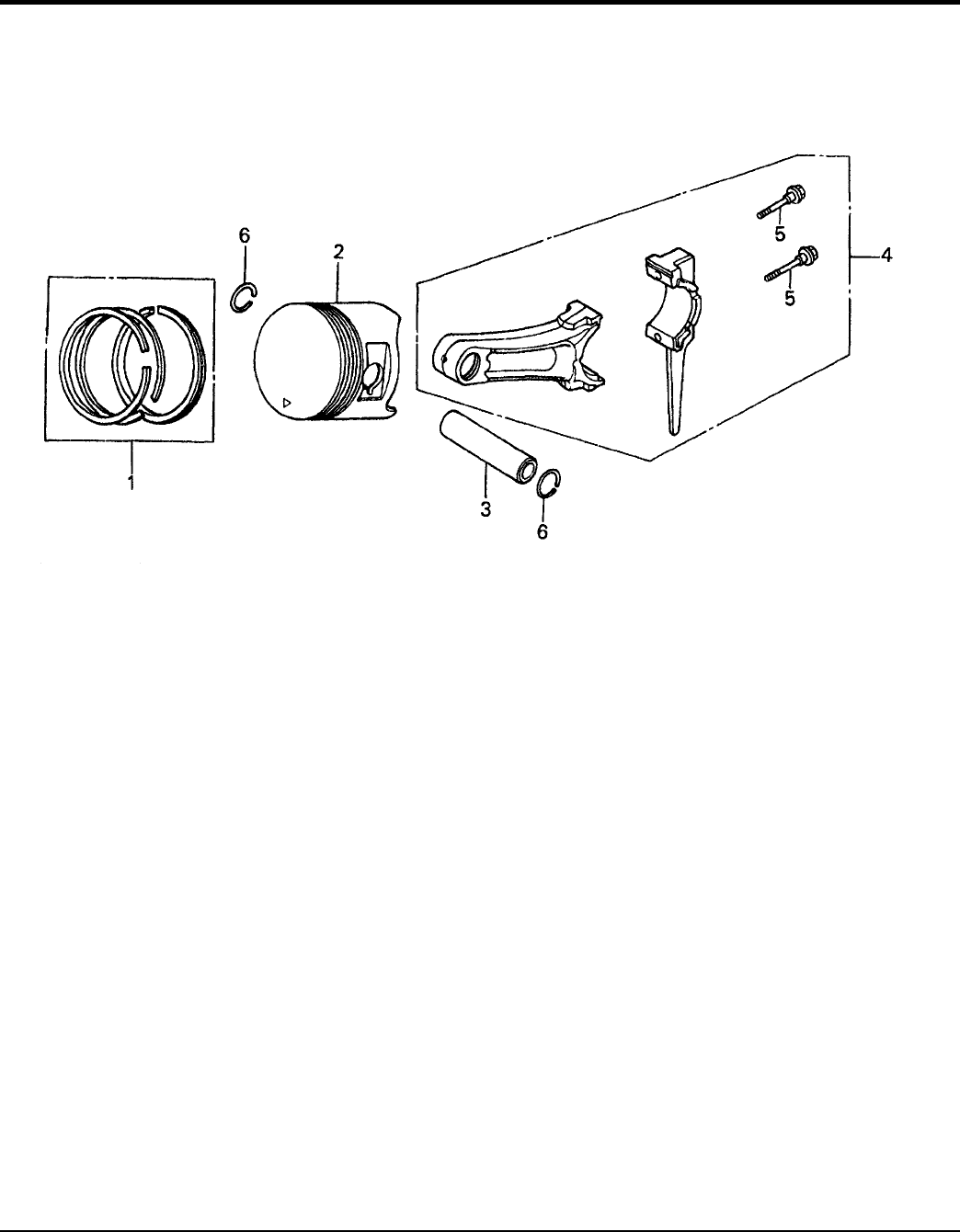

HONDA GX340R2EDE2/EDN2 — PISTON ASSY.
ga6HB/6HeB
1 13010Z5R004 RING SET, PISTON (STD) 1
1 13011Z5R004 RING SET, PISTON (OS 0.25) (OPTIONAL) 1
1 13012Z5R004 RING SET, PISTON (OS O.50) (OPTIONAL) 1
1 13013Z5R004 RING SET, PISTON (0.75) (OPTIONAL) 1
2 13101Z5T800 PISTON (STD) 1
2 13102Z5T800 PISTON (0.25) 1
2 13103Z5T800 PISTON (0.50) 1
2 13104Z5T800 PISTON (0.75) 1
3 13111Z5T000 PIN, PISTON 1
4 13200ZE3020 ROD ASSY., CONNECTING (STD) ...................1................INCLUDES ITEMS W/$
5$ 90001ZE8000 BOLT, CONNECTING ROD 2
6 90601ZE3000 CLIP, PISTON PIN (20MM) 2
HONDA GX340R2EDE2/EDN2 — PISTON ASSY.
ga6HB/ga6HeB

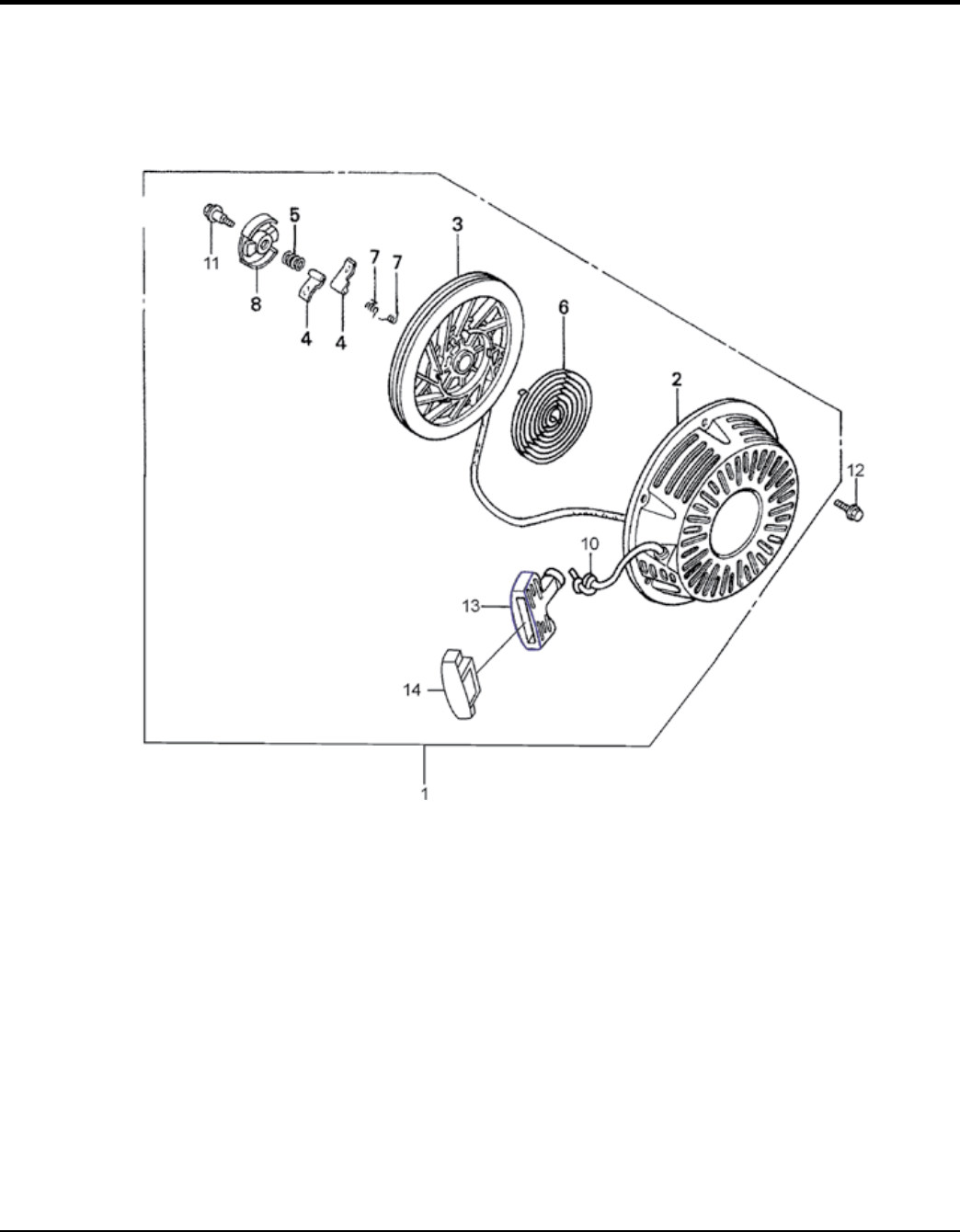

HONDA GX340R2EDE2/EDN2 — RECOIL STARTER ASSY.
ga6HB/6HeB
1 28400Z5T305ZB STARTER ASSY., RECOIL *NH1* (BLACK) ......1................INCLUDES ITEMS W/$
.............................................................................................REPLACES P/N 28400Z5T003ZB
2$ 28410ZE3W01ZB CASE, RECOIL STARTER *NH1* (BLACK) 1
3$ 28421ZE3W01 PULLEY, RECOIL STARTER 1
4$ 28422ZE2W01 RATCHET, STARTER 2
5$ 28441ZE2W01 SPRING, FRICTION 1
6$ 28442ZE2W01 SPRING, STARTER RETURN 1
7$ 28443ZE2W01 SPRING, RATCHET 2
8$ 28444ZE2W01 RETAINER, SPRING 1
10$ 28462ZV7003 ROPE, RECOIL STARTER ................................1................REPLACES P/N 28462ZE3W01
11$ 90004ZE2W01 SCREW, CENTER 1
12 90008ZE2003 BOLT, FLANGE (6X10) 3
13$ 28461Z5T003 GRIP, STARTER 1
14$ 28463Z5T003 GRIP, REINFORCEMENT 1
HONDA GX340R2EDE2/EDN2 — RECOIL STARTER ASSY.
ga6HB/ga6HeB
HONDA GX340R2EDE2 — STARTER MOTOR ASSY.
ga6HB/6HeB
HONDA GX340R2EDE2 — STARTER MOTOR ASSY.
1$ 31204ZA0003 CONTACTOR ASSY. 1
2$ 31206ZE3003 ARMATURE COMPLETE 1
3$ 31207ZE3003 CLUTCH, OVERRUNNING ................................1................INCLUDES ITEMS W/%
4 31210ZE3023 MOTOR UNIT, STARTER ...................................1................INCLUDES ITEMS W/$
5$ 31211ZE2003 BRACKET, CENTER 1
6$ 31212ZE3003 BRACKET, FRONT 1
7$ 31213ZE2003 GEAR, DRIVE PINION 1
8$ 31215ZE2003 BRUSH 2
9$ 31218ZE3003 YOKE COMPLETE 1
10$ 31219ZE2003 SPRING, BRUSH RETURN 4
11$% 31222ZE3791 GEAR, REDUCTION 1
12$ 31231ZE2003 HOLDER, BRUSH 1
14$ 31232ZE3003 WIRE, WATER COVER ......................................1................INCLUDES ITEMS W/#
15$ 31233ZE2003 INSULATOR 1
16$# 90110ZE2003 SCREW, WASHER (4X6) 1
18$ 91601ZE2003 GASKET 1
19$ 90007ZE2003 BOLT, WASHER (5X14) 2
20$ 938920503218 SCREW, WASHER (5X32) 4
21$ 9407006080 NUT, WASHER (6 MM) 2
22 957010803508 BOLT, FLANGE (8X35) 2
page 80 — ga6HB/ga6HeB

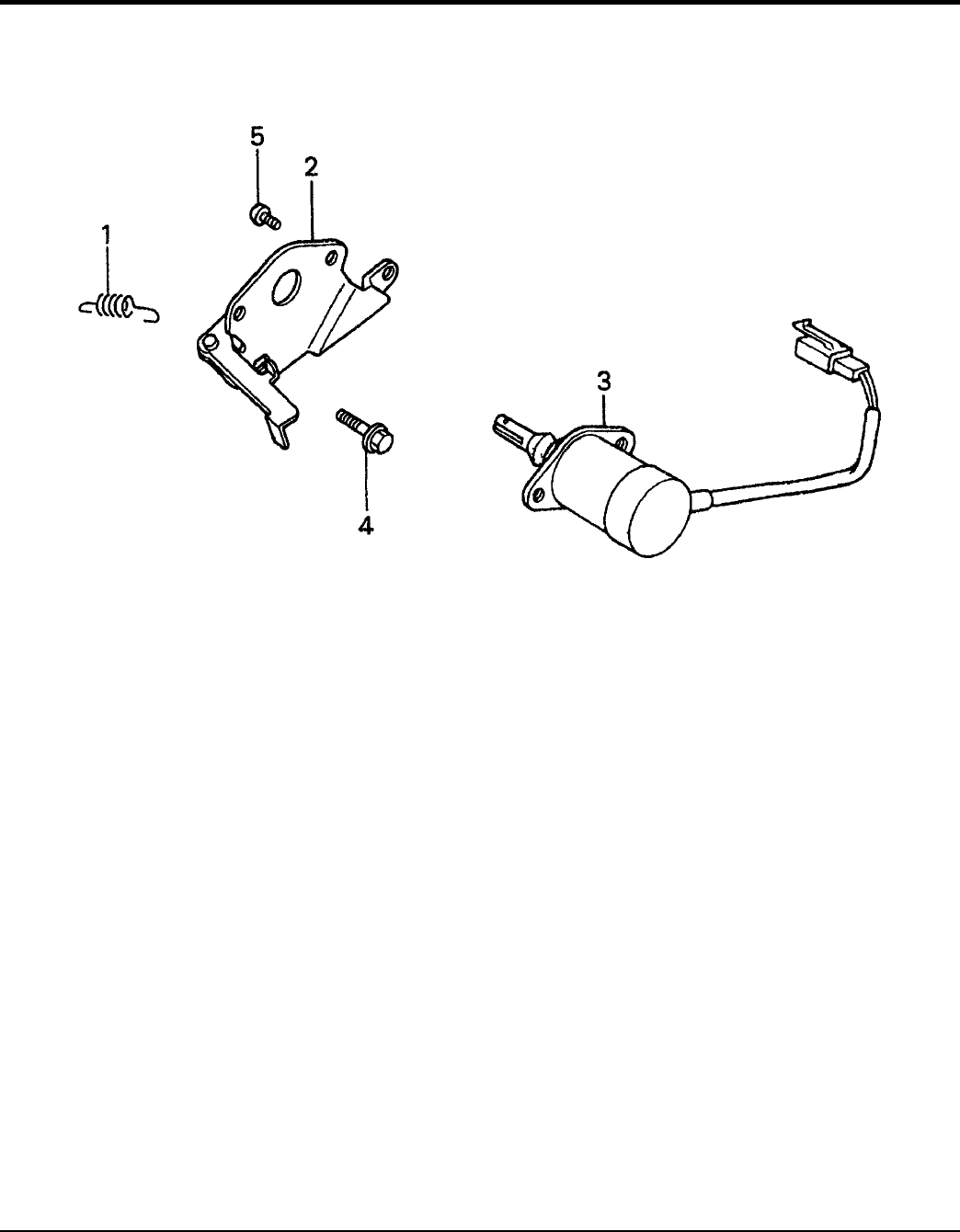

HONDA GX340R2EDE2/EDN2 — SOLENOID ASSY.
ga6HB/6HeB
1 16268893000 SPRING, CHOKE RETURN 1
2 17850ZD1E30 LEVER, THROTTLE 1
3 36160ZB4013 SOLENOID ASSY. 1
4 90013883000 BOLT, FLANGE (6X12) 1
5 93500050080A SCREW, PAN (5X8) 2
HONDA GX340R2EDE2/EDN2 — SOLENOID ASSY.
page 82 — ga6HB/ga6HeB
HONDA GX340R2EDE2/EDN2 — ENGINE DECALS ASSY.
ga6HB/6HeB
1 87533ZC0630 DECAL, AIR CLEANER 1
2 87528898620 DECAL, CHOKE 1
3 87594ZB4A00 MARK, OIL CAUTION 1
4 87521Z8T000 EMBLEM (GX340) 1
HONDA GX340R2EDE2/EDN2 — ENGINE DECALS ASSY.
ga6HB/ga6HeB
TERMS AND CONDITIONS OF SALE — PARTS
Terms of payment for parts are net 30 days.
All parts orders will be shipped collect or
prepaid with the charges added to the invoice.
All shipments are F.O.B. point of origin.
Multiquip’s responsibility ceases when a
signed manifest has been obtained from the
carrier, and any claim for shortage or damage
must be settled between the consignee and
the carrier.
The minimum charge for orders from Multiquip
is $15.00 net. Customers will be asked for
instructions regarding handling of orders not
meeting this requirement.
Return shipments will be accepted and
credit will be allowed, subject to the following
provisions:
1.
A Returned Material Authorization
must be approved by Multiquip prior to
shipment.
2.
To obtain a Return Material Authorization,
a list must be provided to Multiquip
Parts Sales that defi nes item numbers,
quantities, and descriptions of the items
to be returned.
a. The parts numbers and descriptions
must match the current parts price
list.
b. The list must be typed or computer
generated.
c. The list must state the reason(s)
for the return.
d. The list must reference the sales
order(s) or invoice(s) under
which the items were originally
purchased.
e. The list must include the name
and phone number of the person
requesting the RMA.
3.
A copy of the Return Material Authorization
must accompany the return shipment.
4.
Freight is at the sender’s expense. All
parts must be returned freight prepaid to
Multiquip’s designated receiving point.
5. Parts must be in new and resalable
condition, in the original Multiquip
package (if any), and with Multiquip part
numbers clearly marked.
6. The following items are not returnable:
a. Obsolete parts. (If an item is in the
price book and shows as being
replaced by another item, it is
obsolete.)
b. Any parts with a limited shelf life
(such as gaskets, seals, “O” rings,
and other rubber parts) that were
purchased more than six months
prior to the return date.
c. Any line item with an extended
dealer net price of less than
$5.00.
d. Special order items.
e. Electrical components.
f. Paint, chemicals, and lubricants.
g. Decals and paper products.
h. Items purchased in kits.
7. The sender will be notifi ed of any material
received that is not acceptable.
8. Such material will be held for five
working days from notifi cation, pending
instructions. If a reply is not received
within five days, the material will be
returned to the sender at his expense.
9. Credit on returned parts will be issued
at dealer net price at time of the original
purchase, less a 15% restocking
charge.
10. In cases where an item is accepted, for
which the original purchase document
can not be determined, the price will be
based on the list price that was effective
twelve months prior to the RMA date.
11. Credit issued will be applied to future
purchases only.
Prices are subject to change without prior
notice. Price changes are effective on a
specifi c date and all orders received on or
after that date will be billed at the revised price.
Rebates for price declines and added charges
for price increases will not be made for stock
on hand at the time of any price change.
Multiquip reserves the right to quote and
sell direct to Government agencies, and to
Original Equipment Manufacturer accounts
who use our products as integral parts of their
own products.
A $35.00 surcharge will be added to the
invoice for special handling including bus
shipments, insured parcel post or in cases
where Multiquip must personally deliver the
parts to the carrier.
Multiquip shall not be liable hereunder for
damages in excess of the purchase price of
the item with respect to which damages are
claimed, and in no event shall Multiquip be
liable for loss of profi t or good will or for any
other special, consequential or incidental
damages.
No warranties, express or implied, are
made in connection with the sale of parts or
trade accessories nor as to any engine not
manufactured by Multiquip. Such warranties
made in connection with the sale of new,
complete units are made exclusively by a
statement of warranty packaged with such
units, and Multiquip neither assumes nor
authorizes any person to assume for it
any other obligation or liability whatever in
connection with the sale of its products. Apart
from such written statement of warranty,
there are no warranties, express, implied or
statutory, which extend beyond the description
of the products on the face hereof.
Effective: February 22, 2006
ga6HB/6HeB
NOTES
OperatiOn and parts Manual
Your Local Dealer is:
HERE’S HOW TO GET HELP
PLEASE HAVE THE MODEL AND SERIAL
NUMBER ON-HAND WHEN CALLING
© COPYRIGHT 2014, MULTIQUIP INC.
Multiquip Inc
,
the MQ logo are registered trademarks of Multiquip Inc. and may not be used, reproduced, or altered without written permission. All other trademarks are the property
of their respective owners and used with permission.
This manual
MUST accompany the equipment at all times. This manual is considered a permanent part of the equipment and should remain with the unit if resold.
The information and specifi cations included in this publication were in effect at the time of approval for printing. Illustrations, descriptions, references and technical data contained in
this manual are for guidance only and may not be considered as binding. Multiquip Inc. reserves the right to discontinue or change specifi cations, design or the information published
in this publication at any time without notice and without incurring any obligations.
UNITED STATES
Multiquip Corporate Offi ce MQ Parts Department
18910 Wilmington Ave.
Carson, CA 90746
Contact : mq@multiquip.com
Tel. (800) 421-1244
Fax (310) 537-3927
800-427-1244
310-537-3700
Fax: 800-672-7877
Fax: 310-637-3284
Service Department Warranty Department
800-421-1244
310-537-3700
Fax: 310-537-4259 800-421-1244
310-537-3700
Fax: 310-943-2249
Technical Assistance
800-478-1244 Fax: 310-943-2238
CANADA UNITED KINGDOM
Multiquip Multiquip (UK) Limited Head Offi ce
4110 Industriel Boul.
Laval, Quebec, Canada H7L 6V3
Contact : jmartin@multiquip.com
Tel: (450) 625-2244
Tel: (877) 963-4411
Fax: (450) 625-8664
Unit 2, Northpoint Industrial Estate,
Globe Lane,
Dukinfi eld, Cheshire SK16 4UJ
Contact : sales@multiquip.co.uk
Tel: 0161 339 2223
Fax: 0161 339 3226
