OPERATION AND PARTS MANUAL

Revision #9 (06/28/11)

MODELS AR13HA, AR13HAR

RIDE-ON TANDEM DRUM ROLLER

SERIES DRIVE SYSTEM

(HONDA GX610K1QZB2/GX610R1QZB2

GASOLINE ENGINE)

Serial No. 100901 and BELOW

THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.

To find the latest revision of this

publication, visit our website at:

www.multiquip.com

PAGE 2 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

PROPOSITION 65 WARNING

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 3

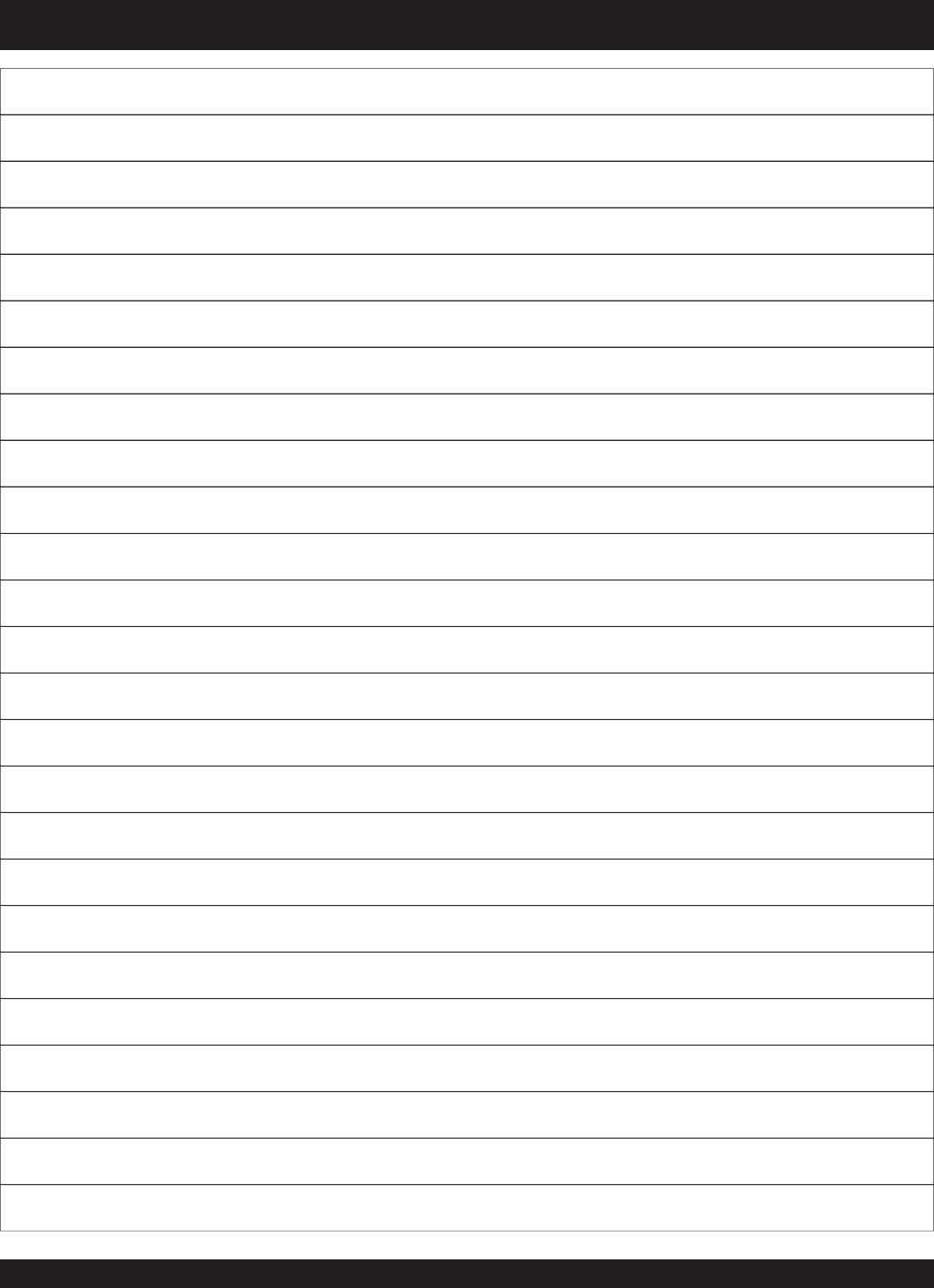

NOTES

PAGE 4 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

TABLE OF CONTENTS

MULTIQUIP AR13HA-R

RIDE-ON TANDEM DRUM

ROLLER

Proposition 65 Warning ............................................. 2

Table Of Contents ..................................................... 4

Parts Ordering Procedures ....................................... 5

Safety Message Alert Symbols .............................. 6-7

Rules For Safe Operation .................................... 8-10

Operation and Safety Decals ............................. 11-12

Specifications (Roller) ............................................. 13

Specifications (Engine) ........................................... 14

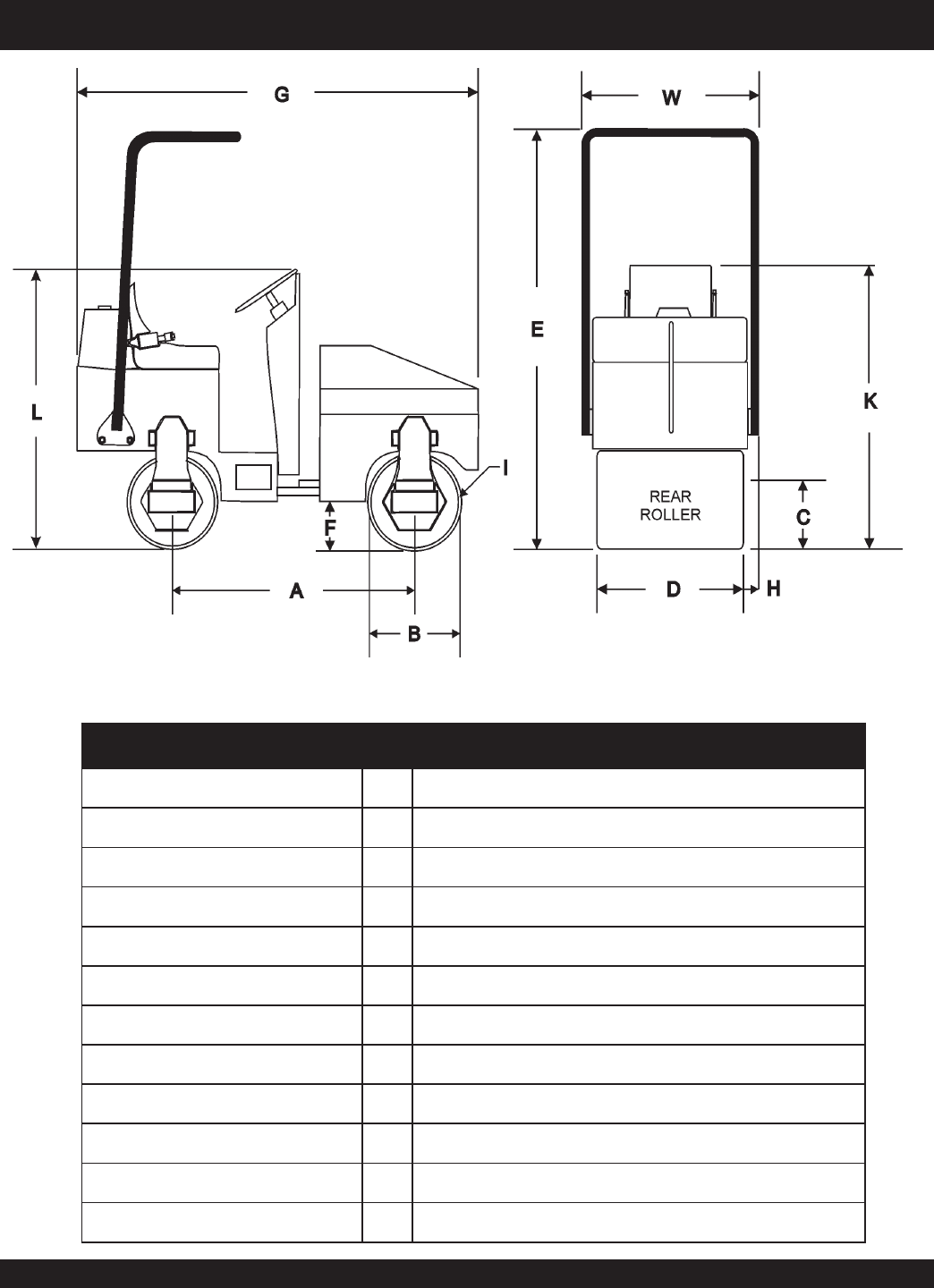

Dimensions ............................................................. 15

General Information ........................................... 16-17

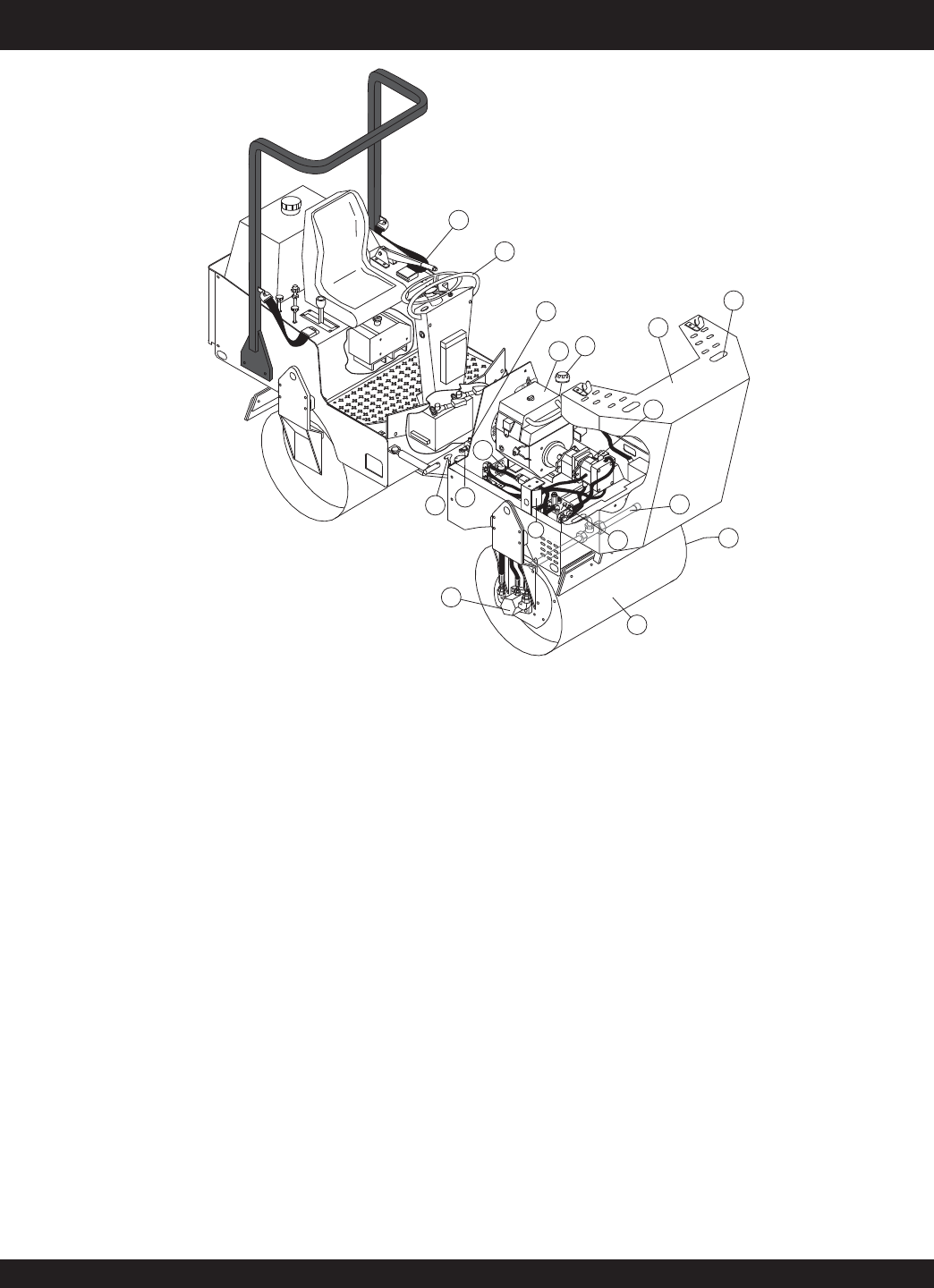

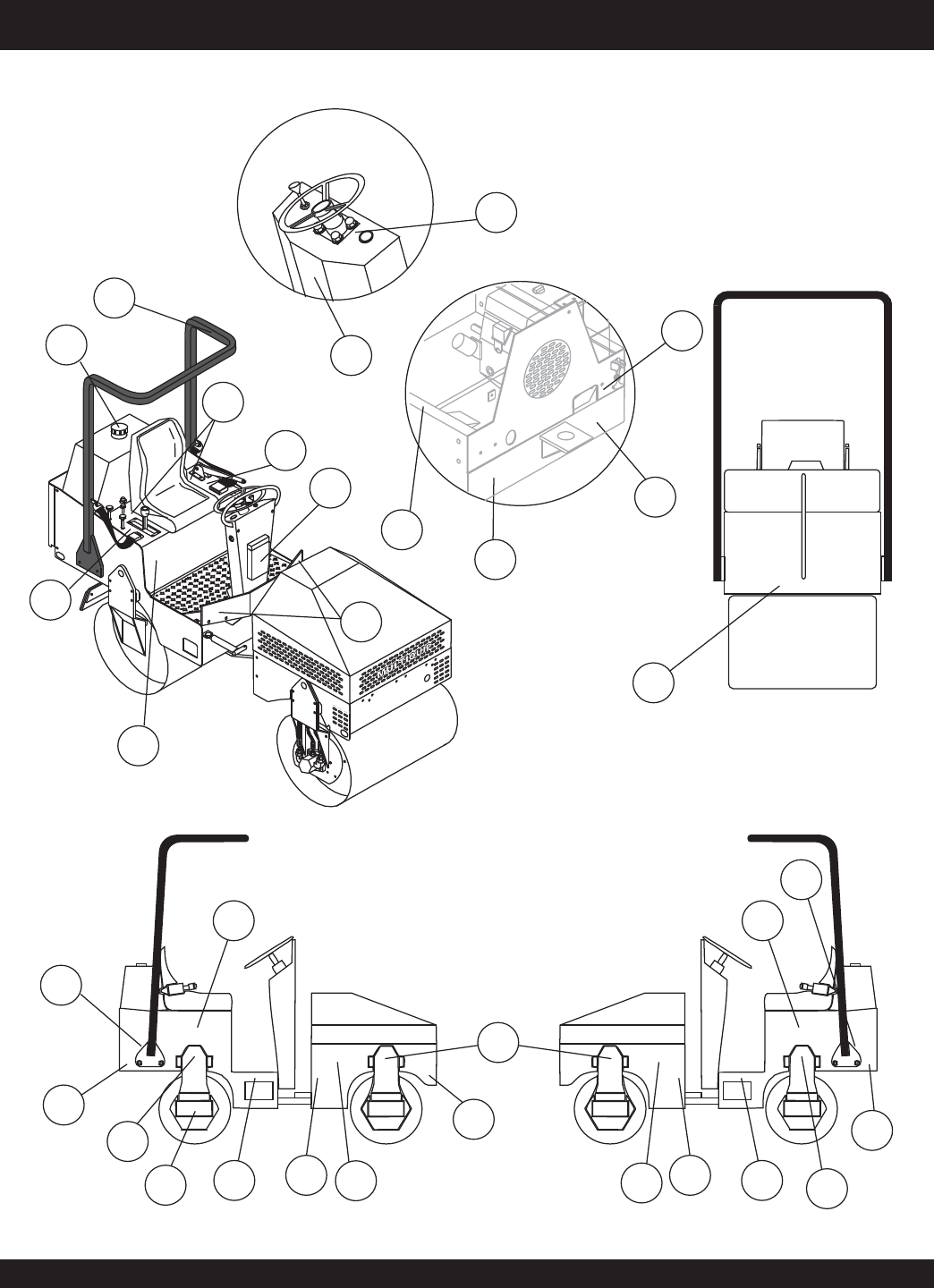

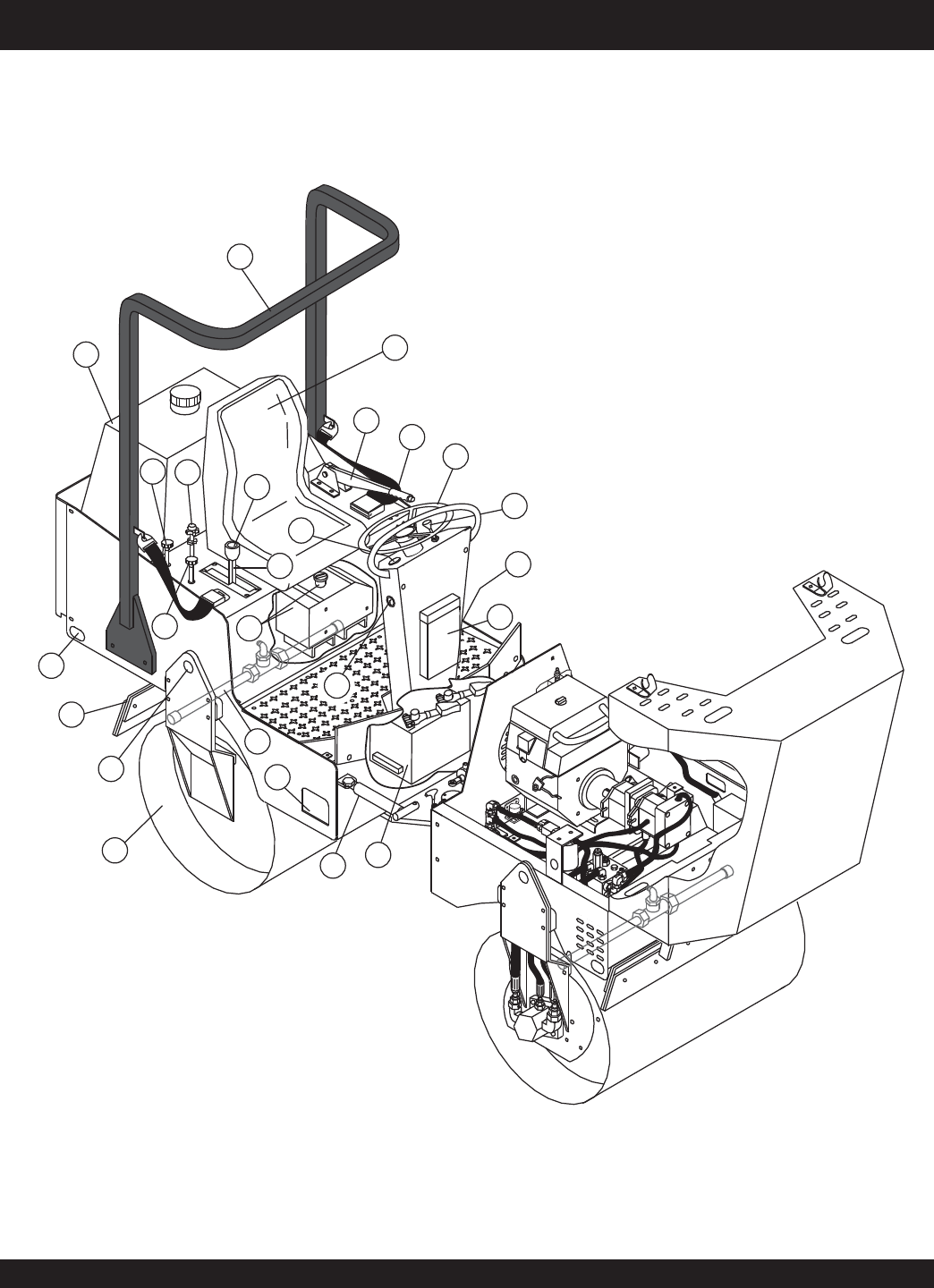

Roller Components ............................................ 18-20

Engine Components ............................................... 21

Inspection ........................................................... 22-24

Initial Start-Up ......................................................... 25

Operation ................................................................ 26

Maintenance ...................................................... 27-36

Preparation For Long-Term Storage ...................... 37

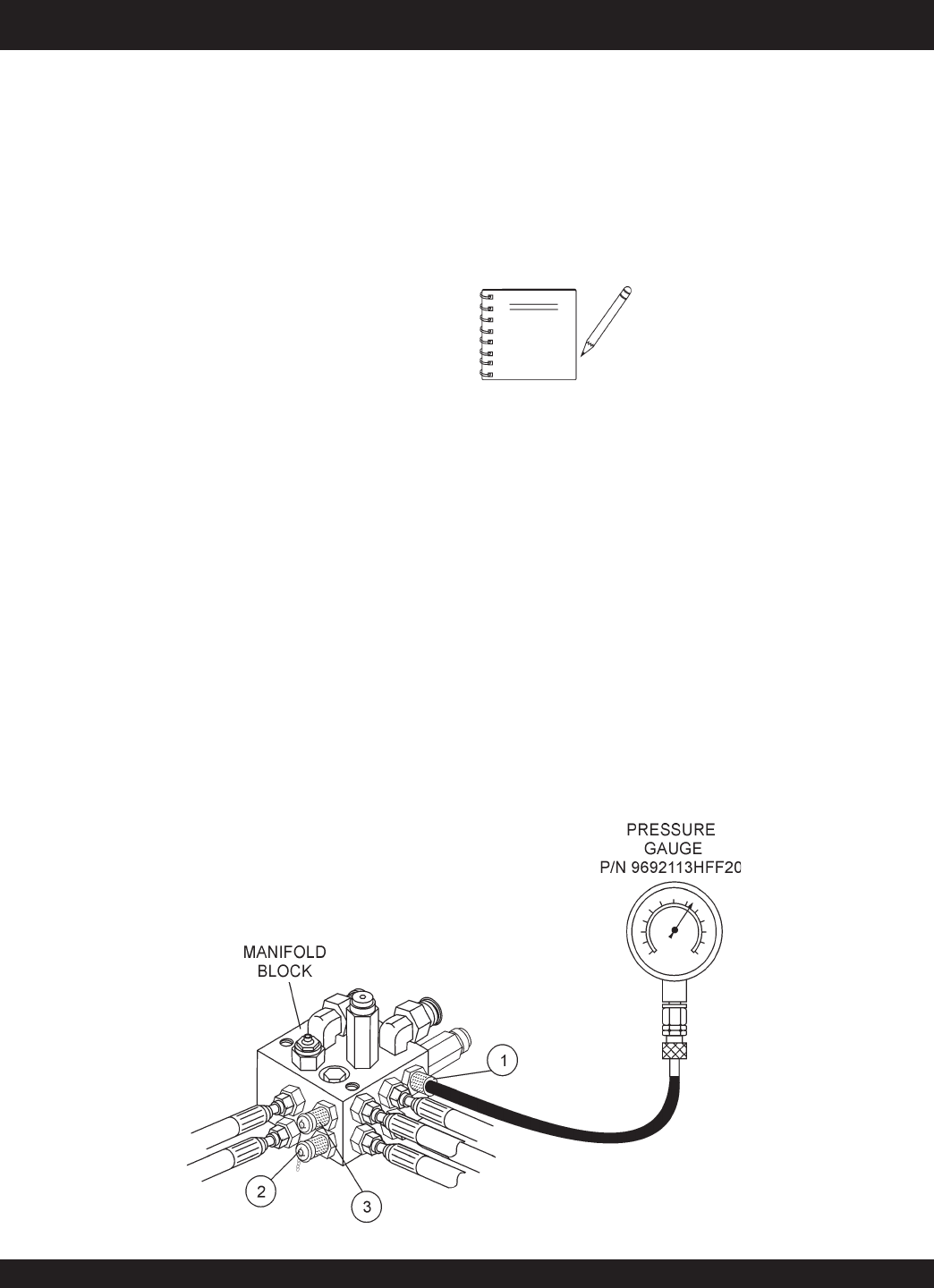

Manifold Test Ports .................................................. 38

Hydraulic System Diagram ..................................... 39

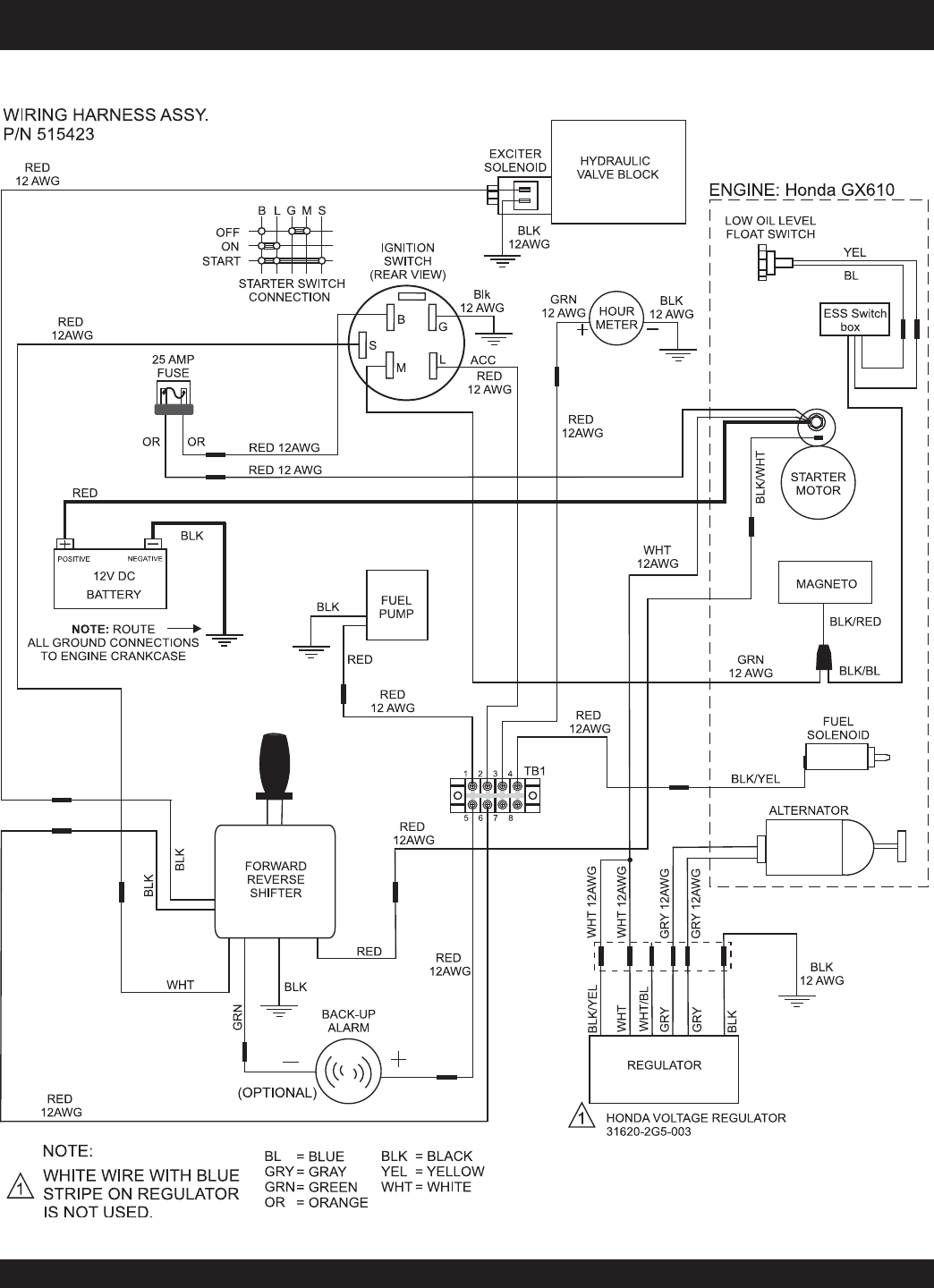

Electric Wiring Diagram ........................................... 40

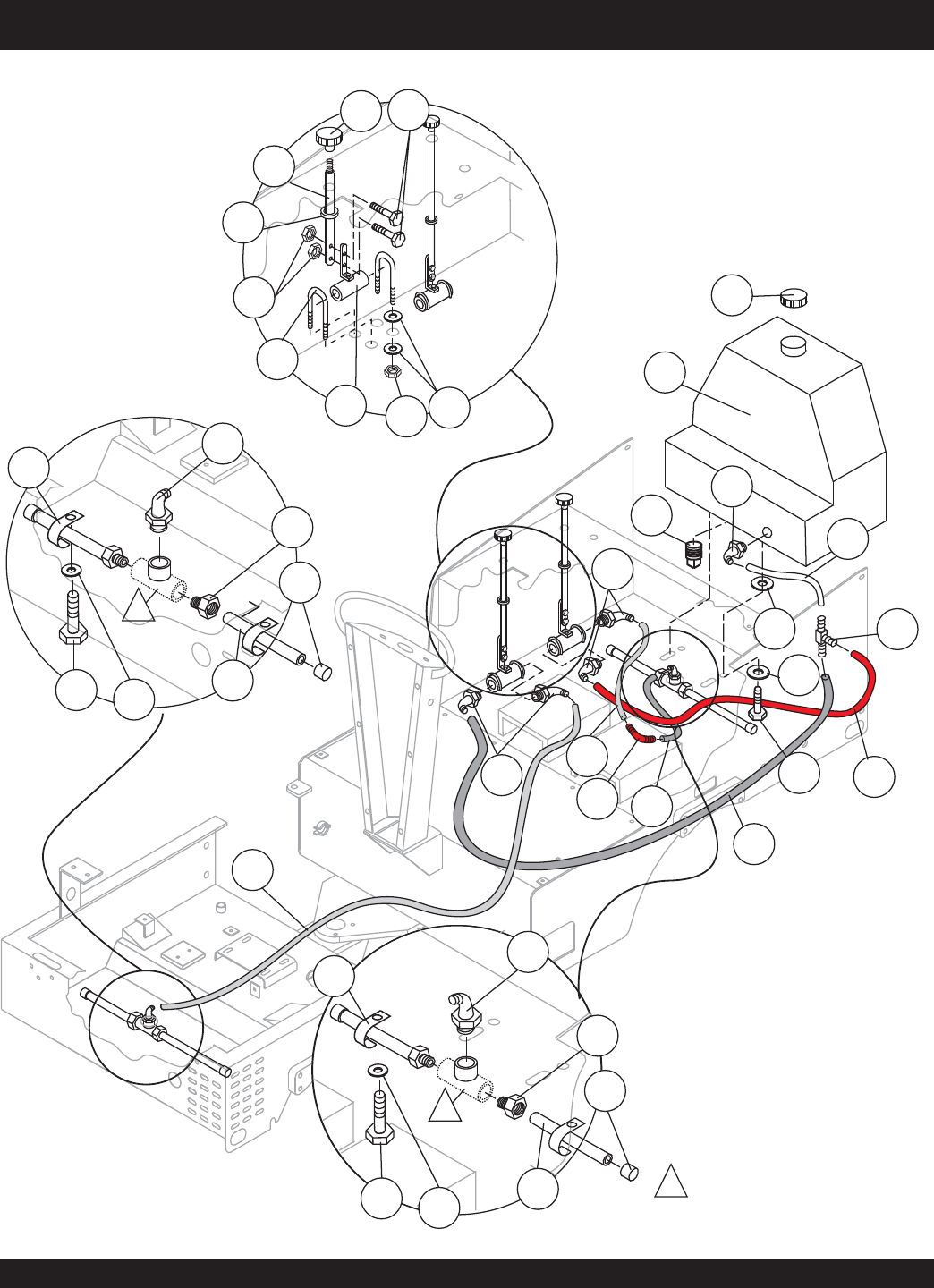

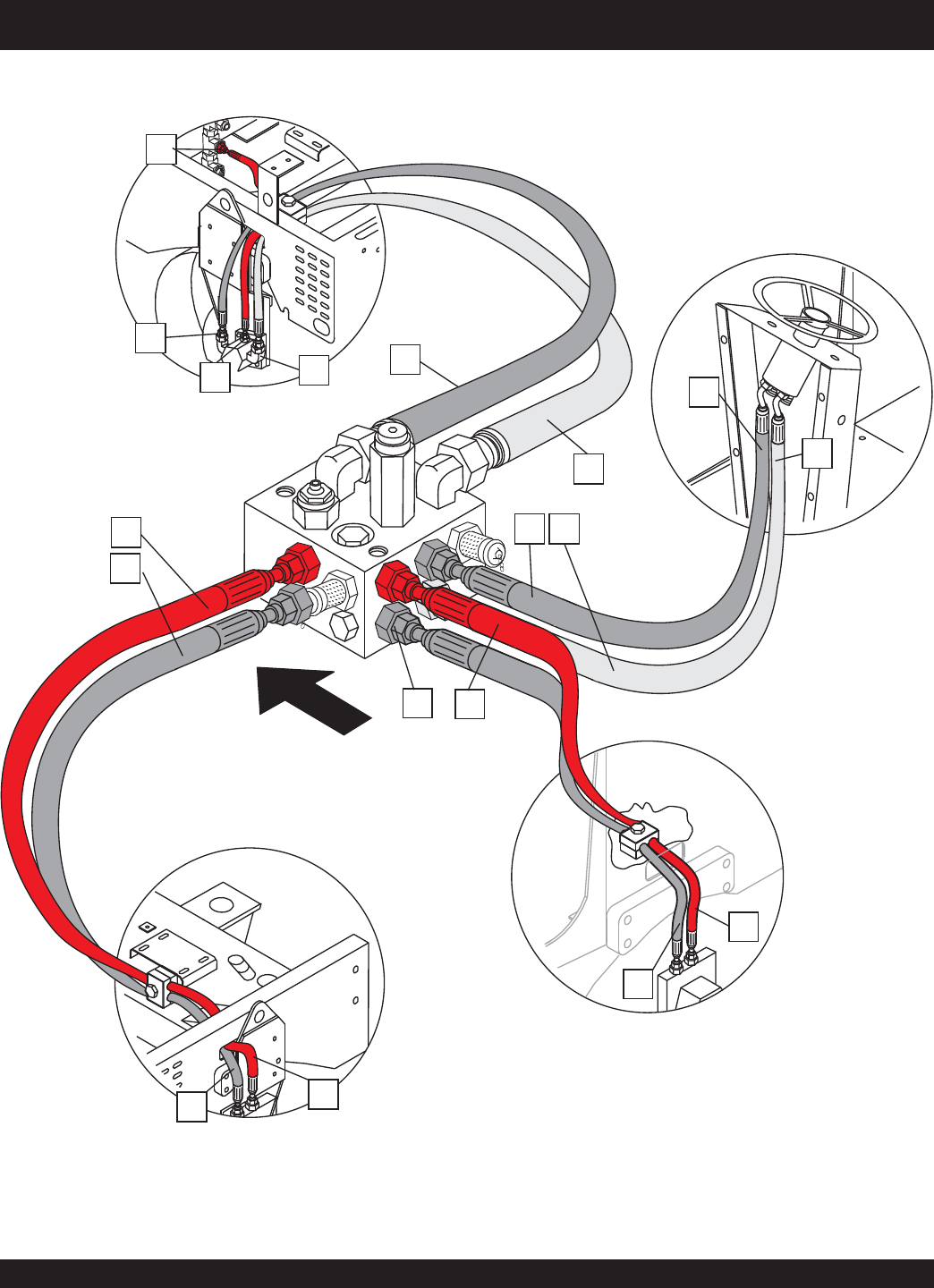

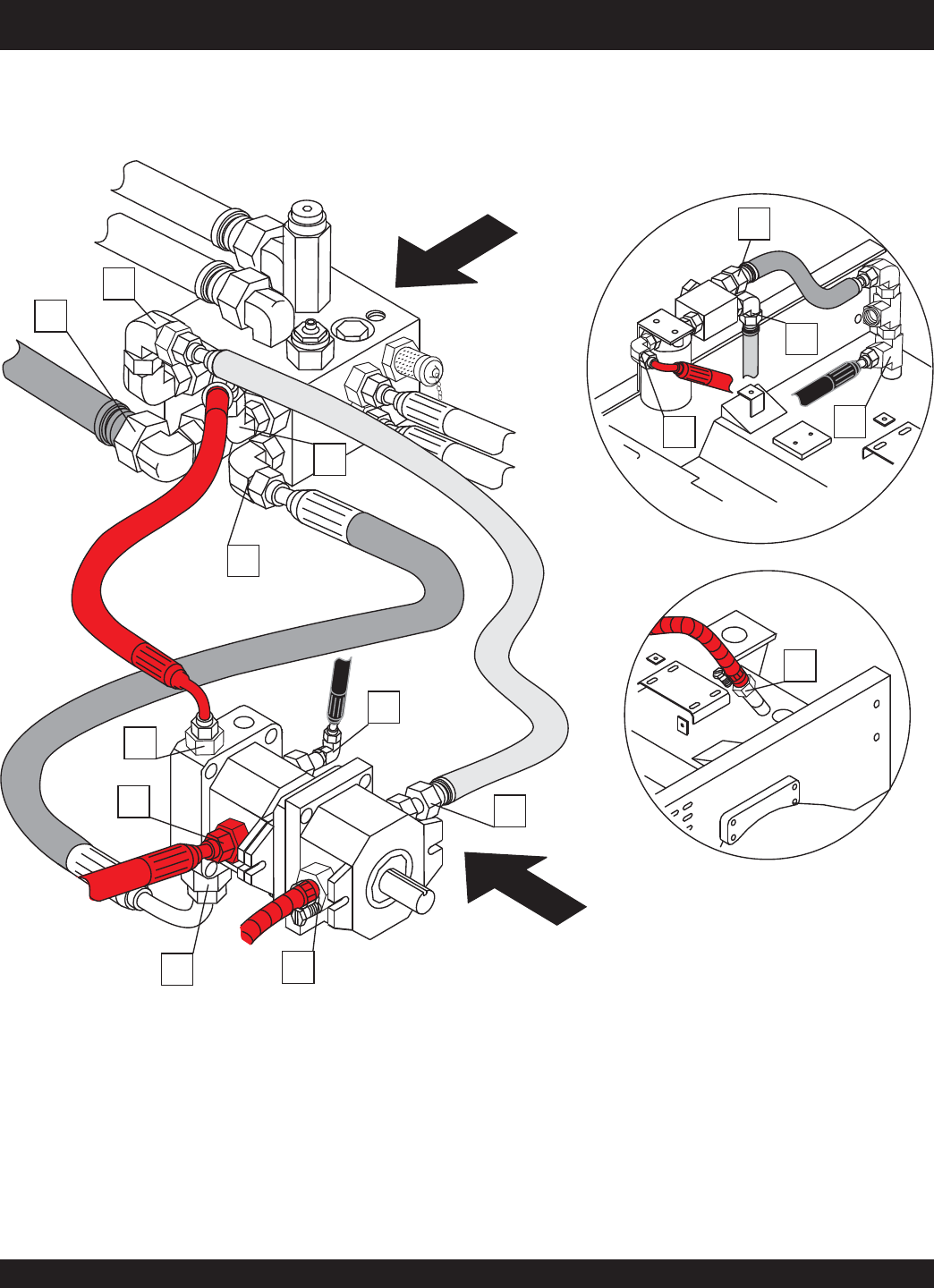

Hydraulic Hose Connections .............................. 42-43

Troubleshooting (Roller).......................................... 44

Troubleshooting (Engine) ................................... 45-46

NOTE

Specification and part number

are subject to change without

notice.

COMPONENT DRAWINGS

Explanation Of Code In Remarks Column .............. 48

Suggested Spare Parts ........................................... 49

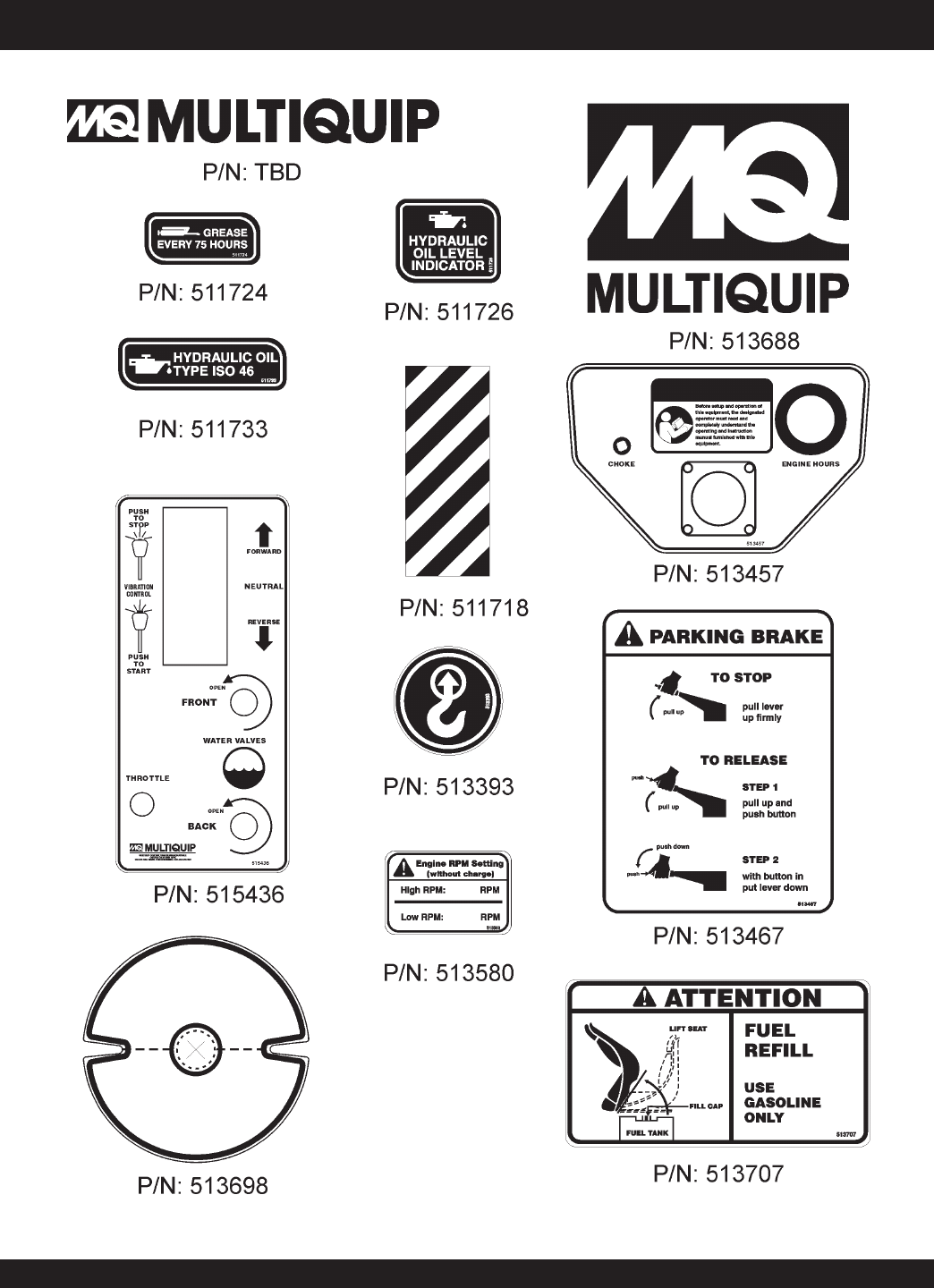

Name Plate and Decals ..................................... 50-51

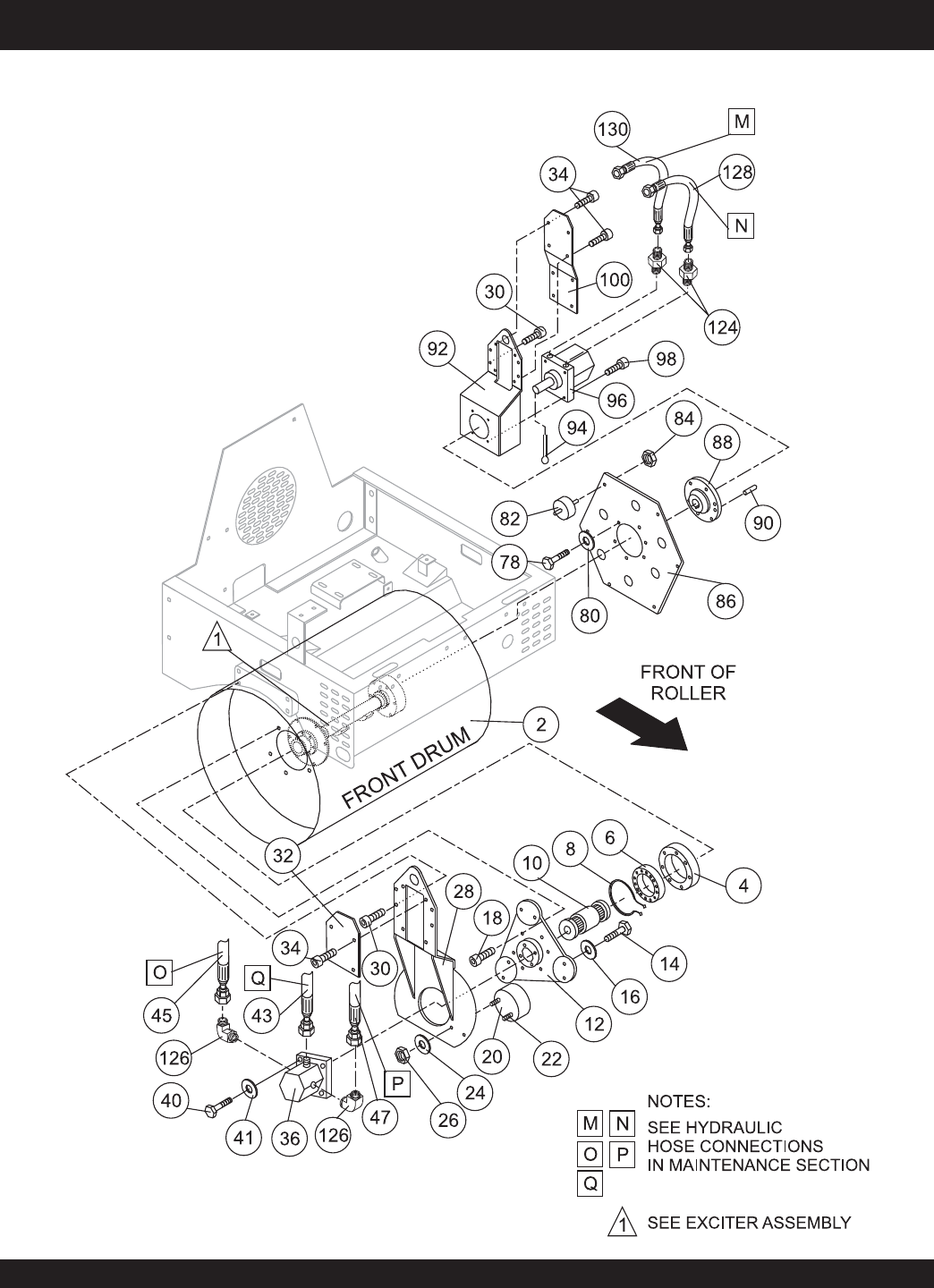

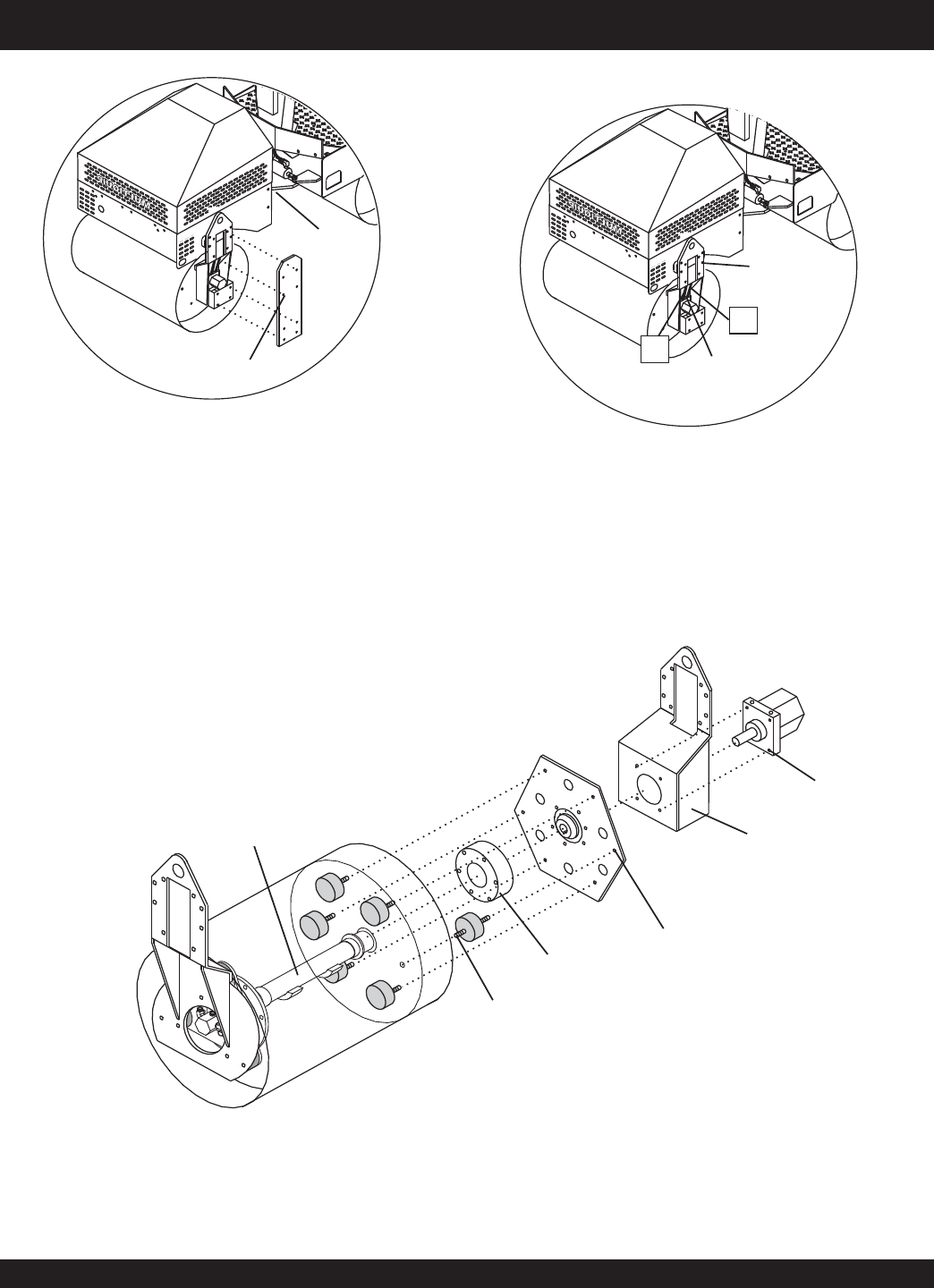

Front Drum Assembly ........................................ 52-53

Exciter Assembly ................................................ 54-55

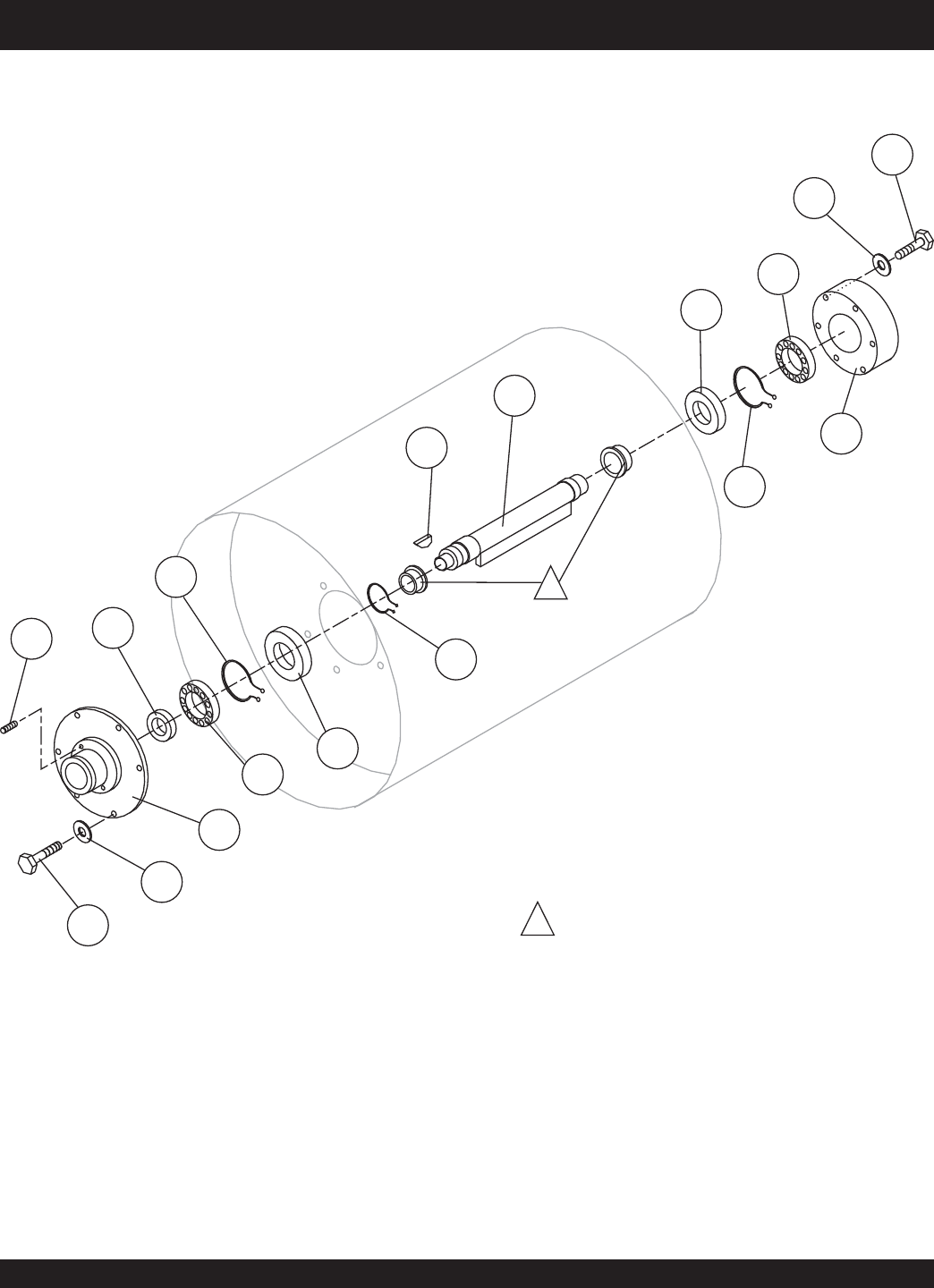

Rear Drum Assembly ......................................... 56-57

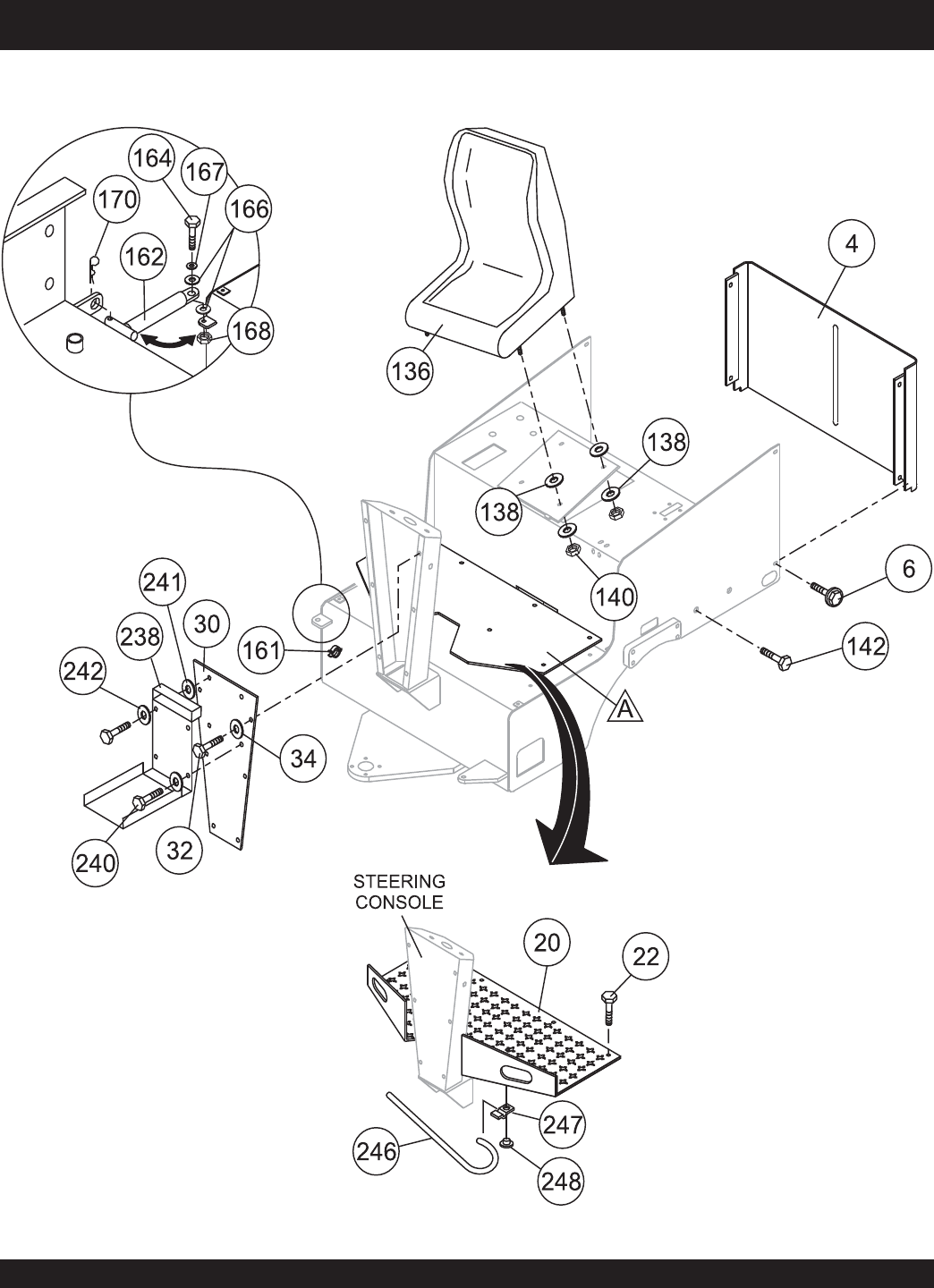

Covers and Frame Articulation Lock Assy. ........ 58-59

Hood and Rear Panel Assembly ........................ 60-61

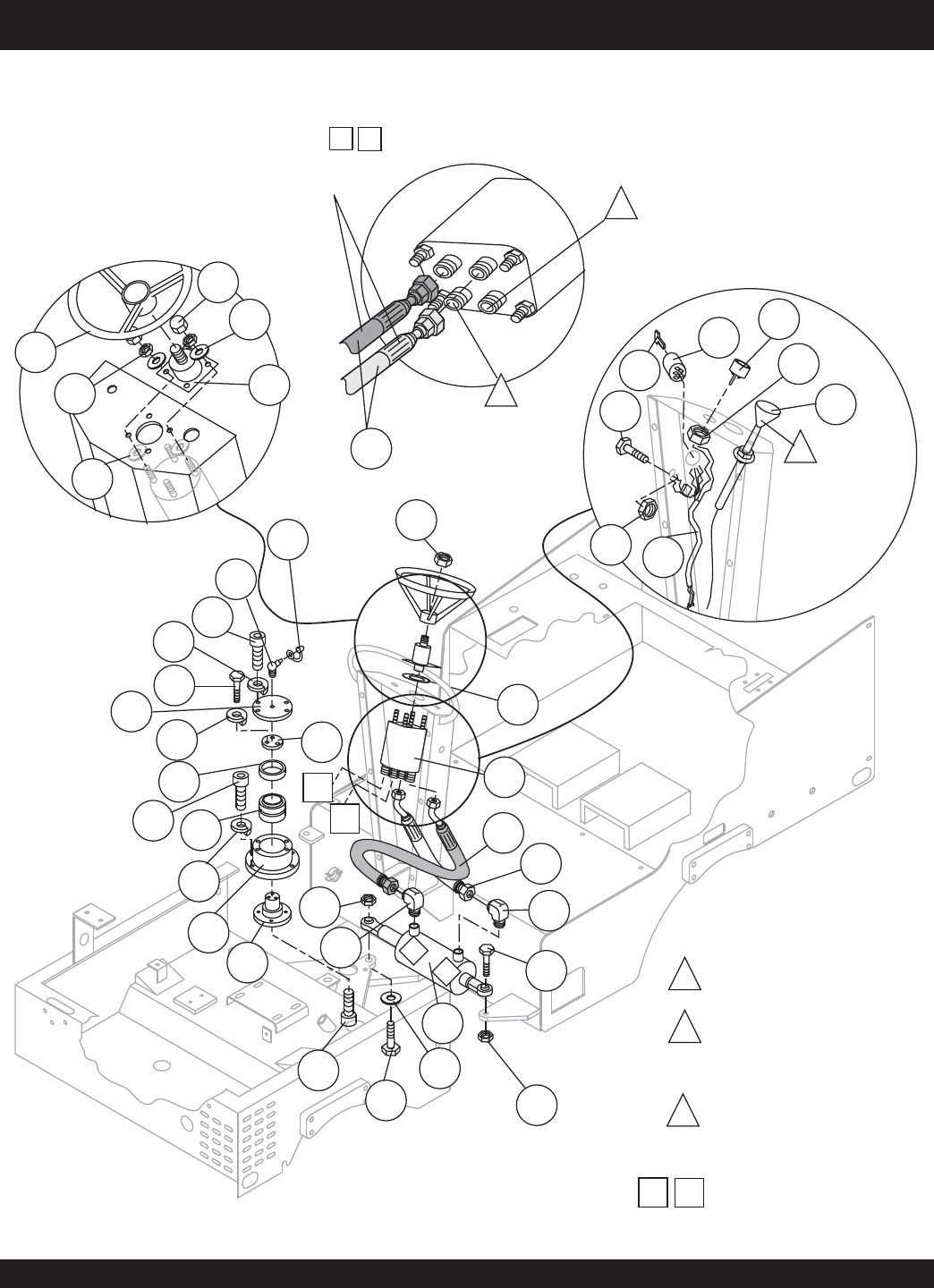

Steering Column and Hydraulic Artic. Assy. ...... 62-63

Articulation Arm Assembly ................................. 64-65

Hydraulic Drive Pump Assembly ........................ 66-67

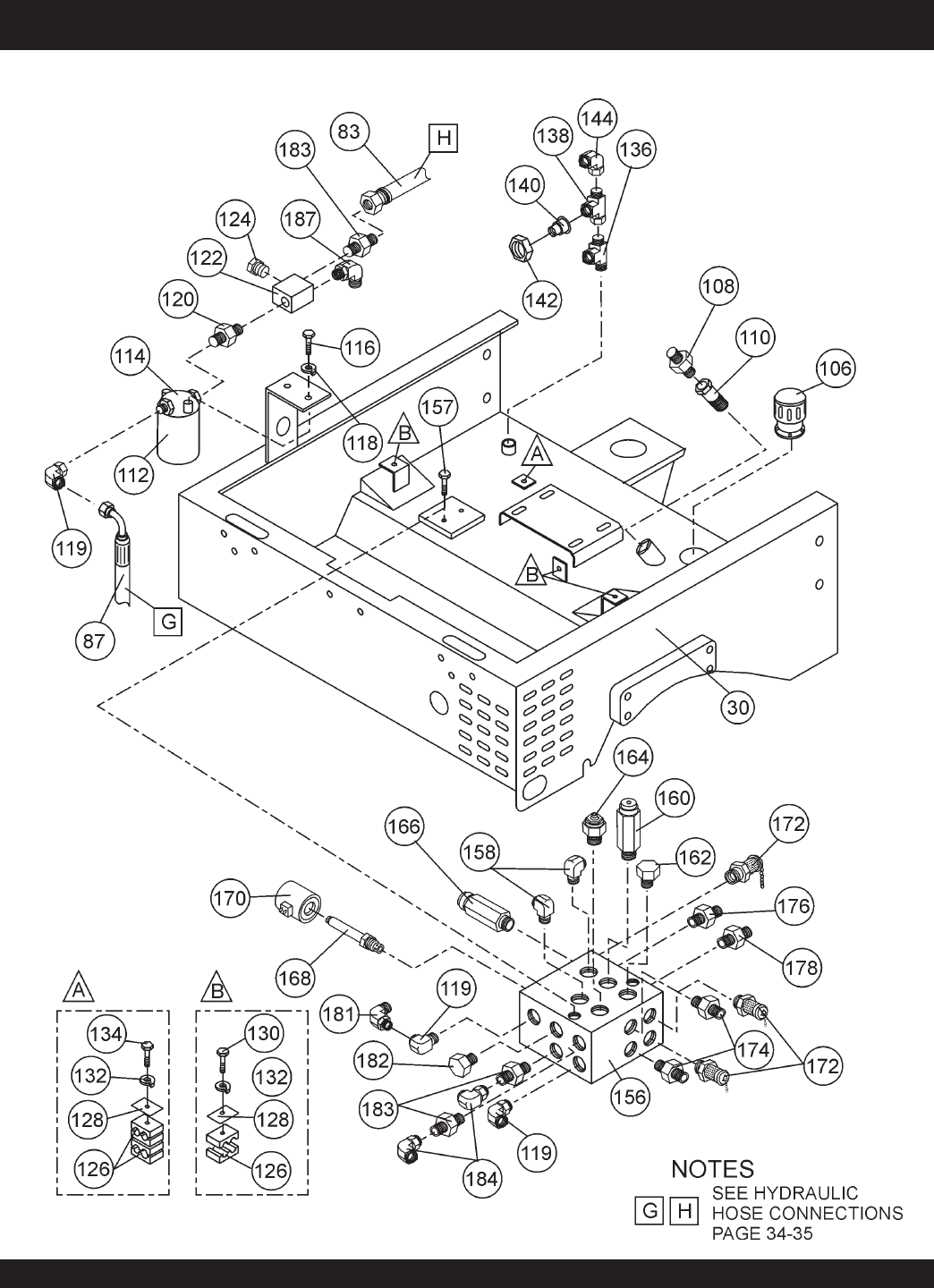

Manifold and Hydraulic Oil Filter Assembly........ 68-69

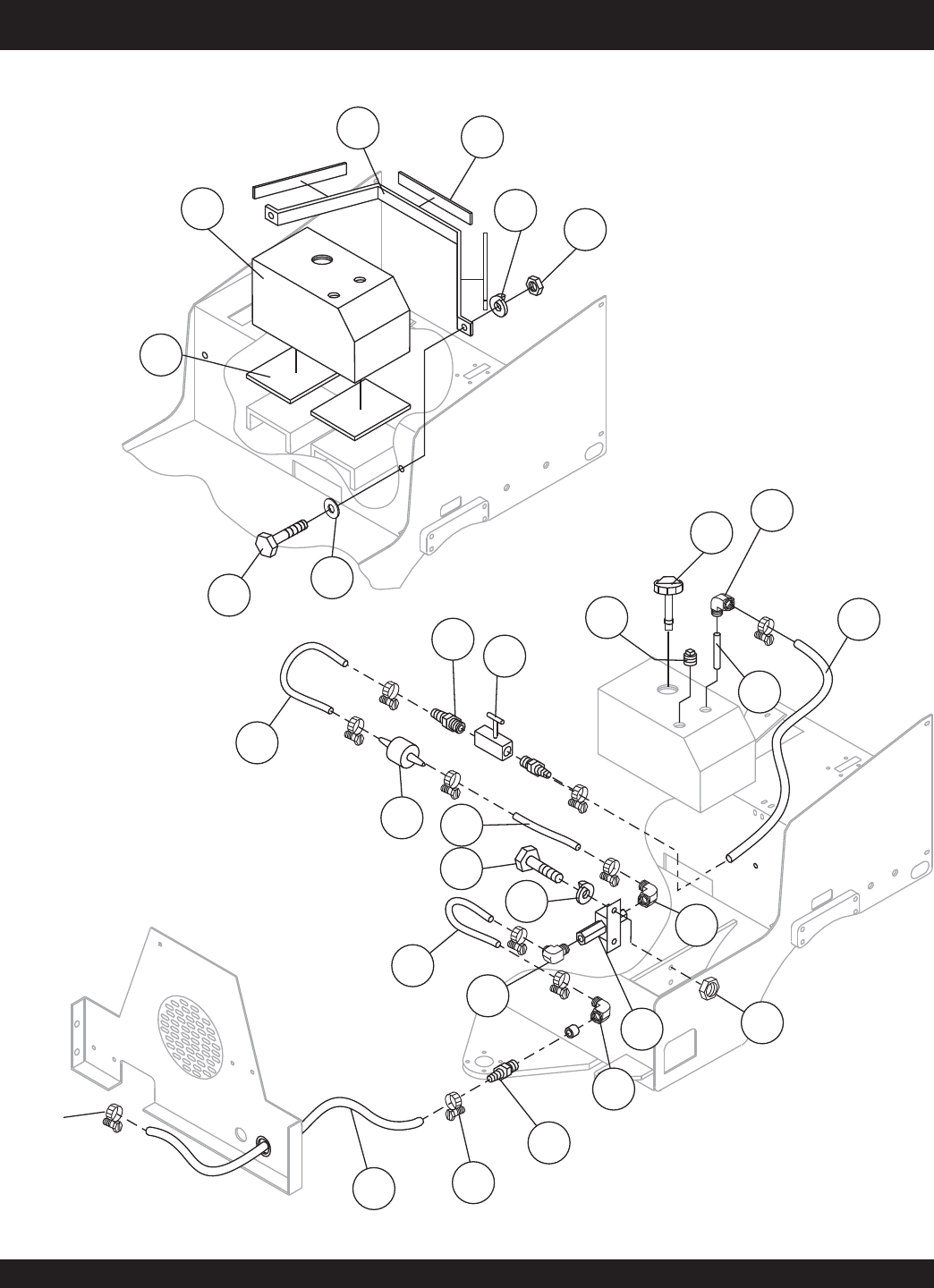

Fuel Tank Assembly ........................................... 70-71

Water Tank Assembly ......................................... 72-73

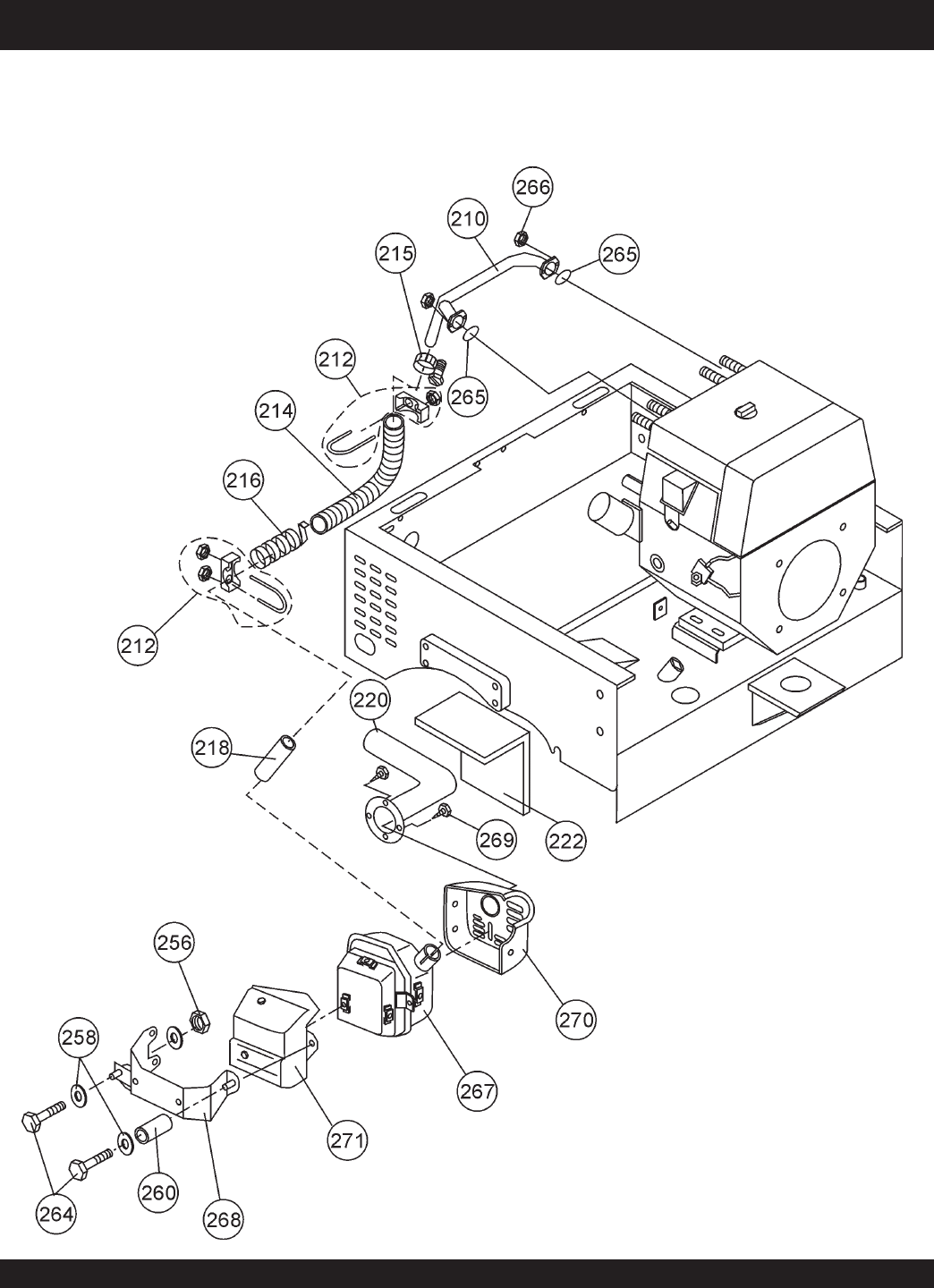

Muffler Assembly ............................................... 74-75

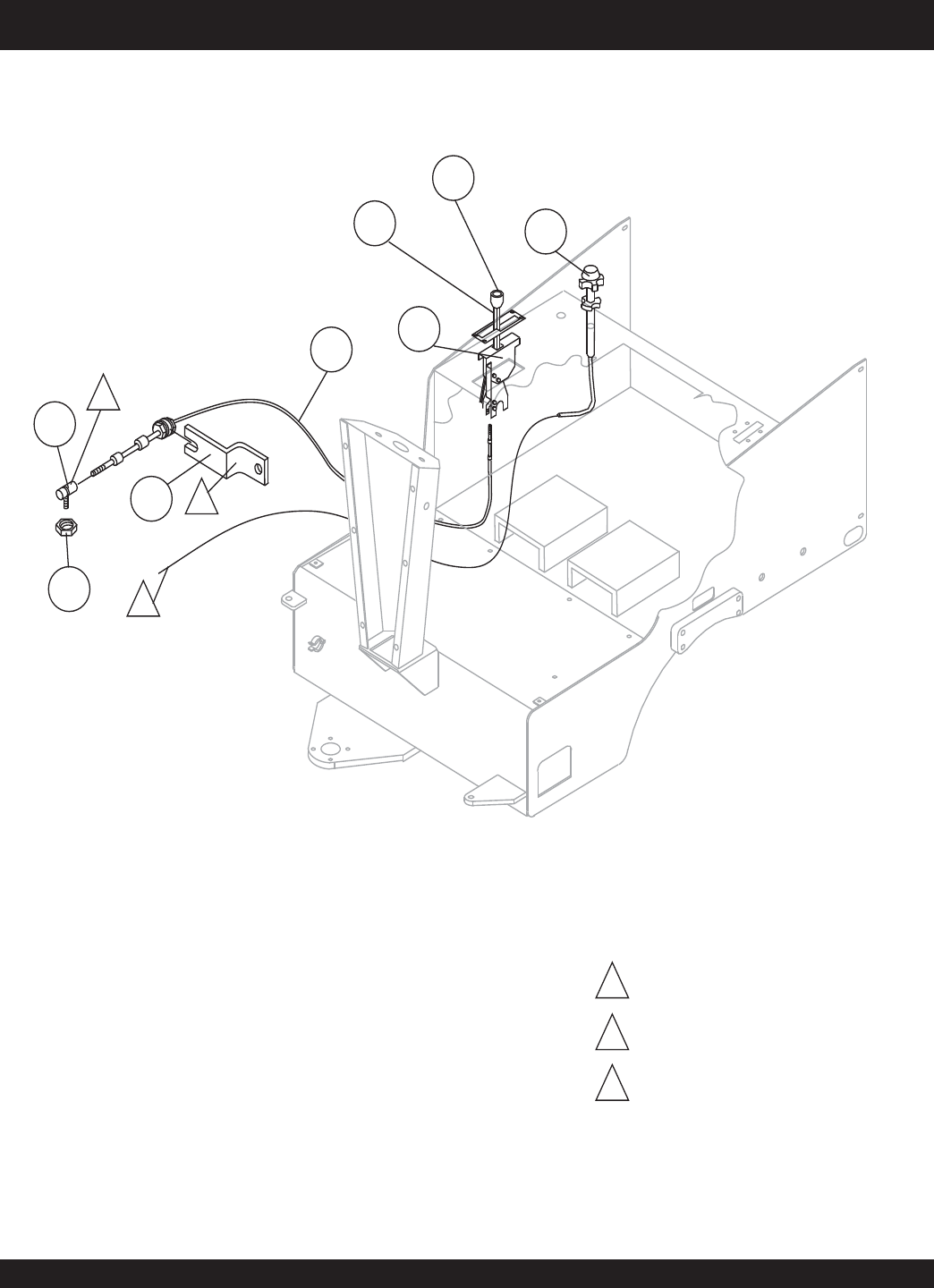

Throttle Assy....................................................... 76-77

Brake Control Assy. ............................................ 78-79

Battery Assy. ...................................................... 80-81

Scraper Assy. ..................................................... 82-83

HONDA GX610K1QZB2

GASOLINE ENGINE

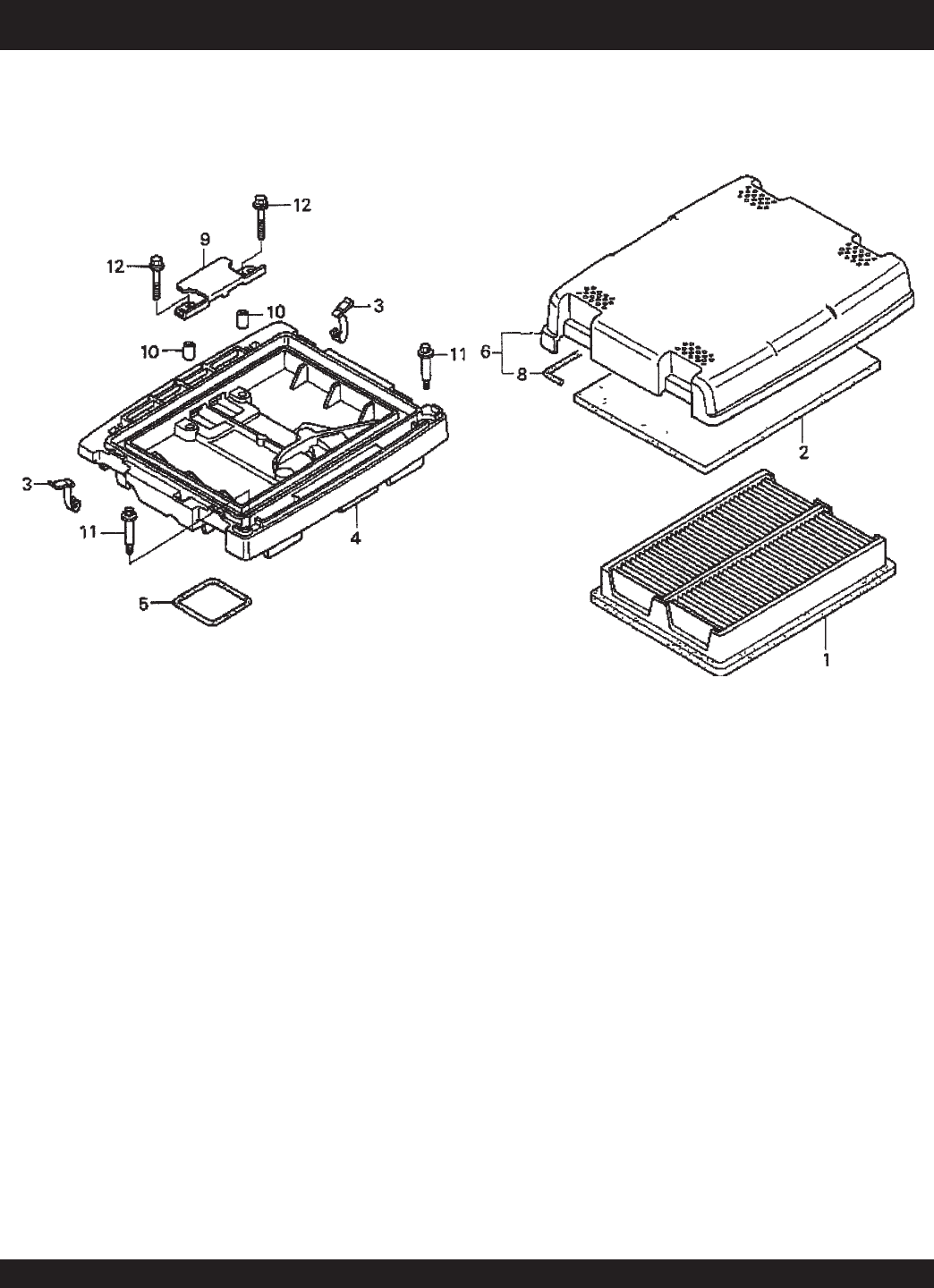

Air Cleaner Assembly......................................... 84-85

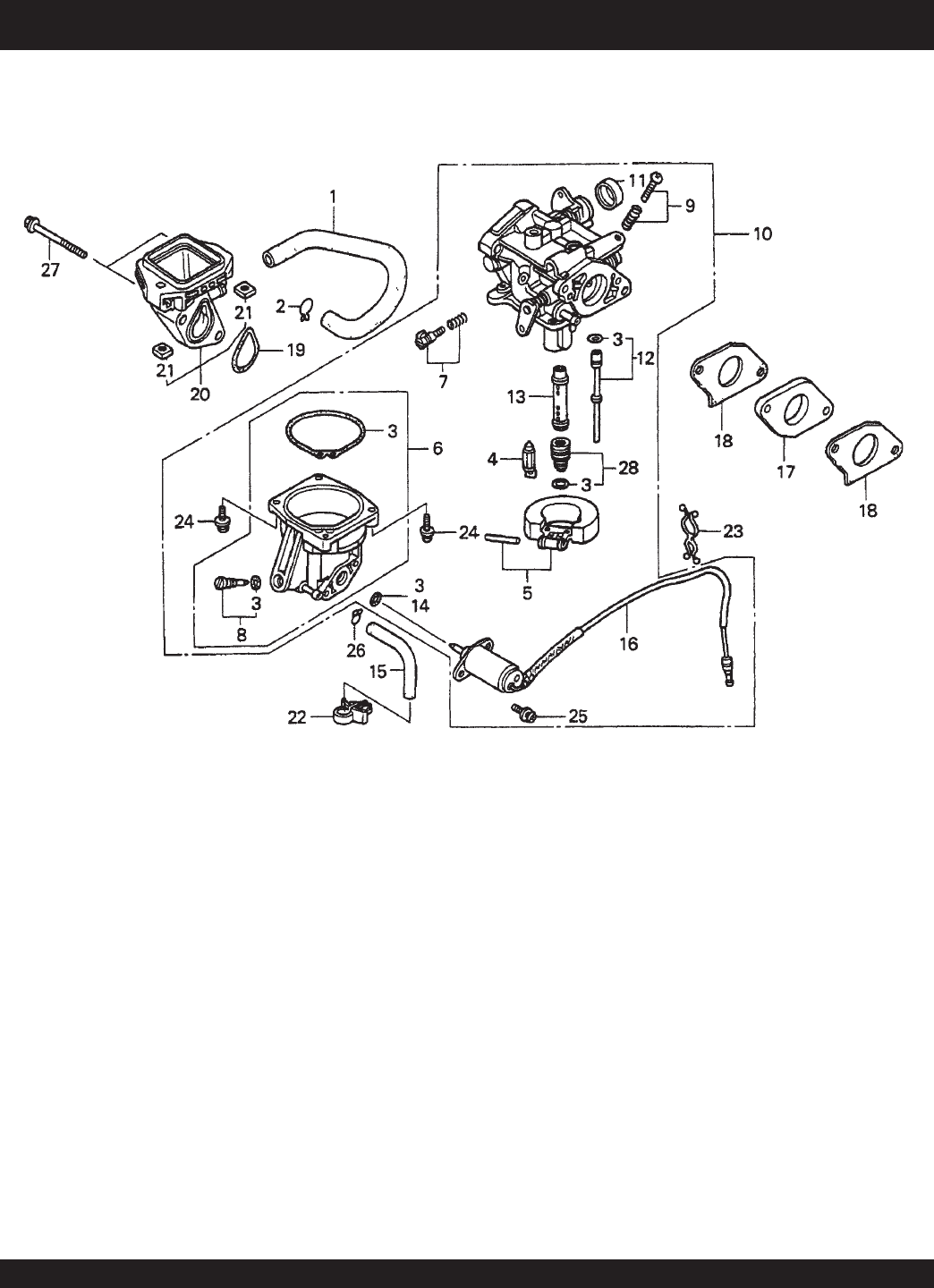

Carburetor Assembly ......................................... 86-87

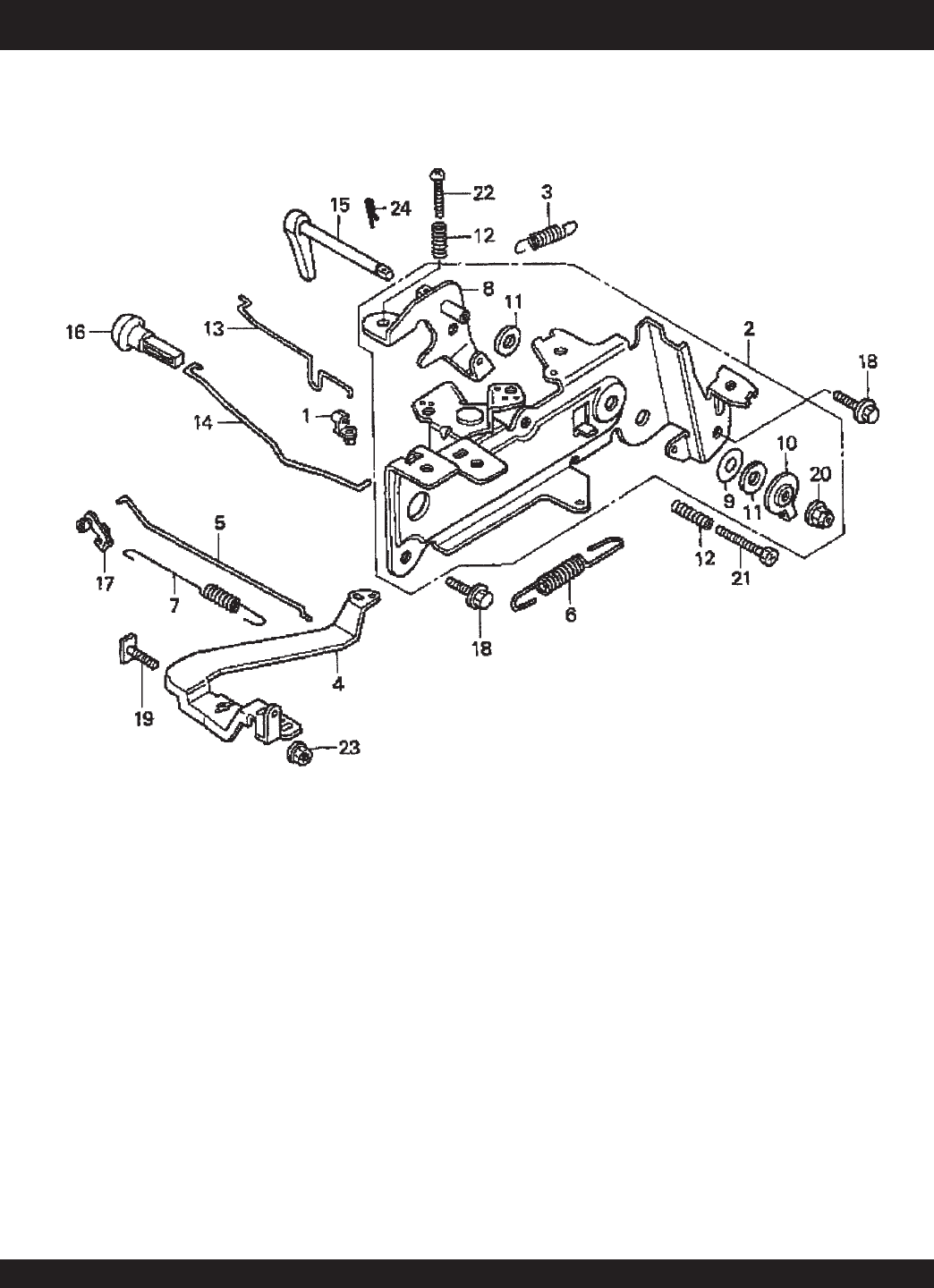

Control Assembly ............................................... 88-89

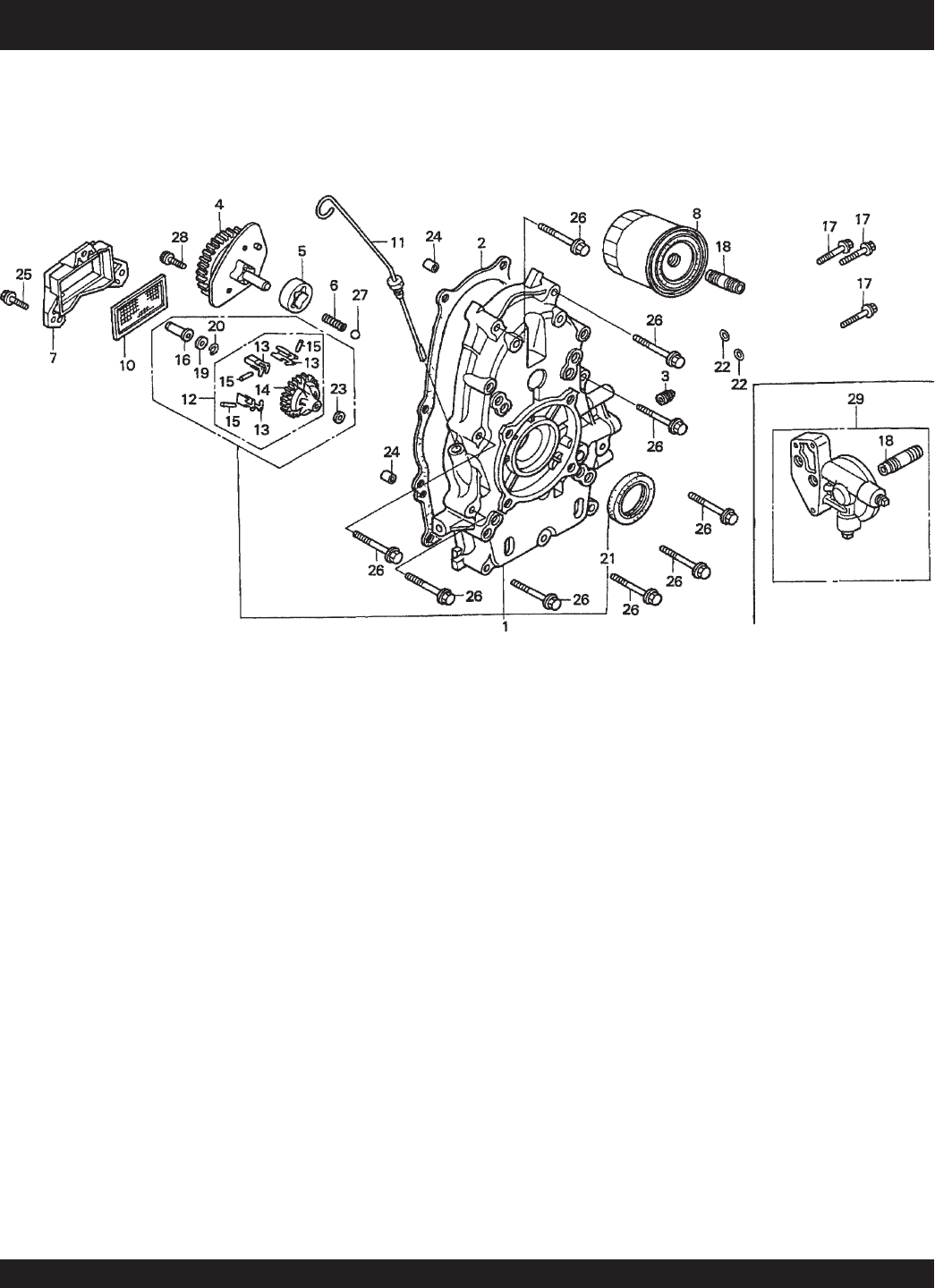

Crankcase Cover Assembly ............................... 90-91

Camshaft Assembly ........................................... 92-93

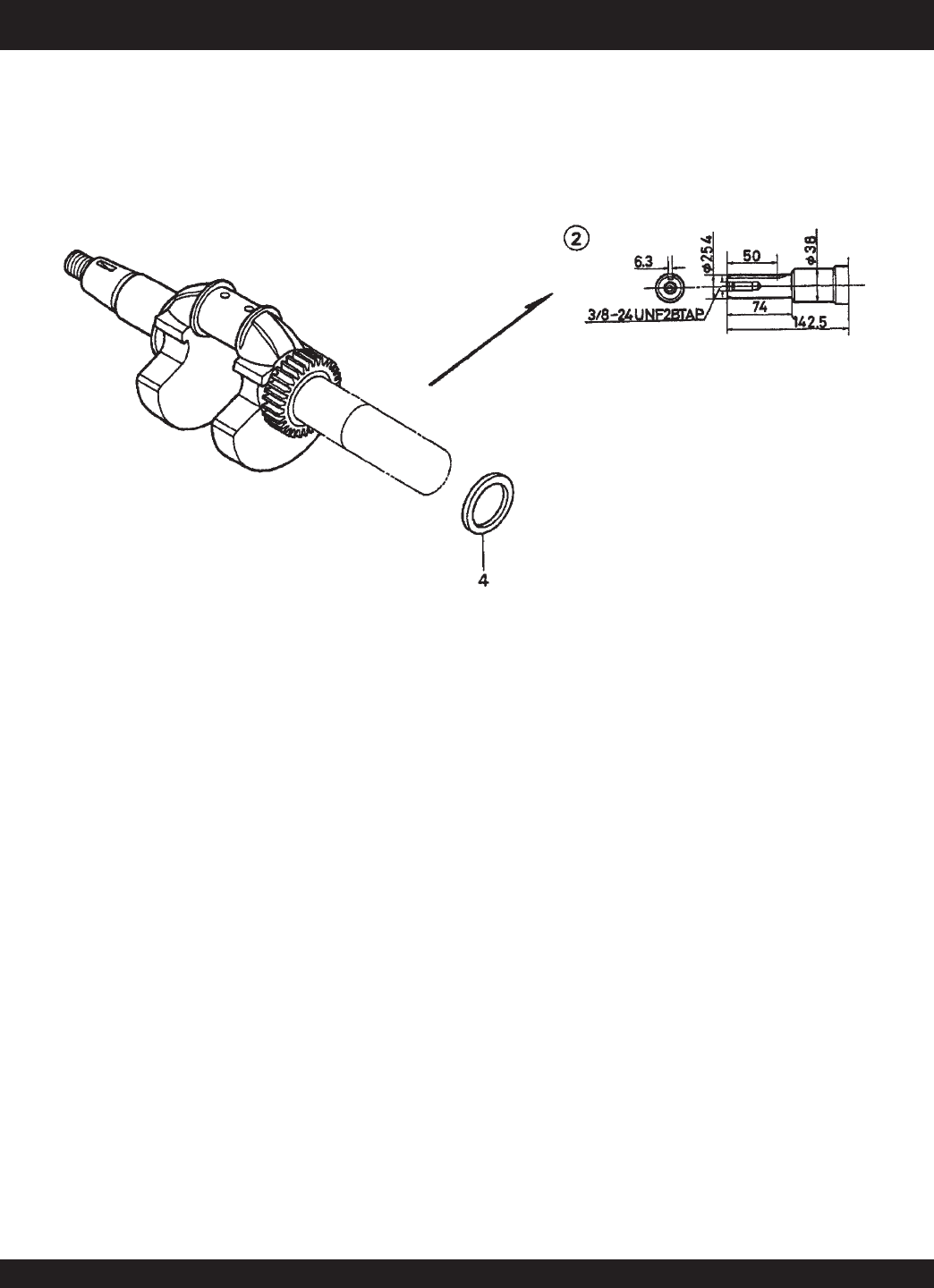

Crankshaft Assembly ......................................... 94-95

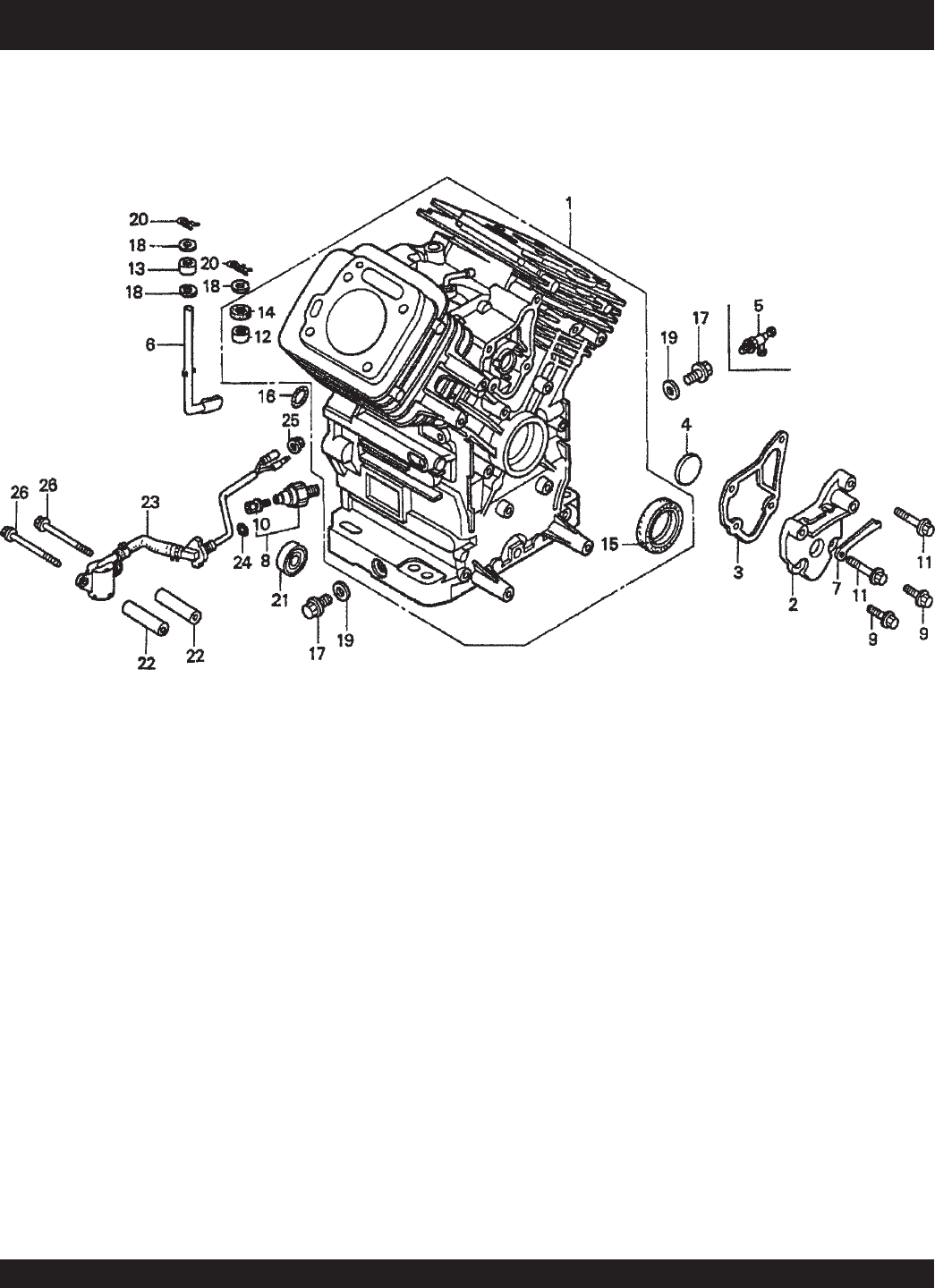

Cylinder Barrel Assembly ................................... 96-97

Cylinder Head Assembly .................................... 98-99

Fan Cover Assembly ...................................... 100-101

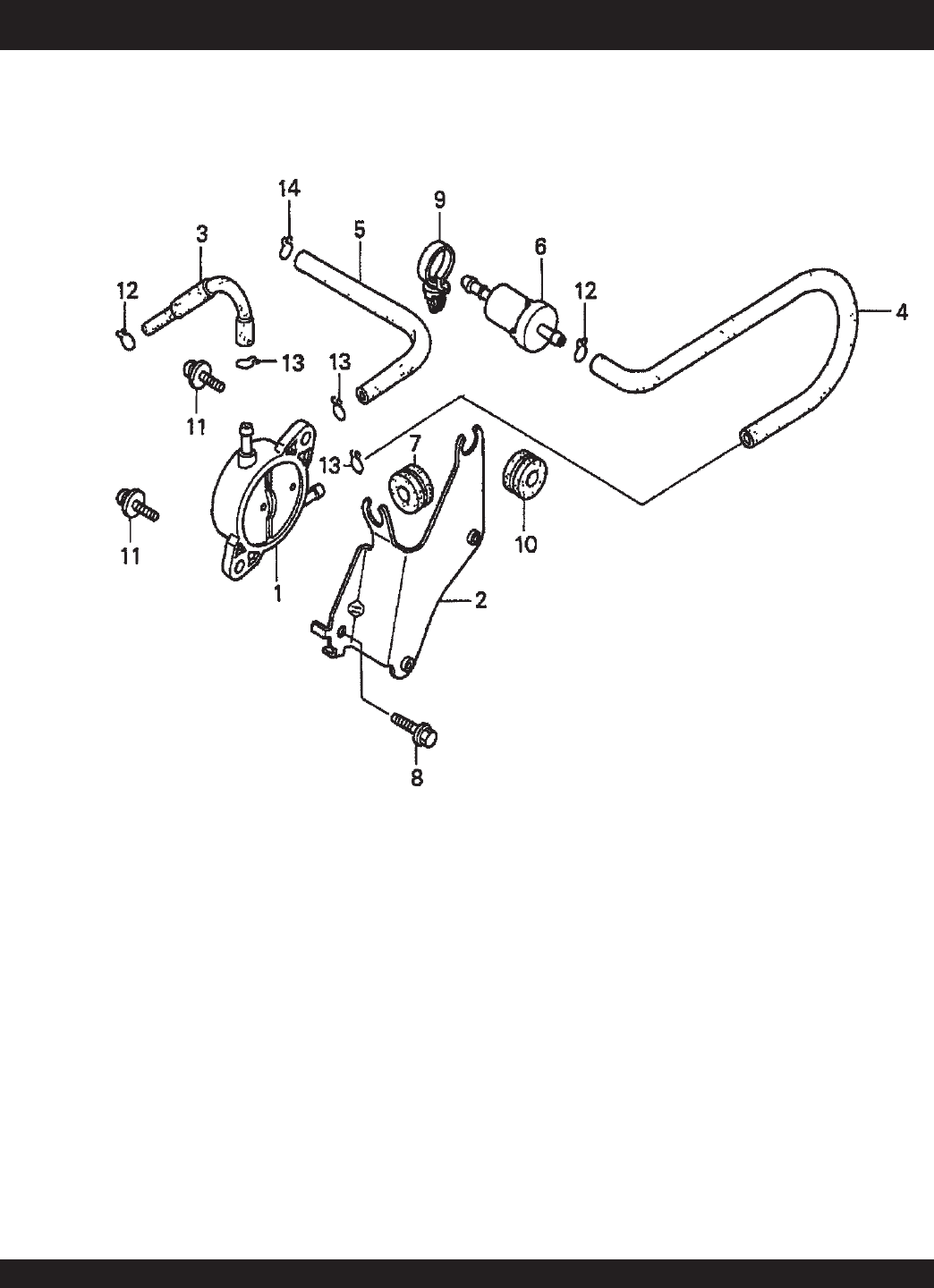

Fuel Pump Assembly ..................................... 102-103

Flywheel Assembly ....................................... 104-105

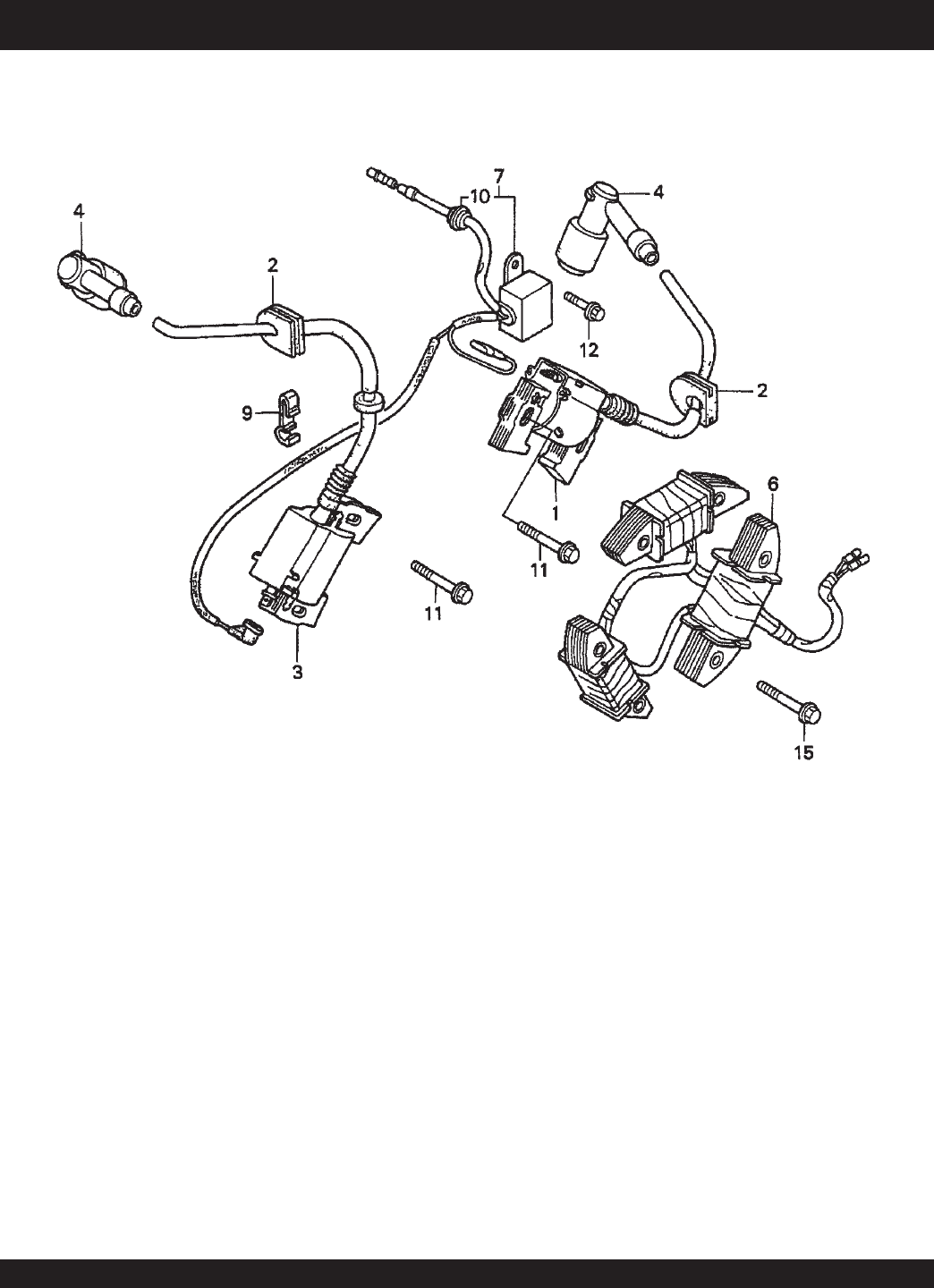

Ignition Assembly ........................................... 106-107

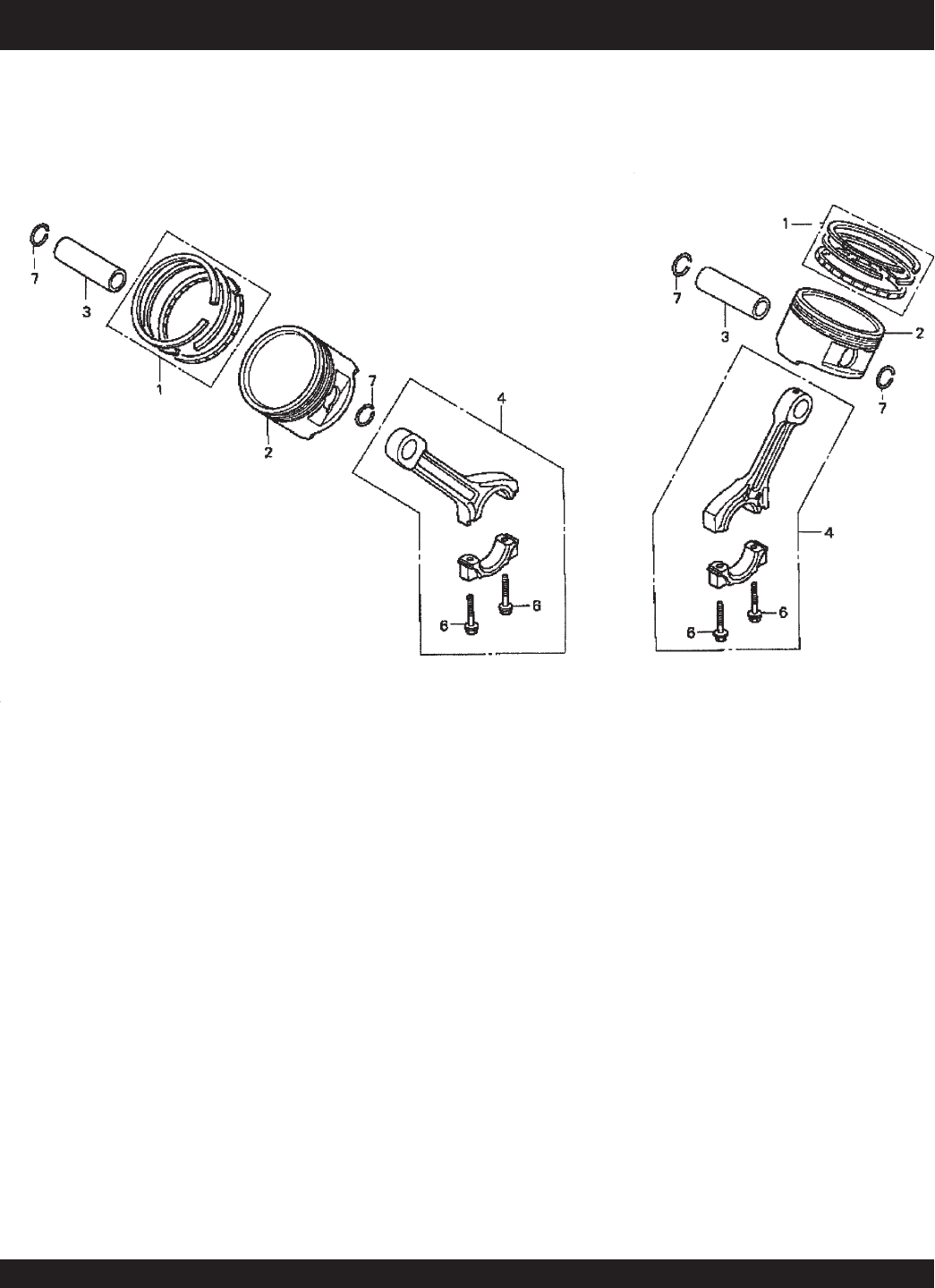

Piston Assembly ............................................. 108-109

Starter Motor Assembly ................................. 110-111

Labels Assembly ............................................ 112-113

Terms and Conditions of Sale ............................... 114

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 5

www.multiquip.com

Ordering parts has never been easier!

Choose from three easy options:

WE ACCEPT ALL MAJOR CREDIT CARDS!

When ordering parts, please supply:

R Dealer Account Number

R Dealer Name and Address

R Shipping Address (if different than billing address)

R Return Fax Number

R Applicable Model Number

R Quantity, Part Number and Description of Each Part

R Specify Preferred Method of Shipment:

UPS/Fed Ex DHL

N Priority One Tr u ck 

N Ground

N Next Day

N Second/Third Day

If you have an MQ Account, to obtain a Username

and Password, E-mail us at: parts@multiquip.

com.

To obtain an MQ Account, contact you

r

District Sales Manager for more information.

Order via Internet (Dealers Only):

Order parts on-line using Multiquip’s SmartEquip website!

N View Parts Diagrams

N Order Parts

N Print Specification Information

Note: Discounts Are Subject To Change

Goto www.multiquip.com and click on

Order Parts to log in and save!

Use the internet and qualify for a 5% Discount

on Standard orders for all orders which include

complete part numbers.*

Order via Fax (Dealers Only):

All customers are welcome to order parts via Fax.

Domestic (US) Customers dial:

1-800-6-PARTS-7 (800-672-7877)

Fax your order in and qualify for a 2% Discount

on Standard orders for all orders which include

complete part numbers.*

Order via Phone: Domestic (US) Dealers Call:

1-800-427-1244

Best Deal!

International Customers should contact

their local Multiquip Representatives for

Parts Ordering information.

Non-Dealer Customers:

Contact your local Multiquip Dealer for

parts or call 800-427-1244 for help in

locating a dealer near you.

Note: Discounts Are Subject To Change

Effective:

January 1st, 2006

NOTICE

All orders are treated as Standard Orders and will

ship the same day if received prior to 3PM PST.

PARTS ORDERING PROCEDURES

PAGE 6 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

AR13HA-R RIDE-ON ROLLER — SAFETY MESSAGE ALERT SYMBOLS

Safety precautions should be followed at all times when operating

this equipment. Failure to read and understand the Safety

Messages and Operating Instructions could result in injury to

yourself and others.

FOR YOUR SAFETY AND THE SAFETY OF OTHERS!

This Owner's Manual has been

developed to provide complete

instructions for the safe and efficient

operation of the Multiquip Model

AR13HA-R Ride-on Tandem Drum

Roller. Refer to the engine manufacturers instructions for data

relative to its safe operation.

Before using this roller, ensure that the operating individual

has read and understands all instructions in this manual.

SAFETY MESSAGE ALERT SYMBOLS

The three (3) Safety Messages shown below will inform you

about potential hazards that could injure you or others. The

Safety Messages specifically address the level of exposure to

the operator, and are preceded by one of three words: DANGER,

WARNING, or CAUTION.

Lethal Exhaust Gases

NOTE

You WILL be KILLED or SERIOUSLY injured if you do

not follow directions.

You COULD be KILLED or SERIOUSLY injured if you

do not follow directions.

You CAN be injured if you do not follow directions

WARNING

DANGER

CAUTION

HAZARD SYMBOLS

Gasoline engine exhaust gases contain

poisonous carbon monoxide. This gas is

colorless and odorless, and can cause

death if inhaled. NEVER operate this

equipment in a confined area or enclosed

structure that does not provide ample free flow air.

Potential hazards associated with operation of the pump will be

referenced with Hazard Symbols which appear throughout this

manual, and will be referenced in conjunction with Safety

Message Alert Symbols. Some examples are listed below:

Gasoline

is extremely flammable, and its

vapors can cause an explosion if ignited.

DO NOT start the engine near spilled fuel

or combustible fluids. DO NOT fill the fuel

tank while the engine is running or hot.

DO NOT overfill tank, since spilled fuel

could ignite if it comes into contact with hot engine parts or

sparks from the ignition system. Store fuel in approved

containers, in well-ventilated areas and away from sparks and

flames. NEVER use fuel as a cleaning agent.

Engine components can generate extreme

heat. To prevent burns, DO NOT touch these

areas while the engine is running or

immediately after operations. NEVER operate

the engine with heat shields or heat guards

removed.

WARNING - LETHAL EXHAUST GASES

WARNING - BURN HAZARDS

WARNING - EXPLOSIVE FUEL

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 7

AR13HA-R RIDE-ON ROLLER — SAFETY MESSAGE ALERT SYMBOLS

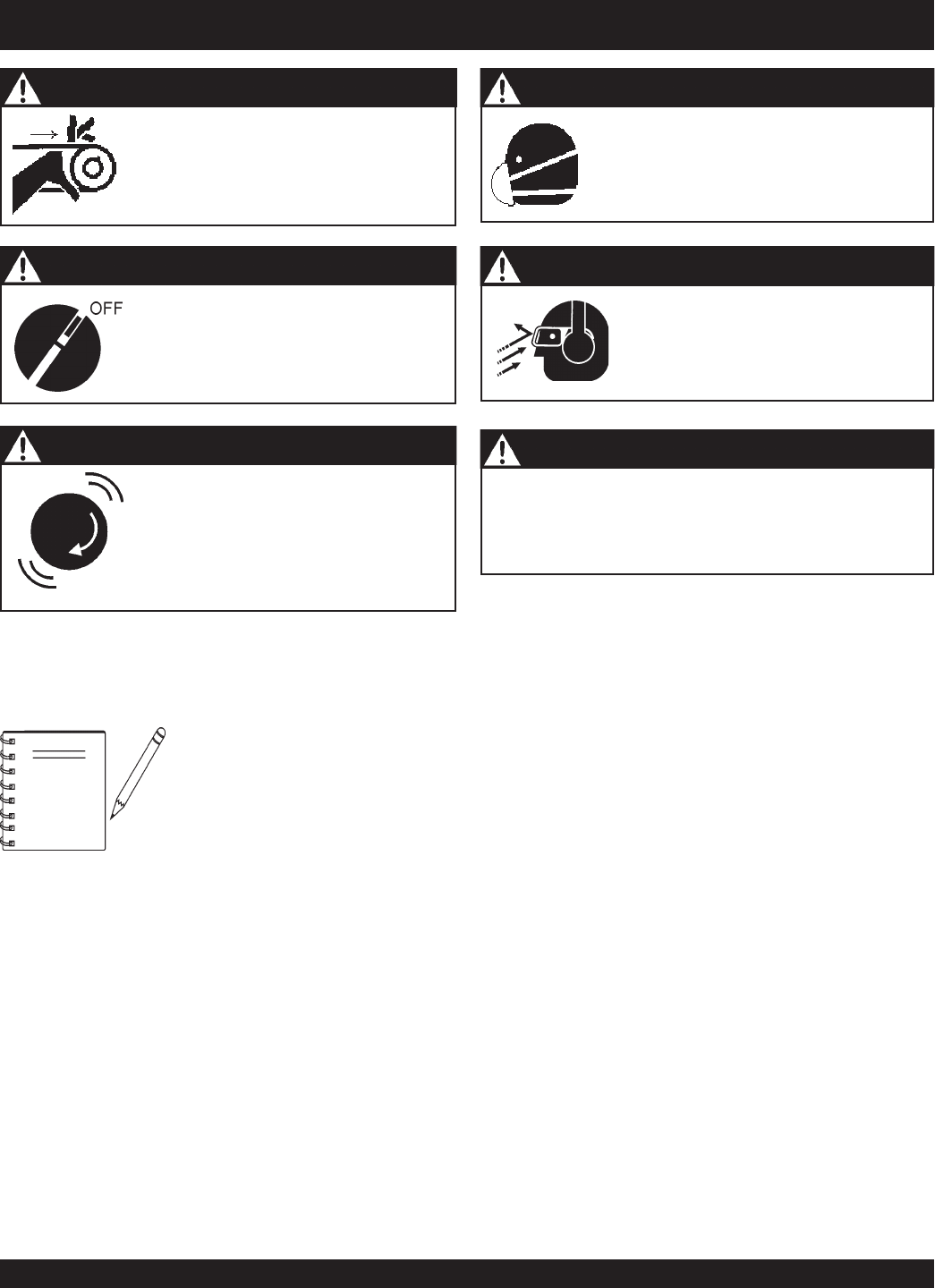

ALWAYS place the Engine ON/OFF switch

in the OFF position and remove the ignition

key when the pump is not in use.

ALWAYS wear approved

respiratory

protection.

ALWAYS wear approved

eye

and

hearing

protection.

Other important messages are provided throughout this manual

to help prevent damage to your concrete pump, other property,

or the surrounding environment.

NOTE

NEVER tamper with the factory settings of

the engine governor or settings. Personal

injury and damage to the engine or

equipment can result if operating in speed

ranges above maximum allowable.

CAUTION - OVER-SPEED CONDITIONS

CAUTION - ACCIDENTAL STARTING

CAUTION - RESPIRATORY HAZARDS

CAUTION - SIGHT AND HEARING HAZARDS

CAUTION - EQUIPMENT DAMAGE MESSAGES

NEVER operate equipment with covers,

or guards removed. Keep

fingers

,

hands

,

hair

and clothing away from all moving

parts to prevent injury.

WARNING - ROTATING PARTS

This Ride-on Tandem Drum Roller,

other property, or the surrounding

environment could be damaged if you

do not follow instructions.

PAGE 8 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

RULES FOR SAFE OPERATION

■

ALWAYS refuel in a well-ventilated area, away from sparks

and open flames.

■

ALWAYS use extreme caution when working with flammable

liquids. When refueling, stop the engine and allow it to cool.

DO NOT smoke around or near the machine. Fire or explosion

could result from fuel vapors, or if fuel is spilled on a hot

engine.

■

NEVER operate the Ride-on Tandem

Drum Roller in an explosive atmosphere

or near combustible materials. An

explosion or fire could result causing

severe

bodily harm or even death.

■

Topping-off to filler port is dangerous, as it tends to spill fuel.

■

Refer to the

Engine Owner's Manual

for engine technical

questions or information.

■

NEVER use accessories or attachments, which are not

recommended by Multiquip for this equipment. Damage to

the equipment and/or injury to user may result.

■

Manufacturer does not assume responsibility for any accident

due to equipment modifications.

■

NEVER touch the hot exhaust manifold, muffler or cylinder.

Allow these parts to cool before servicing

engine or pump.

■

The engine of this roller requires an adequate free flow of

cooling air. Never operate the roller in any enclosed or narrow

area where free flow of the air is restricted. If the air flow is

restricted it will cause

serious damage to the

roller or engine and may

cause injury to people

and property. Remember

the roller's engine gives

off DEADLY gases.

■

High Temperatures – Allow the engine

to cool before adding fuel or performing

service and maintenance functions.

Contact with

hot

components can cause

serious burns.

The following safety guidelines should always be used when

operating the AR13HA-R Ride-on Tandem Drum Roller:

GENERAL SAFETY

■

DO NOT operate or service this equipment before

reading this entire manual.

■

This equipment should not be operated by

persons under 18 years of age.

■

NEVER operate this equipment without proper protective

clothing, shatterproof glasses, steel-toed boots and other

protective devices required by the job.

■

NEVER operate this equipment when not feeling well due to

fatigue, illness or taking medicine.

■

NEVER operate this equipment under the influence or drugs or

alcohol.

■

Whenever necessary, replace nameplate, operation and

safety decals when they become difficult read.

■

ALWAYS check the machine for loosened threads or bolts

before starting.

■

ALWAYS wear proper respiratoty (mask) hearing and eye

protection equipment when operating the roller.

Failure to follow instructions in this manual may lead to serious

injury or even

DEATH

! This equipment is to be operated by

trained and qualified personnel only! This equipment is for

industrial use only.

DANGER - Read This Manual!

■

NEVER operate this equipment when not feeling

well due to fatigue, llness or taking medicine.

■

NEVER operate this equipment under the

influence of

drugs

or

alcohol

.

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 9

RULES FOR SAFE OPERATION

■

NEVER Run engine without air cleaner. Severe engine

damage may occur.

■

ALWAYS read, understand, and follow procedures in

Operator’s Manual before attempting to operate equipment.

■

ALWAYS be sure the operator is familiar with proper safety

precautions and operations techniques before using roller.

■

ALWAYS store equipment properly when it is not being used.

Equipment should be stored in a clean, dry location out of the

reach of children.

■

DO NOT operate this roller with hydrostatic oil temperature

higher than 180 degrees fahrenheit.

■

NEVER leave the roller unattended, turn off engine and place

parking brake lever in upright position.

■

CAUTION must always be observed while servicing this roller.

Rotating parts can cause injury if contacted.

■

DO NOT leave roller with engine running.

■

If the roller must be stopped on an incline (grade), remove the

ignition key and place chock blocks (not provided) under

the

front

and

rear

drums.

■

NEVER drive the roller on unshored trenches or near steep,

unsupported banks. The vibration caused by the roller could

cause a cave-in.

■

ALWAYS use extreme care when operating near obstructions,

on slippery surfaces, grades and side slopes.

■

ALWAYS wear slip resistant safety shoes or boots.

■

Unauthorized equipment modifications will void all

warranties.

■

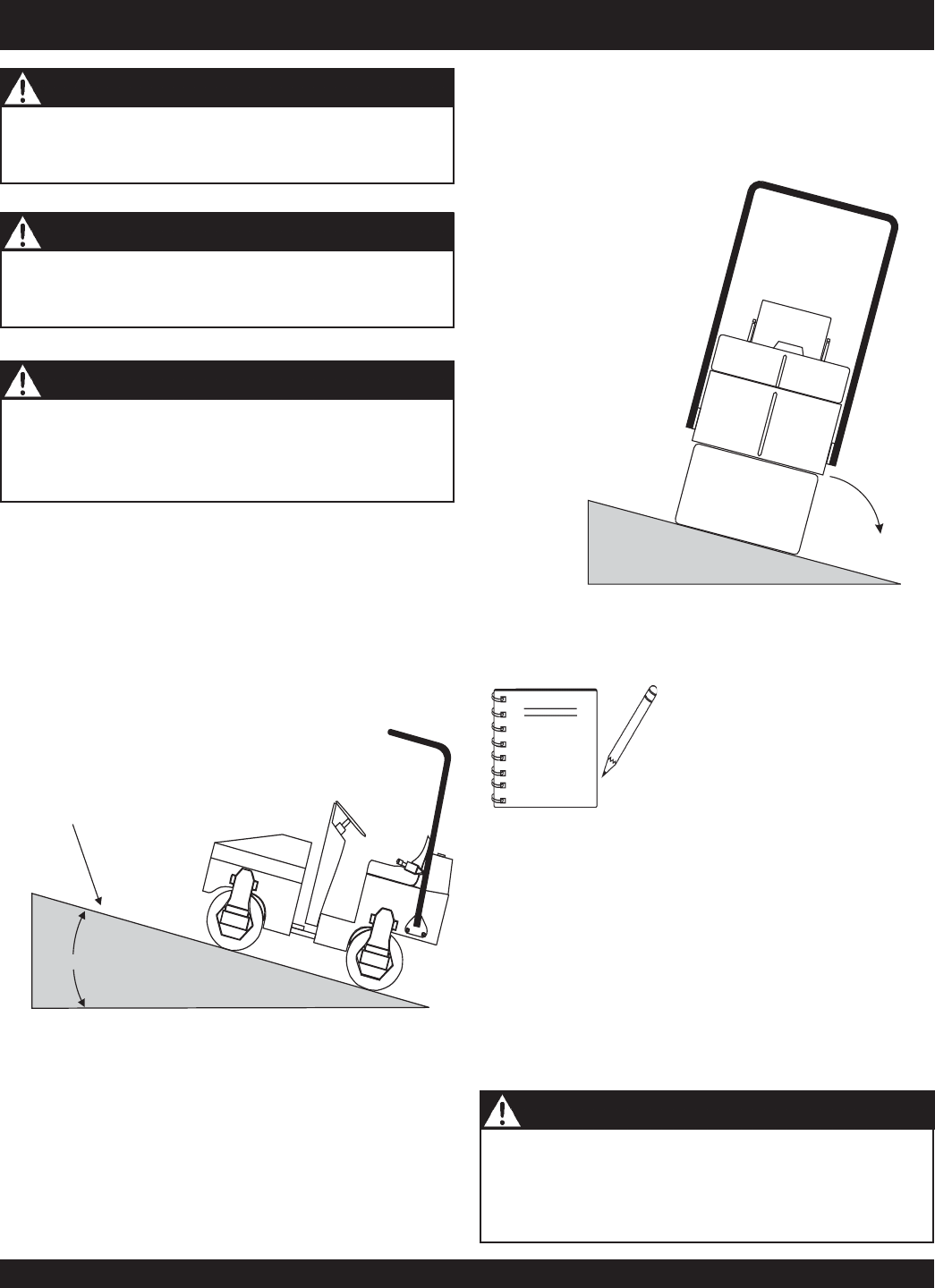

When working on slopes, avoid

sidehill travel

. Operate up

and down travel only. Remember, the danger of sliding on

and/or tripping on steep slopes is always present.

■

ALWAYS wear

seat belts

.

■

When malfunctions occur, always remove the ignition key

and place a "

DO NOT OPERATE

" sign in the operator's

seat.

■

If a malfunction occurs with the travel lever mechanism, speed

and direction will be impossible to control. Immediately stop

the roller and correct the problem.

■

If the steering system operates improperly, immediately stop

the engine and apply the parking brake.

■

In the event of hydraulic hose or line failure, promptly return

the travel lever to the “neutral” position, stop the engine and

set the parking brake.

MAINTENANCE SAFETY

■

NEVER lubricate components or attempt service on a running

machine.

■

ALWAYS allow the machine a proper amount of time to cool

before servicing.

■

Keep the machinery in proper running condition.

■

Fix damage to the machine immediately and always replace

broken parts, or missing decals.

■

Dispose of hazardous waste properly. Examples of potentially

hazardous waste are used motor oil, fuel and fuel filters.

■

DO NOT use food or plastic containers to dispose of

hazardous waste.

■

DO NOT pour waste, oil or fuel directly onto the ground,

down a drain or into any water source.

PAGE 10 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

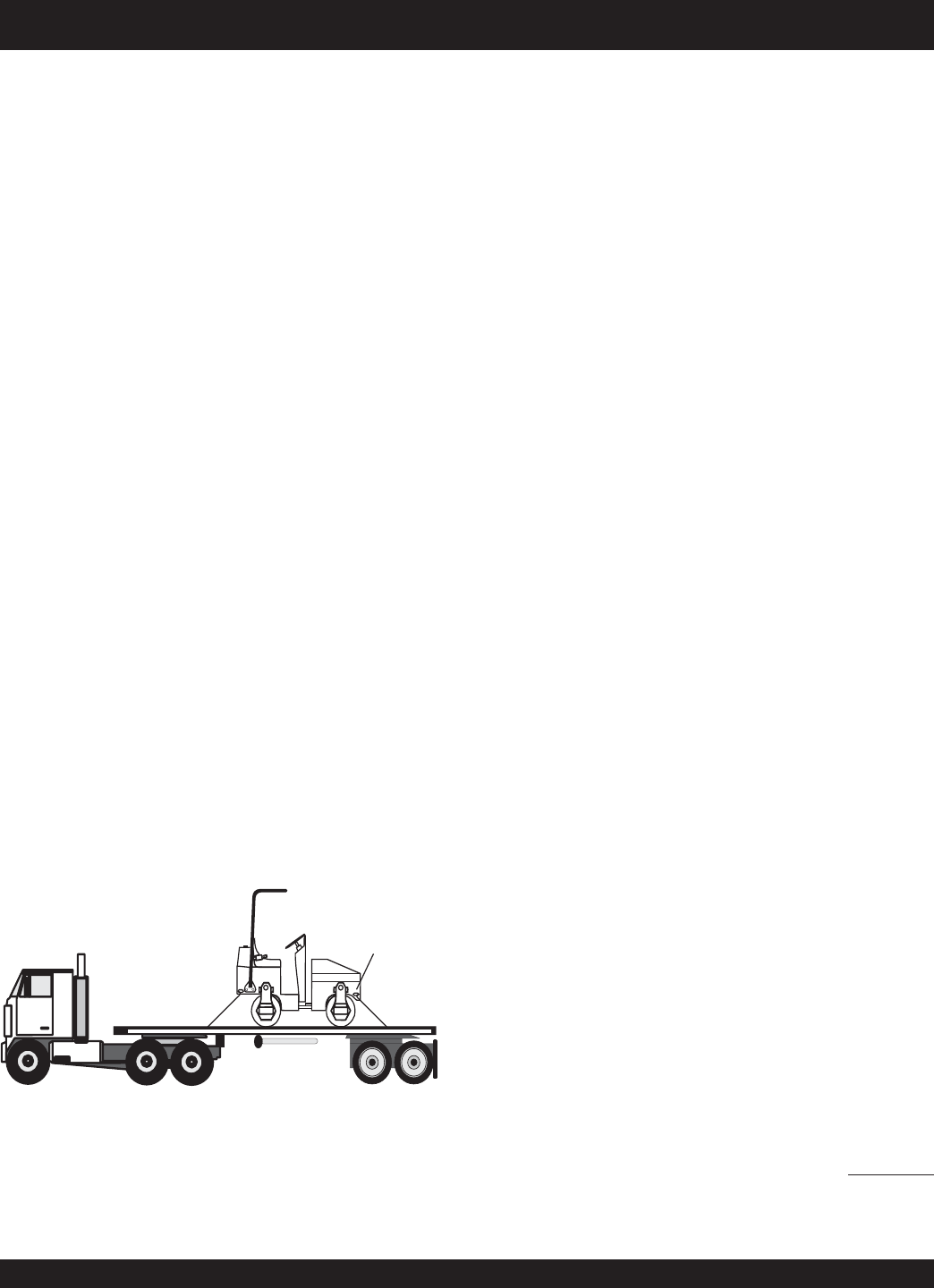

LOADING AND TRANSPORTING SAFETY

■

The roller has an operating weight of approximately 3,088

lbs. (1,400 Kg). Use lifting equipment capable of lifting this

weight.

■

ALWAYS check the roller's lifting hooks. Before lifting or

transporting the roller, lock the frame with the locking bar that

is provided. Make sure the hooks are secure and tight before

lifting the machine.

■

When driving the roller onto a transporting vehicle or trailer,

use ramps or other suitable material of sufficient strength to

support the roller.

■

Remove mud, oil, ice, snow or any other slippery materials

from the ramps and bed of the vehicle to avoid accidents.

■

After loading, apply the parking brake.

■

Use a chain, binders or other suitable means to firmly secure

the roller before transporting.

■

Only use the lifting points for the roller that are clearly marked

as “

lifting point

”.

■

NEVER apply chains through the articulating section of the

roller. The chain could cause damage by scoring the hydraulic

steering cylinder.

■

NEVER stand below roller when it is being lifted.

DANGER!

ALWAYS load and unload the roller on Level,

Hard Ground, or Pavement.

Serious injury or death

can

result from improper loading, lifting or unloading. Use extreme

caution!

DO NOT allow personnel to

stand under

or

near

any

suspended machine.

Serious injury

or

death

may result.

RULES FOR SAFE OPERATION

EMERGENCIES

■

ALWAYS know the location of the

nearest

fire extinguisher

.

■

ALWAYS know the location of the

nearest and

first aid kit

.

■

In emergencies

always

know the location of the

nearest phone or

keep a phone on the job site

.

Also know the phone numbers of the nearest

ambulance

,

doctor

and

fire department

. This

information will be invaluable in the case of an

emergency.

DANGER - Loading & Unloading the Roller

DANGER - Transporting Safety

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 11

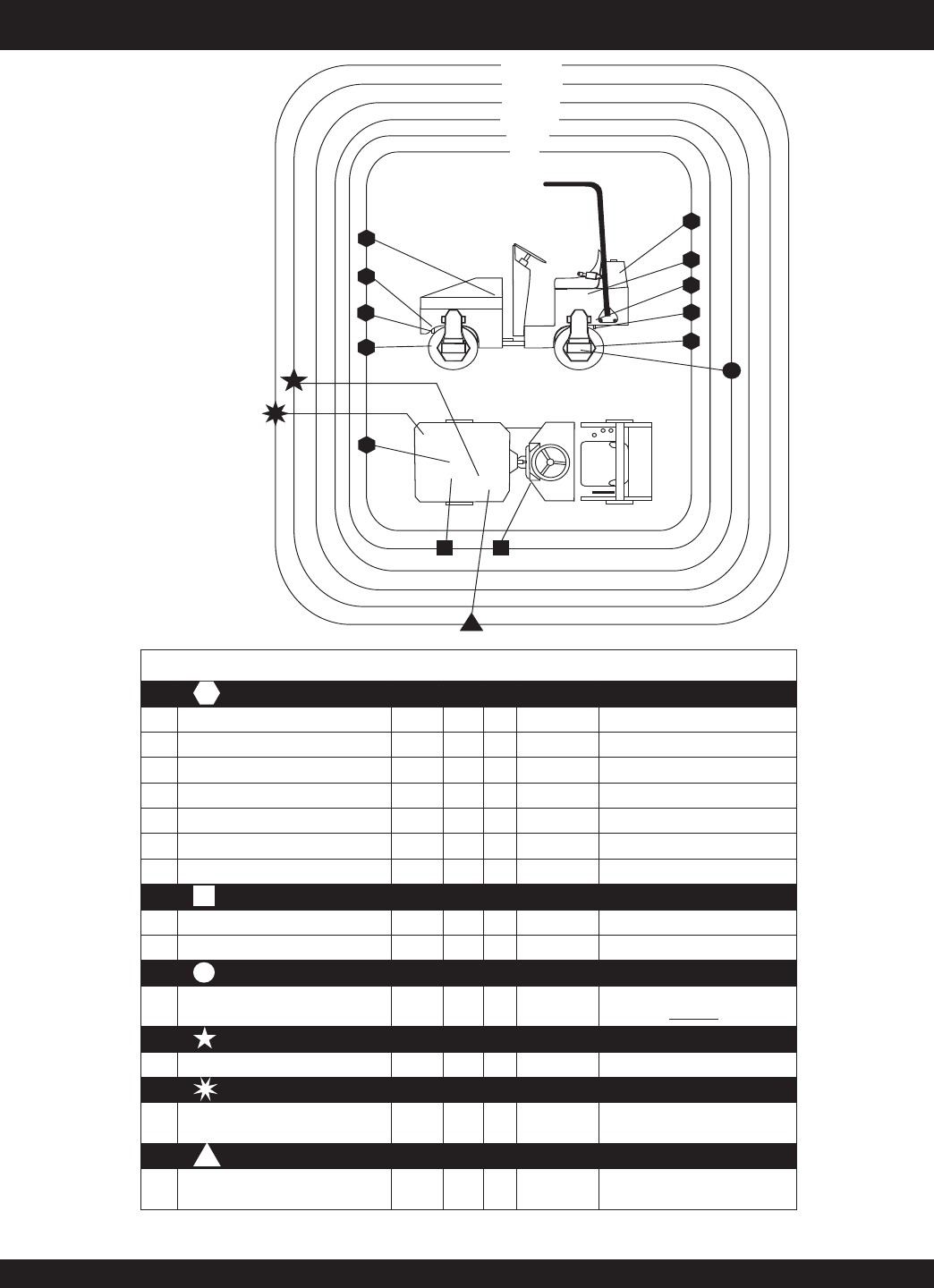

OPERATION AND SAFETY DECALS

Machine Safety Decals

The AR13HA-R Ride-on Tandem Drum Roller

is equipped with a number of safety decals. These decals are provided for operator

safety and maintenance information. The illustration below and on the next page shows these decals as they appear on the

machine. Should any of these decals become unreadable, replacements can be obtained from your dealer.

PAGE 12 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

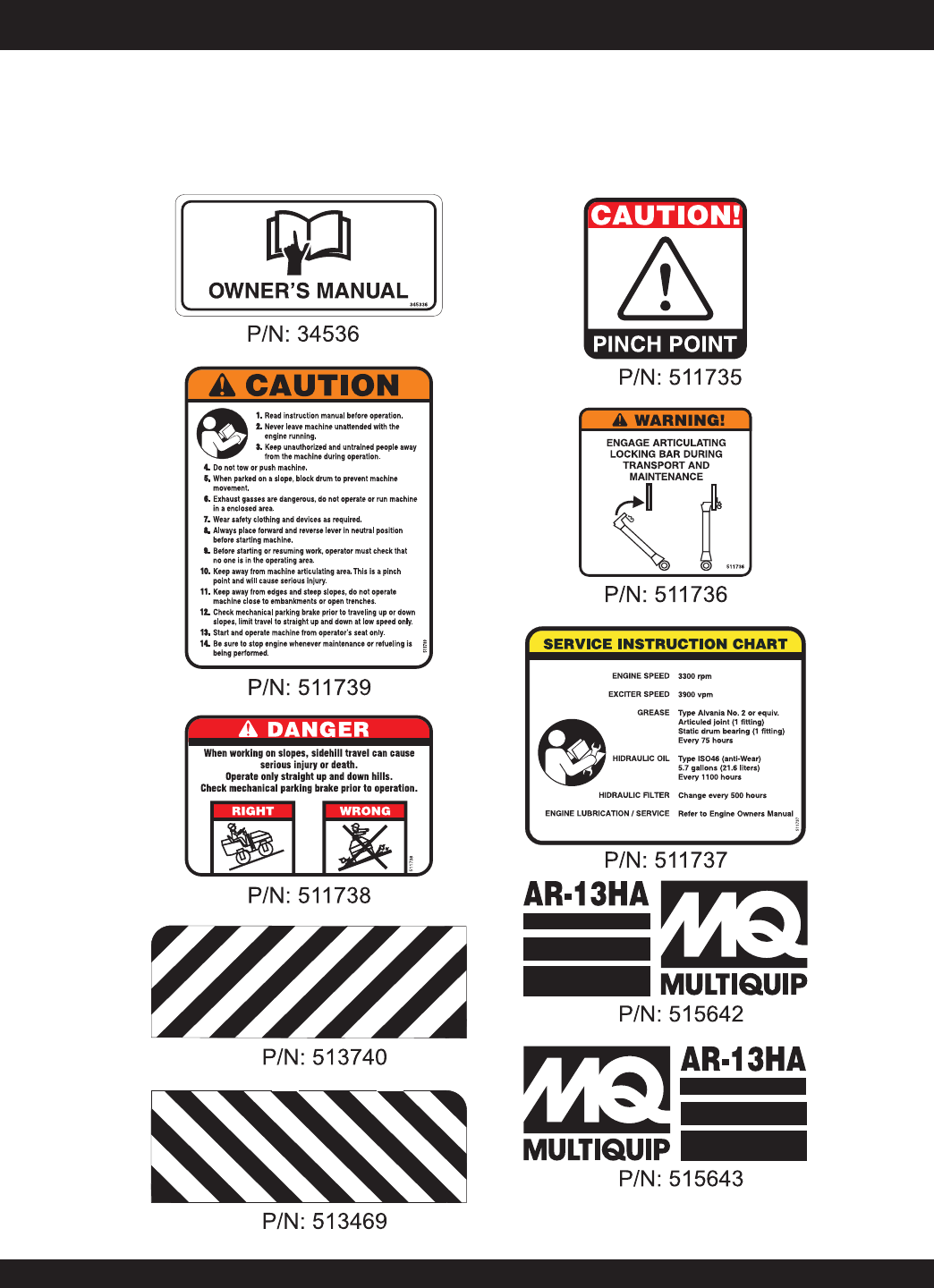

OPERATION AND SAFETY DECALS

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 13

AR13HA-R RIDE-ON ROLLER — SPECIFICATIONS (ROLLER)

snoitacificepSrelloRAH31-RA.1elbaT

thgieWgnippihS).gK761,1(.sbl275,2

thgieWyrD).gK1011(.sbl824,2

thgieWgnitarepO).gK004,1(.sbl880,3

tsallaBmur

D/wthgieWgnitarepO ).gK005,1(.sbl903,3

htgneLllarevO).mm791,2(.ni5.68

htdiWllarevO).mm279(.ni52.83

)pu(SPOR

-thgieHllarevO).mm0122(.ni78

htdiWgnilloRmumixaM).mc709(.ni7.53

edisnI-suidaRgninruT).mm867,2(.ni901

ecnara

elCdnuorG).mm292(.ni5.11

ecnaraelCbruC).mm384,.mm791(R0.91,L57.7

ecnaraelCllaW).mm23,.mm54(R52.1,L57.1

esab

leehW).mm341,1(.ni54

htdiWmurD).mm709(.ni7.53

retemaiDmurD).mm475(.ni6.22

ssenkcihTmurD).mm0.01(.ni83.0

mpr00

7,2-004,2ecroFlagufirtneC ).gK604,1(.sbL001,3

mpr007,2-004,2etunimrepsnoitarbiVMPV000,4

raeniLcimanyD

mpr0

07,2-004,2murDrepecroF

).mc/.gK6.93(.ni/.sbL5.78

)ylnotnorf(

elgnAgnitallicsOseerged11

yticapaCknaTliOcilu

ardyH )sretiL6.12(snollaG.S.U7.5

metsySgnilooCriA

leuFenilosaG

yticapaCknaTleuF)sretiL63(snollaG.S.U5.9

ytica

paCknaTretaW)sretiL722(snollaG06

yrettaB1UepyTpuorGtloV21

-elbairav-deepSlevarT)HPK7.7-0(HPM8.4-0

noitarbiV

o/w-wytilibAedarG)%72(seerged51

PAGE 14 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

AR13HA-R RIDE-ON ROLLER — SPECIFICATIONS (ENGINE)

Table 2. Engine Specifications

Model Honda GX610K1QZB2/GX610R1QZB2 Engine

Ty p eAir-Cooled 4 Stroke, Overhead Valve, 2 cylinders (90

degree V-Twin), Gasoline Engine.

Piston Displacement37.5 cu. in. (614 cc)

[Bore x Stroke][3.03 in. x 2.60 in. (77 mm x 66 mm)]

Max. Output 18 hp (13.4 KW, 18.3 PS) at 3,600 rpm

Max. Governed Speed, No Load 3,500 rpm

Max. To rque31.8 lbf-ft. at 2,500 rpm

Cooling System Forced Air

Engine OilSAE-10W-30 for general use

Engine Oil Capacity (with oil filter

replacement) 1.90 qts. (1.80 liters)

Engine Oil Capacity (without oil

filter replacement) 1.59 qts. (1.50 liters)

FuelUnleaded gasoline

Fuel Consumption0.51 lb/hph (313 g/kWh, 230 g/PSh)

Spark Plug Ty p eNGK: ZGR5A

DENSO: J16CR-U

Idle Speed 1,400 +/- 150 rpm

PTO Shaft RotationCounterclockwise

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 15

AR13HA-R RIDE-ON ROLLER — DIMENSIONS

Figure 1. AR-13H Roller Dimensions

(Side View) (Rear View)

snoisnemiD31-RA.3elbaT

esableehWA ).mm341,1(.ni0.54

retemaiDmurDB ).mm475(.ni6.22

ecnaraelCbruCC ).mm384,.mm791(thgiR.ni0.91,tfeL.ni57.

7

htdiWmurDD ).mm709(.ni7.53

)SPORhtiw(thgieHllarevOE ).mm012,2(.ni78

ecnaraelCdnuorGF ).mm292(.ni5.11

htgneLllare

vOG ).mm741,2(.ni5.68

ecnaraelCllaWH ).mm23,.mm54(thgiR.ni52.1,tfeL.ni57.1

ssenkcihTmurDI ).mm01(.ni83.

htdiWllar

evOJ ).mm279(.ni52.83

thgieHtaeSK ).mm006,1(.ni36

leehWgnireetSL ).mm425,1(.ni06

PAGE 16 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

AR13HA-R RIDE-ON ROLLER — GENERAL INFORMATION

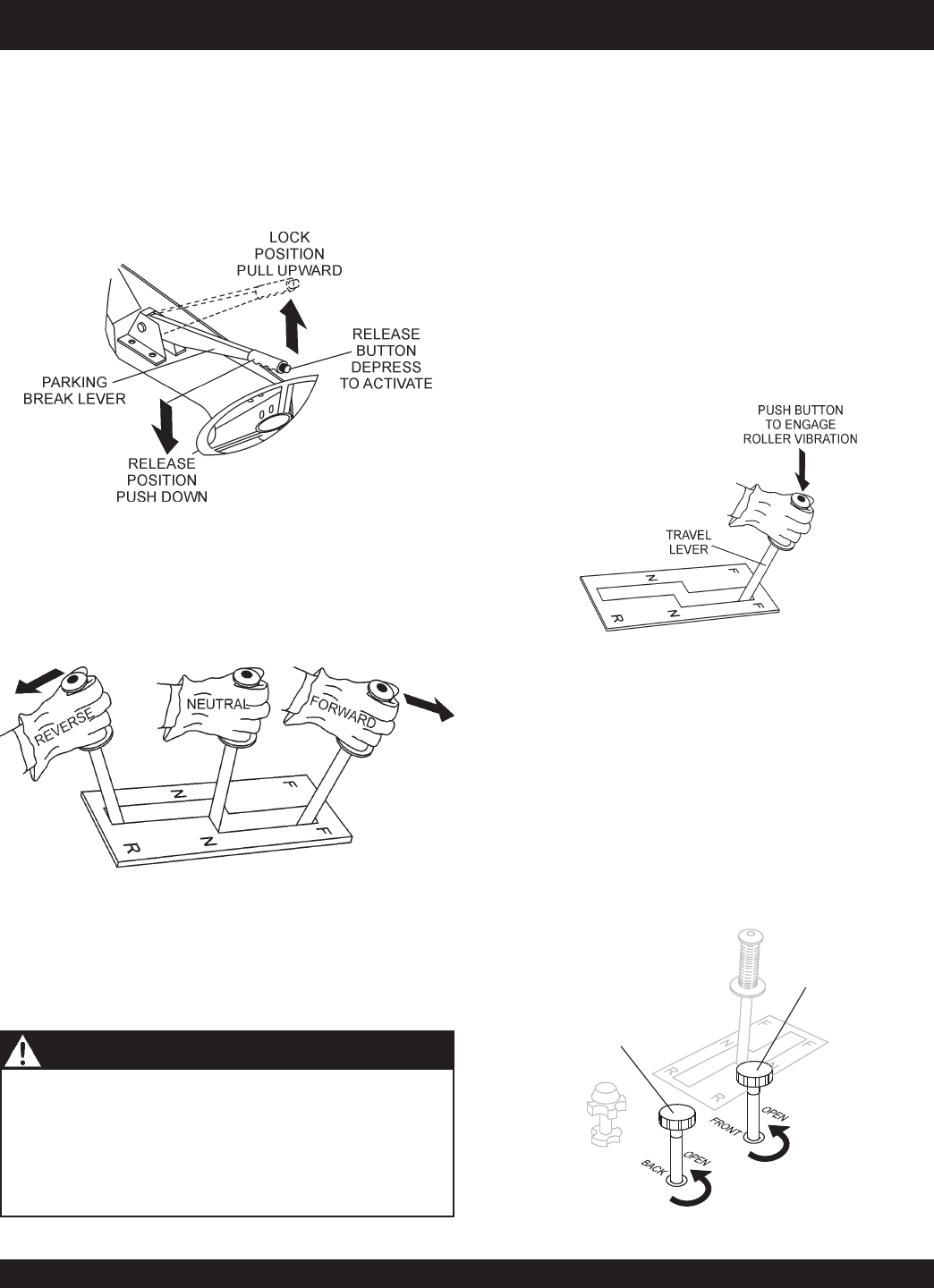

The forward-reverse control lever operates the hydrostatic pump

which governs the roller speed and direction of travel. The speed

in which movement of this lever is made is directly related to the

amount of pressure that is applied to the travel lever in each

direction. Travel speed is infinitely variable from 0 to 4.8 mph.The

neutral position of this lever will cause the roller to stop.

Before operating the roller, make sure that personnel and

obstacles are free from the roller’s path.

Serious injury

or

even

death

can result!

The AR-13H roller has been designed for asphalt application

and compaction of granular soils used in site preparation. Use

the machine only for the purpose intended and by experienced

personnel who understand this operating manual and all safety

decals. Typical applications for this roller are driveways, patch

work and road repairs. Standard features included with this roller

are articulated steering, double drum hydrostatic drive, front drum

vibration, high curb clearance and on board water capability.

POWER PLANT

The AR-13H roller is powered by a Honda GX-610, air cooled,

gasoline engine rated at 18 hp @3,500 rpm. The engine features

a side-mounted muffler designed to direct engine exhaust away

from the operator. In the event of low oil, this engine has a built in

"

oil alert system

" that will shut-down if the engine oil level

reaches an unsafe operating level.

HYDRAULIC SYSTEM

The Honda GX-610 engine drives an axial hydraulics, variable

displacement pump which is manually controlled via a cable

control system. Pump flow is directed through an aluminum block

manifold which provides the control for the 3 hydraulic motors.

The hydraulic drum drive system incorporates a parallel closed

loop configuration operating at a maximum pressure of 2,900

psi. In addition this hydraulic system offers a "

free wheel valve

"

which allows the roller to be towed in the event of an emergency.

COMPACTION SYSTEM

The compaction force is delivered by a 36-inch wide steel drum

with beveled edges to help prevent asphalt

marring

. A fully

enclosed hydrostatic drive system offers a variable speed control

as well as smooth acceleration and braking.

Connected to the axial hydraulic pump is a gear pump that

provides power for the drum vibratory system and the articulating

steering system. Oil from this pump flows to the manifold control

valve block and then to a hydraulic motor which rotates the

eccentric weights inside a sealed housing containing oil to

lubricate the bearings.

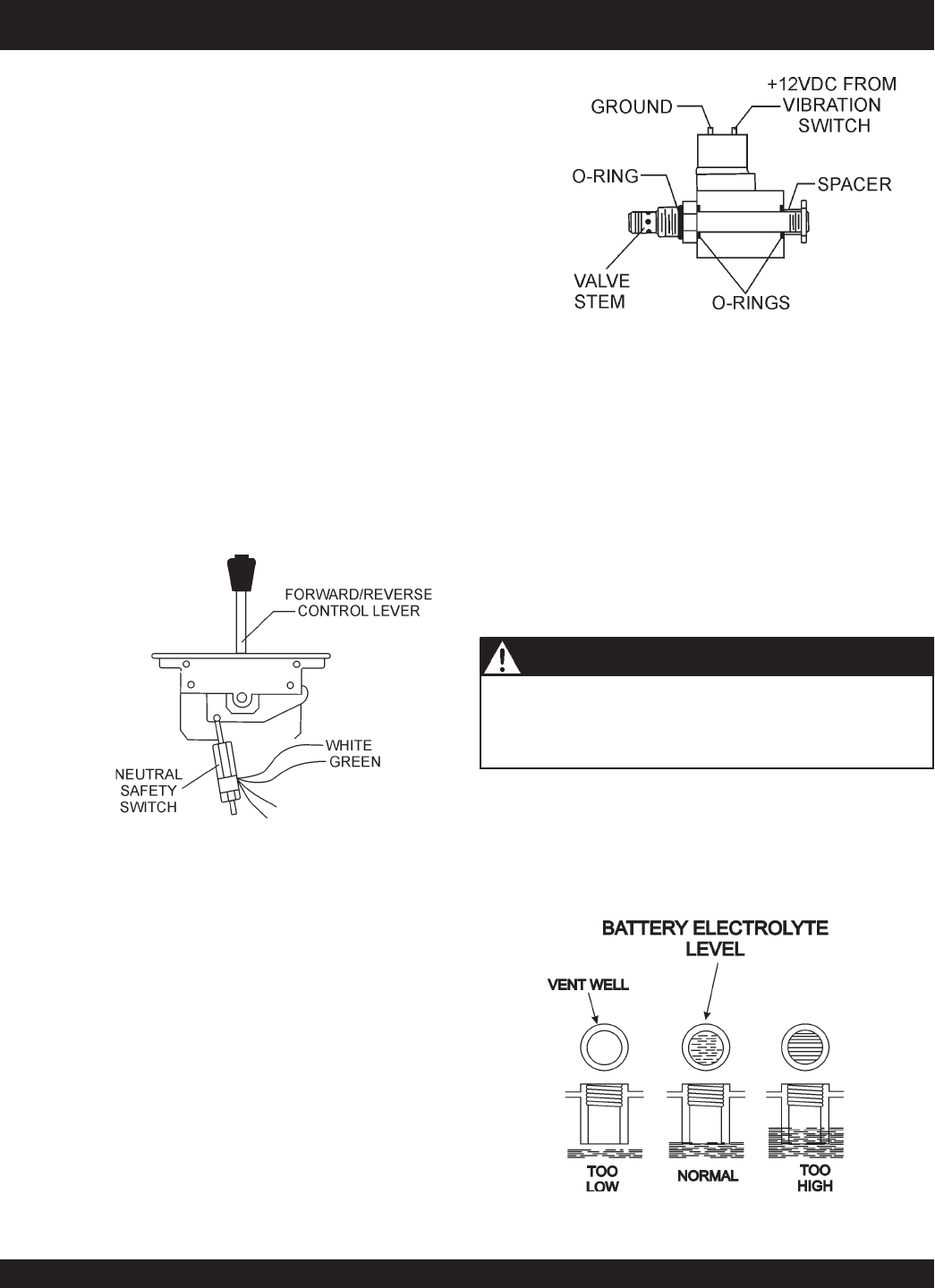

A pushbutton switch located on top of the gearshift lever when

pressed activates a

hydraforce

valve that engages or disgages

the vibratory action. The drum's vibratory action generates 3,100

lbs. (1,406 Kg.) of centrifugal force at a frequency of 4,000 vpm

(vibrations per minute). If the vibration appears to be weak or

slow, allow the machine to warm-up thoroughly, and check the

hydraulic oil level. Add hydraulic oil if necessary.

The vibrator housing and drum are shock mounted to isolate the

engine compartment and operator from vibration.

HYDRAULIC OIL FILTER SYSTEM

The hydraulic system oil is filtered by a screen type filter located

in the reservoir filler neck, then doubled filtered within the system

first by a 40 micron mesh-type suction filter located in the tank

and the by a

Zinga

10 micron, cartridge style spin-on return line

filter.

ARTICULATED STEERING SYSTEM

Power for the articulated steering system, which uses a single

hydraulic cylinder is provided by the gear pump. This steering

system can produce an inside turning radius of 109 inches (2.77

meters).

SPRINKLER SYSTEM

A 60 gallon (227 liters) water tank with a gravity feed spray bar

is provided for wetting the roll for asphaltic pavement rolling.

The water system is fully adjustable from the operator’s position

by adjusting the two water valves. The front valve controls the

water supply to the front drum, and the rear valve controls water

to the rear drum.

Before starting an asphalt rolling job, be sure all spray bar holes

are clear of dirt or foreign matter and are working. Always use

clean fresh water in the water tank. To prevent rust and foreign

debris from clogging the spray bar holes, drain and flush water

tank and spray bars every 30 days.

LIFTING THE ROLLER

When lifting of the roller is required, attach a suitable

hook or shackle to the

lifting eye

of the roller. These

lifting points (4) are marked by a lifting hook decal. Make

sure the lifting device is capable of lifting 4,000 lbs. (1,814 Kg).

The roller nominally has an operating weight of 3,088 lbs (1,400

Kg.), but can be increased to 3,309 lbs (1,500 Kg.) by adding

water ballast to the rear drum.

DANGER - Clear Obstacles from Area

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 17

AR13HA-R RIDE-ON ROLLER — GENERAL INFORMATION

Tipping (Rollovers)

NEVER! operate the roller on side slopes (Figure 3). The

possibility exist that the roller could tip over (roll over), thus

causing bodily harm even death and serious damage to the

equipment.

Figure 3. Tipping (Rollover)

To prevent damage to the engine after a rollover, the roller

must NOT be started. NEVER start a roller after a rollover.

CONTACT your nearest authorized multiquip dealer for

instructions or servicing.

In the event the roller does tip over, if at all possible, try to shut-

down the engine by turning the ignition key to the

OFF

position.

Extreme care must be taken to prevent damage to the engine.

When the roller has been tipped over, oil from the engine

crankcase can flow into the combustion chamber, which can

severely damage the engine the next time it is started.

IMMEDIATELY after a unit has tipped over upright the unit as

soon as possible to prevent oil from leaking into the combustion

chamber.

OPERATING ON SLOPES

Special care must be taken when operating the roller on hills or

slopes. There exist the possibility of serious injury to the operator

and severe damage to the roller in the event of a roll over. ALWAYS

operate the roller up and down hills rater than from side to side.

For safe operation hillside slopes should not exceed 12 degree

(27 % grade). See Figure 2 below.

ONLY! use approved certified lifting devices capable of lifting

at least 4,000 lbs. (1,814 Kg.).

When lifting of the roller is required, only use the provided

lifting eyes

to lift the roller. Using other sections of the roller

for lifting purposes may cause severe damage to the roller.

Figure 2. Recommend Slope

REAR

ROLLER

SIDE TO SIDE

OPERATION

NOT RECOMMENDED

ROLL OVER

NEVER! operate the roller on

side

slopes

. The roller may tip over

causing injury to personnel and

severe damage to the equipment

NOTE

27%

MAXIMUM SLOPE

DO NOT allow personnel to

stand under

or

near

any

suspended machine.

Serious injury

or

death

may result.

DANGER - Transporting Safety

CAUTION - Use CERTIFIED Lifting Devices

CAUTION - Lifting the Roller

CAUTION - Roller Rollover Safety

PAGE 18 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

Figure 4. Roller Components 1

AR13HA-R RIDE-ON ROLLER — ROLLER COMPONENTS

21

6

73

17

9

4

14

11

12 13

21

16

18

19

20

25

22

23

5

8

10

15 24

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 19

AR13HA-R RIDE-ON ROLLER — ROLLER COMPONENTS

Figure 4 shows the location of the components and basic

components for the AR13HA-R compaction roller. The function

of each component or control is described below:

1. Battery – Provides +12VDC to the electrical system,

and is located underneath foot plate. Replace only with

recommended type battery, see specification Table 1.

2. Articulating Locking Bar – Always make sure that the

articulating locking bar is engaged during lifting,

transport and maintenance.

3. Foot Step – To lift yourself onto the roller's platform,

place foot into foot step, then grab hold of hand rail.

4. Ignition Switch – With key inserted, turn clockwise to

start the engine.

5. Rear Sprinkler System – A gravity feed spray bar is

provided for the wetting the roll for asphalt pavement.

6. Rear Roller – This roller is a 30 inch wide

steel drum

with beveled edges (no vibration). The beveled edges

help prevent asphalt marring.

7. Lifting Point – Attach a crane or suitable lifting device

to this point when lifting of the roller is required.

8. Rear Scrapper – This adjustable rear scrapper blade

helps prevent the buildup of material between the drum

and frame.

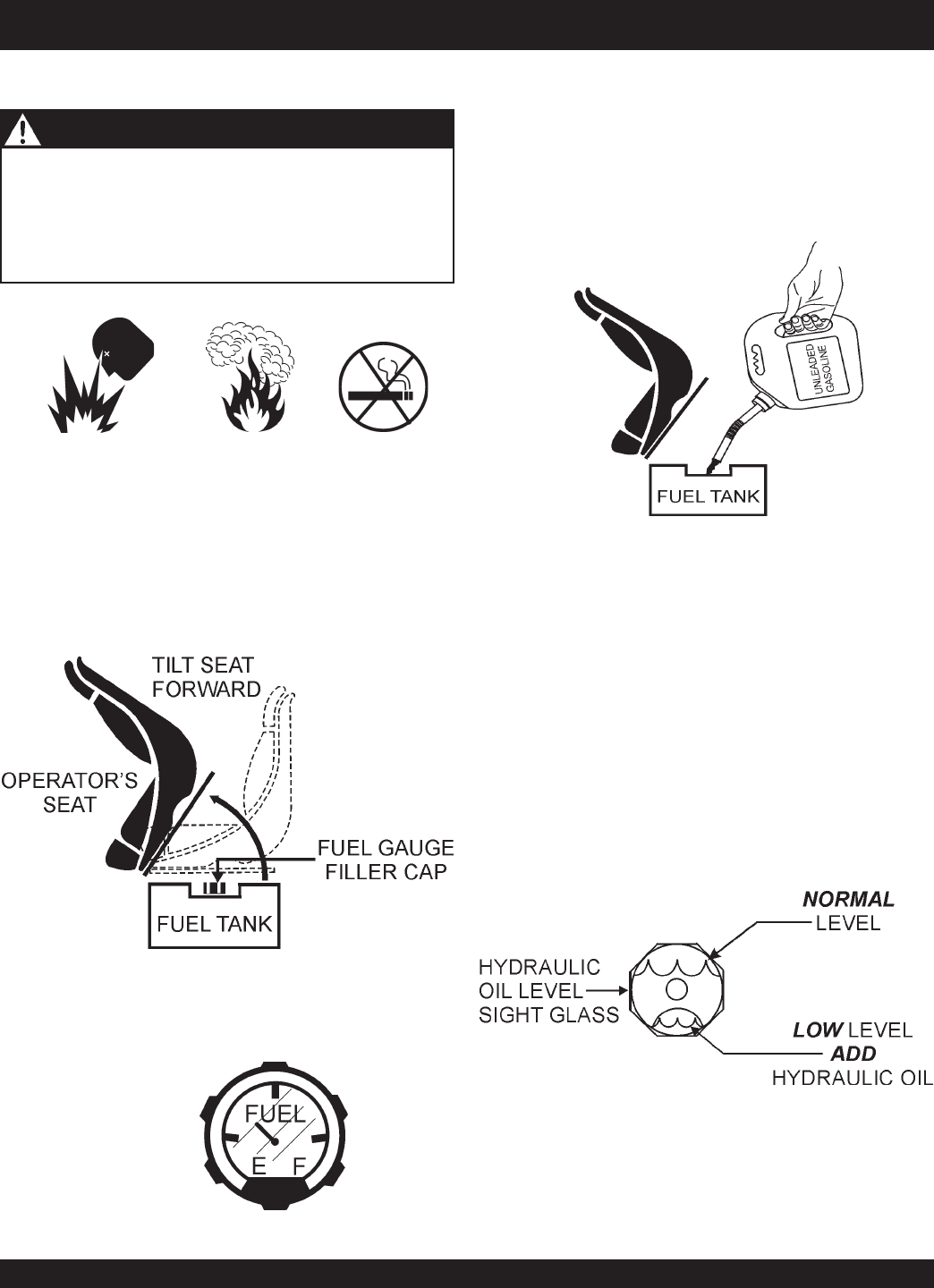

9. Fuel Tank/Fuel Gauge – The fuel capacity of the fuel

tank is 9.5 gallons (36 liters). Read the gauge on top of

the fuel cap to determine if fuel level is low. Fill with

unleaded type gasoline. To gain access to the fuel tank,

tilt the front seat forward

. Fuel tank has a spill

containment feature

10. Tie-Down Transport Point – Attach a chain or suitable

tie-down device to this point when transporting of the is

required.

TRANSPORT

TIE-DOWN POINT

12. Rear Spray Control Valve – This valve controls the

flow of water to the

rear spray bar

.Turn the water valve

to the

open

position (counterclockwise) to let water flow,

return this valve to the closed position (clockwise) when

water is not required.

13. Throttle Control — Pull all the way out to achieved

maximum engine RPM's. To idle the engine, push the RED

stop button inwards all the way.

14. Vibration Control Button – Press this button to activate

the eccentric that will produce a vibration frequency of

4,400 vpm (vibrations per minute). Pressing the button

again will stop the vibrations.

15. Shift Lever — Push the lever

forward

to makethe roller

travel in a forward direction, pull the lever

backward

to

make the roller travel in a reverse direction. Maximum travel

speed is 4.8 MPH ( 7.7 KPH). Center position is neutral, no

travel.

16. Hourmeter — Indicates the number hours the unit has

been in use.

17. Water Tank — Remove filler cap and fill with water. Water

tank capacity is 60 gallons (227 liters). To determine if water

level is low, visually inspect water level gauge (tube) at

rear of roller. Add water as necessary.

18. Roll-Over Bar — This unit may be equipped with a

Roll

Over

Protection System

(ROPS option) to protect the

operator when the roller is used on slopes, open trenches,

sharp turns, slippery surfaces or objects in the rollers's path

of travel.

19. Operator's Seat —

A contoured seat that provides visibility

of both front rear drum edges during

operation.

NEVER!

start the roller unless seated in the operator's seat.

20. Parking Break Lever — Pull the lever upward to set the

parking break. To release the parking break, press and

hold the button on top of the lever and push lever downward.

21. Seat Belt — When using the roller in working conditions

always have the operator wear the seat belt.

NEVER

use

the roller without a seat belt. If the seat belt becomes worn

or damaged, have it replaced immediately.

22. Steering Wheel — Use this wheel to steer the roller.

23. Choke Knob — Used in the starting of a cold engine, or in

cold weather conditions. The choke enriches the fuel

mixture.

24. Hydraulic Motor – This hydraulic motor provides

control for the

rear

of the roller

25. Documentation Box — Maintain and store

at all times

Operation, Parts, and Engine manuals in this box.

11. Front Spray Control Valve – This valve controls the

flow of water to the

front spray bar

.Turn the water valve

to the

open

position (counterclockwise) to let water flow,

return this valve to the closed position (clockwise) when

water is not required.

PAGE 20 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

AR13HA-R RIDE-ON ROLLER — ROLLER COMPONENTS

Figure 5 shows the location of additional components for the

AR13HA-R compaction roller. The function of each component

or control is described below:

26. Front Sprinkler System – A gravity feed spray bar is

provided for the wetting the roll for asphalt pavement.

27. Hydraulic Manifold – Aluminum block that controls the

flow of hydraulic pressure to the various hydraulic motors

and other components required to control the roller.

28. Hydraulic Oil Filter – Filters return oil from the front

and rear hydrostatic motors.

29. Accessory Relay – Provides the +12VDC necessary

to run the roller's electrical accessories.

30. Hydraulic Pump – This unit incorporates an axial

variable displacement hydraulic piston pump.

31. Front Ride-on Tandem Drum Roller – This roller is a

30 inch wide

steel drum

with beveled edges. The

beveled edges help prevent asphalt marring.

32. Hydraulic Motor – This hydraulic motor controls the

rotation of the vibratory system.

33. Bunjee Latch – Pull this rubber latch upward and back

to gain access to the engine/pump compartment. There

is one rubber latch located on each side of the unit.

Figure 5. Roller Components 2

34. Steering Cylinder – Controls direction of roller.

35. Engine – This unit incorporates a HONDA GX-610, air

cooled engine rated at 18 hp at 3,500 rpm.

36. Hydraulic Fluid Filler Port – Remove this cap to add

hydraulic fluid. Fill with type ISO 46 anti-wear hydraulic

fluid.

37. Compartment Hood – Houses the engine, hydraulic

manifold, accessory relay, hydraulic oil filter, hoses, and

hydraulic pump. To lift the compartment hood, release

the rubber bunjee latches located on each side of the

hood.

38. Compartment Hood Lift Point – Place hand here then

lift upwards to lift compartment hood.

39. Hydraulic Motor – This hydraulic motor drives the roller

during operation.

40. Rear Drum Zerk Grease Fitting – Grease this fitting

bi-weekly. See maintenance section of this manual.

41. Articulation Zerk Grease Fitting – Grease this fitting

once a year. See maintenance section of this manual.

42. Hand Rail – Grab hold of this hand rail when lifting

yourself onto the operator's platform.

31

28

32

39

27

26

30

33 34

29

35

37

36

38

42

40

41

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 21

AR13HA-R RIDE-ON ROLLER — ENGINE COMPONENTS

Operating the engine without an air

filter, with a damaged air filter, or a filter

in need of replacement will allow dirt

to enter the engine, causing rapid

engine wear.

Figure 6. Honda GX610 Engine Controls and Components

INITIAL SERVICING

The engine (Figure 6) must be checked for proper lubrication and

filled with fuel prior to operation. Refer to the manufacturer's engine

manual for instructions & details of operation and servicing.

1. Oil Drain Plug – Remove to drain crankcase oil. Fill with

recommended type oil as listed in Table 4.

2. Oil Filter – Spin-on type, filters oil for contaminants.

3. Spark Plug – Provides spark to the ignition system. Set

spark plug gap to 0.6 - 0.7 mm (0.028 - 0.031 inch) Clean

spark plug once a week.

4. Lifting Hook Eye – Attach a lifting device of adequate

lifting capacity at this lifting point whenever lifting of the

engine is required.

5. Fuel Filter – Prevents dirt and other debris from entering

the fuel system..

6. Air Filter – Prevents dirt and other debris from entering the

fuel system. Unsnap air filter cover to gain access to filter

element.

7. Oil Filler Cap – Remove to add engine oil.

8. Oil Dip Stick – Remove to check amount and condition of

oil in crankcase. Refill or replace with recommended type

oil as listed in Table 4.

9. Starter – Starts engine when ignition key is rotated to the

"ON" position.

Engine components can generate extreme heat.

To prevent burns, DO NOT touch these areas

while the engine is running or immediately after

operating. NEVER operate the engine with the

muffler removed.

WARNING - BURN HAZARD

NOTE

PAGE 22 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

AR13HA-R RIDE-ON ROLLER — INSPECTION

Before Starting

1. Read safety instructions at begining of manual.

2. Clean the

ROLLER

, removing dirt and dust, particularly the

engine cooling air inlet, carburetor and air cleaner.

3. Check the air filter for dirt and dust. If air filter is dirty, replace

air filter with a new one as required.

4. Check carburetor for external dirt and dust. Clean with dry

compressed air.

5. Check fastening nuts and bolts for tightness.

Engine Oil Check

1. To check the engine oil level, place the roller on secure level

ground with the engine stopped.

2. Remove the dipstick from its holder (Figure 7) and wipe it

clean.

3. Check the oil level shown on the dipstick (Figure 8).

Figure 7. Engine Oil Dipstick (Removal)

The

HONDA GX-610

engine used

on the AR-13H roller has an "

Oil

Alert System

". This system will

automatically stop the engine in the

event of low oil level. ALWAYS be

sure to check the engine oil level

prior to starting the engine.

Figure 8. Engine Oil Dipstick Level

NOTE

4. If the oil level is low, remove the oil filler cap (Figure 9) and

fill to the safe operating level (max) as indicated by the

dipstick. Fill with recommended type oil as listed in Table 4.

Maximum oil capacity is 1.90 quarts (1.8 liters).

Figure 9. Engine Oil Filler Port

edarGliOrotoM.4elbaT

erutarepmeTronosaeS liorotomfoedarG

)ssalcSMnahtrehgih(

nmutuAroremmuS,gnirpS

F°51+otF°021+ 03EAS

retniW

F°5

1+otF°04+ 03EAS

F°51+woleB03-W01EAS

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 23

NEVER fill the fuel tank while the engine is running or in

the dark. Fuel spillage on a hot engine can cause a fire

or explosion. If fuel spillage occurs, wipe up the spilled

fuel completely to prevent fire hazards.

AR13HA-R RIDE-ON ROLLER — INSPECTION

Fuel Check

1. To check the engine fuel level, place the roller on secure level

ground with the engine stopped.

2. Tilt the operator's seat (Figure 10)

forward

to gain access

to the fuel tank.

DO NOT smoke while refueling, motor fuels are highly

flammable and can be dangerous if mishandled.

Figure 10. Fuel Tank Access

3. Read the fuel gauge (Figure 11) located on top of the fuel tank

to determine if fuel level is low.

Figure 11. Fuel Guage

4. If the fuel level is low, remove the fuel fillercap/guage and fill

with unleaded gasoline. Wipe up any spilled fuel immedi-

ately.

5. Pay attention to the fuel tank capacity when replenishing

fuel (Figure 12). Refer to the fuel tank capacity listed on

page 13, AR-13H Roller Specification Table 1.

6. After replenishing fuel, make sure fuel cap is securely tighten

to fuel tank. Return operator's seat to normal operating

position.

Hydraulic Oil Check

1. To check the hydraulic oil level, place the roller on secure

level ground with the engine stopped.

2. Visually inspect the hydraulic oil sight glass (Figure 13)

located on the right rear of the front drum. For normal

operation the hydraulic oil level must be below the top and

above the bottom of the sight glass. DO NOT OVERFILL!

Figure 12. Adding Fuel

Figure 13. Hydraulic Oil Sightglass

4. If the hydraulic oil level is low, remove the hydraulic oil cap

(Figure 14) and fill with type

ISO 46 anti-wear type hydrau-

lic oil

to the recommended operating level.

DANGER - EXPLOSIVE FUEL

PAGE 24 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

AR13HA-R RIDE-ON ROLLER — INSPECTION

Figure 14. Hydraulic Oil Reservoir Filler Port

Water Tank Check

1. To check the water tank water level, place the roller on

secure level ground.

2. The amount of water inside the water tank can be visually

inspected by reading the water tube (Figure 15) that runs

vertically along the water tank at the rear of the roller. This tube

indicates the amount of water inside the water tank. Total tank

capacity is 60 gallons (227 liters)

Figure 15. Water Tank

Battery Check

A 12-volt DC battery (Figure 16) is shipped dry, and will require

a proper electrolyte level for operation.

ALWAYS be sure that the battery cables are properly

connected to the battery terminals as shown below. Generally

the

RED

cable will be connected to the positive terminal of

the battery, and the BLACK cable will be connected to the

negative terminal of the battery.

If the battery cables are connected incorrectly, electrical

damage will occur causing damage to the roller's electrical

circuits. Pay close attention to the polarity of the battery

when connecting the battery.

Figure 16. Battery

REAR

ROLLER

WATER

TANK

WATER

TANK

CAP

WATER

LEVEL

TUBE

WARNING - Battery Polarity Safety

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 25

AR13HA-R RIDE-ON ROLLER — INITIAL START-UP

DO NOT attempt to operate the roller until the Safety, General

Information and Inspection sections have been read and

understood.

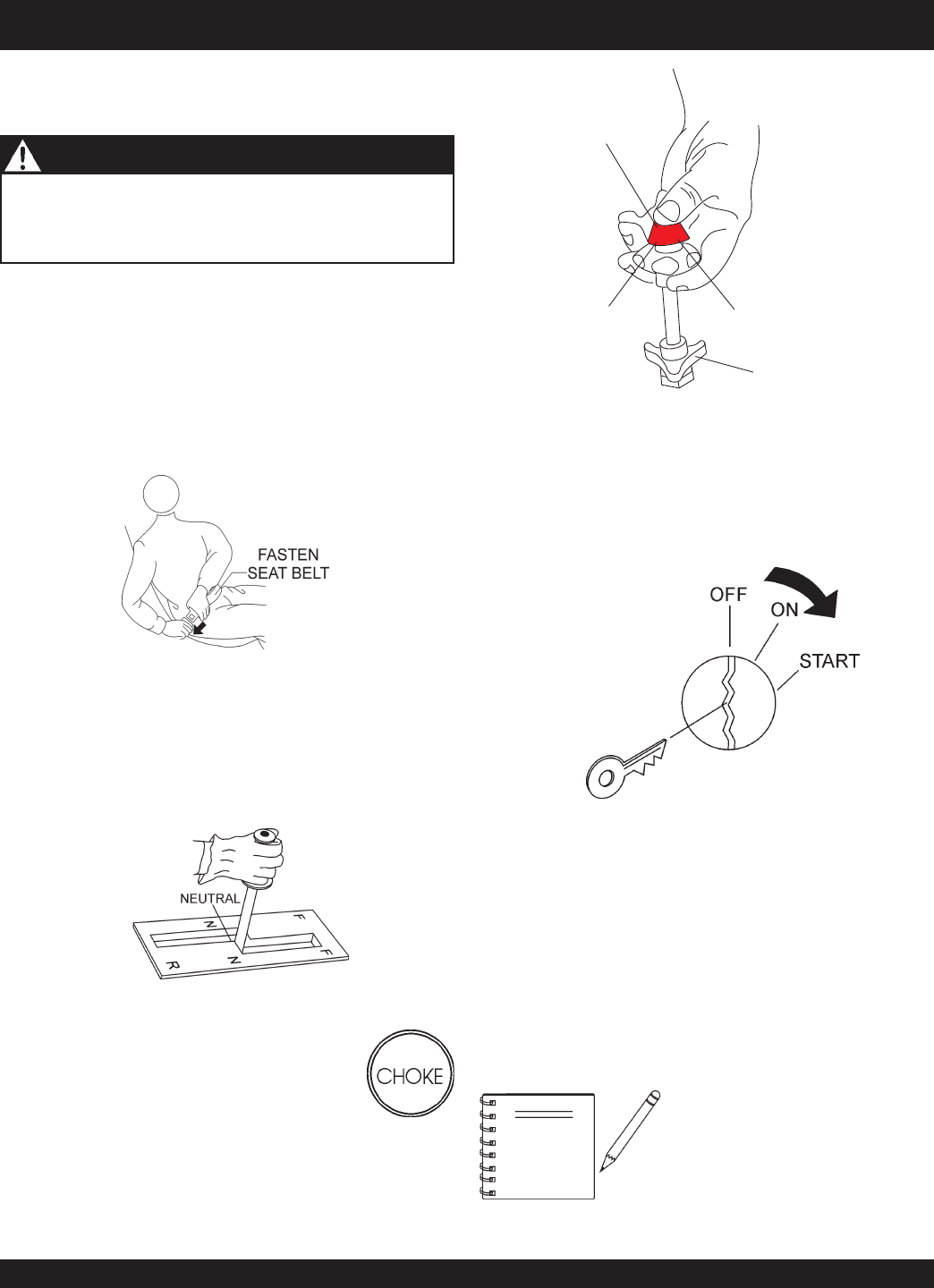

Initial Start-up Instructions

Starting

1. Place your foot into the roller's foot step, grab hold of the hand

rail located on the steering console, and lift yourself onto the

platform.

2. Sit down in the operators seat and adjust the seat for a

confortable position, then fasten the seat belt (Figure 17)

around your waist.

NEVER!

operate the roller without the seat

belt being fastened, serious injury could occur if the seat belt

is not used.

Figure 20. Ignition Switch

7. Insert the ignition key into the ignition (Figure 20), then turn

and hold the key in the clockwise position until the engine

starts, release key.

8. If the engine does not start, repeat steps 1 through 7 or consult

the troubleshooting guide contained in this manual.

9. Let the engine warm for 3 to 5 minutes before using roller.

Check for fuel and oil leaks, and noises that would

associate with a loose guard and/or covers.

10. If necessary return the choke knob to the full

OPEN

position.

The CLOSED position of the

choke knob enriches the fuel

mixture for starting a COLD

engine. The OPEN position

provides the correct fuel mixture

for normal operation after starting,

and for restarting a warm engine.

NOTE

THROTTLE RELEASE

AND IDLE BUTTON

PUSH-IN, THEN PULL

TO SET THROTTLE

(RPM’s)

PUSH ALL THE WAYDOWN

TO IDLE ENGINE

THROTTLE LOCK

KNOB, TURN CLOCKWISE

TO LOCK THROTTLE CABLE.

Figure 19. Throttle Control

5. In cold weather, start the roller with the choke

fully

closed

. In warm weather or when the

engine is warm, the roller can be started with

choke halfway or completely

open

.

6.

PUSH

the "RED" button (Figure 19) on the throttle control

and pull the round black knob about halfway out. Make sure

that the throttle lock knob has been dis-engaged.

Figure 18. Shift Lever

3. Before starting engine, make sure the immediate area is free

of obstructions and debris that may lay in the roller's path.

4. Make sure that the roller's shift lever (Figure 18) is placed in

the

neutral position.

Figure 17. Securing Seat Belt

CAUTION - General Operation Safety

PAGE 26 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

AR13HA-R RIDE-ON ROLLER — OPERATION

OPERATION

Parking Brake

1. To release the parking brake, press and hold the release

button (Figure 21) pull up slightlyon the parking lever, then

push the parking brake lever all the way down.

Shift Lever

1. To make the roller move in a

forward direction

, move the

shift lever forward as shown in Figure 22.

Figure 22. Shift Lever

2. Remember the speed of the roller is directly proportional to

the amount of pressure being applied to the lever in each

direction. Travel speed is between 0 and 4.8 mph (7.2 kph).

3. Try manuvering the roller a few times to get familar with the

handling. Also place the travel lever in the oposite direction

to get acquainted with driving in reverse.

4. Make sure that the roller comes to a complete stop (neutral)

before placing the travel lever in either a forward or reverse

position.

Vibration Button

1. To begin the vibratory action,

press

the vibratory

pushbutton switch located on top of the travel lever as

shown in Figure 23. The pressing of this switch will

generate 3,100 lbs. (1,406 Kg.) of centrifugal force at a

frequency of 4000 vpm (vibrations per minute) to the

front

drum.

ALWAYS

allow the roller to come to a complete stop before

changing the direction of travel. Changing directions before

the roller comes to a complete stop will result in

excessive

force

being applied to the transmission and drive system,

which will reduce the over service life of the system.

Figure 24. Sprinkler Controls

Figure 21. Brake Release Lever

FRONT

BACK

Sprinkler Controls

1. If the application requires the wetting of a surface, front and

rear drum sprinkler controls have been provided. These

controls (Figure 24) are located to the bottom right of the

operators seat. The

front

valve controls the water supply to

the front drum spray bar and the

back

valve contols water

flow to the back drum spray bar.

2. To stop the vibratory action, press the vibratory pushbutton

switch again.

Figure 23. Vibration Pushbutton Switch

CAUTION - Drive System Safety

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 27

AR13HA-R RIDE-ON ROLLER — MAINTENANCE

Maintenance

Perform roller maintenance as

indicated by Figure 25 and

Table 5.

1 = Check 2 = Refill/ Clean / Grease 3 = Replace

Figure 25. Roller Maintenance

Schedule

4

5

6

7

3

6

2

7

Weekly

Daily

1

89

5

Bi-Weekly

10

3 Months

6 Months

Yearly

14

12

13

eludehcSecnanetniaMrelloRH31-RA.5elbaT

yliaD 1 2 3 lavretnI setoN

1leveLliOenignE XX 4elbaTeeS

2leveLknaTretaW XX

3leveLleuF XX

4leveLliOciluardyH XX liOciluardyHepyT64OSIesU

5metsy

SrelknirpS X

6reparcS XX nrowyldabnehwecalpeR

7)raeR/tnorF(smurD XX

ylkeeW

8retliFriA XX .raeyaecnotnemelerepapecalpeR

9leveLdiuqiLyrettaB XX

ylkeeW-iB

01)murDraeR(gnittiFesaerGkreZ Xro.srh08

ylkeeW-iB

tnelaviuqero2#ainavlAepyTesU

.xamstohs3 TONOD .esaergrevo

shtnoM3

21)nruteR(retliFliOciluardyH X.srh005retlifepytemashtiwecalpeR

shtnoM6

31retliFliOenignE Xro.srh02

htnom1

retliflioegnahc,srh02tsrifretfA

.srh001roshtnom6yreve

ylraeY

41liOciluardyH Xro.srh001,1

raeyaecn0

liOciluardyHepyT64OSIesU

PAGE 28 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

AR13HA-R RIDE-ON ROLLER — MAINTENANCE

DO NOT open hydraulic lines or loosen hydraulic fittings

while engine is running! Hydraulic fluid under pressure can

penetrate the skin, blind, cause burns or create other

potentially dangerous hazards follow all safety instructions

as described throughout this manual.

Hydraulic Oil System

The hydraulic system consists of a two pump stack directly

coupled to the engine. A hydraulic valve block (manifold)is

provided for quick and easy testing and troubleshooting.

Hydraulic oil is filtered by a screen filter located in the tank filler

neck, a

40 micron suction filter

located in the tank, and a

10

micron return filter

, with cold oil bypass valve located in the

return circuit.

It is recommended that

ISO 46 type hydraulic oil

or equivalent

be used when adding or replacing the hydraulic oil is required.

DO NOT USE MULTI-VISCOSITY OIL. Cleanliness is a very

important part of proper hydraulic system operation. Hydraulic

oil is not only used to transfer power; it also lubricates and cools

the system components. Keeping the hydraulic system clean

can help reduce costly repairs.

The hydraulic oil level sight glass is located on the right rear of

the front drum, below the engine compartment. This level should

be checked daily. Oil must be below the top and above the bottom

of the sight glass. DO NOT OVERFILL! Care should be taken to

clean the filler cap before adding oil to the system. If hydraulic oil

has to be added, the machine should be inspected for leaks.

The

suction filter

(Figure 26) is located inside the hydraulic

tank. This filter is attached to the fitting connected to the hydraulic

pump suction hose.

The

return filter

(Figure 26) is located at the front of the engine

compartment. Replace both filters according to the Table 5.

Changing Hydraulic Oil and Filters

1. Park the roller on a clean flat work area and set the parking

brake.

2. Remove the

hydraulic oil drain plug

(Figure 26) and

drain the hydraulic oil. Dispose of the used oil in an

environmentally friendly manner. Replace the drain plug

and tighten.

3. Remove the return filter and

install a new filter

. Dispose of

the used filter in an environmentally friendly manner.

4. Disconnect the suction hose and remove the fitting from

the tank.

Replace

the suction filter. Dispose of the used

filter in an environmentally friendly manner. Replace the

fitting and reconnect the suction hose.

Freewheel Engagement Valve

This hydraulic system has a freewheel engagemet valve allowing

hydraulic oil to be bypassed.

Open

(turn allen wrench counter-

clockwise) this valve (Figure 27) to engage the freewheel

capability of the roller. When the valve is fully opened, ports A

and B are allowed to connect, bypassing the oil to and from the

drum drive motors.

Remember the freewheel engagement valve should only be

used in emergencies when the roller cannot be driven due to

engine or hydraulic system problems.

When towing of the roller has been completed, this valve

must

be

closed

(turn allen wrench fully clockwise) completely and

the lock nut set. Failure to close this valve completely will result

in low power, improper speed, and excessive hydraulic oil

temperature.

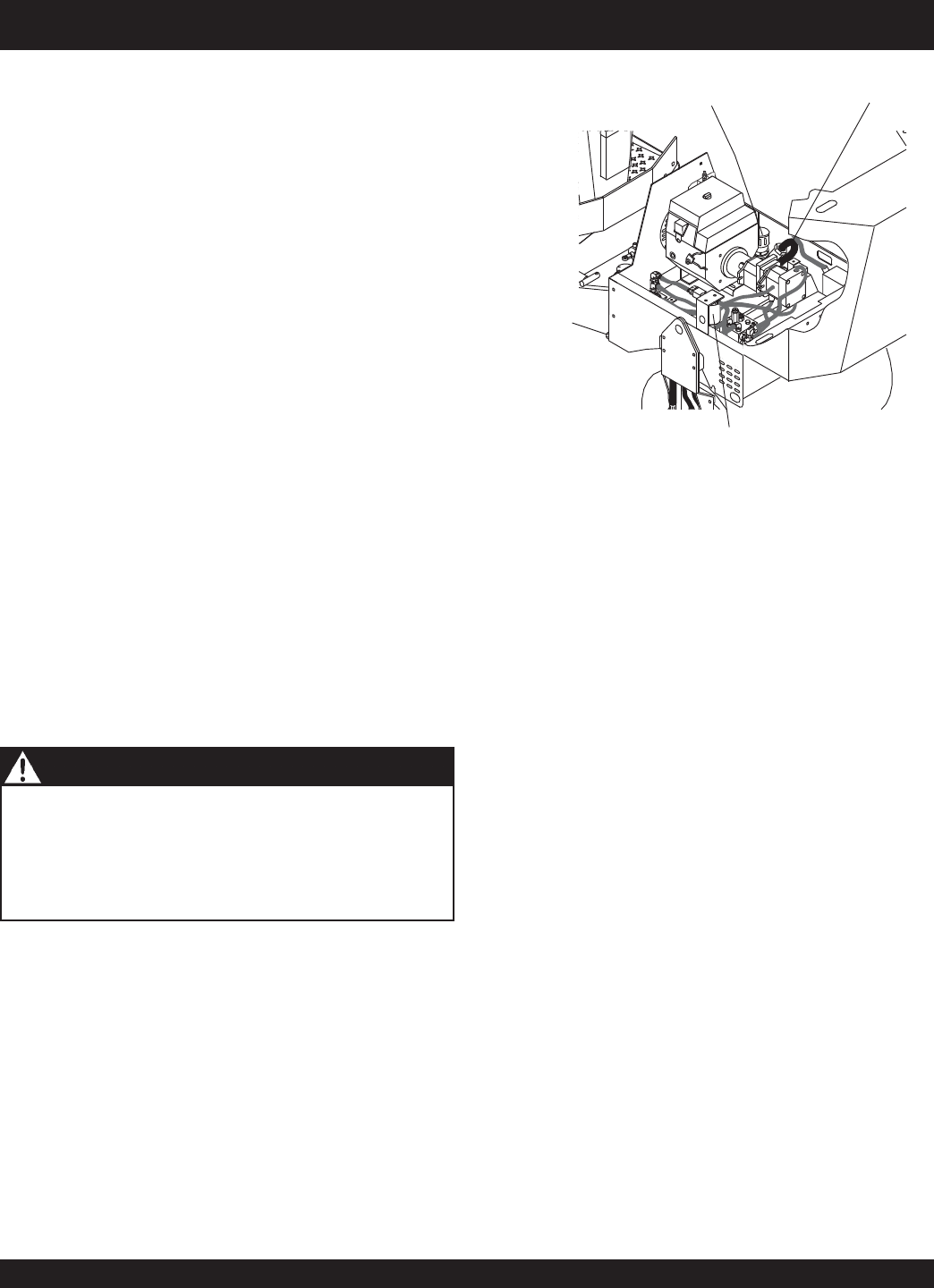

Figure 26. Hydraulic Filter Locations

HYDRAULIC

OIL DRAIN

PLUG

HYDRAULIC OIL

RETURN FILTER

HYDRAULIC OIL

SUCTION FILTER

HYDRAULIC OIL

CAP/FILLER PORT

CAUTION - HYDRAULIC SYSTEM HAZARD

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 29

AR13HA-R RIDE-ON ROLLER — MAINTENANCE

Drum Drive

The drum drive circuit is a

parallel

,

closed loop system

(Figures 38 and 39) consisting of a hydrostatic pump, two

relief valves, a freewheel engagement valve, front and rear

drum drive motors.

The hydrostatic pump is manually controlled by a cable

connected to the forward/reverse shift lever located on the right

side of the operator seat. When the shift lever is placed in forward,

high-pressure oil is supplied by the hydrostatic pump to the valve

block (

port A

). The valve block (manifold) directs this high-

pressure oil to the front and rear drum drive motors. Return oil

from the motors is returned to the valve block (

port B

) and is

returned to the suction side of the hydrostatic pump.

When shifted into reverse, the high-pressure and suction ports

on the hydrostatic pump are reversed. Oil flow is then in the

opposite direction of forward (

port B

becomes high-pressure

and

port A

becomes suction)

Vibration and Steering

The vibration and steering system is an

open loop circuit

operated by a gear type pump. Separate relief valves control

each circuit. This system consist of the gear pump, relief valves,

electric vibration control valve, vibration drive motor, steering

valve, and steering cylinder.

TOW

FREEWHEEL

ENGAGEMENT

VALVE

ALLEN

WRENCH

OPEN

CLOSED

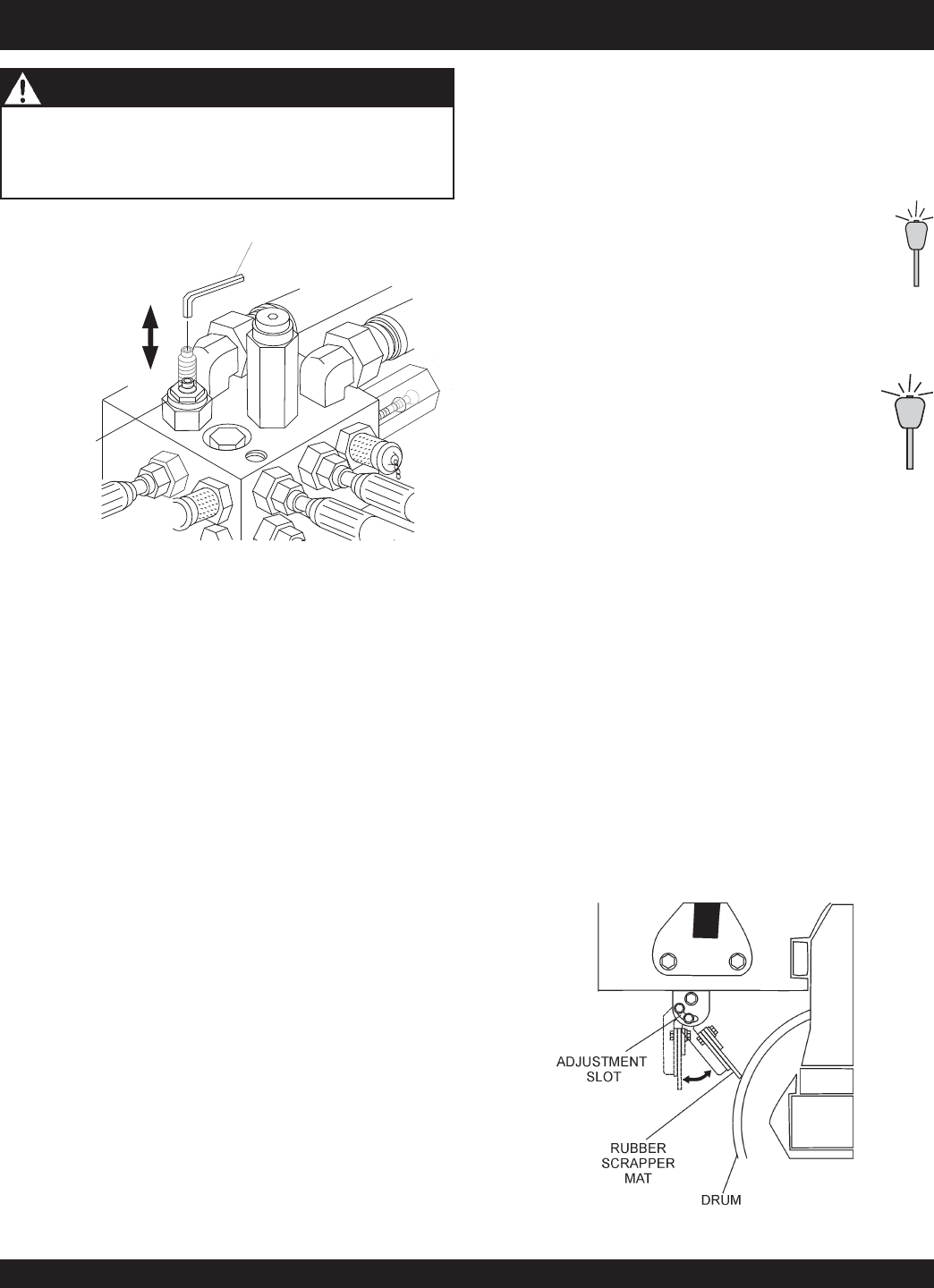

Figure 27. Freewheel Engagement Valve

The freewheel engagement valve (towing) is only for

emergency use

. DO NOT move roller over 2 MPH or long

distances as hydraulic system component failure could result.

The vibration circuit is controlled by an electric control valve

located on the valve block (manifold). This valve is controlled by

the “

ON/OFF

” pushbutton switch mounted on top of the travel

lever.

High-pressure oil is supplied by the pump to the

valve block (

port P

) and is directed to the electric

control valve. When the pushbutton switch is in the

“

OFF

” position, this valve is

open

allowing oil to go

to the steering valve, without driving the vibration

motor.

When the switch is in the “

ON

” position, the

electric control valve

closes

and oil is directed

out of

port 1

to the vibration motor. Return oil

from the motor returns to the valve block via

port

2

and is directed to the steering valve.

Steering is controlled by a

steering valve

and

cylinder

(Figures

29 and 30). The steering wheel is direct coupled to the steering

valve controling the oil flow to the cylinder. Oil supplied from the

vibration circuit is directed to

port 3

which connects to

port P

of

the steering valve. When steering is not being used, oil passes

out of

port T

of the valve block and returns to the hydraulic tank.

When the steering wheel is operated, the steering valve closes

and oil is directed to ports L or R to extend or retract the steering

cylinder.

Rubber Scrapper Mat

Rubber scraper mats have been provided for the cleaning of the

front and rear drums. Adjust the scrapers mats as close as

possible to the drums, using the slotted holes (Figure 28)

provided. Replace these rubber mats when they become badly

worn.

PUSH

TO

START

CLOSED

(ON)

PUSH

TO

START

CLOSED

(ON)

Figure 28. Scraper Bar Adjustment

CAUTION - Freewheel Engagement Valve

PAGE 30 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

Forward/Reverse Hydraulic Pressure Test

Park the machine on a solid flat surface and stop the engine. Set

the parking brake and

block the front drum securely

.

1. Check hydraulic oil level by viewing the hydraulic oil sight

glass. The hydraulic oil level must be below the top and

above the bottom of the sight glass. DO NOT OVERFILL!

2. Adjust engine RPM (3,500 +/- 50 RPM)

3. Let engine run for 5 minutes, this will bring the hydraulic oil

operating temperature to a minimum of 135

°

farenheit.

4. Check and repair all hydraulic leaks.

5. On the manifold block install a 5,000 psi pressure gauge

(Figure 34) to the

forward

pressure quick disconnect

test port 2

6. Run engine at full throttle.

7. Move the

travel lever

to the forward position. MAKE SURE

FRONT AND REAR DRUMS DO NOT SPIN.

8. Read the pressure gauge. The

relief pressure

(roller

drums blocked) will read 2,900 ± 145 psi. Under

normal

operating

conditions this pressure will read 400-600 psi.

9. Return the travel lever to the

neutral

position and

stop

the

engine.

10. Install the pressure gauge into the reverse quick disconnect

port 3

and repeat the above procedures. The relief pressure

reading for the reverse test port 3 will be the same (2,900

psi). Again normal operation pressure for the reverse port

will be 400-600 psi.

Normal operating pressures are based on the machine

traveling on level, firm surface. The operating pressures

will increase significantly when traveling uphill.

Vibration Circuit Pressure Test

Place the front drum on soil, gravel, or a heavy rubber mat.

DO NOT ACTIVATE VIBRATION FEATURE ON CONCRETE

OR HARD SURFACE!

1. On the manifold block install a 5,000 psi pressure gauge to

quick disconnect test port 1.

2. Start the engine and run at full throttle.

3. To start the vibration,

press

the pushbutton switch

(vibration control) located on top of the travel lever. Under

normal operating conditions this pressure will range

between 900-1,500 psi.

Steering Pressure Test

1. On the manifold block, install a 5,000 psi pressure gauge

into quick disconnect test

port 1

(Figure 34).

2. Start the engine and run at full throttle.

3. Turn the steering wheel to the

left or right

(maximum) and

hold. Read the steering relief pressure. The

relief pressure

reading for the steering test port 1 will be 700 psi. Again,

under normal operating conditions, pressure for the

steering port will be between 200-400 psi.

If maximum pressure cannot be reached, plug the steering

cylinder pressure hoses and re-test. If pressure is correct the

steering cylinder is leaking. DO NOT ACTIVATE THE

VIBRATION FUNCTION WHILE PERFORMING THIS TEST !

Figure 34. Manifold Test Ports

Vibration relief pressure is hard to read

accurately using this test. It may be

necessary to disconnect the pressure

line to the vibration drive motor. Plug this

line and re-test, pressure will be exact

relief pressure. DO NOT perform this test

for a long period of time — damage could

occur.

TEST PORTS

1. Vibration and Steering

2. Reverse

3. Forward

AR13HA-R RIDE-ON ROLLER — MAINTENANCE

NOTE

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 31

Forward/Reverse Relief Valves Drive Adjustment

The

forward

and

reverse

relief valves (Figure 35) are located

in the hydrostatic pump (not on the manifold block) under plugs

1 and 2 . Plug 2 is located in the same location as plug 1, except

it is on the bottom side of the pump. Relief valve 1 is

reverse

and

2 is

forward

.

AR13HA-R RIDE-ON ROLLER — MAINTENANCE

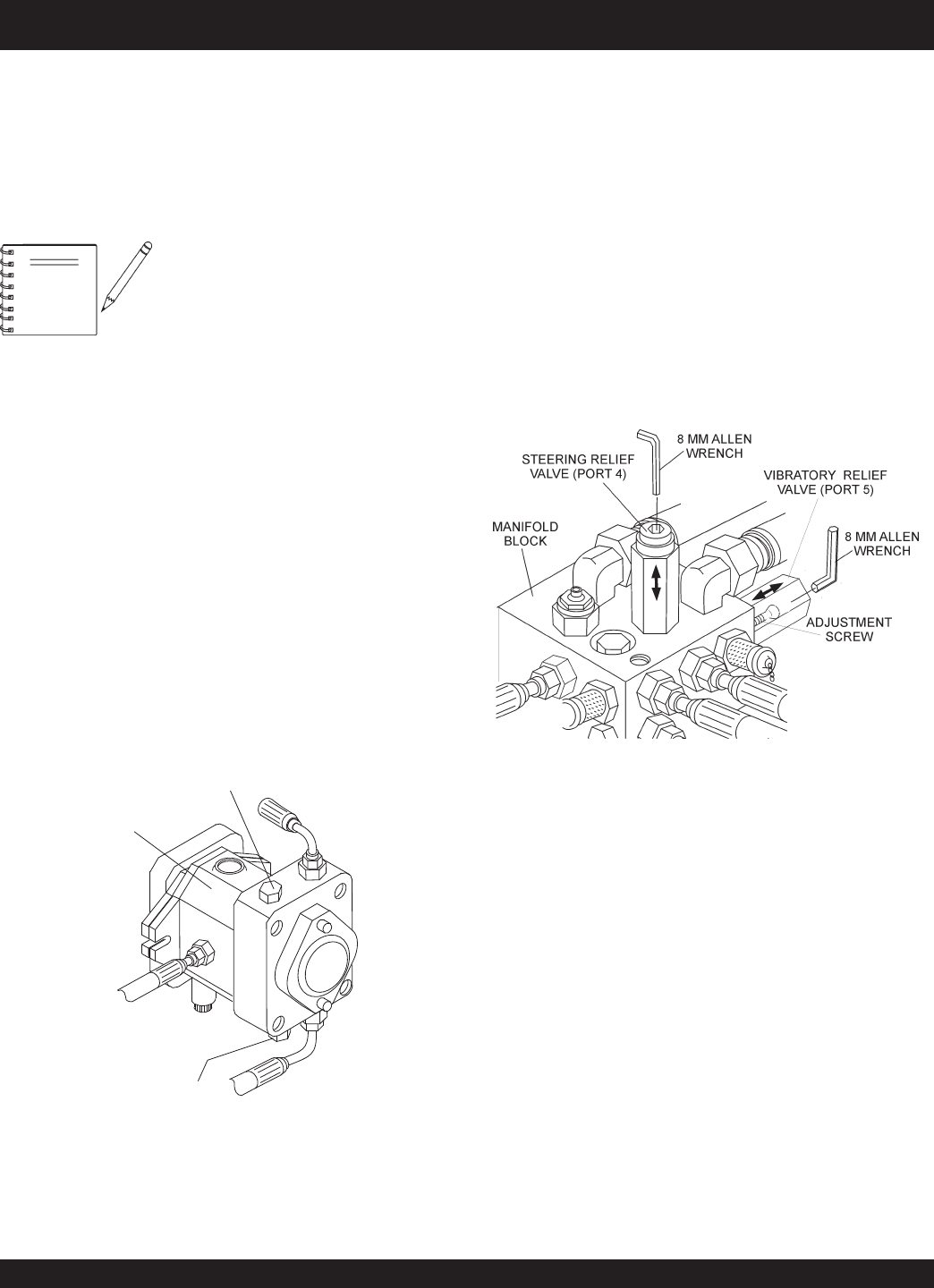

Figure 35. Adjusting Forward/Reverse

Relief Valves

Steering Relief Valve Pressure Adjustment

To adjust the relief valve steering pressure perform the following:

1. Insert an 8 mm allen wrench into steering relief

port 4

(Figure

36) on the manifold block.

2. On the manifold, connect at 5,000 psi pressure gauge into

quick disconnect test

port 1

.

3. Start the engine and run at full throttle.

4. Turn the steering wheel to the

left or right

(maximum) and

hold. Read the steering relief pressure. The

relief pressure

reading for the steering test port 1 will should be 700 psi.

5. If the steering relief pressure is not 700 psi, using the allen

wrench adjust the pressure at

port 4

until the pressure

gauge reads 500 psi.

Figure 36. Steering and Vibration Relief Valves

REVERSE

RELIEF VALVE

(PLUG 1)

FORWARD

RELIEF VALVE

(

PLUG 2

)

HYDROSTATIC

PUMP

NOTE

1. Clean the area around the cap.

2. Remove the cap.

3. Carefully remove the valve cartridge.

4. Using an

allen wrench

, remove the top nut (extreme care

must be taken not to loosen existing shims, spring, or valve)

Add or remove shims as required.

Adding

shims increases

pressure;

removing

shims lowers pressure. One shim is

equal to approximately 50 psi. Shim P/N is 34538.

5. Install the top nut and install valve in the pump cavity using

extreme care not to bind.

6. Install the valve cap.

7. Re-test pressure, further adjustment may be needed if

pressure is not correct.

Pumps supplied after 01/01/2003 DO

NOT have adjustable relief cartridges.

The pressure is fixed at 2,900 ± 145

psi. If the relief pressure is not within

normal range, the complete cartridge

must be replaced.

Vibration Relief Valve Pressure Adjustment

1. Insert an 8 mm allen wrench into steering relief

port 5

(Figure

36) on the manifold block.

2. On the manifold block, insert a 5,000 psi pressure gauge

into quick disconnect test

port 1

.

3. Start the engine and run at full throttle.

4. To start the vibration,

press

the pushbutton switch

(vibration control) located on top of the travel lever. The

relief pressure should read 900 ~ 1,500 psi.

5. If the vibration relief pressure is not 900 ~ 1,500 psi using

the allen wrench adjust the pressure at

port 5

until the

pressure guage reads correctly.

PAGE 32 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

AR13HA-R RIDE-ON ROLLER — MAINTENANCE

Removing and Replacing Hydrostatic Pump

1. Set the parking brake.

2. Disconnect the battery.

3. Clean the pump and all connections.

4. Mark and disconnect all hoses and lines from the pump.

5. Disconnect the forward / reverse control cable.

6. Disconnect the pump support bracket.

7. Remove the engine mounting bolts.

8. Elevate the pump and engine assembly using a proper

lifting device.

9. Disconnect and remove the hydrostatic pump assembly.

10. Repair or replace the hydrostatic pump as required.

11. Install the hydrostatic pump in the reverse order of removal,

using

Locktite 271

on all mounting bolts and nuts.

12. Test operate. Test and adjust the forward and reverse relief

pressures as required. Adjust the forward / reverse control

cable.

Removing and Replacing Vibration/Steering Pump

1. Remove the hydrostatic pump as per preceding instructions.

2. Remove all hoses and lines.

3. Disconnect the vibration / steering pump and remove.

4. Repair or replace pump as required.

5. Install the pump in the reverse order of removal, using

Locktite 271

on all mounting bolts and nuts.

6. Test operate. Test and adjust the forward and reverse

pressure relief valves as required. Adjust the

forward

/

reverse control cable

. Test and adjust the vibration and

steering pressure relief valves as required.

Drums and Main Frame

The front drum is designed to apply vibration and compaction

force to the operating surface for compaction. This vibration and

compaction force is produced when the vibrator shaft is rotated.

Maximum efficiency is achieved only when the engine is operated

at full throttle.

A single drive motor is mounted on the left side of the drum and

is shockmounted. This type of drive motor is designed for

maximum torque and power.

The vibrator is driven by a gear motor coupled to the vibrator

shaft. The vibrator assembly rotates inside of a sealed housing

containing oil to lubricate the bearings. This side of the drum is

also shock mounted.

Front and Rear Drum Removal and Disassembly.

The removal and disassembly of the front and rear drums shall

be referenced by Figures 37, 38, and 39 on the following pages.

When reassembling the front drum use

Locktite 271

on all

mounting hardware.

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 33

STEP 2

STEP 1

Q

P

Q

P

STEP 3

1. JACK FRAME UP SLIGHTLY AT

ARTICULATION JOINT.

2. REMOVE THE FOUR ALLEN HEAD

SCREWS HOLDING THE SIDE

COVER OF THE DRUM SUPPORT

PLATE.

3. MARK AND DISCONNECT

HOSES FROM MOTOR AND

MANIFOLD.

4. REMOVE FOUR ALLEN HEAD

SCREWS FROM DRUM SUPPORT

PLATES.(SCREWS MAY NEED TO BE

HEATED TO REMOVE)

O

STEP 4

FRONT DRUM

5. REMOVE NUTS SECURING FLANGE

ASSEMBLY TO DRUM SUPPORT PLATE

AND PULL OFF OF FLANGE ASSEMBLY.

6. REMOVE THE SIX 9/16 BOLTS SECURING

EXCITER PLATE TO DRUM WALL

STEP 5

STEP 6

7. PULL EXCITER ASSEMBLY TO

REMOVE FROM DRUM INTERIOR

.

8. REVERSE PROCEDURES TO

REASSEMBLE DRUM. USE

LOCKTITE 271 ON ALL BOLTS

AND NUTS.

STEP 7

AR13HA-R RIDE-ON ROLLER — MAINTENANCE

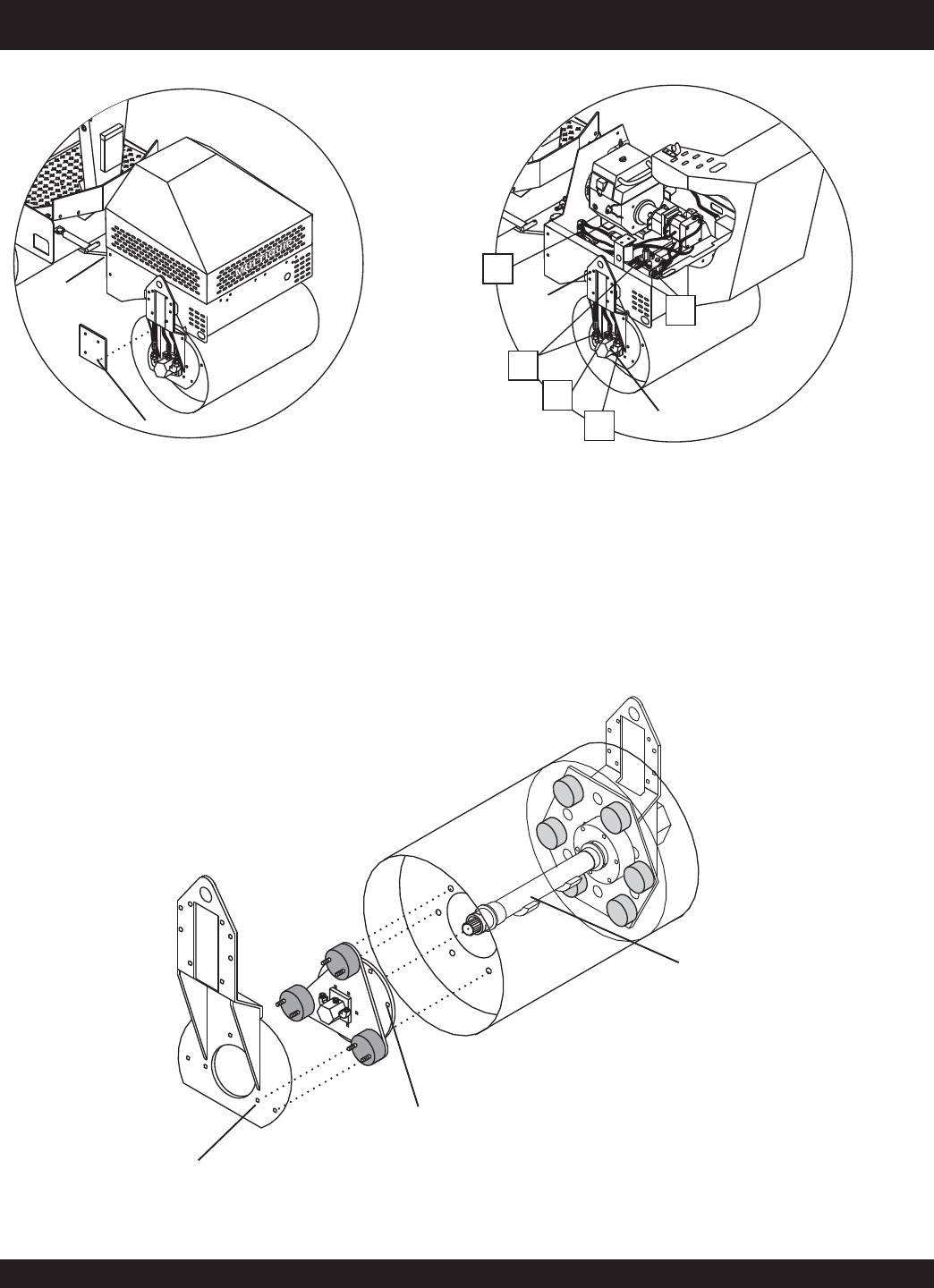

Figure 37. Front-Right Drum Removal

PAGE 34 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

AR13HA-R RIDE-ON ROLLER — MAINTENANCE

Figure 38. Front-Left Drum Removal

M

1. JACK FRAME UP SLIGHTLY AT

ARTICULATION JOINT.

2. REMOVE THE EIGHT ALLEN HEAD

SCREWS HOLDING THE SIDE

COVER OF THE DRUM SUPPORT

PLATE.

3. MARK AND DISCONNECT

HOSES FROM MOTOR.

4. REMOVE FOUR ALLEN HEAD

SCREWS FROM DRUM SUPPORT

PLATE. (SCREWS MAY NEED TO BE

HEATED TO REMOVE)

5.

REMOVE FOUR ALLEN HEAD

SCREWS SECURING MOTOR TO

DRUM SUPPORT PLATE AND

SET ASIDE.

7. REMOVE SIX NUTS SECURING

DRIVE PLATE TO SHOCK MOUNTS.

PULL OFF DRIVE PLATE AND SET

ASIDE.

PULL DRUM SUPPORT PLATE

OFF DRIVE PLATE ASSEMBLY.

6.

8. UN-THREAD SIX SHOCK MOUNTS

FROM DRUM WALL TO REPLACE.

REVERSE PROCEDURES TO

REASSEMBLE DRUM. USE

LOCKTITE ON ALL NUTS AND

BOLTS.

9. PULL EXCITER ASSEMBLY TO

REMOVE FROM DRUM INTERIOR.

10.

FRONT DRUM

STEP 6

STEP 5

STEP 7

STEP 8

STEP 9

STEP 1

STEP 2

N

STEP 3

STEP 4

STEP 8

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 35

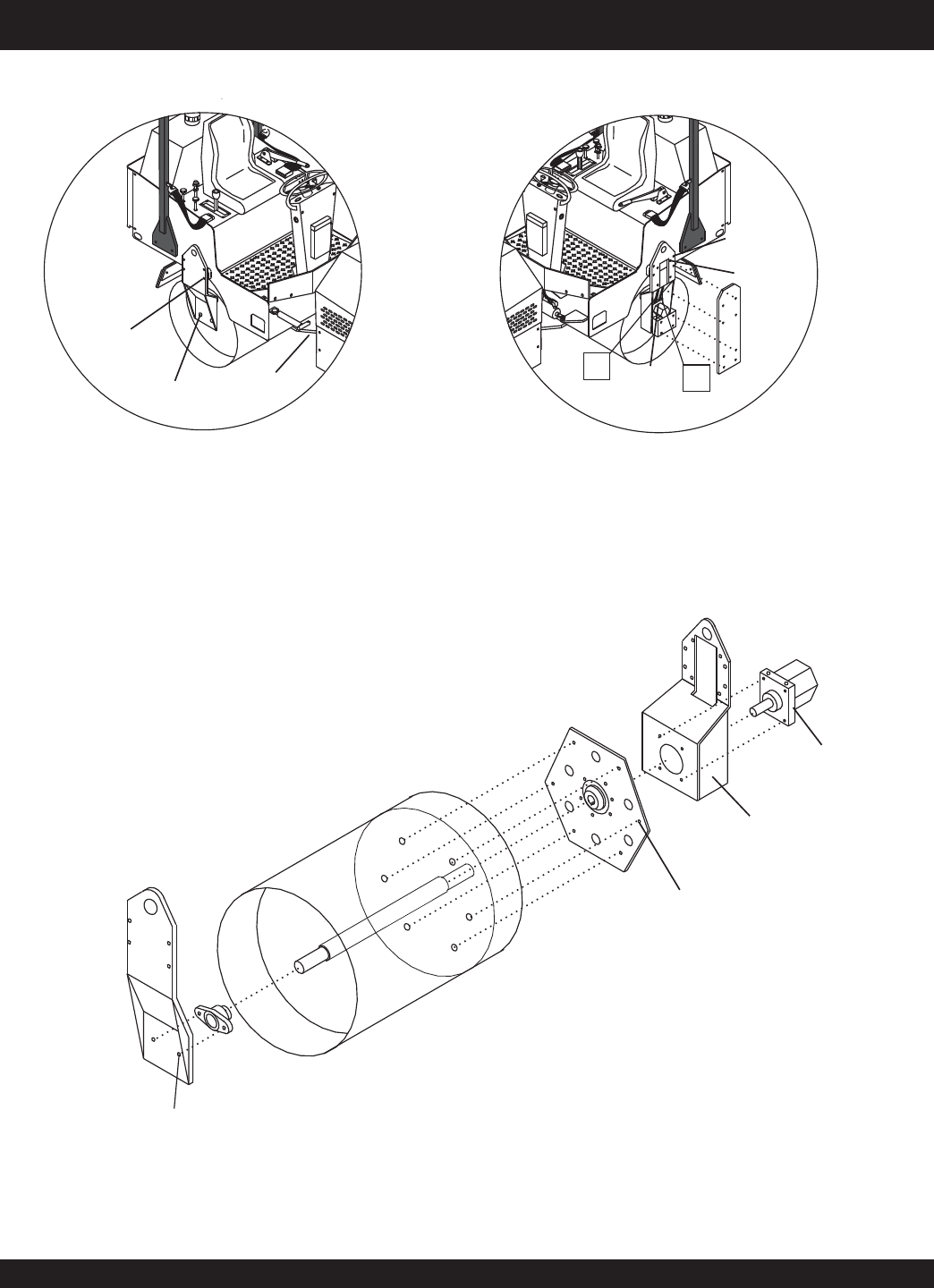

REAR DRUM

1. JACK FRAME UP SLIGHTLY AT

ARTICULATION JOINT.

2. REMOVE THE FOUR ALLEN HEAD

SCREWS SECURING THE DRUM

SUPPORT PLATE TO THE FRAME.

3. REMOVE NUTS SECURING BEARING

FLANGE TO BASE OF DRUM SUPPORT

PLATE.

4.

5. MARK AND DISCONNECT

HOSES FROM MOTOR.

6. REMOVE FOUR ALLEN HEAD

SCREWS FROM DRUM SUPPORT

PLATES.

REMOVE ALLEN HEAD SCREWS

HOLDING THE SIDE COVER OF THE

DRUM SUPPORT PLATE.

STEP 1

STEP 2

STEP 3 J

STEP 4

STEP 5

STEP 6

I

STEP 4

STEP 7

STEP 8

STEP 10

STEP 9

7.

8

9.

REMOVE TWO NUTS SECURING

DRUM SUPPORT PLATE TO FLANGE.

PULL OFF LEFT DRUM SUPPORT

PLATE AND SET ASIDE.

. PULL FLANGE OFF DRUM ROD

FOR SERVICE.

PULL RIGHT DRUM SUPPORT PLATE

OFF DRIVE PLATE ASSEMBLY.

10.

11.

12. REVERSE PROCEDURES TO

REASSEMBLE DRUM.

REMOVE FOUR ALLEN HEAD

SCREWS SECURING MOTOR TO

DRUM SUPPORT PLATE AND

SET ASIDE.

REMOVE SIX BOLTS SECURING

DRIVE PLATE TO DRUM WALL.

PULL OFF DRIVE PLATE AND SET

ASIDE.

STEP 11

AR13HA-R RIDE-ON ROLLER — MAINTENANCE

Figure 39. Rear Drum Removal/Installation

PAGE 36 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

Alternator/Regulator

The AR-13H is equipped with a 20 amp charging system. This

system uses three charge coils connected in parallel. The

windings of each coil are wound with heave-duty insulated wire

and are further protected by insulating material for long life. A

voltage regulator is provided to control the amount of charge

voltage being delivered to the 12 volt electrical system. For

servicing this charging system, contact your Honda dealer.

Neutral Safety Switch

The

travel lever

is provided with a

neutral

safety switch

(Figure 40) that prevents the engine from starting when the

lever is in the forward or reverse drive position. Lever must

be placed in the neutral position in order for the starter to

function.

To check this switch, remove the panel located below and to the

rear of the floor. This switch is mounted to the lower forward/

reverse lever mechanism. Disconnect the

white

and

green

wires.

Place the lever in neutral and test for continuity. Place the lever

in forward or reverse; no continuity should be present. Repair or

replace as required.

AR13HA-R RIDE-ON ROLLER — MAINTENANCE

Figure 40. Safety Switch

Vibrator Solenoid

The vibrator solenoid (Figure 41) is located in the manifold valve

block and is controlled by the vibration switch located on top of

the travel lever. This solenoid controls the vibration control valve

which supplies hydraulic oil to the vibration drive motor.

To test the vibration solenoid, turn the ignition switch on. Check

for proper supply voltage and ground. If proper voltage and

ground are present, check the solenoid for continuity. If no

continuity, replace the solenoid coil. If continuity is present, place

your hand on the solenoid and turn the switch to the ON position;

movement should be felt. DO NOT START THE ENGINE FOR

THIS TEST

Figure 41. Vibration Solenoid

Battery

Mishandling of the battery shortens the service life of the battery

ans adds to maintenance cost. When handling the battery do the

following:

-

Be careful not to let the battery electrolyte come in

contact with your body or clothing.

-

Always wear eye protection and rubber gloves, since

the battery contains sulfuric acid which burns skin and

eats through clothing.

If your clothing or skin comes in contact with the battery acid,

immediately

wash off with running water and get medical

attention.

-

Check the battery regulary and make sure that each

electrolyte level is to the bottom of the vent well

(Figure 42). If necessary add only distilled water in a

well-ventilated area.

Figure 42. Battery Fluid Levels

CAUTION - BATTERY ACID BURN HAZARD

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 37

AR13HA-R RIDE-ON ROLLER — PREPARATION FOR LONG-TERM

STORAGE

Roller Storage

For storage of the roller for over 30 days, the following is

recommended:

-

Drain the fuel tank completely, or add STA-BIL to the

fuel.

-

Run the engine until the fuel in the injection system is

completely consumed.

-

Completely drain used oil from the engine crankcase

and fill with fresh clean oil, then follow the procedures

described in the engine manual for engine storage.

-

Drain water tank

-

Clean the entire roller and engine compartment.

-

Remove battery and store it in cool dry place.

-

Cover the roller and place it a clean dry area, that is

protected from harsh elements.

-

Remove ignition key, and store in a safe place.

PAGE 38 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

AR13HA-R RIDE-ON ROLLER — MANIFOLD TEST PORTS

Figure 29. Manifold Test Ports

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 39

Figure 30. Hydraulic System Diagram

AR13HA-R RIDE-ON ROLLER — HYDRAULIC SYSTEM DIAGRAM

W

EXCITER

VALVE

M

1

2

VIBRATION

EXCITER

MOTOR

MANIFOLD

P

EXCITER

RELIEF VALVE

2000 PSI

G1

STEERING

RELIEF VALVE

700 PSI

3

P

T

4

M

W

W

R

L

STEERING

CYLINDER

STEERING VALVE

CHARGE PRESSURE

RELIEF VALVE

150-210 PSI

INTERNAL DRIVE PUMP

RELIEF VALVES

2900 ± 145 PSI

W

M

G2

G3

T

B

FRONT

DRIVE

MOTOR

PUMP ASSEMBLY

10 MICRON

SUCTION

FILTER 14.5 PSI

M

W

RETURN LINE FILTER

ASSEMBLY

FILTER BY-PASS

25 PSI

CHARGE

PUMP

W

EXCITER

PUMP DRIVE

PUMP

A

REAR

DRIVE

MOTOR

SERIES

DRIVE

TEST

TEST

TEST

TOW

VALVE

PAGE 40 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

AR-13H ROLLER — ELECTRIC WIRING DIAGRAM

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 41

NOTES

PAGE 42 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

FROM OPERATOR’S

POSITION

DFROM OPERATOR’S

POSITION

D

G

A

A

E

E

B

F

G

H

B

F

C

C

NOTES

HOSES SHADED FOR

VISUAL CLARITY.

FRONT LEFT SIDE

FRONT RIGHT SIDE

MANIFOLD

HYDRAULIC

DRIVE PUMP

HYDRAULIC

DRIVE PUMP

AR13HA-R RIDE-ON ROLLER — HYDRAULIC HOSE CONNECTIONS

Figure 32. Hydraulic Hose Connections 1

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 43

NOTES

HOSES SHADED FOR

VISUAL CLARITY.

FROM OPERATOR’S

POSITION

M

K

STEERING COLUMN

L

N

J

I

REAR LEFT MOTOR

FRONT RIGHT MOTOR

P

O

Q

P

Q

O

IJ

MANIFOLD

K

L

N

M

FRONT LEFT MOTOR

AR13HA-R RIDE-ON ROLLER — HYDRAULIC HOSE CONNECTIONS

Figure 33. Hydraulic Hose Connections 2

PAGE 44 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

AR13HA-R RIDE-ON ROLLER — TROUBLESHOOTING (ROLLER)

Table 6. Roller Troubleshooting

Symptom Possible Problem Solution

Low Vibration

Low engine RPM? Check and adjust engine speed.

Low hydraulic pressure? Check and adjust hydraulic pressure,

contaminant or defective relief valve.

Vibrator shaft is binding Remove motor from drum to determine

if binding is result of shaft or motor.

No Vibration

No voltage to 12 volt solenoid? Check vibration switch, check coil for

continuity.

No oil pressurel? Check for proper oil pressure or

defective relief valve.

Broken motor coupler? Replace coupler.

Slow Steering

Low hydraulic pressure? Check pressure.

Steering column connector? Inspect bearings and grease if

necessary.

Defective steering cylinder? Check seals, replace if necessary.

Steers Slow in One Direction Defective Steering cylinder? Inspect cylinder for contamination,

replace if necessary.

Slow Forward/Reverse Speed

Low hydraulic pressure? Check pressure.

Rubber scrapper adjustment

incorrect?

Check for proper adjustment against

drum.

Rubber shock mount loose? Inspect for broken mount, replace if

necessary.

"Free wheel valve ""open""?" Close valve.

Speed control cable out of

adjustment? Inspect cable and adjust if necessary.

Main Hydraulic Pressure Low

Incorrect engine speed? Adjust engine speed to correct speed.

Broken rubber shock mounts or drive

plate? Inspect for cracks, replace if necessary.

Drive motor hardware not secure? Check motor nut and key coupler

Relief valve Check for contamination, replace.

Drive motor Replace motor.

Broken motor shaft key or coupling Replace motor shaft key or coupling.

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 45

AR13HA-R RIDE-ON ROLLER — TROUBLESHOOTING (ENGINE)

GNITOOHSELBUORTENIGNE.7ELBAT

NOTPMYSMELBORPELBISSOPNOITULOS

sitratsrotratstonlliwenignE

nacenignehguohtla,

deyaled

.revodenruteb

?pmupnoitcejnignihcaerleuFoN .metsysleuferitnekcehC.leufddA

?pmupleufevitcefeD.pmupl

eufecalpeR

?deggolcretlifleuF .knatnaelcdnaretlifleufecalpeR

?enilylppusleufytluaF .enilleufriaperroecalp

eR

?wolootnoisserpmoC rotsujdA.sevlavdnarednilyc,notsipkcehC

.launamriaperenignerepriaper

?yltcerrocgnikr

owtonpmupleuF .pmupleufecalperroriapeR

?wolooterusserpliO .erusserplioenignekcehC

dedeecxetimilerutarepme

tgnitratswoL dnasnoitcurtsnignitratsdlochtiwylpmoC

.ytisocsivlioreporp

?yrettabevitcefeD .yrettabecalperr

oegrahC

lliwenigneserutarepmetwoltA

.tratston

?kcihtootlioenignE liofoepyttcerrochtiwesacknarcenignellifeR

.tnemnorivneretniwrof

?yrettabevitcefeD.yrettabecalpeR

sanoosspotstubserifenignE

.ffodehctiwssiretrats

?d

ekcolbretlifleuF.retlifleufecalpeR

?dekcolbylppusleuF .metsysleuferitneehtkcehC

?pmupleufevitcefeD.pmupleu

fecalpeR

gnirudflestiybspotsenignE

.noitarepolamron

?ytpmeknatleuF.leufddA

?dekcolbretlifleuF.retlifleufeca

lpeR

?pmupleufevitcefeD.pmupleufecalpeR

rosnesnwodtuhserusserpliolacinahceM

?liowoloteudenigneehtspots

fir

osnesnwodtuhsliowolecalpeR.lioddA

.yrassecen

PAGE 46 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

AR13HA-R RIDE-ON ROLLER — TROUBLESHOOTING (ENGINE)

)DEUNITNOC(GNITOOHSELBUORTENIGNE.7ELBAT

NOTPMYSMELBORPELBISSOPNOITULOS

dnatuptuo,rewopenignewoL

.deeps

?ytp

meknatleuF.retlifleufecalpeR

?deggolcretlifleuF.retlifleufecalpeR

?etauqedanisignitnevknatleuF .detnevylet

auqedasiknattahterusnE

?snoinuepiptaskaeL nethgitdnaepatsnoinuepipdedaerhtkcehC

.deriuqerasnoinu

detceles

niniamertonseodrevellortnocdeepS

?noitisop

.noitcaevitcerrocroflaunamenigneeeS

?llufootlevellioenignE ?le

vellioenignetcerroC

dnatuptuorewopenignewoL

tsuahxekcalb,deepswol

.ekoms

?dekcolbretlifriA .retlifriaecalp

erronaelC

?secnaraelcevlavtcerrocnI .noitacificepsenignerepsevlavtsujdA

?rotcejnitanoitcnuflaM.launamenig

neeeS

snurenigneleseiddelooc-riA

daehrednilyC."TOH"yrev

.staehrevo

?esacknarcenigneniliohcumooT nokramrepp

uotnwodlioenigneffoniarD

.kcitspid

?dekcolbdetanimatnocmetsysriagnilooceritnE nifgniloocdna,metsysriagni

loocnaelC

.saera

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 47

NOTES

PAGE 48 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

AR13HA-R RIDE-ON ROLLER —

EXPLANATION OF PARTS SECTION

REMARKS

The following section explains the different symbols and

remarks used in the Parts section of this manual. Use the

help numbers found on the back page of the manual if there

are any questions.

SAMPLE PARTS LIST

NO. PART NO. PART NAME QTY. REMARKS

1 12345 BOLT ......................1 .....INCLUDES ITEMS W/%

2% WASHER, 1/4 IN. ...........NOT SOLD SEPARATELY

2% 12347 WASHER, 3/8 IN. ...1 .....MQ-45T ONLY

3 12348 HOSE ..................A/R ...MAKE LOCALLY

4 12349 BEARING ..............1 .....S/N 2345B AND ABOVE

NO. Column

Unique Symbols — All items with same unique

symbol

(@, #, +, %, or >) in the number column belong to the

same assembly or kit, which is indicated by a note in the

“Remarks” column.

Duplicate Item Numbers — Duplicate numbers indicate

multiple part numbers, which are in effect for the same

general item, such as different size saw blade guards in

use or a part that has been updated on newer versions

of the same machine.

PART NO. Column

Numbers Used — Part numbers can be indicated by a

number, a blank entry, or TBD.

TBD (To Be Determined) is generally used to show a

part that has not been assigned a formal part number

at the time of publication.

A blank entry generally indicates that the item is not sold

separately or is not sold by Multiquip. Other entries will

be clarified in the “Remarks” Column.

NOTICE

The contents and part numbers listed in the parts

section are subject to change without notice. Multiquip

does not guarantee the availability of the parts listed.

NOTICE

When ordering a part that has more than one item

number listed, check the remarks column for help in

determining the proper part to order.

QTY. Column

Numbers Used — Item quantity can be indicated by a

number, a blank entry, or A/R.

A/R (As Required) is generally used for hoses or other

parts that are sold in bulk and cut to length.

A blank entry generally indicates that the item is not sold

separately. Other entries will be clarified in the “Remarks”

Column.

REMARKS Column

Some of the most common notes found in the “Remarks

”

Column are listed below. Other additional notes needed

to describe the item can also be shown.

Assembly/Kit — All items on the parts list with the

same unique symbol will be included when this item is

purchased.

Indicated by:

“INCLUDES ITEMS W/(unique symbol)”

Serial Number Break — Used to list an effective serial

number range where a particular part is used.

Indicated by:

“S/N XXXXX AND BELOW”

“S/N XXXX AND ABOVE”

“S/N XXXX TO S/N XXX”

Specific Model Number Use — Indicates that the part

is used only with the specific model number or model

number variant listed. It can also be used to show a

part is NOT used on a specific model or model number

variant.

Indicated by:

“XXXXX ONLY”

“NOT USED ON XXXX”

“Make/Obtain Locally” — Indicates that the part can

be purchased at any hardware shop or made out of

available items. Examples include battery cables, shims,

and certain washers and nuts.

“Not Sold Separately” — Indicates that an item cannot

be purchased as a separate item and is either part of an

assembly/kit that can be purchased, or is not available

for sale through Multiquip.

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 49

AR13HA-R RIDE-ON ROLLER — SUGGESTED SPARE PARTS

AR-13H Ride-on Tandem Drum Roller

w/Honda GX610K1QZB2/GX610R1QZB2 Engine

1 to 3 Units

Qty.P/N Description

1 ........ 510229 ................... CABLE, THROTTLE

1 ........ 506239 ................... CABLE, CHOKE

1 ........ 513324 ................... CABLE, FORWARD/REVERSE

1 ........ 10958 ..................... SWITCH, STARTER

3 ........ 506267K ................. KEY, STARTER SWITCH

6 ........ 508667 ................... OIL FILTER, HYDRAULIC

1 ........ 507278 ................... CAP, HYDRAULIC TANK

1 ........ 506221 ................... FILTER, GAS TANK

6 ........ EM20763 ................ FILTER, FUEL

1 ........ 34507 ..................... GAUGE, FUEL/CAP

1 ........ 509249 ................... CAP, WATER TANK

4 ........ 508433 ................... SCRAPER, RUBBER

3 ........ 17010ZJ1000 ......... ELEMENT SET, AIR

1 ........ 17218ZJ1000 ......... FILTER OUTER, AIR

6 ........ 15410ZJ4999AH .... FILTER, OIL

6 ........ 9807956846 ........... SPARK PLUG

3 ........ 16910ZE8015 ........ FILTER, FUEL ENGINE

PAGE 50 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

AR13HA-R RIDE-ON ROLLER — NAME PLATE AND DECALS

NAME PLATE AND DECALS

REAR

ROLLER

21

20

19

18

12

16

17

4

3

2

1

8

9

10

11

6

13

14

15

21 20 22 18

23

24

18

5

7

25

12 12

26

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 51

AR13HA-R RIDE-ON ROLLER — NAME PLATE AND DECALS

NAME PLATE AND DECALS

NO. PART NO. PART NAME QTY.REMARKS

1 513457 DECAL: STEERING CONSOLE 1

2 13118 DECAL: POWDER COATED 1

3 511726 DECAL: HYDRAULIC OIL LEVEL INDICATOR 1

4 511736 DECAL: WARNING 1

5 TBD DECAL: MULTIQUIP BANNER 1

6 34536 DECAL: OWNERS MANUAL 1

7 513580 DECAL: ENGINE RPM SETTING 1

9 513698 DECAL: WATER TANK CAP 1

10 515436 DECAL: CONTROL PANEL 1

11 511737 DECAL: SERVICE INSTRUCTION CHART 1

12 513393 DECAL: SECURING POINT INDICATOR ................ 3 ........ POINT ARROW DOWN

13 511735 DECAL: CAUTION 2

14 513707 DECAL: ATTENTION 2

15 513467 DECAL: PARKING BRAKE INSTRUCTIONS 1

16 513529 DECAL: AR-13H MQ LOGO 1

17 511738 DECAL: DANGER 1

18 513393 DECAL: SECURING POINT INDICATOR ................ 4 ........ POINT ARROW UP

19 513469 DECAL: CAUTION STRIPE PATTERN.................... 1 ........ HORIZONTAL PLACEMENT

20 511718 DECAL: CAUTION STRIPE PATTERN.................... 2 ........ VERTICAL PLACEMENT

21 513688 DECAL: MQ LOGO 2

22 513740 DECAL: CAUTION STRIPE PATTERN.................... 1 ........ HORIZONTAL PLACEMENT

23 513531 DECAL: AR-13H MQ LOGO 1

24 511739 DECAL: CAUTION: INSTRUCTIONS 1

25 511724 DECAL: GREASE REMINDER 1

26 511733 DECAL: HYDRAULIC OIL INDICATOR 1

PAGE 52 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

AR13HA-R RIDE-ON ROLLER — FRONT DRUM ASSY.

FRONT DRUM ASSY.

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 53

AR13HA-R RIDE-ON ROLLER — FRONT DRUM ASSY.

FRONT DRUM ASSY.

NO. PART NO. PART NAME QTY.REMARKS

2 513280 FRONT ROLLER 1

4 506145 HOUSING BEARING 1

6 506147 BEARING 1

8 506136 RING, RETAINING 1

10 508665 COUPLER 1

12 506142 MOUNT, VIBRATION MOTOR 1

14 011208025 BOLT, 8X25T ................................................... 6 ................. REPLACES 508342

16 EM923023 WASHER, FLAT 5/16" ..................................... 6 ................. REPLACES 492597

18 492264 BOLT, 3/8"X1" 6

20 506141 SHOCK, MOUNT 3

22 508340 STUD, M8X40 6

24 EM923343 WASHER, LOCK 5/16 ..................................... 6 ................. REPLACES 492623

26 020108060 NUT, M8 .......................................................... 6 ................. REPLACES 508341

28 514522 ROLLER, SUPPORT ...................................... 1 ................. RIGHT SIDE — FRONT

30 492276 BOLT 1/2" X 1-1/2" 8

32 513283 HOSE, PROTECTION COVER 1

34 513314 NUT 1/4" X 3/4" 12

36 506220 MOTOR, HYDRAULIC 1

40 492362 NUT 5/16" X 5/8" 4

41 EM923343 WASHER, LOCK 5/16" ................................... 4 ................. REPLACES 492623

43 513337 HOSE 1

45 513343 HOSE 1

47 513342 HOSE 1

78 EM963610 CAPSCREW 3/8" NC X 1-1/4" G8 .................. 6 ................. REPLACES 492375

80 3019092 WASHER, FLAT 3/8" ....................................... 6 ................. REPLACES 508346

82 505985 SHOCK, MOUNT 6

84 021110120 NUT, NYLON LOCK M10 ZINC 1.SP 6

86 505977 PLATE, DRIVER 1

88 505984 HUB 1

90 EM503803 PINS, DOWEL ................................................ 2 ................. REPLACES 503803

92 515637 SUPPORT, ROLLER ....................................... 1 ................. LEFT SIDE - FRONT /REAR

94 EM924006 KEY, COTTER 1/8" X 2" ................................. 1 ................. REPLACES 491690

96 515396 MOTOR, HYDRAULIC 1

98 505990 BOLT 1/2" X 2-1/2" 4

100 515639 COVER 1

124 505951 FITTING 2

126 513332 FITTING 2

128 515641 HOSE 1

130 513344 HOSE 1

PAGE 54 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

AR13HA-R RIDE-ON ROLLER — EXCITER ASSY.

EXCITER ASSY.

FRONT DRUM

70

74

76

64

46

58

66

52

62

74

70

64

60

54

48

46

44 INNER BEARINGS ARE INCLUDED

WITH ITEM 64.

1

NOTES:

1

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 55

AR13HA-R RIDE-ON ROLLER — EXCITER ASSY.

EXCITER ASSY.

NO. PART NO. PART NAME QTY.REMARKS

44 EM963610 CAPSCREW, 3/8" NC X 1-1/4" G8 .................. 6 ............... REPLACES 492375

46 3019092 WASHER, FLAT 3/8" ....................................... 12 .............. REPLACES 508346

48 513285 HOUSING, BEARING RIGHT 1

52 EM927040 KEY, WOODRUFF 606 ..................................... 1 ............... REPLACES 506250

54 492467 SCREW, ALLEN 5/16" 2

58 EM963610 CAPSCREW, 3/8" NC X 1-1/4" G8 .................. 6 ............... REPLACES 492375

60 506144 SEAL 1

62 490964 RING, RETAINING 1

64 506131 BEARING 2

66 513418 EXCITER SHAFT 1

70 506135 RING, RETAINING 2

74 513286 OIL SEAL 65x100x9 2

76 513287 HOUSING, BEARING LEFT 1

PAGE 56 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

AR13HA-R RIDE-ON ROLLER — REAR DRUM & CHASSIS ASSY.

REAR DRUM & CHASSIS ASSY.

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 57

AR13HA-R RIDE-ON ROLLER — REAR DRUM & CHASSIS ASSY.

REAR DRUM & CHASSIS ASSY.

NO. PART NO. PART NAME QTY.REMARKS

2 513291 REAR DRUM 1

4 505988 ALLEN PLUG 1

6 492584 NUT, LOCK 1/2 IN. 1

8 503735 BEARING, FLANGE ........................................ 1 ............... INCLUDES ITEMS W/*

10 514523 SUPPORT, ROLLER ........................................ 1 ............... RIGHT SIDE - REAR

12 509165 BOLT, 1/2 NC x 2-1/4 IN. G5 1

14 492276 BOLT, 1/2 NC x 1-1/2 IN. G5 8

16 EM963610 CAPSCREW, 3/8 IN. NC x 1-1/4 IN. G5 6

18 508346 LOCK WASHER 3/8 IN. 6

20 505977 PLATE DRIVE 1

24 EM963610 CAPSCREW, 3/8 NC x 1-1/4 IN. G8 ................ 6 ............... REPLACES 492375

26 505984 HUB 1

28 EM503803 PINS, DOWEL 3/8 x 1 IN. 2

30 515637 REAR ROLLER SUPPORT, LEFT ................... 1 ............... LEFT SIDE - FRONT/REAR

32 515639 SUPPORT COVER 1

34 513314 BOLT, 1/4 NC x 1/2 IN. G 12

36 491689 KEY, COTTER 1/8 x 2 IN. 1

38 515396 MOTOR, HYDRAULIC 1

40 505990 BOLT, 1/2 NC x 2-1/2 IN. G 4

66 505951 FITTING 8-10-F5OLO-S 2

70 513349 HOSE 2

72 *ZERK GREASE FITTING ................................ 1 ............... CANNOT BE SOLD SEPARATELY

74 *ZERK CAP ....................................................... 1 ............... CANNOT BE SOLD SEPARATELY

100 513266 REAR CHASSIS 1

PAGE 58 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

AR13HA-R RIDE-ON ROLLER — COVERS AND FRAME ARTICULATION LOCK ASSY.

AR13HA-R RIDE-ON ROLLER — COVERS AND FRAME ARTICULATION LOCK ASSY.

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 59

COVERS AND FRAME ARTICULATION LOCK ASSY.

NO. PART NO. PART NAME QTY.REMARKS

4 513315 REAR WATER TANK COVER 1

6 509177 BOLT 5/16 IN. 4

20 515416 FLOOR PLATE/W ALUMINUM COVER 1

22 509177 BOLT 5/16 X 5/8 IN. 10

32 492363 BOLT 5/16 X 3/4 IN. NCG5 6

34 EM923343 WASHER, LOCK 5/16 IN. ................................ 6 ............... REPLACES 492623

136 507888 SEAT 1

138 505679 NUT 5/16" 8

140 2105164 NUT, NYLON 5/16 IN. - 18 ............................... 4 ............... REPLACES 492582

161 513471 LOCK CLIP 4

162 513328 LOCKING ARM 1

164 492410 BOLT 5/8 NC x 2-1/2 IN. G5 1

166 506167 WASHER, PLASTIC 5/8 IN. 2

167 EM923023 WASHER, PLAIN 5/16 IN. ............................... 1 ............... REPLACES 506109

168 EM969023 NUT, LOCK 5/8 IN. ........................................... 1 ............... REPLACES 492586

170 745 LOCK PIN 1

238 29057 DOCUMENT BOX 1

240 492357 SCREW, HHC 1/4 IN.- 20X12 4

241 504451 WASHER 1/4 IN. 4

242 492596 WASHER 1/4 IN. 8

243 509177 BOLT 5/16 NC X 5/8 IN. G5 2

244 515416 ALUMINUM FLOOR COVER 1

246 515415 ARM, FLOOR COVER 1

247 511474 BRACKET, ARM 1

248 503723 RIVET AM-54 1

AR13HA-R RIDE-ON ROLLER — COVERS AND FRAME ARTICULATION LOCK ASSY.

PAGE 60 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

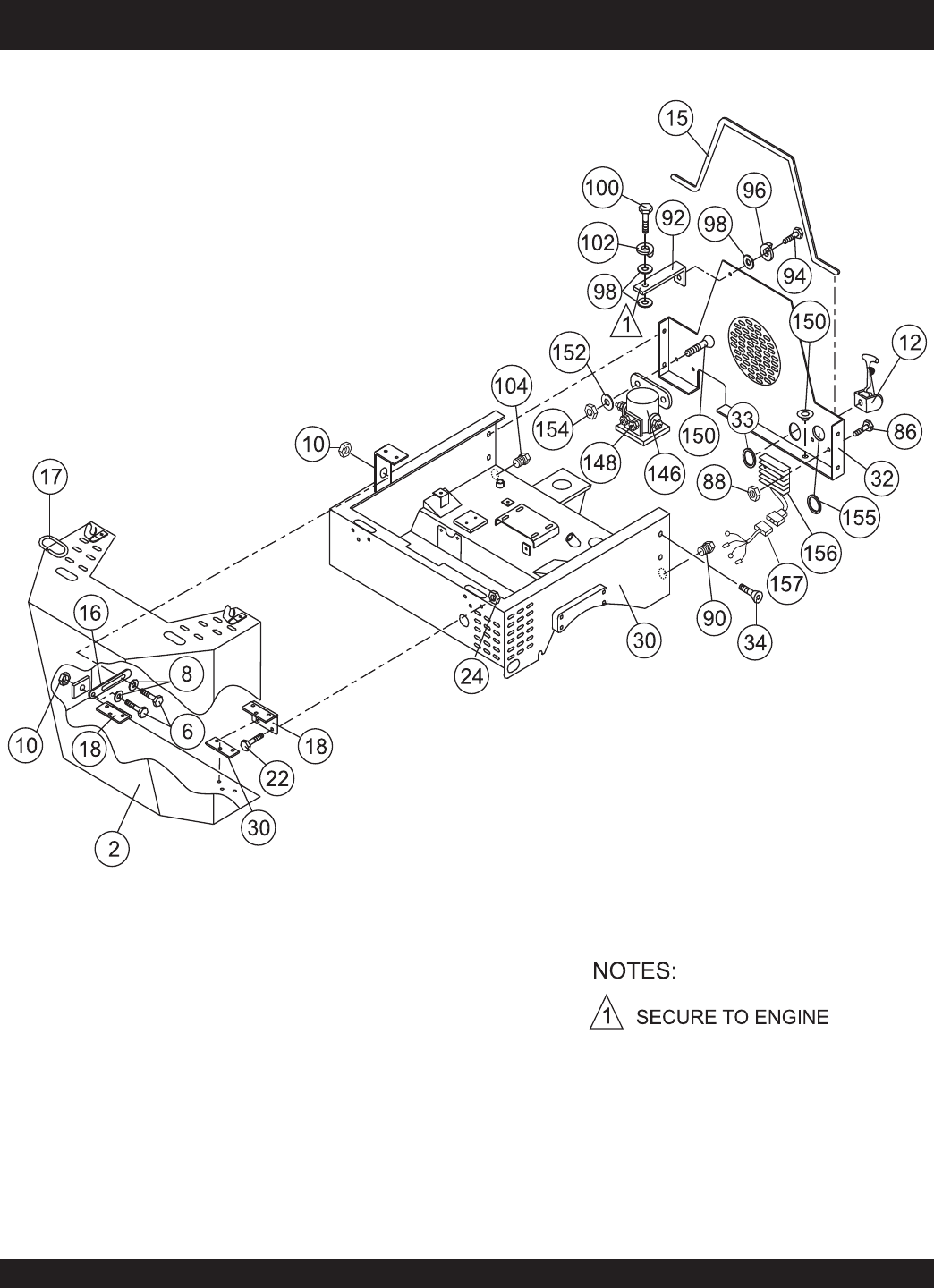

AR13HA-R RIDE-ON ROLLER — HOOD AND REAR PANEL ASSY.

HOOD AND REAR PANEL ASSY.

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 61

AR13HA-R RIDE-ON ROLLER — HOOD AND REAR PANEL ASSY.

HOOD AND REAR PANEL ASSY.

NO. PART NO. PART NAME QTY.REMARKS

2 515096 HOOD 1

6 492364 SCREW, HHC 5/16 X 18 X 1 IN. 2

8 505679 FLAT WASHER 5/16 IN. 2

10 2105164 NUT, NYLON 5/16- 18 ...................................... 2 ............... REPLACES 492582

12 491010 LATCH KIT ....................................................... 2 ............... REPLACES 504744

13 503723 RIVET BRAKE LINING 13

15 515199 SEAL RUBBER 1

16 513305 HINGE, SLOTTED 1

18 514438 LATCH KIT (HOOD) 1

22 492356 BOLT 1/4 X 3/4 IN. 12

24 492581 NUT 1/4 IN. 12

30 513396 FRONT CHASSIS 1

32 513308 REAR EINGINE COVER 1

33 13212 GROMMET, 1-1/4 IN. ID 1

34 513309 BOLT 5/16 X 3/4 IN. 4

86 513312 BOLT 1/4 X 1 IN. 2

88 492581 NUT 1/4 IN. 2

90 490181 SIGHT GLASS 1

92 513313 SUPPORT REAR ENGINE COVER 1

94 492356 BOLT 1/4 X 3/4 IN. 1

96 2101402 WASHER, LOCK 1/4 IN. .................................. 1 ............... REPLACES 492622

98 492596 FLAT WASHER 1/4 IN. 3

100 011208025 BOLT 8 X 25T DCA-85,125,150SSM ............... 1 ............... REPLACES 508342

102 EM923343 WASHER, LOCK 5/16 IN. ................................ 1 ............... REPLACES 492623

104 506205 PLUG 1

146 506273 SOLENOID, STARTER 1

148 510925 NUT 3/16 IN. 2

150 513314 BOLT 1/4 X 1/2 IN. 2

152 492596 FLAT WASHER 1/4 IN. 2

154 492581 NUT 1/4 IN. 2

155 506085 GROMMET 1

156 31620ZG5003 RECTIFER ASSY, REGULATOR , 20A 1

157 32105ZJ1800 SUB-WIRE HARNESS ASSY. 1

PAGE 62 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

AR-13H — STEERING COLUMN AND HYDRAULIC ARTICULATION ASSY.

STEERING COLUMN AND HYDRAULIC ARTICULATION ASSY.

CLUTCH CABLE

CONNECTS TO ENGINE

1

NOTES:

SEE HYDRAULIC

HOSE CONNECTIONS

PAGES 34-35

KL

L

K

HOSES

CONNECT TO

MANIFOLD

STEERING

VALVE

KL

174

180

182

176

184

58

26

30

34 36

28

52

32

172

42

38

44

40

46

48

50

18

14

16

18

22

54

16

24

56

188

1

202

198

194

196

190

200

22

178

186

192

3

HOSE CONNECTS TO

HYDRAULIC CYLINDER

PORT 2, ITEM 24

2

3

HOSE CONNECTS TO

HYDRAULIC CYLINDER

PORT 1, ITEM 24

2

181

2

1

195

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 63

AR-13H — STEERING COLUMN AND HYDRAULIC ARTICULATION ASSY.

STEERING COLUMN AND HYDRAULIC ARTICULATION ASSY.

NO. PART NO. PART NAME QTY.REMARKS

14 EM923348 WASHER, LOCK 5/8 IN. 2

16 EM969023 NUT, LOCK 5/8 IN. ........................................... 2 ............... REPLACES 492586

18 492412 BOLT 5/8” UNC X 3 2

22 506196 ELBOW FITTING 2

24 513297 CYLINDER, STEERING 1

26 513298 BOLT 1/2 IN. NC x 1 IN. G 4

28 513299 COVER, ARTICULATING JOINT 1

30 EM963055 HEX HEAD CAPSCREW 3/8 IN. x 3/4 IN. ....... 3 ............... REPLACES 492373

32 6109180 WASHER, LOCK 1/2” DIAMETER ................... 4 ............... REPLACES 492626

34 0166A WASHER, LOCK 3/8” DIAMETER ................... 3 ............... REPLACES 492624

36 513300 RETAINER PLATE 1

38 513301 SPACER 1

40 506164 BEARING 1

42 492276 BOLT 1/2 IN. NC x 1-1/2 IN. G 4

44 6109180 WASHER, LOCK 1/2 IN. .................................. 4 ............... REPLACES 492626

46 513302 BASE, ARTICULATING JOINT 1

48 513303 ARTICULATING JOINT 1

50 492276 BOLT 1/2 IN. NC x 1-1/2 IN. G 4

52 491701 ZERK FITTING 1

54 513350 HOSE, 9 1

56 513348 HOSE, 16 1

58 491008 GREASE COVER 1

172 598156 NUT 1

174 493128 WHEEL, STEERING 1

176 507862 STEERING COLUMN 1

178 506265 NUT 5/16 IN. 4

180 509143 NUT 5/16 IN. 4

181 513346 HOSES K AND L 2

182 508344 WASHER 5/16 IN. 4

184 508335 BUSHING 4

186 509190 WASHER 3/4 IN. 1

188 506186 HYDRAULIC VALVE 1

190 506222 HOUR METER 1

192 503119 NUT, LOCK 3/16” 1

194 10958 SWITCH, STARTER 1

195 11078 KEY, IGNITION 1

196 506239 CABLE CHOKE 1

198 503958 BOLT 1/4 IN. x 5/8 IN. G5 1

200 EM969079 NUT 1/4 IN. ...................................................... 1 ............... REPLACES 492581

202 515423 HARNESS, WIRING 1

PAGE 64 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

4

2

6

8

10

8

4

2

6

AR13HA-R RIDE-ON ROLLER — ARTICULATION ARM ASSY.

ARTICULATION ARM

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 65

AR13HA-R RIDE-ON ROLLER — ARTICULATION ARM ASSY.

ARTICULATION ARM

NO. PART NO. PART NAME QTY.REMARKS

2 513294 ROD END 2

4 514347 BOLT 3/4 IN. x 2-1/2 IN. 2

6 EM505069 NUT 3/4 IN. 2

8 513295 NUT 3/4 IN. 2

10 513296 ROD, DIRECTION STABILIZER 1

PAGE 66 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

AR13HA-R RIDE-ON ROLLER — HYDRAULIC DRIVE PUMP ASSY.

200

202

201

62

204

206 209

196

199

60

38

52

50 38

46

48

190

192

191

56

54

58

72

70

203

74

64

68

66

87

202

200

45

44

40

42

A

B

C

F

ED

NOTES

SEE HYDRAULIC

HOSE CONNECTIONS

A

B

192

36

AC

B D

88

89

90

HYDRAULIC DRIVE PUMP ASSY.

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 67

AR13HA-R RIDE-ON ROLLER — HYDRAULIC DRIVE PUMP ASSY.

HYDRAULIC DRIVE PUMP ASSY.

NO. PART NO. PART NAME QTY.REMARKS

36 GX610K1QZB2 ENGINE W/ELECTRIC STARTER .................... 1 .............. OLDER MODELS

36 GX610R1QZB2 ENGINE W/ELECTRIC STARTER .................... 1 .............. NEWER MODELS

38 500214 KEY SQUARE 1

40 EM969013 NUT LOCK 3/8 IN. ........................................... 4 ............... REPLACES 492583

42 3019092 WASHER, FLAT 3/8 IN. ................................... 8 ............... REPLACES 492598

44 EM963059 BOLT 3/8 X 2 IN. .............................................. 4 ............... REPLACES 492379

45 513352 RUBBER RING 1/2 X 1/2 IN. 1

46 506234 SPACER 1

48 506235 COUPLER 1

50 506236 ALUMINUM ADAPTER 1

52 EM963610 CAPSCREW 3/8 NCX 1-1/4 IN. GS ................. 4 ............... REPLACES 492376

54 507845 PUMP, STEERING 1

56 EM508346 WASHER 3/8 IN. .............................................. 2 ............... REPLACES 508346

58 EM175 BOLT 3/8-16 X 1-1/4 SC HD 2

60 507860 ADAPTER, STEERING PUMP 1

62 506187 HYDRAULIC PUMP 1

64 513310 SHIFT LEVER 1

66 509144 BOLT 3/16 X 1-3/4 IN. 1

68 492367 BOLT 5/16 X 1-3/4 IN. 1

70 2105164 NUT, NYLON 5/16 IN. - 18 ............................... 1 ............... REPLACES 492582

72 503119 NUT, LOCK 3/16 IN. 1

74 492465 SCREW ALLEN HEAD 1/4 - 20 X 3/8 IN. 1

87 513335 HOSE 2

88 513618 ADAPTOR 1

89 513620 HOSE, DRAIN 1

90 513619 PLUG 1

190 506217 FITTING 3/4 IN. 1

191 513340 HOSE 1

192 506207 HOSE CLAMP, HS-16 2

196 506203 FITTING 1

199 513338 HOSE 1

200 508427C COPPER WASHER 21/32 IN. 3

201 513333 HOSE 1

202 508343 FITTING 3

203 513339 HOSE 1

204 508428C COPPER WASHER 5/8 IN. 1

206 506219 FITTING 1/2 IN. 1

208 506200 FITTING 3703-08-08 1

209 513336 HOSE 1

PAGE 68 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

AR13HA-R RIDE-ON ROLLER — MANIFOLD AND HYDRAULIC OIL FILTER

ASSY.

MANIFOLD AND HYDRAULIC OIL FILTER ASSY.

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 69

MANIFOLD AND HYDRAULIC OIL FILTER ASSY.

NO. PART NO. PART NAME QTY.REMARKS

83 513334 HOSE 1

87 513335 HOSE 2

106 507278 HYDRAULIC TANK CAP 1

108 506218 STRAIGHT FITTING 3/4" 1

110 506221 FILTER, GAS 1

112 508667 OIL FILTER 1

114 508664 FILTER, HEAD 1

116 492357 SCREW HHC 1/4- 20X12 2

118 2101402 WASHER, LOCK 1/4” ....................................... 2 ............... REPLACES 492622

119 EM25507 FITTING 3

120 506204 FITTING 1

122 506244 BLOCK FILTER M10 1

124 508670 VALVE CHECK 1

126 505976 CLAMP 3/4 5

128 506185 PLATE CORNER 4

130 492367 SCREW, HHC5/16”-18X1-3/4” 3

132 EM923343 WASHER, LOCK 5/16” ..................................... 4 ............... REPLACES 492623

134 492371 BOLT 5/16” LOCK 1

136 506201 FITTING, TEE 1

138 506202 FITTING 2

140 506206 FITTING 1

142 508472 FITTING 1

144 506195 FITTING 1

156 515502 MANIFOLD 1

157 508814 BOLT 5/16”X3-1/4” 2

158 506192 FITTING 2

160 507774 VALVE RELIEF, 500 PSI 1

162 507772 PLUG 1

164 506247 VALVE, NEEDLE 1

166 506246 VALVE, RELIEF, 2000 PSI 1

168 506245 VALVE, SOLENOID 1

170 507885 12 VOLT COIL SOLENOID 1

172 506182 COUPLING PSI TEST 3

174 506190 FITTING 2

176 511808 ADAPTER, STRAIGHT 2

178 506190 FITTING 2

181 506195 FITTING 1

182 506205 PLUG 1

183 506193 FITTING 4

184 506195 FITTING 2

AR13HA-R RIDE-ON ROLLER — MANIFOLD AND HYDRAULIC OIL FILTER

ASSY.

PAGE 70 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

AR13HA-R RIDE-ON ROLLER — FUEL TANK ASSY.

FUEL TANK ASSY.

TO

ENGINE

REAR

ENGINE COVER

LEFT SIDE

CHASSIS

FUEL TANK

FUEL TANK

210

220

284

206

204

205 207

213 216

124

214

224 218

268

248

224

228

227

226

248

223

250

258

222

221

252 256

212

208

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 71

AR13HA-R RIDE-ON ROLLER — FUEL TANK ASSY.

FUEL TANK ASSY.

NO. PART NO. PART NAME QTY.REMARKS

124 508302 PAD, RUBBER TANK 2

204 513329 FUEL TANK 1

205 514467 BRACKET, FUEL TANK SUPPORT 1

206 34507 CAP, FUEL W/GAUGE 1

207 514340 PAD, RUBBER BRACKET 4 x 36 x 10 mm 1.7

208 491210 FLEX TUBE 5/16 IN. 1

210 505521 ADAPTER, ELBOW 1

212 492309 BOLT 5/16 NC x 1 IN. G5 2

213 492623 WASHER, LOCK 5/16 IN. 2

214 3019092 WASHER, FLAT 5/16 IN. 2

216 492553 NUT, HEX 5/16 IN. 2

218 506208 CLAMP HS-4 8

220 514536 HOSE 4FLH 5/16 IN. .85

221 EM20427 HOSE 1/4 IN. .07

222 352431090 FUEL, FILTER ......................................................... 1 ......... REPLACES EM20763

223 40177 FUEL PUMP 1

224 EM20427 HOSE 1/4 IN. .19

226 492622 WASHER, LOCK 1/4 IN. 2

227 492561 NUT, HEX 1/4 IN. 2

228 492357 BOLT 1/4 NC x 1 IN. G5 2

230 404976 CLAMP 3/4 1

248 EM20426 ADAPTOR, ELBOW 2

250 514559 ADAPTOR, ELBOW 1

252 512731 ADAPTOR 2

256 512722 FUEL SHUT-OFF VALVE 1

258 EM20427 HOSE 1/4 IN. .07

268 511778 ADAPTER 1

284 491210 PLUG, TANK 1/4 IN. 1

PAGE 72 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

AR13HA-R RIDE-ON ROLLER — WATER TANK ASSY.

PART OF FRAME

1

NOTES

1

132

128

18

270

130 266

1

268

132

128

18

270

130 266

268

116

116

116 10

12

13

18

18

93 116

8

14

18

100

102

92

98

90

84

104 88

86

116

96

119

16

WATER TANK ASSEMBLY ASSY.

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 73

AR13HA-R RIDE-ON ROLLER — WATER TANK ASSY.

WATER TANK ASSEMBLY ASSY.

NO. PART NO. PART NAME QTY.REMARKS

8 513316 WATER TANK 1

10 EM963055 BOLT 3/8”X3/4” ................................................ 1 ............... REPLACES 492373

12 3019092 WASHER, FLAT 3/8” SPECIAL ........................ 1 ............... REPLACES 492598

13 0166A WASHER, LOCK 3/8” ...................................... 1 ............... REPLACES 492624

14 509249 WATER TANK CAP 1

16 506094 PLUG 1/2” NPT GALVANIZED 1

18 506071 ELBOW PVC 7

84 513321 WATER VALVE EXTENSION 1

88 492358 BOLT 1/4" NC x 1-1/4" G5 4

90 492581 NUT1/4" 4

92 513322 VALVE, BALL 2

93 813351 ELBOW 90G 1/2” NYLON 1

94 513379 “T” ADAPTER 1

98 506086 U- BOLT 3/8" 4

100 3019092 WASHER, FLAT. 3/8” ...................................... 16 ............... REPLACES 492598

102 508435 LOCK NUT 8

104 503015 KNOB, HANDLE ADJ. 2

116 504163 HOSE 1/2" 1

118 504163 HOSE 1/2" 1

119 504163 HOSE 1/2" 1

120 504163 HOSE 1/2" 1

122 504163 HOSE 1/2" 1

128 506084 CLAMP 4

130 505679 NUT 5/16" 4

132 505401 SCREW, HHC 5/16”- 18X1/2” 4

266 506072 PVC TUBE 4

268 506074 MALE ADAPTER 4

270 508610 CAP 4

PAGE 74 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

AR13HA-R RIDE-ON ROLLER — MUFFLER ASSY.

MUFFLER ASSY.

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 75

AR13HA-R RIDE-ON ROLLER — MUFFLER ASSY.

MUFFLER ASSY.

NO. PART NO. PART NAME QTY.REMARKS

210 513449 MUFFLER PIPE (MODIFIED) 1

212 506257 U- BOLT ASSY. 1-1/2" 2

214 514711 TUBE 1.25” FLEX 1

215 506207 HOSE CLAMP HS-16 2

216 510718 HEAT WRAP 2”x1/16” 1

218 513447 EXTENSION MUFFLER PIPE 1

220 513444 ELBOW, EXHAUST FLANGED 1

222 513341 DEFLECTOR EXHAUST 1

256 492553 NUT, HEX 5/16” NC 2

258 505679 FLAT WASHER 5/16” 4

260 513520 MUFFLER BASE EXTENSION 1

262 492369 SCREW, HHC5/16”- 18X2-1/4 1

264 503952 BOLT 5/16” X4” 1

265 18333ZJ1000 GASKET, MUFFLER 2

266 9405008000 NUT 4

267 18310ZJ1-800 MUFFLER 1

268 18338ZJ1801 STAY, MUFFLER .............................................. 1 ............... REPLACES 18338ZJ1800

269 90009ZJ1801 SCREW, SPECIAL 4

270 18321ZJ1801 PROTECTOR MUFFLER ................................. 1 ............... REPLACES 18321ZJ1800

271 18325ZJ1801 PROTECTOR RR. MUFFLER .......................... 1 ............... REPLACES 18325ZJ1800

PAGE 76 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

AR13HA-R RIDE-ON ROLLER — THROTTLE ASSY.

THROTTLE ASSY.

ITEM 114 BOLTS

TO ENGINE

1

NOTES:

1

2

3

112

110

114

106

134

108

THROTTLE CABLE

CONNECTS TO ENGINE

2

ITEM 110 CONNECTS

TO ITEM 64, SEE PAGE 66

3

136

135

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 77

AR13HA-R RIDE-ON ROLLER — THROTTLE ASSY.

THROTTLE ASSY.

NO. PART NO. PART NAME QTY.REMARKS

106 513323 TRAVEL LEVER (FWD/REV) 1

108 513324 CABLE, FORWARD/REVERSE 1

110 514742 JOINT BALL 1

112 508451 LOCK NUT 1/4" - 28 NF 1

114 513325 ADVANCE CABLE SUPPORT 1

134 510229 CABLE THROTTLE ASSEMBLY 1

135 G201 KNOB HANDLE 1

136 DA1252 LEVER HANDLE 1

PAGE 78 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

AR13HA-R RIDE-ON ROLLER — BRAKE CONTROL ASSY.

BRAKE CONTROL ASSY.

36

42

40

62

64

48

66

54

44

46

82

78

265

72

268

74

56

58

60

38

76

70

68

266

267

269

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 79

AR13HA-R RIDE-ON ROLLER — BRAKE CONTROL ASSY.

BRAKE CONTROL ASSY.

NO. PART NO. PART NAME QTY.REMARKS

36 506046 LEVER, BRAKE 1

38 506158 BOLT 5/16" NC x 3/4" G5 4

40 492365 BOLT 5/16" NC x 1/1/4" G5 1

42 EM923023 WASHER, FLAT 5/16” ...................................... 2 ............... REPLACES 492597

44 2105164 NUT, NYLON 5/16”- 18 ..................................... 1 ............... REPLACES 492582

46 506057 BRAKE LINK 1

48 505999 BELL CRANK 1

50 EM963097 BOLT 3/8” NC x 1/1/2" G5 ................................ 1 ............... REPLACES 492313

52 EM969013 NUT, LOCK 3/8” ............................................... 1 ............... REPLACES 492583

56 508674 BOLT 5/16" NC x 1" G5 4

58 506042 PIN, CLEVIS 1

66 2219 KEY, COTTER 1

68 492570 NUT, HEX 5/8" 1

70 EM923348 WASHER, LOCK 5/8” ....................................... 1 ............... REPLACES 492627

72 508449 BRAKE ROD 1

74 508619 BOLT, HEX HEAD 3/8” NCX4” 1

76 3019092 WASHER, FLAT 3/8” ........................................ 2 ............... REPLACES 492598

78 EM969013 NUT, LOCK 3/8” ............................................... 1 ............... REPLACES 492583

82 506001 BUSHING, PLASTIC 1

265@ 513320 SUPPORT, BRAKE SHOE 1

266@ 505997 BRAKE PAD 1

267@ 508566 RIVET 6

268@ 508386 WASHER 3/16" 6

269 505994 BRAKE PAD ASSY. ......................................... 1 ............... INCLUDES ITEMS W/@

PAGE 80 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

AR13HA-R RIDE-ON ROLLER — BATTERY ASSY.

BATTERY ASSY.

REMOVE ITEMS 20

AND29ONPAGE58

FOR BATTERY ACCESS

NOTES:

160

158

150

152

146

148

154

156

144

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 81

AR13HA-R RIDE-ON ROLLER — BATTERY ASSY.

BATTERY ASSY.

NO. PART NO. PART NAME QTY.REMARKS

144 514391 BATTERY 12V 1

146 513446 CABLE (-) BATTERY 1

148 513445 CABLE (+) BATTERY 1

150 505624 BATTERY TERMINAL COVER......................... 1 ............... BLACK

152 506266 BATTERY TERMINAL COVER......................... 1 ............... RED

154 506152 WRAP 1

156 506151 CLAMP, BATTERY 1

158 TBD HEX HEAD SCREW 3/8"X2" NC G5 1

160 3019092 WASHER, FLAT 3/8” ........................................ 1 ............... REPLACES 492598

PAGE 82 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

AR13HA-R RIDE-ON ROLLER — SCRAPER ASSY.

PART OF FRAME

1

NOTES:

1

A

A

120

122

118

112 114 110 108

106

116

SCRAPER ASSY.

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 83

AR13HA-R RIDE-ON ROLLER — SCRAPER ASSY.

SCRAPER ASSY.

NO. PART NO. PART NAME QTY.REMARKS

106 513290 SCRAPER, SUPPORT 4

108 508433 SCRAPER, RUBBER 4

110 508434 PLATE BACKING 4

112 EM963057 BOLT 3/8” ..................................................... 12 ................ REPLACES 492313

114 3019092 WASHER, FLAT3/8” ...................................... 12 ................ REPLACES 492598

116 EM969013 NUT, LOCK 3/8” ............................................ 12 ................ REPLACES 492583

118 EM963692 BOLT, 1/2” UNC X 1-1/2” ................................. 8 ................ REPLACES 492384

120 492584 NUT, LOCK 1/2” NC 8

122 621 WASHER 1/2” SPECIAL 8

PAGE 84 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

HONDA GX610K1QZB2 ENGINE — AIR CLEANER ASSY.

AIR CLEANER ASSY.

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 85

HONDA GX610K1QZB2 ENGINE — AIR CLEANER ASSY.

AIR CLEANER ASSY.

NO. PART NO. PART NAME QTY.REMARKS

1 17210ZJ1841 ELEMENT, AIR CLEANER 1

2 17218ZJ1840 FILTER (OUTER) 1

3 17219ZJ1840 CLIP, AIR CLEANER 4

4 17220ZJ1840 HOUSING, AIR CLEANER 1

5 17229ZJ1840 SEAL, AIR CLEANER HOUSING 1

6 17230ZJ1840 COVER ASSEMBLY, AIR CLEANER ............. 1 .............. INCLUDES ITEM W/*

8 *17233ZJ1840 SEAL, AIR CLEANER COVER 1

9 17234ZJ1840 PLATE, AIR CLEANER SETTING 1

10 17238ZJ4830 COLLAR A, AIR CLEANER 2

11 90003ZJ1840 BOLT, SPECIAL 5MM 2

12 957010602800 BOLT, FLANGE 6X28 2

PAGE 86 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

HONDA GX610K1QZB2 ENGINE — CARBURETOR ASSY.

CARBURETOR ASSY.

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 87

HONDA GX610K1QZB2 ENGINE — CARBURETOR ASSY.

CARBURETOR ASSY.

NO. PART NO. PART NAME QTY.REMARKS

1 12357ZJ1840 TUBE, BREATHER 1

2 15772551000 CLIP, BREATHER TUBE 1

3*#16010ZG8000 GASKET SET 1

4*16011KCK910 VALVE SET, FLOAT 1

5*16013ZV4005 FLOAT SET 1

6*16015ZJ1841 CHAMBER SET, FLOAT ................................ 1 .............. INCLUDES ITEMS W/#

7*16016ZJ1010 SCREW SET 1

8*#16024124760 SCREW SET, DRAIN 1

9*16028ZG8000 SCREW SET 1

10 16100ZJ10831 CARBURETOR ASSEMBLY, BG21H A ......... 1 .............. INCLUDES ITEMS W/*

11*16148141881 CAP, CHOKE LEVER DUST 1

12*16150ZJ0831 JET SET #58 1

13*16166ZJ0831 NOZZLE, MAIN 1

14*16178548004 O- RING 5.8X1.9 1

15 16198ZJ1840 TUBE, DRAIN 1

16*16200ZJ1841 VALVE ASSEMBLY, SOLENOID 1

17 16211ZJ0841 INSULATOR, CARBURETOR 1

18 16221ZJ1840 GASKET, CARBURETOR 2

19 17228ZG8003 GASKET, AIR CLEANER 1

20 17410ZJ1840 ELBOW, AIR CLEANER 1

21 90314ZJ1840 NUT, INSERT 6MM 2

22 90682959661 CLIP B, CABLE 1

23 91402ZJ1841 CLIP, PURSE LOCK 1

24*938920401408 SCREW- WASHER 4X14 4

25 938920501208 SCREW- WASHER 5X12 2

26 9500202080 CLIP, TUBE B8 1

27 958010612000 BOLT, FLANGE 6X120 2

28*99201ZG80880 JET SET, MAIN #88 (OPTIONAL) 1

28 99201ZG80900 JET SET, MAIN #90 (OPTIONAL) 1

28 99201ZG80920 JET SET, MAIN #92 (OPTIONAL) 1

PAGE 88 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

HONDA GX610K1QZB2 ENGINE — CONTROL ASSY.

CONTROL ASSY.

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 89

HONDA GX610K1QZB2 ENGINE — CONTROL ASSY.

CONTROL ASSY.

NO. PART NO. PART NAME QTY.REMARKS

1 16263883W10 JOINT, ROD 1

2 16500ZJ1850 CONTROL ASSEMBLY .................................. 1 ............ INCLUDES ITEMS W/*

3 16534ZJ1840 SPRING, STARTER 1

4 16551ZJ1840 ARM, GOVERNOR 1

5 16555ZJ1840 ROD, GOVERNOR 1

6 16561ZJ1850 SPRING, GOVERNOR (MANUAL) 1

7 16562ZJ1840 SPRING, THROTTLE RETURN 1

8*16570ZJ1850 ARM, CONTROL 1

9*16574883300 SPRING, LEVER 1

10*16575ZJ1850 WASHER, CONTROL ARM 1

11*16576883300 SPACER, CONTROL LEVER 2

12 16584883300 SPRING, CONTROL ADJUSTING 2

13 16611ZJ1840 ROD, CHOKE CONTROL 1

14 16628ZJ1850 ROD, CHOKE KNOB 1

15 17850ZJ1850 LEVER ASSEMBLY, THROTTLE 1

16 17951921030 KNOB, CHOKE 1

17 17957ZV4000 BUSH, LINKAGE 1

18 90014952000 BOLT, FLANGE 6X14 2

19 90015ZE3790 BOLT, GOVERNOR ARM 1

20*90114SA0000 NUT, SELF- LOCK 6MM 1

21 92301050250A BOLT, SLOT 5X25 1

22 93500050250A SCREW, PAN 5X25 1

23 9405006000 NUT FLANGE 6 MM 1

24 9425110000 PIN, LOCK 10 MM 1

PAGE 90 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

HONDA GX610K1QZB2 ENGINE — CRANKCASE COVER ASSY.

CRANKCASE COVER ASSY.

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 91

HONDA GX610K1QZB2 ENGINE — CRANKCASE COVER ASSY.

CRANKCASE COVER ASSY.

NO. PART NO. PART NAME QTY.REMARKS

1 11300ZJ1840 COVER ASSY., CRANKCASE Q TYPE ........ 1 .............. INCLUDES ITEMS/*

2 11381ZJ1840 GASKET, CASE COVER 1

3 12105ZA0701 BOLT, SEALING 1

4 15120ZJ1000 COVER ASSEMBLY, OIL PUMP 1

5 15124ZJ1003 ROTOR, OIL PUMP (OUTER) 1

6 15232ZJ1000 SPRING, RELIEF VALVE 1

7 15348ZJ1840 COVER, OIL FILTER 1

8 15410ZJ4999AH FILTER, OIL................................................... 1 .............. SOLD INDIVIDUALLY

10 15427ZJ1000 SCREEN, OIL FILTER 1

11 15655ZJ1840 DIPSTICK, OIL 1

12*16510ZJ1840 GOVERNOR ASSEMBLY .............................. 1 .............. INCLUDES ITEMS/%

13*%16511ZJ1840 WEIGHT, GOVERNOR 3

14*%16512ZJ1840 HOLDER, GOVERNOR WEIGHT 1

15*%16513ZE2000 PIN, GOVERNOR WEIGHT 3

16*16531ZE2000 SLIDER, GOVERNOR 1

17 90014ZE6000 BOLT, FLANGE 6X35 3

18#90018PN3000 HOLDER, OIL FILTER 1

19*90473147000 WASHER 6X16 1

20*90602ZE1000 CLIP, GOVERNOR HOLDER 1

21*91202ZJ1841 OIL SEAL 38X58X9 1

22 91320MJ6003 O- RING 11.8X2.4 2

23*9410106800 WASHER, PLAIN 6MM 1

24 9430108140 PIN A, DOWEL 8X14 2

25 957010602000 BOLT, FLANGE 6X20 3

26 957010805000 BOLT, FLANGE 8X50 9

27 9621112000 BALL, STEEL #12 (3/8) 1

28 966000601600 BOLT, SOCKET 6X16 2

29 15410ZJ1800 BASE, OIL FILTER A .................................... 1 .............. INCLUDES ITEMS/#

PAGE 92 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

HONDA GX610K1QZB2 ENGINE — CAMSHAFT ASSY.

CAMSHAFT ASSY.

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 93

HONDA GX610K1QZB2 ENGINE — CAMSHAFT ASSY.

CAMSHAFT ASSY.

NO. PART NO. PART NAME QTY.REMARKS

1 12209ZE8003 SEAL, VALVE STEM 2

2 14100ZJ1842 CAMSHAFT ASSEMBLY 1

3 14410ZJ1840 ROD, PUSH 4

4 14431ZE2010 ARM, VALVE ROCKER 4

5 14451ZE1013 PIVOT, ROCKER ARM 4

6 14568ZJ1841 SPRING, WEIGHT RETURN 1

7 14576ZJ1840 PIN, DECOMPRESSION 1

8 14711ZE3000 VALVE, INTAKE 2

9 14721ZE3000 VALVE, EXHAUST 2

10 14730ZJ1840 LIFTER ASSEMBLY, VALVE ......................... 1 .............. INCLUDES ITEMS W/*

11 14751ZE2003 SPRING, VALVE 4

12*14760ZJ1840 SHAFT, VALVE LIFTER 1

13*14764ZJ1840 SPRING VALVE LIFTER 2

14 14771ZE2000 RETAINER, INTAKE VALVE SPRING 2

15 14773ZE2000 RETAINER, EXHAUST VALVE SPRING 2

16 14775ZE2010 SEAT, VALVE SPRING 2

17 14781ZE2000 ROTATOR, VALVE 2

18 14791ZE2010 PLATE, PUSH ROD GUIDE 2

19 90005896000 BOLT, FLANGE 5X16 1

20 90012ZE0010 BOLT, PIVOT 8MM 4

21 90206ZE1000 NUT, PIVOT ADJ. 4

22 90446357000 WASHER, THRUST 17.2MM 1

23*90602ZE1000 CLIP, GOVERNOR HOLDER 2

24 9430108120 PIN A, DOWEL 8X12 1

25*9410106800 WASHER, PLAIN 6MM 4

26 9430560282 PIN, SPRING 6X28 1

27 957010602500 BOLT, FLANGE 6X25 1

PAGE 94 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

HONDA GX610K1QZB2 ENGINE — CRANKSHAFT ASSY.

CRANKSHAFT ASSY.

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 95

HONDA GX610K1QZB2 ENGINE — CRANKSHAFT ASSY.

CRANKSHAFT ASSY.

NO. PART NO. PART NAME QTY.REMARKS

2 13310ZJ1840 CRANKSHAFT 1

4 90401ZJ1000 WASHER, CRANKSHAFT THRUST 1

PAGE 96 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

HONDA GX610K1QZB2 ENGINE — CYLINDER BARREL ASSY.

CYLINDER BARREL ASSY.

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 97

HONDA GX610K1QZB2 ENGINE — CYLINDER BARREL ASSY.

CYLINDER BARREL ASSY.

NO. PART NO. PART NAME QTY.REMARKS

1 12000ZJ1850 CYLINDER ASSEMBLY, (OIL ALERT) .......... 1 .............. INCLUDES ITEMS W/*

2 12356ZJ1000 COVER, BREATHER COVER 1

3 12358ZJ1000 GASKET, BREATHER COVER 1

4 12371ZE2300 VALVE, BREATHER 1

5 15558ZJ1010AH VALVE, DRAIN 14X1.5 (OPTIONAL) 1

6 16541ZJ1840 SHAFT, GOVERNOR ARM 1

7 31511ZJ1000 CLAMP, WIRE 1

9 90029888000 BOLT, FLANGE 6X16 2

11 90031ZE1000 BOLT, FLANGE 6X32 2

12*91001ZJ1841 BEARING, NEEDLE 8X12.7X11.1 1

13 91002ZJ1841 BEARING, NEEDLE 8X12X10 1

14*91201ZE9003 OIL SEAL 8X14X5 1

15*91201ZJ1841 OILSEAL 38X58X9 1

16 91302MB6830 O- RING 13X3.0 1

17 9280014000 BOLT, DRAIN PLUG 14MM 2

18 9410208800 WASHER, PLAIN 6MM 3

19 9410914000 WASHER, DRAIN PLUG 14MM 2

20 9425108000 PIN, LOCK 8MM 2

21 961406003010 BEARING, RADIAL BALL 6003 1

22 25523VD6010 COLLAR, FILTER SETTING 2

23 35480ZJ1841 SWITCH ASSEMBLY, OIL LEVEL 1

24 91353671003 O- RING 13.5X1.5 (ARAI) 1

25 9405010000 NUT, FLANGE 10MM 1

26 957010607509 BOLT,FLANGE 6X75 2

PAGE 98 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

HONDA GX610K1QZB2 ENGINE — CYLINDER HEAD ASSY.

CYLINDER HEAD ASSY.

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 99

HONDA GX610K1QZB2 ENGINE — CYLINDER HEAD ASSY.

CYLINDER HEAD ASSY.

NO. PART NO. PART NAME QTY.REMARKS

1 11911ZJ1840 HANGER,ENGINE 1

2*#12204ZE2306 GUIDE, VALVE OS (OPTIONAL) 2

3*#12205ZJ1405 GUIDE, EX. VALVE OS (OPTIONAL) 2

4 12210ZJ1840 CYLINDER HEAD #1 ...................................... 1 ............ INCLUDES ITEMS W/#

5*#12216ZE2300 CLIP, VALVEGUIDE ........................................ 4

6 12220ZJ1840 CYLINDER HEAD #2 ...................................... 1 ............ INCLUDES ITEMS W/*

7 12251ZJ1841 GASKET, CYLINDER HEAD 2

8 12311ZJ1840 COVER, HEAD 1

9 12314ZJ1840 COVER, HEAD FILLER 1

10 12391ZE2020 GASKET, CYLINDER HEAD COVER 2

11 15611MB0000 CAP, OIL FILLER 1

12 15625ZJ1840 GASKET, OIL FILLER CAP 1

13 17101ZJ1840 MANIFOLD, INTAKE 1

14 17151ZJ1841 GASKET, INTAKE MANIFOLD 2

15 18333ZE3800 GASKET, EXHAUST PIPE 2

16 19682ZJ1840 SHROUD, HEAD 2

17 90011ZJ1841 BOLT, SOCKET 8X45 4

18 90014ZE2000 BOLT, HEAD COVER 2

19 90014952000 BOLT, FLANGE 6X14 2

20 90018ZJ1840 BOLT, STUD 8X22 4

21 90441ZE2010 WASHER, HEAD COVER 2

22 9405008000 NUT, FLANGE 8MM 4

23 9430112200 PIN A, DOWEL 12X20 4

24 957010802000 BOLT, FLANGE 8X20 2

25 957011008000 BOLT, FLANGE 10X80 8

26 9807952876 SPARK PLUG BPR2ES (NGK) 2

27 11911ZJ1840 HANGER, ENGINE 1

PAGE 100 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

HONDA GX610K1QZB2 ENGINE — FAN COVER ASSY.

FAN COVER ASSY.

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 101

HONDA GX610K1QZB2 ENGINE — FAN COVER ASSY.

FAN COVER ASSY.

NO. PART NO. PART NAME QTY.REMARKS

1 16715ZJ1850 COVER, FUEL PUMP 1

2 19611ZJ1850ZB COVER, FAN *R8* RECOIL STARTER RED 1

3 19612ZJ1840 PLATE, RIGHT SIDE 1

4 19614ZJ1840 PLATE, LEFT SIDE 1

5 19631ZJ1850 SHROUD, RIGHT (OIL ALERT) 1

6 19632ZJ1840 SHROUD, LEFT 1

7 28491ZJ1840 STAY A, RECOIL STARTER 1

8 28492ZJ1840 STAY B, RECOIL STARTER 1

9 28496ZJ1840ZB COVER, RECOIL STARTER STAY *R8* RED 1

10 33713GC2000 COLLAR B, TAILLIGHT 6

11 34150ZJ1841 ALERT UNIT ASSEMBLY, OIL 1

12 80101310000 RUBBER, RR. FENDER CUSION 1

13 90013883000 BOLT, FLANGE 6X12 (CT200) 10

14 90018ZE1000 BOLT, FLANGE 6X23 2

15 90042ZJ1840 BOLT, STUD 6X71 4

16 90313ZJ1840 NUT, SQUARE 5MM 2

17 9390335380 SCREW, TAPPING 5X16 4

18 9391325580 SCREW, TAPPING 5X20 2

19 9405005000 NUT, FLANGE 5MM 2

20 9405006070 NUT, FLANGE 6MM 4

21 957010600800 BOLT, FLANGE 6X8 2

PAGE 102 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

HONDA GX610K1QZB2 ENGINE — FUEL PUMP ASSY.

FUEL PUMP ASSY.

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 103

HONDA GX610K1QZB2 ENGINE — FUEL PUMP ASSY.

FUEL PUMP ASSY.

NO. PART NO. PART NAME QTY.REMARKS

1 16700ZL8003 PUMP ASSEMBLY, FUEL 1

2 16711ZJ1840 STAY, FUEL PUMP 1

3 16850ZJ1840 TUBE A, FUEL 1

4 16852ZJ1840 TUBE B, FUEL 1

5 16882ZJ1840 TUBE, DIAPHRAGM 1

6 16910ZE8015 FILTER, FUEL 1

7 19111MF5000 GROMMET, RESERVE TANK 1

8 90014952000 BOLT, FLANGE 6X14 1

9 90617SA0003 CLIP, WIRE HARNESS 1

10 91601ZJ1840 GROMMET, PUMP STAY 1

11 938940601600 SCREW- WASHER 6X16 2

12 9500202080 CLIP, TUBE B8 2

13 9500202100 CLIP, TUBE B10 3

14 9500250000 CLIP, TUBE C9 1

PAGE 104 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

HONDA GX610K1QZB2 ENGINE — FLY WHEEL ASSY.

FLYWHEEL ASSY.

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 105

HONDA GX610K1QZB2 ENGINE — FLY WHEEL ASSY.

FLYWHEEL ASSY.

NO. PART NO. PART NAME QTY.REMARKS

1 19511ZJ1000 FAN, COOLING 1

3 28452ZJ1811 GRID, SCREEN P. T. O. (OPTIONAL) 1

4 28454ZJ1801 HOLDER, SCREEN GRID (OPTIONAL) 1

5 31110ZJ1840 FLYWHEEL 1

6 90201ZG3000 NUT, FLANGE 20MM 1

7 90401ZG3000 WASHER 20MM 1

8 90741ZE2000 KEY, SPECIAL WOODRUFF 25X18 1

10 957010801600 BOLT, FLANGE 8X16 3

11 28451ZJ1801 PULLEY, STARTER 1

12 28453ZJ1801 SPACER, STARTER PULLEY MOUNTING 1

13 90013ZJ1800 BOLT, UBS 12X28 1

PAGE 106 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

HONDA GX610K1QZB2 ENGINE — IGNITION ASSY.

IGNITION COIL ASSY.

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 107

HONDA GX610K1QZB2 ENGINE — IGNITION ASSY.

IGNITION COIL ASSY.

NO. PART NO. PART NAME QTY.REMARKS

1 30500ZJ1841 COIL ASSEMBLY, RIGHT IGNITION 1

2 30518ZJ1000 GROMMET, IGNITION WIRE 2

3 30550ZJ1841 COIL ASSEMBLY, LEFT IGNITION 1

4 30700ZJ1841 CAP ASSEMBLY, NOISE SUPPRESSOR 2

6 31630ZJ1801 COIL ASSEMBLY, CHARGE 12V/20A 1

7 31740ZJ1861 DIODE ASSEMBLY, ENGINE STOP ............. 1 .............. INCLUDES ITEMS W/*

9 32763PA0000 CLAMP, WIRE 1

10*63312ZA7000 GROMMET, TOOL 1

11 90031ZE1000 BOLT, FLANGE 6X32 2

12 957010600800 BOLT, FLANGE 6X8 1

15 90031ZE1000 BOLT, FLANGE 6X32 6

PAGE 108 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

HONDA GX610K1QZB2 ENGINE — PISTON ASSY.

PISTON ASSY.

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 109

HONDA GX610K1QZB2 ENGINE — PISTON ASSY.

PISTON ASSY.

NO. PART NO. PART NAME QTY.REMARKS

1 13010ZJ1841 RING SET, PISTON (STANDARD) 2

1 13011ZJ1841 RING SET, PISTON (OS 0.25) 2

1 13012ZJ1841 RING SET, PISTON (OS 0.50) 2

1 13013ZJ1841 RING SET, PISTON (0.75) 2

2 13101ZJ1840 PISTON (STANDARD) 2

2 13102ZJ1840 PISTON (OS 0.25) 2

2 13103ZJ1840 PISTON (OS 0.50) 2

2 13104ZJ1840 PISTON (0.75) 2

3 13111ZJ1840 PIN, PISTON 2

4 13200ZJ1841 ROD ASSEMBLY, CONNECTING ................... 2 ............ INCLUDES ITEMS W/*

6*90001ZN1000 BOLT, CONNECTING ROD 6X37 4

7 9460118000 CLIP, PISTON PIN 18MM 4

PAGE 110 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

HONDA GX610K1QZB2 ENGINE — STARTER MOTOR ASSY.

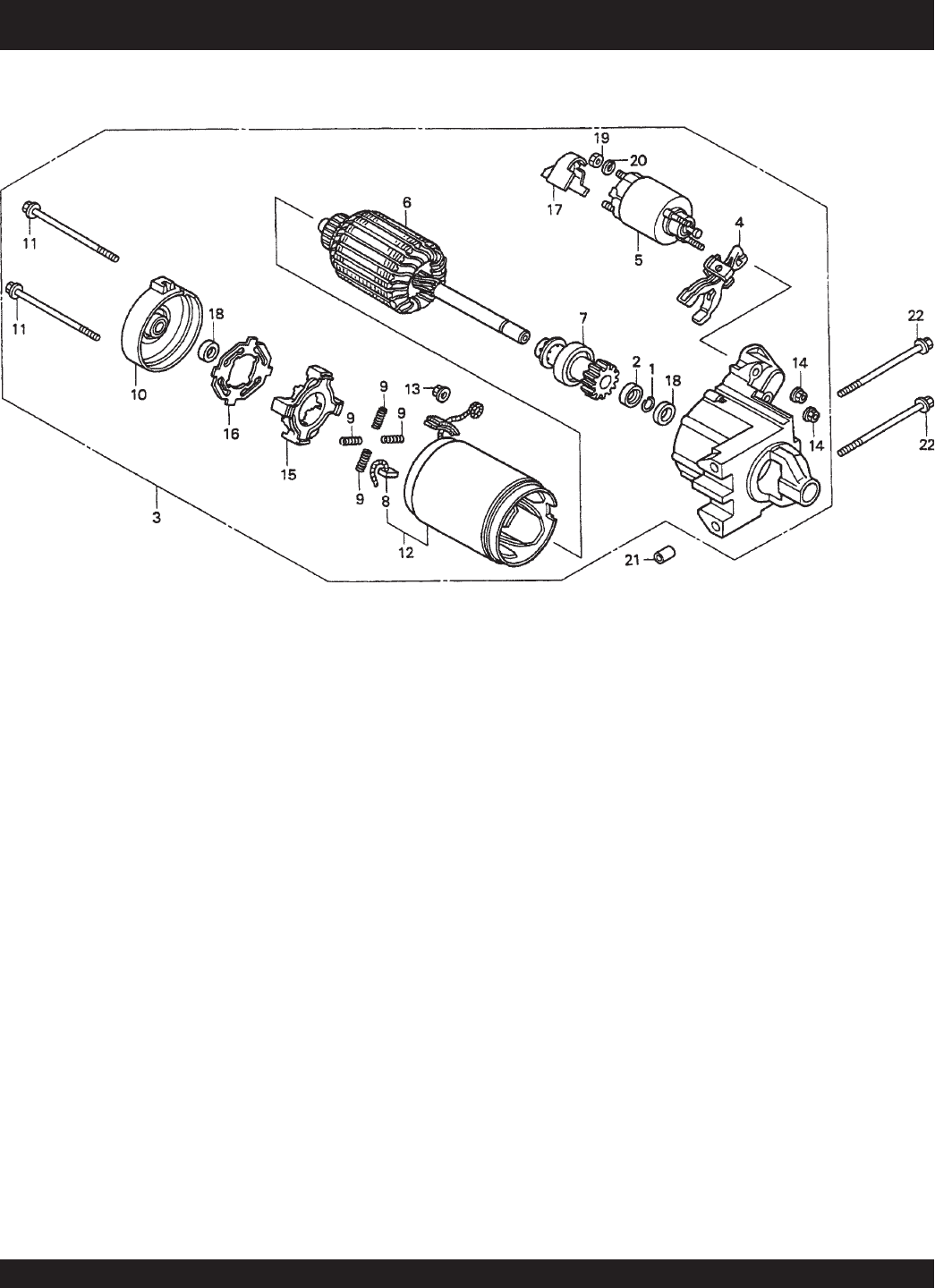

STARTER MOTOR ASSY.

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 111

HONDA GX610K1QZB2 ENGINE — STARTER MOTOR ASSY.

STARTER MOTOR ASSY.

NO. PART NO. PART NAME QTY.REMARKS

1*30201PH9004 RING, SNAP (DENSO) 1

2*30202PZ1003 COLLAR SET, CLUTCH STOP 1

3 31200ZJ1841 MOTOR ASSEMBLY, STARTER .................... 1 .............. INCLUDES ITEMS W/*

4*31203PH9004 LEVER, PINION DRIVE 1

5*31204ZJ1H01 SWITCH ASSEMBLY, MAGNET 1

6*31206ZG4801 ARMATURE 1

7*31207ZJ1H01 CLUTCH, OVERRUNNING 1

8*31211PH9004 BRUSH 4

9*31212PH9004 SPRING, BRUSH 4

10*31213P64N01 COVER 1

11*31214PH9004 BOLT, THROUGH 2

12*31216ZJ1H01 YOKE 1

13*31220PH9004 NUT, HEX. 8MM 1

14*31223PA0006 NUT, FLANGE 5MM 2

15*31231PH9004 HOLDER, BRUSH 1

16*31233PH9004 INSULATOR, BRUSH HOLDER 1

17*31234ZJ1H01 COVER, TERMINAL 1

18*91002ZG4801 BEARING A 2

19*94001080000S NUT, HEX. 8MM 1

20*9411108000 WASHER, SPRING 8MM 1

21 9430110120 PIN, DOWEL 10X12 2

22 957010811000 BOLT, FLANGE 8X110 2

PAGE 112 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

HONDA GX610K1QZB2 ENGINE — LABELS ASSY.

LABELS ASSY.

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 113

HONDA GX610K1QZB2 ENGINE — LABELS ASSY.

LABELS ASSY.

NO. PART NO. PART NAME QTY.REMARKS

1 87101ZJ0830 MARK, EMBLEM 1

2 87106737J00 MARK, FUEL WARNING 1

3 87150ZH8000 MARK, CAUTION J 1

4 87152ZJ0000 LABEL, SPECIFICATION GX610 1

5 87539737J00 MARK, HEAT CAUTION 1

6 87561733J00 MARK, EXHAUST GAS WARNING 1

7 87532ZH8810 MARK, OIL ALERT E 1

8 87532ZJ1840 MARK, THROTTLE INDICATION 1

PAGE 114 — AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11)

PAYMENT TERMS

Terms of payment for parts are net 30 days.

FREIGHT POLICY

All parts orders will be shipped collect or

prepaid with the charges added to the invoice.

All shipments are F.O.B. point of origin.

Multiquip’s responsibility ceases when a

signed manifest has been obtained from the

carrier, and any claim for shortage or damage

must be settled between the consignee and

the carrier.

MINIMUM ORDER

The minimum charge for orders from Multiquip

is $15.00 net. Customers will be asked for

instructions regarding handling of orders not

meeting this requirement.

RETURNED GOODS POLICY

Return shipments will be accepted and

credit will be allowed, subject to the following

provisions:

A Returned Material Authorization 1.

must be approved by Multiquip prior to

shipment.

To obtain a Return Material Authorization, 2.

a list must be provided to Multiquip

Parts Sales that defines item numbers,

quantities, and descriptions of the items

to be returned.

The parts numbers and descriptions a.

must match the current parts price

list.

The list must be typed or computer b.

generated.

The list must state the reason(s) c.

for the return.

The list must reference the sales d.

order(s) or invoice(s) under

which the items were originally

purchased.

The list must include the name e.

and phone number of the person

requesting the RMA.

A copy of the Return Material Authorization 3.

must accompany the return shipment.

Freight is at the sender’s expense. All 4.

parts must be returned freight prepaid to

Multiquip’s designated receiving point.

Parts must be in new and resalable 5.

condition, in the original Multiquip

package (if any), and with Multiquip part

numbers clearly marked.

The following items are not returnable:6.

Obsolete parts. (If an item is in the a.

price book and shows as being

replaced by another item, it is

obsolete.)

Any parts with a limited shelf life b.

(such as gaskets, seals, “O” rings,

and other rubber parts) that were

purchased more than six months

prior to the return date.

Any line item with an extended c.

dealer net price of less than

$5.00.

Special order items.d.

Electrical components.e.

Paint, chemicals, and lubricants.f.

Decals and paper products.g.

Items purchased in kits.h.

The sender will be notified of any material 7.

received that is not acceptable.

Such material will be held for five 8.

working days from notification, pending

instructions. If a reply is not received

within five days, the material will be

returned to the sender at his expense.

Credit on returned parts will be issued 9.

at dealer net price at time of the original

purchase, less a 15% restocking

charge.

In cases where an item is accepted, for 10.

which the original purchase document

can not be determined, the price will be

based on the list price that was effective

twelve months prior to the RMA date.

Credit issued will be applied to future 11.

purchases only.

PRICING AND REBATES

Prices are subject to change without prior

notice. Price changes are effective on a

specific date and all orders received on or

after that date will be billed at the revised price.

Rebates for price declines and added charges

for price increases will not be made for stock

on hand at the time of any price change.

Multiquip reserves the right to quote and

sell direct to Government agencies, and to

Original Equipment Manufacturer accounts

who use our products as integral parts of their

own products.

SPECIAL EXPEDITING SERVICE

A $35.00 surcharge will be added to the

invoice for special handling including bus

shipments, insured parcel post or in cases

where Multiquip must personally deliver the

parts to the carrier.

LIMITATIONS OF SELLER’S LIABILITY

Multiquip shall not be liable hereunder for

damages in excess of the purchase price of

the item with respect to which damages are

claimed, and in no event shall Multiquip be

liable for loss of profit or good will or for any

other special, consequential or incidental

damages.

LIMITATION OF WARRANTIES

No warranties, express or implied, are

made in connection with the sale of parts or

trade accessories nor as to any engine not

manufactured by Multiquip. Such warranties

made in connection with the sale of new,

complete units are made exclusively by a

statement of warranty packaged with such

units, and Multiquip neither assumes nor

authorizes any person to assume for it

any other obligation or liability whatever in

connection with the sale of its products. Apart

from such written statement of warranty,

there are no warranties, express, implied or

statutory, which extend beyond the description

of the products on the face hereof.

Effective: February 22, 2006

TERMS AND CONDITIONS OF SALE — PARTS

AR13HA-R RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #9 (06/28/11) — PAGE 115

NOTES

OPERATION AND PARTS MANUAL

Your Local Dealer is:

HERE’S HOW TO GET HELP

PLEASE HAVE THE MODEL AND SERIAL

NUMBER ON-HAND WHEN CALLING

©

COPYRIGHT 2010, MULTIQUIP INC.

Multiquip Inc and the MQ logo are registered trademarks of Multiquip Inc. and may not be used, reproduced, or altered without written permission. All other trademarks are the property

of their respective owners and used with permission.

This manual MUST accompany the equipment at all times. This manual is considered a permanent part of the equipment and should remain with the unit if resold.

The information and specifications included in this publication were in effect at the time of approval for printing. Illustrations, descriptions, references and technical data contained in

this manual are for guidance only and may not be considered as binding. Multiquip Inc. reserves the right to discontinue or change specifications, design or the information published

in this publication at any time without notice and without incurring any obligations.

UNITED STATES

Multiquip Corporate Office MQ Parts Department

18910 Wilmington Ave.

Carson, CA 90746

Contact: mq@multiquip.com

Tel. (800) 421-1244

Fax (800) 537-3927

800-427-1244

310-537-3700

Fax: 800-672-7877

Fax: 310-637-3284

Mayco Parts Warranty Department

800-306-2926

310-537-3700

Fax: 800-672-7877

Fax: 310-637-3284

800-421-1244, Ext. 279

310-537-3700, Ext. 279

Fax: 310-537-1173

Service Department Technical Assistance

800-421-1244

310-537-3700

Fax: 310-537-4259 800-478-1244 Fax: 310-631-5032

MEXICO UNITED KINGDOM

MQ Cipsa Multiquip (UK) Limited Head Office

Carr. Fed. Mexico-Puebla KM 126.5

Momoxpan, Cholula, Puebla 72760 Mexico

Contact: pmastretta@cipsa.com.mx

Tel: (52) 222-225-9900

Fax: (52) 222-285-0420

Unit 2, Northpoint Industrial Estate,

Global Lane,

Dukinfield, Cheshire SK16 4UJ

Contact: sales@multiquip.co.uk

Tel: 0161 339 2223

Fax: 0161 339 3226

CANADA

Multiquip

4110 Industriel Boul.

Laval, Quebec, Canada H7L 6V3

Contact: jmartin@multiquip.com

Tel: (450) 625-2244

Tel: (877) 963-4411

Fax: (450) 625-8664
