OPERATION AND PARTS MANUAL
THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.
To find the latest revision of this
publication, visit our website at:
www.multiquip.com
MODEL ST2010 Series
SUBMERSIBLE PUMP
Revision #3 (12/07/12)
PAGE 2 —ST2010 SERIES SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #3 (12/07/12)
TABLE OF CONTENTS
ST2010 Series
Submersible Pump
Parts Ordering Procedures ...................................... 3
Safety Information ................................................ 4-7
Specifications .......................................................... 8

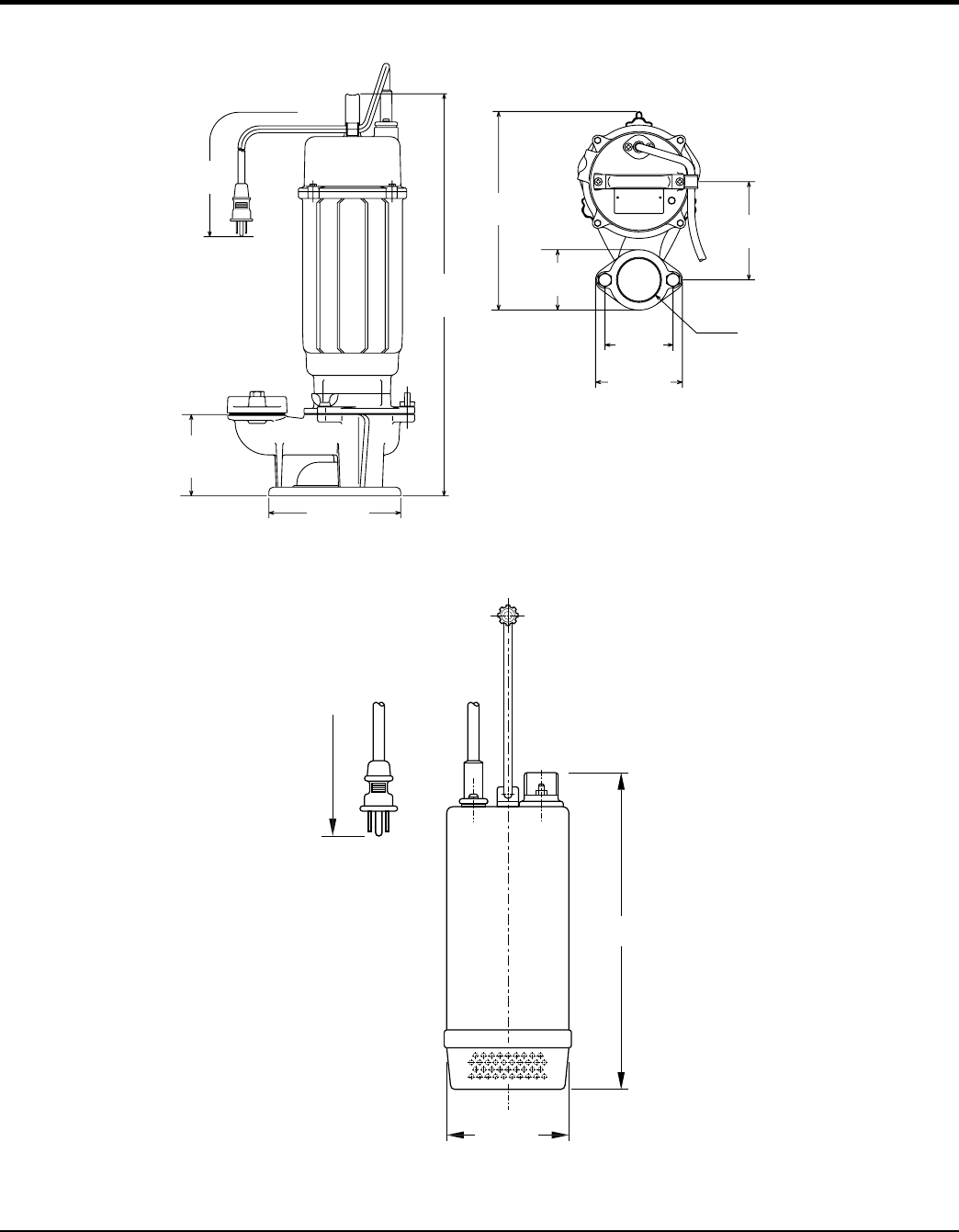

Dimensions .............................................................. 9
General Information ............................................... 10
Components .......................................................... 11
Float Switches ....................................................... 12
Float Switch (Piggy-Back) ..................................... 13
Float Switch (Control Box) ................................ 14-15
Operation ............................................................... 16
Control Box Installation ..................................... 17-18
Clean-Up ............................................................... 19
Maintenance .......................................................... 20
Troubleshooting ..................................................... 21
Performance Curves .............................................. 22

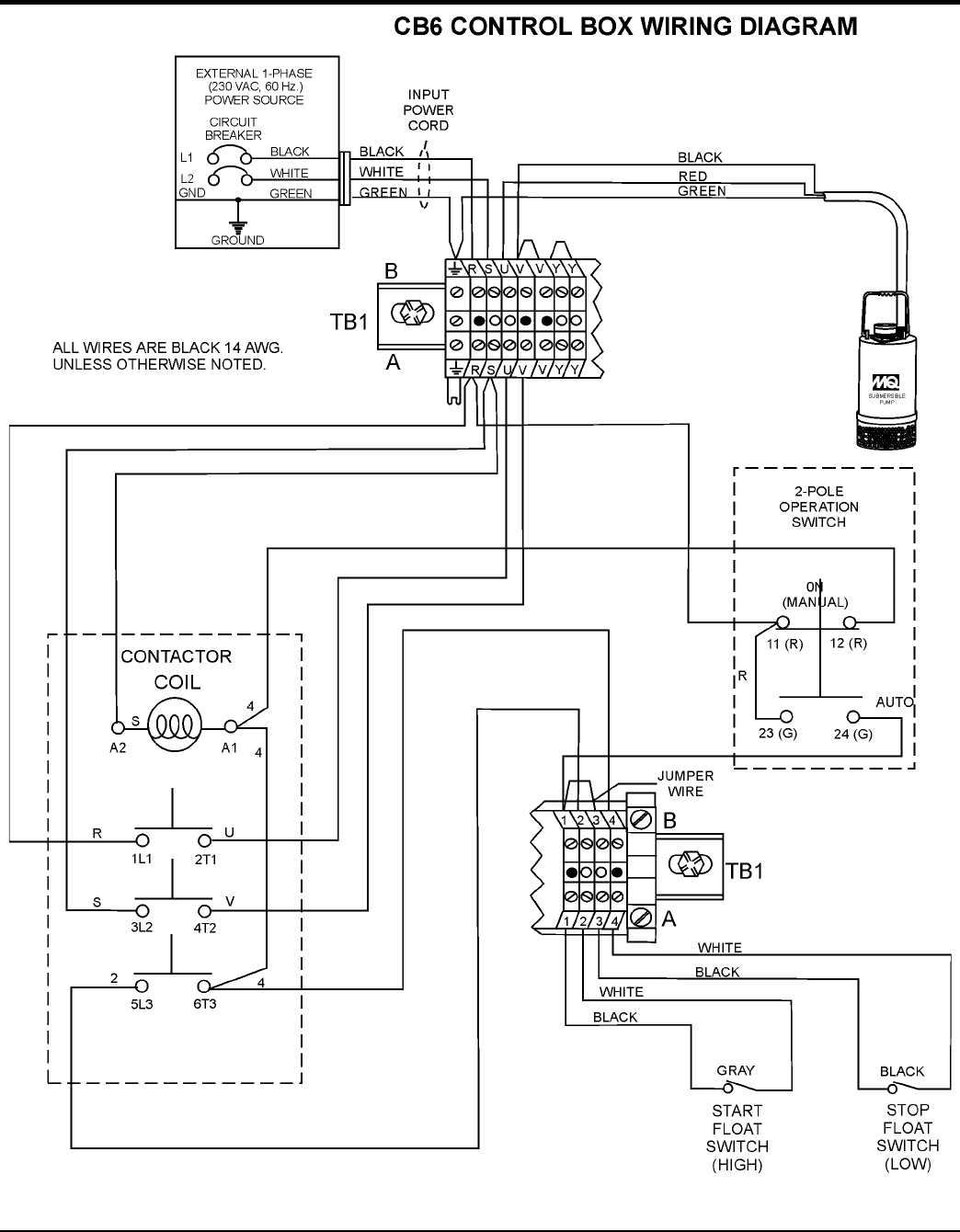

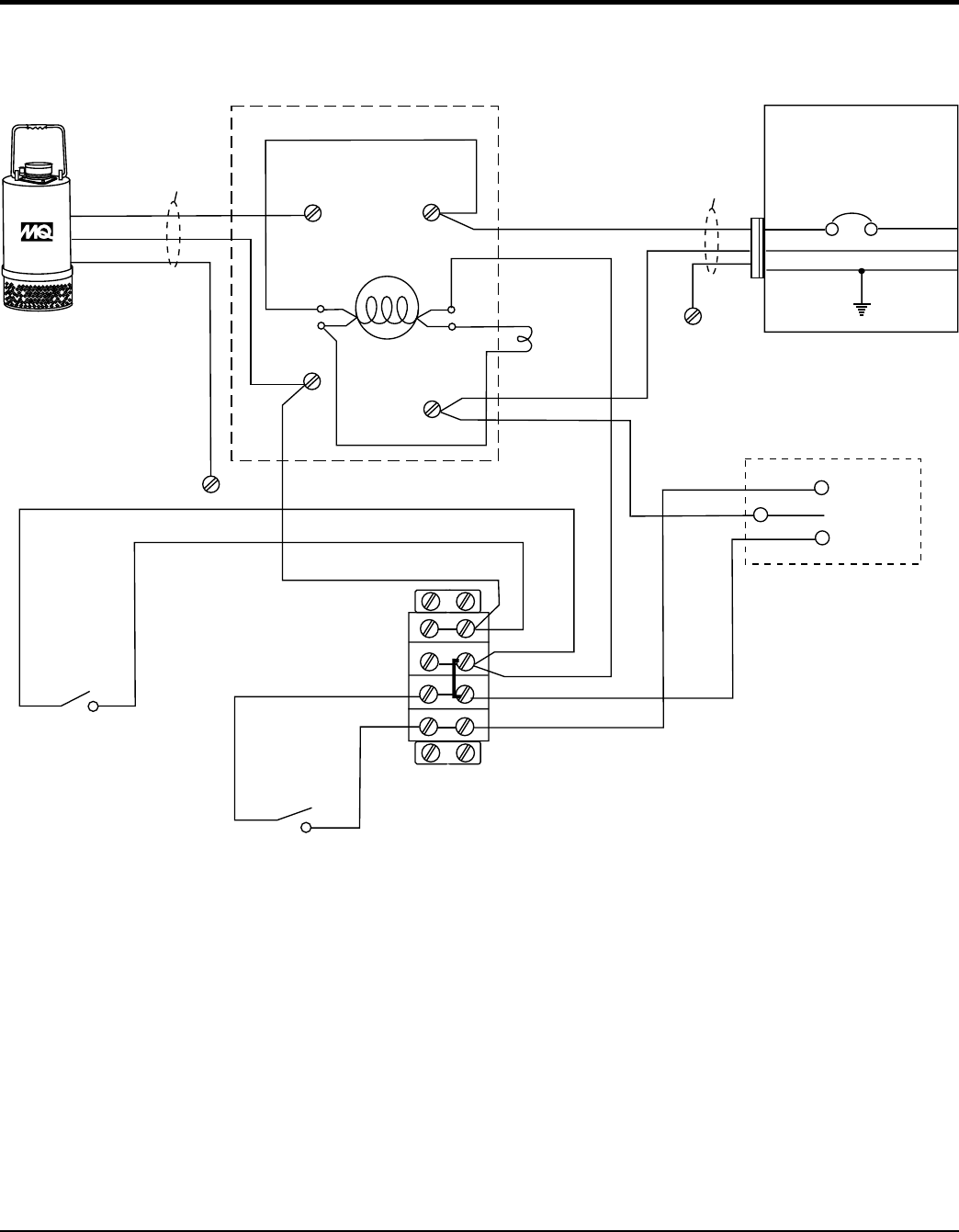

Control Box Wiring Diagram ............................. 23-24
Motor Wiring Diagram ............................................ 25
Explanation Of Code In Remarks Column............. 26
Suggested Spare Parts ......................................... 27
Illustrations
ST010TCUL Pump Assy. .................................. 28-29

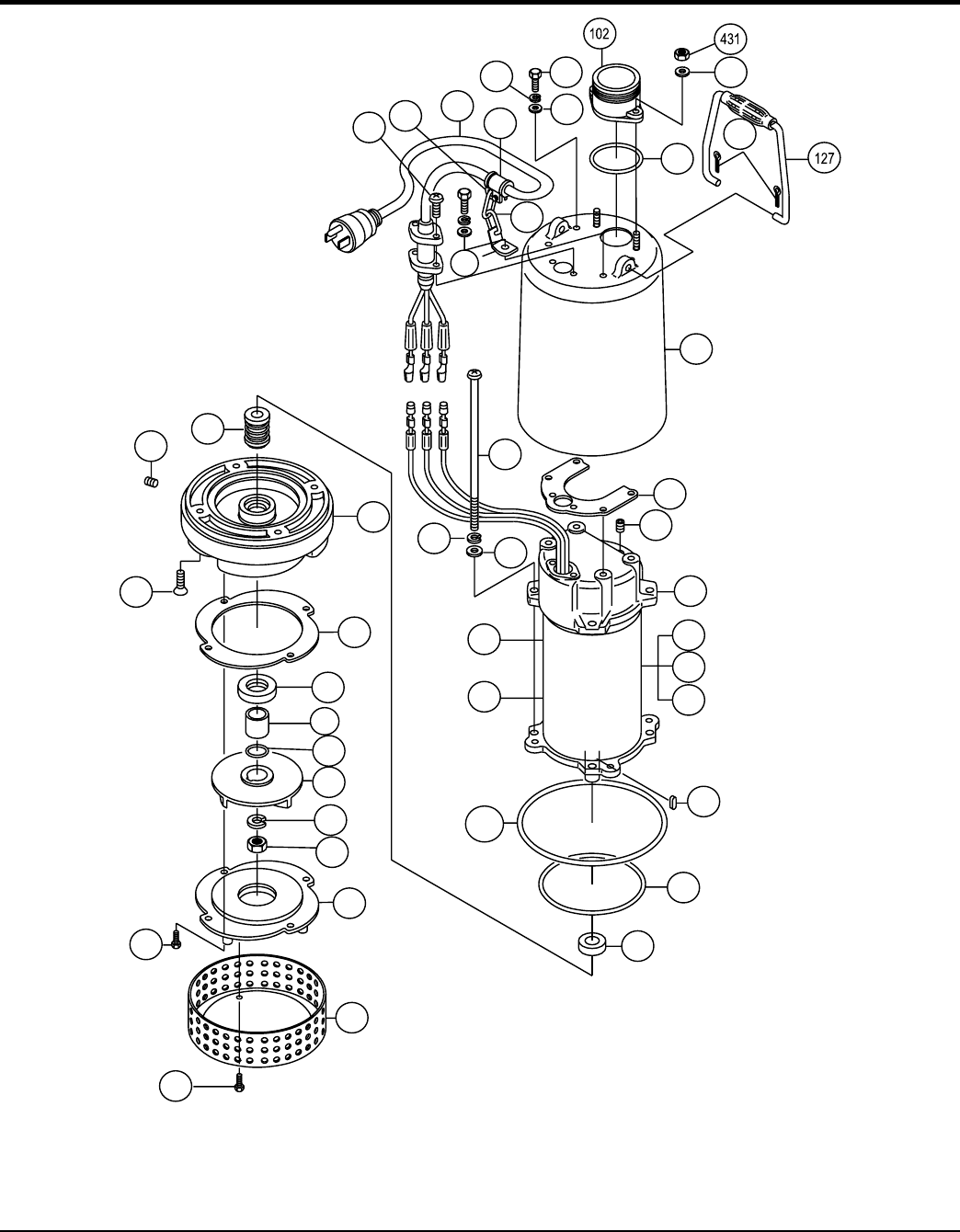

ST2010, ST2010A/B, ST2010CUL Pump Assy. ....30-33

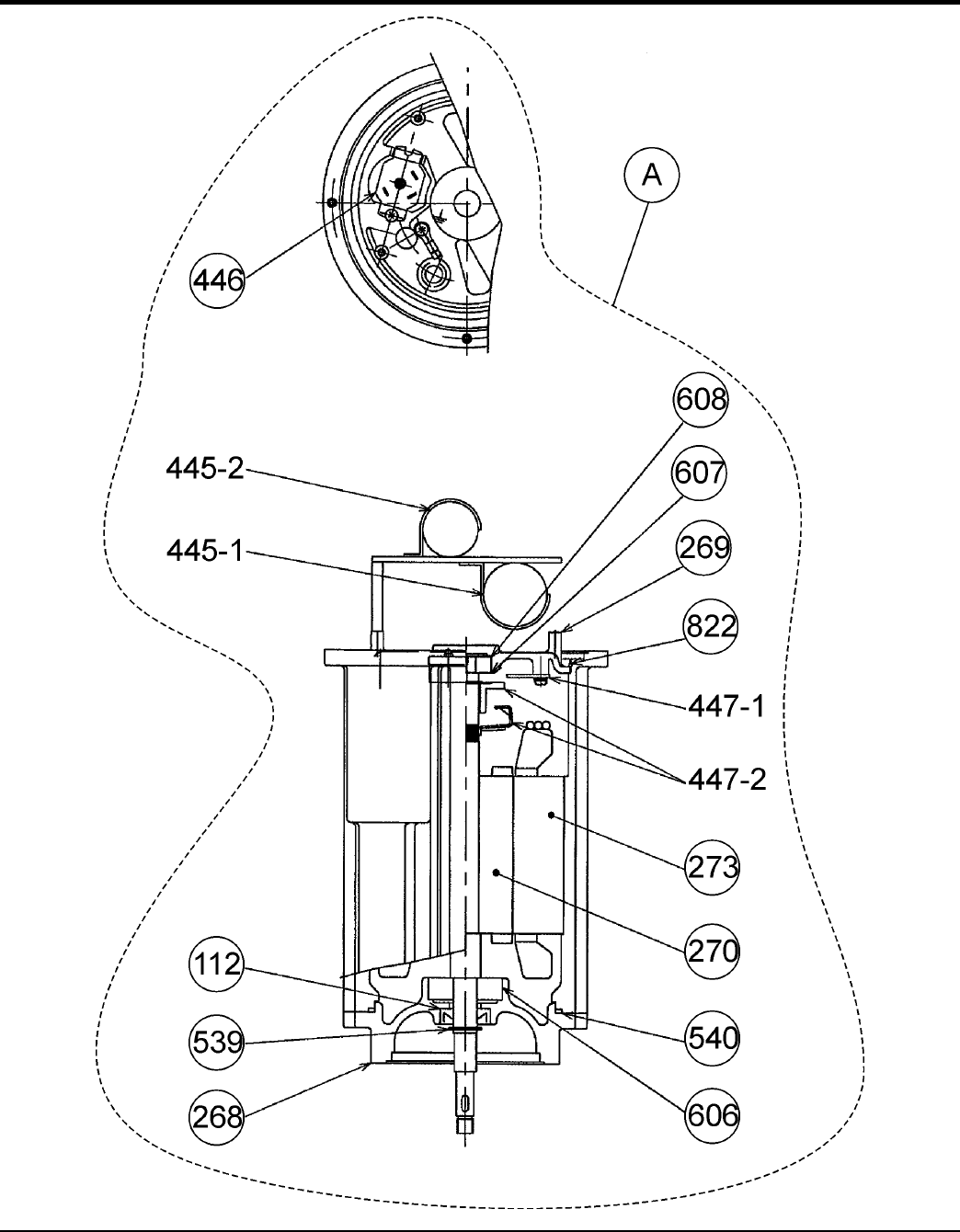

Electric Motor Assy. .......................................... 34-35
Terms And Conditions Of Sale — Parts ................ 36
NOTICE
Specifications and part numbers are subject to change
without notice.
ST2010 SERIES SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #3 (12/07/12) — PAGE 3
PARTS ORDERING PROCEDURES
www.multiquip.com
Ordering parts has never been easier!
Choose from three easy options:
WE ACCEPT ALL MAJOR CREDIT CARDS!
When ordering parts, please supply:
❒ Dealer Account Number
❒ Dealer Name and Address
❒ Shipping Address (if different than billing address)
❒ Return Fax Number
❒ Applicable Model Number
❒ Quantity, Part Number and Description of Each Part
❒ Specify Preferred Method of Shipment:
✓ UPS/Fed Ex ✓ DHL
■ Priority One ✓ Truck
■ Ground
■ Next Day
■ Second/Third Day
If you have an MQ Account, to obtain a Username
and Password, E-mail us at: parts@multiquip.
com.
To obtain an MQ Account, contact your
District Sales Manager for more information.
Order via Internet (Dealers Only):
Order parts on-line using Multiquip’s SmartEquip website!
■ View Parts Diagrams
■ Order Parts
■ Print Specifi cation Information
Note: Discounts Are Subject To Change
Goto www.multiquip.com and click on
Order Parts to log in and save!
Use the internet and qualify for a 5% Discount
on Standard orders for all orders which include
complete part numbers.*
Order via Fax (Dealers Only):
All customers are welcome to order parts via Fax.
Domestic (US) Customers dial:
1-800-6-PARTS-7 (800-672-7877)
Fax your order in and qualify for a 2% Discount
on Standard orders for all orders which include
complete part numbers.*
Order via Phone: Domestic (US) Dealers Call:
1-800-427-1244
Best Deal!
International Customers should contact
their local Multiquip Representatives for
Parts Ordering information.
Non-Dealer Customers:
Contact your local Multiquip Dealer for
parts or call 800-427-1244 for help in
locating a dealer near you.
Note: Discounts Are Subject To Change
Effective:
January 1st, 2006
NOTICE
All orders are treated as Standard Orders and will
ship the same day if received prior to 3PM PST.
PAGE 4 —ST2010 SERIES SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #3 (12/07/12)
SAFETY INFORMATION
Do not operate or service the equipment before reading
the entire manual. Safety precautions should be followed
at all times when operating this equipment.
Failure to read and understand the safety
messages and operating instructions could
result in injury to yourself and others.
SAFETY MESSAGES
The four safety messages shown below will inform you
about potential hazards that could injure you or others. The
safety messages specifi cally address the level of exposure
to the operator and are preceded by one of four words:
DANGER, WARNING, CAUTION or NOTICE.
SAFETY SYMBOLS
DANGER
Indicates a hazardous situation which, if not avoided,
WILL result in DEATH or SERIOUS INJURY.
WARNING
Indicates a hazardous situation which, if not avoided,
COULD result in DEATH or SERIOUS INJURY.
CAUTION
Indicates a hazardous situation which, if not avoided,
COULD result in MINOR or MODERATE INJURY.
NOTICE
Addresses practices not related to personal injury.
Potential hazards associated with the operation of this
equipment will be referenced with hazard symbols which
may appear throughout this manual in conjunction with
safety messages.
Burn hazards
Symbol Safety Hazard
Electric shock hazards
Rotating parts hazards
Pressurized fluid hazards
ST2010 SERIES SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #3 (12/07/12) — PAGE 5
SAFETY INFORMATION
GENERAL SAFETY
CAUTION
NEVER operate this equipment without proper protective
clothing, shatterproof glasses, respiratory protection,
hearing protection, steel-toed boots and other protective
devices required by the job or city and state regulations.
Avoid wearing jewelry or loose fi tting clothes that may
snag on the controls or moving parts as this can cause
serious injury.
NEVER operate this equipment when not
feeling well due to fatigue, illness or when
under medication.
NEVER operate this equipment under the
infl uence of drugs or alcohol.
ALWAYS clear the work area of any debris, tools, etc.
that would constitute a hazard while the equipment is
in operation.
No one other than the operator is to be in the working
area when the equipment is in operation.
DO NOT use the equipment for any purpose other than
its intended purposes or applications.
NOTICE
This equipment should only be operated by trained and
qualifi ed personnel 18 years of age and older.
Whenever necessary, replace nameplate, operation and
safety decals when they become diffi cult read.
Manufacturer does not assume responsibility for any
accident due to equipment modifi cations. Unauthorized
equipment modifi cation will void all warranties.
NEVER use accessories or attachments that are not
recommended by Multiquip for this equipment. Damage
to the equipment and/or injury to user may result.
ALWAYS know the location of the nearest
fi re extinguisher.
ALWAYS know the location of the nearest
fi rst aid kit.
ALWAYS know the location of the nearest phone or
keep
a phone on the job site.
Also, know the phone numbers
of the nearest ambulance, doctor and
fi re department.
This information will be invaluable in case of an
emergency.
PAGE 6 —ST2010 SERIES SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #3 (12/07/12)
SAFETY INFORMATION
PUMP SAFETY
DANGER
NEVER operate the equipment in an explosive
atmosphere or near combustible materials. An
explosion or fi re could result causing severe
bodily harm or even death.
WARNING
Accidental starting can cause severe injury
or death. ALWAYS place the ON/OFF
switch in the OFF position.
DO NOT place hands or fingers inside
pump when pump is running.
NEVER disconnect any emergency or
safety devices. These devices are intended for operator
safety. Disconnection of these devices can cause severe
injury, bodily harm or even death. Disconnection of any
of these devices will void all warranties.
Risk of Electric Shock - This pump has not been
investigated for use in swimming pool or marine areas.
CAUTION
DO NOT restrict the fl ow of the discharge hose as it may
cause the pump to overheat.
Be careful of discharge hose whipping under pressure.
ALWAYS check pump oil level only when pump is cool.
Expansion due to heat may cause hot oil to spray from
the oil plug when the oil plug is removed. The possibility
of severe scalding may exist.
NOTICE

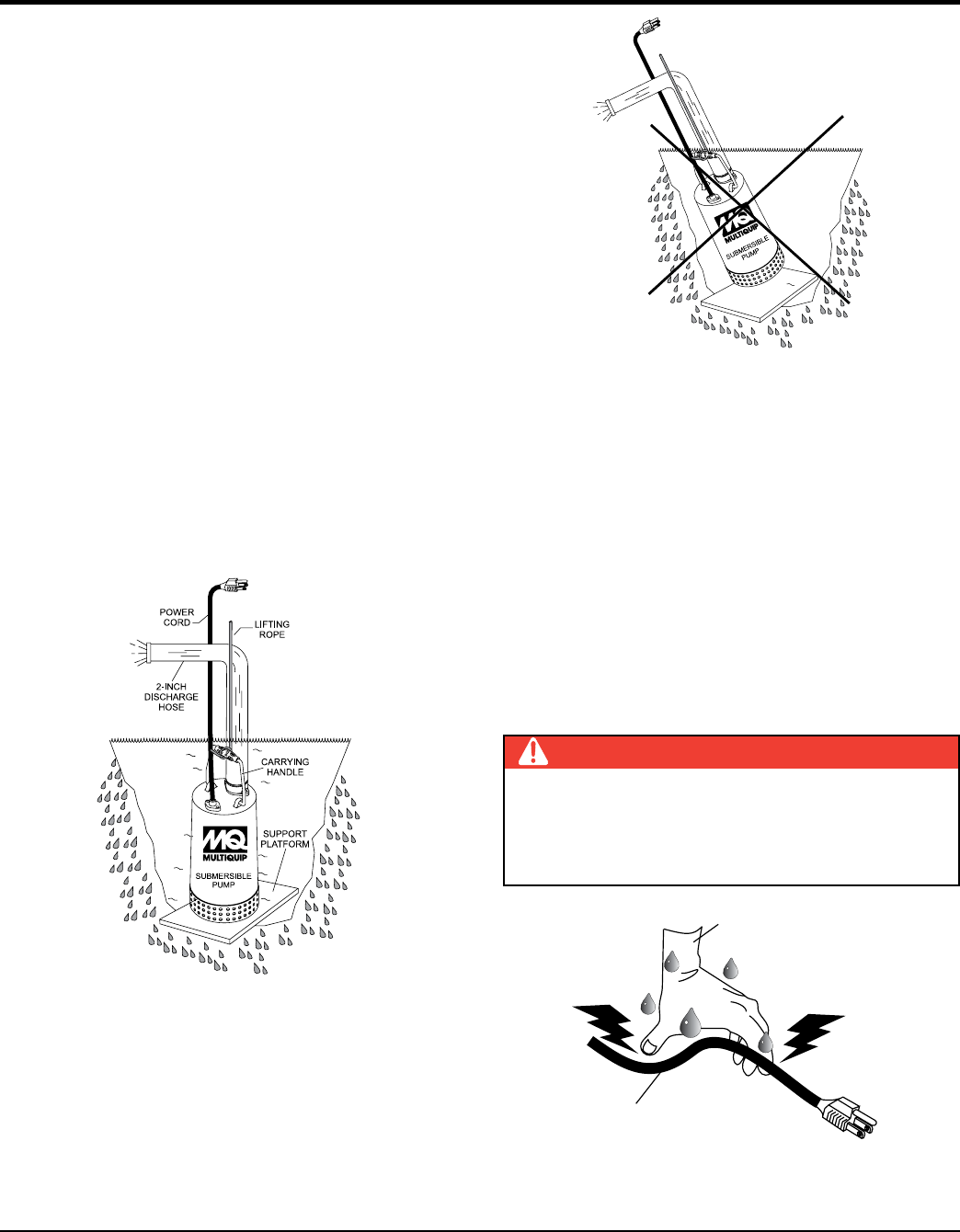

ALWAYS place the pump in an upright position on a
platform before using. The platform will prevent the pump
from burrowing itself on soft sand or mud.
NEVER operate pump on its side.
DO NOT allow the pump to freeze in water.
NEVER leave an open pump chamber unattended.
ALWAYS keep the machine in proper running condition.
DO NOT attempt to thaw out a frozen pump by using
a torch or other source of fl ame. Application of heat in
this manner may heat the oil in the seal cavity above the
critical point, causing pump damage.
DO NOT pump water with a temperature greater than
104°F.
DO NOT pump liquids containing acid or alkali.
ALWAYS check strainer before pumping. Make sure
strainer is not clogged. Remove any large objects, dirt
or debris from the strainer to prevent clogging.
ALWAYS use a large basket strainer when pumping
water that contains large debris.
ALWAYS fl ush pump (clean) after use when pumping
water concentrated with heavy debris. It is very important
to always fl ush the pump before turning it off to prevent
clogging.
Fix damage to machine and replace any broken parts
immediately.
ALWAYS
store equipment properly when it is not being
used. Equipment should be stored in a clean, dry location
out of the reach of children and unauthorized personnel.
NEVER lubricate components or attempt service on a
running machine.
NEVER run pump dry.
ALWAYS
allow the machine a proper amount of time to
cool before servicing.
Keep machine in proper running condition.
ELECTRICAL SAFETY
DANGER
The electrical voltage required to operate
pump can cause severe injury or even death
through physical contact with live circuits.
ALWAYS disconnect electrical power from
pump before performing maintenance on
pump.
WARNING
To reduce the risk of electric shock, connect only to a
circuit protected by a Ground-Fault Circuit-Interrupter
(GFCI).
ST2010 SERIES SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #3 (12/07/12) — PAGE 7
SAFETY INFORMATION
NOTICE
ALWAYS make certain that the voltage supplied to the
pump is correct. Always read the pump’s nameplate to
determine what the power requirements are.

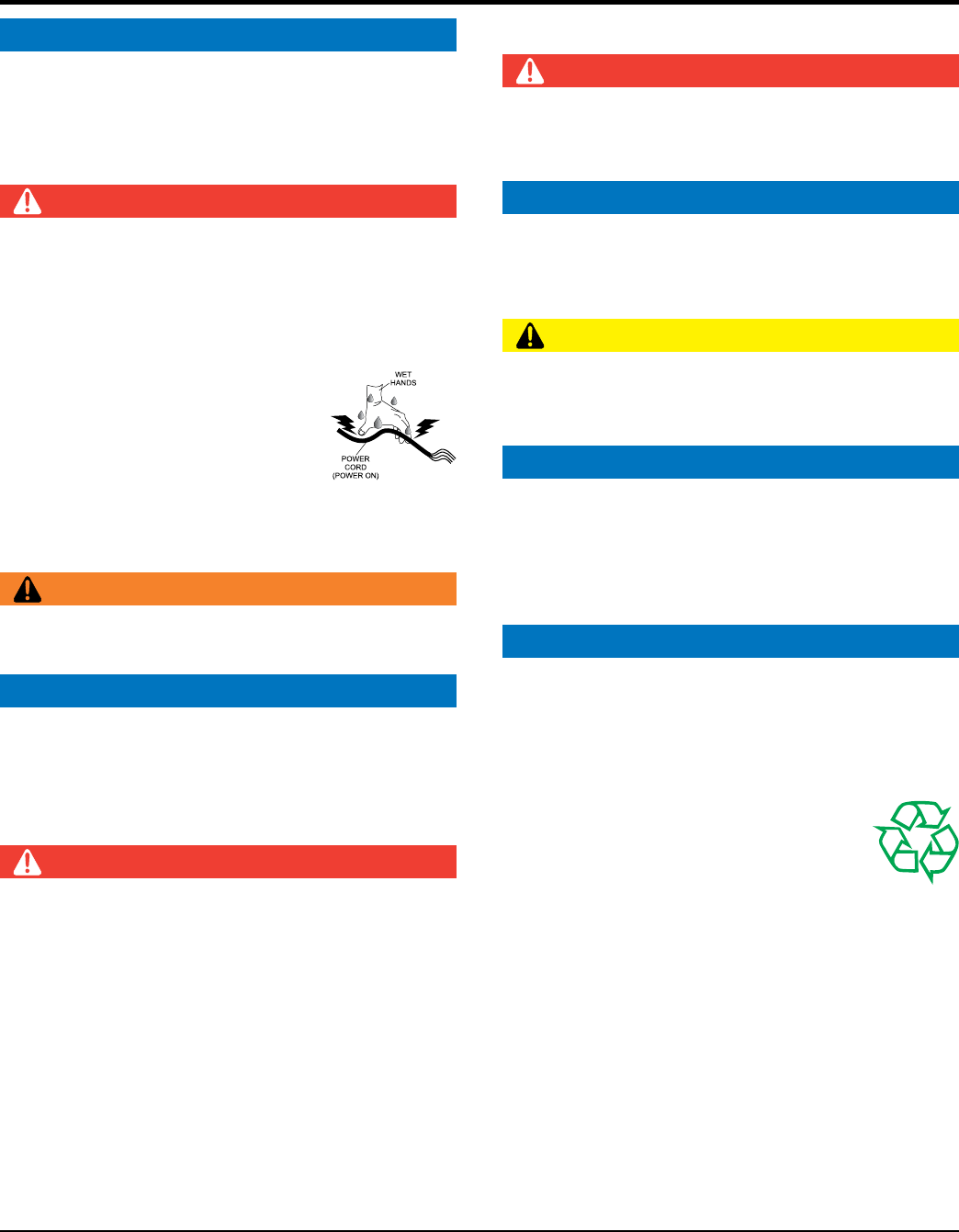

Power Cord/Cable Safety
DANGER
NEVER let power cords or cables lay in water.
NEVER stand in water while AC power cord is connected
to a live power source.
NEVER use damaged or worn cables or cords. Inspect
for cuts in the insulation.
NEVER grab or touch a live power
cord or cable with wet hands. The
possibility exists of electrical shock,
electrocution or death.
Make sure power cables are securely connected to the
motor's output receptacles. Incorrect connections may
cause electrical shock and damage to the motor.
WARNING
NEVER attempt to use the power cord as a lifting or
lowering device for the pump.
NOTICE
ALWAYS make certain that proper power or extension
cord has been selected for the job. See Cable Selection
Chart in this manual.
Grounding Safety
DANGER
ALWAYS make sure pump is grounded.
NEVER use gas piping as an electrical ground.
ALWAYS make sure that electrical circuits are properly
grounded to a suitable earth ground (ground rod) per
the National Electrical Code (NEC) and local codes
before operating generator. Severe injury or death by
electrocution can result from operating an ungrounded
motor.
This pump is supplied with a grounding conductor and
grounding-type attachment plug. To reduce the risk of
electric shock, connect only to a properly grounded,
grounding-type receptacle.
Control Box Safety
DANGER
ALWAYS
have a qualifi ed electrician perform the control
box installation. The possibility exists of electrical shock
or electrocution.
NOTICE
ALWAYS mount control box in a vertical position
protected from harsh environmental elements.
LIFTING SAFETY
CAUTION
When raising or lowering of the pump is required, always
attach an adequate rope or lifting device to the correct
lifting point (handle) on the pump.
NOTICE
DO NOT lift machine to unnecessary heights.
NEVER lift the equipment while the electric motor is
running.
TRANSPORTING SAFETY
NOTICE
ALWAYS shut down pump before transporting.
ALWAYS tie down equipment during transport by
securing the equipment with rope.
ENVIRONMENTAL SAFETY/DECOMMISSIONING
CE
DO NOT pour waste or oil directly onto
the ground, down a drain or into any water
source.
Contact your country's Department of Public
Works or recycling agency in your area and arrange for
proper disposal of any electrical components, waste or
oil associated with this equipment.
When the life cycle of this equipment is over it is
recommended that the pump casing and all other metal
parts be sent to a recycling center.
Metal recycling involves the collection of metal from
discarded products and its transformation into raw
materials to use in manufacturing a new product.
Recyclers and manufacturers alike promote the process
of recycling metal. Using a metal recycling center
promotes energy cost savings.
PAGE 8 —ST2010 SERIES SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #3 (12/07/12)
SPECIFICATIONS
Table 1. Specifications
Model ST-2010/ST-2010A/
ST-2010CUL ST-2010B ST-2010TCUL
Type Submersible Pump Submersible Pump Submersible Trash Pump
Impeller Cast Ductile Iron Cast Ductile Iron Cast Ductile Iron
Discharge Size 2.00 in. (51 mm) 2.00 in. (51 mm) 2.00 in. (51 mm)
Maximum Pumping
Capacity
85 gallons/minute
(322 liters/minute)
85 gallons/minute
(322 liters/minute)
90 gallons/minute
(341 liters/minute)
Max. Solids Diameter --- --- 1.00 in. (25 mm.)
Max Head 54.7 ft. (16.6 meters)
ST-2010CUL: 50 ft. (15.24 m) 54.7 ft. (16.6 meters) 45 ft. (13.7 meters)
Power 1.0 HP (0.75 kw) 1.0 HP (0.75 kw) 1.0 HP (0.75 kw)
Voltage; Phase 1Ø 115V 1Ø 230V 1Ø 115V
Starting Amps 63 A 30 A 53 A
Running Amps
ST2010: 13.5 A
ST2010A: 13.5 A
ST2010CUL: 11.9A
6.7 A 9.4 A
Control Box (see Note 3) CB3 CB6 CB3
Thermal Overlaod
Protection YES YES YES
Rotation CCW (Note 1) CCW (Note 1) CCW (Note 1)
Mechanical Oil seal
Capacity 150 cc. (Note 2) 150 cc. (Note 2) 180 cc. (Note 2)
Check Frequency Monthly (300 hrs.) Monthly (300 hrs.) Monthly (300 hrs.)
RMP (Speed) 3550 +/- 30 3550 +/- 30 3550 +/- 30
Power Cable Length 50 ft. (15.2 meters) 50 ft. (15.2 meters) 50 ft. (15.2 meters)
Dry Net weight 55 lbs. (25 Kg.) 55 lbs. (25 Kg.) 77 lbs. (35 Kg.)
1. Motor Rotation – Upon start-up, the pump "kicks" in the opposite direction of motor rotation. The correct rotation is counterclockwise (CCW) as viewed from
the impeller end of the pump.
2. Mechanical Oil Seal – Use a good grade 10 weight non-detergent hydraulic oil (i.e. Shell Turbo 32 or equivalent). Fill oil cavity 75% to 85% full (allow air
space for expansion).
3. Control Box - Control box (Table 2) may be required for certain pumping applications.
Table 2. Control Box Specifications
Model No. Voltage Type UL/CSA Listed
Thermal
Overload
Protection
Float Switch
Capability
CB3 115 VAC, 60 Hz Single-Phase YES YES YES
CB6 230 VAC, 60 Hz Single-Phase YES YES YES
ST2010 SERIES SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #3 (12/07/12) — PAGE 9
DIMENSIONS
ST2010TCUL
ST2010, ST2010A, ST2010B, ST2010CUL
Figure 1. ST2010 Series Dimensions
23.82 in.
(605 mm.)
10.23 in.
(260 mm.)
3.14 in.
(80 mm.)
5.11 in.
(130 mm.)
NPT 2
4.52 in.
(115 mm.)
3.54 in.
(90 mm.)
7.08 in.
(180 mm.)
4.37 in.
(111 mm.)
49.21 ft.
(15 m)
16.46 in
(418 mm)
6.7 in
(170 mm) Dia.
49.21 ft
(15m)
PAGE 10 —ST2010 SERIES SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #3 (12/07/12)
GENERAL INFORMATION
INTRODUCTION
The Multiquip Model ST-2010 submersible pump is
designed to pump water and is used for the draining (de-
watering) of well casings construction sites, cofferdams,
manholes, transformer vaults and excavations. The ST-
2010TCUL is designed for heavily debris-laden water and
the 2-inch discharge port can handle solids up to one inch
in diameter.
A cast ductile iron type impeller is attached to the output
shaft of a 1 HP electric motor which provides adequate
power for general purpose pumping. This submersible
pump is supplied complete with an electric power cable,
and a discharge port which accepts a 2-inch hose.
This pump is ideal for portability because of its light
weight and carrying handle. For reliability and long life, a
mechanical seal provides shaft sealing, with an oil chamber
separating the pump section from the motor.
The pump when in use, should be installed as free standing
(upright position) on its strainer base. A 2-inch discharge
hose (not supplied) should be connected to the discharge
port. The discharge hose should be adequately supported
to avoid stress on the pump.
For maximum water flow, the discharge hose should be
kept as short as possible, and with minimum elevation
above the pump. Remember as the length and/or height
of the discharge hose is increased, the flow of water will
be reduced. Also any reduction in the hose size, and any
fittings such as valves or outlet nozzles, will restrict the
water flow.
To avoid back-siphonage when the pump is switched off,
ensure that the end of the discharge hose is installed above
the water level at the final discharge point.
When the pump is switched off, the water remaining in the
hose will run back through the pump. This can be avoided
by placing a non-return valve in the hose nearest the pump.
NEVER use this submersible pump to pump flammable
liquids or operate in a explosive or flammable environment.
Avoid using this pump in conditions where mud, grit, silt
or other debris are present. These conditions could cause
blockage and cause excessive pump wear.
DO NOT install the pump directly into an area where there
is a heavy build-up of mud, grit, silt or debris. If this condition
is present, install the pump on a platform before operating.
This pump must always be positioned on a platform in an
upright position. NEVER operate the pump by a suspended
rope. To prevent large solids from entering the pump, install
a wire mesh screen or similar barrier around the pump.
If the pump was used to pump water containing mud, silt,
use clean water to flush out the pump after each use.
DO NOT allow the pump to run dry, as this will damage the
pump. During maintenance, dry running is permissible but
only for a few seconds.
NEVER lift the pump by its electrical power cord. ALWAYS
lift the pump by its carrying handle or attach a rope to the
carrying handle.
A pump fully submerged in liquid will not freeze, unless
the liquid freezes. DO NOT allow a partially submerged
pump to freeze. The expansion of water freezing in the
volute may crack the pump, causing expensive repairs. If
there is any danger of the pump being subjected to freezing
temperatures, Lift the pump from water and allow it to drain
thoroughly.
If the pump jams or the pump rotor locks for any reason,
disconnect the pump from the power source immediately.
Allowing the pump motor to cycle ON and OFF under an
overload condition can burn out the motor.
When replacement of nuts and bolts is required, use only
recommended parts as referenced in the parts section of
this manual. This pump uses metric threads. DO NOT use
English measurement threads.
Failure to follow the above referenced precautions could
result in serious injury or death! Replace pump cord
immediately if cord becomes damaged or severed. This
pump must be installed in accordance with National Electric
Code ANSI/NFPA 70 so as to prevent moisture from
entering or accumulating with the boxes, conduit bodies
fittings, float housing or cable.
WARNING
Explosion or Fire Hazard exists if this
pump is used with flammable liquids. DO
NOT use this pump with flammable liquids.
DO NOT install this pump in hazardous
locations as defined by the National
Electrical Code, ANSI/NFPA 70.
ST2010 SERIES SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #3 (12/07/12) — PAGE 11
COMPONENTS
ST2010, ST2010A, ST2010B, ST2010CUL ST2010TCUL
6
5
2
3
1
4
7
8
9
Figure 2. Submersible Pump Components
Figure 2 shows the location of the basic components for
the ST2010 series submersible pumps. Listed below is a
brief description of each component.
1. Strainer Base — Made of chrome-plated steel which
is resistant to hardware corrosion. DO NOT pump
large objects or debris with this pump. This pump is
for pumping water only. Always place the strainer base
on a platform.
2. Volute/Impeller — Volute is constructed of cast iron
and impeller is made of cast ductile iron to minimize
wear and prolong service life.
3. Electric Motor — All ST2010 series submersible
pumps utilize a 60 Hz, single-phase, 1.0 HP electric
motor. The ST2010, ST2010A, ST2010CUL and
S-2010TCUL operate at 115 VAC while the ST2010B
operates at 230VAC. Consult with a licensed electrician
before connecting motor to a power source. Observe
all city and local safety codes.
4. Discharge Port — Connect a 2-inch hose to this port.
Remember to adequately support the discharge hose
to avoid stress on the pump.
5. AC Power Cable — This unit is supplied with an AC
power cable. Always check the cable for signs of wear.
NEVER use a defective power cable. Replace the cable
immediately if the cable is worn or defective.
6. Carrying Handle — Always carry the submersible
pump by its handle. NEVER carry the pump by its
power cord. Carrying or lifting the pump by the power
cord will cause undue stress on the cord and ultimately
the cord will become dislodged from the pump.
7. Thermal Overload Protection — This pump is
equipped with thermal overload protection device that
will shut down the motor in the event of high operating
temperatures. The motor will automatically restart once
the temperature returns to an acceptable operating
temperature.
8. Mechanical Oil Seal — This oil-filled seal provides
lubrication when running the pump dry. NEVER run
the pump dry. Running the pump dry will cause severe
damage to the pump.

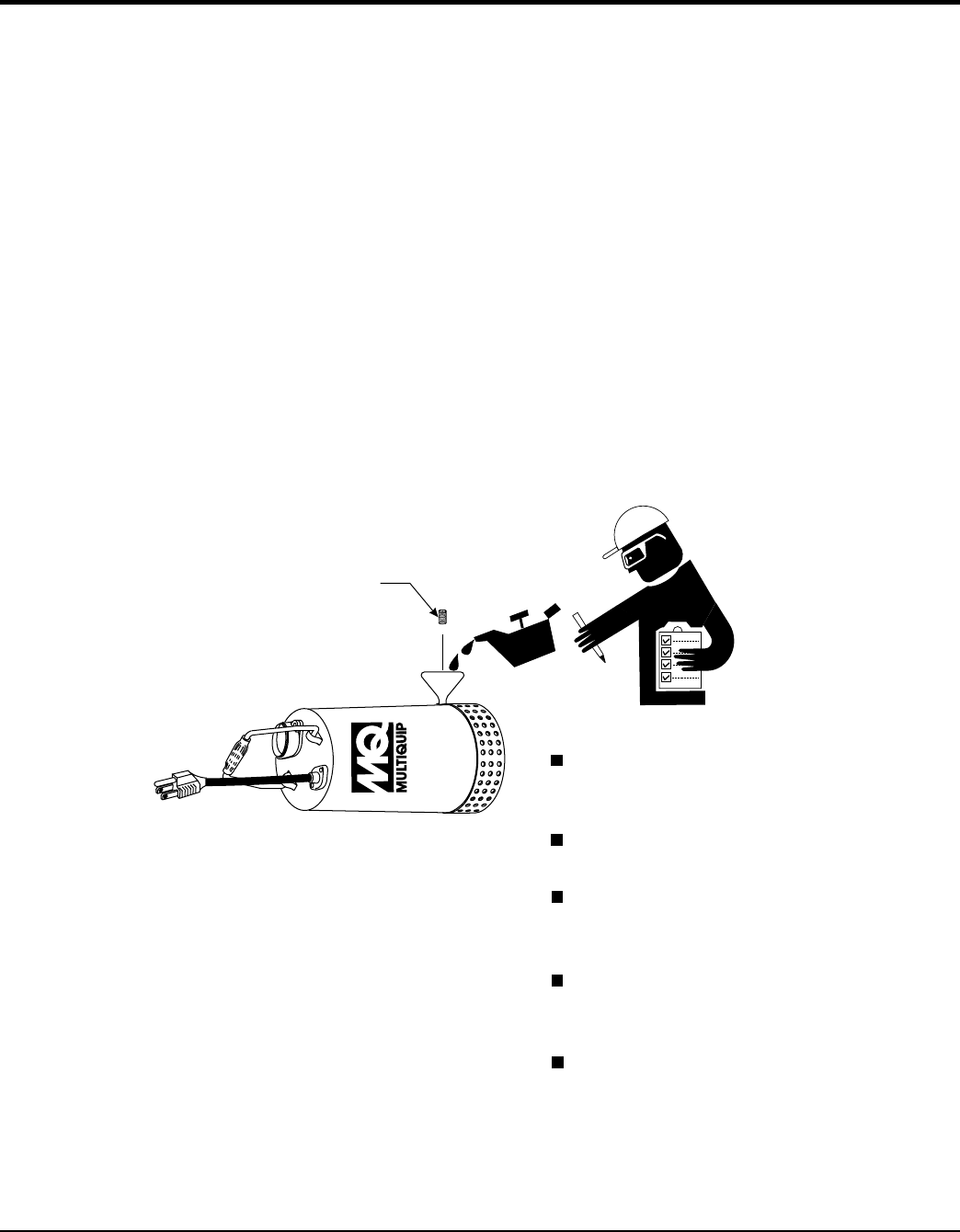

9. Mechanical Oil Seal Plug — Remove this plug to
check and add hydraulic oil (Shell 32 or equivalent)
to the oil cavity. This oil protects the mechanical seal.
Oil cavity should be full enough to cover seal spring.
PAGE 12 —ST2010 SERIES SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #3 (12/07/12)
FLOAT SWITCHES
FLOAT SWITCH THEORY
Mercury monitoring is a mercury-switch actuated, liquid-
level control that has proven to be more economical
and longer lasting than other types of liquid-level control
systems, easily replacing and improving upon diaphragm
switches, air bubble systems and electro-mechanical
switches most often relied upon in the past.

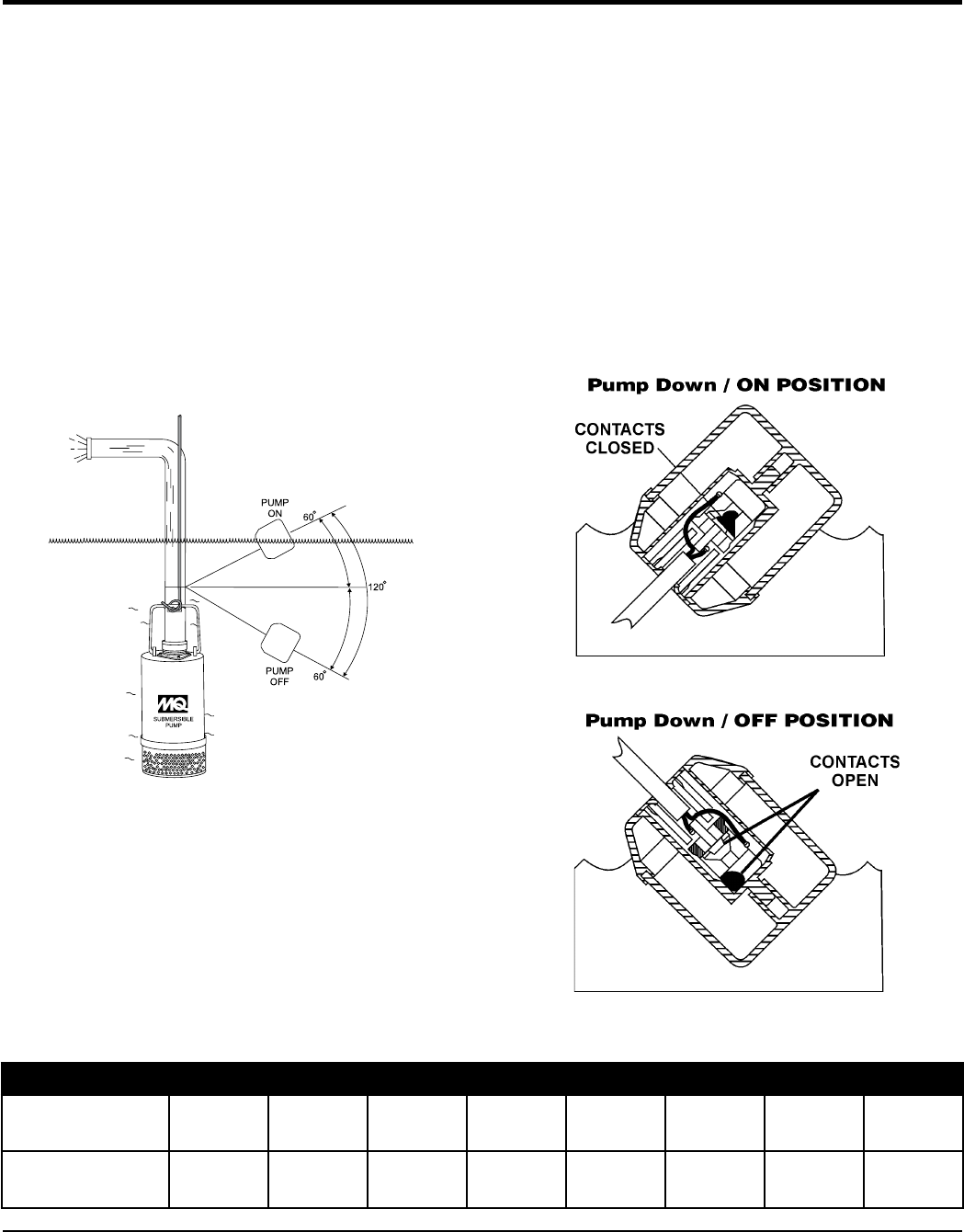

HOW IT WORKS
There is a tilt-sensitive mercury switch hermetically sealed
within each float. As the liquid level (water) rises or falls,
the float changes its angle until the mercury switch makes
(closed, Figure 4) or breaks (open, Figure 5) the circuit.
Maximum pumping range is 120 degrees. See Figure 3
below.
Figure 3. Pumping Range (Float Switch)
PUMPING RANGE
The pumping range of the pump is determined by the float
switch tether cord. Use Table 3 as guide line to determine
your required pumping range. Pumping ranges are based
on non-turbulent conditions. Range may vary due to water
temperature and cord shape. Please note as the tether
length increases, so does the variance of the pumping
range.
DESIGN FEATURES
Constructed of rigid, durable ABS polymer ultrasonically
welded. The all-steel mercury switch is held by positioning
pins. Interior is filled with cell foam.
Suitable for most liquid environments.
Hermetically sealed.
Thick-walled non-corrosive PVC plastic enclosure.
Pressure tested to 60 ft. (18.2 meters).
Mercury switch reliability, proven to 500,000 cycles.
Standard SJO, 16-gauge, 2 conductor cord (20 ft./6.09 m).
Figure 4. Float Switch (Closed)
Figure 5. Float Switcfh (Open)
Table 3. Pumping Range
Tether Length 2 in.
5.08 cm.
4 in.
10.16 cm.
6 in.
15.24 cm.
8 in.
20.32 cm.
10 in.
25.4 cm.
12 in.
30.48 cm.
14 in.
35.56 cm.
16 in.
40.64 cm.
Pumping Range 6 in.
15.24 cm.
10 in.
25.4 cm.
14 in.
35.56 cm.
18 in.
45.72 cm.
22 in.
55.88 cm.
27 in.
68.58 cm.
31 in.
78.74 cm.
35 in.
88.9 cm.
ST2010 SERIES SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #3 (12/07/12) — PAGE 13
FLOAT SWITCH (PIGGY-BACK)
FLOAT SWITCH
Single or dual control float switches (Figure 6) can be used
for the unattended operation of the submersible pump.
When using the piggy-back power configuration (plug),
the ST-2010 series pumps DO NOT require the use of a
control box. In this configuration (piggy-back), the SW-1
(single float switch) or SW-2 (dual float switch) are required.
The illustration below is an example of a single float switch
application.
Mounting The Float Switch
1. Determine the required cord tether length as shown in
Figure 6 and Table 3.
2. Place the cord into the clamp as shown in Figure 6
3. Secure the clamp to the discharge hose as shown in
Figure 6. DO NOT install cord under hose clamp.
4. Using a screwdriver, tighten the hose clamp. DO NOT
over- tighten. Make sure the float cord is not allowed
to touch the excess hose clamp band during operation.
NOTICE
Figure 6 shows a single float switch application. For
dual float switch capability use a Model SW-2 mercury
type float switch.

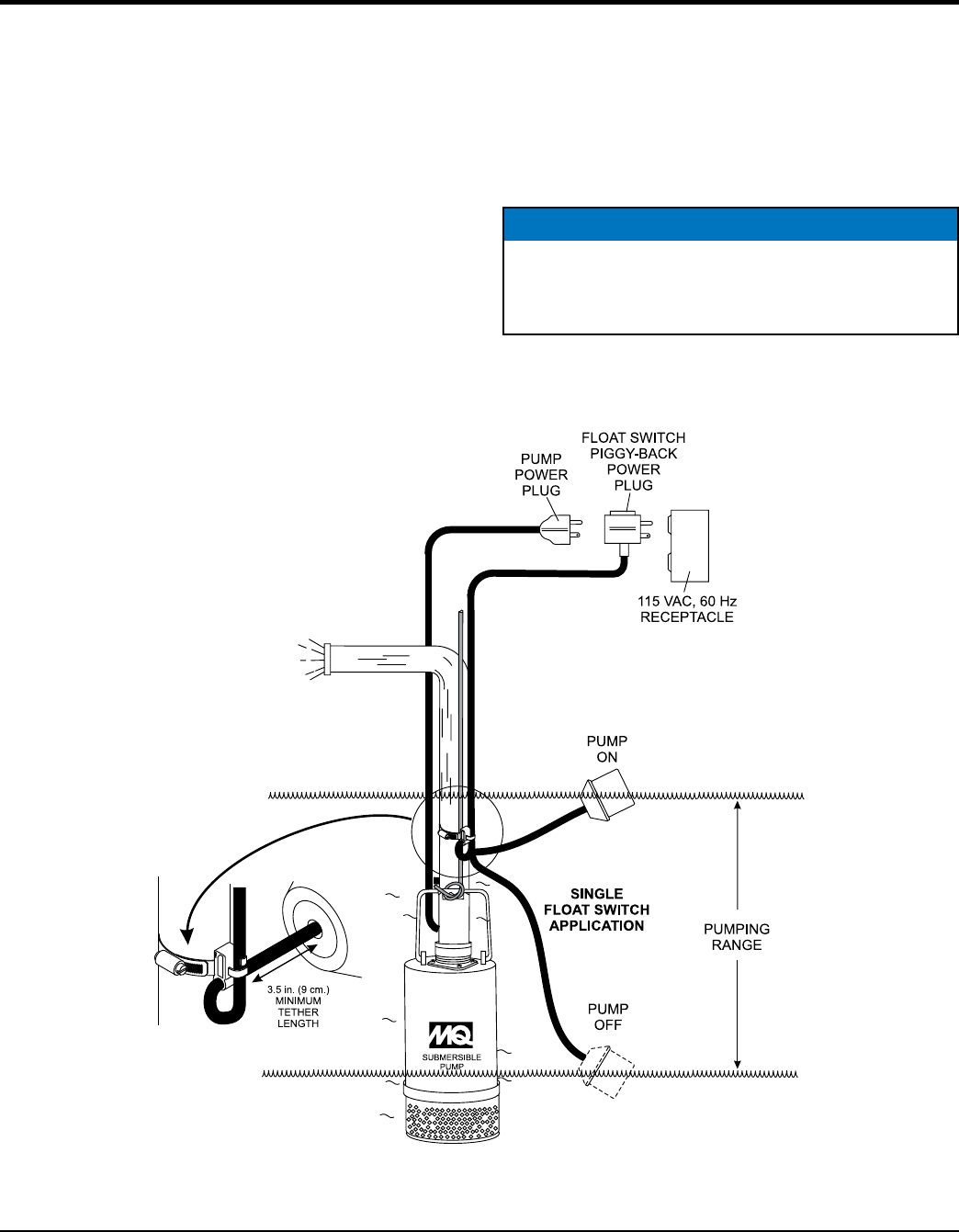

Figure 6. Single Float Switch Application Diagram
PAGE 14 —ST2010 SERIES SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #3 (12/07/12)
FLOAT SWITCH (CONTROL BOX)
CONTROL BOX
For special remote pumping applications of the submersible
pump, a control box (Model CB3 - for ST2010, ST2010A,
ST2010CUL, and ST2010TCUL and Model CB6 - for
ST2010B) may be required. This water-resistant control box
provides watertight housing and glands to prevent water
from leaking into the box, and a float switch interface. When
using the CB3 control box, only the SW-1WOP float switch
(2) can be used (no plug, bare wires).

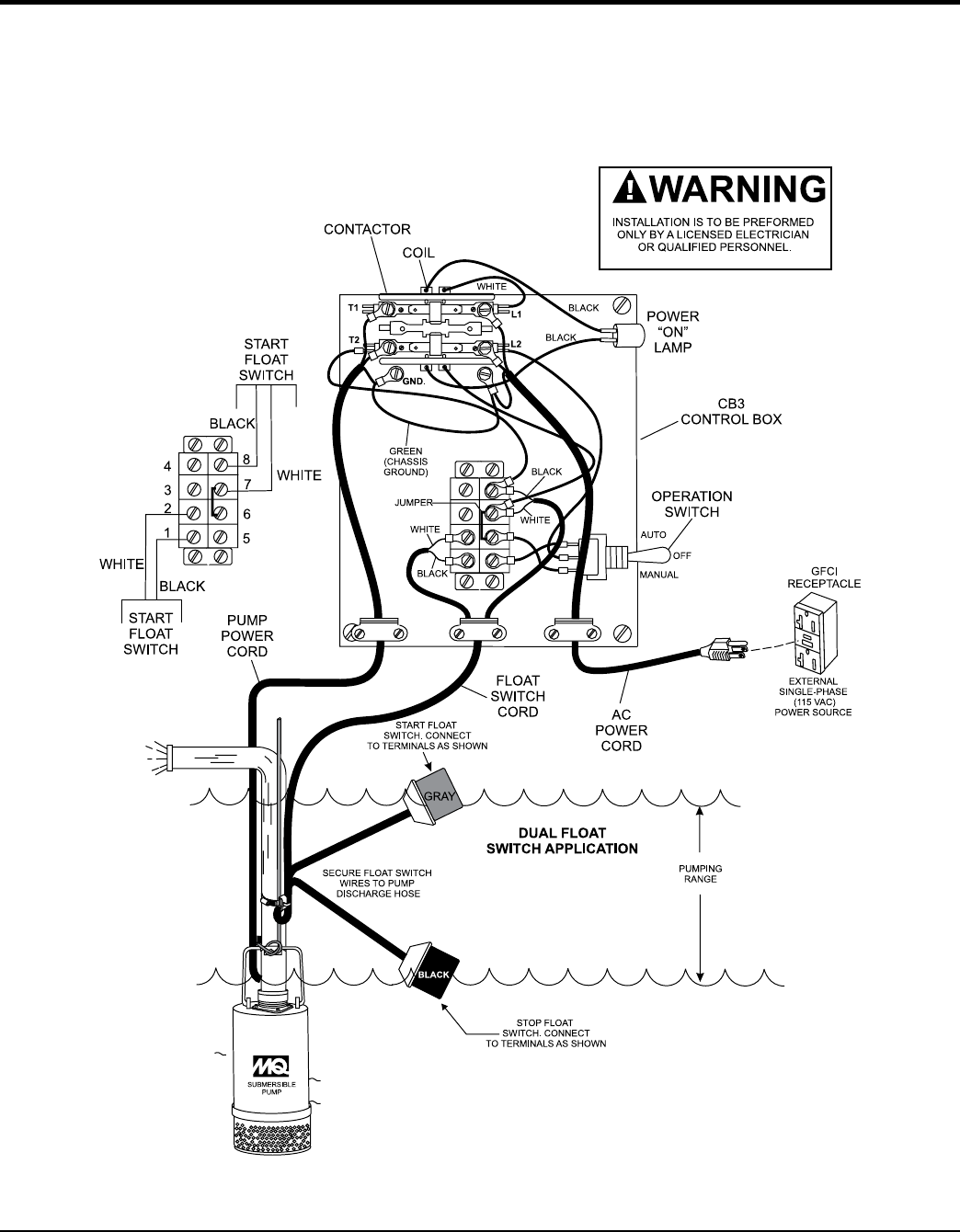

Figure 7. CB3 Control Box abd Dual Float Switch Application Diagram
ST2010 SERIES SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #3 (12/07/12) — PAGE 15
FLOAT SWITCH (CONTROL BOX)
Figure 8. CB6 Control Box and Dual Float Switch Application Diagram
PAGE 16 —ST2010 SERIES SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #3 (12/07/12)
OPERATION
HOSE CONNECTIONS
Connect a 2-inch hose to the discharge port on the pump
as shown in Figure 9. Make sure that the hose is attached
correctly to the discharge port.
PUMP POWER CONNECTIONS
(PIGGY-BACK CORD ONLY)
1. Make sure the circuit breaker supplying power to the
pump is in the OFF position.
2. Connect the float switch or switches to the AC power
receptacle as shown in Figure 6.
ATTACHING LIFTING ROPE
1. Attach a suitable lifting cable (rope) to the carrying
handle (Figure 9) on the pump and lower the pump
into place. For applications where there is an excessive
amount of mud, grit or silt, the use of a support platform
is desirable. When pumping water from swimming pool
type applications where there is little or no debris, the
support platform is not required.
Figure 9. Submersible Pump Upright
(Correct Position)
2. Make sure the pump is always placed in an upright
position, not tilted (Figure 10). Never position the pump
directly on a soft, loose bottom. Remember to attain
maximum pumping capacity and prevent excessive
wear, position the pump so it will not burrow itself into
sand or clay.
Figure 10. Submersible Pump Tilted
(Incorrect Position)
3. If all of the pump's electrical requirements have been
met, place the circuit breaker or power ON/OFF switch
in the ON position.
4. Wait a few seconds and water should begin to flow
from the discharge hose.
5. If water is not flowing from the discharge hose or not
flowing freely after a few minutes, remove the power
from the pump and check the system for leaks.
6. To stop the pump from pumping, place the circuit
breaker or ON/OFF switch in the OFF position.
Figure 11. Power Cord (Wet Hands)
DANGER
NEVER grab or touch a live power cord (Figure 11).
DO NOT stand in water when connecting the pump's
power cord into a voltage source. The possibility exists
of electrical shock, electrocution and possibly death!
POWER
CORD
(POWER ON)
WET
HANDS
ST2010 SERIES SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #3 (12/07/12) — PAGE 17
CONTROL BOX INSTALLATION
CONTROL BOX MOUNTING
Mount the control box in an upright vertical position. Make
sure the control box is securely fastened to a flat surface,
that is free of dust, dirt, moisture or any elements that
may contaminate or erode the electronic components of
the control box.
SINGLE-PHASE POWER INSTALLATION (INPUT)
The ST2010, ST2010A, ST2010CUL, and ST2010TCUL
submersible pumps require 115 V, 60 Hz, single-phase
power for normal operation. The ST2010B requires 230 V,
60 Hz, single-phase power.
If you cannot determine what your pump's power
requirements are, look at the vendor supplied identification
name tag attached to the pump or contact Multiquip's
Service/Technical Assistance department.
DANGER
The ST2010 Series submersible
pumps are designed to work with a
control box. The control box contains
the necessary electronics (float
switch connections) to operate
the pump. Remember the control
box contains hazardous voltages.
Disconnect all sources of power
before installing or servicing. There exists the possibility
of electrocution, electric shock or burn, which can cause
severe bodily harm or even death!
CAUTION
This control box should only be installed or serviced by
a licensed electrician or qualified personnel.
CAUTION
Applying incorrect power (voltage phasing) to the
submersible pump can cause severe damage to the
pump. Please make sure that the correct voltage and
phase are transferred to the pump at all times.
POWER CORD REQUIREMENTS
When routing the 115 VAC/230V, 60 Hz, single-phase power
via a power cord to the control box, always use the correct
wire size. Please refer to Table 4 below (Cord Length/Wire
Size) to determine the correct wire size. Incorrect wire size
can adversely affect the performance of the pump.
CONNECTING DUAL FLOAT SWITCH (SW-1WOP)
TO CONTROL BOX
1. Remove the float switch input connector housing, then
route the float switch wires through the cable gland on
the control box. Attach the wires of the float switch to
the terminal block as indicated by Table 5, Figure 7
and Figure 8.
2. Tighten the connector housing to ensure a tight fit
between the cord and the connector body. This will
prevent the cable from pulling out of the terminal block
and also prevent moisture from entering the control box.
3. Determine the length of the float switch wires, then
secure float switch wires to pump discharge hose. See
Figure 3 and Table 3 to determine the pumping range.
Table 4. Cord Length and Wire Size
AMPS 50 FT. 100 FT. 150 FT.
6 16 AWG 16 AWG 14 AWG
8 16 AWG 14 AWG 12 AWG
10 16 AWG 14 AWG 12 AWG
12 14 AWG 14 AWG 12 AWG
14 14 AWG 12 AWG 10 AWG
16 12 AWG 12 AWG 10 AWG
Table 5. Float Switch Connections
Float Switch Terminal Block Number
START TERMINAL 1 (BLACK)
TERMINAL 2 (WHITE)
STOP TERMINAL 7 WHITE)
TERMINAL 8 (BLACK))
PAGE 18 —ST2010 SERIES SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #3 (12/07/12)
CONNECTING AC POWER TO THE CONTROL BOX
1. The AC power cord (input) should have three wires.
Each wire is color coded. The colors are WHITE,
BLACK and GREEN.
2. Remove the AC input connector housing from the
control box, then route the power cord through the
cable gland on the control box.
3. Connect the AC power cord to the contactor as shown
in Figure 7 and Table 6.
4. Tighten the connector housing to ensure a tight fit
between the power cord and the connector body. This
will prevent the cable from pulling out of the terminal
block and also prevent moisture from entering the
control box.
5. Connect the other end of the AC power cord to the
voltage source. Remember to provide a means of
disconnecting the power from the control box (circuit
breaker or quick disconnect switch). Also make sure to
provide a good earth ground to the control box.
CONNECTING AC POWER TO THE PUMP
1. AC power is transferred to the pump via a contactor.
The coil of the contactor is energized or de-energized
by the opening and closing of the float switch contacts.
The power cord should have three wires. Each wire
is color coded. The colors are WHITE, BLACK and
GREEN.
Table 6. AC Input Power Connections
to Contactor
Float Switch Terminal Block Number
BLACK L1
WHITE L2
GREEN GROUND
NOTICE
It is recommended that the power being supplied to the
control box always be connected to a circuit breaker
or a quick disconnect switch. This safety feature allows
for quick removal of power from the control box in the
event of an emergency.
CONTROL BOX INSTALLATION
2. Remove the pump AC input connector housing from
the control box, then route the power cord through the
cable gland on the control box.
3. Connect the pump power cord to the contactor as
shown in Figure 7 and Table 7.
TURNING ON THE PUMP
1. If all of the pump's electrical requirements have been
met, place the circuit breaker or power ON/OFF switch
in the ON position.
2. The CB3 control box has an operation switch located
on the front cover. This switch has 3 positions; AUTO,
MANUAL and OFF. The AUTO position allows the
pump to run in an unattended mode. The MANUAL
position will let the pump run without the float switches
controlling the pump. When in the manual mode, be
careful not to let the pump run dry. Severe damage to
the pump may occur if it is allowed to run dry.
3. Place the operation switch in the AUTO position. The
AC power indicator lamp should be lit (ON).
4. Wait a few seconds and water should begin to flow
from the discharge hose.
5. If water is not flowing from the discharge hose or not
flowing freely after a few minutes, remove the power
from the pump and check the system for leaks.
6. To stop the pump from pumping, place the operation
switch in the OFF position.
Table 7. AC Output Power Connections
to Pump
Cable Wire Color Contactor
BLACK T1
WHITE T2
GREEN GROUND
NOTICE
Electrical connections to the power source should only
be performed by a licensed electrician or qualified
personnel.
ST2010 SERIES SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #3 (12/07/12) — PAGE 19
PUMP SHUT-DOWN/CLEAN-UP
1. Remove the power from the pump by turning off the
circuit breaker or switch that provides power to the
pump. Remember to make sure that hands are dry (not
wet), and feet are not standing in water when removing
disconnecting power from the pump.
2. Using the lifting rope, lift the pump up from its current
position. Remove the discharge hose from the
discharge port on the pump.
3. Remove all power cables and float switches from
the control box. Place cables and float switches in a
suitable container where they will not get damaged.
4. If the pump was used to pump mud, grit or silt, flush
vigorously with clean water.
5. Remove the pump from the water. Wipe off any mud
or debris that might have attached itself to the pump.
6. Store pump in a clean dry place away from dirt and
debris.
CLEAN-UP
PAGE 20 —ST2010 SERIES SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #3 (12/07/12)
MAINTENANCE
LUBRICATION
To check the oil level of the mechanical seal perform the
following:
1. Lay the pump (Figure 12) on its side with the oil plug
facing upwards.
2. Remove oil fill plug.
3. Visually inspect oil plug hole to verify that oil cavity
is full enough to cover seal spring. Check every 300
hours. Change hydraulic oil every 6 months (1,000
hours) or as needed.
4. While checking the hydraulic oil level, also check the
condition of the hydraulic oil in the seal cavity. Block the
opening with a finger and roll pump to one side to drain
oil into a small transparent container. If oil is cloudy or
has water in it, drain oil from pump cavity and replace
hydraulic oil. Check the seal for wear damage.
5. If oil level is low, fill with SAE 10 weight non-detergent
hydraulic oil (i.e. Shell Turbo 32 or equivalent). Fill oil
cavity 75% to 85% full (allow air space for expansion).
See Table 1 for pump oil cavity capacity.
IMPELLER
1. Make sure the clearance between the impeller and
the friction disk is approximately .012 - .020 inches
(.304 - .508 mm.)
2. If impeller is defective or badly worn, replace impeller
immediately.
Figure 12. Checking Hydraulic Oil
OIL FILL
PLUG
FILL TO 75-80% CAPACITY
SEE TABLE 1 FOR FILLING
CAPACITY.
LAY PUMP FLAT
ON ITS SIDE
FILL WITH 10 WEIGHT NON-
DETERGENT HYDRAULIC
OIL. USE SHELL TURBO 32
OR EQUIVALENT.
REMOVE FILL PLUG, AND
VISUALLY INSPECT THAT
OIL CAVITY IS FULL ENOUGH
TO COVER SEAL SPRING.
CHECK HYDRAULIC OIL
EVERY 300 HOURS. CHANGE
EVERY 6 MONTHS OR AS
NEEDED.
DISCOLORATION OF OIL
(MILKY)INDICATES A LEAKING
PUMP WATER SEAL.
SUBMERSIBLE
PUMP
ST2010 SERIES SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #3 (12/07/12) — PAGE 21
TROUBLESHOOTING
Troubleshooting (Pump)
Symptom Possible Problem Solution
Pump Fails To Start
Incorrect voltage/amps?
Check that proper voltage is being supplied to
the pump. Also check that there is an adequate
amount of current (amps) to run the pump.
Check power source circuit breaker.
Check electrical connections? If using fl oat switches check wiring, inspect
power cord.
Blown power fuse? Replace fuse, check cause of blown fuse.
Impeller locked?
Disconnect power cord and check for clogging
and improper impeller clearance. Unclog pump.
Check overload protection device.
Wet motor windings?
Use multimeter to check motor insulation.
Insulation resistance must be greater than 15
megaohms. If resistance is low, disassemble
pump motor and bake windings to dry them.
Defective motor and pump bearings? Check for excessive bearing wear. If worn,
replace bearings. Replace motor if defective.
Pump Fails to Deliver Full
Output
Twisted or restricted discharge hose?
Lay hose fl at unkinked. Remove clog from hose
line.
Clogged pump strainer? Clean strainer.
Low voltage?
Use a voltmeter to check voltage while pump
is energized. Voltage must be within ±10%.
Check power source (no load and load).
If an extension cord is used, make sure it
has adequate current-carrying capacity for
the required length.See Cord Length and
SizesTable.
Impeller worn? Replace impeller.
Water in Seal Oil Defective water seal? Replace water seal.
Loose Oil Fill Plug? Tighten securely.
PAGE 22 —ST2010 SERIES SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #3 (12/07/12)

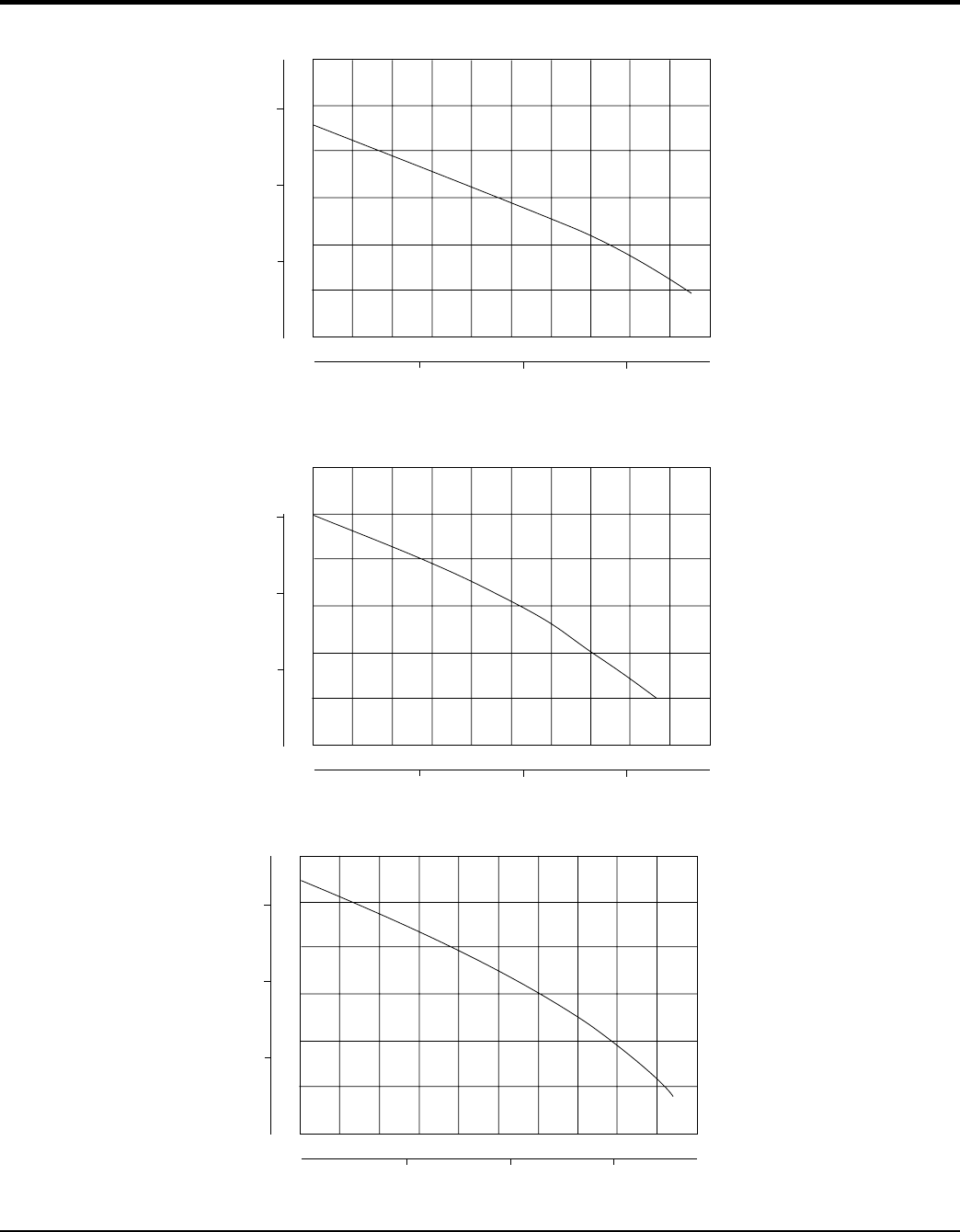

PERFORMANCE CURVES
GALLONS
PER MINUTE
LITERS
PER MINUTE
FT.METERS
PUMPING CAPACITY
TOTAL HEAD
20 40 60 80 100
0
0
20
30
40
50
60
10
100 200 300
15
10
5
ST2010TCUL
GALLONS
PER MINUTE
LITERS
PER MINUTE
FT.METERS
PUMPING CAPACITY
TOTAL HEAD
20 40 60 80 100
0
0
20
30
40
50
60
10
100 200 300
15
10
5
ST2010CUL
GALLONS
PER MINUTE
LITERS
PER MINUTE
FT.METERS
PUMPING CAPACITY
TOTAL HEAD
20 40 60 80 100
0
0
20
30
40
50
60
10
100 200 300
15
10
5
ST2010, ST2010A, ST2010B
ST2010 SERIES SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #3 (12/07/12) — PAGE 23
CONTROL BOX WIRING DIAGRAM
COIL
L1
T1
SUBMERSIBLE
PUMP
1
2
3
4
5
6
7
8
STOP
FLOAT
SWITCH
(LOW)
T2
PUMP
POWER
CORD
BLACK
WHITE
GREEN
CHASSIS
GND.
WHITE
BLACK
BLACK
POWER
ON
LAMP
BLACK
WHITE
BLACK
CONTACTOR
L2
EXTERNAL 1-PHASE
(115 VAC, 60 Hz.)
POWER SOURCE
CIRCUIT
BREAKER
WHITE
BLACK
L1
GROUND
L2
GREEN
OFF
MANUAL
AUTO
OPERATION SWITCH
WHITE
GND
BLACK
BLACK
INPUT
POWER
CORD
GREEN
WHITE
START
FLOAT
SWITCH
(HIGH)
WHITE
BLACK
CB3 CONTROL BOX WIRING DIAGRAM
BLACK
CHASSIS
GND.
BLACK
PAGE 24 —ST2010 SERIES SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #3 (12/07/12)
CONTROL BOX WIRING DIAGRAM
ST2010 SERIES SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #3 (12/07/12) — PAGE 25

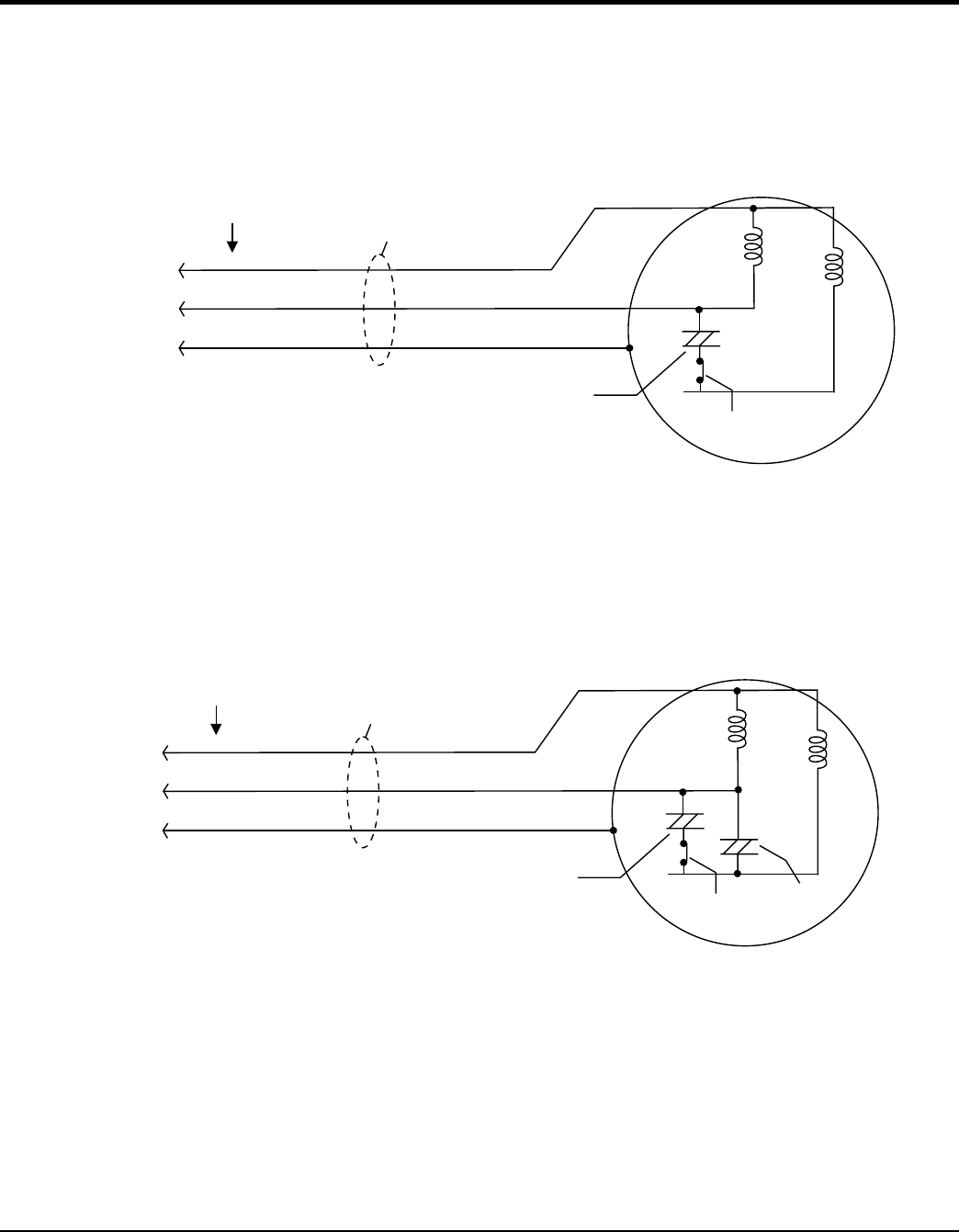

MOTOR WIRING DIAGRAM
LEAD WIRES
AC POWER CORD
U
V
BLACK (LINE)
WHITE (NEUTRAL)
GREEN (GROUND)
CAPACITOR
MAIN
COIL AUX.
COIL
CENTRIFUGAL
SWITCH
ST-2010, ST-2010A, ST-2010B, ST-2010CUL ELECTRIC MOTOR
WIRING DIAGRAM
LEAD WIRES
AC POWER CORD
U
V
BLACK (LINE)
WHITE (NEUTRAL)
GREEN (GROUND)
CAPACITOR
MAIN
COIL AUX.
COIL
CENTRIFUGAL
SWITCH
ST2010-TCUL ELECTRIC MOTOR
WIRING DIAGRAM
CAPACITOR
PAGE 26 —ST2010 SERIES SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #3 (12/07/12)
EXPLANATION OF CODE IN REMARKS COLUMN
The following section explains the different symbols and
remarks used in the Parts section of this manual. Use the
help numbers found on the back page of the manual if there
are any questions.
SAMPLE PARTS LIST
NO. PART NO. PART NAME QTY. REMARKS
1 12345 BOLT .....................1 .....INCLUDES ITEMS W/%
2% WASHER, 1/4 IN. ..........NOT SOLD SEPARATELY
2% 12347 WASHER, 3/8 IN. ..1 .....MQ-45T ONLY
3 12348 HOSE ..................A/R ...MAKE LOCALLY
4 12349 BEARING ..............1 .....S/N 2345B AND ABOVE
NO. Column
Unique Symbols — All items with same unique
symbol
(@, #, +, %, or >) in the number column belong to the
same assembly or kit, which is indicated by a note in the
“Remarks” column.
Duplicate Item Numbers — Duplicate numbers indicate
multiple part numbers, which are in effect for the same
general item, such as different size saw blade guards in
use or a part that has been updated on newer versions
of the same machine.
PART NO. Column
Numbers Used — Part numbers can be indicated by a
number, a blank entry, or TBD.
TBD (To Be Determined) is generally used to show a
part that has not been assigned a formal part number
at the time of publication.
A blank entry generally indicates that the item is not sold
separately or is not sold by Multiquip. Other entries will
be clarifi ed in the “Remarks” Column.
NOTICE
The contents and part numbers listed in the parts
section are subject to change without notice. Multiquip
does not guarantee the availability of the parts listed.
NOTICE
When ordering a part that has more than one item
number listed, check the remarks column for help in
determining the proper part to order.
QTY. Column
Numbers Used
— Item quantity can be indicated by a
number, a blank entry, or A/R.
A/R (As Required) is generally used for hoses or other
parts that are sold in bulk and cut to length.
A blank entry generally indicates that the item is not sold
separately. Other entries will be clarifi ed in the “Remarks”
Column.
REMARKS Column
Some of the most common notes found in the “Remarks”
Column are listed below. Other additional notes needed
to describe the item can also be shown.
Assembly/Kit — All items on the parts list with the
same unique symbol will be included when this item is
purchased.
Indicated by:
“INCLUDES ITEMS W/(unique symbol)”
Serial Number Break
— Used to list an effective serial
number range where a particular part is used.
Indicated by:
“S/N XXXXX AND BELOW”
“S/N XXXX AND ABOVE”
“S/N XXXX TO S/N XXX”
Specifi c Model Number Use
— Indicates that the part
is used only with the specifi c model number or model
number variant listed. It can also be used to show a
part is NOT used on a specifi c model or model number
variant.
Indicated by:
“XXXXX ONLY”
“NOT USED ON XXXX”
“Make/Obtain Locally” — Indicates that the part can
be purchased at any hardware shop or made out of
available items. Examples include battery cables, shims,
and certain washers and nuts.
“Not Sold Separately”
— Indicates that an item cannot
be purchased as a separate item and is either part of an
assembly/kit that can be purchased, or is not available
for sale through Multiquip.
ST2010 SERIES SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #3 (12/07/12) — PAGE 27
SUGGESTED SPARE PARTS
ST-2010 SERIES SUBMERSIBLE PUMP
1 TO 3 UNITS
Qty. P/N Description
1 ...........0202010T120 ....... ACCORD WITH GLAND
1............0202010T081 ...... OIL SEAL
1............0202010T112 ....... OIL SEAL
1............0202010T008 ....... PACKING, CASING
1............0202010T060 ....... MECHANICAL SEAL
1............0202010T074 ....... PACKING
1............0202010T157 ....... PACKING
1............0202010T003 ....... IMPELLER
NOTICE
Part numbers on this Suggested Spare Parts list may
supersede/replace the part numbers shown in the
following parts lists.
PAGE 28 —ST2010 SERIES SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #3 (12/07/12)
ST2010TCUL PUMP ASSY.
123
120
125
121
128 127 128
156
158 224
157
445
446
119
447
65
16
6
112
74
60
34
42
23
24
7
160
76
81
3
8
5
4
1
530
531
122
236
448
820
828
238
ST2010 SERIES SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #3 (12/07/12) — PAGE 29
ST2010TCUL PUMP ASSY.
NO. PART NO. PART NAME QTY. REMARKS
1 0202005T001 CASING 1
3 0202010T003 IMPELLER 1
4 0202005T004 IMPELLER NUT 1
5 0202005T005 SPRING WASHER 1
6 0202005T006 IMPELLER KEY 1
7 0202010T007 CASING COVER 1
8 0202005T008 CASING PACKING 1
16 0202010T016 SHAFT 1
23 0202005T023 COMPANION FLANGE 1
24 0202005T024 PACKING 1
34 0202010T034 BOLT 3
42 0202005T042 BOLT 2
60 0202005T060 MECHANICAL SEAL 1
65 0202005T065 PLUG 1
74 0202010T074 PACKING 1
76 0202005T076 BOLT 3
81 0202005T081 OIL SEAL 1
112 0202010T112 OIL SEAL 1
119 0202010TCUL119 MOTOR 1
120 0202010T120 AC CORD W/ CORD GLAND 1
121 0202010T121 CORD CLAMP 1
122 0202010T122 HANGER METAL 1
123 0202010T123 CHAIN 1
125 0202005T125 SCREW 2
127 0202010T127 CARRYING HANDLE 1
128 0202010T128 SCREW 2
156 0202010T156 HEAD COVER 1
157 0202010T157 PACKING 1
158 0202010T158 BOLT 4
160 0202005T160 SLEEVE 1
224 0202005T224 PLUG 1
236 0202010T236 S-TIP 1
445 0202010T4551 CONDENSER STARTING 1
446 0202010T446 AUTO-CUT (PROTECTOR) 1
447 0202010T447 CENTRIFUGAL SWITCH 1
448 0202010T4552 CONDENSER RUNNING 1
820 0202010T820 MOUNTING PLATE, CONDENSER 1
238 0202010T238 STANDOFF 4
828 0202010T828 BOLT 4
530 0202005T530 BOTTOM PLATE 1
531 0202005T531 BOLT 3
PAGE 30 —ST2010 SERIES SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #3 (12/07/12)
ST2010, ST2010A, ST2010B, ST2010CUL PUMP ASSY.
263
265
266
641
103
563
125
122
123
121
120
131
174
132
474
214-1
224
119 445
446
447
130
6
214-2
8
112
1
60
299
65
160
146
147
176
179
5
4
3
47
81
177
236
129
ST2010 SERIES SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #3 (12/07/12) — PAGE 31
ST2010, ST2010A, ST2010B, ST2010CUL PUMP ASSY.
NO. PART NO. PART NAME QTY. REMARKS
1 0202005A001 CASING 1
3 0202010CUL003 IMPELLER .........................................................1................ST2010CUL ONLY
3 0202010A003 IMPELLER .........................................................1................ST2010A ONLY
3 0202010003 IMPELLER .........................................................1................ST2010, ST2010B ONLY
4 0201503A004 IMPELLER NUT 1
5 0201503A005 IMPELLER NUT WASHER 1
6 0201503A006 IMPELLER KEY 1
8 0201503UL008 CASING PACKING 1
47 0201503A047A LINER (0.2MM) 1
47 0201503A047B LINER (0.3MM) 1
60 0201503A060 MECHANICAL SEAL 1
65 0201503A065 PLUG 1
81 0201503A081 OIL SEAL 1
102 0202005A102 DISCHARGE PORT ...........................................1................ ST2010A/B, ST2010CUL ONLY
103 0201503A103 PACKING ...........................................................1................ST2010A/B, ST2010CUL ONLY
112 0201503A112 OIL SEAL FOR OIL CHAMBER .........................1................ST2010A/B, ST2010CUL ONLY
119 0202010119 MOTOR ..............................................................1................ST2010 ONLY
119 0202010A119 MOTOR ..............................................................1................ST2010A ONLY
119 0202010B119 MOTOR ..............................................................1................ST2010B ONLY
119 0202010UL119 MOTOR ..............................................................1................ST2010CUL ONLY
120 0202010120 AC CORD W/CORD GLAND .............................1................ST2010 ONLY
120 0202010A120 AC CORD W/CORD GLAND .............................1................ST2010A ONLY
120 0202010B120 AC CORD W/CORD GLAND .............................1................ST2010B ONLY
120 0202010UL120 AC CORD W/CORD GLAND .............................1................ST2010CUL ONLY
121 0201503A121 CORD CLAMP 1
122 0201503A122 HANGER METAL 1
123 0201503A123 CHAIN 1
125 0201503A125 SCREW 2
127 0202010127 CARRYING HANDLE.........................................1................ST2010 ONLY
127 0202010A127 CARRYING HANDLE.........................................1................ST2010A ONLY
127 0201503A127 CARRYING HANDLE.........................................1................ST2010B, ST2010CUL ONLY
129 0202005129 FRAME COVER .................................................1................ST2010 ONLY
129 0202005A129 FRAME COVER .................................................1................ST2010A/B, ST2010CUL ONLY
130 0202005UL130 PACKING 1
131 0202010131 BOLT ..................................................................4................ST2010 ONLY
131 0202010A131 BOLT ..................................................................4................ST2010A/B, ST2010CUL ONLY
132 0201503A132 SPRING WASHER 4
146 0210503A146 STRAINER 1
147 0201503A147 BOLT 3
160 0201503A160 SLEEVE 1
174 0202010174 OUTER PIPE .....................................................1................ST2010 ONLY
174 0202010A174 OUTER PIPE .....................................................1................ST2010A ONLY
174 0202010UL174 OUTER PIPE .....................................................1................ST2010B, ST2010CUL ONLY
PAGE 32 —ST2010 SERIES SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #3 (12/07/12)
ST2010, ST2010A, ST2010B, ST2010CUL PUMP ASSY.
263
265
266
641
103
563
125
122
123
121
120
131
174
132
474
214-1
224
119 445
446
447
130
6
214-2
8
112
1
60
299
65
160
146
147
176
179
5
4
3
47
81
177
236
129
ST2010 SERIES SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #3 (12/07/12) — PAGE 33
ST2010, ST2010A, ST2010B, ST2010CUL PUMP ASSY.
NO. PART NO. PART NAME QTY. REMARKS
176 0202010CUL176 SUCTION COVER .............................................1................ST2010CUL ONLY
176 0202005176 SUCTION COVER .............................................1................ST2010, ST2010B ONLY
176 0202005A176 SUCTION COVER .............................................1................ST2010A ONLY
177 0201503A177 BOLT 4
178 0201503A178 SPRING WASHER .............................................4................ST2010, ST2010A ONLY
179 0202005A179 PACKING 1
214-1 0201503UL214A PACKING 1
214-2 0201503A214B PACKING 1
224 0201503A224 PLUG 1
236 0202005S236 S-TIP 1
263 0401450080 WASHER ...........................................................2................ST2010A/B, ST2010CUL ONLY
265 011206020 BOLT 4
266 952404470 WASHER 4
299 0202005299 SCREW 5 X 30 ..................................................4................ST2010B, ST2010CUL ONLY
299 0202005A299 SCREW 6MM X 40MM ......................................4................ST2010A ONLY
299 0202010299 SCREW ..............................................................4................ST2010 ONLY
431 0202010A431 NUT ....................................................................2................ST2010A/B, ST2010CUL ONLY
445 0202010445 CONDENSER ...................................................1................ST2010 ONLY
445 0202010A445 CONDENSER ...................................................1................ST2010A,ST-2010CUL ONLY
445 0202010B445 CONDENSER ....................................................1................ST2010B ONLY
446 0202010446 AUTO-CUT .........................................................1................ST2010 ONLY
446 0202010A446 AUTO-CUT .........................................................1................ST2010A ONLY
446 0202010B446 AUTO-CUT .........................................................1................ST2010B ONLY
446 0202010UL446 AUTO-CUT .........................................................1................ST2010CUL ONLY
447 0202005447 CENTRIFUGAL SWITCH ..................................1................ST2010 ONLY
447 0202010A447 CENTRIFUGAL SWITCH ..................................1................ST2010A ONLY
447 0202005A447 CENTRIFUGAL SWITCH ..................................1................ST2010B,ST2010CUL ONLY
474 0201503A474 WASHER 4
475 0202010475 ROPE .................................................................1................ST2010 ONLY
563 0201503A563 SPLIT PIN ..........................................................2................ST2010A/B, ST2010CUL ONLY
641 030208200 SPRING WASHER .............................................4................ST2010B,ST2010CUL ONLY
PAGE 34 —ST2010 SERIES SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #3 (12/07/12)
ELECTRIC MOTOR ASSY.
ST2010 SERIES SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #3 (12/07/12) — PAGE 35
ELECTRIC MOTOR ASSY.
NO. PART NO. PART NAME QTY. REMARKS
112* 0202010T112 OIL SEAL 1
268* 0202010T268 MOTOR A BRACKET 1
269* 0202010T269 MOTOR B BRACKET 1
270* 0202010T270 MOTOR ROTOR 1
273* 0202010T273 MOTOR STATOR 1
445-1* 0202010T4451 CONDENSER (STARTING) 1
445-2* 0202010T4452 CONDENSER (RUNNING) 1
446* 0202010T446 AUTO-CUT (PROTECTOR) 1
447-1* 0202010T4471 CENTRIFUGAL SWITCH-1 1
447-2* 0202010T4472 CENTRIFUGAL SWITCH-2 1
539* 0202010T539 SNAP RING 1
540* 0202010T540 A PACKING 1
606* 0202010T606 MOTOR A BEARING 1
607* 0202010S607 MOTOR B BEARING 1
608* 0202010T608 WAVE WASHER 1
822* 0202010T822 BRACKET RING 1
A 0202010T119 MOTOR ASSEMBLY ..........................................1................INCLUDES ITEMS W/ *
PAGE 36 —ST2010 SERIES SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #3 (12/07/12)
TERMS AND CONDITIONS OF SALE — PARTS
PAYMENT TERMS
Terms of payment for parts are net 30 days.
FREIGHT POLICY
All parts orders will be shipped collect or
prepaid with the charges added to the invoice.
All shipments are F.O.B. point of origin.
Multiquip’s responsibility ceases when a
signed manifest has been obtained from the
carrier, and any claim for shortage or damage
must be settled between the consignee and
the carrier.
MINIMUM ORDER
The minimum charge for orders from Multiquip
is $15.00 net. Customers will be asked for
instructions regarding handling of orders not
meeting this requirement.
RETURNED GOODS POLICY
Return shipments will be accepted and
credit will be allowed, subject to the following
provisions:
1. A Returned Material Authorization
must be approved by Multiquip prior to
shipment.
2. To obtain a Return Material Authorization,
a list must be provided to Multiquip
Parts Sales that defi nes item numbers,
quantities, and descriptions of the items
to be returned.
a. The parts numbers and descriptions
must match the current parts price
list.
b. The list must be typed or computer
generated.
c. The list must state the reason(s)
for the return.
d. The list must reference the sales
order (s ) or invoi ce ( s) under
which the items were originally
purchased.
e. The list must include the name
and phone number of the person
requesting the RMA.
3. A copy of the Return Material Authorization
must accompany the return shipment.
4. Freight is at the sender’s expense. All
parts must be returned freight prepaid to
Multiquip’s designated receiving point.
5. Parts must be in new and resalable
condition, in the original Multiquip
package (if any), and with Multiquip part
numbers clearly marked.
6. The following items are not returnable:
a. Obsolete parts. (If an item is in the
price book and shows as being
replaced by another item, it is
obsolete.)
b. Any parts with a limited shelf life
(such as gaskets, seals, “O” rings,
and other rubber parts) that were
purchased more than six months
prior to the return date.
c. Any line item with an extended
dealer net price of less than
$5.00.
d. Special order items.
e. Electrical components.
f. Paint, chemicals, and lubricants.
g. Decals and paper products.
h. Items purchased in kits.
7. The sender will be notifi ed of any material
received that is not acceptable.
8. Such material will be held for five
working days from notifi cation, pending
instructions. If a reply is not received
within five days, the material will be
returned to the sender at his expense.
9. Credit on returned parts will be issued
at dealer net price at time of the original
purchase, less a 15% restocking
charge.
10. In cases where an item is accepted, for
which the original purchase document
can not be determined, the price will be
based on the list price that was effective
twelve months prior to the RMA date.
11. Credit issued will be applied to future
purchases only.
PRICING AND REBATES
Prices are subject to change without prior
notice. Price changes are effective on a
specifi c date and all orders received on or
after that date will be billed at the revised price.
Rebates for price declines and added charges
for price increases will not be made for stock
on hand at the time of any price change.
Multiquip reserves the right to quote and
sell direct to Government agencies, and to
Original Equipment Manufacturer accounts
who use our products as integral parts of their
own products.
SPECIAL EXPEDITING SERVICE
A $35.00 surcharge will be added to the
invoice for special handling including bus
shipments, insured parcel post or in cases
where Multiquip must personally deliver the
parts to the carrier.
LIMITATIONS OF SELLER’S LIABILITY
Multiquip shall not be liable hereunder for
damages in excess of the purchase price of
the item with respect to which damages are
claimed, and in no event shall Multiquip be
liable for loss of profi t or good will or for any
other special, consequential or incidental
damages.
LIMITATION OF WARRANTIES
No warranties, express or implied, are
made in connection with the sale of parts or
trade accessories nor as to any engine not
manufactured by Multiquip. Such warranties
made in connection with the sale of new,
complete units are made exclusively by a
statement of warranty packaged with such
units, and Multiquip neither assumes nor
authorizes any person to assume for it
any other obligation or liability whatever in
connection with the sale of its products. Apart
from such written statement of warranty,
there are no warranties, express, implied or
statutory, which extend beyond the description
of the products on the face hereof.
Effective: February 22, 2006
ST2010 SERIES SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #3 (12/07/12) — PAGE 37
NOTES
OPERATION AND PARTS MANUAL
Your Local Dealer is:
HERE’S HOW TO GET HELP
PLEASE HAVE THE MODEL AND SERIAL
NUMBER ON-HAND WHEN CALLING
United StateS
Multiquip Corporate Office MQ Parts Department
18910 Wilmington Ave.
Carson, CA 90746
Contact: mq@multiquip.com
Tel. (800) 421-1244
Fax (310) 537-3927
800-427-1244
310-537-3700
Fax: 800-672-7877
Fax: 310-637-3284
Service Department Warranty Department
800-421-1244
310-537-3700
Fax: 310-537-4259 800-421-1244
310-537-3700
Fax: 310-943-2249
Technical Assistance
800-478-1244 Fax: 310-943-2238
mexico United Kingdom
MQ Cipsa Multiquip (UK) Limited Head Office
Carr. Fed. Mexico-Puebla KM 126.5
Momoxpan, Cholula, Puebla 72760 Mexico
Contact: pmastretta@cipsa.com.mx
Tel: (52) 222-225-9900
Fax: (52) 222-285-0420
Unit 2, Northpoint Industrial Estate,
Globe Lane,
Dukinfield, Cheshire SK16 4UJ
Contact: sales@multiquip.co.uk
Tel: 0161 339 2223
Fax: 0161 339 3226
Canada
Multiquip
4110 Industriel Boul.
Laval, Quebec, Canada H7L 6V3
Contact: jmartin@multiquip.com
Tel: (450) 625-2244
Tel: (877) 963-4411
Fax: (450) 625-8664
© COPYRIGHT 2012, MULTIQUIP INC.
Multiquip Inc
, the MQ logo are registered trademarks of Multiquip Inc. and may not be used, reproduced, or altered without written permission. All other trademarks are the property
of their respective owners and used with permission.
This manual
MUST accompany the equipment at all times. This manual is considered a permanent part of the equipment and should remain with the unit if resold.
The information and specifications included in this publication were in effect at the time of approval for printing. Illustrations, descriptions, references and technical data contained in
this manual are for guidance only and may not be considered as binding. Multiquip Inc. reserves the right to discontinue or change specifications, design or the information published
in this publication at any time without notice and without incurring any obligations.

Navigation menu
