Murata Electronics North America BTR1 Bridge Transceiver User Manual Cooper Industries
Murata Electronics North America Bridge Transceiver Cooper Industries
User Manual
Cooper Bussmann, Inc.
114 Old State Rd.
Ellisville, MO 63021-5942
(314) 394-2877
FAX (314) 527-1480
PRELIMINARY SPECIFICATION
InVision Wireless Network
Bridge Router/Mesh Router
Designer Specifications
April 25, 2006
CONFIDENTIAL. THE PROPERTY IN THIS DOCUMENT IS THE PROPERTY OF COOPER INDUSTRIES, INC. IT IS NOT FOR PUBLIC DISCLOSURE. POSSESSION OF THE
INFORMATION DOES NOT CONVEY ANY RIGHT TO LOAN, SELL OR DISCLOSE THE INFORMATION. UNAUTHORIZED REPRODUCTION OR USE OF THE INFORMATION IS
PROHIBITED. THIS DOCUMENT IS TO BE RETURNED TO COOPER INDUSTRIES, INC. UPON COMPLETION OF THE PURPOSE FOR WHICH IT IS LOANED OR UPON
REQUEST.
COPYRIGHT. COOPER INDUSTRIES, INC. This is an unpublished work. The disclosure of this work is limited to select personnel. Further dissemination or disclosure to the public
is PROHIBITED. This unpublished work is protected by Federal Copyright law and all rights thereunder are reserved by Cooper Industries, Inc.
InVision Wireless Network
Preliminary Designer Specifications
April 25, 2006
Page 1 of 4
CONFIDENTIAL. THE PROPERTY IN THIS DOCUMENT IS THE PROPERTY OF COOPER INDUSTRIES, INC. IT IS NOT FOR PUBLIC DISCLOSURE. POSSESSION OF THE
INFORMATION DOES NOT CONVEY ANY RIGHT TO LOAN, SELL OR DISCLOSE THE INFORMATION. UNAUTHORIZED REPRODUCTION OR USE OF THE INFORMATION IS
PROHIBITED. THIS DOCUMENT IS TO BE RETURNED TO COOPER INDUSTRIES, INC. UPON COMPLETION OF THE PURPOSE FOR WHICH IT IS LOANED OR UPON
REQUEST.
SYSTEM DESCRIPTION
The Bussmann Genesis Network is a wireless sensor network that will allow data to be
transmitted about the status of sensors monitoring overcurrent protection devices with in a
facility. The system uses a mesh network topology to enable highly reliable data
transmission. The data is then sent to a web based portal. The portal allows the user to
define how they wish to be notified upon an event occurring with in the network of sensors
they are monitoring. The network operates in the 900MHz range of the ISM band of the
frequency spectrum.
One of the advantages of the system is that it is highly scalable. Up to 10,000 device
sensors can be monitored.
The sensors operate on a different frequency from the data transport layer of the network.
The mesh network operates on a second frequency. This allows for the system to have a
high reliability and minimize data collisions. The BTR-1 is certified for operation under FCC
15.249 regulations
BRIDGE ROUTER DESCRIPTION
The bridge router acts as a collection point for the data. The sensors transmit data on a
specified frequency. The bridge router collects this data and processes it and re-transmits
the data on a different frequency. By using two different frequencies the system can listen
and talk at the same time. The electronics are housed in a NEMA 4X enclosure. The unit
contains an internal antenna to make the installation hassle free. Unit also uses a UL listed
cord set and liquid tight strain relief rated. Status of the unit can be view via LEDs viewable
on the enclosure face.
COPYRIGHT. COOPER INDUSTRIES, INC. This is an unpublished work. The disclosure of this work is limited to select personnel. Further dissemination or disclosure to the public
is PROHIBITED. This unpublished work is protected by Federal Copyright law and all rights thereunder are reserved by Cooper Industries, Inc.
InVision Wireless Network
Preliminary Designer Specifications
April 25, 2006
Page 2 of 4
CONFIDENTIAL. THE PROPERTY IN THIS DOCUMENT IS THE PROPERTY OF COOPER INDUSTRIES, INC. IT IS NOT FOR PUBLIC DISCLOSURE. POSSESSION OF THE
INFORMATION DOES NOT CONVEY ANY RIGHT TO LOAN, SELL OR DISCLOSE THE INFORMATION. UNAUTHORIZED REPRODUCTION OR USE OF THE INFORMATION IS
PROHIBITED. THIS DOCUMENT IS TO BE RETURNED TO COOPER INDUSTRIES, INC. UPON COMPLETION OF THE PURPOSE FOR WHICH IT IS LOANED OR UPON
REQUEST.

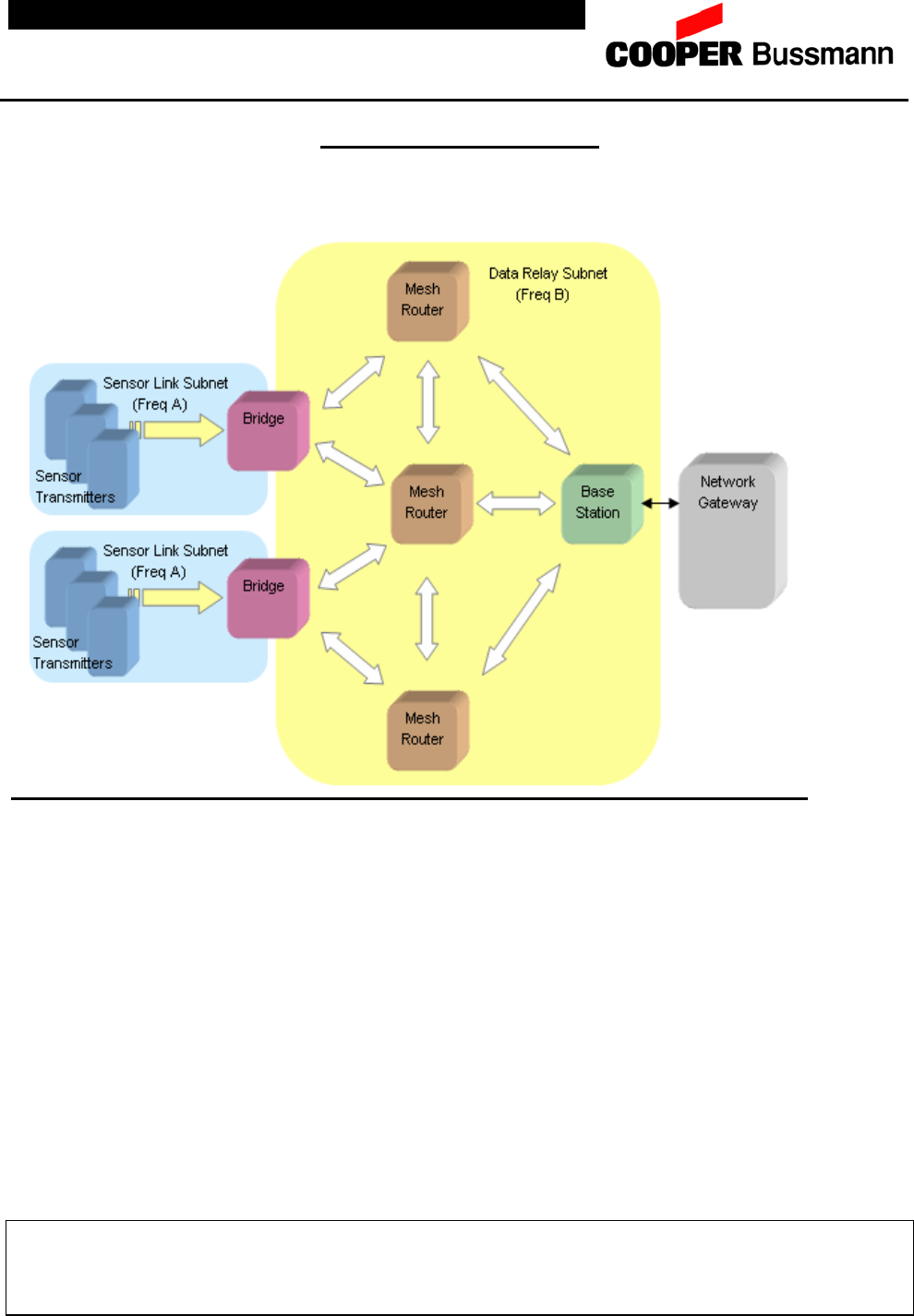

Simplified Network Layout
COPYRIGHT. COOPER INDUSTRIES, INC. This is an unpublished work. The disclosure of this work is limited to select personnel. Further dissemination or disclosure to the public
is PROHIBITED. This unpublished work is protected by Federal Copyright law and all rights thereunder are reserved by Cooper Industries, Inc.
InVision Wireless Network
Preliminary Designer Specifications
April 25, 2006
Page 3 of 4
CONFIDENTIAL. THE PROPERTY IN THIS DOCUMENT IS THE PROPERTY OF COOPER INDUSTRIES, INC. IT IS NOT FOR PUBLIC DISCLOSURE. POSSESSION OF THE
INFORMATION DOES NOT CONVEY ANY RIGHT TO LOAN, SELL OR DISCLOSE THE INFORMATION. UNAUTHORIZED REPRODUCTION OR USE OF THE INFORMATION IS
PROHIBITED. THIS DOCUMENT IS TO BE RETURNED TO COOPER INDUSTRIES, INC. UPON COMPLETION OF THE PURPOSE FOR WHICH IT IS LOANED OR UPON
REQUEST.
INTENDED APPLICATION
The Genesis Wireless Network can be used for any industrial or commercial application
that requires overcurrent circuit protection products that has the need to be monitored and
notification to the user.
ROUTER/BRIDGE ELECTRICAL SPECIFICATIONS
Input voltage:.....................................................120 V AC
Input Frequency: ...............................................50 – 60 Hz
Power Consumption:.........................................10mW
Operating Frequency:........................................
IFM Receiver Channel.......................................916.5MHz
Mesh Transceiver Channel ...............................904.0MHz
THERMAL SPECIFICATIONS
Operating temperature range:...........................-20°C to 85°C
Relative Humidity: .............................................10-95% Non-condensing
Class of Protection: ...........................................IP20
MECHANICAL SPECIFICATIONS
Dimensions:...................................................... 3.5” x 3.5” x 6.3”
Enclosure Material:...........................................Polycarbonate – UL94 5V
Weight:..............................................................1.3 pounds
HANDLING & STORAGE SPECIFICATIONS
Storage Temperature: ............................ -40°C to 85°C
COPYRIGHT. COOPER INDUSTRIES, INC. This is an unpublished work. The disclosure of this work is limited to select personnel. Further dissemination or disclosure to the public
is PROHIBITED. This unpublished work is protected by Federal Copyright law and all rights thereunder are reserved by Cooper Industries, Inc.
InVision Wireless Network
Preliminary Designer Specifications
April 25, 2006
Page 4 of 4
CONFIDENTIAL. THE PROPERTY IN THIS DOCUMENT IS THE PROPERTY OF COOPER INDUSTRIES, INC. IT IS NOT FOR PUBLIC DISCLOSURE. POSSESSION OF THE
INFORMATION DOES NOT CONVEY ANY RIGHT TO LOAN, SELL OR DISCLOSE THE INFORMATION. UNAUTHORIZED REPRODUCTION OR USE OF THE INFORMATION IS
PROHIBITED. THIS DOCUMENT IS TO BE RETURNED TO COOPER INDUSTRIES, INC. UPON COMPLETION OF THE PURPOSE FOR WHICH IT IS LOANED OR UPON
REQUEST.
FCC Labels and Notices
This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions: (1) this device may not cause and harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
WARNING: This devices operates under part 15 of the FCC rules. Any modification to this
device not expressly authorized by Cooper Bussmann, Inc. may void the user’s authority to
operate this device.
This product specification is intended to clearly present comprehensive product data and
provide technical information that will help the end user with design applications.
Bussmann reserves the right, without notice, to change design or construction of any
products and to discontinue or limit distribution of any product. Bussmann also reserves
the right to change or update, without notice, any technical information contained in this
bulletin. Once a product has been selected, it should be tested by the user in all possible
applications.
For the current revision of this document please contact the person(s) below.
Michael C. Henricks
mhenricks@cooperbussmann.com
636-527-1366 Phone
636-207-4838 FAX
