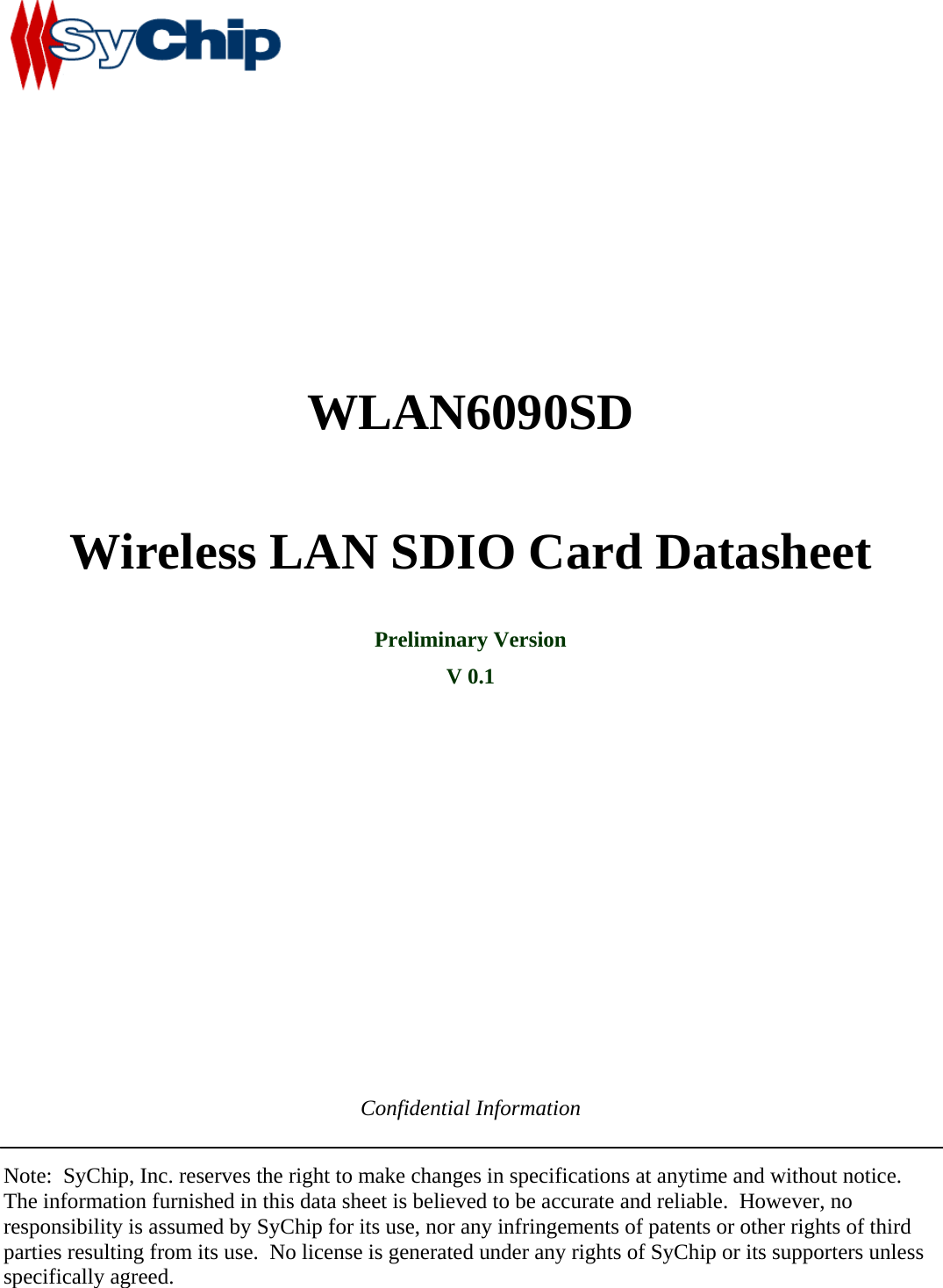

Confidential Information Note: SyChip, Inc. reserves the right to make changes in specifications at anytime and without notice. The information furnished in this data sheet is believed to be accurate and reliable. However, no responsibility is assumed by SyChip for its use, nor any infringements of patents or other rights of third parties resulting from its use. No license is generated under any rights of SyChip or its supporters unless specifically agreed. WLAN6090SD Wireless LAN SDIO Card Datasheet Preliminary Version V 0.1

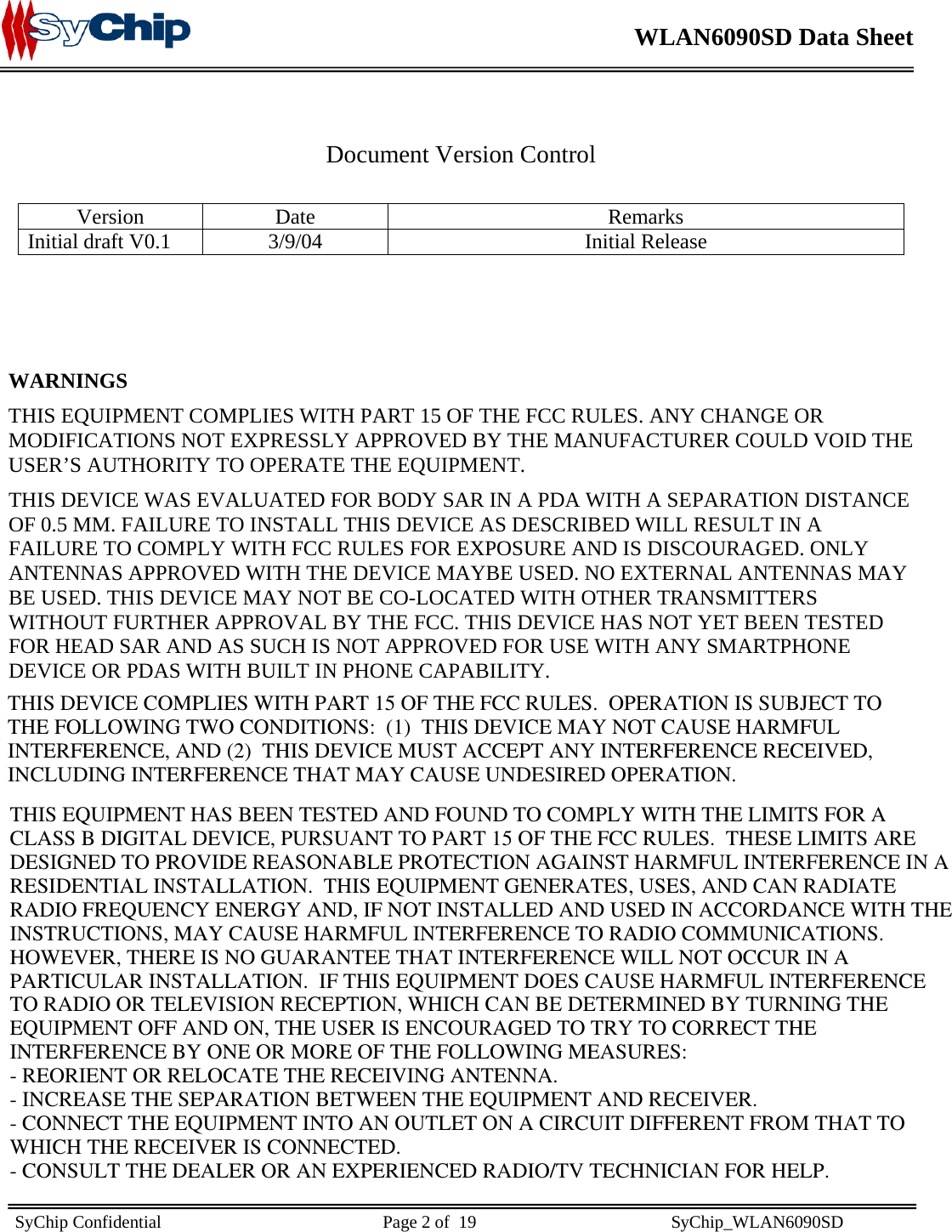

WLAN6090SD Data Sheet SyChip Confidential Page 2 of 19 SyChip_WLAN6090SD Document Version Control Version Date Remarks Initial draft V0.1 3/9/04 Initial Release WARNINGS THIS EQUIPMENT COMPLIES WITH PART 15 OF THE FCC RULES. ANY CHANGE OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE MANUFACTURER COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. THIS DEVICE WAS EVALUATED FOR BODY SAR IN A PDA WITH A SEPARATION DISTANCE OF 0.5 MM. FAILURE TO INSTALL THIS DEVICE AS DESCRIBED WILL RESULT IN A FAILURE TO COMPLY WITH FCC RULES FOR EXPOSURE AND IS DISCOURAGED. ONLY ANTENNAS APPROVED WITH THE DEVICE MAYBE USED. NO EXTERNAL ANTENNAS MAY BE USED. THIS DEVICE MAY NOT BE CO-LOCATED WITH OTHER TRANSMITTERS WITHOUT FURTHER APPROVAL BY THE FCC. THIS DEVICE HAS NOT YET BEEN TESTED FOR HEAD SAR AND AS SUCH IS NOT APPROVED FOR USE WITH ANY SMARTPHONE DEVICE OR PDAS WITH BUILT IN PHONE CAPABILITY. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TOTHE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFULINTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR ACLASS B DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS AREDESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE IN ARESIDENTIAL INSTALLATION. THIS EQUIPMENT GENERATES, USES, AND CAN RADIATERADIO FREQUENCY ENERGY AND, IF NOT INSTALLED AND USED IN ACCORDANCE WITH THEINSTRUCTIONS, MAY CAUSE HARMFUL INTERFERENCE TO RADIO COMMUNICATIONS. HOWEVER, THERE IS NO GUARANTEE THAT INTERFERENCE WILL NOT OCCUR IN APARTICULAR INSTALLATION. IF THIS EQUIPMENT DOES CAUSE HARMFUL INTERFERENCETO RADIO OR TELEVISION RECEPTION, WHICH CAN BE DETERMINED BY TURNING THEEQUIPMENT OFF AND ON, THE USER IS ENCOURAGED TO TRY TO CORRECT THEINTERFERENCE BY ONE OR MORE OF THE FOLLOWING MEASURES:- REORIENT OR RELOCATE THE RECEIVING ANTENNA.- INCREASE THE SEPARATION BETWEEN THE EQUIPMENT AND RECEIVER.- CONNECT THE EQUIPMENT INTO AN OUTLET ON A CIRCUIT DIFFERENT FROM THAT TOWHICH THE RECEIVER IS CONNECTED.- CONSULT THE DEALER OR AN EXPERIENCED RADIO/TV TECHNICIAN FOR HELP.

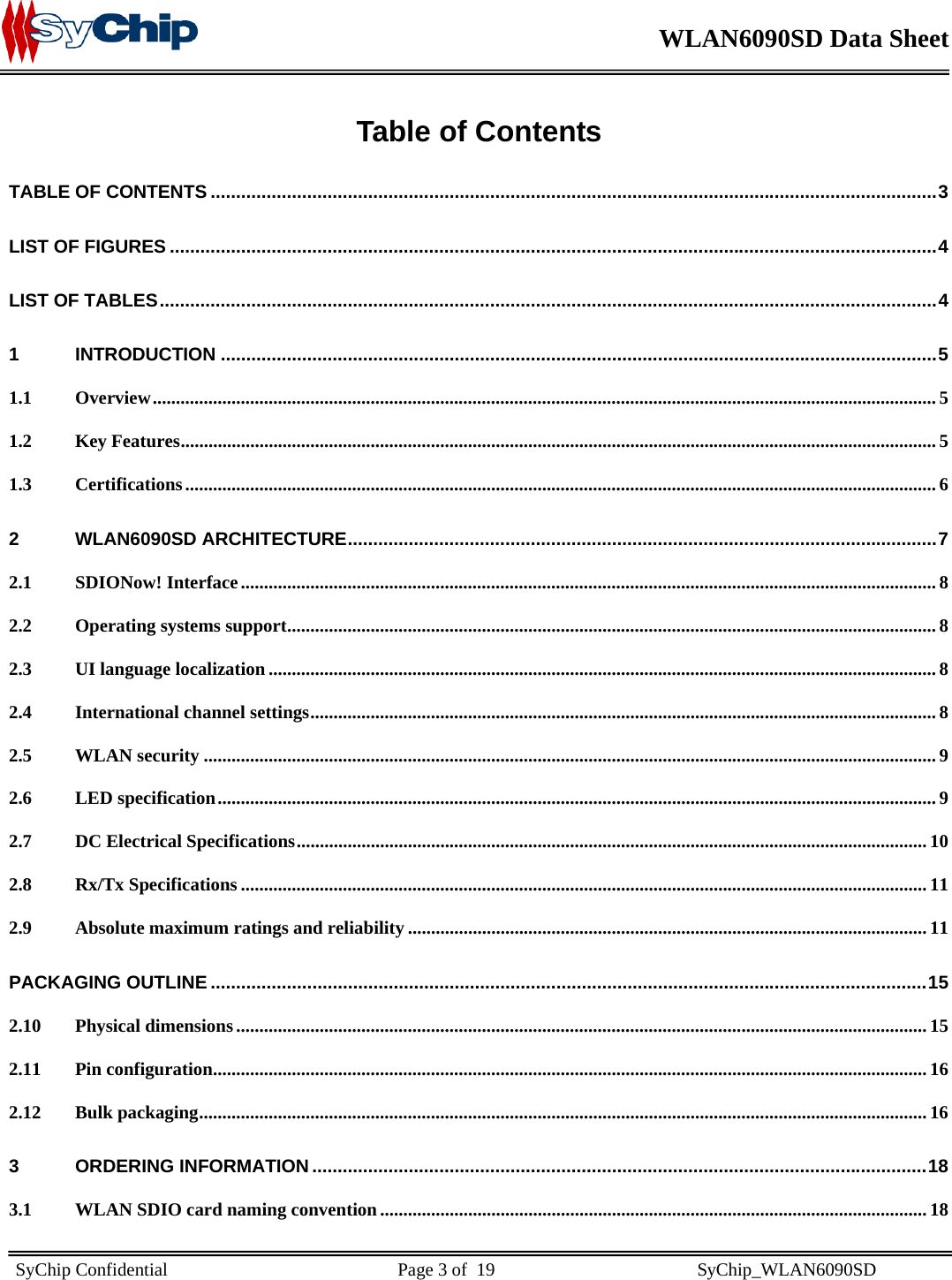

WLAN6090SD Data Sheet SyChip Confidential Page 3 of 19 SyChip_WLAN6090SD Table of Contents TABLE OF CONTENTS ...............................................................................................................................................3 LIST OF FIGURES .......................................................................................................................................................4 LIST OF TABLES.........................................................................................................................................................4 1 INTRODUCTION .............................................................................................................................................5 1.1 Overview......................................................................................................................................................................... 5 1.2 Key Features................................................................................................................................................................... 5 1.3 Certifications.................................................................................................................................................................. 6 2 WLAN6090SD ARCHITECTURE....................................................................................................................7 2.1 SDIONow! Interface...................................................................................................................................................... 8 2.2 Operating systems support............................................................................................................................................ 8 2.3 UI language localization ................................................................................................................................................ 8 2.4 International channel settings....................................................................................................................................... 8 2.5 WLAN security .............................................................................................................................................................. 9 2.6 LED specification........................................................................................................................................................... 9 2.7 DC Electrical Specifications........................................................................................................................................ 10 2.8 Rx/Tx Specifications .................................................................................................................................................... 11 2.9 Absolute maximum ratings and reliability ................................................................................................................ 11 PACKAGING OUTLINE .............................................................................................................................................15 2.10 Physical dimensions..................................................................................................................................................... 15 2.11 Pin configuration.......................................................................................................................................................... 16 2.12 Bulk packaging............................................................................................................................................................. 16 3 ORDERING INFORMATION .........................................................................................................................18 3.1 WLAN SDIO card naming convention...................................................................................................................... 18

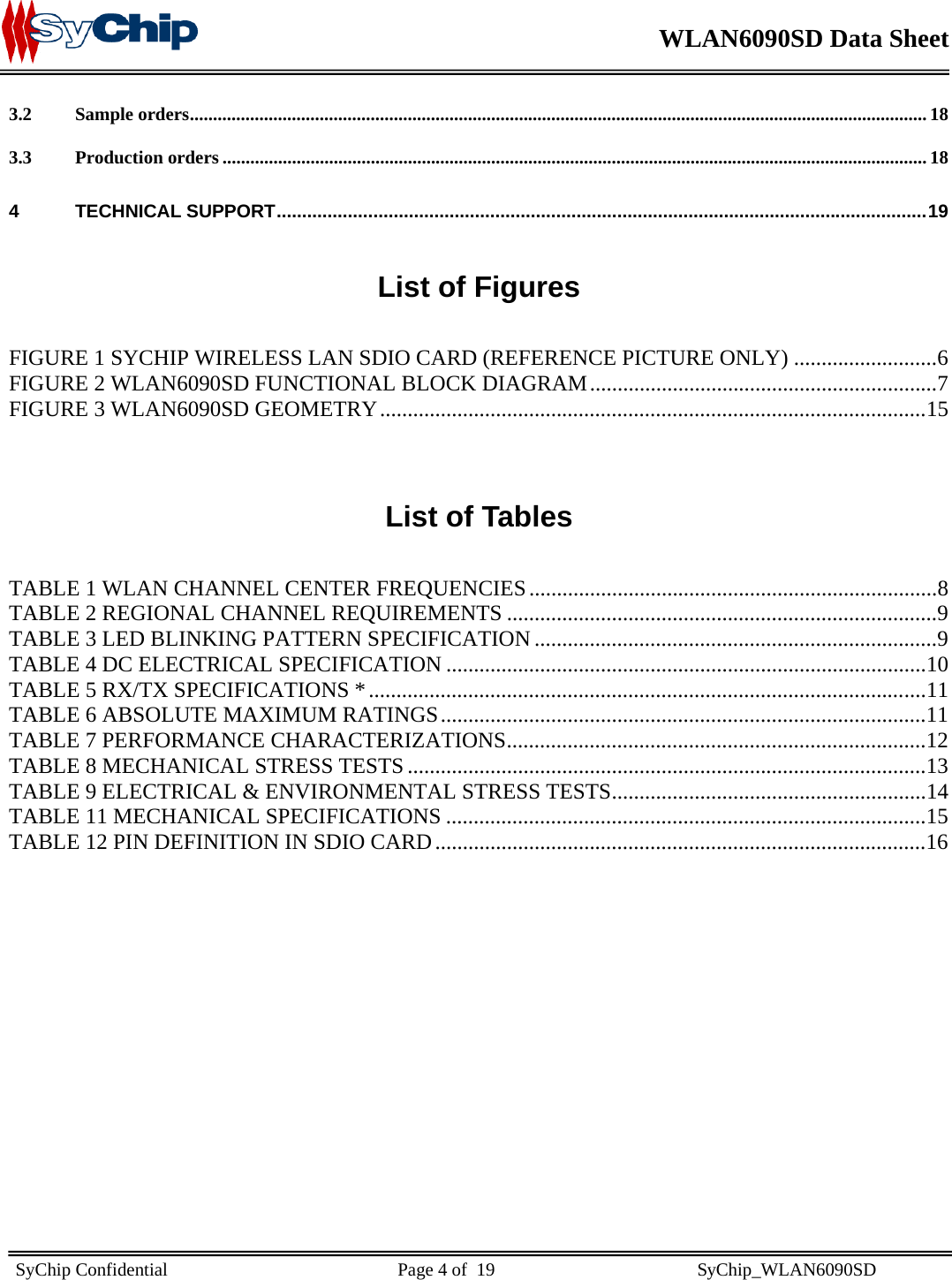

WLAN6090SD Data Sheet SyChip Confidential Page 4 of 19 SyChip_WLAN6090SD 3.2 Sample orders............................................................................................................................................................... 18 3.3 Production orders ........................................................................................................................................................ 18 4 TECHNICAL SUPPORT................................................................................................................................19 List of Figures FIGURE 1 SYCHIP WIRELESS LAN SDIO CARD (REFERENCE PICTURE ONLY) ..........................6 FIGURE 2 WLAN6090SD FUNCTIONAL BLOCK DIAGRAM...............................................................7 FIGURE 3 WLAN6090SD GEOMETRY...................................................................................................15 List of Tables TABLE 1 WLAN CHANNEL CENTER FREQUENCIES ..........................................................................8 TABLE 2 REGIONAL CHANNEL REQUIREMENTS ..............................................................................9 TABLE 3 LED BLINKING PATTERN SPECIFICATION .........................................................................9 TABLE 4 DC ELECTRICAL SPECIFICATION .......................................................................................10 TABLE 5 RX/TX SPECIFICATIONS *.....................................................................................................11 TABLE 6 ABSOLUTE MAXIMUM RATINGS........................................................................................11 TABLE 7 PERFORMANCE CHARACTERIZATIONS............................................................................12 TABLE 8 MECHANICAL STRESS TESTS ..............................................................................................13 TABLE 9 ELECTRICAL & ENVIRONMENTAL STRESS TESTS.........................................................14 TABLE 11 MECHANICAL SPECIFICATIONS .......................................................................................15 TABLE 12 PIN DEFINITION IN SDIO CARD.........................................................................................16

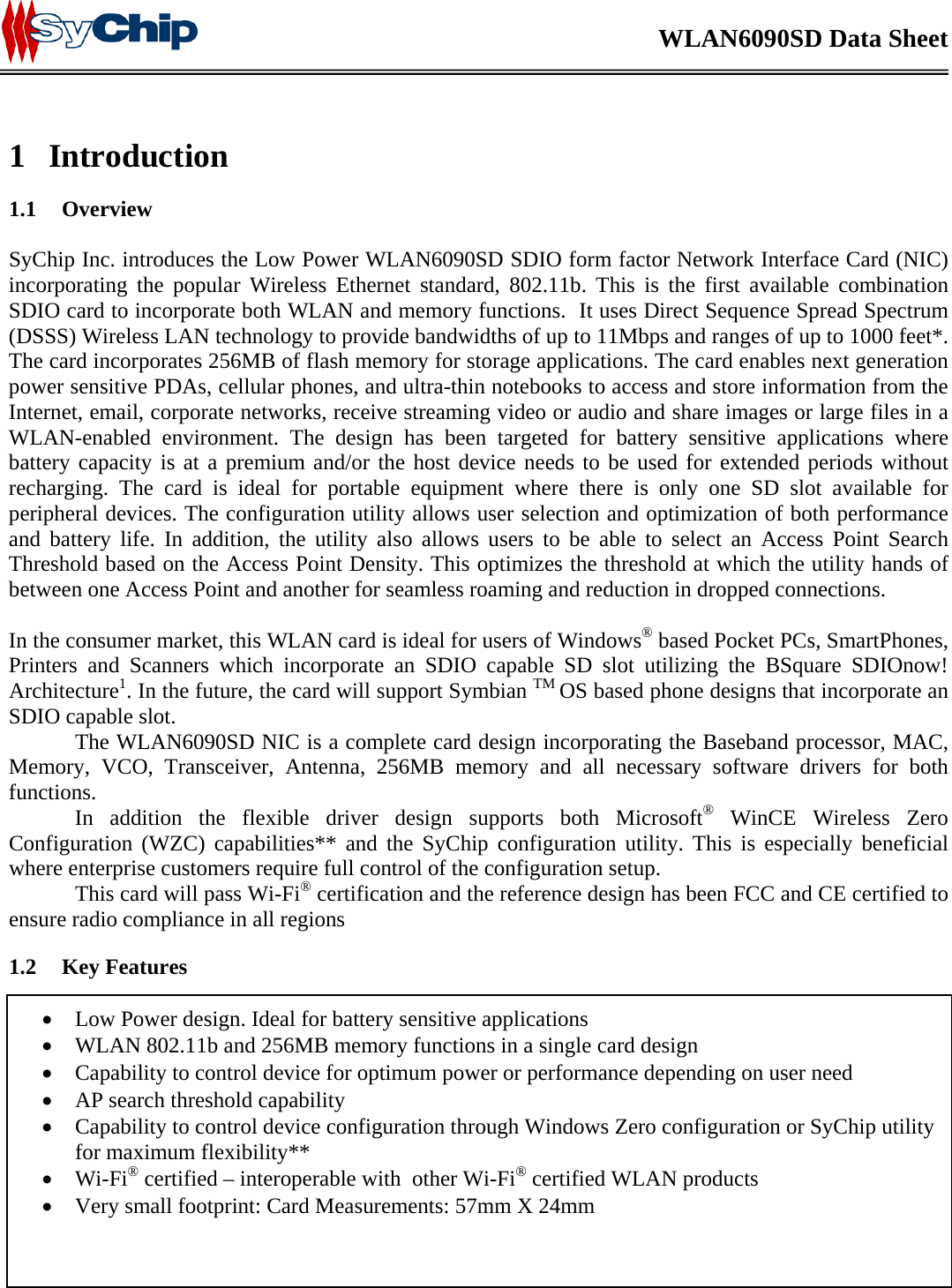

WLAN6090SD Data Sheet SyChip Confidential Page 5 of 19 SyChip_WLAN6090SD 1 Introduction 1.1 Overview SyChip Inc. introduces the Low Power WLAN6090SD SDIO form factor Network Interface Card (NIC) incorporating the popular Wireless Ethernet standard, 802.11b. This is the first available combination SDIO card to incorporate both WLAN and memory functions. It uses Direct Sequence Spread Spectrum (DSSS) Wireless LAN technology to provide bandwidths of up to 11Mbps and ranges of up to 1000 feet*. The card incorporates 256MB of flash memory for storage applications. The card enables next generation power sensitive PDAs, cellular phones, and ultra-thin notebooks to access and store information from the Internet, email, corporate networks, receive streaming video or audio and share images or large files in a WLAN-enabled environment. The design has been targeted for battery sensitive applications where battery capacity is at a premium and/or the host device needs to be used for extended periods without recharging. The card is ideal for portable equipment where there is only one SD slot available for peripheral devices. The configuration utility allows user selection and optimization of both performance and battery life. In addition, the utility also allows users to be able to select an Access Point Search Threshold based on the Access Point Density. This optimizes the threshold at which the utility hands of between one Access Point and another for seamless roaming and reduction in dropped connections. In the consumer market, this WLAN card is ideal for users of Windows® based Pocket PCs, SmartPhones, Printers and Scanners which incorporate an SDIO capable SD slot utilizing the BSquare SDIOnow! Architecture1. In the future, the card will support Symbian TM OS based phone designs that incorporate an SDIO capable slot. The WLAN6090SD NIC is a complete card design incorporating the Baseband processor, MAC, Memory, VCO, Transceiver, Antenna, 256MB memory and all necessary software drivers for both functions. In addition the flexible driver design supports both Microsoft® WinCE Wireless Zero Configuration (WZC) capabilities** and the SyChip configuration utility. This is especially beneficial where enterprise customers require full control of the configuration setup. This card will pass Wi-Fi® certification and the reference design has been FCC and CE certified to ensure radio compliance in all regions 1.2 Key Features • Low Power design. Ideal for battery sensitive applications • WLAN 802.11b and 256MB memory functions in a single card design • Capability to control device for optimum power or performance depending on user need • AP search threshold capability • Capability to control device configuration through Windows Zero configuration or SyChip utility for maximum flexibility** • Wi-Fi® certified – interoperable with other Wi-Fi® certified WLAN products • Very small footprint: Card Measurements: 57mm X 24mm

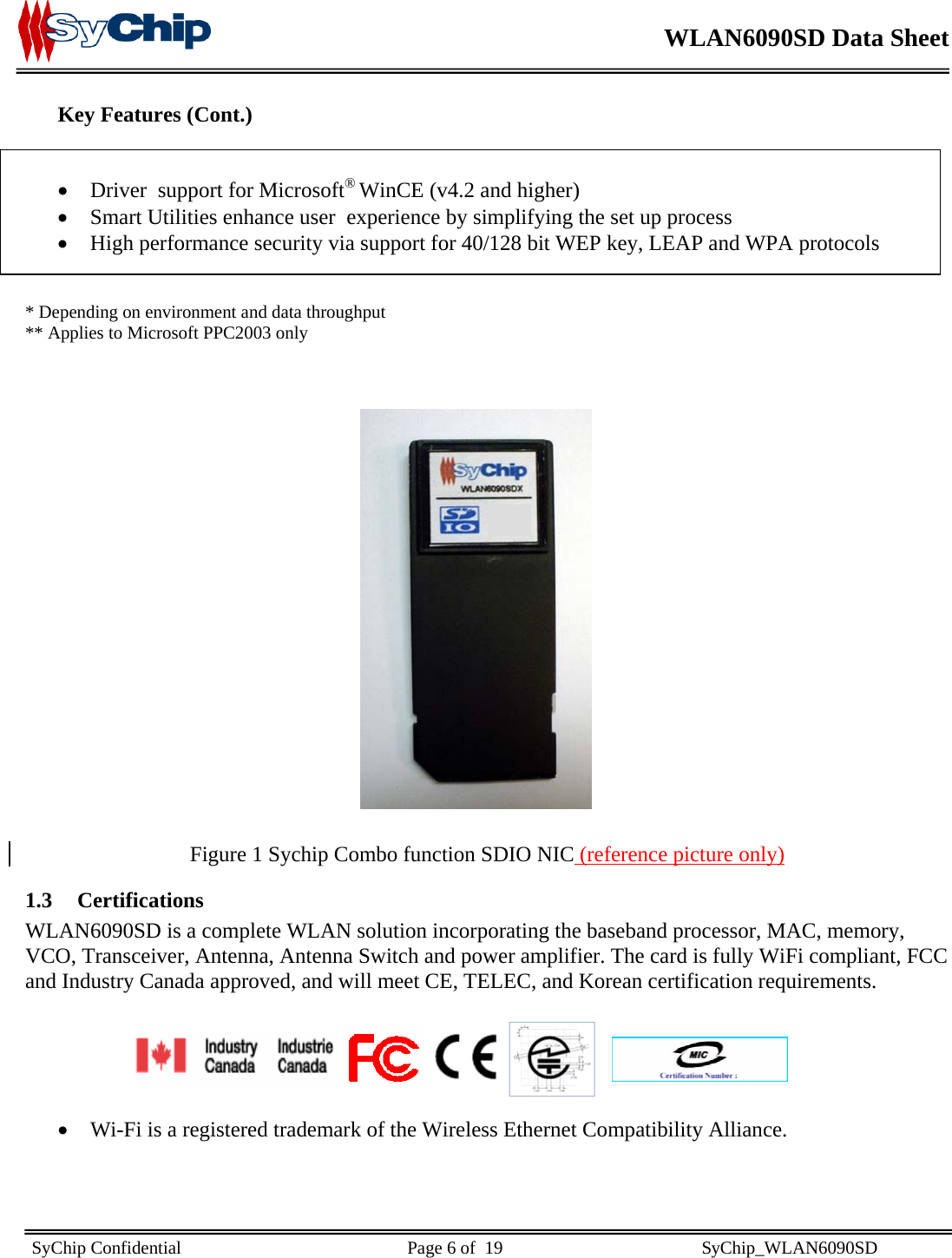

WLAN6090SD Data Sheet SyChip Confidential Page 6 of 19 SyChip_WLAN6090SD Key Features (Cont.) • Driver support for Microsoft® WinCE (v4.2 and higher) • Smart Utilities enhance user experience by simplifying the set up process • High performance security via support for 40/128 bit WEP key, LEAP and WPA protocols * Depending on environment and data throughput ** Applies to Microsoft PPC2003 only Figure 1 Sychip Combo function SDIO NIC (reference picture only) 1.3 Certifications WLAN6090SD is a complete WLAN solution incorporating the baseband processor, MAC, memory, VCO, Transceiver, Antenna, Antenna Switch and power amplifier. The card is fully WiFi compliant, FCC and Industry Canada approved, and will meet CE, TELEC, and Korean certification requirements. • Wi-Fi is a registered trademark of the Wireless Ethernet Compatibility Alliance.

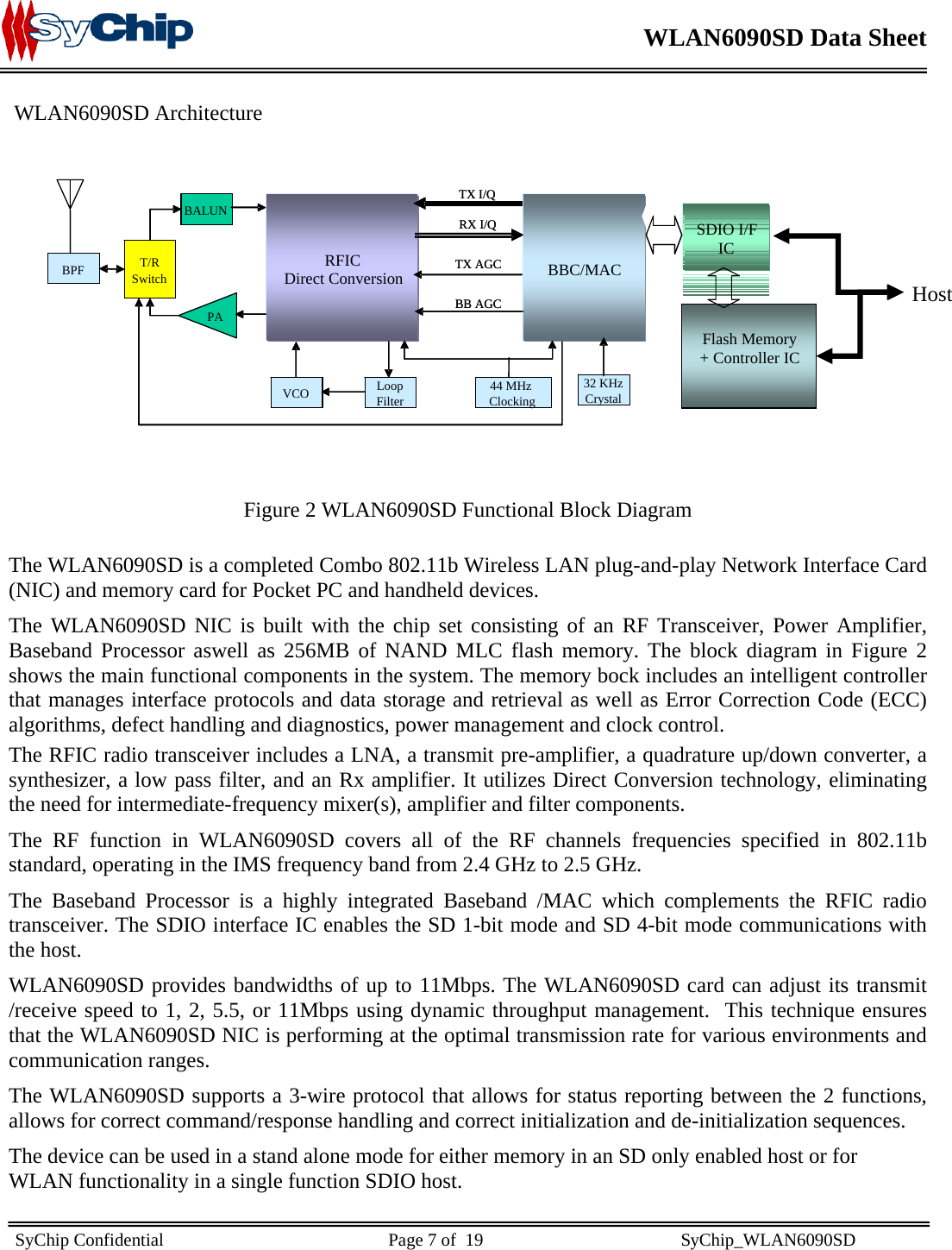

WLAN6090SD Data Sheet SyChip Confidential Page 7 of 19 SyChip_WLAN6090SD WLAN6090SD Architecture Figure 2 WLAN6090SD Functional Block Diagram The WLAN6090SD is a completed Combo 802.11b Wireless LAN plug-and-play Network Interface Card (NIC) and memory card for Pocket PC and handheld devices. The WLAN6090SD NIC is built with the chip set consisting of an RF Transceiver, Power Amplifier, Baseband Processor aswell as 256MB of NAND MLC flash memory. The block diagram in Figure 2 shows the main functional components in the system. The memory bock includes an intelligent controller that manages interface protocols and data storage and retrieval as well as Error Correction Code (ECC) algorithms, defect handling and diagnostics, power management and clock control. The RFIC radio transceiver includes a LNA, a transmit pre-amplifier, a quadrature up/down converter, a synthesizer, a low pass filter, and an Rx amplifier. It utilizes Direct Conversion technology, eliminating the need for intermediate-frequency mixer(s), amplifier and filter components. The RF function in WLAN6090SD covers all of the RF channels frequencies specified in 802.11b standard, operating in the IMS frequency band from 2.4 GHz to 2.5 GHz. The Baseband Processor is a highly integrated Baseband /MAC which complements the RFIC radio transceiver. The SDIO interface IC enables the SD 1-bit mode and SD 4-bit mode communications with the host. WLAN6090SD provides bandwidths of up to 11Mbps. The WLAN6090SD card can adjust its transmit /receive speed to 1, 2, 5.5, or 11Mbps using dynamic throughput management. This technique ensures that the WLAN6090SD NIC is performing at the optimal transmission rate for various environments and communication ranges. The WLAN6090SD supports a 3-wire protocol that allows for status reporting between the 2 functions, allows for correct command/response handling and correct initialization and de-initialization sequences. The device can be used in a stand alone mode for either memory in an SD only enabled host or for WLAN functionality in a single function SDIO host. RFICDirect Conversion BBC/MACSDIO I/F IC T/RSwitchBALUN PA BPF VCO LoopFilter44 MHz Clocking32 KHzCrystalTX I/QTX AGCBB AGCRX I/QFlash Memory+ Controller ICRFICDirect Conversion BBC/MACSDIO I/F IC T/RSwitchBALUN PA BPF VCO LoopFilter44 MHz Clocking32 KHzCrystalTX I/QTX AGCBB AGCRX I/QFlash Memory+ Controller ICHost

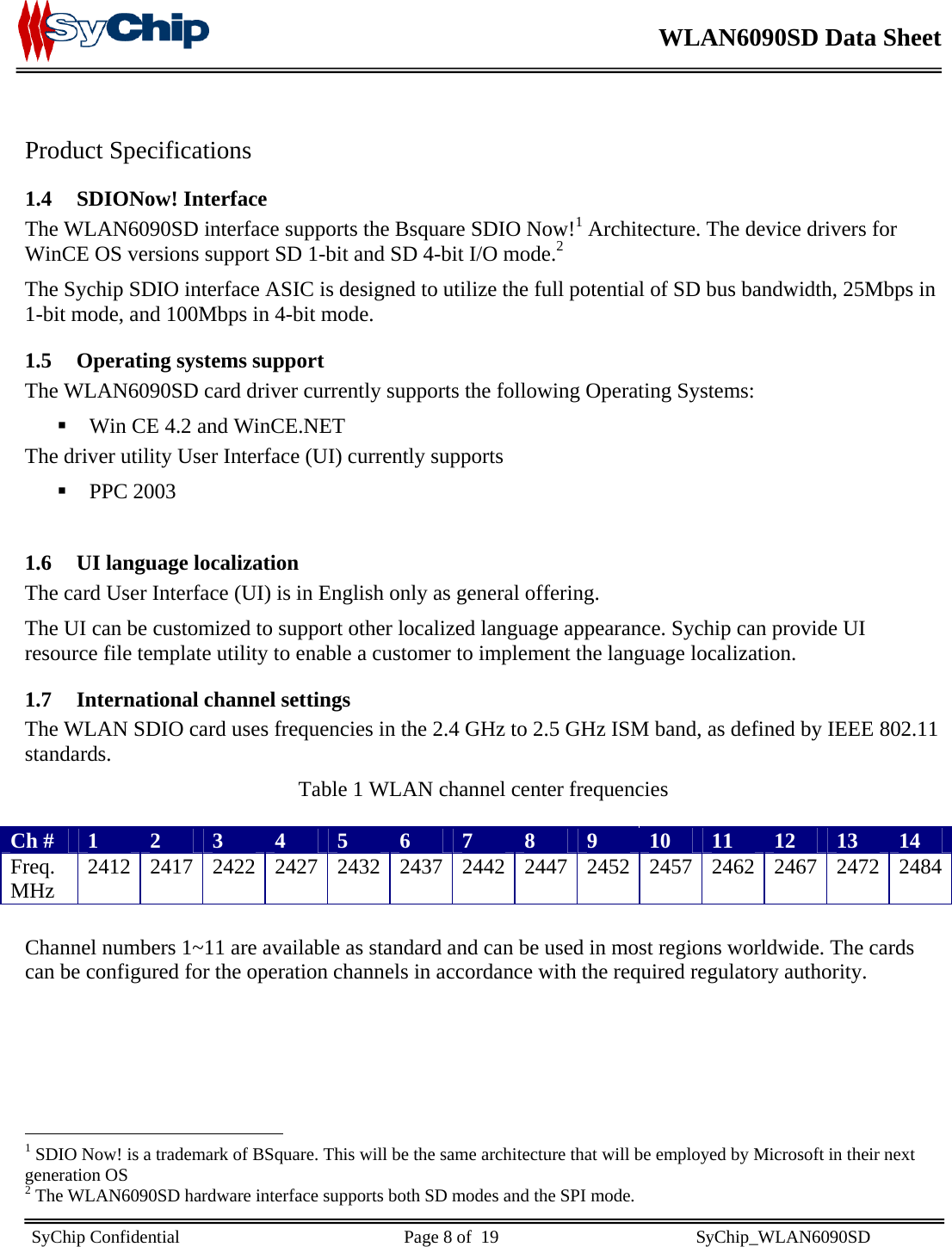

WLAN6090SD Data Sheet SyChip Confidential Page 8 of 19 SyChip_WLAN6090SD Product Specifications 1.4 SDIONow! Interface The WLAN6090SD interface supports the Bsquare SDIO Now!1 Architecture. The device drivers for WinCE OS versions support SD 1-bit and SD 4-bit I/O mode.2 The Sychip SDIO interface ASIC is designed to utilize the full potential of SD bus bandwidth, 25Mbps in 1-bit mode, and 100Mbps in 4-bit mode. 1.5 Operating systems support The WLAN6090SD card driver currently supports the following Operating Systems:  Win CE 4.2 and WinCE.NET The driver utility User Interface (UI) currently supports  PPC 2003 1.6 UI language localization The card User Interface (UI) is in English only as general offering. The UI can be customized to support other localized language appearance. Sychip can provide UI resource file template utility to enable a customer to implement the language localization. 1.7 International channel settings The WLAN SDIO card uses frequencies in the 2.4 GHz to 2.5 GHz ISM band, as defined by IEEE 802.11 standards. Table 1 WLAN channel center frequencies Ch # 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Freq. MHz 2412 2417 2422 2427 2432 2437 2442 2447 2452 2457 2462 2467 2472 2484 Channel numbers 1~11 are available as standard and can be used in most regions worldwide. The cards can be configured for the operation channels in accordance with the required regulatory authority. 1 SDIO Now! is a trademark of BSquare. This will be the same architecture that will be employed by Microsoft in their next generation OS 2 The WLAN6090SD hardware interface supports both SD modes and the SPI mode.

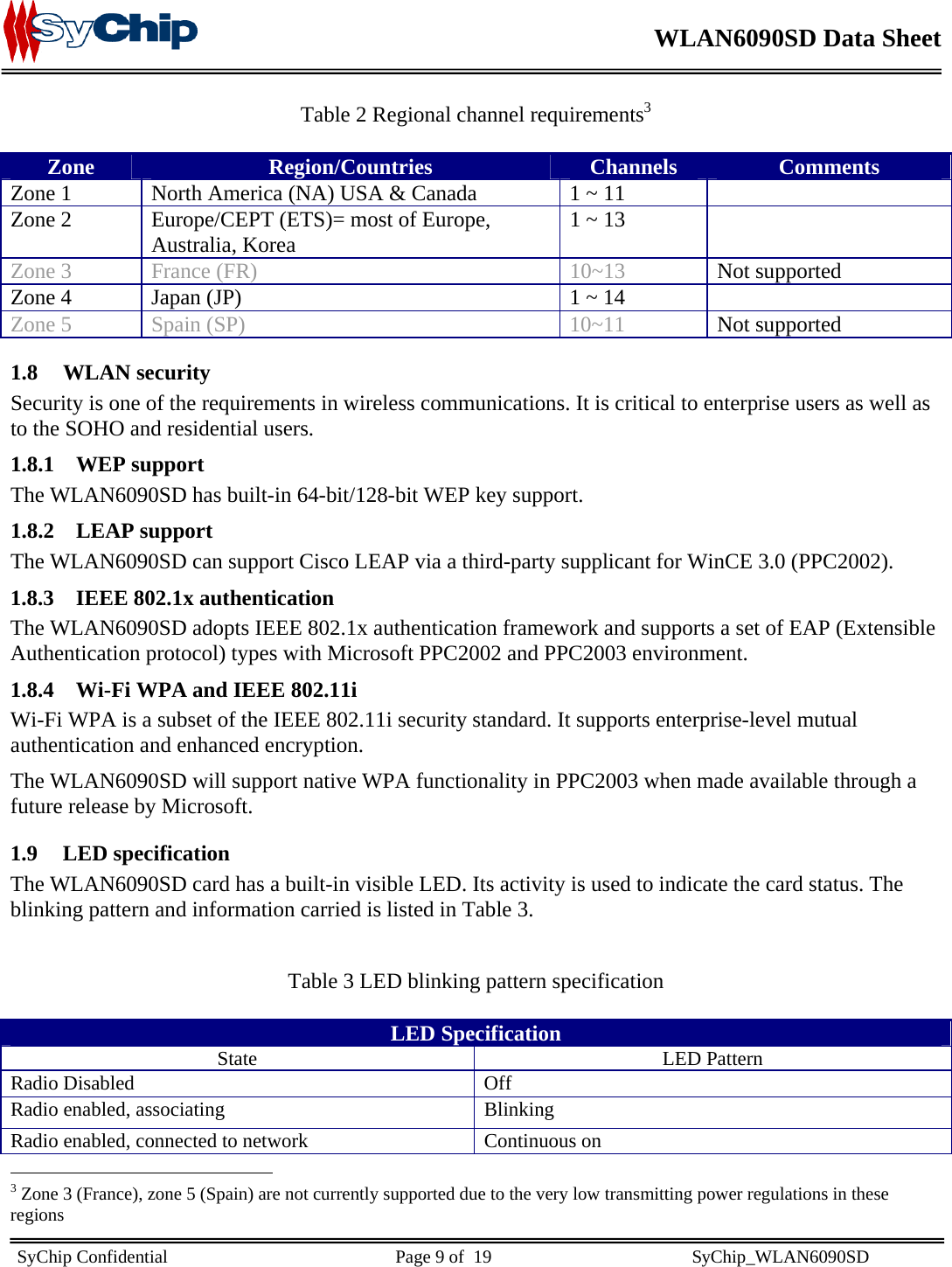

WLAN6090SD Data Sheet SyChip Confidential Page 9 of 19 SyChip_WLAN6090SD Table 2 Regional channel requirements3 Zone Region/Countries Channels Comments Zone 1 North America (NA) USA & Canada 1 ~ 11 Zone 2 Europe/CEPT (ETS)= most of Europe, Australia, Korea 1 ~ 13 Zone 3 France (FR) 10~13 Not supported Zone 4 Japan (JP) 1 ~ 14 Zone 5 Spain (SP) 10~11 Not supported 1.8 WLAN security Security is one of the requirements in wireless communications. It is critical to enterprise users as well as to the SOHO and residential users. 1.8.1 WEP support The WLAN6090SD has built-in 64-bit/128-bit WEP key support. 1.8.2 LEAP support The WLAN6090SD can support Cisco LEAP via a third-party supplicant for WinCE 3.0 (PPC2002). 1.8.3 IEEE 802.1x authentication The WLAN6090SD adopts IEEE 802.1x authentication framework and supports a set of EAP (Extensible Authentication protocol) types with Microsoft PPC2002 and PPC2003 environment. 1.8.4 Wi-Fi WPA and IEEE 802.11i Wi-Fi WPA is a subset of the IEEE 802.11i security standard. It supports enterprise-level mutual authentication and enhanced encryption. The WLAN6090SD will support native WPA functionality in PPC2003 when made available through a future release by Microsoft. 1.9 LED specification The WLAN6090SD card has a built-in visible LED. Its activity is used to indicate the card status. The blinking pattern and information carried is listed in Table 3. Table 3 LED blinking pattern specification LED Specification State LED Pattern Radio Disabled Off Radio enabled, associating Blinking Radio enabled, connected to network Continuous on 3 Zone 3 (France), zone 5 (Spain) are not currently supported due to the very low transmitting power regulations in these regions

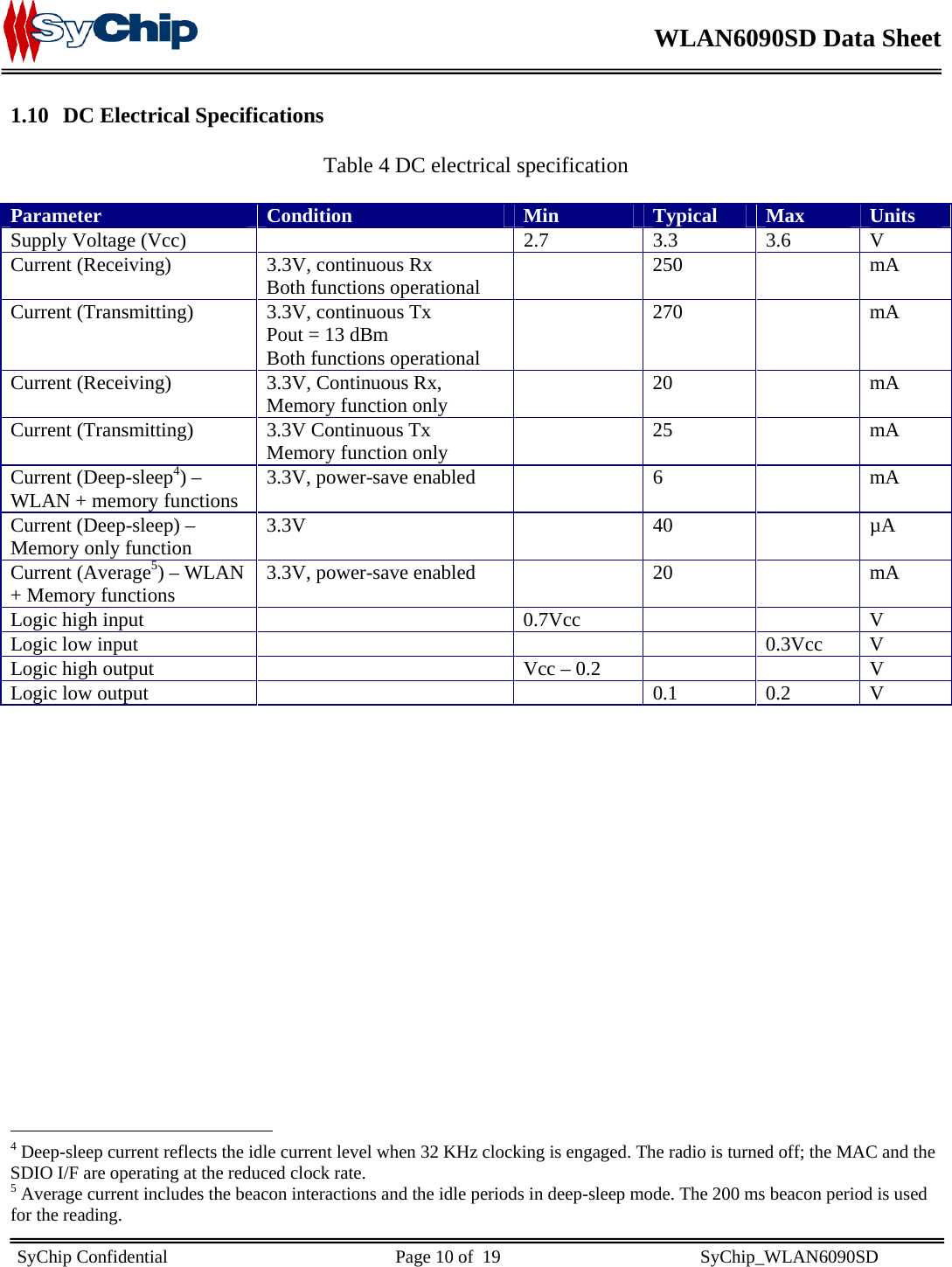

WLAN6090SD Data Sheet SyChip Confidential Page 10 of 19 SyChip_WLAN6090SD 1.10 DC Electrical Specifications Table 4 DC electrical specification Parameter Condition Min Typical Max Units Supply Voltage (Vcc) 2.7 3.3 3.6 V Current (Receiving) 3.3V, continuous Rx Both functions operational 250 mA Current (Transmitting) 3.3V, continuous Tx Pout = 13 dBm Both functions operational 270 mA Current (Receiving) 3.3V, Continuous Rx, Memory function only 20 mA Current (Transmitting) 3.3V Continuous Tx Memory function only 25 mA Current (Deep-sleep4) – WLAN + memory functions 3.3V, power-save enabled 6 mA Current (Deep-sleep) – Memory only function 3.3V 40 µA Current (Average5) – WLAN + Memory functions 3.3V, power-save enabled 20 mA Logic high input 0.7Vcc V Logic low input 0.3Vcc V Logic high output Vcc – 0.2 V Logic low output 0.1 0.2 V 4 Deep-sleep current reflects the idle current level when 32 KHz clocking is engaged. The radio is turned off; the MAC and the SDIO I/F are operating at the reduced clock rate. 5 Average current includes the beacon interactions and the idle periods in deep-sleep mode. The 200 ms beacon period is used for the reading.

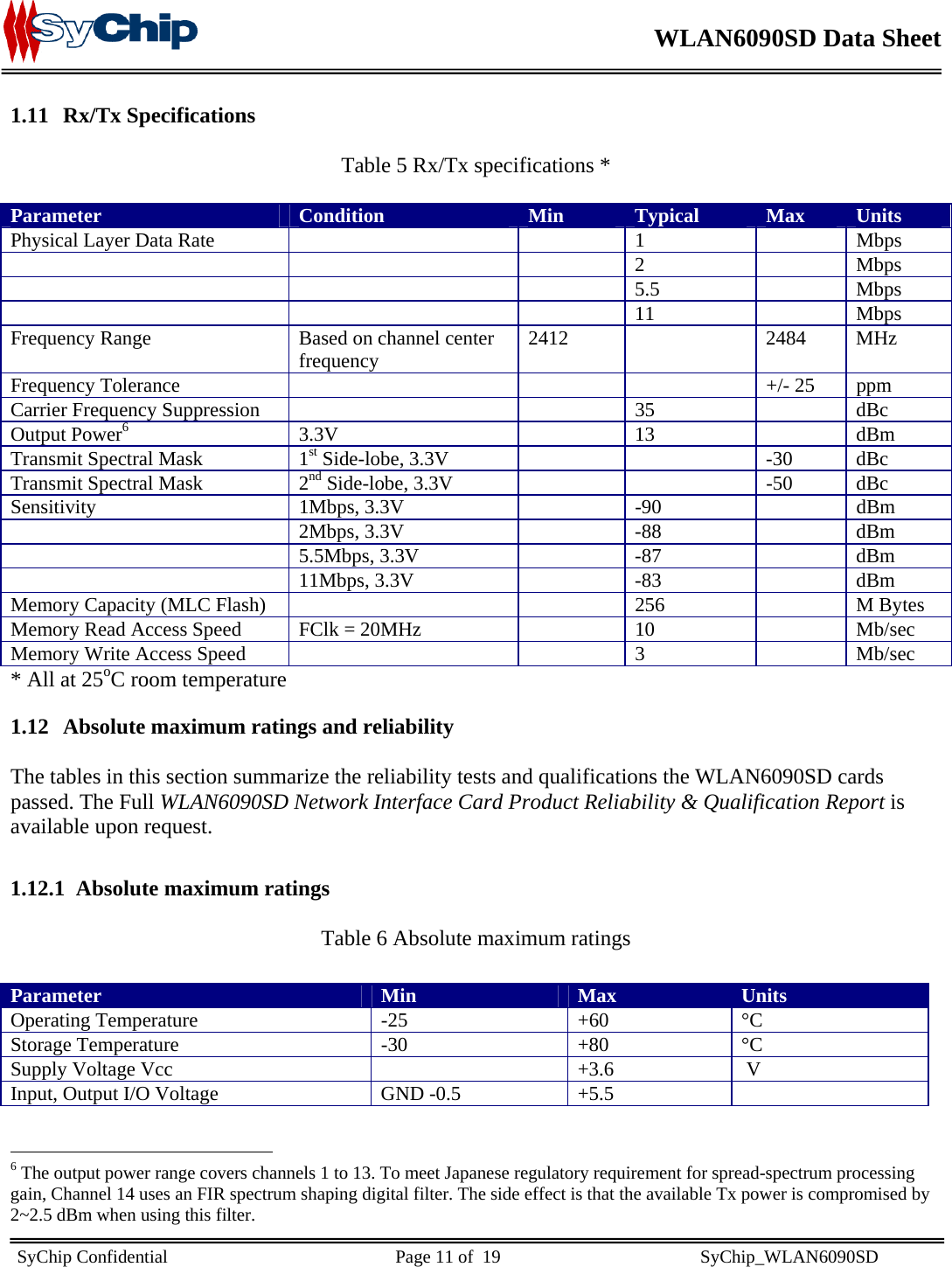

WLAN6090SD Data Sheet SyChip Confidential Page 11 of 19 SyChip_WLAN6090SD 1.11 Rx/Tx Specifications Table 5 Rx/Tx specifications * Parameter Condition Min Typical Max Units Physical Layer Data Rate 1 Mbps 2 Mbps 5.5 Mbps 11 Mbps Frequency Range Based on channel center frequency 2412 2484 MHz Frequency Tolerance +/- 25 ppm Carrier Frequency Suppression 35 dBc Output Power6 3.3V 13 dBm Transmit Spectral Mask 1st Side-lobe, 3.3V -30 dBc Transmit Spectral Mask 2nd Side-lobe, 3.3V -50 dBc Sensitivity 1Mbps, 3.3V -90 dBm 2Mbps, 3.3V -88 dBm 5.5Mbps, 3.3V -87 dBm 11Mbps, 3.3V -83 dBm Memory Capacity (MLC Flash) 256 M Bytes Memory Read Access Speed FClk = 20MHz 10 Mb/sec Memory Write Access Speed 3 Mb/sec * All at 25oC room temperature 1.12 Absolute maximum ratings and reliability The tables in this section summarize the reliability tests and qualifications the WLAN6090SD cards passed. The Full WLAN6090SD Network Interface Card Product Reliability & Qualification Report is available upon request. 1.12.1 Absolute maximum ratings Table 6 Absolute maximum ratings 6 The output power range covers channels 1 to 13. To meet Japanese regulatory requirement for spread-spectrum processing gain, Channel 14 uses an FIR spectrum shaping digital filter. The side effect is that the available Tx power is compromised by 2~2.5 dBm when using this filter. Parameter Min Max Units Operating Temperature -25 +60 °C Storage Temperature -30 +80 °C Supply Voltage Vcc +3.6 V Input, Output I/O Voltage GND -0.5 +5.5

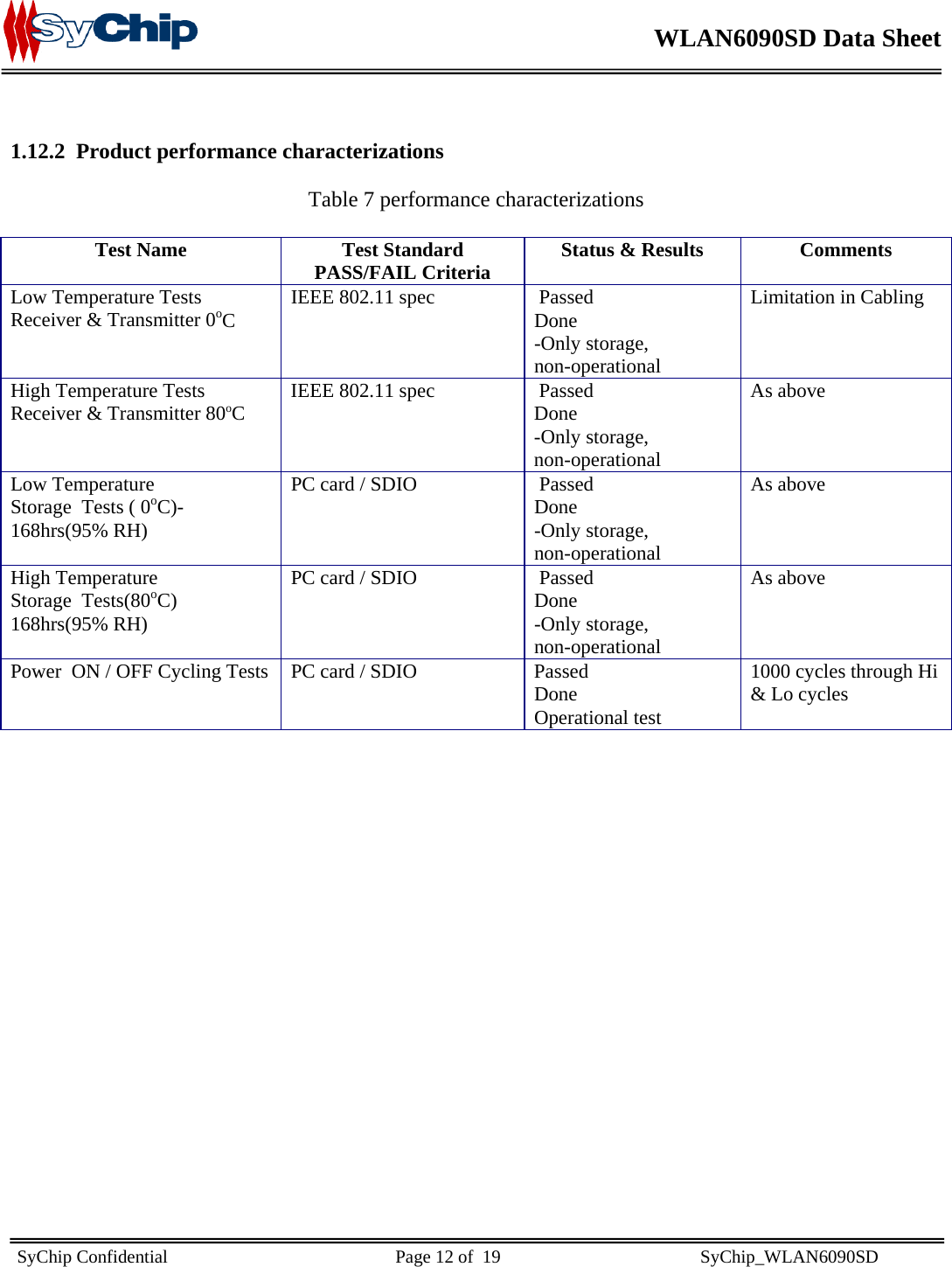

WLAN6090SD Data Sheet SyChip Confidential Page 12 of 19 SyChip_WLAN6090SD 1.12.2 Product performance characterizations Table 7 performance characterizations Test Name Test Standard PASS/FAIL Criteria Status & Results Comments Low Temperature Tests Receiver & Transmitter 0oC IEEE 802.11 spec Passed Done -Only storage, non-operational Limitation in Cabling High Temperature Tests Receiver & Transmitter 80oC IEEE 802.11 spec Passed Done -Only storage, non-operational As above Low Temperature Storage Tests ( 0oC)-168hrs(95% RH) PC card / SDIO Passed Done -Only storage, non-operational As above High Temperature Storage Tests(80oC) 168hrs(95% RH) PC card / SDIO Passed Done -Only storage, non-operational As above Power ON / OFF Cycling Tests PC card / SDIO Passed Done Operational test 1000 cycles through Hi & Lo cycles

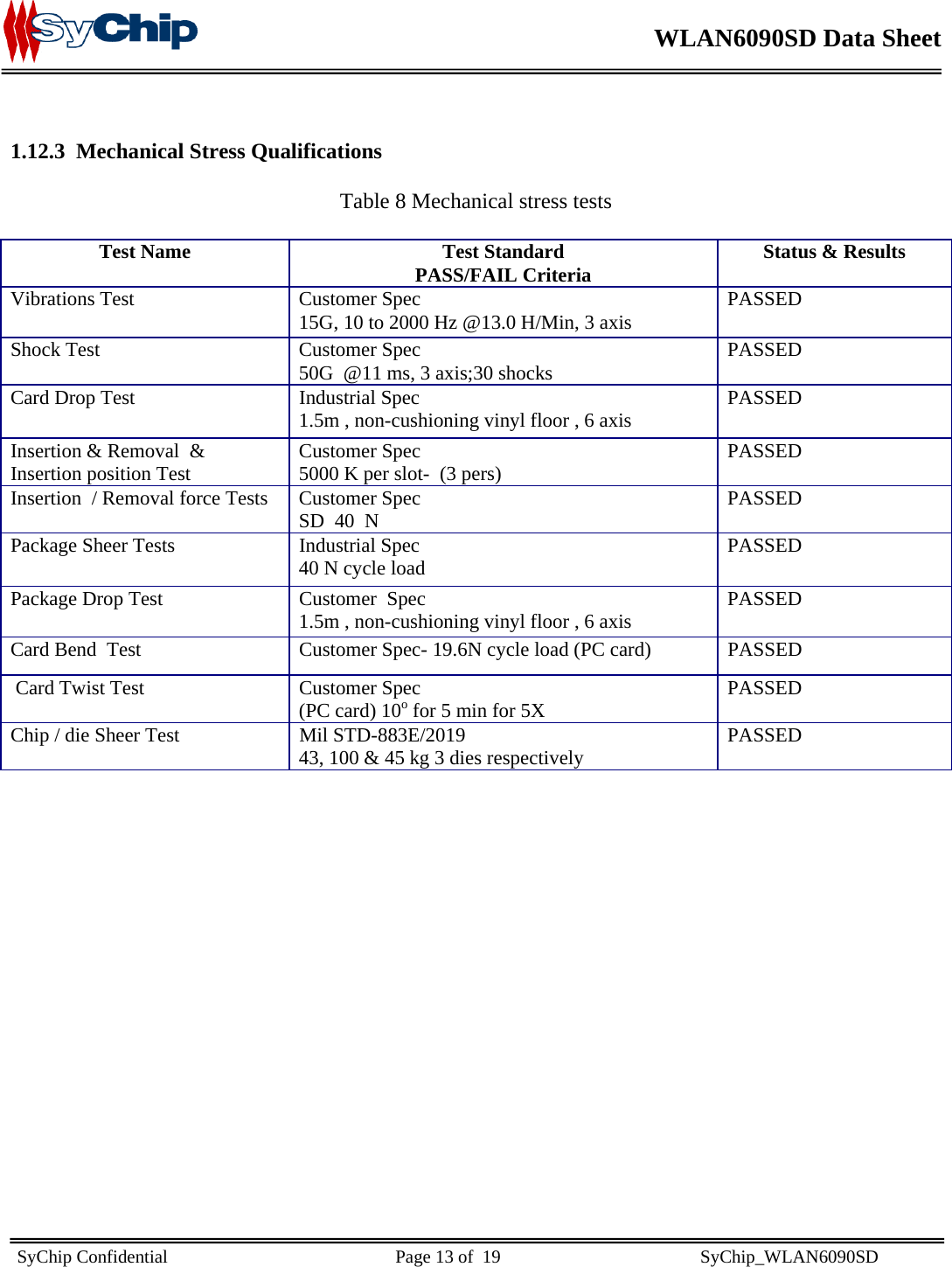

WLAN6090SD Data Sheet SyChip Confidential Page 13 of 19 SyChip_WLAN6090SD 1.12.3 Mechanical Stress Qualifications Table 8 Mechanical stress tests Test Name Test Standard PASS/FAIL Criteria Status & Results Vibrations Test Customer Spec 15G, 10 to 2000 Hz @13.0 H/Min, 3 axis PASSED Shock Test Customer Spec 50G @11 ms, 3 axis;30 shocks PASSED Card Drop Test Industrial Spec 1.5m , non-cushioning vinyl floor , 6 axis PASSED Insertion & Removal & Insertion position Test Customer Spec 5000 K per slot- (3 pers) PASSED Insertion / Removal force Tests Customer Spec SD 40 N PASSED Package Sheer Tests Industrial Spec 40 N cycle load PASSED Package Drop Test Customer Spec 1.5m , non-cushioning vinyl floor , 6 axis PASSED Card Bend Test Customer Spec- 19.6N cycle load (PC card) PASSED Card Twist Test Customer Spec (PC card) 10o for 5 min for 5X PASSED Chip / die Sheer Test Mil STD-883E/2019 43, 100 & 45 kg 3 dies respectively PASSED

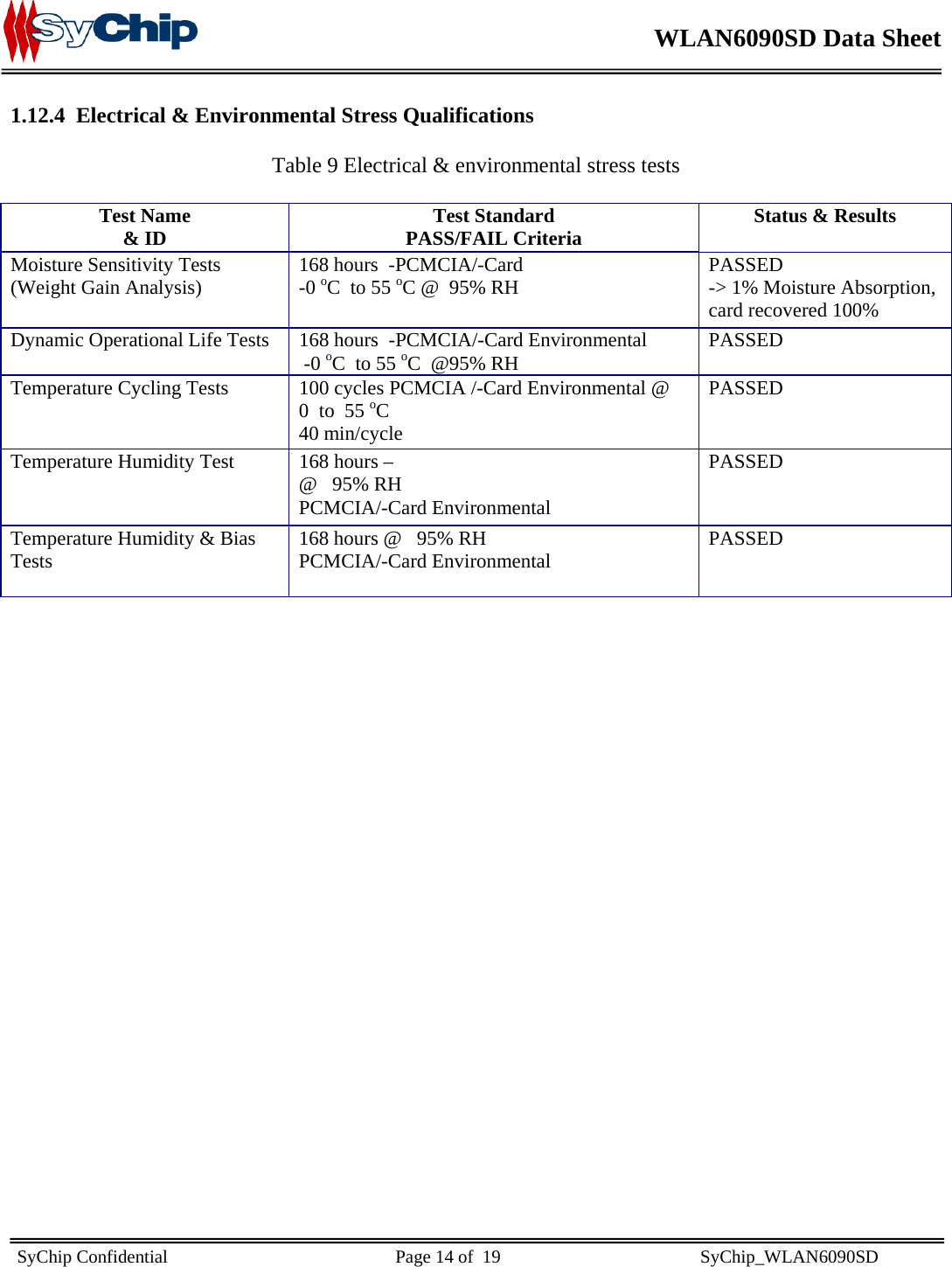

WLAN6090SD Data Sheet SyChip Confidential Page 14 of 19 SyChip_WLAN6090SD 1.12.4 Electrical & Environmental Stress Qualifications Table 9 Electrical & environmental stress tests Test Name & ID Test Standard PASS/FAIL Criteria Status & Results Moisture Sensitivity Tests (Weight Gain Analysis) 168 hours -PCMCIA/-Card -0 oC to 55 oC @ 95% RH PASSED -> 1% Moisture Absorption, card recovered 100% Dynamic Operational Life Tests 168 hours -PCMCIA/-Card Environmental -0 oC to 55 oC @95% RH PASSED Temperature Cycling Tests 100 cycles PCMCIA /-Card Environmental @ 0 to 55 oC 40 min/cycle PASSED Temperature Humidity Test 168 hours – @ 95% RH PCMCIA/-Card Environmental PASSED Temperature Humidity & Bias Tests 168 hours @ 95% RH PCMCIA/-Card Environmental PASSED

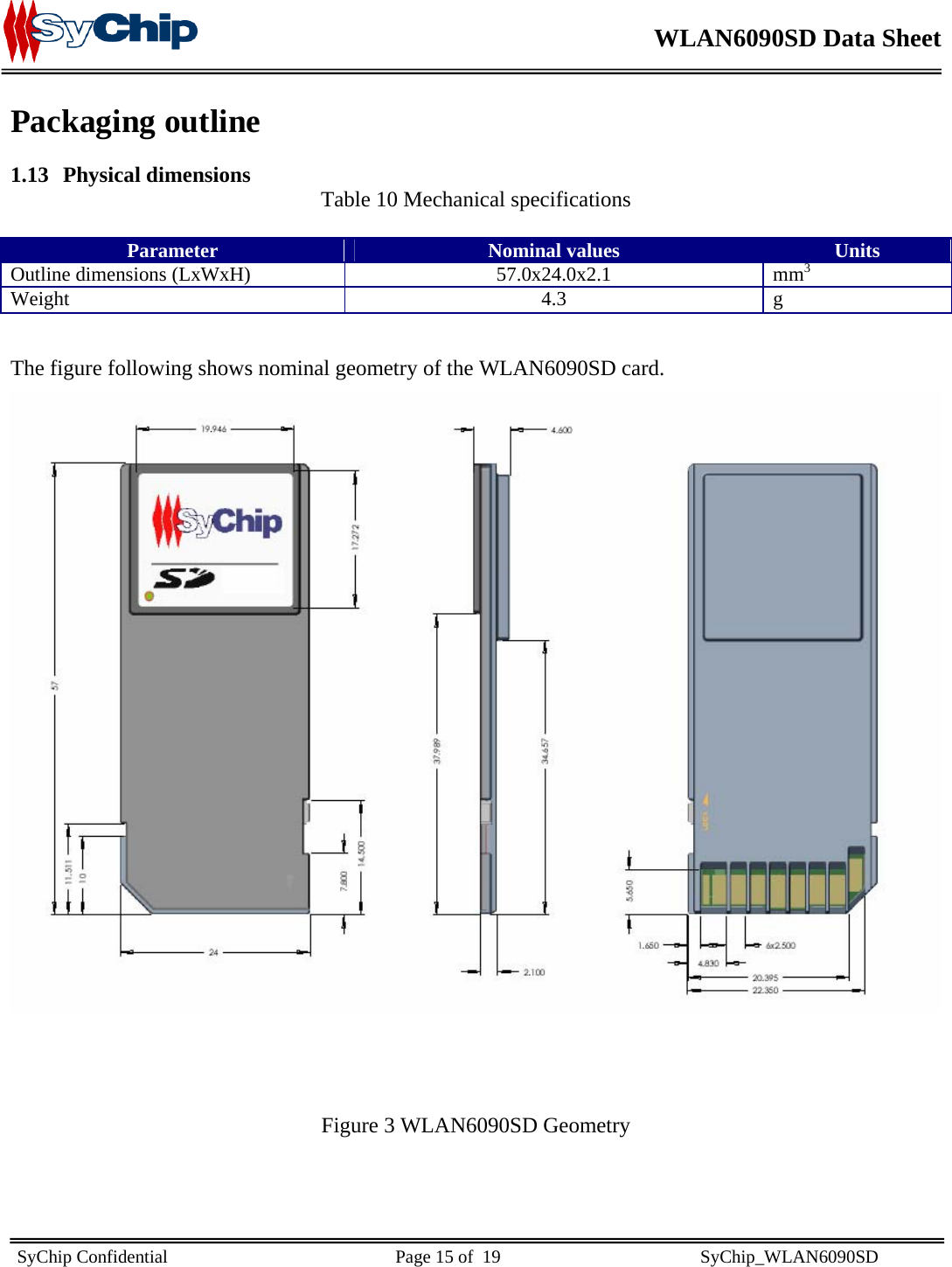

WLAN6090SD Data Sheet SyChip Confidential Page 15 of 19 SyChip_WLAN6090SD Packaging outline 1.13 Physical dimensions Table 10 Mechanical specifications Parameter Nominal values Units Outline dimensions (LxWxH) 57.0x24.0x2.1 mm3 Weight 4.3 g The figure following shows nominal geometry of the WLAN6090SD card. Figure 3 WLAN6090SD Geometry

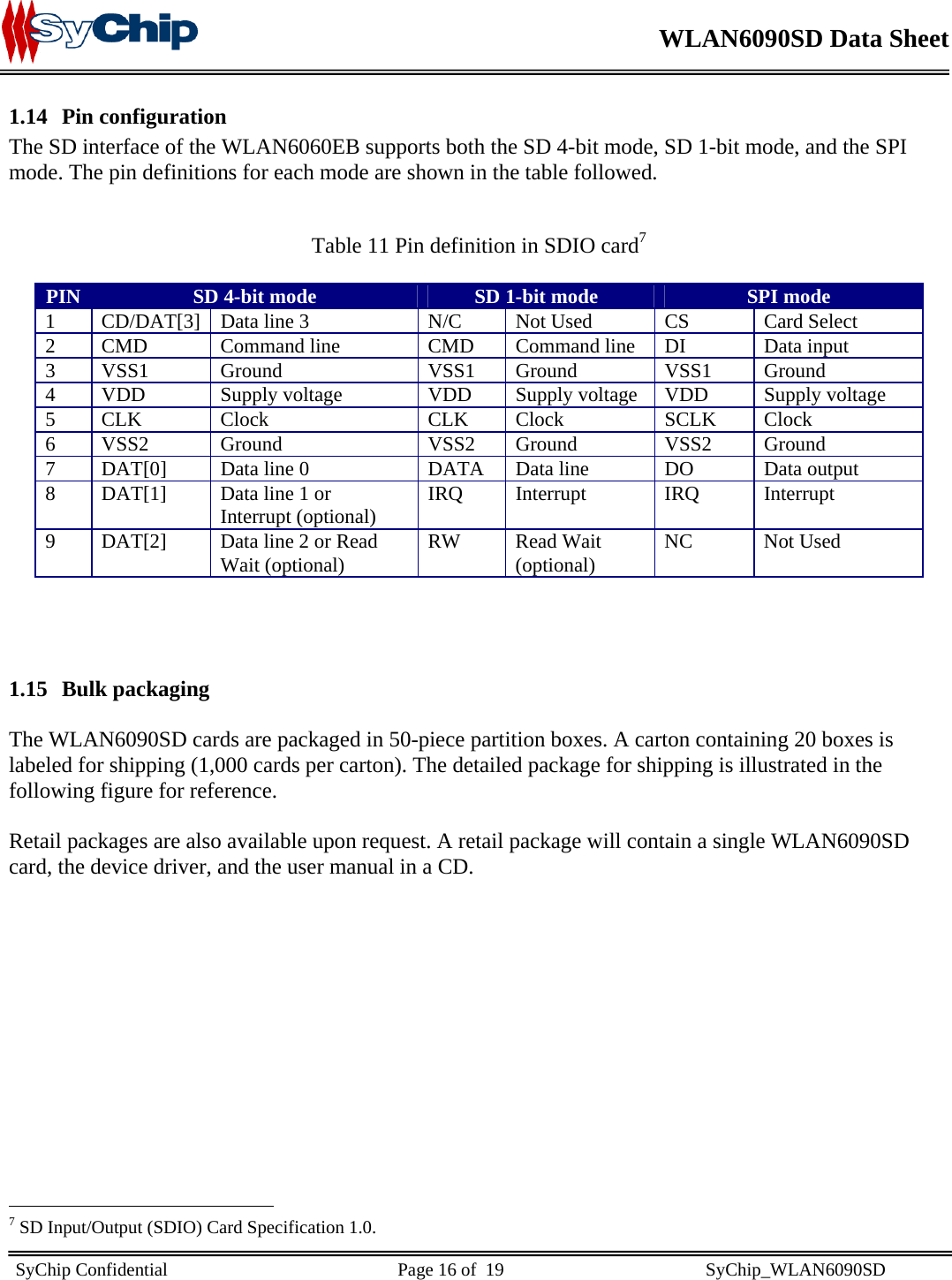

WLAN6090SD Data Sheet SyChip Confidential Page 16 of 19 SyChip_WLAN6090SD 1.14 Pin configuration The SD interface of the WLAN6060EB supports both the SD 4-bit mode, SD 1-bit mode, and the SPI mode. The pin definitions for each mode are shown in the table followed. Table 11 Pin definition in SDIO card7 PIN SD 4-bit mode SD 1-bit mode SPI mode 1 CD/DAT[3] Data line 3 N/C Not Used CS Card Select 2 CMD Command line CMD Command line DI Data input 3 VSS1 Ground VSS1 Ground VSS1 Ground 4 VDD Supply voltage VDD Supply voltage VDD Supply voltage 5 CLK Clock CLK Clock SCLK Clock 6 VSS2 Ground VSS2 Ground VSS2 Ground 7 DAT[0] Data line 0 DATA Data line DO Data output 8 DAT[1] Data line 1 or Interrupt (optional) IRQ Interrupt IRQ Interrupt 9 DAT[2] Data line 2 or Read Wait (optional) RW Read Wait (optional) NC Not Used 1.15 Bulk packaging The WLAN6090SD cards are packaged in 50-piece partition boxes. A carton containing 20 boxes is labeled for shipping (1,000 cards per carton). The detailed package for shipping is illustrated in the following figure for reference. Retail packages are also available upon request. A retail package will contain a single WLAN6090SD card, the device driver, and the user manual in a CD. 7 SD Input/Output (SDIO) Card Specification 1.0.

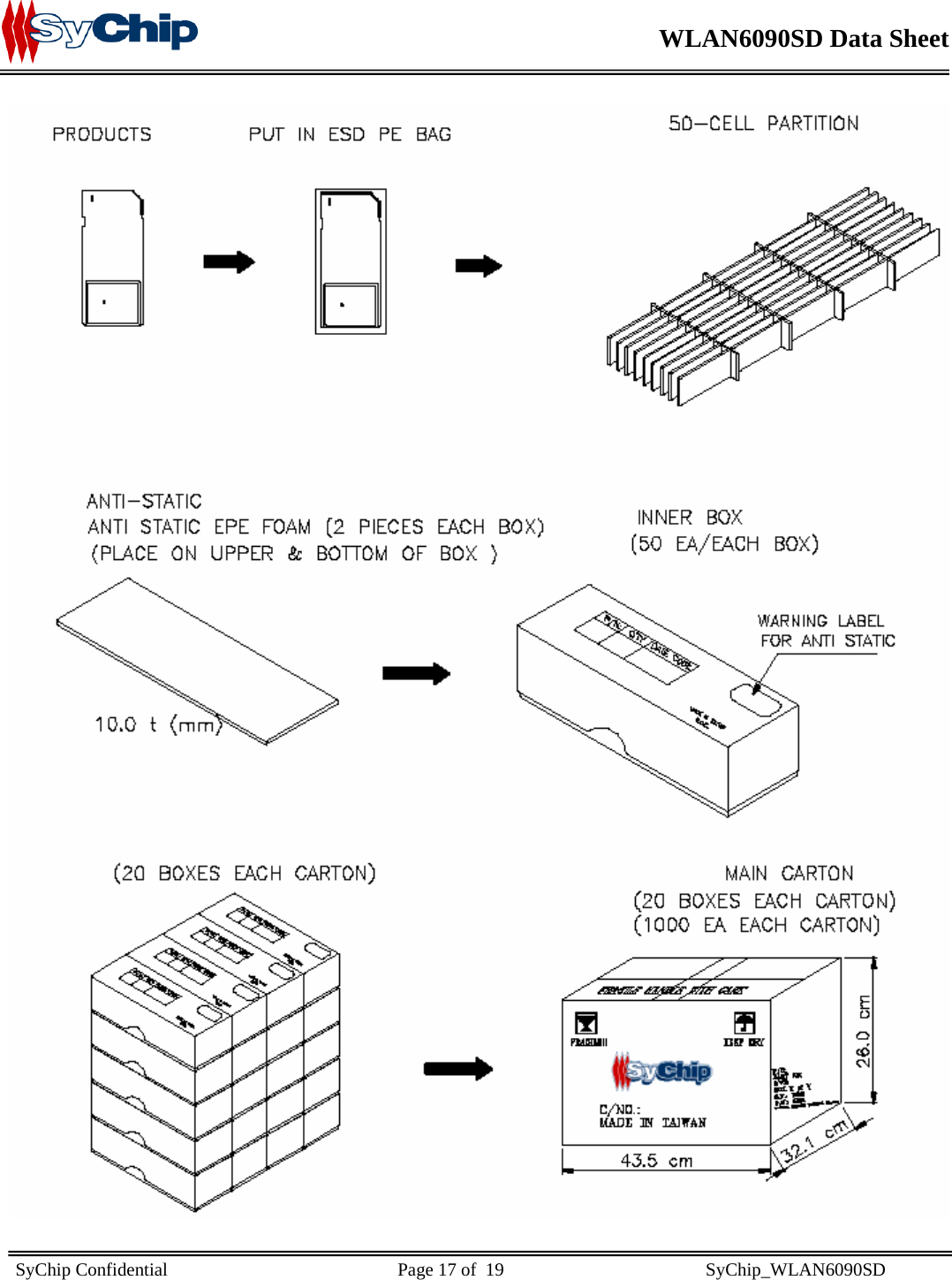

WLAN6090SD Data Sheet SyChip Confidential Page 17 of 19 SyChip_WLAN6090SD

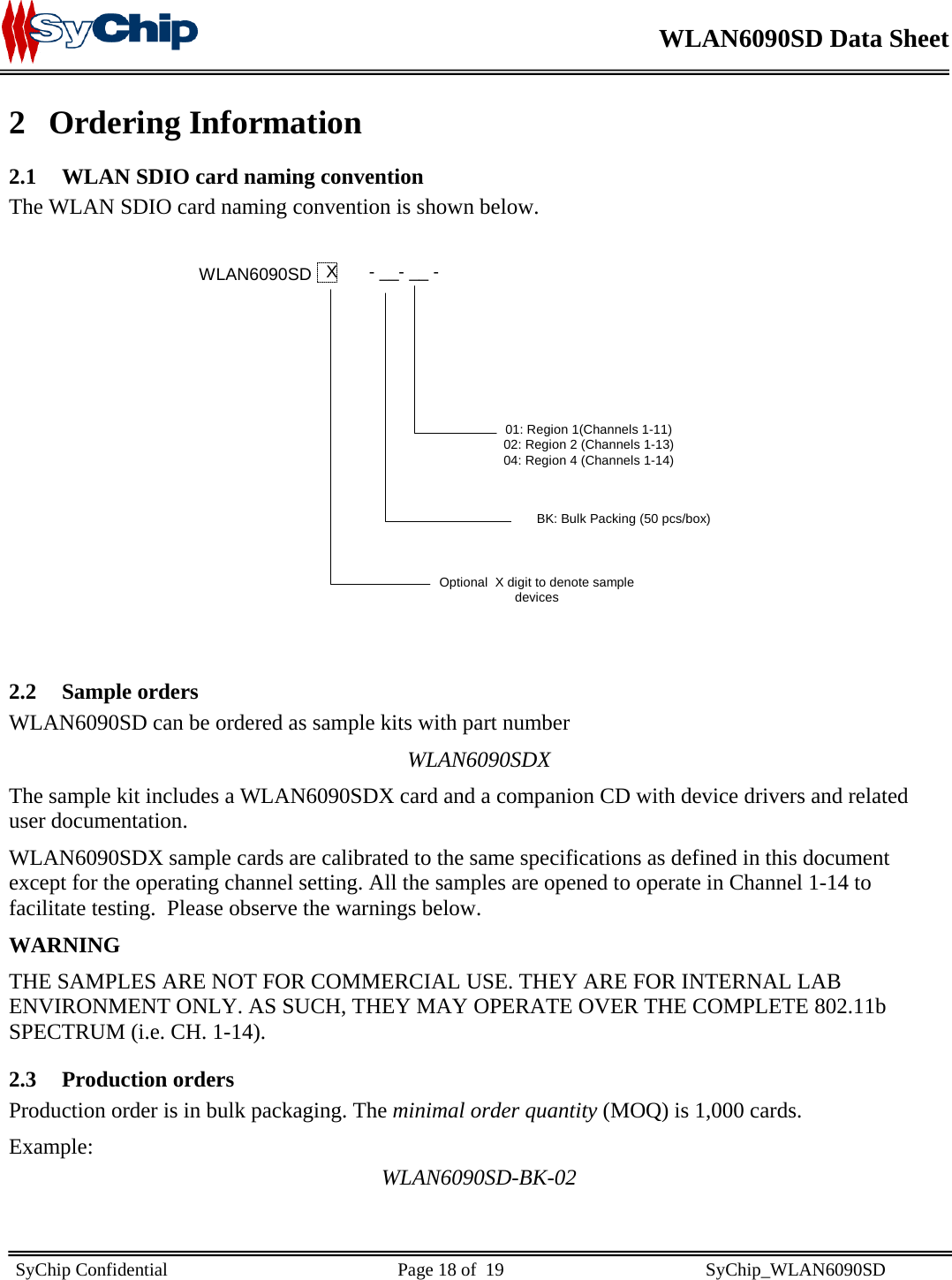

WLAN6090SD Data Sheet SyChip Confidential Page 18 of 19 SyChip_WLAN6090SD 2 Ordering Information 2.1 WLAN SDIO card naming convention The WLAN SDIO card naming convention is shown below. 2.2 Sample orders WLAN6090SD can be ordered as sample kits with part number WLAN6090SDX The sample kit includes a WLAN6090SDX card and a companion CD with device drivers and related user documentation. WLAN6090SDX sample cards are calibrated to the same specifications as defined in this document except for the operating channel setting. All the samples are opened to operate in Channel 1-14 to facilitate testing. Please observe the warnings below. WARNING THE SAMPLES ARE NOT FOR COMMERCIAL USE. THEY ARE FOR INTERNAL LAB ENVIRONMENT ONLY. AS SUCH, THEY MAY OPERATE OVER THE COMPLETE 802.11b SPECTRUM (i.e. CH. 1-14). 2.3 Production orders Production order is in bulk packaging. The minimal order quantity (MOQ) is 1,000 cards. Example: WLAN6090SD-BK-02 WLAN6090SD X- __- __ -01: Region 1(Channels 1-11)02: Region 2 (Channels 1-13)04: Region 4 (Channels 1-14)BK: Bulk Packing (50 pcs/box)Optional X digit to denote sampledevices

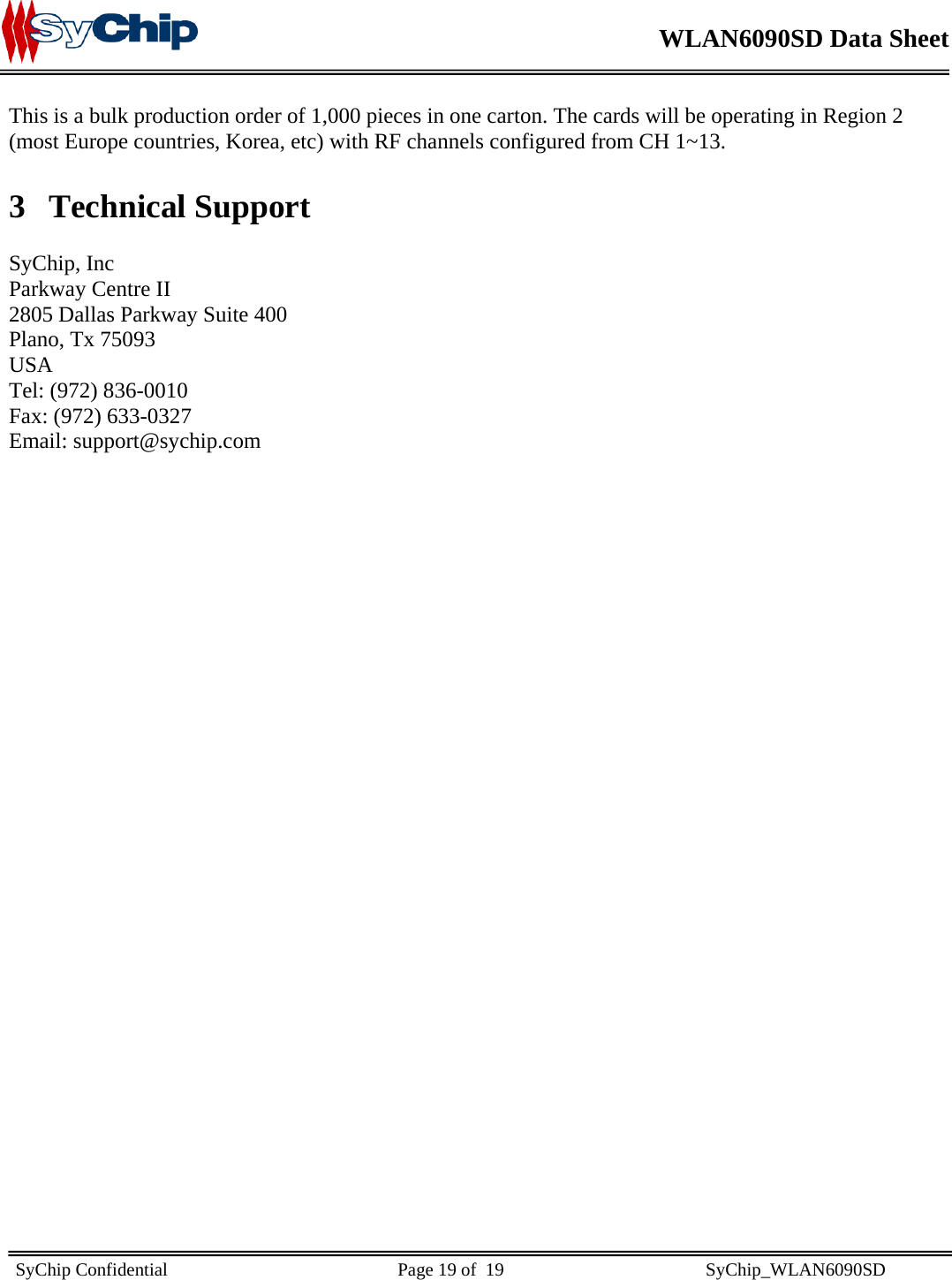

WLAN6090SD Data Sheet SyChip Confidential Page 19 of 19 SyChip_WLAN6090SD This is a bulk production order of 1,000 pieces in one carton. The cards will be operating in Region 2 (most Europe countries, Korea, etc) with RF channels configured from CH 1~13. 3 Technical Support SyChip, Inc Parkway Centre II 2805 Dallas Parkway Suite 400 Plano, Tx 75093 USA Tel: (972) 836-0010 Fax: (972) 633-0327 Email: support@sychip.com
