ANTENNA LIST

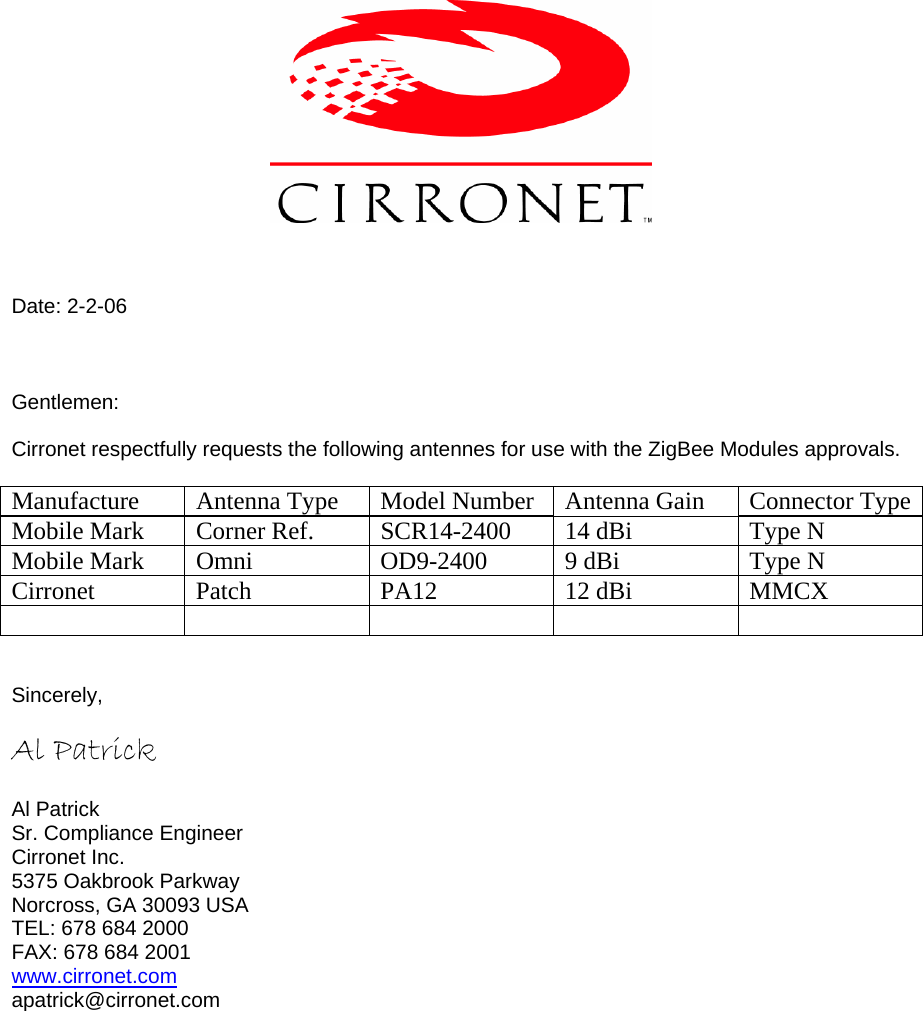

Date: 2-2-06 Gentlemen: Cirronet respectfully requests the following antennes for use with the ZigBee Modules approvals. Manufacture Antenna Type Model Number Antenna Gain Connector TypeMobile Mark Corner Ref. SCR14-2400 14 dBi Type N Mobile Mark Omni OD9-2400 9 dBi Type N Cirronet Patch PA12 12 dBi MMCX Sincerely, Al Patrick Al Patrick Sr. Compliance Engineer Cirronet Inc. 5375 Oakbrook Parkway Norcross, GA 30093 USA TEL: 678 684 2000 FAX: 678 684 2001 www.cirronet.com apatrick@cirronet.com
