LBEQ6ZZ1ES Installation Manual for FCC
FCC ID of this product is as follows.
FCC ID: VPYLB1ES
Contents
1. PIN Layout
2. Supply Voltage
3. Power Levels
4. Notice
Please make sure that your product has been evaluated and
confirmed from the aspect of the fitness for the specifications and this
documentation of our product.
2
Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 08 January 2016

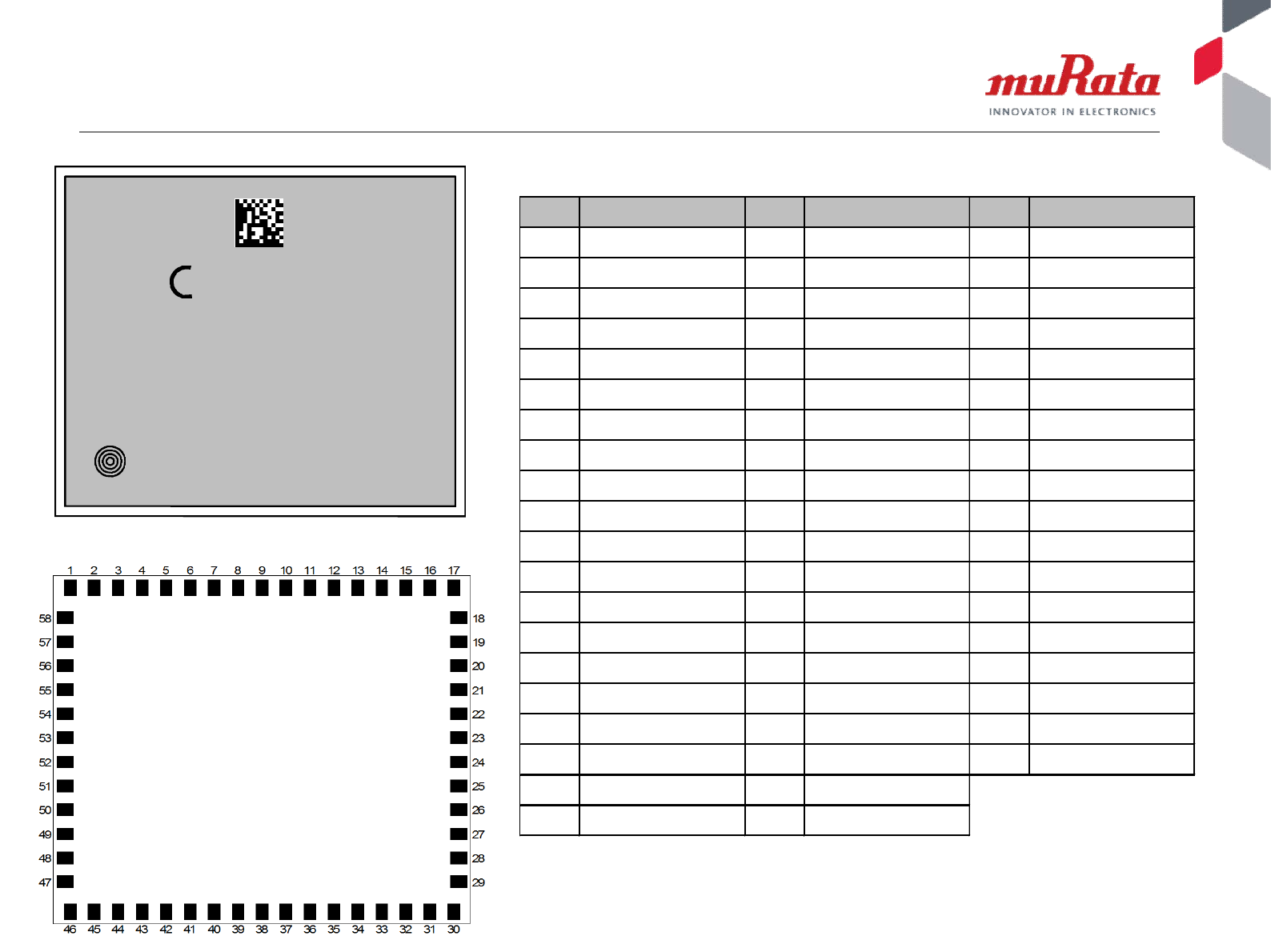

1. PIN Layout
<Top View>
<Bottom View>
No. PIN NAME No. PIN NAME No. PIN NAME
1 GND 21 PCM_SYNC 41 NC
2 GND 22 GND 42 GND
3 GND 23 SD_CLK 43 GPIO2
4 NC 24 SD_CMD 44 GPIO3
5 NC 25 SD_D0 45 GND
6 NC 26 SD_D1 46 GND
7 GPIO0 27 SD_D2 47 GND
8 TCK 28 SD_D3 48 NC
9 TMS 29 GND 49 GND
10 TDI 30 GND 50 GND
11 TDO 31 VBAT 51 GND
12 GPIO1 32 GND 52 GND
13 GND 33 PDn 53 GND
14 NC 34 UART_TX 54 GND
15 GND 35 UART_RX 55 GND
16 VIO 36 UART_CTS 56 GND
17 GND 37 UART_RTS 57 ANT
18 PCM_IN 38 NC 58 GND
19 PCM_OUT 39 GND
20 PCM_CLK 40 NC
D123
1ESxxx
123456789ABCDE
Model:LBEQ6ZZ1ES
FCC ID:VPYLB1ES
IC:772C-LB1ES
M
3
Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 08 January 2016
2. Supply Voltage
min. typ. max. unit
Operating Temperature -40 25 85 deg.C
Supply Voltage VBAT 3.0 3.3 3.6 V
4
Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 08 January 2016
3. Power Levels
Mode Setting Power
[dBm]
IEEE 802.11b 17
IEEE 802.11g 13
IEEE 802.11n 13
Mode Setting Power
[dBm]
BT 7
BLE 7
Mode Setting Power
[dBm]
IEEE 802.11a 14
IEEE 802.11n (HT20) 14
IEEE 802.11n (HT40) 13
IEEE 802.11ac (HT20) 8
IEEE 802.11ac (HT20 8
IEEE 802.11ac (VHT80) 8
<Wi-Fi 2.4GHz>
<Wi-Fi 5GHz>
<Bluetooth>
5
Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 08 January 2016
4. Notice
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
6
Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 08 January 2016
4. Notice
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
7
Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 08 January 2016
4. Notice
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and
2) The transmitter module may not be co-located with any other transmitter or antenna.
3) The use of an antenna with gain less than 2.07 dBi (for 2.4GHz) and 2.43 dBi (for 5GHz)
As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM
integrator is still responsible for testing their end-product for any additional compliance requirements
required with this module installed
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop
configurations or co-location with another transmitter), then the FCC authorization is no longer
considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM
integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a
separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed such that
20 cm may be maintained between the antenna and users. The final end product must be labeled in a
visible area with the following: “Contains FCC ID:VPYLB1ES”. The grantee‘s FCC ID can be used only
when all FCC compliance requirements are met.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to install or
remove this RF module in the user’s manual of the end product which integrates this module.
The end user manual shall include all required regulatory information/warning as show in this manual.
