Users Guide
Lenovo(Japan), Ltd., Date: October 29, 2007
Document Number: UY610-03-0041-85
User’s Manual
The attachment in the next page is the user’s manual of the specific Lenovo host device (ThinkPad
X300 Series) which indicates the regulatory notice concerning the FCC Part 2, 15B and 15F.
As shown in the notice, the applying UWB transmitter (FCC ID: HJY-LBUA0ZZKB1) is preinstalled
by Lenovo, and no option card is provided for user installation. Therefore, there is no installation
instruction provided to customers.

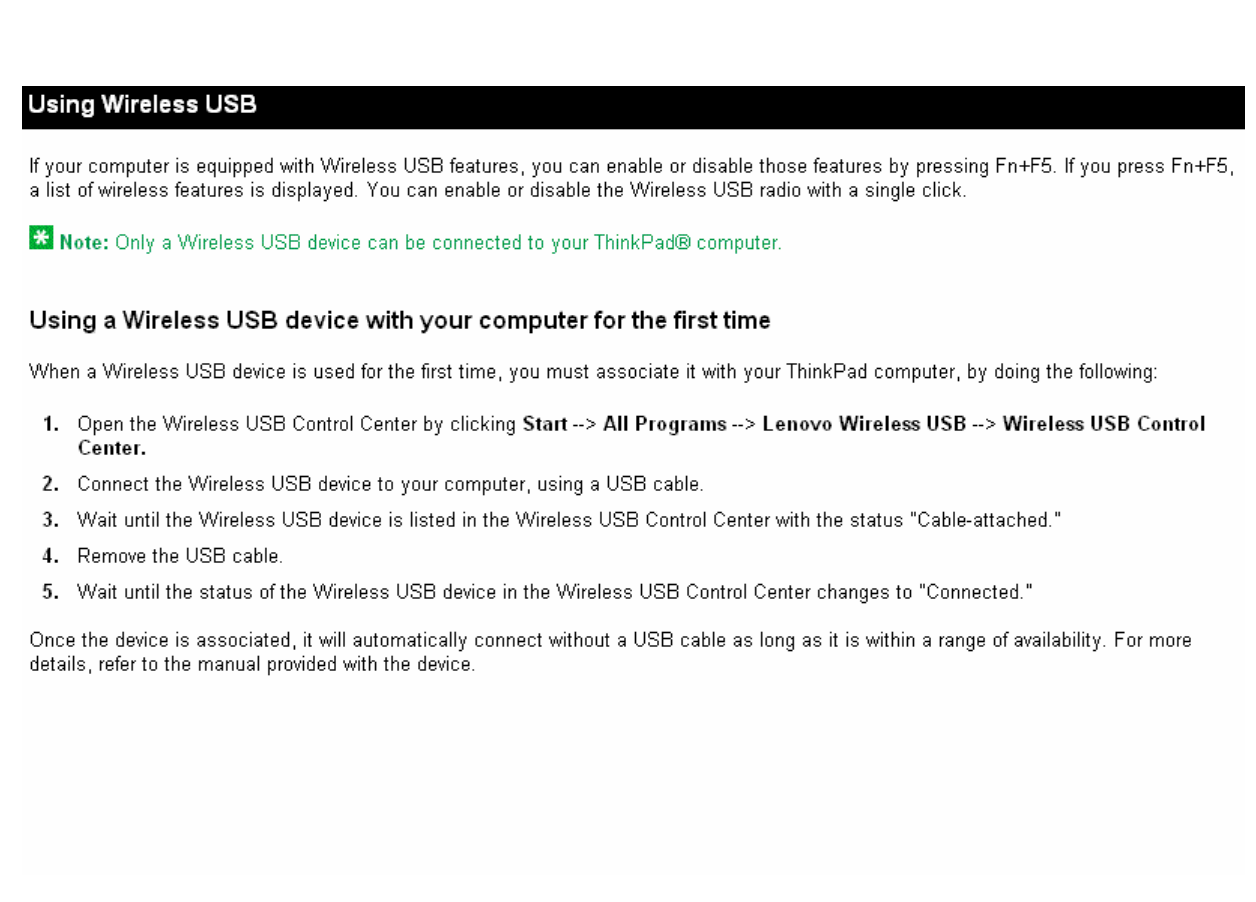

Also electronic user’s guidance referred in the user’s manual is provided associated with the host
device and it is indicated on the host’s LCD screen.
Part Number: 42X4211
ThinkPad® Regulatory Notice
Read first — regulatory information
Please read this document before you use the ThinkPad computer. ThinkPad
computer complies with the radio frequency and safety standards of any
country or region in which it has been approved for wireless use. You must
install and use your computer in strict accordance with the instructions as
described hereafter.
If your ThinkPad computer contains a Wireless WAN adapter, be sure to also
read ThinkPad Regulatory Notice for Wireless WAN adapter, included with your
computer.
Note: You cannot use the Wireless WAN adapter and the Wireless LAN
adapter (Models: 4965AG or 4965AGN) simultaneously. If one of the adapters
has established the connection to the network, the other will be disconnected
automatically. To confirm the status of the network connection, check the
power status indicators of your computer. For more information about the
power status indicators, see the “Power status indicators” section in Access
Help.
Veuillez lire ce document avant d’utiliser l’ordinateur ThinkPad. L’ordinateur
ThinkPad est conforme aux normes de sécurité et de radiofréquence du pays
ou de la région où son utilisation sans fil est agréée. Vous devez installer et
utiliser votre ordinateur en respectant scrupuleusement les instructions
décrites ci-après.
Si votre ordinateur ThinkPad contient une carte de réseau étendu (WAN) sans
fil, veillez à lire également la consigne réglementaire ThinkPad Regulatory
Notice for Wireless WAN adapter, fournie avec votre ordinateur.
Remarque: Vous ne pouvez pas utiliser simultanément la carte de réseau
étendu sans fil et la carte de réseau local sans fil (Modéles: 4965AG ou
4965AGN). Si l’une de ces cartes a établi la connexion avec le réseau, l’autre
carte sera automatiquement déconnectée. Pour confirmer l’état de la
connexion réseau, contrôlez les voyants d’état d’alimentation. Pour plus
d’informations, reportez-vous à la section “Voyants d’état de l’alimentation”
dans l’aide Access.
© Copyright Lenovo 2008 1
USA — Federal Communications Commission (FCC)
I. The FCC RF safety requirement
The radiated output power of the Wireless LAN Mini PCI Express Card
authorized to use for the your ThinkPad computer is far below the FCC radio
frequency exposure limits. Nevertheless, it shall be used in such a manner
that the potential for human contact during normal operation is minimized as
follows:
Caution: To comply with FCC RF exposure compliance requirements, a
separation distance of at least 20 cm (8 inches) must be maintained between
the antenna for the integrated Wireless LAN Mini PCI Express Card built
into the screen section and all persons. You are not allowed to disable
“sleep (standby) mode” for the power management function, if you cannot
maintain the sufficient antenna separation (at least 20 cm) in any case the
LCD is left opened or closed.
For the location of the antenna, see the ″About your computer″ section in
Access Help.
Note: The transmission diversity function is implemented for this product.
For WLAN cards (Models: 4965AG and 4965AGN) using Main and Auxiliary
antennas for transmission in the IEEE 802.11 a/b/g transmission mode, radio
frequency energy is not emitted simultaneously from both Main and Auxiliary
antennas. One of the antennas is selected automatically or manually (by users)
to have good quality of radiocommunication (transmission diversity function).
For the WLAN card (Model: 4965AGN) using MIMO (Multiple In Multiple
Out), multiple antennas (Main and Auxiliary) can transmit radio frequency
energy simultaneously. Third antenna is also used with the model 4965AGN
on some computers, and functions as Receive Only. It does not emit any radio
frequency energy.
II. User installable Wireless LAN module
Mini PCI Express Cards:
v FCC ID: PD9LEN4965AG (Model: 4965AG)
v FCC ID: PD9LEN4965AGN (Model: 4965AGN)
Wireless LAN Mini PCI Express Cards marketed in the USA and Canada do
not support nor function in the extended channels (12ch, 13ch).
i) FCC ID of wireless module: There is no FCC ID for Mini PCI Express
Card shown on the enclosure of your ThinkPad computer. Instead you will
find an indicator pointing to the location of the FCC ID on the bottom side of
your computer. For the location of the FCC ID indicator, see the “Location of
the FCC ID and IC Certification number label” section in Access Help. The
2
FCC ID is affixed on the approved module installed in the Mini PCI Express
Card slot. For the location of the slot, see the “PCI Express Mini Card slot for
wireless LAN” section in Access Help.
ii) Installation of approved wireless module: If no integrated wireless LAN
Mini PCI Express Card has been preinstalled in your ThinkPad computer, you
can install one, provided by Lenovo as an option. Plug the wireless card
option into the Mini PCI Express Card slot. For the installation procedure, see
the ″Installing and replacing the PCI Express Mini Card for wireless LAN
connection″ section in Access Help.
Attention: The ThinkPad computers contain an authentication mechanism.
If you install an unauthorized wireless LAN Mini PCI Express Card that is
not approved for use in your computer, the computer will not start, but only
displays an error message and emits beeps.
iii) Radio Frequency interference requirements:
v The devices have been tested and found to comply with the limits for a
Class B digital device pursuant to FCC Part 15 Subpart B. The models
4965AG and 4965AGN underwent the certification process, thus FCC ID
PD9LEN4965AG for model 4965AG, and FCC ID PD9LEN4965AGN for
model 4965AGN include all compliances of Part 15 Subpart B, C, and E.
v Each device is restricted to indoor use due to its operation in the 5.15 to
5.25 GHz frequency range. FCC requires these products to be used indoors
for the frequency range 5.15 to 5.25 GHz to reduce the potential for harmful
interference to co-channel Mobile Satellite systems.
v High power radar are allocated as primary users of the 5.25 to 5.35 GHz
and 5.65 to 5.85 GHz bands. These radar stations can cause interference
with and/or damage this device.
III. Preinstalled integrated Bluetooth module
v FCC ID: MCLJ07H081 (Model: J07H081)
i) FCC ID and installation of the module: If you find the FCC ID
“MCLJ07H081” on the label at the bottom side of your computer, your
computer integrates the Bluetooth transmitter module (Model: J07H081). The
Bluetooth module is preinstalled by Lenovo, and no option card is provided
for user installation. If your card requires replacement, contact the Lenovo
Customer Support Center by following the proper steps described in ″Getting
help and service″ of the Service and Troubleshooting Guide, shipped with your
computer.
ii) The FCC RF safety requirement: The radiated output power of the
Bluetooth module is far below the FCC radio frequency exposure limits.
Therefore, a 20 cm of separation between the Bluetooth antenna and human
body is not required.
3
For the location of the Bluetooth module “J07H081” and its built-in antenna,
see the ″About your computer″ section in Access Help.
iii) Radio Frequency interference requirements: The device has been tested
and found to comply with the limits for both a Class B digital device
regarding FCC Part 15 Subpart B and an intentional radiator regarding FCC
Part 15 Subpart C; then it underwent the certification processes for both rules.
Thus the FCC ID MCLJ07H081 of this device includes both certifications of
Part 15 Subpart B and C.
IV. Preinstalled integrated Wireless USB module
v FCC ID: HJY-LBUA0ZZKB1 (Model: LBUA0ZZKB1-214)
i) FCC ID and installation of the module: If you find the FCC ID
“HJY-LBUA0ZZKB1” on the label at the bottom side of your computer, your
computer integrates the Wireless USB card (Model: LBUA0ZZKB1-214). The
Wireless USB card is preinstalled by Lenovo, and no option card is provided
for user installation. If your card requires replacement, contact the Lenovo
Customer Support Center by following the proper steps described in ″Getting
help and service″ of the Service and Troubleshooting Guide, shipped with your
computer.
ii) The FCC RF safety requirement: The standard FCC rule for RF exposure
compliance requires a separation distance of at least 20 cm (8 inches) between
the integrated Wireless USB antenna and all persons. However the radiated
output power of the Wireless USB card authorized to use for your ThinkPad
computer is far below the FCC radio frequency exposure limits. Therefore, a
20 cm of separation between the Wireless USB antenna built into the screen
section of your computer and human body is not required.

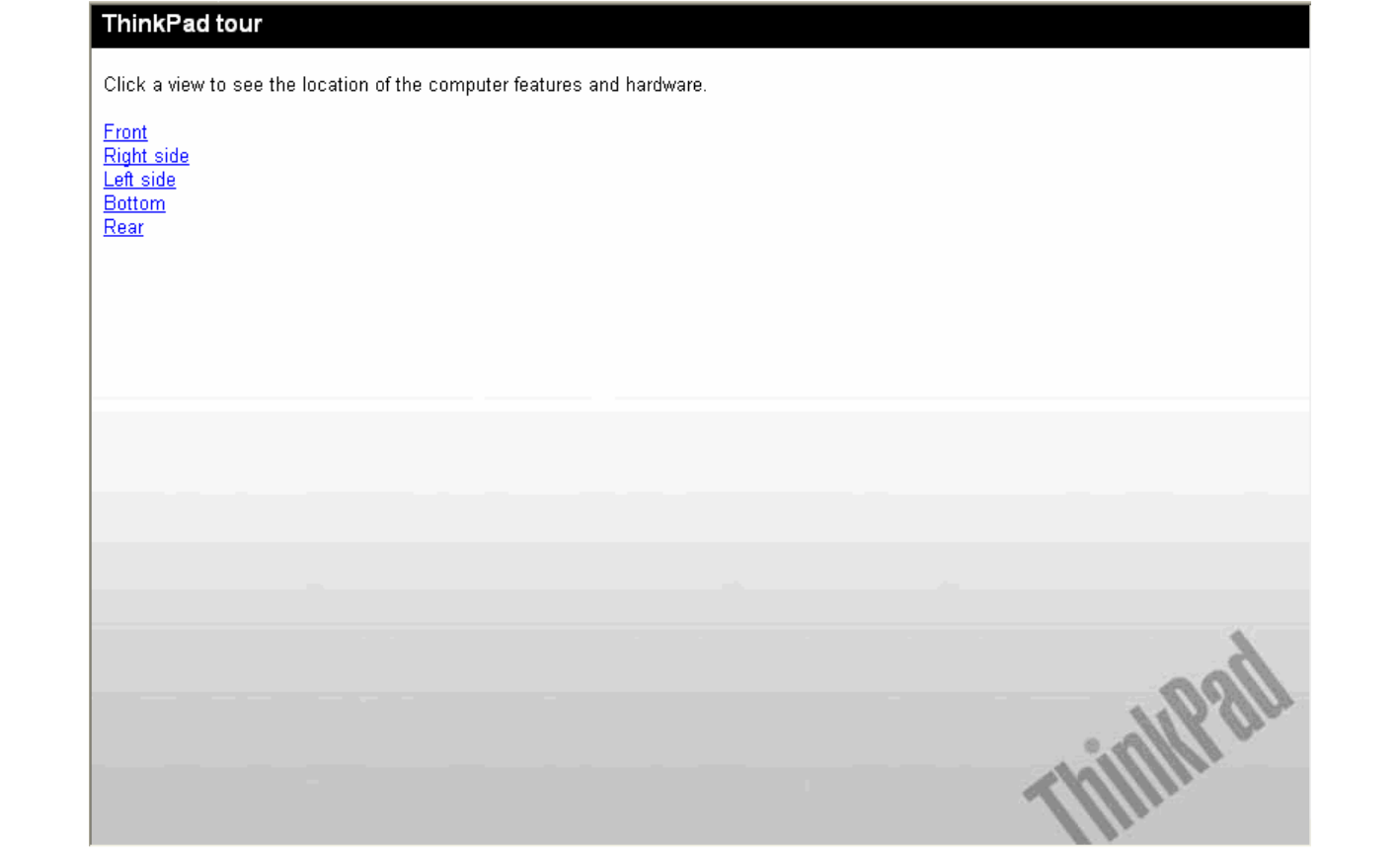

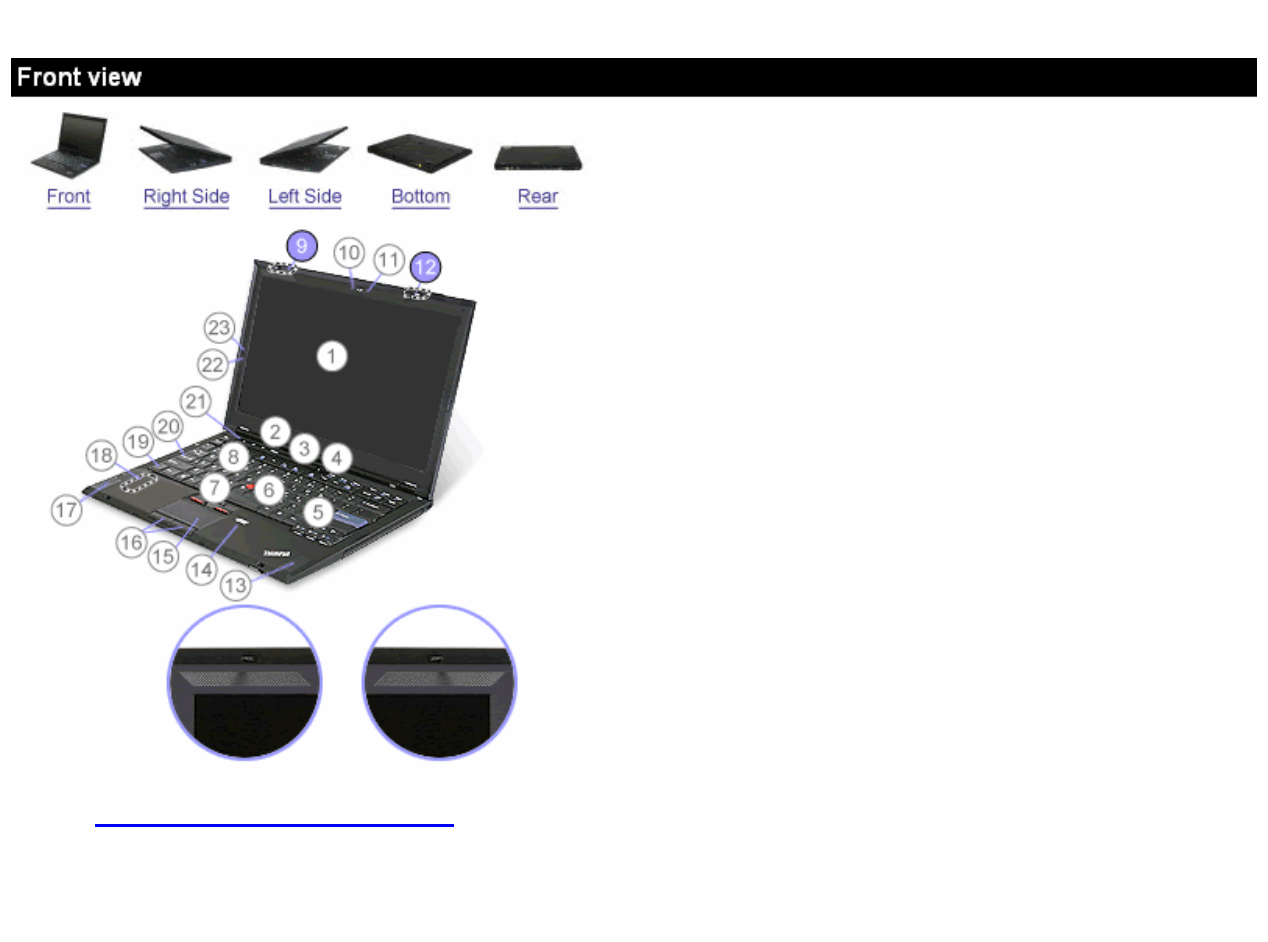

For the location of the antenna, see the ″About your computer″ section in

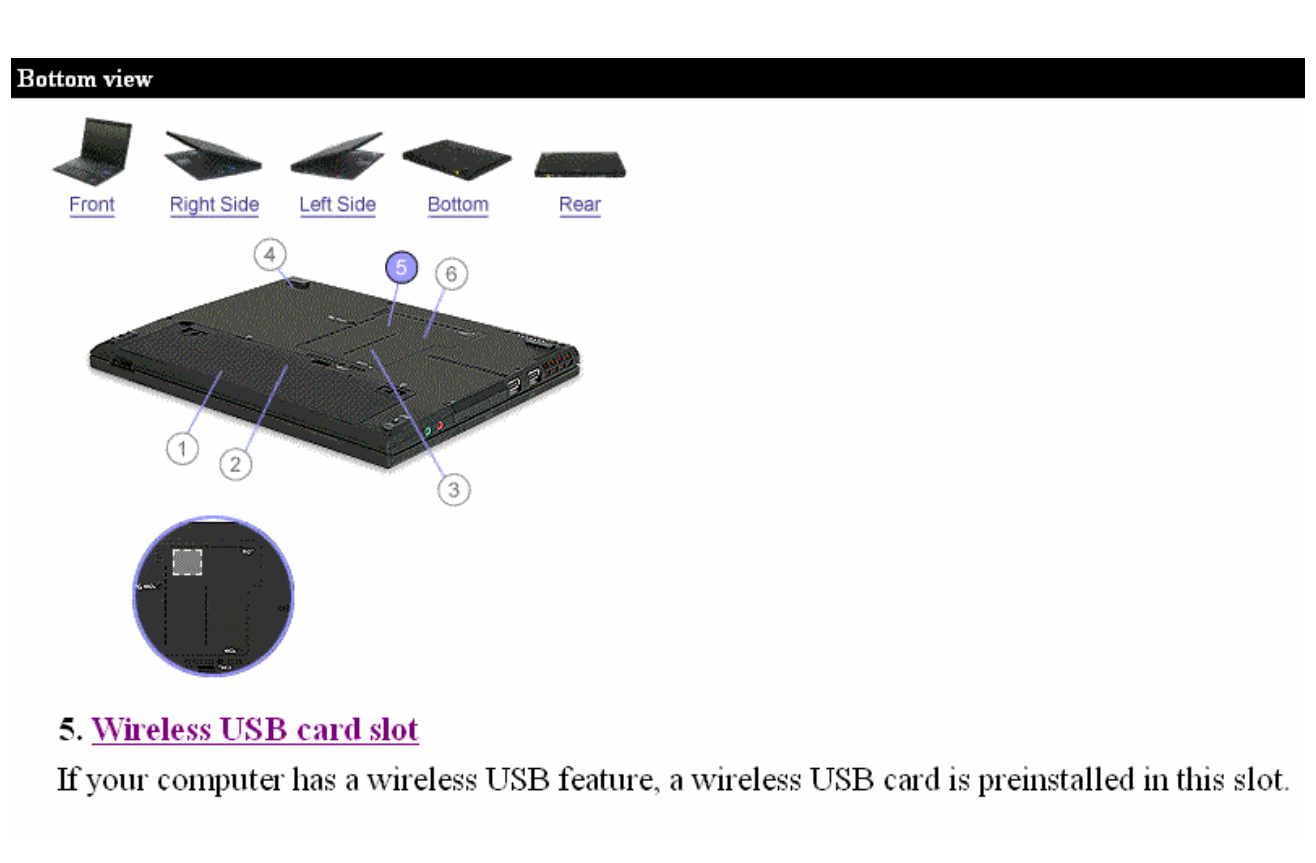

Access Help. For the location of the Wireless USB card “LBUA0ZZKB1-214”,
see the ″Wireless USB card slot″ section in Access Help.
iii) Radio Frequency interference requirements: The device has been tested
and found to comply with the limits for a Class B digital device regarding
FCC Part 15 Subpart B and was subject to DoC. Refer to “Electronic emission
notices” on page 9. Also it has been certified as an intentional radiator
regarding FCC Part 15 Subpart F under the FCC ID: HJY-LBUA0ZZKB1.
V. Simultaneous use of RF transmitters
Your ThinkPad computer is approved for simultaneous use of the transmitters
listed below:
v Wireless LAN adapter (FCC ID: PD9LEN4965AG or PD9LEN4965AGN)
v Bluetooth module (FCC ID: MCLJ07H081)
v Wireless USB adapter (FCC ID: HJY-LBUA0ZZKB1)
4
Please make sure of the following conditions on use of these wireless features:
1. When you use any other RF option device, all other wireless features
including the above integrated devices in your ThinkPad computer are
required to be turned off.
2. Users must follow the RF Safety instructions on wireless option devices
that are included in the RF option device’s user’s manual.
Canada — Industry Canada (IC)
IC Certification number
I) User installable Wireless LAN modules:
v IC: 1000M-L4965AG (Model: 4965AG)
v IC: 1000M-L4965AGN (Model: 4965AGN)
Wireless LAN Mini PCI Express Cards marketed in the USA and Canada do
not support nor function in the extended channels (12ch, 13ch).
There is no certification number of Industry Canada for Mini PCI Express
Card shown on the enclosure of your ThinkPadcomputer. Instead you will
find an indicator pointing to the location of the IC Certification number on the
bottom side of your computer. For the location of the IC Certification number
indicator, see the “Location of the FCC ID and IC Certification number label”
section in Access Help. The IC certification number is affixed on the approved
module installed in the Mini PCI Express Card slot. For the location of the
slot, see the “PCI Express Mini Card slot for wireless LAN” section in Access
Help.
Attention: The ThinkPad computer contains an authentication mechanism
You can install or remove each wireless feature by yourself. If you install an
unauthorized wireless adapter that is not approved for use in the ThinkPad
computer, the computer will not start, but only displays an error message and
emits beeps.
II) Preinstalled integrated Bluetooth module:
v IC: 2878D-J07H081 (Model: J07H081)
If you find an indication “Contains Transmitter Module: Canada IC:
2878D-J07H081” on the label at the bottom side of your computer, your
computer integrates the Bluetooth transmitter module. The Bluetooth module is
preinstalled by Lenovo, and no option card is provided for user installation. If
your card requires replacement, contact the Lenovo Customer Support Center
by following the proper steps described in ″Getting help and service″ of the
Service and Troubleshooting Guide, shipped with your computer.
Low power license-exempt radiocommunication devices (RSS-210):
Operation is subject to the following two conditions:
5
1. This device may not cause interference, and
2. this device must accept any interference, including interference that may
cause undesired operation of the device.
The transmitter devices have been designed to operate with the antennas
integrated in ThinkPad computer, and having a maximum gain of within 3
dBi.
The maximum antenna gain permitted for devices in the 5250-5350 MHz and
5725-5825 MHz bands complies with the e.i.r.p. limit in section A9.2 of
RSS-210.
When you use the model 4965AG or 4965AGN:
v The devices for the band 5150–5250 MHz are only for indoor usage to
reduce potential for harmful interference to co-channel Mobile Satellite
systems.
v High power radars are allocated as primary users (meaning they have
priority) of 5250–5350 MHz and 5650–5850 MHz and these radars could
cause interference and/or damage to LELAN (Licence-Exempt Local Area
Network) devices.
Exposure of humans to RF fields (RSS-102): ThinkPad computers employ
low gain integral antennas that do not emit RF field in excess of Health
Canada limits for the general population; consult Safety Code 6, obtainable
from Health Canada’s Web site at www.hc-sc.gc.ca/rpb
Numéro d’homologation IC
I) Module sans fil installable par l’utilisateur: Les cartes Express mini-PCI
de réseau local sans fil:
v IC: 1000M-L4965AG (Model: 4965AG)
v IC: 1000M-L4965AGN (Model: 4965AGN)
Les cartes de réseau local sans fil Express mini-PCI commercialisées aux
Etats-Unis et au Canada ne prennent pas en charge les canaux étendus (12ch,
13ch) et ne fonctionnent donc pas sur de tels canaux.
Le boîtier de votre ordinateur ThinkPad ne comporte pas de numéro
d’homologation IC (Industry Canada) pour la carte mini-PCI Express ; mais
sous votre ThinkPad, vous trouverez un indicateur pointant vers
l’emplacement du numéro d’homologation IC. Pour connaître l’emplacement
du numéro d’homologation IC, consultez la section correspondante dans l’aide
Access. Le numéro d’homologation IC est apposé sur le module installé dans
le logement pour carte mini-PCI Express. Pour connaître l’emplacement de ce
logement, consultez la section correspondante dans l’aide Access.
6
Attention: L’ordinateur ThinkPad contient un mécanisme d’authentification.
Vous pouvez installer ou désinstaller tout dispositif sans fil. Si vous installez
une carte sans fil qui n’est pas homologuée pour l’ordinateur ThinkPad,
l’ordinateur ne démarrera pas; un message d’erreur sera affiché et des bips
sonores seront émis.
II) Module Bluetooth intégré préinstallé:
v IC : 2878D-J07H081 (Modèle : J07H081)
Si la mention “Contains Transmitter Module: Canada IC: 2878D-J07H081”
figure sur l’étiquette située au bas de votre ordinateur, cela signifie que ce
dernier intègre le module de transmission Bluetooth. Le module Bluetooth est
préinstallé par Lenovo et ne peut pas être retiré par les utilisateurs. Si votre
carte doit être remplacée conformément aux étapes du Chapitre relatif à l’aide
et la maintenance dans le manuel Guide de maintenance et d’identification des
incidents, Lenovo vous demandera de lui envoyer votre ordinateur
accompagné de la carte pour réparation.
Remarque relative aux appareils de communication radio de faible
puissance sans licence (CNR-210): Le fonctionnement de ce type d’appareil
est soumis aux deux conditions suivantes:
1. Cet appareil ne doit pas perturber les communications radio, et
2. cet appareil doit supporter toute perturbation, y compris les perturbations
qui pourraient provoquer son dysfonctionnement.
Les périphériques d’émission sont conçus pour fonctionner avec des antennes
intégrées aux ThinkPad et ayant un gain maximal de moins de 3 dBi.
Le gain d’antenne maximal pour les périphériques dans les bandes de
fréquence 5250-5350 MHz et 5725-5825 MHz est conforme à la limite p.i.r.e
énoncée dans la section A9.2 de la CNR-210.
Lorsque vous utilisez le modèle 4965AG ou 4965AGN :
v Tout appareil destiné à la bande 5150-5250 MHz devra être exclusivement
utilisé en intérieur afin de réduire les risques de perturbations
électromagnétiques gênantes sur les systèmes de satellite mobile dans un
même canal.
v Les radars à forte puissance sont désignés comme les utilisateurs
principaux (c’est-à-dire qu’ils sont prioritaires) des bandes 5250-5350 MHz
et 5650-5850 MHz. Ils peuvent provoquer des perturbations
électromagnétiques sur les appareils de type LELAN (réseau de
communication local sans licence) ou les endommager.
Exposition des êtres humains aux champs radioélectriques (RF) (CNR-102):
L’ordinateur ThinkPad utilise des antennes intégrales à faible gain qui
n’émettent pas un champ électromagnétique supérieur aux normes imposées
7
par le Ministére de la santé canadien pour la population. Consultez le Safety
Code 6 sur le site Web du Ministére de la santé canadien à l’adresse
“www.hc-sc.gc.ca/rpb”.
8
Electronic emission notices
Federal Communications Commission (FCC) Statement
v Model: LBUA0ZZKB1-214
Note: The compliances of the FCC Part 15 Subpart B for models 4965AG,
4965AGN, and J07H081 were proceeded by certification under each respective
FCC ID: PD9LEN4965AG, PD9LEN4965AGN, and MCLJ07H081.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
v Reorient or relocate the receiving antenna.
v Increase the separation between the equipment and receiver.
v Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
v Consult an authorized dealer or service representative for help.
Lenovo is not responsible for any radio or television interference caused by
unauthorized changes or modifications to this equipment. Unauthorized
changes or modifications could void the user’s authority to operate the
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Responsible Party:
Lenovo (United States) Incorporated
1009 Think Place-Building One
Morrisville, NC 27560
Telephone: 1-919-294-5900
9
Tested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
Industry Canada Class B Emission Compliance Statement
This Class B digital apparatus complies with Canadian ICES-003.
Avis de conformité à la réglementation d’Industrie Canada
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du
Canada.
Trademarks
The following terms are trademarks of Lenovo in the United States, other
countries, or both:
Lenovo
ThinkPad
Other company, product, and service names may be trademarks or service
marks of others.
10
Lenovo(Japan), Ltd., Date: October 29, 2007
Document Number: UY610-03-0041-85
The screen copies of electronic user’s guidance are extracted hereafter.
Operation instruction of UWB device
UWB card slot location
UWB antenna location
12. UltraConnect wireless antenna:
If your computer comes with a wireless USB feature, its antenna is located here.
